- 1. slide 1 Vitaly Shmatikov CS345 Programming Paradigms

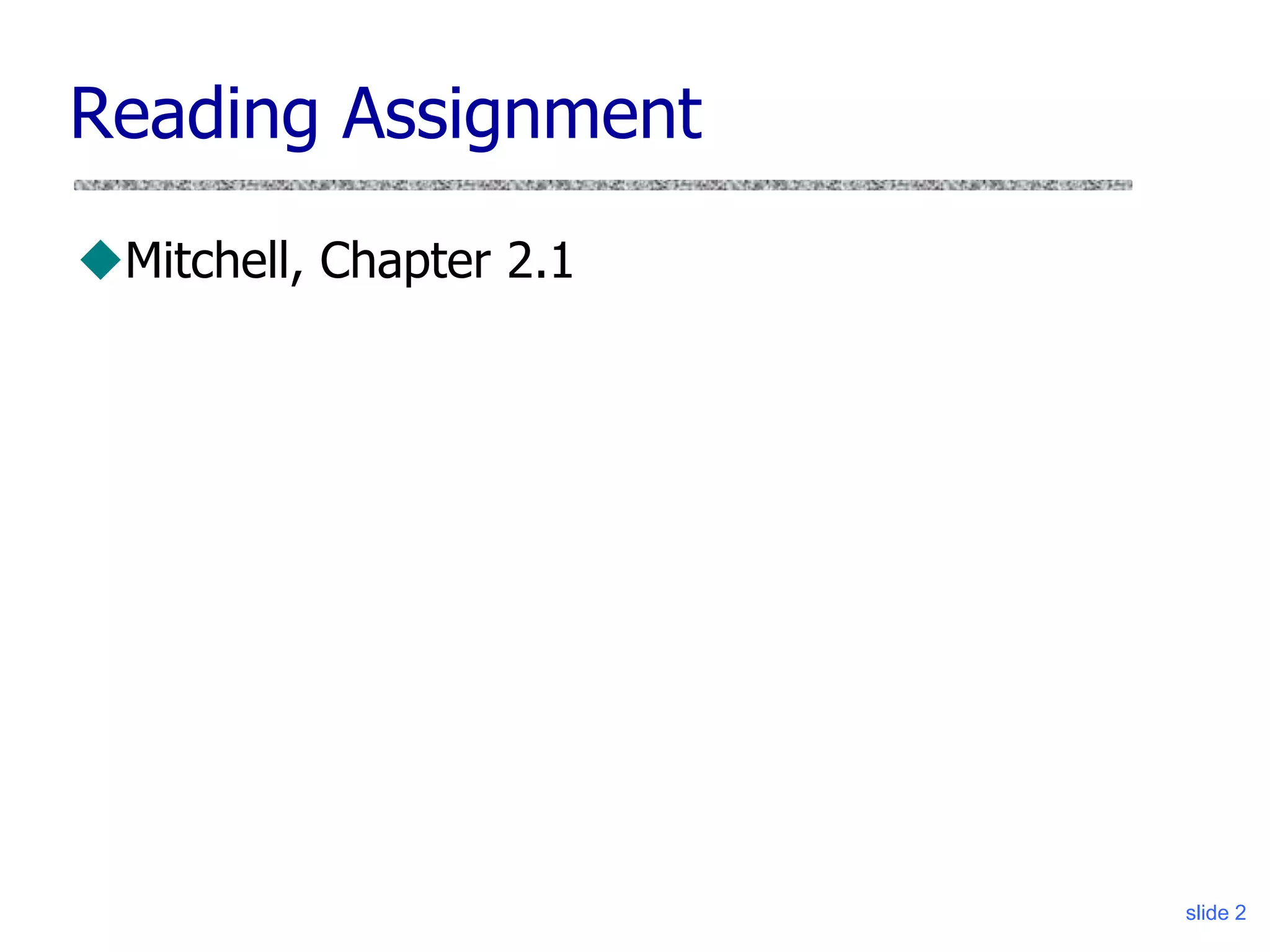

- 2. slide 2 Reading Assignment Mitchell,Chapter 2.1

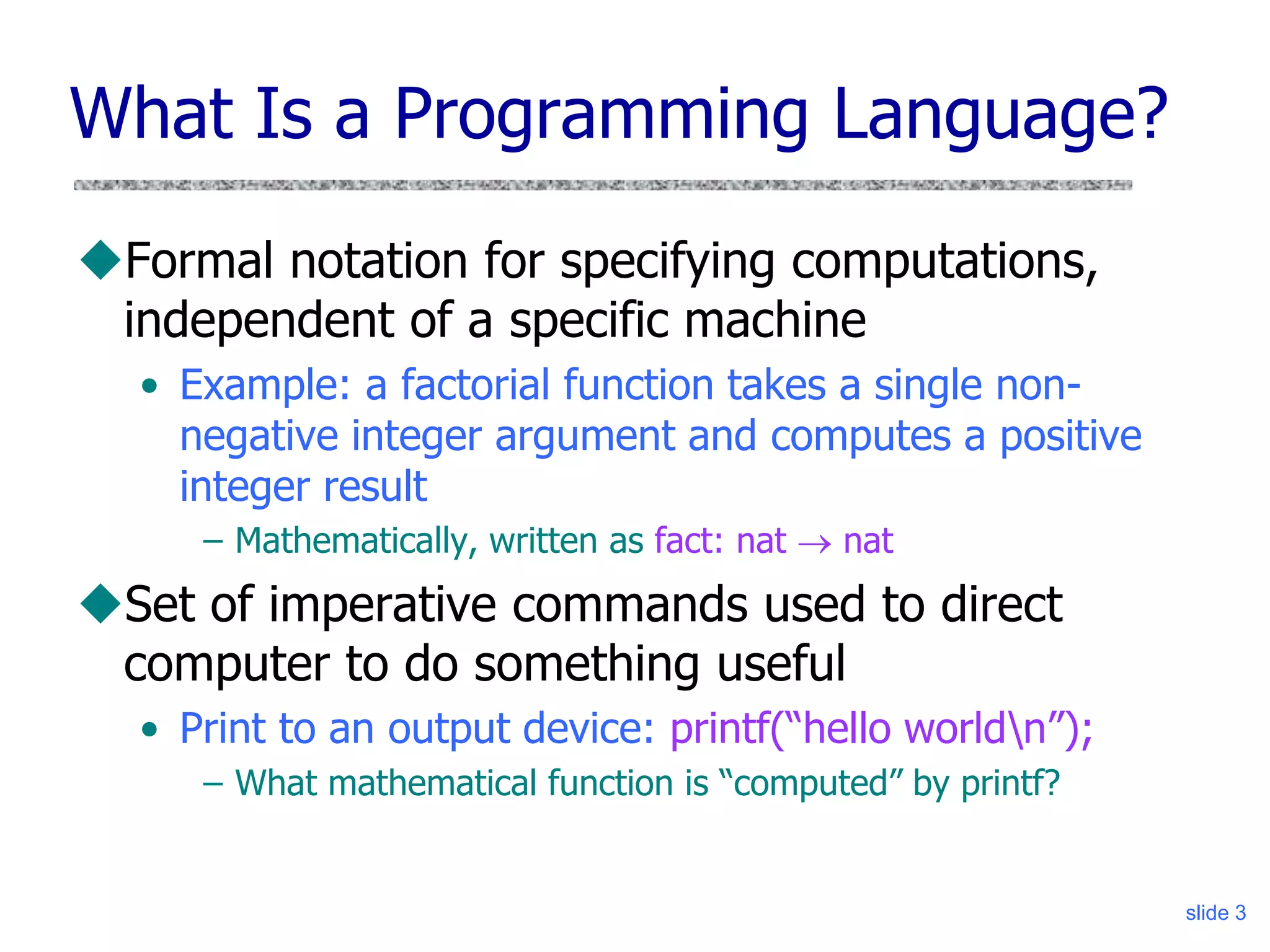

- 3. slide 3 What Isa Programming Language? Formal notation for specifying computations, independent of a specific machine • Example: a factorial function takes a single non- negative integer argument and computes a positive integer result – Mathematically, written as fact: nat nat Set of imperative commands used to direct computer to do something useful • Print to an output device: printf(“hello worldn”); – What mathematical function is “computed” by printf?

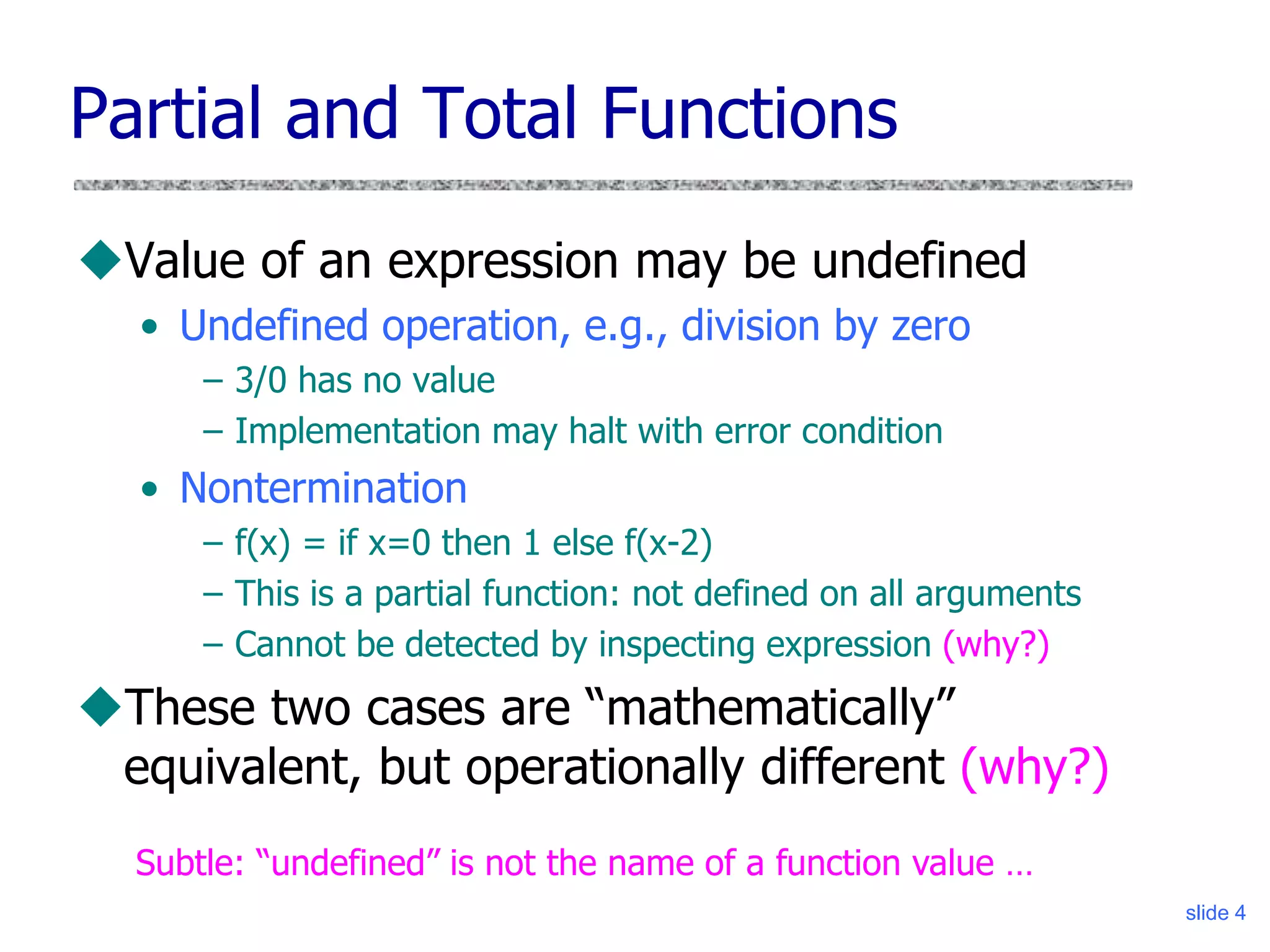

- 4. slide 4 Partial andTotal Functions Value of an expression may be undefined • Undefined operation, e.g., division by zero – 3/0 has no value – Implementation may halt with error condition • Nontermination – f(x) = if x=0 then 1 else f(x-2) – This is a partial function: not defined on all arguments – Cannot be detected by inspecting expression (why?) These two cases are “mathematically” equivalent, but operationally different (why?) Subtle: “undefined” is not the name of a function value …

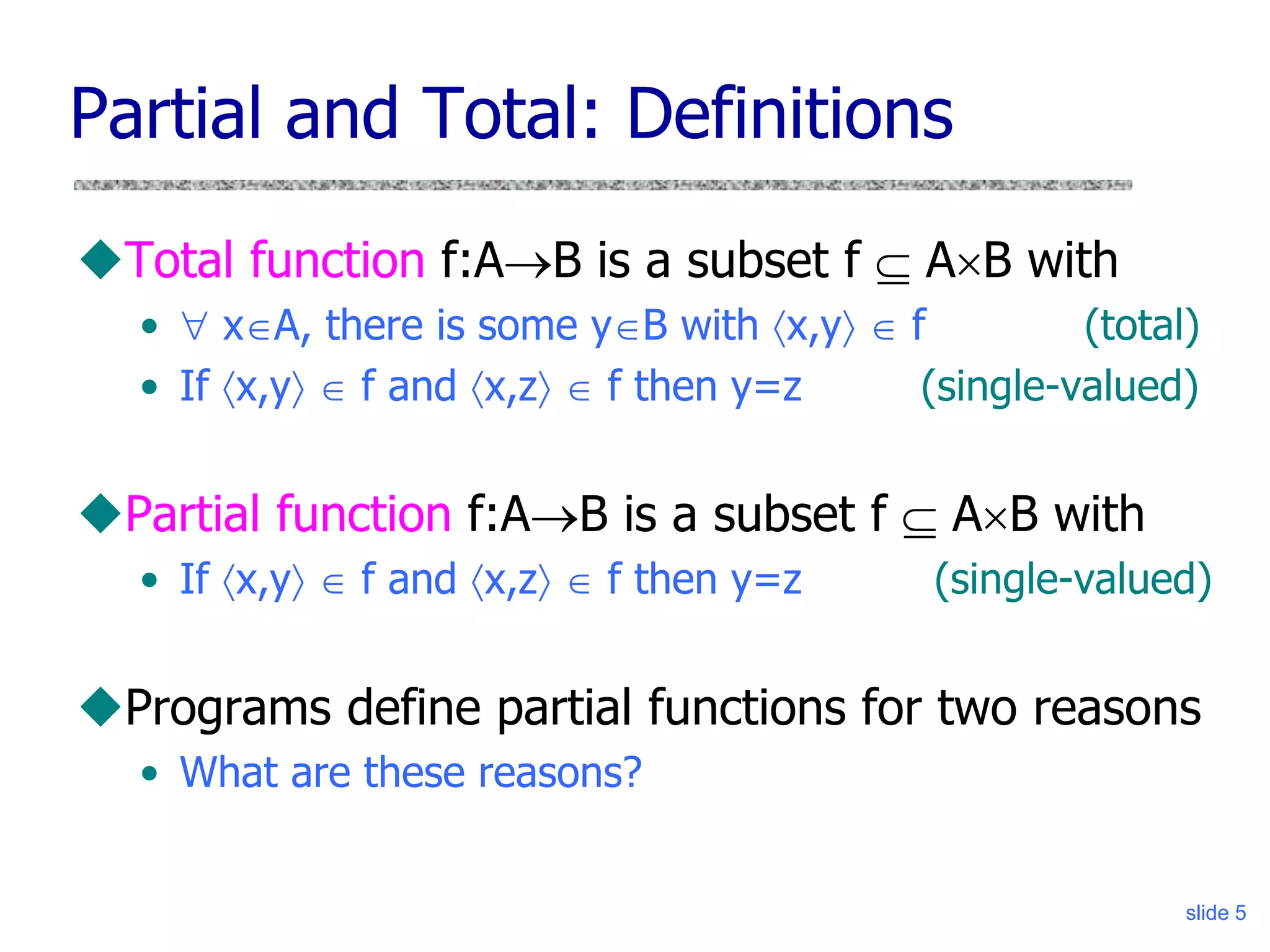

- 5. slide 5 Partial andTotal: Definitions Total function f:AB is a subset f AB with • xA, there is some yB with x,y f (total) • If x,y f and x,z f then y=z (single-valued) Partial function f:AB is a subset f AB with • If x,y f and x,z f then y=z (single-valued) Programs define partial functions for two reasons • What are these reasons?

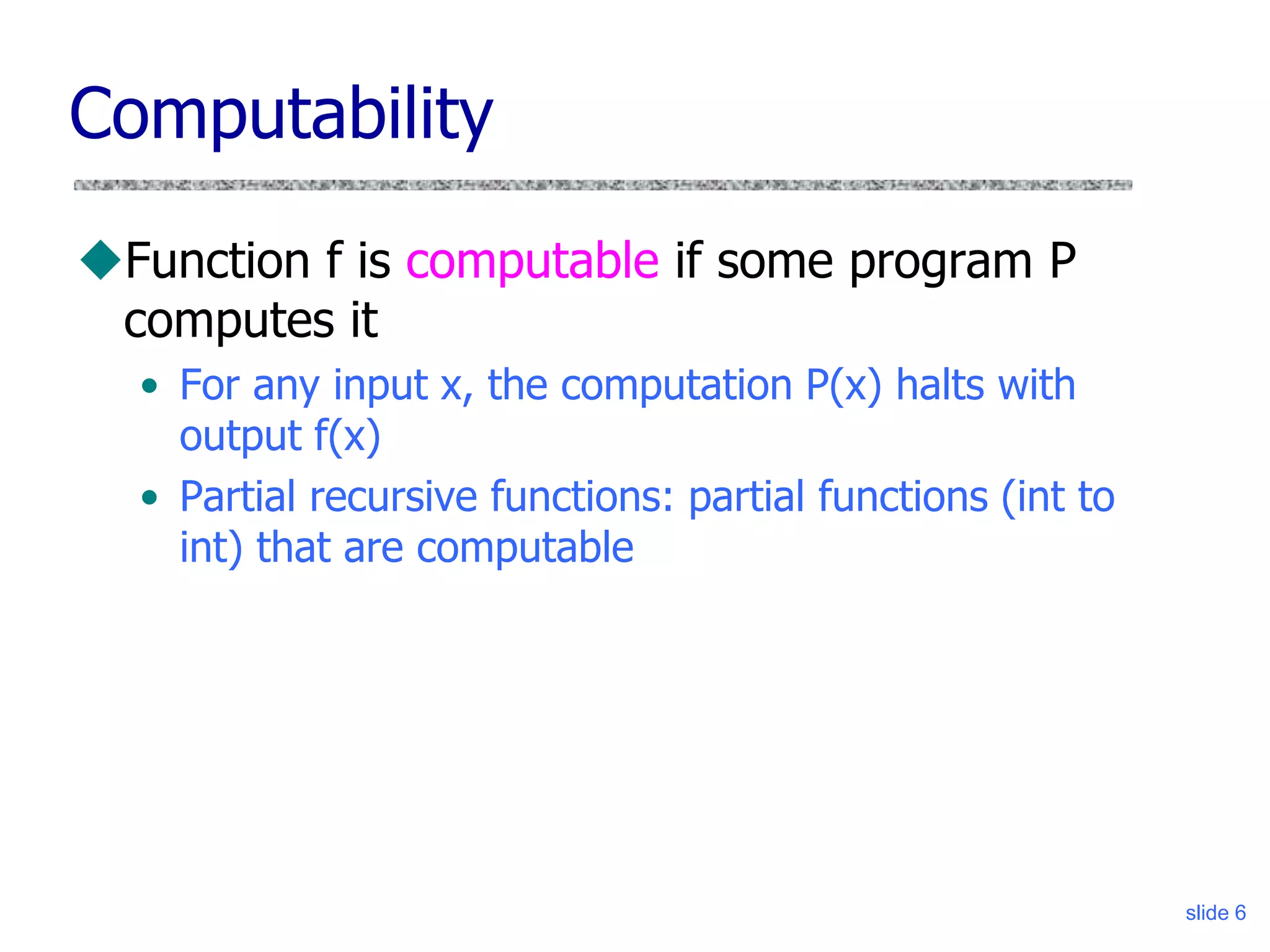

- 6. slide 6 Computability Function fis computable if some program P computes it • For any input x, the computation P(x) halts with output f(x) • Partial recursive functions: partial functions (int to int) that are computable

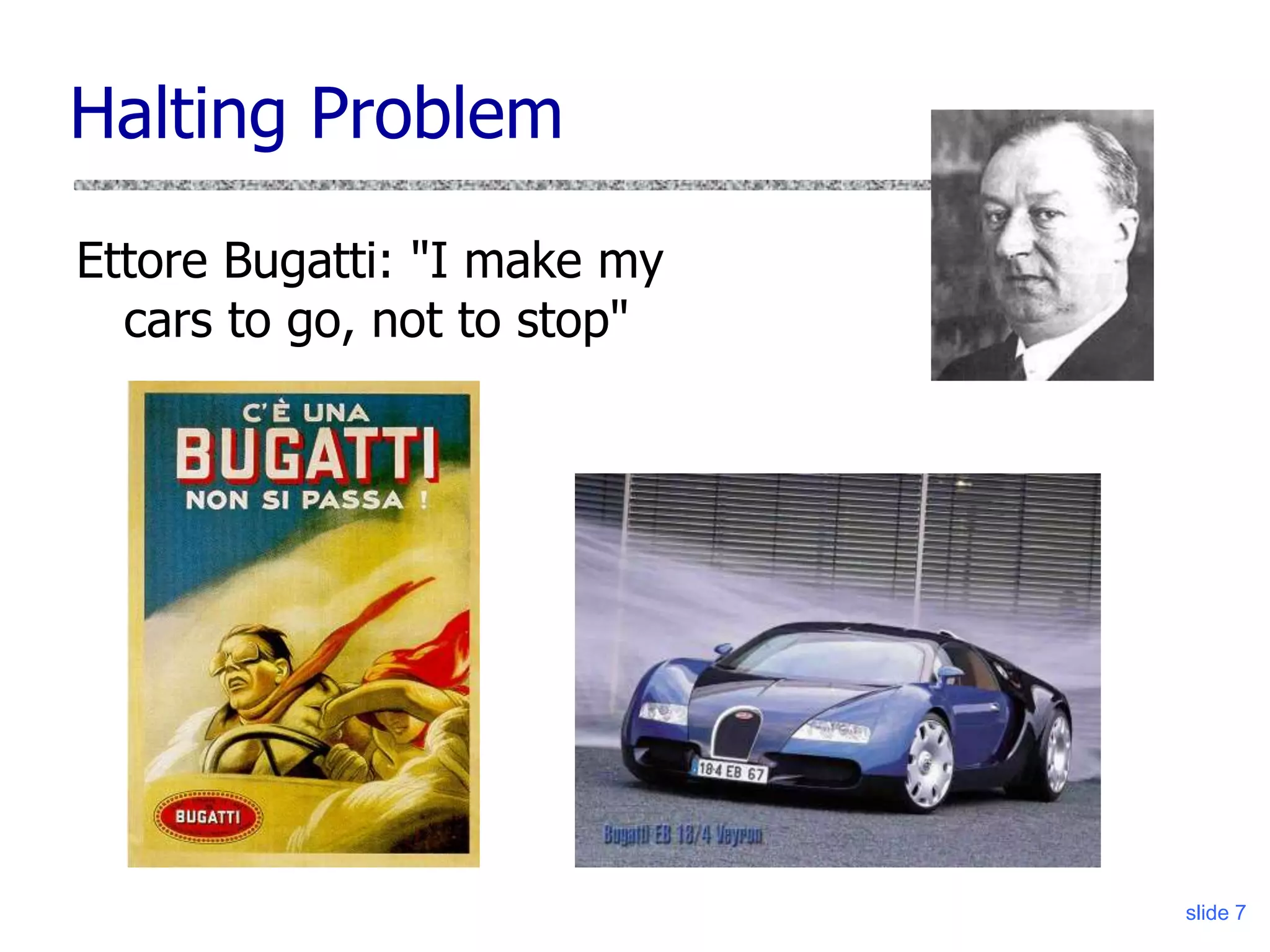

- 7. slide 7 Halting Problem EttoreBugatti: "I make my cars to go, not to stop"

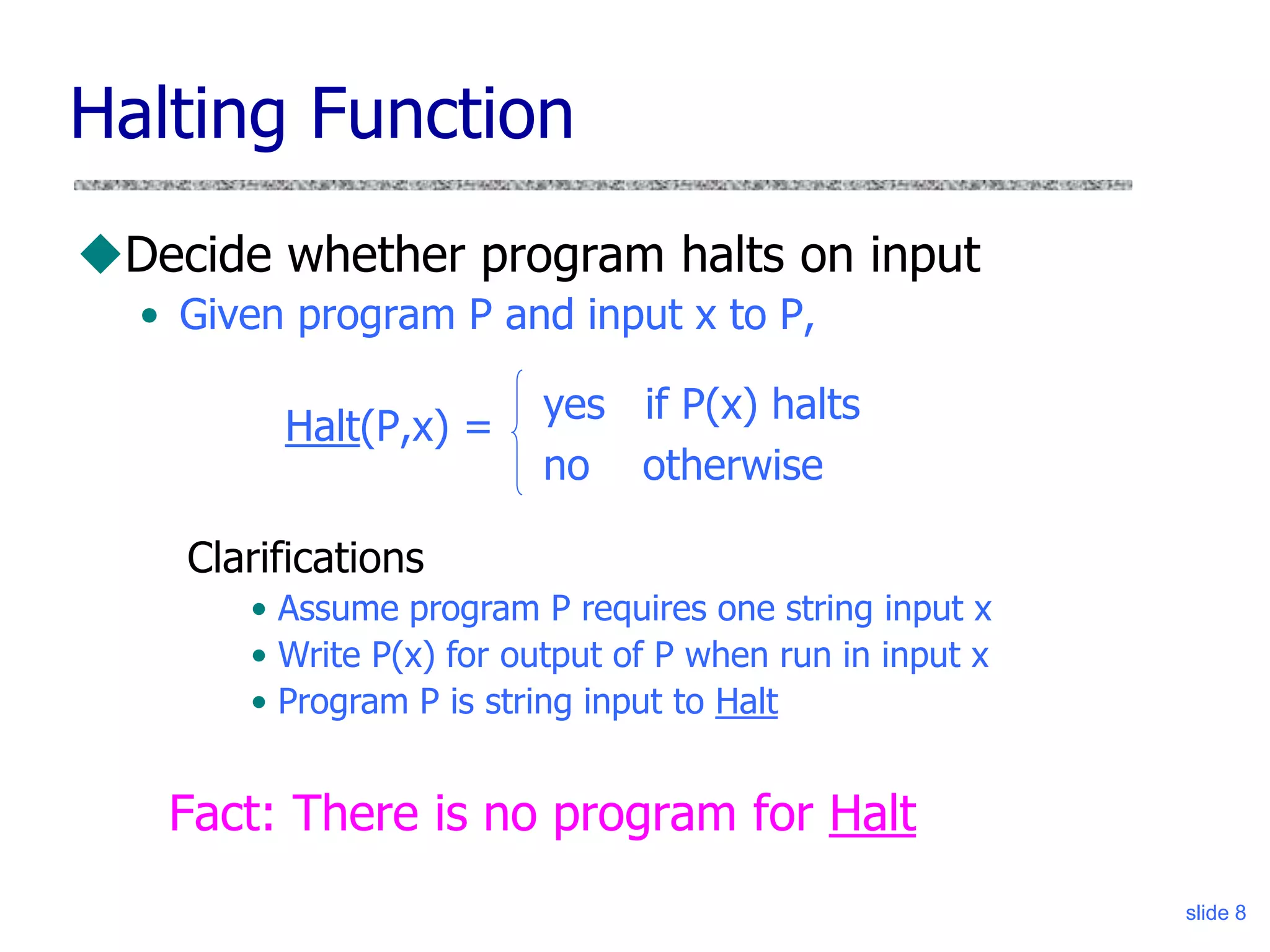

- 8. slide 8 Halting Function Decidewhether program halts on input • Given program P and input x to P, Halt(P,x) = Fact: There is no program for Halt yes if P(x) halts no otherwise Clarifications • Assume program P requires one string input x • Write P(x) for output of P when run in input x • Program P is string input to Halt

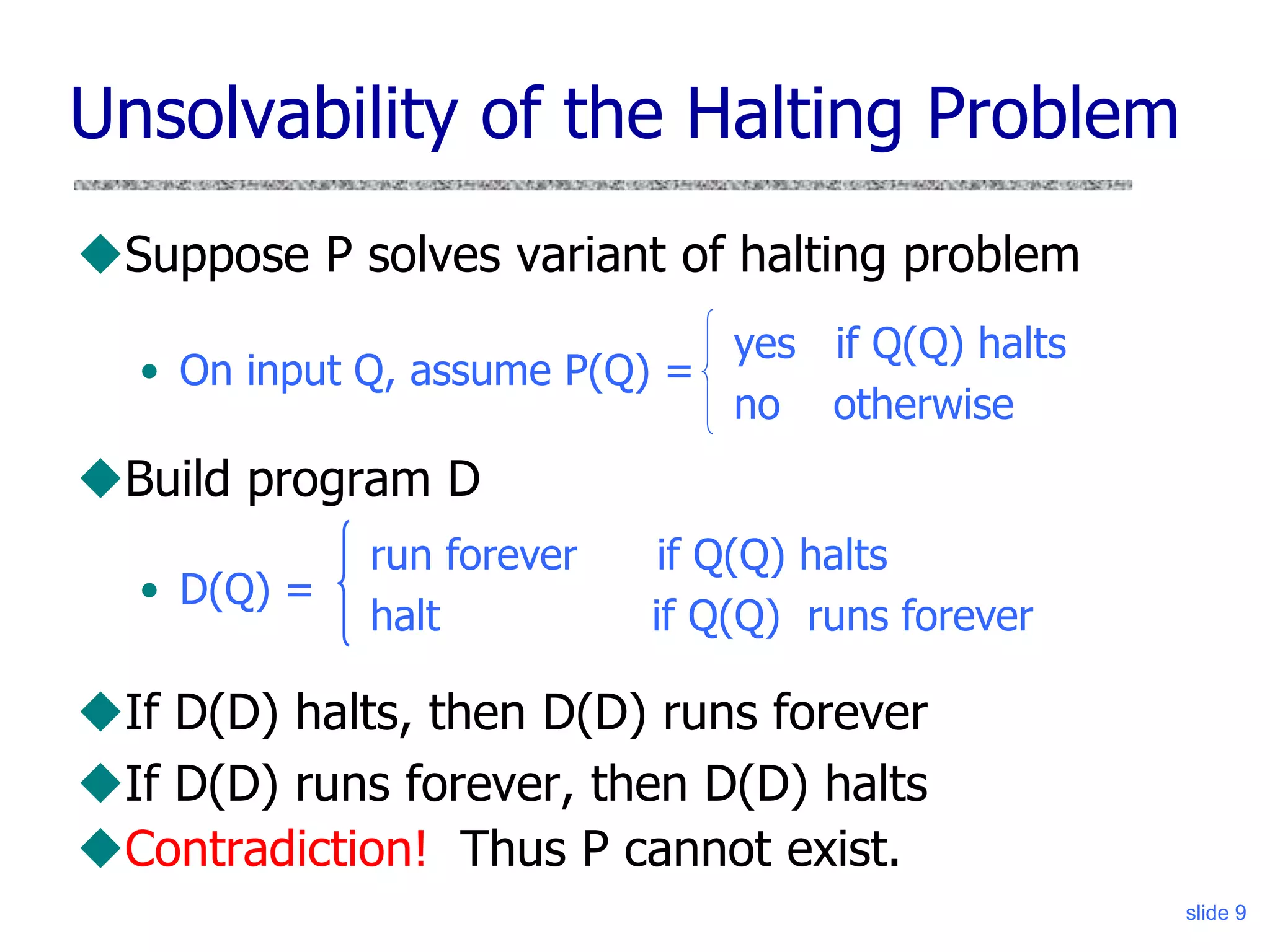

- 9. slide 9 Unsolvability ofthe Halting Problem Suppose P solves variant of halting problem • On input Q, assume P(Q) = Build program D • D(Q) = If D(D) halts, then D(D) runs forever If D(D) runs forever, then D(D) halts Contradiction! Thus P cannot exist. yes if Q(Q) halts no otherwise run forever if Q(Q) halts halt if Q(Q) runs forever

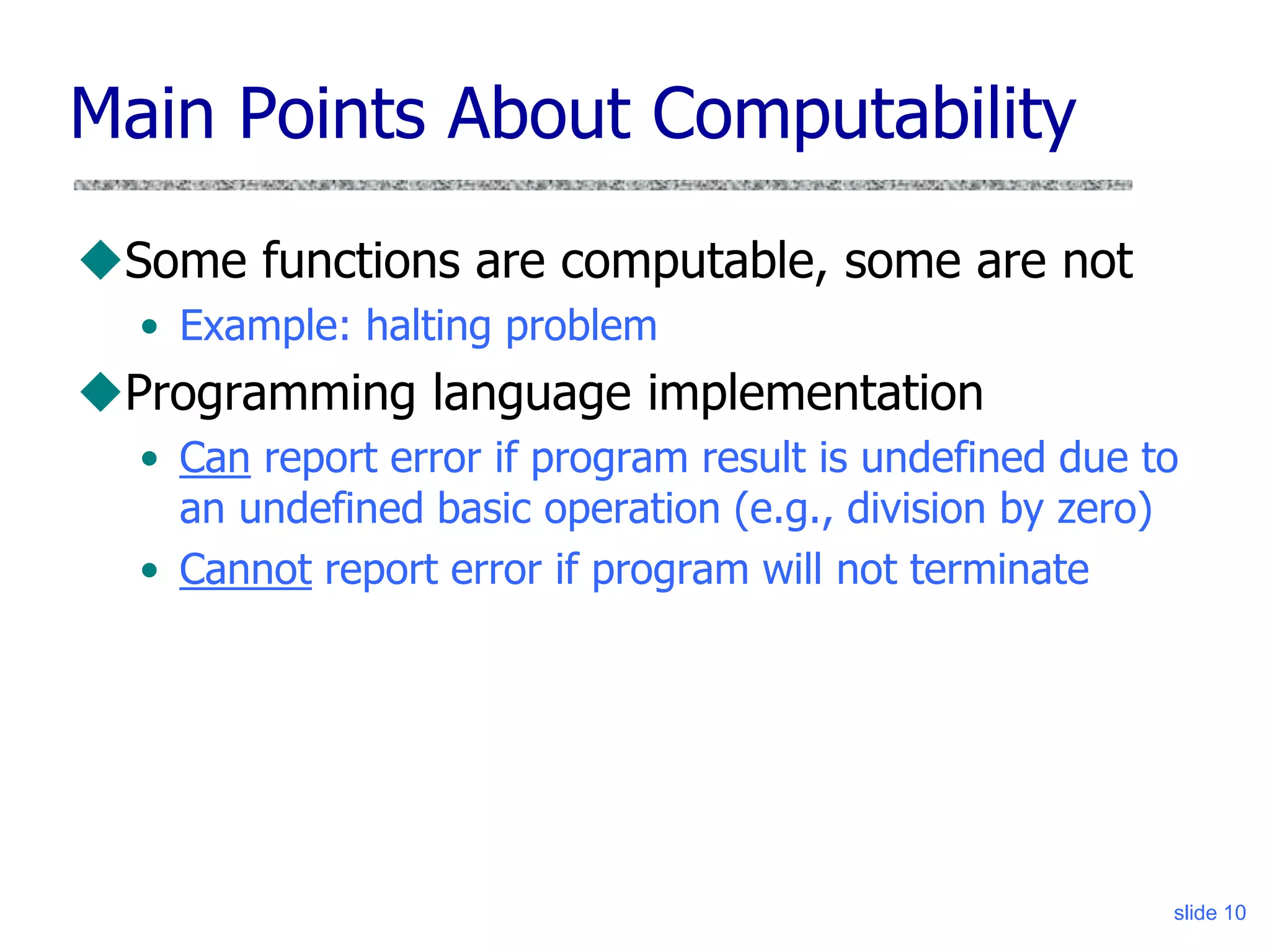

- 10. slide 10 Main PointsAbout Computability Some functions are computable, some are not • Example: halting problem Programming language implementation • Can report error if program result is undefined due to an undefined basic operation (e.g., division by zero) • Cannot report error if program will not terminate

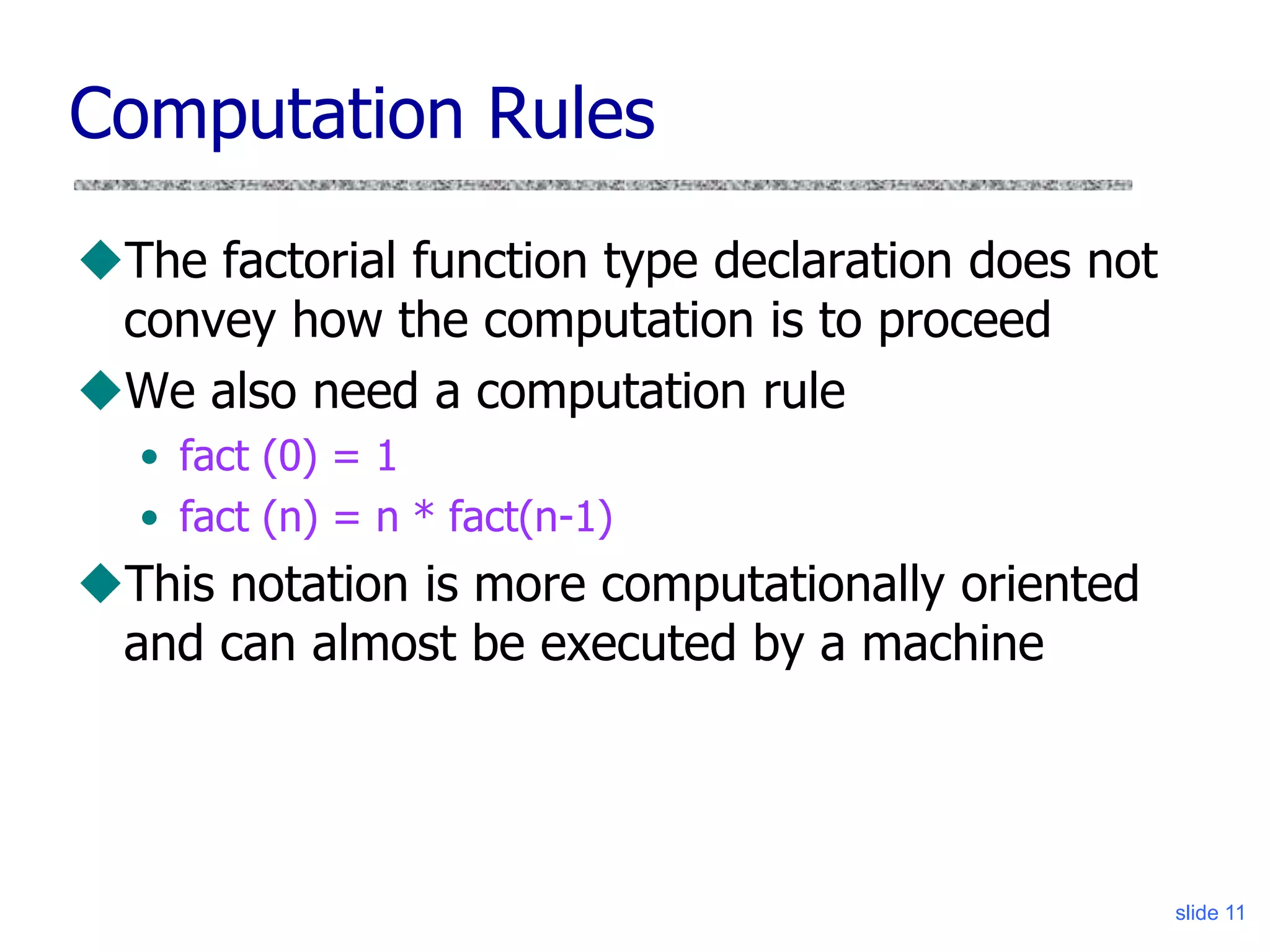

- 11. slide 11 Computation Rules Thefactorial function type declaration does not convey how the computation is to proceed We also need a computation rule • fact (0) = 1 • fact (n) = n * fact(n-1) This notation is more computationally oriented and can almost be executed by a machine

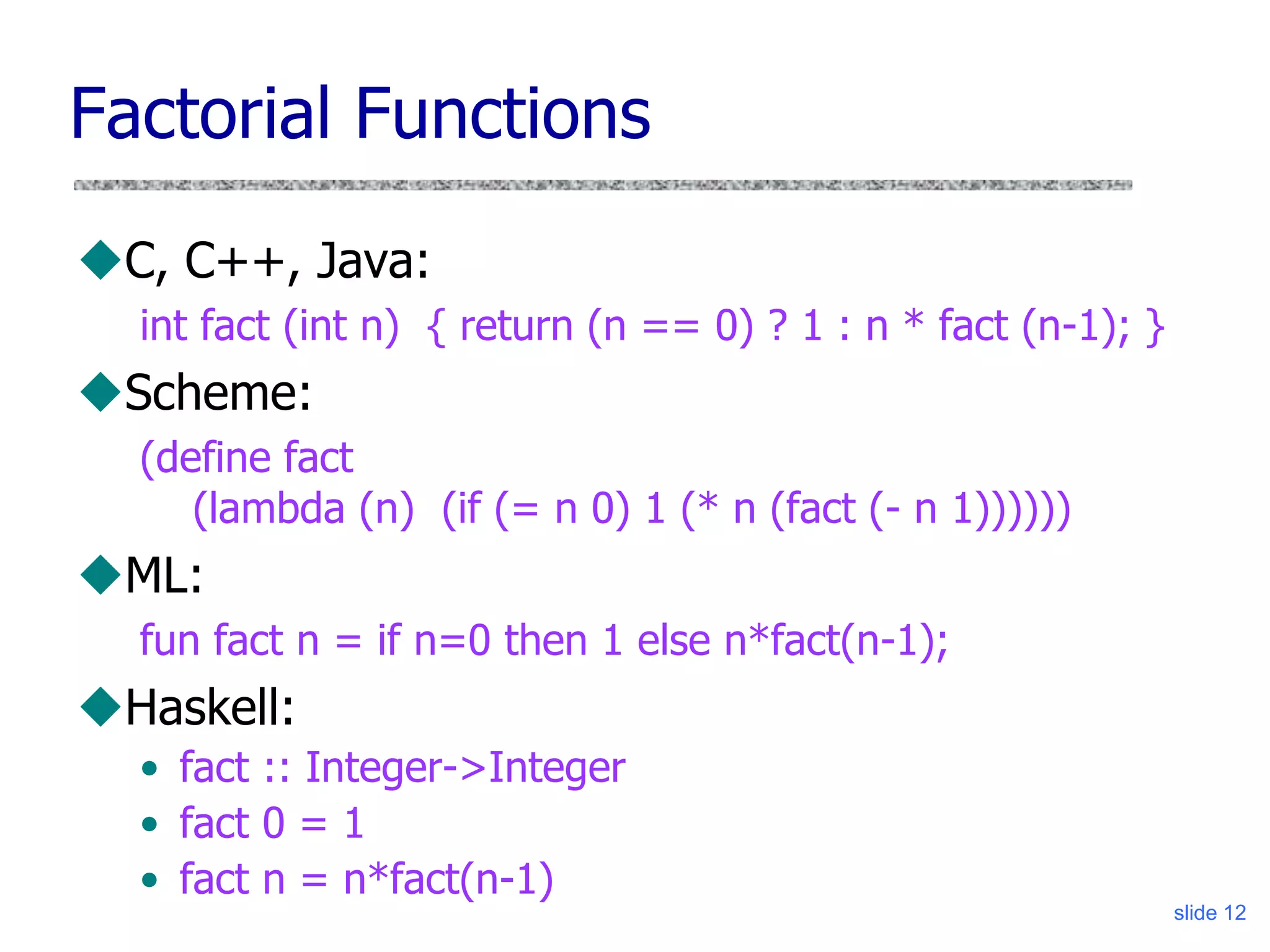

- 12. slide 12 Factorial Functions C,C++, Java: int fact (int n) { return (n == 0) ? 1 : n * fact (n-1); } Scheme: (define fact (lambda (n) (if (= n 0) 1 (* n (fact (- n 1)))))) ML: fun fact n = if n=0 then 1 else n*fact(n-1); Haskell: • fact :: Integer->Integer • fact 0 = 1 • fact n = n*fact(n-1)

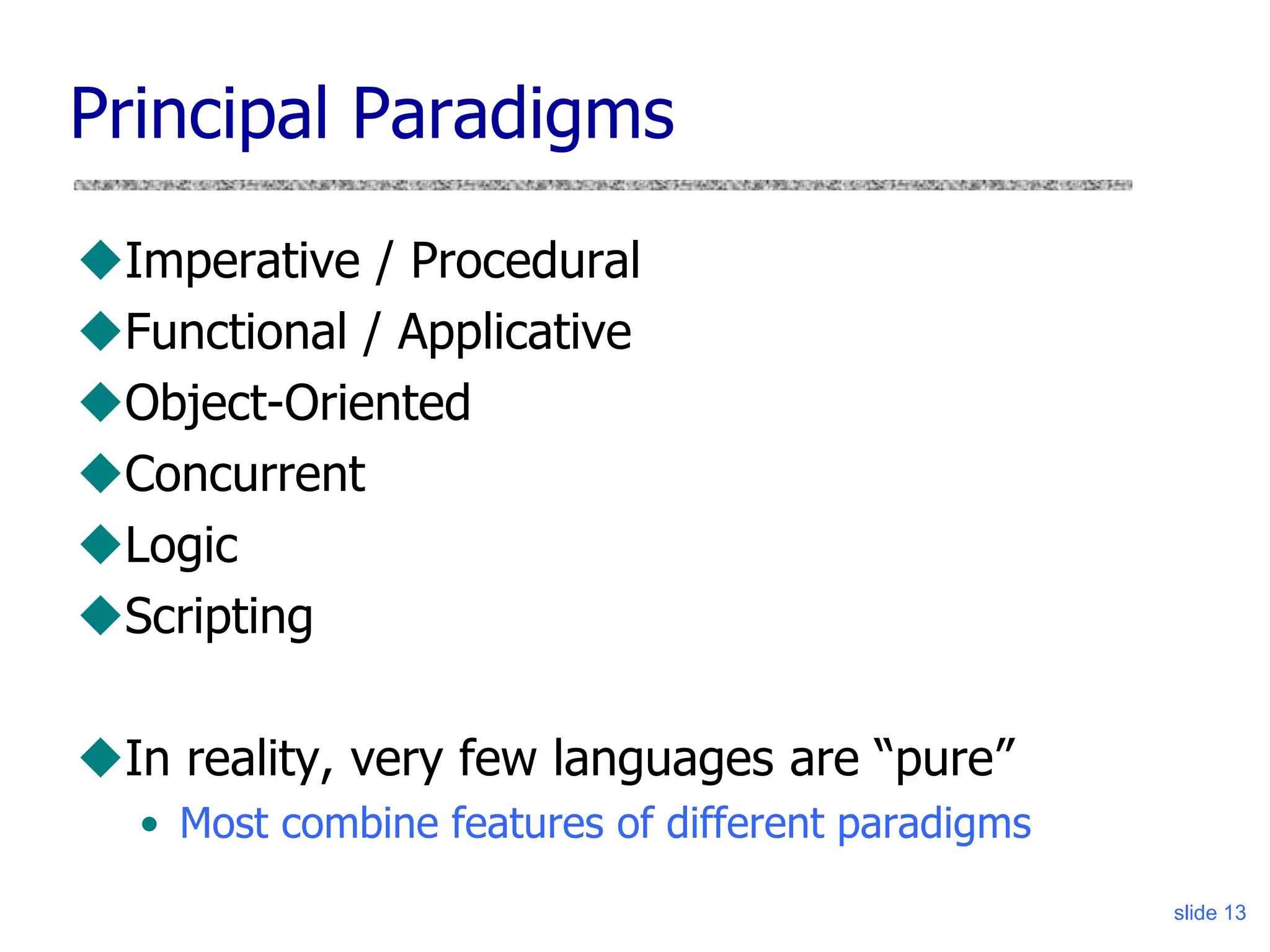

- 13. slide 13 Principal Paradigms Imperative/ Procedural Functional / Applicative Object-Oriented Concurrent Logic Scripting In reality, very few languages are “pure” • Most combine features of different paradigms

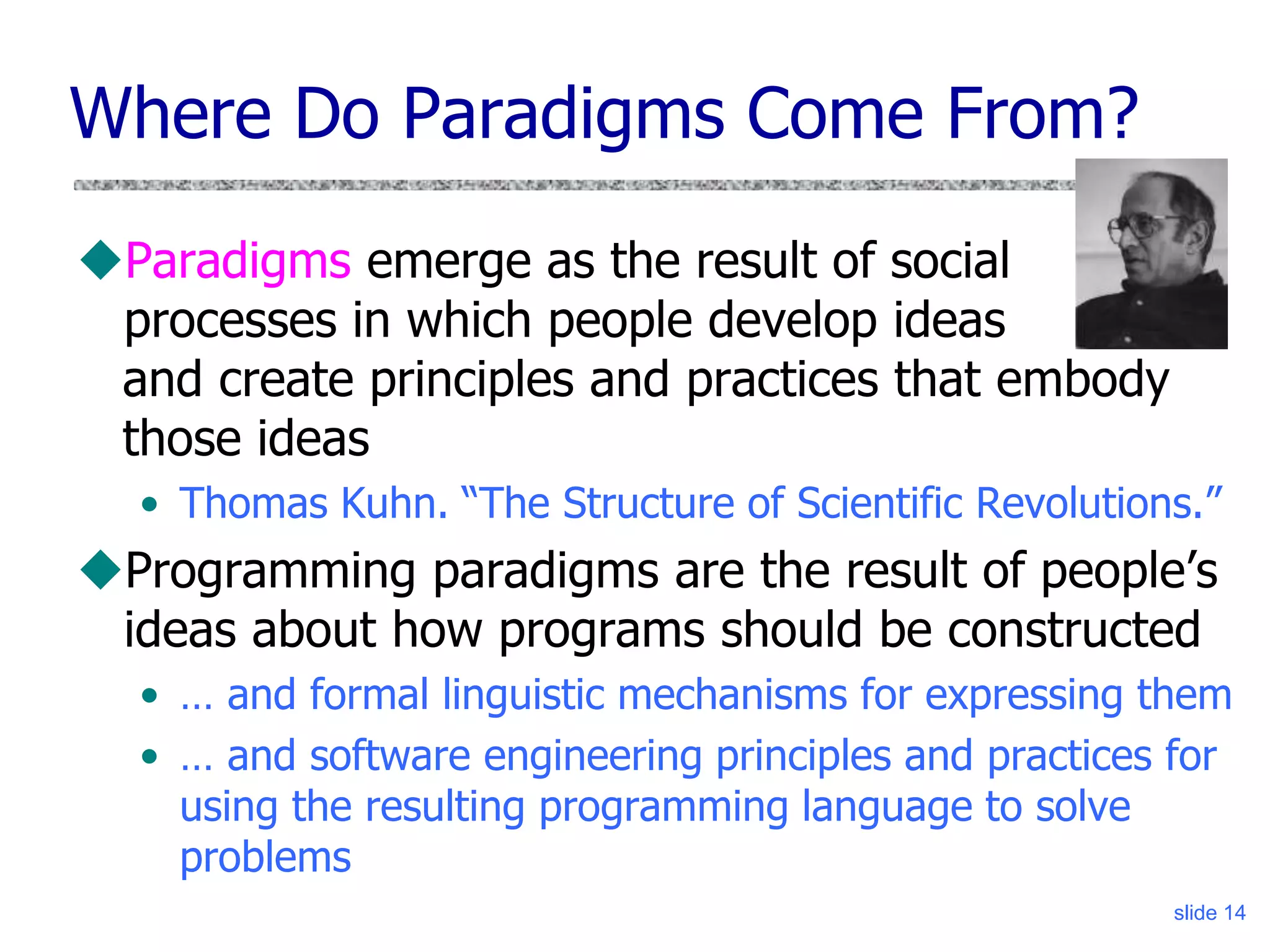

- 14. slide 14 Where DoParadigms Come From? Paradigms emerge as the result of social processes in which people develop ideas and create principles and practices that embody those ideas • Thomas Kuhn. “The Structure of Scientific Revolutions.” Programming paradigms are the result of people’s ideas about how programs should be constructed • … and formal linguistic mechanisms for expressing them • … and software engineering principles and practices for using the resulting programming language to solve problems

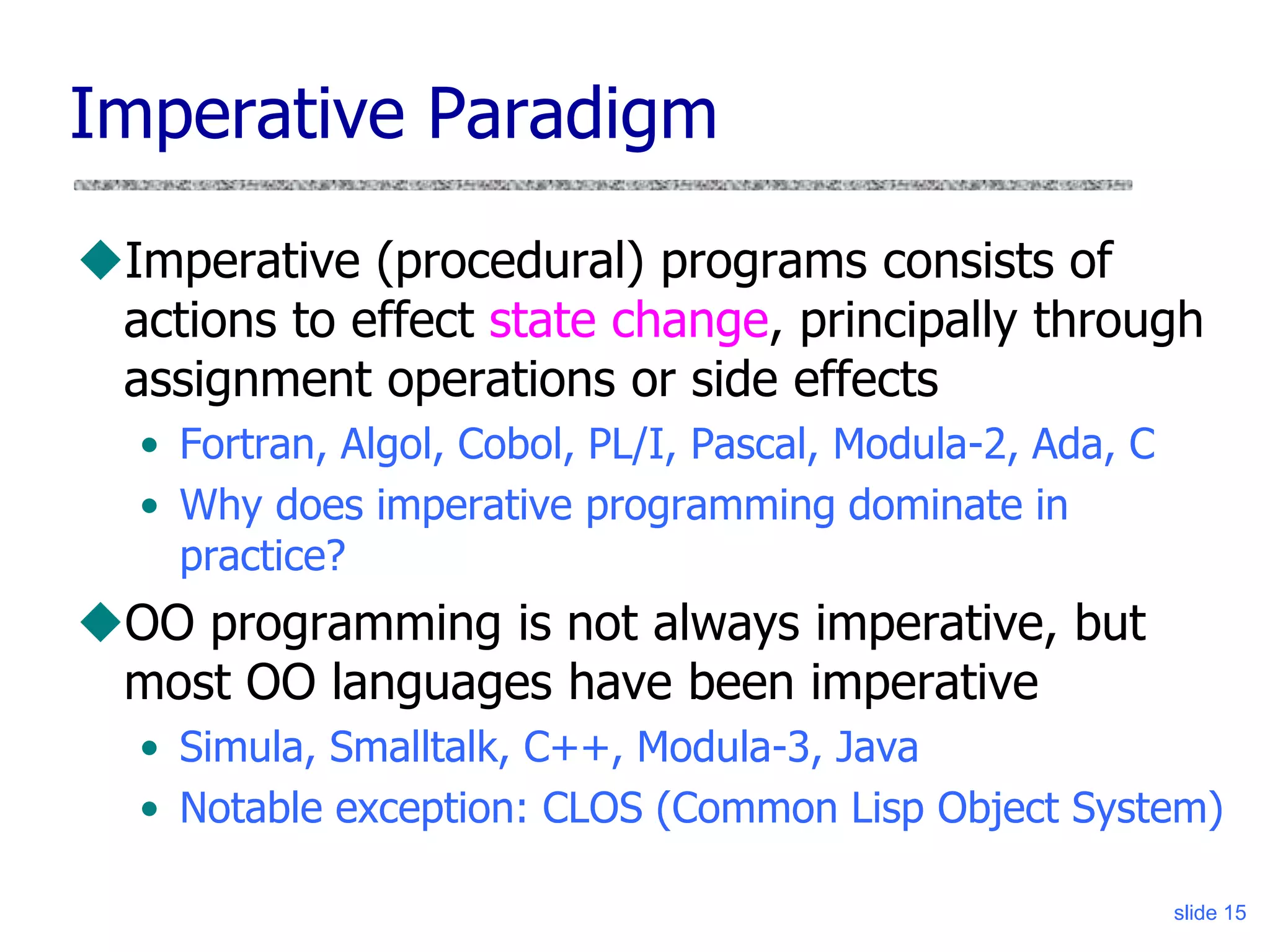

- 15. slide 15 Imperative Paradigm Imperative(procedural) programs consists of actions to effect state change, principally through assignment operations or side effects • Fortran, Algol, Cobol, PL/I, Pascal, Modula-2, Ada, C • Why does imperative programming dominate in practice? OO programming is not always imperative, but most OO languages have been imperative • Simula, Smalltalk, C++, Modula-3, Java • Notable exception: CLOS (Common Lisp Object System)

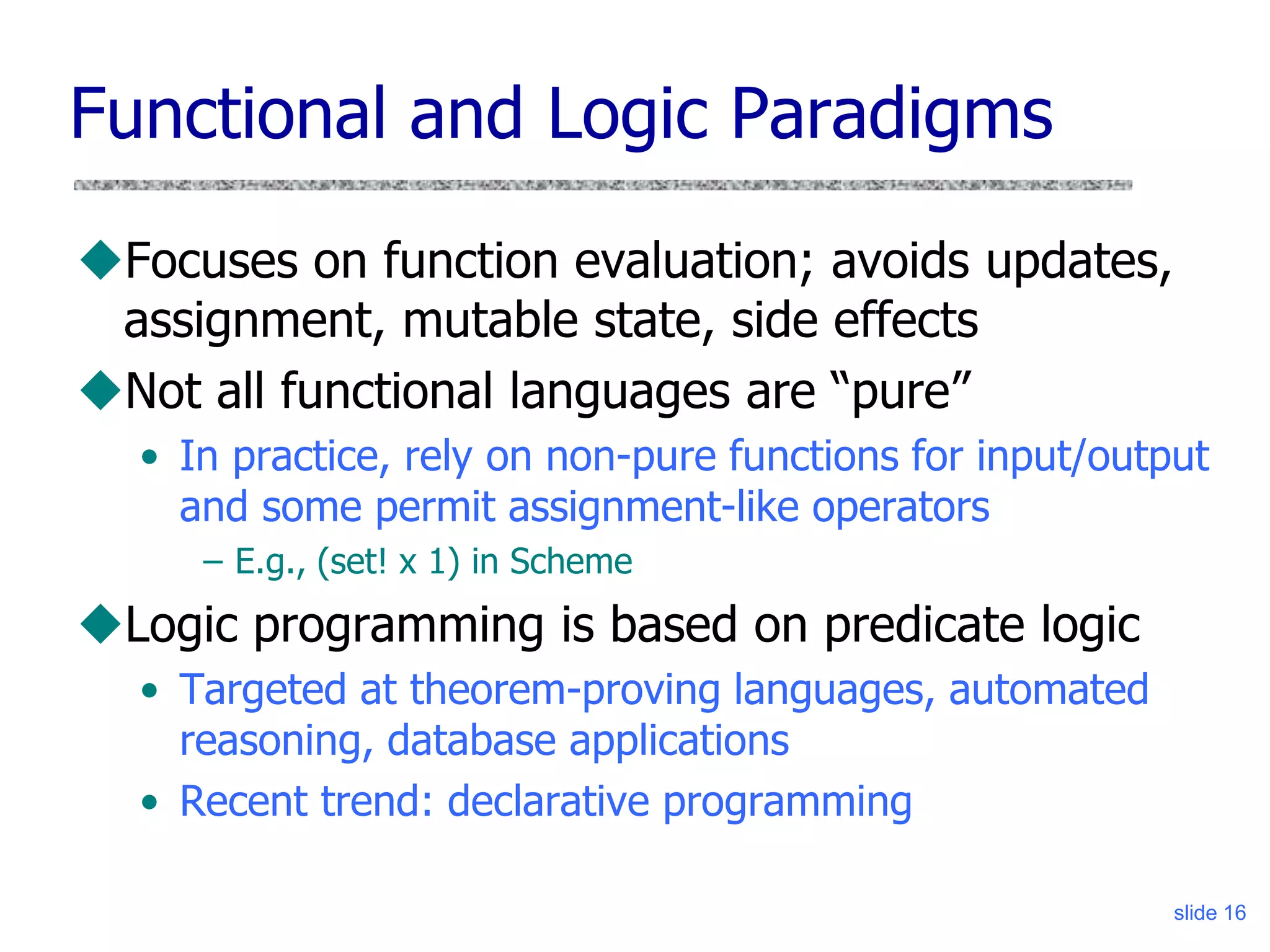

- 16. slide 16 Functional andLogic Paradigms Focuses on function evaluation; avoids updates, assignment, mutable state, side effects Not all functional languages are “pure” • In practice, rely on non-pure functions for input/output and some permit assignment-like operators – E.g., (set! x 1) in Scheme Logic programming is based on predicate logic • Targeted at theorem-proving languages, automated reasoning, database applications • Recent trend: declarative programming

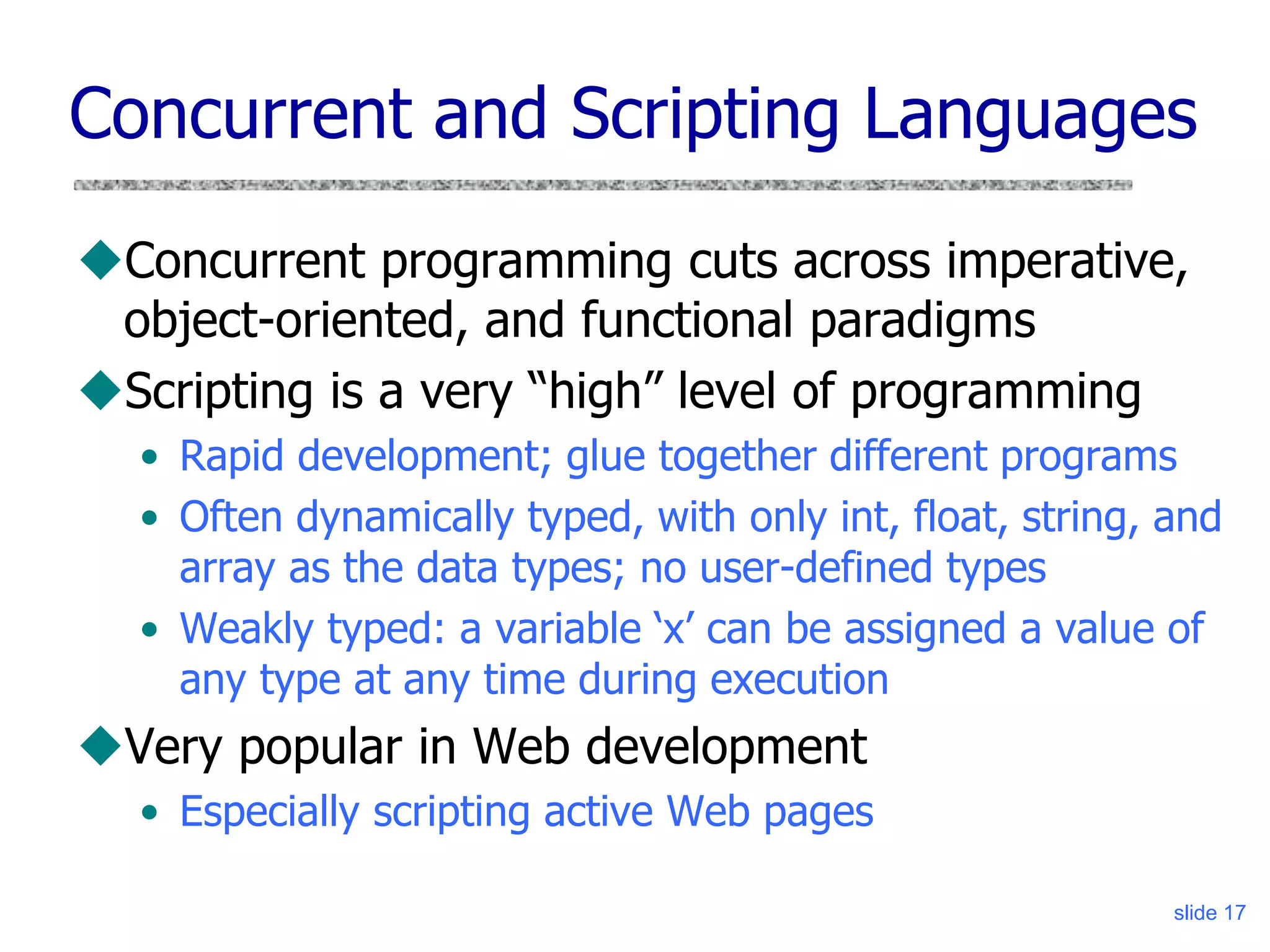

- 17. slide 17 Concurrent andScripting Languages Concurrent programming cuts across imperative, object-oriented, and functional paradigms Scripting is a very “high” level of programming • Rapid development; glue together different programs • Often dynamically typed, with only int, float, string, and array as the data types; no user-defined types • Weakly typed: a variable ‘x’ can be assigned a value of any type at any time during execution Very popular in Web development • Especially scripting active Web pages

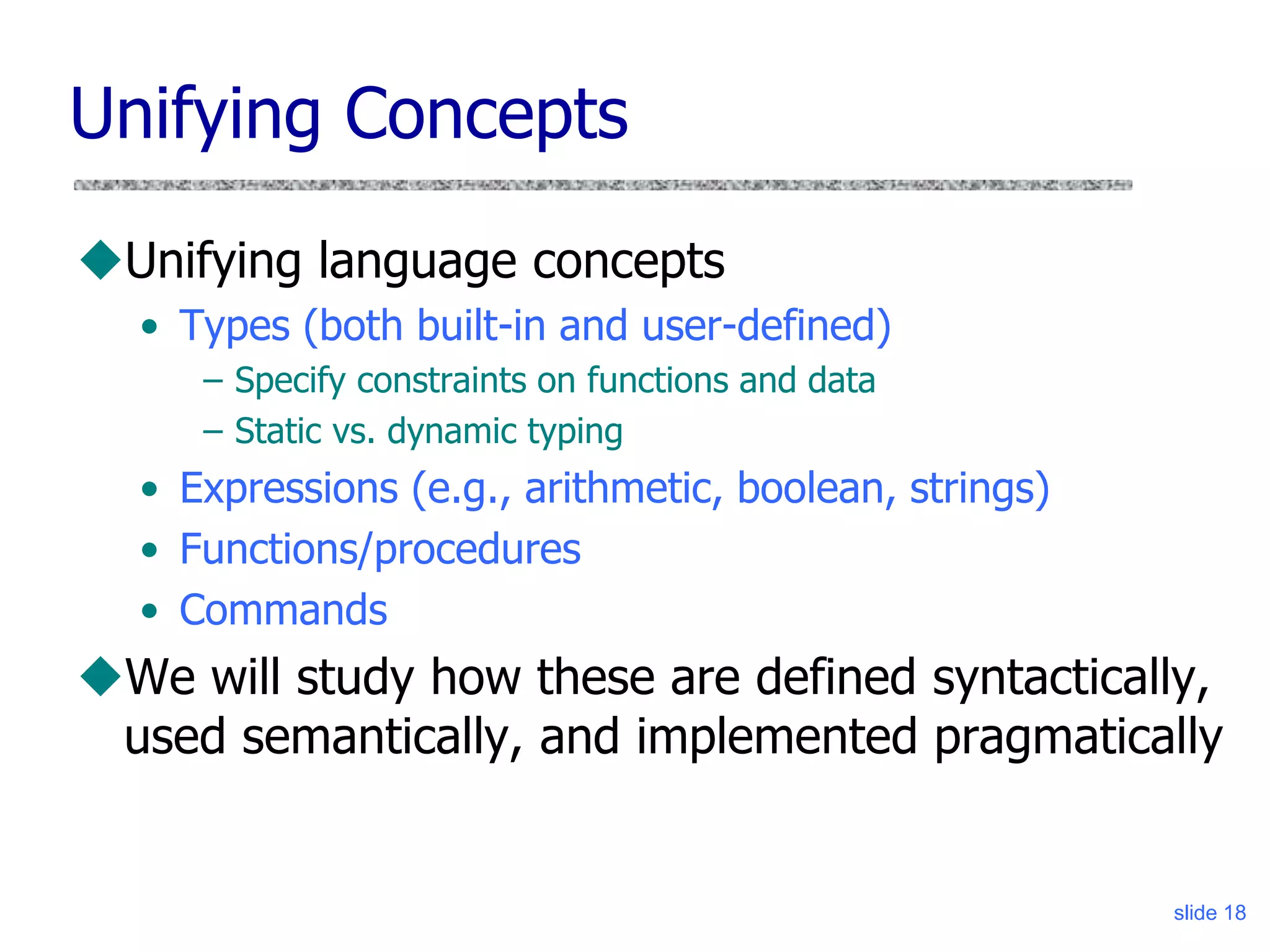

- 18. slide 18 Unifying Concepts Unifyinglanguage concepts • Types (both built-in and user-defined) – Specify constraints on functions and data – Static vs. dynamic typing • Expressions (e.g., arithmetic, boolean, strings) • Functions/procedures • Commands We will study how these are defined syntactically, used semantically, and implemented pragmatically

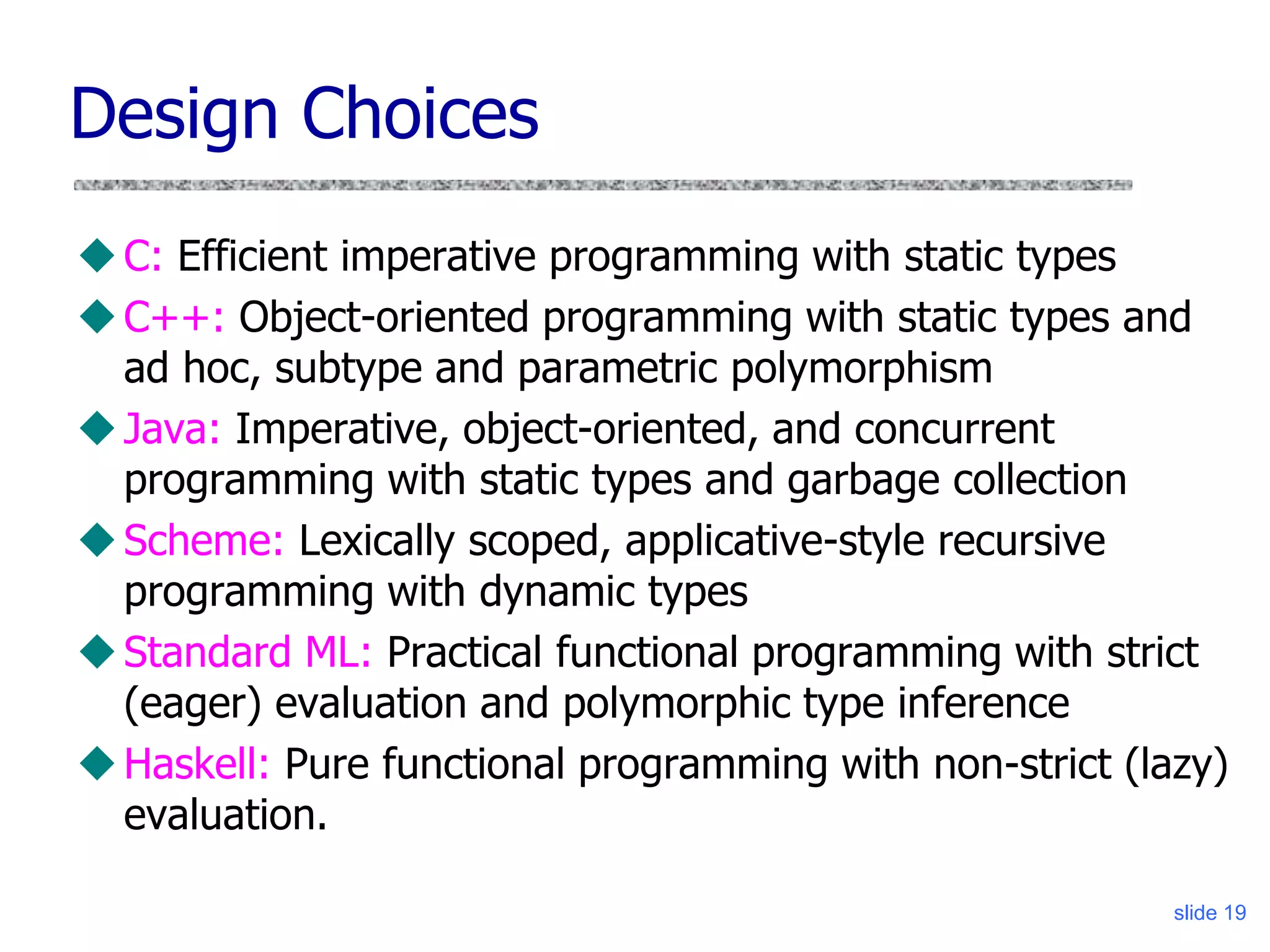

- 19. slide 19 Design Choices C:Efficient imperative programming with static types C++: Object-oriented programming with static types and ad hoc, subtype and parametric polymorphism Java: Imperative, object-oriented, and concurrent programming with static types and garbage collection Scheme: Lexically scoped, applicative-style recursive programming with dynamic types Standard ML: Practical functional programming with strict (eager) evaluation and polymorphic type inference Haskell: Pure functional programming with non-strict (lazy) evaluation.

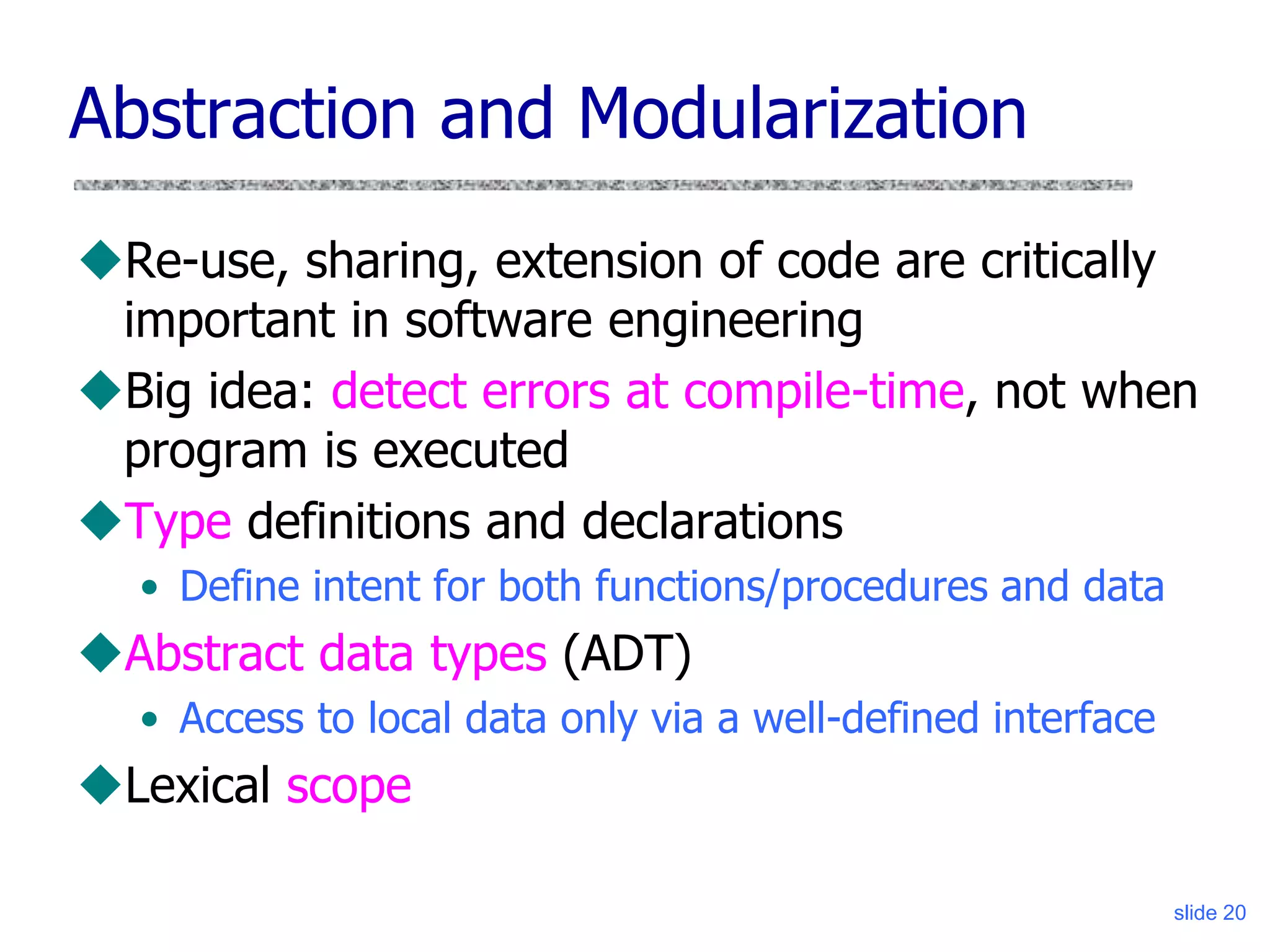

- 20. slide 20 Abstraction andModularization Re-use, sharing, extension of code are critically important in software engineering Big idea: detect errors at compile-time, not when program is executed Type definitions and declarations • Define intent for both functions/procedures and data Abstract data types (ADT) • Access to local data only via a well-defined interface Lexical scope

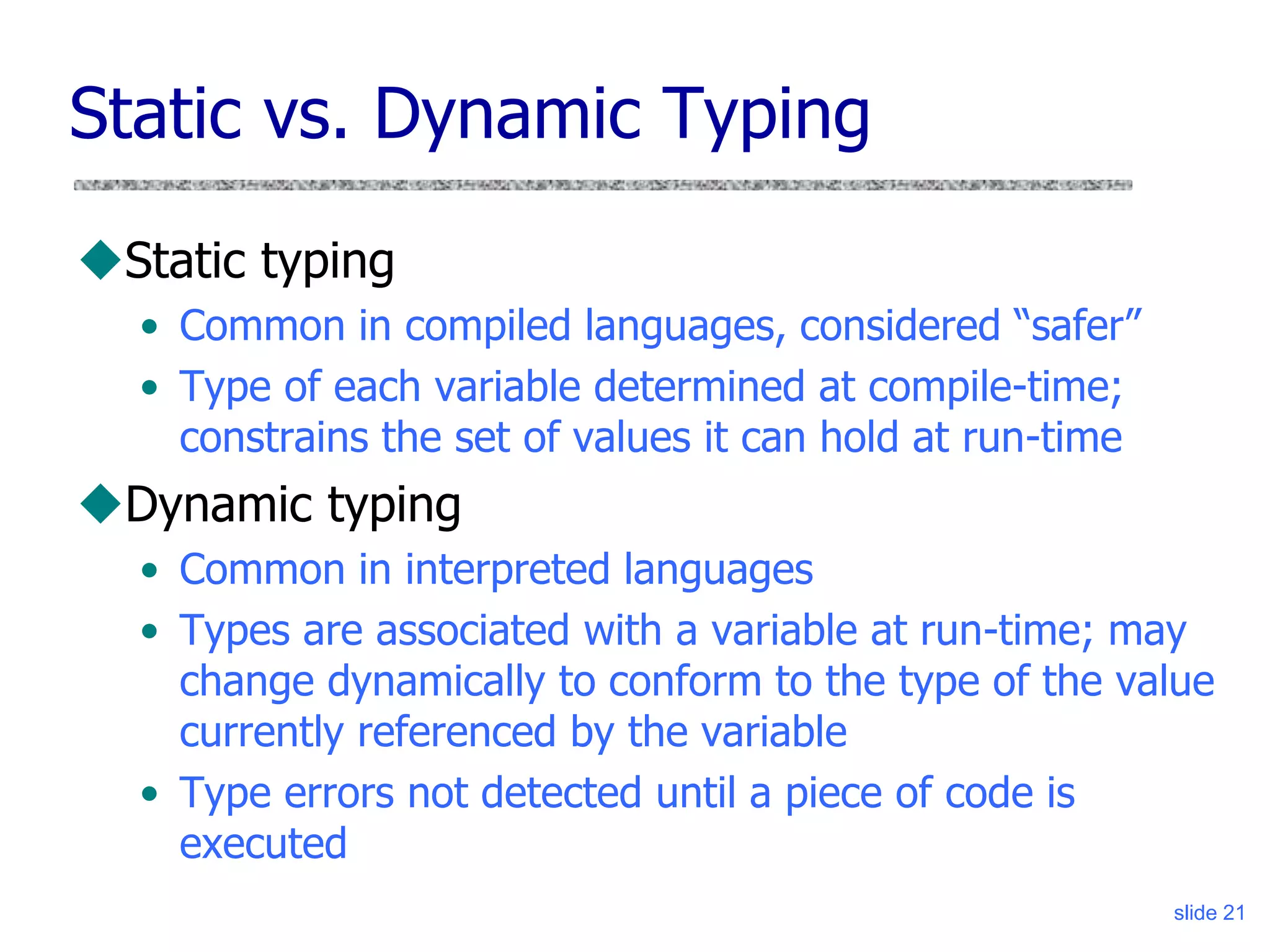

- 21. slide 21 Static vs.Dynamic Typing Static typing • Common in compiled languages, considered “safer” • Type of each variable determined at compile-time; constrains the set of values it can hold at run-time Dynamic typing • Common in interpreted languages • Types are associated with a variable at run-time; may change dynamically to conform to the type of the value currently referenced by the variable • Type errors not detected until a piece of code is executed

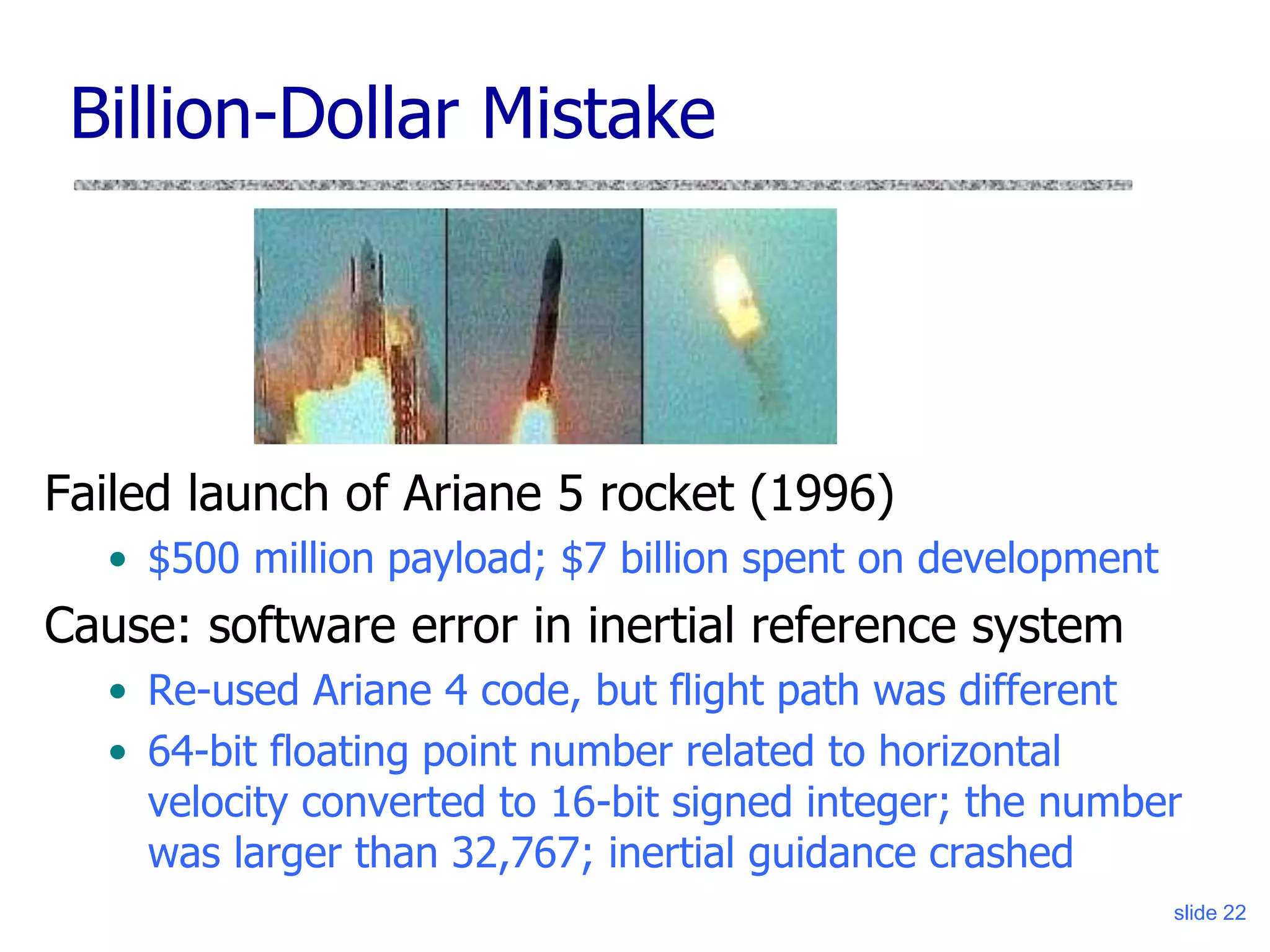

- 22. slide 22 Billion-Dollar Mistake Failedlaunch of Ariane 5 rocket (1996) • $500 million payload; $7 billion spent on development Cause: software error in inertial reference system • Re-used Ariane 4 code, but flight path was different • 64-bit floating point number related to horizontal velocity converted to 16-bit signed integer; the number was larger than 32,767; inertial guidance crashed

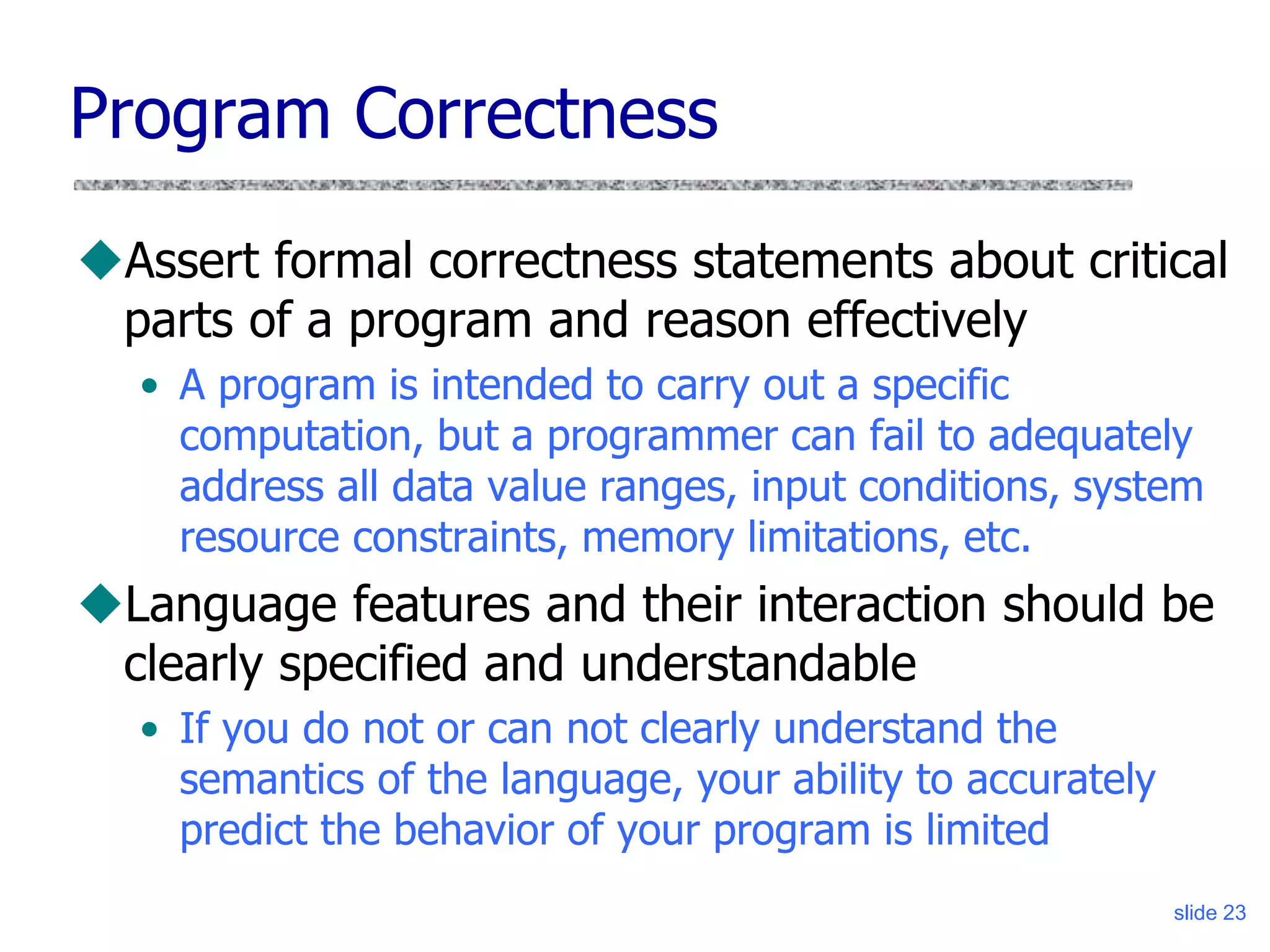

- 23. slide 23 Program Correctness Assertformal correctness statements about critical parts of a program and reason effectively • A program is intended to carry out a specific computation, but a programmer can fail to adequately address all data value ranges, input conditions, system resource constraints, memory limitations, etc. Language features and their interaction should be clearly specified and understandable • If you do not or can not clearly understand the semantics of the language, your ability to accurately predict the behavior of your program is limited

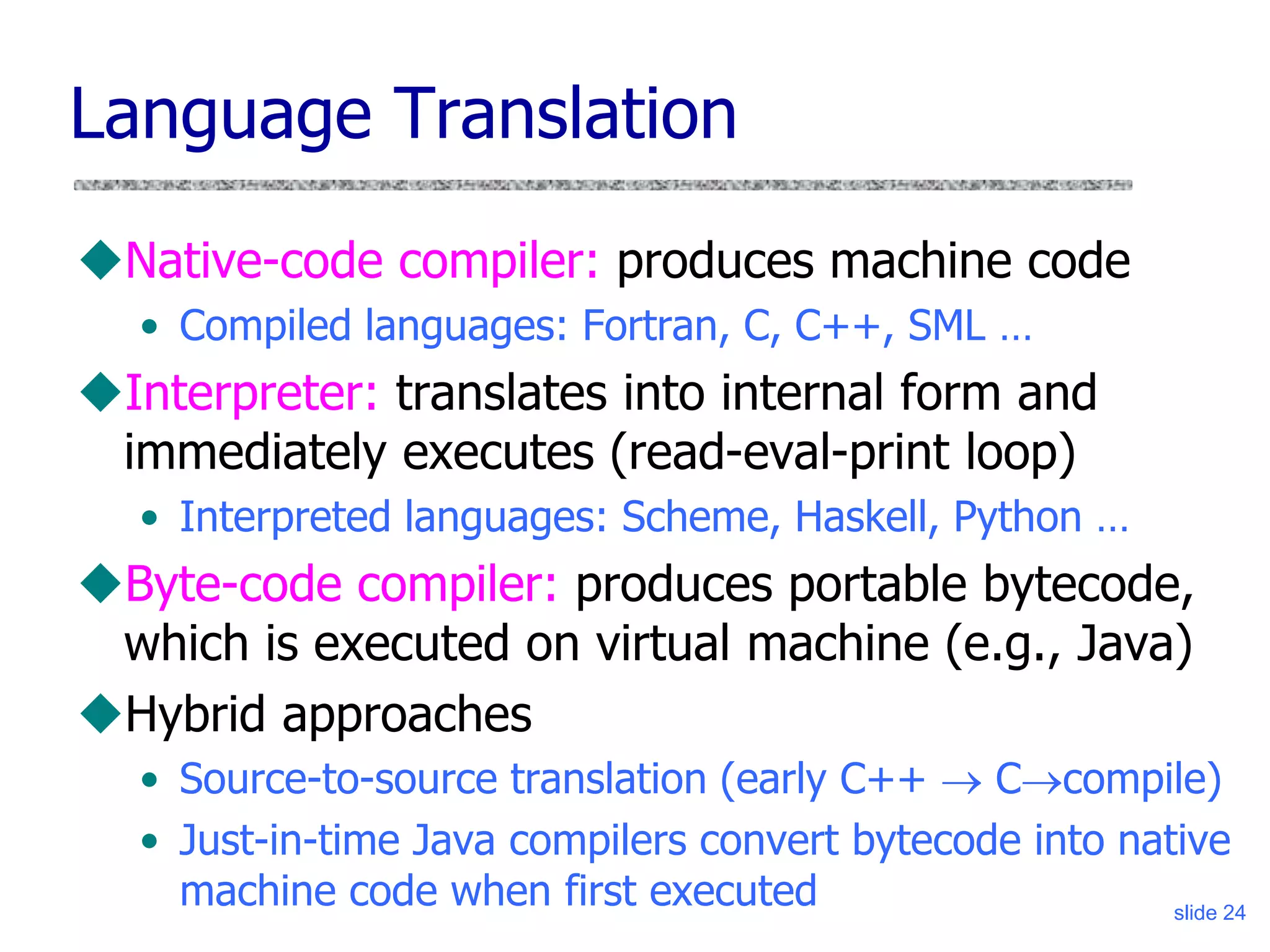

- 24. slide 24 Native-code compiler:produces machine code • Compiled languages: Fortran, C, C++, SML … Interpreter: translates into internal form and immediately executes (read-eval-print loop) • Interpreted languages: Scheme, Haskell, Python … Byte-code compiler: produces portable bytecode, which is executed on virtual machine (e.g., Java) Hybrid approaches • Source-to-source translation (early C++ Ccompile) • Just-in-time Java compilers convert bytecode into native machine code when first executed Language Translation

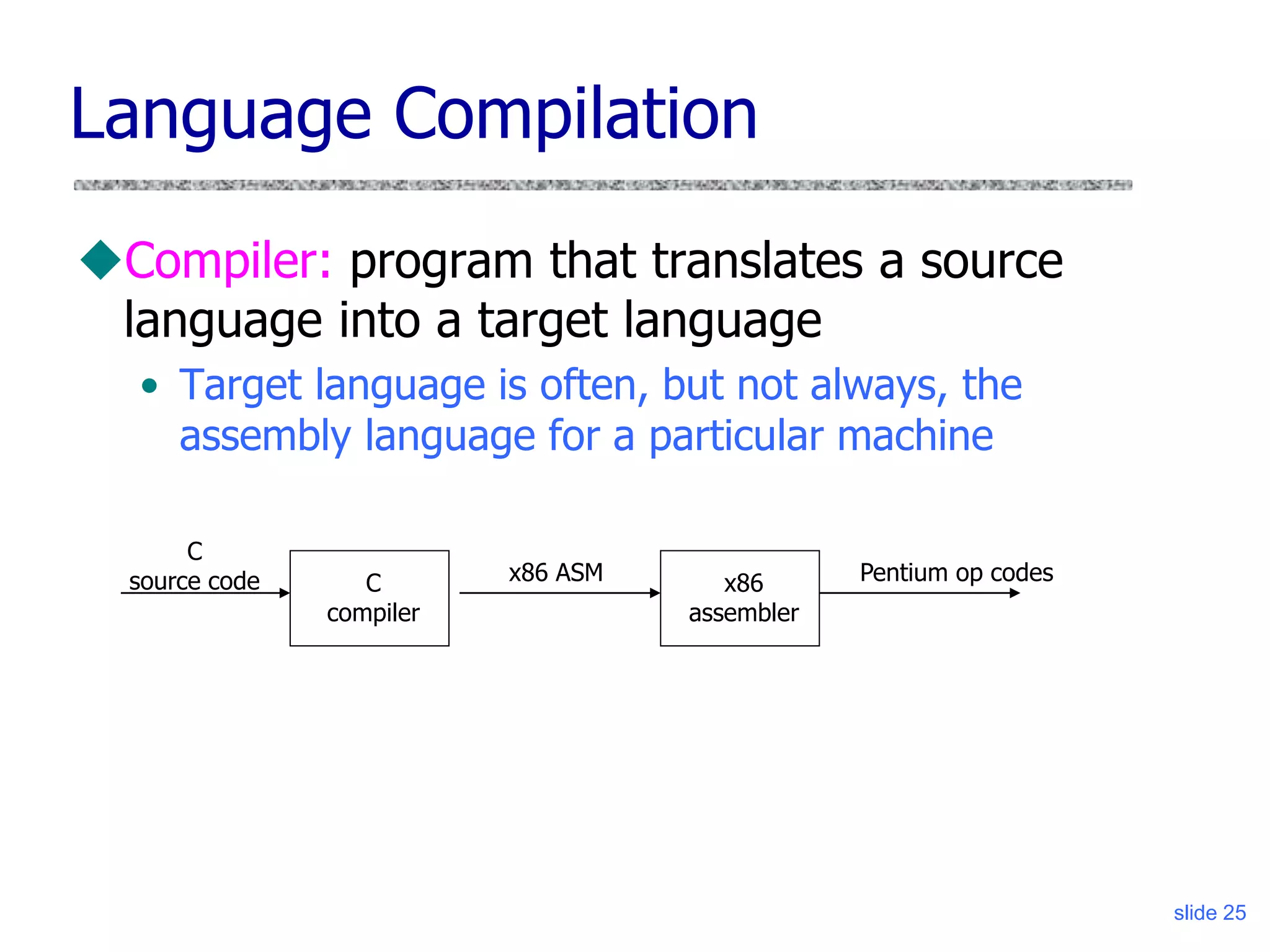

- 25. slide 25 Language Compilation Compiler:program that translates a source language into a target language • Target language is often, but not always, the assembly language for a particular machine C compiler C source code x86 assembler x86 ASM Pentium op codes

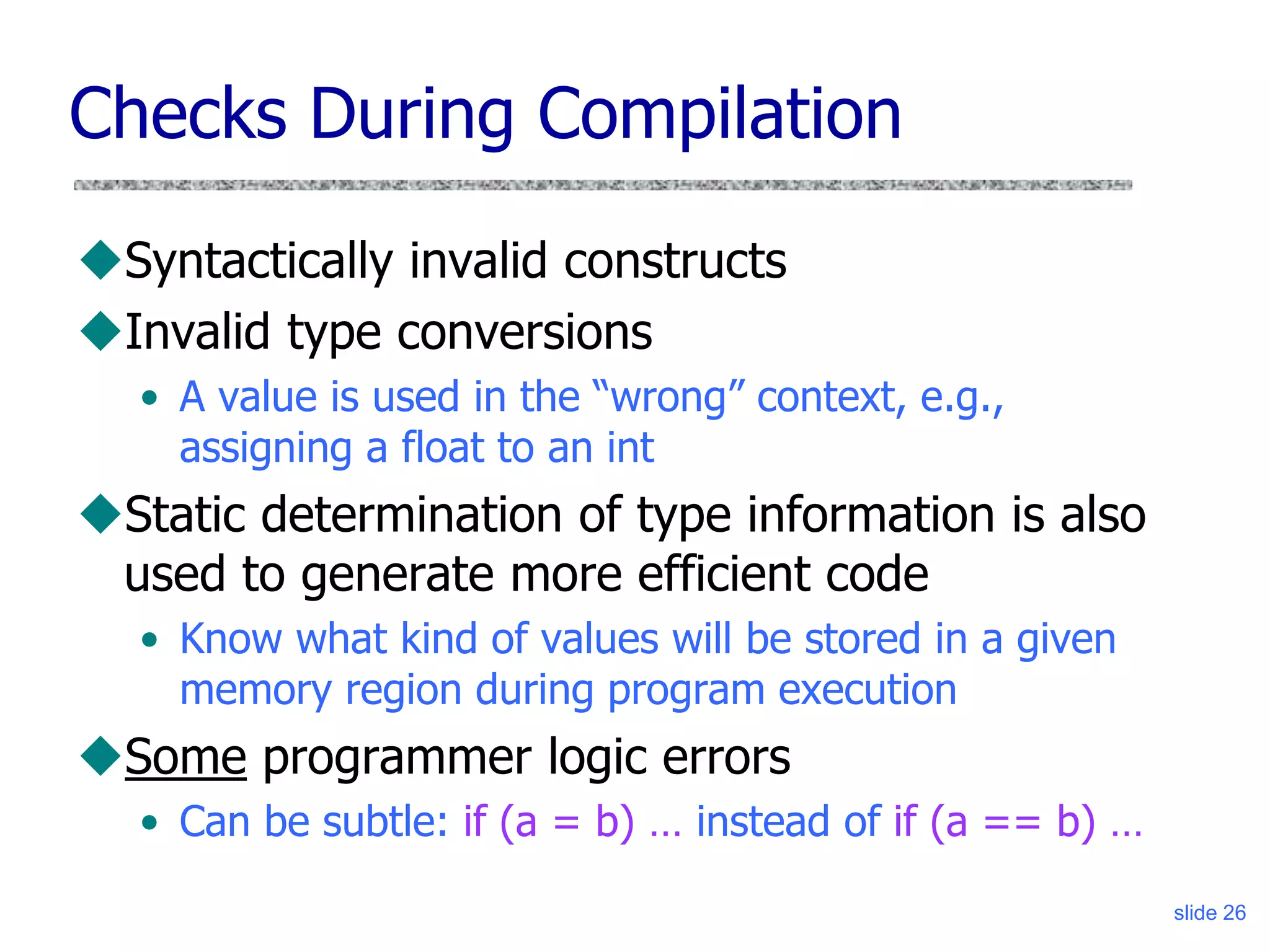

- 26. slide 26 Checks DuringCompilation Syntactically invalid constructs Invalid type conversions • A value is used in the “wrong” context, e.g., assigning a float to an int Static determination of type information is also used to generate more efficient code • Know what kind of values will be stored in a given memory region during program execution Some programmer logic errors • Can be subtle: if (a = b) … instead of if (a == b) …

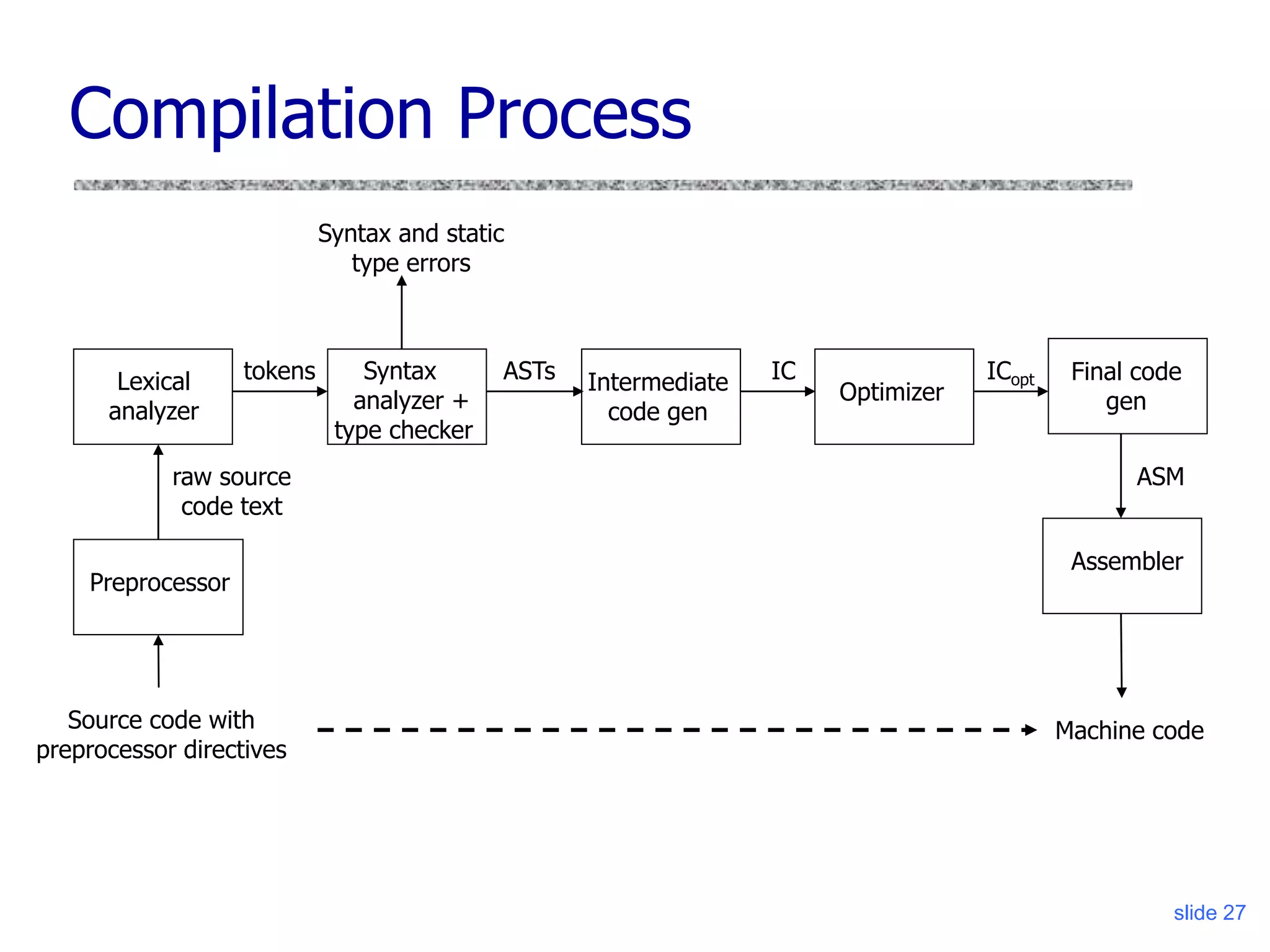

- 27. slide 27 Compilation Process Lexical analyzer rawsource code text Syntax analyzer + type checker tokens ASTs Intermediate code gen Optimizer IC ICopt Final code gen ASM Assembler Machine code Syntax and static type errors Preprocessor Source code with preprocessor directives

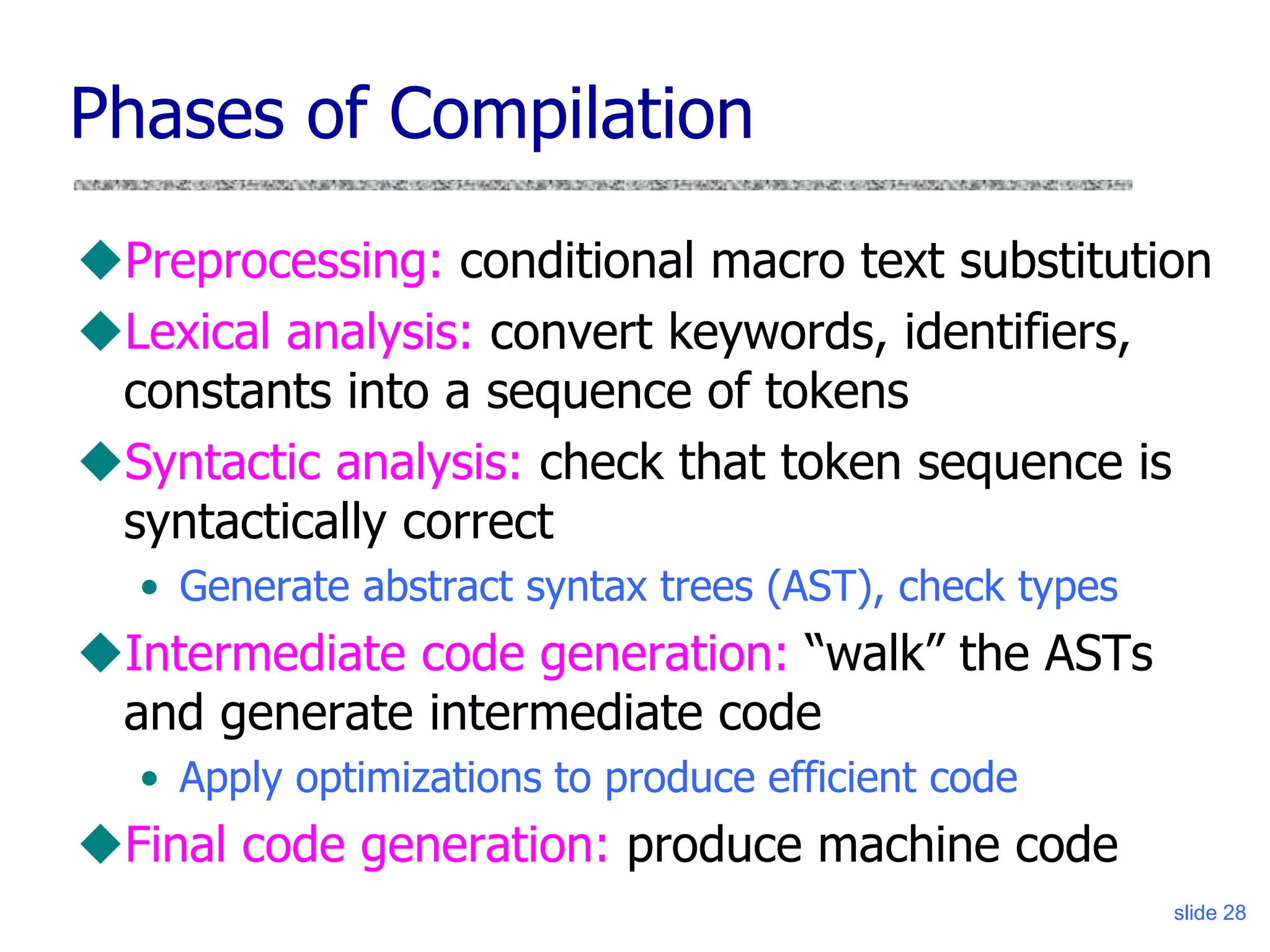

- 28. slide 28 Phases ofCompilation Preprocessing: conditional macro text substitution Lexical analysis: convert keywords, identifiers, constants into a sequence of tokens Syntactic analysis: check that token sequence is syntactically correct • Generate abstract syntax trees (AST), check types Intermediate code generation: “walk” the ASTs and generate intermediate code • Apply optimizations to produce efficient code Final code generation: produce machine code

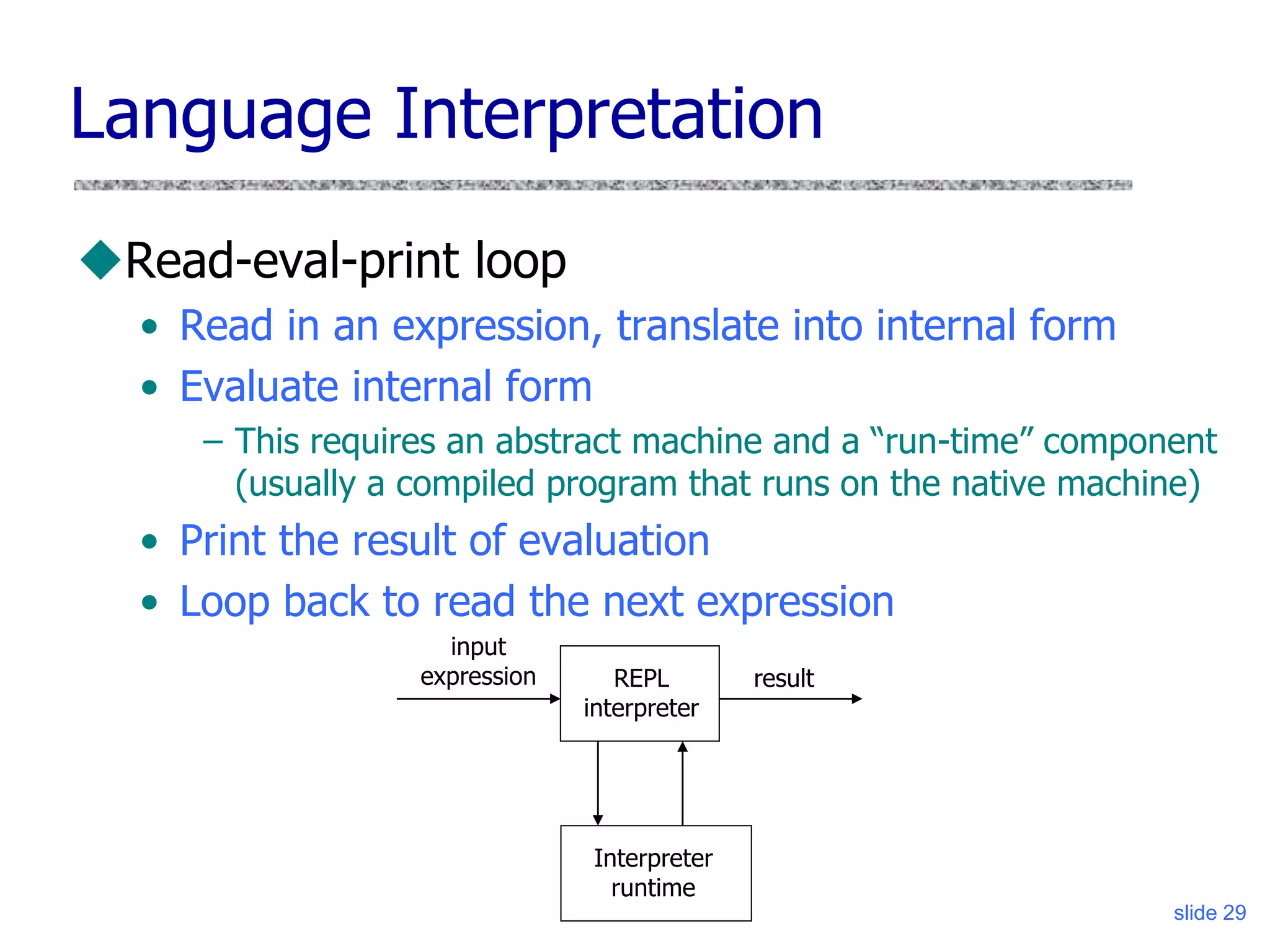

- 29. slide 29 Language Interpretation Read-eval-printloop • Read in an expression, translate into internal form • Evaluate internal form – This requires an abstract machine and a “run-time” component (usually a compiled program that runs on the native machine) • Print the result of evaluation • Loop back to read the next expression REPL interpreter input expression Interpreter runtime result

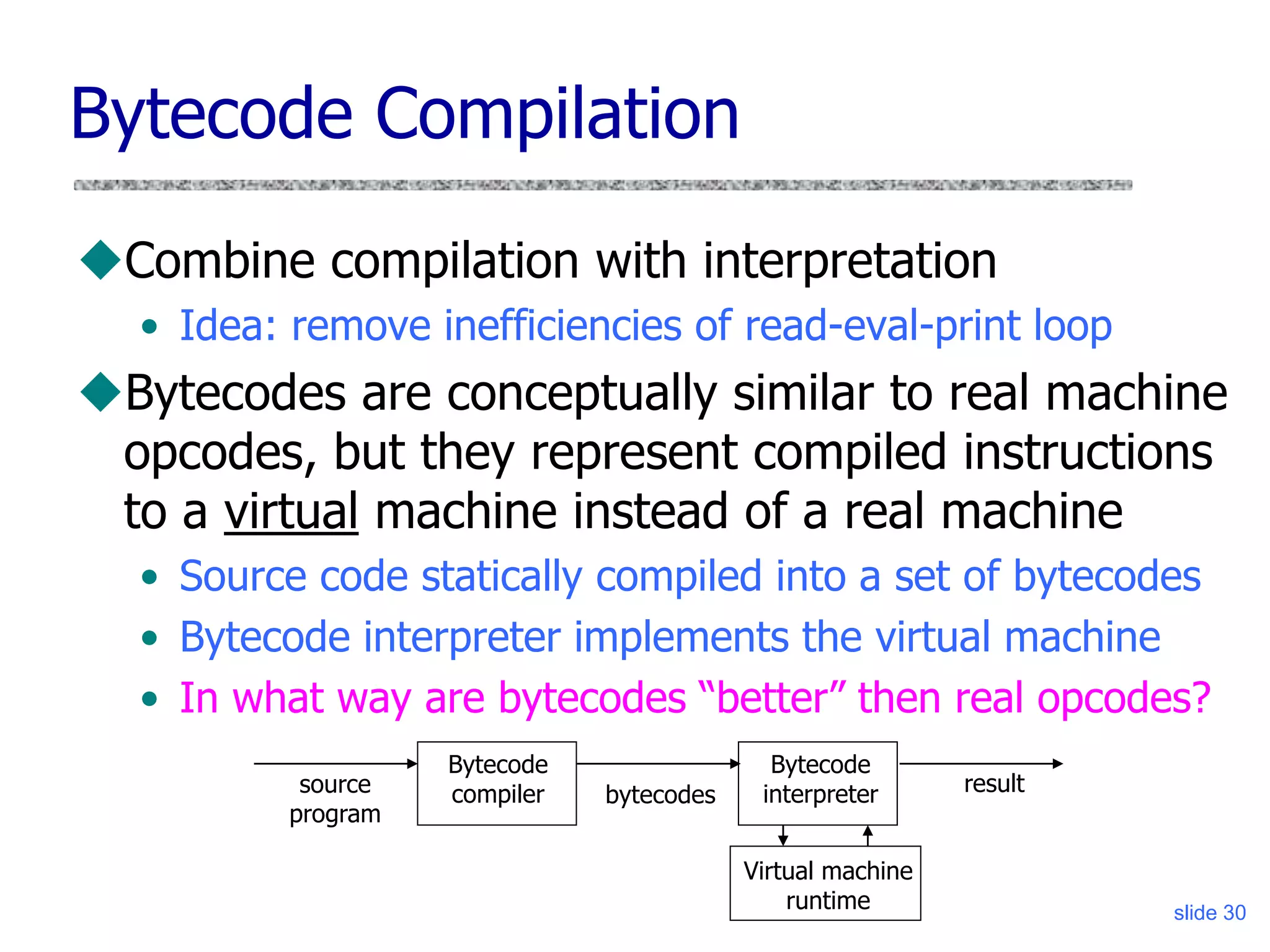

- 30. slide 30 Virtual machine runtime BytecodeCompilation Combine compilation with interpretation • Idea: remove inefficiencies of read-eval-print loop Bytecodes are conceptually similar to real machine opcodes, but they represent compiled instructions to a virtual machine instead of a real machine • Source code statically compiled into a set of bytecodes • Bytecode interpreter implements the virtual machine • In what way are bytecodes “better” then real opcodes? Bytecode compiler source program bytecodes Bytecode interpreter result

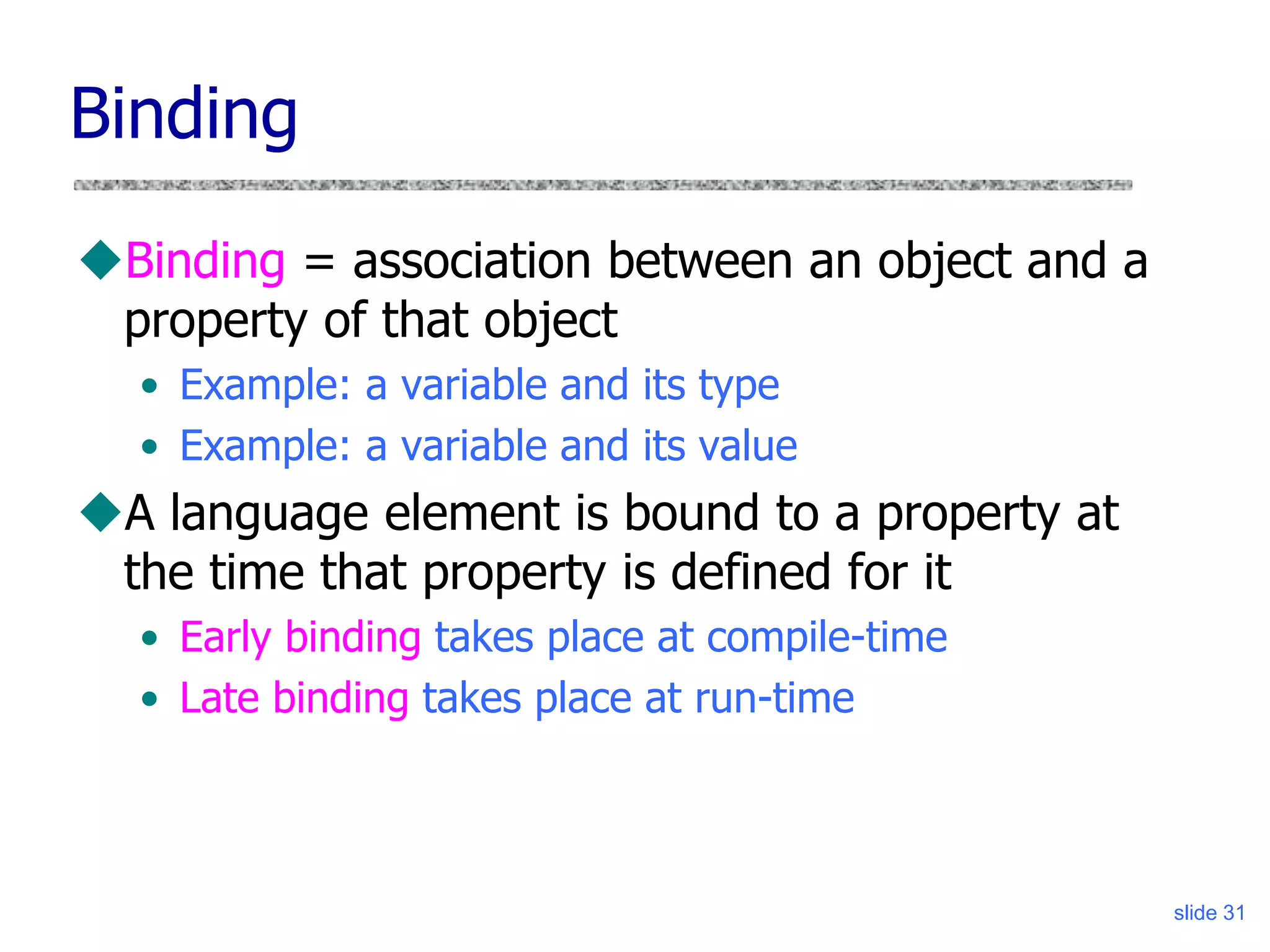

- 31. slide 31 Binding Binding =association between an object and a property of that object • Example: a variable and its type • Example: a variable and its value A language element is bound to a property at the time that property is defined for it • Early binding takes place at compile-time • Late binding takes place at run-time
