You’re still using
passwords on your
site?

François Marier – @fmarier

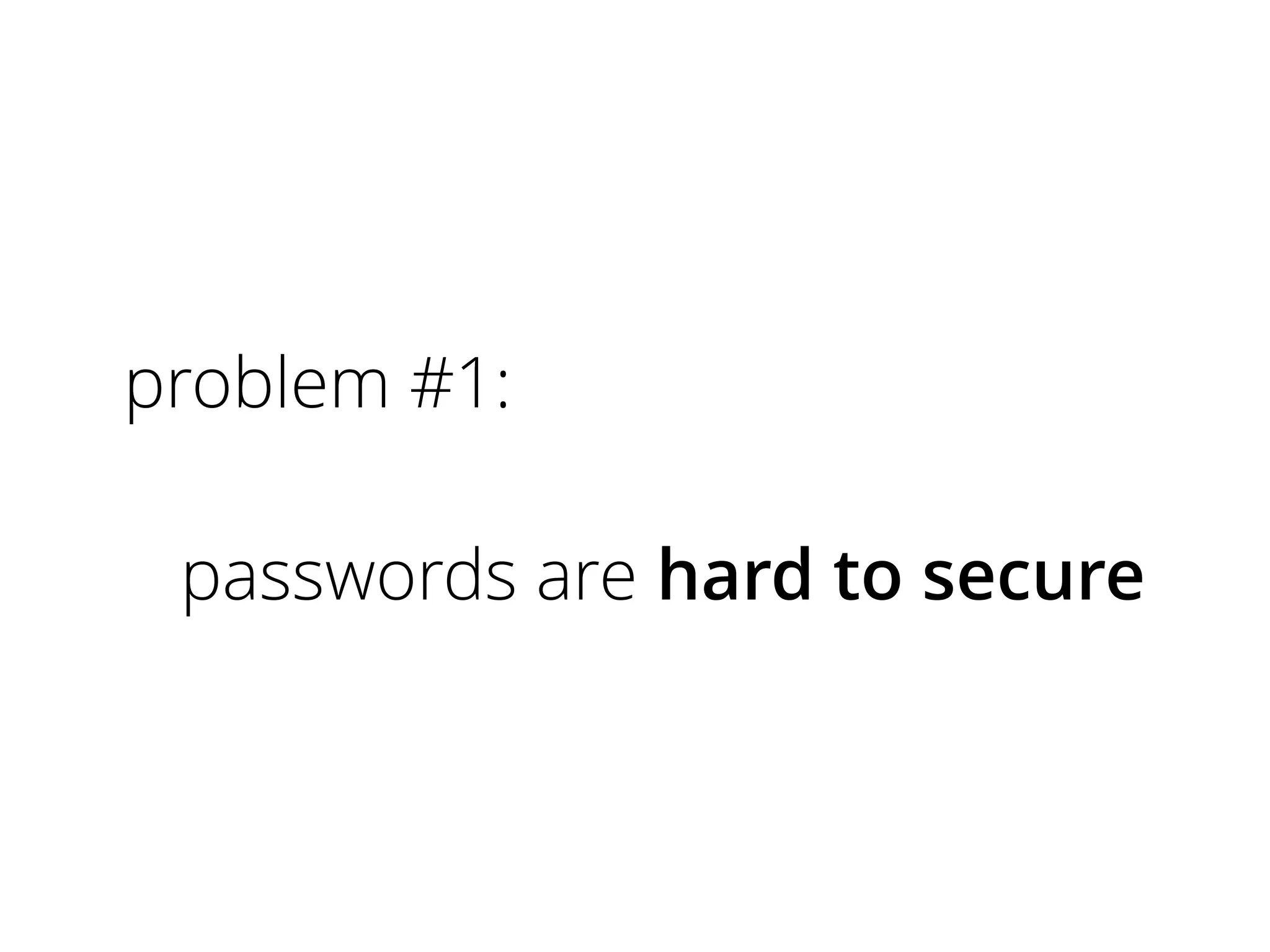

problem #1:
passwords are hard to secure

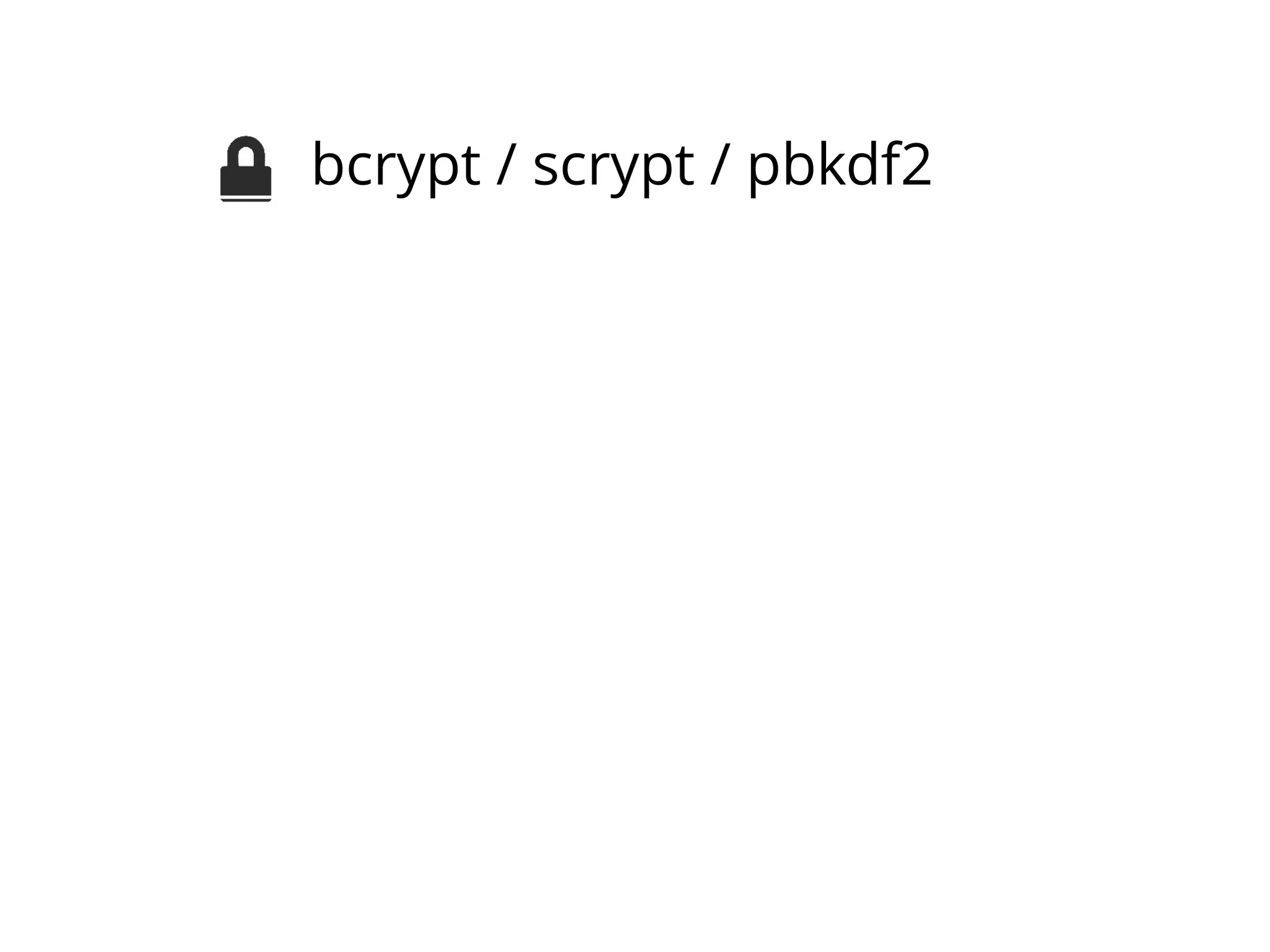

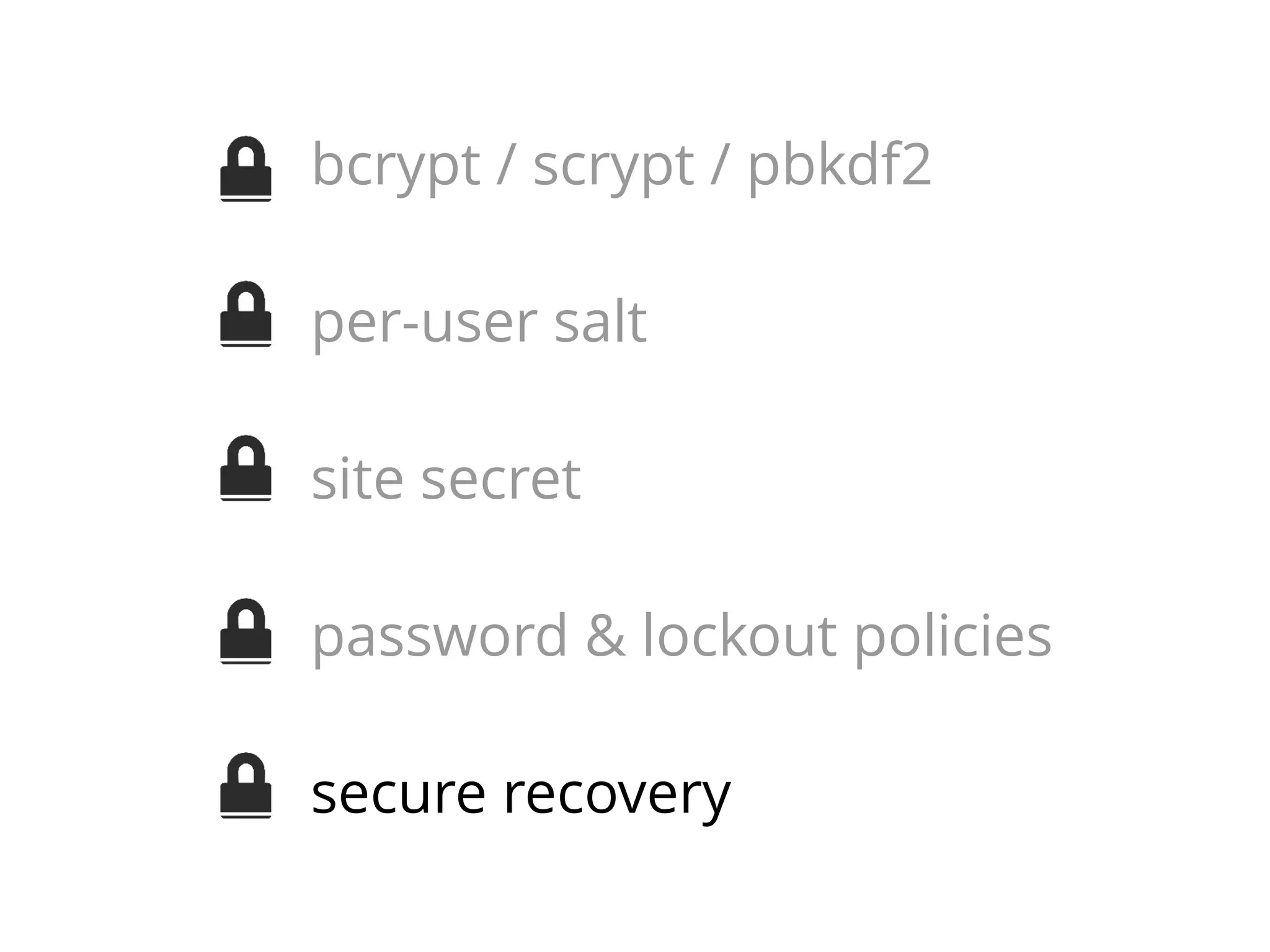

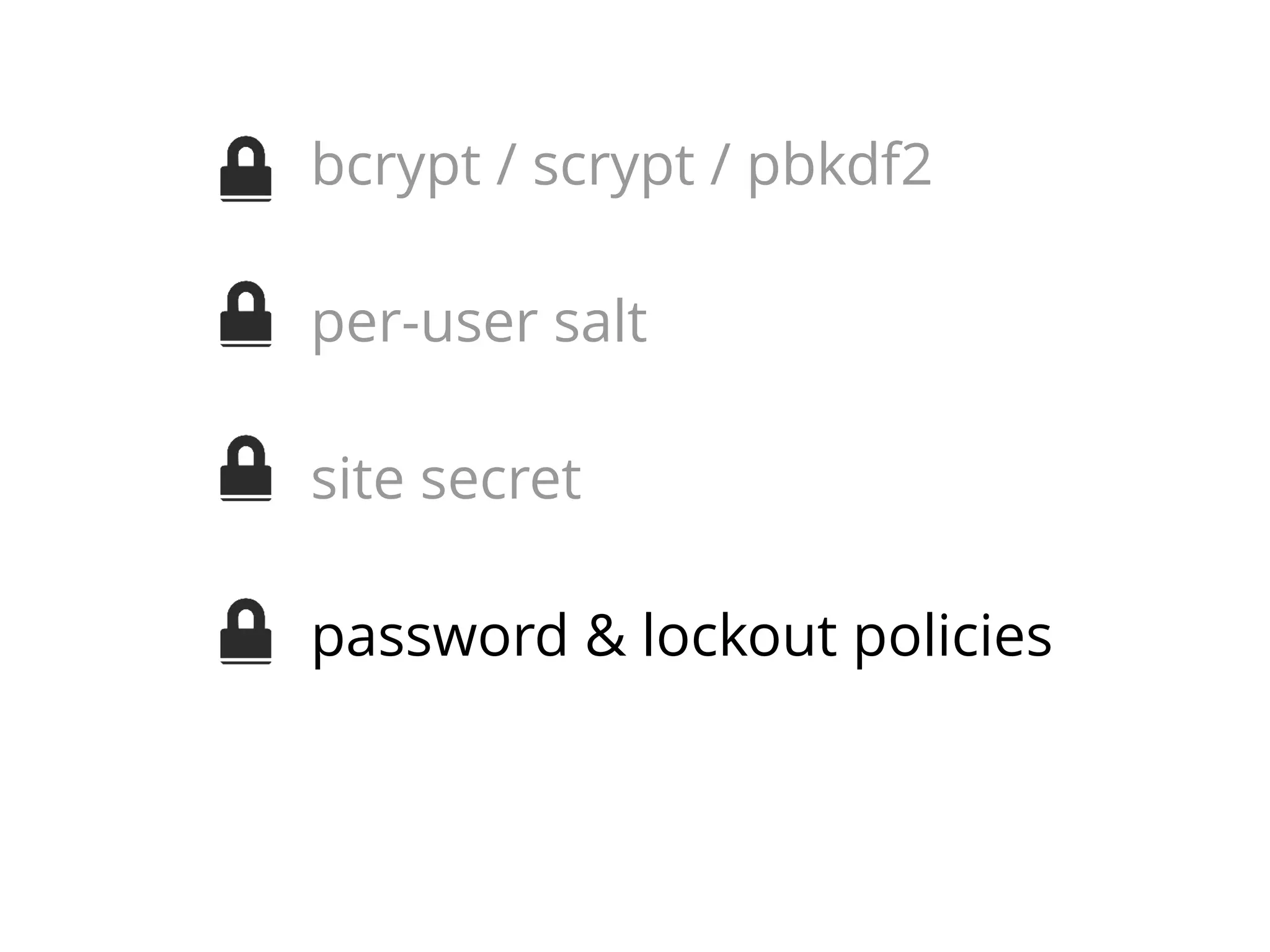

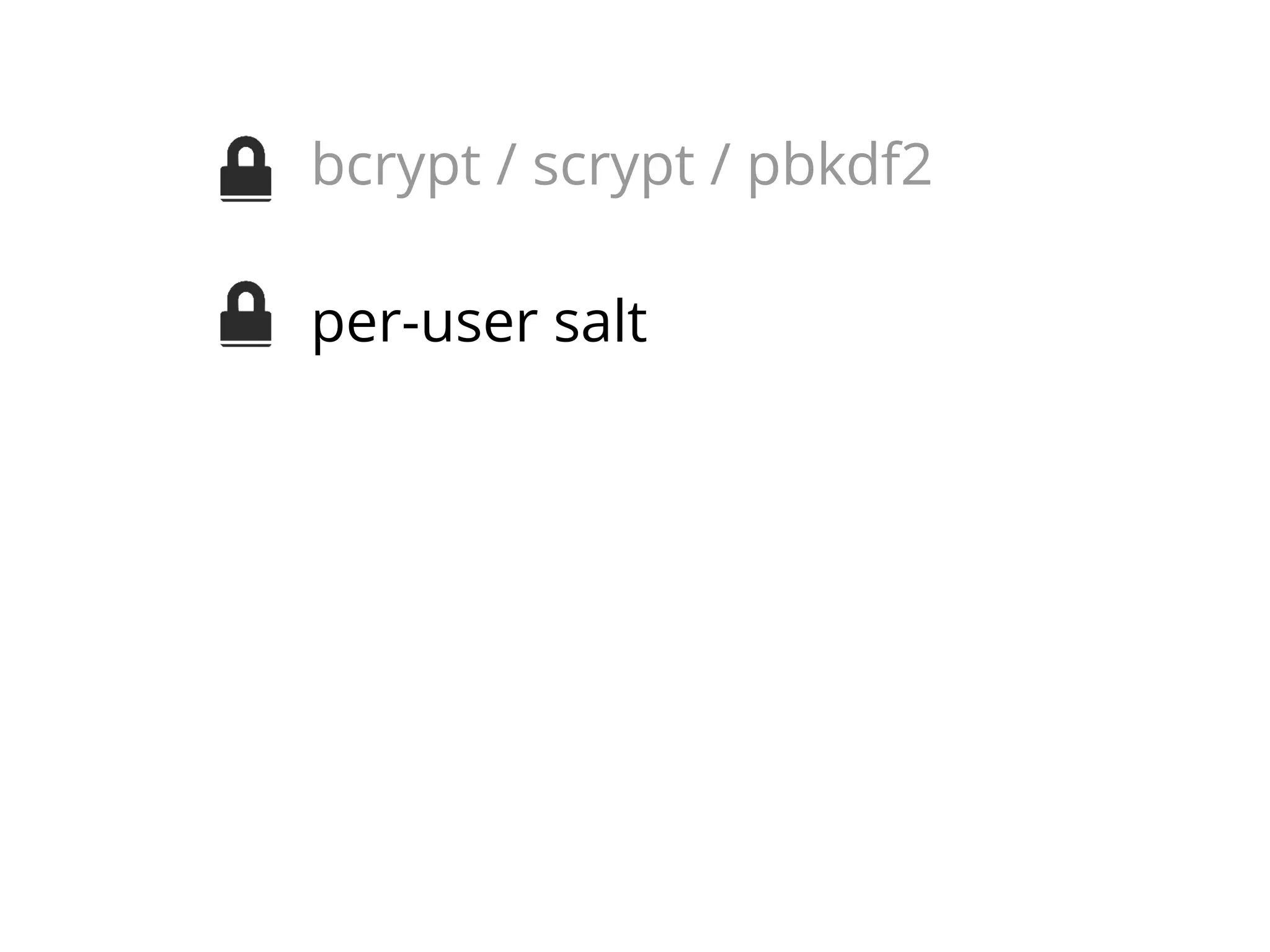

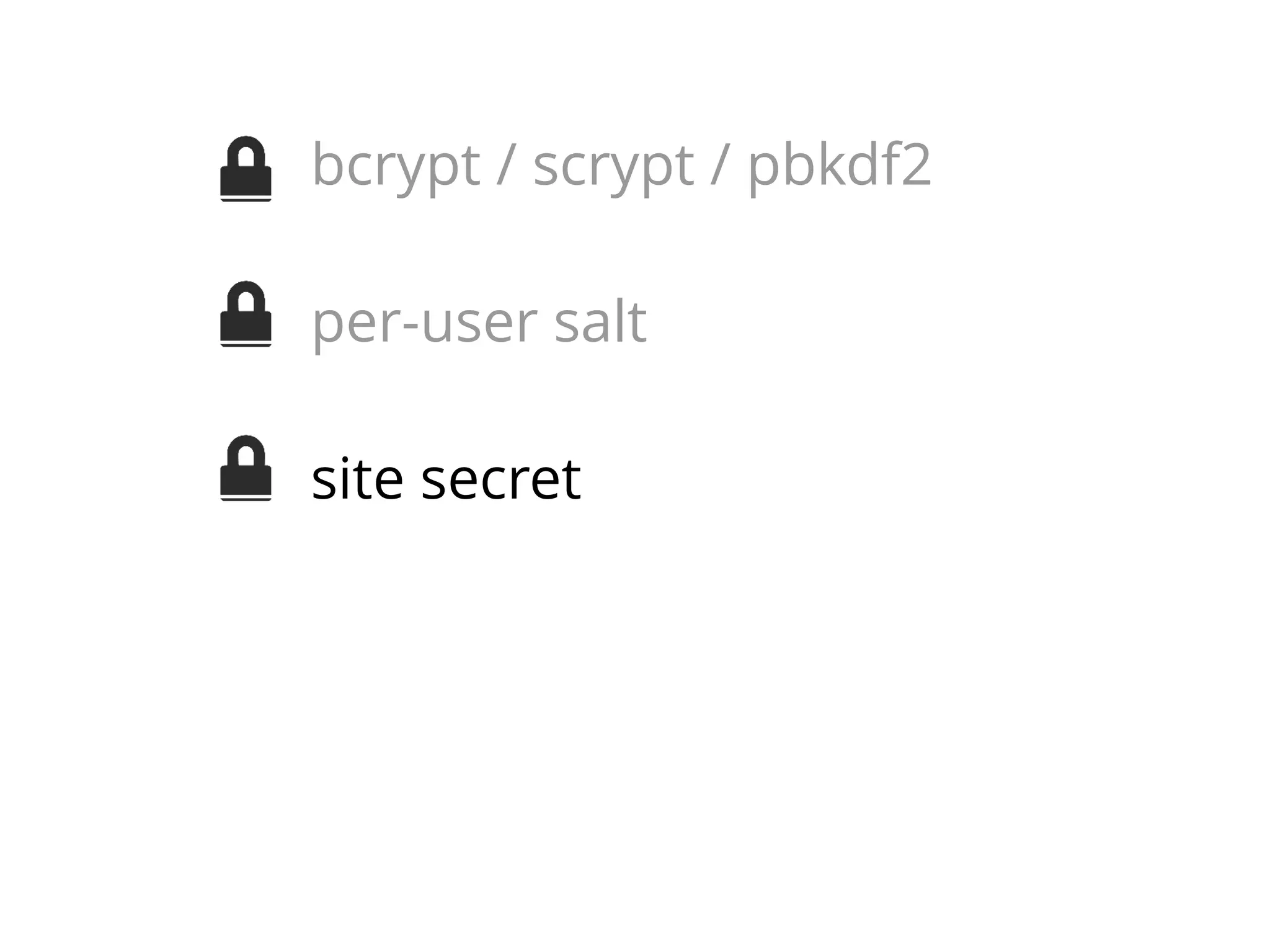

bcrypt / scrypt / pbkdf2
per-user salt
site secret
password & lockout policies
secure recovery
bcrypt / scrypt / pbkdf2
per-user salt
site secret
password & lockout policies
secure recovery
bcrypt / scrypt / pbkdf2
per-user salt
site secret
password & lockout policies
secure recovery
bcrypt / scrypt / pbkdf2
per-user salt
site secret
password & lockout policies
secure recovery
bcrypt / scrypt / pbkdf2
per-user salt
site secret
password & lockout policies
secure recovery
bcrypt / scrypt / pbkdf2

3
1
0
2

per-user salt

d
r
o
site secret
w
s
s
s
a & lockoutne
p
password
li policies
e
id
u
secure recovery
g

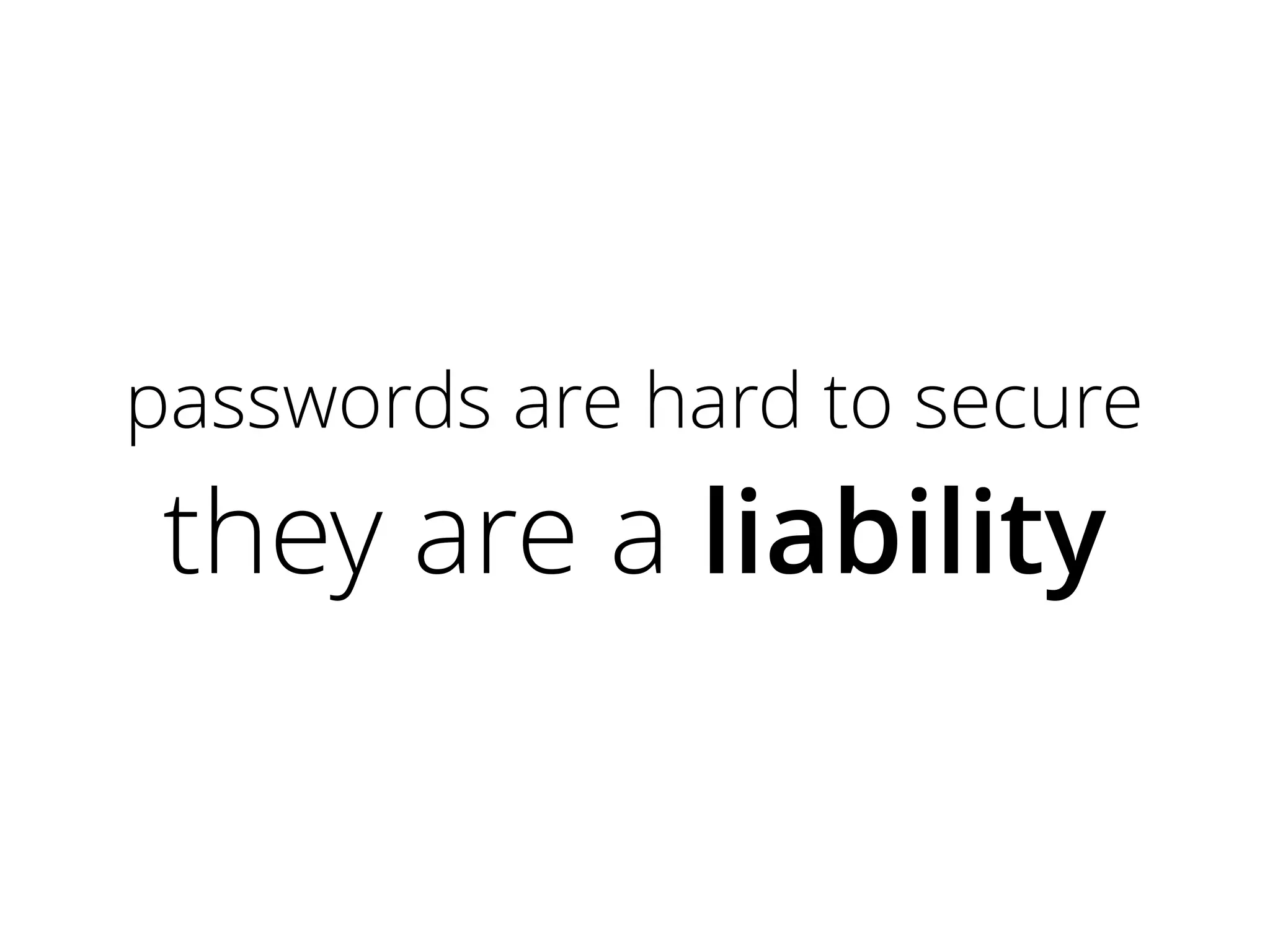

passwords are hard to secure

they are a liability

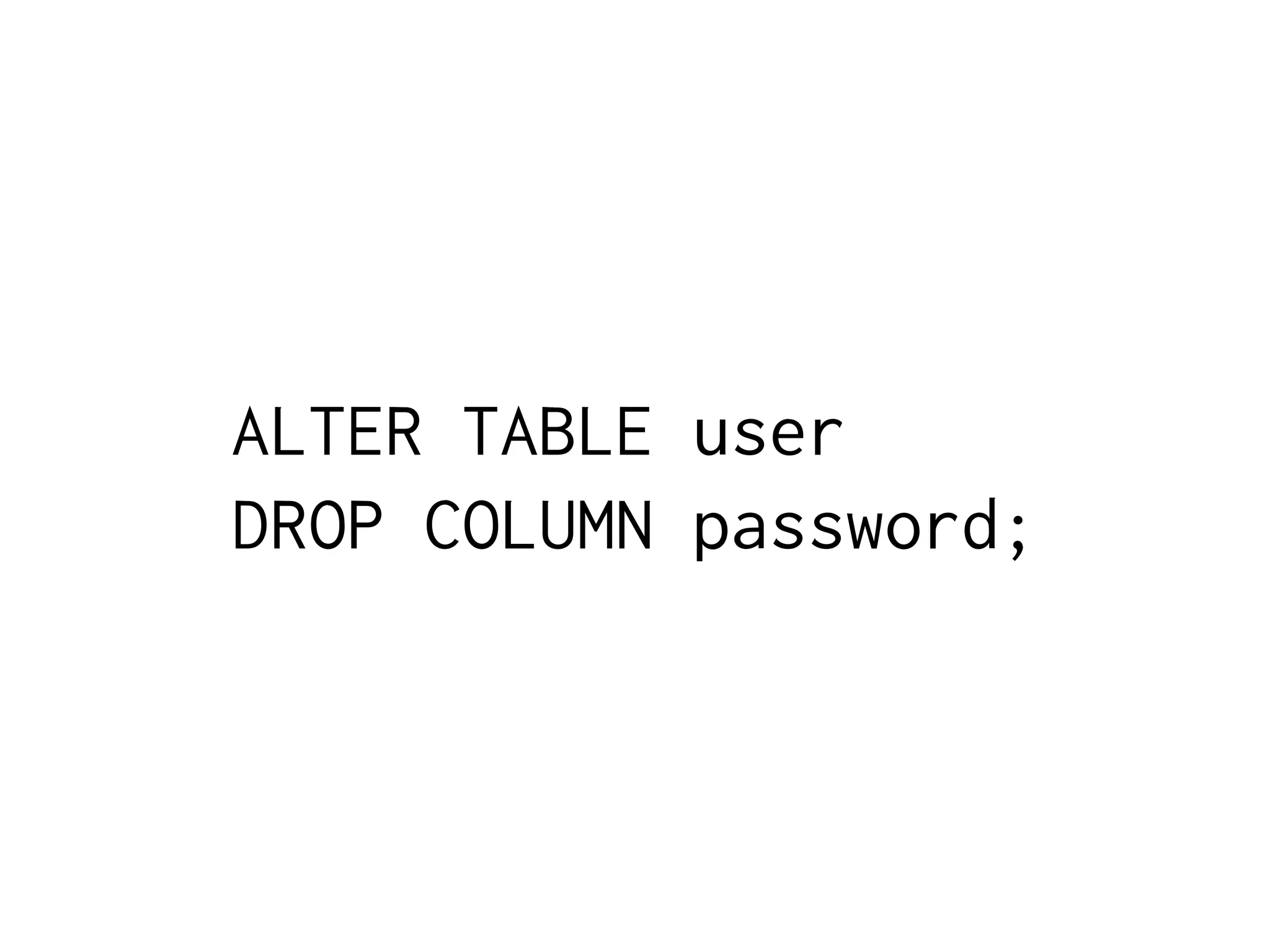

ALTER TABLE user
DROP COLUMN password;

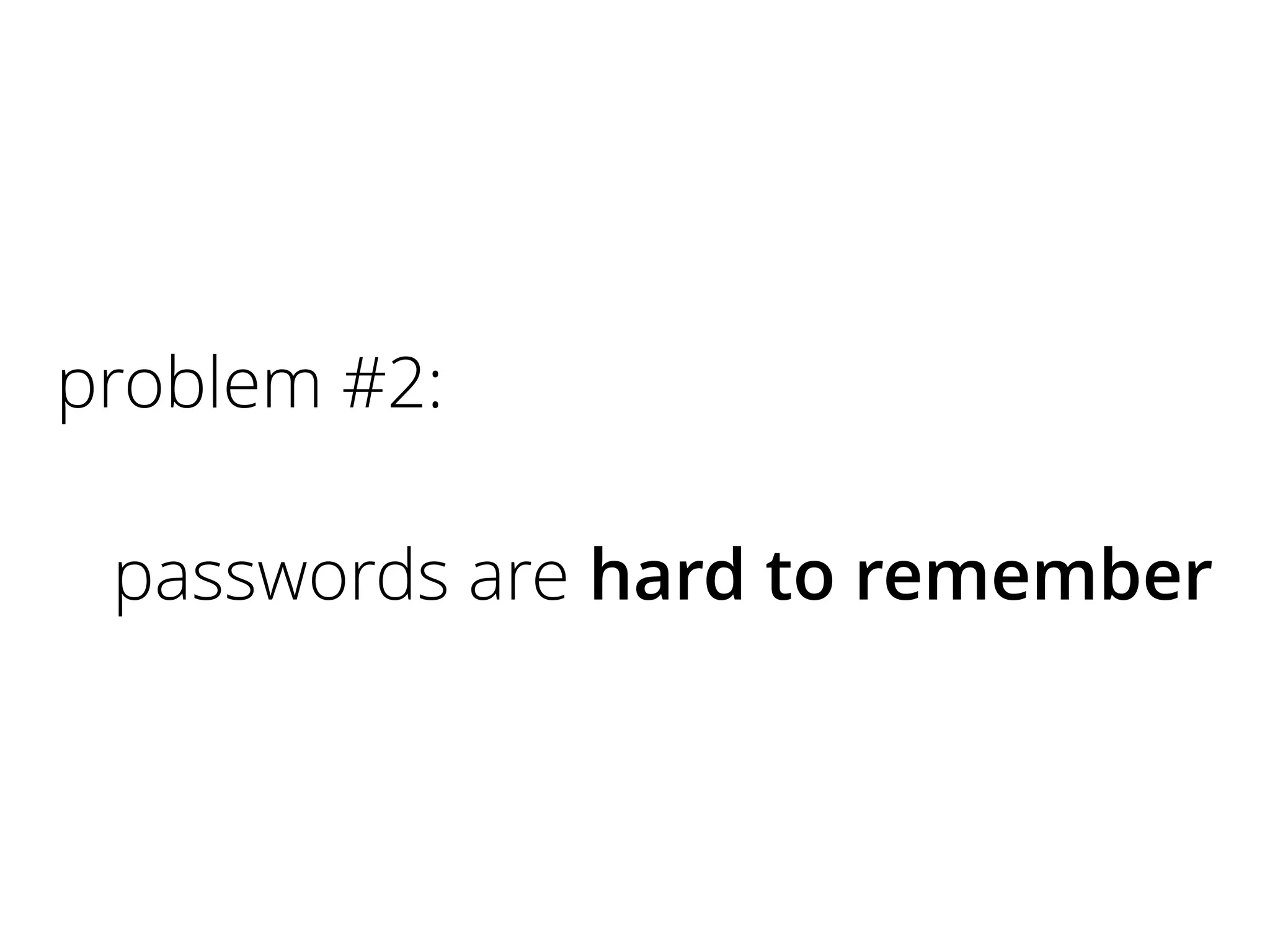

problem #2:
passwords are hard to remember

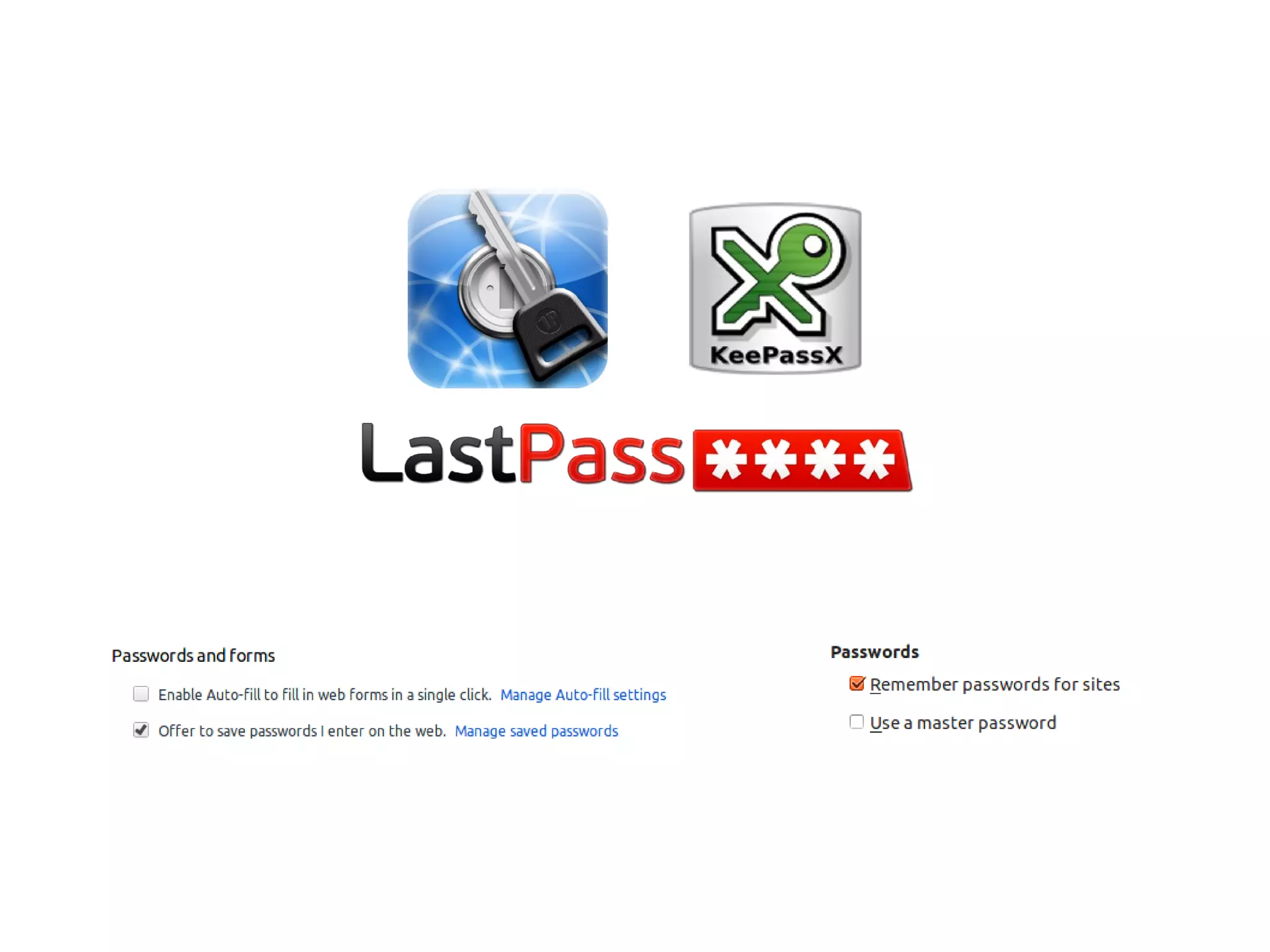

pick an easy password
pick an easy password

use it everywhere

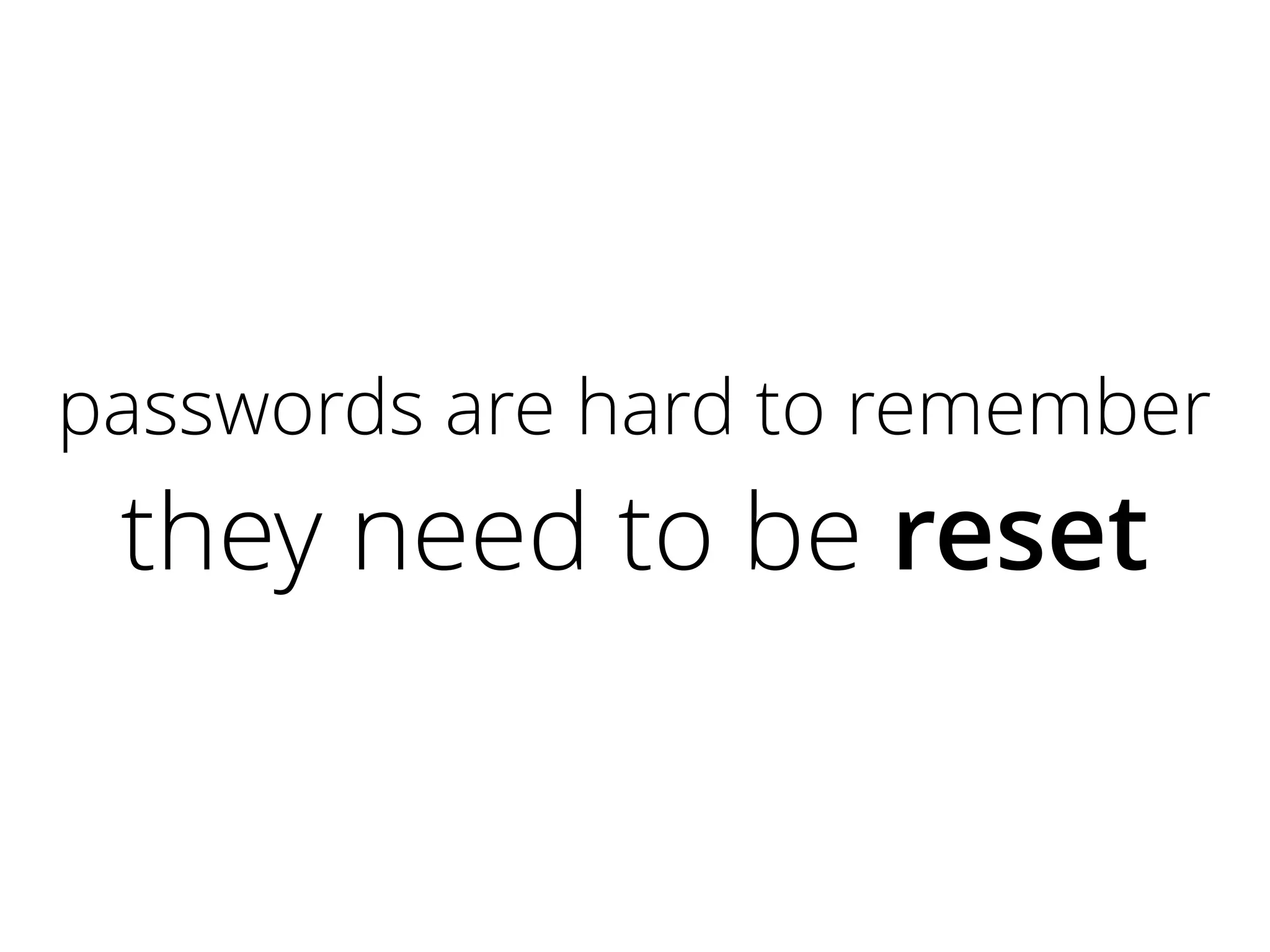

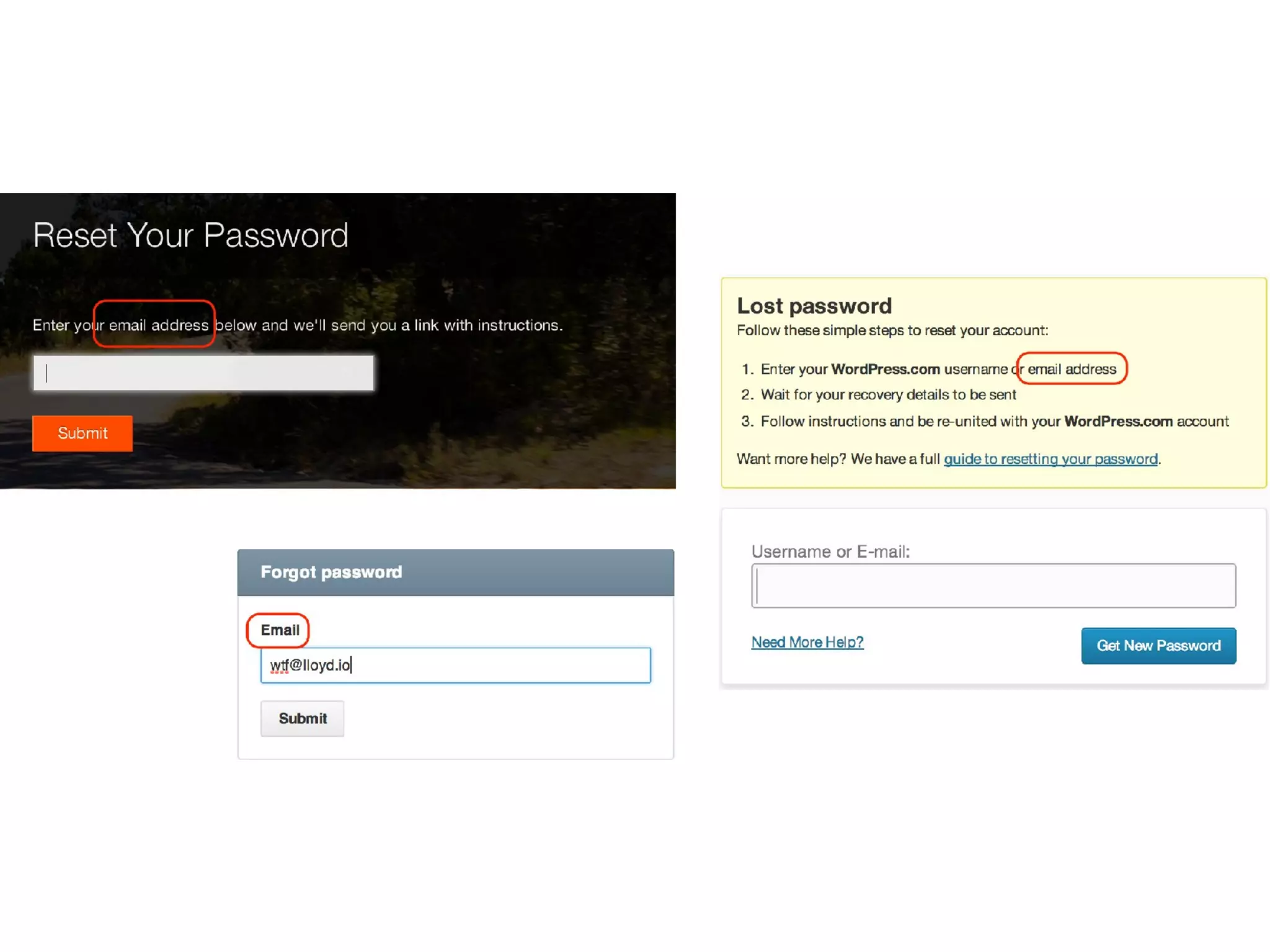

passwords are hard to remember

they need to be reset
control
email
account

=

control
all
accounts
“People want
a little dating
before marriage.”
Eric Vishria – Rockmelt
decentralised
myid.com/u/francois
privacy®

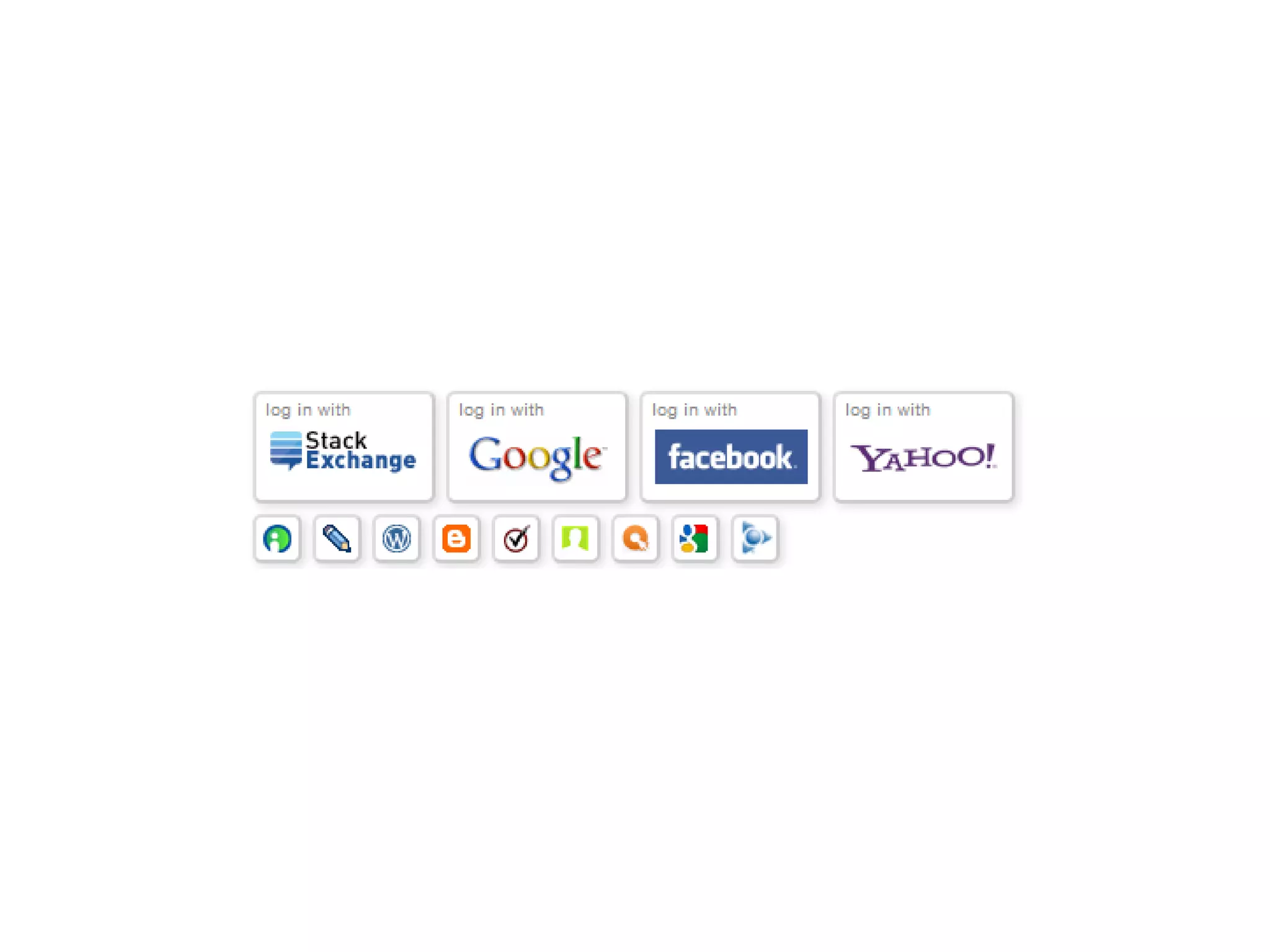

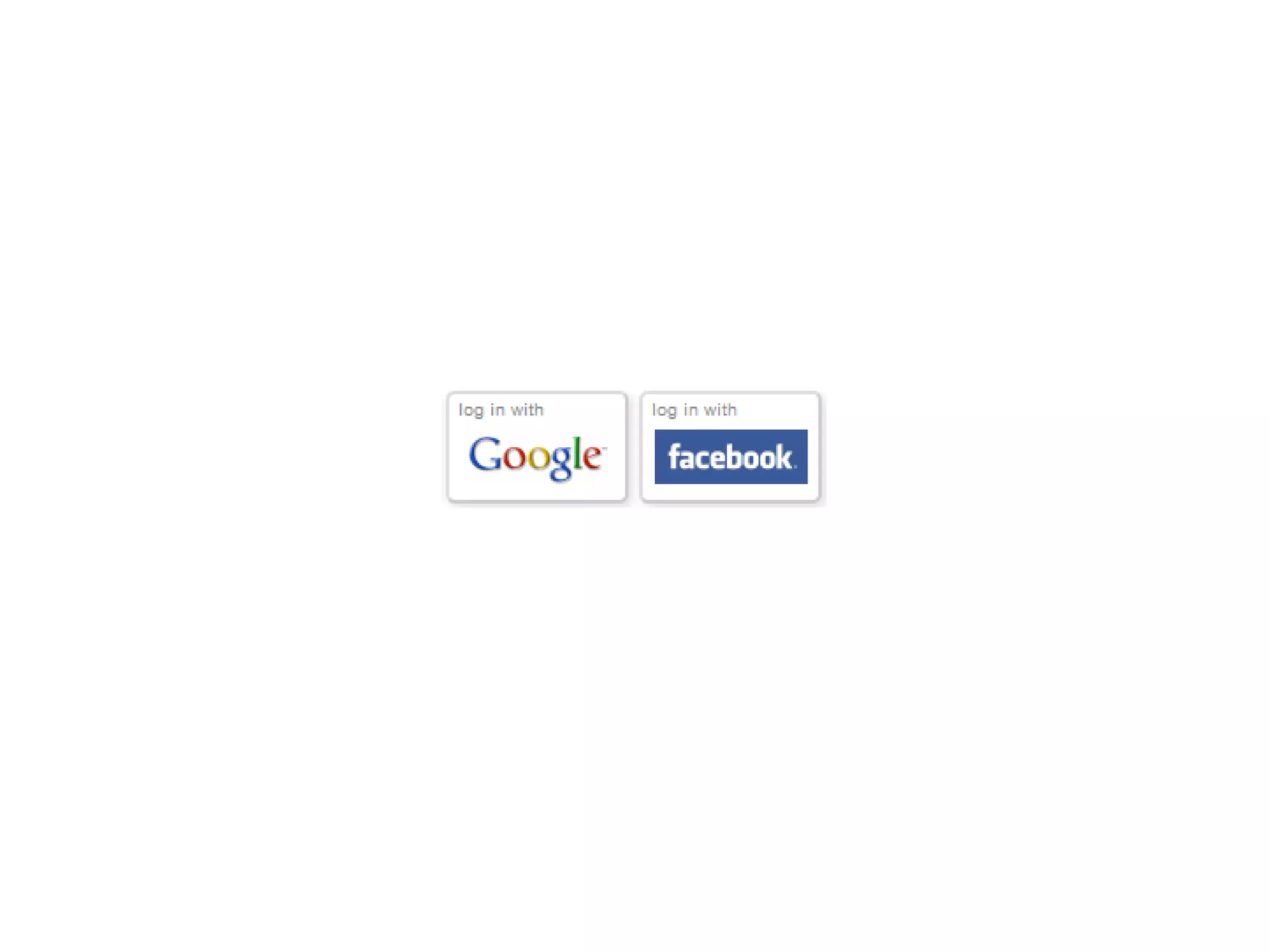

existing login systems
are not good enough

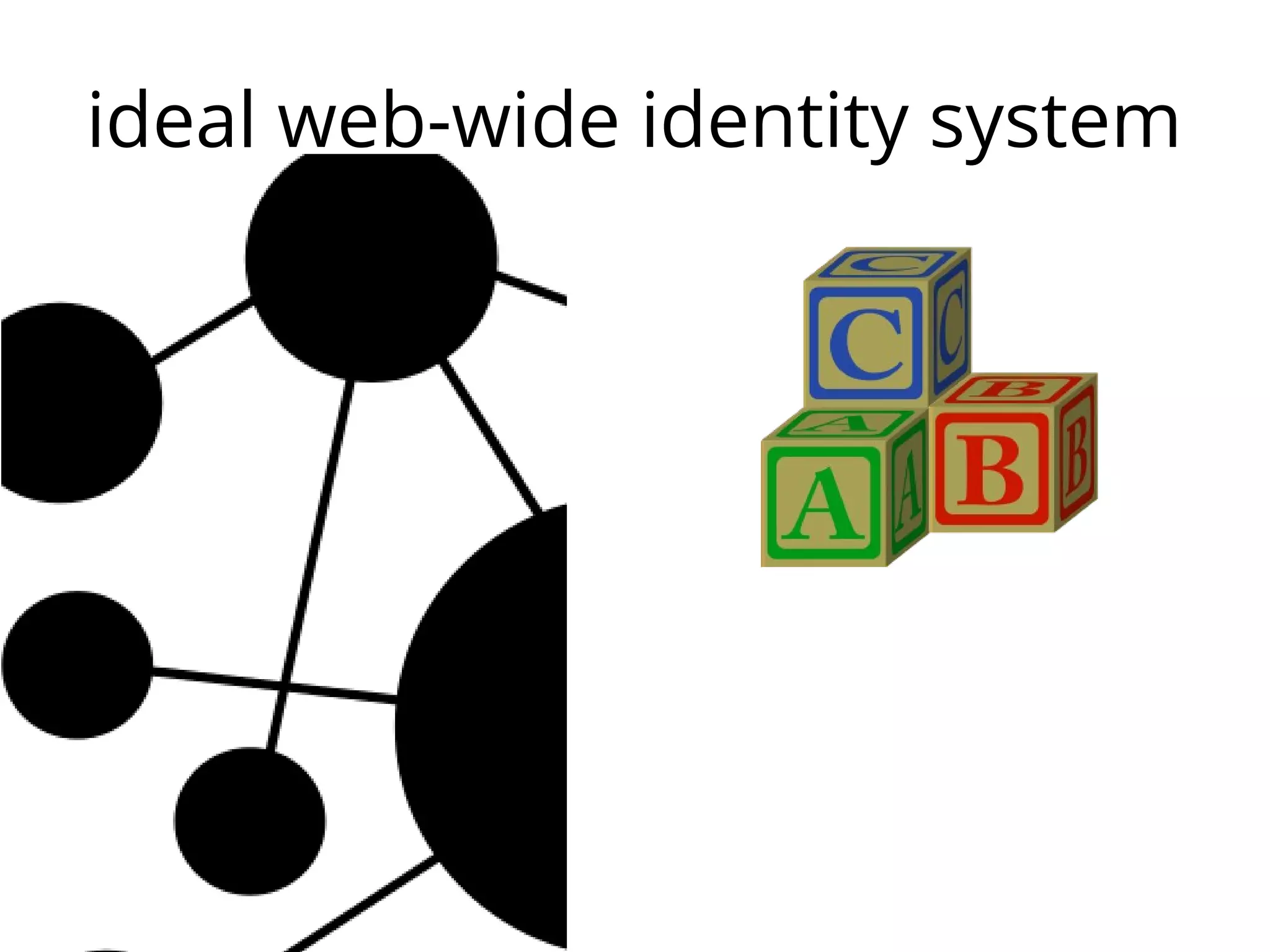

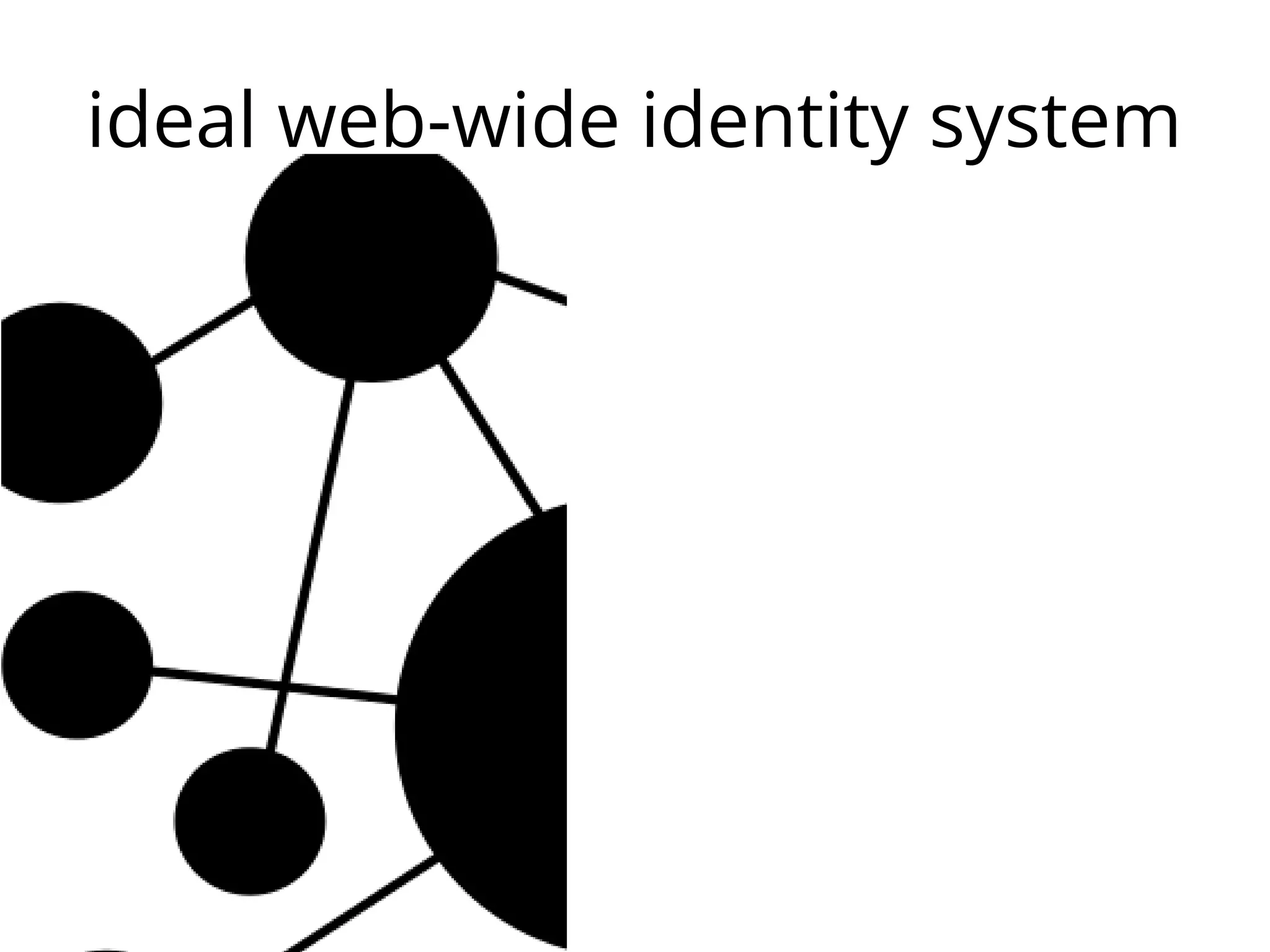

ideal web-wide identity system
ideal web-wide identity system
ideal web-wide identity system
ideal web-wide identity system
what if it were a standard
part of the web browser?
how does it work?
fmarier@gmail.com

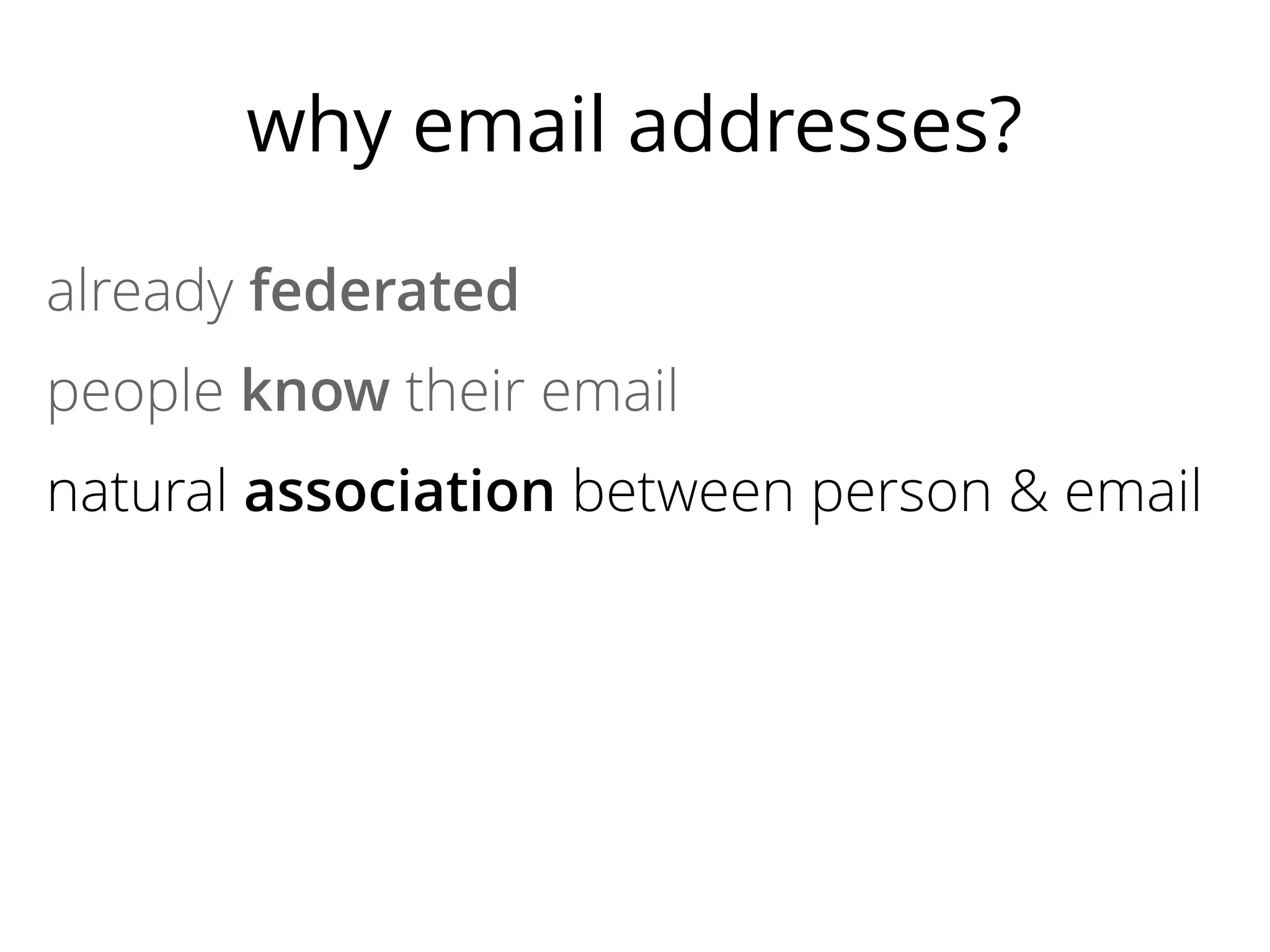

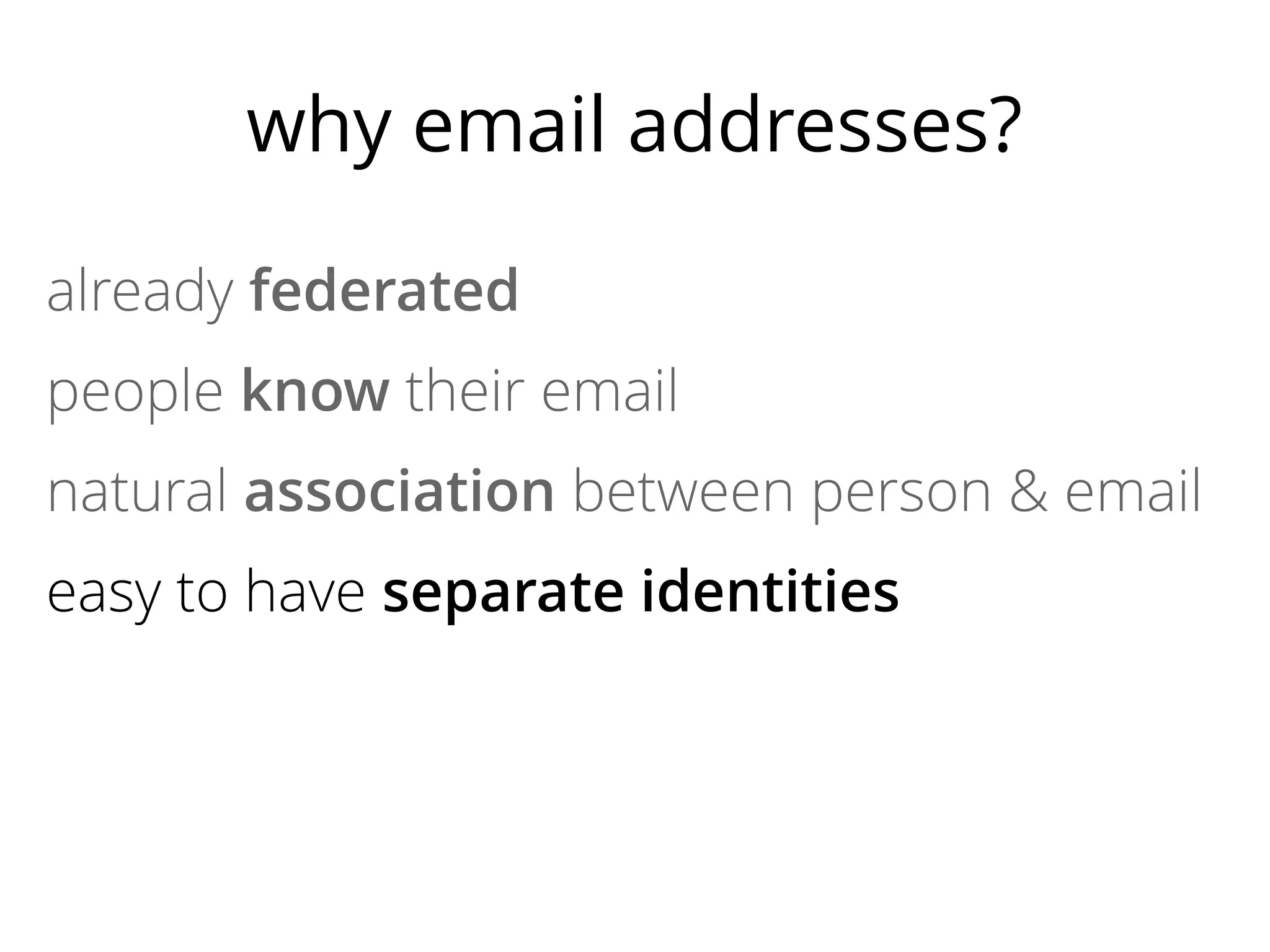

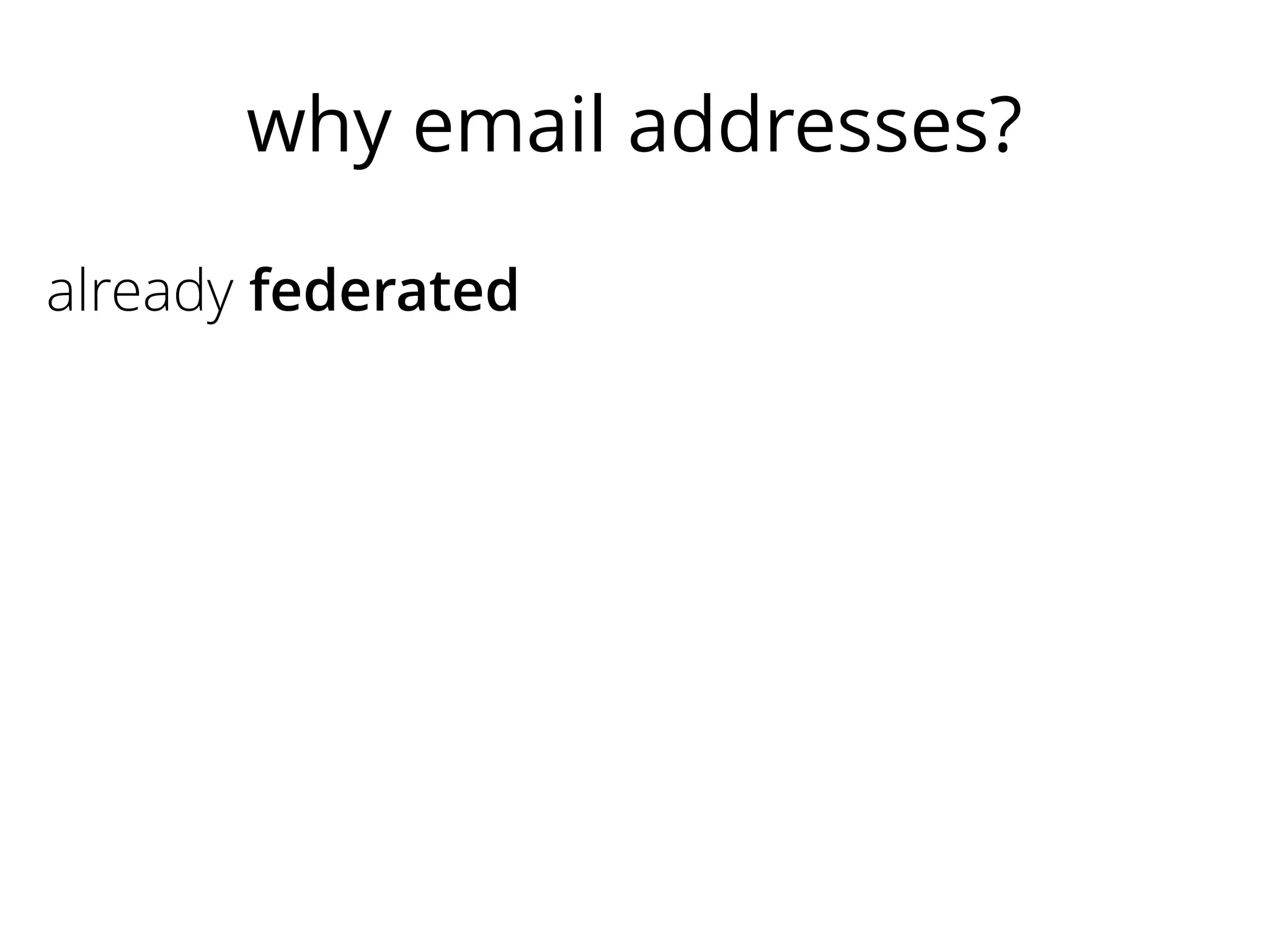

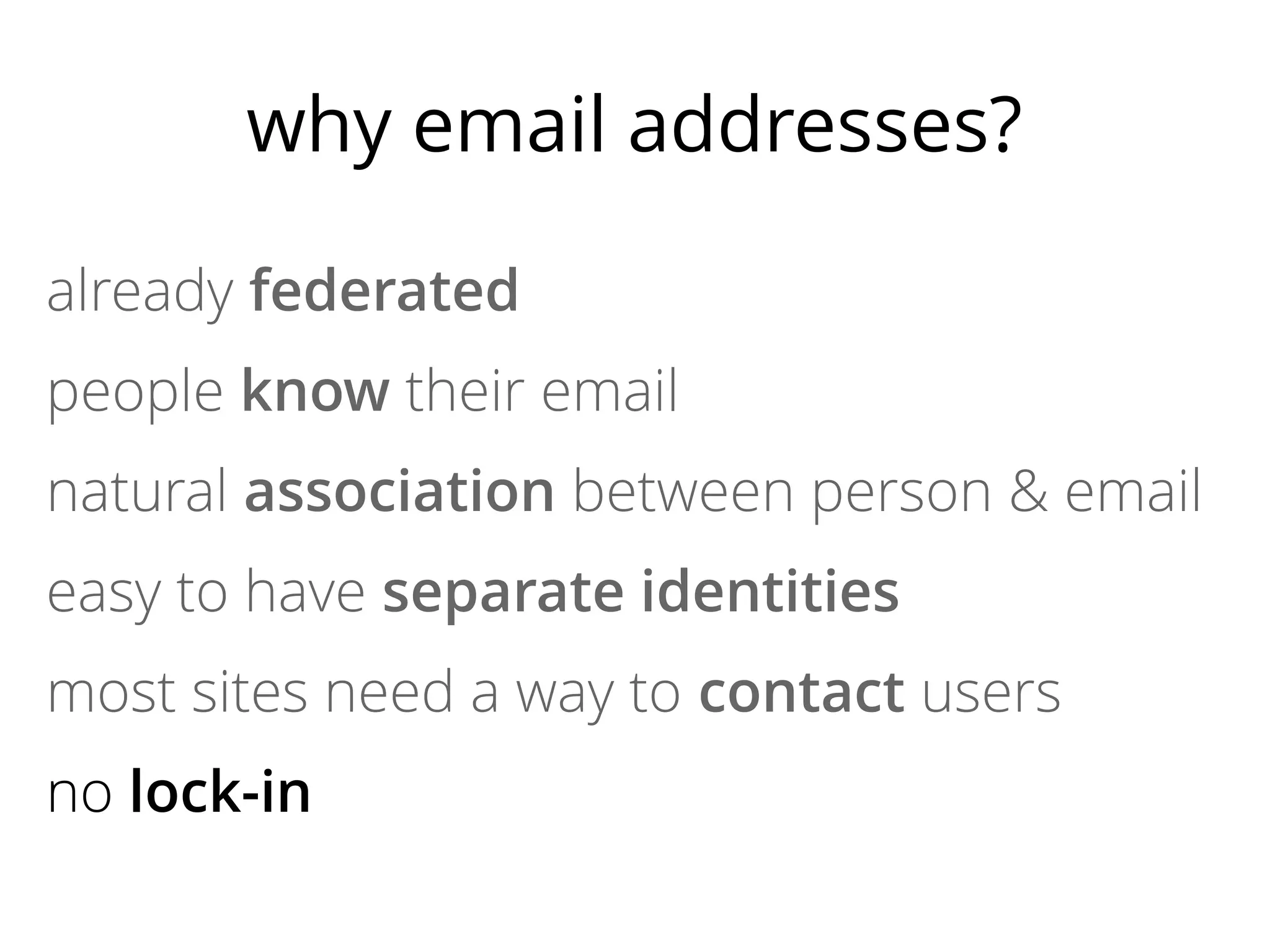

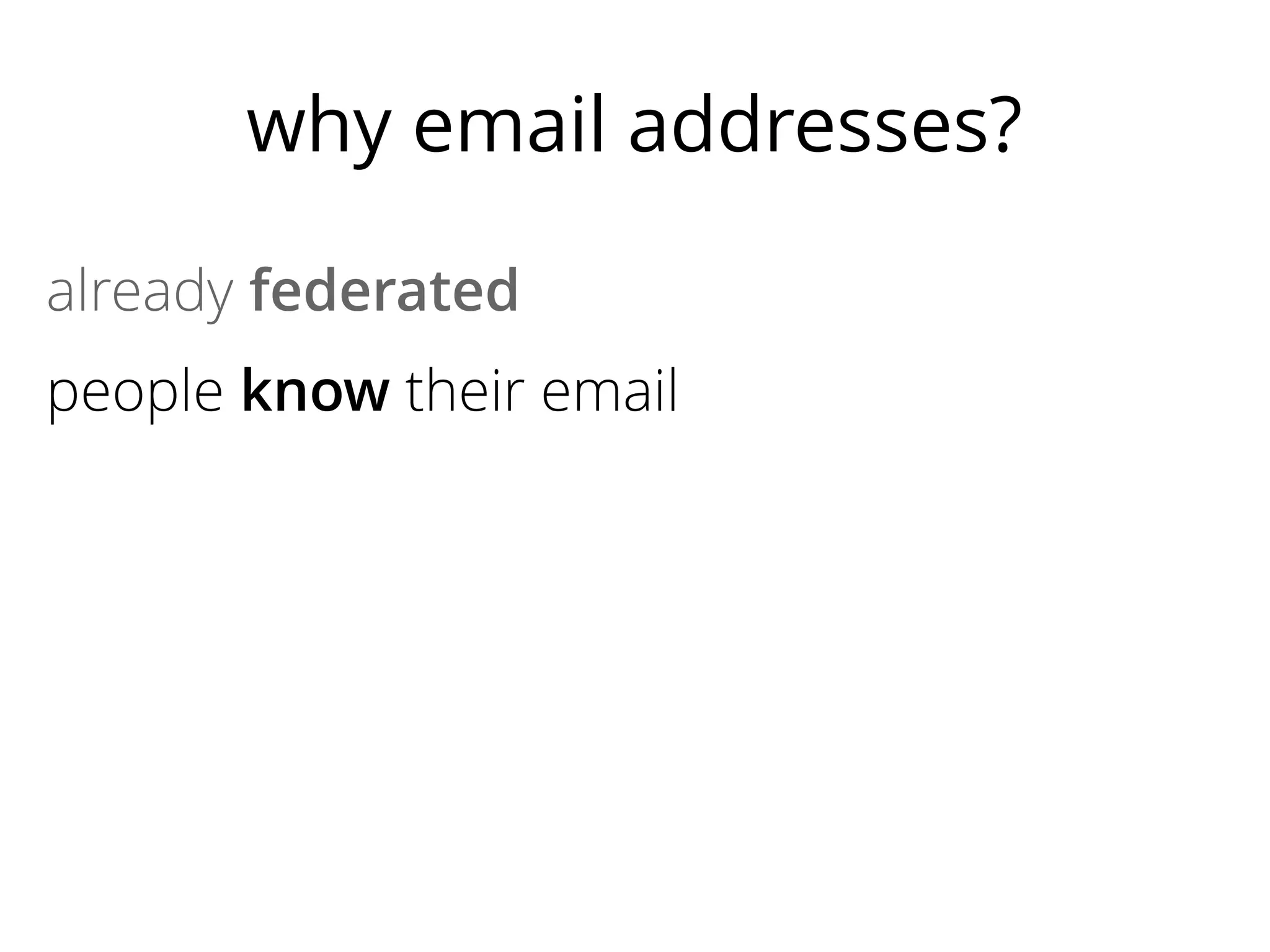

why email addresses?
why email addresses?
already federated
people know their email
natural association between person & email
easy to have separate identities
most sites need a way to contact users
no lock-in
why email addresses?
already federated
people know their email
natural association between person & email
easy to have separate identities
most sites need a way to contact users
no lock-in
why email addresses?
already federated
people know their email
natural association between person & email
easy to have separate identities
most sites need a way to contact users
no lock-in
why email addresses?
already federated
people know their email
natural association between person & email
easy to have separate identities
most sites need a way to contact users
no lock-in
why email addresses?
already federated
people know their email
natural association between person & email
easy to have separate identities
most sites need a way to contact users
no lock-in

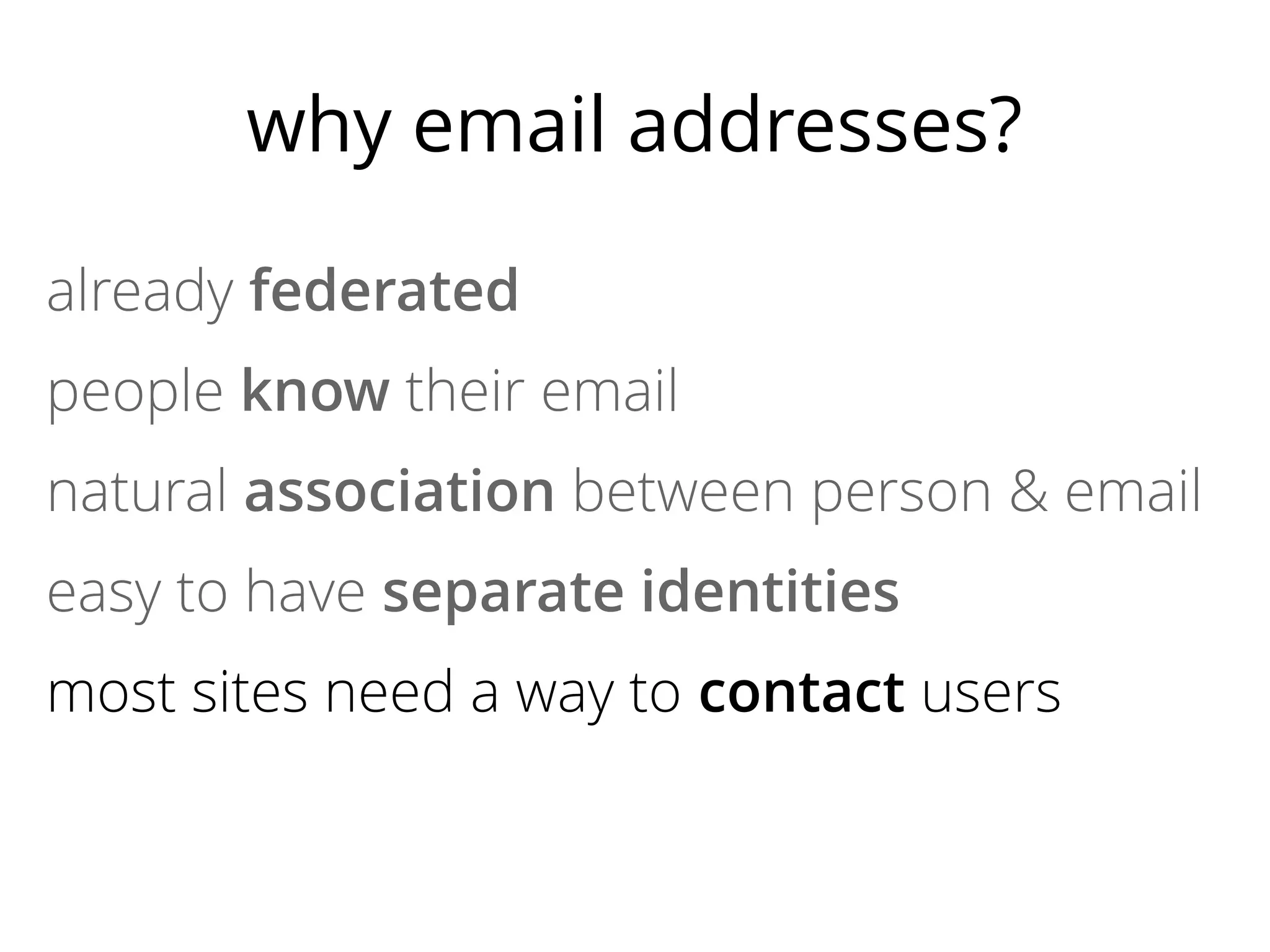

why email addresses?
already federated
people know their email
natural association between person & email
easy to have separate identities
most sites need a way to contact users
no lock-in
fmarier@gmail.com

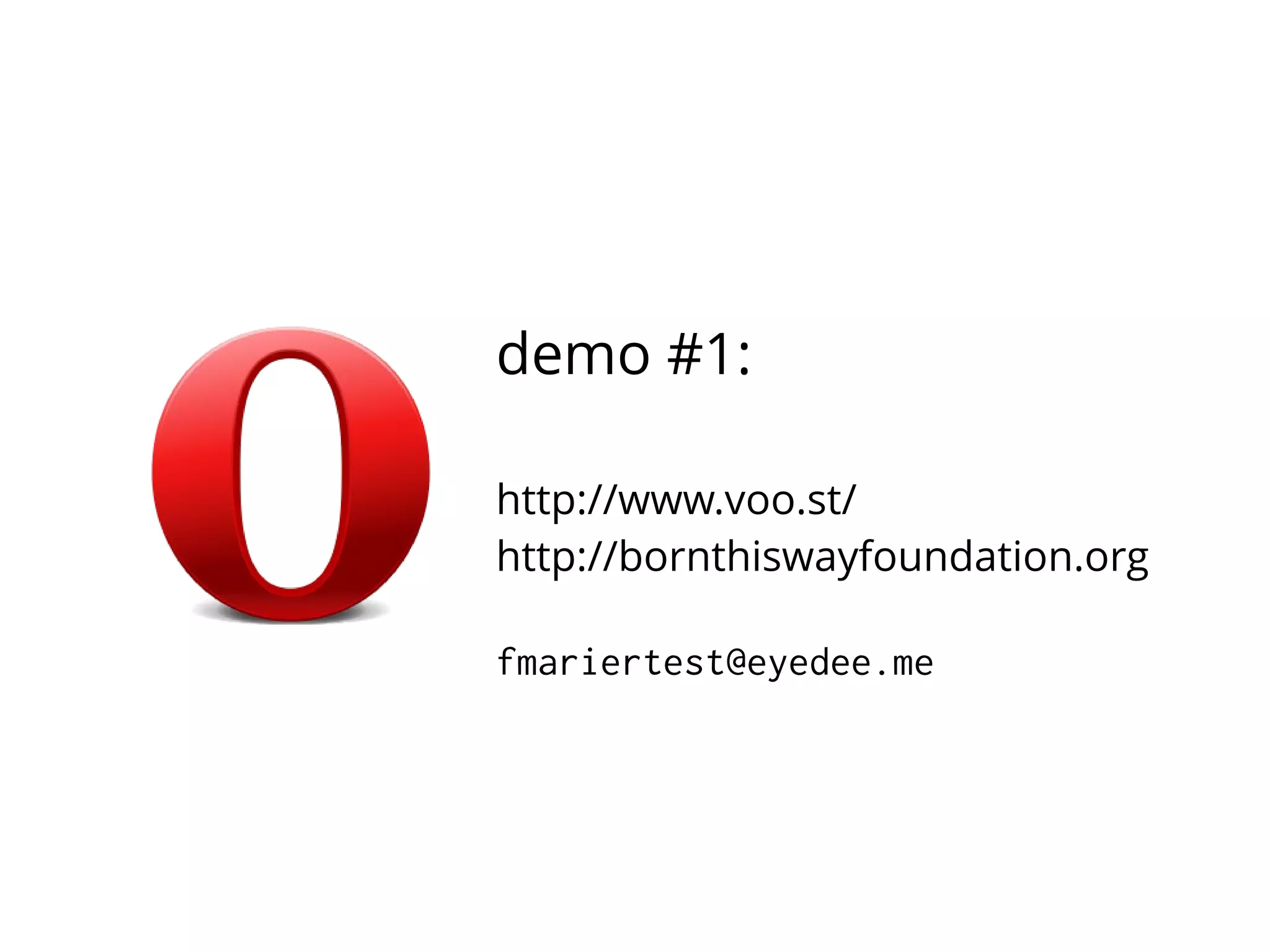

demo #1:
http://www.voo.st/
http://bornthiswayfoundation.org
fmariertest@eyedee.me

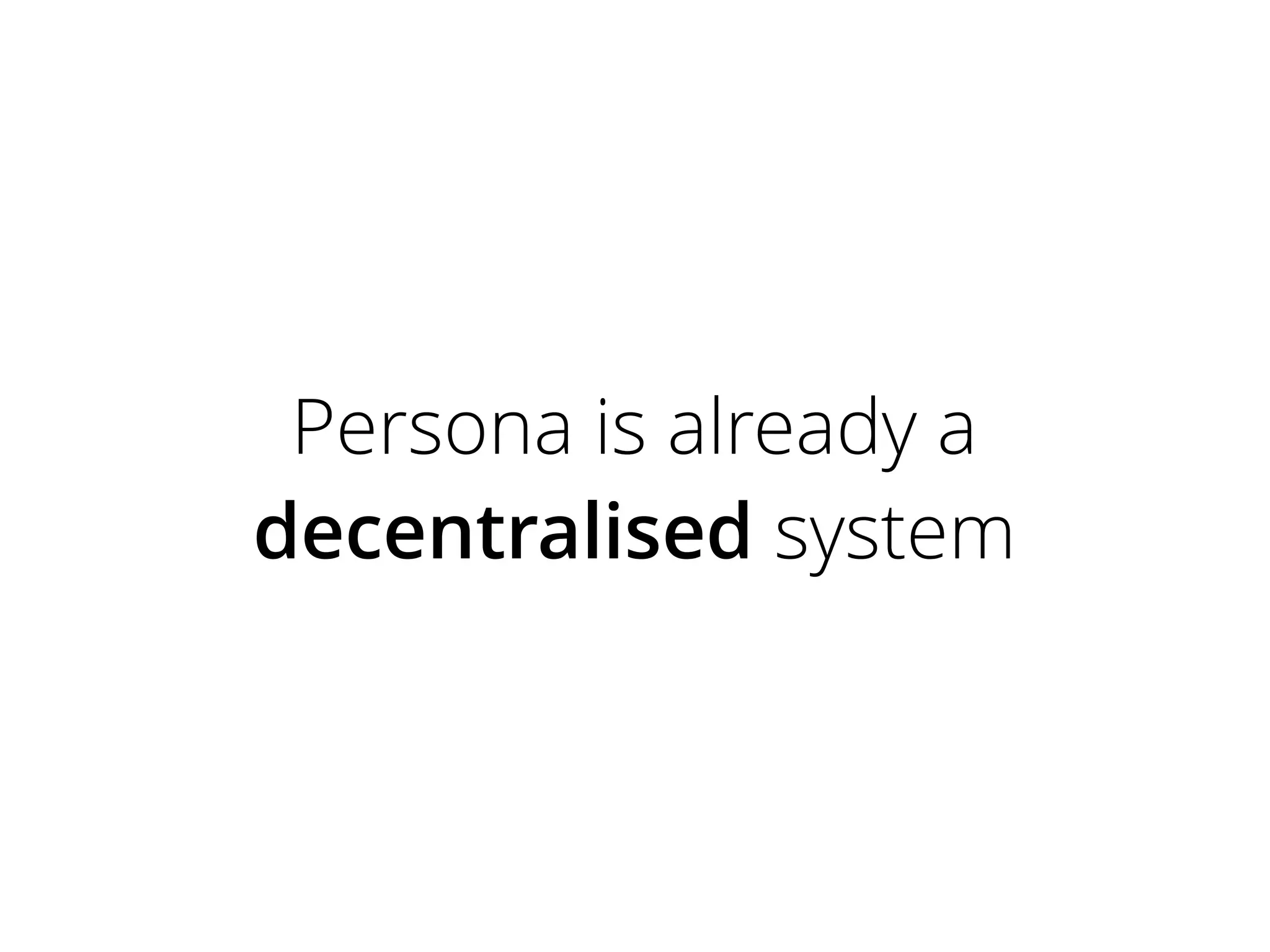

Persona is already a
decentralised system

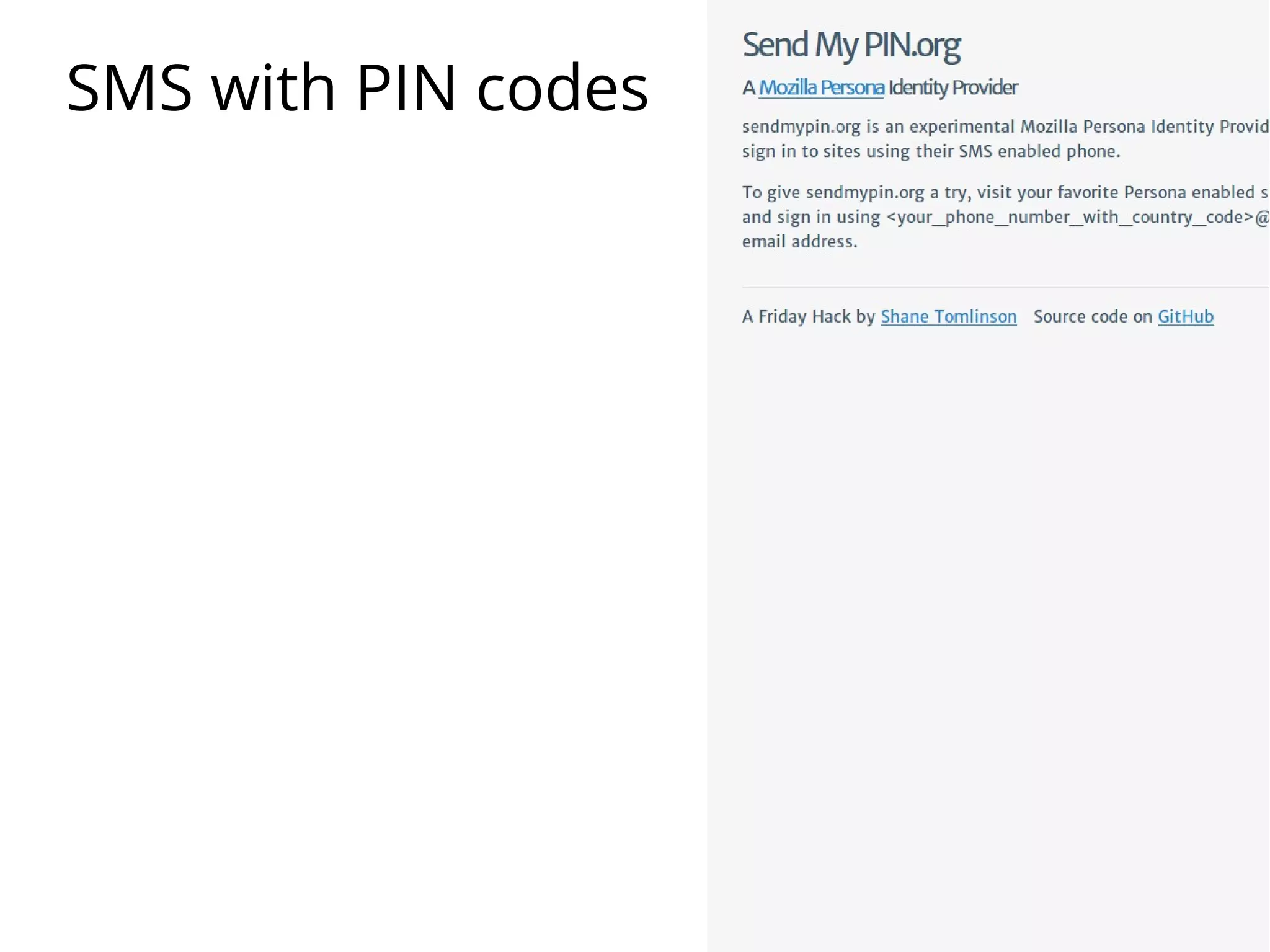

SMS with PIN codes
SMS with PIN codes
Jabber / XMPP
SMS with PIN codes
Jabber / XMPP

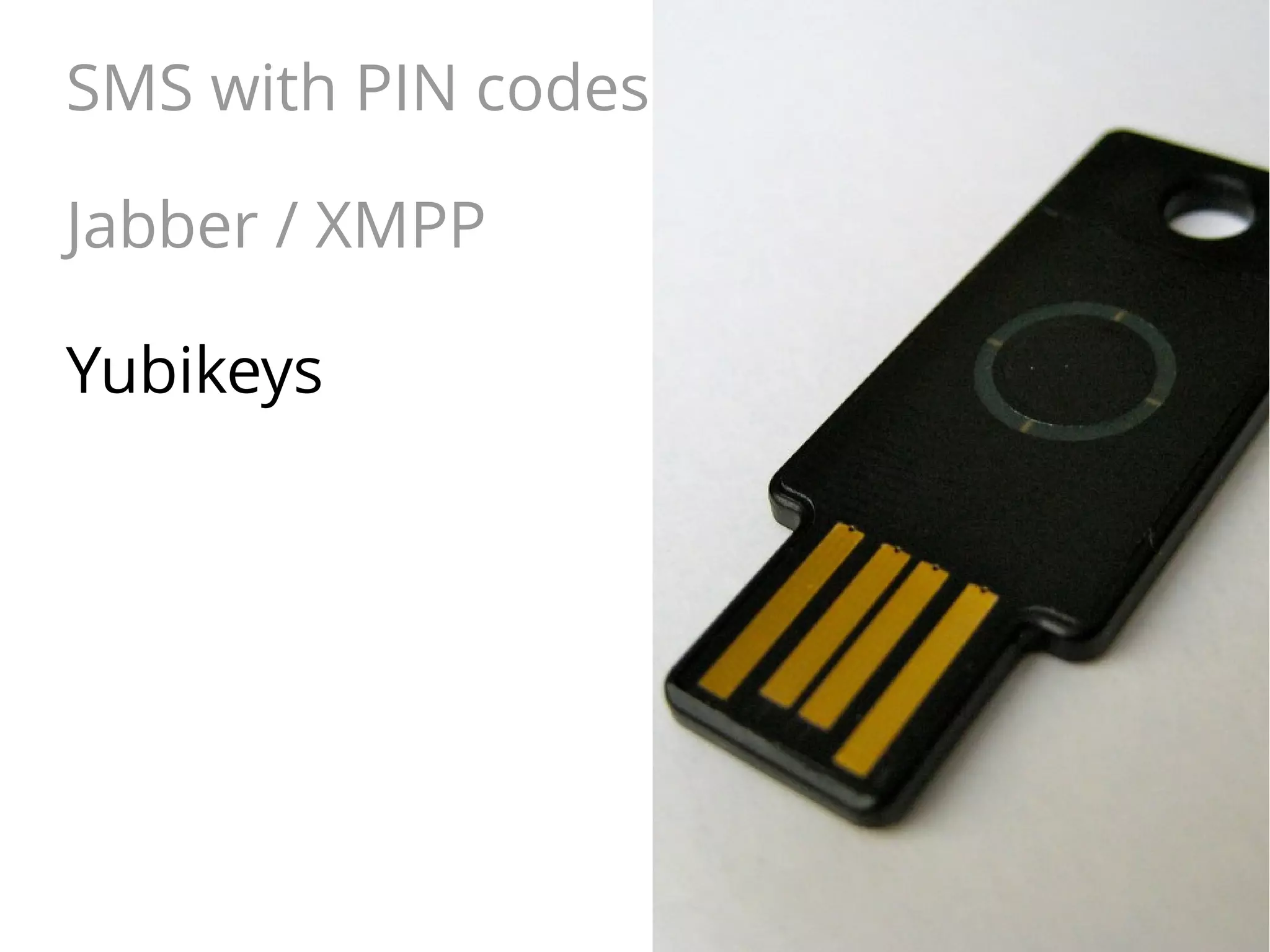

Yubikeys
SMS with PIN codes
Jabber / XMPP
Yubikeys

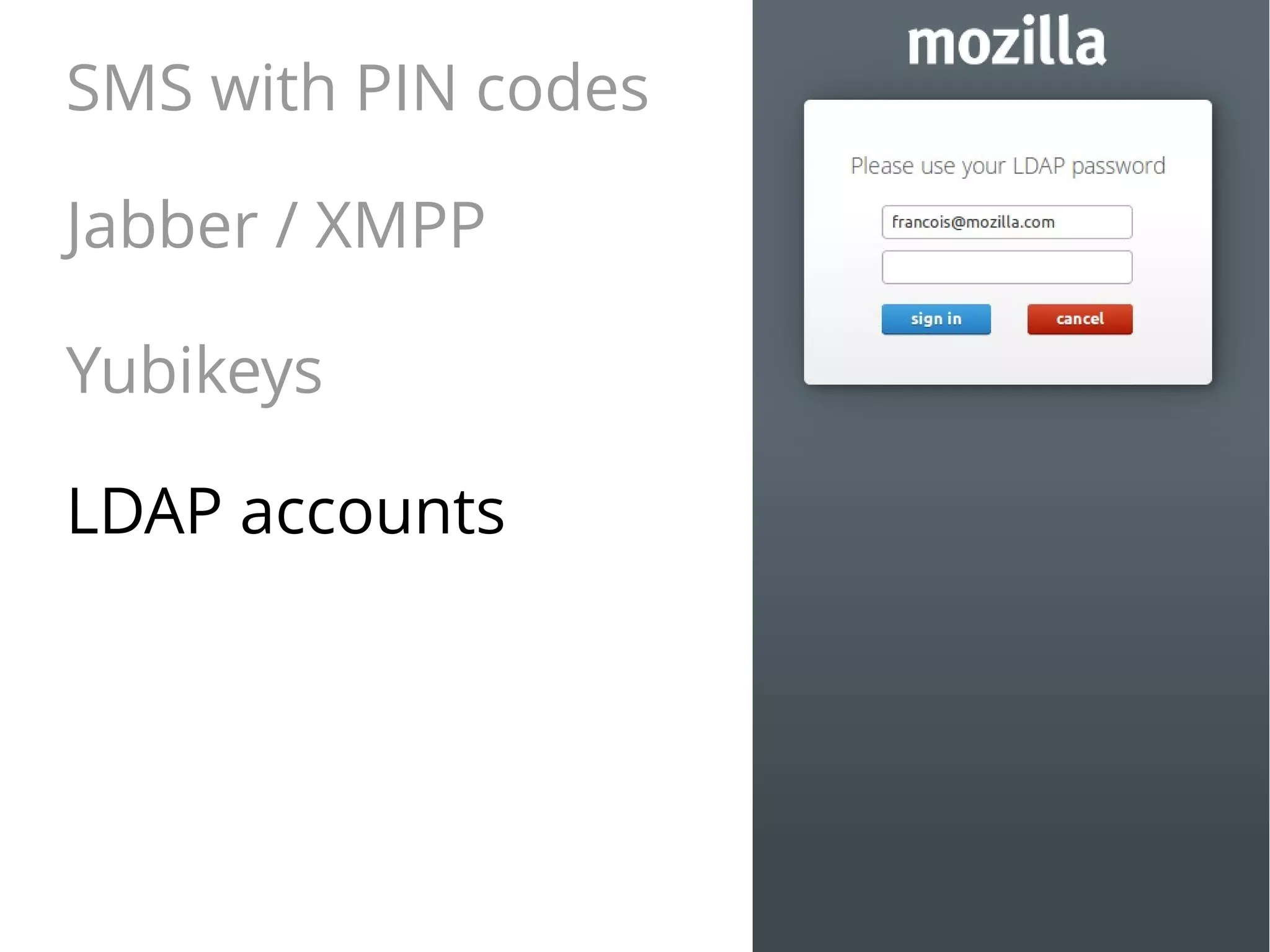

LDAP accounts
SMS with PIN codes
Jabber / XMPP
Yubikeys
LDAP accounts
Client certificates

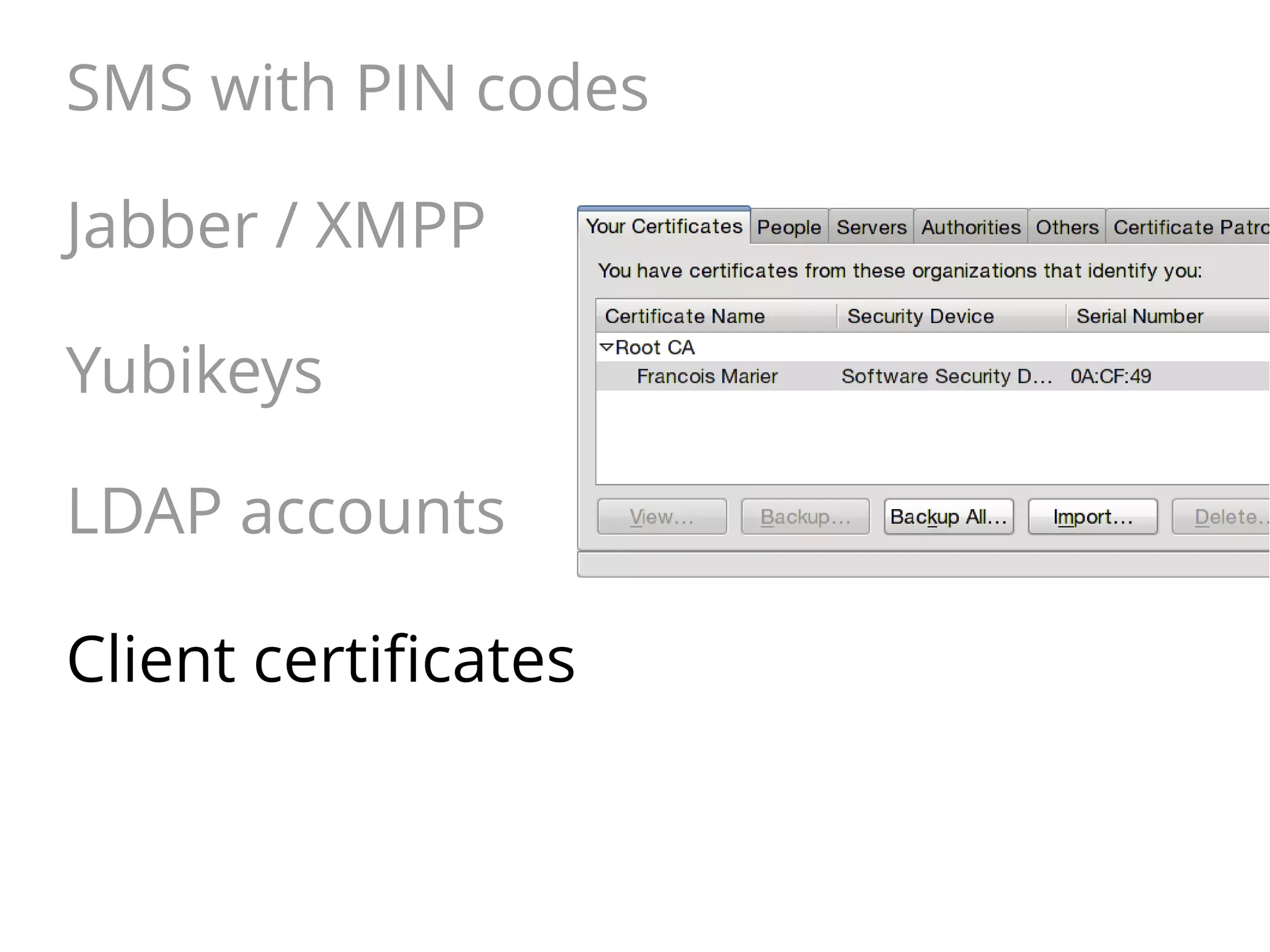

SMS with PIN codes

{

Jabber / XMPP
Yubikeys
LDAP accounts
Client certificates

}

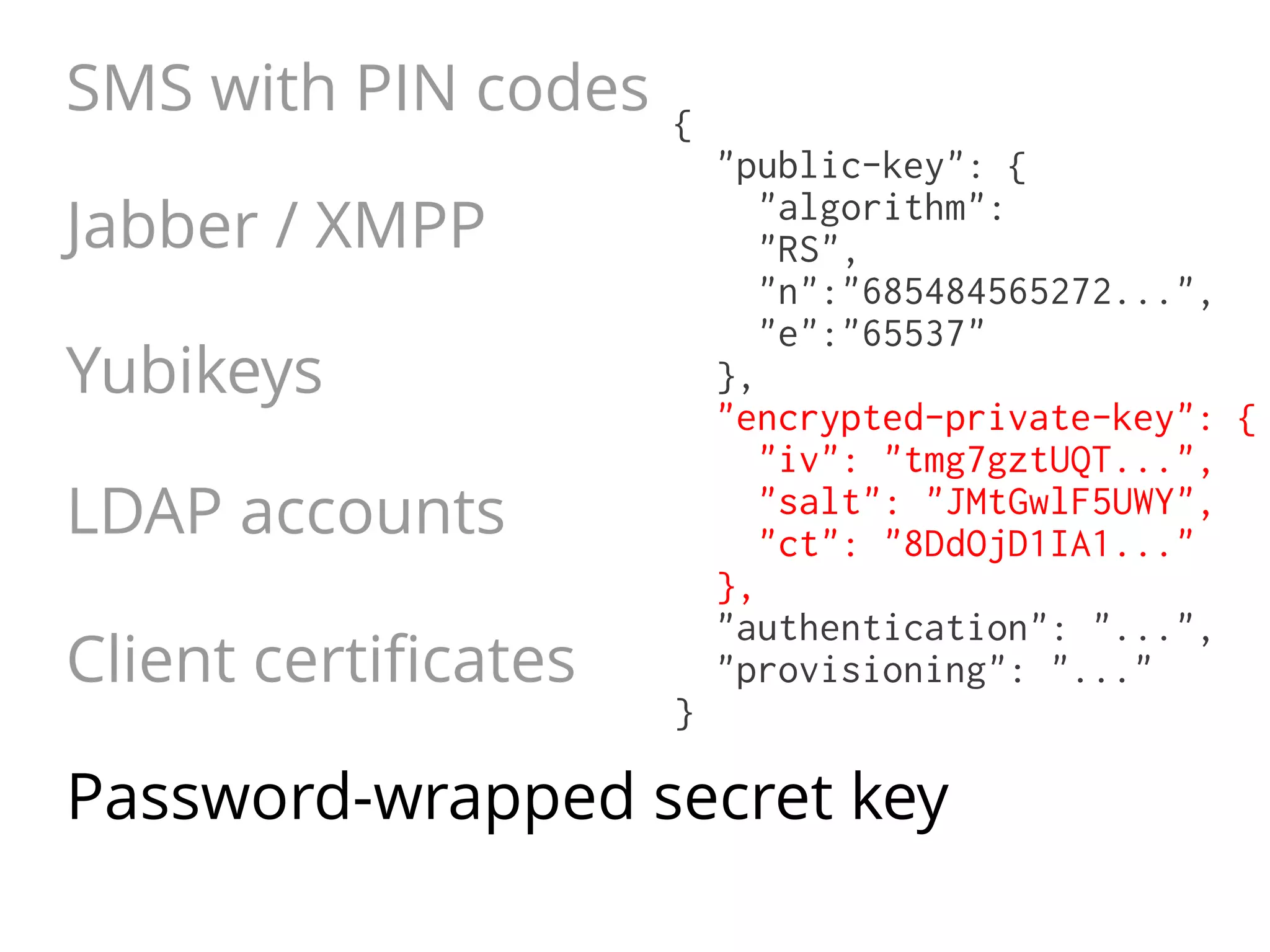

"public-key": {
"algorithm":
"RS",
"n":"685484565272...",
"e":"65537"
},
"encrypted-private-key": {
"iv": "tmg7gztUQT...",
"salt": "JMtGwlF5UWY",
"ct": "8DdOjD1IA1..."
},
"authentication": "...",
"provisioning": "..."

Password-wrapped secret key
decentralisation is the answer, but it's not

a product adoption strategy

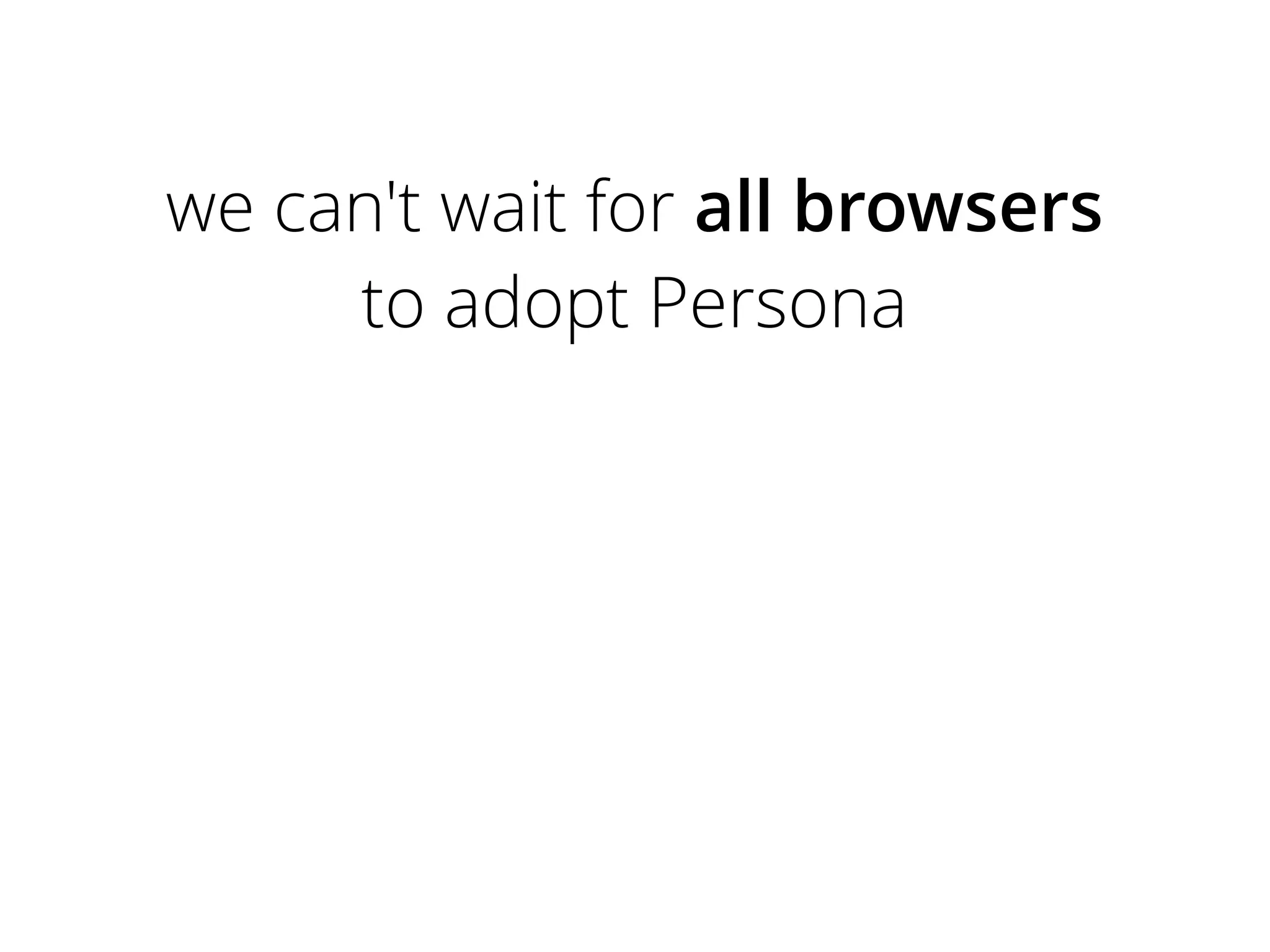

we can't wait for all browsers
to adopt Persona

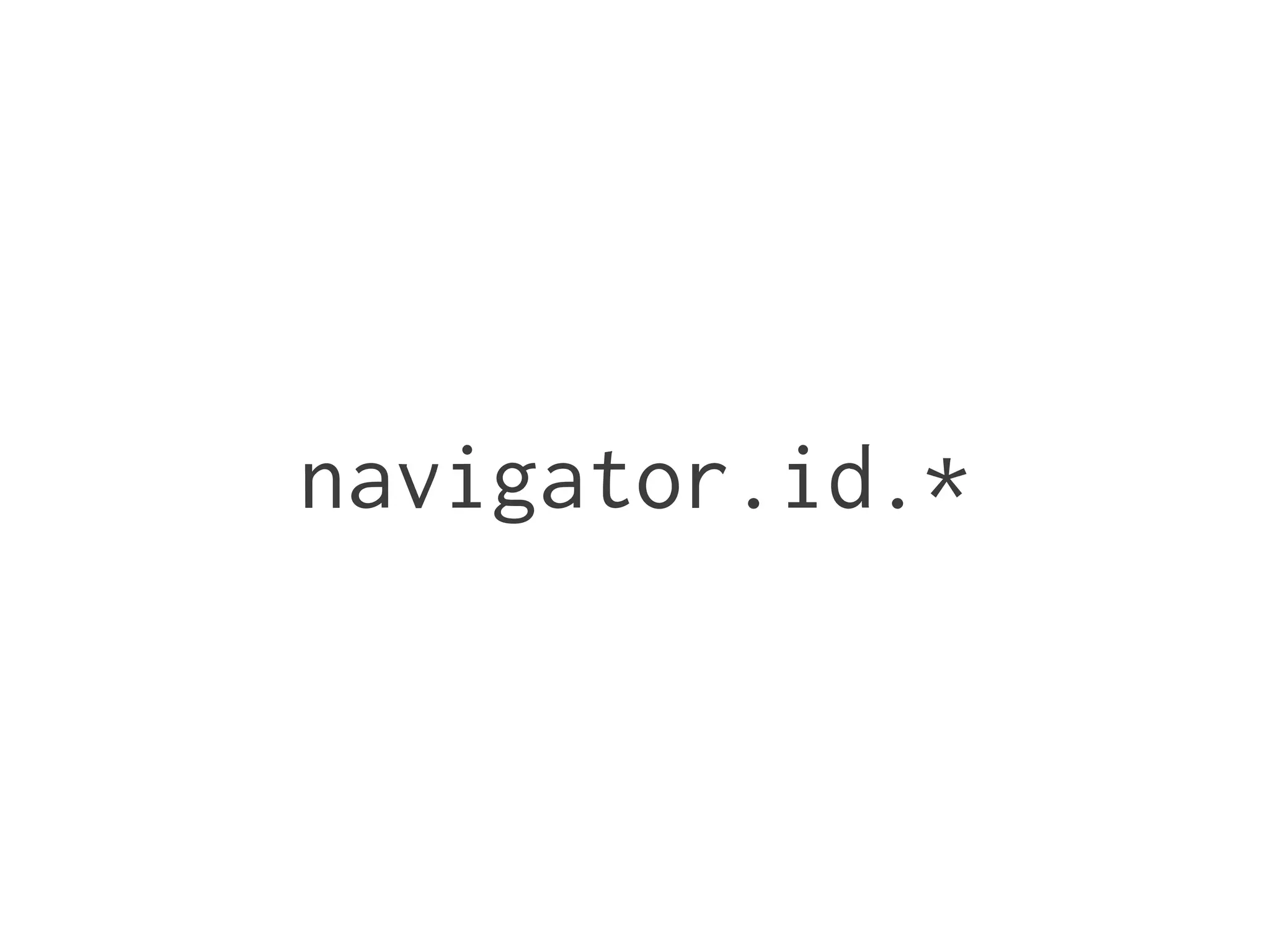

navigator.id.*

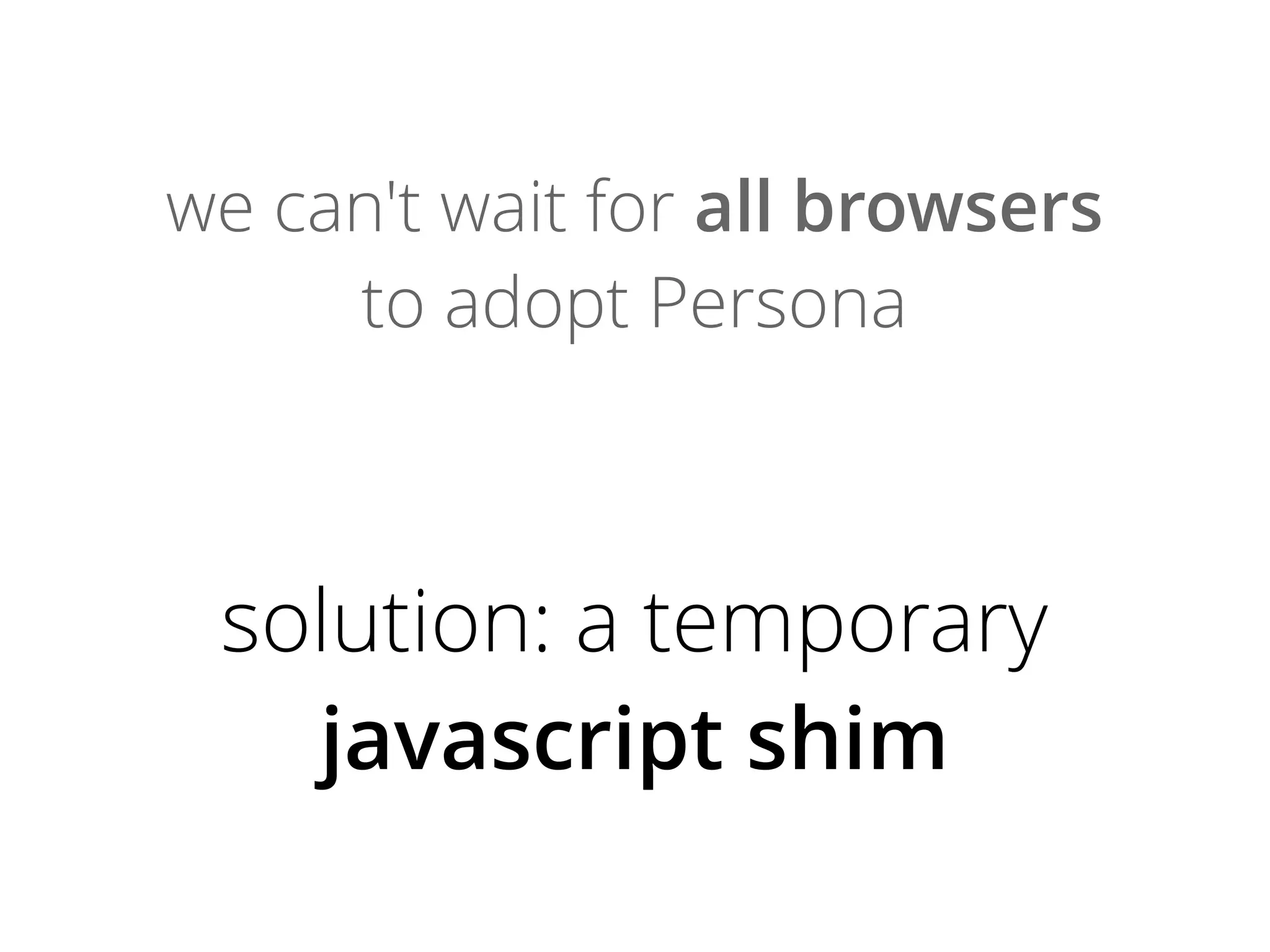

we can't wait for all browsers
to adopt Persona

solution: a temporary
javascript shim

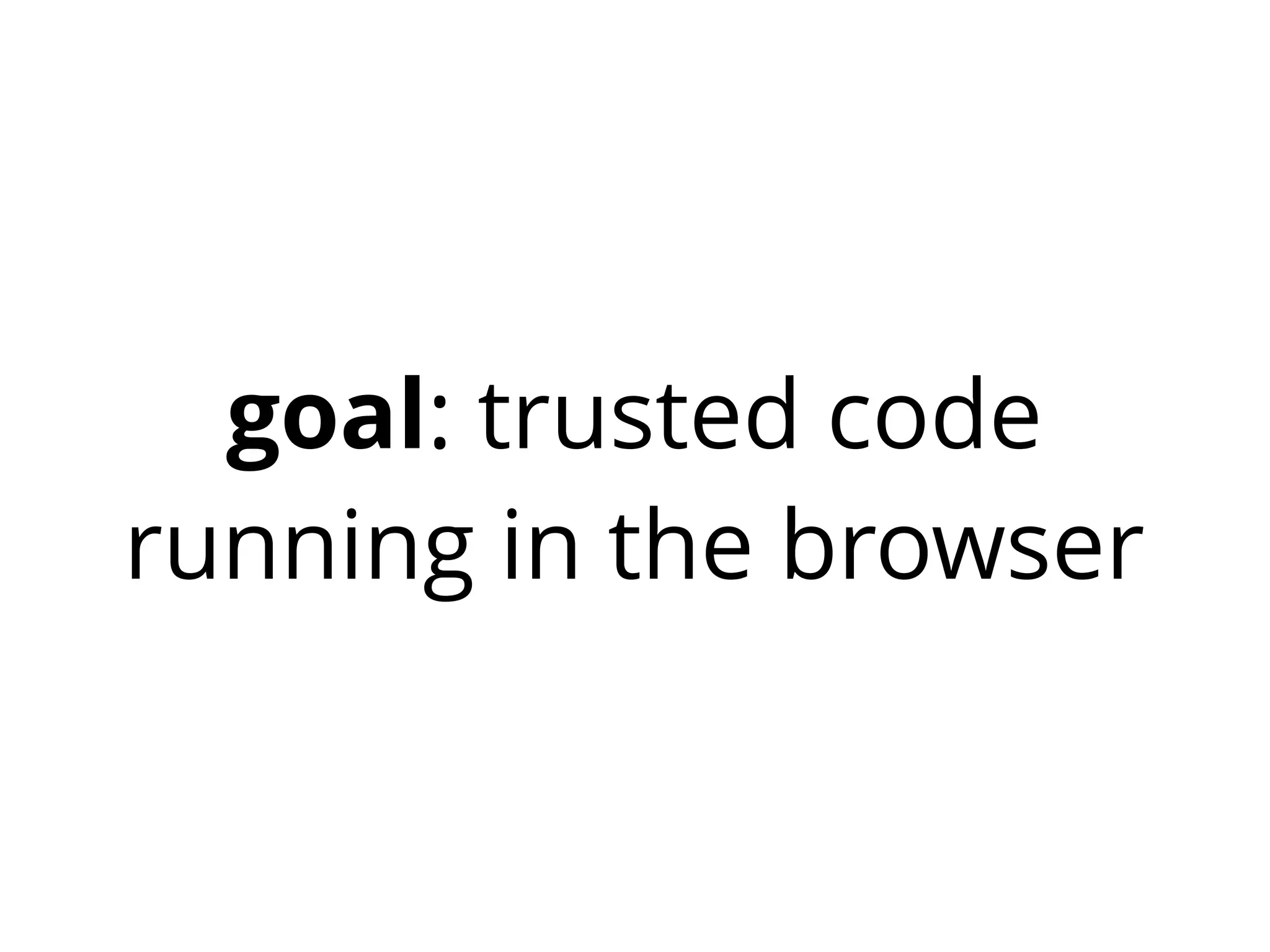

goal: trusted code
running in the browser
login.persona.org

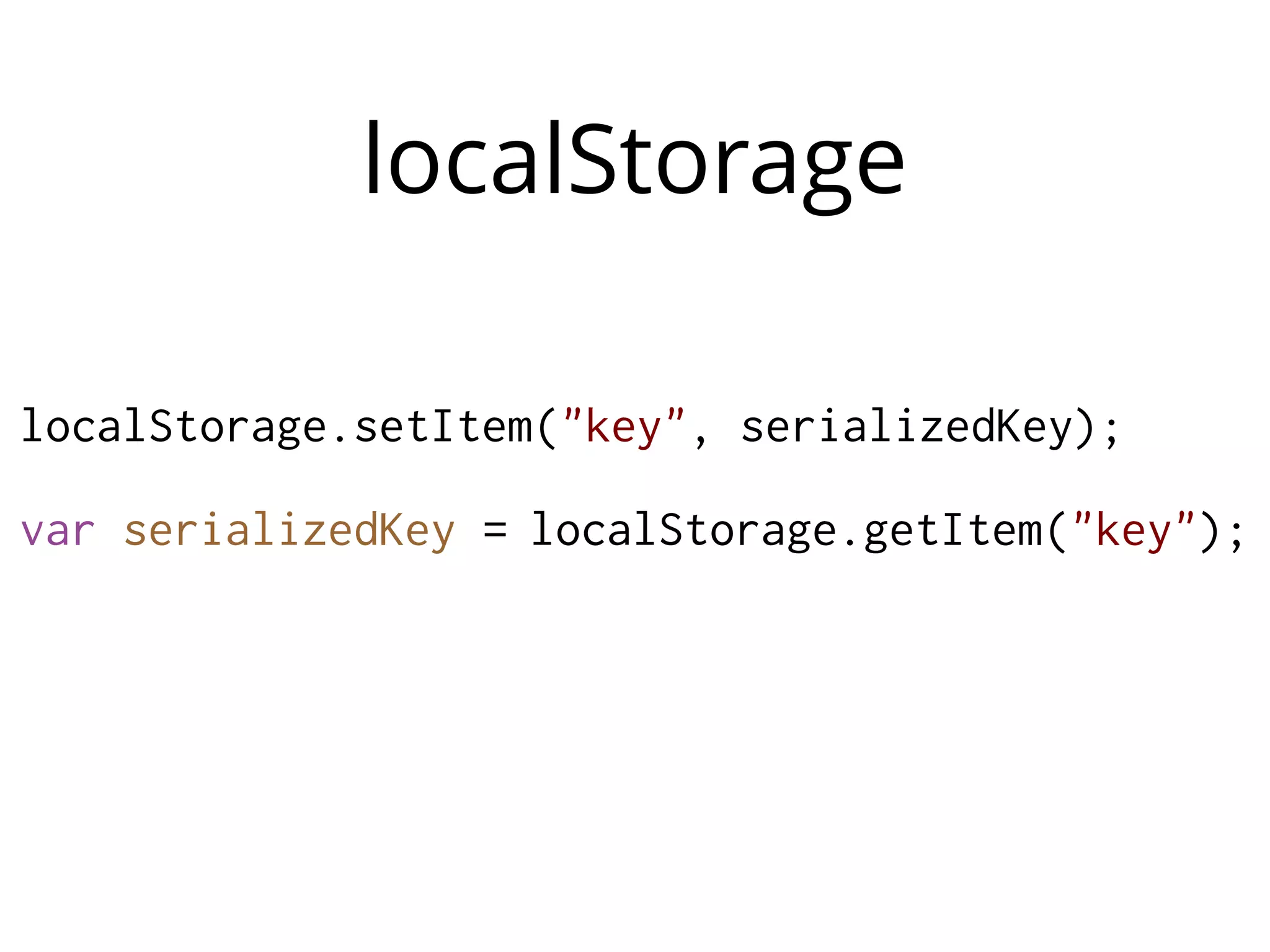

localStorage
localStorage.setItem("key", serializedKey);
var serializedKey = localStorage.getItem("key");

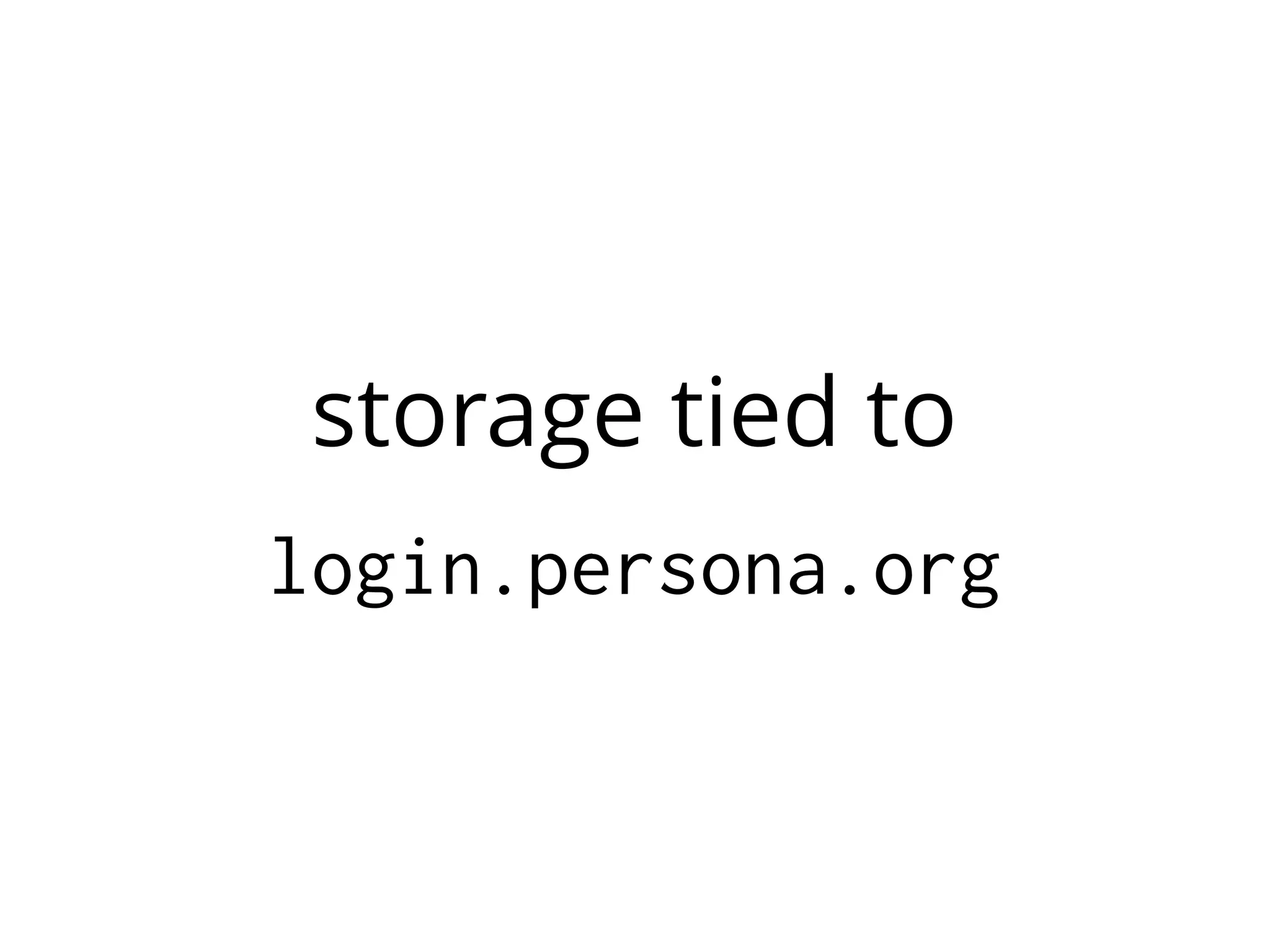

storage tied to
login.persona.org

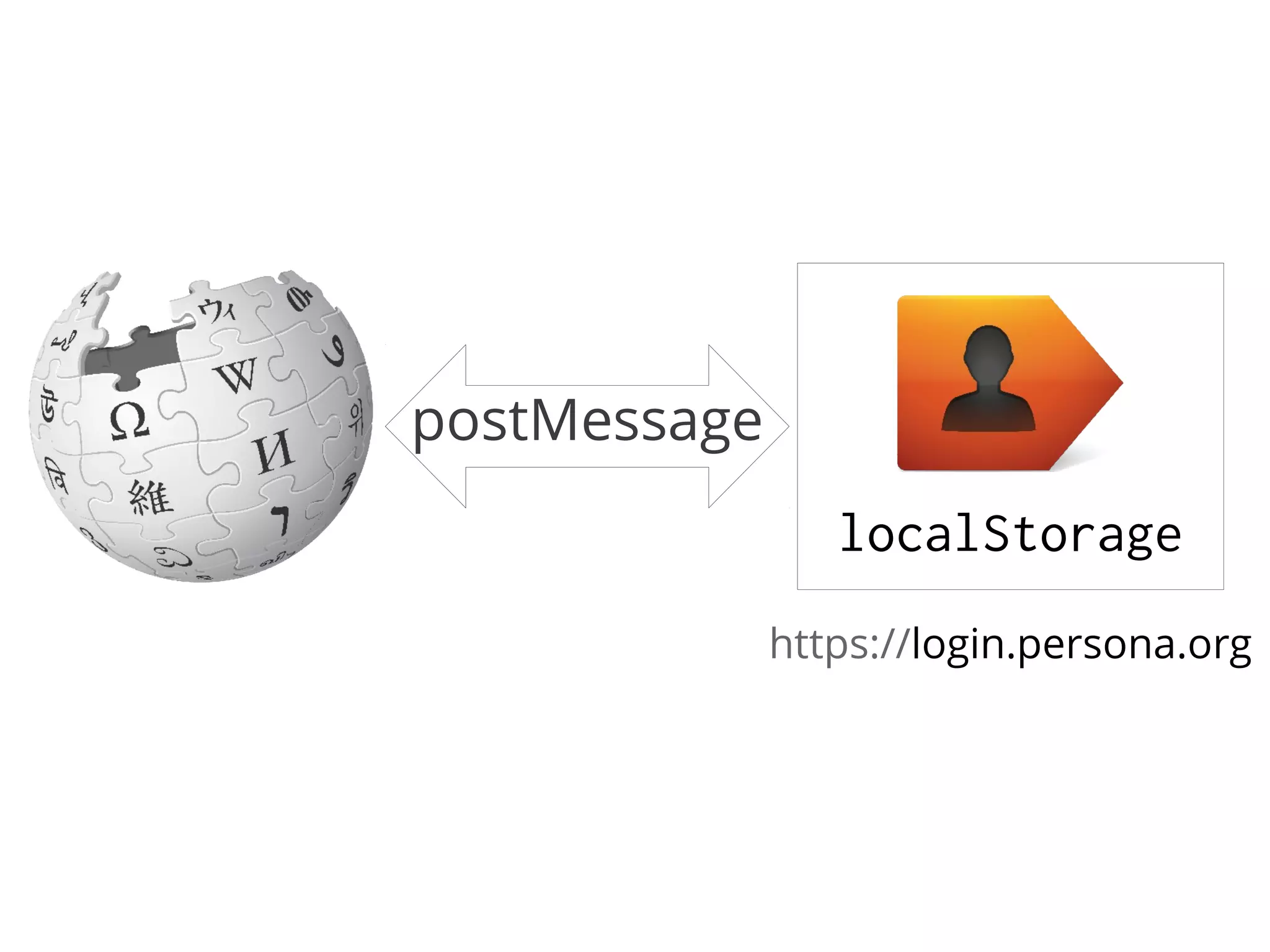

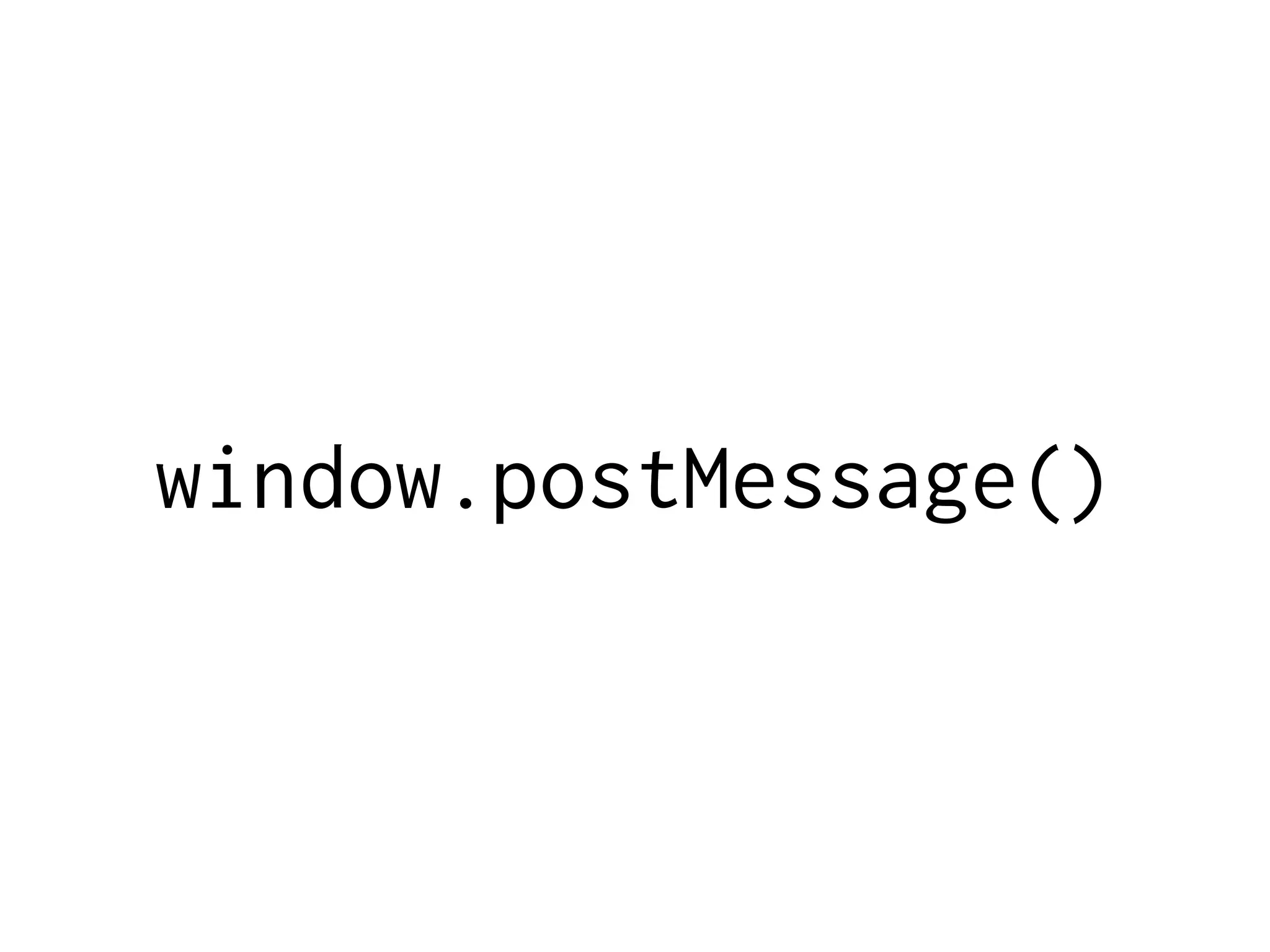

window.postMessage()
postMessage
localStorage
https://login.persona.org

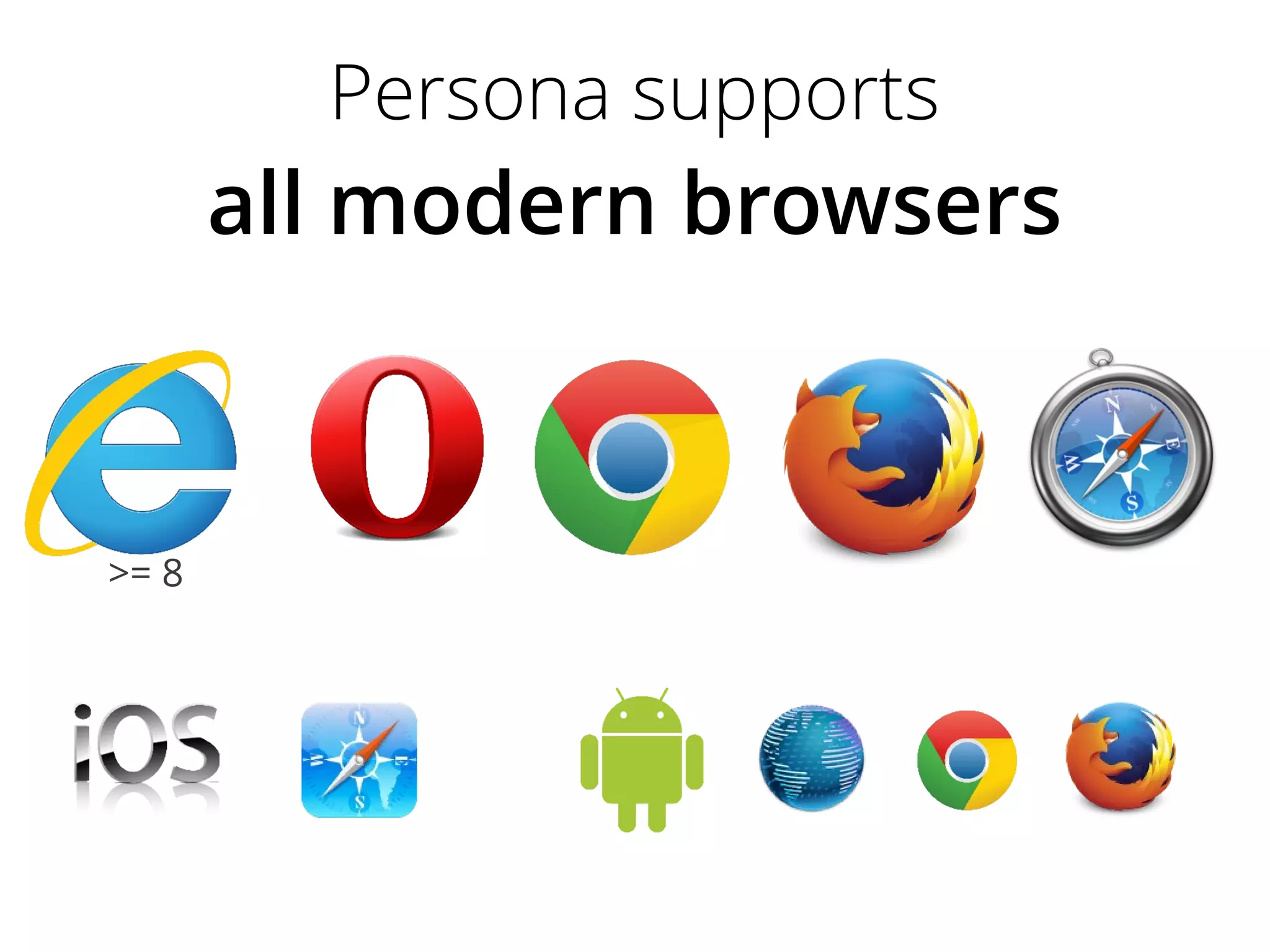

Persona supports

all modern browsers

>= 8

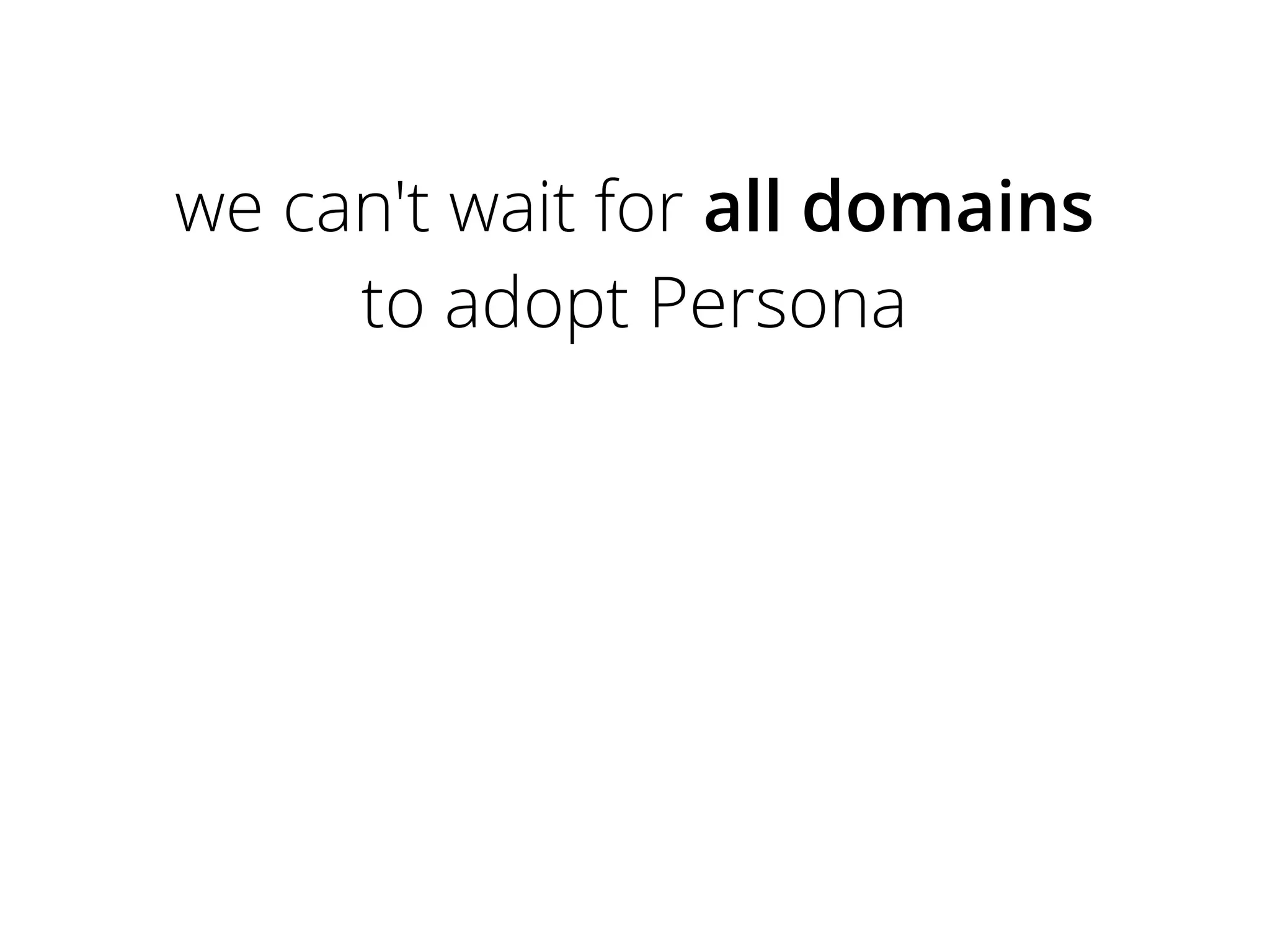

we can't wait for all domains
to adopt Persona

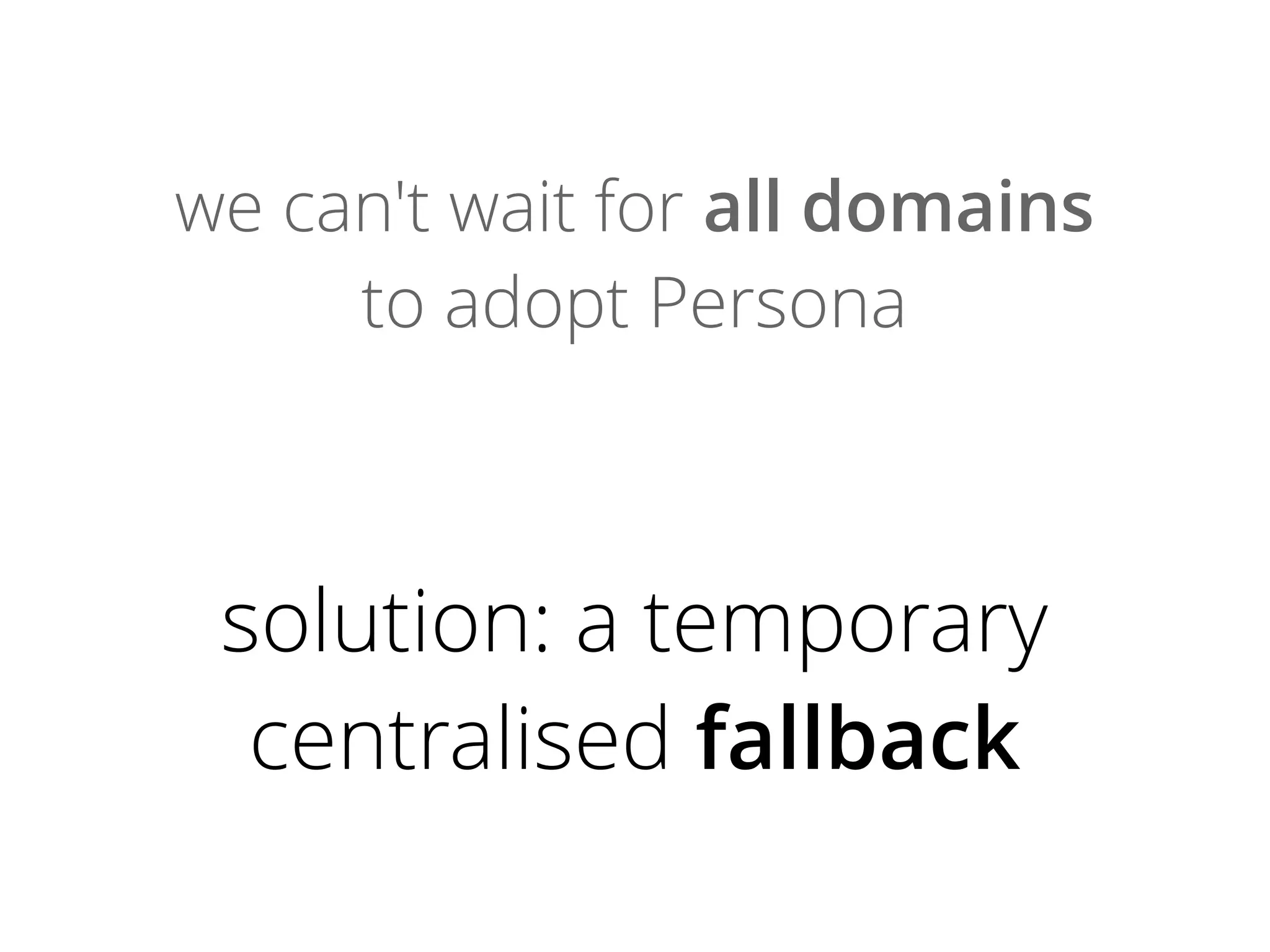

we can't wait for all domains
to adopt Persona

solution: a temporary
centralised fallback

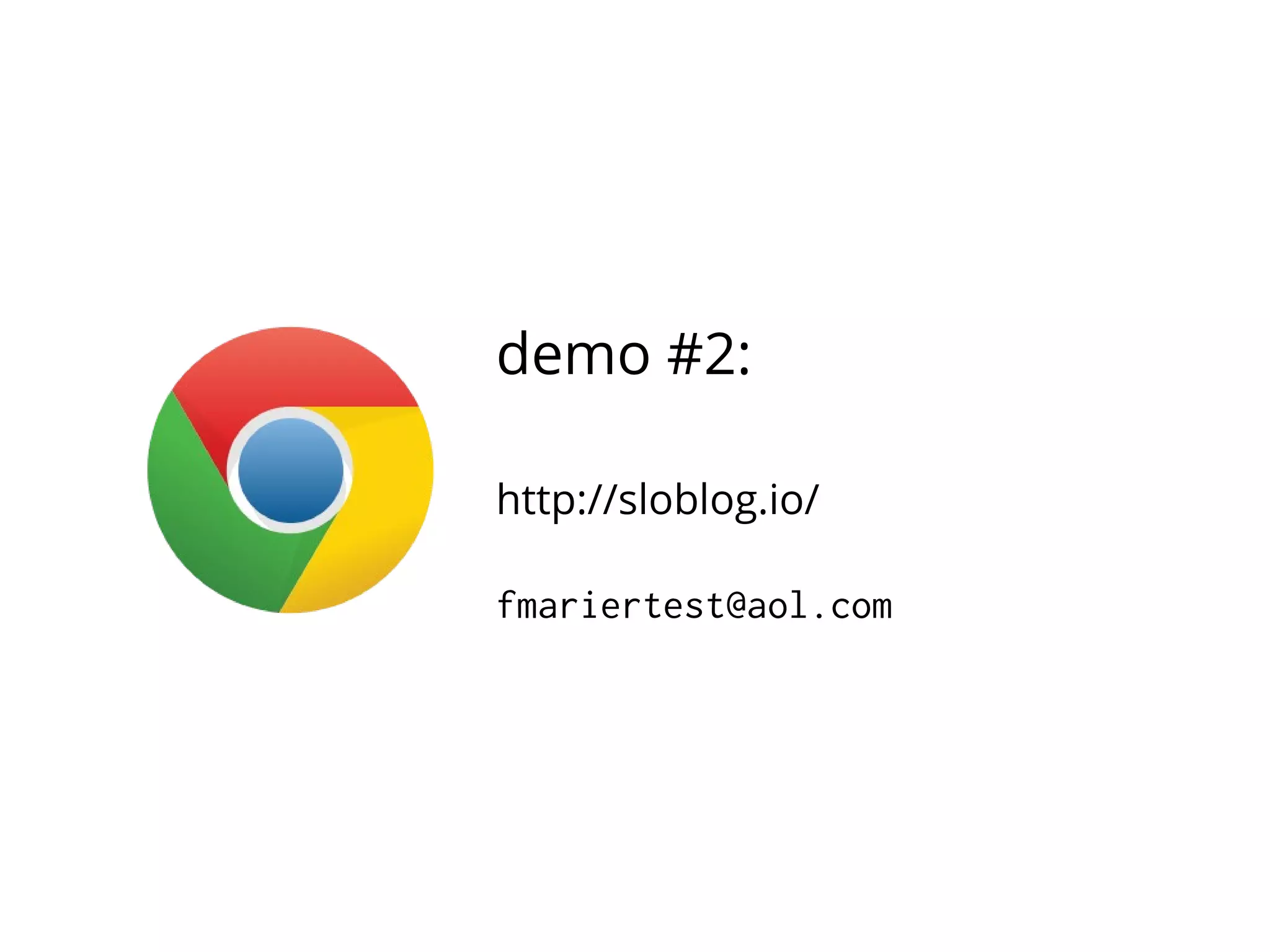

demo #2:
http://sloblog.io/
fmariertest@aol.com

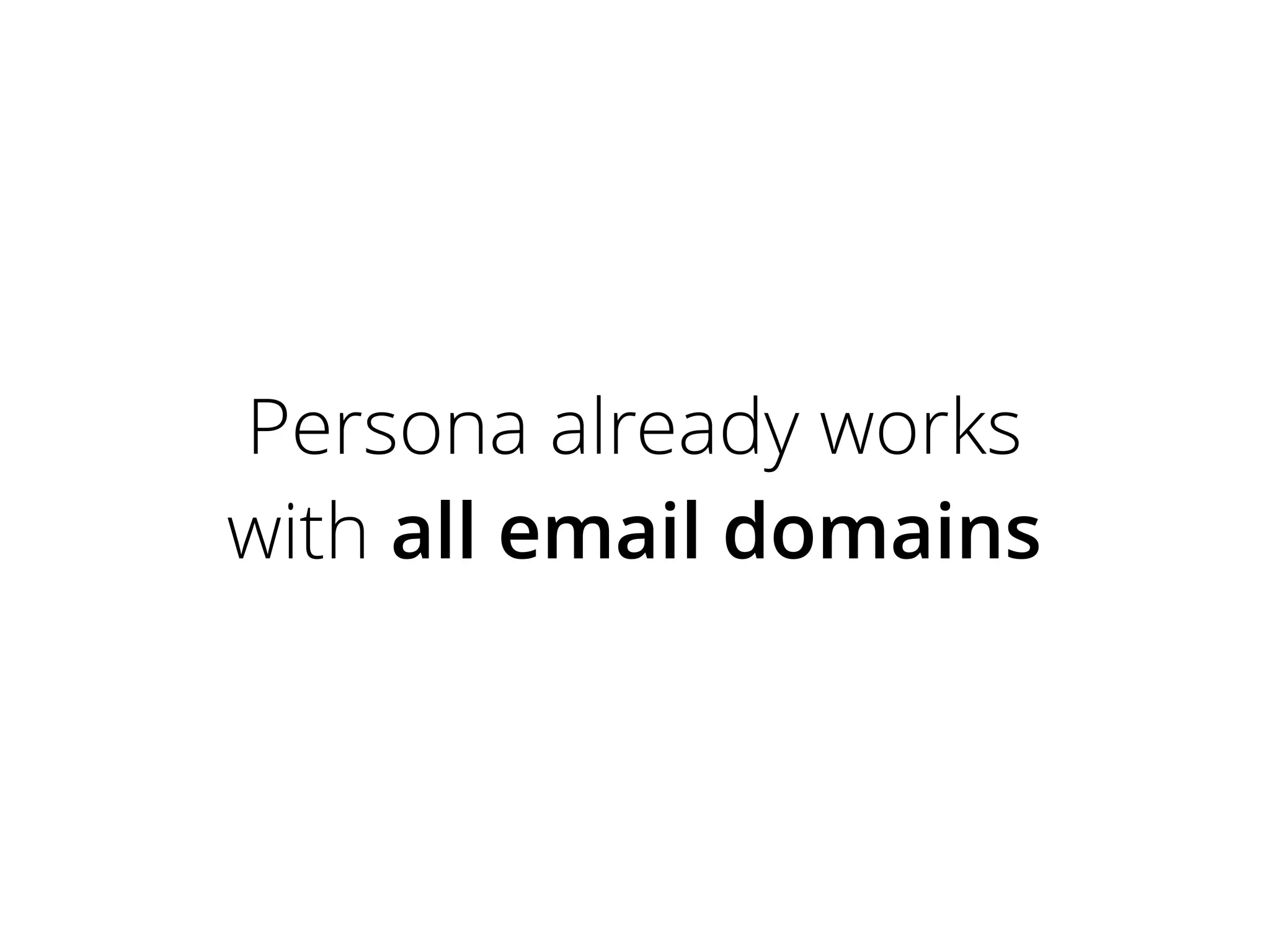

Persona already works
with all email domains
identity bridging
demo #3:
http://www.reasonwell.com/
fmariertest@yahoo.com

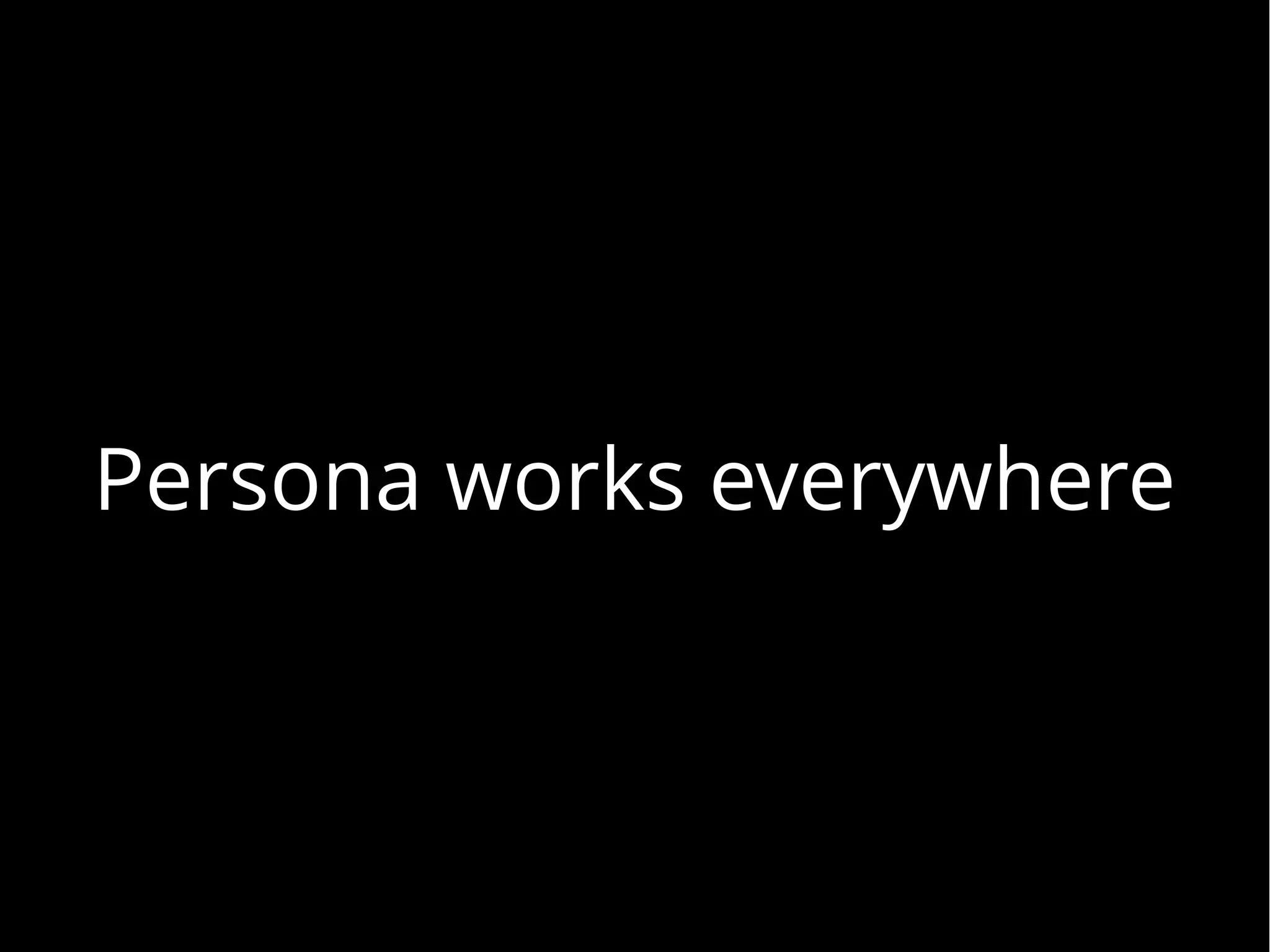

Persona works everywhere

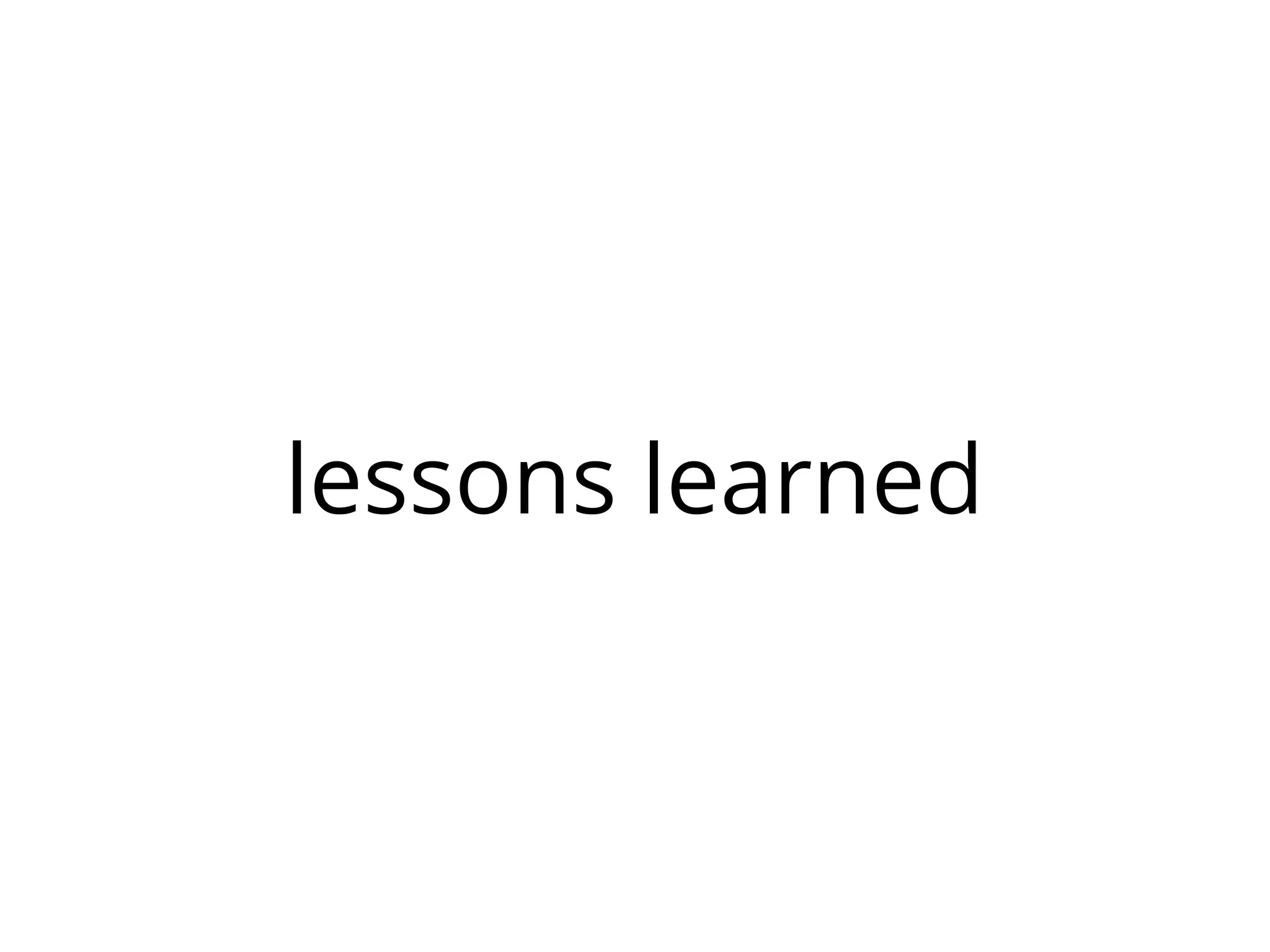

lessons learned
#1

user testing
is critical
#2

nobody wants
to be first

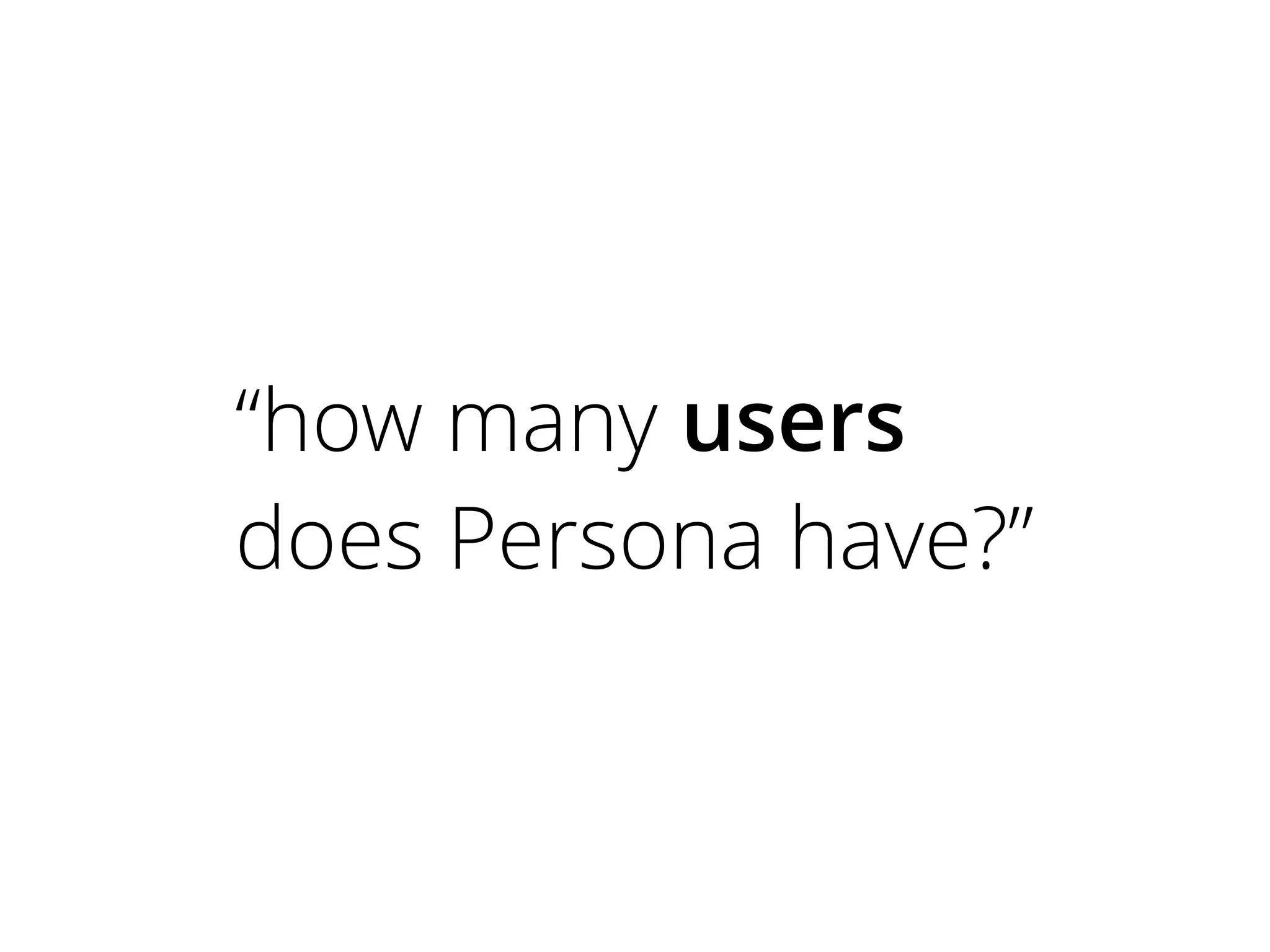

“how many users
does Persona have?”
700,000,000
#3

if a problem has
been around for a
while, it's probably
a hard one
see if you can solve
part of the problem

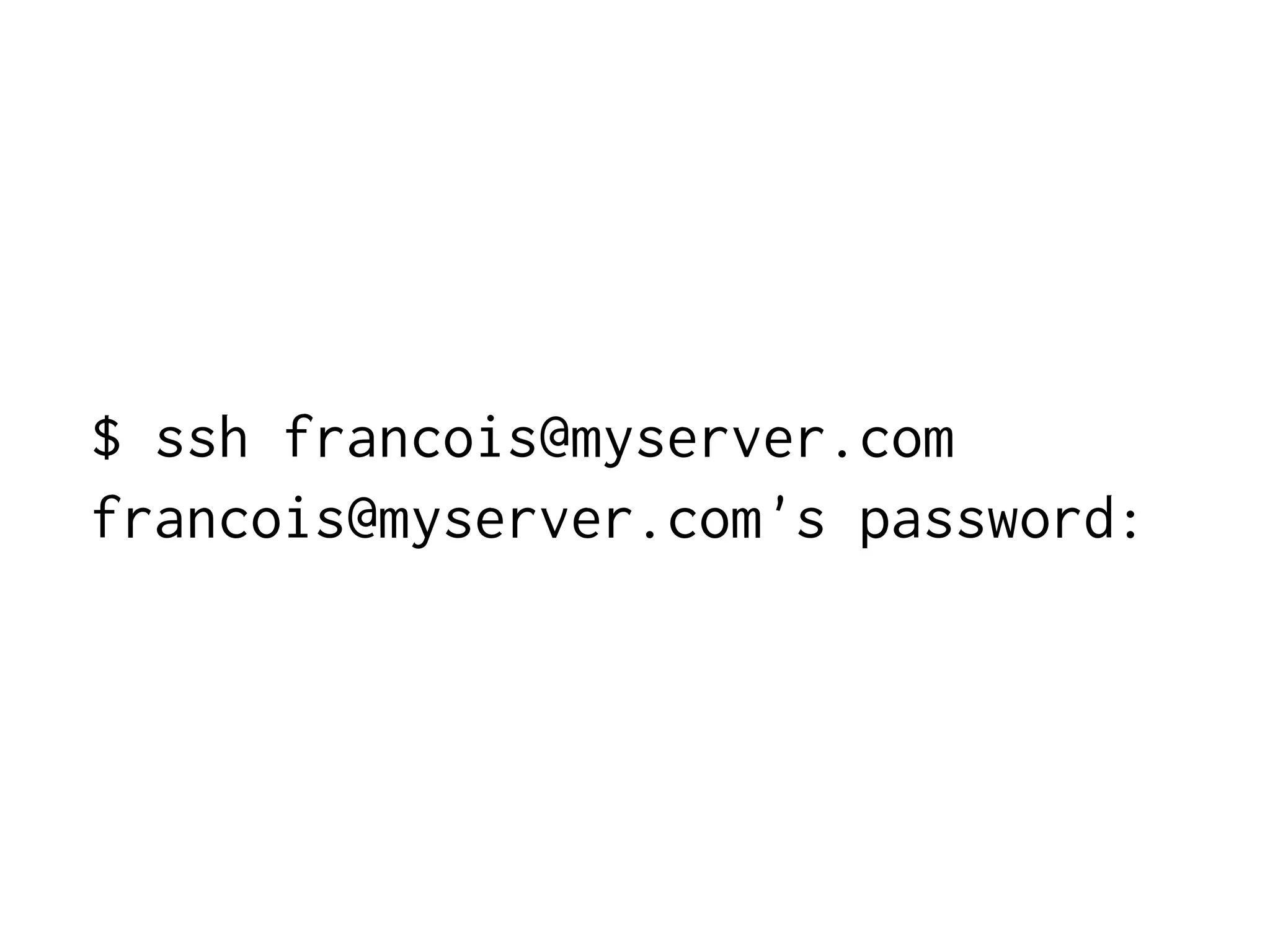

$ ssh francois@myserver.com
francois@myserver.com's password:
Persona is a simple
sign-in solution
for the web
how simple is it

for developers?

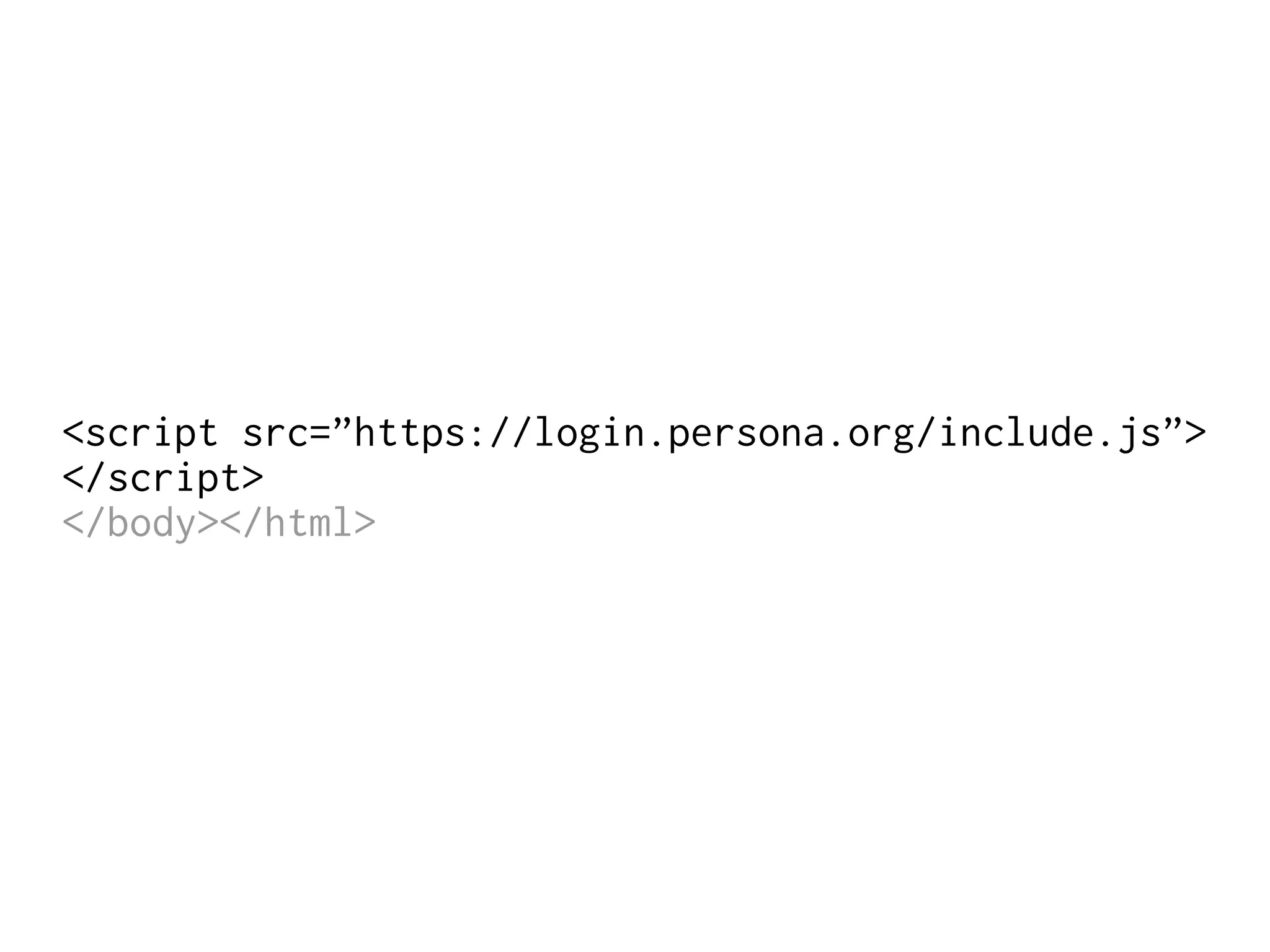

<script src=”https://login.persona.org/include.js”>
</script>
</body></html>

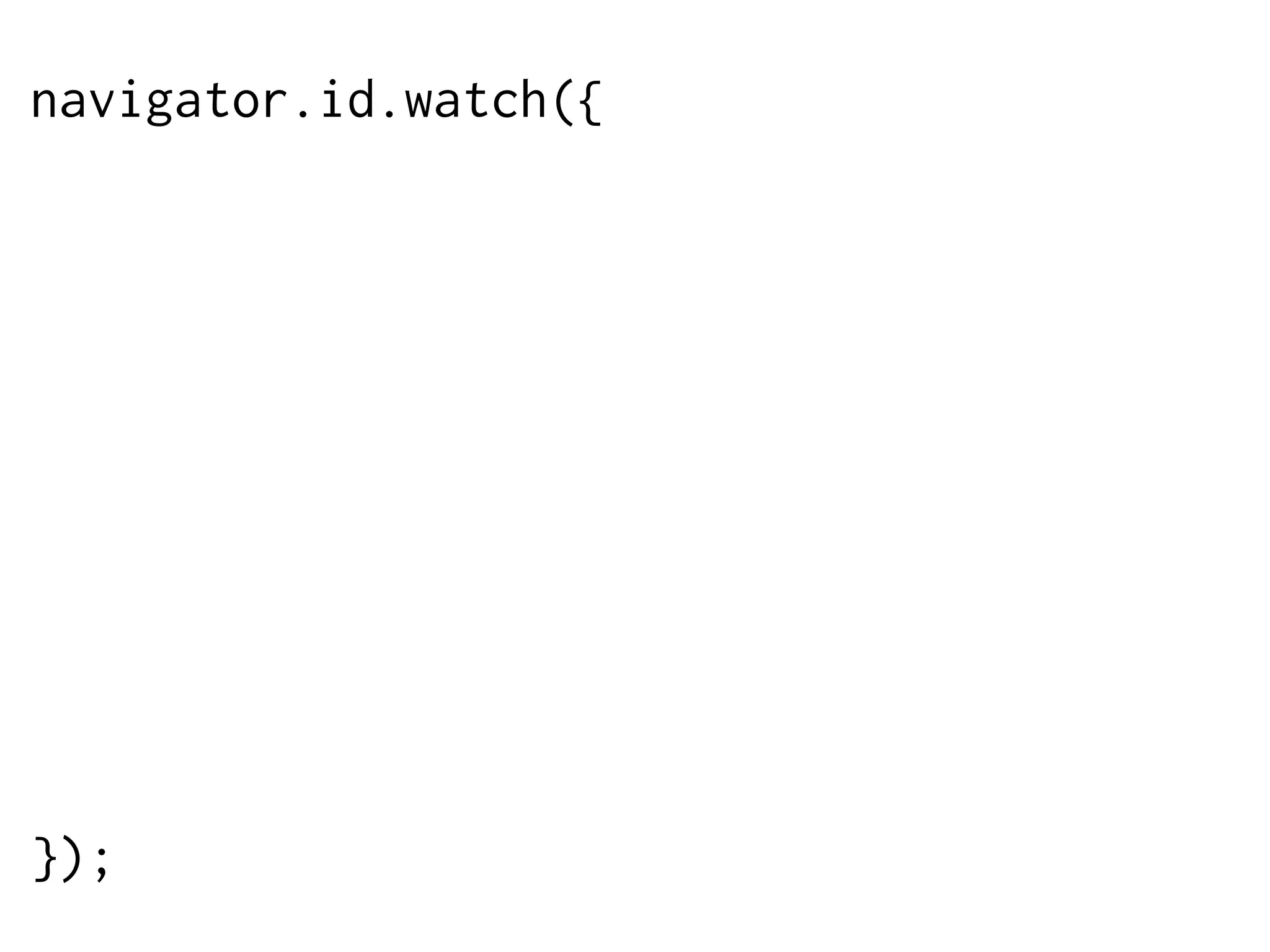

navigator.id.watch({
loggedInEmail: “francois@mozilla.com”,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
// do something
}
);
},
onlogout: function () {
window.location = '/logout';
}
});

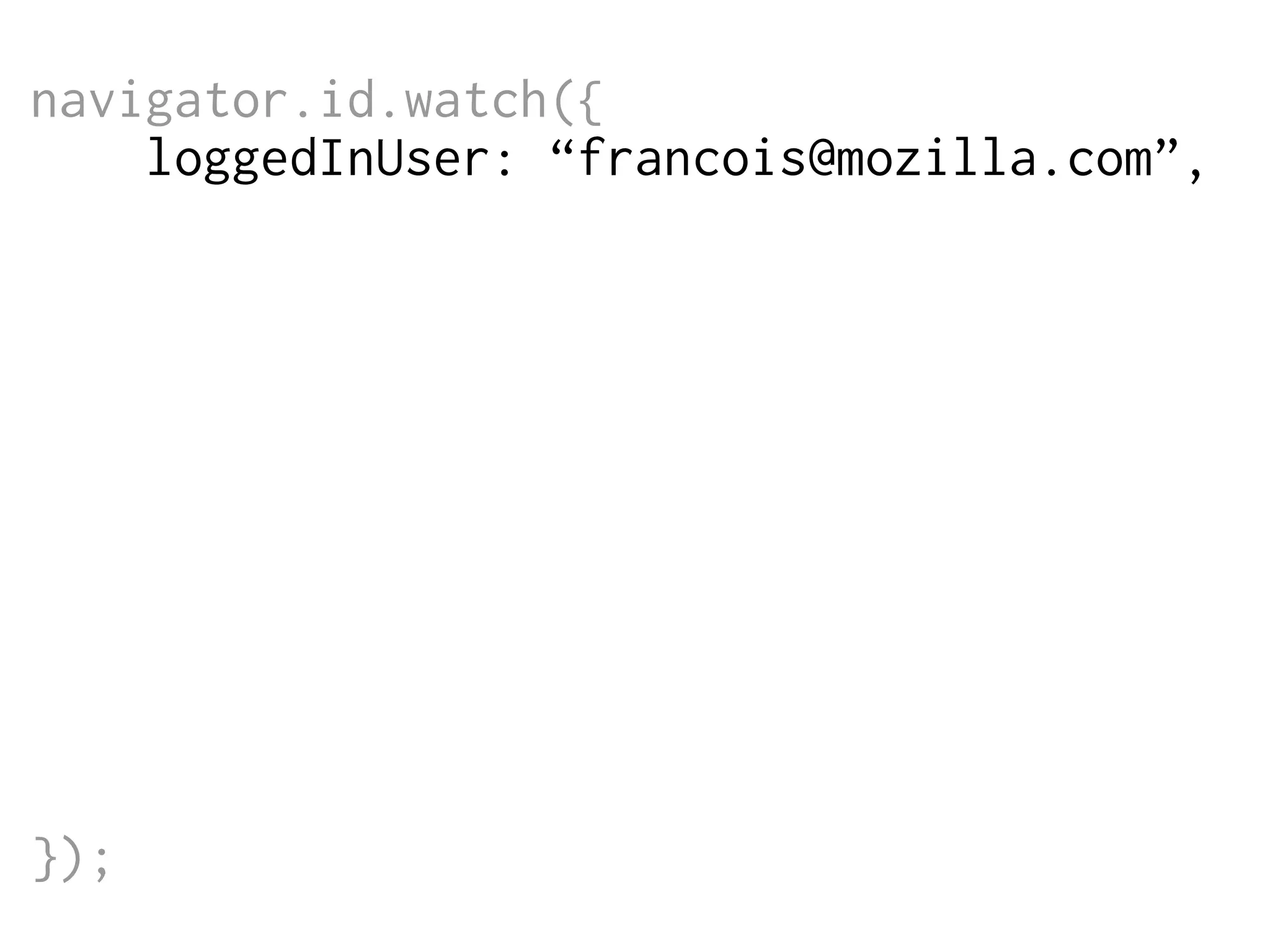

navigator.id.watch({
loggedInUser: “francois@mozilla.com”,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
// do something
}
);
},
onlogout: function () {
window.location = '/logout';
}
});
navigator.id.watch({
loggedInUser: null,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
// do something
}
);
},
onlogout: function () {
window.location = '/logout';
}
});

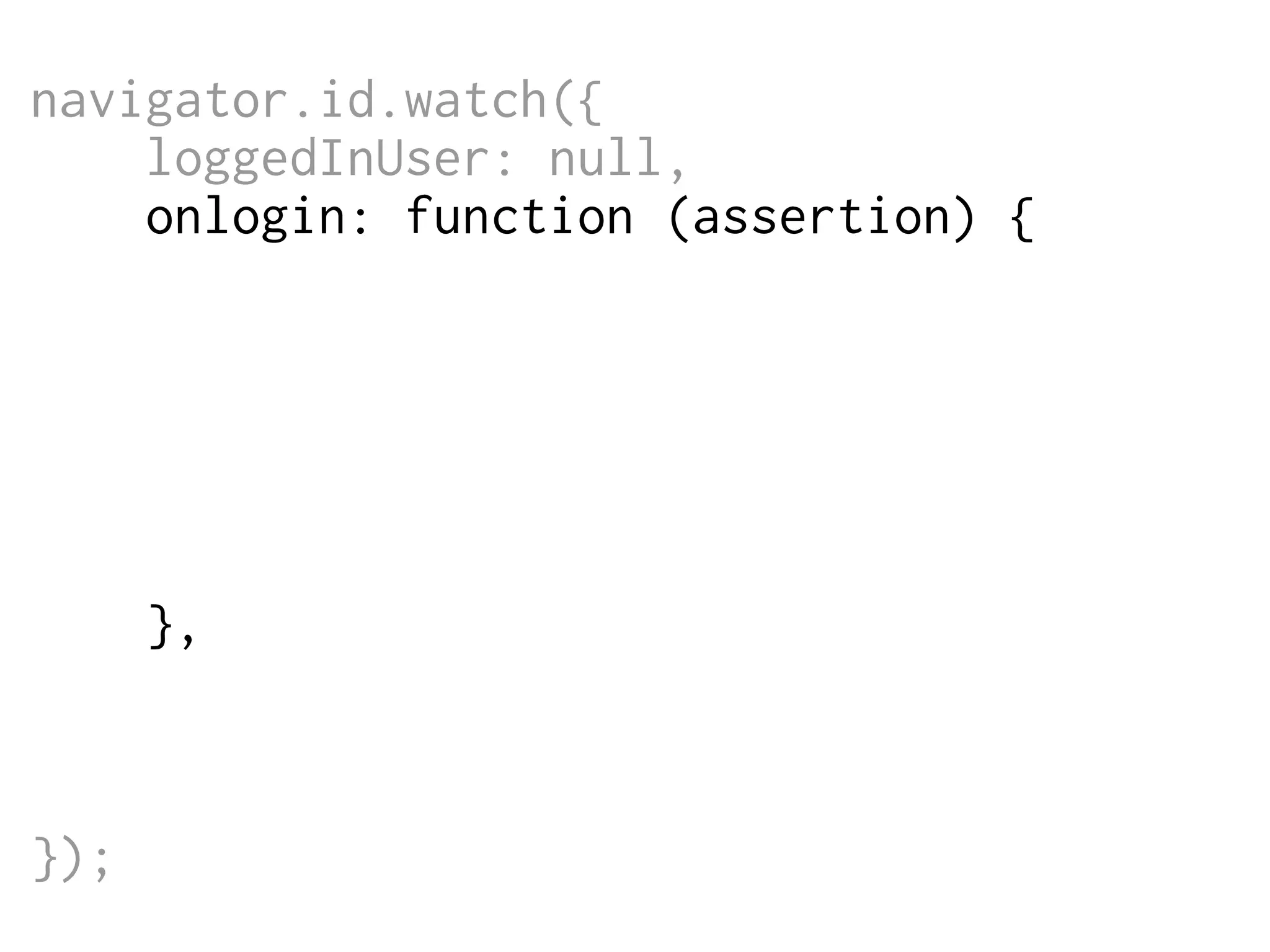

navigator.id.watch({
loggedInUser: null,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
// do something
}
);
},
onlogout: function () {
window.location = '/logout';
}
});

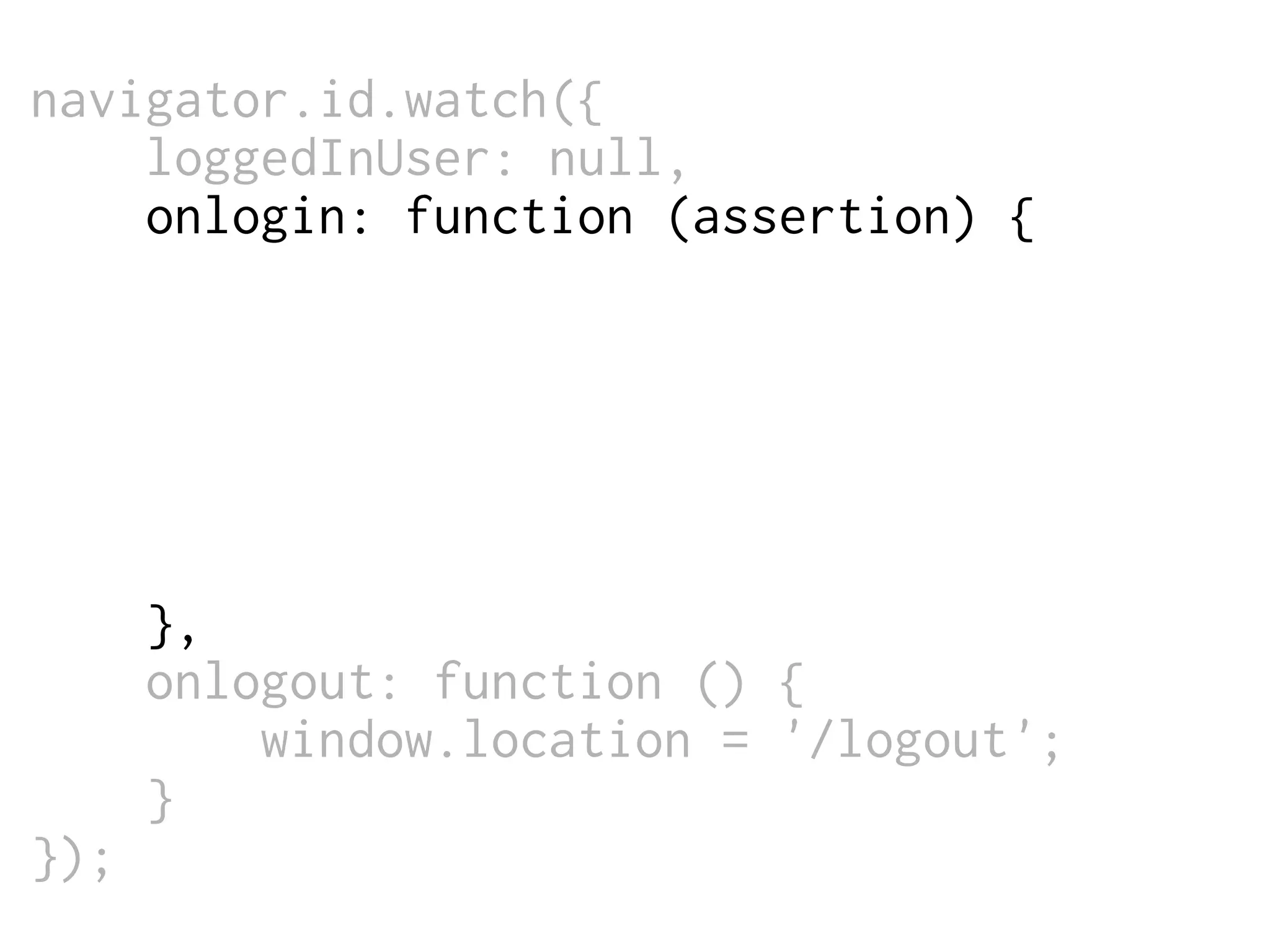

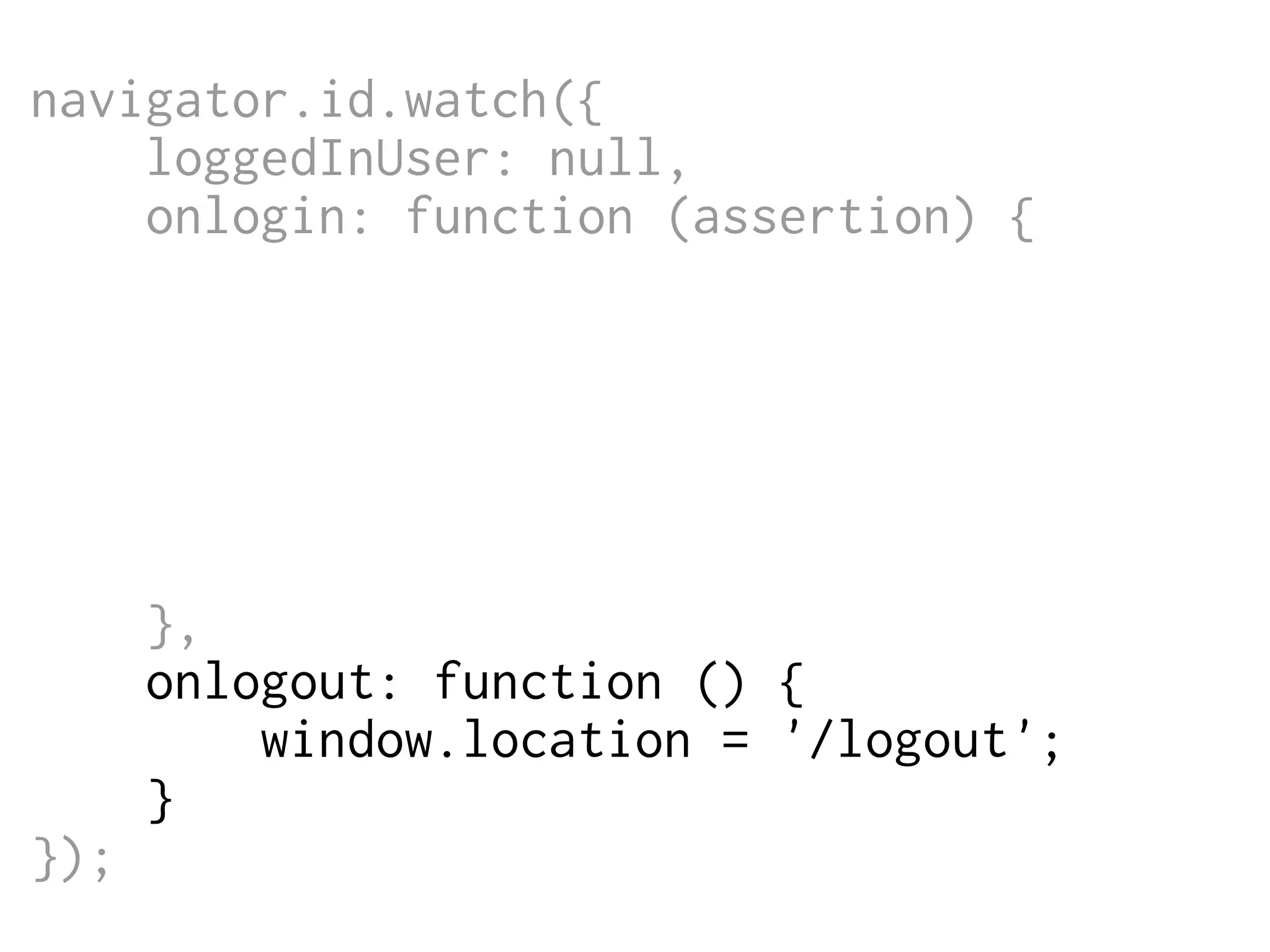

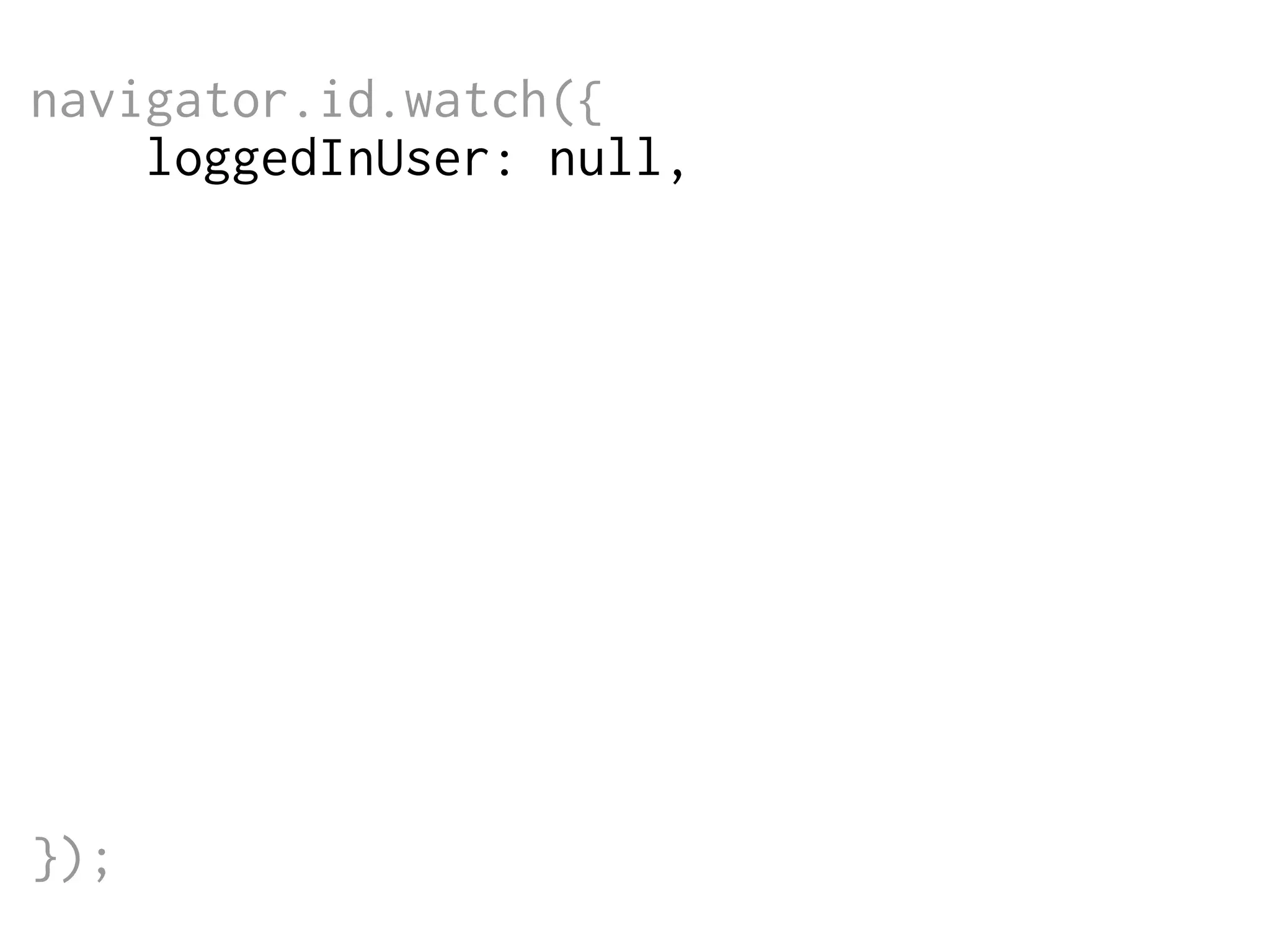

navigator.id.watch({
loggedInUser: null,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
window.location = '/';
}
);
},
onlogout: function () {
window.location = '/logout';
}
});

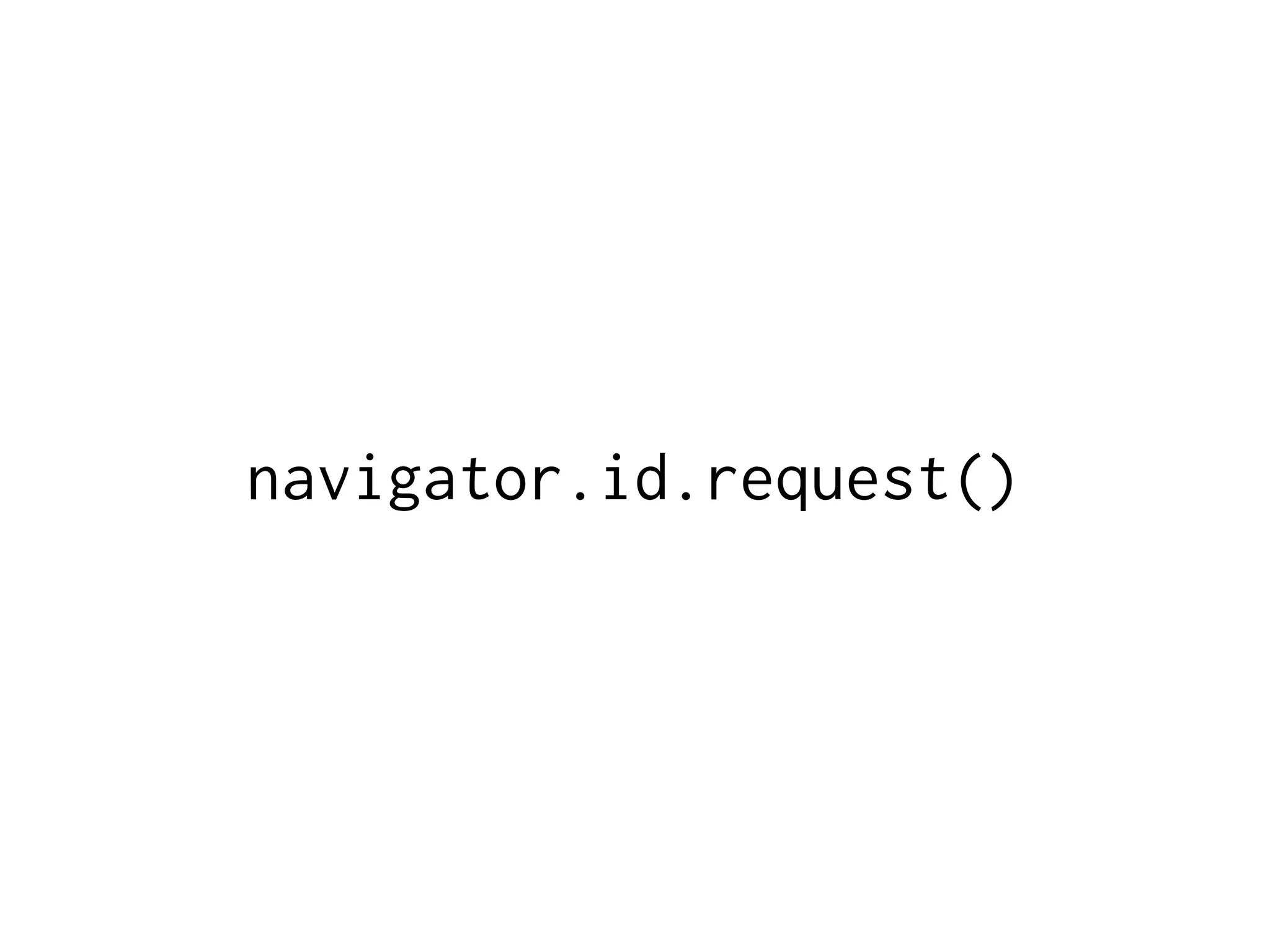

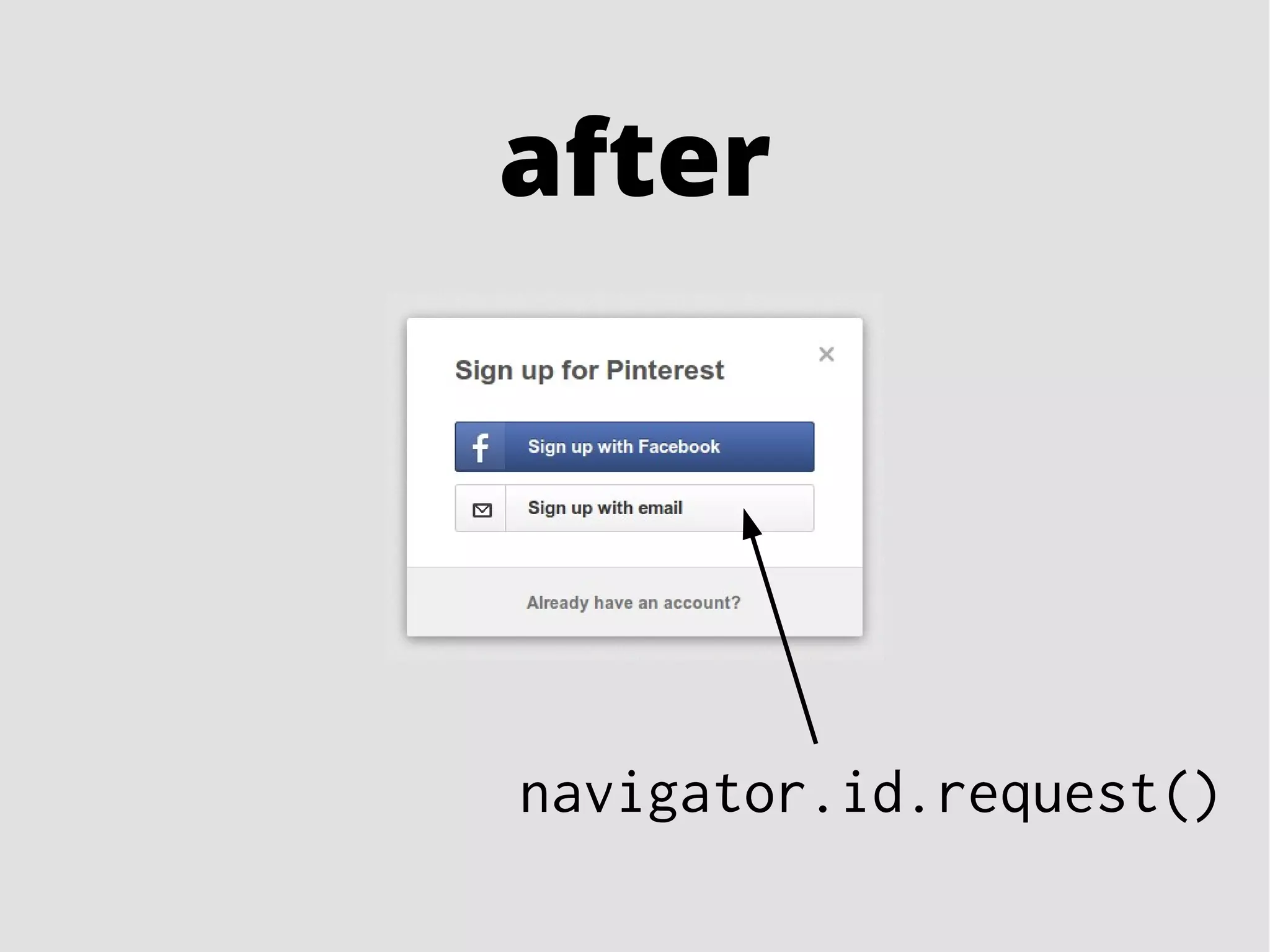

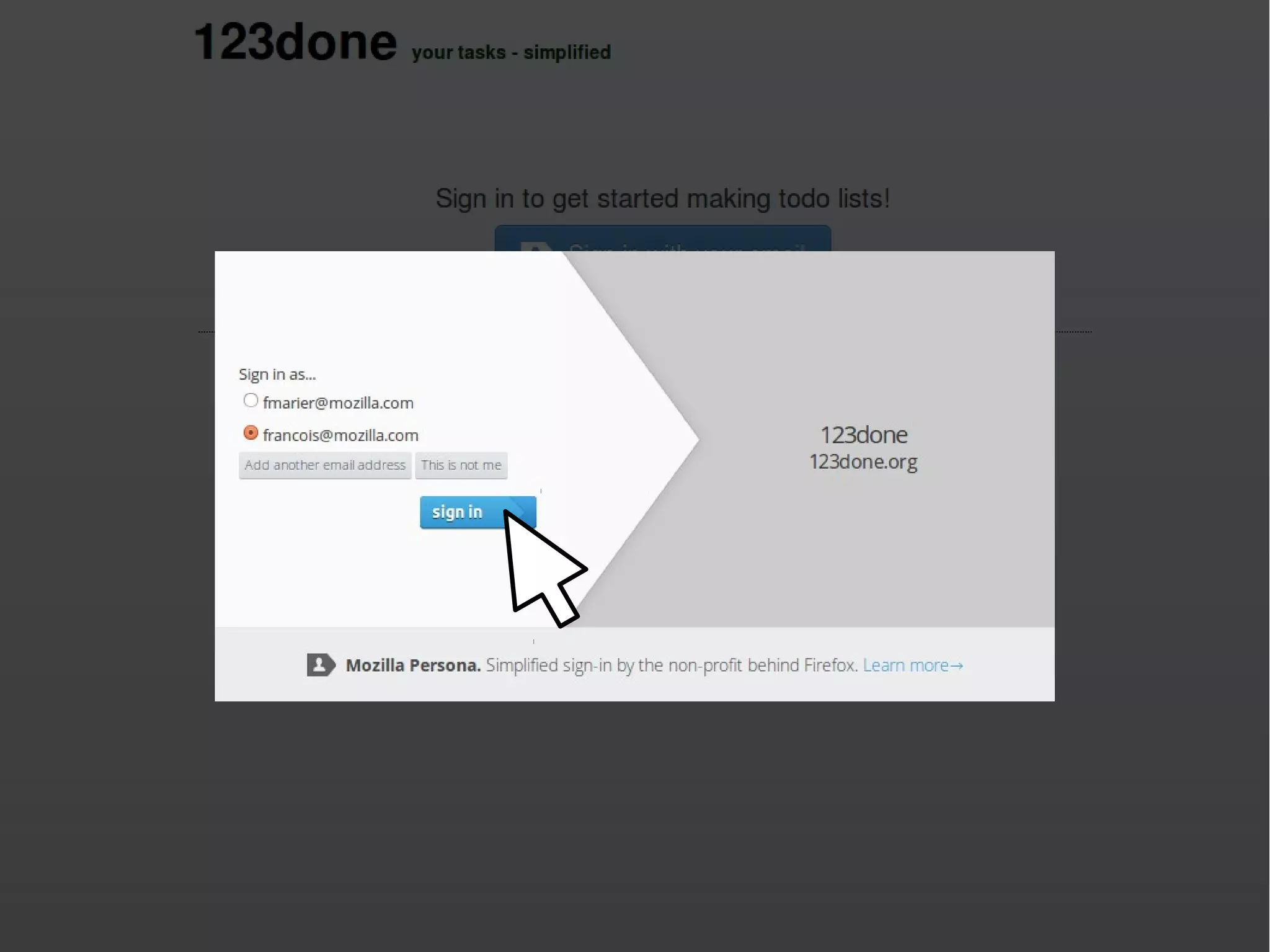

navigator.id.request()
navigator.id.watch({
loggedInUser: null,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
window.location = '/';
}
);
},
onlogout: function () {
window.location = '/logout';
}
});
eyJhbGciOiJEUzEyOCJ9.eyJwdWJsaWMta2V5Ijp7ImFsZ29yaXRobSI6IkRTIiwieSI6ImNhZDg2ZDg
yNWU0MjBkMGI4Njk5MjM4ZDM5ZTFjYjIyOGMyMTk1NWFiMzcwOTQ1YzExNzBhMzM4NjcyNDM0ZDJmNGY
xZDg5ZjFkZjMzNmU1ZjZjZjk2YjhiOTlmMjgyNmFjNTYxZmI1YWMyYTc4ZjNhMzBkNGYxNTVhYjc3ZGE
xYmY3MWU4ZGMzNjQ0MmU2NjQ3MmE5Mjg0N2I2YjFlNDRkMTJlM2IwMjVjOWZmNTFmNDdhMWE5ZWYyMGZ
hOTVjMTcxZjBkMTYzNGE4ZTY4YTk5NWU3ZjFjY2FiYTJlOTRjYTI3ODE1ZWVkMTcxYjY1YTJmZGQzNTE
1NjY3OTI0ZjUiLCJwIjoiZmY2MDA0ODNkYjZhYmZjNWI0NWVhYjc4NTk0YjM1MzNkNTUwZDlmMWJmMmE
5OTJhN2E4ZGFhNmRjMzRmODA0NWFkNGU2ZTBjNDI5ZDMzNGVlZWFhZWZkN2UyM2Q0ODEwYmUwMGU0Y2M
xNDkyY2JhMzI1YmE4MWZmMmQ1YTViMzA1YThkMTdlYjNiZjRhMDZhMzQ5ZDM5MmUwMGQzMjk3NDRhNTE
3OTM4MDM0NGU4MmExOGM0NzkzMzQzOGY4OTFlMjJhZWVmODEyZDY5YzhmNzVlMzI2Y2I3MGVhMDAwYzN
mNzc2ZGZkYmQ2MDQ2MzhjMmVmNzE3ZmMyNmQwMmUxNyIsInEiOiJlMjFlMDRmOTExZDFlZDc5OTEwMDh
lY2FhYjNiZjc3NTk4NDMwOWMzIiwiZyI6ImM1MmE0YTBmZjNiN2U2MWZkZjE4NjdjZTg0MTM4MzY5YTY
xNTRmNGFmYTkyOTY2ZTNjODI3ZTI1Y2ZhNmNmNTA4YjkwZTVkZTQxOWUxMzM3ZTA3YTJlOWUyYTNjZDV
kZWE3MDRkMTc1ZjhlYmY2YWYzOTdkNjllMTEwYjk2YWZiMTdjN2EwMzI1OTMyOWU0ODI5YjBkMDNiYmM
3ODk2YjE1YjRhZGU1M2UxMzA4NThjYzM0ZDk2MjY5YWE4OTA0MWY0MDkxMzZjNzI0MmEzODg5NWM5ZDV
iY2NhZDRmMzg5YWYxZDdhNGJkMTM5OGJkMDcyZGZmYTg5NjIzMzM5N2EifSwicHJpbmNpcGFsIjp7ImV
tYWlsIjoiZm9vQG1vY2tteWlkLmNvbSJ9LCJpYXQiOjEzNzY1MzY0NjM1MTgsImV4cCI6MTM3NjU0MDA
2MzUxOCwiaXNzIjoibW9ja215aWQuY29tIn0.IeUR0_3ayAZkdNSXjF4aaCwSHnHa4X1lzrjX-qkNcPI
bXx1hmQQPwg~eyJhbGciOiJEUzEyOCJ9.eyJleHAiOjEzNzY1MzY3MDc2MzUsImF1ZCI6Imh0dHA6Ly9
sb2NhbGhvc3QifQ.NJ8H1qZcWXbXfPJSdgB_mORHQ442ZkY0XYfdQsZZsIjooG7k7qWyVw

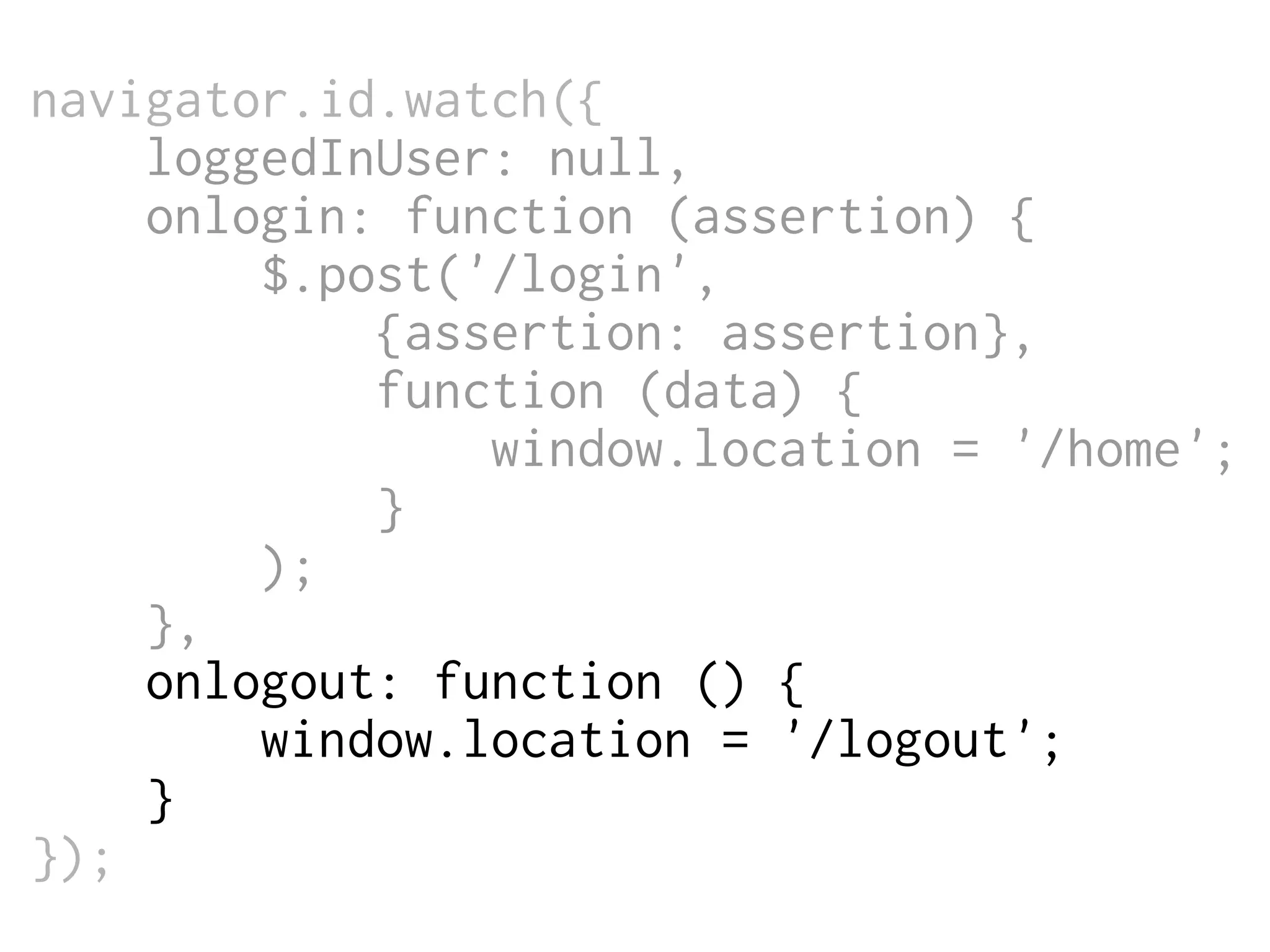

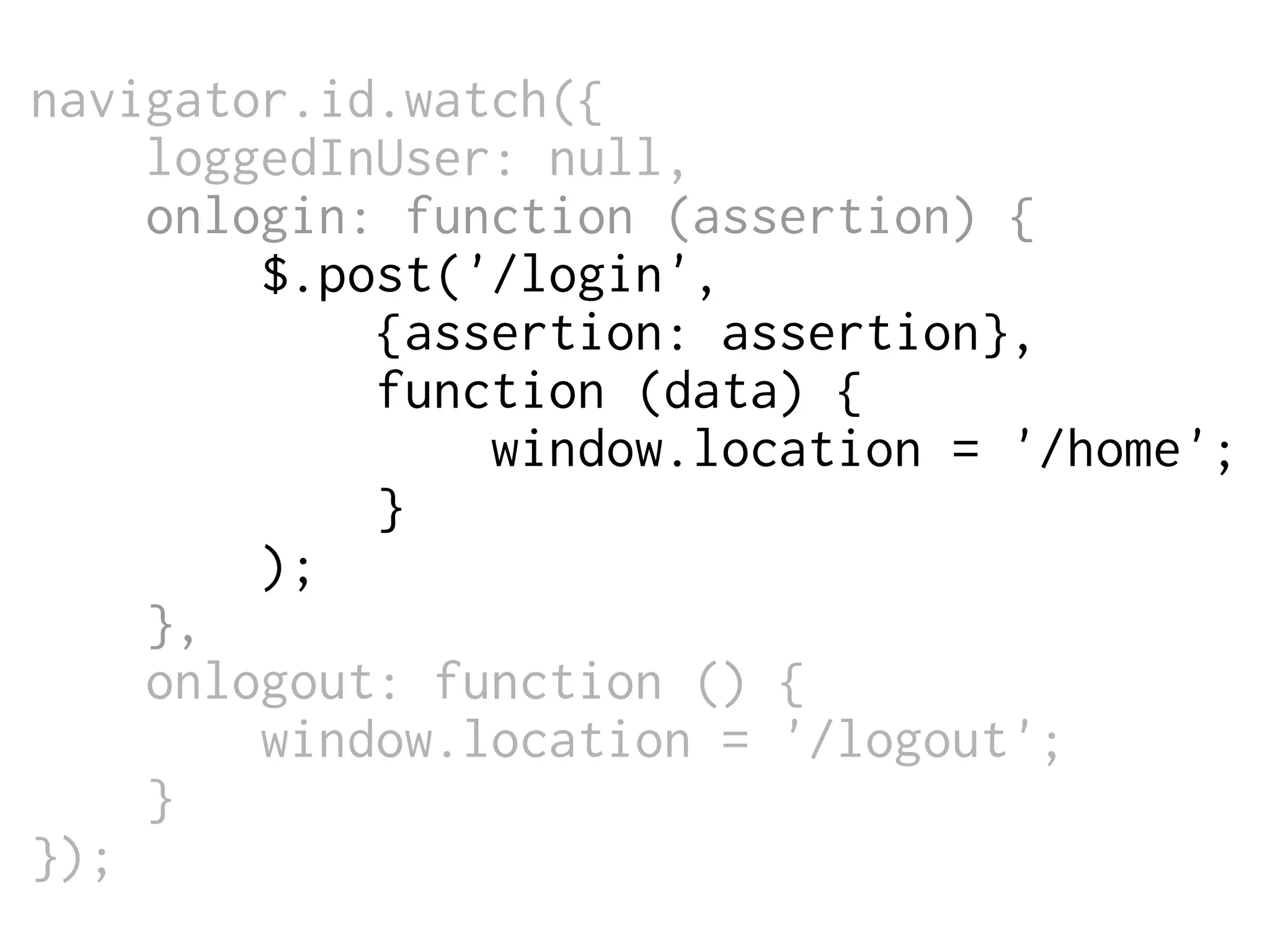

navigator.id.watch({
loggedInUser: null,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
window.location = '/home';
}
);
},
onlogout: function () {
window.location = '/logout';
}
});

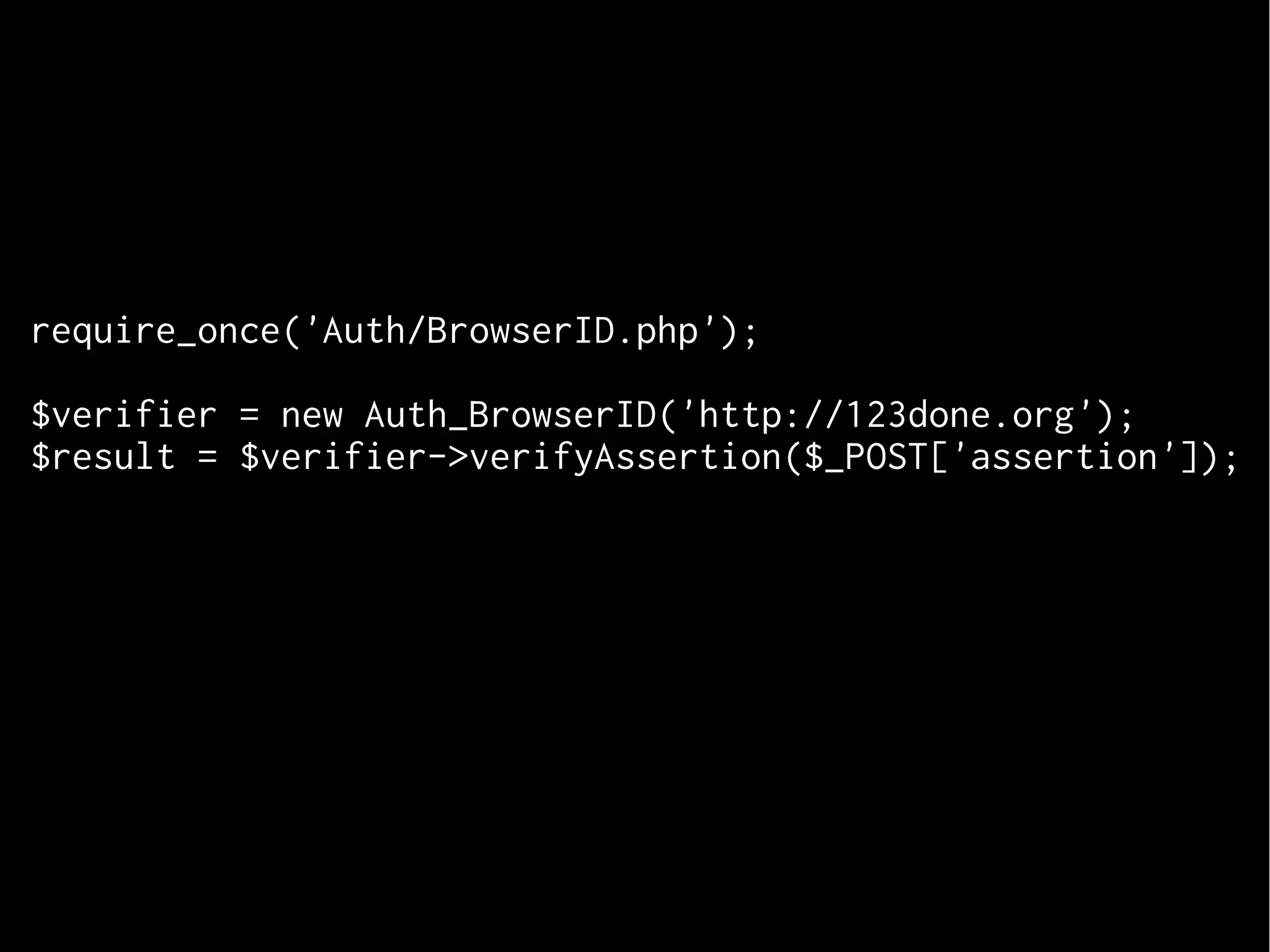

require_once('Auth/BrowserID.php');
$verifier = new Auth_BrowserID('http://123done.org');
$result = $verifier->verifyAssertion($_POST['assertion']);
{

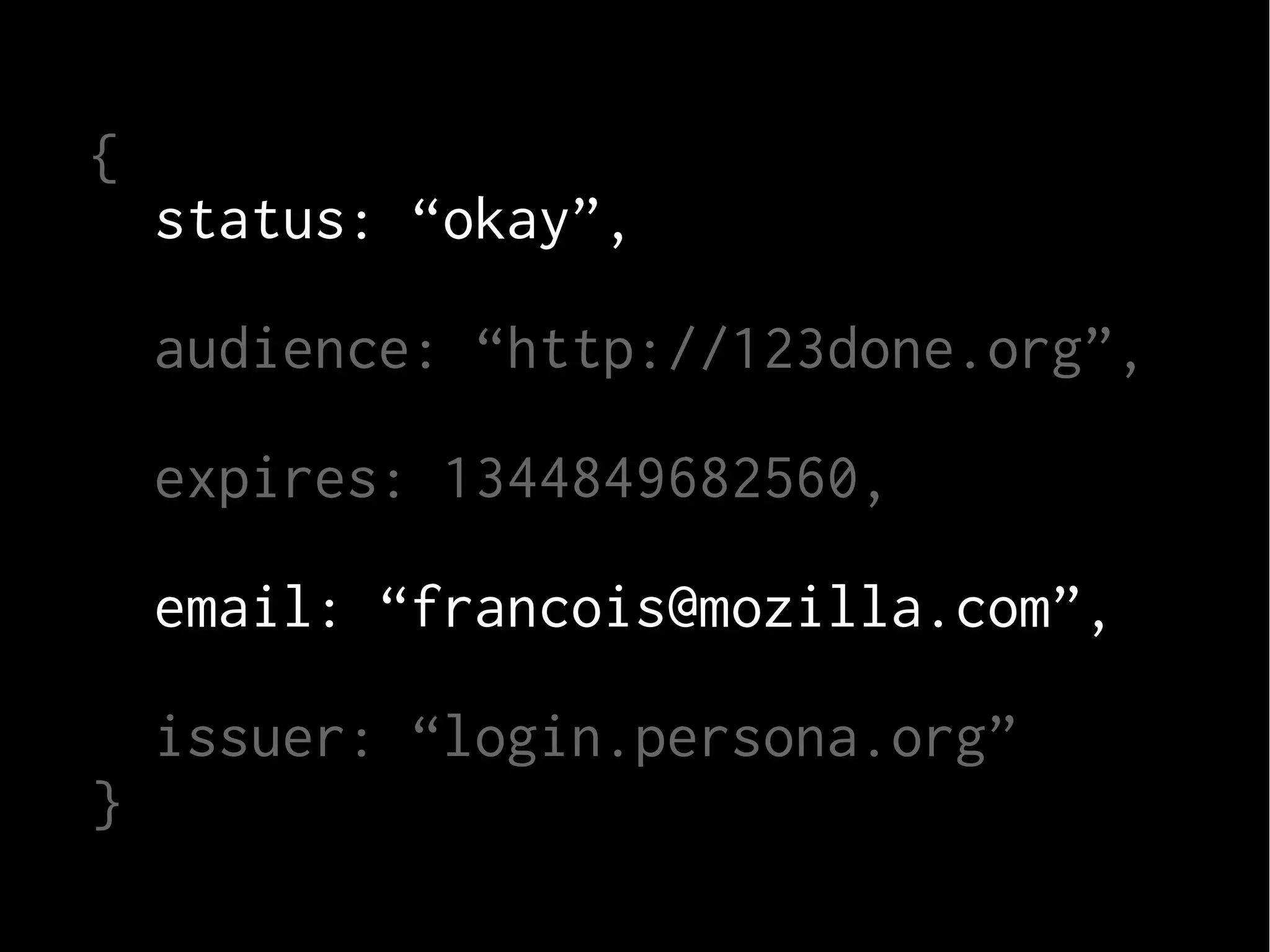

status: “okay”,
audience: “http://123done.org”,
expires: 1344849682560,
email: “francois@mozilla.com”,
}

issuer: “login.persona.org”
require_once('Auth/BrowserID.php');
$verifier = new Auth_BrowserID('http://123done.org');
$result = $verifier->verifyAssertion($_POST['assertion']);
if ($result->status === 'okay') {
echo "Hi " . $result->email;
} else {
echo "Error: " . $result->reason;
}
{

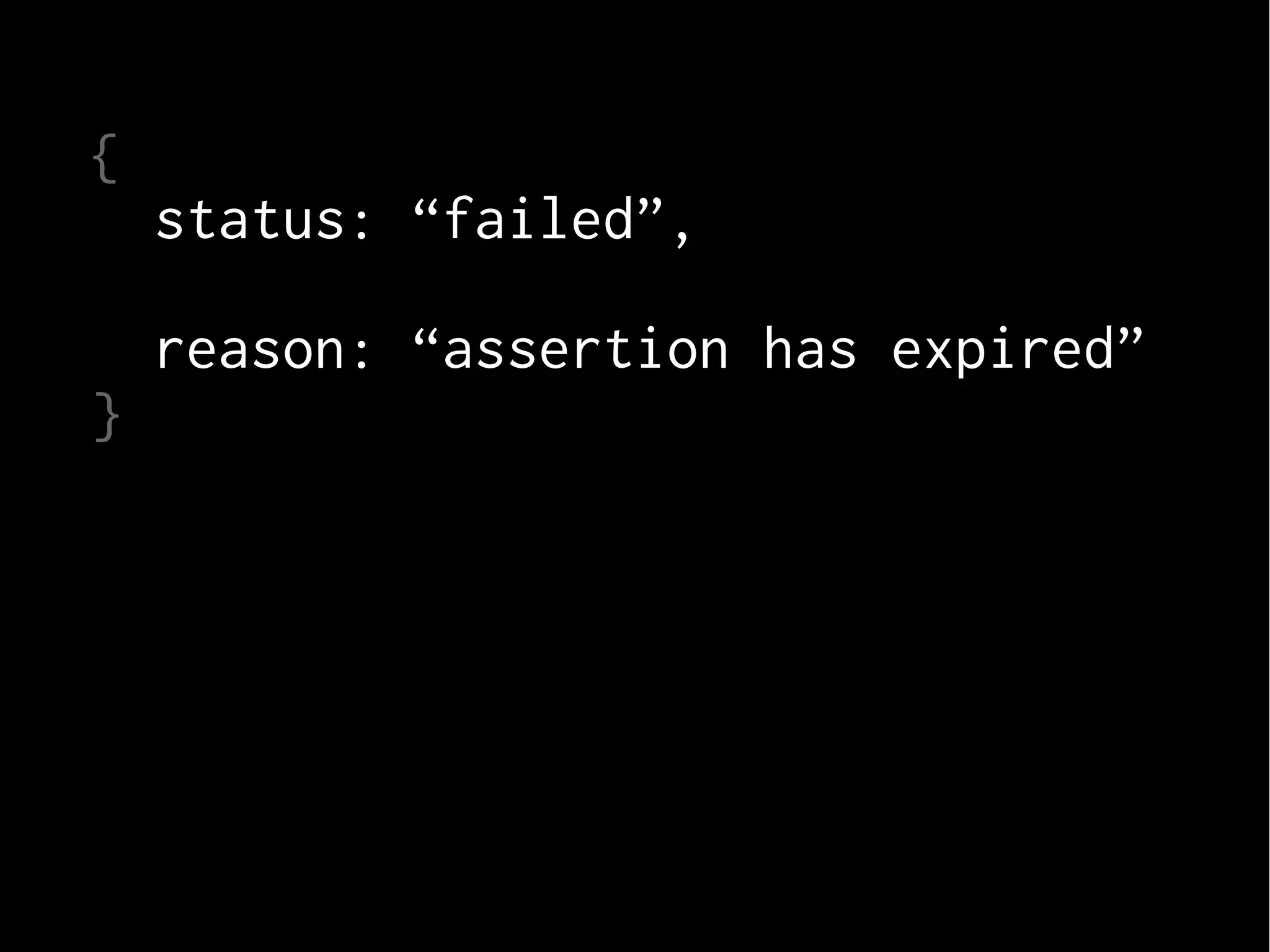

status: “failed”,
}

reason: “assertion has expired”

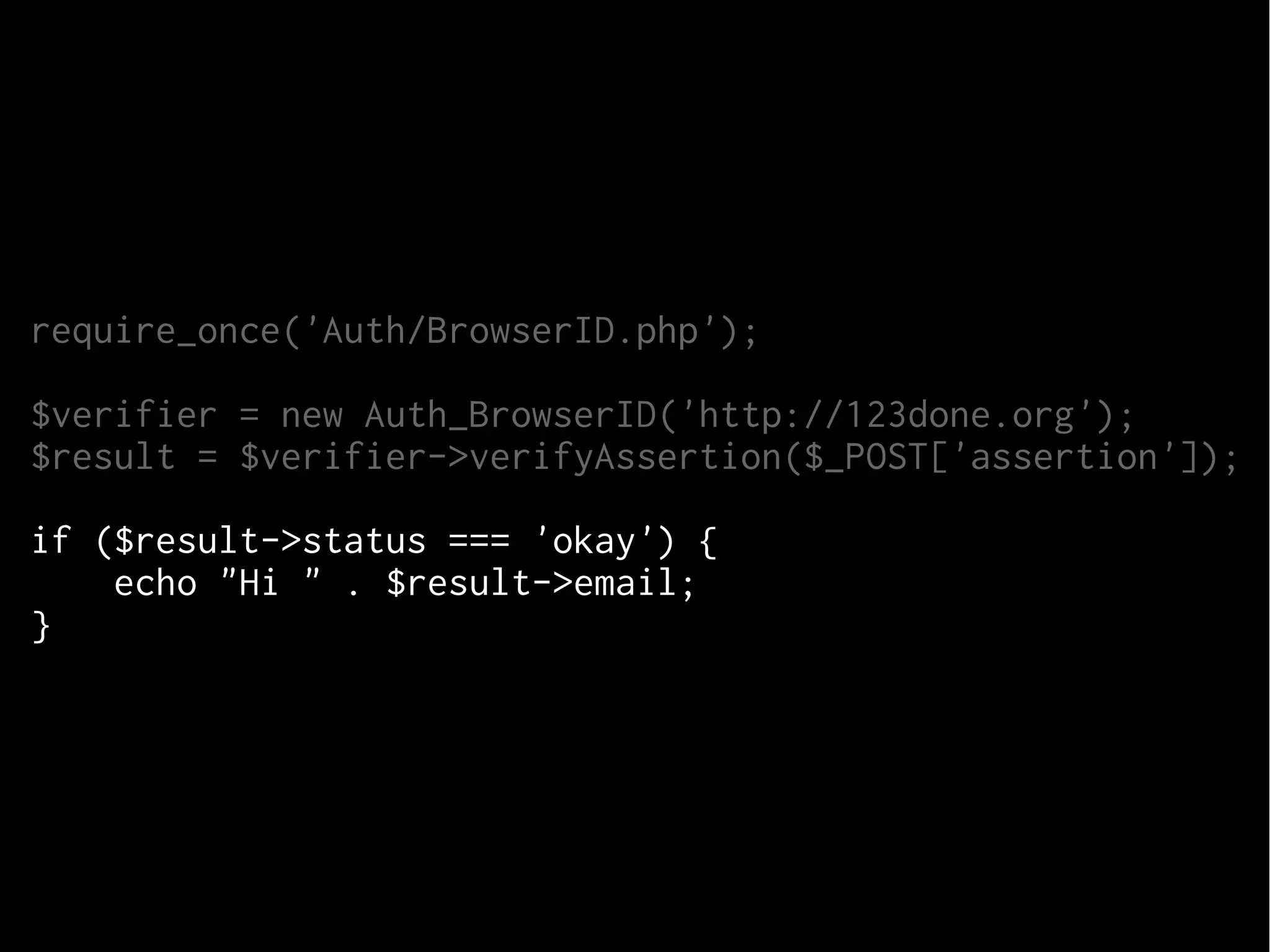

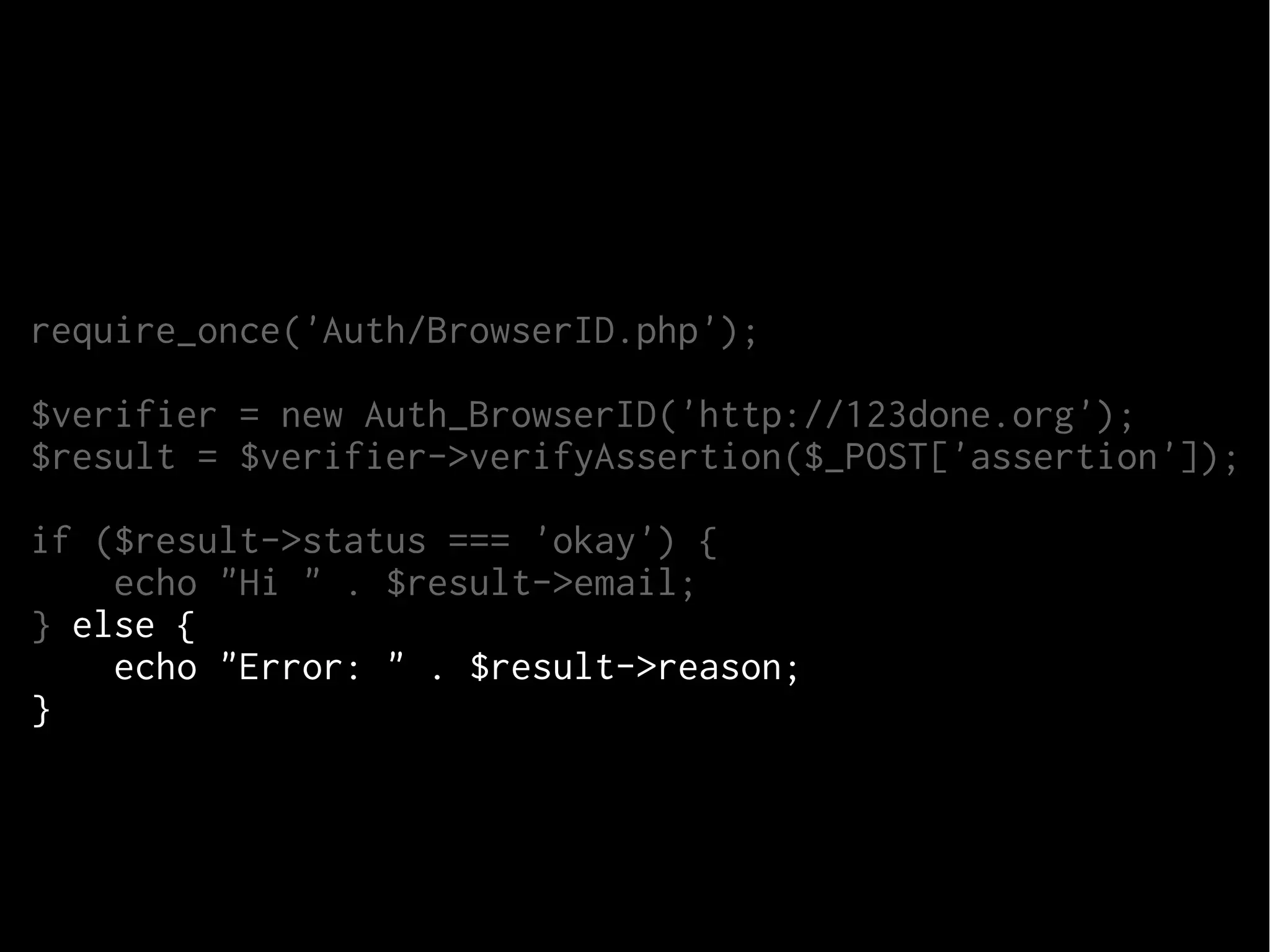

require_once('Auth/BrowserID.php');
$verifier = new Auth_BrowserID('http://123done.org');
$result = $verifier->verifyAssertion($_POST['assertion']);
if ($result->status === 'okay') {
echo "Hi " . $result->email;
} else {
echo "Error: " . $result->reason;
}

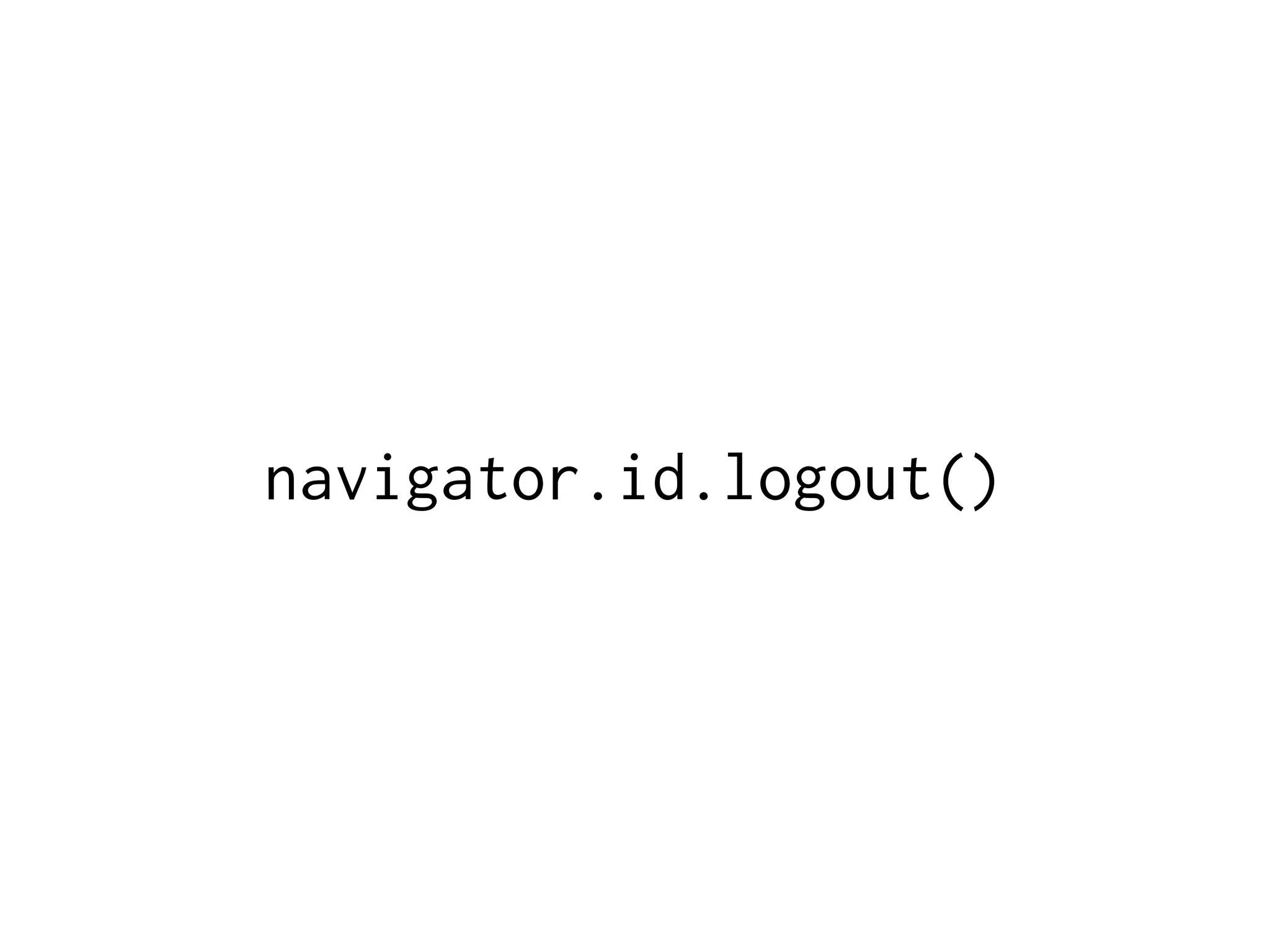

navigator.id.logout()
navigator.id.watch({
loggedInUser: null,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
window.location = '/home';
}
);
},
onlogout: function () {
window.location = '/logout';
}
});

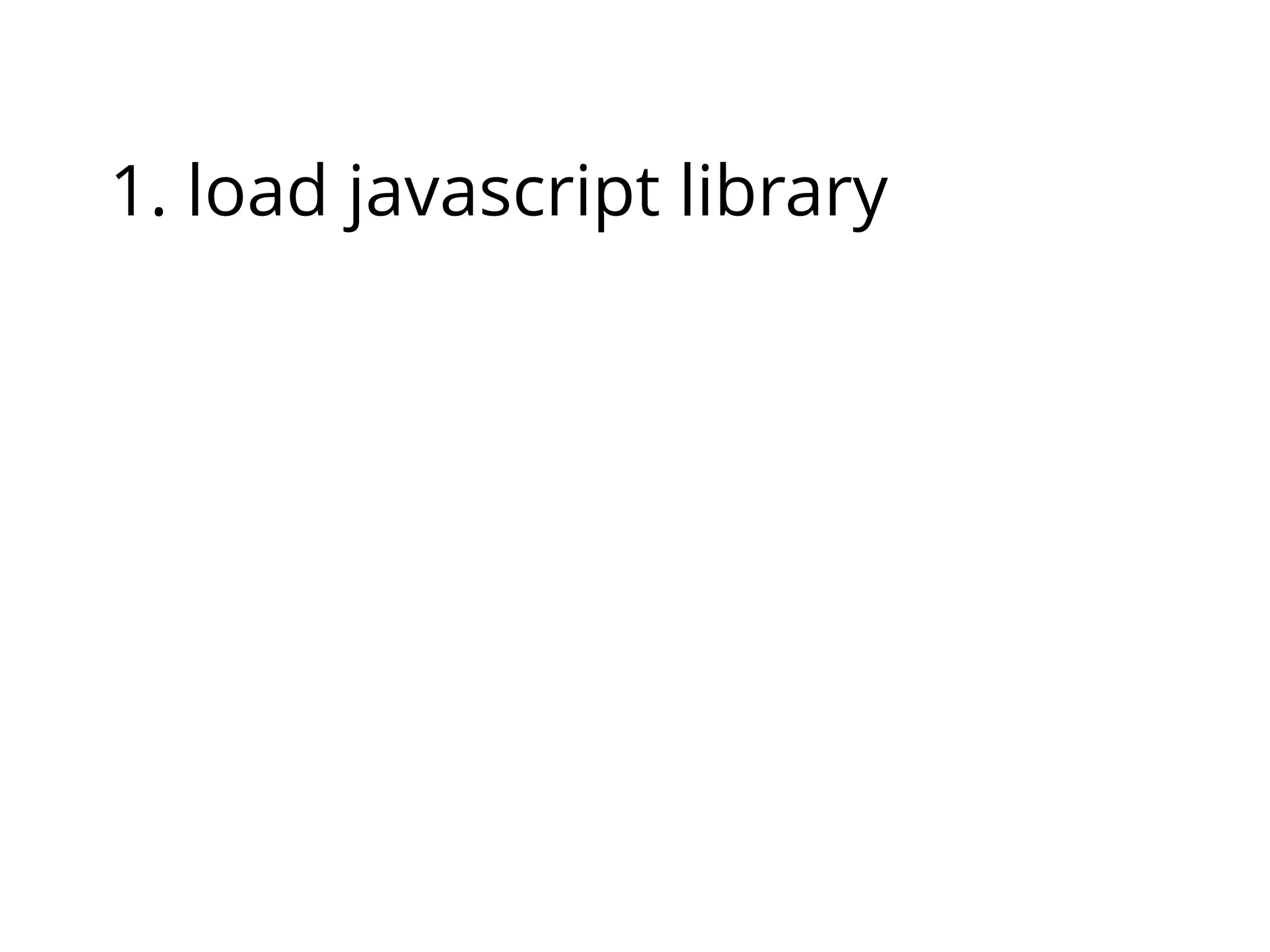

1. load javascript library

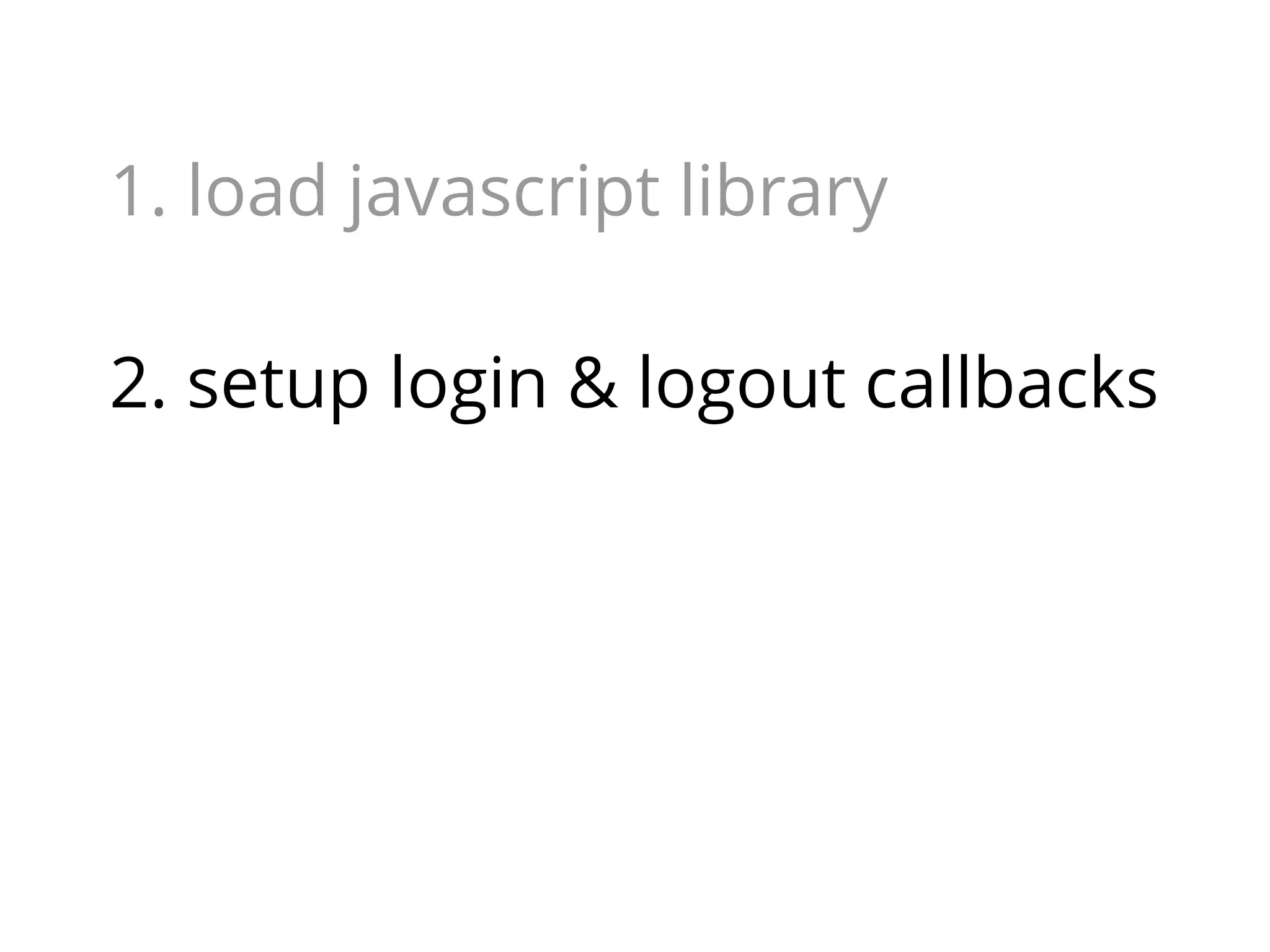

1. load javascript library
2. setup login & logout callbacks
1. load javascript library
2. setup login & logout callbacks

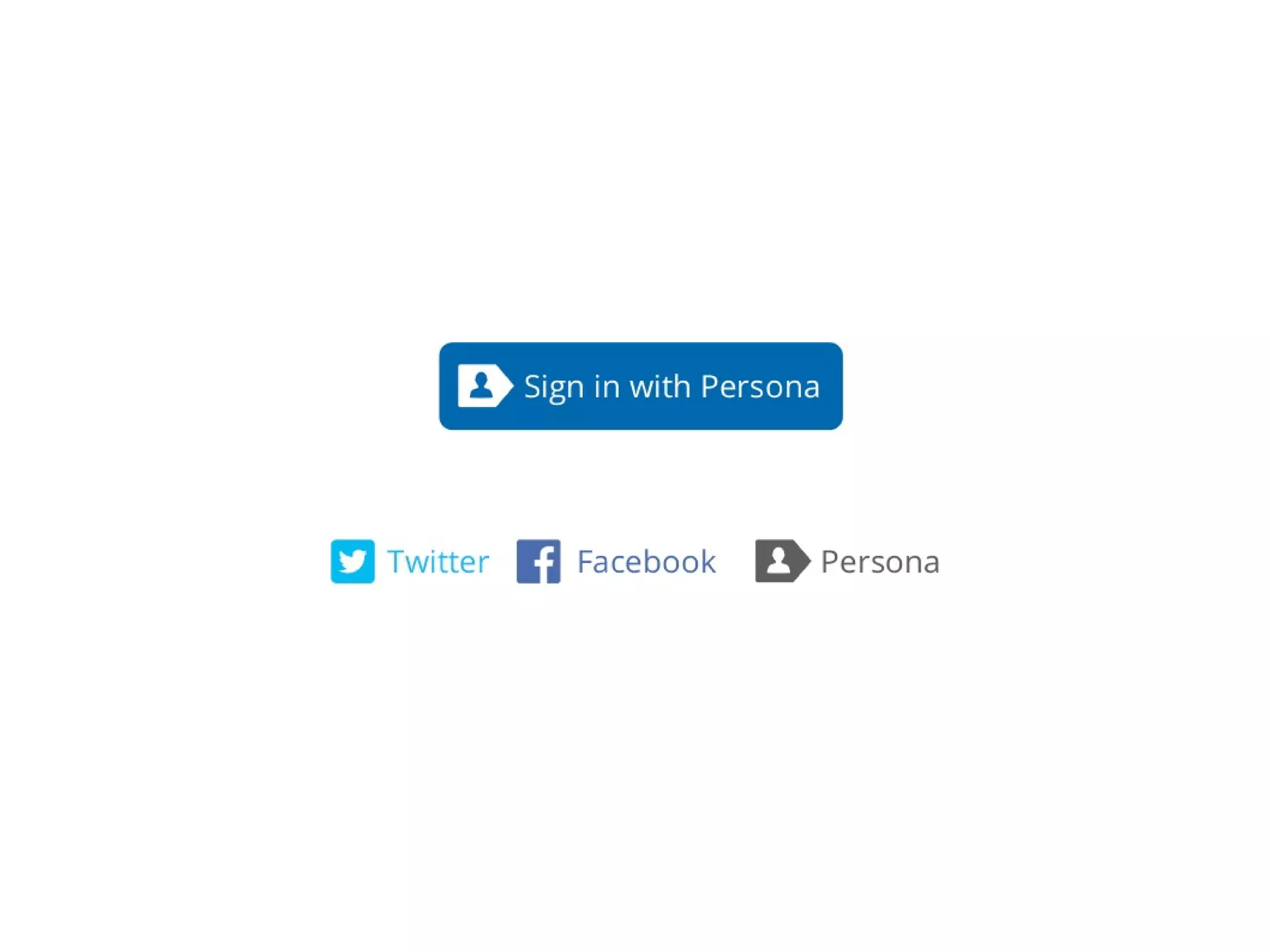

3. add login and logout buttons

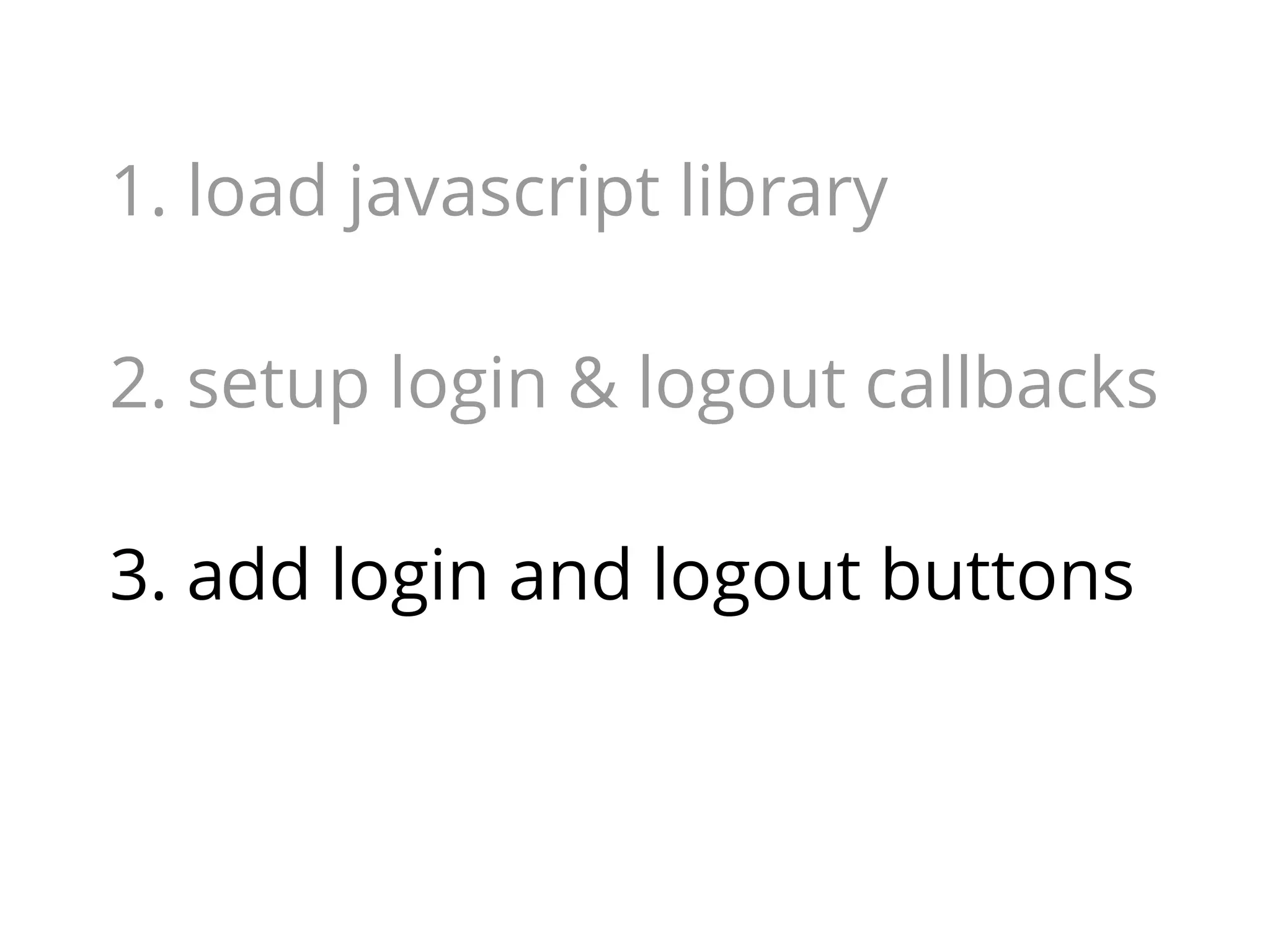

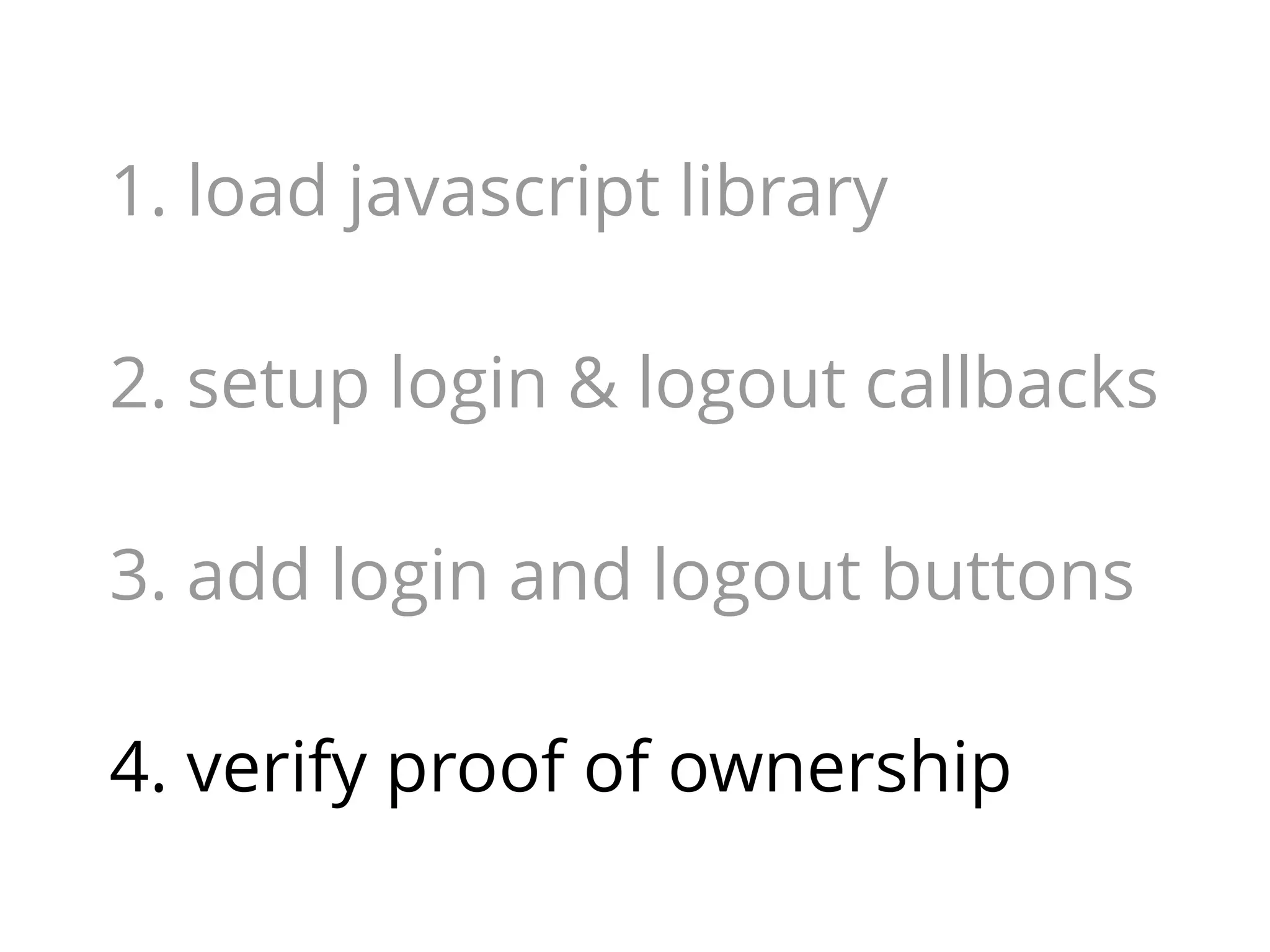

1. load javascript library
2. setup login & logout callbacks
3. add login and logout buttons
4. verify proof of ownership
no
1. load javascript library API key
needed
2. setup login & logout callbacks
3. add login and logout buttons
4. verify proof of ownership

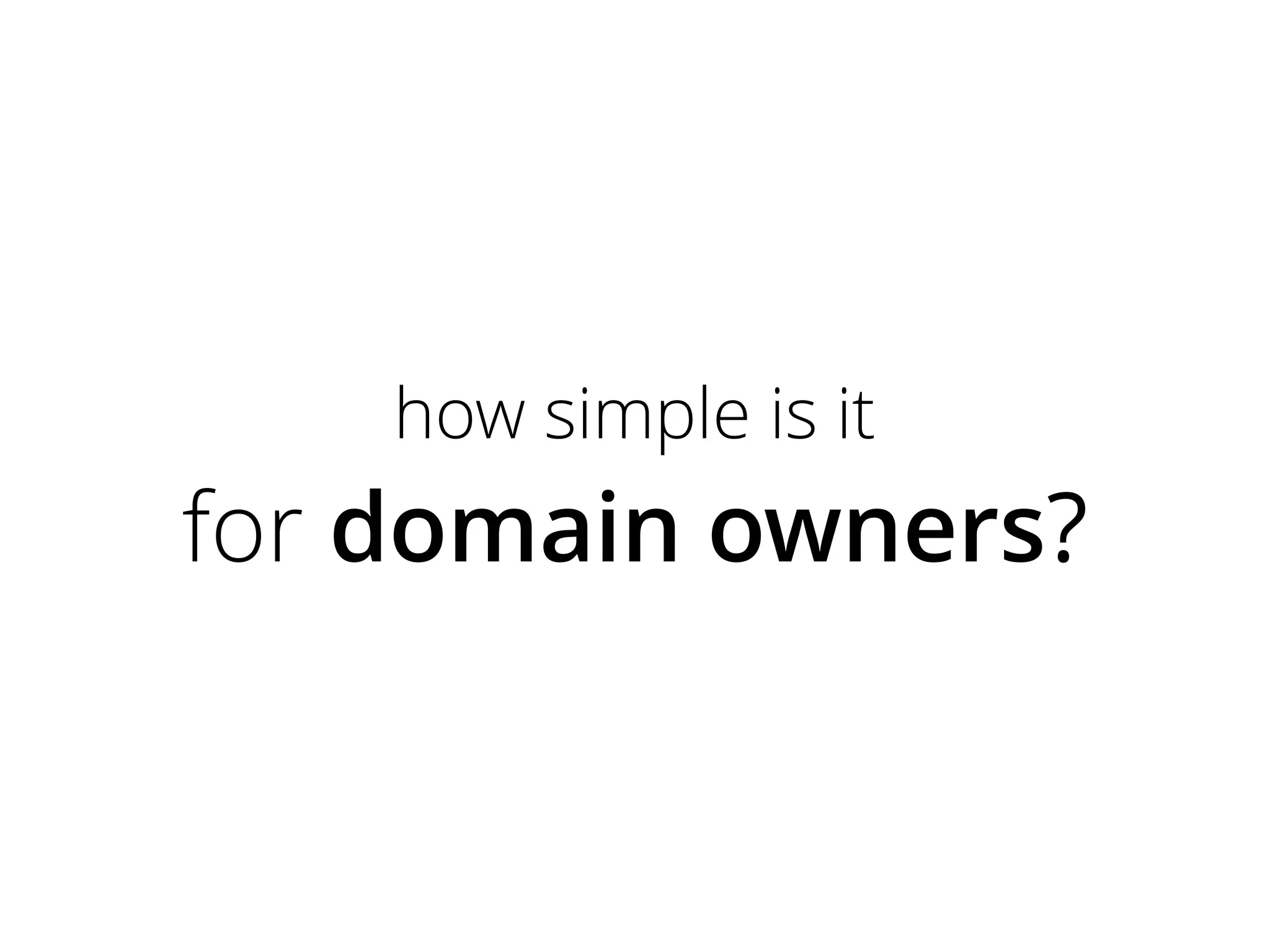

how simple is it

for domain owners?

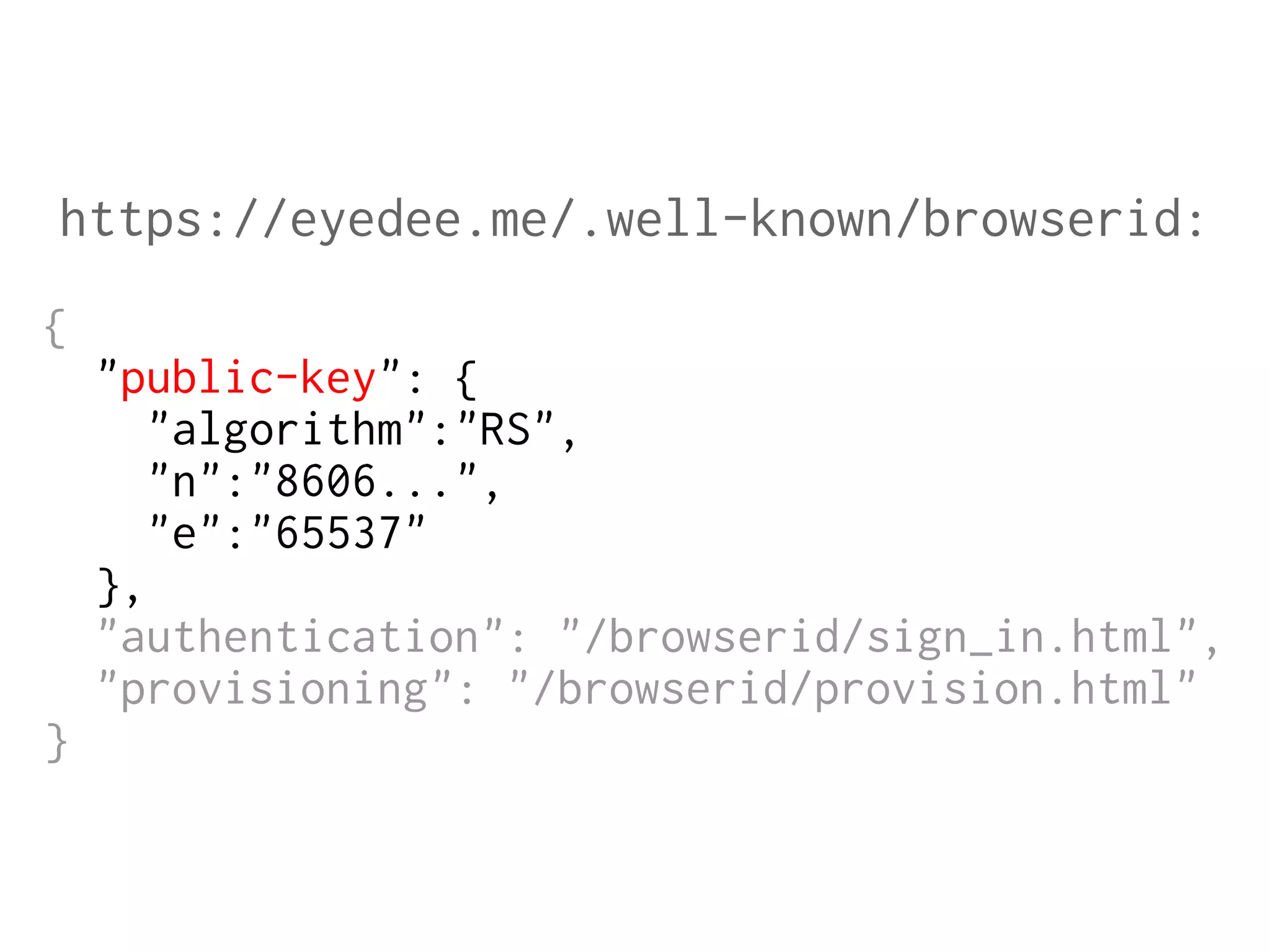

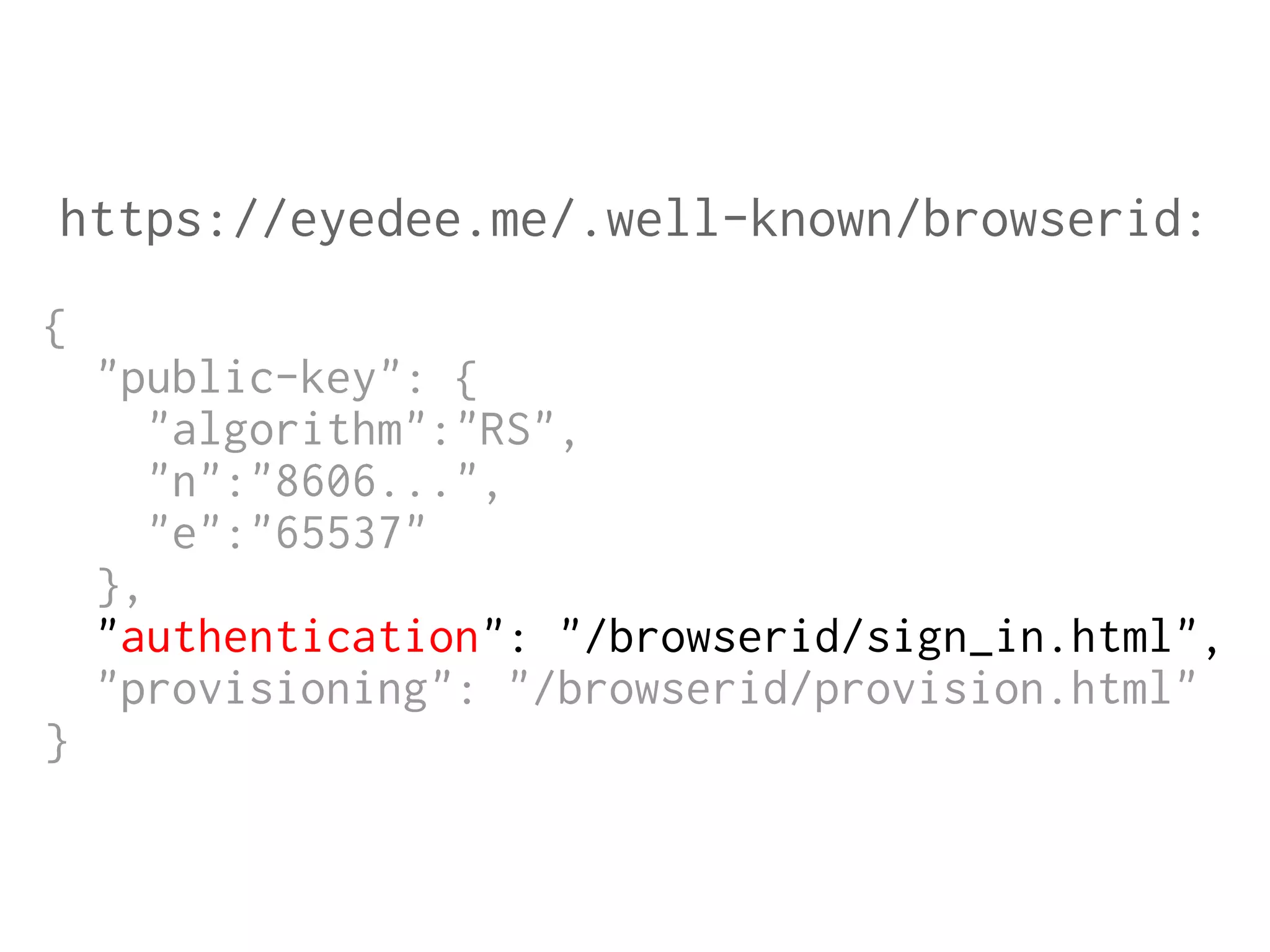

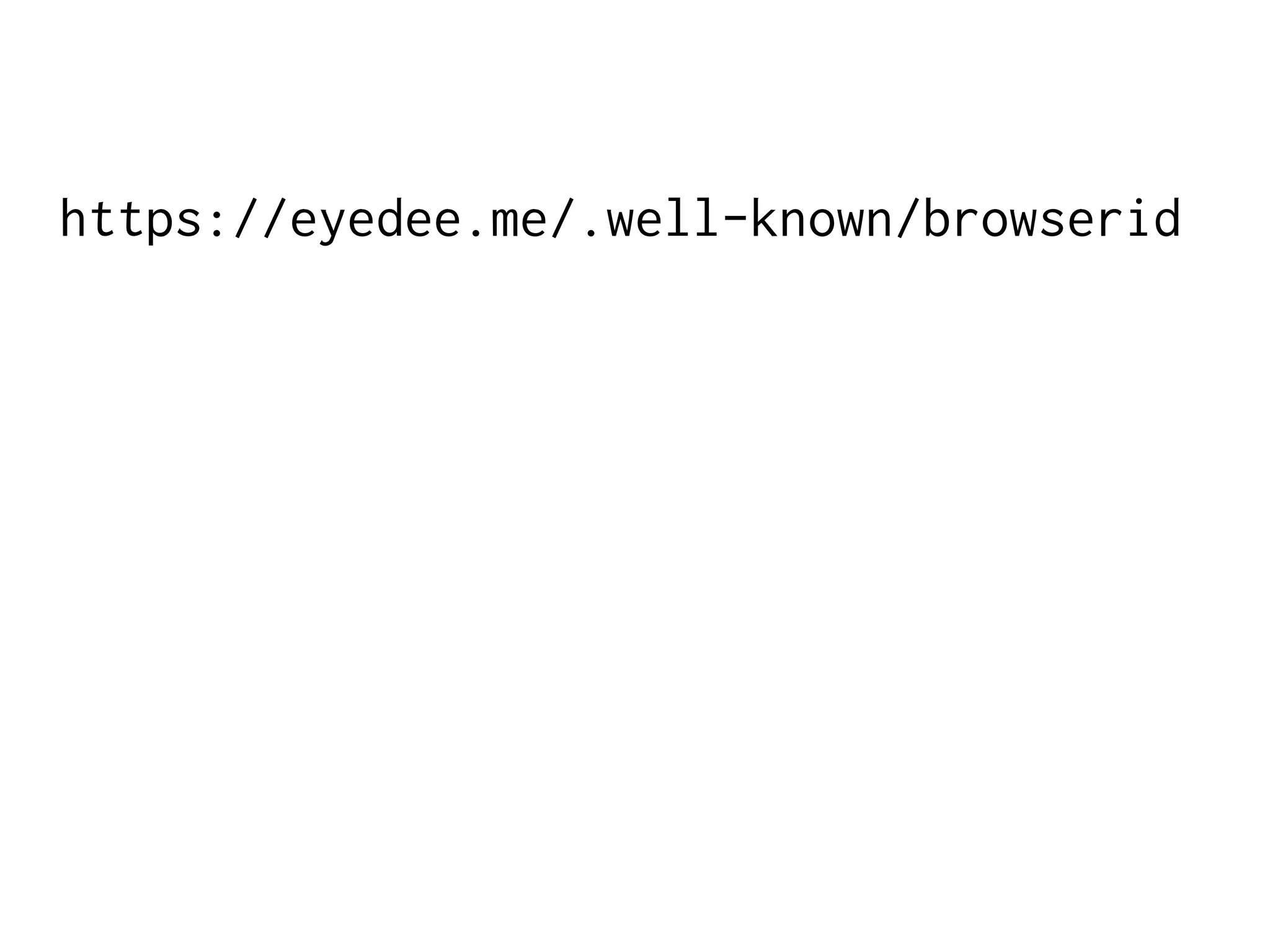

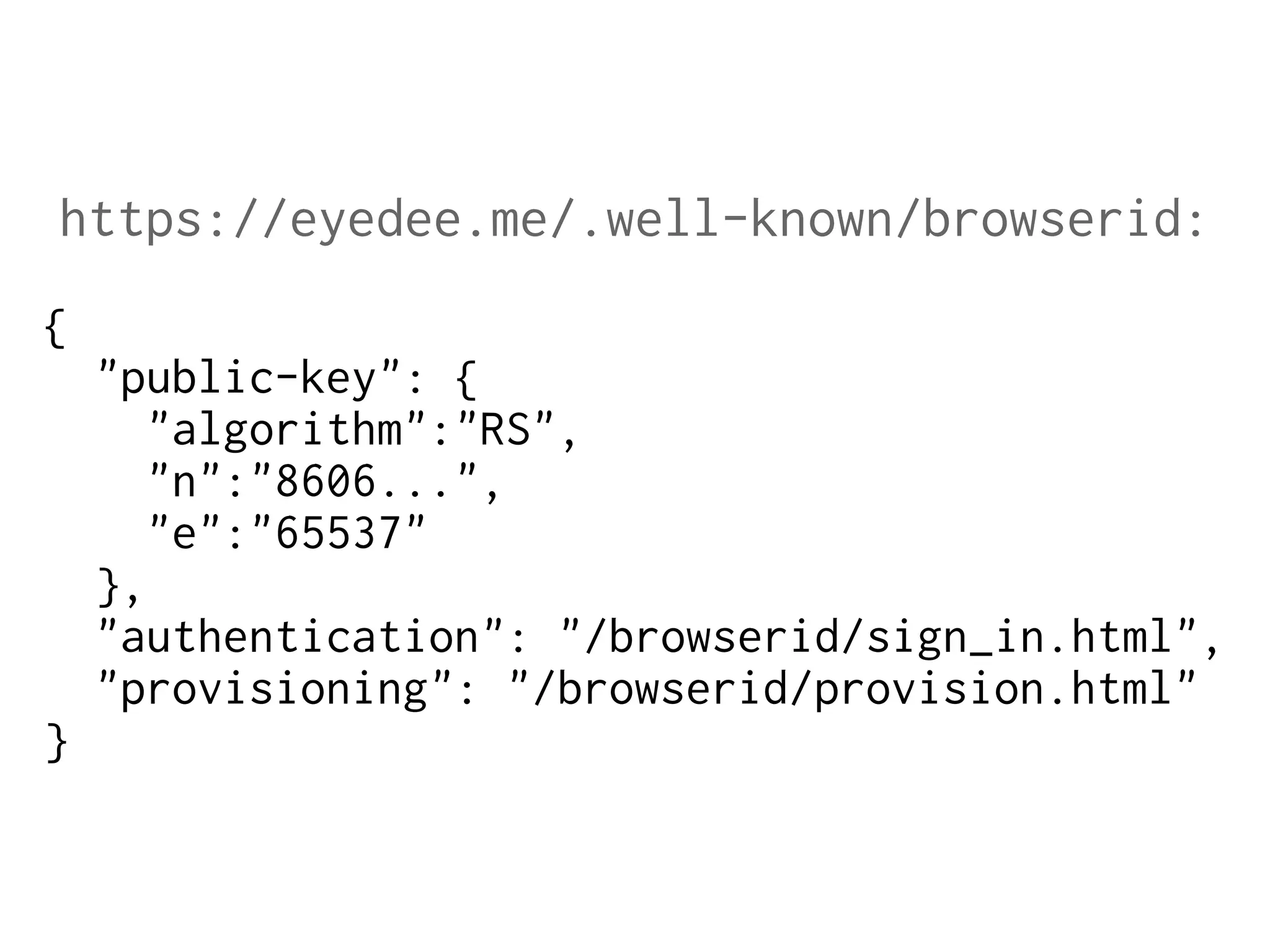

https://eyedee.me/.well-known/browserid:
{
"public-key": {
"algorithm":"RS",
"n":"8606...",
"e":"65537"
},
"authentication": "/browserid/sign_in.html",
"provisioning": "/browserid/provision.html"
}
https://eyedee.me/.well-known/browserid:
{
"public-key": {
"algorithm":"RS",
"n":"8606...",
"e":"65537"
},
"authentication": "/browserid/sign_in.html",
"provisioning": "/browserid/provision.html"
}
https://eyedee.me/.well-known/browserid:
{
"public-key": {
"algorithm":"RS",
"n":"8606...",
"e":"65537"
},
"authentication": "/browserid/sign_in.html",
"provisioning": "/browserid/provision.html"
}
https://eyedee.me/.well-known/browserid:
{
"public-key": {
"algorithm":"RS",
"n":"8606...",
"e":"65537"
},
"authentication": "/browserid/sign_in.html",
"provisioning": "/browserid/provision.html"
}

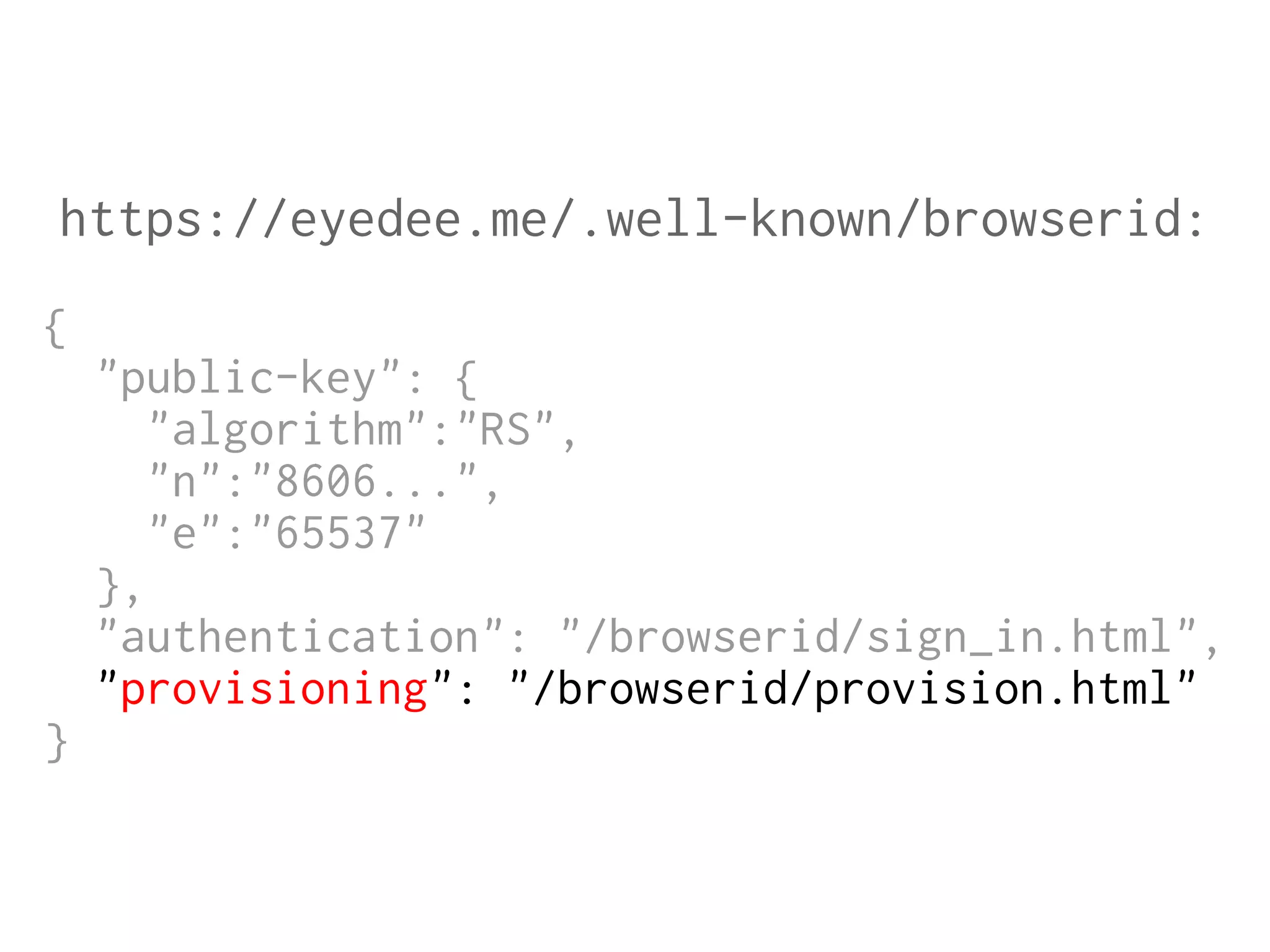

https://eyedee.me/.well-known/browserid:
{
"public-key": {
"algorithm":"RS",
"n":"8606...",
"e":"65537"
},
"authentication": "/browserid/sign_in.html",
"provisioning": "/browserid/provision.html"
}

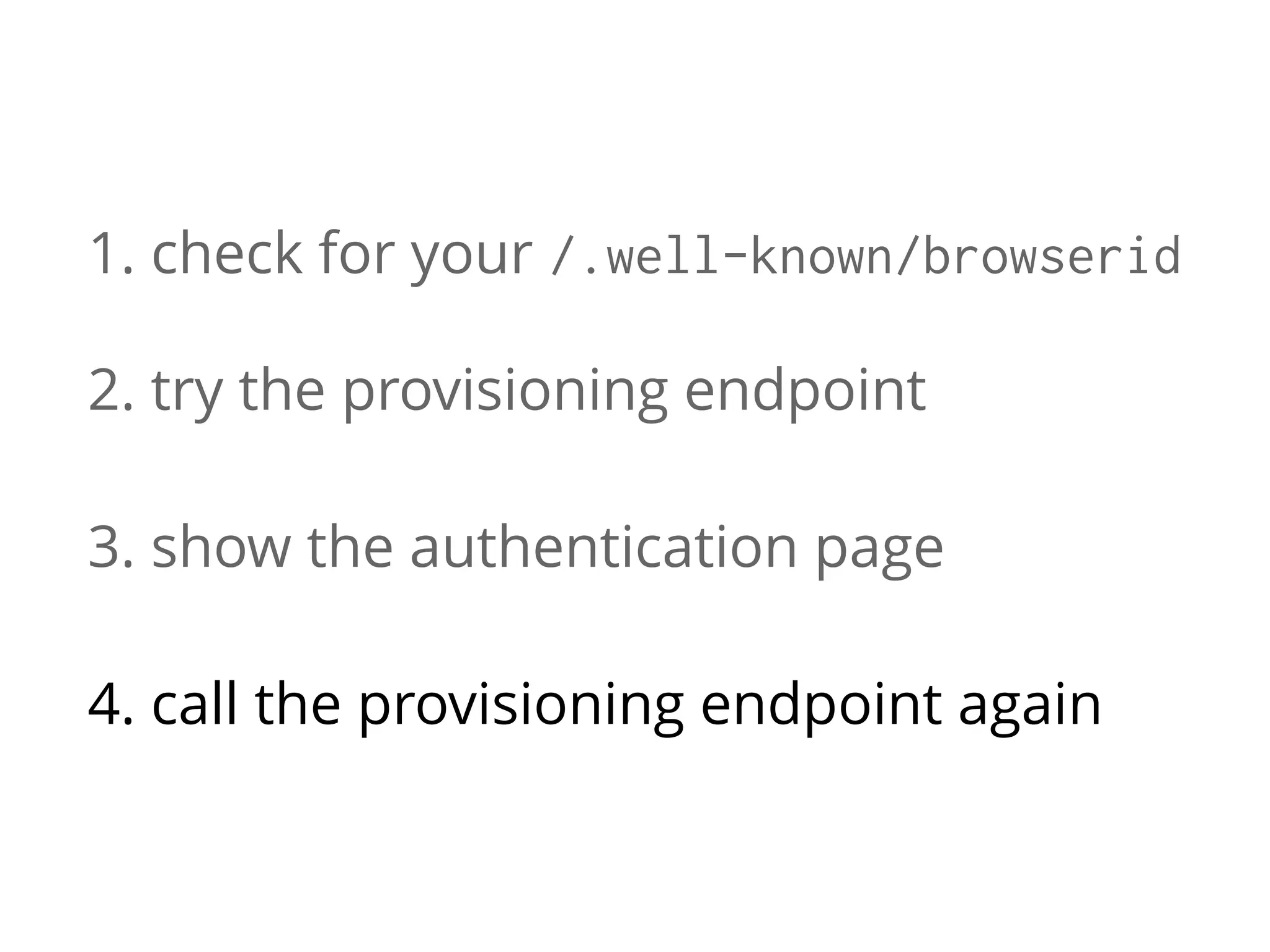

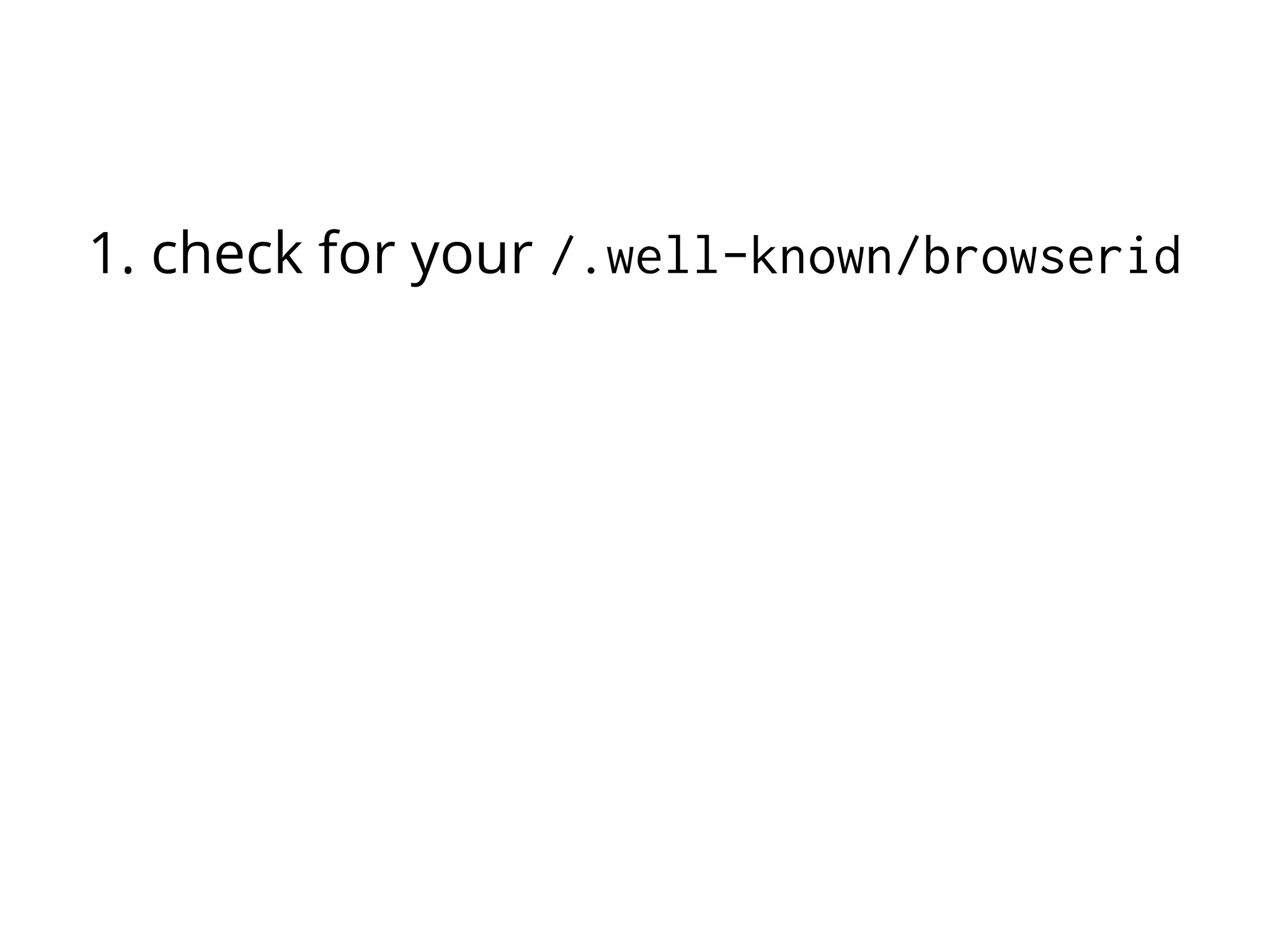

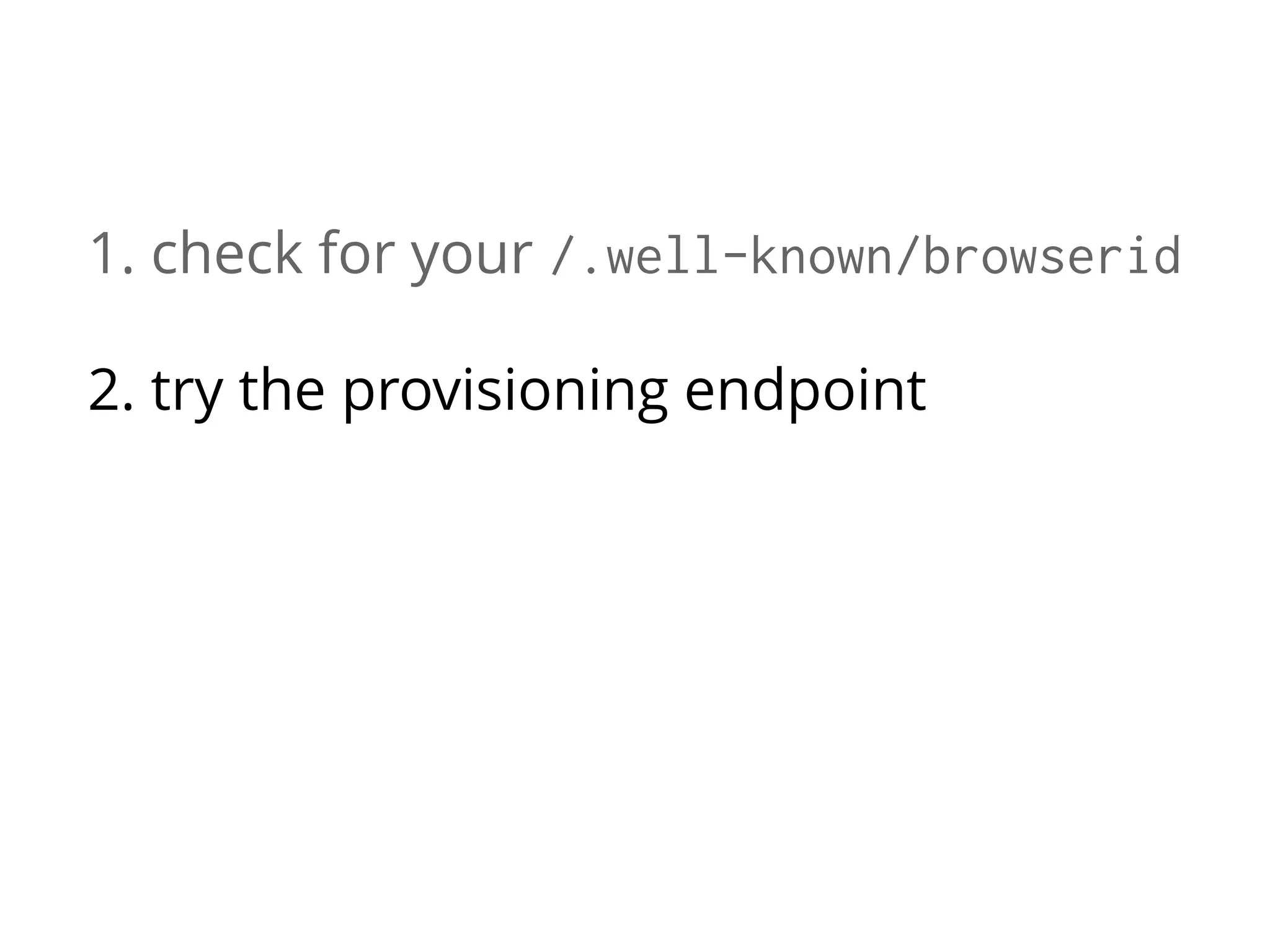

1. check for your /.well-known/browserid
2. try the provisioning endpoint
3. show the authentication page
4. call the provisioning endpoint again
1. check for your /.well-known/browserid
2. try the provisioning endpoint
3. show the authentication page
4. call the provisioning endpoint again

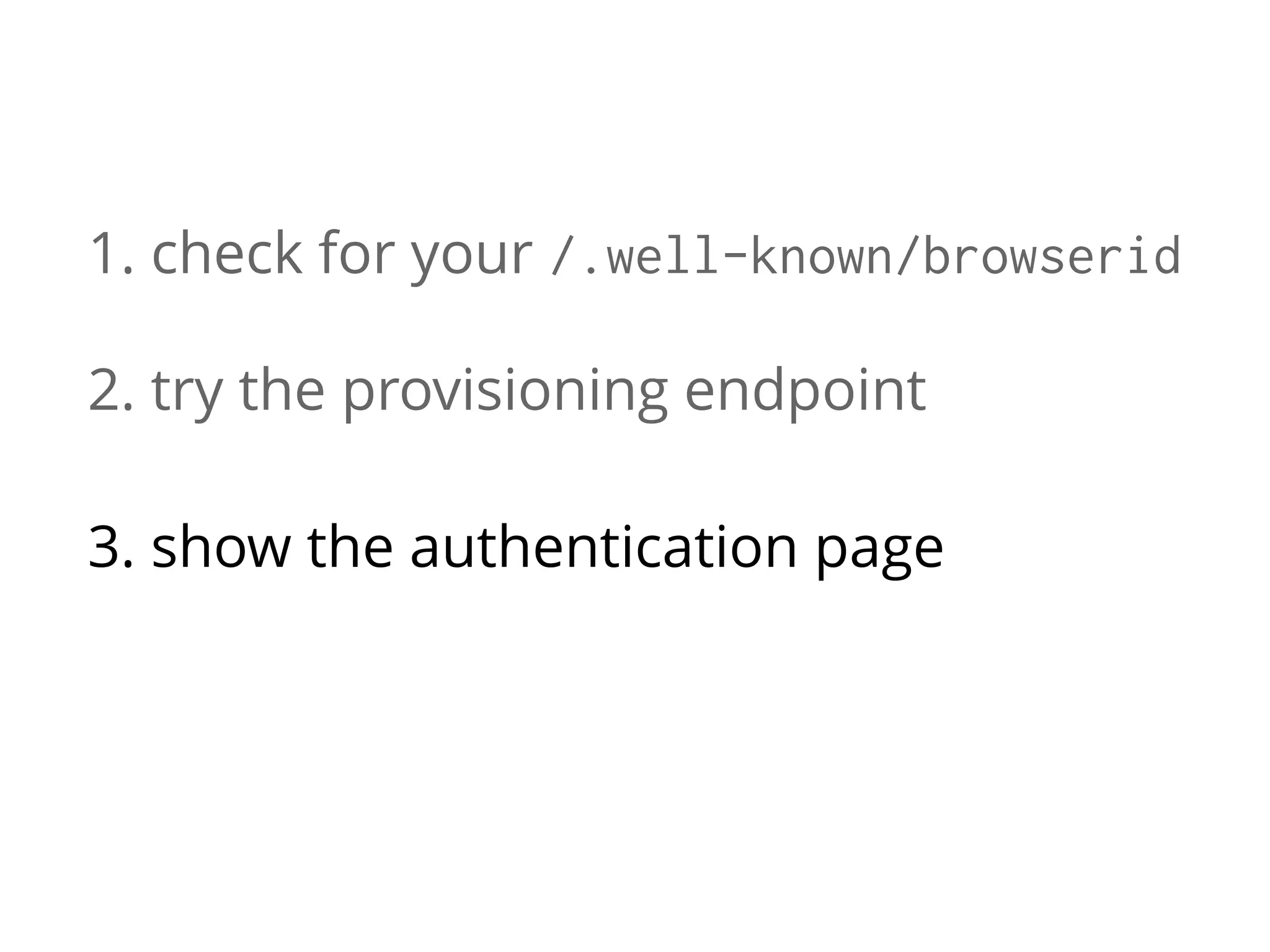

1. check for your /.well-known/browserid
2. try the provisioning endpoint
3. show the authentication page
4. call the provisioning endpoint again
1. check for your /.well-known/browserid
2. try the provisioning endpoint
3. show the authentication page
4. call the provisioning endpoint again

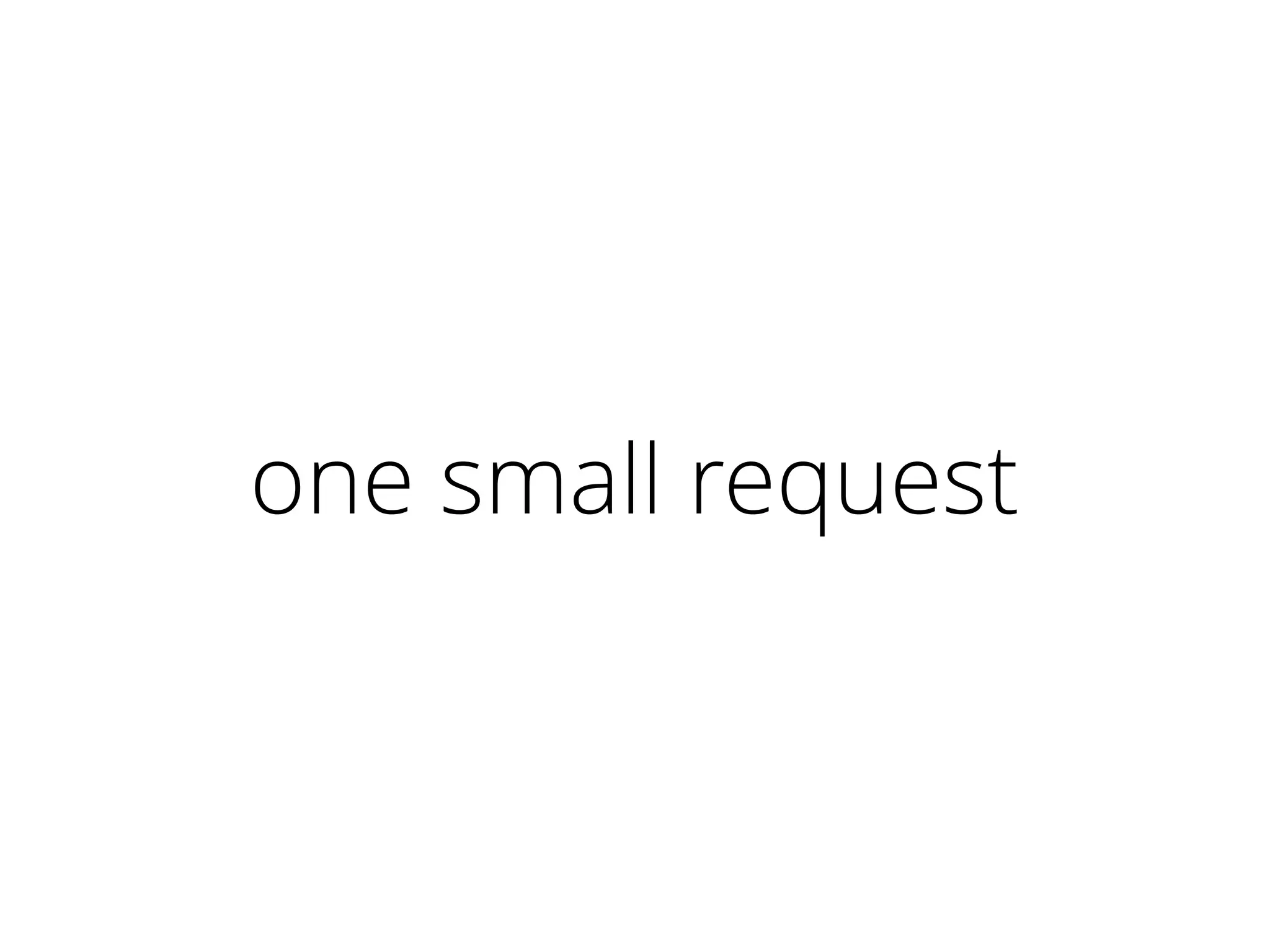

one small request

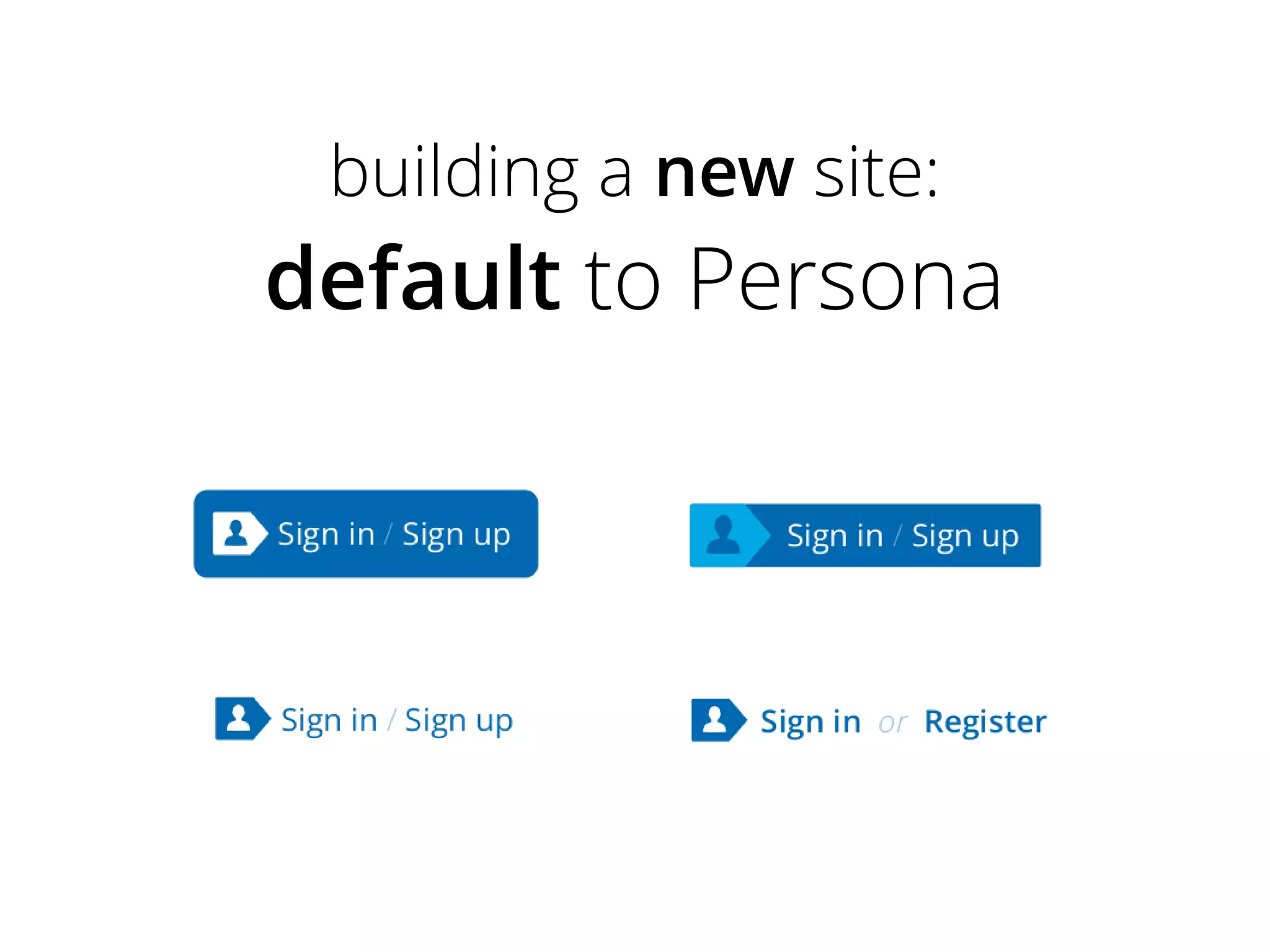

building a new site:

default to Persona

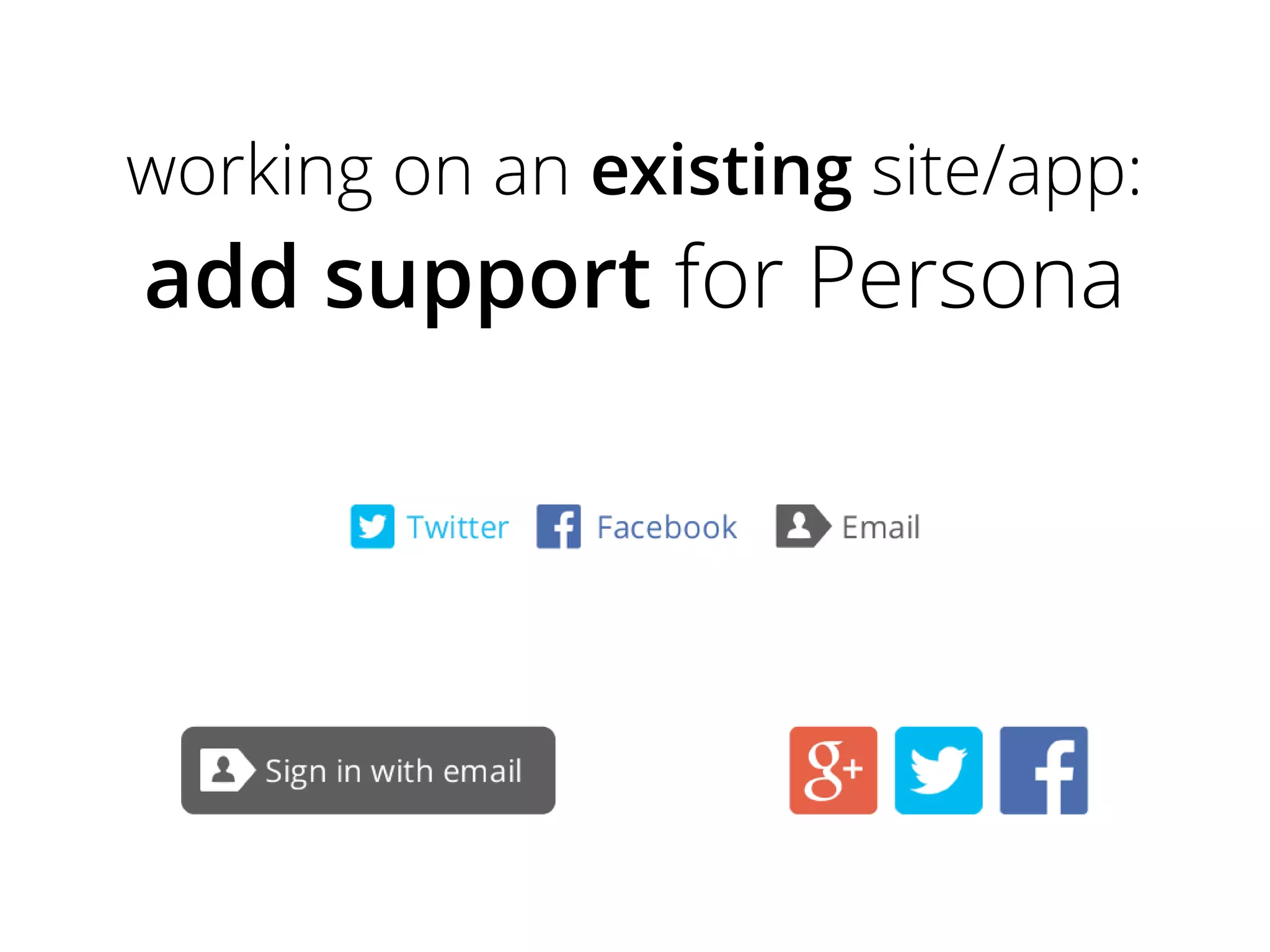

working on an existing site/app:

add support for Persona

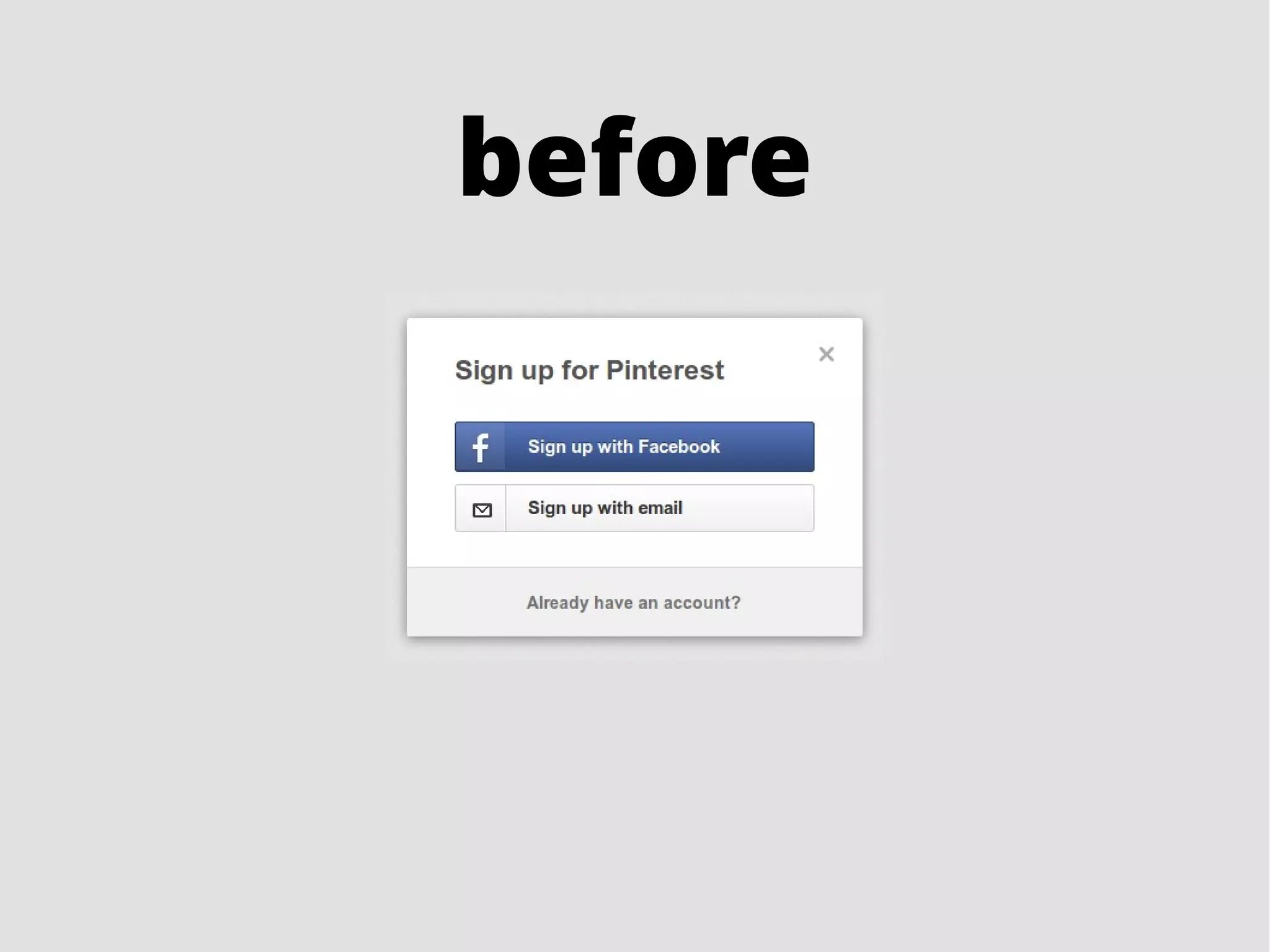

before

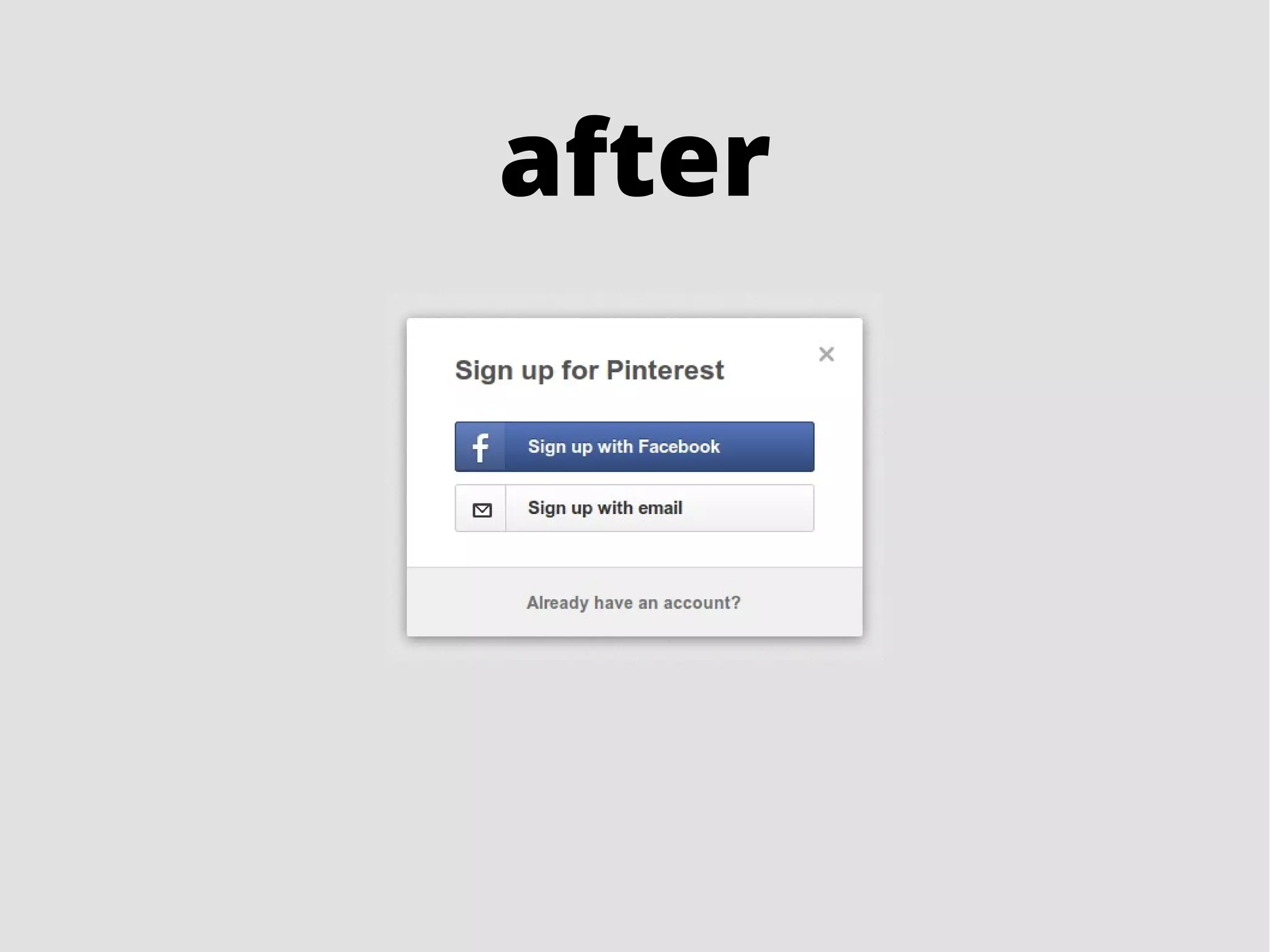

after
after

navigator.id.request()
ALTER TABLE user
DROP COLUMN password;

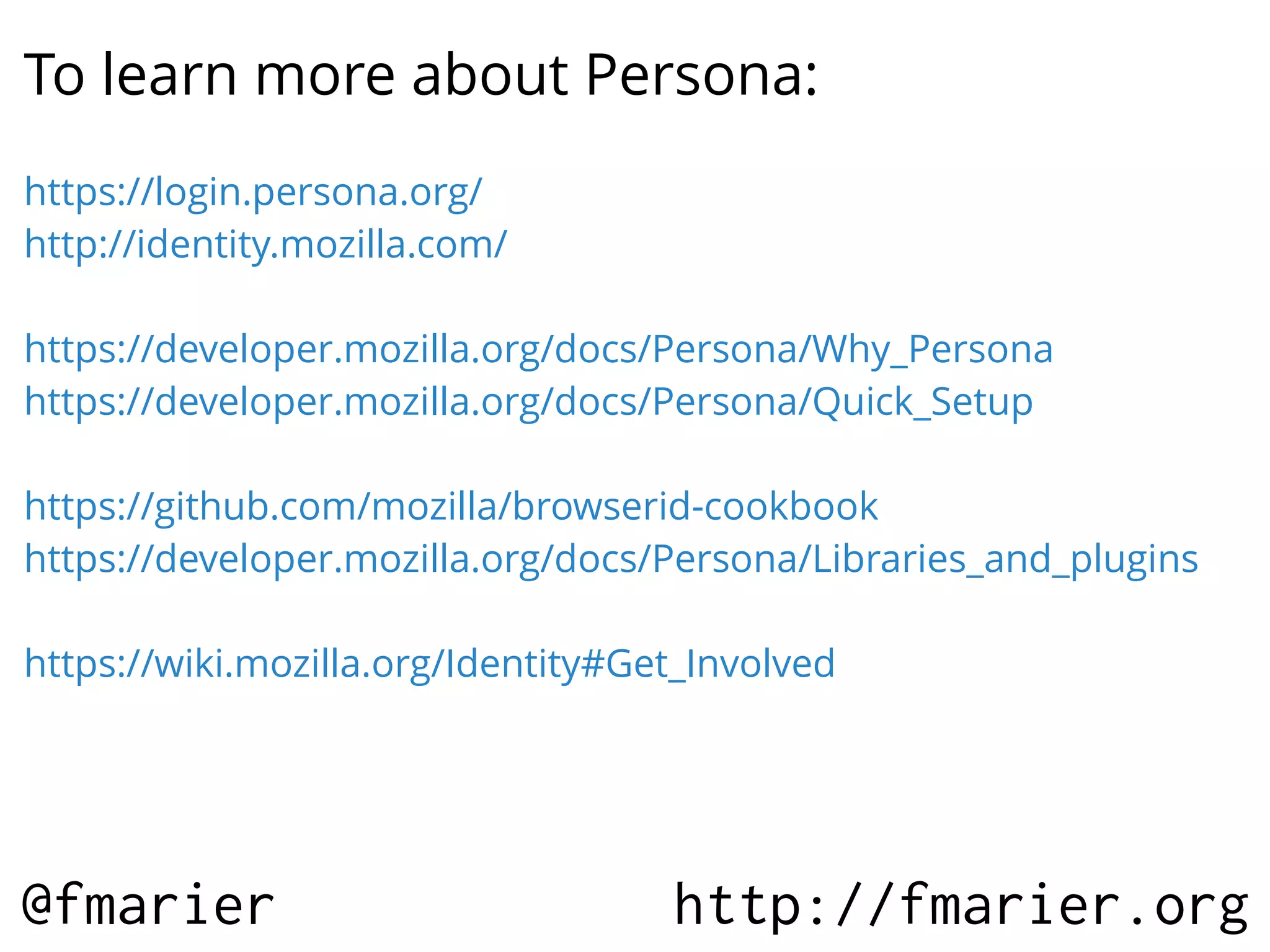

To learn more about Persona:
https://login.persona.org/
http://identity.mozilla.com/
https://developer.mozilla.org/docs/Persona/Why_Persona
https://developer.mozilla.org/docs/Persona/Quick_Setup
https://github.com/mozilla/browserid-cookbook
https://developer.mozilla.org/docs/Persona/Libraries_and_plugins
https://wiki.mozilla.org/Identity#Get_Involved

@fmarier

http://fmarier.org
Photo credits:
Laptop password: https://secure.flickr.com/photos/reidrac/4696900602/
Top 500 passwords: http://xato.net/passwords/more-top-worst-passwords/
Restaurant dinner: https://secure.flickr.com/photos/yourdon/3977084094/
Parchment: https://secure.flickr.com/photos/27613359@N03/6750396225/
Yubikey: https://secure.flickr.com/photos/knk/3379897261/
Stop sign: https://secure.flickr.com/photos/artbystevejohnson/6673406227/

© 2013 François Marier <francois@mozilla.com>
This work is licensed under a
Creative Commons Attribution-ShareAlike 3.0 New Zealand License.

You're still using passwords on your site?
