Visual Factory
- 1. 5 S –A Visual Factory

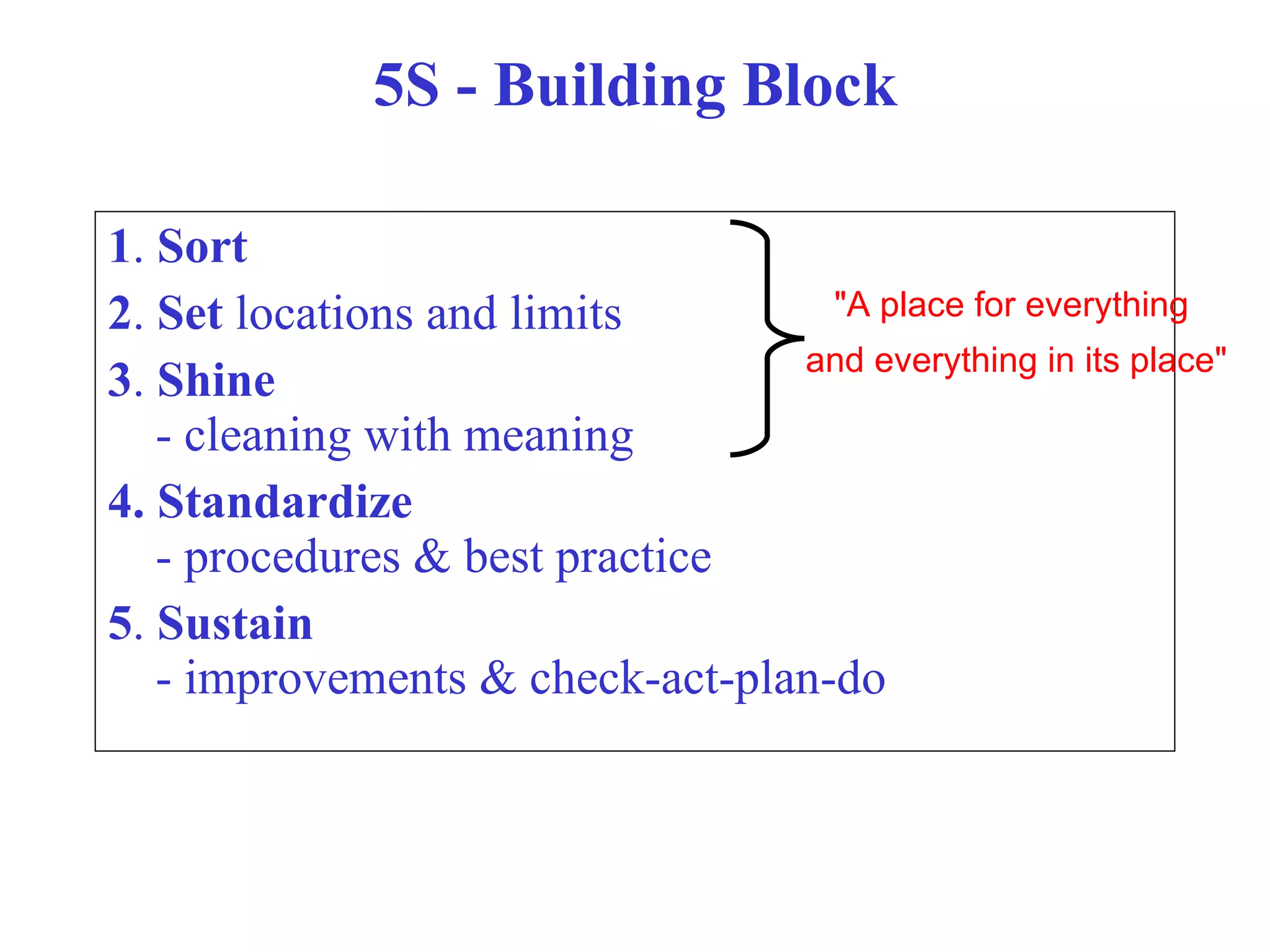

- 2. 5S - BuildingBlock 1 . Sort 2 . Set locations and limits 3 . Shine - cleaning with meaning 4. Standardize - procedures & best practice 5 . Sustain - improvements & check-act-plan-do "A place for everything and everything in its place"

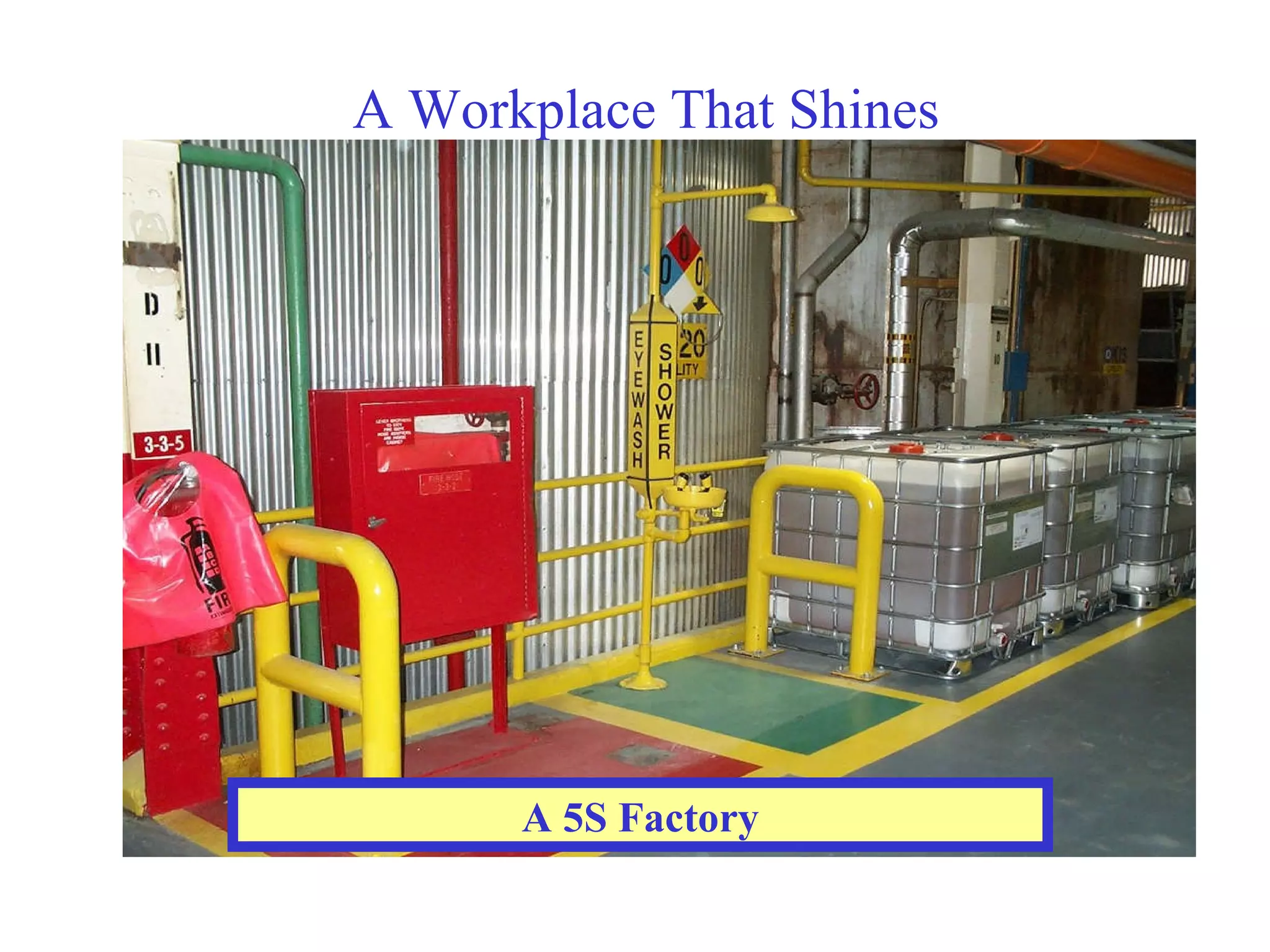

- 3. A 5S FactoryA Workplace That Shines
- 4. Floor area markingsRed area = Do not put anything here

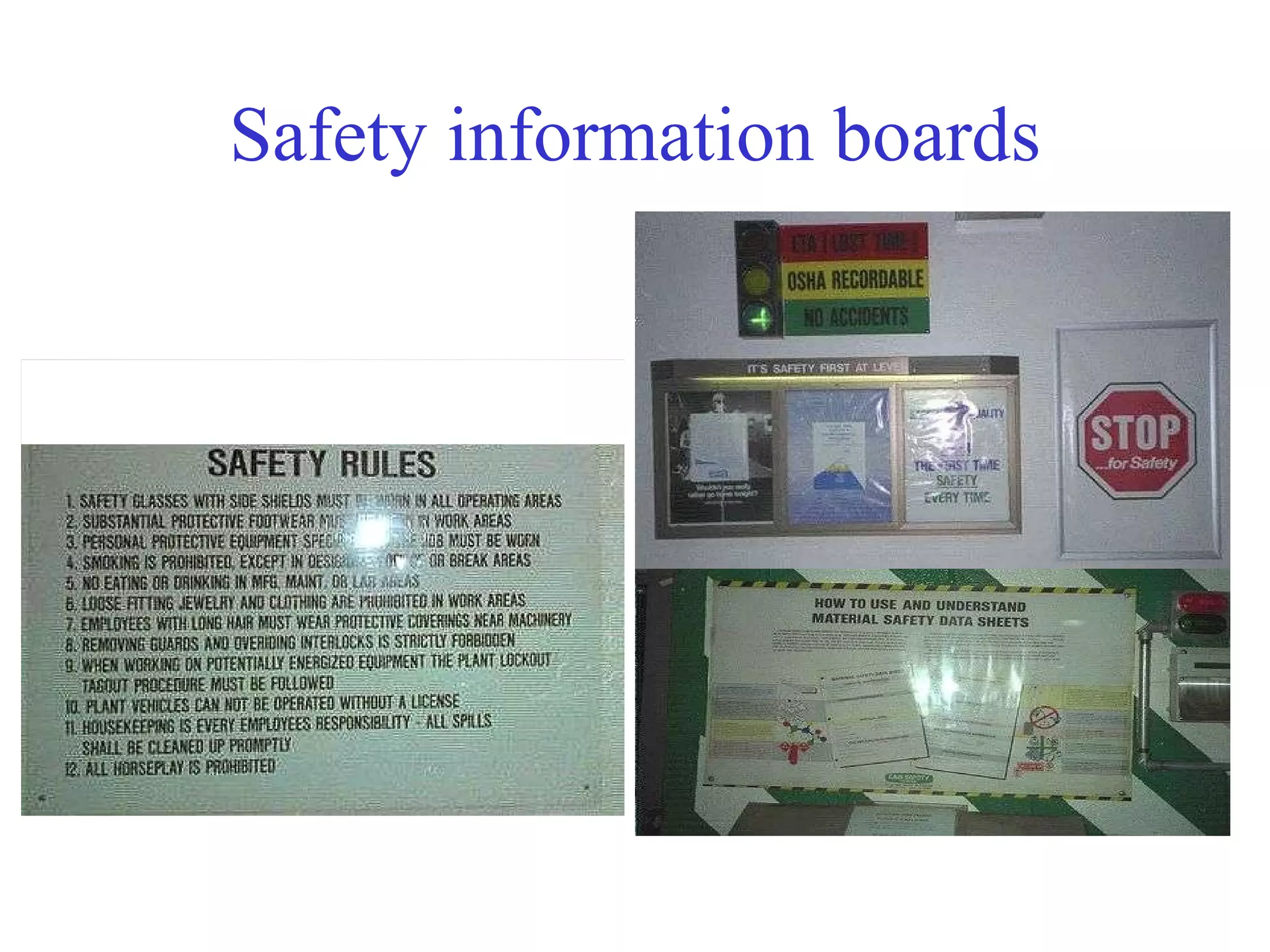

- 5.

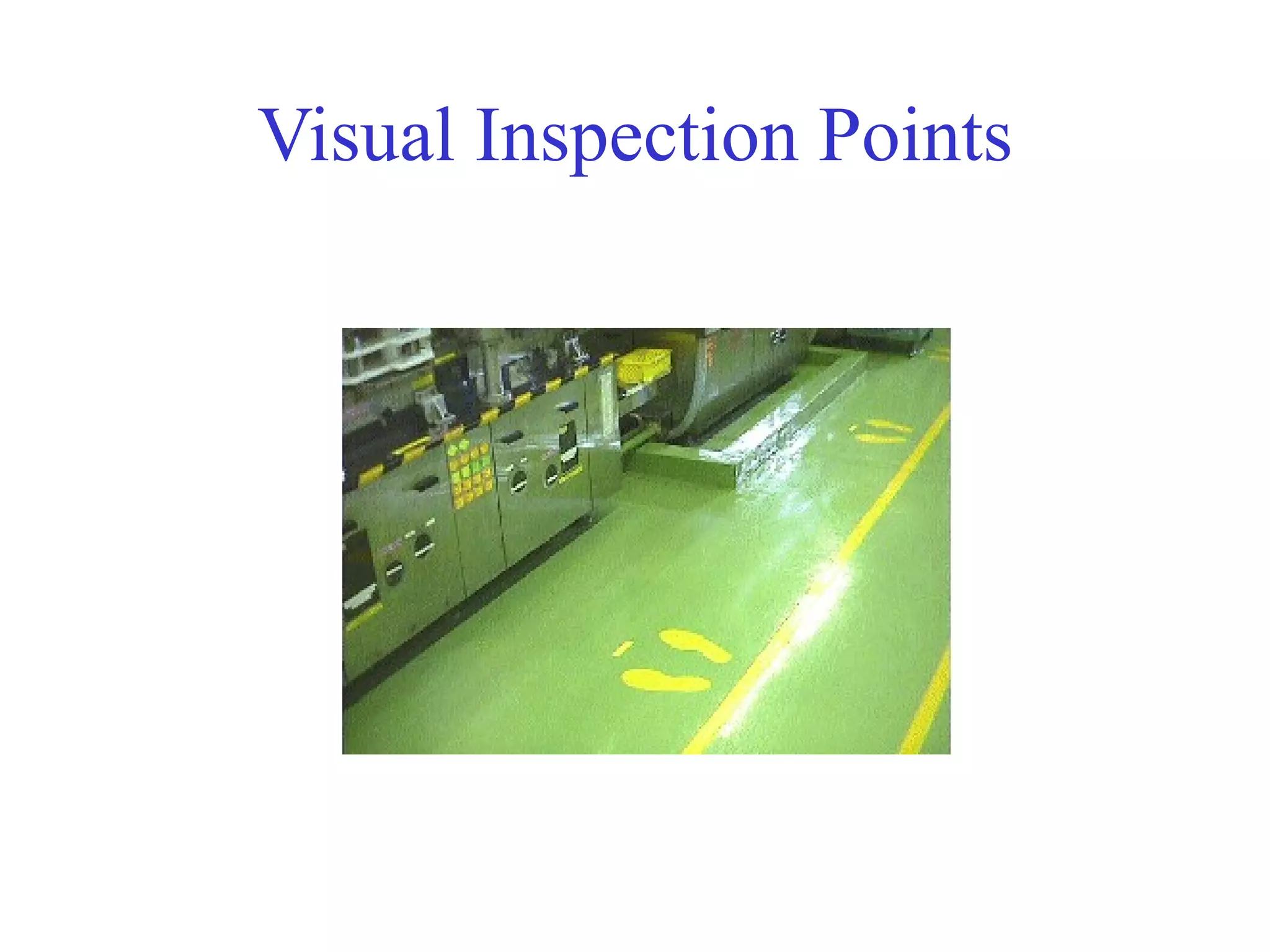

- 6.

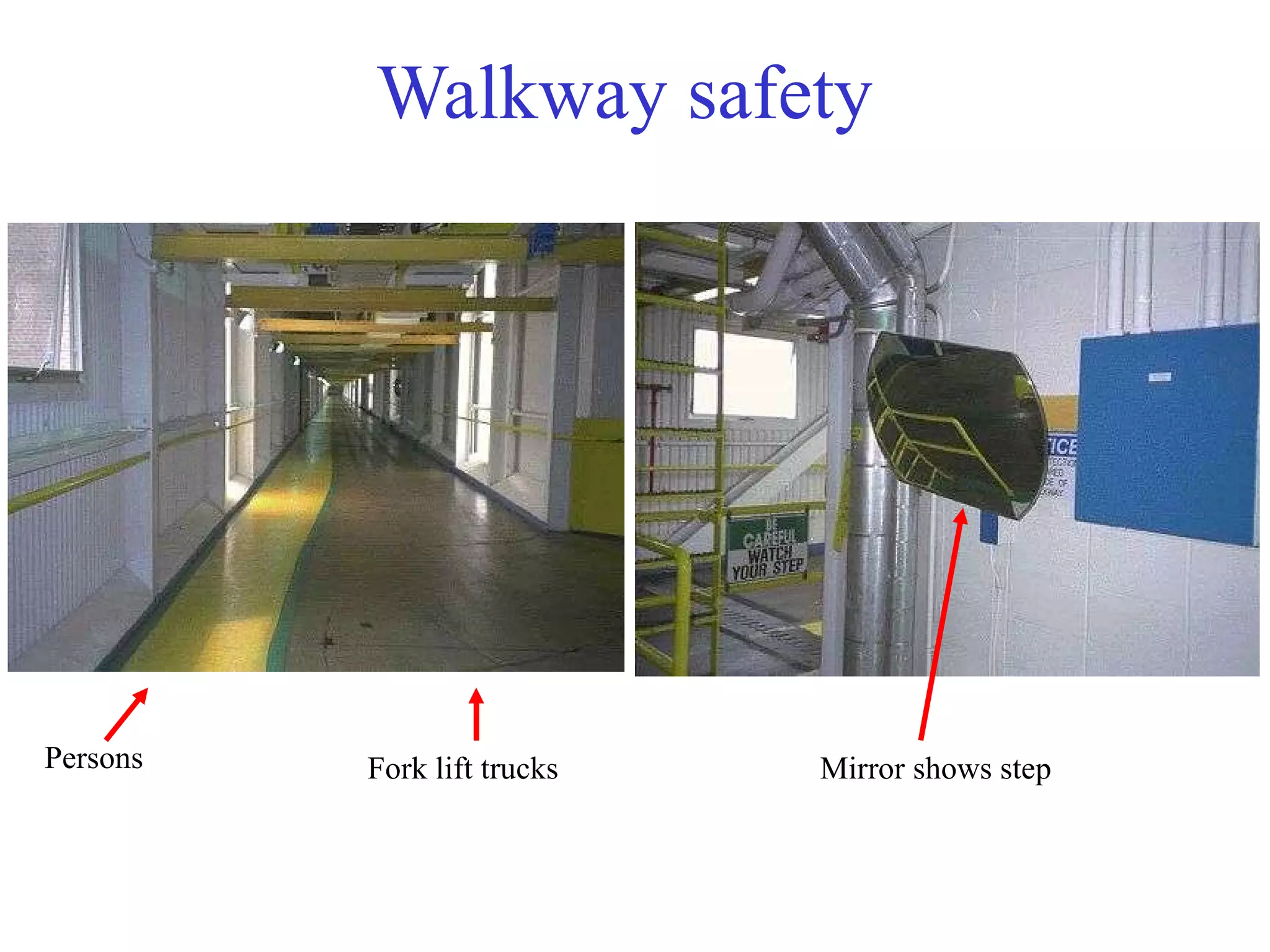

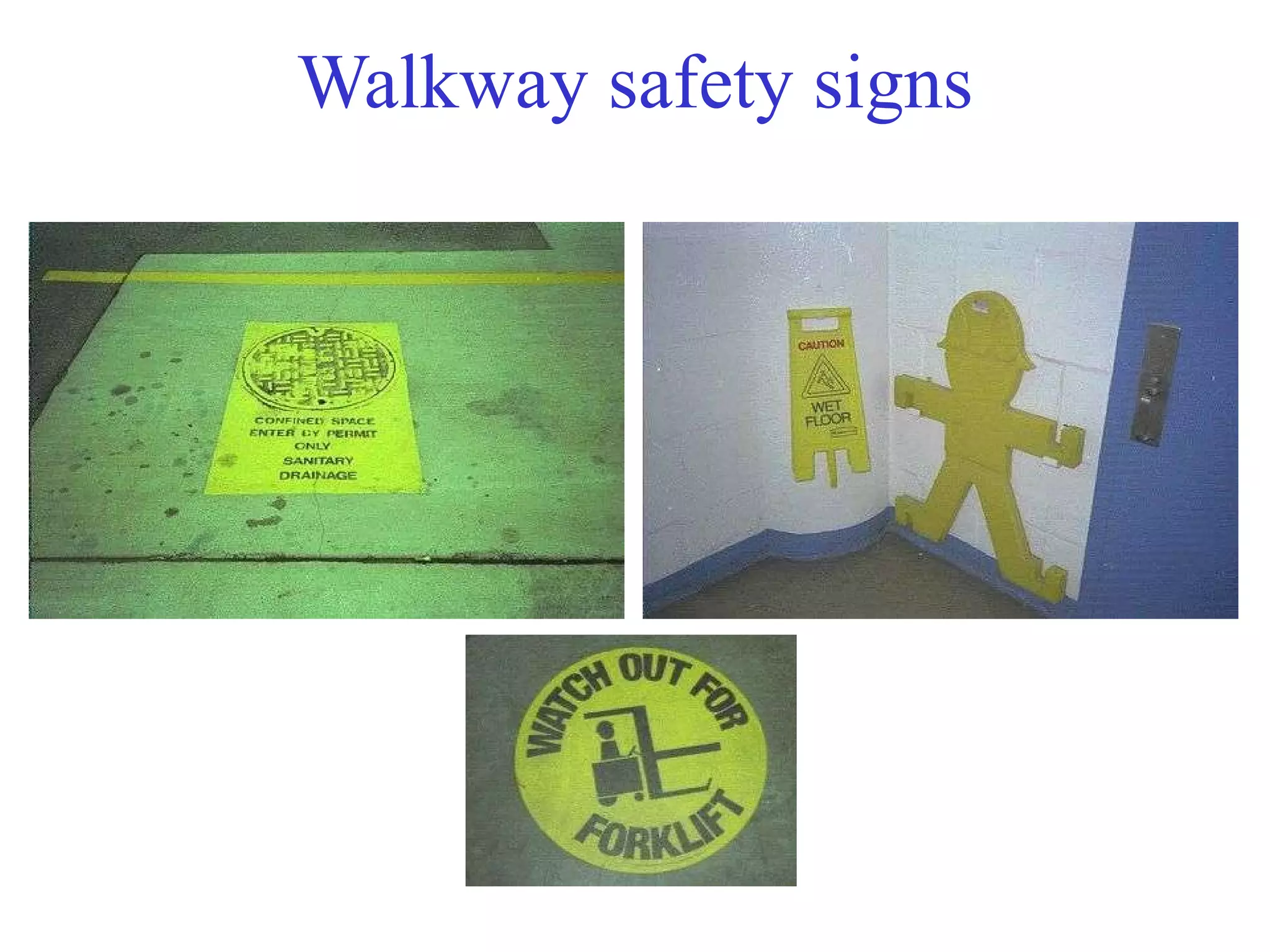

- 7. Walkway safety PersonsFork lift trucks Mirror shows step
- 8.

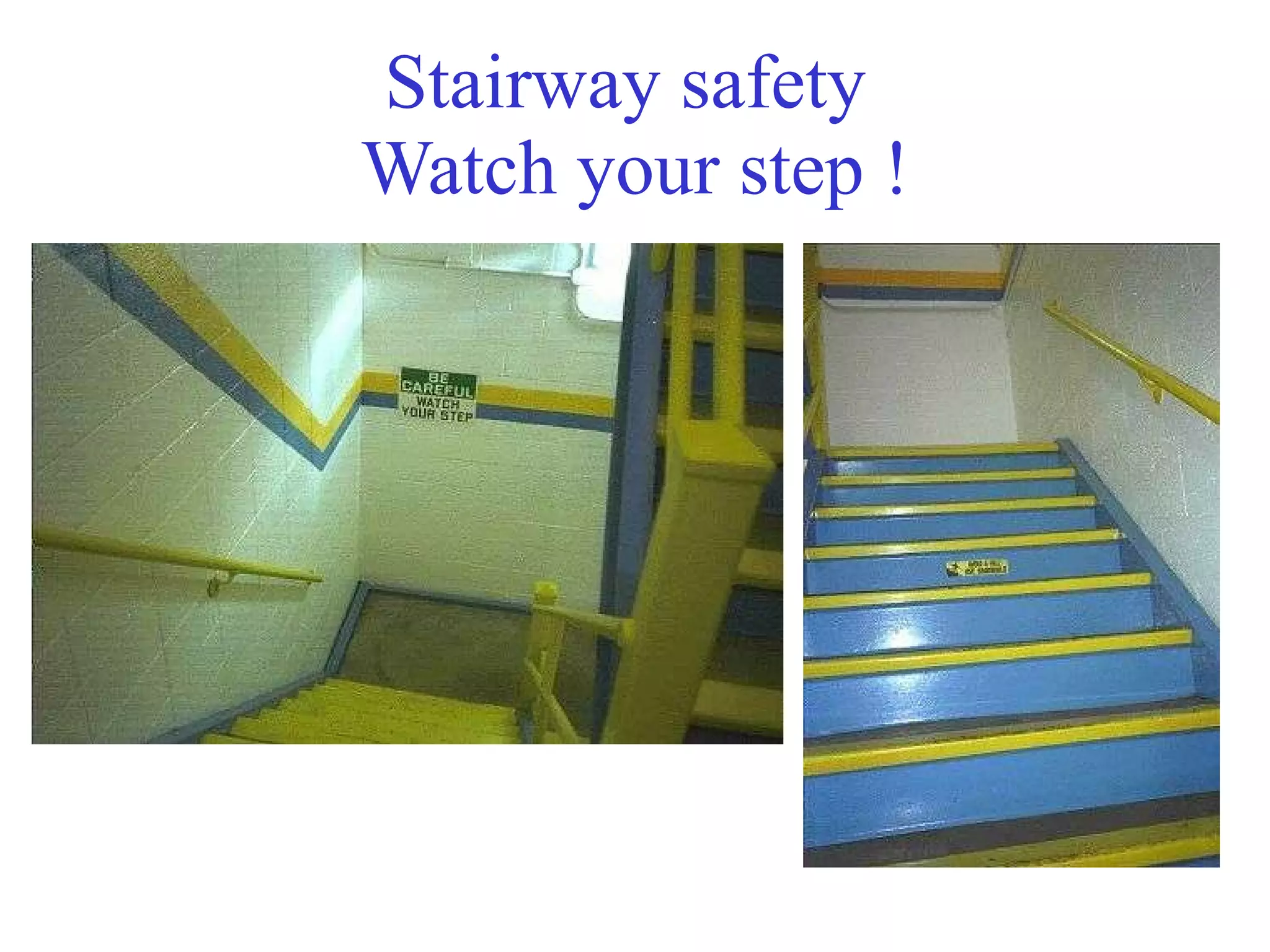

- 9. Stairway safety Watch your step !

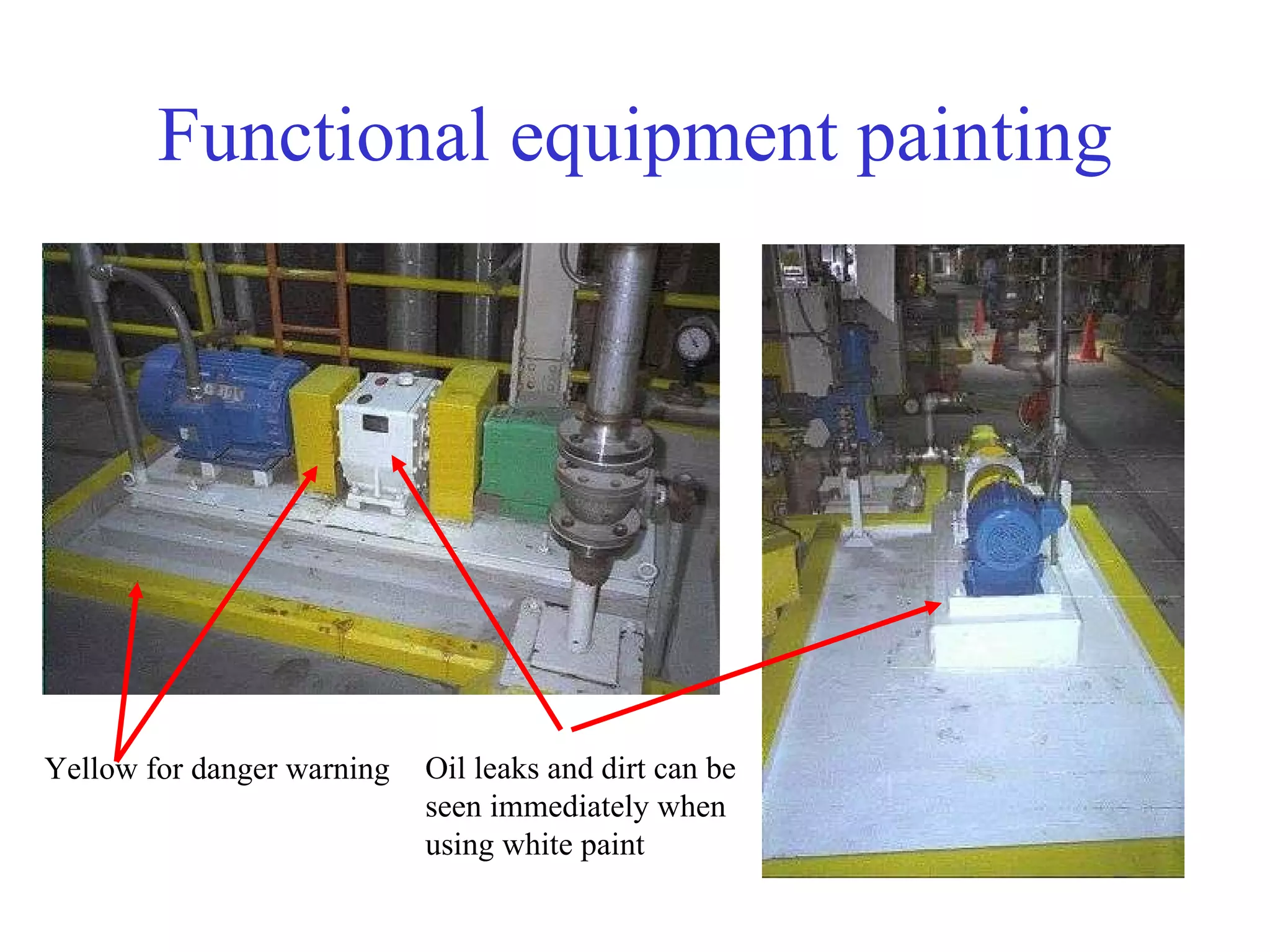

- 10. Functional equipment painting Oil leaks and dirt can be seen immediately when using white paint Yellow for danger warning

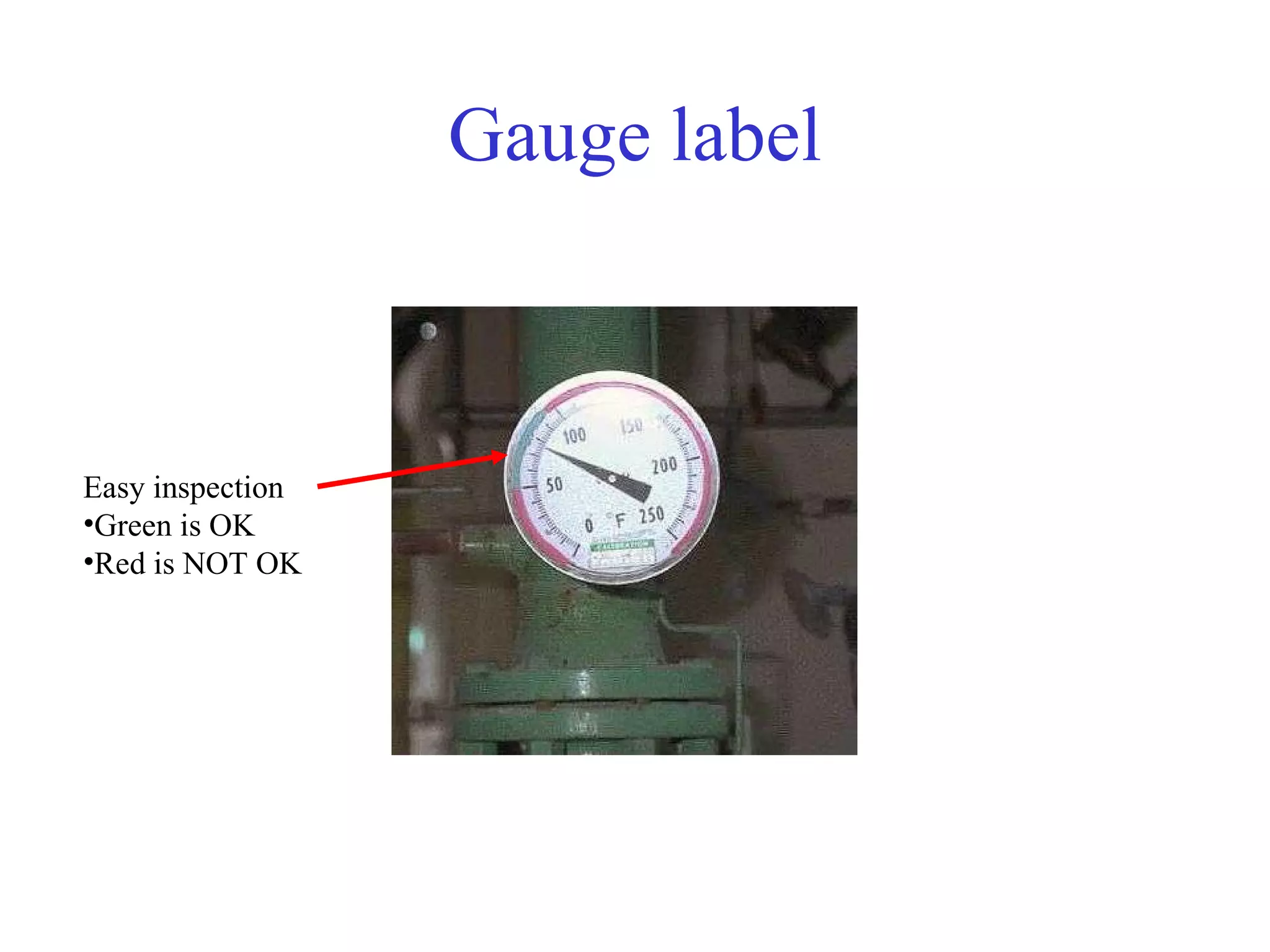

- 11. Gauge label Easyinspection Green is OK Red is NOT OK

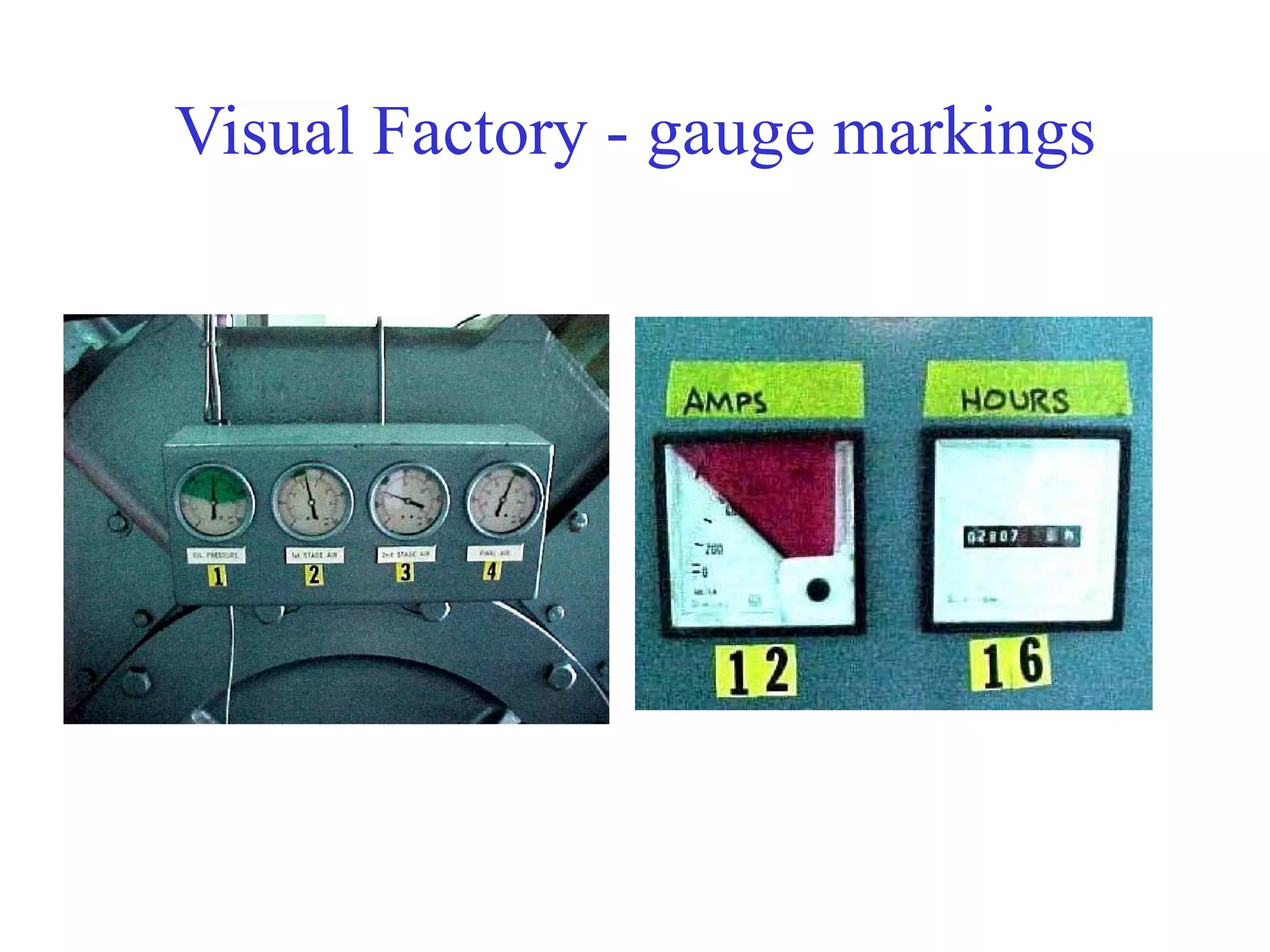

- 12. Visual Factory -gauge markings
- 13. Piping marking Colorcoding Color coded name and flow direction labels

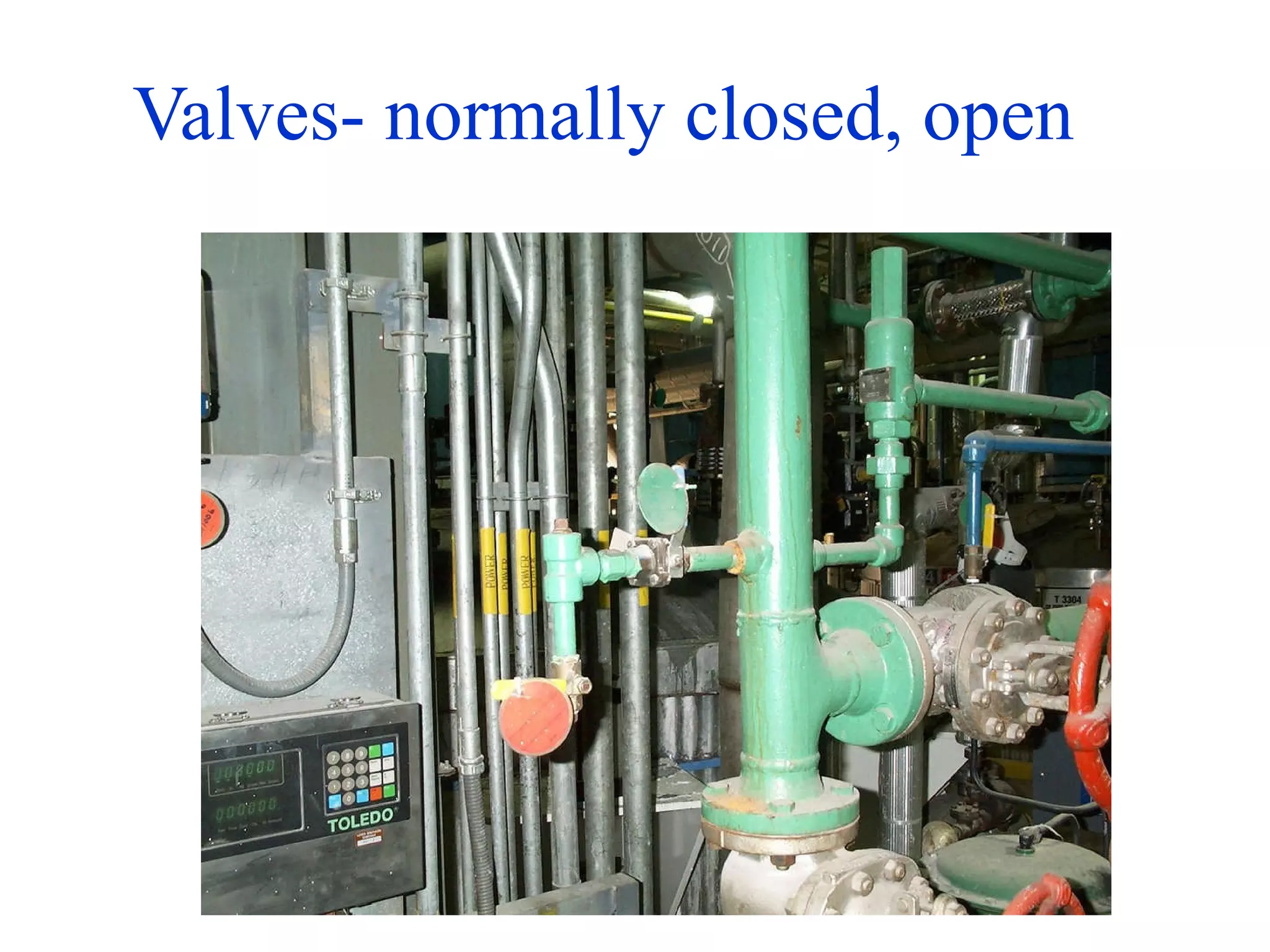

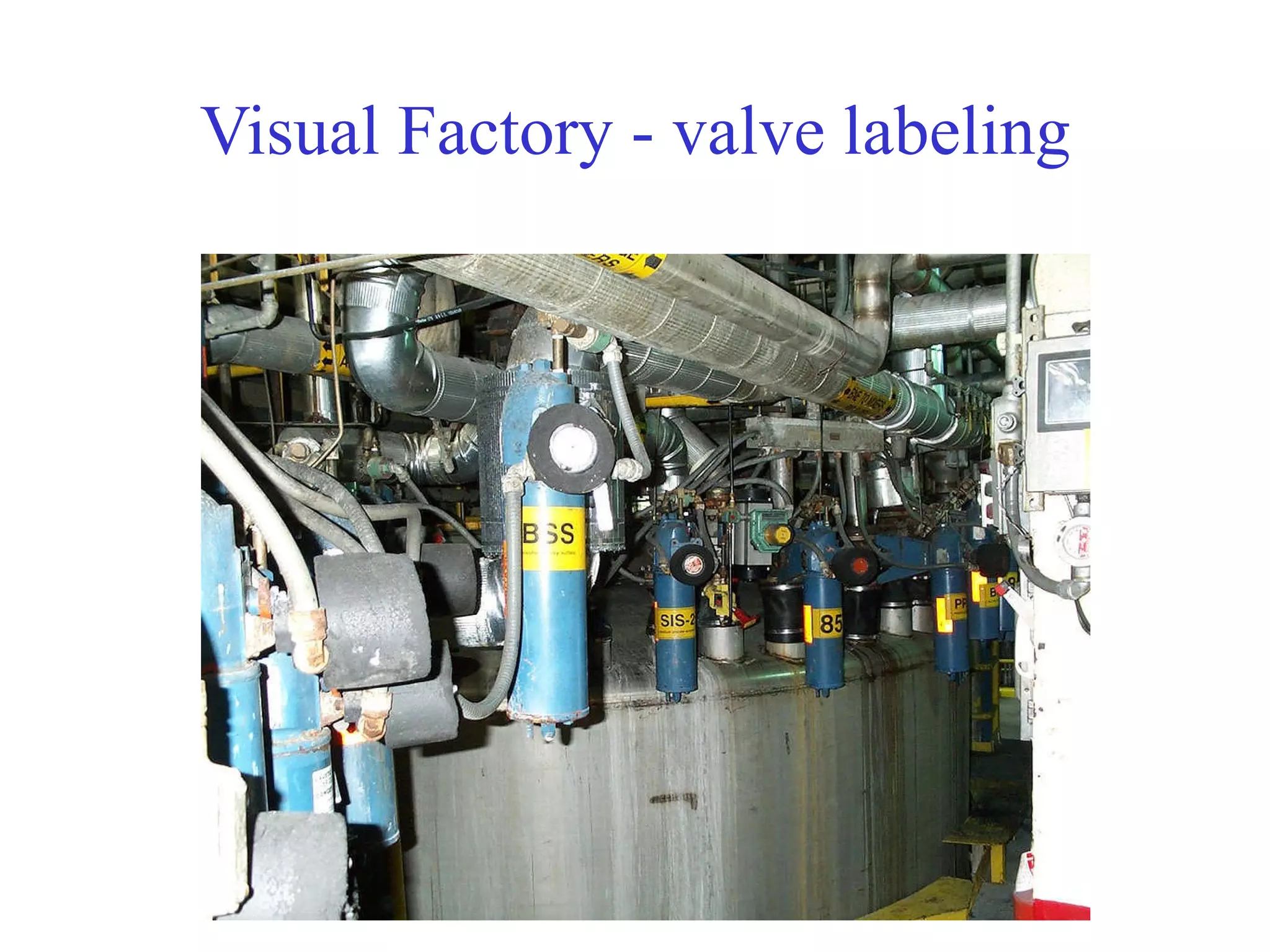

- 14. Visual Factory -valve labeling
- 15.

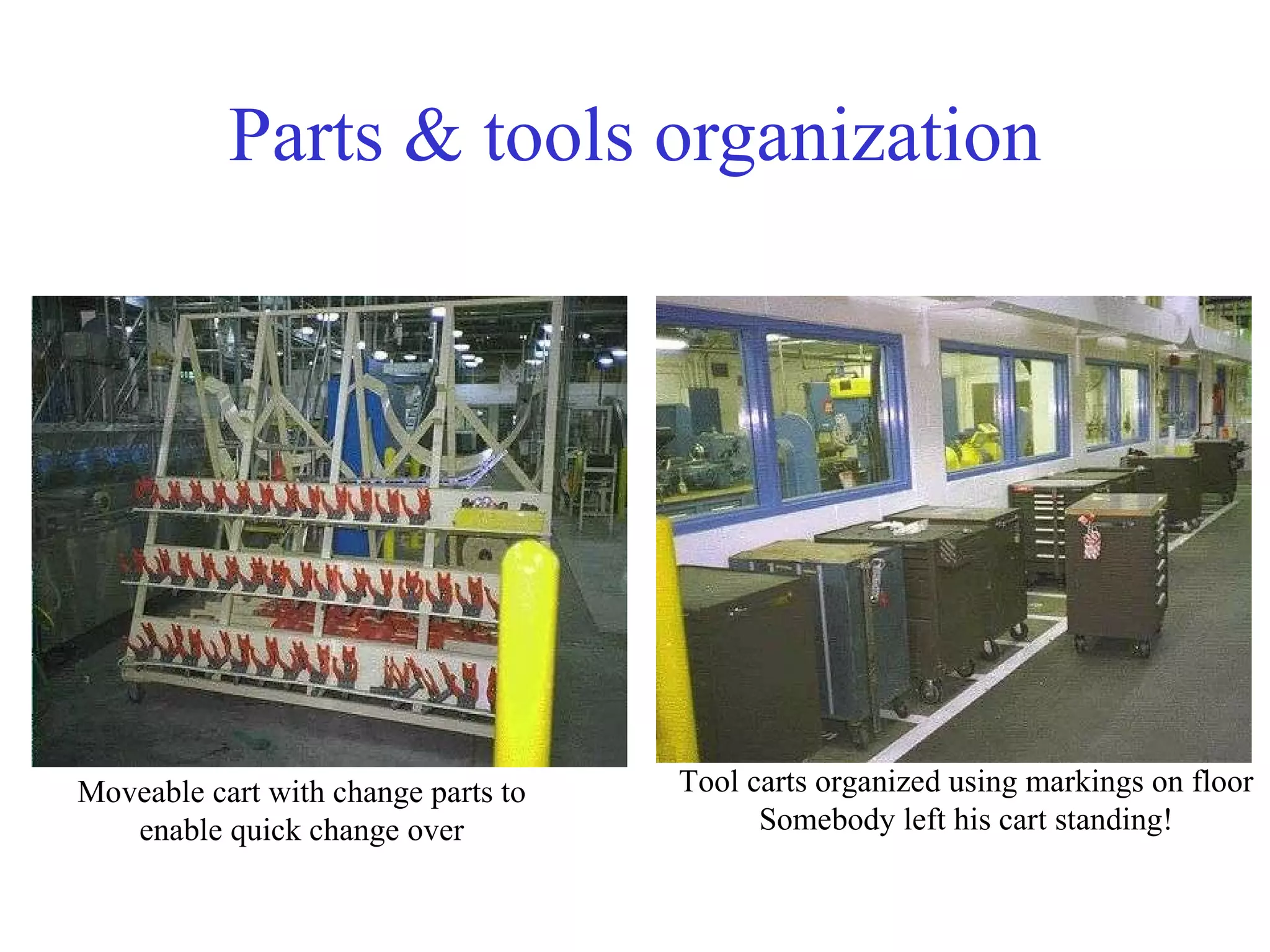

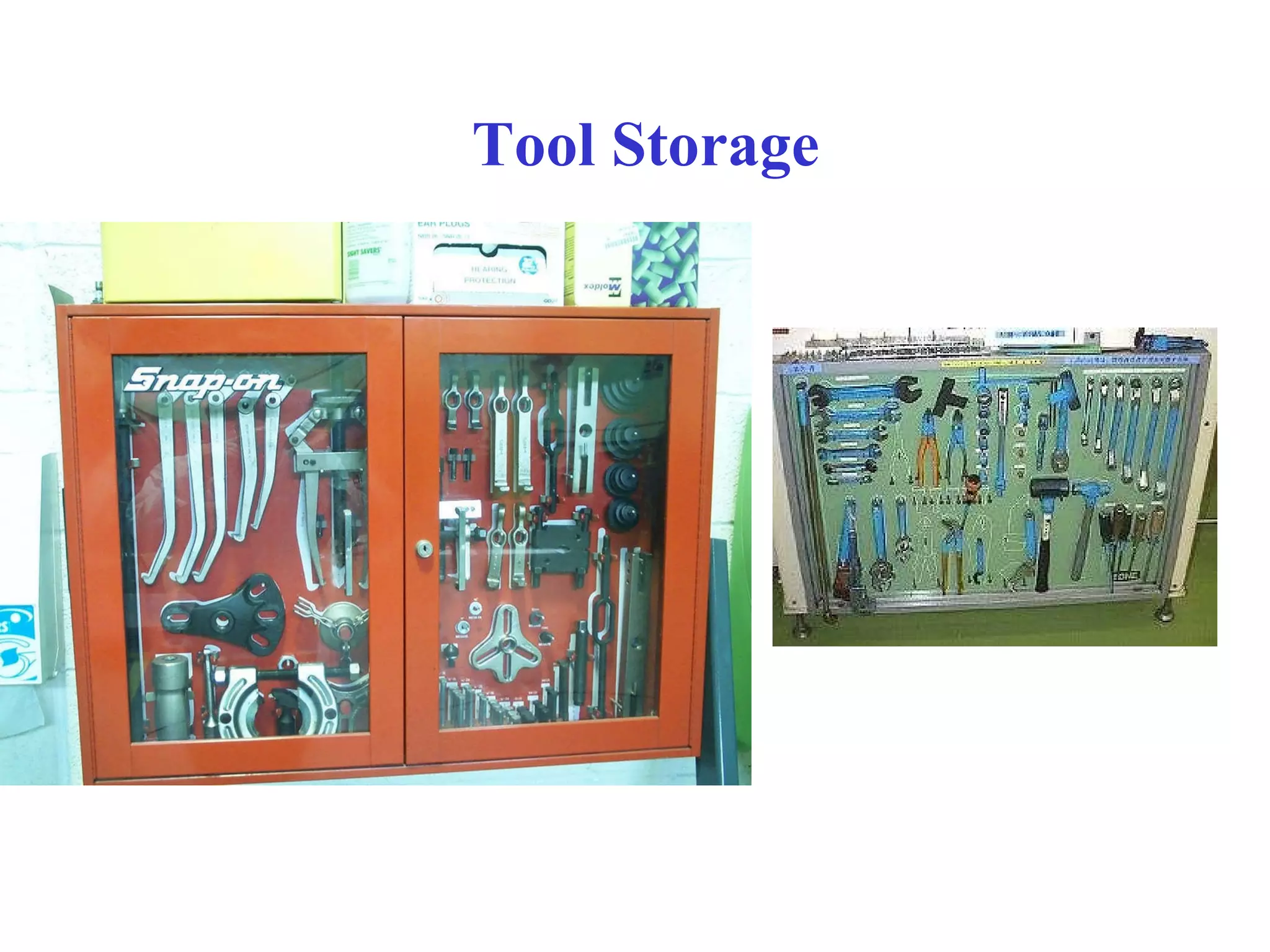

- 16. Parts & toolsorganization Moveable cart with change parts to enable quick change over Tool carts organized using markings on floor Somebody left his cart standing!

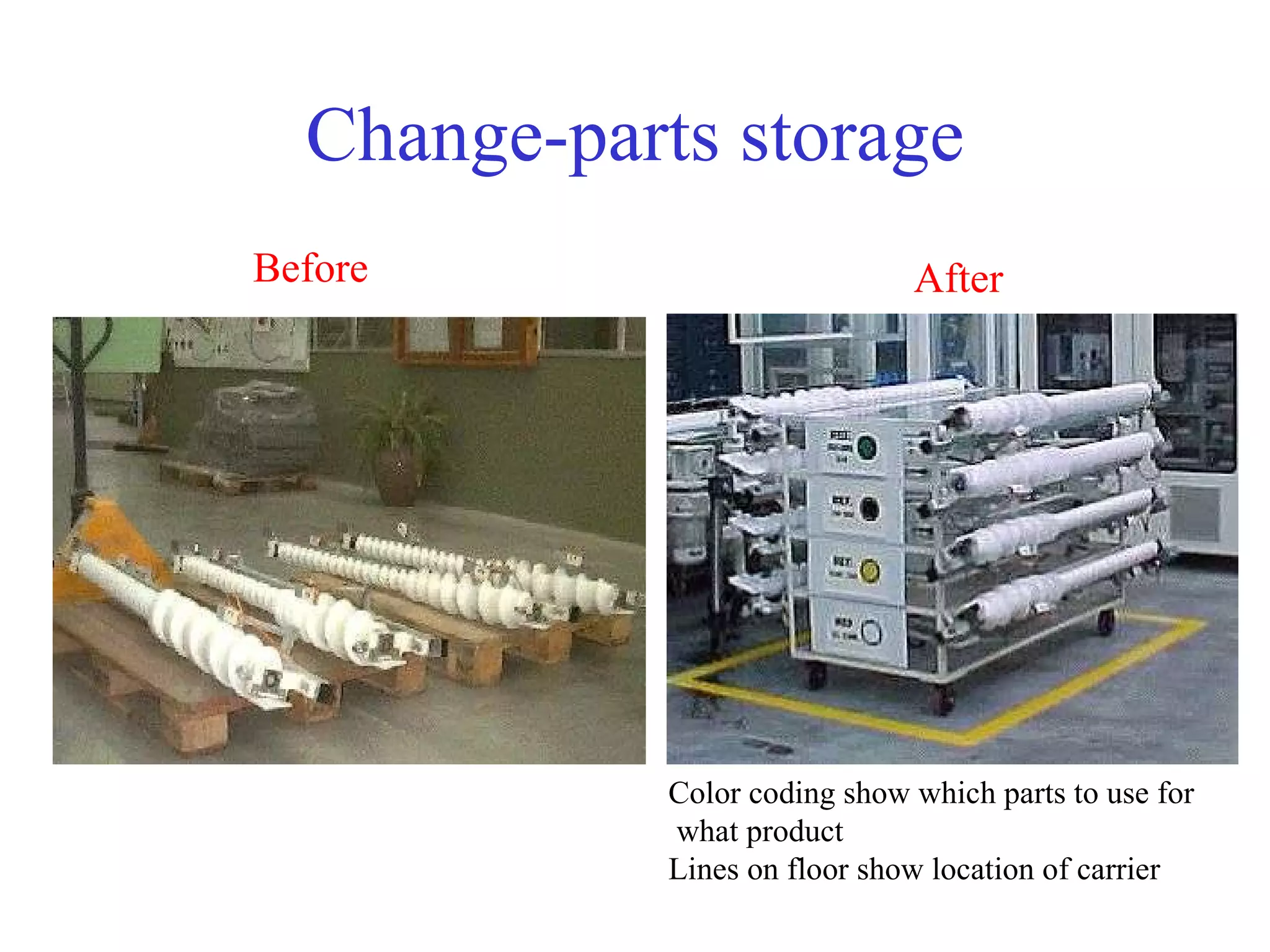

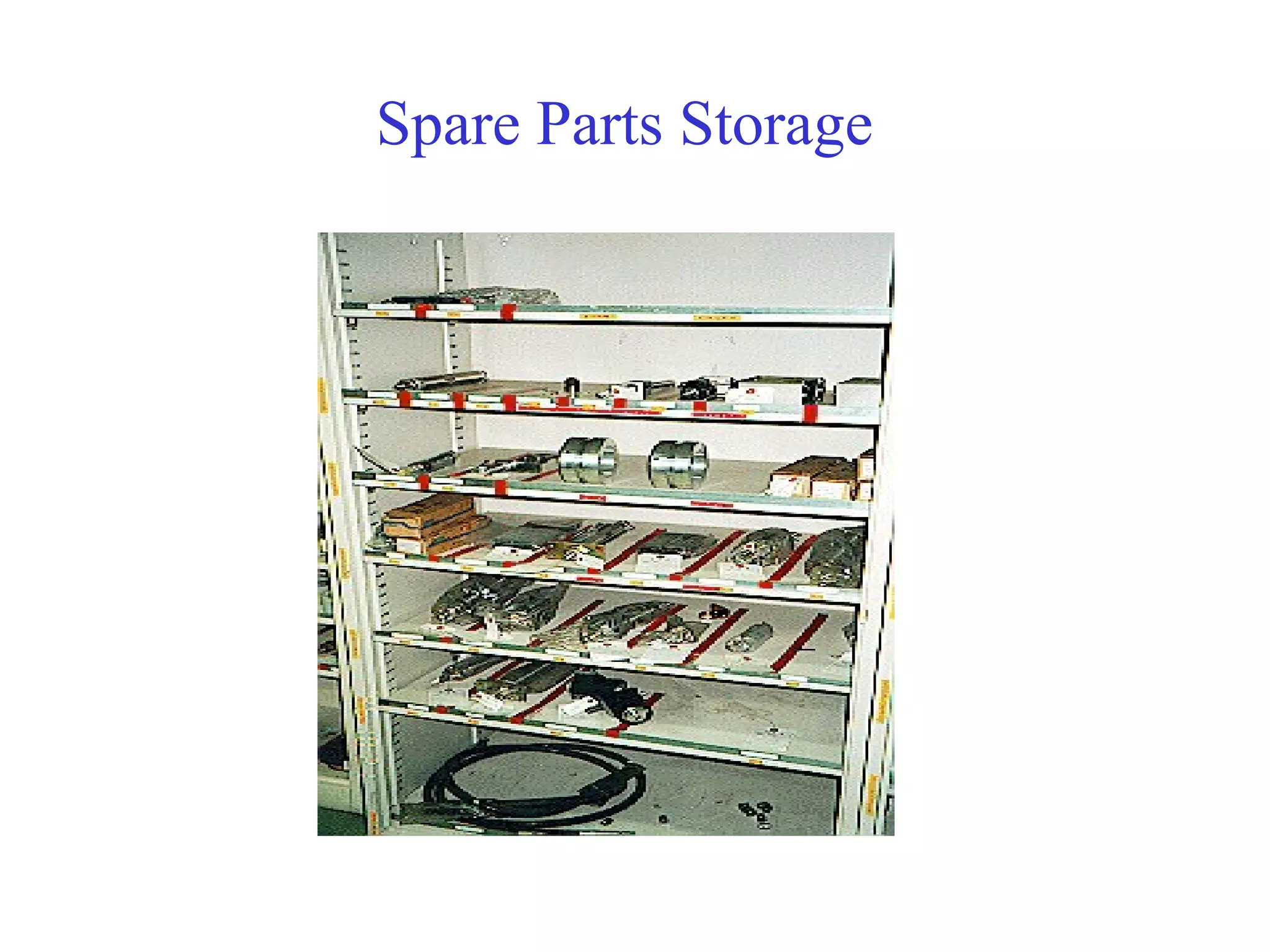

- 17. Change-parts storage BeforeAfter Color coding show which parts to use for what product Lines on floor show location of carrier
- 18.
- 19.

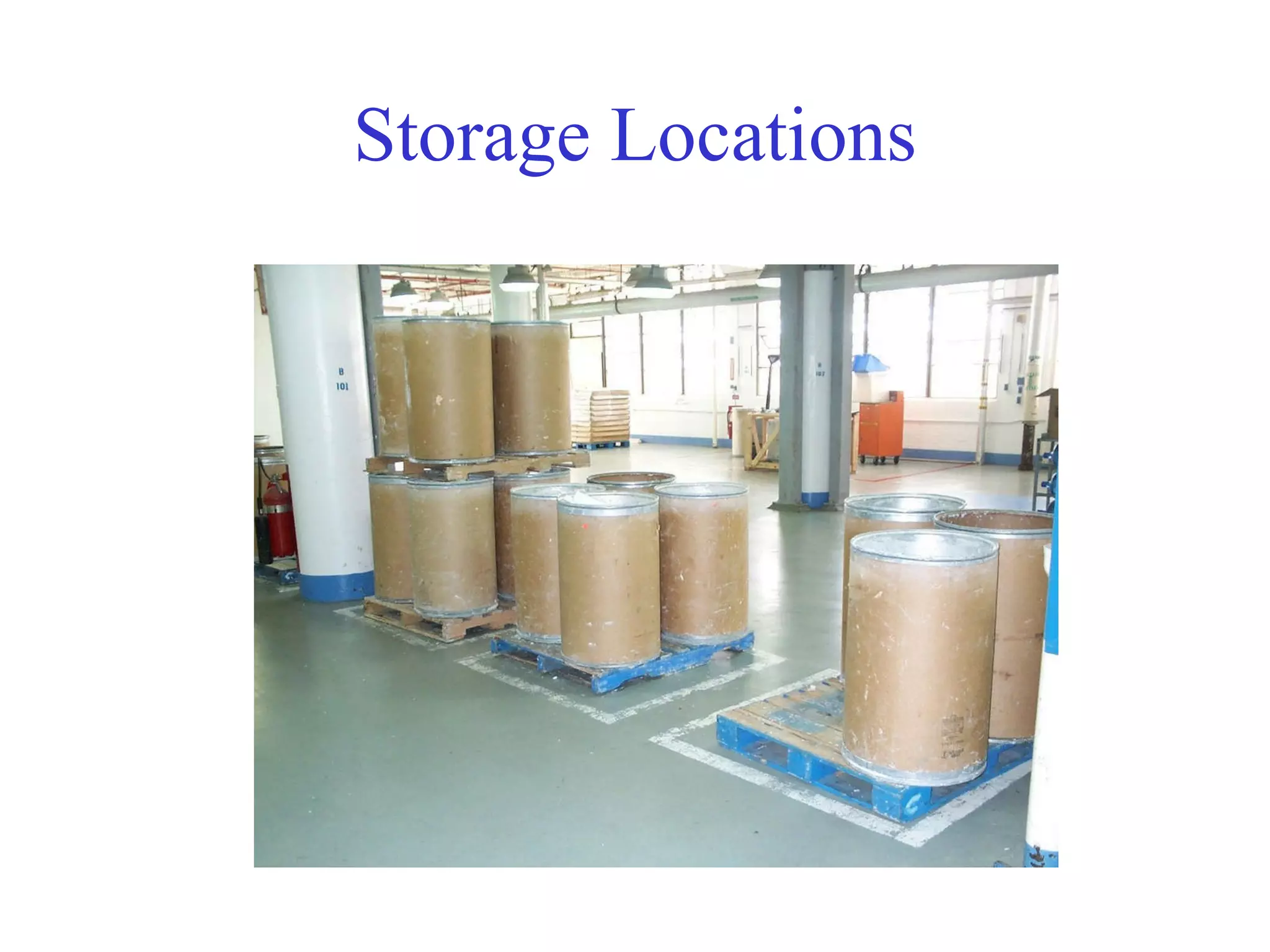

- 20.

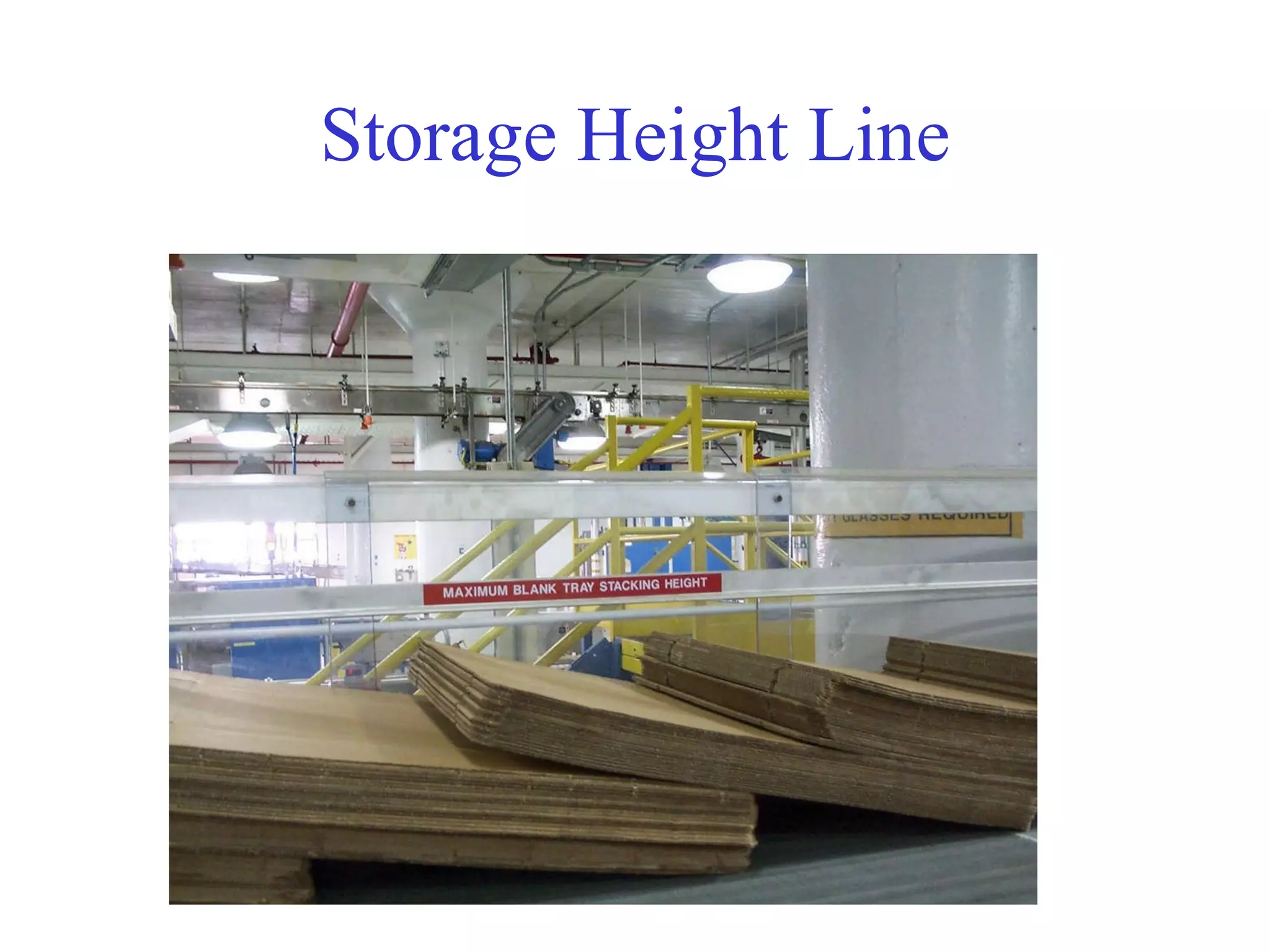

- 21.

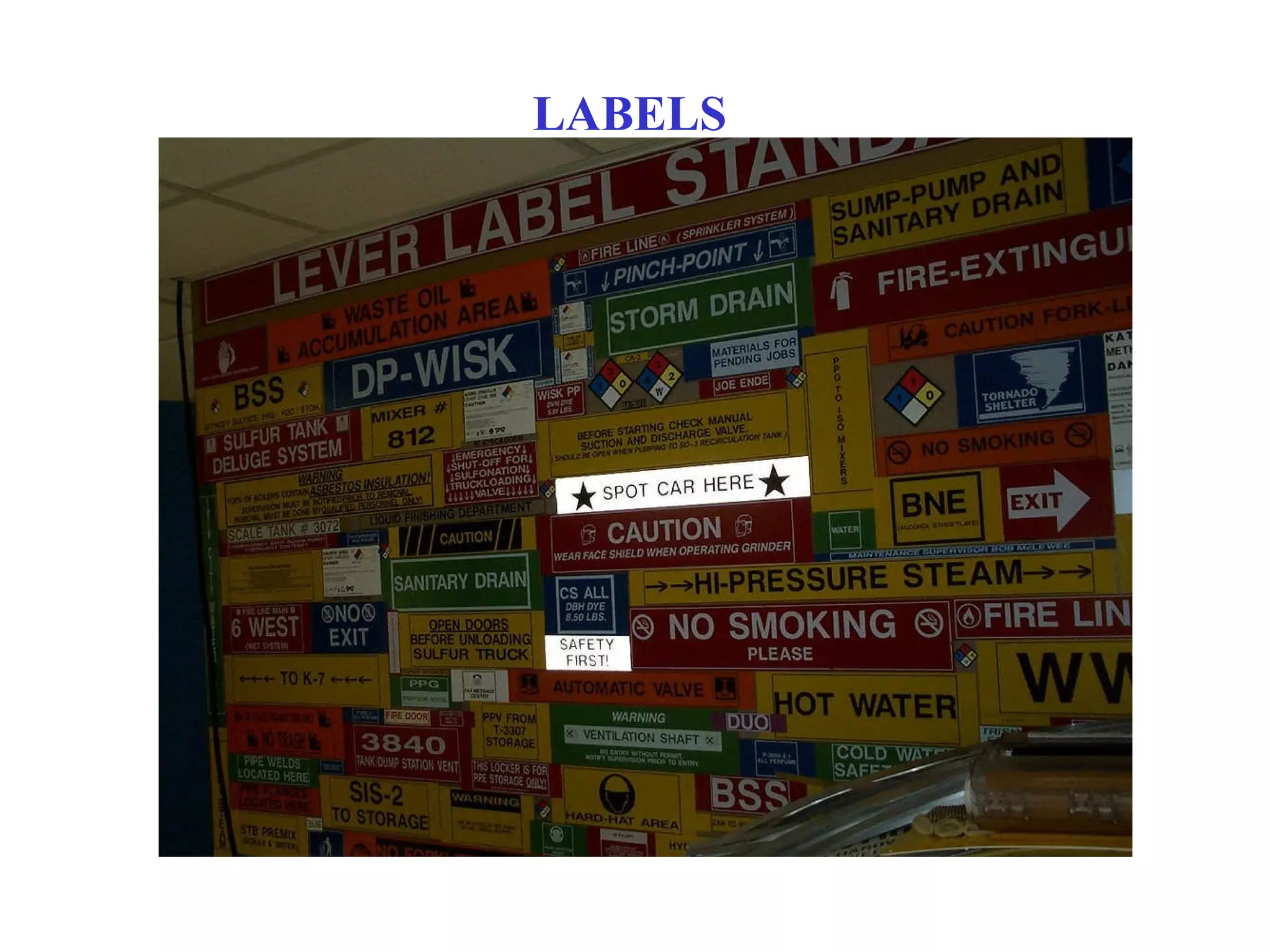

- 22.

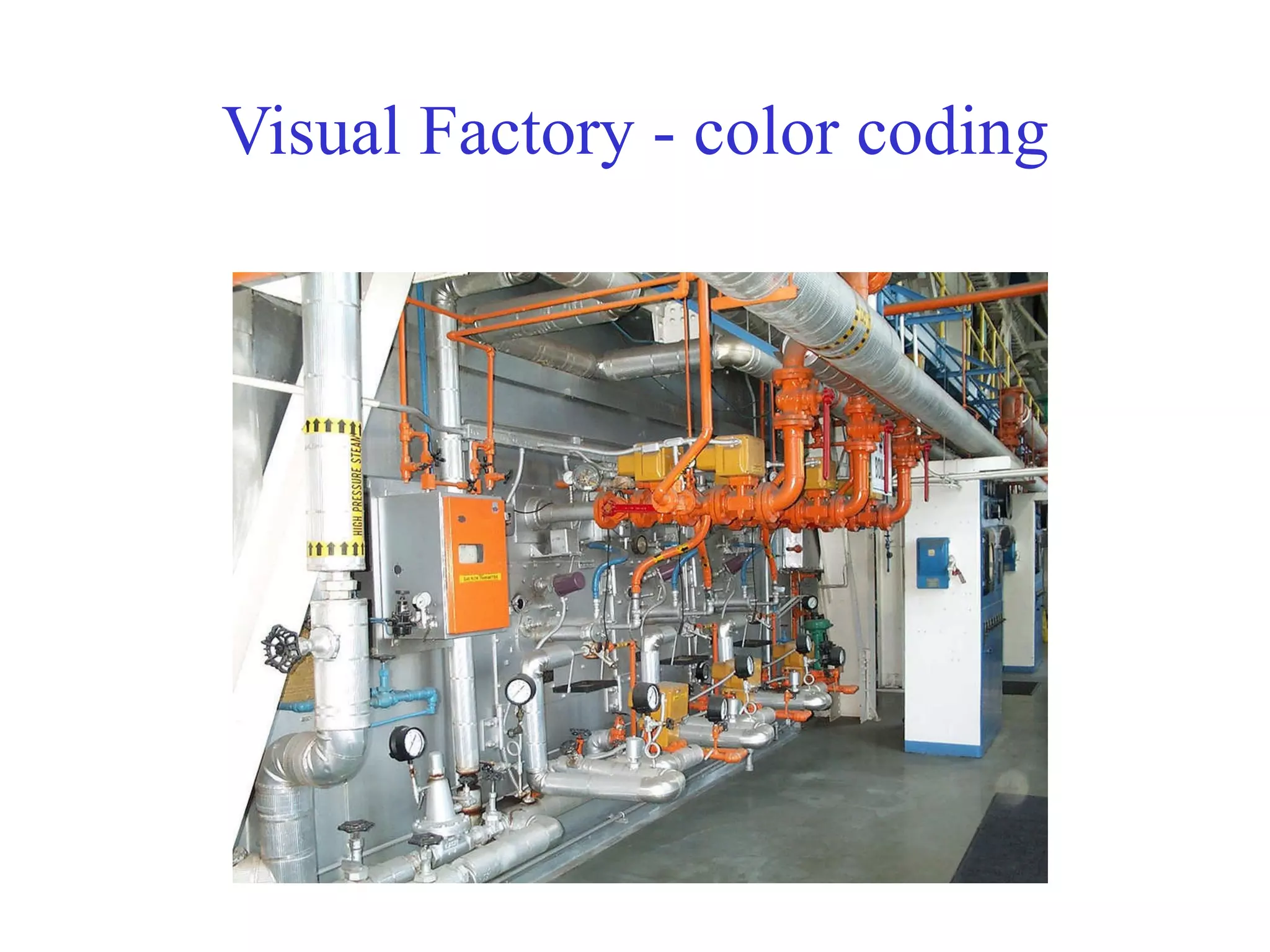

- 23. Visual Factory -color coding

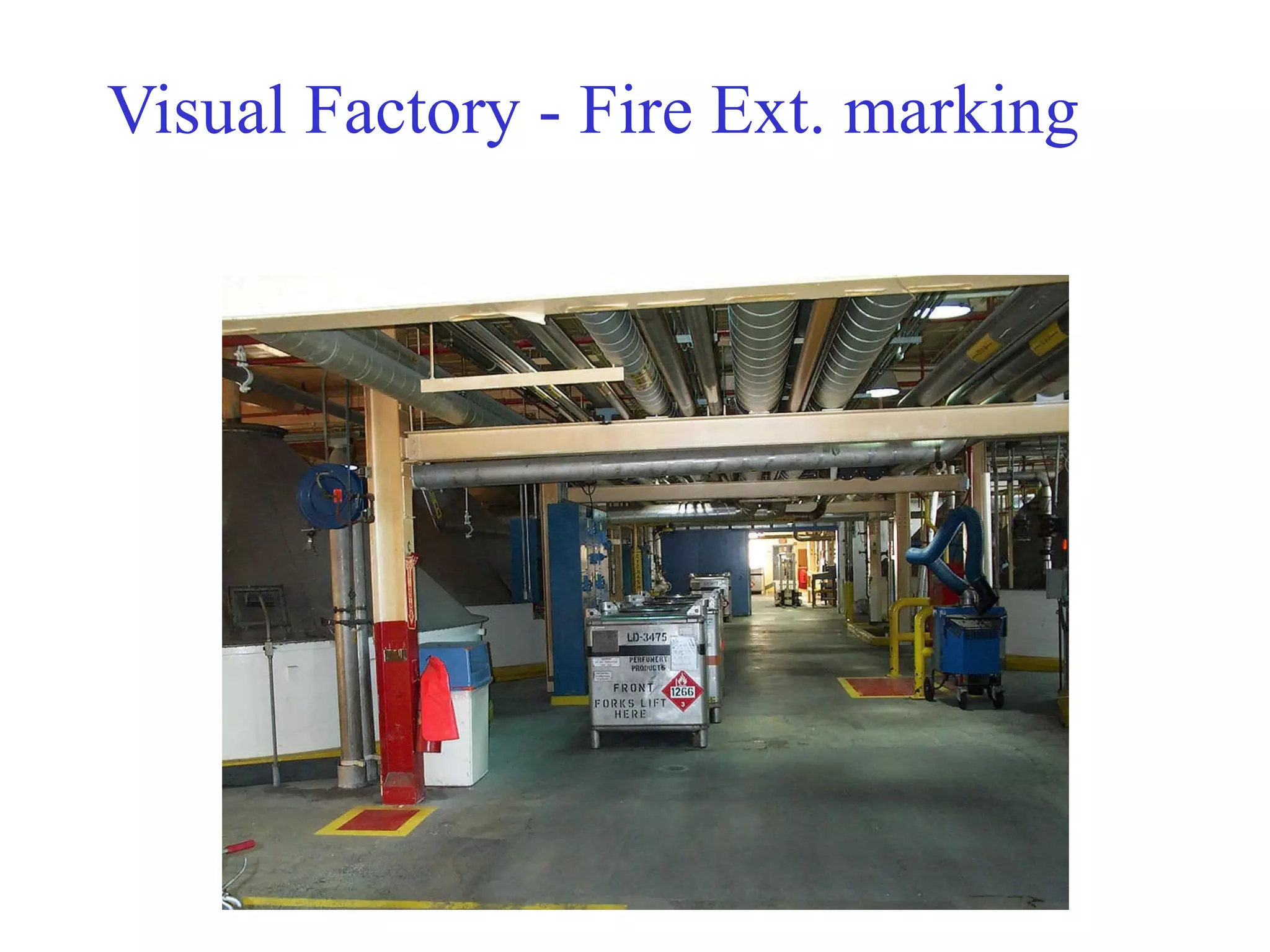

- 24. Visual Factory -Fire Ext. marking

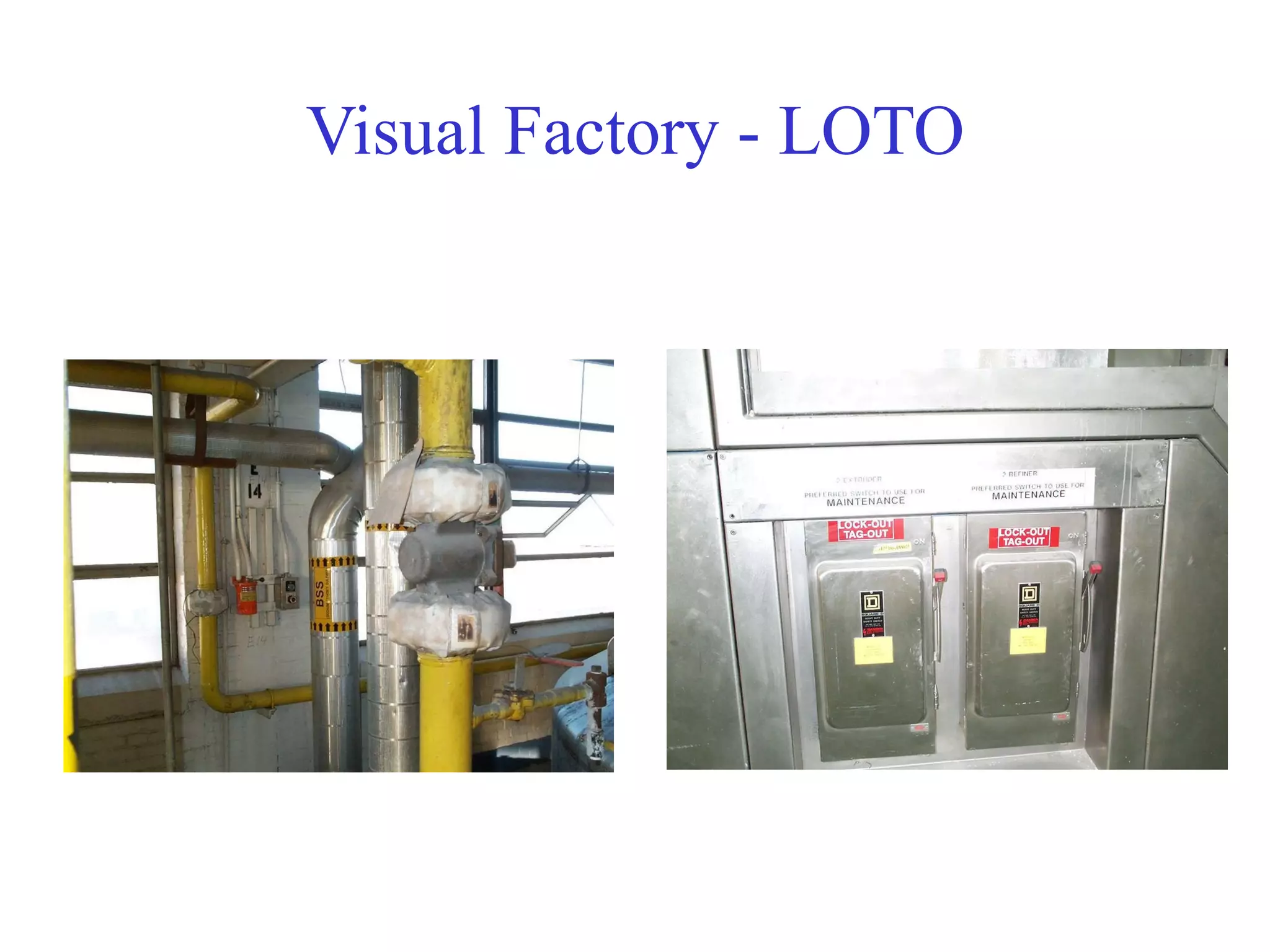

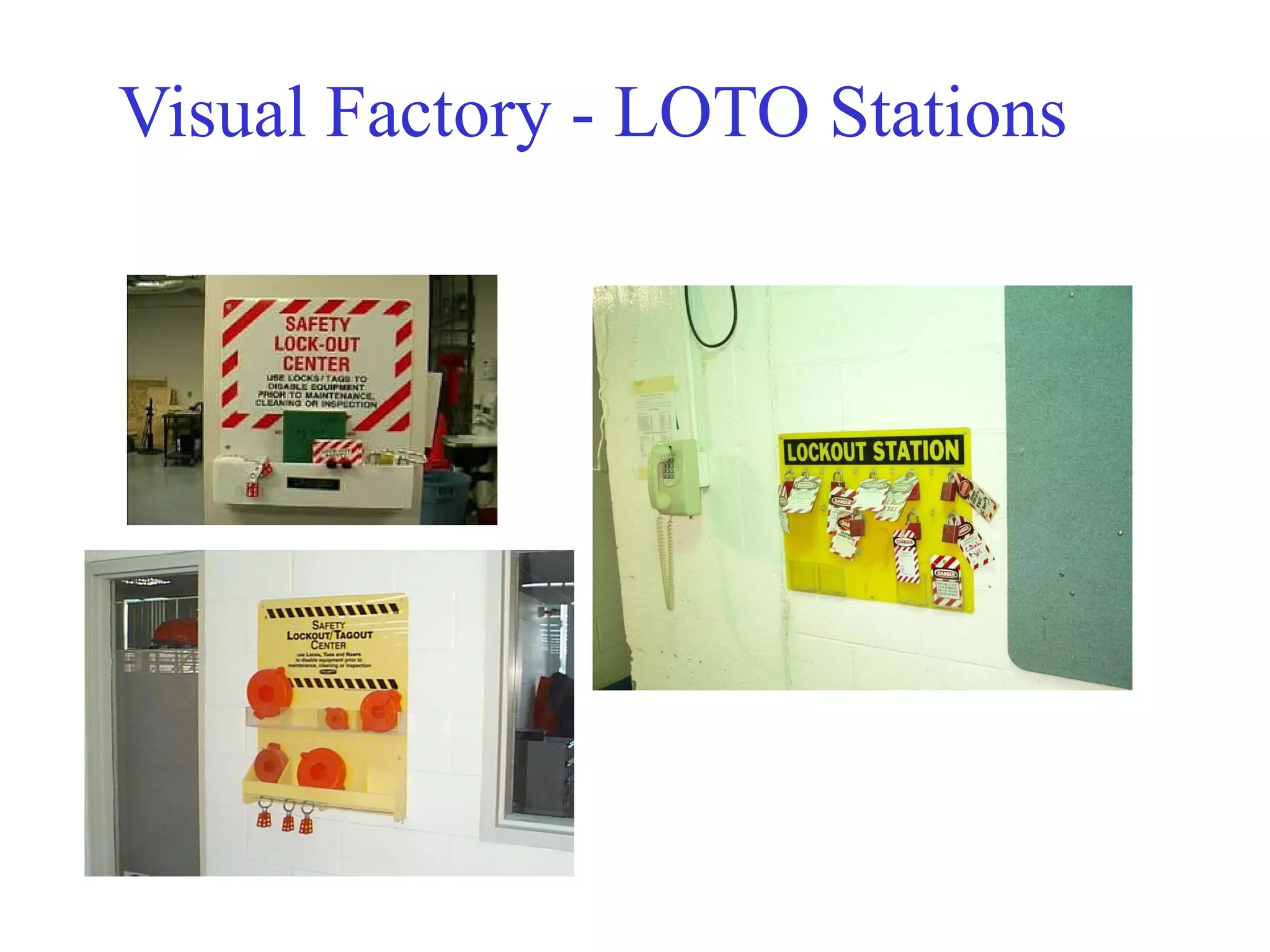

- 25. Visual Factory -LOTO Stations

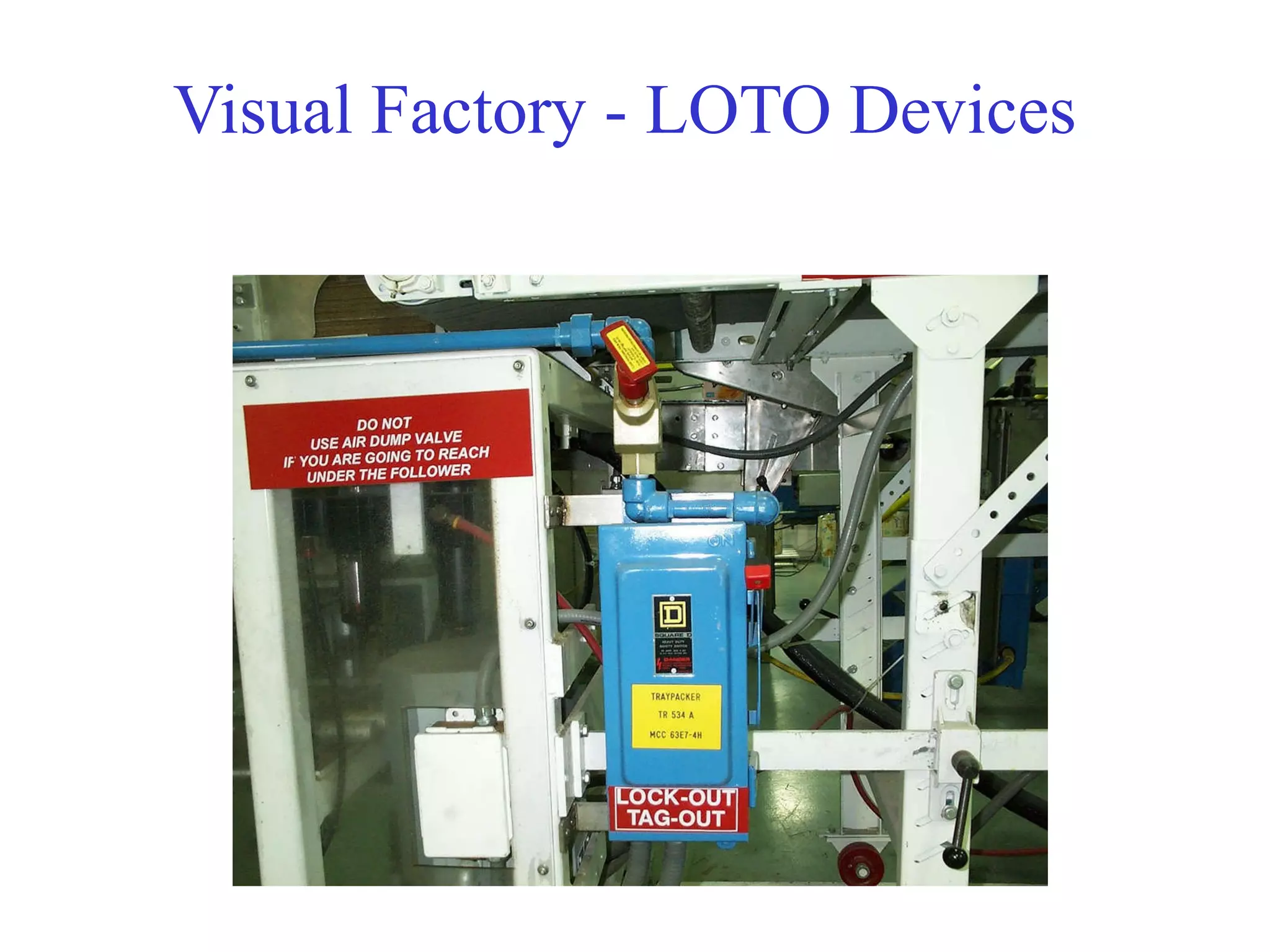

- 26. Visual Factory -LOTO Devices
- 27. Visual Factory -LOTO

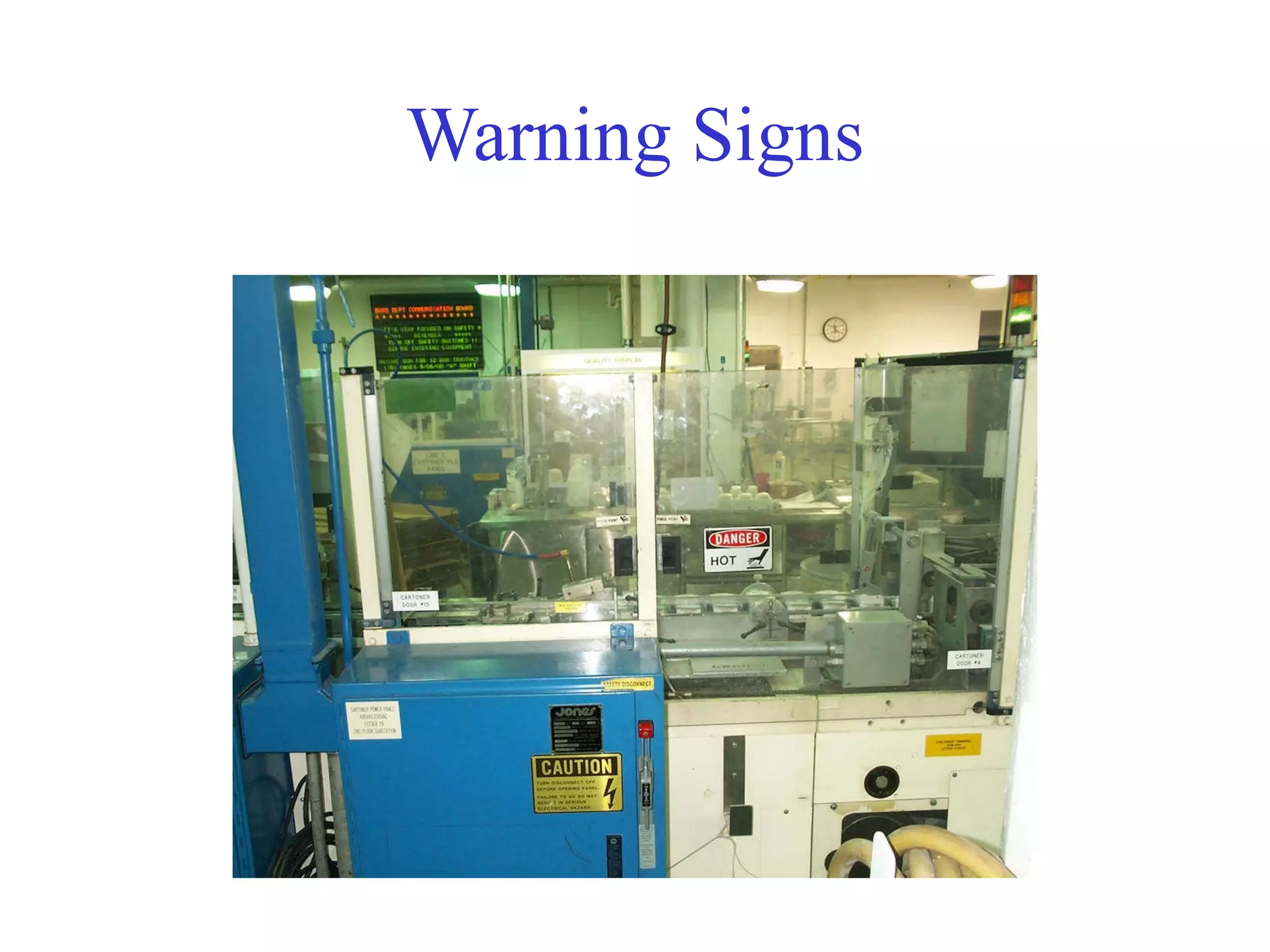

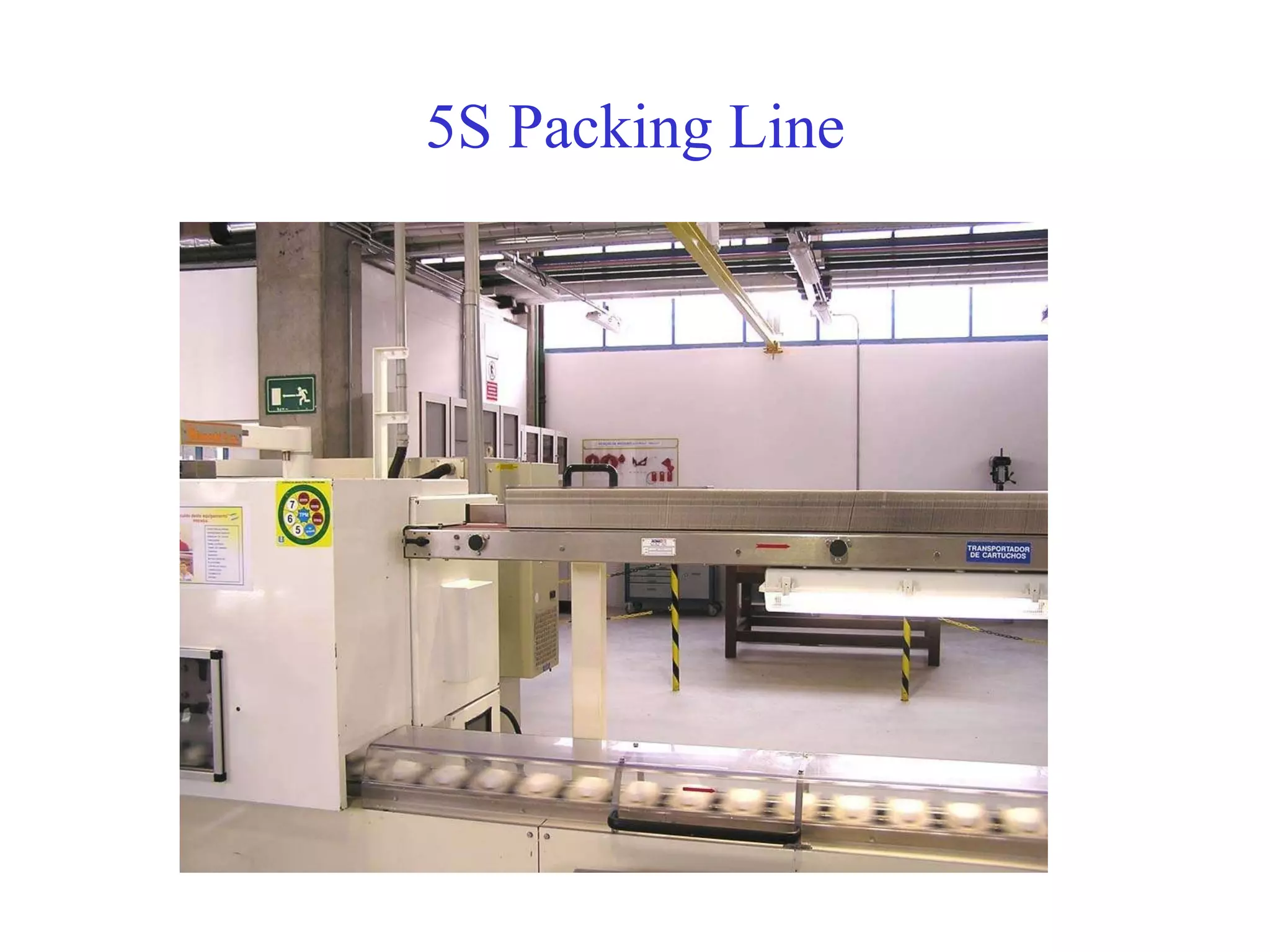

- 28.
- 29.

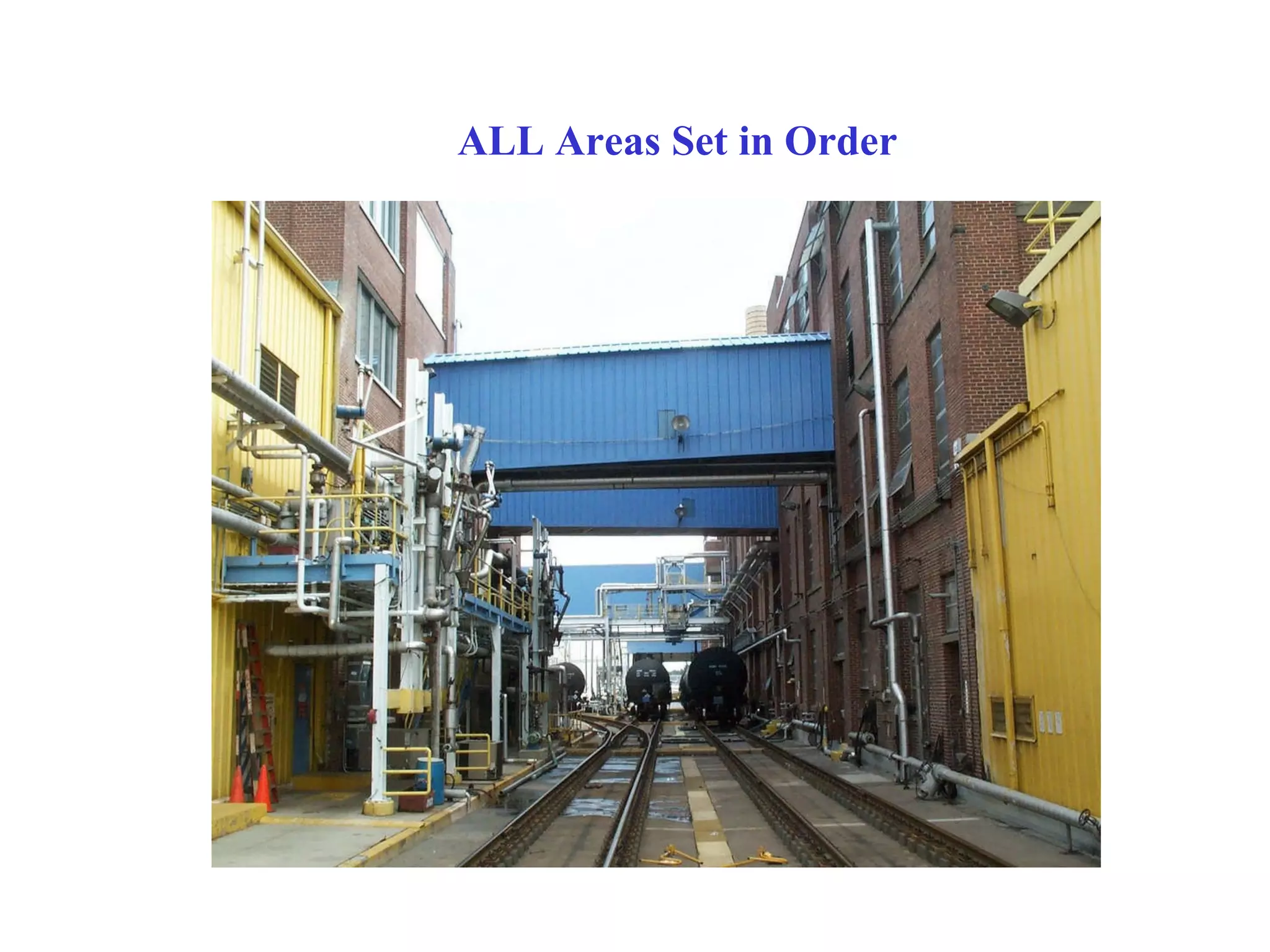

- 30. ALL Areas Setin Order
