- 1. PRINCIPLE OFARCHITECTURE Complied by : Manish Jain Gr. Floor , Ashoka apartment Bhawani Singh Road C-scheme , Jaipur -302001 Rajasthan ( INDIA) Ph. 91-0141-2743536 , 91-9829063132 Email: fdarchitect@gmail.com Web : www.frontdesk.co.in
- 2.

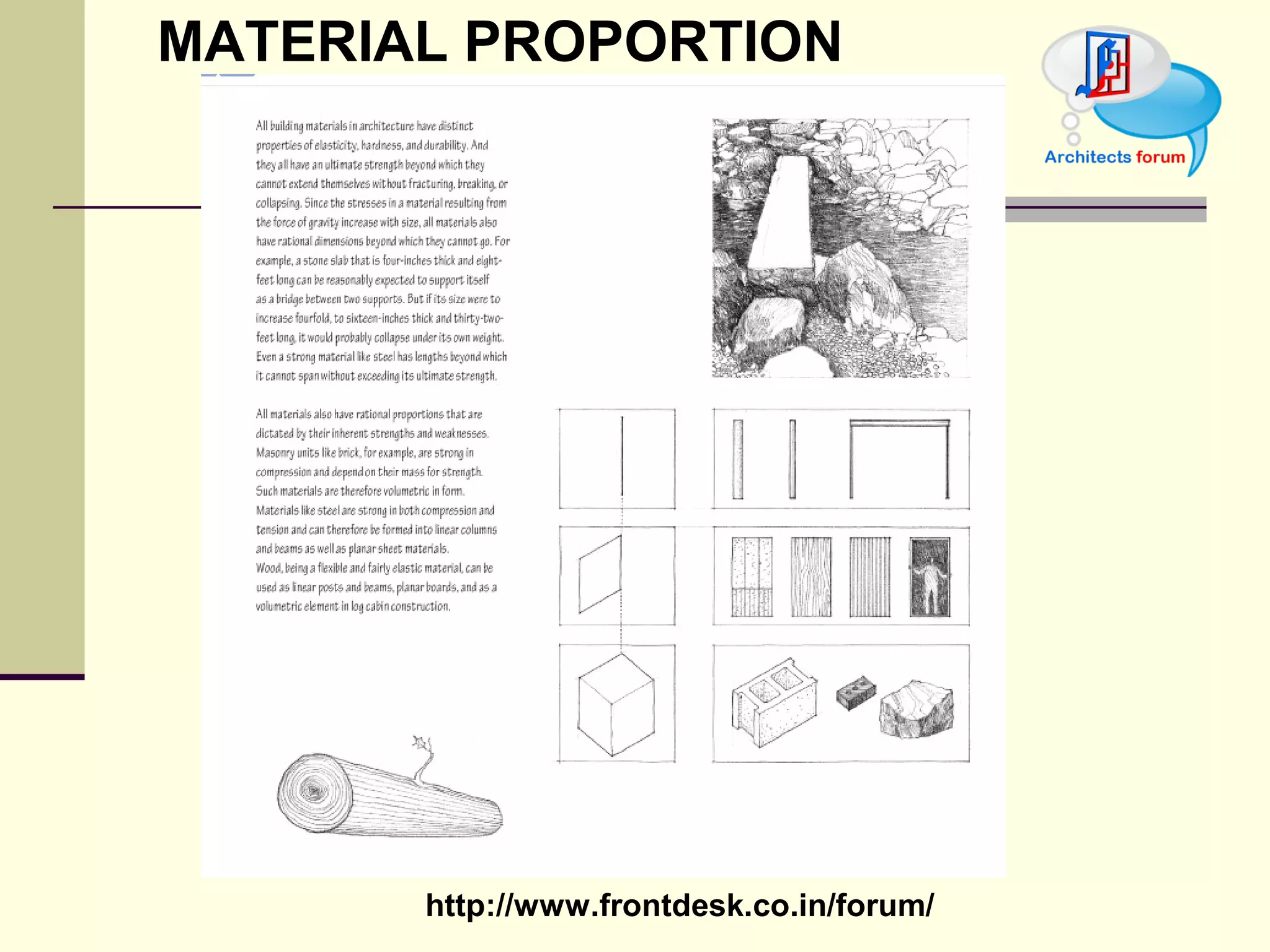

- 3.

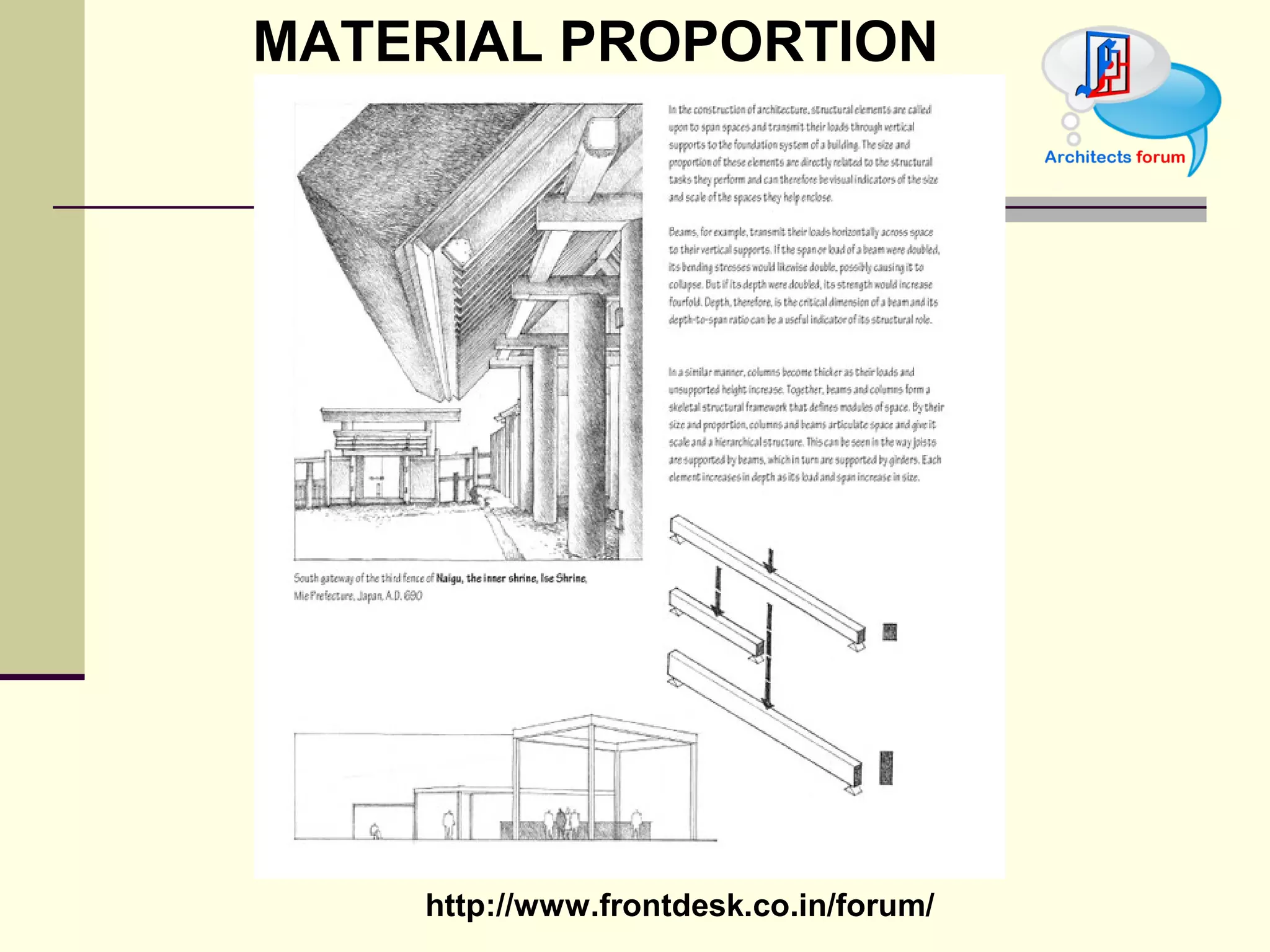

- 4.

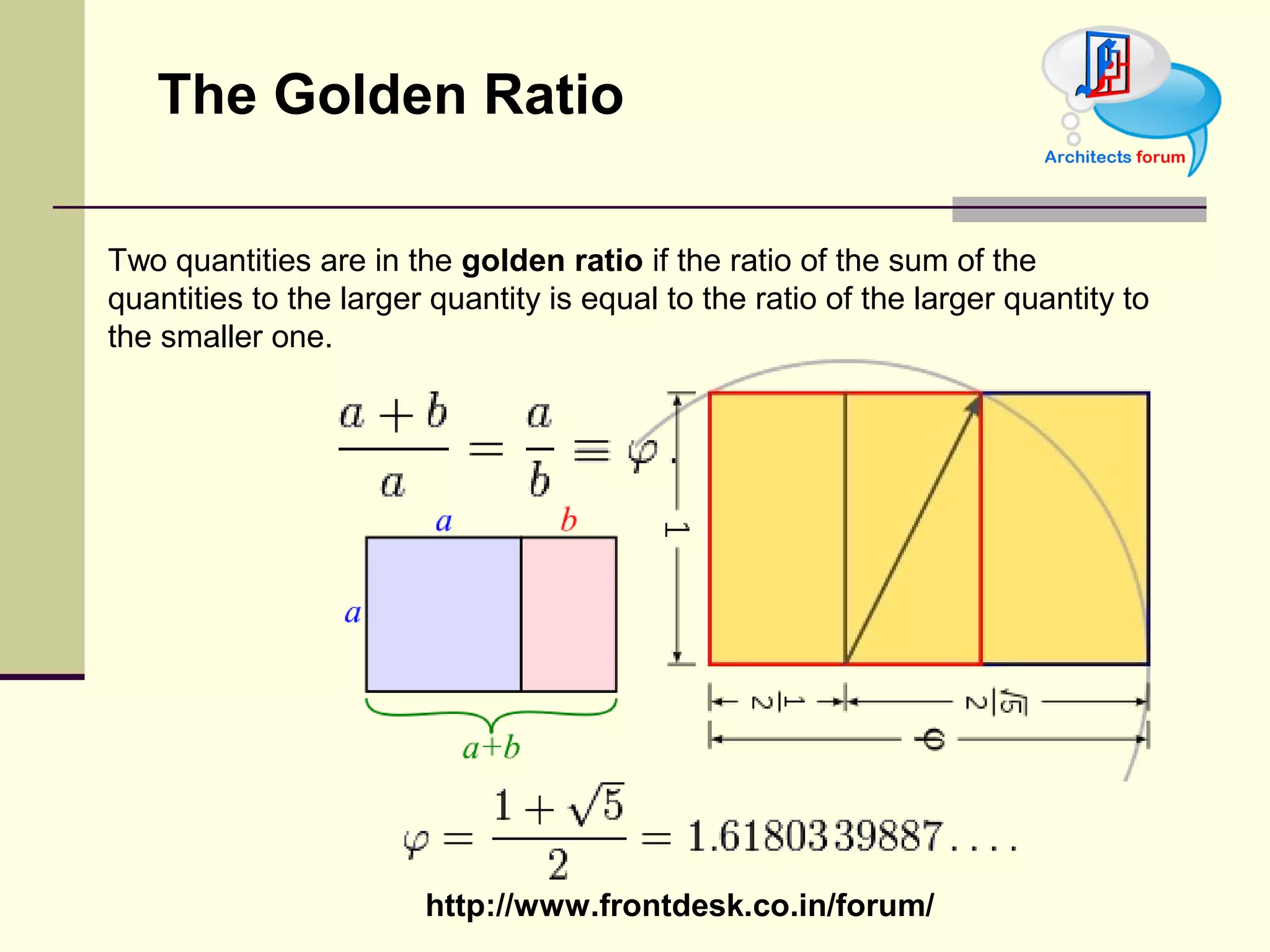

- 5. THE GOLDEN RATIOTwo quantities are in the golden ratio if the ratio of the sum of the quantities to the larger quantity is equal to the ratio of the larger quantity to the smaller one.

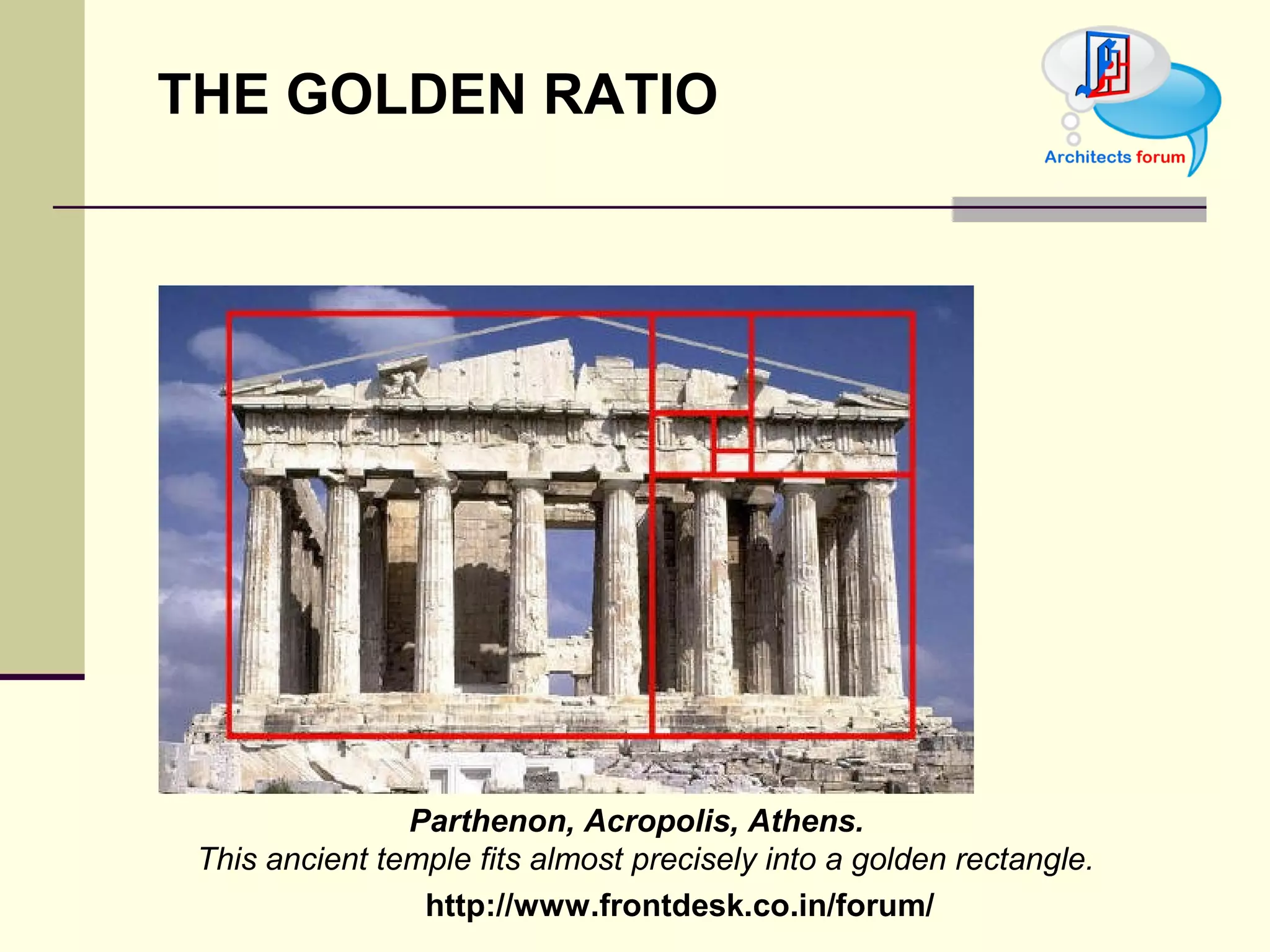

- 6. THE GOLDEN RATIOParthenon, Acropolis, Athens. This ancient temple fits almost precisely into a golden rectangle.

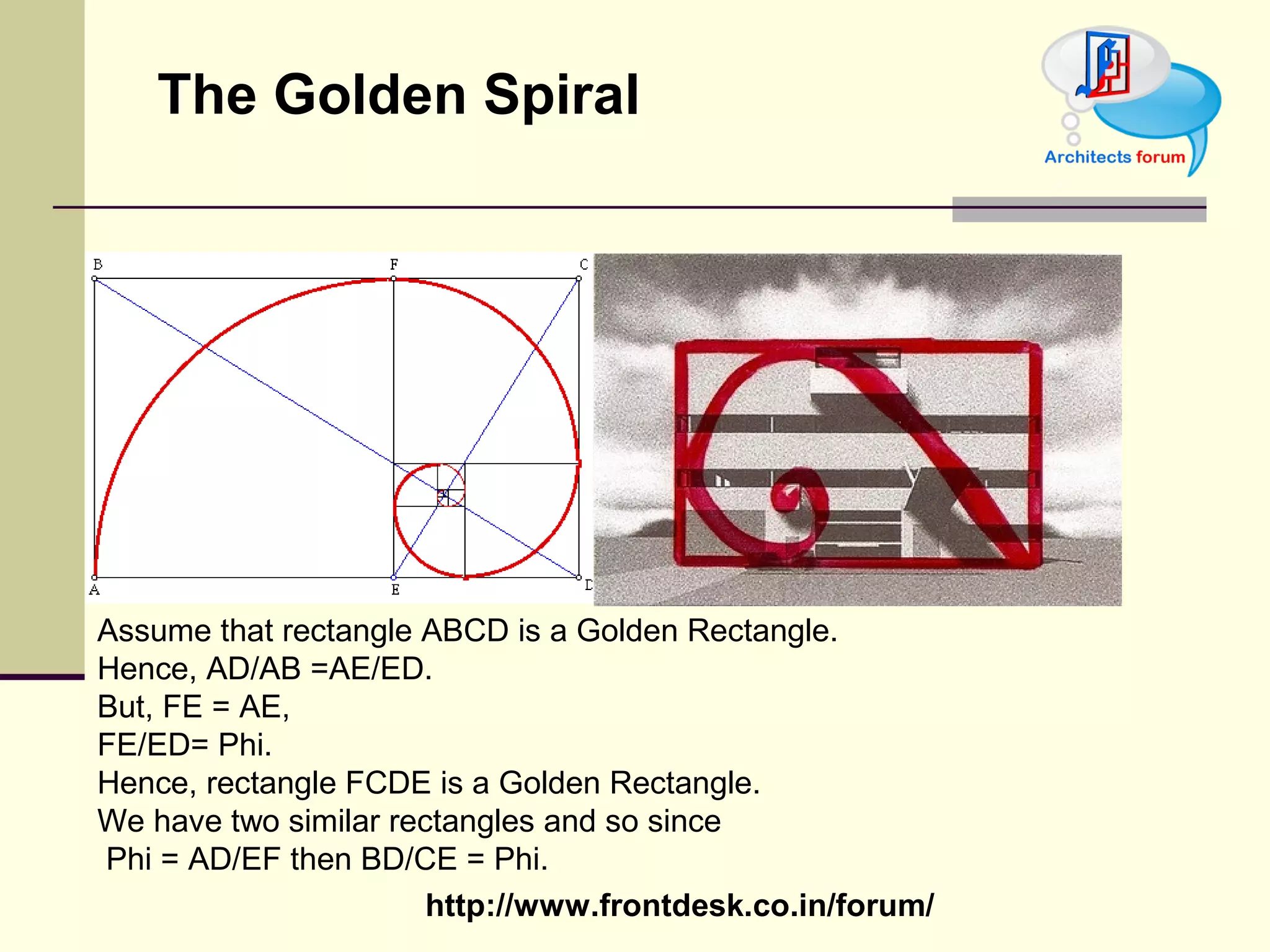

- 7. THE GOLDEN SPIRALAssume that rectangle ABCD is a Golden Rectangle. Hence, AD/AB =AE/ED. But, FE = AE, FE/ED= Phi. Hence, rectangle FCDE is a Golden Rectangle. We have two similar rectangles and so since Phi = AD/EF then BD/CE = Phi.

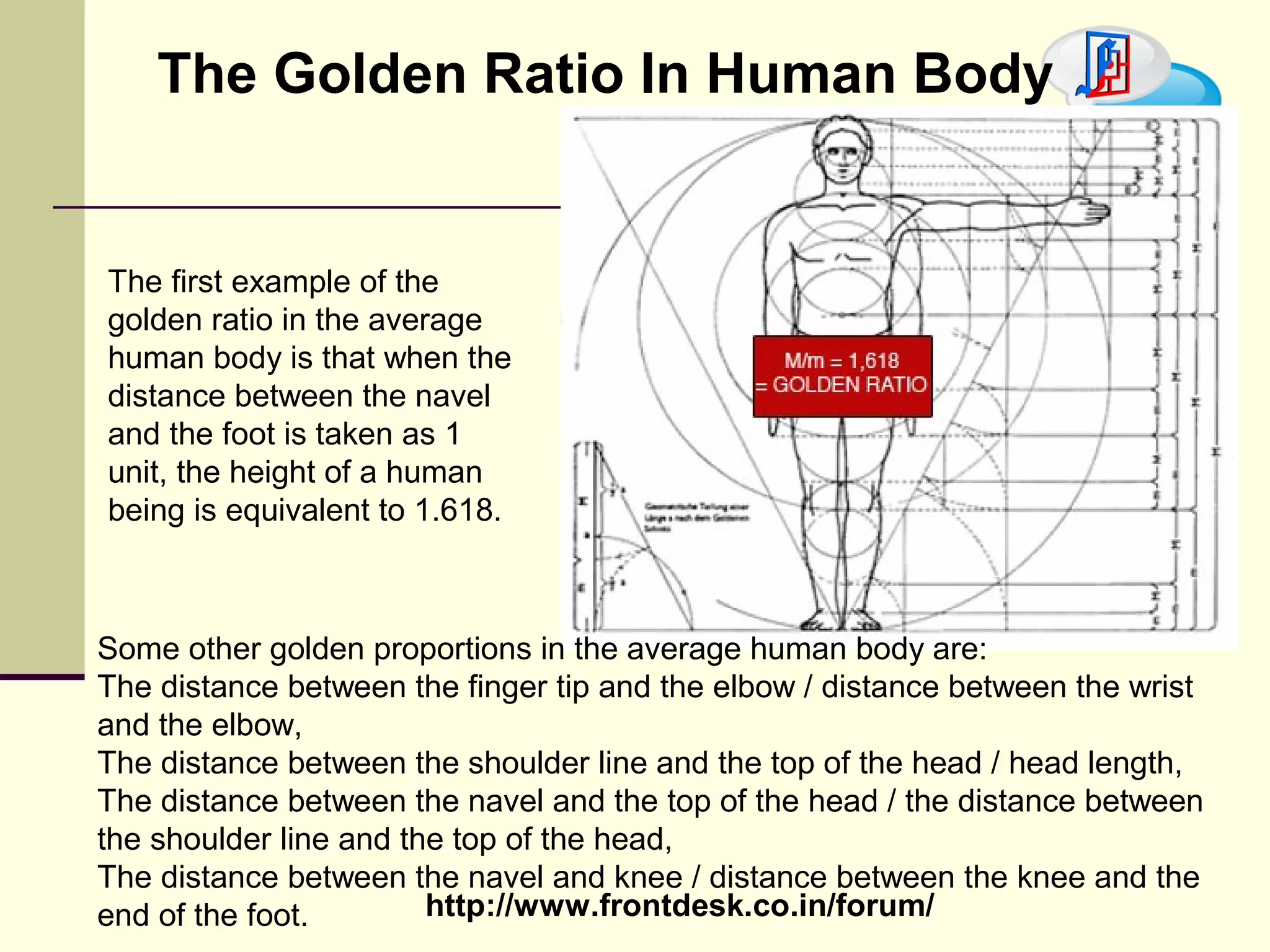

- 8. THE GOLDEN RATIOIN HUMAN BODY The first example of the golden ratio in the average human body is that when the distance between the navel and the foot is taken as 1 unit, the height of a human being is equivalent to 1.618. Some other golden proportions in the average human body are: The distance between the finger tip and the elbow / distance between the wrist and the elbow, The distance between the shoulder line and the top of the head / head length, The distance between the navel and the top of the head / the distance between the shoulder line and the top of the head, The distance between the navel and knee / distance between the knee and the end of the foot.

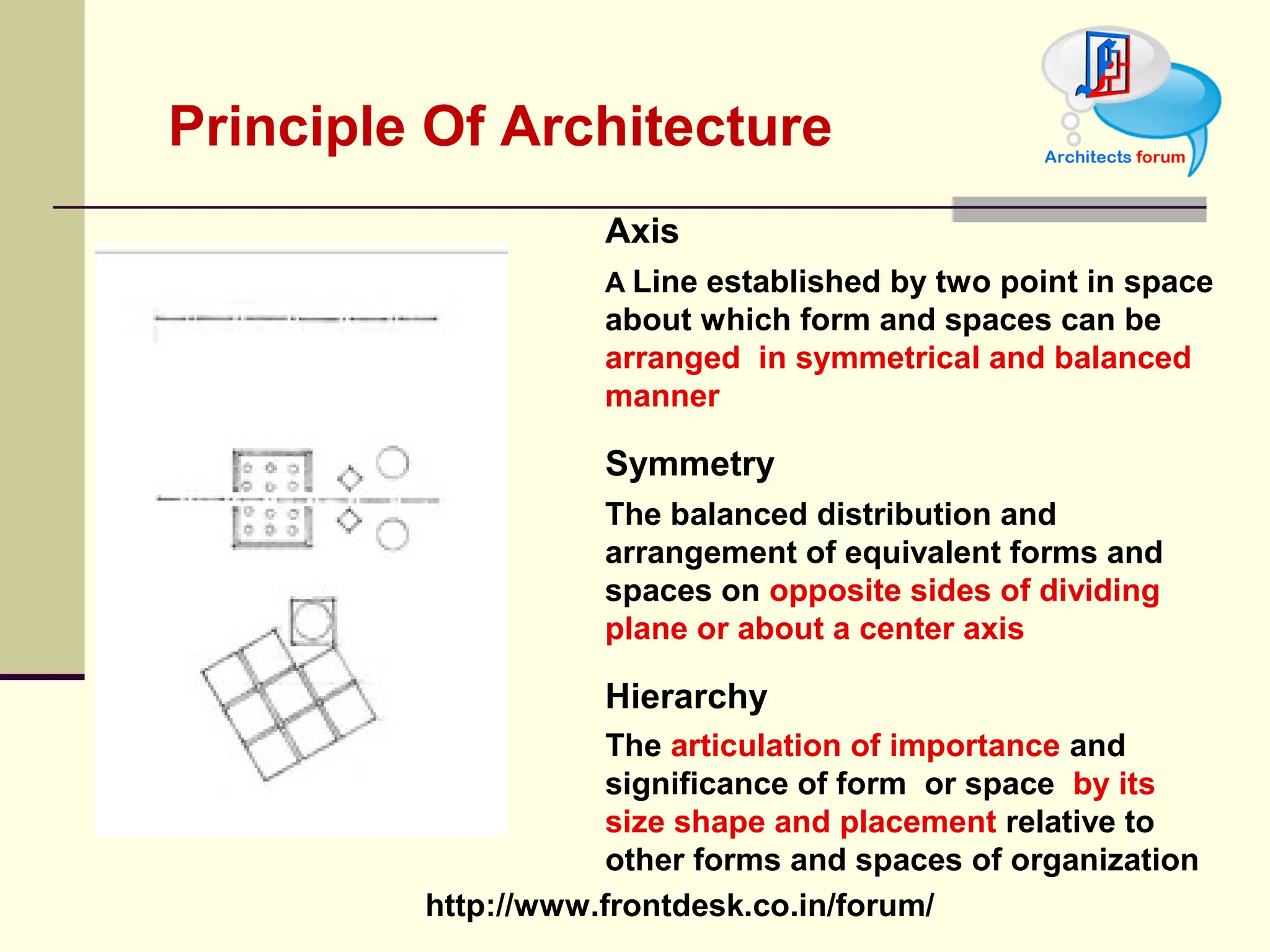

- 9. PRINCIPLE OF ARCHITECTUREAXIS SYMMETRY A Line established by two point in space about which form and spaces can be arranged in symmetrical and balanced manner The balanced distribution and arrangement of equivalent forms and spaces on opposite sides of dividing plane or about a center axis HIEARCHY The articulation of importance and significance of form or space by its size shape and placement relative to other forms and spaces of organization

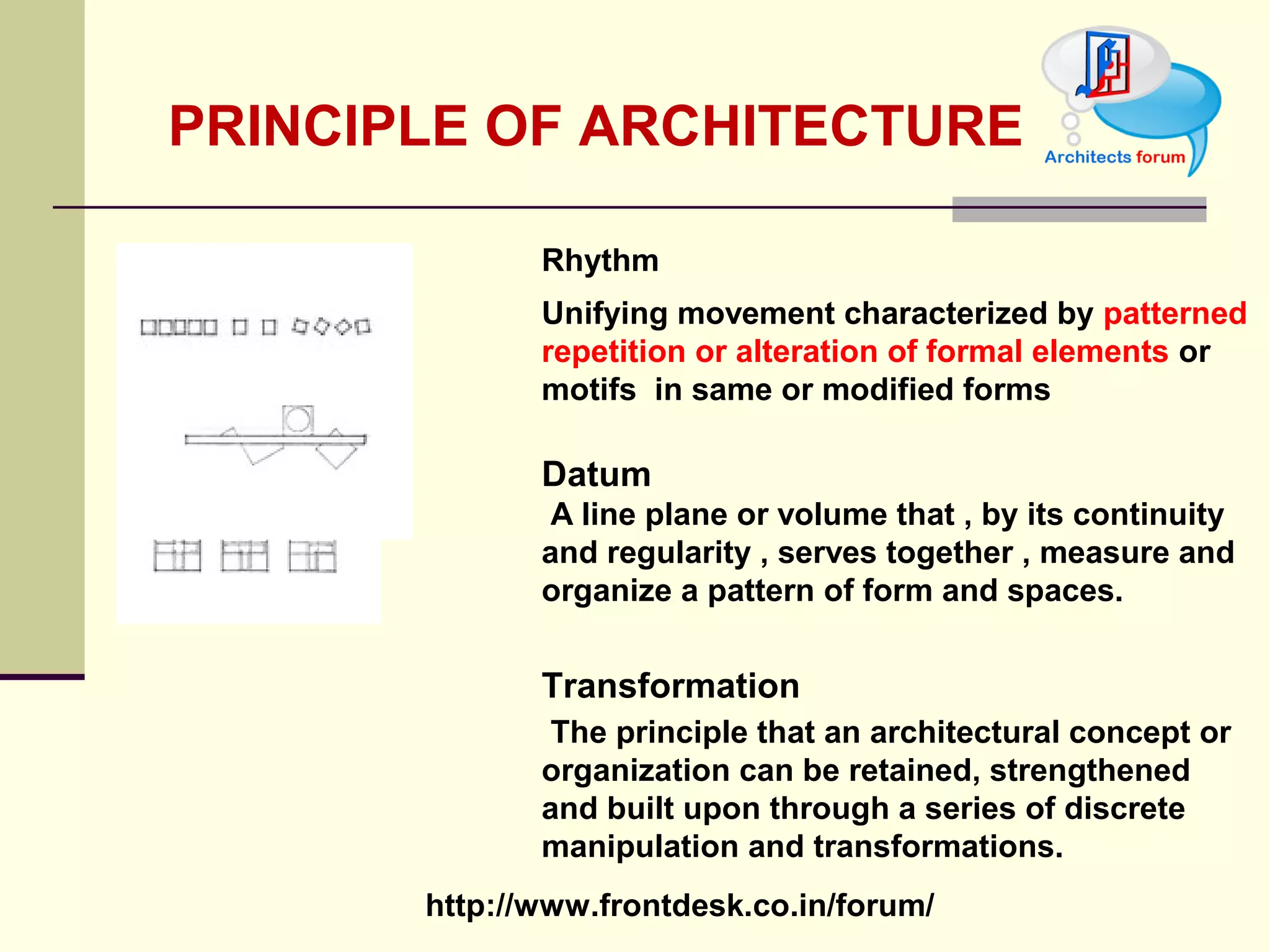

- 10. PRINCIPLE OF ARCHITECTURERHYTHM Unifying movement characterized by patterned repetition or alteration of formal elements or motifs in same or modified forms DATUM A line plane or volume that , by its continuity and regularity , serves together , measure and organize a pattern of form and spaces TRANSFORMATION The principle that an architectural concept or organization can be retained, strengthened and built upon through a series of discrete manipulation and transformations

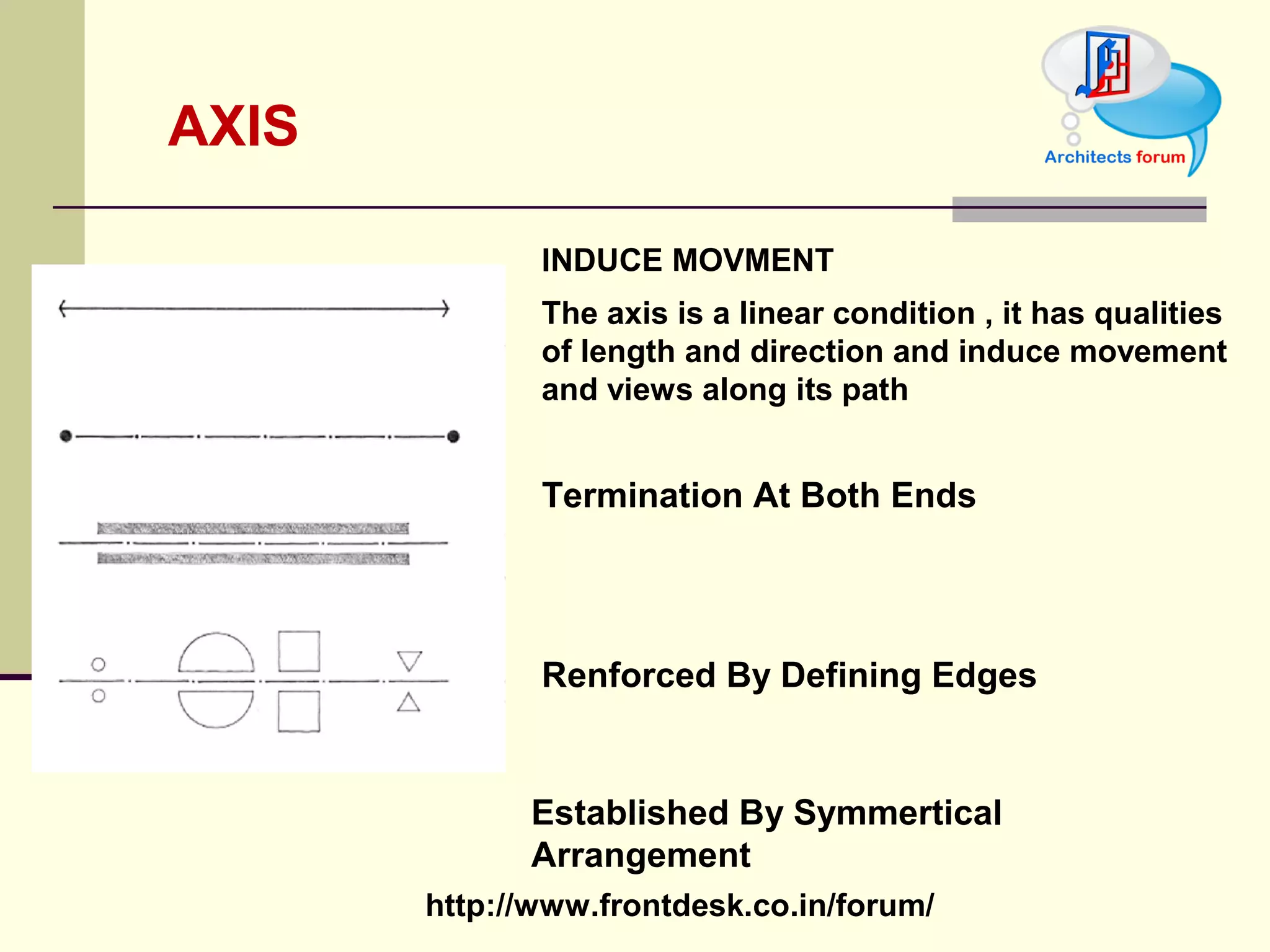

- 11. AXIS INDUCE MOVMENTThe axis is a linear condition , it has qualities of length and direction and induce movement and views along its path TERMINATION AT BOTH ENDS RENFORCED BY DEFINING EDGES ESTABLISHED BY SYMMERTICAL ARRANGEMENT

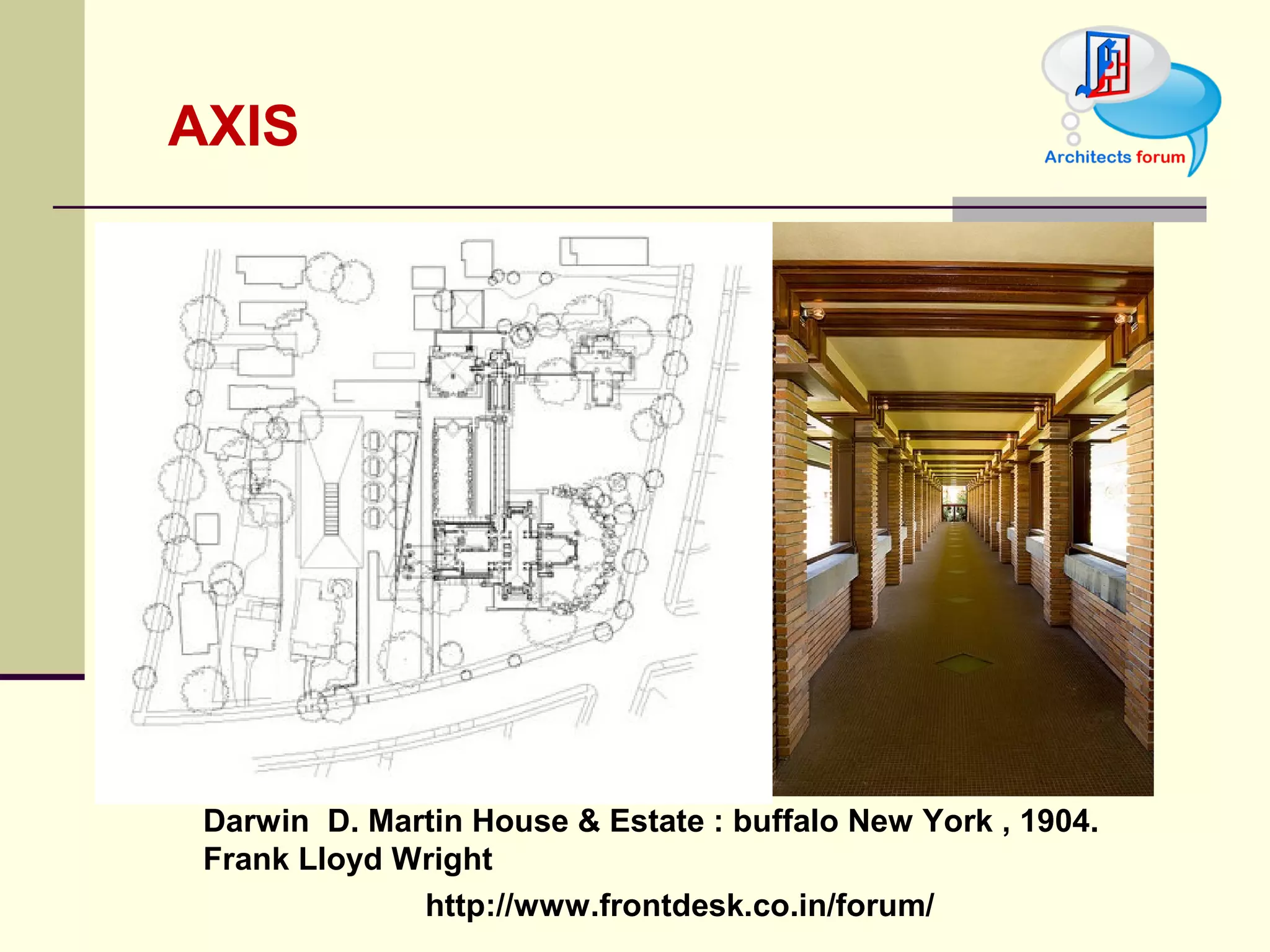

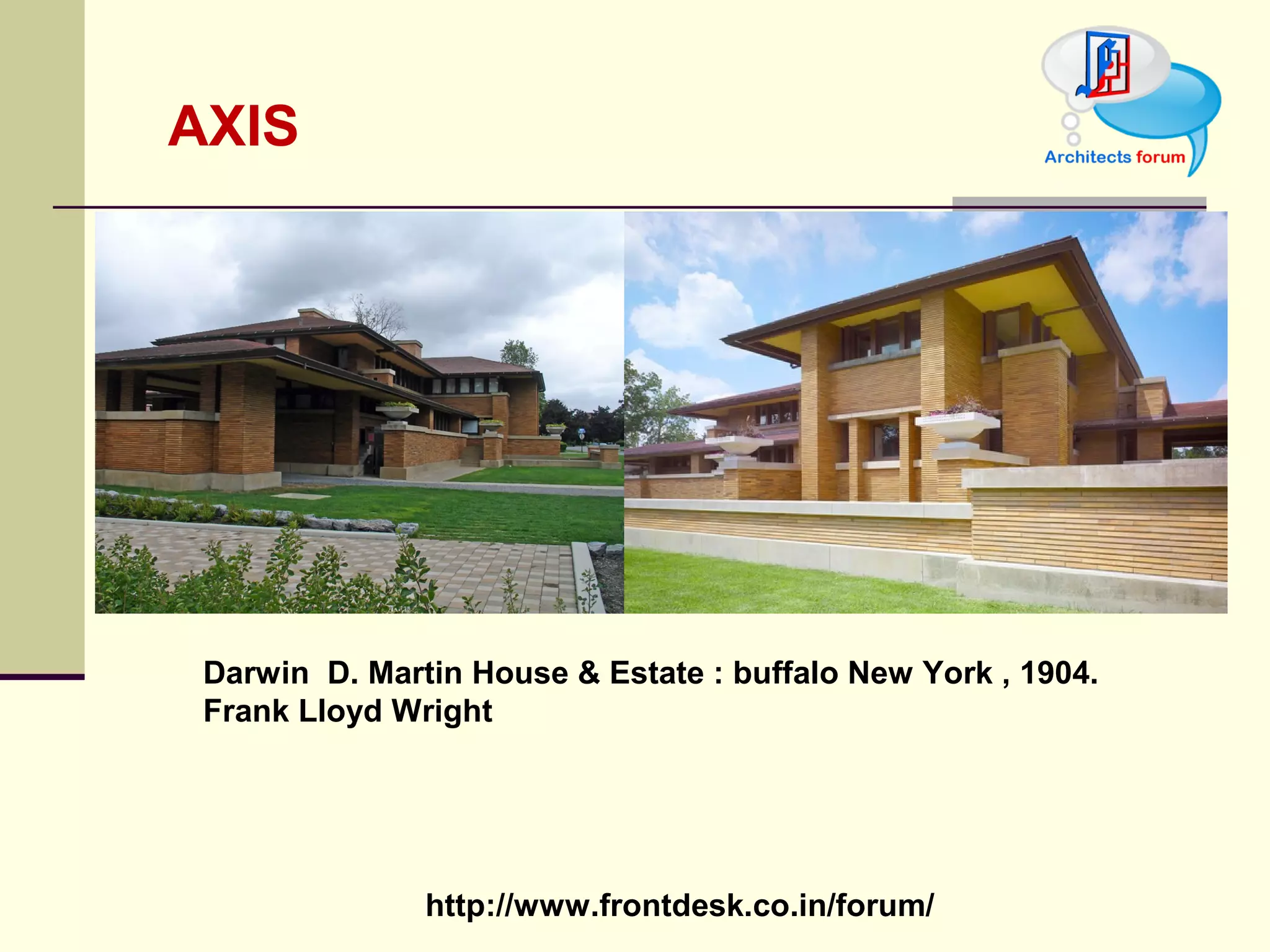

- 12. AXIS DARWIN D. MARTIN HOUSE & ESTATE : buffalo New York , 1904. Frank Lloyd Wright
- 13. AXIS DARWIN D. MARTIN HOUSE & ESTATE : buffalo New York , 1904. Frank Lloyd Wright

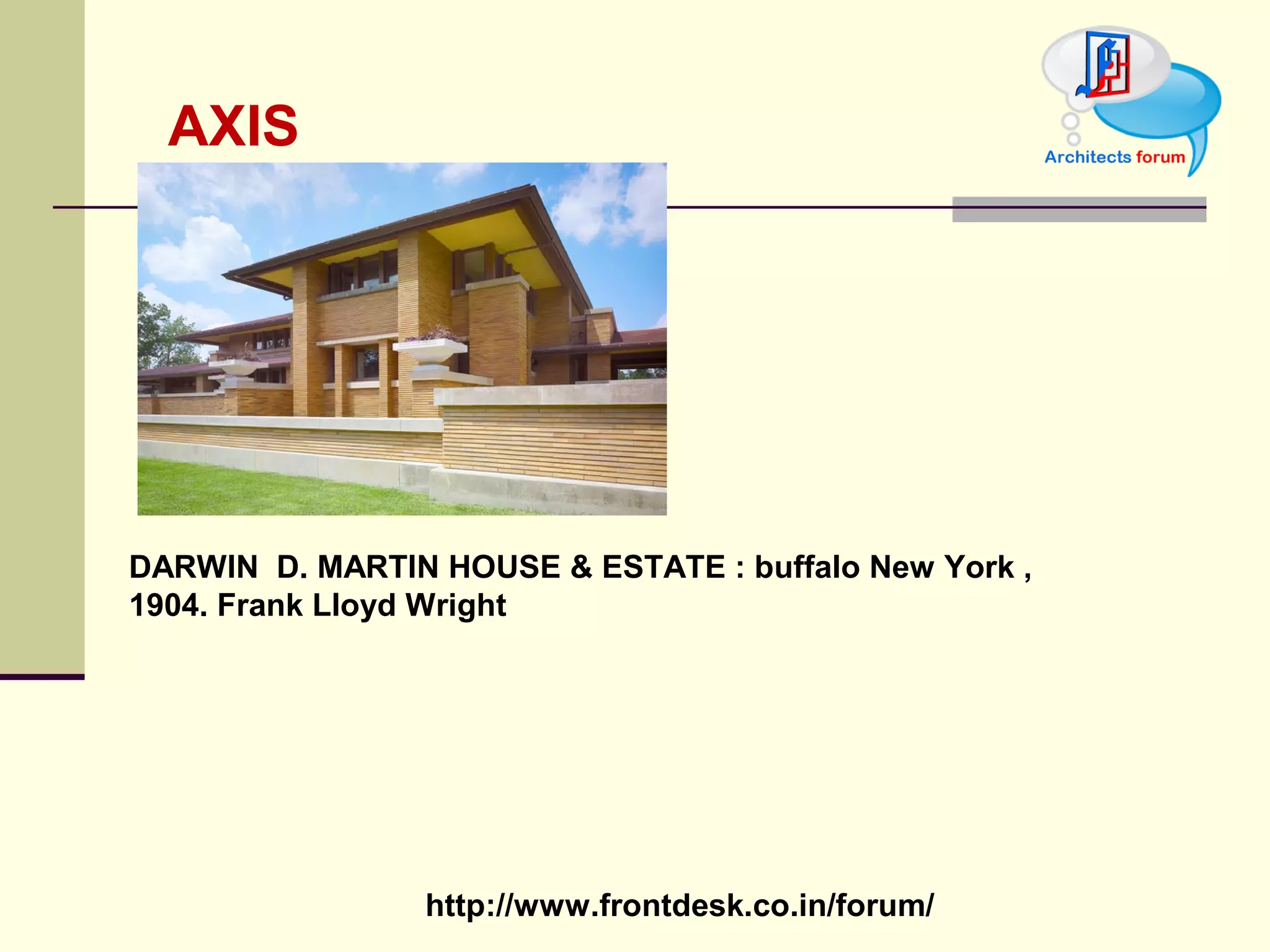

- 14. AXIS DARWIN D. MARTIN HOUSE & ESTATE : buffalo New York , 1904. Frank Lloyd Wright

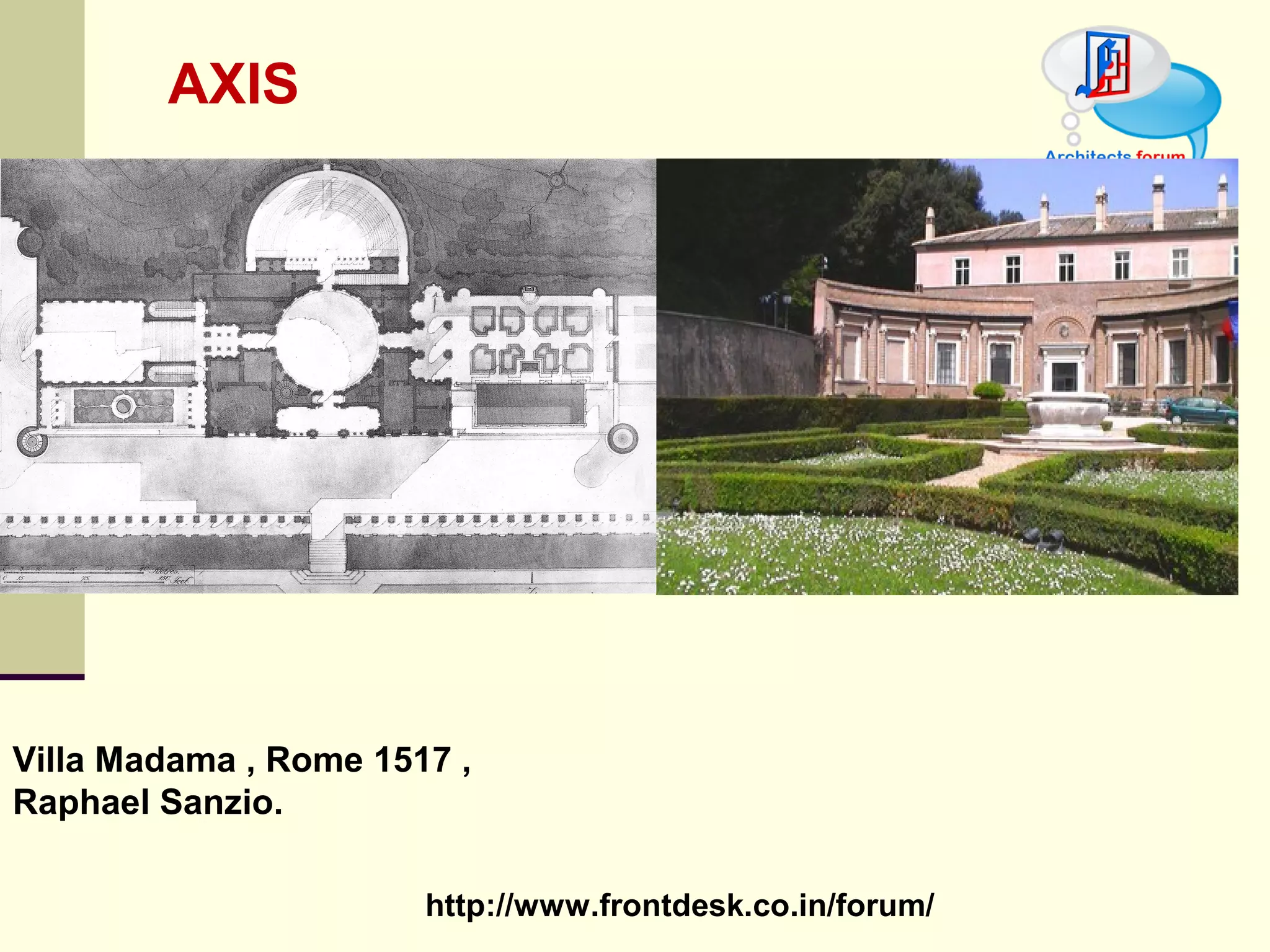

- 15. AXIS Villa Madama, Rome 1517 , Raphael Sanzio

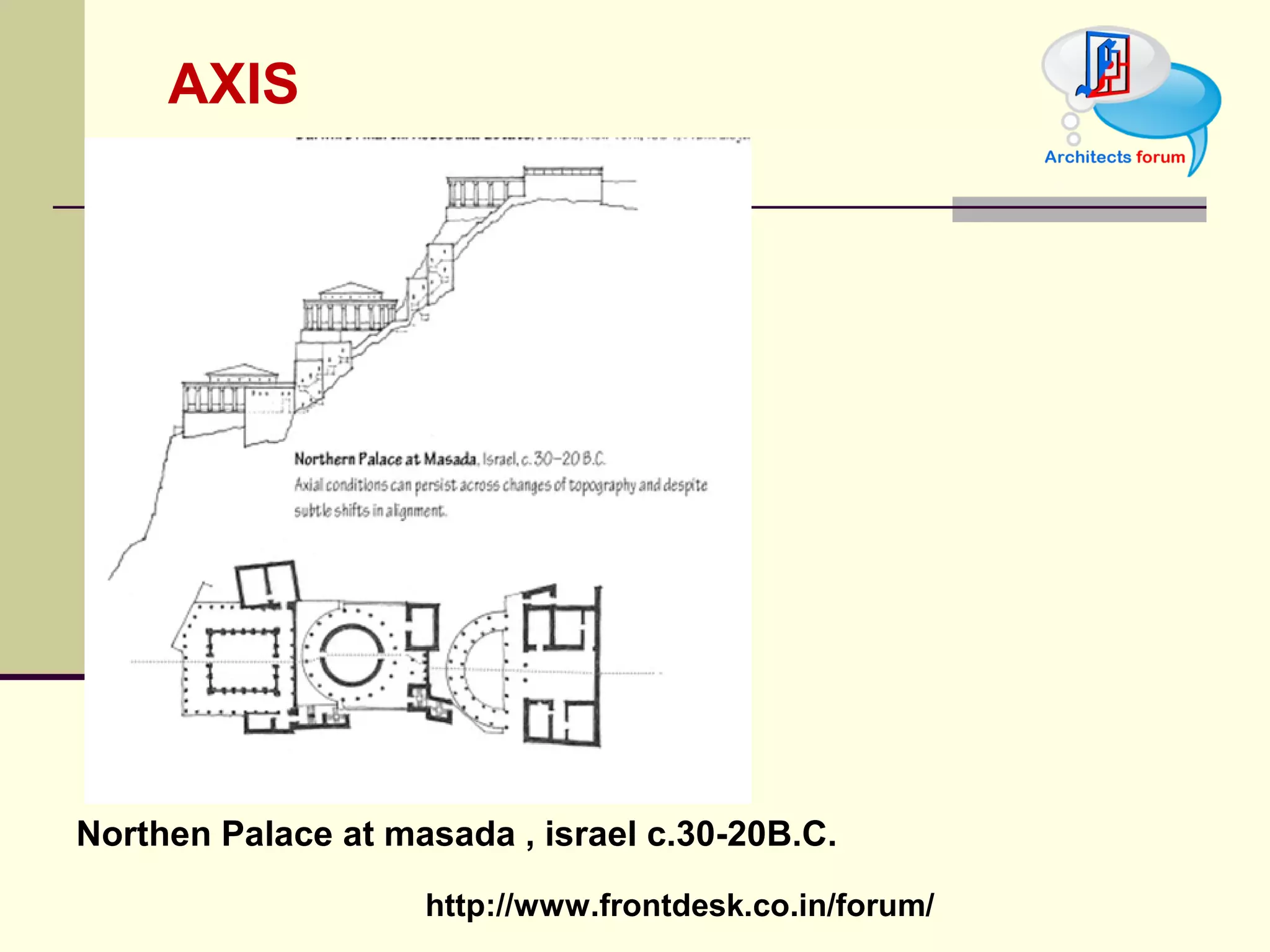

- 16. AXIS Northen Palaceat masada , israel c.30-20B.C.

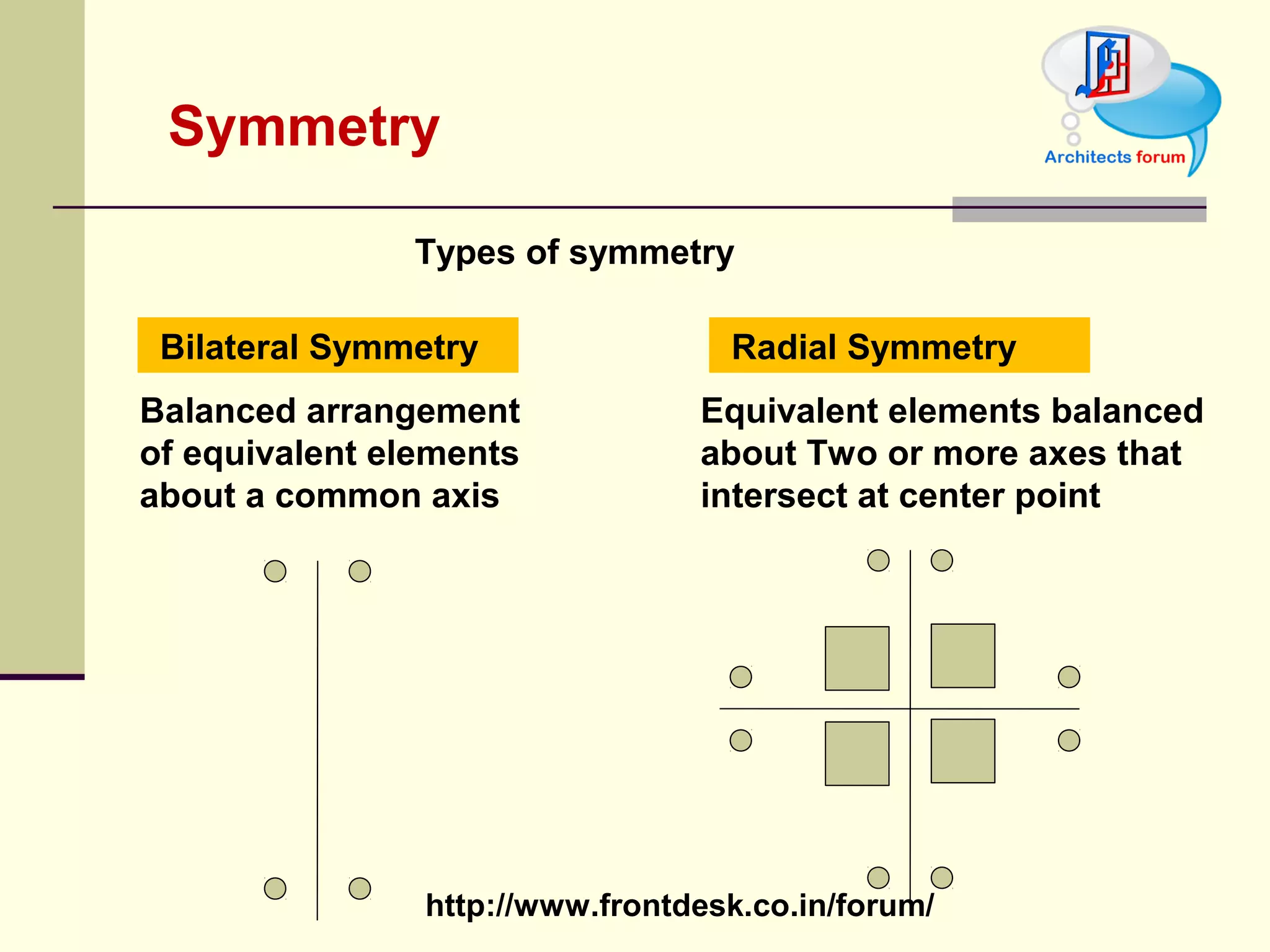

- 17. SYMMETRY Types ofsymmetry Bilateral Symmetry Radial Symmetry Balanced arrangement of equivalent elements about a common axis Equivalent elements balanced about Two or more axes that intersect at center point

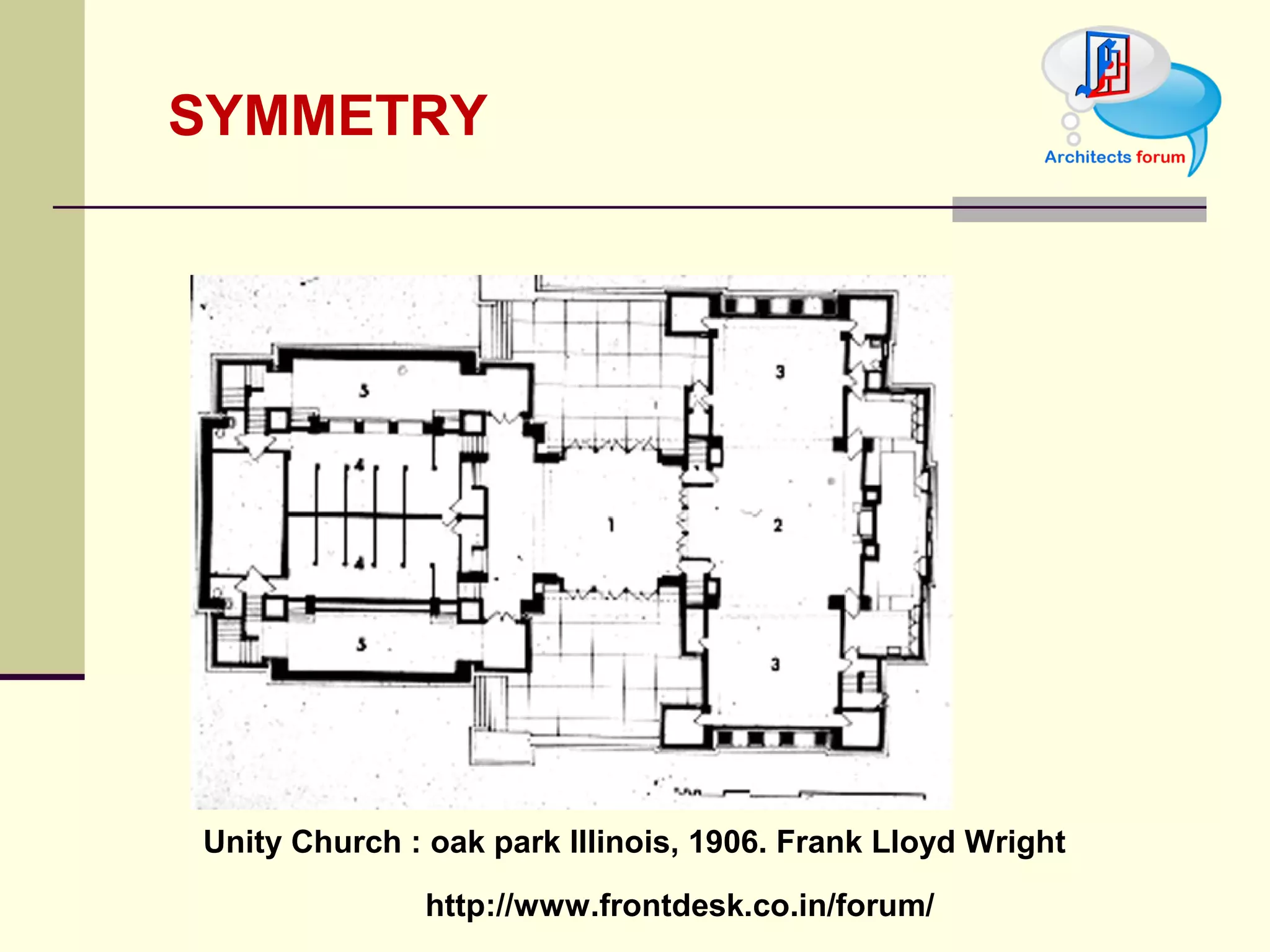

- 18. Unity Church :oak park Illinois, 1906. Frank Lloyd Wright SYMMETRY

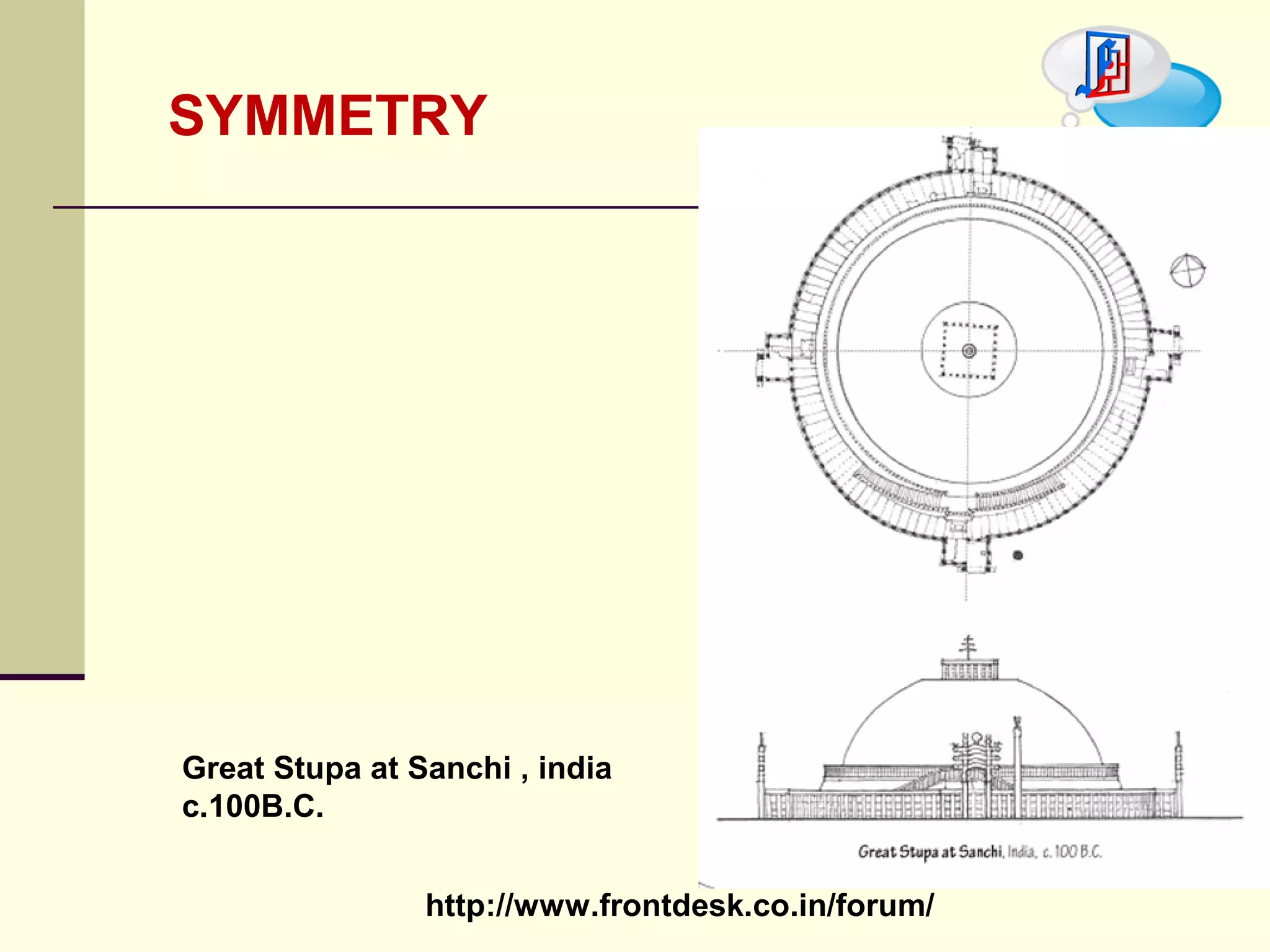

- 19. Great Stupa atSanchi , india c.100B.C. SYMMETRY

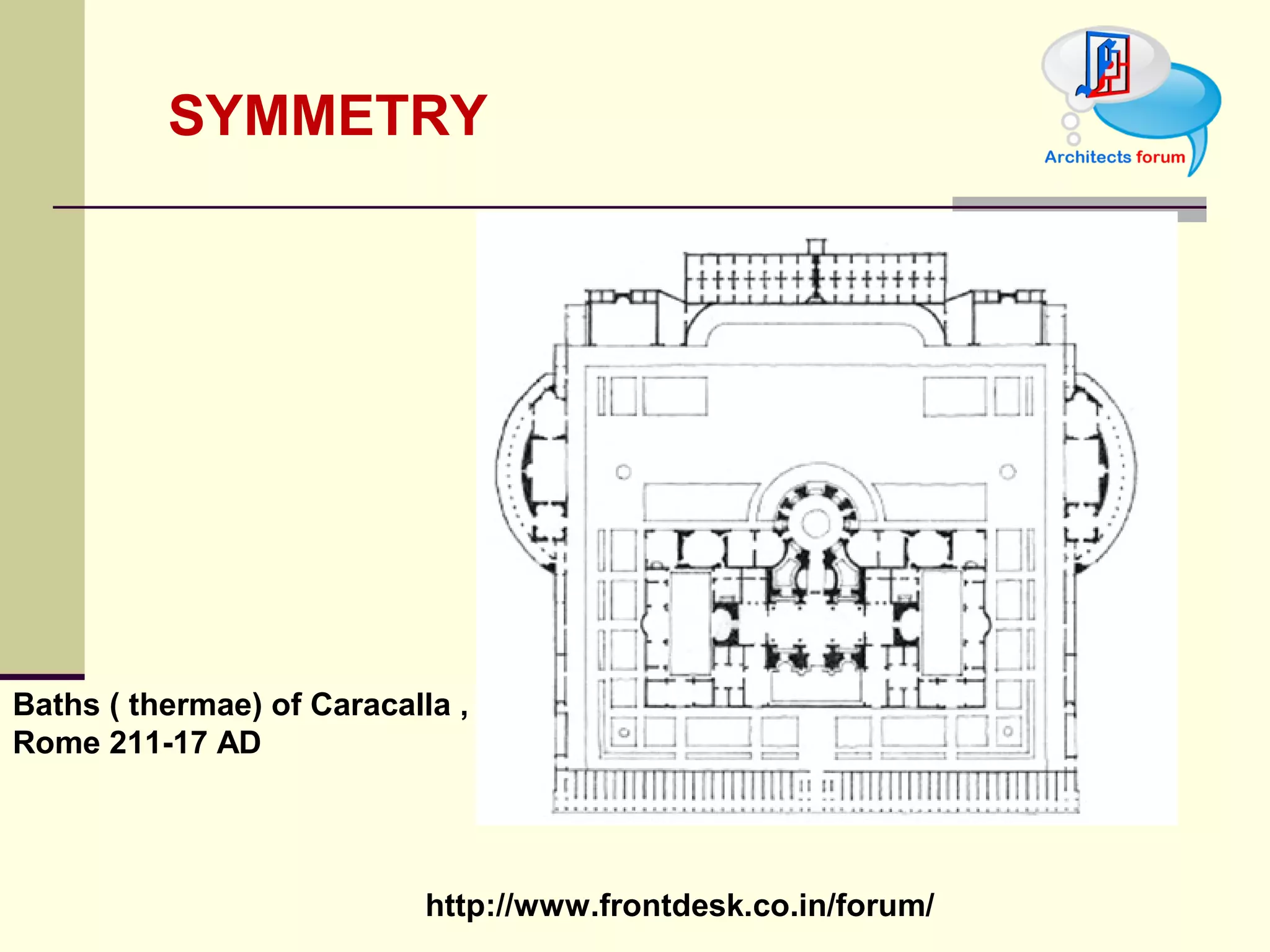

- 20. Baths ( thermae)of Caracalla , Rome 211-17 AD SYMMETRY

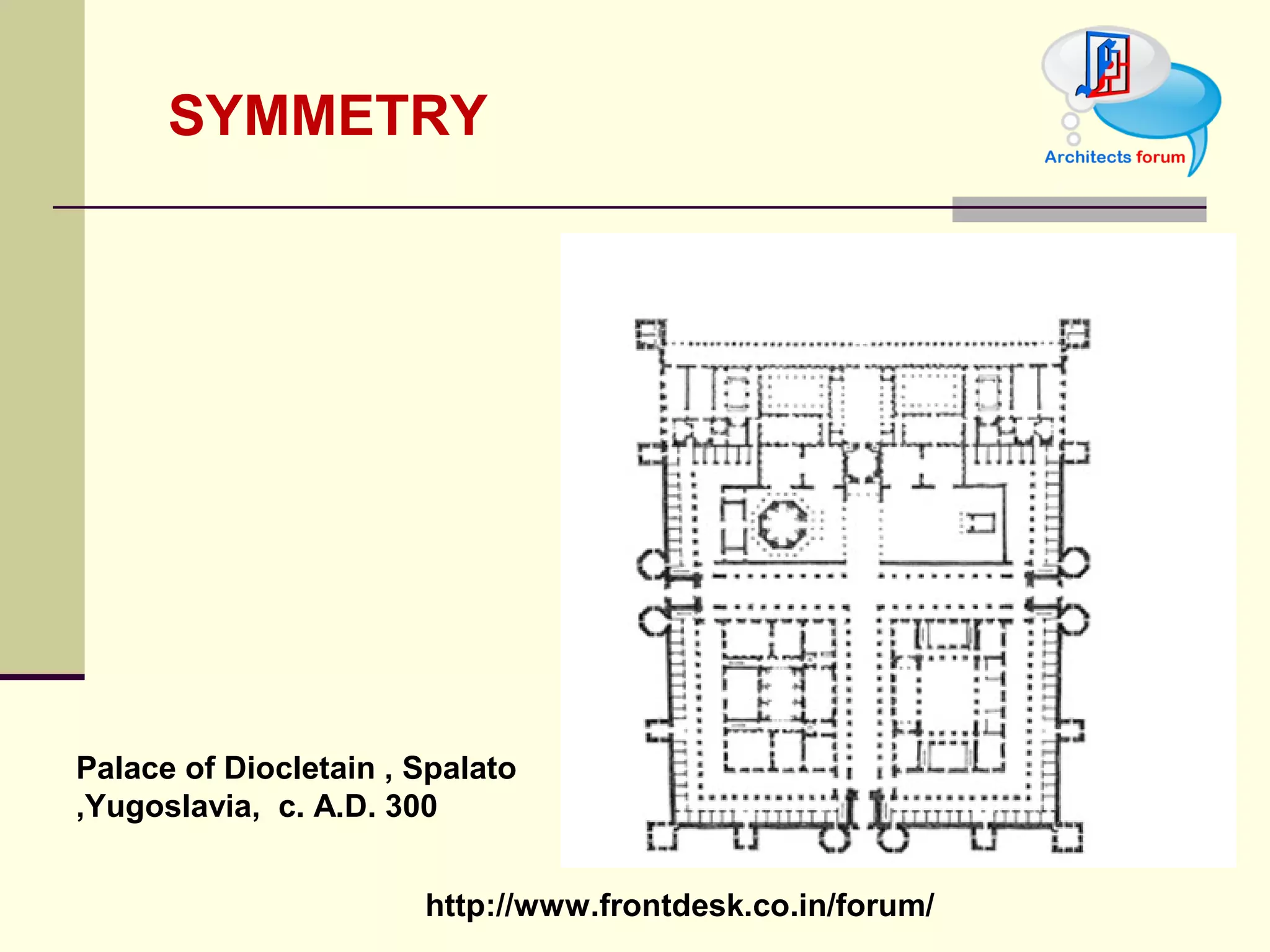

- 21. Palace of Diocletain, Spalato ,Yugoslavia, c. A.D. 300 SYMMETRY

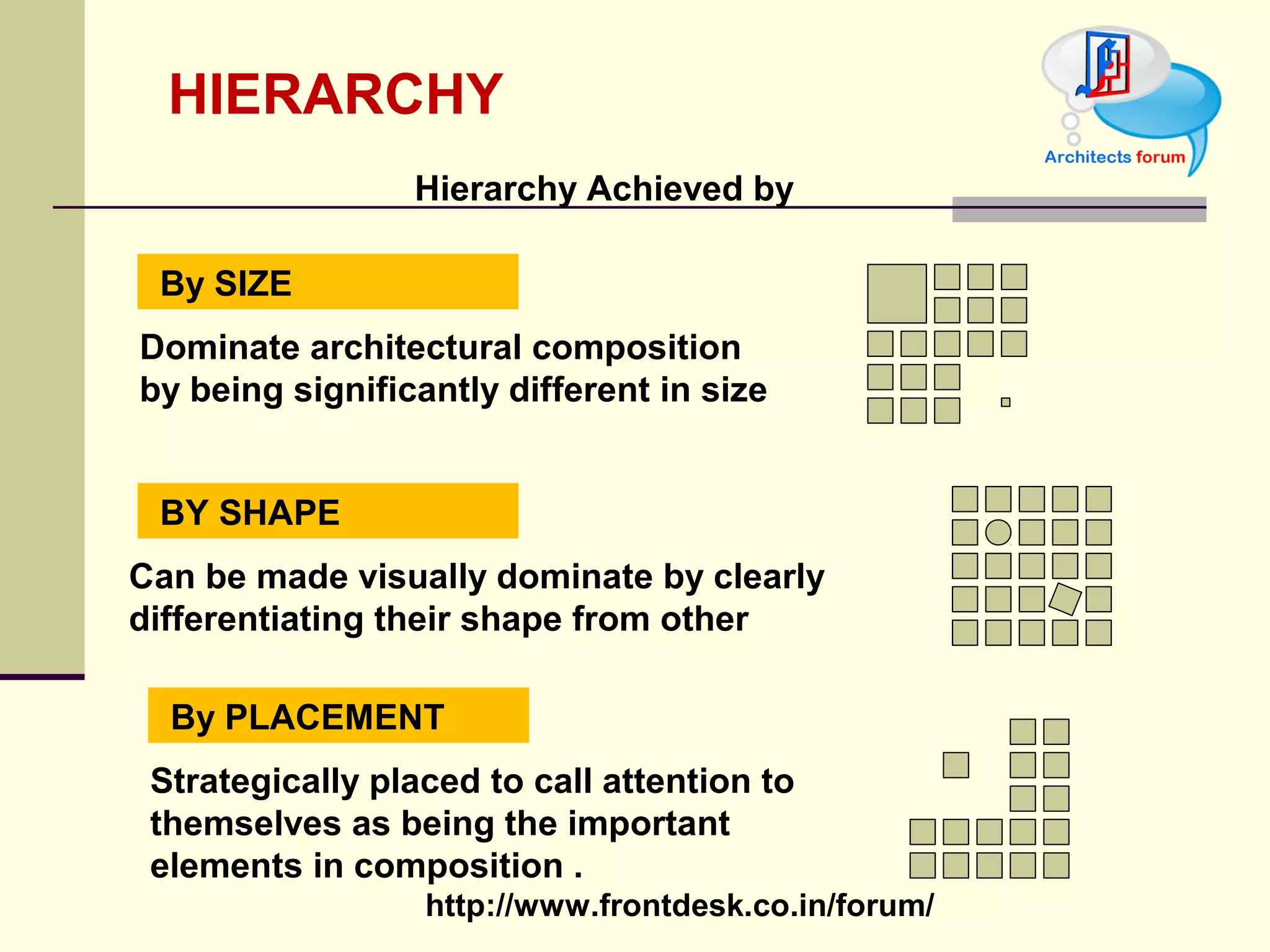

- 22. HIERARCHY Hierarchy Achievedby By SIZE BY SHAPE Dominate architectural composition by being significantly different in size Can be made visually dominate by clearly differentiating their shape from other By PLACEMENT Strategically placed to call attention to themselves as being the important elements in composition .

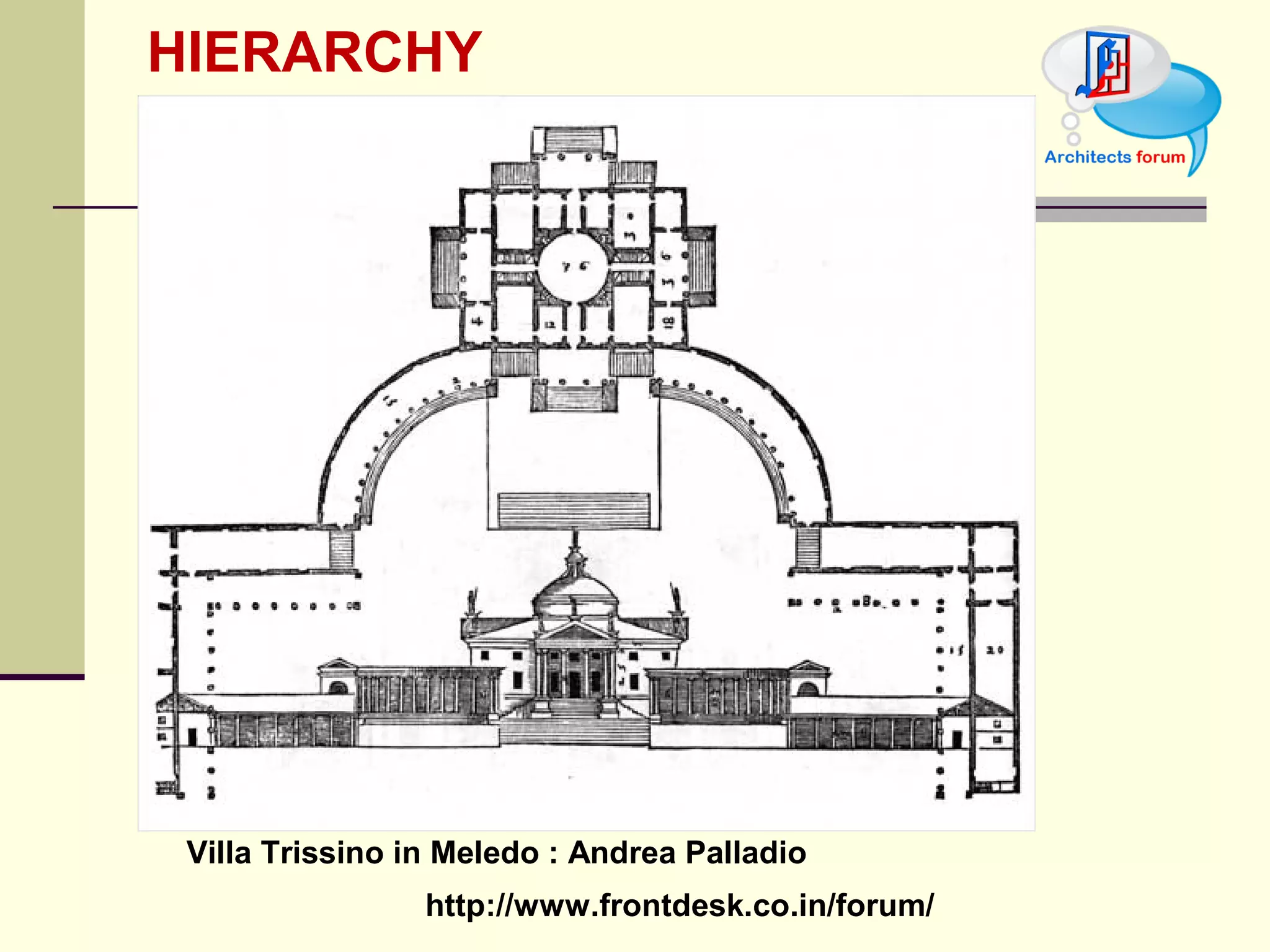

- 23. Villa Trissino inMeledo : Andrea Palladio HIERARCHY

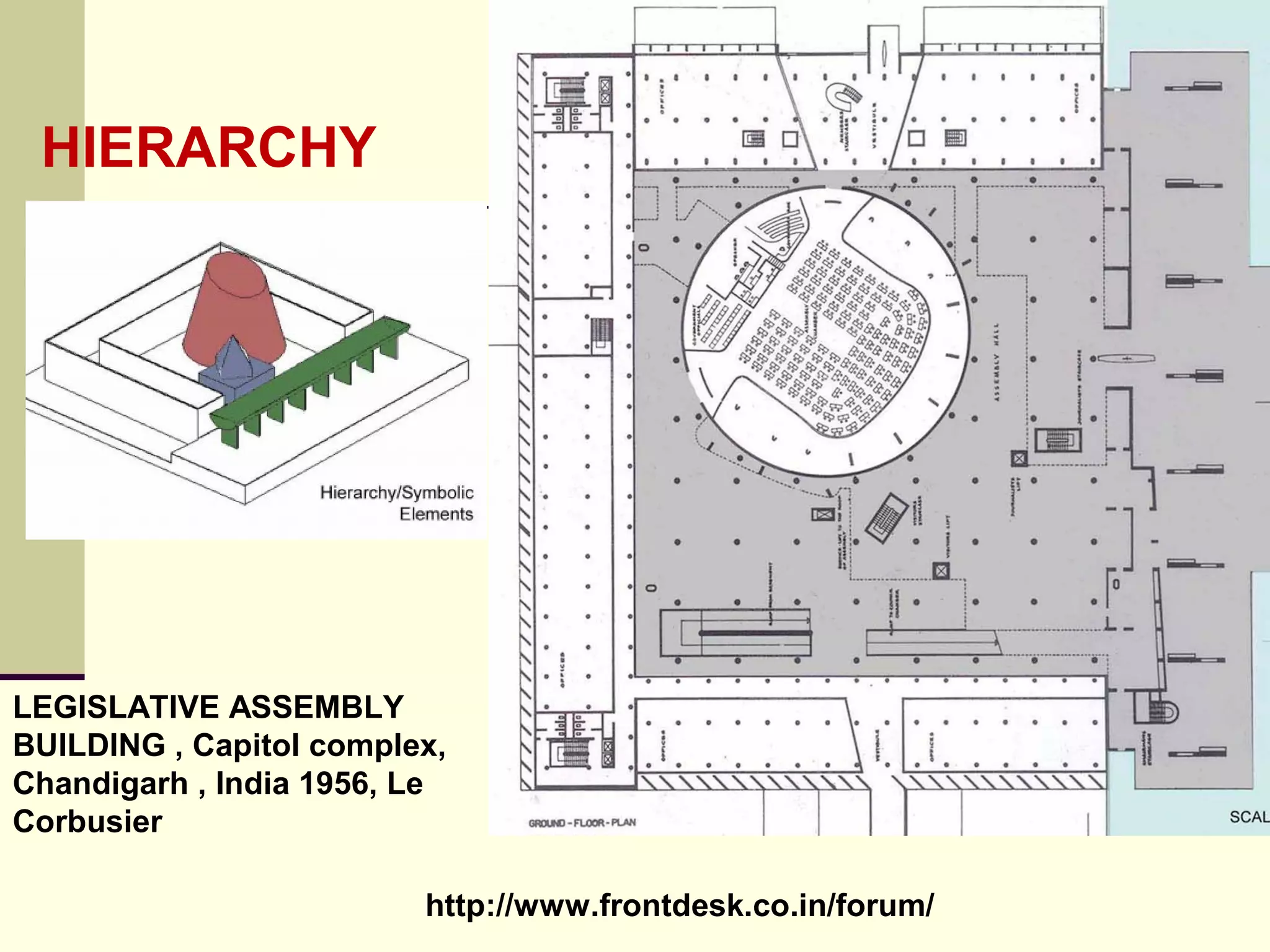

- 24. LEGISLATIVE ASSEMBLY BUILDING, Capitol complex, Chandigarh , india 1956, Le corbusier HIERARCHY

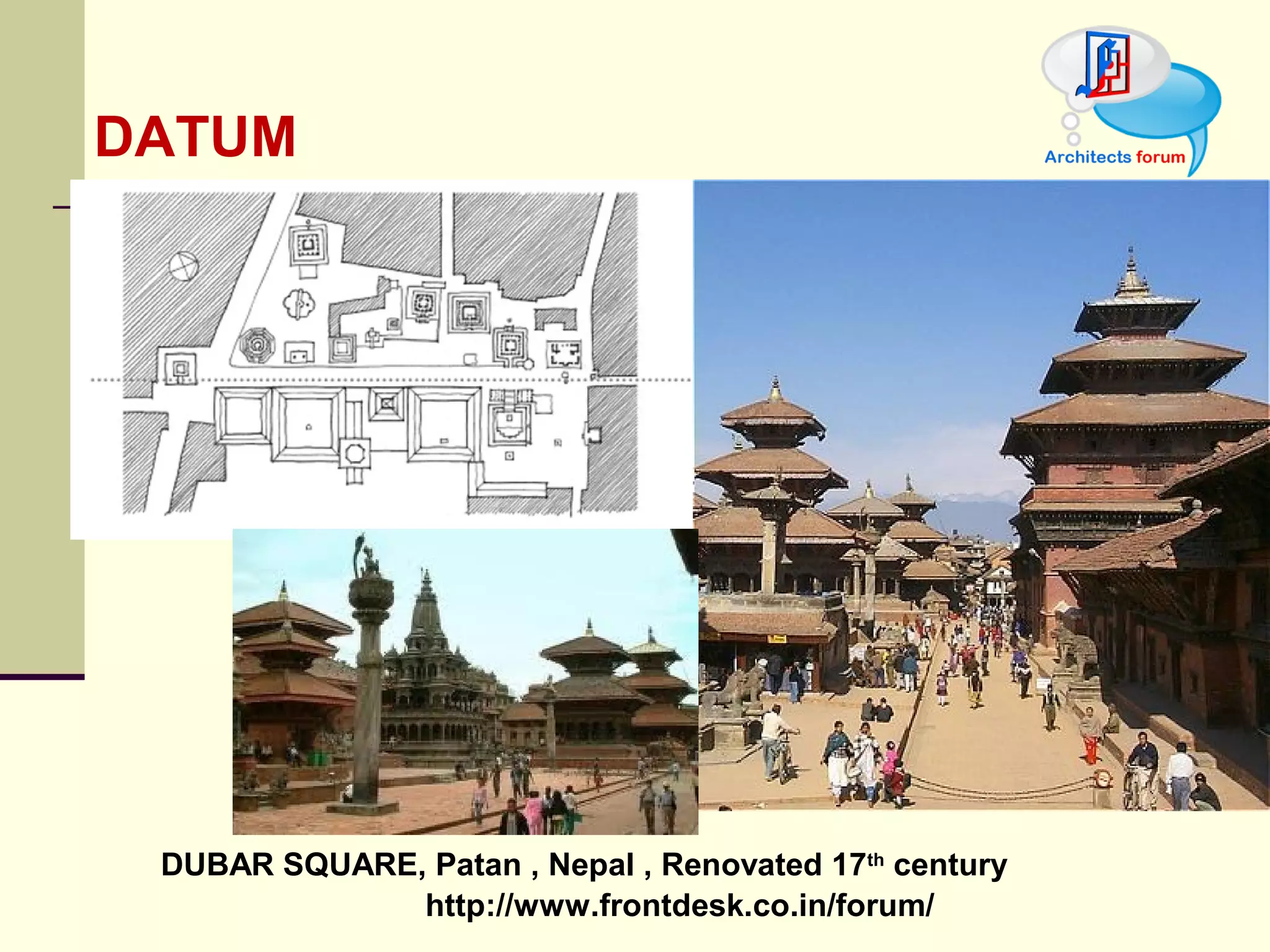

- 25. DUBAR SQUARE, Patan, Nepal , Renovated 17 th century DATUM

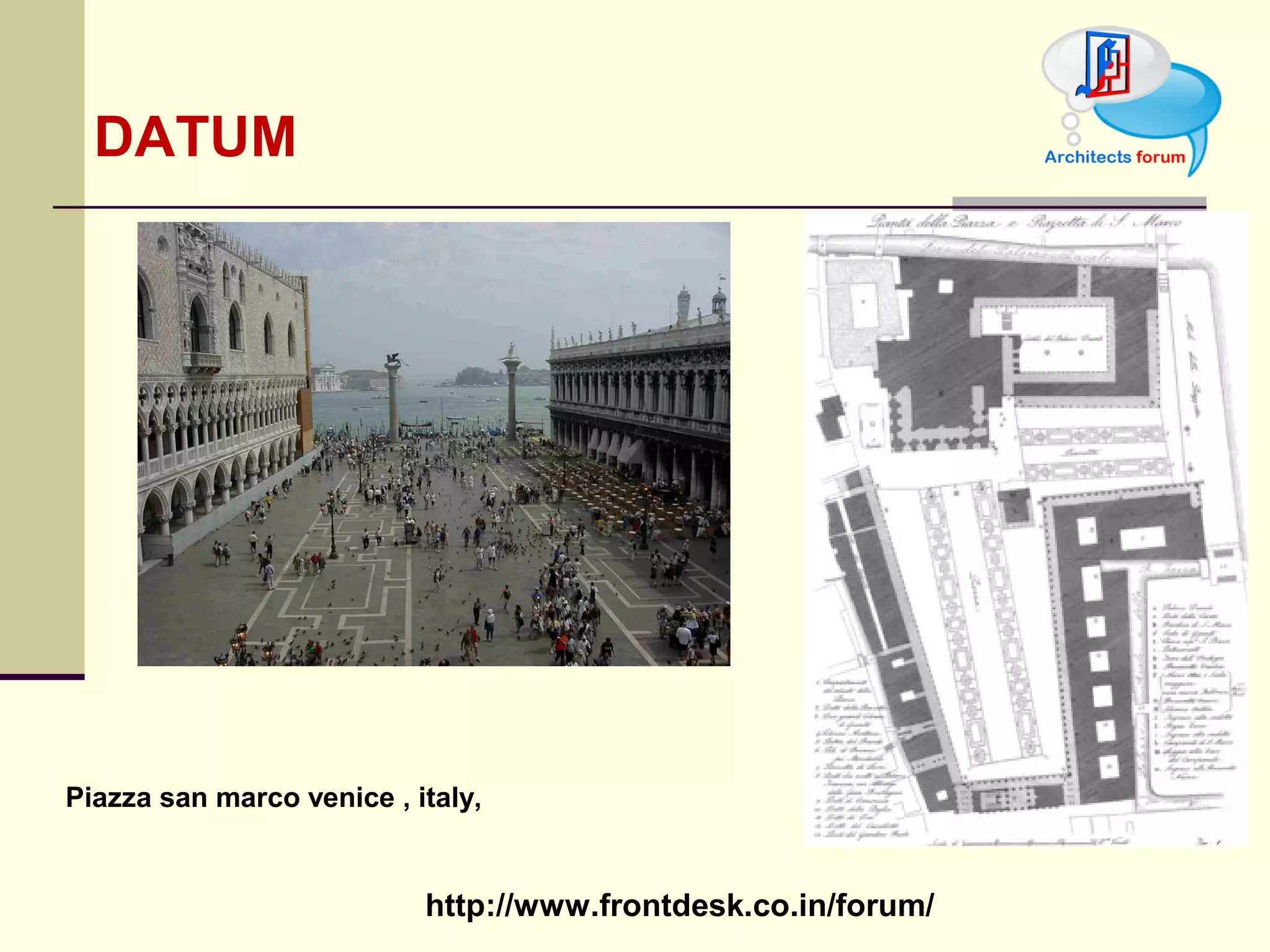

- 26. DATUM Piazza sanmarco venice , italy,

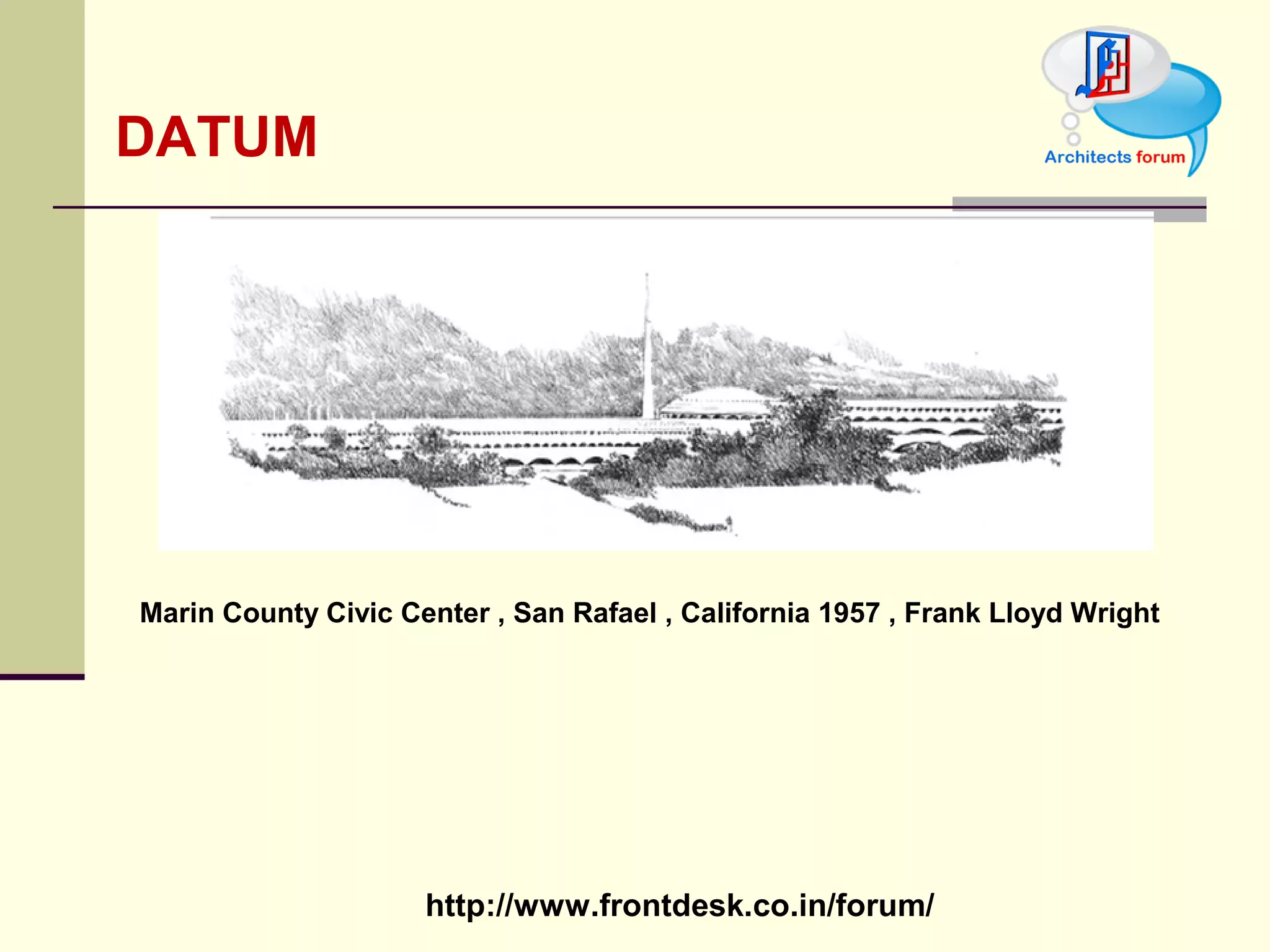

- 27. DATUM Marin CountyCivic Center , San Rafael , California 1957 , Frank Lloyd Wright

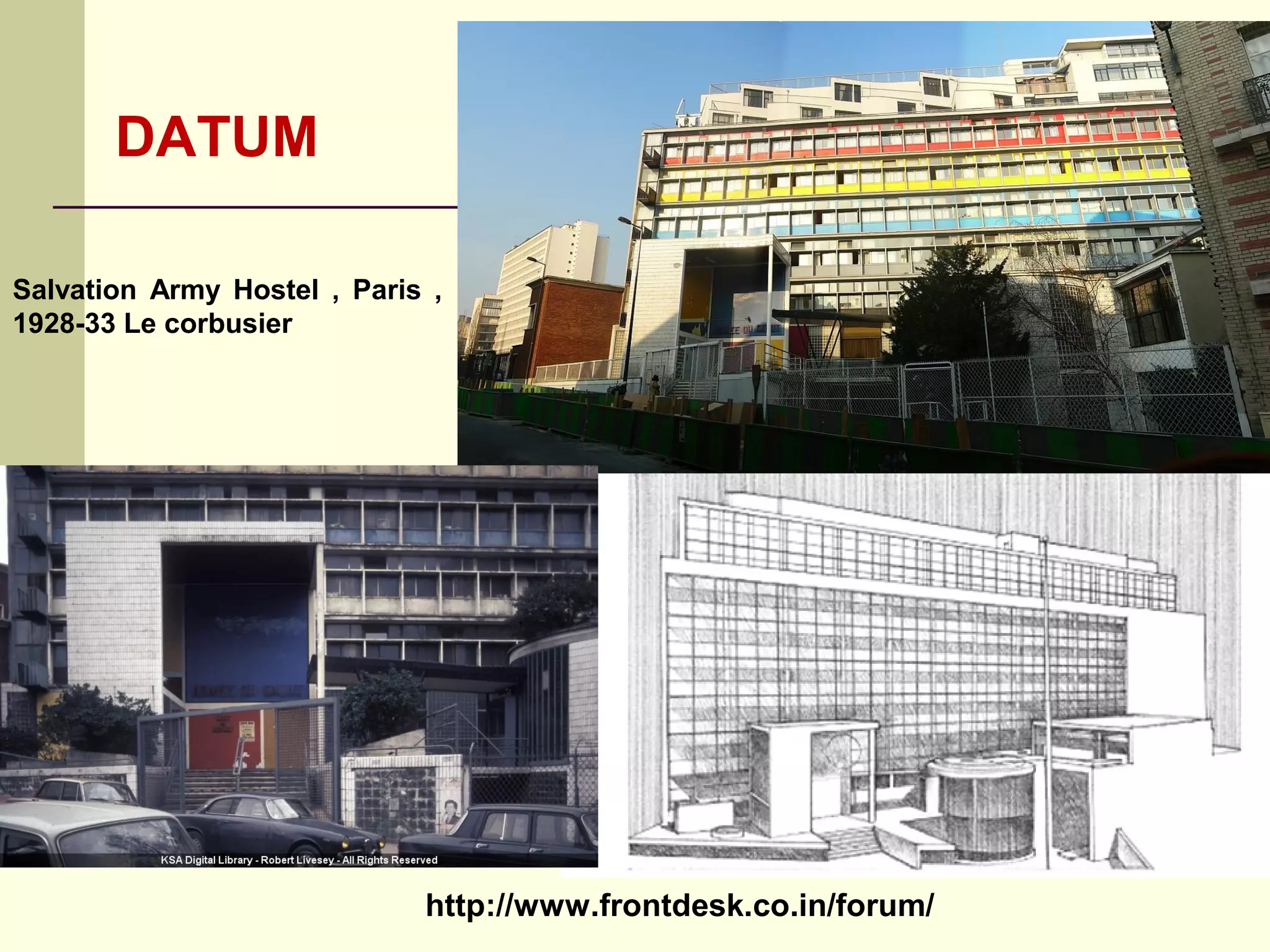

- 28. DATUM Salvation ArmyHostel , Paris , 1928-33 Le corbusier

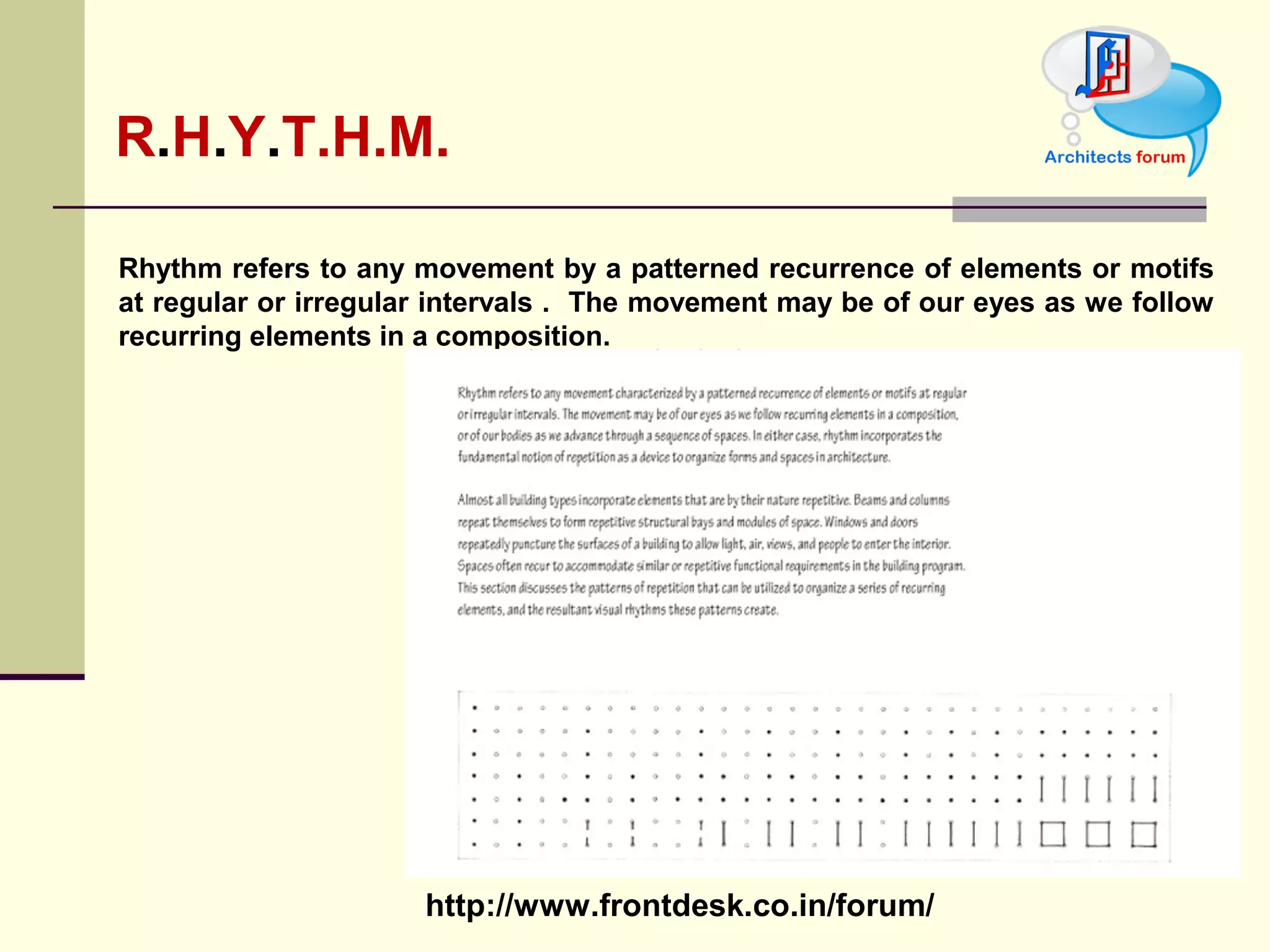

- 29. R . H. Y . T.H.M. Rhythm refers to any movement by a patterned recurrence of elements or motifs at regular or irregular intervals . The movement may be of our eyes as we follow recurring elements in a composition.

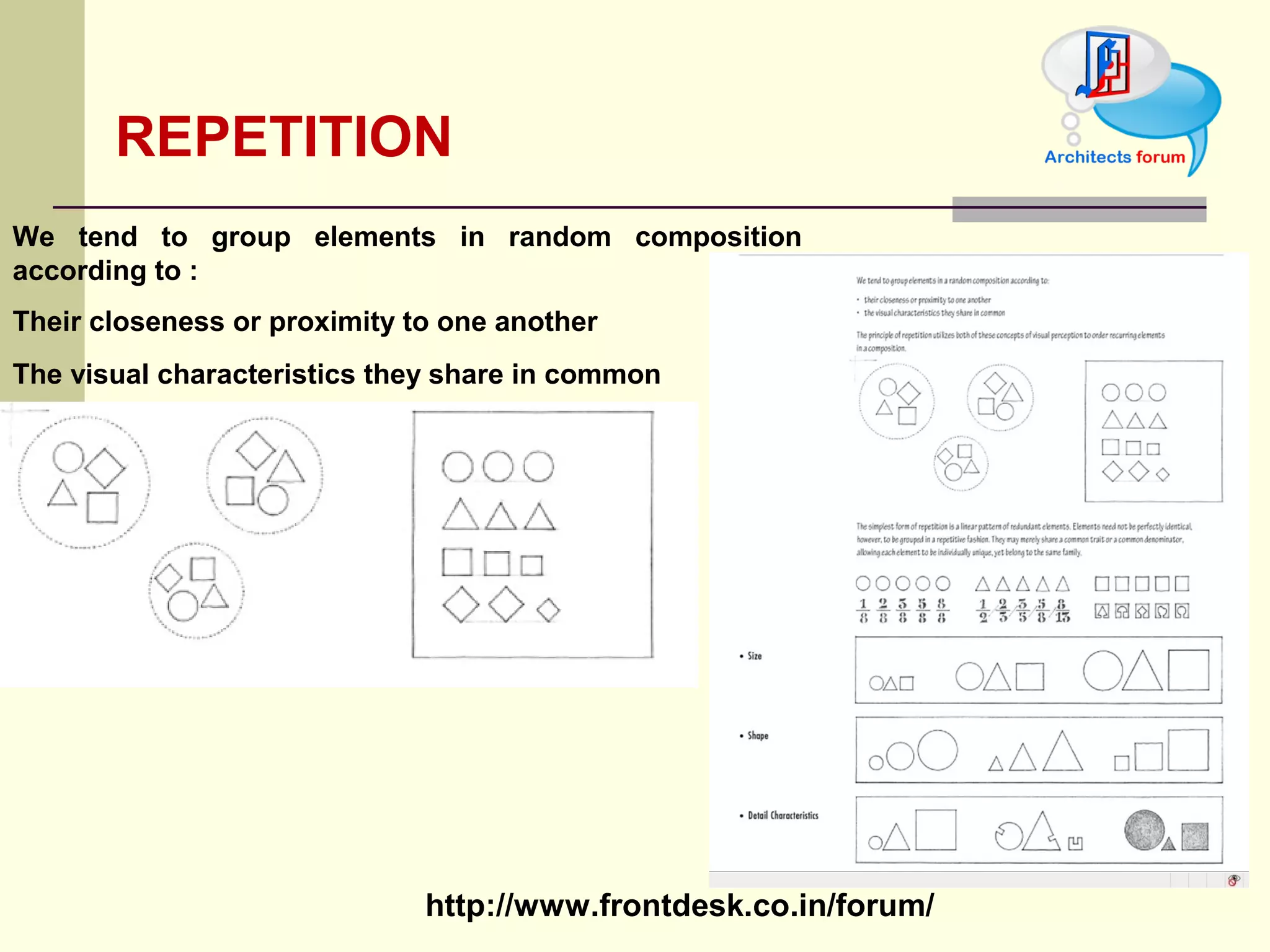

- 30. REPETITION Wetend to group elements in random composition according to Their closeness or proximity to one another The visual characteristics they share in common

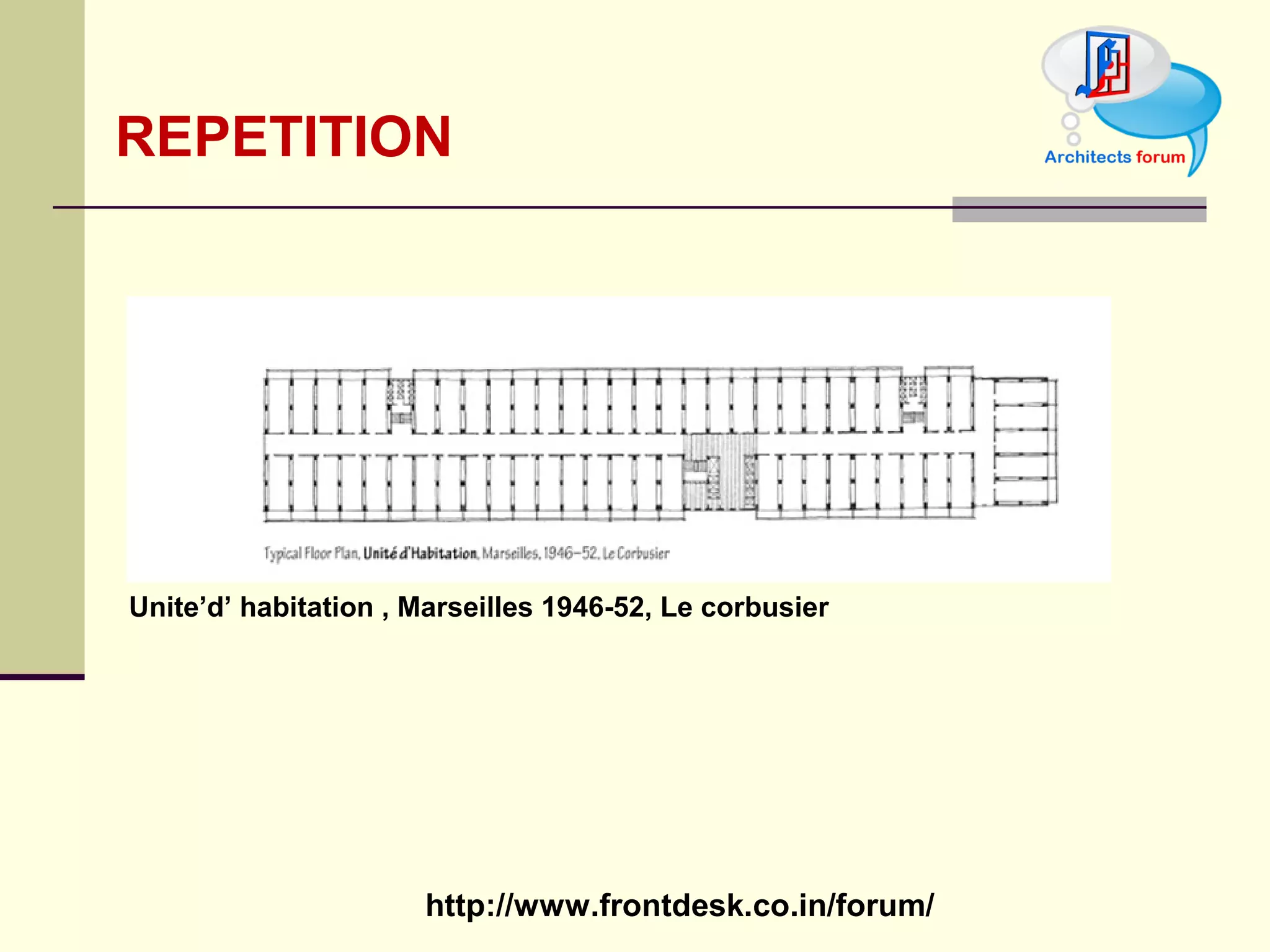

- 31. REPETITION Unite’d’habitation , Marseilles 1946-52, Le corbusier

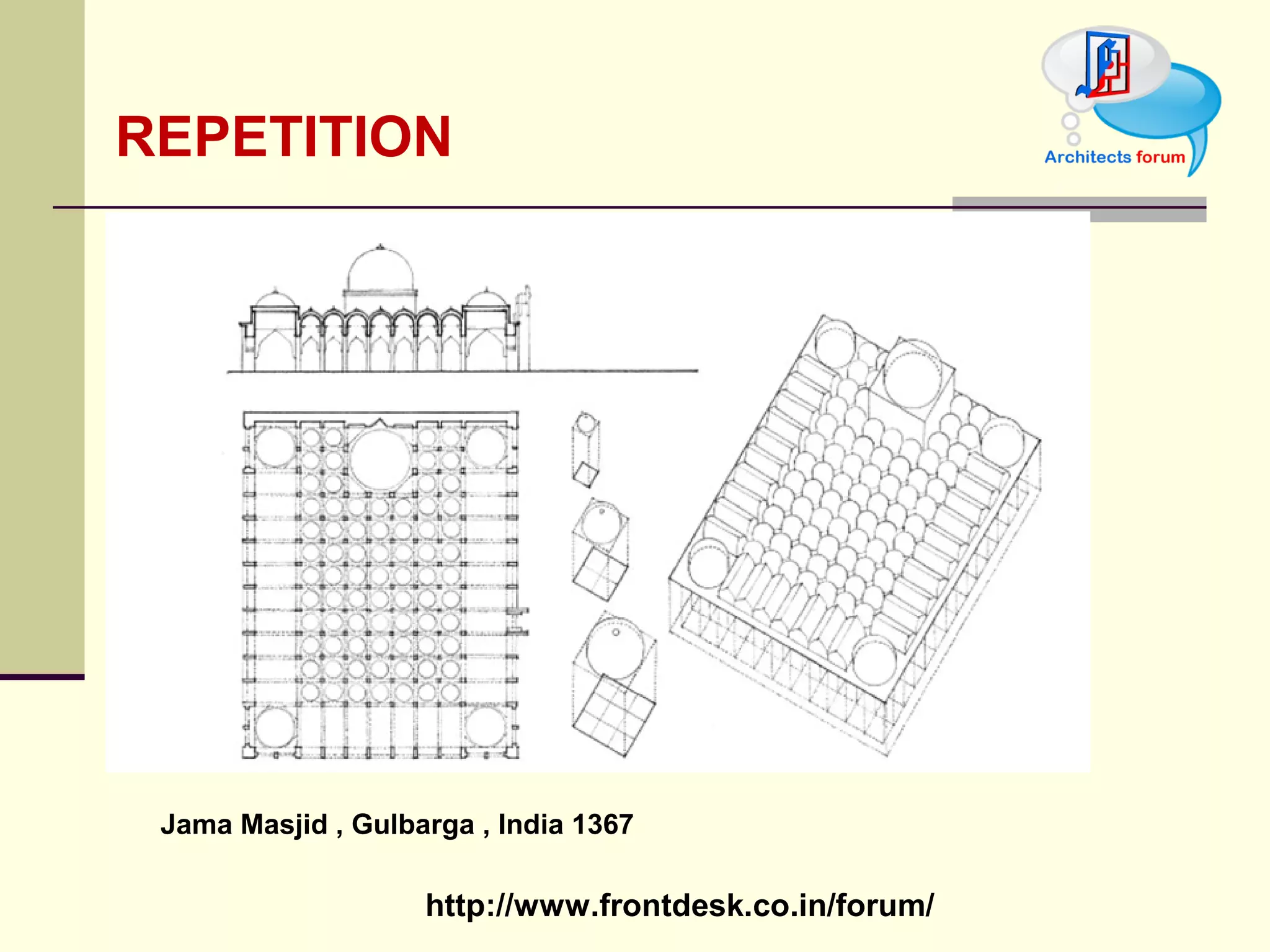

- 32. REPETITION JamaMasjid , Gulbarga , India 1367

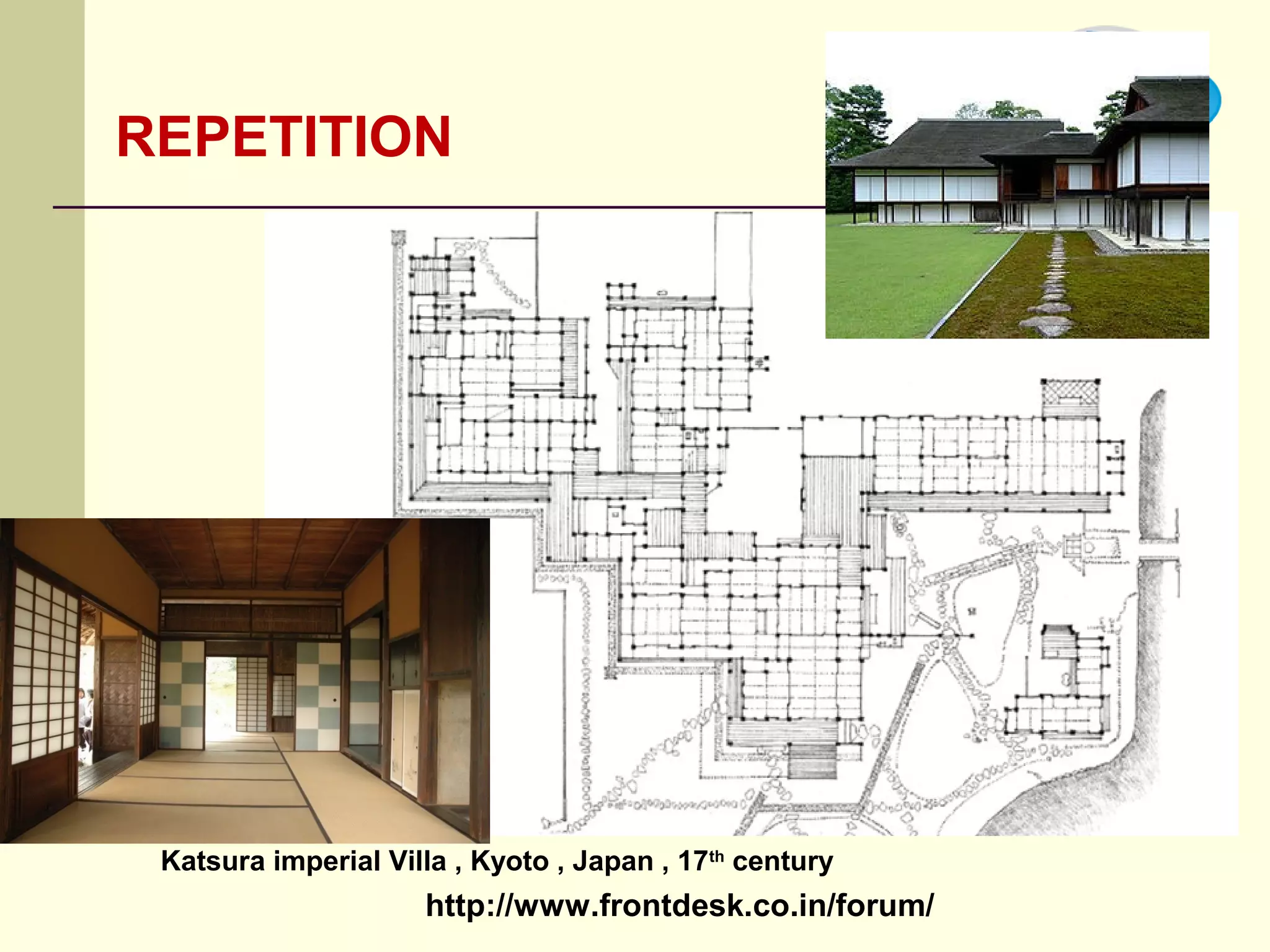

- 33. REPETITION Katsuraimperial Villa , Kyoto , Japan , 17 th century
- 34.

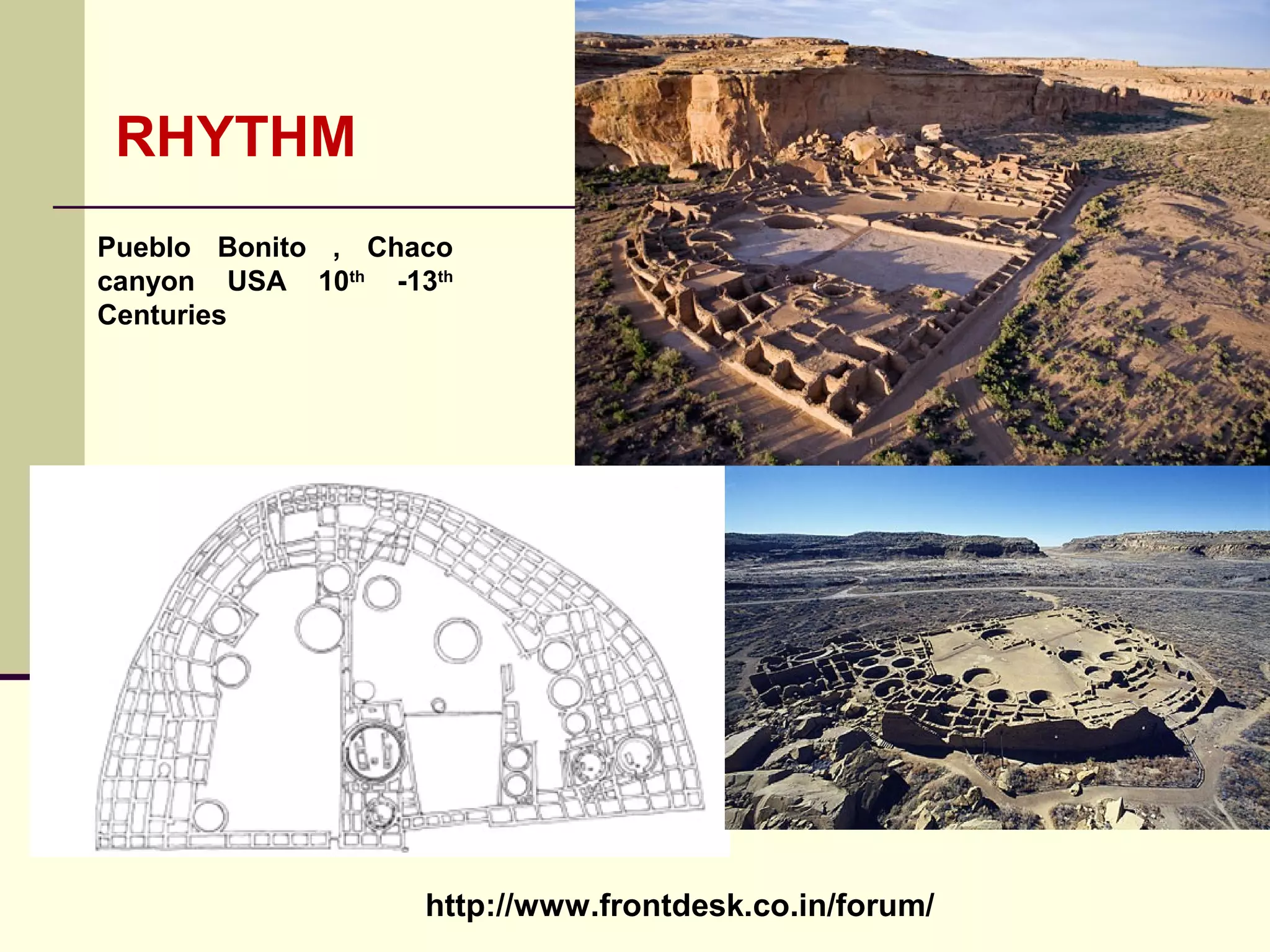

- 35. RHYTHM Pueblo Bonito, Chaco canyon USA 10 th -13 th Centuries

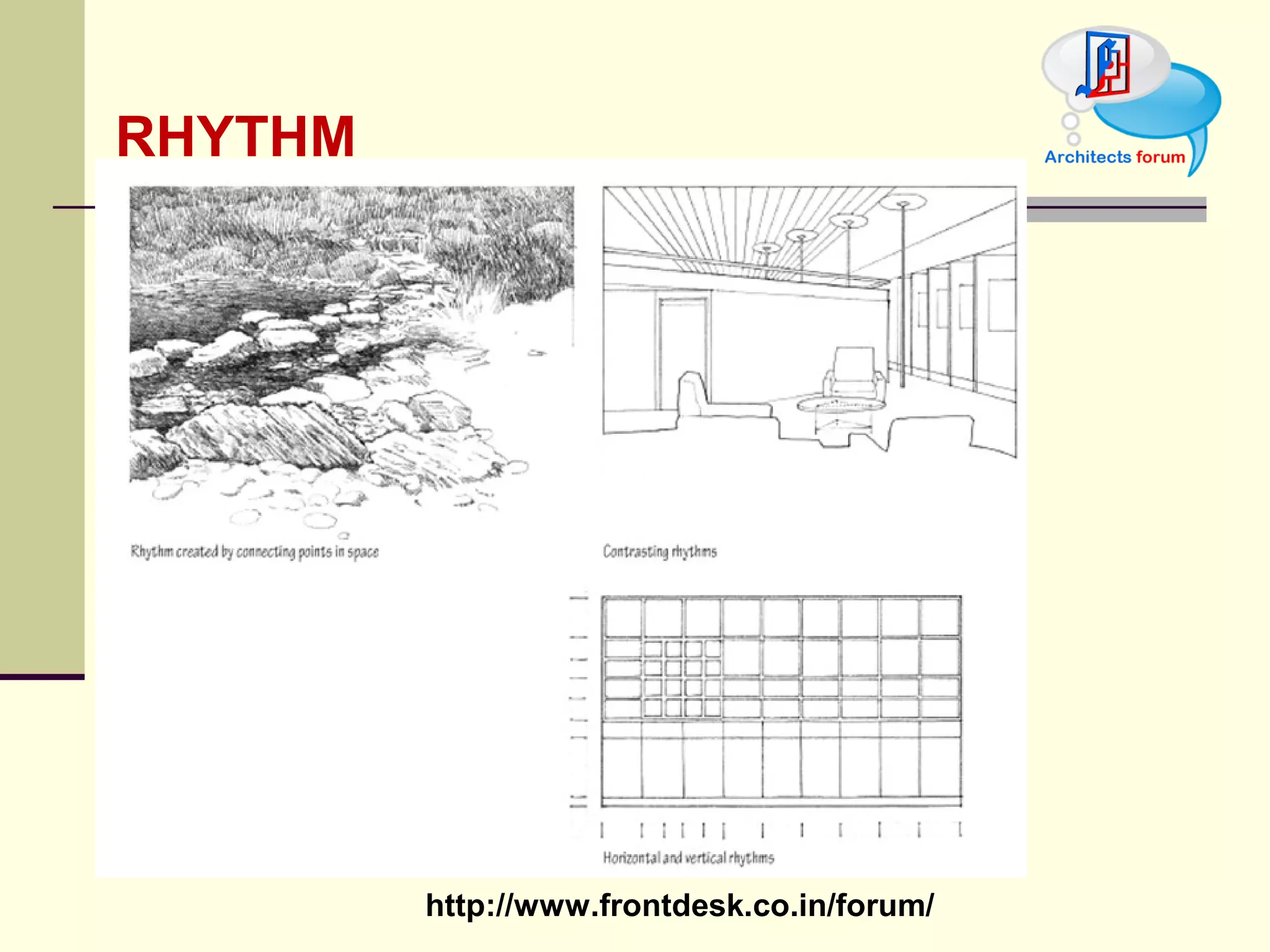

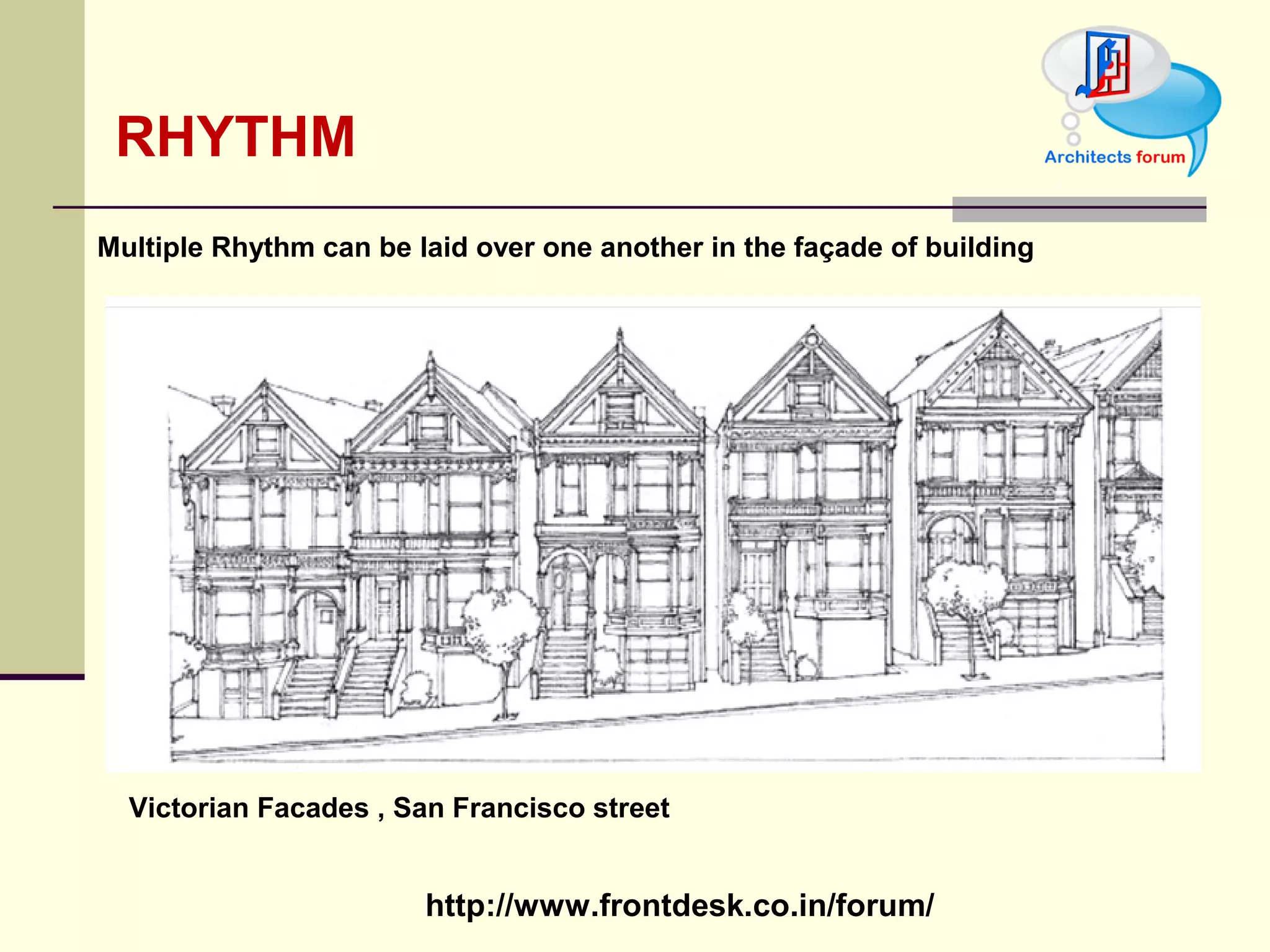

- 36. RHYTHM Victorian Facades, San Francisco street Multiple Rhythm can be laid over one another in the façade of building

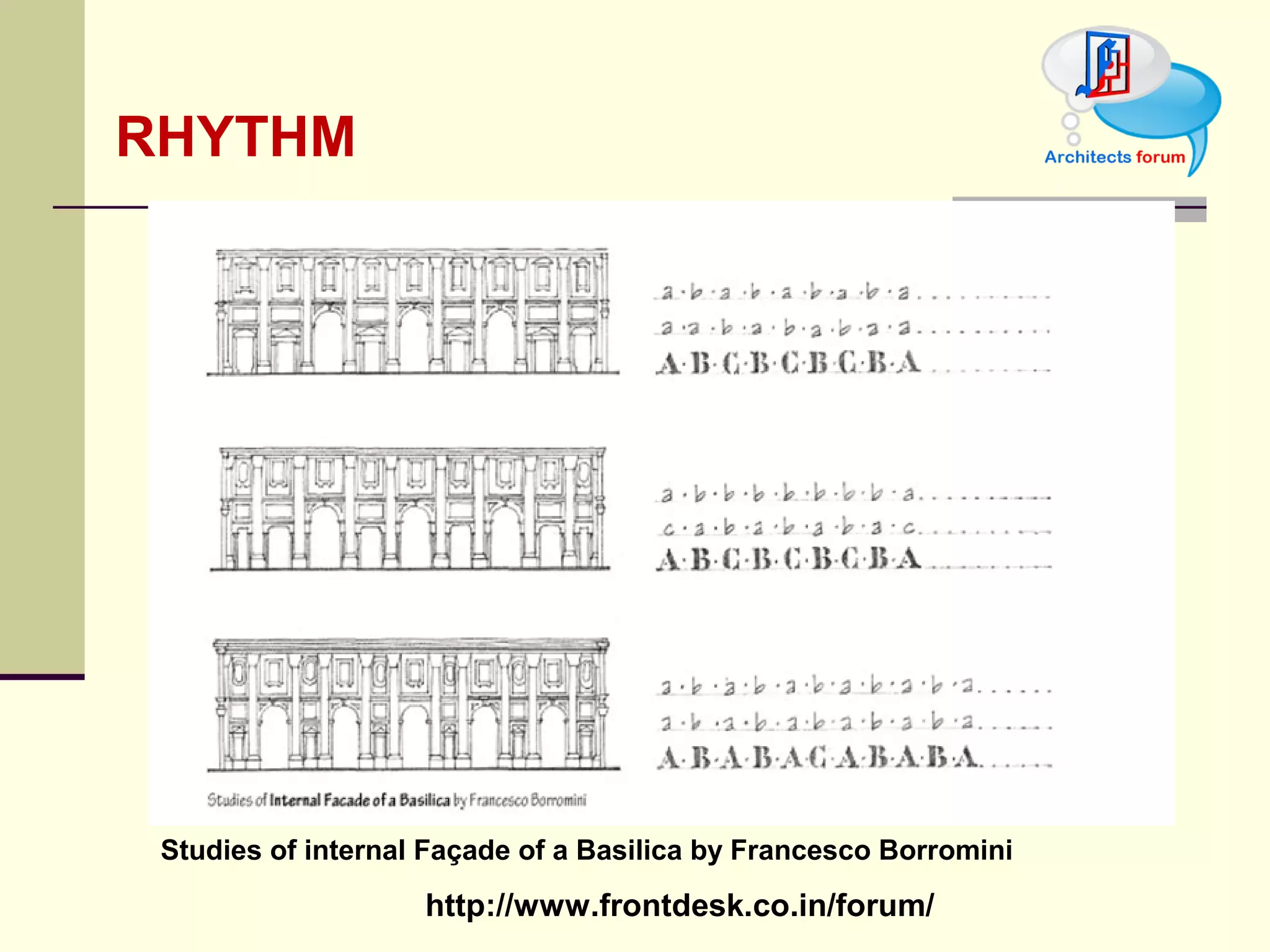

- 37. RHYTHM Studies ofinternal Façade of a Basilica by Francesco Borromini

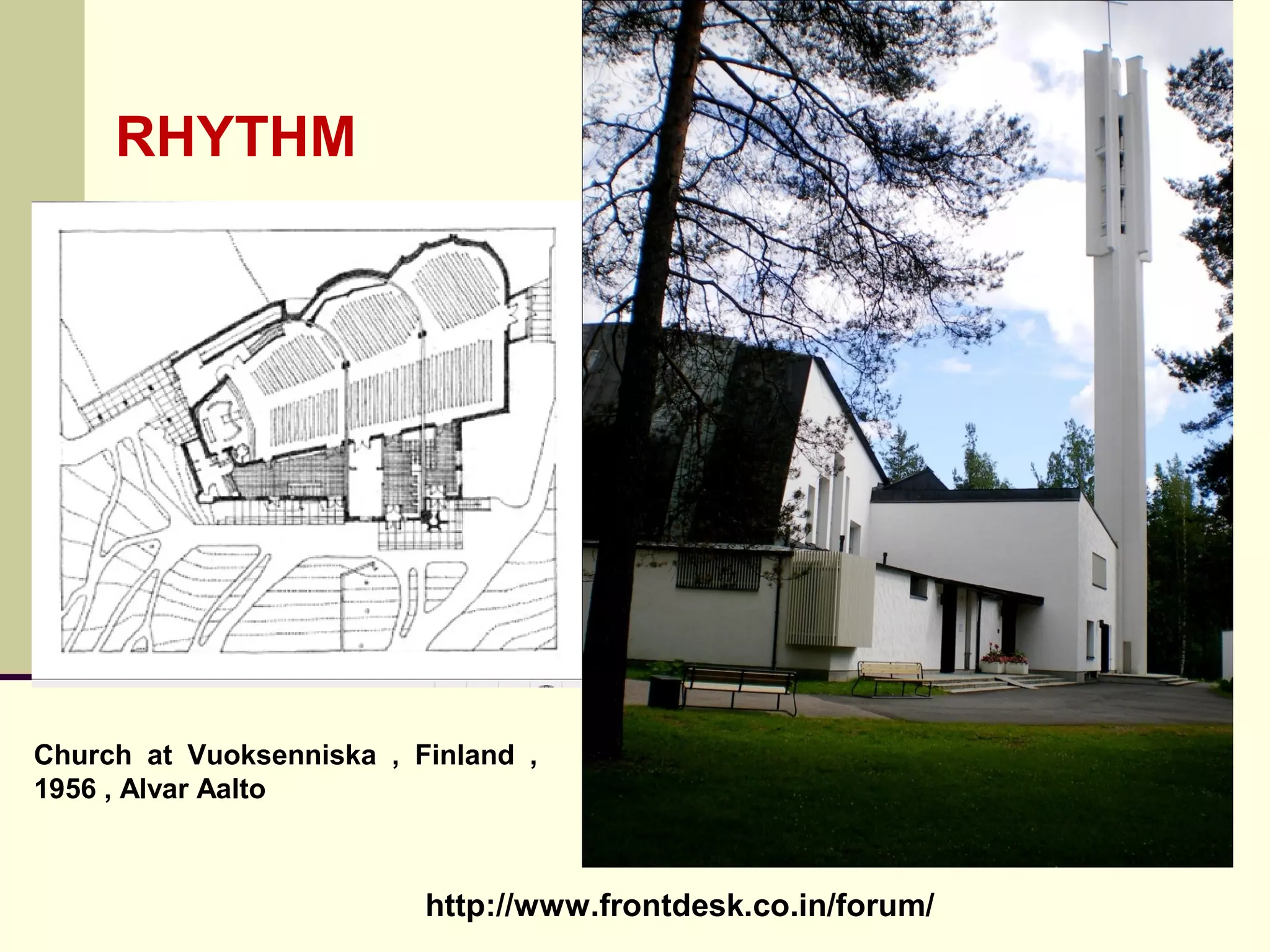

- 38. RHYTHM Church atVuoksenniska , Finland , 1956 , Alvar Aalto

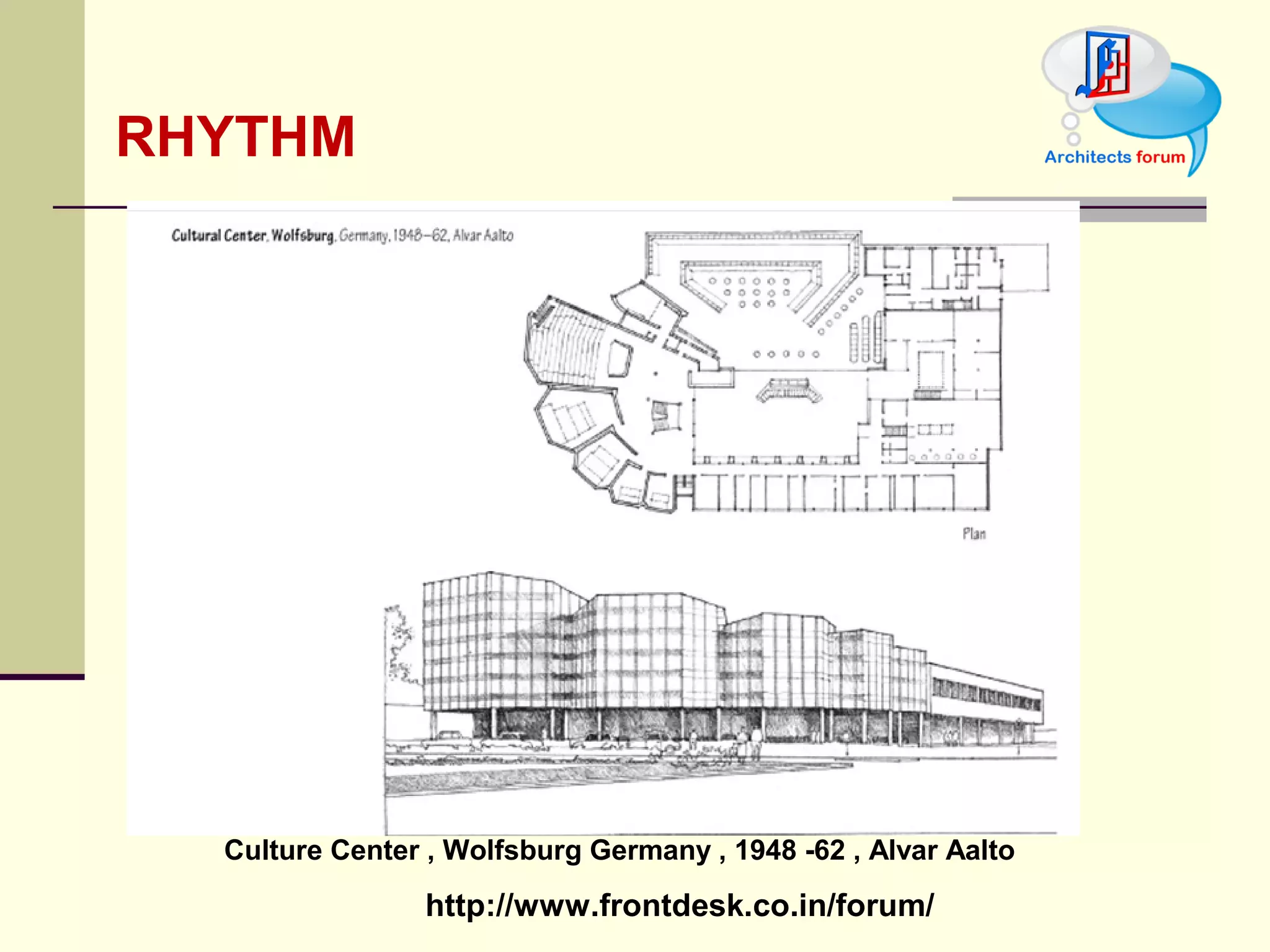

- 39. RHYTHM Culture Center, Wolfsburg Germany , 1948 -62 , Alvar Aalto

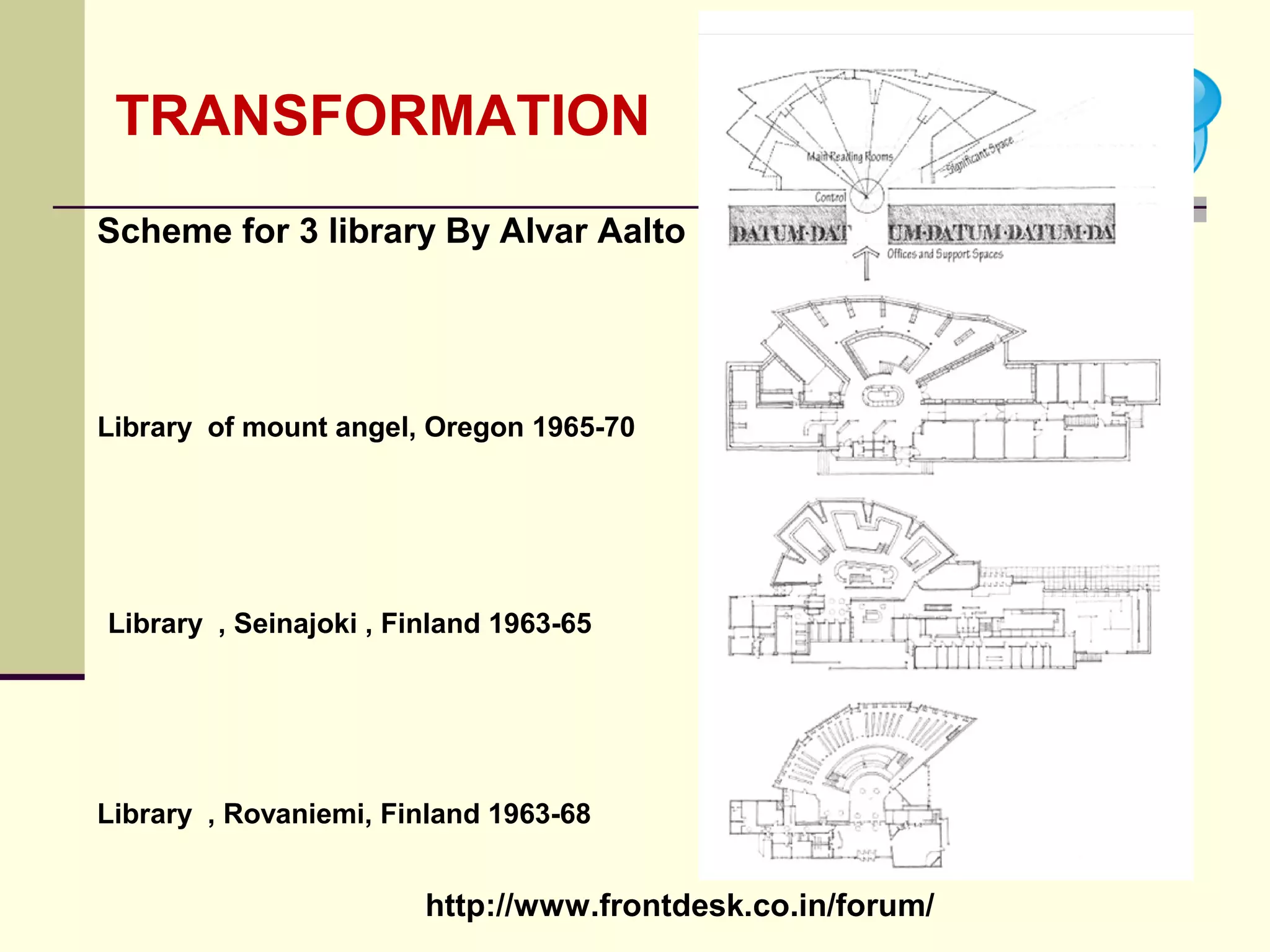

- 40. Library ofmount angel, Oregon 1965-70 TRANSFORMATION Library , Seinajoki , Finland 1963-65 Library , Rovaniemi, Finland 1963-68 Scheme for 3 library By Alvar Aalto

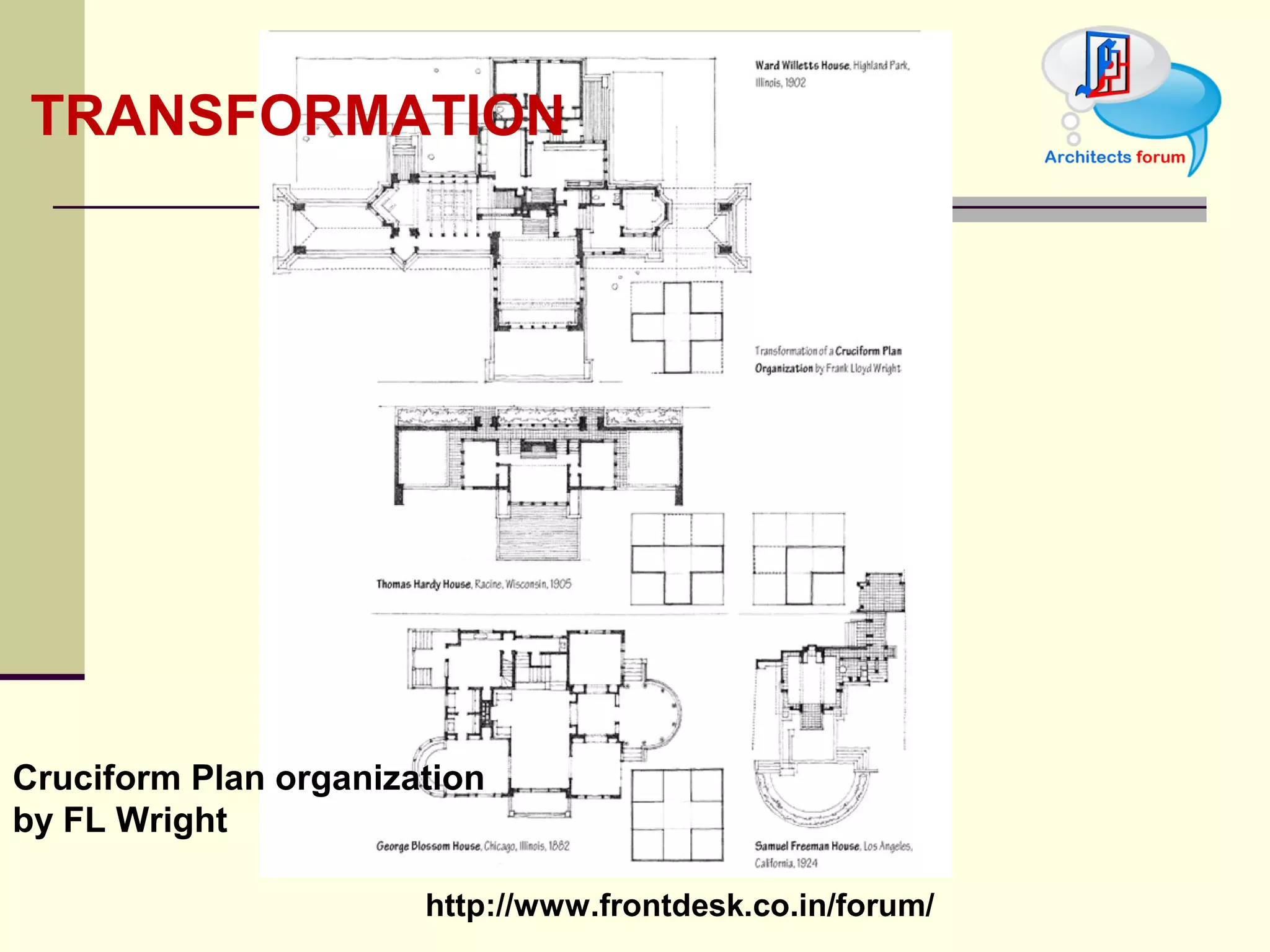

- 41. TRANSFORMATION Cruciform Planorganization by FL Wright

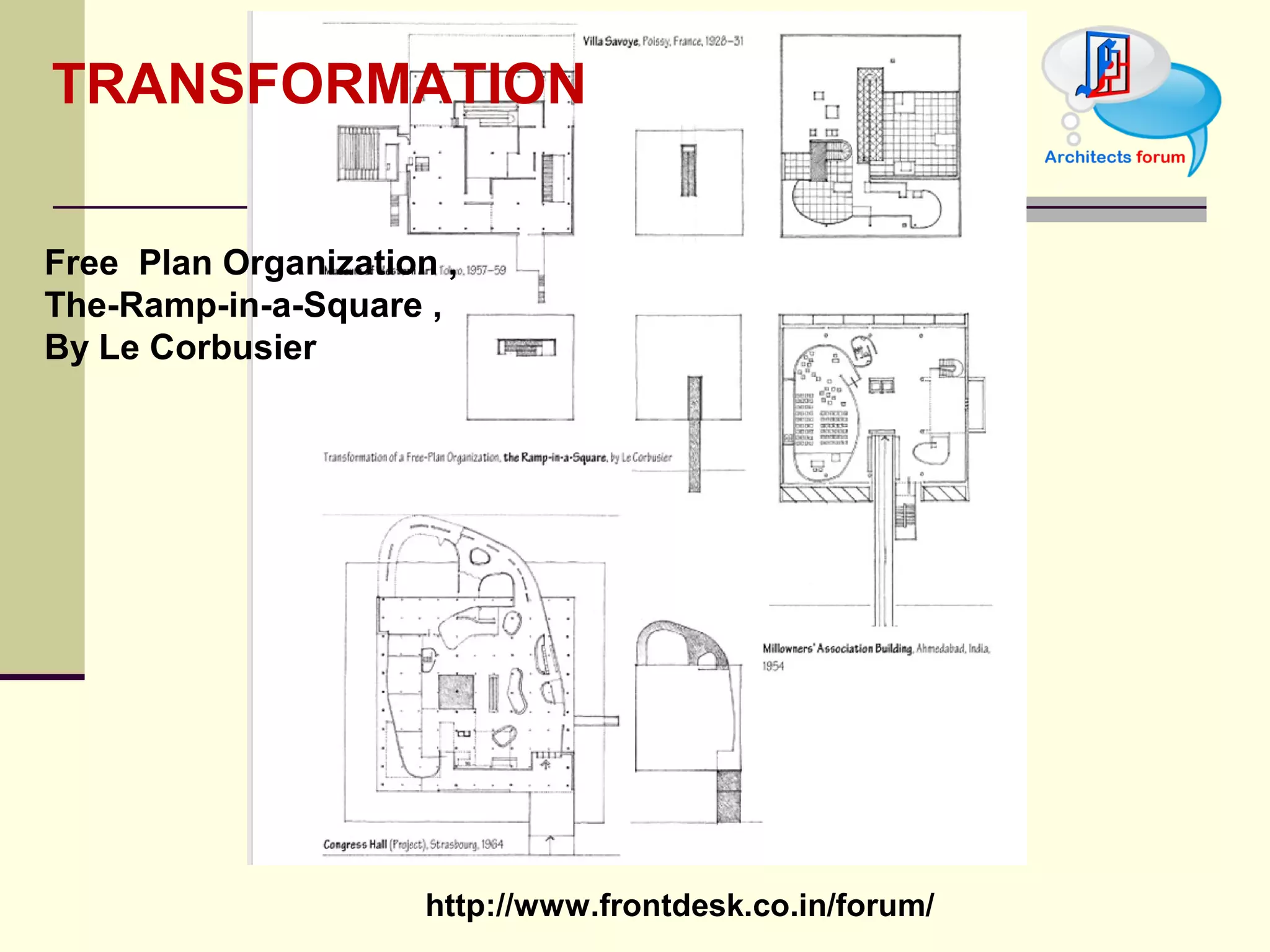

- 42. Free PlanOrganization , The-Ramp-in-a-Square , By Le Corbusier TRANSFORMATION
