- 1. SACRAMENTO SharePoint Infrastructure Tipsand Tricks for On-Premises and Hybrid Cloud Environments
- 2. Michael Noel • Authorof SAMS Publishing titles “SharePoint 2013 Unleashed,” “SharePoint 2010 Unleashed”, “Windows Server 2012 Unleashed,” “Exchange Server 2013 Unleashed”, “ISA Server 2006 Unleashed”, and a total of 19 titles that have sold over 300,000 copies. • Partner at Convergent Computing (www.cco.com) – San Francisco, U.S.A. based Infrastructure/Security specialists for SharePoint, AD, Exchange, System Center, Security, etc.
- 3.

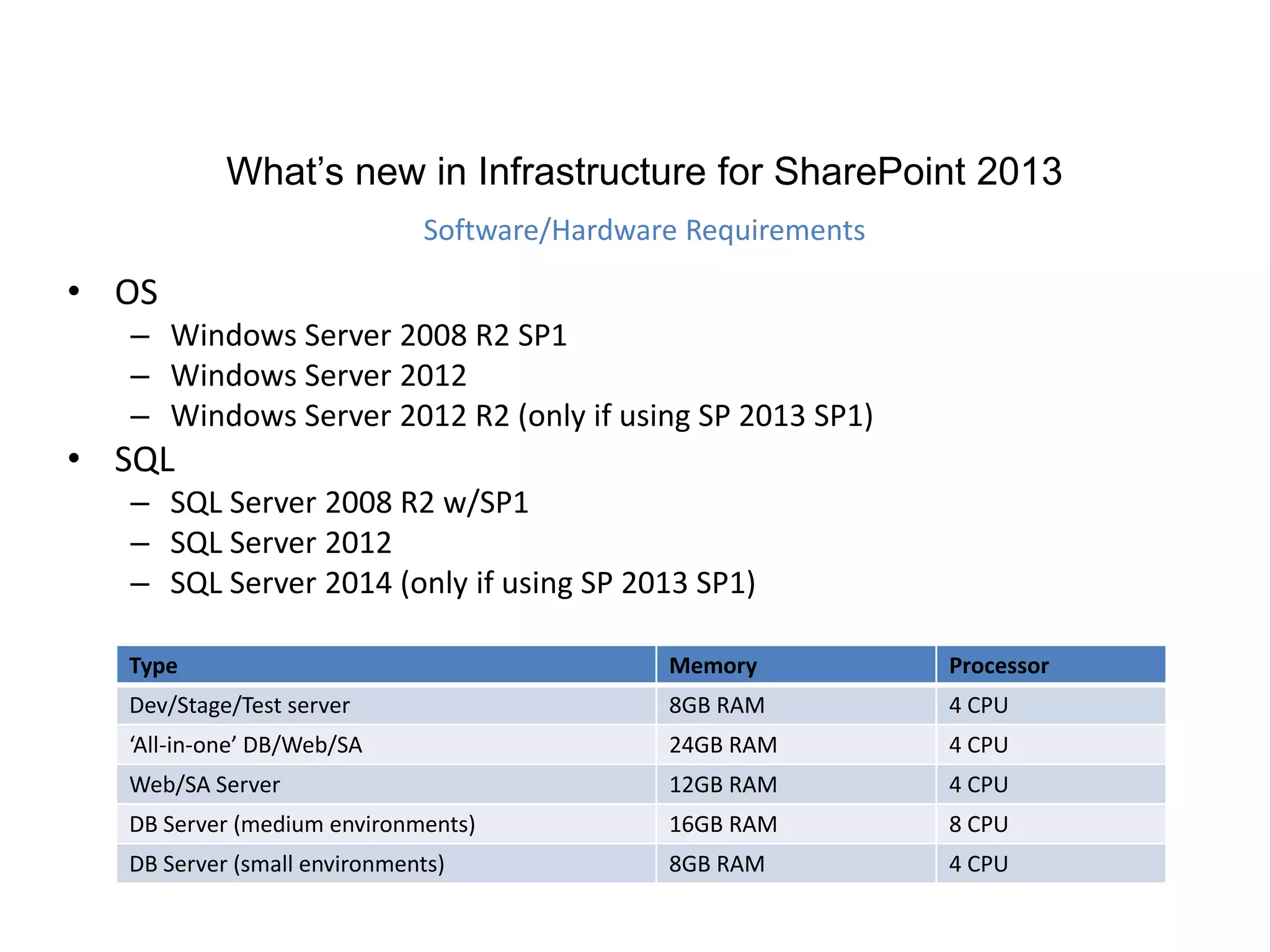

- 4. • OS – WindowsServer 2008 R2 SP1 – Windows Server 2012 – Windows Server 2012 R2 (only if using SP 2013 SP1) • SQL – SQL Server 2008 R2 w/SP1 – SQL Server 2012 – SQL Server 2014 (only if using SP 2013 SP1) Type Memory Processor Dev/Stage/Test server 8GB RAM 4 CPU ‘All-in-one’ DB/Web/SA 24GB RAM 4 CPU Web/SA Server 12GB RAM 4 CPU DB Server (medium environments) 16GB RAM 8 CPU DB Server (small environments) 8GB RAM 4 CPU What’s new in Infrastructure for SharePoint 2013 Software/Hardware Requirements

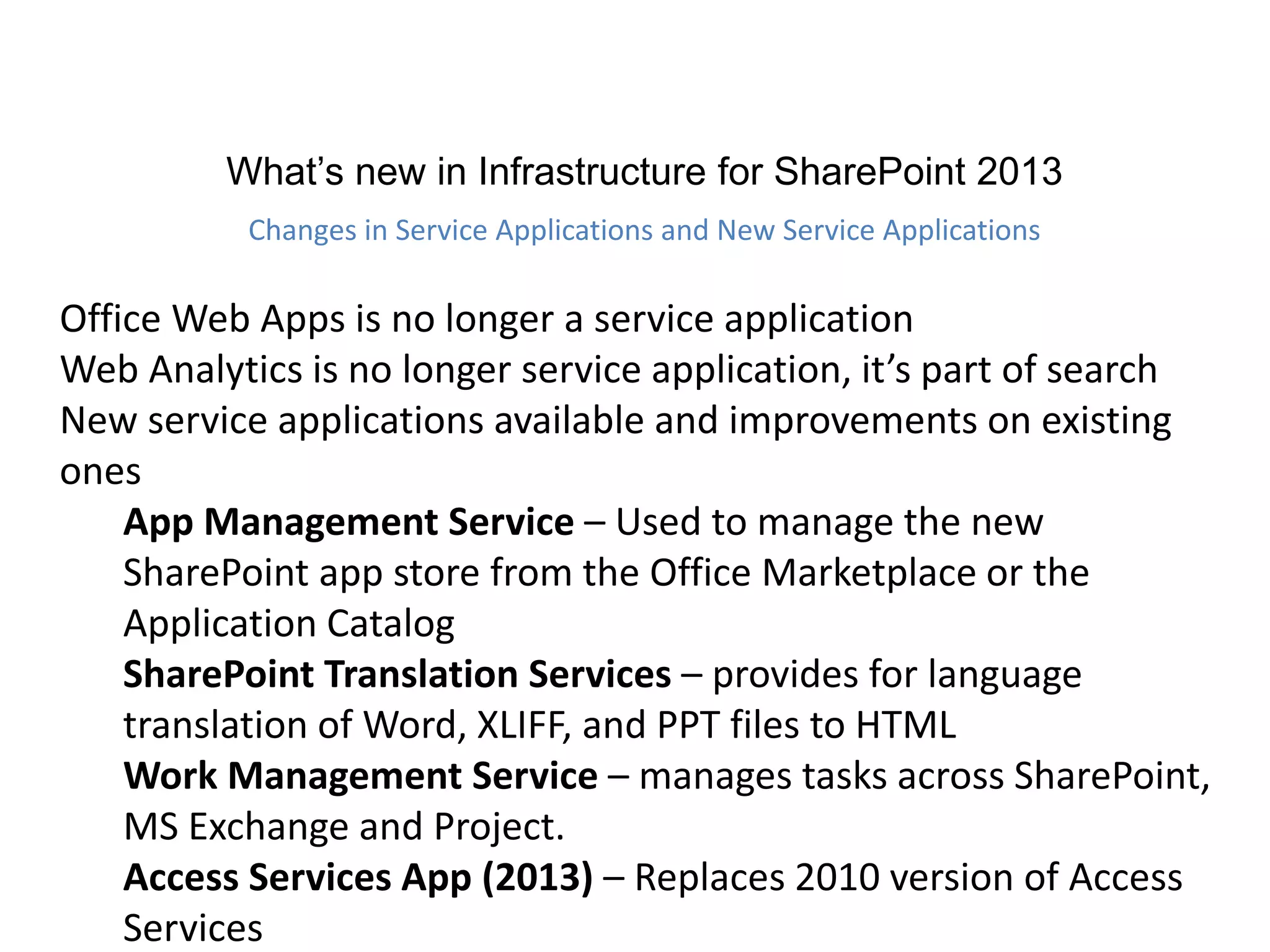

- 5. What’s new inInfrastructure for SharePoint 2013 Changes in Service Applications and New Service Applications Office Web Apps is no longer a service application Web Analytics is no longer service application, it’s part of search New service applications available and improvements on existing ones App Management Service – Used to manage the new SharePoint app store from the Office Marketplace or the Application Catalog SharePoint Translation Services – provides for language translation of Word, XLIFF, and PPT files to HTML Work Management Service – manages tasks across SharePoint, MS Exchange and Project. Access Services App (2013) – Replaces 2010 version of Access Services

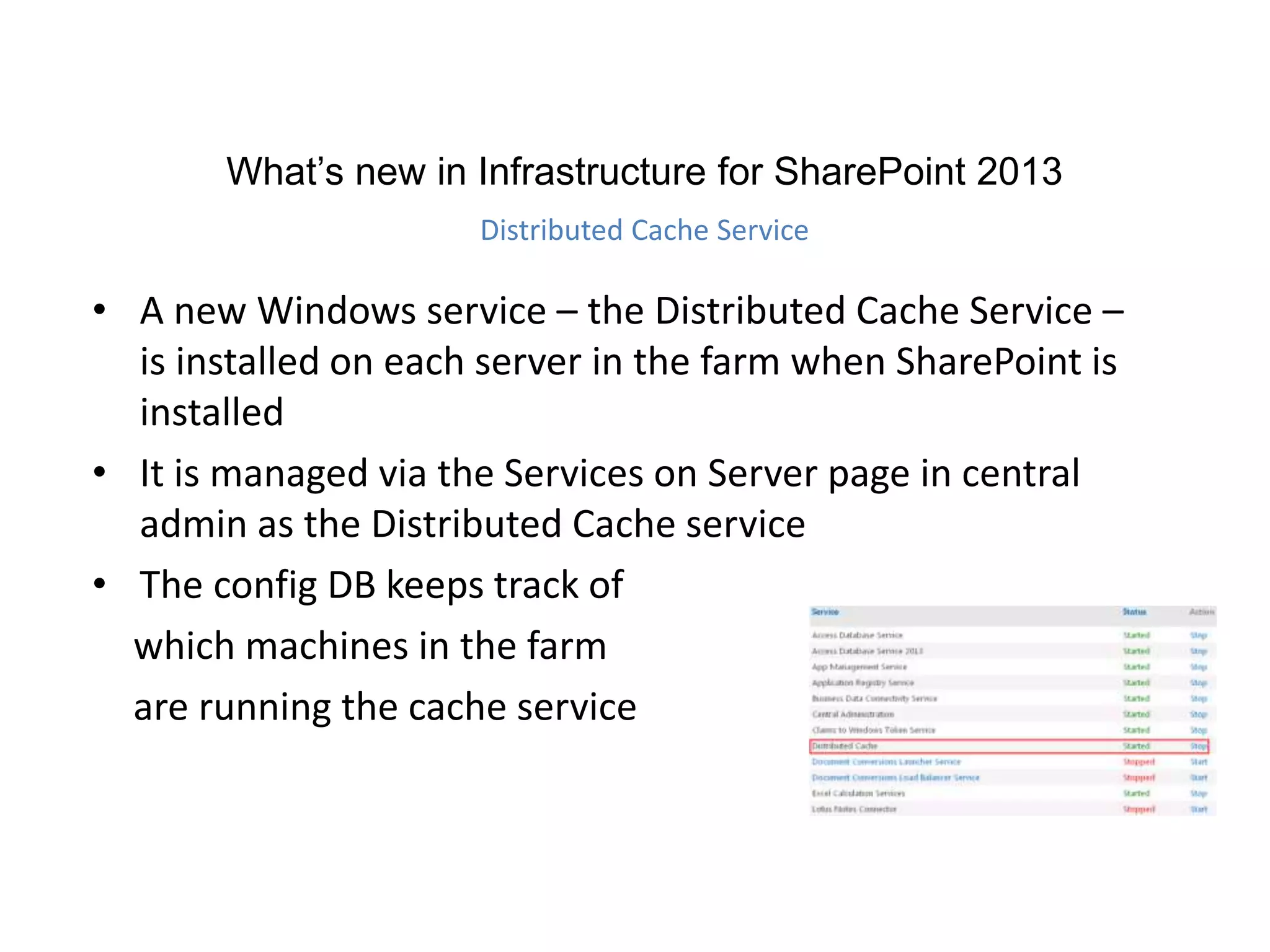

- 6. • A newWindows service – the Distributed Cache Service – is installed on each server in the farm when SharePoint is installed • It is managed via the Services on Server page in central admin as the Distributed Cache service • The config DB keeps track of which machines in the farm are running the cache service What’s new in Infrastructure for SharePoint 2013 Distributed Cache Service

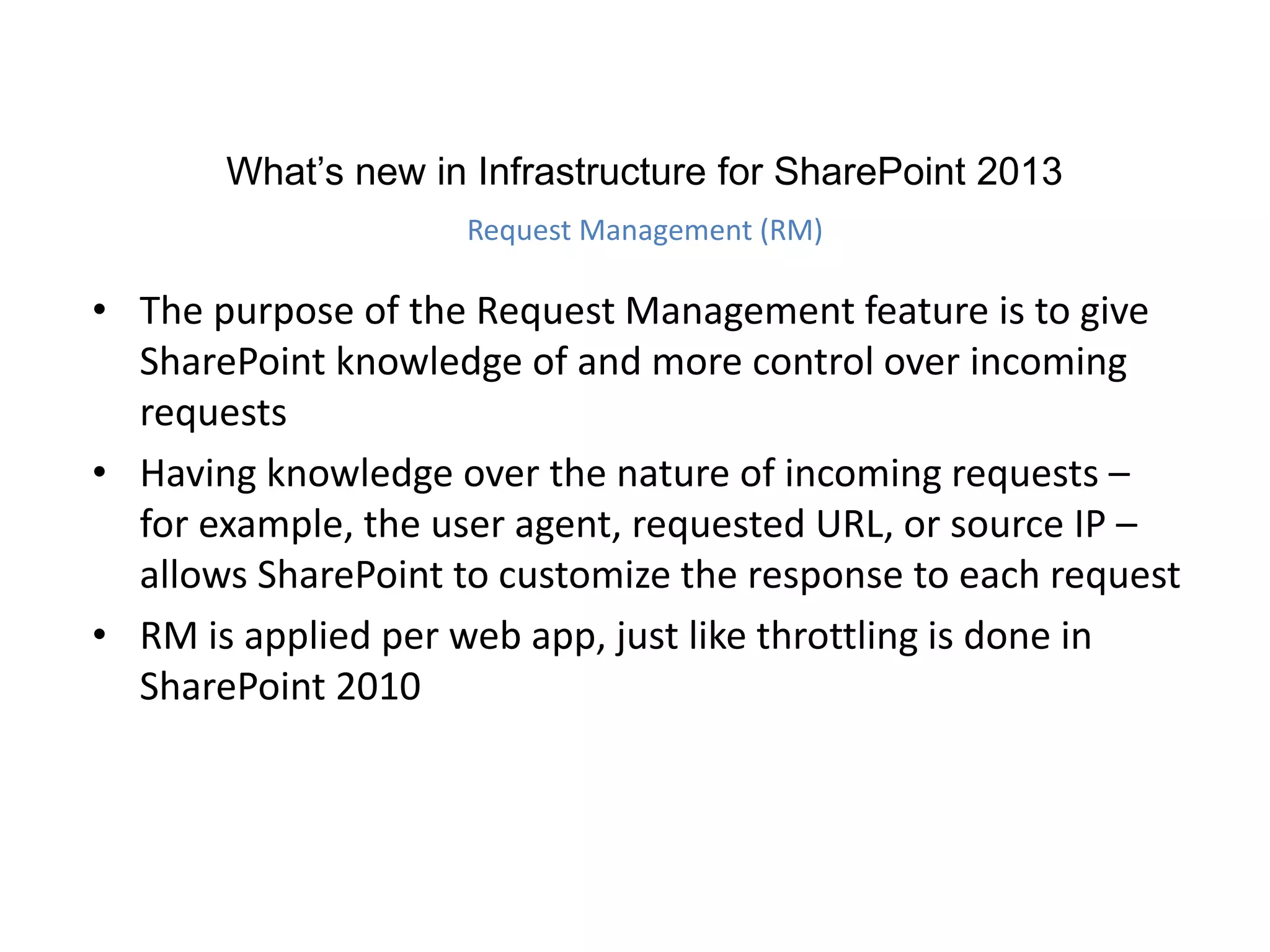

- 7. • The purposeof the Request Management feature is to give SharePoint knowledge of and more control over incoming requests • Having knowledge over the nature of incoming requests – for example, the user agent, requested URL, or source IP – allows SharePoint to customize the response to each request • RM is applied per web app, just like throttling is done in SharePoint 2010 What’s new in Infrastructure for SharePoint 2013 Request Management (RM)

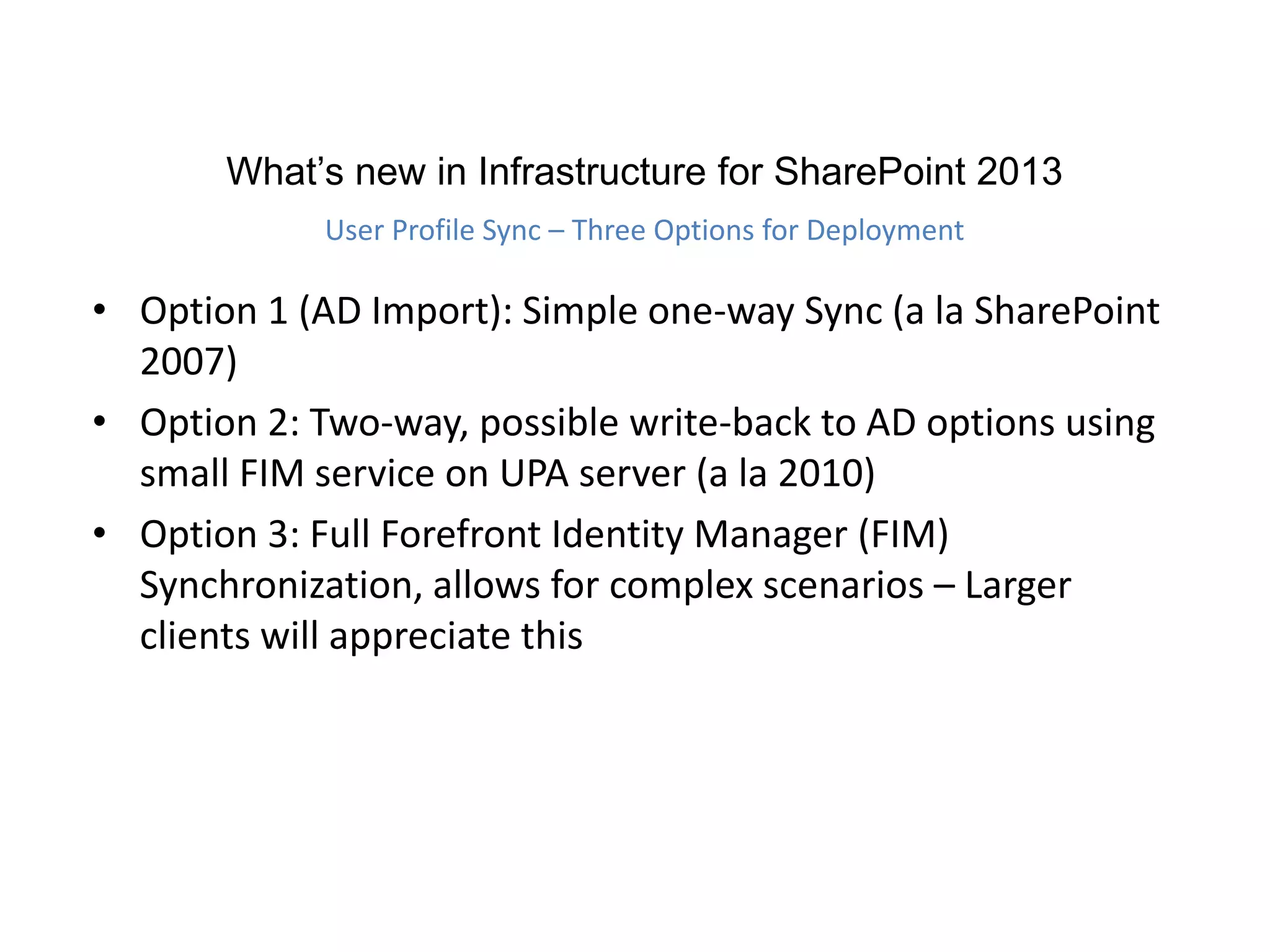

- 8. • Option 1(AD Import): Simple one-way Sync (a la SharePoint 2007) • Option 2: Two-way, possible write-back to AD options using small FIM service on UPA server (a la 2010) • Option 3: Full Forefront Identity Manager (FIM) Synchronization, allows for complex scenarios – Larger clients will appreciate this What’s new in Infrastructure for SharePoint 2013 User Profile Sync – Three Options for Deployment
- 9. • SharePoint 2013continues to offer support for both claims and classic authentication modes • However claims authentication is THE default authentication option now – Classic authentication mode is still there, but can only be managed in PowerShell – it’s gone from the UI – Support for classic mode is deprecated and will go away in a future release – There also a new process to migrate accounts from Windows classic to Windows claims – the Convert-SPWebApplication cmdlet What’s new in Infrastructure for SharePoint 2013 Claims-based Authentication - Default

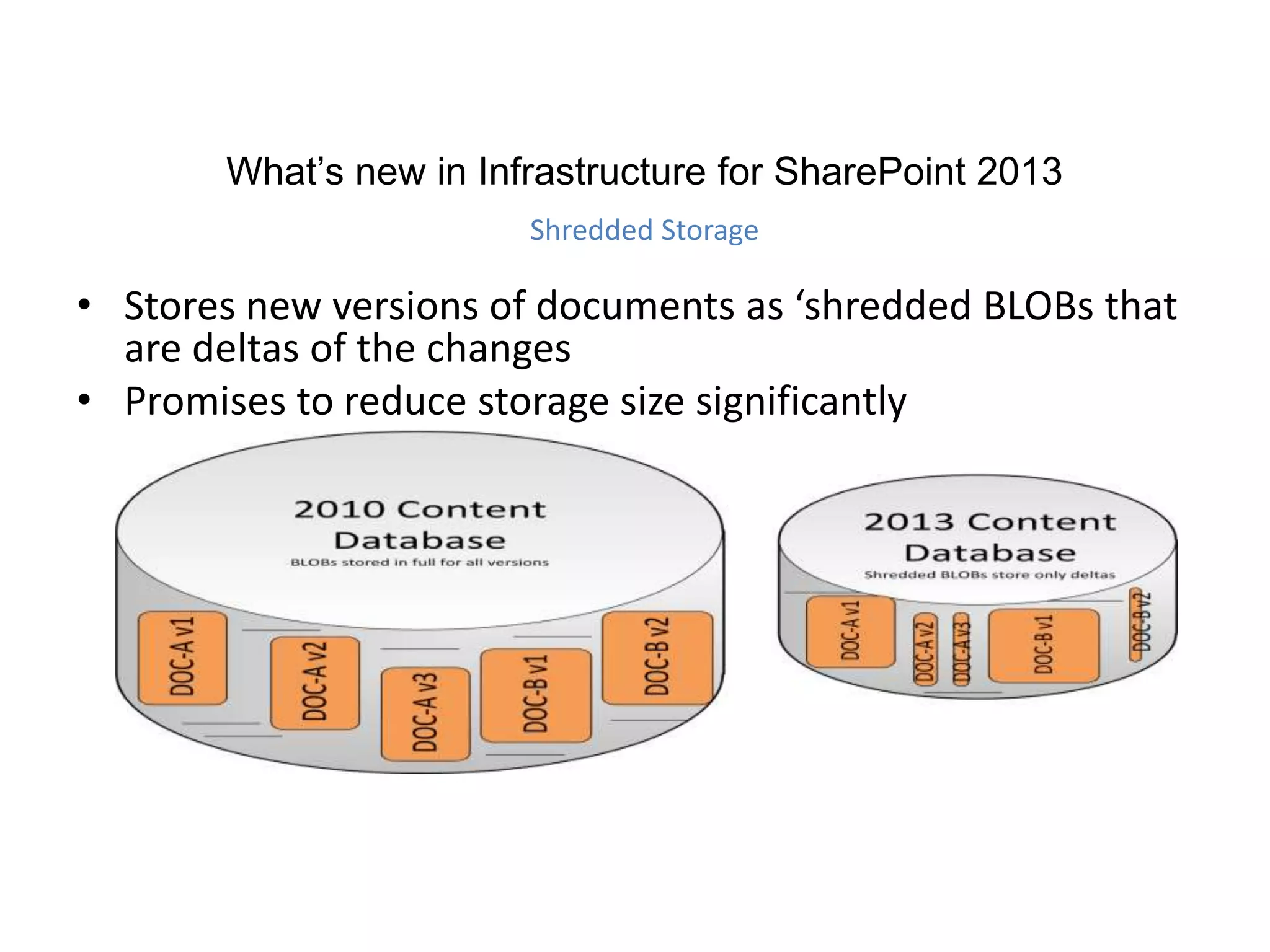

- 10. • Stores newversions of documents as ‘shredded BLOBs that are deltas of the changes • Promises to reduce storage size significantly What’s new in Infrastructure for SharePoint 2013 Shredded Storage

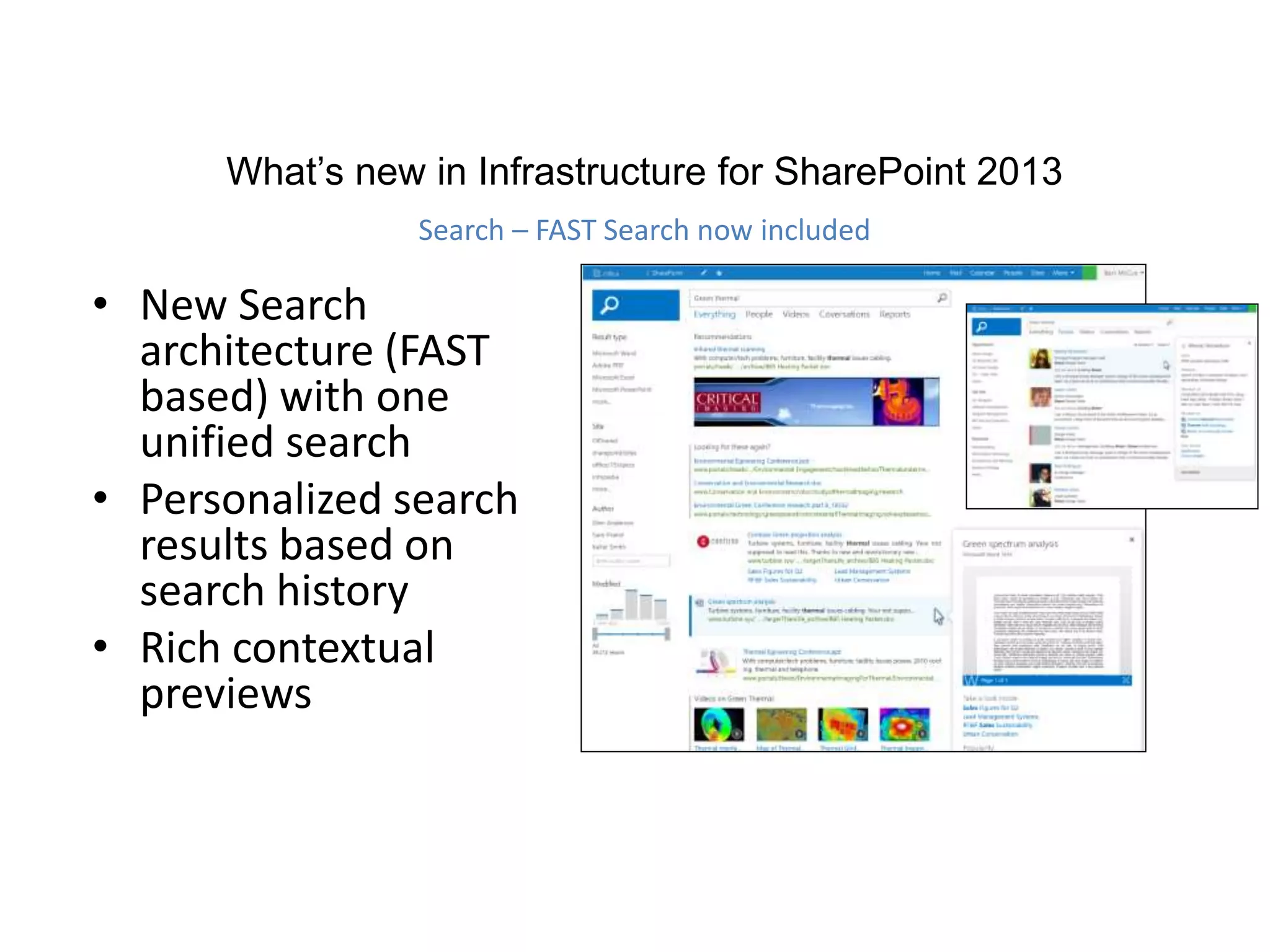

- 11. • New Search architecture(FAST based) with one unified search • Personalized search results based on search history • Rich contextual previews What’s new in Infrastructure for SharePoint 2013 Search – FAST Search now included
- 12.

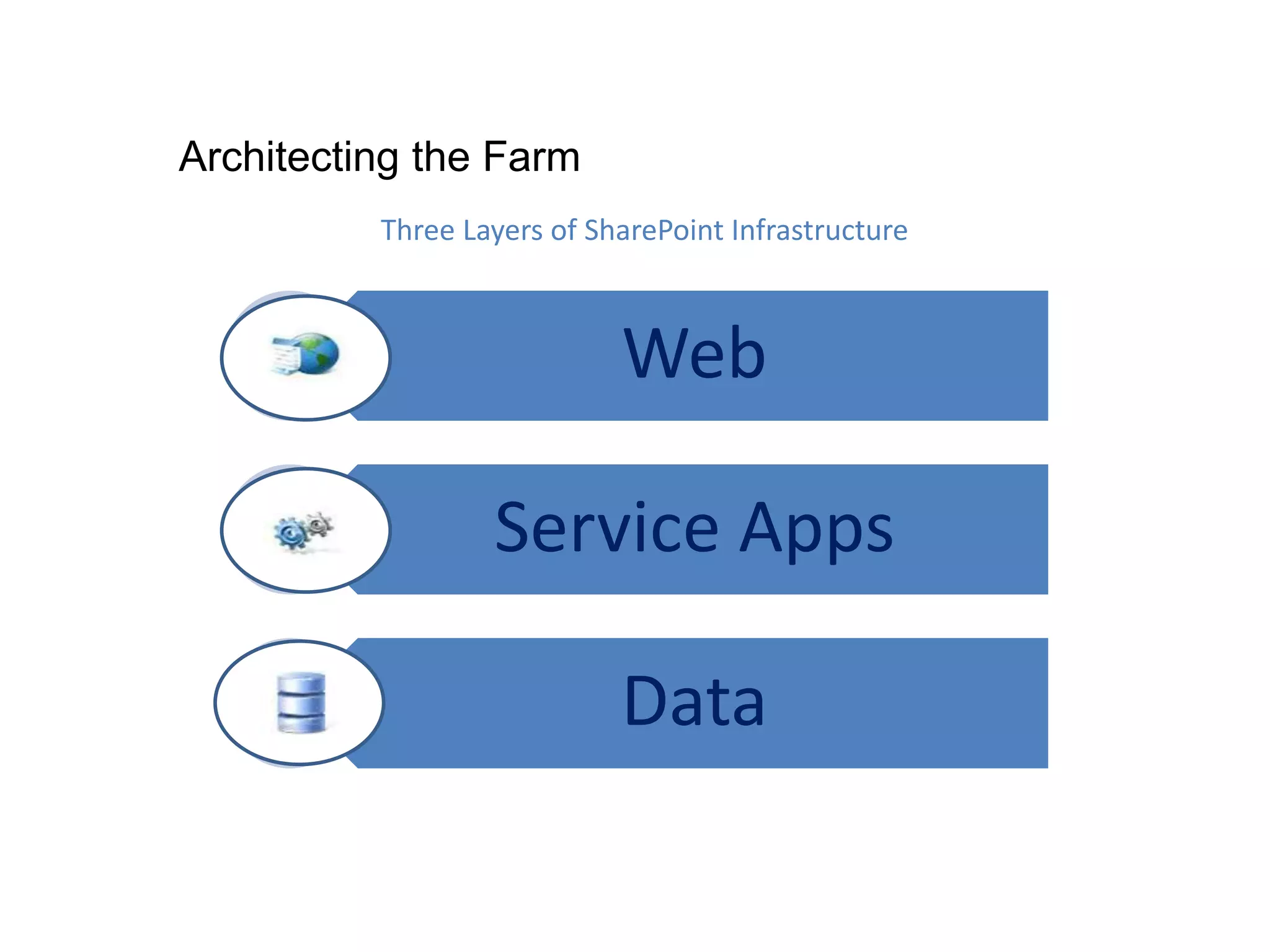

- 13. Web Service Apps Data Architecting theFarm Three Layers of SharePoint Infrastructure

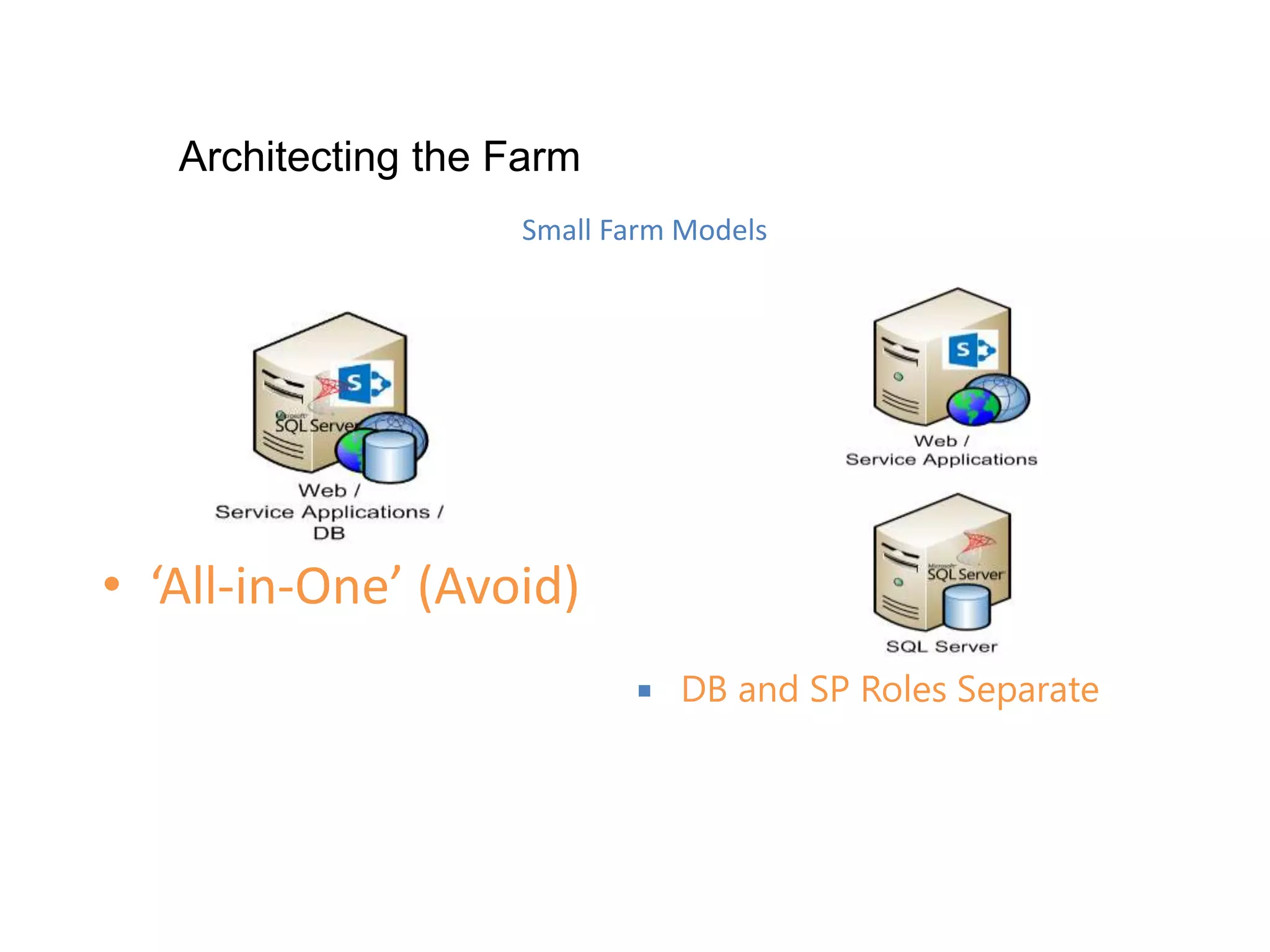

- 14. • ‘All-in-One’ (Avoid) DB and SP Roles Separate Architecting the Farm Small Farm Models

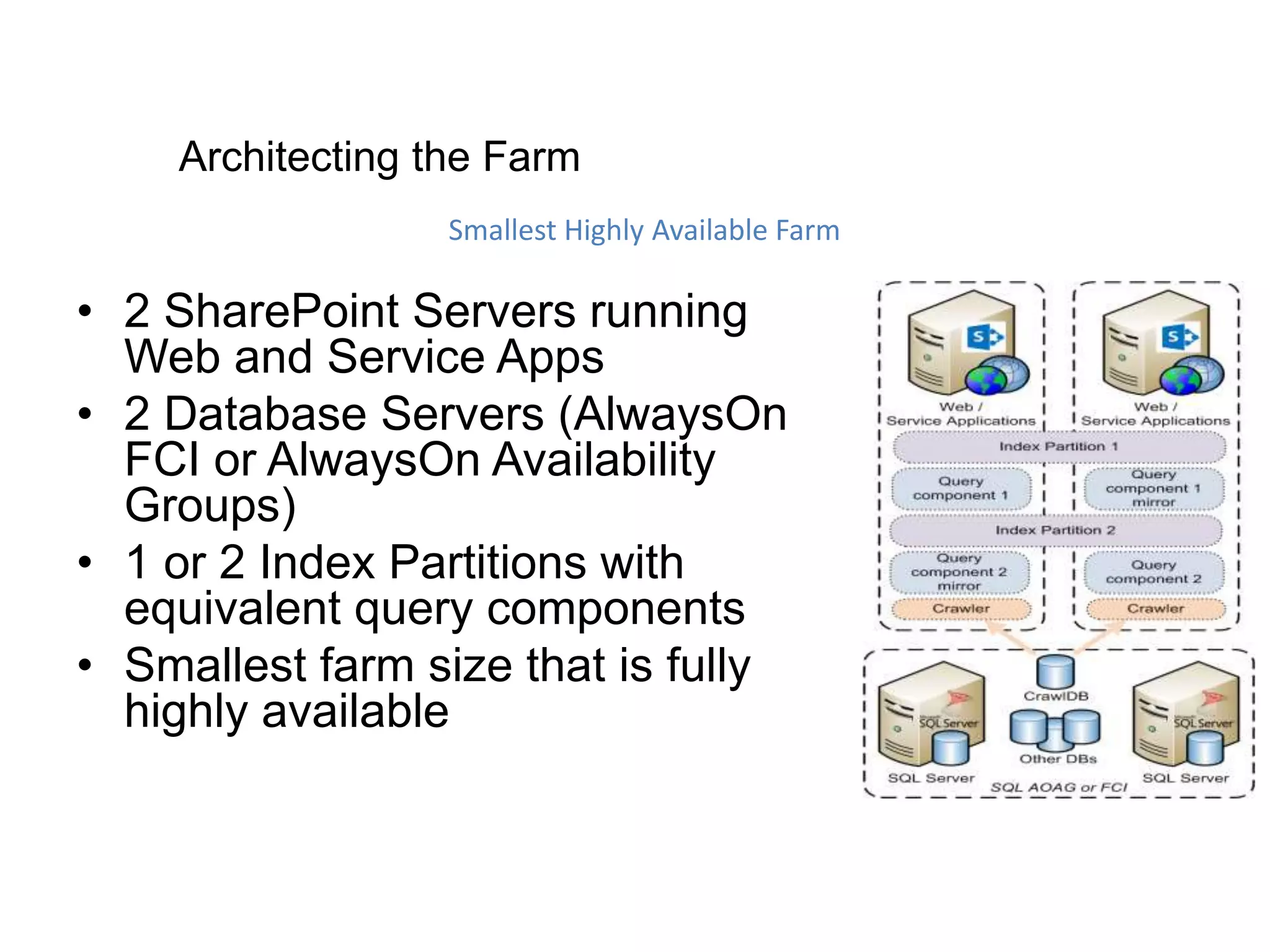

- 15. • 2 SharePointServers running Web and Service Apps • 2 Database Servers (AlwaysOn FCI or AlwaysOn Availability Groups) • 1 or 2 Index Partitions with equivalent query components • Smallest farm size that is fully highly available Architecting the Farm Smallest Highly Available Farm

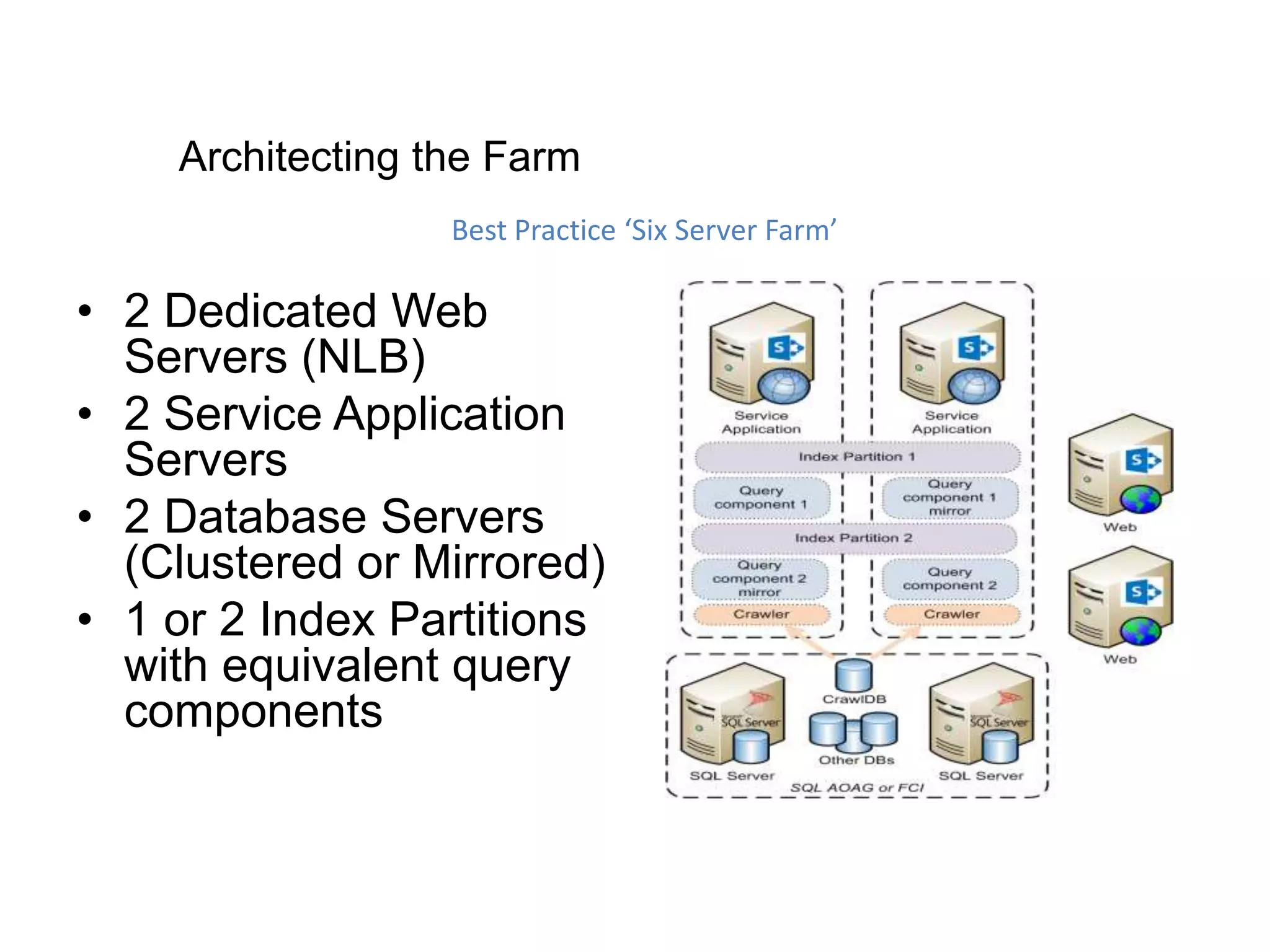

- 16. • 2 DedicatedWeb Servers (NLB) • 2 Service Application Servers • 2 Database Servers (Clustered or Mirrored) • 1 or 2 Index Partitions with equivalent query components Architecting the Farm Best Practice ‘Six Server Farm’

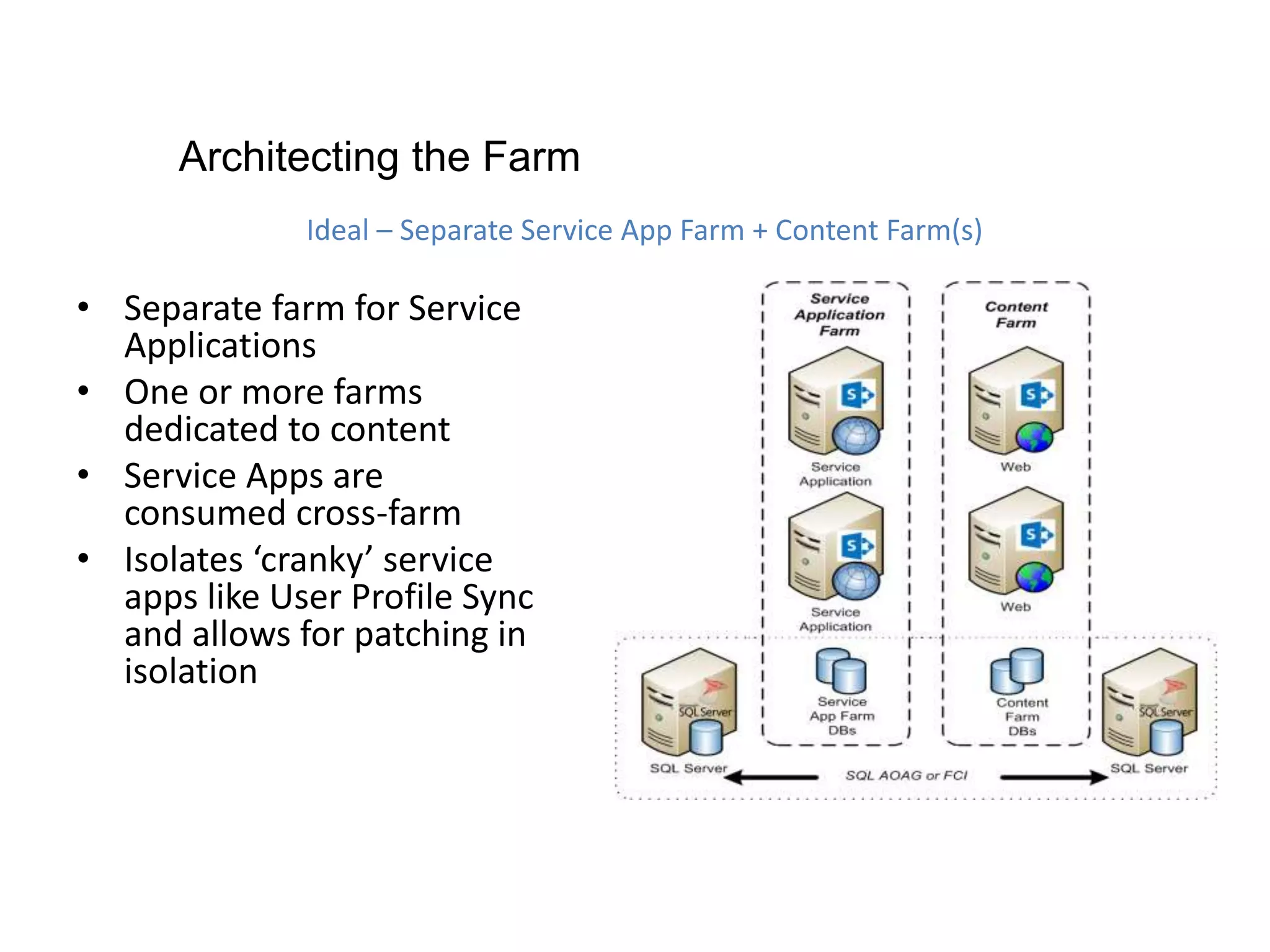

- 17. • Separate farmfor Service Applications • One or more farms dedicated to content • Service Apps are consumed cross-farm • Isolates ‘cranky’ service apps like User Profile Sync and allows for patching in isolation Architecting the Farm Ideal – Separate Service App Farm + Content Farm(s)

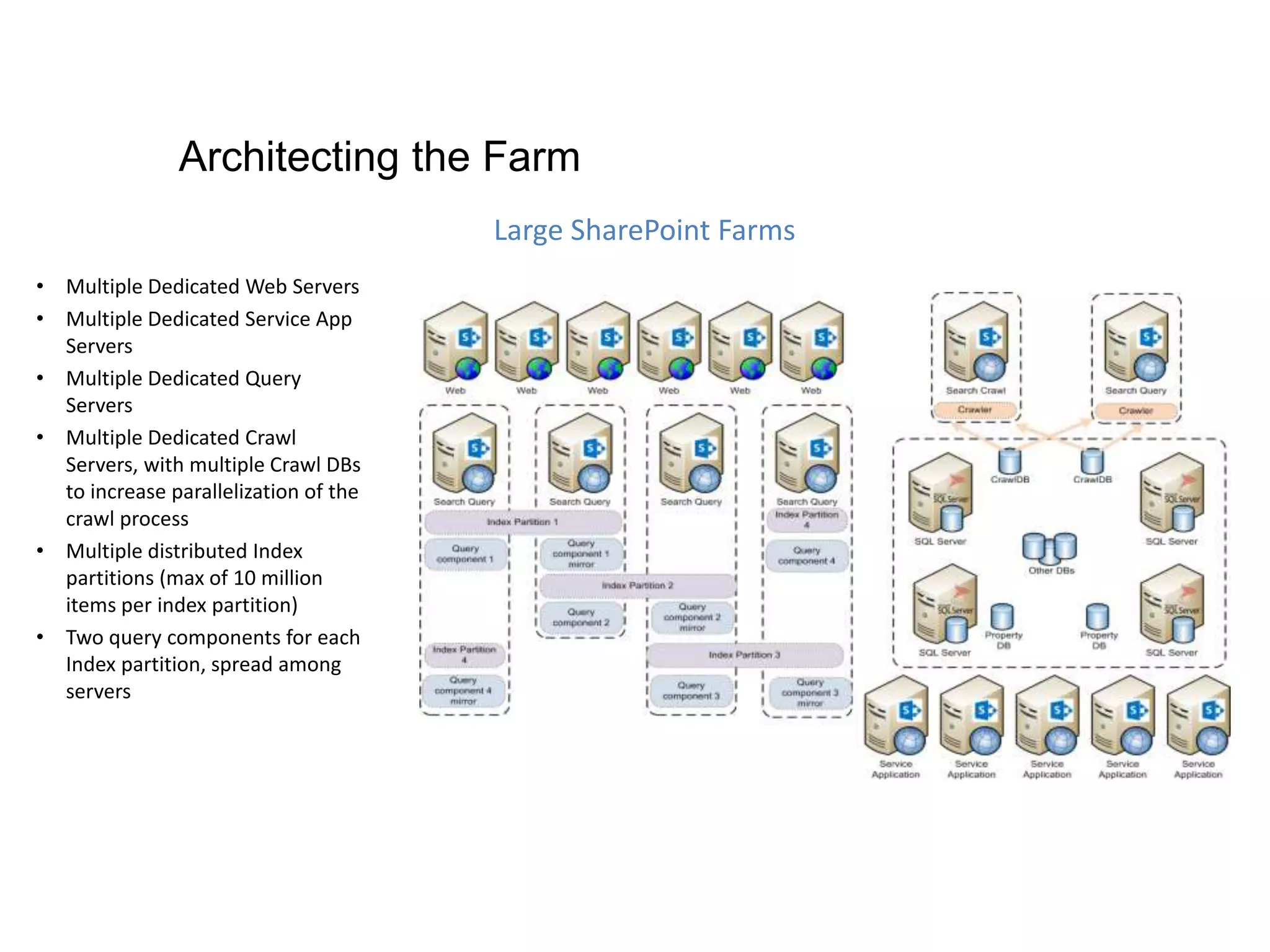

- 18. • Multiple DedicatedWeb Servers • Multiple Dedicated Service App Servers • Multiple Dedicated Query Servers • Multiple Dedicated Crawl Servers, with multiple Crawl DBs to increase parallelization of the crawl process • Multiple distributed Index partitions (max of 10 million items per index partition) • Two query components for each Index partition, spread among servers Architecting the Farm Large SharePoint Farms
- 19.

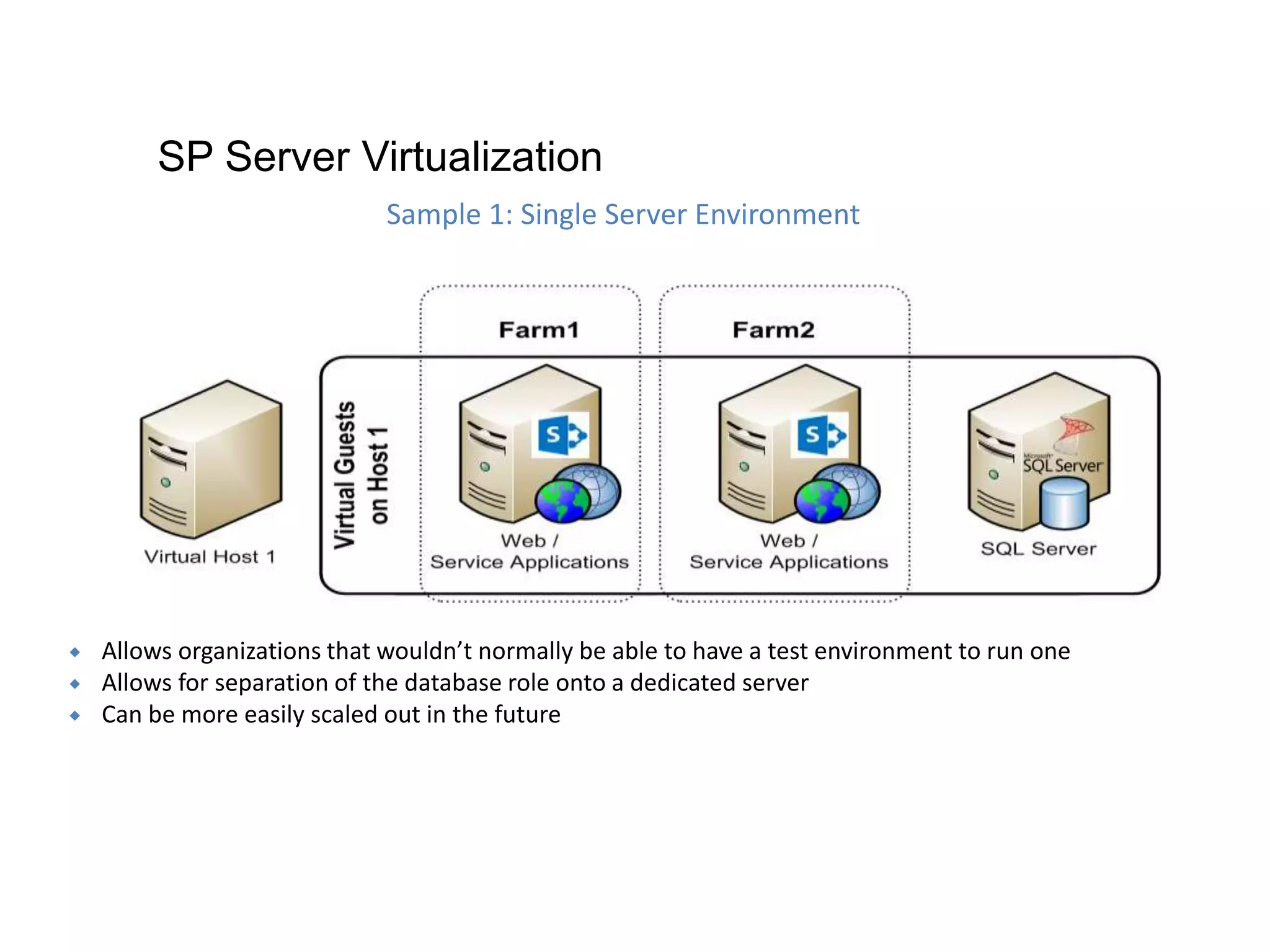

- 20. Allows organizationsthat wouldn’t normally be able to have a test environment to run one Allows for separation of the database role onto a dedicated server Can be more easily scaled out in the future Sample 1: Single Server Environment SP Server Virtualization

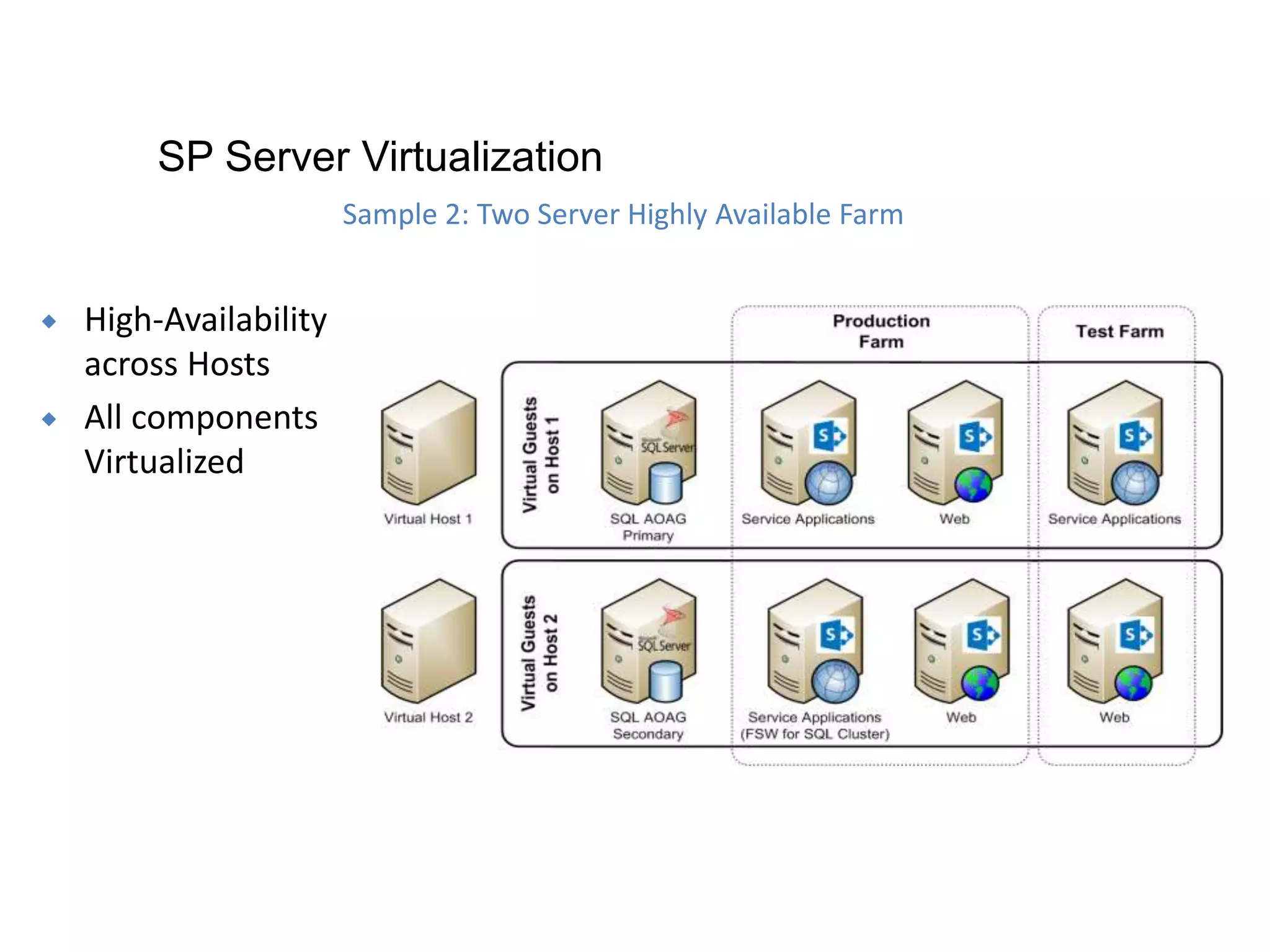

- 21. High-Availability across Hosts All components Virtualized Sample 2: Two Server Highly Available Farm SP Server Virtualization

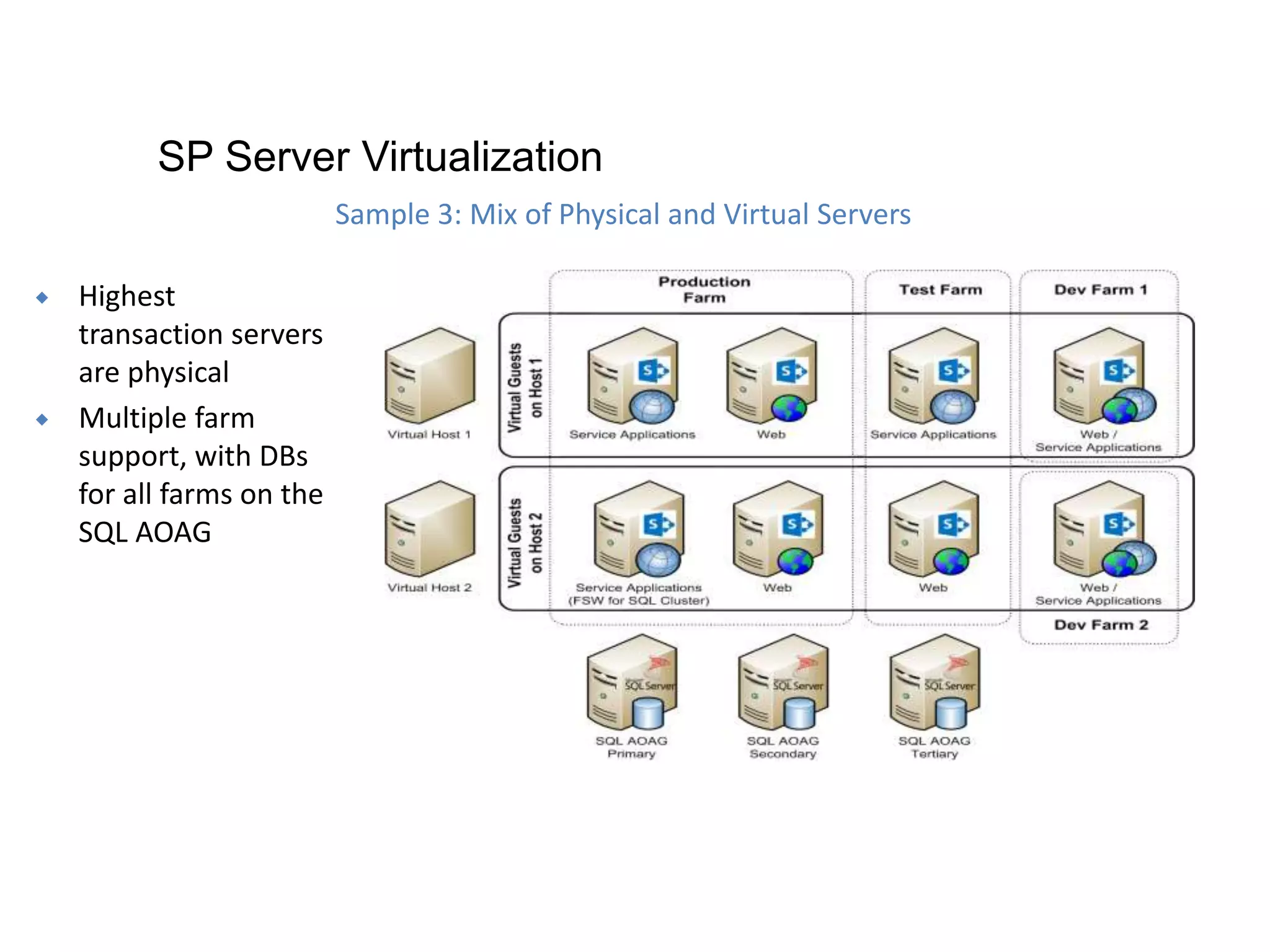

- 22. Highest transaction servers arephysical Multiple farm support, with DBs for all farms on the SQL AOAG Sample 3: Mix of Physical and Virtual Servers SP Server Virtualization

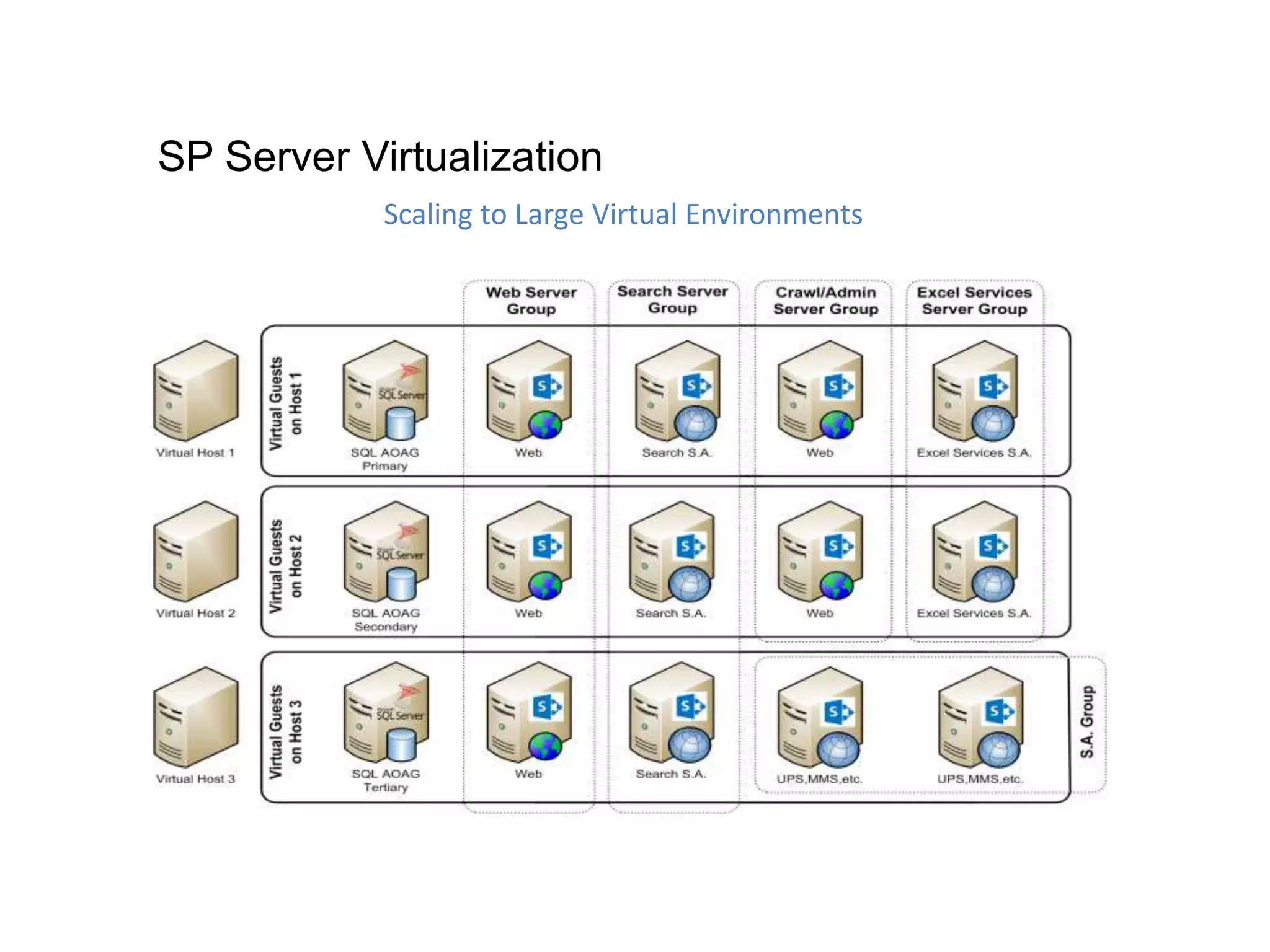

- 23. Scaling to LargeVirtual Environments SP Server Virtualization

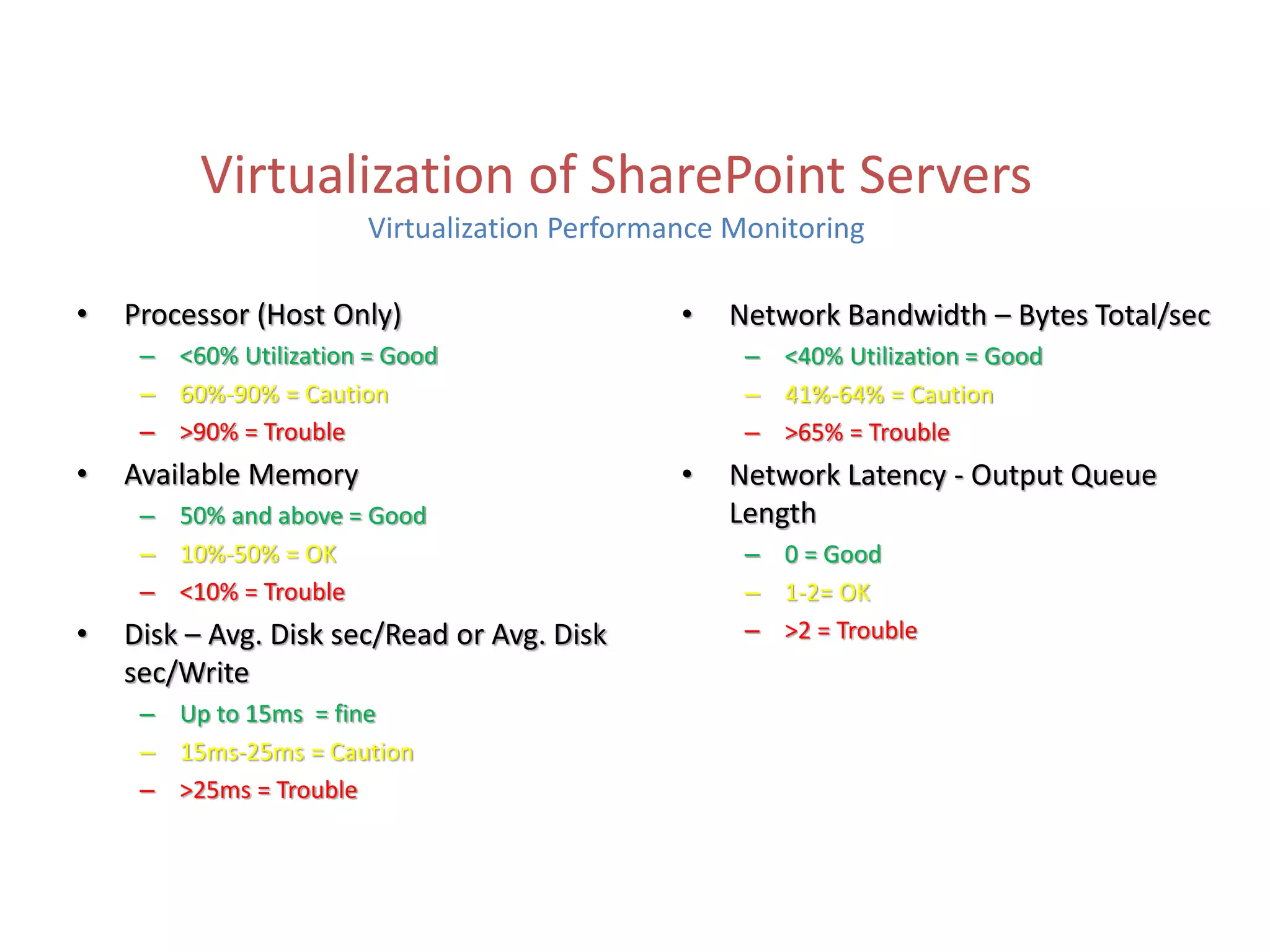

- 24. • Processor (HostOnly) – <60% Utilization = Good – 60%-90% = Caution – >90% = Trouble • Available Memory – 50% and above = Good – 10%-50% = OK – <10% = Trouble • Disk – Avg. Disk sec/Read or Avg. Disk sec/Write – Up to 15ms = fine – 15ms-25ms = Caution – >25ms = Trouble • Network Bandwidth – Bytes Total/sec – <40% Utilization = Good – 41%-64% = Caution – >65% = Trouble • Network Latency - Output Queue Length – 0 = Good – 1-2= OK – >2 = Trouble Virtualization of SharePoint Servers Virtualization Performance Monitoring
- 25.

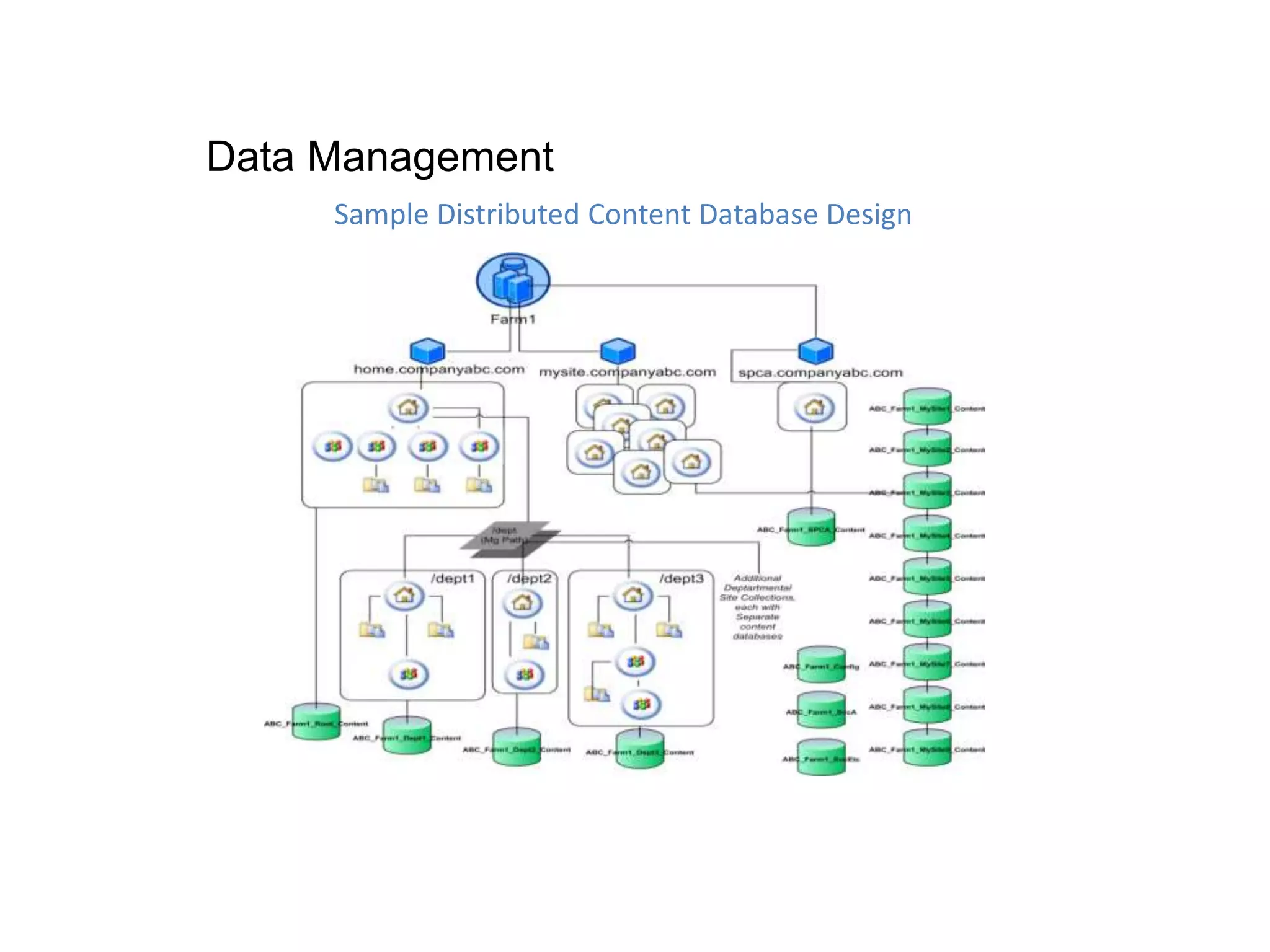

- 26. Sample Distributed ContentDatabase Design Data Management

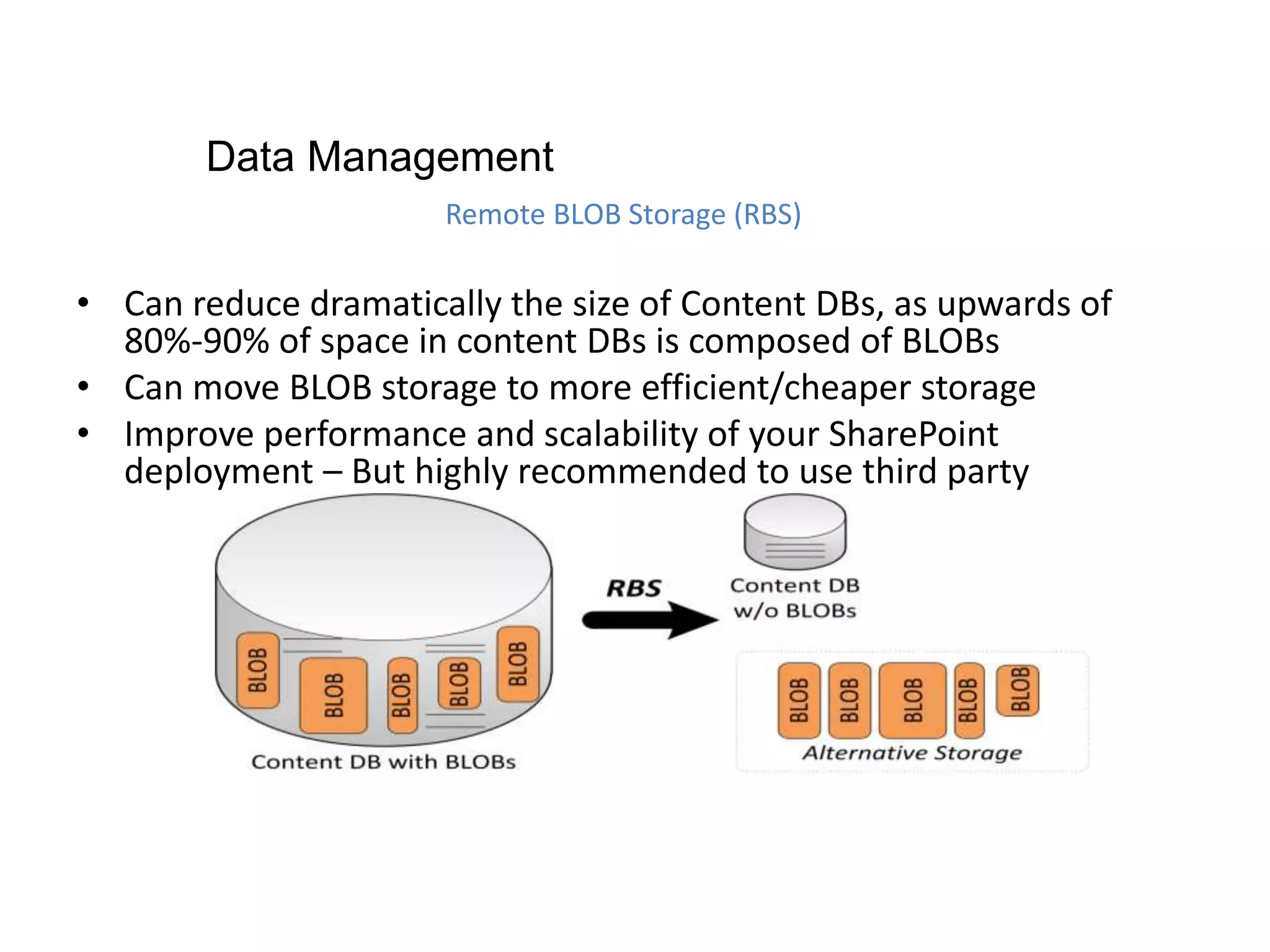

- 27. • Can reducedramatically the size of Content DBs, as upwards of 80%-90% of space in content DBs is composed of BLOBs • Can move BLOB storage to more efficient/cheaper storage • Improve performance and scalability of your SharePoint deployment – But highly recommended to use third party Remote BLOB Storage (RBS) Data Management
- 28.

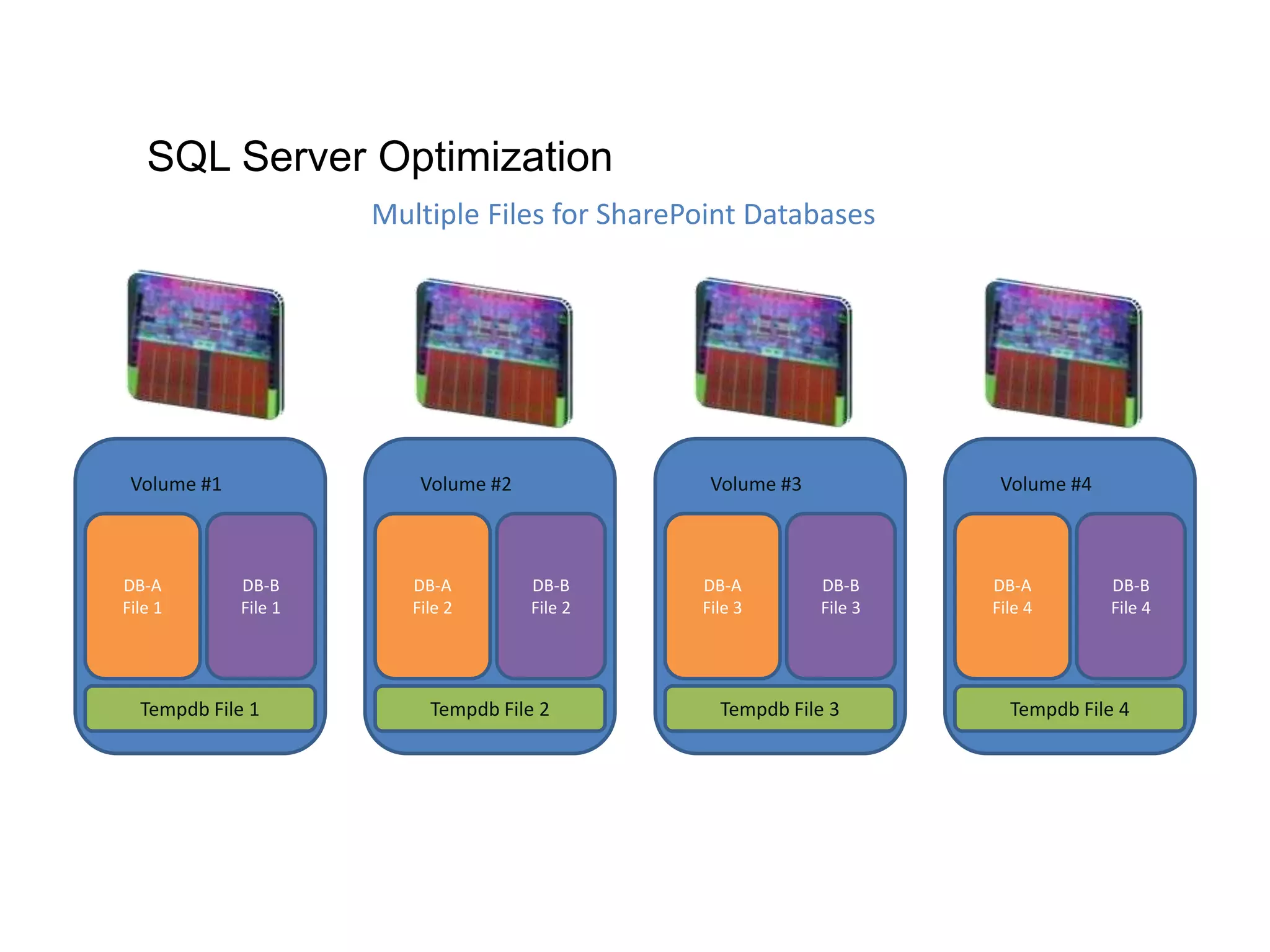

- 29. DB-A File 1 DB-B File 1 Volume#1 DB-A File 2 DB-B File 2 Volume #2 DB-A File 3 DB-B File 3 Volume #3 DB-A File 4 DB-B File 4 Volume #4 Tempdb File 1 Tempdb File 2 Tempdb File 3 Tempdb File 4 Multiple Files for SharePoint Databases SQL Server Optimization

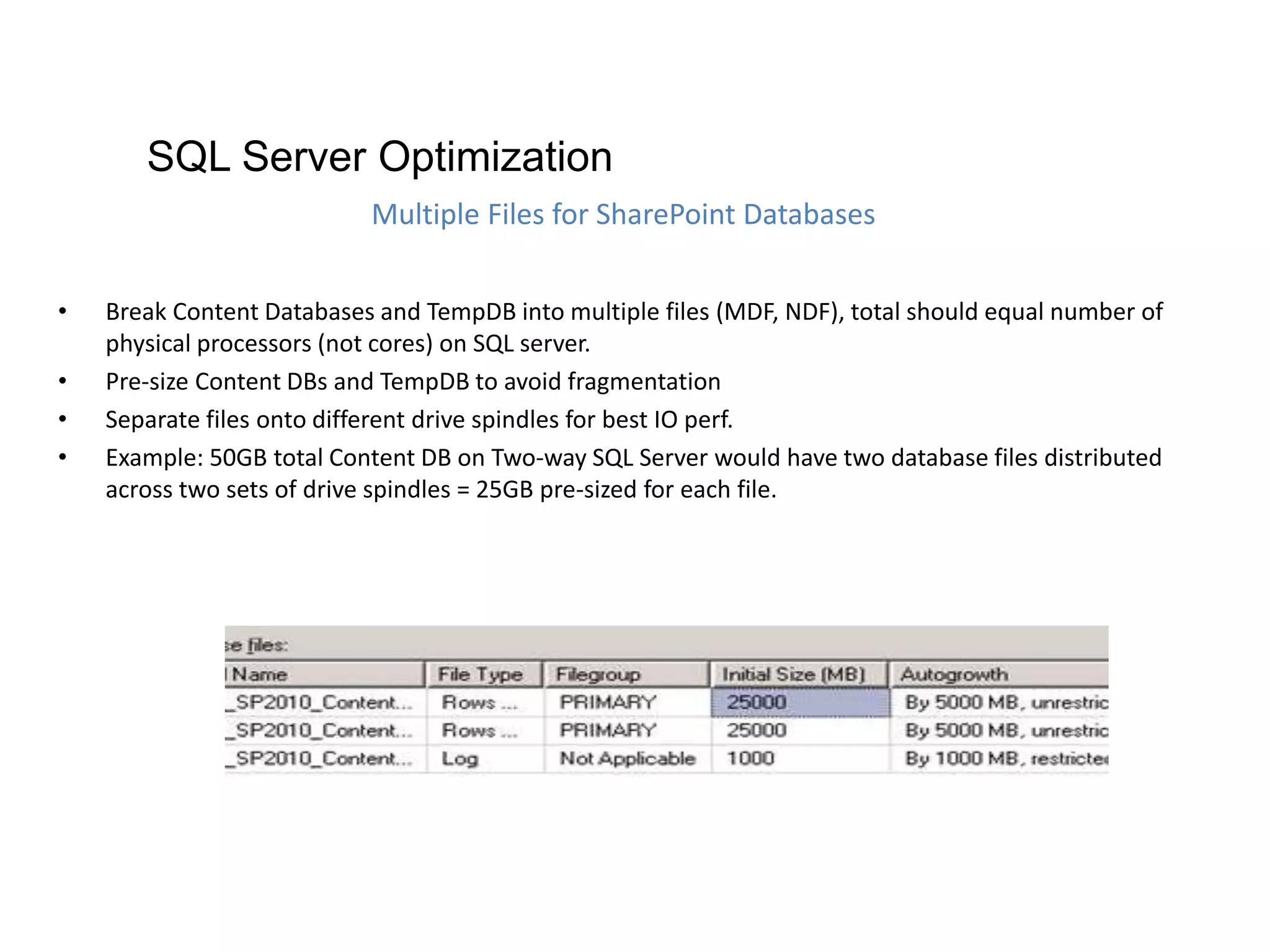

- 30. • Break ContentDatabases and TempDB into multiple files (MDF, NDF), total should equal number of physical processors (not cores) on SQL server. • Pre-size Content DBs and TempDB to avoid fragmentation • Separate files onto different drive spindles for best IO perf. • Example: 50GB total Content DB on Two-way SQL Server would have two database files distributed across two sets of drive spindles = 25GB pre-sized for each file. Multiple Files for SharePoint Databases SQL Server Optimization

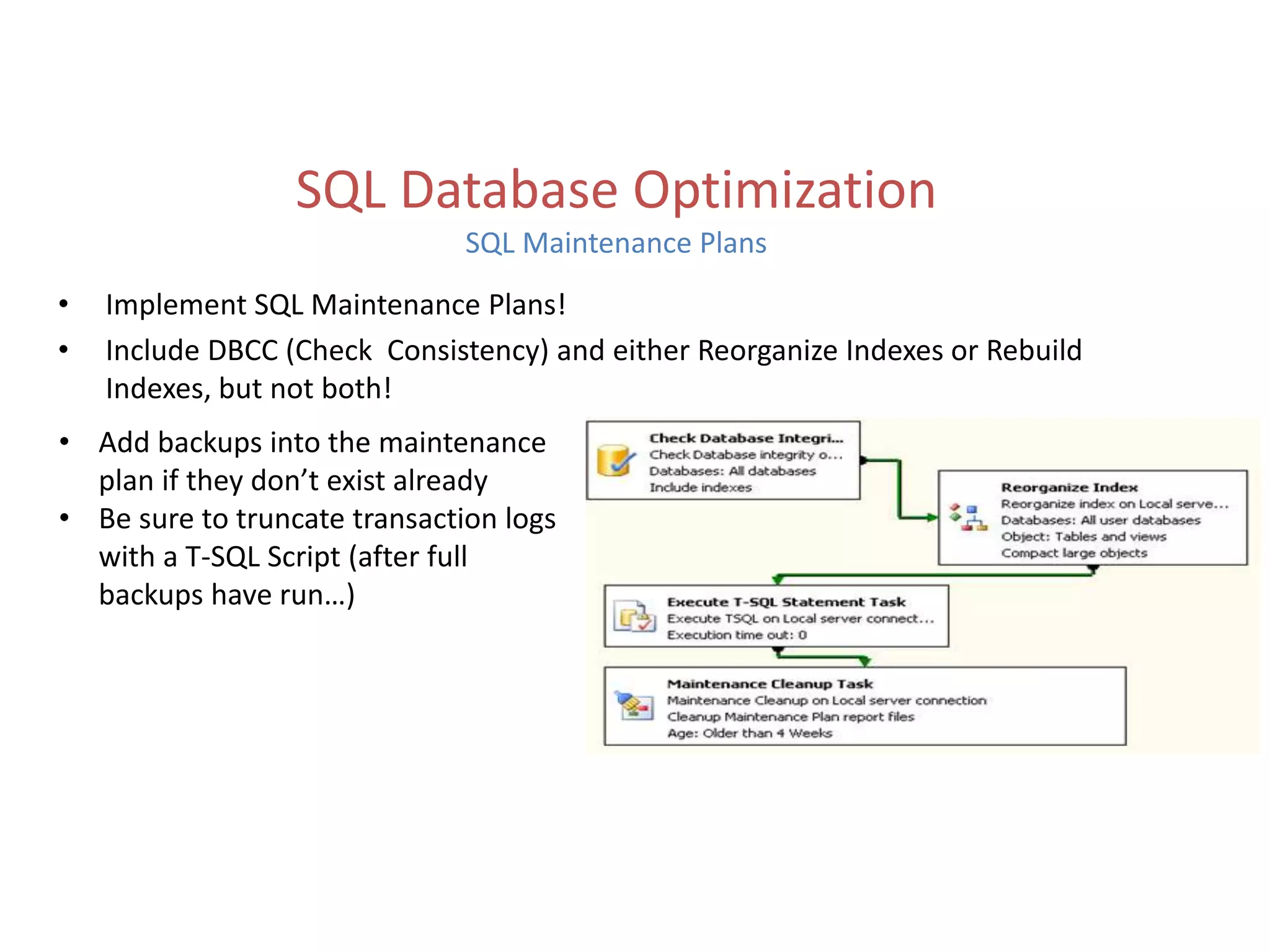

- 31. • Implement SQLMaintenance Plans! • Include DBCC (Check Consistency) and either Reorganize Indexes or Rebuild Indexes, but not both! SQL Database Optimization SQL Maintenance Plans • Add backups into the maintenance plan if they don’t exist already • Be sure to truncate transaction logs with a T-SQL Script (after full backups have run…)
- 32. High Availability andDisaster Recovery

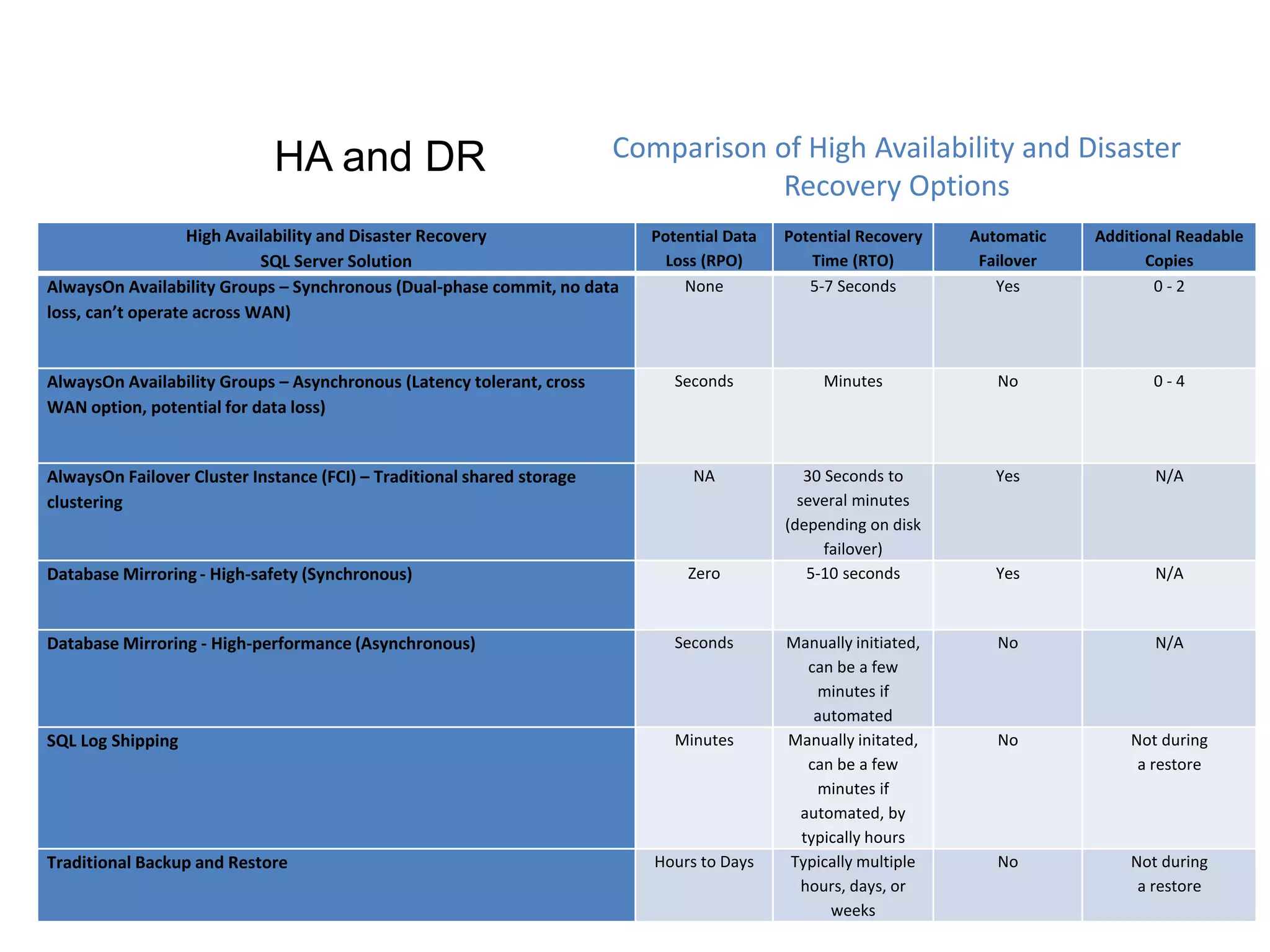

- 33. High Availability andDisaster Recovery SQL Server Solution Potential Data Loss (RPO) Potential Recovery Time (RTO) Automatic Failover Additional Readable Copies AlwaysOn Availability Groups – Synchronous (Dual-phase commit, no data loss, can’t operate across WAN) None 5-7 Seconds Yes 0 - 2 AlwaysOn Availability Groups – Asynchronous (Latency tolerant, cross WAN option, potential for data loss) Seconds Minutes No 0 - 4 AlwaysOn Failover Cluster Instance (FCI) – Traditional shared storage clustering NA 30 Seconds to several minutes (depending on disk failover) Yes N/A Database Mirroring - High-safety (Synchronous) Zero 5-10 seconds Yes N/A Database Mirroring - High-performance (Asynchronous) Seconds Manually initiated, can be a few minutes if automated No N/A SQL Log Shipping Minutes Manually initated, can be a few minutes if automated, by typically hours No Not during a restore Traditional Backup and Restore Hours to Days Typically multiple hours, days, or weeks No Not during a restore Comparison of High Availability and Disaster Recovery Options HA and DR

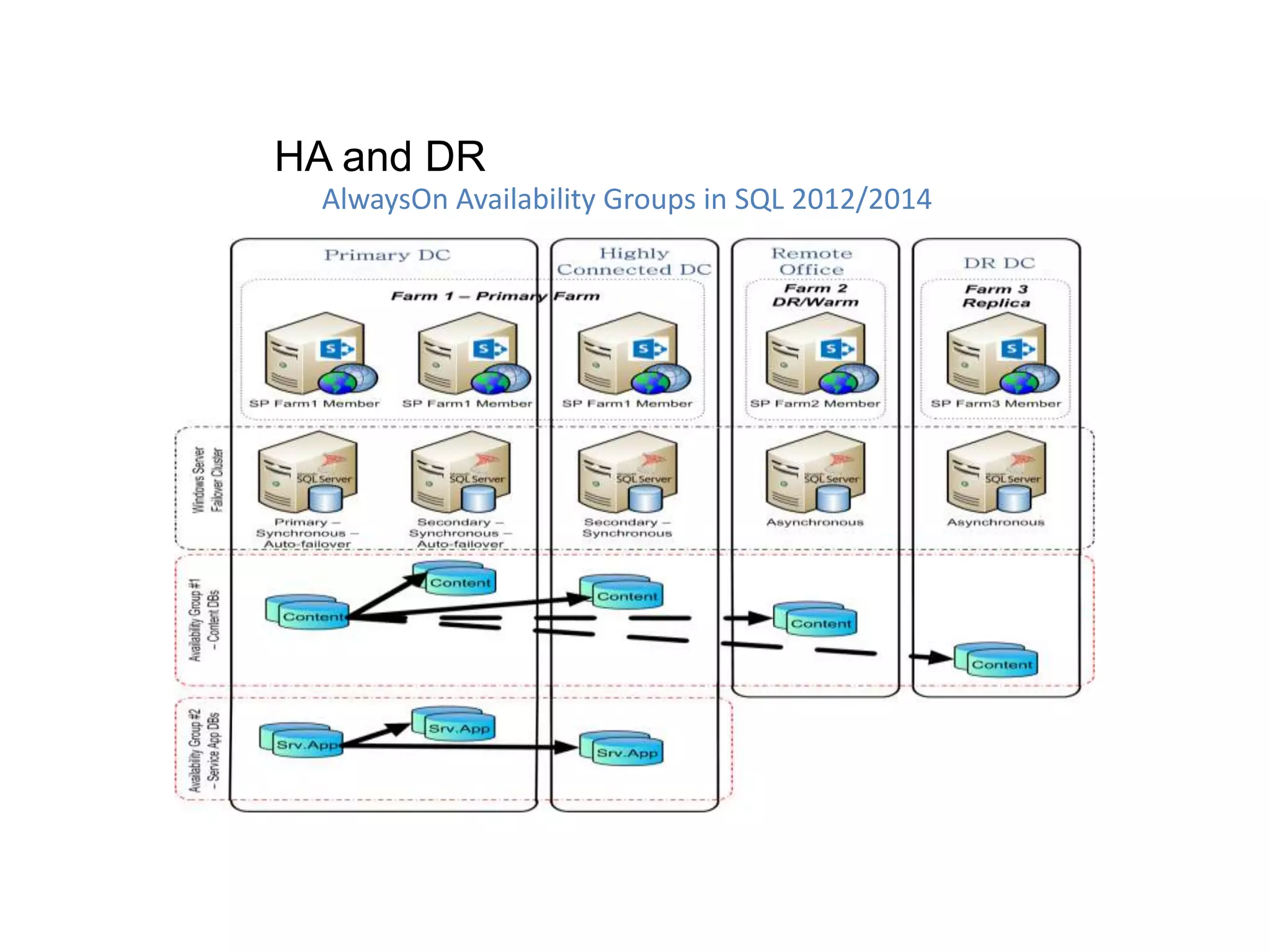

- 34. AlwaysOn Availability Groupsin SQL 2012/2014 HA and DR

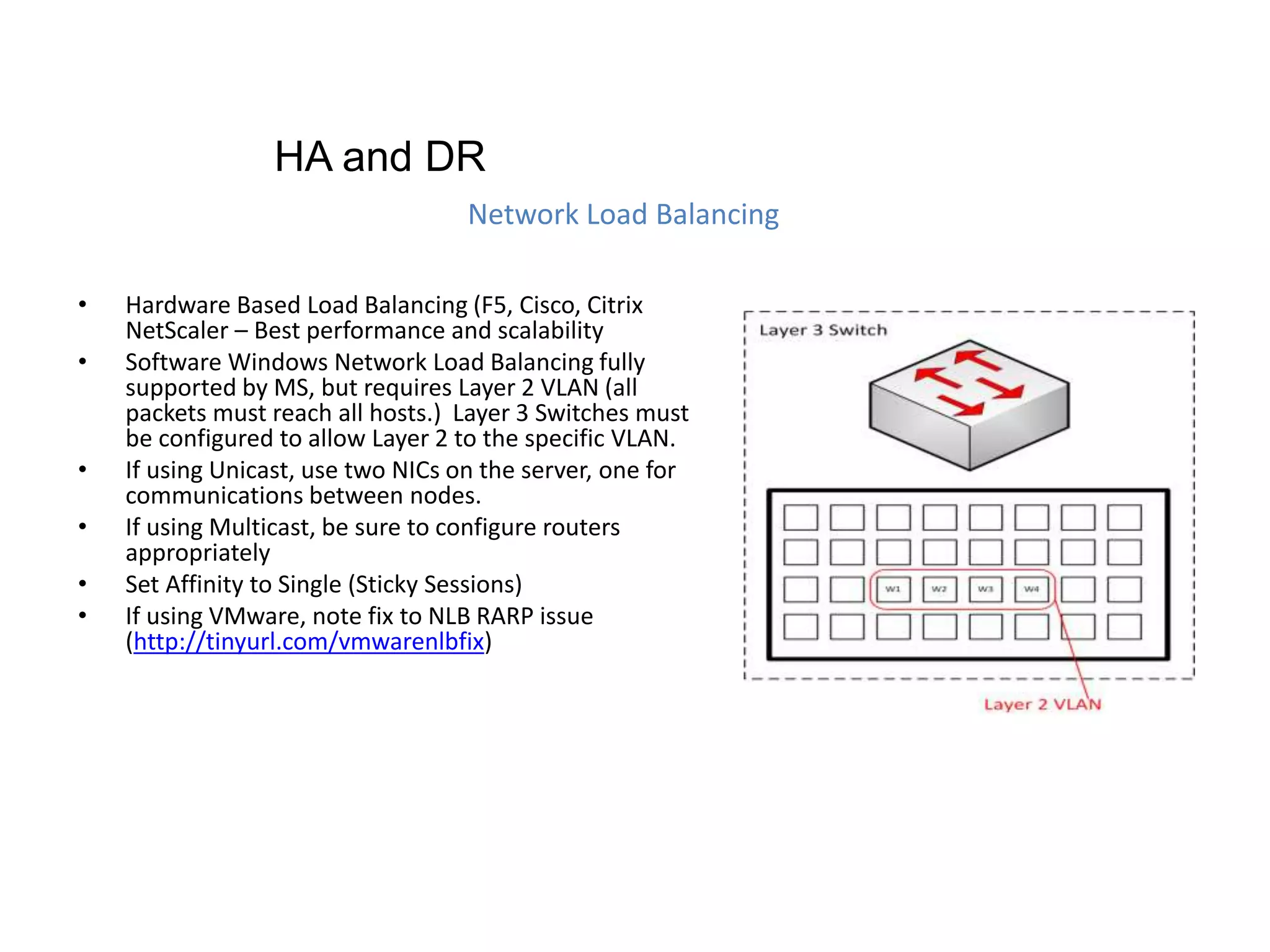

- 35. • Hardware BasedLoad Balancing (F5, Cisco, Citrix NetScaler – Best performance and scalability • Software Windows Network Load Balancing fully supported by MS, but requires Layer 2 VLAN (all packets must reach all hosts.) Layer 3 Switches must be configured to allow Layer 2 to the specific VLAN. • If using Unicast, use two NICs on the server, one for communications between nodes. • If using Multicast, be sure to configure routers appropriately • Set Affinity to Single (Sticky Sessions) • If using VMware, note fix to NLB RARP issue (http://tinyurl.com/vmwarenlbfix) Network Load Balancing HA and DR
- 36.

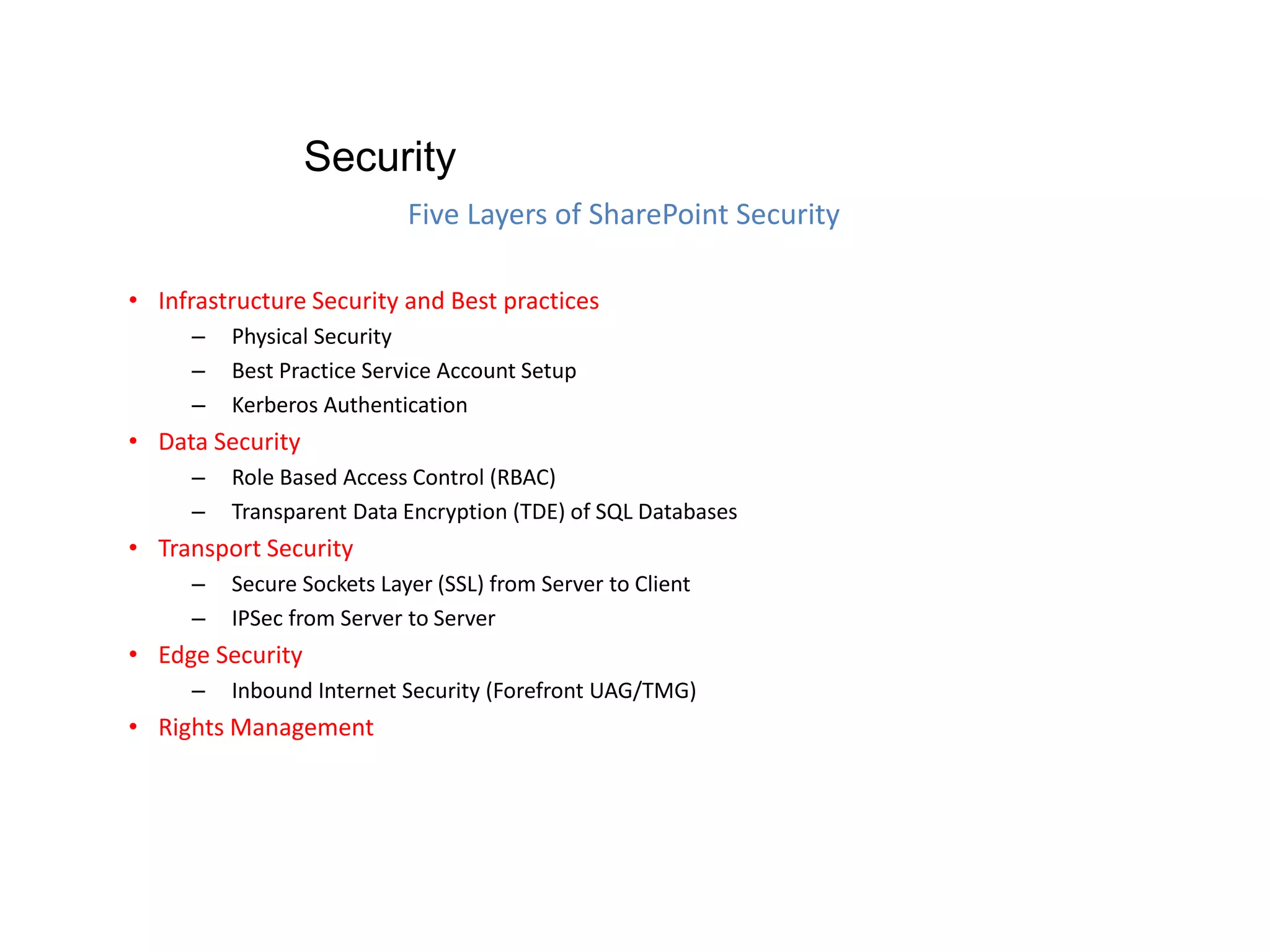

- 37. • Infrastructure Securityand Best practices – Physical Security – Best Practice Service Account Setup – Kerberos Authentication • Data Security – Role Based Access Control (RBAC) – Transparent Data Encryption (TDE) of SQL Databases • Transport Security – Secure Sockets Layer (SSL) from Server to Client – IPSec from Server to Server • Edge Security – Inbound Internet Security (Forefront UAG/TMG) • Rights Management Five Layers of SharePoint Security Security

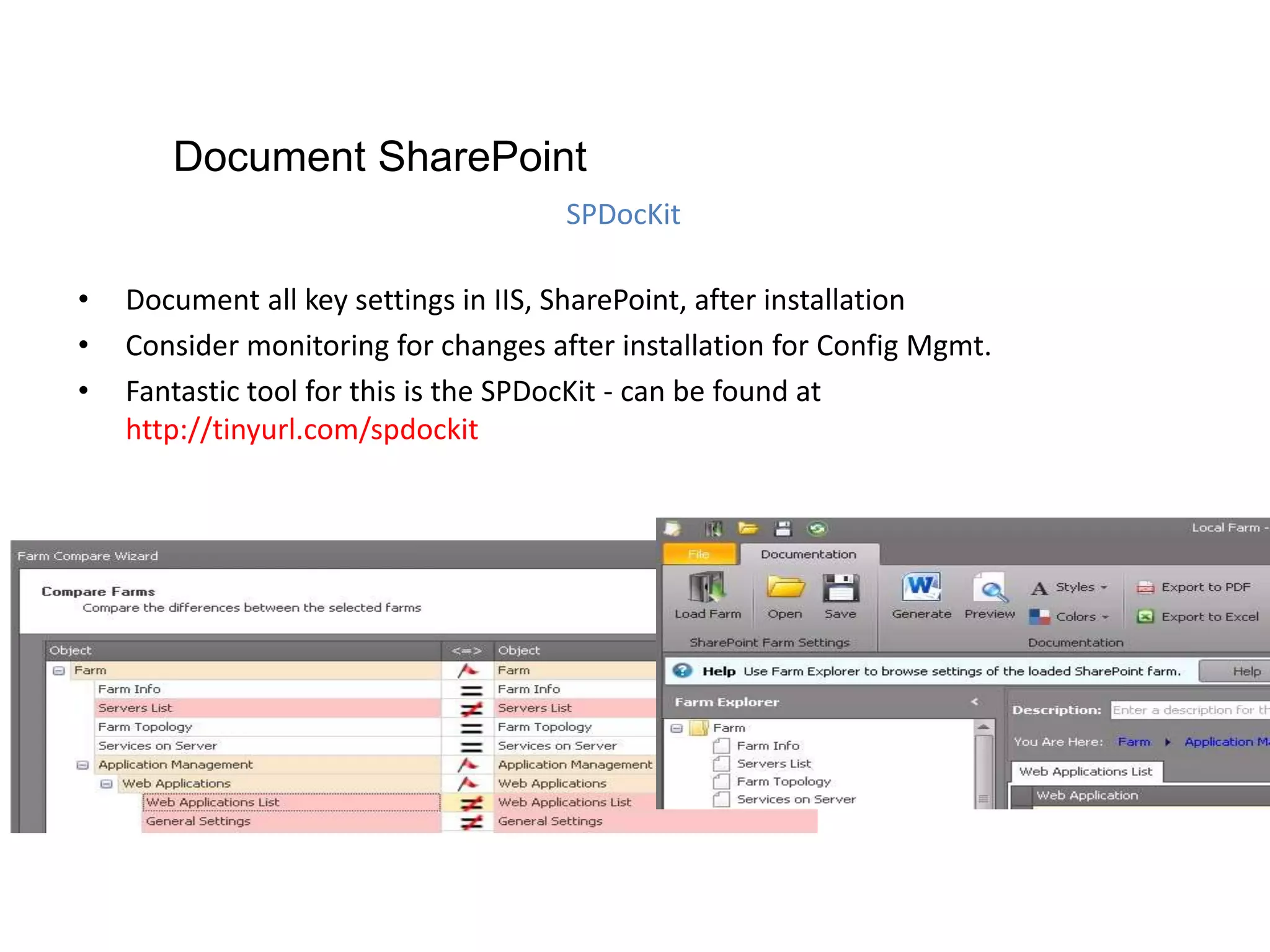

- 38. • Document allkey settings in IIS, SharePoint, after installation • Consider monitoring for changes after installation for Config Mgmt. • Fantastic tool for this is the SPDocKit - can be found at http://tinyurl.com/spdockit SPDocKit Document SharePoint
- 39. Michael Noel Twitter: @MichaelTNoel www.cco.com Slides:slideshare.net/michaeltnoel Travel blog: sharingtheglobe.com Pre-order SharePoint 2013 Unleashed: tinyurl.com/sp2013unleashed
