Scaling wix to over 70 m users
This document summarizes Wix's scaling efforts from 2006 to 2014 to support over 70 million users on its website building platform. It describes Wix's initial architecture and challenges with downtime from server updates. It outlines Wix's migration to managed hosting on Amazon and Google Cloud to address scalability issues. The document also discusses Wix's shift to microservices, continuous integration/delivery, test-driven development, and DevOps practices to improve development velocity and allow faster feature rollouts. It provides details on Wix's adoption of Scala, Angular, React, Node.js and establishment of technology guilds to further its engineering capabilities as it scaled its platform globally.
More Related Content
Similar to Scaling wix to over 70 m users
Scaling wix to over 70 m users
- 1. Scaling Wix toover 70M users

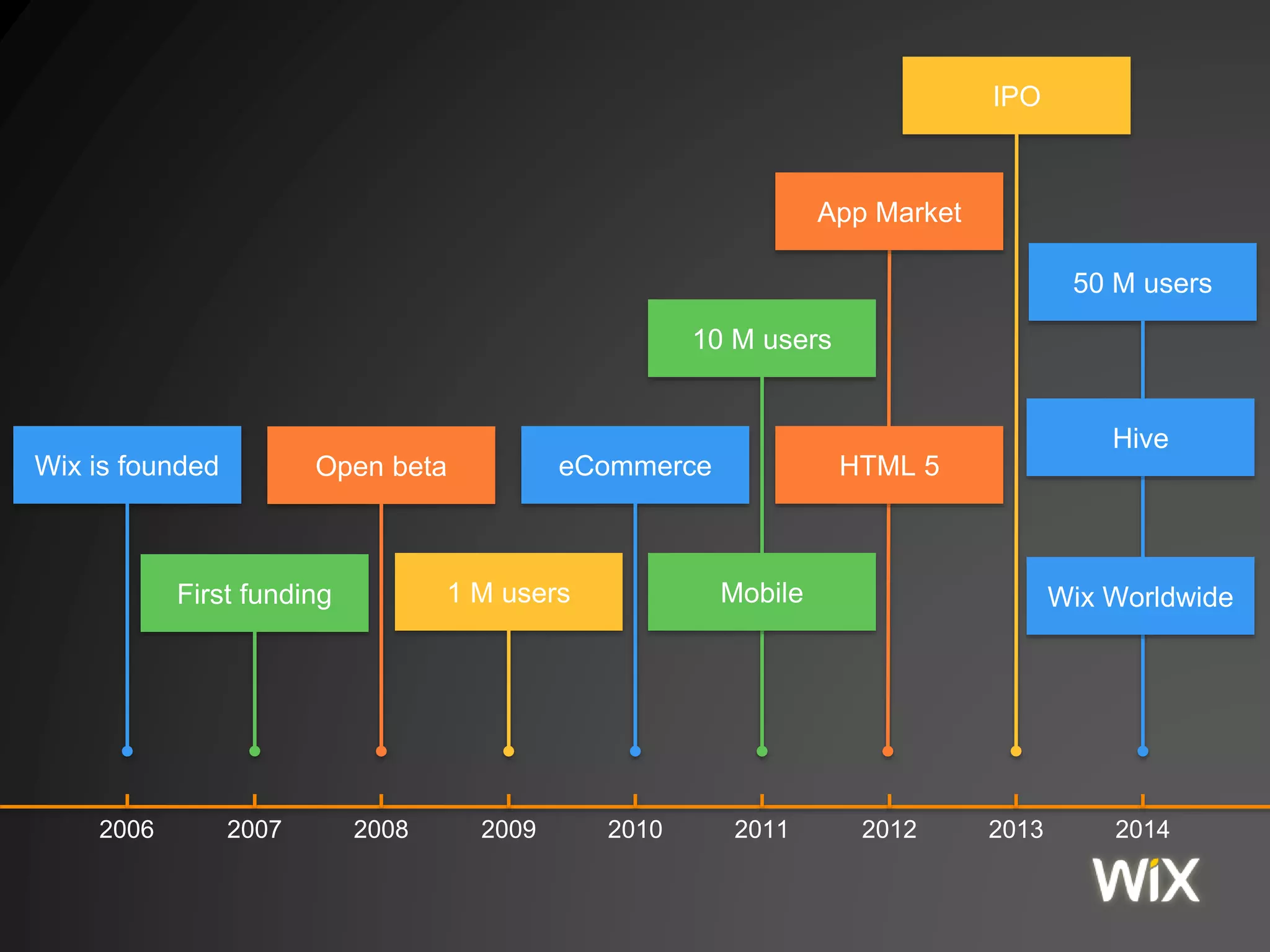

- 6. 2006 2007 20082009 2010 2011 2012 2013 2014 Wix is founded First funding Open beta 1 M users eCommerce 10 M users IPO 50 M users Mobile App Market Hive Wix Worldwide HTML 5
- 7.
- 8.

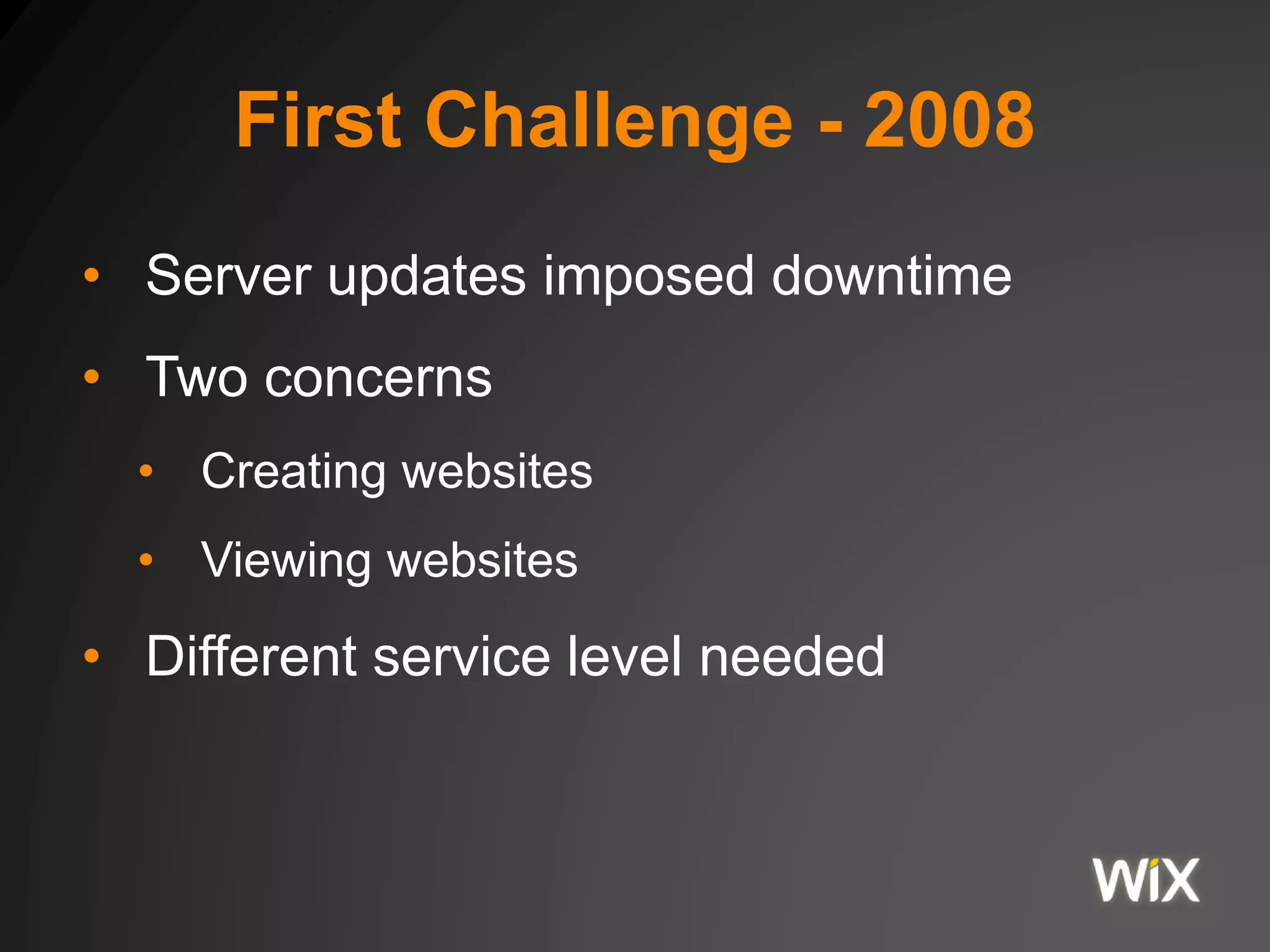

- 9. First Challenge -2008 • Server updates imposed downtime • Two concerns • Creating websites • Viewing websites • Different service level needed

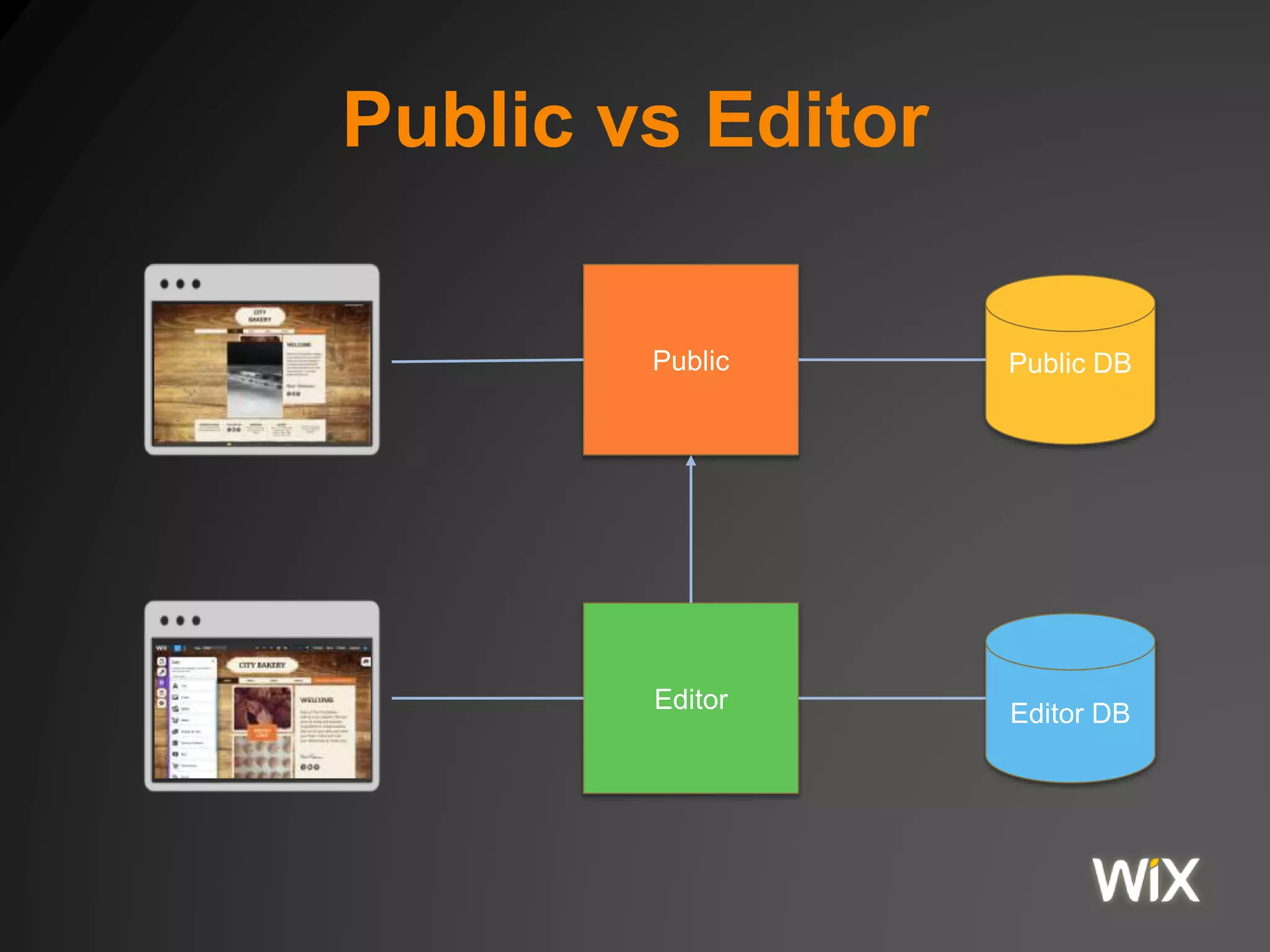

- 10. Public vs Editor PublicPublic DB Editor Editor DB

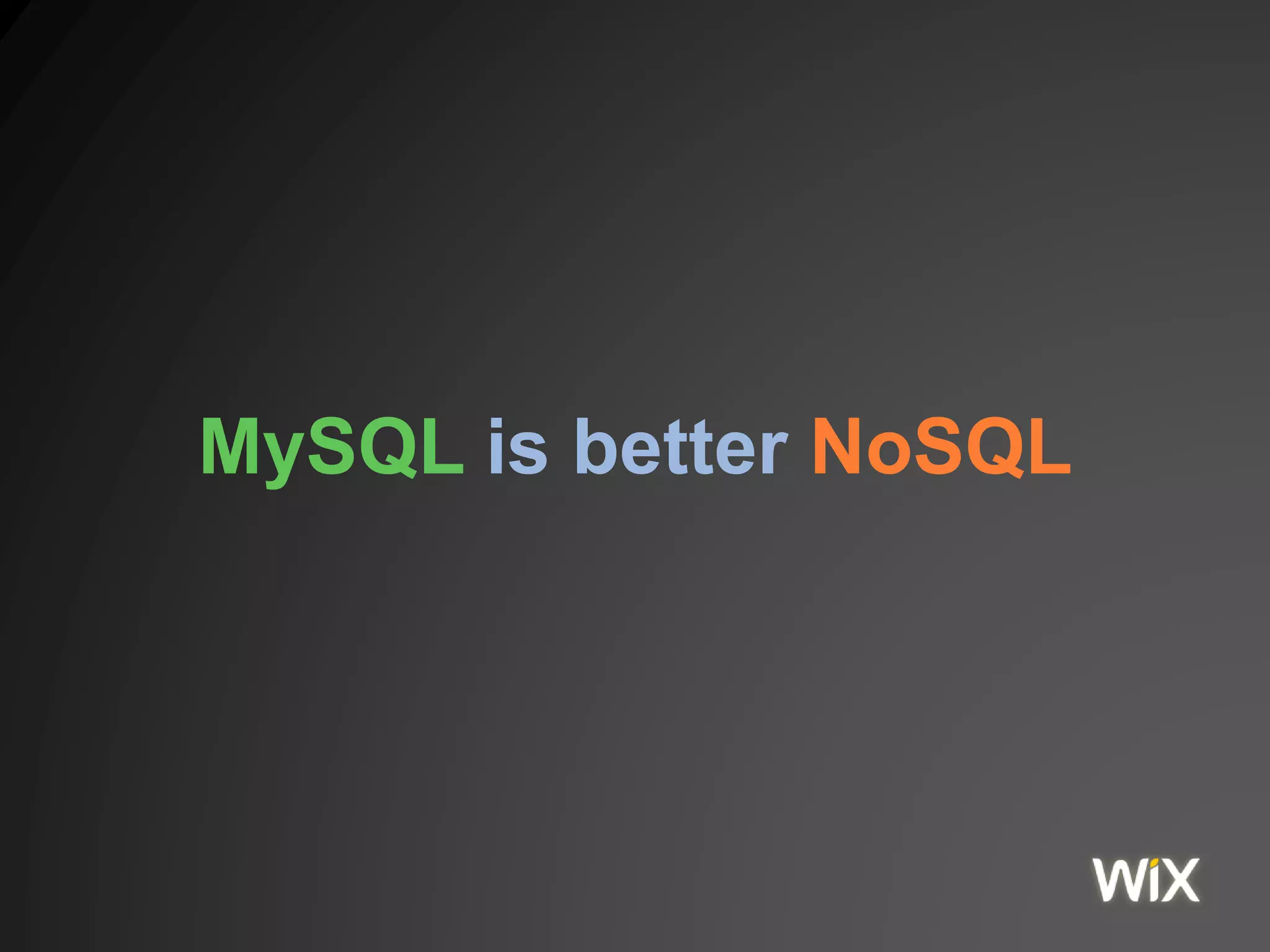

- 11. MySQL is betterNoSQL

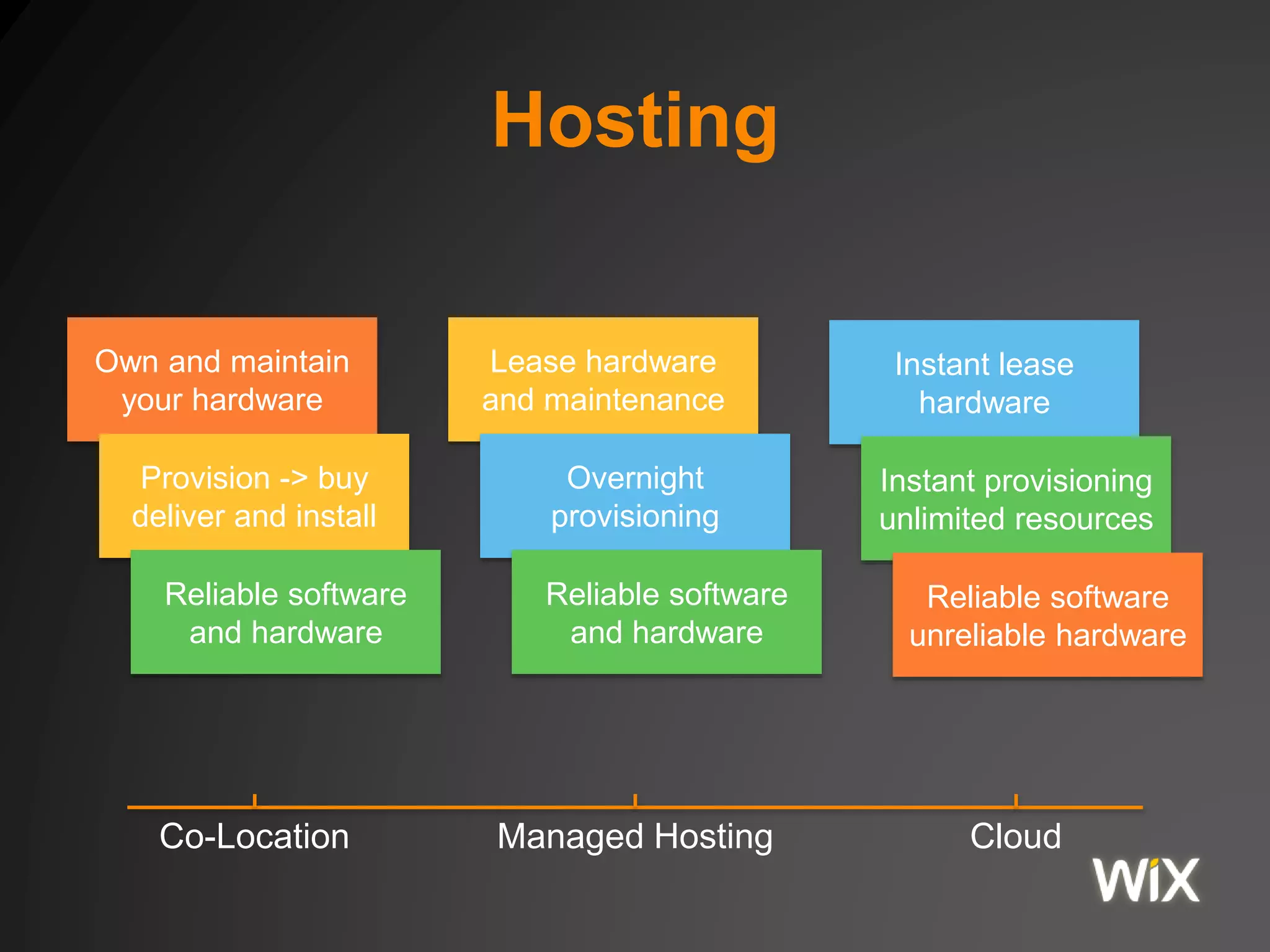

- 12. Hosting Co-Location Managed HostingCloud Lease hardware and maintenance Overnight provisioning Reliable software and hardware Instant lease hardware Instant provisioning unlimited resources Reliable software unreliable hardware Own and maintain your hardware Provision -> buy deliver and install Reliable software and hardware

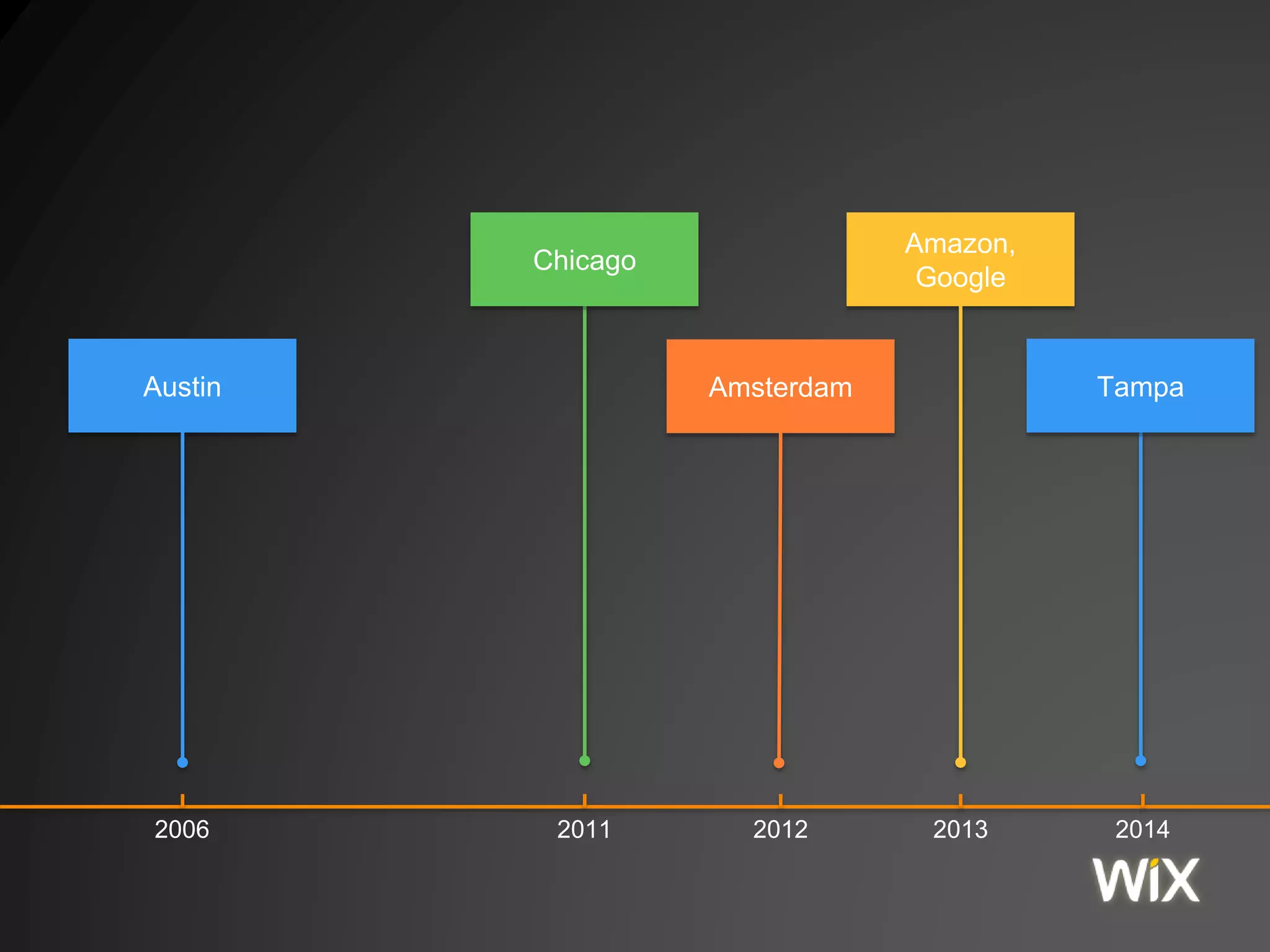

- 13. 2006 2011 20122013 2014 Austin Amsterdam Amazon, Google Chicago Tampa

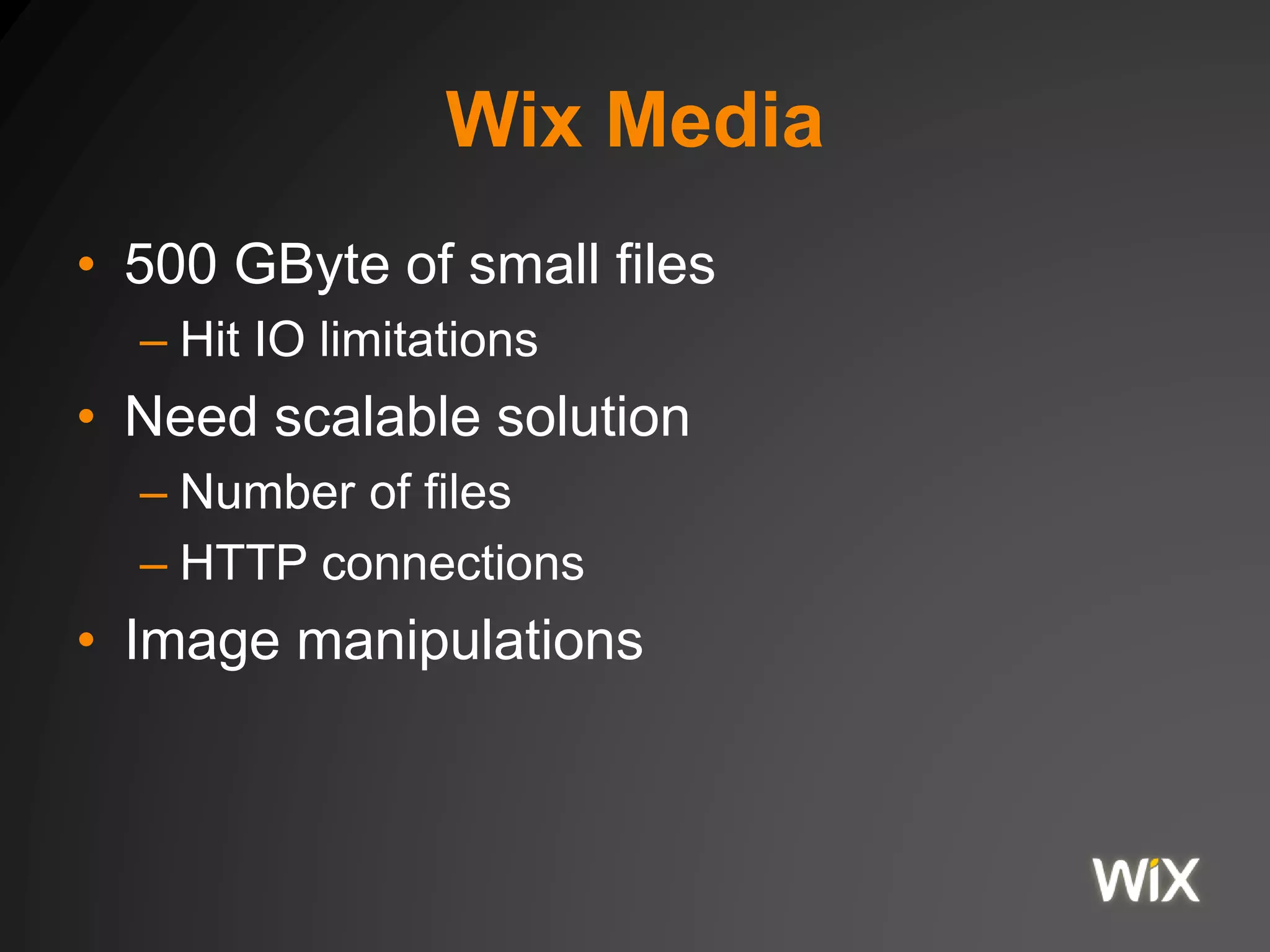

- 14. Wix Media • 500GByte of small files – Hit IO limitations • Need scalable solution – Number of files – HTTP connections • Image manipulations

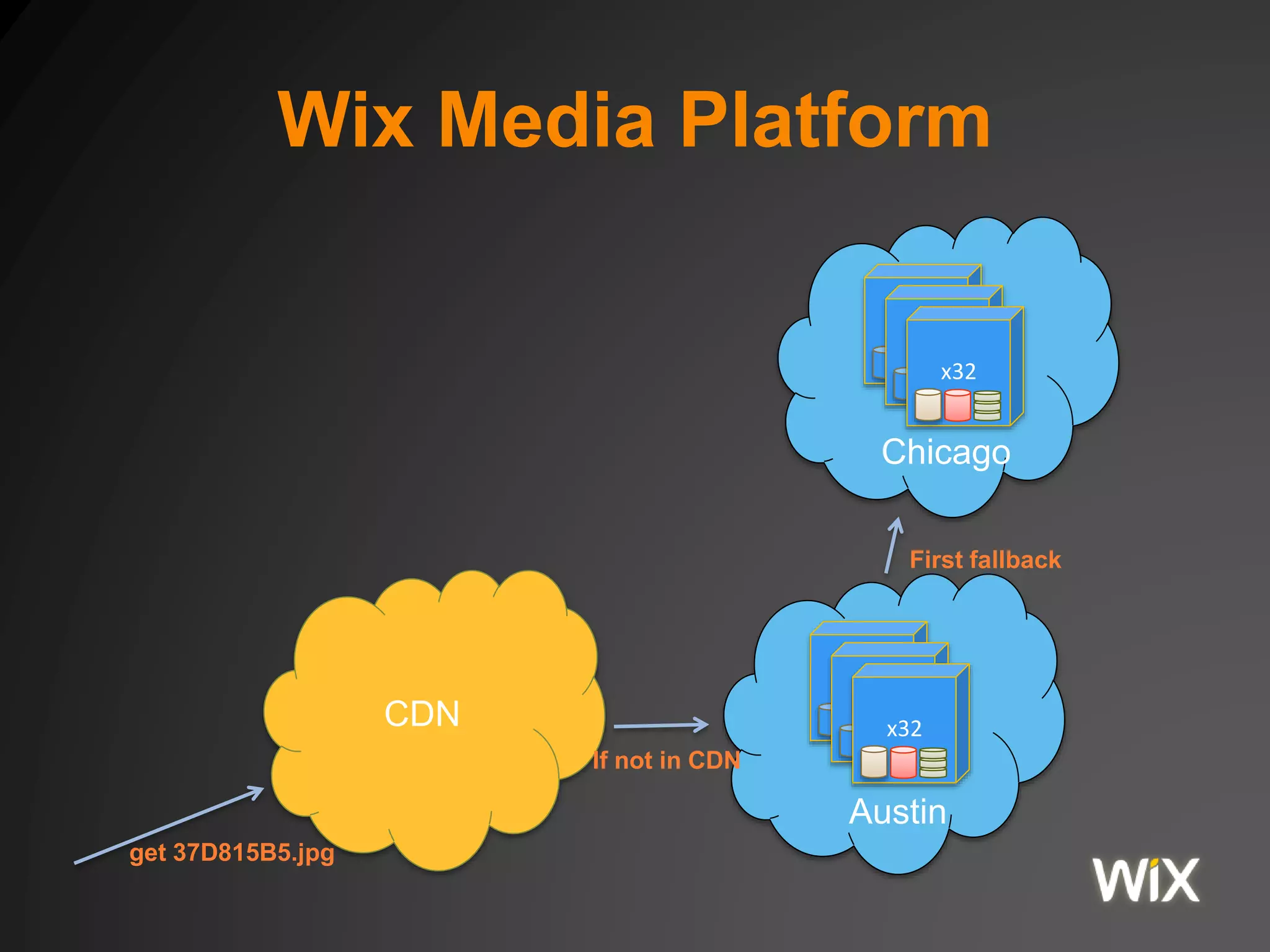

- 15. Wix Media Platform x36 x36 x32 x36 x36 x32 Austin Chicago get37D815B5.jpg First fallback CDN If not in CDN

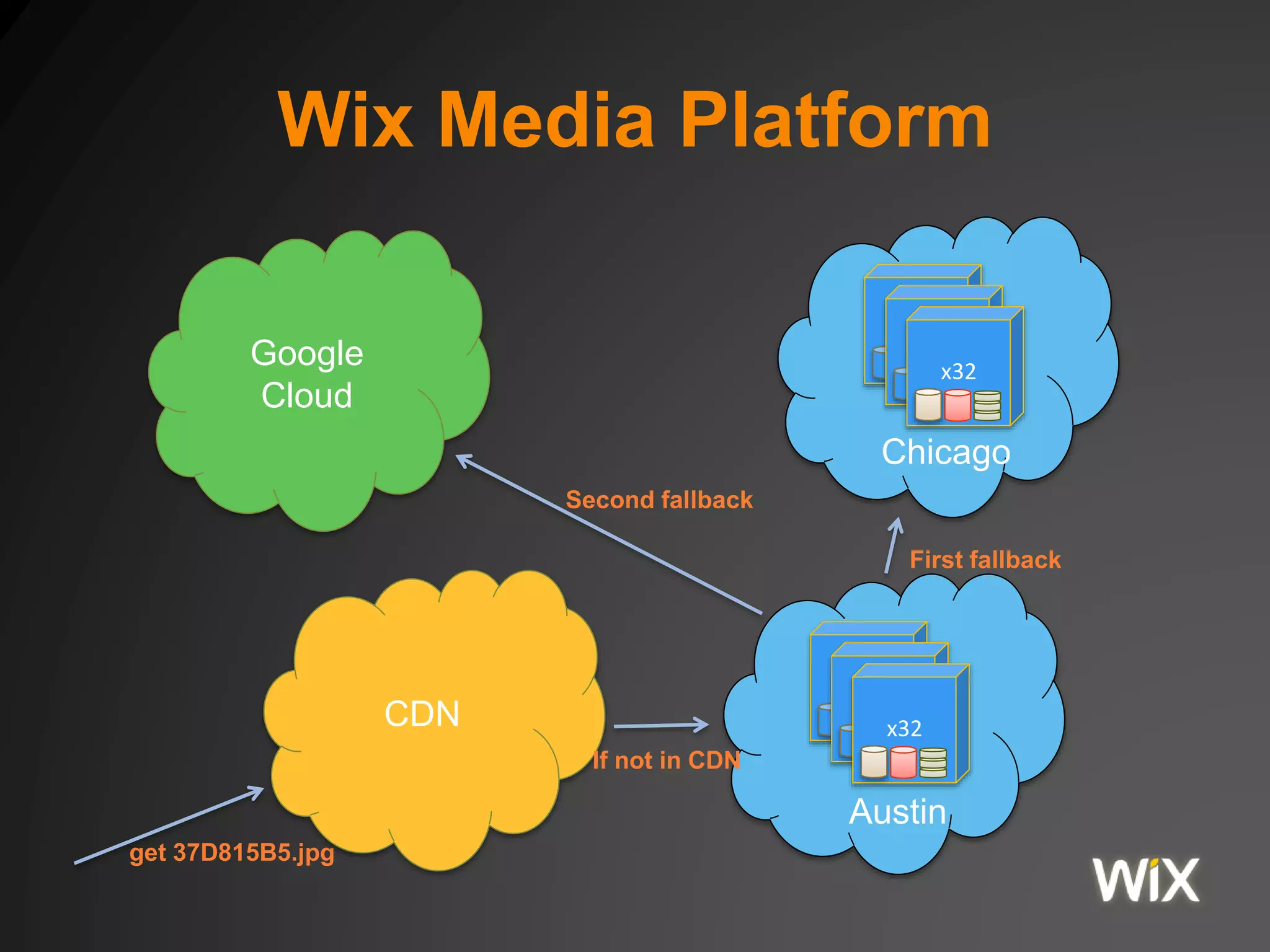

- 16. Wix Media Platform x36 x36 x32 x36 x36 x32 Google Cloud Austin Chicago get37D815B5.jpg First fallback Second fallback CDN If not in CDN

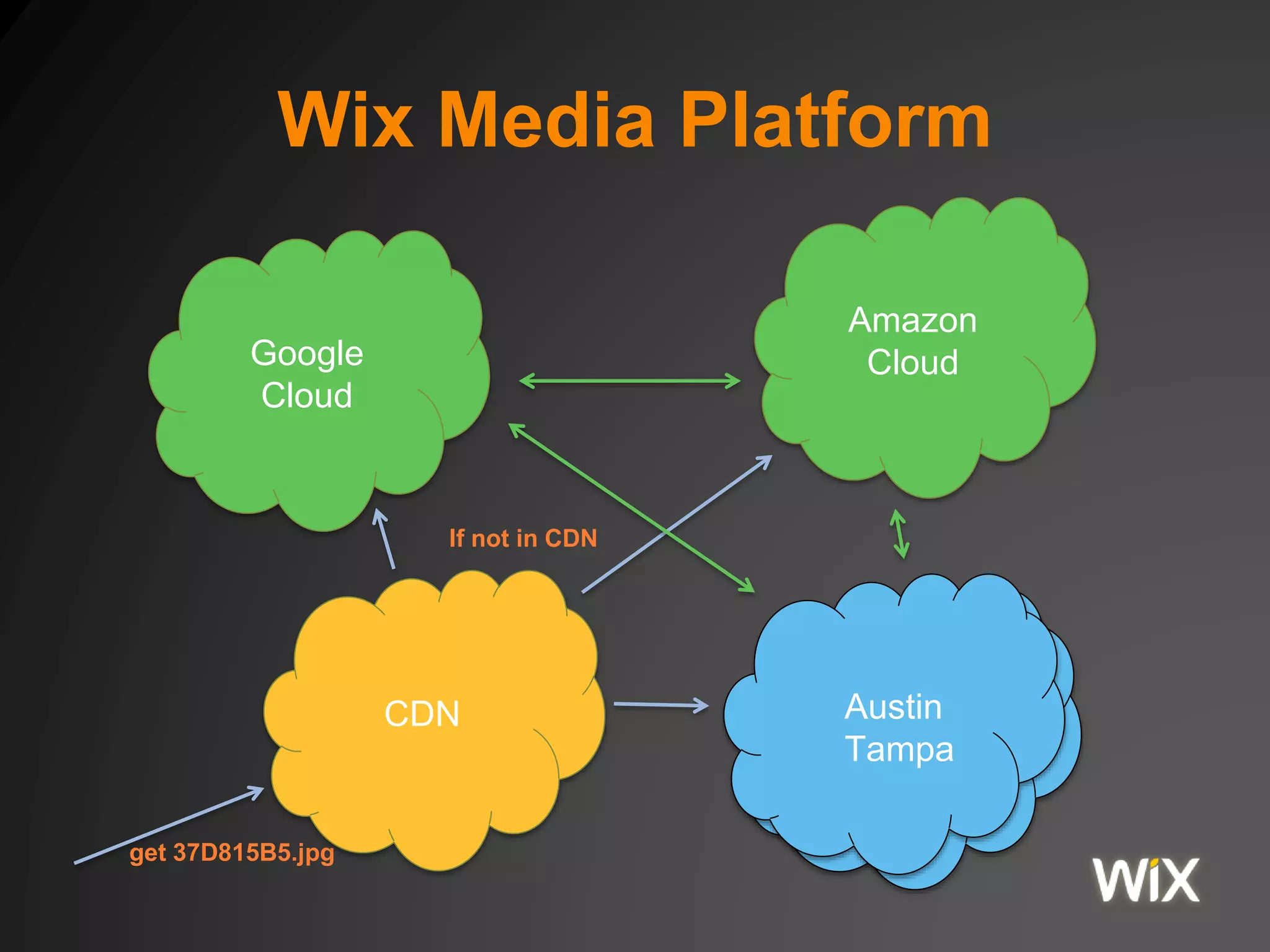

- 17. Wix Media Platform Google Cloud Austin Tampa get37D815B5.jpg CDN If not in CDN Amazon Cloud

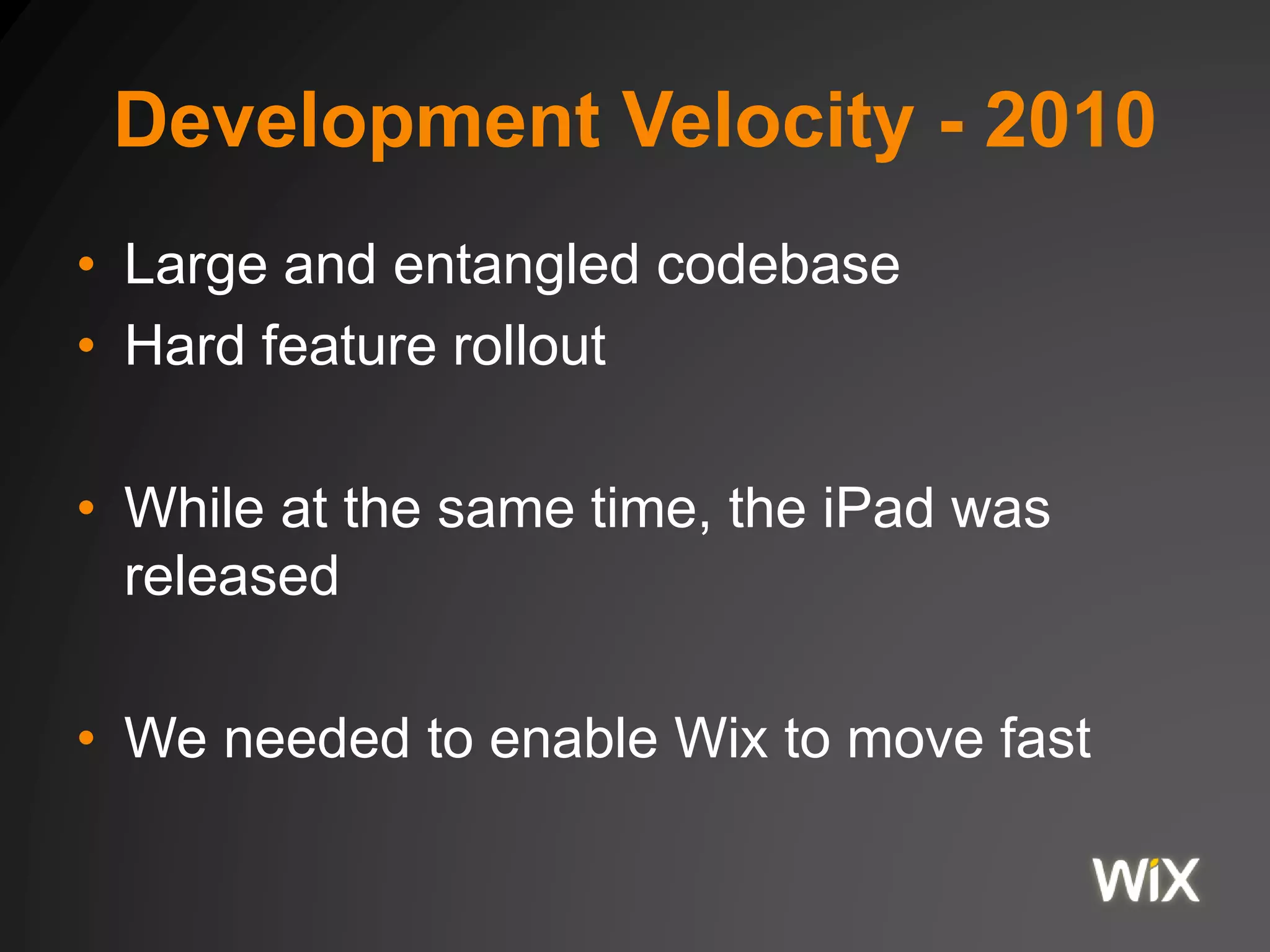

- 19. Development Velocity -2010 • Large and entangled codebase • Hard feature rollout • While at the same time, the iPad was released • We needed to enable Wix to move fast
- 20.

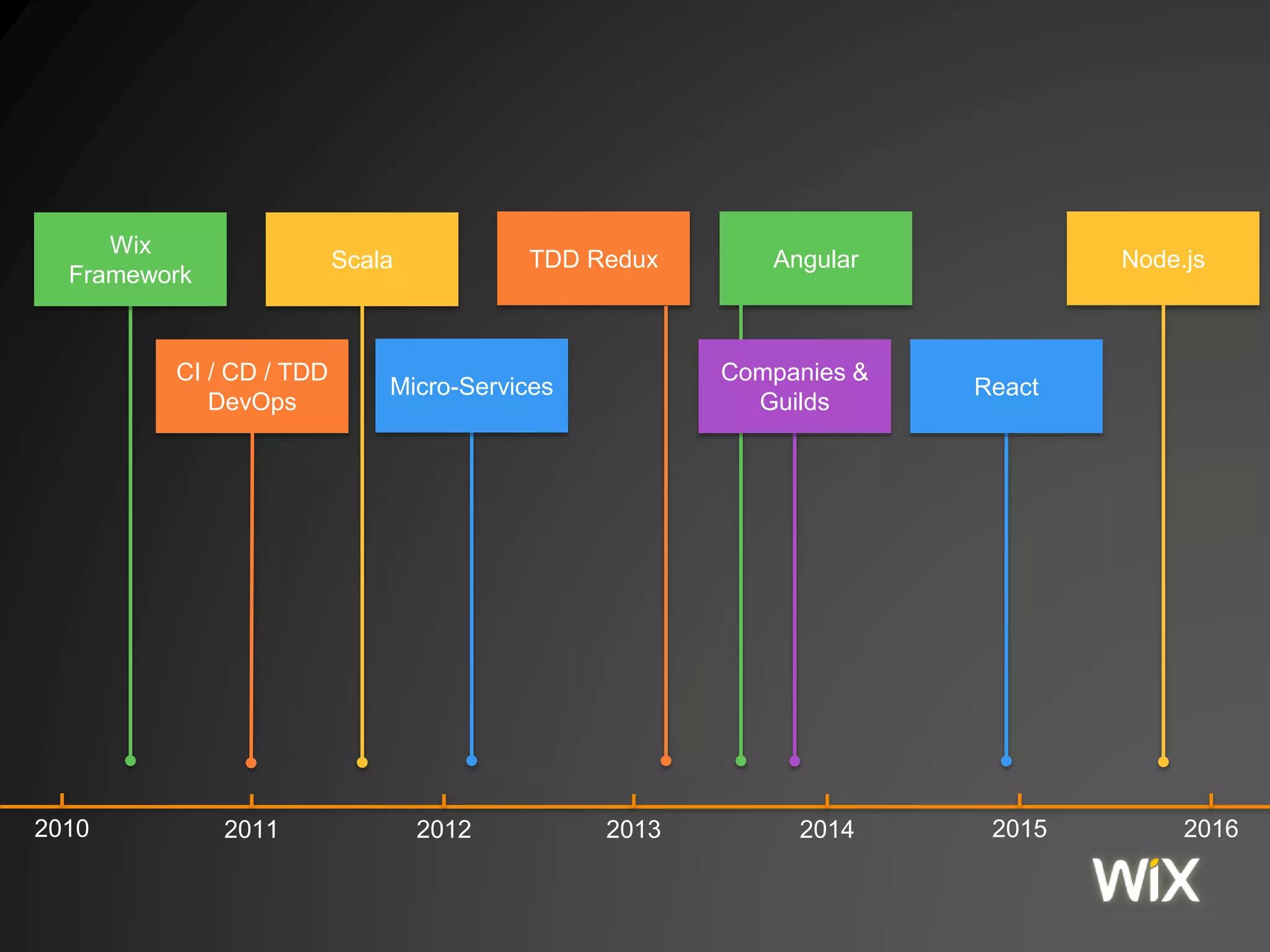

- 21. 2011 2012 20132014 CI / CD / TDD DevOps Scala Wix Framework Micro-Services 2010 TDD Redux 2015 Node.js 2016 React Angular Companies & Guilds
- 22.

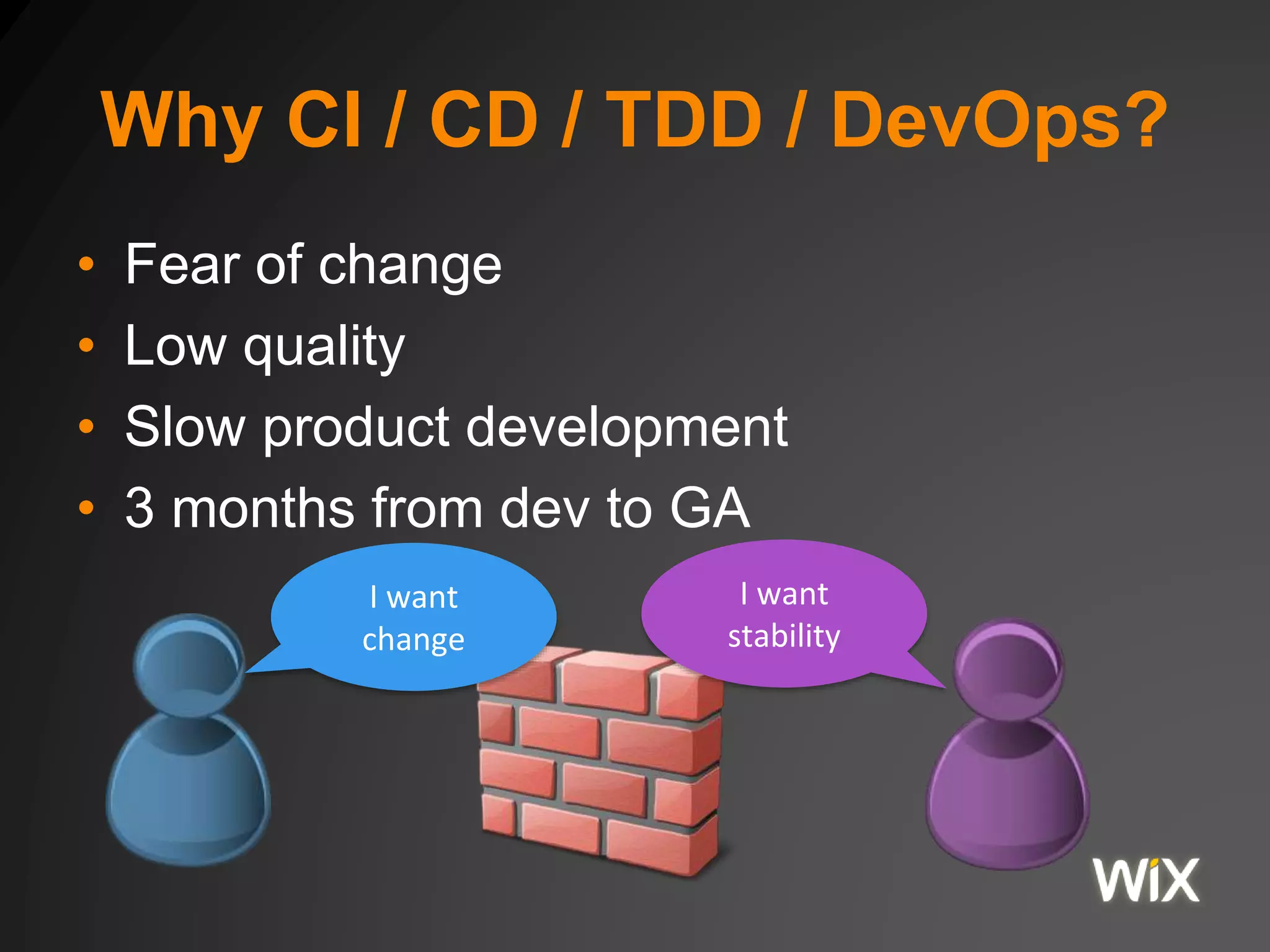

- 23. Why CI /CD / TDD / DevOps? • Fear of change • Low quality • Slow product development • 3 months from dev to GA I want change I want stability

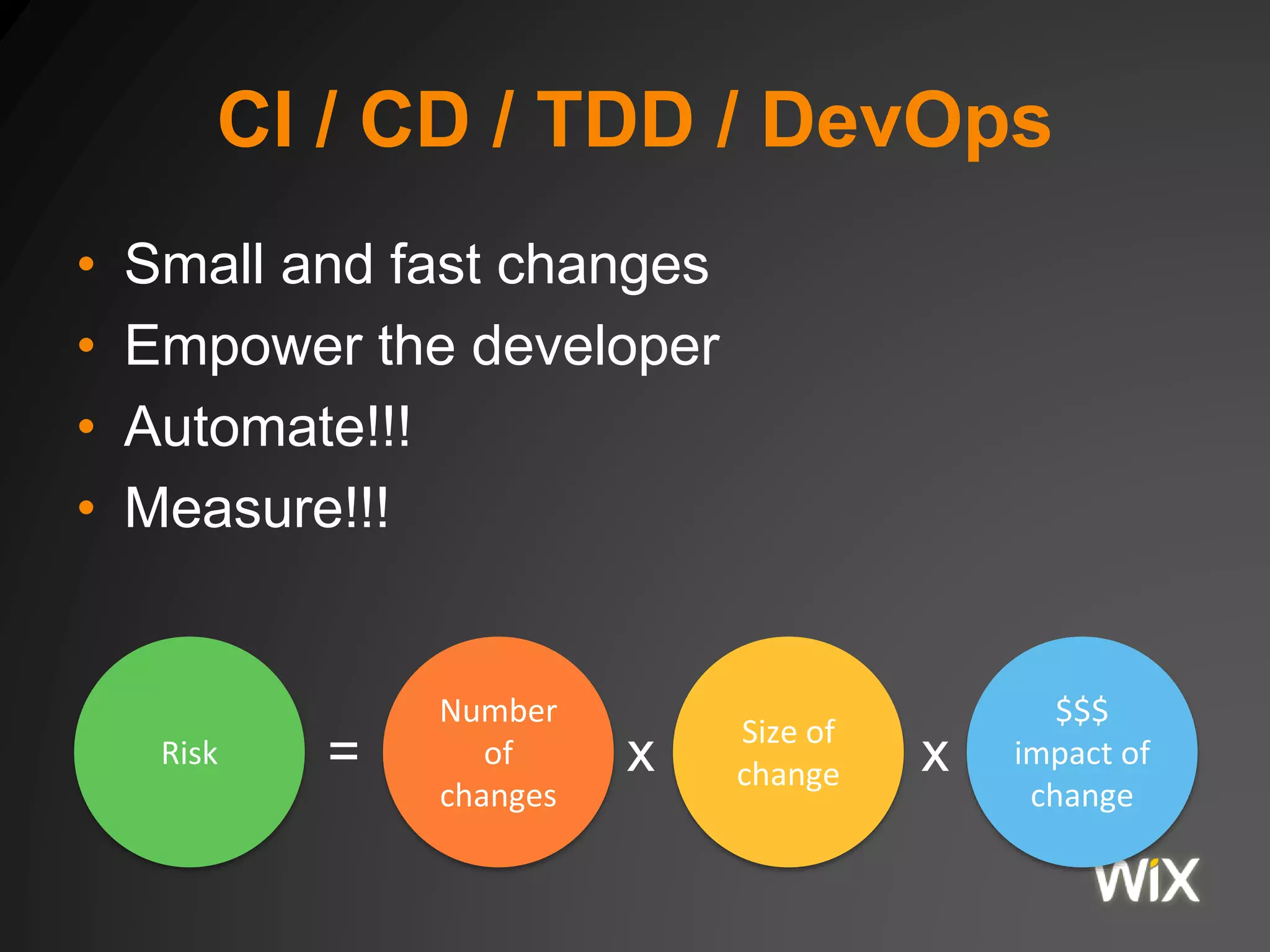

- 24. CI / CD/ TDD / DevOps • Small and fast changes • Empower the developer • Automate!!! • Measure!!! • = x xRisk Number of changes Size of change $$$ impact of change
- 25.
- 26.
- 27.

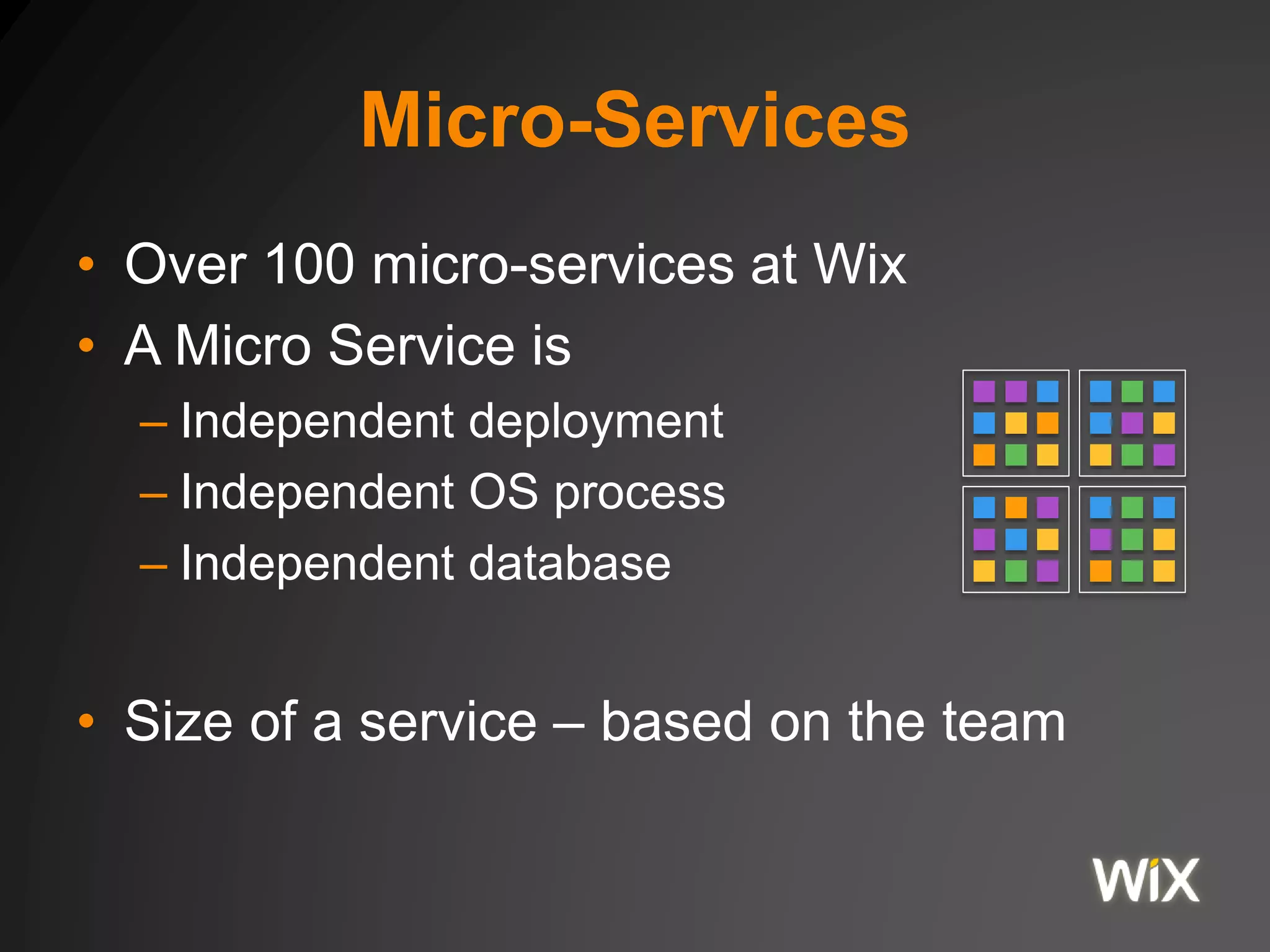

- 28. Micro-Services • Over 100micro-services at Wix • A Micro Service is – Independent deployment – Independent OS process – Independent database • Size of a service – based on the team
- 29. Micro-Services • The goodnews: – Great risk mitigation – Enforces separation of concerns – Minimal blockers for deployment • The bad news: – More network hops - Increases % of failures – Requires Back / Forward compatibility – Distributed operations / transactions
- 30. Scala • Moves Javadevelopers out of their comfort zone. • Forced them to grow • Question how things are done • End result – great innovation

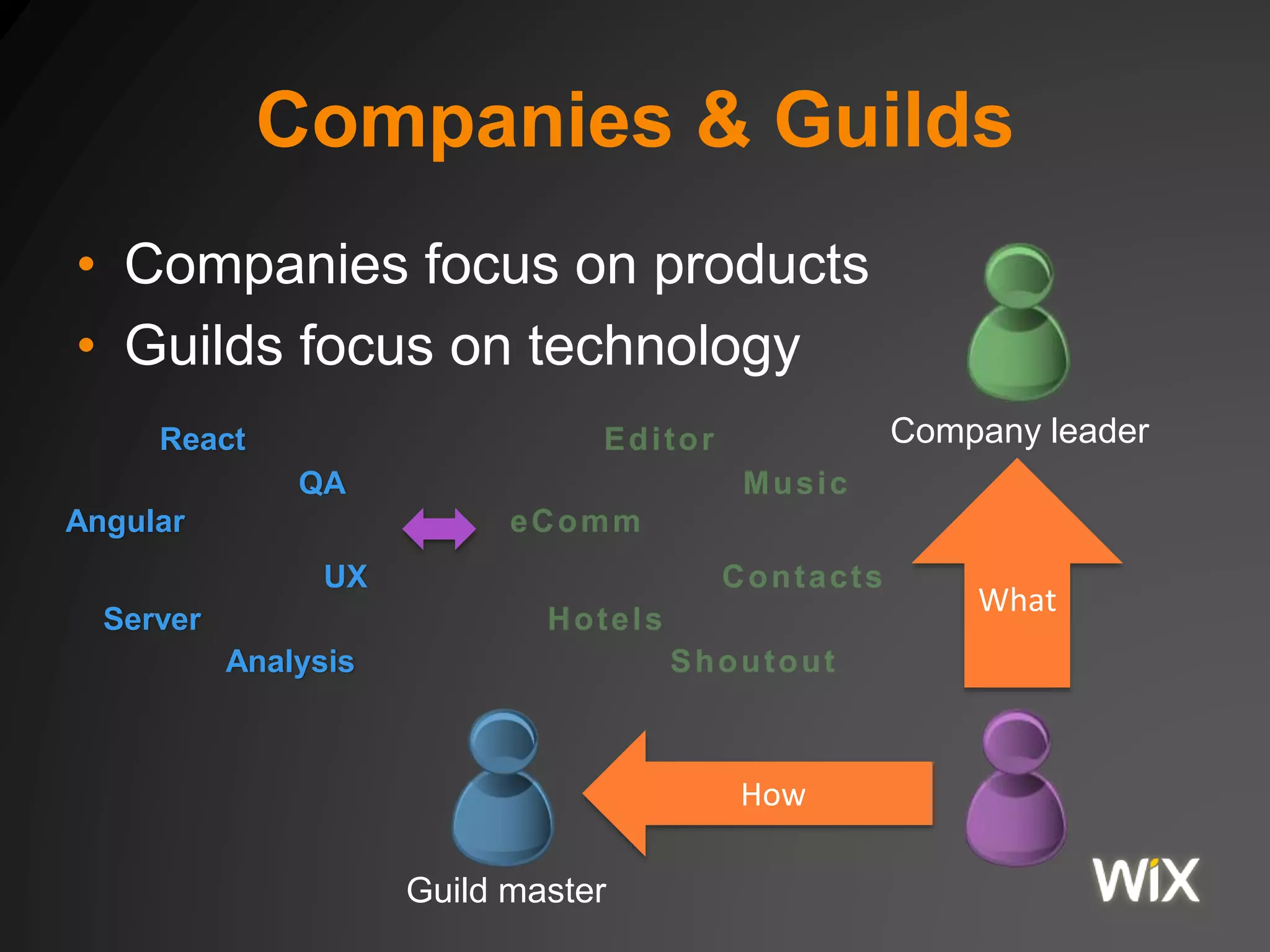

- 31. Companies & Guilds •Companies focus on products • Guilds focus on technology How What Company leader Guild master Angular React Server QA Analysis UX

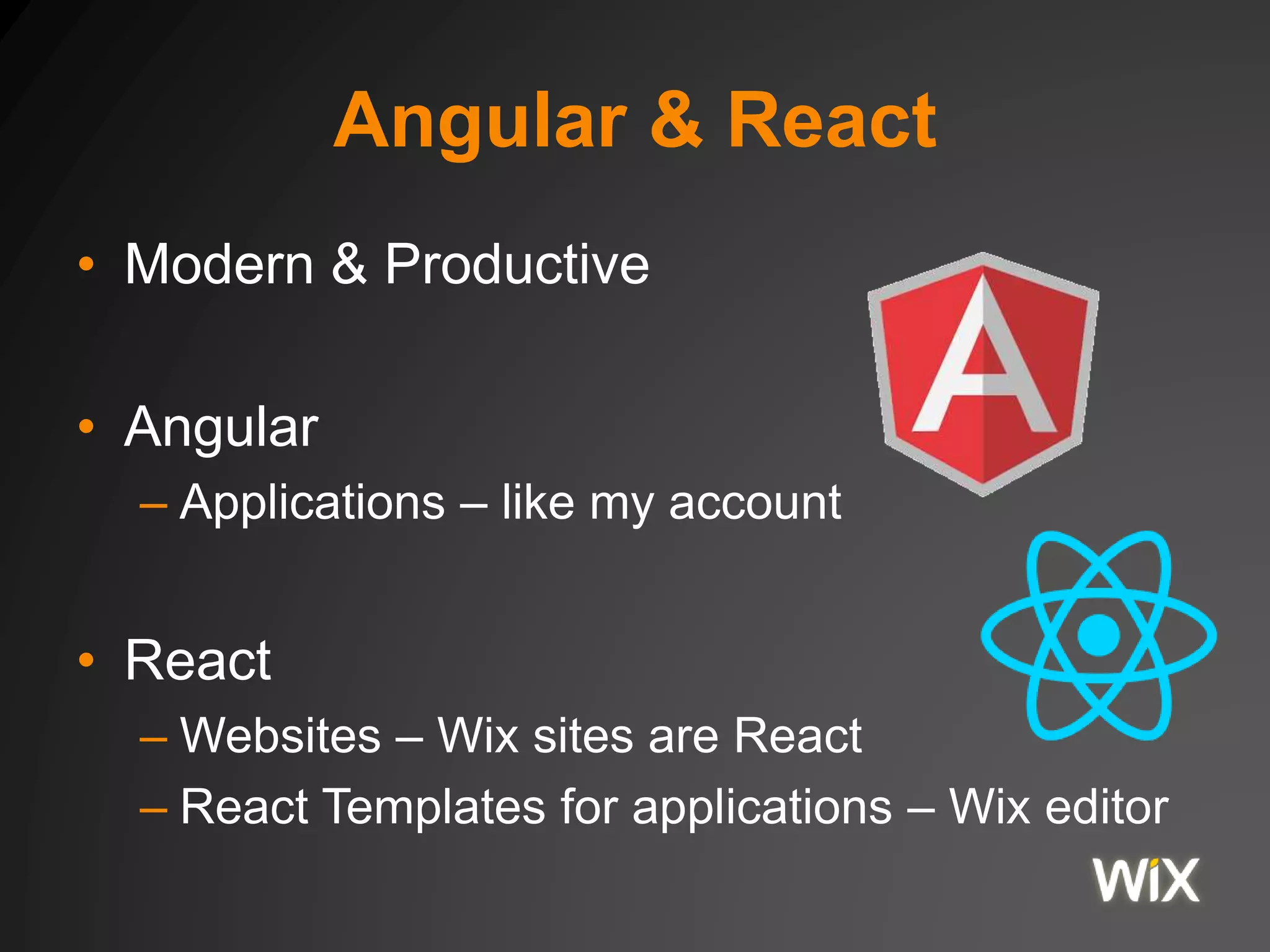

- 32. Angular & React •Modern & Productive • Angular – Applications – like my account • React – Websites – Wix sites are React – React Templates for applications – Wix editor
- 33. Node.js • Frontend server •Complement Scala – Not replace • Let frontend devs take ownership of the full HTTP stack – HTML, Ajax, Sockets, etc.
- 34.
Editor's Notes

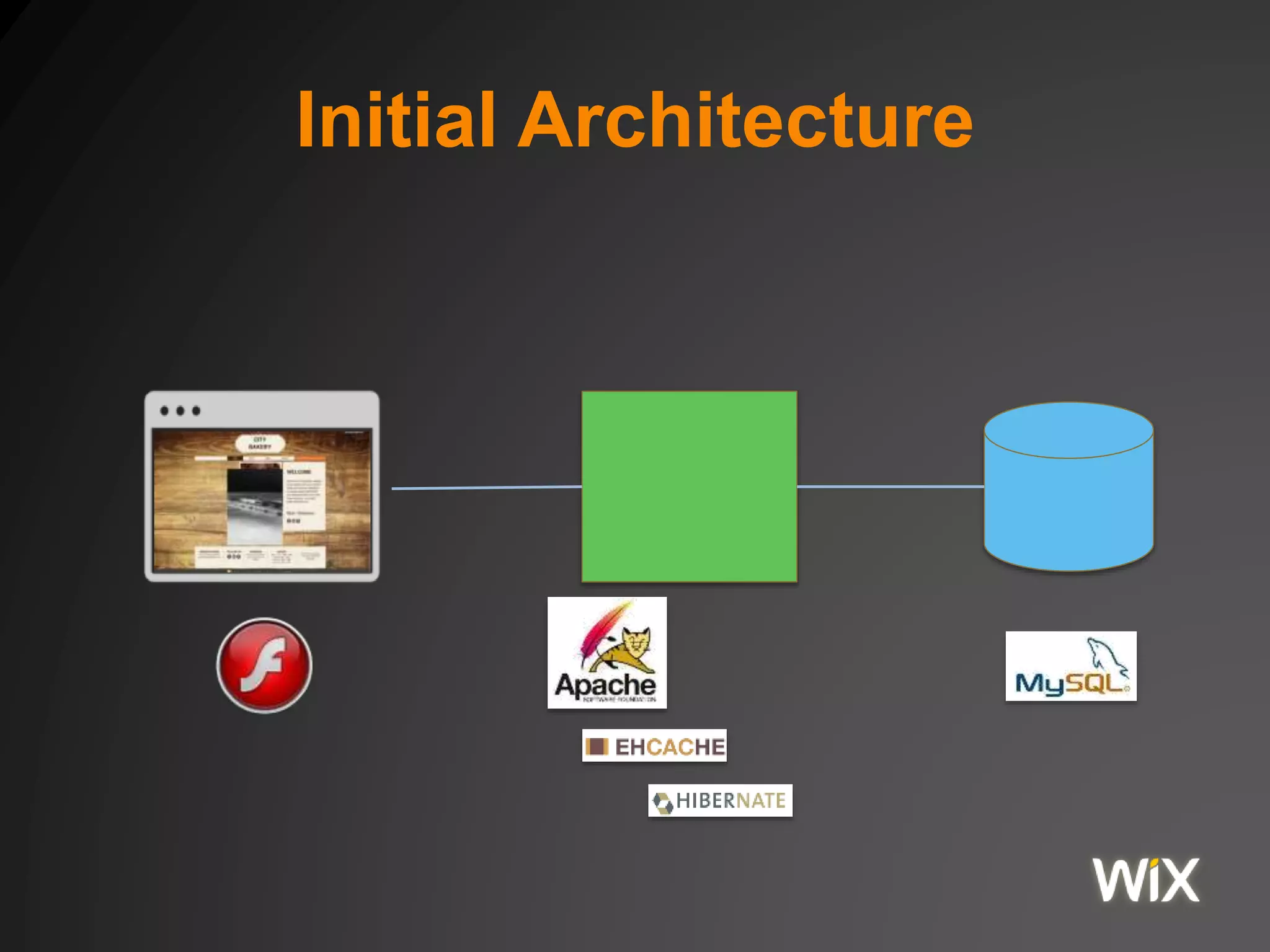

- #8 Built for fast development Did not know what are business is We know we will need to replace it Did not know how hard that will be
- #10 Sites should never ever have a downtime! Sites should work as fast as possible, always! However, an editing system does not require this level of SLA
- #11 Releases of Editing feature should have no impact on existing site operations! Solution - The two concerns evolve independently The Public segment targets serving websites Has mostly read-only usage pattern Simple publishing system Simple + readonly -> simpler to have higher SLA and DRP MySQL used as NoSQL – single large table with XML text fields The Editor segment Exposes the Editing APIs, user account and galleries management. Has different release schedule compared to the Public segment
- #12 Use one non-normalized table, primary key access, json fields Immutable blobs, blog table with pointers No transactions No MySQL auto generated keys GUID for keys – no locks, enable master master replication
- #14 Amsterdam for 3 way active active -> failed Doing 2 way active active + service disruption on third
- #15 The “upload to app server, post process files, copy to lighttpd server, serve by lighttpd” pattern proved inefficient, slow and error prone ls does not scale Needed control over http headers for caching
- #21 Train the people you already have Hiring the right people is key to success Hire only the best developers (only seniors) Don’t count only on the interview, you need to test actual coding Hire people who will challenge you (no “yes man”) Get people you can trust with “root” access to production Never stop hiring
