Rete di casa e raspberry pi - Home network and Raspberry Pi
The document discusses setting up a Raspberry Pi 3 to improve home network privacy and security. It describes installing Kali Linux on the Raspberry Pi and configuring it with NAT, DHCP, and an access point to monitor network traffic. It also covers using Pi-hole for ad blocking and tools like Wireshark for sniffing and analyzing traffic patterns on the home network. The goal is to gain more visibility and control over devices connected to the network to limit information leakage and unauthorized behavior.
More Related Content
Similar to Rete di casa e raspberry pi - Home network and Raspberry Pi
Rete di casa e raspberry pi - Home network and Raspberry Pi
- 1. Home network andRaspberry PiHome network and Raspberry Pi Daniele AlbrizioDaniele Albrizio daniele@albrizio.itdaniele@albrizio.it By Evan-Amos - Own work, Public Domain, https://commons.wikimedia.org/w/index.php?curid=56262833
- 2. 2 What exactly isRaspberry Pi? ● The Raspberry Pi Foundation is a charity founded in 2009 to promote the study of basic computer science in schools, and is responsible for developing a single-board computer called the Raspberry Pi, the UK's best-selling PC of all time.

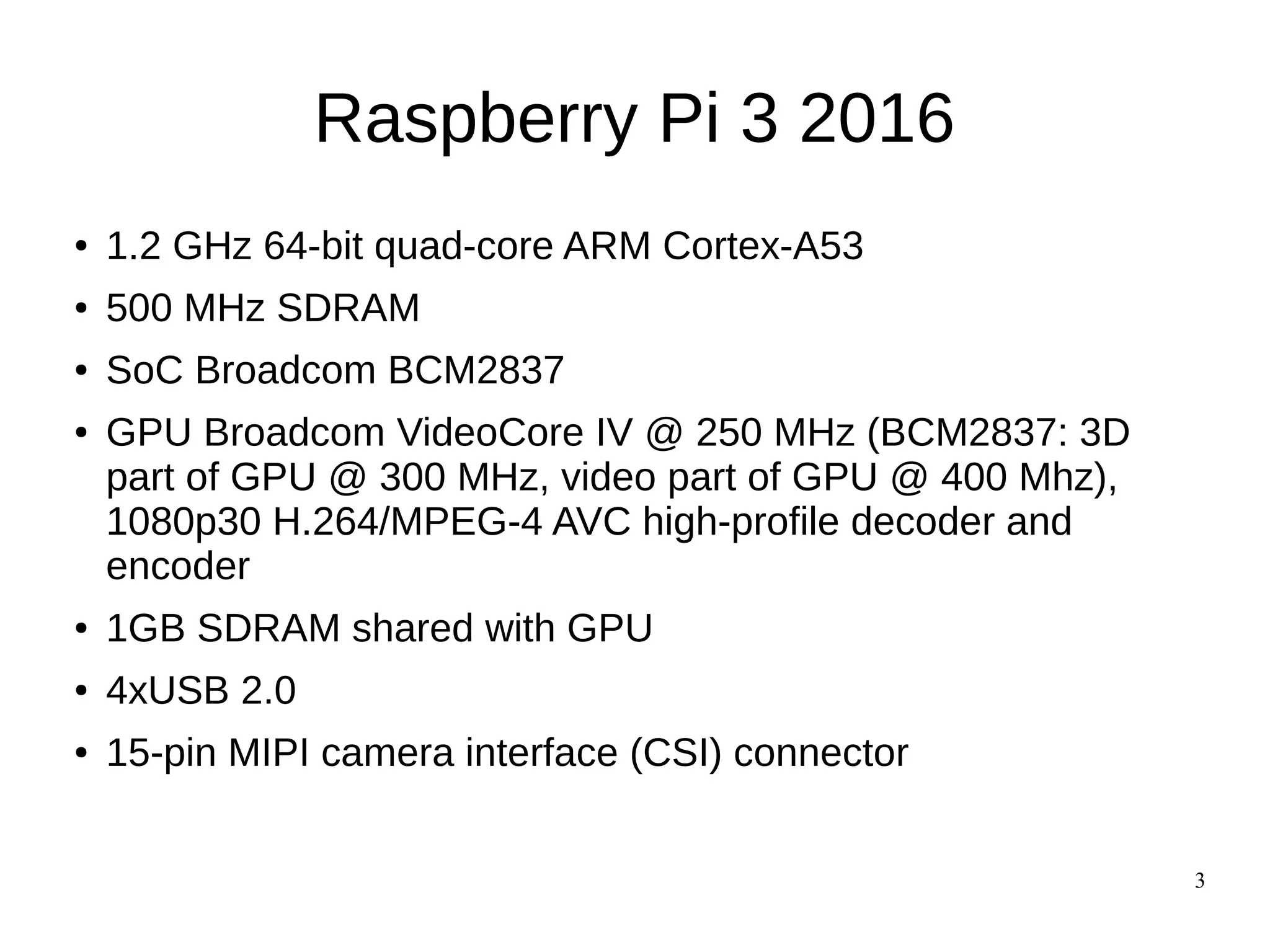

- 3. 3 Raspberry Pi 32016 ● 1.2 GHz 64-bit quad-core ARM Cortex-A53 ● 500 MHz SDRAM ● SoC Broadcom BCM2837 ● GPU Broadcom VideoCore IV @ 250 MHz (BCM2837: 3D part of GPU @ 300 MHz, video part of GPU @ 400 Mhz), 1080p30 H.264/MPEG-4 AVC high-profile decoder and encoder ● 1GB SDRAM shared with GPU ● 4xUSB 2.0 ● 15-pin MIPI camera interface (CSI) connector

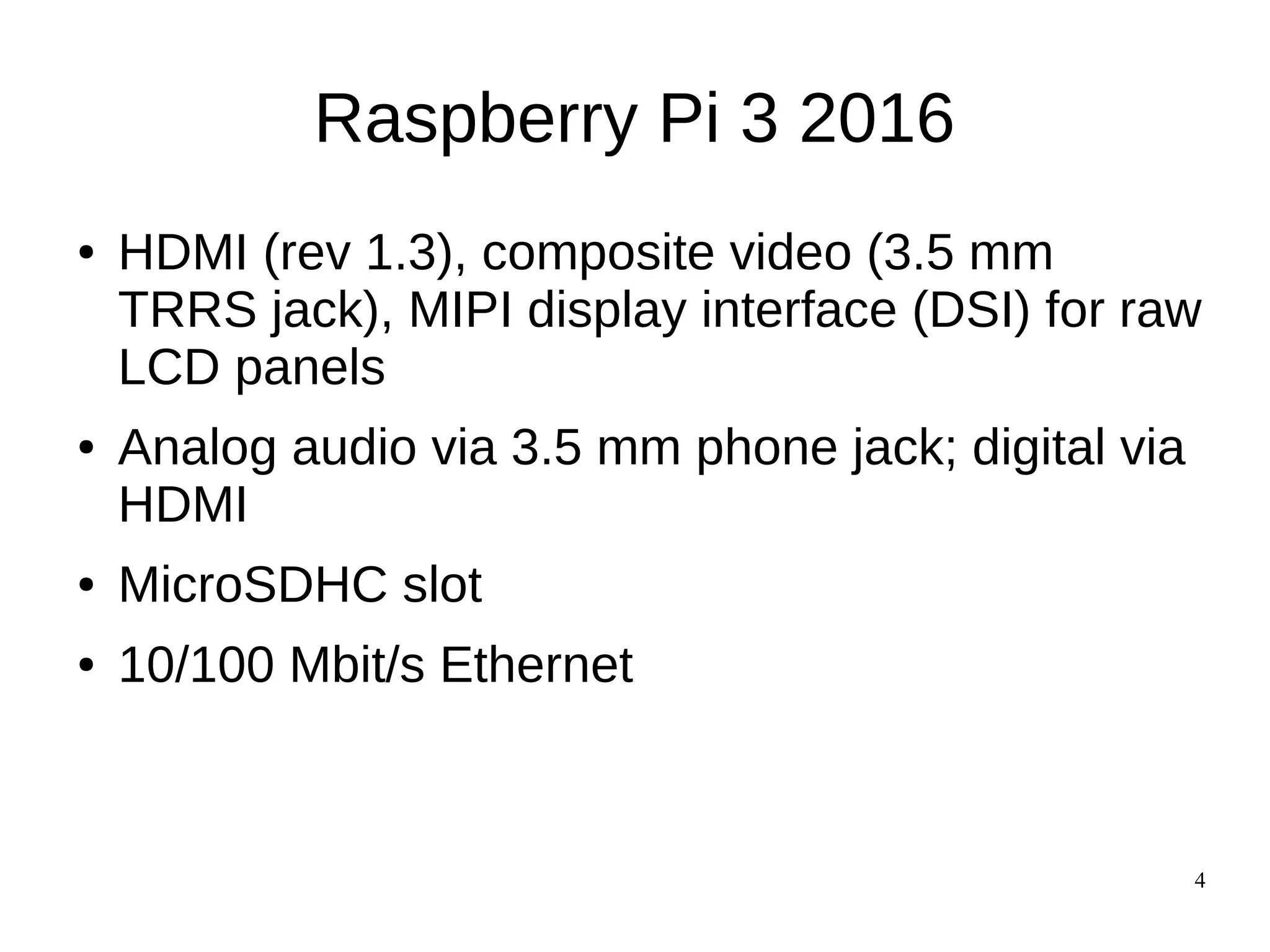

- 4. 4 Raspberry Pi 32016 ● HDMI (rev 1.3), composite video (3.5 mm TRRS jack), MIPI display interface (DSI) for raw LCD panels ● Analog audio via 3.5 mm phone jack; digital via HDMI ● MicroSDHC slot ● 10/100 Mbit/s Ethernet

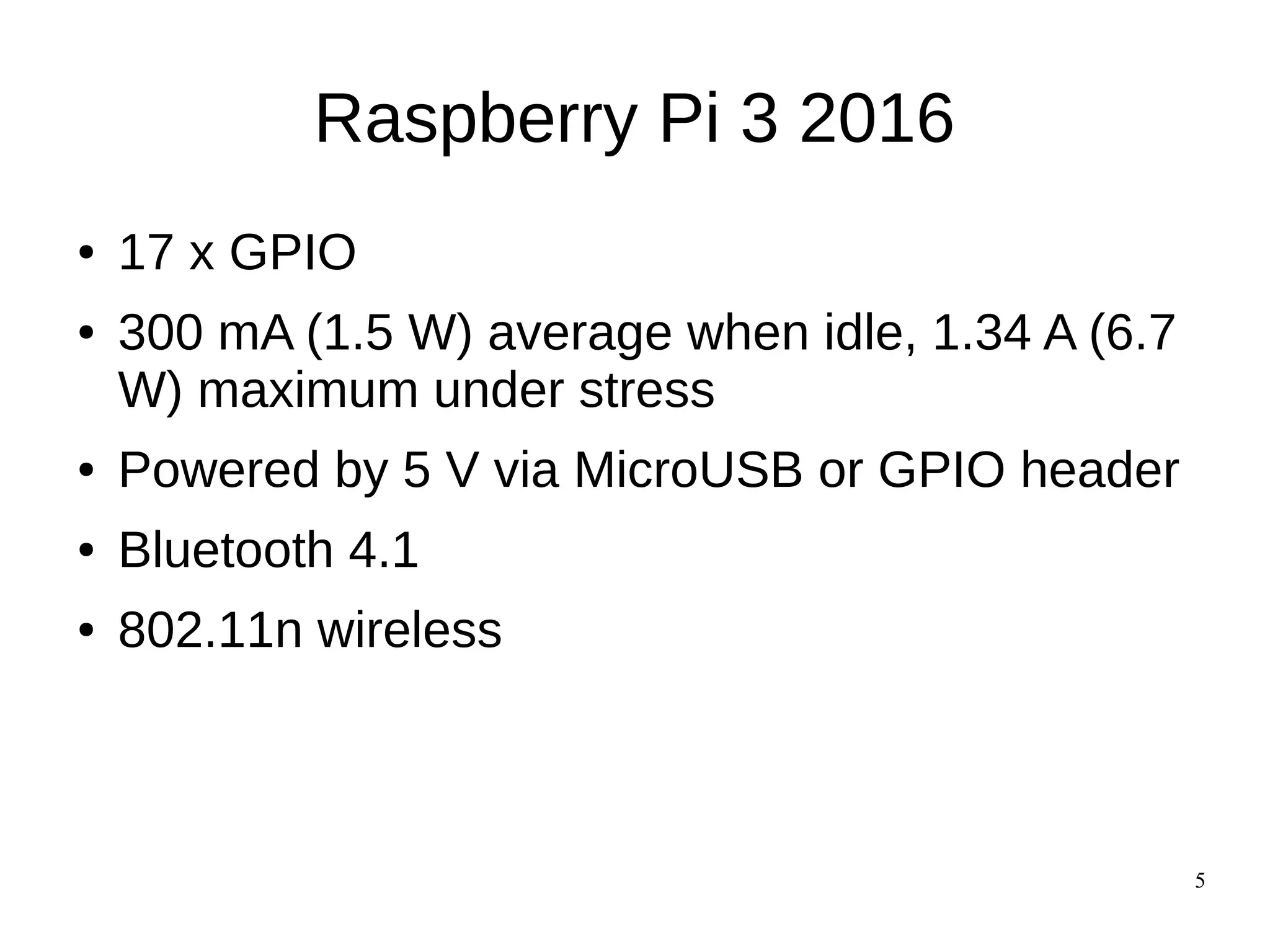

- 5. 5 Raspberry Pi 32016 ● 17 x GPIO ● 300 mA (1.5 W) average when idle, 1.34 A (6.7 W) maximum under stress ● Powered by 5 V via MicroUSB or GPIO header ● Bluetooth 4.1 ● 802.11n wireless

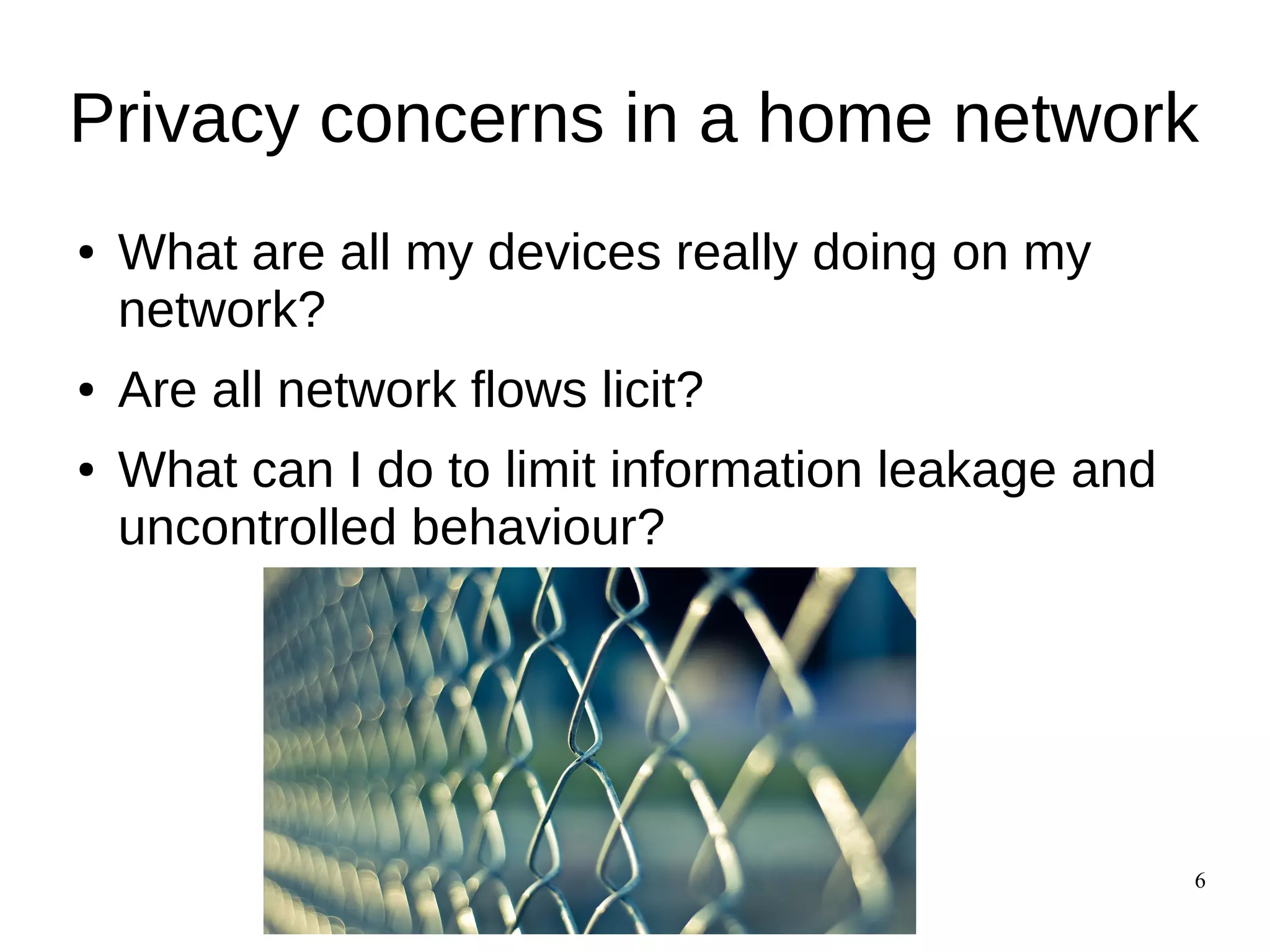

- 6. 6 Privacy concerns ina home network ● What are all my devices really doing on my network? ● Are all network flows licit? ● What can I do to limit information leakage and uncontrolled behaviour?

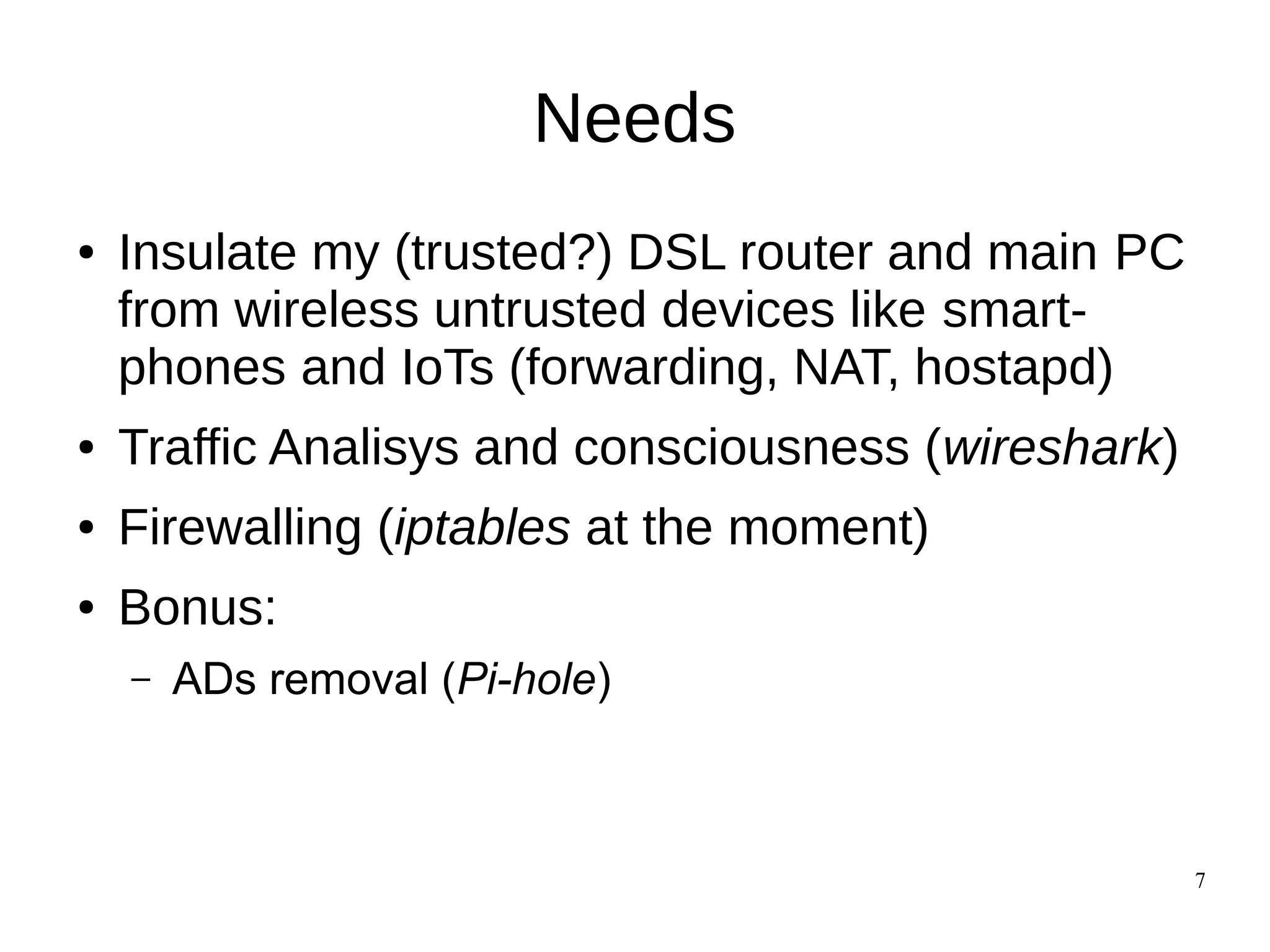

- 7. 7 Needs ● Insulate my(trusted?) DSL router and main PC from wireless untrusted devices like smart- phones and IoTs (forwarding, NAT, hostapd) ● Traffic Analisys and consciousness (wireshark) ● Firewalling (iptables at the moment) ● Bonus: – ADs removal (Pi-hole)
- 8.

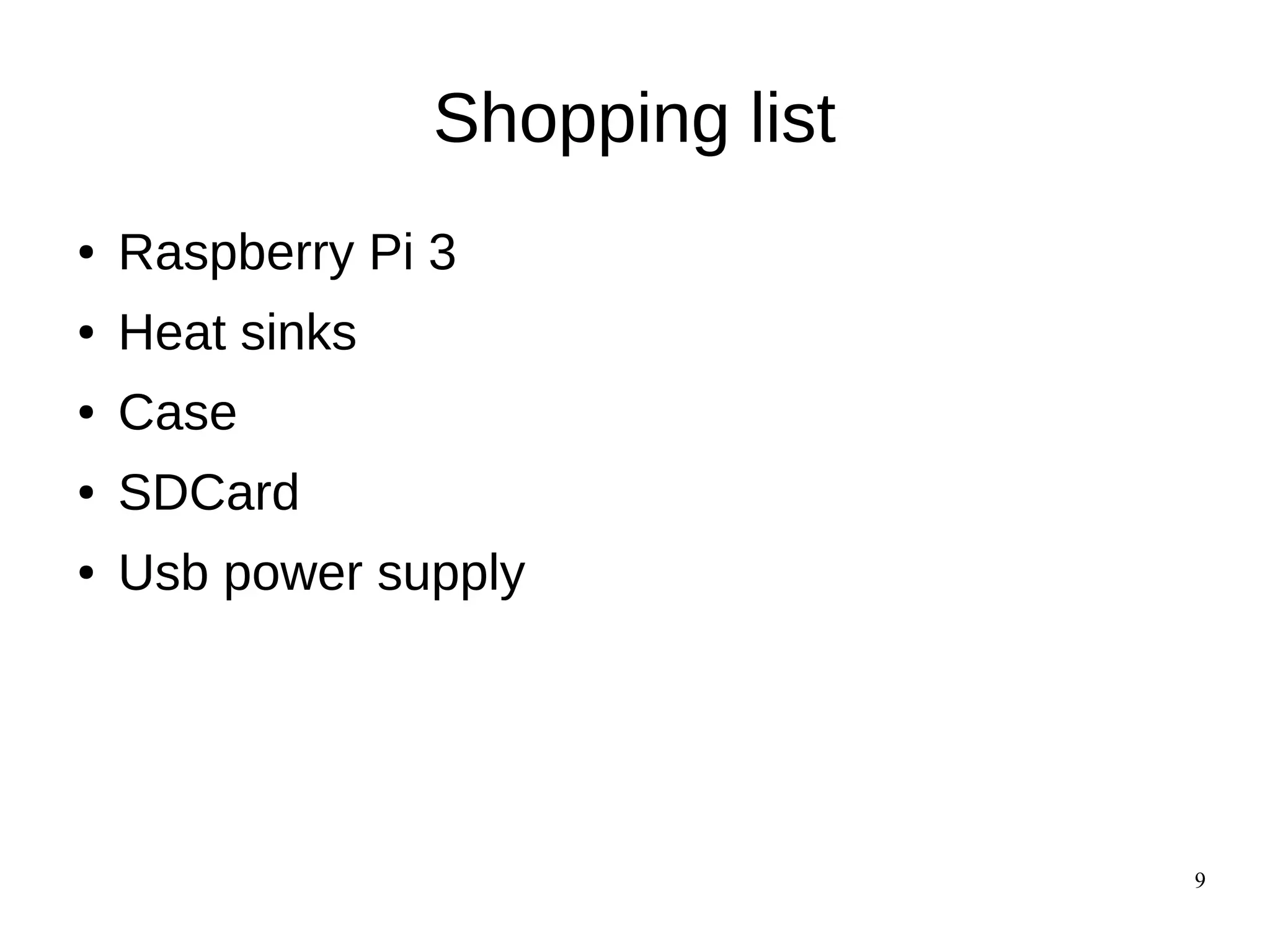

- 9. 9 Shopping list ● RaspberryPi 3 ● Heat sinks ● Case ● SDCard ● Usb power supply

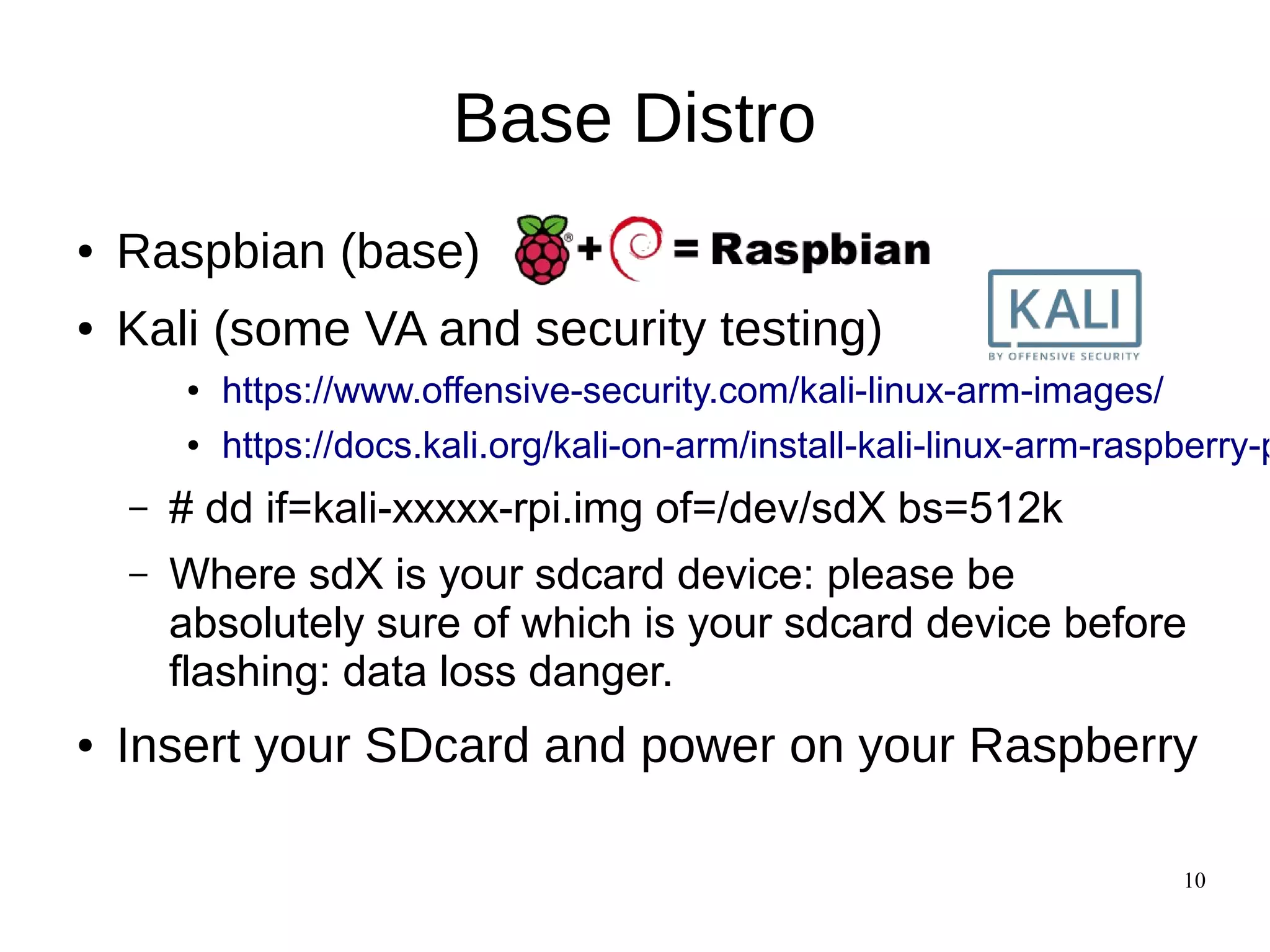

- 10. 10 Base Distro ● Raspbian(base) ● Kali (some VA and security testing) ● https://www.offensive-security.com/kali-linux-arm-images/ ● https://docs.kali.org/kali-on-arm/install-kali-linux-arm-raspberry-p – # dd if=kali-xxxxx-rpi.img of=/dev/sdX bs=512k – Where sdX is your sdcard device: please be absolutely sure of which is your sdcard device before flashing: data loss danger. ● Insert your SDcard and power on your Raspberry

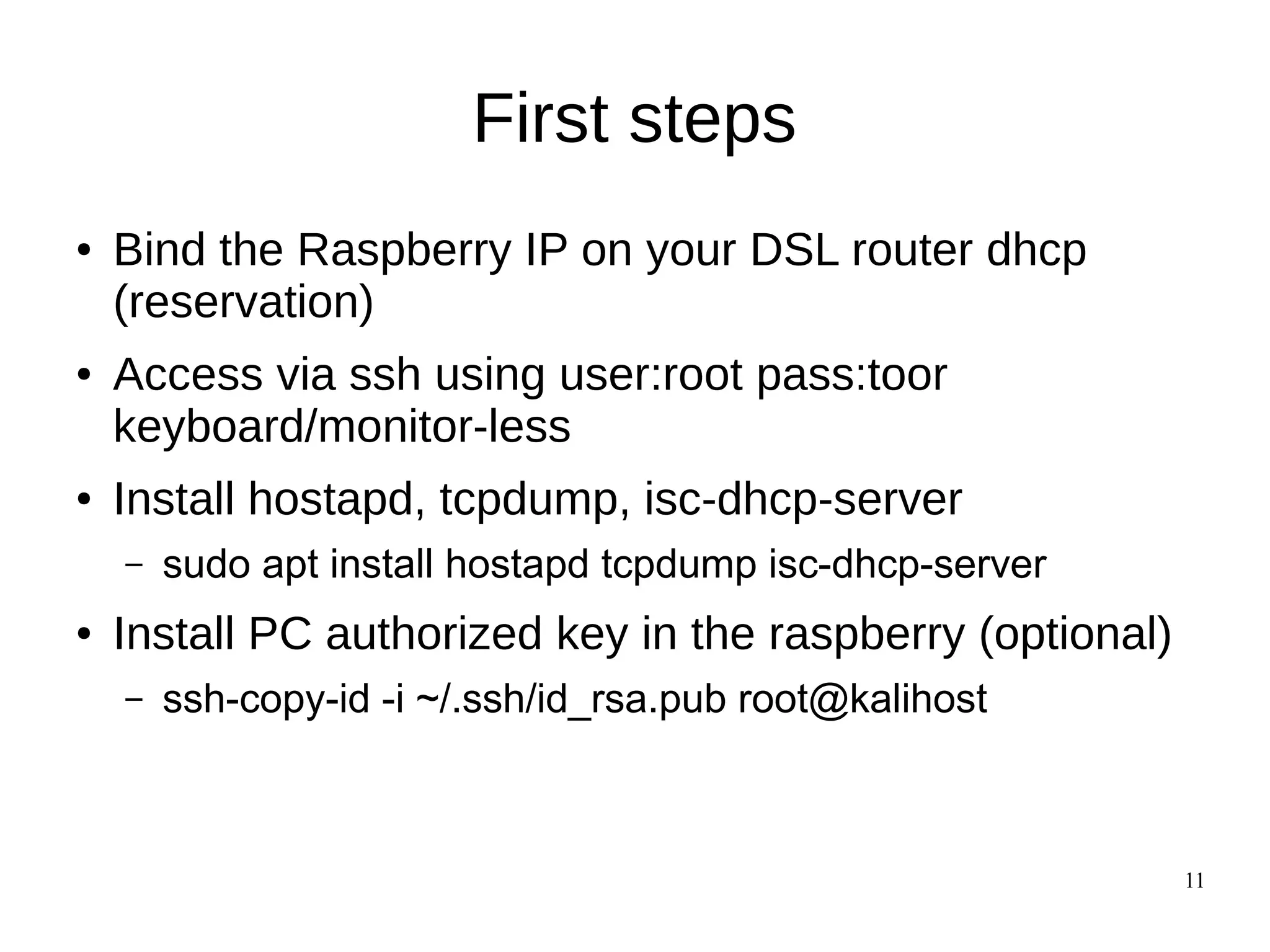

- 11. 11 First steps ● Bindthe Raspberry IP on your DSL router dhcp (reservation) ● Access via ssh using user:root pass:toor keyboard/monitor-less ● Install hostapd, tcpdump, isc-dhcp-server – sudo apt install hostapd tcpdump isc-dhcp-server ● Install PC authorized key in the raspberry (optional) – ssh-copy-id -i ~/.ssh/id_rsa.pub root@kalihost

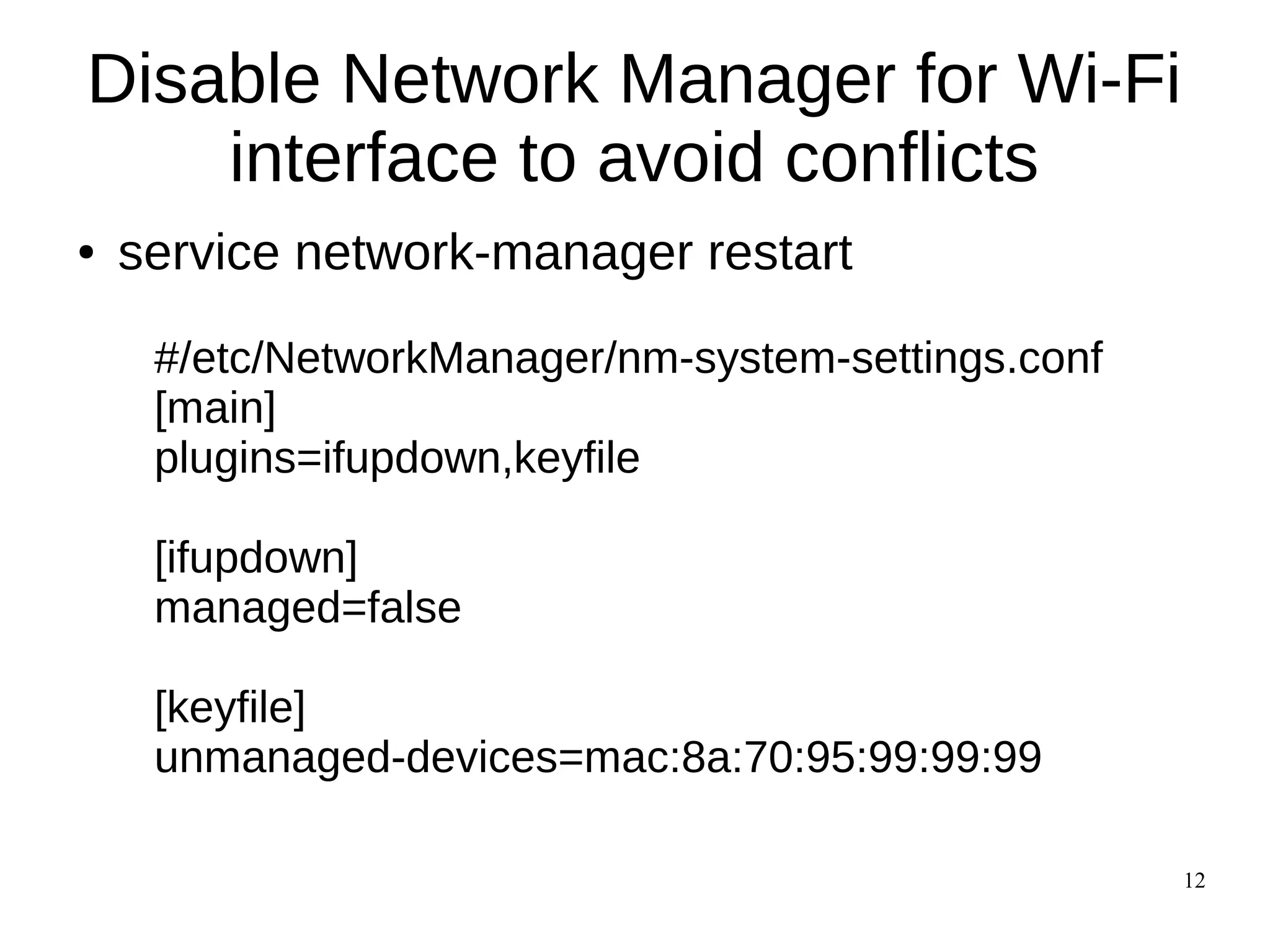

- 12. 12 Disable Network Managerfor Wi-Fi interface to avoid conflicts ● service network-manager restart #/etc/NetworkManager/nm-system-settings.conf [main] plugins=ifupdown,keyfile [ifupdown] managed=false [keyfile] unmanaged-devices=mac:8a:70:95:99:99:99

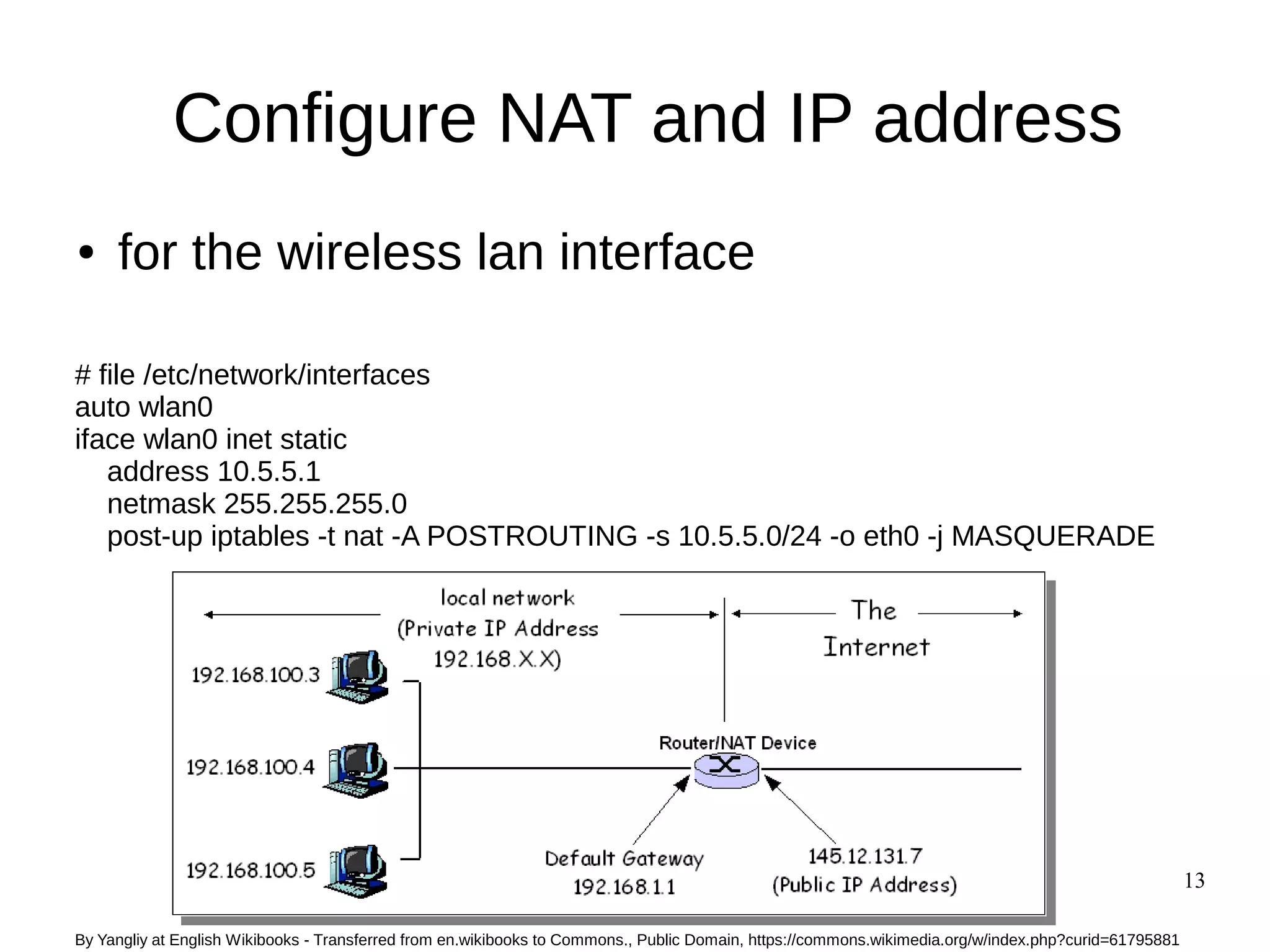

- 13. 13 Configure NAT andIP address ● for the wireless lan interface # file /etc/network/interfaces auto wlan0 iface wlan0 inet static address 10.5.5.1 netmask 255.255.255.0 post-up iptables -t nat -A POSTROUTING -s 10.5.5.0/24 -o eth0 -j MASQUERADE By Yangliy at English Wikibooks - Transferred from en.wikibooks to Commons., Public Domain, https://commons.wikimedia.org/w/index.php?curid=61795881

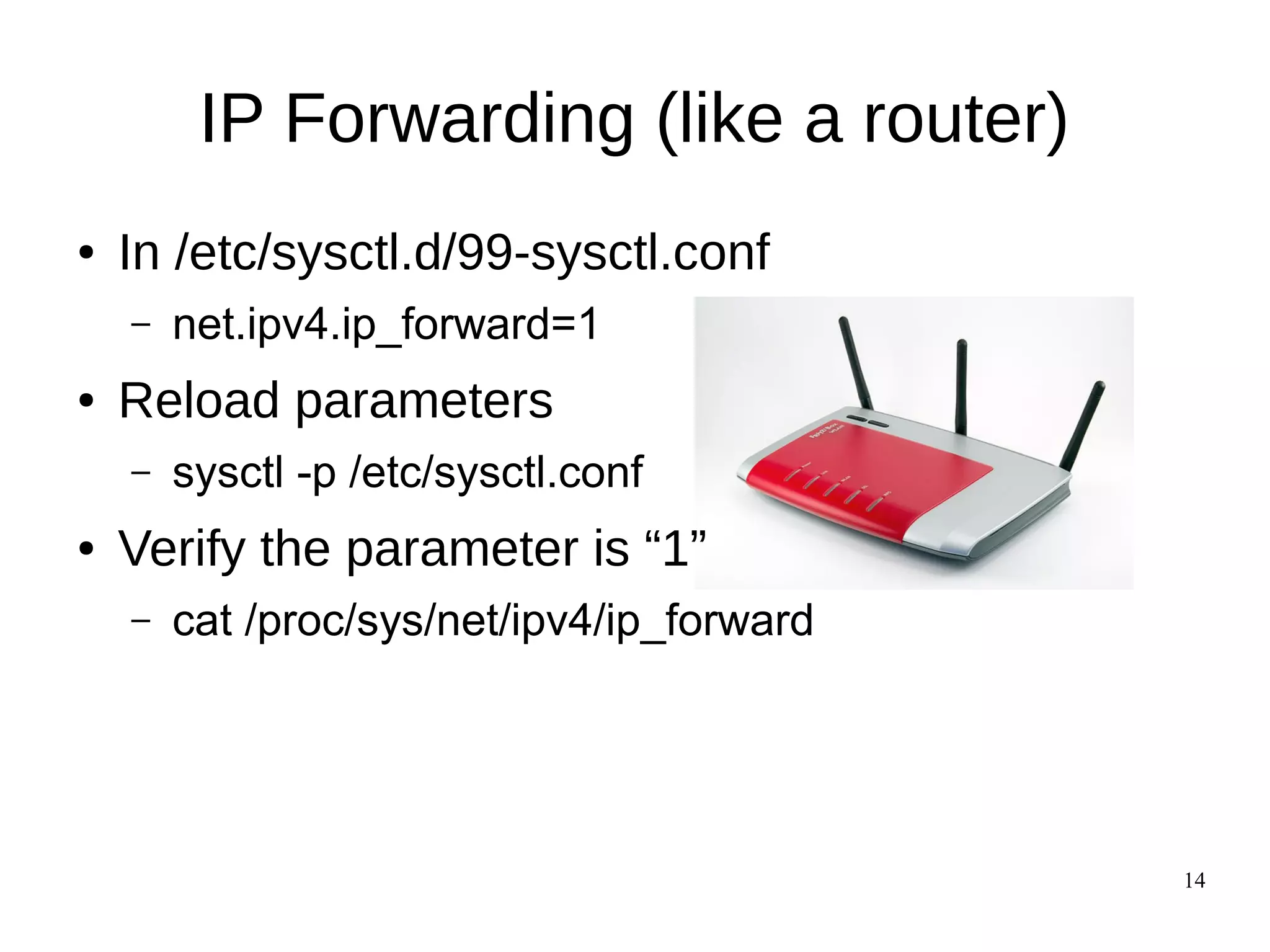

- 14. 14 IP Forwarding (likea router) ● In /etc/sysctl.d/99-sysctl.conf – net.ipv4.ip_forward=1 ● Reload parameters – sysctl -p /etc/sysctl.conf ● Verify the parameter is “1” – cat /proc/sys/net/ipv4/ip_forward

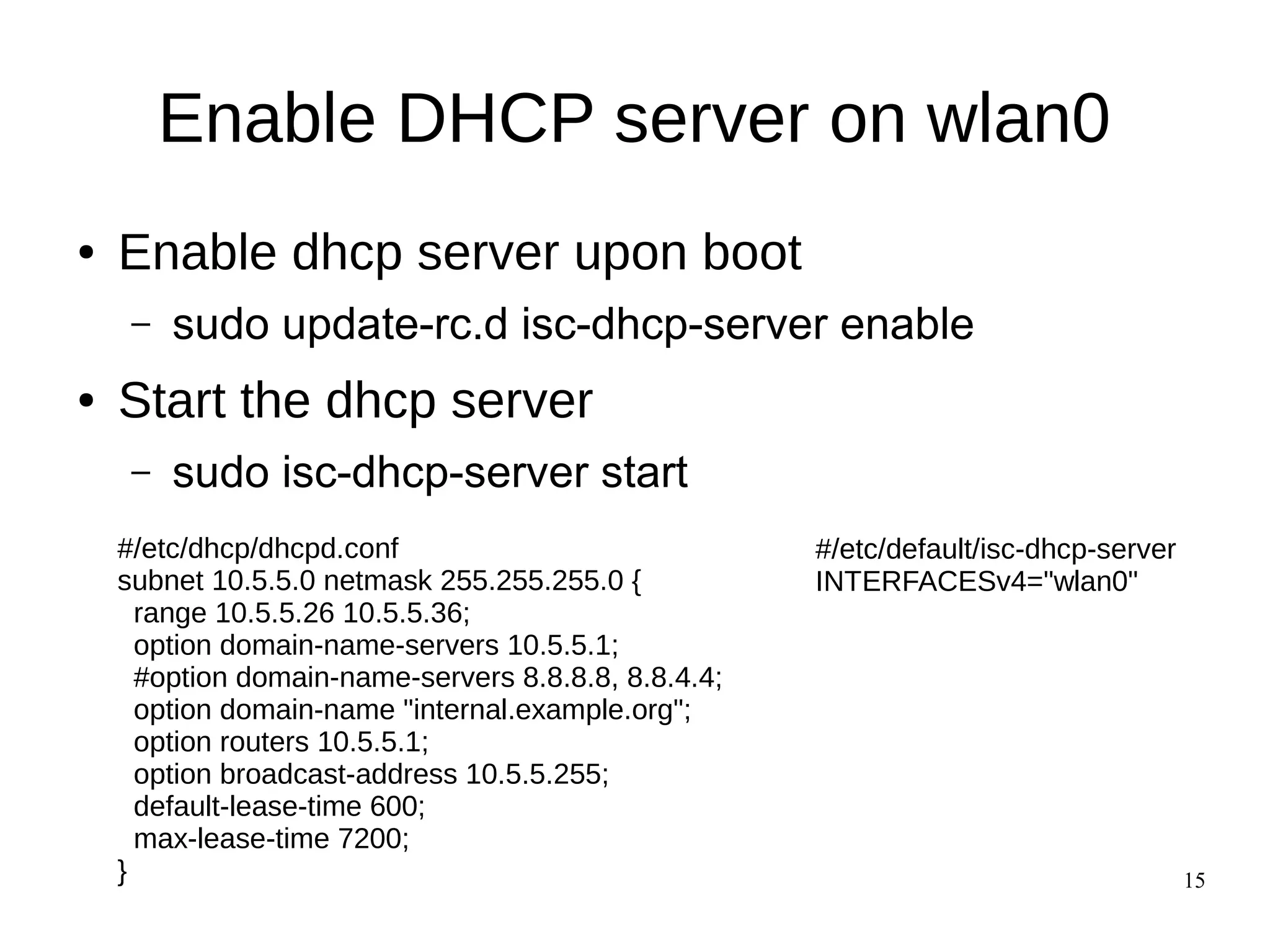

- 15. 15 Enable DHCP serveron wlan0 ● Enable dhcp server upon boot – sudo update-rc.d isc-dhcp-server enable ● Start the dhcp server – sudo isc-dhcp-server start #/etc/dhcp/dhcpd.conf subnet 10.5.5.0 netmask 255.255.255.0 { range 10.5.5.26 10.5.5.36; option domain-name-servers 10.5.5.1; #option domain-name-servers 8.8.8.8, 8.8.4.4; option domain-name "internal.example.org"; option routers 10.5.5.1; option broadcast-address 10.5.5.255; default-lease-time 600; max-lease-time 7200; } #/etc/default/isc-dhcp-server INTERFACESv4="wlan0"

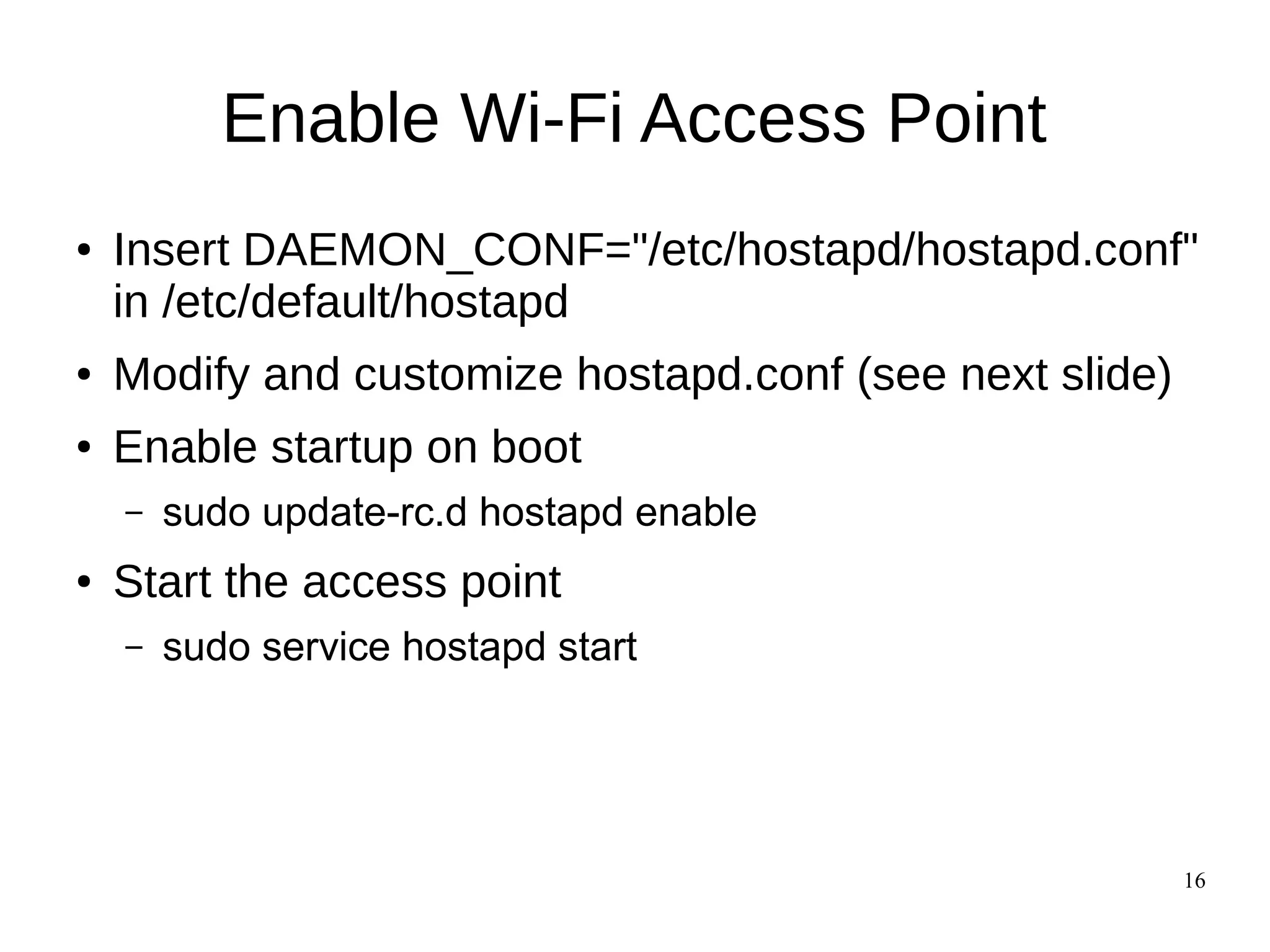

- 16. 16 Enable Wi-Fi AccessPoint ● Insert DAEMON_CONF="/etc/hostapd/hostapd.conf" in /etc/default/hostapd ● Modify and customize hostapd.conf (see next slide) ● Enable startup on boot – sudo update-rc.d hostapd enable ● Start the access point – sudo service hostapd start

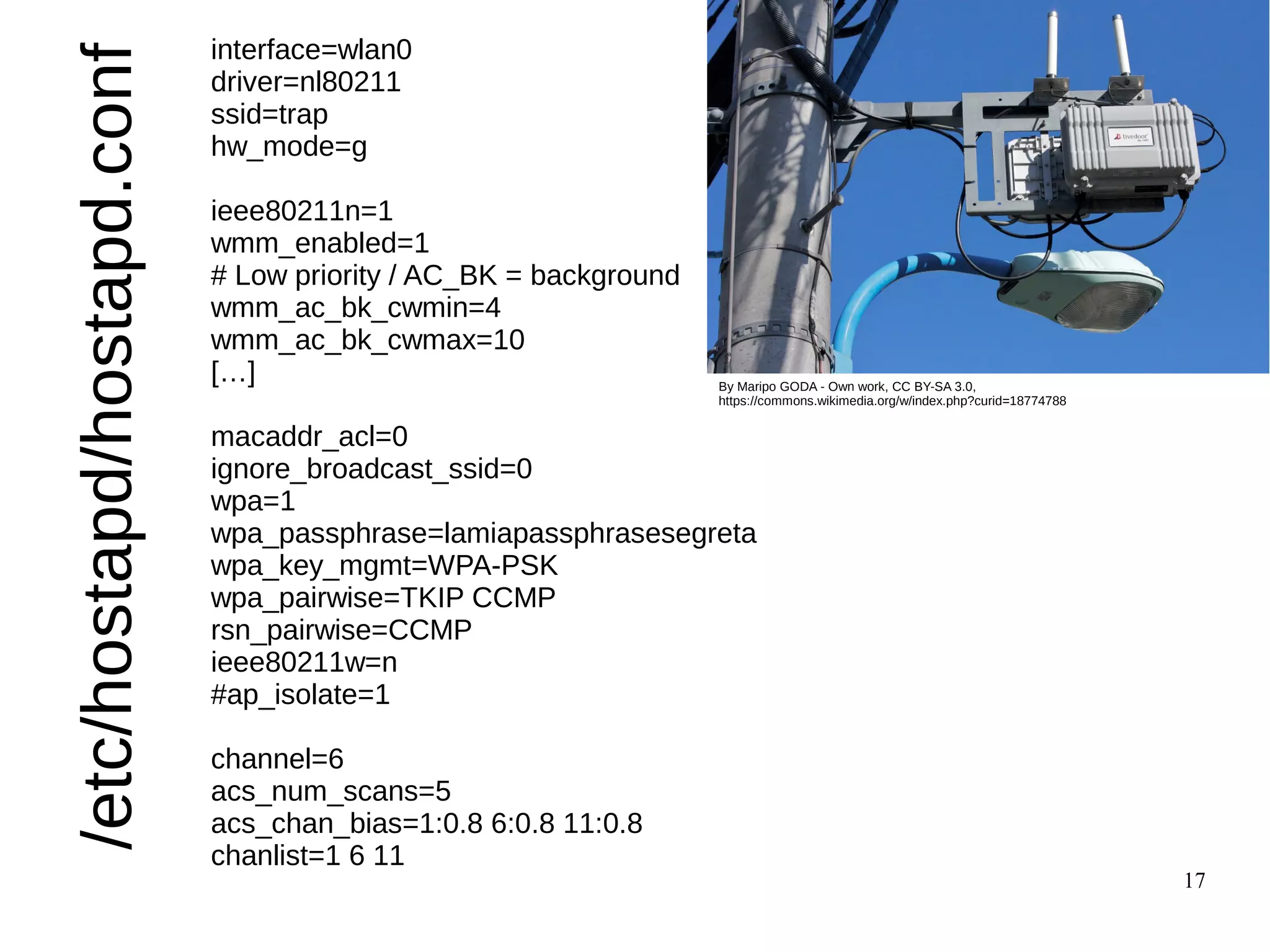

- 17. 17 /etc/hostapd/hostapd.conf interface=wlan0 driver=nl80211 ssid=trap hw_mode=g ieee80211n=1 wmm_enabled=1 # Low priority/ AC_BK = background wmm_ac_bk_cwmin=4 wmm_ac_bk_cwmax=10 […] macaddr_acl=0 ignore_broadcast_ssid=0 wpa=1 wpa_passphrase=lamiapassphrasesegreta wpa_key_mgmt=WPA-PSK wpa_pairwise=TKIP CCMP rsn_pairwise=CCMP ieee80211w=n #ap_isolate=1 channel=6 acs_num_scans=5 acs_chan_bias=1:0.8 6:0.8 11:0.8 chanlist=1 6 11 By Maripo GODA - Own work, CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=18774788

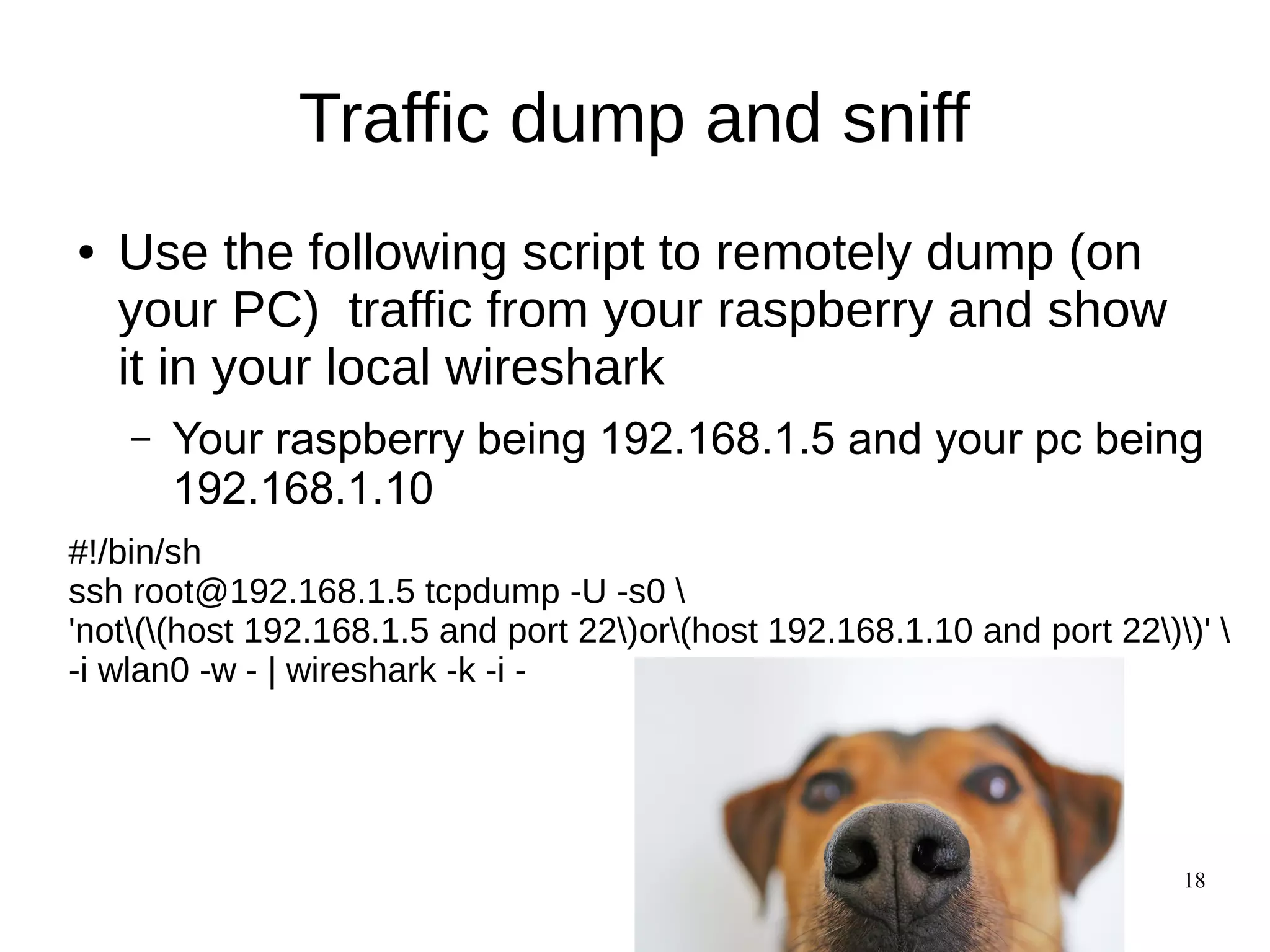

- 18. 18 Traffic dump andsniff ● Use the following script to remotely dump (on your PC) traffic from your raspberry and show it in your local wireshark – Your raspberry being 192.168.1.5 and your pc being 192.168.1.10 #!/bin/sh ssh root@192.168.1.5 tcpdump -U -s0 'not((host 192.168.1.5 and port 22)or(host 192.168.1.10 and port 22))' -i wlan0 -w - | wireshark -k -i -

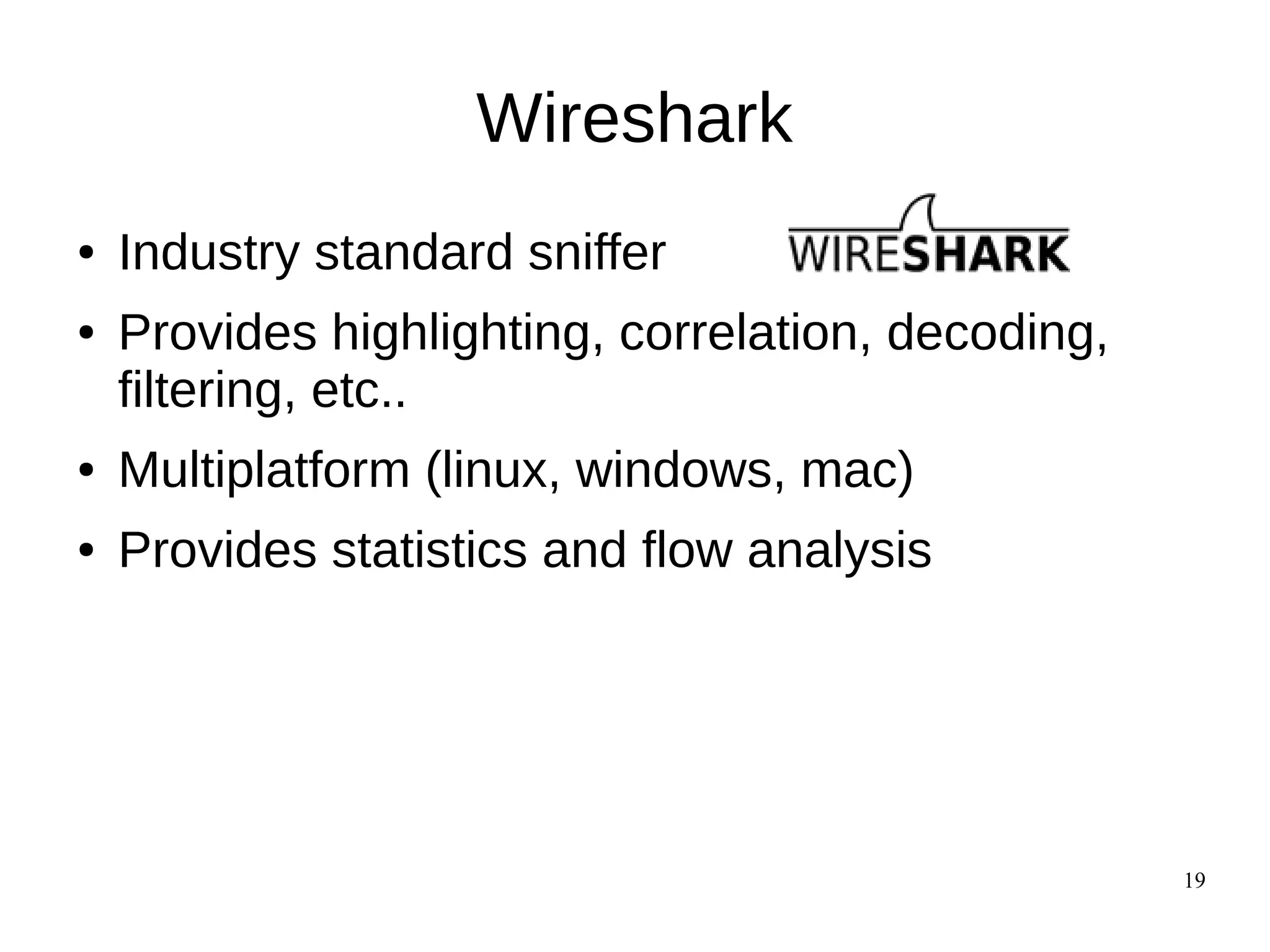

- 19. 19 Wireshark ● Industry standardsniffer ● Provides highlighting, correlation, decoding, filtering, etc.. ● Multiplatform (linux, windows, mac) ● Provides statistics and flow analysis

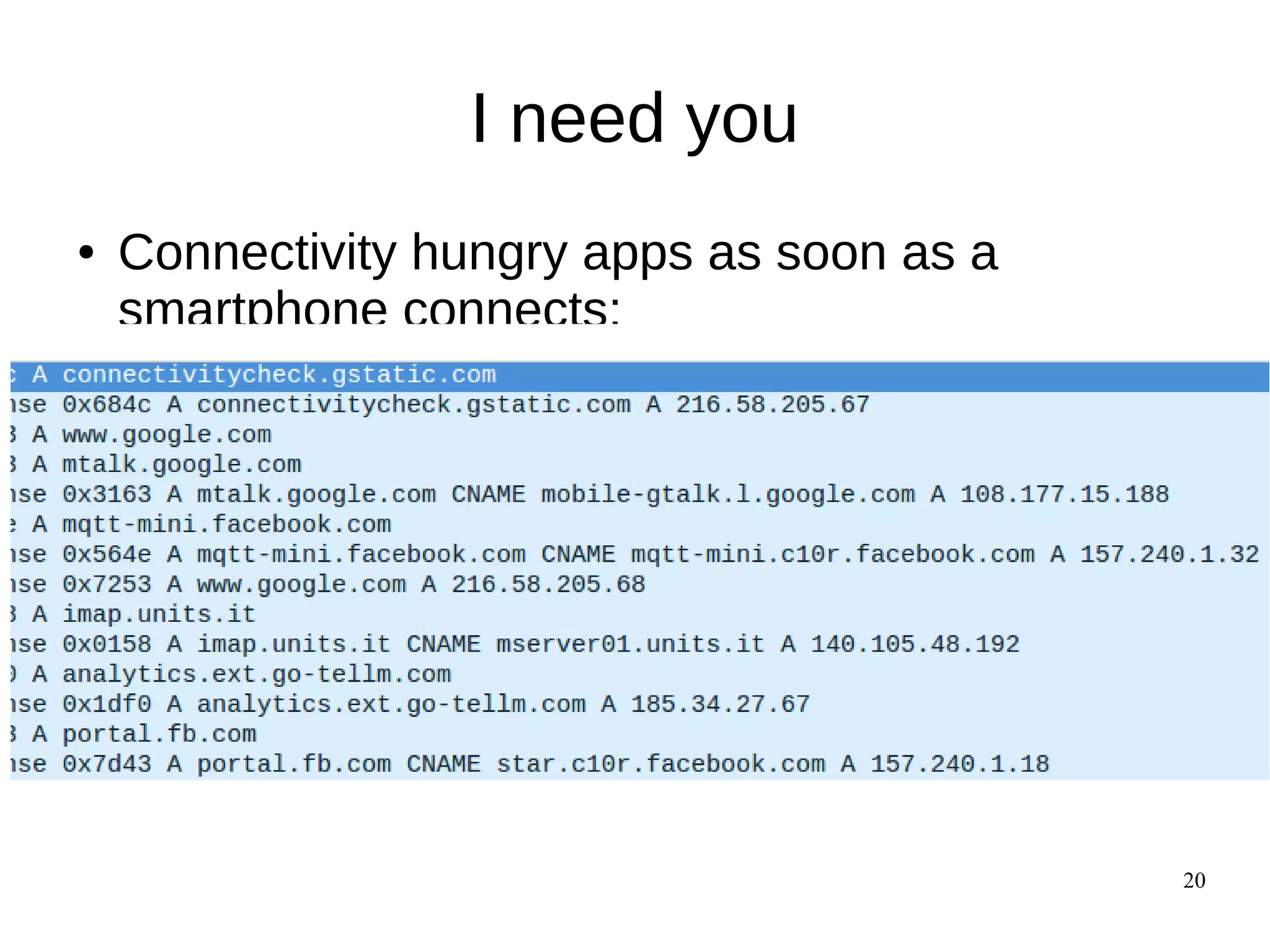

- 20. 20 I need you ●Connectivity hungry apps as soon as a smartphone connects:

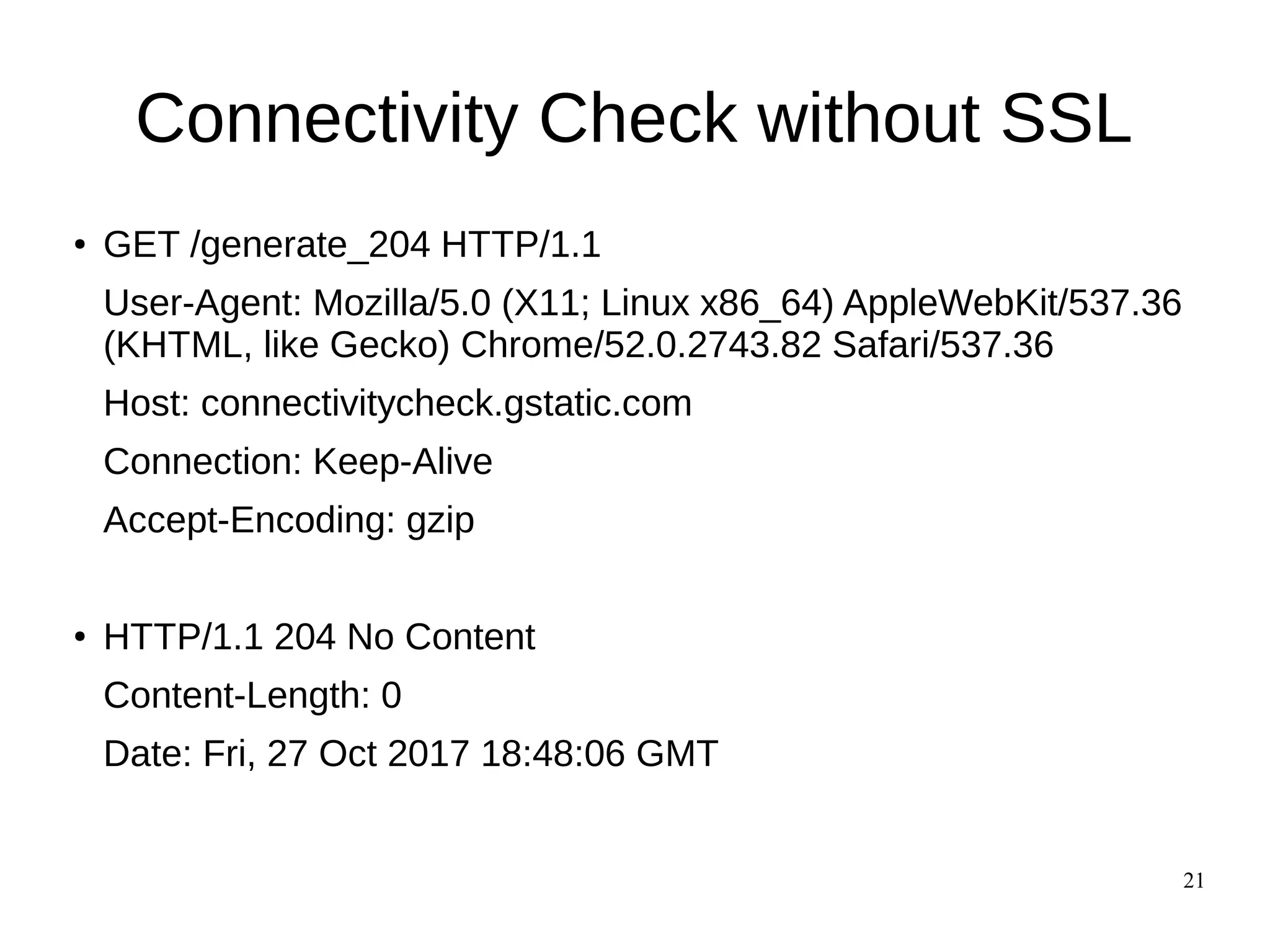

- 21. 21 Connectivity Check withoutSSL ● GET /generate_204 HTTP/1.1 User-Agent: Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/52.0.2743.82 Safari/537.36 Host: connectivitycheck.gstatic.com Connection: Keep-Alive Accept-Encoding: gzip ● HTTP/1.1 204 No Content Content-Length: 0 Date: Fri, 27 Oct 2017 18:48:06 GMT

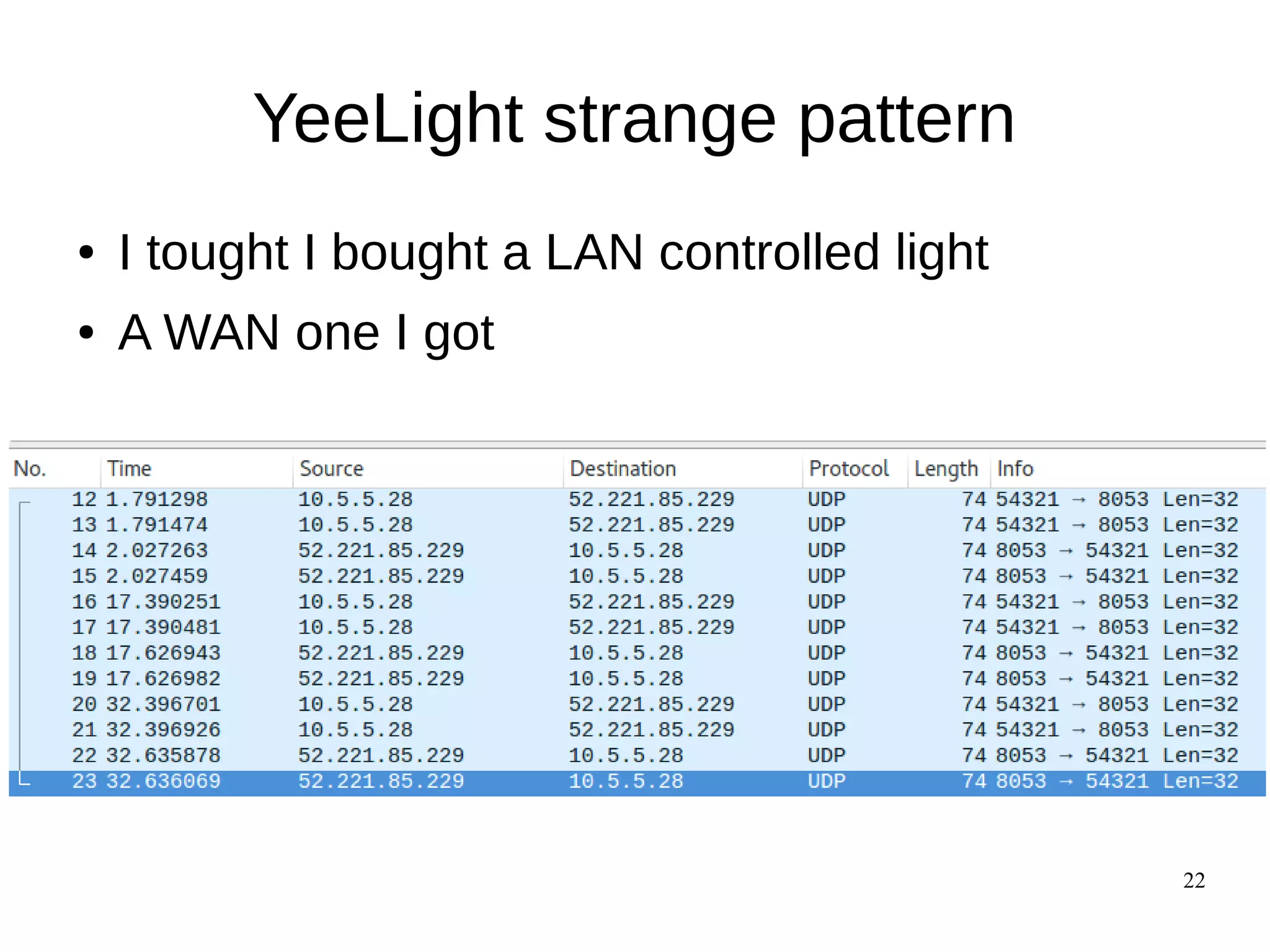

- 22. 22 YeeLight strange pattern ●I tought I bought a LAN controlled light ● A WAN one I got

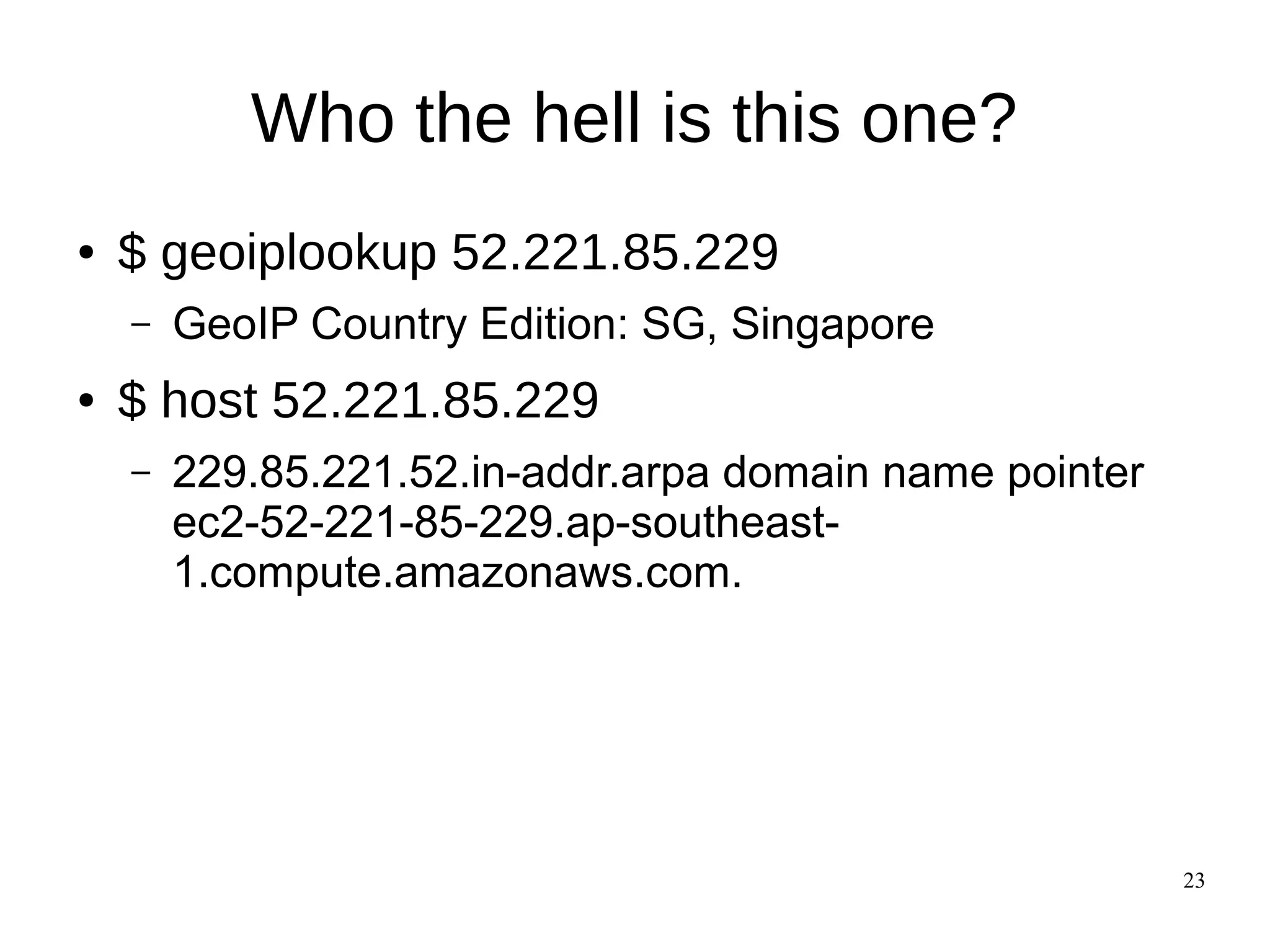

- 23. 23 Who the hellis this one? ● $ geoiplookup 52.221.85.229 – GeoIP Country Edition: SG, Singapore ● $ host 52.221.85.229 – 229.85.221.52.in-addr.arpa domain name pointer ec2-52-221-85-229.ap-southeast- 1.compute.amazonaws.com.

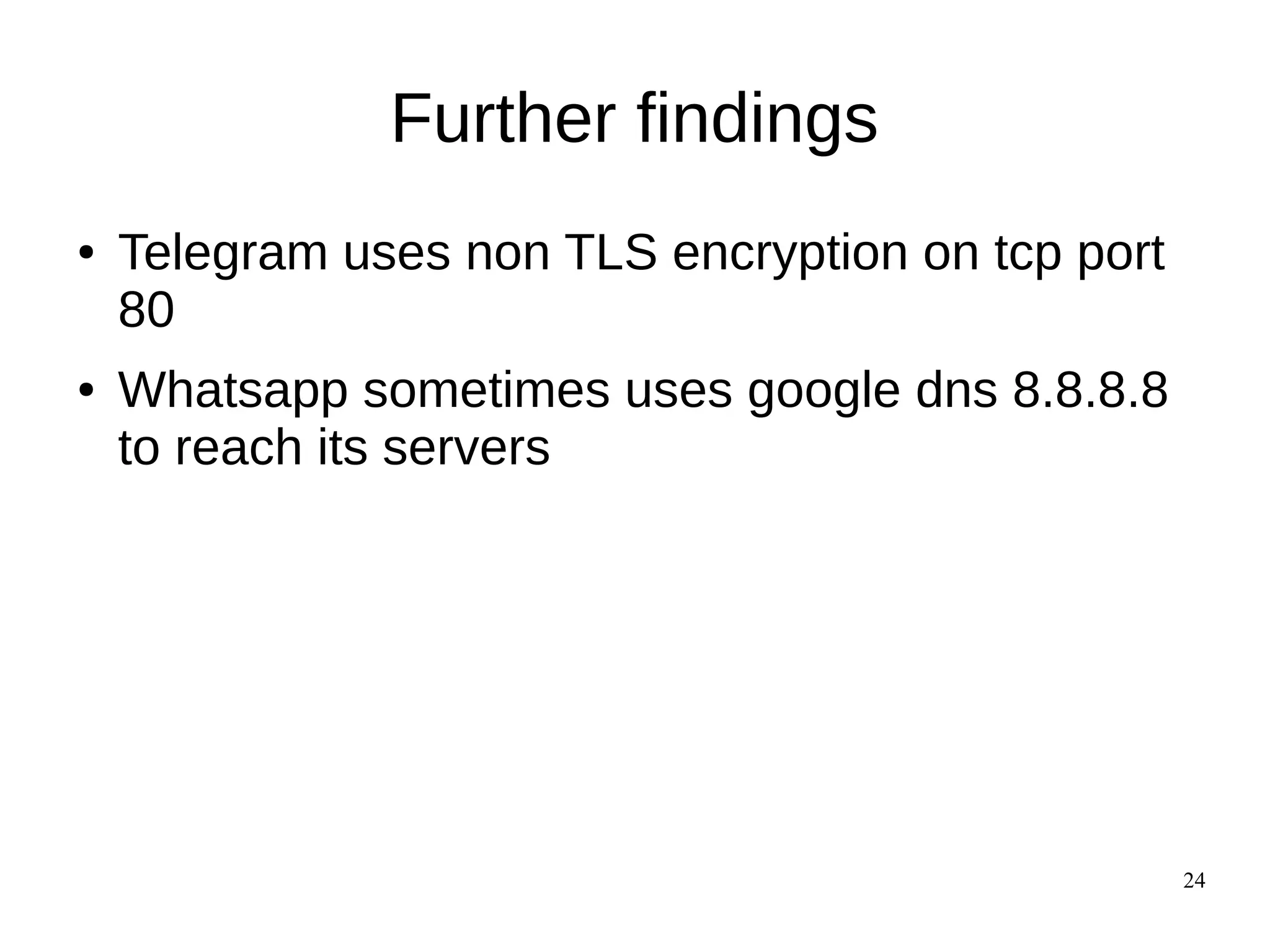

- 24. 24 Further findings ● Telegramuses non TLS encryption on tcp port 80 ● Whatsapp sometimes uses google dns 8.8.8.8 to reach its servers

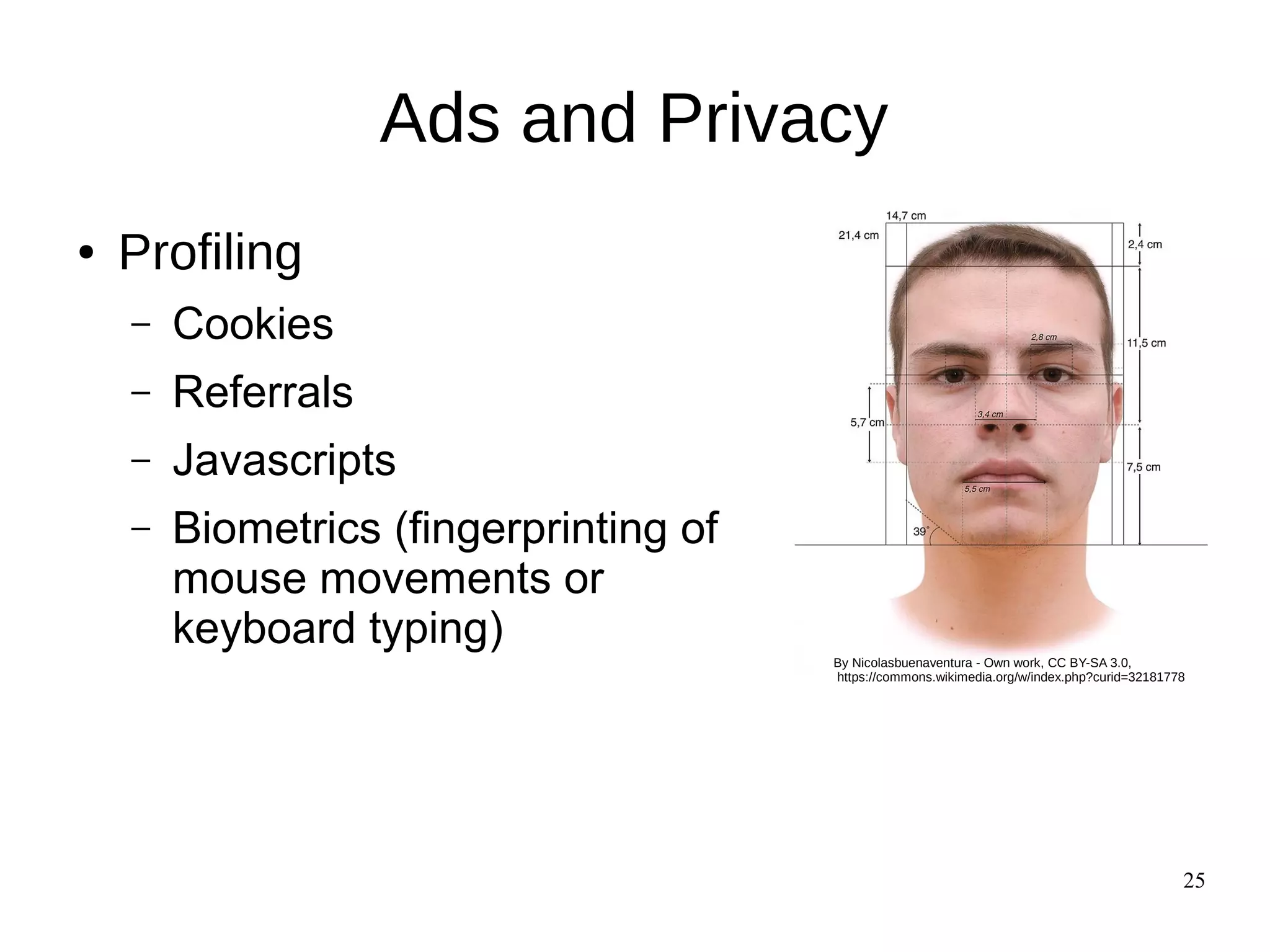

- 25. 25 Ads and Privacy ●Profiling – Cookies – Referrals – Javascripts – Biometrics (fingerprinting of mouse movements or keyboard typing) By Nicolasbuenaventura - Own work, CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=32181778

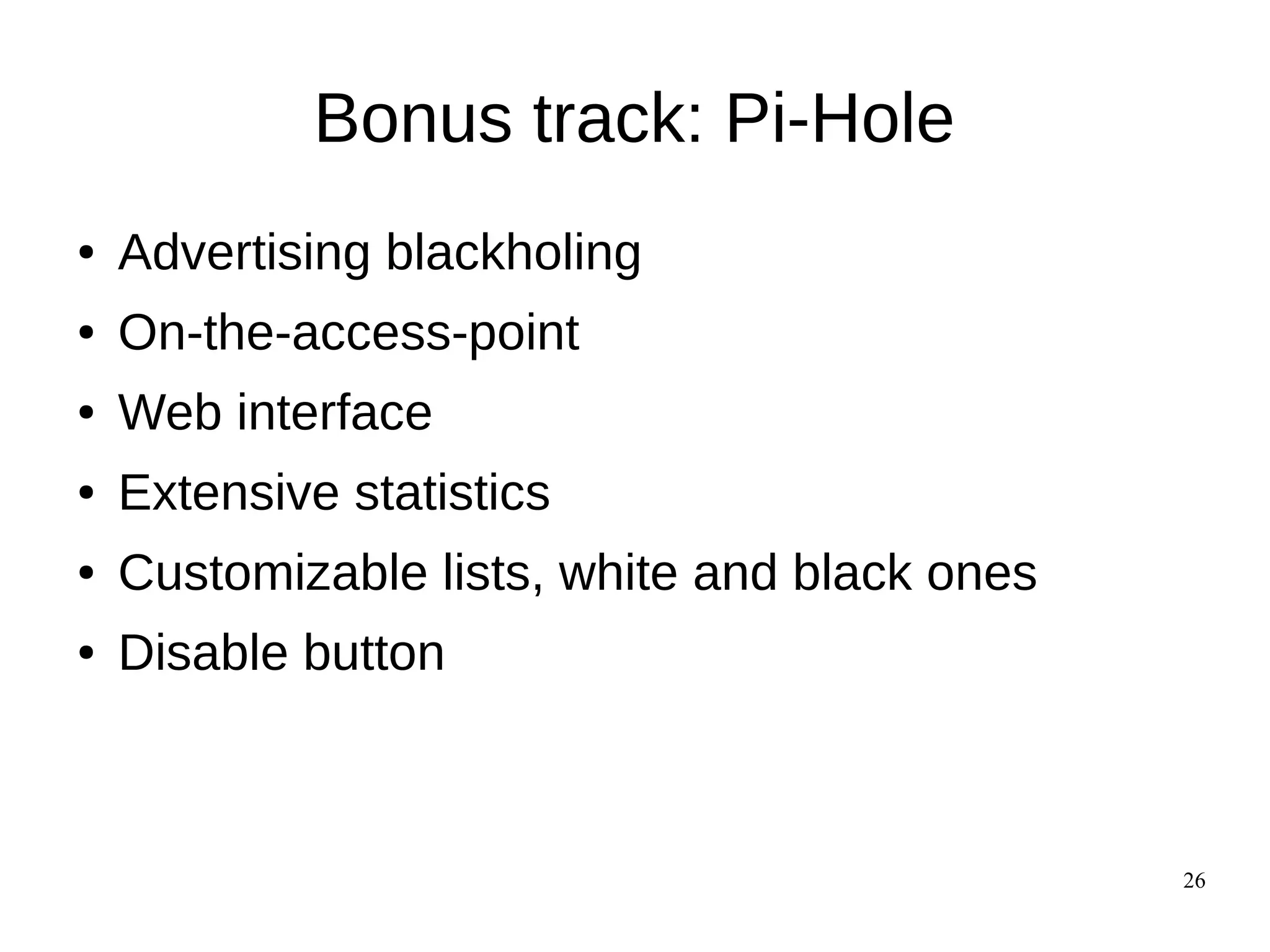

- 26. 26 Bonus track: Pi-Hole ●Advertising blackholing ● On-the-access-point ● Web interface ● Extensive statistics ● Customizable lists, white and black ones ● Disable button

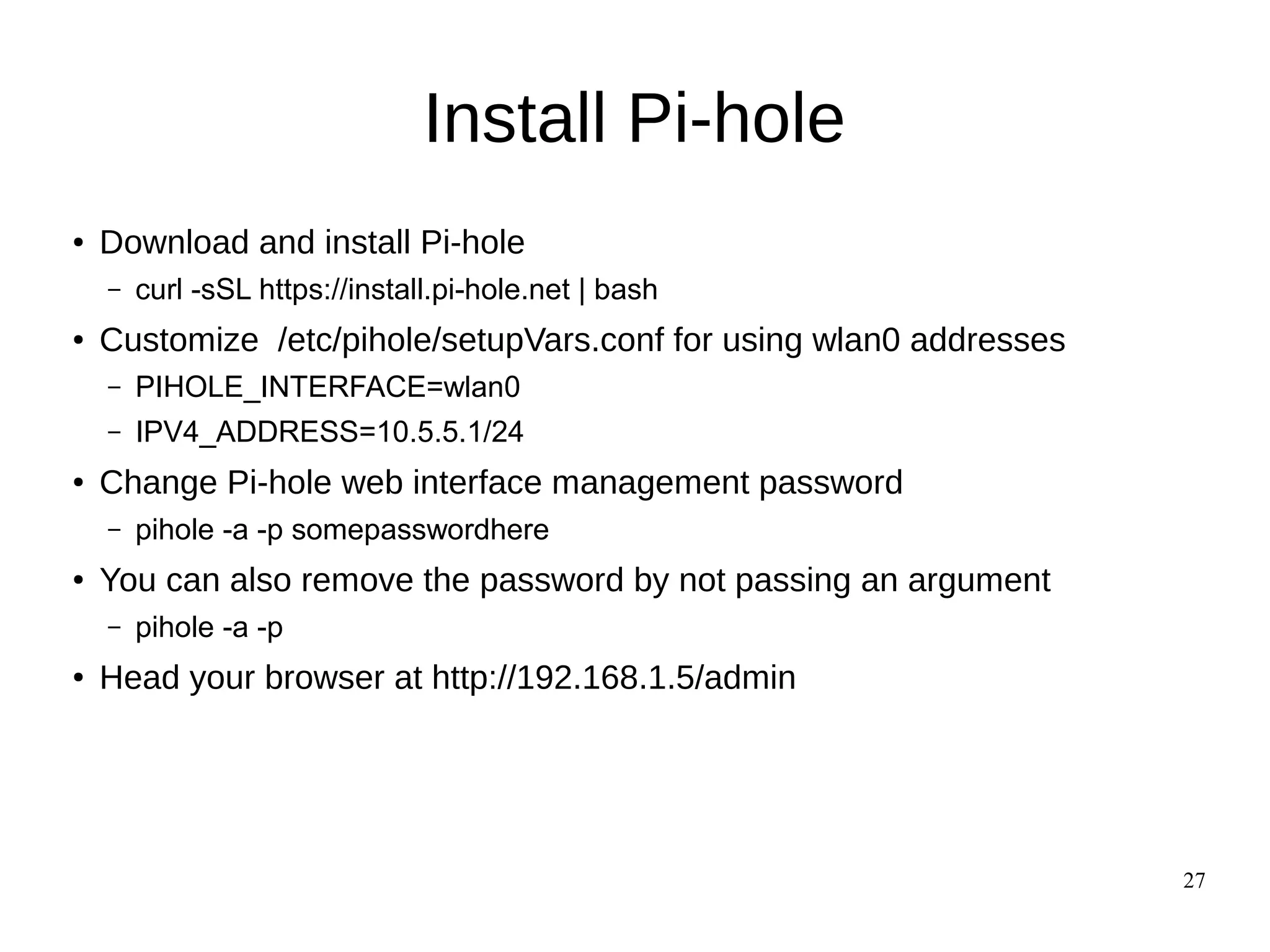

- 27. 27 Install Pi-hole ● Downloadand install Pi-hole – curl -sSL https://install.pi-hole.net | bash ● Customize /etc/pihole/setupVars.conf for using wlan0 addresses – PIHOLE_INTERFACE=wlan0 – IPV4_ADDRESS=10.5.5.1/24 ● Change Pi-hole web interface management password – pihole -a -p somepasswordhere ● You can also remove the password by not passing an argument – pihole -a -p ● Head your browser at http://192.168.1.5/admin

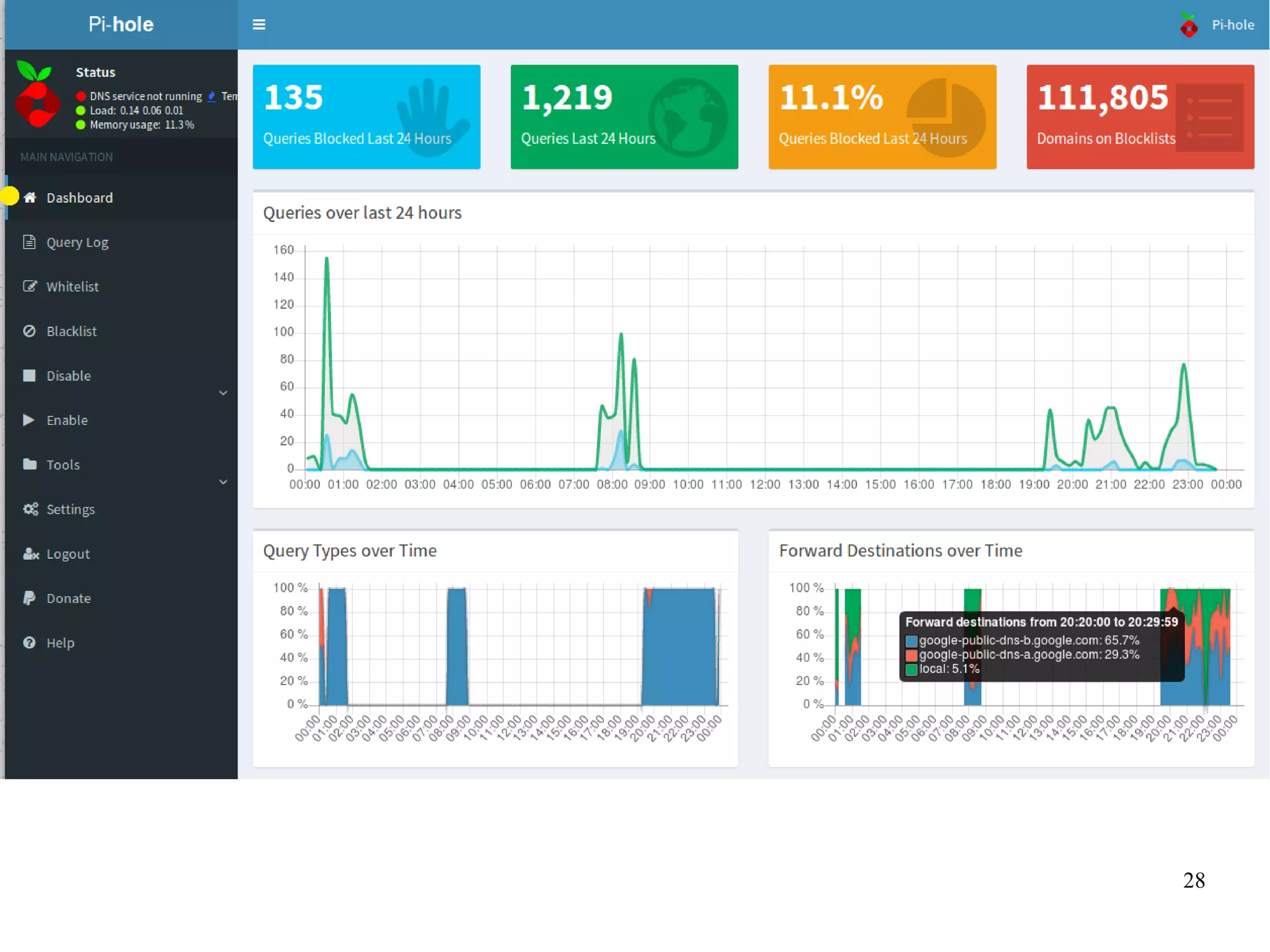

- 28.
- 29.

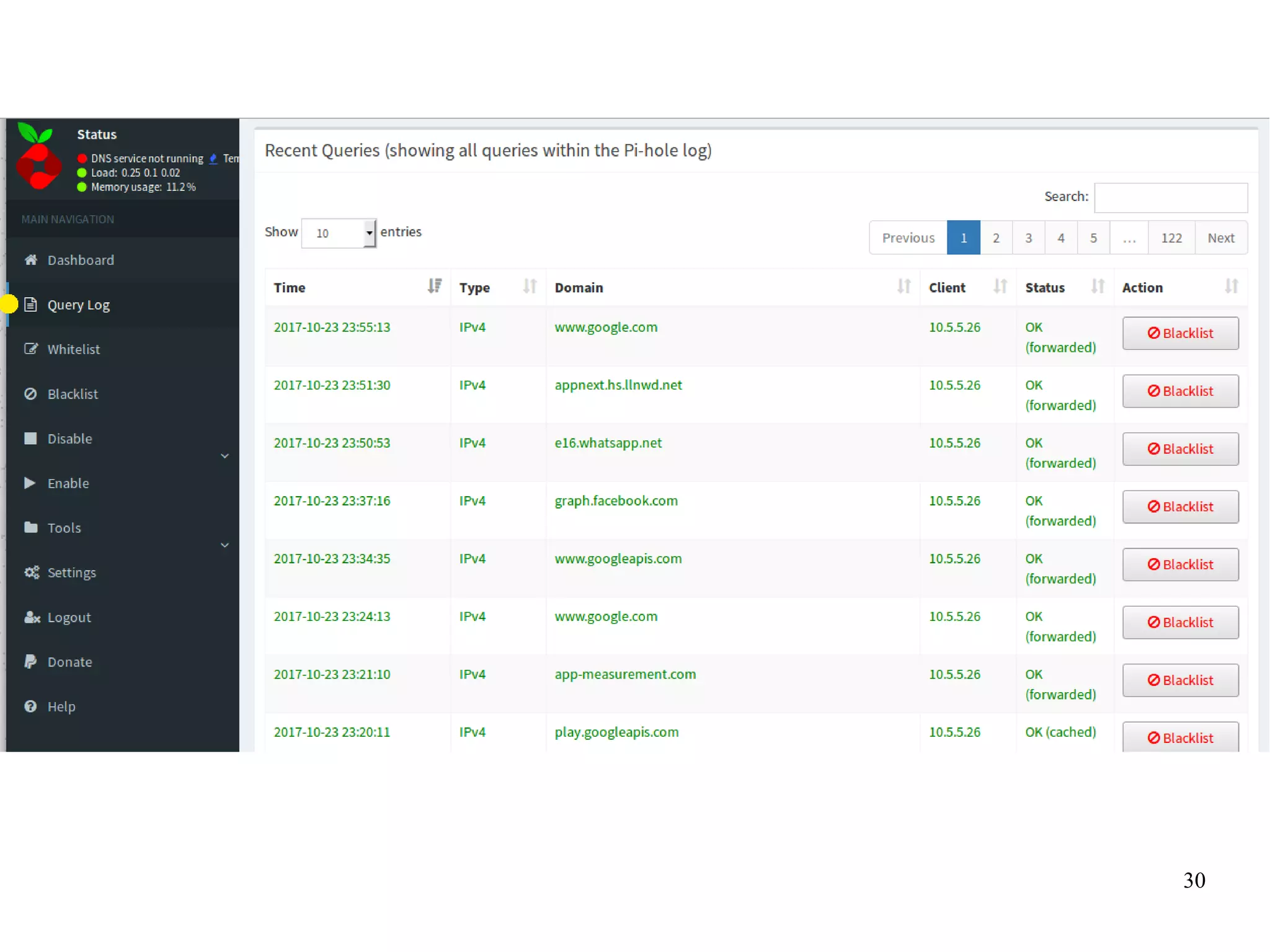

- 30.
- 31.

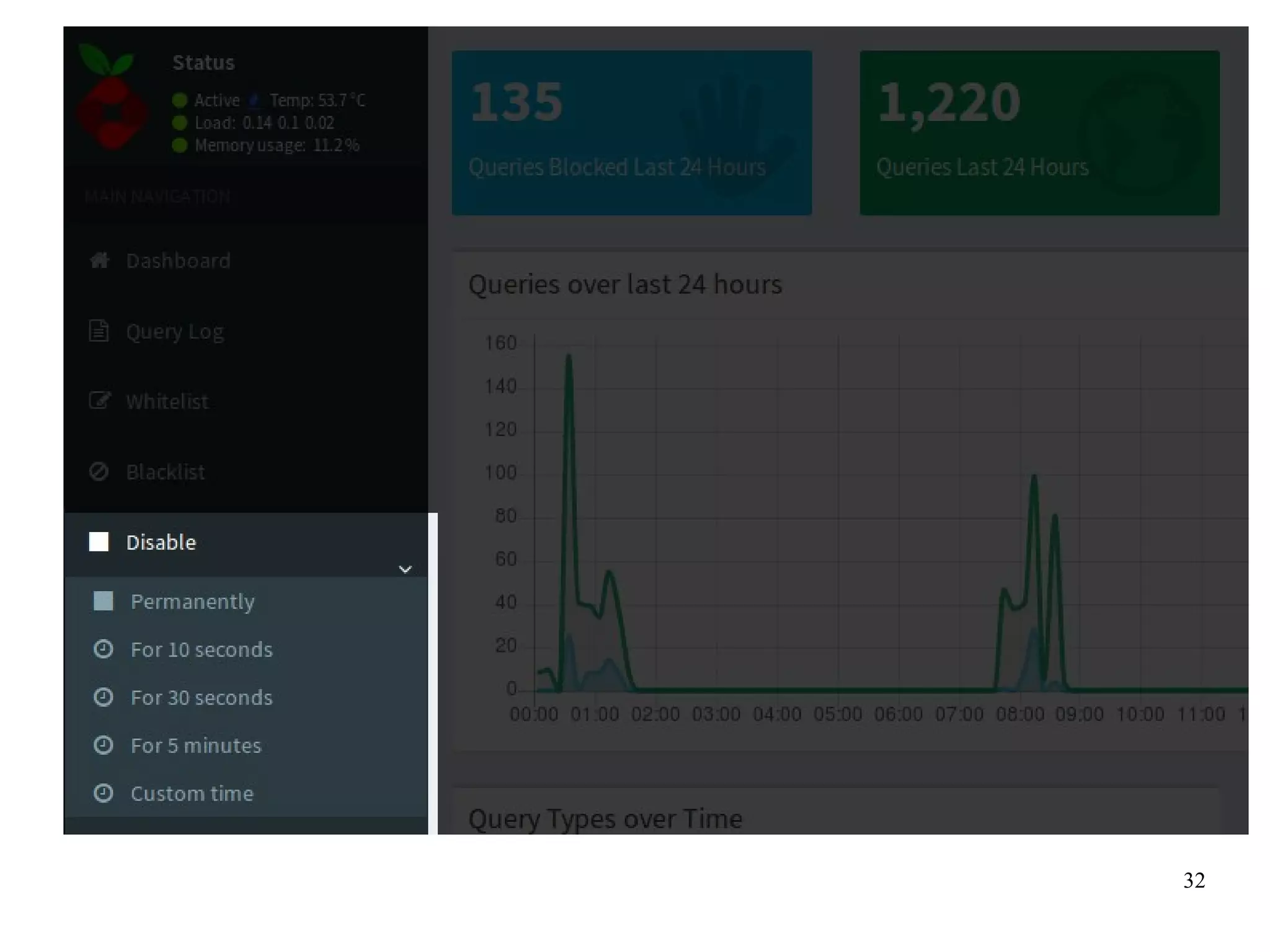

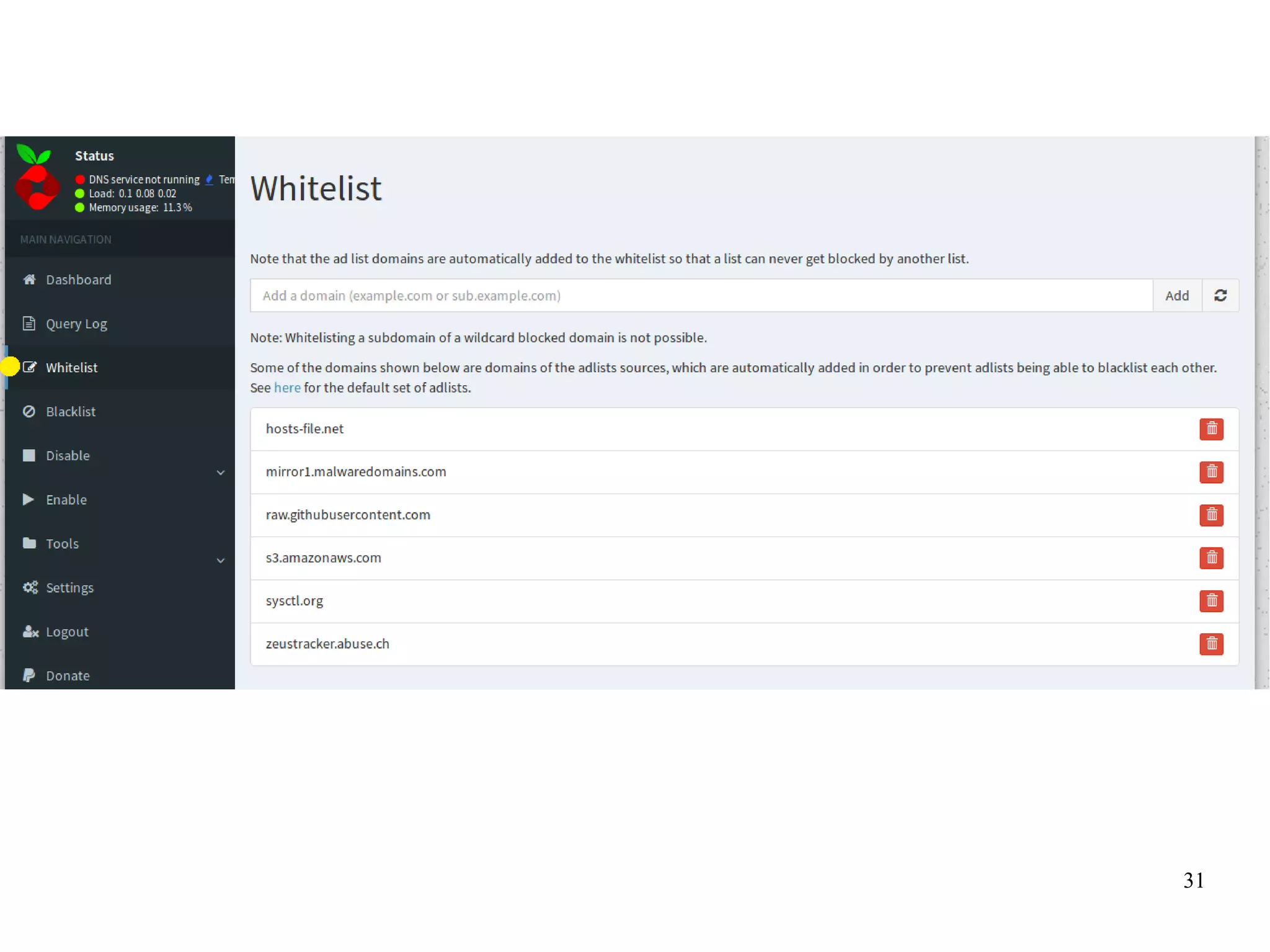

- 32.

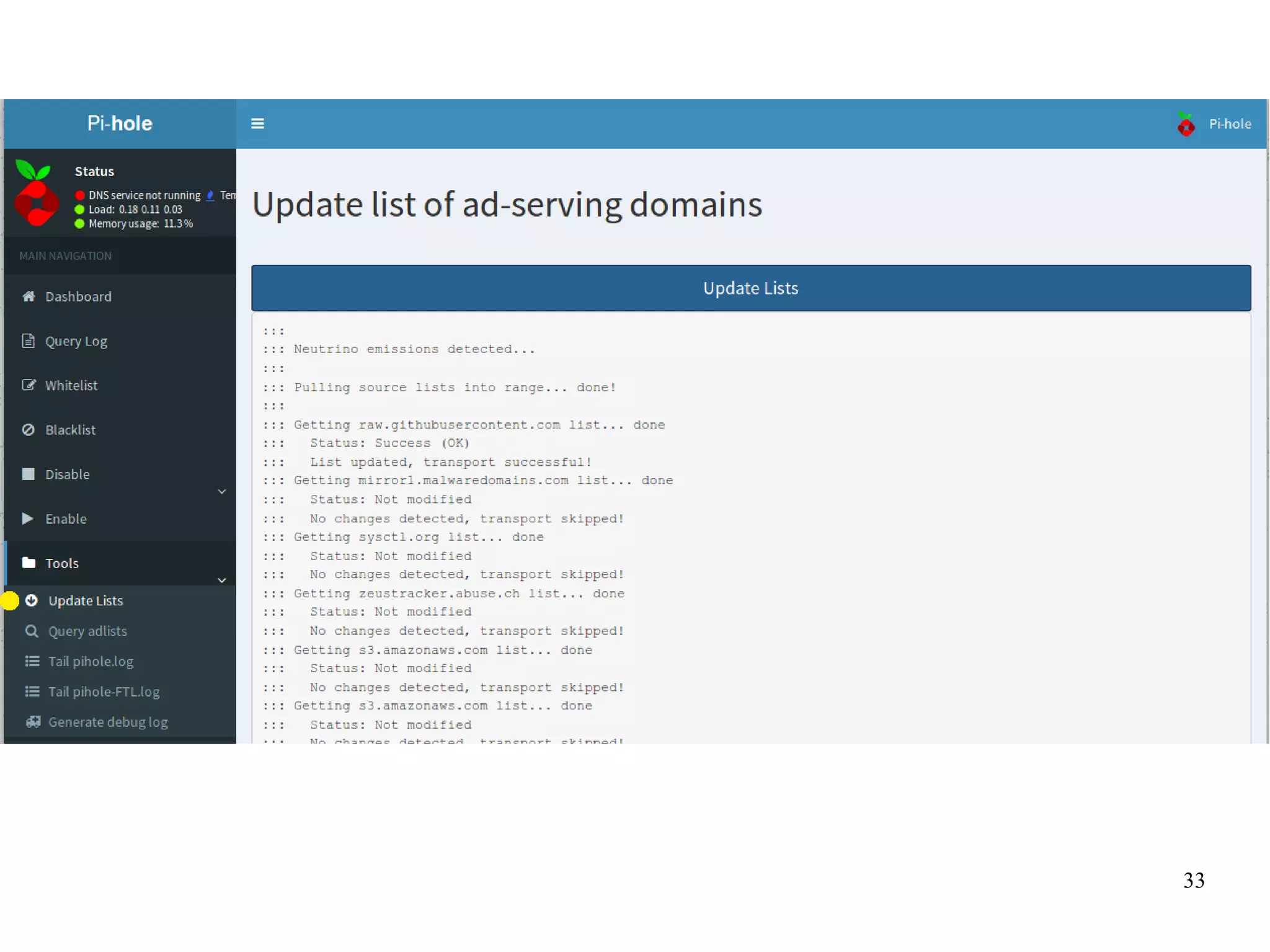

- 33.
- 34.

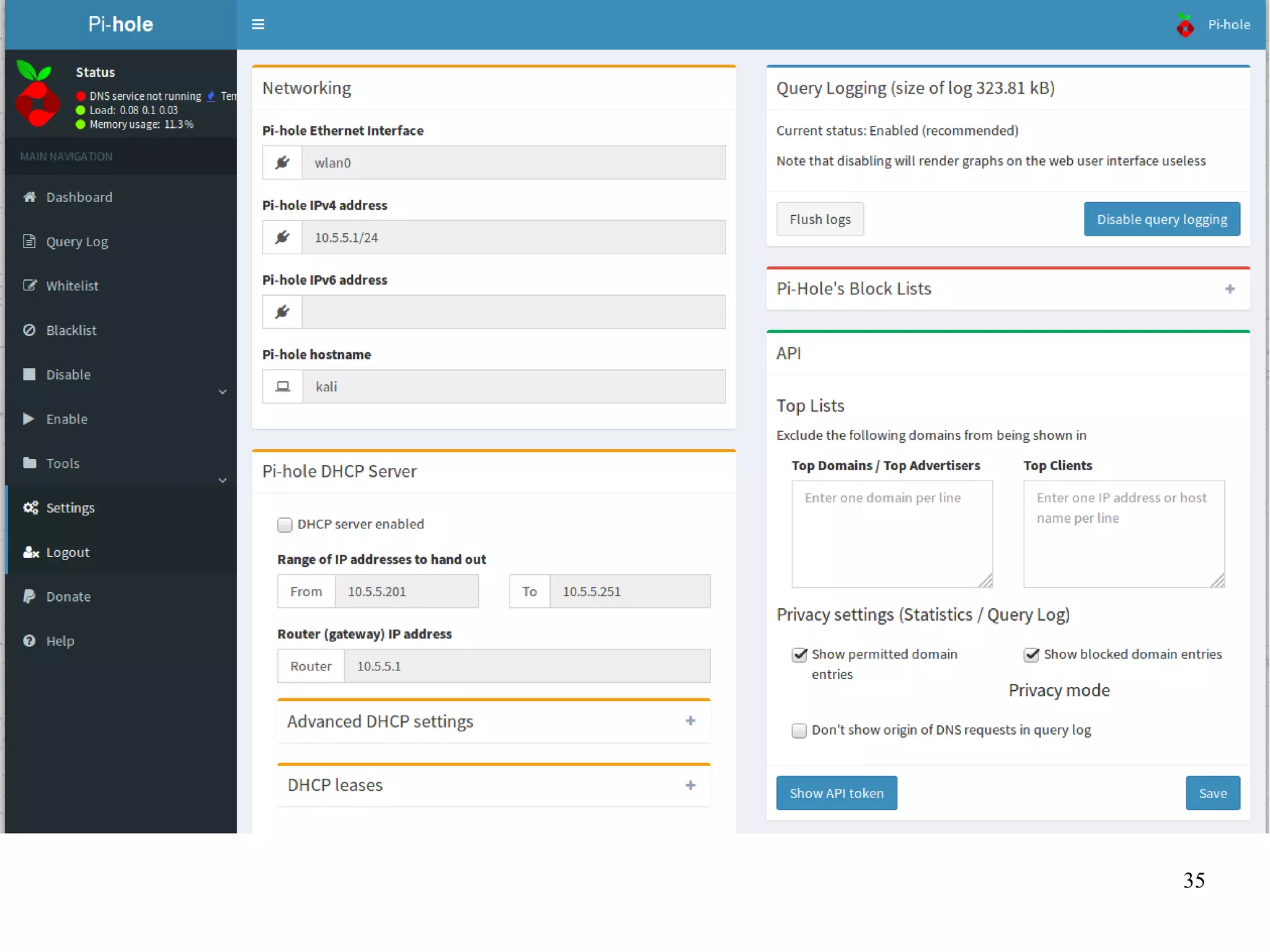

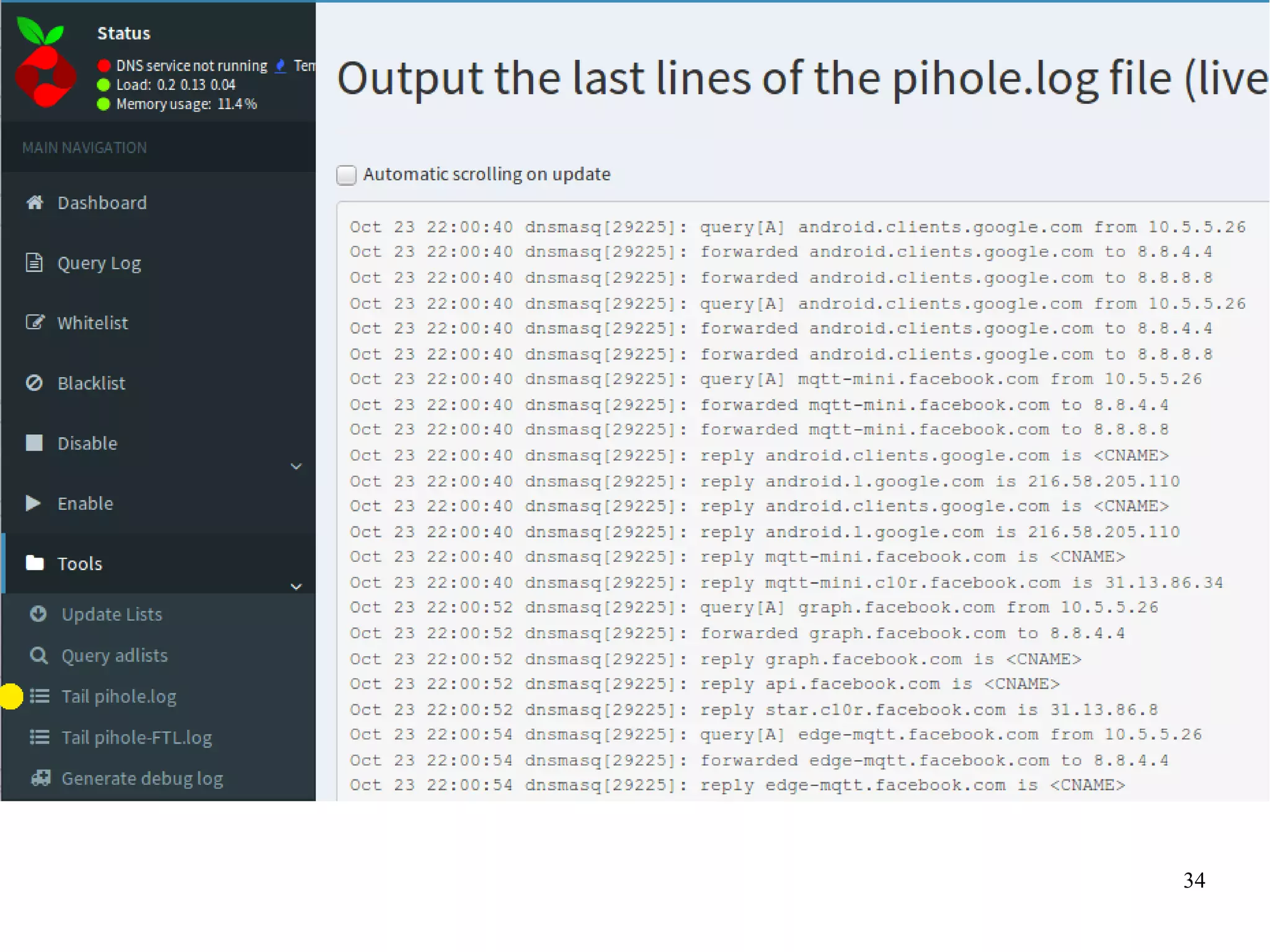

- 35.

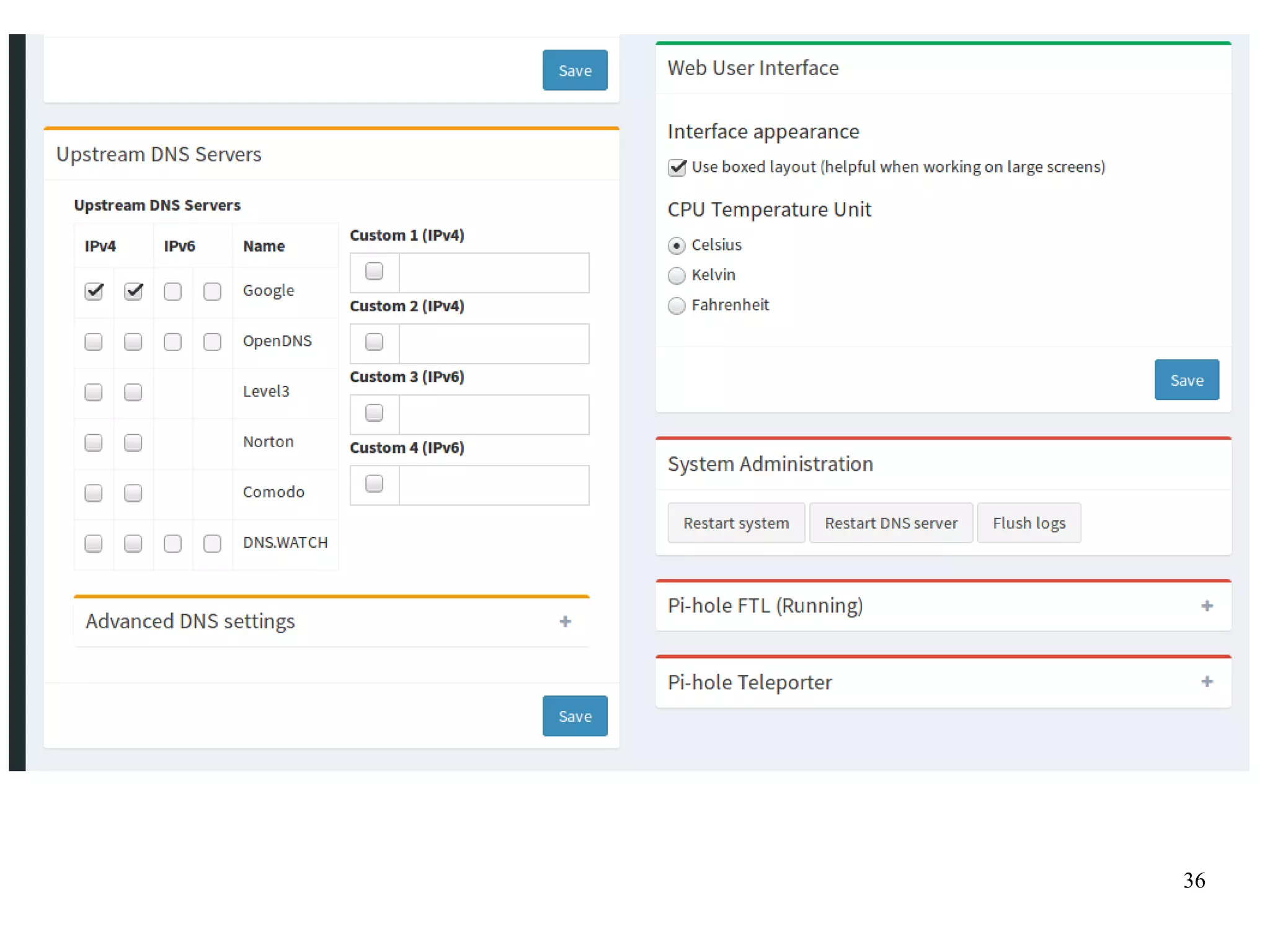

- 36.

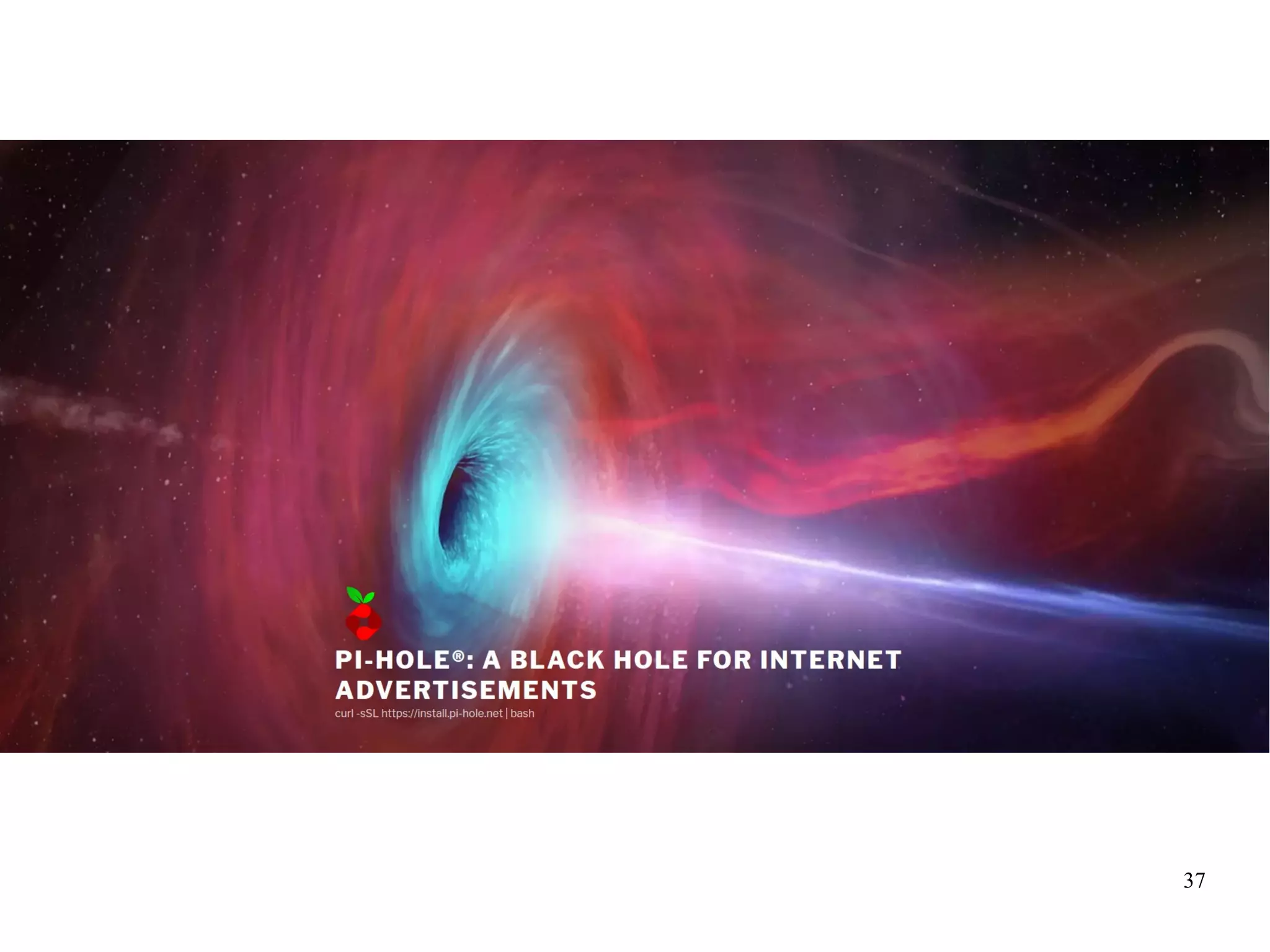

- 37.

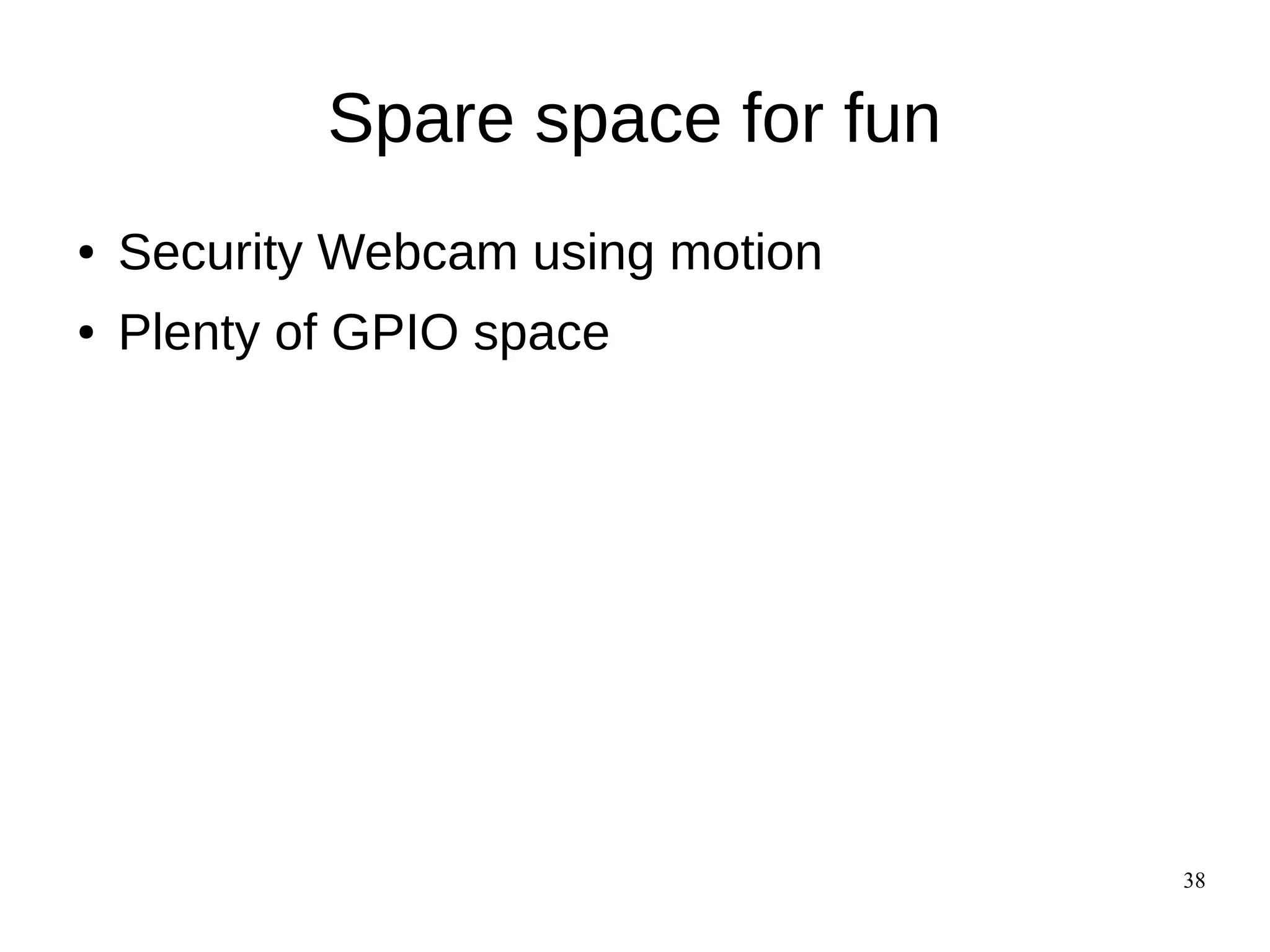

- 38. 38 Spare space forfun ● Security Webcam using motion ● Plenty of GPIO space

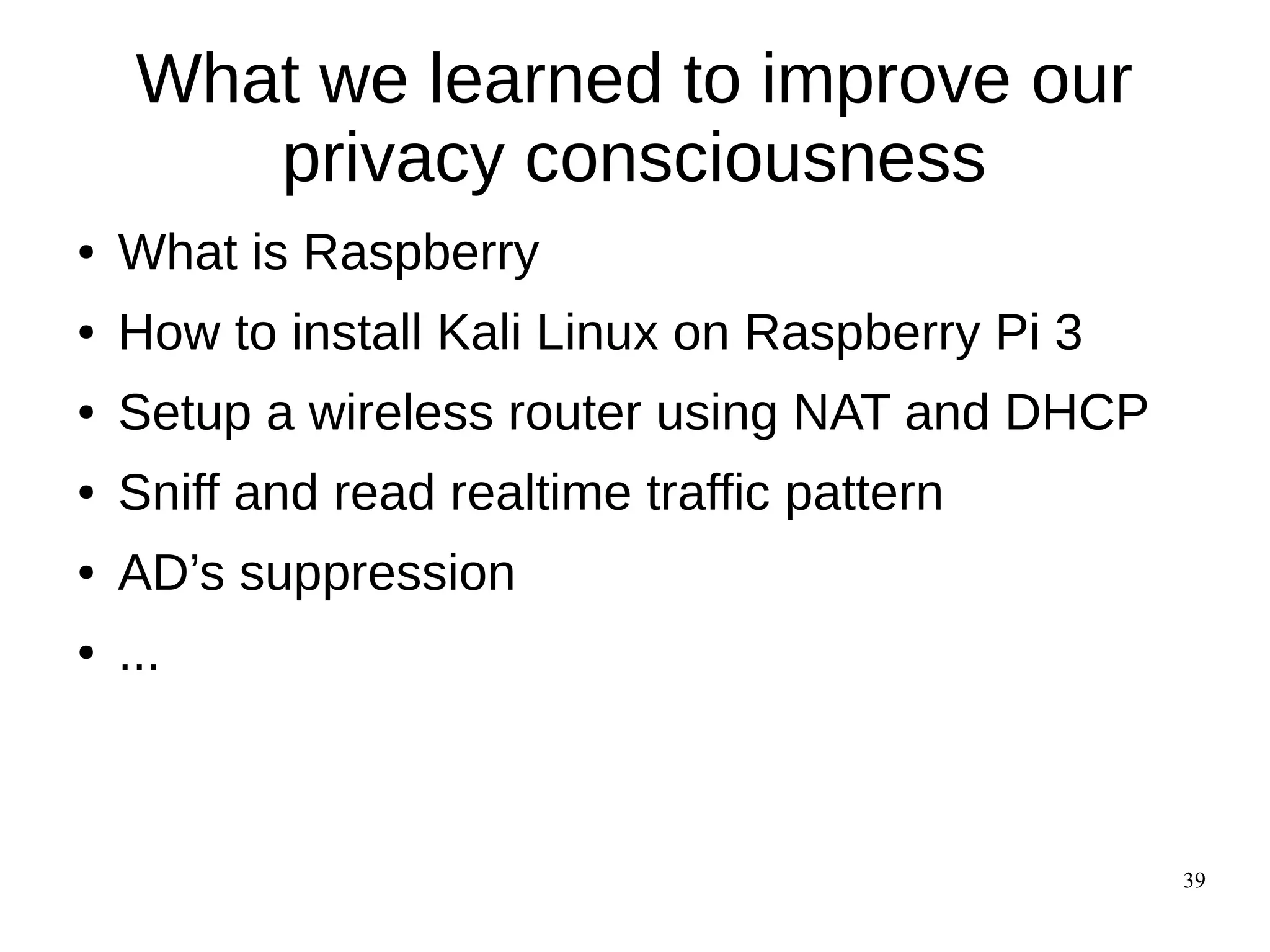

- 39. 39 What we learnedto improve our privacy consciousness ● What is Raspberry ● How to install Kali Linux on Raspberry Pi 3 ● Setup a wireless router using NAT and DHCP ● Sniff and read realtime traffic pattern ● AD’s suppression ● ...
- 40. 40 Quest'opera è statarilasciata con licenza Creative Commons Attribuzione - Non commerciale - Condividi allo stesso modo 3.0 Italia. Per leggere una copia della licenza visita il sito web http://creativecommons.org/licenses/by-nc-sa/3.0/it/ o spedisci una lettera a Creative Commons, PO Box 1866, Mountain View, CA 94042, USA. Alcune immagini hanno licenze d’uso differenti e sono indicate sulle immagini stesse. Daniele Albrizio daniele@albrizio.it Questions?Questions?

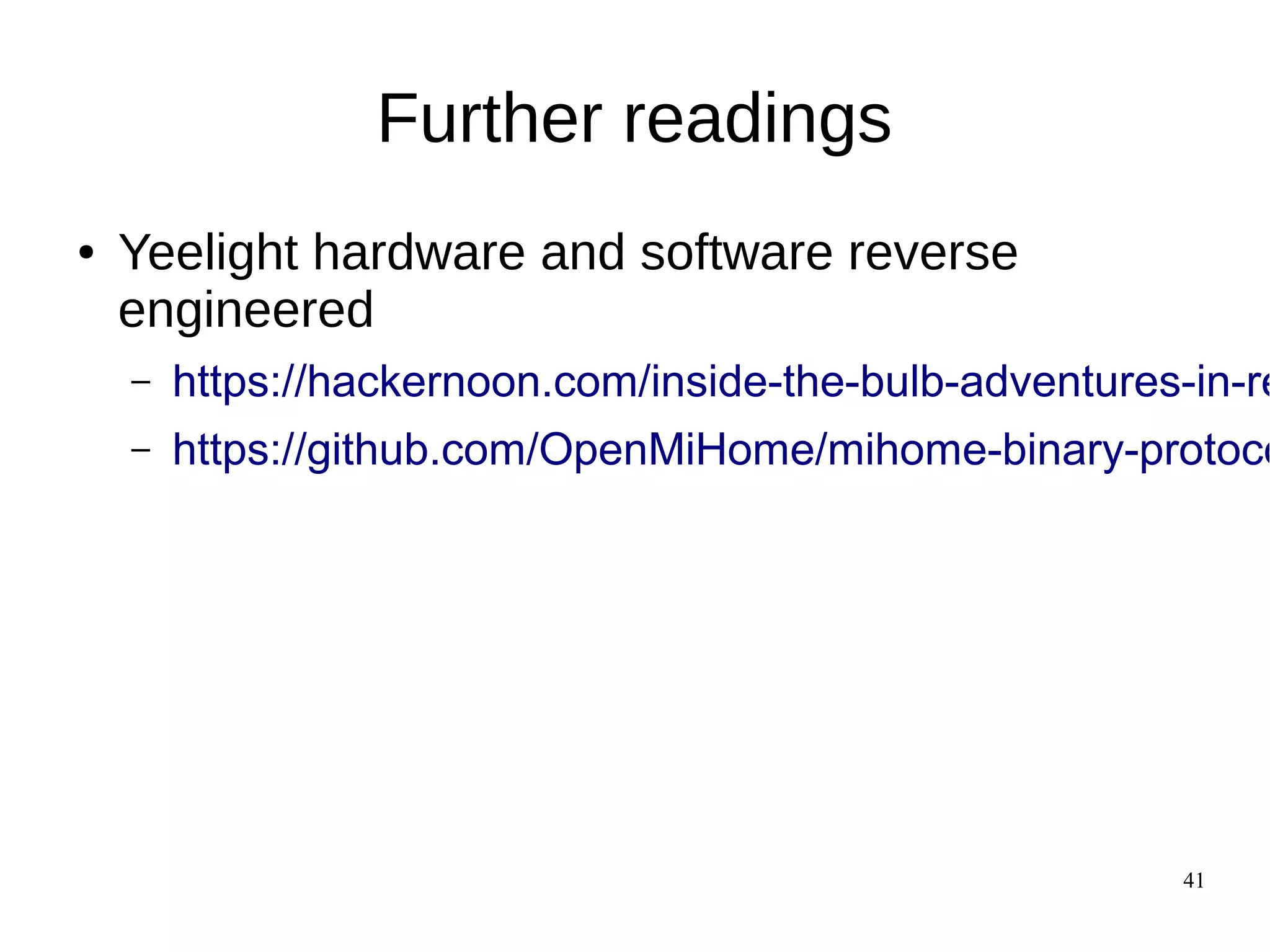

- 41. 41 Further readings ● Yeelighthardware and software reverse engineered – https://hackernoon.com/inside-the-bulb-adventures-in-re – https://github.com/OpenMiHome/mihome-binary-protoco
