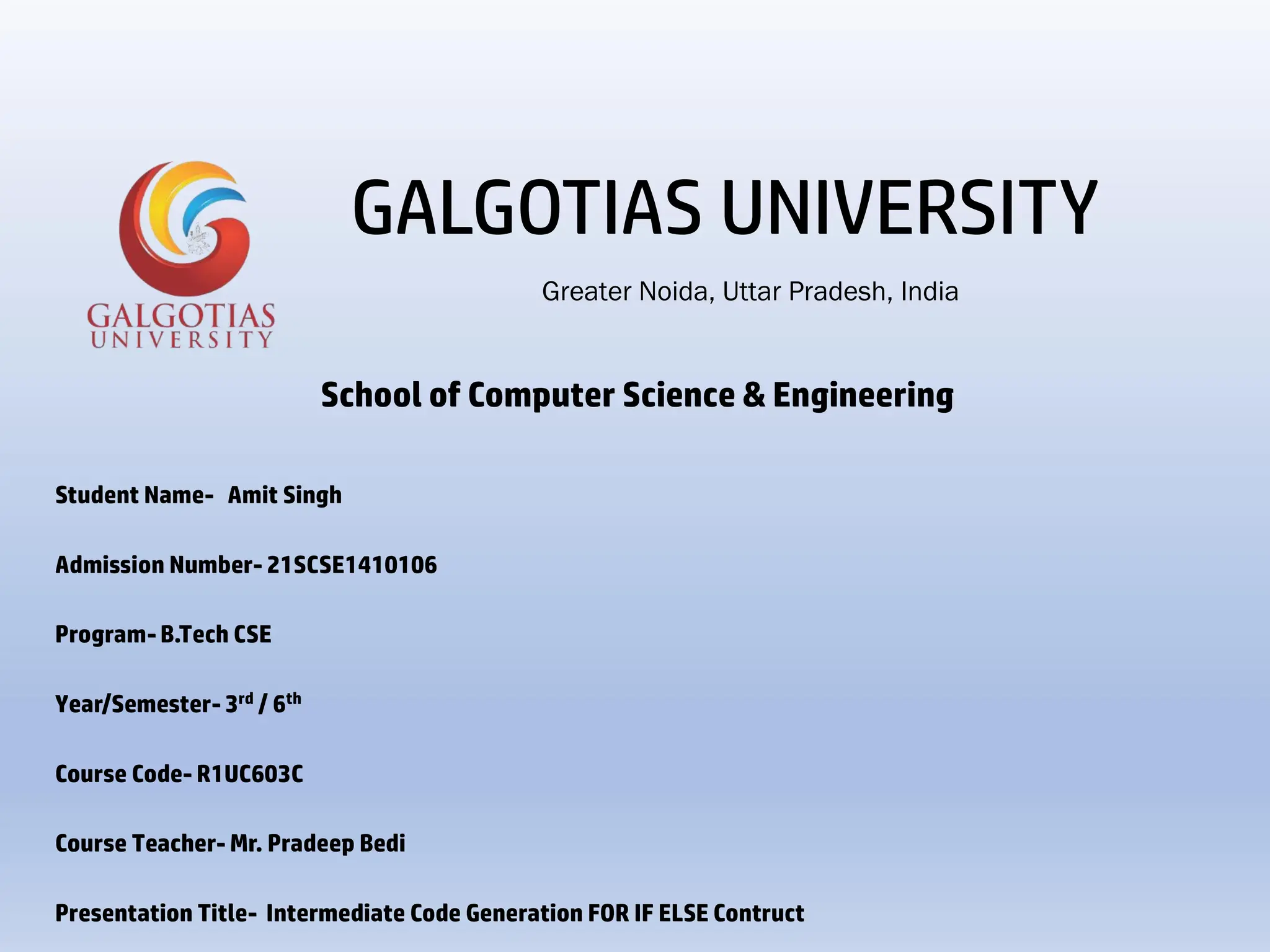

School of Computer Science & Engineering
Student Name- Amit Singh
Admission Number- 21SCSE1410106
Program- B.Tech CSE
Year/Semester- 3rd / 6th
Course Code- R1UC603C
Course Teacher- Mr. Pradeep Bedi
Presentation Title- Intermediate Code Generation FOR IF ELSE Contruct
Greater Noida, Uttar Pradesh, India
GALGOTIAS UNIVERSITY

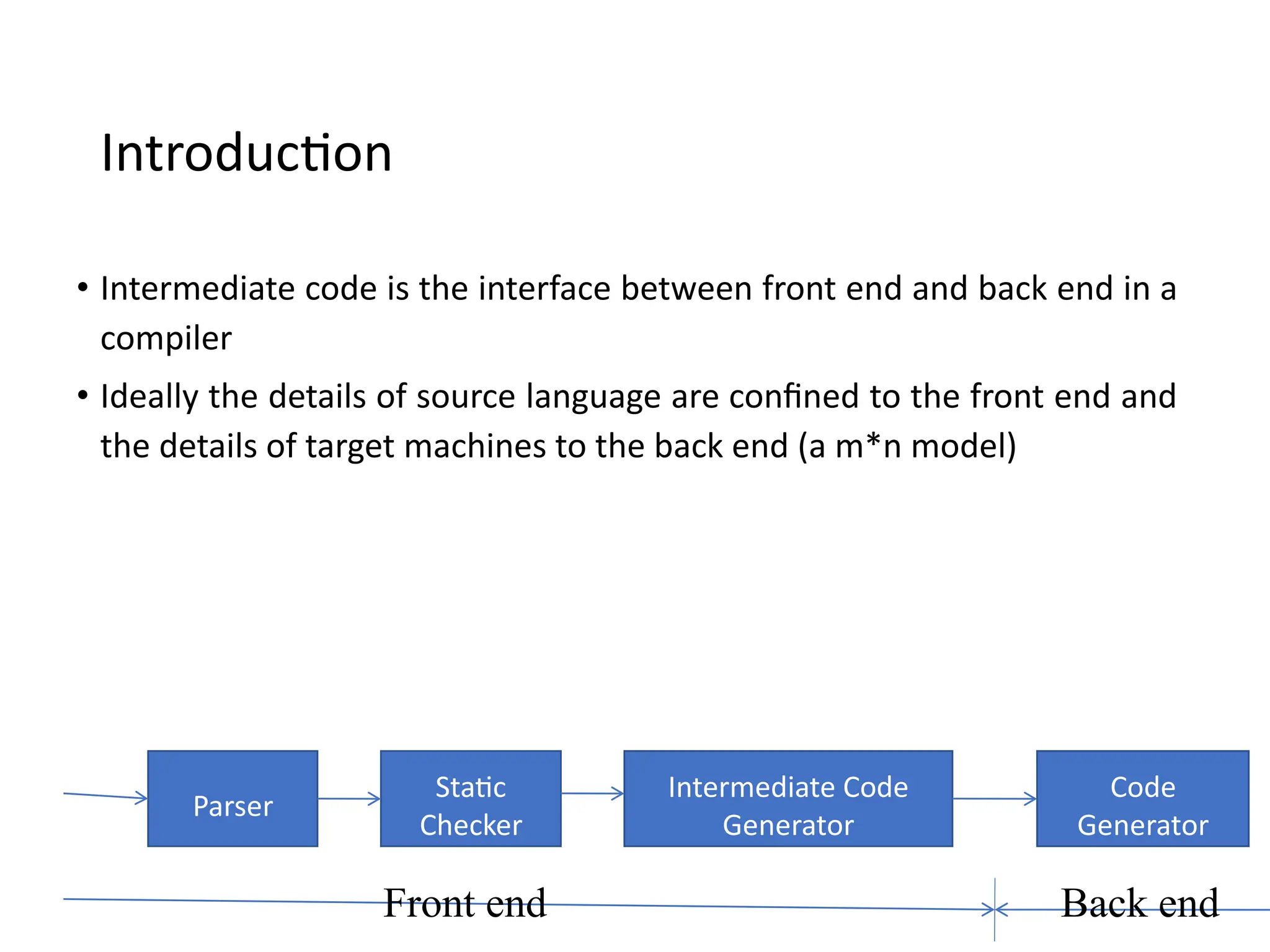

Introduction
• Intermediate code is the interface between front end and back end in a
compiler
• Ideally the details of source language are confined to the front end and
the details of target machines to the back end (a m*n model)
Parser
Static
Checker
Intermediate Code
Generator
Code
Generator
Front end Back end

• In this chapter we study intermediate representations, static type
checking and intermediate code generation

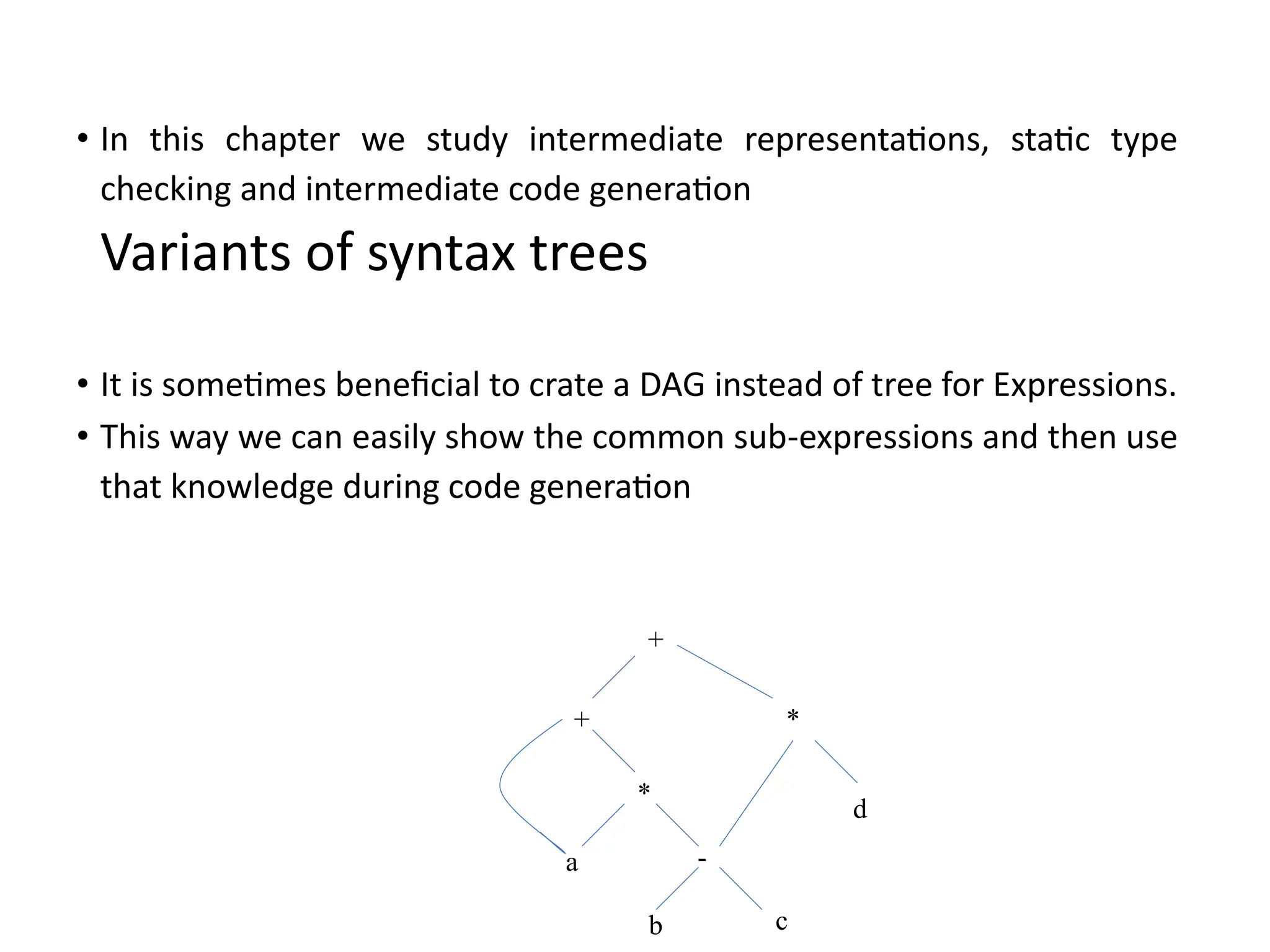

Variants of syntax trees
• It is sometimes beneficial to crate a DAG instead of tree for Expressions.
• This way we can easily show the common sub-expressions and then use
that knowledge during code generation
+
+ *
*
-
b c
a
d

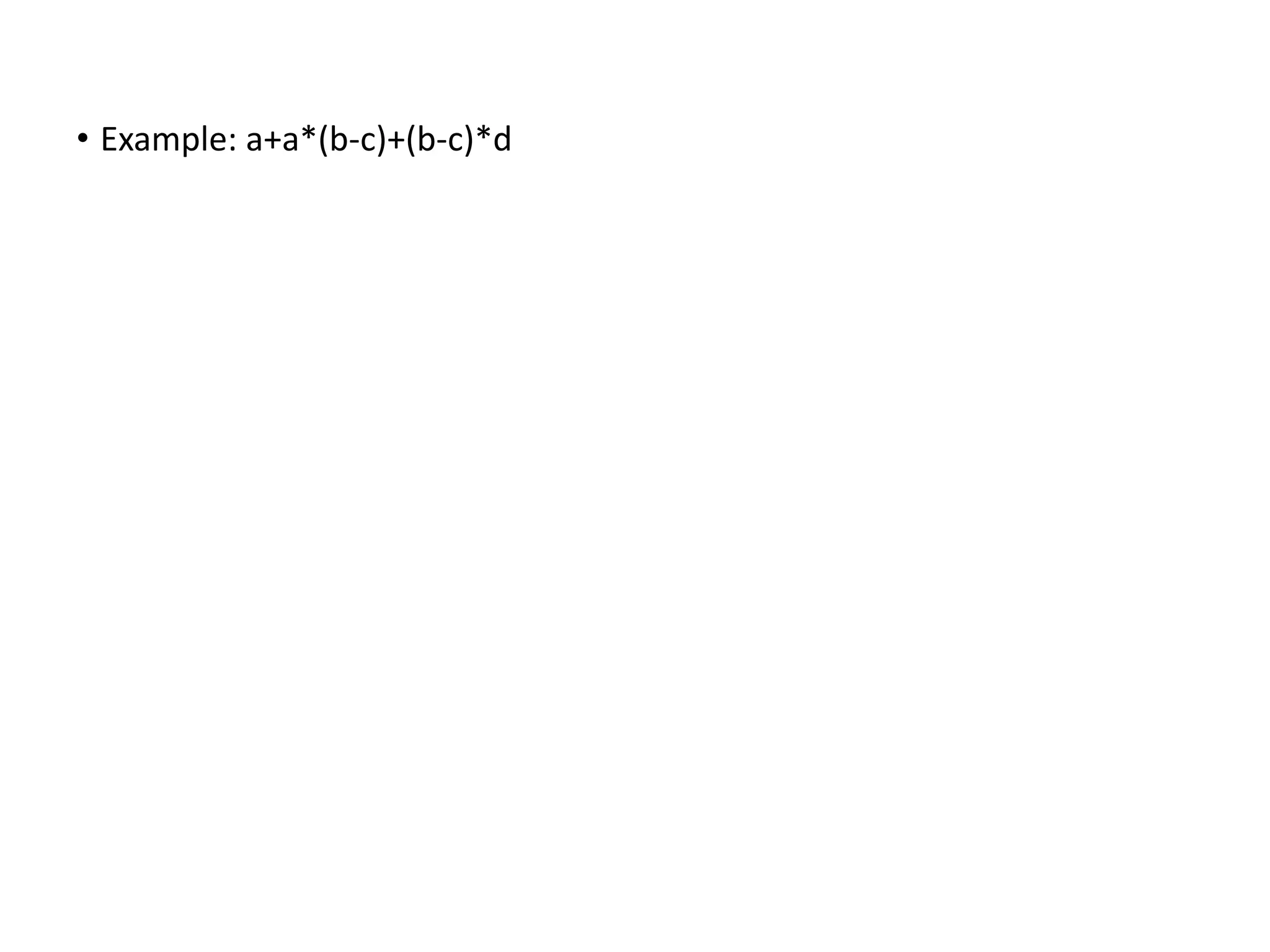

• Example: a+a*(b-c)+(b-c)*d

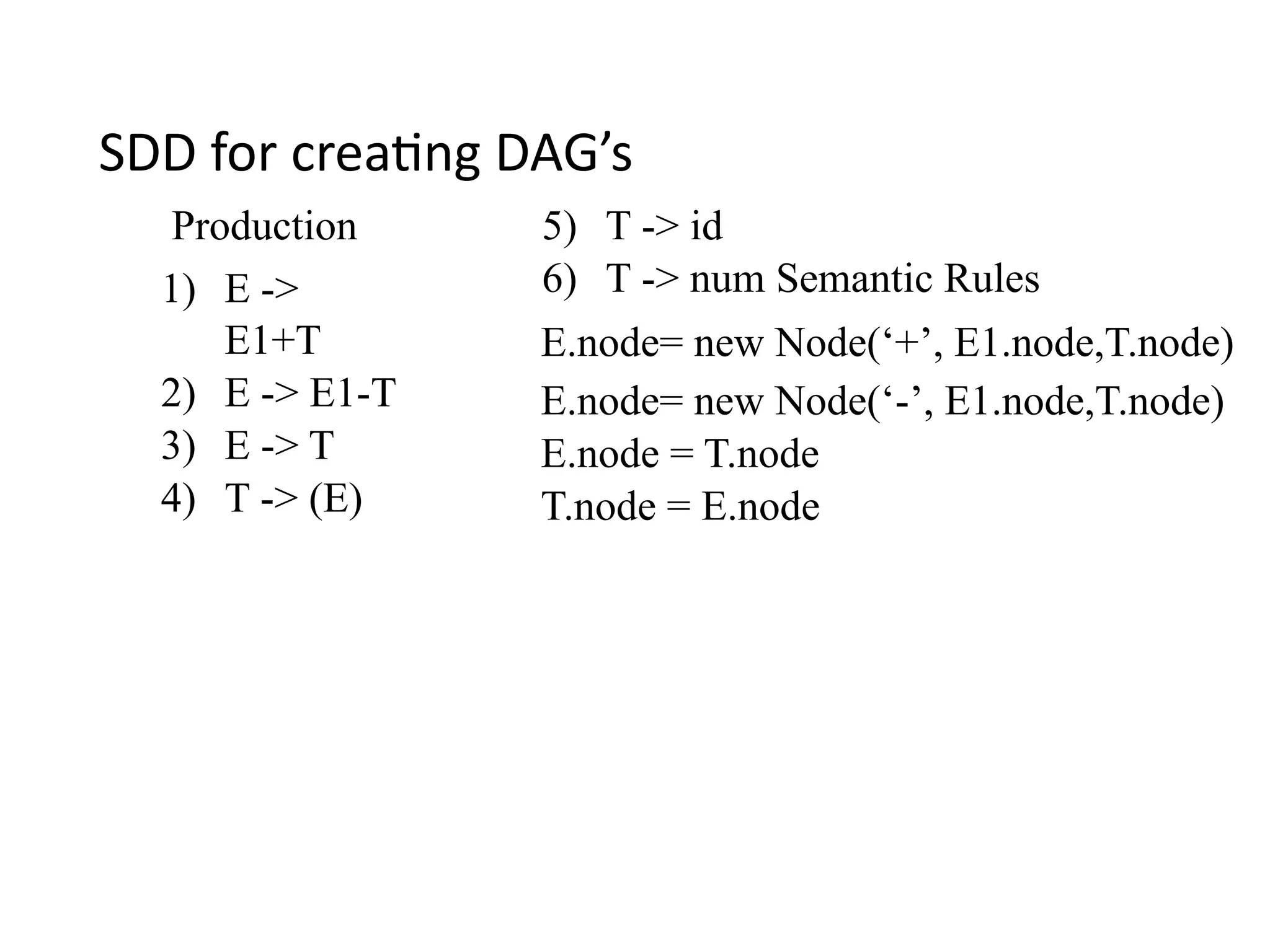

SDD for creating DAG’s
Production
1) E ->
E1+T
2) E -> E1-T
3) E -> T
4) T -> (E)
5) T -> id
6) T -> num Semantic Rules
E.node= new Node(‘+’, E1.node,T.node)
E.node= new Node(‘-’, E1.node,T.node)
E.node = T.node
T.node = E.node

T.node = new Leaf(id, id.entry)
T.node = new Leaf(num, num.val)

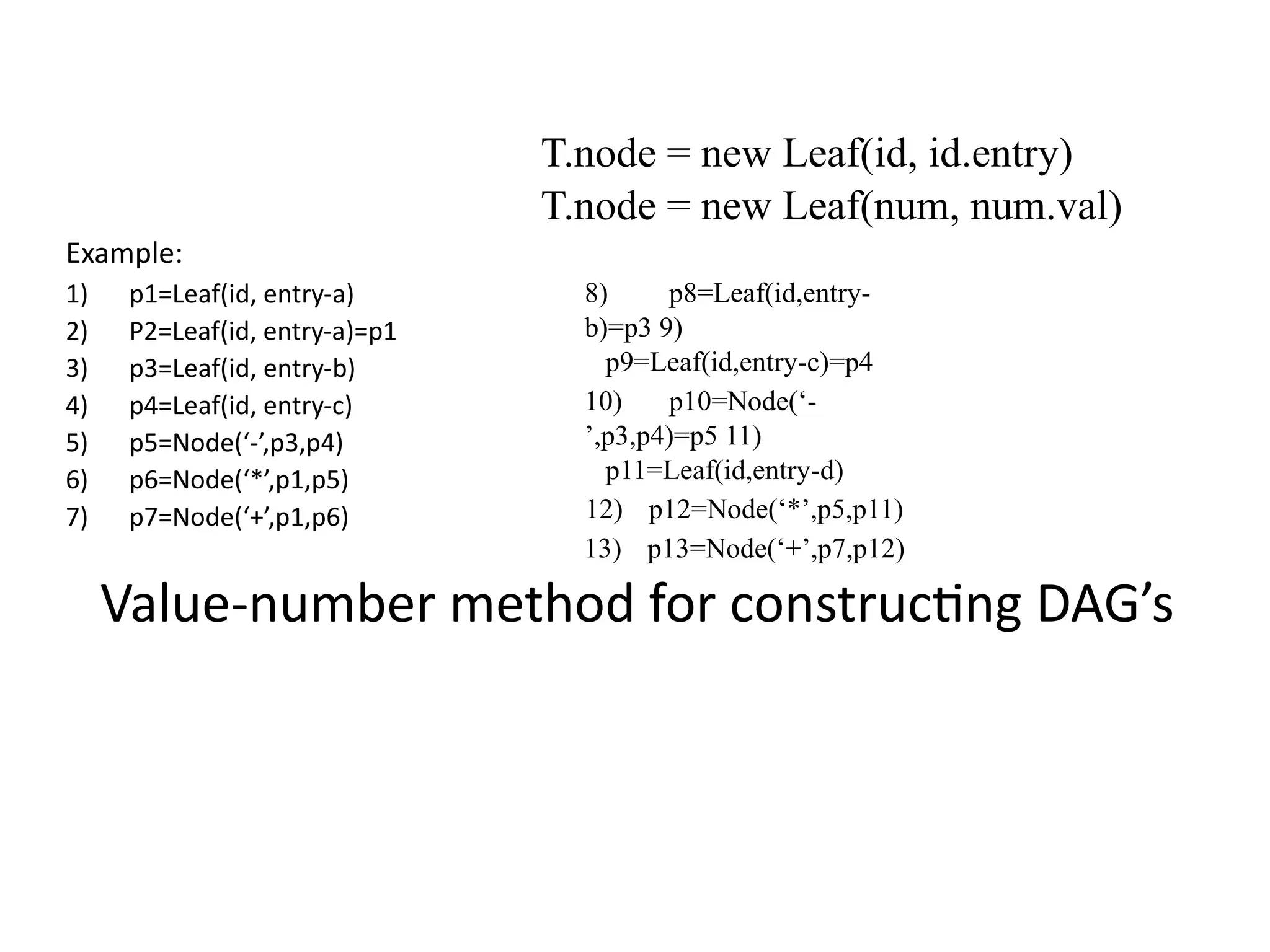

Example:
1) p1=Leaf(id, entry-a)
2) P2=Leaf(id, entry-a)=p1
3) p3=Leaf(id, entry-b)
4) p4=Leaf(id, entry-c)
5) p5=Node(‘-’,p3,p4)
6) p6=Node(‘*’,p1,p5)
7) p7=Node(‘+’,p1,p6)
8) p8=Leaf(id,entry-
b)=p3 9)
p9=Leaf(id,entry-c)=p4
10) p10=Node(‘-
’,p3,p4)=p5 11)
p11=Leaf(id,entry-d)
12) p12=Node(‘*’,p5,p11)
13) p13=Node(‘+’,p7,p12)

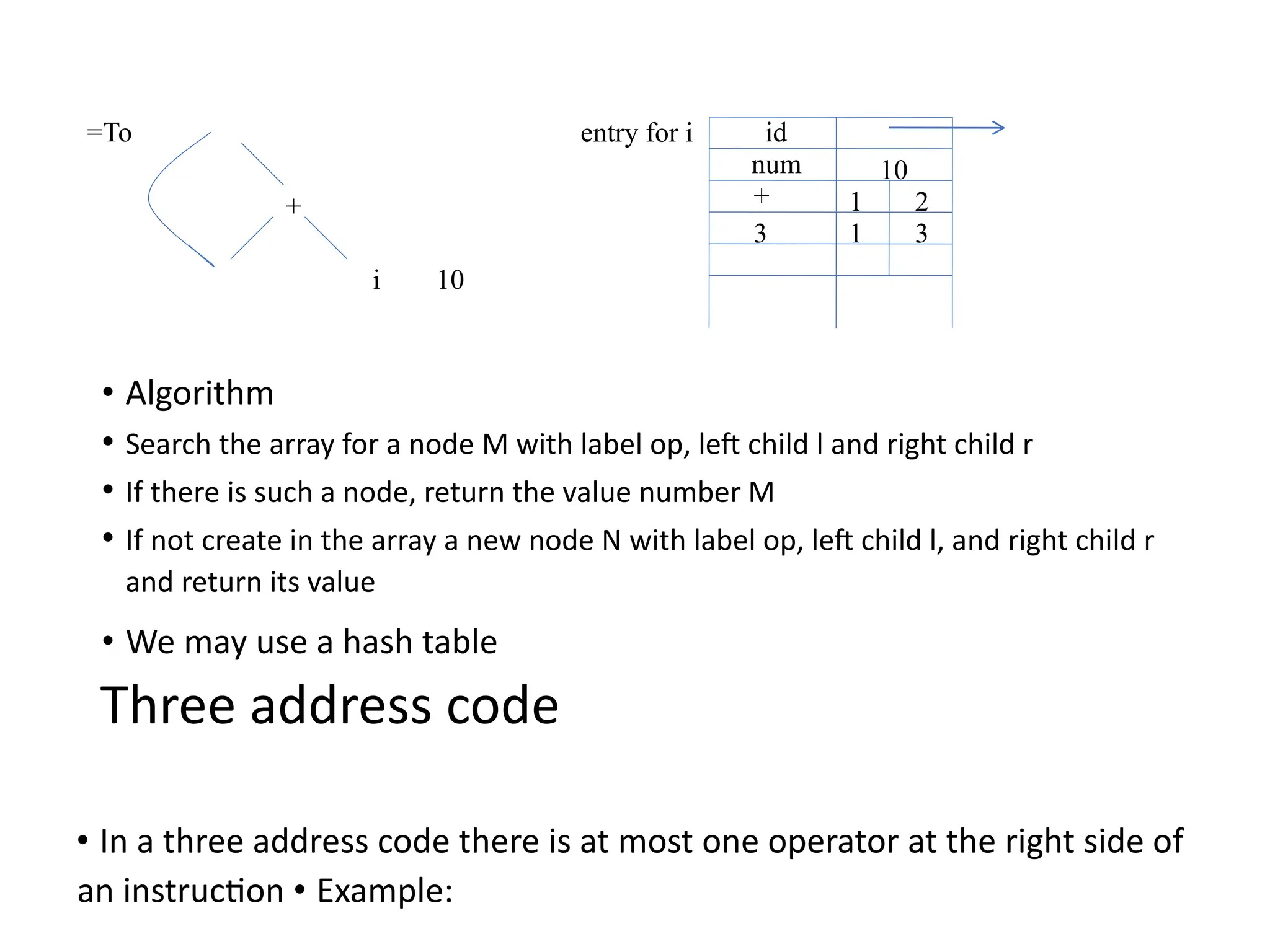

Value-number method for constructing DAG’s

=To entry for i
i 10
• Algorithm
• Search the array for a node M with label op, left child l and right child r
• If there is such a node, return the value number M
• If not create in the array a new node N with label op, left child l, and right child r
and return its value
• We may use a hash table
Three address code
• In a three address code there is at most one operator at the right side of
an instruction • Example:
id
num 10
+ 1 2
3 1 3
+

t1 = b – c t2 = a * t1 t3 = a +
t2 t4 = t1 * d t5 = t3 + t4

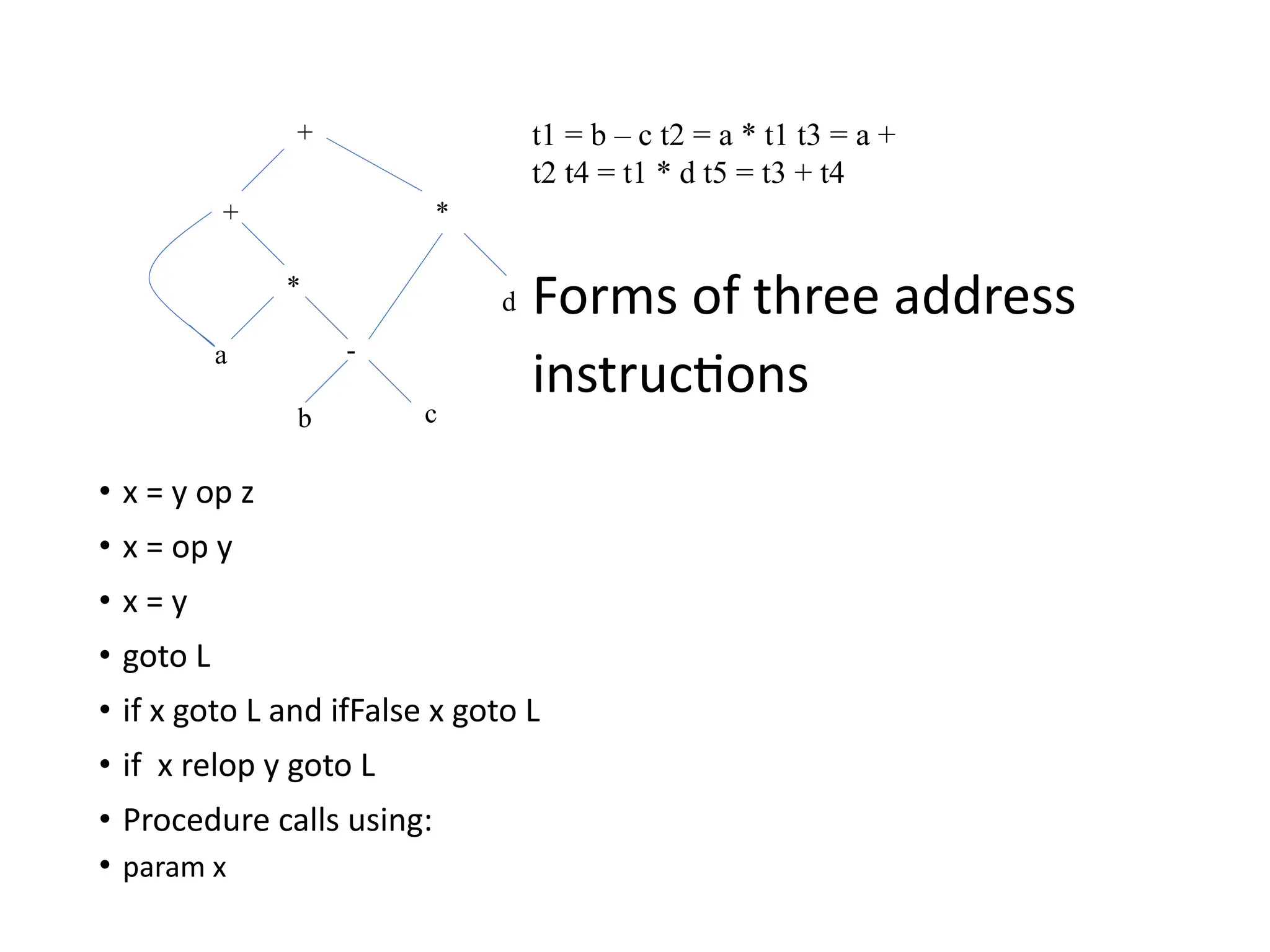

Forms of three address
instructions
• x = y op z
• x = op y
• x = y
• goto L
• if x goto L and ifFalse x goto L
• if x relop y goto L
• Procedure calls using:
• param x
+
+ *
*
-
b c
a
d

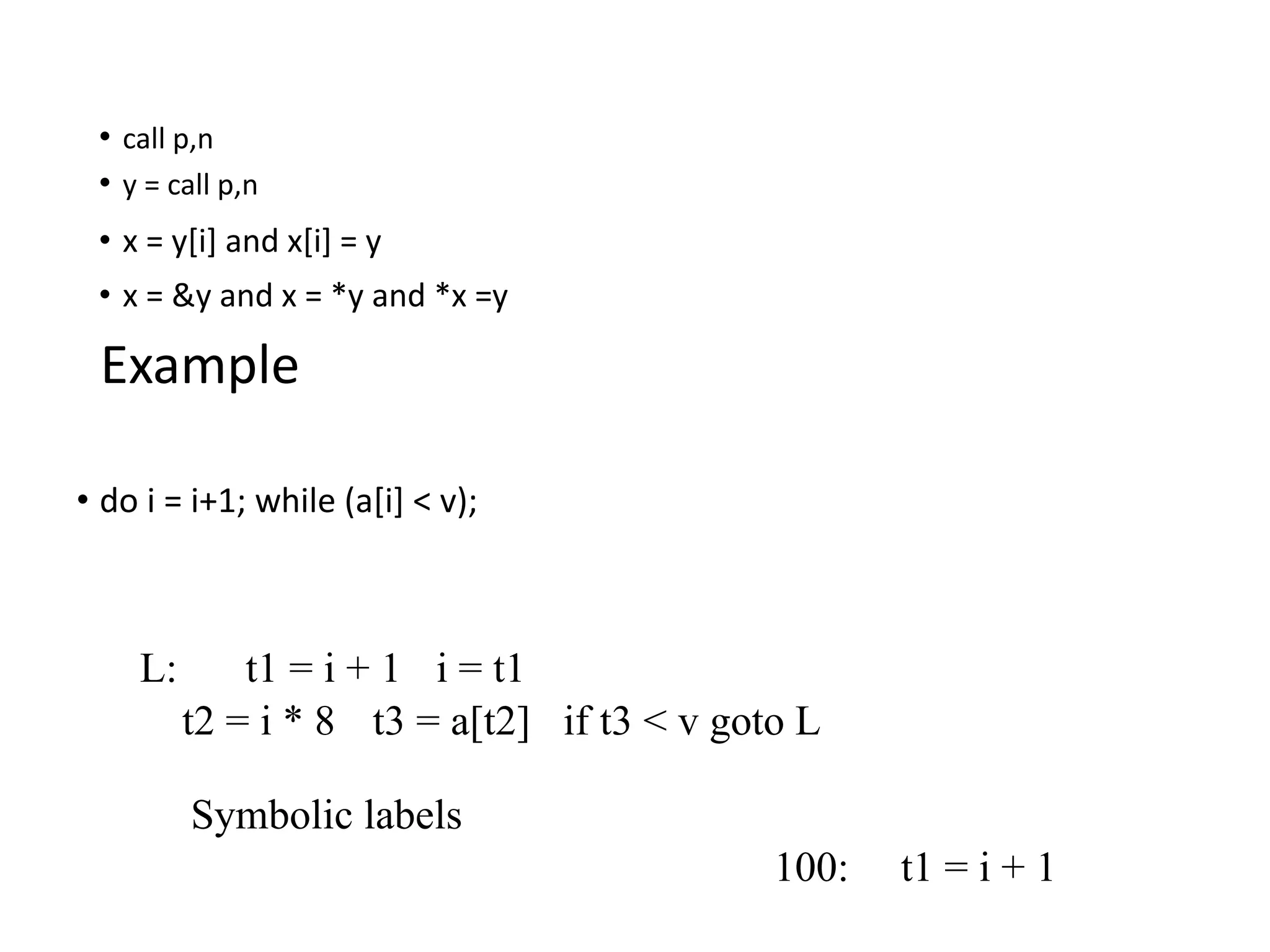

• call p,n
• y = call p,n
• x = y[i] and x[i] = y
• x = &y and x = *y and *x =y
Example
• do i = i+1; while (a[i] < v);
L: t1 = i + 1 i = t1
t2 = i * 8 t3 = a[t2] if t3 < v goto L
Symbolic labels
100: t1 = i + 1

101: i = t1
102: t2 = i * 8
103: t3 = a[t2]
104: if t3 < v goto
100
Position
numbers

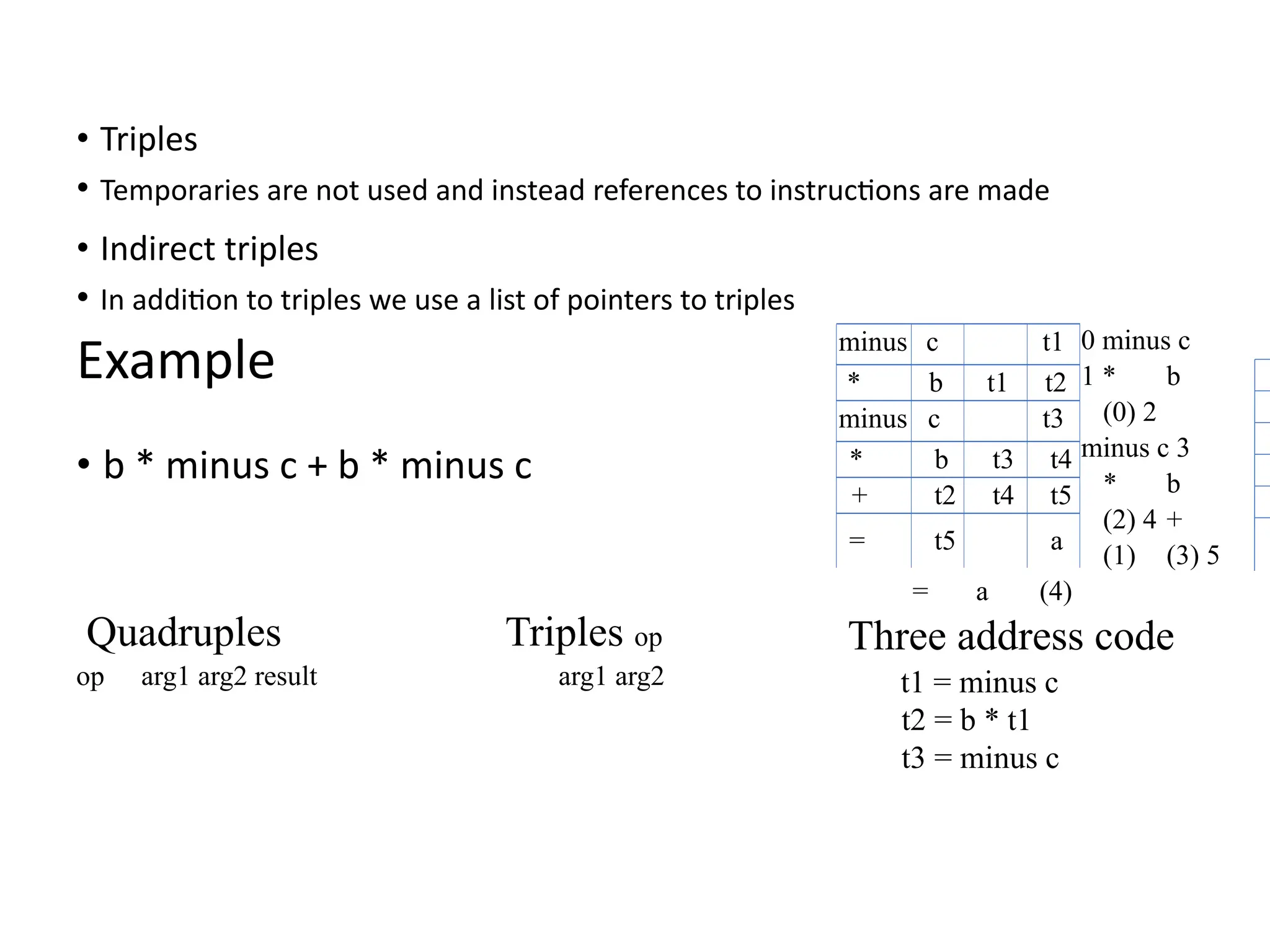

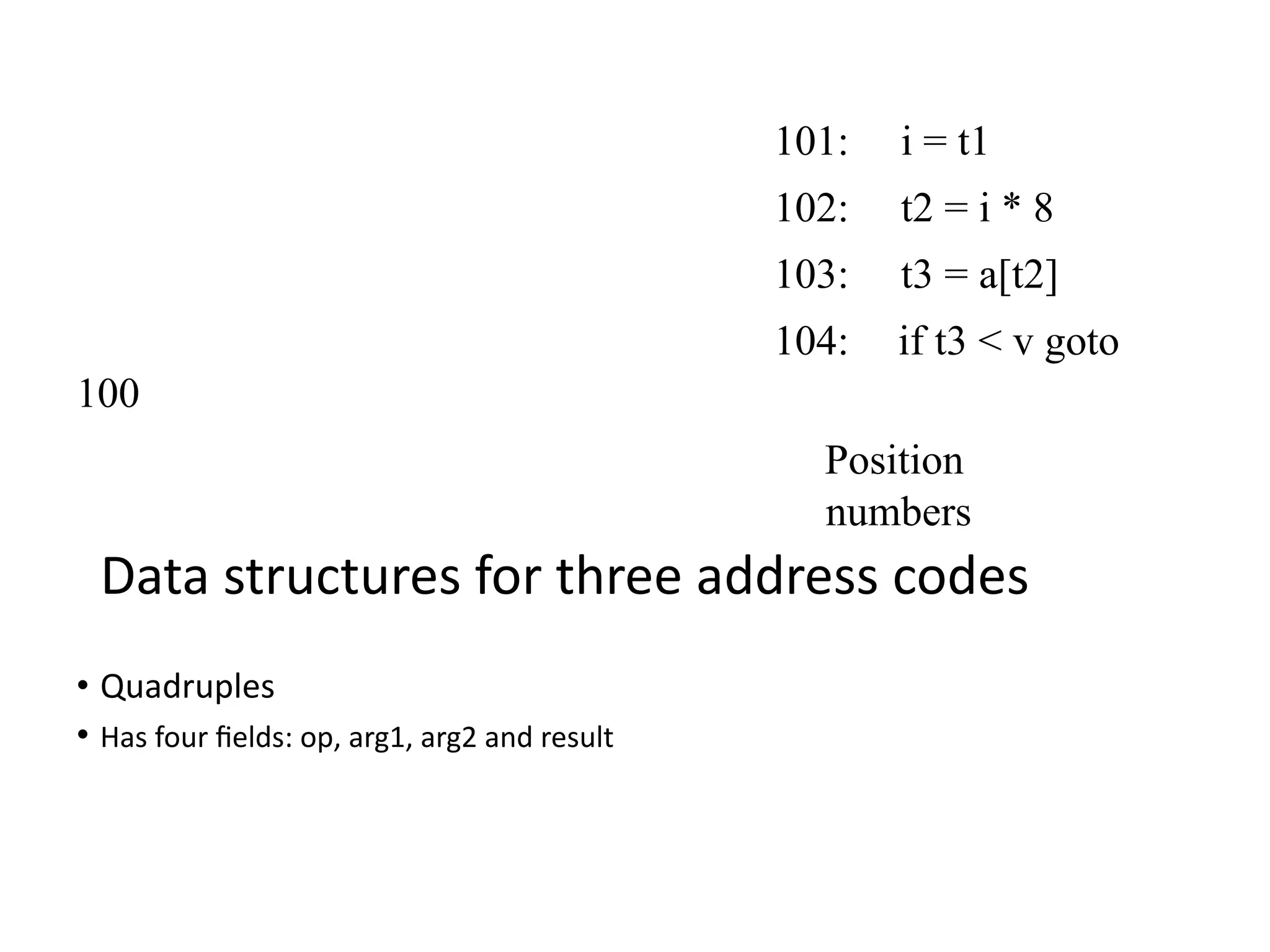

Data structures for three address codes
• Quadruples
• Has four fields: op, arg1, arg2 and result

• Triples
• Temporaries are not used and instead references to instructions are made
• Indirect triples
• In addition to triples we use a list of pointers to triples
Example
• b * minus c + b * minus c
Quadruples
op arg1 arg2 result
Triples op
arg1 arg2
0 minus c
1 * b
(0) 2
minus c 3
* b
(2) 4 +
(1) (3) 5
= a (4)
Three address code
t1 = minus c
t2 = b * t1
t3 = minus c
minus c t1
* b t1 t2
minus c t3
* b t3 t4
+ t2 t4 t5
= t5 a

t4 = b * t3 t5 = t2 + t4 a = t5
Indirect Triples
op op arg1 arg2
35 (0) 0 minus c 36 (1) 1 *
b (0) 37 (2) 2 minus c
38 (3) 3 * b (2)
39 (4) 4 + (1) (3) 40 (5) 5 = a
(4)

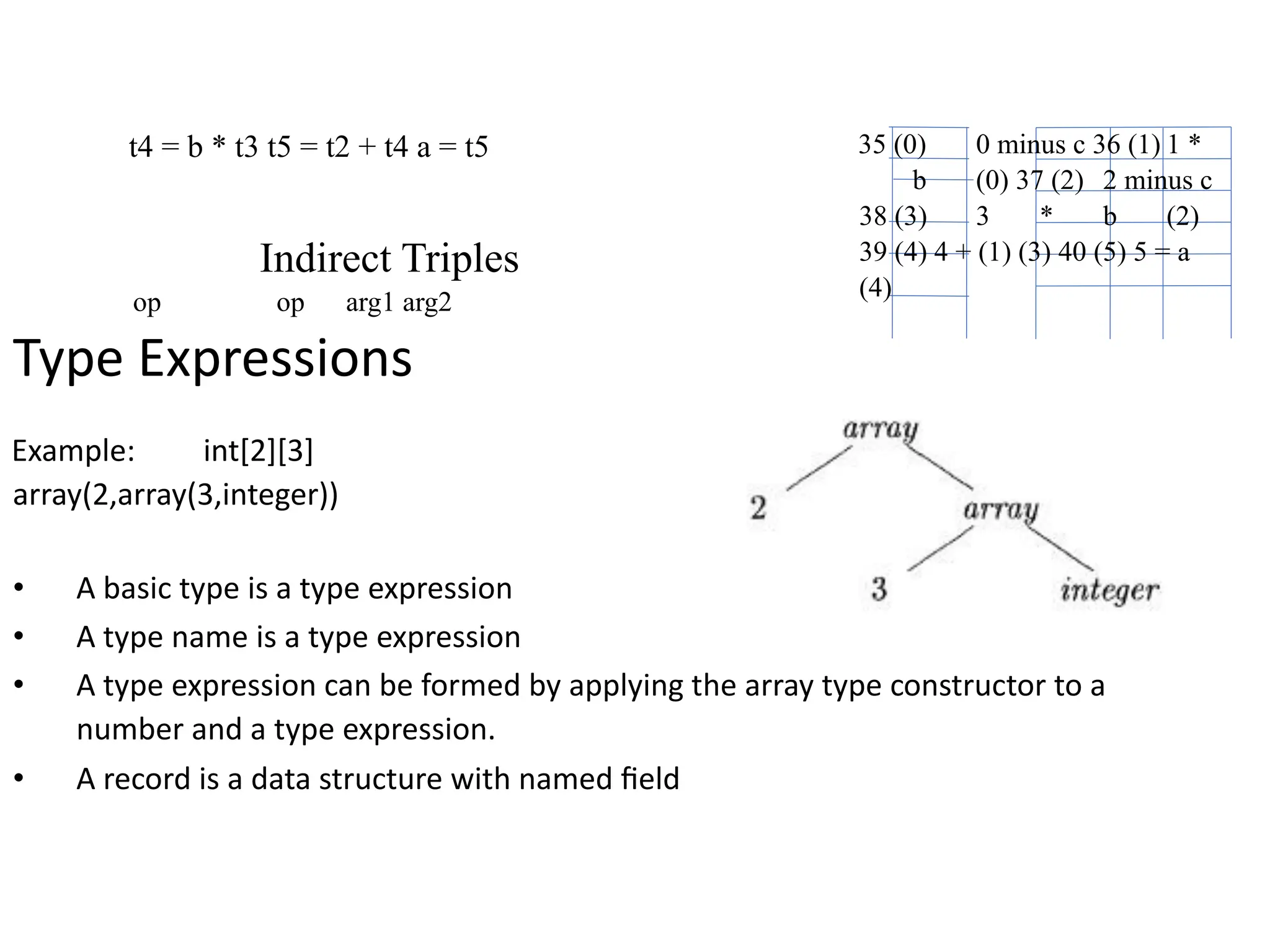

Type Expressions
Example: int[2][3]
array(2,array(3,integer))
• A basic type is a type expression
• A type name is a type expression
• A type expression can be formed by applying the array type constructor to a
number and a type expression.
• A record is a data structure with named field

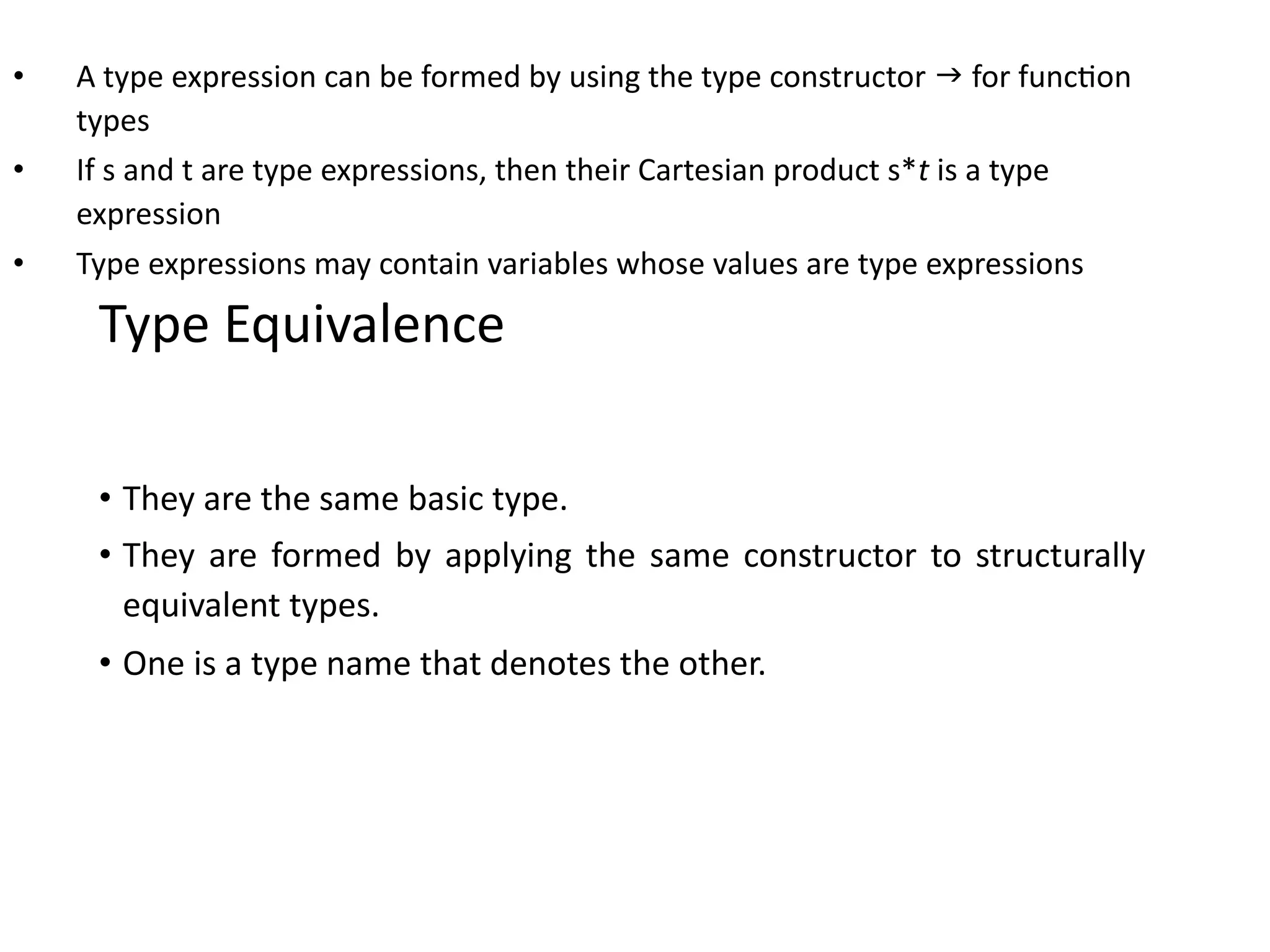

• A type expression can be formed by using the type constructor  for function
types
• If s and t are type expressions, then their Cartesian product s*t is a type
expression
• Type expressions may contain variables whose values are type expressions
Type Equivalence
• They are the same basic type.
• They are formed by applying the same constructor to structurally
equivalent types.
• One is a type name that denotes the other.

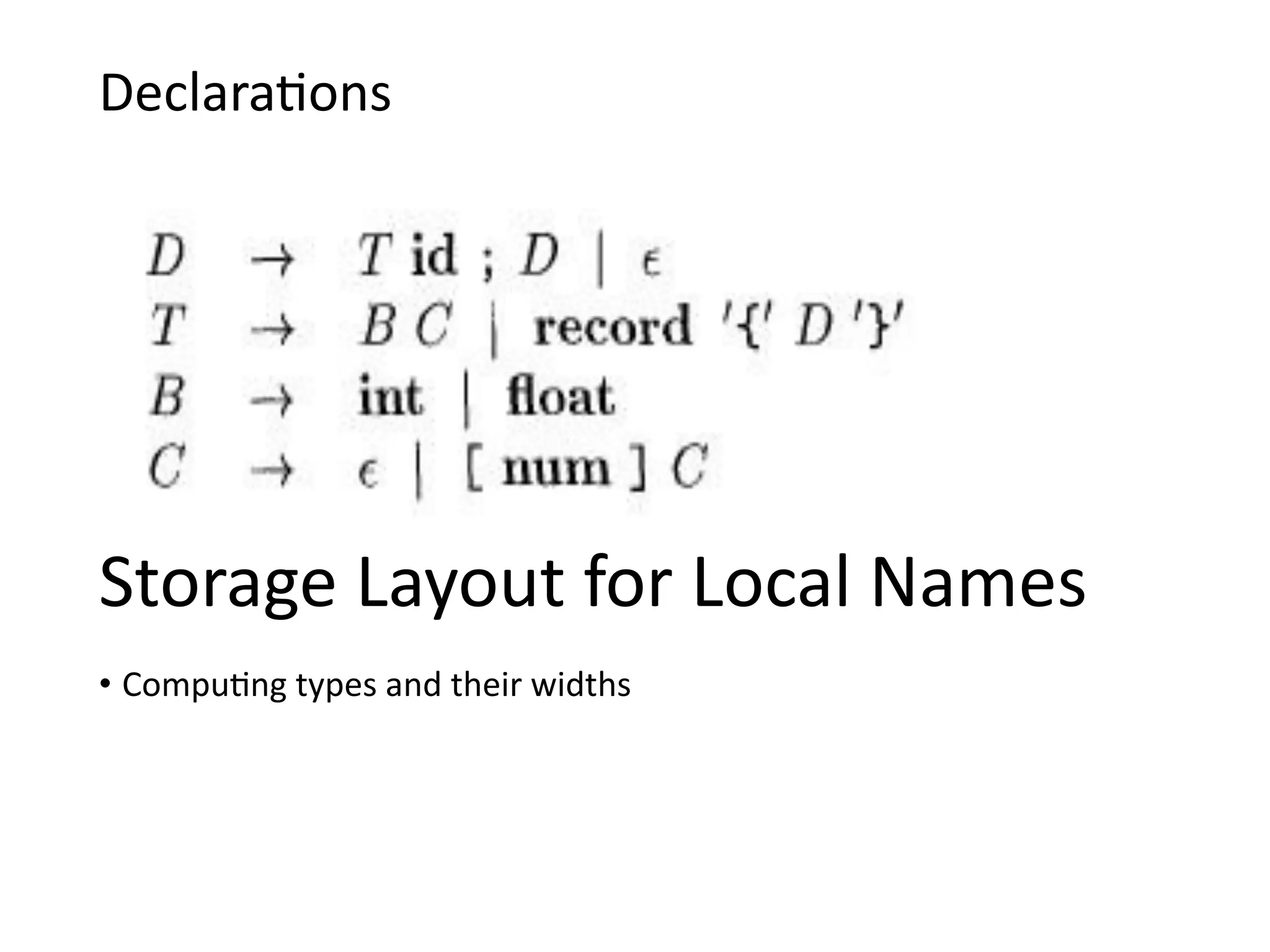

Declarations
Storage Layout for Local Names
• Computing types and their widths

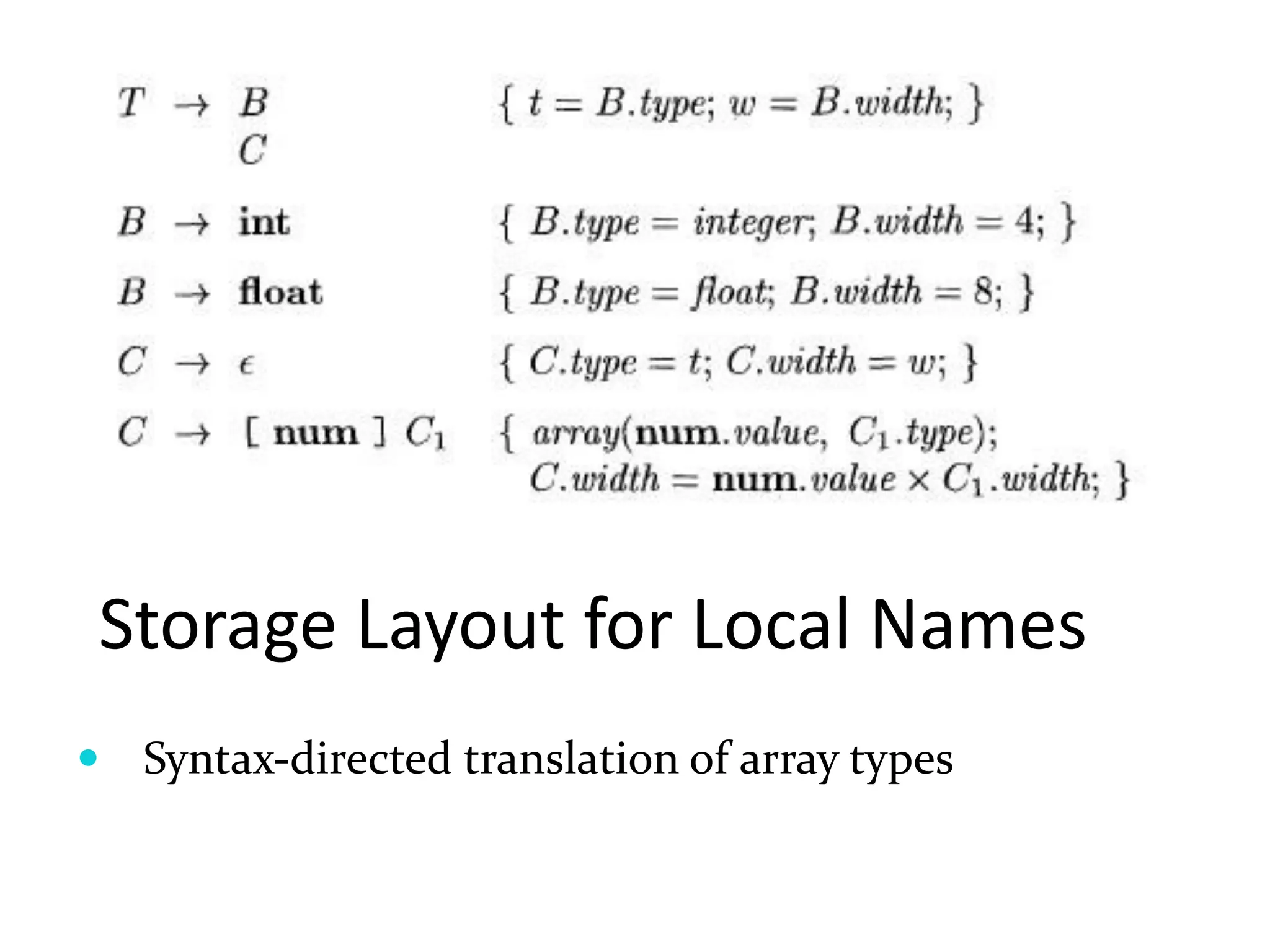

Storage Layout for Local Names
Syntax-directed translation of array types

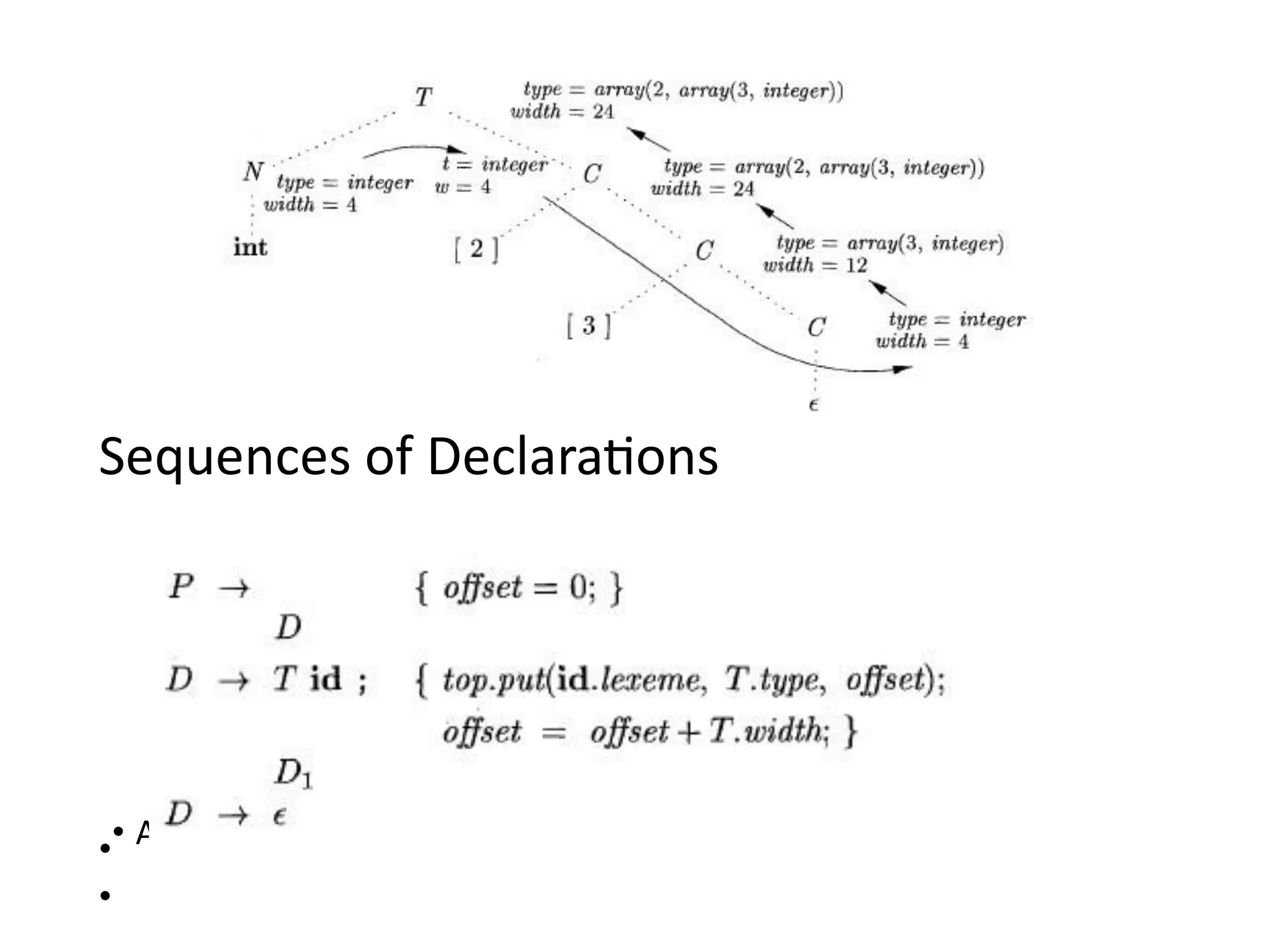

Sequences of Declarations
•
•
• Actions at the end:

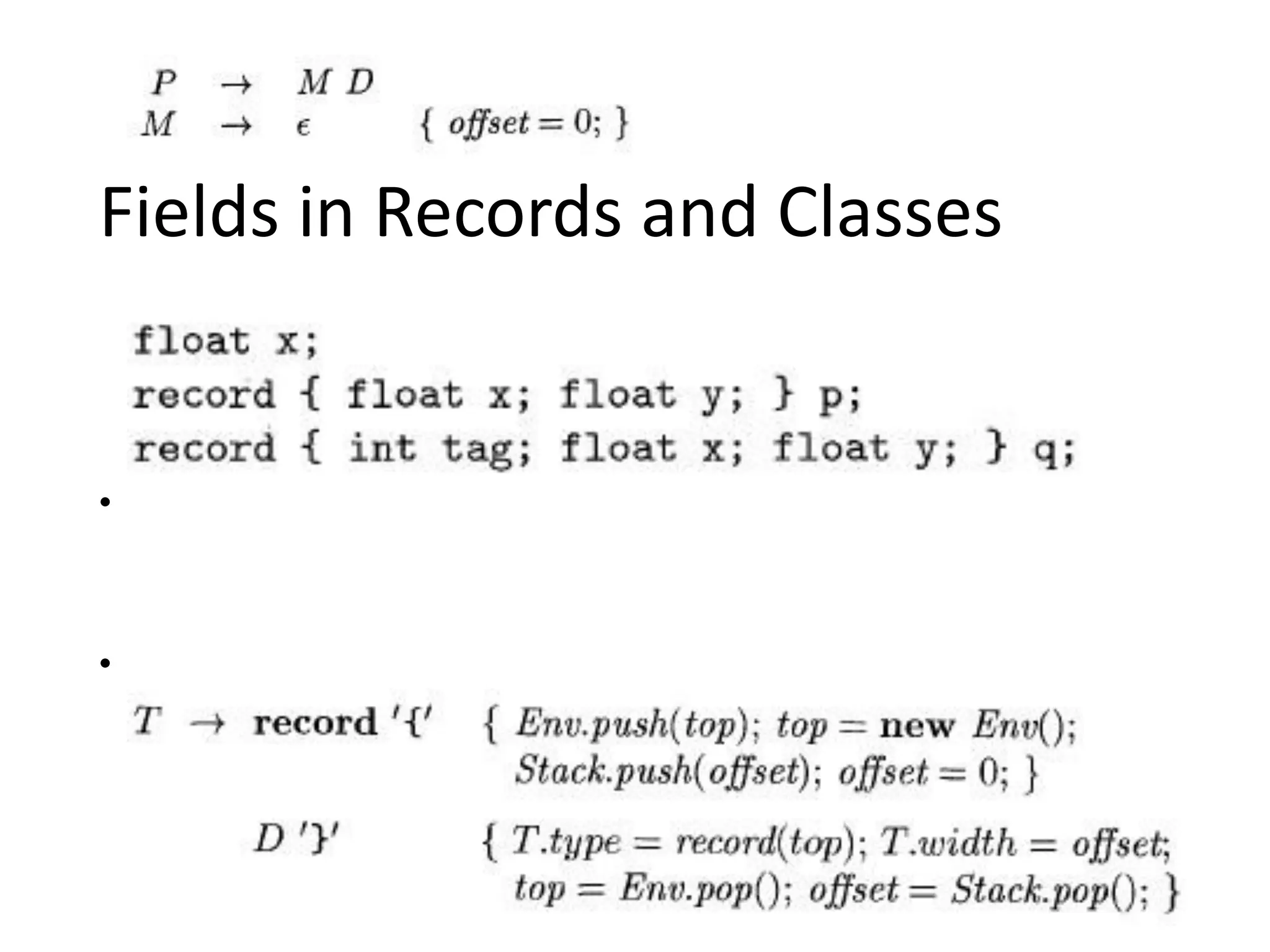

Fields in Records and Classes
•
•

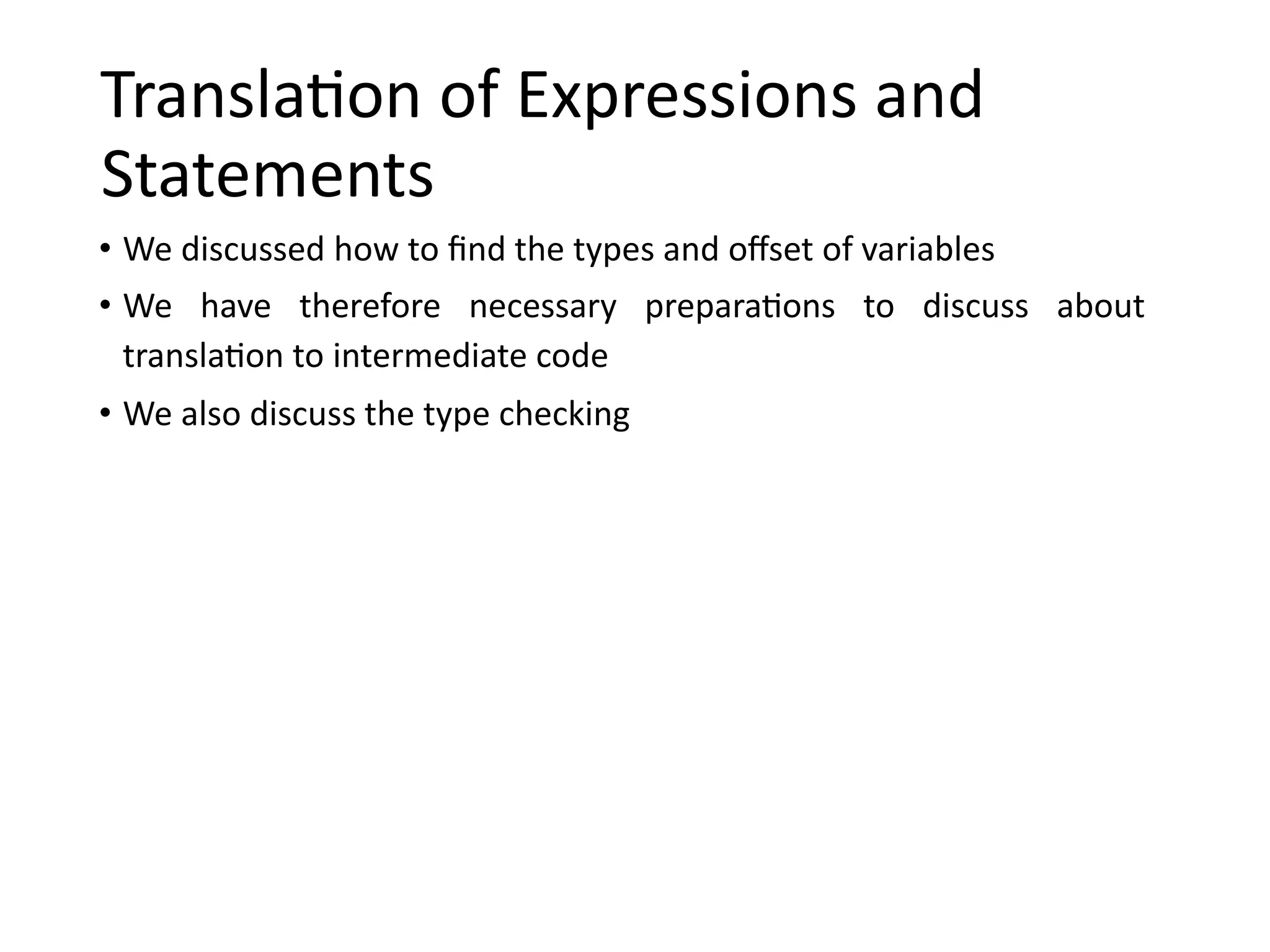

Translation of Expressions and
Statements
• We discussed how to find the types and offset of variables
• We have therefore necessary preparations to discuss about
translation to intermediate code
• We also discuss the type checking

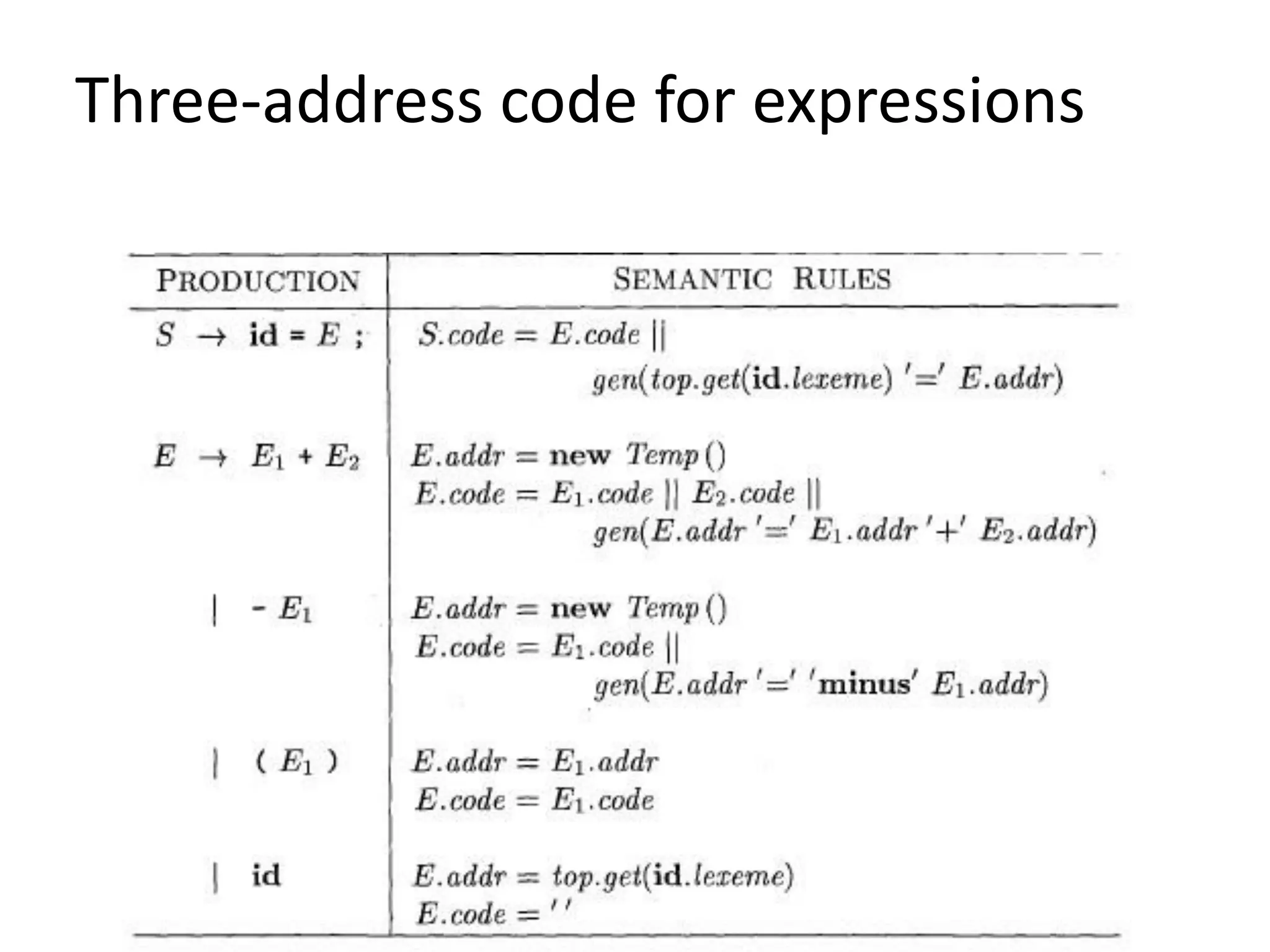

Three-address code for expressions

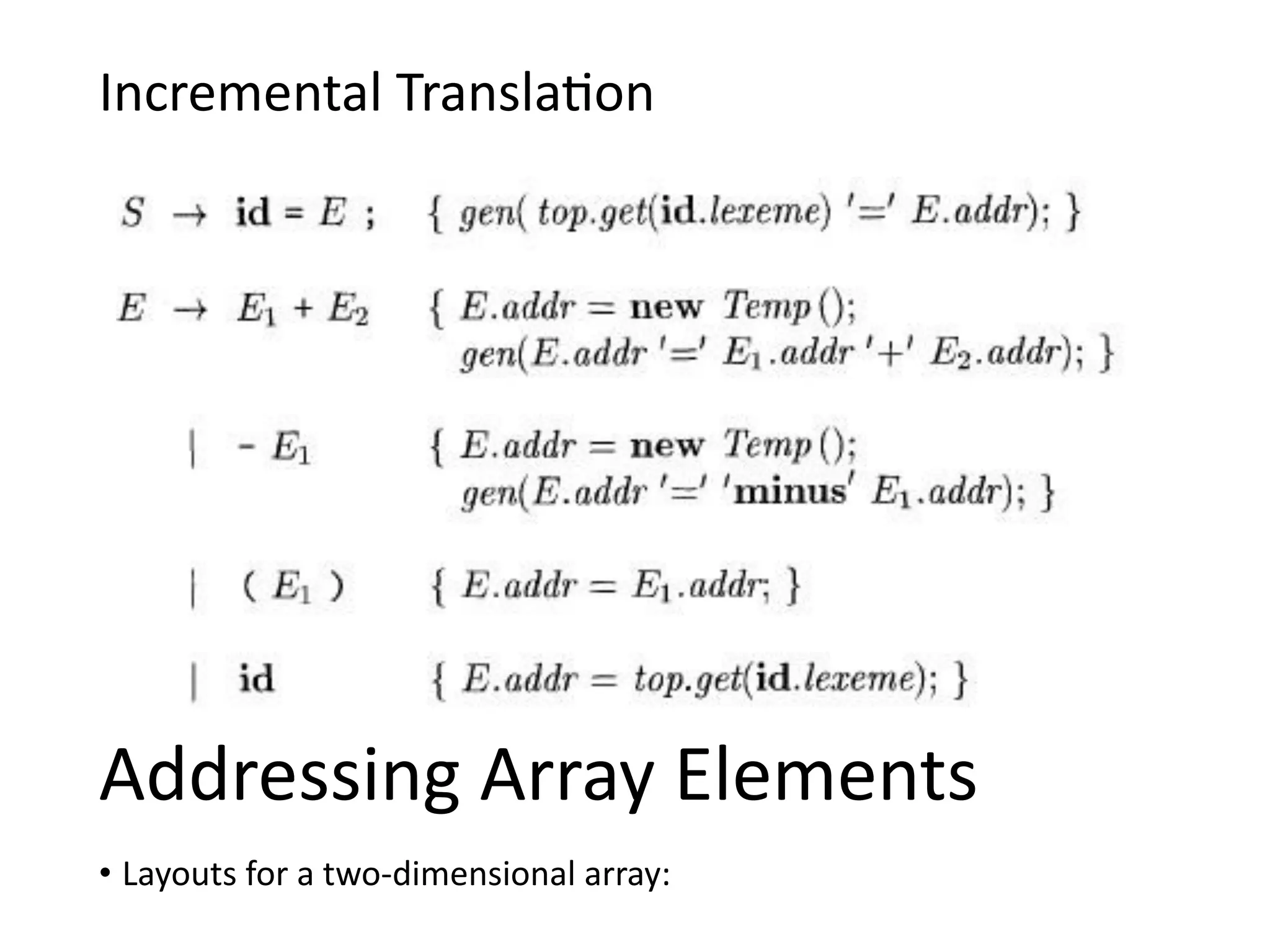

Incremental Translation
Addressing Array Elements

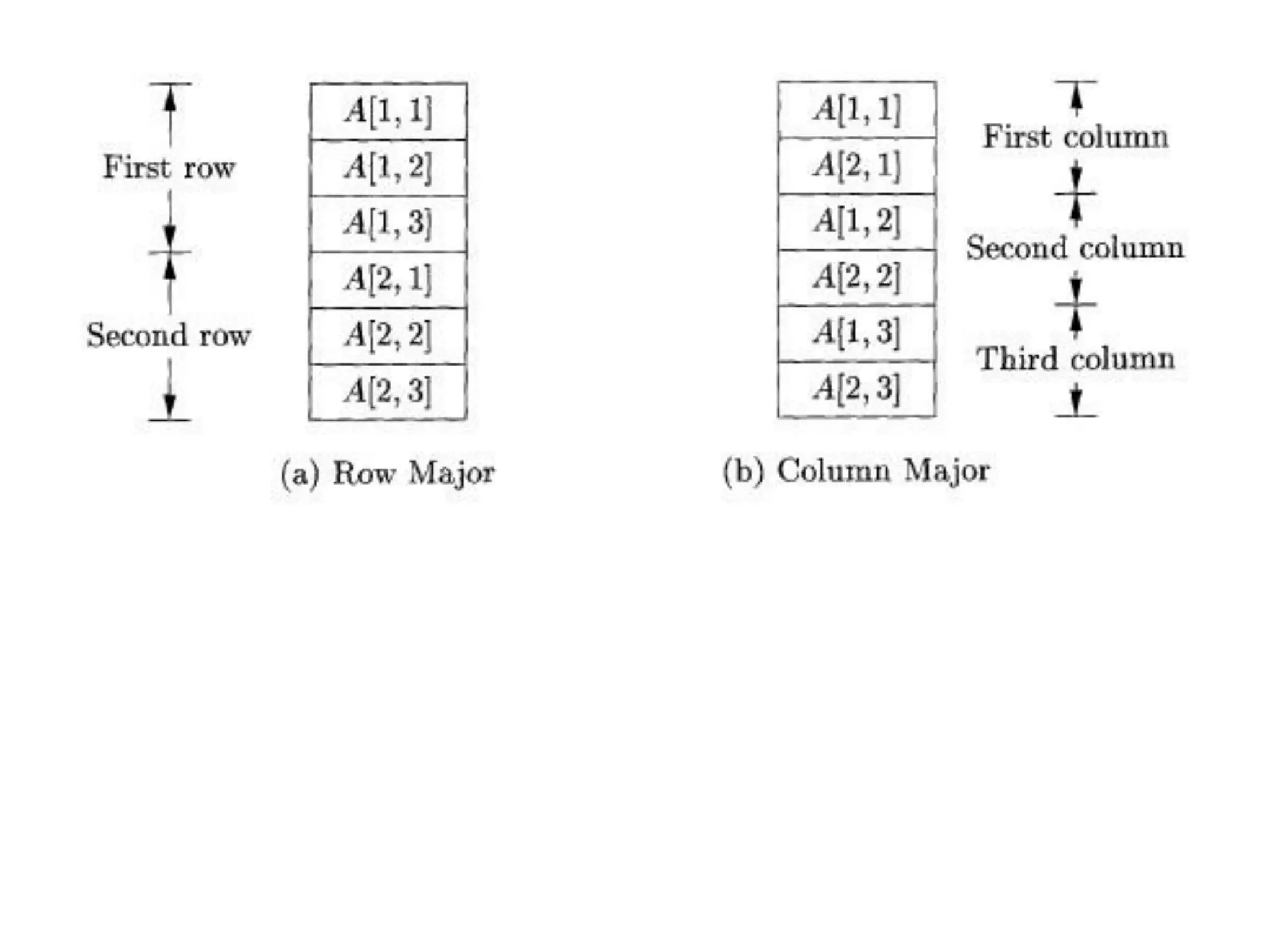

• Layouts for a two-dimensional array:

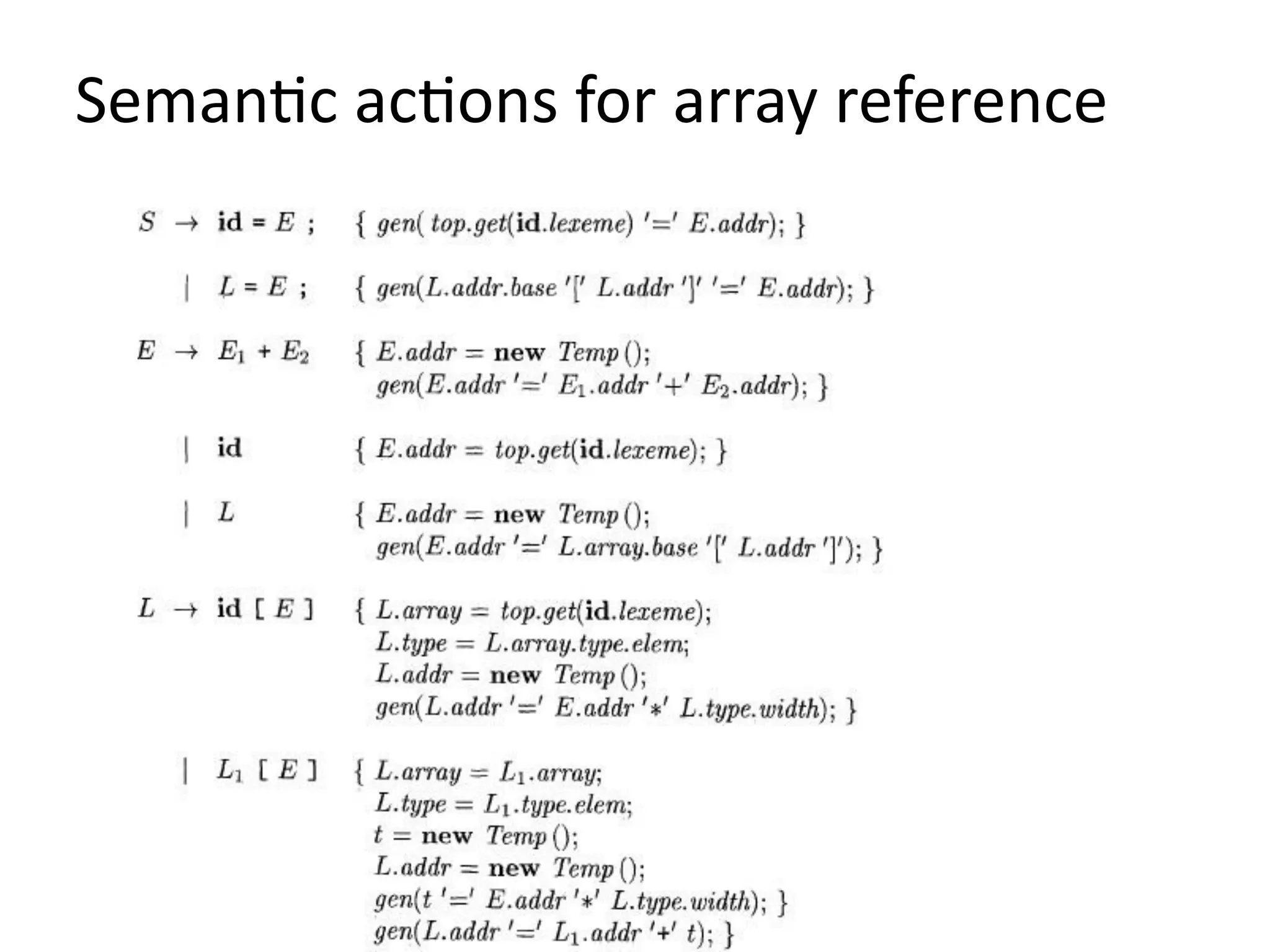

Semantic actions for array reference

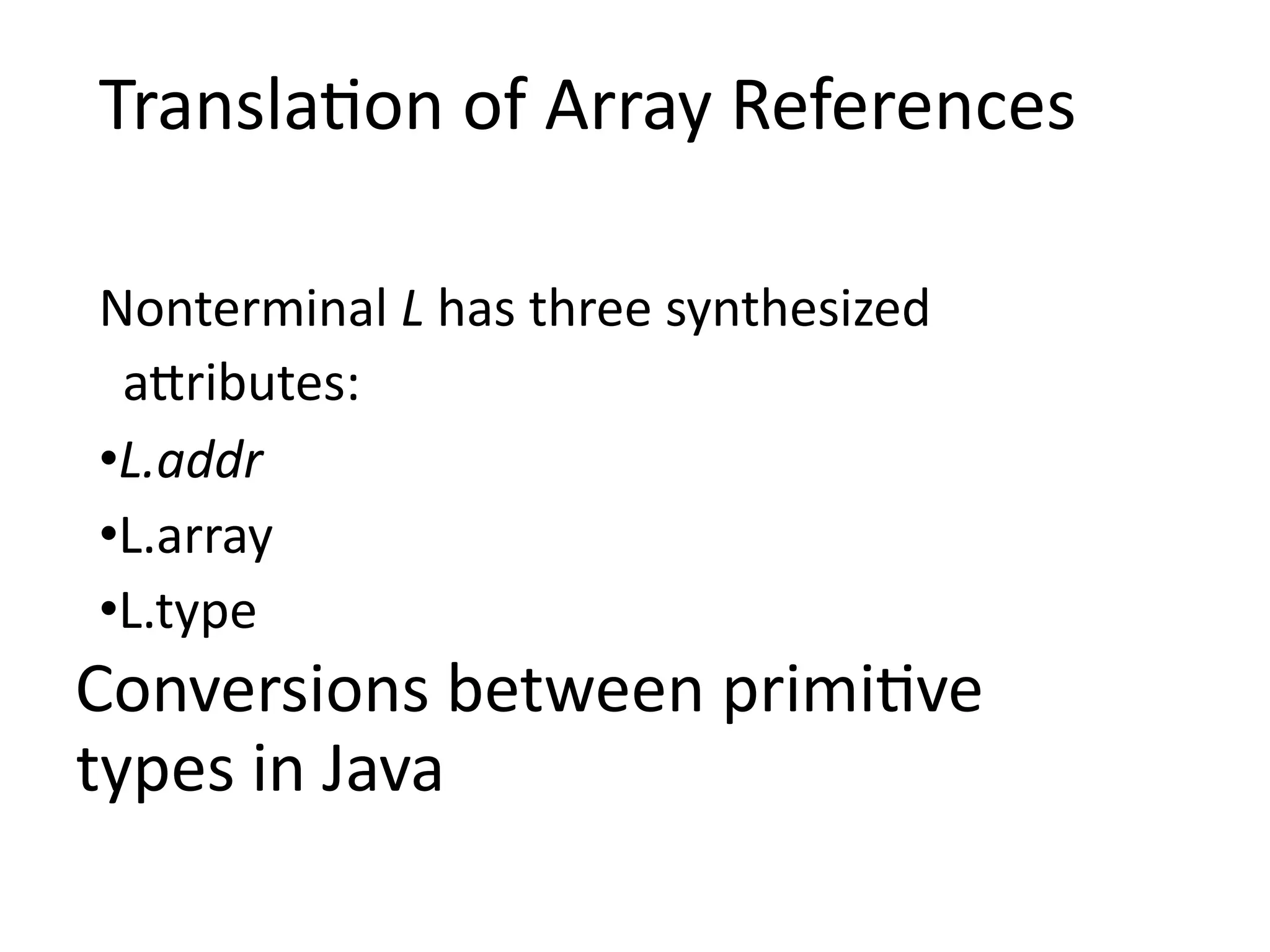

Translation of Array References
Nonterminal L has three synthesized
attributes:
•L.addr
•L.array
•L.type
Conversions between primitive
types in Java

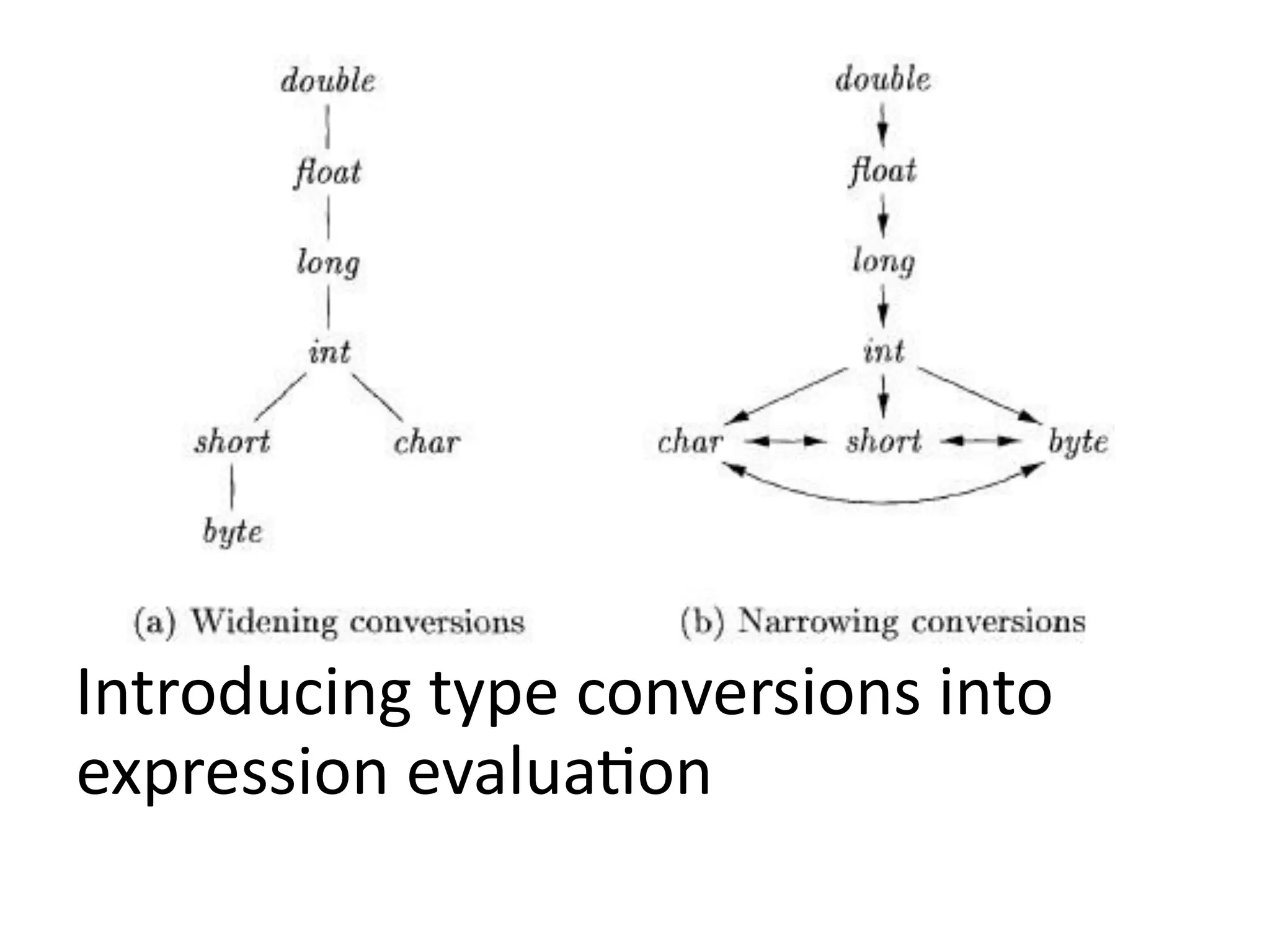

Introducing type conversions into
expression evaluation

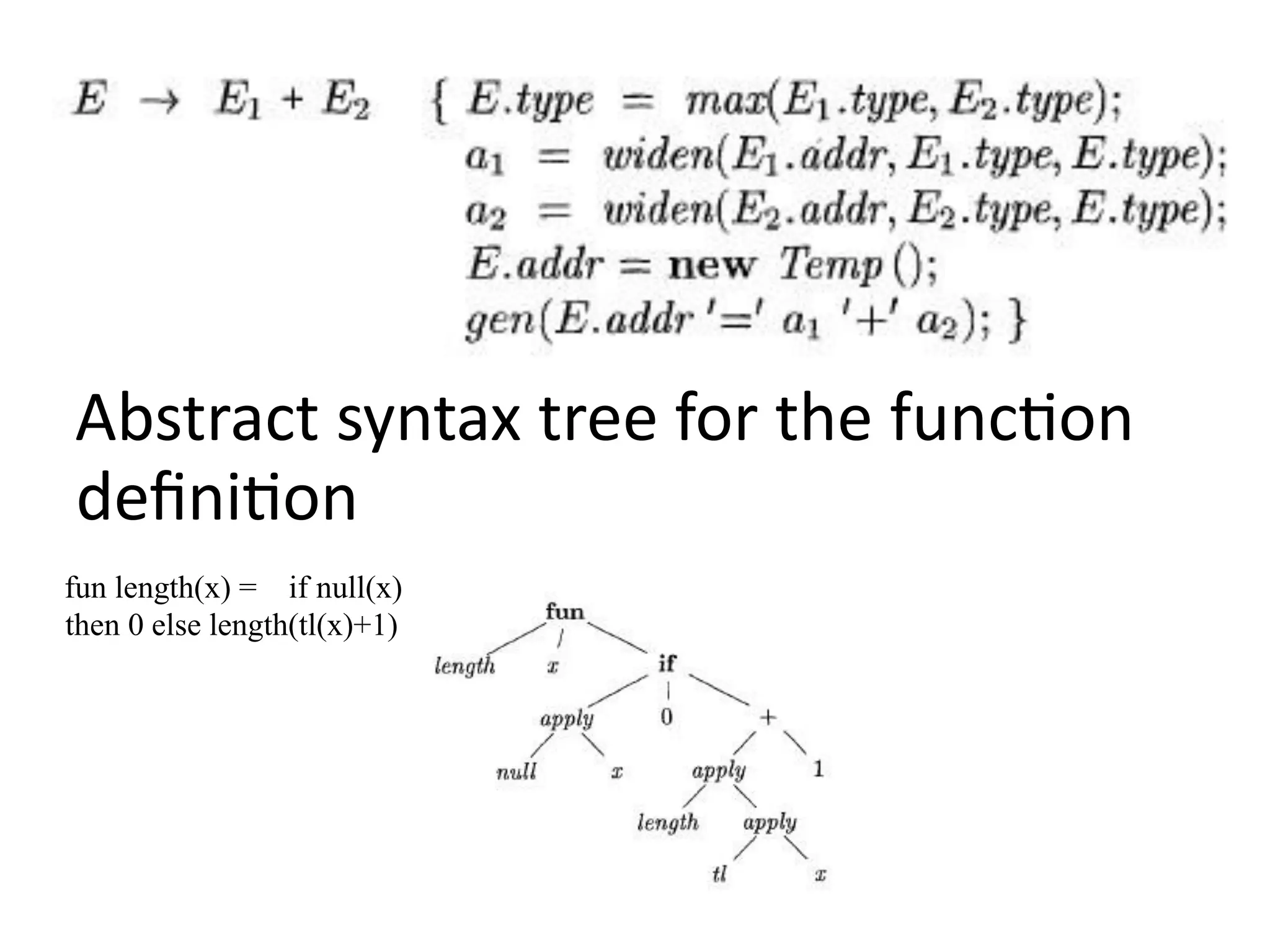

Abstract syntax tree for the function
definition
fun length(x) = if null(x)
then 0 else length(tl(x)+1)

This is a polymorphic function
in ML language

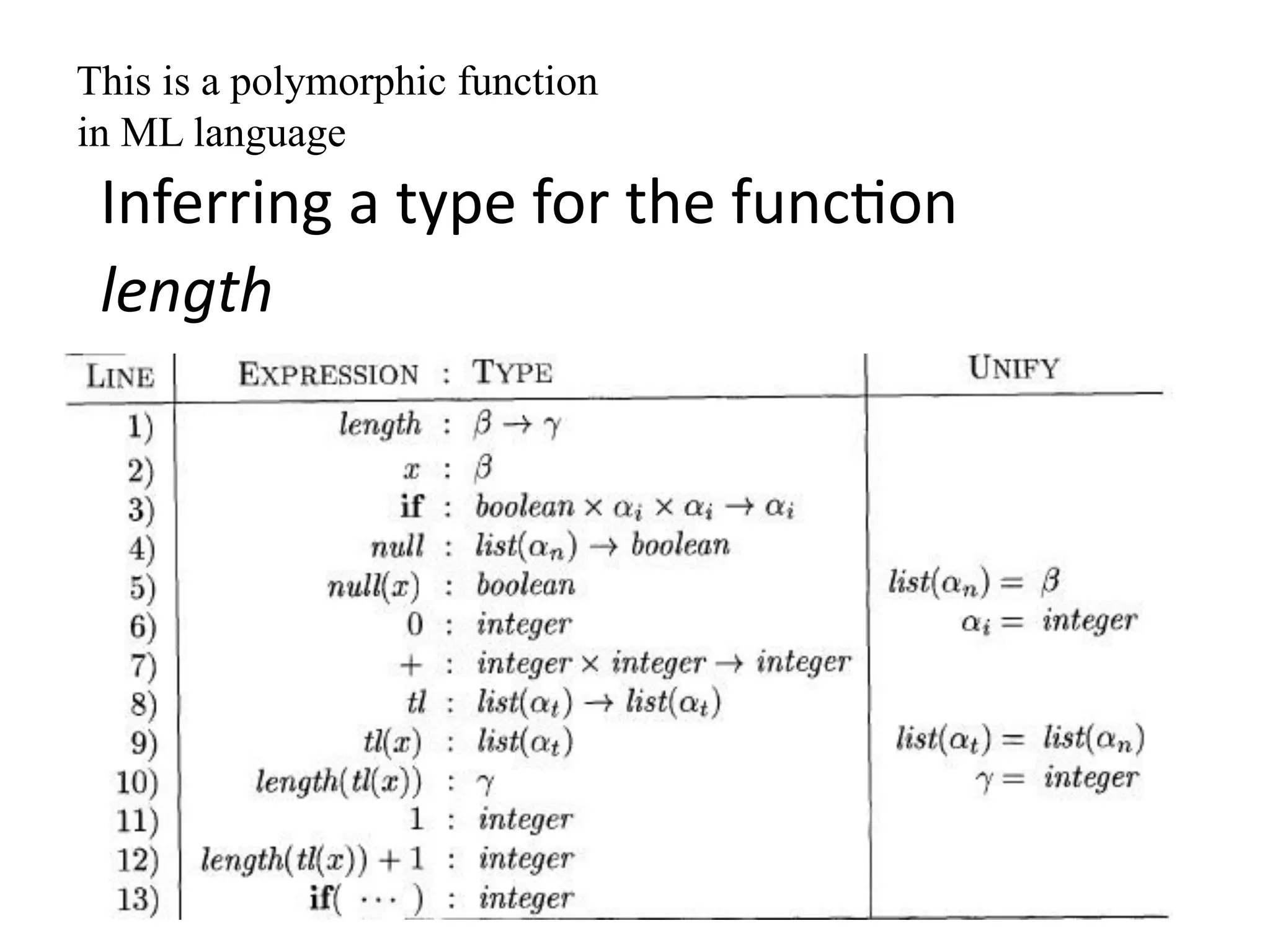

Inferring a type for the function
length

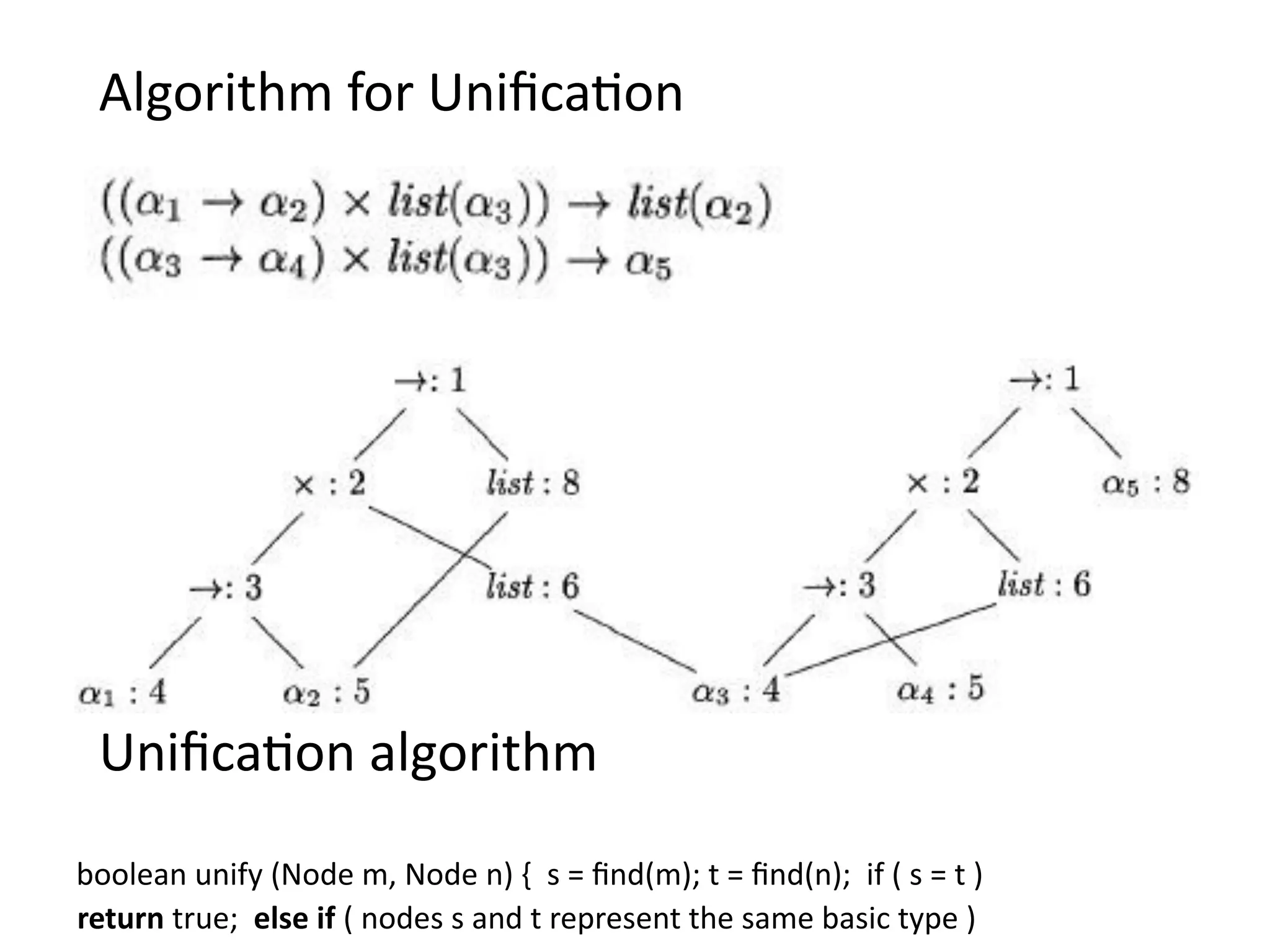

Algorithm for Unification
Unification algorithm

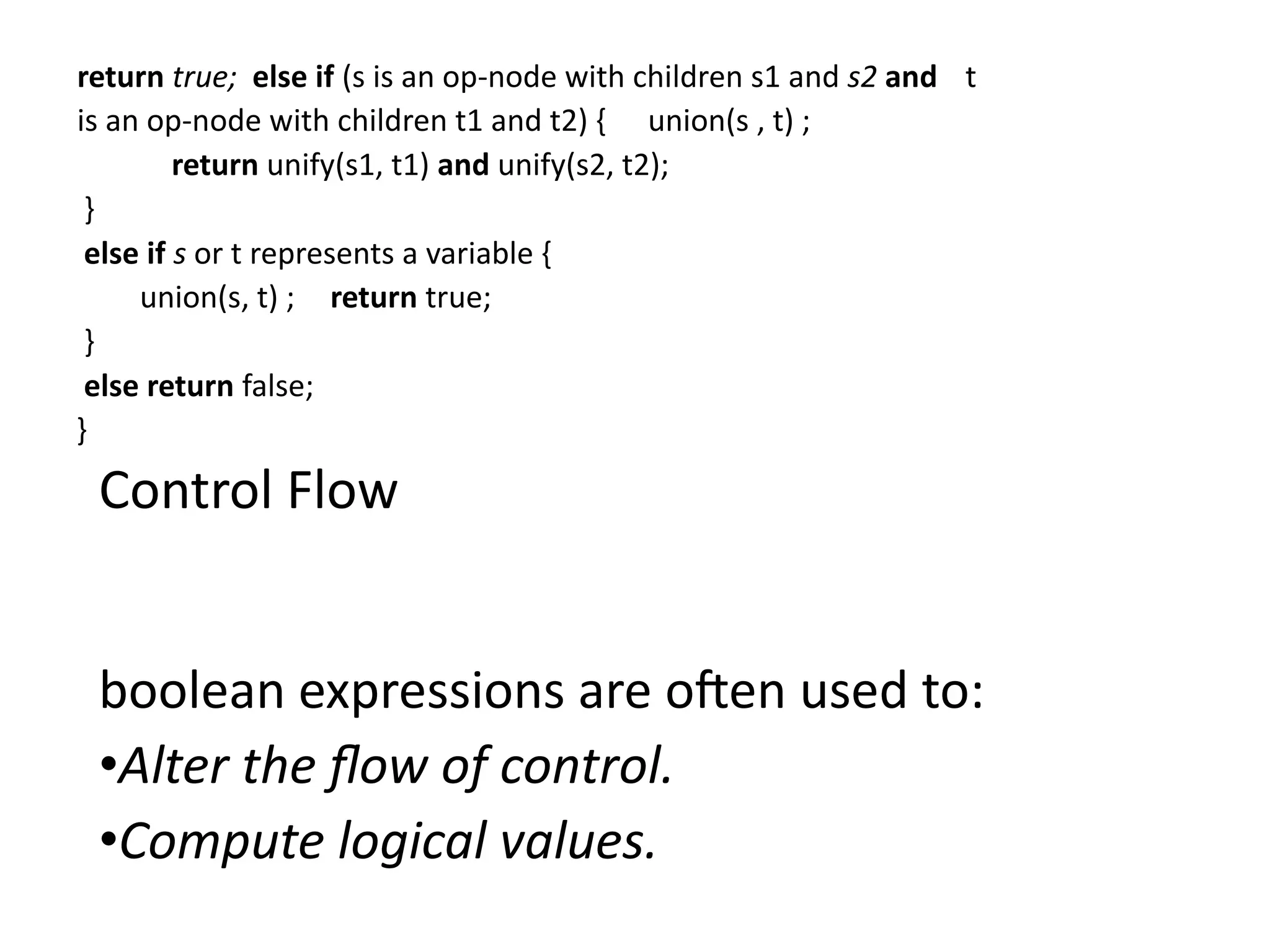

boolean unify (Node m, Node n) { s = find(m); t = find(n); if ( s = t )
return true; else if ( nodes s and t represent the same basic type )

return true; else if (s is an op-node with children s1 and s2 and t
is an op-node with children t1 and t2) { union(s , t) ;
return unify(s1, t1) and unify(s2, t2);
}
else if s or t represents a variable {
union(s, t) ; return true;
}
else return false;
}
Control Flow
boolean expressions are often used to:
•Alter the flow of control.
•Compute logical values.

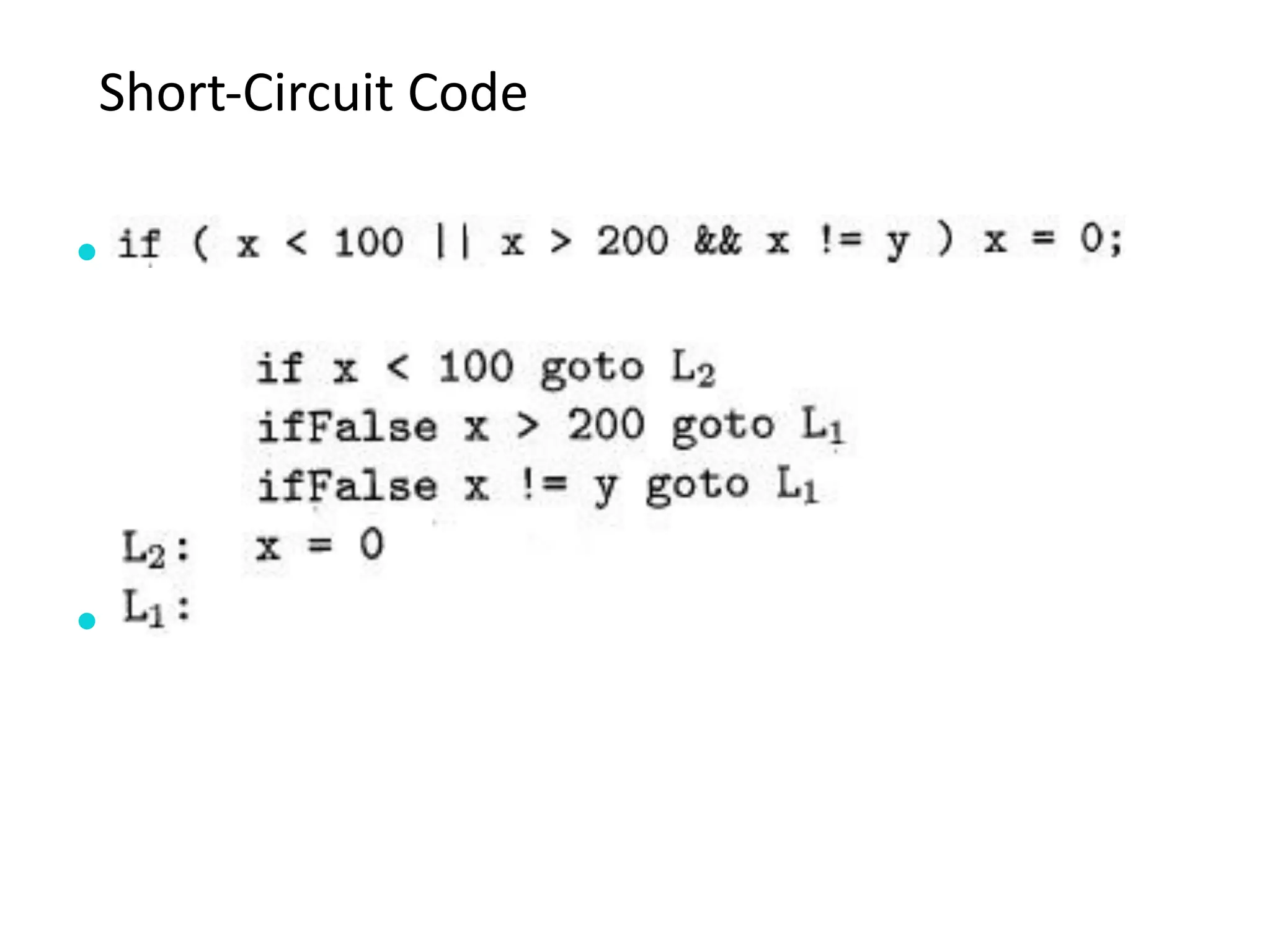

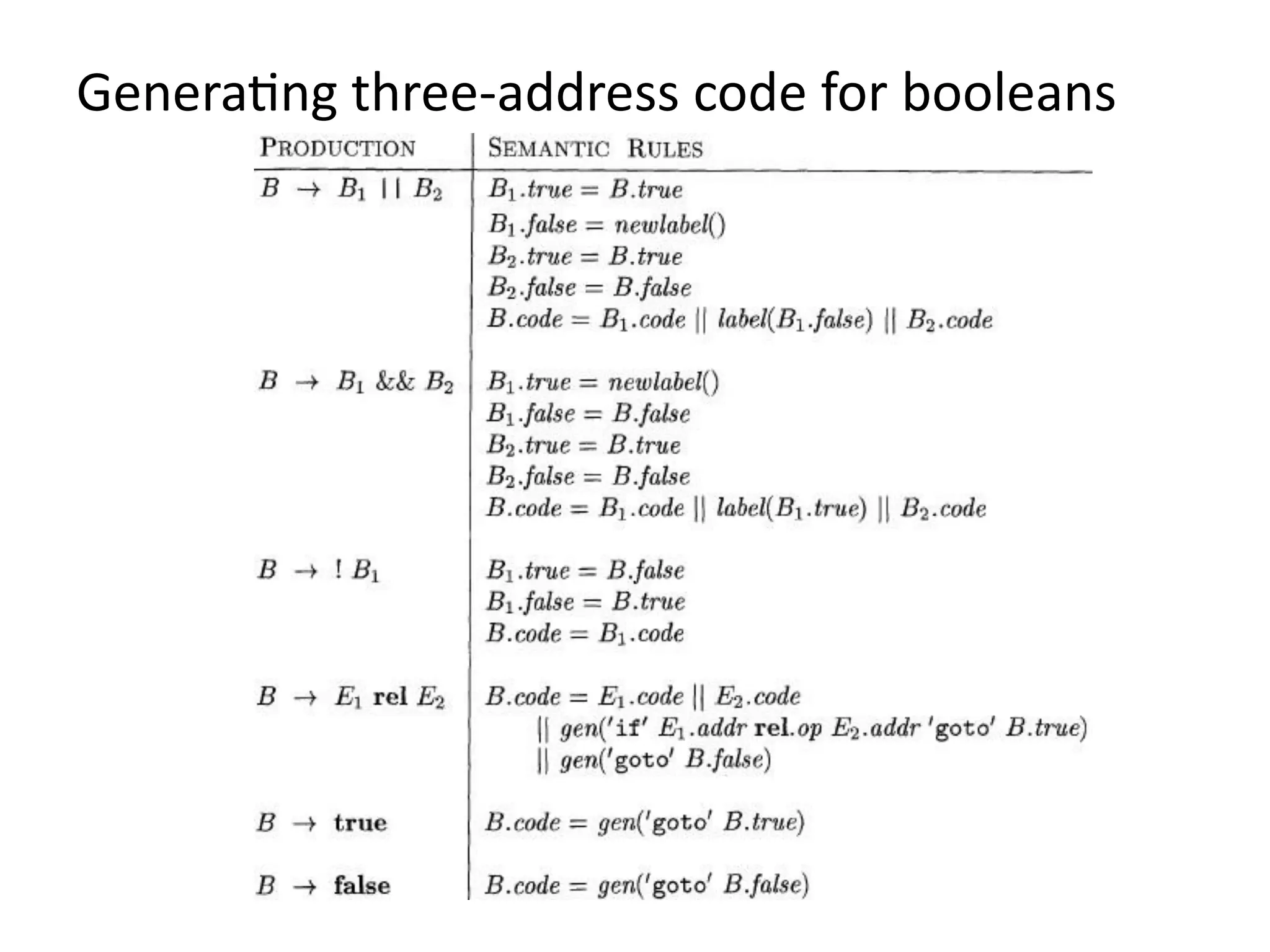

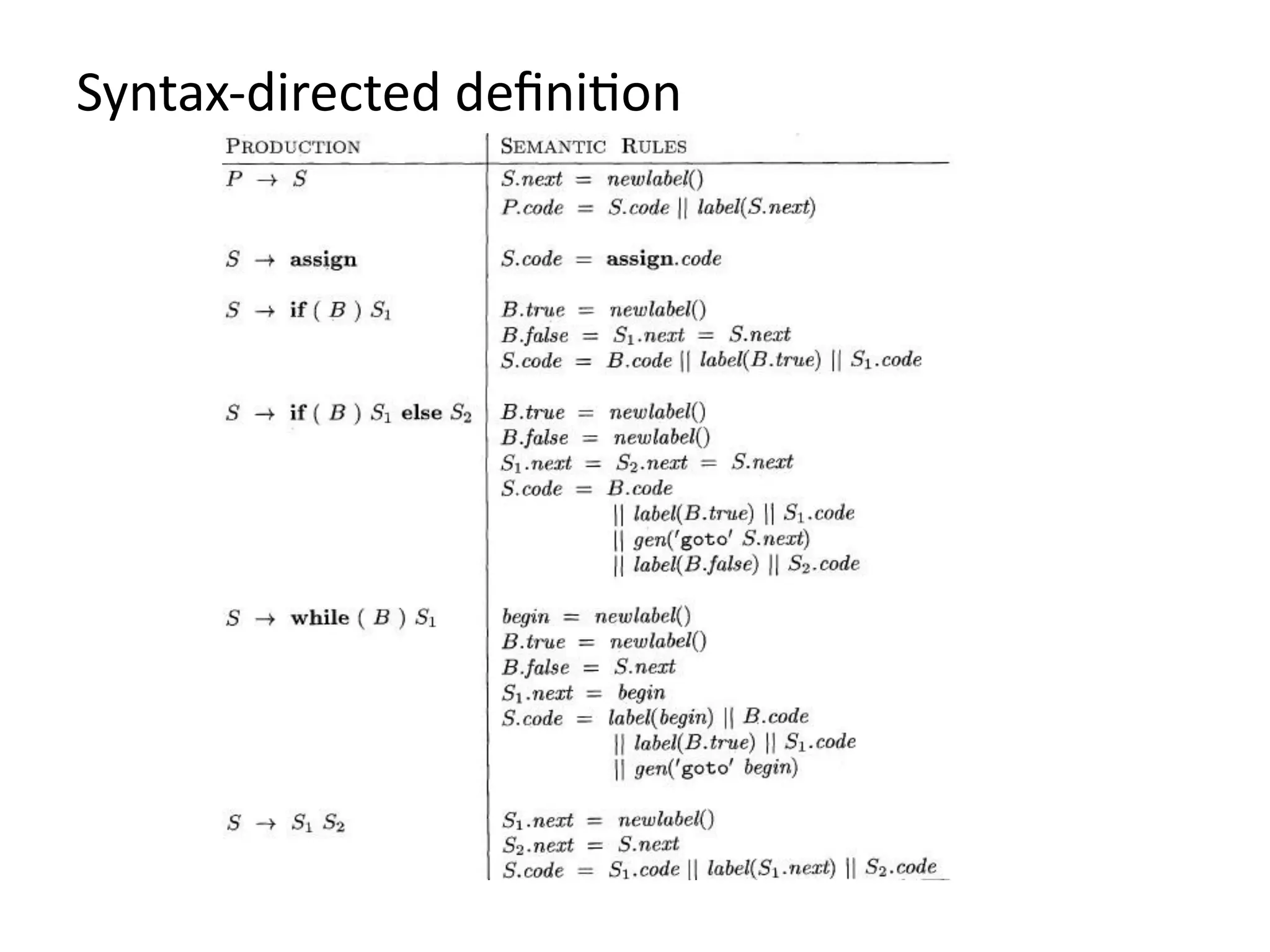

Generating three-address code for booleans

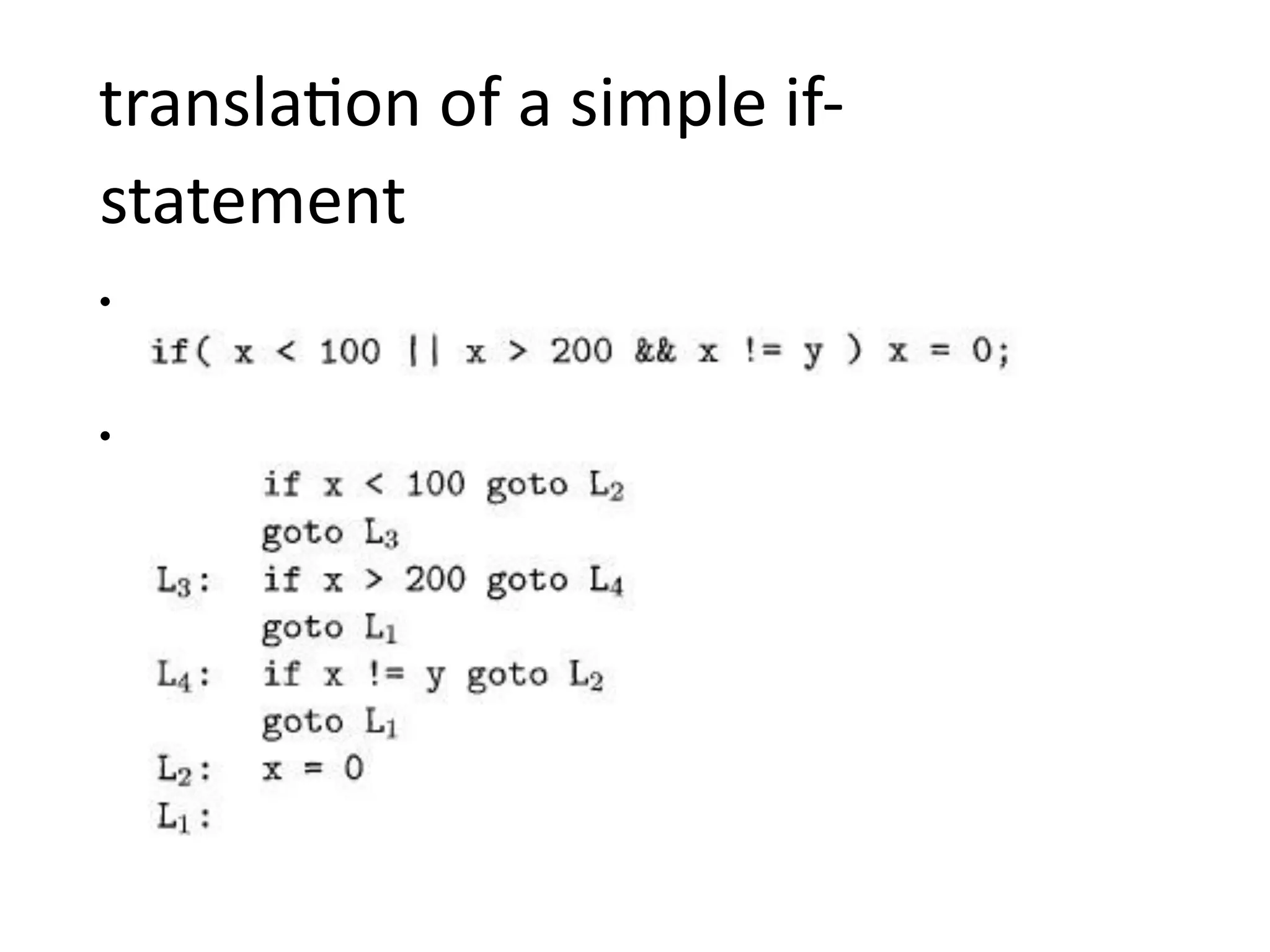

translation of a simple if-
statement
•
•

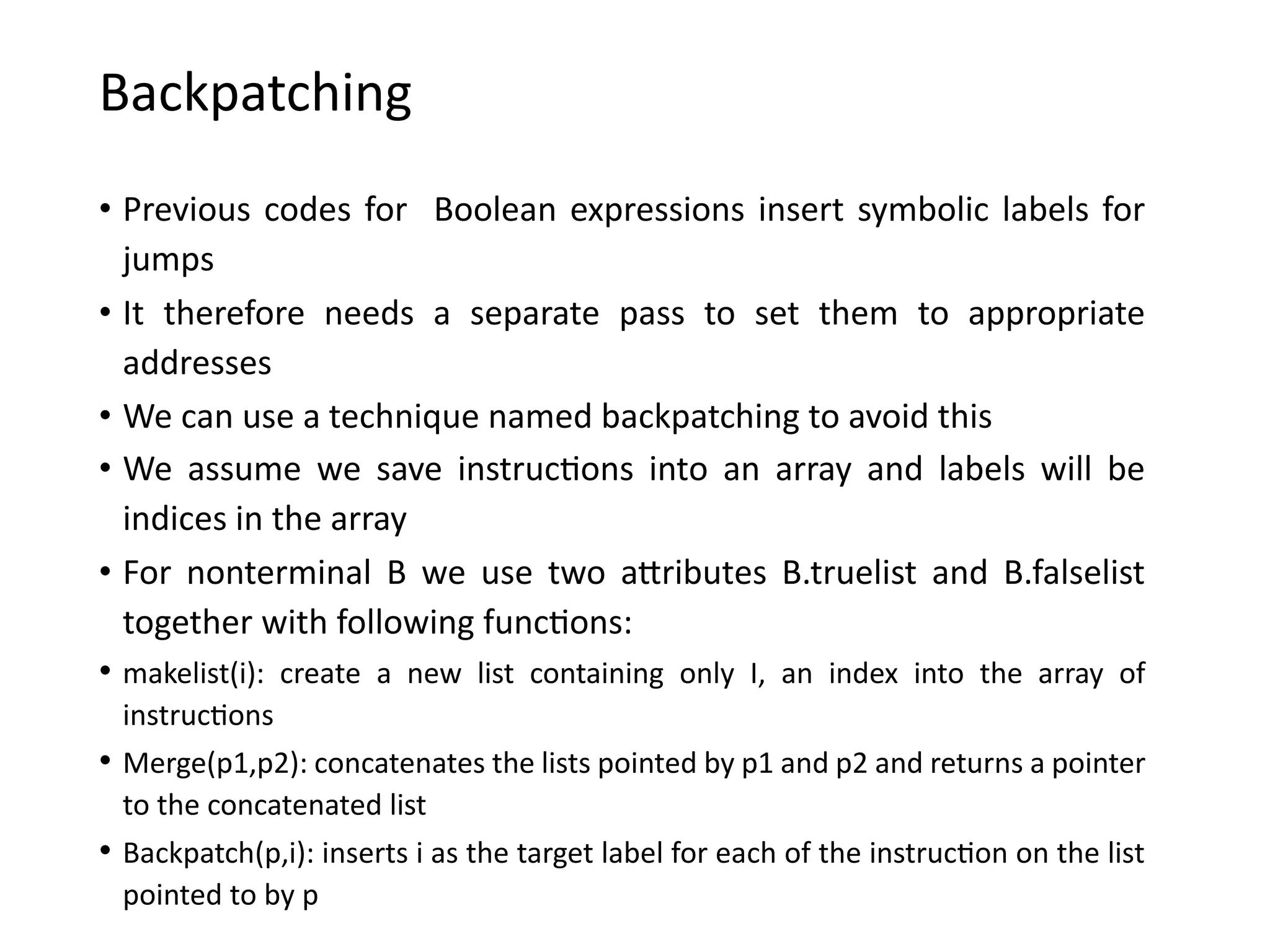

Backpatching
• Previous codes for Boolean expressions insert symbolic labels for
jumps
• It therefore needs a separate pass to set them to appropriate
addresses
• We can use a technique named backpatching to avoid this
• We assume we save instructions into an array and labels will be
indices in the array
• For nonterminal B we use two attributes B.truelist and B.falselist
together with following functions:
• makelist(i): create a new list containing only I, an index into the array of
instructions
• Merge(p1,p2): concatenates the lists pointed by p1 and p2 and returns a pointer
to the concatenated list
• Backpatch(p,i): inserts i as the target label for each of the instruction on the list
pointed to by p

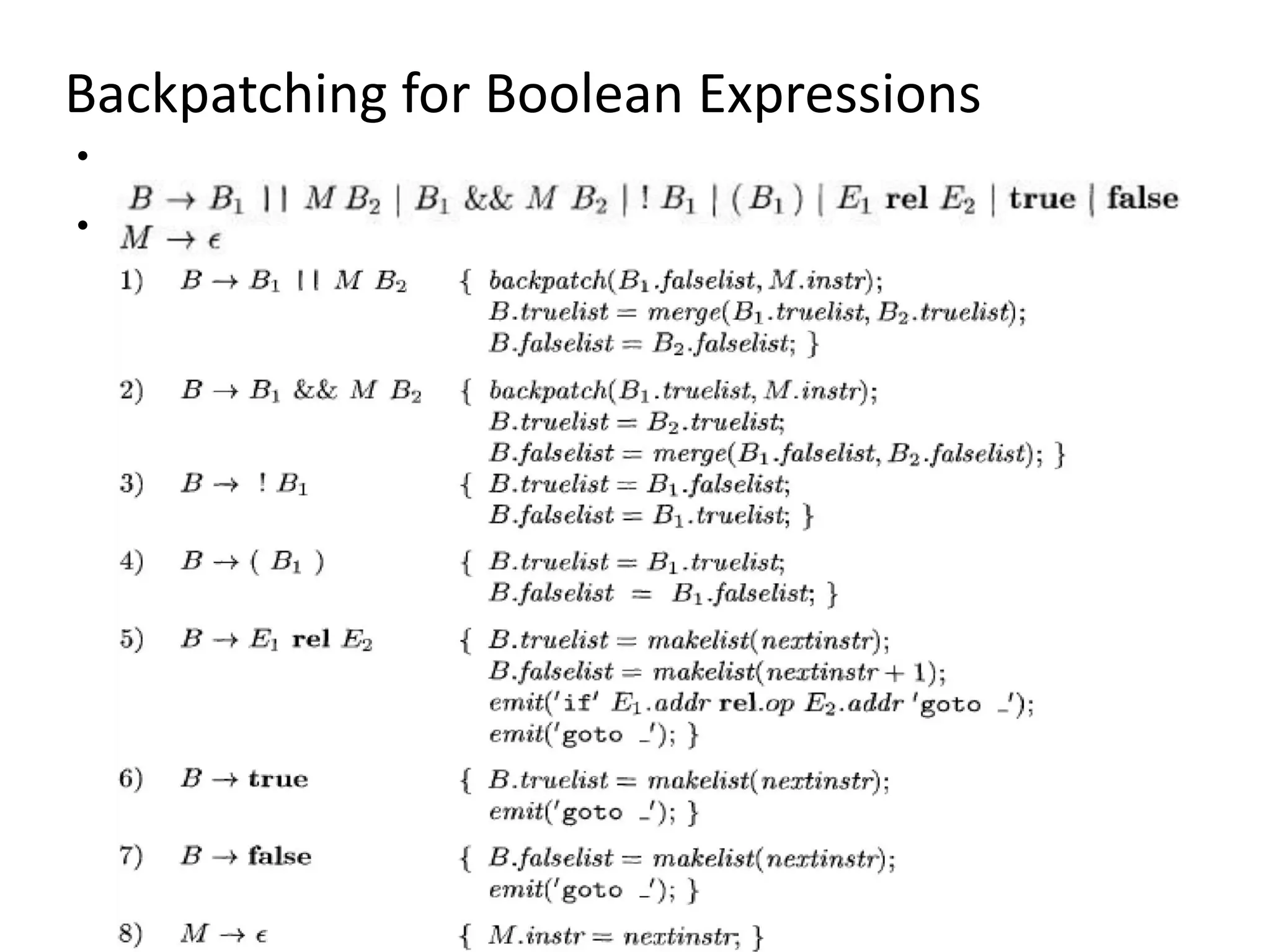

Backpatching for Boolean Expressions
•
•

Backpatching for Boolean Expressions

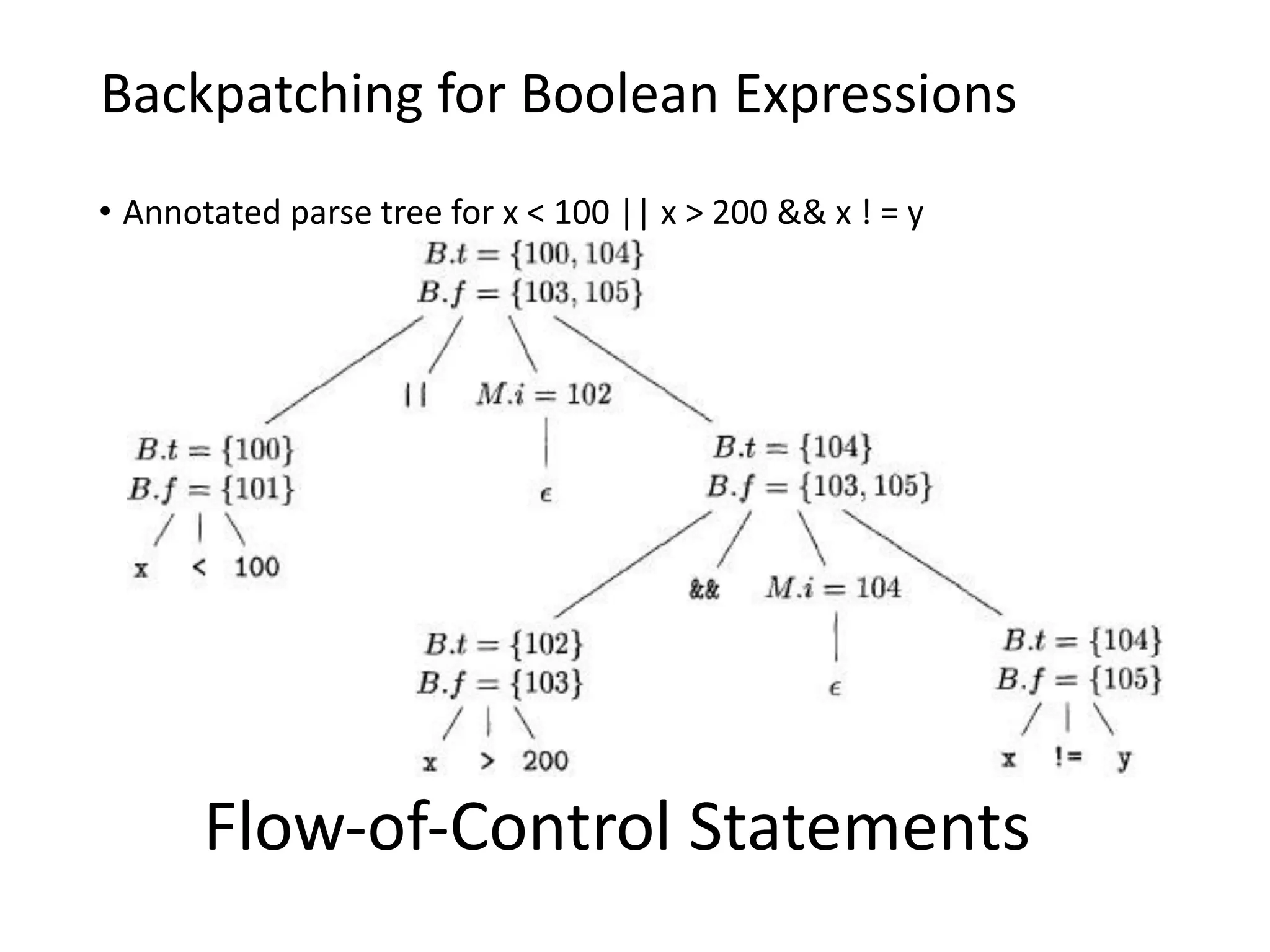

• Annotated parse tree for x < 100 || x > 200 && x ! = y

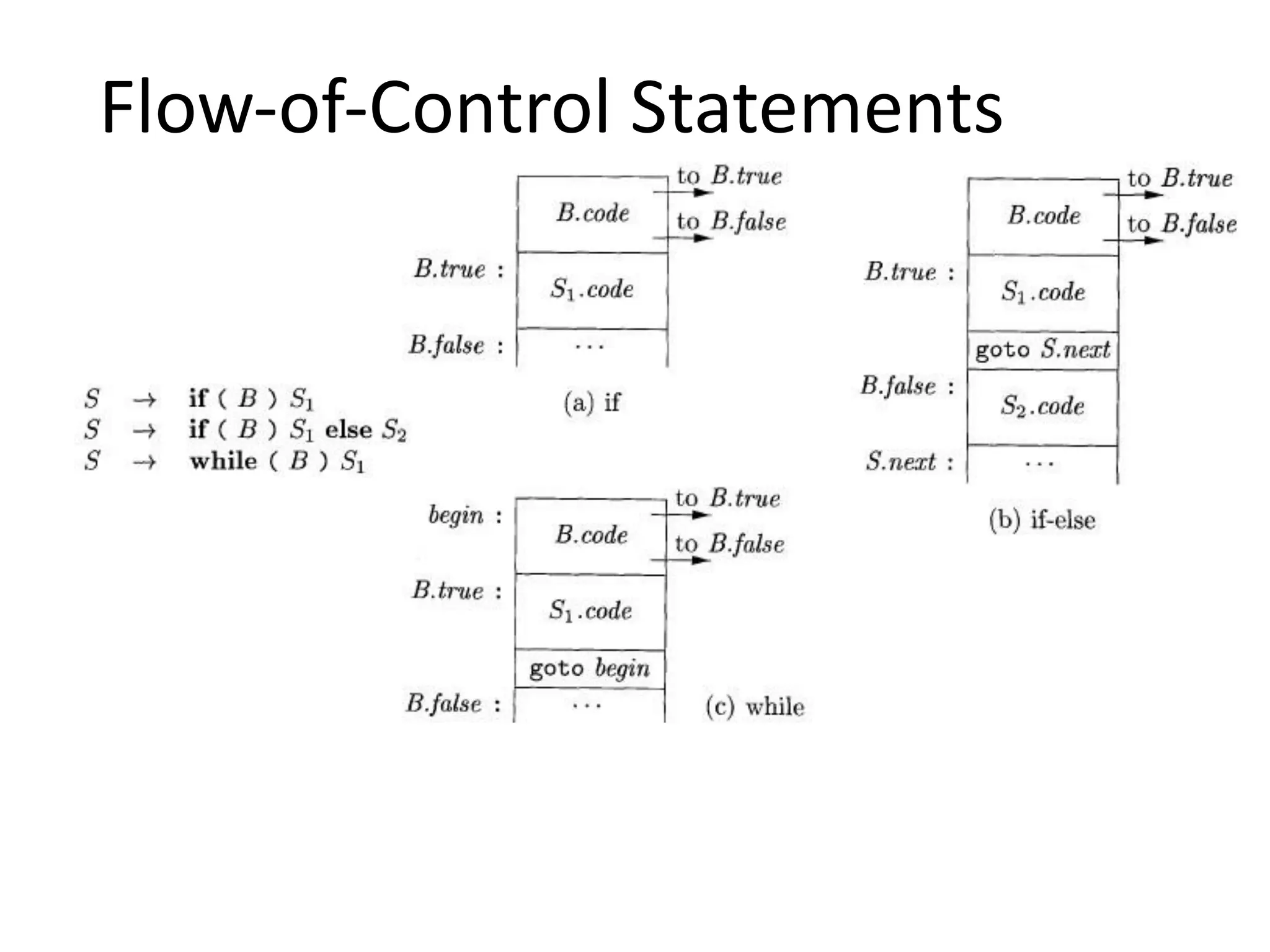

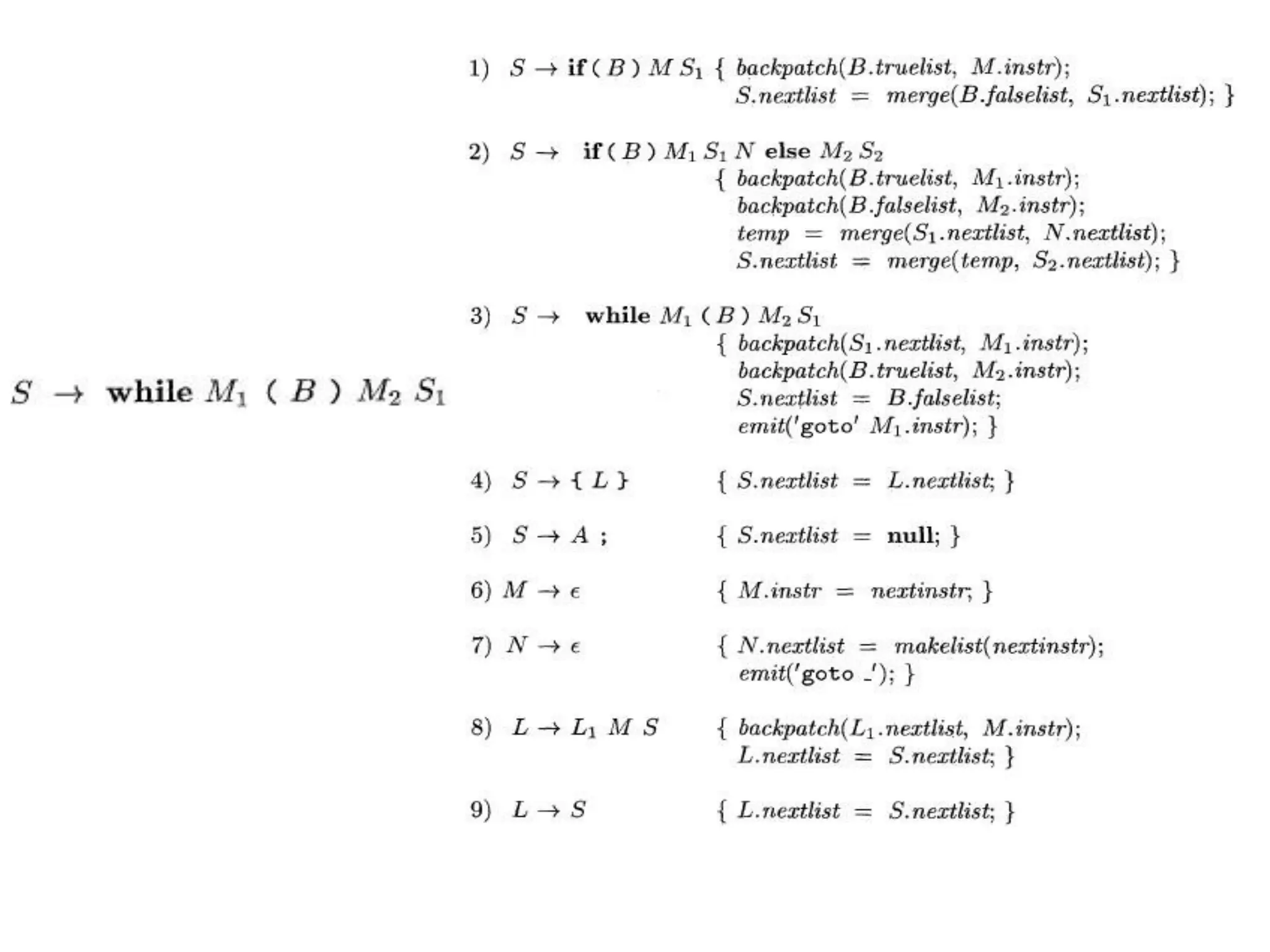

Flow-of-Control Statements

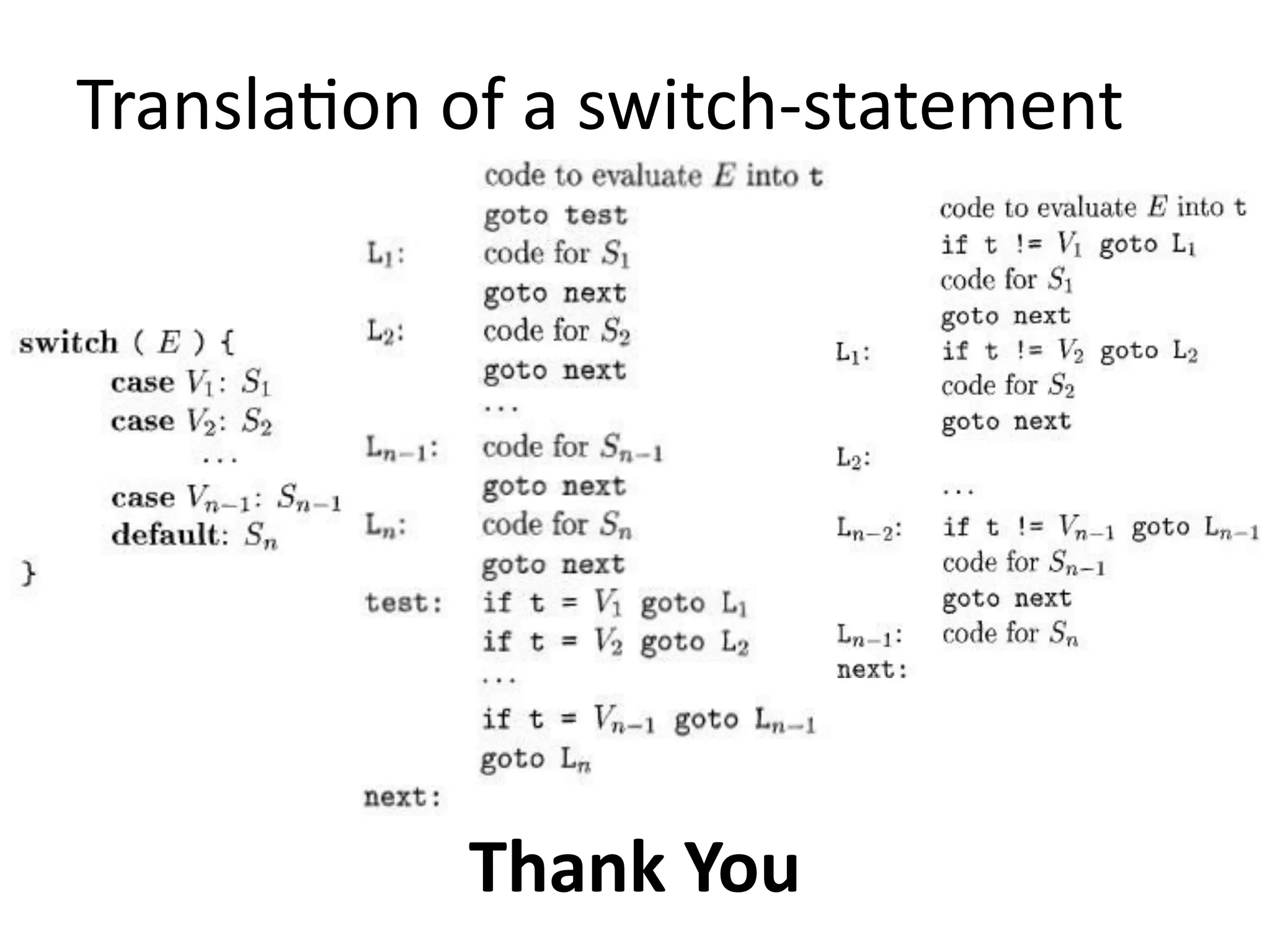

Translation of a switch-statement
Thank You
