- 1. info@newsteplearning.com www.newsteplearning.com (425) 522-3727 Understanding and Extending SharePoint Designer Workflows
- 2. About Chris Beckett Solution Architect Learning Consultant and Trainer @sharepointbits MCM MCT MCSE MCPD 24+10 blog.sharepointbits.com chris@newsteplearning.com

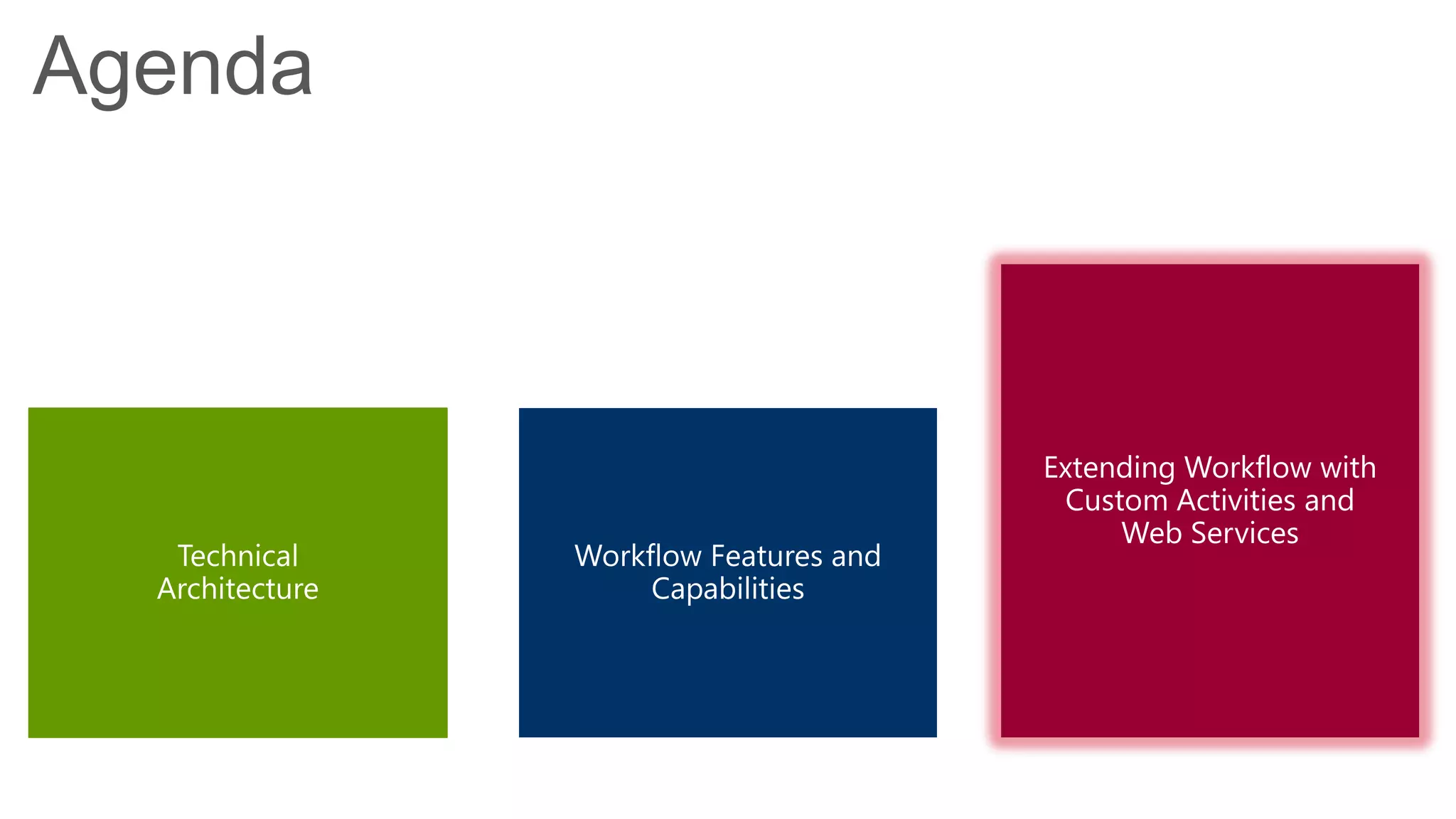

- 3. Agenda Technical Architecture Extending Workflow with Workflow Features and Custom Activities and Capabilities Web Services

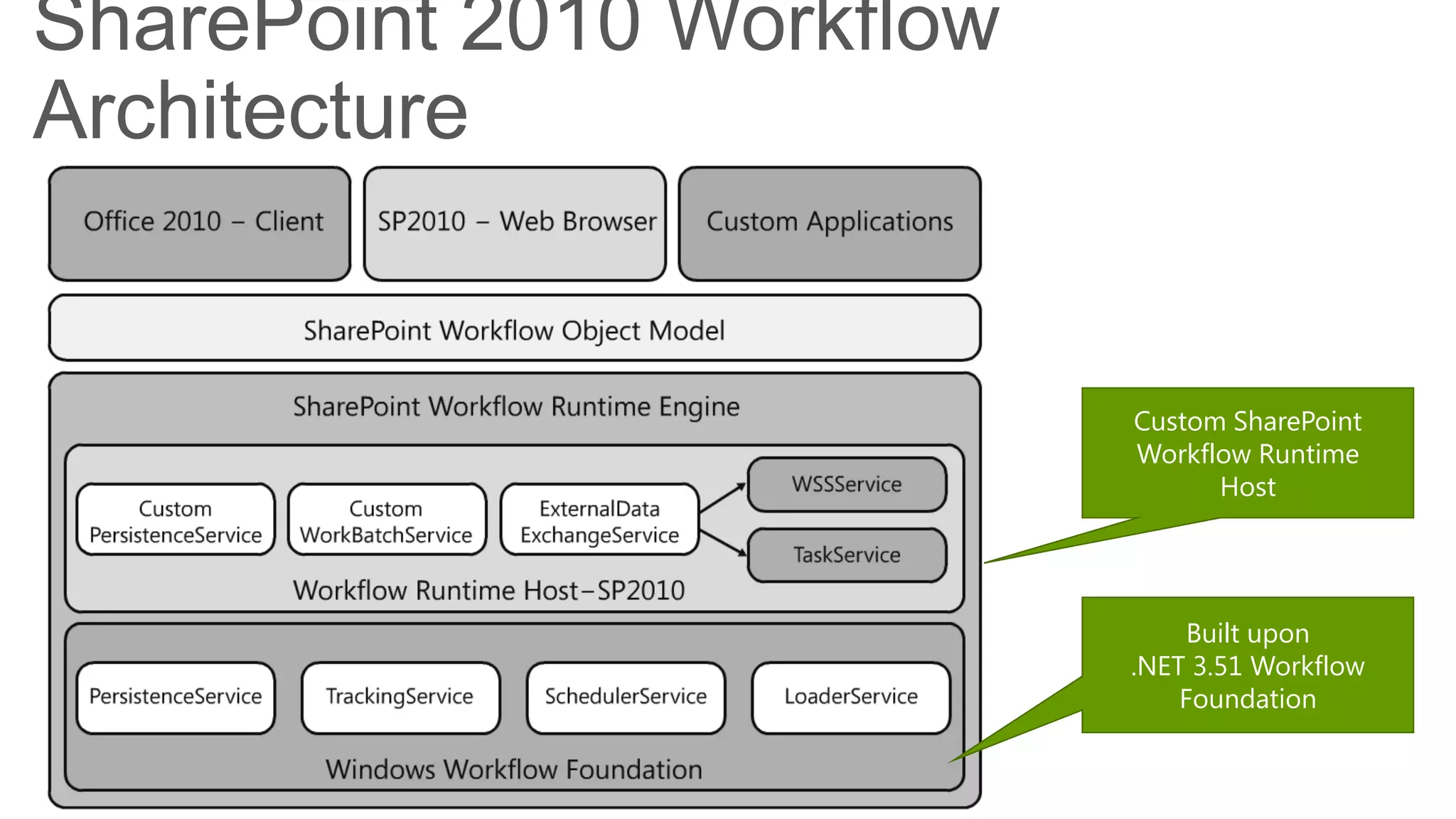

- 4. SharePoint 2010 Workflow Architecture Custom SharePoint Workflow Runtime Host Built upon .NET 3.51 Workflow Foundation

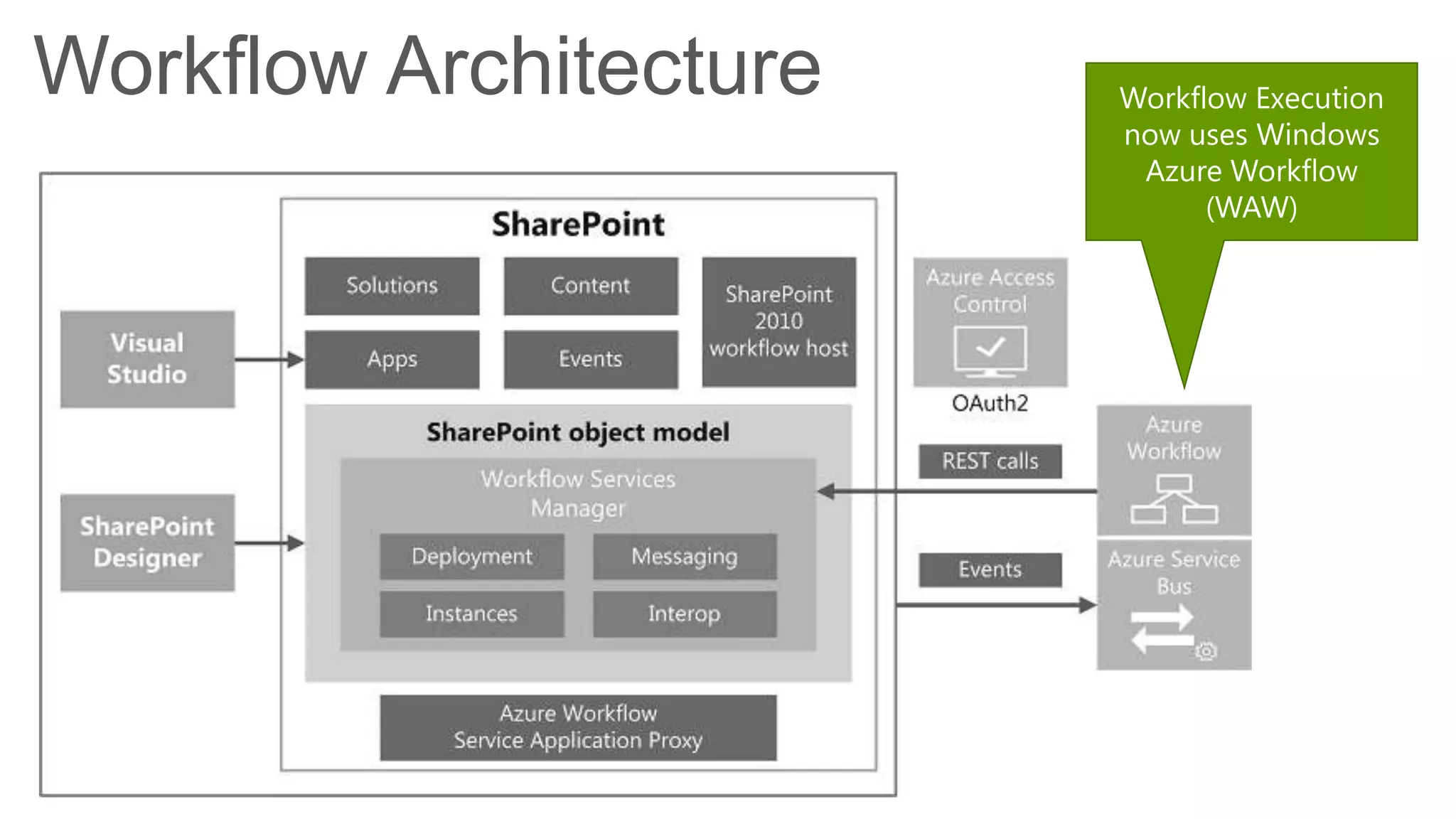

- 5. Workflow Architecture Workflow Execution now uses Windows Azure Workflow (WAW)

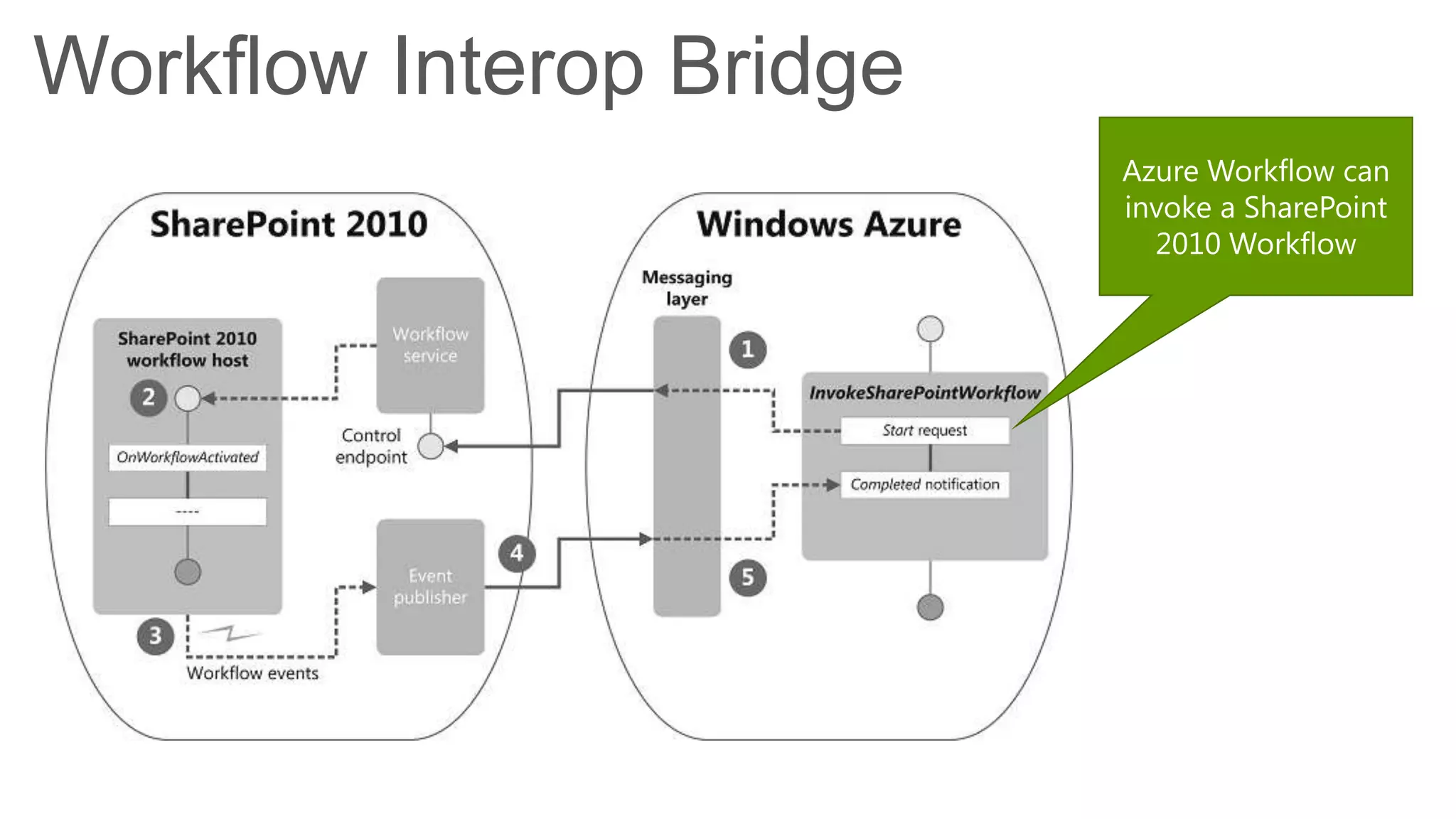

- 6. Workflow Interop Bridge Azure Workflow can invoke a SharePoint 2010 Workflow

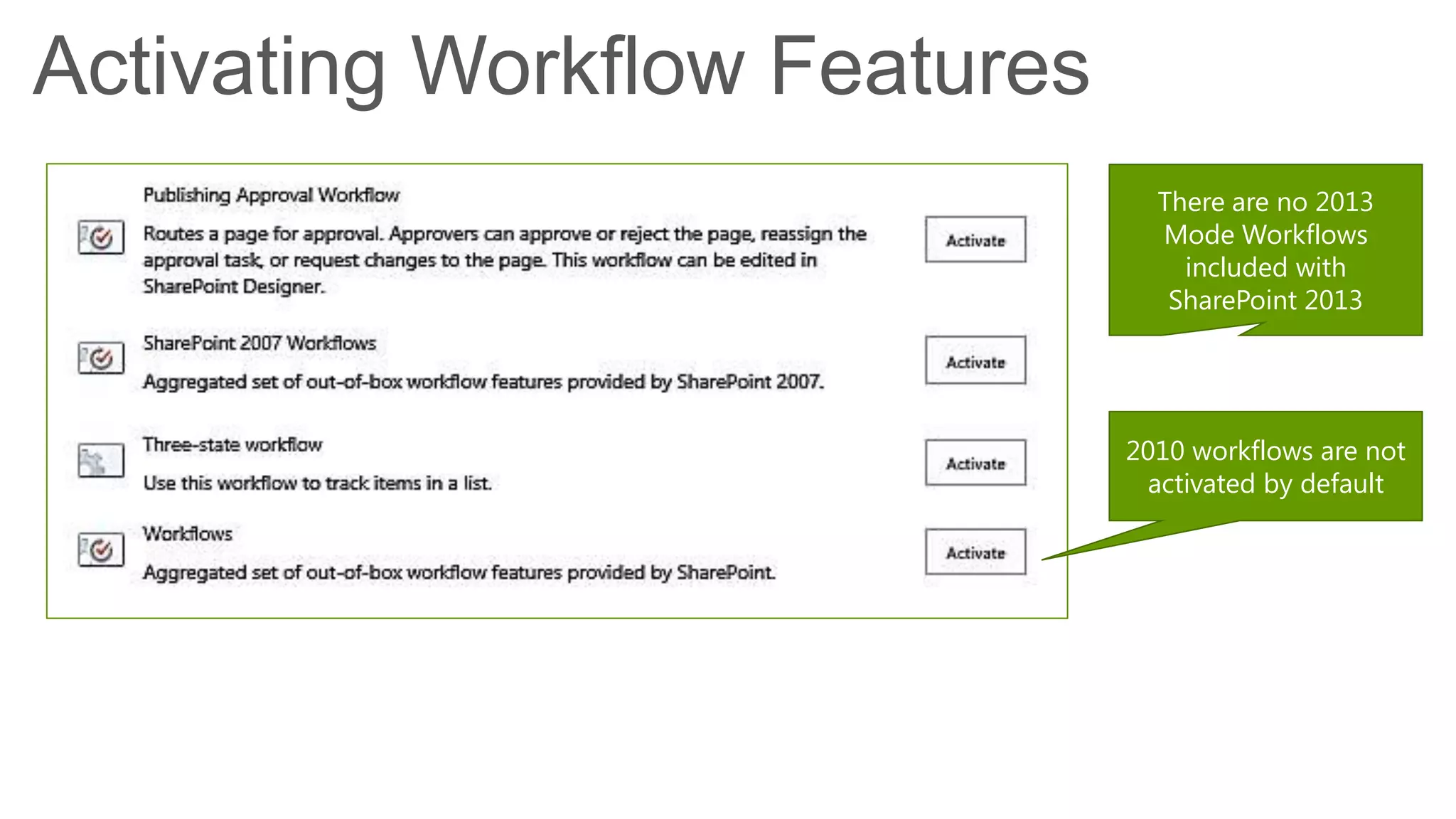

- 7. Activating Workflow Features There are no 2013 Mode Workflows included with SharePoint 2013 2010 workflows are not activated by default

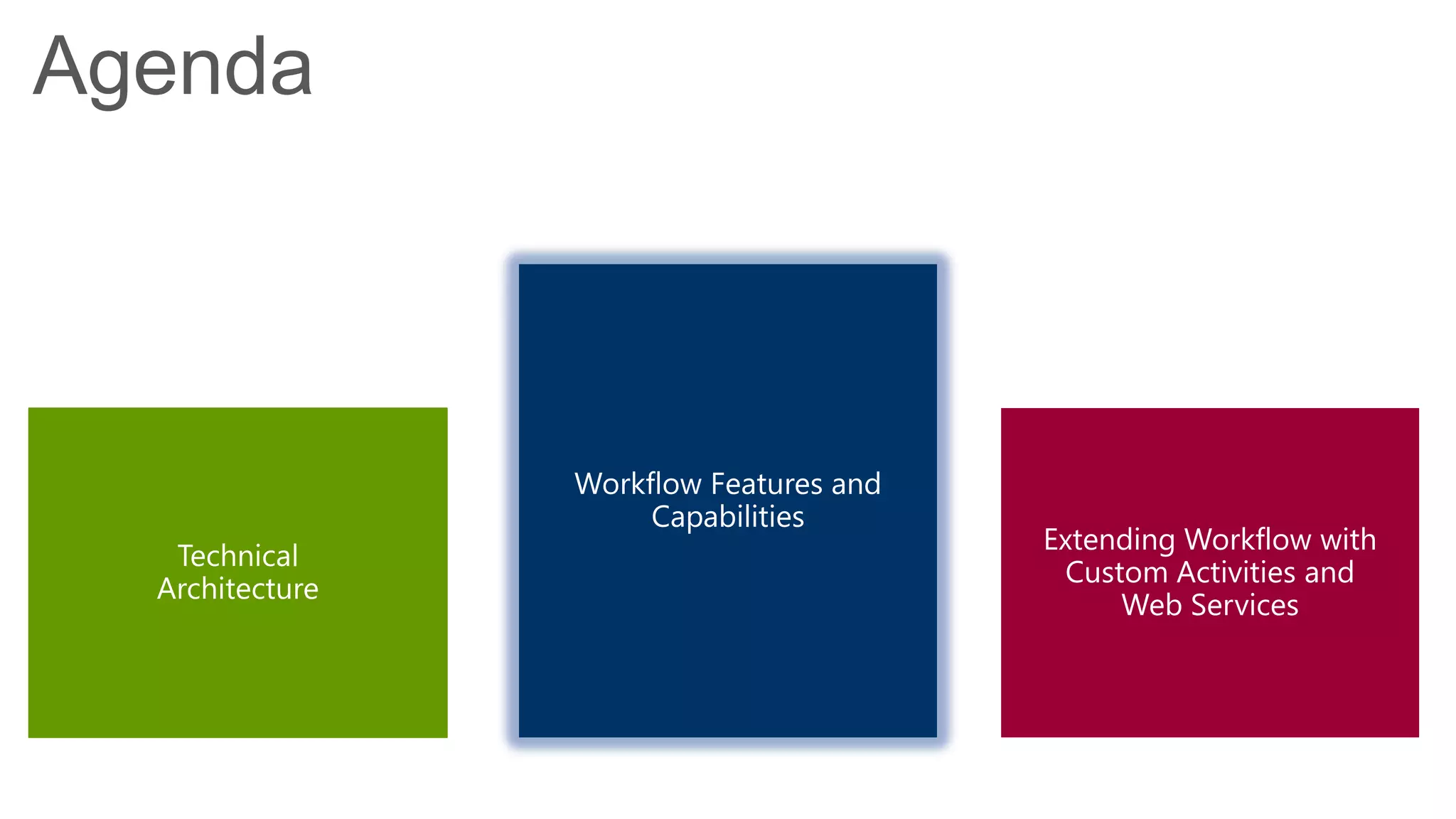

- 8. Agenda Workflow Features and Capabilities Extending Workflow with Technical Custom Activities and Architecture Web Services

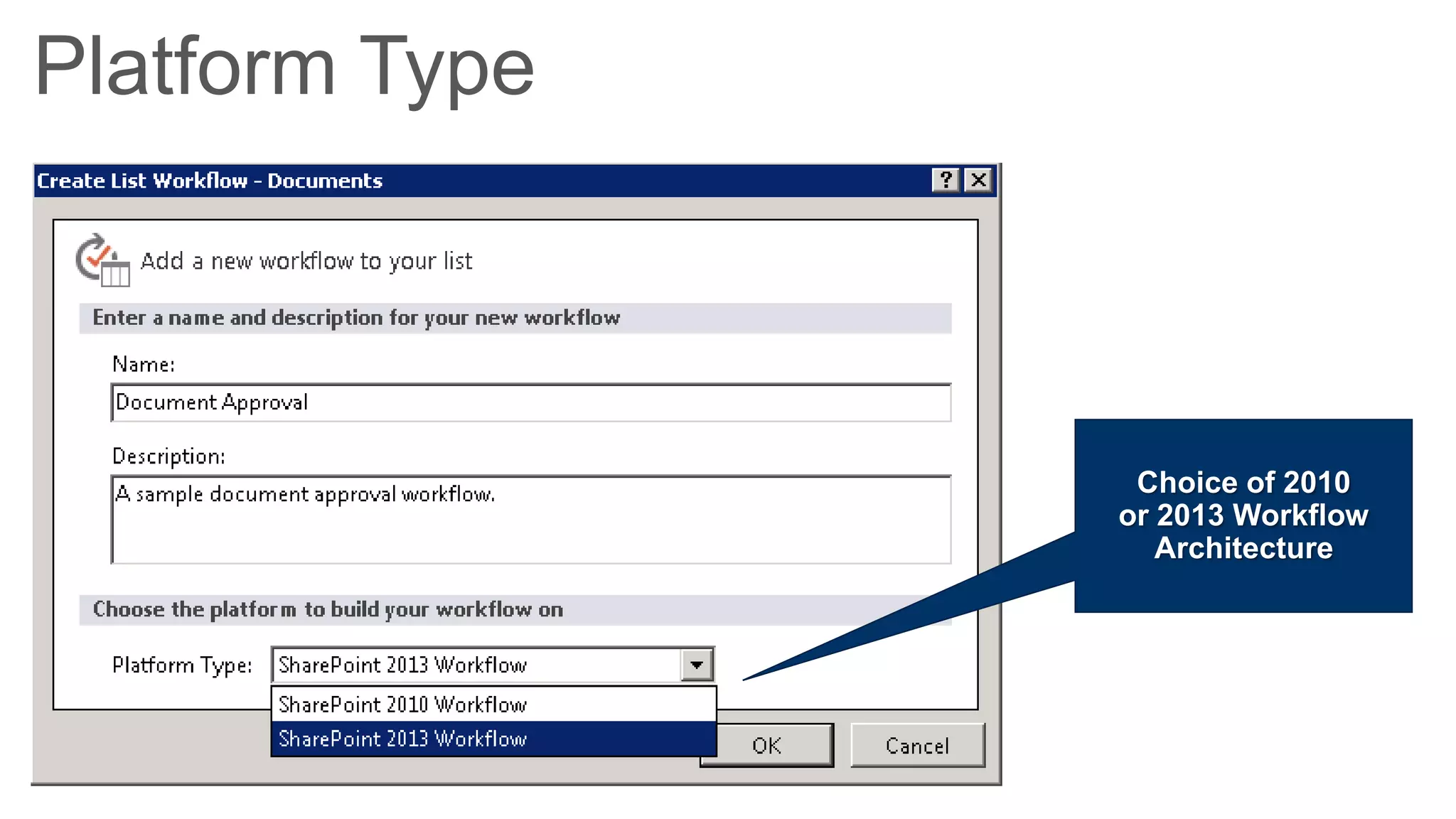

- 9. Platform Type Choice of 2010 or 2013 Workflow Architecture

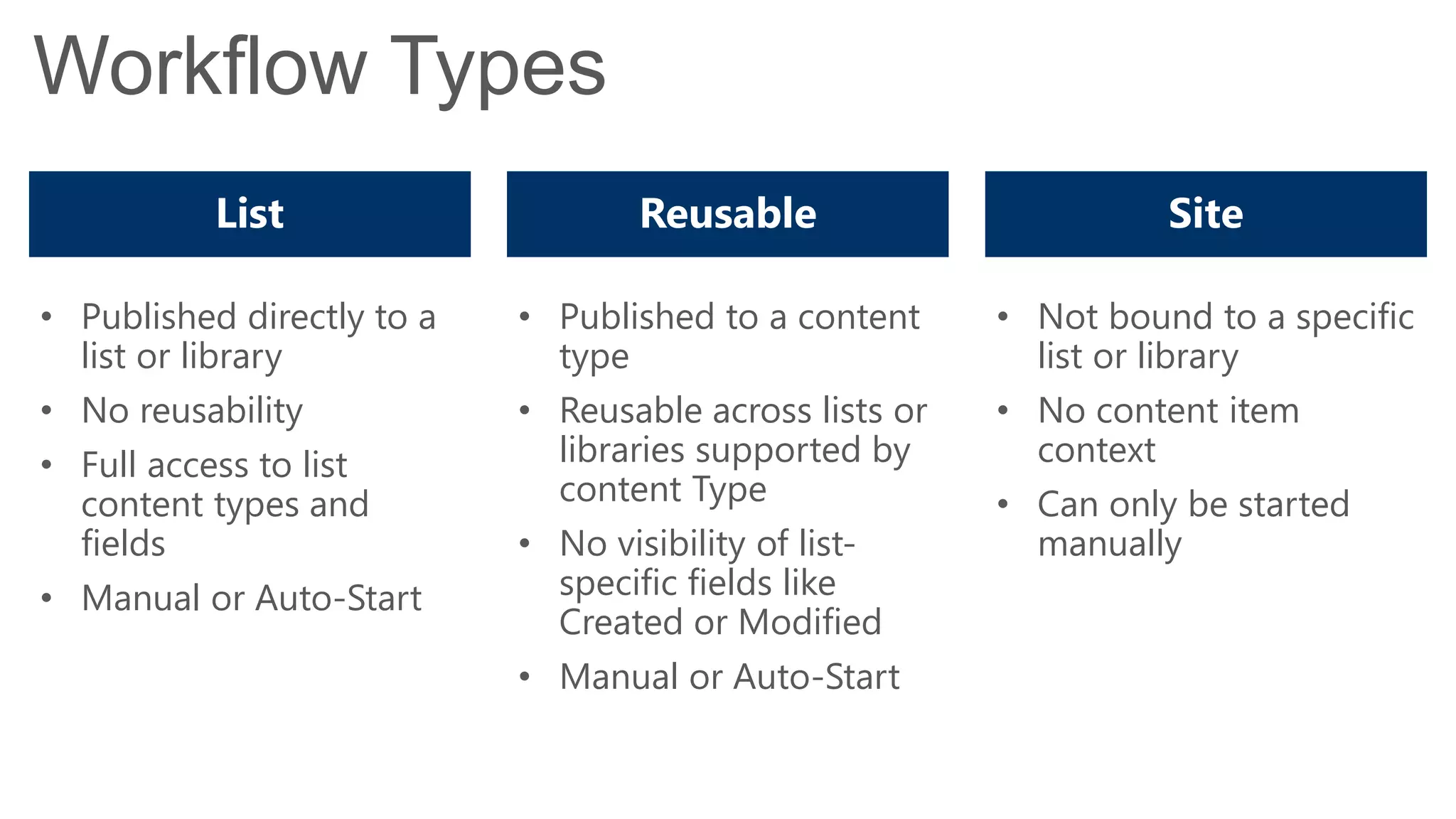

- 10. Workflow Types List Reusable Site • Published directly to a • Published to a content • Not bound to a specific list or library type list or library • No reusability • Reusable across lists or • No content item • Full access to list libraries supported by context content types and content Type • Can only be started fields • No visibility of list- manually • Manual or Auto-Start specific fields like Created or Modified • Manual or Auto-Start

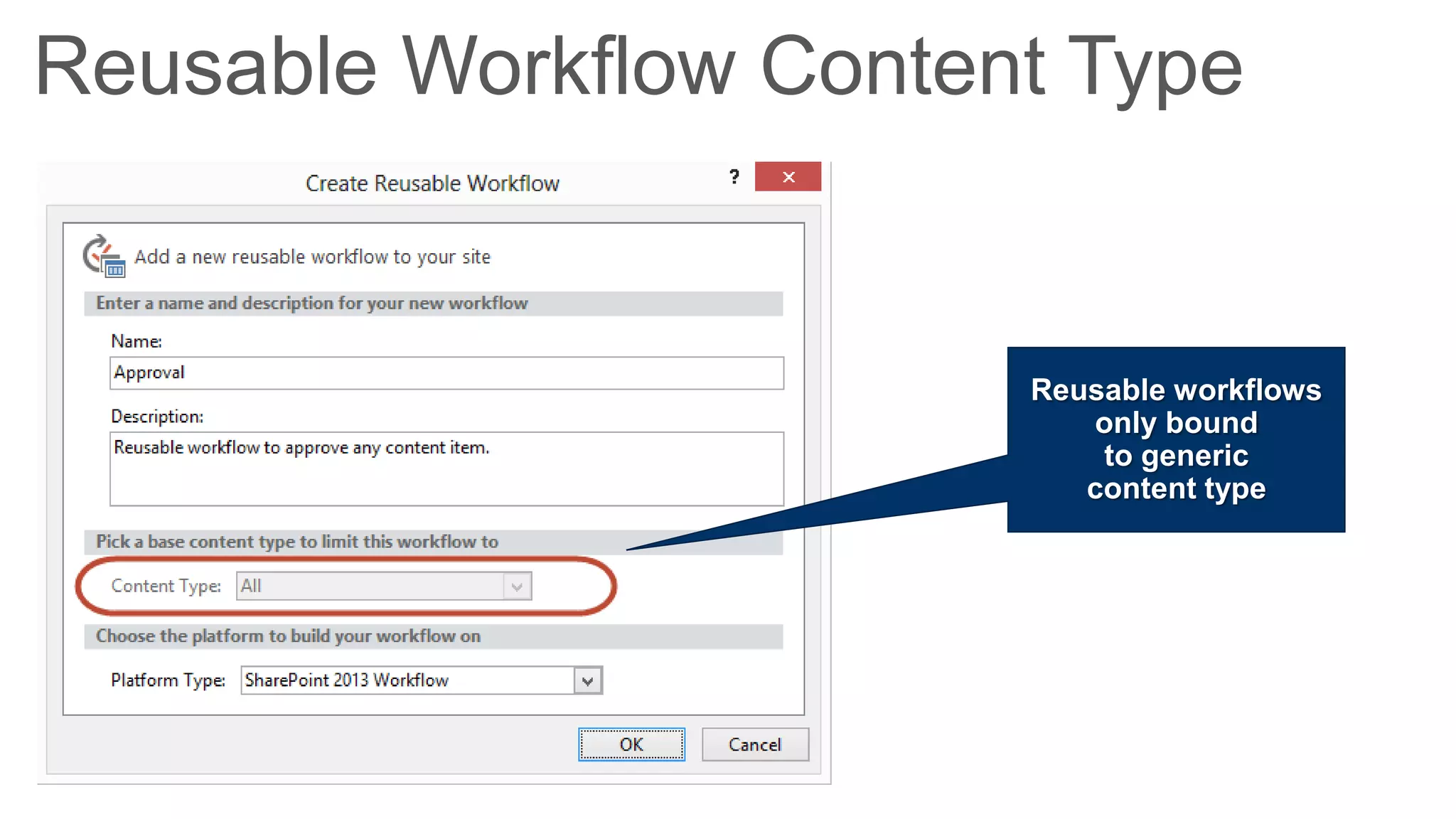

- 11. Reusable Workflow ContentType Reusable workflows only bound to generic content type

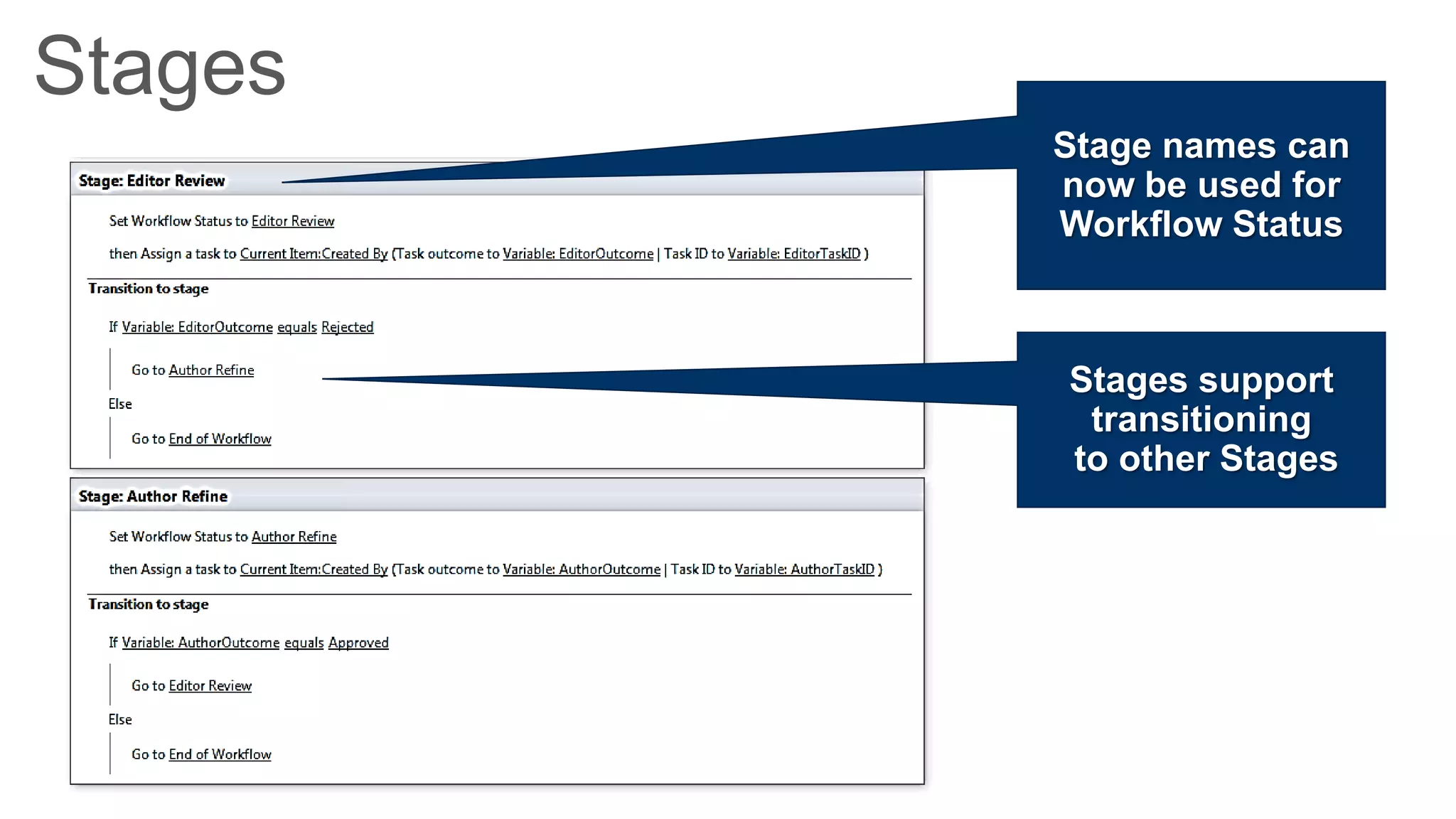

- 12. Stages Stage names can now be used for Workflow Status Stages support transitioning to other Stages

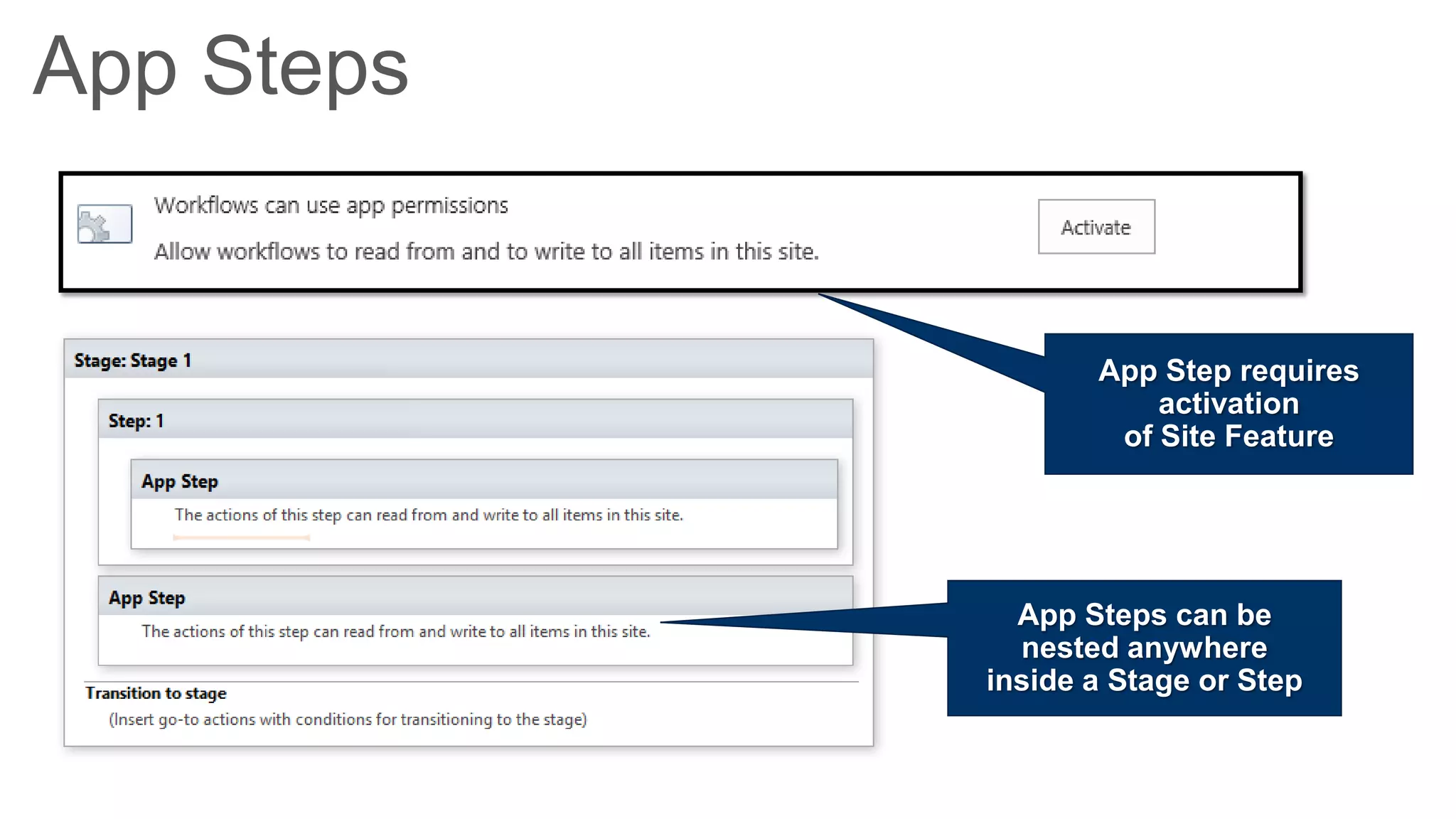

- 13. App Steps App Step requires activation of Site Feature App Steps can be nested anywhere inside a Stage or Step

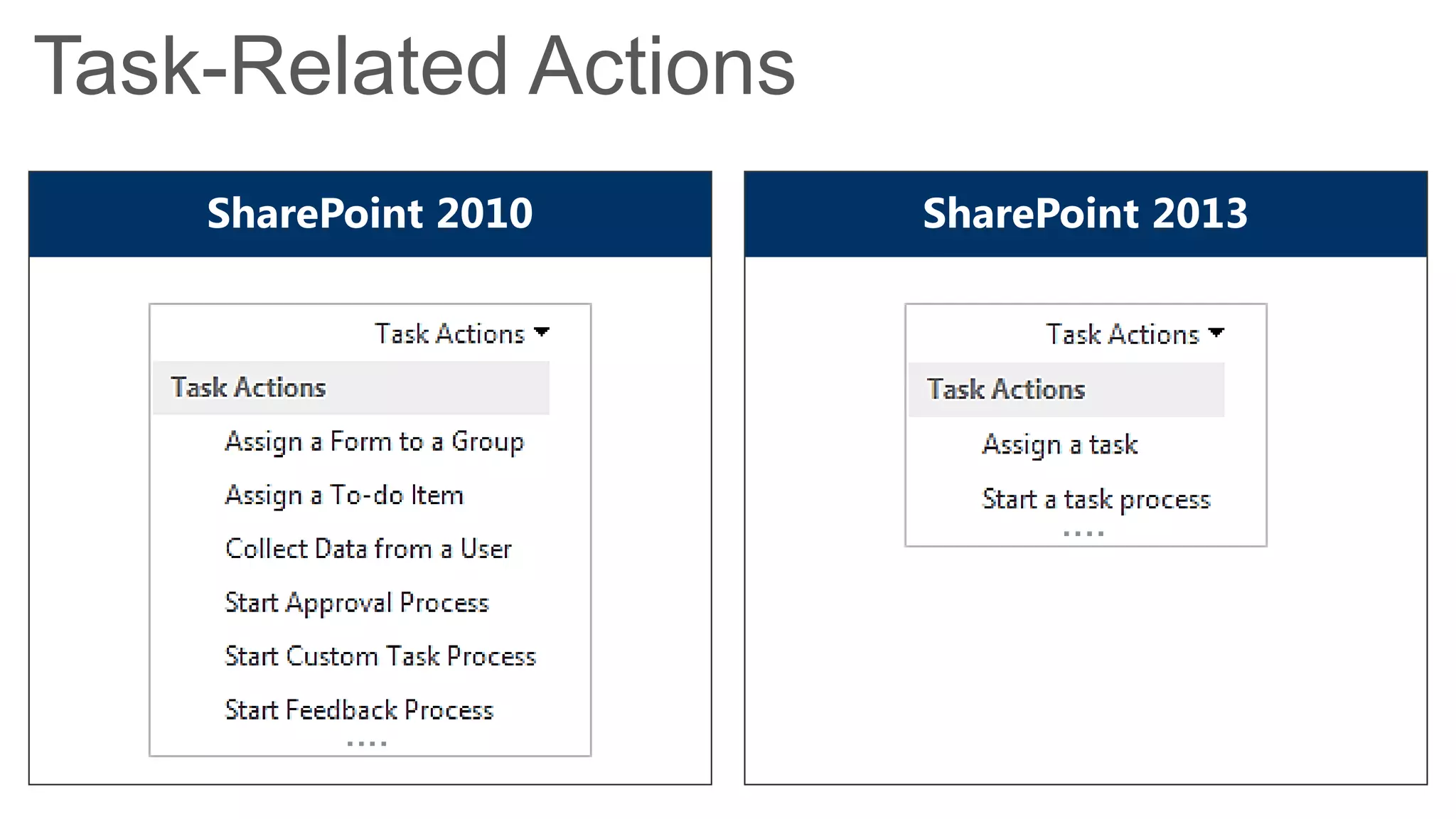

- 14. Task-Related Actions SharePoint 2010 SharePoint 2013

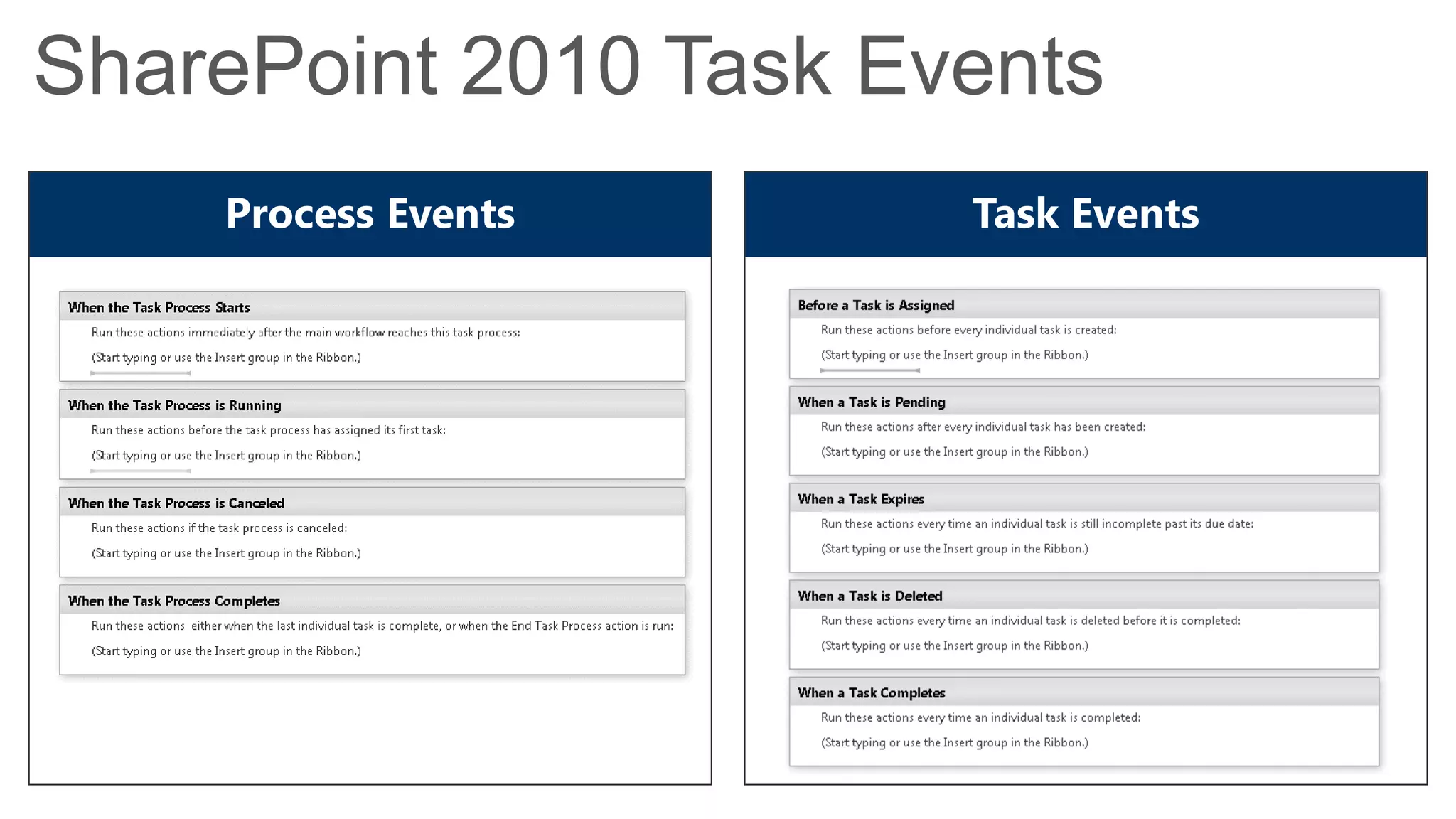

- 15. SharePoint 2010 TaskEvents Process Events Task Events

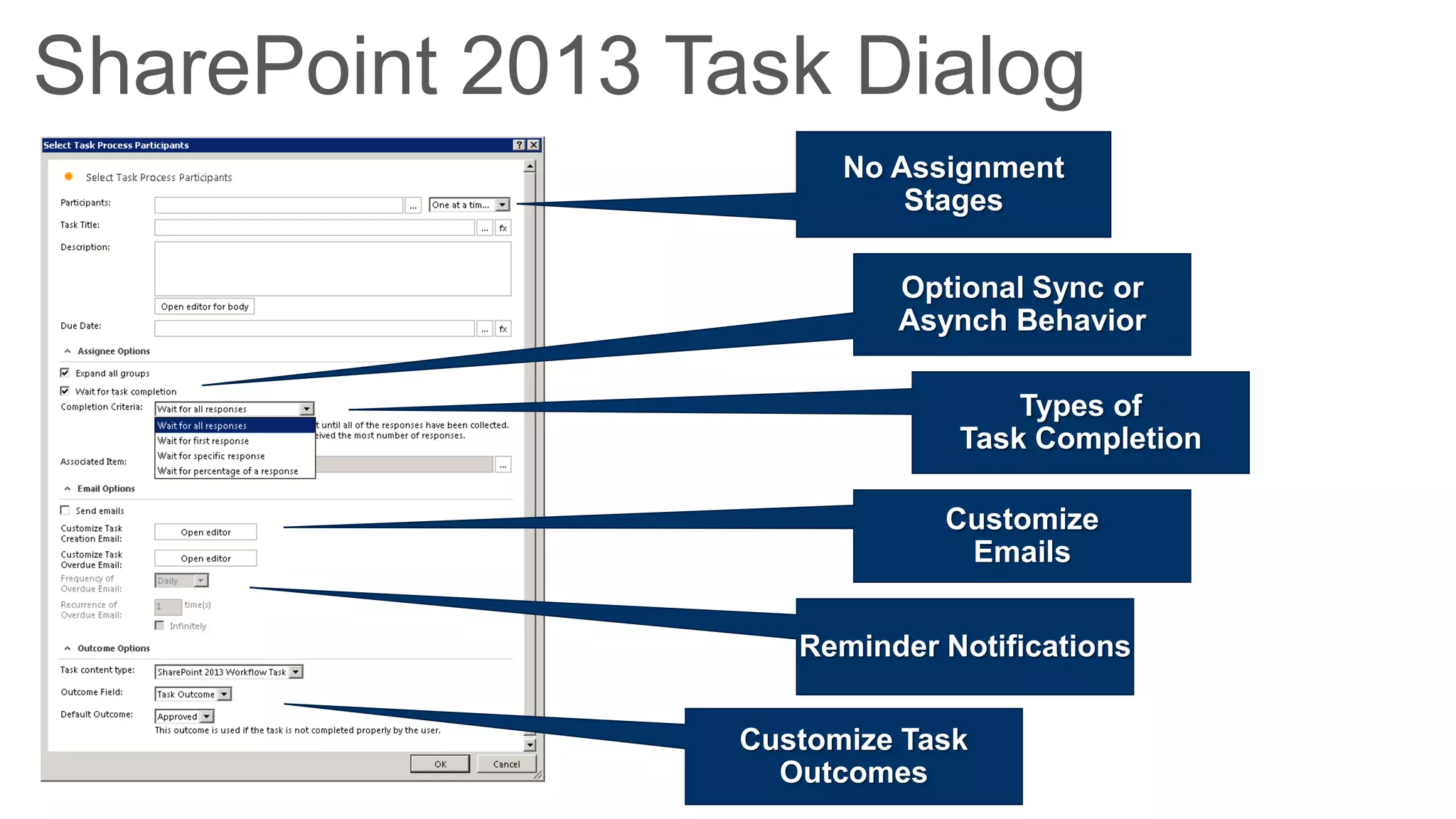

- 16. SharePoint 2013 TaskDialog No Assignment Stages Optional Sync or Asynch Behavior Types of Task Completion Customize Emails Reminder Notifications Customize Task Outcomes

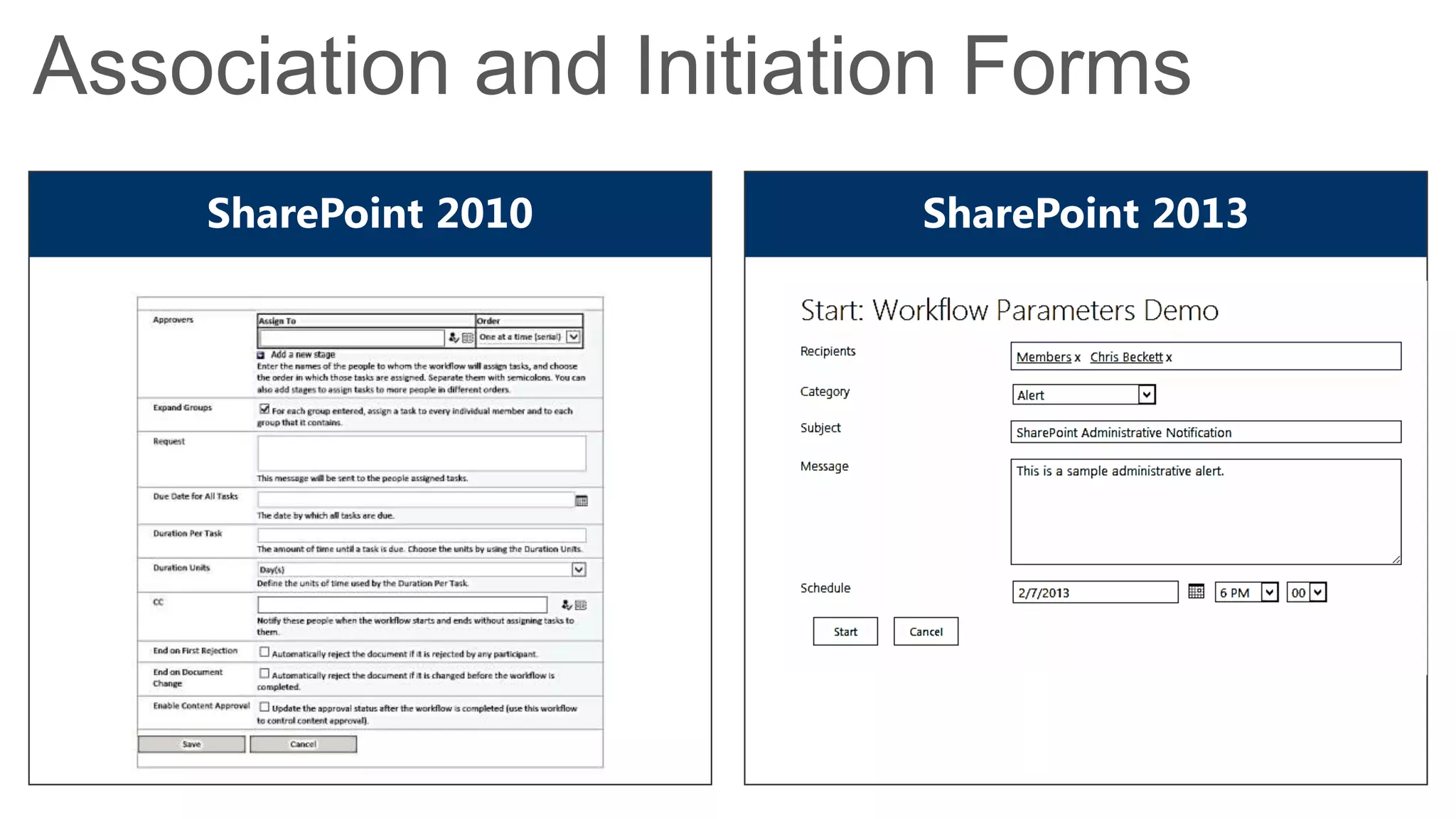

- 17. Association and InitiationForms SharePoint 2010 SharePoint 2013

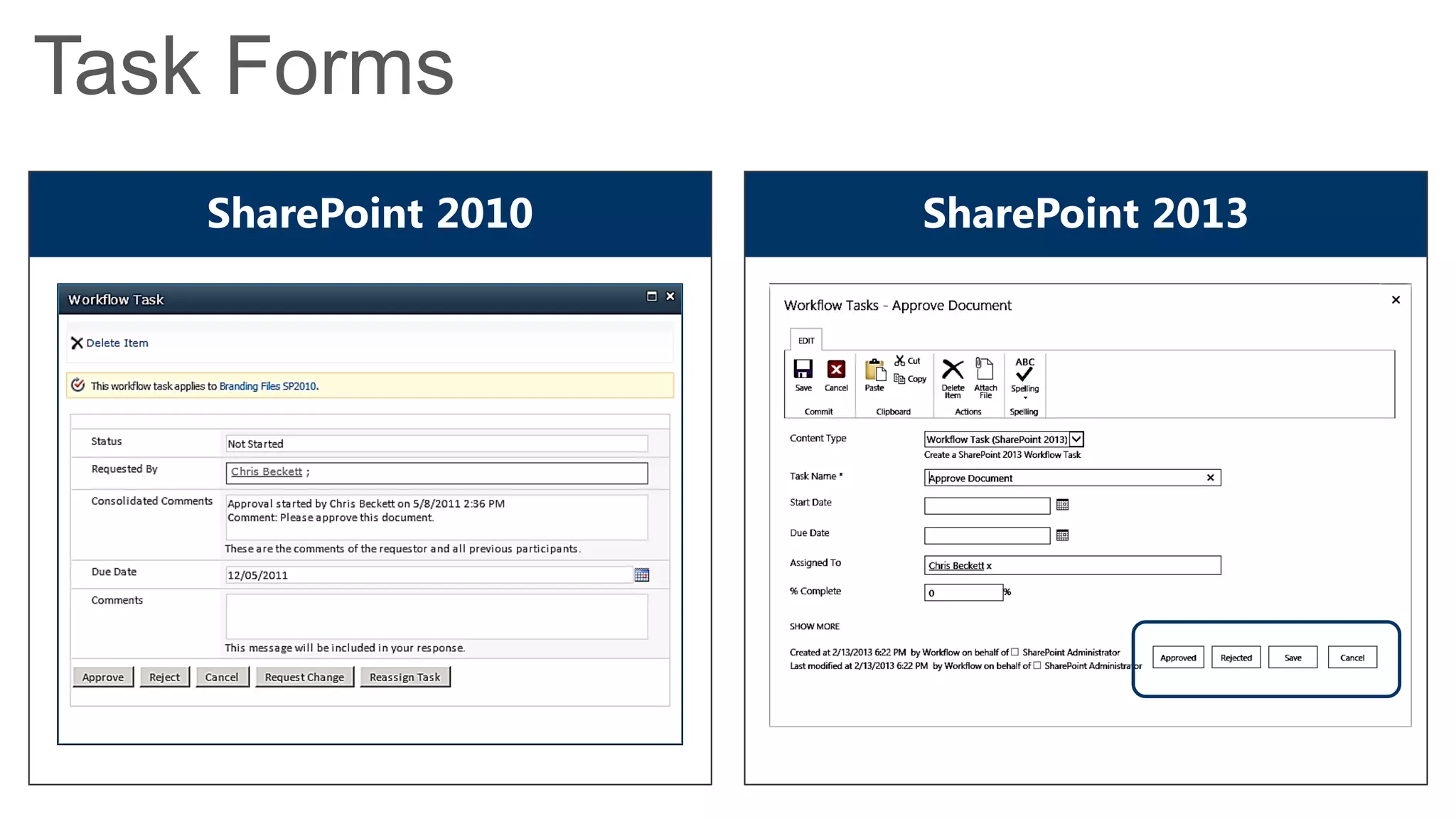

- 18. Task Forms SharePoint 2010 SharePoint 2013

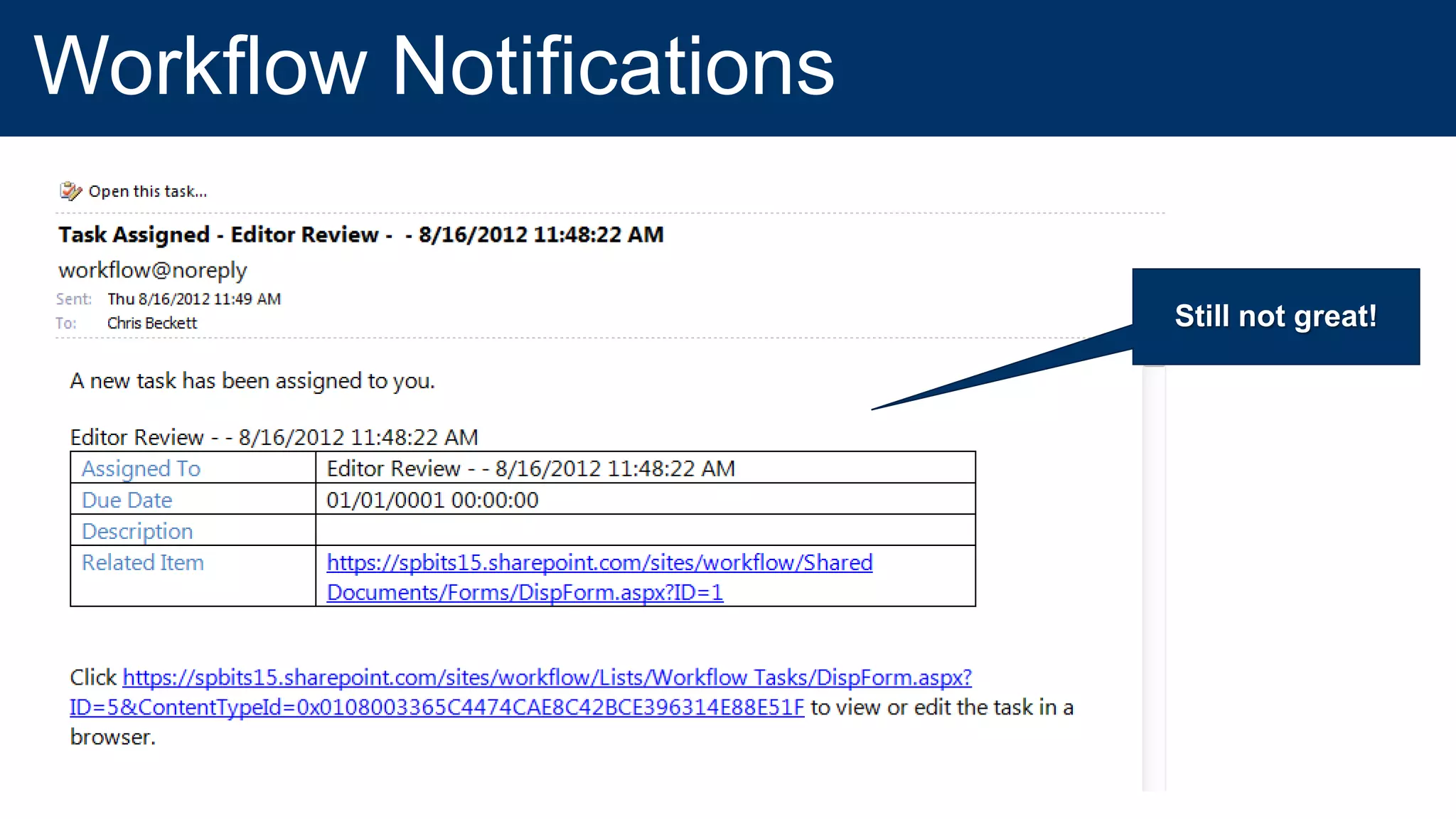

- 19. Workflow Notifications Still not great!

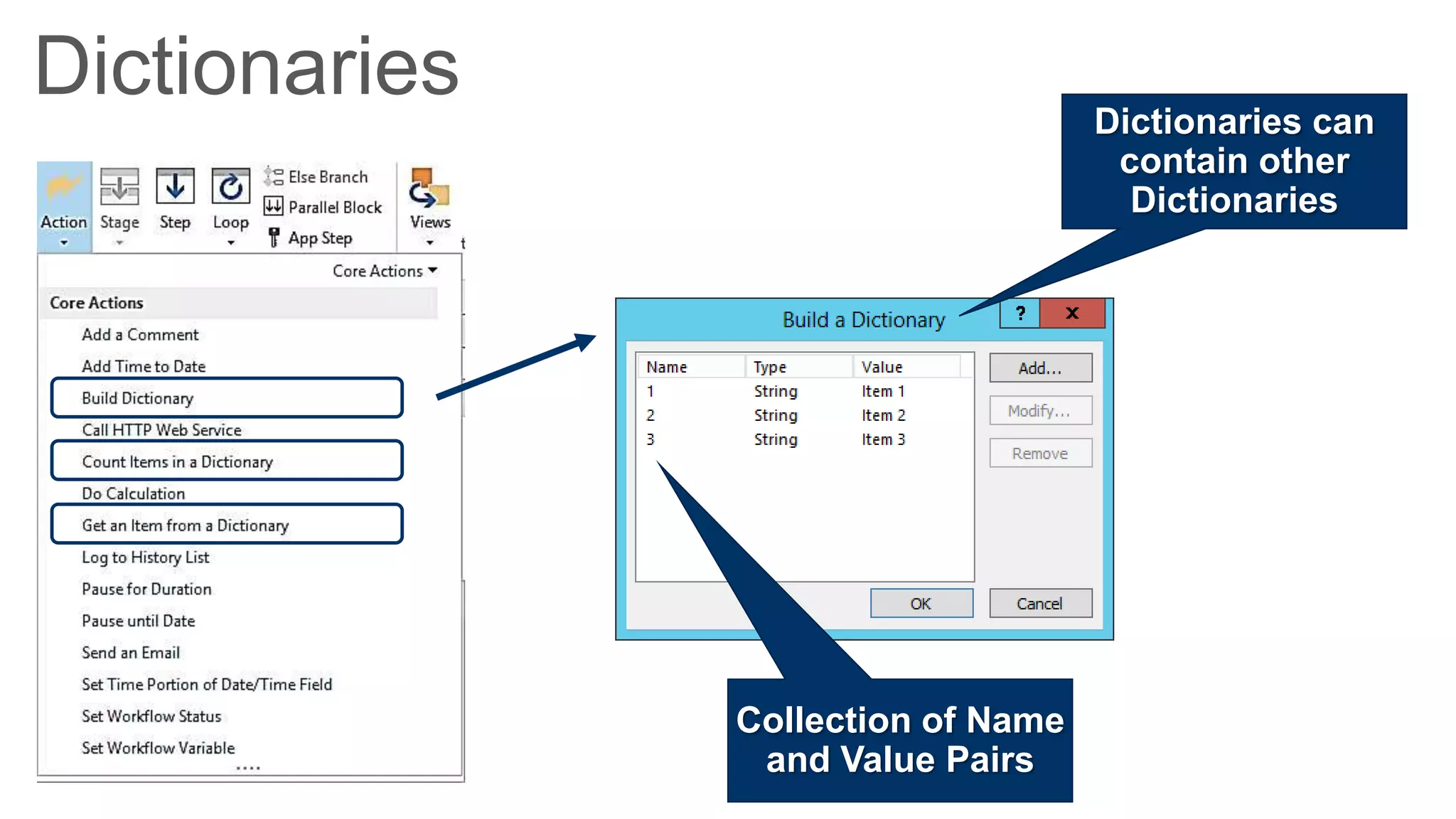

- 20. Dictionaries Dictionaries can contain other Dictionaries Collection of Name and Value Pairs

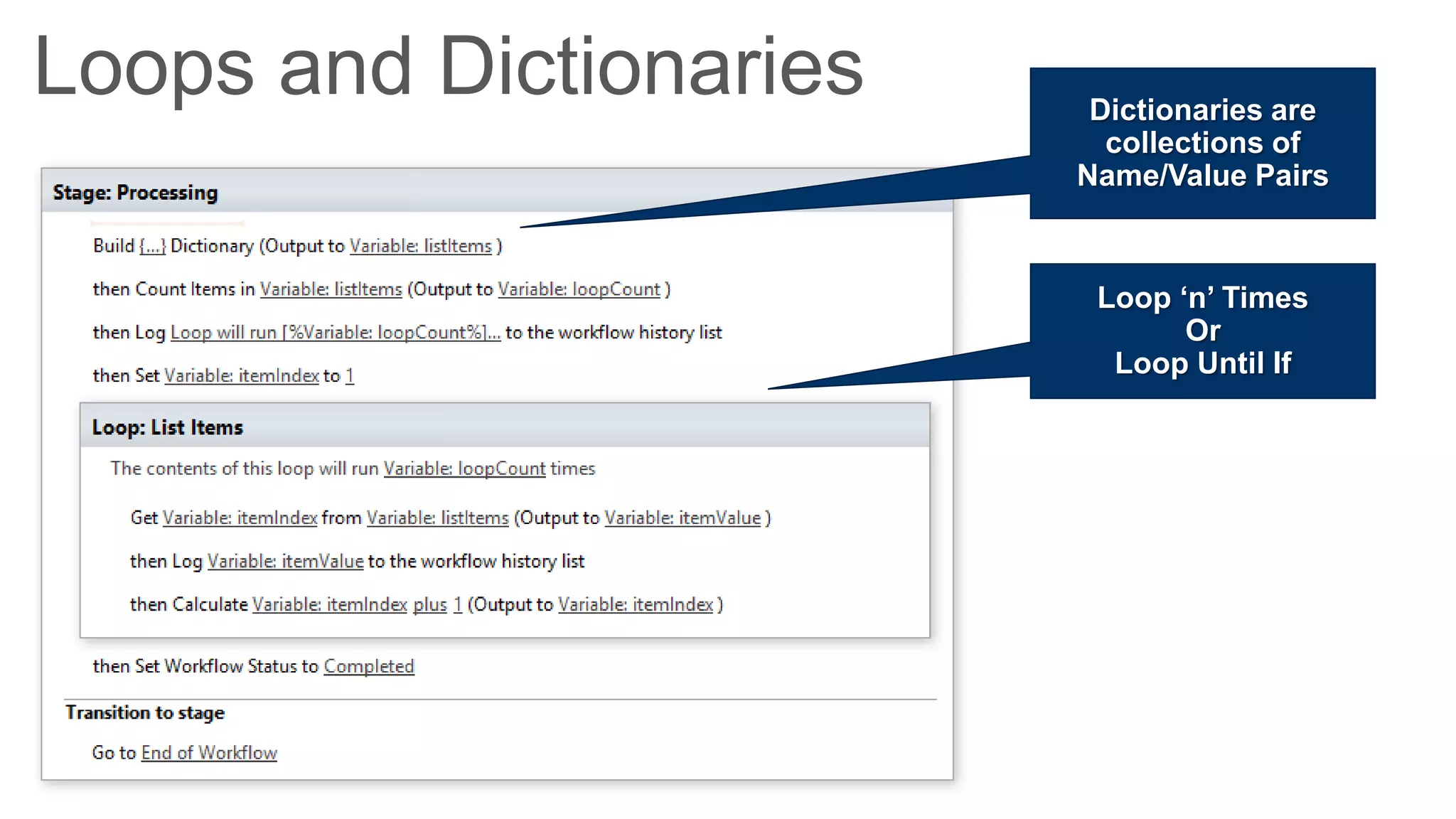

- 21. Loops and Dictionaries Dictionaries are collections of Name/Value Pairs Loop ‘n’ Times Or Loop Until If

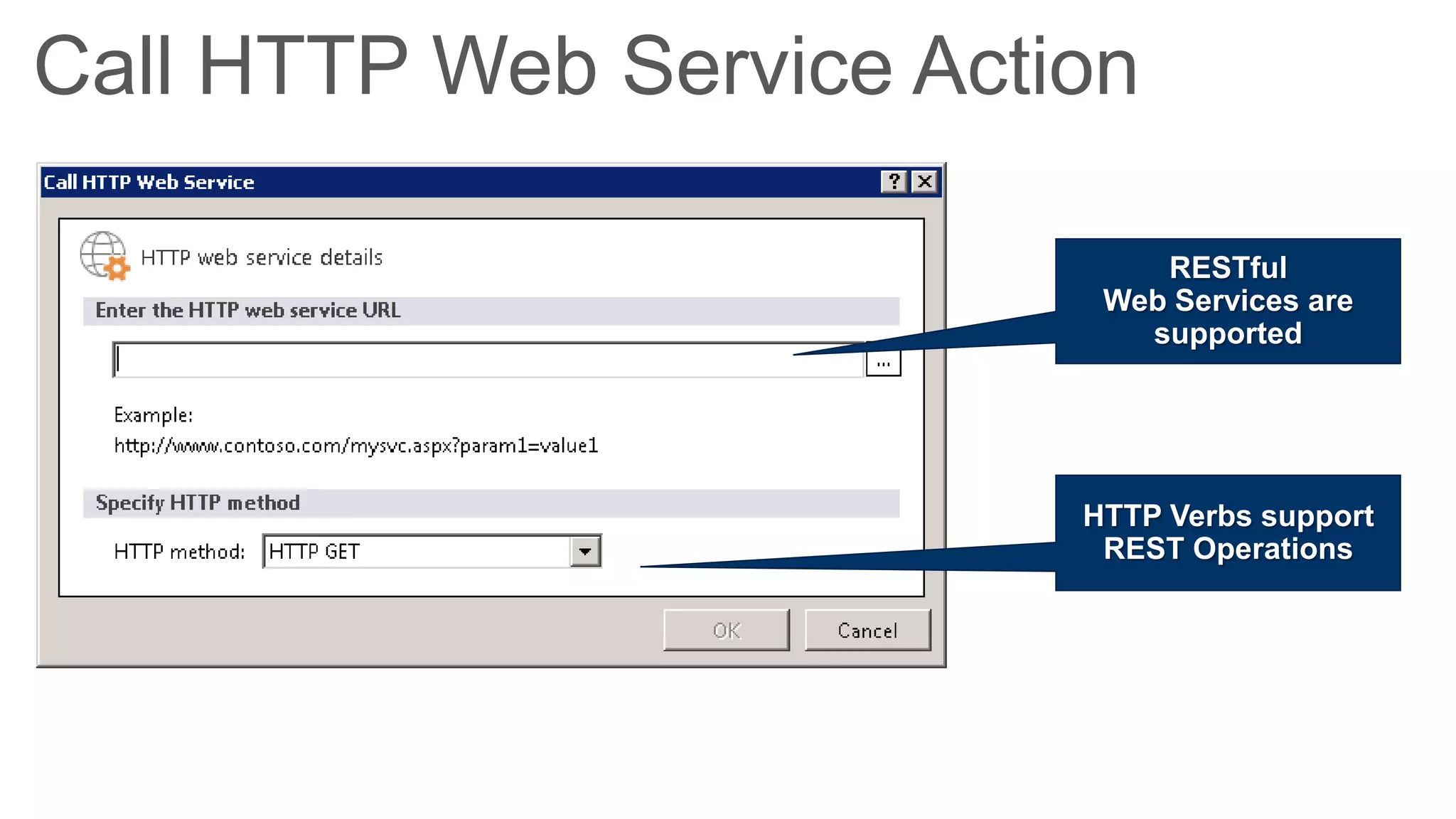

- 22. Call HTTP WebService Action RESTful Web Services are supported HTTP Verbs support REST Operations

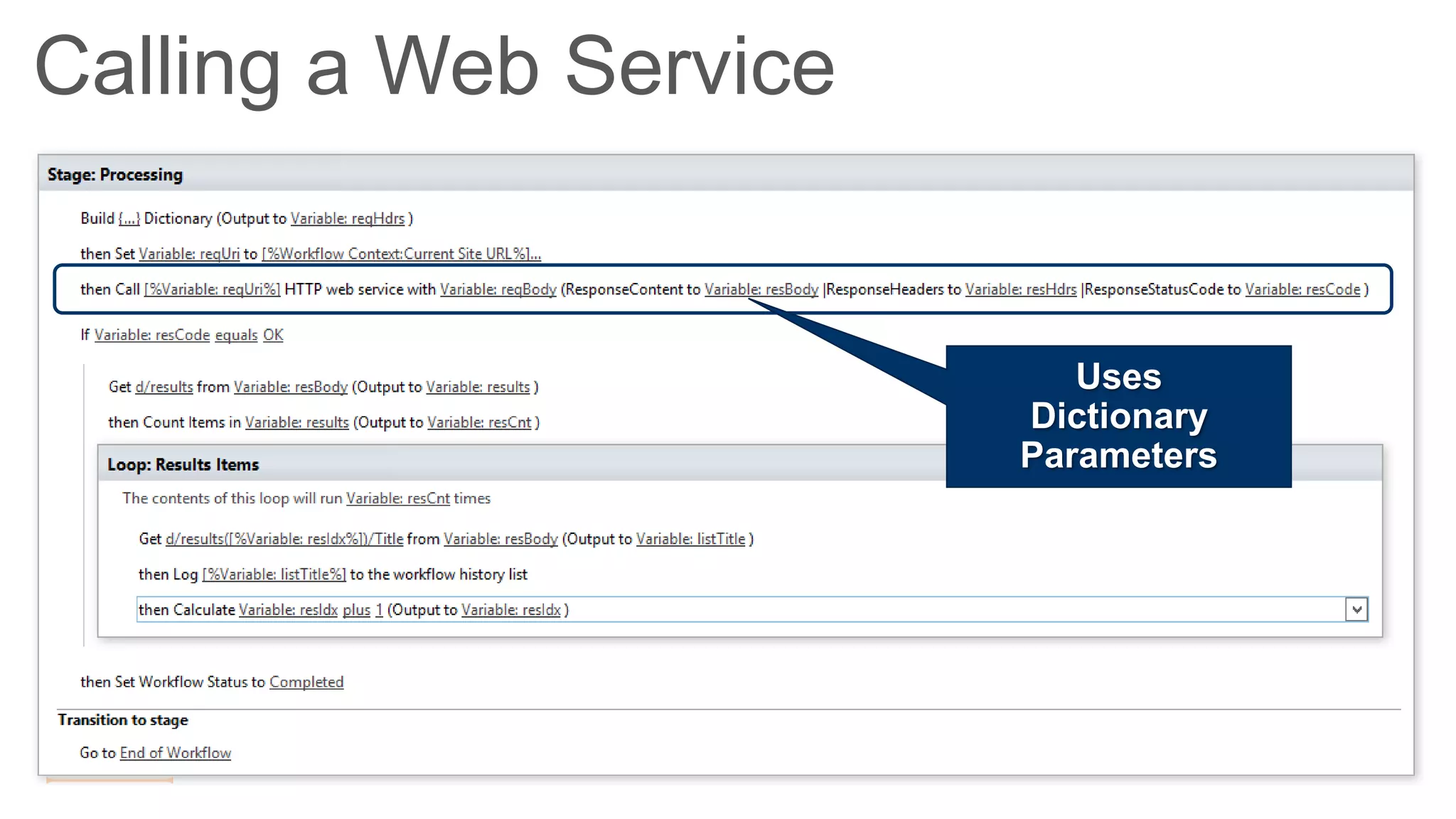

- 23. Calling a WebService Uses Dictionary Parameters
- 24. Agenda Extending Workflow with Custom Activities and Web Services Technical Workflow Features and Architecture Capabilities

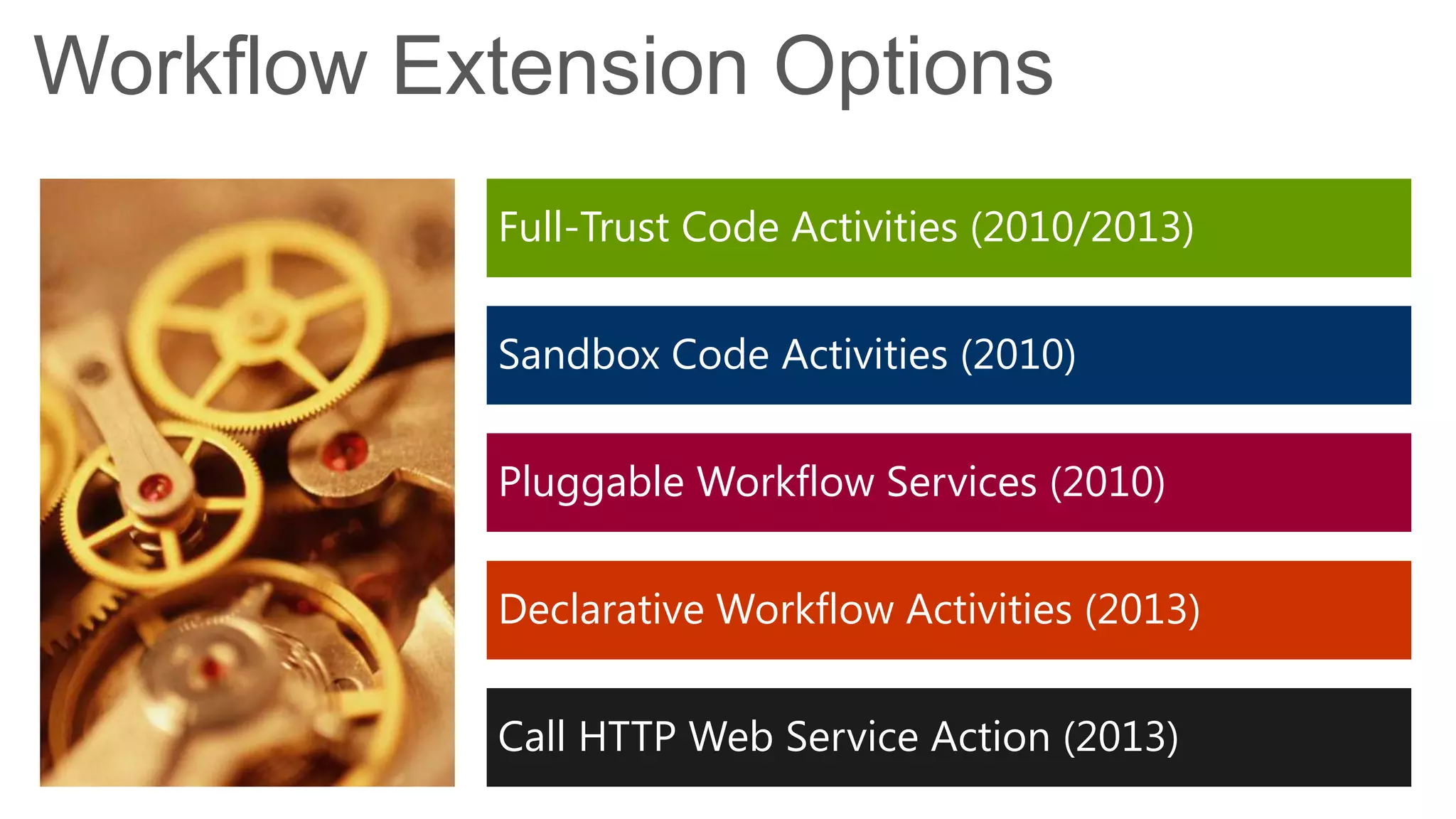

- 25. Workflow Extension Options Full-Trust Code Activities (2010/2013) Sandbox Code Activities (2010) Pluggable Workflow Services (2010) Declarative Workflow Activities (2013) Call HTTP Web Service Action (2013)

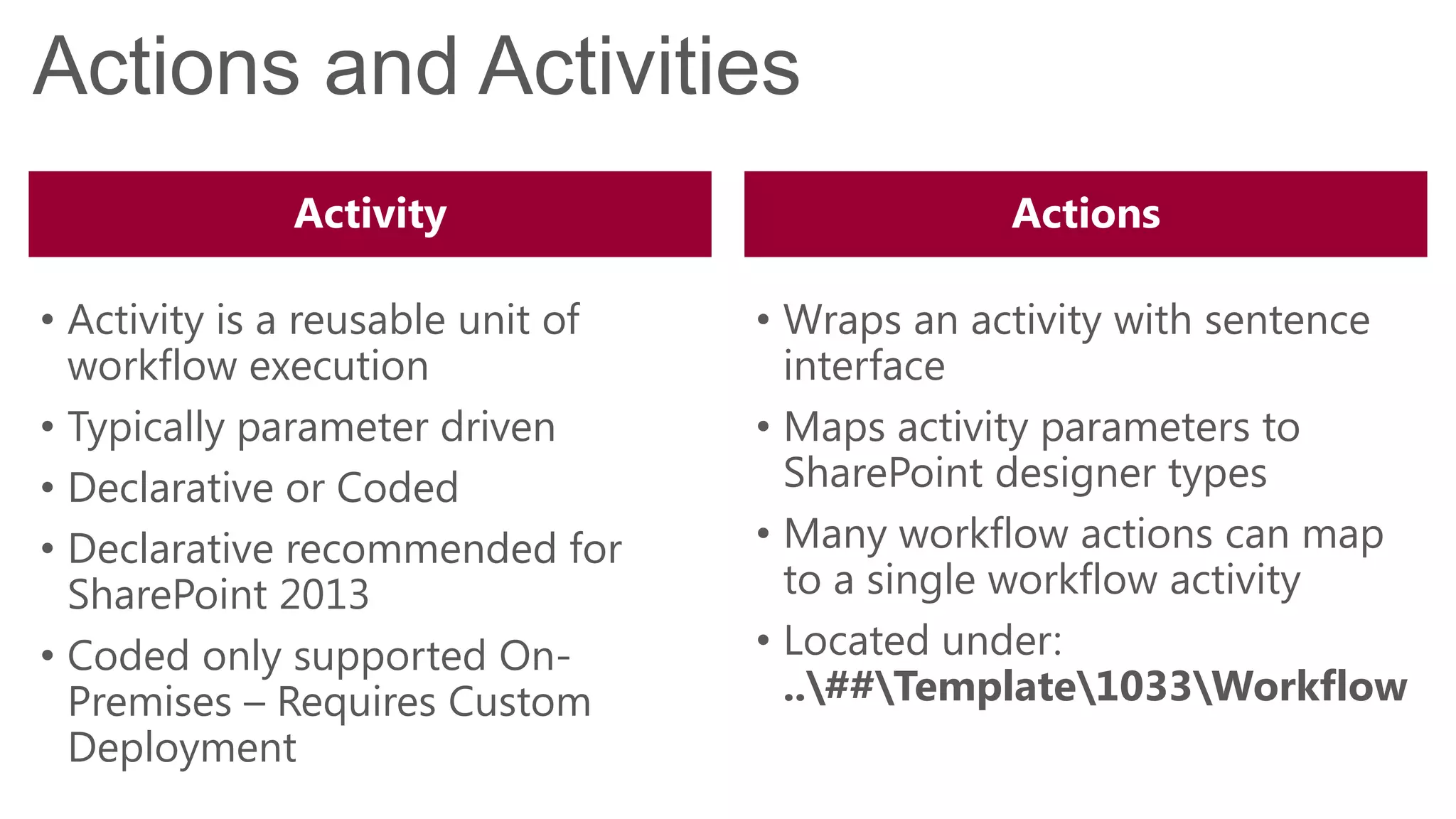

- 26. Actions and Activities Activity Actions • Activity is a reusable unit of • Wraps an activity with sentence workflow execution interface • Typically parameter driven • Maps activity parameters to • Declarative or Coded SharePoint designer types • Declarative recommended for • Many workflow actions can map SharePoint 2013 to a single workflow activity • Coded only supported On- • Located under: Premises – Requires Custom ..##Template1033Workflow Deployment

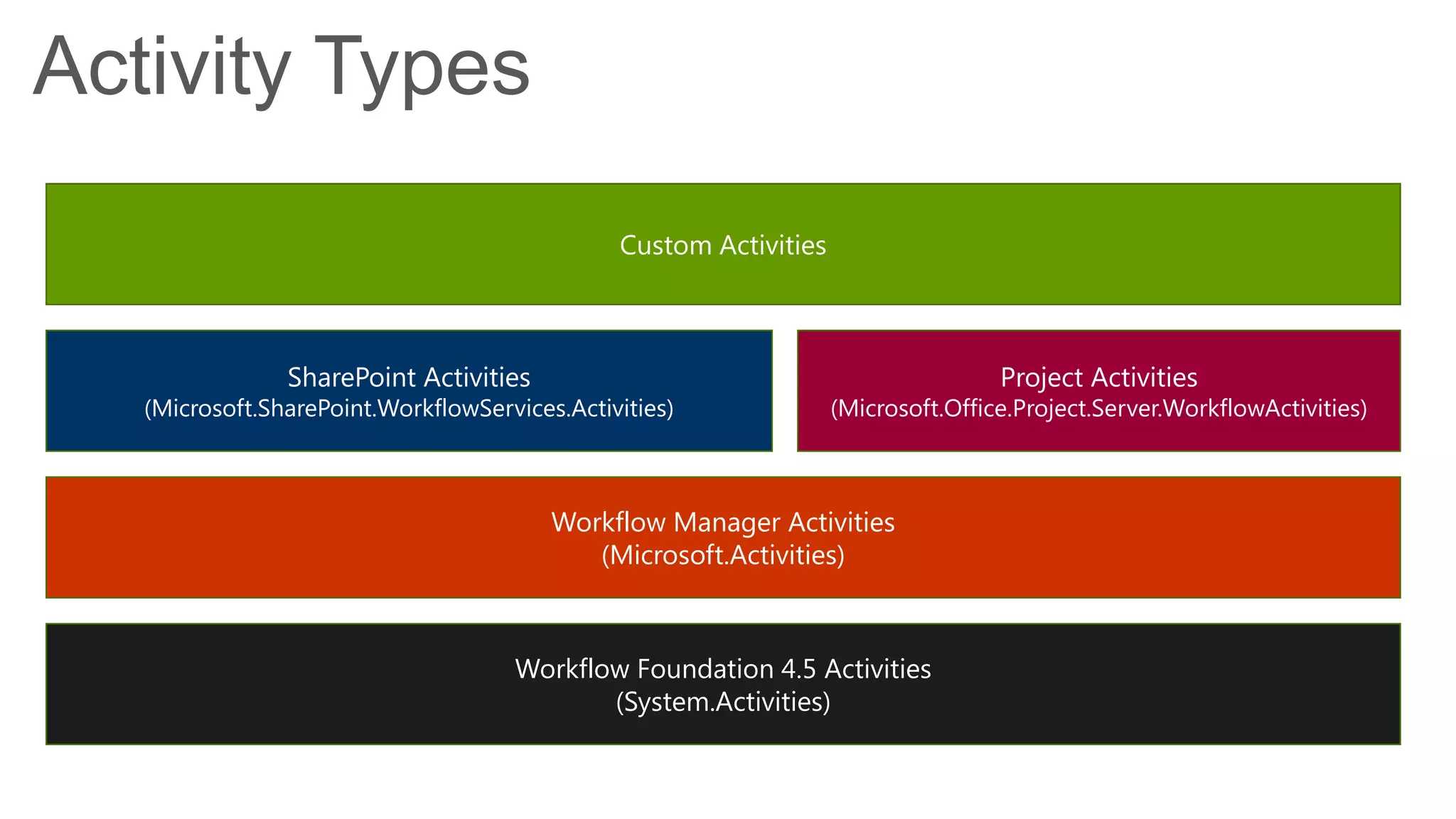

- 27. Activity Types Custom Activities SharePoint Activities Project Activities (Microsoft.SharePoint.WorkflowServices.Activities) (Microsoft.Office.Project.Server.WorkflowActivities) Workflow Manager Activities (Microsoft.Activities) Workflow Foundation 4.5 Activities (System.Activities)

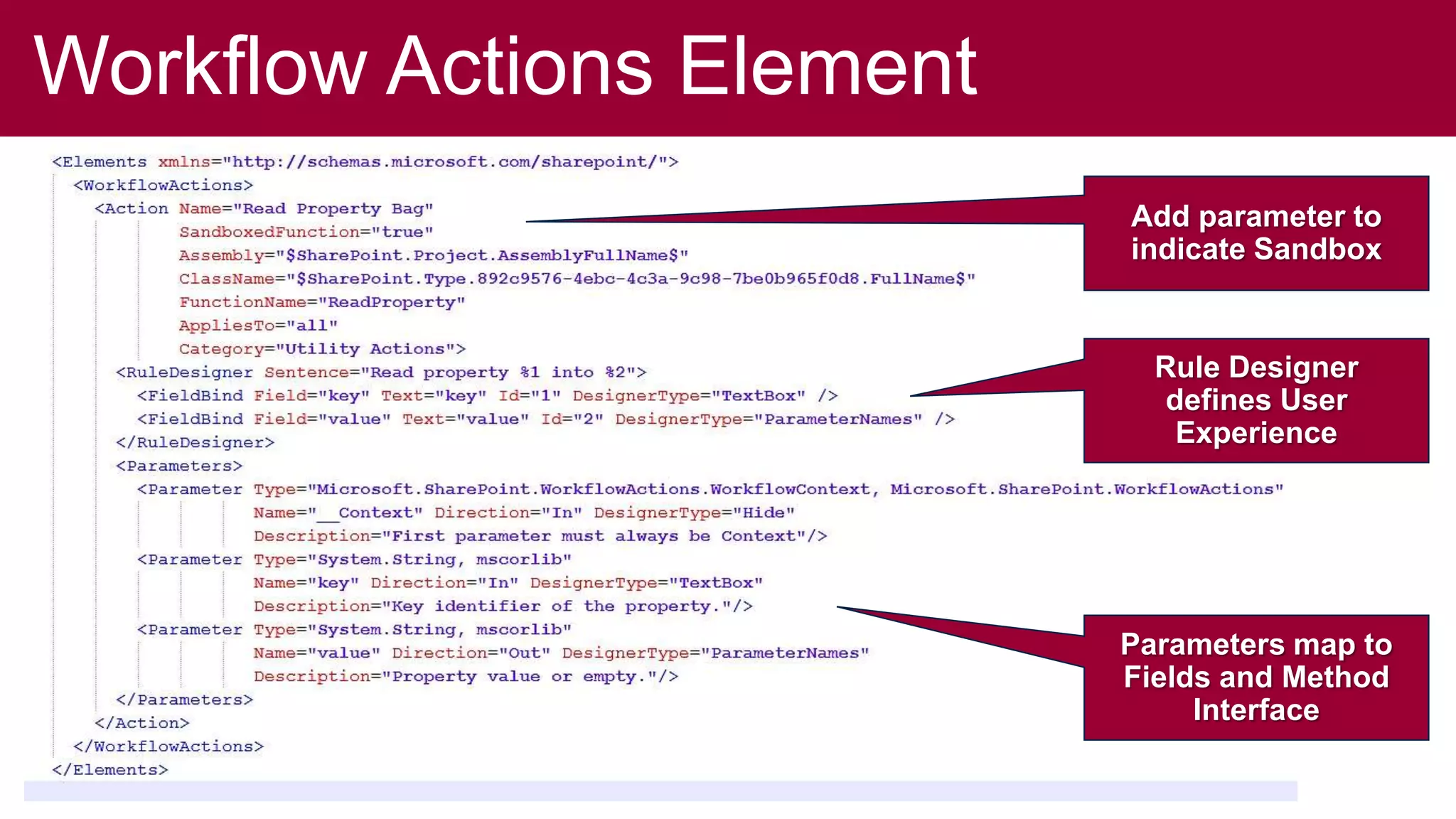

- 28. Workflow Actions Element Add parameter to indicate Sandbox Rule Designer defines User Experience Parameters map to Fields and Method Interface

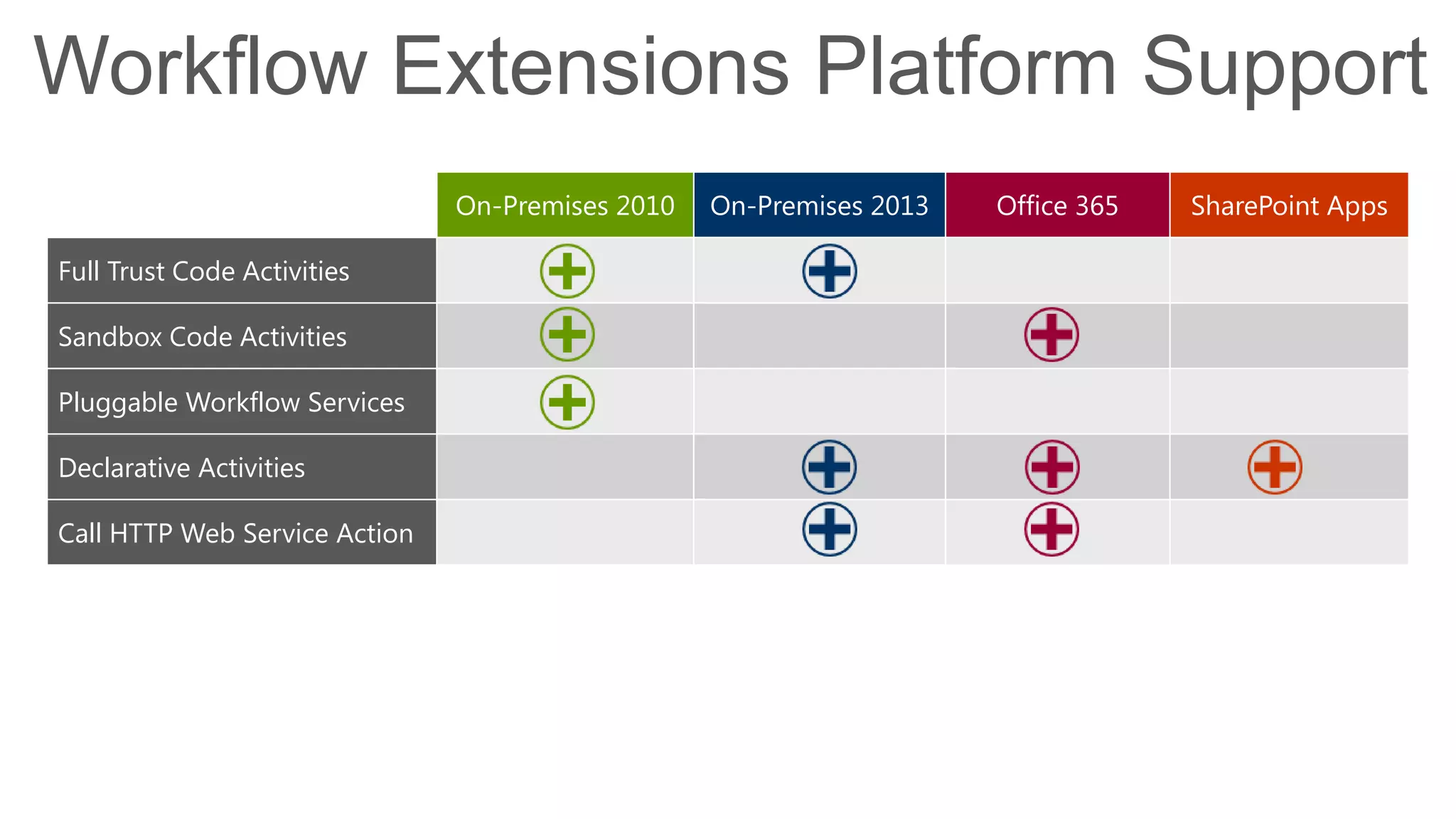

- 29. Workflow Extensions PlatformSupport On-Premises 2010 On-Premises 2013 Office 365 SharePoint Apps Full Trust Code Activities Sandbox Code Activities Pluggable Workflow Services Declarative Activities Call HTTP Web Service Action

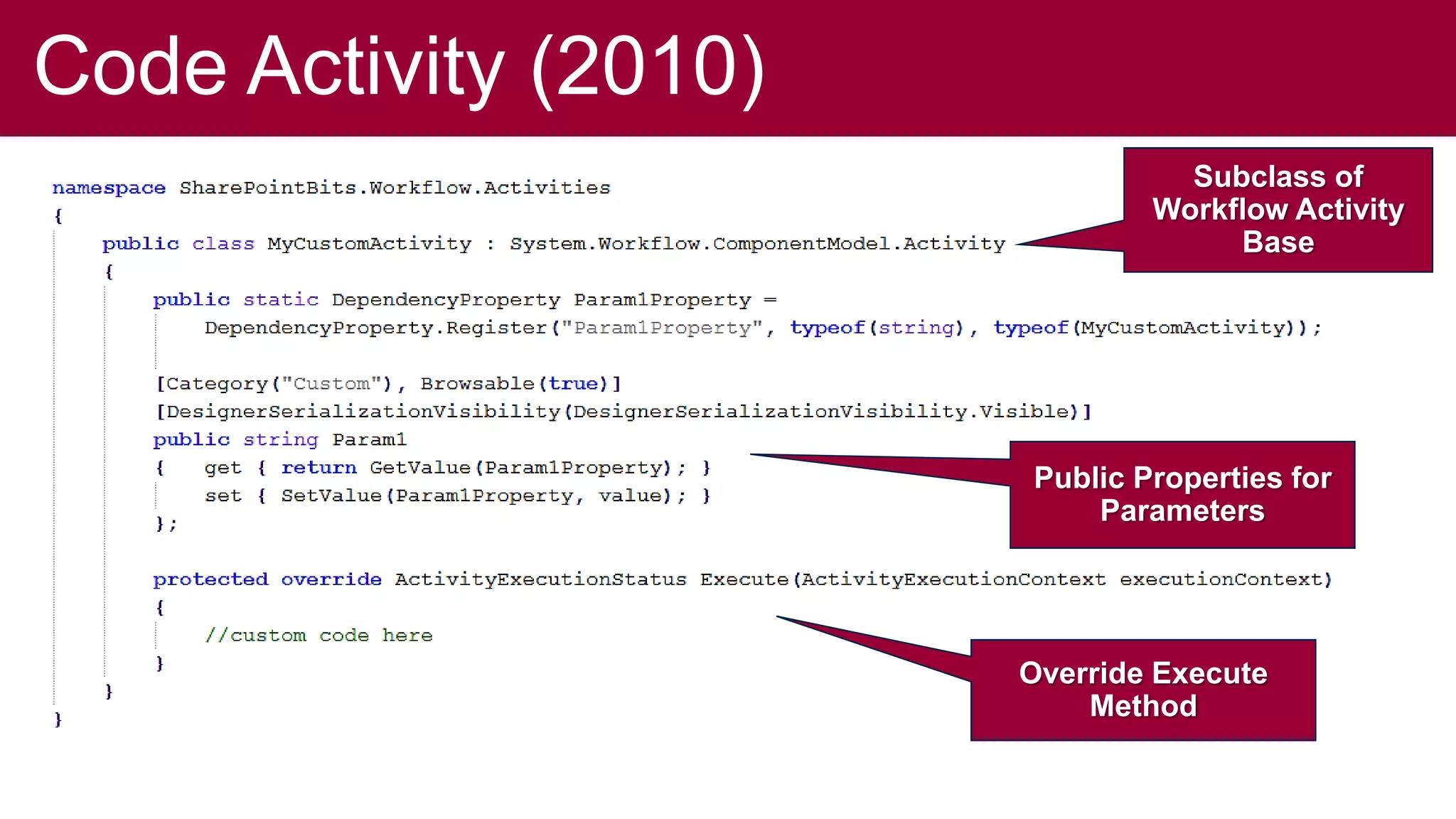

- 30. Code Activity (2010) Subclass of Workflow Activity Base Public Properties for Parameters Override Execute Method

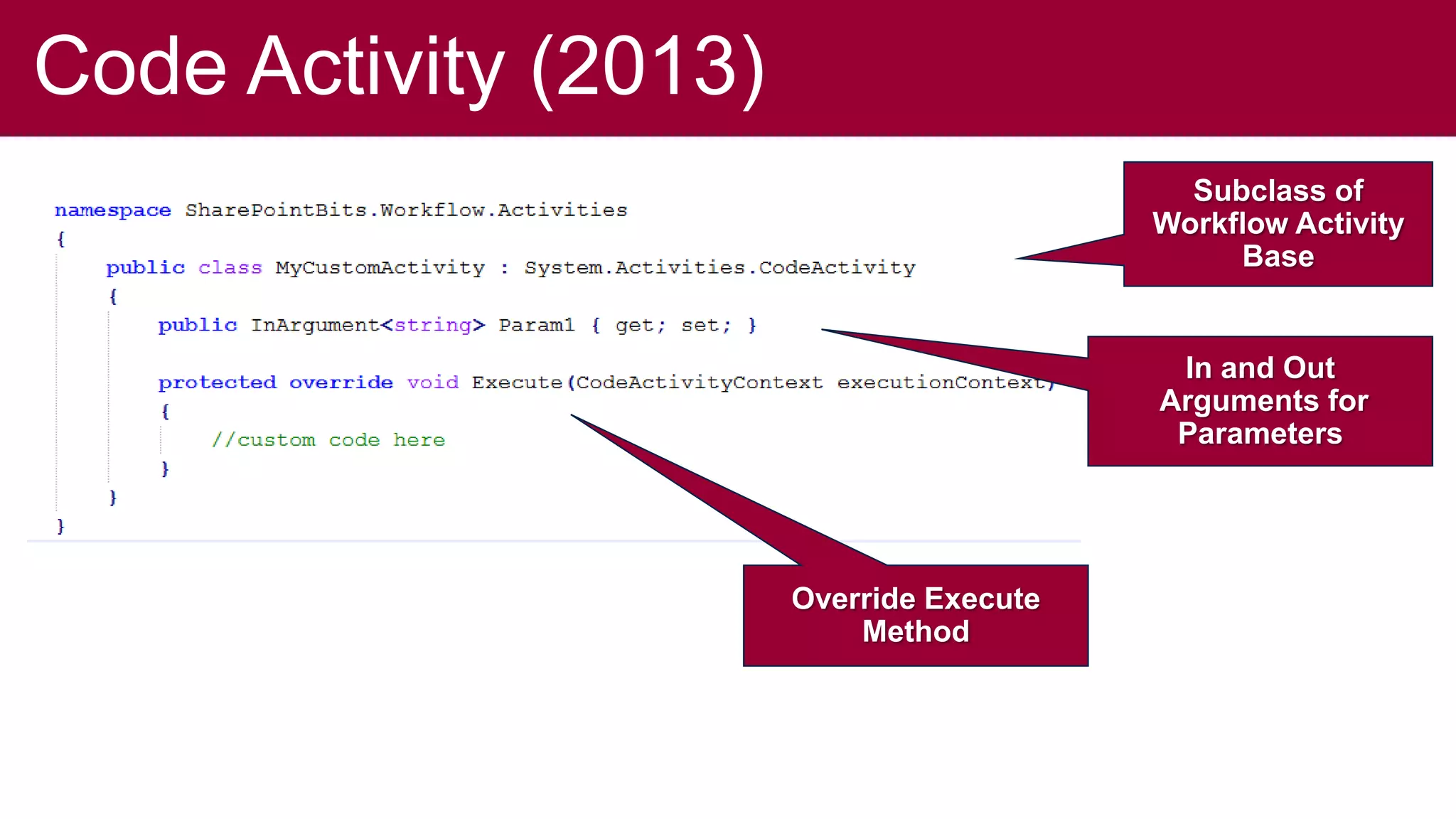

- 31. Code Activity (2013) Subclass of Workflow Activity Base In and Out Arguments for Parameters Override Execute Method

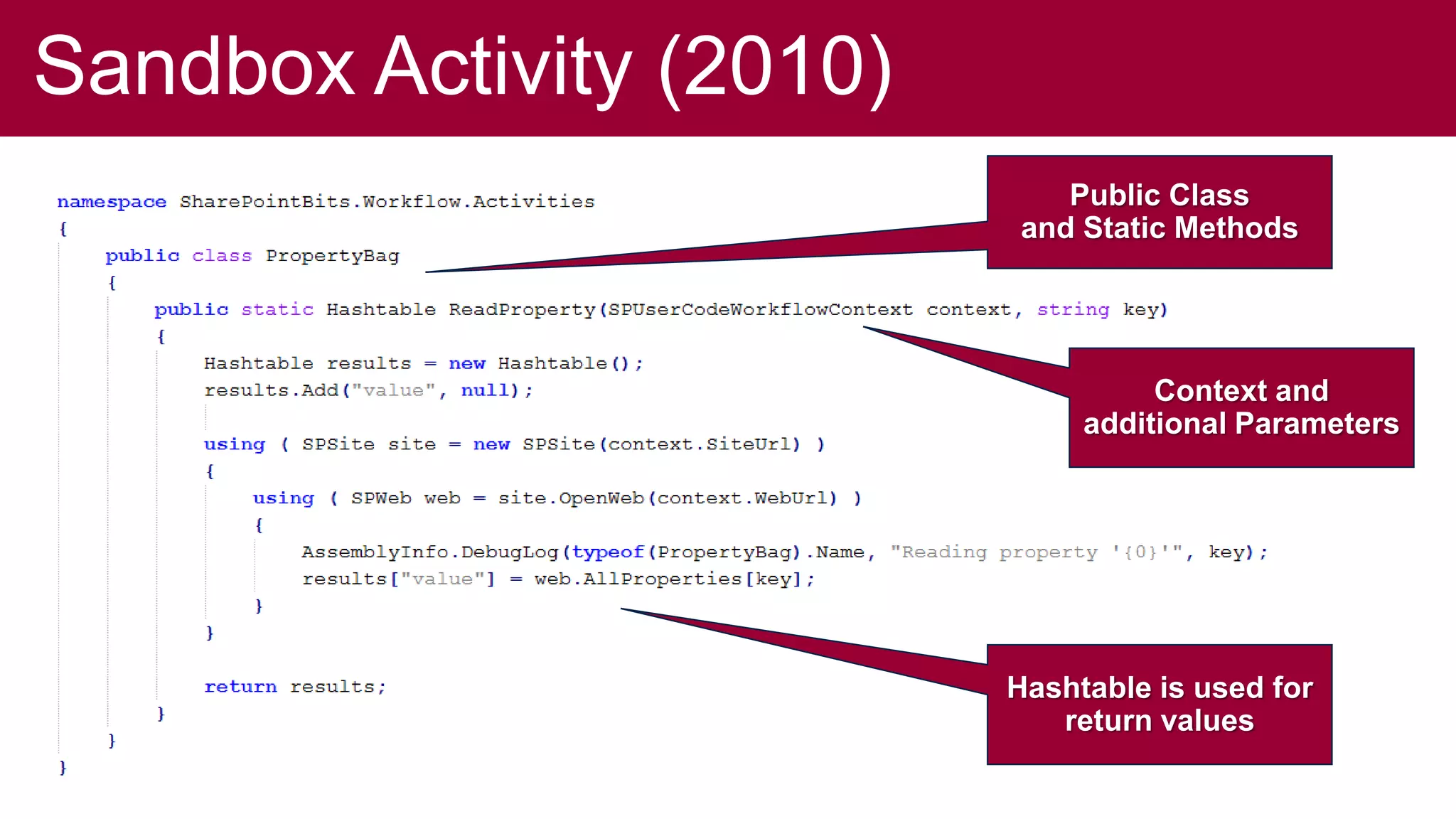

- 32. Sandbox Activity (2010) Public Class and Static Methods Context and additional Parameters Hashtable is used for return values

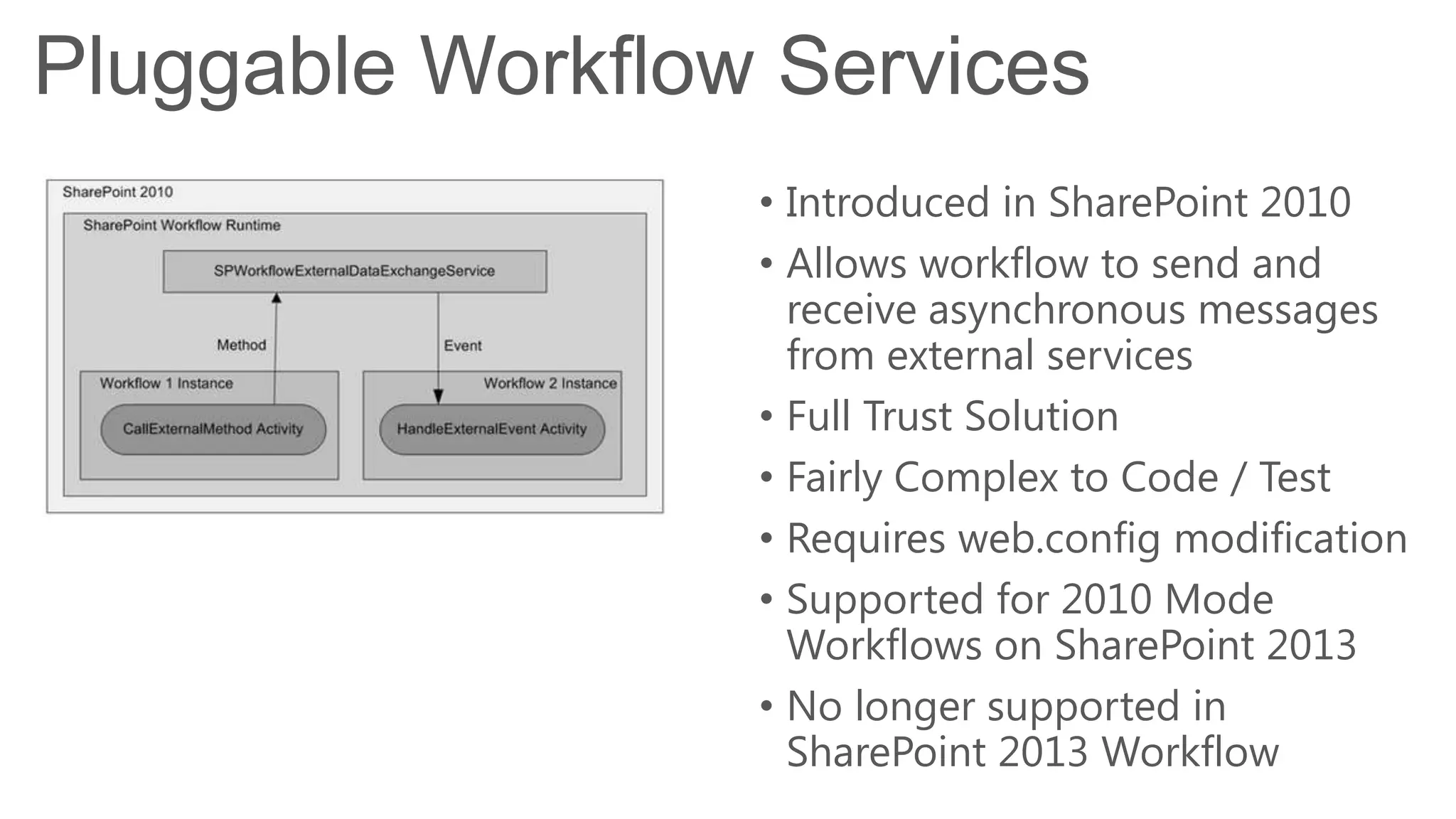

- 33. Pluggable Workflow Services • Introduced in SharePoint 2010 • Allows workflow to send and receive asynchronous messages from external services • Full Trust Solution • Fairly Complex to Code / Test • Requires web.config modification • Supported for 2010 Mode Workflows on SharePoint 2013 • No longer supported in SharePoint 2013 Workflow

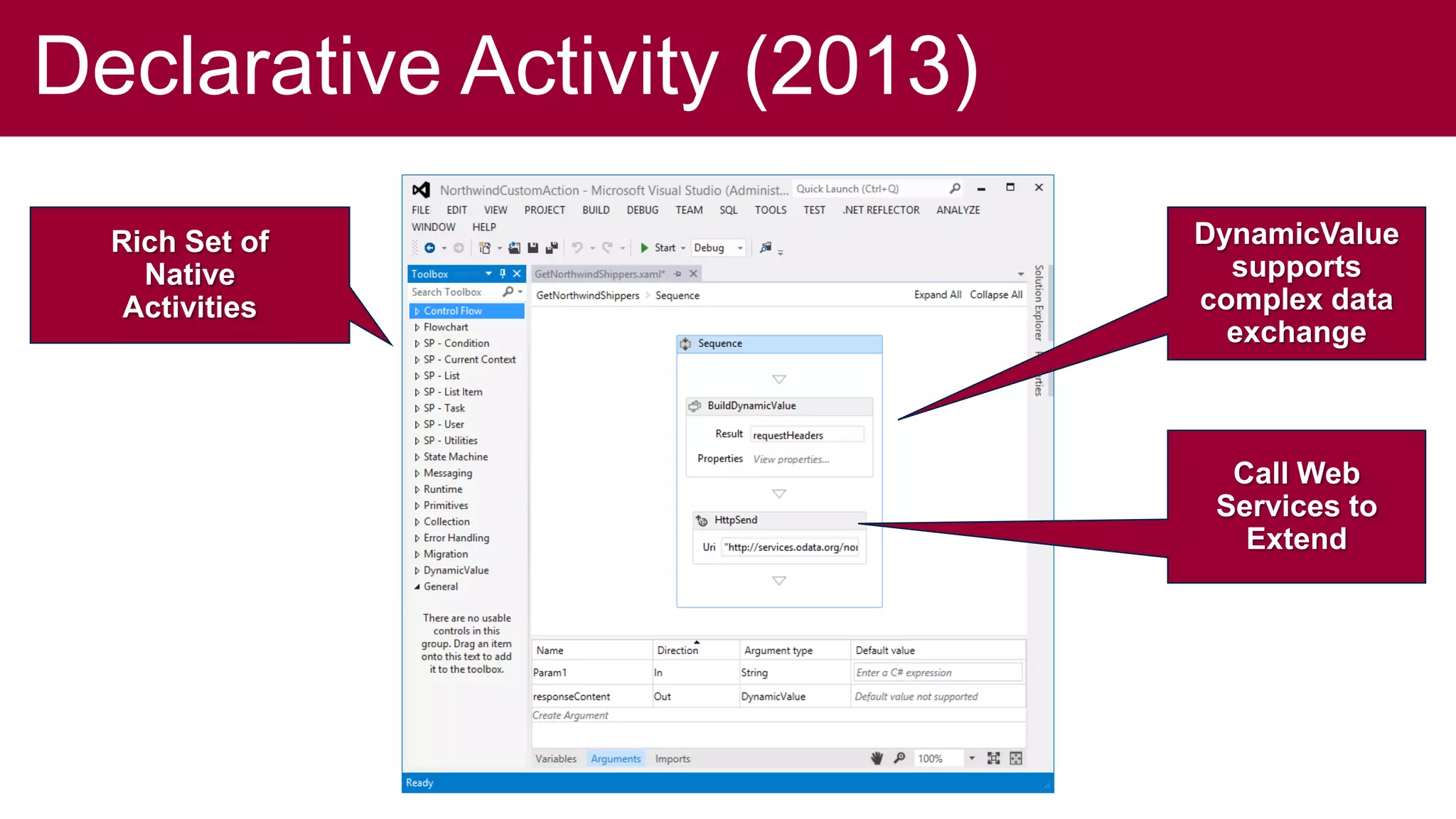

- 34. Declarative Activity (2013) Rich Set of DynamicValue Native supports Activities complex data exchange Call Web Services to Extend

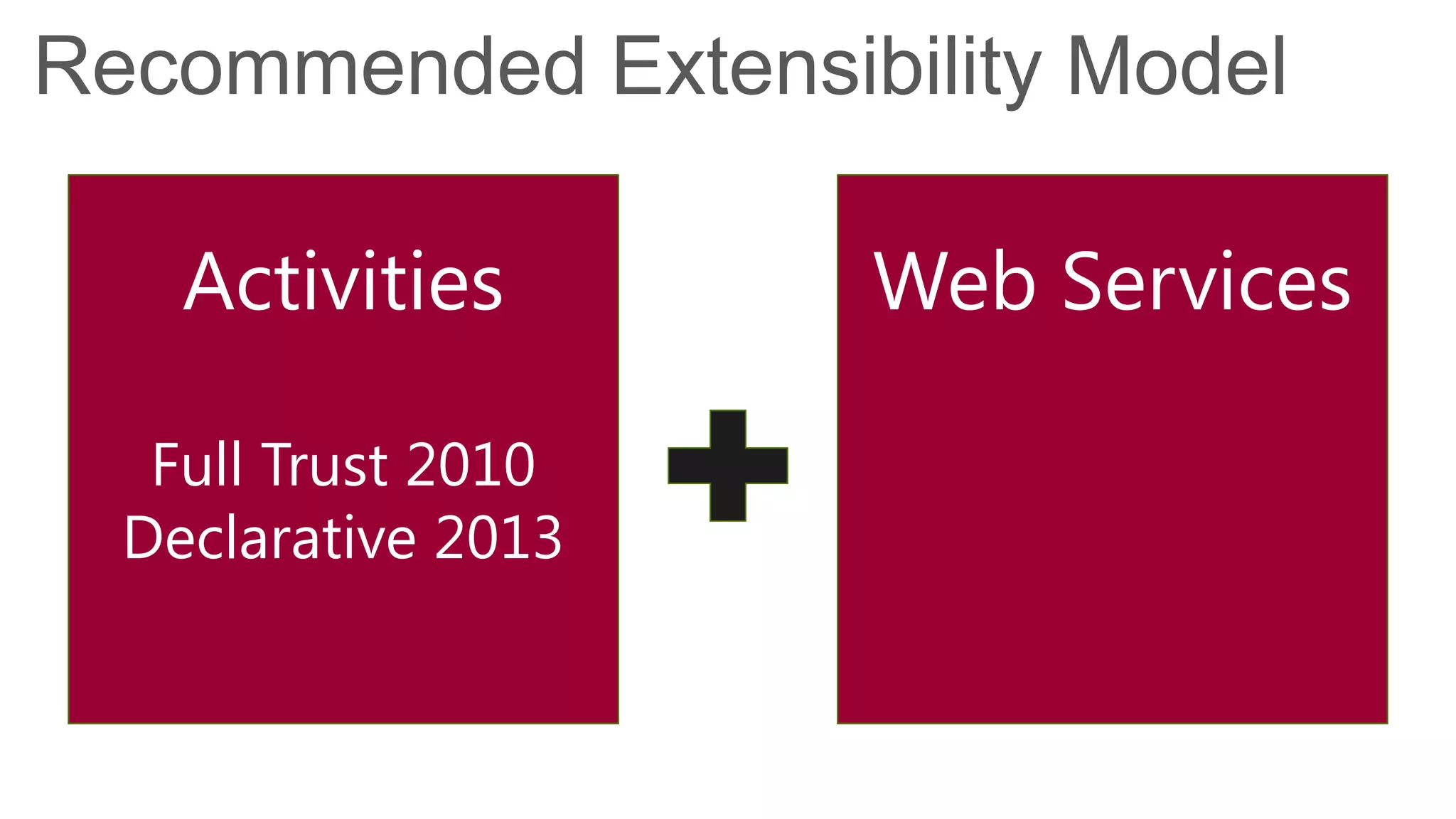

- 35. Recommended Extensibility Model Activities Web Services Full Trust 2010 Declarative 2013

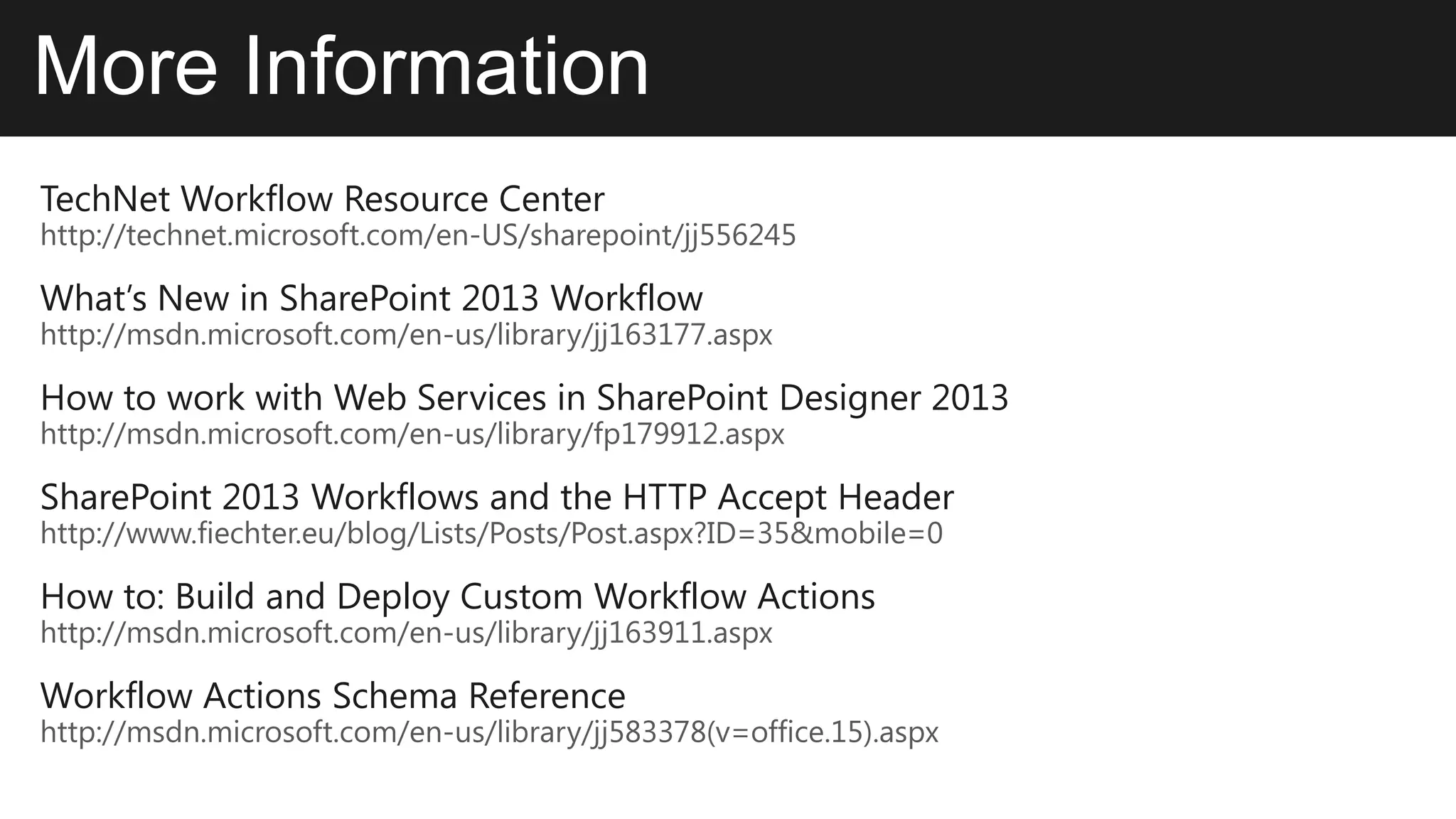

- 36. More Information TechNet WorkflowResource Center http://technet.microsoft.com/en-US/sharepoint/jj556245 What’s New in SharePoint 2013 Workflow http://msdn.microsoft.com/en-us/library/jj163177.aspx How to work with Web Services in SharePoint Designer 2013 http://msdn.microsoft.com/en-us/library/fp179912.aspx SharePoint 2013 Workflows and the HTTP Accept Header http://www.fiechter.eu/blog/Lists/Posts/Post.aspx?ID=35&mobile=0 How to: Build and Deploy Custom Workflow Actions http://msdn.microsoft.com/en-us/library/jj163911.aspx Workflow Actions Schema Reference http://msdn.microsoft.com/en-us/library/jj583378(v=office.15).aspx
- 37. Connect with NewStep Learning Course Curriculums and Training Programs http://www.newsteplearning.com News, Events and Training Announcements http://www.newsteplearning.com/blog Webinar and Conference Presentations http://www.slideshare.net/newsteplearning Free Step-By-Step Demos and Tutorials https://www.youtube.com/user/newsteplearning
- 38. Questions Thank you forattending! chris@newsteplearning.com (425) 522-3727 @sharepointbits blog.sharepointbits.com Please complete your evaluations. Your feedback is appreciated
