![JOSEPH HOWARD a , GARY MOSIER a , KEITH PARRISH a , SHAUN THOMSON a , MARK MCGINNIS b , JEREMY REDDEN b , KONG Ha c , CARL BLAUROCK d a NASA-GODDARD SPACE FLIGHT CENTER, GREENBELT, MD b SWALES AEROSPACE, BELTSVILLE, MD c SGT, GREENBELT, MD d NIGHTSKY SYSTEMS, RALEIGH, NC THE JAMES WEB SPACE TELESCOPE (JWST) IS A LARGE, INFRARED-OPTIMIZED, SPACE TELESCOPE SCHEDULED FOR LAUNCH TO L2 IN 2014. IT MUST MEET RIGOROUS THERMAL STABILITY REQUIREMENTS, ALMOST ALL OF WHICH WILL BE VERIFIED THROUGH ANALYSIS. TERRESTRIAL TESTING WILL BE PERFORMED BUT EVEN THAT WILL REQUIRE SIGNIFICANT ANALYTICAL INTERPRETATION OF RESULTS. PRELIMINARY ANALYSIS INDICATES THAT TRADITIONAL THIRD-ORDER EFFECTS COULD CAUSE THE TELESCOPE TO EXCEED ESTABLISHED PERFORMANCE REQUIREMENTS. THIS LEADS TO VERY LARGE DETAILED MODELS. PRIMARILY SINCE COMPOSITE TUBES ARE BEING MODELED USING SOLID ELEMENTS. TO MINIMIZE DIFFERENCES BETWEEN THE CURRENT BASELINE AND THE MODEL THE PROJECT IS USING A NUMBER OF RAPID ANALYSIS CYCLES THE LARGE SIZE OF THE TELESCOPE MODELS AND THE SHORT CYCLE TIME CREATES A DEMANDING MULTI-DISCIPLINARY ANALYSIS ENVIRONMENT. Optical Performance Modeling of the James Webb Space Telescope - An Update - Science Requirements Measure the luminosities, morphologies, and environments of galaxies within the spectral band 0.6 – 10 µ m Measure the spectra of 2500 galaxies over the redshift range 1 < z < 5 5-year lifetime. Constraints Launch by 2014 Cost capped Significant International Contributions Spacecraft from Prime Contractor Key Mission Trades Launch Vehicle Filled vs. Partially-Filled Apertures Thermal Management Sky Coverage Communications Strategy Science Instruments NIR Imaging Camera [NIRCam] 8 square arc minutes field of view Spectral resolution R (λ/Δλ) ≤ 100 Wavelength range 0.6-5 µm Multi-object spectrograph [ NIRSpec ] Observing > 100 objects at once 9 square arc minutes field of view R ~1000 over λ from 1-5 µm R ~100 over λ from 0.6-5 µm MIR instrument [MIRI] Imaging and spectroscopy 2 square arcminutes field of view R ~1500 spectroscopy over λ from 5-28 µm. Design Cycles Current Generation JWST FEM for Thermal Distortion Major analyses of current baseline design are repeated during each cycle On-orbit Thermal Distortion Perform two cooldown analyses and take the difference of displacements Compare results to budgeted wavefront error allotments On-orbit Jitter Calculate normal modes and modal damping based on strain energy Apply reaction wheel and cryocooler disturbances in DOCS for optical performance calculation Design cycles are approximately 3 months from model receipt to completion MATLAB & FEMAP NASTRAN & MATLAB Semi-automated Mapping of Backplane ISIM Backplane SDR3 Hot-to-cold Slew Wavefront Error Current Thermal Distortion Model Size 3.8 million GRIDS 2.0 million solid elements 260 thousand plate elements JWST Project Summary Linear Optical Model Closeup of Backplane & Mirror Segment Models assembled by NGST from subassemblies created by various subcontractors Previously documented use of optical sensitivities to predict wavefront error in MATLAB from NASTRAN punch file inputs Added decomposition of wavefront error by source and budget category Will soon add Zernicke coefficient calculation Addition of field distortion upcoming Previously considered the errors in transmitting a point source through the system Now adding the changes in the shape of an extended body A slight distortion in one axis is inherent in the design but will be removed in post-processing The change in this calibrated distortion becomes very important for NirSpec as it observes the spectrum of many objects simultaneously through an array of micro-shutters: Too much distortion prevents observation of the correct science targets We are tracking this distortion stability by keeping track of multiple field points and evaluating their relative separations after thermal/structural events, such as repointing the observatory so that the sun strikes at a different angle JWST Telescope Architecture Sec. Mir. Support Structure PM Backplane ISIM Enclosure Aft Optics Subsystem (AOS ) Fixed tertiary mirror Fine steering mirror PM baffle/radiator Secondary Mirror Assembly Primary Mirror Segments Light-weighted, 7DOF segments 18 modular units make up PM Supports 18 PMSAs, ISIM, IEC, Radiators, IOS, SMSS Torque Box BSF Deployment Tower Overview Gradients used heavily in STOP modeling Uncertainty modeling, identifying critical parameters and levying requirements Analytical gradients would improve process less susceptible to numerical conditioning if faster, enable larger parameter space Methodology Use discipline modeling tools to compute gradients to design parameters p chain rule applied to discipline models validate using finite differences FEMAP TSS SINDA MATLAB NASTRAN MATLAB geometry R C T s T n u optical performance z bulk data optical sensitivities Integrated Sensitivity Analyses GSFC Backplane T Comparison Worst-Case Hot-to-Cold T2 T1 Structural Model Thermal Model Large Model requires careful memory management during mapping in Matlab Stick model thermal nodes run down the middle of the solid-element tube models T2 T1](https://image.slidesharecdn.com/powerpoint-powerpoint1374/75/PowerPoint-Powerpoint-1-2048.jpg)
![JOSEPH HOWARD a , GARY MOSIER a , KEITH PARRISH a , SHAUN THOMSON a , MARK MCGINNIS b , JEREMY REDDEN b , KONG Ha c , CARL BLAUROCK d a NASA-GODDARD SPACE FLIGHT CENTER, GREENBELT, MD b SWALES AEROSPACE, BELTSVILLE, MD c SGT, GREENBELT, MD d NIGHTSKY SYSTEMS, RALEIGH, NC THE JAMES WEB SPACE TELESCOPE (JWST) IS A LARGE, INFRARED-OPTIMIZED, SPACE TELESCOPE SCHEDULED FOR LAUNCH TO L2 IN 2014. IT MUST MEET RIGOROUS THERMAL STABILITY REQUIREMENTS, ALMOST ALL OF WHICH WILL BE VERIFIED THROUGH ANALYSIS. TERRESTRIAL TESTING WILL BE PERFORMED BUT EVEN THAT WILL REQUIRE SIGNIFICANT ANALYTICAL INTERPRETATION OF RESULTS. PRELIMINARY ANALYSIS INDICATES THAT TRADITIONAL THIRD-ORDER EFFECTS COULD CAUSE THE TELESCOPE TO EXCEED ESTABLISHED PERFORMANCE REQUIREMENTS. THIS LEADS TO VERY LARGE DETAILED MODELS. PRIMARILY SINCE COMPOSITE TUBES ARE BEING MODELED USING SOLID ELEMENTS. TO MINIMIZE DIFFERENCES BETWEEN THE CURRENT BASELINE AND THE MODEL THE PROJECT IS USING A NUMBER OF RAPID ANALYSIS CYCLES THE LARGE SIZE OF THE TELESCOPE MODELS AND THE SHORT CYCLE TIME CREATES A DEMANDING MULTI-DISCIPLINARY ANALYSIS ENVIRONMENT. Optical Performance Modeling of the James Webb Space Telescope - An Update - Science Requirements Measure the luminosities, morphologies, and environments of galaxies within the spectral band 0.6 – 10 µ m Measure the spectra of 2500 galaxies over the redshift range 1 < z < 5 5-year lifetime. Constraints Launch by 2014 Cost capped Significant International Contributions Spacecraft from Prime Contractor Key Mission Trades Launch Vehicle Filled vs. Partially-Filled Apertures Thermal Management Sky Coverage Communications Strategy Science Instruments NIR Imaging Camera [NIRCam] 8 square arc minutes field of view Spectral resolution R (λ/Δλ) ≤ 100 Wavelength range 0.6-5 µm Multi-object spectrograph [ NIRSpec ] Observing > 100 objects at once 9 square arc minutes field of view R ~1000 over λ from 1-5 µm R ~100 over λ from 0.6-5 µm MIR instrument [MIRI] Imaging and spectroscopy 2 square arcminutes field of view R ~1500 spectroscopy over λ from 5-28 µm. Design Cycles Current Generation JWST FEM for Thermal Distortion Major analyses of current baseline design are repeated during each cycle On-orbit Thermal Distortion Perform two cooldown analyses and take the difference of displacements Compare results to budgeted wavefront error allotments On-orbit Jitter Calculate normal modes and modal damping based on strain energy Apply reaction wheel and cryocooler disturbances in DOCS for optical performance calculation Design cycles are approximately 3 months from model receipt to completion MATLAB & FEMAP NASTRAN & MATLAB Semi-automated Mapping of Backplane ISIM Backplane SDR3 Hot-to-cold Slew Wavefront Error Current Thermal Distortion Model Size 3.8 million GRIDS 2.0 million solid elements 260 thousand plate elements JWST Project Summary Linear Optical Model Closeup of Backplane & Mirror Segment Models assembled by NGST from subassemblies created by various subcontractors Previously documented use of optical sensitivities to predict wavefront error in MATLAB from NASTRAN punch file inputs Added decomposition of wavefront error by source and budget category Will soon add Zernicke coefficient calculation Addition of field distortion upcoming Previously considered the errors in transmitting a point source through the system Now adding the changes in the shape of an extended body A slight distortion in one axis is inherent in the design but will be removed in post-processing The change in this calibrated distortion becomes very important for NirSpec as it observes the spectrum of many objects simultaneously through an array of micro-shutters: Too much distortion prevents observation of the correct science targets We are tracking this distortion stability by keeping track of multiple field points and evaluating their relative separations after thermal/structural events, such as repointing the observatory so that the sun strikes at a different angle JWST Telescope Architecture Sec. Mir. Support Structure PM Backplane ISIM Enclosure Aft Optics Subsystem (AOS ) Fixed tertiary mirror Fine steering mirror PM baffle/radiator Secondary Mirror Assembly Primary Mirror Segments Light-weighted, 7DOF segments 18 modular units make up PM Supports 18 PMSAs, ISIM, IEC, Radiators, IOS, SMSS Torque Box BSF Deployment Tower Overview Gradients used heavily in STOP modeling Uncertainty modeling, identifying critical parameters and levying requirements Analytical gradients would improve process less susceptible to numerical conditioning if faster, enable larger parameter space Methodology Use discipline modeling tools to compute gradients to design parameters p chain rule applied to discipline models validate using finite differences FEMAP TSS SINDA MATLAB NASTRAN MATLAB geometry R C T s T n u optical performance z bulk data optical sensitivities Integrated Sensitivity Analyses GSFC Backplane T Comparison Worst-Case Hot-to-Cold T2 T1 Structural Model Thermal Model Large Model requires careful memory management during mapping in Matlab Stick model thermal nodes run down the middle of the solid-element tube models T2 T1](https://crownmelresort.com/image.slidesharecdn.com/powerpoint-powerpoint1374/75/PowerPoint-Powerpoint-1-2048.jpg)
![1200 cash[2]](https://cdn.slidesharecdn.com/ss_thumbnails/enxkjvufqc6h4ffmmmnz-signature-fabe374f978bfb273f92443e2c8243d3e294d623a7c677008fe136d7284f57a9-poli-140825181532-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
PowerPoint Powerpoint

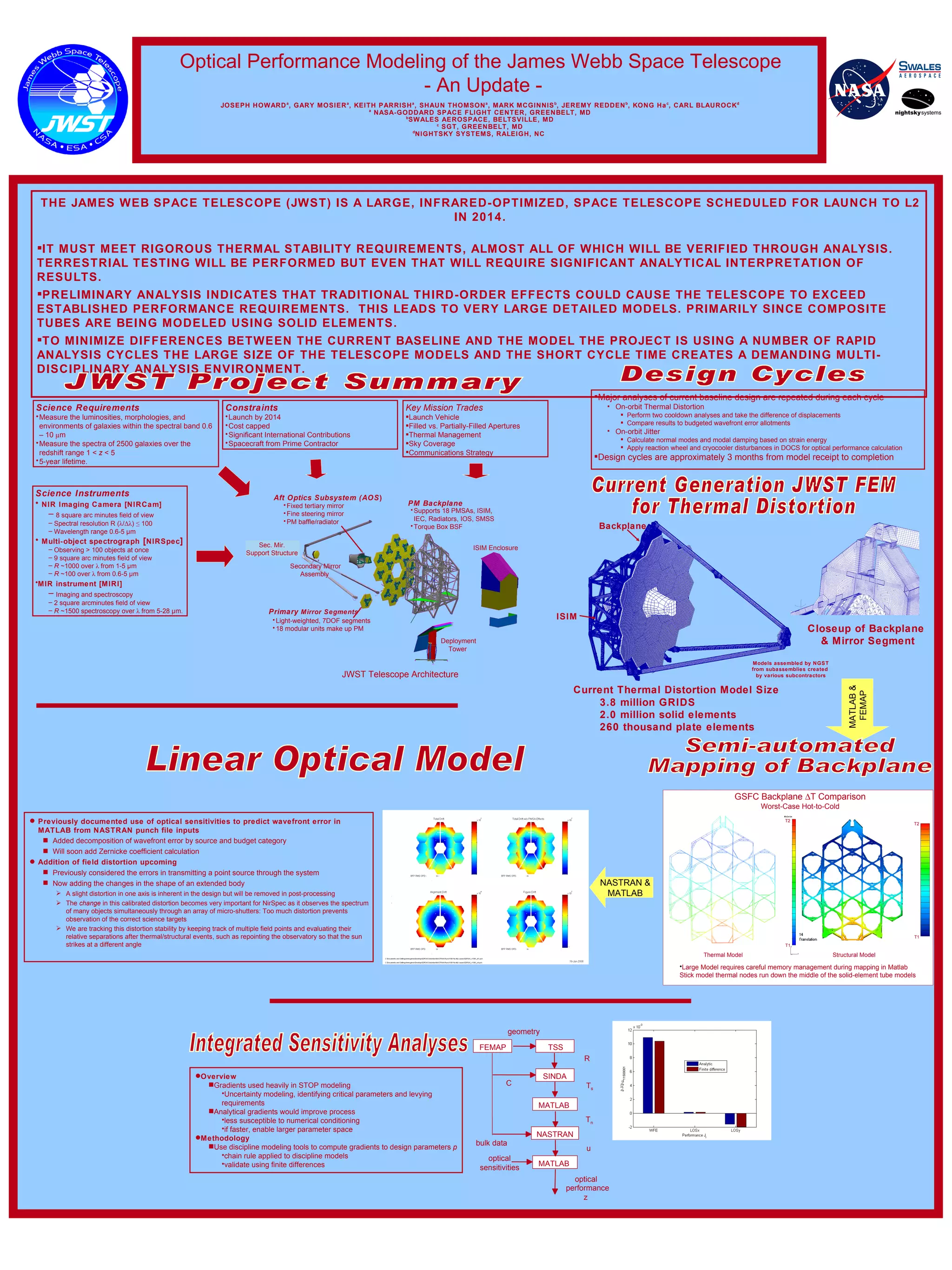

- 1. JOSEPH HOWARD a, GARY MOSIER a , KEITH PARRISH a , SHAUN THOMSON a , MARK MCGINNIS b , JEREMY REDDEN b , KONG Ha c , CARL BLAUROCK d a NASA-GODDARD SPACE FLIGHT CENTER, GREENBELT, MD b SWALES AEROSPACE, BELTSVILLE, MD c SGT, GREENBELT, MD d NIGHTSKY SYSTEMS, RALEIGH, NC THE JAMES WEB SPACE TELESCOPE (JWST) IS A LARGE, INFRARED-OPTIMIZED, SPACE TELESCOPE SCHEDULED FOR LAUNCH TO L2 IN 2014. IT MUST MEET RIGOROUS THERMAL STABILITY REQUIREMENTS, ALMOST ALL OF WHICH WILL BE VERIFIED THROUGH ANALYSIS. TERRESTRIAL TESTING WILL BE PERFORMED BUT EVEN THAT WILL REQUIRE SIGNIFICANT ANALYTICAL INTERPRETATION OF RESULTS. PRELIMINARY ANALYSIS INDICATES THAT TRADITIONAL THIRD-ORDER EFFECTS COULD CAUSE THE TELESCOPE TO EXCEED ESTABLISHED PERFORMANCE REQUIREMENTS. THIS LEADS TO VERY LARGE DETAILED MODELS. PRIMARILY SINCE COMPOSITE TUBES ARE BEING MODELED USING SOLID ELEMENTS. TO MINIMIZE DIFFERENCES BETWEEN THE CURRENT BASELINE AND THE MODEL THE PROJECT IS USING A NUMBER OF RAPID ANALYSIS CYCLES THE LARGE SIZE OF THE TELESCOPE MODELS AND THE SHORT CYCLE TIME CREATES A DEMANDING MULTI-DISCIPLINARY ANALYSIS ENVIRONMENT. Optical Performance Modeling of the James Webb Space Telescope - An Update - Science Requirements Measure the luminosities, morphologies, and environments of galaxies within the spectral band 0.6 – 10 µ m Measure the spectra of 2500 galaxies over the redshift range 1 < z < 5 5-year lifetime. Constraints Launch by 2014 Cost capped Significant International Contributions Spacecraft from Prime Contractor Key Mission Trades Launch Vehicle Filled vs. Partially-Filled Apertures Thermal Management Sky Coverage Communications Strategy Science Instruments NIR Imaging Camera [NIRCam] 8 square arc minutes field of view Spectral resolution R (λ/Δλ) ≤ 100 Wavelength range 0.6-5 µm Multi-object spectrograph [ NIRSpec ] Observing > 100 objects at once 9 square arc minutes field of view R ~1000 over λ from 1-5 µm R ~100 over λ from 0.6-5 µm MIR instrument [MIRI] Imaging and spectroscopy 2 square arcminutes field of view R ~1500 spectroscopy over λ from 5-28 µm. Design Cycles Current Generation JWST FEM for Thermal Distortion Major analyses of current baseline design are repeated during each cycle On-orbit Thermal Distortion Perform two cooldown analyses and take the difference of displacements Compare results to budgeted wavefront error allotments On-orbit Jitter Calculate normal modes and modal damping based on strain energy Apply reaction wheel and cryocooler disturbances in DOCS for optical performance calculation Design cycles are approximately 3 months from model receipt to completion MATLAB & FEMAP NASTRAN & MATLAB Semi-automated Mapping of Backplane ISIM Backplane SDR3 Hot-to-cold Slew Wavefront Error Current Thermal Distortion Model Size 3.8 million GRIDS 2.0 million solid elements 260 thousand plate elements JWST Project Summary Linear Optical Model Closeup of Backplane & Mirror Segment Models assembled by NGST from subassemblies created by various subcontractors Previously documented use of optical sensitivities to predict wavefront error in MATLAB from NASTRAN punch file inputs Added decomposition of wavefront error by source and budget category Will soon add Zernicke coefficient calculation Addition of field distortion upcoming Previously considered the errors in transmitting a point source through the system Now adding the changes in the shape of an extended body A slight distortion in one axis is inherent in the design but will be removed in post-processing The change in this calibrated distortion becomes very important for NirSpec as it observes the spectrum of many objects simultaneously through an array of micro-shutters: Too much distortion prevents observation of the correct science targets We are tracking this distortion stability by keeping track of multiple field points and evaluating their relative separations after thermal/structural events, such as repointing the observatory so that the sun strikes at a different angle JWST Telescope Architecture Sec. Mir. Support Structure PM Backplane ISIM Enclosure Aft Optics Subsystem (AOS ) Fixed tertiary mirror Fine steering mirror PM baffle/radiator Secondary Mirror Assembly Primary Mirror Segments Light-weighted, 7DOF segments 18 modular units make up PM Supports 18 PMSAs, ISIM, IEC, Radiators, IOS, SMSS Torque Box BSF Deployment Tower Overview Gradients used heavily in STOP modeling Uncertainty modeling, identifying critical parameters and levying requirements Analytical gradients would improve process less susceptible to numerical conditioning if faster, enable larger parameter space Methodology Use discipline modeling tools to compute gradients to design parameters p chain rule applied to discipline models validate using finite differences FEMAP TSS SINDA MATLAB NASTRAN MATLAB geometry R C T s T n u optical performance z bulk data optical sensitivities Integrated Sensitivity Analyses GSFC Backplane T Comparison Worst-Case Hot-to-Cold T2 T1 Structural Model Thermal Model Large Model requires careful memory management during mapping in Matlab Stick model thermal nodes run down the middle of the solid-element tube models T2 T1
