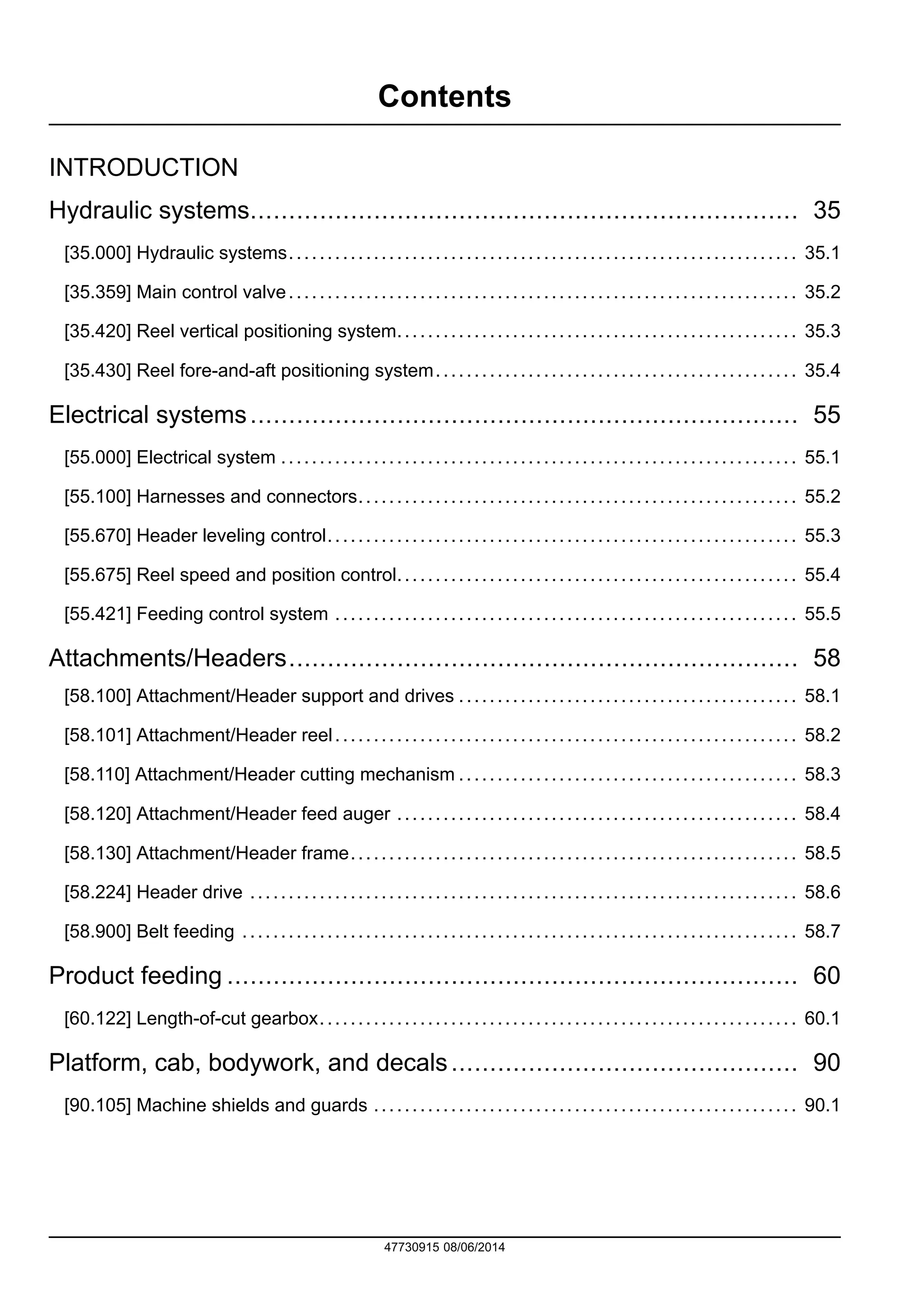

Contents
INTRODUCTION
Hydraulic systems....................................................................... 35
[35.000] Hydraulic systems.................................................................. 35.1
[35.359] Main control valve.................................................................. 35.2
[35.420] Reel vertical positioning system.................................................... 35.3
[35.430] Reel fore-and-aft positioning system............................................... 35.4
Electrical systems....................................................................... 55
[55.000] Electrical system ................................................................... 55.1
[55.100] Harnesses and connectors......................................................... 55.2
[55.670] Header leveling control............................................................. 55.3
[55.675] Reel speed and position control.................................................... 55.4
[55.421] Feeding control system ............................................................ 55.5
Attachments/Headers.................................................................. 58
[58.100] Attachment/Header support and drives ............................................ 58.1
[58.101] Attachment/Header reel............................................................ 58.2
[58.110] Attachment/Header cutting mechanism ............................................ 58.3
[58.120] Attachment/Header feed auger .................................................... 58.4
[58.130] Attachment/Header frame.......................................................... 58.5
[58.224] Header drive ....................................................................... 58.6
[58.900] Belt feeding ........................................................................ 58.7
Product feeding .......................................................................... 60
[60.122] Length-of-cut gearbox.............................................................. 60.1
Platform, cab, bodywork, and decals............................................. 90
[90.105] Machine shields and guards ....................................................... 90.1
47730915 08/06/2014

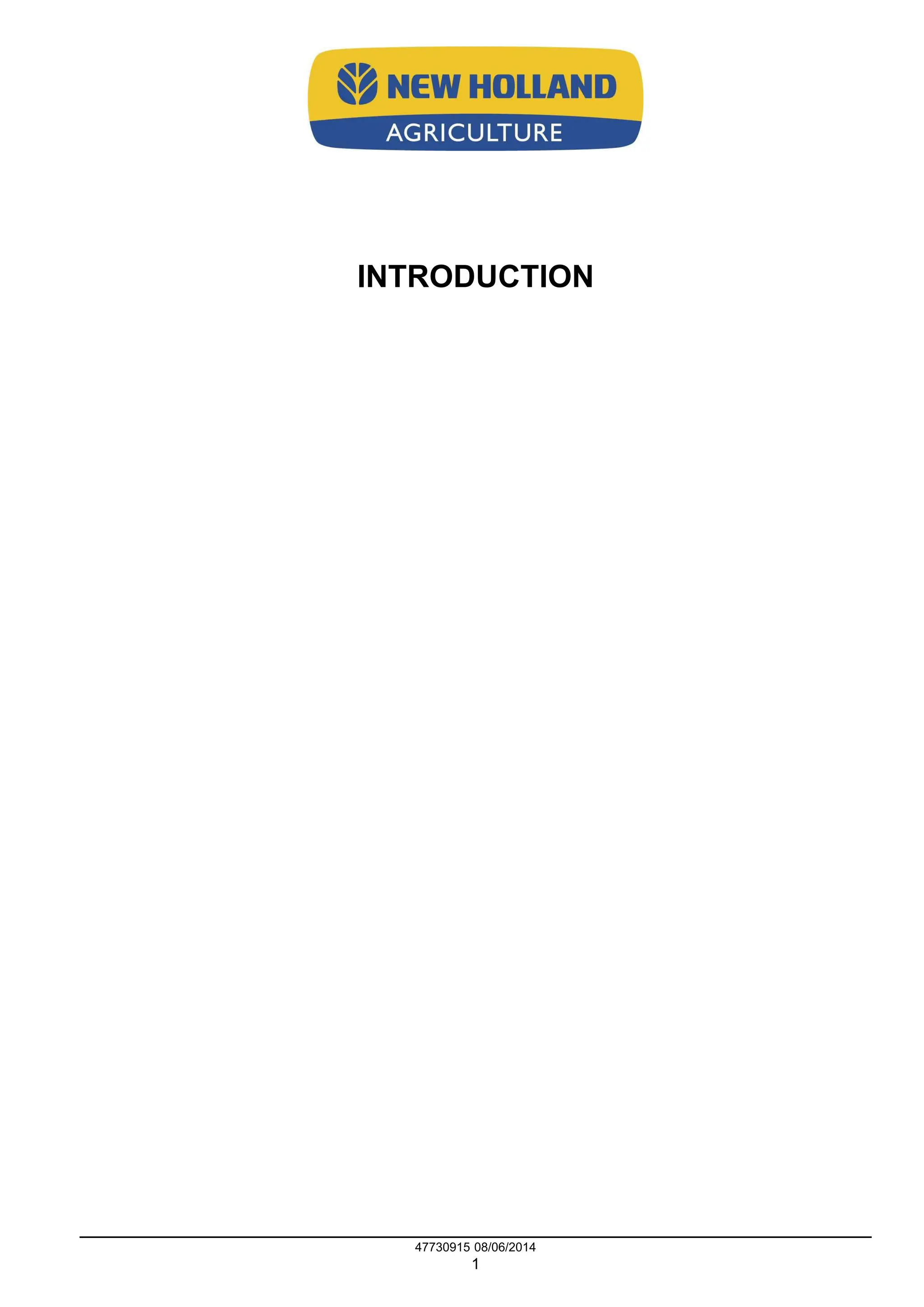

INTRODUCTION
47730915 08/06/2014
1

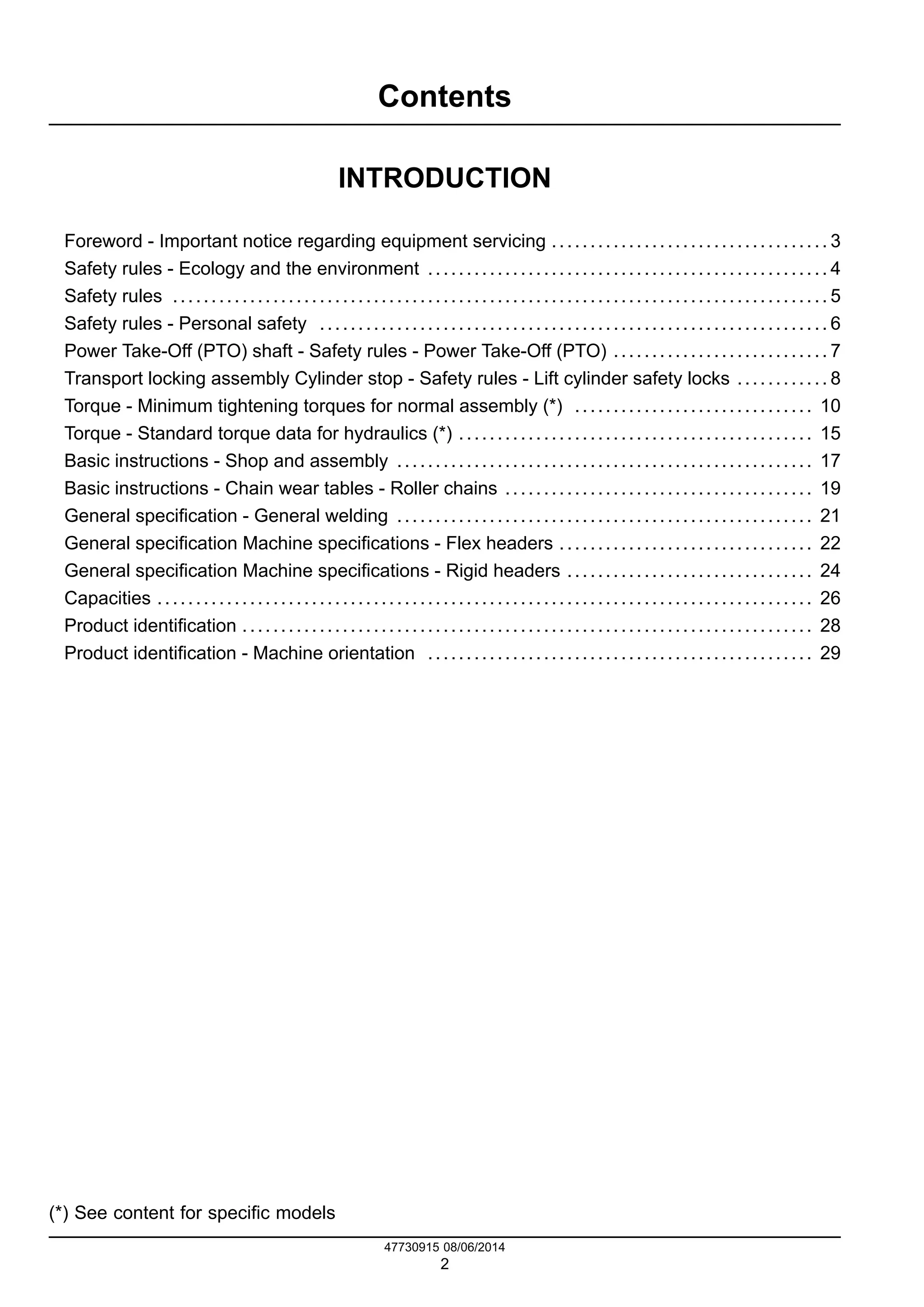

Contents
INTRODUCTION
Foreword - Important notice regarding equipment servicing .................................... 3
Safety rules - Ecology and the environment .................................................... 4
Safety rules ..................................................................................... 5
Safety rules - Personal safety .................................................................. 6
Power Take-Off (PTO) shaft - Safety rules - Power Take-Off (PTO) ............................ 7
Transport locking assembly Cylinder stop - Safety rules - Lift cylinder safety locks ............ 8

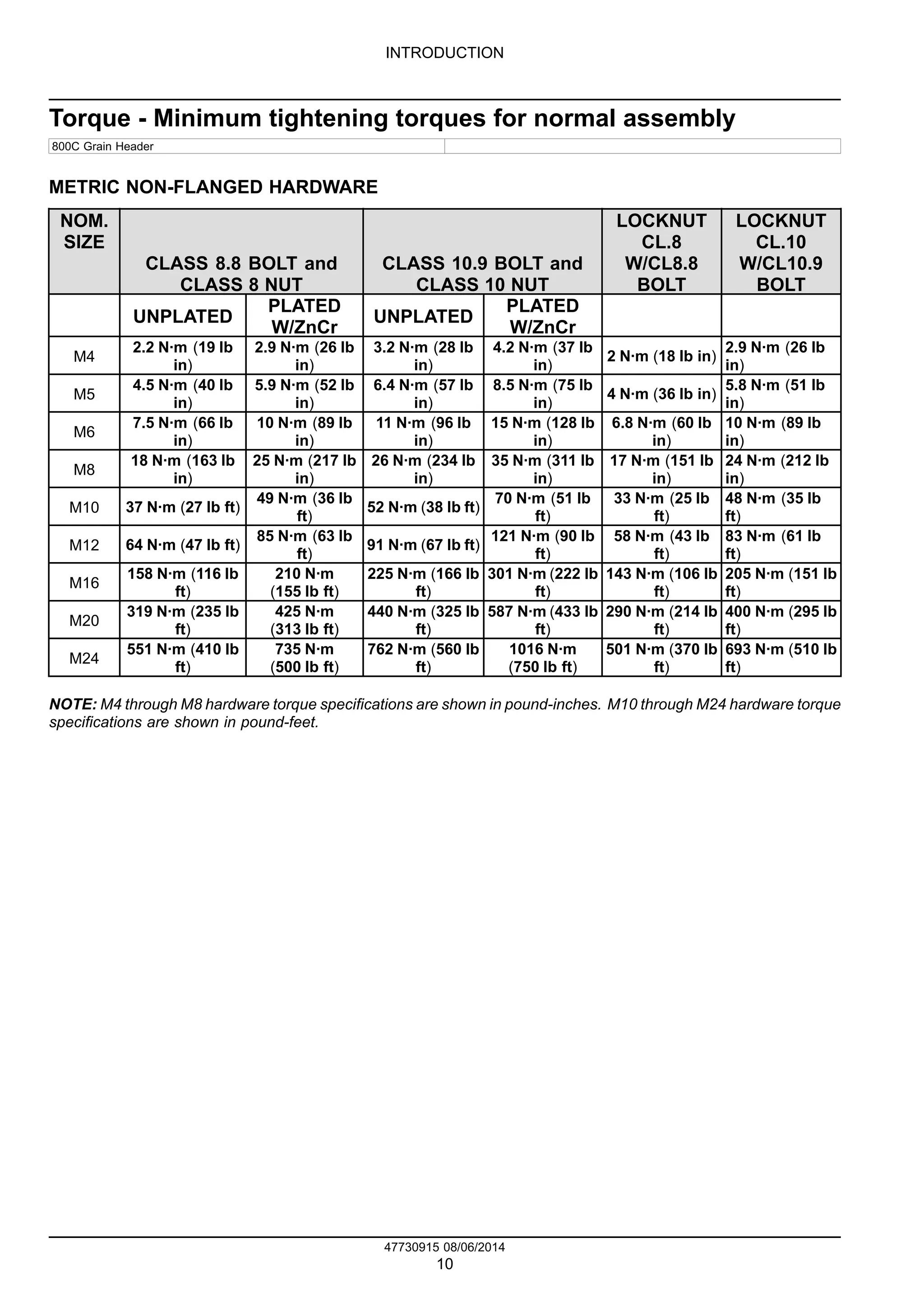

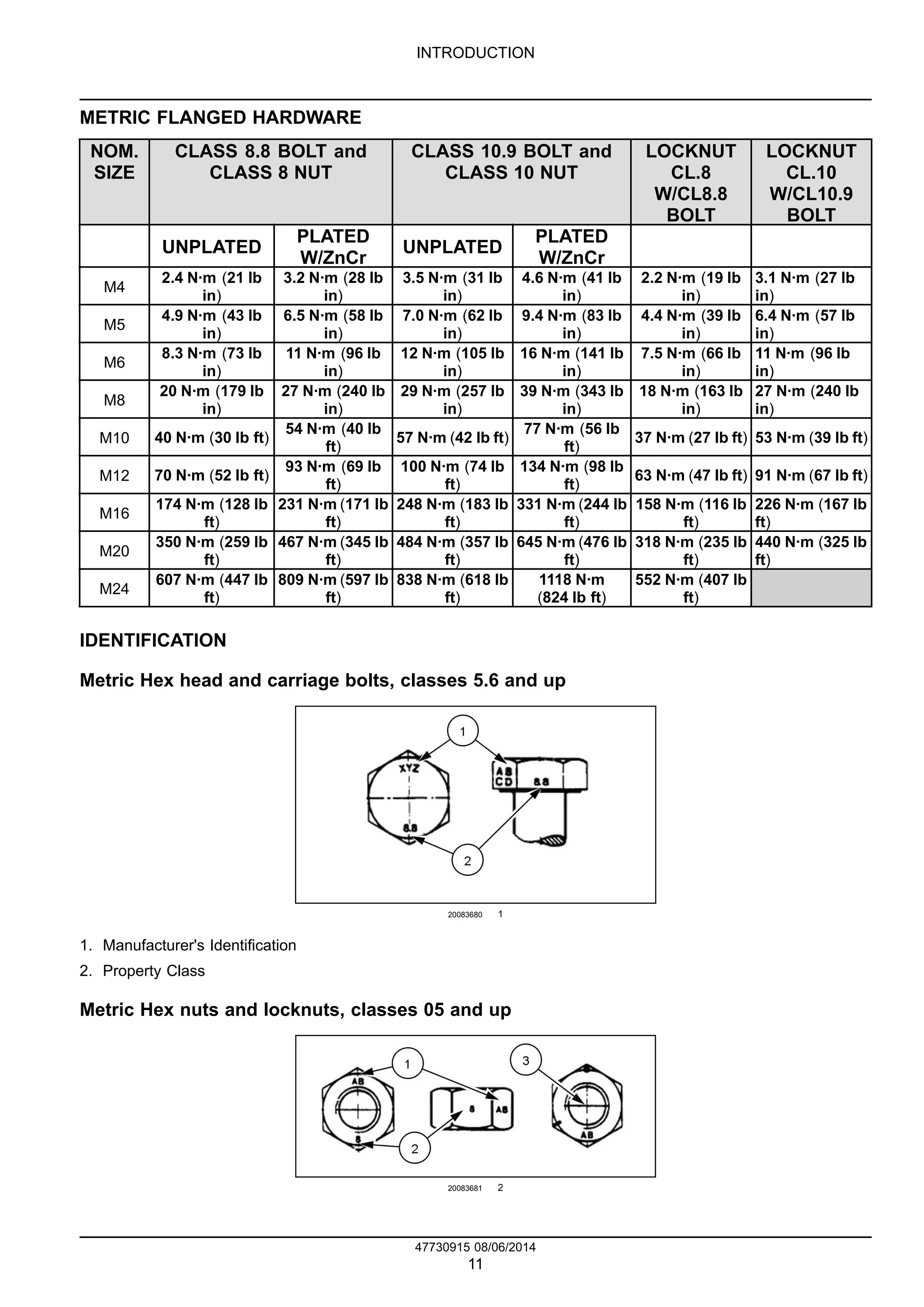

Torque - Minimum tightening torques for normal assembly (*) ............................... 10
Torque - Standard torque data for hydraulics (*) .............................................. 15

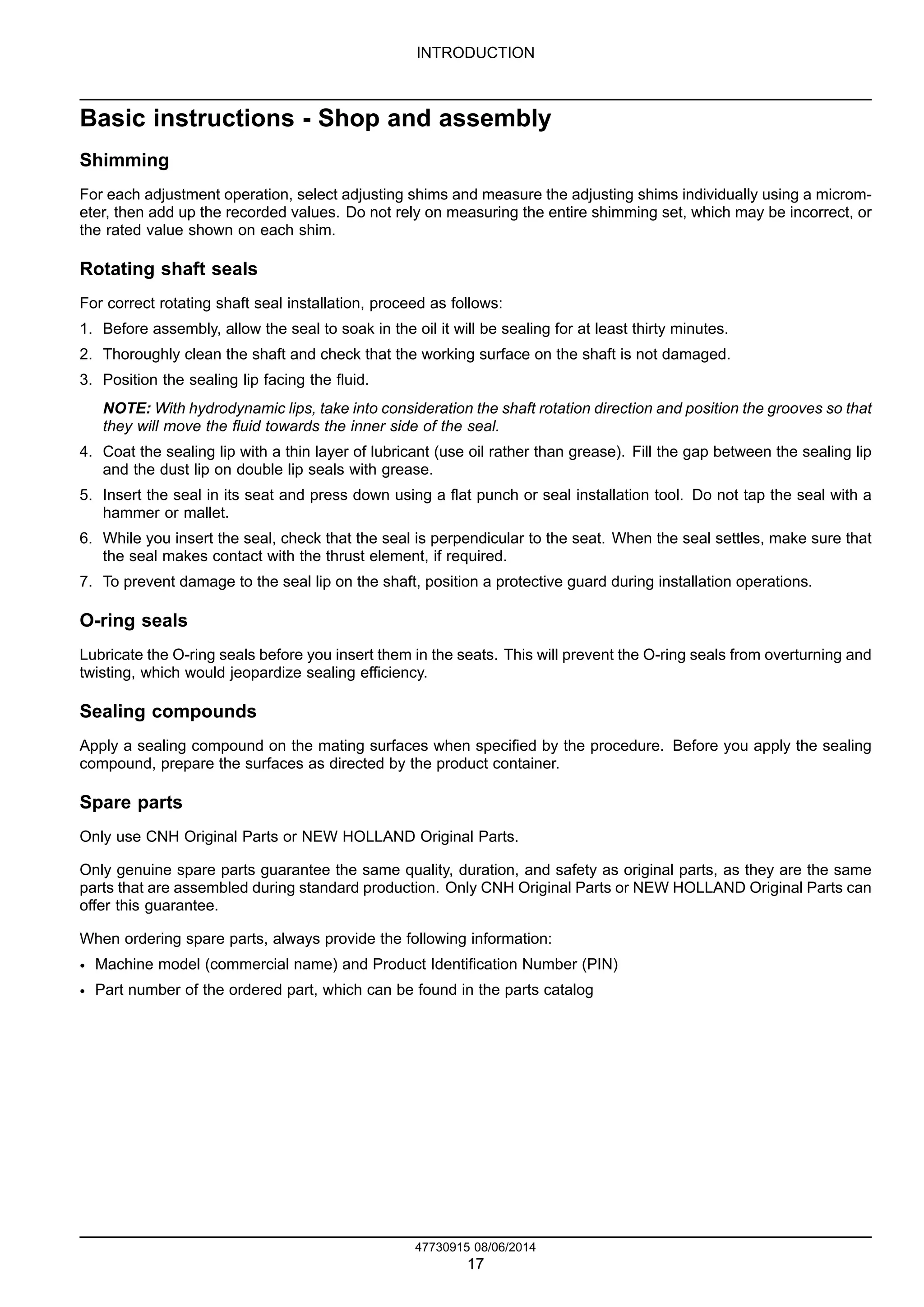

Basic instructions - Shop and assembly ...................................................... 17
Basic instructions - Chain wear tables - Roller chains ........................................ 19
General specification - General welding ...................................................... 21

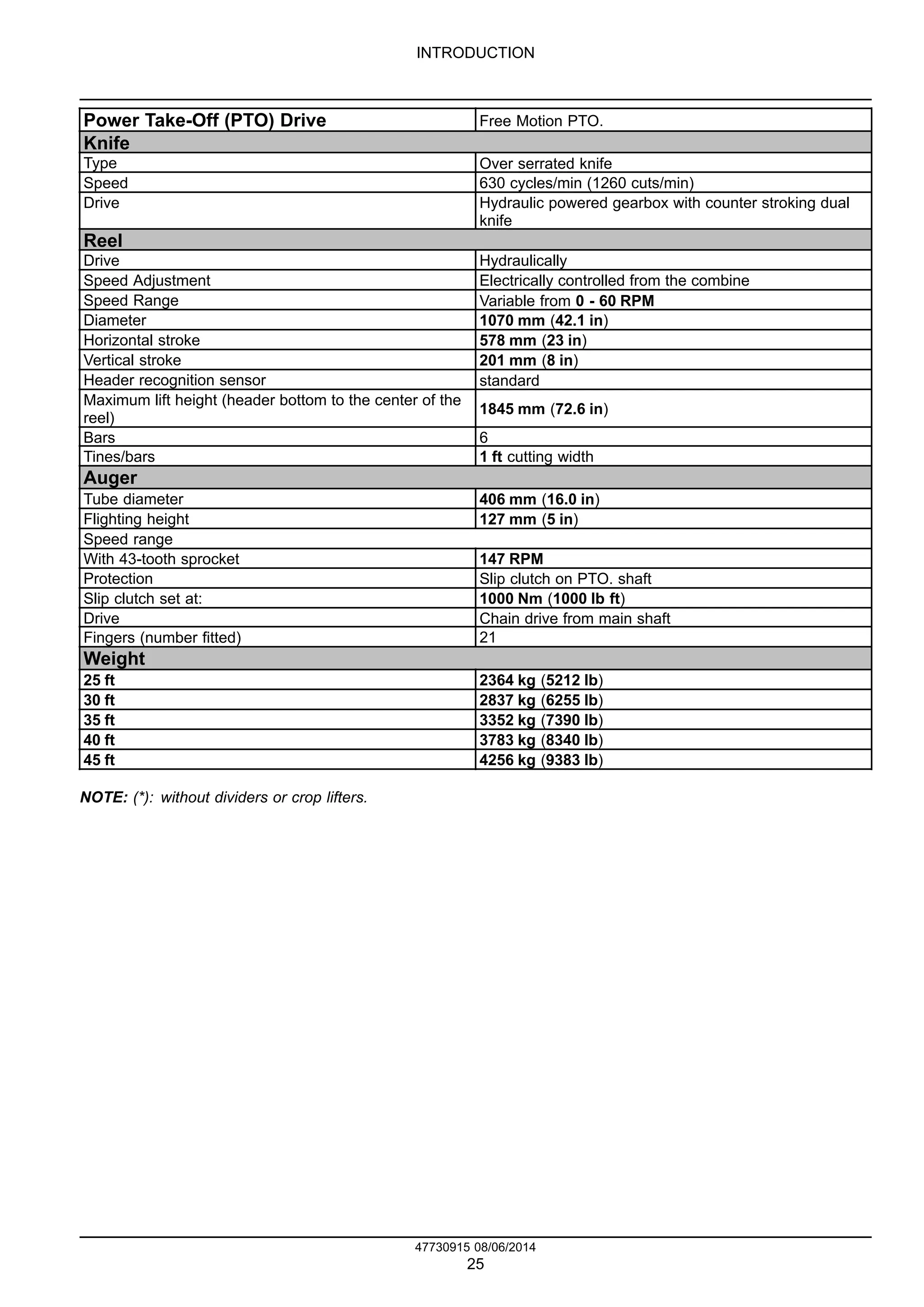

General specification Machine specifications - Flex headers ................................. 22
General specification Machine specifications - Rigid headers ................................ 24
Capacities ..................................................................................... 26
Product identification .......................................................................... 28
Product identification - Machine orientation .................................................. 29
(*) See content for specific models
47730915 08/06/2014
2

INTRODUCTION

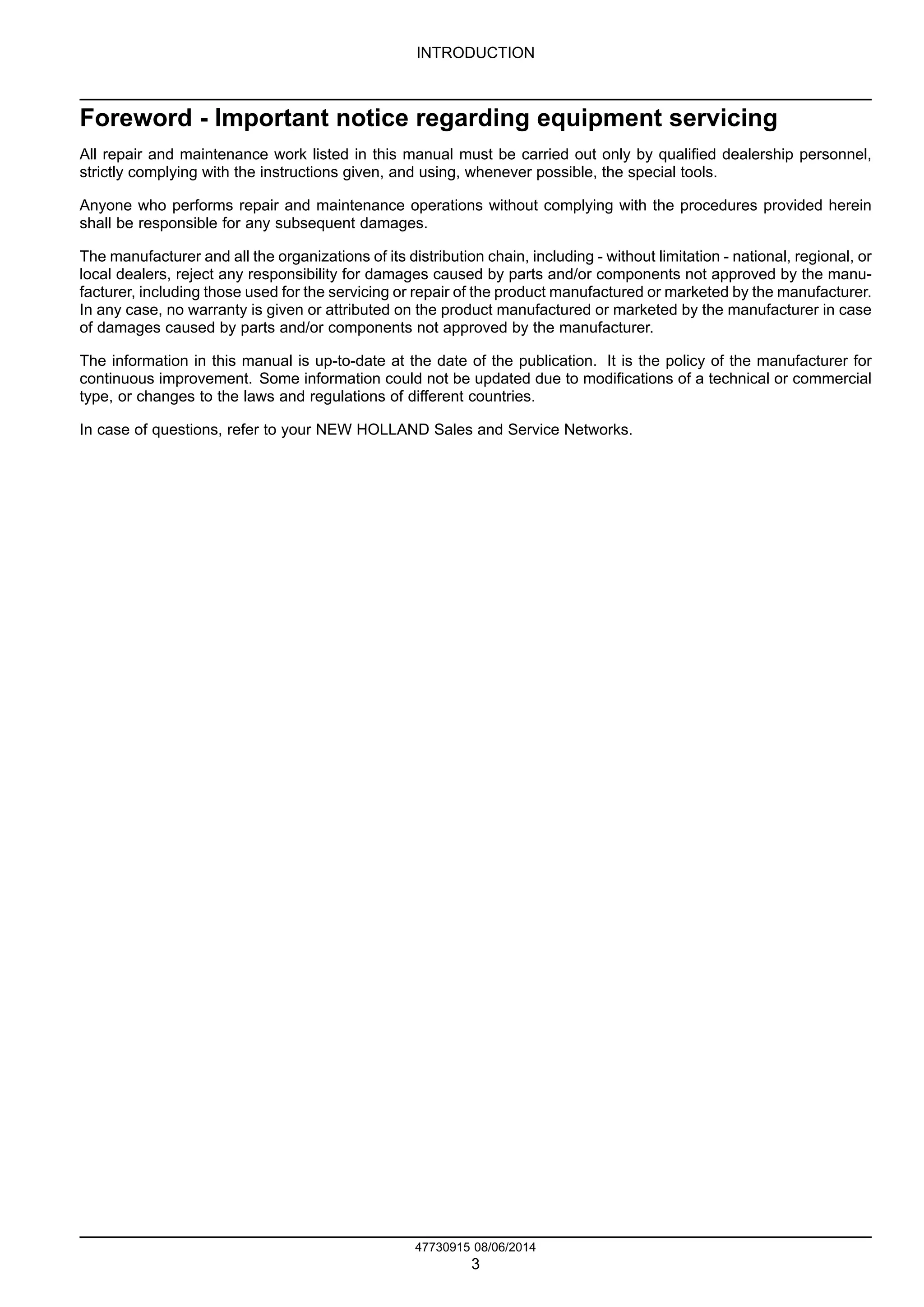

Foreword - Important notice regarding equipment servicing
All repair and maintenance work listed in this manual must be carried out only by qualified dealership personnel,
strictly complying with the instructions given, and using, whenever possible, the special tools.
Anyone who performs repair and maintenance operations without complying with the procedures provided herein
shall be responsible for any subsequent damages.
The manufacturer and all the organizations of its distribution chain, including - without limitation - national, regional, or
local dealers, reject any responsibility for damages caused by parts and/or components not approved by the manu-
facturer, including those used for the servicing or repair of the product manufactured or marketed by the manufacturer.
In any case, no warranty is given or attributed on the product manufactured or marketed by the manufacturer in case
of damages caused by parts and/or components not approved by the manufacturer.
The information in this manual is up-to-date at the date of the publication. It is the policy of the manufacturer for
continuous improvement. Some information could not be updated due to modifications of a technical or commercial
type, or changes to the laws and regulations of different countries.
In case of questions, refer to your NEW HOLLAND Sales and Service Networks.
47730915 08/06/2014
3

INTRODUCTION

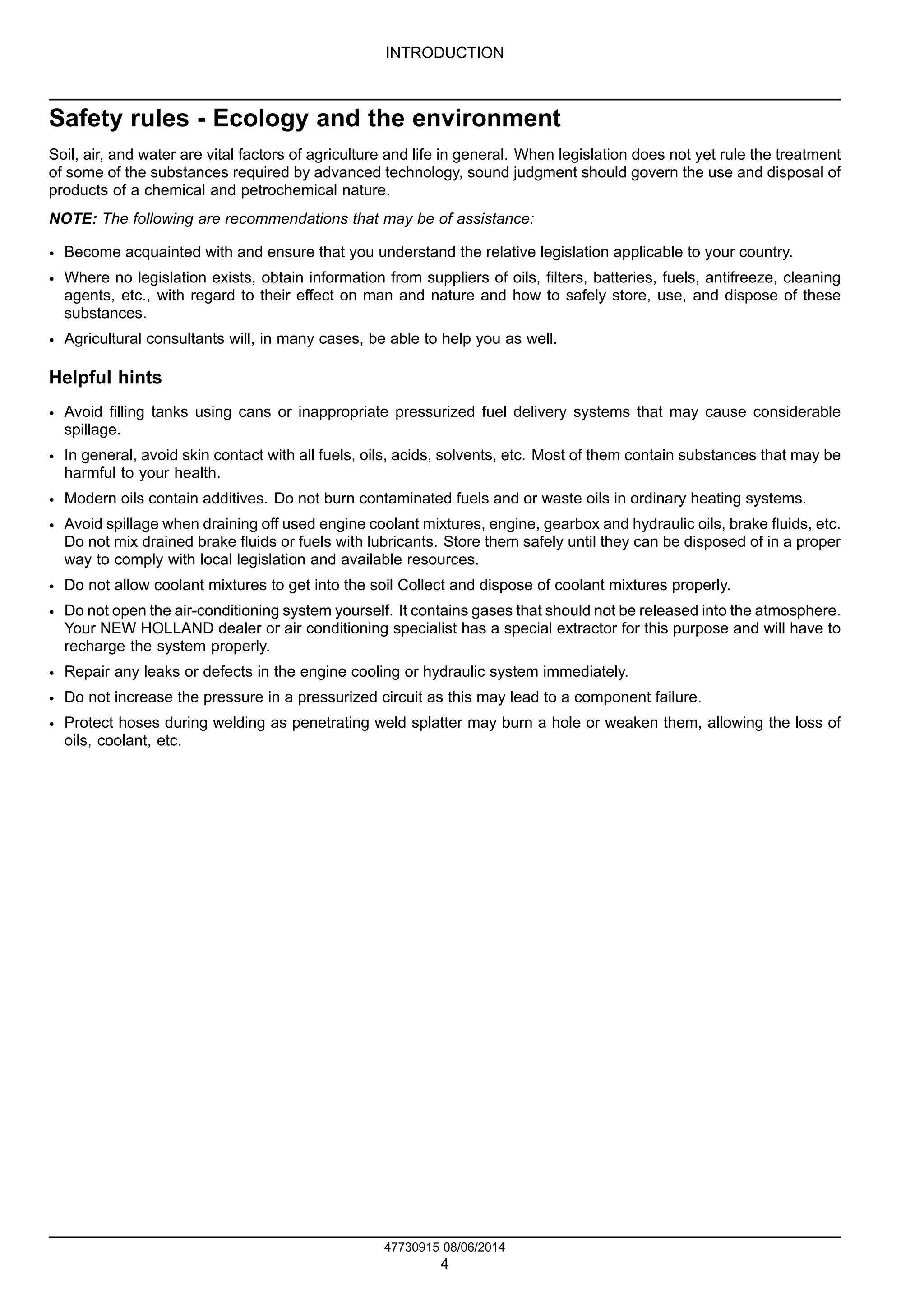

Safety rules - Ecology and the environment
Soil, air, and water are vital factors of agriculture and life in general. When legislation does not yet rule the treatment
of some of the substances required by advanced technology, sound judgment should govern the use and disposal of
products of a chemical and petrochemical nature.
NOTE: The following are recommendations that may be of assistance:
• Become acquainted with and ensure that you understand the relative legislation applicable to your country.
• Where no legislation exists, obtain information from suppliers of oils, filters, batteries, fuels, antifreeze, cleaning
agents, etc., with regard to their effect on man and nature and how to safely store, use, and dispose of these
substances.
• Agricultural consultants will, in many cases, be able to help you as well.
Helpful hints
• Avoid filling tanks using cans or inappropriate pressurized fuel delivery systems that may cause considerable
spillage.
• In general, avoid skin contact with all fuels, oils, acids, solvents, etc. Most of them contain substances that may be
harmful to your health.
• Modern oils contain additives. Do not burn contaminated fuels and or waste oils in ordinary heating systems.
• Avoid spillage when draining off used engine coolant mixtures, engine, gearbox and hydraulic oils, brake fluids, etc.
Do not mix drained brake fluids or fuels with lubricants. Store them safely until they can be disposed of in a proper
way to comply with local legislation and available resources.
• Do not allow coolant mixtures to get into the soil Collect and dispose of coolant mixtures properly.
• Do not open the air-conditioning system yourself. It contains gases that should not be released into the atmosphere.
Your NEW HOLLAND dealer or air conditioning specialist has a special extractor for this purpose and will have to
recharge the system properly.
• Repair any leaks or defects in the engine cooling or hydraulic system immediately.
• Do not increase the pressure in a pressurized circuit as this may lead to a component failure.
• Protect hoses during welding as penetrating weld splatter may burn a hole or weaken them, allowing the loss of
oils, coolant, etc.
47730915 08/06/2014
4

INTRODUCTION

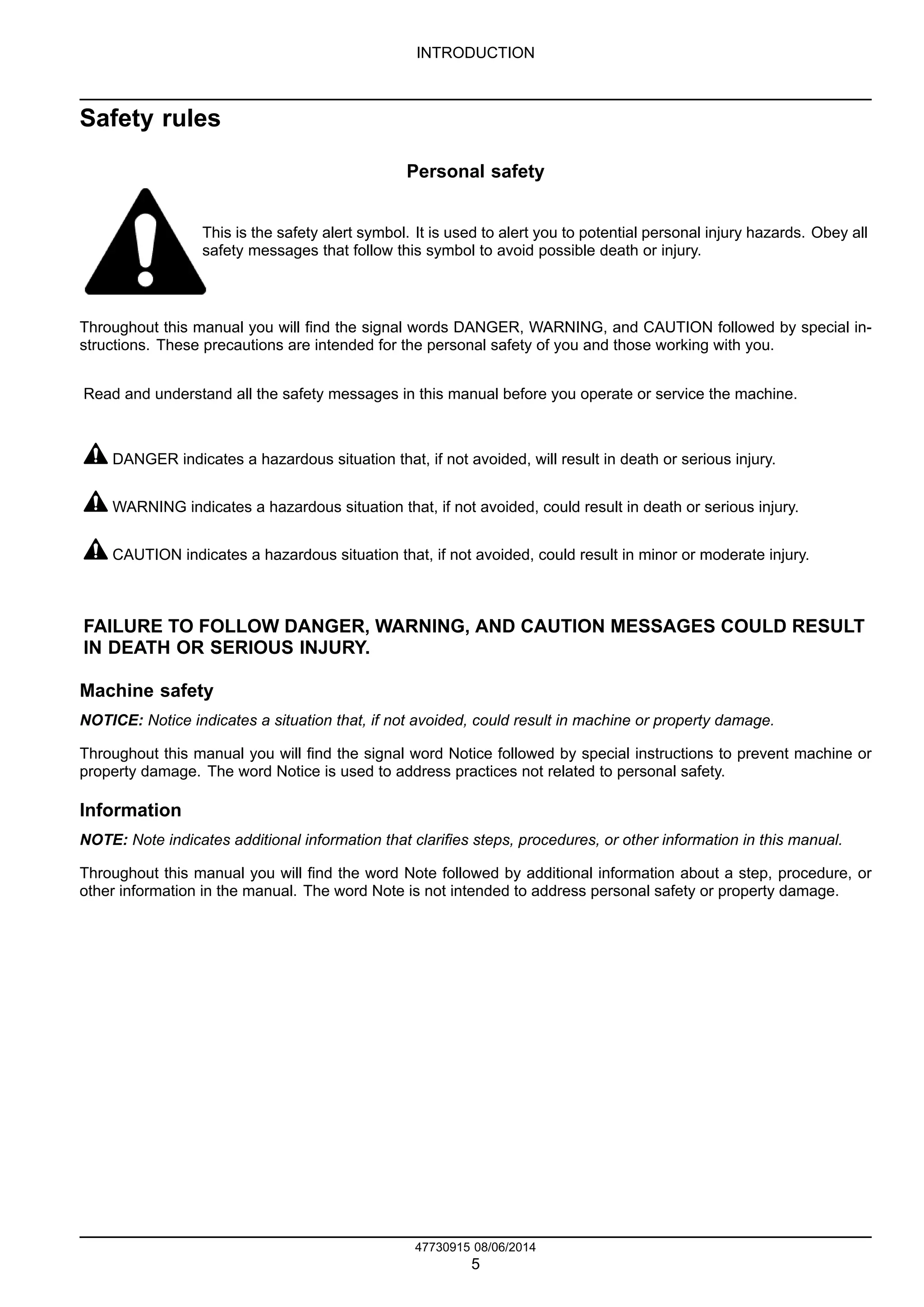

Safety rules
Personal safety
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid possible death or injury.
Throughout this manual you will find the signal words DANGER, WARNING, and CAUTION followed by special in-
structions. These precautions are intended for the personal safety of you and those working with you.
Read and understand all the safety messages in this manual before you operate or service the machine.
DANGER indicates a hazardous situation that, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
FAILURE TO FOLLOW DANGER, WARNING, AND CAUTION MESSAGES COULD RESULT
IN DEATH OR SERIOUS INJURY.
Machine safety
NOTICE: Notice indicates a situation that, if not avoided, could result in machine or property damage.
Throughout this manual you will find the signal word Notice followed by special instructions to prevent machine or
property damage. The word Notice is used to address practices not related to personal safety.
Information
NOTE: Note indicates additional information that clarifies steps, procedures, or other information in this manual.
Throughout this manual you will find the word Note followed by additional information about a step, procedure, or
other information in the manual. The word Note is not intended to address personal safety or property damage.
47730915 08/06/2014
5

INTRODUCTION

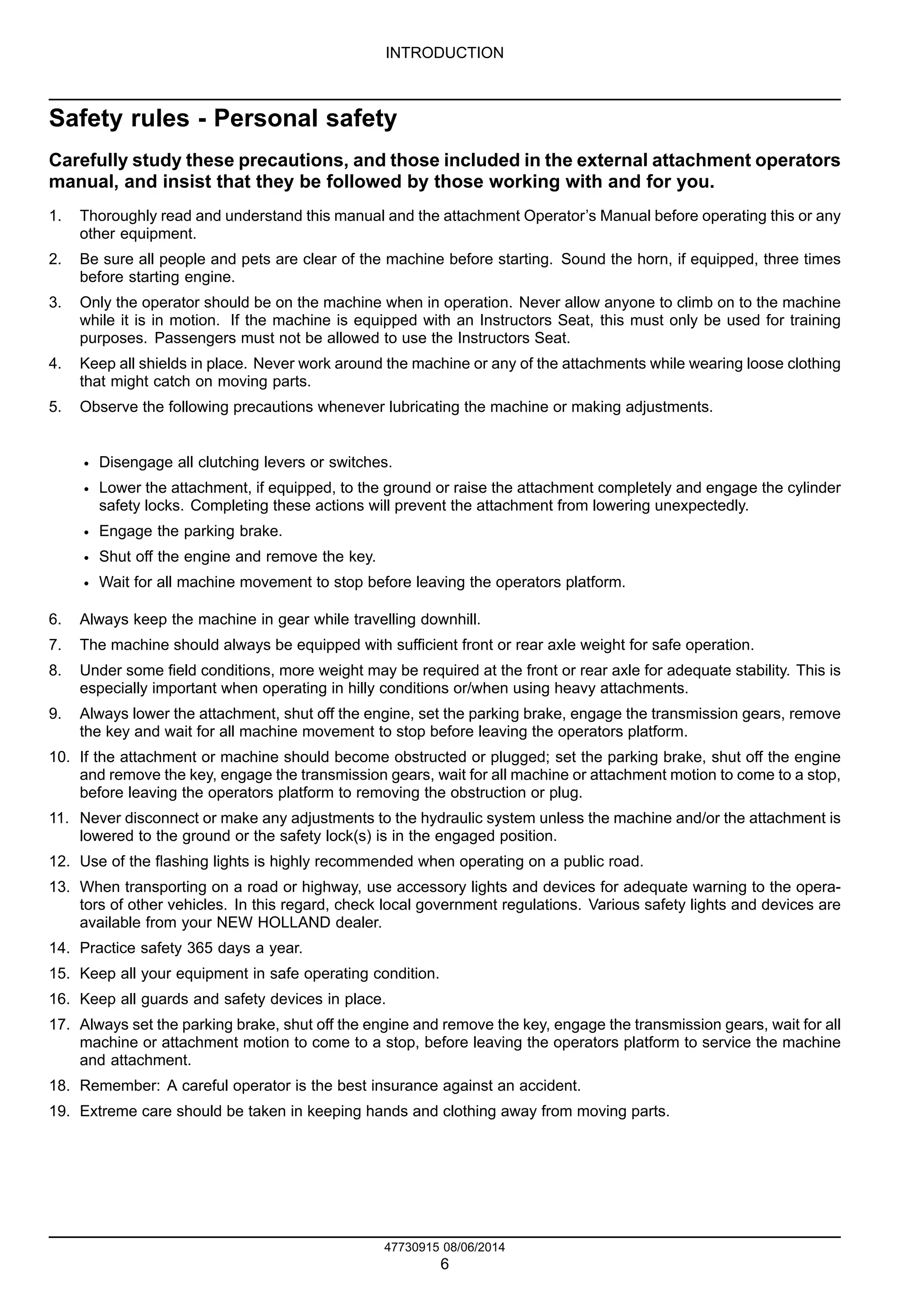

Safety rules - Personal safety
Carefully study these precautions, and those included in the external attachment operators
manual, and insist that they be followed by those working with and for you.
1. Thoroughly read and understand this manual and the attachment Operator’s Manual before operating this or any
other equipment.
2. Be sure all people and pets are clear of the machine before starting. Sound the horn, if equipped, three times
before starting engine.
3. Only the operator should be on the machine when in operation. Never allow anyone to climb on to the machine
while it is in motion. If the machine is equipped with an Instructors Seat, this must only be used for training
purposes. Passengers must not be allowed to use the Instructors Seat.
4. Keep all shields in place. Never work around the machine or any of the attachments while wearing loose clothing
that might catch on moving parts.
5. Observe the following precautions whenever lubricating the machine or making adjustments.
• Disengage all clutching levers or switches.
• Lower the attachment, if equipped, to the ground or raise the attachment completely and engage the cylinder
safety locks. Completing these actions will prevent the attachment from lowering unexpectedly.
• Engage the parking brake.
• Shut off the engine and remove the key.
• Wait for all machine movement to stop before leaving the operators platform.
6. Always keep the machine in gear while travelling downhill.
7. The machine should always be equipped with sufficient front or rear axle weight for safe operation.
8. Under some field conditions, more weight may be required at the front or rear axle for adequate stability. This is
especially important when operating in hilly conditions or/when using heavy attachments.
9. Always lower the attachment, shut off the engine, set the parking brake, engage the transmission gears, remove
the key and wait for all machine movement to stop before leaving the operators platform.
10. If the attachment or machine should become obstructed or plugged; set the parking brake, shut off the engine
and remove the key, engage the transmission gears, wait for all machine or attachment motion to come to a stop,
before leaving the operators platform to removing the obstruction or plug.
11. Never disconnect or make any adjustments to the hydraulic system unless the machine and/or the attachment is
lowered to the ground or the safety lock(s) is in the engaged position.
12. Use of the flashing lights is highly recommended when operating on a public road.
13. When transporting on a road or highway, use accessory lights and devices for adequate warning to the opera-
tors of other vehicles. In this regard, check local government regulations. Various safety lights and devices are
available from your NEW HOLLAND dealer.
14. Practice safety 365 days a year.
15. Keep all your equipment in safe operating condition.
16. Keep all guards and safety devices in place.
17. Always set the parking brake, shut off the engine and remove the key, engage the transmission gears, wait for all
machine or attachment motion to come to a stop, before leaving the operators platform to service the machine
and attachment.
18. Remember: A careful operator is the best insurance against an accident.
19. Extreme care should be taken in keeping hands and clothing away from moving parts.
47730915 08/06/2014
6

INTRODUCTION

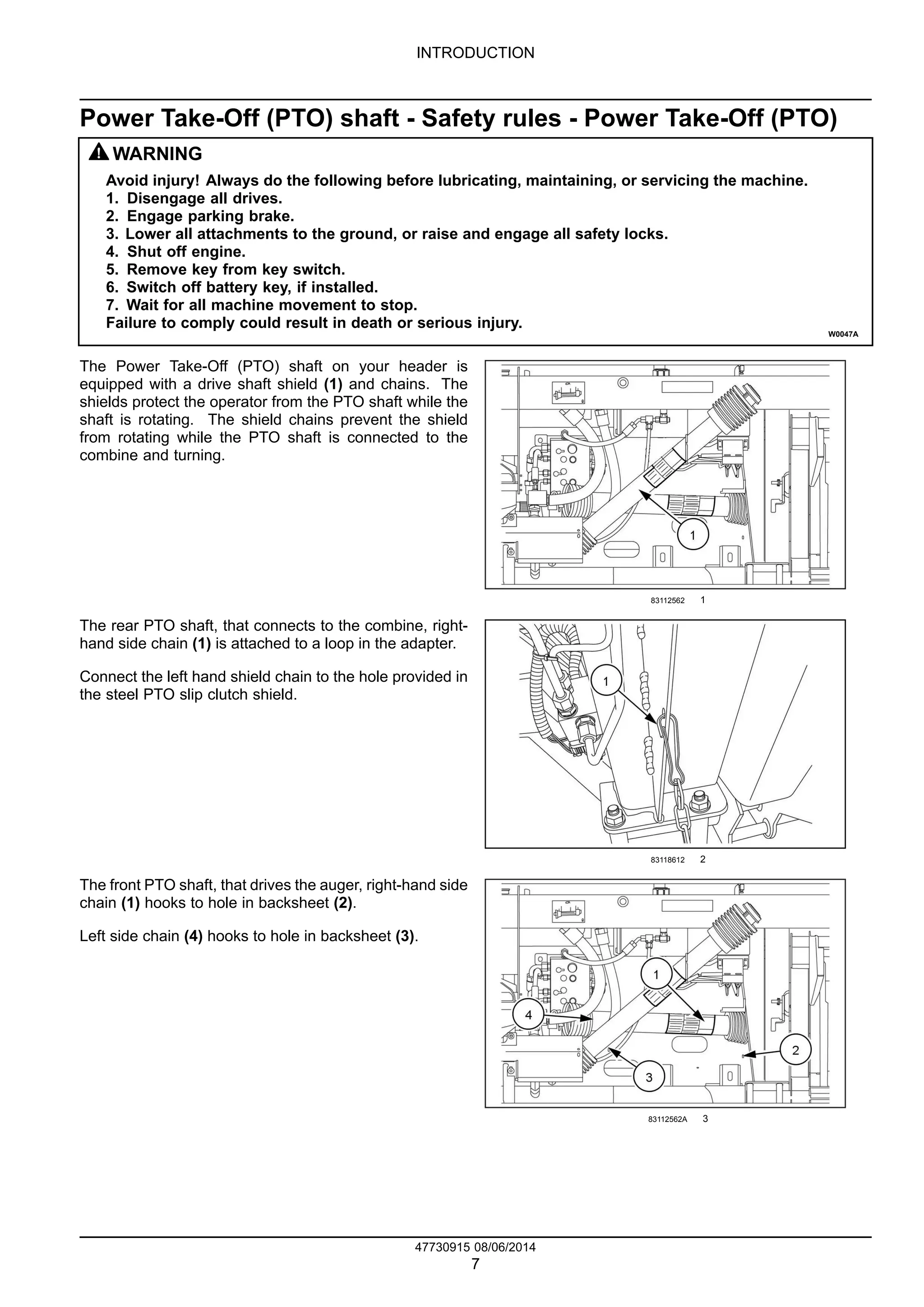

Power Take-Off (PTO) shaft - Safety rules - Power Take-Off (PTO)
WARNING
Avoid injury! Always do the following before lubricating, maintaining, or servicing the machine.
1. Disengage all drives.
2. Engage parking brake.
3. Lower all attachments to the ground, or raise and engage all safety locks.
4. Shut off engine.
5. Remove key from key switch.
6. Switch off battery key, if installed.
7. Wait for all machine movement to stop.
Failure to comply could result in death or serious injury.
W0047A
The Power Take-Off (PTO) shaft on your header is
equipped with a drive shaft shield (1) and chains. The
shields protect the operator from the PTO shaft while the
shaft is rotating. The shield chains prevent the shield
from rotating while the PTO shaft is connected to the
combine and turning.
83112562 1
The rear PTO shaft, that connects to the combine, right-
hand side chain (1) is attached to a loop in the adapter.
Connect the left hand shield chain to the hole provided in
the steel PTO slip clutch shield.
83118612 2
The front PTO shaft, that drives the auger, right-hand side
chain (1) hooks to hole in backsheet (2).
Left side chain (4) hooks to hole in backsheet (3).
83112562A 3
47730915 08/06/2014
7

INTRODUCTION
Transport locking assembly Cylinder stop - Safety rules - Lift
cylinder safety locks
WARNING
Crushing hazard!
ALWAYS make sure the work area is clear of bystanders and domestic animals before raising or low-
ering the equipment.
W0123A

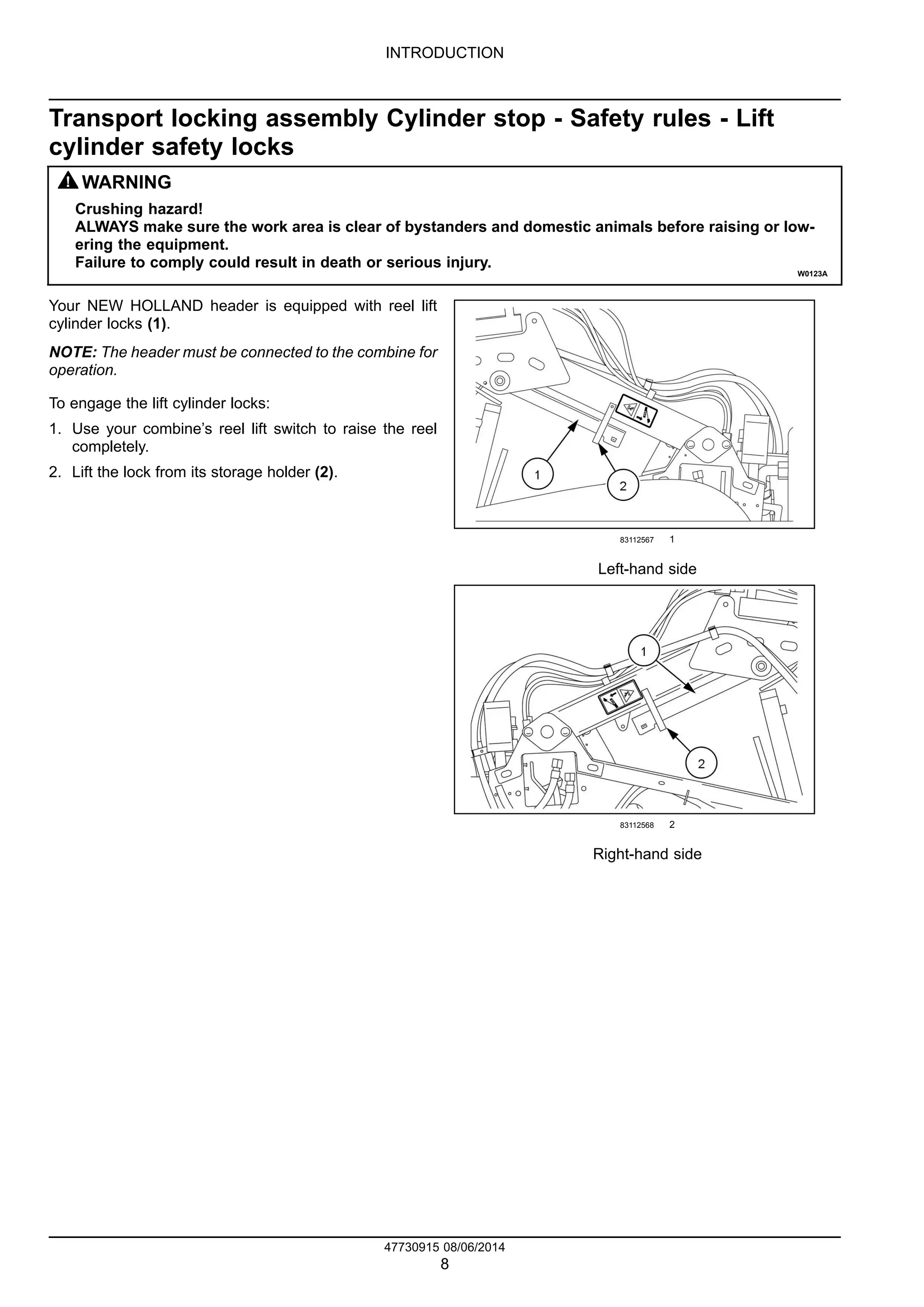

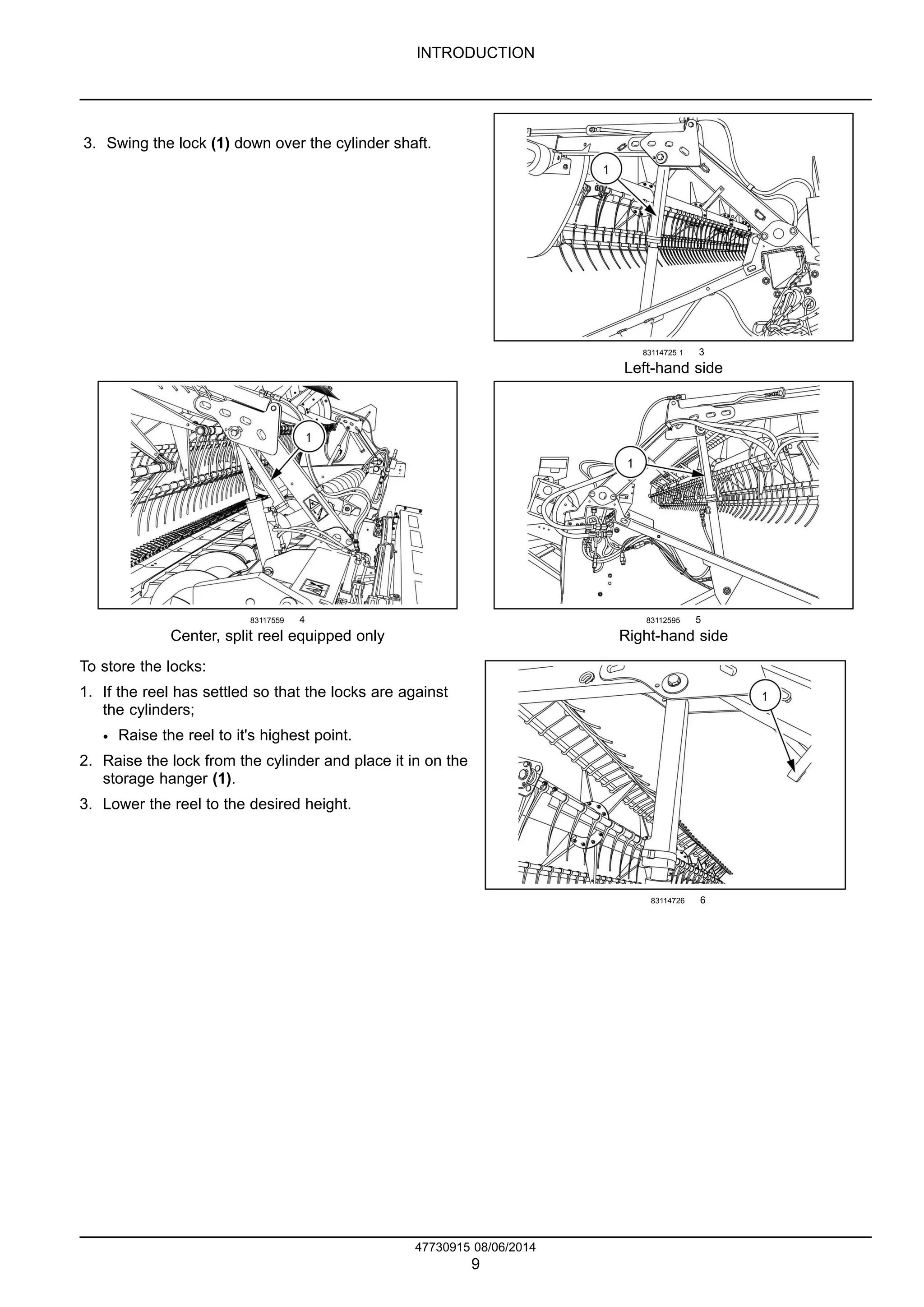

Your NEW HOLLAND header is equipped with reel lift
cylinder locks (1).
NOTE: The header must be connected to the combine for
operation.
To engage the lift cylinder locks:
1. Use your combine’s reel lift switch to raise the reel
completely.
2. Lift the lock from its storage holder (2).
83112567 1
Left-hand side
83112568 2
Right-hand side
47730915 08/06/2014
8

INTRODUCTION
3. Swing the lock (1) down over the cylinder shaft.
83114725 1 3
Left-hand side
83117559 4
Center, split reel equipped only
83112595 5
Right-hand side
To store the locks:
1. If the reel has settled so that the locks are against
the cylinders;
• Raise the reel to it's highest point.
2. Raise the lock from the cylinder and place it in on the
storage hanger (1).
3. Lower the reel to the desired height.
83114726 6
47730915 08/06/2014
9

INTRODUCTION
Torque - Minimum tightening torques for normal assembly
800C Grain Header
METRIC NON-FLANGED HARDWARE
NOM.
SIZE
CLASS 8.8 BOLT and
CLASS 8 NUT
CLASS 10.9 BOLT and
CLASS 10 NUT
LOCKNUT
CL.8
W/CL8.8
BOLT
LOCKNUT
CL.10
W/CL10.9
BOLT
UNPLATED
PLATED
W/ZnCr
UNPLATED
PLATED
W/ZnCr
M4
2.2 N·m (19 lb
in)
2.9 N·m (26 lb
in)
3.2 N·m (28 lb
in)
4.2 N·m (37 lb
in)
2 N·m (18 lb in)
2.9 N·m (26 lb
in)
M5
4.5 N·m (40 lb
in)
5.9 N·m (52 lb
in)
6.4 N·m (57 lb
in)
8.5 N·m (75 lb
in)
4 N·m (36 lb in)
5.8 N·m (51 lb
in)
M6
7.5 N·m (66 lb
in)
10 N·m (89 lb
in)
11 N·m (96 lb
in)
15 N·m (128 lb
in)
6.8 N·m (60 lb
in)
10 N·m (89 lb
in)
M8
18 N·m (163 lb
in)
25 N·m (217 lb
in)
26 N·m (234 lb
in)
35 N·m (311 lb
in)
17 N·m (151 lb
in)
24 N·m (212 lb
in)
M10 37 N·m (27 lb ft)
49 N·m (36 lb
ft)
52 N·m (38 lb ft)
70 N·m (51 lb
ft)
33 N·m (25 lb
ft)
48 N·m (35 lb
ft)
M12 64 N·m (47 lb ft)
85 N·m (63 lb
ft)
91 N·m (67 lb ft)
121 N·m (90 lb
ft)
58 N·m (43 lb
ft)
83 N·m (61 lb
ft)
M16
158 N·m (116 lb
ft)
210 N·m
(155 lb ft)
225 N·m (166 lb
ft)
301 N·m (222 lb
ft)
143 N·m (106 lb
ft)
205 N·m (151 lb
ft)
M20
319 N·m (235 lb
ft)
425 N·m
(313 lb ft)
440 N·m (325 lb
ft)
587 N·m (433 lb
ft)
290 N·m (214 lb
ft)
400 N·m (295 lb
ft)
M24
551 N·m (410 lb
ft)
735 N·m
(500 lb ft)
762 N·m (560 lb
ft)
1016 N·m
(750 lb ft)
501 N·m (370 lb
ft)
693 N·m (510 lb
ft)
NOTE: M4 through M8 hardware torque specifications are shown in pound-inches. M10 through M24 hardware torque
specifications are shown in pound-feet.
47730915 08/06/2014
10

INTRODUCTION
METRIC FLANGED HARDWARE
NOM.
SIZE
CLASS 8.8 BOLT and
CLASS 8 NUT
CLASS 10.9 BOLT and
CLASS 10 NUT
LOCKNUT
CL.8
W/CL8.8
BOLT
LOCKNUT
CL.10
W/CL10.9
BOLT
UNPLATED
PLATED
W/ZnCr
UNPLATED
PLATED
W/ZnCr
M4
2.4 N·m (21 lb
in)
3.2 N·m (28 lb
in)
3.5 N·m (31 lb
in)
4.6 N·m (41 lb
in)
2.2 N·m (19 lb
in)
3.1 N·m (27 lb
in)
M5
4.9 N·m (43 lb
in)
6.5 N·m (58 lb
in)
7.0 N·m (62 lb
in)
9.4 N·m (83 lb
in)
4.4 N·m (39 lb
in)
6.4 N·m (57 lb
in)
M6
8.3 N·m (73 lb
in)
11 N·m (96 lb
in)
12 N·m (105 lb
in)
16 N·m (141 lb
in)
7.5 N·m (66 lb
in)
11 N·m (96 lb
in)
M8
20 N·m (179 lb
in)
27 N·m (240 lb
in)
29 N·m (257 lb
in)
39 N·m (343 lb
in)
18 N·m (163 lb
in)
27 N·m (240 lb
in)
M10 40 N·m (30 lb ft)
54 N·m (40 lb
ft)
57 N·m (42 lb ft)
77 N·m (56 lb
ft)
37 N·m (27 lb ft) 53 N·m (39 lb ft)
M12 70 N·m (52 lb ft)
93 N·m (69 lb
ft)
100 N·m (74 lb
ft)
134 N·m (98 lb
ft)
63 N·m (47 lb ft) 91 N·m (67 lb ft)
M16
174 N·m (128 lb
ft)
231 N·m (171 lb
ft)
248 N·m (183 lb
ft)
331 N·m (244 lb
ft)
158 N·m (116 lb
ft)
226 N·m (167 lb
ft)
M20
350 N·m (259 lb
ft)
467 N·m (345 lb
ft)
484 N·m (357 lb
ft)
645 N·m (476 lb
ft)
318 N·m (235 lb
ft)
440 N·m (325 lb
ft)
M24
607 N·m (447 lb
ft)
809 N·m (597 lb
ft)
838 N·m (618 lb
ft)
1118 N·m
(824 lb ft)
552 N·m (407 lb
ft)
IDENTIFICATION
Metric Hex head and carriage bolts, classes 5.6 and up
20083680 1
1. Manufacturer's Identification
2. Property Class
Metric Hex nuts and locknuts, classes 05 and up
20083681 2
47730915 08/06/2014
11

INTRODUCTION
1. Manufacturer's Identification
2. Property Class
3. Clock Marking of Property Class and Manufacturer's Identification (Optional), i.e. marks 60 ° apart indicate Class
10 properties, and marks 120 ° apart indicate Class 8.

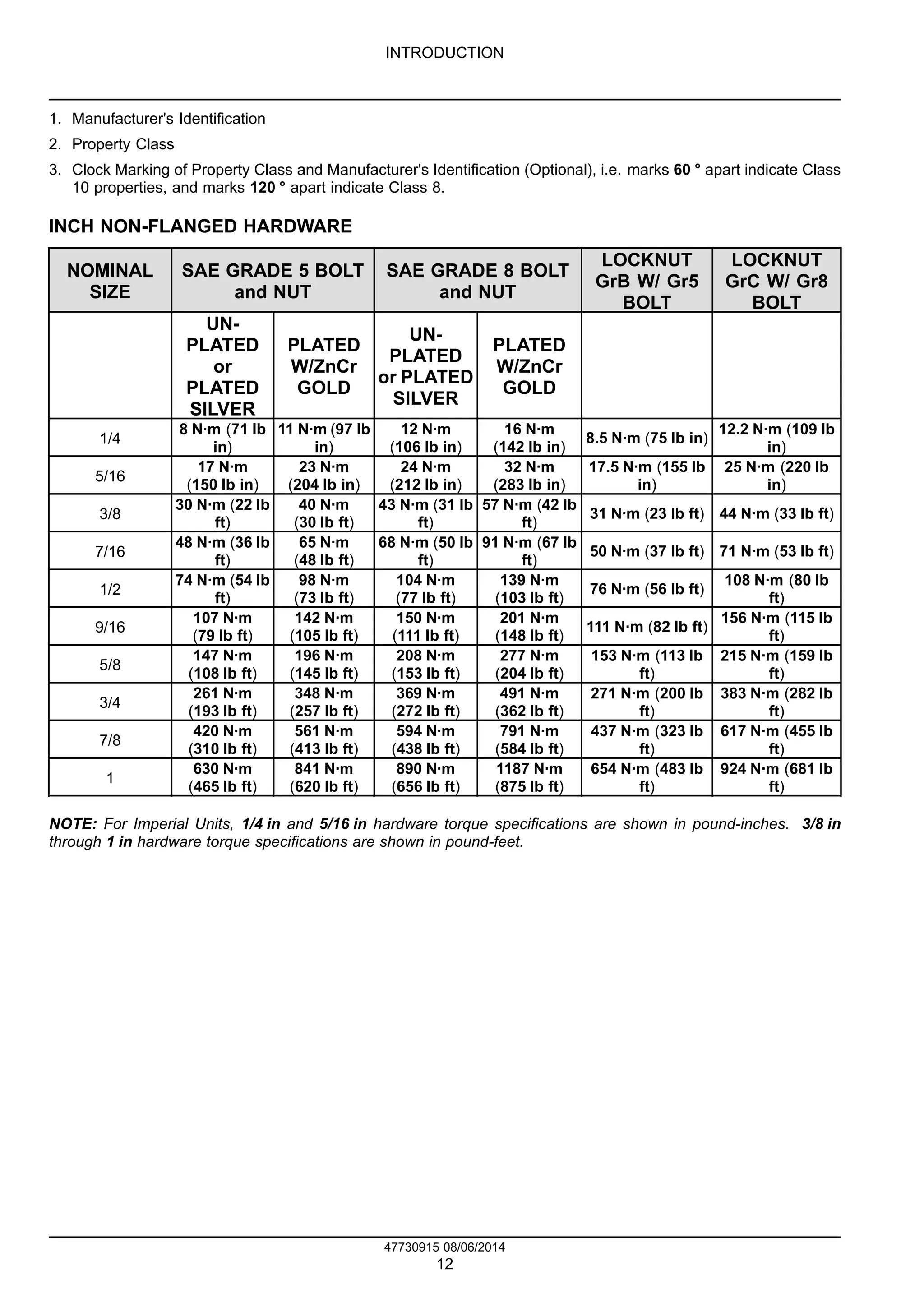

INCH NON-FLANGED HARDWARE
NOMINAL
SIZE
SAE GRADE 5 BOLT
and NUT
SAE GRADE 8 BOLT
and NUT
LOCKNUT
GrB W/ Gr5
BOLT
LOCKNUT
GrC W/ Gr8
BOLT
UN-
PLATED
or
PLATED
SILVER
PLATED
W/ZnCr
GOLD
UN-
PLATED
or PLATED
SILVER
PLATED
W/ZnCr
GOLD
1/4
8 N·m (71 lb
in)
11 N·m (97 lb
in)
12 N·m
(106 lb in)
16 N·m
(142 lb in)
8.5 N·m (75 lb in)
12.2 N·m (109 lb
in)
5/16
17 N·m
(150 lb in)
23 N·m
(204 lb in)
24 N·m
(212 lb in)
32 N·m
(283 lb in)
17.5 N·m (155 lb
in)
25 N·m (220 lb
in)
3/8
30 N·m (22 lb
ft)
40 N·m
(30 lb ft)
43 N·m (31 lb
ft)
57 N·m (42 lb
ft)
31 N·m (23 lb ft) 44 N·m (33 lb ft)
7/16
48 N·m (36 lb
ft)
65 N·m
(48 lb ft)
68 N·m (50 lb
ft)
91 N·m (67 lb
ft)
50 N·m (37 lb ft) 71 N·m (53 lb ft)
1/2
74 N·m (54 lb
ft)
98 N·m
(73 lb ft)
104 N·m
(77 lb ft)
139 N·m
(103 lb ft)
76 N·m (56 lb ft)
108 N·m (80 lb
ft)
9/16
107 N·m
(79 lb ft)
142 N·m
(105 lb ft)
150 N·m
(111 lb ft)
201 N·m
(148 lb ft)
111 N·m (82 lb ft)
156 N·m (115 lb
ft)
5/8
147 N·m
(108 lb ft)
196 N·m
(145 lb ft)
208 N·m
(153 lb ft)
277 N·m
(204 lb ft)
153 N·m (113 lb
ft)
215 N·m (159 lb
ft)
3/4
261 N·m
(193 lb ft)
348 N·m
(257 lb ft)
369 N·m
(272 lb ft)
491 N·m
(362 lb ft)
271 N·m (200 lb
ft)
383 N·m (282 lb
ft)
7/8
420 N·m
(310 lb ft)
561 N·m
(413 lb ft)
594 N·m
(438 lb ft)
791 N·m
(584 lb ft)
437 N·m (323 lb
ft)
617 N·m (455 lb
ft)
1
630 N·m
(465 lb ft)
841 N·m
(620 lb ft)
890 N·m
(656 lb ft)
1187 N·m
(875 lb ft)
654 N·m (483 lb
ft)
924 N·m (681 lb
ft)
NOTE: For Imperial Units, 1/4 in and 5/16 in hardware torque specifications are shown in pound-inches. 3/8 in
through 1 in hardware torque specifications are shown in pound-feet.
47730915 08/06/2014
12

INTRODUCTION

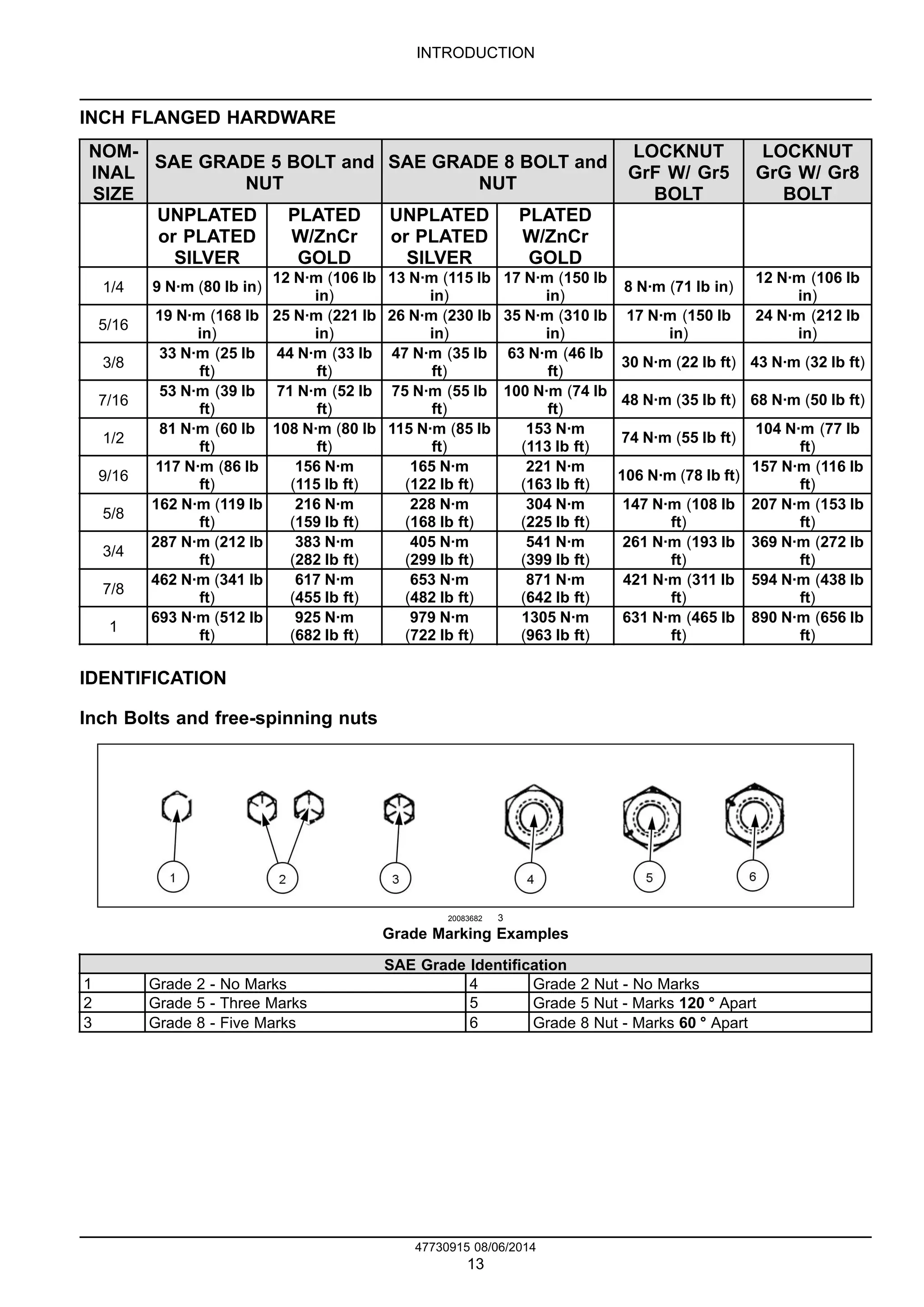

INCH FLANGED HARDWARE
NOM-
INAL
SIZE
SAE GRADE 5 BOLT and
NUT
SAE GRADE 8 BOLT and
NUT
LOCKNUT
GrF W/ Gr5
BOLT
LOCKNUT
GrG W/ Gr8
BOLT
UNPLATED
or PLATED
SILVER
PLATED
W/ZnCr
GOLD
UNPLATED
or PLATED
SILVER
PLATED
W/ZnCr
GOLD
1/4 9 N·m (80 lb in)
12 N·m (106 lb
in)
13 N·m (115 lb
in)
17 N·m (150 lb
in)
8 N·m (71 lb in)
12 N·m (106 lb
in)
5/16
19 N·m (168 lb
in)
25 N·m (221 lb
in)
26 N·m (230 lb
in)
35 N·m (310 lb
in)
17 N·m (150 lb
in)
24 N·m (212 lb
in)
3/8
33 N·m (25 lb
ft)
44 N·m (33 lb
ft)
47 N·m (35 lb
ft)
63 N·m (46 lb
ft)
30 N·m (22 lb ft) 43 N·m (32 lb ft)
7/16
53 N·m (39 lb
ft)
71 N·m (52 lb
ft)
75 N·m (55 lb
ft)
100 N·m (74 lb
ft)
48 N·m (35 lb ft) 68 N·m (50 lb ft)
1/2
81 N·m (60 lb
ft)
108 N·m (80 lb
ft)
115 N·m (85 lb
ft)
153 N·m
(113 lb ft)
74 N·m (55 lb ft)
104 N·m (77 lb
ft)
9/16
117 N·m (86 lb
ft)
156 N·m
(115 lb ft)
165 N·m
(122 lb ft)
221 N·m
(163 lb ft)
106 N·m (78 lb ft)
157 N·m (116 lb
ft)
5/8
162 N·m (119 lb
ft)
216 N·m
(159 lb ft)
228 N·m
(168 lb ft)
304 N·m
(225 lb ft)
147 N·m (108 lb
ft)
207 N·m (153 lb
ft)
3/4
287 N·m (212 lb
ft)
383 N·m
(282 lb ft)
405 N·m
(299 lb ft)
541 N·m
(399 lb ft)
261 N·m (193 lb
ft)
369 N·m (272 lb
ft)
7/8
462 N·m (341 lb
ft)
617 N·m
(455 lb ft)
653 N·m
(482 lb ft)
871 N·m
(642 lb ft)
421 N·m (311 lb
ft)
594 N·m (438 lb
ft)
1
693 N·m (512 lb
ft)
925 N·m
(682 lb ft)
979 N·m
(722 lb ft)
1305 N·m
(963 lb ft)
631 N·m (465 lb
ft)
890 N·m (656 lb
ft)
IDENTIFICATION
Inch Bolts and free-spinning nuts
20083682 3
Grade Marking Examples
SAE Grade Identification
1 Grade 2 - No Marks 4 Grade 2 Nut - No Marks
2 Grade 5 - Three Marks 5 Grade 5 Nut - Marks 120 ° Apart
3 Grade 8 - Five Marks 6 Grade 8 Nut - Marks 60 ° Apart
47730915 08/06/2014
13

INTRODUCTION
Inch Lock Nuts, All Metal (Three optional methods)
20090268 4
Grade Identification
Grade Corner Marking Method (1) Flats Marking Method (2) Clock Marking Method (3)
Grade A No Notches No Mark No Marks
Grade B One Circumferential Notch Letter B Three Marks
Grade C Two Circumferential Notches Letter C Six Marks
47730915 08/06/2014
14

INTRODUCTION

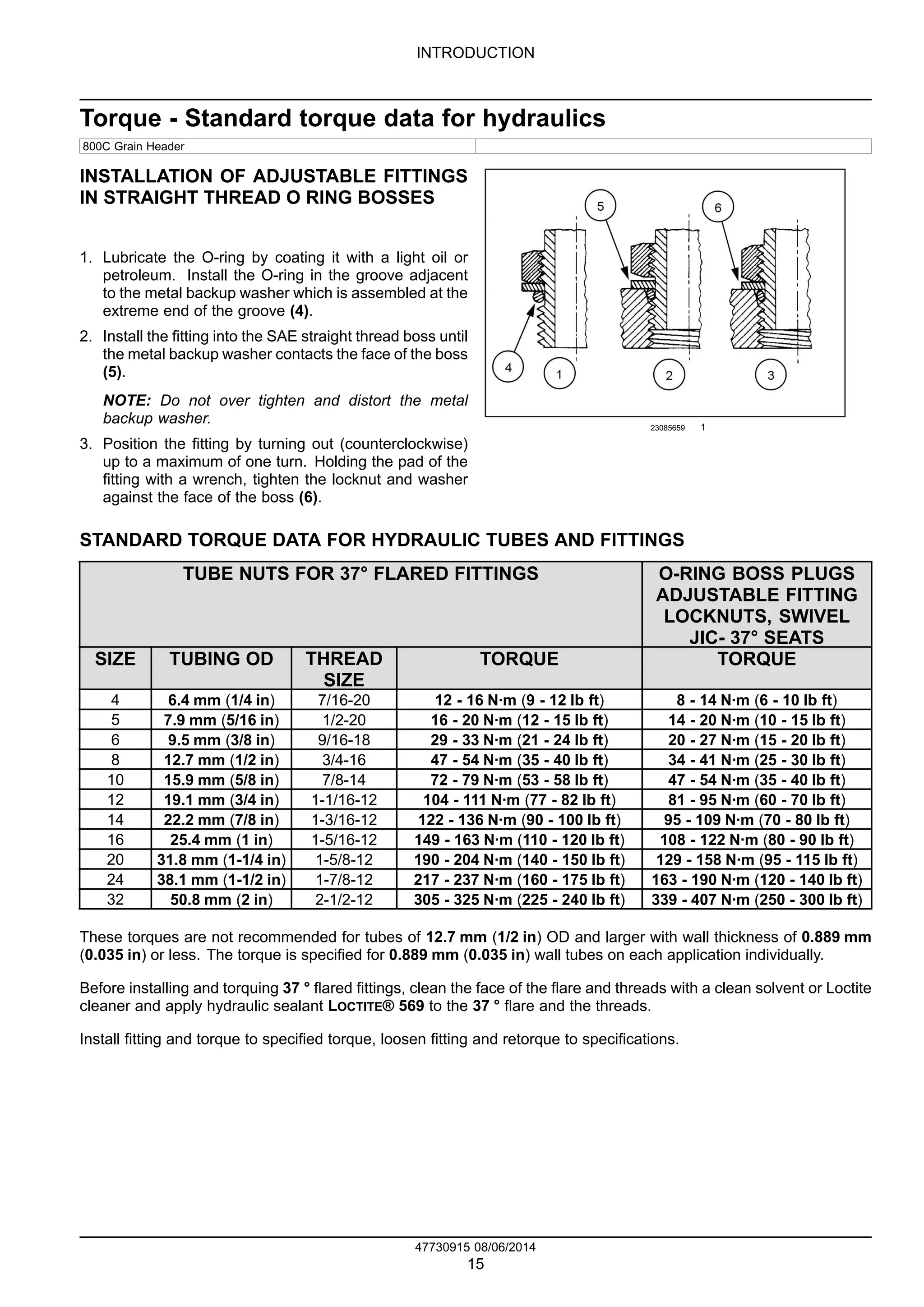

Torque - Standard torque data for hydraulics
800C Grain Header
INSTALLATION OF ADJUSTABLE FITTINGS
IN STRAIGHT THREAD O RING BOSSES
1. Lubricate the O-ring by coating it with a light oil or
petroleum. Install the O-ring in the groove adjacent
to the metal backup washer which is assembled at the
extreme end of the groove (4).
2. Install the fitting into the SAE straight thread boss until
the metal backup washer contacts the face of the boss
(5).
NOTE: Do not over tighten and distort the metal
backup washer.
3. Position the fitting by turning out (counterclockwise)
up to a maximum of one turn. Holding the pad of the
fitting with a wrench, tighten the locknut and washer
against the face of the boss (6).
23085659 1
STANDARD TORQUE DATA FOR HYDRAULIC TUBES AND FITTINGS
TUBE NUTS FOR 37° FLARED FITTINGS O-RING BOSS PLUGS
ADJUSTABLE FITTING
LOCKNUTS, SWIVEL
JIC- 37° SEATS
SIZE TUBING OD THREAD
SIZE
TORQUE TORQUE
4 6.4 mm (1/4 in) 7/16-20 12 - 16 N·m (9 - 12 lb ft) 8 - 14 N·m (6 - 10 lb ft)
12 19.1 mm (3/4 in) 1-1/16-12 104 - 111 N·m (77 - 82 lb ft) 81 - 95 N·m (60 - 70 lb ft)
14 22.2 mm (7/8 in) 1-3/16-12 122 - 136 N·m (90 - 100 lb ft) 95 - 109 N·m (70 - 80 lb ft)
16 25.4 mm (1 in) 1-5/16-12 149 - 163 N·m (110 - 120 lb ft) 108 - 122 N·m (80 - 90 lb ft)
20 31.8 mm (1-1/4 in) 1-5/8-12 190 - 204 N·m (140 - 150 lb ft) 129 - 158 N·m (95 - 115 lb ft)
24 38.1 mm (1-1/2 in) 1-7/8-12 217 - 237 N·m (160 - 175 lb ft) 163 - 190 N·m (120 - 140 lb ft)
32 50.8 mm (2 in) 2-1/2-12 305 - 325 N·m (225 - 240 lb ft) 339 - 407 N·m (250 - 300 lb ft)
These torques are not recommended for tubes of 12.7 mm (1/2 in) OD and larger with wall thickness of 0.889 mm
(0.035 in) or less. The torque is specified for 0.889 mm (0.035 in) wall tubes on each application individually.
Before installing and torquing 37 ° flared fittings, clean the face of the flare and threads with a clean solvent or Loctite
cleaner and apply hydraulic sealant LOCTITE® 569 to the 37 ° flare and the threads.
Install fitting and torque to specified torque, loosen fitting and retorque to specifications.
47730915 08/06/2014
15

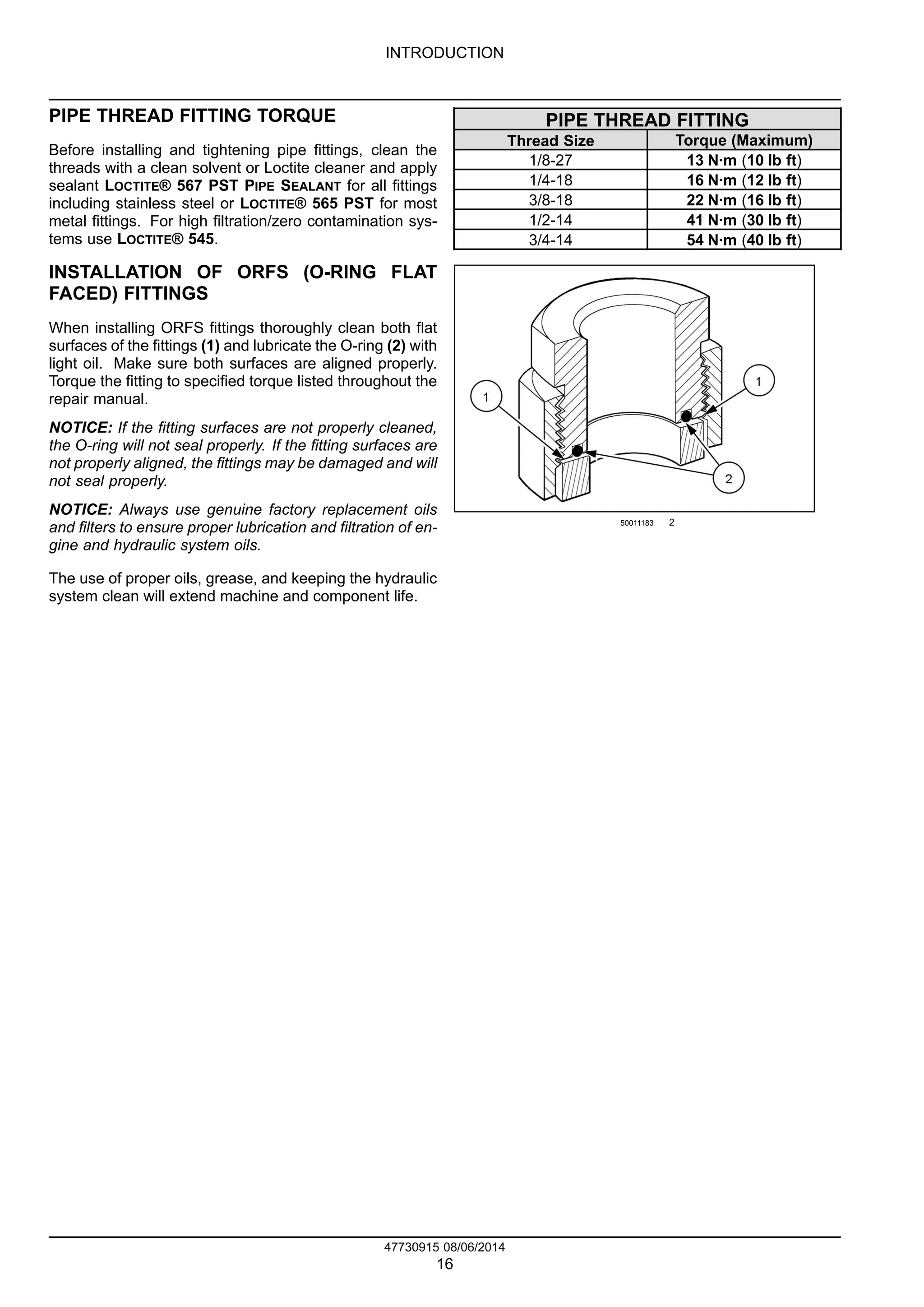

INTRODUCTION
PIPE THREAD FITTING TORQUE
Before installing and tightening pipe fittings, clean the
threads with a clean solvent or Loctite cleaner and apply
sealant LOCTITE® 567 PST PIPE SEALANT for all fittings
including stainless steel or LOCTITE® 565 PST for most
metal fittings. For high filtration/zero contamination sys-
tems use LOCTITE® 545.
PIPE THREAD FITTING
Thread Size Torque (Maximum)
1/8-27 13 N·m (10 lb ft)
1/4-18 16 N·m (12 lb ft)
3/8-18 22 N·m (16 lb ft)
1/2-14 41 N·m (30 lb ft)
3/4-14 54 N·m (40 lb ft)
INSTALLATION OF ORFS (O-RING FLAT
FACED) FITTINGS
When installing ORFS fittings thoroughly clean both flat
surfaces of the fittings (1) and lubricate the O-ring (2) with
light oil. Make sure both surfaces are aligned properly.
Torque the fitting to specified torque listed throughout the
repair manual.
NOTICE: If the fitting surfaces are not properly cleaned,
the O-ring will not seal properly. If the fitting surfaces are
not properly aligned, the fittings may be damaged and will
not seal properly.
NOTICE: Always use genuine factory replacement oils
and filters to ensure proper lubrication and filtration of en-
gine and hydraulic system oils.
The use of proper oils, grease, and keeping the hydraulic
system clean will extend machine and component life.
50011183 2
47730915 08/06/2014
16

INTRODUCTION
Basic instructions - Shop and assembly
Shimming
For each adjustment operation, select adjusting shims and measure the adjusting shims individually using a microm-
eter, then add up the recorded values. Do not rely on measuring the entire shimming set, which may be incorrect, or
the rated value shown on each shim.
Rotating shaft seals
For correct rotating shaft seal installation, proceed as follows:
1. Before assembly, allow the seal to soak in the oil it will be sealing for at least thirty minutes.
2. Thoroughly clean the shaft and check that the working surface on the shaft is not damaged.
3. Position the sealing lip facing the fluid.
NOTE: With hydrodynamic lips, take into consideration the shaft rotation direction and position the grooves so that
they will move the fluid towards the inner side of the seal.
4. Coat the sealing lip with a thin layer of lubricant (use oil rather than grease). Fill the gap between the sealing lip
and the dust lip on double lip seals with grease.
5. Insert the seal in its seat and press down using a flat punch or seal installation tool. Do not tap the seal with a
hammer or mallet.
6. While you insert the seal, check that the seal is perpendicular to the seat. When the seal settles, make sure that
the seal makes contact with the thrust element, if required.
7. To prevent damage to the seal lip on the shaft, position a protective guard during installation operations.
O-ring seals
Lubricate the O-ring seals before you insert them in the seats. This will prevent the O-ring seals from overturning and
twisting, which would jeopardize sealing efficiency.
Sealing compounds
Apply a sealing compound on the mating surfaces when specified by the procedure. Before you apply the sealing
compound, prepare the surfaces as directed by the product container.
Spare parts
Only use CNH Original Parts or NEW HOLLAND Original Parts.
Only genuine spare parts guarantee the same quality, duration, and safety as original parts, as they are the same
parts that are assembled during standard production. Only CNH Original Parts or NEW HOLLAND Original Parts can
offer this guarantee.
When ordering spare parts, always provide the following information:
• Machine model (commercial name) and Product Identification Number (PIN)
• Part number of the ordered part, which can be found in the parts catalog
47730915 08/06/2014
17

INTRODUCTION

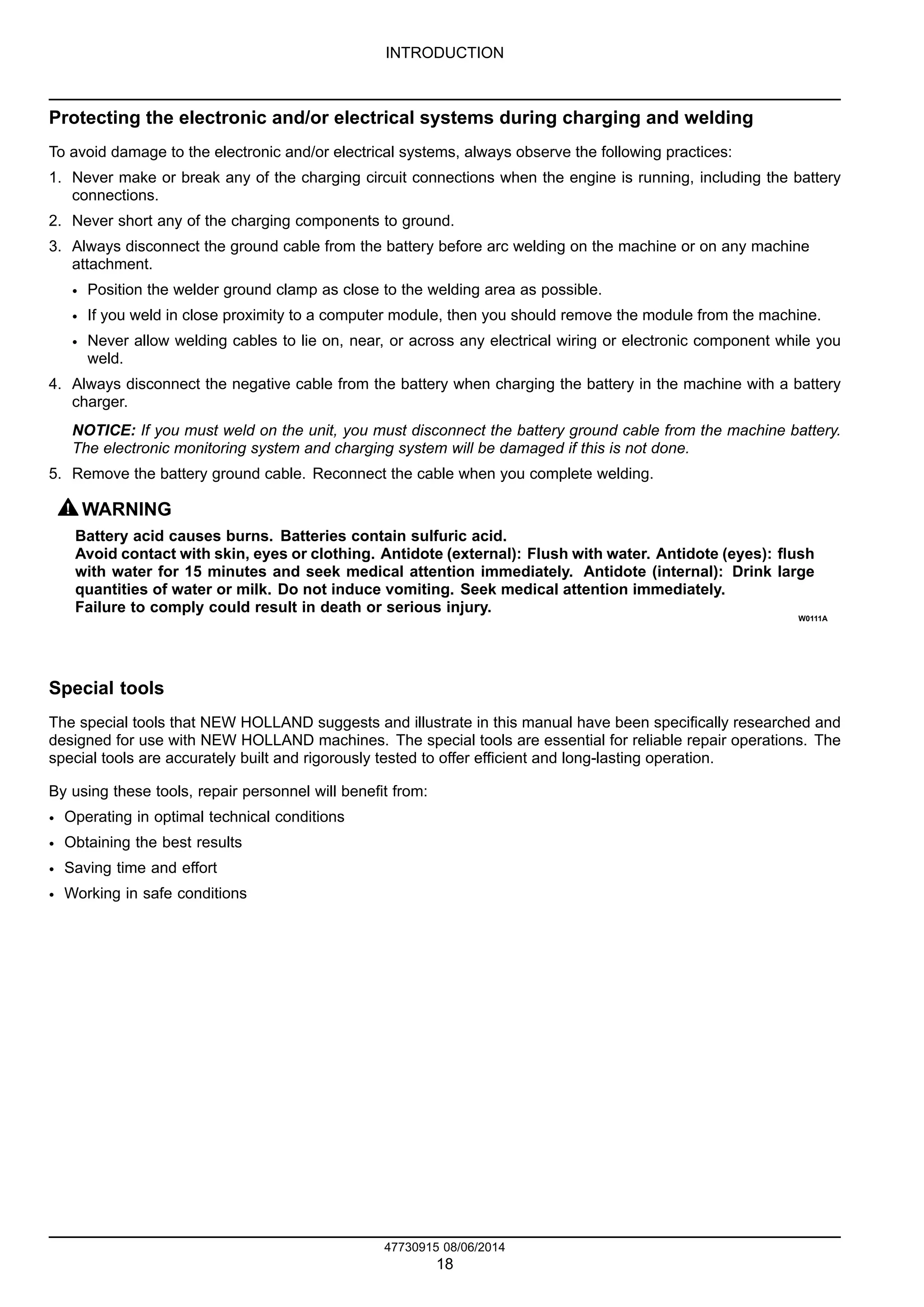

Protecting the electronic and/or electrical systems during charging and welding
To avoid damage to the electronic and/or electrical systems, always observe the following practices:
1. Never make or break any of the charging circuit connections when the engine is running, including the battery
connections.
2. Never short any of the charging components to ground.
3. Always disconnect the ground cable from the battery before arc welding on the machine or on any machine
attachment.
• Position the welder ground clamp as close to the welding area as possible.
• If you weld in close proximity to a computer module, then you should remove the module from the machine.
• Never allow welding cables to lie on, near, or across any electrical wiring or electronic component while you
weld.
4. Always disconnect the negative cable from the battery when charging the battery in the machine with a battery
charger.
NOTICE: If you must weld on the unit, you must disconnect the battery ground cable from the machine battery.
The electronic monitoring system and charging system will be damaged if this is not done.
5. Remove the battery ground cable. Reconnect the cable when you complete welding.
WARNING
Battery acid causes burns. Batteries contain sulfuric acid.
Avoid contact with skin, eyes or clothing. Antidote (external): Flush with water. Antidote (eyes): flush
with water for 15 minutes and seek medical attention immediately. Antidote (internal): Drink large
quantities of water or milk. Do not induce vomiting. Seek medical attention immediately.
W0111A
Special tools
The special tools that NEW HOLLAND suggests and illustrate in this manual have been specifically researched and
designed for use with NEW HOLLAND machines. The special tools are essential for reliable repair operations. The
special tools are accurately built and rigorously tested to offer efficient and long-lasting operation.
By using these tools, repair personnel will benefit from:
• Operating in optimal technical conditions
• Obtaining the best results
• Saving time and effort
• Working in safe conditions
47730915 08/06/2014
18

INTRODUCTION

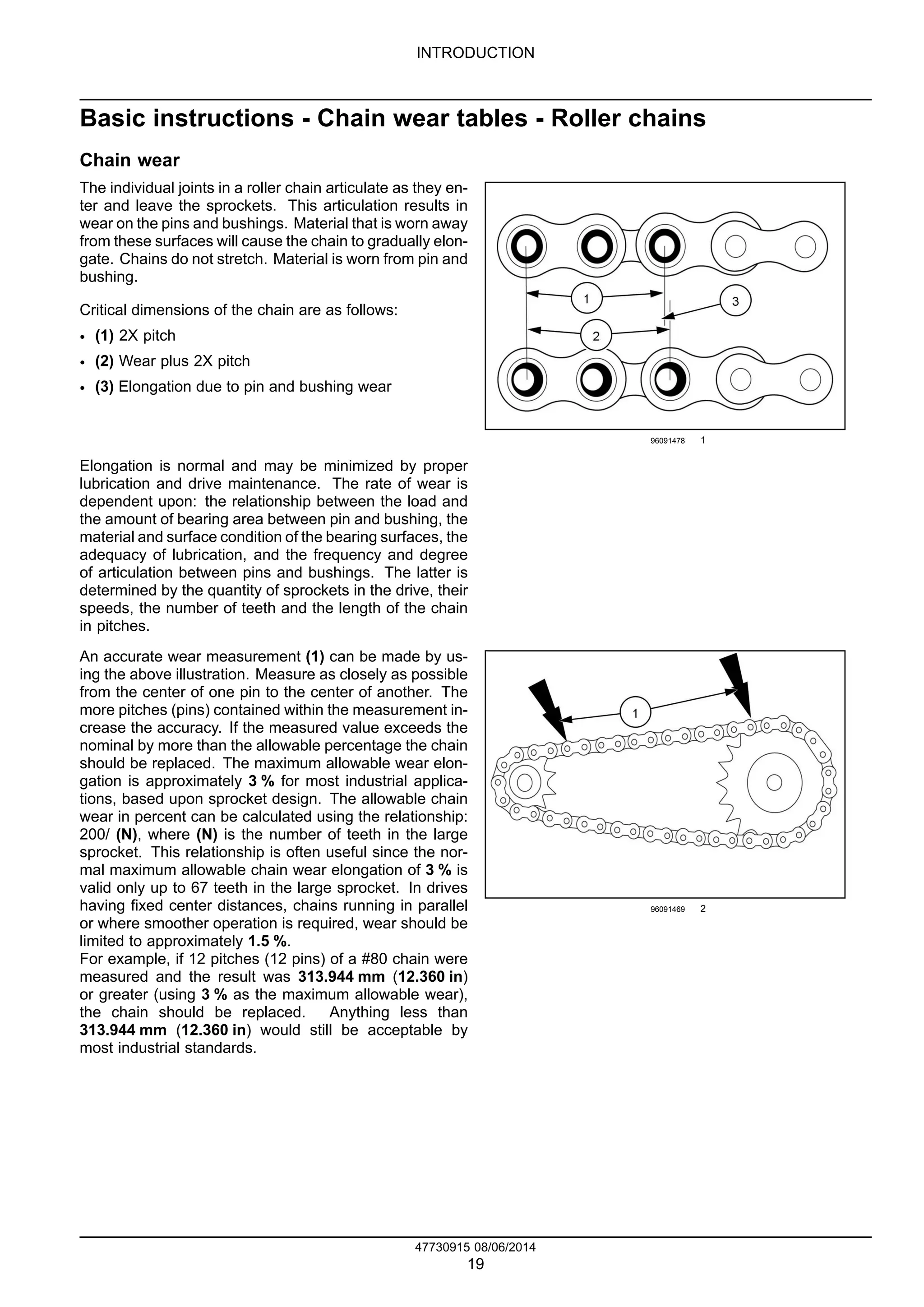

Basic instructions - Chain wear tables - Roller chains
Chain wear
The individual joints in a roller chain articulate as they en-
ter and leave the sprockets. This articulation results in
wear on the pins and bushings. Material that is worn away
from these surfaces will cause the chain to gradually elon-
gate. Chains do not stretch. Material is worn from pin and
bushing.
Critical dimensions of the chain are as follows:
• (1) 2X pitch
• (2) Wear plus 2X pitch
• (3) Elongation due to pin and bushing wear
96091478 1
Elongation is normal and may be minimized by proper
lubrication and drive maintenance. The rate of wear is
dependent upon: the relationship between the load and
the amount of bearing area between pin and bushing, the
material and surface condition of the bearing surfaces, the
adequacy of lubrication, and the frequency and degree
of articulation between pins and bushings. The latter is
determined by the quantity of sprockets in the drive, their
speeds, the number of teeth and the length of the chain
in pitches.
An accurate wear measurement (1) can be made by us-
ing the above illustration. Measure as closely as possible
from the center of one pin to the center of another. The
more pitches (pins) contained within the measurement in-
crease the accuracy. If the measured value exceeds the
nominal by more than the allowable percentage the chain
should be replaced. The maximum allowable wear elon-
gation is approximately 3 % for most industrial applica-
tions, based upon sprocket design. The allowable chain
wear in percent can be calculated using the relationship:
200/ (N), where (N) is the number of teeth in the large
sprocket. This relationship is often useful since the nor-
mal maximum allowable chain wear elongation of 3 % is
valid only up to 67 teeth in the large sprocket. In drives
having fixed center distances, chains running in parallel
or where smoother operation is required, wear should be
limited to approximately 1.5 %.
For example, if 12 pitches (12 pins) of a #80 chain were
measured and the result was 313.944 mm (12.360 in)
or greater (using 3 % as the maximum allowable wear),
the chain should be replaced. Anything less than
313.944 mm (12.360 in) would still be acceptable by
most industrial standards.
96091469 2
47730915 08/06/2014
19

INTRODUCTION

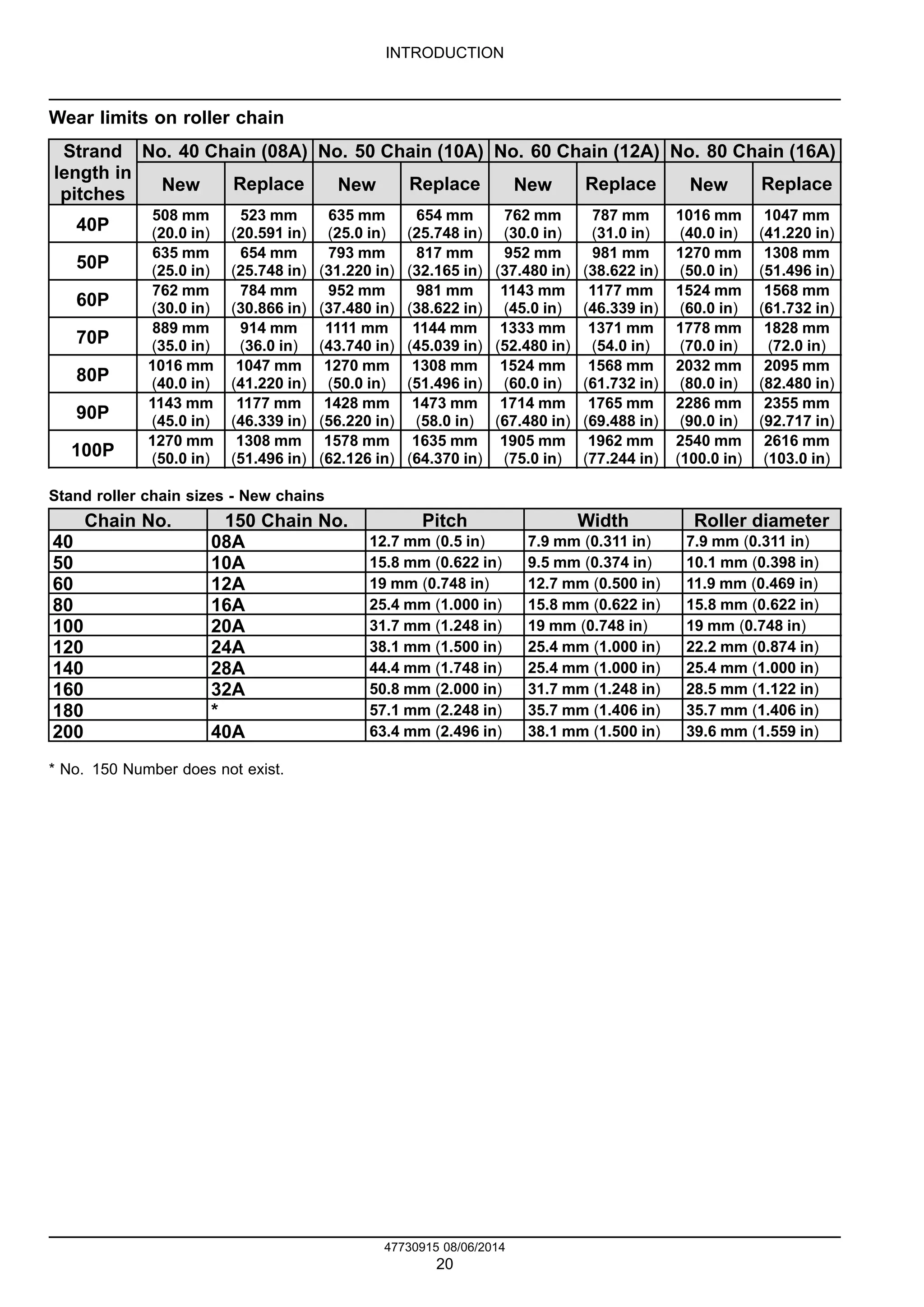

Wear limits on roller chain
No. 40 Chain (08A) No. 50 Chain (10A) No. 60 Chain (12A) No. 80 Chain (16A)
Strand
length in
pitches
New Replace New Replace New Replace New Replace
40P
508 mm
(20.0 in)
523 mm
(20.591 in)
635 mm
(25.0 in)
654 mm
(25.748 in)
762 mm
(30.0 in)
787 mm
(31.0 in)
1016 mm
(40.0 in)
1047 mm
(41.220 in)
50P
635 mm
(25.0 in)
654 mm
(25.748 in)
793 mm
(31.220 in)
817 mm
(32.165 in)
952 mm
(37.480 in)
981 mm
(38.622 in)
1270 mm
(50.0 in)
1308 mm
(51.496 in)
60P
762 mm
(30.0 in)
784 mm
(30.866 in)
952 mm
(37.480 in)
981 mm
(38.622 in)
1143 mm
(45.0 in)
1177 mm
(46.339 in)
1524 mm
(60.0 in)
1568 mm
(61.732 in)
70P
889 mm
(35.0 in)
914 mm
(36.0 in)
1111 mm
(43.740 in)
1144 mm
(45.039 in)
1333 mm
(52.480 in)
1371 mm
(54.0 in)
1778 mm
(70.0 in)
1828 mm
(72.0 in)
80P
1016 mm
(40.0 in)
1047 mm
(41.220 in)
1270 mm
(50.0 in)
1308 mm
(51.496 in)
1524 mm
(60.0 in)
1568 mm
(61.732 in)
2032 mm
(80.0 in)
2095 mm
(82.480 in)
90P
1143 mm
(45.0 in)
1177 mm
(46.339 in)
1428 mm
(56.220 in)
1473 mm
(58.0 in)
1714 mm
(67.480 in)
1765 mm
(69.488 in)
2286 mm
(90.0 in)
2355 mm
(92.717 in)
100P
1270 mm
(50.0 in)
1308 mm
(51.496 in)
1578 mm
(62.126 in)
1635 mm
(64.370 in)
1905 mm
(75.0 in)
1962 mm
(77.244 in)
2540 mm
(100.0 in)
2616 mm
(103.0 in)
Stand roller chain sizes - New chains
Chain No. 150 Chain No. Pitch Width Roller diameter
40 08A 12.7 mm (0.5 in) 7.9 mm (0.311 in) 7.9 mm (0.311 in)
50 10A 15.8 mm (0.622 in) 9.5 mm (0.374 in) 10.1 mm (0.398 in)
60 12A 19 mm (0.748 in) 12.7 mm (0.500 in) 11.9 mm (0.469 in)
80 16A 25.4 mm (1.000 in) 15.8 mm (0.622 in) 15.8 mm (0.622 in)
100 20A 31.7 mm (1.248 in) 19 mm (0.748 in) 19 mm (0.748 in)
120 24A 38.1 mm (1.500 in) 25.4 mm (1.000 in) 22.2 mm (0.874 in)
140 28A 44.4 mm (1.748 in) 25.4 mm (1.000 in) 25.4 mm (1.000 in)
160 32A 50.8 mm (2.000 in) 31.7 mm (1.248 in) 28.5 mm (1.122 in)
180 * 57.1 mm (2.248 in) 35.7 mm (1.406 in) 35.7 mm (1.406 in)
200 40A 63.4 mm (2.496 in) 38.1 mm (1.500 in) 39.6 mm (1.559 in)
* No. 150 Number does not exist.
47730915 08/06/2014
20

INTRODUCTION

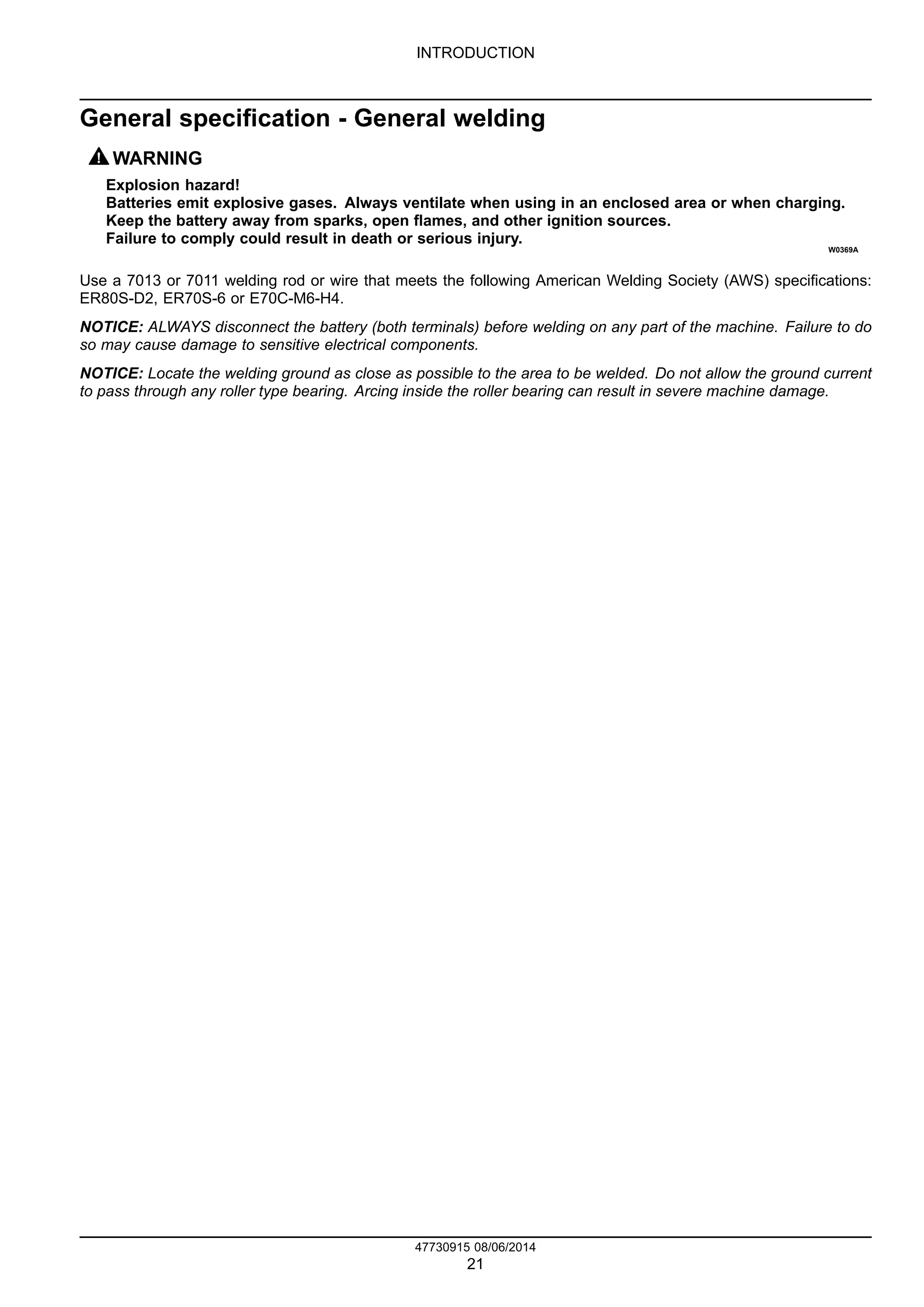

General specification - General welding
WARNING
Explosion hazard!
Batteries emit explosive gases. Always ventilate when using in an enclosed area or when charging.
Keep the battery away from sparks, open flames, and other ignition sources.
W0369A
Use a 7013 or 7011 welding rod or wire that meets the following American Welding Society (AWS) specifications:
ER80S-D2, ER70S-6 or E70C-M6-H4.
NOTICE: ALWAYS disconnect the battery (both terminals) before welding on any part of the machine. Failure to do
so may cause damage to sensitive electrical components.
NOTICE: Locate the welding ground as close as possible to the area to be welded. Do not allow the ground current
to pass through any roller type bearing. Arcing inside the roller bearing can result in severe machine damage.
47730915 08/06/2014
21

INTRODUCTION

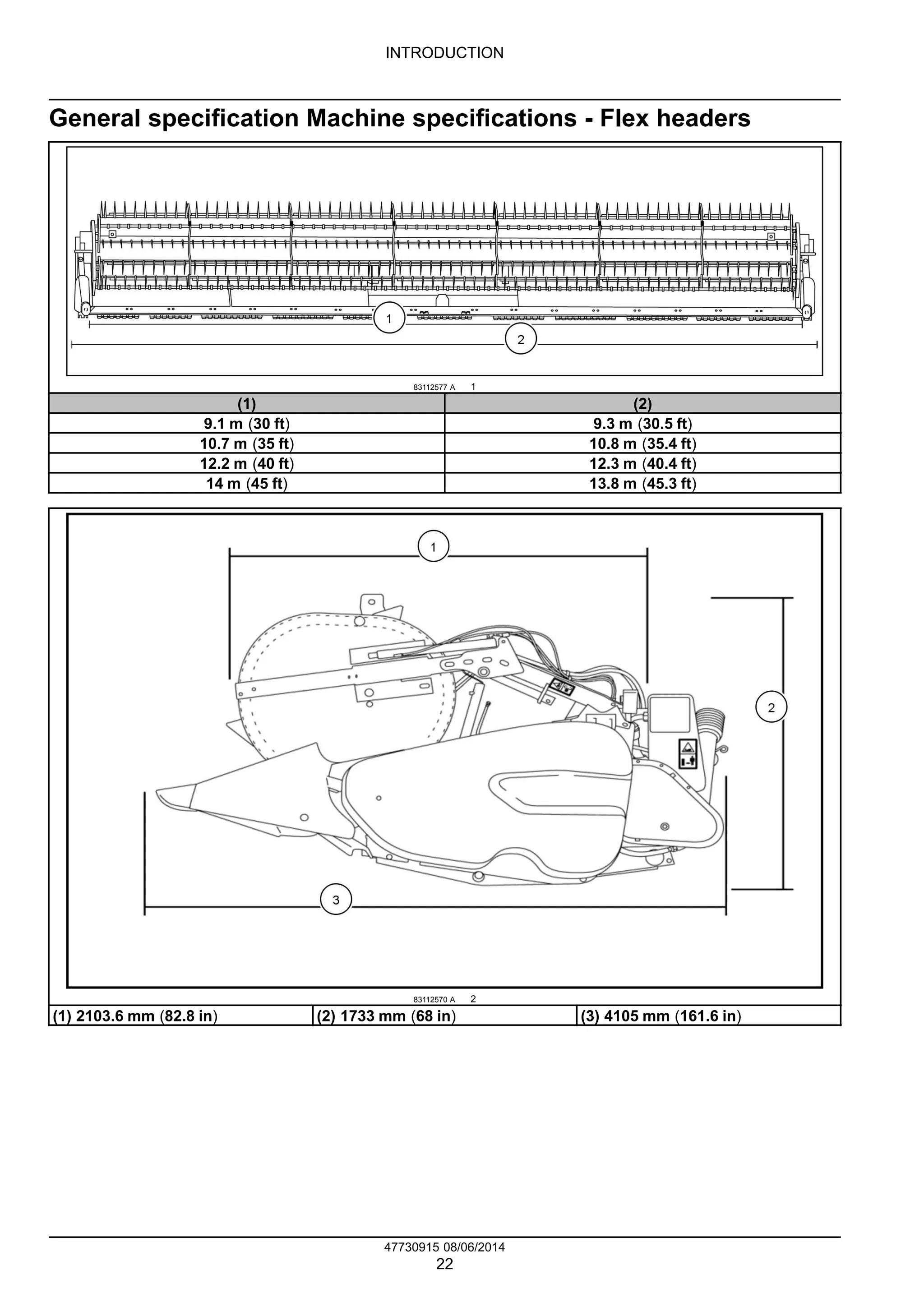

General specification Machine specifications - Flex headers
83112577 A 1
(1) (2)
9.1 m (30 ft) 9.3 m (30.5 ft)
10.7 m (35 ft) 10.8 m (35.4 ft)
12.2 m (40 ft) 12.3 m (40.4 ft)
14 m (45 ft) 13.8 m (45.3 ft)
83112570 A 2
(1) 2103.6 mm (82.8 in) (2) 1733 mm (68 in) (3) 4105 mm (161.6 in)
47730915 08/06/2014
22

INTRODUCTION

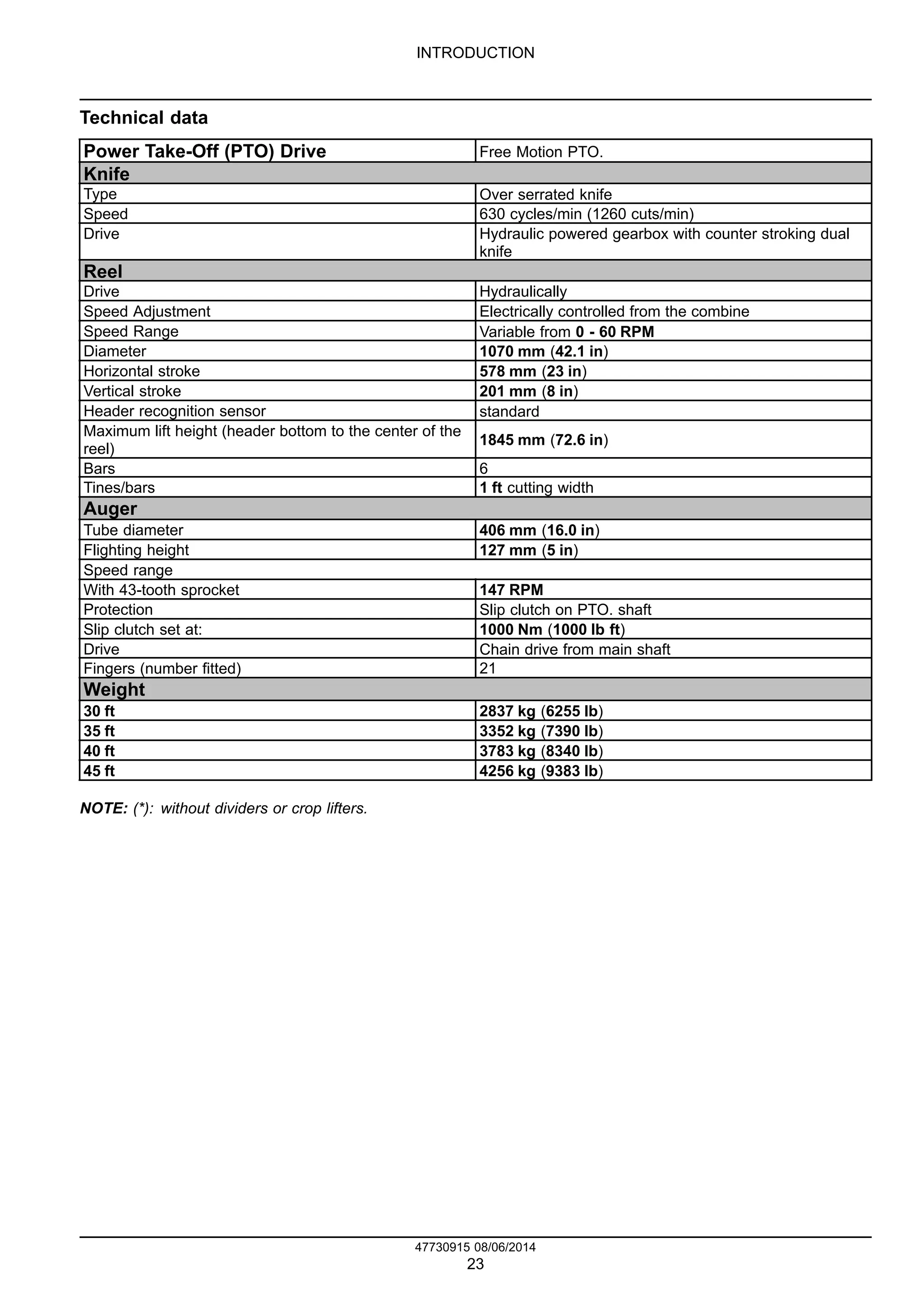

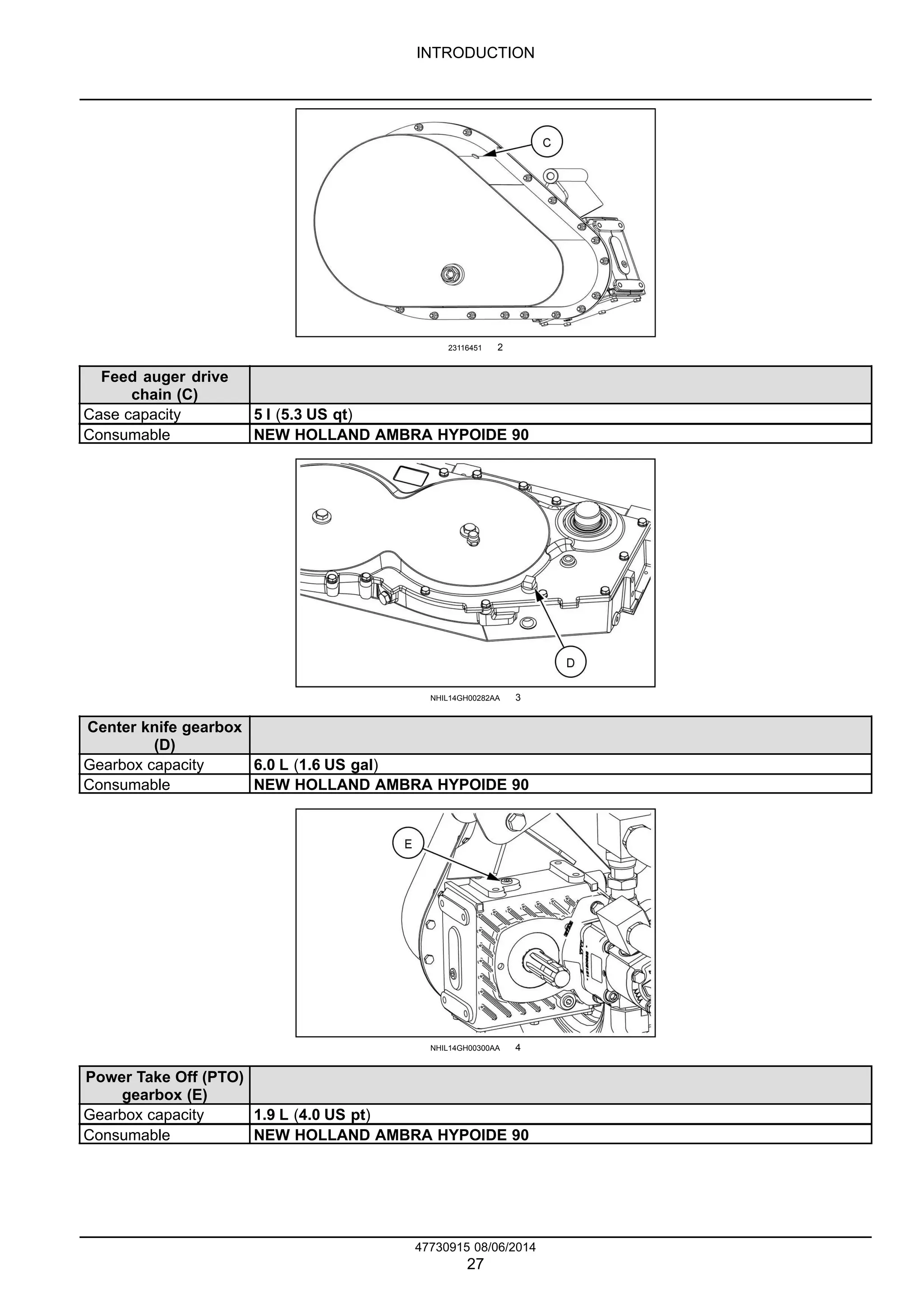

Technical data
Power Take-Off (PTO) Drive Free Motion PTO.
Knife
Type Over serrated knife
Speed 630 cycles/min (1260 cuts/min)
Drive Hydraulic powered gearbox with counter stroking dual
knife
Reel
Drive Hydraulically
Speed Adjustment Electrically controlled from the combine
Speed Range Variable from 0 - 60 RPM
Diameter 1070 mm (42.1 in)
Horizontal stroke 578 mm (23 in)
Vertical stroke 201 mm (8 in)
Header recognition sensor standard
Maximum lift height (header bottom to the center of the
reel)
1845 mm (72.6 in)
Bars 6
Tines/bars 1 ft cutting width
Auger
Tube diameter 406 mm (16.0 in)
Flighting height 127 mm (5 in)
Speed range
With 43-tooth sprocket 147 RPM
Protection Slip clutch on PTO. shaft
Slip clutch set at: 1000 Nm (1000 lb ft)
Drive Chain drive from main shaft
Fingers (number fitted) 21
Weight
30 ft 2837 kg (6255 lb)
35 ft 3352 kg (7390 lb)
40 ft 3783 kg (8340 lb)
45 ft 4256 kg (9383 lb)
NOTE: (*): without dividers or crop lifters.
47730915 08/06/2014
23

INTRODUCTION

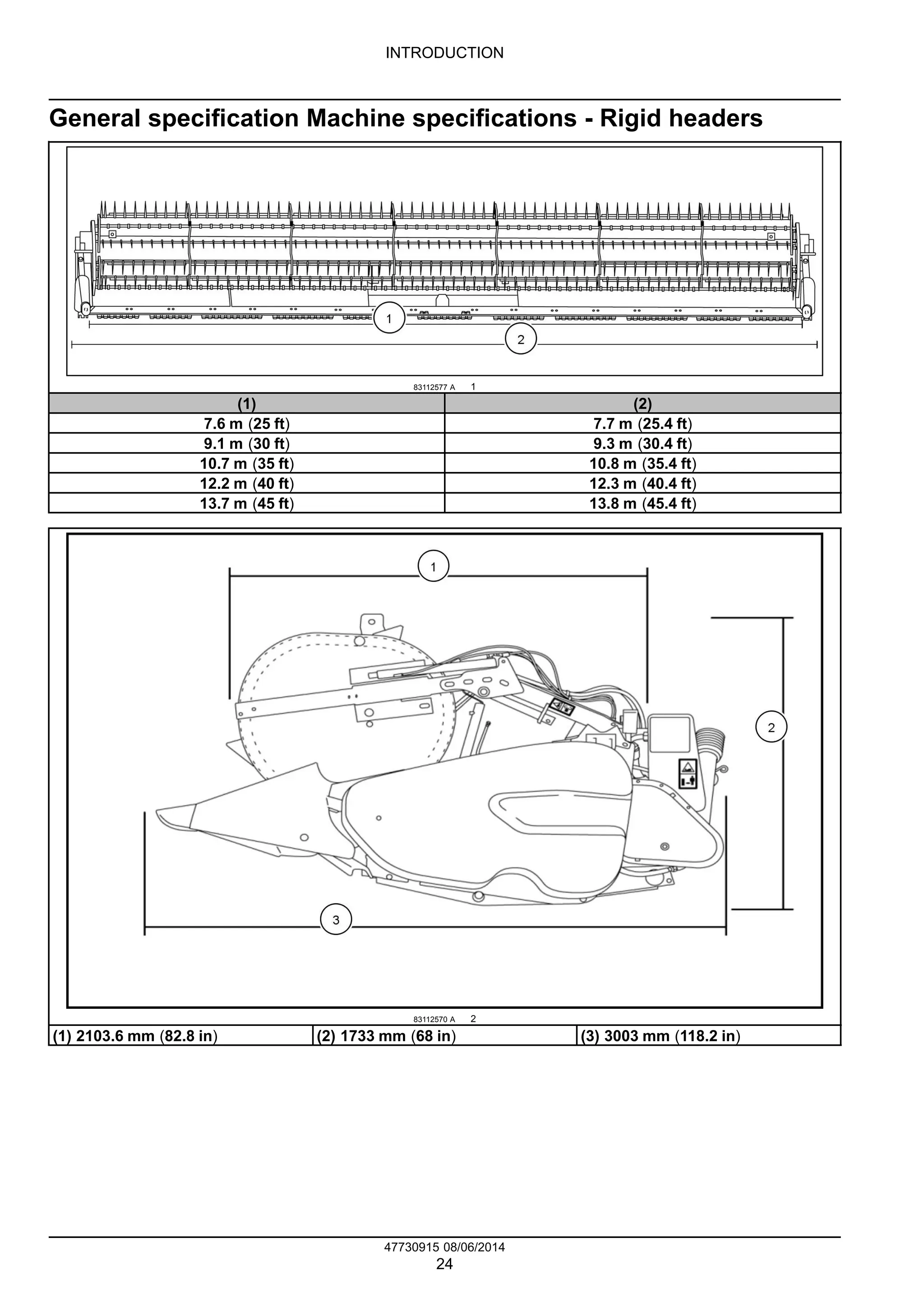

General specification Machine specifications - Rigid headers
83112577 A 1
(1) (2)
7.6 m (25 ft) 7.7 m (25.4 ft)
9.1 m (30 ft) 9.3 m (30.4 ft)
10.7 m (35 ft) 10.8 m (35.4 ft)
12.2 m (40 ft) 12.3 m (40.4 ft)
13.7 m (45 ft) 13.8 m (45.4 ft)
83112570 A 2
(1) 2103.6 mm (82.8 in) (2) 1733 mm (68 in) (3) 3003 mm (118.2 in)
47730915 08/06/2014
24

INTRODUCTION
Power Take-Off (PTO) Drive Free Motion PTO.
Knife
Type Over serrated knife
Speed 630 cycles/min (1260 cuts/min)
Drive Hydraulic powered gearbox with counter stroking dual
knife
Reel
Drive Hydraulically
Speed Adjustment Electrically controlled from the combine
Speed Range Variable from 0 - 60 RPM
Diameter 1070 mm (42.1 in)
Horizontal stroke 578 mm (23 in)
Vertical stroke 201 mm (8 in)
Header recognition sensor standard
Maximum lift height (header bottom to the center of the
reel)
1845 mm (72.6 in)
Bars 6
Tines/bars 1 ft cutting width
Auger
Tube diameter 406 mm (16.0 in)
Flighting height 127 mm (5 in)
Speed range
With 43-tooth sprocket 147 RPM
Protection Slip clutch on PTO. shaft
Slip clutch set at: 1000 Nm (1000 lb ft)
Drive Chain drive from main shaft
Fingers (number fitted) 21
Weight
25 ft 2364 kg (5212 lb)
30 ft 2837 kg (6255 lb)
35 ft 3352 kg (7390 lb)
40 ft 3783 kg (8340 lb)
45 ft 4256 kg (9383 lb)
NOTE: (*): without dividers or crop lifters.
47730915 08/06/2014
25

INTRODUCTION
Capacities
NH12AF01077AA 1
Expansion tank (A)
Tank capacity 13 l (3.4 US gal)
Tank capacity at low
level
2.2 l (0.6 US gal)
Consumable NEW HOLLAND AMBRA MASTERTRAN™ HYDRAULIC TRANSMISSION OIL
Hydraulic reservoir
integrated with draper
header frame (B)
Reservoir capacity 90 l (23.8 US gal)
Consumable NEW HOLLAND AMBRA MASTERTRAN™ HYDRAULIC TRANSMISSION OIL
47730915 08/06/2014
26

INTRODUCTION
23116451 2
Feed auger drive
chain (C)
Case capacity 5 l (5.3 US qt)
Consumable NEW HOLLAND AMBRA HYPOIDE 90
NHIL14GH00282AA 3
Center knife gearbox
(D)
Gearbox capacity 6.0 L (1.6 US gal)
NHIL14GH00300AA 4
Power Take Off (PTO)
gearbox (E)
Gearbox capacity 1.9 L (4.0 US pt)
47730915 08/06/2014
27

This as a preview PDF file from heavymachineryequipment. com
Download full PDF manual at heavymachineryequipment. com

New Holland 840CD Draper Header Technical Service Manual.pdf

More Related Content

Similar to New Holland 840CD Draper Header Technical Service Manual.pdf

More from abjekGoogle

Recently uploaded

New Holland 840CD Draper Header Technical Service Manual.pdf
