New Audi 10.25 12.3 Android Screen Unit User Manual.pdf

A N D R O I D
A N D R O I D
INTERFACE INSTRUCTION
U S E R M A N U A L

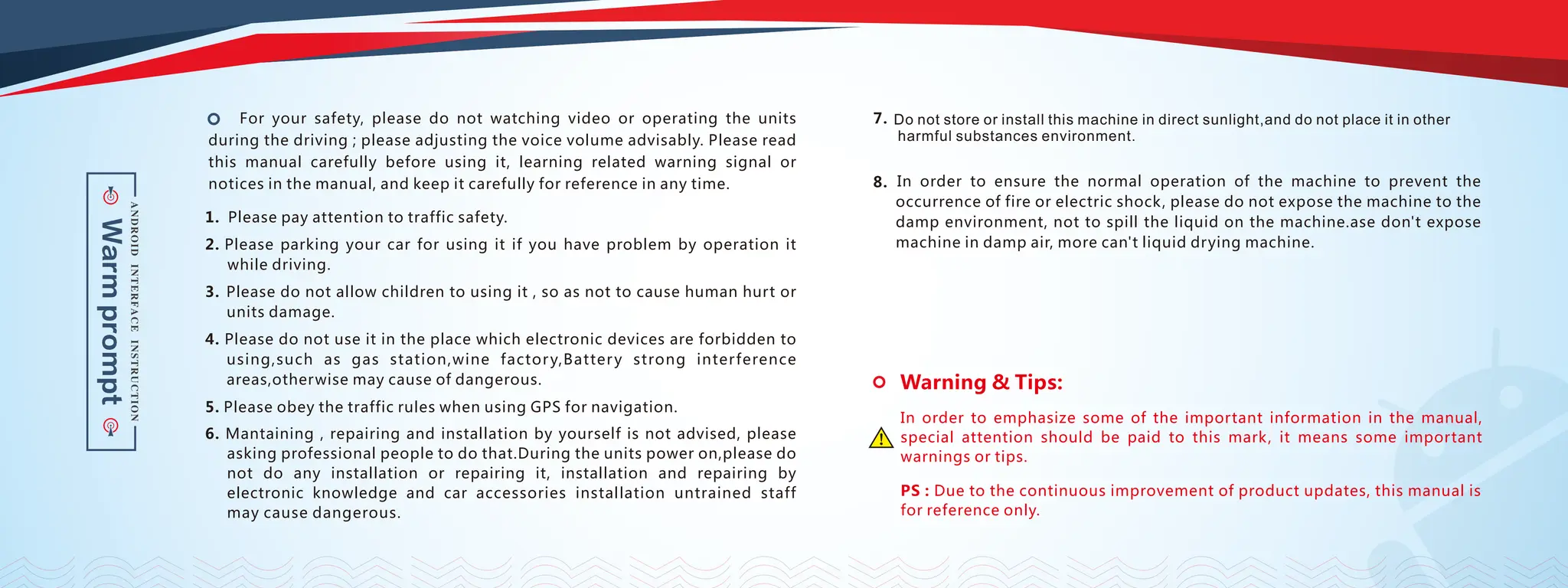

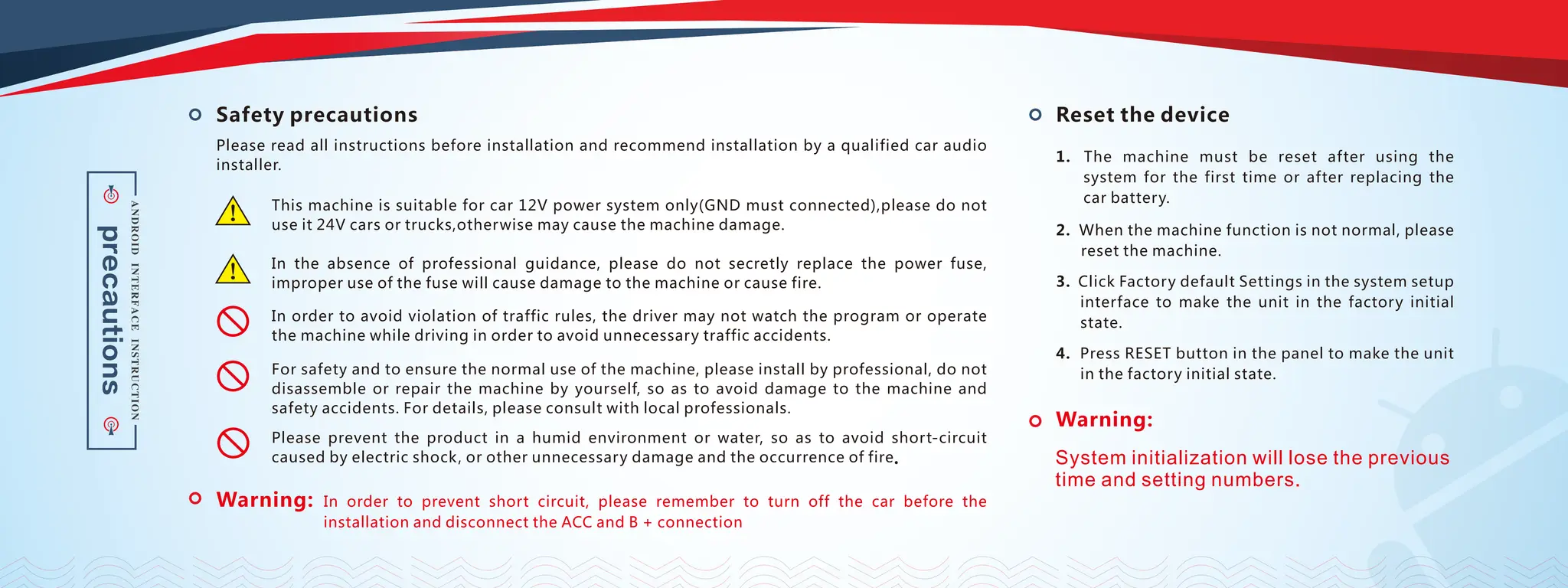

Do not store or install this machine in direct sunlight,and do not place it in other
harmful substances environment.

System initialization will lose the previous
time and setting numbers.

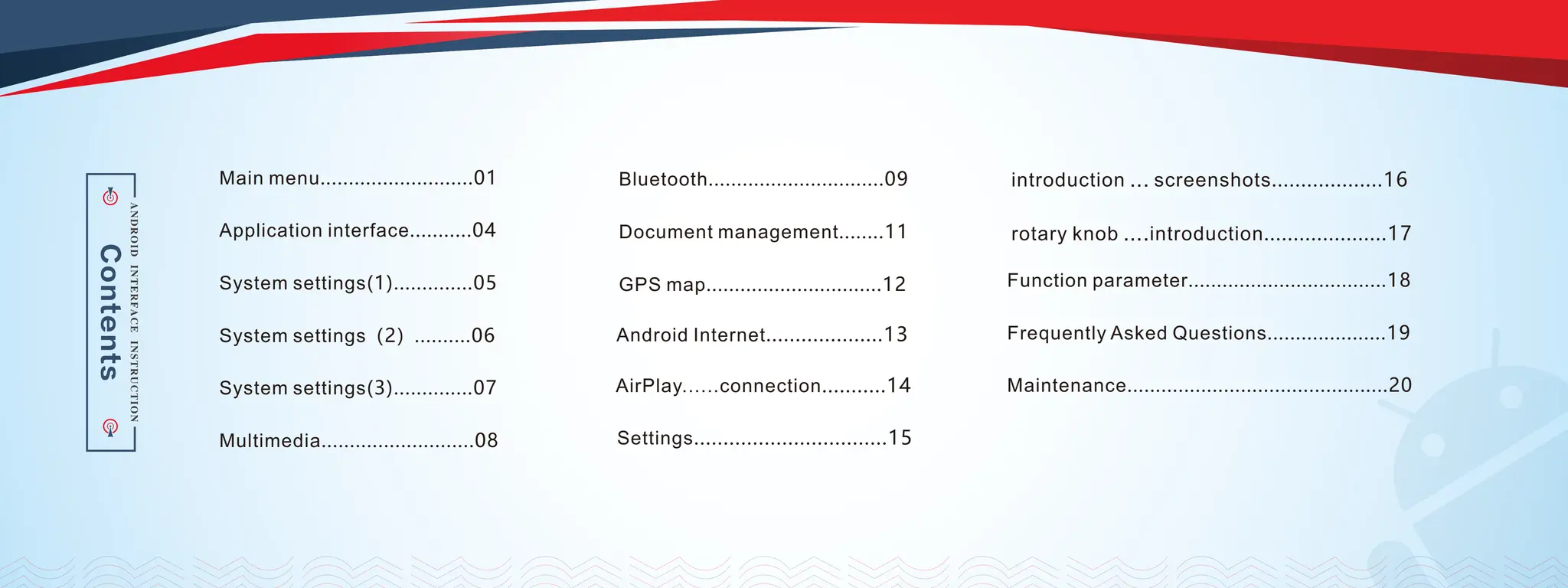

Main menu...........................01
Application interface...........04
System settings(1)..............05
System settings（2）..........06
System settings(3)..............07
Multimedia...........................08
Bluetooth...............................09
Document management........11
GPS map...............................12
Settings.................................15
introduction ... screenshots...................16
rotary knob ....introduction.....................17
Android Internet....................13
AirPlay......connection...........14
Function parameter...................................18
Frequently Asked Questions.....................19
Maintenance..............................................20

01
Main menu
Main menu

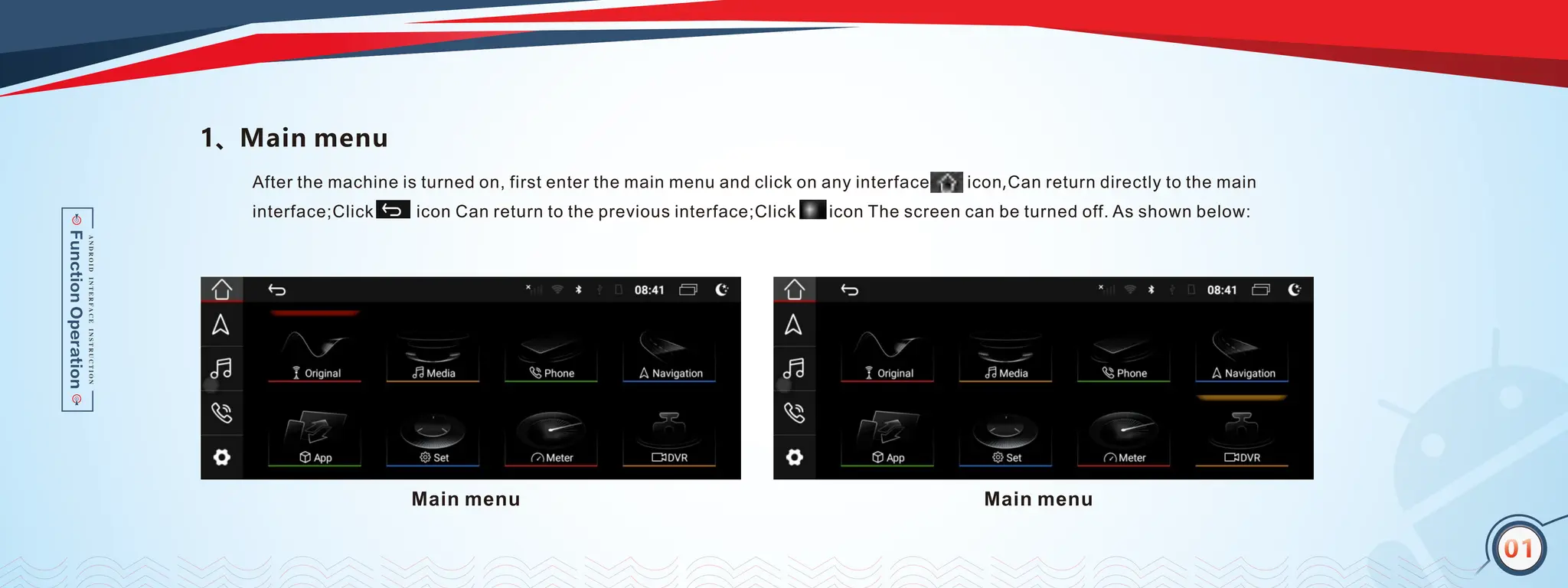

1、Main menu
After the machine is turned on, first enter the main menu and click on any interface icon,Can return directly to the main
interface;Click icon Can return to the previous interface;Click icon The screen can be turned off. As shown below:
01

02

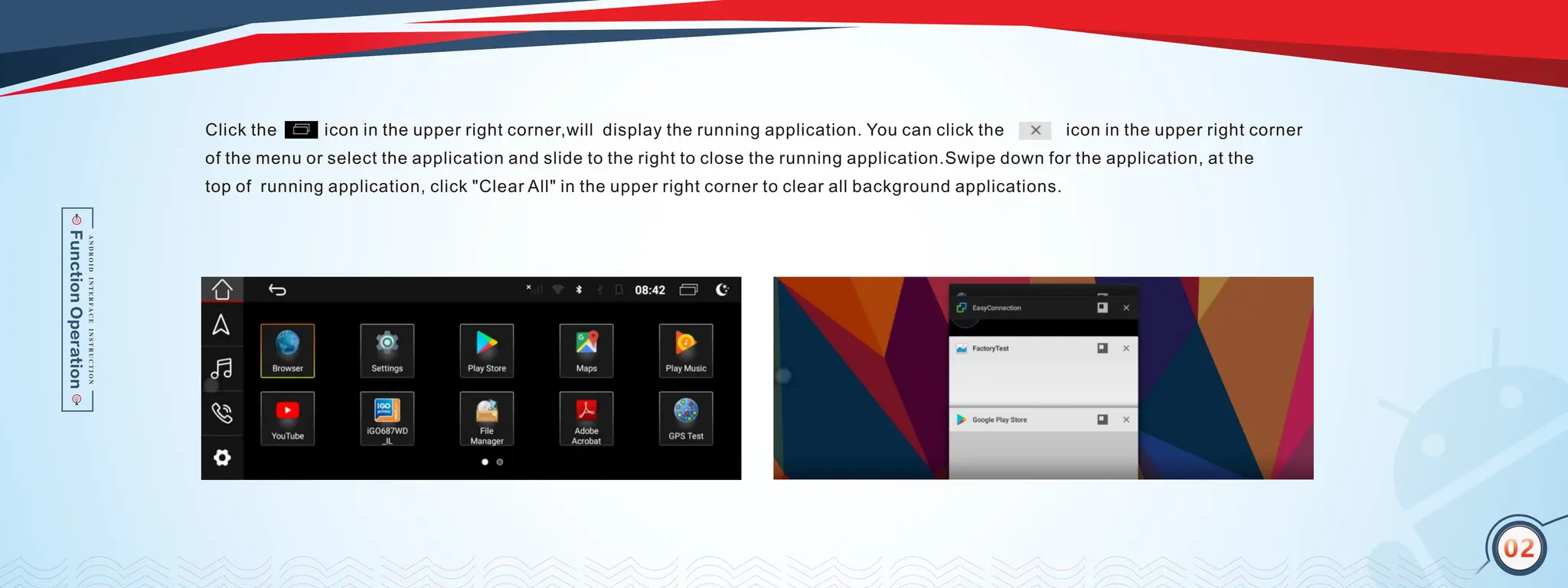

Click the icon in the upper right corner,will display the running application. You can click the icon in the upper right corner
of the menu or select the application and slide to the right to close the running application.Swipe down for the application, at the
top of running application, click "Clear All" in the upper right corner to clear all background applications.
02

02

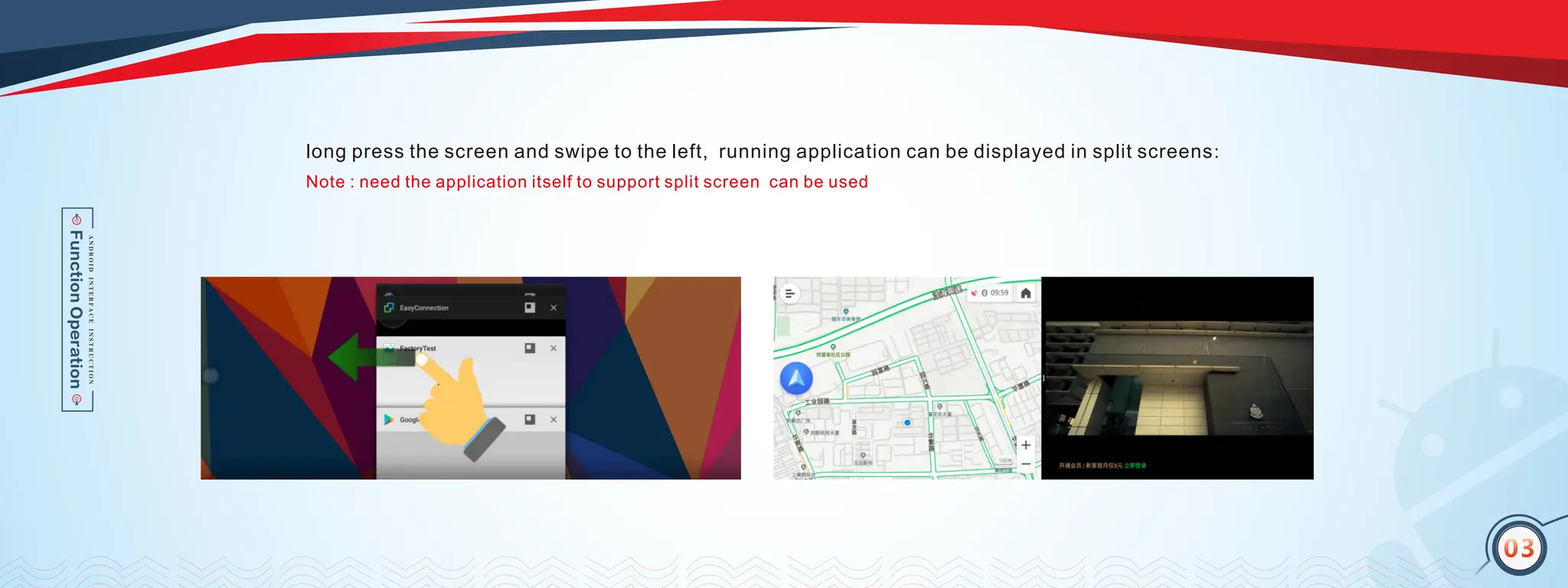

long press the screen and swipe to the left, running application can be displayed in split screens：
Note : need the application itself to support split screen can be used
03

03

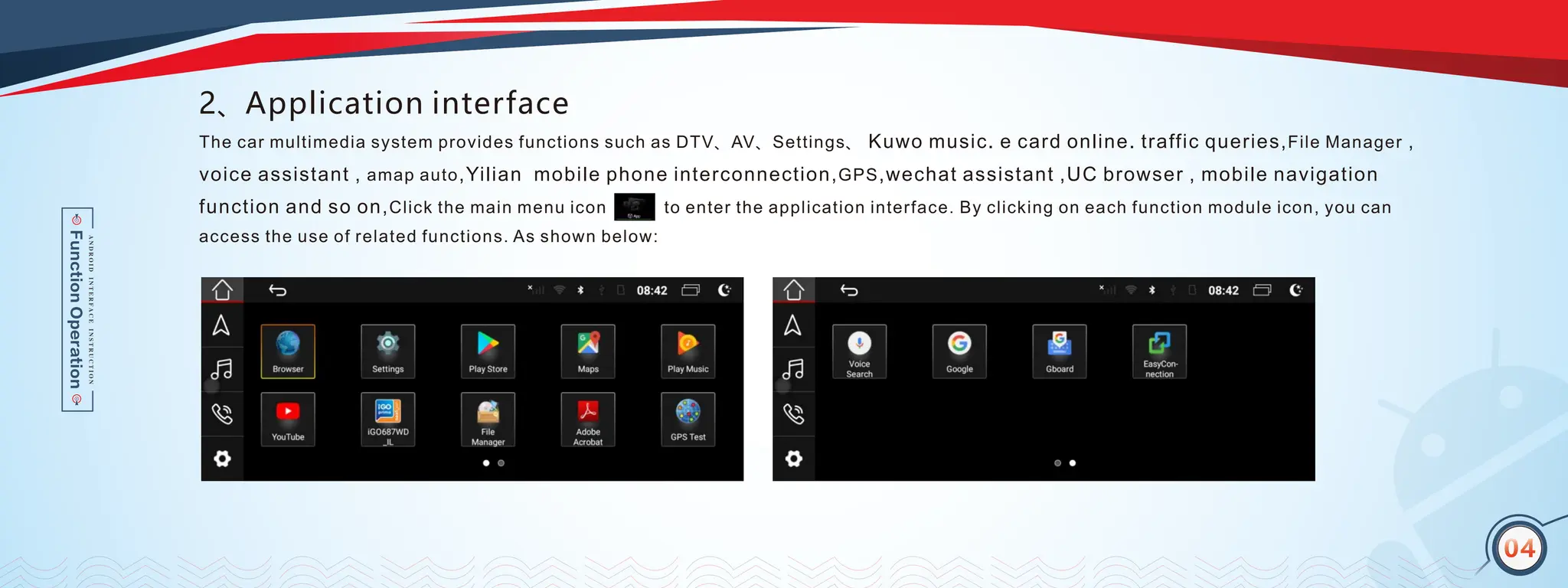

2、Application interface
The car multimedia system provides functions such as DTV、AV、Settings、 Kuwo music. e card online. traffic queries,File Manager ,
voice assistant , amap auto,Yilian mobile phone interconnection,GPS,wechat assistant ,UC browser , mobile navigation
function and so on,Click the main menu icon to enter the application interface. By clicking on each function module icon, you can
access the use of related functions. As shown below:
04

04

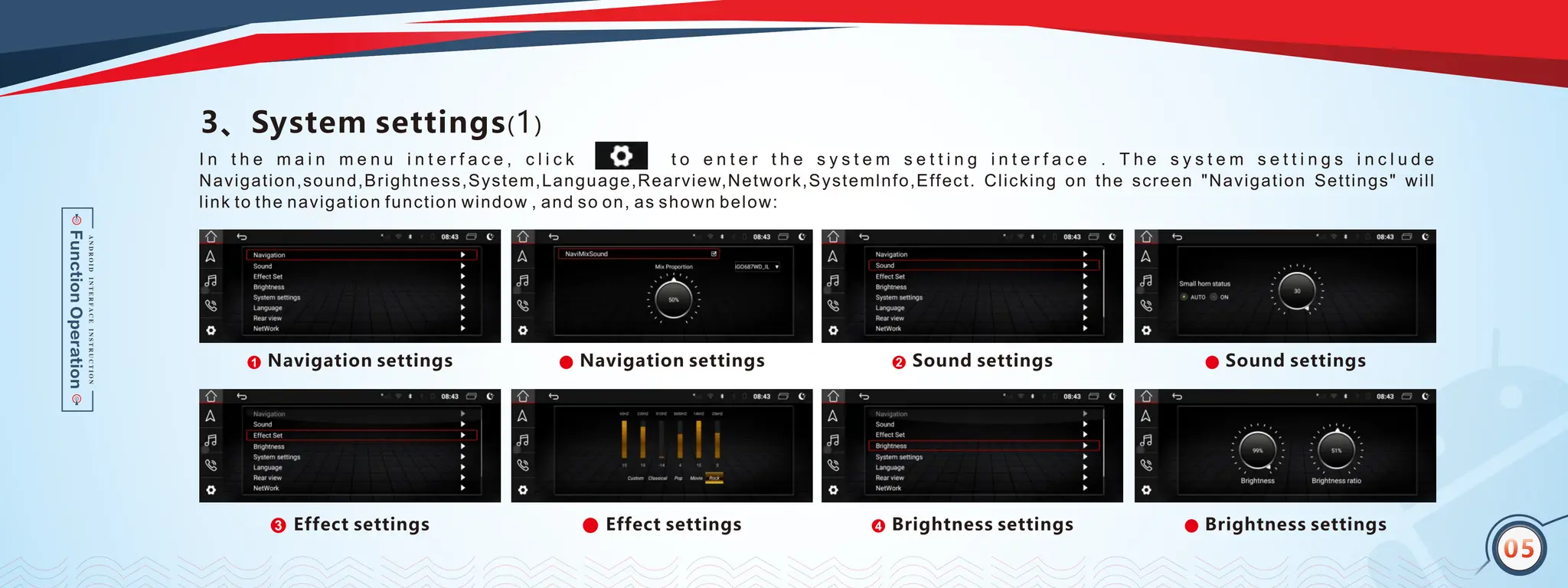

3、System settings(1)
I n t h e m a i n m e n u i n t e r f a c e , c l i c k t o e n t e r t h e s y s t e m s e t t i n g i n t e r f a c e . T h e s y s t e m s e t t i n g s i n c l u d e
Navigation,sound,Brightness,System,Language,Rearview,Network,Systemlnfo,Effect. Clicking on the screen "Navigation Settings" will
link to the navigation function window , and so on, as shown below:
Navigation settings
1
1 Sound settings
1
2
Brightness settings
1
4
05
Navigation settings
1 Sound settings
1
Brightness settings
1
Effect settings
1
3 Effect settings
1

04

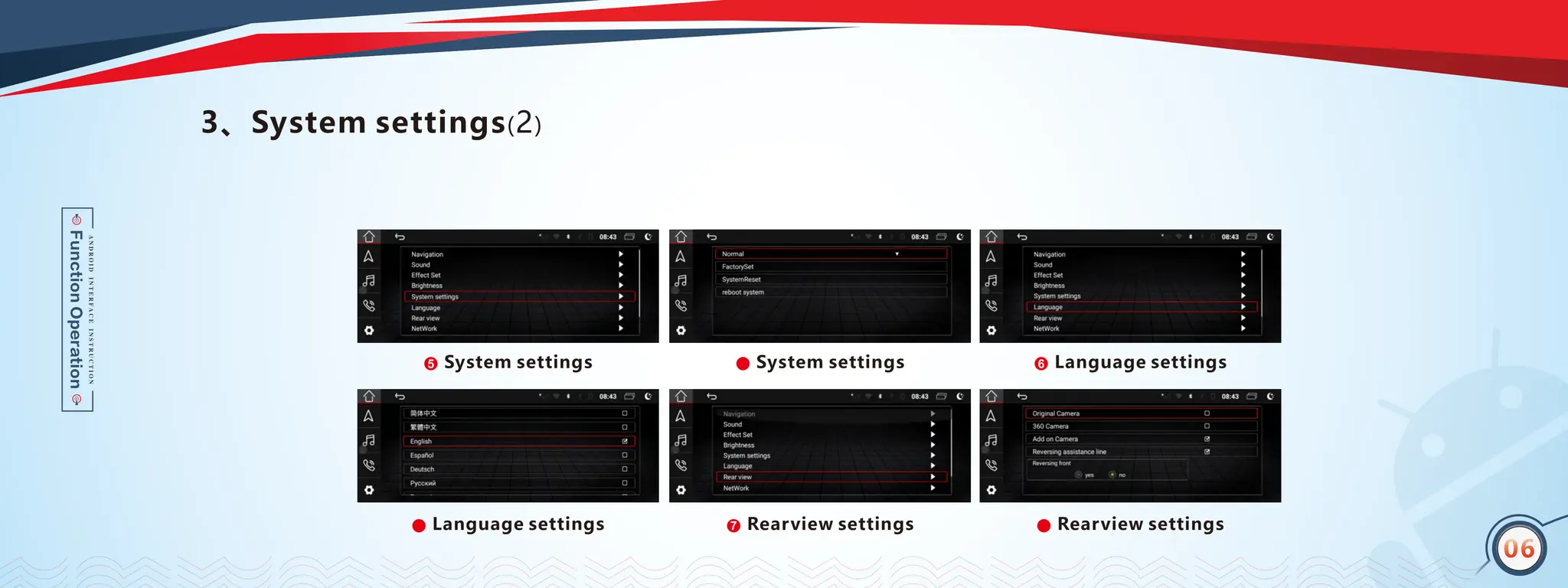

Language settings
1
6
06
Language settings
1
System settings
5 System settings
Rearview settings
1
7 Rearview settings
1

04
Aux Conflgure
1
10
07
Aux Conflgure
1
Network settings
1
8 Network settings
1 Systemlnfo
9
Systemlnfo

06

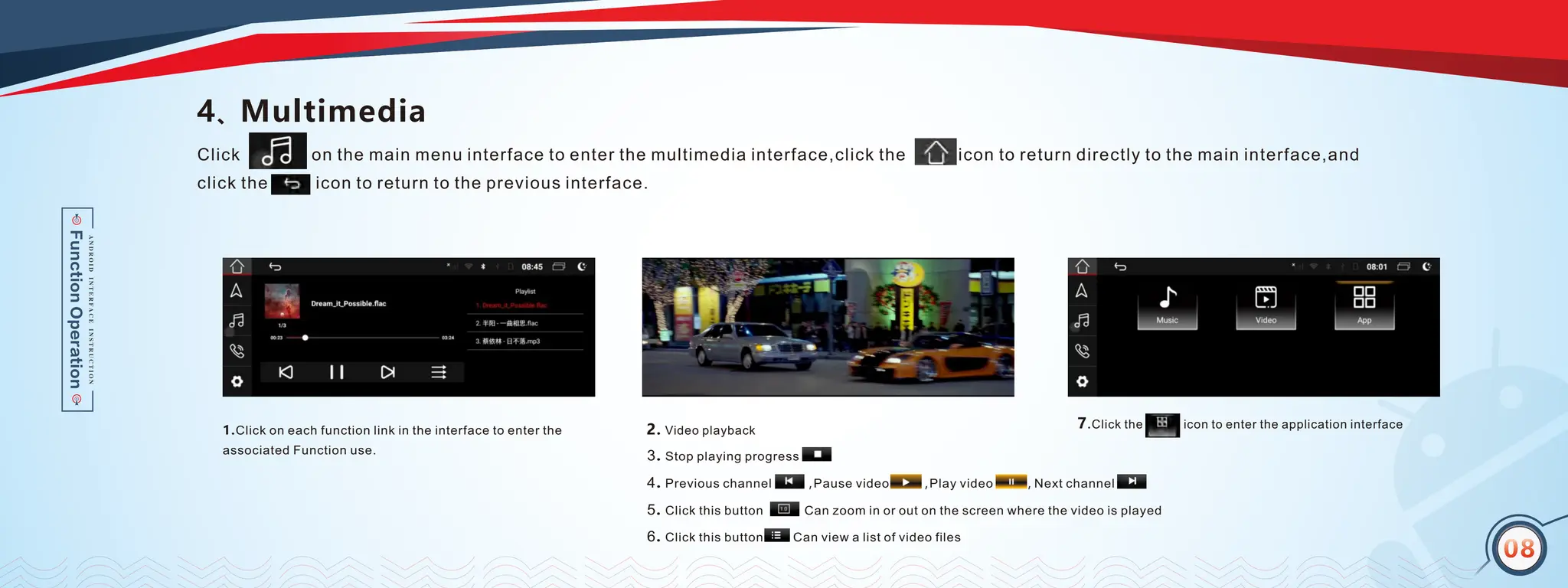

4、Multimedia
Click on the main menu interface to enter the multimedia interface,click the icon to return directly to the main interface,and
click the icon to return to the previous interface.
1.Click on each function link in the interface to enter the
associated Function use.
2. Video playback
3. Stop playing progress
4. Previous channel ,Pause video ,Play video , Next channel
5. Click this button Can zoom in or out on the screen where the video is played
6. Click this button Can view a list of video files
08
7.Click the icon to enter the application interface

07

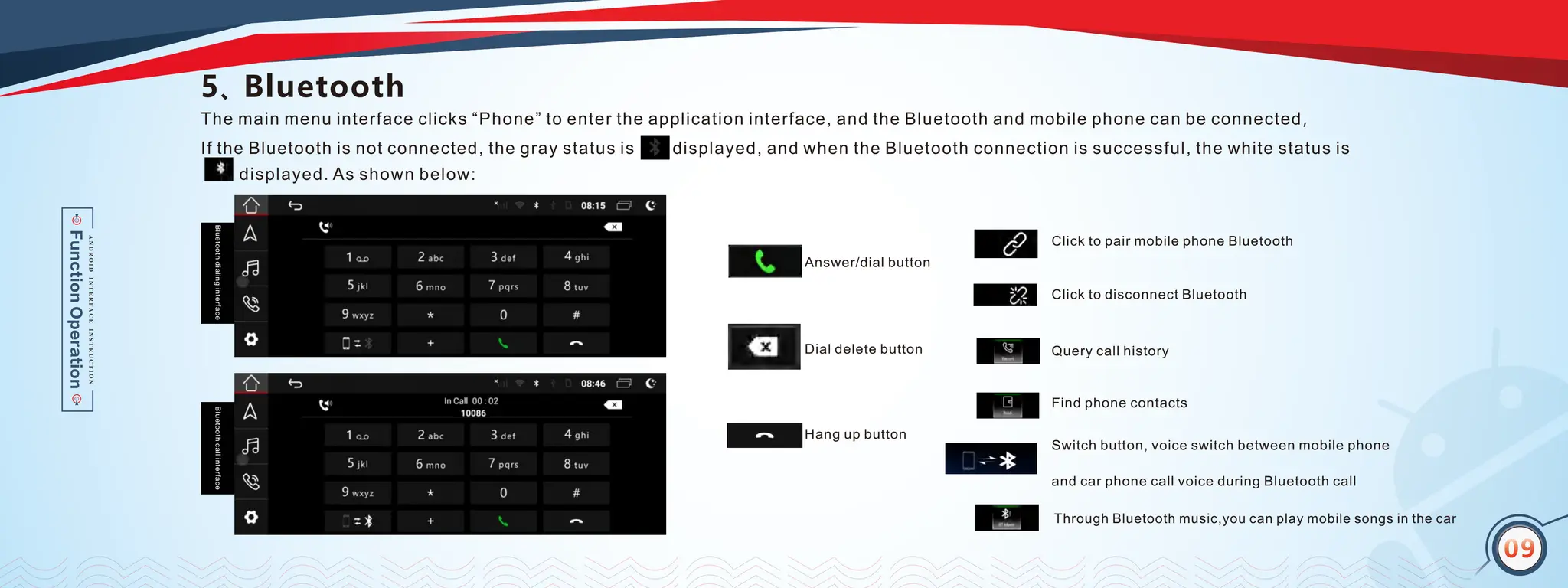

5、Bluetooth
If the Bluetooth is not connected, the gray status is displayed, and when the Bluetooth connection is successful, the white status is
displayed. As shown below:
The main menu interface clicks “Phone” to enter the application interface, and the Bluetooth and mobile phone can be connected，
Bluetooth
dialing
interface
Bluetooth
call
interface
Answer/dial button
Dial delete button
Hang up button
Click to disconnect Bluetooth
Switch button, voice switch between mobile phone
and car phone call voice during Bluetooth call
Query call history
Find phone contacts
Click to pair mobile phone Bluetooth
09

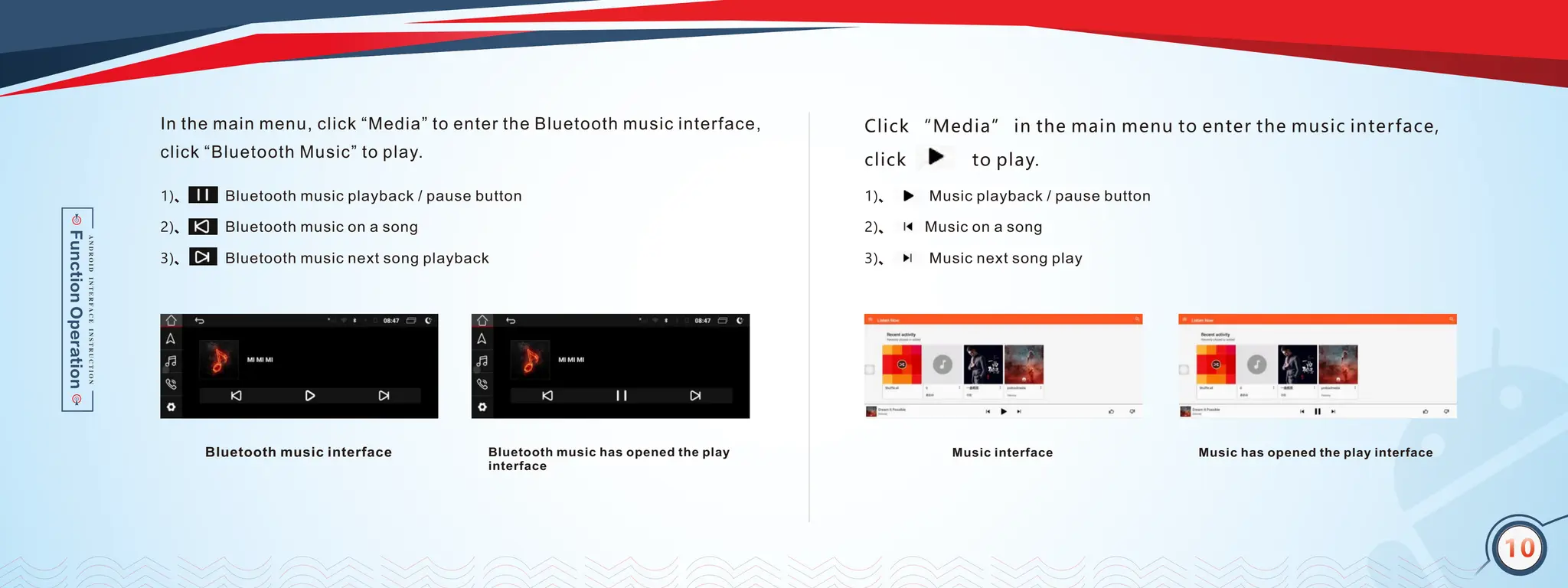

Through Bluetooth music,you can play mobile songs in the car

08
Bluetooth music interface Music interface
Bluetooth music has opened the play
interface
Music has opened the play interface
In the main menu, click “Media” to enter the Bluetooth music interface,
click “Bluetooth Music” to play.
Click “Media” in the main menu to enter the music interface,
click to play.
10
1)、 Bluetooth music playback / pause button
2)、 Bluetooth music on a song
3)、 Bluetooth music next song playback
1)、 Music playback / pause button
2)、 Music on a song
3)、 Music next song play

11

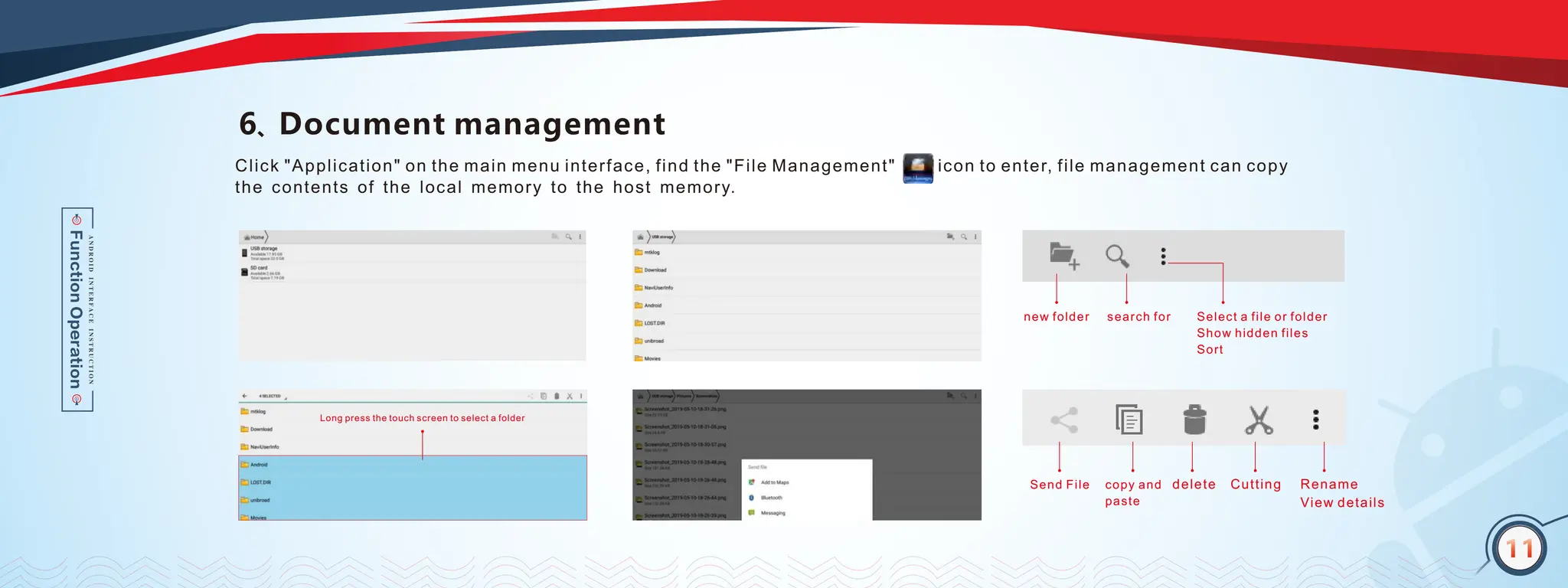

6、Document management
Send File copy and
paste
delete Cutting Rename
View details
new folder search for Select a file or folder
Show hidden files
Sort
Long press the touch screen to select a folder
Click "Application" on the main menu interface, find the "File Management" icon to enter, file management can copy
the contents of the local memory to the host memory.
11

12

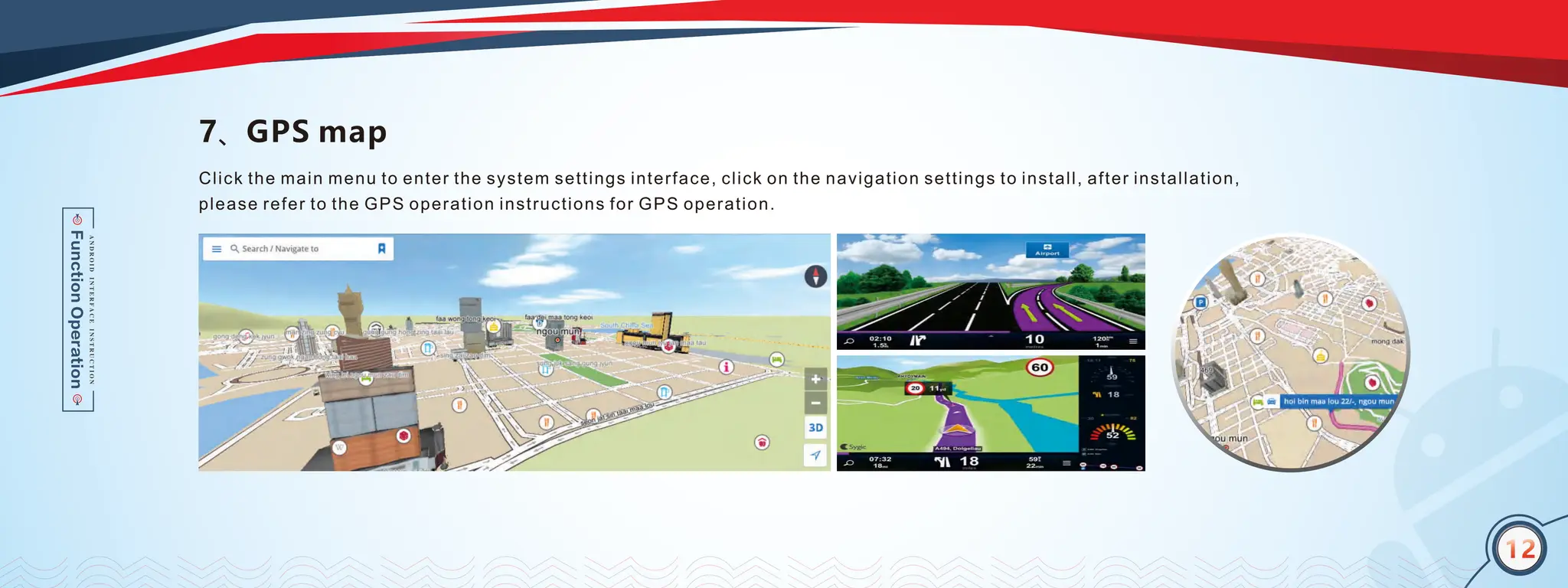

Click the main menu to enter the system settings interface, click on the navigation settings to install, after installation,
please refer to the GPS operation instructions for GPS operation.
7、GPS map
12

13

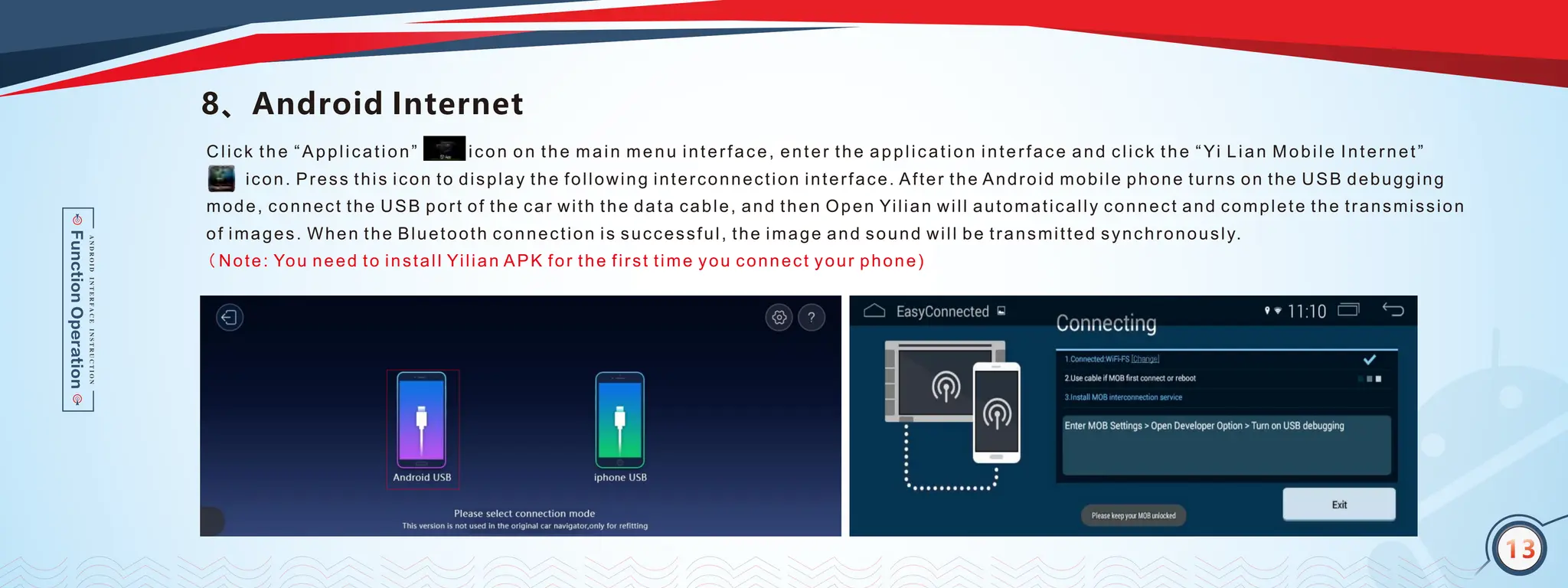

8、Android Internet
Click the “Application” icon on the main menu interface, enter the application interface and click the “Yi Lian Mobile Internet”
( Note: You need to install Yilian APK for the first time you connect your phone)
icon. Press this icon to display the following interconnection interface. After the Android mobile phone turns on the USB debugging
mode, connect the USB port of the car with the data cable, and then Open Yilian will automatically connect and complete the transmission
of images. When the Bluetooth connection is successful, the image and sound will be transmitted synchronously.
13

14

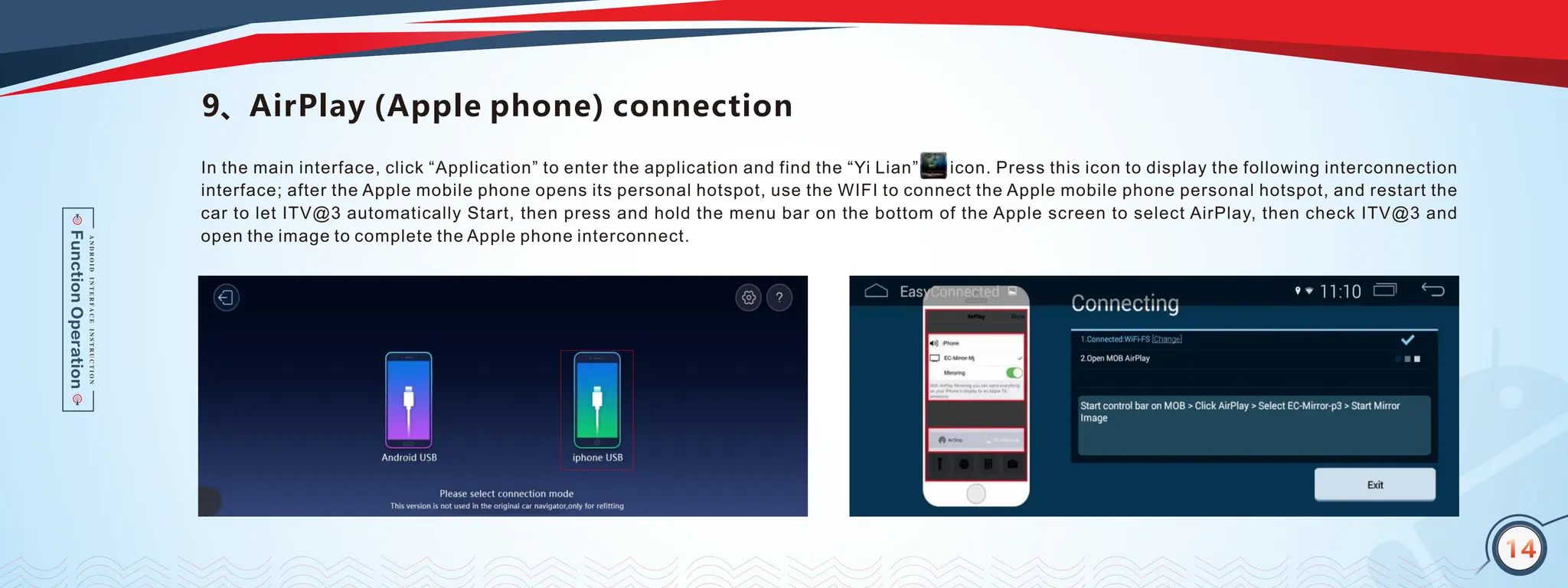

9、AirPlay (Apple phone) connection
In the main interface, click “Application” to enter the application and find the “Yi Lian” icon. Press this icon to display the following interconnection
interface; after the Apple mobile phone opens its personal hotspot, use the WIFI to connect the Apple mobile phone personal hotspot, and restart the
car to let ITV@3 automatically Start, then press and hold the menu bar on the bottom of the Apple screen to select AirPlay, then check ITV@3 and
open the image to complete the Apple phone interconnect.
14

14

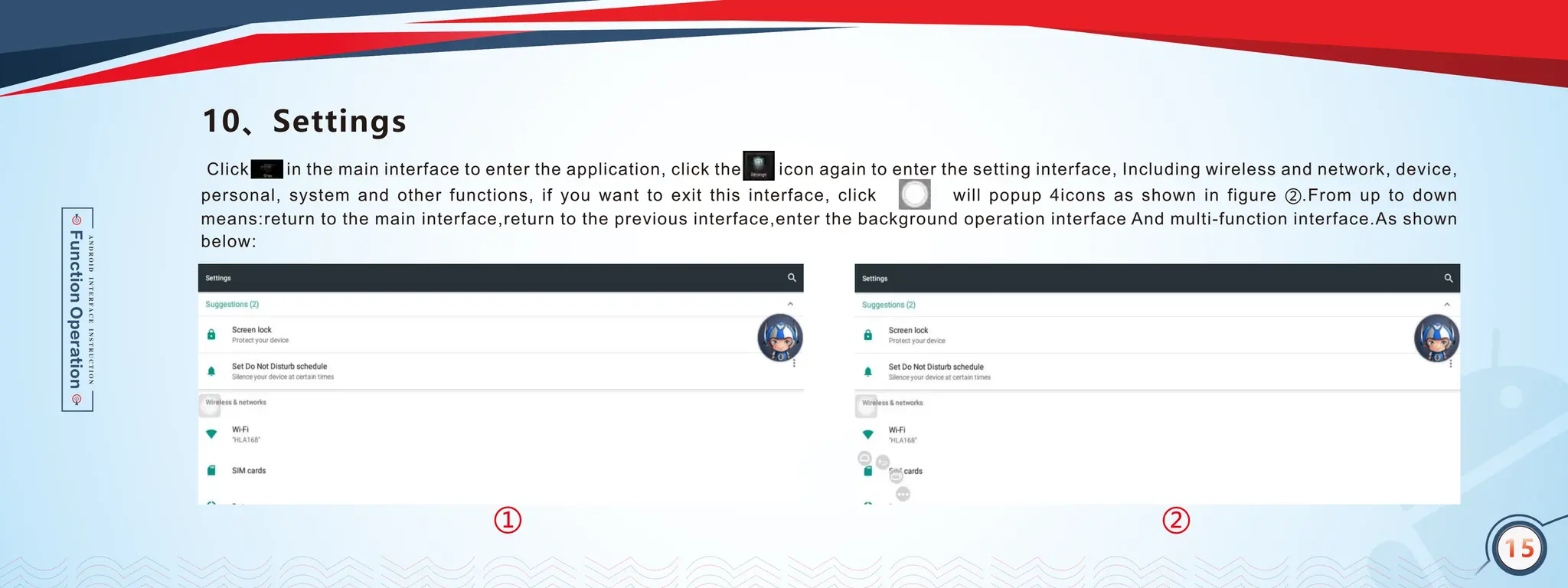

10、Settings
Click in the main interface to enter the application, click the icon again to enter the setting interface, Including wireless and network, device,
personal, system and other functions, if you want to exit this interface, click will popup 4icons as shown in figure ②.From up to down
means:return to the main interface,return to the previous interface,enter the background operation interface And multi-function interface.As shown
below:
15
②
①

14

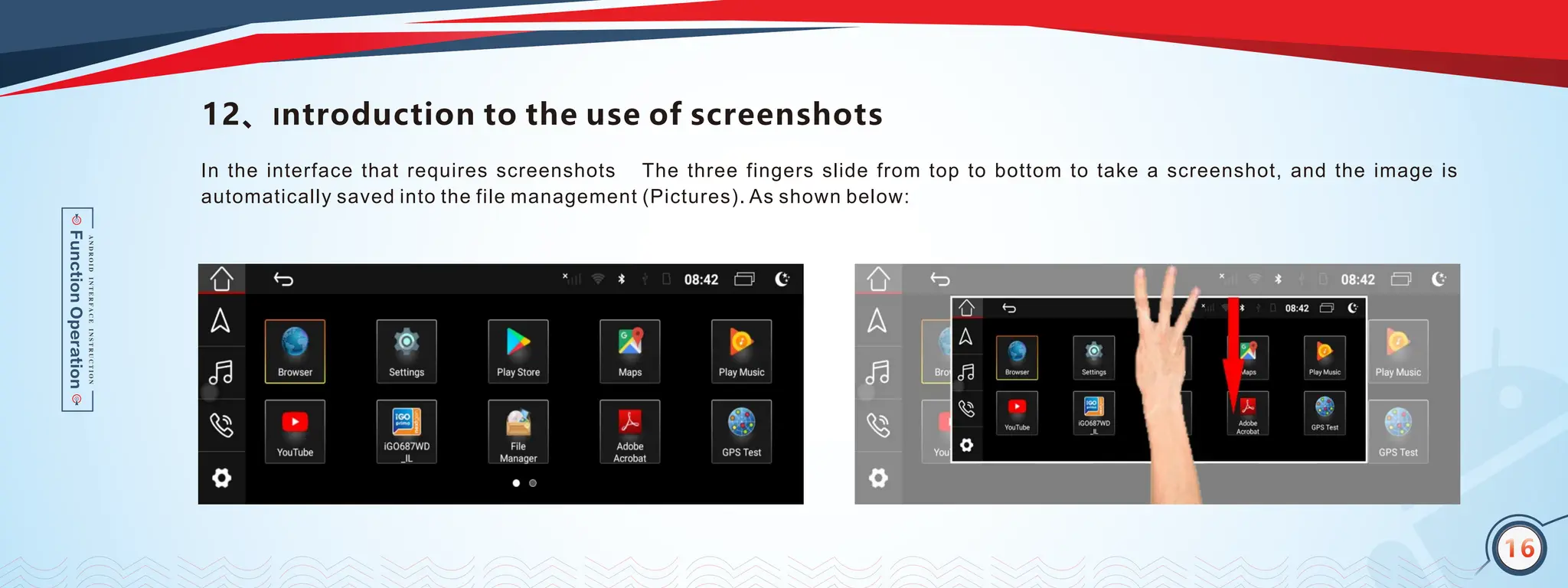

12、Introduction to the use of screenshots
In the interface that requires screenshots The three fingers slide from top to bottom to take a screenshot, and the image is
automatically saved into the file management (Pictures). As shown below:
16

14

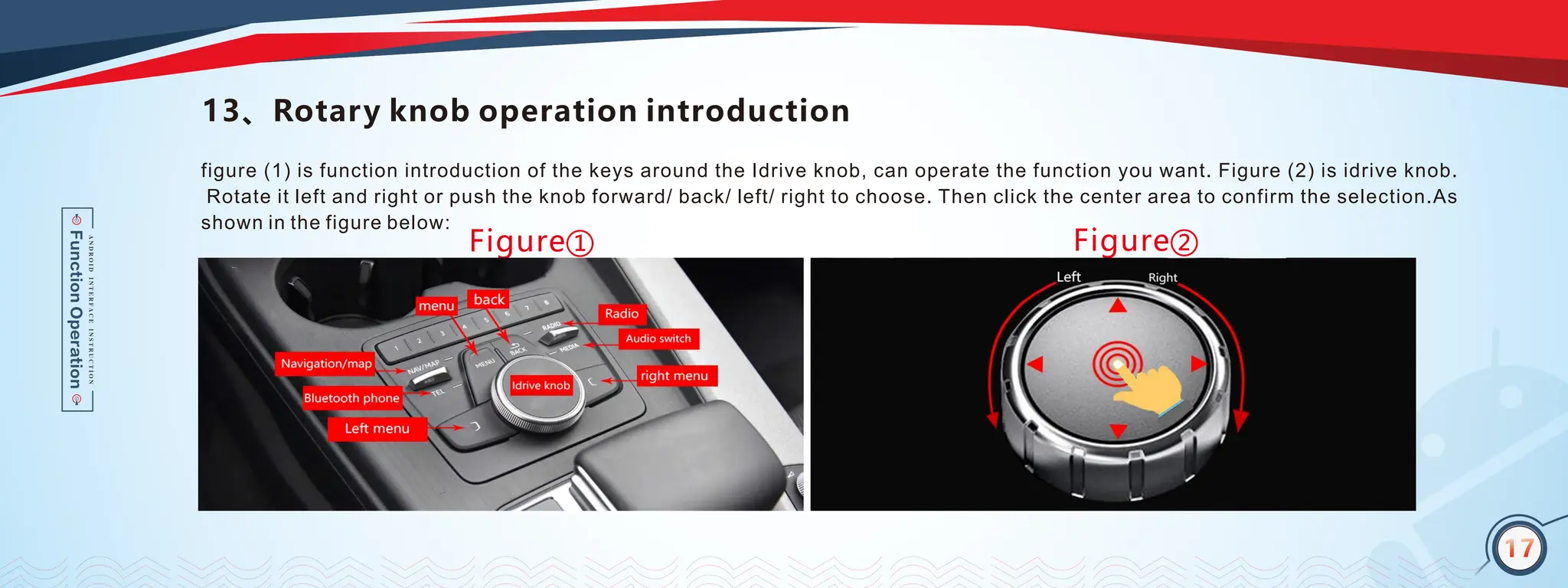

13、Rotary knob operation introduction
figure (1) is function introduction of the keys around the Idrive knob, can operate the function you want. Figure (2) is idrive knob.
Rotate it left and right or push the knob forward/ back/ left/ right to choose. Then click the center area to confirm the selection.As
shown in the figure below:
17
Figure① Figure②

15

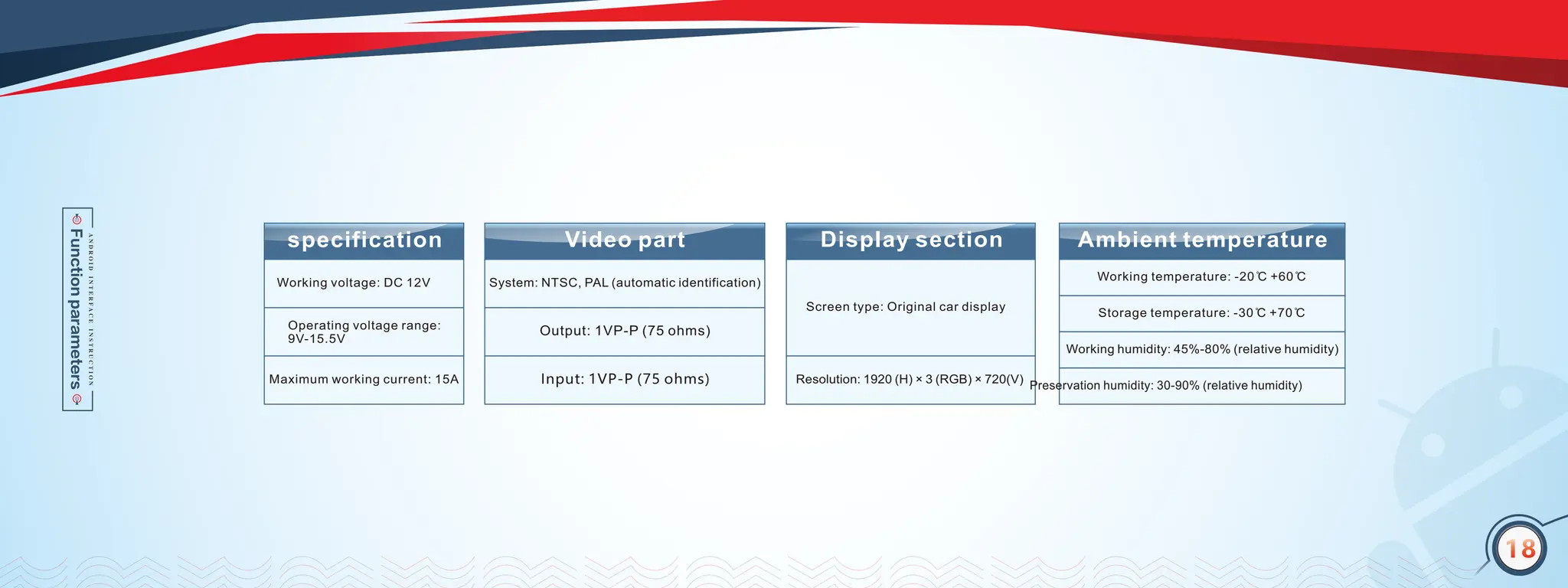

specification
Working voltage: DC 12V
Operating voltage range:
9V-15.5V
Maximum working current: 15A
Video part
System: NTSC, PAL (automatic identification)
Output: 1VP-P (75 ohms)
Input: 1VP-P (75 ohms)
Display section
Screen type: Original car display
Resolution: 1920 (H) × 3 (RGB) × 720(V)
Ambient temperature
Working temperature: -20 ̊C +60 ̊C
Storage temperature: -30 ̊C +70 ̊C
Working humidity: 45%-80% (relative humidity)
Preservation humidity: 30-90% (relative humidity)
18

16

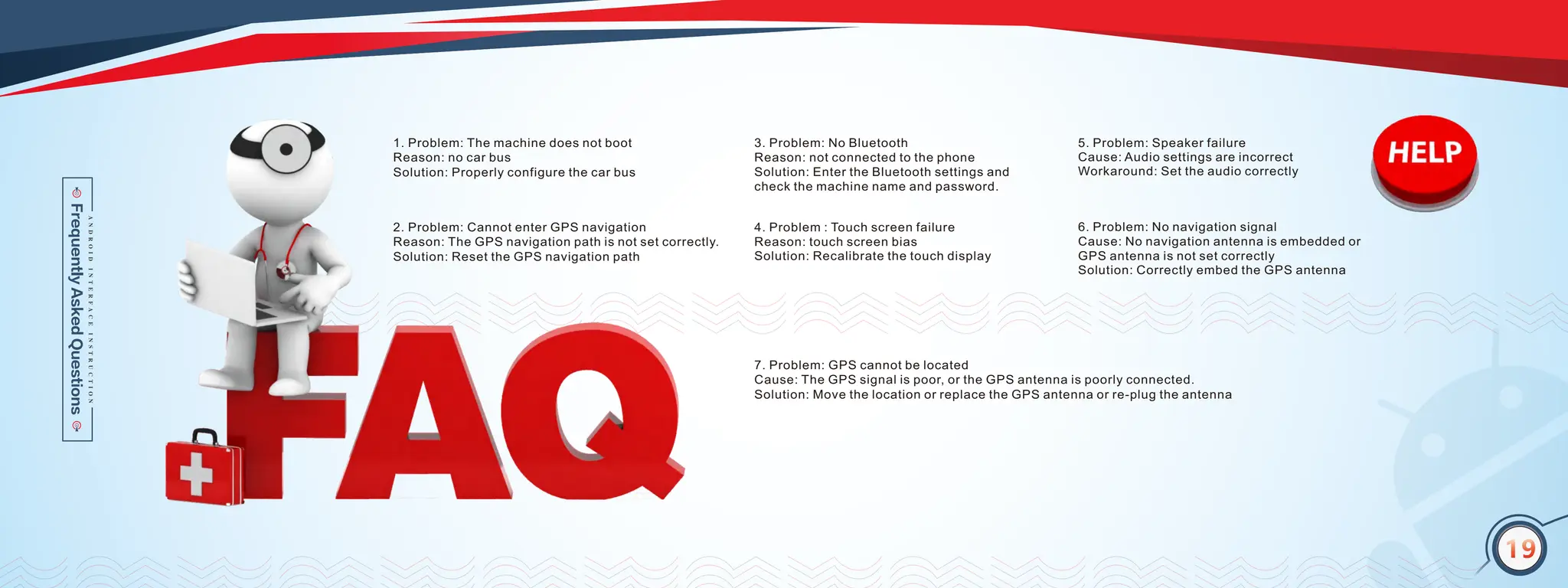

5. Problem: Speaker failure
Cause: Audio settings are incorrect
Workaround: Set the audio correctly
4. Problem : Touch screen failure
Reason: touch screen bias
Solution: Recalibrate the touch display
6. Problem: No navigation signal
Cause: No navigation antenna is embedded or
GPS antenna is not set correctly
Solution: Correctly embed the GPS antenna
7. Problem: GPS cannot be located
Cause: The GPS signal is poor, or the GPS antenna is poorly connected.
Solution: Move the location or replace the GPS antenna or re-plug the antenna
1. Problem: The machine does not boot
Reason: no car bus
Solution: Properly configure the car bus
2. Problem: Cannot enter GPS navigation
Reason: The GPS navigation path is not set correctly.
Solution: Reset the GPS navigation path
3. Problem: No Bluetooth
Reason: not connected to the phone
Solution: Enter the Bluetooth settings and
check the machine name and password.
19

17
20

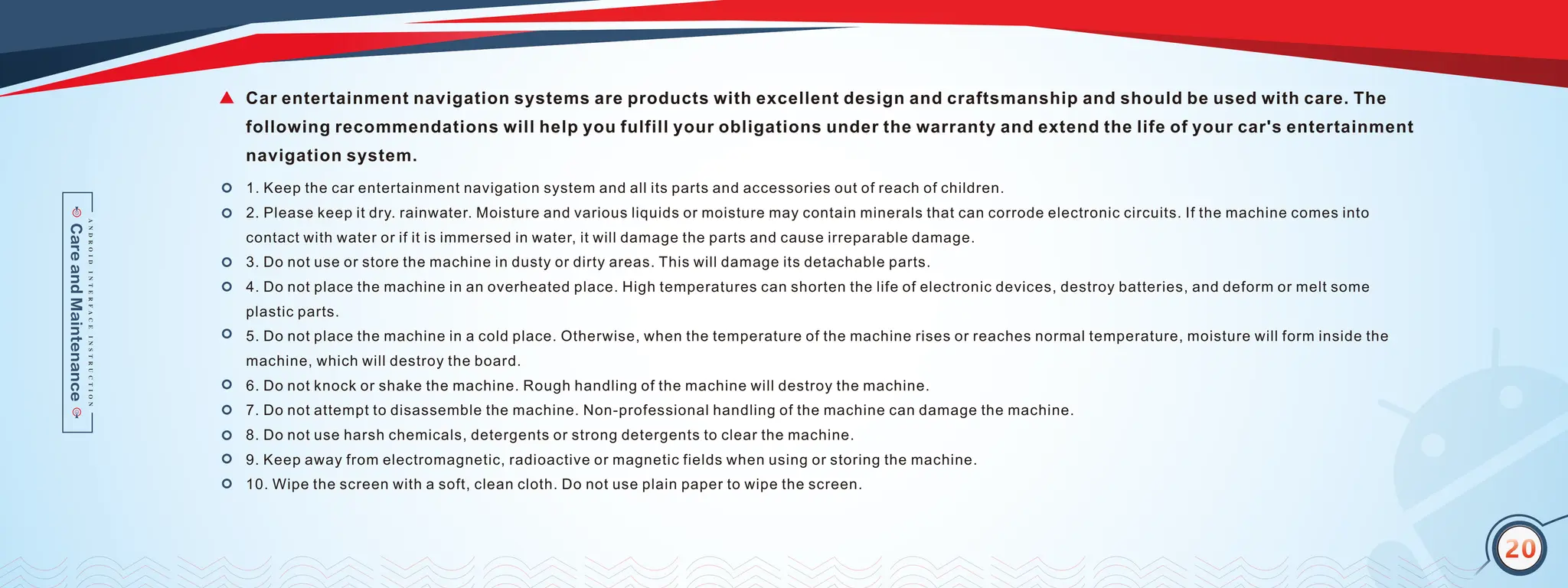

1. Keep the car entertainment navigation system and all its parts and accessories out of reach of children.
2. Please keep it dry. rainwater. Moisture and various liquids or moisture may contain minerals that can corrode electronic circuits. If the machine comes into
contact with water or if it is immersed in water, it will damage the parts and cause irreparable damage.
3. Do not use or store the machine in dusty or dirty areas. This will damage its detachable parts.
4. Do not place the machine in an overheated place. High temperatures can shorten the life of electronic devices, destroy batteries, and deform or melt some
plastic parts.
5. Do not place the machine in a cold place. Otherwise, when the temperature of the machine rises or reaches normal temperature, moisture will form inside the
machine, which will destroy the board.
6. Do not knock or shake the machine. Rough handling of the machine will destroy the machine.
7. Do not attempt to disassemble the machine. Non-professional handling of the machine can damage the machine.
8. Do not use harsh chemicals, detergents or strong detergents to clear the machine.
9. Keep away from electromagnetic, radioactive or magnetic fields when using or storing the machine.
10. Wipe the screen with a soft, clean cloth. Do not use plain paper to wipe the screen.
Car entertainment navigation systems are products with excellent design and craftsmanship and should be used with care. The
following recommendations will help you fulfill your obligations under the warranty and extend the life of your car's entertainment
navigation system.
20
