  1 Network and SecurityReference Architecture For Driving Workstyle Transformation Author: Matsuo Sawahashi Division: GTS Japan, Solutioning, Chief Architect Mail: matsuos@jp.ibm.com Chief Architect Reference Architecture Asset Series
• 2.

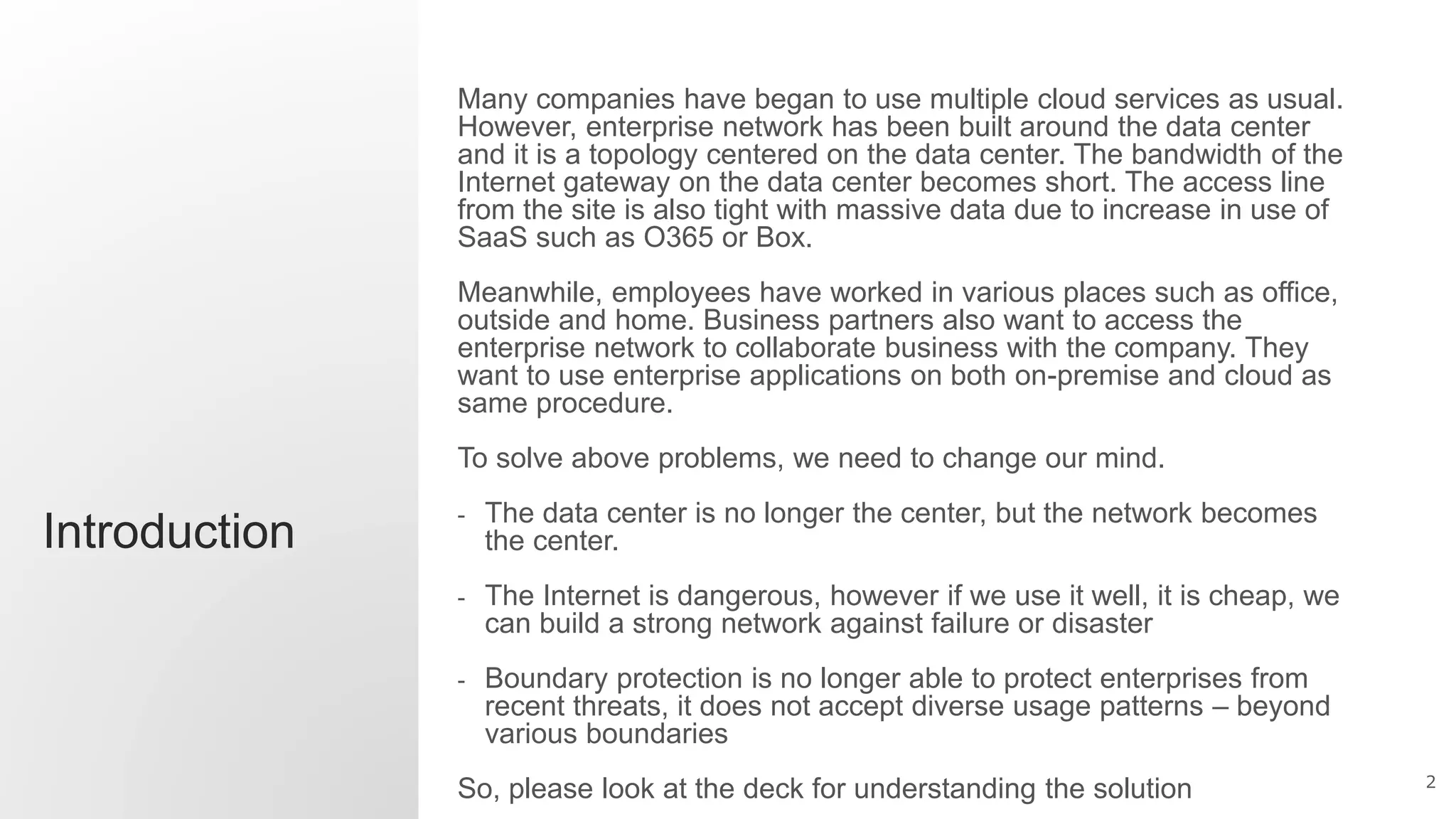

  2 Introduction Many companies havebegan to use multiple cloud services as usual. However, enterprise network has been built around the data center and it is a topology centered on the data center. The bandwidth of the Internet gateway on the data center becomes short. The access line from the site is also tight with massive data due to increase in use of SaaS such as O365 or Box. Meanwhile, employees have worked in various places such as office, outside and home. Business partners also want to access the enterprise network to collaborate business with the company. They want to use enterprise applications on both on-premise and cloud as same procedure. To solve above problems, we need to change our mind. - The data center is no longer the center, but the network becomes the center. - The Internet is dangerous, however if we use it well, it is cheap, we can build a strong network against failure or disaster - Boundary protection is no longer able to protect enterprises from recent threats, it does not accept diverse usage patterns – beyond various boundaries So, please look at the deck for understanding the solution
• 3.

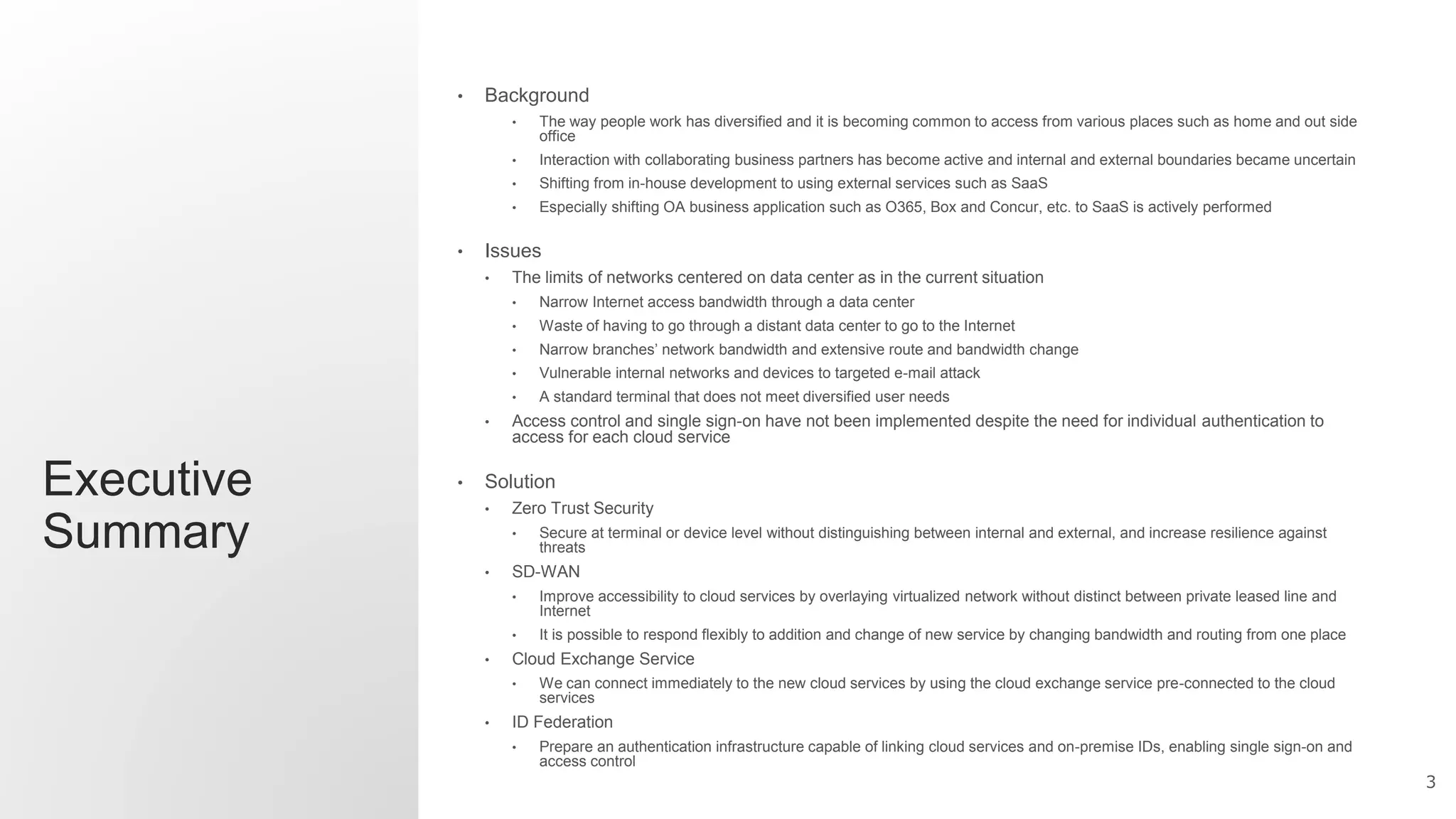

  3 Executive Summary • Background • Theway people work has diversified and it is becoming common to access from various places such as home and out side office • Interaction with collaborating business partners has become active and internal and external boundaries became uncertain • Shifting from in-house development to using external services such as SaaS • Especially shifting OA business application such as O365, Box and Concur, etc. to SaaS is actively performed • Issues • The limits of networks centered on data center as in the current situation • Narrow Internet access bandwidth through a data center • Waste of having to go through a distant data center to go to the Internet • Narrow branches’ network bandwidth and extensive route and bandwidth change • Vulnerable internal networks and devices to targeted e-mail attack • A standard terminal that does not meet diversified user needs • Access control and single sign-on have not been implemented despite the need for individual authentication to access for each cloud service • Solution • Zero Trust Security • Secure at terminal or device level without distinguishing between internal and external, and increase resilience against threats • SD-WAN • Improve accessibility to cloud services by overlaying virtualized network without distinct between private leased line and Internet • It is possible to respond flexibly to addition and change of new service by changing bandwidth and routing from one place • Cloud Exchange Service • We can connect immediately to the new cloud services by using the cloud exchange service pre-connected to the cloud services • ID Federation • Prepare an authentication infrastructure capable of linking cloud services and on-premise IDs, enabling single sign-on and access control
• 4.

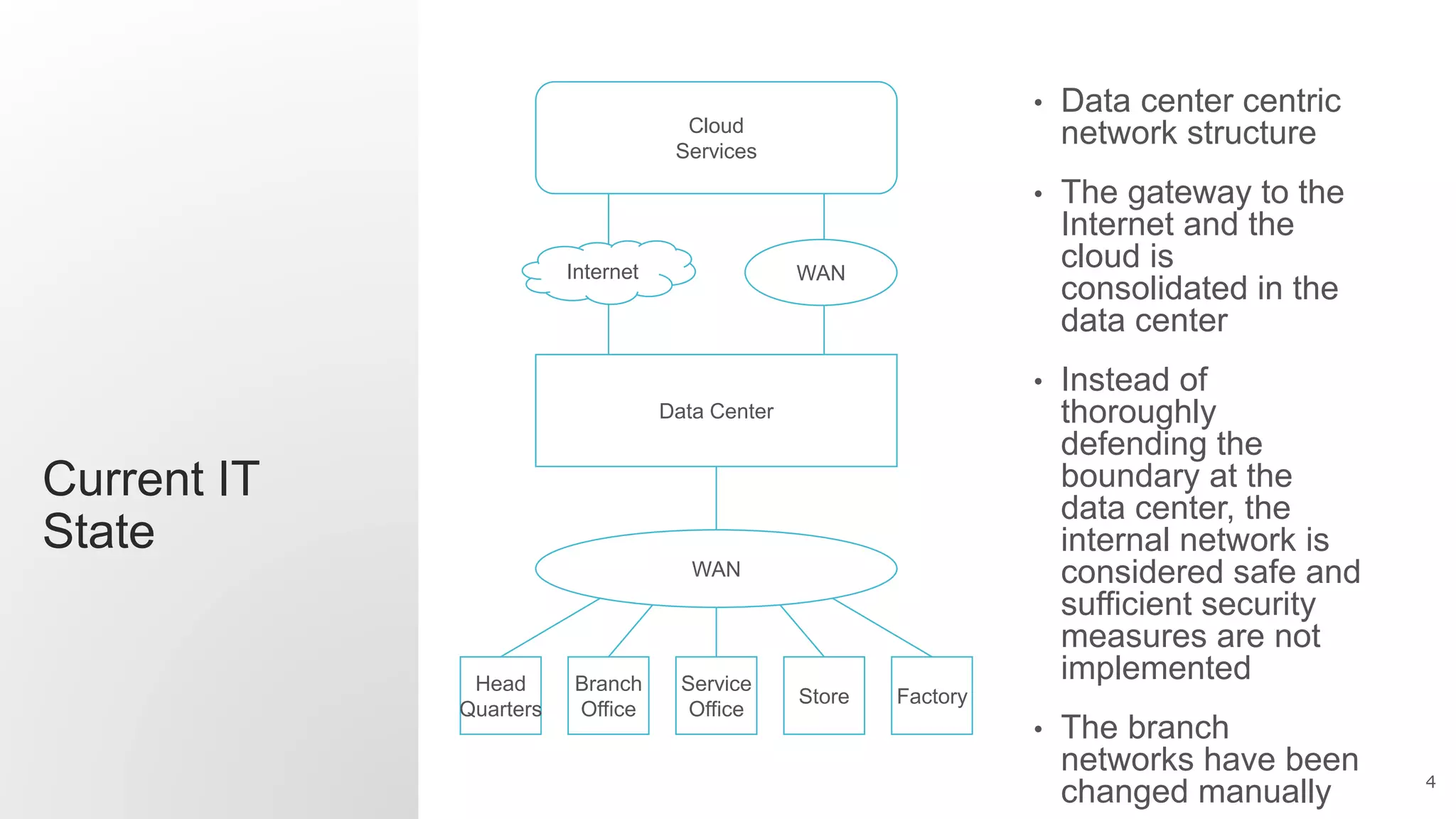

  4 Current IT State • Datacenter centric network structure • The gateway to the Internet and the cloud is consolidated in the data center • Instead of thoroughly defending the boundary at the data center, the internal network is considered safe and sufficient security measures are not implemented • The branch networks have been changed manually Data Center Head Quarters Branch Office Service Office Store Factory WAN Cloud Services Internet WAN
• 5.

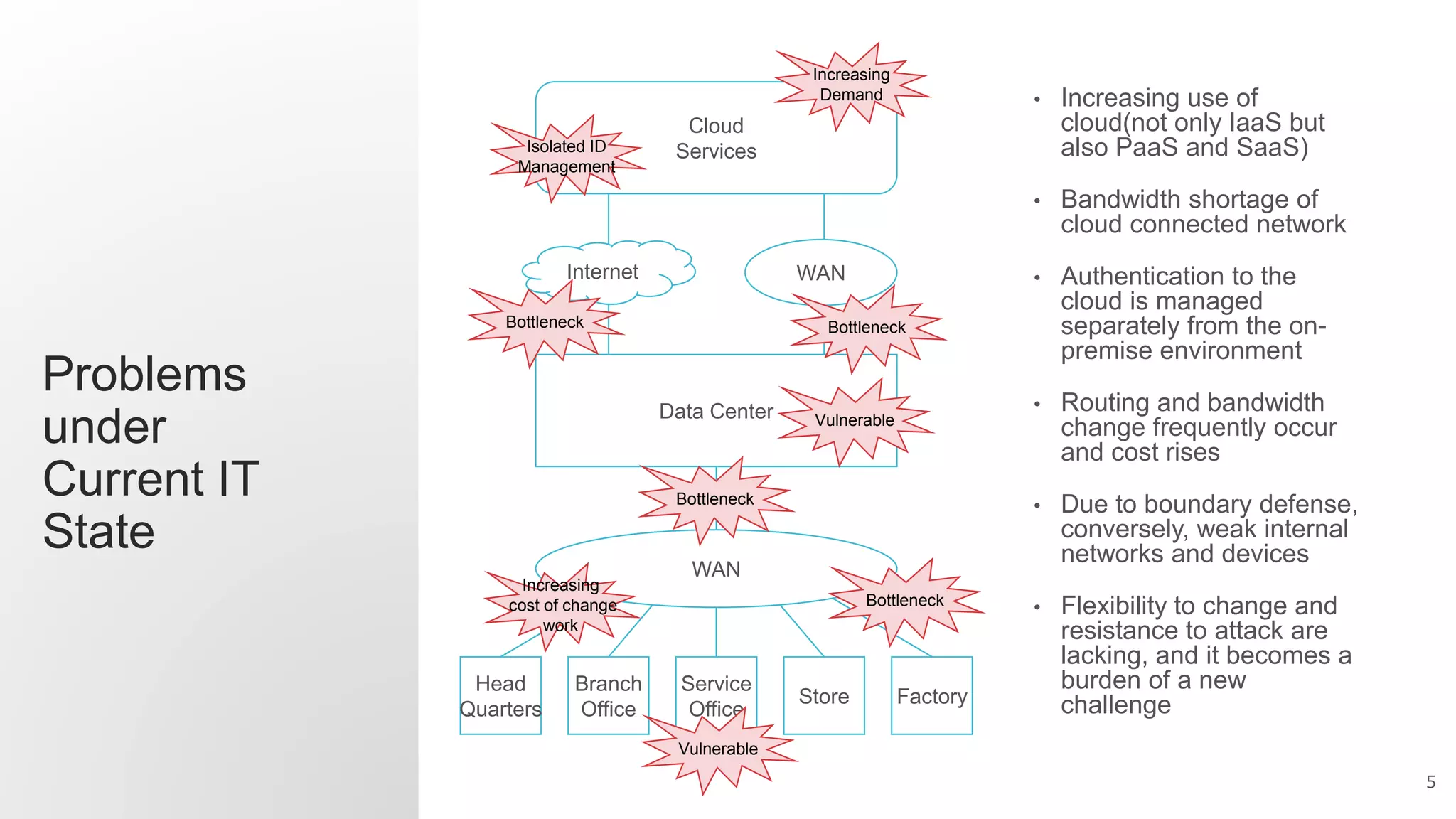

  5 Problems under Current IT State • Increasinguse of cloud(not only IaaS but also PaaS and SaaS) • Bandwidth shortage of cloud connected network • Authentication to the cloud is managed separately from the on- premise environment • Routing and bandwidth change frequently occur and cost rises • Due to boundary defense, conversely, weak internal networks and devices • Flexibility to change and resistance to attack are lacking, and it becomes a burden of a new challenge Data Center Head Quarters Branch Office Service Office Store Factory WAN Cloud Services Internet WAN Bottleneck Bottleneck Increasing Demand Increasing cost of change work Bottleneck Bottleneck Vulnerable Vulnerable Isolated ID Management
• 6.

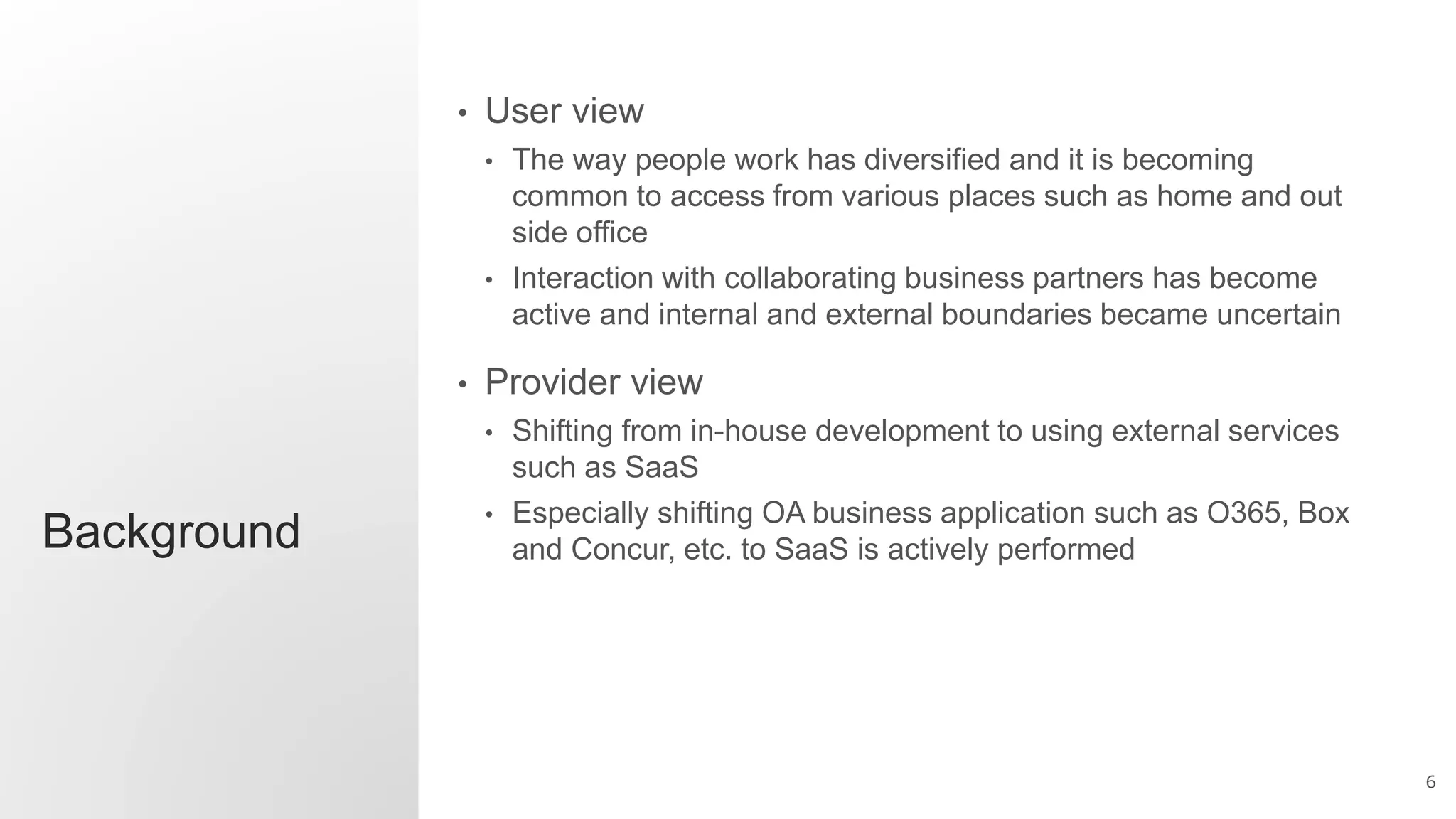

  6 Background • User view •The way people work has diversified and it is becoming common to access from various places such as home and out side office • Interaction with collaborating business partners has become active and internal and external boundaries became uncertain • Provider view • Shifting from in-house development to using external services such as SaaS • Especially shifting OA business application such as O365, Box and Concur, etc. to SaaS is actively performed
• 7.

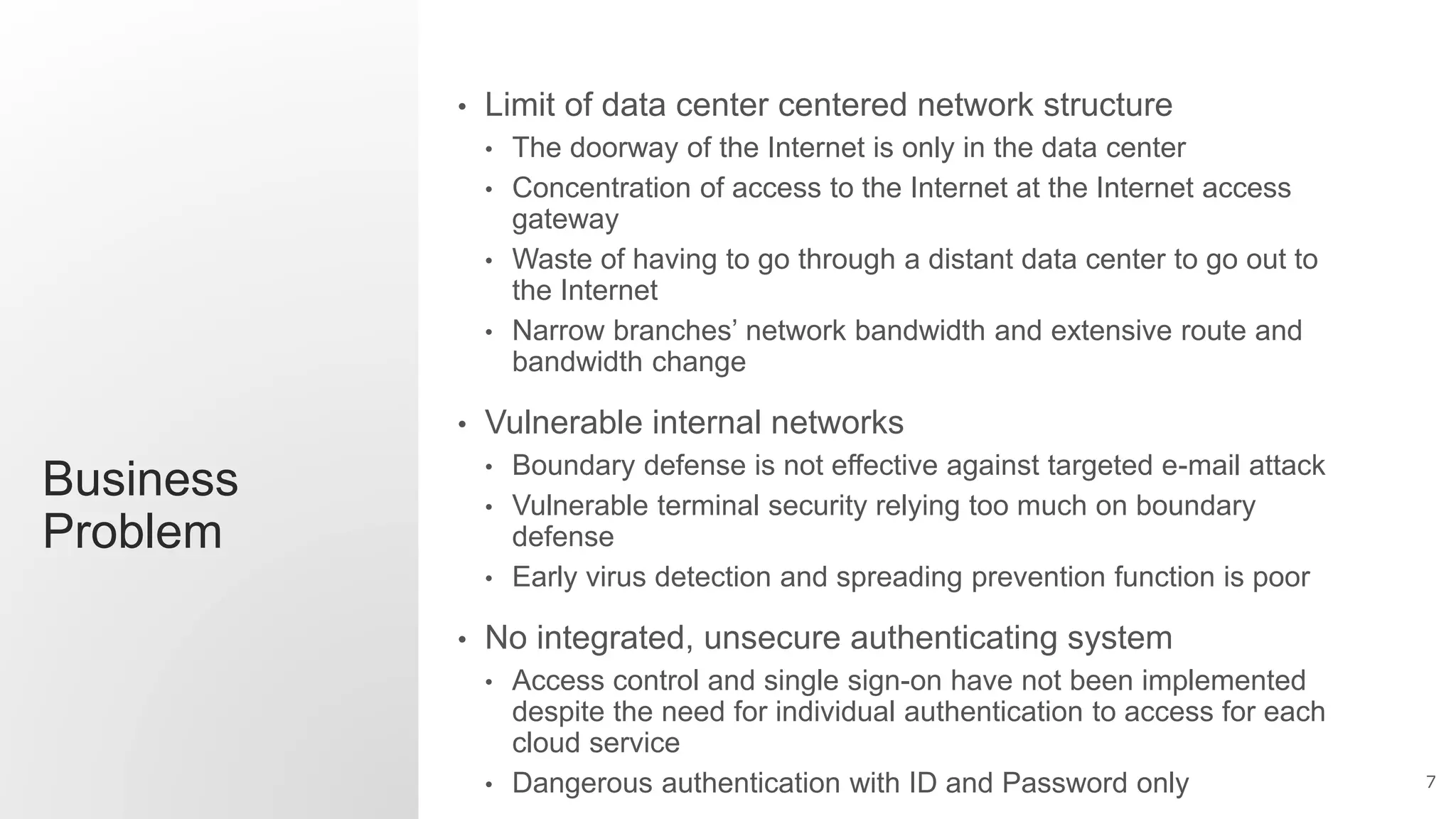

  7 Business Problem • Limit ofdata center centered network structure • The doorway of the Internet is only in the data center • Concentration of access to the Internet at the Internet access gateway • Waste of having to go through a distant data center to go out to the Internet • Narrow branches’ network bandwidth and extensive route and bandwidth change • Vulnerable internal networks • Boundary defense is not effective against targeted e-mail attack • Vulnerable terminal security relying too much on boundary defense • Early virus detection and spreading prevention function is poor • No integrated, unsecure authenticating system • Access control and single sign-on have not been implemented despite the need for individual authentication to access for each cloud service • Dangerous authentication with ID and Password only
• 8.

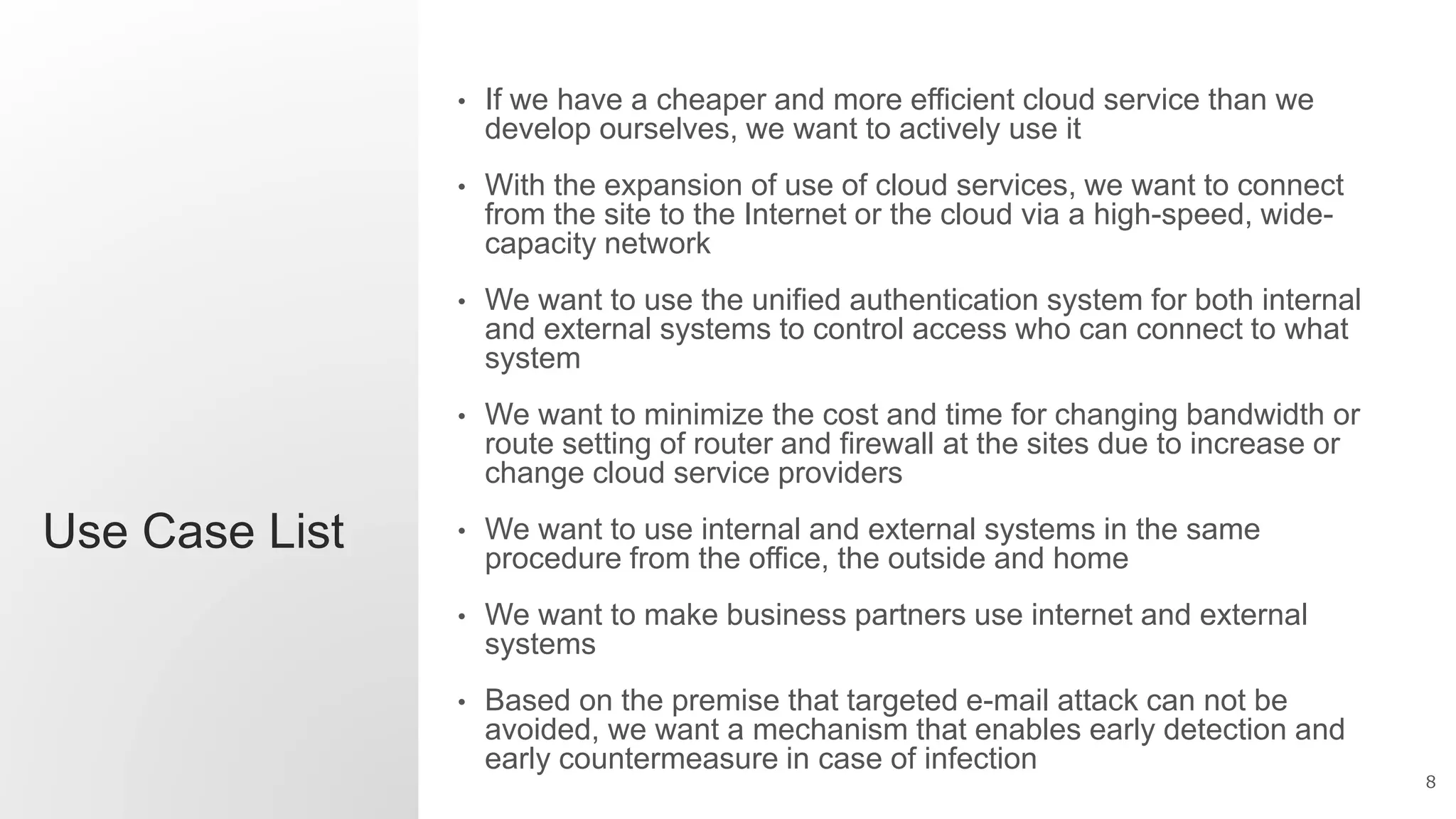

  8 Use Case List •If we have a cheaper and more efficient cloud service than we develop ourselves, we want to actively use it • With the expansion of use of cloud services, we want to connect from the site to the Internet or the cloud via a high-speed, wide- capacity network • We want to use the unified authentication system for both internal and external systems to control access who can connect to what system • We want to minimize the cost and time for changing bandwidth or route setting of router and firewall at the sites due to increase or change cloud service providers • We want to use internal and external systems in the same procedure from the office, the outside and home • We want to make business partners use internet and external systems • Based on the premise that targeted e-mail attack can not be avoided, we want a mechanism that enables early detection and early countermeasure in case of infection
• 9.

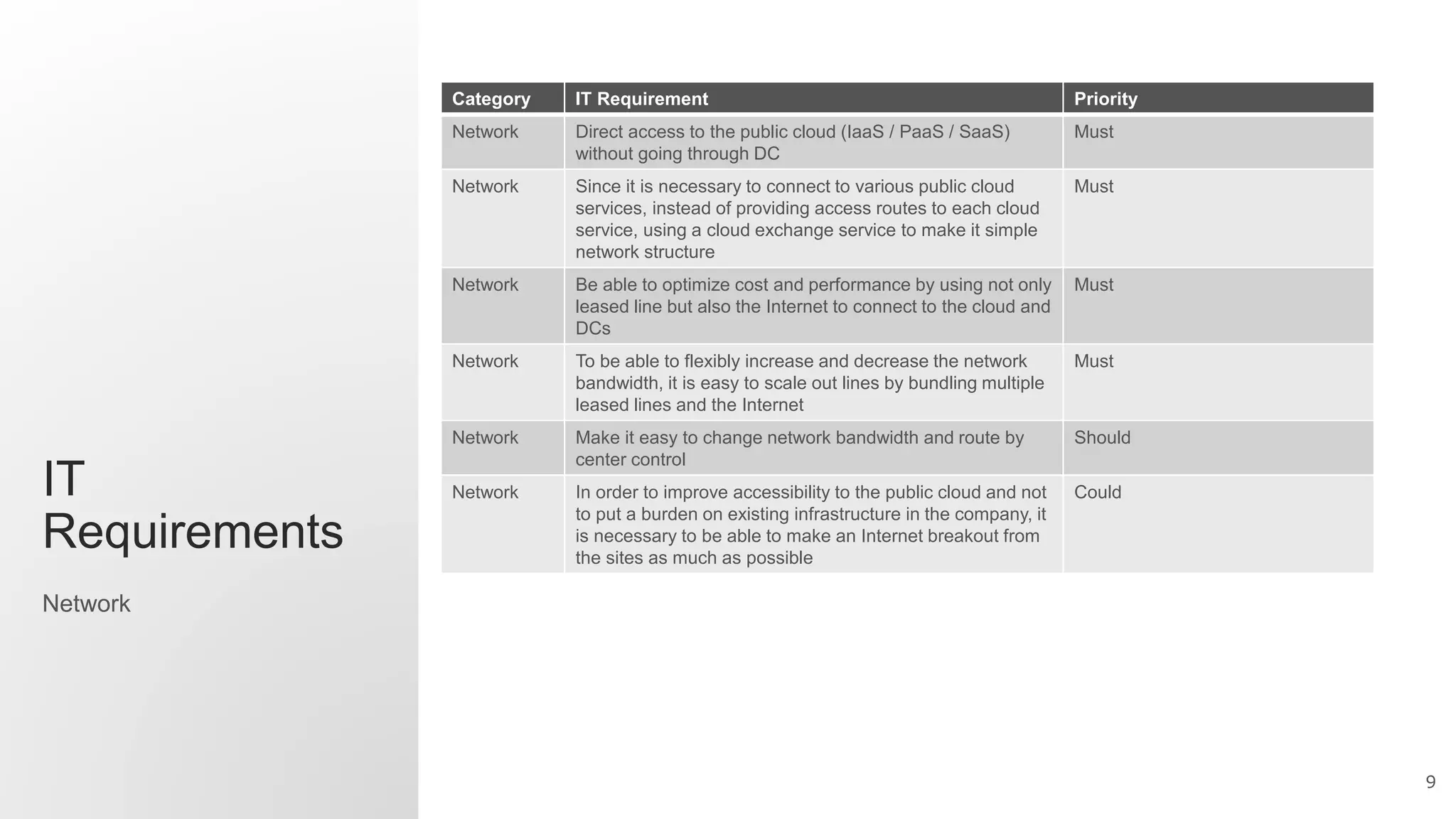

  9 IT Requirements Category IT RequirementPriority Network Direct access to the public cloud (IaaS / PaaS / SaaS) without going through DC Must Network Since it is necessary to connect to various public cloud services, instead of providing access routes to each cloud service, using a cloud exchange service to make it simple network structure Must Network Be able to optimize cost and performance by using not only leased line but also the Internet to connect to the cloud and DCs Must Network To be able to flexibly increase and decrease the network bandwidth, it is easy to scale out lines by bundling multiple leased lines and the Internet Must Network Make it easy to change network bandwidth and route by center control Should Network In order to improve accessibility to the public cloud and not to put a burden on existing infrastructure in the company, it is necessary to be able to make an Internet breakout from the sites as much as possible Could Network
• 10.

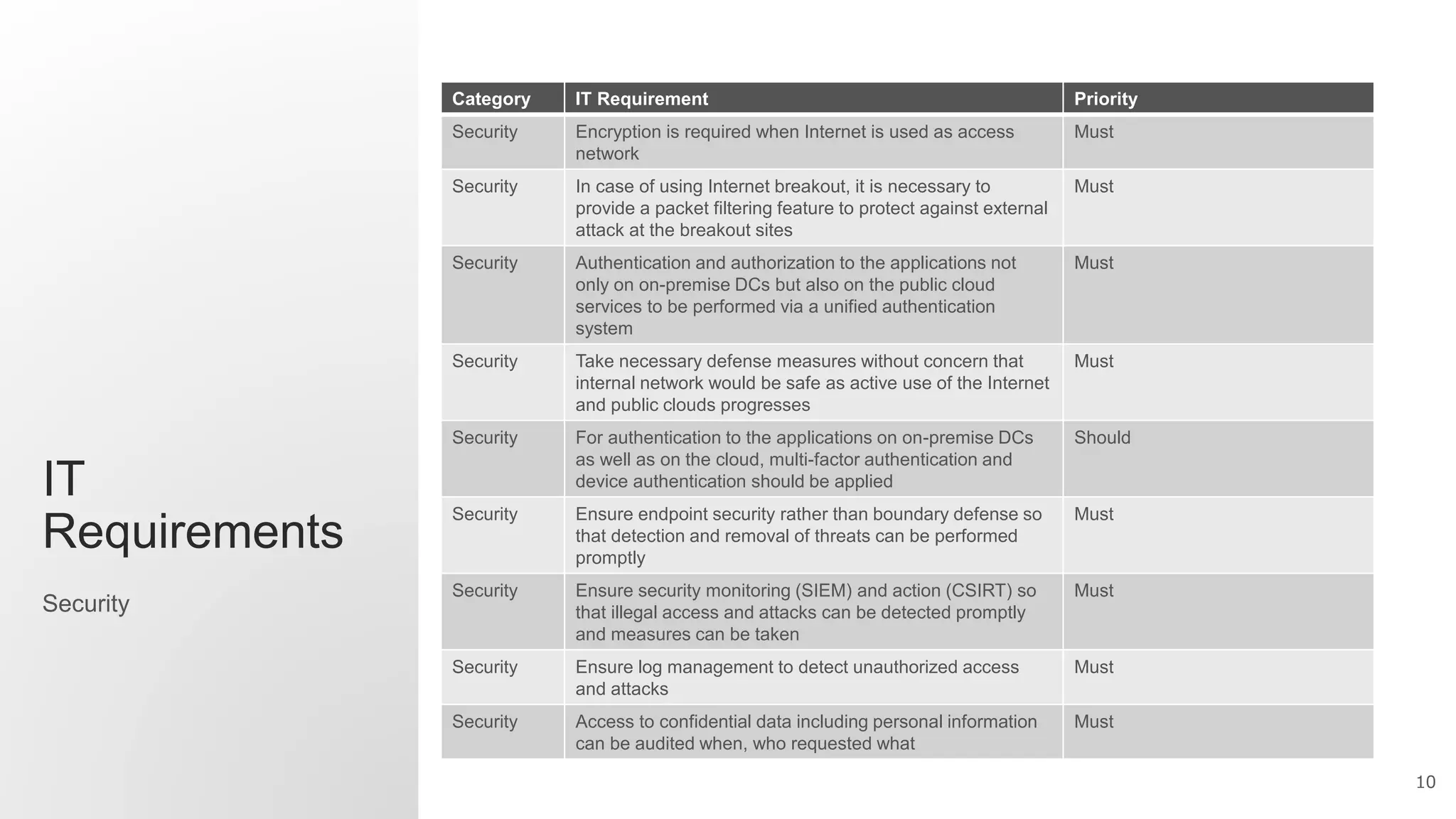

  10 IT Requirements Category IT RequirementPriority Security Encryption is required when Internet is used as access network Must Security In case of using Internet breakout, it is necessary to provide a packet filtering feature to protect against external attack at the breakout sites Must Security Authentication and authorization to the applications not only on on-premise DCs but also on the public cloud services to be performed via a unified authentication system Must Security Take necessary defense measures without concern that internal network would be safe as active use of the Internet and public clouds progresses Must Security For authentication to the applications on on-premise DCs as well as on the cloud, multi-factor authentication and device authentication should be applied Should Security Ensure endpoint security rather than boundary defense so that detection and removal of threats can be performed promptly Must Security Ensure security monitoring (SIEM) and action (CSIRT) so that illegal access and attacks can be detected promptly and measures can be taken Must Security Ensure log management to detect unauthorized access and attacks Must Security Access to confidential data including personal information can be audited when, who requested what Must Security
• 11.

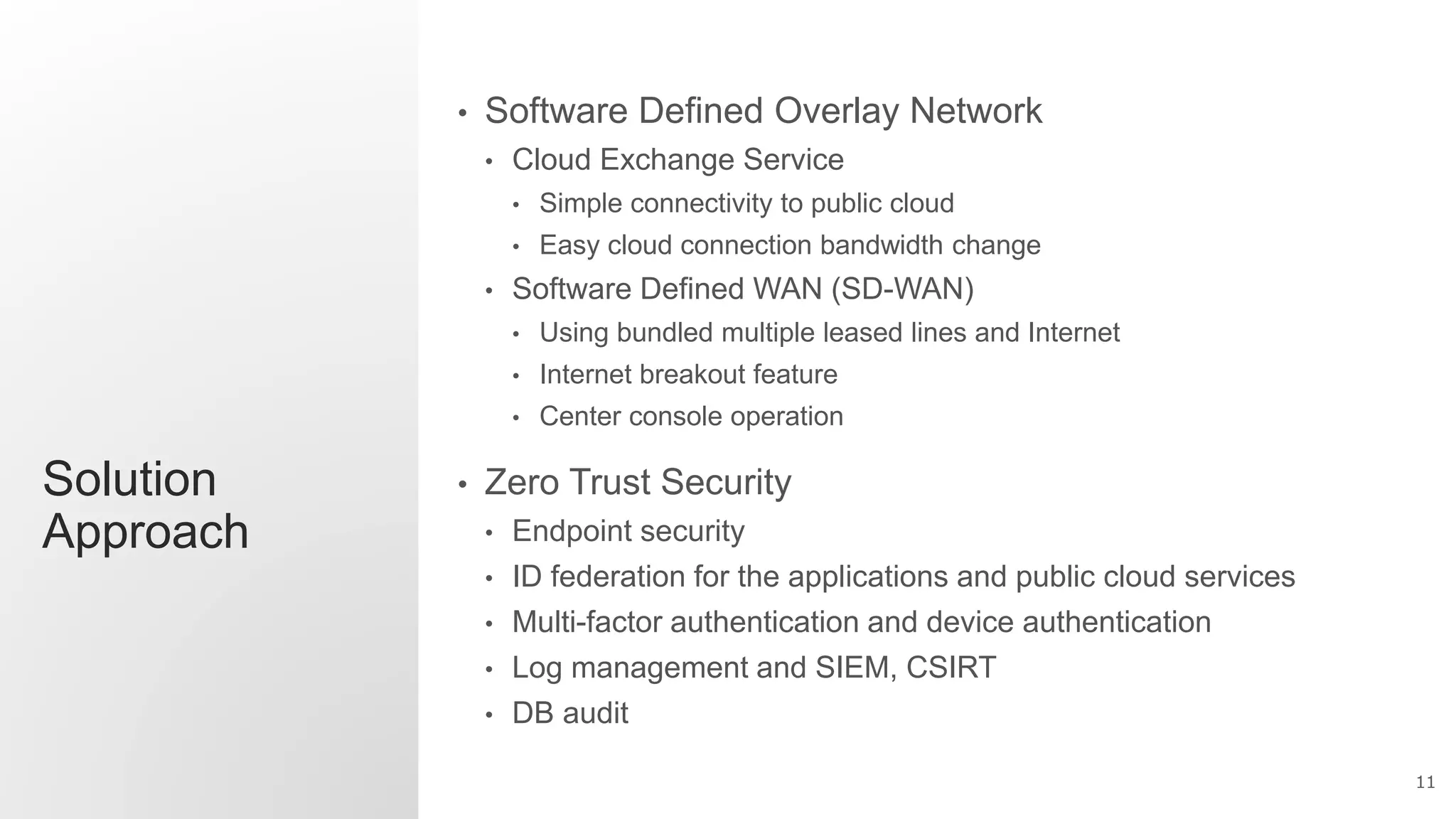

  11 Solution Approach • Software DefinedOverlay Network • Cloud Exchange Service • Simple connectivity to public cloud • Easy cloud connection bandwidth change • Software Defined WAN (SD-WAN) • Using bundled multiple leased lines and Internet • Internet breakout feature • Center console operation • Zero Trust Security • Endpoint security • ID federation for the applications and public cloud services • Multi-factor authentication and device authentication • Log management and SIEM, CSIRT • DB audit
• 12.

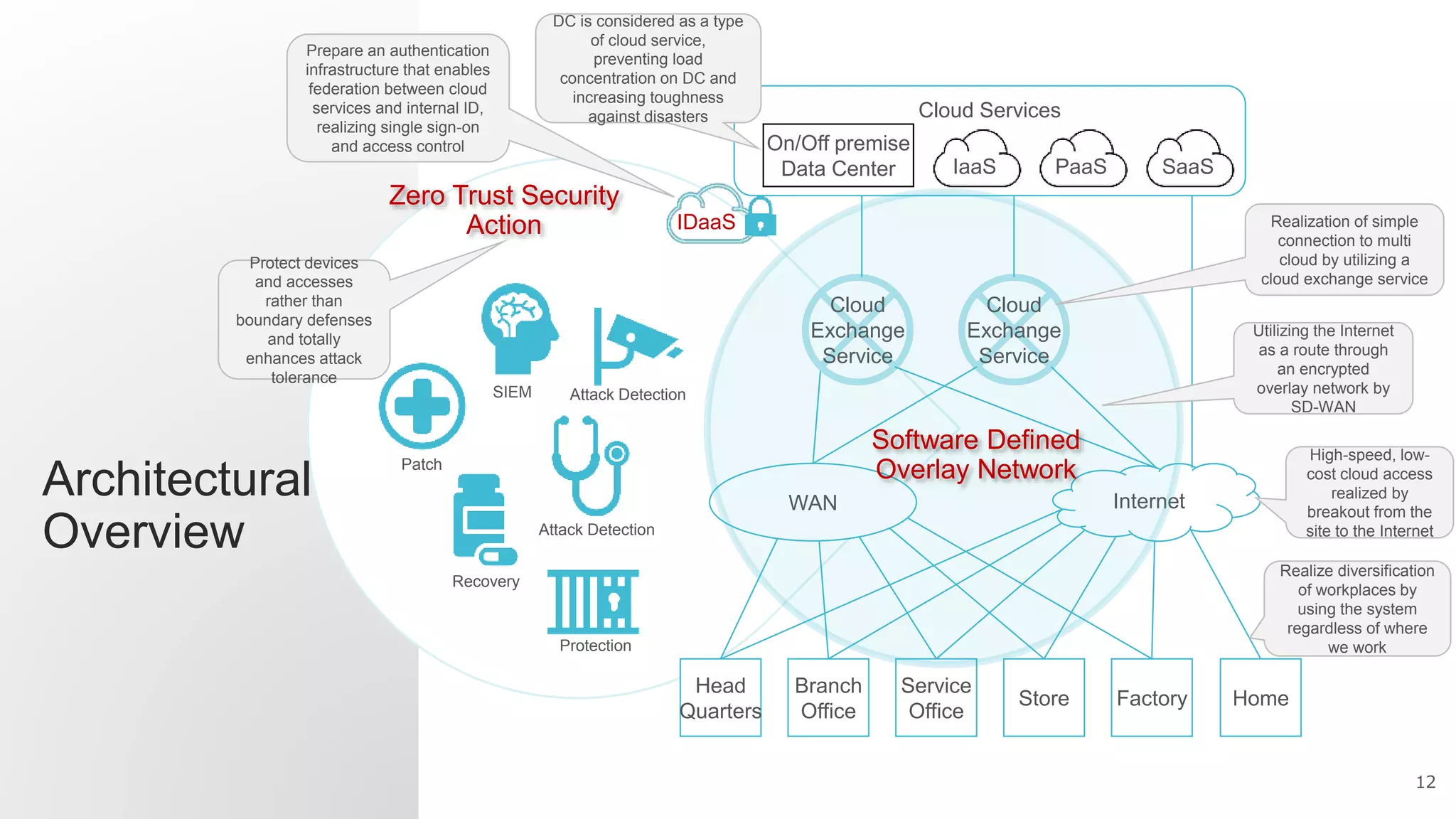

  12 Architectural Overview Head Quarters Branch Office Service Office Store Factory WAN Cloud Services Internet Cloud Exchange Service Cloud Exchange Service On/Offpremise Data Center IaaS PaaS SaaS Attack DetectionSIEM Attack Detection Protection Recovery Patch Zero Trust Security Action IDaaS DC is considered as a type of cloud service, preventing load concentration on DC and increasing toughness against disasters Protect devices and accesses rather than boundary defenses and totally enhances attack tolerance Realize diversification of workplaces by using the system regardless of where we work Utilizing the Internet as a route through an encrypted overlay network by SD-WAN High-speed, low- cost cloud access realized by breakout from the site to the Internet Realization of simple connection to multi cloud by utilizing a cloud exchange service Software Defined Overlay Network Prepare an authentication infrastructure that enables federation between cloud services and internal ID, realizing single sign-on and access control Home
• 13.

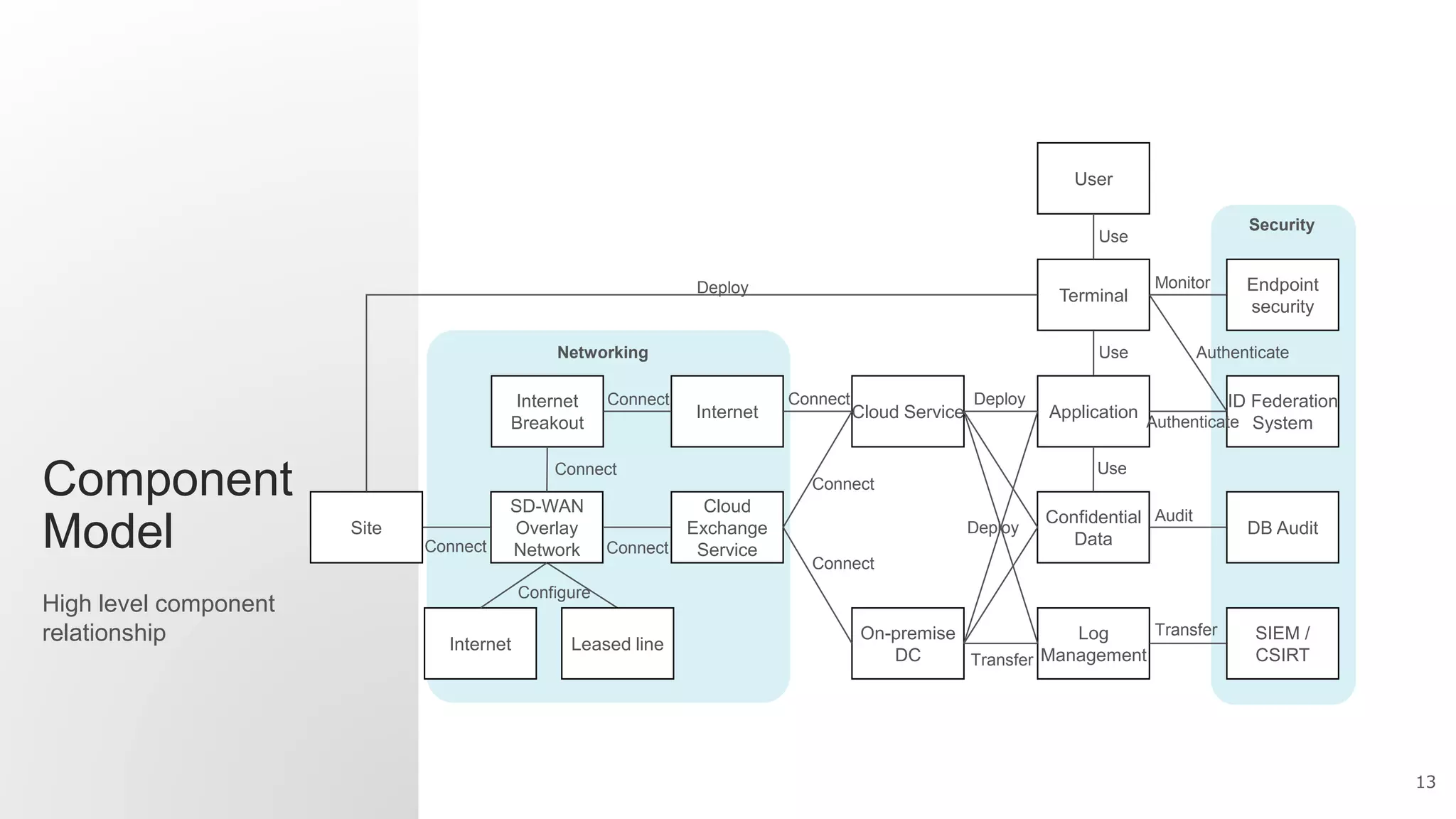

  13 Component Model High level component relationship Cloud Exchange Service IDFederation System Application On-premise DC Cloud Service Terminal Endpoint security User SD-WAN Overlay Network Internet Leased line Internet Internet Breakout Site Deploy Use Use Authenticate Authenticate Deploy Deploy Connect Connect Connect Connect Connect Connect Configure Connect Log ManagementTransfer SIEM / CSIRT Transfer Monitor Confidential Data DB Audit Audit Use Security Networking
• 14.

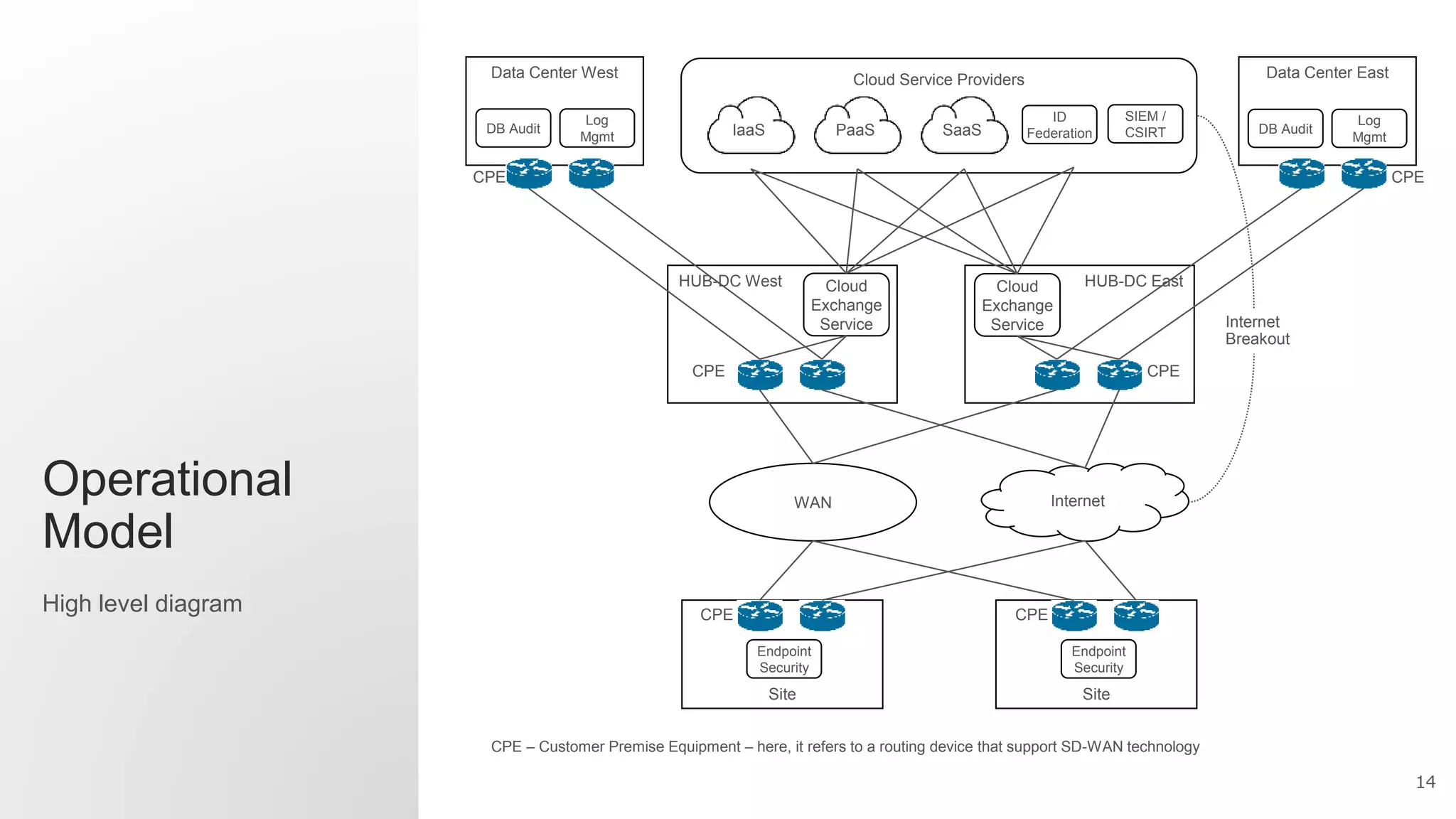

  14 Cloud Service Providers HUB-DCWest CPE Cloud Exchange Service HUB-DC East CPE Cloud Exchange Service Operational Model High level diagram Data Center East IaaS PaaS SaaS WAN Internet Site CPE Site CPE Internet Breakout Data Center West CPE CPE CPE – Customer Premise Equipment – here, it refers to a routing device that support SD-WAN technology Endpoint Security SIEM / CSIRTDB Audit ID Federation Endpoint Security Log Mgmt DB Audit Log Mgmt
• 15.

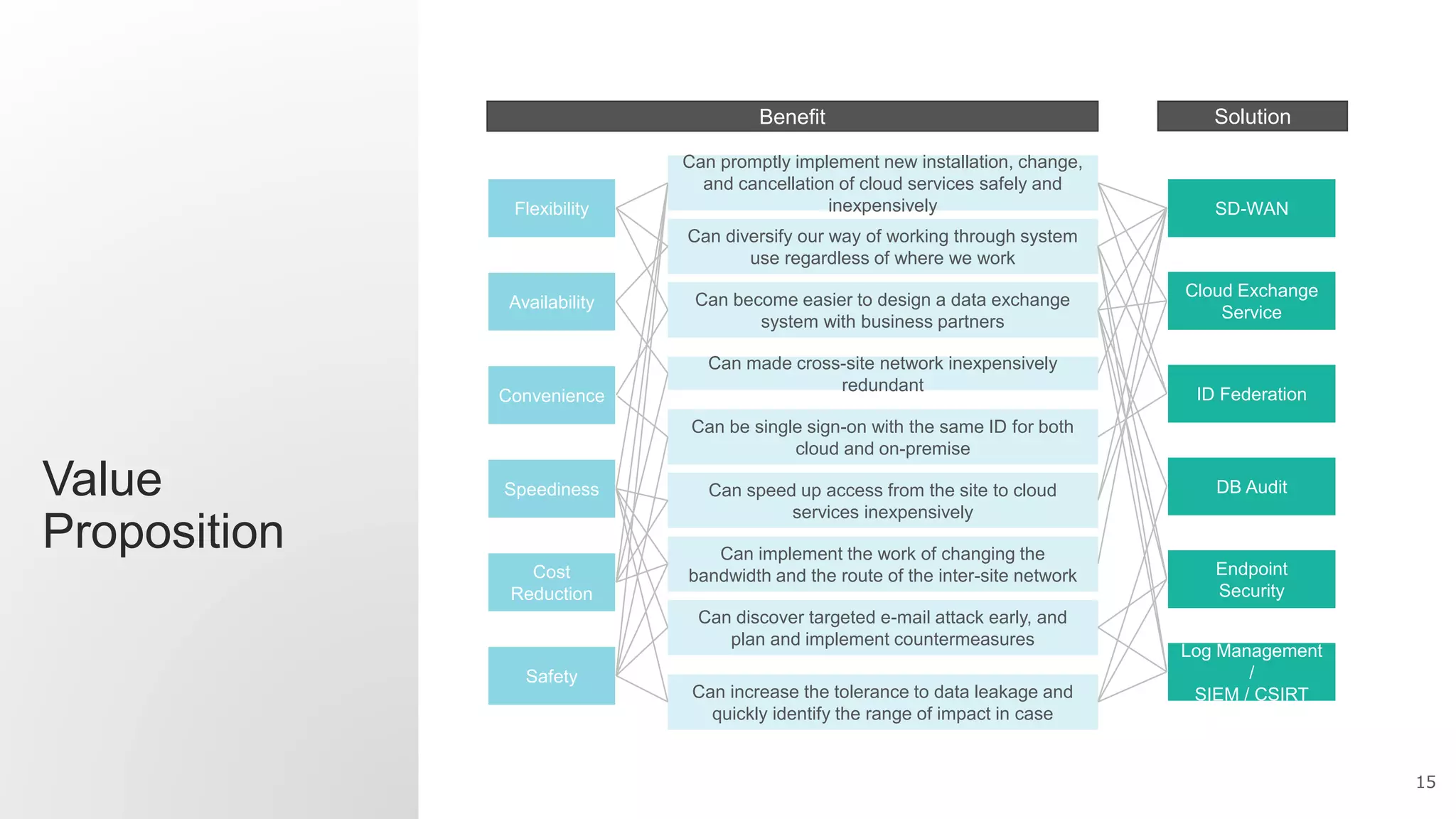

  15 Value Proposition Flexibility Can promptly implementnew installation, change, and cancellation of cloud services safely and inexpensively Can diversify our way of working through system use regardless of where we work Can made cross-site network inexpensively redundant Can be single sign-on with the same ID for both cloud and on-premise Can discover targeted e-mail attack early, and plan and implement countermeasures Can speed up access from the site to cloud services inexpensively Can implement the work of changing the bandwidth and the route of the inter-site network Can increase the tolerance to data leakage and quickly identify the range of impact in case Can become easier to design a data exchange system with business partners Availability Convenience Safety Cost Reduction Speediness DB Audit ID Federation Endpoint Security Log Management / SIEM / CSIRT SD-WAN Cloud Exchange Service Benefit Solution
• 16.

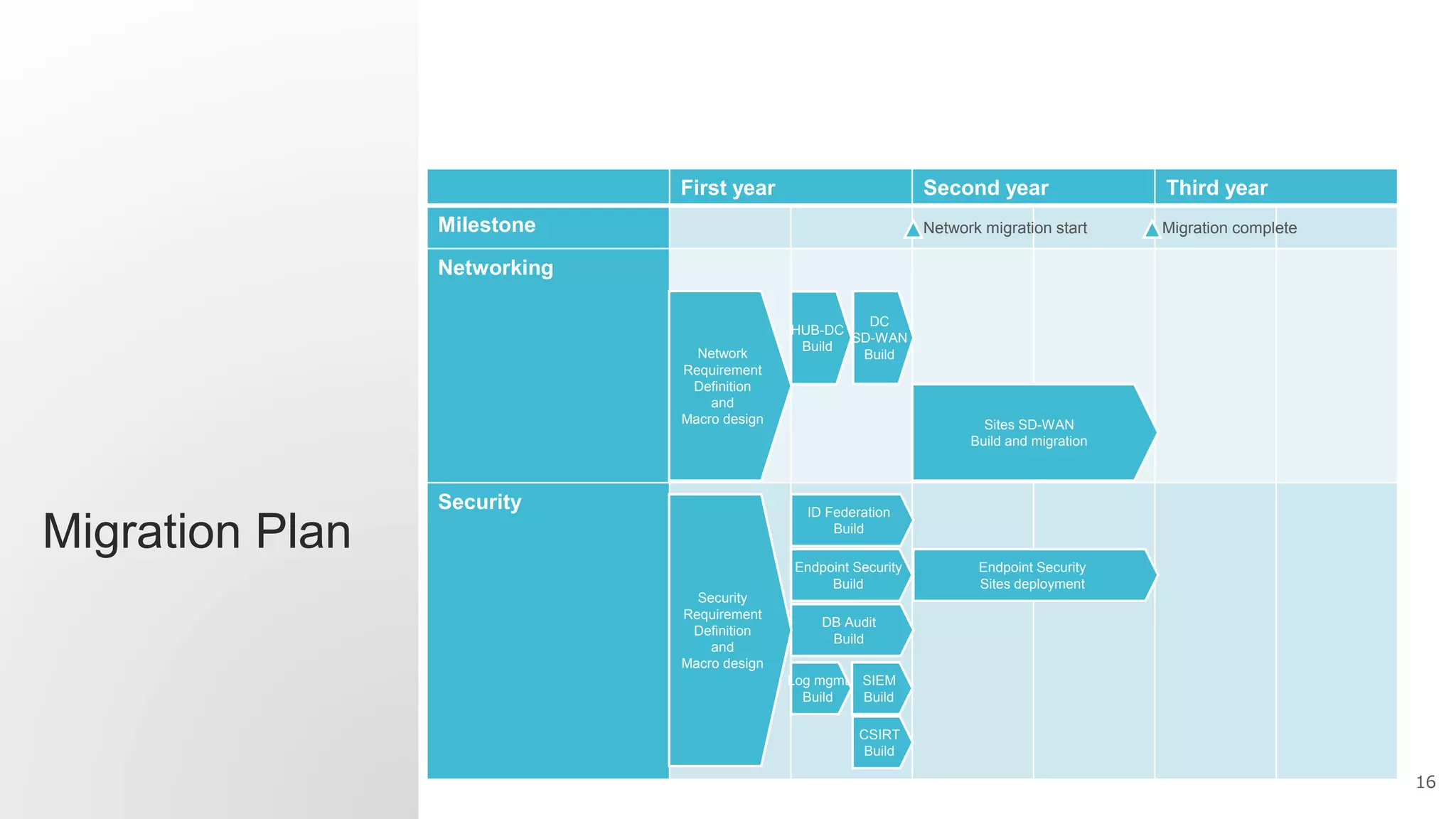

  16 Migration Plan First yearSecond year Third year Milestone Networking Security HUB-DC Build DC SD-WAN Build Sites SD-WAN Build and migration ID Federation Build DB Audit Build Endpoint Security Build Log mgmt Build SIEM Build CSIRT Build Endpoint Security Sites deployment Security Requirement Definition and Macro design Network Requirement Definition and Macro design Network migration start Migration complete
• 17.

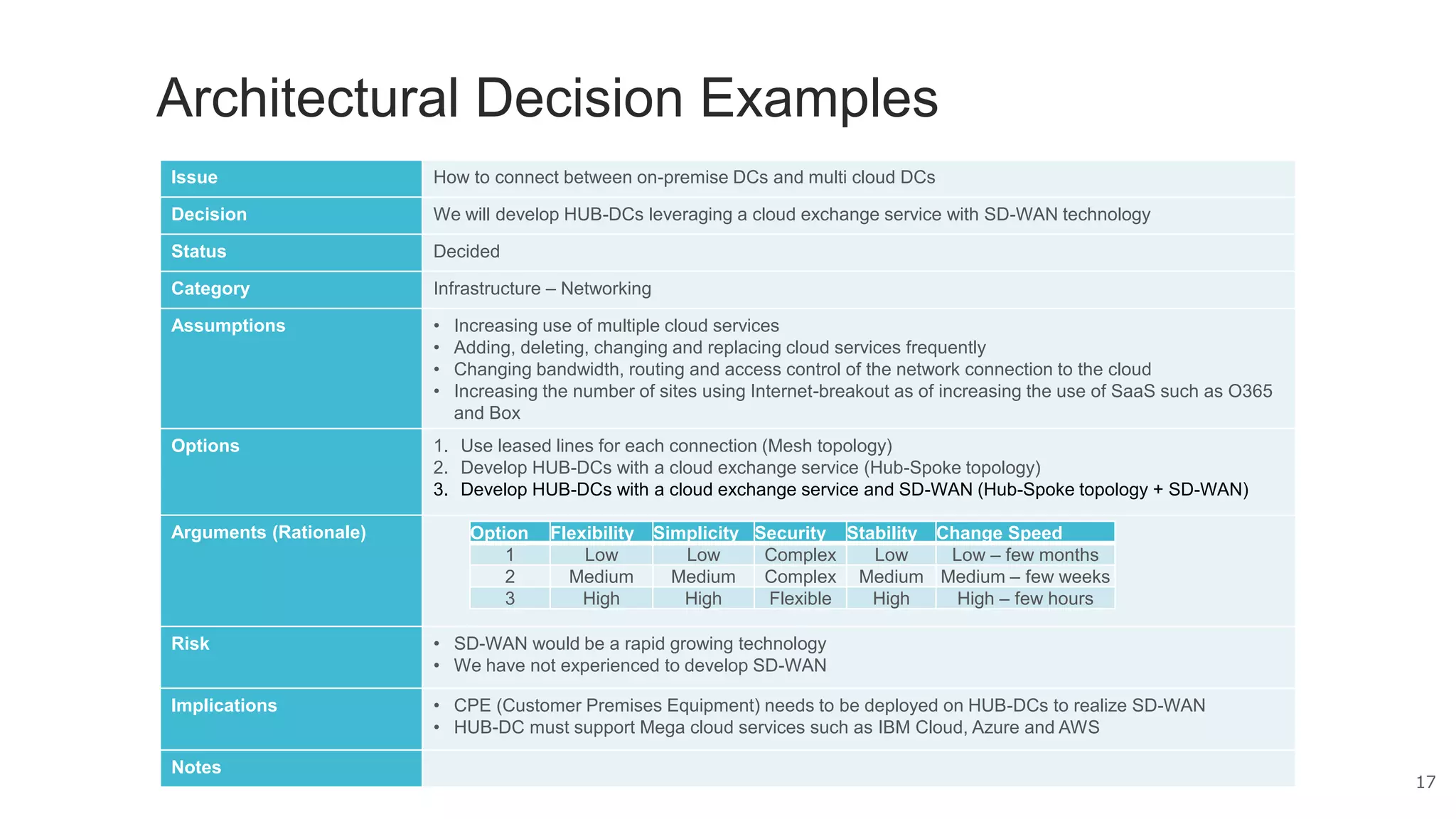

  17 Architectural Decision Examples IssueHow to connect between on-premise DCs and multi cloud DCs Decision We will develop HUB-DCs leveraging a cloud exchange service with SD-WAN technology Status Decided Category Infrastructure – Networking Assumptions • Increasing use of multiple cloud services • Adding, deleting, changing and replacing cloud services frequently • Changing bandwidth, routing and access control of the network connection to the cloud • Increasing the number of sites using Internet-breakout as of increasing the use of SaaS such as O365 and Box Options 1. Use leased lines for each connection (Mesh topology) 2. Develop HUB-DCs with a cloud exchange service (Hub-Spoke topology) 3. Develop HUB-DCs with a cloud exchange service and SD-WAN (Hub-Spoke topology + SD-WAN) Arguments (Rationale) Risk • SD-WAN would be a rapid growing technology • We have not experienced to develop SD-WAN Implications • CPE (Customer Premises Equipment) needs to be deployed on HUB-DCs to realize SD-WAN • HUB-DC must support Mega cloud services such as IBM Cloud, Azure and AWS Notes Option Flexibility Simplicity Security Stability Change Speed 1 Low Low Complex Low Low – few months 2 Medium Medium Complex Medium Medium – few weeks 3 High High Flexible High High – few hours
