Let Android dream electric sheep:
Making emotion model for chat-bot with
Python3, NLTK and TensorFlow
Jeongkyu Shin
Lablup Inc.

Let Android dream electric sheep:
Making emotion model for chat-bot with
Python3, NLTK and TensorFlow
Jeongkyu Shin
Lablup Inc.
Illustration * © Idol M@aster / Bandai Namco Games. All rights reserved.

–Bryce Courtenay's The Power of One
“First with the head, then with the heart.”

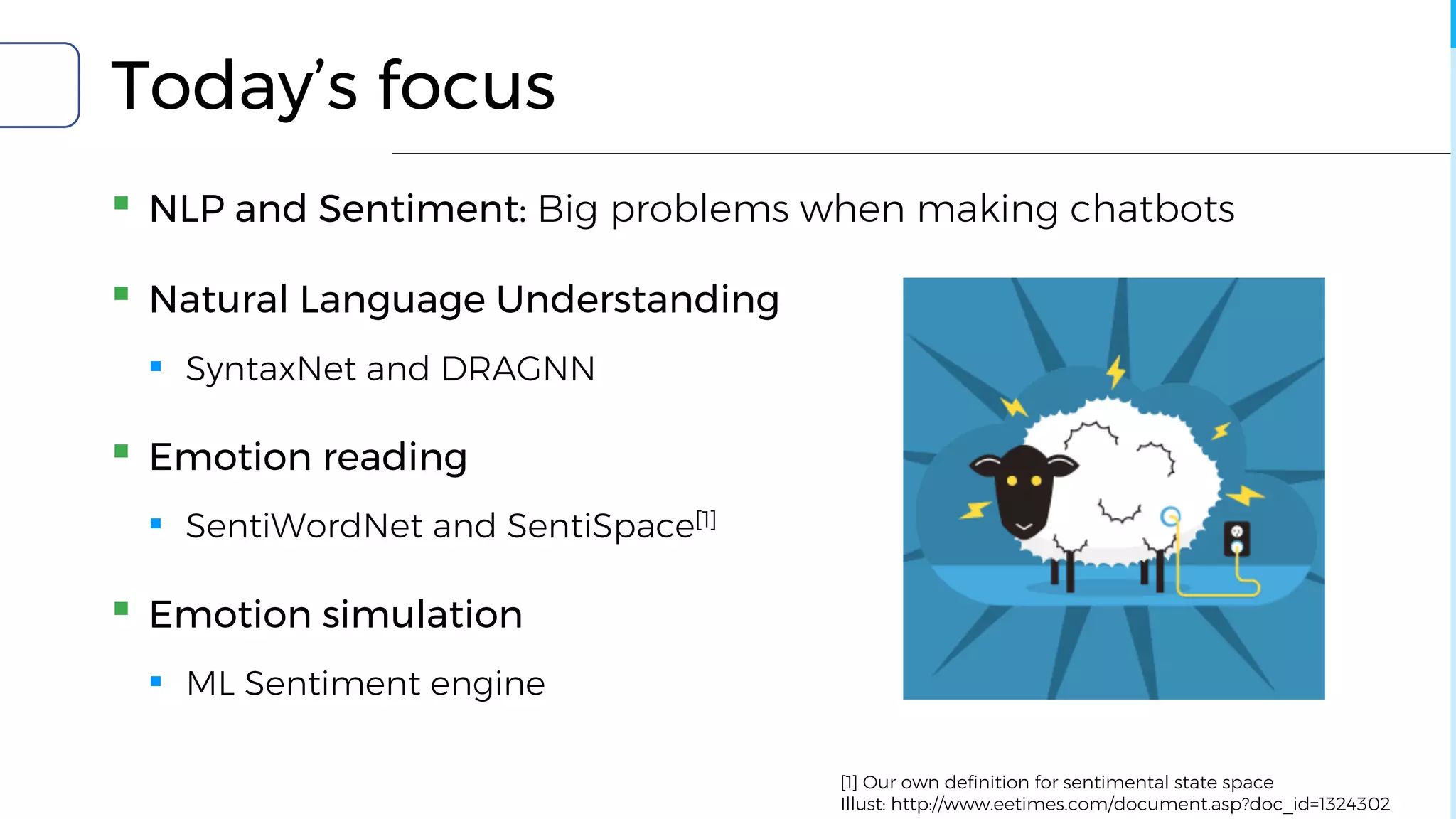

Today’s focus
▪ NLP and Sentiment: Big problems when making chatbots
▪ Natural Language Understanding
▪ SyntaxNet and DRAGNN
▪ Emotion reading
▪ SentiWordNet and SentiSpace[1]
▪ Emotion simulation
▪ ML Sentiment engine
[1] Our own definition for sentimental state space
Illust: http://www.eetimes.com/document.asp?doc_id=1324302

I’m not sure but
I’ll try to explain the
whole process I did

And I assume
that you already
have experience /
knowledge about
machine learning
Illustration *(c) marioandluigi97.deviantart.com

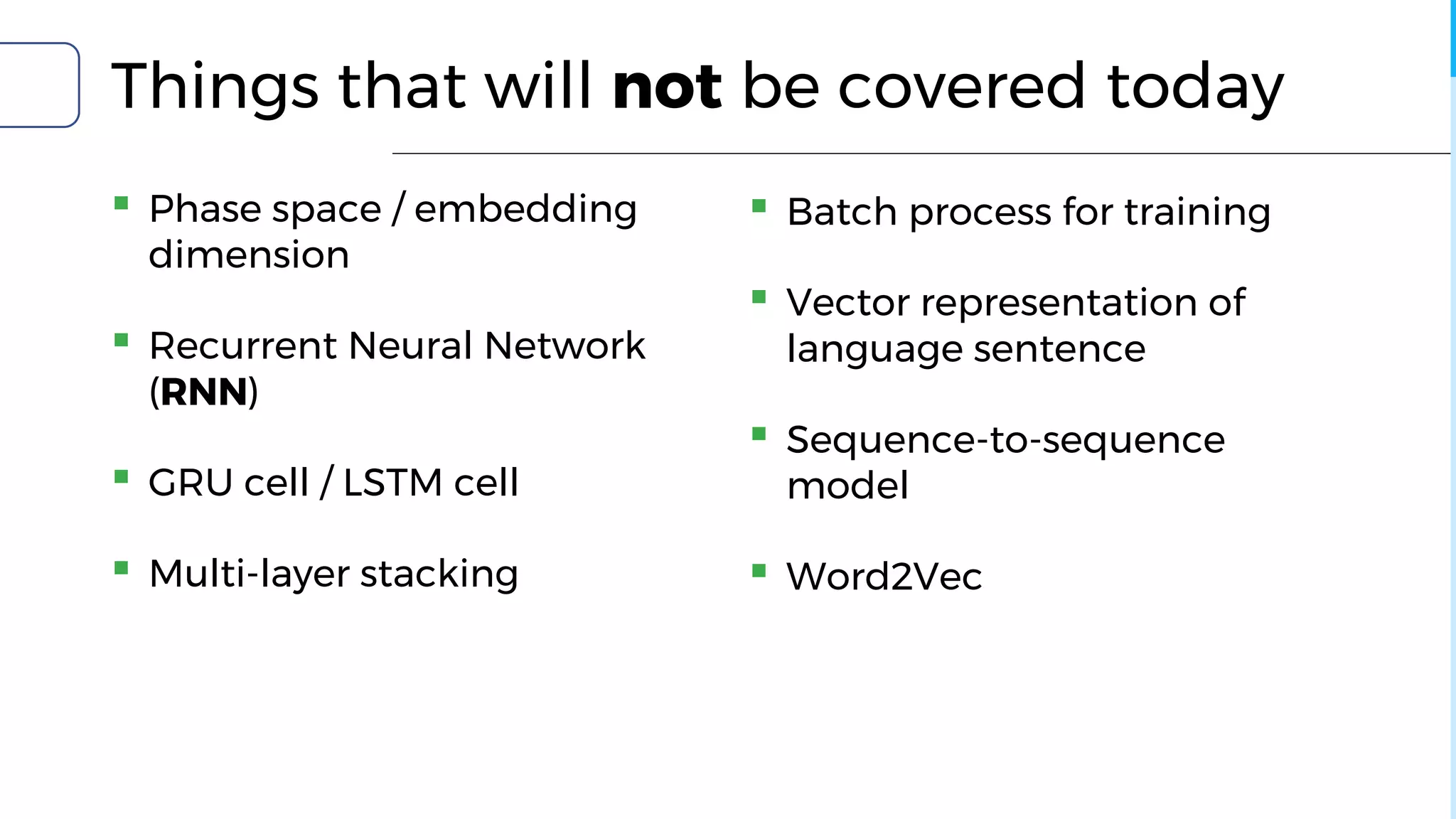

Things that will not be covered today
▪ Phase space / embedding
dimension
▪ Recurrent Neural Network
(RNN)
▪ GRU cell / LSTM cell
▪ Multi-layer stacking
▪ Batch process for training
▪ Vector representation of
language sentence
▪ Sequence-to-sequence
model
▪ Word2Vec

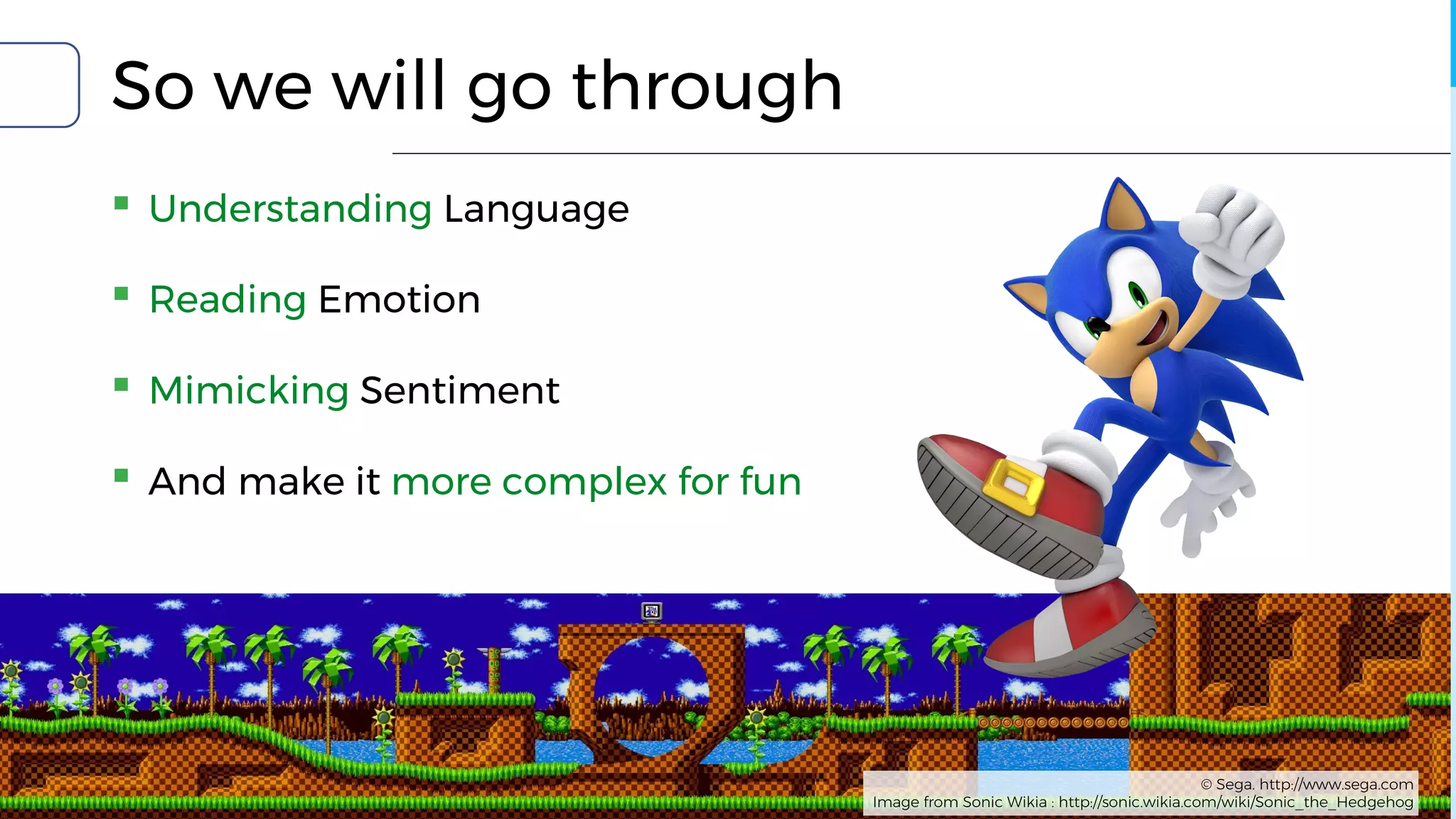

So we will go through
▪ Understanding Language
▪ Reading Emotion
▪ Mimicking Sentiment
▪ And make it more complex for fun
© Sega. http://www.sega.com
Image from Sonic Wikia : http://sonic.wikia.com/wiki/Sonic_the_Hedgehog

It’s even hard for humanbeings.
Let’s start from
Language Understanding:

Lexical
Output

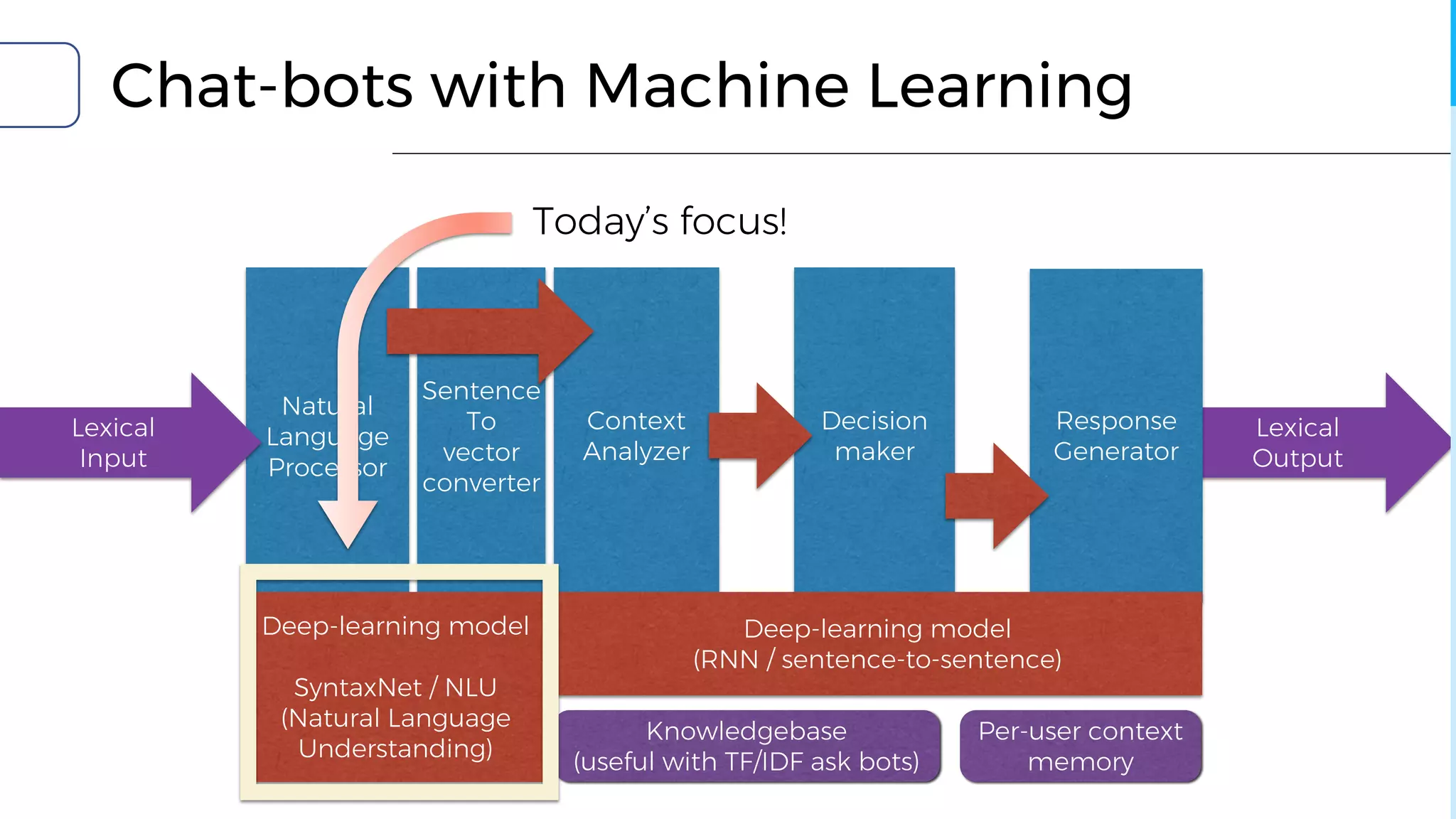

Chat-bots with Machine Learning
Context
Analyzer
Natural
Language
Processor
Response
Generator
Decision
maker
Sentence
To
vector
converter
Deep-learning model
(RNN / sentence-to-sentence)
Knowledgebase
(useful with TF/IDF ask bots)
Per-user context
memory
Lexical
Input
Deep-learning model
SyntaxNet / NLU
(Natural Language
Understanding)
Today’s focus!

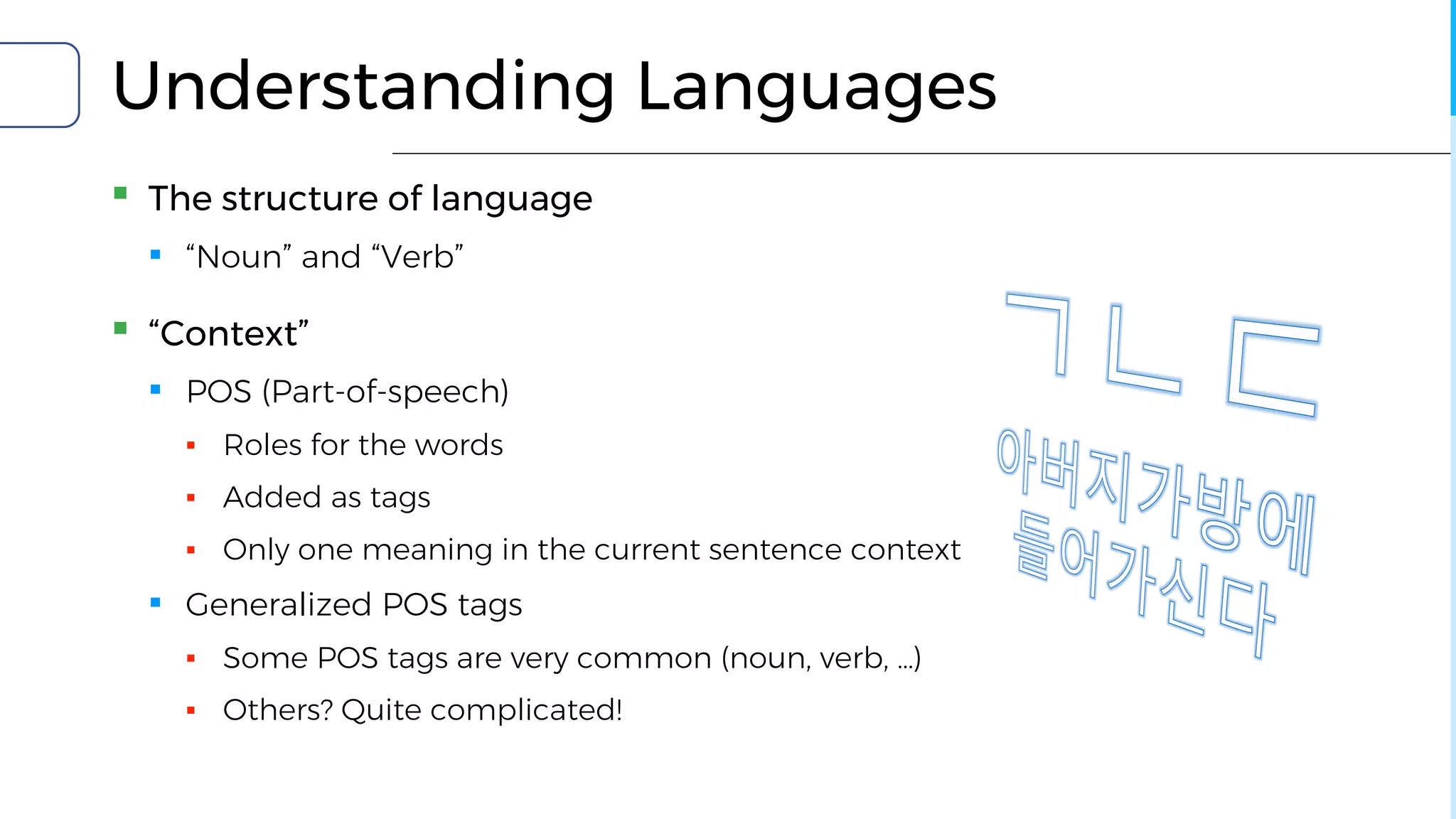

Understanding Languages
▪ The structure of language
▪ “Noun” and “Verb”
▪ “Context”
▪ POS (Part-of-speech)
▪ Roles for the words
▪ Added as tags
▪ Only one meaning in the current sentence context
▪ Generalized POS tags
▪ Some POS tags are very common (noun, verb, …)
▪ Others? Quite complicated!

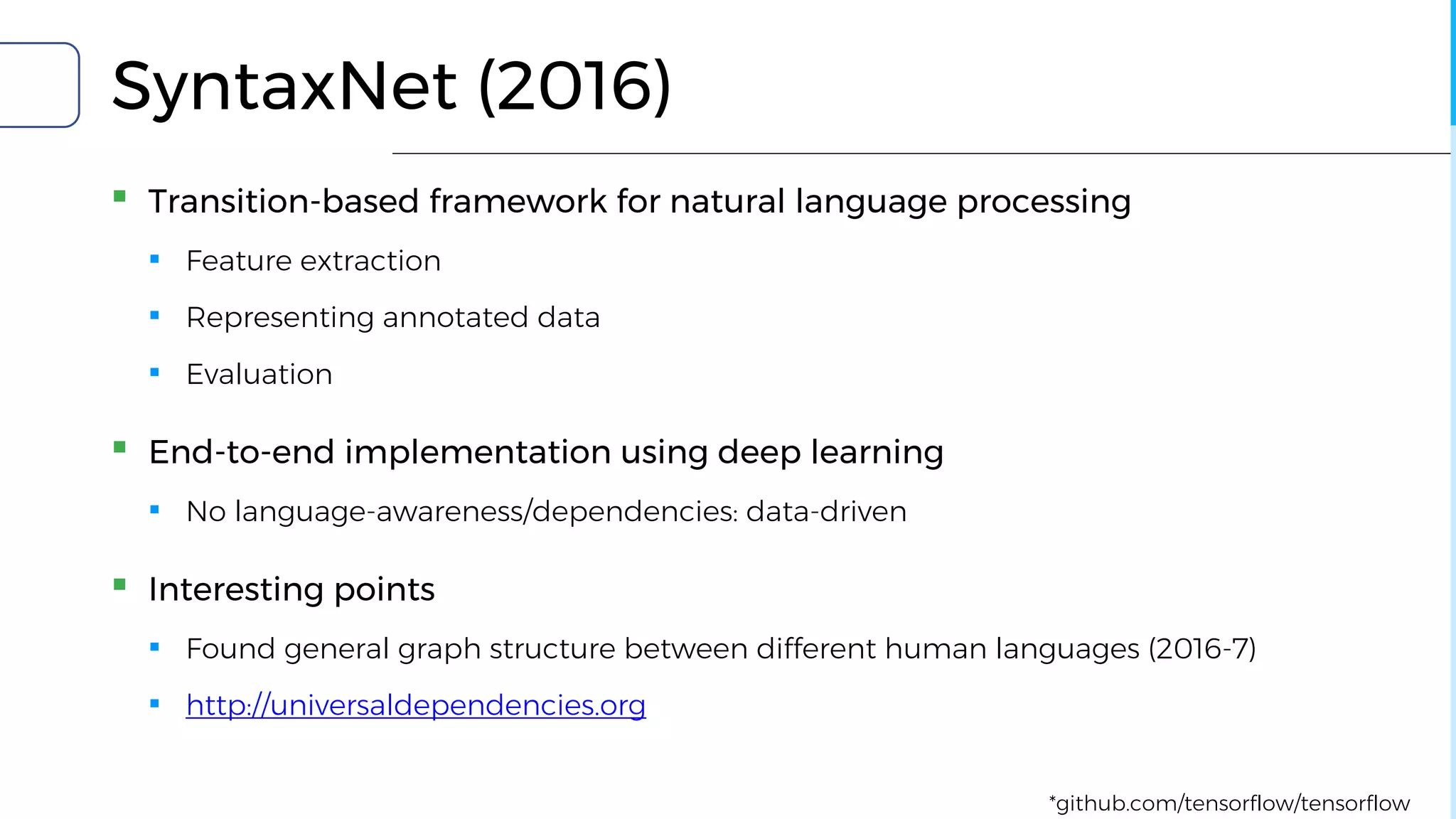

SyntaxNet (2016)
▪ Transition-based framework for natural language processing
▪ Feature extraction
▪ Representing annotated data
▪ Evaluation
▪ End-to-end implementation using deep learning
▪ No language-awareness/dependencies: data-driven
▪ Interesting points
▪ Found general graph structure between different human languages (2016-7)
▪ http://universaldependencies.org
*github.com/tensorflow/tensorflow

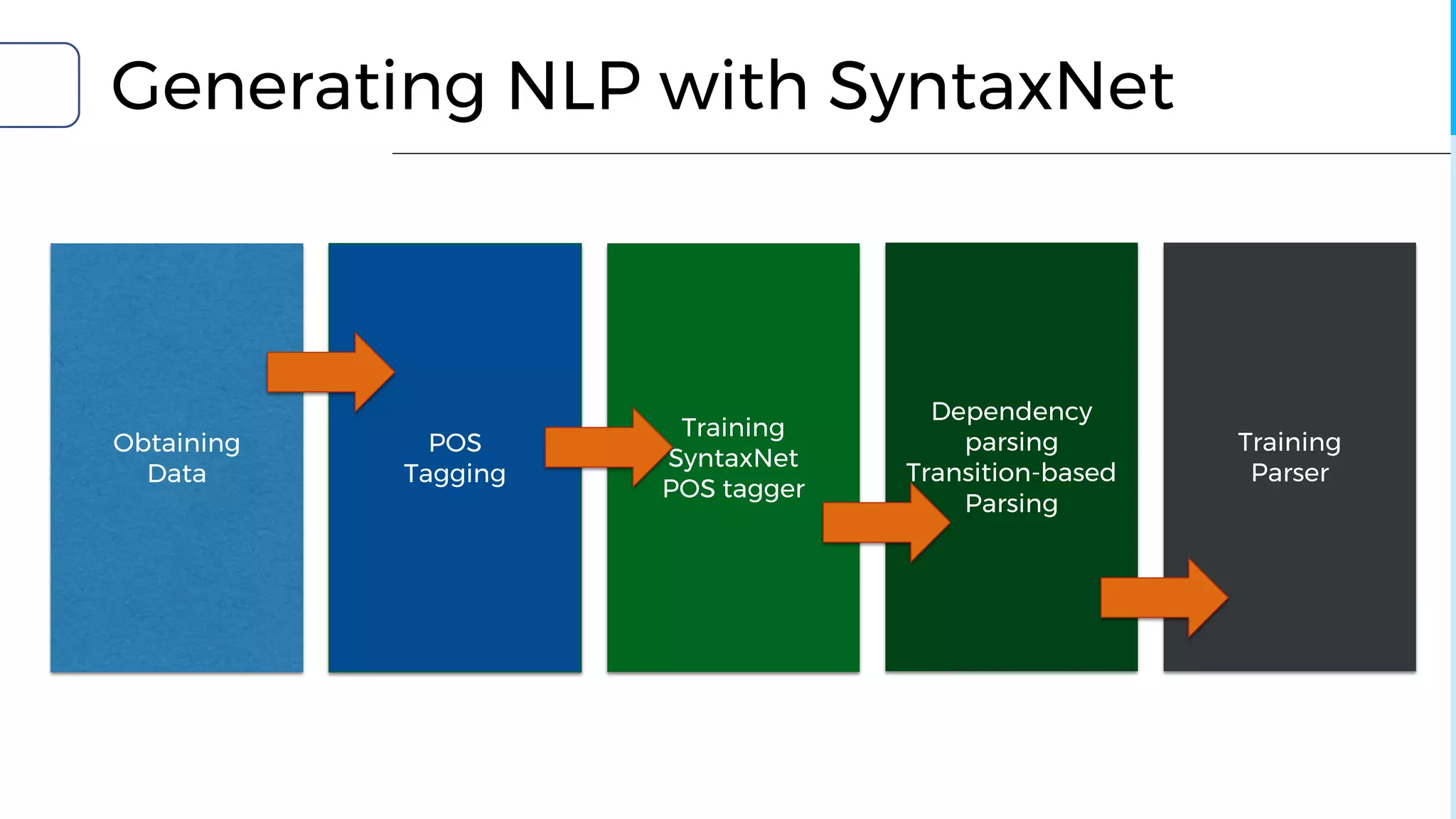

Generating NLP with SyntaxNet
Obtaining
Data
POS
Tagging
Training
SyntaxNet
POS tagger
Dependency
parsing
Transition-based
Parsing
Training
Parser

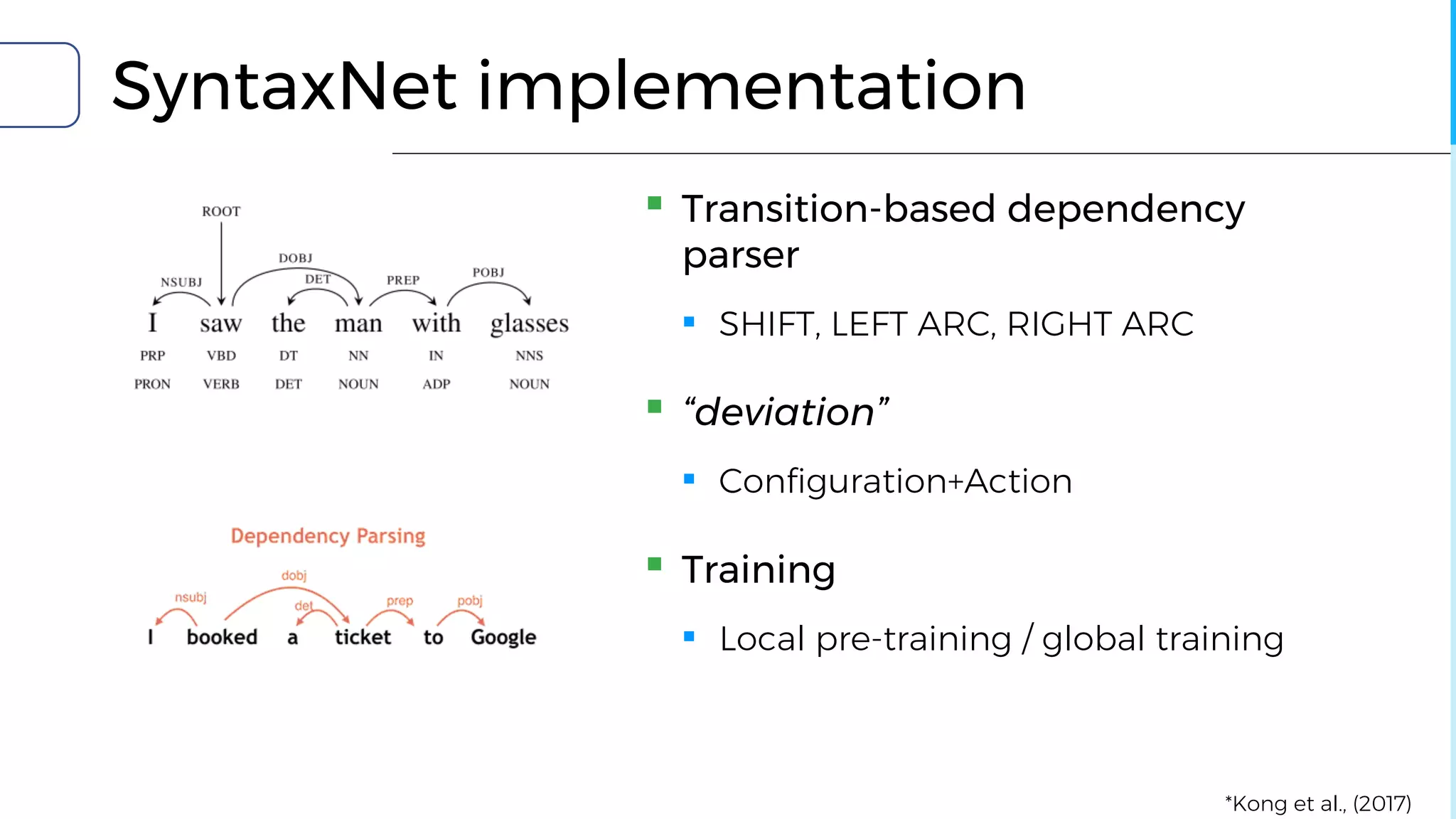

SyntaxNet implementation
▪ Transition-based dependency
parser
▪ SHIFT, LEFT ARC, RIGHT ARC
▪ “deviation”
▪ Configuration+Action
▪ Training
▪ Local pre-training / global training
*Kong et al., (2017)

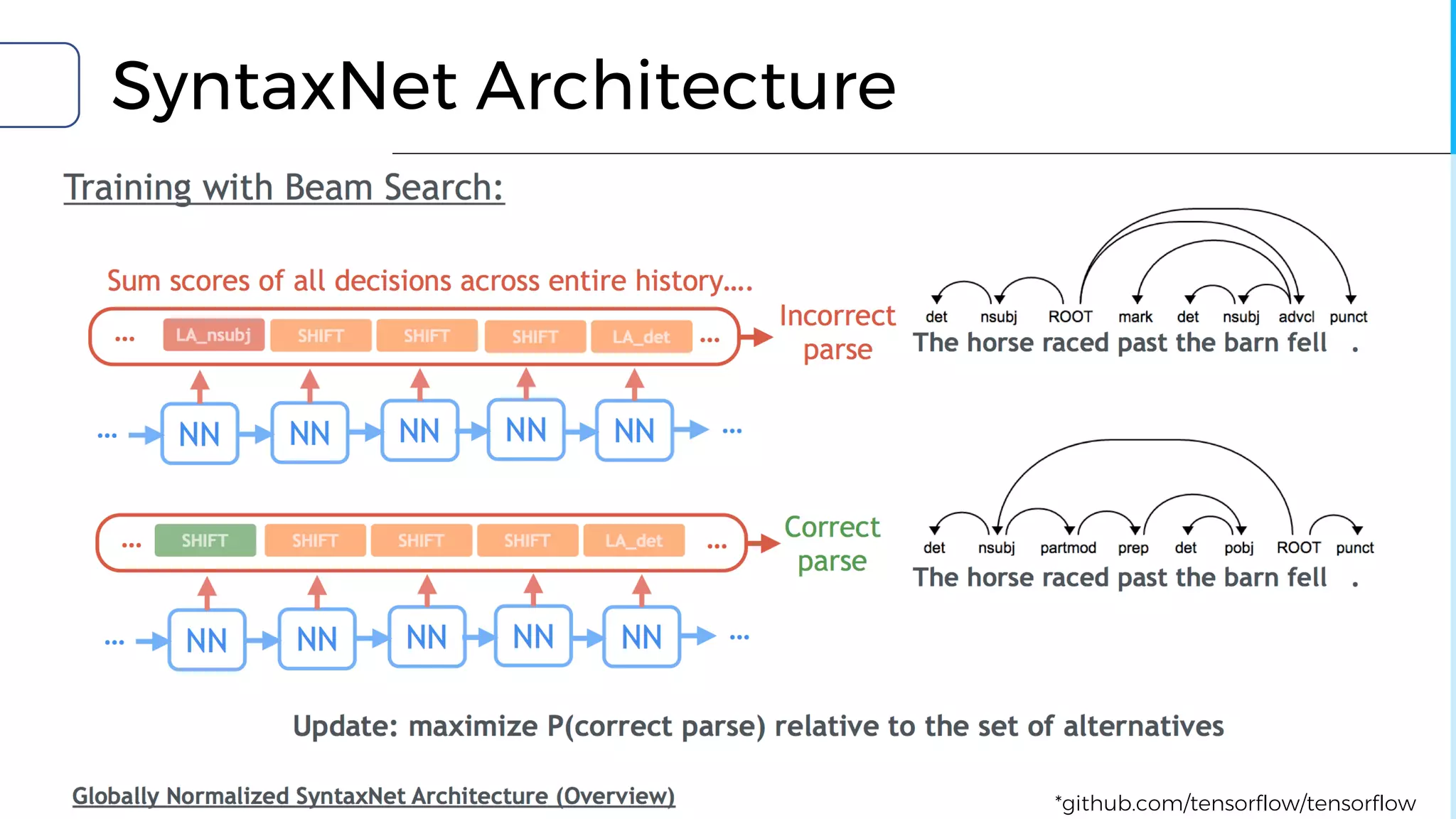

SyntaxNet Architecture

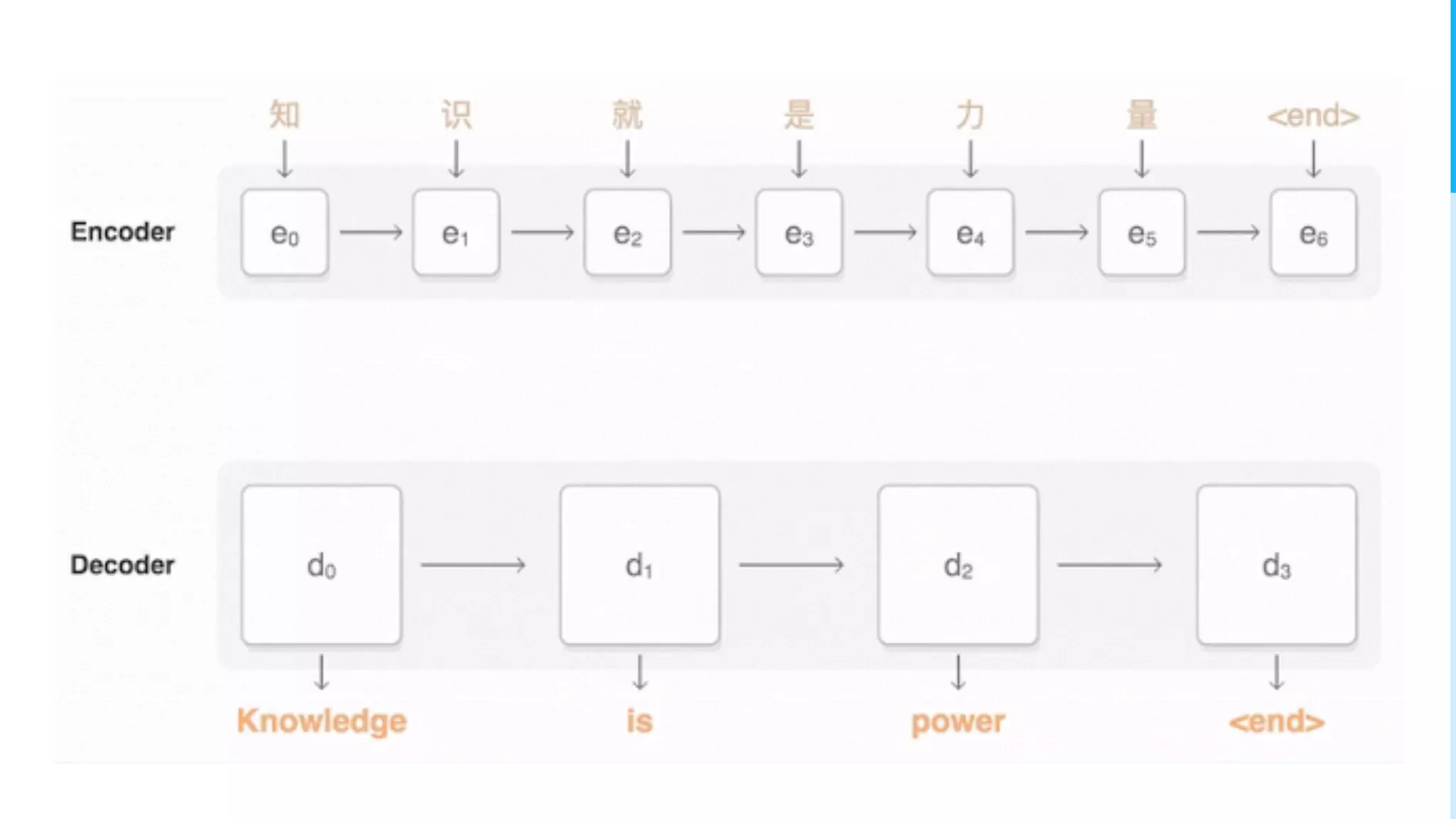

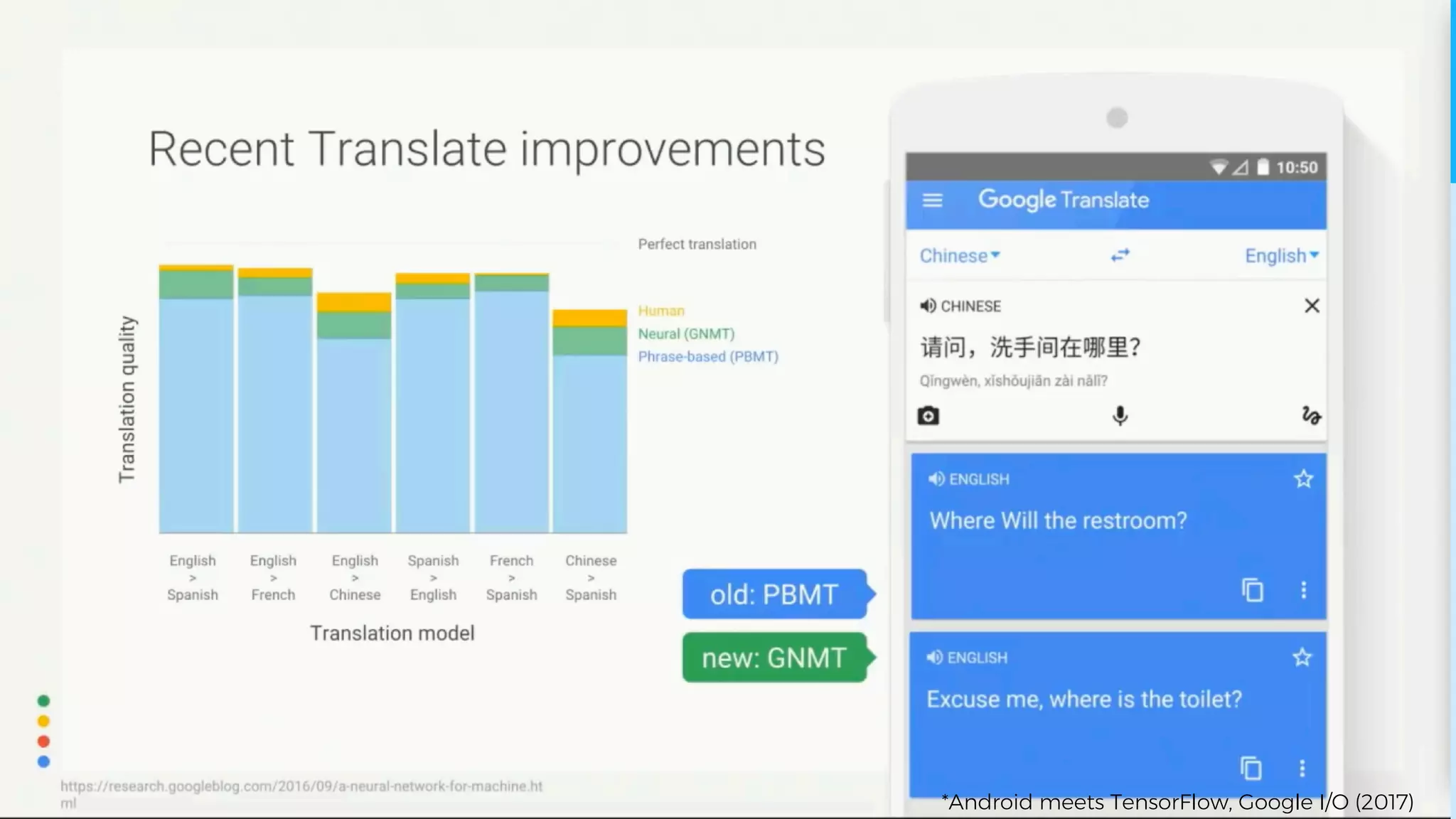

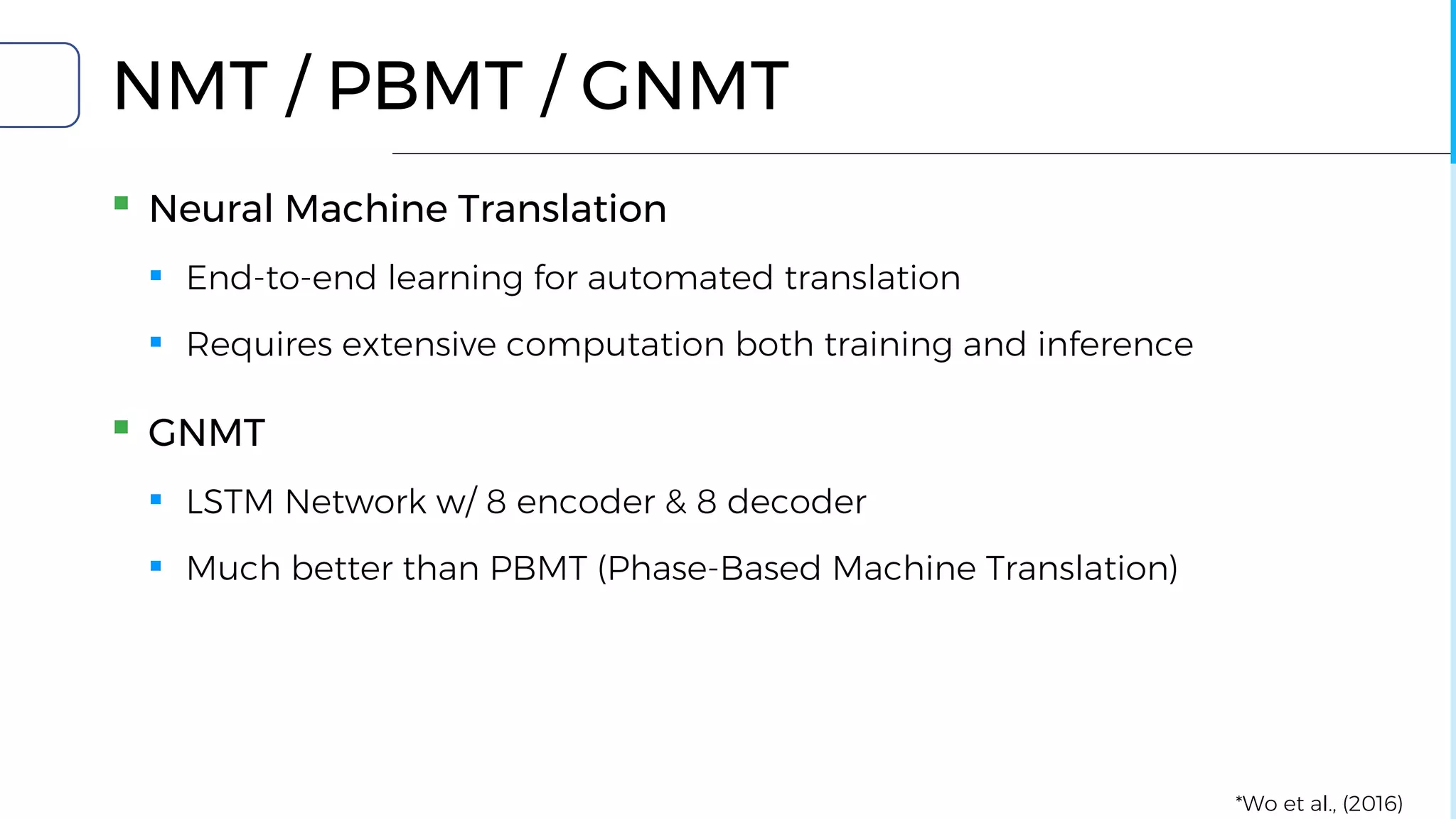

NMT / PBMT / GNMT
▪ Neural Machine Translation
▪ End-to-end learning for automated translation
▪ Requires extensive computation both training and inference
▪ GNMT
▪ LSTM Network w/ 8 encoder & 8 decoder
▪ Much better than PBMT (Phase-Based Machine Translation)
*Wo et al., (2016)

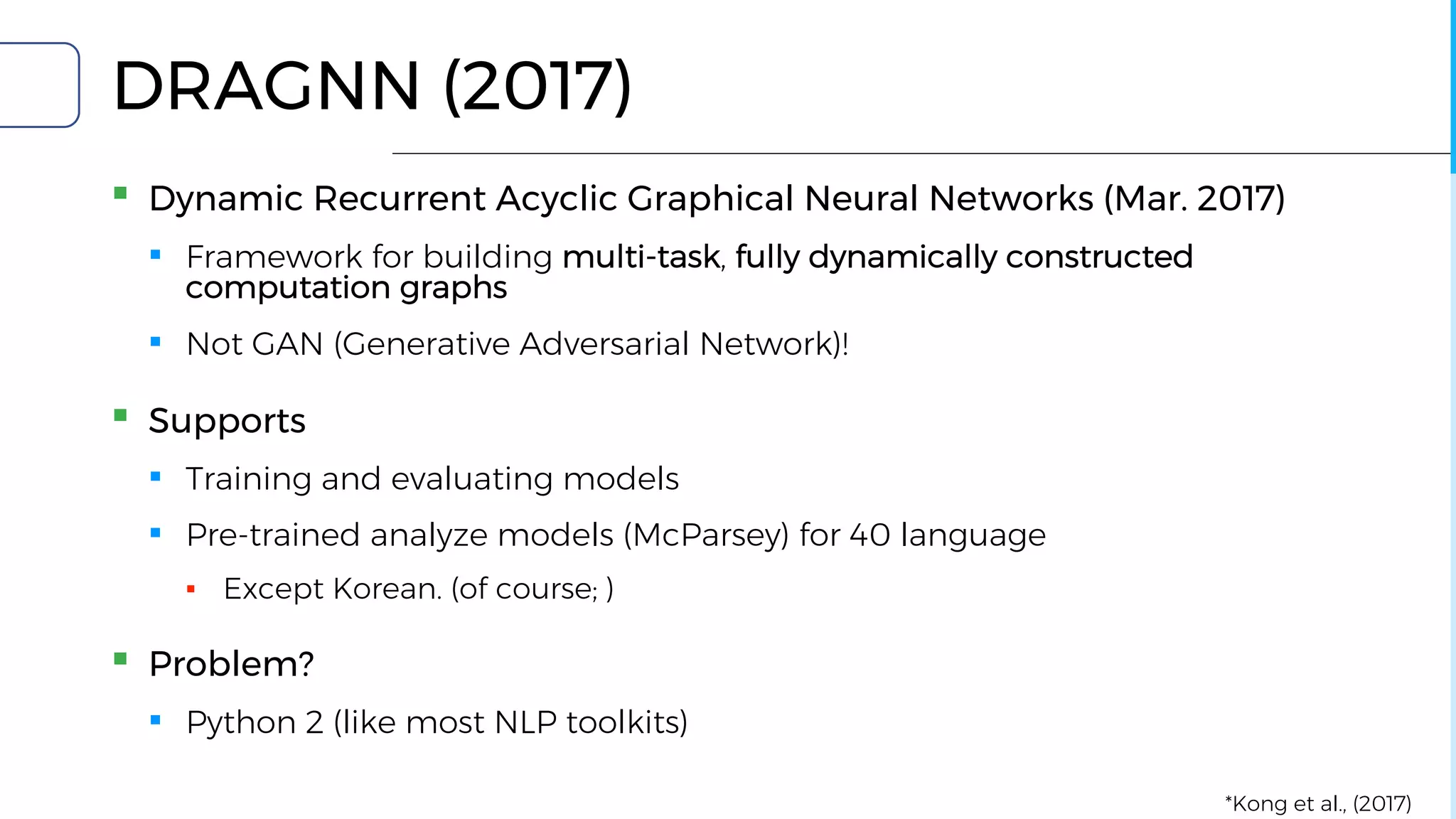

DRAGNN (2017)
▪ Dynamic Recurrent Acyclic Graphical Neural Networks (Mar. 2017)
▪ Framework for building multi-task, fully dynamically constructed
computation graphs
▪ Not GAN (Generative Adversarial Network)!
▪ Supports
▪ Training and evaluating models
▪ Pre-trained analyze models (McParsey) for 40 language
▪ Except Korean. (of course; )
▪ Problem?
▪ Python 2 (like most NLP toolkits)
*Kong et al., (2017)

*Android meets TensorFlow, Google I/O (2017)

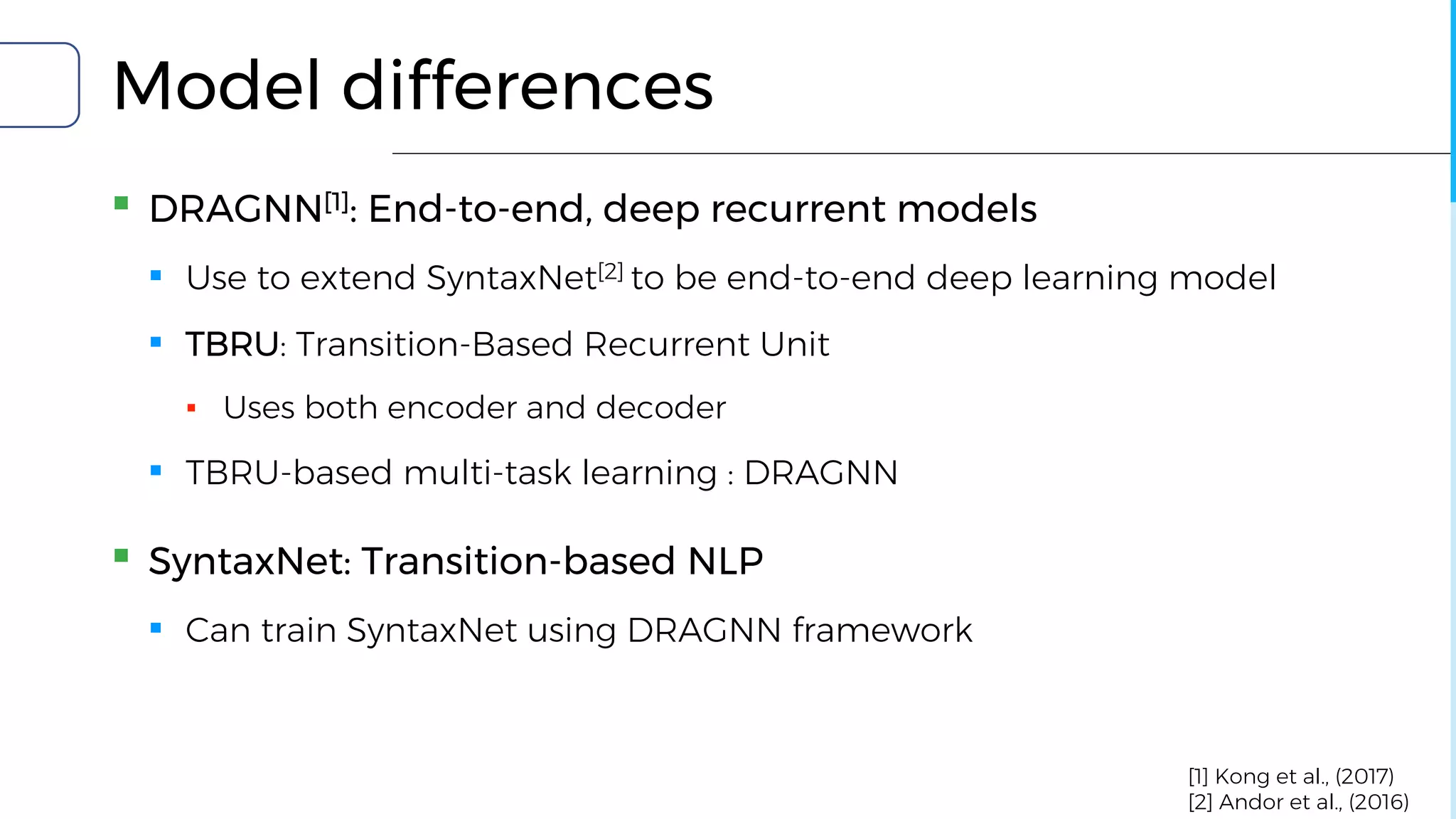

Model differences
▪ DRAGNN[1]: End-to-end, deep recurrent models
▪ Use to extend SyntaxNet[2] to be end-to-end deep learning model
▪ TBRU: Transition-Based Recurrent Unit
▪ Uses both encoder and decoder
▪ TBRU-based multi-task learning : DRAGNN
▪ SyntaxNet: Transition-based NLP
▪ Can train SyntaxNet using DRAGNN framework
[1] Kong et al., (2017)
[2] Andor et al., (2016)

Encoder/Decoder (2 TBRU)
Bi-LSTM Tagging (3 TBRU
Y1 Y2 Y3 Y4 Y5
Y1 Y2 Y3 Y4 Y
Transition Based Recurrent Unit (TBRU)
Network
Cell
Discrete
state
Recurrence fcn
Input embeddings
network activations
Figure 1: High level schematic of a Transition-Based Recurrent Unit (

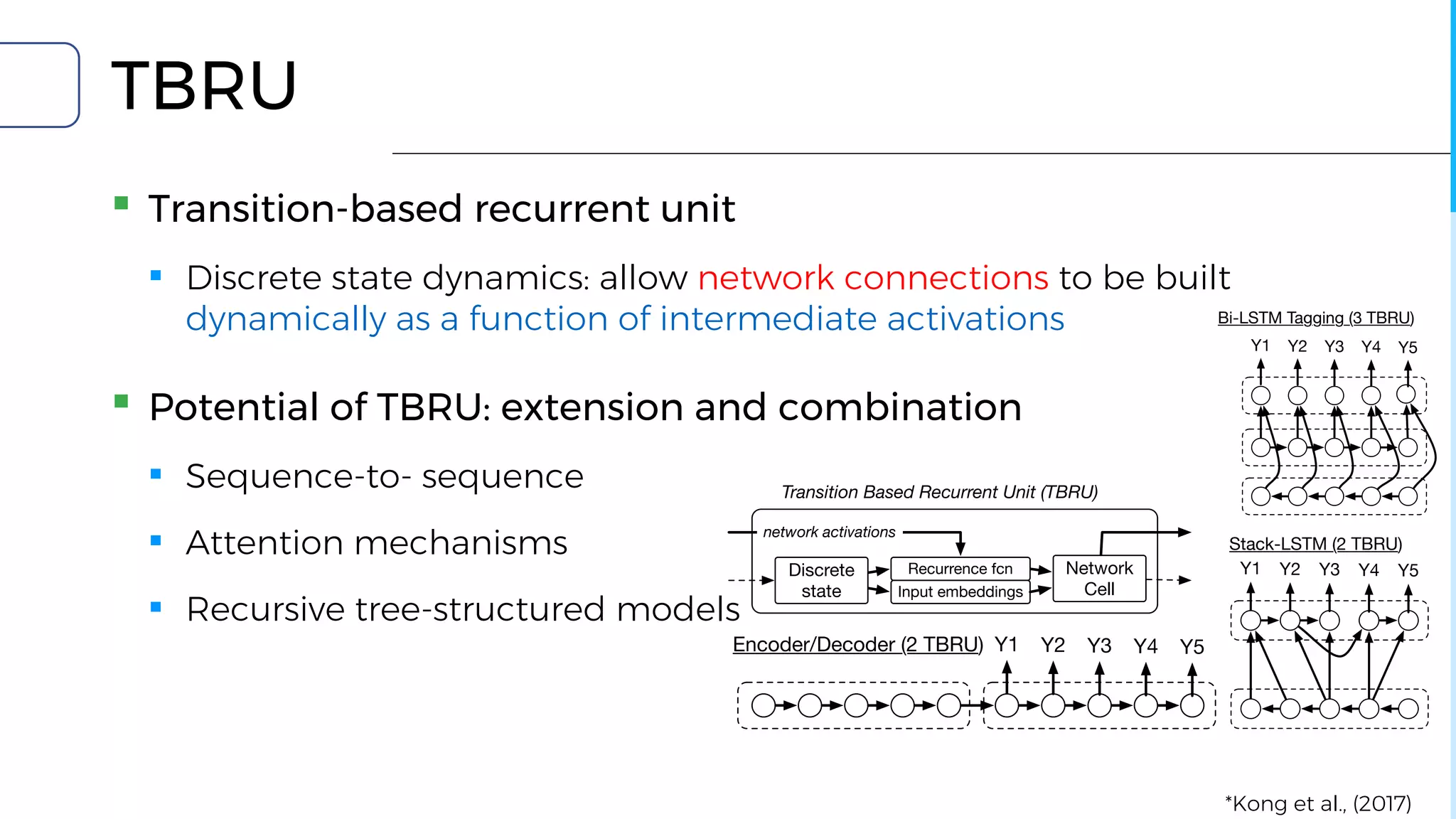

TBRU
▪ Transition-based recurrent unit
▪ Discrete state dynamics: allow network connections to be built
dynamically as a function of intermediate activations
▪ Potential of TBRU: extension and combination
▪ Sequence-to- sequence
▪ Attention mechanisms
▪ Recursive tree-structured models
Bi-LSTM Tagging (3 TBRU)
Y1 Y2 Y3 Y4 Y5
Y1 Y2 Y3 Y4 Y5
Stack-LSTM (2 TBRU)
Y1 Y2 Y3 Y4 Y5
Network
Cell
Discrete
state
Recurrence fcn
Input embeddings
network activations
Figure 1: High level schematic of a Transition-Based Recurrent Unit (TBRU), and common network
Bi-LSTM Tagging (3 TBRU)
Y1 Y2 Y3 Y4 Y5
Y1 Y2 Y3 Y4 Y5
Network
Cell
Discrete
state
Recurrence fcn
Input embeddings
network activations
Figure 1: High level schematic of a Transition-Based Recurrent Unit (TBRU
architectures that can be implemented with multiple TBRUs. The discrete
recurrences and ﬁxed input embeddings, which are then fed through a network c
an action which is used to update the discrete state (dashed output) and provid
consumed through recurrences (solid output). Note that we present a slightly sim
LSTM (Dyer et al., 2015) for clarity.
NLP problems; Dyer et al. (2015); Lample et al.
(2016); Kiperwasser and Goldberg (2016); Zhang
et al. (2016); Andor et al. (2016), among others.
tures by providing a ﬁn
puts that ‘attend’ to relev
space. Unlike recursive*Kong et al., (2017)

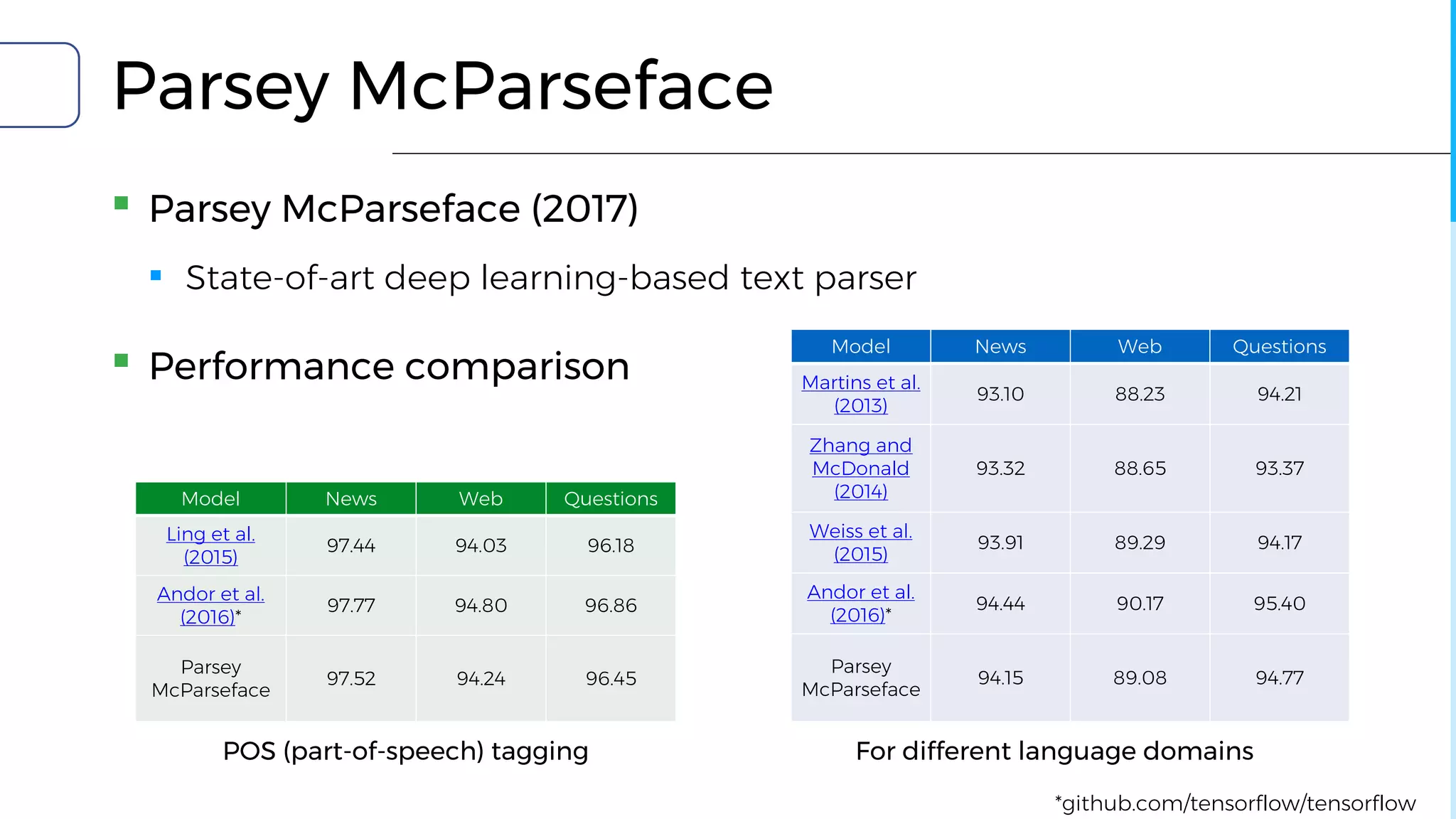

Parsey McParseface
▪ Parsey McParseface (2017)
▪ State-of-art deep learning-based text parser
▪ Performance comparison
Model News Web Questions
Martins et al.
(2013)
93.10 88.23 94.21
Zhang and
McDonald
(2014)
93.32 88.65 93.37
Weiss et al.
(2015)
93.91 89.29 94.17
Andor et al.
(2016)*
94.44 90.17 95.40
Parsey
McParseface
94.15 89.08 94.77
Model News Web Questions
Ling et al.
(2015)
97.44 94.03 96.18
Andor et al.
(2016)*
97.77 94.80 96.86
Parsey
McParseface
97.52 94.24 96.45
POS (part-of-speech) tagging For different language domains

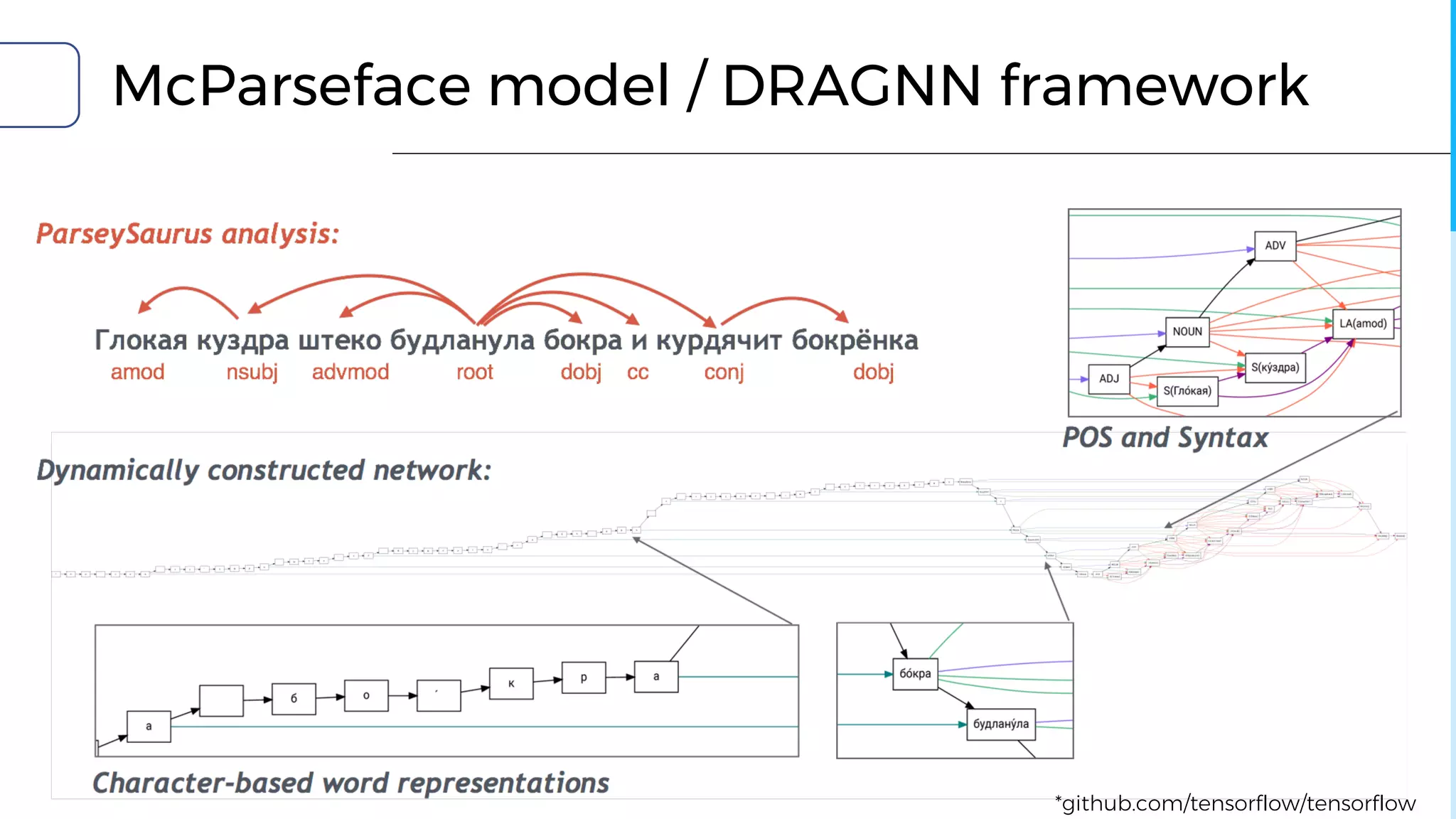

McParseface model / DRAGNN framework

Where is Korean?
▪ Korean language-specific characteristics
▪ Order / sequence is not important / Distance is important
▪ However, SyntaxNet works even with raw Korean
sequence!
▪ Even Japanese translation is supported
▪ Better solution?
▪ Now working on creating preprocessing NM for increase
DRAGNN performance
▪ With `Josa` ML
© Flappy Pepe by NADI games

Now, let’s move to the emotion
reading part.
Looks easier but hard, in fact.

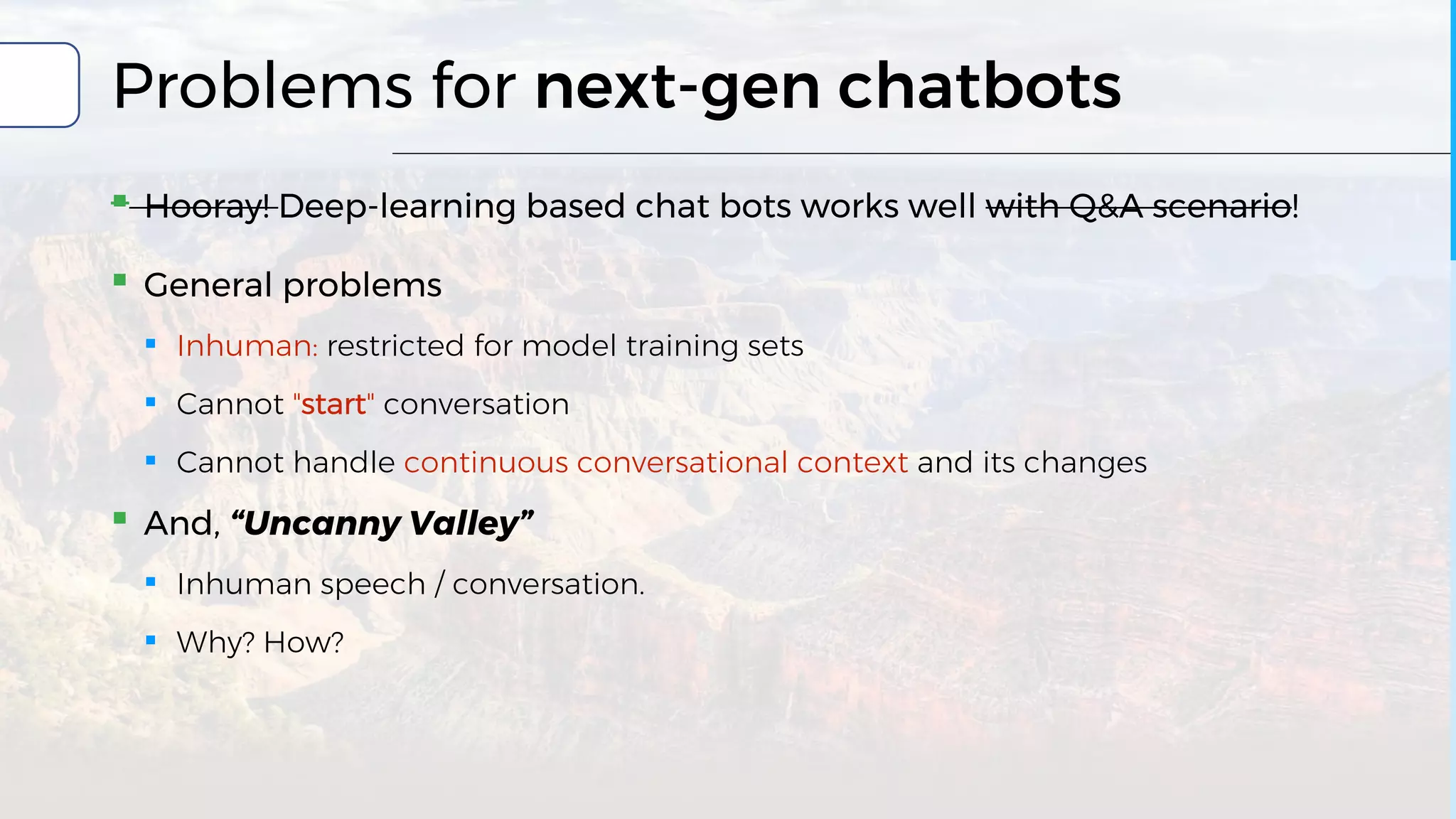

Problems for next-gen chatbots
▪ Hooray! Deep-learning based chat bots works well with Q&A scenario!
▪ General problems
▪ Inhuman: restricted for model training sets
▪ Cannot "start" conversation
▪ Cannot handle continuous conversational context and its changes
▪ And, “Uncanny Valley”
▪ Inhuman speech / conversation.
▪ Why? How?

So, let’s just focus on the details of humanbeings
: What makes us human?
imdb.com
ingorae.tistory.com/1249

I've seen things you people wouldn't believe.
Attack ships on fire off the shoulder of Orion.
I watched C-beams glitter in the dark near the Tannhäuser Gate.
All those moments will be lost in time, like tears in rain. Time to die.

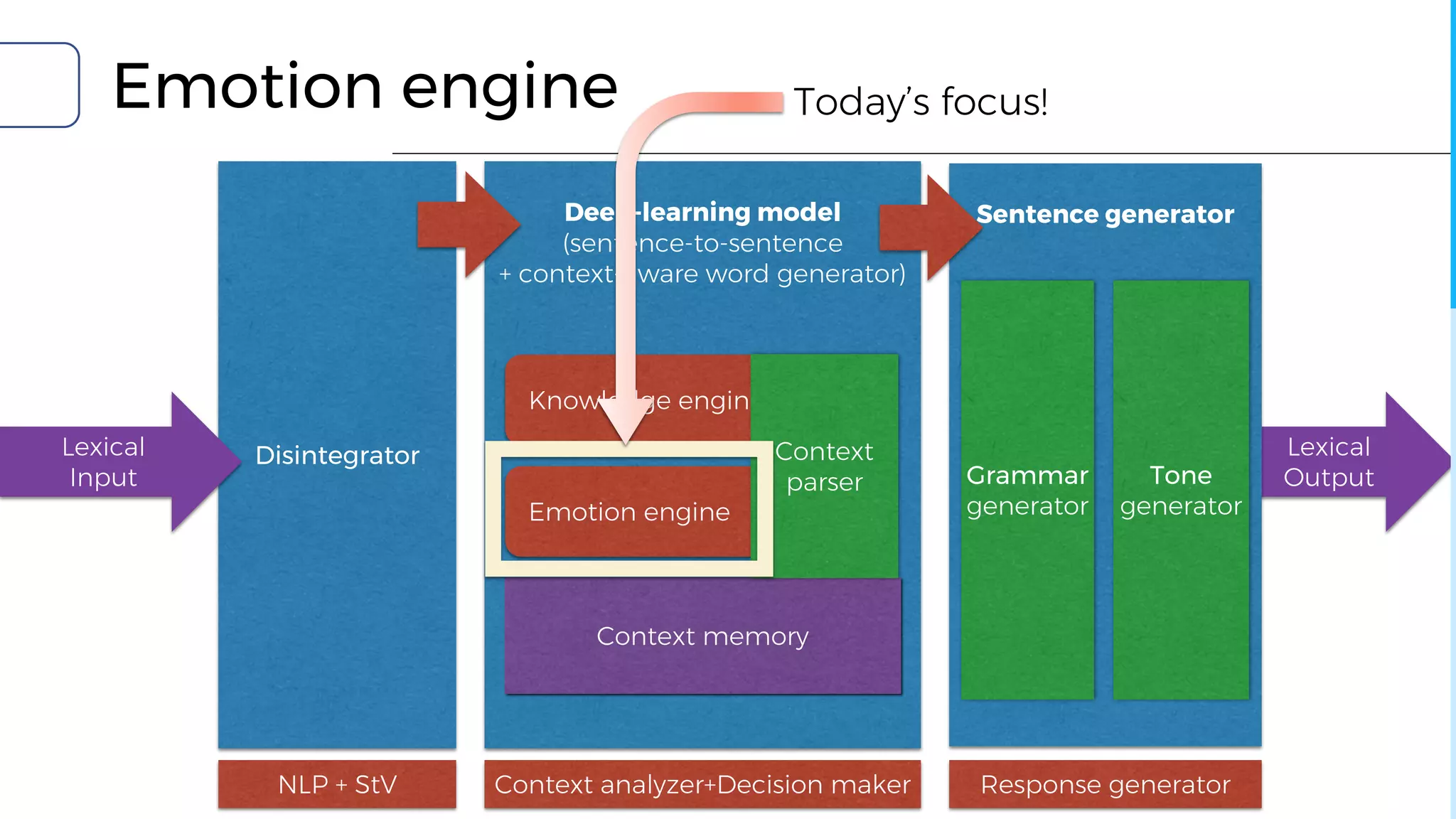

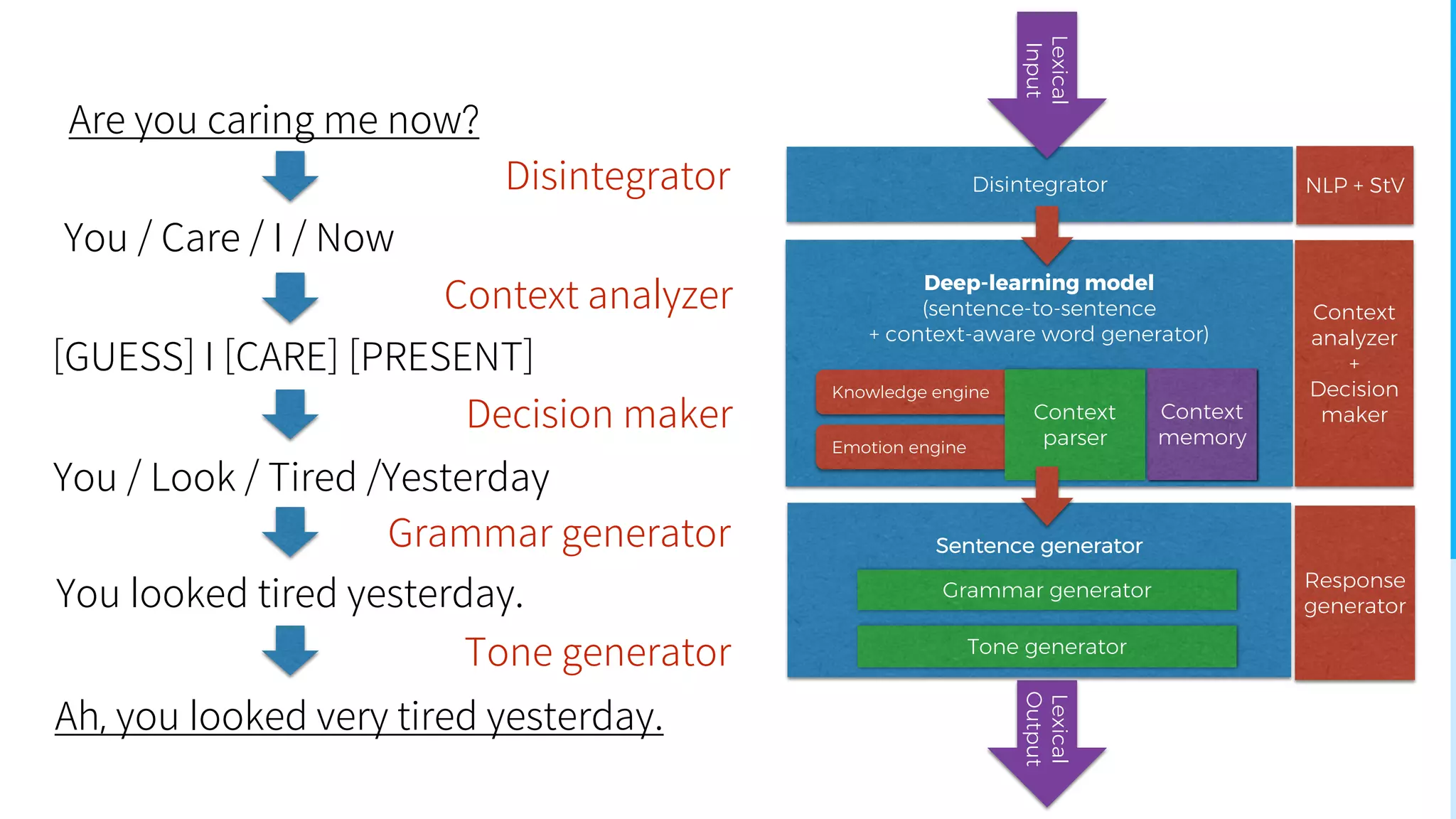

Lexical
Output
Sentence generatorDeep-learning model
(sentence-to-sentence
+ context-aware word generator)
Emotion engine
Grammar
generator
Context memory
Knowledge engine
Emotion engine
Context
parser Tone
generator
Disintegrator
Response generatorNLP + StV Context analyzer+Decision maker
Lexical
Input
Today’s focus!

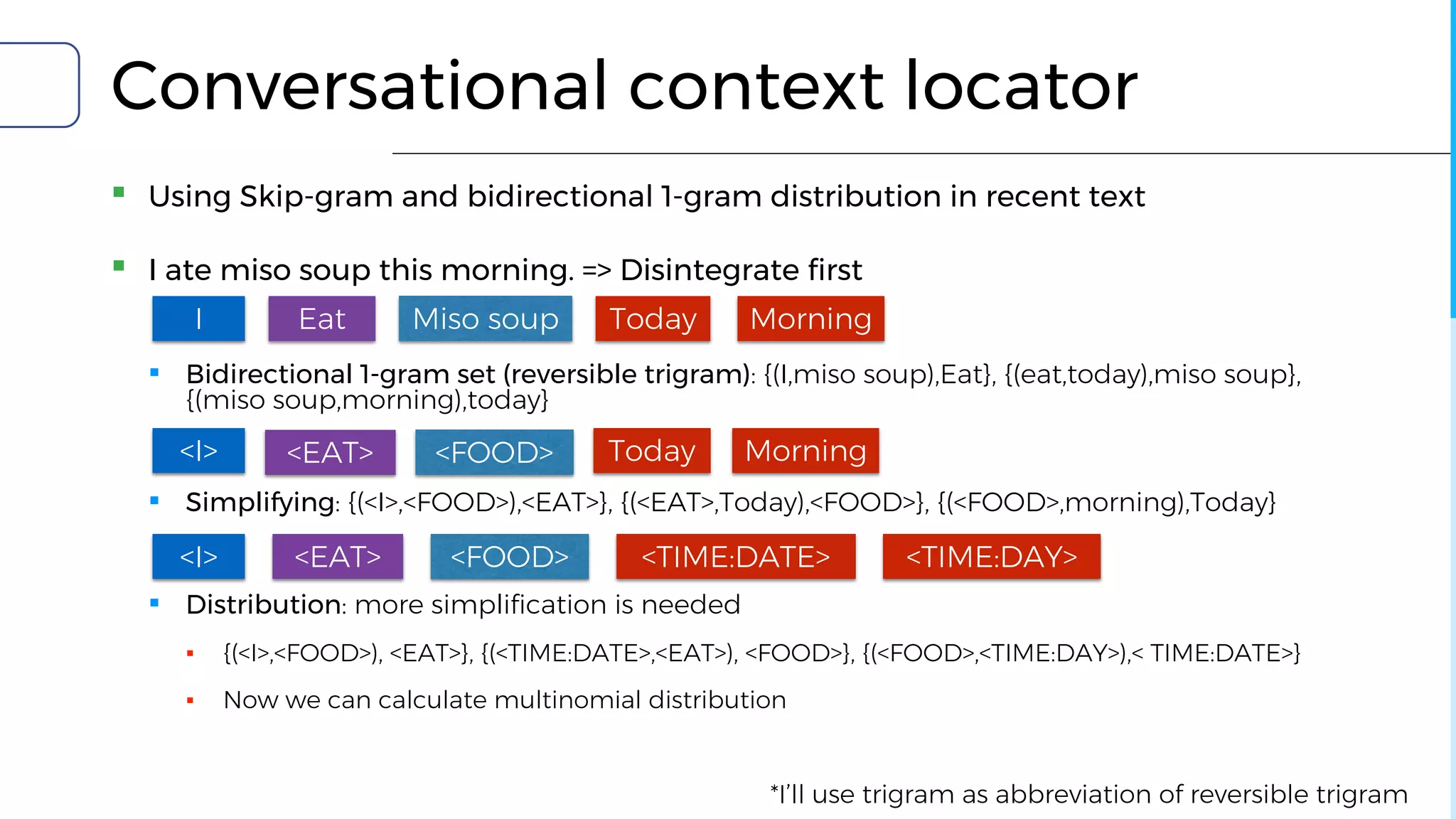

Conversational context locator
▪ Using Skip-gram and bidirectional 1-gram distribution in recent text
▪ I ate miso soup this morning. => Disintegrate first
▪ Bidirectional 1-gram set (reversible trigram): {(I,miso soup),Eat}, {(eat,today),miso soup},
{(miso soup,morning),today}
▪ Simplifying: {(,<FOOD>),<EAT>}, {(<EAT>,Today),<FOOD>}, {(<FOOD>,morning),Today}
▪ Distribution: more simplification is needed
▪ {(,<FOOD>), <EAT>}, {(<TIME:DATE>,<EAT>), <FOOD>}, {(<FOOD>,<TIME:DAY>),< TIME:DATE>}
▪ Now we can calculate multinomial distribution
I Today MorningMiso soupEat
 Today Morning<FOOD><EAT>
 <TIME:DATE> <TIME:DAY><FOOD><EAT>
*I’ll use trigram as abbreviation of reversible trigram

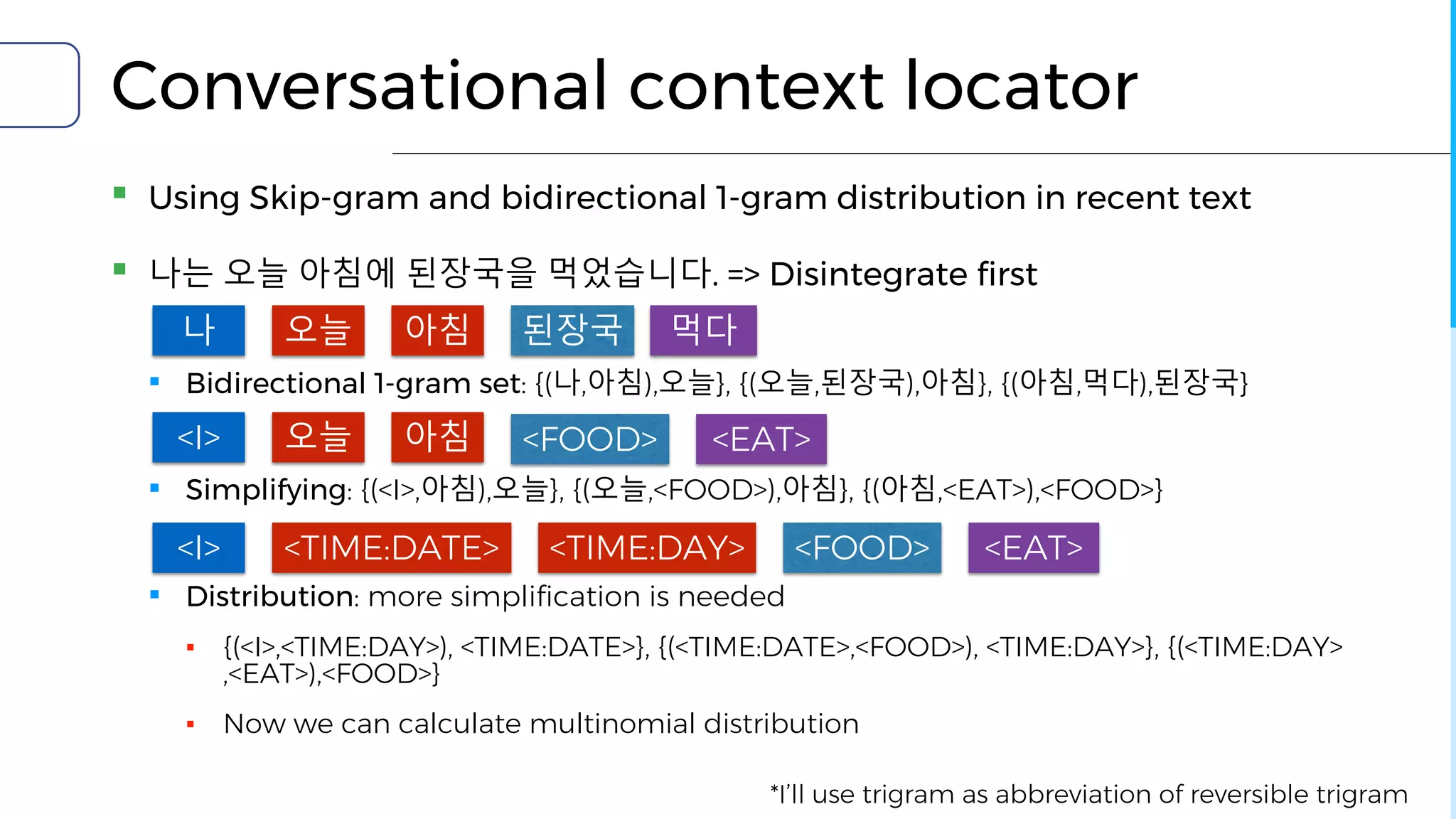

▪ Using Skip-gram and bidirectional 1-gram distribution in recent text
▪ 나는 오늘 아침에 된장국을 먹었습니다. => Disintegrate first
▪ Bidirectional 1-gram set: {(나,아침),오늘}, {(오늘,된장국),아침}, {(아침,먹다),된장국}
▪ Simplifying: {(,아침),오늘}, {(오늘,<FOOD>),아침}, {(아침,<EAT>),<FOOD>}
▪ Distribution: more simplification is needed
▪ {(,<TIME:DAY>), <TIME:DATE>}, {(<TIME:DATE>,<FOOD>), <TIME:DAY>}, {(<TIME:DAY>
,<EAT>),<FOOD>}
▪ Now we can calculate multinomial distribution
나 오늘 아침 된장국 먹다
 오늘 아침 <FOOD> <EAT>
 <TIME:DATE> <TIME:DAY> <FOOD> <EAT>
*I’ll use trigram as abbreviation of reversible trigram

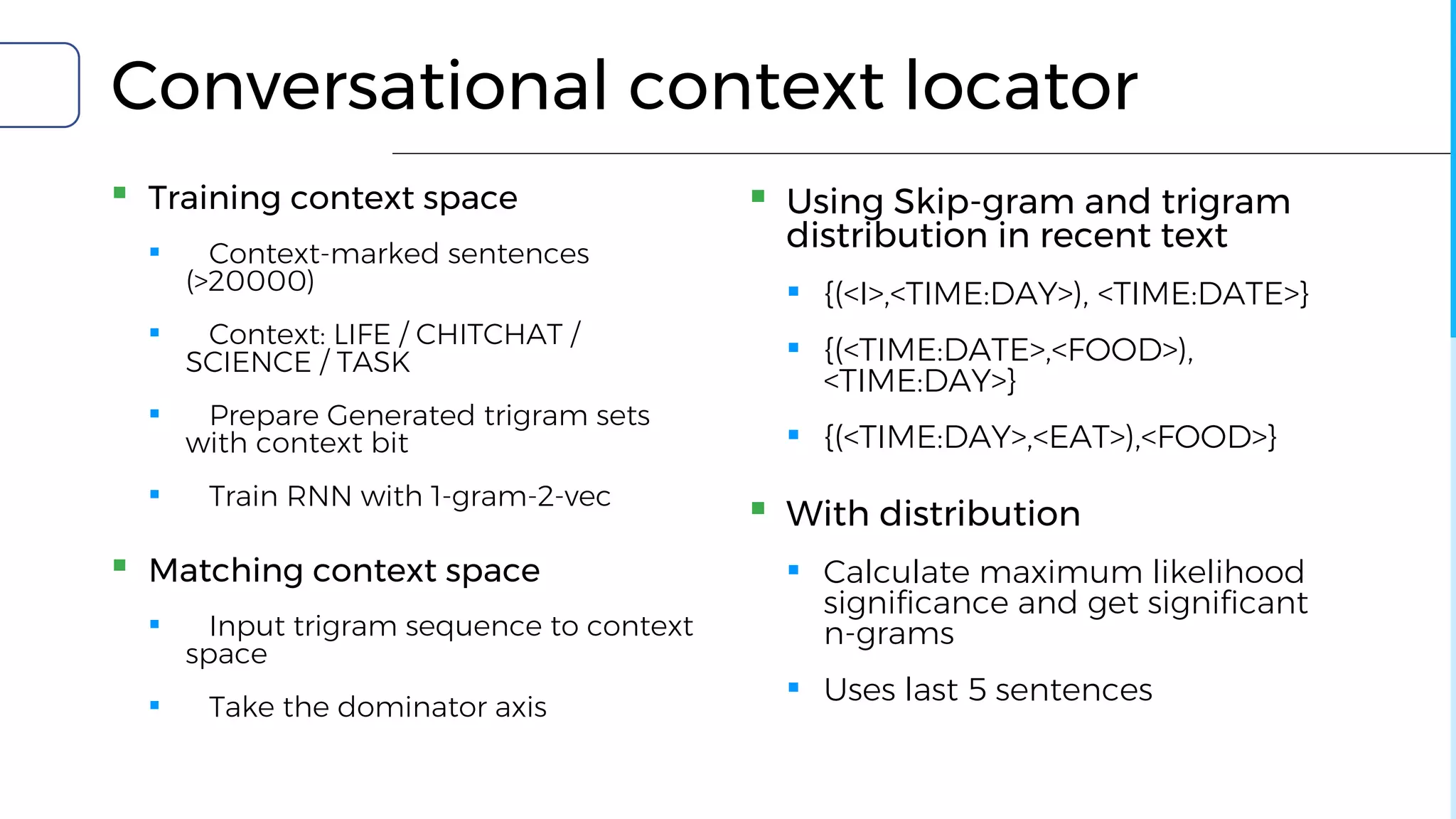

▪ Training context space
▪ Context-marked sentences
(>20000)
▪ Context: LIFE / CHITCHAT /
SCIENCE / TASK
▪ Prepare Generated trigram sets
with context bit
▪ Train RNN with 1-gram-2-vec
▪ Matching context space
▪ Input trigram sequence to context
space
▪ Take the dominator axis
▪ Using Skip-gram and trigram
distribution in recent text
▪ {(,<TIME:DAY>), <TIME:DATE>}
▪ {(<TIME:DATE>,<FOOD>),
<TIME:DAY>}
▪ {(<TIME:DAY>,<EAT>),<FOOD>}
▪ With distribution
▪ Calculate maximum likelihood
significance and get significant
n-grams
▪ Uses last 5 sentences

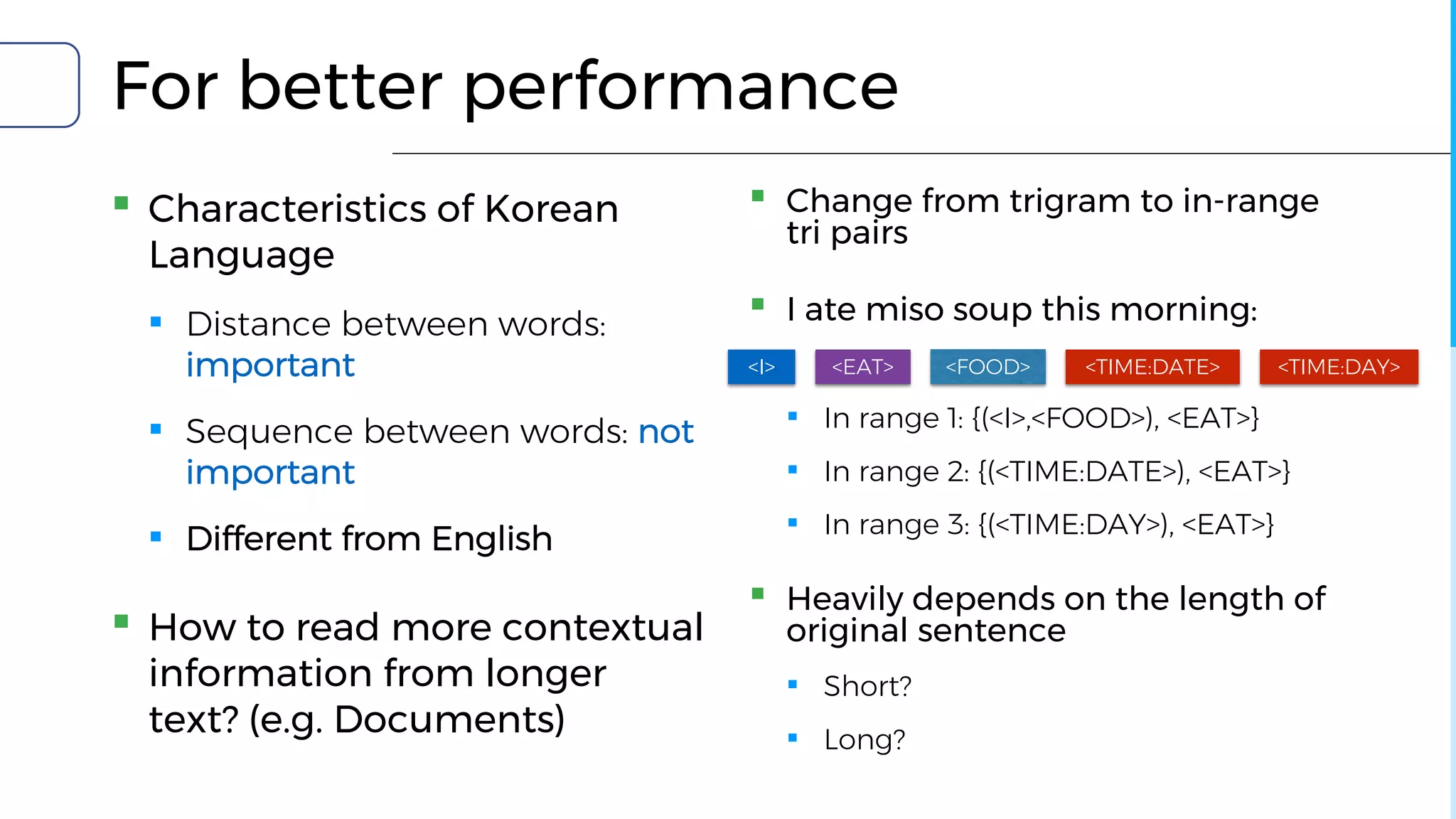

For better performance
▪ Characteristics of Korean
Language
▪ Distance between words:
important
▪ Sequence between words: not
important
▪ Different from English
▪ How to read more contextual
information from longer
text? (e.g. Documents)
▪ Change from trigram to in-range
tri pairs
▪ I ate miso soup this morning:
▪ In range 1: {(,<FOOD>), <EAT>}
▪ In range 2: {(<TIME:DATE>), <EAT>}
▪ In range 3: {(<TIME:DAY>), <EAT>}
▪ Heavily depends on the length of
original sentence
▪ Short?
▪ Long?
 <TIME:DATE> <TIME:DAY><FOOD><EAT>

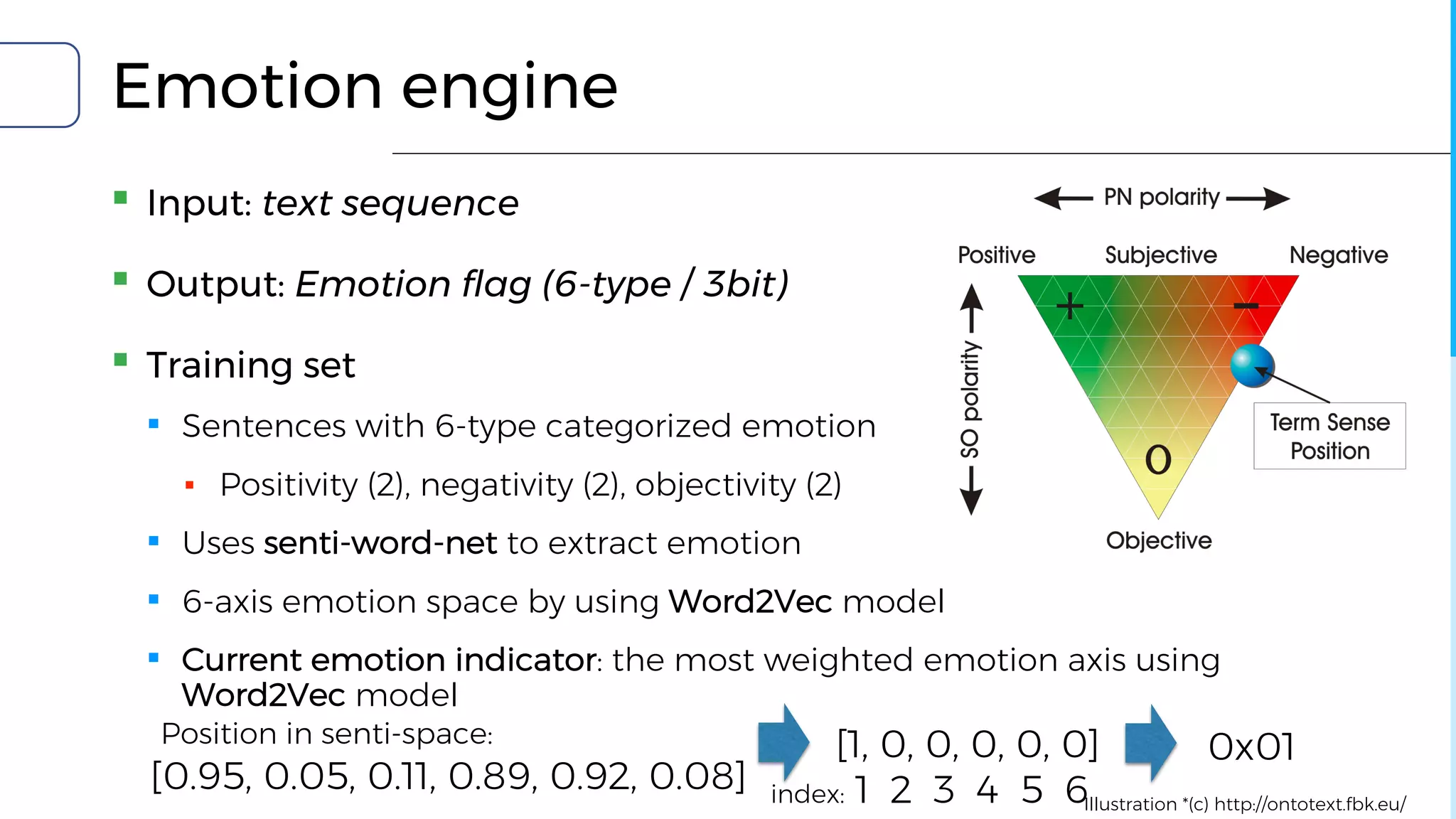

Emotion engine
▪ Input: text sequence
▪ Output: Emotion flag (6-type / 3bit)
▪ Training set
▪ Sentences with 6-type categorized emotion
▪ Positivity (2), negativity (2), objectivity (2)
▪ Uses senti-word-net to extract emotion
▪ 6-axis emotion space by using Word2Vec model
▪ Current emotion indicator: the most weighted emotion axis using
Word2Vec model
Illustration *(c) http://ontotext.fbk.eu/
[0.95, 0.05, 0.11, 0.89, 0.92, 0.08]
[1, 0, 0, 0, 0, 0] 0x01
index: 1 2 3 4 5 6
Position in senti-space:

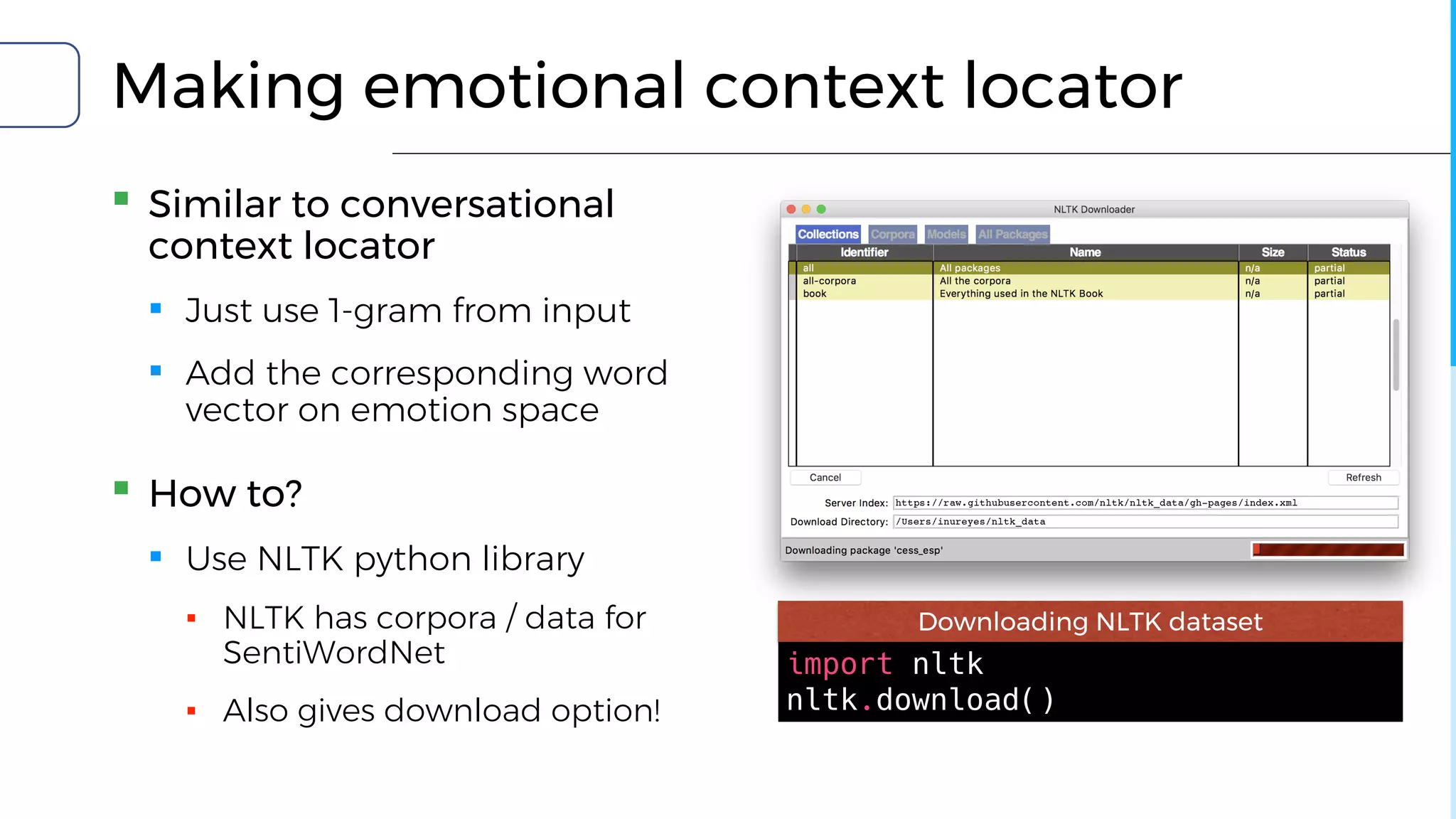

Making emotional context locator
▪ Similar to conversational
context locator
▪ Just use 1-gram from input
▪ Add the corresponding word
vector on emotion space
▪ How to?
▪ Use NLTK python library
▪ NLTK has corpora / data for
SentiWordNet
▪ Also gives download option!
import nltk
nltk.download()
Downloading NLTK dataset

Making emotional context locator
▪ Get emotional flag from sentence
Sample test routine for Sentimental state
from nltk.corpus import sentiwordnet as swn
def get_senti_vector(sentence, pos=None):
result = dict()
for s in sentence.split(' '):
if s not in result.keys():
senti = list(swn.senti_synsets(s.lower(),
pos))
if len(senti) > 0:
mostS = senti[0]
result[s] = [mostS.pos_score(), 1.0-
mostS.pos_score(), mostS.neg_score(), 1.0-
mostS.neg_score(), mostS.obj_score(), 1.0 -
mostS.obj_score()]
return result
{'I': [0.0, 1.0, 0.25, 0.75, 0.75, 0.25],
'happy': [0.875, 0.125, 0.0, 1.0, 0.125, 0.875],
'super': [0.625, 0.375, 0.0, 1.0, 0.375, 0.625],
'surprised': [0.125, 0.875, 0.25, 0.75, 0.625,
0.375]}
{'Hello': [0.0, 1.0, 0.0, 1.0, 1.0, 0.0],
'I': [0.0, 1.0, 0.0, 1.0, 1.0, 0.0],
'am': [0.0, 1.0, 0.0, 1.0, 1.0, 0.0],
'happy': [0.875, 0.125, 0.0, 1.0, 0.125, 0.875],
'was': [0.0, 1.0, 0.0, 1.0, 1.0, 0.0],
'super': [0.0, 1.0, 0.0, 1.0, 1.0, 0.0],
'surprised': [0.125, 0.875, 0.0, 1.0, 0.875, 0.125]}
sentence = "Hello I am happy I was super
surprised"
result = get_senti_vector(sentence)
Adj. only
All morpheme

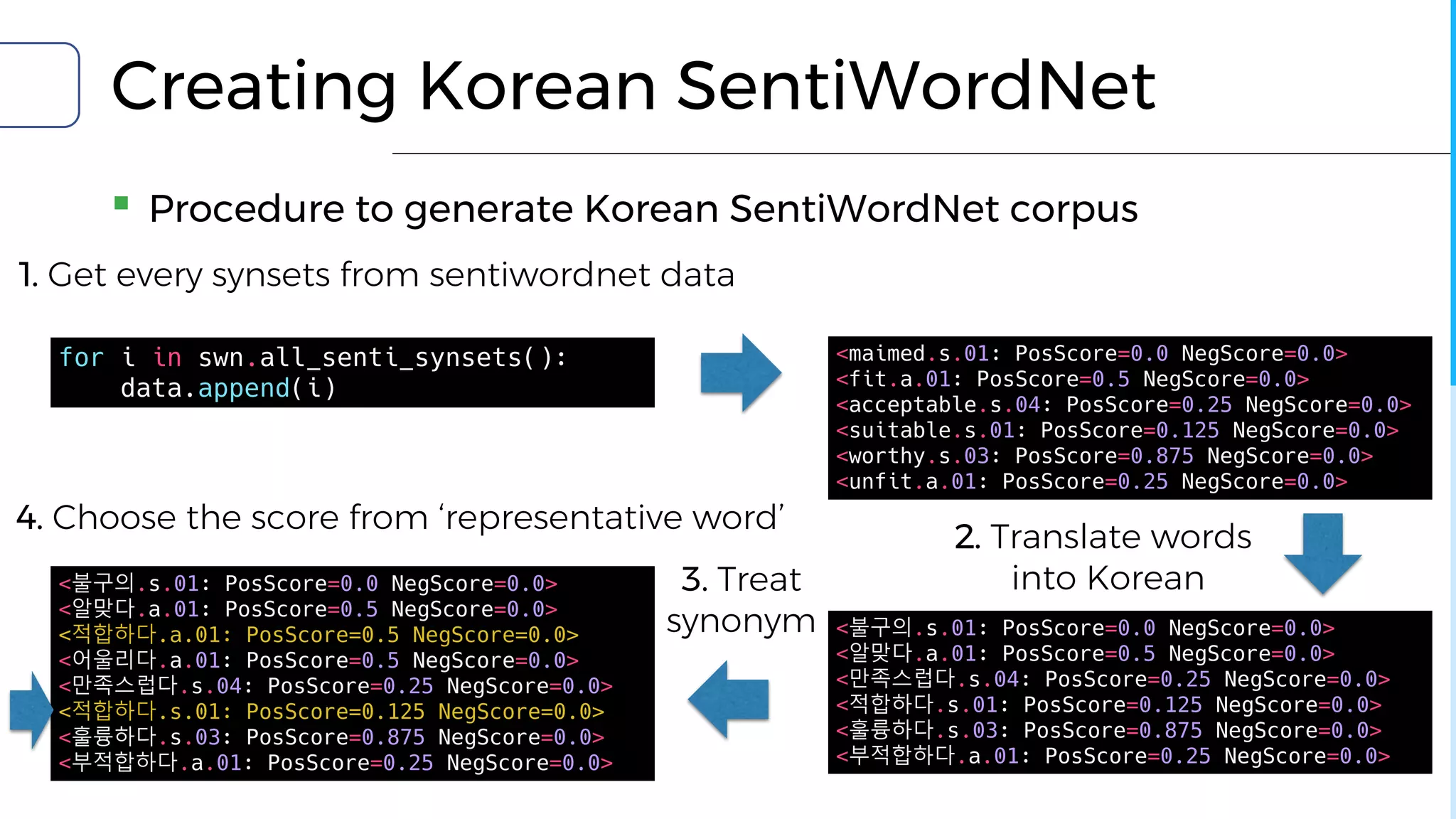

Creating Korean SentiWordNet
▪ Procedure to generate Korean SentiWordNet corpus
for i in swn.all_senti_synsets():
data.append(i)
<maimed.s.01: PosScore=0.0 NegScore=0.0>
<fit.a.01: PosScore=0.5 NegScore=0.0>
<acceptable.s.04: PosScore=0.25 NegScore=0.0>
<suitable.s.01: PosScore=0.125 NegScore=0.0>
<worthy.s.03: PosScore=0.875 NegScore=0.0>
<unfit.a.01: PosScore=0.25 NegScore=0.0>
<불구의.s.01: PosScore=0.0 NegScore=0.0>
<알맞다.a.01: PosScore=0.5 NegScore=0.0>
<만족스럽다.s.04: PosScore=0.25 NegScore=0.0>
<적합하다.s.01: PosScore=0.125 NegScore=0.0>
<훌륭하다.s.03: PosScore=0.875 NegScore=0.0>
<부적합하다.a.01: PosScore=0.25 NegScore=0.0>
2. Translate words
into Korean3. Treat
synonym
<불구의.s.01: PosScore=0.0 NegScore=0.0>
<알맞다.a.01: PosScore=0.5 NegScore=0.0>
<적합하다.a.01: PosScore=0.5 NegScore=0.0>
<어울리다.a.01: PosScore=0.5 NegScore=0.0>
<만족스럽다.s.04: PosScore=0.25 NegScore=0.0>
<적합하다.s.01: PosScore=0.125 NegScore=0.0>
<훌륭하다.s.03: PosScore=0.875 NegScore=0.0>
<부적합하다.a.01: PosScore=0.25 NegScore=0.0>
4. Choose the score from ‘representative word’
1. Get every synsets from sentiwordnet data

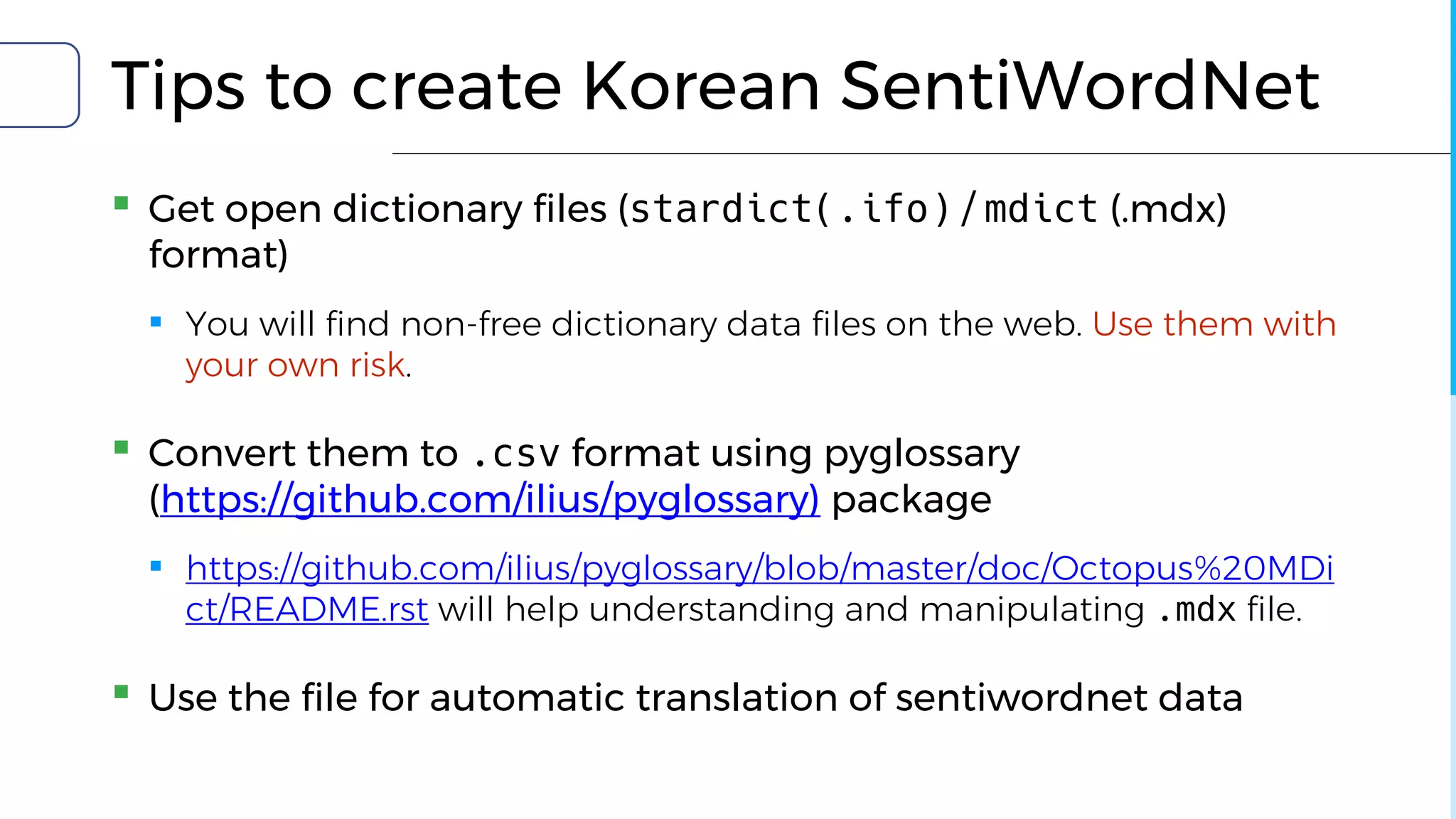

Tips to create Korean SentiWordNet
▪ Get open dictionary files (stardict(.ifo) / mdict (.mdx)
format)
▪ You will find non-free dictionary data files on the web. Use them with
your own risk.
▪ Convert them to .csv format using pyglossary
(https://github.com/ilius/pyglossary) package
▪ https://github.com/ilius/pyglossary/blob/master/doc/Octopus%20MDi
ct/README.rst will help understanding and manipulating .mdx file.
▪ Use the file for automatic translation of sentiwordnet data

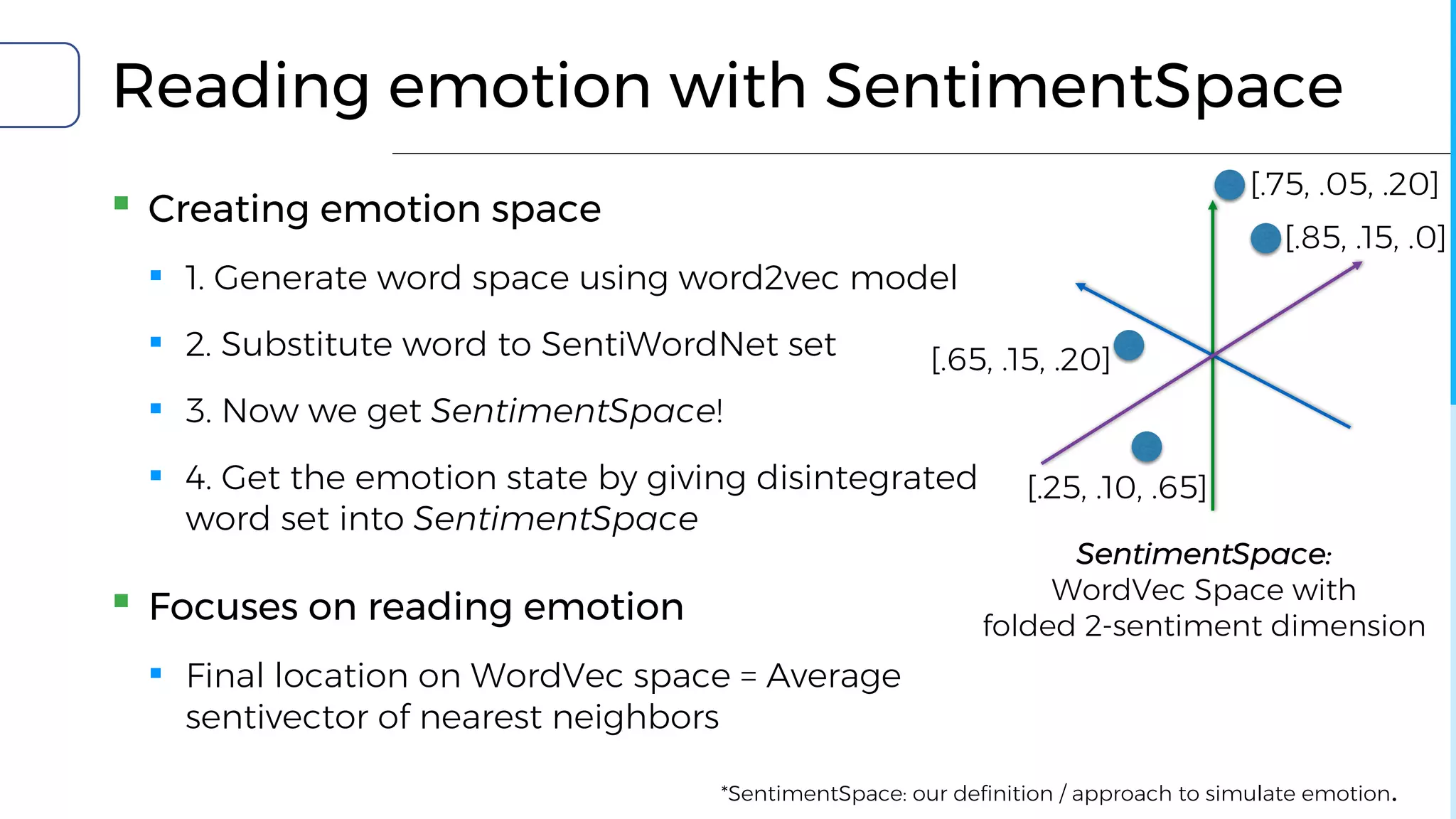

Reading emotion with SentimentSpace
▪ Creating emotion space
▪ 1. Generate word space using word2vec model
▪ 2. Substitute word to SentiWordNet set
▪ 3. Now we get SentimentSpace!
▪ 4. Get the emotion state by giving disintegrated
word set into SentimentSpace
▪ Focuses on reading emotion
▪ Final location on WordVec space = Average
sentivector of nearest neighbors
*SentimentSpace: our definition / approach to simulate emotion.
SentimentSpace:
WordVec Space with
folded 2-sentiment dimension
[.85, .15, .0]
[.75, .05, .20]
[.65, .15, .20]
[.25, .10, .65]

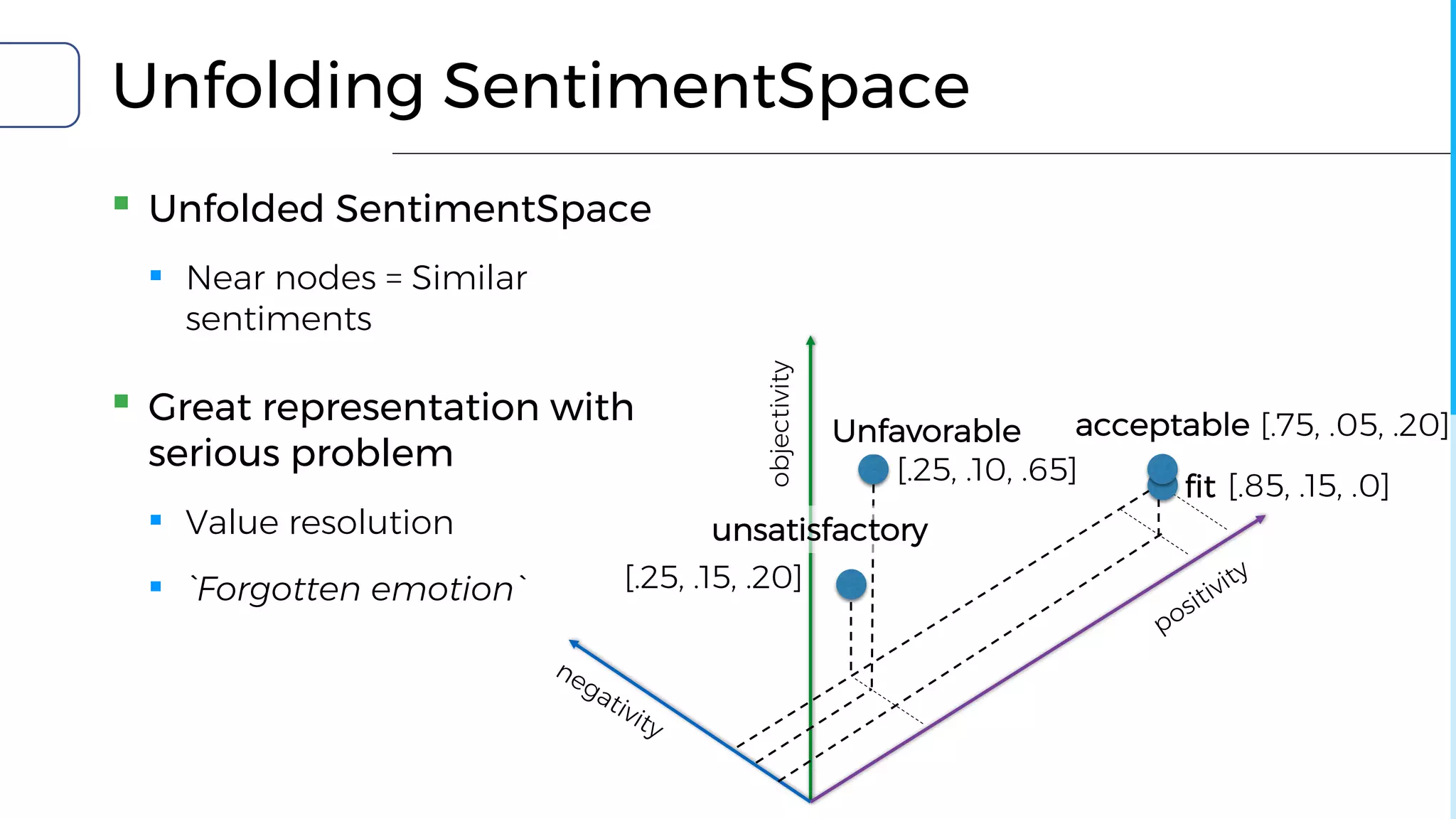

Unfolding SentimentSpace
▪ Unfolded SentimentSpace
▪ Near nodes = Similar
sentiments
▪ Great representation with
serious problem
▪ Value resolution
▪ `Forgotten emotion`
[.85, .15, .0]
[.75, .05, .20]
[.25, .15, .20]
[.25, .10, .65]
acceptable
fit
Unfavorable
unsatisfactory
objectivity

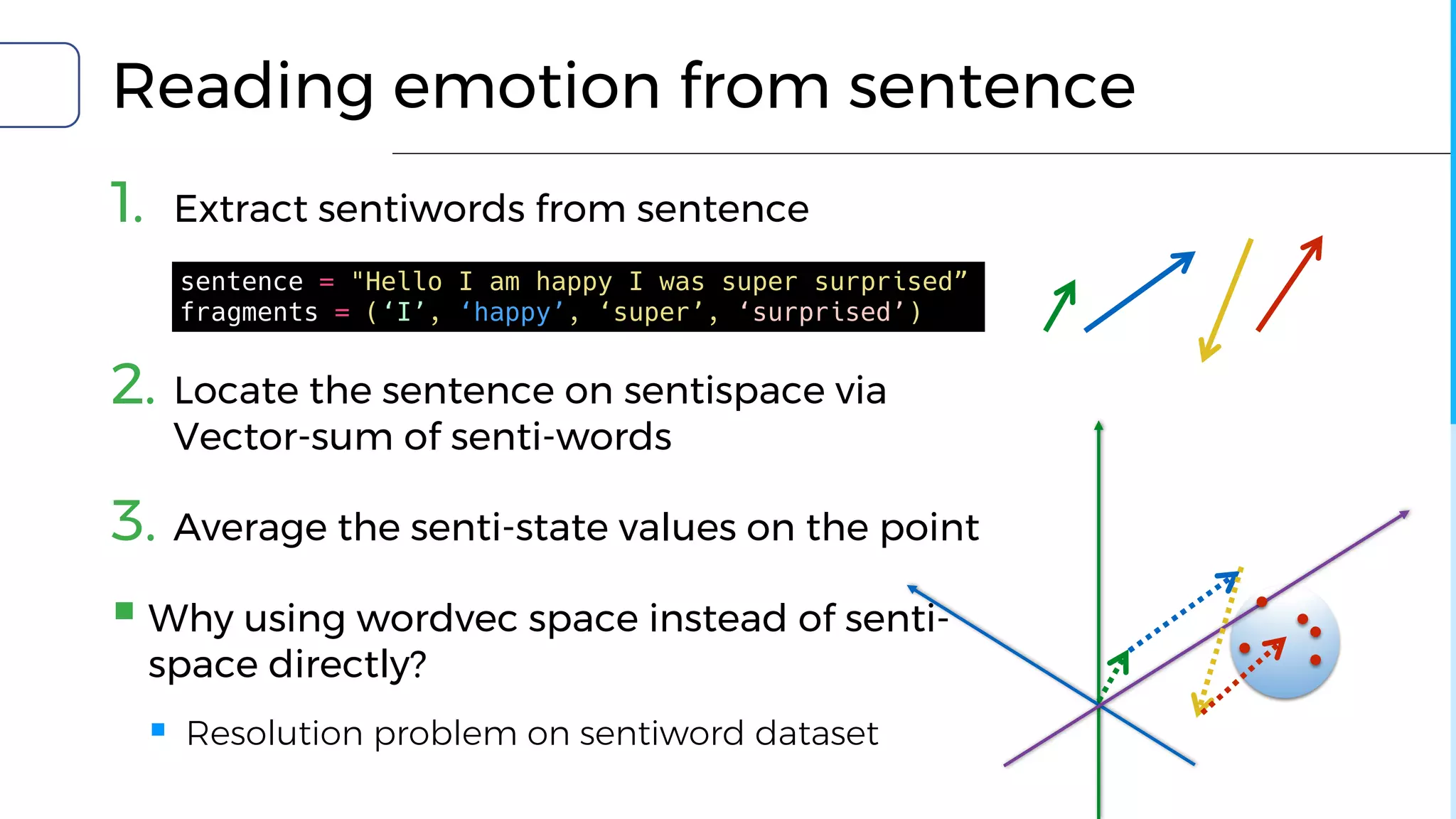

Reading emotion from sentence
1. Extract sentiwords from sentence
2. Locate the sentence on sentispace via
Vector-sum of senti-words
3. Average the senti-state values on the point
§ Why using wordvec space instead of senti-
space directly?
§ Resolution problem on sentiword dataset
sentence = "Hello I am happy I was super surprised”
fragments = (‘I’, ‘happy’, ‘super’, ‘surprised’)

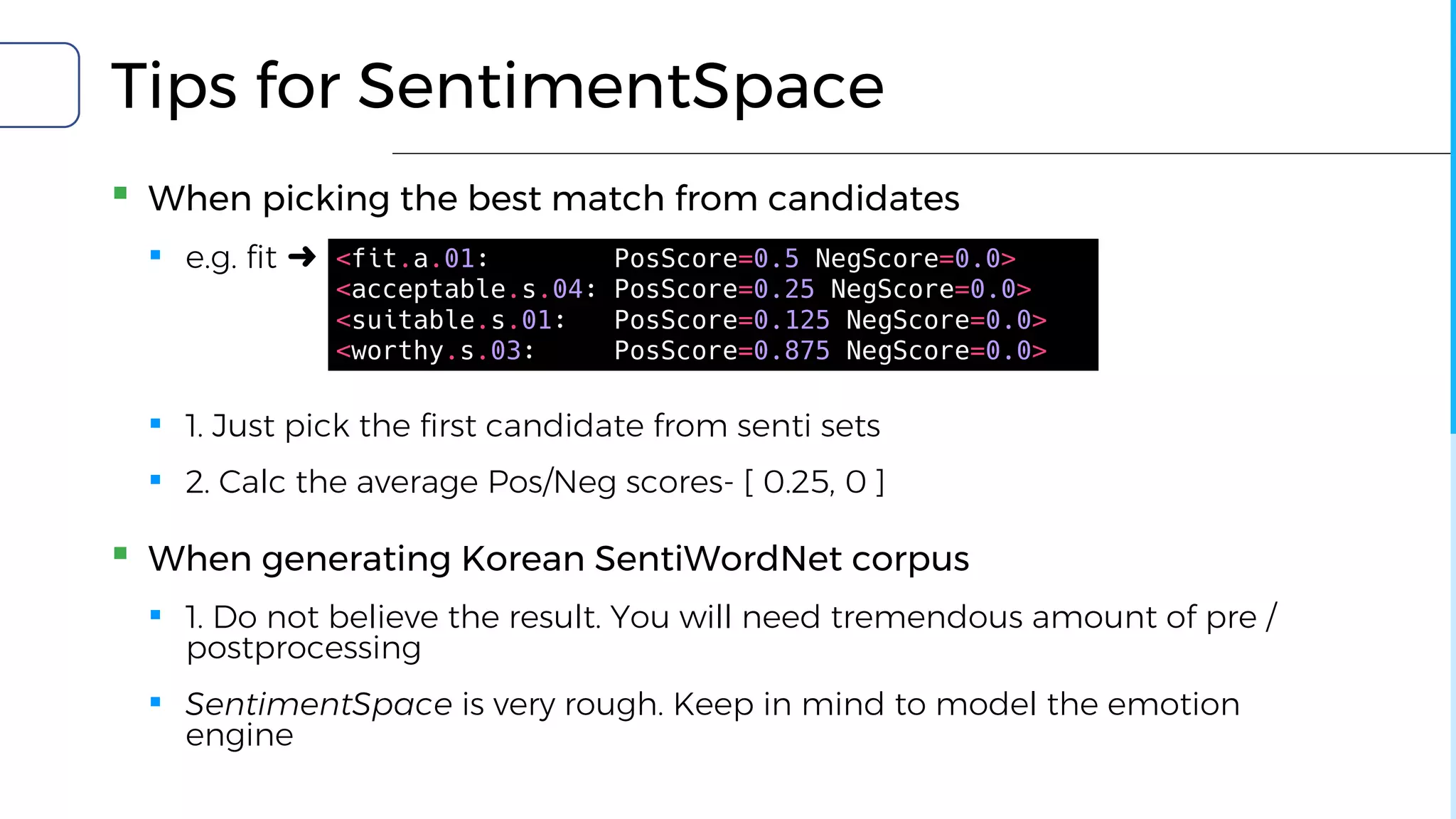

Tips for SentimentSpace
▪ When picking the best match from candidates
▪ e.g. fit ➜
▪ 1. Just pick the first candidate from senti sets
▪ 2. Calc the average Pos/Neg scores- [ 0.25, 0 ]
▪ When generating Korean SentiWordNet corpus
▪ 1. Do not believe the result. You will need tremendous amount of pre /
postprocessing
▪ SentimentSpace is very rough. Keep in mind to model the emotion
engine
<fit.a.01: PosScore=0.5 NegScore=0.0>
<acceptable.s.04: PosScore=0.25 NegScore=0.0>
<suitable.s.01: PosScore=0.125 NegScore=0.0>
<worthy.s.03: PosScore=0.875 NegScore=0.0>

Do we really know what emotion is?
And, mimic the sentiment.
© Sports chosun

–Ridley Scott’s blade runner
"More human than human" is our motto.
(c) http://www.westword.com/arts/the-top-five-best-futurama-episodes-ever-5800102

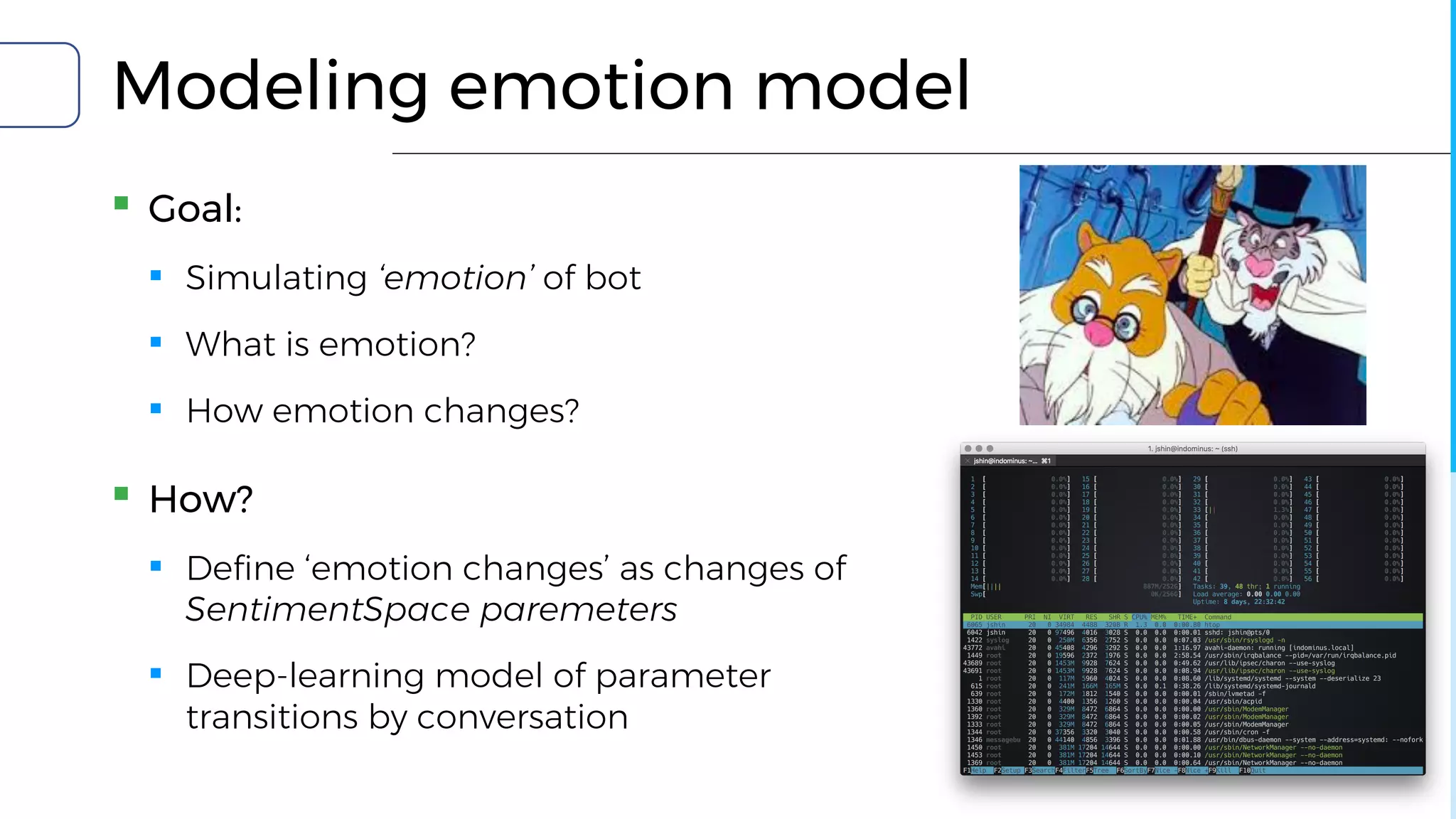

Modeling emotion model
▪ Goal:
▪ Simulating ‘emotion’ of bot
▪ What is emotion?
▪ How emotion changes?
▪ How?
▪ Define ‘emotion changes’ as changes of
SentimentSpace paremeters
▪ Deep-learning model of parameter
transitions by conversation

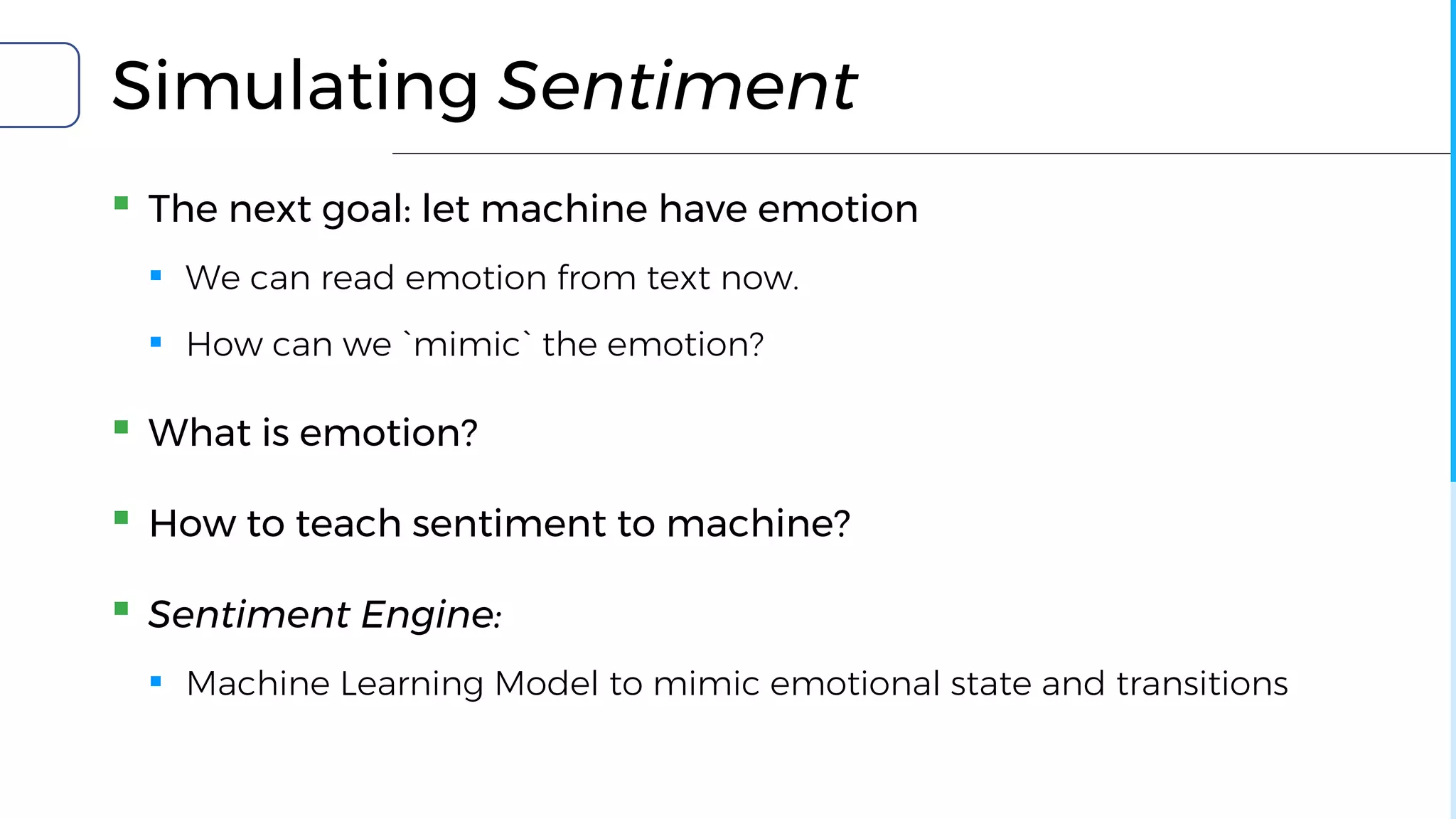

Simulating Sentiment
▪ The next goal: let machine have emotion
▪ We can read emotion from text now.
▪ How can we `mimic` the emotion?
▪ What is emotion?
▪ How to teach sentiment to machine?
▪ Sentiment Engine:
▪ Machine Learning Model to mimic emotional state and transitions

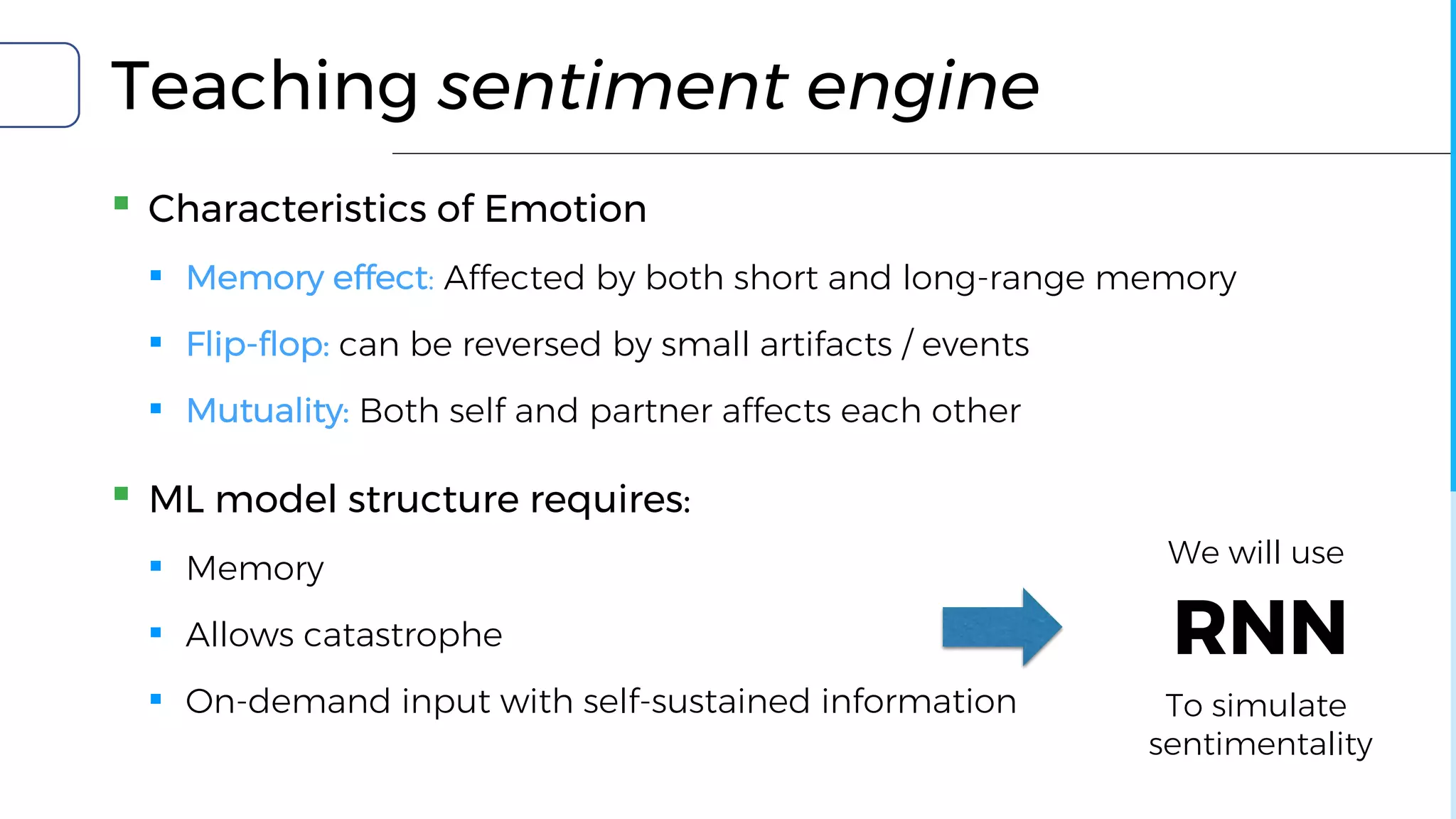

Teaching sentiment engine
▪ Characteristics of Emotion
▪ Memory effect: Affected by both short and long-range memory
▪ Flip-flop: can be reversed by small artifacts / events
▪ Mutuality: Both self and partner affects each other
▪ ML model structure requires:
▪ Memory
▪ Allows catastrophe
▪ On-demand input with self-sustained information
RNN
We will use
To simulate
sentimentality

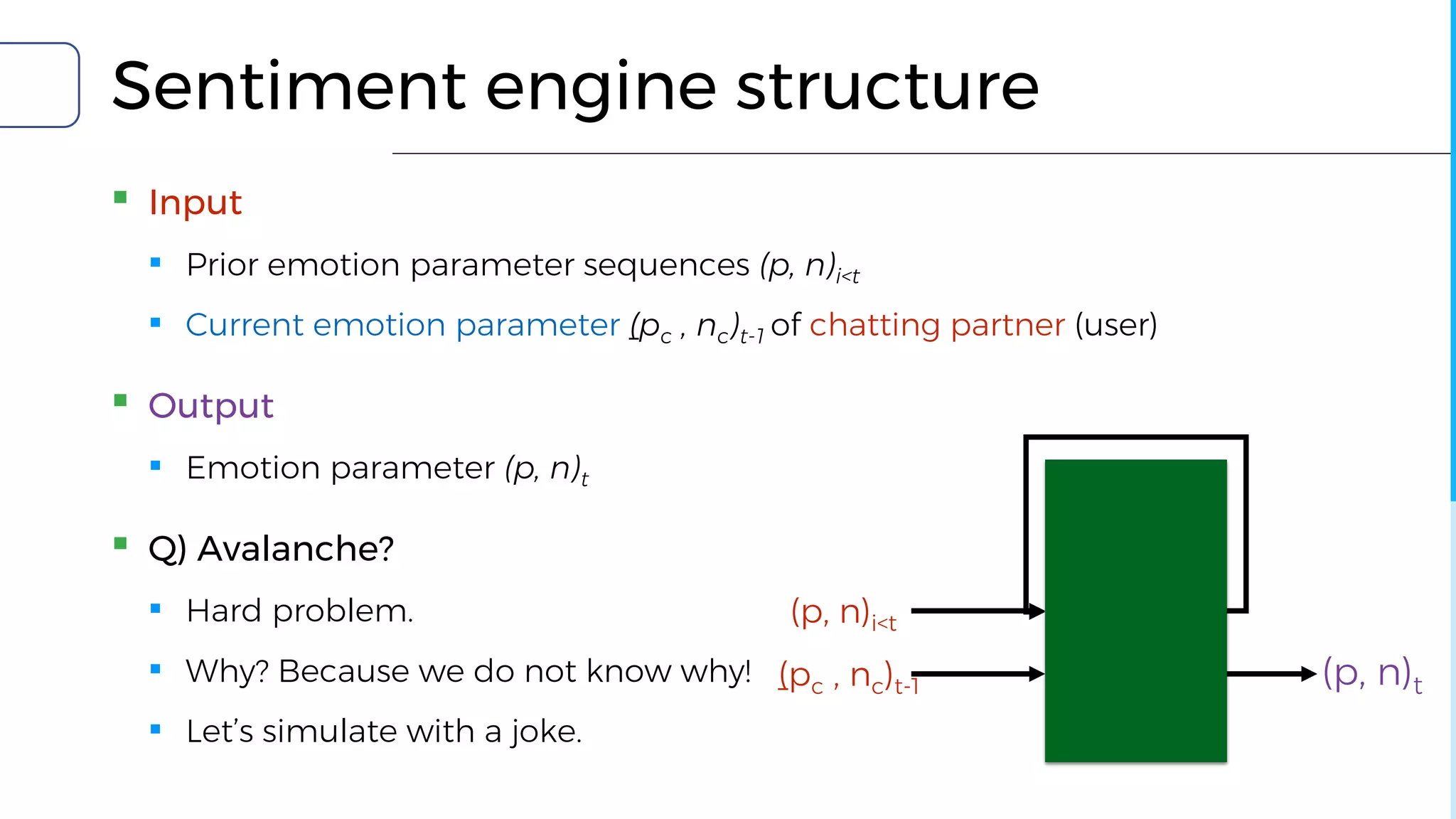

Sentiment engine structure
▪ Input
▪ Prior emotion parameter sequences (p, n)i<t
▪ Current emotion parameter (pc , nc)t-1 of chatting partner (user)
▪ Output
▪ Emotion parameter (p, n)t
▪ Q) Avalanche?
▪ Hard problem.
▪ Why? Because we do not know why!
▪ Let’s simulate with a joke.
(pc , nc)t-1
(p, n)i<t
(p, n)t

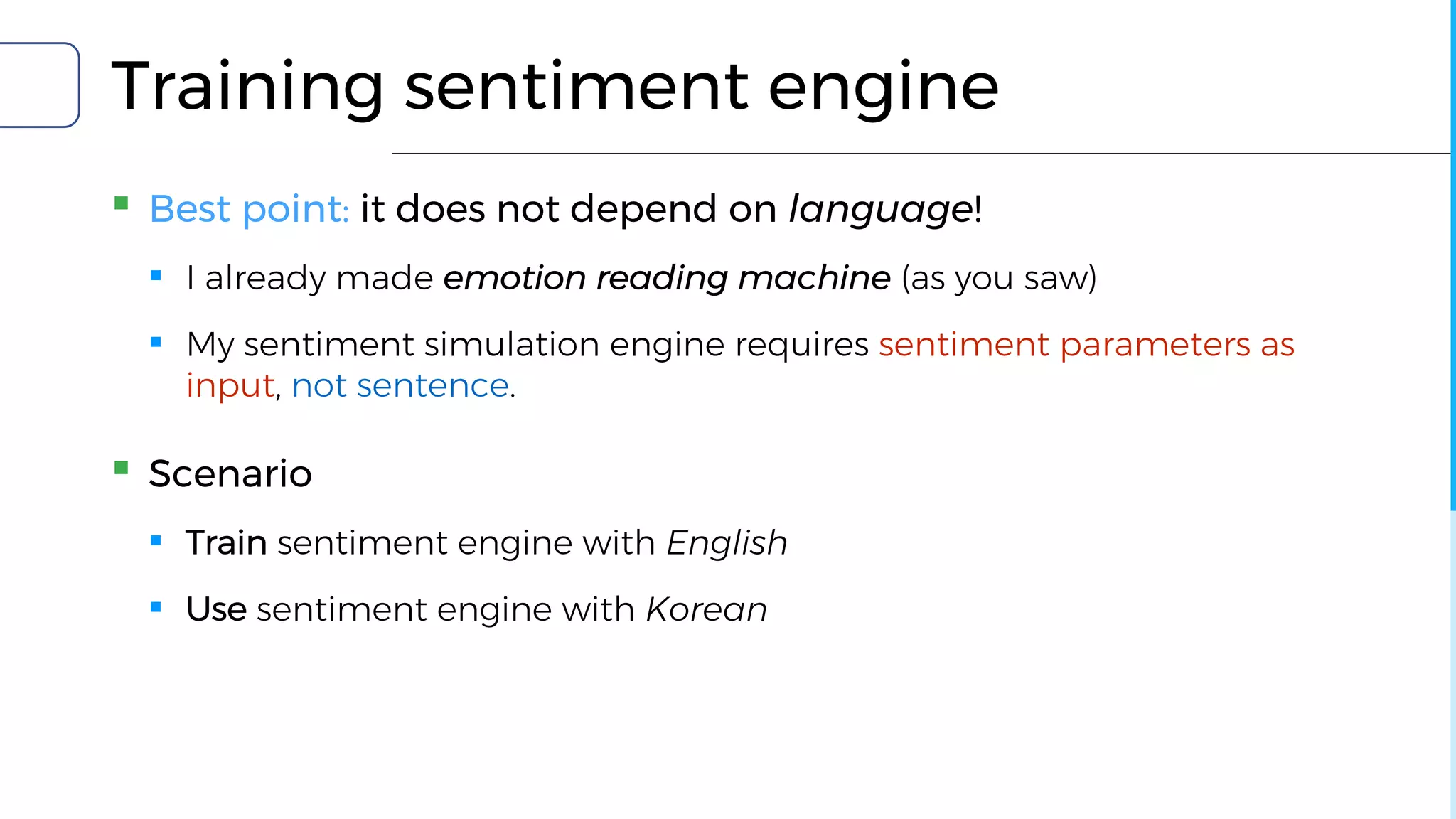

Training sentiment engine
▪ Best point: it does not depend on language!
▪ I already made emotion reading machine (as you saw)
▪ My sentiment simulation engine requires sentiment parameters as
input, not sentence.
▪ Scenario
▪ Train sentiment engine with English
▪ Use sentiment engine with Korean

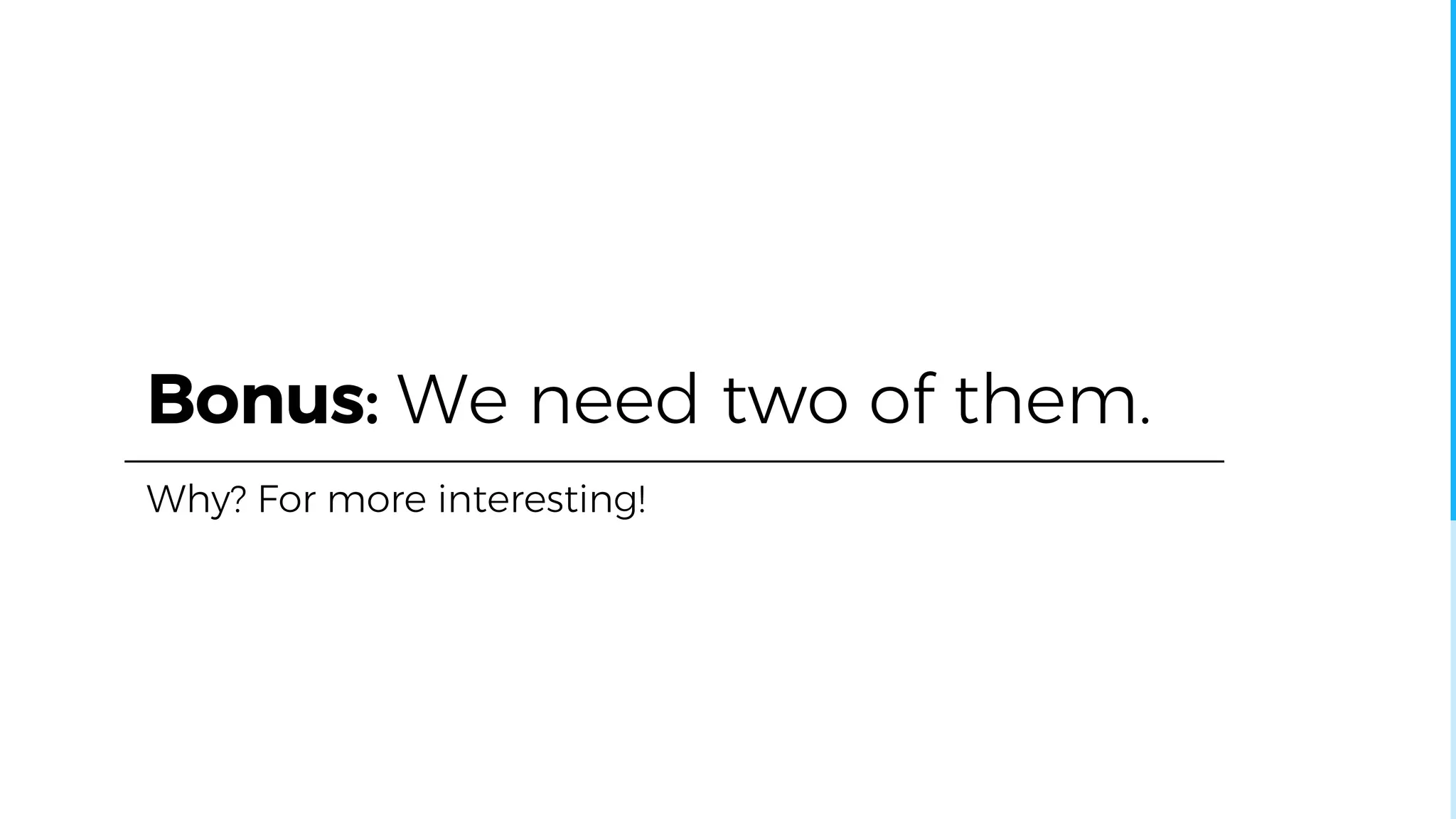

Bonus: We need two of them.
Why? For more interesting!

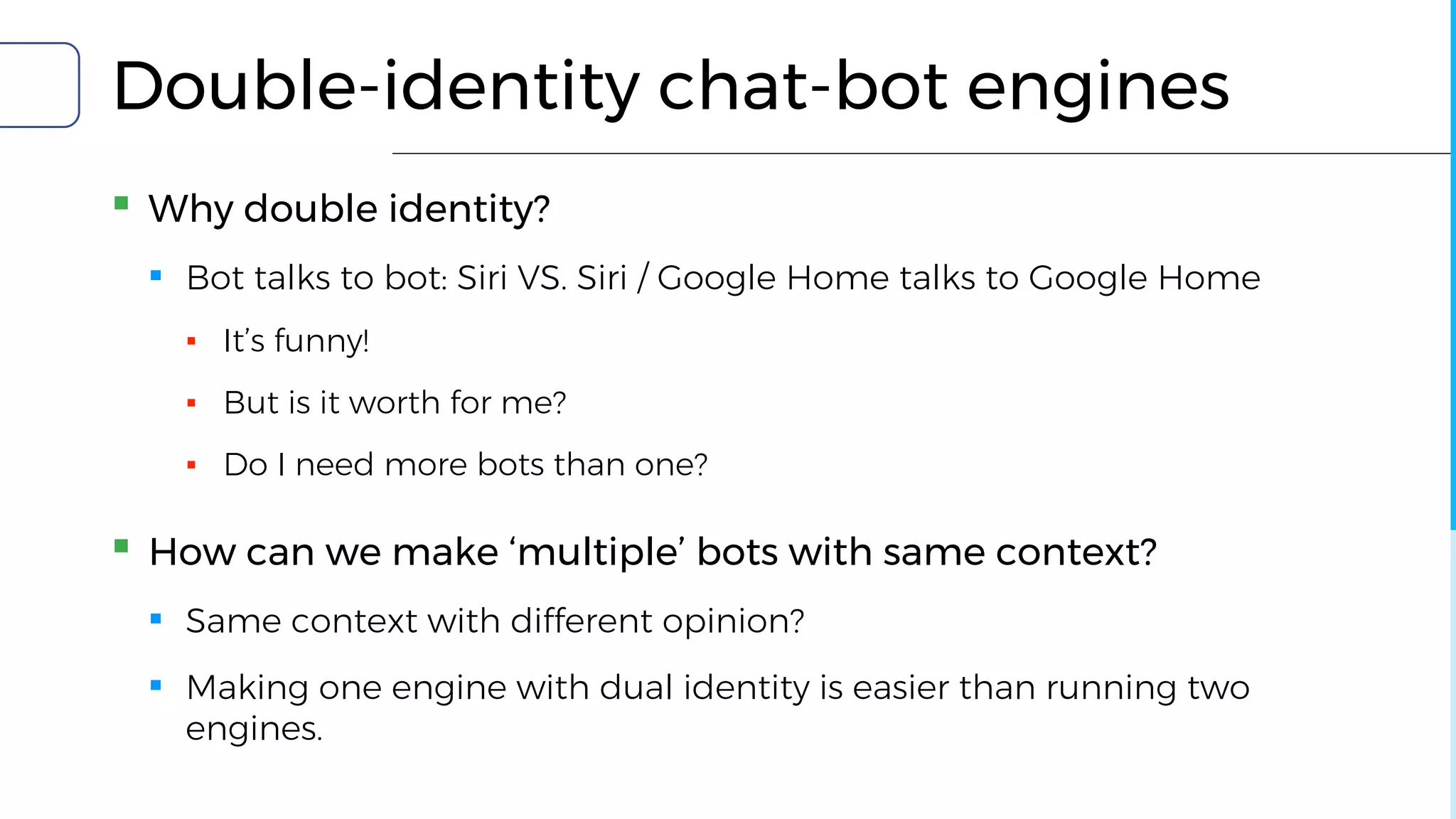

Double-identity chat-bot engines
▪ Why double identity?
▪ Bot talks to bot: Siri VS. Siri / Google Home talks to Google Home
▪ It’s funny!
▪ But is it worth for me?
▪ Do I need more bots than one?
▪ How can we make ‘multiple’ bots with same context?
▪ Same context with different opinion?
▪ Making one engine with dual identity is easier than running two
engines.

…Still testing / working on the topic now.

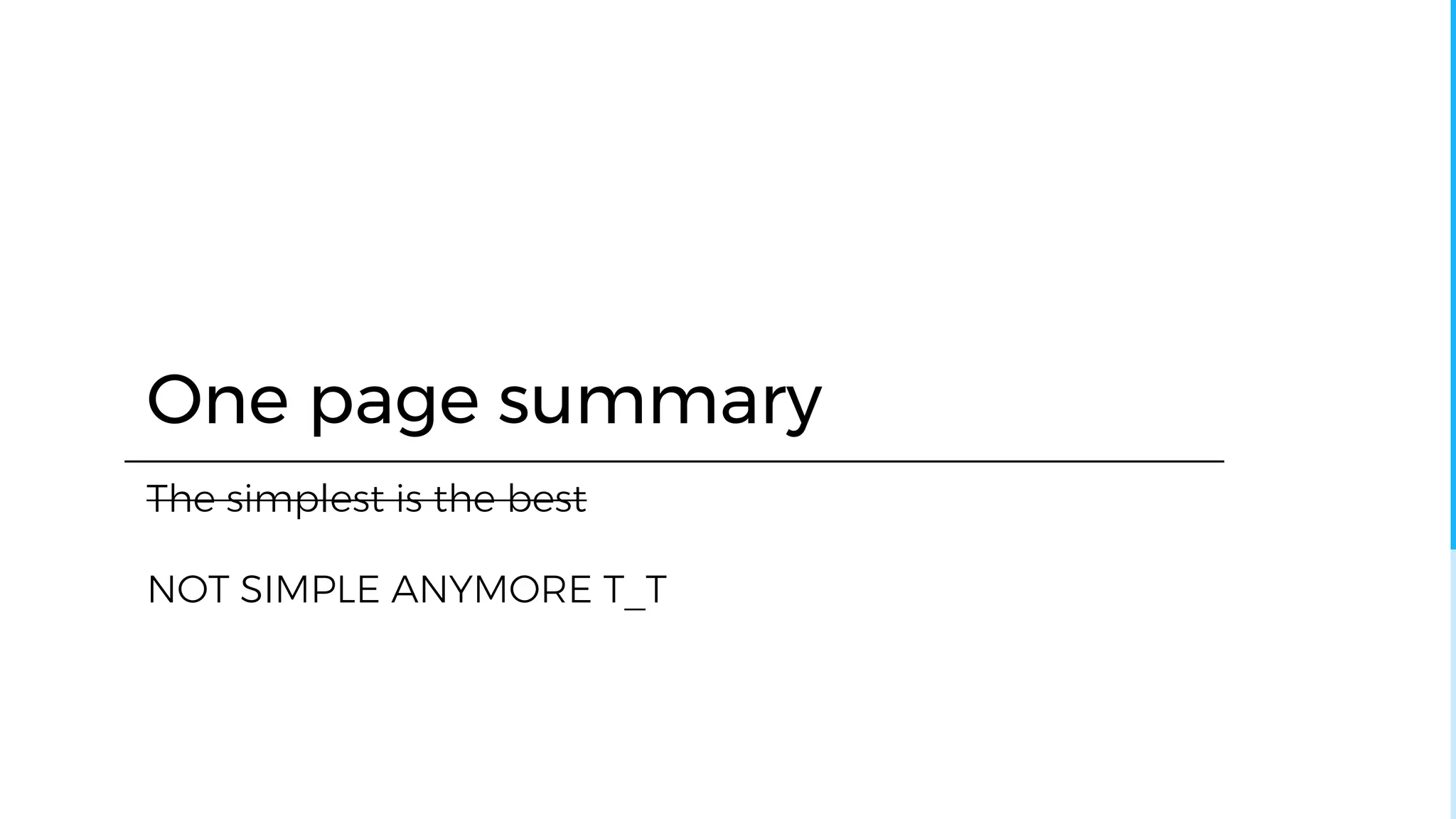

One page summary
The simplest is the best
NOT SIMPLE ANYMORE T_T

Are you caring me now?
You / Care / I / Now
You / Look / Tired /Yesterday
You looked tired yesterday.
Ah, you looked very tired yesterday.
[GUESS] I [CARE] [PRESENT]
Disintegrator
Context analyzer
Decision maker
Grammar generator
Tone generator
Lexical
Output
Sentence generator
Deep-learning model
Grammar generator
Context
memory
Knowledge engine
Emotion engine
Context
parser
Tone generator
Disintegrator
Response
generator
NLP + StV
Context
analyzer
+
Decision
maker
Lexical
Input

Deep-learning model
Knowledge engine
Emotion engine
Context
parser
Context
analyzer
+
Decision
maker
Emotion Reader Sentiment Engine
Sentiment ML
SentimentSpace
Reader ML
Context
memory

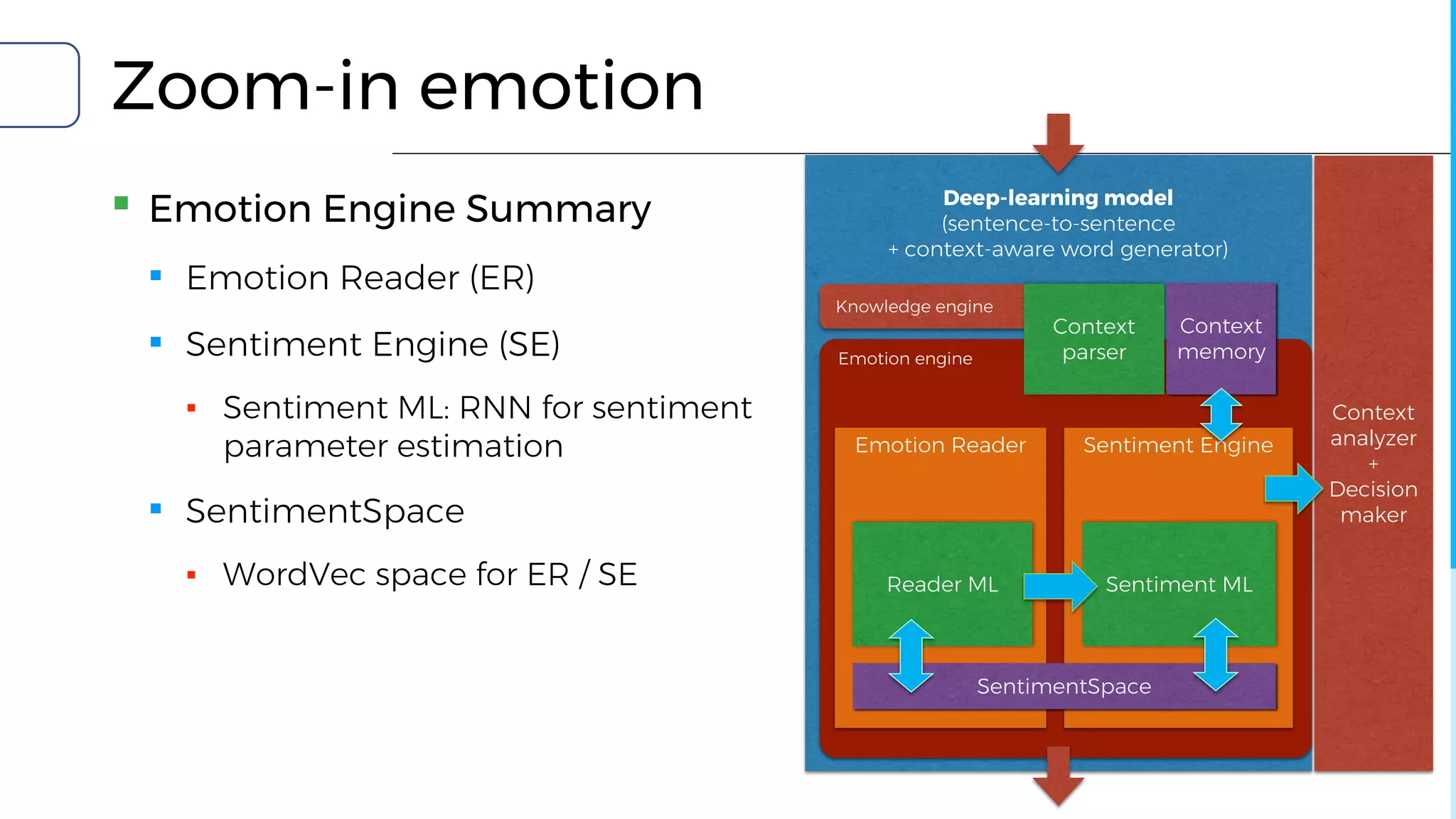

Zoom-in emotion
▪ Emotion Engine Summary
▪ Emotion Reader (ER)
▪ Sentiment Engine (SE)
▪ Sentiment ML: RNN for sentiment
parameter estimation
▪ SentimentSpace
▪ WordVec space for ER / SE

With nostalgic tools (to someone)

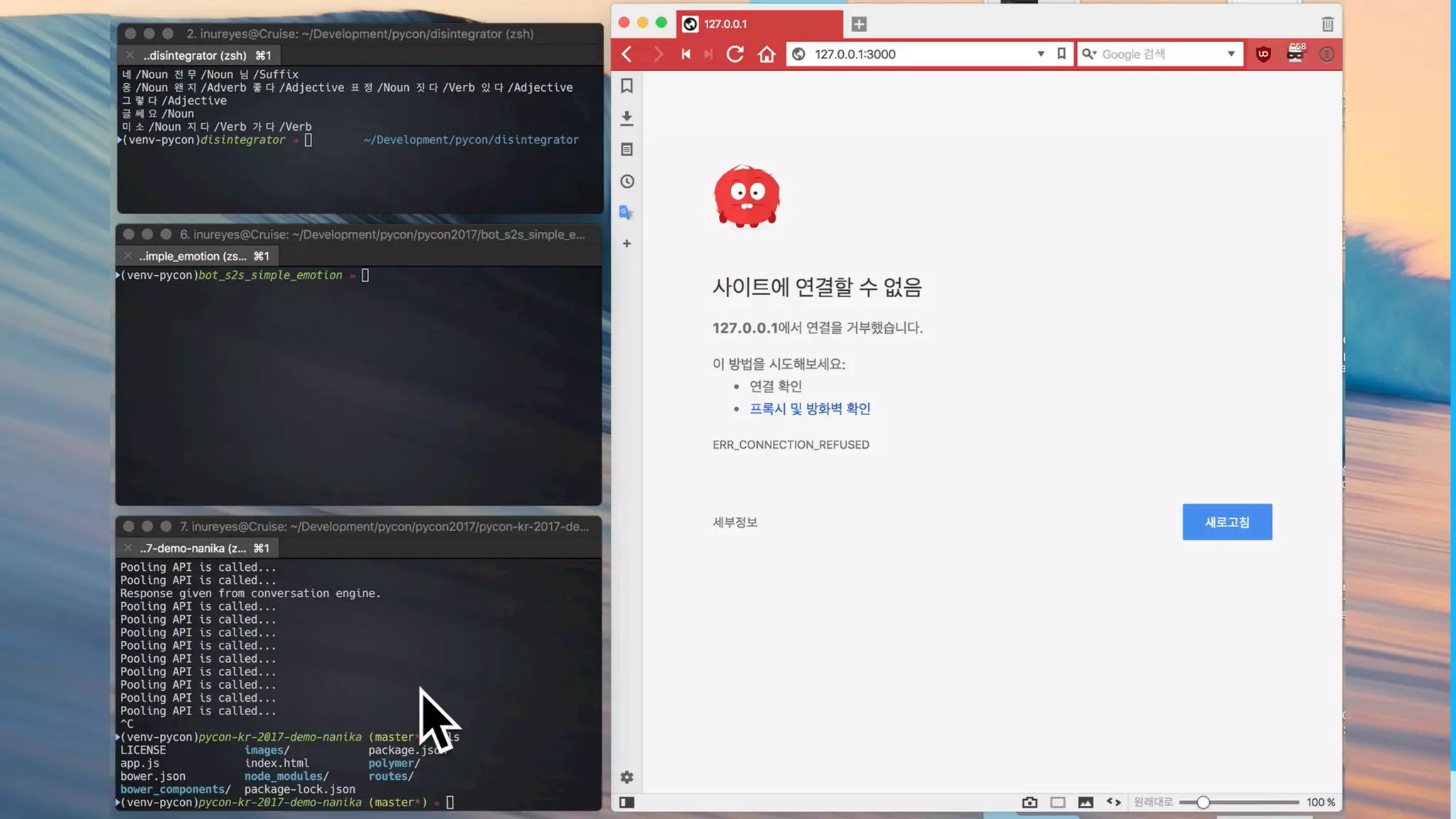

Demonstration

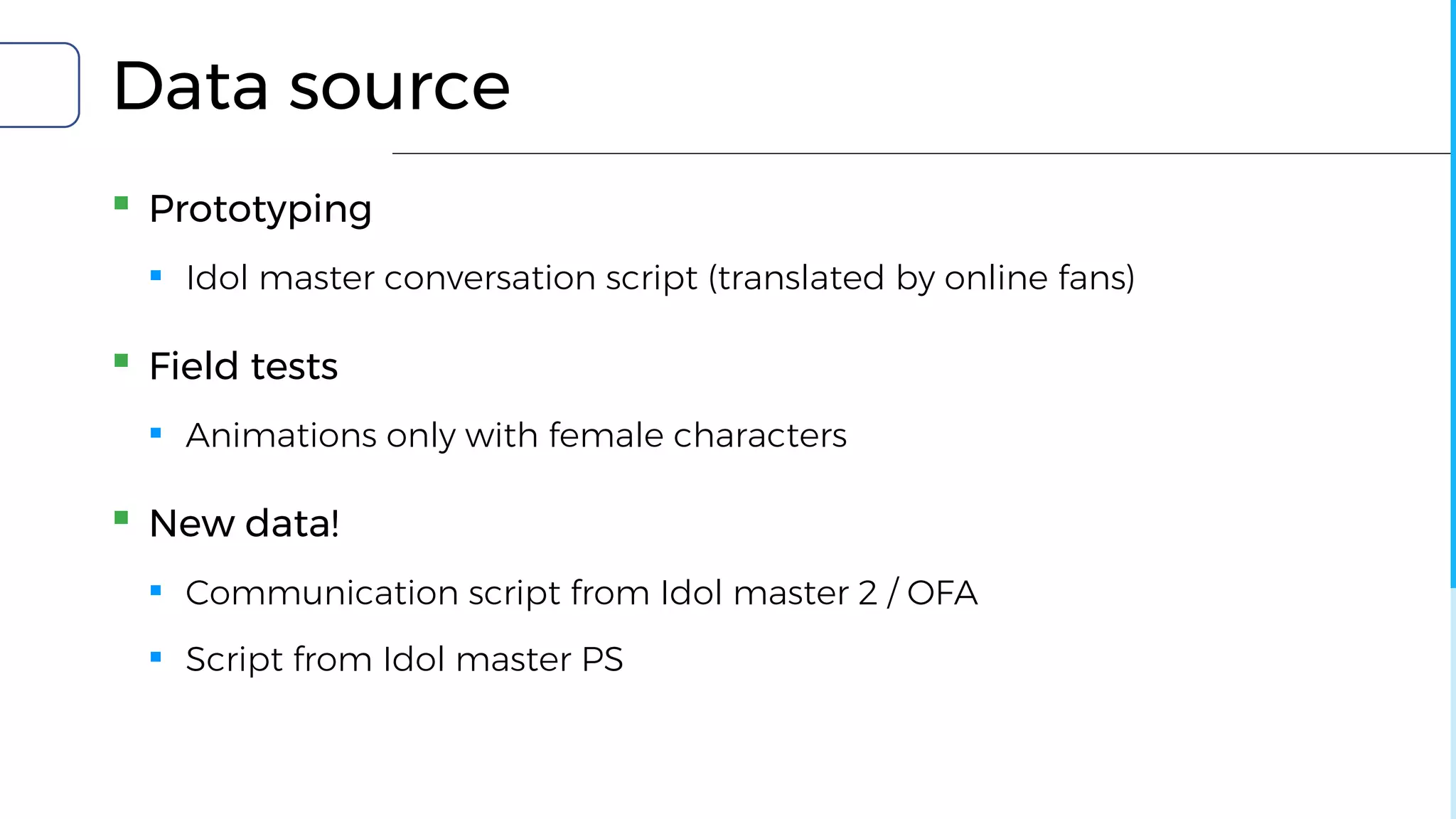

Data source
▪ Prototyping
▪ Idol master conversation script (translated by online fans)
▪ Field tests
▪ Animations only with female characters
▪ New data!
▪ Communication script from Idol master 2 / OFA
▪ Script from Idol master PS

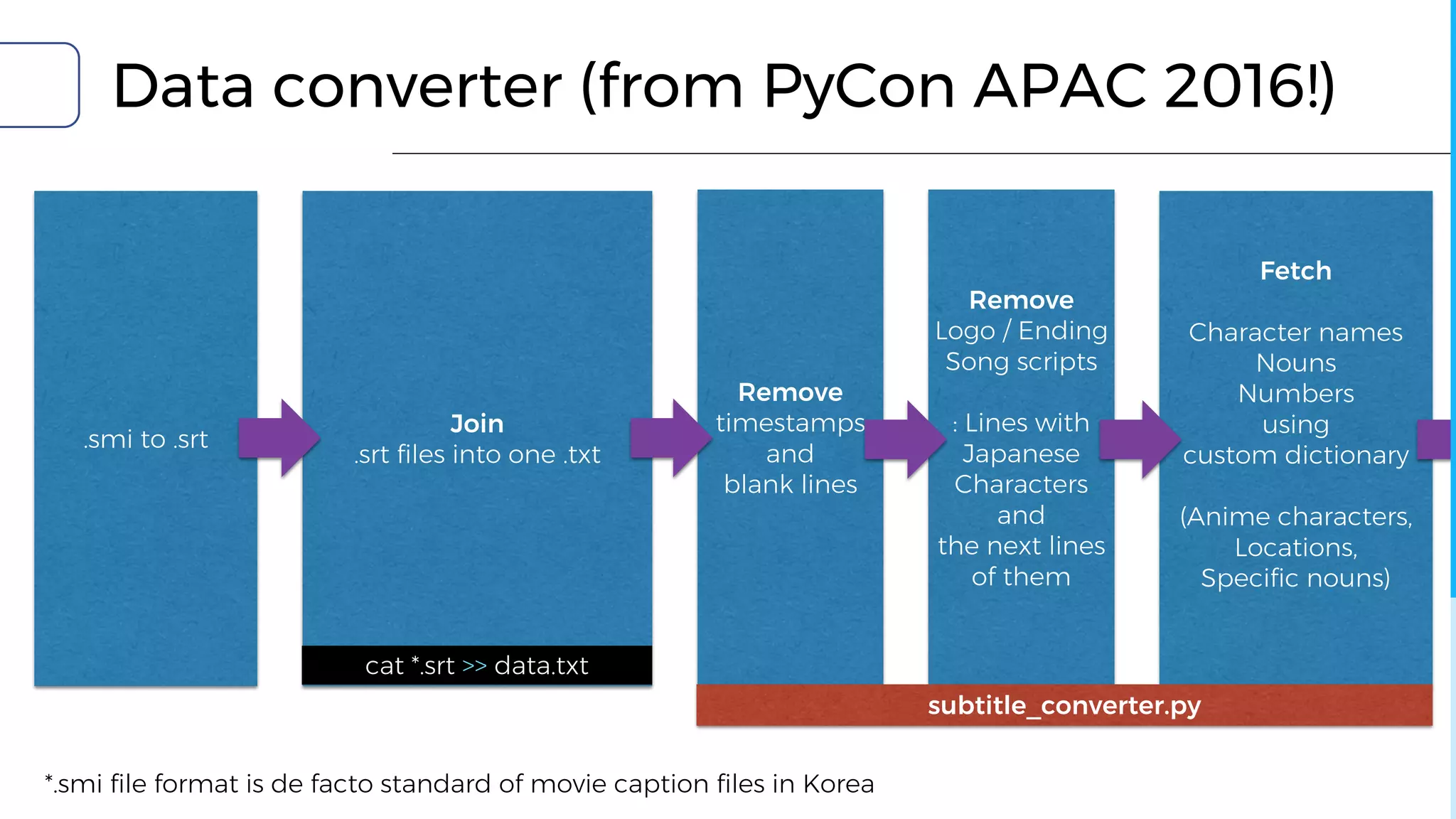

Data converter (from PyCon APAC 2016!)
.smi to .srt
Join
.srt files into one .txt
Remove
timestamps
and
blank lines
Remove
Logo / Ending
Song scripts
: Lines with
Japanese
Characters
and
the next lines
of them
Fetch
Character names
Nouns
Numbers
using
custom dictionary
(Anime characters,
Locations,
Specific nouns)
cat *.srt >> data.txt
subtitle_converter.py
*.smi file format is de facto standard of movie caption files in Korea

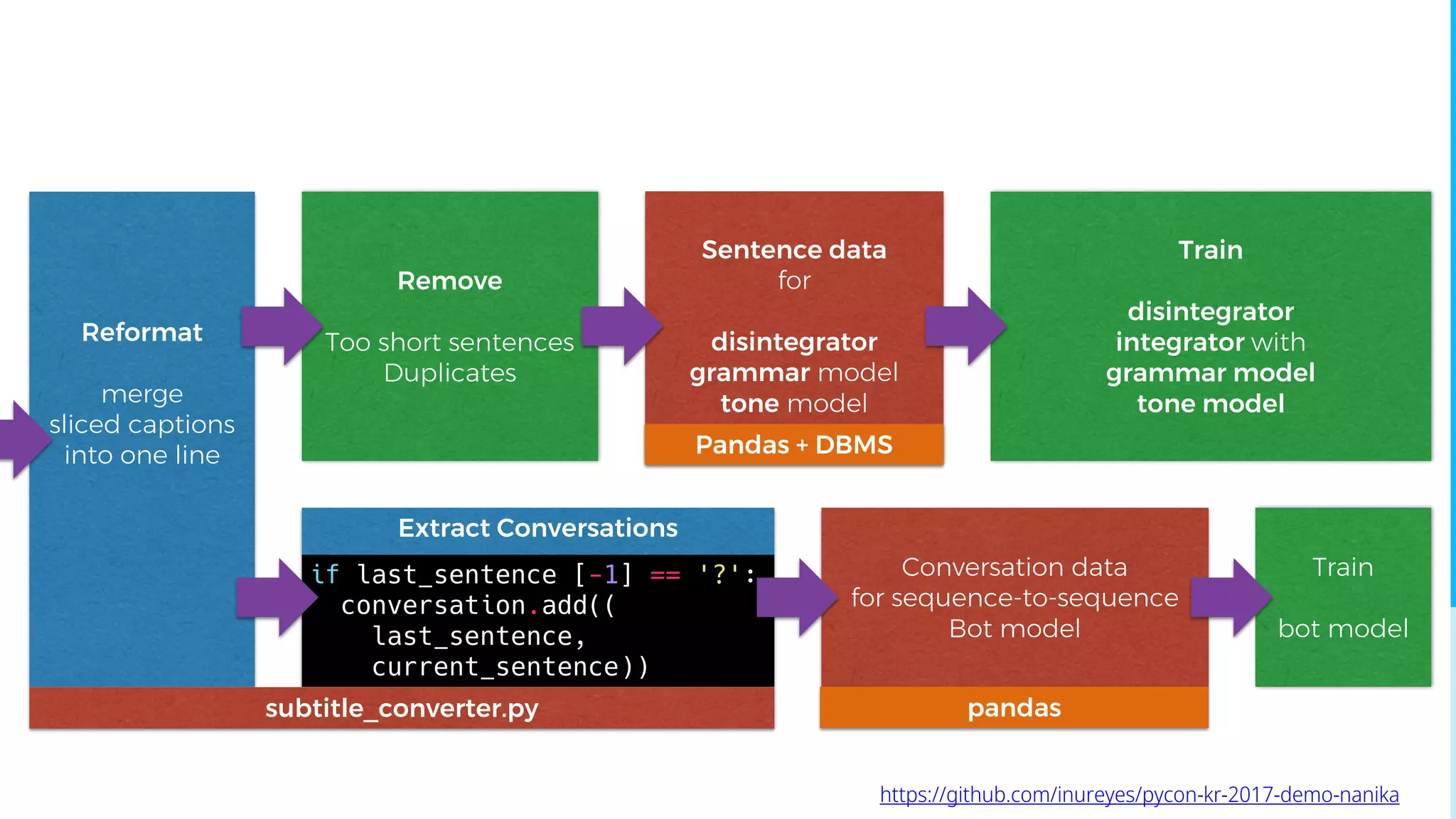

Extract Conversations
Conversation data
for sequence-to-sequence
Bot model
Reformat
merge
sliced captions
into one line
if last_sentence [-1] == '?':
conversation.add((
last_sentence,
current_sentence))
Remove
Too short sentences
Duplicates
Sentence data
for
disintegrator
grammar model
tone model
Train
disintegrator
integrator with
grammar model
tone model
Train
bot model
subtitle_converter.py
Pandas + DBMS
pandas
https://github.com/inureyes/pycon-kr-2017-demo-nanika

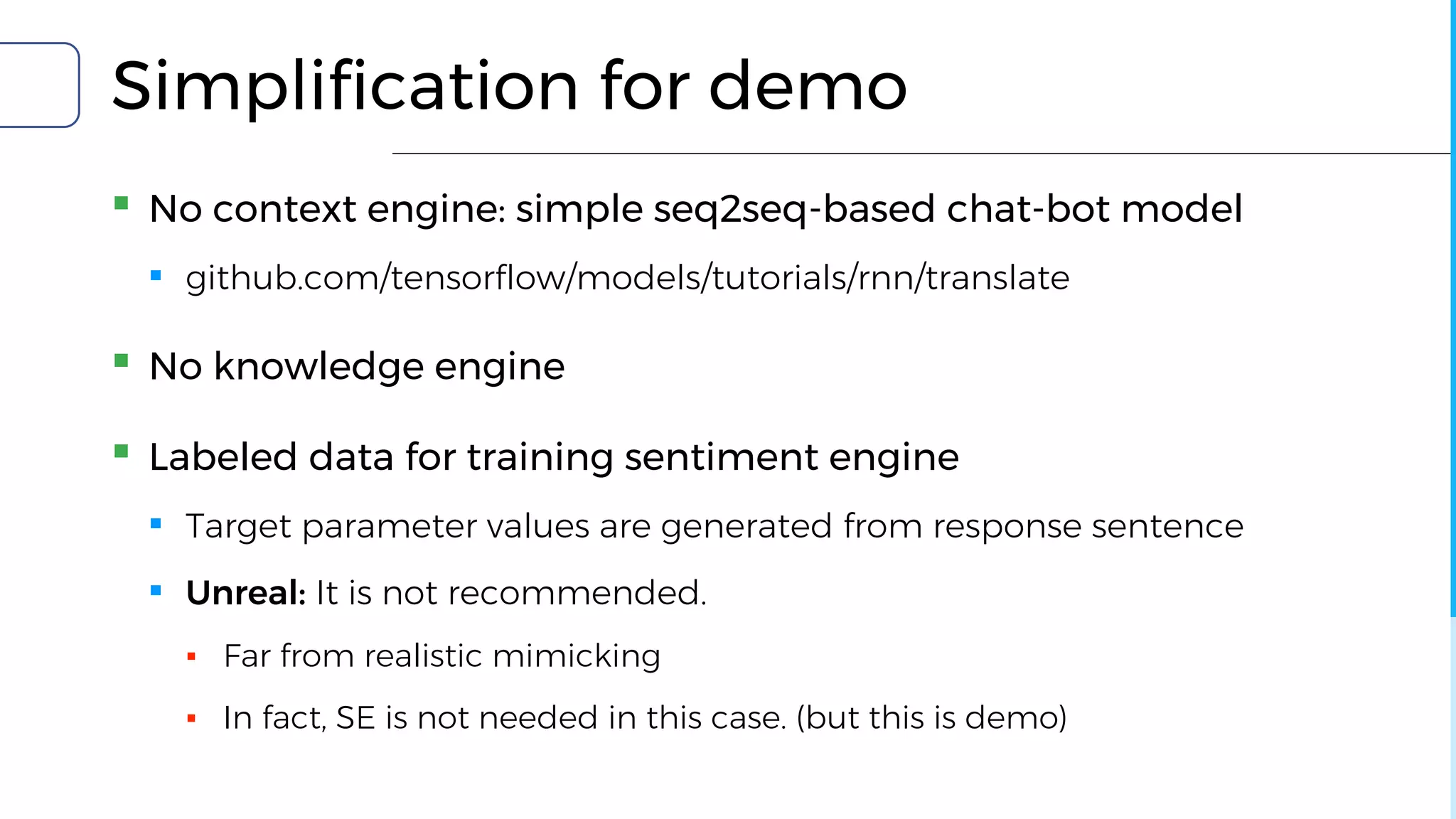

Simplification for demo
▪ No context engine: simple seq2seq-based chat-bot model
▪ github.com/tensorflow/models/tutorials/rnn/translate
▪ No knowledge engine
▪ Labeled data for training sentiment engine
▪ Target parameter values are generated from response sentence
▪ Unreal: It is not recommended.
▪ Far from realistic mimicking
▪ In fact, SE is not needed in this case. (but this is demo)

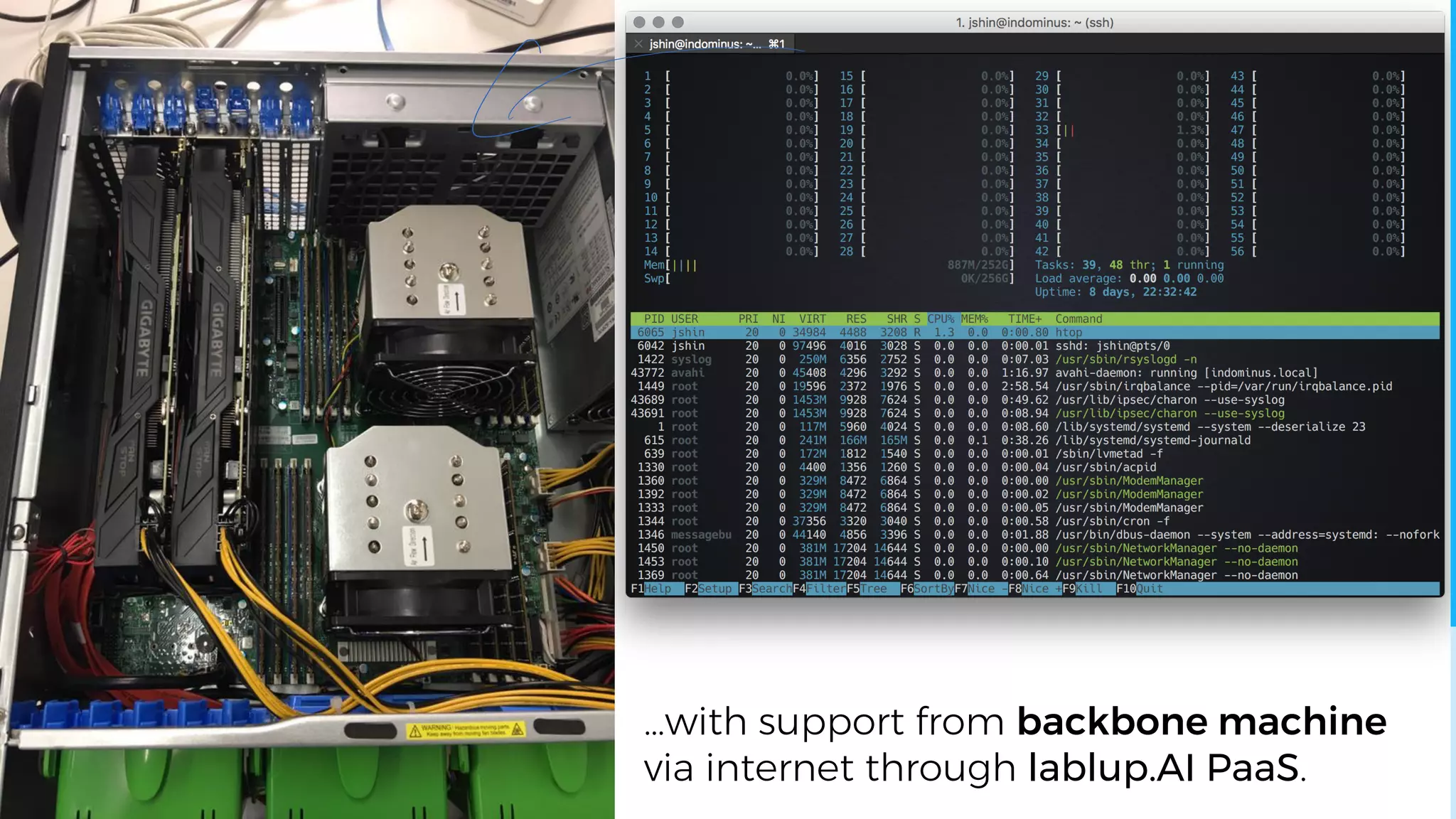

…with support from backbone machine
via internet through lablup.AI PaaS.

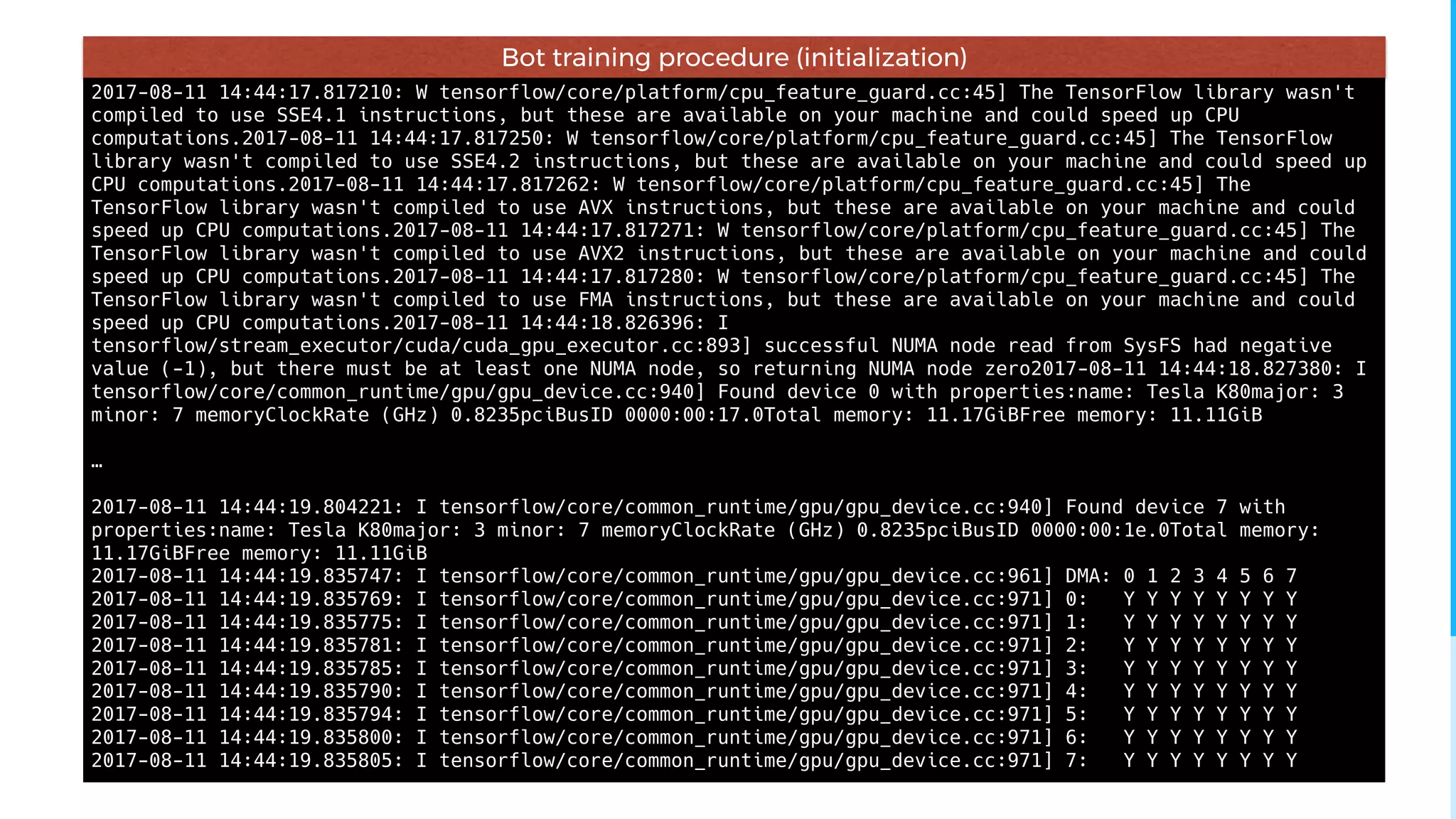

2017-08-11 14:44:17.817210: W tensorflow/core/platform/cpu_feature_guard.cc:45] The TensorFlow library wasn't
compiled to use SSE4.1 instructions, but these are available on your machine and could speed up CPU
computations.2017-08-11 14:44:17.817250: W tensorflow/core/platform/cpu_feature_guard.cc:45] The TensorFlow
library wasn't compiled to use SSE4.2 instructions, but these are available on your machine and could speed up
CPU computations.2017-08-11 14:44:17.817262: W tensorflow/core/platform/cpu_feature_guard.cc:45] The
TensorFlow library wasn't compiled to use AVX instructions, but these are available on your machine and could
speed up CPU computations.2017-08-11 14:44:17.817271: W tensorflow/core/platform/cpu_feature_guard.cc:45] The
TensorFlow library wasn't compiled to use AVX2 instructions, but these are available on your machine and could
speed up CPU computations.2017-08-11 14:44:17.817280: W tensorflow/core/platform/cpu_feature_guard.cc:45] The
TensorFlow library wasn't compiled to use FMA instructions, but these are available on your machine and could
speed up CPU computations.2017-08-11 14:44:18.826396: I
tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:893] successful NUMA node read from SysFS had negative
value (-1), but there must be at least one NUMA node, so returning NUMA node zero2017-08-11 14:44:18.827380: I
tensorflow/core/common_runtime/gpu/gpu_device.cc:940] Found device 0 with properties:name: Tesla K80major: 3
minor: 7 memoryClockRate (GHz) 0.8235pciBusID 0000:00:17.0Total memory: 11.17GiBFree memory: 11.11GiB
…
2017-08-11 14:44:19.804221: I tensorflow/core/common_runtime/gpu/gpu_device.cc:940] Found device 7 with
properties:name: Tesla K80major: 3 minor: 7 memoryClockRate (GHz) 0.8235pciBusID 0000:00:1e.0Total memory:
11.17GiBFree memory: 11.11GiB
2017-08-11 14:44:19.835747: I tensorflow/core/common_runtime/gpu/gpu_device.cc:961] DMA: 0 1 2 3 4 5 6 7
2017-08-11 14:44:19.835769: I tensorflow/core/common_runtime/gpu/gpu_device.cc:971] 0: Y Y Y Y Y Y Y Y
Bot training procedure (initialization)

There was a clip a.k.a. Office Assistant
Note: It is NOT a joke.
A long time ago,
© clippit, Microsoft Office 97
It was not fun.

Back to the basic
Go back to the past

If you were crazy about desktop eyecandy,
▪ SSP / 나니카
▪ Compatible Baseware of 伺か
▪ 伺か: Desktop accessary for geeks in 2000s.
http://ssp.shillest.net
https://plaza.rakuten.co.jp/iiwisblog/diary/200602250000/

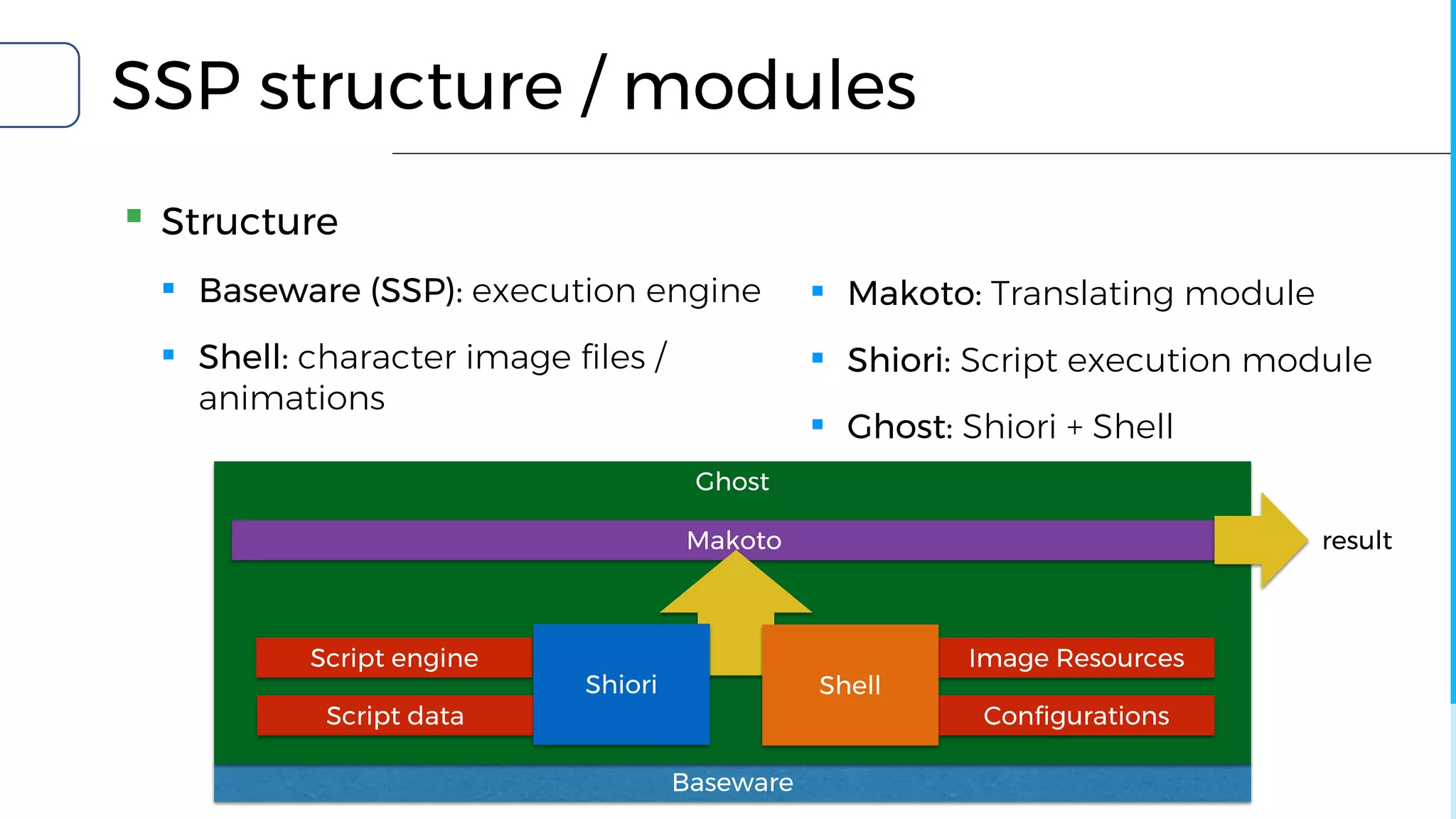

Baseware
Ghost
Makoto
Image Resources
Configurations
Script engine
Script data
SSP structure / modules
▪ Makoto: Translating module
▪ Shiori: Script execution module
▪ Ghost: Shiori + Shell
ShellShiori
▪ Structure
▪ Baseware (SSP): execution engine
▪ Shell: character image files /
animations
result

Poster * seanloh.wordpress.com/2013/07/03/ghost-in-the-shell-1995/

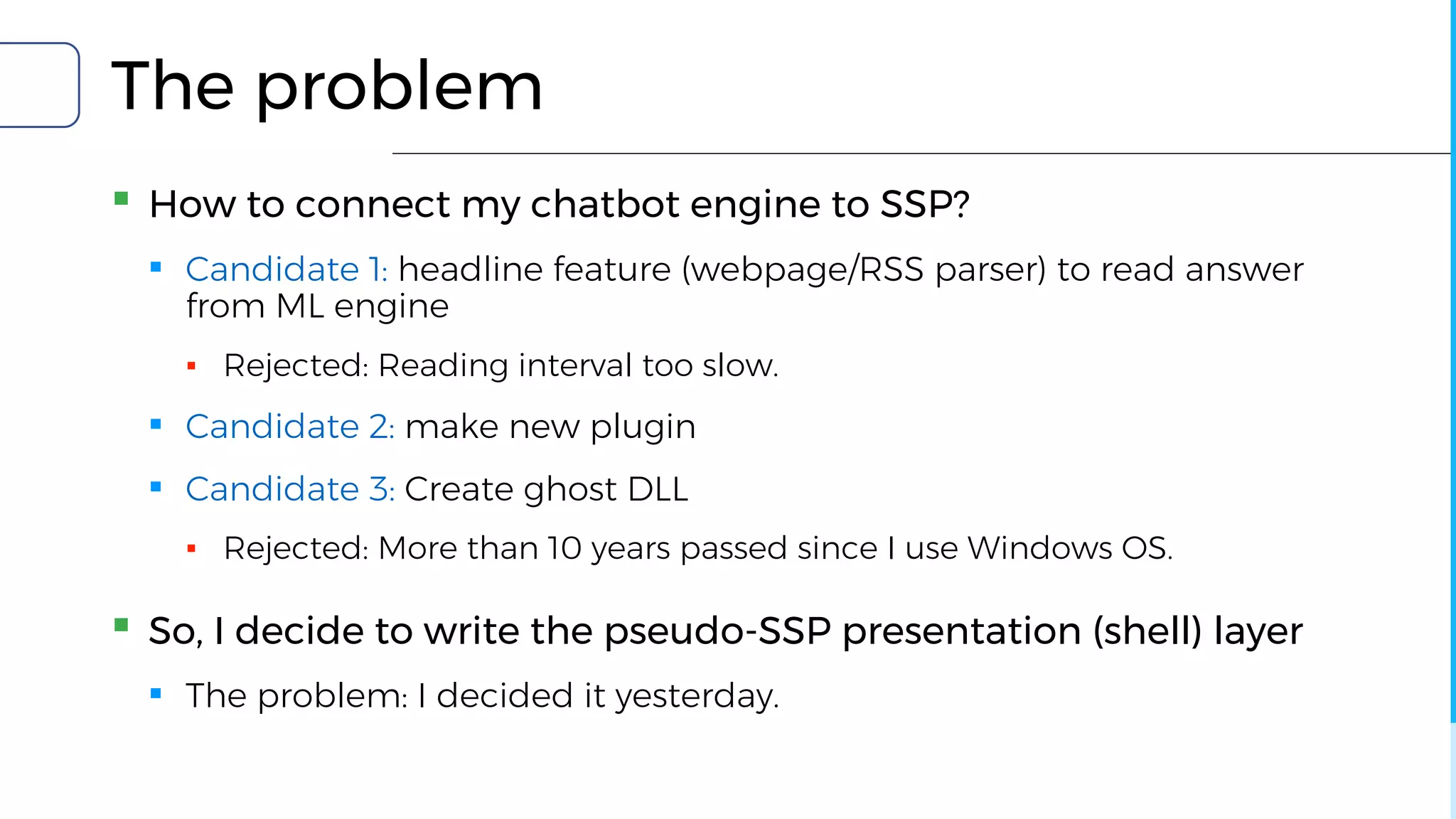

The problem
▪ How to connect my chatbot engine to SSP?
▪ Candidate 1: headline feature (webpage/RSS parser) to read answer
from ML engine
▪ Rejected: Reading interval too slow.
▪ Candidate 2: make new plugin
▪ Candidate 3: Create ghost DLL
▪ Rejected: More than 10 years passed since I use Windows OS.
▪ So, I decide to write the pseudo-SSP presentation (shell) layer
▪ The problem: I decided it yesterday.

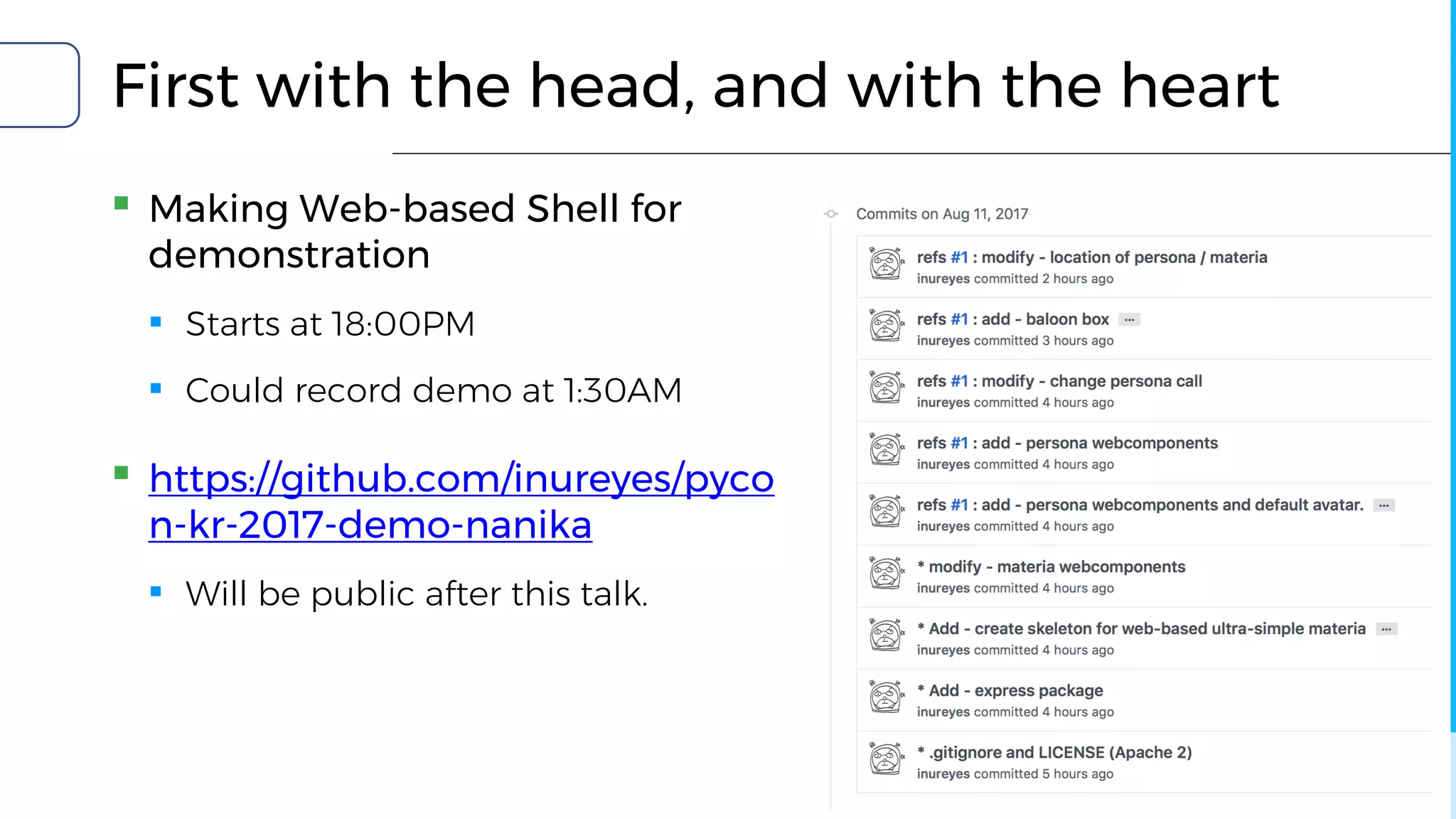

First with the head, and with the heart
▪ Making Web-based Shell for
demonstration
▪ Starts at 18:00PM
▪ Could record demo at 1:30AM
▪ https://github.com/inureyes/pyco
n-kr-2017-demo-nanika
▪ Will be public after this talk.

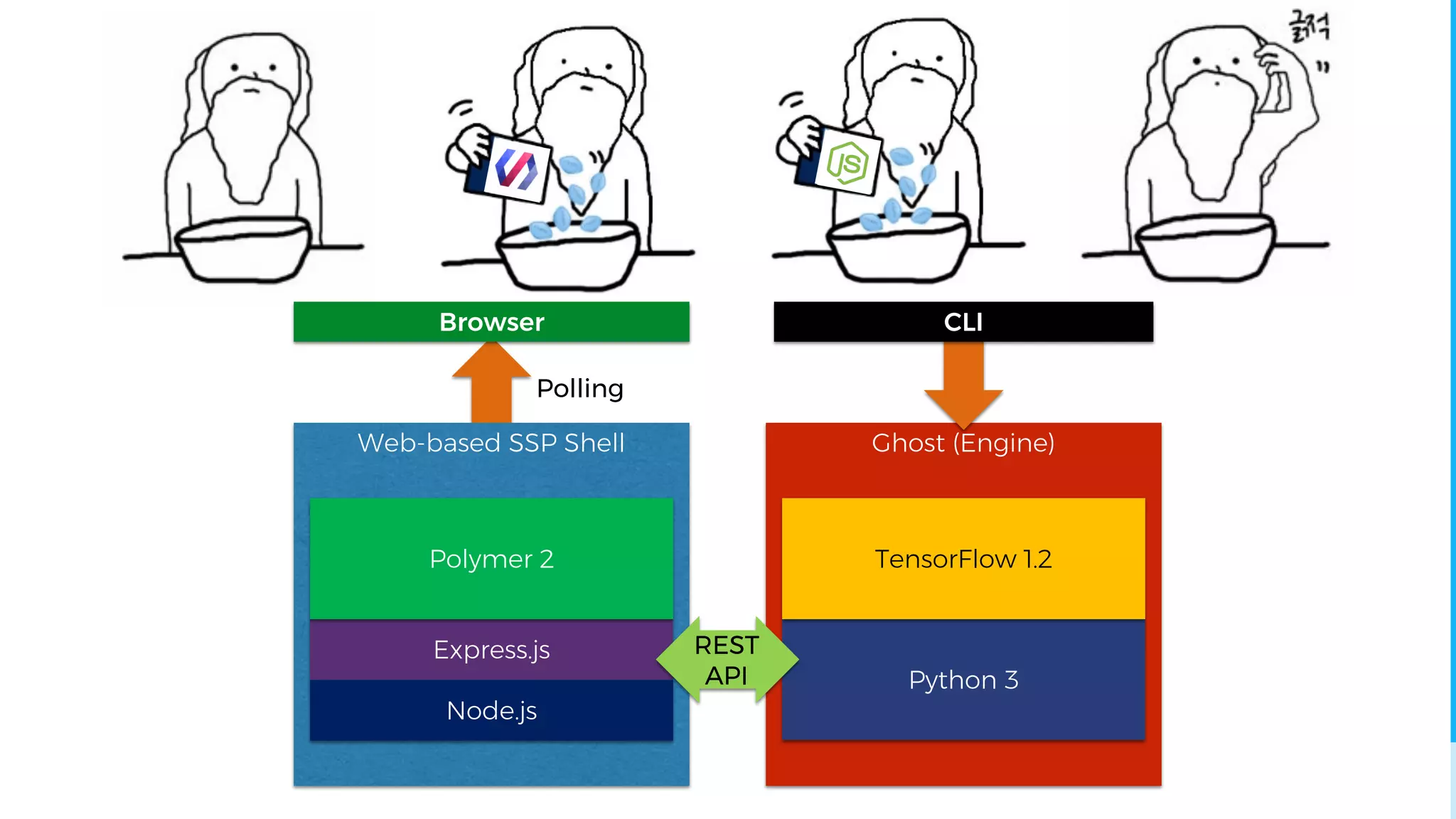

Ghost (Engine)Web-based SSP Shell
Express.js
Polymer 2
Python 3
TensorFlow 1.2
Node.js
Browser CLI
Polling
REST
API

Pseudo-SSP demonstration structure
▪ Shell
▪ Written in node.js
▪ Why not django-rest?
▪ Ghost
▪ Written in Python3 / TensorFlow
▪ Context: seq2seq
▪ Emotion: Sentimental Engine / Emotion reader

Demo time
The end is near. (In many ways)

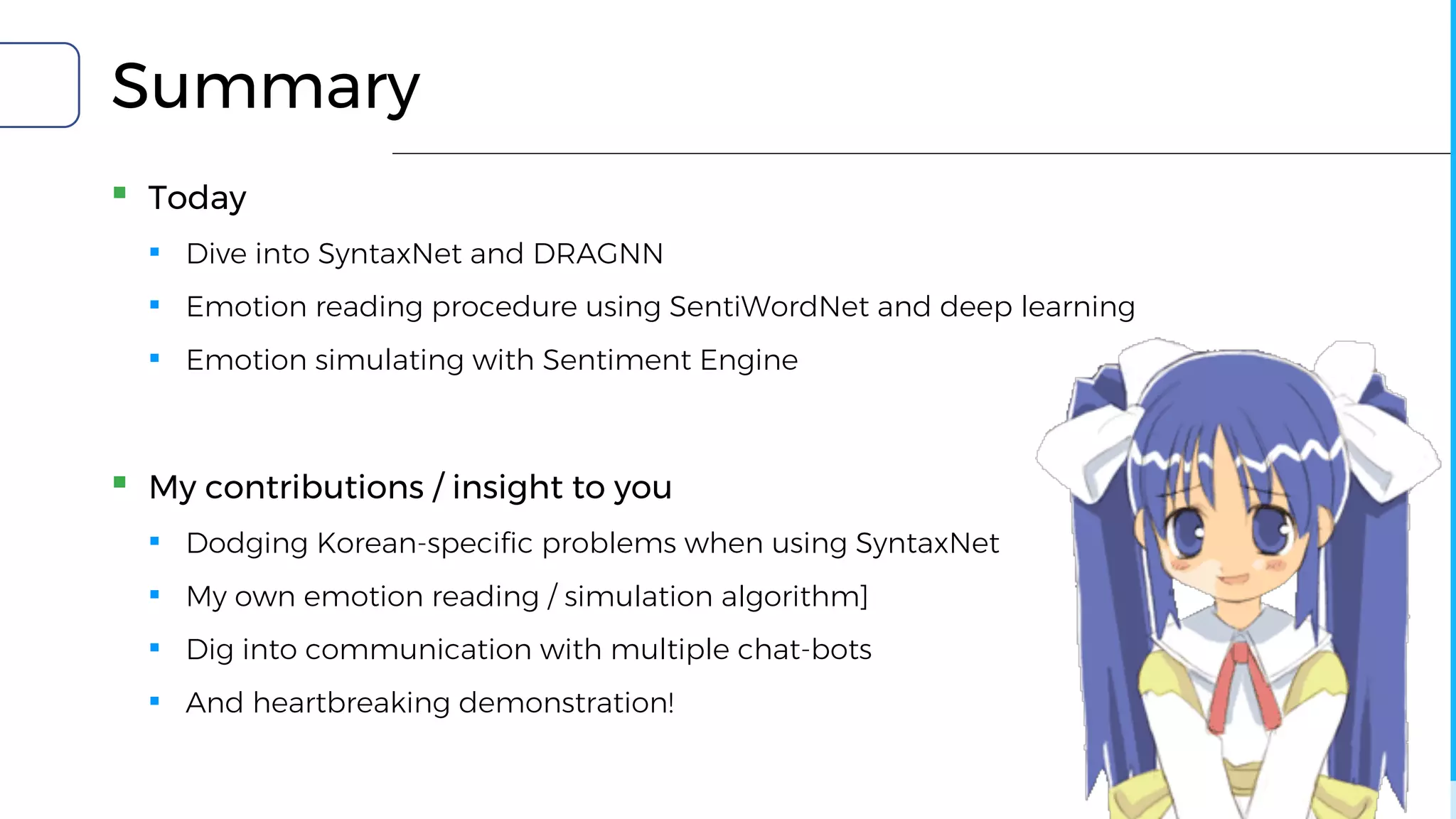

Summary
▪ Today
▪ Dive into SyntaxNet and DRAGNN
▪ Emotion reading procedure using SentiWordNet and deep learning
▪ Emotion simulating with Sentiment Engine
▪ My contributions / insight to you
▪ Dodging Korean-specific problems when using SyntaxNet
▪ My own emotion reading / simulation algorithm]
▪ Dig into communication with multiple chat-bots
▪ And heartbreaking demonstration!

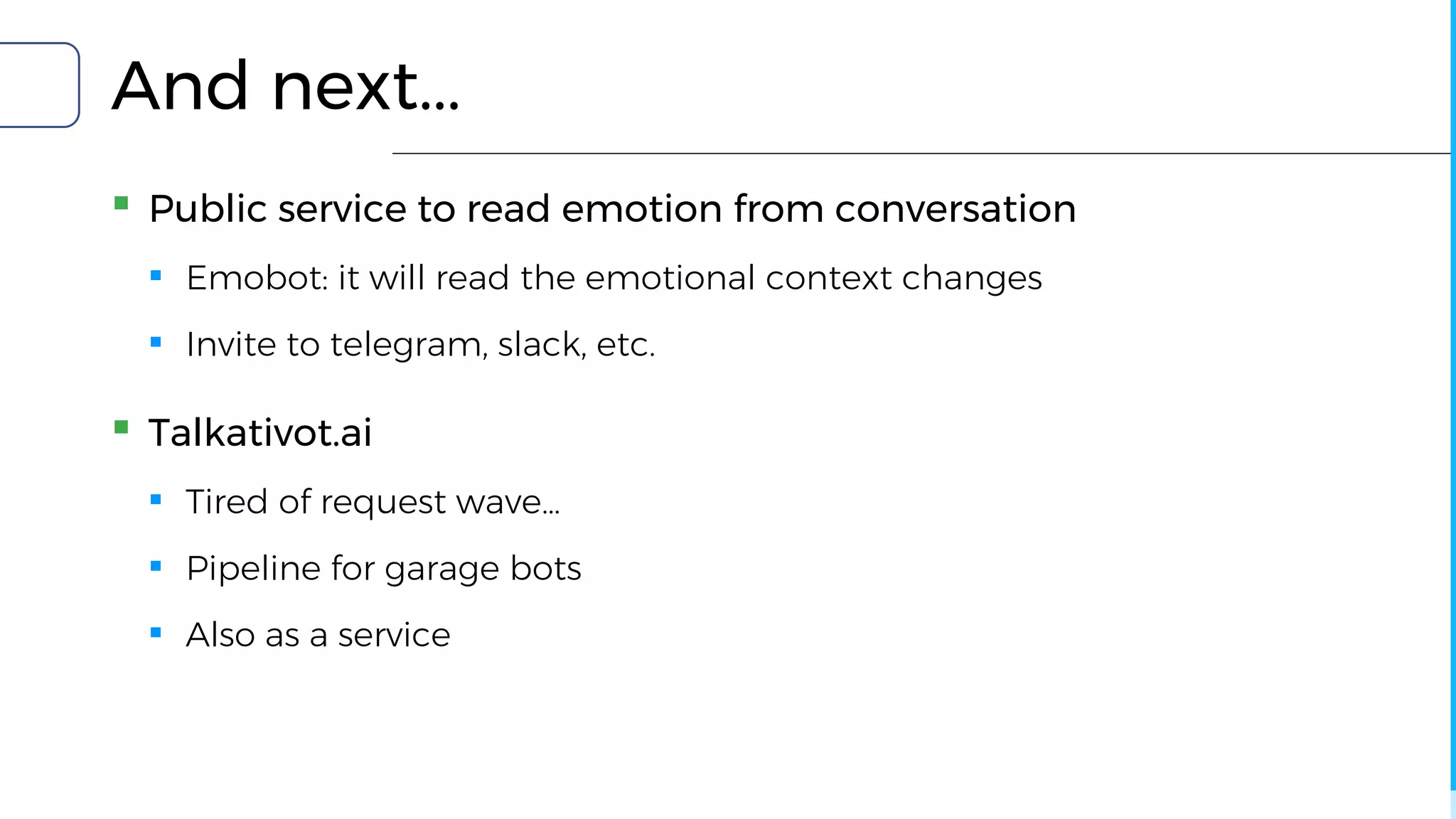

And next...
▪ Public service to read emotion from conversation
▪ Emobot: it will read the emotional context changes
▪ Invite to telegram, slack, etc.
▪ Talkativot.ai
▪ Tired of request wave…
▪ Pipeline for garage bots
▪ Also as a service

github.com/lablup/talkativot
And I prepare the shovel for you:
…Maybe, from late this month?

Thank you for listening :)
@inureyes
jeongkyu.shin
github.com/inureyes

Let Android dream electric sheep: Making emotion model for chat-bot with Python3, NLTK and TensorFlow

Let Android dream electric sheep: Making emotion model for chat-bot with Python3, NLTK and TensorFlow

More Related Content

What's hot

Similar to Let Android dream electric sheep: Making emotion model for chat-bot with Python3, NLTK and TensorFlow

More from Jeongkyu Shin

Recently uploaded

Let Android dream electric sheep: Making emotion model for chat-bot with Python3, NLTK and TensorFlow
