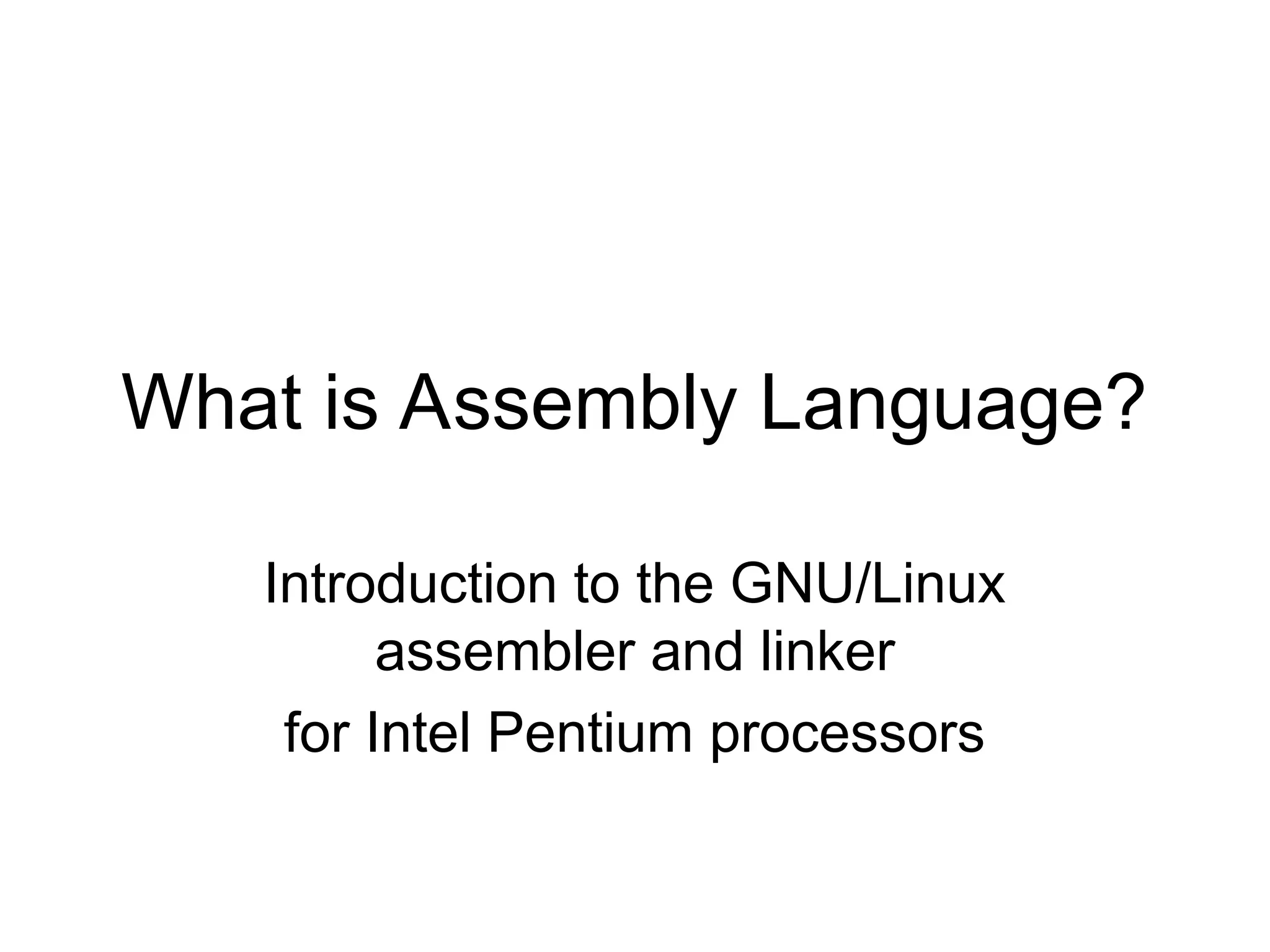

- 1. What is AssemblyLanguage? Introduction to the GNU/Linux assembler and linker for Intel Pentium processors

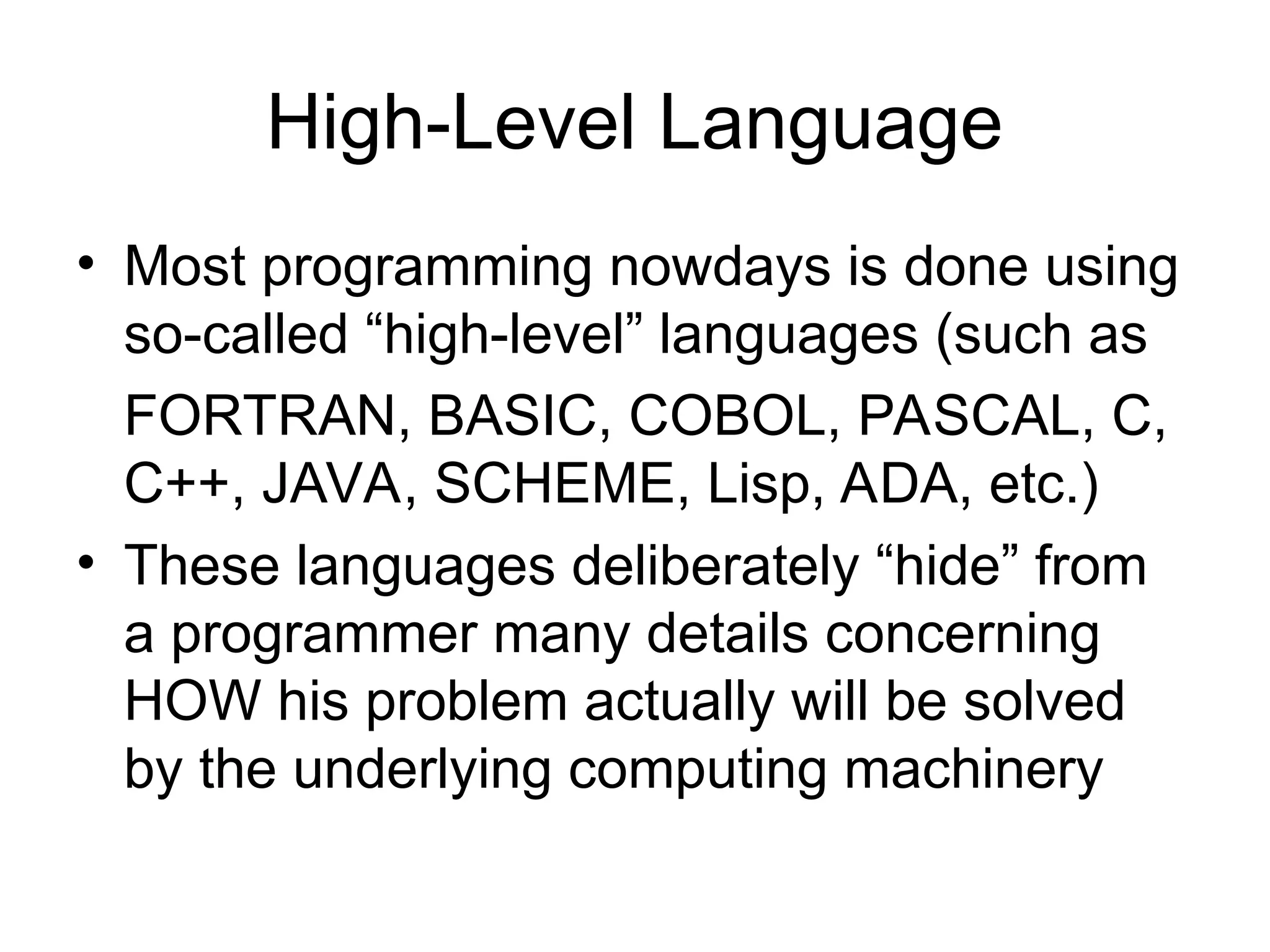

- 2. High-Level Language • Mostprogramming nowdays is done using so-called “high-level” languages (such as FORTRAN, BASIC, COBOL, PASCAL, C, C++, JAVA, SCHEME, Lisp, ADA, etc.) • These languages deliberately “hide” from a programmer many details concerning HOW his problem actually will be solved by the underlying computing machinery

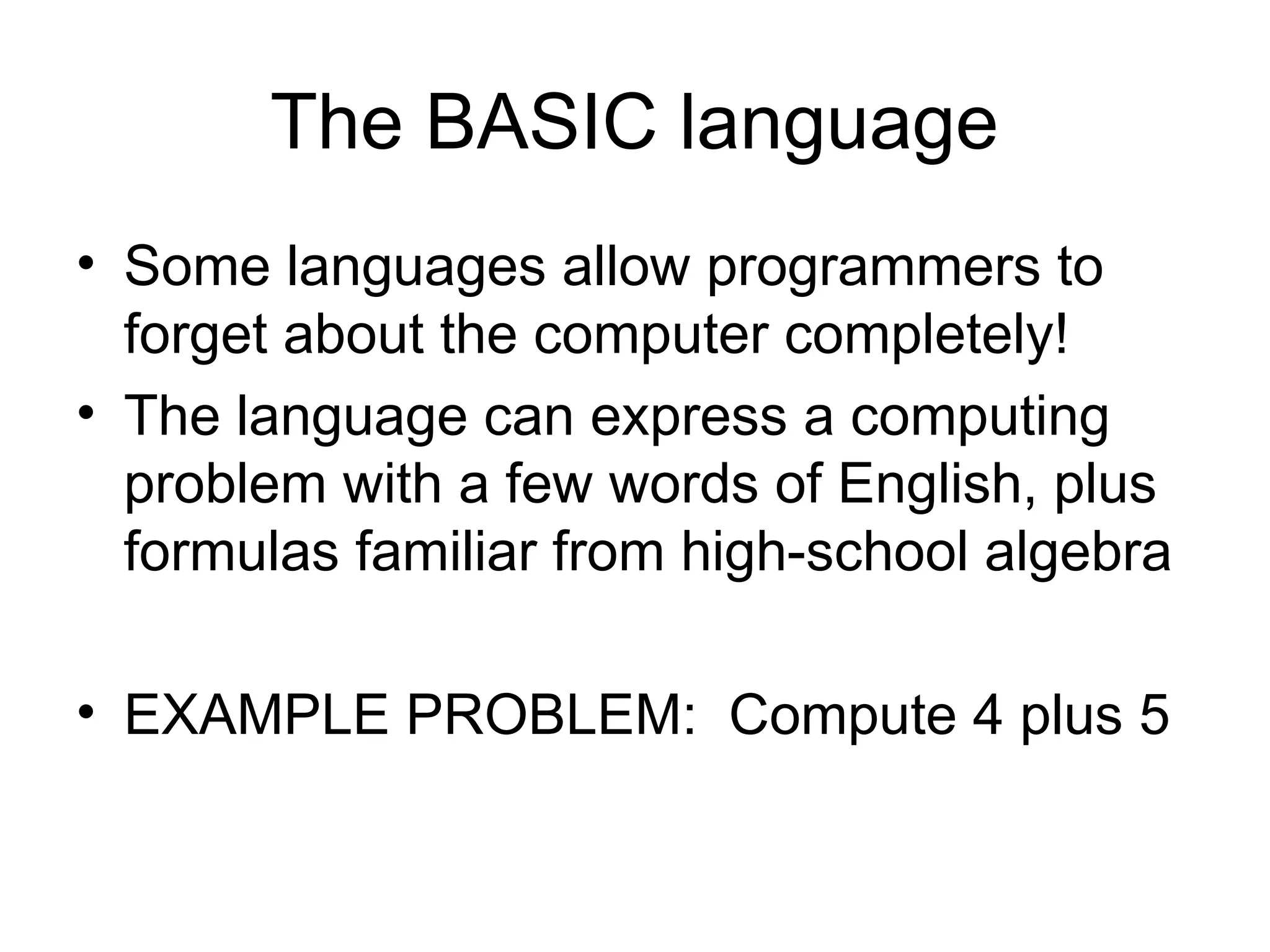

- 3. The BASIC language •Some languages allow programmers to forget about the computer completely! • The language can express a computing problem with a few words of English, plus formulas familiar from high-school algebra • EXAMPLE PROBLEM: Compute 4 plus 5

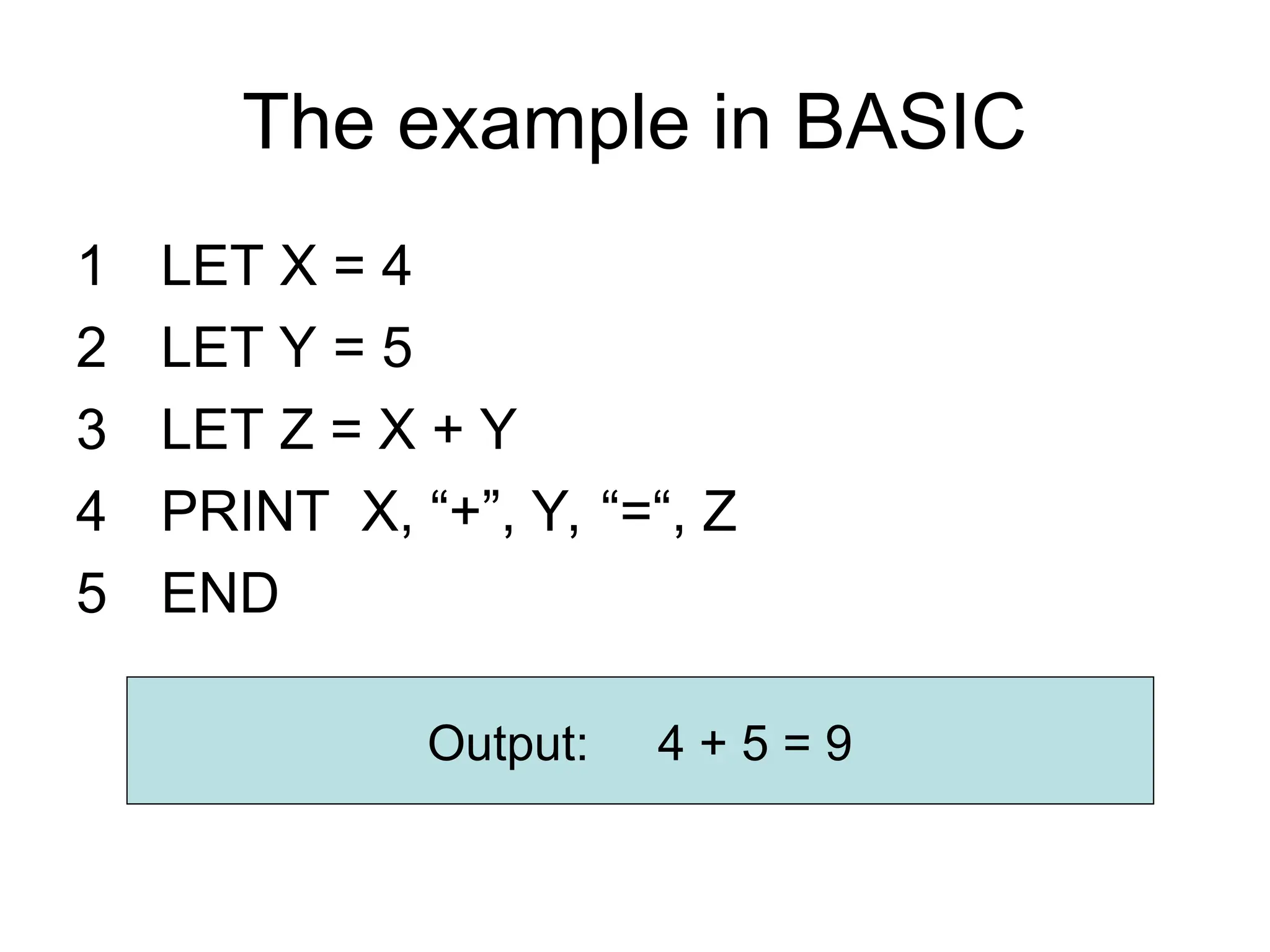

- 4. The example inBASIC 1 LET X = 4 2 LET Y = 5 3 LET Z = X + Y 4 PRINT X, “+”, Y, “=“, Z 5 END Output: 4 + 5 = 9

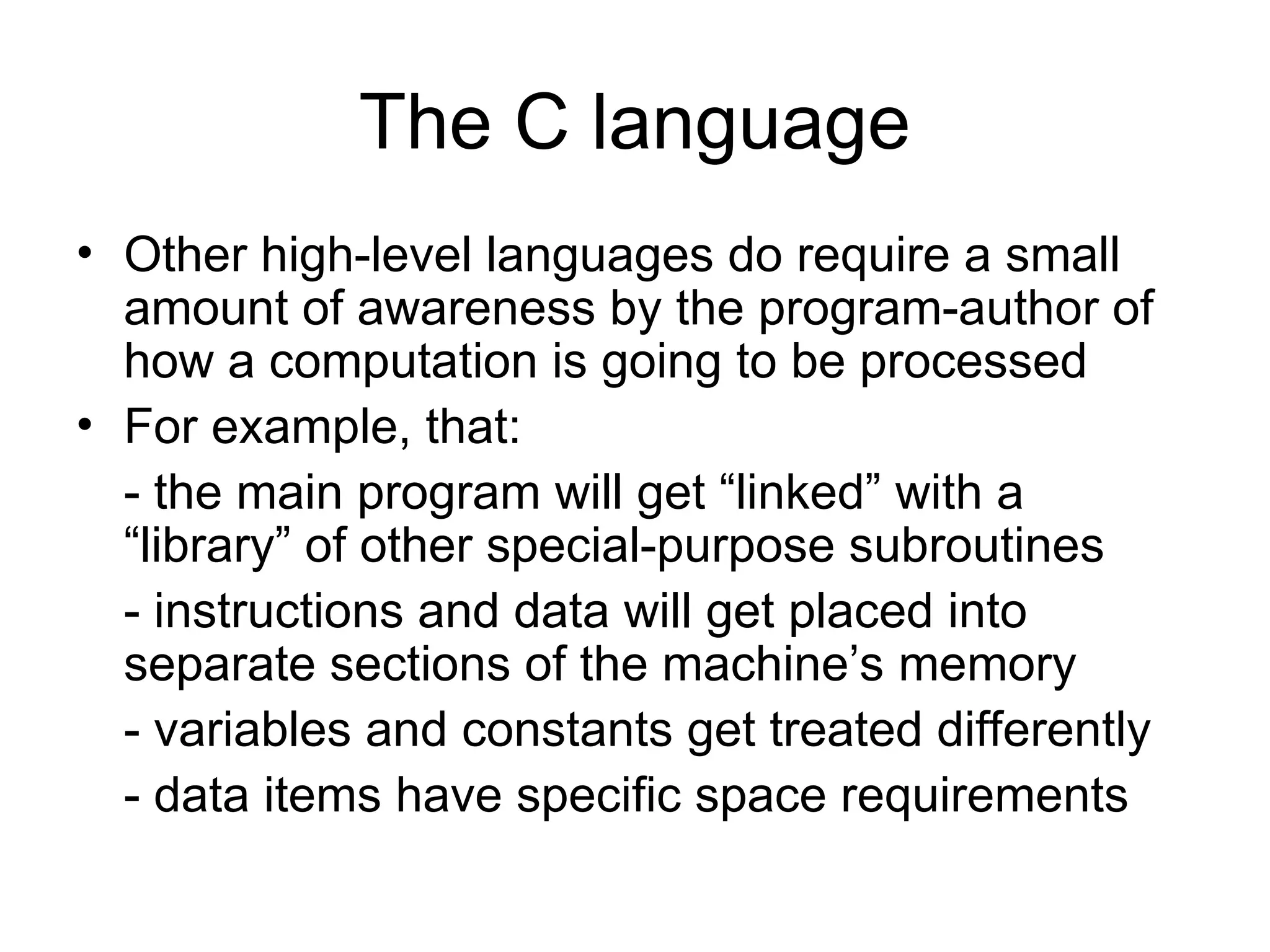

- 5. The C language •Other high-level languages do require a small amount of awareness by the program-author of how a computation is going to be processed • For example, that: - the main program will get “linked” with a “library” of other special-purpose subroutines - instructions and data will get placed into separate sections of the machine’s memory - variables and constants get treated differently - data items have specific space requirements

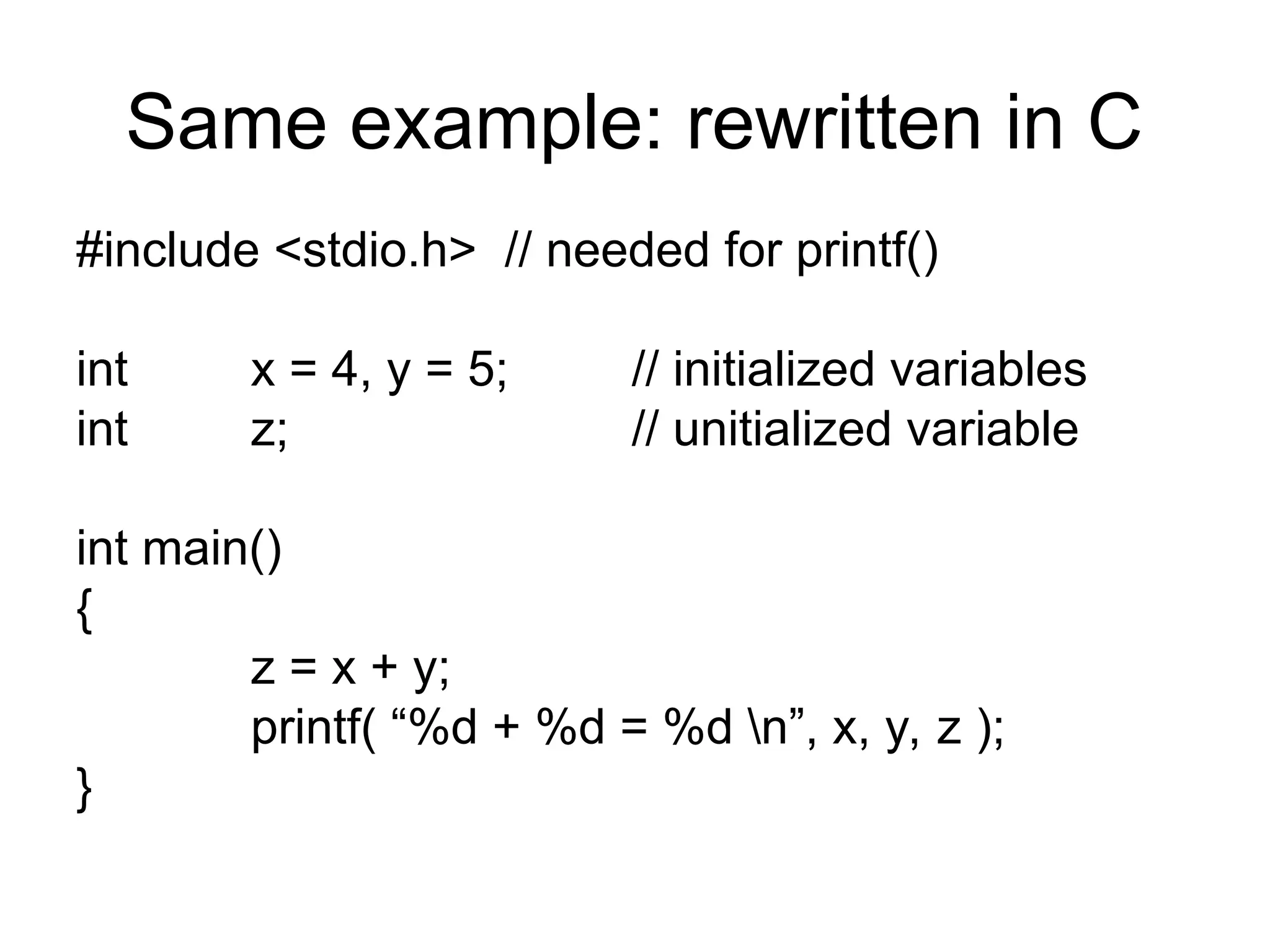

- 6. Same example: rewrittenin C #include <stdio.h> // needed for printf() int x = 4, y = 5; // initialized variables int z; // unitialized variable int main() { z = x + y; printf( “%d + %d = %d n”, x, y, z ); }

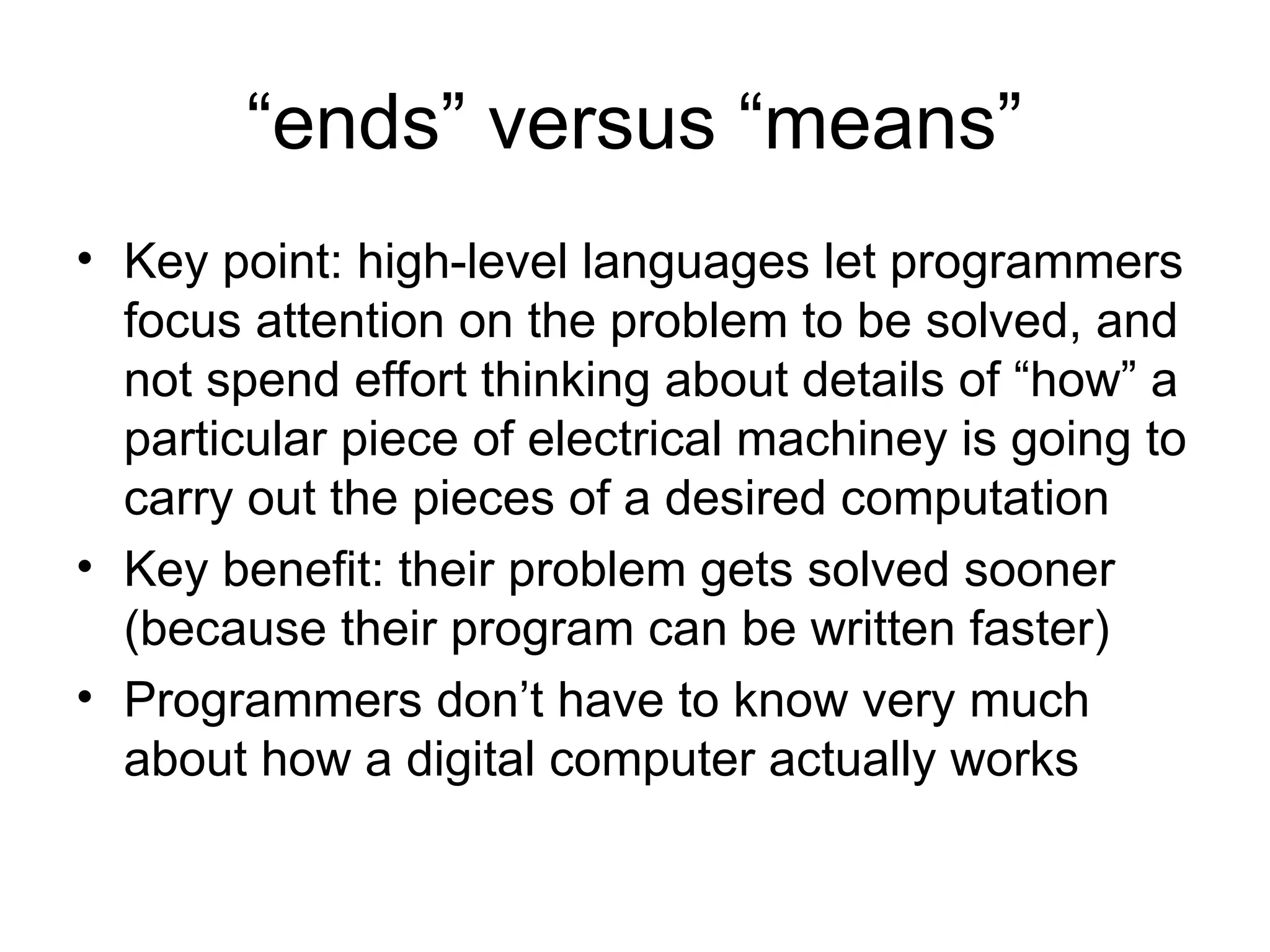

- 7. “ends” versus “means” •Key point: high-level languages let programmers focus attention on the problem to be solved, and not spend effort thinking about details of “how” a particular piece of electrical machiney is going to carry out the pieces of a desired computation • Key benefit: their problem gets solved sooner (because their program can be written faster) • Programmers don’t have to know very much about how a digital computer actually works

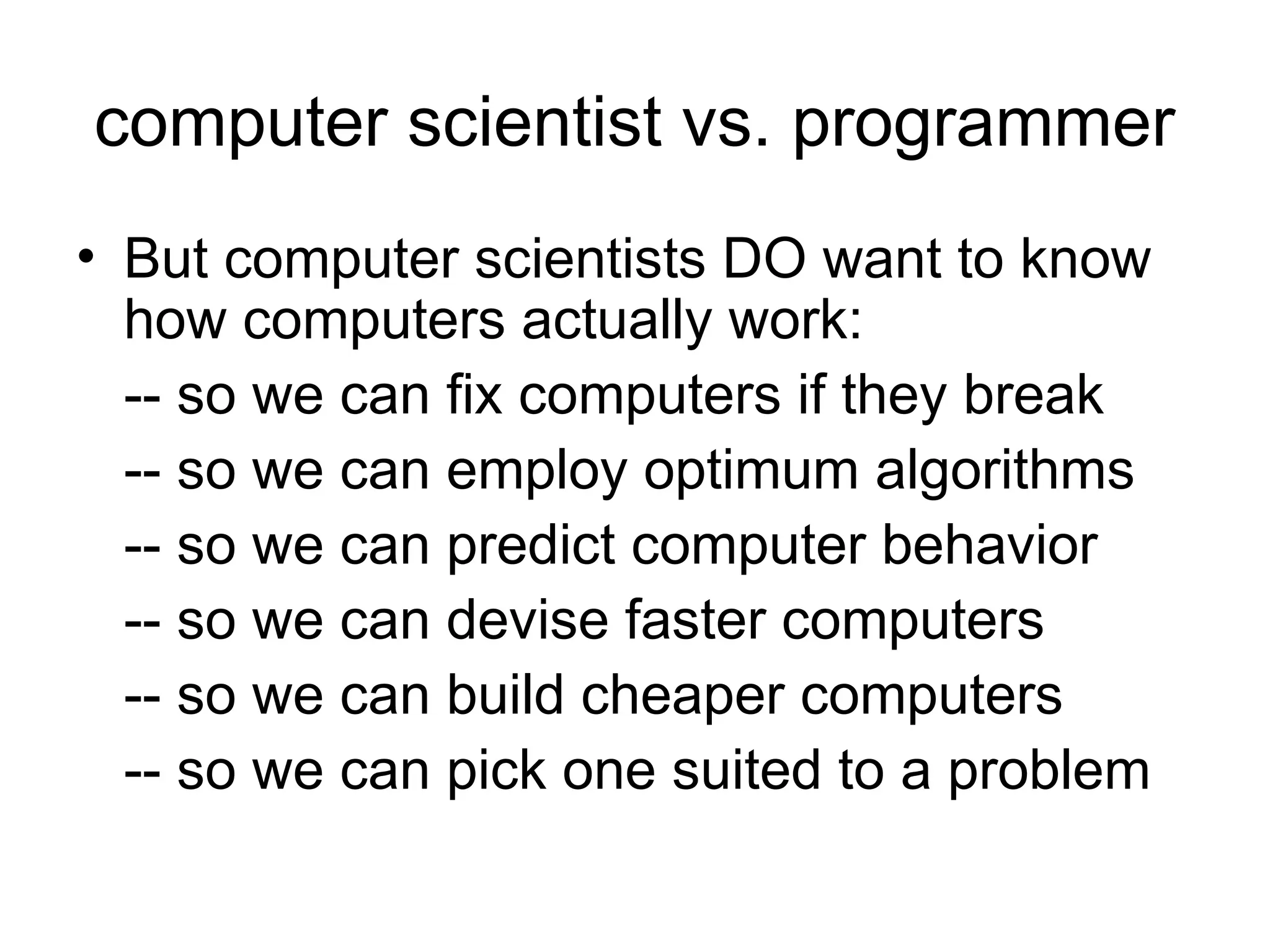

- 8. computer scientist vs.programmer • But computer scientists DO want to know how computers actually work: -- so we can fix computers if they break -- so we can employ optimum algorithms -- so we can predict computer behavior -- so we can devise faster computers -- so we can build cheaper computers -- so we can pick one suited to a problem

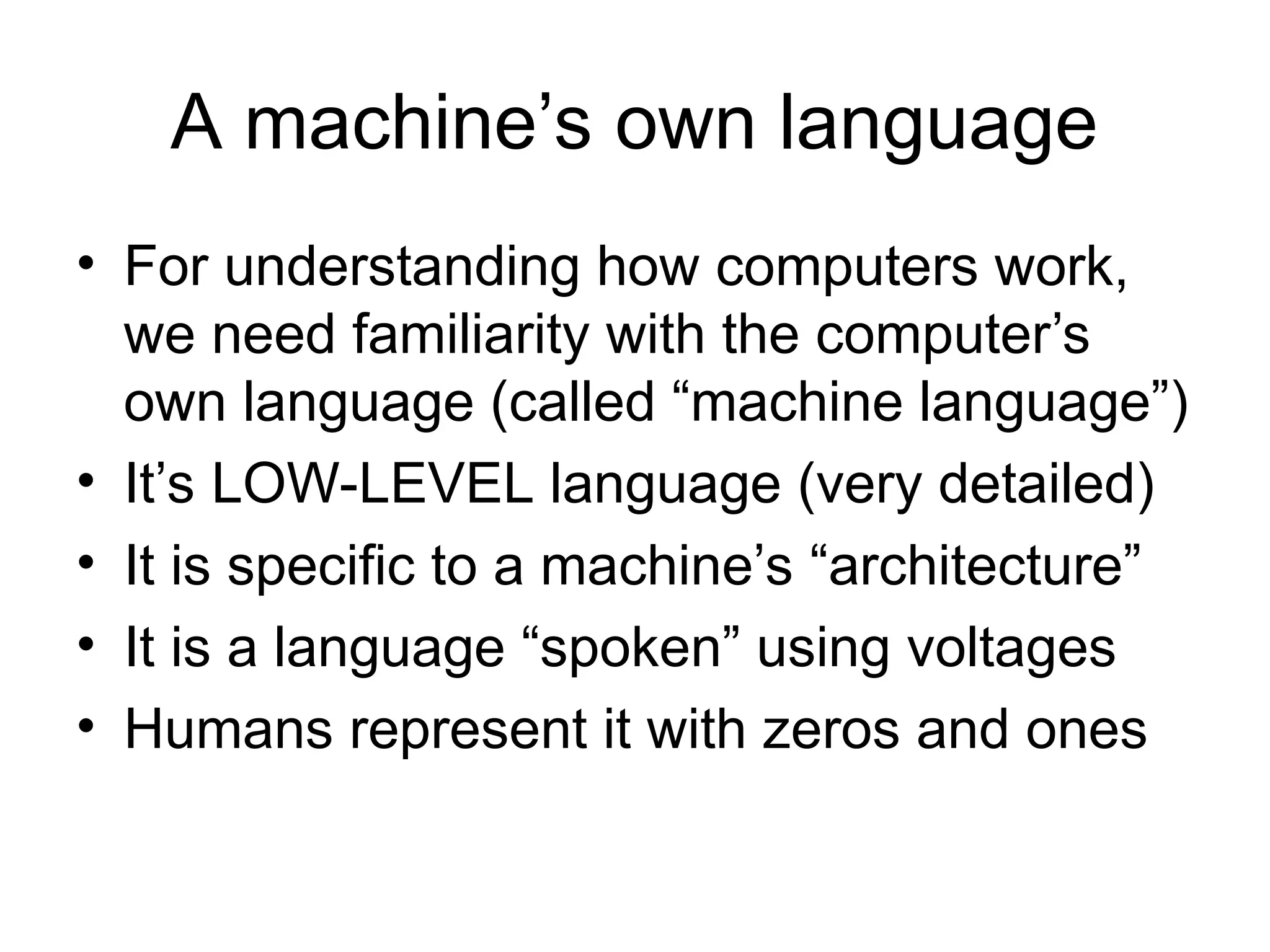

- 9. A machine’s ownlanguage • For understanding how computers work, we need familiarity with the computer’s own language (called “machine language”) • It’s LOW-LEVEL language (very detailed) • It is specific to a machine’s “architecture” • It is a language “spoken” using voltages • Humans represent it with zeros and ones

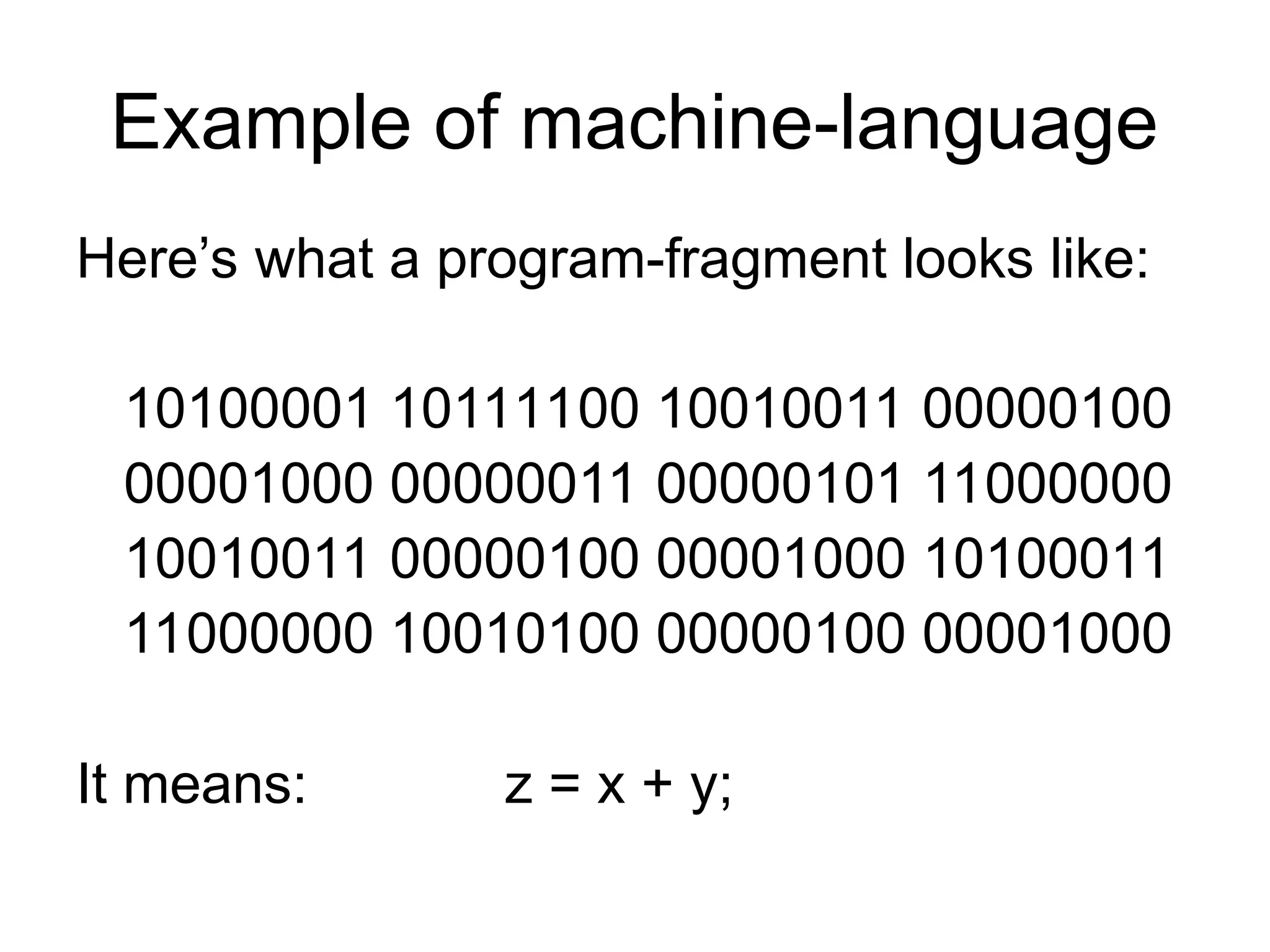

- 10. Example of machine-language Here’swhat a program-fragment looks like: 10100001 10111100 10010011 00000100 00001000 00000011 00000101 11000000 10010011 00000100 00001000 10100011 11000000 10010100 00000100 00001000 It means: z = x + y;

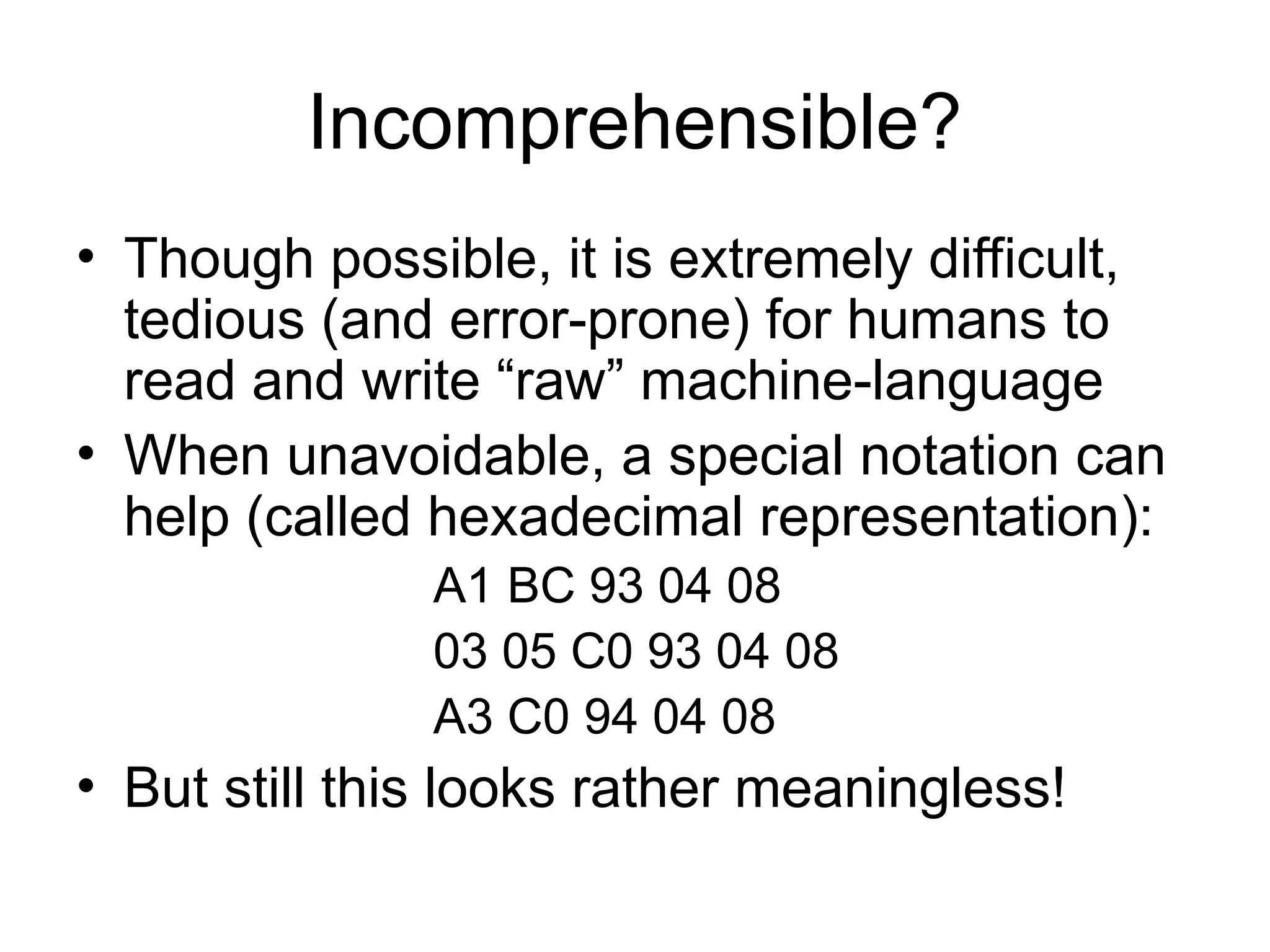

- 11. Incomprehensible? • Though possible,it is extremely difficult, tedious (and error-prone) for humans to read and write “raw” machine-language • When unavoidable, a special notation can help (called hexadecimal representation): A1 BC 93 04 08 03 05 C0 93 04 08 A3 C0 94 04 08 • But still this looks rather meaningless!

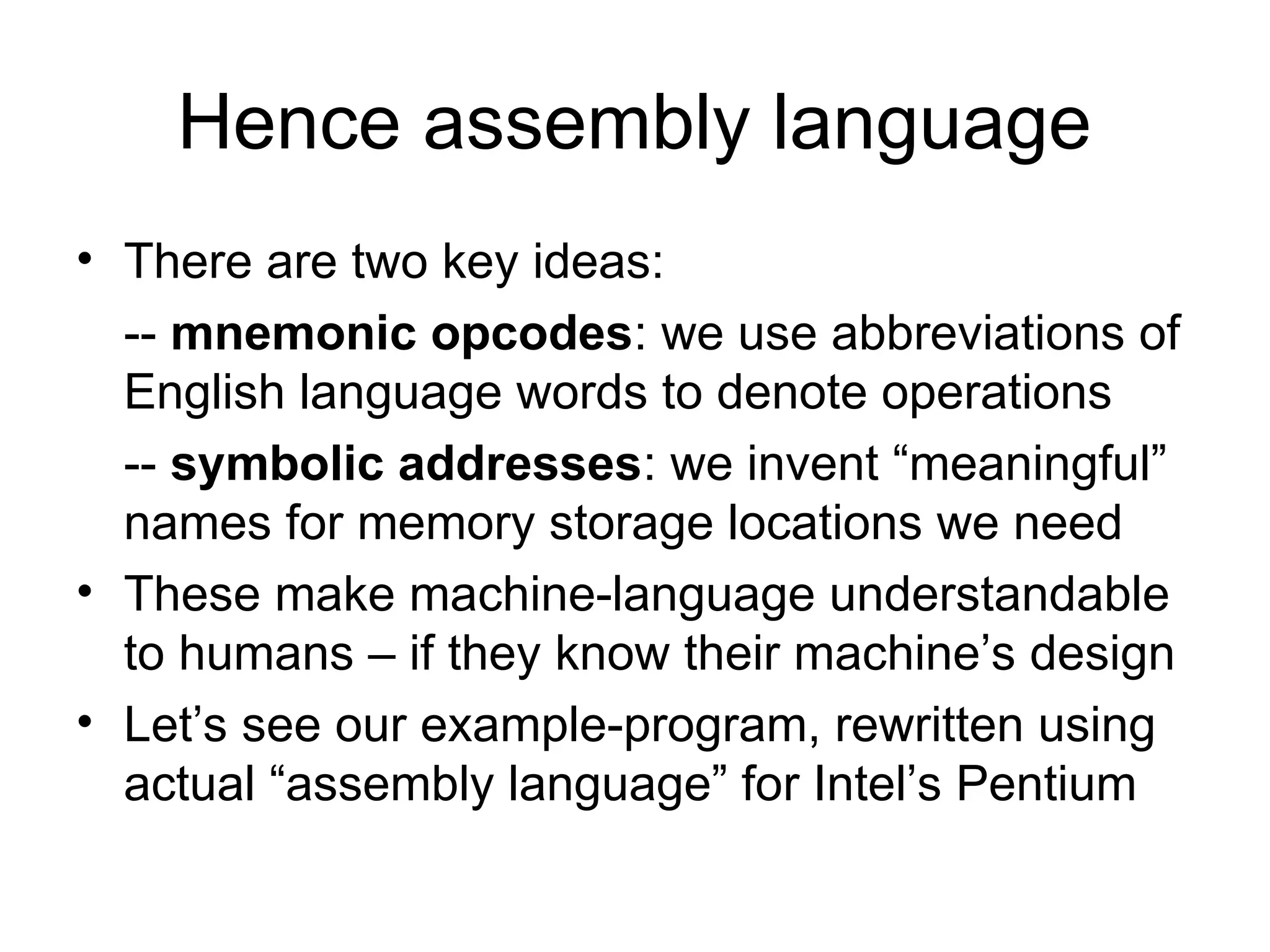

- 12. Hence assembly language •There are two key ideas: -- mnemonic opcodes: we use abbreviations of English language words to denote operations -- symbolic addresses: we invent “meaningful” names for memory storage locations we need • These make machine-language understandable to humans – if they know their machine’s design • Let’s see our example-program, rewritten using actual “assembly language” for Intel’s Pentium

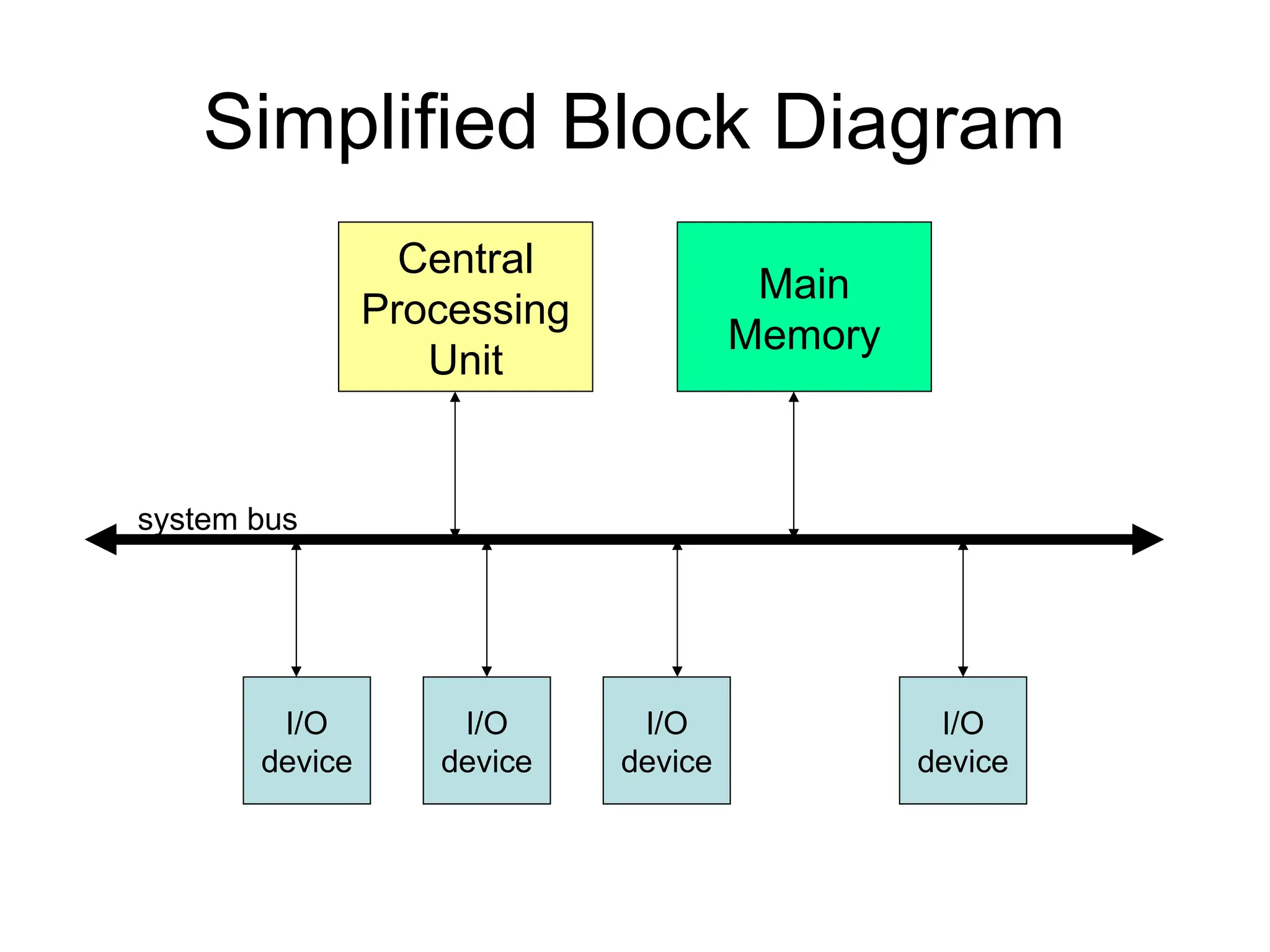

- 13.

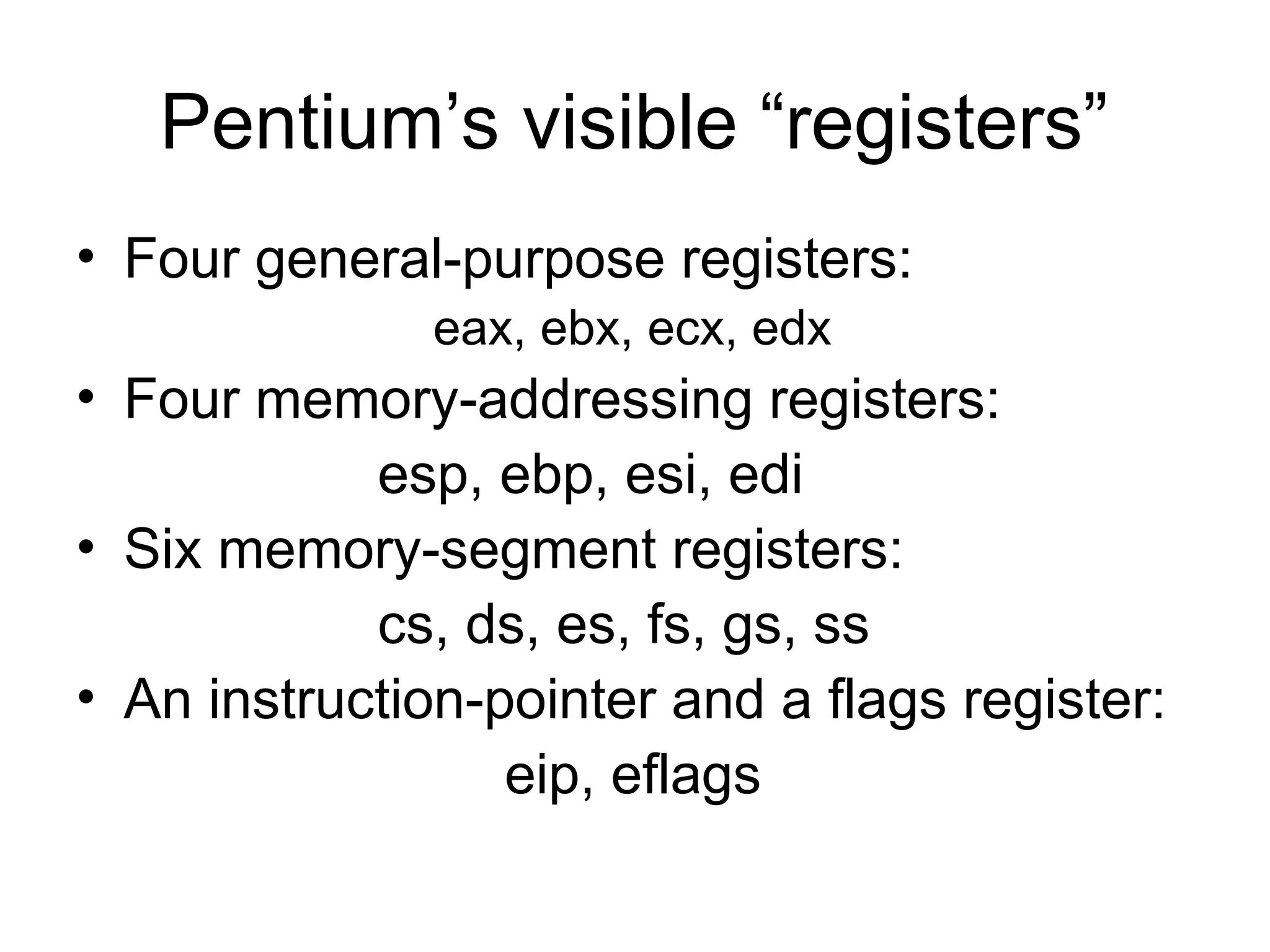

- 14. Pentium’s visible “registers” •Four general-purpose registers: eax, ebx, ecx, edx • Four memory-addressing registers: esp, ebp, esi, edi • Six memory-segment registers: cs, ds, es, fs, gs, ss • An instruction-pointer and a flags register: eip, eflags

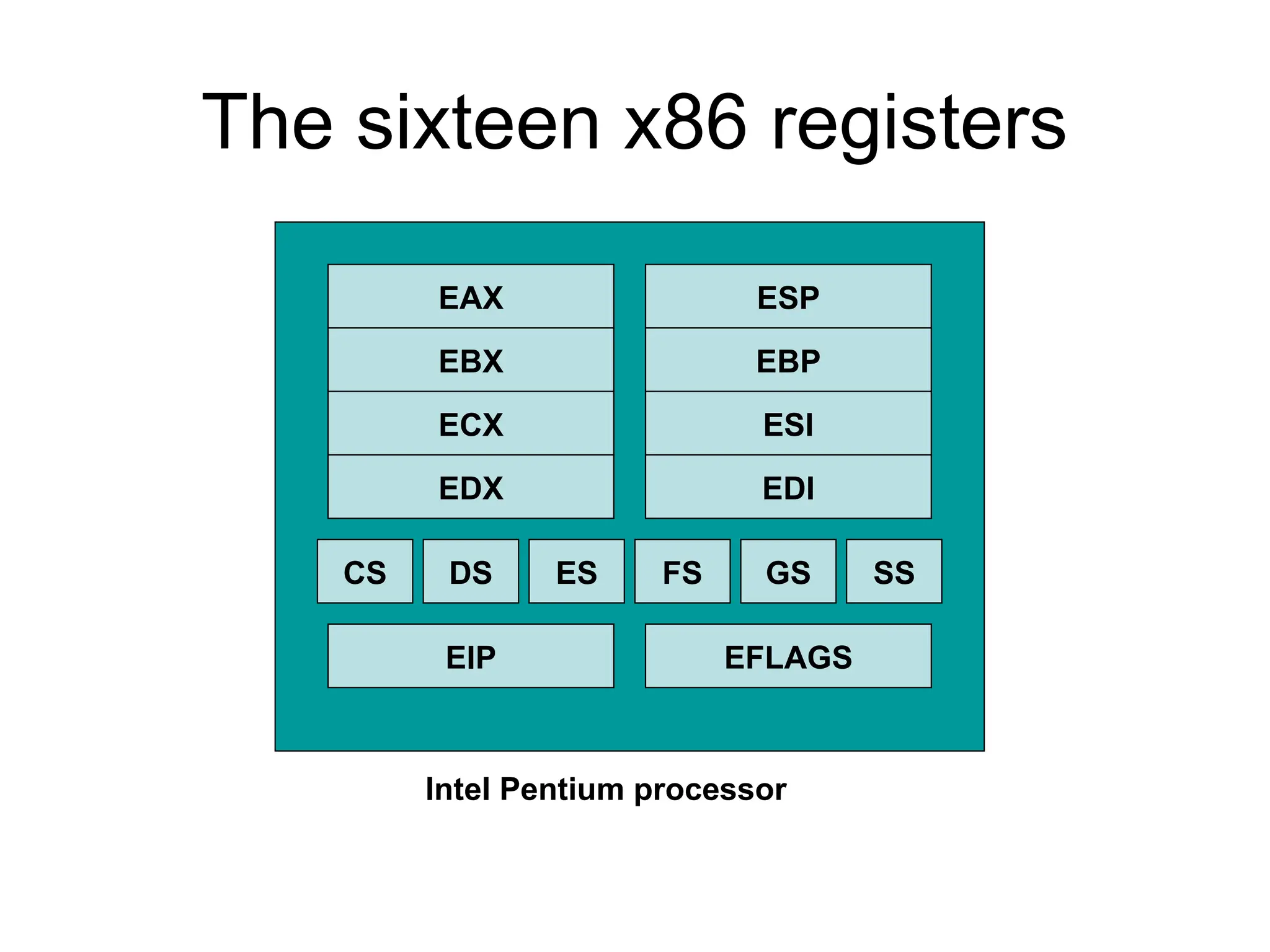

- 15. The sixteen x86registers EAX ESP EBX EBP ECX ESI EDX EDI EIP EFLAGS CS DS ES FS GS SS Intel Pentium processor

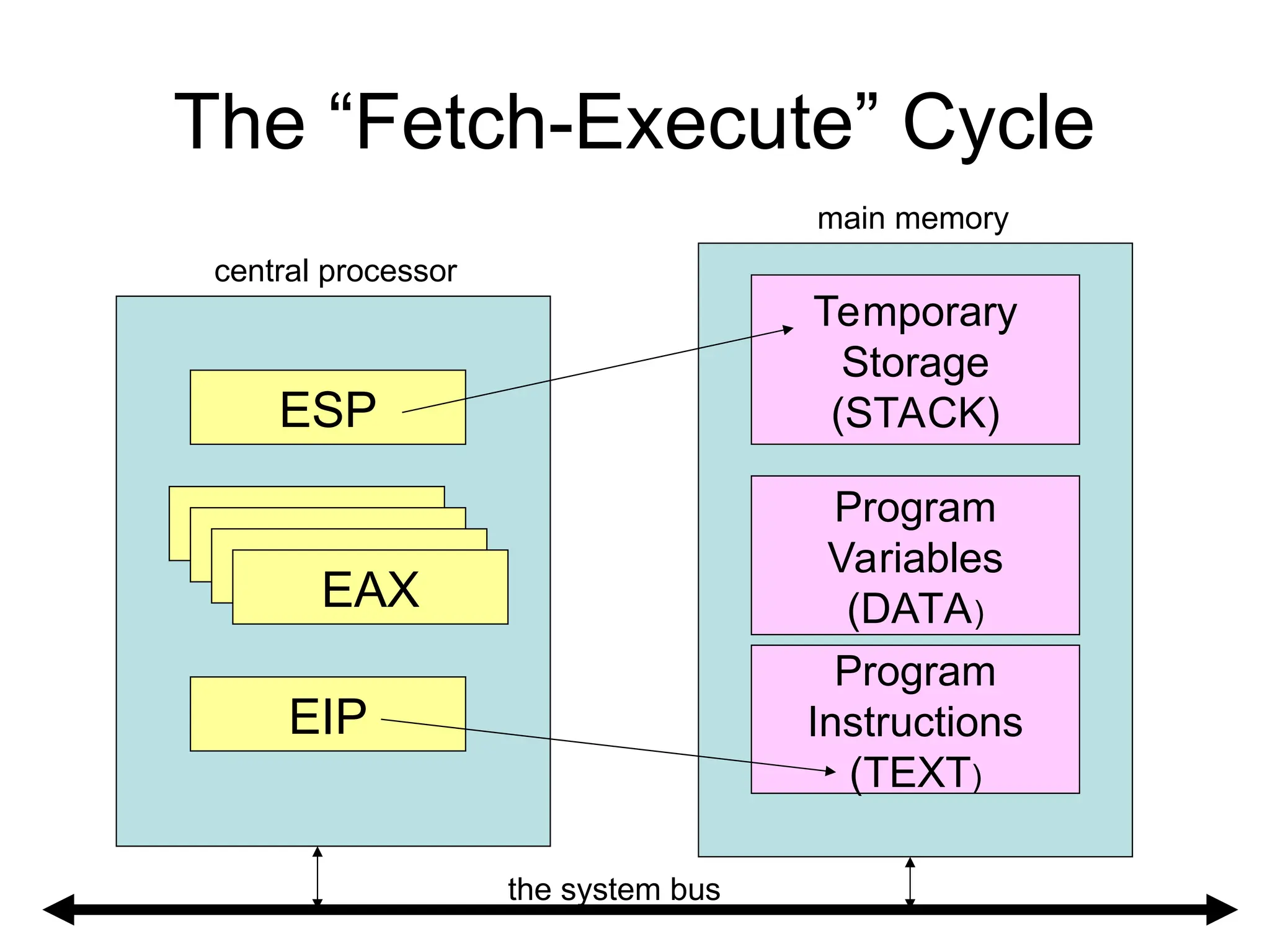

- 16. The “Fetch-Execute” Cycle ESP EIP Program Instructions (TEXT) Program Variables (DATA) Temporary Storage (STACK) mainmemory central processor EAX EAX EAX EAX the system bus

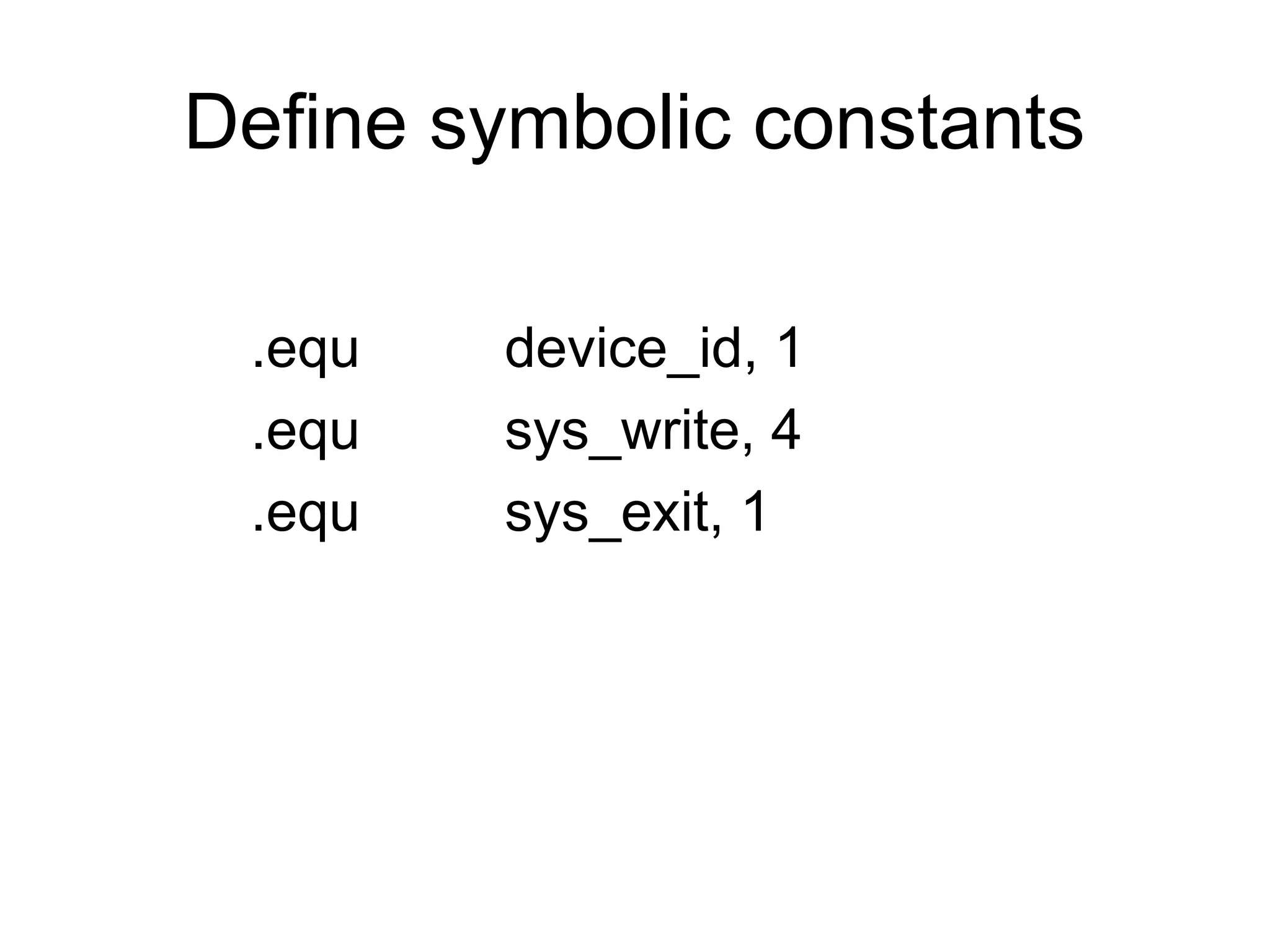

- 17. Define symbolic constants .equdevice_id, 1 .equ sys_write, 4 .equ sys_exit, 1

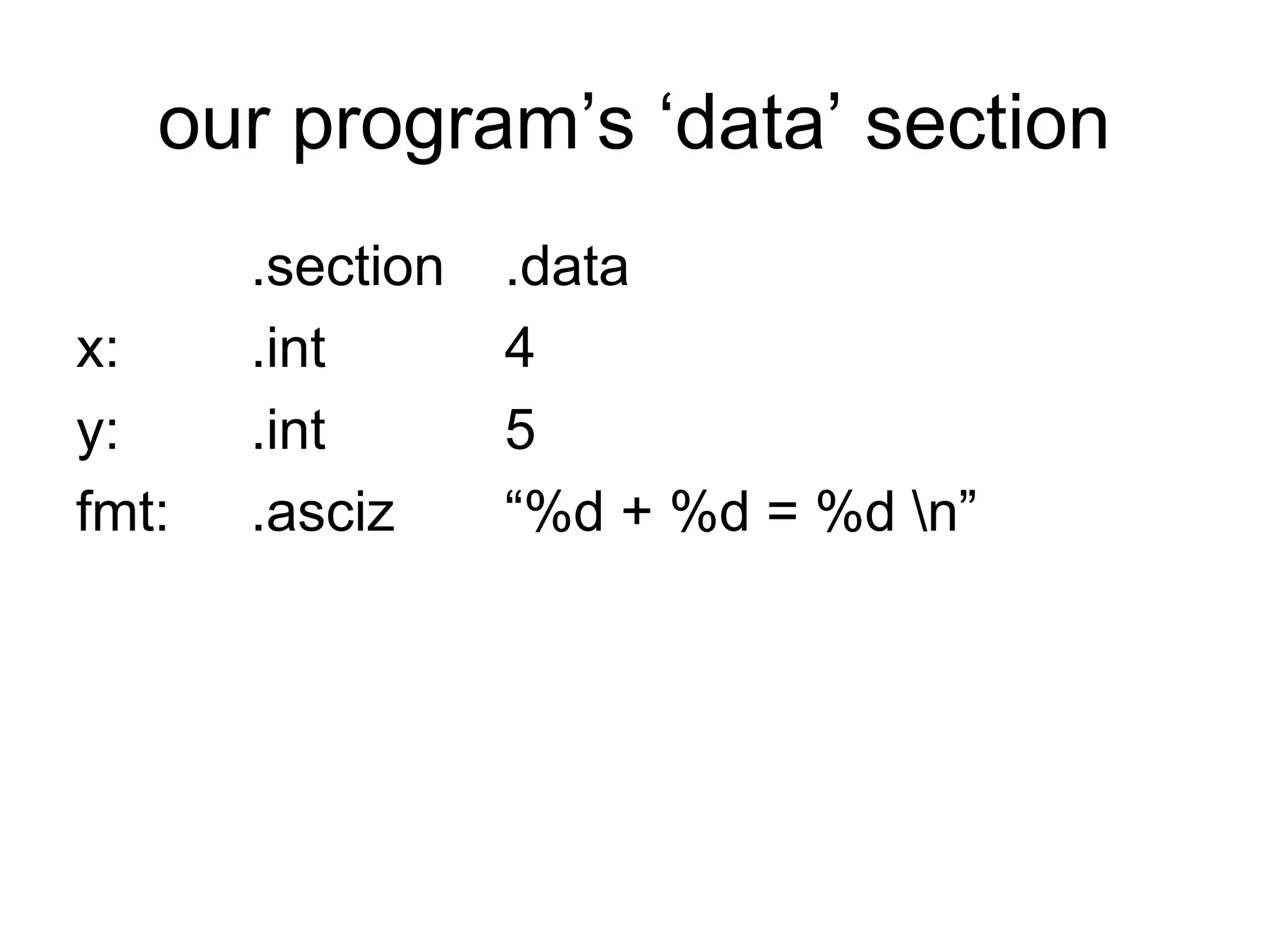

- 18. our program’s ‘data’section .section .data x: .int 4 y: .int 5 fmt: .asciz “%d + %d = %d n”

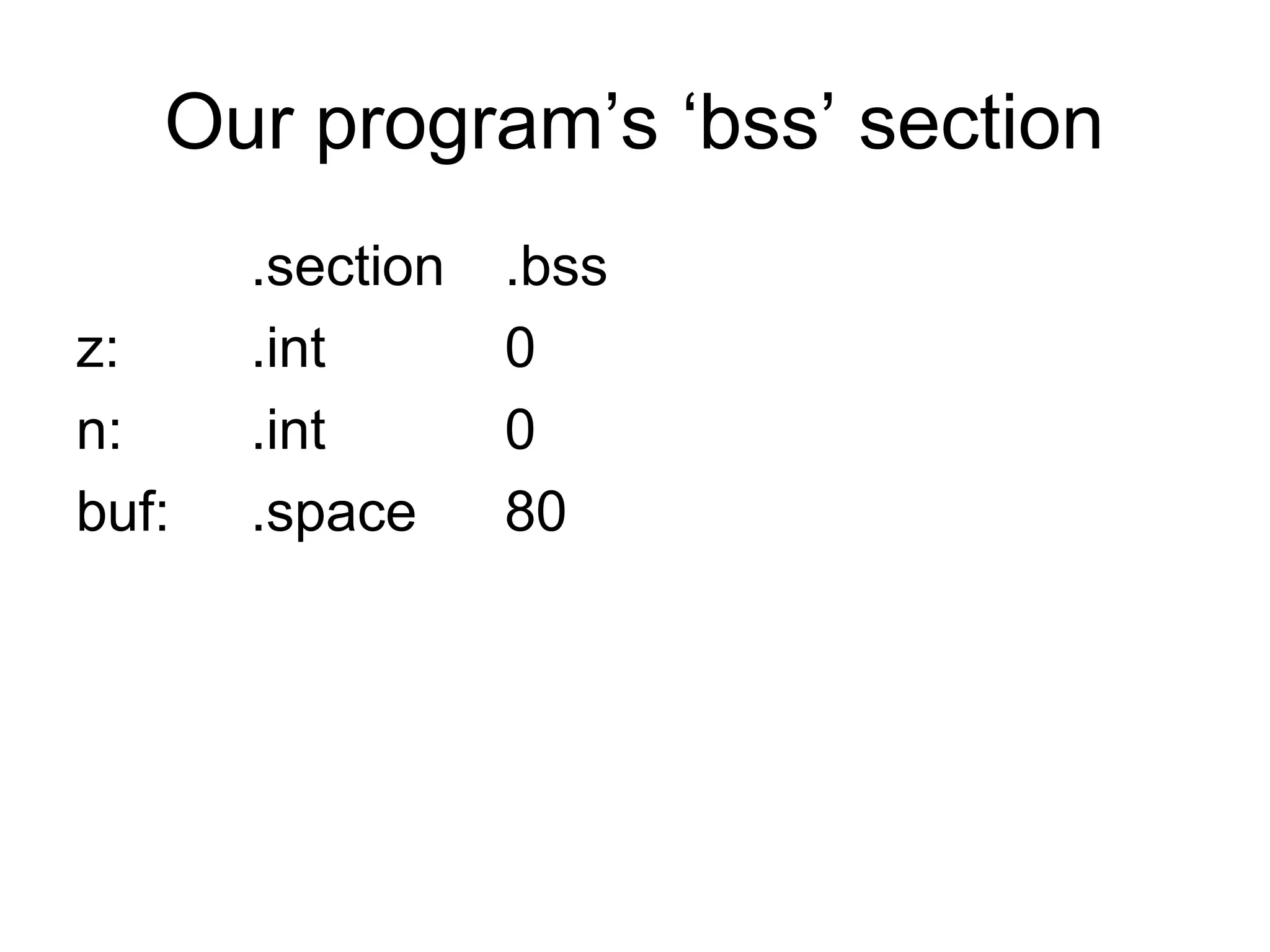

- 19. Our program’s ‘bss’section .section .bss z: .int 0 n: .int 0 buf: .space 80

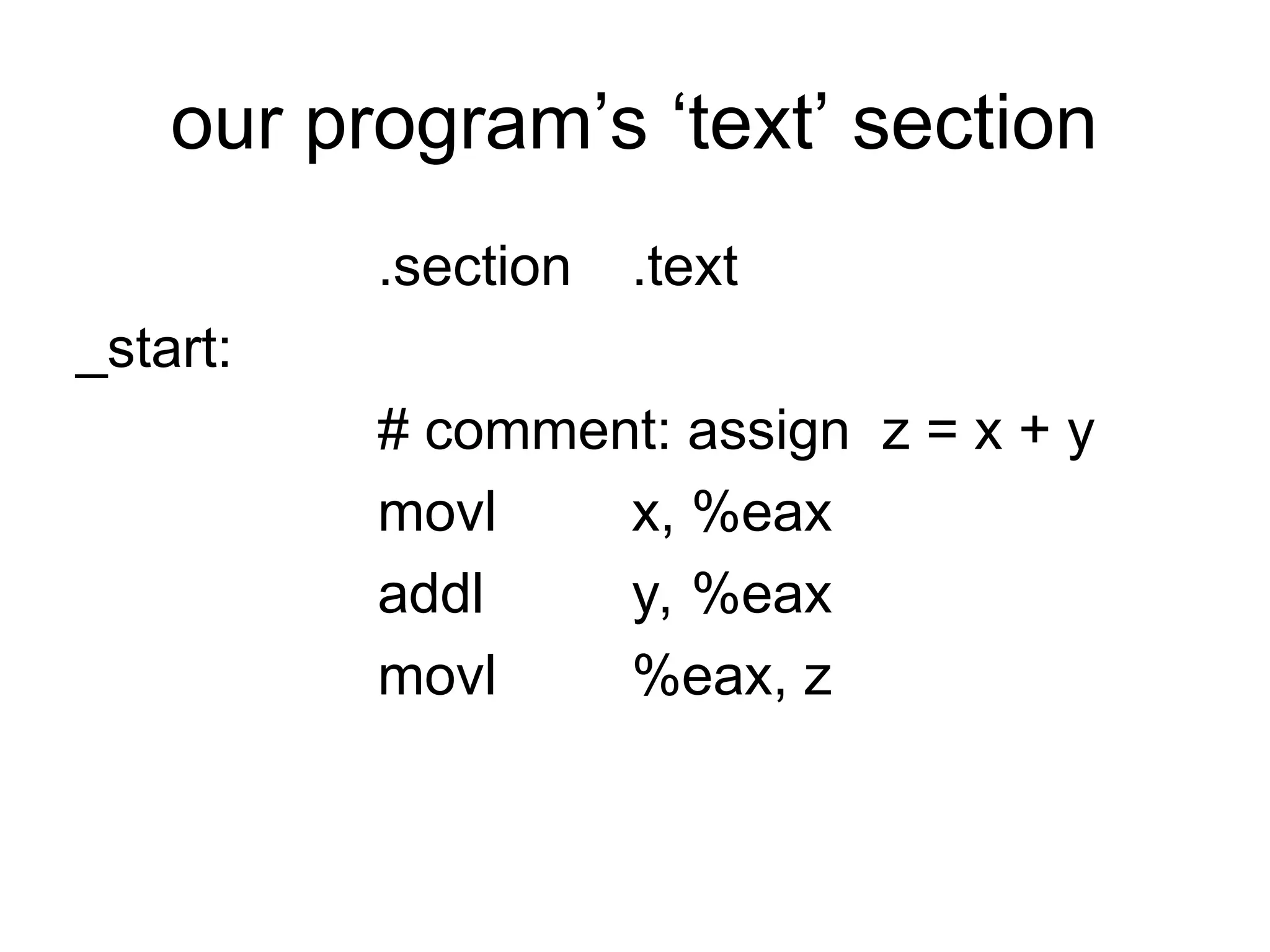

- 20. our program’s ‘text’section .section .text _start: # comment: assign z = x + y movl x, %eax addl y, %eax movl %eax, z

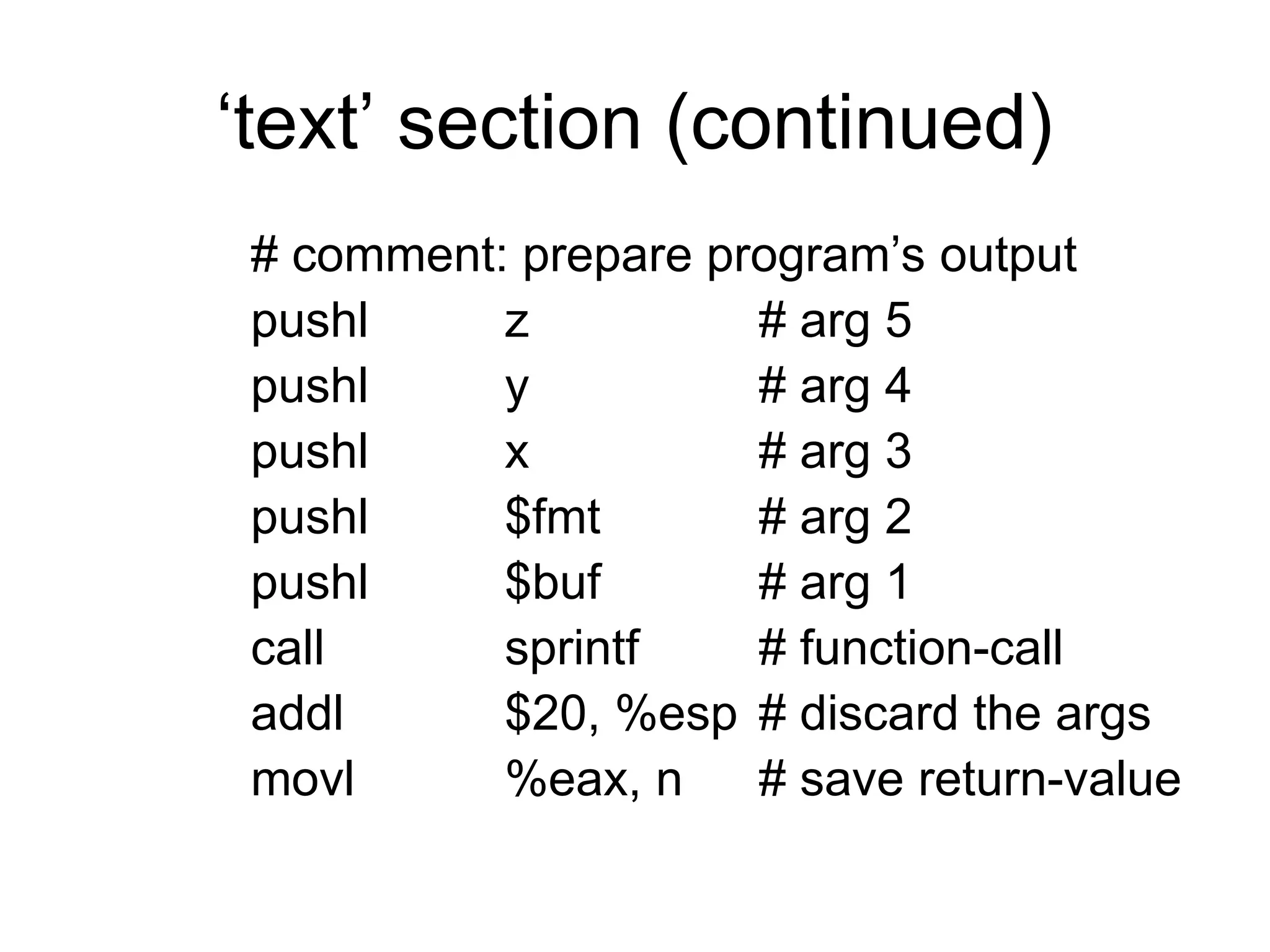

- 21. ‘text’ section (continued) #comment: prepare program’s output pushl z # arg 5 pushl y # arg 4 pushl x # arg 3 pushl $fmt # arg 2 pushl $buf # arg 1 call sprintf # function-call addl $20, %esp # discard the args movl %eax, n # save return-value

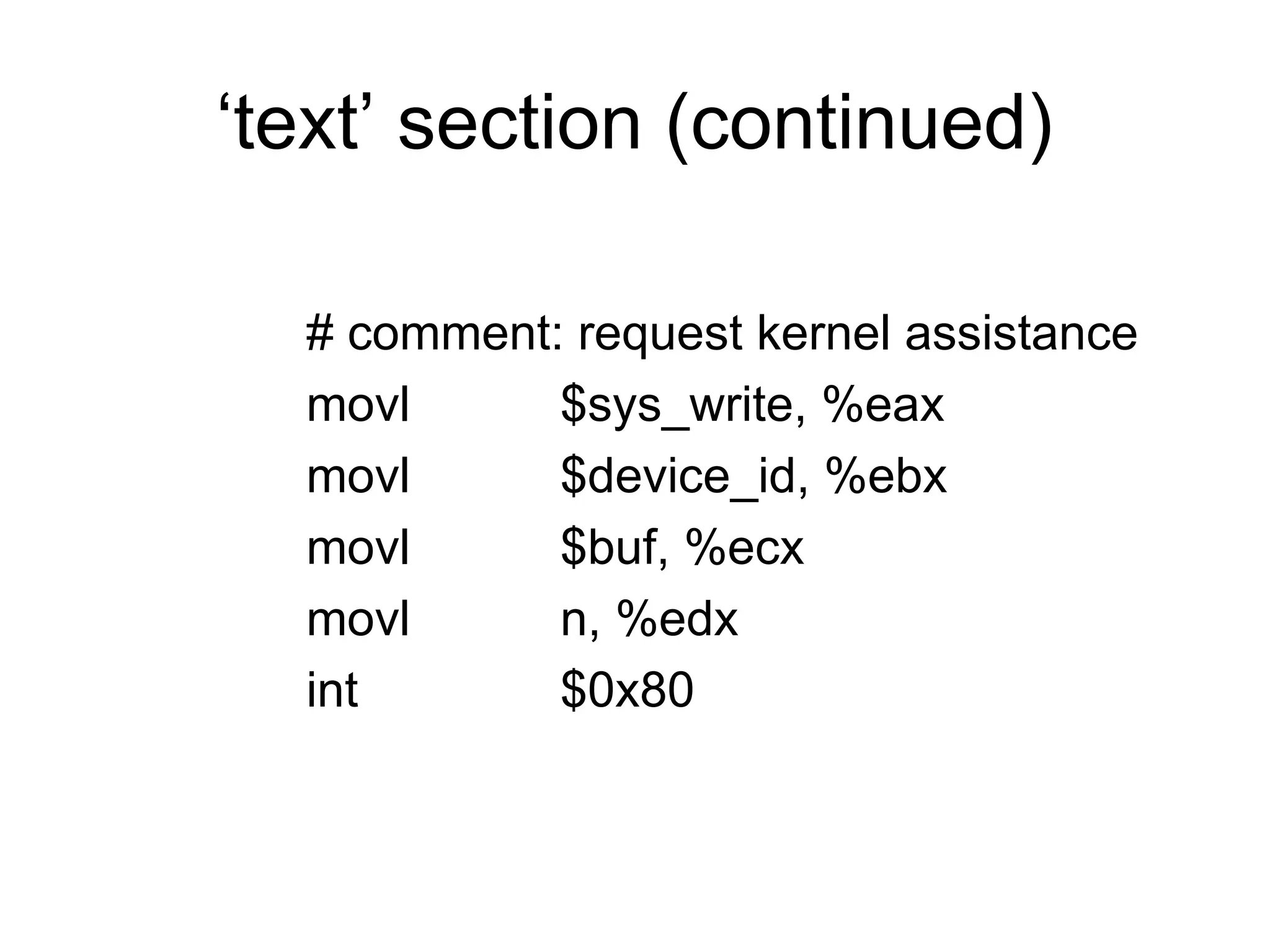

- 22. ‘text’ section (continued) #comment: request kernel assistance movl $sys_write, %eax movl $device_id, %ebx movl $buf, %ecx movl n, %edx int $0x80

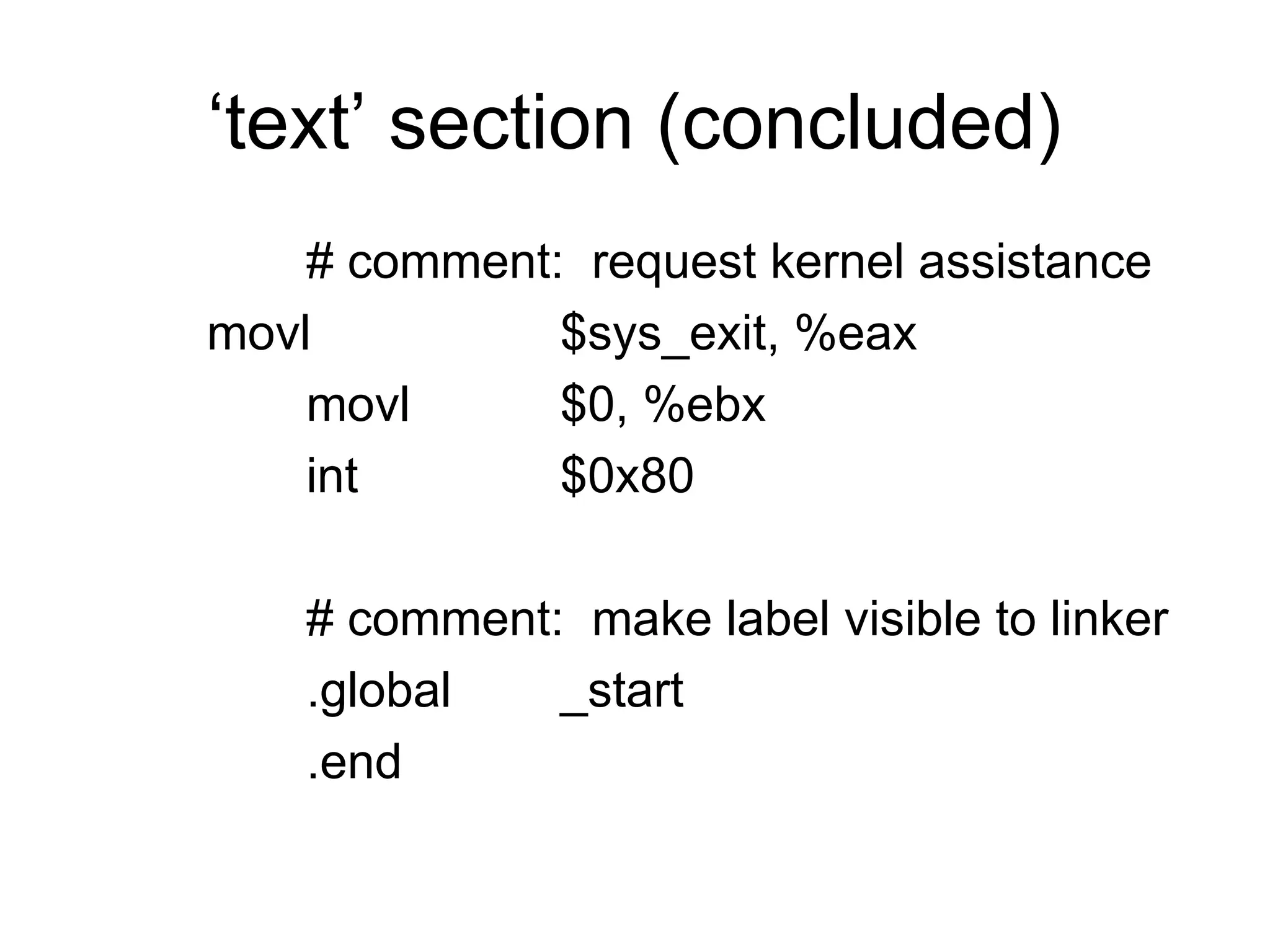

- 23. ‘text’ section (concluded) #comment: request kernel assistance movl $sys_exit, %eax movl $0, %ebx int $0x80 # comment: make label visible to linker .global _start .end

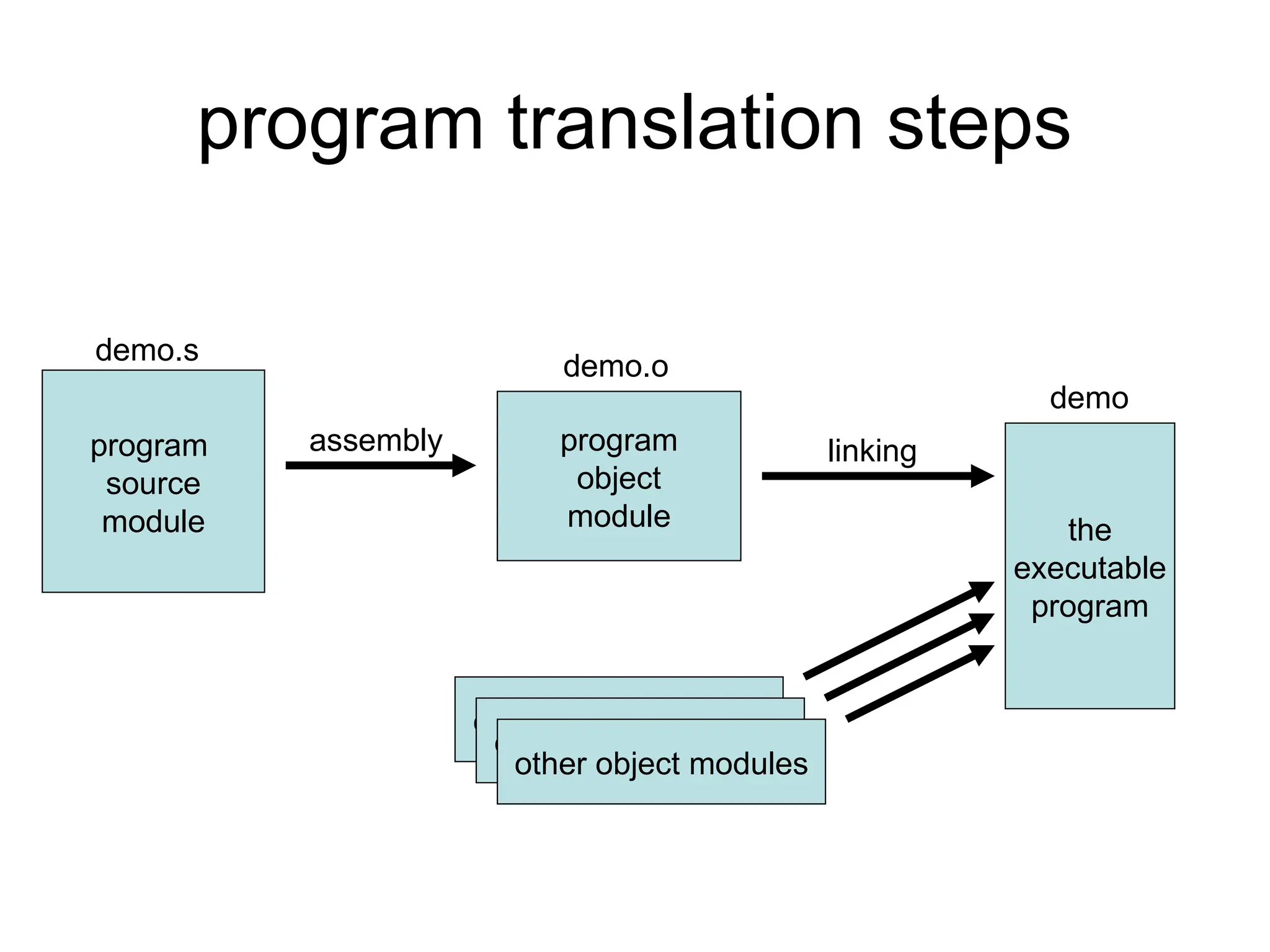

- 24. program translation steps program source module demo.s program object module assembly demo.o the executable program objectmodule library object module library other object modules linking demo

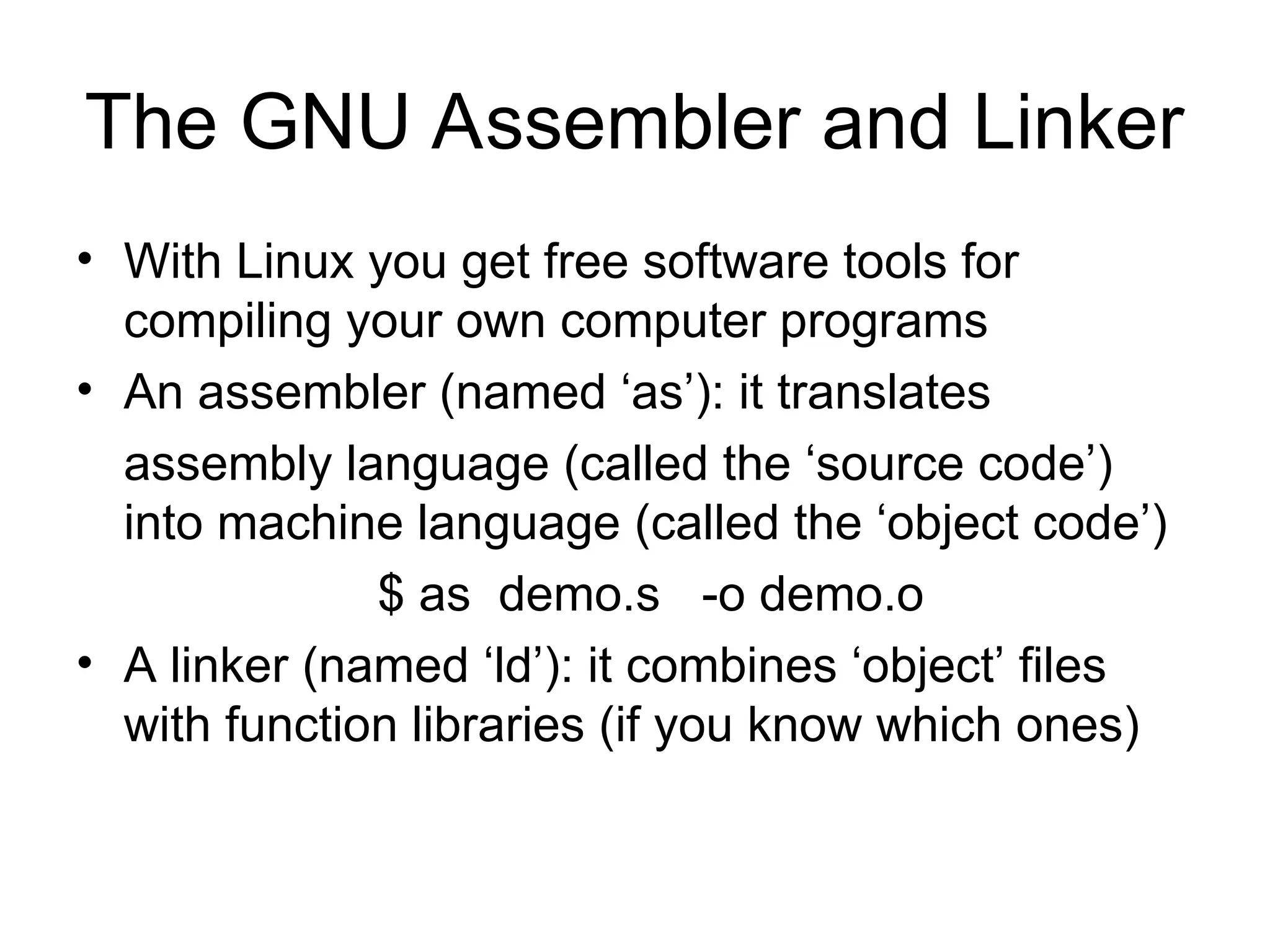

- 25. The GNU Assemblerand Linker • With Linux you get free software tools for compiling your own computer programs • An assembler (named ‘as’): it translates assembly language (called the ‘source code’) into machine language (called the ‘object code’) $ as demo.s -o demo.o • A linker (named ‘ld’): it combines ‘object’ files with function libraries (if you know which ones)

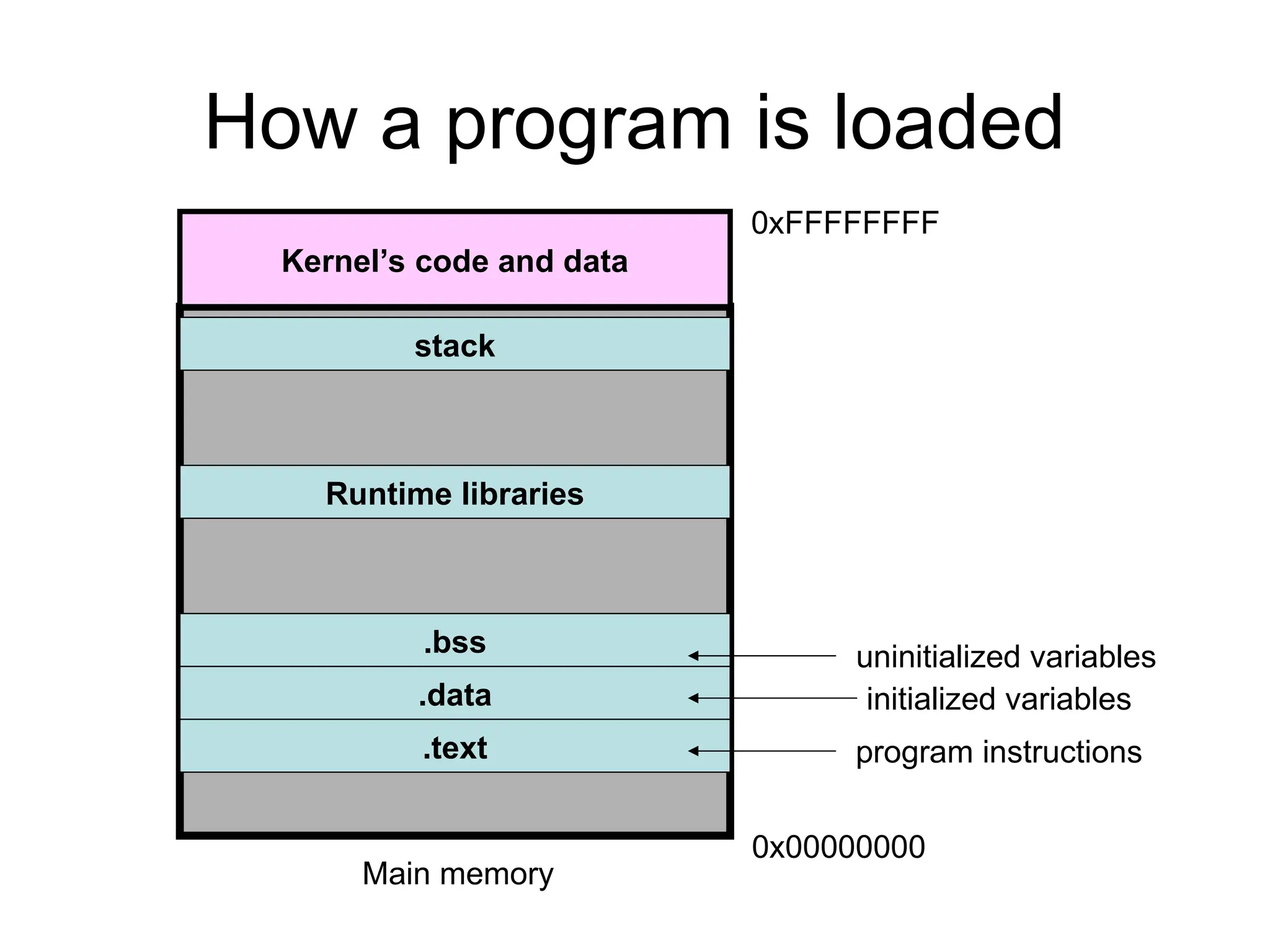

- 26. How a programis loaded stack .text .data .bss Runtime libraries Kernel’s code and data program instructions initialized variables uninitialized variables Main memory 0x00000000 0xFFFFFFFF

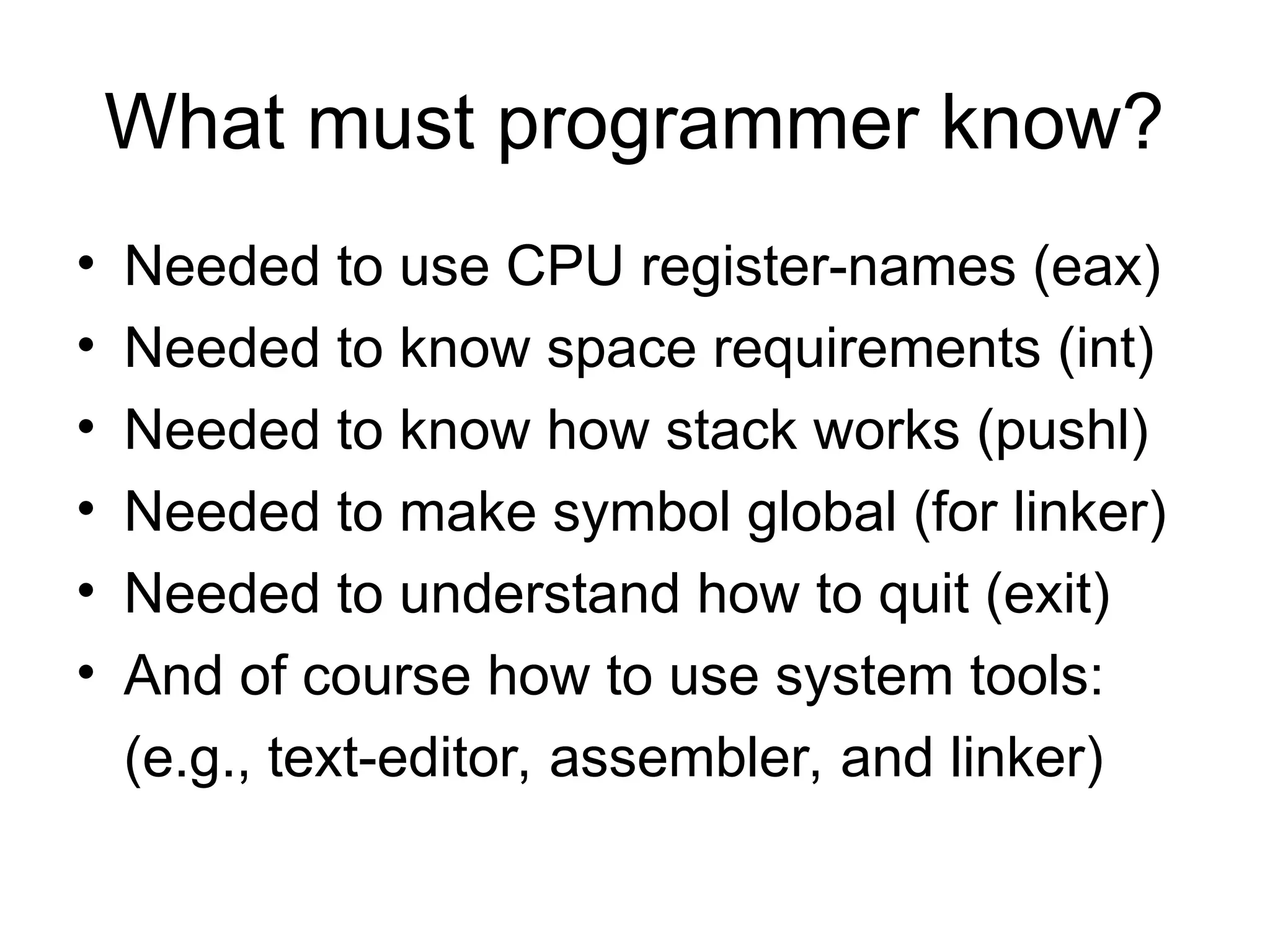

- 27. What must programmerknow? • Needed to use CPU register-names (eax) • Needed to know space requirements (int) • Needed to know how stack works (pushl) • Needed to make symbol global (for linker) • Needed to understand how to quit (exit) • And of course how to use system tools: (e.g., text-editor, assembler, and linker)

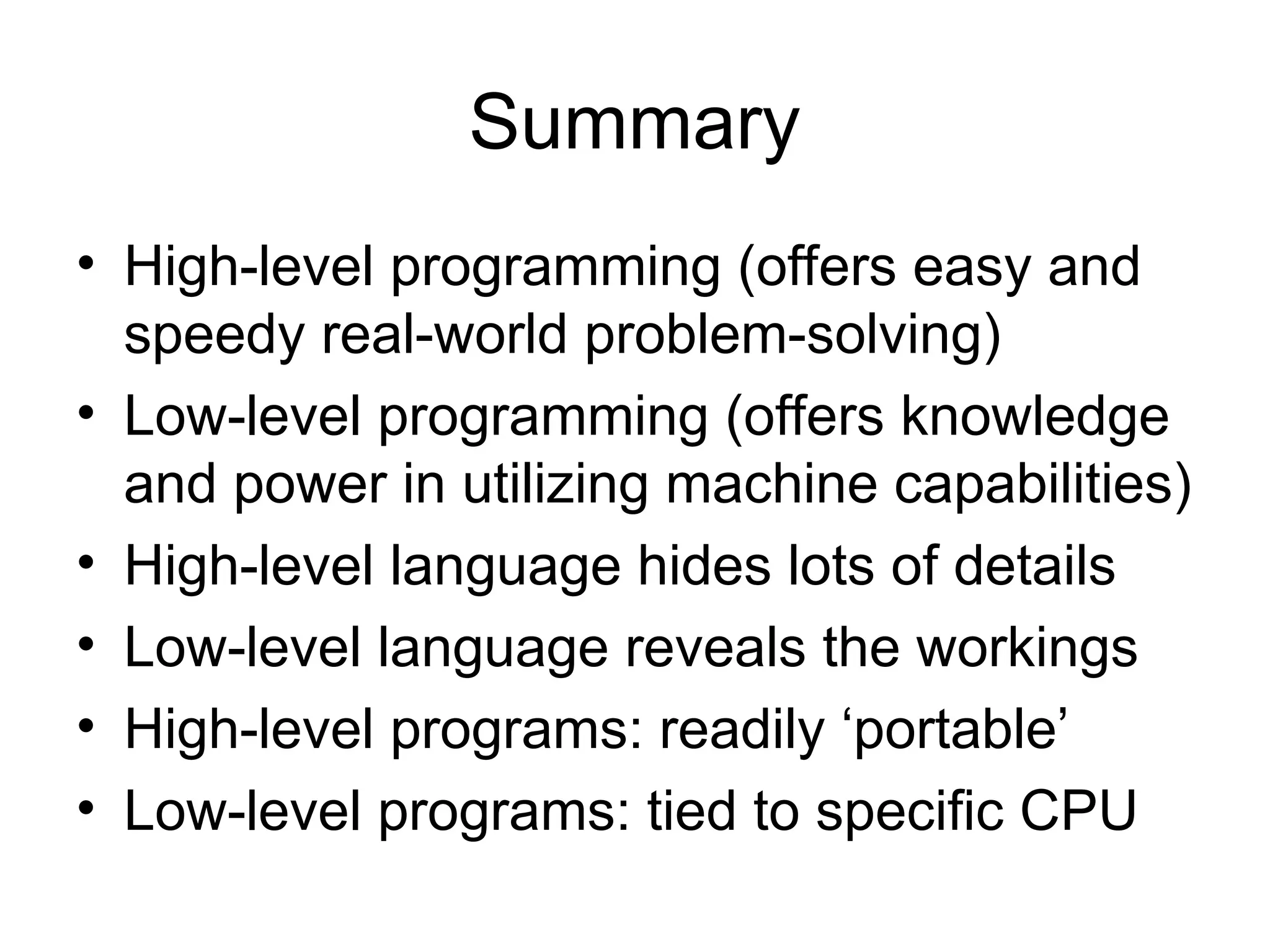

- 28. Summary • High-level programming(offers easy and speedy real-world problem-solving) • Low-level programming (offers knowledge and power in utilizing machine capabilities) • High-level language hides lots of details • Low-level language reveals the workings • High-level programs: readily ‘portable’ • Low-level programs: tied to specific CPU

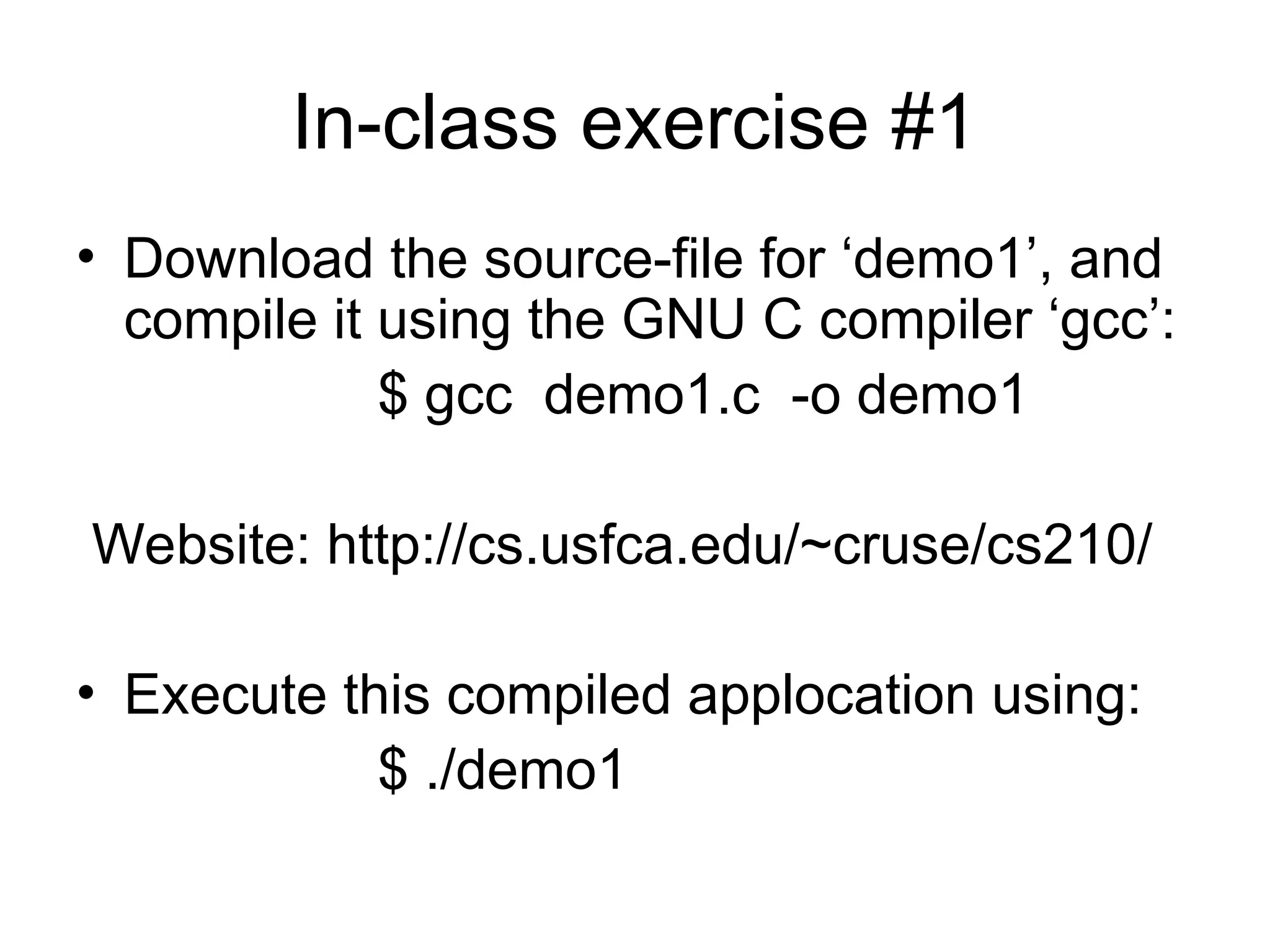

- 29. In-class exercise #1 •Download the source-file for ‘demo1’, and compile it using the GNU C compiler ‘gcc’: $ gcc demo1.c -o demo1 Website: http://cs.usfca.edu/~cruse/cs210/ • Execute this compiled applocation using: $ ./demo1

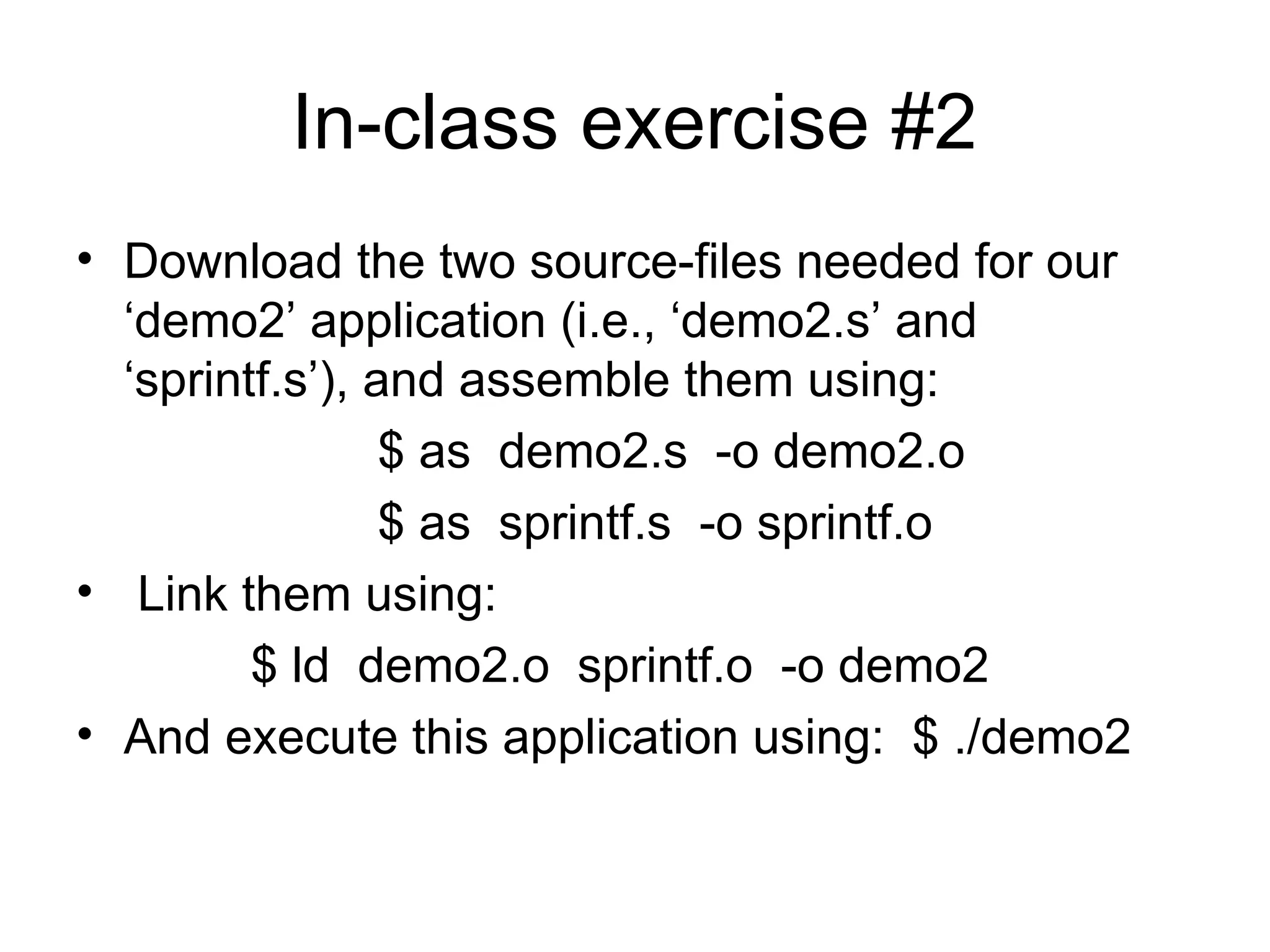

- 30. In-class exercise #2 •Download the two source-files needed for our ‘demo2’ application (i.e., ‘demo2.s’ and ‘sprintf.s’), and assemble them using: $ as demo2.s -o demo2.o $ as sprintf.s -o sprintf.o • Link them using: $ ld demo2.o sprintf.o -o demo2 • And execute this application using: $ ./demo2

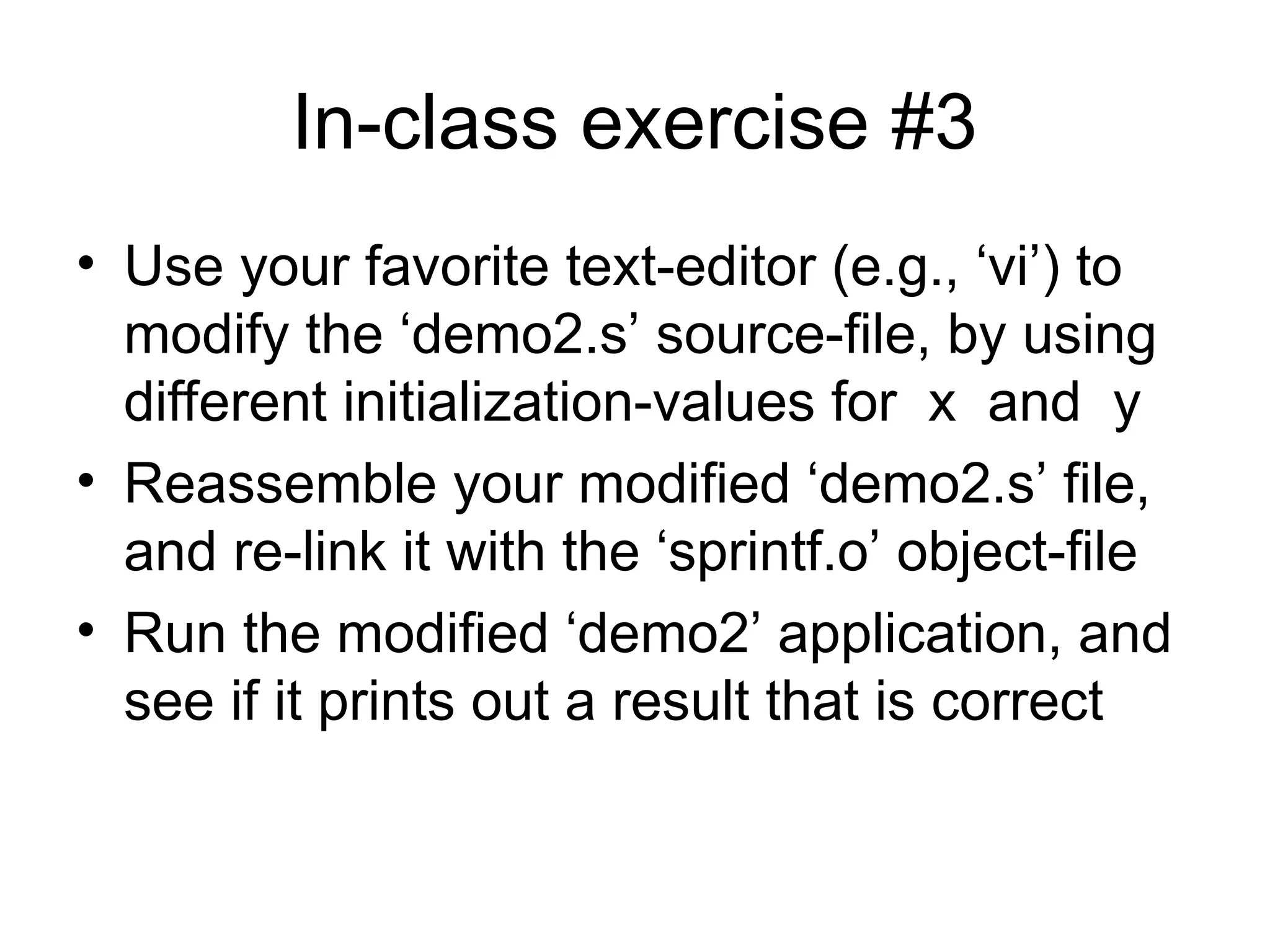

- 31. In-class exercise #3 •Use your favorite text-editor (e.g., ‘vi’) to modify the ‘demo2.s’ source-file, by using different initialization-values for x and y • Reassemble your modified ‘demo2.s’ file, and re-link it with the ‘sprintf.o’ object-file • Run the modified ‘demo2’ application, and see if it prints out a result that is correct

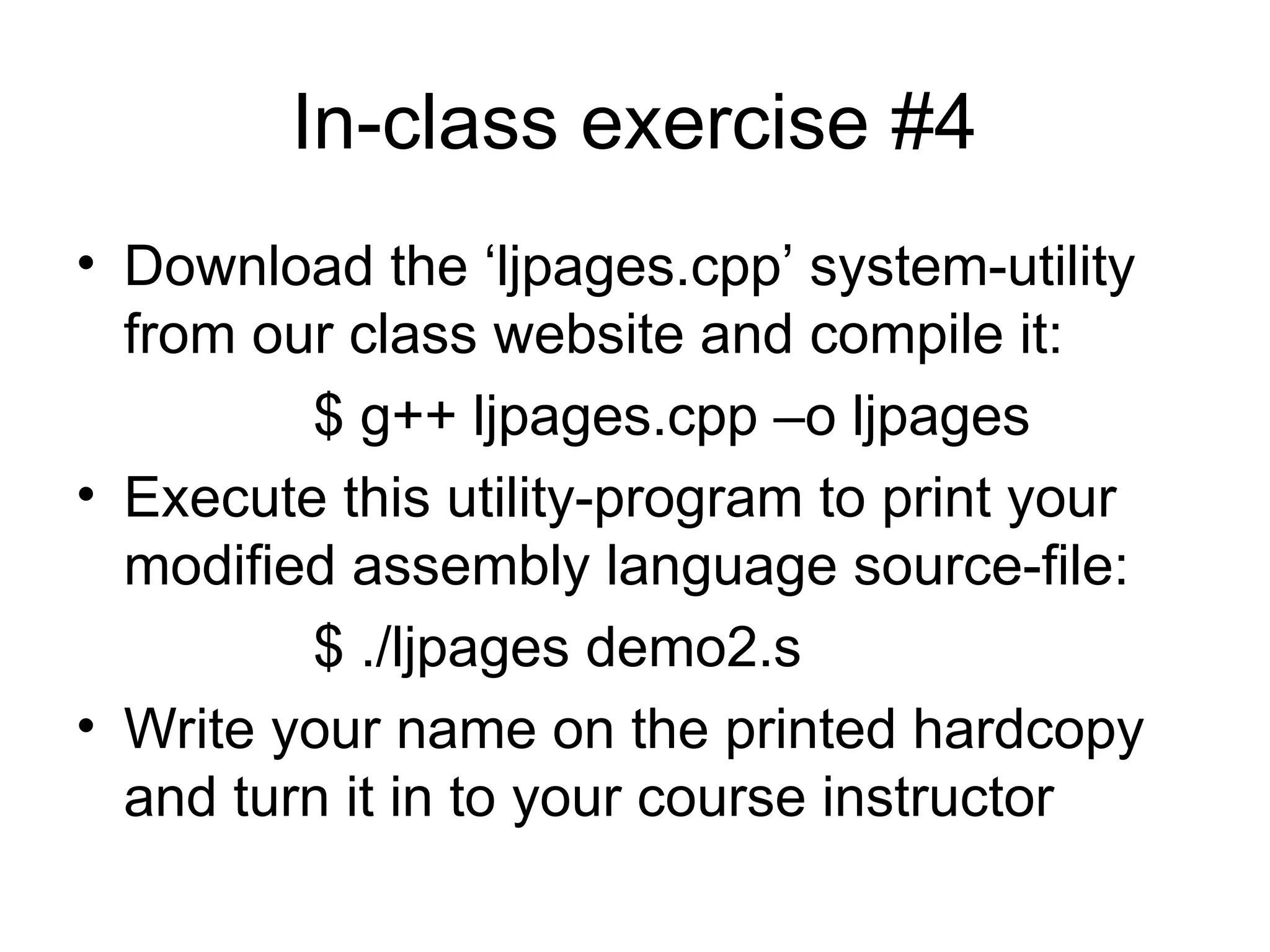

- 32. In-class exercise #4 •Download the ‘ljpages.cpp’ system-utility from our class website and compile it: $ g++ ljpages.cpp –o ljpages • Execute this utility-program to print your modified assembly language source-file: $ ./ljpages demo2.s • Write your name on the printed hardcopy and turn it in to your course instructor

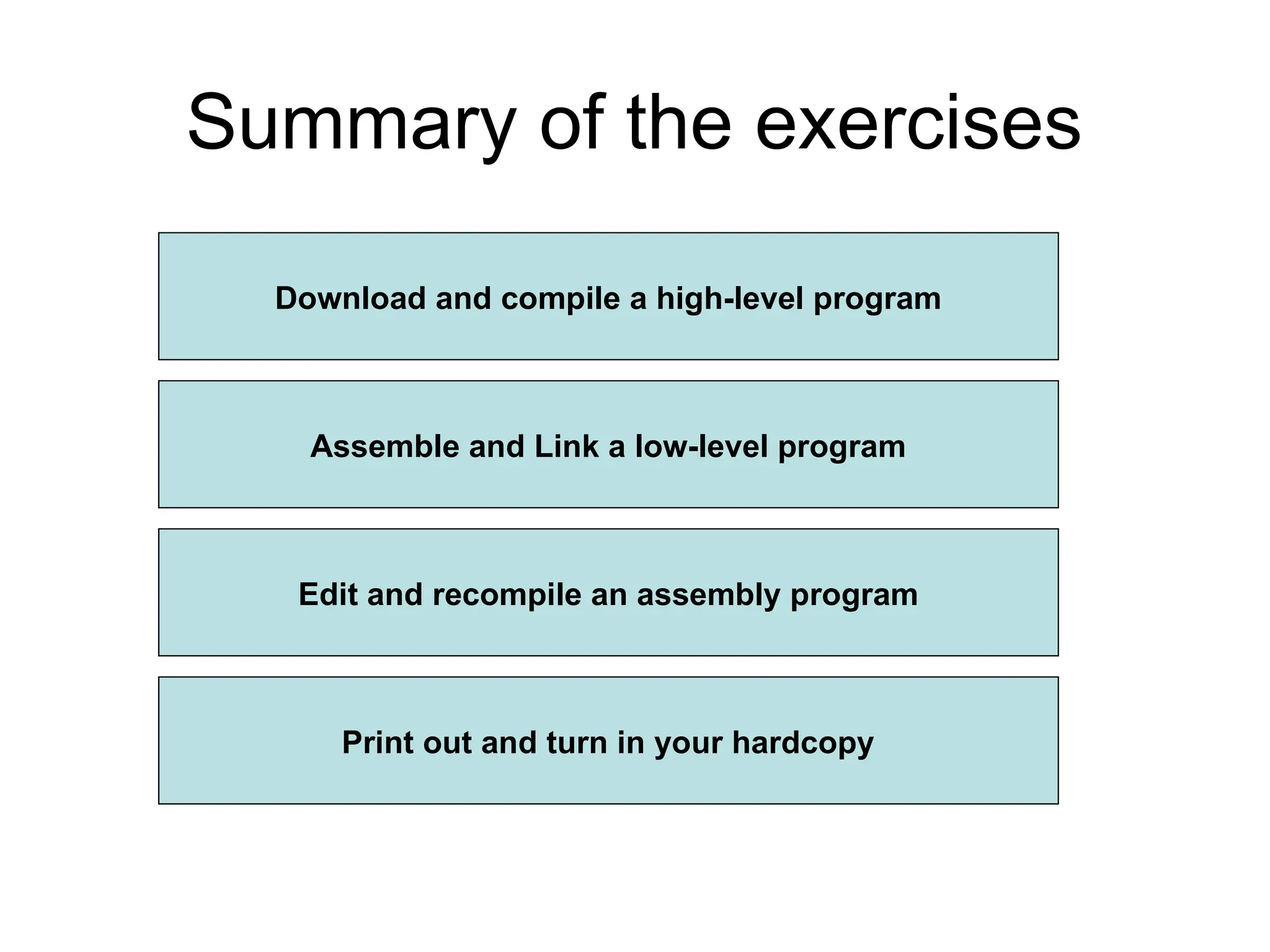

- 33. Summary of theexercises Download and compile a high-level program Assemble and Link a low-level program Edit and recompile an assembly program Print out and turn in your hardcopy
