Lessons learned from designing
a QA automation event streaming
platform (IoT & Big Data)
Omid Vahdaty, Big Data ninja.

Agenda
● Introduction to Big Data Testing
● Challenges of Big Data Testing.
● Methodological approach for QA Automation road map
● True Story
● The Solution?
● Performance and Maintenance

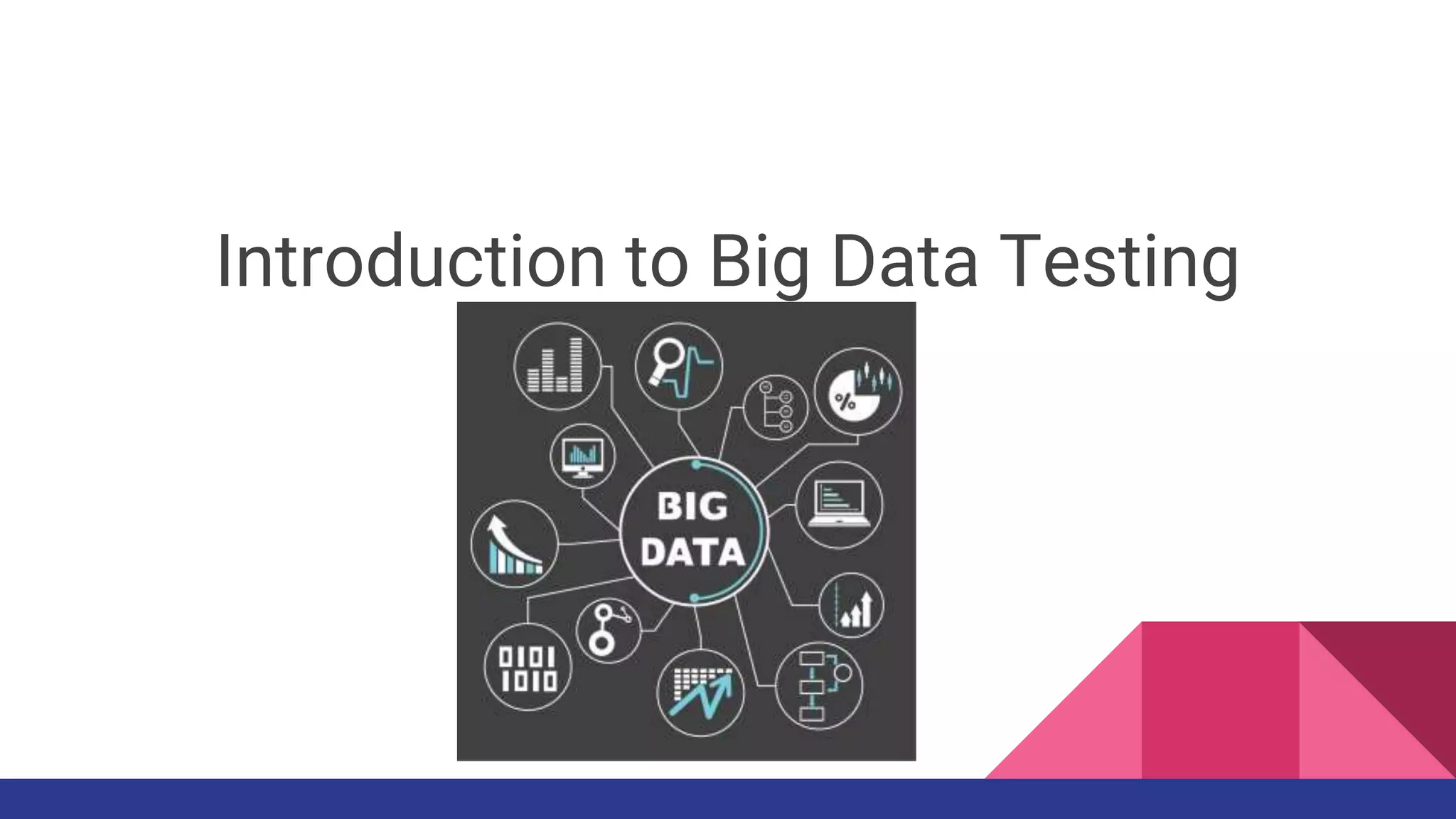

Introduction to Big Data Testing

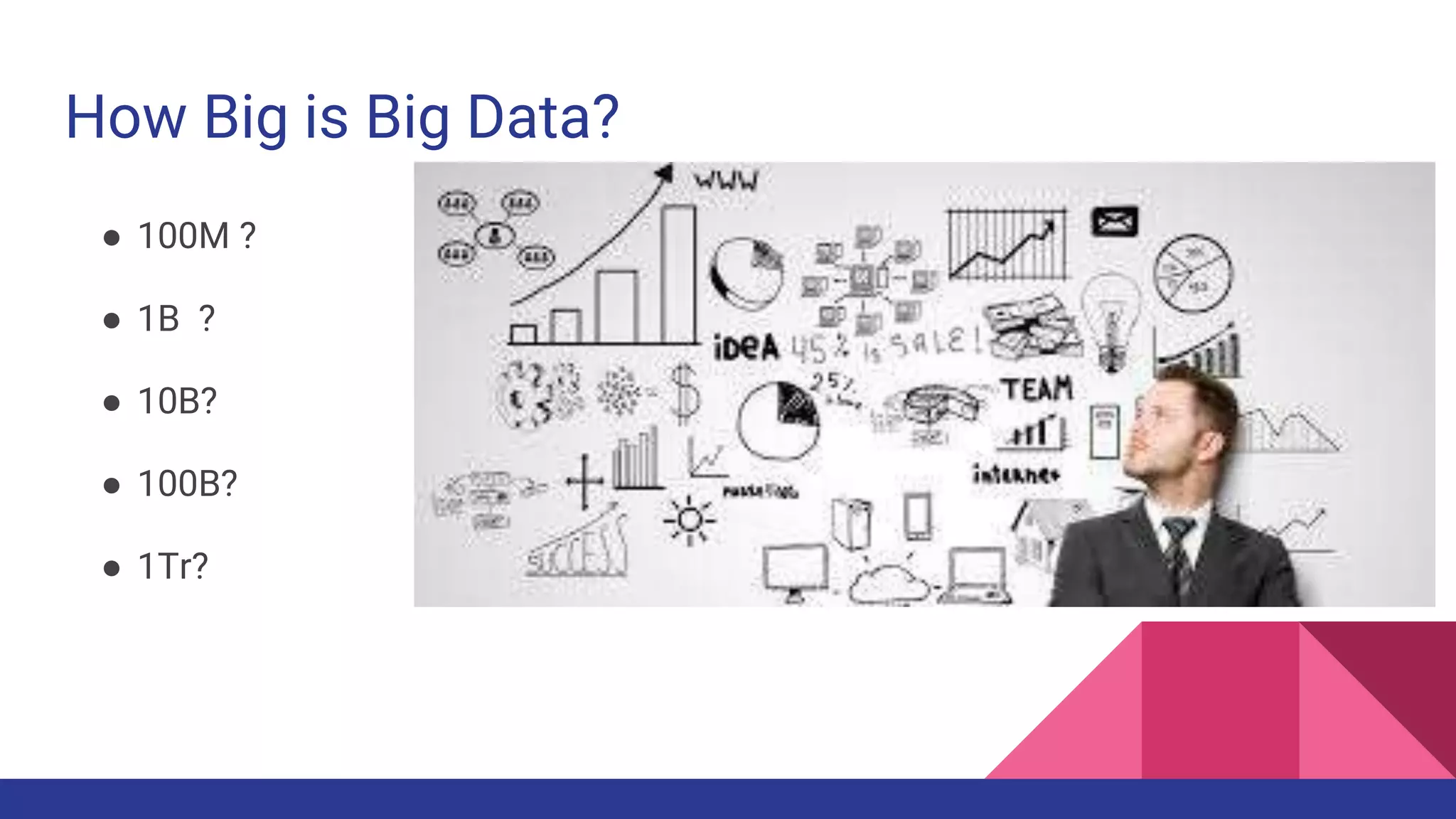

● 100M ?
● 1B ?
● 10B?
● 100B?
● 1Tr?
How Big is Big Data?

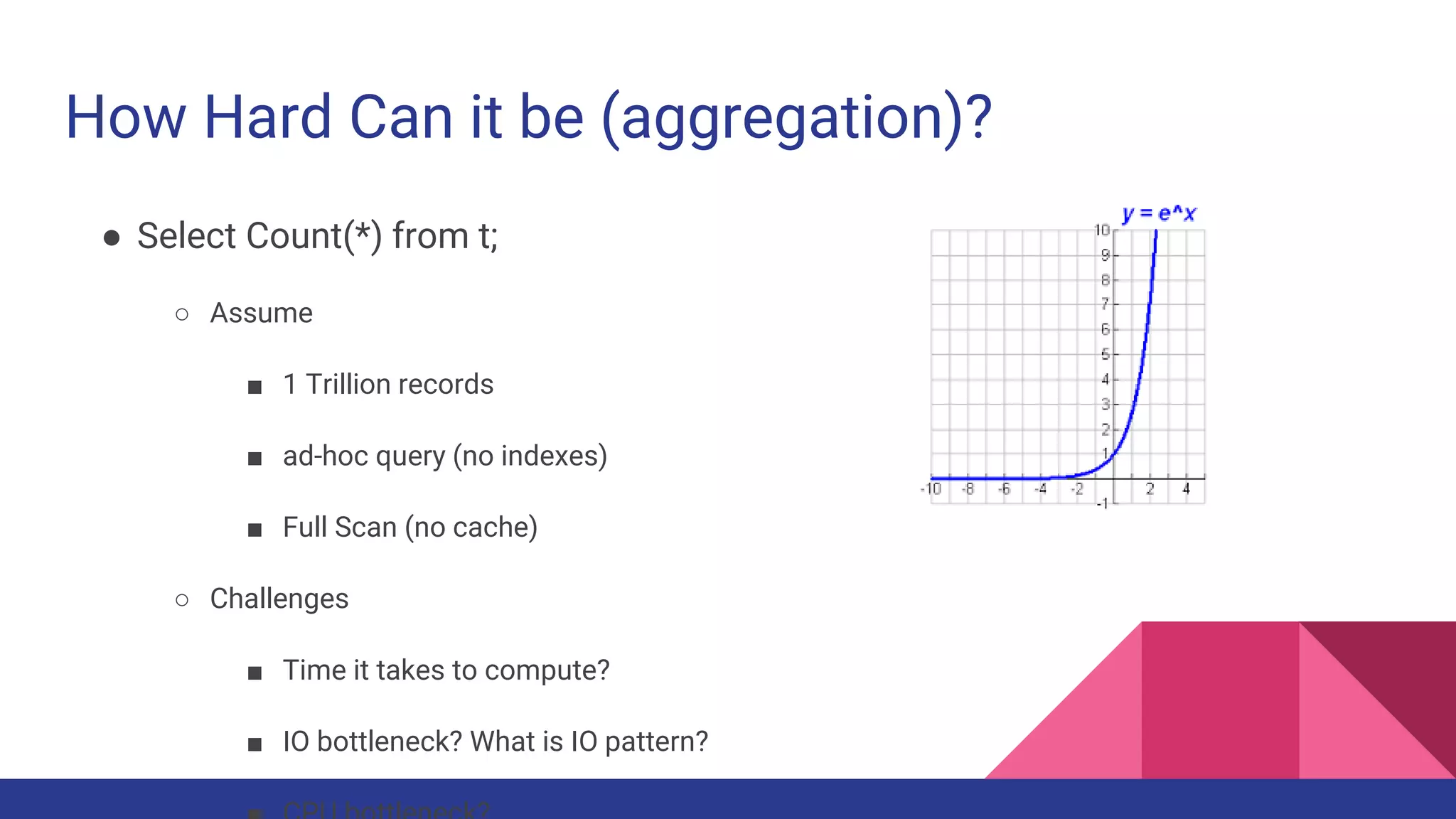

How Hard Can it be (aggregation)?
● Select Count(*) from t;
○ Assume
■ 1 Trillion records
■ ad-hoc query (no indexes)
■ Full Scan (no cache)
○ Challenges
■ Time it takes to compute?
■ IO bottleneck? What is IO pattern?

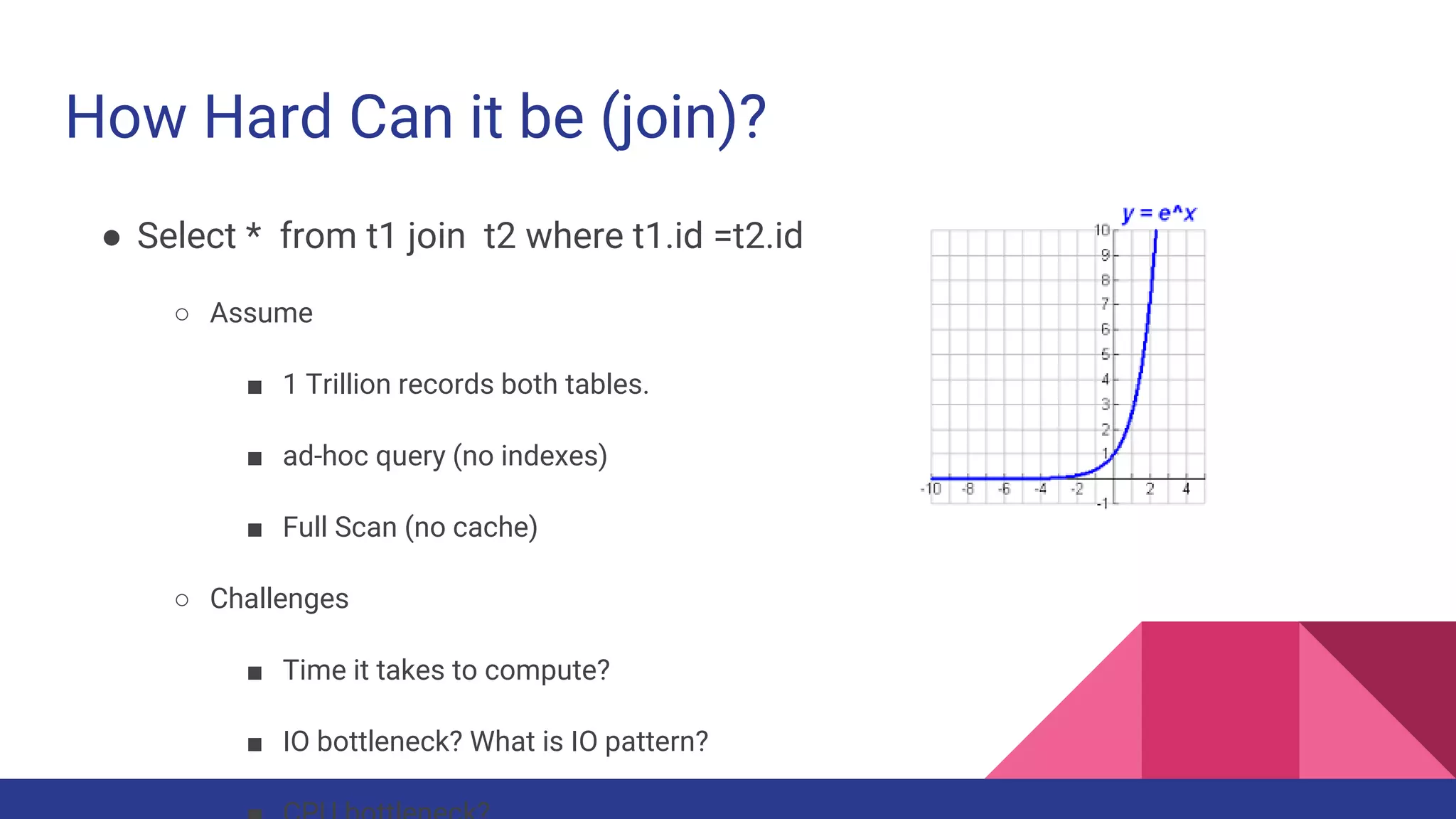

How Hard Can it be (join)?
● Select * from t1 join t2 where t1.id =t2.id
○ Assume
■ 1 Trillion records both tables.
■ ad-hoc query (no indexes)
■ Full Scan (no cache)
○ Challenges
■ Time it takes to compute?
■ IO bottleneck? What is IO pattern?

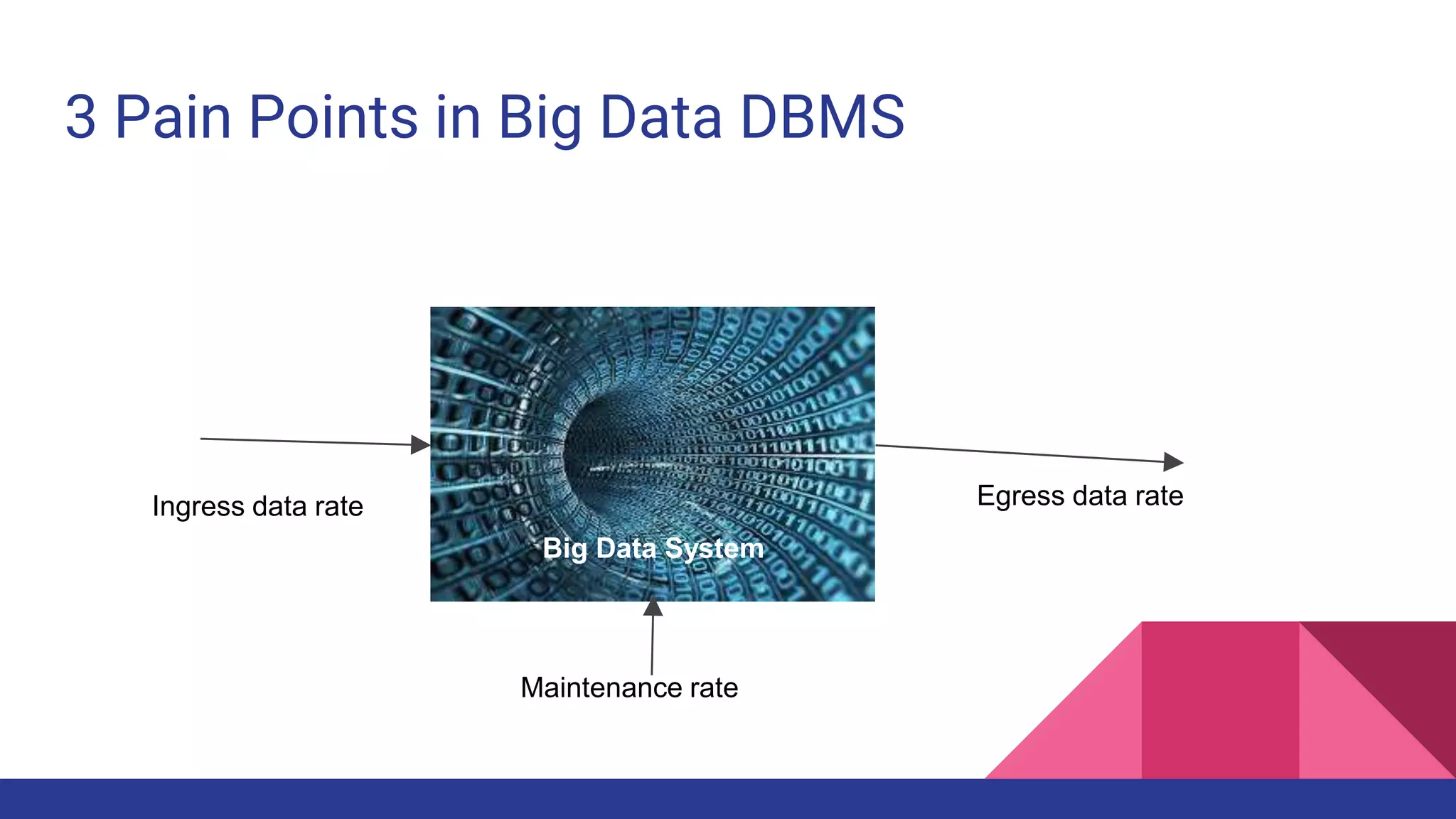

3 Pain Points in Big Data DBMS
Big Data System
Ingress data rate Egress data rate
Maintenance rate

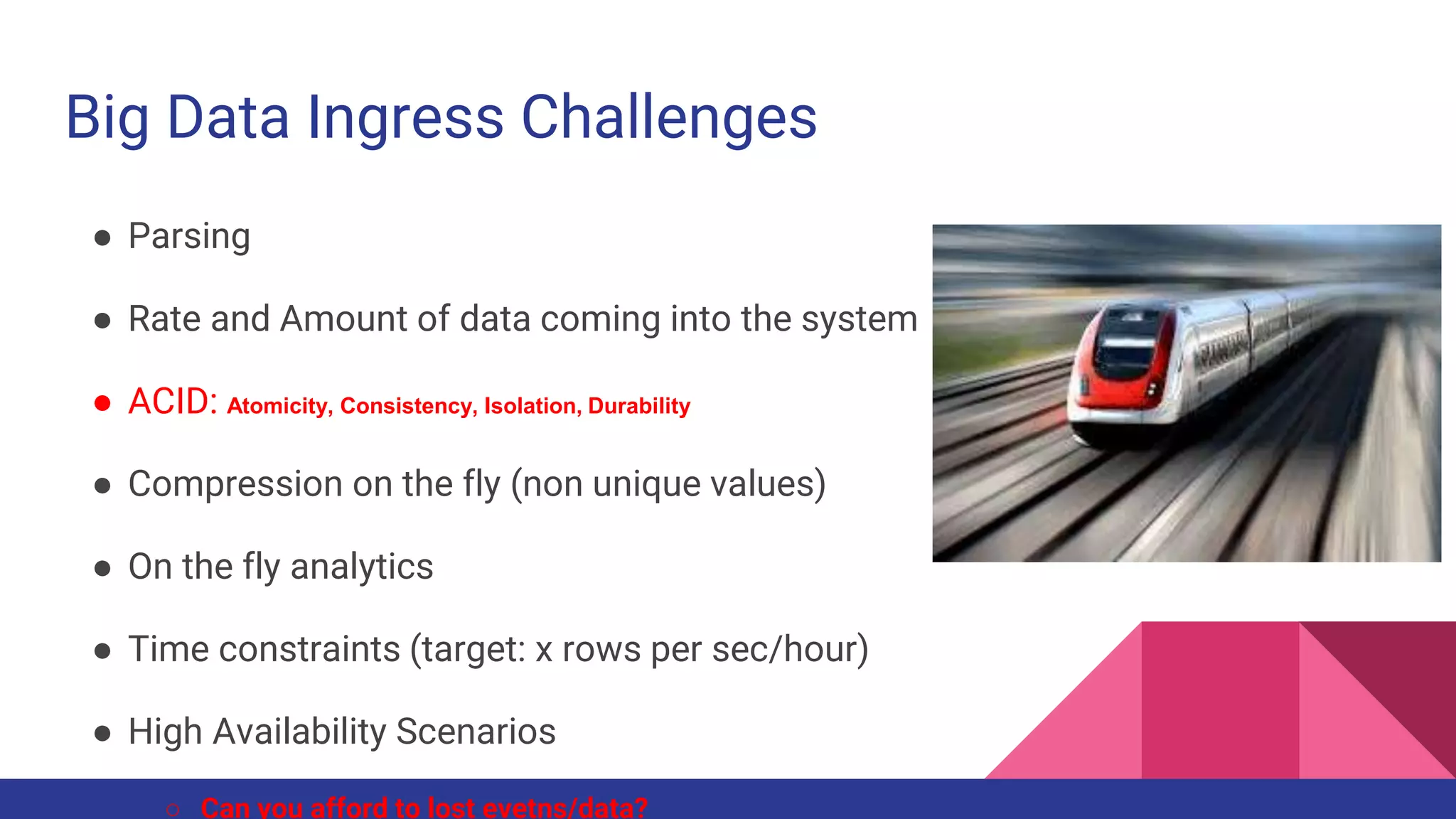

Big Data Ingress Challenges
● Parsing
● Rate and Amount of data coming into the system
● ACID: Atomicity, Consistency, Isolation, Durability
● Compression on the fly (non unique values)
● On the fly analytics
● Time constraints (target: x rows per sec/hour)
● High Availability Scenarios
○ Can you afford to lost evetns/data?

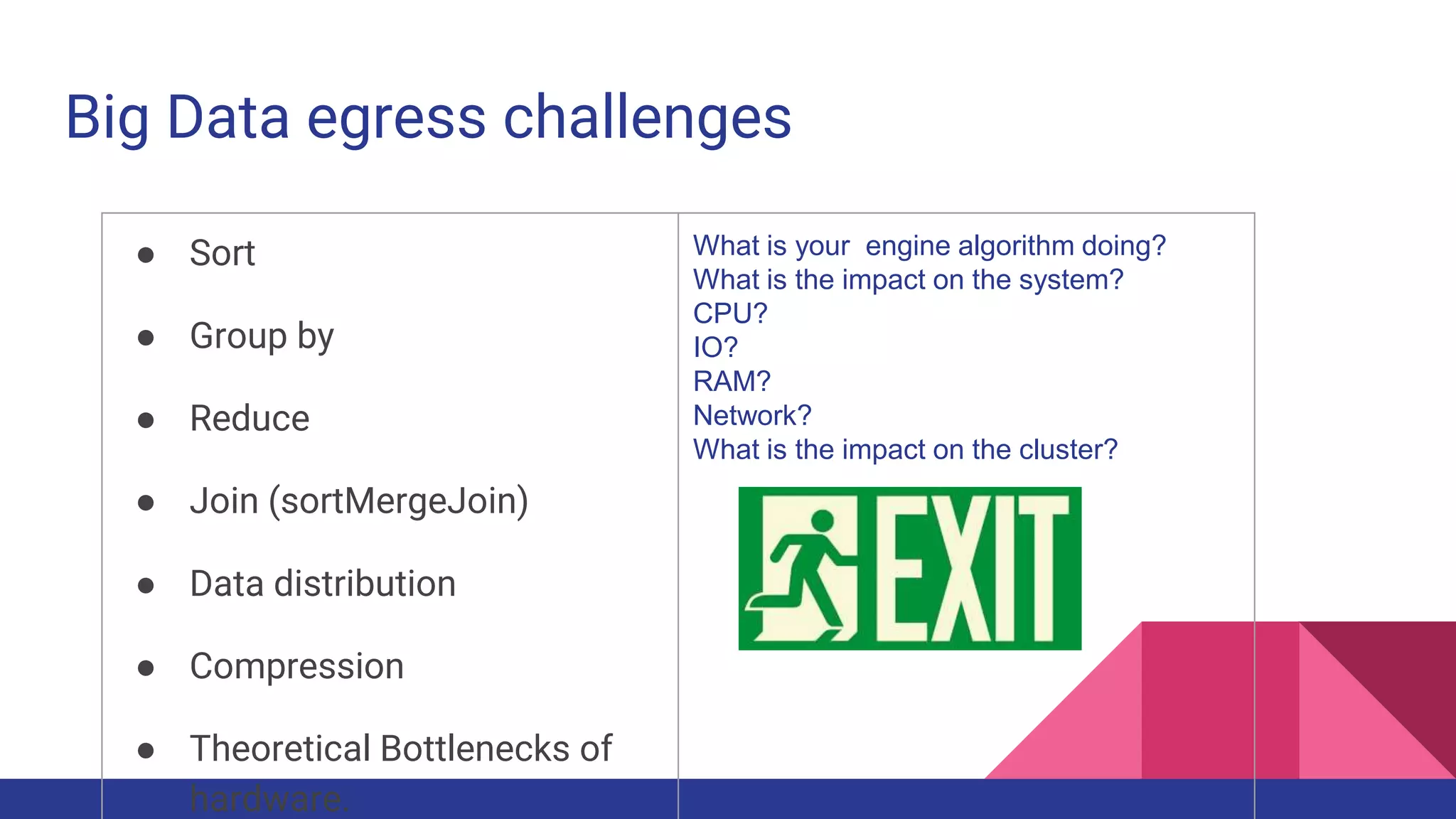

Big Data egress challenges
● Sort
● Group by
● Reduce
● Join (sortMergeJoin)
● Data distribution
● Compression
● Theoretical Bottlenecks of
hardware.
What is your engine algorithm doing?
What is the impact on the system?
CPU?
IO?
RAM?
Network?
What is the impact on the cluster?

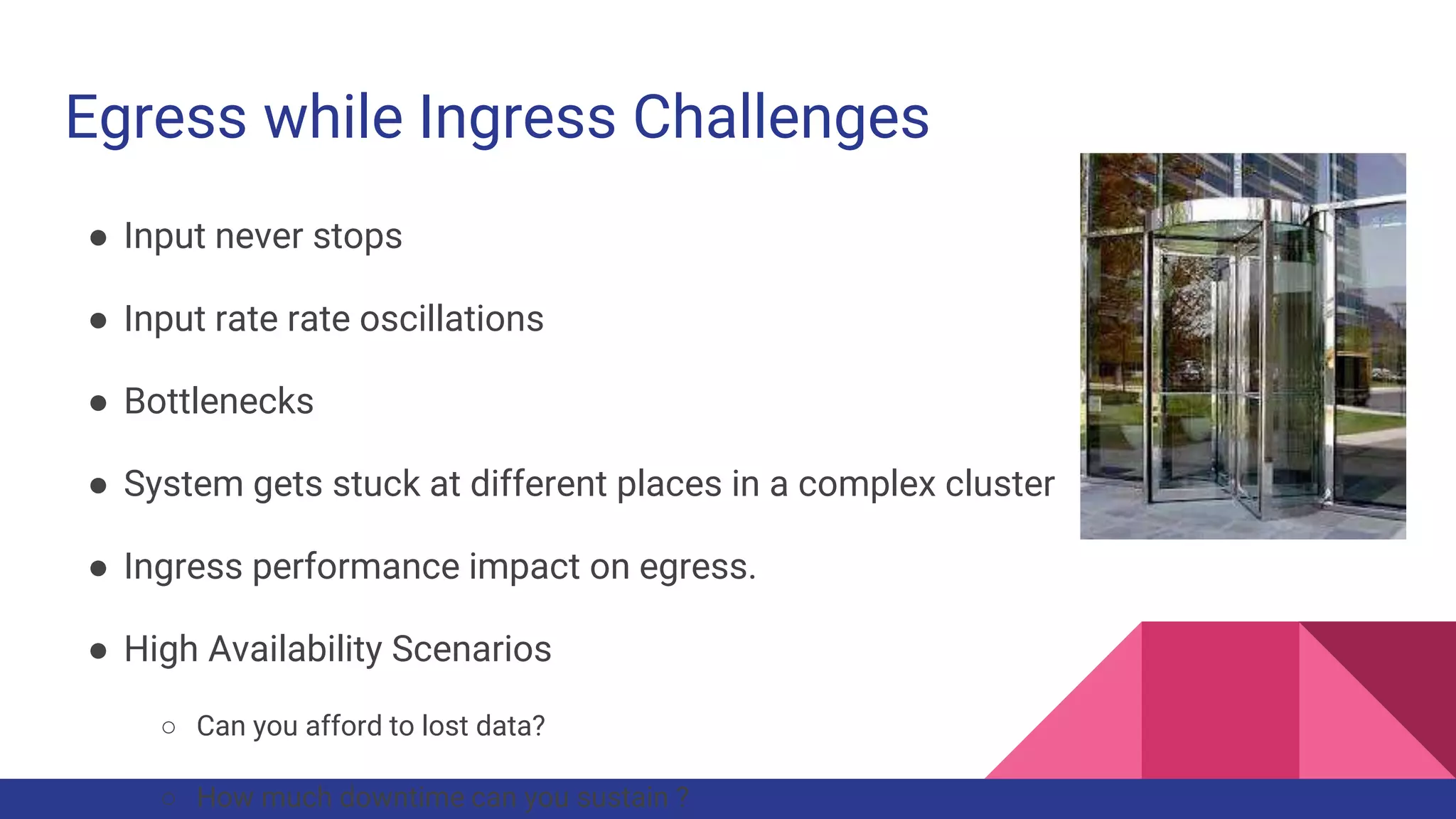

Egress while Ingress Challenges
● Input never stops
● Input rate rate oscillations
● Bottlenecks
● System gets stuck at different places in a complex cluster
● Ingress performance impact on egress.
● High Availability Scenarios
○ Can you afford to lost data?
○ How much downtime can you sustain ?

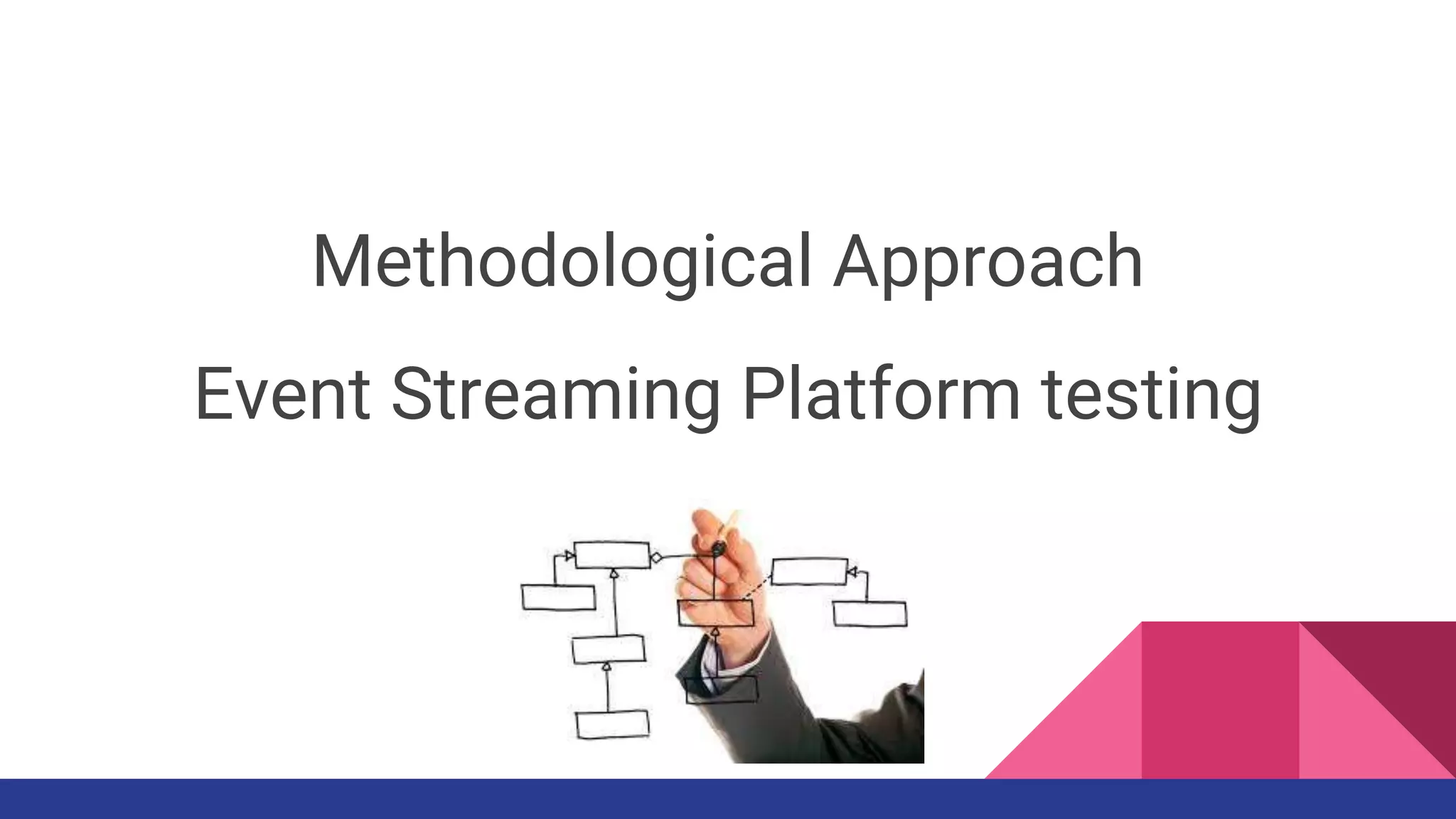

Methodological Approach
Event Streaming Platform testing

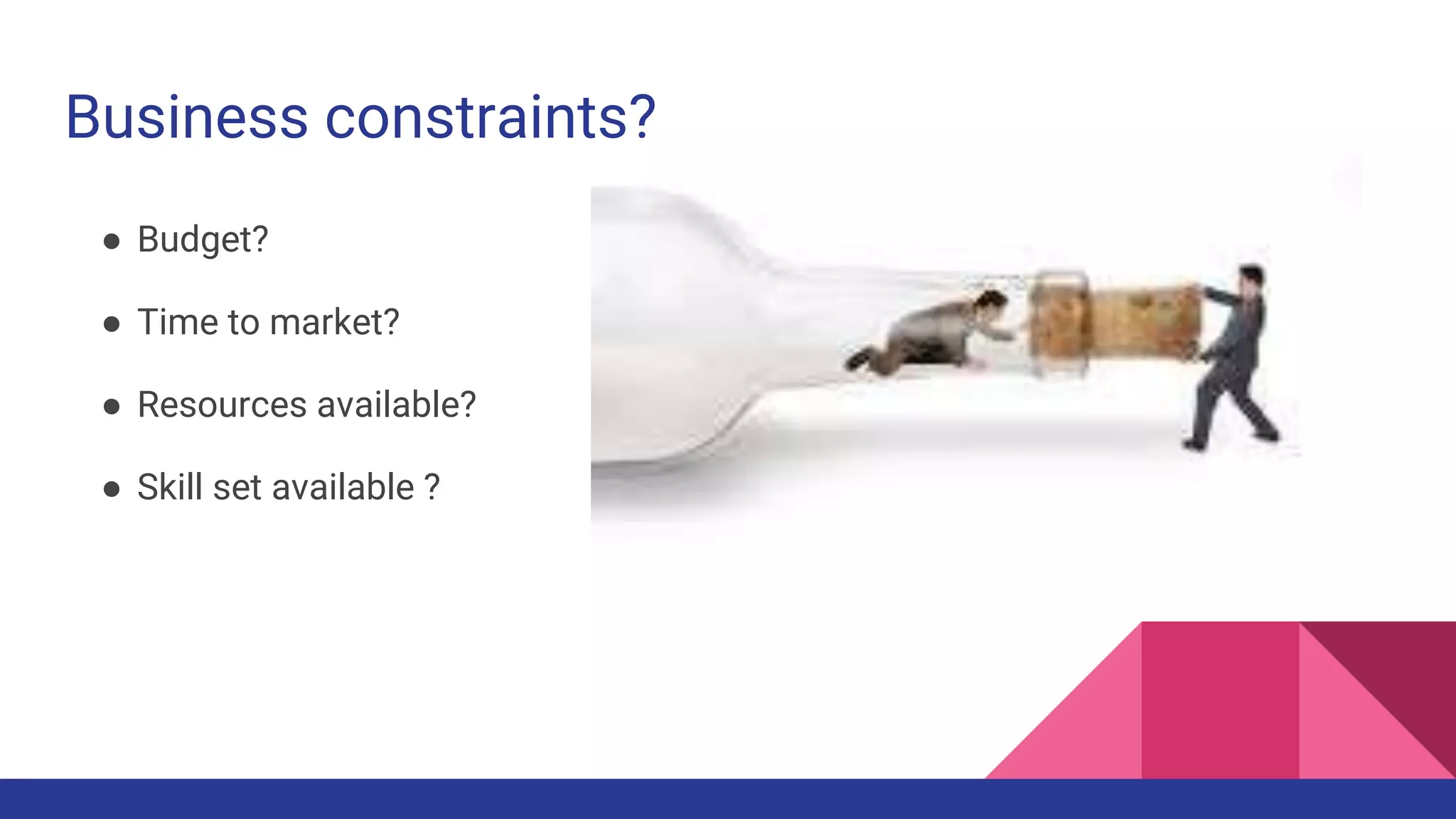

Business constraints?
● Budget?
● Time to market?
● Resources available?
● Skill set available ?

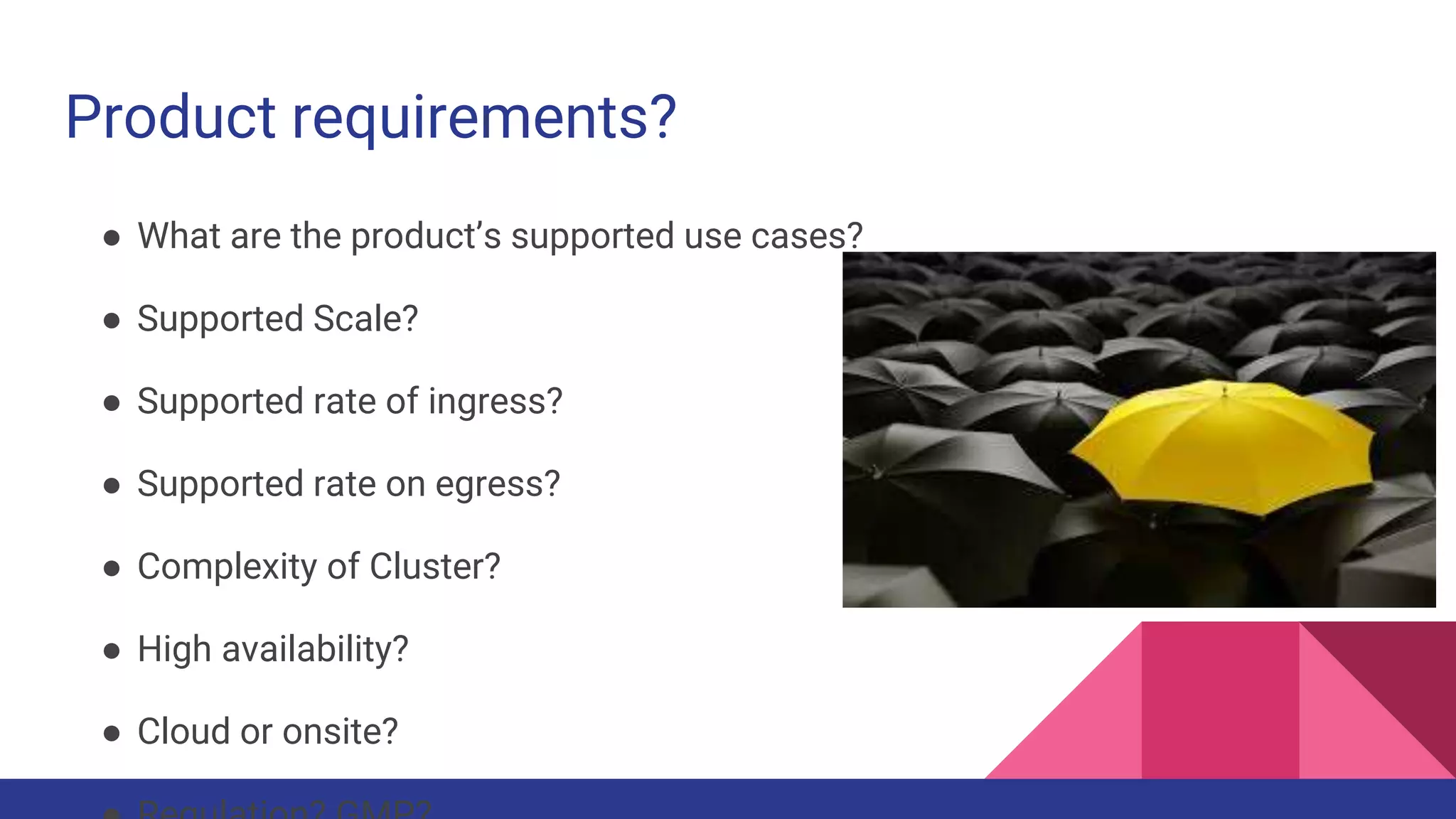

Product requirements?
● What are the product’s supported use cases?
● Supported Scale?
● Supported rate of ingress?
● Supported rate on egress?
● Complexity of Cluster?
● High availability?
● Cloud or onsite?

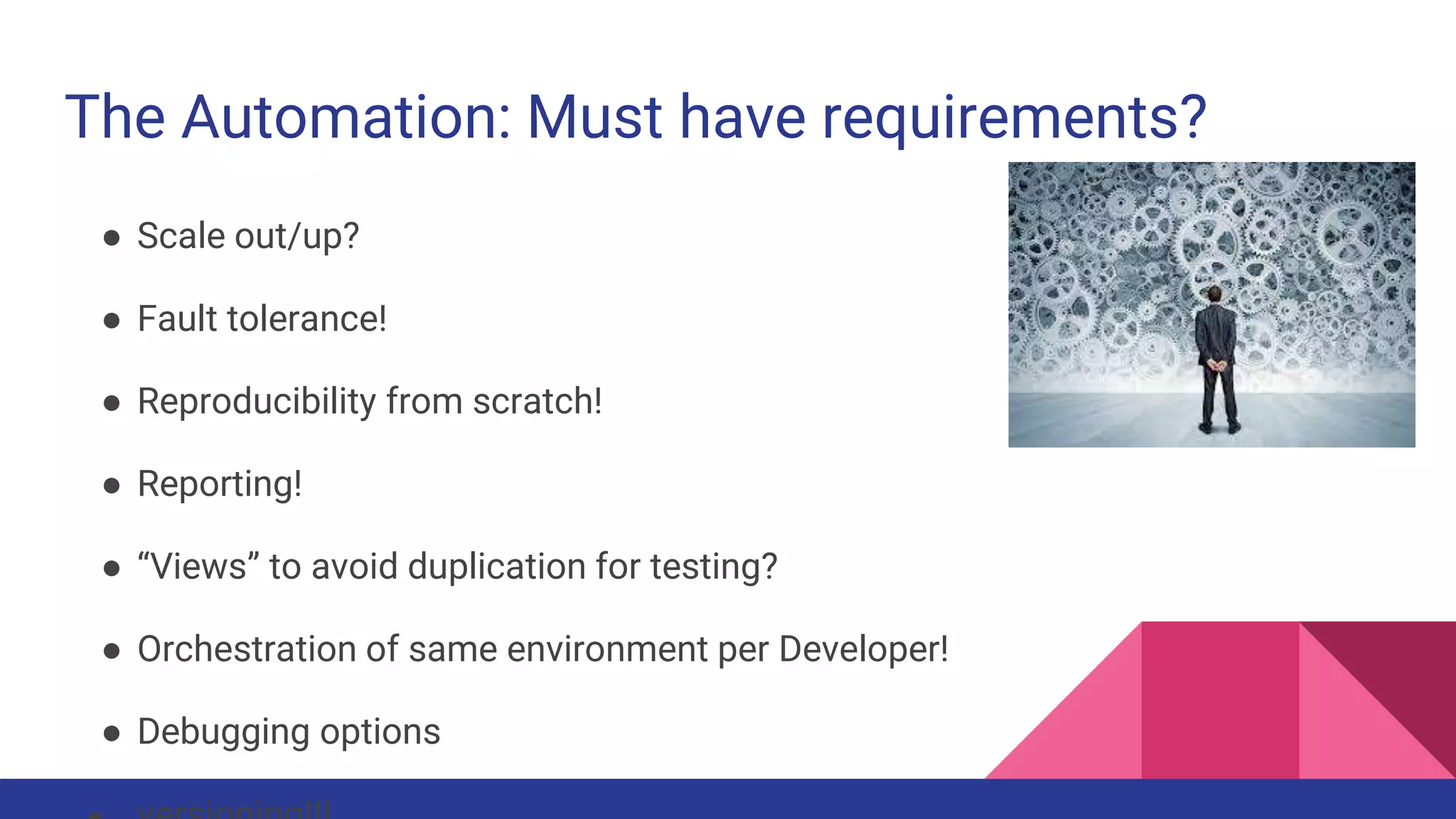

The Automation: Must have requirements?
● Scale out/up?
● Fault tolerance!
● Reproducibility from scratch!
● Reporting!
● “Views” to avoid duplication for testing?
● Orchestration of same environment per Developer!
● Debugging options

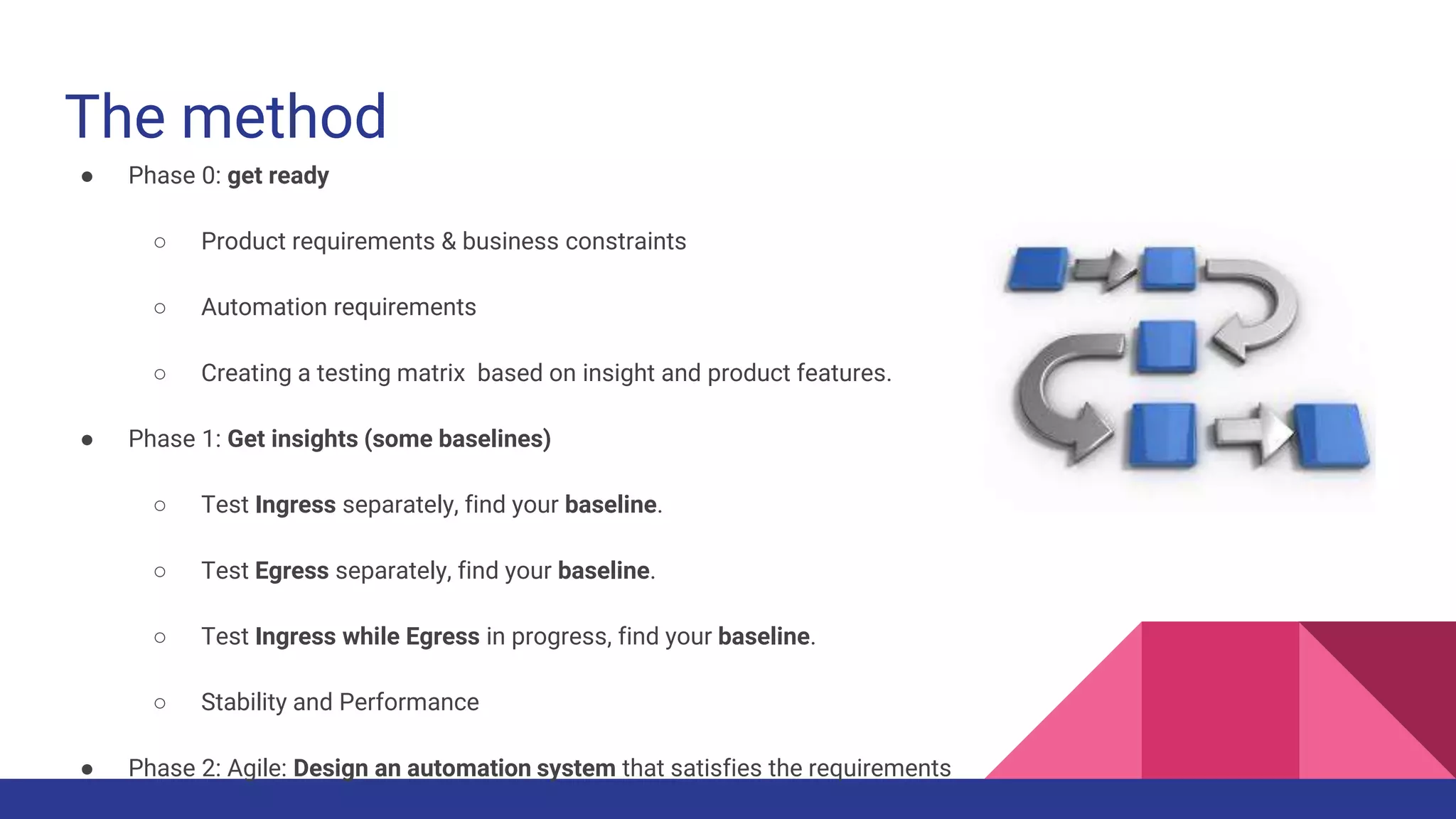

The method
● Phase 0: get ready
○ Product requirements & business constraints
○ Automation requirements
○ Creating a testing matrix based on insight and product features.
● Phase 1: Get insights (some baselines)
○ Test Ingress separately, find your baseline.
○ Test Egress separately, find your baseline.
○ Test Ingress while Egress in progress, find your baseline.
○ Stability and Performance
● Phase 2: Agile: Design an automation system that satisfies the requirements

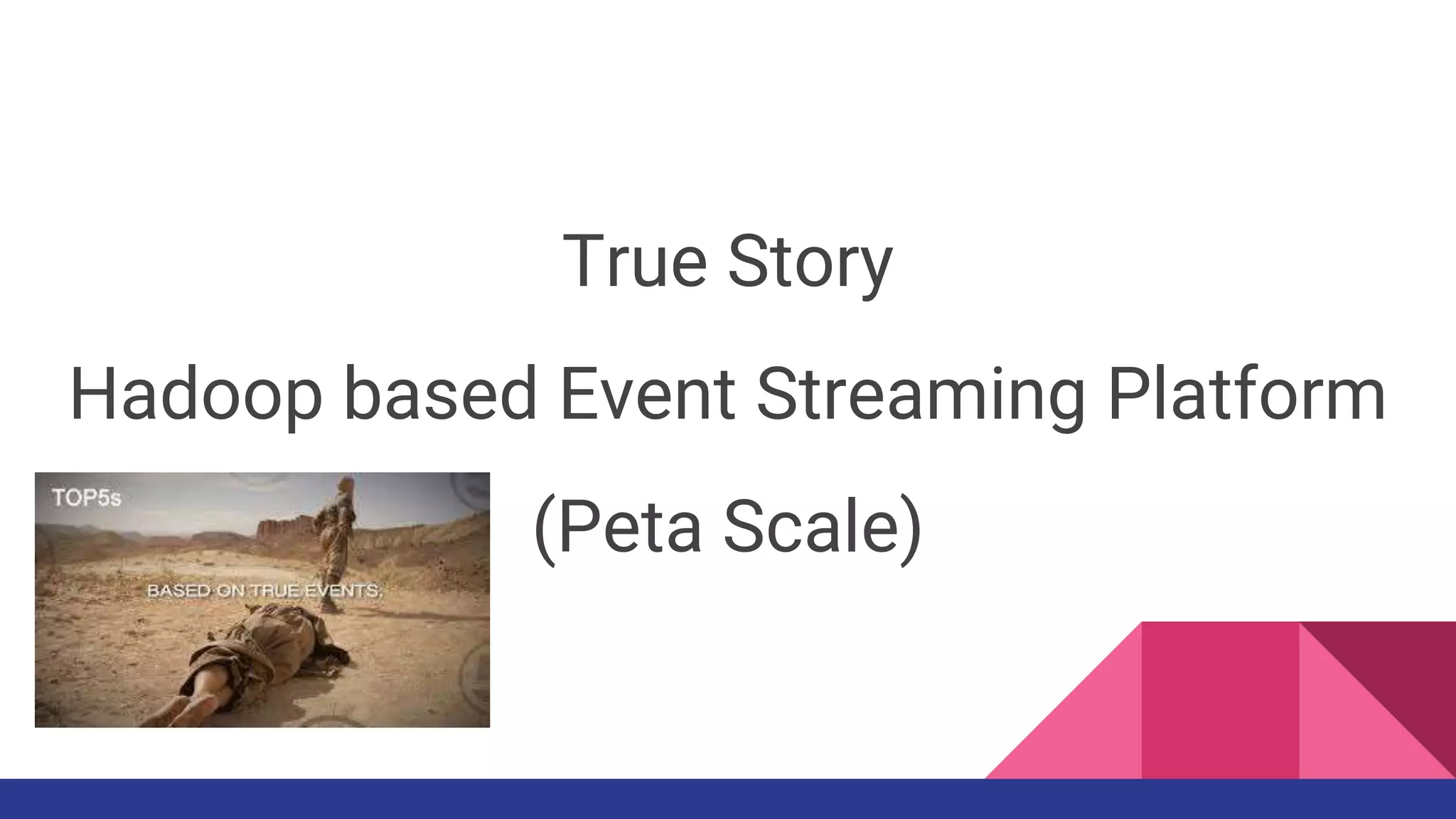

True Story
Hadoop based Event Streaming Platform
(Peta Scale)

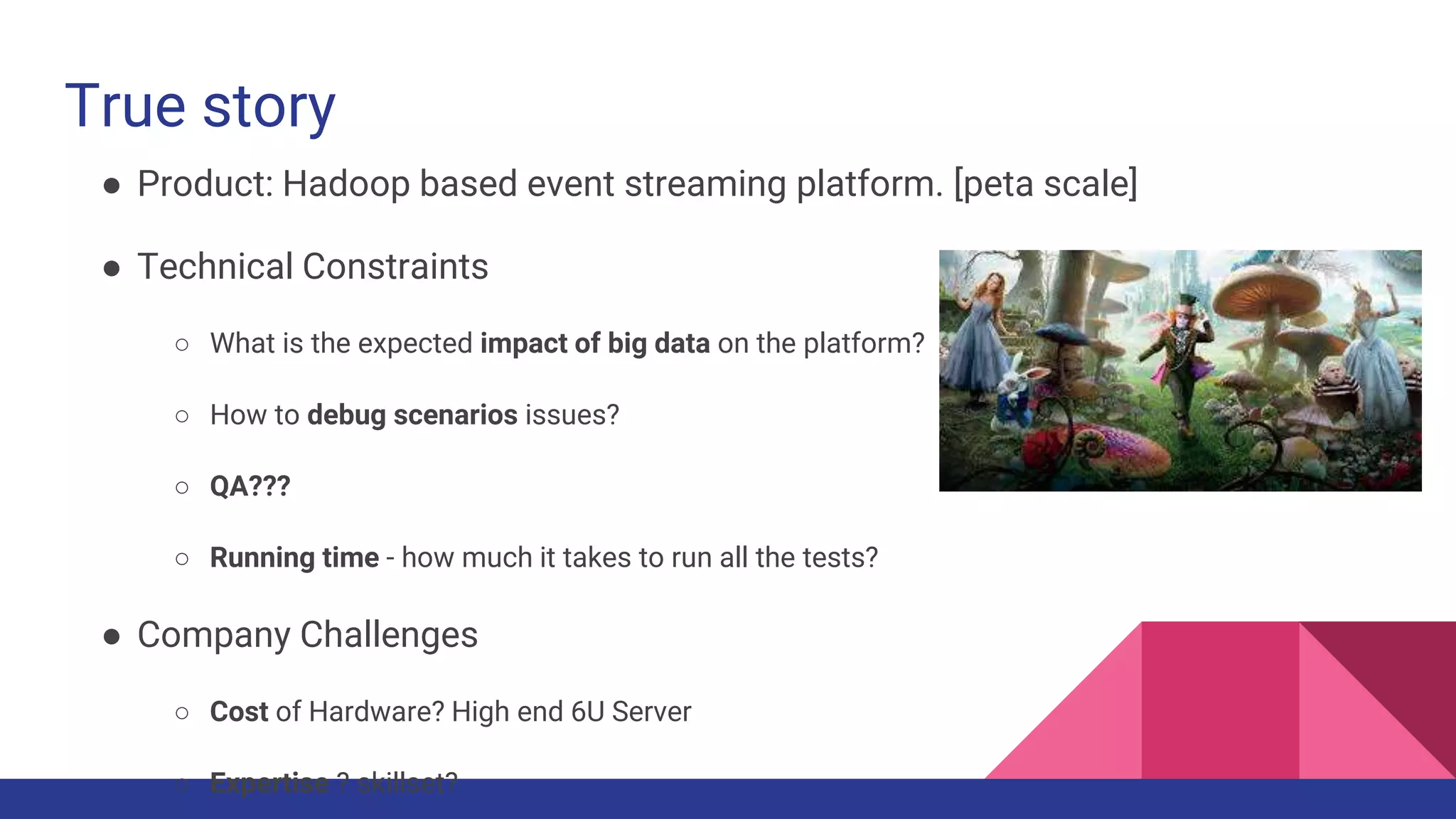

True story
● Product: Hadoop based event streaming platform. [peta scale]
● Technical Constraints
○ What is the expected impact of big data on the platform?
○ How to debug scenarios issues?
○ QA???
○ Running time - how much it takes to run all the tests?
● Company Challenges
○ Cost of Hardware? High end 6U Server
○ Expertise ? skillset?

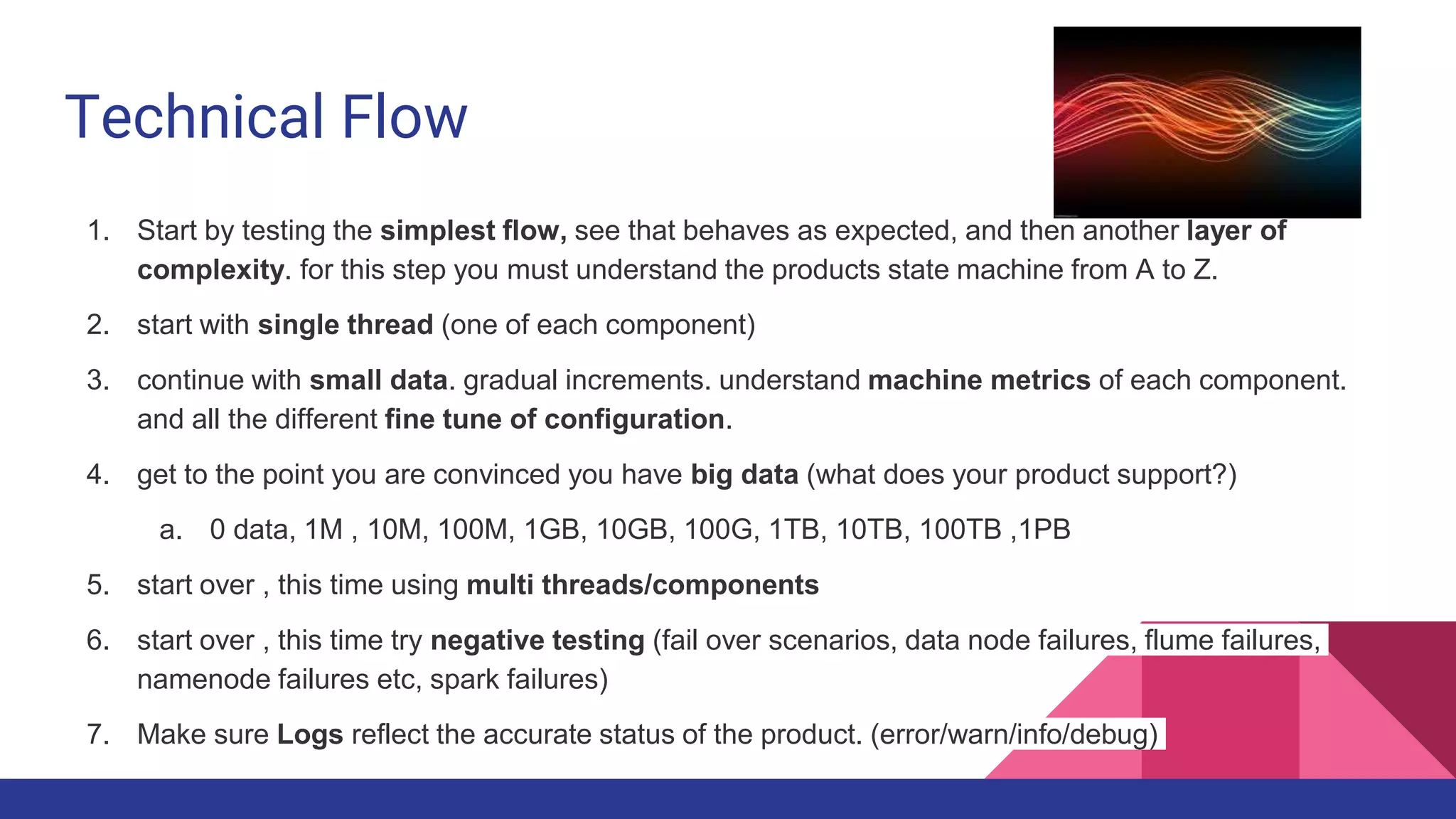

Technical Flow
1. Start by testing the simplest flow, see that behaves as expected, and then another layer of
complexity. for this step you must understand the products state machine from A to Z.
2. start with single thread (one of each component)
3. continue with small data. gradual increments. understand machine metrics of each component.
and all the different fine tune of configuration.
4. get to the point you are convinced you have big data (what does your product support?)
a. 0 data, 1M , 10M, 100M, 1GB, 10GB, 100G, 1TB, 10TB, 100TB ,1PB
5. start over , this time using multi threads/components
6. start over , this time try negative testing (fail over scenarios, data node failures, flume failures,
namenode failures etc, spark failures)
7. Make sure Logs reflect the accurate status of the product. (error/warn/info/debug)

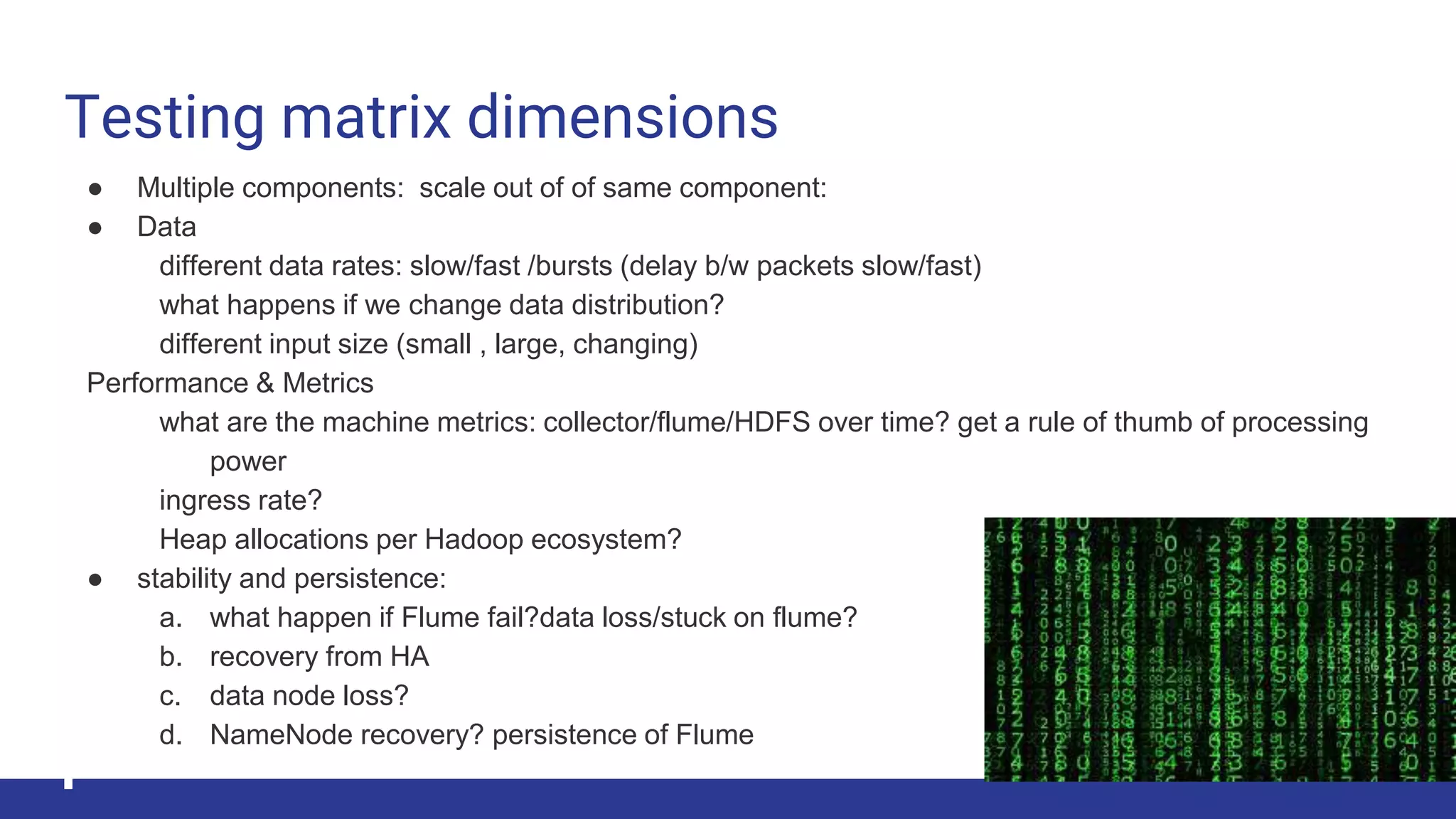

Testing matrix dimensions
● Multiple components: scale out of of same component:
● Data
different data rates: slow/fast /bursts (delay b/w packets slow/fast)
what happens if we change data distribution?
different input size (small , large, changing)
Performance & Metrics
what are the machine metrics: collector/flume/HDFS over time? get a rule of thumb of processing
power
ingress rate?
Heap allocations per Hadoop ecosystem?
● stability and persistence:
a. what happen if Flume fail?data loss/stuck on flume?
b. recovery from HA
c. data node loss?
d. NameNode recovery? persistence of Flume

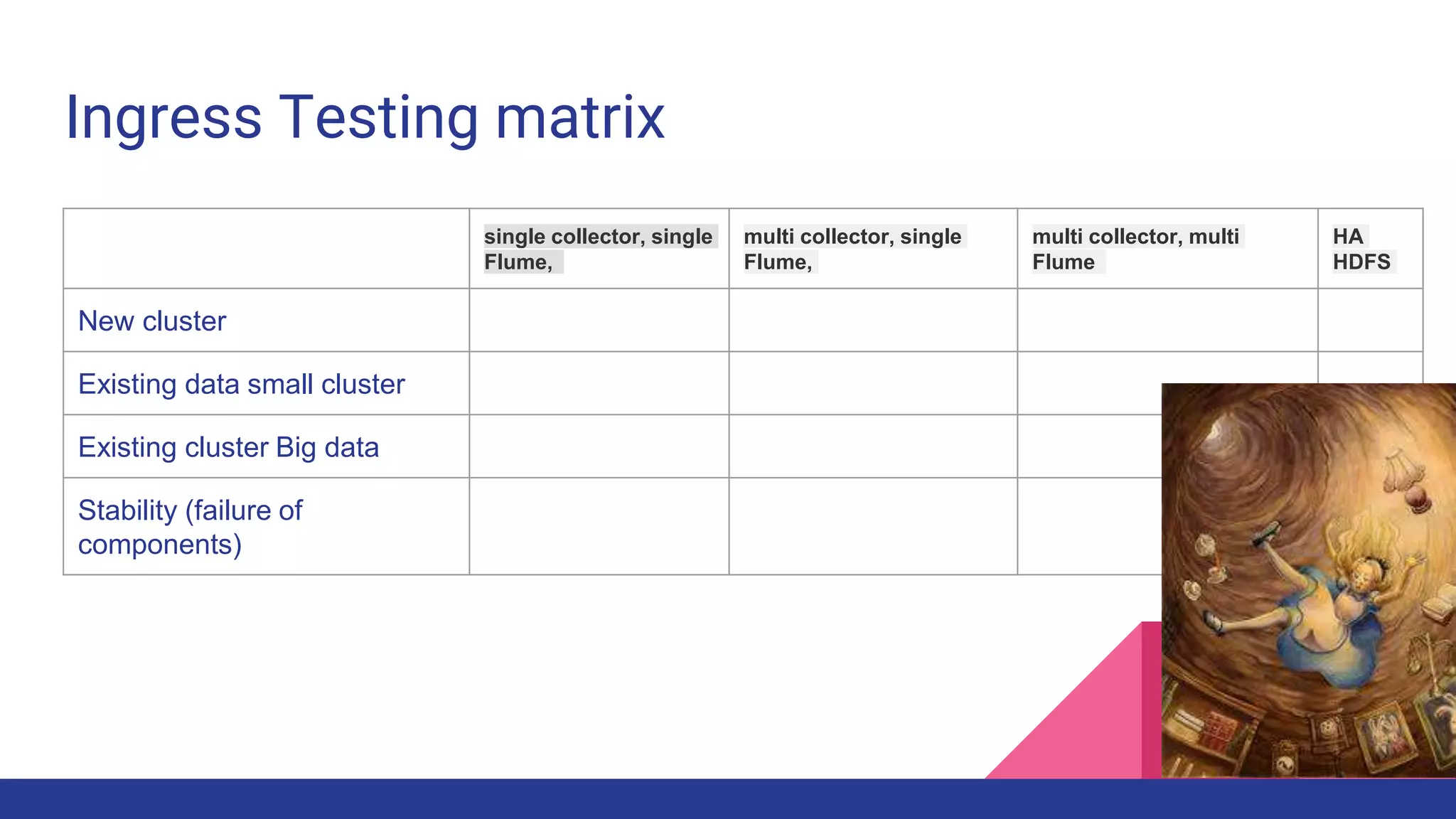

Ingress Testing matrix
single collector, single
Flume,
multi collector, single
Flume,
multi collector, multi
Flume
HA
HDFS
New cluster
Existing data small cluster
Existing cluster Big data
Stability (failure of
components)

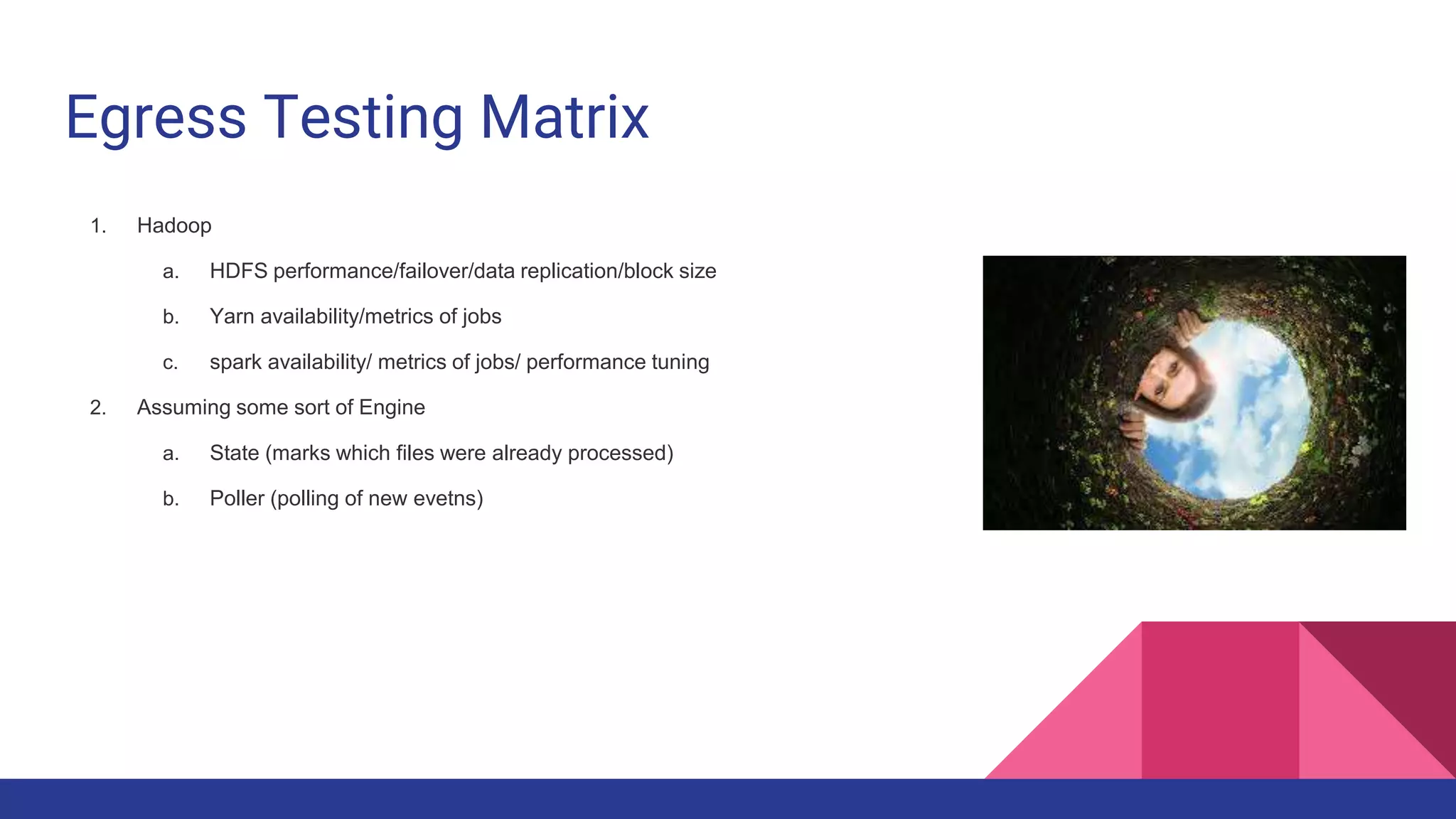

Egress Testing Matrix
1. Hadoop
a. HDFS performance/failover/data replication/block size
b. Yarn availability/metrics of jobs
c. spark availability/ metrics of jobs/ performance tuning
2. Assuming some sort of Engine
a. State (marks which files were already processed)
b. Poller (polling of new evetns)

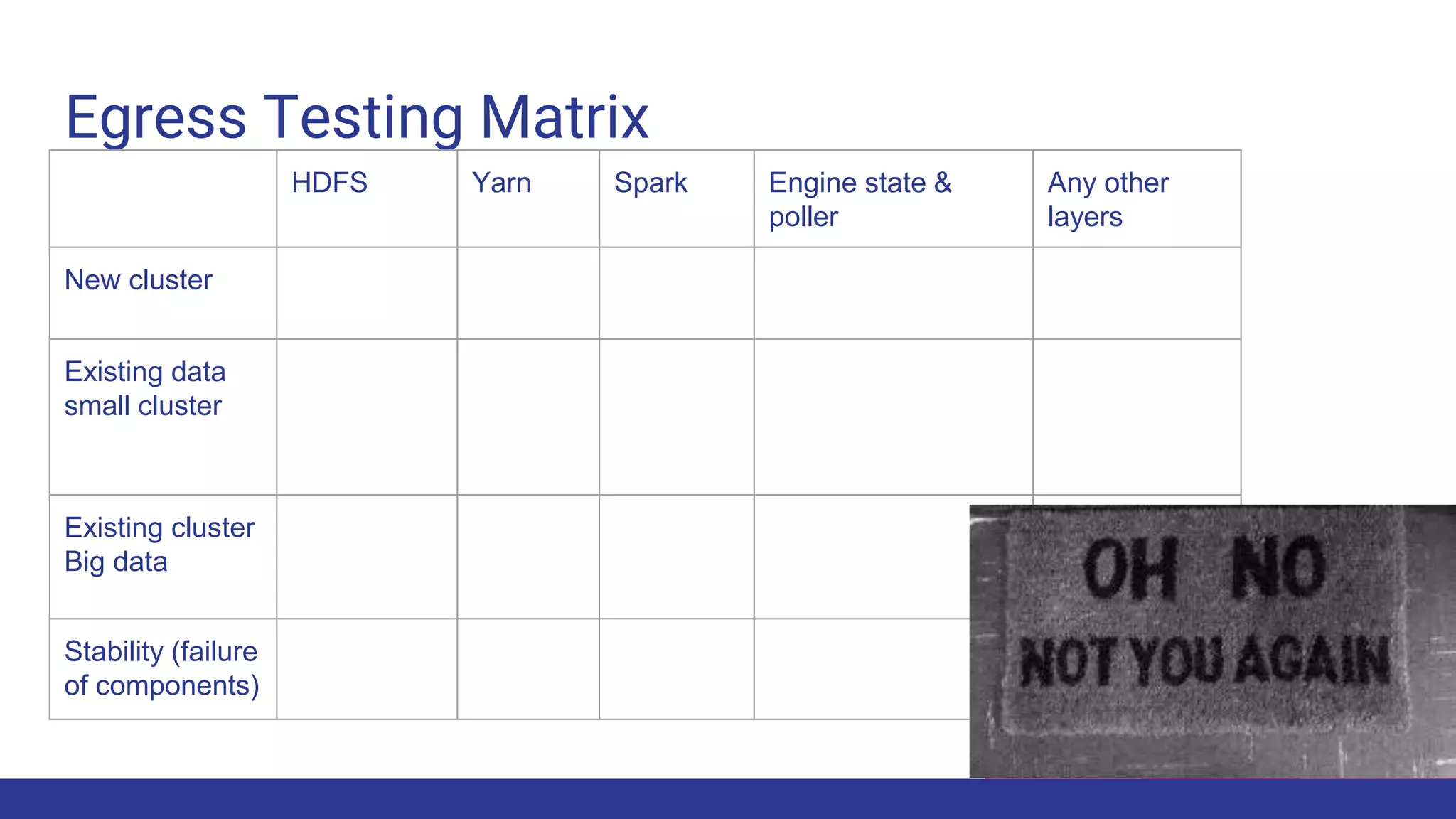

Egress Testing Matrix
HDFS Yarn Spark Engine state &
poller
Any other
layers
New cluster
Existing data
small cluster
Existing cluster
Big data
Stability (failure
of components)

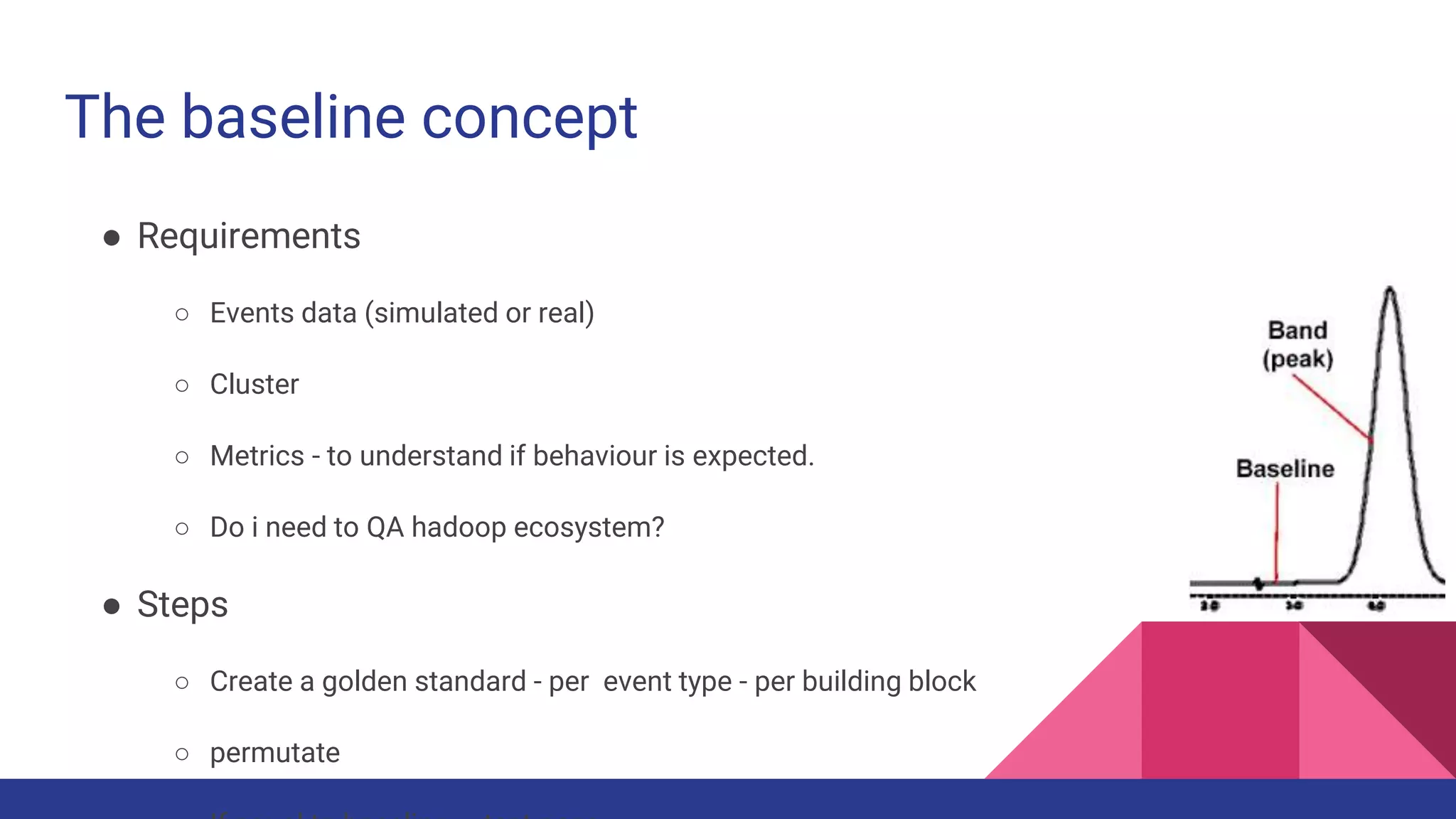

The baseline concept
● Requirements
○ Events data (simulated or real)
○ Cluster
○ Metrics - to understand if behaviour is expected.
○ Do i need to QA hadoop ecosystem?
● Steps
○ Create a golden standard - per event type - per building block
○ permutate

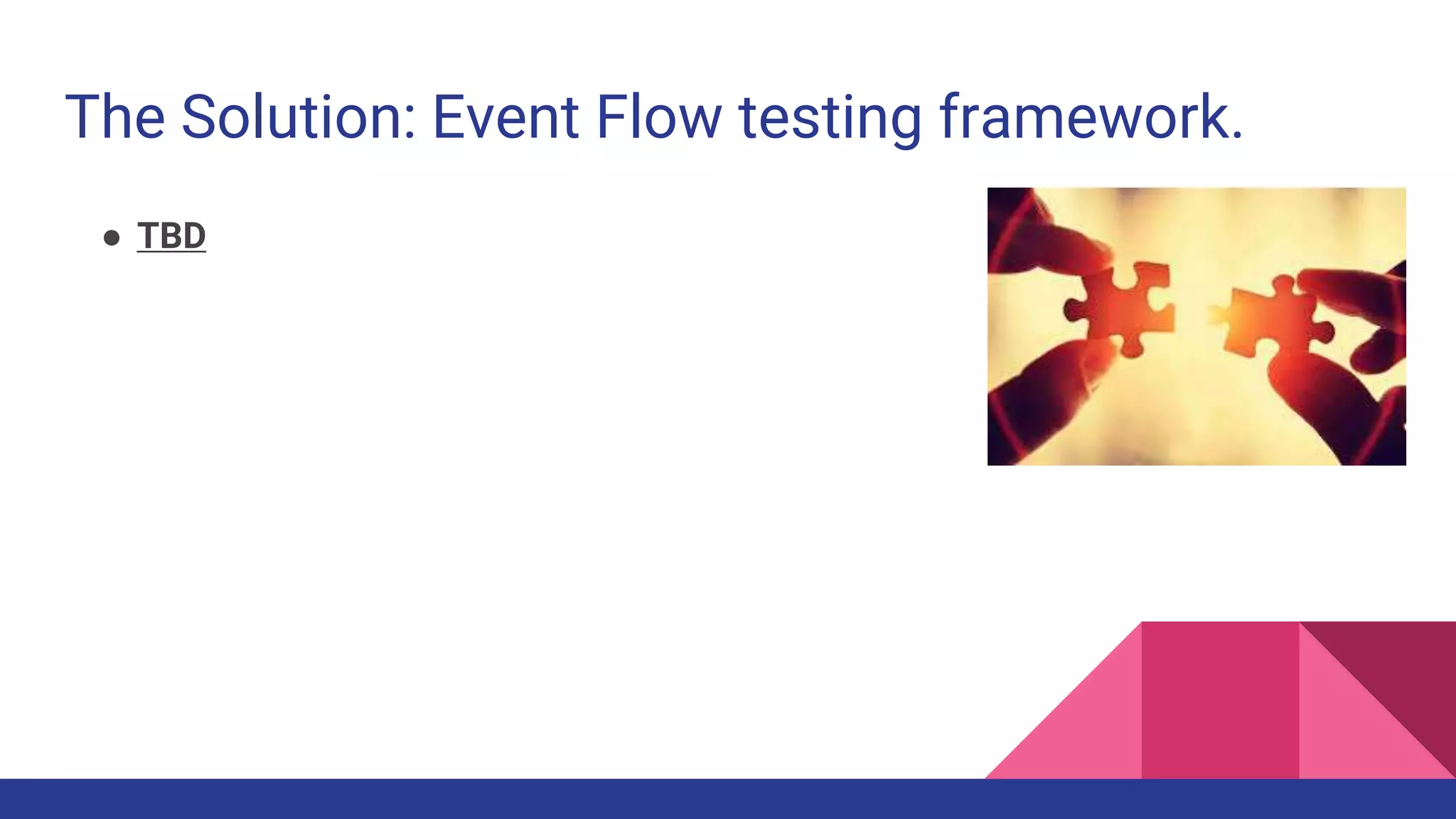

The Solution: Event Flow testing framework.
● TBD

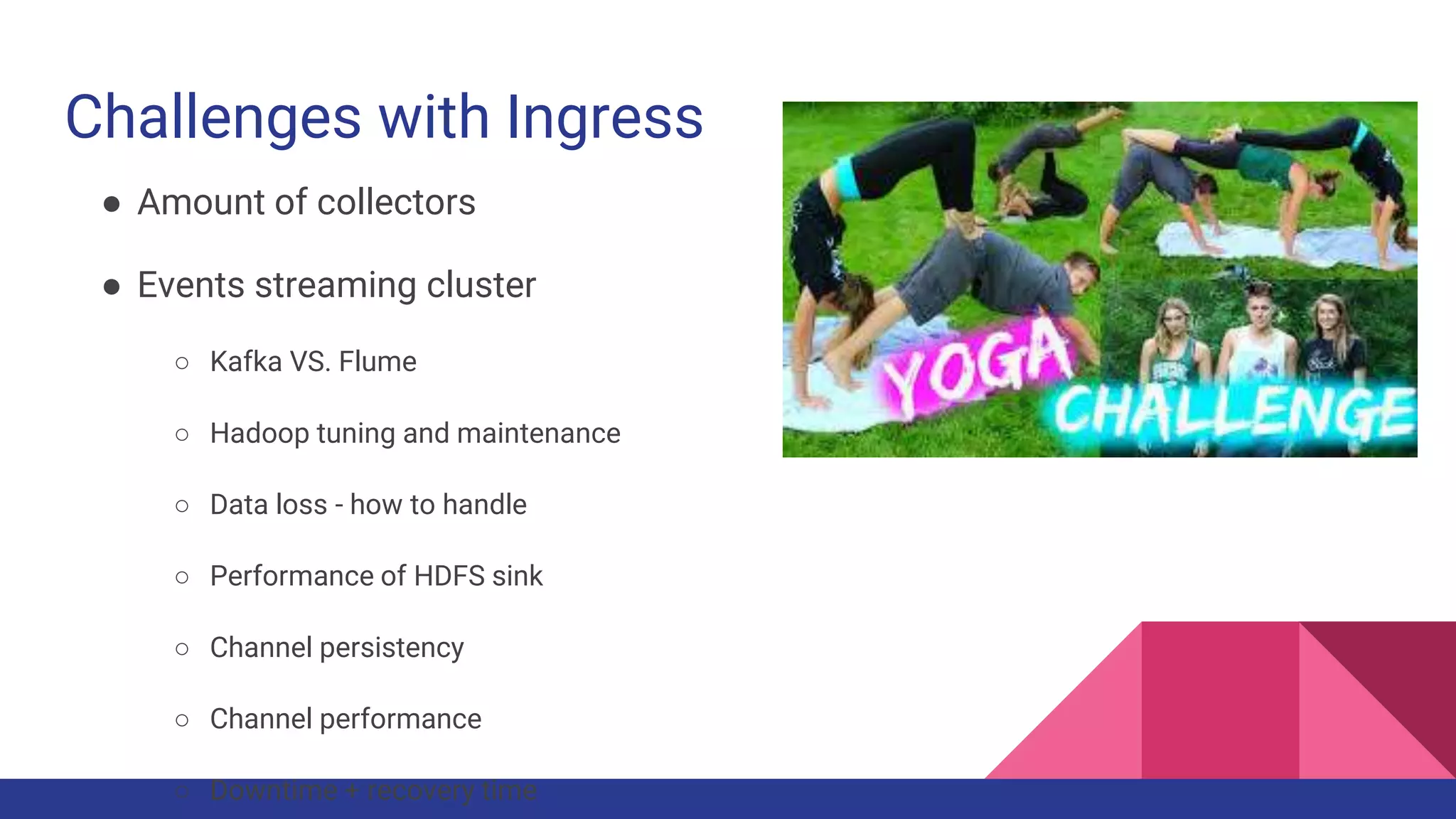

Challenges with Ingress
● Amount of collectors
● Events streaming cluster
○ Kafka VS. Flume
○ Hadoop tuning and maintenance
○ Data loss - how to handle
○ Performance of HDFS sink
○ Channel persistency
○ Channel performance
○ Downtime + recovery time

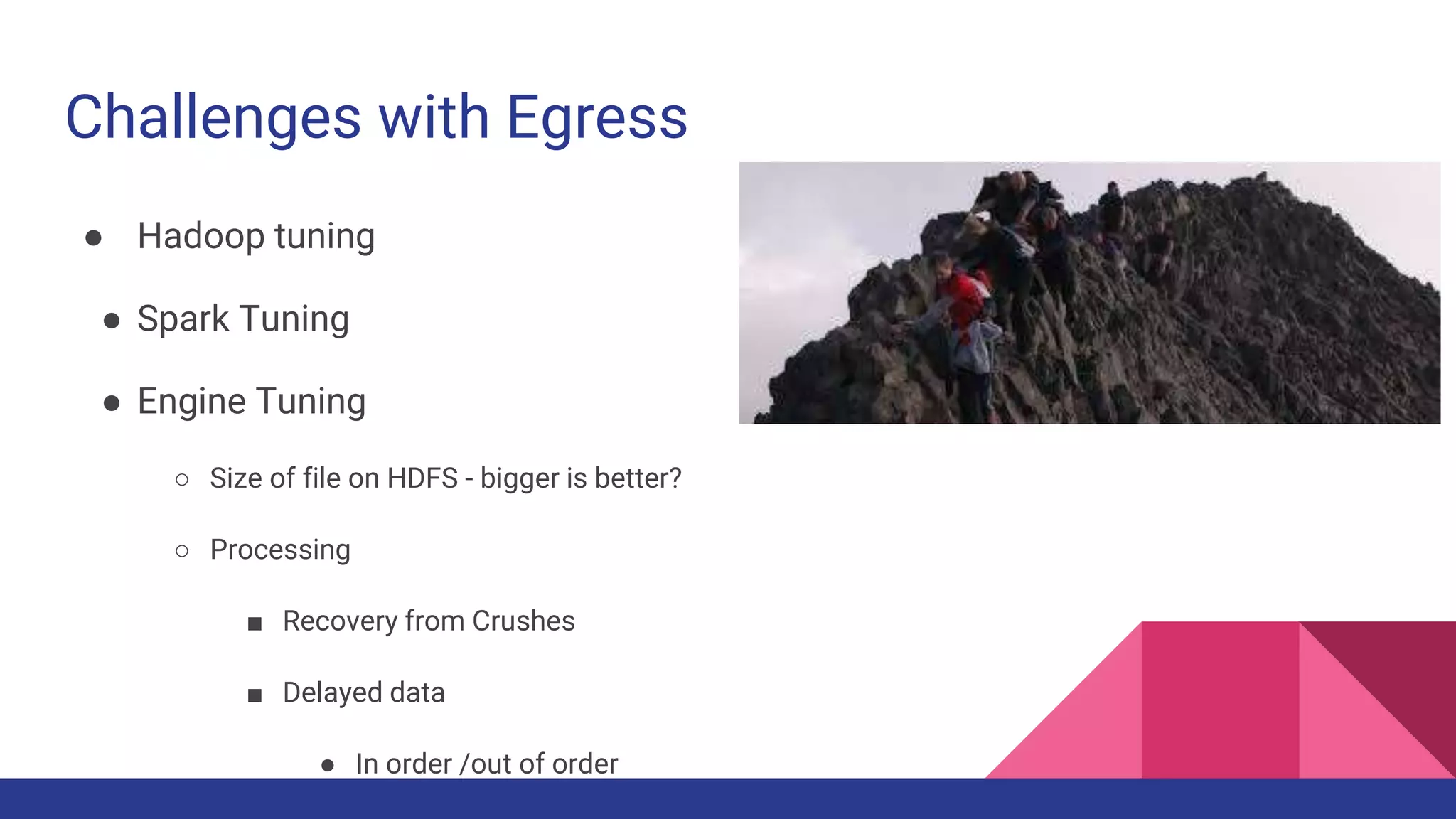

Challenges with Egress
● Hadoop tuning
● Spark Tuning
● Engine Tuning
○ Size of file on HDFS - bigger is better?
○ Processing
■ Recovery from Crushes
■ Delayed data
● In order /out of order

Challenges with Big Data testing.
● Generating Time of events → genUtil with json for user input
● Reproducibility → genUtil again.
● Disk space for testing data → peta scale product → peta scale testing data
● Results compared mechanism
● Network bottlenecks on a scale out system...
● ORDER IS NOT GUARANTEED!
● Replications

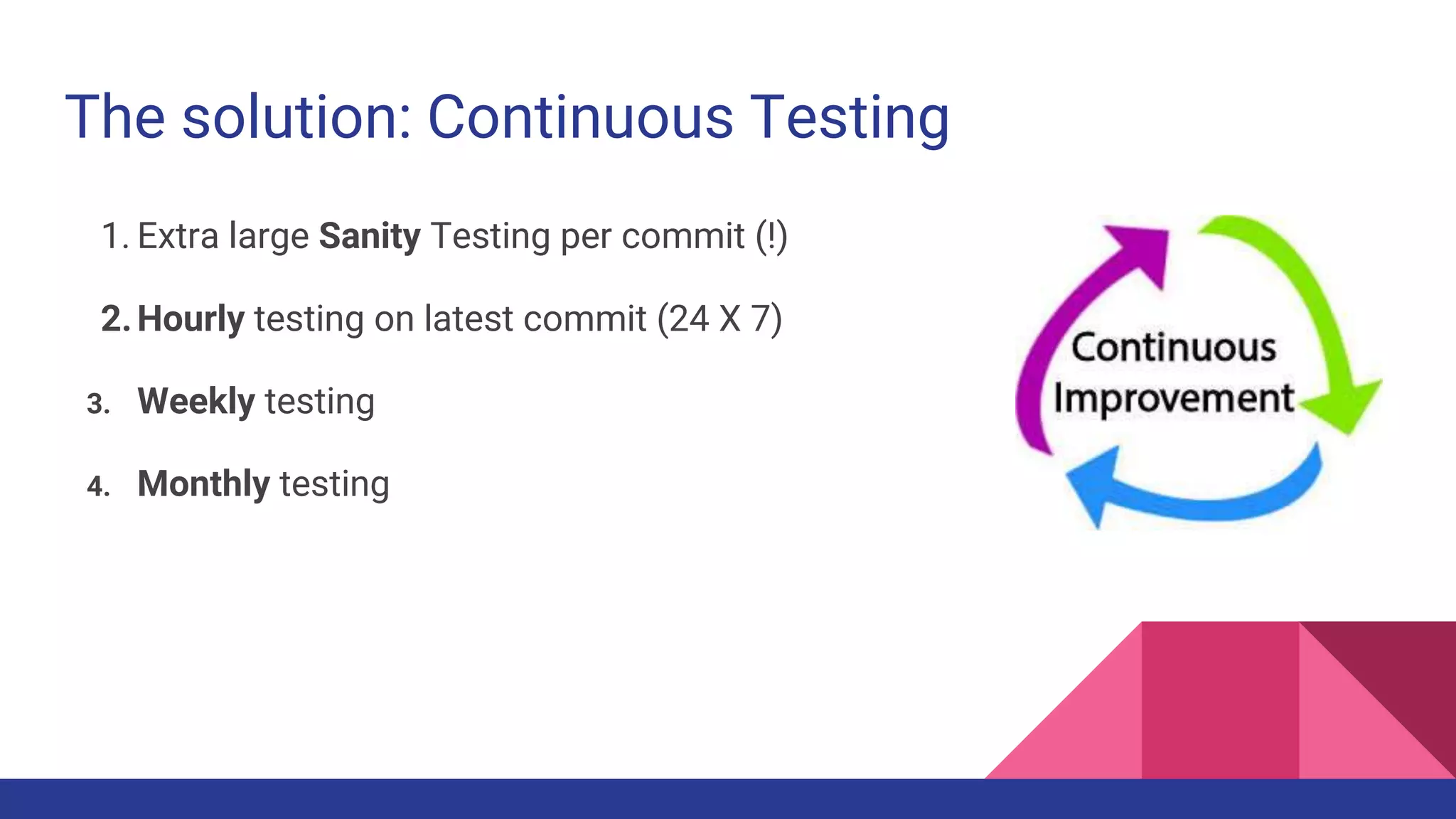

The solution: Continuous Testing
1. Extra large Sanity Testing per commit (!)
2.Hourly testing on latest commit (24 X 7)
3. Weekly testing
4. Monthly testing

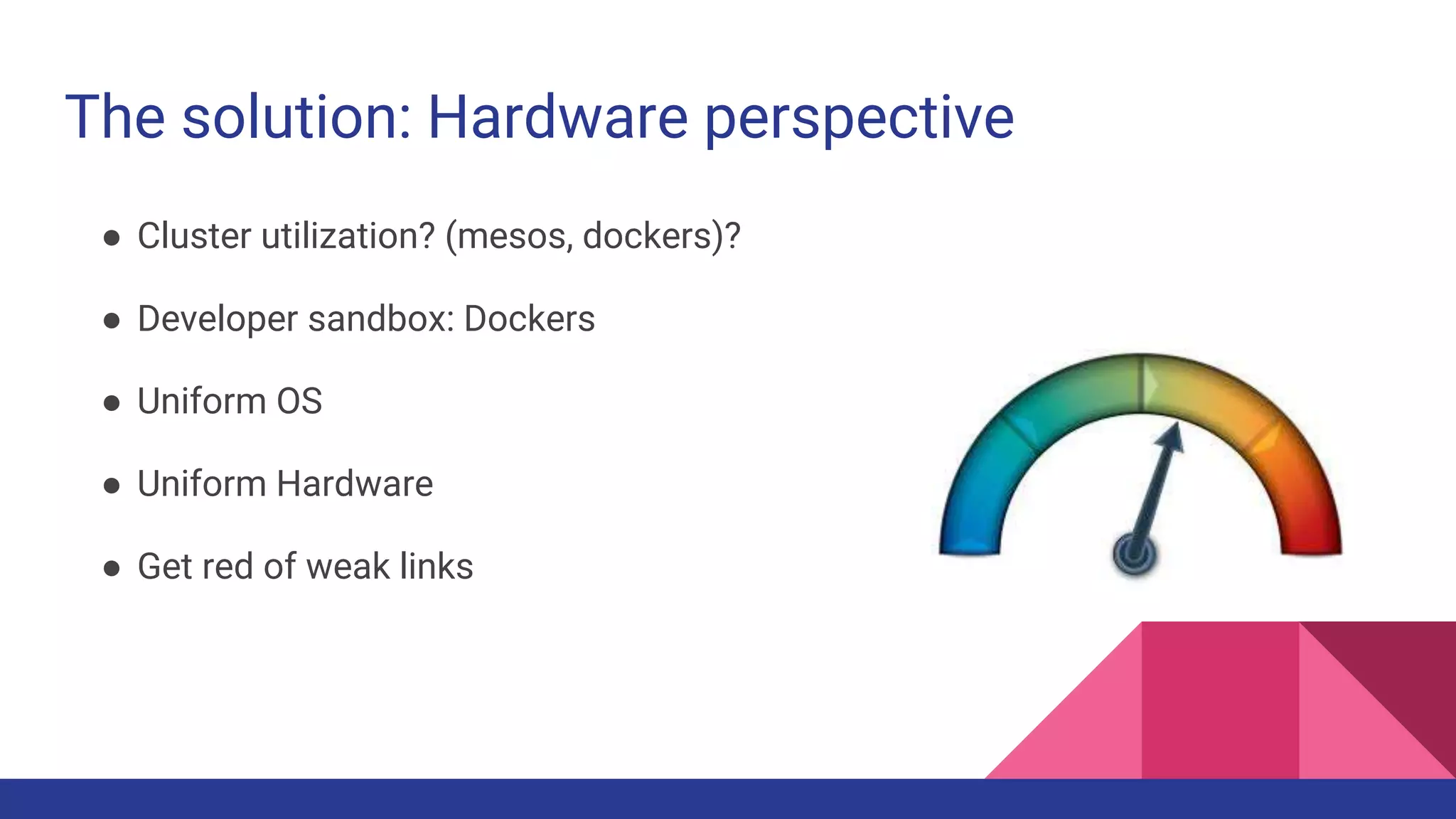

The solution: Hardware perspective
● Cluster utilization? (mesos, dockers)?
● Developer sandbox: Dockers
● Uniform OS
● Uniform Hardware
● Get red of weak links

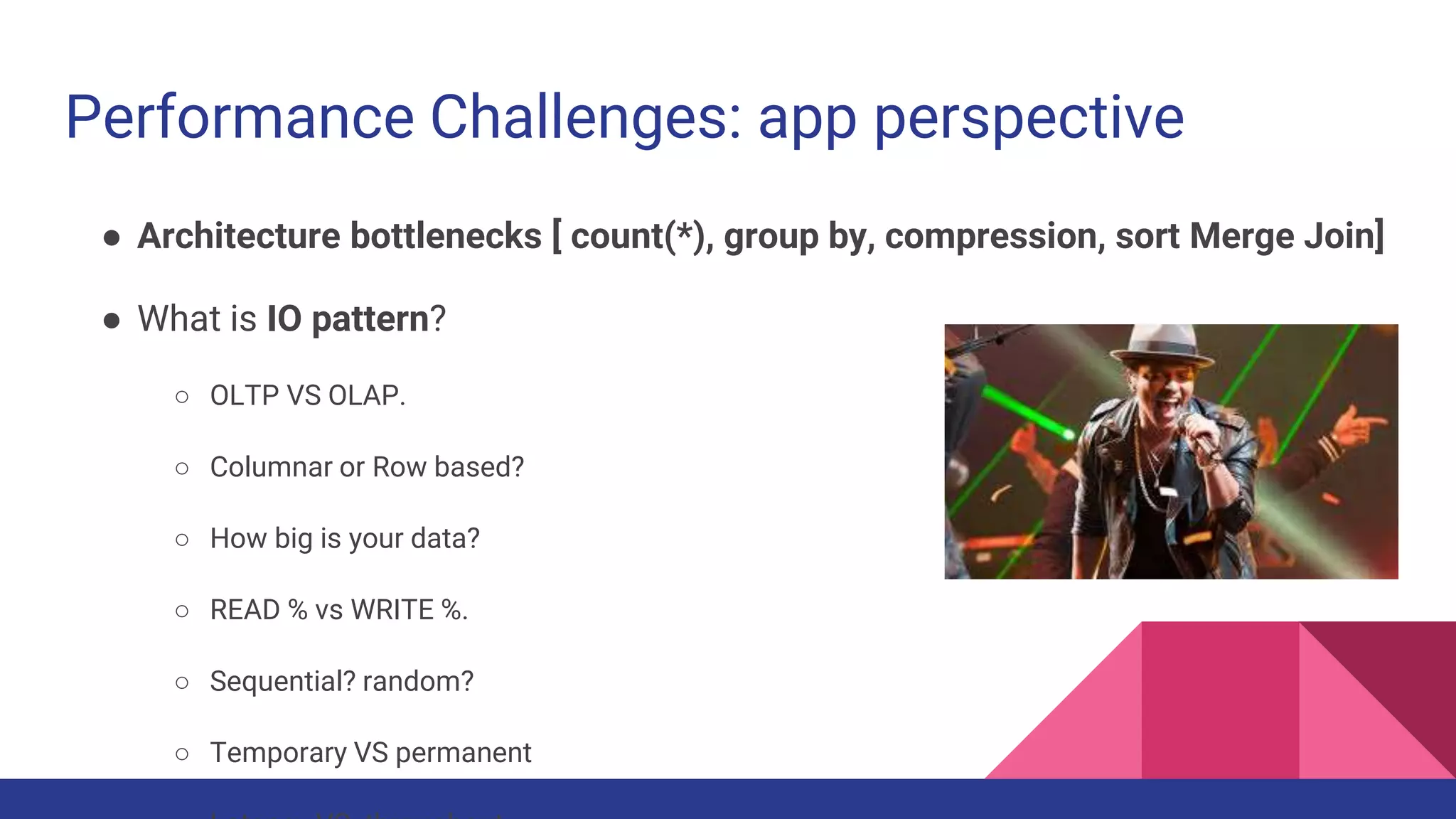

Performance Challenges: app perspective
● Architecture bottlenecks [ count(*), group by, compression, sort Merge Join]
● What is IO pattern?
○ OLTP VS OLAP.
○ Columnar or Row based?
○ How big is your data?
○ READ % vs WRITE %.
○ Sequential? random?
○ Temporary VS permanent

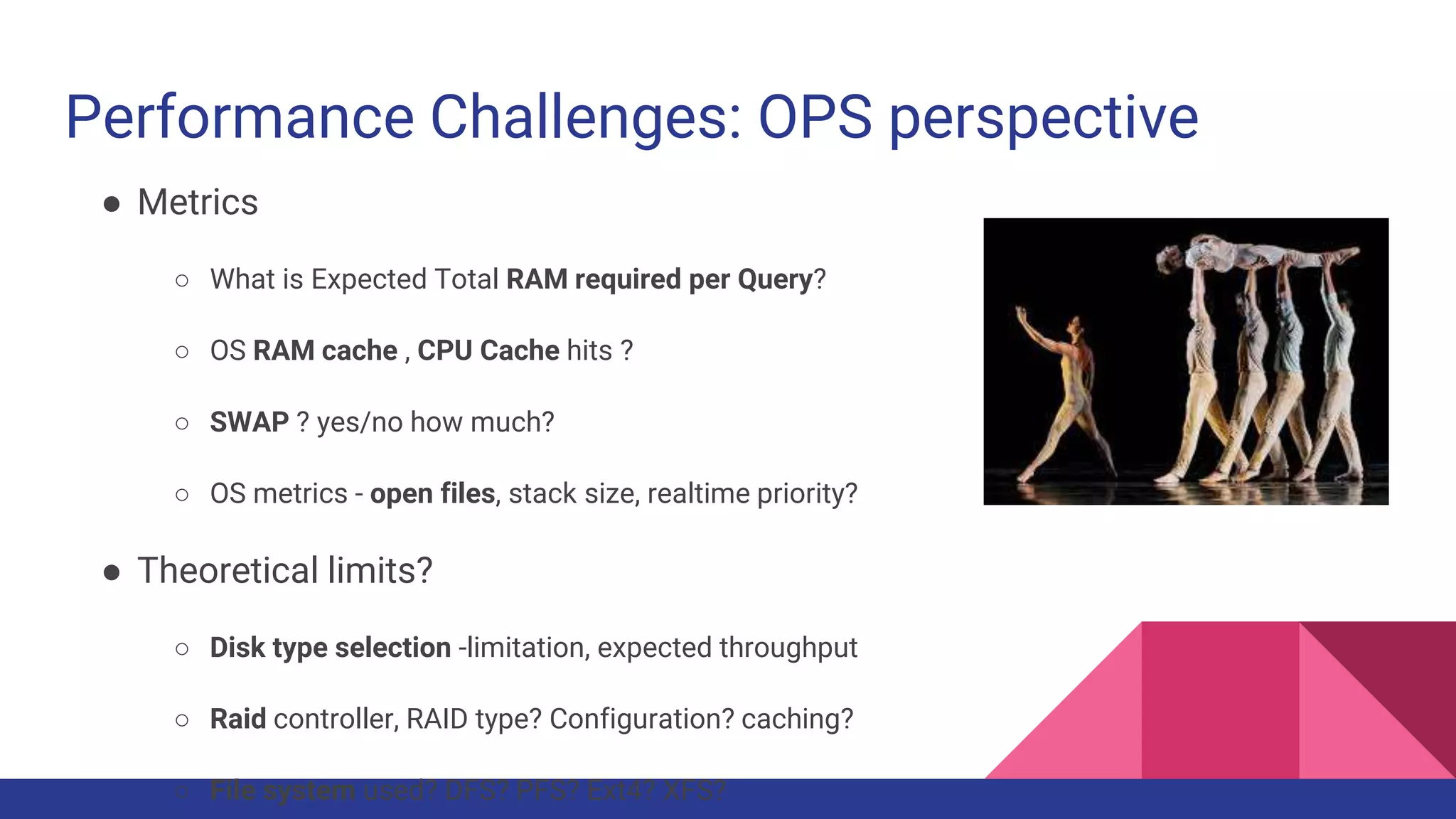

Performance Challenges: OPS perspective
● Metrics
○ What is Expected Total RAM required per Query?
○ OS RAM cache , CPU Cache hits ?
○ SWAP ? yes/no how much?
○ OS metrics - open files, stack size, realtime priority?
● Theoretical limits?
○ Disk type selection -limitation, expected throughput
○ Raid controller, RAID type? Configuration? caching?
○ File system used? DFS? PFS? Ext4? XFS?

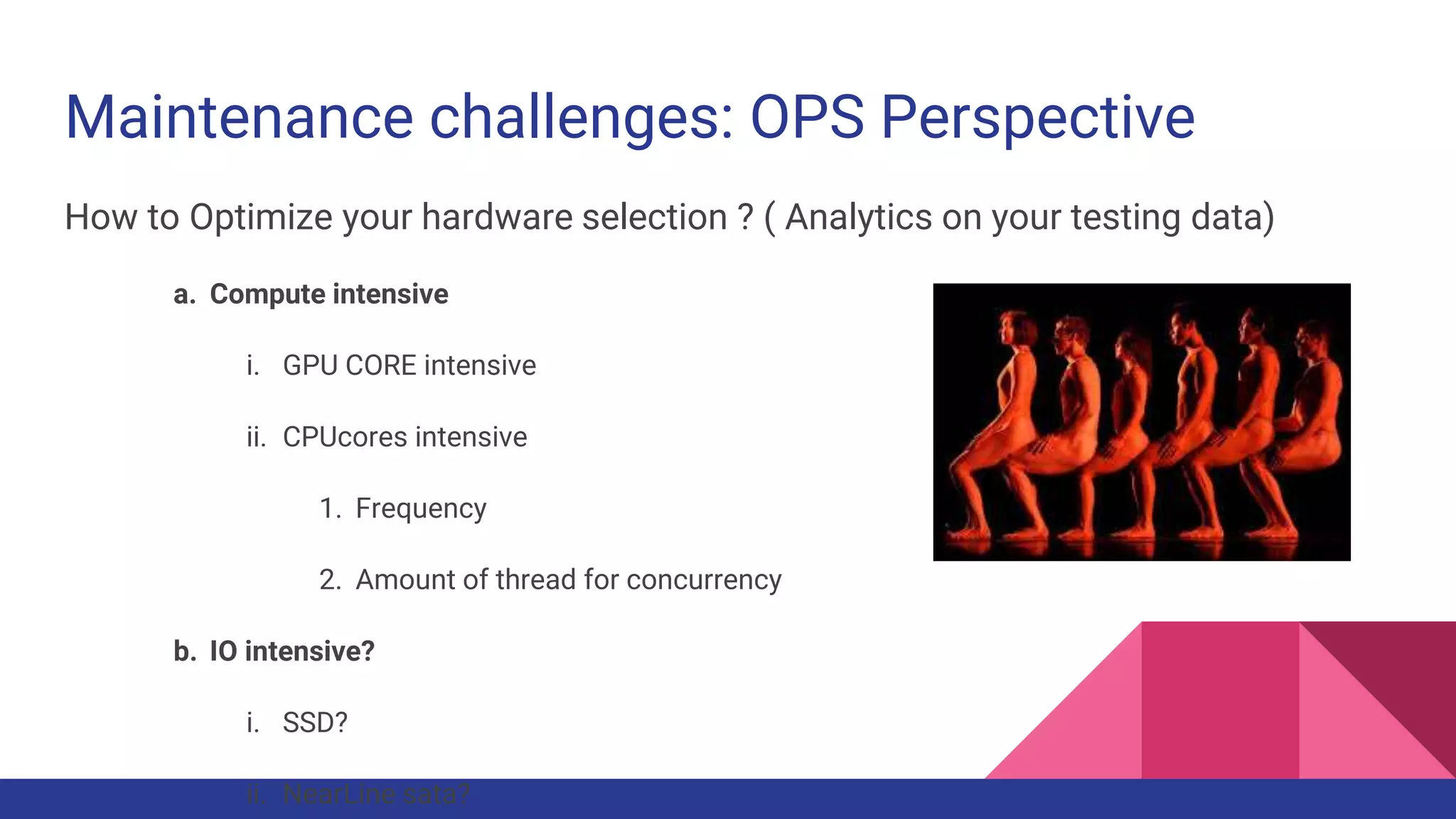

Maintenance challenges: OPS Perspective
How to Optimize your hardware selection ? ( Analytics on your testing data)
a. Compute intensive
i. GPU CORE intensive
ii. CPUcores intensive
1. Frequency
2. Amount of thread for concurrency
b. IO intensive?
i. SSD?
ii. NearLine sata?

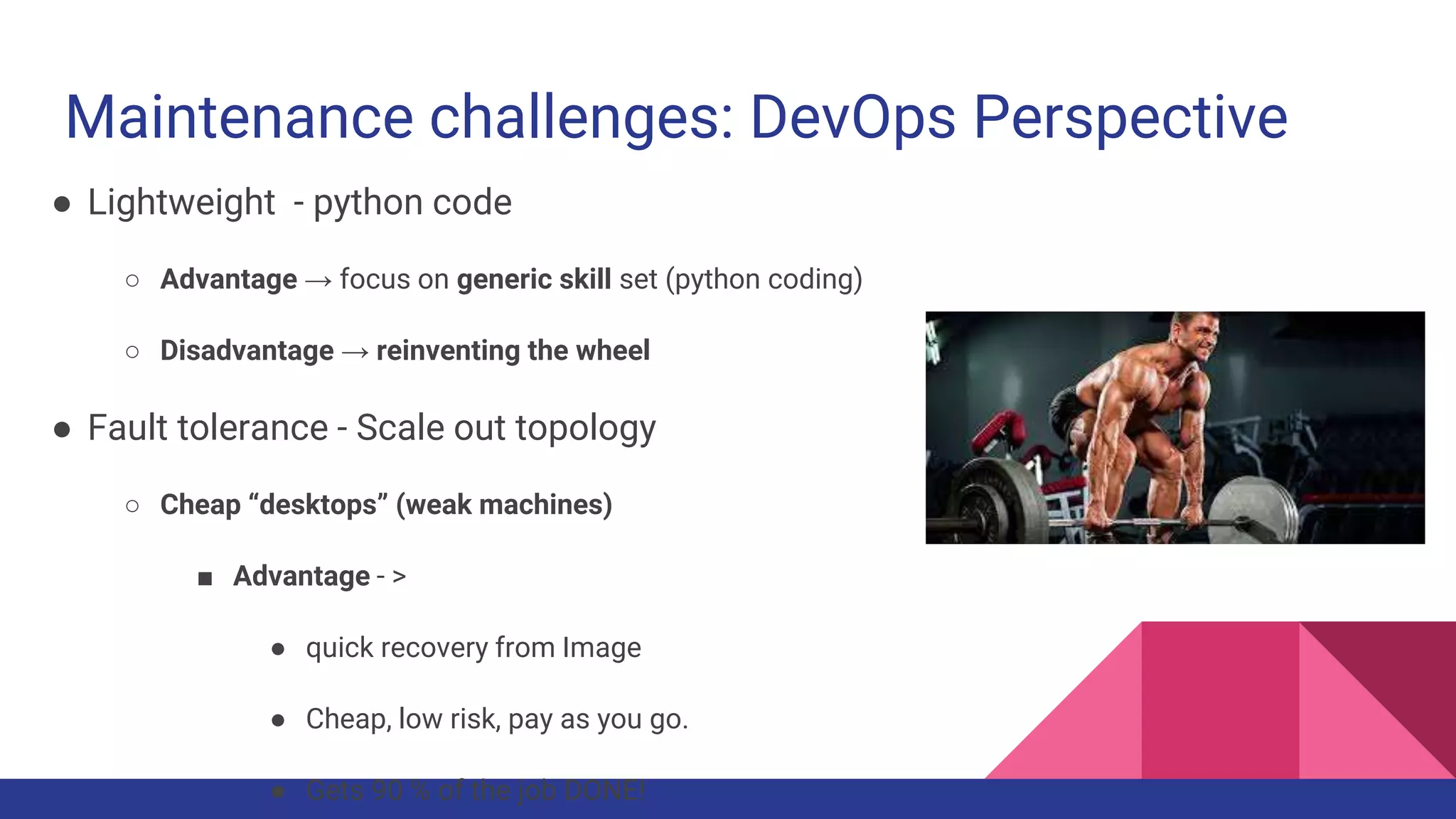

Maintenance challenges: DevOps Perspective
● Lightweight - python code
○ Advantage → focus on generic skill set (python coding)
○ Disadvantage → reinventing the wheel
● Fault tolerance - Scale out topology
○ Cheap “desktops” (weak machines)
■ Advantage - >
● quick recovery from Image
● Cheap, low risk, pay as you go.
● Gets 90 % of the job DONE!

Maintenance challenges: DevOps Perspective
● Infrastructure
○ Continuous integration: continuous build, continuous packaging, installer.
○ Continuous Deployment: pre flight check, remote machine (on site, private cloud, cloud)
○ Continuous testing: Sanity, Hourly, Daily, weekly
● Reporting and Monitoring:
○ Extensive report server and analytics on current testing.
○ Monitoring: Green/Red and system real time metrics.

Maintenance challenges: Innovation Perspective
1. Data generation (using GPU to generate data)
2. (hashing)
3. Workload (one dispatcher, many compute nodes)
4. saving running time: data/compute time
a. Hashing
b. Cacheing
c. Smart Data Creating - no need to create 100B events to generate 100B events test.
d. Logs: Test results were managed on a DB
5. Dockers

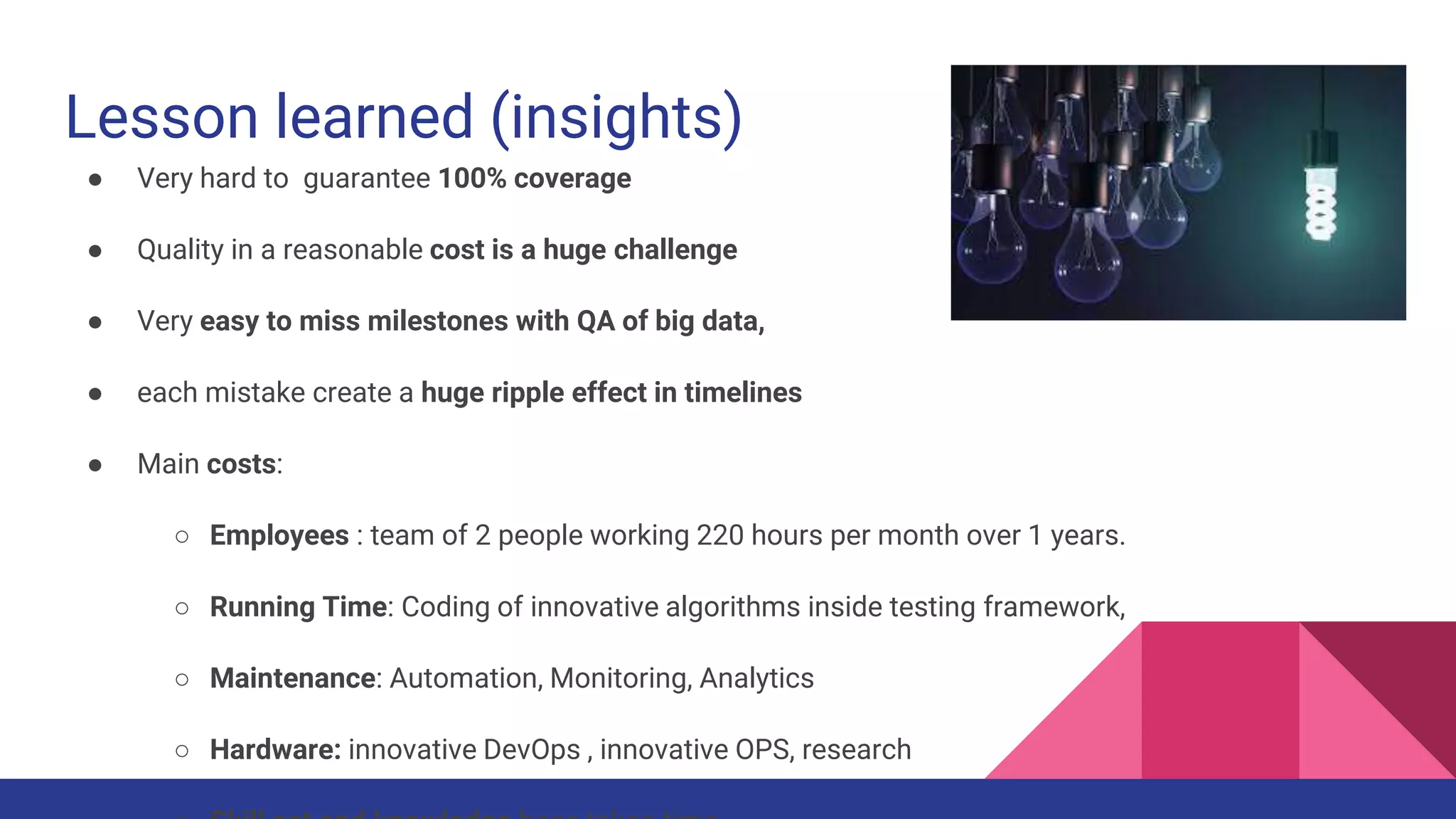

Lesson learned (insights)
● Very hard to guarantee 100% coverage
● Quality in a reasonable cost is a huge challenge
● Very easy to miss milestones with QA of big data,
● each mistake create a huge ripple effect in timelines
● Main costs:
○ Employees : team of 2 people working 220 hours per month over 1 years.
○ Running Time: Coding of innovative algorithms inside testing framework,
○ Maintenance: Automation, Monitoring, Analytics
○ Hardware: innovative DevOps , innovative OPS, research

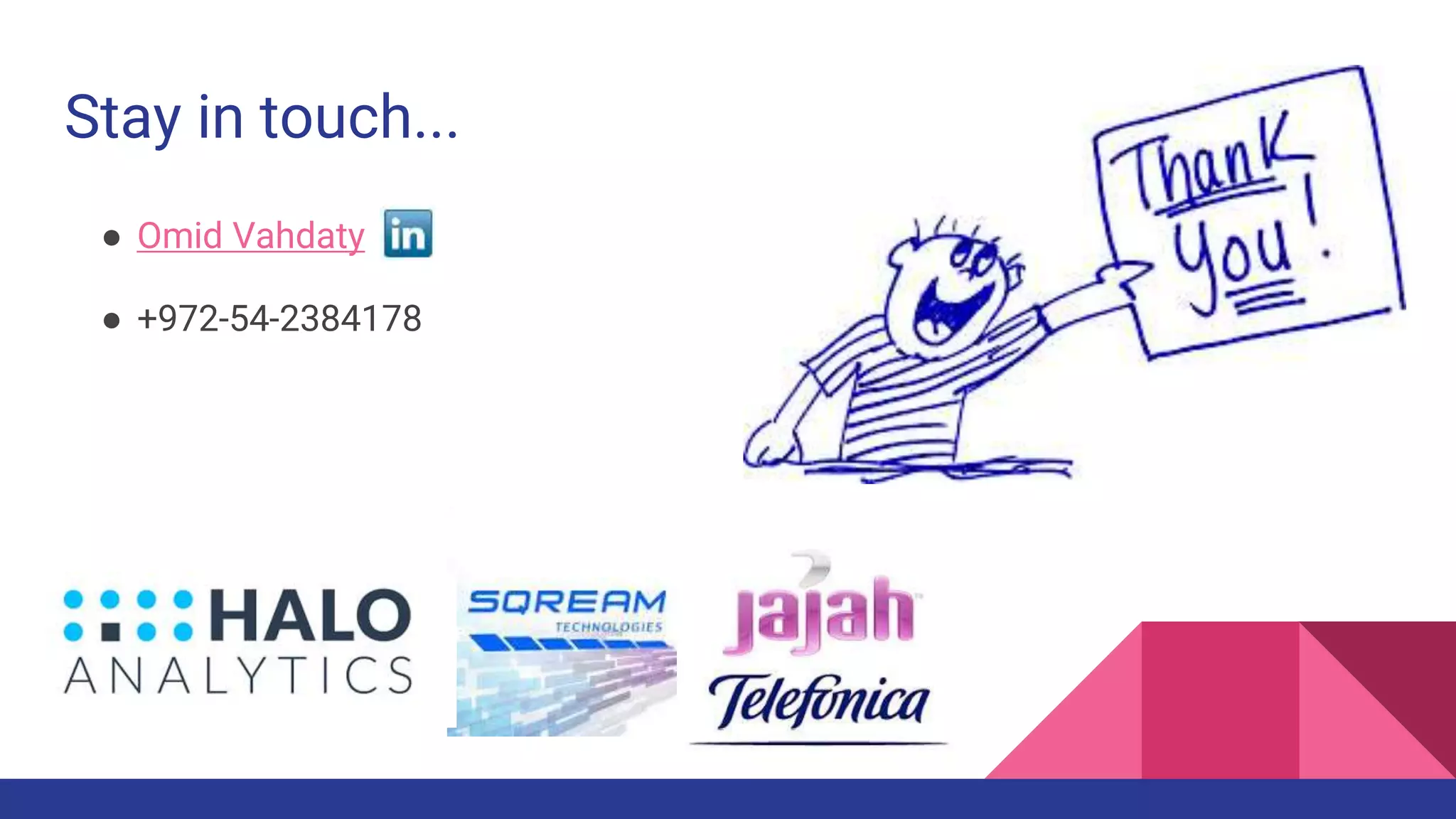

Stay in touch...
● Omid Vahdaty
● +972-54-2384178
