- 1. Lessons From the ColumbiaDisaster “Safety & Organizational Culture” 2005 © American Institute of Chemical Engineers

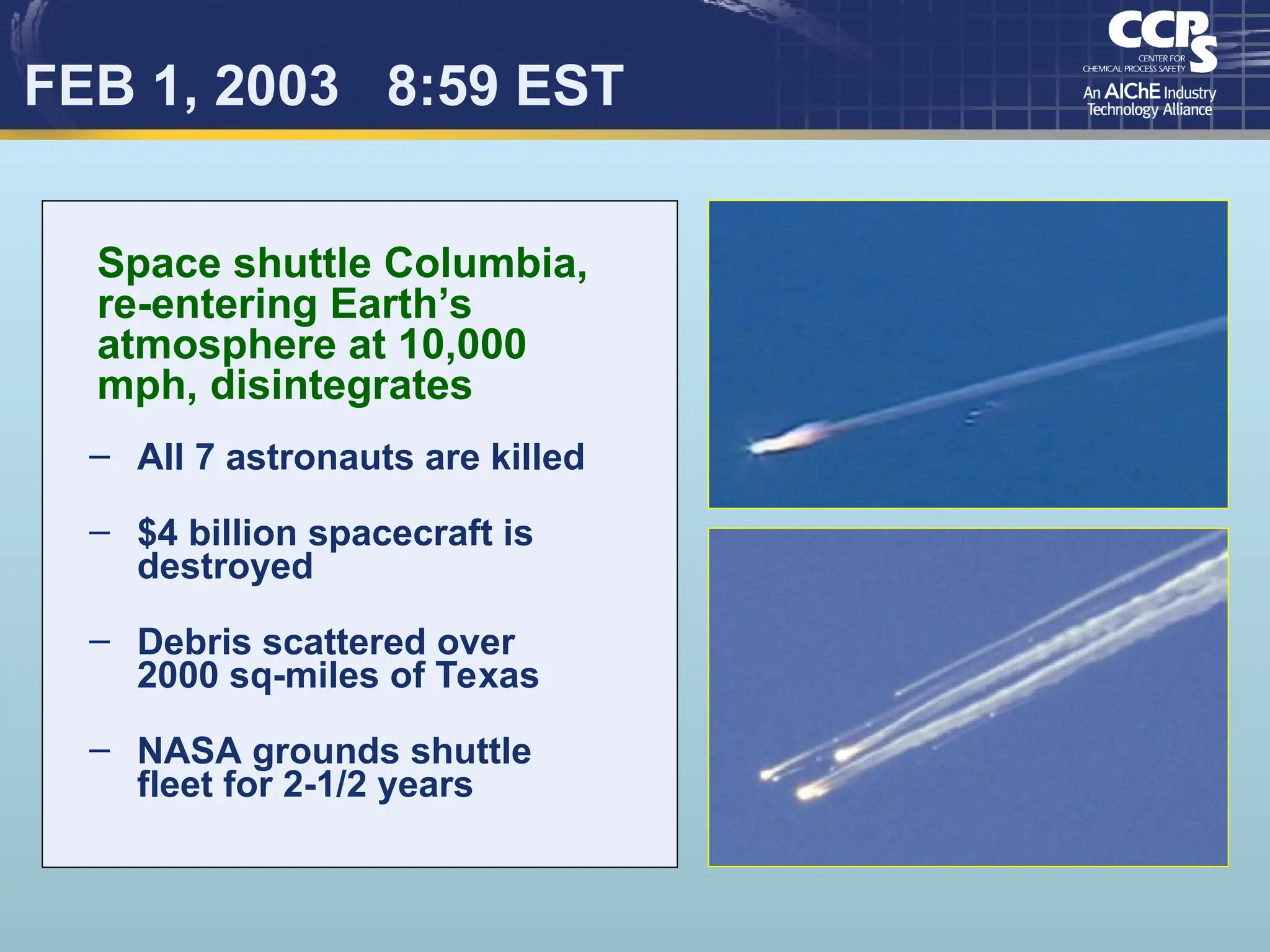

- 2. FEB 1, 20038:59 EST – All 7 astronauts are killed – $4 billion spacecraft is destroyed – Debris scattered over 2000 sq-miles of Texas – NASA grounds shuttle fleet for 2-1/2 years Space shuttle Columbia, re-entering Earth’s atmosphere at 10,000 mph, disintegrates

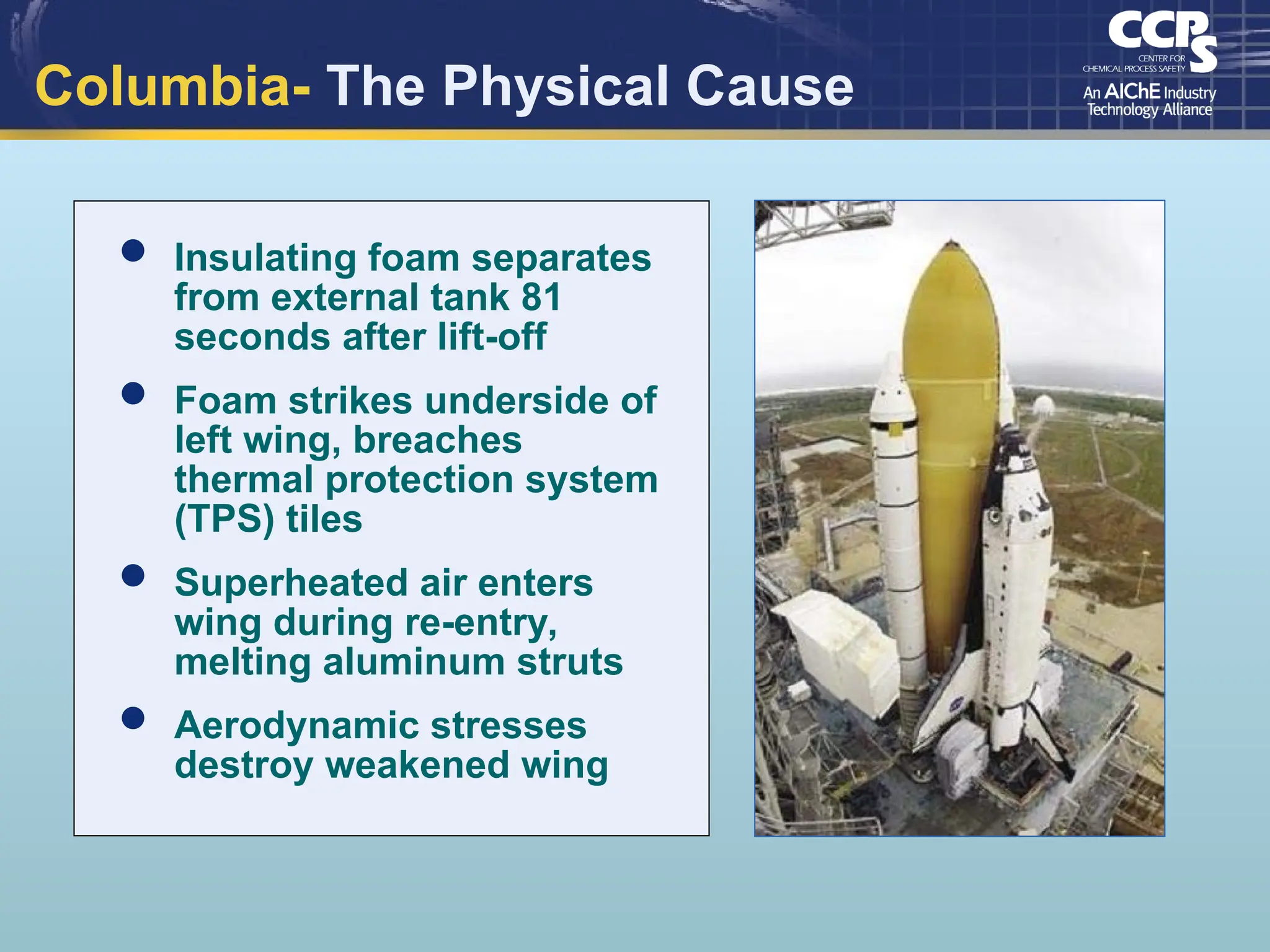

- 3. Columbia- The PhysicalCause Insulating foam separates from external tank 81 seconds after lift-off Foam strikes underside of left wing, breaches thermal protection system (TPS) tiles Superheated air enters wing during re-entry, melting aluminum struts Aerodynamic stresses destroy weakened wing

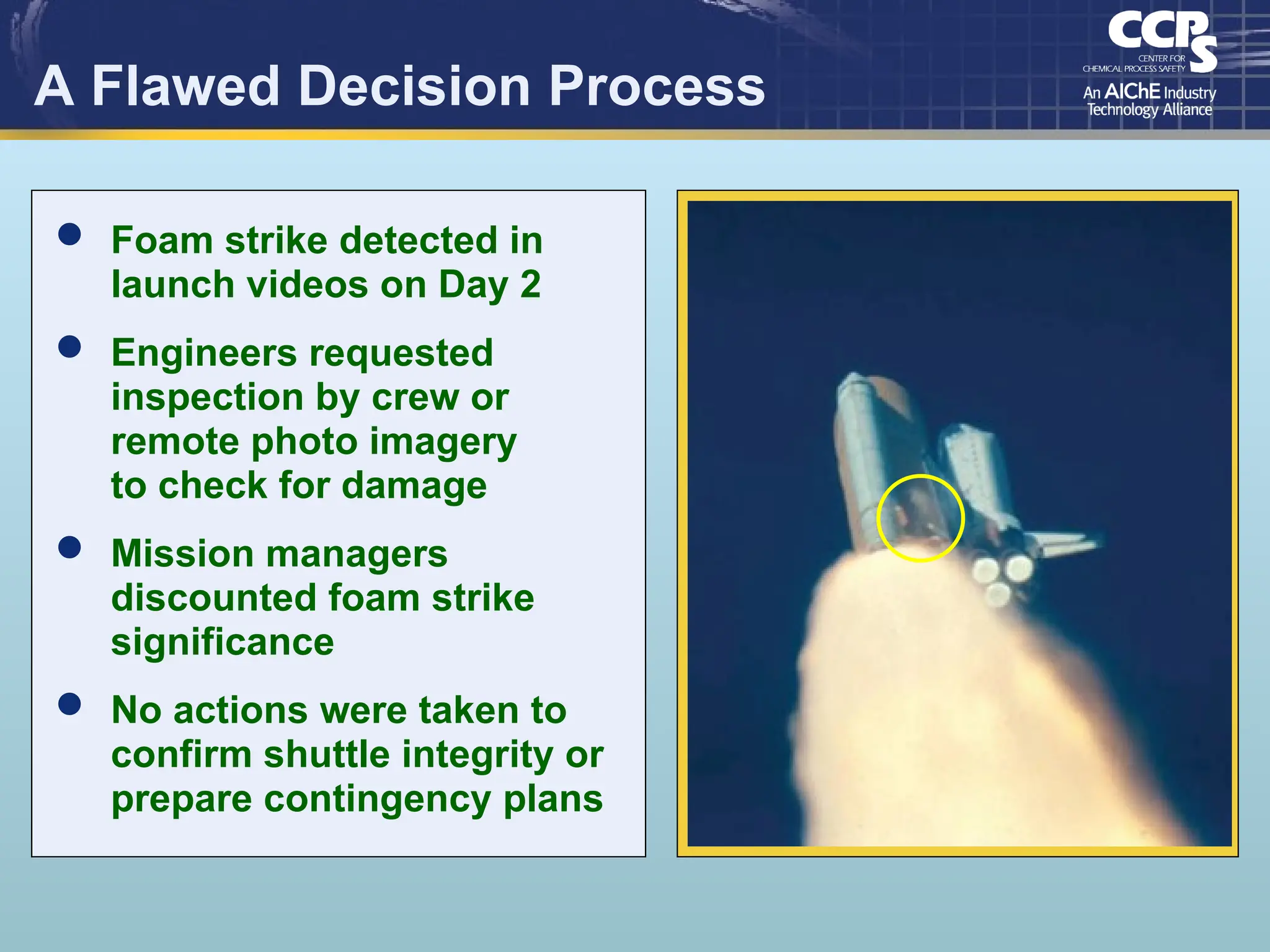

- 4. A Flawed DecisionProcess Foam strike detected in launch videos on Day 2 Engineers requested inspection by crew or remote photo imagery to check for damage Mission managers discounted foam strike significance No actions were taken to confirm shuttle integrity or prepare contingency plans

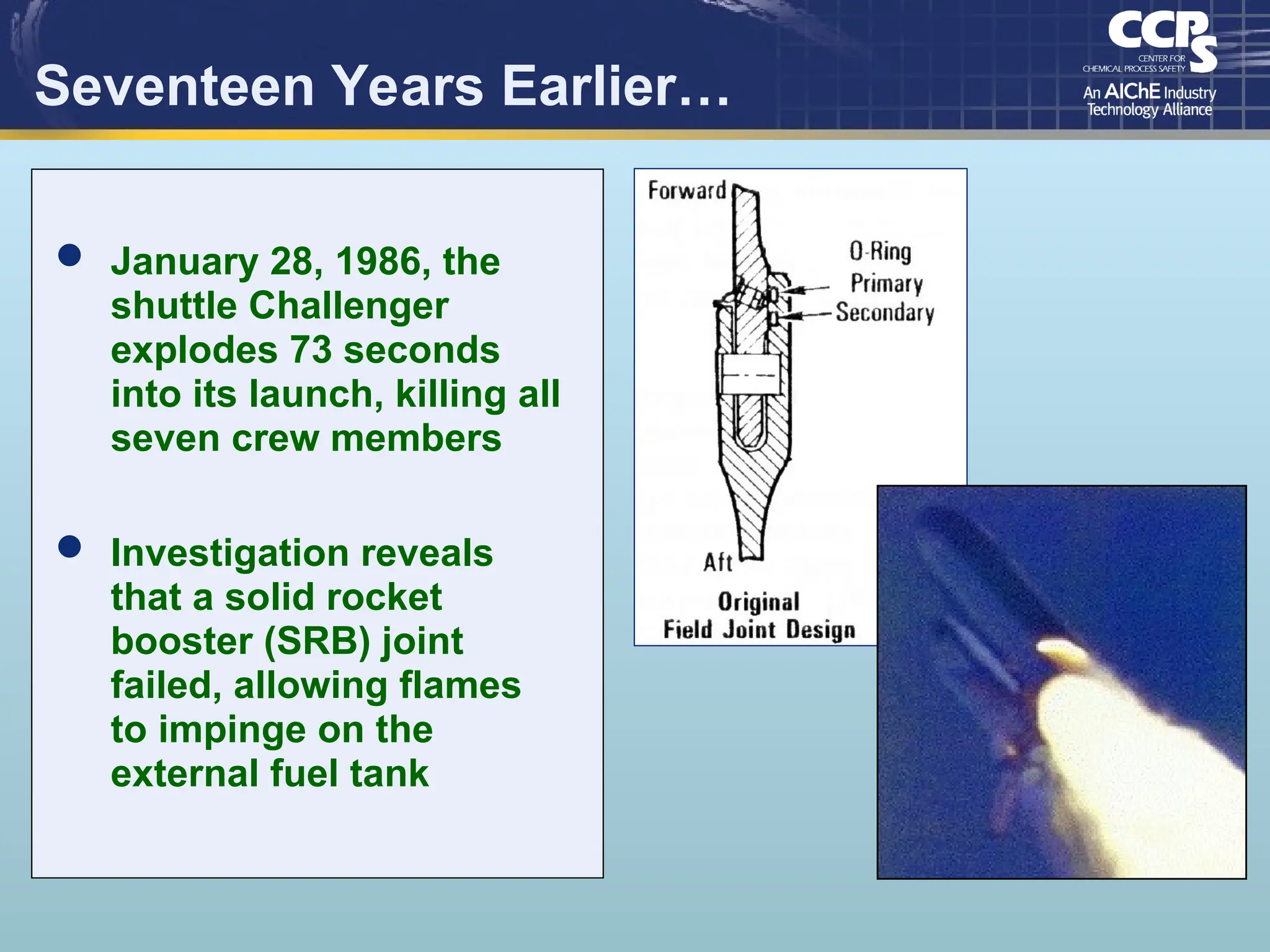

- 5. Seventeen Years Earlier… January 28, 1986, the shuttle Challenger explodes 73 seconds into its launch, killing all seven crew members Investigation reveals that a solid rocket booster (SRB) joint failed, allowing flames to impinge on the external fuel tank

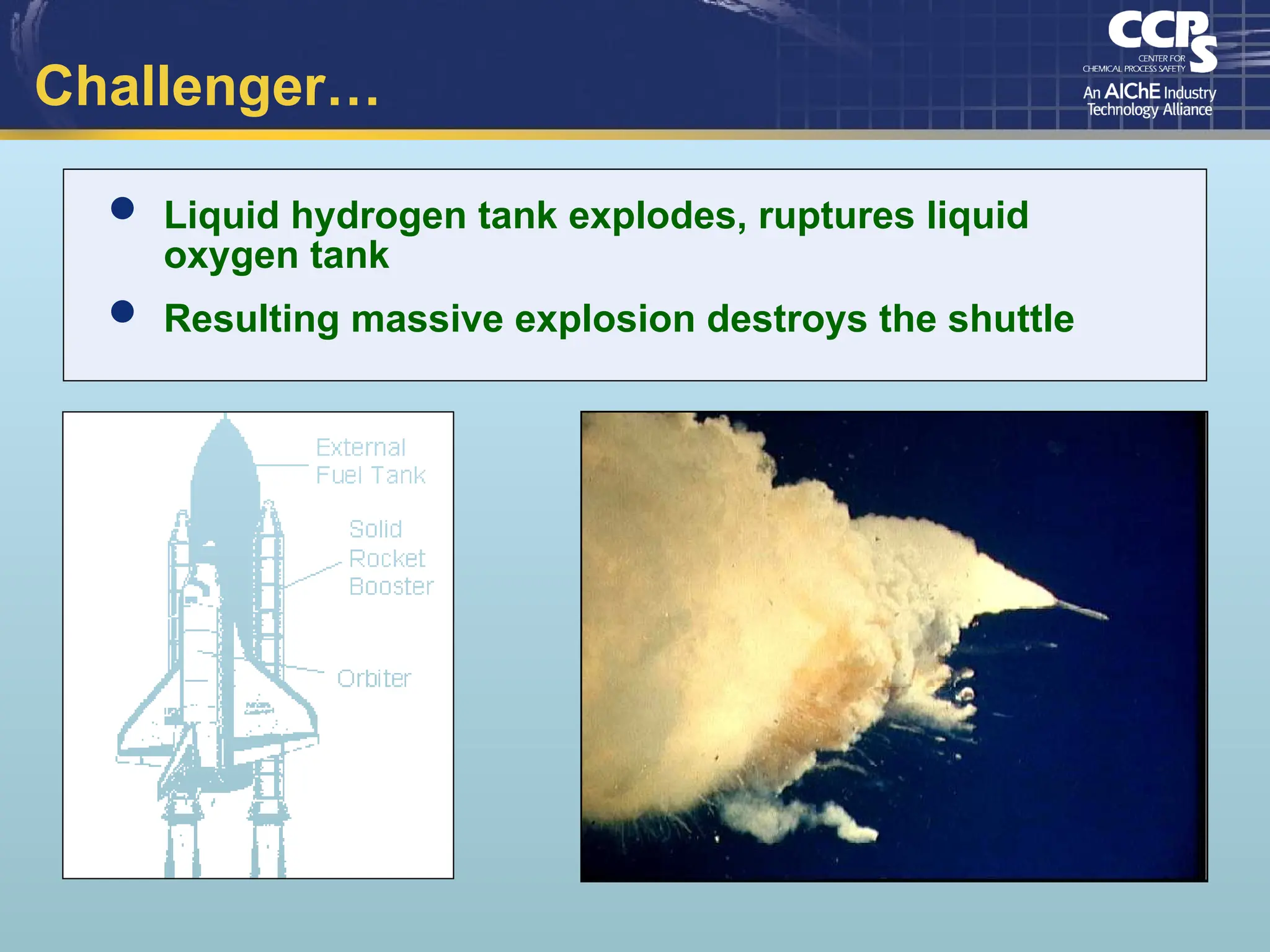

- 6. Challenger… Liquid hydrogentank explodes, ruptures liquid oxygen tank Resulting massive explosion destroys the shuttle

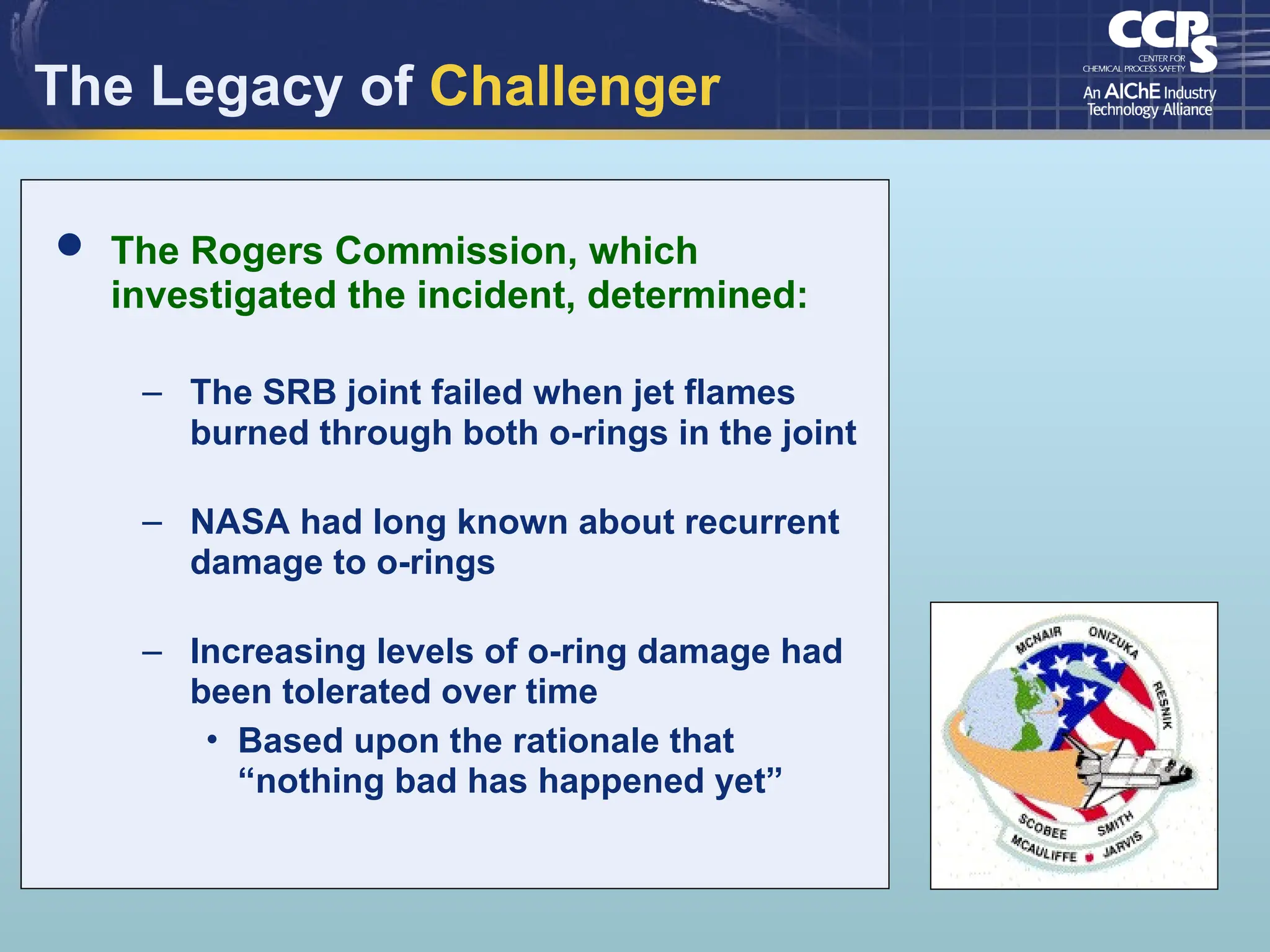

- 7. The Legacy ofChallenger The Rogers Commission, which investigated the incident, determined: – The SRB joint failed when jet flames burned through both o-rings in the joint – NASA had long known about recurrent damage to o-rings – Increasing levels of o-ring damage had been tolerated over time • Based upon the rationale that “nothing bad has happened yet”

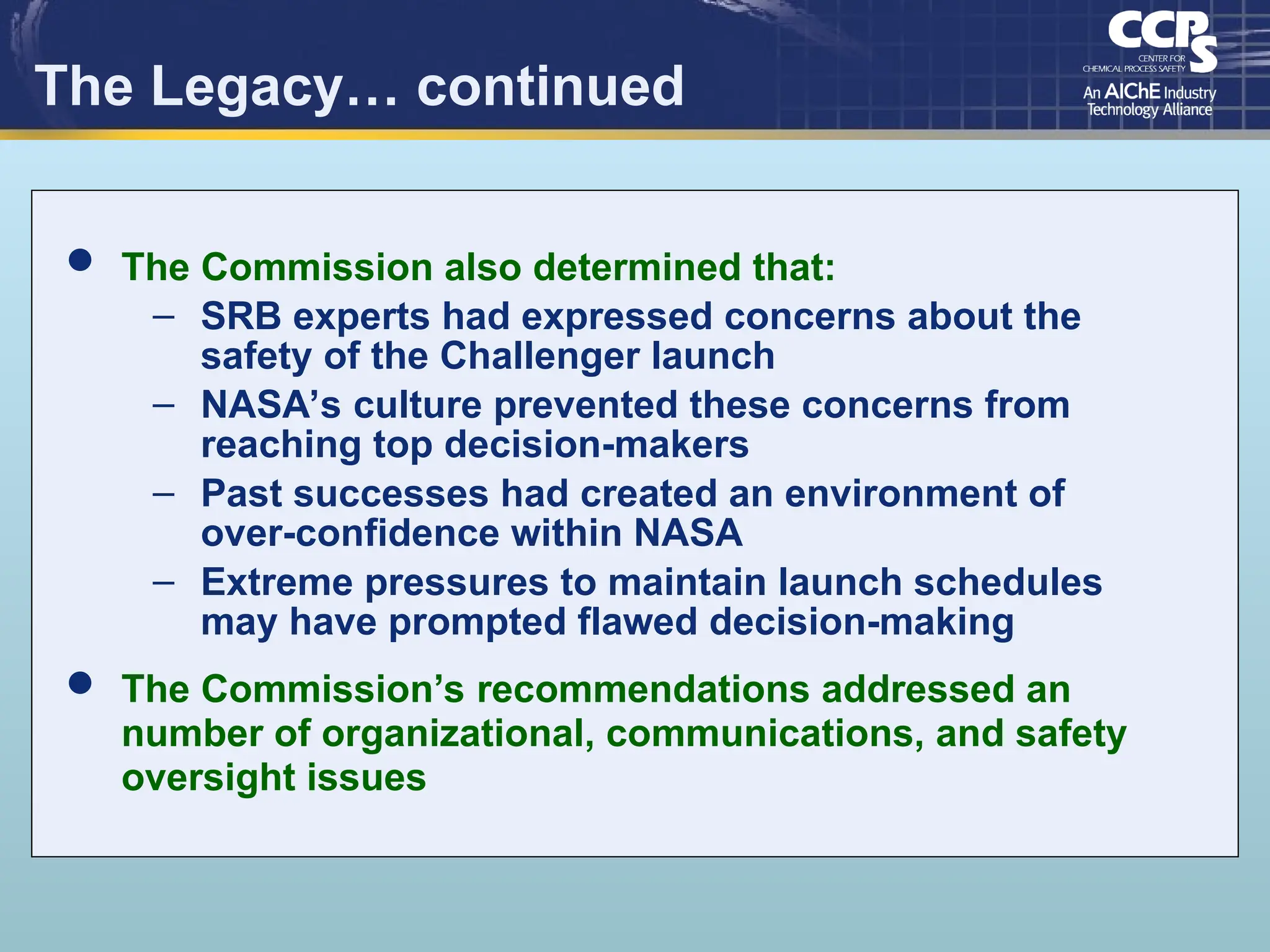

- 8. The Legacy… continued The Commission also determined that: – SRB experts had expressed concerns about the safety of the Challenger launch – NASA’s culture prevented these concerns from reaching top decision-makers – Past successes had created an environment of over-confidence within NASA – Extreme pressures to maintain launch schedules may have prompted flawed decision-making The Commission’s recommendations addressed an number of organizational, communications, and safety oversight issues

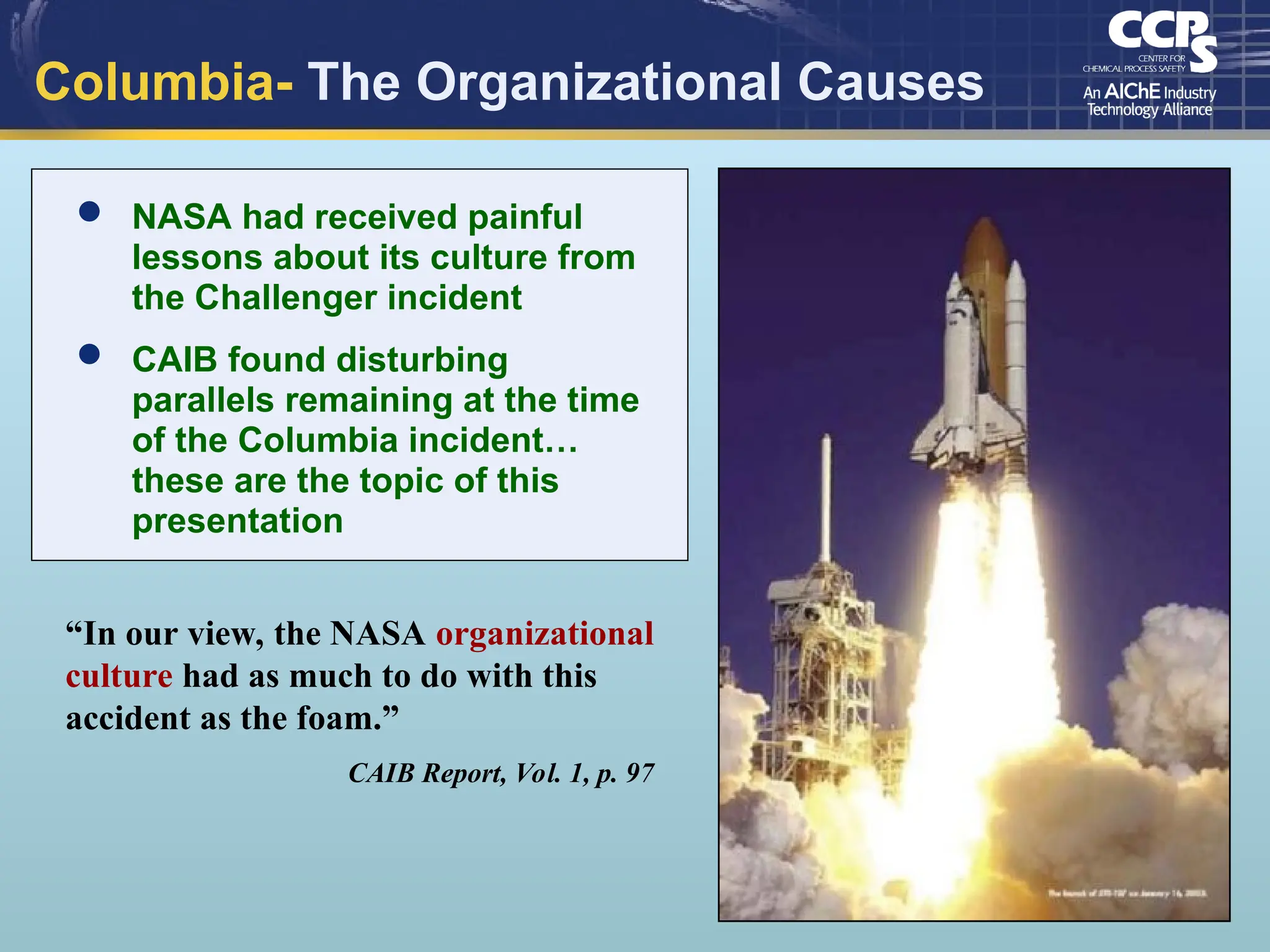

- 9. Columbia- The OrganizationalCauses “In our view, the NASA organizational culture had as much to do with this accident as the foam.” CAIB Report, Vol. 1, p. 97 NASA had received painful lessons about its culture from the Challenger incident CAIB found disturbing parallels remaining at the time of the Columbia incident… these are the topic of this presentation

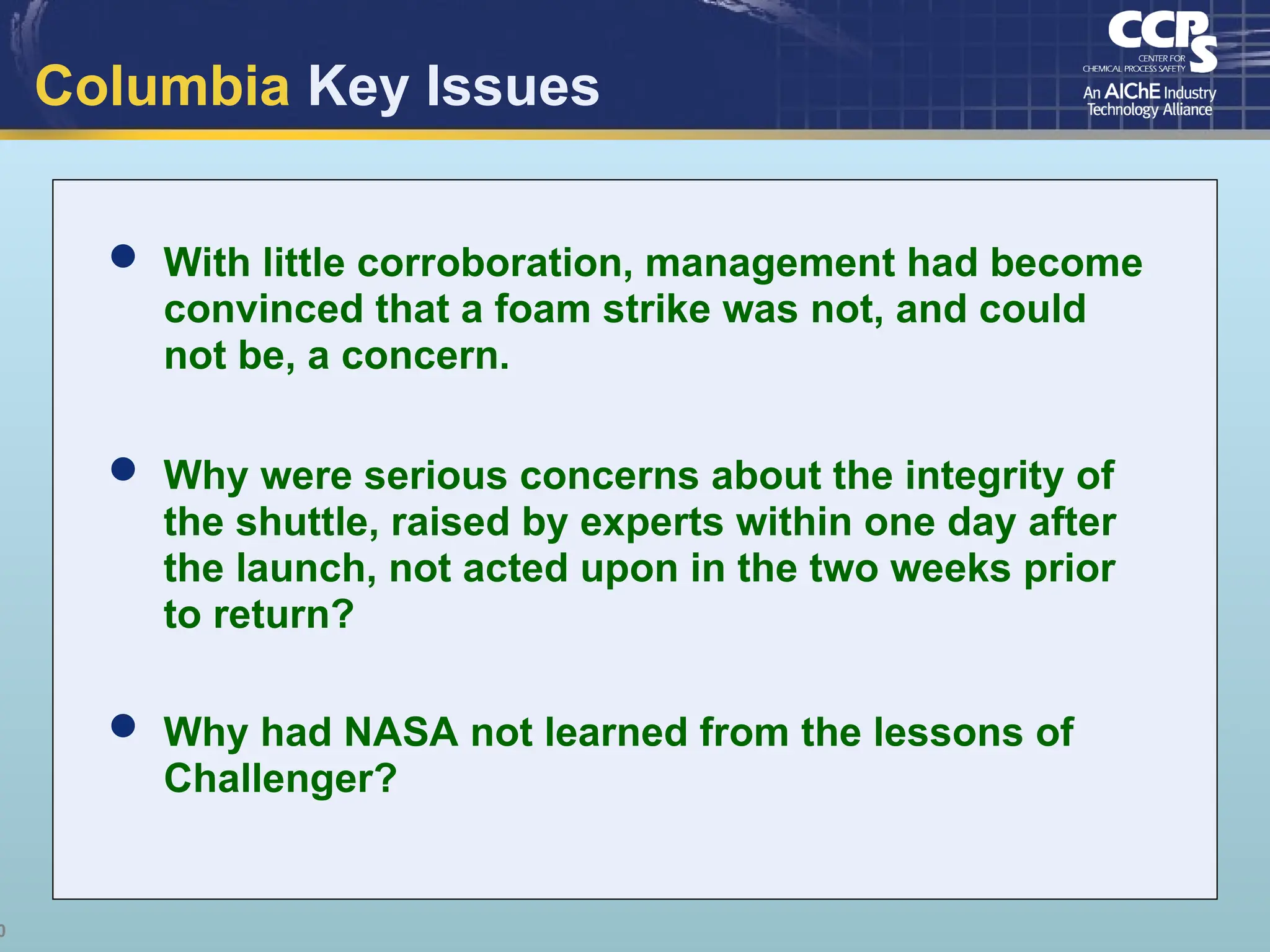

- 10. 0 Columbia Key Issues With little corroboration, management had become convinced that a foam strike was not, and could not be, a concern. Why were serious concerns about the integrity of the shuttle, raised by experts within one day after the launch, not acted upon in the two weeks prior to return? Why had NASA not learned from the lessons of Challenger?

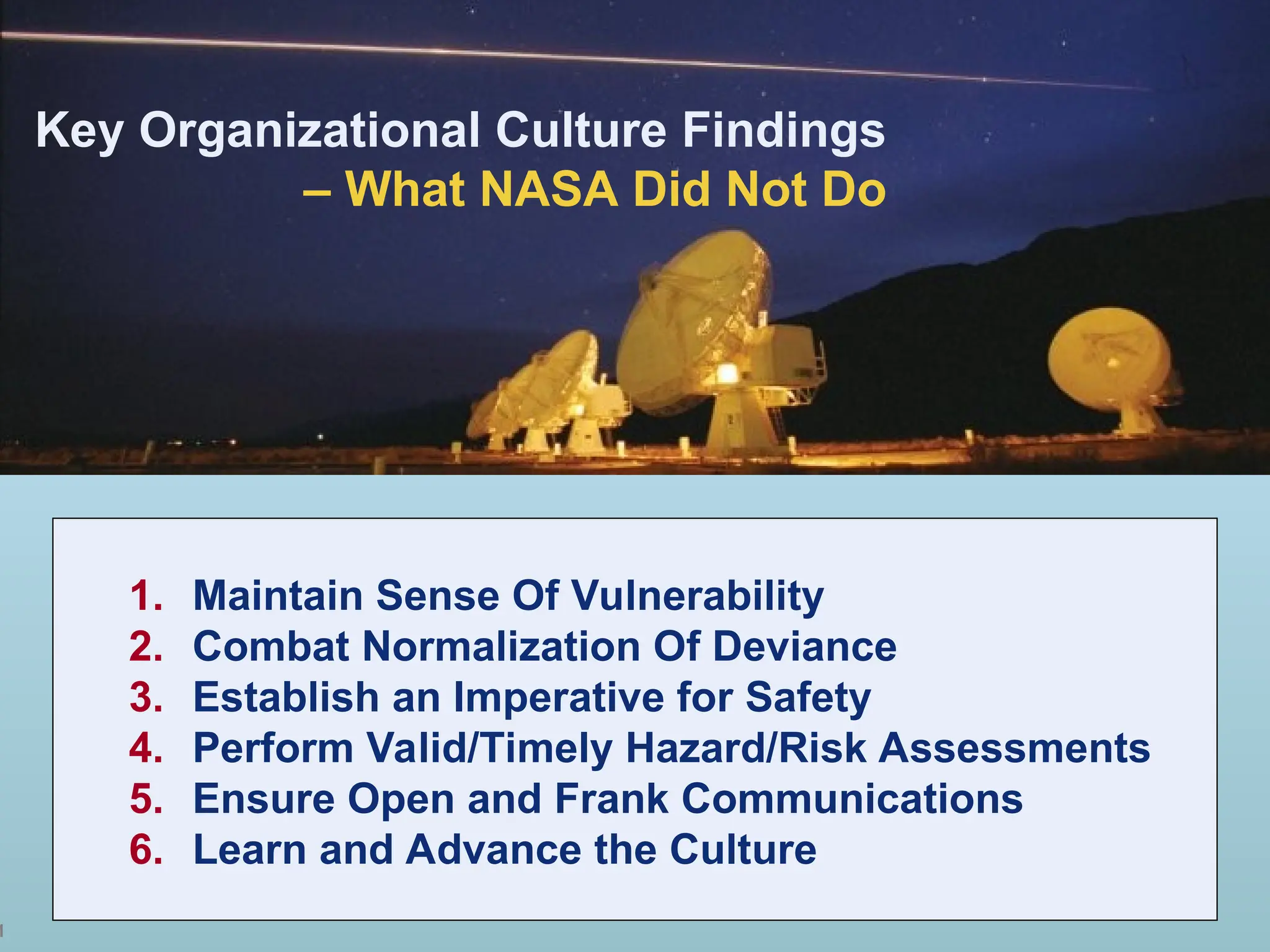

- 11. 1 1. Maintain SenseOf Vulnerability 2. Combat Normalization Of Deviance 3. Establish an Imperative for Safety 4. Perform Valid/Timely Hazard/Risk Assessments 5. Ensure Open and Frank Communications 6. Learn and Advance the Culture Key Organizational Culture Findings – What NASA Did Not Do

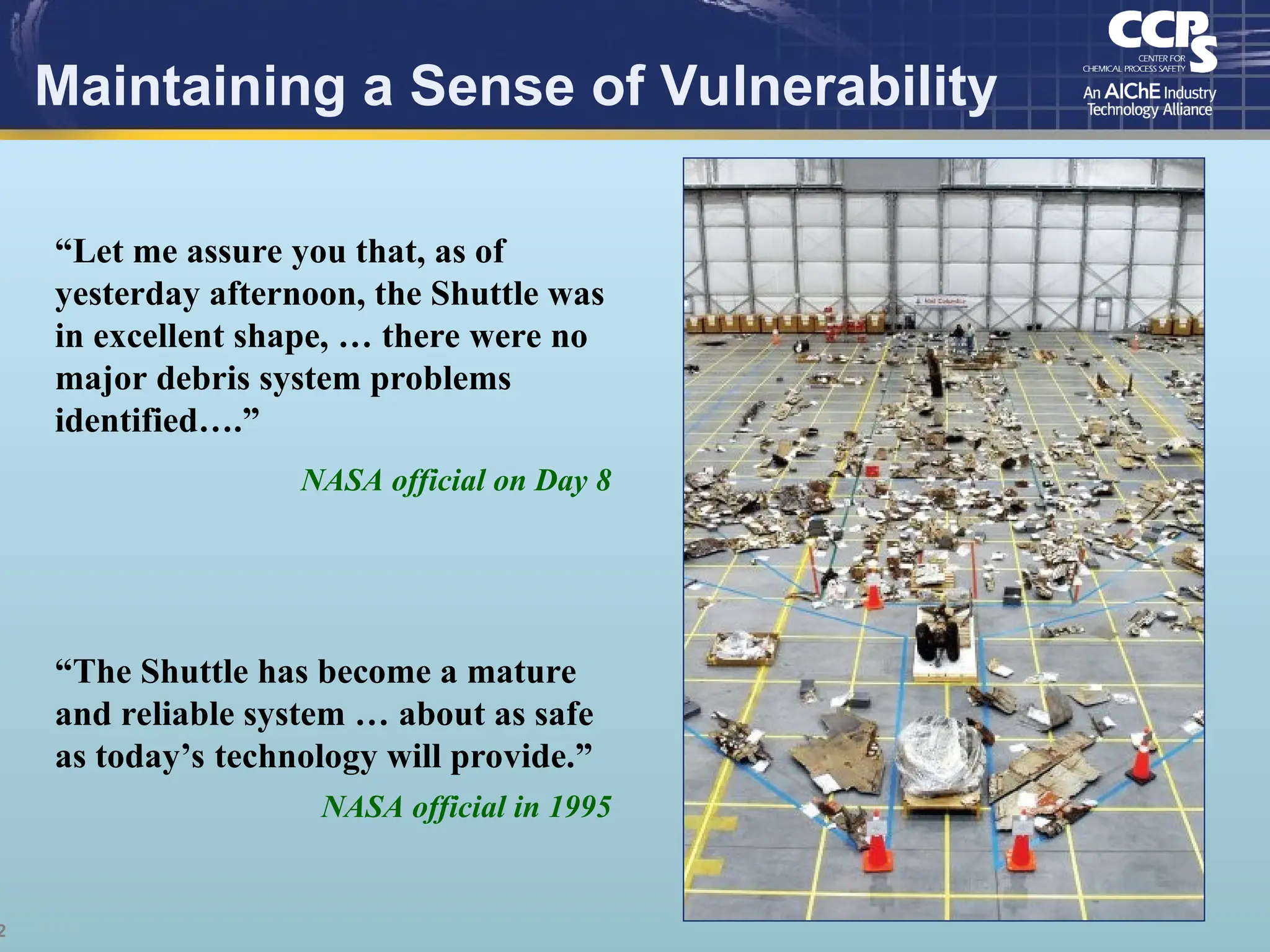

- 12. 2 Maintaining a Senseof Vulnerability “Let me assure you that, as of yesterday afternoon, the Shuttle was in excellent shape, … there were no major debris system problems identified….” NASA official on Day 8 “The Shuttle has become a mature and reliable system … about as safe as today’s technology will provide.” NASA official in 1995

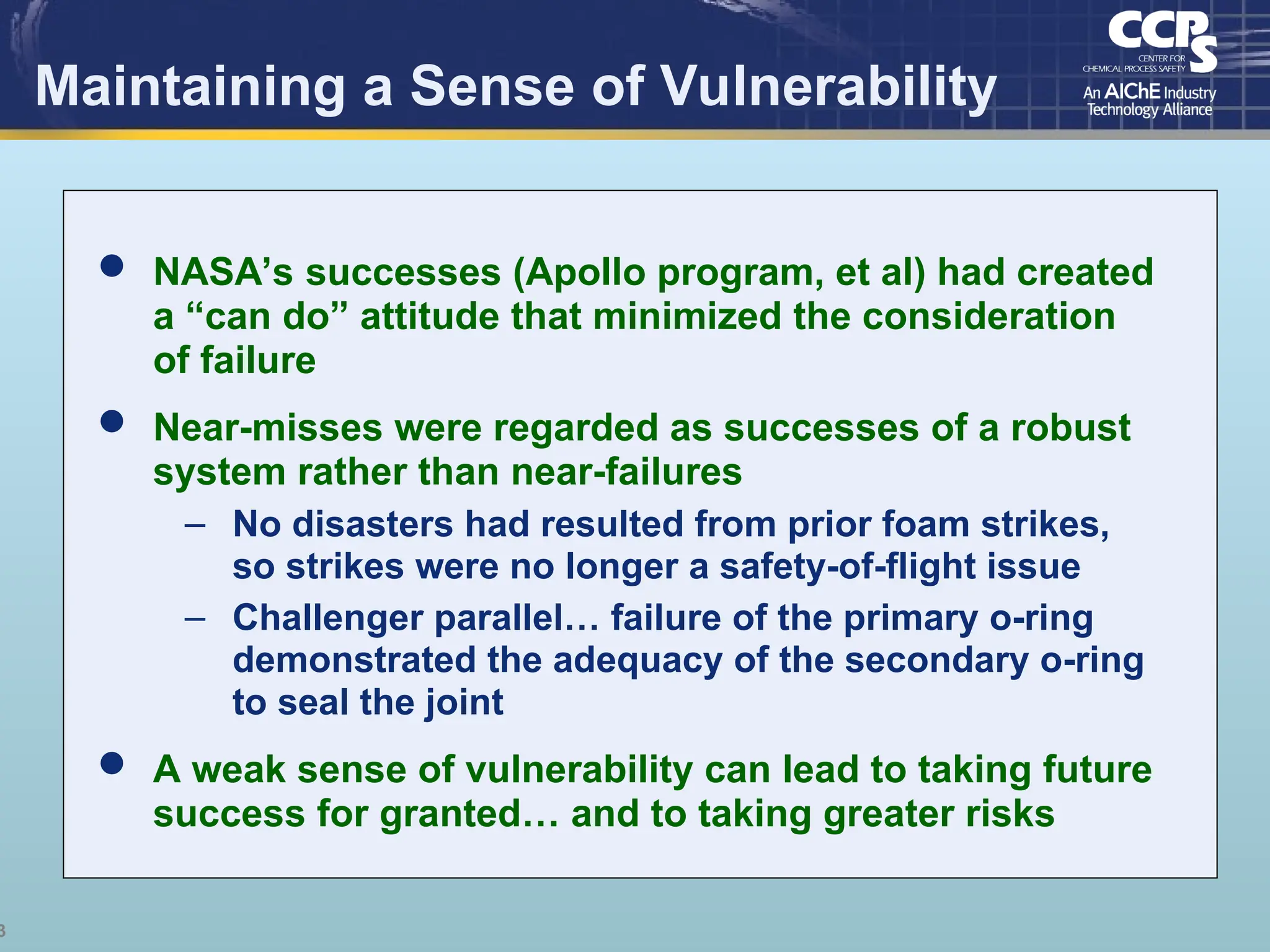

- 13. 3 Maintaining a Senseof Vulnerability NASA’s successes (Apollo program, et al) had created a “can do” attitude that minimized the consideration of failure Near-misses were regarded as successes of a robust system rather than near-failures – No disasters had resulted from prior foam strikes, so strikes were no longer a safety-of-flight issue – Challenger parallel… failure of the primary o-ring demonstrated the adequacy of the secondary o-ring to seal the joint A weak sense of vulnerability can lead to taking future success for granted… and to taking greater risks

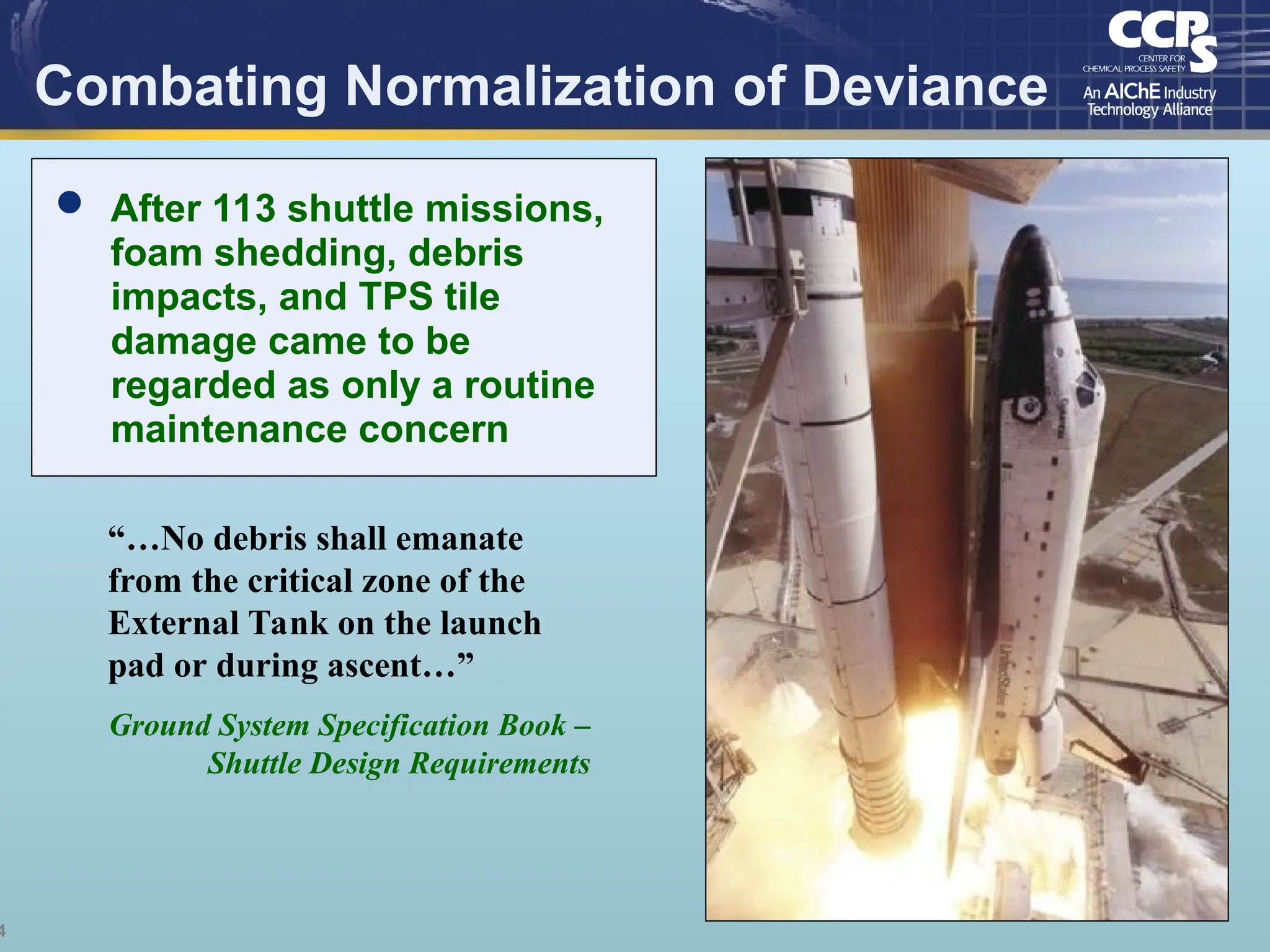

- 14. 4 Combating Normalization ofDeviance “…No debris shall emanate from the critical zone of the External Tank on the launch pad or during ascent…” Ground System Specification Book – Shuttle Design Requirements After 113 shuttle missions, foam shedding, debris impacts, and TPS tile damage came to be regarded as only a routine maintenance concern

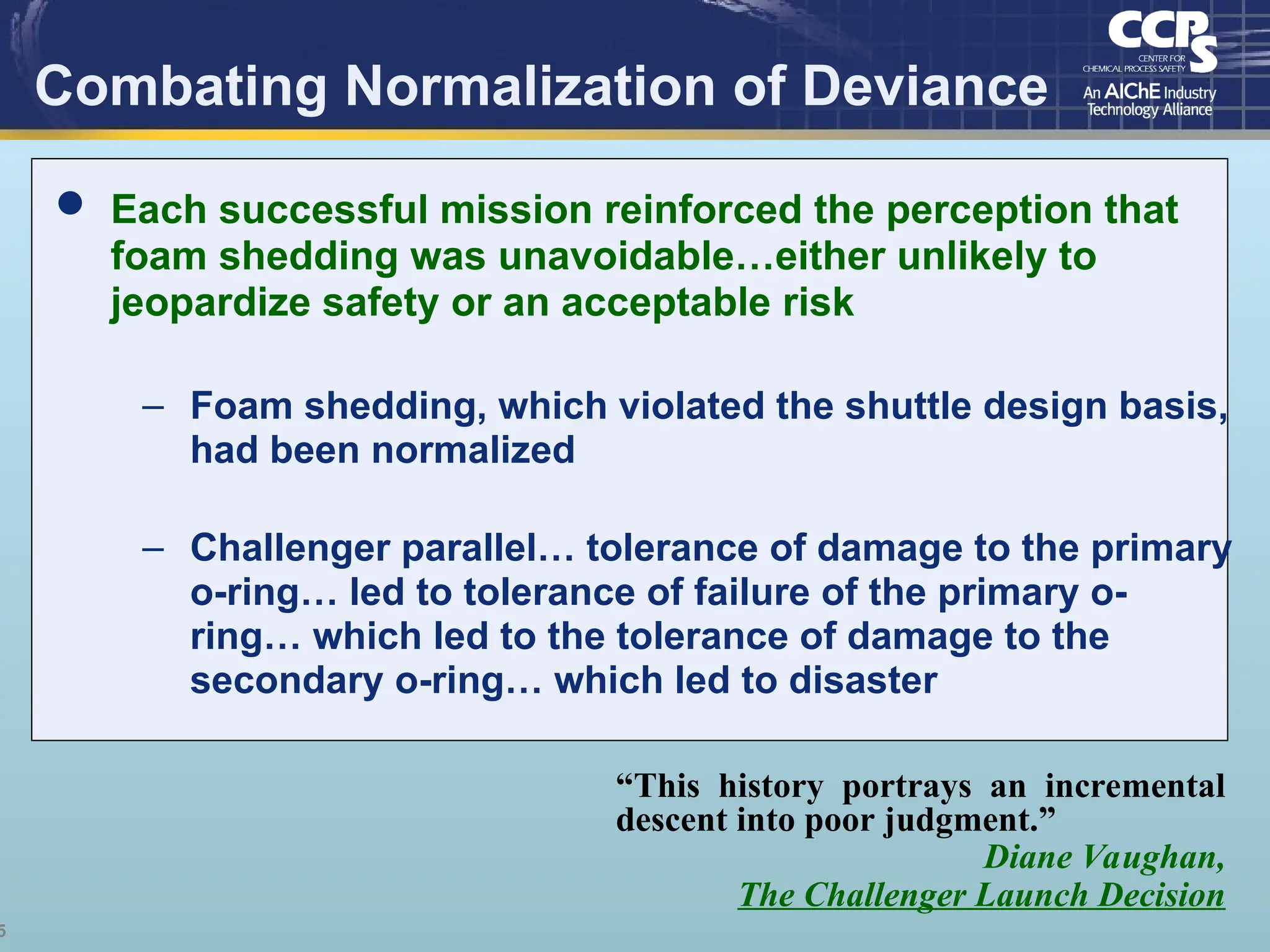

- 15. 5 Combating Normalization ofDeviance “This history portrays an incremental descent into poor judgment.” Diane Vaughan, The Challenger Launch Decision Each successful mission reinforced the perception that foam shedding was unavoidable…either unlikely to jeopardize safety or an acceptable risk – Foam shedding, which violated the shuttle design basis, had been normalized – Challenger parallel… tolerance of damage to the primary o-ring… led to tolerance of failure of the primary o- ring… which led to the tolerance of damage to the secondary o-ring… which led to disaster

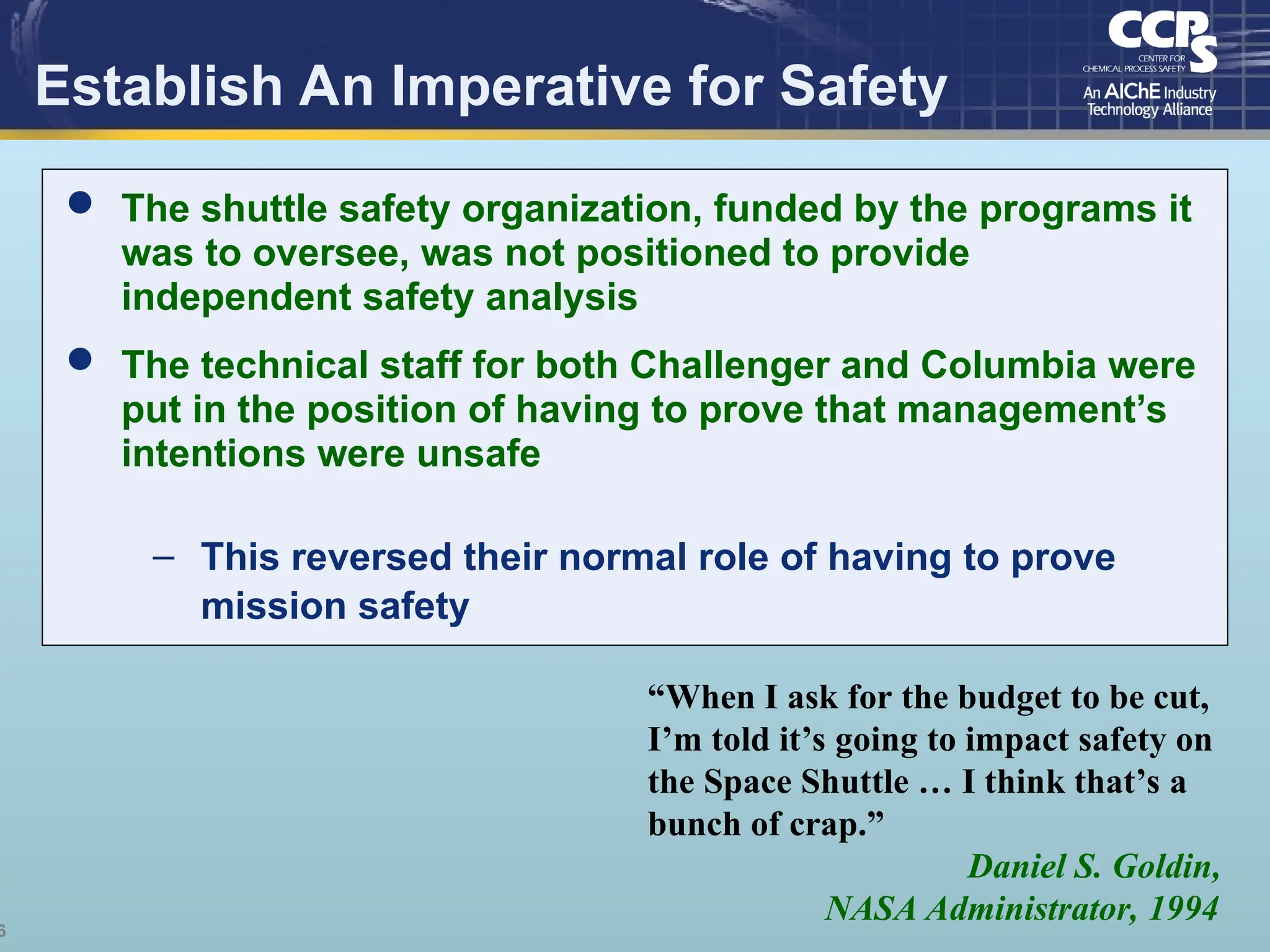

- 16. 6 Establish An Imperativefor Safety “When I ask for the budget to be cut, I’m told it’s going to impact safety on the Space Shuttle … I think that’s a bunch of crap.” Daniel S. Goldin, NASA Administrator, 1994 The shuttle safety organization, funded by the programs it was to oversee, was not positioned to provide independent safety analysis The technical staff for both Challenger and Columbia were put in the position of having to prove that management’s intentions were unsafe – This reversed their normal role of having to prove mission safety

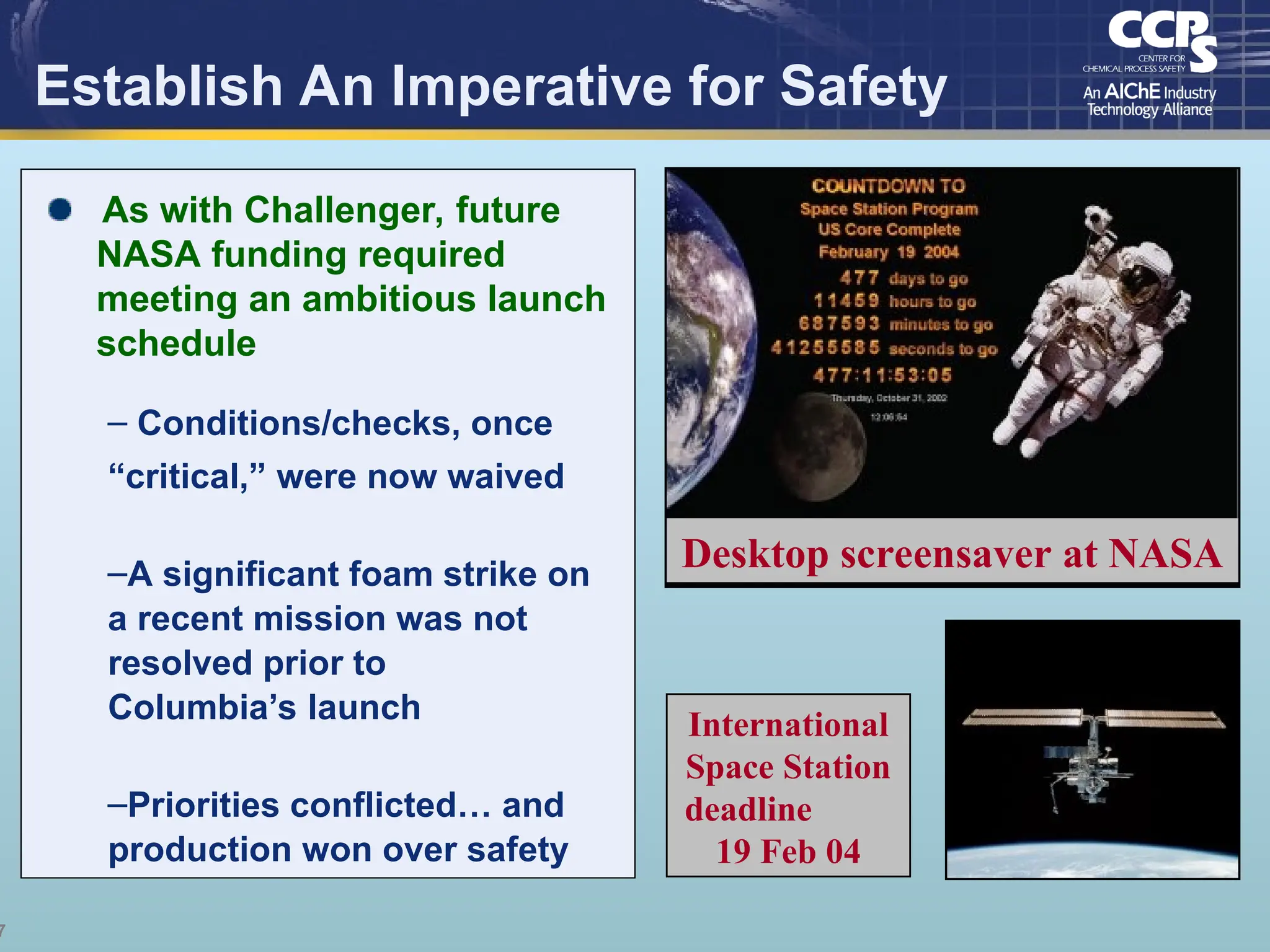

- 17. 7 Establish An Imperativefor Safety International Space Station deadline 19 Feb 04 Desktop screensaver at NASA As with Challenger, future NASA funding required meeting an ambitious launch schedule – Conditions/checks, once “critical,” were now waived –A significant foam strike on a recent mission was not resolved prior to Columbia’s launch –Priorities conflicted… and production won over safety

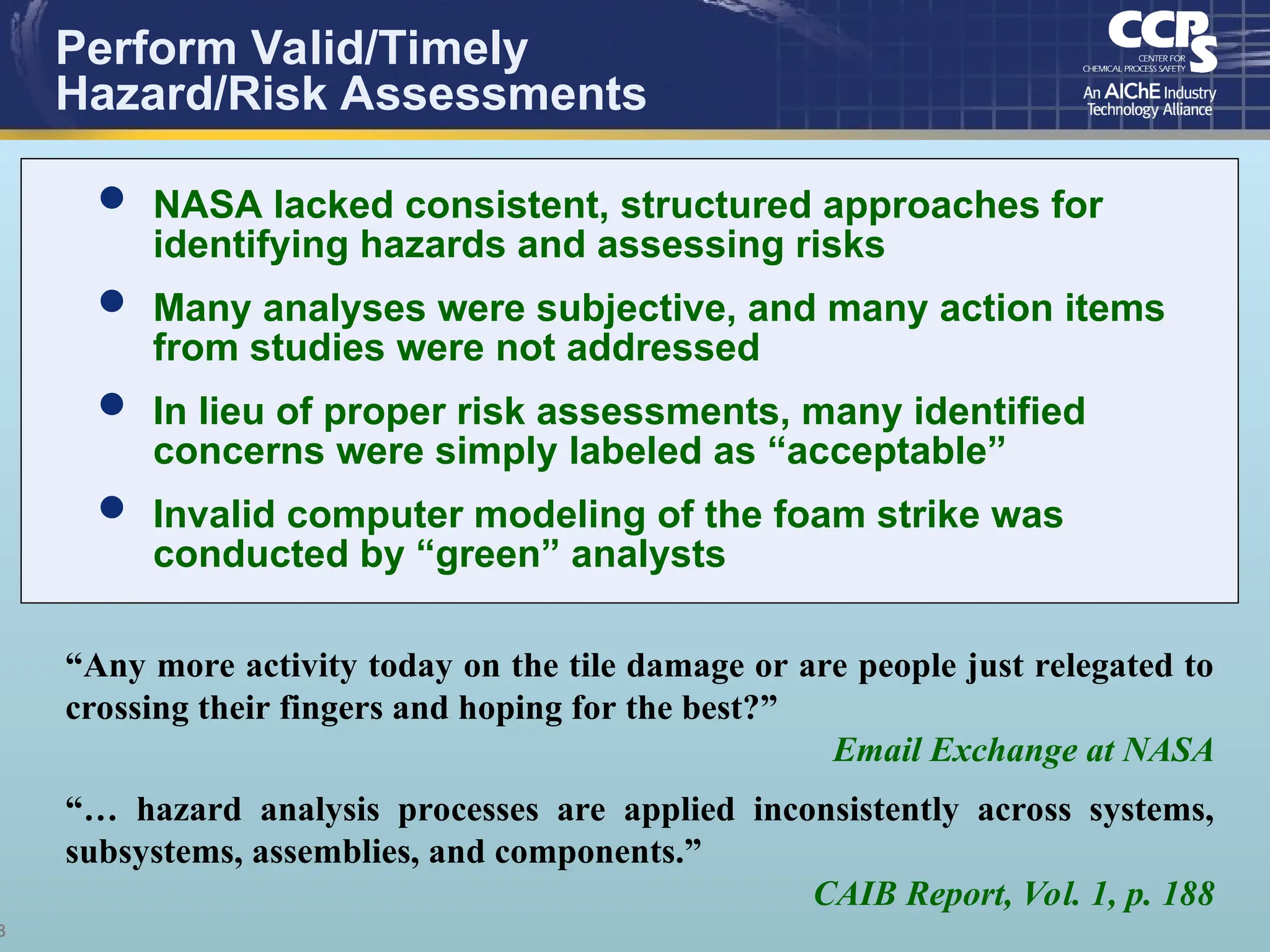

- 18. 8 Perform Valid/Timely Hazard/Risk Assessments “Anymore activity today on the tile damage or are people just relegated to crossing their fingers and hoping for the best?” Email Exchange at NASA “… hazard analysis processes are applied inconsistently across systems, subsystems, assemblies, and components.” CAIB Report, Vol. 1, p. 188 NASA lacked consistent, structured approaches for identifying hazards and assessing risks Many analyses were subjective, and many action items from studies were not addressed In lieu of proper risk assessments, many identified concerns were simply labeled as “acceptable” Invalid computer modeling of the foam strike was conducted by “green” analysts

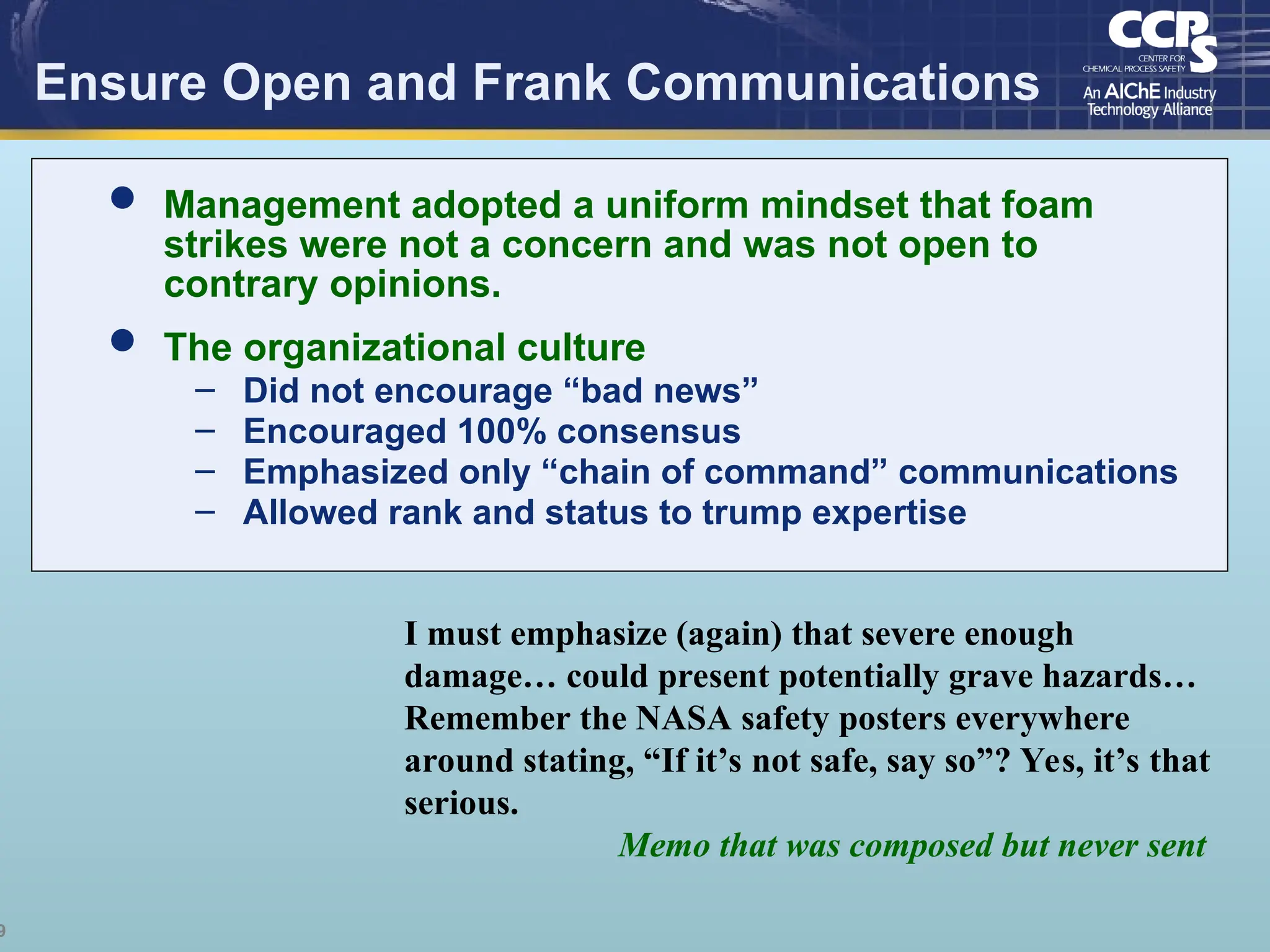

- 19. 9 Ensure Open andFrank Communications I must emphasize (again) that severe enough damage… could present potentially grave hazards… Remember the NASA safety posters everywhere around stating, “If it’s not safe, say so”? Yes, it’s that serious. Memo that was composed but never sent Management adopted a uniform mindset that foam strikes were not a concern and was not open to contrary opinions. The organizational culture – Did not encourage “bad news” – Encouraged 100% consensus – Emphasized only “chain of command” communications – Allowed rank and status to trump expertise

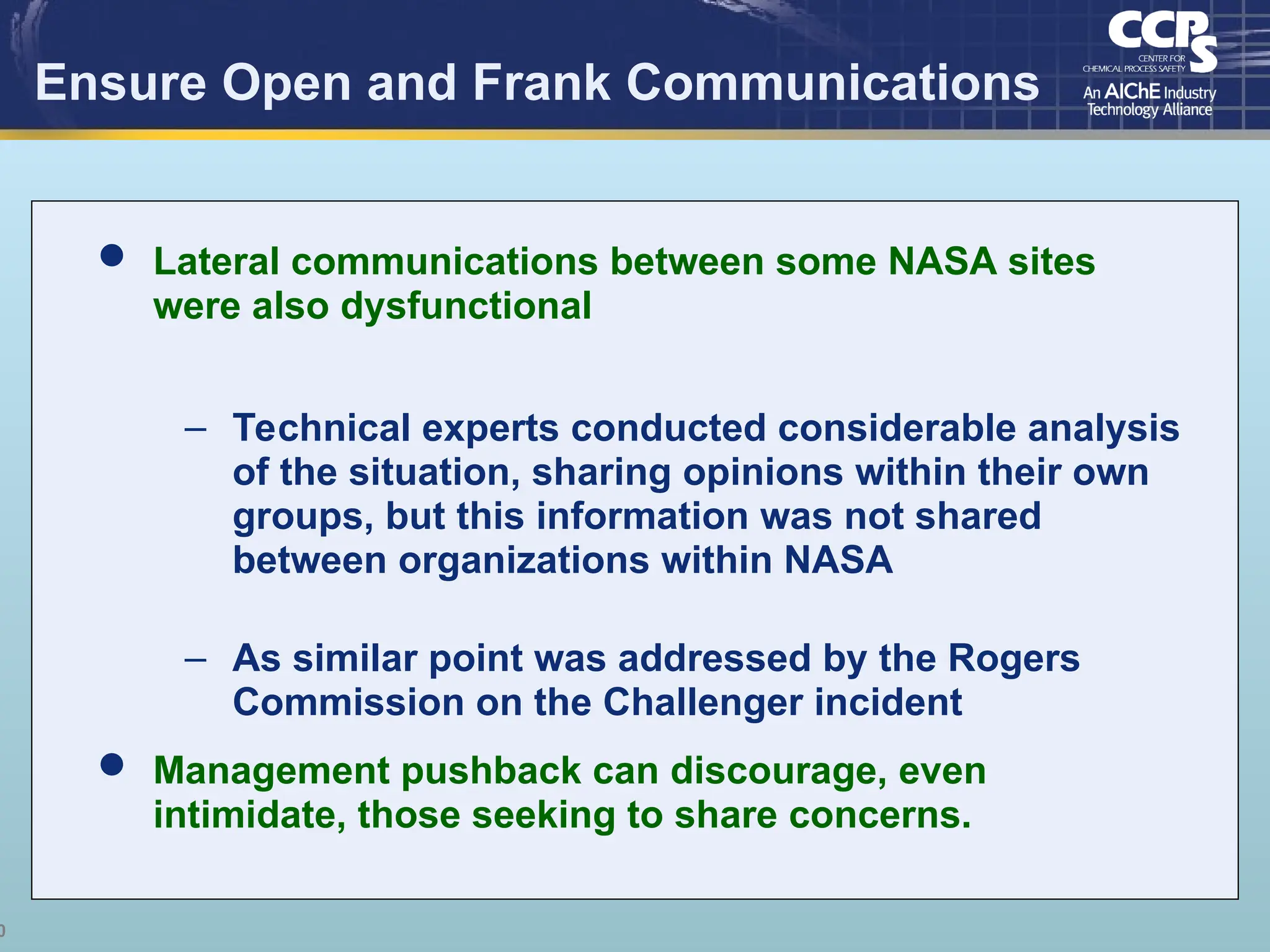

- 20. 0 Ensure Open andFrank Communications Lateral communications between some NASA sites were also dysfunctional – Technical experts conducted considerable analysis of the situation, sharing opinions within their own groups, but this information was not shared between organizations within NASA – As similar point was addressed by the Rogers Commission on the Challenger incident Management pushback can discourage, even intimidate, those seeking to share concerns.

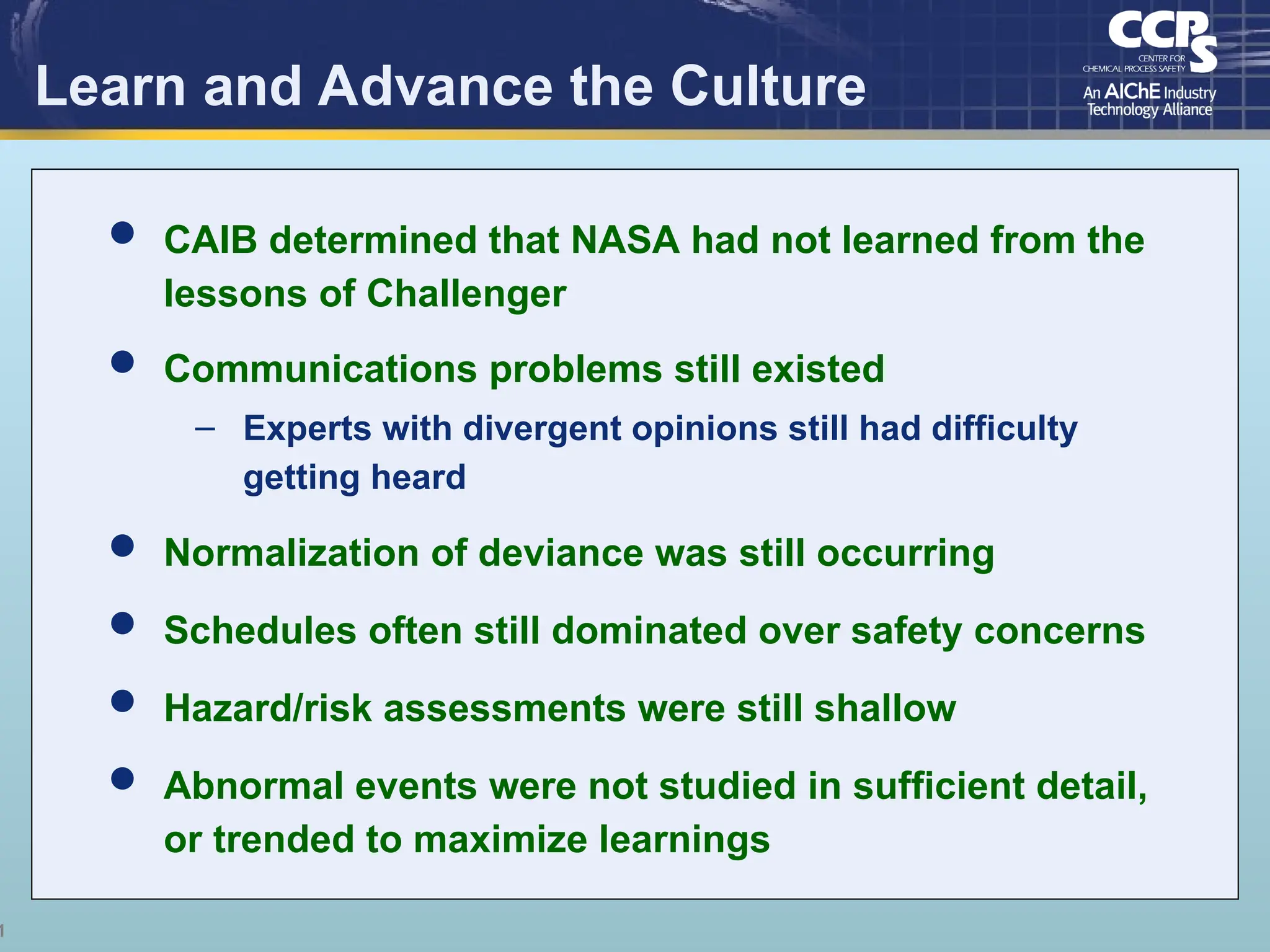

- 21. 1 Learn and Advancethe Culture CAIB determined that NASA had not learned from the lessons of Challenger Communications problems still existed – Experts with divergent opinions still had difficulty getting heard Normalization of deviance was still occurring Schedules often still dominated over safety concerns Hazard/risk assessments were still shallow Abnormal events were not studied in sufficient detail, or trended to maximize learnings

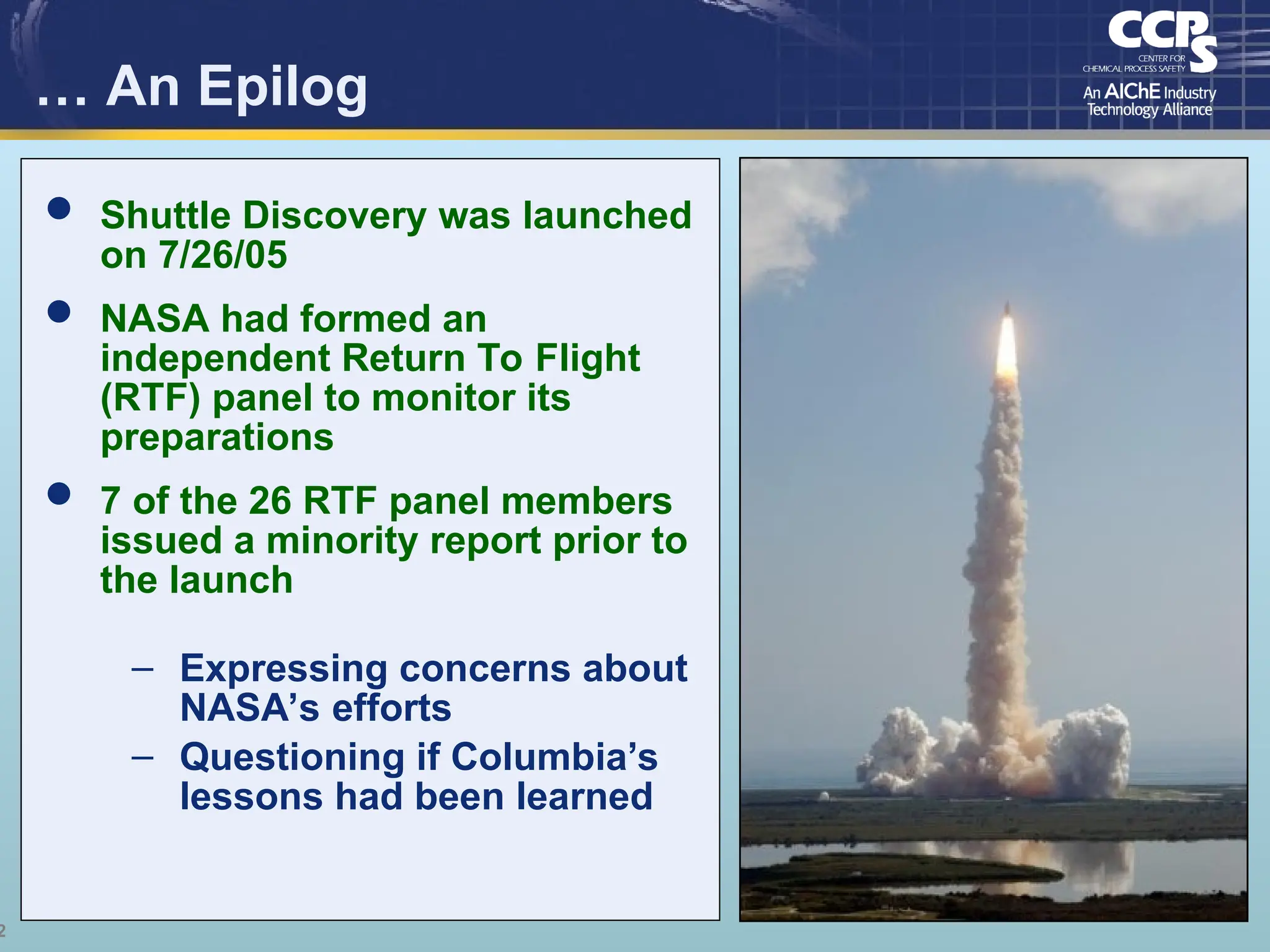

- 22. 2 … An Epilog Shuttle Discovery was launched on 7/26/05 NASA had formed an independent Return To Flight (RTF) panel to monitor its preparations 7 of the 26 RTF panel members issued a minority report prior to the launch – Expressing concerns about NASA’s efforts – Questioning if Columbia’s lessons had been learned

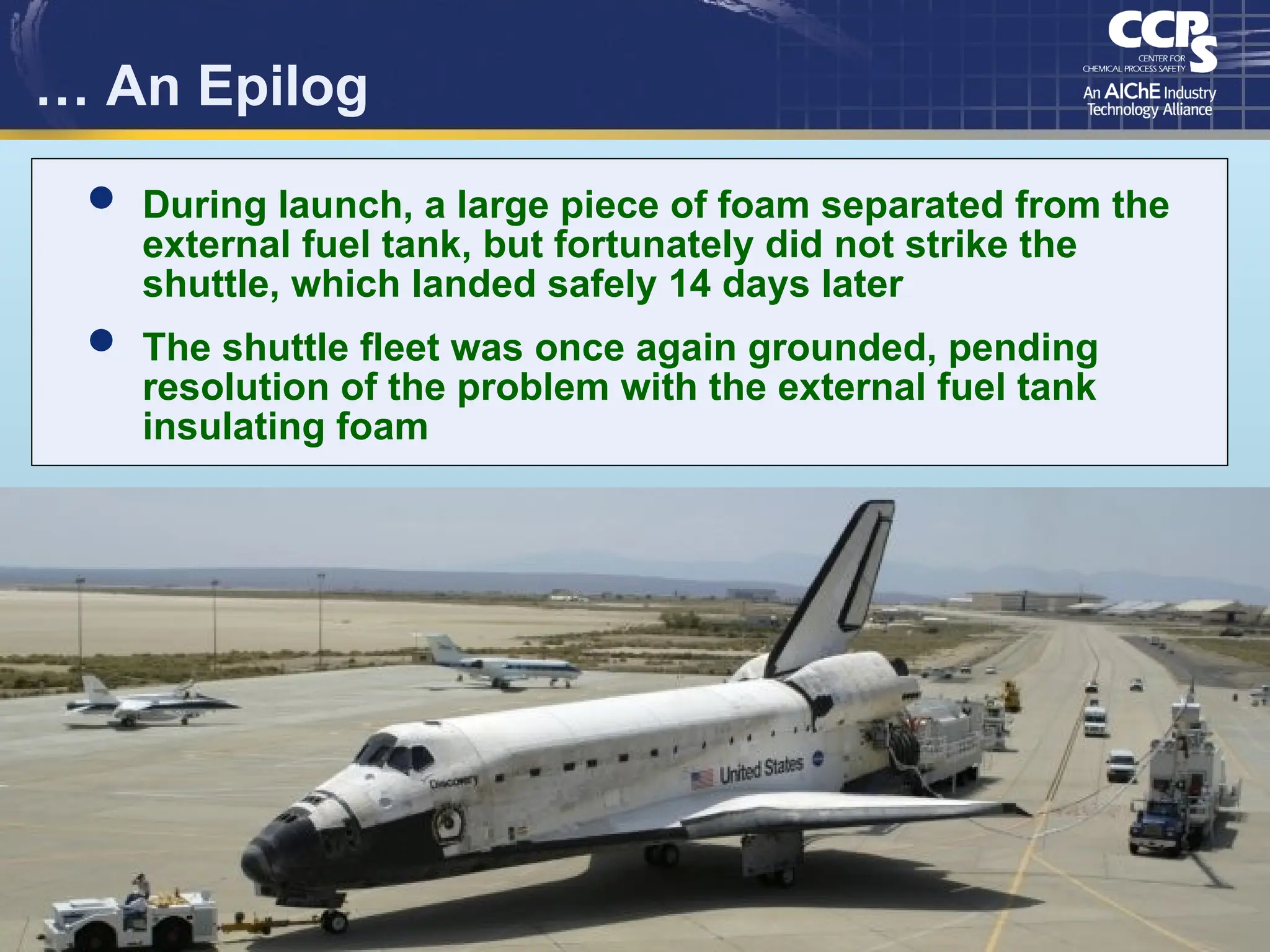

- 23. 3 … An Epilog During launch, a large piece of foam separated from the external fuel tank, but fortunately did not strike the shuttle, which landed safely 14 days later The shuttle fleet was once again grounded, pending resolution of the problem with the external fuel tank insulating foam

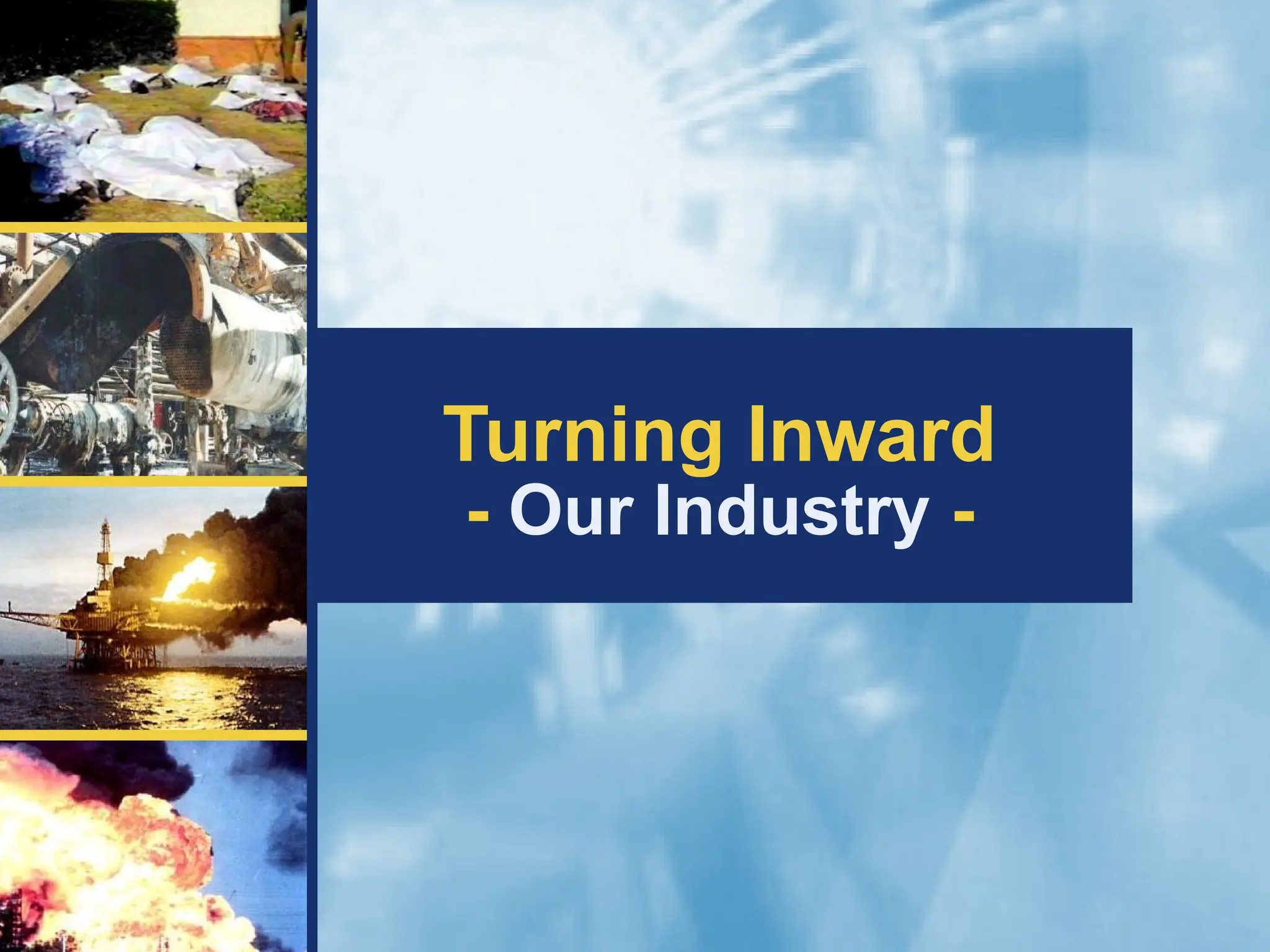

- 24. Turning Inward - OurIndustry -

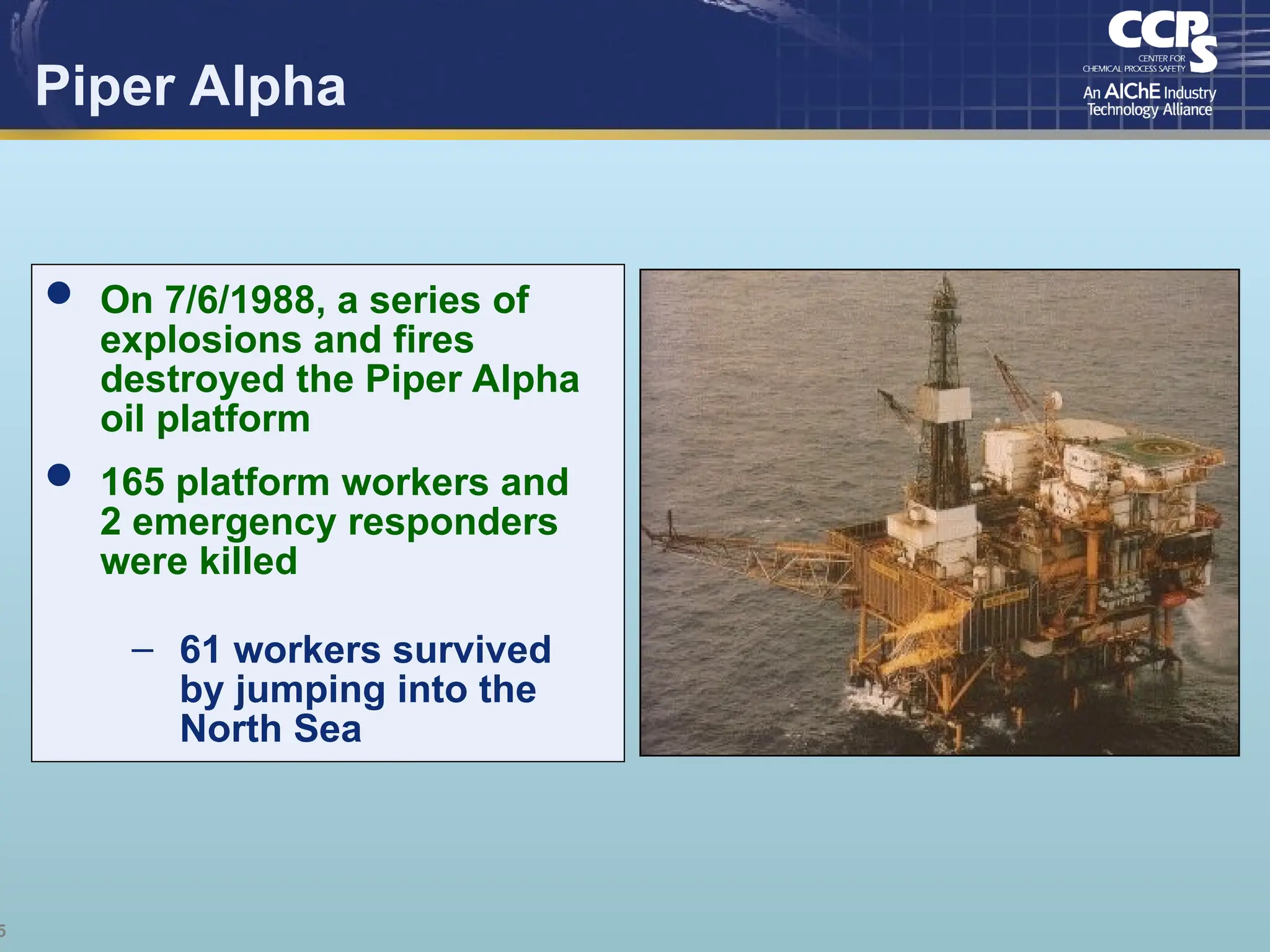

- 25. 5 Piper Alpha On7/6/1988, a series of explosions and fires destroyed the Piper Alpha oil platform 165 platform workers and 2 emergency responders were killed – 61 workers survived by jumping into the North Sea

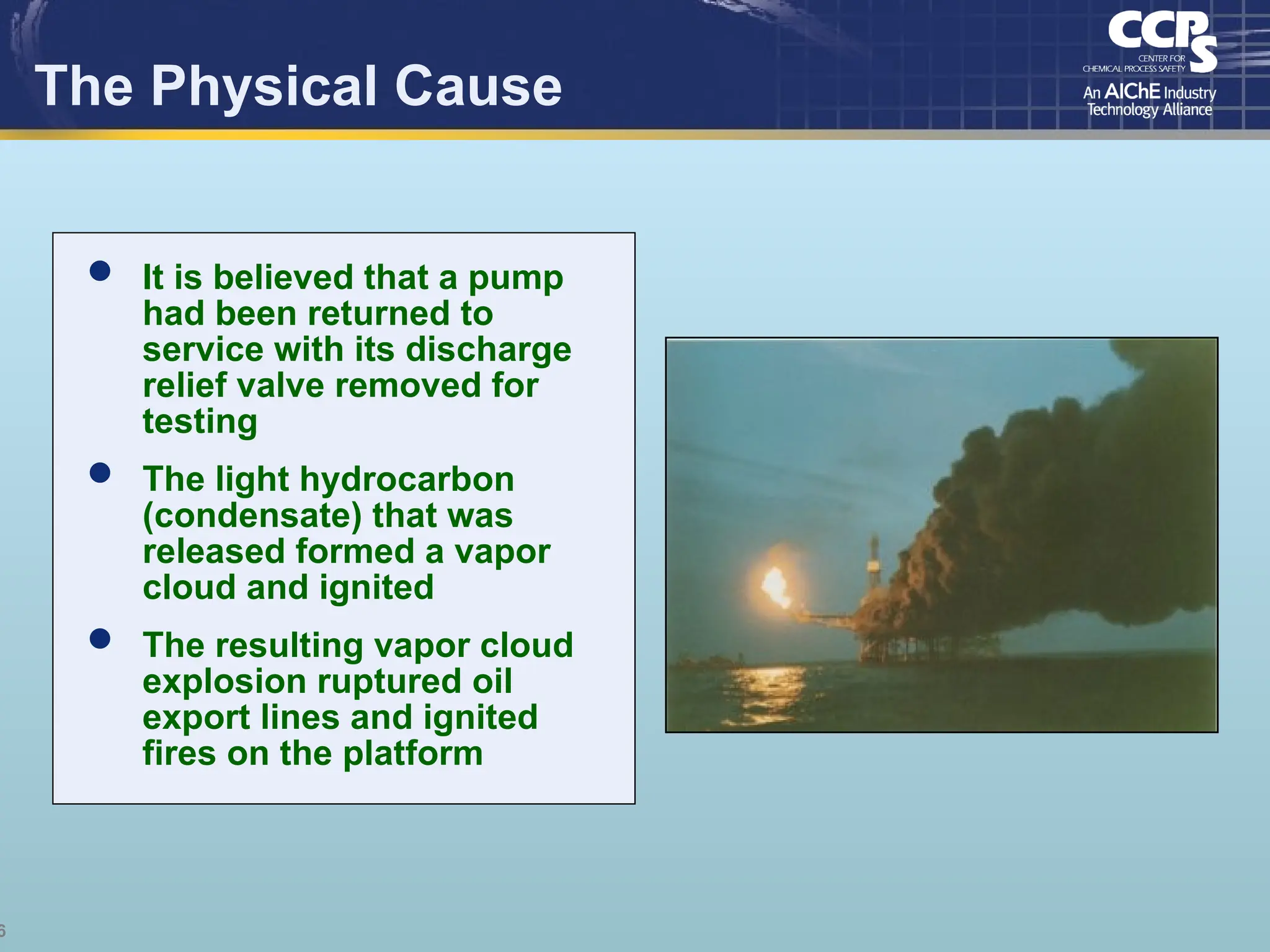

- 26. 6 The Physical Cause It is believed that a pump had been returned to service with its discharge relief valve removed for testing The light hydrocarbon (condensate) that was released formed a vapor cloud and ignited The resulting vapor cloud explosion ruptured oil export lines and ignited fires on the platform

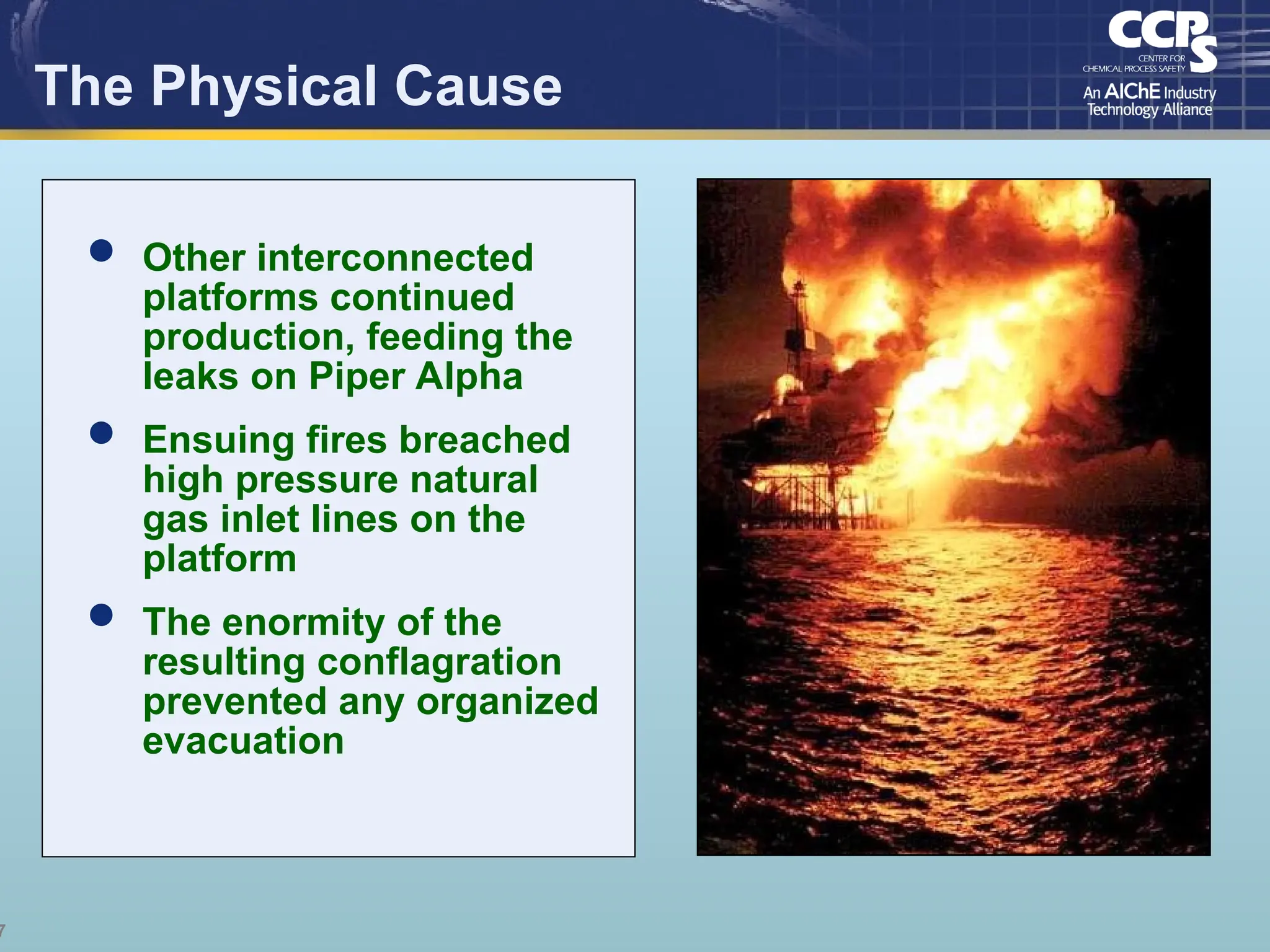

- 27. 7 The Physical Cause Other interconnected platforms continued production, feeding the leaks on Piper Alpha Ensuing fires breached high pressure natural gas inlet lines on the platform The enormity of the resulting conflagration prevented any organized evacuation

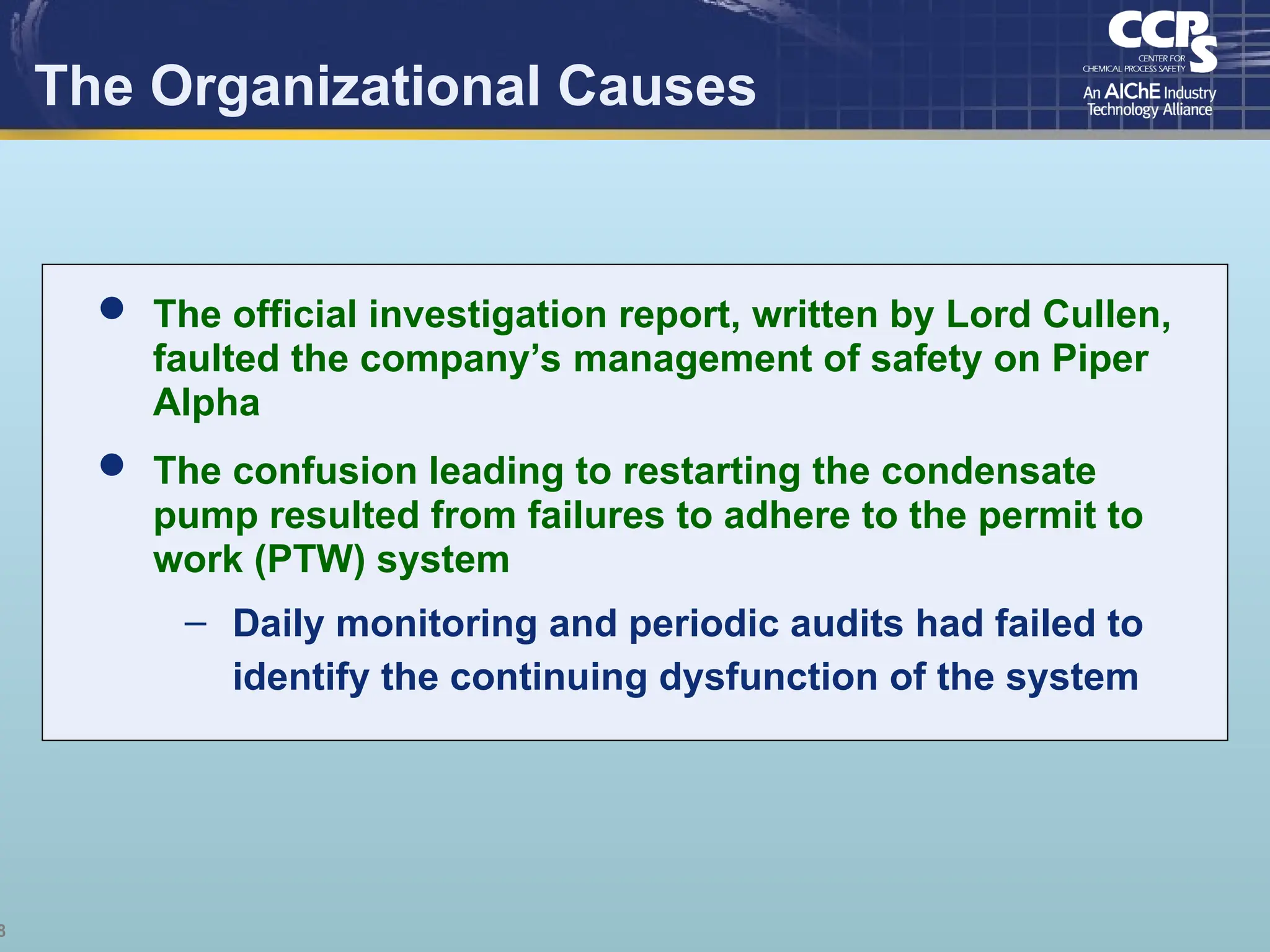

- 28. 8 The Organizational Causes The official investigation report, written by Lord Cullen, faulted the company’s management of safety on Piper Alpha The confusion leading to restarting the condensate pump resulted from failures to adhere to the permit to work (PTW) system – Daily monitoring and periodic audits had failed to identify the continuing dysfunction of the system

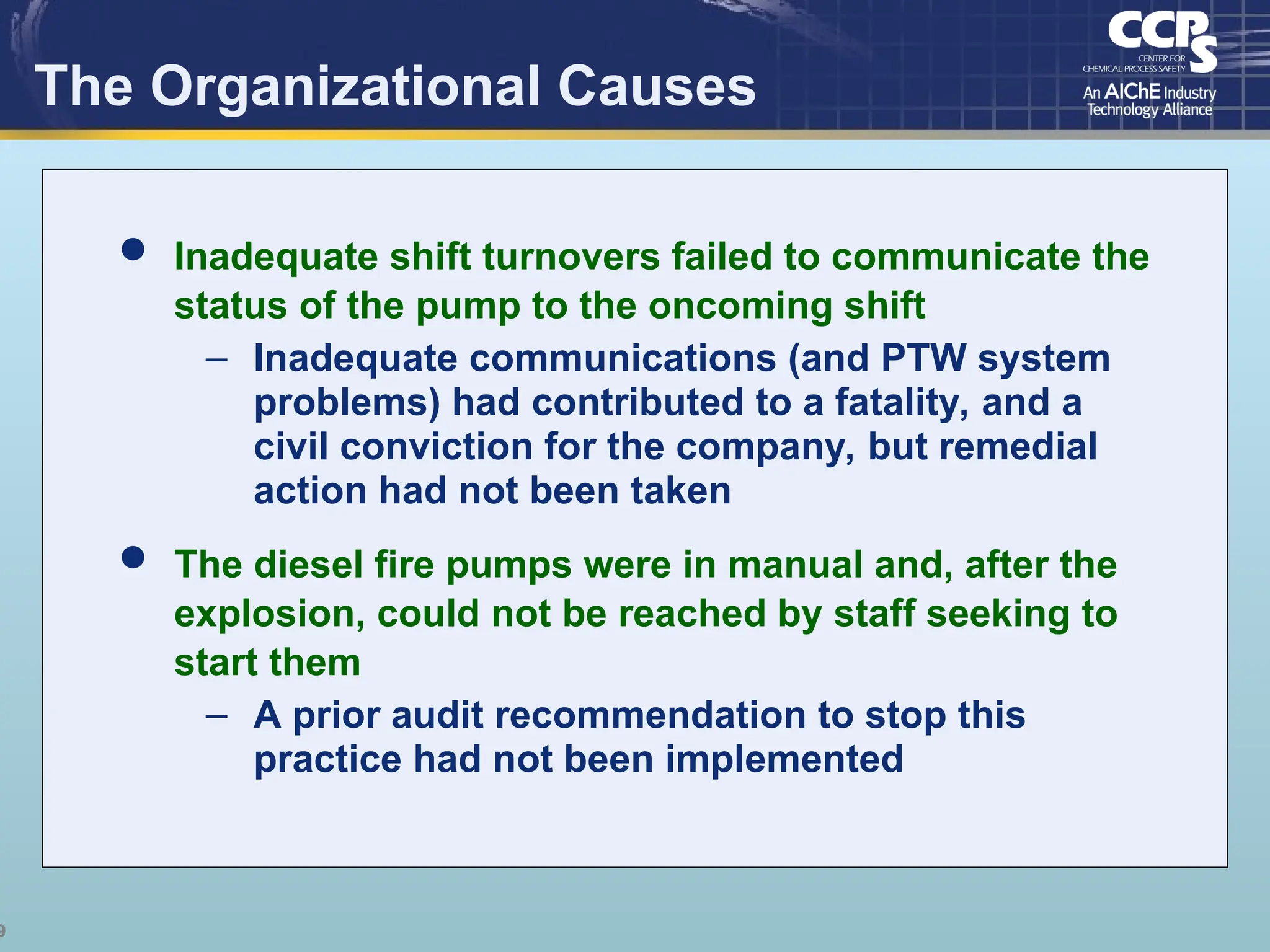

- 29. 9 The Organizational Causes Inadequate shift turnovers failed to communicate the status of the pump to the oncoming shift – Inadequate communications (and PTW system problems) had contributed to a fatality, and a civil conviction for the company, but remedial action had not been taken The diesel fire pumps were in manual and, after the explosion, could not be reached by staff seeking to start them – A prior audit recommendation to stop this practice had not been implemented

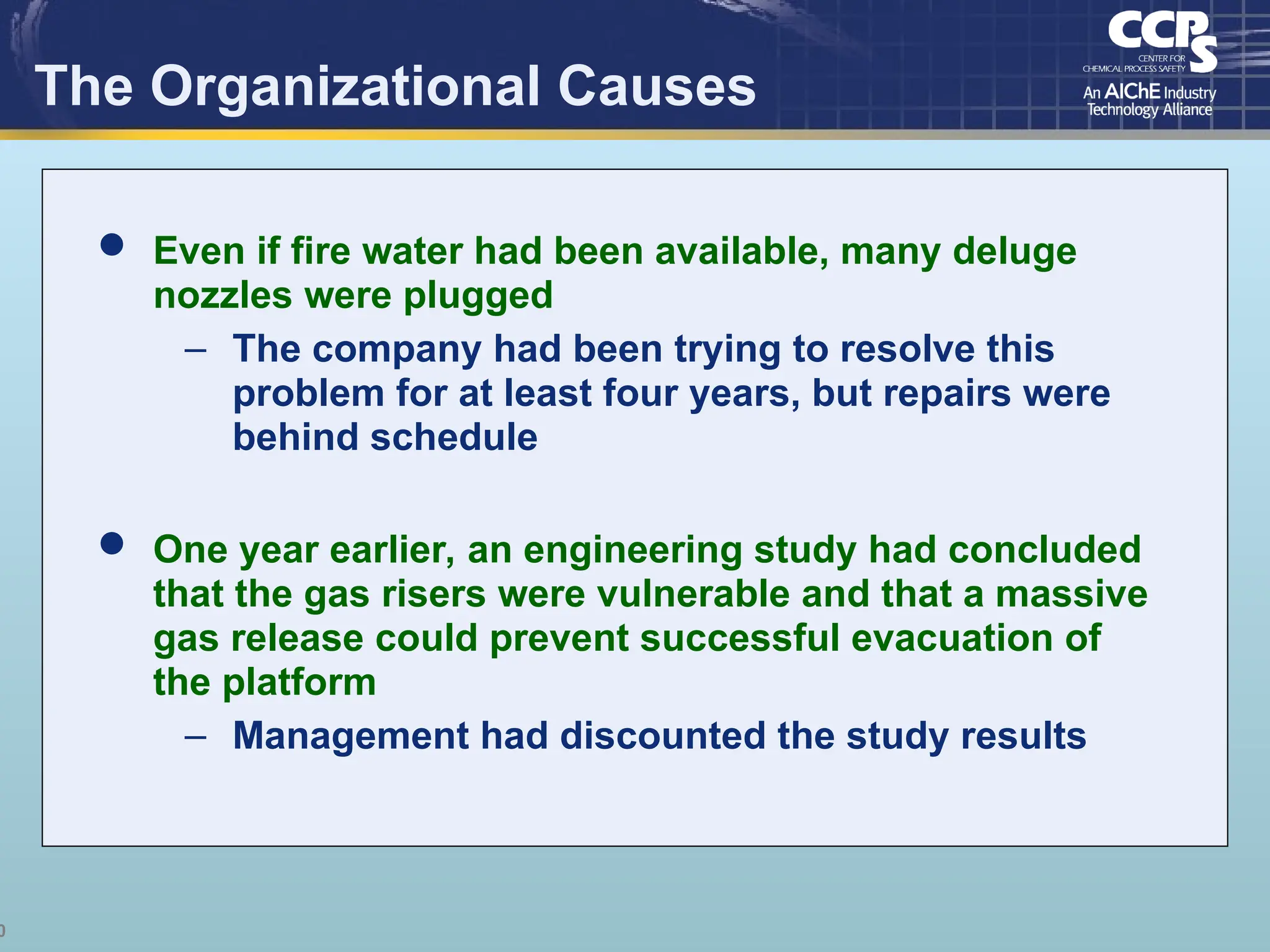

- 30. 0 The Organizational Causes Even if fire water had been available, many deluge nozzles were plugged – The company had been trying to resolve this problem for at least four years, but repairs were behind schedule One year earlier, an engineering study had concluded that the gas risers were vulnerable and that a massive gas release could prevent successful evacuation of the platform – Management had discounted the study results

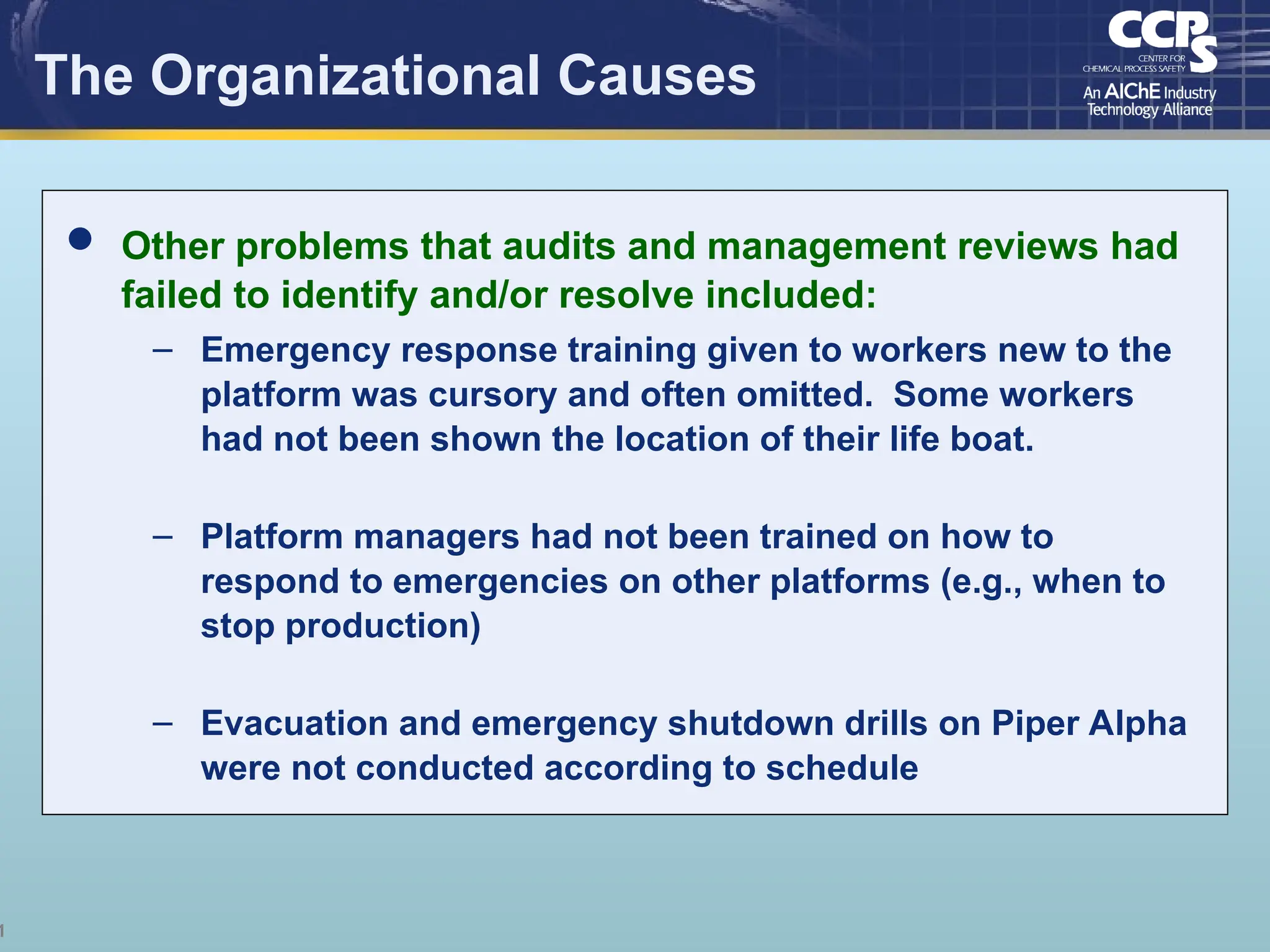

- 31. 1 The Organizational Causes Other problems that audits and management reviews had failed to identify and/or resolve included: – Emergency response training given to workers new to the platform was cursory and often omitted. Some workers had not been shown the location of their life boat. – Platform managers had not been trained on how to respond to emergencies on other platforms (e.g., when to stop production) – Evacuation and emergency shutdown drills on Piper Alpha were not conducted according to schedule

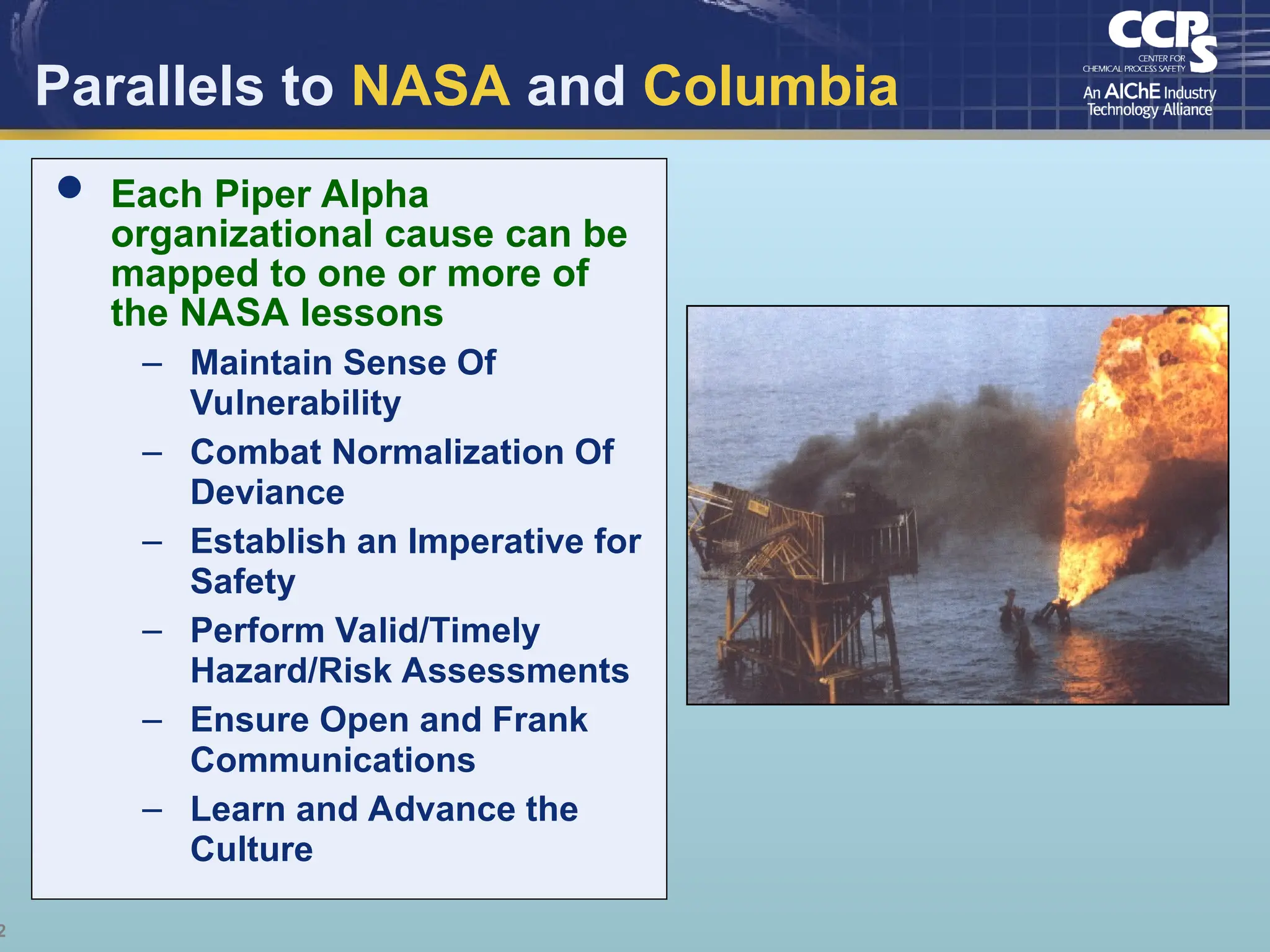

- 32. 2 Parallels to NASAand Columbia Each Piper Alpha organizational cause can be mapped to one or more of the NASA lessons – Maintain Sense Of Vulnerability – Combat Normalization Of Deviance – Establish an Imperative for Safety – Perform Valid/Timely Hazard/Risk Assessments – Ensure Open and Frank Communications – Learn and Advance the Culture

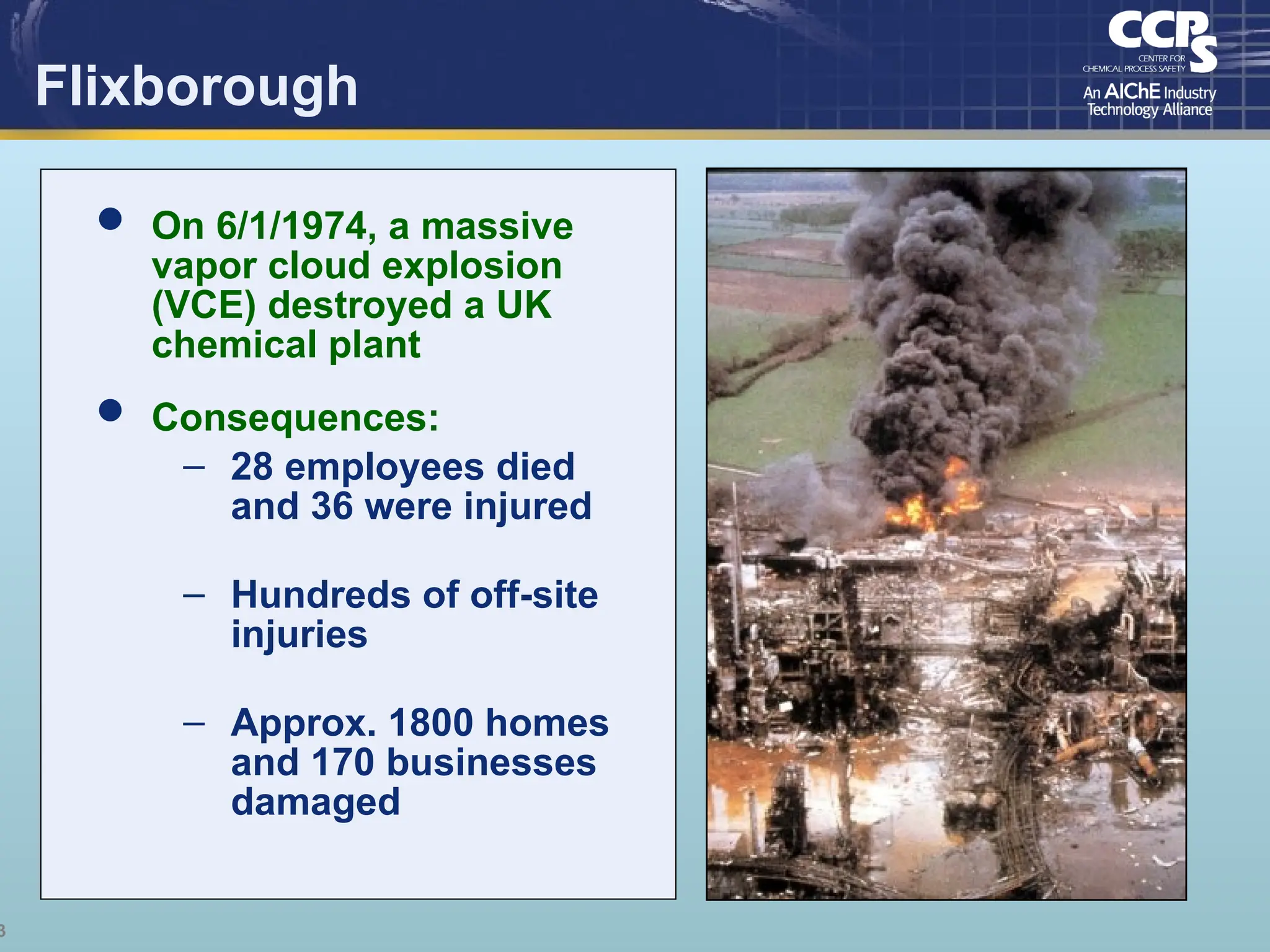

- 33. 3 Flixborough On 6/1/1974,a massive vapor cloud explosion (VCE) destroyed a UK chemical plant Consequences: – 28 employees died and 36 were injured – Hundreds of off-site injuries – Approx. 1800 homes and 170 businesses damaged

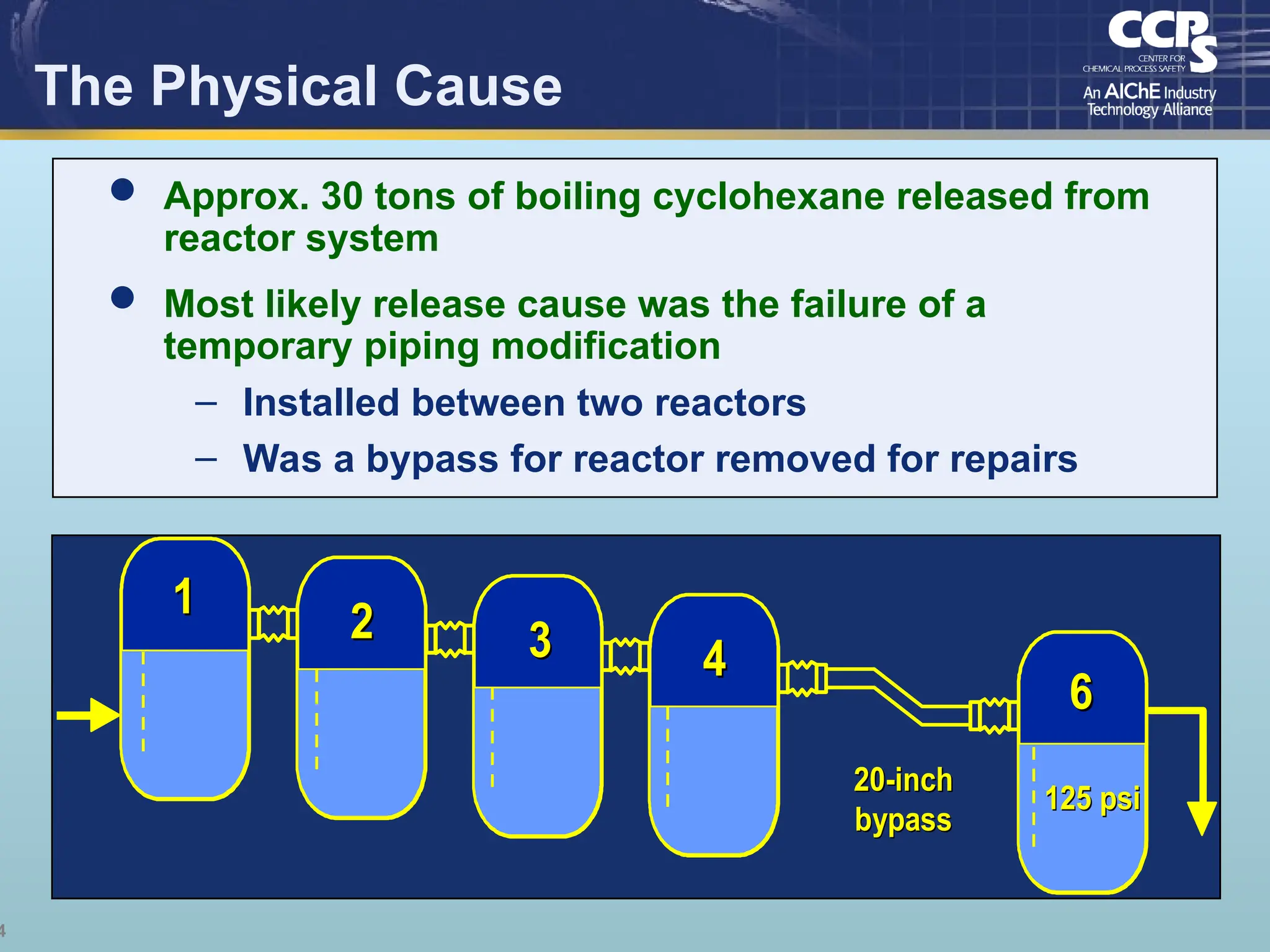

- 34. 4 The Physical Cause 2 23 3 4 4 6 6 20 20- -inch inch bypass bypass 125 psi 125 psi 1 1 2 2 3 3 4 4 6 6 20 20- -inch inch bypass bypass 125 psi 125 psi 1 1 Approx. 30 tons of boiling cyclohexane released from reactor system Most likely release cause was the failure of a temporary piping modification – Installed between two reactors – Was a bypass for reactor removed for repairs

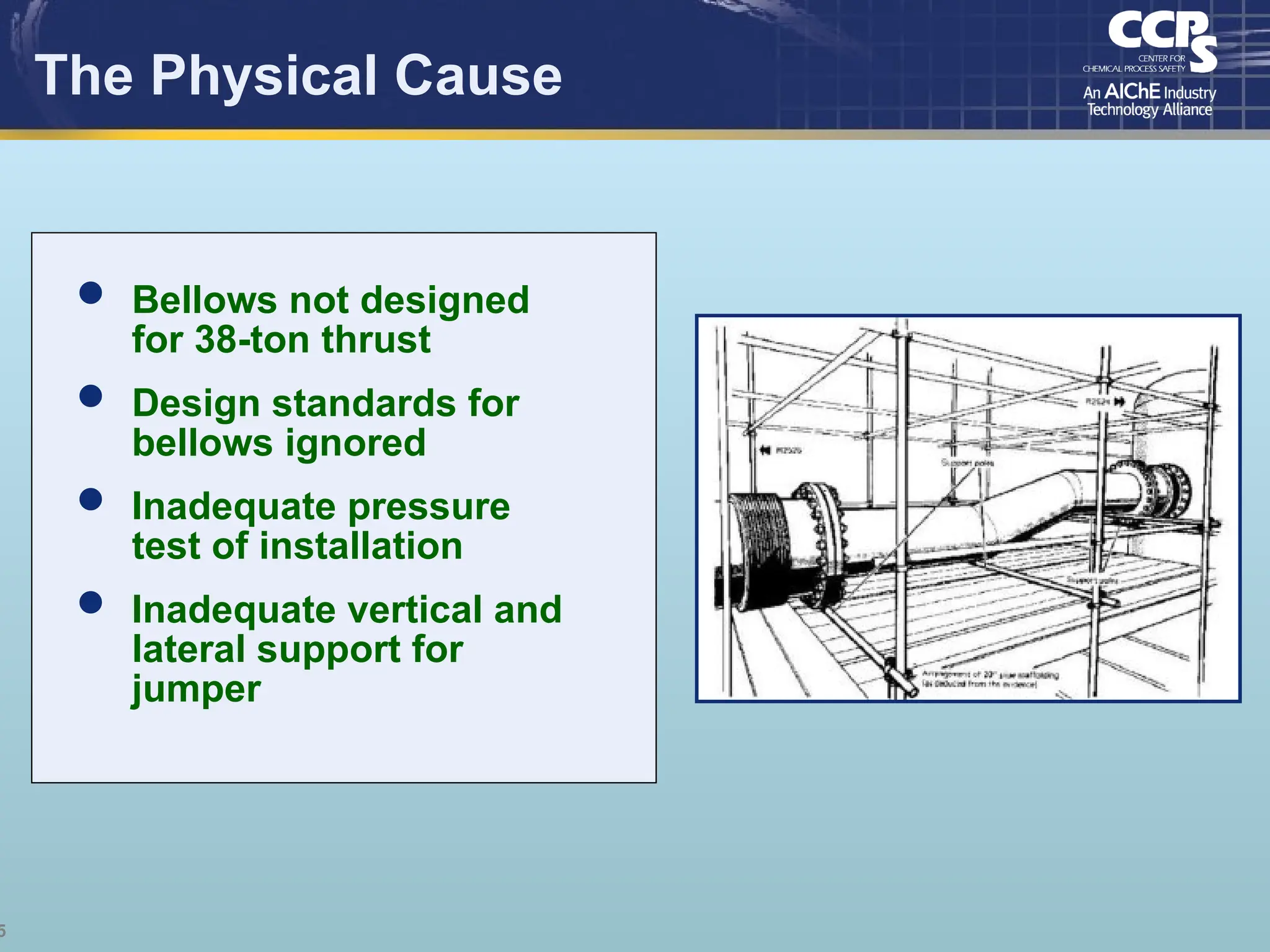

- 35. 5 The Physical Cause Bellows not designed for 38-ton thrust Design standards for bellows ignored Inadequate pressure test of installation Inadequate vertical and lateral support for jumper

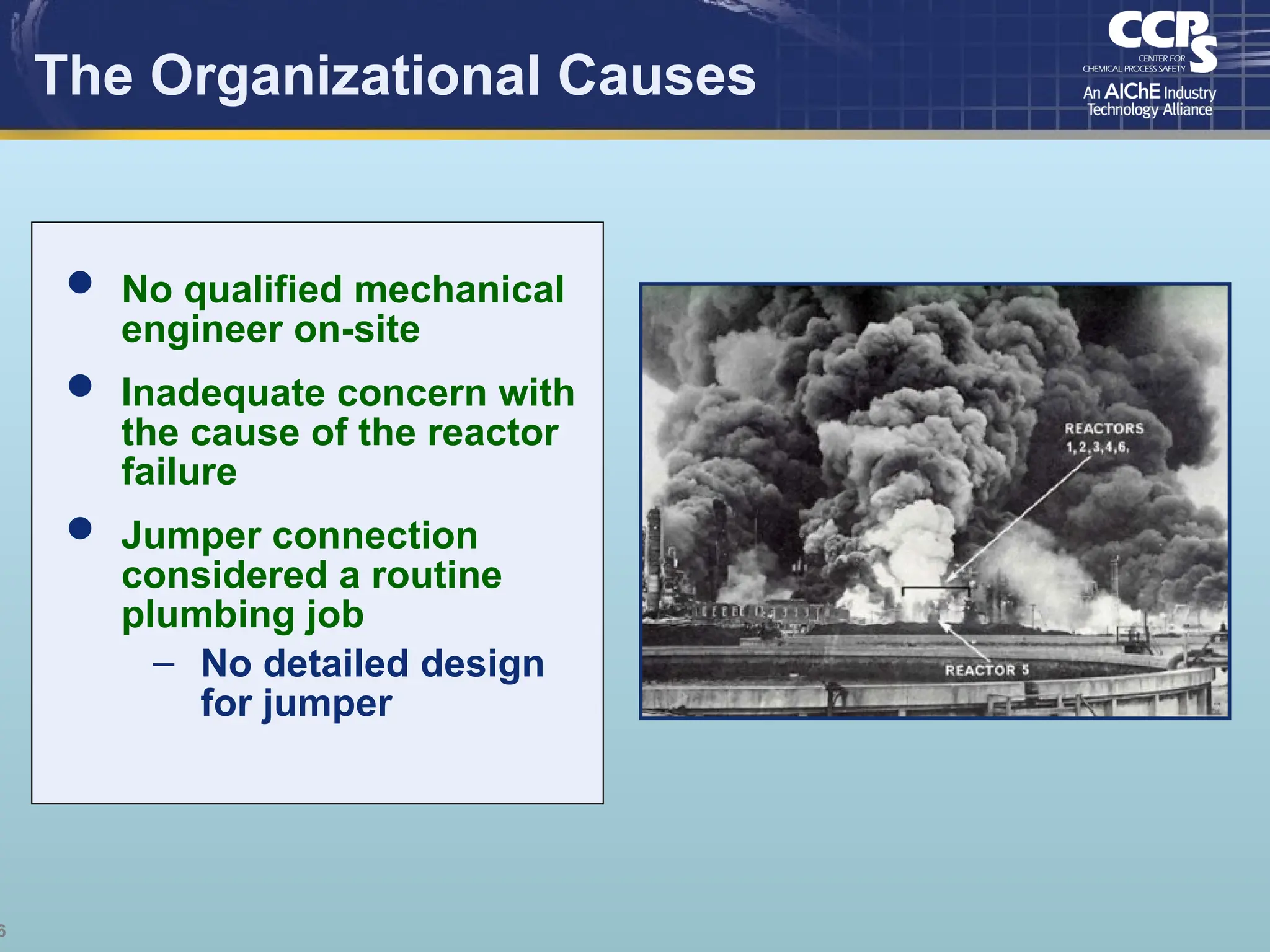

- 36. 6 The Organizational Causes No qualified mechanical engineer on-site Inadequate concern with the cause of the reactor failure Jumper connection considered a routine plumbing job – No detailed design for jumper
- 37. 7 The Organizational Causes “Hurry up” attitude of management – Overworked staff did not take time to properly analyze their actions

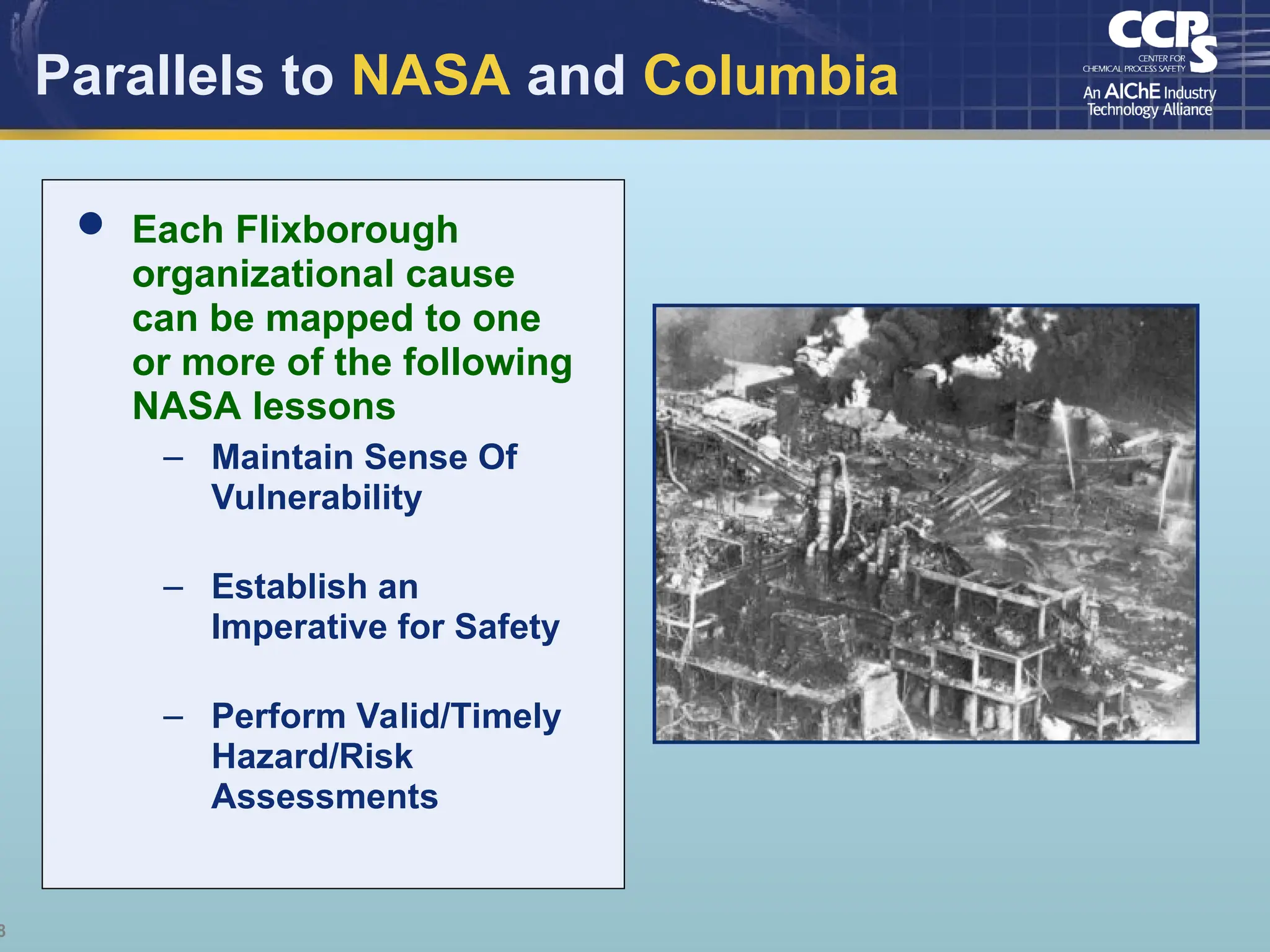

- 38. 8 Parallels to NASAand Columbia Each Flixborough organizational cause can be mapped to one or more of the following NASA lessons – Maintain Sense Of Vulnerability – Establish an Imperative for Safety – Perform Valid/Timely Hazard/Risk Assessments

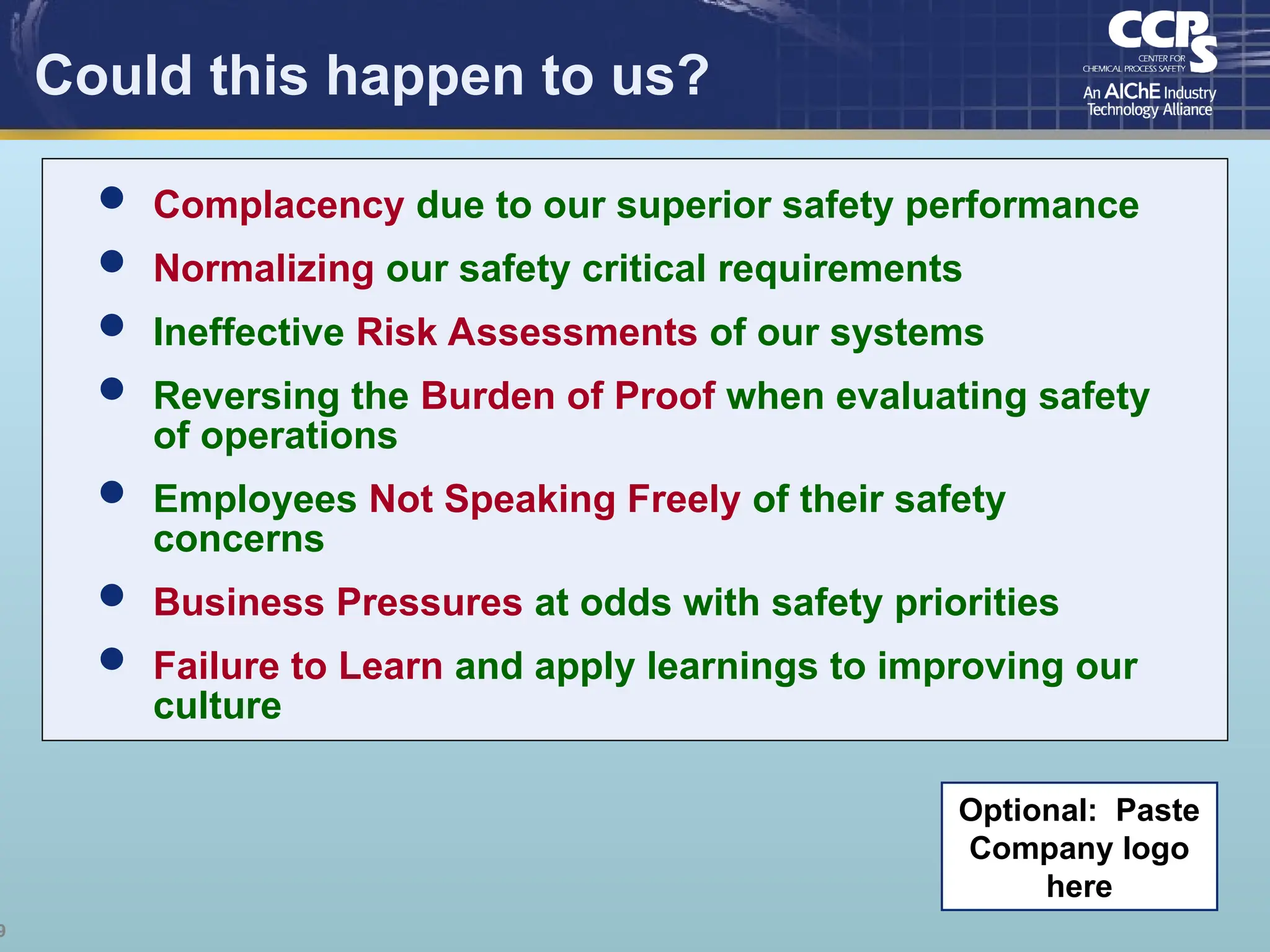

- 39. 9 Could this happento us? Optional: Paste Company logo here Complacency due to our superior safety performance Normalizing our safety critical requirements Ineffective Risk Assessments of our systems Reversing the Burden of Proof when evaluating safety of operations Employees Not Speaking Freely of their safety concerns Business Pressures at odds with safety priorities Failure to Learn and apply learnings to improving our culture

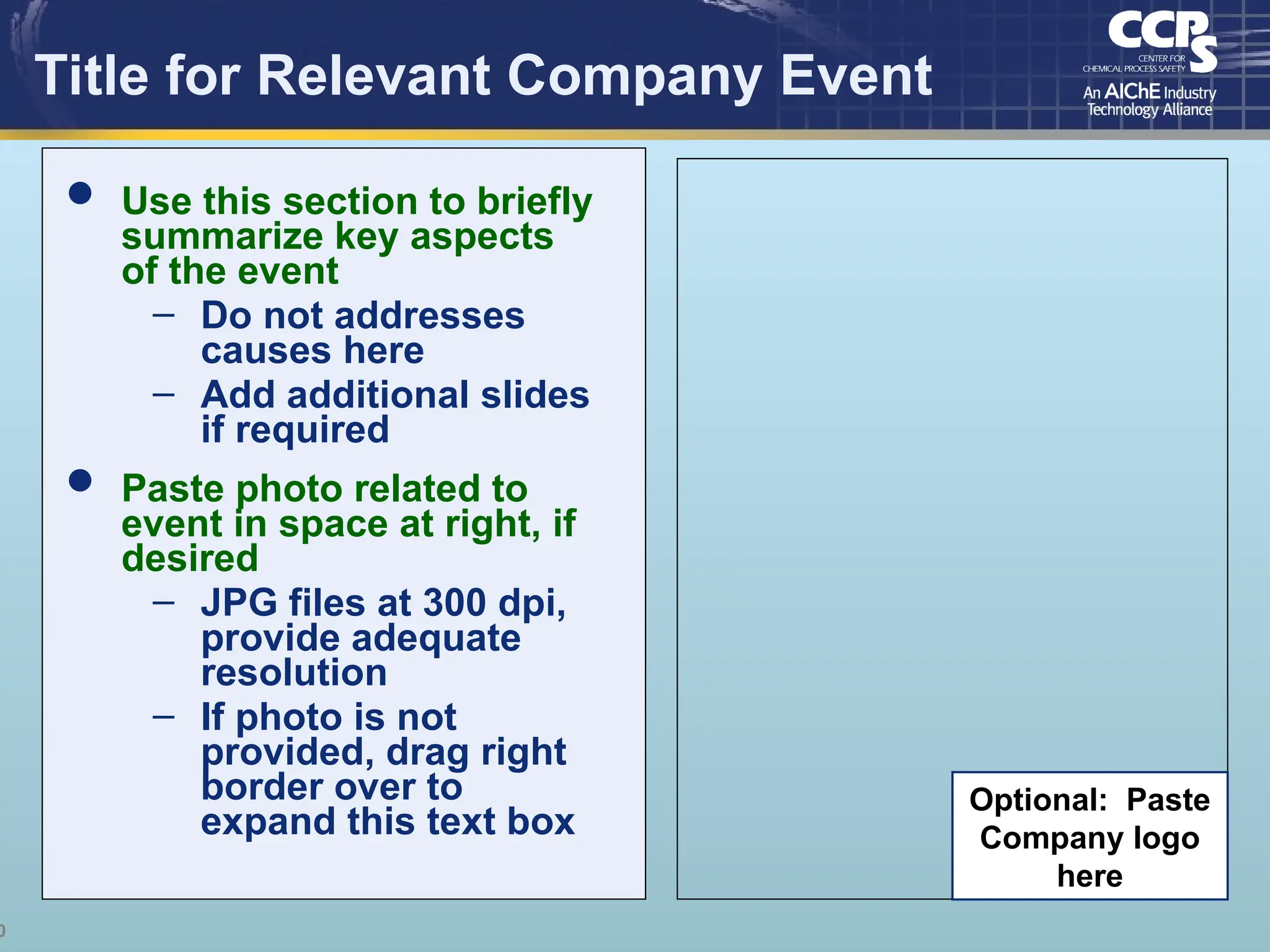

- 40. 0 Title for RelevantCompany Event Use this section to briefly summarize key aspects of the event – Do not addresses causes here – Add additional slides if required Paste photo related to event in space at right, if desired – JPG files at 300 dpi, provide adequate resolution – If photo is not provided, drag right border over to expand this text box Optional: Paste Company logo here

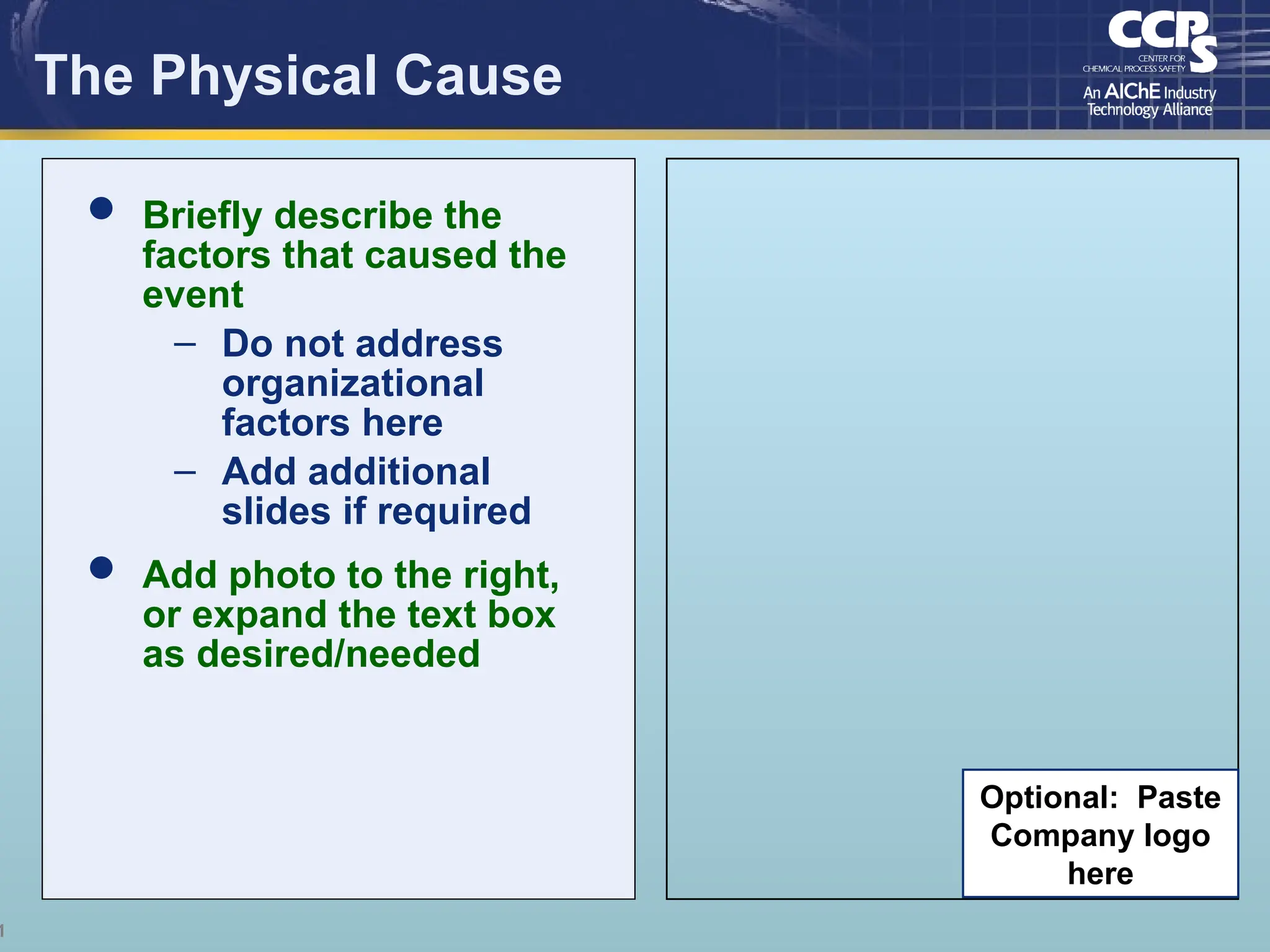

- 41. 1 The Physical Cause Briefly describe the factors that caused the event – Do not address organizational factors here – Add additional slides if required Add photo to the right, or expand the text box as desired/needed Optional: Paste Company logo here

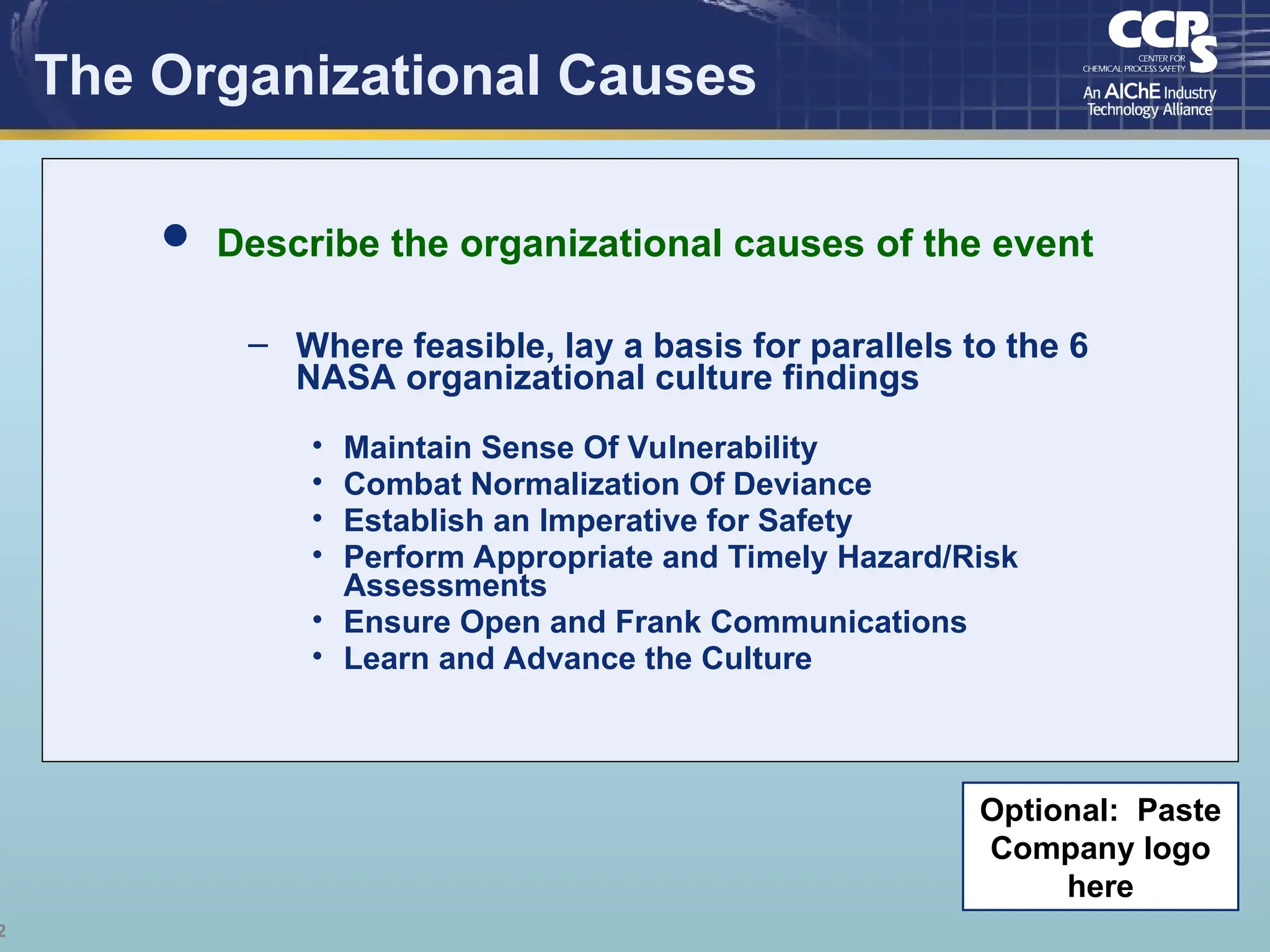

- 42. 2 The Organizational Causes Describe the organizational causes of the event – Where feasible, lay a basis for parallels to the 6 NASA organizational culture findings • Maintain Sense Of Vulnerability • Combat Normalization Of Deviance • Establish an Imperative for Safety • Perform Appropriate and Timely Hazard/Risk Assessments • Ensure Open and Frank Communications • Learn and Advance the Culture Optional: Paste Company logo here

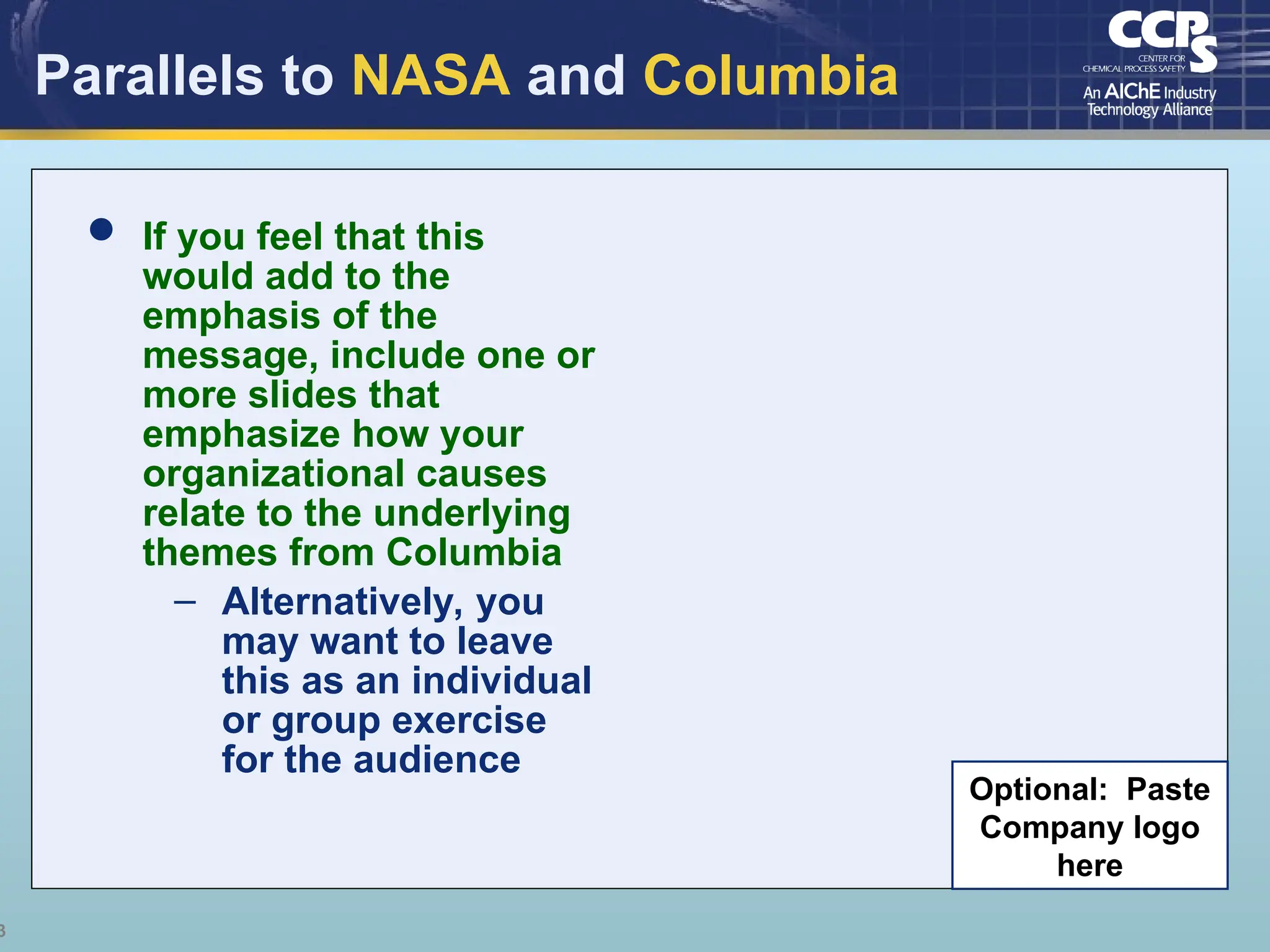

- 43. 3 Parallels to NASAand Columbia If you feel that this would add to the emphasis of the message, include one or more slides that emphasize how your organizational causes relate to the underlying themes from Columbia – Alternatively, you may want to leave this as an individual or group exercise for the audience Optional: Paste Company logo here
- 44. Indicators Of Organizational CultureWeaknesses The following slides provide examples of indicators that your organization is…

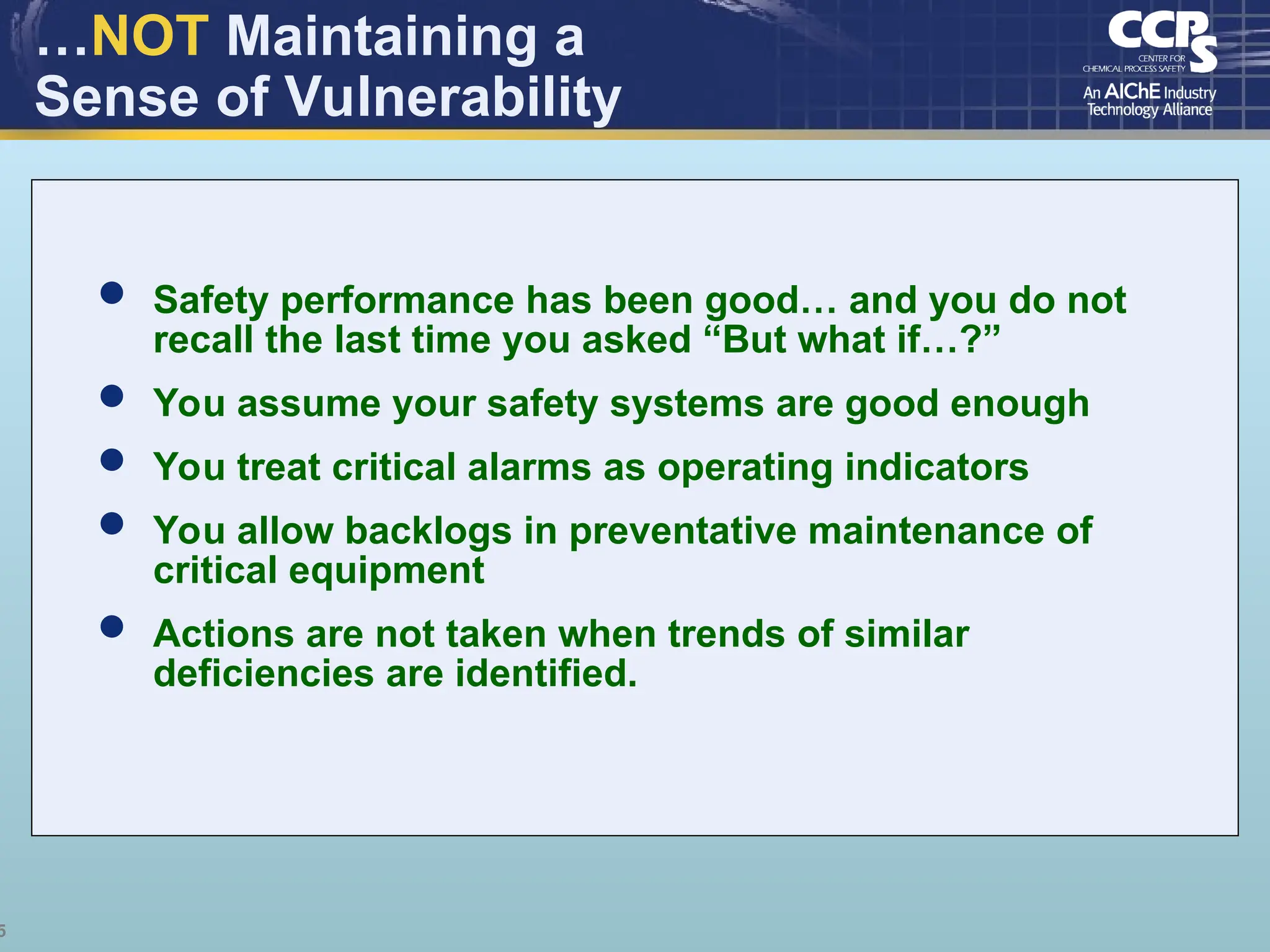

- 45. 5 …NOT Maintaining a Senseof Vulnerability Safety performance has been good… and you do not recall the last time you asked “But what if…?” You assume your safety systems are good enough You treat critical alarms as operating indicators You allow backlogs in preventative maintenance of critical equipment Actions are not taken when trends of similar deficiencies are identified.

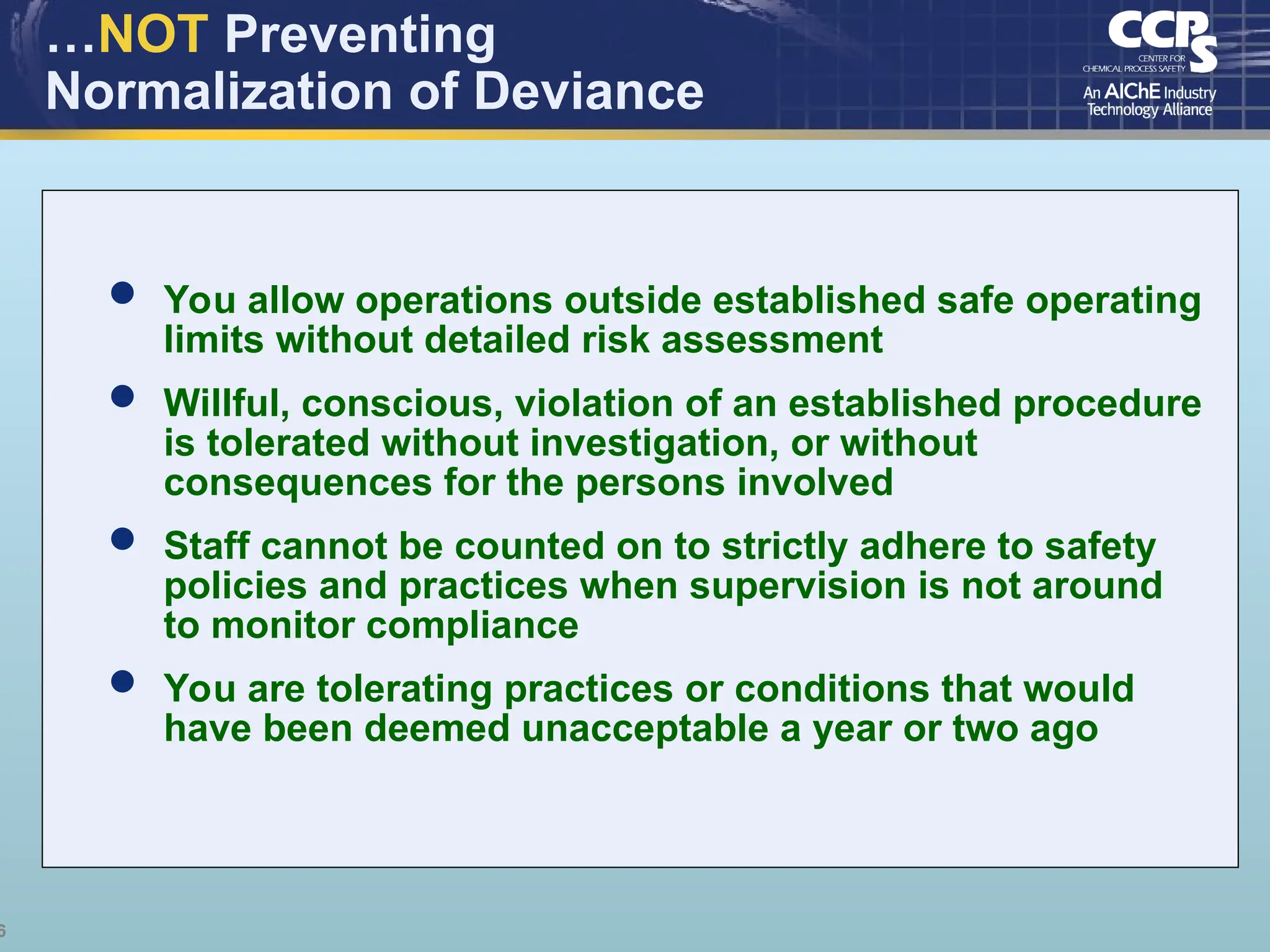

- 46. 6 …NOT Preventing Normalization ofDeviance You allow operations outside established safe operating limits without detailed risk assessment Willful, conscious, violation of an established procedure is tolerated without investigation, or without consequences for the persons involved Staff cannot be counted on to strictly adhere to safety policies and practices when supervision is not around to monitor compliance You are tolerating practices or conditions that would have been deemed unacceptable a year or two ago

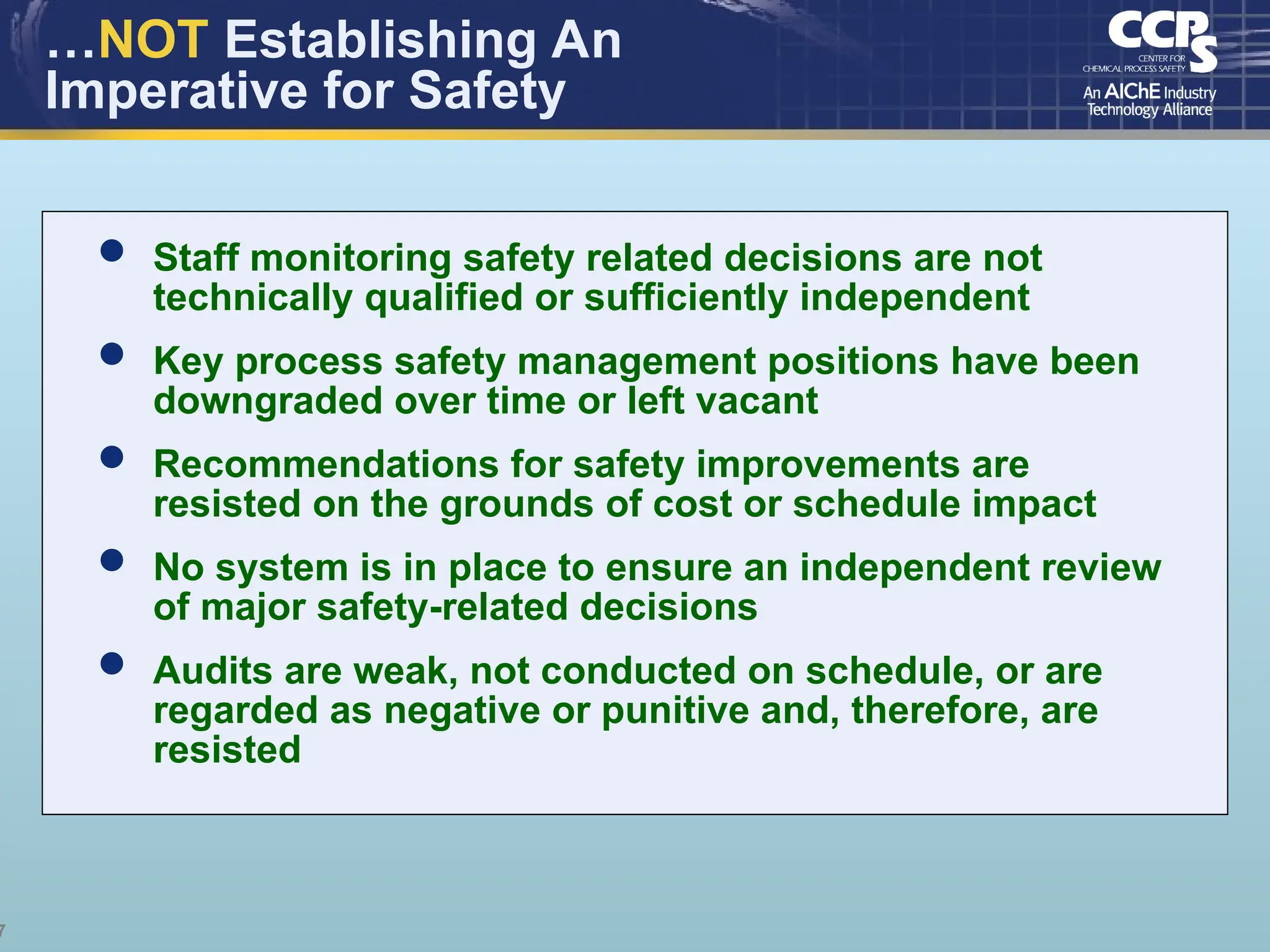

- 47. 7 …NOT Establishing An Imperativefor Safety Staff monitoring safety related decisions are not technically qualified or sufficiently independent Key process safety management positions have been downgraded over time or left vacant Recommendations for safety improvements are resisted on the grounds of cost or schedule impact No system is in place to ensure an independent review of major safety-related decisions Audits are weak, not conducted on schedule, or are regarded as negative or punitive and, therefore, are resisted

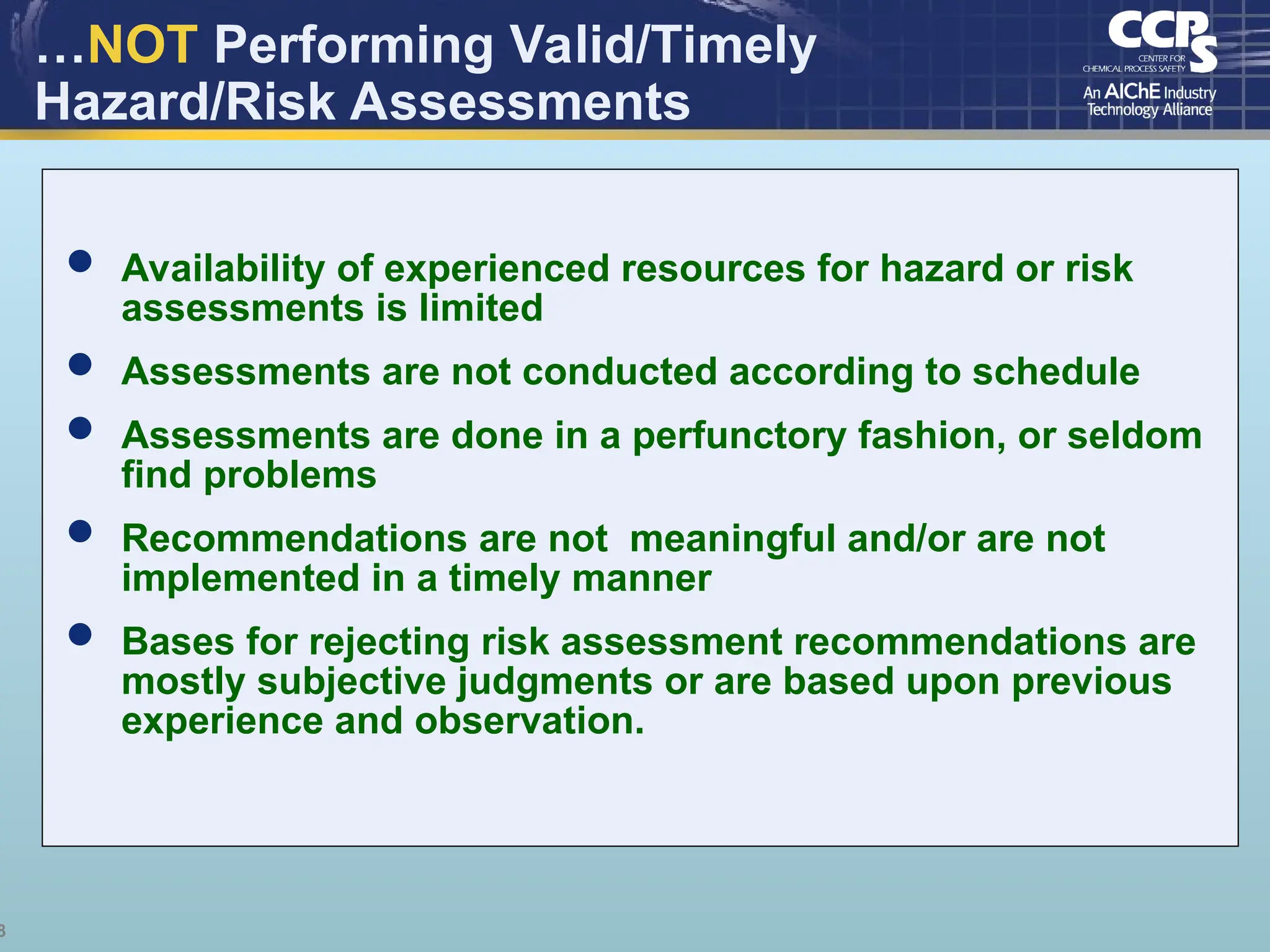

- 48. 8 …NOT Performing Valid/Timely Hazard/RiskAssessments Availability of experienced resources for hazard or risk assessments is limited Assessments are not conducted according to schedule Assessments are done in a perfunctory fashion, or seldom find problems Recommendations are not meaningful and/or are not implemented in a timely manner Bases for rejecting risk assessment recommendations are mostly subjective judgments or are based upon previous experience and observation.

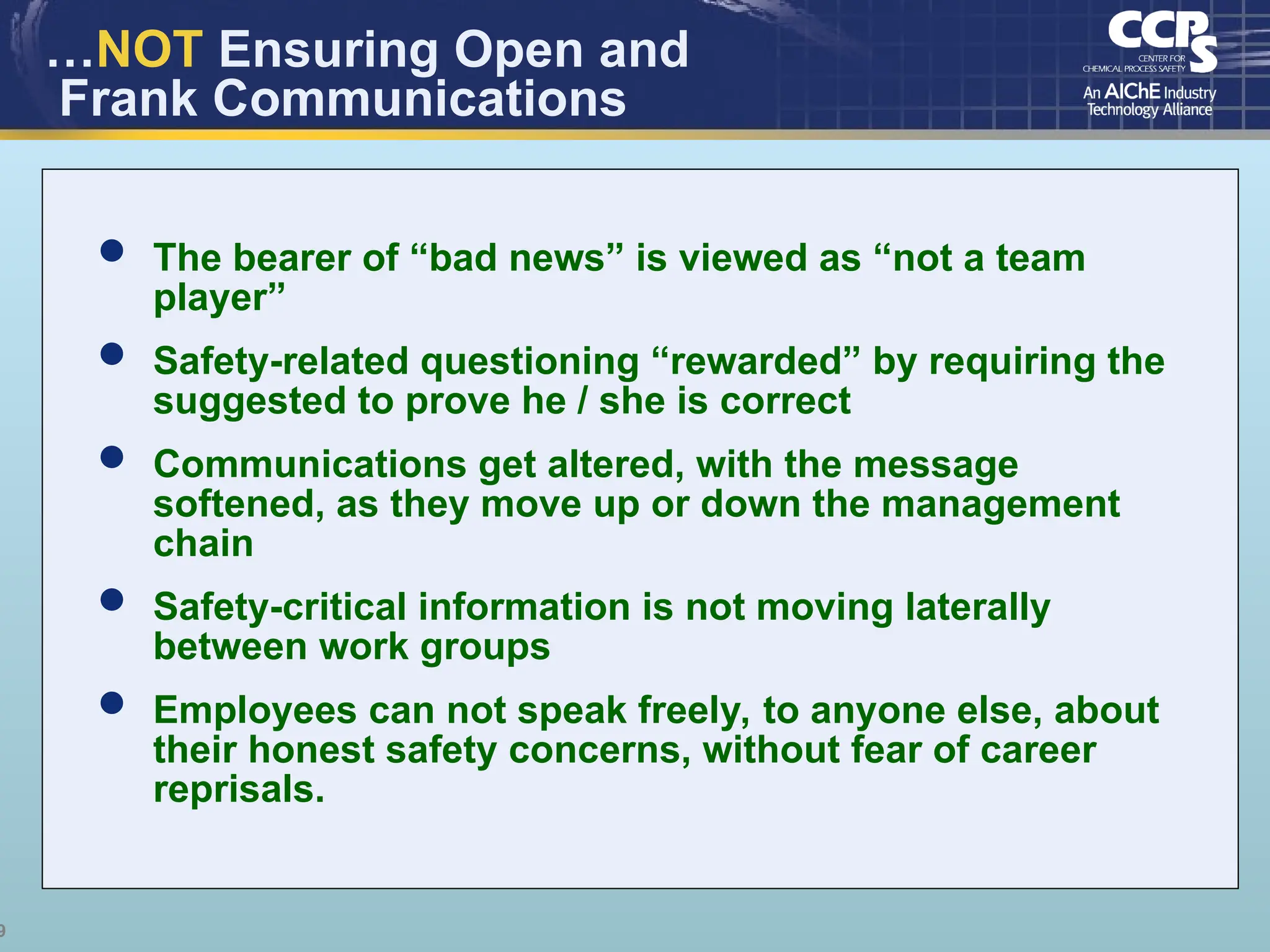

- 49. 9 …NOT Ensuring Openand Frank Communications The bearer of “bad news” is viewed as “not a team player” Safety-related questioning “rewarded” by requiring the suggested to prove he / she is correct Communications get altered, with the message softened, as they move up or down the management chain Safety-critical information is not moving laterally between work groups Employees can not speak freely, to anyone else, about their honest safety concerns, without fear of career reprisals.

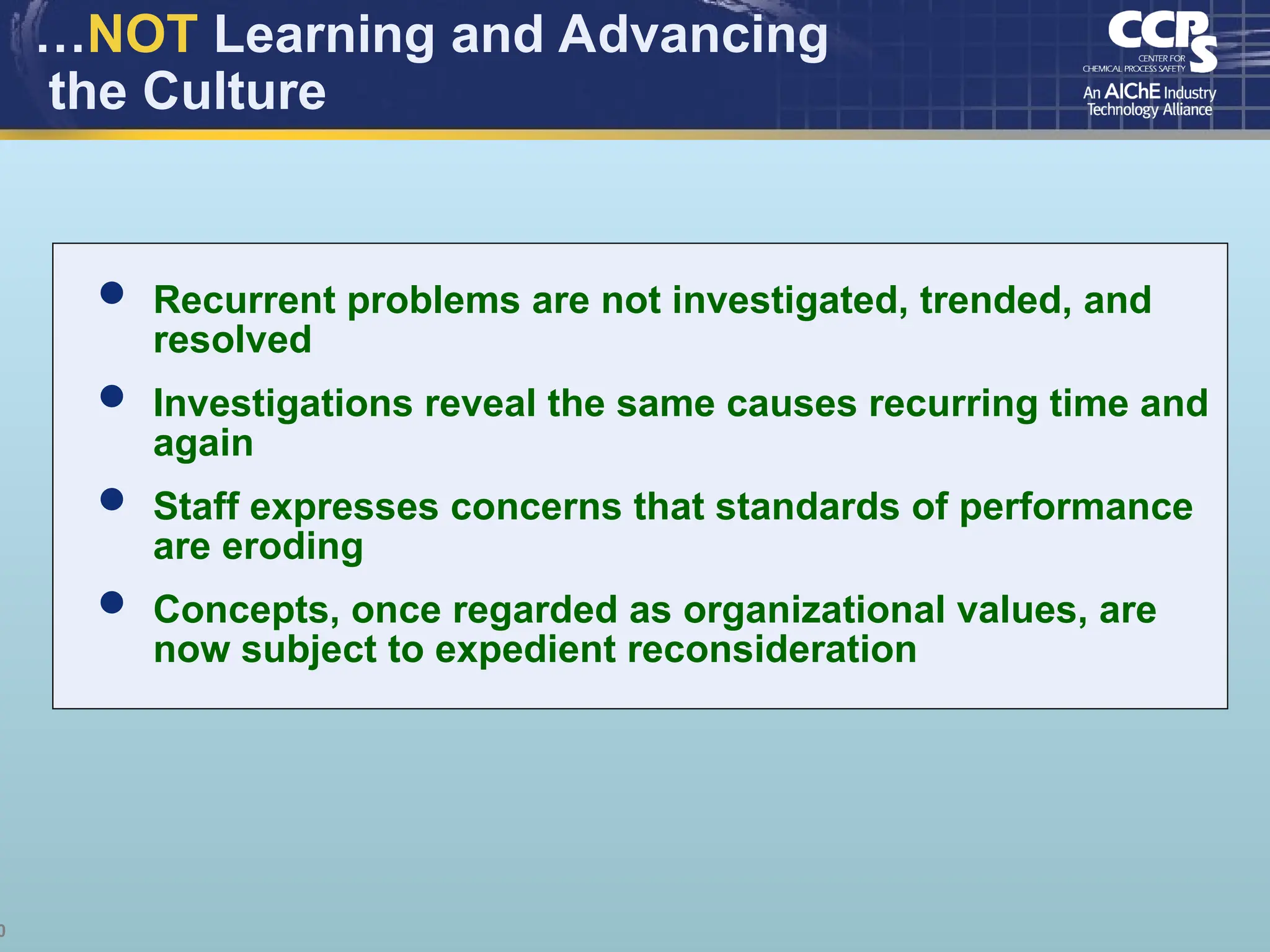

- 50. 0 …NOT Learning andAdvancing the Culture Recurrent problems are not investigated, trended, and resolved Investigations reveal the same causes recurring time and again Staff expresses concerns that standards of performance are eroding Concepts, once regarded as organizational values, are now subject to expedient reconsideration

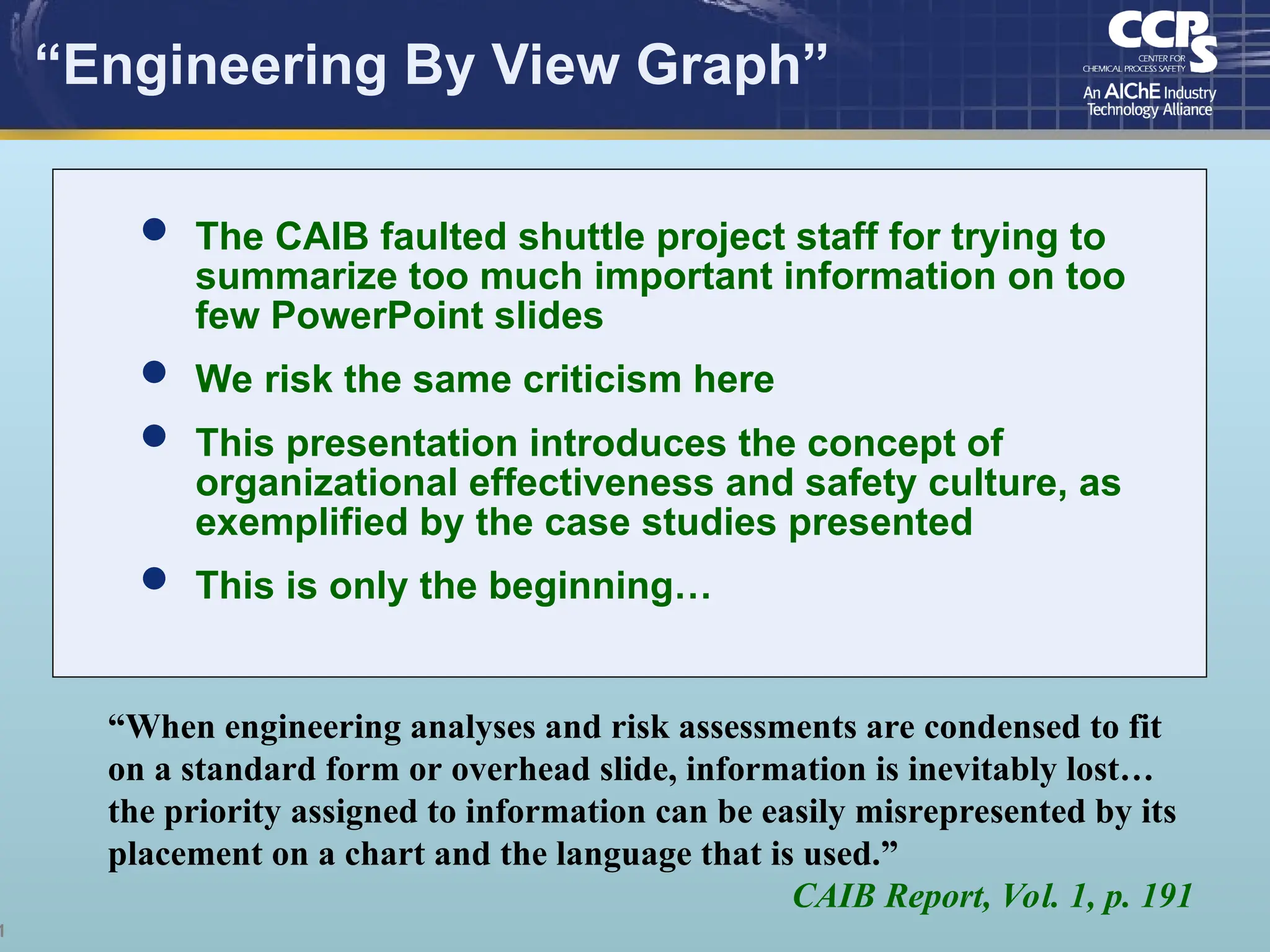

- 51. 1 “Engineering By ViewGraph” “When engineering analyses and risk assessments are condensed to fit on a standard form or overhead slide, information is inevitably lost… the priority assigned to information can be easily misrepresented by its placement on a chart and the language that is used.” CAIB Report, Vol. 1, p. 191 The CAIB faulted shuttle project staff for trying to summarize too much important information on too few PowerPoint slides We risk the same criticism here This presentation introduces the concept of organizational effectiveness and safety culture, as exemplified by the case studies presented This is only the beginning…
Editor's Notes
- #1 The primary focus of this presentation are the circumstances leading up to the Columbia shuttle disaster. However, to emphasize that Columbia was not a one-of-a-kind event, and to illustrate the potential consequence of failing to acknowledge and address cultural weaknesses, the Challenger shuttle disaster (which occurred 17 years before) is described, and parallels are drawn. Also, to provide relevance to our industry, the Piper Alpha and Flixborough disasters are described in a way that emphasizes the general applicability of the safety culture learnings from Columbia. Most of the information in this presentation was taken from from the publicly available investigation reports. The Process Safety Culture project team feels that the lessons and organizational root causes identified in these four investigations are applicable to all organizations that operate facilities handling hazardous materials or that engage in hazardous activities. We have included some self-assessment questions at the end of the presentation that are intended to assist the presenter in determining whether these lessons are relevant to his or her organization.
- #2 On February 1, 2003, the Space Shuttle Columbia disintegrated during re-entry into the Earth’s atmosphere, killing all seven crewmembers aboard. Following the tragedy, a 13-member Columbia Accident Investigation Board (CAIB) investigated this incident and identified both its physical cause as well as the underlying organizational causes. The board warned that, without sweeping changes to address the underlying causes, "the scene is set for another accident.“ This incident and its findings offer many lessons that are likely to be applicable to any organization that is involved in high risk activities. [The photos on this slide are two views, taken from the ground, of Columbia as it was breaking apart.]
- #3 The physical cause leading to the loss of Columbia and its crew was a breach in the Thermal Protection System (TPS) on the leading edge of the left wing, caused by a piece of insulating foam that separated from the external fuel tank and struck the wing at 81.7 seconds after launch. The circles and arrow in the figure show the point of origination, point of impact, and likely trajectory of the foam. While the foam is lightweight, it would have been moving at a speed of about 500 mph relative to the shuttle at impact. (The external fuel tank assembly, which includes the cryogenic liquid hydrogen and liquid oxygen tanks, is insulated to prevent the formation of ice that could break free during launch and damage the shuttle. The foam broke away from the left bipod ramp section of the tank; i.e., a “strut” that anchors the fuel tank to the shuttle during launch). During re-entry, the breach in the TPS allowed superheated air to penetrate the left wing and progressively melt the aluminum structure of the wing. This weakened the structure until increasing aerodynamic forces caused failure of the wing, loss of control, and break-up of the Shuttle. This breakup occurred in a flight regime during which, given the current design of the Shuttle, there was no possibility for the crew to survive (the shuttle’s speed would have been on the order of 10,000 mph at the time).
- #4 During routine reviews on the 2nd day of the mission, of video taken during the launch, it was observed that a piece of foam broke free from the external tank and struck the shuttle. The circle in the photo shows the cloud of debris that was produced by the collision. Mission technical experts almost immediately began to assess the significance of the foam strike. A special Damage Assessment Team (DAT) was formed to study the matter. A series of requests were made for either direct inspection of the wing by the astronauts (which would have required an unscheduled space walk) or photographic imagery from ground- or space-based cameras operated by US military or intelligence agencies. Shuttle Program management either refused over overruled these requests (some of which had apparently been looked upon with disfavor since they had been submitted outside of the normal organizational channels). Shuttle Program management quickly formed the opinion that the foam strike was not a safety-of-flight issue and was, at most, a maintenance issue that would complicate preparing Columbia for its next mission. This opinion was based, in part, on the knowledge that previous foam strikes had not caused serious safety issues. While technical experts in the engineering ranks were concerned about the potential for damage to the shuttle, management did not see this as an issue, and no initiatives were implemented for inspecting the shuttle, or for planning any alternatives to its scheduled routine return to Earth.
- #5 To understand the full significance of the Columbia disaster, it is necessary to recall the details of the Challenger disaster which occurred 17 years earlier. The Challenger space shuttle was destroyed in a massive explosion approximately 73 seconds into its launch. Subsequent investigation revealed that a field assembly joint in one of the two solid rocket boosters (SRBs) had failed, allowing hot combustion gases to contact the external fuel tank. The two illustrations show a cross-section of a SRB field joint, and the jet of flame issuing from the joint during take-off. The joint design incorporates two o-rings to seal the joint during the firing of the rocket. Note that the SRBs, unlike the main engines on the shuttle, cannot be “turned off”after they are ignited.
- #6 The external fuel tank carries the liquid hydrogen and liquid oxygen which fuel the main engines on the shuttle. The flame from the field joint impacted the external fuel tank at a point where the liquid hydrogen tank was located. The liquid hydrogen tank failed and the resulting explosion caused the SRB to rotate away from the external tank in a manner that resulted in the nose of the SRB puncturing the liquid oxygen tank like a can opener. The simultaneous release of the liquid hydrogen and liquid oxygen resulted in a massive explosion that destroyed the shuttle orbiter. [The photo on the left shows the SRBs, still burning, rocketing away from the shuttle debris just after the explosion.]
- #7 The subsequent investigation confirmed that a field joint had indeed failed when flames from the SRB burned through both the primary and secondary o-rings and the putty between them. Further, it was learned that SRB o-ring damage was not unique to this mission. A pattern of o-ring damage extending over several years had preceded this mission. Even though progressively more severe degrees of damage had been observed over time, Shuttle Program management had grown increasingly complacent to o-ring damage, since the o-ring damage had not yet seriously impacted a mission.
- #8 After identifying the immediate, physical cause of the incident, the Commission investigated the organizational factors that had contributed to the event. Even though technical experts had been studying the field joint problem, and even though they expressed grave reservations about the safety of this particular launch, the nature and intensity of their concerns did not reach Shuttle Program management. The organizational culture factors that stifled effective communications are discussed in more detail in the Challenger Case History included in this package. At the same time, the NASA organization was riding on an excess of confidence, inspired by past successes – notably the Apollo lunar program. Even though the nature of the agency’s mission, and the agency itself, had changed significantly (e.g., NASA had experienced significant budget and staffing cuts), NASA continued to view, at least implicitly, its past performance as a predictor of future success. In addition, NASA management believed that they were in a struggle to prevent the demise of the Shuttle program. NASA had to prove the reliability of the Shuttle in order to obtain the funding necessary to sustain the program. This required that NASA meet a sustained schedule of launches that was far more ambitious than any previously demonstrated. The Commission felt that the resulting pressures on Shuttle Program management distracted attention away from the consideration of matters that, if addressed, would likely have delayed the program. The Commission report included a number of organizational and safety culture recommendations that were felt necessary to prevent future catastrophic incidents. Some, regrettably, were not implemented.
- #9 With this background, let us return to Columbia… Once the physical cause that led to the disaster was determined, the CAIB turned its attention to organizational cultural factors behind the failure, just as the Rogers Commission had. The CAIB was already familiar with the problems rooted in the Shuttle Program’s history and culture, including the original compromises that were required to gain approval for the Shuttle, subsequent years of resource constraints, fluctuating priorities, schedule pressures, mischaracterization of the Shuttle as an operational rather than developmental or experimental vehicle, and lack of an agreed upon national vision for human space flight. As the nest series of slides will show, the CAIB found a number of disconcerting similarities between the organizational causes of the Columbia and those of Challenger, 17 years before.
- #10 Recognizing that Shuttle Program management had almost immediately made an a priori decision that the foam strike could not be a problem, the CAIB was seeking to understand two issues: Why was it that serious concerns about the integrity of Columbia, raised by technical experts within one day after the launch, were not acted upon in the two weeks available between launch and return? Were there cultural patterns emerging from the Columbia accident that were the same as those first identified after the Challenger tragedy (almost exactly 17 years earlier) and, if so, why were they still present? The CAIB was interested in finding out how the “Organizational culture” contributed to the event.
- #11 We have identified six key organization culture themes within the Columbia report. While these themes may be self-explanatory … the following comments are included for your information. Maintain Sense Of Vulnerability. Since catastrophic accidents involving hazardous materials or activities are not very common, most organizations never have the unfortunate opportunity to experience one. This can create a false sense of security and decreased operating discipline, which can dull management system effectiveness. Lapses in critical prevention systems can result. Combat Normalization Of Deviance. When established engineering or operational constraints are consciously violated, without any resulting negative consequences, an organizational mindset is encouraged that more easily sanctions future violations. Such violations are more likely to lead to a serious accident. Establish an Imperative for Safety. This addresses a range of considerations, from showing visible support for safety through management actions, statements and priorities to soliciting and welcoming differing opinions on critical safety issues. Perform Valid/Timely Hazard/Risk Assessment. Without a complete understanding of risks, and the options available to mitigate them, management is hampered in making effective decisions. Perfunctory assessments lead to flawed decisions. Ensure Open and Frank Communications. Information must effectively flow both up and down the organization, and laterally between functional groups within the organization. “Bad news filters,” emphasis on “chain of command” communications, and “silo” mentalities can stifle the exchange of safety-critical information. Learn and Advance the Culture. We must be open to learning from our mistakes (and those of others), and to making the necessary corrections… or we will repeat those mistakes.
- #12 Even after it was established that a significant piece of debris had struck the orbiter during its initial ascent, a senior NASA official was in a denial mode on the eighth day of the mission. In the 17 years since the Challenger incident, the perception that similar catastrophic events could occur had been diminished by the NASA organizational culture. Shuttle managers were relying heavily on recent past success as a justification for their actions or inactions. Specifically, new, unforeseen issues were not subject to thorough technical analysis. A key observation made by the Rogers Commission after the Challenger incident was that the Shuttle was, and might always remain, an experimental vehicle. The second quote, made 9 years after Challenger, illustrates how the sense of vulnerability that should have been created by the Challenger incident had not persisted. Between 1986 and 1995, the shuttle had gone from being an experimental vehicle to a “mature and reliable system.” [The photo shows debris, recovered after the Columbia break-up, laid out on a grid pattern approximating where the debris had originated from on the shuttle.]
- #13 NASA’s “can do” attitude often made it hard for individuals (even groups) to step forward and say “this can’t be done.” The imperative of “we must succeed” had overwhelmed the consideration of “we could fail.” The belief that foam strikes did not jeopardize the Shuttle arose from a limited observation that no disasters had resulted from previous foam impacts – so, therefore, no disasters were going to occur in the future. Even though foam strikes represented a failure to comply with the design basis for the shuttle, NASA had “turned the experience of failure into the memory of success.”
- #14 Early in the Shuttle Program, foam loss had been considered a dangerous problem. Design engineers were extremely concerned about potential damage to the Orbiter and the fragile TPS. The assumption that only tiny pieces of debris would strike the Orbiter was also built into original design requirements. Over the 113 Shuttle missions flown, foam shedding and debris impacts had come to be accepted as routine and were viewed by Shuttle Program managers to be only a maintenance concern. Having lost the sense of vulnerability, the organization succumbed to accepting events that were proscripted in the original design basis.
- #15 Only limited technical analyses were performed to determine the actual risks associated with this fundamental deviation from intended design. Each successful landing reinforced the organization’s belief to the point where foam shedding and debris strikes were “normalized.” As new evidence emerged suggesting that the Columbia foam strike was larger, and possibly more threatening, than earlier foam strikes, this information was quickly discounted by management. Once you let a standard slip, each successive violation becomes a bit easier. While the concept of “normalization of deviance” had been much discussed in the aftermath of the Challenger incident, the NASA culture had not been “cured” of this crucial weakness.
- #16 The impact of such a statement on an organizational culture is significant -- especially when coming from a top official. It can result in people at all levels feeling less compelled to bring up safety matters. Others, at lower levels, begin to mimic what they hear from above. Over the years at NASA, the safety organization had degraded, and had ultimately been relegated to “rubber stamping” critical safety-related decisions, rather than providing an independent assessment and strong voice that would help ensure the management of risks. Safety personnel were present during debris assessment meetings, but their presence was passive and they did not serve as a channel for voicing concerns or dissenting views. Most importantly, technical staff with mission safety responsibilities had their normal roles reversed. The traditional approach to a potential safety problem would have been to assume that a problem existed, then seek the sound technical evidence and analysis necessary to prove (if possible) that the problem did not exist. Technical staff concerned about the foam strike wanted to obtain photographs that would have shown whether there was damage to the Orbiter. Shuttle Program management, in effect, required proof of the damage before they would authorize the imaging necessary to prove whether there was damage. The burden of proof should have been placed on proving that reentry was safe. Instead, technical staff were faced with the reality that reentry would proceed as planned, unless they could prove that it was unsafe… and then they were denied the tools needed to do so.
- #17 NASA employees were also subjected to deadline pressures to complete the preliminary phase of the International Space Station by 19 Feb 2004. The failure to meet this schedule was perceived by NASA management to threaten the viability of the Shuttle Program. Consequently, this deadline was heavily promoted by the most senior NASA officials and it created an environment in which some NASA workers felt reluctant to raise safety issues for fear of delaying the timetable. Even though several substantive technical problems were encountered with the Shuttle program after this deadline was established, NASA management was unwilling to revise it. The upper figure shows a screen saver that was installed on NASA computers. The screen saver counted down the time until the 19 Feb 2004 deadline… in seconds. Thus, NASA employees received a continuous, real-time reemphasis on the importance of schedule… which potentially overwhelmed any periodic emphasis on program safety.
- #18 The CAIB concluded that a lack of consistent, structured approaches for identifying hazards and assessing risks contributed to the faulty decision-making process at NASA. Many of the analyses that were performed contained subjective and qualitative judgments, using words and phrases like “believed” and “based on experience from previous flights this hazard is an Accepted Risk.” Further, many of the action items emerging from these studies were not addressed. The failure of the risk assessment process is ultimately manifested in the Columbia incident. At the time of the Shuttle launch, there was still no clear technical, risk-based understanding of the significance of foam debris impacts to the spacecraft. A very significant foam strike on a prior, recent mission had not even been assessed yet. Management had no solid information upon which to base their decisions… yet they made the decision that the Columbia foam strike was not a concern.
- #19 Management had already settled on a uniform mindset that foam strikes were not a concern. Any communications to the contrary were either directly or subtly discouraged. An organizational culture had been established that did not encourage “bad news.” This was coupled with a NASA culture that emphasized “chain of command” communications. The overall effect was to either stifle communications completely or, when important issues were communicated, to soften the content and message as the reports and presentations were elevated through the management chain. The organizational culture encouraged 100% consensus, further discouraging the expression of dissent. (The CAIB observed that a healthy safety organization is suspicious if there are no dissenting views). Participants felt intimidated.
- #20 While a significant amount of e-mail traffic occurred between individuals, official communications between NASA sites and functional groups were limited and ineffective.
- #21 The organizational dysfunctions that had been identified in the Challenger incident, and which persisted through the Columbia incident, strongly suggest that NASA had not learned from its mistakes… and had not stepped up to the challenge of maturing its safety culture. Such lessons are painful and expensive. Ignoring them risks repeating them.
- #22 NASA resumed manned space flight on July 2005, nearly 2-1/2 years after the Columbia incident. NASA had commissioned a panel of experts to monitor its compliance with the CAIB report recommendations, and its preparations for return to flight (RTF). The panel issued a formal report documenting their observations and opinions. 7 of the 26 panel members issued a minority report criticizing NASA’s efforts. Some quotes follow: “…we believe that the leadership and management climate that governed NASA’s return-to-flight effort was weak in some important ways… “ “we believe these organizational and behavioral concerns are still pervasive throughout the human spaceflight programs… “ “NASA leadership … missed opportunities to address the enduring themes of dysfunctional organizational behavior that the CAIB and other external evaluators have repeatedly found. As a result, in our view, many fundamental concerns persist… “ “…we do not believe the risk management processes in place within the Space Shuttle Program are sufficiently robust… “ “…what our concerns … point to are a lack of focused, consistent, leadership and management…” “… roles, positions, and strength of personality often determined critical outcomes more than facts and analysis… “ “…it appears to us that lessons that should have been learned have not been… “ “NASA’s leaders and managers must break this cycle of smugness substituting for knowledge.”
- #23 During the launch of Discovery, a large piece of insulating foam broke off of the external fuel tank but, fortuitously, did not strike the Orbiter. In response to the CAIB’s recommendations, NASA now has the capability to inspect the Orbiter on orbit. The shuttle astronauts were able to confirm that Discovery had not been damaged, and a safe return to Earth was later affected. NASA subsequently grounded the shuttle fleet, once again, to allow further studies and, hopefully, an ultimate resolution of the problems associated with the shedding of insulating foam.
- #24 One or more industry case histories are presented to illustrate the relevance to our industries of the general learnings from the Columbia investigation
- #25 The Piper Alpha oil platform was located in the North Sea approximately 110 miles from Aberdeen, Scotland. At the time of the incident it had 226 people on board, 165 of whom perished (in addition, two emergency response personnel died during a rescue attempt). Many of the platform occupants retreated to the crew quarter to await evacuation instructions which never came. The died there from smoke inhalation. The platform was totally destroyed. [The photo shows the Piper Alpha platform prior to the explosion.]
- #26 While the investigation of the incident was hindered by a lack of physical evidence, based upon eyewitness accounts it was concluded that, most likely, a release of light hydrocarbon (condensate; i.e., propane, butane, and pentane) occurred when a pump was restarted after maintenance. Personnel restarting the pump were not aware that a relief valve (RV) in the pump discharge had also been removed for service and that a blank had been loosely installed on the piping flange (which was not readily visible from the pump vicinity) in place of the valve. Upon restart of the pump, this flange leaked, producing a flammable hydrocarbon cloud, which subsequently found an ignition source. The resulting explosion breached crude oil lines on the platform, resulting in large hydrocarbon fires on the platform. [The photo shows the smoke from the oil fires shortly after the initial explosion.]
- #27 Piper Alpha was at the hub of a network of platforms interconnected by oil and gas pipelines. Managers on the other platforms were aware that there was a problem on Piper Alpha, but did not know its severity. They assumed that they would be instructed to shut down their operations, if needed. However, the initial explosion had interrupted communications from Piper Alpha and considerable intervals (from 30 to 60 minutes) passed before these other platforms were shut in. In the interim, oil from these other platforms continued to fuel the fires on Piper Alpha. The heat from the oil fires ultimately weakened large diameter, high pressure natural gas lines on Piper Alpha. These lines ruptured in succession, resulting in catastrophic explosions. Nearby ships attempted to reach Piper Alpha to effect rescues, but were hampered by the intensity of the flames. [The photo shows the platform during one of the explosions occurring after the rupture of a gas riser.]
- #28 The incident received an extensive government investigation. In addition to identifying the most probable physical causes, the investigation identified a number of organizational causes. It was determined that chronic problems existed with the implementation of the permit to work (PTW) system. The fact that two separate permits had been written (one for the pump and one for the RV), and that at least of them had not been properly administered, resulted in Operation’s lack of awareness that the RV was missing when the pump was restarted. Audits and reviews of the PTW system had failed to identify its weaknesses.
- #29 Inadequate communications between maintenances, contractor, and operations personnel on two successive shifts also contributes to the problem. Shift turnovers were known to be problematic, but corrective actions had not been implemented. There was no fire water available to fight the initial oil fires because the diesel fire pumps were in manual. The platform manager had a policy of putting the pumps in manual whenever divers were in the water around the platform… even if they were not working in the vicinity of the pump intakes. A prior fire protection audit recommendation to modify this policy had not been addressed. Personnel were unable to reach the pumps after the first explosion to start them.
- #30 Had fire water been available, it might not have been effective since there was a known problem with salt water corrosion of the fire water lines. Many deluge heads were known to be plugged. Work to replace the supply lines and nozzles was in progress but was well behind schedule. The structural steel on Piper Alpha had no fireproofing. The structure was overloaded and could not support the additional weight of such protection. Consequently, the platform was known to be susceptible to the effects of a massive hydrocarbon fire. The natural gas risers were similarly unprotected from external fire exposure. An engineering study, presented a year before the incident, cautioned about the potential for riser failures, but the recommendations of the study were discounted by company management. The study also cautioned that a massive riser leak would make a successful evacuation of the platform unlikely. One year after the report, this proved to be the case.
- #31 The investigation also revealed that personal safety and emergency response training was haphazardly conducted. A visitor to the platform was to receive safety training, including training on the use and location of the lifeboats, if this was the first visit to Piper Alpha, or if more than 12 months had elapsed since the last refresher training. Some survivors recounted that such training was waived if they had ever previously been offshore anywhere else. Some were unaware of their lifeboat assignments or where to find them. Evacuation and emergency shutdown drills were scheduled, but often deferred due to weather conditions or other conflicts. Platform mangers had not been trained/drilled on the proper responses to major emergencies on other platforms, hence the confusion as to whether they should have suspended production after learning that there were problems on Piper Alpha. To complicate this matter, different platforms were owned by different companies. The lack of effectiveness of the Piper Alpha platform manager during the emergency (he was one of the staff who evacuated to the crew quarters and suffocated there) lead the inquiry to question the adequacy of his training.
- #32 Slides have not been included to explicitly map the parallels between Piper Alpha and the NASA learnings. This was intentional, so that the mapping could be left as a potential group or workshop exercise. Some suggestions: Management’s dismissal of the engineering study suggesting the catastrophic potential of a gas riser failure, and management tolerance of the delays in the repair of the fire protection systems suggest that they did not Maintain a Sense of Vulnerability. Combat Normalization of Deviance. Problems with the PTW system and shift turnovers were known, at least by personnel on the platform, but no corrections were made. The Inquiry was critical of corporate management’s overall performance with respect to the acceptance of some known problems, and failure to identify other obvious problems. Management’s actions did not communicate An Imperative for Safety. The decision-making processes with respect to operation of the diesel fire pump, the schedule for the fire water system repairs, the vulnerability of the natural gas risers calls into question the validity of any underlying Hazard/Risk Assessments. Management’s failure to address employee concerns about the inadequacy of shift turnovers indicates several problems related to Open and Frank Communications. PTW and shift turnover problems had been identified in an earlier incident that resulted in one fatality, yet corrections had not been made. In fact, corporate admissions of fault, made during the settlement of the resulting legal proceedings, had not been shared with safety staff. The organization did not evidence an inclination to Learn and Advance the Culture.
- #33 The Flixborough Works of Nypro (UK) Limited manufactured cyclohexanone via the partial oxidation of cyclohexane (cyclohexanone is used to make caprolactum, a nylon intermediate). The process operated at approximate 125 psi and 155 oC. The VCE and subsequent fires destroyed the plant. Of the 28 fatalities, 18 were in the control room building which was demolished. The fatality count would have been far higher, had the explosion not occurred on a weekend. There was a significant number of injuries, and considerable building damage, in the nearby villages. [The photo shows a portion of the plant after the explosion.]
- #34 One of six vessels in the reactor train was removed after a six ft long crack was detected in the vessel shell. The gap between the adjacent reactors was subsequently spanned by a 20 inch diameter jumper. The investigation determined that the most likely cause of the explosion was the failure of this jumper, which released at least 30 toms of boiling cyclohexane, which formed a vapor cloud, found an ignition source, and exploded. [The figure illustrates how the reactors were arranged, with each successive reactor lower in elevation, to permit gravity flow of the process stream from one reactor to the next. It also depicts the doglegged shape required for the jumper to make up the elevation differences between reactors 4 and 6.]
- #35 Because the reactors were staggered in elevation, it was necessary to incorporate a dogleg into this piping jumper. This jumper was fabricated and installed, supported only by scaffolding. There were no detailed design calculations made for the jumper (other than to confirm that it would withstand the normal operating pressure). The installed jumper was leak checked at normal operating pressure, but the system was not pressure tested in a fashion appropriate for this sort of modification to a pressurized process system. Had the jumper been tested at 1.3X the reactor design pressure (as required by British standards) it would have likely failed… hopefully preventing the explosion that subsequently occurred. It is believed that the unbalanced forces imposed on the bends in the piping, coupled with the flexibility introduced by the expansion bellows on each end of the jumper, allowed the inadequately supported and unconstrained jumper to oscillate. Ultimately, one of the bellows failed. [The figure shows the installed jumper, supported on scaffolding. Surprisingly, perhaps, the jumper remained in service for two months before failing.]
- #36 The works engineer had resigned earlier in the year. While there were chemical and electrical engineers on staff, there was no qualified mechanical engineer employed at the site. In the perspective of the staff involved in planning and implementing this modification, this was a routine plumbing job. No detailed design was provided for the jumper; in fact, the “design drawing” consisted of a chalk sketch on the maintenance shop floor. Even though reactor 5 had experienced a six-ft long crack, it was decided that there was no need to inspect the other five reactors, which were exposed to similar service conditions. The investigation team suggested that the time required to make this inspection might have provided staff an opportunity to reflect on, and reconsider, their hasty plans to jumper between the reactors.
- #37 The investigation team did not fault the safety attitude of company and site management, but did imply that there was a lack of appreciation of the impact on plant staff resulting from the departure of the works engineer, and the emphasis on a prompt return to production. Workloads were increased by the absence of the works engineer, and some staff were working in areas not consistent with their areas of competence. The investigation team concluded that these factors prevented staff from taking the time necessary to properly evaluate their plans and actions.
- #38 Slides have not been included to explicitly map the parallels between Piper Alpha and the NASA learnings. This was intentional, so that the mapping could be left as a potential group or workshop exercise.
- #39 Subsequent slides will detail a company-specific case history. Before proceeding, ask the audience to share their current impressions with respect to these questions. Could this happen to you? Do we see staff becoming complacent as a result of past superior safety performance? Are we taking chances that would not have been tolerated before? Are we maintaining the same standards that were in effect 12, 24, or 36 months ago? Is our risk assessment process effective? Are we addressing our risks on a timely basis? If the safety of an activity is in question, where dose the burden of proof lie? Do we require proof of safety to permit the activity to continue… or proof of danger to prevent the activity? Does it matter whether the activity, if conducted, is a profitable one? Do our employees feel empowered to share their safety concerns freely with management? Do we “shoot the messenger” if we disagree with the message? Do we frequently see business and customer pressures at odds with safety requirements? Is our incident reporting system working well? Do we learn from our mistakes and apply those learnings? Can we point to evidence that our safety culture is strengthening with time?
- #40 If you choose to include a company specific case history, refer to the guidance in Instructions for PowerPoint Presentation.
- #41 If you choose to include a company specific case history, refer to the guidance in Instructions for PowerPoint Presentation.
- #42 If you choose to include a company specific case history, refer to the guidance in Instructions for PowerPoint Presentation.
- #43 If you choose to include a company specific case history, refer to the guidance in Instructions for PowerPoint Presentation, included in the package.
- #44 The following slides provide a sampling of indicators that problems may exist within your organization with respect to each of the six organizational/safety culture themes. These are all self-explanatory, and no commentary is provided.
- #51 The CAIB faulted NASA staff for attempting to condense technically complex topics, addressing matters of great import, onto a few (often only one) PowerPoint slides for presentation to management. Such an approach almost guarantees that important details will be omitted or downplayed and, consequently, that management awareness of the issue will be lessened. This presentation is a brief introduction to a very complex topic. It is meant only to create an awareness and stimulate an interest in your audience. There are key organizational/safety culture issues that have not been touched on in this presentation… we sought only to discuss those which could be exemplified by the compelling details of the Columbia disaster. A broader perspective is provided in the document Safety Culture: What Is At Stake, included in this package. But even this is only an introduction. Additional valuable resources on the topics of organizational effectiveness and safety culture are provided in the Bibliography.
