- 1. Kubernetes Introduction @rafabene benevides@redhat.com Linkhttp://bit.ly/kubernetes-intro
- 2. Rafael Benevides Director ofDeveloper Experience at Red Hat Apache DeltaSpike P.M.C benevides@redhat.com @rafabene Java Certifications: SCJA / SCJP / SCWCD / SCBCD / SCEA JBoss Certifications: JBCD / JBCAA Red Hat Certifications: OpenShift / Containers / Ansible Other Certifications: SAP Netweaver / ITIL / IBM Software Quality
- 4. Demo: bit.ly/msa-instructions Slides: bit.ly/microservicesdeepdive VideoTraining: bit.ly/microservicesvideo Free eBooks from developers.redhat.com bit.ly/reactivemicroservicesbook bit.ly/javamicroservicesbook Microservices Introductory Materials @rafabene Advanced Materials bit.ly/istio-tutorial http://bit.ly/kubernetes-intro Kubernetes for Java Developers learn.openshift.com/servicemesh bit.ly/faas-tutorial learn.openshift.com/serverless
- 5.
- 6.
- 7. @rafabene Why do youwant to run your application inside containers?

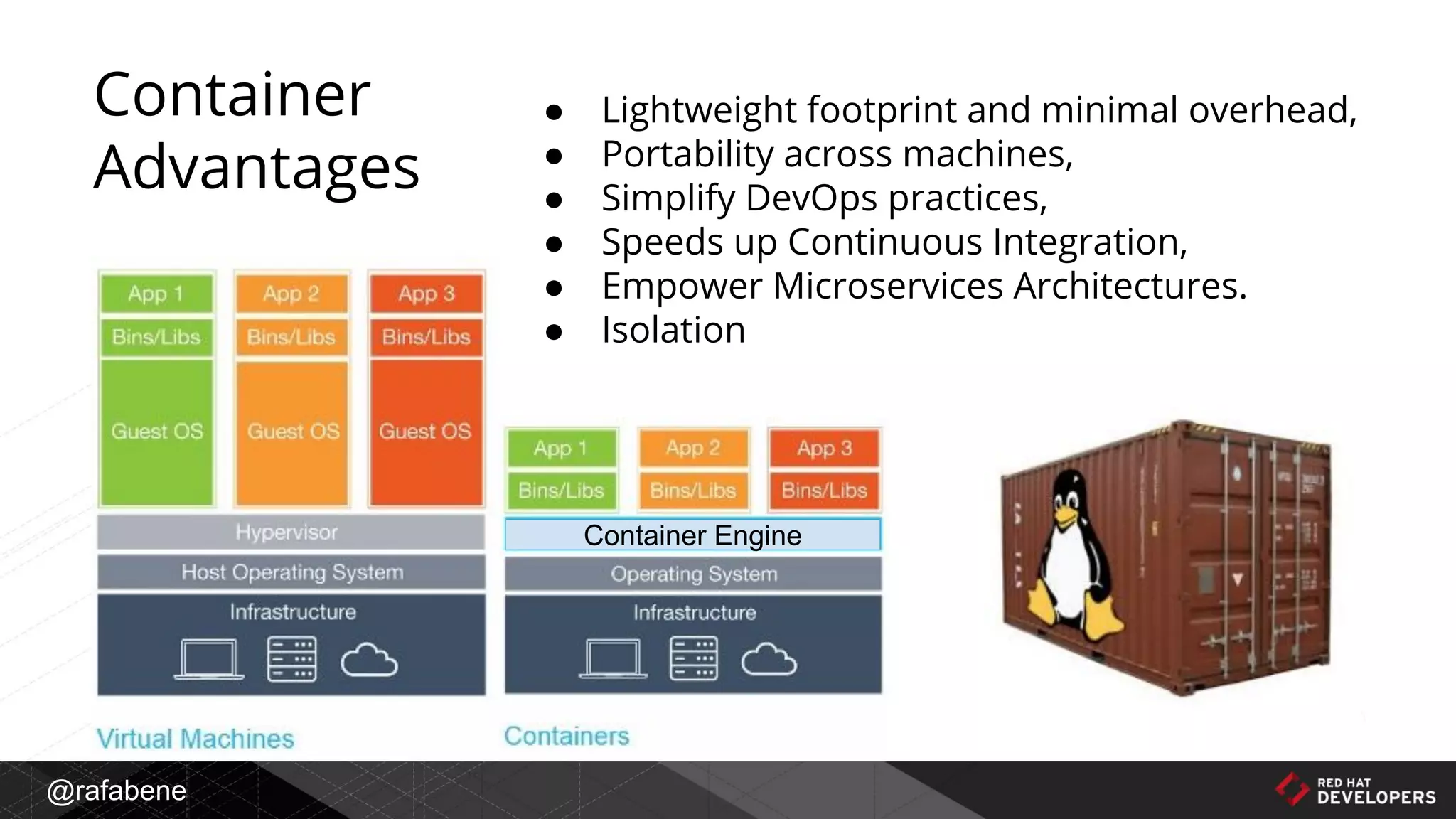

- 8. @rafabene ● Lightweight footprintand minimal overhead, ● Portability across machines, ● Simplify DevOps practices, ● Speeds up Continuous Integration, ● Empower Microservices Architectures. ● Isolation Container Advantages Container Engine
- 9. @rafabene A way torun a Linux container: $ docker run -d <image-name> A single and isolated Linux process running in a single machine

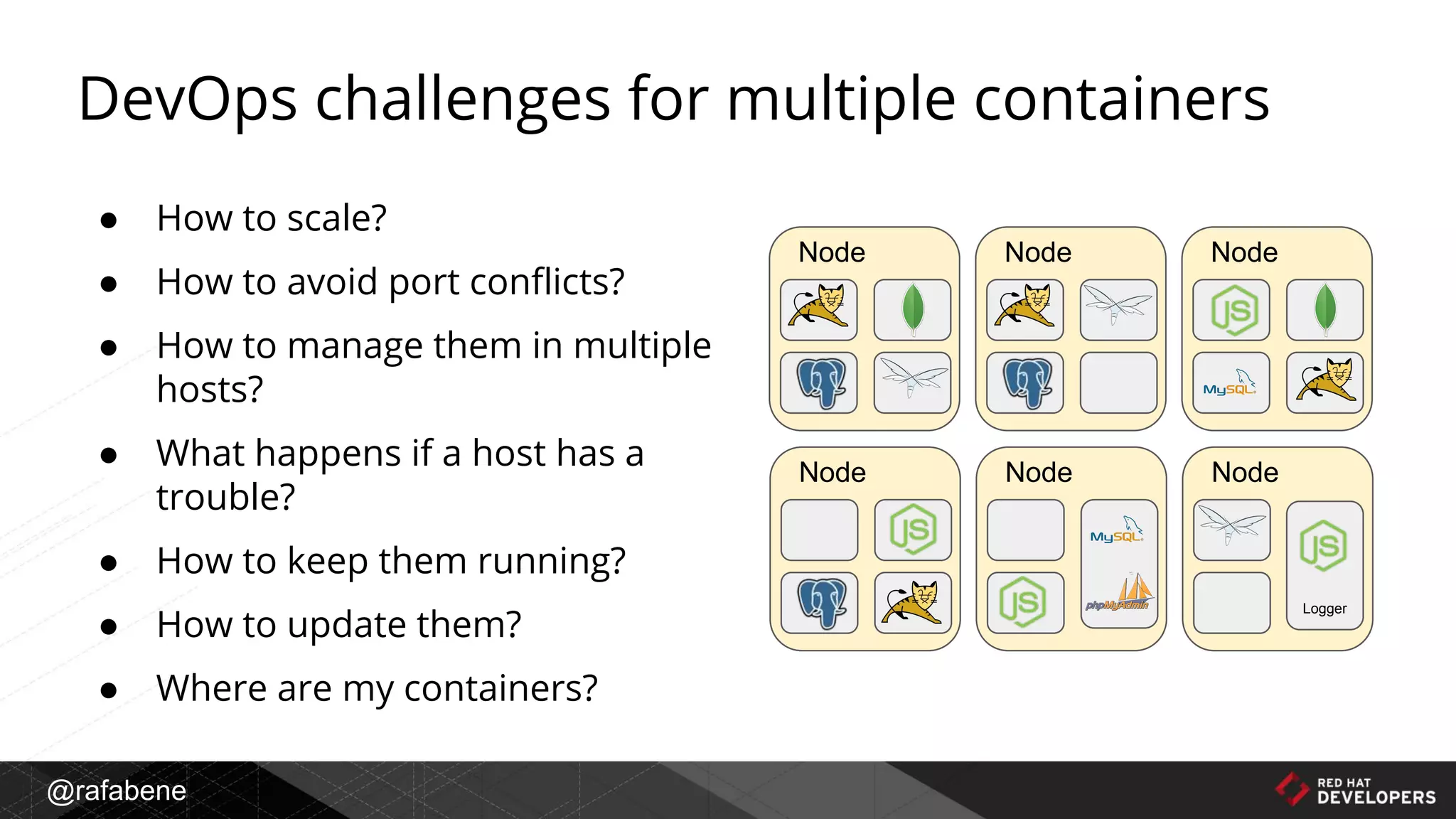

- 10. @rafabene DevOps challenges formultiple containers ● How to scale? ● How to avoid port conflicts? ● How to manage them in multiple hosts? ● What happens if a host has a trouble? ● How to keep them running? ● How to update them? ● Where are my containers? Node Node Logger Node Node Node Node

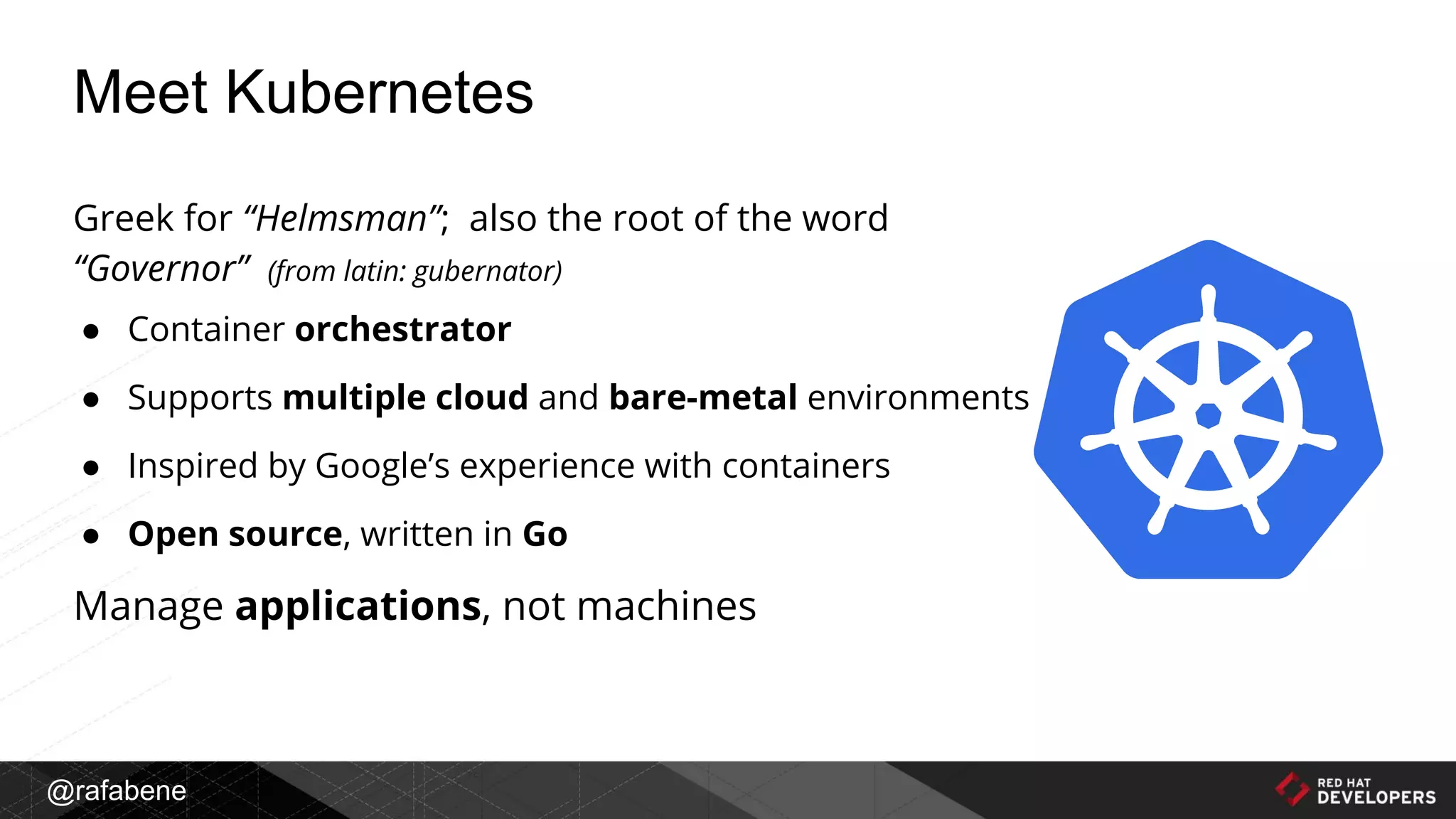

- 11. @rafabene Greek for “Helmsman”;also the root of the word “Governor” (from latin: gubernator) ● Container orchestrator ● Supports multiple cloud and bare-metal environments ● Inspired by Google’s experience with containers ● Open source, written in Go Manage applications, not machines Meet Kubernetes

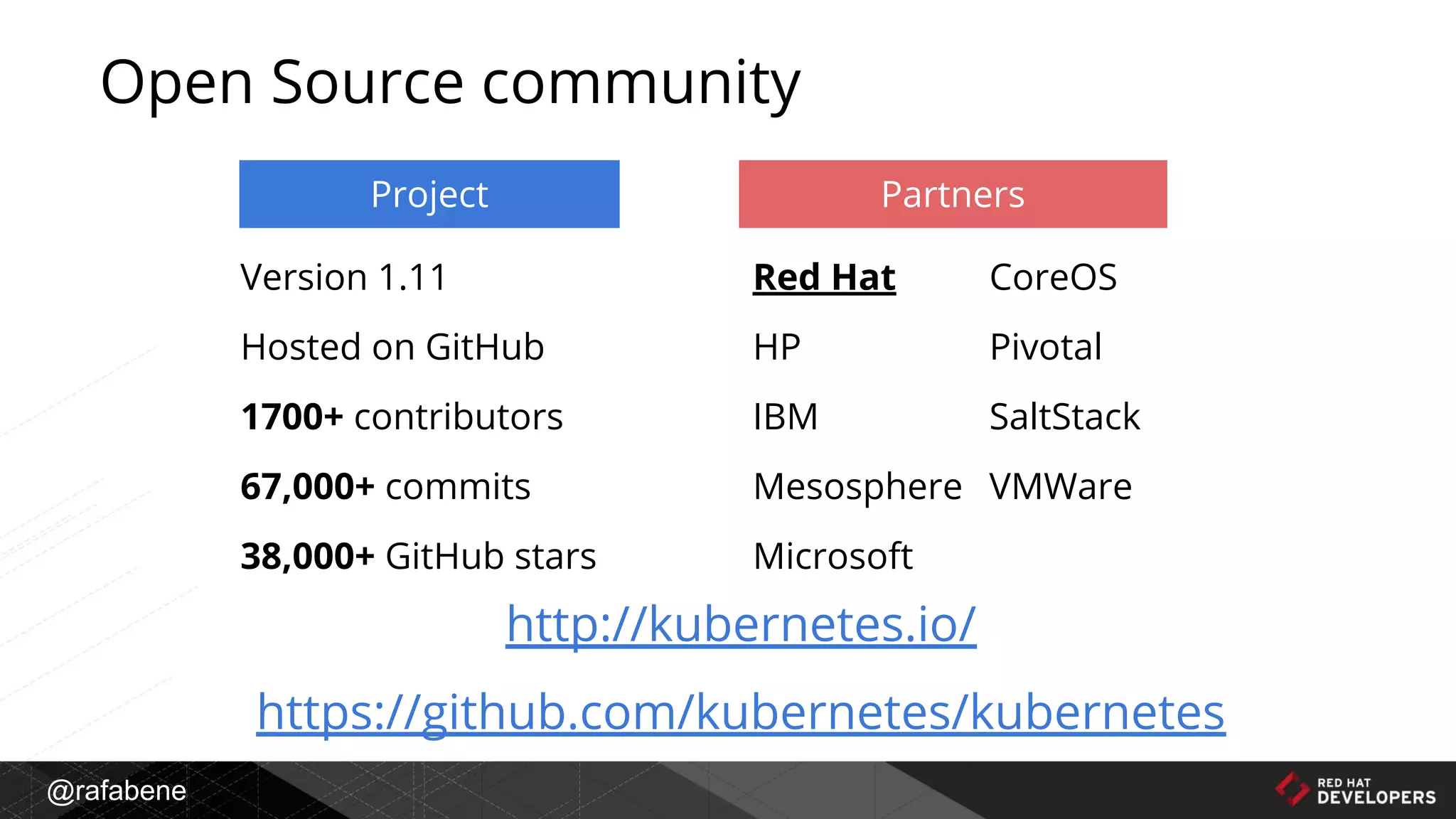

- 12. @rafabene Version 1.11 Hosted onGitHub 1700+ contributors 67,000+ commits 38,000+ GitHub stars Red Hat HP IBM Mesosphere Microsoft Project Partners CoreOS Pivotal SaltStack VMWare http://kubernetes.io/ https://github.com/kubernetes/kubernetes Open Source community

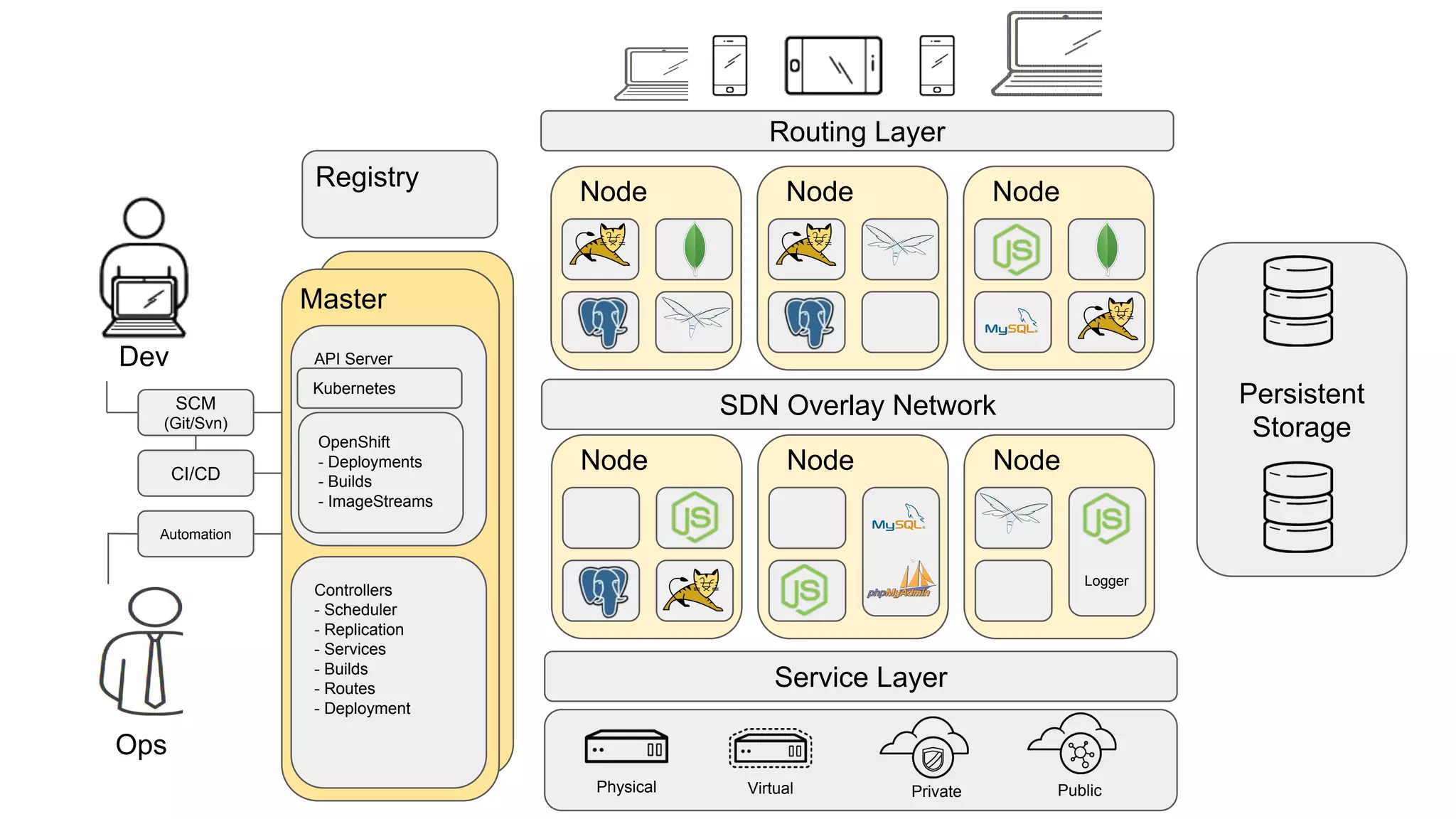

- 13. Master API Server Service Layer Virtual PhysicalPrivate Public Persistent Storage Node Node Logger Node Node Node Node Dev Ops SCM (Git/Svn) CI/CD Automation Routing Layer Registry SDN Overlay Network Controllers - Scheduler - Replication - Services - Builds - Routes - Deployment Kubernetes OpenShift - Deployments - Builds - ImageStreams

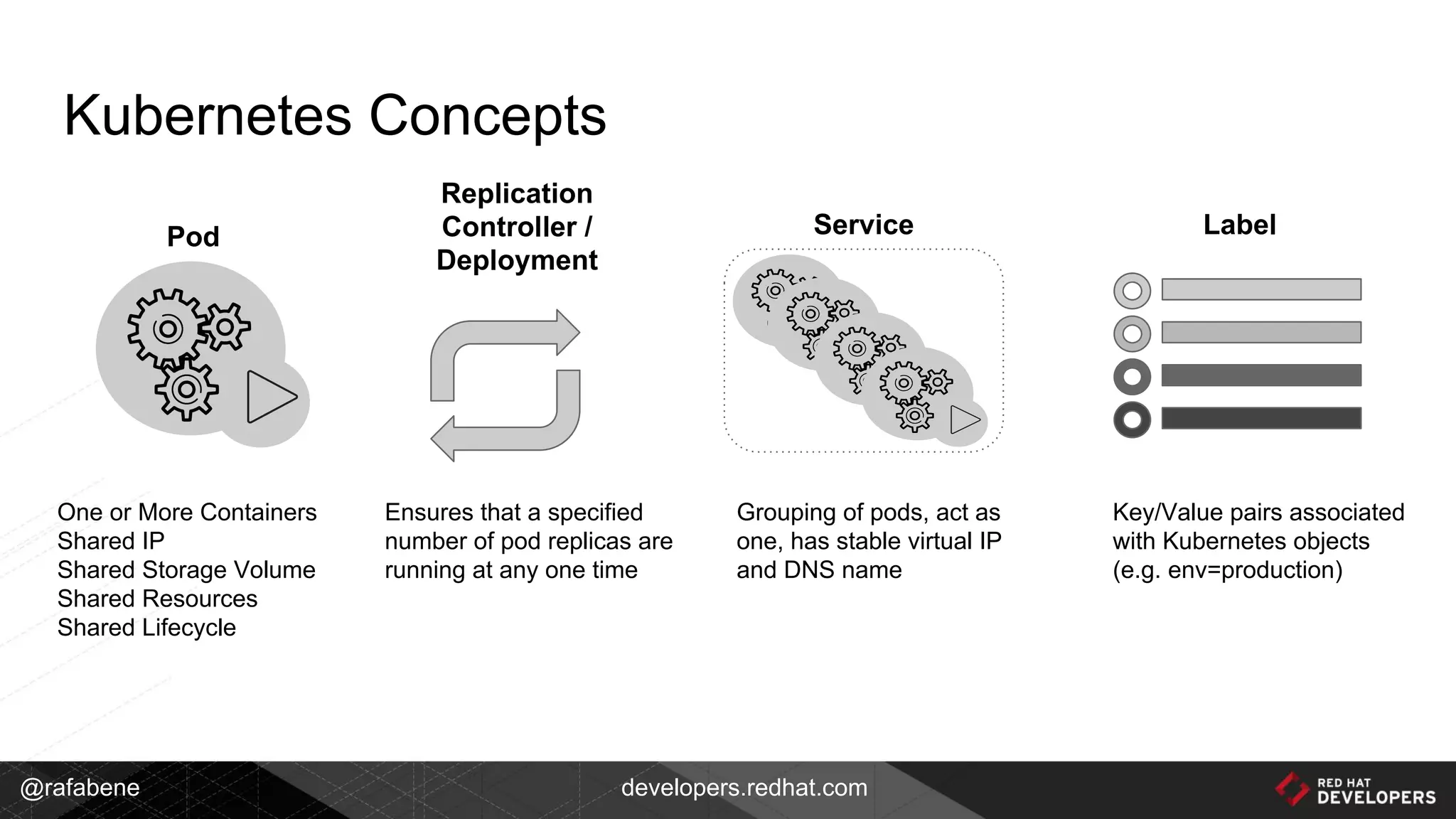

- 14. @rafabene developers.redhat.com Kubernetes Concepts Pod Replication Controller/ Deployment Service Label One or More Containers Shared IP Shared Storage Volume Shared Resources Shared Lifecycle Ensures that a specified number of pod replicas are running at any one time Grouping of pods, act as one, has stable virtual IP and DNS name Key/Value pairs associated with Kubernetes objects (e.g. env=production)

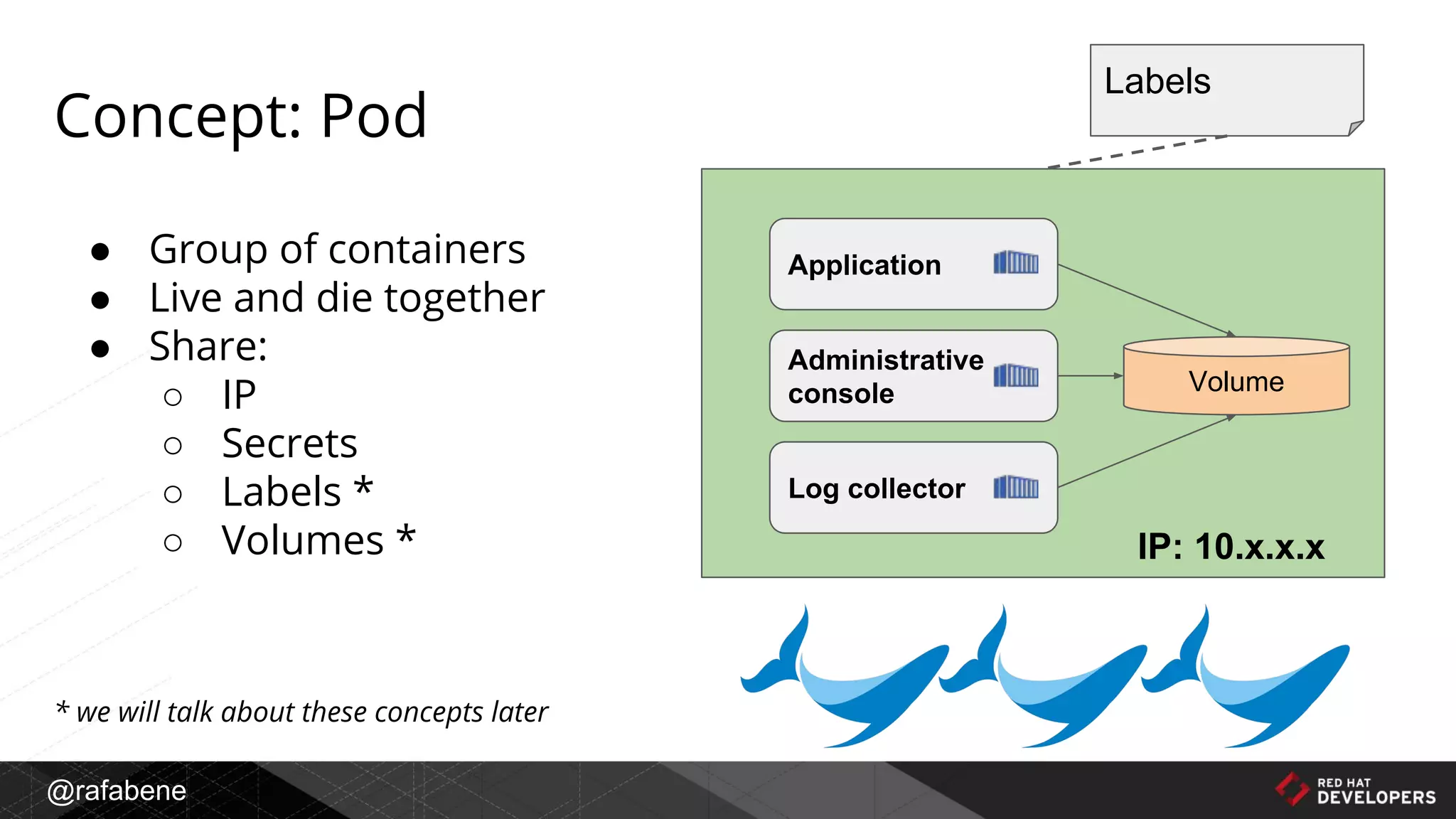

- 15. @rafabene Concept: Pod ● Groupof containers ● Live and die together ● Share: ○ IP ○ Secrets ○ Labels * ○ Volumes * * we will talk about these concepts later Labels Application Administrative console Log collector IP: 10.x.x.x Volume

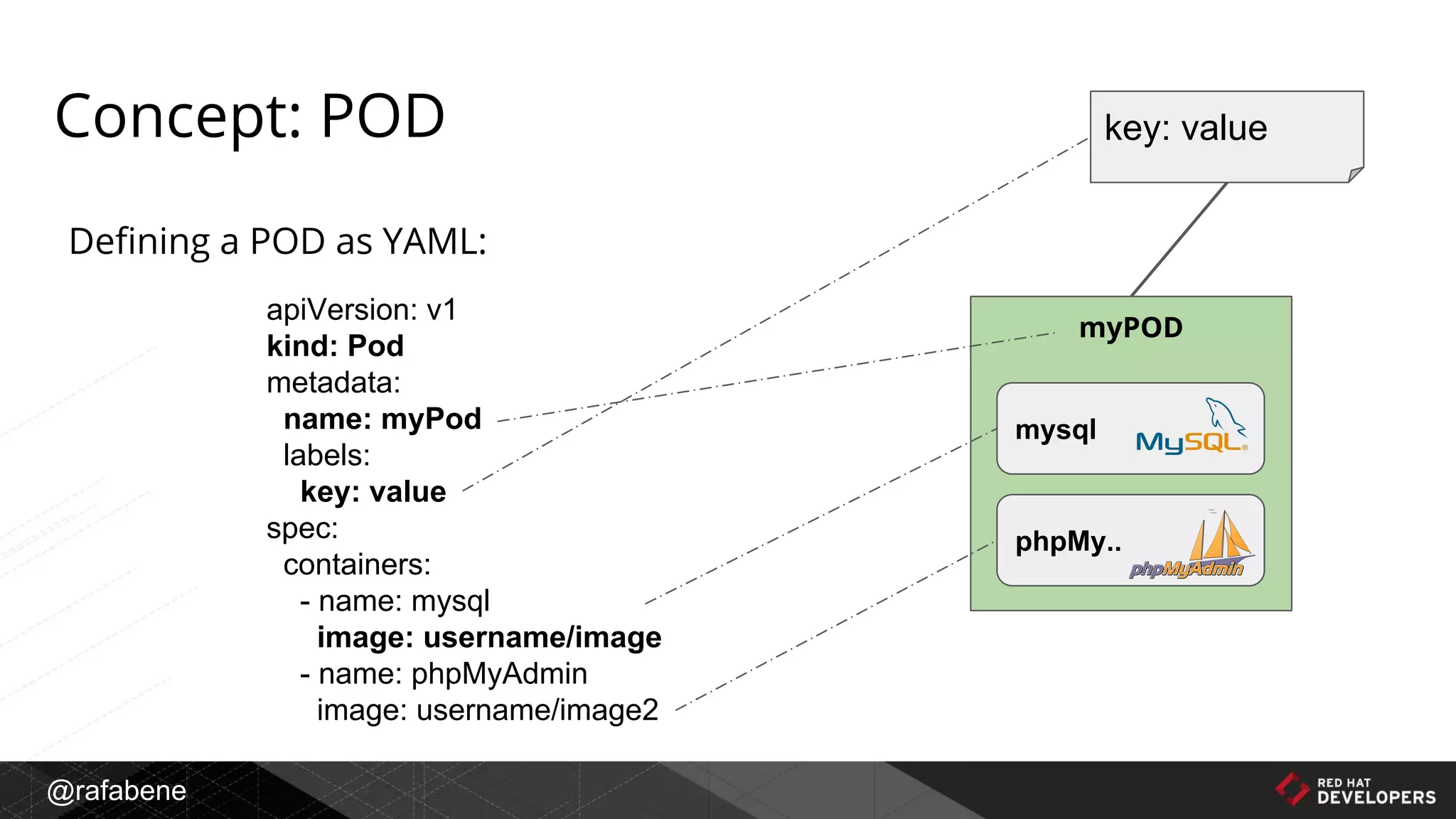

- 16. @rafabene Concept: POD Defining aPOD as YAML: apiVersion: v1 kind: Pod metadata: name: myPod labels: key: value spec: containers: - name: mysql image: username/image - name: phpMyAdmin image: username/image2 key: value myPOD mysql phpMy..

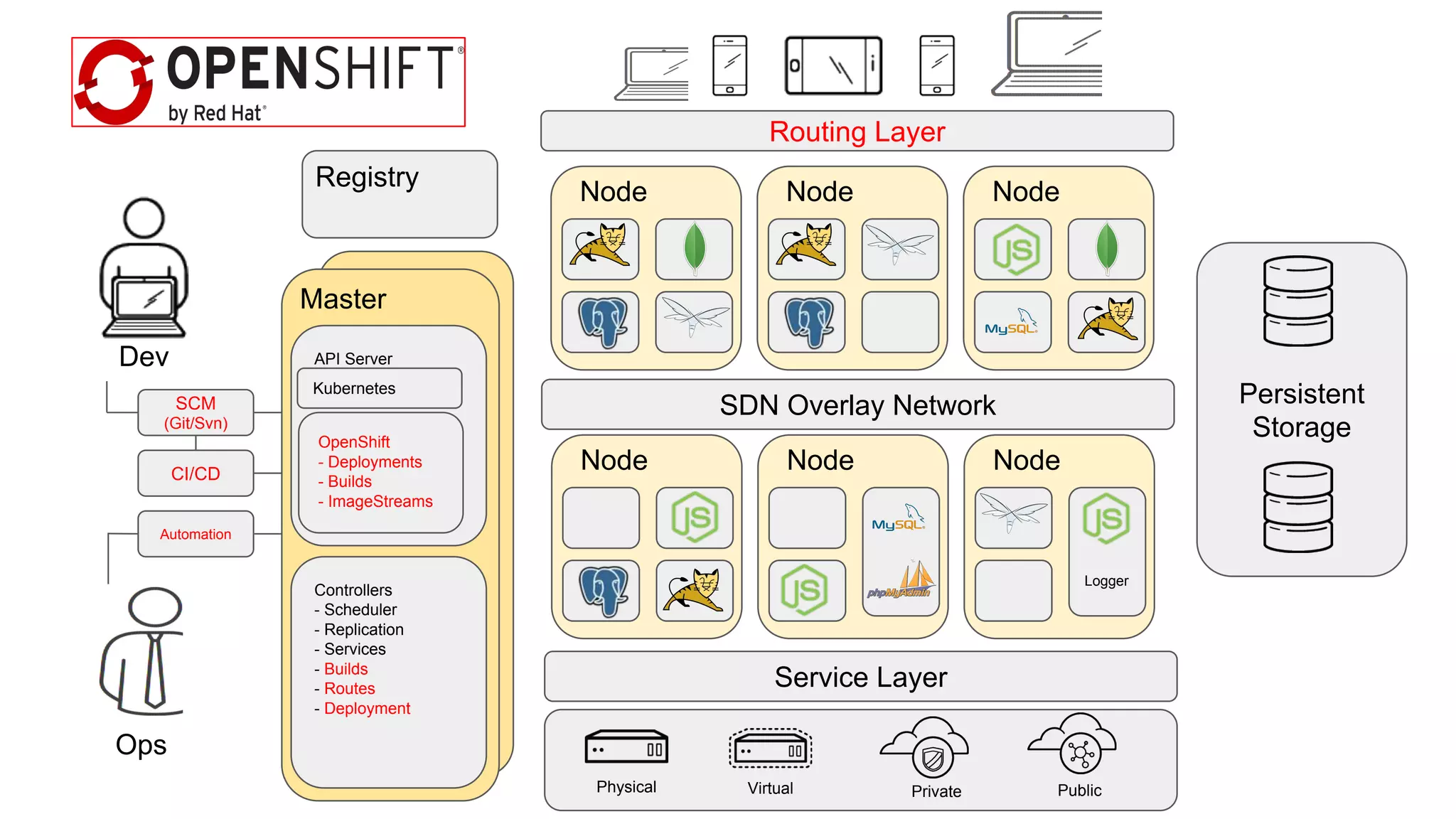

- 17. SCM (Git/Svn) Master API Server Service Layer Virtual PhysicalPrivate Public Persistent Storage Node Node Logger Node Node Node Node Dev Ops CI/CD Automation Routing Layer Registry SDN Overlay Network Controllers - Scheduler - Replication - Services - Builds - Routes - Deployment Kubernetes OpenShift - Deployments - Builds - ImageStreams

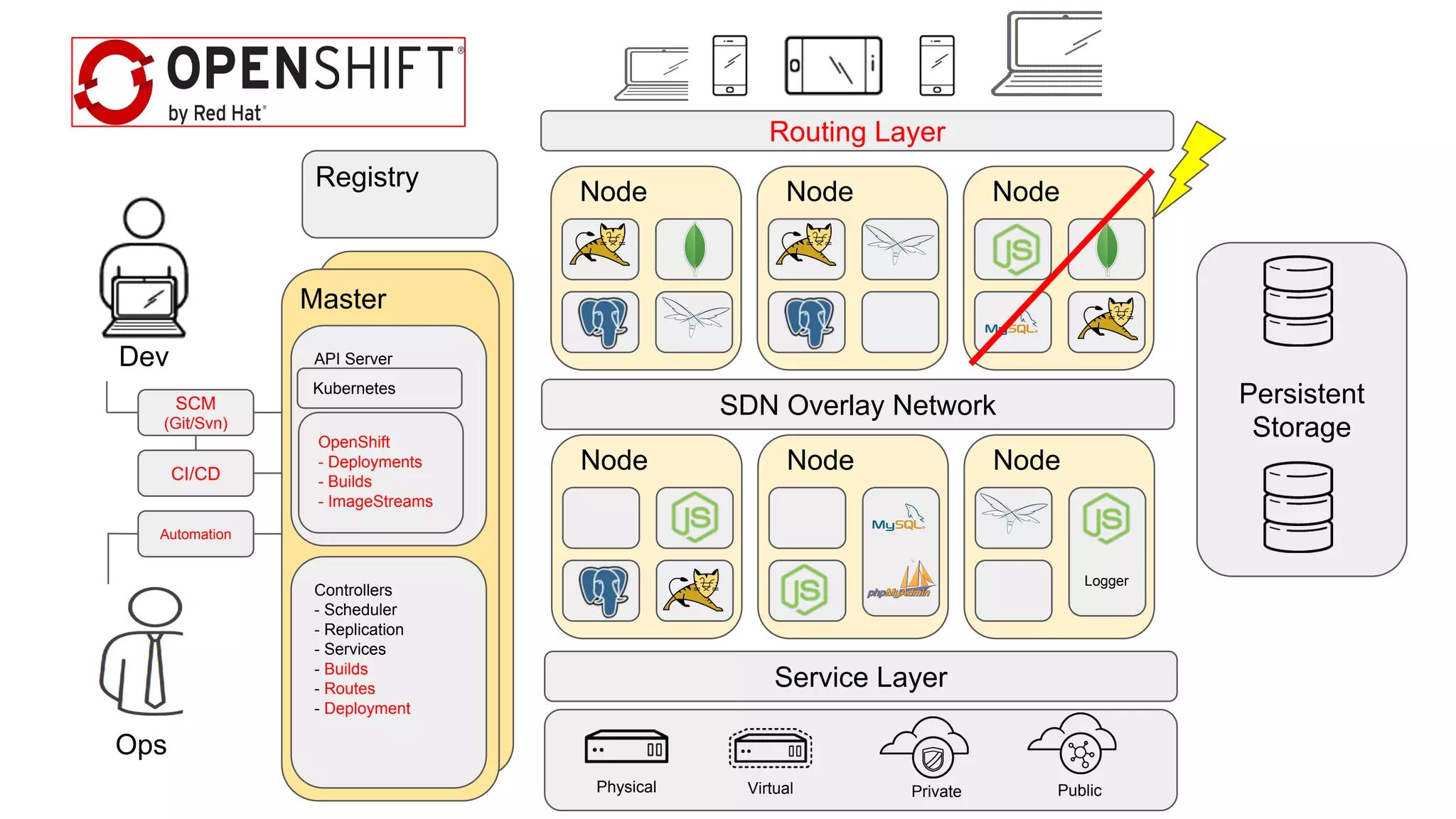

- 18. SCM (Git/Svn) Master API Server Service Layer Virtual PhysicalPrivate Public Persistent Storage Node Node Logger Node Node Node Node Dev Ops CI/CD Automation Routing Layer Registry SDN Overlay Network Controllers - Scheduler - Replication - Services - Builds - Routes - Deployment Kubernetes OpenShift - Deployments - Builds - ImageStreams

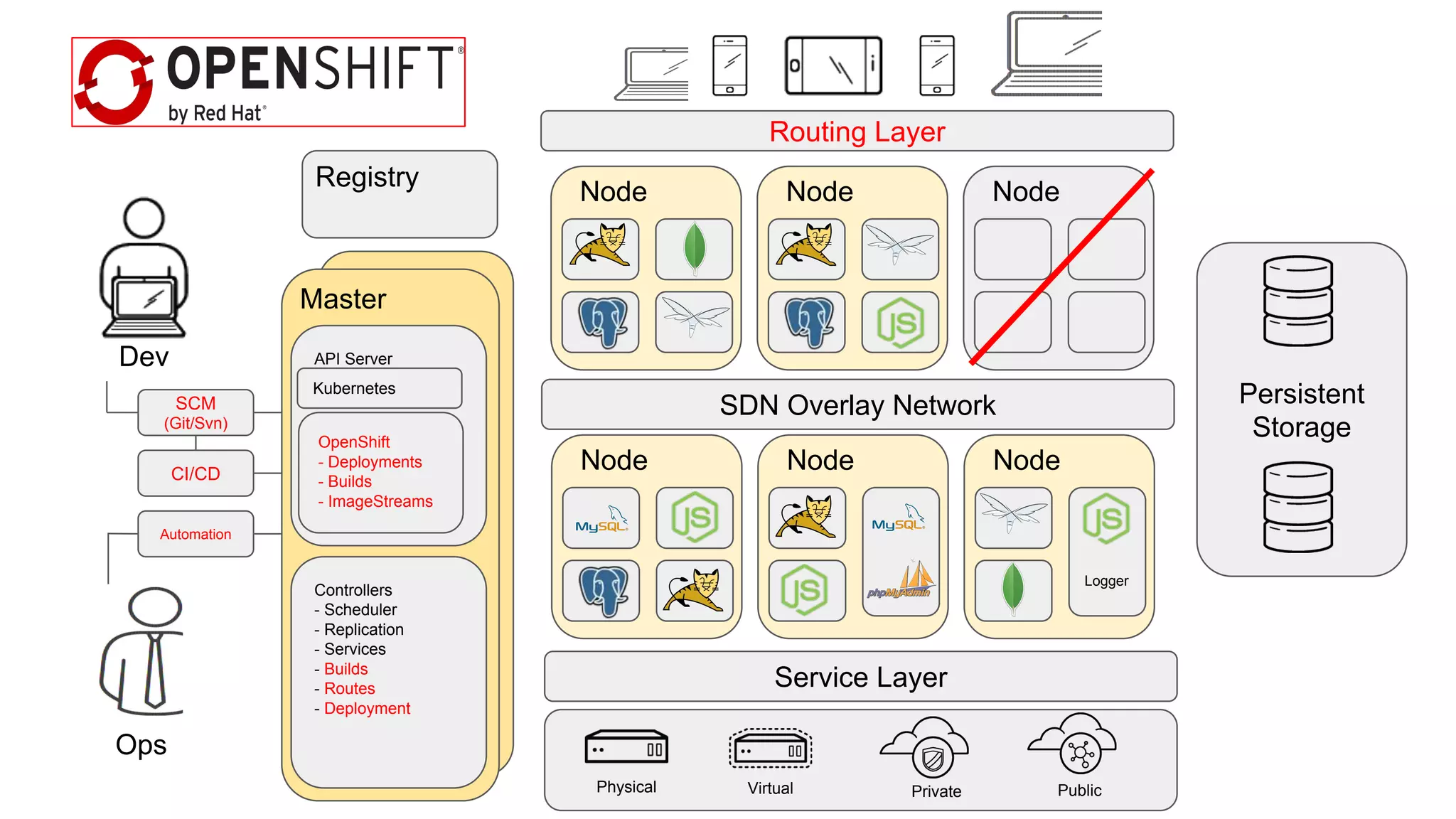

- 19. SCM (Git/Svn) Master API Server Service Layer Virtual PhysicalPrivate Public Persistent Storage Node Node Logger Node Node Node Node Dev Ops CI/CD Automation Routing Layer Registry SDN Overlay Network Controllers - Scheduler - Replication - Services - Builds - Routes - Deployment Kubernetes OpenShift - Deployments - Builds - ImageStreams

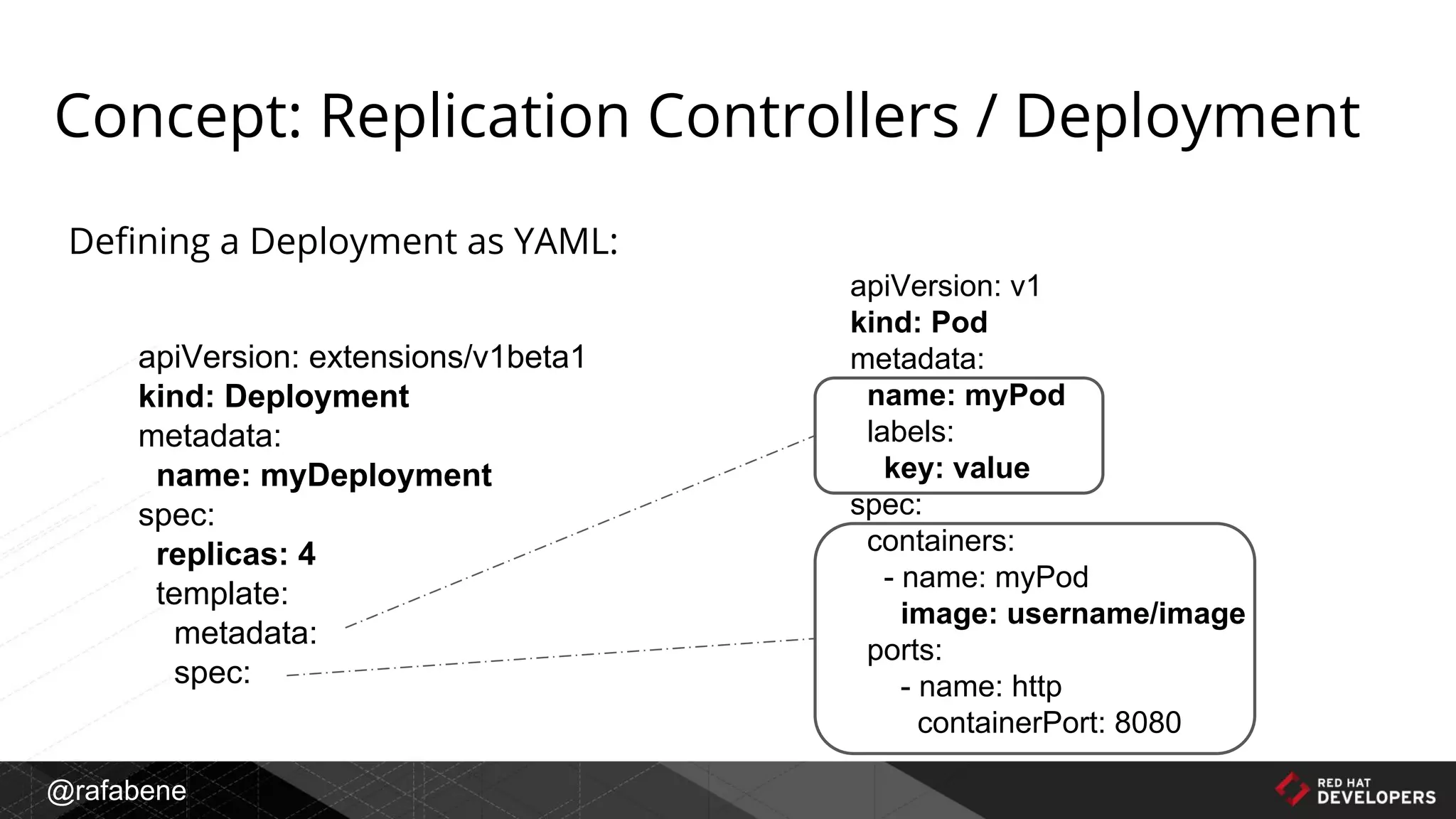

- 20. @rafabene Concept: Replication Controllers/ Deployment Defining a Deployment as YAML: apiVersion: v1 kind: Pod metadata: name: myPod labels: key: value spec: containers: - name: myPod image: username/image ports: - name: http containerPort: 8080 apiVersion: extensions/v1beta1 kind: Deployment metadata: name: myDeployment spec: replicas: 4 template: metadata: spec:

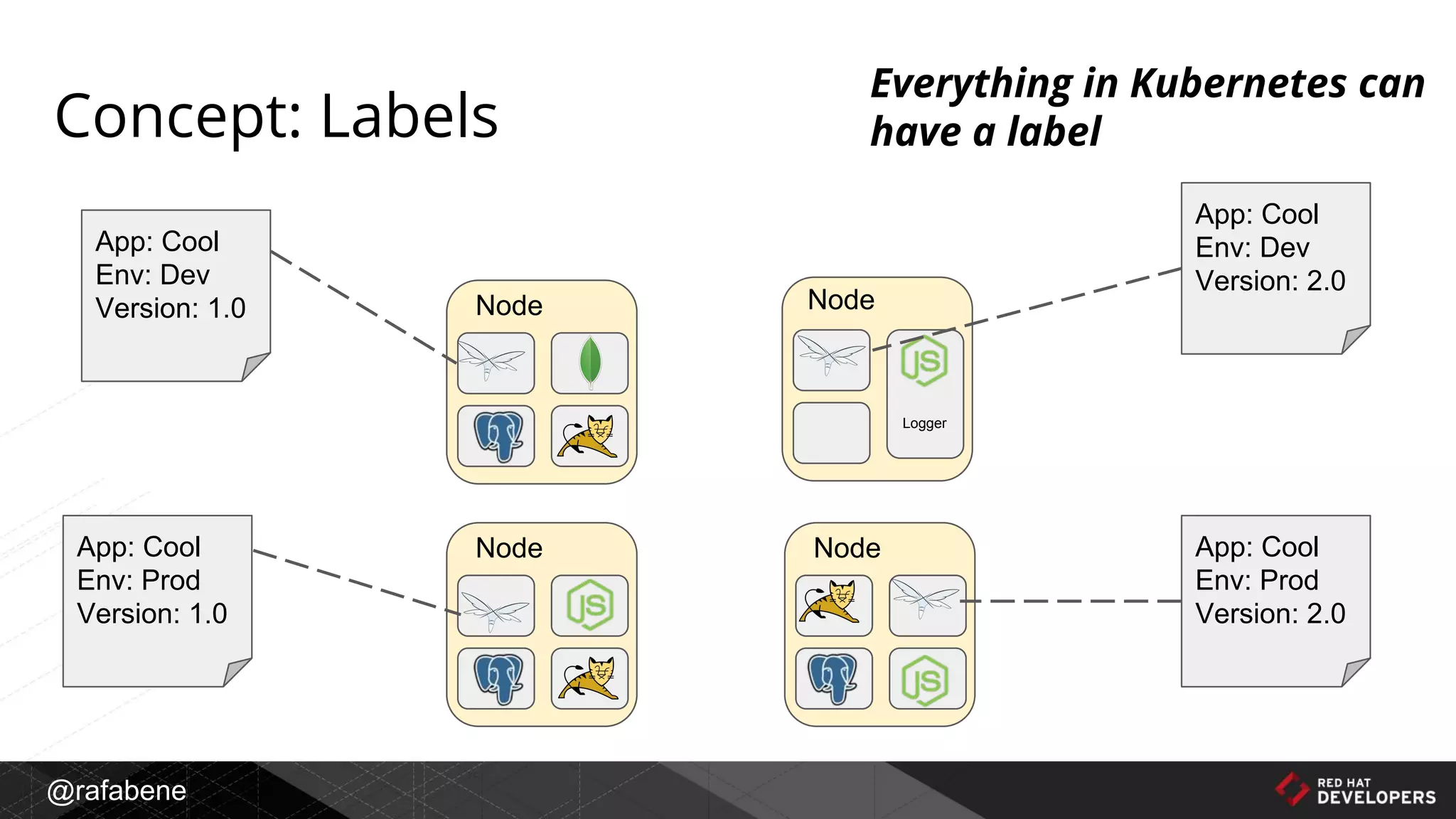

- 21. @rafabene Concept: Labels App: Cool Env:Dev Version: 1.0 App: Cool Env: Prod Version: 1.0 App: Cool Env: Dev Version: 2.0 App: Cool Env: Prod Version: 2.0 Everything in Kubernetes can have a label Node Logger Node Node Node

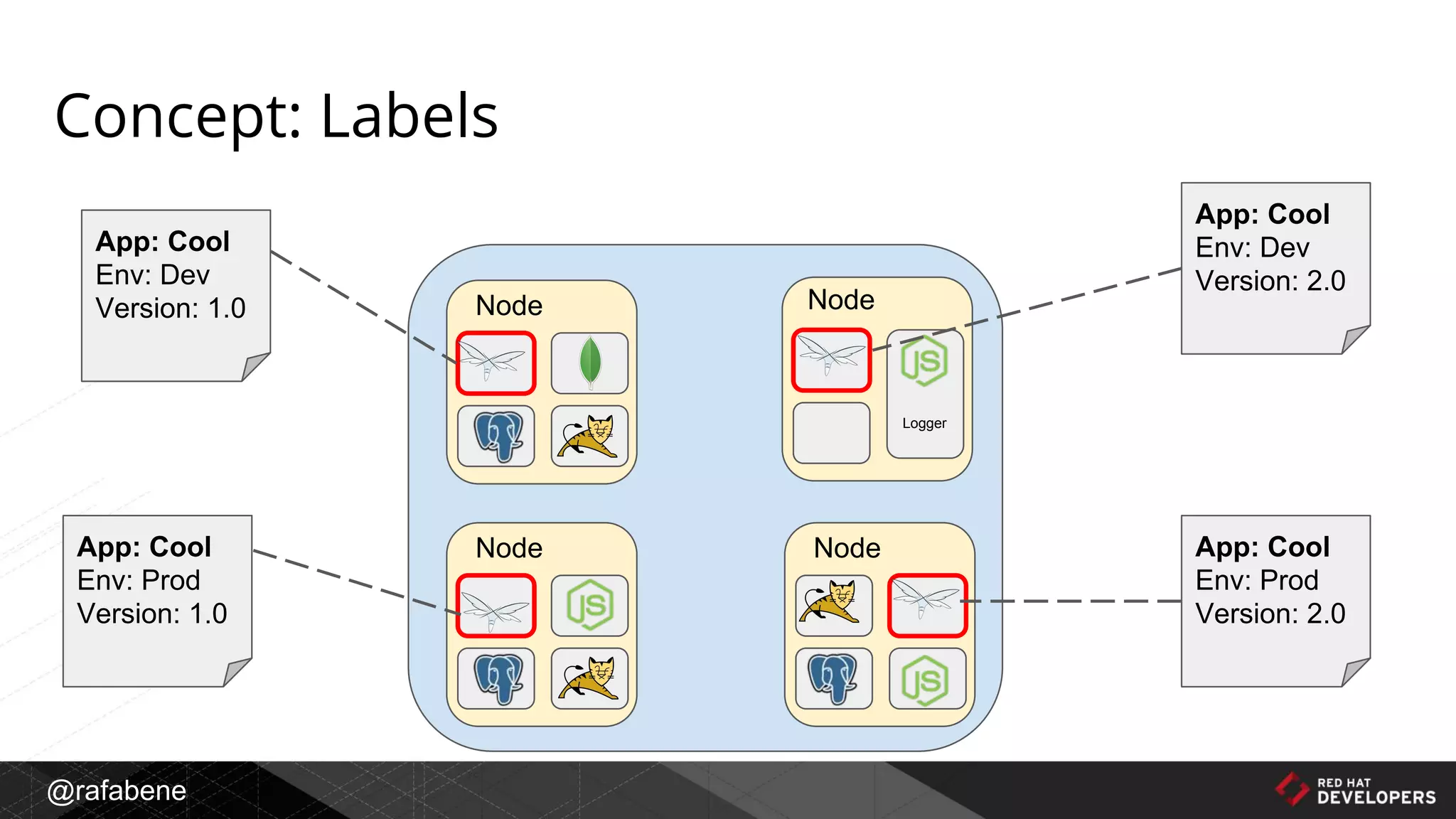

- 22. @rafabene Concept: Labels App: Cool Env:Dev Version: 1.0 App: Cool Env: Prod Version: 1.0 App: Cool Env: Dev Version: 2.0 App: Cool Env: Prod Version: 2.0 Node Logger Node Node Node

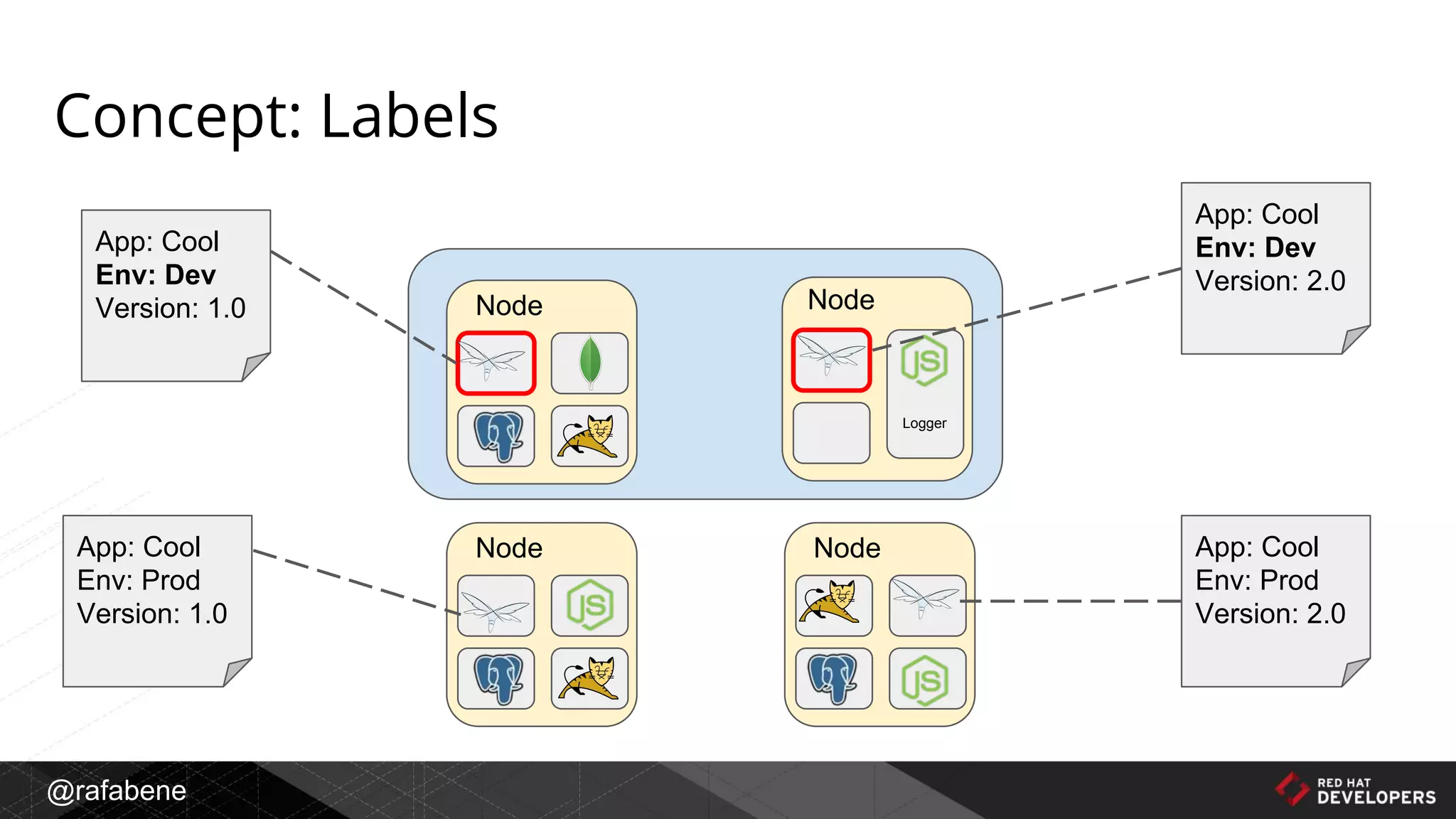

- 23. @rafabene Concept: Labels App: Cool Env:Dev Version: 1.0 App: Cool Env: Prod Version: 1.0 App: Cool Env: Dev Version: 2.0 App: Cool Env: Prod Version: 2.0 Node Logger Node Node Node

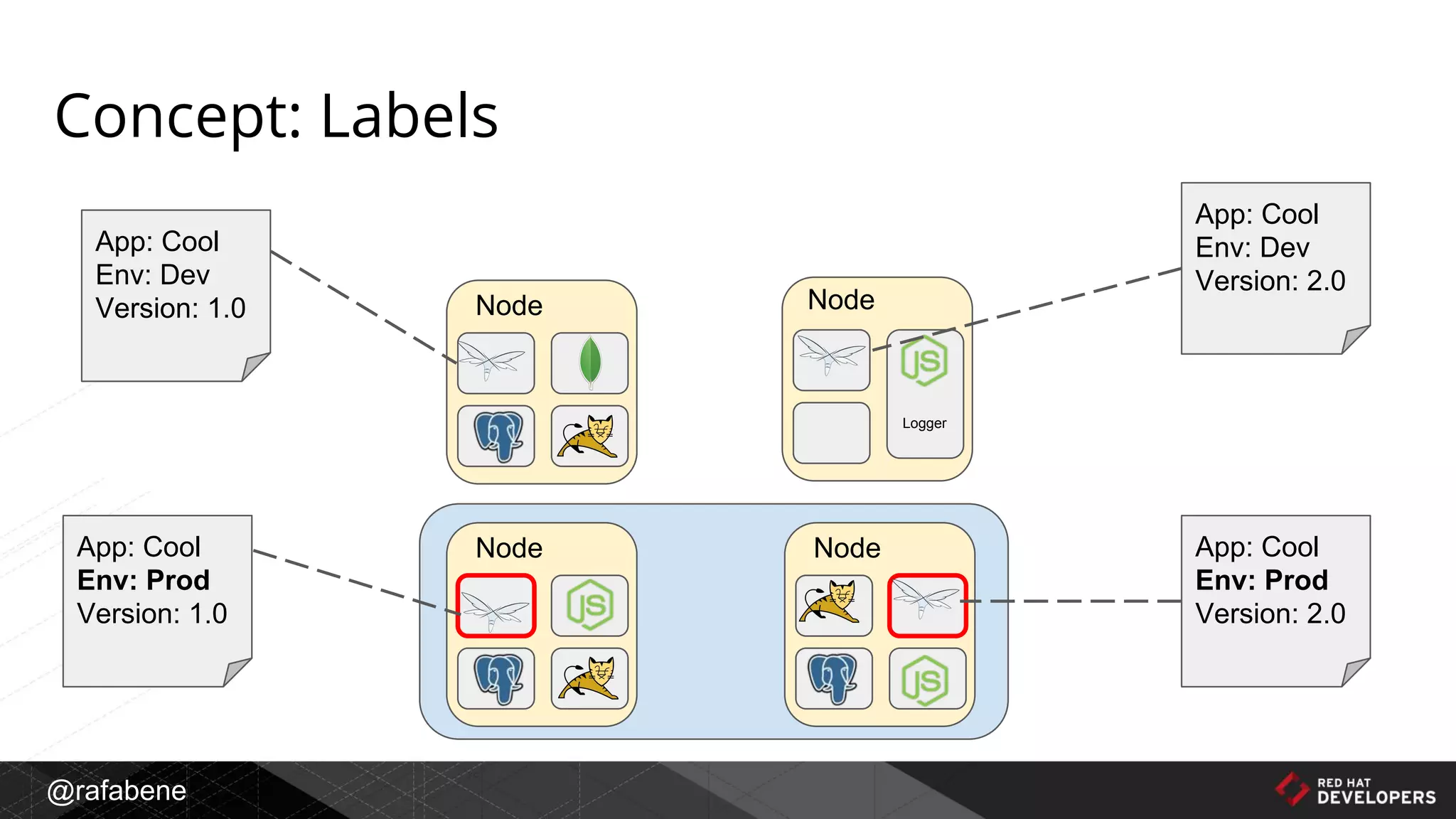

- 24. @rafabene Concept: Labels App: Cool Env:Dev Version: 1.0 App: Cool Env: Prod Version: 1.0 App: Cool Env: Dev Version: 2.0 App: Cool Env: Prod Version: 2.0 Node Logger Node Node Node

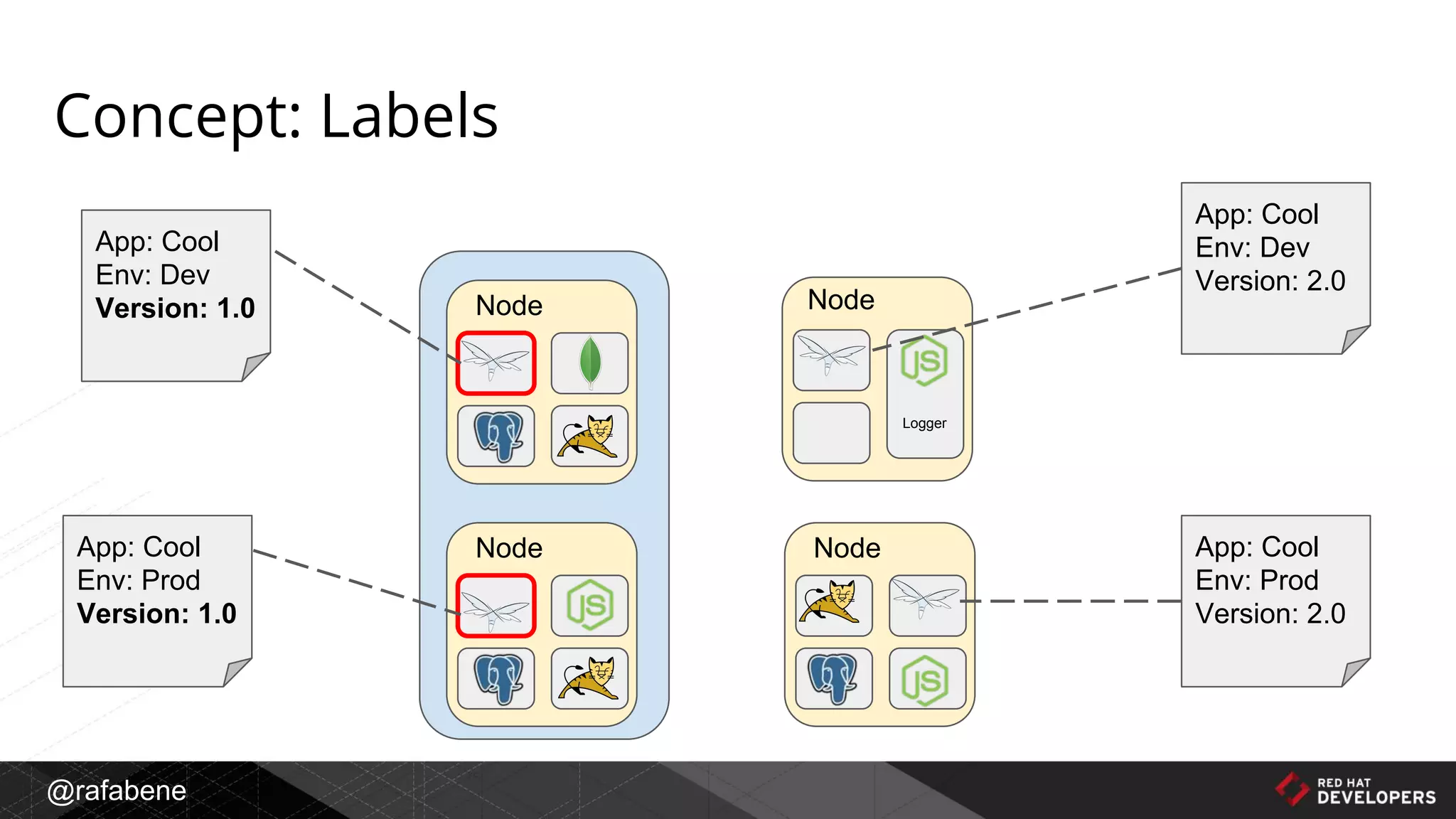

- 25. @rafabene Concept: Labels App: Cool Env:Dev Version: 1.0 App: Cool Env: Prod Version: 1.0 App: Cool Env: Dev Version: 2.0 App: Cool Env: Prod Version: 2.0 Node Logger Node Node Node

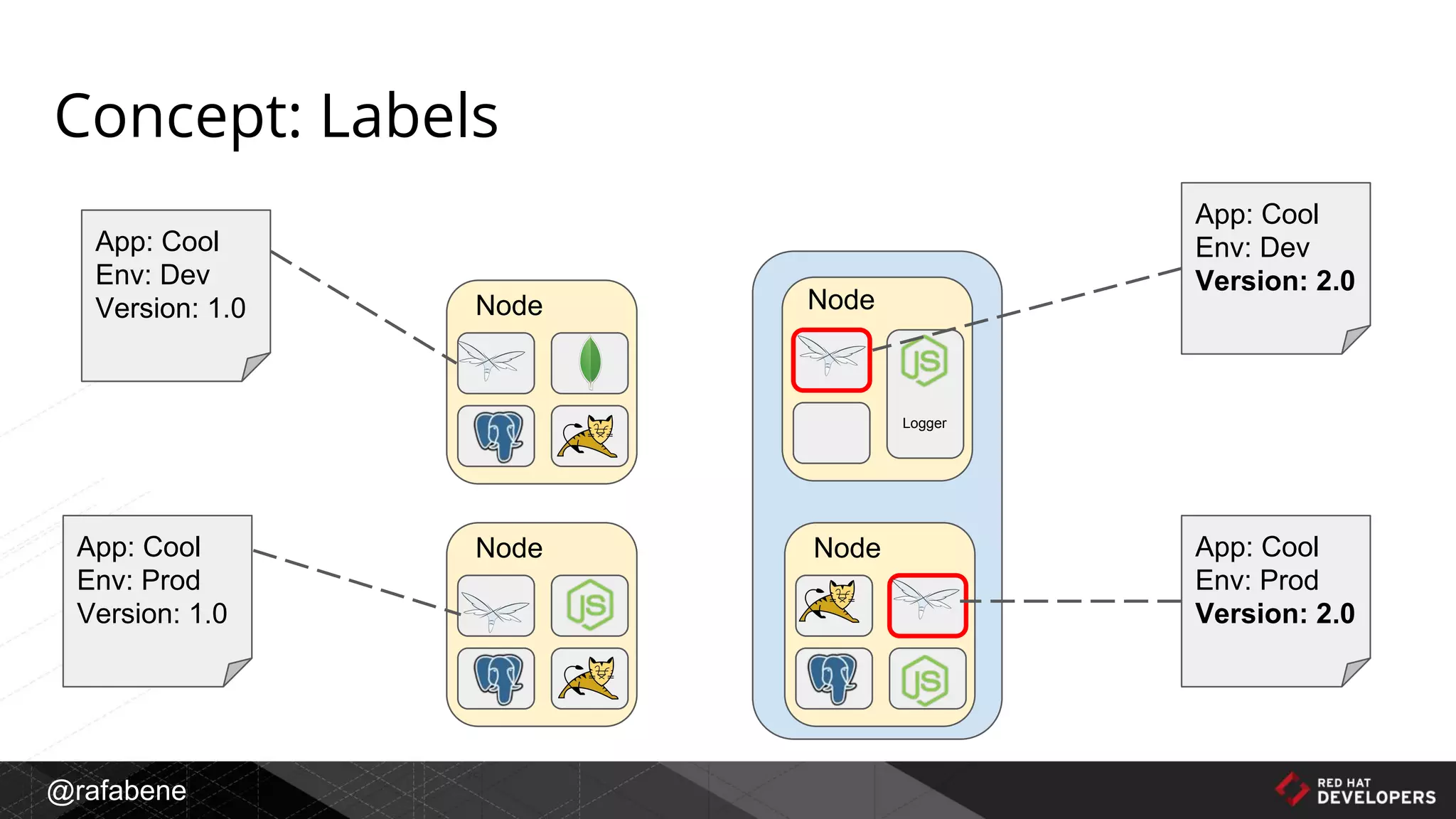

- 26. @rafabene Concept: Labels App: Cool Env:Dev Version: 1.0 App: Cool Env: Dev Version: 2.0 App: Cool Env: Prod Version: 1.0 App: Cool Env: Prod Version: 2.0 Node Logger Node Node Node

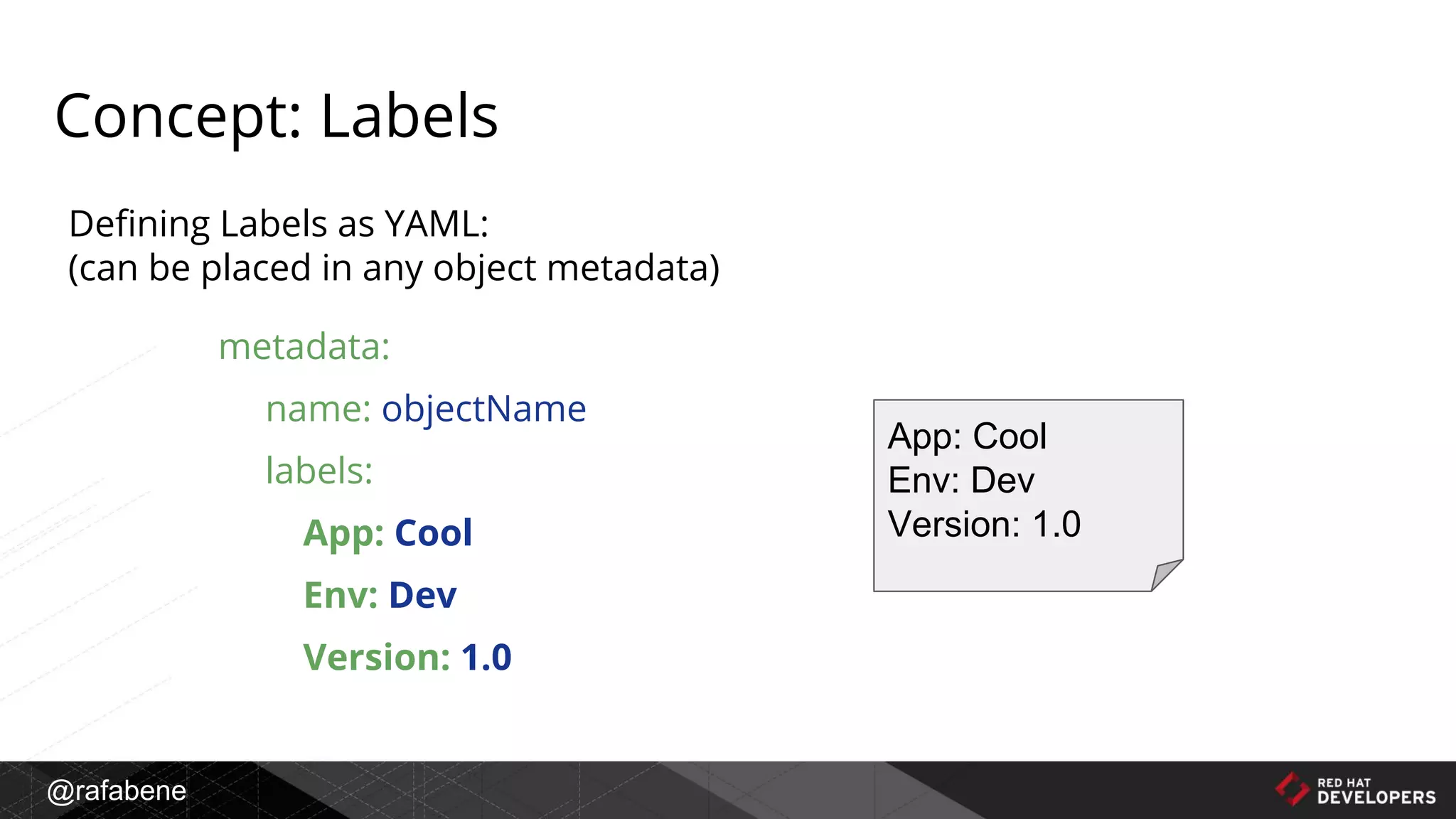

- 27. @rafabene Concept: Labels metadata: name: objectName labels: App:Cool Env: Dev Version: 1.0 Defining Labels as YAML: (can be placed in any object metadata) App: Cool Env: Dev Version: 1.0

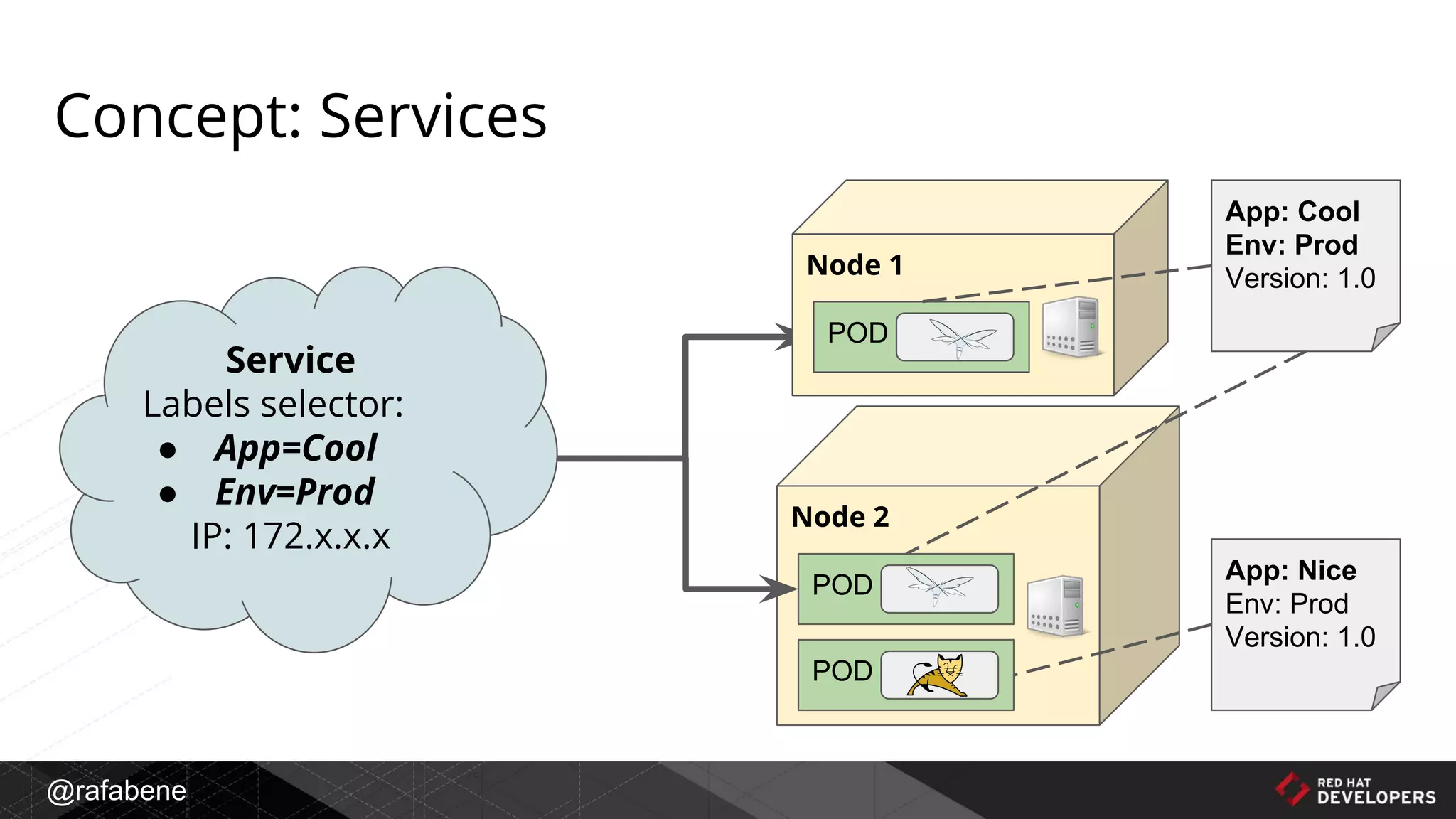

- 28. @rafabene Node 2 POD App: Cool Env:Prod Version: 1.0 POD Service Labels selector: ● App=Cool ● Env=Prod IP: 172.x.x.x App: Nice Env: Prod Version: 1.0 Concept: Services Node 1 POD

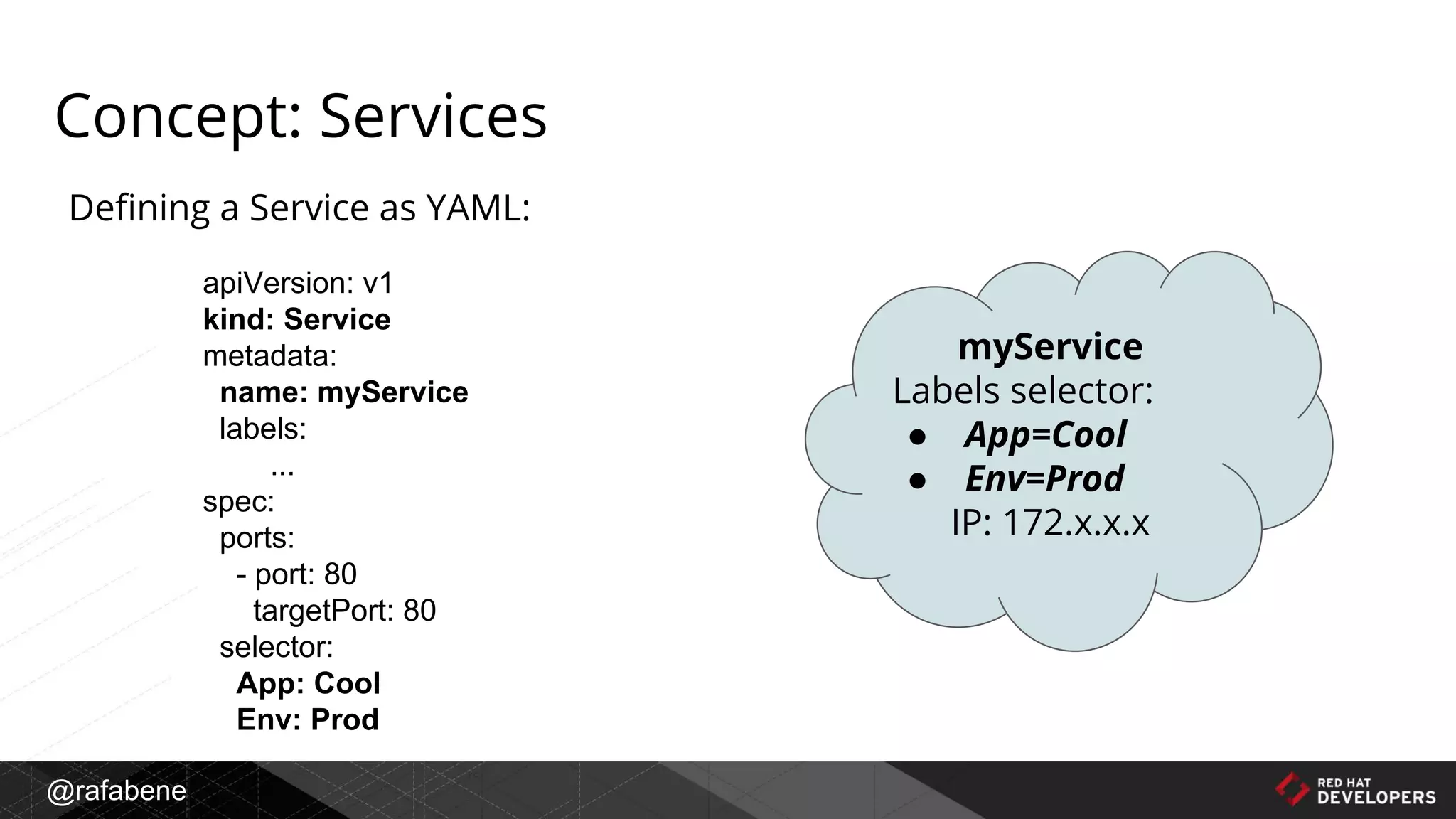

- 29. @rafabene Concept: Services apiVersion: v1 kind:Service metadata: name: myService labels: ... spec: ports: - port: 80 targetPort: 80 selector: App: Cool Env: Prod Defining a Service as YAML: myService Labels selector: ● App=Cool ● Env=Prod IP: 172.x.x.x

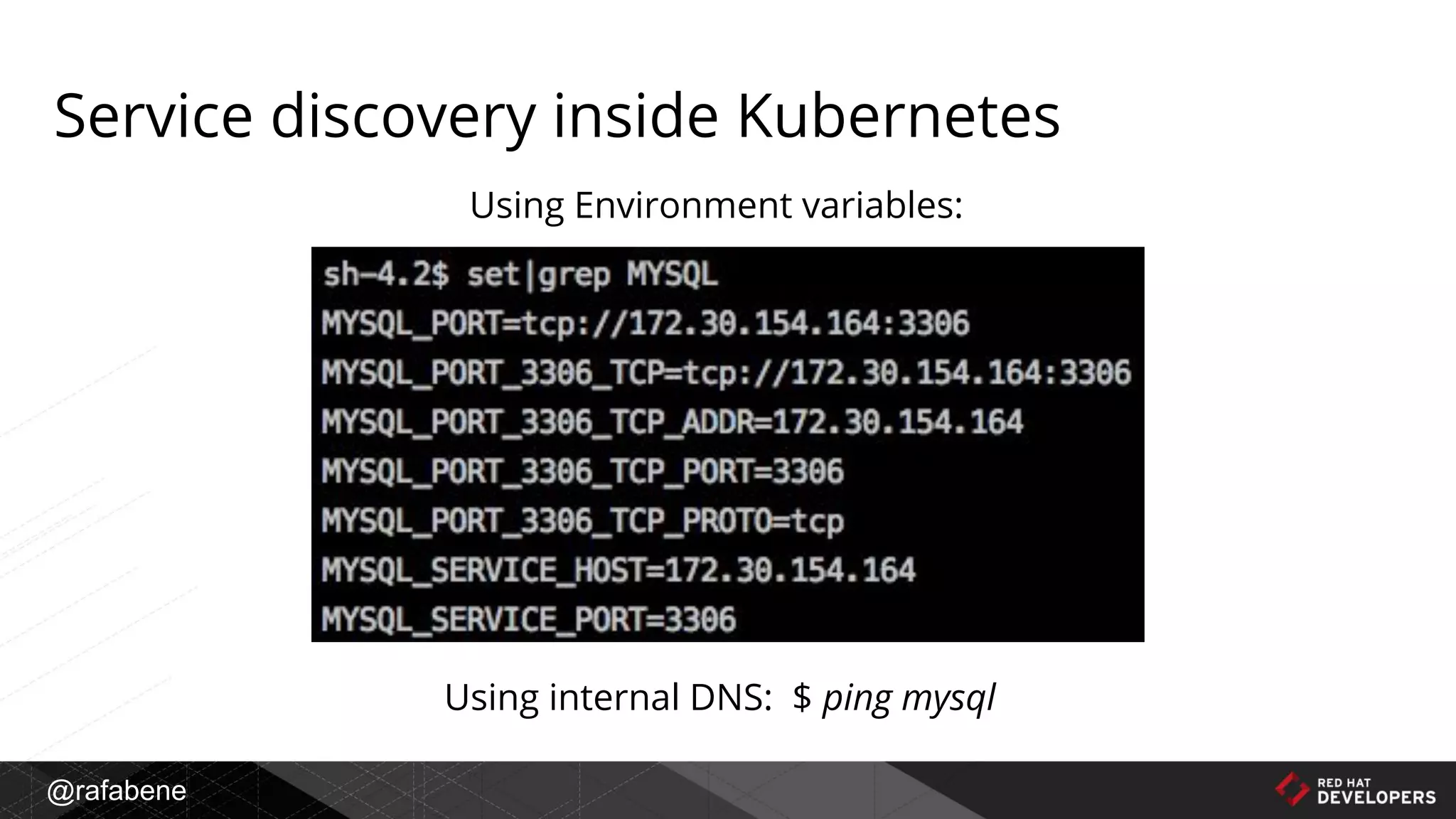

- 30. @rafabene Using Environment variables: Usinginternal DNS: $ ping mysql Service discovery inside Kubernetes

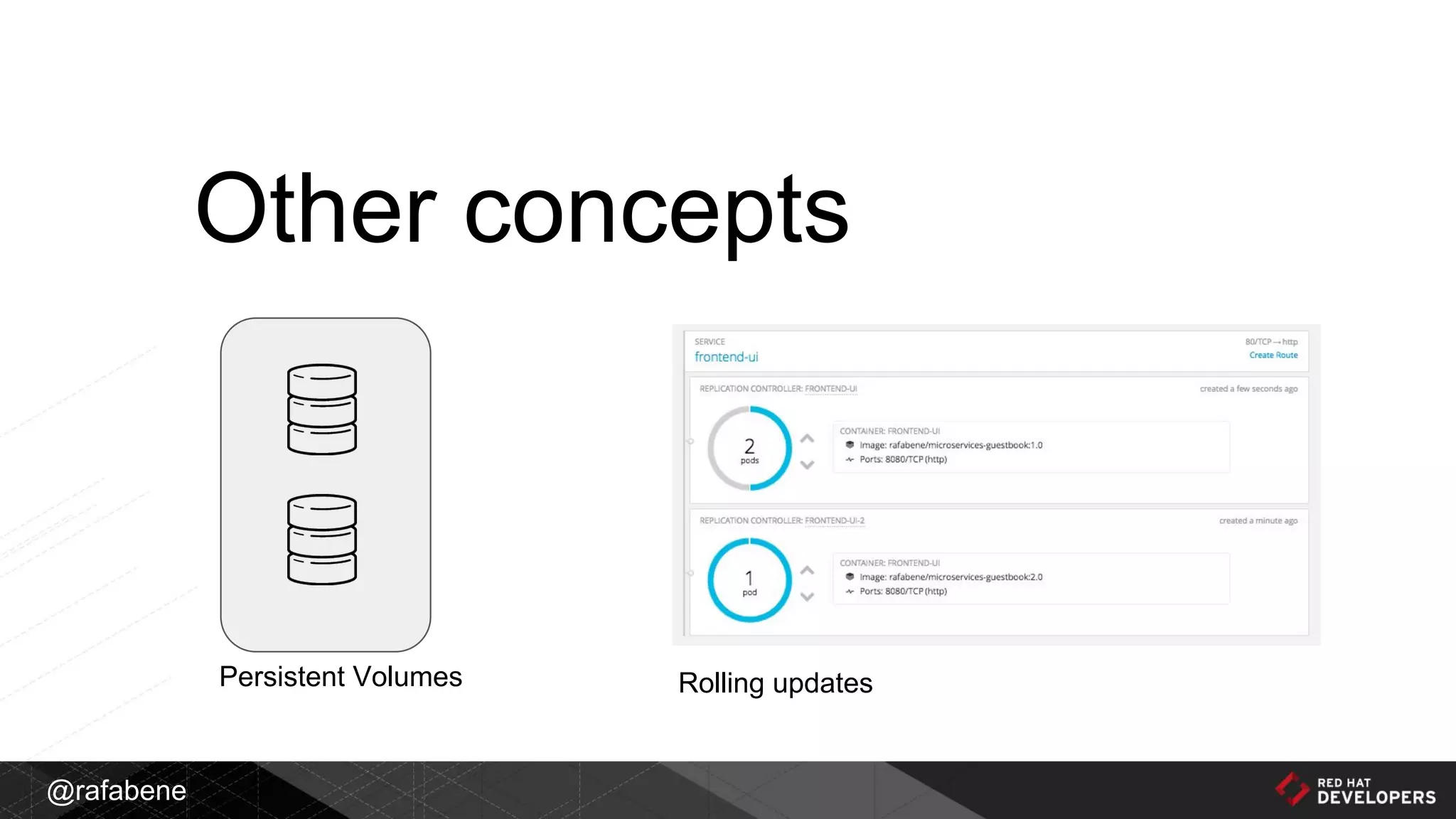

- 31.

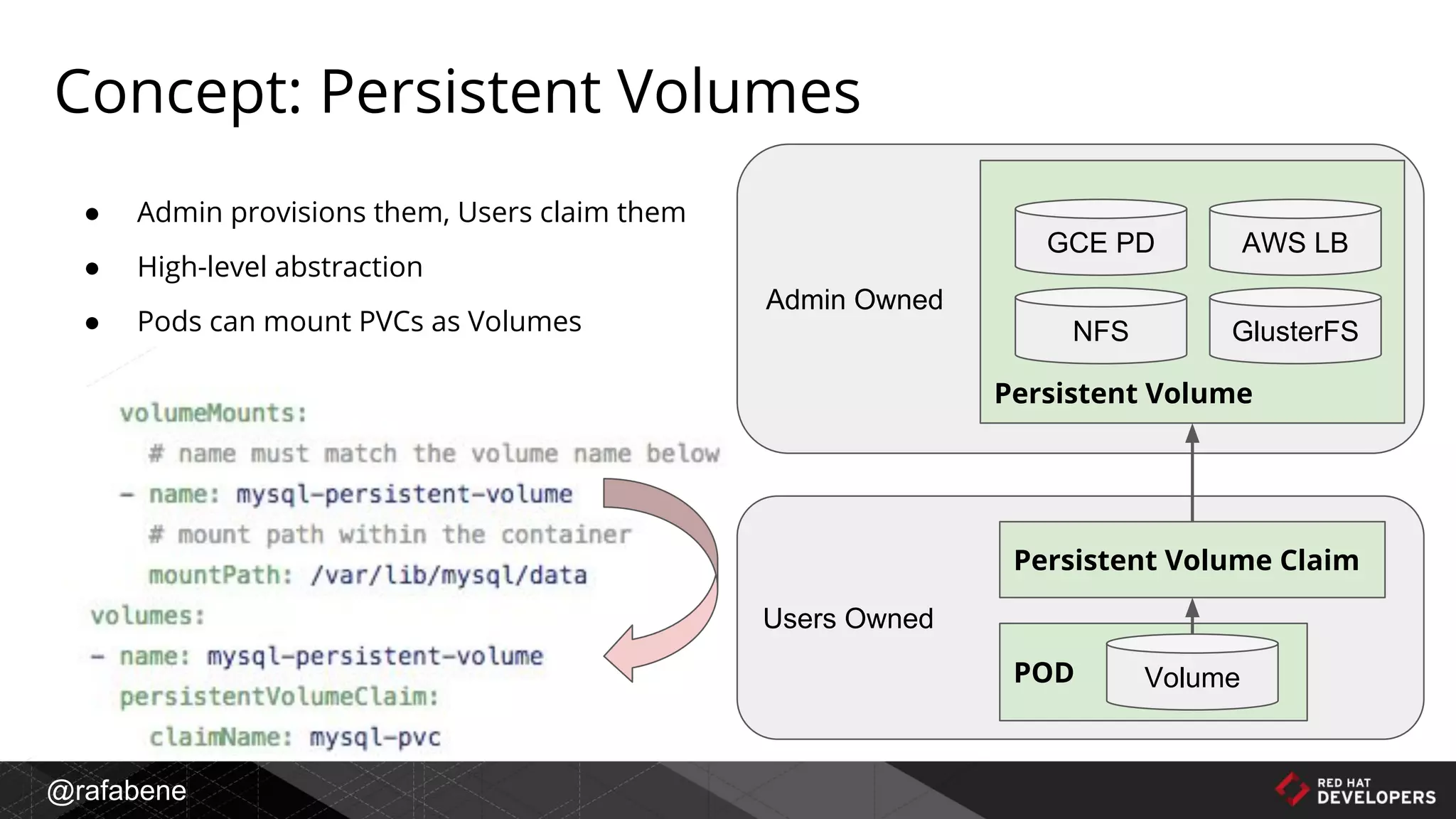

- 32. @rafabene Admin Owned Users Owned PersistentVolume GCE PD AWS LB NFS GlusterFS Persistent Volume Claim POD Volume ● Admin provisions them, Users claim them ● High-level abstraction ● Pods can mount PVCs as Volumes Concept: Persistent Volumes

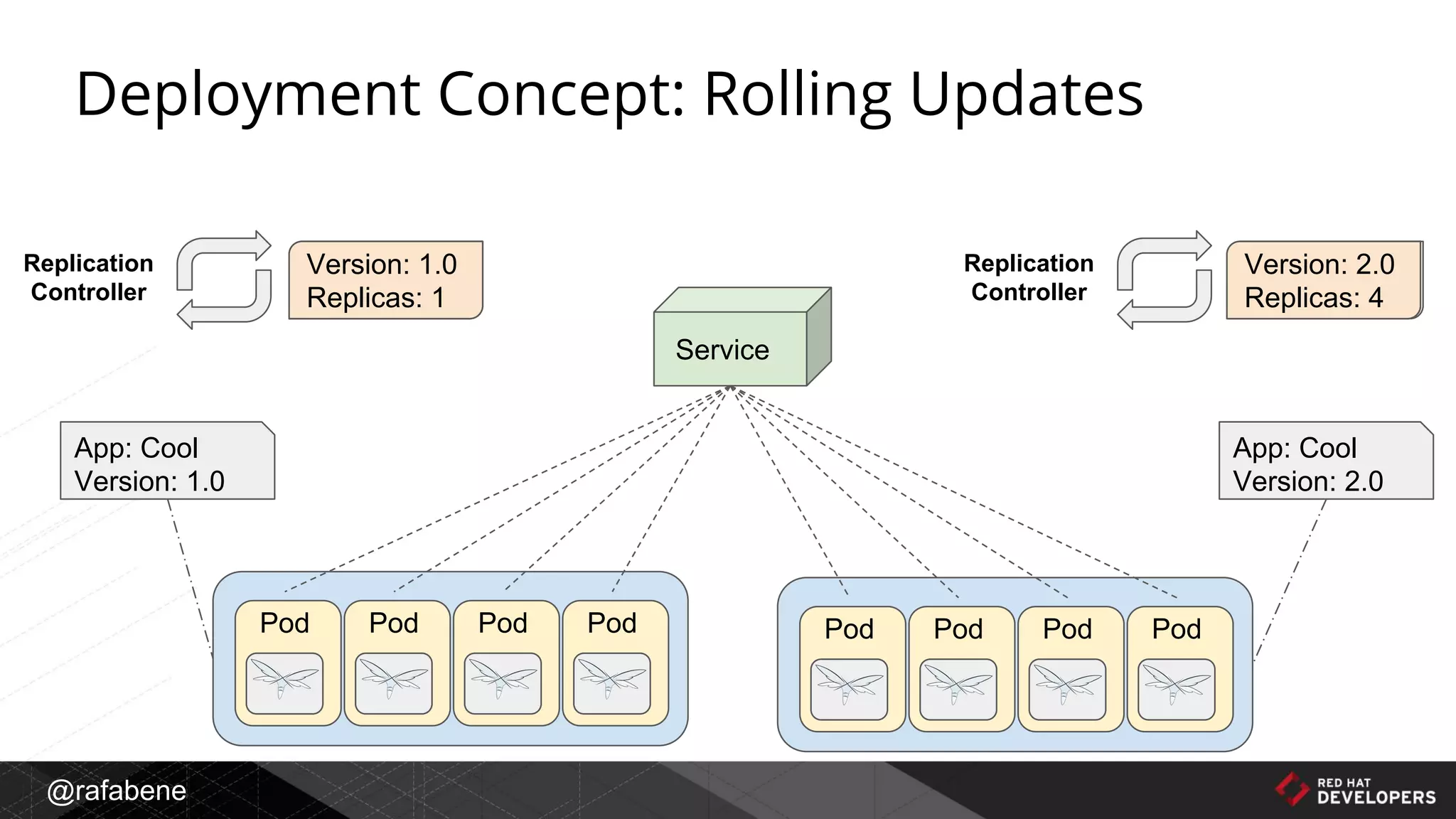

- 33. @rafabene Deployment Concept: RollingUpdates Pod Replication Controller Pod Pod Pod App: Cool Version: 1.0 Version: 1.0 Replicas: 4 Service Replication Controller Version: 2.0 Replicas: 1 Pod Pod Pod Pod App: Cool Version: 2.0 Version: 1.0 Replicas: 3 Version: 2.0 Replicas: 2 Version: 1.0 Replicas: 2 Version: 2.0 Replicas: 3 Version: 1.0 Replicas: 1 Version: 2.0 Replicas: 4
- 34.
- 35.
- 36.

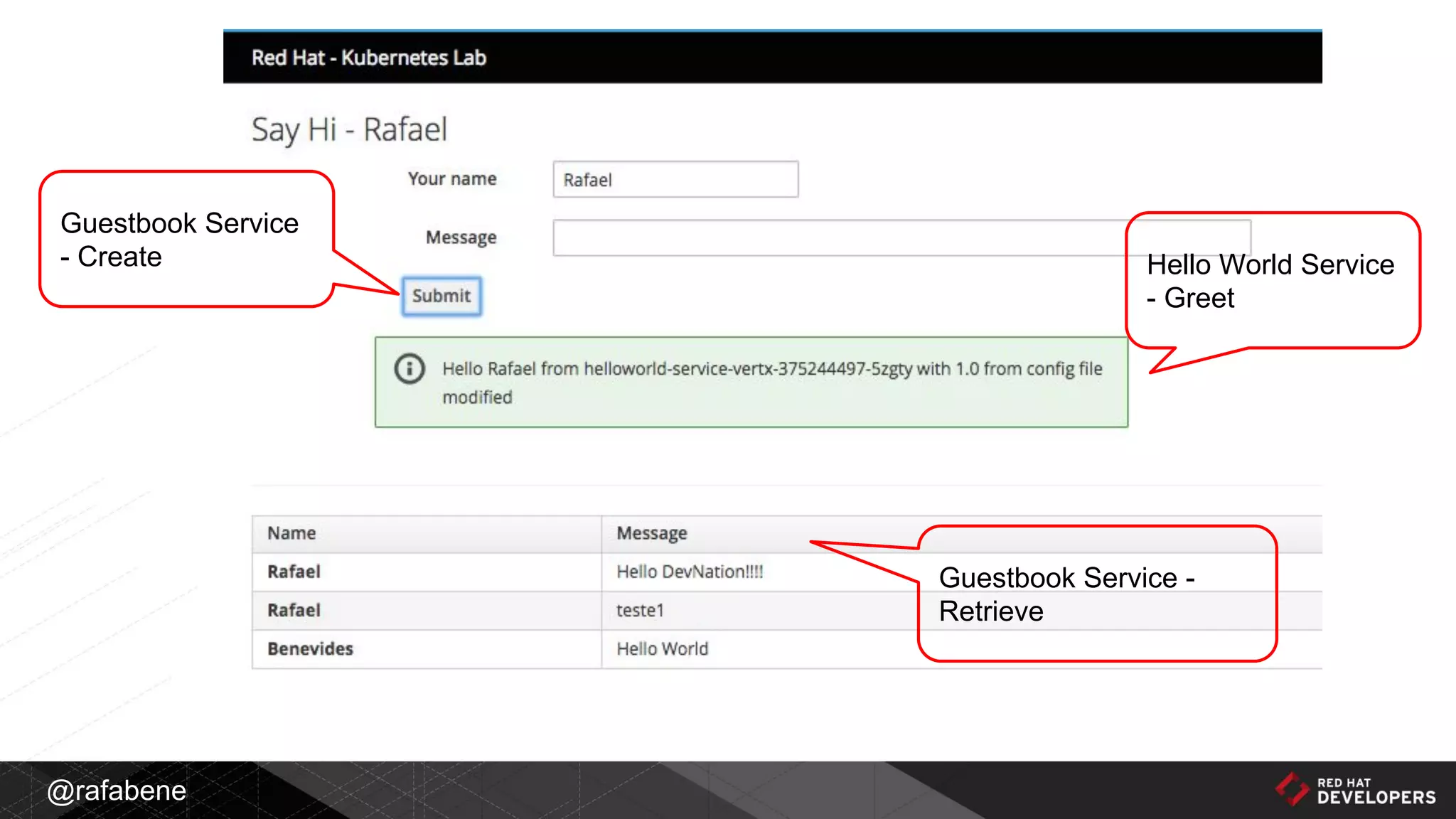

- 37. @rafabene Hello World Service -Greet Guestbook Service - Create Guestbook Service - Retrieve

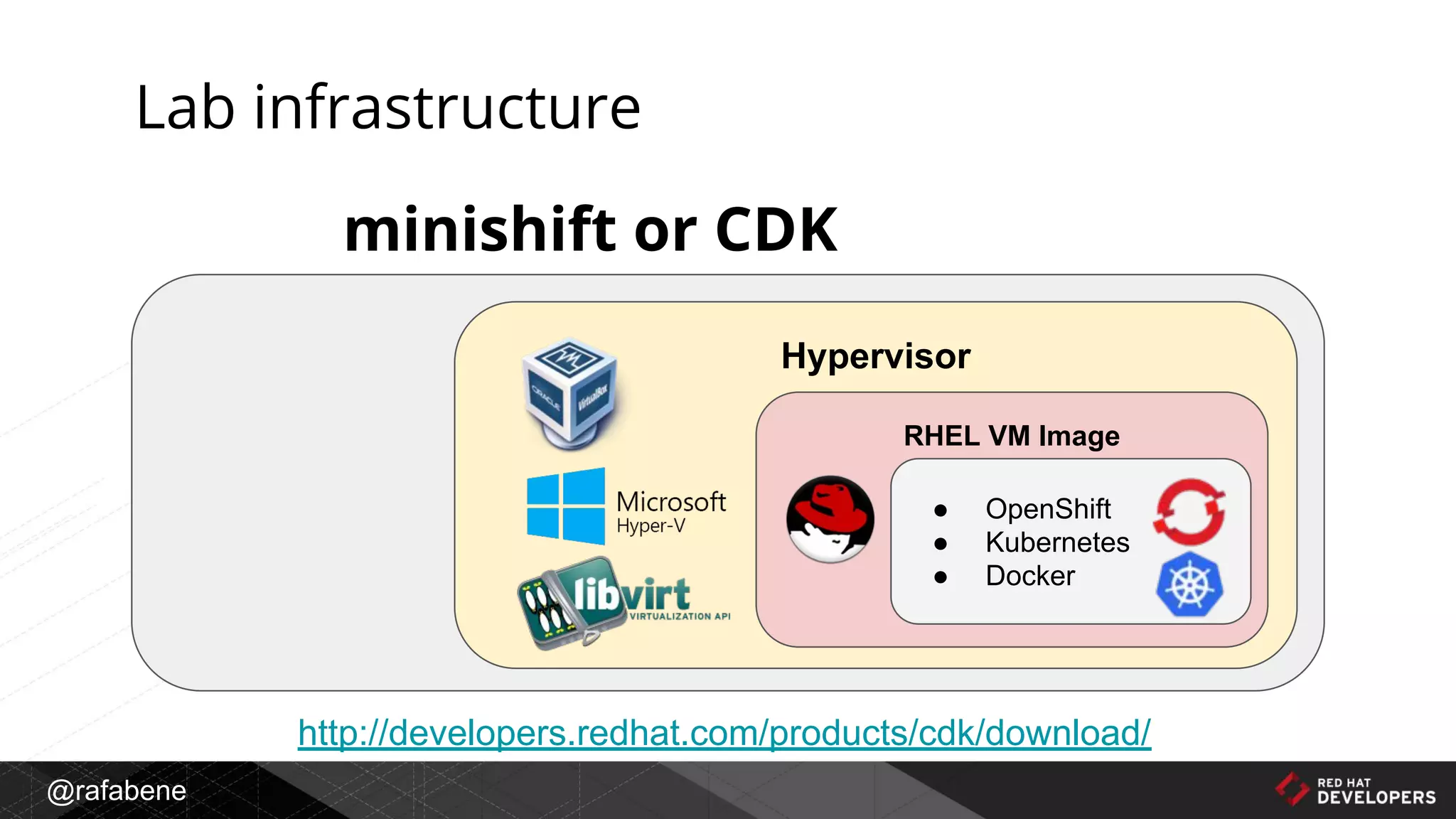

- 38. @rafabene Lab infrastructure Hypervisor RHEL VMImage ● OpenShift ● Kubernetes ● Docker minishift or CDK http://developers.redhat.com/products/cdk/download/
- 39. @rafabene Kubernetes lab VERY IMPORTANT http://bit.ly/kubernetes-lab Followme on the Setup environment section!
- 40.
- 41. Kubernetes Introduction @rafabene benevides@redhat.com Linkhttp://bit.ly/kubernetes-intro
