Internet2 Bio IT 2016 v2

The document discusses Internet2, an advanced networking consortium that operates a 15,000 mile fiber optic network for research and education. It provides very high speed connectivity and collaboration technologies to facilitate large data sharing and frictionless research. Examples are given of life sciences projects utilizing Internet2's high-speed network for genomic research and agricultural applications involving terabytes of satellite and sensor data. The network is expanding to include cloud computing resources and supercomputing centers to enable global-scale distributed scientific computing and collaboration.

Embed presentation

Downloaded 10 times
Pushing Discovery with Internet2 Cloud to Supercomputing in Life Sciences DAN TAYLOR Director, Business Development, Internet2 BIO-IT WORLD 2016 BOSTON APRIL, 2016

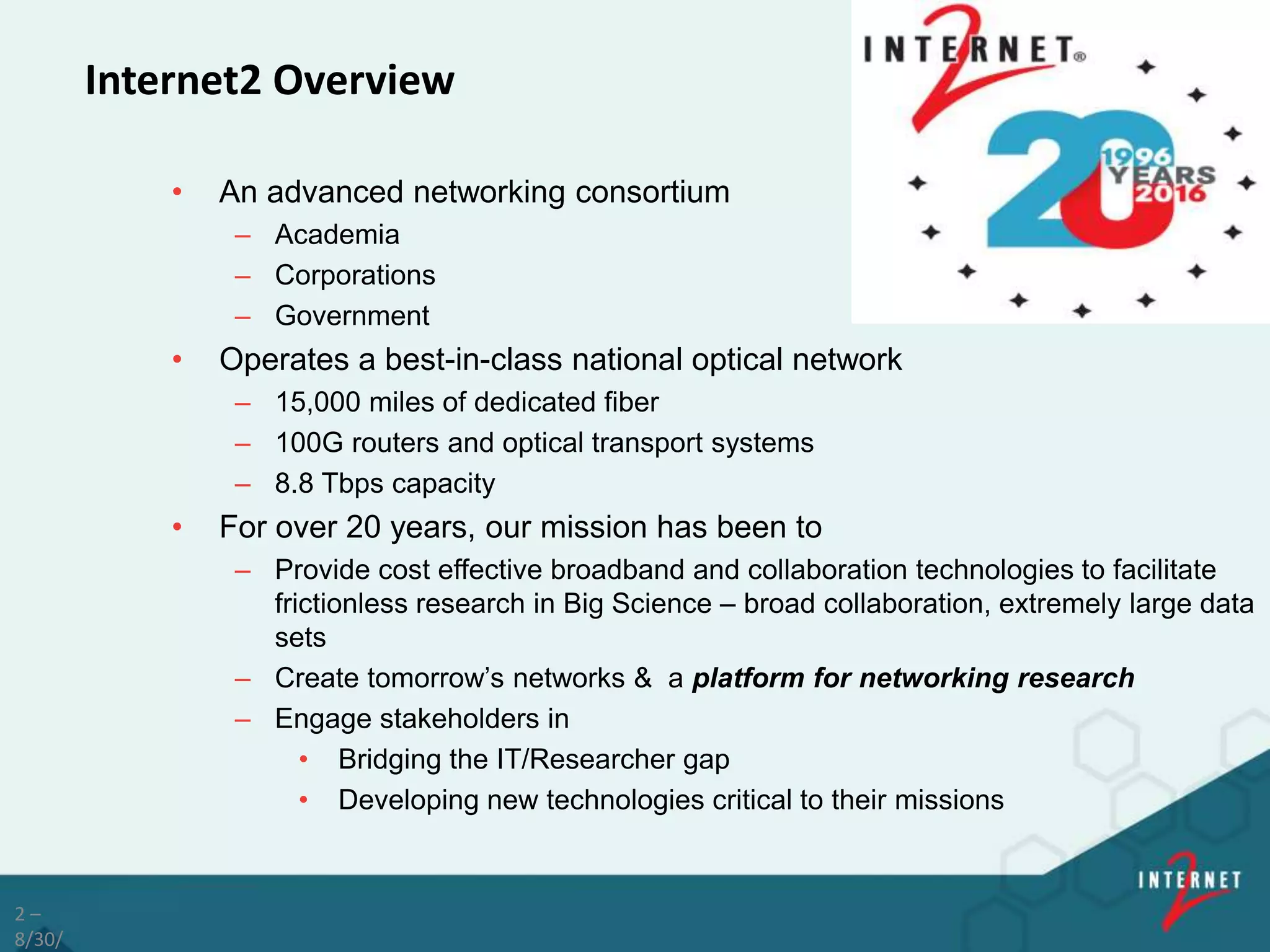

2 – 8/30/ Internet2 Overview • An advanced networking consortium – Academia – Corporations – Government • Operates a best-in-class national optical network – 15,000 miles of dedicated fiber – 100G routers and optical transport systems – 8.8 Tbps capacity • For over 20 years, our mission has been to – Provide cost effective broadband and collaboration technologies to facilitate frictionless research in Big Science – broad collaboration, extremely large data sets – Create tomorrow’s networks & a platform for networking research – Engage stakeholders in • Bridging the IT/Researcher gap • Developing new technologies critical to their missions

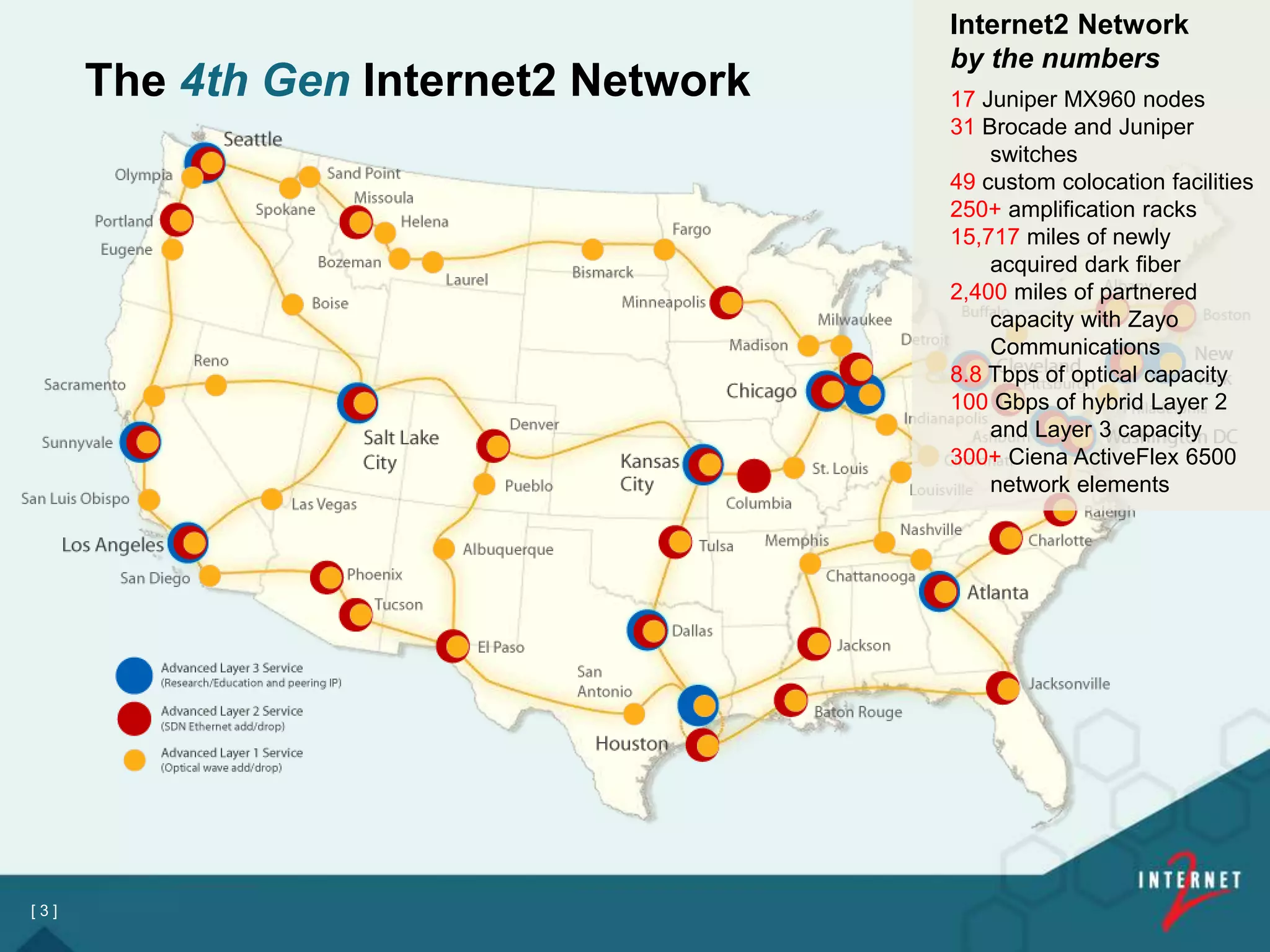

[ 3 ] The 4th Gen Internet2 Network Internet2 Network by the numbers 17 Juniper MX960 nodes 31 Brocade and Juniper switches 49 custom colocation facilities 250+ amplification racks 15,717 miles of newly acquired dark fiber 2,400 miles of partnered capacity with Zayo Communications 8.8 Tbps of optical capacity 100 Gbps of hybrid Layer 2 and Layer 3 capacity 300+ Ciena ActiveFlex 6500 network elements

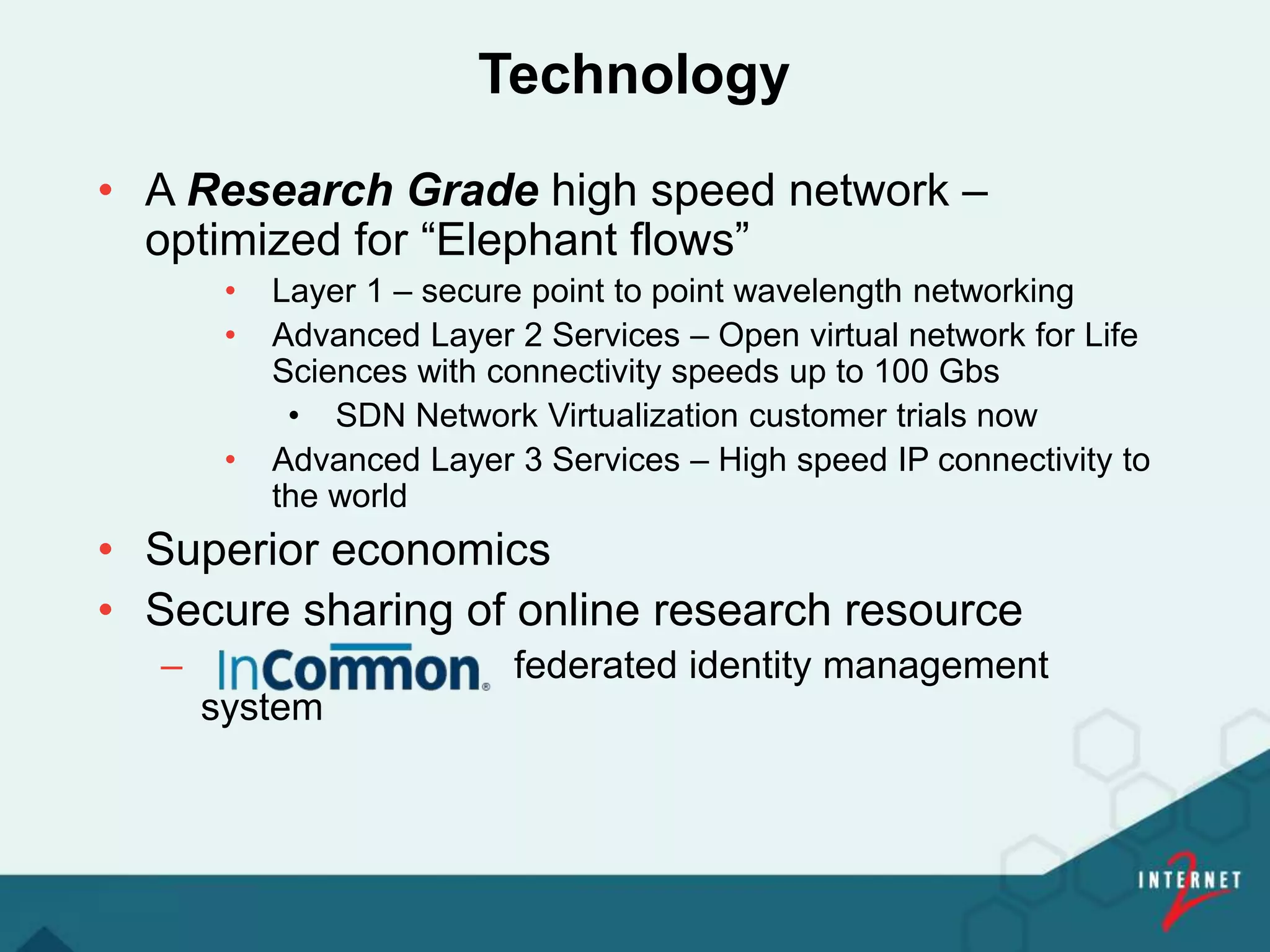

Technology • A Research Grade high speed network – optimized for “Elephant flows” • Layer 1 – secure point to point wavelength networking • Advanced Layer 2 Services – Open virtual network for Life Sciences with connectivity speeds up to 100 Gbs • SDN Network Virtualization customer trials now • Advanced Layer 3 Services – High speed IP connectivity to the world • Superior economics • Secure sharing of online research resource – federated identity management system

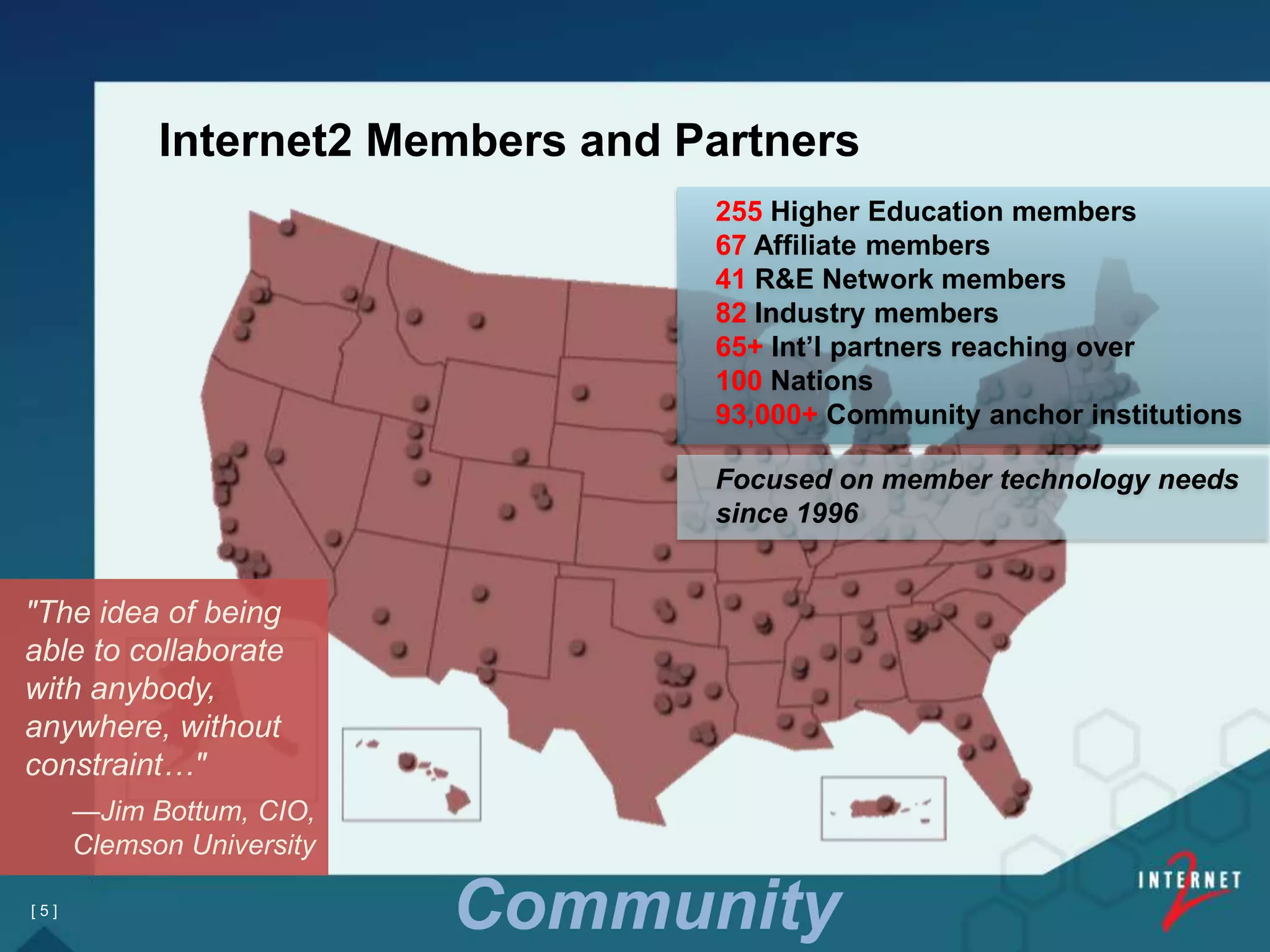

[ 5 ] Internet2 Members and Partners 255 Higher Education members 67 Affiliate members 41 R&E Network members 82 Industry members 65+ Int’l partners reaching over 100 Nations 93,000+ Community anchor institutions Focused on member technology needs since 1996 "The idea of being able to collaborate with anybody, anywhere, without constraint…" —Jim Bottum, CIO, Clemson University Community

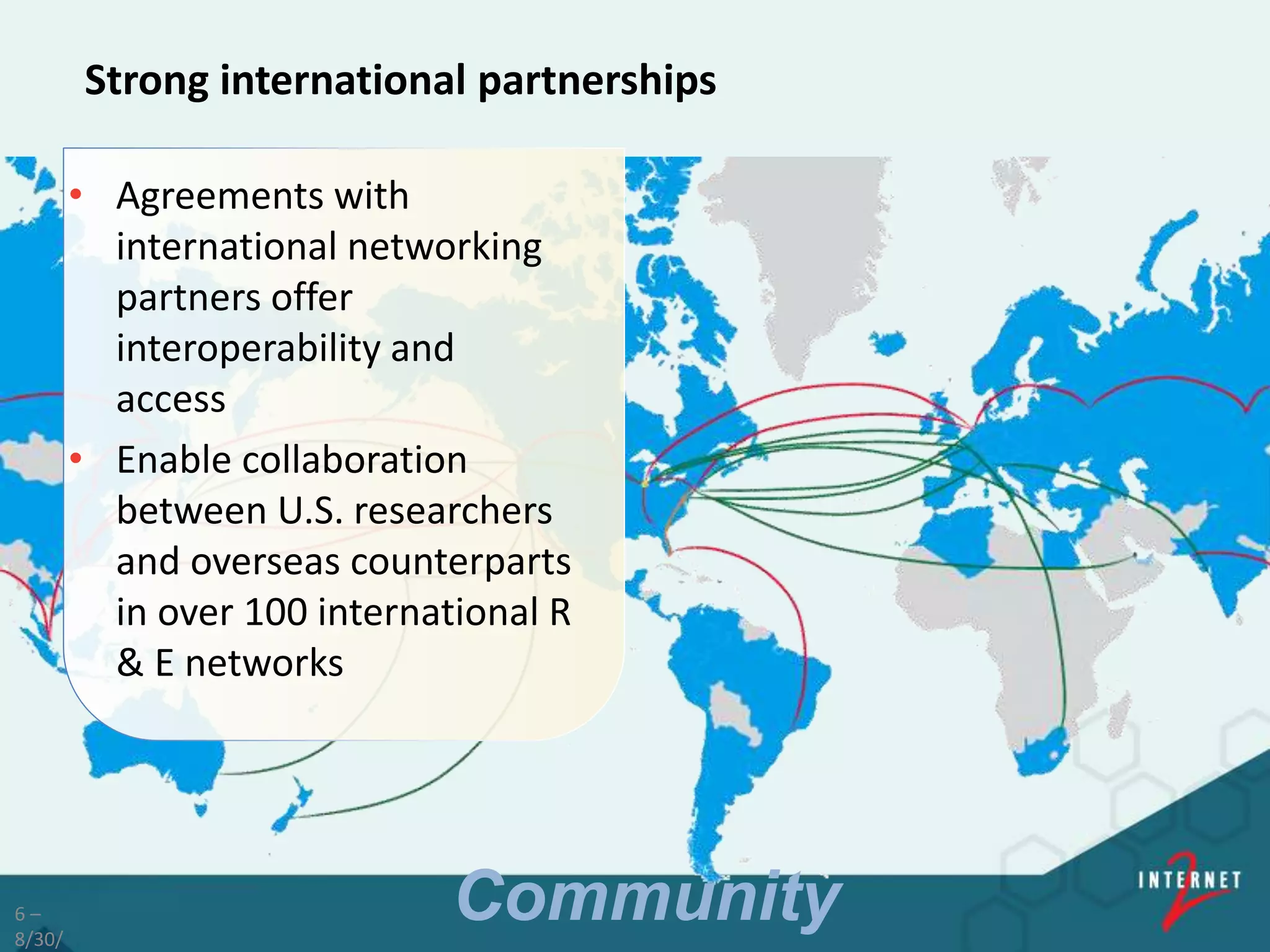

6 – 8/30/ Strong international partnerships • Agreements with international networking partners offer interoperability and access • Enable collaboration between U.S. researchers and overseas counterparts in over 100 international R & E networks Community
Some of our Affiliate Members 7
[ 8 ] *Routers Stanford Computer Workstations Berkeley, Stanford Security Systems Univ of Michigan Security Systems Georgia Tech Social Media Harvard Network Caching MIT Search Stanford

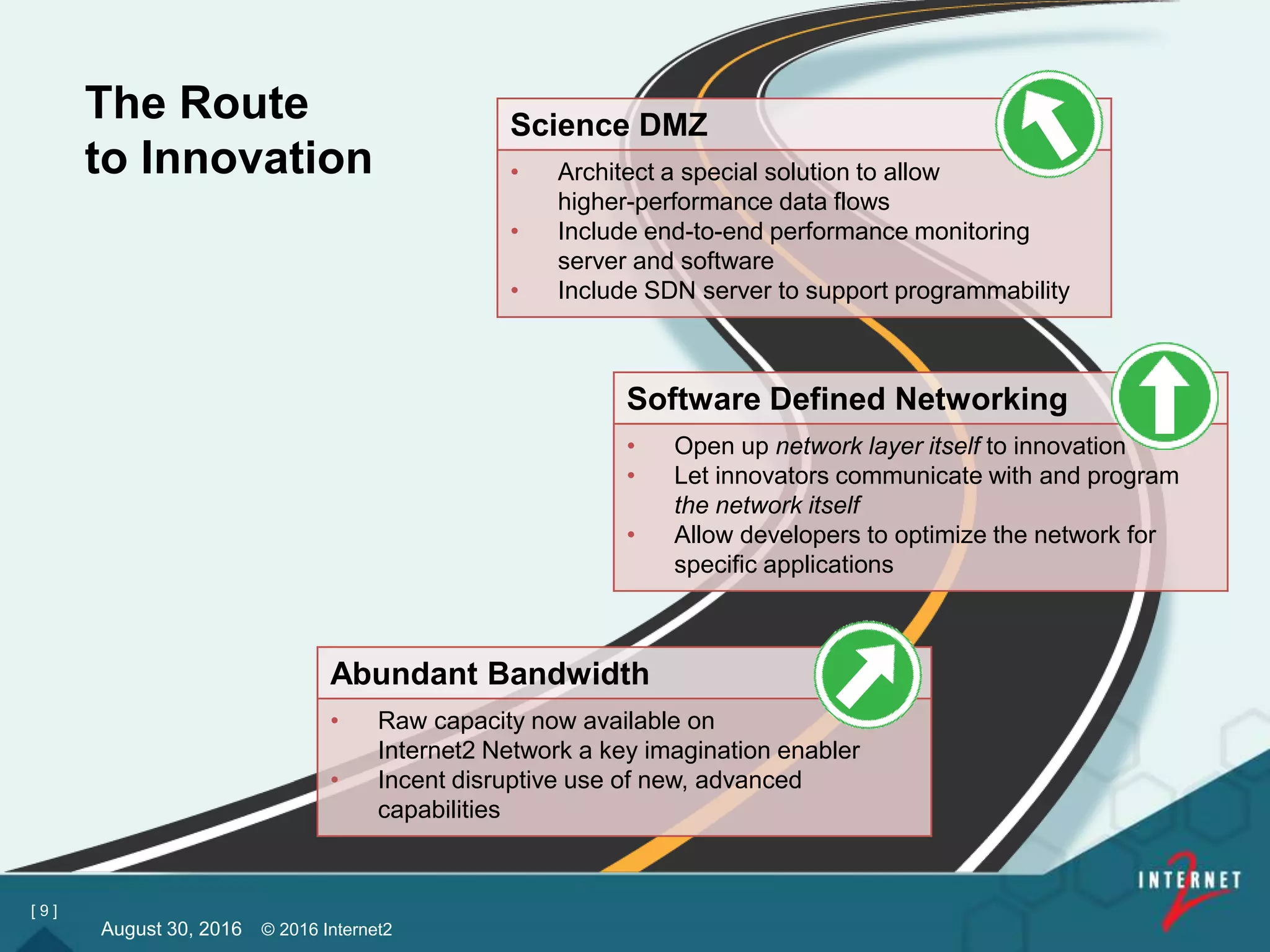

[ 9 ] The Route to Innovation August 30, 2016 © 2016 Internet2 Abundant Bandwidth • Raw capacity now available on Internet2 Network a key imagination enabler • Incent disruptive use of new, advanced capabilities Software Defined Networking • Open up network layer itself to innovation • Let innovators communicate with and program the network itself • Allow developers to optimize the network for specific applications Science DMZ • Architect a special solution to allow higher-performance data flows • Include end-to-end performance monitoring server and software • Include SDN server to support programmability

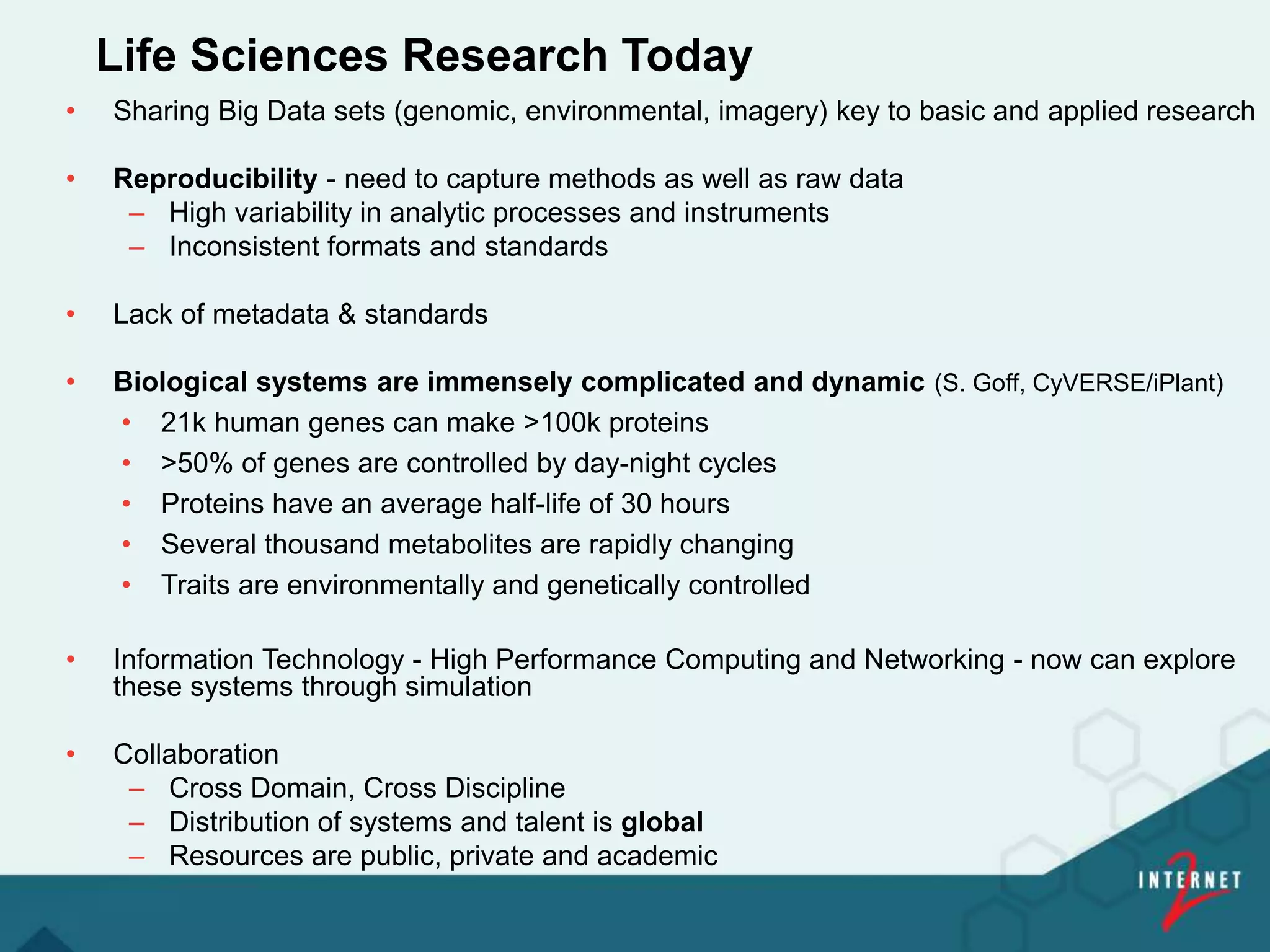

Life Sciences Research Today • Sharing Big Data sets (genomic, environmental, imagery) key to basic and applied research • Reproducibility - need to capture methods as well as raw data – High variability in analytic processes and instruments – Inconsistent formats and standards • Lack of metadata & standards • Biological systems are immensely complicated and dynamic (S. Goff, CyVERSE/iPlant) • 21k human genes can make >100k proteins • >50% of genes are controlled by day-night cycles • Proteins have an average half-life of 30 hours • Several thousand metabolites are rapidly changing • Traits are environmentally and genetically controlled • Information Technology - High Performance Computing and Networking - now can explore these systems through simulation • Collaboration – Cross Domain, Cross Discipline – Distribution of systems and talent is global – Resources are public, private and academic

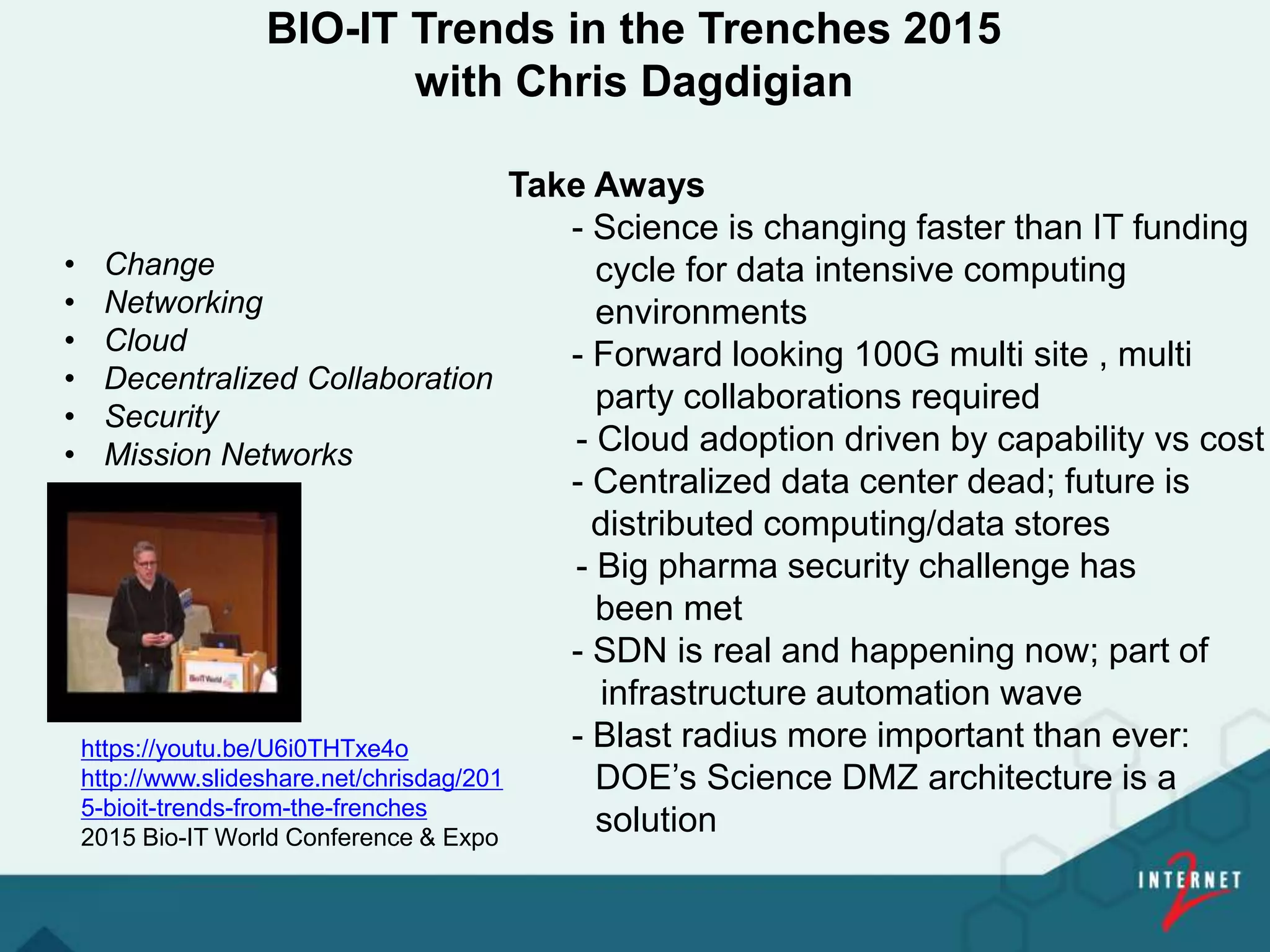

BIO-IT Trends in the Trenches 2015 with Chris Dagdigian Take Aways - Science is changing faster than IT funding cycle for data intensive computing environments - Forward looking 100G multi site , multi party collaborations required - Cloud adoption driven by capability vs cost - Centralized data center dead; future is distributed computing/data stores - Big pharma security challenge has been met - SDN is real and happening now; part of infrastructure automation wave - Blast radius more important than ever: DOE’s Science DMZ architecture is a solution https://youtu.be/U6i0THTxe4o http://www.slideshare.net/chrisdag/201 5-bioit-trends-from-the-frenches 2015 Bio-IT World Conference & Expo • Change • Networking • Cloud • Decentralized Collaboration • Security • Mission Networks

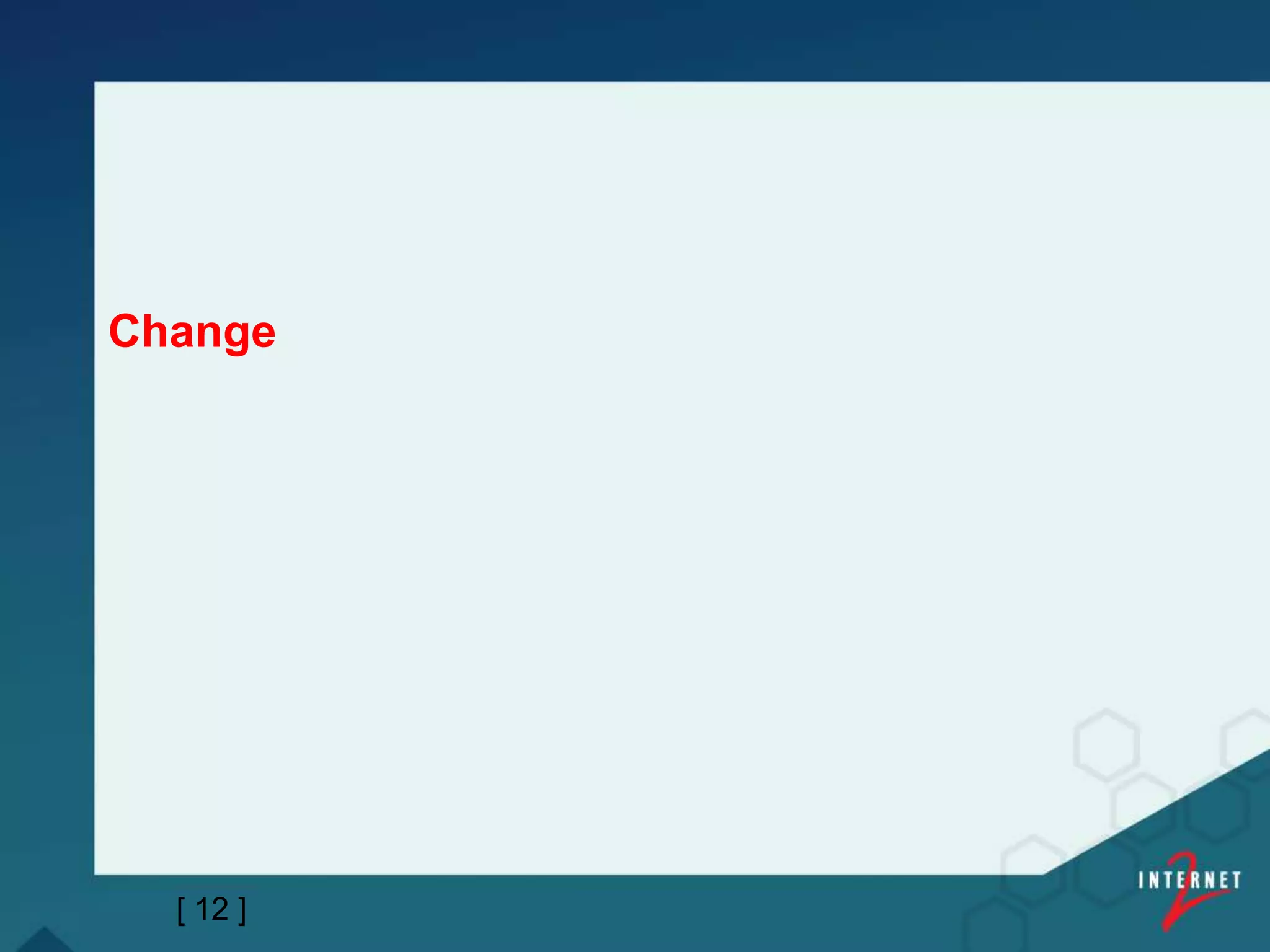

Change [ 12 ]

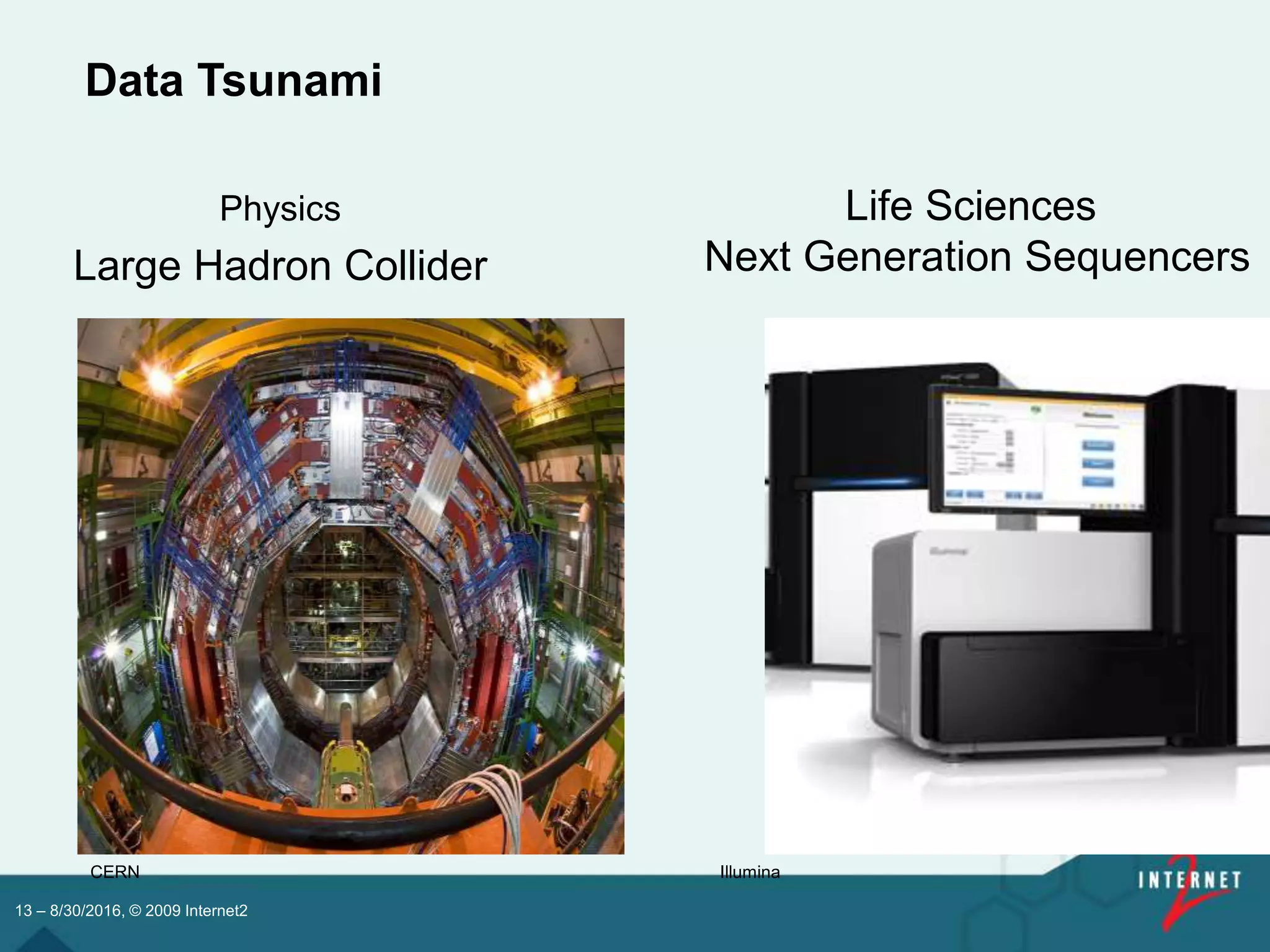

13 – 8/30/2016, © 2009 Internet2 Data Tsunami Physics Large Hadron Collider Life Sciences Next Generation Sequencers CERN Illumina
Networking [ 14 ]

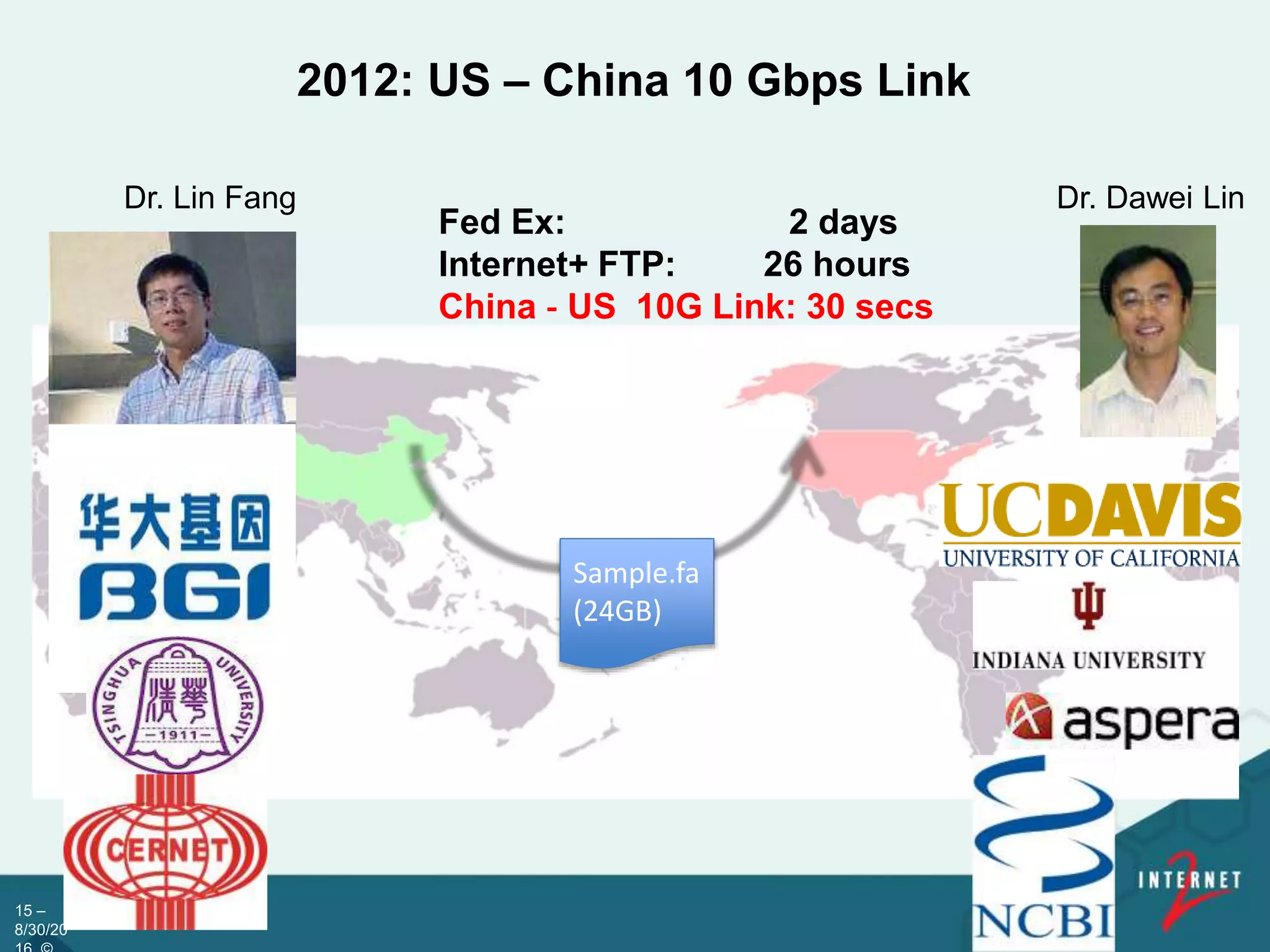

15 – 8/30/20 2012: US – China 10 Gbps Link Fed Ex: 2 days Internet+ FTP: 26 hours China ‐ US 10G Link: 30 secs Dr. Lin Fang Dr. Dawei Lin Sample.fa (24GB)

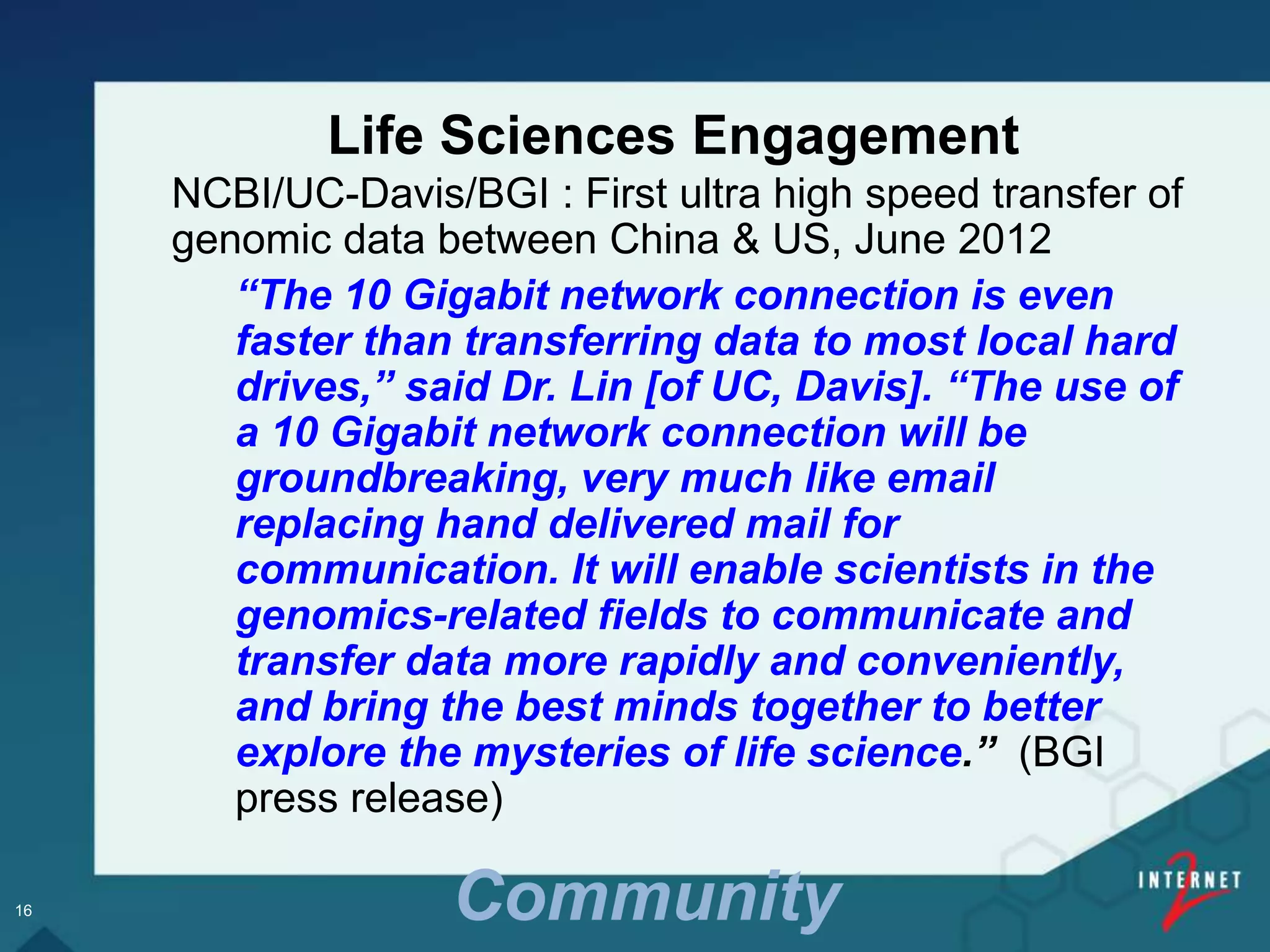

NCBI/UC-Davis/BGI : First ultra high speed transfer of genomic data between China & US, June 2012 “The 10 Gigabit network connection is even faster than transferring data to most local hard drives,” said Dr. Lin [of UC, Davis]. “The use of a 10 Gigabit network connection will be groundbreaking, very much like email replacing hand delivered mail for communication. It will enable scientists in the genomics-related fields to communicate and transfer data more rapidly and conveniently, and bring the best minds together to better explore the mysteries of life science.” (BGI press release) Life Sciences Engagement 16 Community

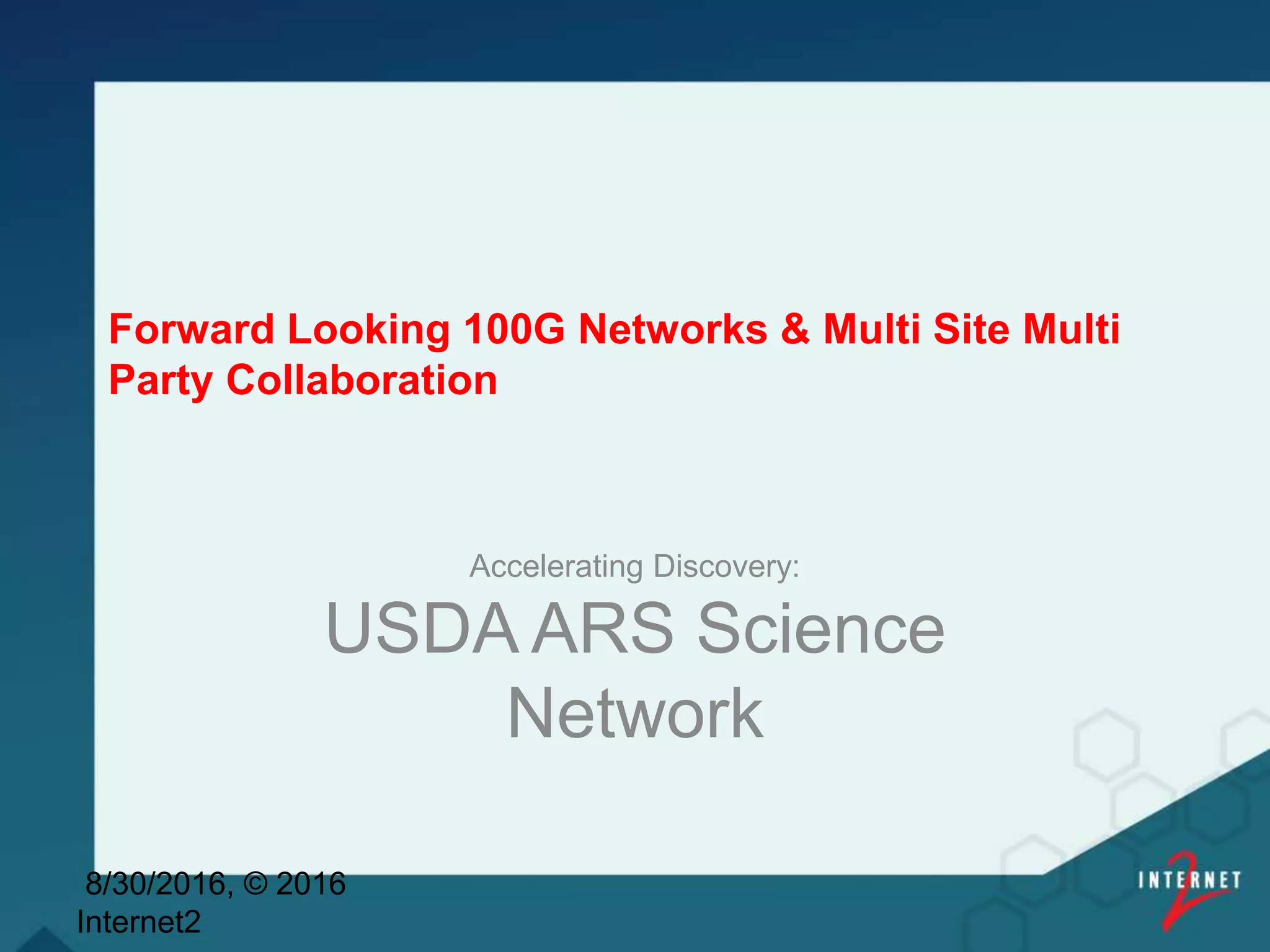

Forward Looking 100G Networks & Multi Site Multi Party Collaboration Accelerating Discovery: USDA ARS Science Network 8/30/2016, © 2016 Internet2

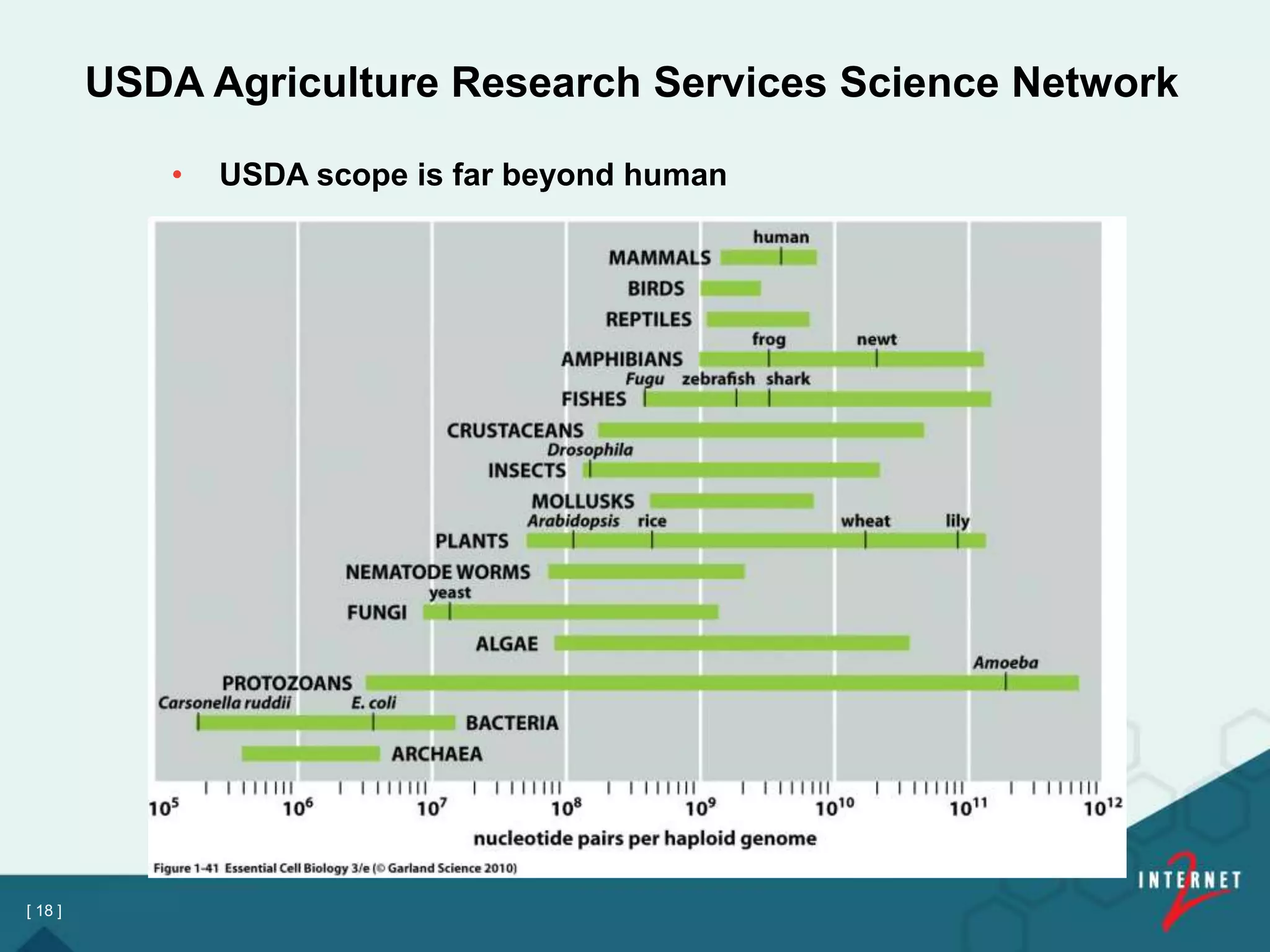

[ 18 ] USDA Agriculture Research Services Science Network • USDA scope is far beyond human

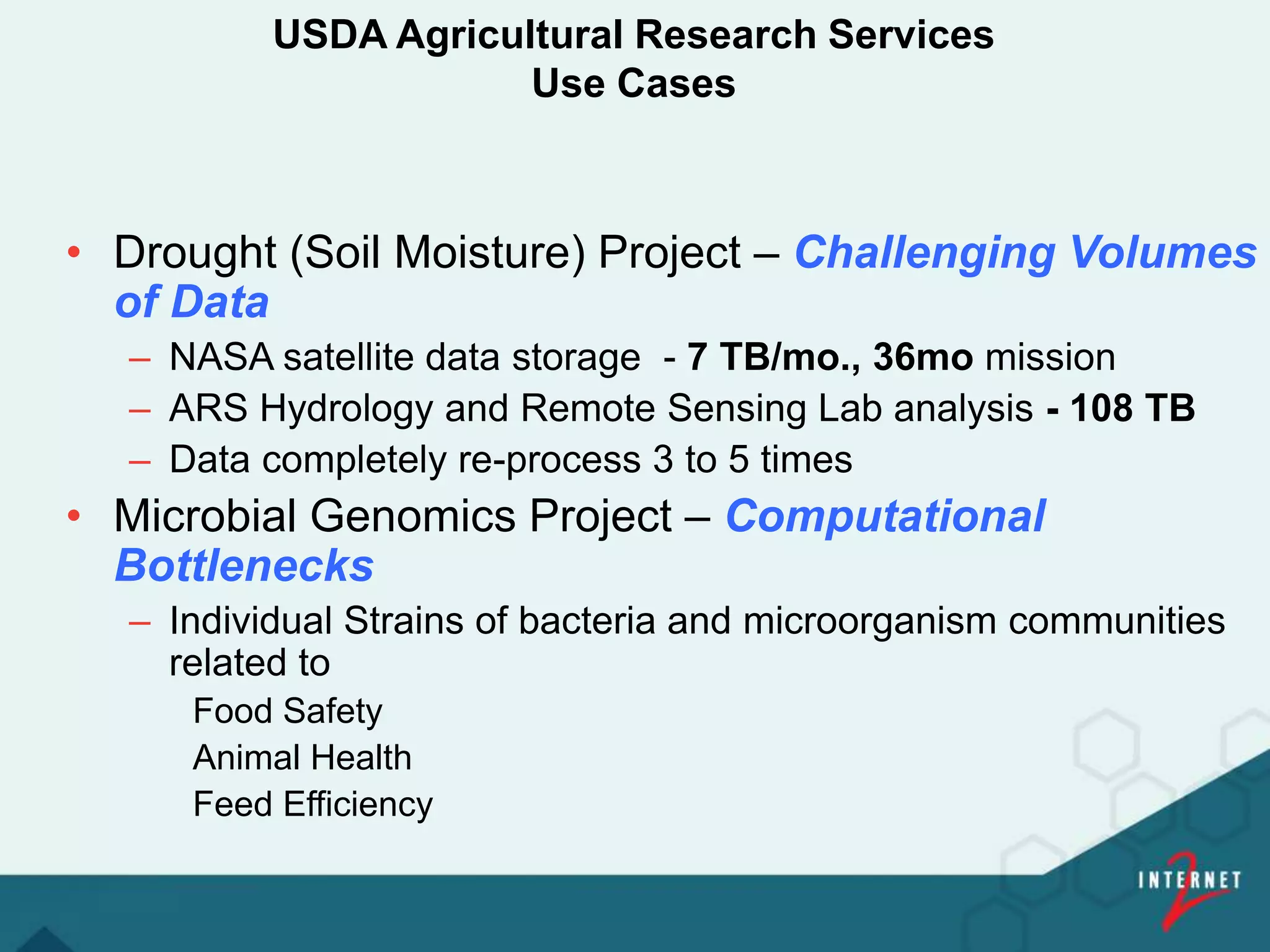

USDA Agricultural Research Services Use Cases • Drought (Soil Moisture) Project – Challenging Volumes of Data – NASA satellite data storage - 7 TB/mo., 36mo mission – ARS Hydrology and Remote Sensing Lab analysis - 108 TB – Data completely re-process 3 to 5 times • Microbial Genomics Project – Computational Bottlenecks – Individual Strains of bacteria and microorganism communities related to Food Safety Animal Health Feed Efficiency

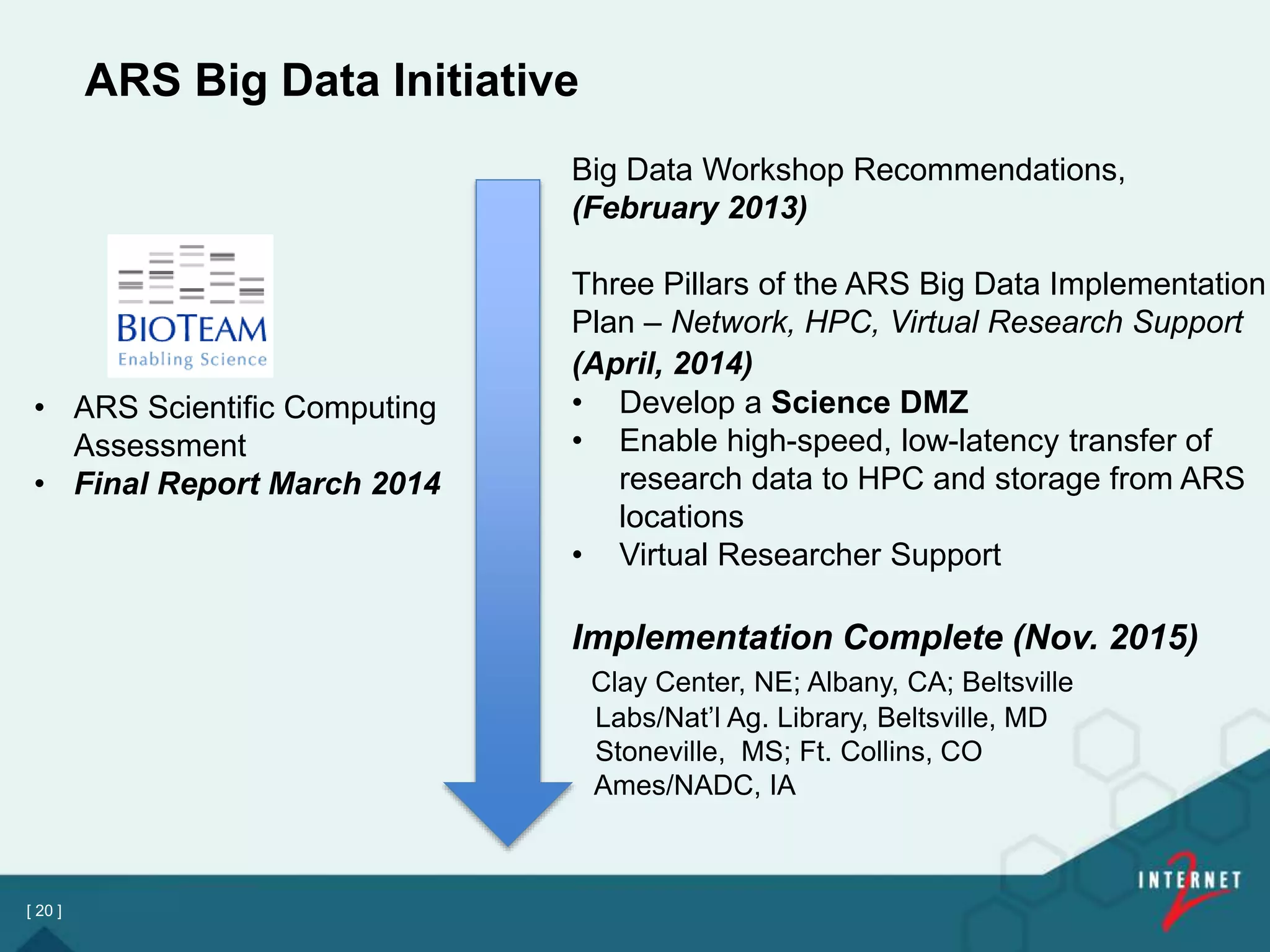

[ 20 ] ARS Big Data Initiative Big Data Workshop Recommendations, (February 2013) Three Pillars of the ARS Big Data Implementation Plan – Network, HPC, Virtual Research Support (April, 2014) • Develop a Science DMZ • Enable high-speed, low-latency transfer of research data to HPC and storage from ARS locations • Virtual Researcher Support Implementation Complete (Nov. 2015) Clay Center, NE; Albany, CA; Beltsville Labs/Nat’l Ag. Library, Beltsville, MD Stoneville, MS; Ft. Collins, CO Ames/NADC, IA • ARS Scientific Computing Assessment • Final Report March 2014

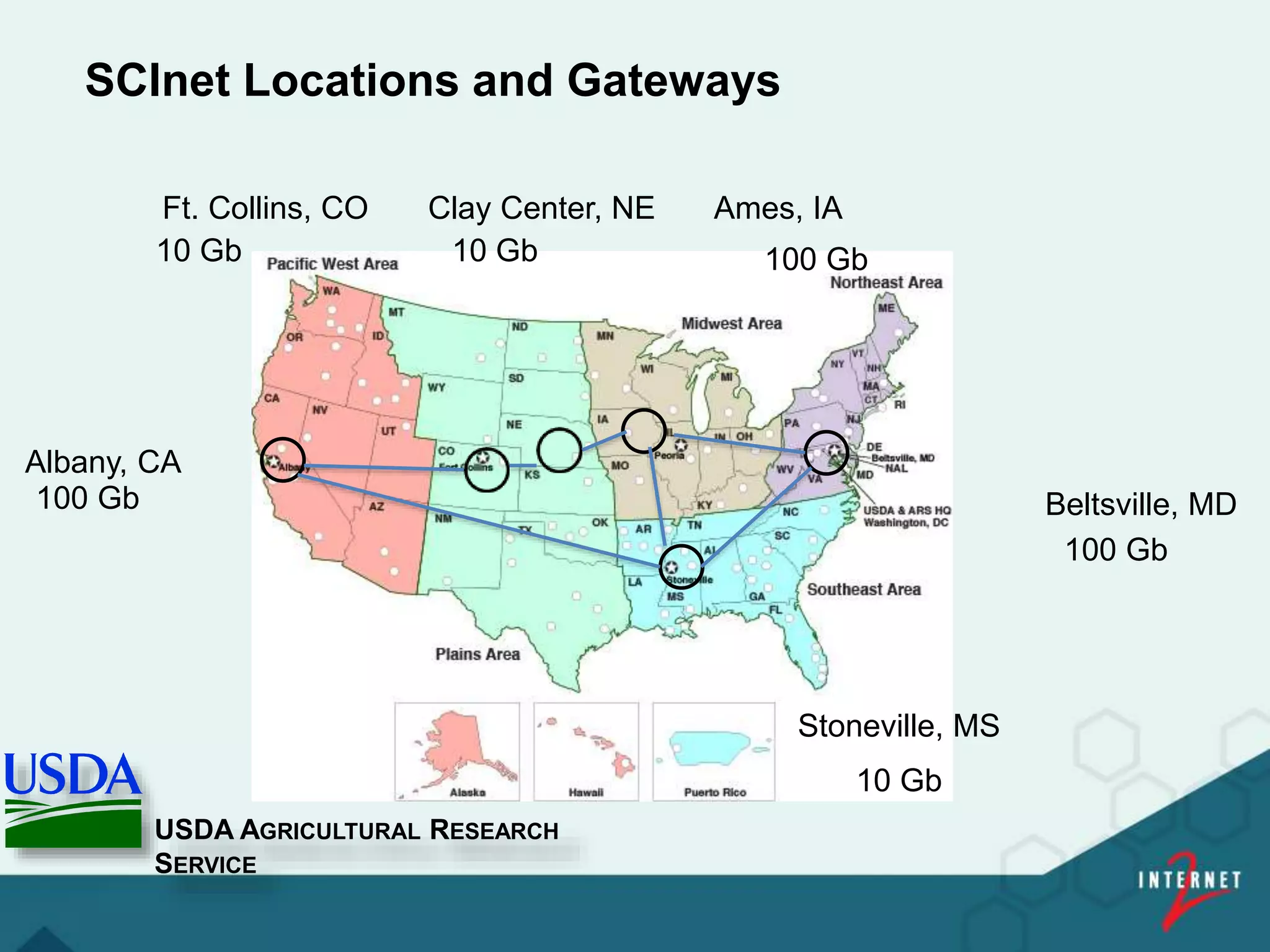

SCInet Locations and Gateways USDA AGRICULTURAL RESEARCH SERVICE Albany, CA Ft. Collins, CO Clay Center, NE Ames, IA Stoneville, MS Beltsville, MD 100 Gb 100 Gb 100 Gb 10 Gb 10 Gb10 Gb

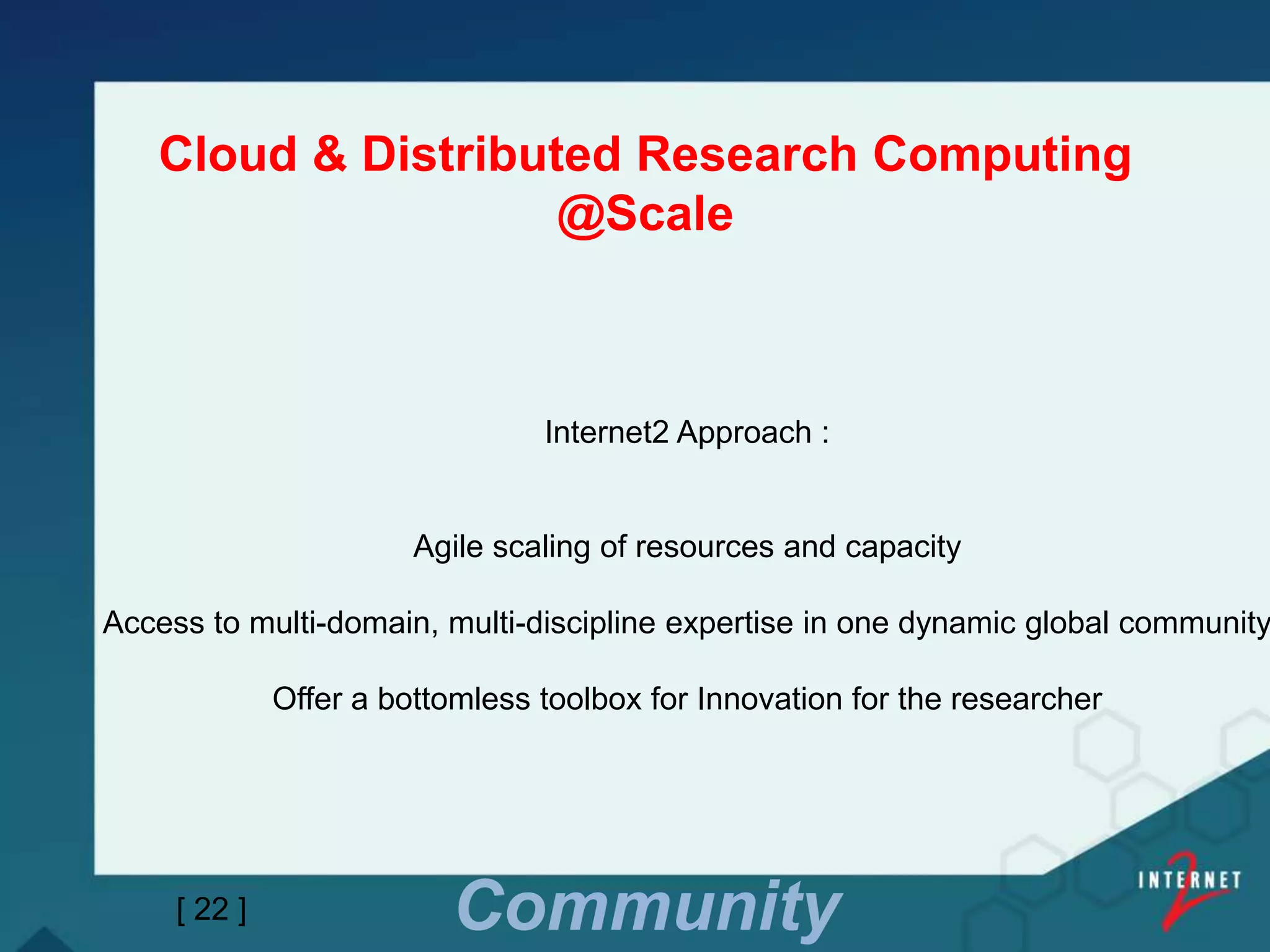

Cloud & Distributed Research Computing @Scale [ 22 ] Community Internet2 Approach : Agile scaling of resources and capacity Access to multi-domain, multi-discipline expertise in one dynamic global community Offer a bottomless toolbox for Innovation for the researcher
[ 23 ] New High Speed Cloud Collaborations 8/30/20 16 23 10, x10G, x100G
Syngenta Science Network Bringing Plant Potential to Life through enhanced computing capacity

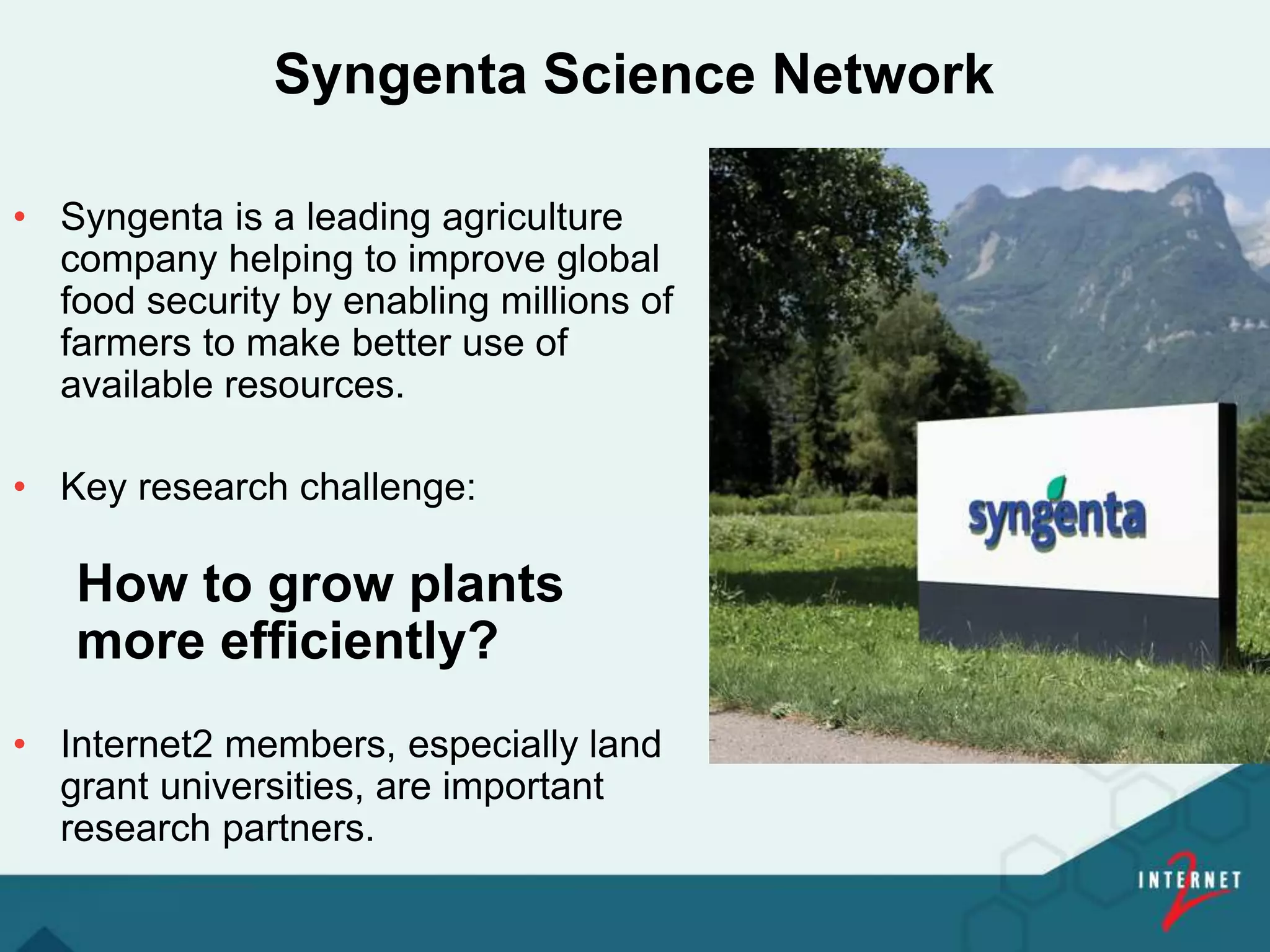

Syngenta Science Network • Syngenta is a leading agriculture company helping to improve global food security by enabling millions of farmers to make better use of available resources. • Key research challenge: How to grow plants more efficiently? • Internet2 members, especially land grant universities, are important research partners.

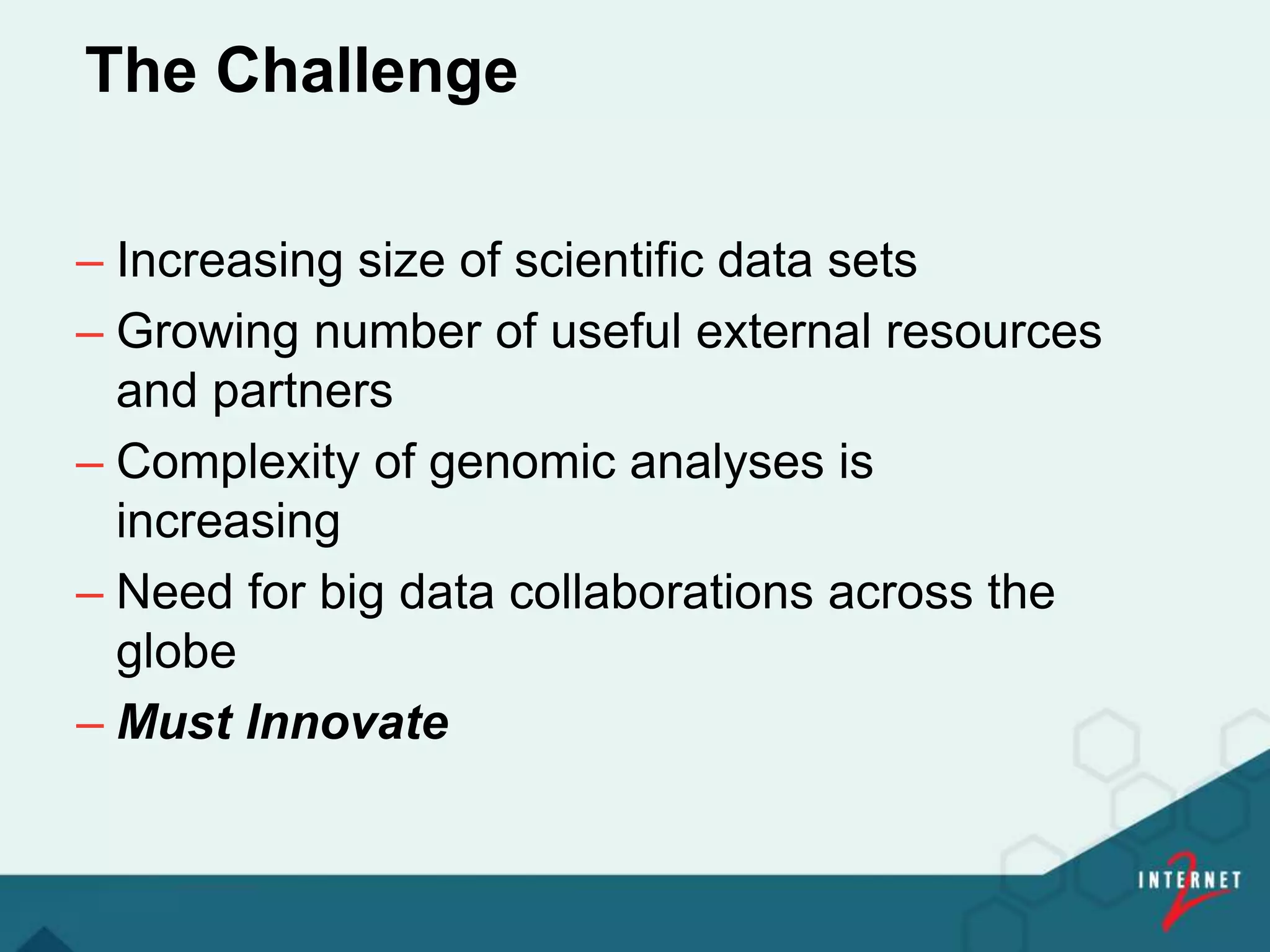

The Challenge – Increasing size of scientific data sets – Growing number of useful external resources and partners – Complexity of genomic analyses is increasing – Need for big data collaborations across the globe – Must Innovate

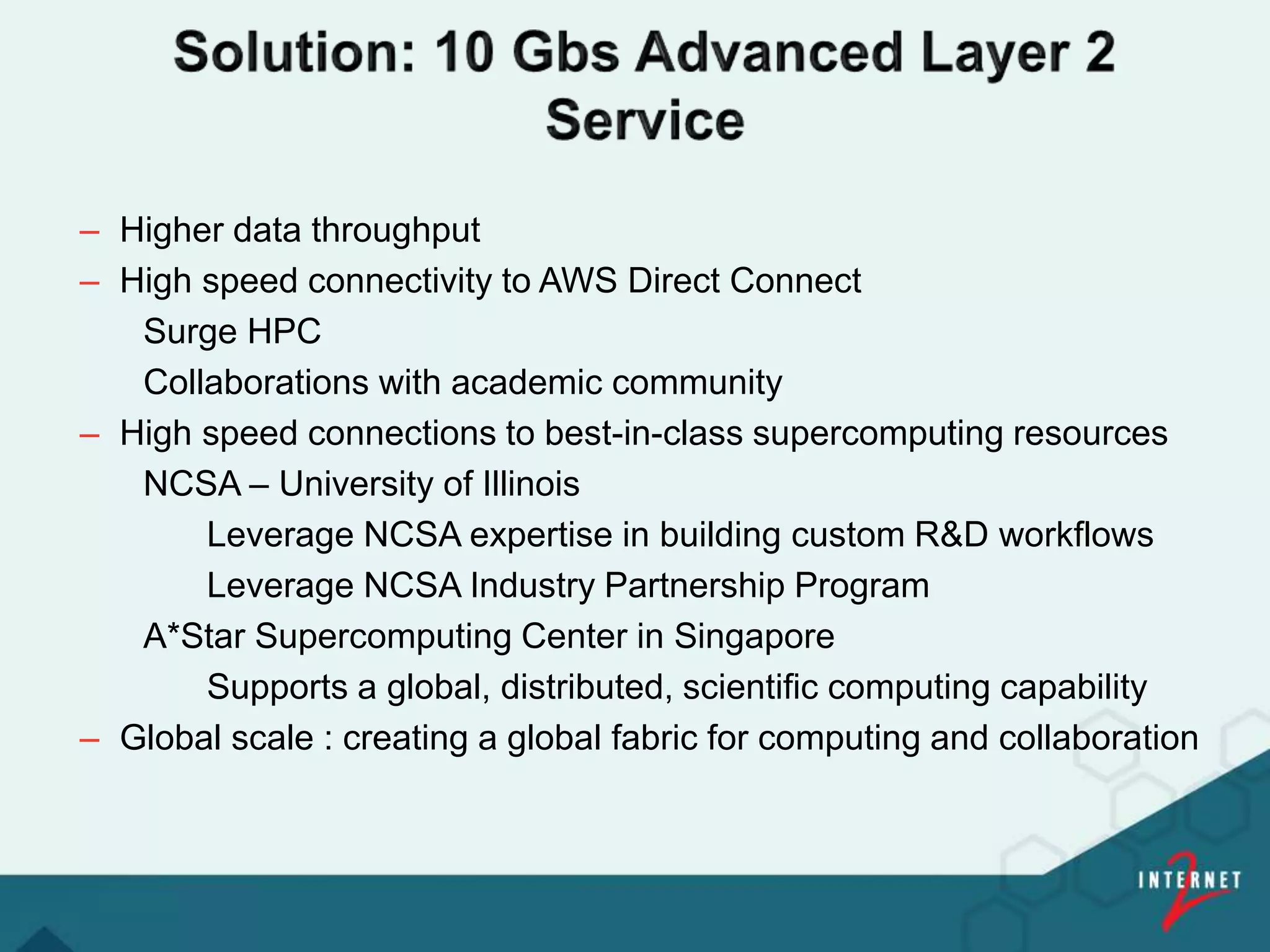

– Higher data throughput – High speed connectivity to AWS Direct Connect Surge HPC Collaborations with academic community – High speed connections to best-in-class supercomputing resources NCSA – University of Illinois Leverage NCSA expertise in building custom R&D workflows Leverage NCSA Industry Partnership Program A*Star Supercomputing Center in Singapore Supports a global, distributed, scientific computing capability – Global scale : creating a global fabric for computing and collaboration

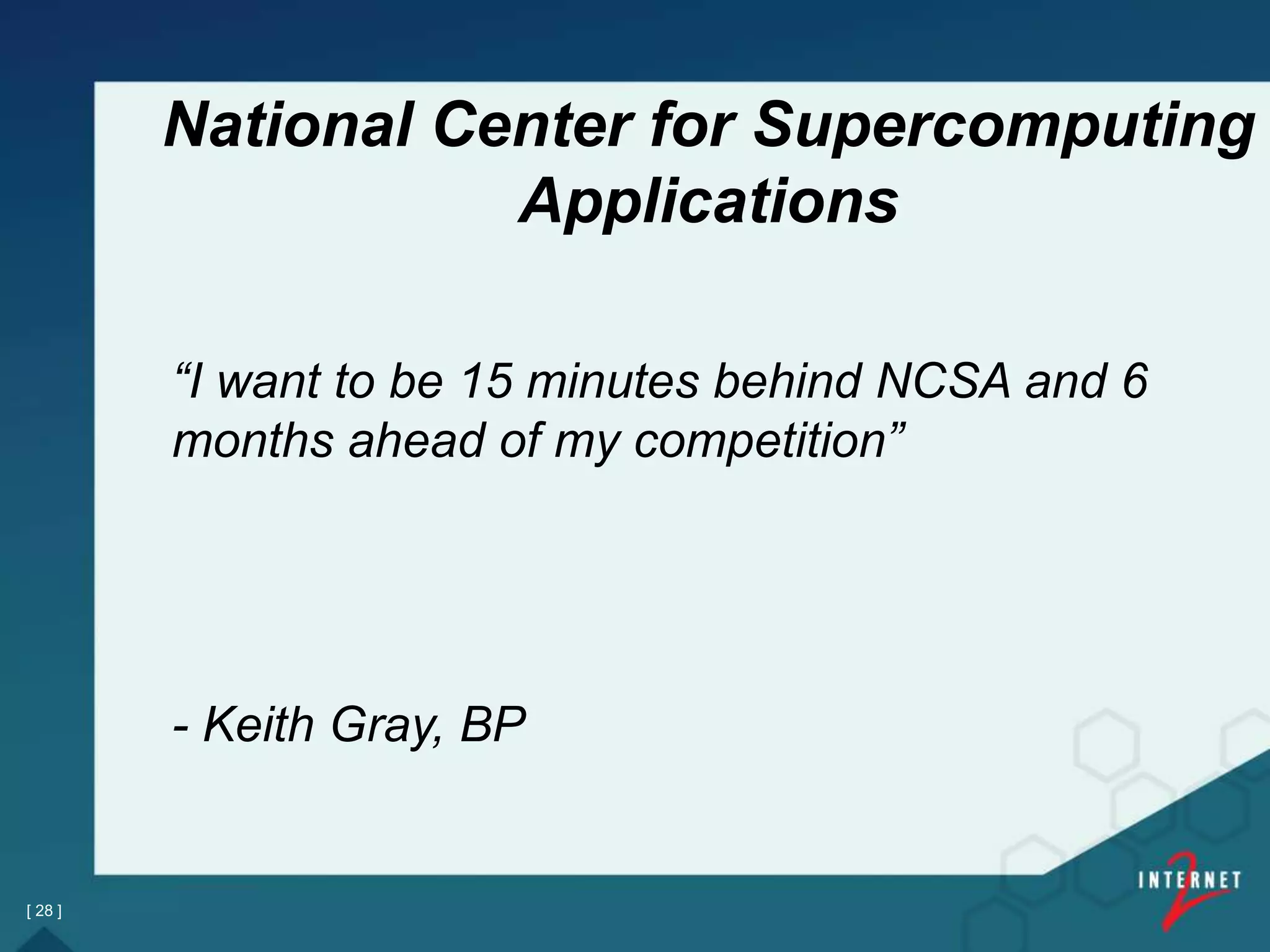

“I want to be 15 minutes behind NCSA and 6 months ahead of my competition” - Keith Gray, BP [ 28 ] National Center for Supercomputing Applications

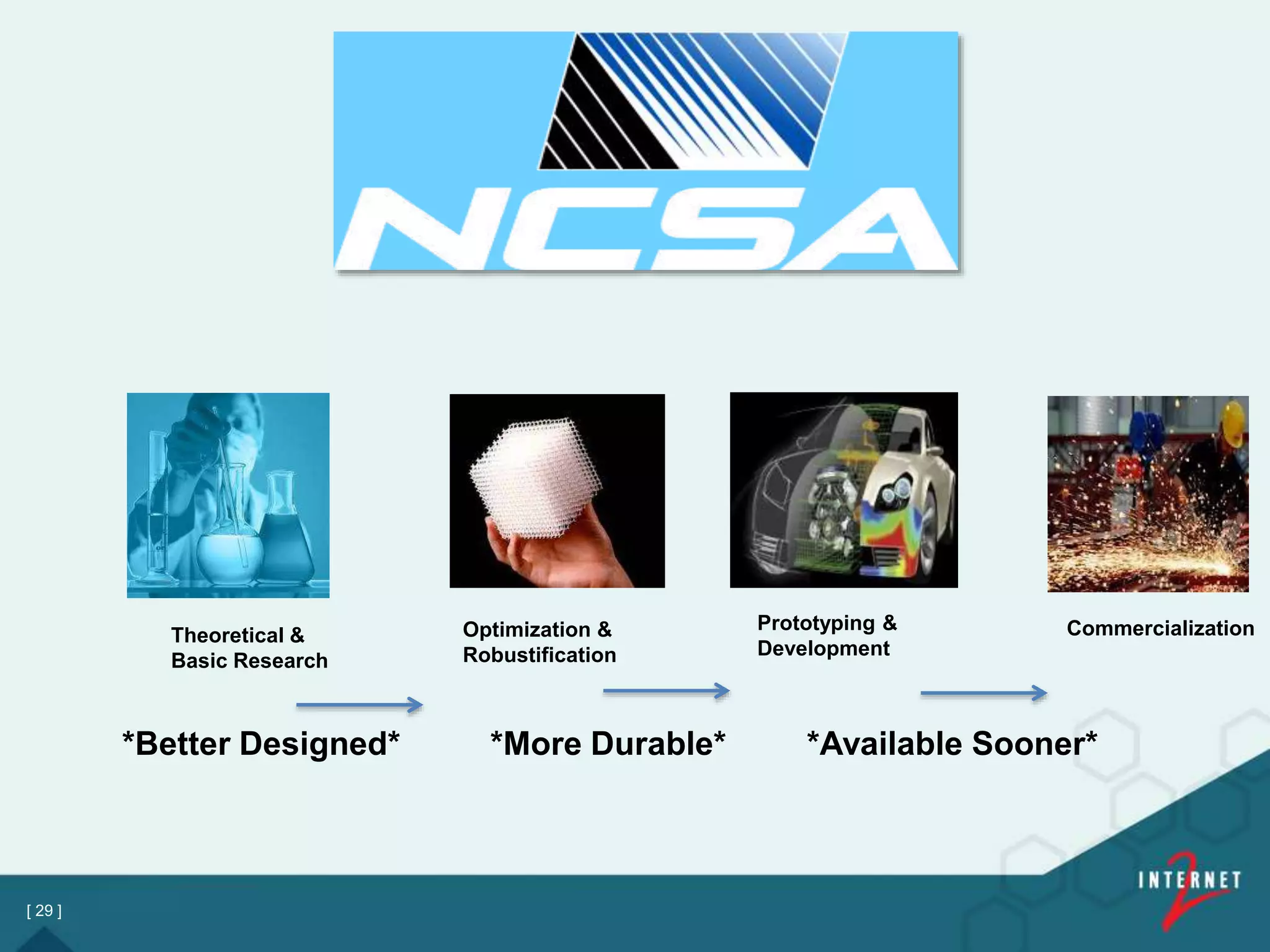

[ 29 ] *Better Designed* *More Durable* *Available Sooner* Theoretical & Basic Research Prototyping & Development Optimization & Robustification Commercialization
[ 30 ] NCSA Mayo Clinic @Scale Genome-Wide Association Study for Alzheimer’s disease • NCSA Private Sector Program – UIUC HPCBio – Mayo Clinic • BlueWatersteam and Swiss Institute of Bioinformatics worked together to identify which genetic variants interact to influence gene expression patterns that may associate with Alzheimer’s disease

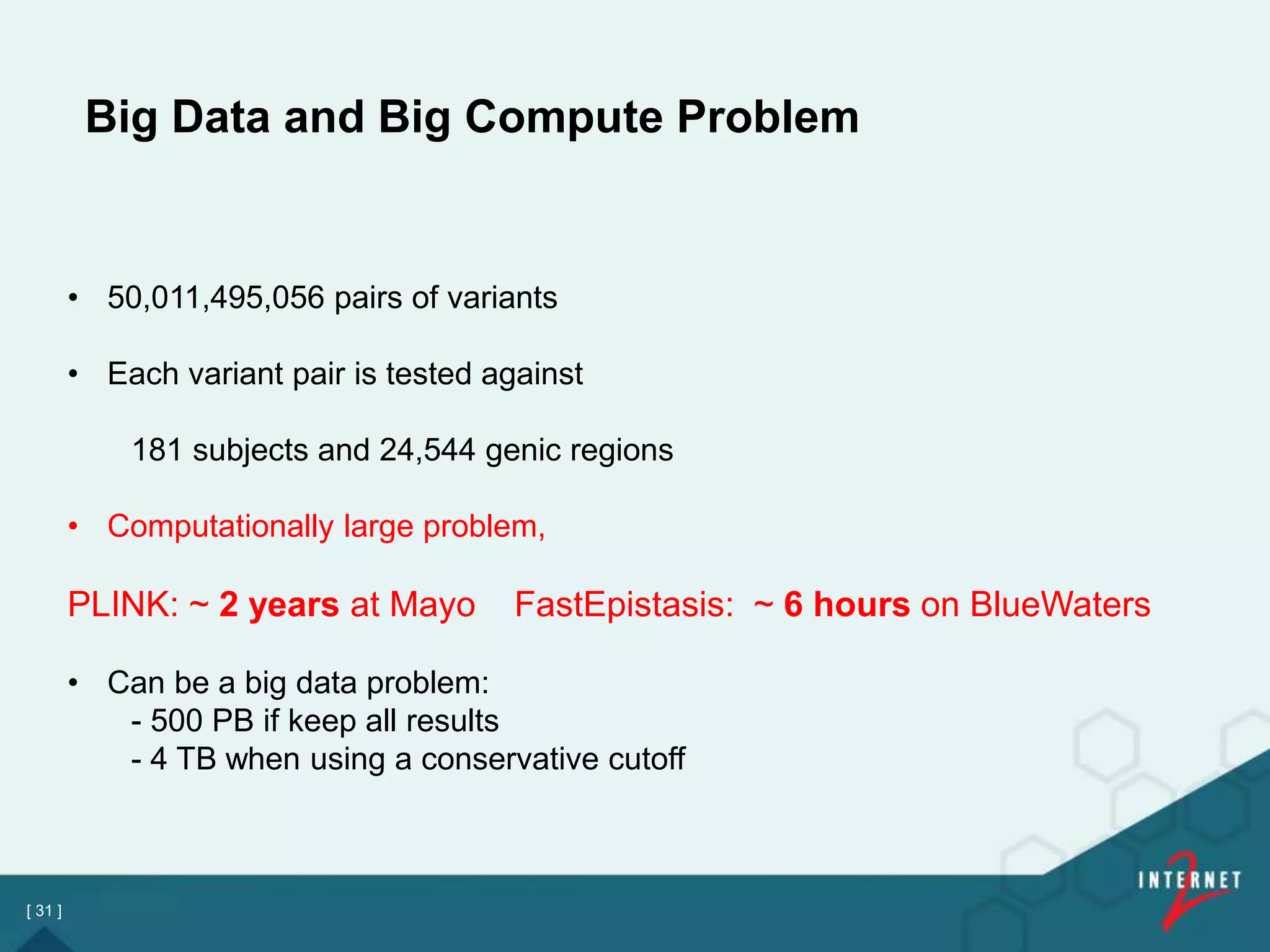

[ 31 ] Big Data and Big Compute Problem • 50,011,495,056 pairs of variants • Each variant pair is tested against 181 subjects and 24,544 genic regions • Computationally large problem, PLINK: ~ 2 years at Mayo FastEpistasis: ~ 6 hours on BlueWaters • Can be a big data problem: - 500 PB if keep all results - 4 TB when using a conservative cutoff

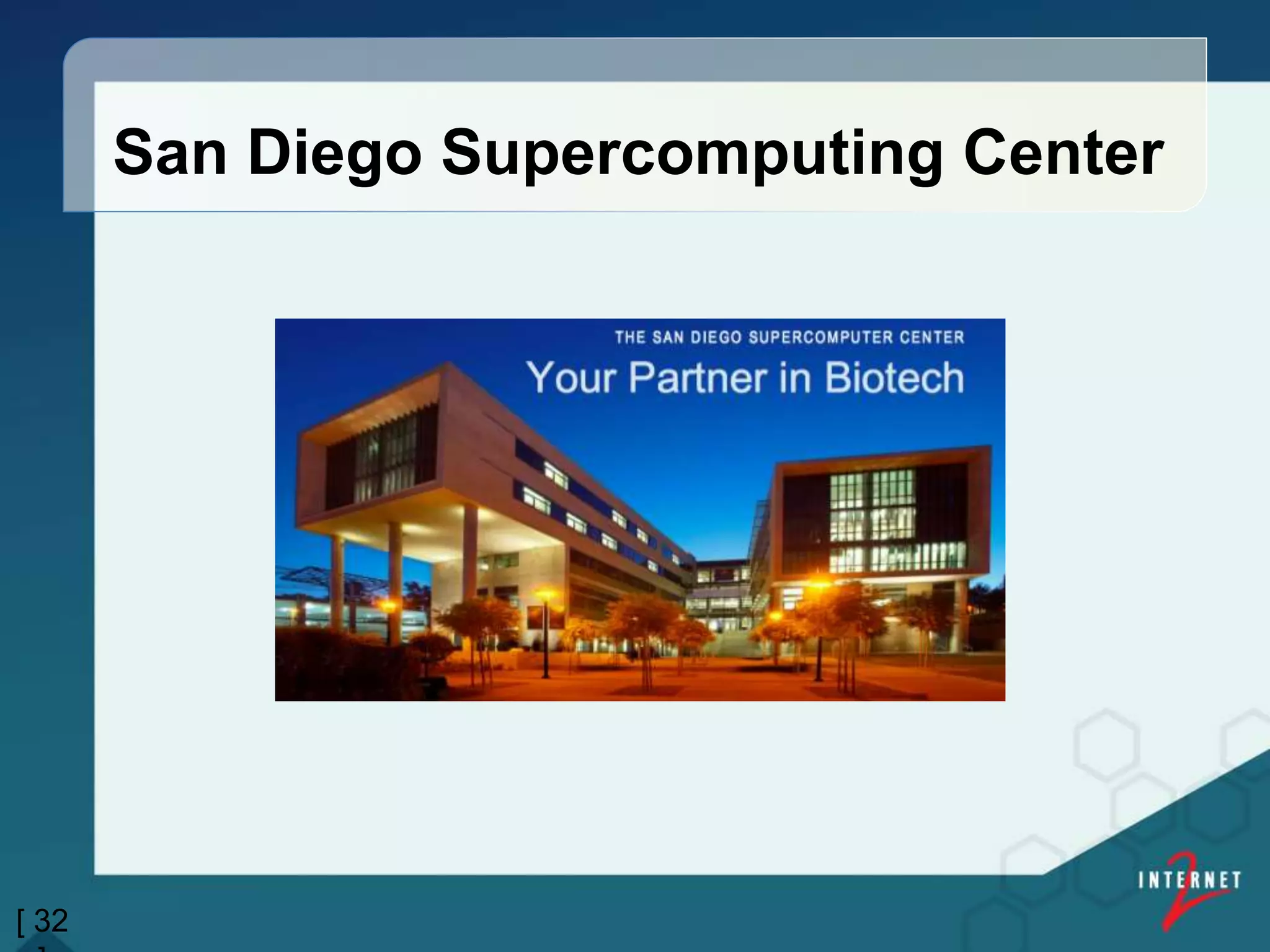

San Diego Supercomputing Center [ 32

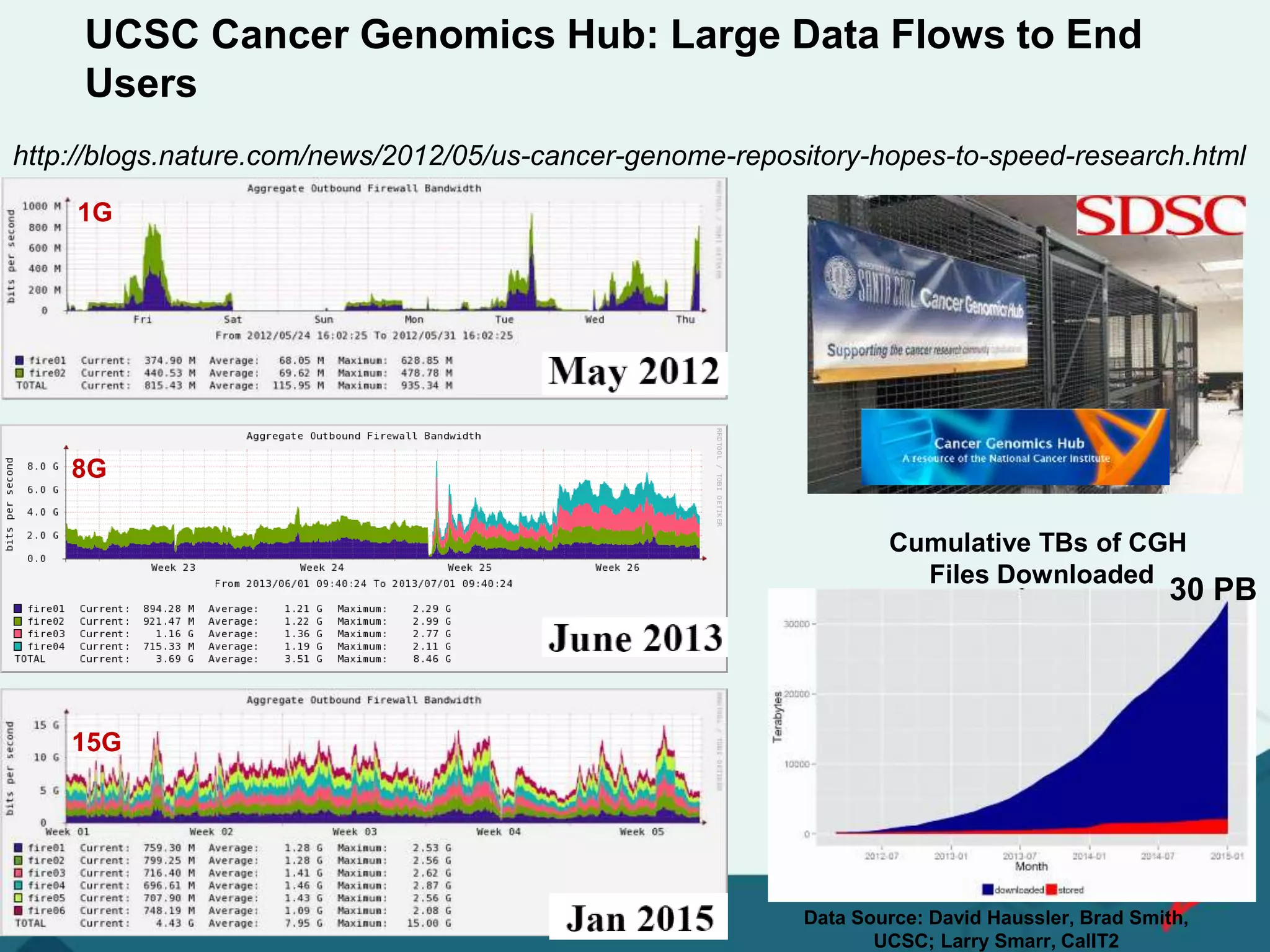

UCSC Cancer Genomics Hub: Large Data Flows to End Users 1G 8G 15G Cumulative TBs of CGH Files Downloaded Data Source: David Haussler, Brad Smith, UCSC; Larry Smarr, CalIT2 30 PB http://blogs.nature.com/news/2012/05/us-cancer-genome-repository-hopes-to-speed-research.html

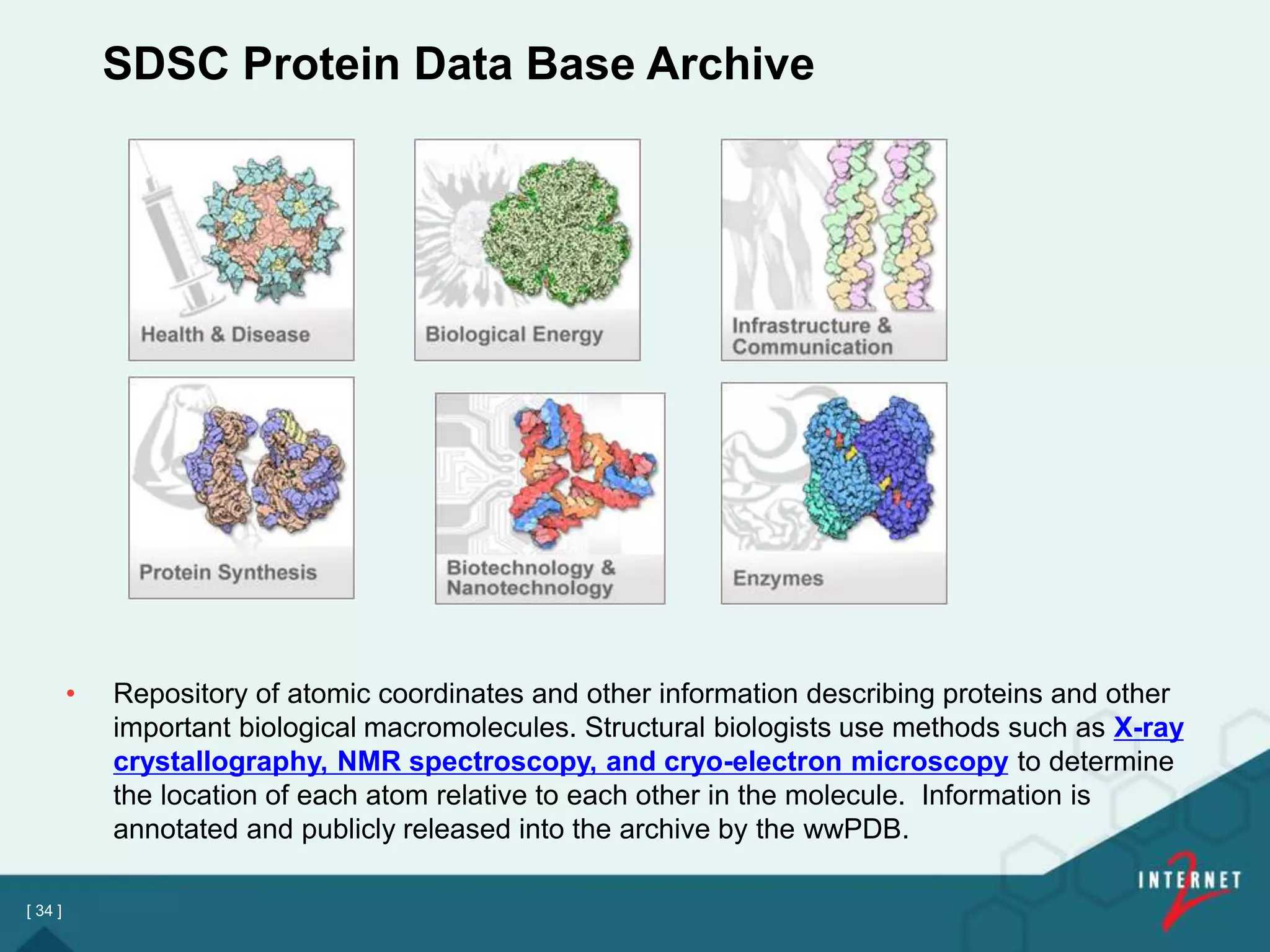

[ 34 ] SDSC Protein Data Base Archive • Repository of atomic coordinates and other information describing proteins and other important biological macromolecules. Structural biologists use methods such as X-ray crystallography, NMR spectroscopy, and cryo-electron microscopy to determine the location of each atom relative to each other in the molecule. Information is annotated and publicly released into the archive by the wwPDB.

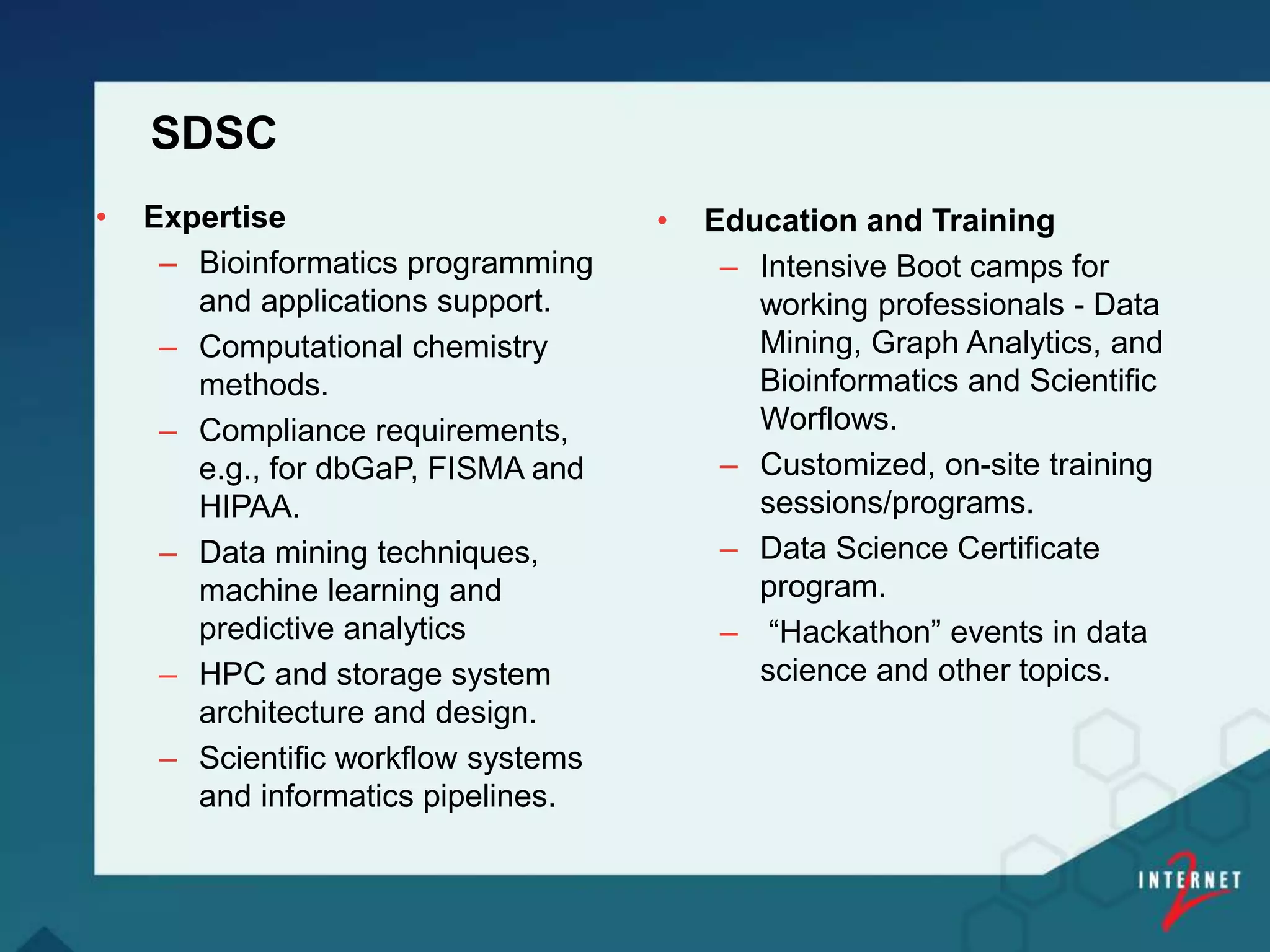

SDSC • Expertise – Bioinformatics programming and applications support. – Computational chemistry methods. – Compliance requirements, e.g., for dbGaP, FISMA and HIPAA. – Data mining techniques, machine learning and predictive analytics – HPC and storage system architecture and design. – Scientific workflow systems and informatics pipelines. • Education and Training – Intensive Boot camps for working professionals - Data Mining, Graph Analytics, and Bioinformatics and Scientific Worflows. – Customized, on-site training sessions/programs. – Data Science Certificate program. – “Hackathon” events in data science and other topics.

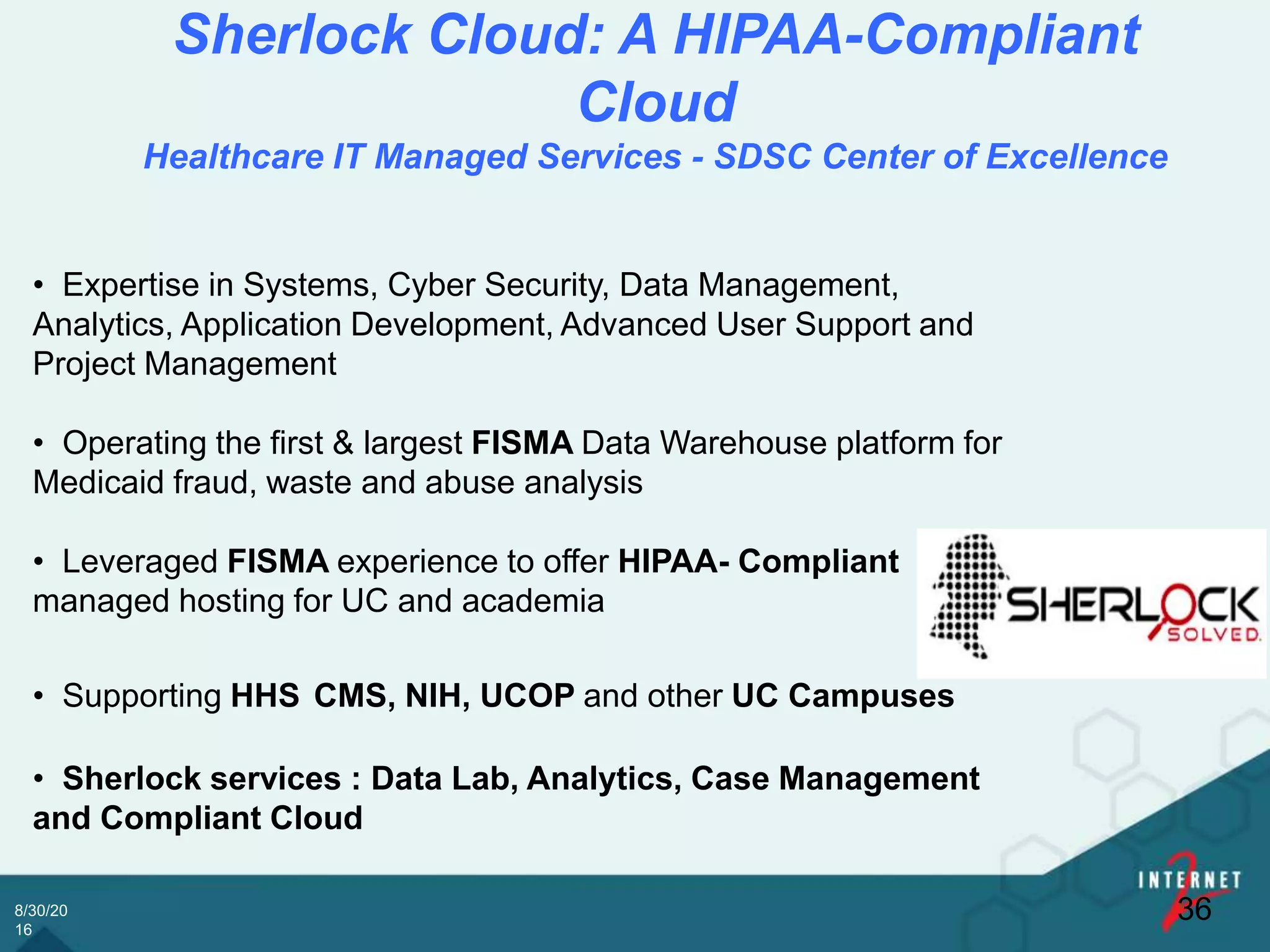

8/30/20 16 Sherlock Cloud: A HIPAA-Compliant Cloud Healthcare IT Managed Services - SDSC Center of Excellence 36 • Expertise in Systems, Cyber Security, Data Management, Analytics, Application Development, Advanced User Support and Project Management • Operating the first & largest FISMA Data Warehouse platform for Medicaid fraud, waste and abuse analysis • Leveraged FISMA experience to offer HIPAA- Compliant managed hosting for UC and academia • Supporting HHS CMS, NIH, UCOP and other UC Campuses • Sherlock services : Data Lab, Analytics, Case Management and Compliant Cloud
Lawrence Livermore National Lab [ 37 ]

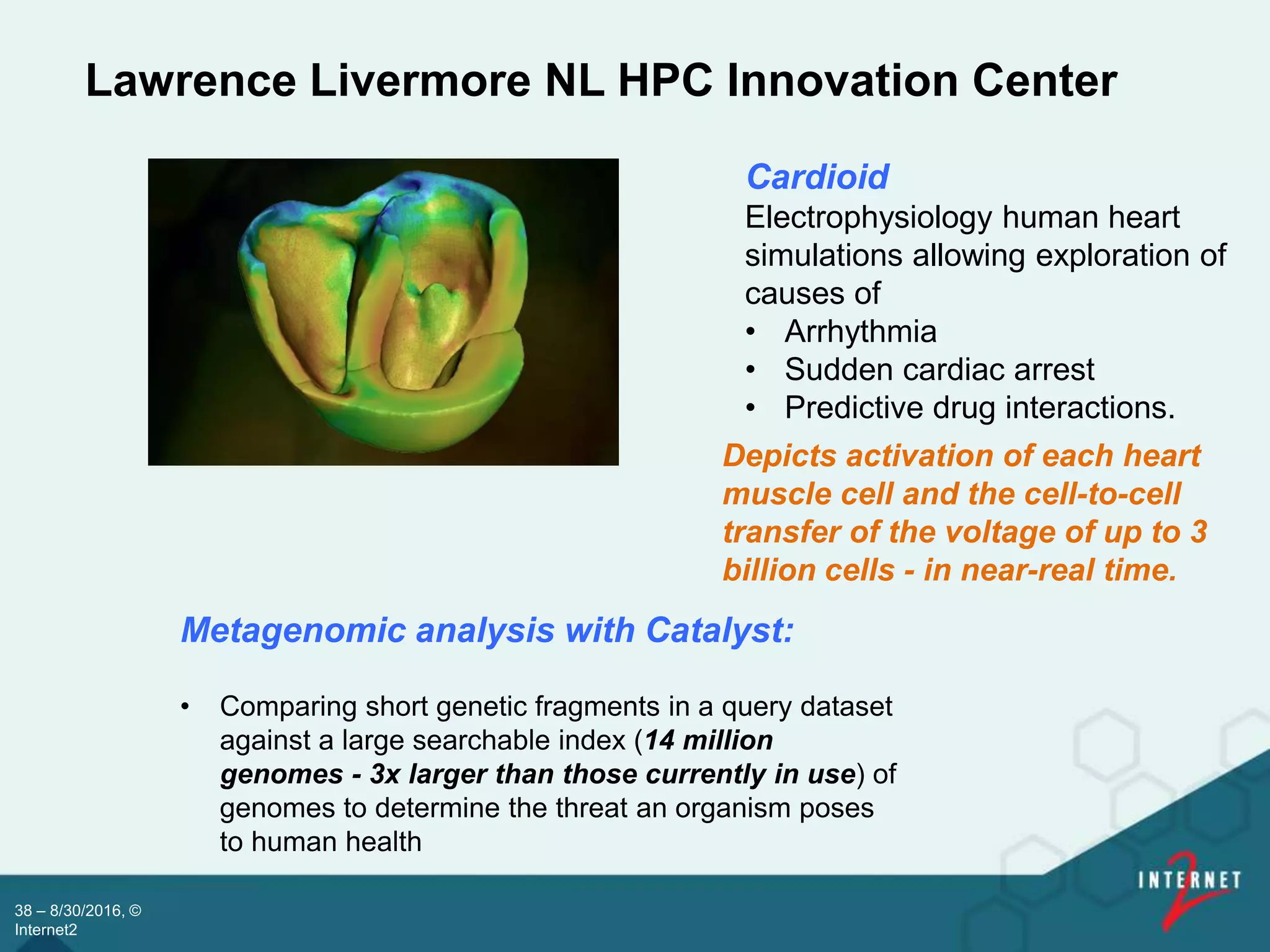

38 – 8/30/2016, © Internet2 Lawrence Livermore NL HPC Innovation Center Cardioid Electrophysiology human heart simulations allowing exploration of causes of • Arrhythmia • Sudden cardiac arrest • Predictive drug interactions. Depicts activation of each heart muscle cell and the cell-to-cell transfer of the voltage of up to 3 billion cells - in near-real time. Metagenomic analysis with Catalyst: • Comparing short genetic fragments in a query dataset against a large searchable index (14 million genomes - 3x larger than those currently in use) of genomes to determine the threat an organism poses to human health

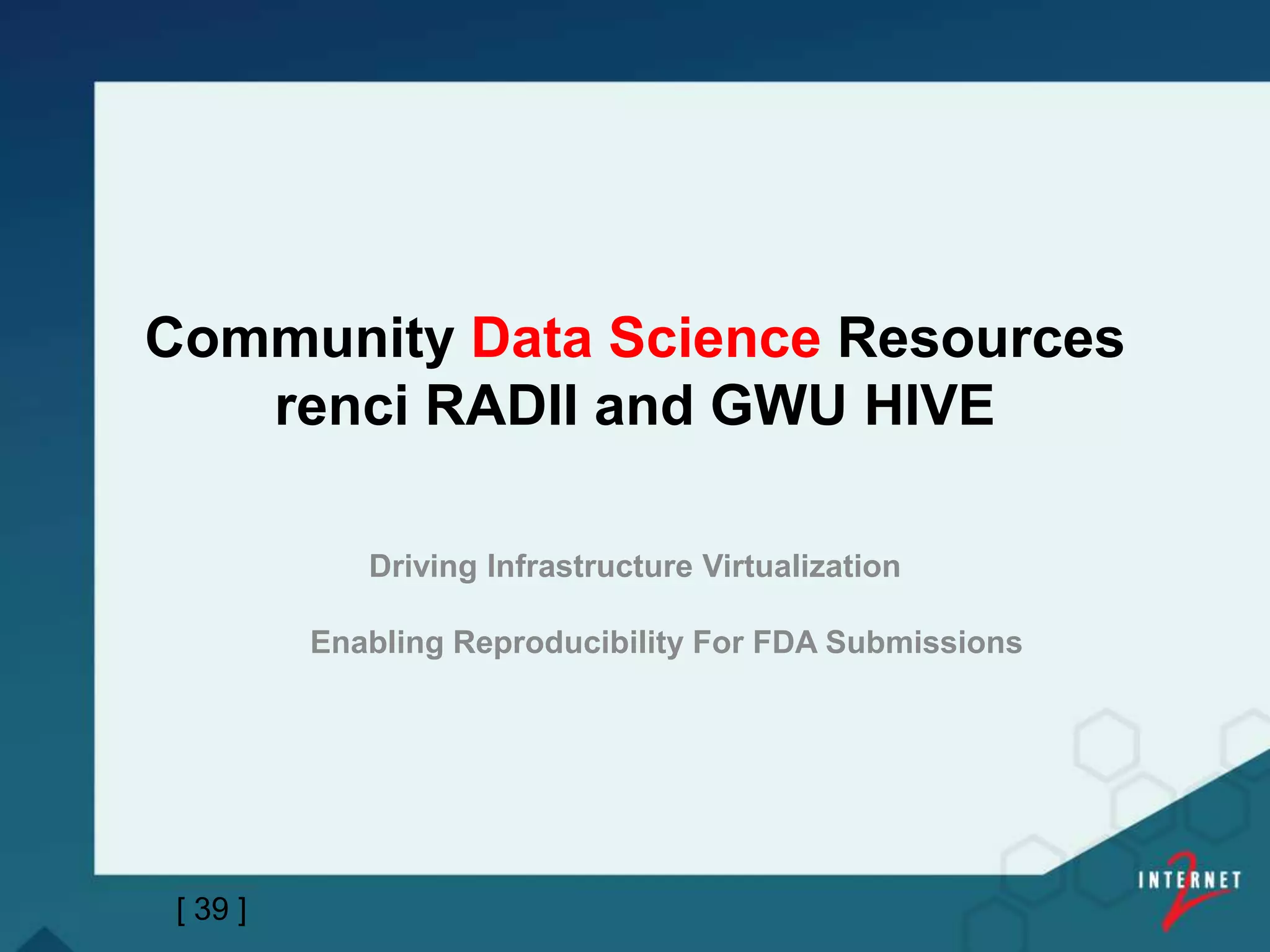

Community Data Science Resources renci RADII and GWU HIVE Driving Infrastructure Virtualization Enabling Reproducibility For FDA Submissions [ 39 ]

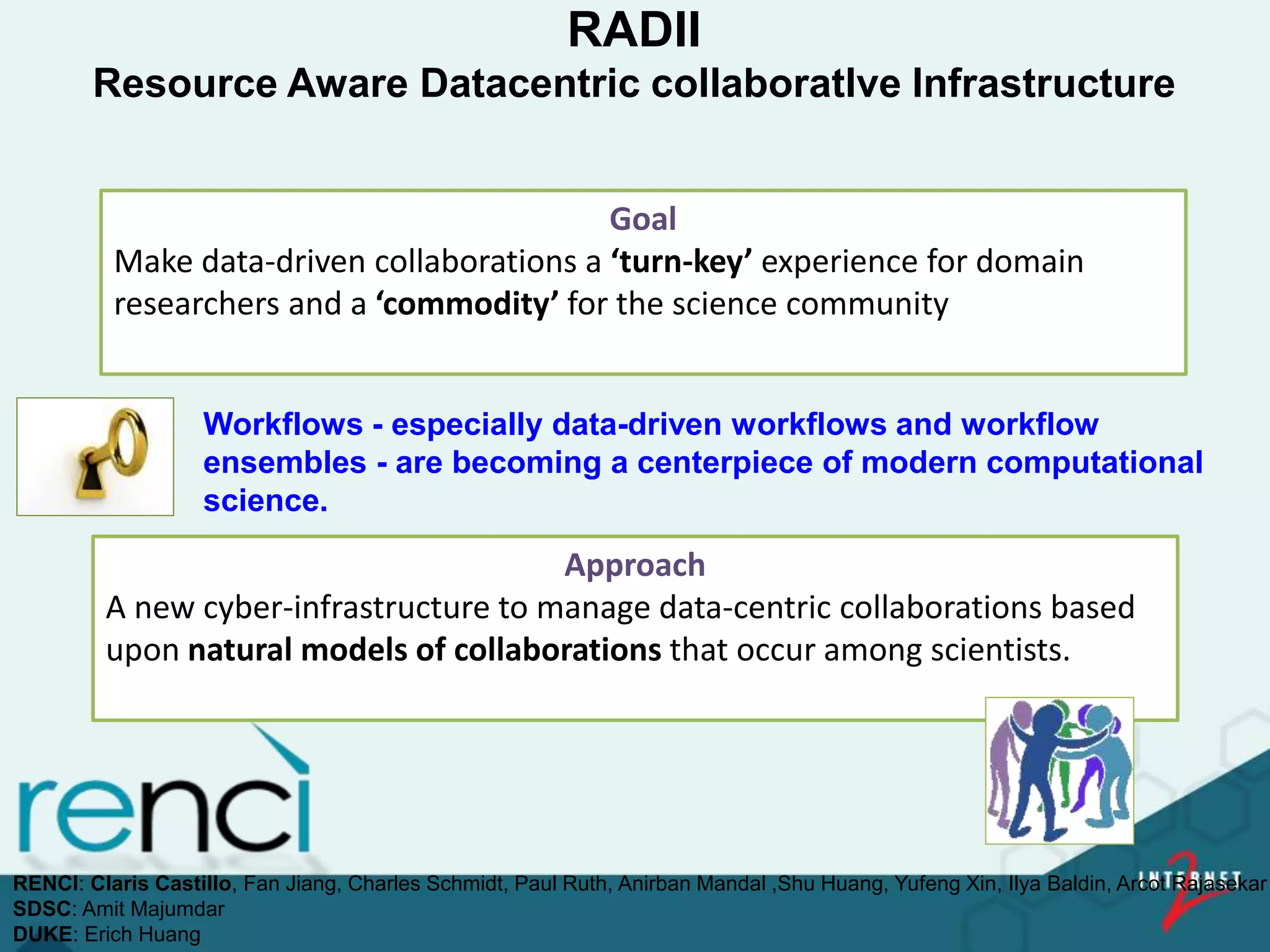

RADII Resource Aware Datacentric collaboratIve Infrastructure Goal Make data-driven collaborations a ‘turn-key’ experience for domain researchers and a ‘commodity’ for the science community Approach A new cyber-infrastructure to manage data-centric collaborations based upon natural models of collaborations that occur among scientists. RENCI: Claris Castillo, Fan Jiang, Charles Schmidt, Paul Ruth, Anirban Mandal ,Shu Huang, Yufeng Xin, Ilya Baldin, Arcot Rajasekar SDSC: Amit Majumdar DUKE: Erich Huang Workflows - especially data-driven workflows and workflow ensembles - are becoming a centerpiece of modern computational science.

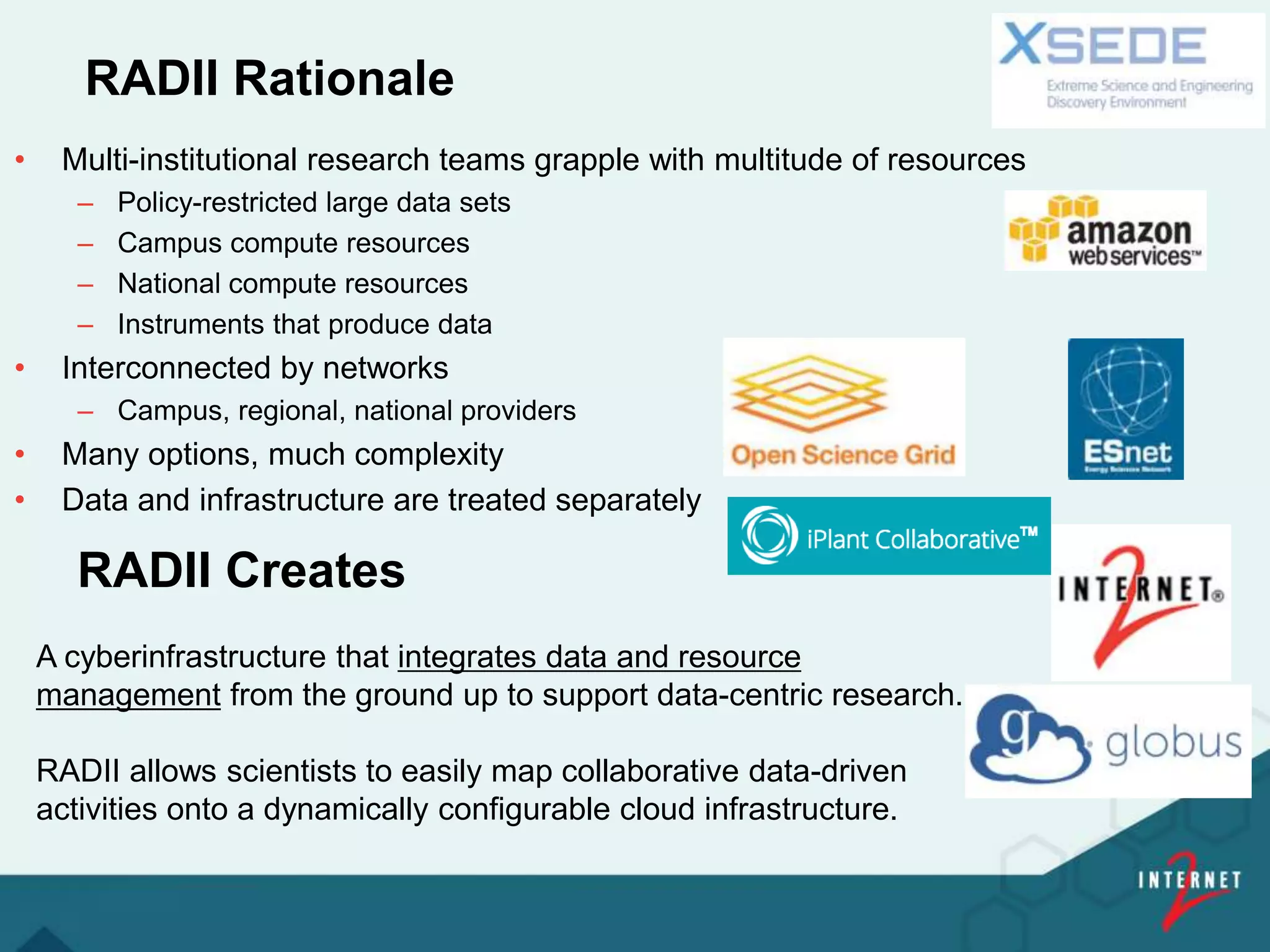

RADII Rationale • Multi-institutional research teams grapple with multitude of resources – Policy-restricted large data sets – Campus compute resources – National compute resources – Instruments that produce data • Interconnected by networks – Campus, regional, national providers • Many options, much complexity • Data and infrastructure are treated separately RADII Creates A cyberinfrastructure that integrates data and resource management from the ground up to support data-centric research. RADII allows scientists to easily map collaborative data-driven activities onto a dynamically configurable cloud infrastructure.

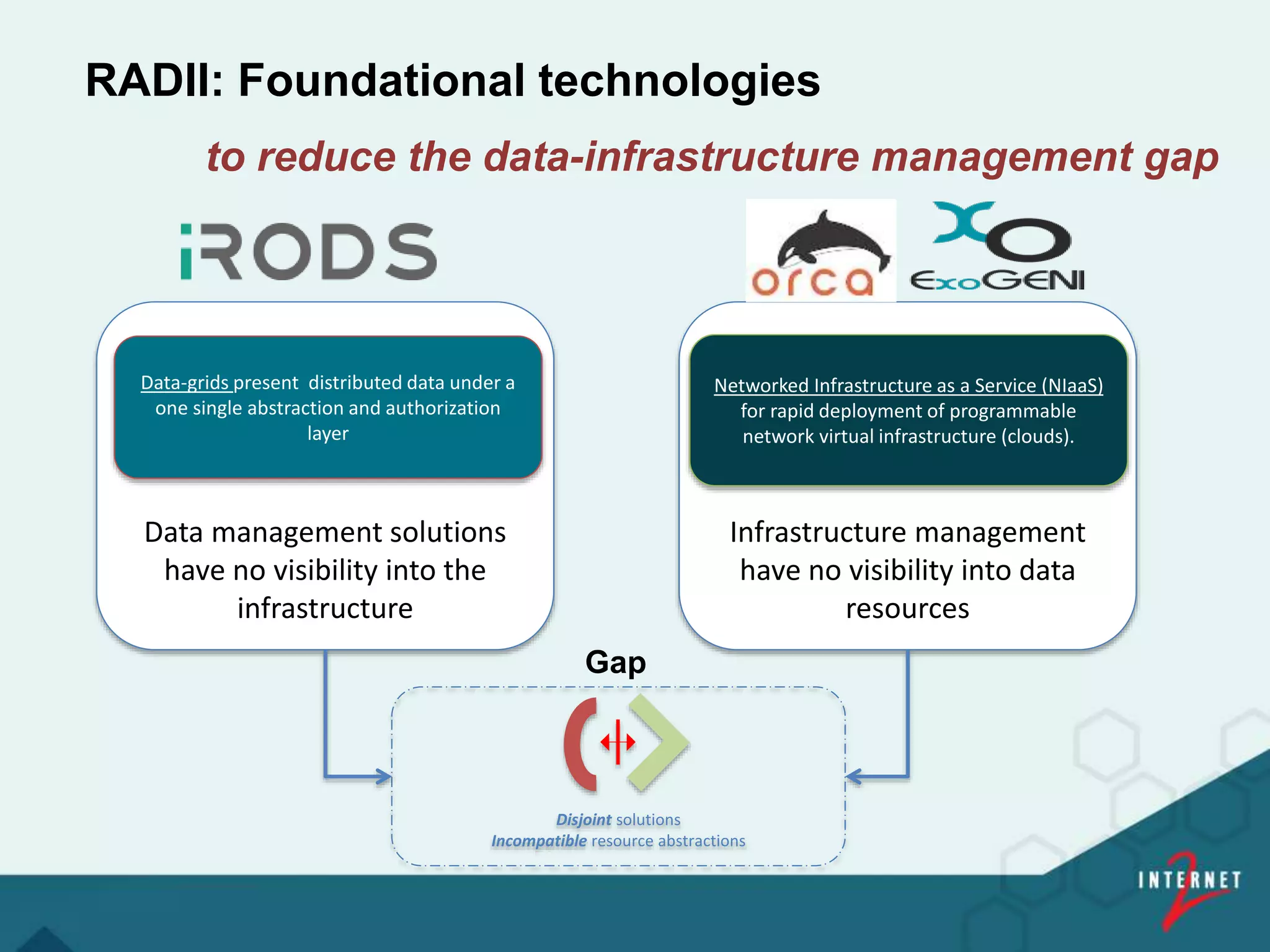

Infrastructure management have no visibility into data resources Data management solutions have no visibility into the infrastructure RADII: Foundational technologies Data-grids present distributed data under a one single abstraction and authorization layer Networked Infrastructure as a Service (NIaaS) for rapid deployment of programmable network virtual infrastructure (clouds). Disjoint solutions Incompatible resource abstractions Gap to reduce the data-infrastructure management gap

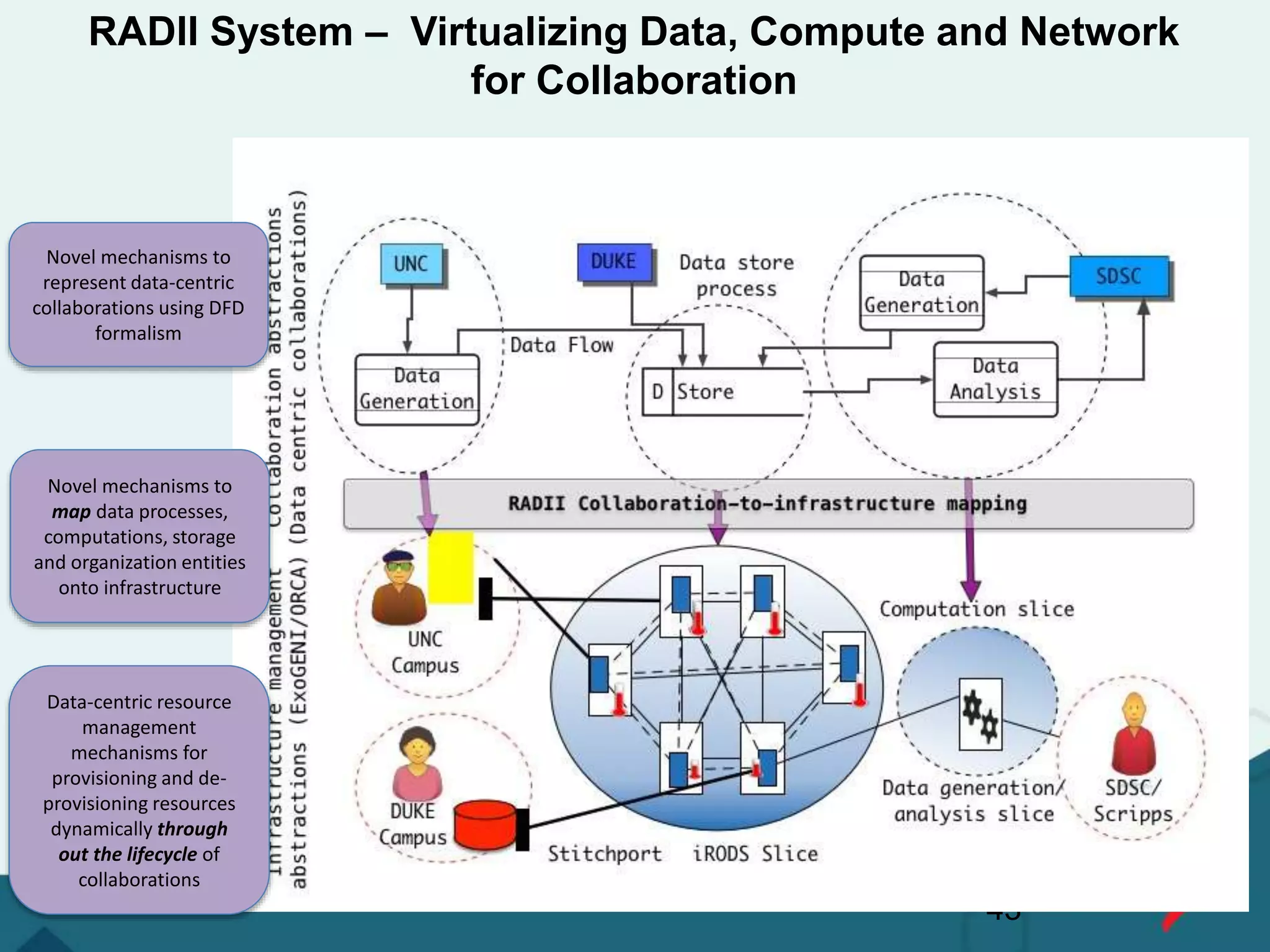

RADII System – Virtualizing Data, Compute and Network for Collaboration 43 Novel mechanisms to represent data-centric collaborations using DFD formalism Data-centric resource management mechanisms for provisioning and de- provisioning resources dynamically through out the lifecycle of collaborations Novel mechanisms to map data processes, computations, storage and organization entities onto infrastructure

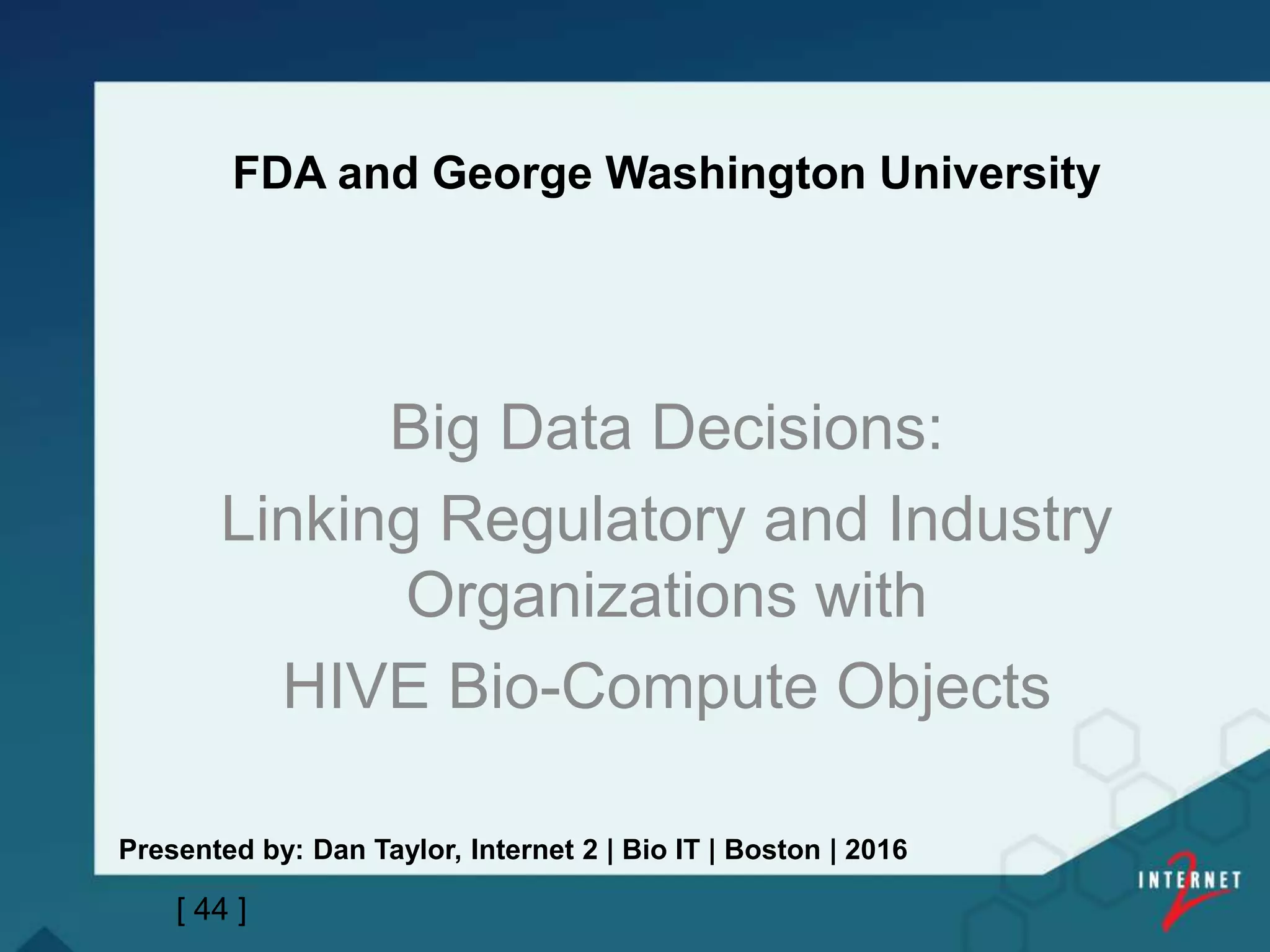

FDA and George Washington University Big Data Decisions: Linking Regulatory and Industry Organizations with HIVE Bio-Compute Objects [ 44 ] Presented by: Dan Taylor, Internet 2 | Bio IT | Boston | 2016
EI H V From Jan 2016: Vahan Simonyan, Raja Mazumder lecture NIH: Frontiers in Data Science Series https://videocast.nih.gov/summary.asp?Live=18299&bhcp=1 High-performance Integrated Virtual Environment A regulatory NGS data analysis platform

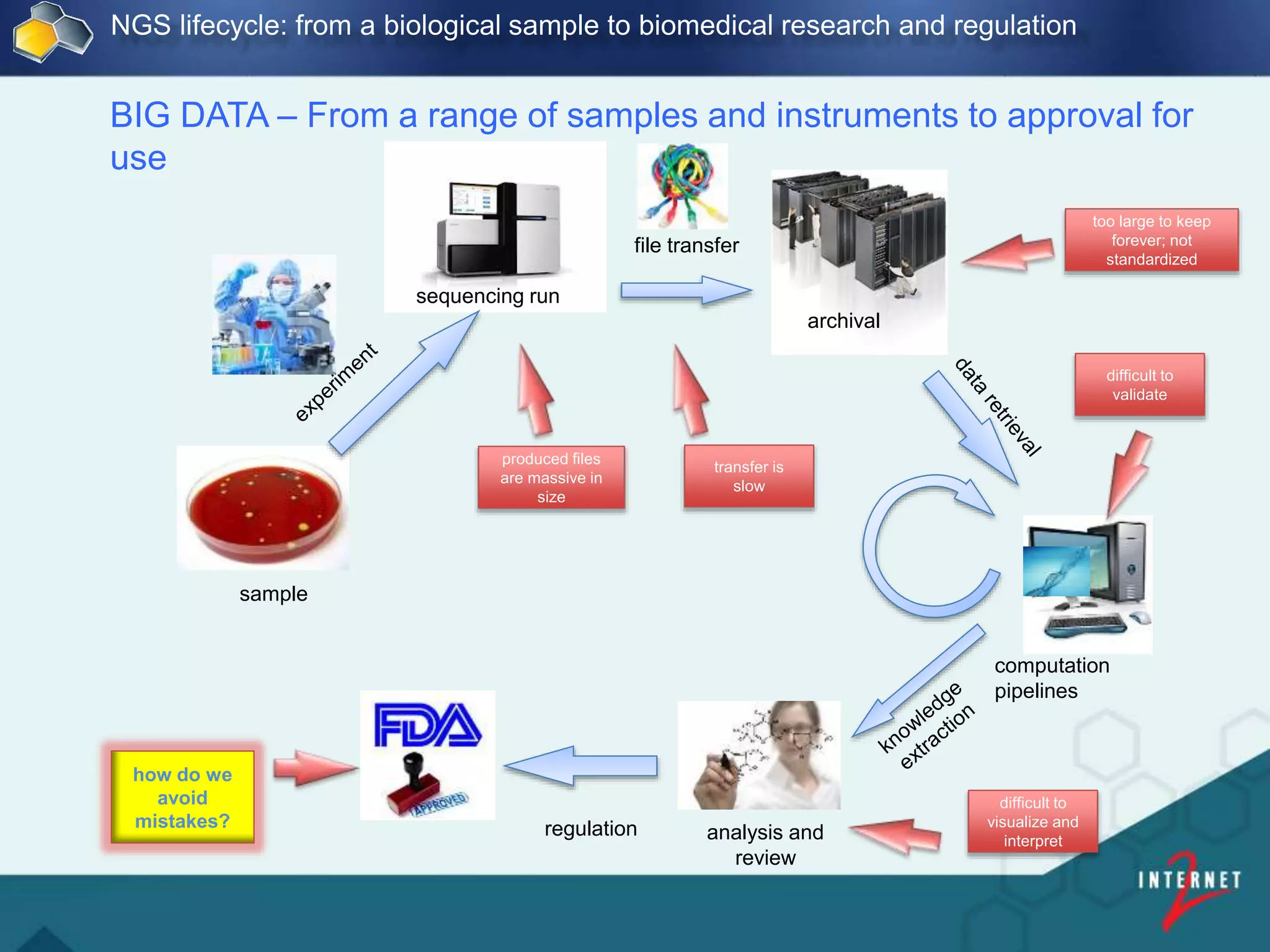

BIG DATA – From a range of samples and instruments to approval for use analysis and review sample archival sequencing run file transfer regulation computation pipelines produced files are massive in size transfer is slow too large to keep forever; not standardized difficult to validate difficult to visualize and interpret how do we avoid mistakes? NGS lifecycle: from a biological sample to biomedical research and regulation

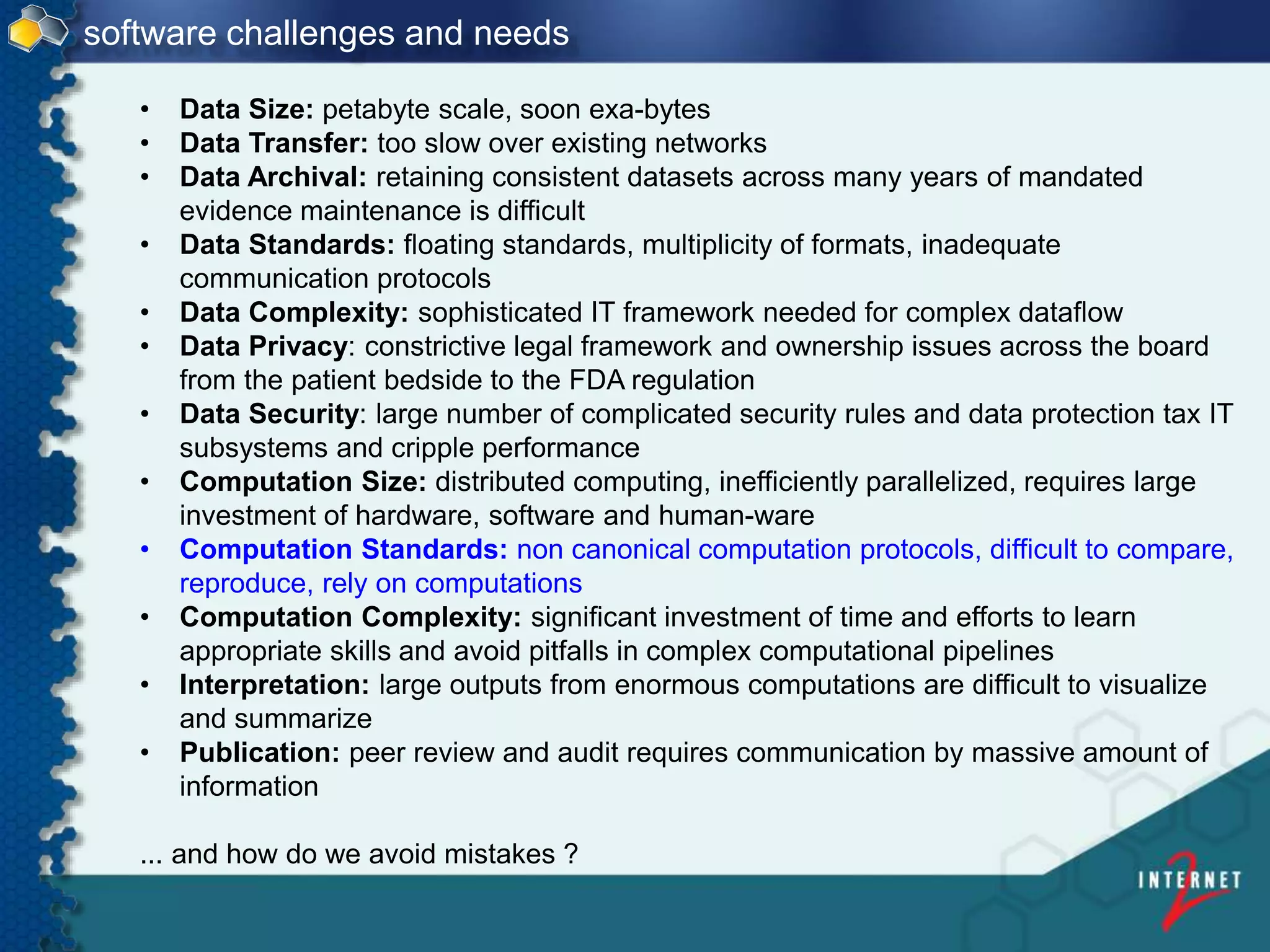

• Data Size: petabyte scale, soon exa-bytes • Data Transfer: too slow over existing networks • Data Archival: retaining consistent datasets across many years of mandated evidence maintenance is difficult • Data Standards: floating standards, multiplicity of formats, inadequate communication protocols • Data Complexity: sophisticated IT framework needed for complex dataflow • Data Privacy: constrictive legal framework and ownership issues across the board from the patient bedside to the FDA regulation • Data Security: large number of complicated security rules and data protection tax IT subsystems and cripple performance • Computation Size: distributed computing, inefficiently parallelized, requires large investment of hardware, software and human-ware • Computation Standards: non canonical computation protocols, difficult to compare, reproduce, rely on computations • Computation Complexity: significant investment of time and efforts to learn appropriate skills and avoid pitfalls in complex computational pipelines • Interpretation: large outputs from enormous computations are difficult to visualize and summarize • Publication: peer review and audit requires communication by massive amount of information ... and how do we avoid mistakes ? software challenges and needs

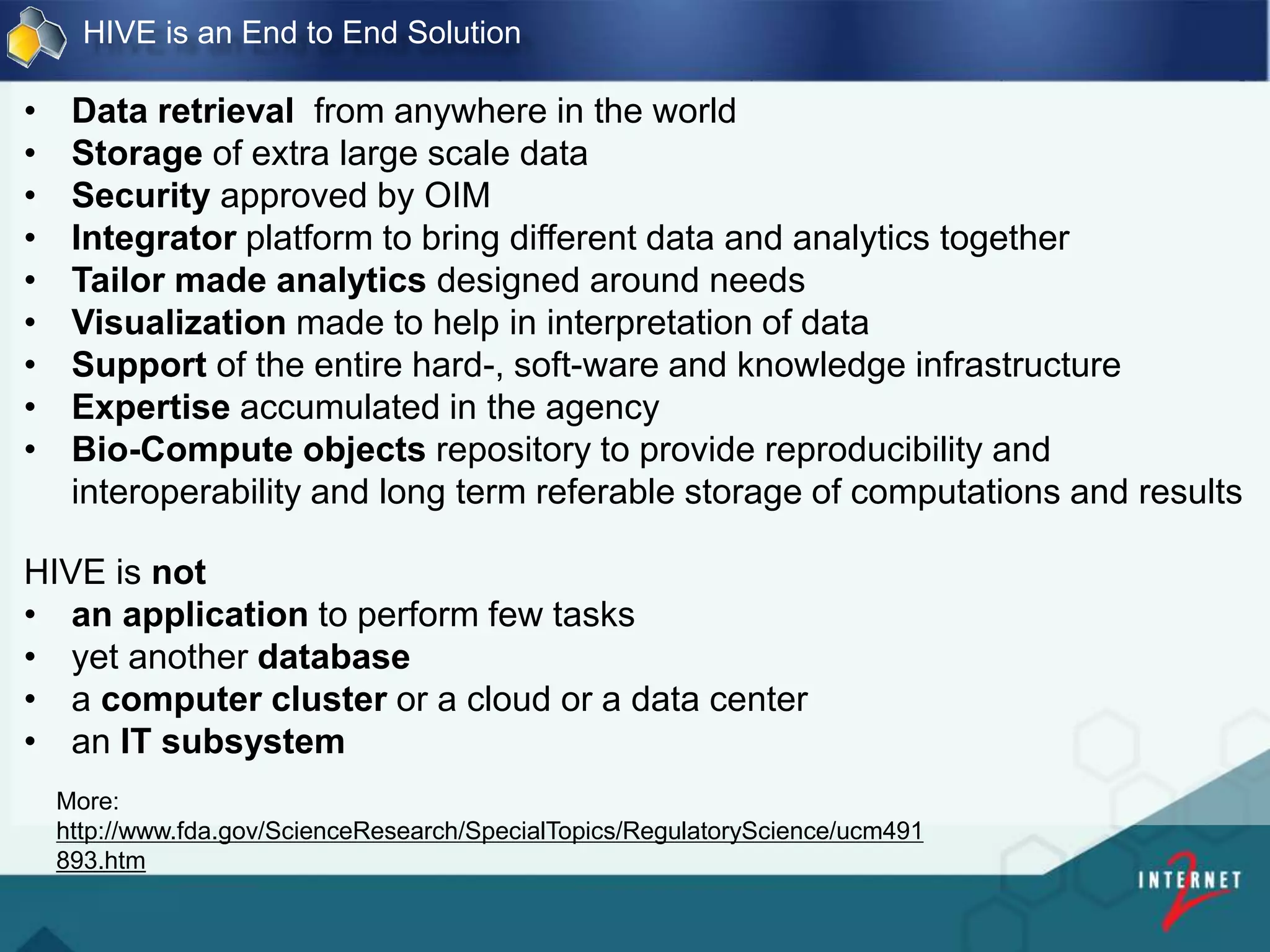

HIVE is an End to End Solution • Data retrieval from anywhere in the world • Storage of extra large scale data • Security approved by OIM • Integrator platform to bring different data and analytics together • Tailor made analytics designed around needs • Visualization made to help in interpretation of data • Support of the entire hard-, soft-ware and knowledge infrastructure • Expertise accumulated in the agency • Bio-Compute objects repository to provide reproducibility and interoperability and long term referable storage of computations and results HIVE is not • an application to perform few tasks • yet another database • a computer cluster or a cloud or a data center • an IT subsystem More: http://www.fda.gov/ScienceResearch/SpecialTopics/RegulatoryScience/ucm491 893.htm

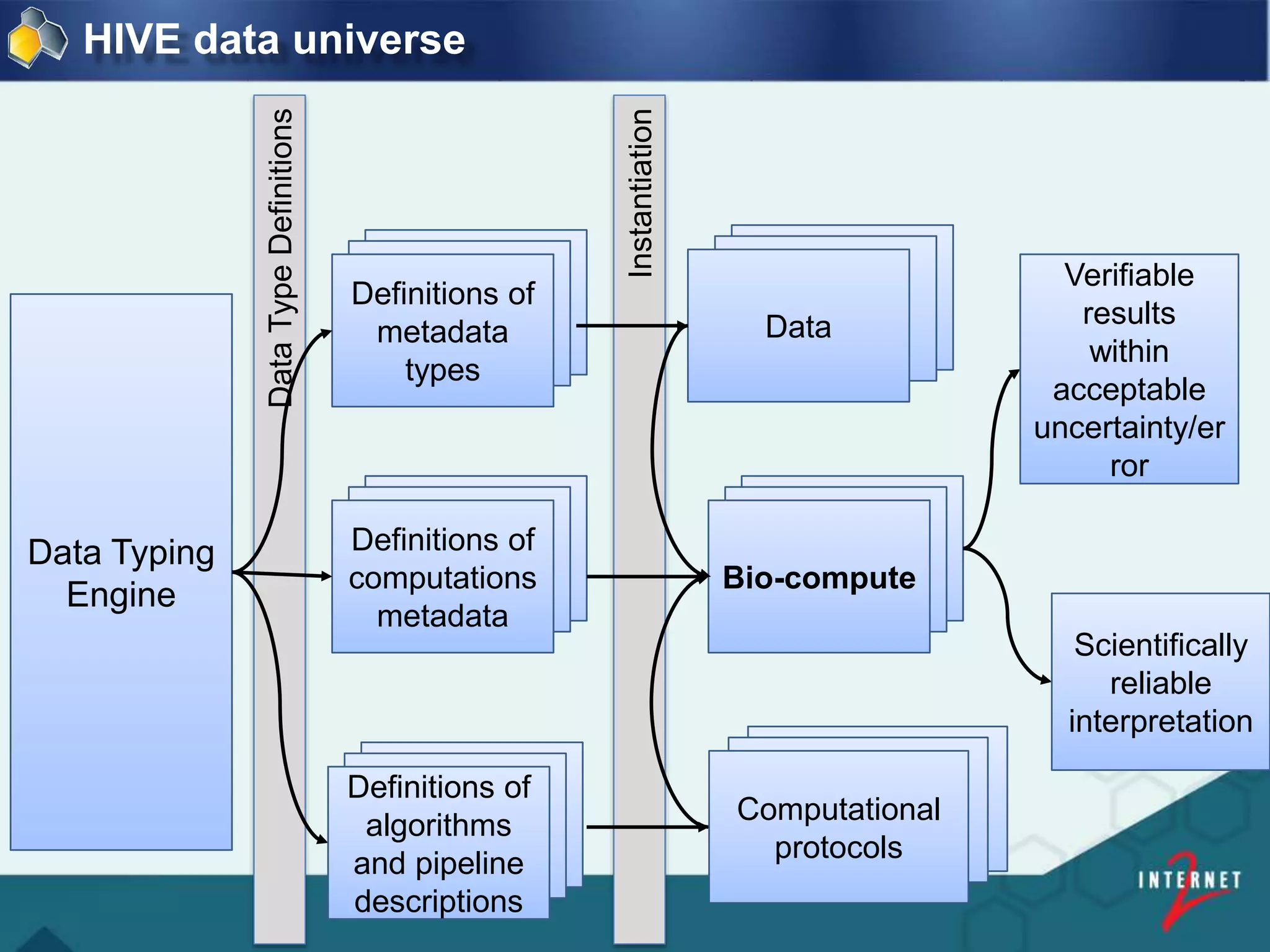

Instantiation DataTypeDefinitions Definitions of metadata types Data Typing Engine Definitions of computations metadata Data Bio-compute Definitions of algorithms and pipeline descriptions Computational protocols Verifiable results within acceptable uncertainty/er ror Scientifically reliable interpretation HIVE data universe

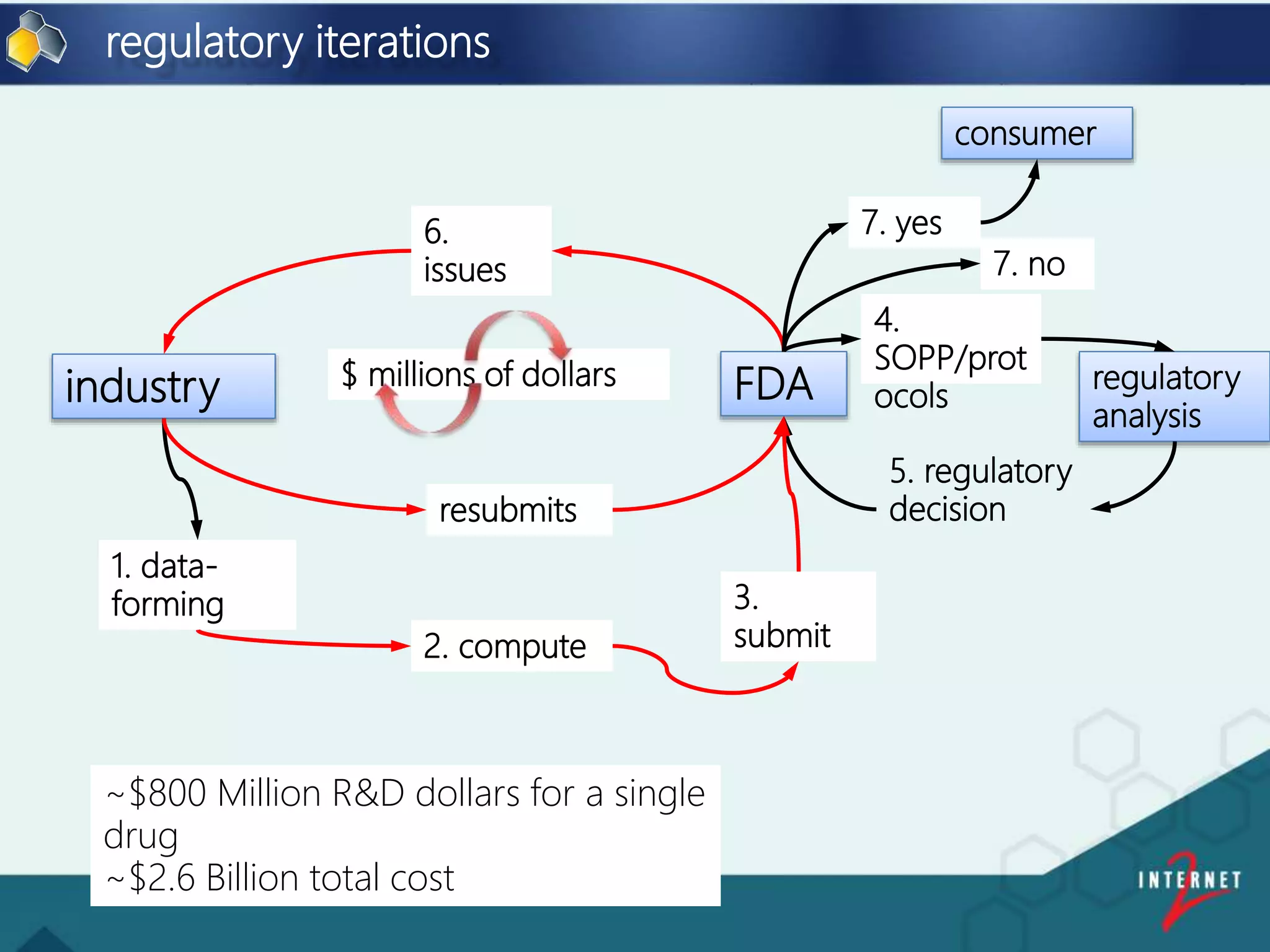

industry FDA regulatory analysis 2. compute 3. submit 1. data- forming 6. issues resubmits 5. regulatory decision 4. SOPP/prot ocols consumer $ millions of dollars 7. yes 7. no regulatory iterations ~$800 Million R&D dollars for a single drug ~$2.6 Billion total cost

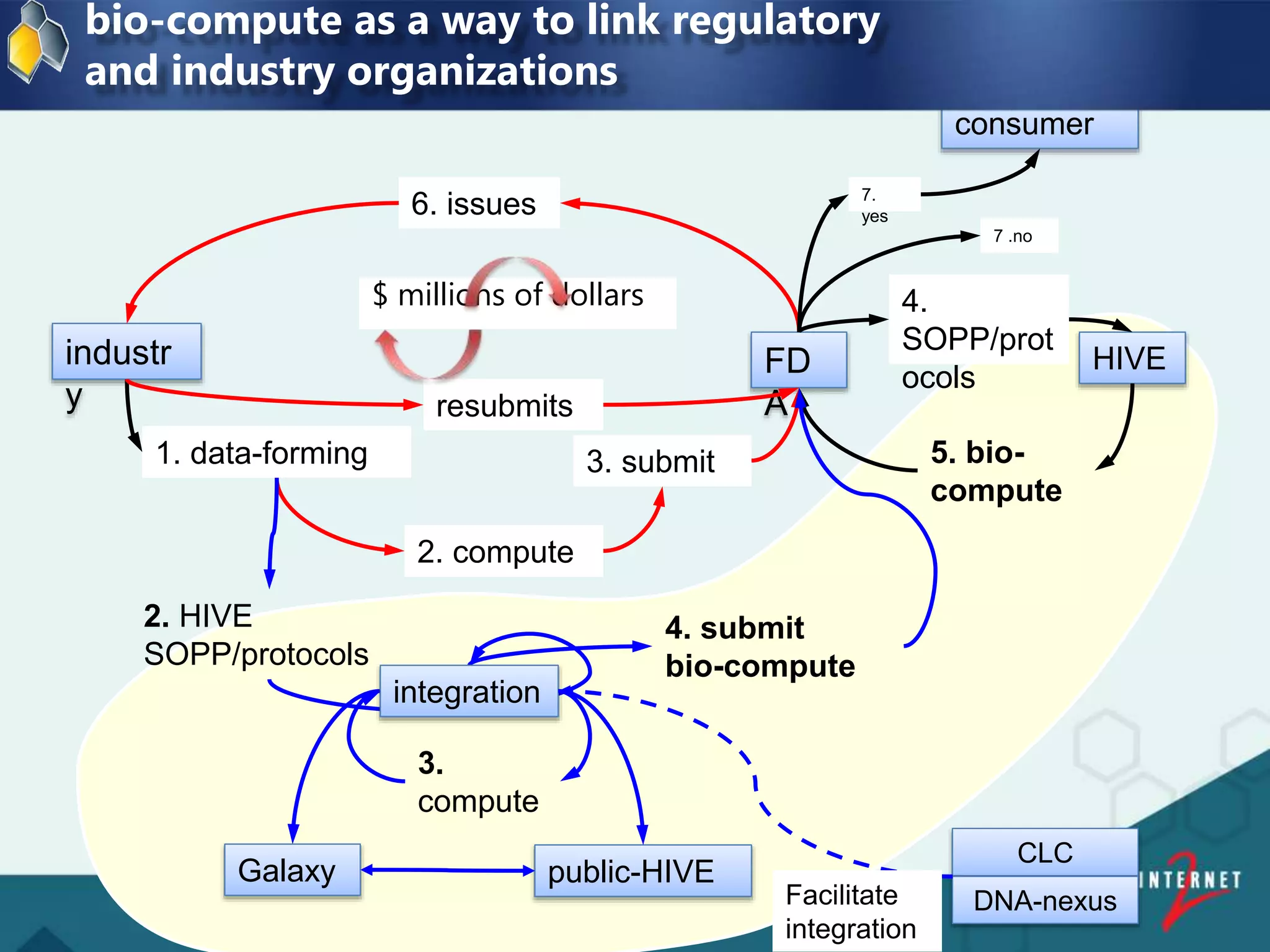

industr y FD A HIVE public-HIVEGalaxy CLC DNA-nexus 2. compute 3. submit1. data-forming 6. issues resubmits 5. bio- compute 2. HIVE SOPP/protocols 4. SOPP/prot ocols consumer 7. yes 7 .no 4. submit bio-compute integration 3. compute Facilitate integration $ millions of dollars bio-compute as a way to link regulatory and industry organizations

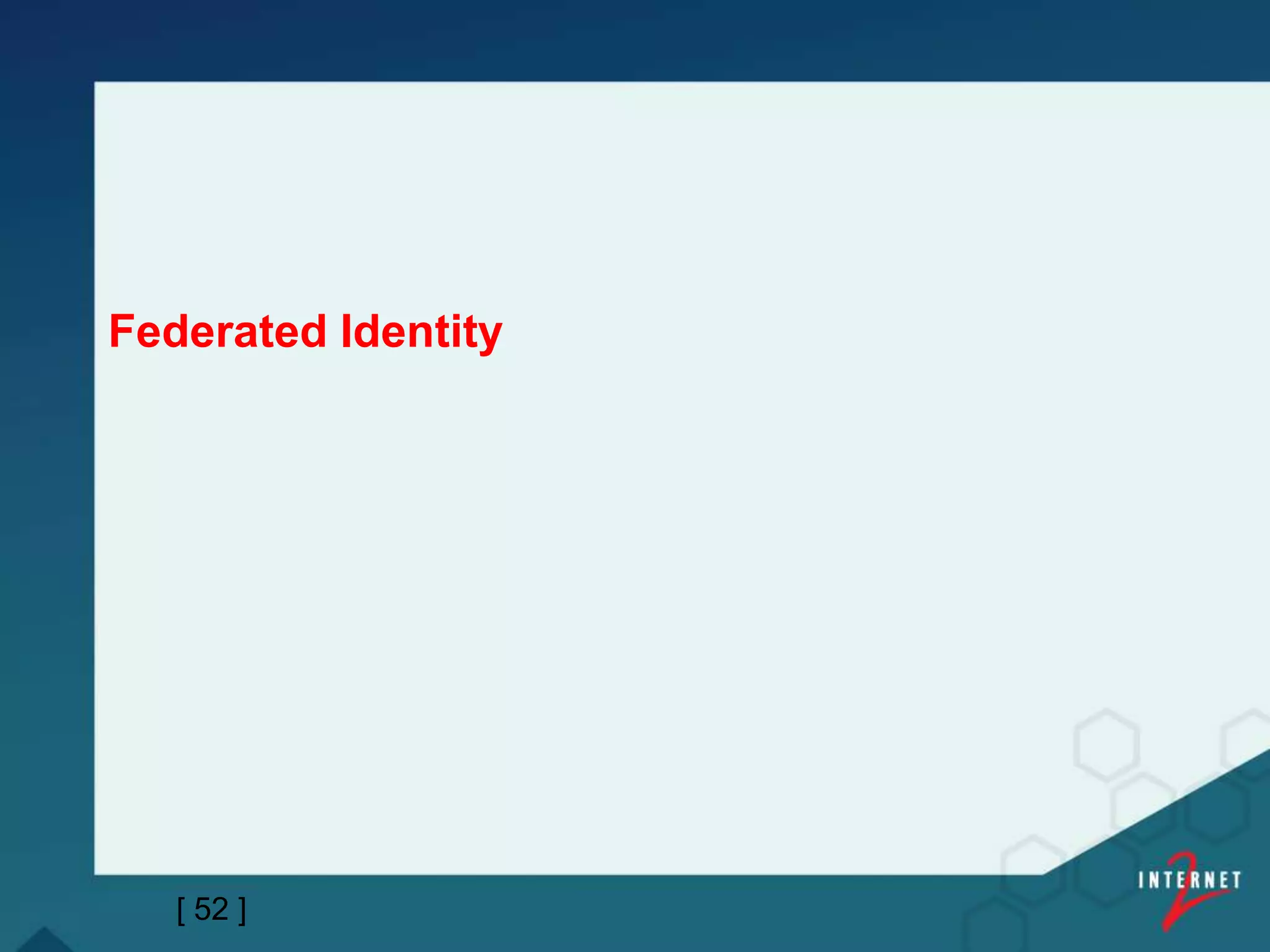

Federated Identity [ 52 ]

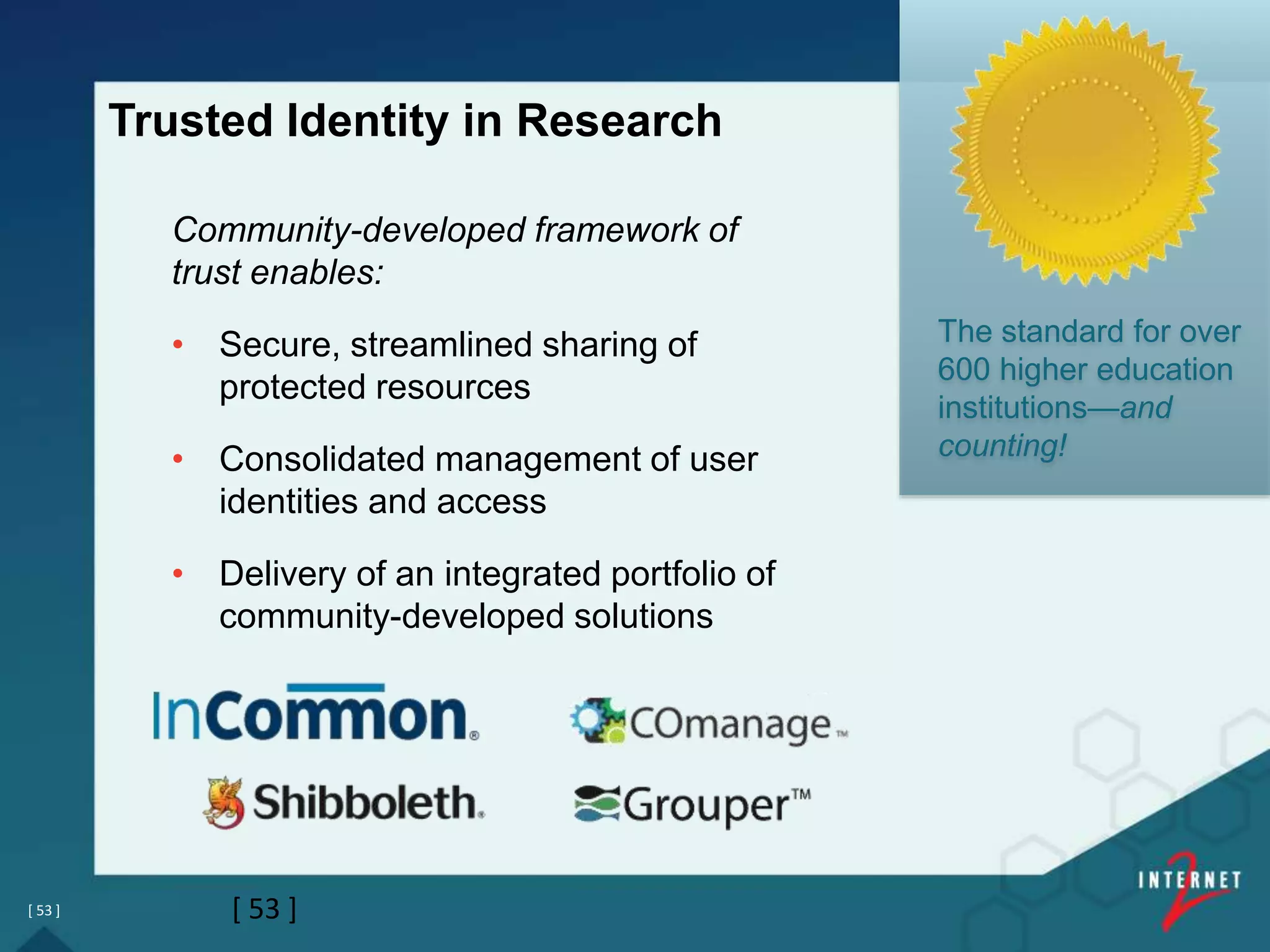

[ 53 ] Community-developed framework of trust enables: • Secure, streamlined sharing of protected resources • Consolidated management of user identities and access • Delivery of an integrated portfolio of community-developed solutions [ 53 ] Trusted Identity in Research The standard for over 600 higher education institutions—and counting!
[ 54 ] 15 425+ 2 160+ 0 2000+ 7.8 million Academic Participants Sponsored Partners Registered Service Providers Individuals served by federated IdM Foundation for Trust & Identity 54 ®

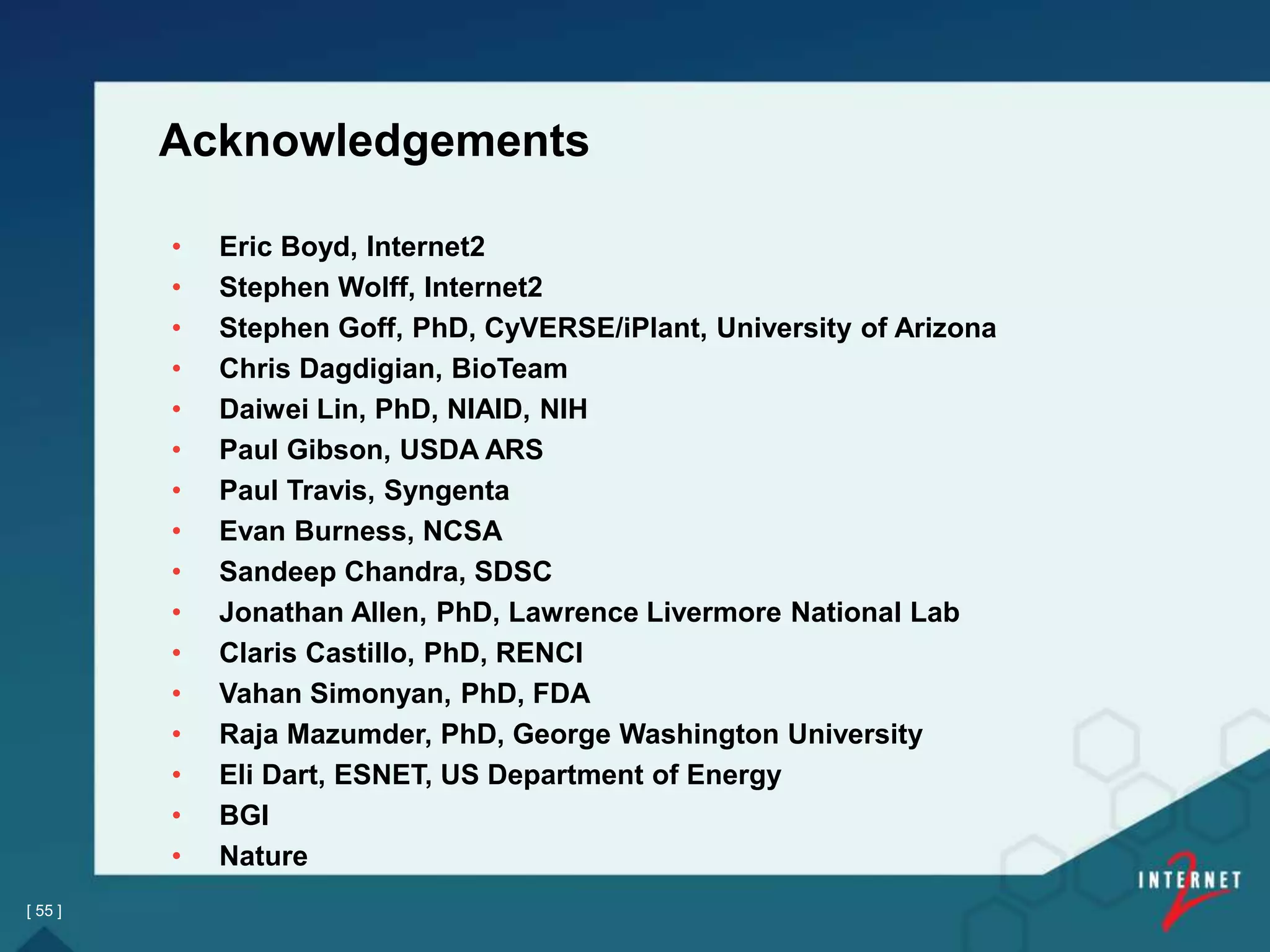

• Eric Boyd, Internet2 • Stephen Wolff, Internet2 • Stephen Goff, PhD, CyVERSE/iPlant, University of Arizona • Chris Dagdigian, BioTeam • Daiwei Lin, PhD, NIAID, NIH • Paul Gibson, USDA ARS • Paul Travis, Syngenta • Evan Burness, NCSA • Sandeep Chandra, SDSC • Jonathan Allen, PhD, Lawrence Livermore National Lab • Claris Castillo, PhD, RENCI • Vahan Simonyan, PhD, FDA • Raja Mazumder, PhD, George Washington University • Eli Dart, ESNET, US Department of Energy • BGI • Nature [ 55 ] Acknowledgements
Thank you! Daniel Taylor, Director, Business Development Internet2 dbt3@internet2.edu 703-517-2566

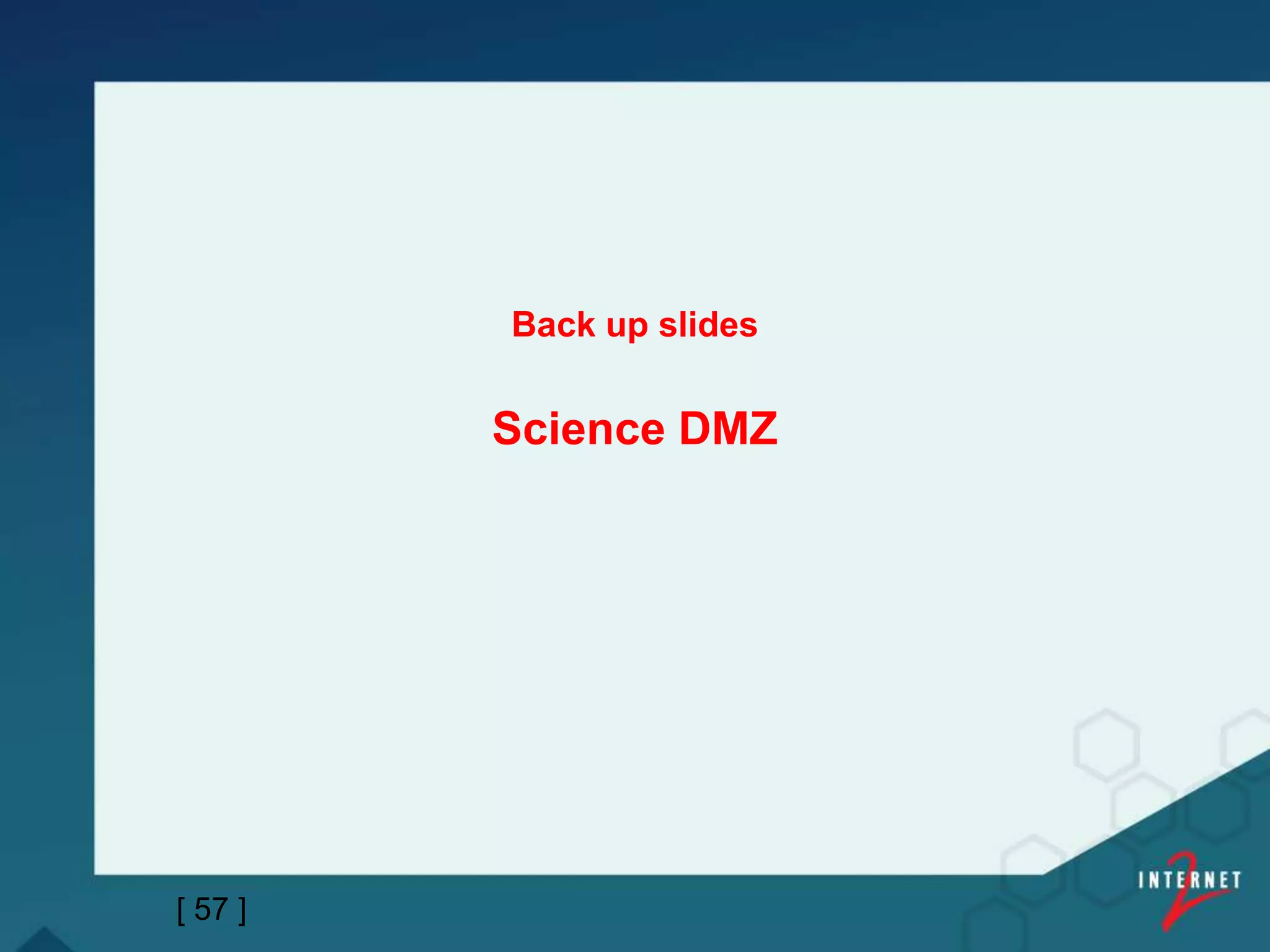

Back up slides Science DMZ [ 57 ]

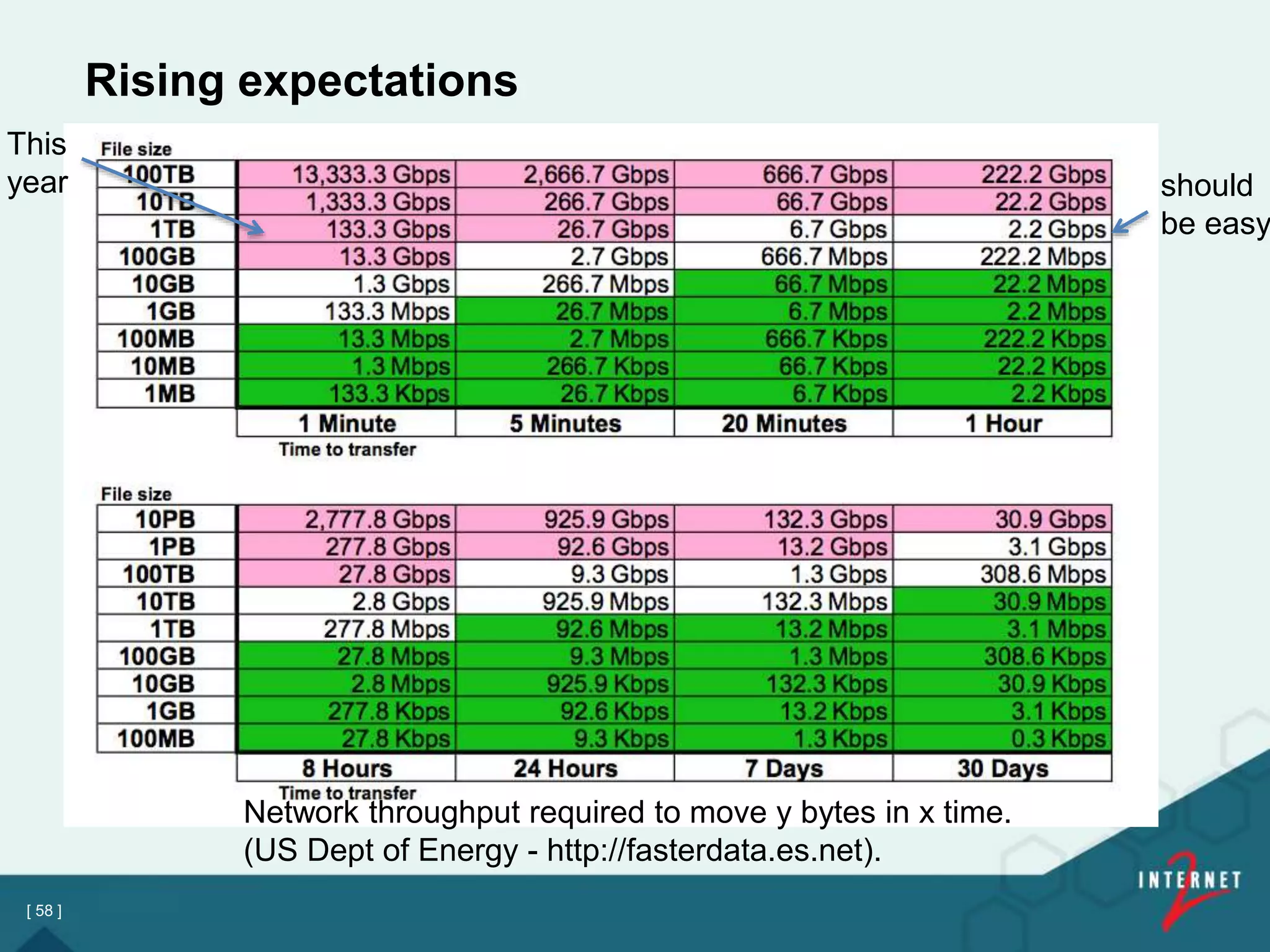

[ 58 ] Rising expectations Network throughput required to move y bytes in x time. (US Dept of Energy - http://fasterdata.es.net). should be easy This year

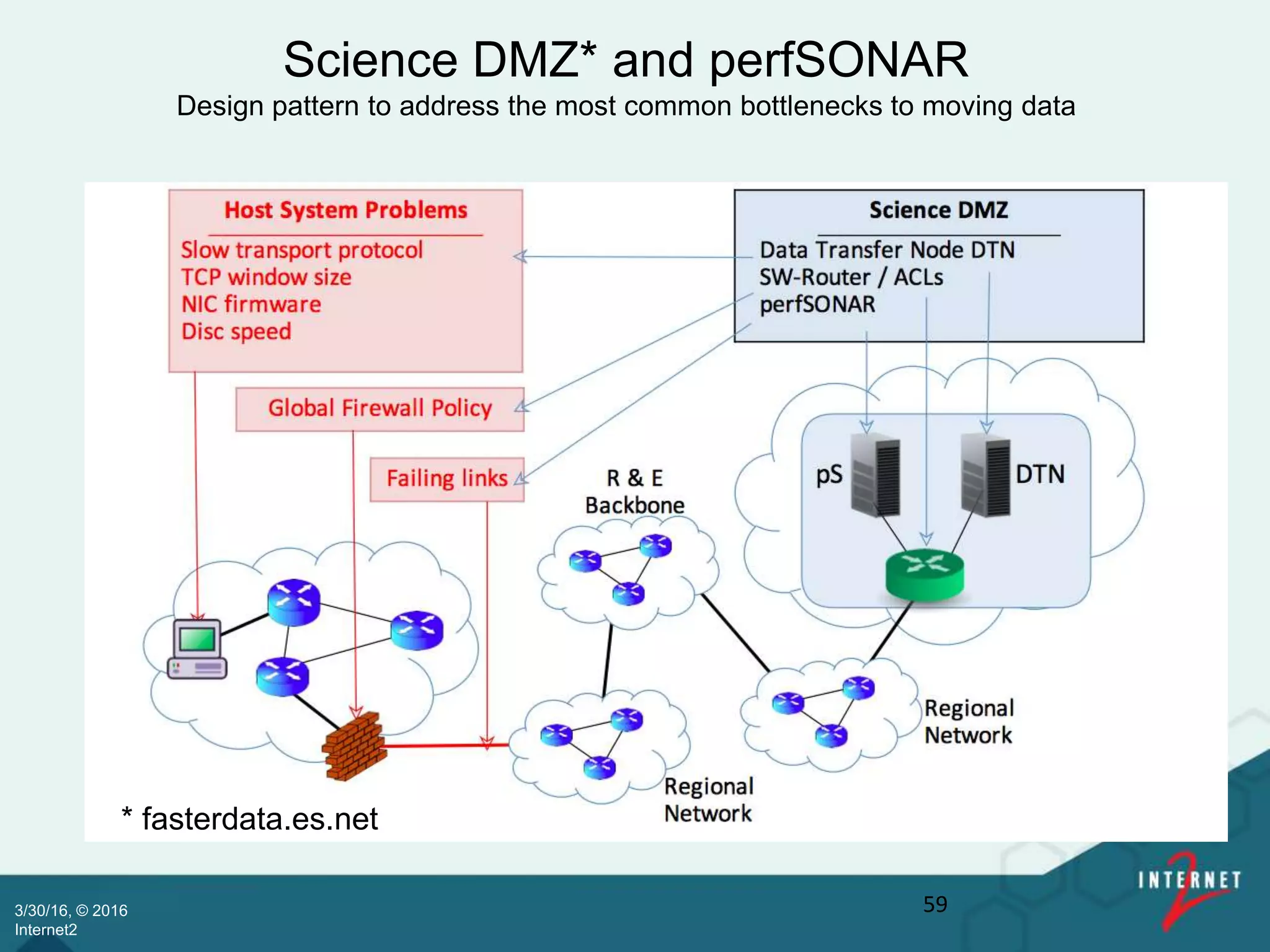

3/30/16, © 2016 Internet2 Science DMZ* and perfSONAR Design pattern to address the most common bottlenecks to moving data * fasterdata.es.net 59
