Insight into IoT Applications and Common Practice Challenges

International Journal of Trend in Scientific Research and Development (IJTSRD)
Volume 4 Issue 3, April 2020 Available Online: www.ijtsrd.com e-ISSN: 2456 – 6470
@ IJTSRD | Unique Paper ID – IJTSRD30286 | Volume – 4 | Issue – 3 | March-April 2020 Page 42
Insight into IoT Applications and Common Practice Challenges
Lubna Alazzawi, Jamal Alotaibi
Electrical and Computer Engineering Department, Wayne State University, Detroit, Michigan, USA
ABSTRACT
IoT caused a revolution in the technological world. Not only is the IoT related
to computers, people or cell phones but also to various sensors, actuators,
vehicles, and other modern appliances. There are around 14 billion
interconnected digital devices acrosstheglobei.e.almost2devicesperhuman
being on earth. The IoT serves as a medium to connect non-livingthingstothe
internet to transfer information from one point to another intheircommunity
network which automates processes and ultimately makes the life of human
beings convenient. The subsequent result of amalgamating internet
connectivity with powerful data analysis is a complete change in the way we
humans work and live. The most vital characteristics of IoT include
connectivity, active engagement, sensors, artificial intelligence, and small
device use. All of this creates many challenges that need to be solved to keep
this technology to continue expanding. In this paper, we have identified
various applications of IoT based on recent technological and businesstrends
and highlighted the existing challenges faced by IoT which need to be
addressed considering the exponential acceptance of theconceptgloballyand
the way those challenges had been addressed in the past.Wehavealsomadea
few comments on the way such challenges are being attempted to beresolved
now. This paper presents the current status Internet of Things (IoT) in terms
of technical details, and applications. Also, this paper opens a window for
future work on the historical approach to study and address IoT challenges.
KEYWORDS: IoT, challenges, applications, IoT architecture, computing devices,
connectivity, security, smart city
How to cite this paper: Lubna Alazzawi |
Jamal Alotaibi "Insight into IoT
Applications and Common Practice
Challenges"
Published in
International Journal
of Trend in Scientific
Research and
Development(ijtsrd),
ISSN: 2456-6470,
Volume-4 | Issue-3,
April 2020, pp.42-49, URL:
www.ijtsrd.com/papers/ijtsrd30286.pdf
Copyright © 2020 by author(s) and
International Journal ofTrendinScientific
Research and Development Journal. This
is an Open Access article distributed
under the terms of
the Creative
CommonsAttribution
License (CC BY 4.0)
(http://creativecommons.org/licenses/by
/4.0)
1. INTRODUCTION
The industrial revolution fortified the idea of a globally
connected world paving the way for the internet. Although
there was a considerable rate at which computers and
related accessories were connected to the internet, there
was still a lack of sufficient information which could drive
the world towards a much safer, efficient global machine. It
was the time when very simple objects which generated
information could be used to monitor and control things
remotely is now known as the Internet of Things (IoT)[1]-
[4]. The term IoT was given by Kevin Ashton in1999[5].The
idea has been straightforward yet immensely powerful. It
focused on connecting things that were not connected
before, such as engines, sensors, personal machines,
industries, etc.
In general, the entire world became connected via the
Internet platform. This idea was also presented in a refined
way by Cisco which projects there would be around 500
billion devices connected to the Internet by the year 2030.
Cisco predicts this will lead to the rise of smart networks,
interconnected devices generating bulk of data that IoT
applications use to bundle, analyze, and deliver insight,
which can help drive well-informed decisions and
actions[6][7].
Fig. 1 illustrates the interconnection between different
technologies that together make up the concept of IoT [8].
In this paper, the topmost prominent and fast-growing IoT
applications are mentioned, including Smart Spaces,
Transport, Industrial IoT (IIoT), Machine to Machine and
Artificial Intelligence (M2M & AI), Healthcare, Consumer
Electronics, Retail, and Agriculture.
With a bigger network of devices come bigger opportunities
and challenges. Also, in this paper, many of these challenges,
which are still relevant today but not commonly mentioned
in many publications, are addressed. Some of these
challenges include connectivity, Centralization, Availability
and Reliability, Scalability and Interoperability, Longevity
and Upgrades, Network Latency, Energy Consumption,
Regulations and Standardizations, Privacy, and Security.
Fig. 1 Illustration of the concept of IoT
IJTSRD30286

International Journal of Trend in Scientific Research and Development (IJTSRD) @ www.ijtsrd.com eISSN: 2456-6470

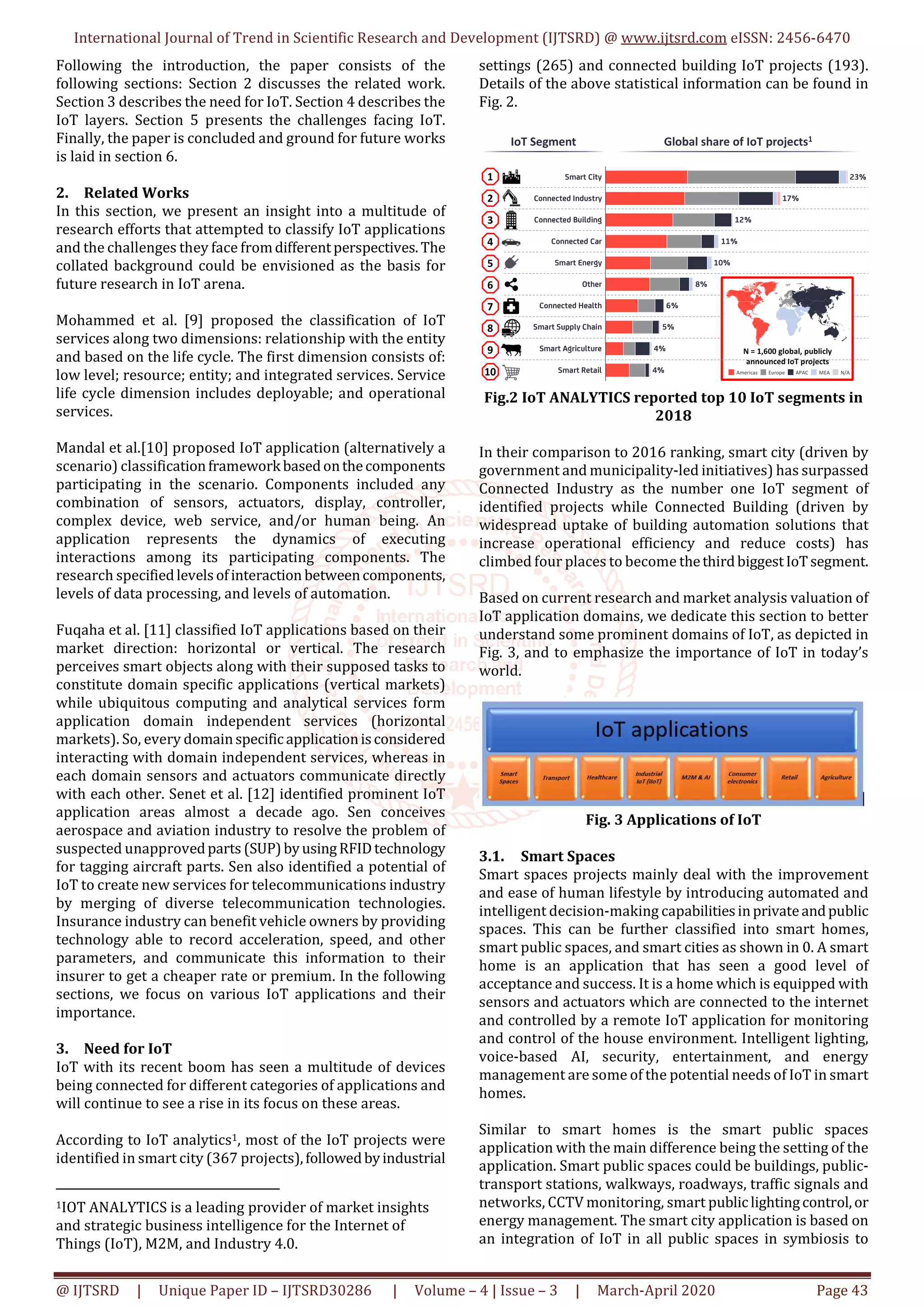

Following the introduction, the paper consists of the
following sections: Section 2 discusses the related work.
Section 3 describes the need for IoT. Section 4 describes the
IoT layers. Section 5 presents the challenges facing IoT.
Finally, the paper is concluded and ground for future works
is laid in section 6.
2. Related Works
In this section, we present an insight into a multitude of
research efforts that attempted to classify IoT applications
and the challenges they face fromdifferentperspectives.The
collated background could be envisioned as the basis for
future research in IoT arena.
Mohammed et al. [9] proposed the classification of IoT
services along two dimensions: relationship with the entity
and based on the life cycle. The first dimension consists of:
low level; resource; entity; and integrated services. Service
life cycle dimension includes deployable; and operational
services.
Mandal et al.[10] proposed IoT application (alternatively a
scenario) classificationframework basedonthecomponents
participating in the scenario. Components included any
combination of sensors, actuators, display, controller,
complex device, web service, and/or human being. An
application represents the dynamics of executing
interactions among its participating components. The
research specifiedlevelsofinteraction betweencomponents,
levels of data processing, and levels of automation.
Fuqaha et al. [11] classified IoT applications based on their
market direction: horizontal or vertical. The research
perceives smart objects along with their supposed tasks to
constitute domain specific applications (vertical markets)
while ubiquitous computing and analytical services form
application domain independent services (horizontal
markets). So, every domainspecificapplicationisconsidered
interacting with domain independent services, whereas in
each domain sensors and actuators communicate directly
with each other. Senet et al. [12] identified prominent IoT
application areas almost a decade ago. Sen conceives
aerospace and aviation industry to resolve the problem of
suspected unapprovedparts (SUP)byusingRFIDtechnology
for tagging aircraft parts. Sen also identified a potential of
IoT to create new services for telecommunications industry
by merging of diverse telecommunication technologies.
Insurance industry can benefit vehicle owners by providing
technology able to record acceleration, speed, and other
parameters, and communicate this information to their
insurer to get a cheaper rate or premium. In the following
sections, we focus on various IoT applications and their
importance.
3. Need for IoT
IoT with its recent boom has seen a multitude of devices
being connected for different categories of applications and
will continue to see a rise in its focus on these areas.
According to IoT analytics1, most of the IoT projects were
identified in smart city (367 projects),followedbyindustrial
1IOT ANALYTICS is a leading provider of market insights
and strategic business intelligence for the Internet of
Things (IoT), M2M, and Industry 4.0.
settings (265) and connected building IoT projects (193).
Details of the above statistical information can be found in
Fig. 2.
Fig.2 IoT ANALYTICS reported top 10 IoT segments in
2018
In their comparison to 2016 ranking, smart city (driven by
government and municipality-led initiatives) has surpassed
Connected Industry as the number one IoT segment of
identified projects while Connected Building (driven by
widespread uptake of building automation solutions that
increase operational efficiency and reduce costs) has
climbed four places to become thethirdbiggestIoTsegment.
Based on current research and market analysis valuation of
IoT application domains, we dedicate this section to better
understand some prominent domains of IoT, as depicted in
Fig. 3, and to emphasize the importance of IoT in today’s
world.
Fig. 3 Applications of IoT
3.1. Smart Spaces
Smart spaces projects mainly deal with the improvement
and ease of human lifestyle by introducing automated and
intelligent decision-making capabilitiesinprivateandpublic
spaces. This can be further classified into smart homes,
smart public spaces, and smart cities as shown in 0. A smart
home is an application that has seen a good level of
acceptance and success. It is a home which is equipped with
sensors and actuators which are connected to the internet
and controlled by a remote IoT application for monitoring
and control of the house environment. Intelligent lighting,
voice-based AI, security, entertainment, and energy
management are some of the potential needs of IoT in smart
homes.
Similar to smart homes is the smart public spaces
application with the main difference being the setting of the
application. Smart public spaces could be buildings, public-
transport stations, walkways, roadways, traffic signals and
networks, CCTV monitoring, smart publiclightingcontrol,or
energy management. The smart city application is based on
an integration of IoT in all public spaces in symbiosis to

monitor and control the city as a single organism. Many
countries are waking up to this idea of smart cities [13][14].

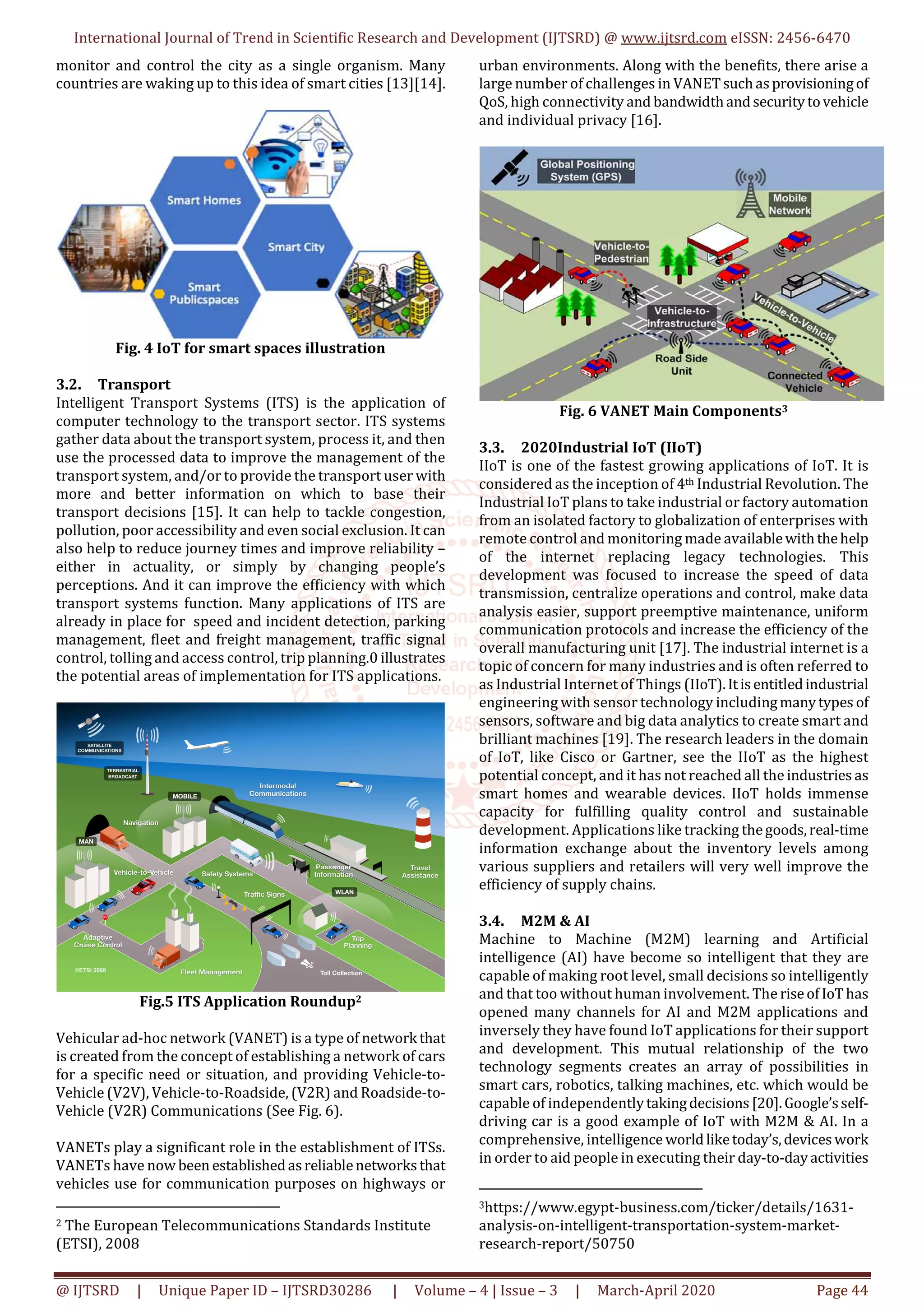

Fig. 4 IoT for smart spaces illustration
3.2. Transport
Intelligent Transport Systems (ITS) is the application of
computer technology to the transport sector. ITS systems
gather data about the transport system, process it, and then
use the processed data to improve the management of the
transport system, and/or to provide the transport user with
more and better information on which to base their
transport decisions [15]. It can help to tackle congestion,
pollution, poor accessibility and even social exclusion. It can
also help to reduce journey times and improve reliability –
either in actuality, or simply by changing people’s
perceptions. And it can improve the efficiency with which
transport systems function. Many applications of ITS are
already in place for speed and incident detection, parking
management, fleet and freight management, traffic signal
control, tolling and access control, trip planning.0 illustrates
the potential areas of implementation for ITS applications.
Fig.5 ITS Application Roundup2
Vehicular ad-hoc network (VANET) is a type of network that
is created from the concept of establishing a network of cars
for a specific need or situation, and providing Vehicle-to-
Vehicle (V2V), Vehicle-to-Roadside, (V2R) and Roadside-to-
Vehicle (V2R) Communications (See Fig. 6).
VANETs play a significant role in the establishment of ITSs.
VANETs have now been establishedasreliablenetworksthat
vehicles use for communication purposes on highways or
2 The European Telecommunications Standards Institute
(ETSI), 2008
urban environments. Along with the benefits, there arise a
large number of challenges in VANETsuchasprovisioningof
QoS, high connectivity and bandwidthandsecuritytovehicle
and individual privacy [16].
Fig. 6 VANET Main Components3
3.3. 2020Industrial IoT (IIoT)
IIoT is one of the fastest growing applications of IoT. It is
considered as the inception of 4th Industrial Revolution. The
Industrial IoT plans to take industrial or factory automation
from an isolated factory to globalization of enterprises with
remote control and monitoring made availablewiththehelp
of the internet replacing legacy technologies. This
development was focused to increase the speed of data
transmission, centralize operations and control, make data
analysis easier, support preemptive maintenance, uniform
communication protocols and increase the efficiency of the
overall manufacturing unit [17]. The industrial internet is a
topic of concern for many industries and is often referred to
as Industrial Internet of Things (IIoT).Itisentitledindustrial
engineering with sensor technology includingmanytypes of
sensors, software and big data analytics to create smart and
brilliant machines [19]. The research leaders in the domain
of IoT, like Cisco or Gartner, see the IIoT as the highest
potential concept, and it has not reached all the industries as
smart homes and wearable devices. IIoT holds immense
capacity for fulfilling quality control and sustainable
development. Applications like tracking thegoods,real-time
information exchange about the inventory levels among
various suppliers and retailers will very well improve the
efficiency of supply chains.
3.4. M2M & AI
Machine to Machine (M2M) learning and Artificial
intelligence (AI) have become so intelligent that they are
capable of making root level, small decisions so intelligently
and that too without human involvement. The riseofIoThas
opened many channels for AI and M2M applications and
inversely they have found IoT applications for their support
and development. This mutual relationship of the two
technology segments creates an array of possibilities in
smart cars, robotics, talking machines, etc. which would be
capable of independentlytakingdecisions[20].Google’sself-
driving car is a good example of IoT with M2M & AI. In a
comprehensive, intelligence worldliketoday’s,deviceswork
in order to aid people in executing their day-to-dayactivities
3https://www.egypt-business.com/ticker/details/1631-
analysis-on-intelligent-transportation-system-market-
research-report/50750

conveniently [21] and in a natural wayusingtheinformation
and intelligence that is concealed in the network connected
devices [22]. It is distinguished by the following systems of
characteristics –first, numerous devices connected through
network are integratedinto anenvironment;second,devices
can be aware of an individual and their situational context;
third, they can be altered as per an individual’s necessity;
fourth, they can transform if requested by the user; fifth,
they can be prepared for an individual’s desires effortlessly.
3.5. Healthcare
A very important and slowly developing applicationofIoTis
in the healthcare and fitness sector. The concept of
telemedicine has been crudely tested by doctors around the
world by remotely controlling medicinal devicesformedical
monitoring and operations. But IoT has leveled up the
situation. The connection between the health care system
and smart medical devices canproveto bea greatadvantage,
not only for the companies but also for the well-being of
general public (see 0).
IoT in healthcare has an intention to empower people to live
a safe and healthy life by wearing devices which are
connected through the internet. The data collected will help
with personalized analysis and a solution to an individual’s
health plan to combat a disease. A lot of research and pilot
applications are being tested in this sector which will enable
doctors to make better diagnosis and treatment to patients.
Some of the prominent applications include monitoring of
patient’s health and using the collected data to analyze and
generate models for better diagnosis and treatment.
Intelligent medicinal systems collect patient data, processit,
and administer medicines according to AI decisions [18].

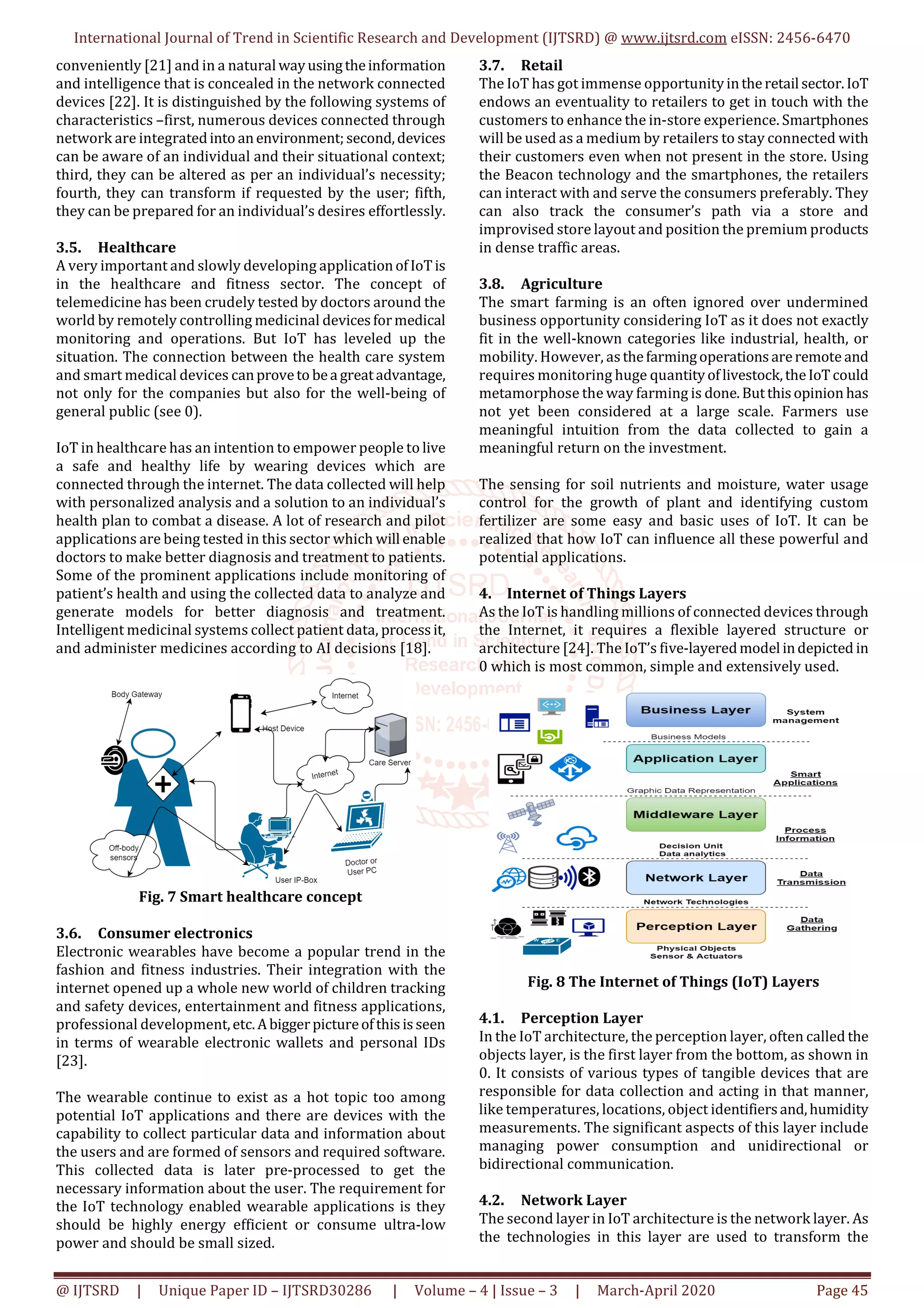

Fig. 7 Smart healthcare concept
3.6. Consumer electronics
Electronic wearables have become a popular trend in the
fashion and fitness industries. Their integration with the
internet opened up a whole new world of children tracking
and safety devices, entertainment and fitness applications,
professional development,etc.Abiggerpictureofthisisseen
in terms of wearable electronic wallets and personal IDs
[23].
The wearable continue to exist as a hot topic too among
potential IoT applications and there are devices with the
capability to collect particular data and information about
the users and are formed of sensors and required software.
This collected data is later pre-processed to get the
necessary information about the user. The requirement for
the IoT technology enabled wearable applications is they
should be highly energy efficient or consume ultra-low
power and should be small sized.
3.7. Retail
The IoT has got immense opportunityintheretail sector.IoT
endows an eventuality to retailers to get in touch with the
customers to enhance the in-store experience. Smartphones
will be used as a medium by retailers to stay connected with
their customers even when not present in the store. Using
the Beacon technology and the smartphones, the retailers
can interact with and serve the consumers preferably. They
can also track the consumer’s path via a store and
improvised store layout and position the premium products
in dense traffic areas.
3.8. Agriculture
The smart farming is an often ignored over undermined
business opportunity considering IoT as it does not exactly
fit in the well-known categories like industrial, health, or
mobility. However, asthefarmingoperationsareremote and
requires monitoring huge quantityoflivestock,theIoTcould
metamorphose the way farming is done.Butthisopinion has
not yet been considered at a large scale. Farmers use
meaningful intuition from the data collected to gain a
meaningful return on the investment.
The sensing for soil nutrients and moisture, water usage
control for the growth of plant and identifying custom
fertilizer are some easy and basic uses of IoT. It can be
realized that how IoT can influence all these powerful and
potential applications.
4. Internet of Things Layers
As the IoT is handling millions of connected devices through
the Internet, it requires a flexible layered structure or
architecture [24]. The IoT’s five-layeredmodel indepicted in
0 which is most common, simple and extensively used.
Fig. 8 The Internet of Things (IoT) Layers

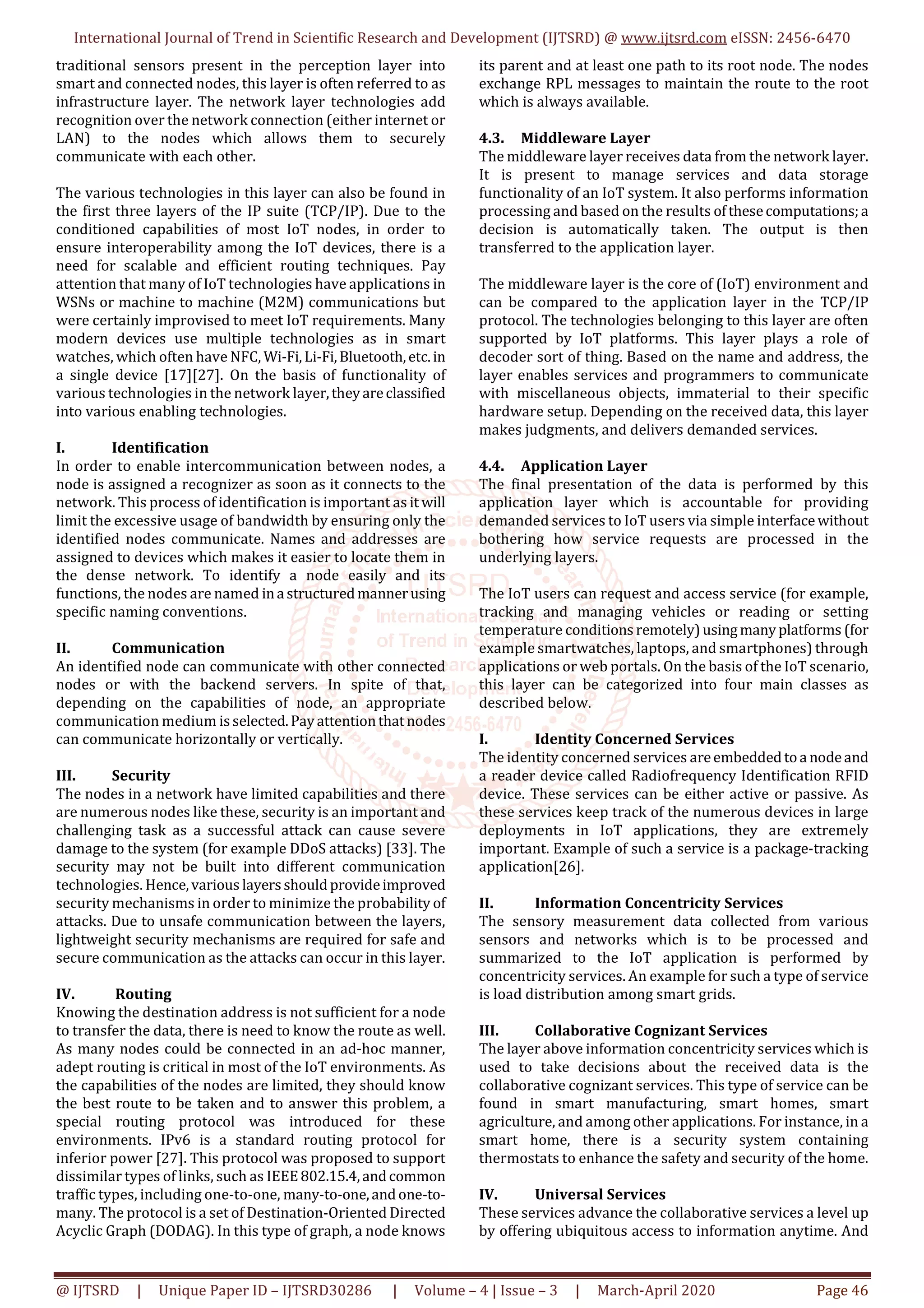

4.1. Perception Layer
In the IoT architecture, the perception layer, often called the
objects layer, is the first layer from the bottom, as shown in
0. It consists of various types of tangible devices that are
responsible for data collection and acting in that manner,
like temperatures, locations, object identifiersand,humidity
measurements. The significant aspects of this layer include
managing power consumption and unidirectional or
bidirectional communication.
4.2. Network Layer
The second layer in IoT architecture is the network layer. As
the technologies in this layer are used to transform the

traditional sensors present in the perception layer into
smart and connected nodes, this layer is often referred to as
infrastructure layer. The network layer technologies add
recognition over the network connection (either internet or
LAN) to the nodes which allows them to securely
communicate with each other.
The various technologies in this layer can also be found in
the first three layers of the IP suite (TCP/IP). Due to the
conditioned capabilities of most IoT nodes, in order to
ensure interoperability among the IoT devices, there is a
need for scalable and efficient routing techniques. Pay
attention that many of IoT technologies have applications in
WSNs or machine to machine (M2M) communications but
were certainly improvised to meet IoT requirements. Many
modern devices use multiple technologies as in smart
watches, which often have NFC, Wi-Fi,Li-Fi,Bluetooth,etc.in
a single device [17][27]. On the basis of functionality of
various technologies in the network layer,theyareclassified
into various enabling technologies.
I. Identification
In order to enable intercommunication between nodes, a
node is assigned a recognizer as soon as it connects to the
network. This process of identification is important as it will
limit the excessive usage of bandwidth by ensuring only the
identified nodes communicate. Names and addresses are
assigned to devices which makes it easier to locate them in
the dense network. To identify a node easily and its
functions, the nodes are named ina structuredmannerusing
specific naming conventions.
II. Communication
An identified node can communicate with other connected
nodes or with the backend servers. In spite of that,
depending on the capabilities of node, an appropriate
communication medium isselected.Payattentionthatnodes
can communicate horizontally or vertically.
III. Security
The nodes in a network have limited capabilities and there
are numerous nodes like these, security is an important and
challenging task as a successful attack can cause severe
damage to the system (for example DDoS attacks) [33]. The
security may not be built into different communication
technologies. Hence,various layersshouldprovideimproved
security mechanisms in order to minimize the probability of
attacks. Due to unsafe communication between the layers,
lightweight security mechanisms are required for safe and
secure communication as the attacks can occur in this layer.
IV. Routing
Knowing the destination address is not sufficient for a node
to transfer the data, there is need to know the route as well.
As many nodes could be connected in an ad-hoc manner,
adept routing is critical in most of the IoT environments. As
the capabilities of the nodes are limited, they should know
the best route to be taken and to answer this problem, a
special routing protocol was introduced for these
environments. IPv6 is a standard routing protocol for
inferior power [27]. This protocol was proposed to support
dissimilar types of links, such as IEEE802.15.4,andcommon
traffic types, including one-to-one, many-to-one,andone-to-
many. The protocol is a set of Destination-Oriented Directed
Acyclic Graph (DODAG). In this type of graph, a node knows
its parent and at least one path to its root node. The nodes
exchange RPL messages to maintain the route to the root
which is always available.
4.3. Middleware Layer
The middleware layer receives data from the network layer.
It is present to manage services and data storage
functionality of an IoT system. It also performs information
processing and based on the results ofthesecomputations;a
decision is automatically taken. The output is then
transferred to the application layer.
The middleware layer is the core of (IoT) environment and
can be compared to the application layer in the TCP/IP
protocol. The technologies belonging to this layer are often
supported by IoT platforms. This layer plays a role of
decoder sort of thing. Based on the name and address, the
layer enables services and programmers to communicate
with miscellaneous objects, immaterial to their specific
hardware setup. Depending on the received data, this layer
makes judgments, and delivers demanded services.
4.4. Application Layer
The final presentation of the data is performed by this
application layer which is accountable for providing
demanded services to IoT users via simple interfacewithout
bothering how service requests are processed in the
underlying layers.
The IoT users can request and access service (for example,
tracking and managing vehicles or reading or setting
temperature conditionsremotely)usingmanyplatforms (for
example smartwatches, laptops, and smartphones) through
applications or web portals. On the basis of the IoT scenario,
this layer can be categorized into four main classes as
described below.
I. Identity Concerned Services
The identity concerned services areembeddedtoa nodeand
a reader device called Radiofrequency Identification RFID
device. These services can be either active or passive. As
these services keep track of the numerous devices in large
deployments in IoT applications, they are extremely
important. Example of such a service is a package-tracking
application[26].
II. Information Concentricity Services
The sensory measurement data collected from various
sensors and networks which is to be processed and
summarized to the IoT application is performed by
concentricity services. An example for such a type of service
is load distribution among smart grids.
III. Collaborative Cognizant Services
The layer above information concentricity services which is
used to take decisions about the received data is the
collaborative cognizant services. This type of service can be
found in smart manufacturing, smart homes, smart
agriculture, and among other applications. For instance, in a
smart home, there is a security system containing
thermostats to enhance the safety and security of the home.
IV. Universal Services

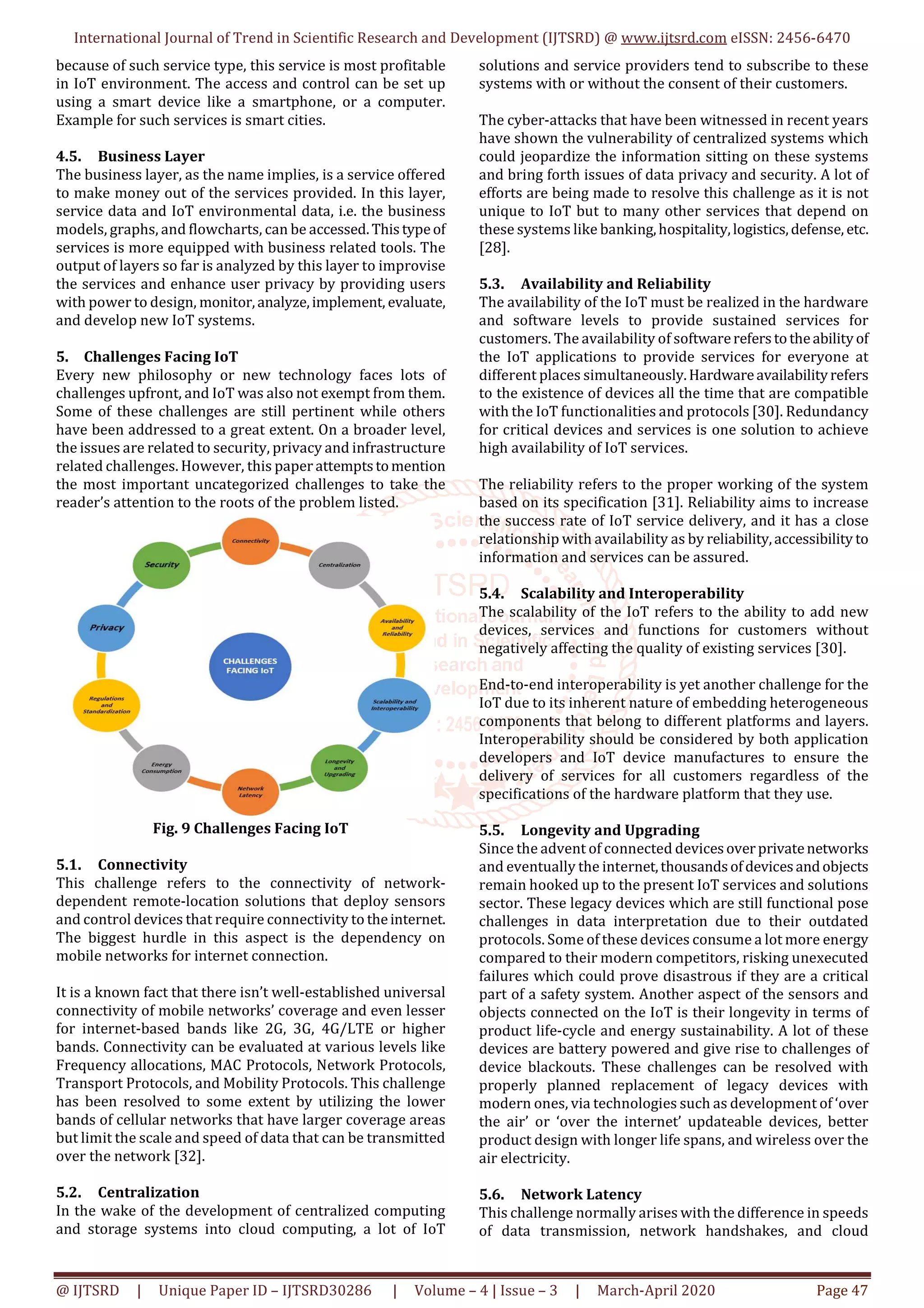

These services advance the collaborative services a level up
by offering ubiquitous access to information anytime. And

because of such service type, this service is most profitable
in IoT environment. The access and control can be set up
using a smart device like a smartphone, or a computer.
Example for such services is smart cities.
4.5. Business Layer
The business layer, as the name implies, is a service offered
to make money out of the services provided. In this layer,
service data and IoT environmental data, i.e. the business
models, graphs, and flowcharts, can be accessed.Thistypeof
services is more equipped with business related tools. The
output of layers so far is analyzed by this layer to improvise
the services and enhance user privacy by providing users
with power to design, monitor,analyze,implement, evaluate,
and develop new IoT systems.
5. Challenges Facing IoT
Every new philosophy or new technology faces lots of
challenges upfront, and IoT was also not exempt from them.
Some of these challenges are still pertinent while others
have been addressed to a great extent. On a broader level,
the issues are related to security, privacy and infrastructure
related challenges. However, this paper attemptstomention
the most important uncategorized challenges to take the
reader’s attention to the roots of the problem listed.
Fig. 9 Challenges Facing IoT
5.1. Connectivity
This challenge refers to the connectivity of network-
dependent remote-location solutions that deploy sensors
and control devices that require connectivity to theinternet.
The biggest hurdle in this aspect is the dependency on
mobile networks for internet connection.
It is a known fact that there isn’t well-established universal
connectivity of mobile networks’ coverage and even lesser
for internet-based bands like 2G, 3G, 4G/LTE or higher
bands. Connectivity can be evaluated at various levels like
Frequency allocations, MAC Protocols, Network Protocols,
Transport Protocols, and Mobility Protocols. This challenge
has been resolved to some extent by utilizing the lower
bands of cellular networks that have larger coverage areas
but limit the scale and speed of data that can be transmitted
over the network [32].
5.2. Centralization
In the wake of the development of centralized computing
and storage systems into cloud computing, a lot of IoT
solutions and service providers tend to subscribe to these
systems with or without the consent of their customers.
The cyber-attacks that have been witnessed in recent years
have shown the vulnerability of centralized systems which
could jeopardize the information sitting on these systems
and bring forth issues of data privacy and security. A lot of
efforts are being made to resolve this challenge as it is not
unique to IoT but to many other services that depend on
these systems like banking,hospitality,logistics,defense, etc.
[28].
5.3. Availability and Reliability
The availability of the IoT must be realized in the hardware
and software levels to provide sustained services for
customers. The availability of softwarereferstotheabilityof
the IoT applications to provide services for everyone at
different places simultaneously.Hardwareavailabilityrefers
to the existence of devices all the time that are compatible
with the IoT functionalities and protocols [30]. Redundancy
for critical devices and services is one solution to achieve
high availability of IoT services.
The reliability refers to the proper working of the system
based on its specification [31]. Reliability aims to increase
the success rate of IoT service delivery, and it has a close
relationship with availability as by reliability,accessibility to
information and services can be assured.
5.4. Scalability and Interoperability
The scalability of the IoT refers to the ability to add new
devices, services and functions for customers without
negatively affecting the quality of existing services [30].
End-to-end interoperability is yet another challenge for the
IoT due to its inherent nature of embedding heterogeneous
components that belong to different platforms and layers.
Interoperability should be considered by both application
developers and IoT device manufactures to ensure the
delivery of services for all customers regardless of the
specifications of the hardware platform that they use.
5.5. Longevity and Upgrading
Since the advent of connected devicesoverprivatenetworks
and eventually the internet,thousandsofdevicesandobjects
remain hooked up to the present IoT services and solutions
sector. These legacy devices which are still functional pose
challenges in data interpretation due to their outdated
protocols. Some of these devices consume a lot more energy
compared to their modern competitors, risking unexecuted
failures which could prove disastrous if they are a critical
part of a safety system. Another aspect of the sensors and
objects connected on the IoT is their longevity in terms of
product life-cycle and energy sustainability. A lot of these
devices are battery powered and give rise to challenges of
device blackouts. These challenges can be resolved with
properly planned replacement of legacy devices with
modern ones, via technologies such as development of ‘over
the air’ or ‘over the internet’ updateable devices, better
product design with longer life spans, and wireless over the
air electricity.

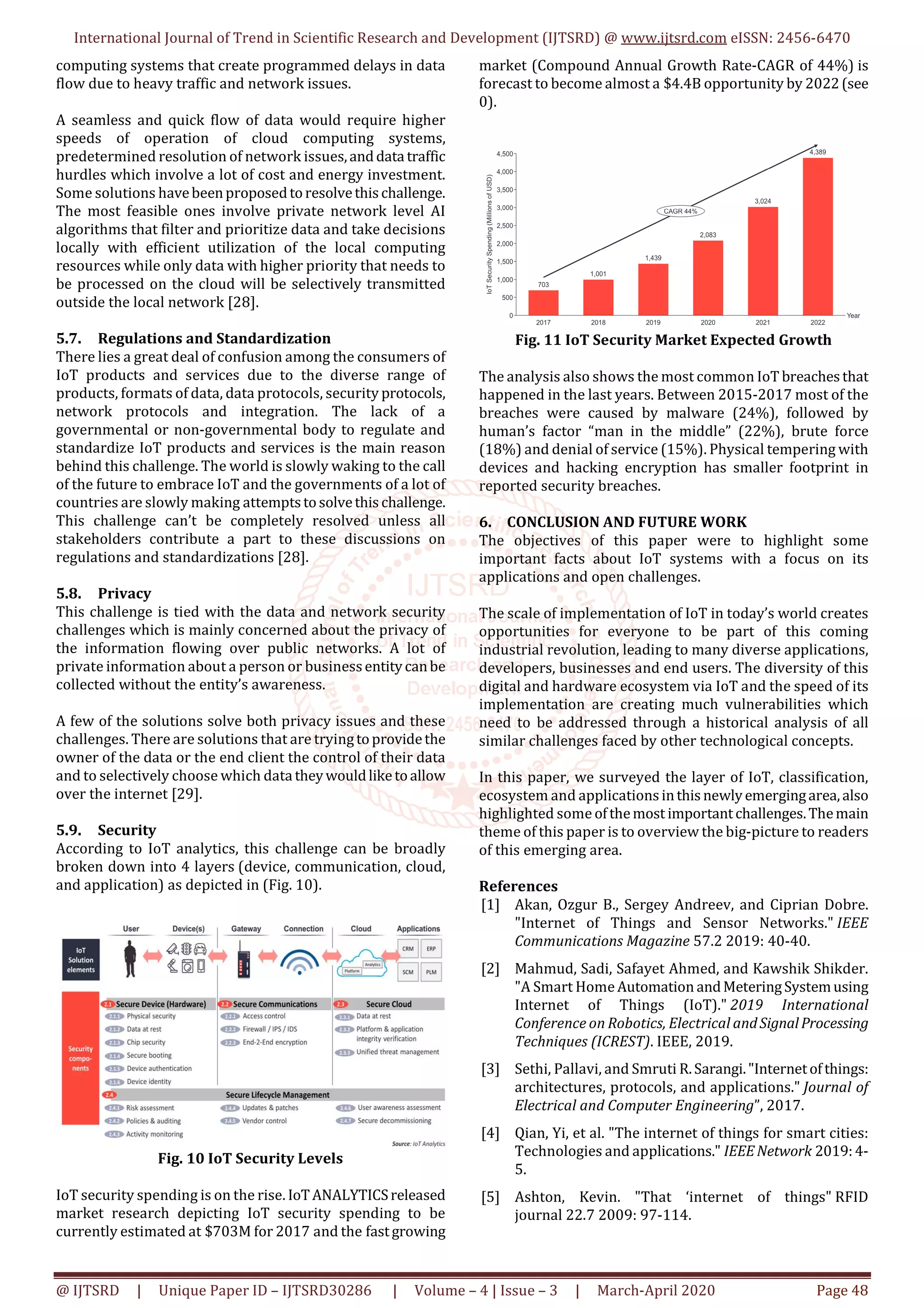

5.6. Network Latency
This challenge normally arises with the difference in speeds
of data transmission, network handshakes, and cloud

computing systems that create programmed delays in data
flow due to heavy traffic and network issues.
A seamless and quick flow of data would require higher
speeds of operation of cloud computing systems,
predetermined resolution of network issues,anddata traffic
hurdles which involve a lot of cost and energy investment.
Some solutions havebeenproposedtoresolvethischallenge.
The most feasible ones involve private network level AI
algorithms that filter and prioritize data and take decisions
locally with efficient utilization of the local computing
resources while only data with higher priority that needs to
be processed on the cloud will be selectively transmitted
outside the local network [28].
5.7. Regulations and Standardization
There lies a great deal of confusion among the consumers of
IoT products and services due to the diverse range of
products, formats of data, data protocols, security protocols,
network protocols and integration. The lack of a
governmental or non-governmental body to regulate and
standardize IoT products and services is the main reason
behind this challenge. The world is slowly waking to the call
of the future to embrace IoT and the governments of a lot of
countries are slowly making attemptstosolvethis challenge.
This challenge can’t be completely resolved unless all
stakeholders contribute a part to these discussions on
regulations and standardizations [28].
5.8. Privacy
This challenge is tied with the data and network security
challenges which is mainly concerned about the privacy of
the information flowing over public networks. A lot of
private information about a person or businessentitycanbe
collected without the entity’s awareness.
A few of the solutions solve both privacy issues and these
challenges. There are solutions that are tryingtoprovidethe
owner of the data or the end client the control of their data
and to selectively choose which data theywouldliketoallow
over the internet [29].
5.9. Security
According to IoT analytics, this challenge can be broadly
broken down into 4 layers (device, communication, cloud,
and application) as depicted in (Fig. 10).
Fig. 10 IoT Security Levels
IoT security spending is on the rise. IoTANALYTICSreleased
market research depicting IoT security spending to be
currently estimated at $703M for 2017 and the fastgrowing
market (Compound Annual Growth Rate-CAGR of 44%) is
forecast to become almost a $4.4B opportunity by 2022(see
0).
Fig. 11 IoT Security Market Expected Growth
The analysis also shows the most common IoT breachesthat
happened in the last years. Between 2015-2017 most of the
breaches were caused by malware (24%), followed by
human’s factor “man in the middle” (22%), brute force
(18%) and denial of service (15%). Physical tempering with
devices and hacking encryption has smaller footprint in
reported security breaches.
6. CONCLUSION AND FUTURE WORK
The objectives of this paper were to highlight some
important facts about IoT systems with a focus on its
applications and open challenges.
The scale of implementation of IoT in today’s world creates
opportunities for everyone to be part of this coming
industrial revolution, leading to many diverse applications,
developers, businesses and end users. The diversity of this
digital and hardware ecosystem via IoT and the speed of its
implementation are creating much vulnerabilities which
need to be addressed through a historical analysis of all
similar challenges faced by other technological concepts.
In this paper, we surveyed the layer of IoT, classification,
ecosystem and applicationsinthisnewlyemergingarea,also
highlighted some ofthemost importantchallenges.Themain
theme of this paper is to overview the big-picture to readers
of this emerging area.
References
[1] Akan, Ozgur B., Sergey Andreev, and Ciprian Dobre.
"Internet of Things and Sensor Networks." IEEE
Communications Magazine 57.2 2019: 40-40.
[2] Mahmud, Sadi, Safayet Ahmed, and Kawshik Shikder.
"A Smart Home Automation andMeteringSystemusing
Internet of Things (IoT)." 2019 International
Conference on Robotics, Electrical andSignalProcessing
Techniques (ICREST). IEEE, 2019.
[3] Sethi, Pallavi, and Smruti R.Sarangi."Internetofthings:
architectures, protocols, and applications." Journal of
Electrical and Computer Engineering”, 2017.
[4] Qian, Yi, et al. "The internet of things for smart cities:
Technologies and applications." IEEENetwork 2019:4-
5.
[5] Ashton, Kevin. "That ‘internet of things" RFID
journal 22.7 2009: 97-114.

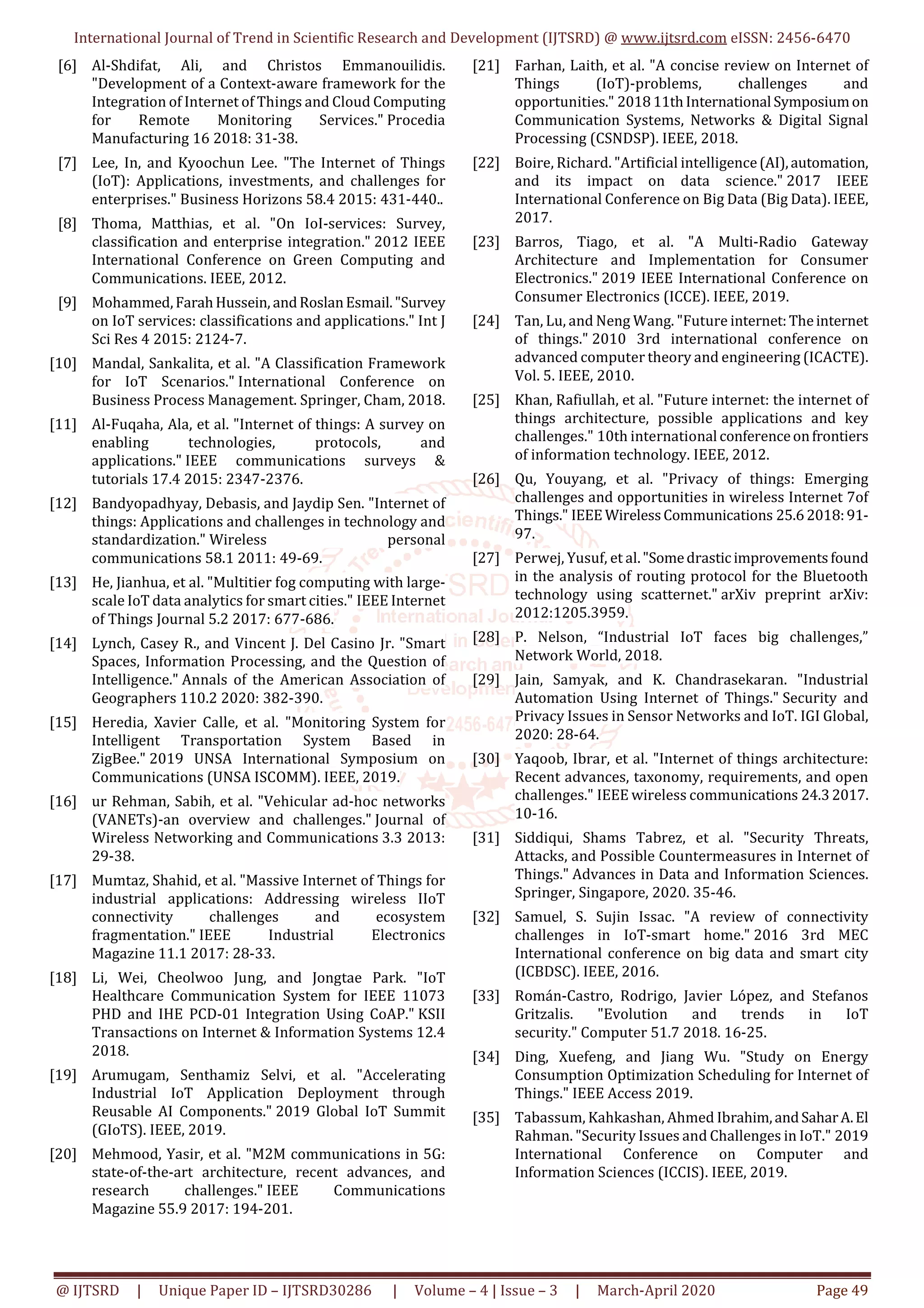

[6] Al-Shdifat, Ali, and Christos Emmanouilidis.
"Development of a Context-aware framework for the
Integration of Internet of Things and Cloud Computing
for Remote Monitoring Services." Procedia
Manufacturing 16 2018: 31-38.
[7] Lee, In, and Kyoochun Lee. "The Internet of Things
(IoT): Applications, investments, and challenges for
enterprises." Business Horizons 58.4 2015: 431-440..
[8] Thoma, Matthias, et al. "On IoI-services: Survey,
classification and enterprise integration." 2012 IEEE
International Conference on Green Computing and
Communications. IEEE, 2012.
[9] Mohammed,FarahHussein, andRoslanEsmail."Survey
on IoT services: classifications and applications." Int J
Sci Res 4 2015: 2124-7.
[10] Mandal, Sankalita, et al. "A Classification Framework
for IoT Scenarios." International Conference on
Business Process Management. Springer, Cham, 2018.
[11] Al-Fuqaha, Ala, et al. "Internet of things: A survey on
enabling technologies, protocols, and
applications." IEEE communications surveys &
tutorials 17.4 2015: 2347-2376.
[12] Bandyopadhyay, Debasis, and Jaydip Sen. "Internet of
things: Applications and challenges in technology and
standardization." Wireless personal
communications 58.1 2011: 49-69.
[13] He, Jianhua, et al. "Multitier fog computing with large-
scale IoT data analytics for smart cities." IEEE Internet
of Things Journal 5.2 2017: 677-686.
[14] Lynch, Casey R., and Vincent J. Del Casino Jr. "Smart
Spaces, Information Processing, and the Question of
Intelligence." Annals of the American Association of
Geographers 110.2 2020: 382-390.
[15] Heredia, Xavier Calle, et al. "Monitoring System for
Intelligent Transportation System Based in
ZigBee." 2019 UNSA International Symposium on
Communications (UNSA ISCOMM). IEEE, 2019.
[16] ur Rehman, Sabih, et al. "Vehicular ad-hoc networks
(VANETs)-an overview and challenges." Journal of
Wireless Networking and Communications 3.3 2013:
29-38.
[17] Mumtaz, Shahid, et al. "Massive Internet of Things for
industrial applications: Addressing wireless IIoT
connectivity challenges and ecosystem
fragmentation." IEEE Industrial Electronics
Magazine 11.1 2017: 28-33.
[18] Li, Wei, Cheolwoo Jung, and Jongtae Park. "IoT
Healthcare Communication System for IEEE 11073
PHD and IHE PCD-01 Integration Using CoAP." KSII
Transactions on Internet & Information Systems 12.4
2018.
[19] Arumugam, Senthamiz Selvi, et al. "Accelerating
Industrial IoT Application Deployment through
Reusable AI Components." 2019 Global IoT Summit
(GIoTS). IEEE, 2019.
[20] Mehmood, Yasir, et al. "M2M communications in 5G:
state-of-the-art architecture, recent advances, and
research challenges." IEEE Communications
Magazine 55.9 2017: 194-201.
[21] Farhan, Laith, et al. "A concise review on Internet of
Things (IoT)-problems, challenges and
opportunities." 201811thInternational Symposiumon
Communication Systems, Networks & Digital Signal
Processing (CSNDSP). IEEE, 2018.
[22] Boire, Richard. "Artificial intelligence(AI),automation,
and its impact on data science." 2017 IEEE
International Conference on Big Data (Big Data). IEEE,
2017.
[23] Barros, Tiago, et al. "A Multi-Radio Gateway
Architecture and Implementation for Consumer
Electronics." 2019 IEEE International Conference on
Consumer Electronics (ICCE). IEEE, 2019.
[24] Tan, Lu, and Neng Wang. "Future internet:Theinternet
of things." 2010 3rd international conference on
advanced computer theory and engineering (ICACTE).
Vol. 5. IEEE, 2010.
[25] Khan, Rafiullah, et al. "Future internet: the internet of
things architecture, possible applications and key
challenges." 10th international conferenceonfrontiers
of information technology. IEEE, 2012.
[26] Qu, Youyang, et al. "Privacy of things: Emerging
challenges and opportunities in wireless Internet 7of
Things." IEEE WirelessCommunications 25.62018:91-
97.
[27] Perwej, Yusuf, et al."Somedrasticimprovementsfound
in the analysis of routing protocol for the Bluetooth
technology using scatternet." arXiv preprint arXiv:
2012:1205.3959.
[28] P. Nelson, “Industrial IoT faces big challenges,”
Network World, 2018.
[29] Jain, Samyak, and K. Chandrasekaran. "Industrial
Automation Using Internet of Things." Security and
Privacy Issues in Sensor Networks and IoT. IGI Global,
2020: 28-64.
[30] Yaqoob, Ibrar, et al. "Internet of things architecture:
Recent advances, taxonomy, requirements, and open
challenges." IEEE wireless communications 24.32017.
10-16.
[31] Siddiqui, Shams Tabrez, et al. "Security Threats,
Attacks, and Possible Countermeasures in Internet of
Things." Advances in Data and Information Sciences.
Springer, Singapore, 2020. 35-46.
[32] Samuel, S. Sujin Issac. "A review of connectivity
challenges in IoT-smart home." 2016 3rd MEC
International conference on big data and smart city
(ICBDSC). IEEE, 2016.
[33] Román-Castro, Rodrigo, Javier López, and Stefanos
Gritzalis. "Evolution and trends in IoT
security." Computer 51.7 2018. 16-25.
[34] Ding, Xuefeng, and Jiang Wu. "Study on Energy
Consumption Optimization Scheduling for Internet of
Things." IEEE Access 2019.
[35] Tabassum, Kahkashan, Ahmed Ibrahim,andSaharA.El
Rahman. "Security Issues and Challenges in IoT." 2019
International Conference on Computer and
Information Sciences (ICCIS). IEEE, 2019.

Insight into IoT Applications and Common Practice Challenges

More Related Content

What's hot

Similar to Insight into IoT Applications and Common Practice Challenges

More from ijtsrd

Recently uploaded

Insight into IoT Applications and Common Practice Challenges
