How to import an Excel file into
SQL Server 2005 using
Integration Services
By Tim Chapman
October 9, 2007, 5:34 AM PDT

Integration Services, which replaces Data Transformation Services (DTS) in SQL Server 2005, is a
wonderful tool for extracting, transforming, and loading data. Common uses for Integration
Services include: loading data into the database; changing data into to or out from your relational
database structures; loading your data warehouse data; and taking data out of your database and
moving it to other databases or types of storage. This article describes how you can use the new
features of SQL Server 2005 Integration Services (SSIS) to load an Excel file into your database.

Note: There are several wizards that come with SQL Server Management Studio to aid you in the
import and export of data into and out of your database. I will not look at those wizards; I will focus
on how you can build a package from scratch so that you don’t have to rely on the wizards.

To begin the process, I open SQL Server Business Intelligence (BI) Development Studio, a front-
end tool that is installed when you install SQL Server 2005. The BI Development Studio is a
scaled down version of Visual Studio. Then I select New Integration Services Project and give the
project a name. See Figure A.

Figure A

http://www.techrepublic.com/blog/datacenter/how-to-import-an-excel-file-into-sql-server-2005-using-integration-services/205[08/29/2012 3:16:54 PM]


When the project opens, you will see an environment that may look familiar to you if you have
used SQL Server DTS; some of the items of the toolbox are the same. For the purposes of this
project, I am interested in dragging the Data Flow task item from the toolbar into the Control Flow
tab. (The idea of a Data Flow task is one of the major differences between DTS and SSIS
packages. In an SSIS package, you can control the manner in which your package logic flows
inside of the Control Flow tab. When you need to manage the data aspects of your project, you
will use the Data Flow task. You can have several different Data Flow tasks in your project — all
of which will reside inside the Control Flow tab.) See Figure B.

Figure B

Double-click the Data Flow task that you have dragged onto the Control Flow tab. The available
options in the Toolbar have changed; I now have available Data Flow Sources, Data Flow
Destinations, and Data Flow Transformations. Since I am going to import an Excel file into the
database, I will drag the Excel Source item from the Toolbar onto the screen. See Figure C.

Figure C

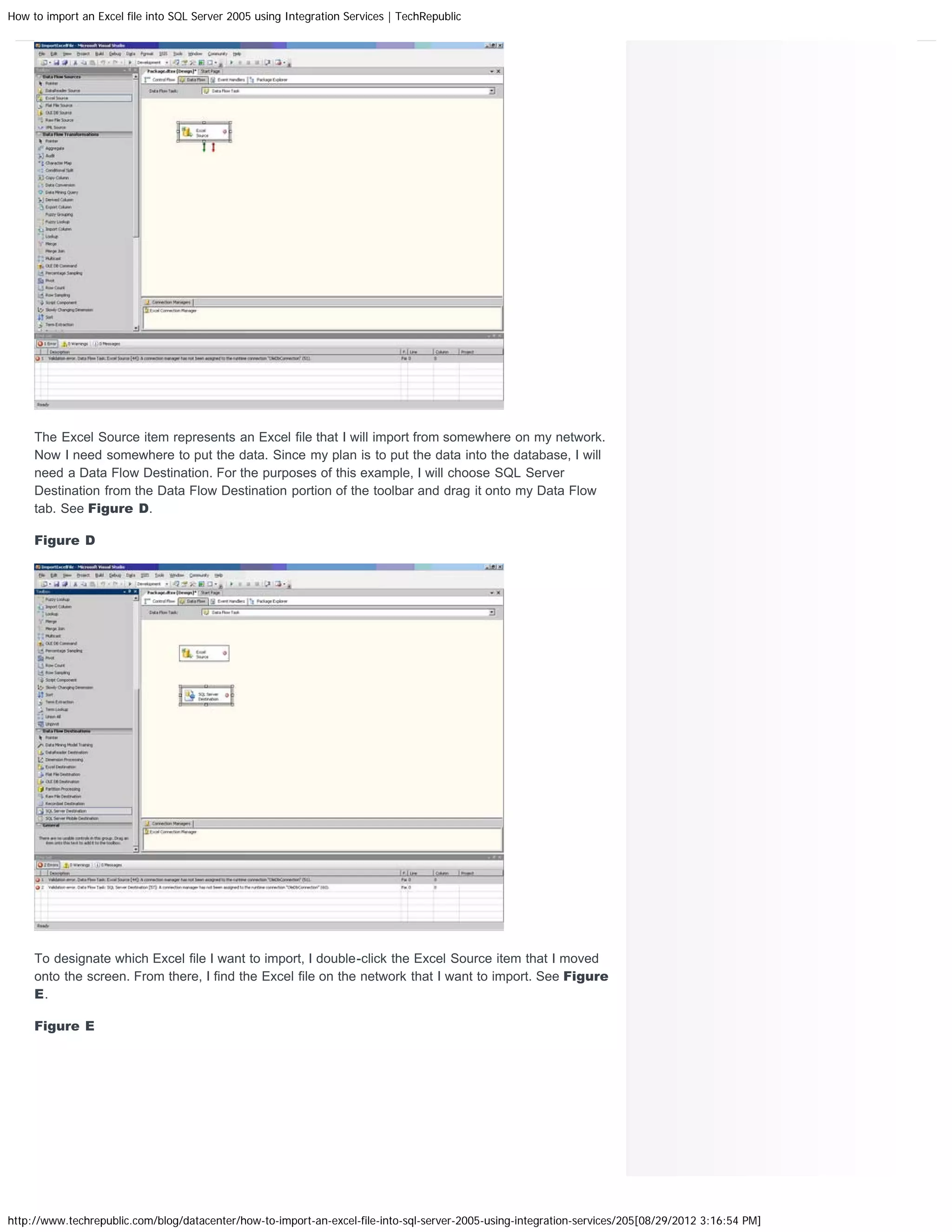

The Excel Source item represents an Excel file that I will import from somewhere on my network.
Now I need somewhere to put the data. Since my plan is to put the data into the database, I will
need a Data Flow Destination. For the purposes of this example, I will choose SQL Server
Destination from the Data Flow Destination portion of the toolbar and drag it onto my Data Flow
tab. See Figure D.

Figure D

To designate which Excel file I want to import, I double-click the Excel Source item that I moved
onto the screen. From there, I find the Excel file on the network that I want to import. See Figure
E.

Figure E

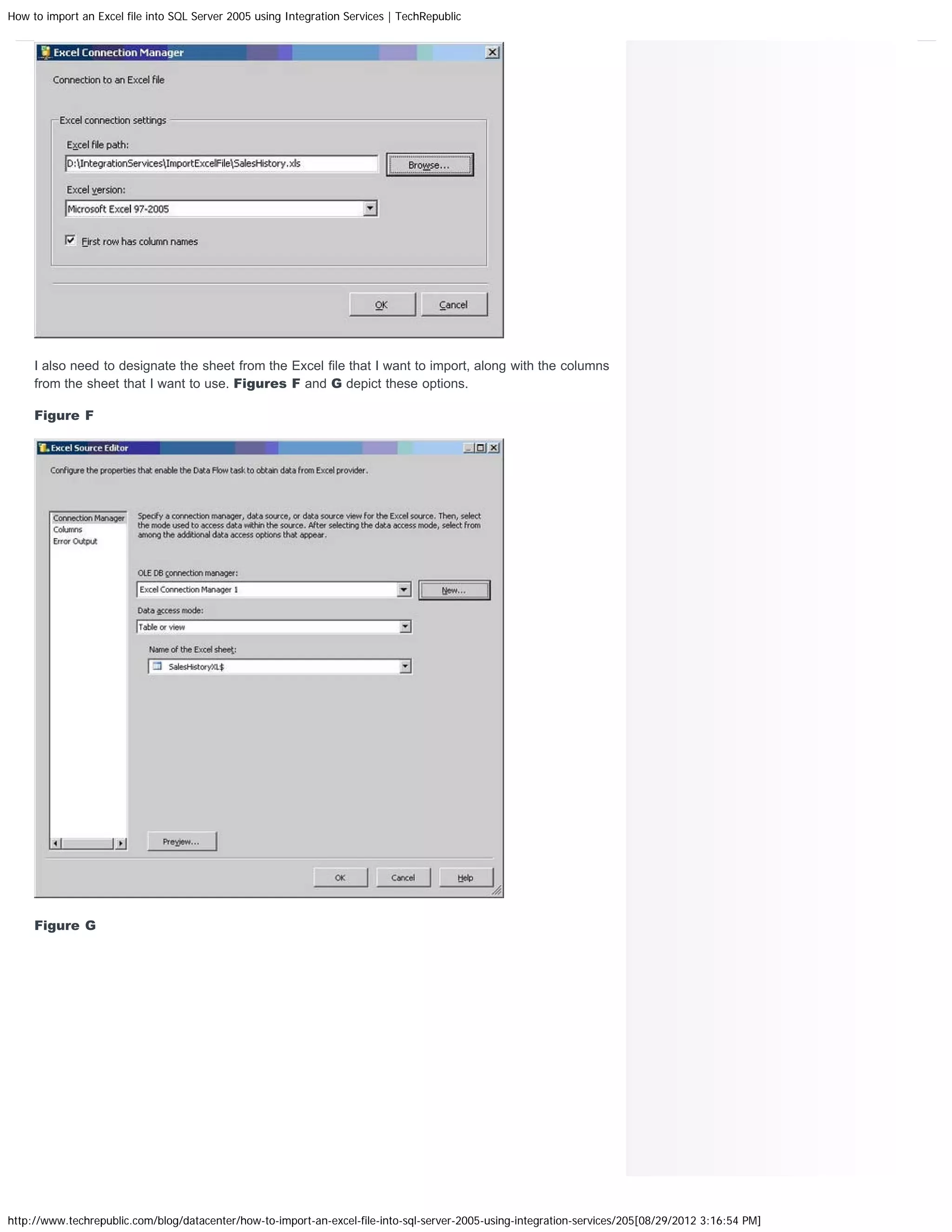

I also need to designate the sheet from the Excel file that I want to import, along with the columns
from the sheet that I want to use. Figures F and G depict these options.

Figure F

Figure G

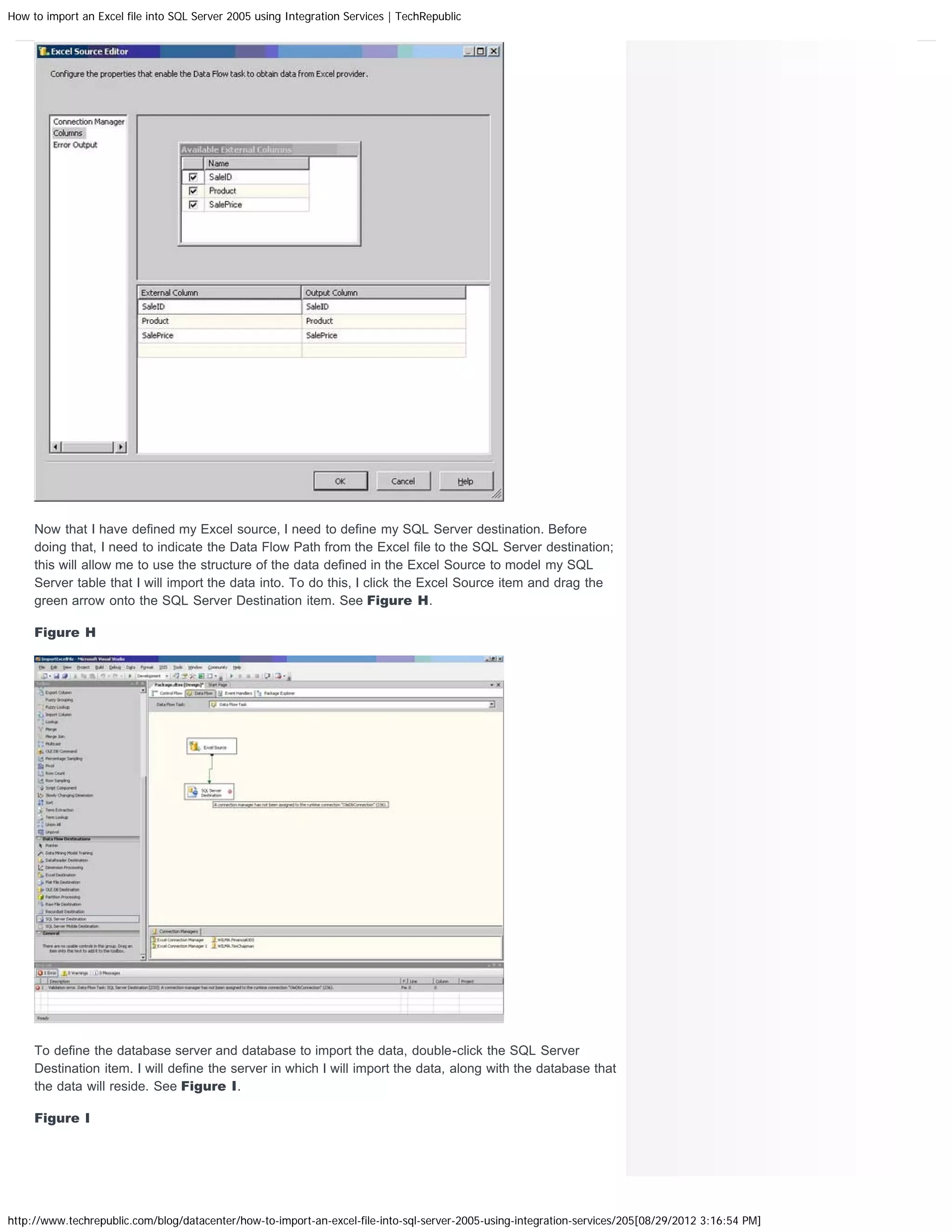

Now that I have defined my Excel source, I need to define my SQL Server destination. Before
doing that, I need to indicate the Data Flow Path from the Excel file to the SQL Server destination;
this will allow me to use the structure of the data defined in the Excel Source to model my SQL
Server table that I will import the data into. To do this, I click the Excel Source item and drag the
green arrow onto the SQL Server Destination item. See Figure H.

Figure H

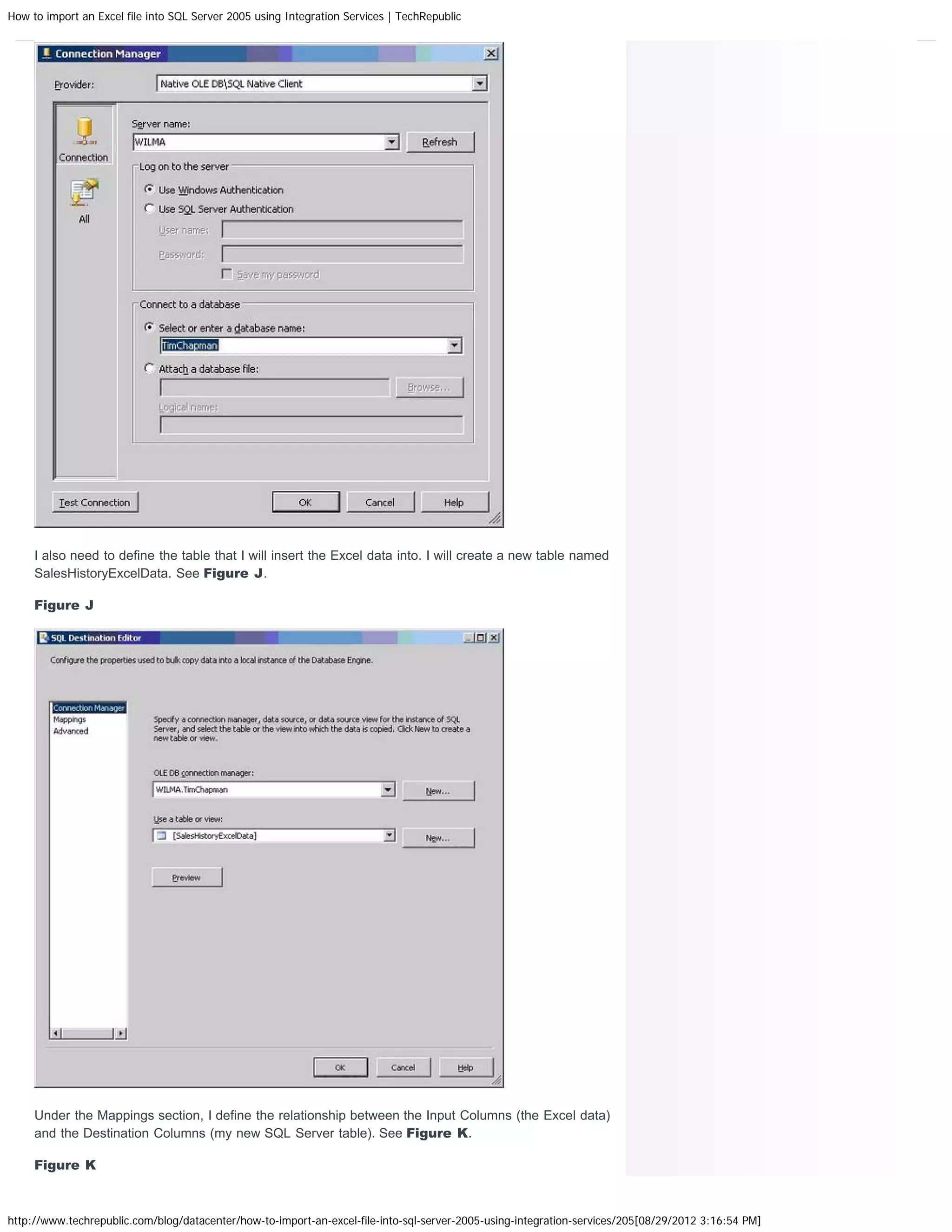

To define the database server and database to import the data, double-click the SQL Server
Destination item. I will define the server in which I will import the data, along with the database that
the data will reside. See Figure I.

Figure I



I also need to define the table that I will insert the Excel data into. I will create a new table named
SalesHistoryExcelData. See Figure J.

Figure J

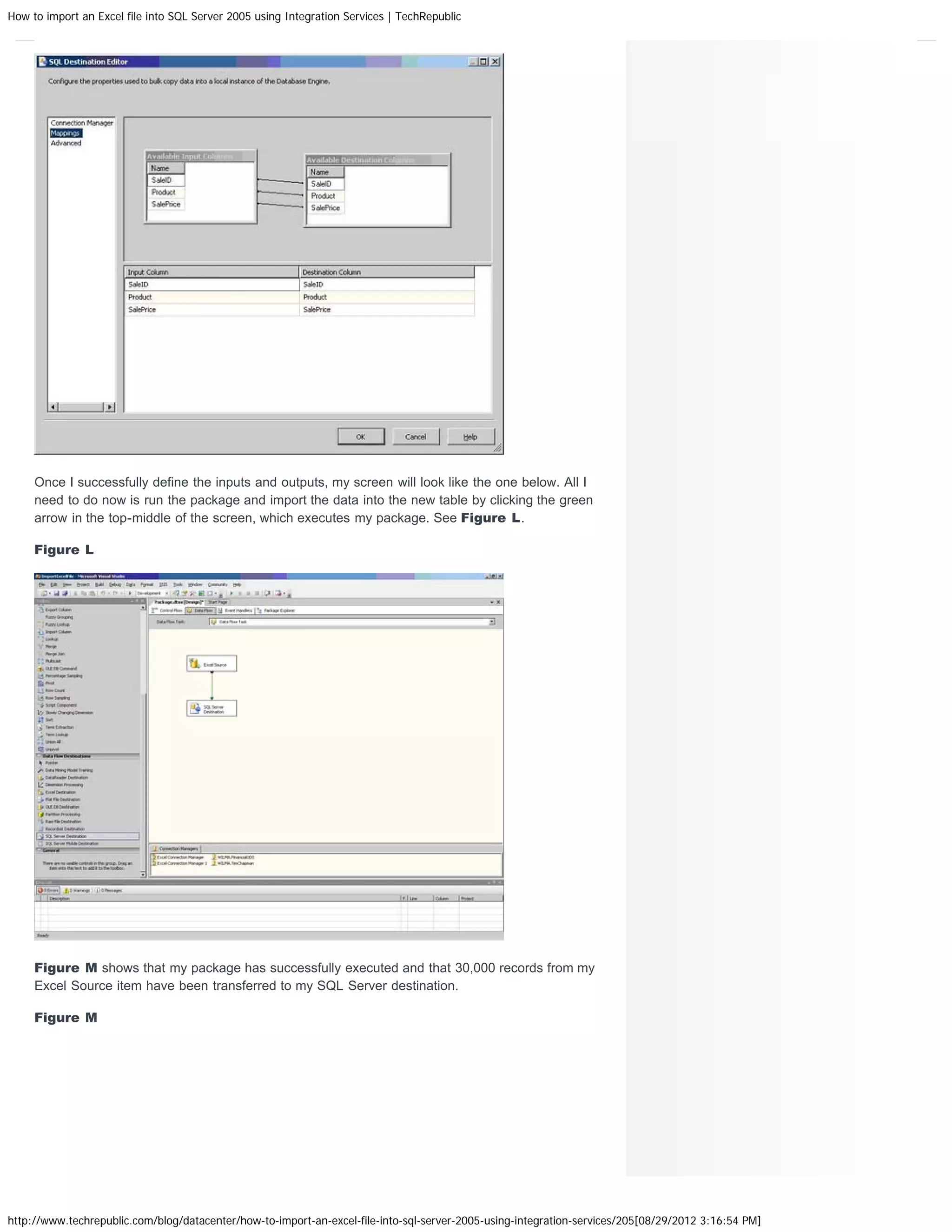

Under the Mappings section, I define the relationship between the Input Columns (the Excel data)
and the Destination Columns (my new SQL Server table). See Figure K.

Figure K



Once I successfully define the inputs and outputs, my screen will look like the one below. All I
need to do now is run the package and import the data into the new table by clicking the green
arrow in the top-middle of the screen, which executes my package. See Figure L.

Figure L

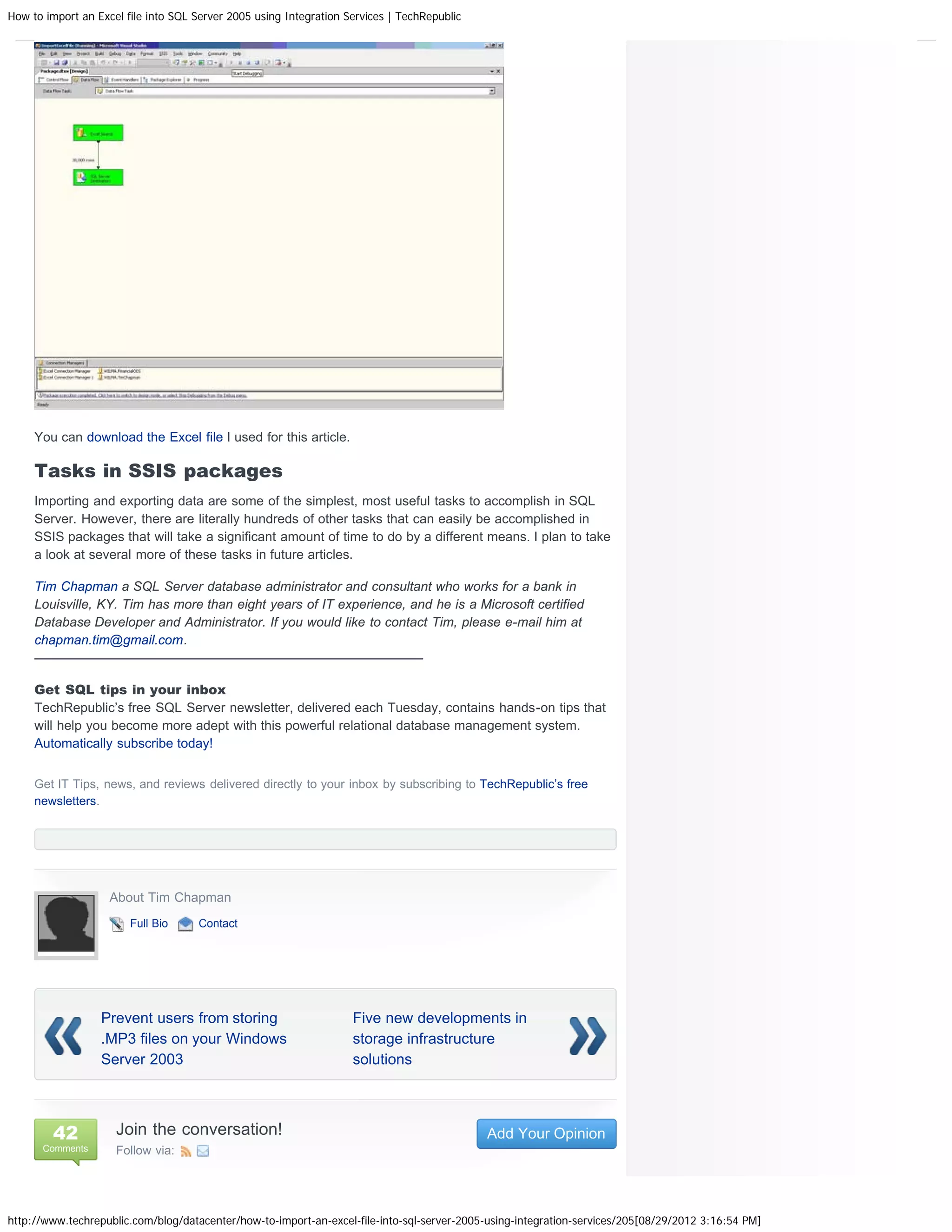

Figure M shows that my package has successfully executed and that 30,000 records from my
Excel Source item have been transferred to my SQL Server destination.

Figure M



You can download the Excel file I used for this article.

Tasks in SSIS packages
Importing and exporting data are some of the simplest, most useful tasks to accomplish in SQL
Server. However, there are literally hundreds of other tasks that can easily be accomplished in
SSIS packages that will take a significant amount of time to do by a different means. I plan to take
a look at several more of these tasks in future articles.

Tim Chapman a SQL Server database administrator and consultant who works for a bank in
Louisville, KY. Tim has more than eight years of IT experience, and he is a Microsoft certified
Database Developer and Administrator. If you would like to contact Tim, please e-mail him at
chapman.tim@gmail.com.
—————————————————————————————–

Get SQL tips in your inbox
TechRepublic’s free SQL Server newsletter, delivered each Tuesday, contains hands-on tips that
will help you become more adept with this powerful relational database management system.
Automatically subscribe today!

Get IT Tips, news, and reviews delivered directly to your inbox by subscribing to TechRepublic’s free
newsletters.

About Tim Chapman
Full Bio Contact

Prevent users from storing Five new developments in
.MP3 files on your Windows storage infrastructure
Server 2003 solutions

42 Join the conversation! Add Your Opinion
Comments Follow via:



Staff Picks Top Rated Most Recent My Contacts See All Comments

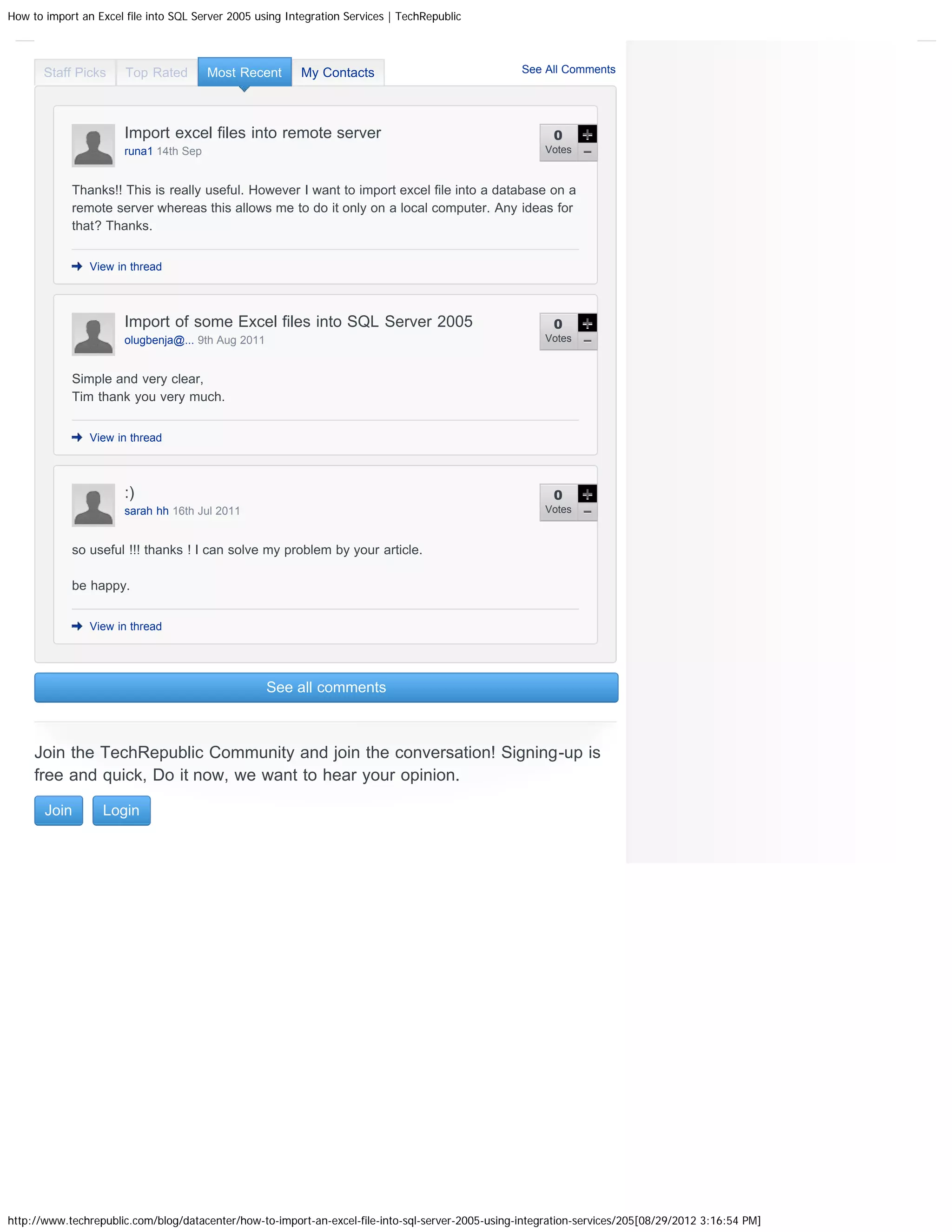

Import excel files into remote server 0
