#GeodeSummit - Where Does Geode Fit in Modern System Architectures
- 1.
- 2. Where does Geodefit in modern system architectures? 2 Eitan Suez

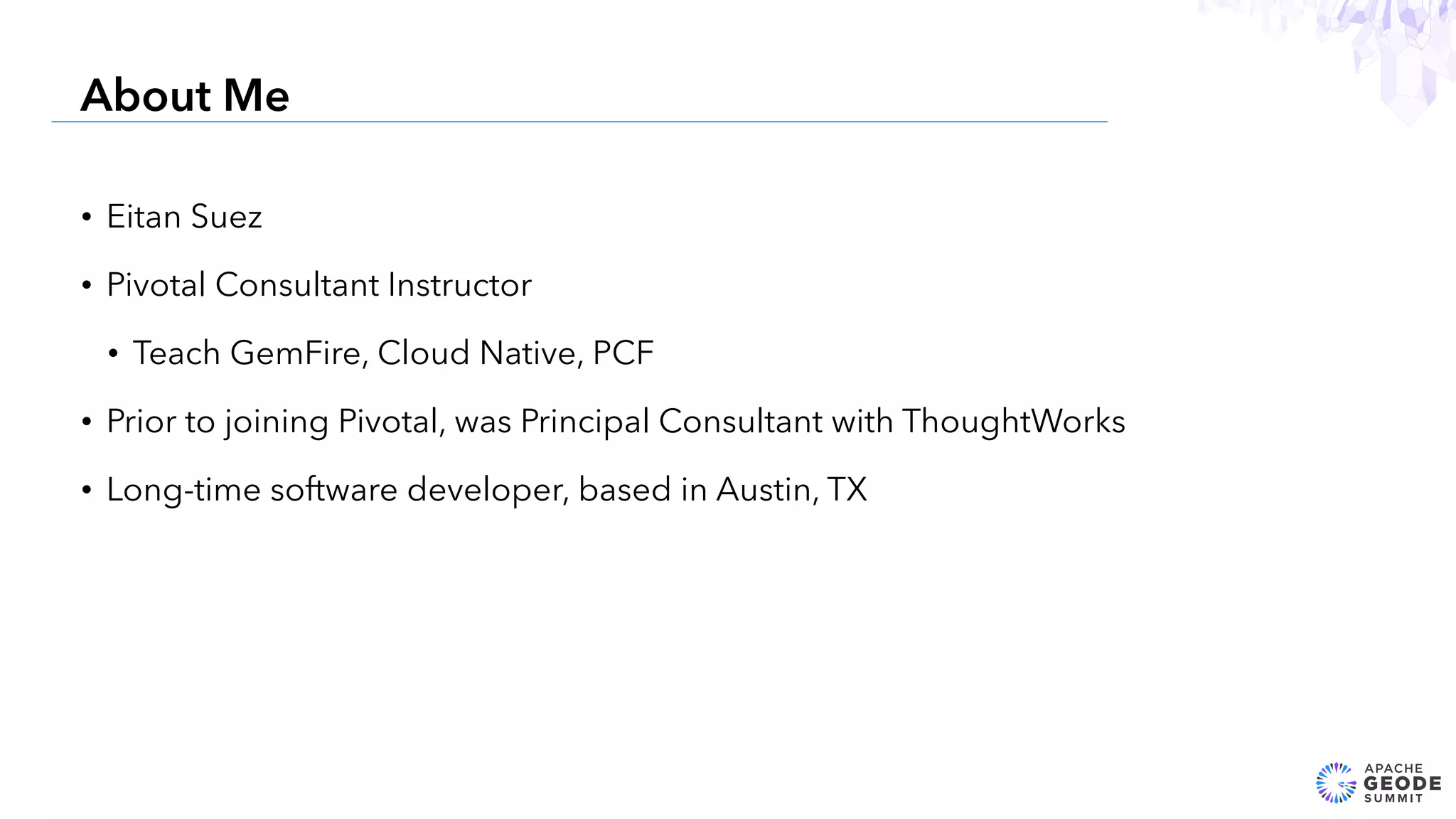

- 3. • Eitan Suez •Pivotal Consultant Instructor • Teach GemFire, Cloud Native, PCF • Prior to joining Pivotal, was Principal Consultant with ThoughtWorks • Long-time software developer, based in Austin, TX 3 About Me

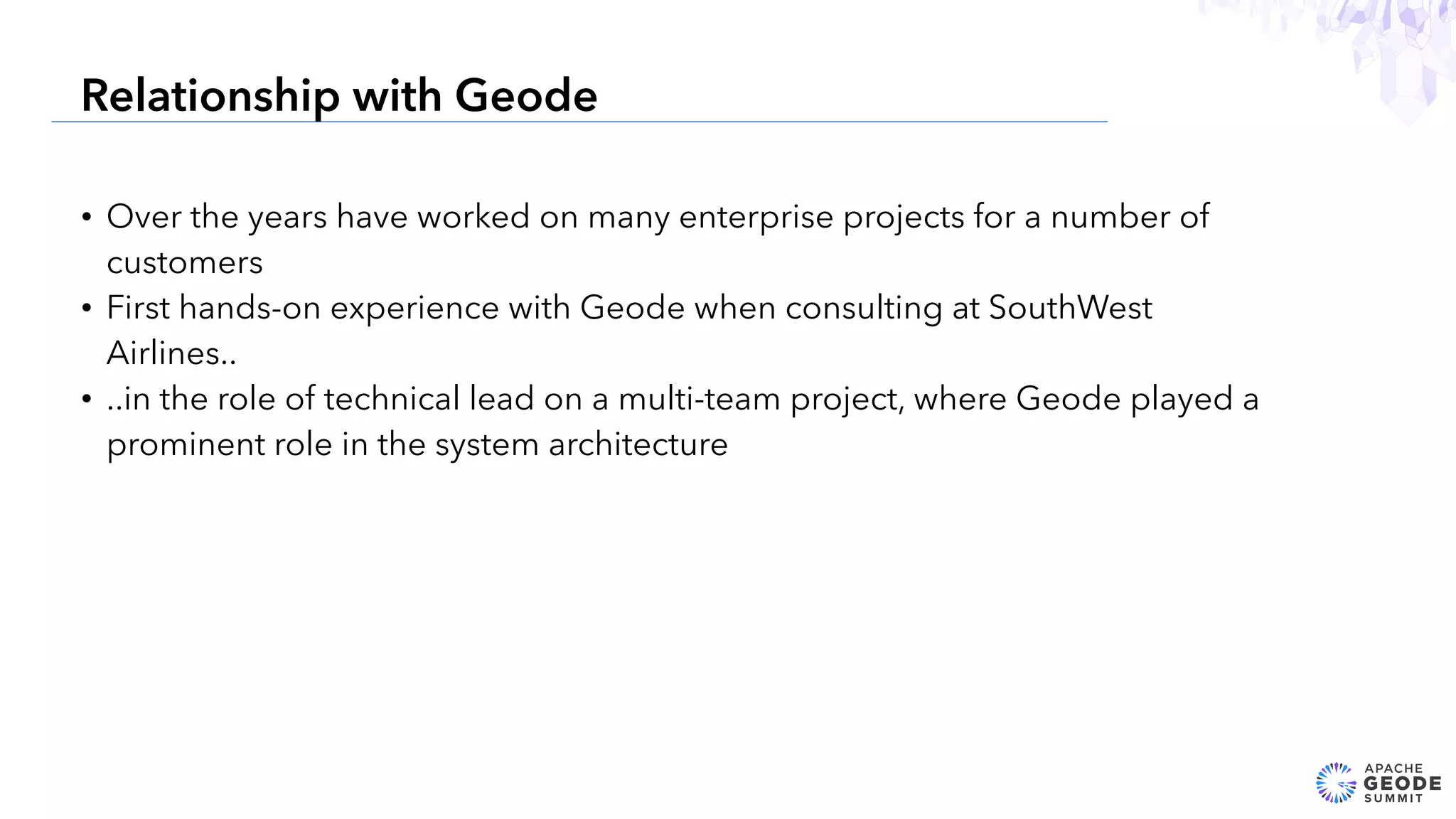

- 4. • Over theyears have worked on many enterprise projects for a number of customers • First hands-on experience with Geode when consulting at SouthWest Airlines.. • ..in the role of technical lead on a multi-team project, where Geode played a prominent role in the system architecture 4 Relationship with Geode

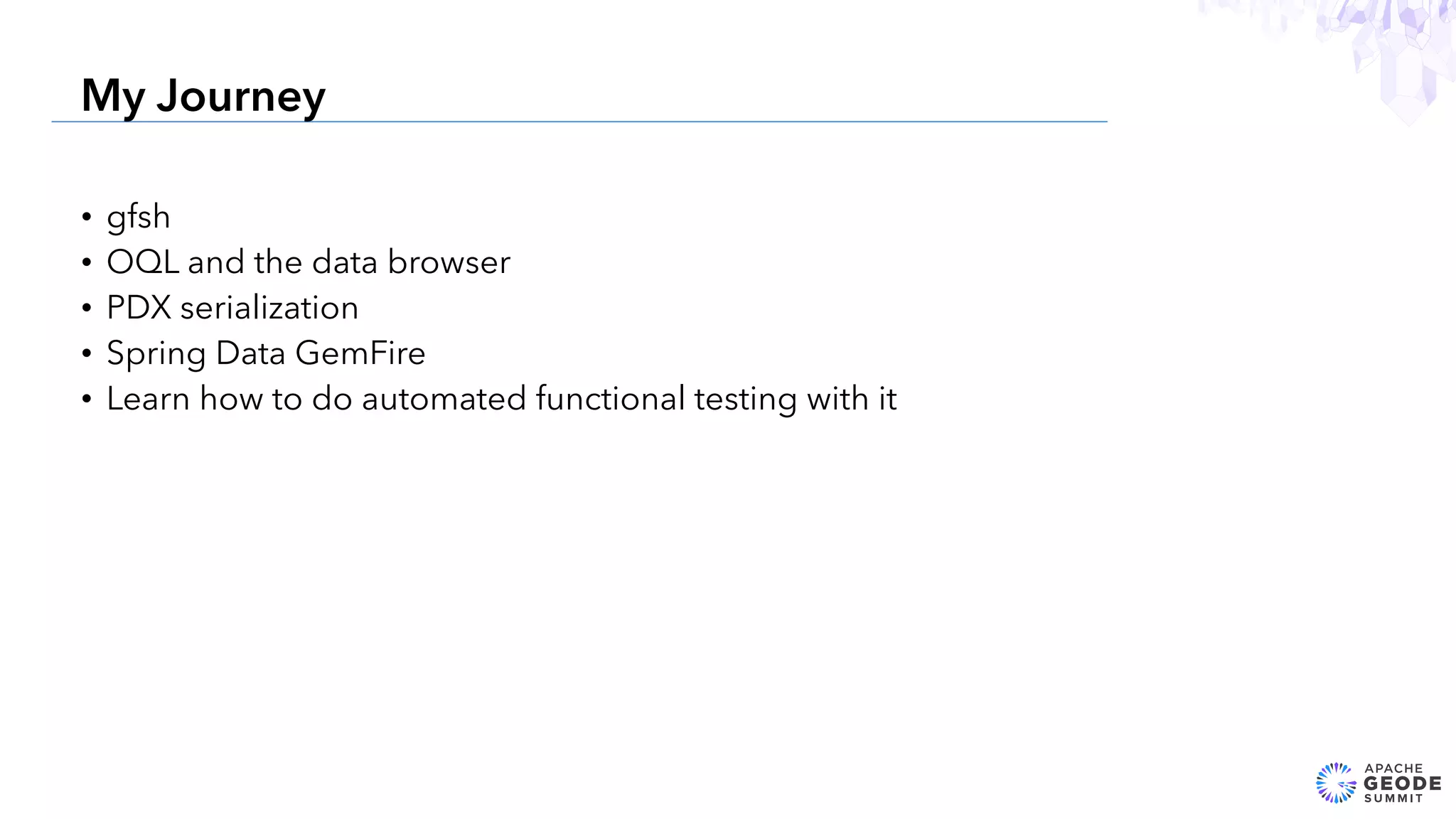

- 5. • gfsh • OQLand the data browser • PDX serialization • Spring Data GemFire • Learn how to do automated functional testing with it 5 My Journey

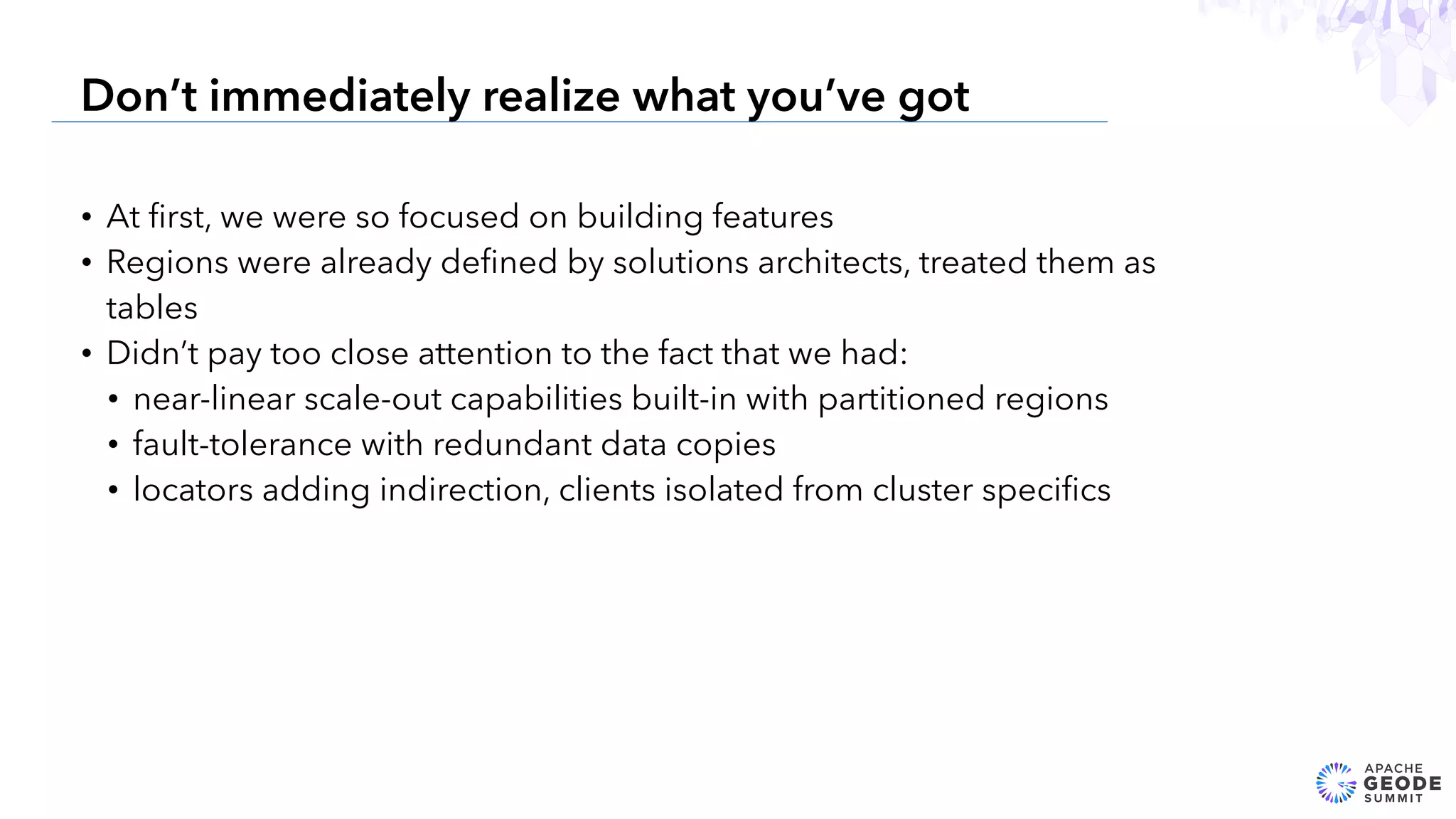

- 6. • At first,we were so focused on building features • Regions were already defined by solutions architects, treated them as tables • Didn’t pay too close attention to the fact that we had: • near-linear scale-out capabilities built-in with partitioned regions • fault-tolerance with redundant data copies • locators adding indirection, clients isolated from cluster specifics 6 Don’t immediately realize what you’ve got

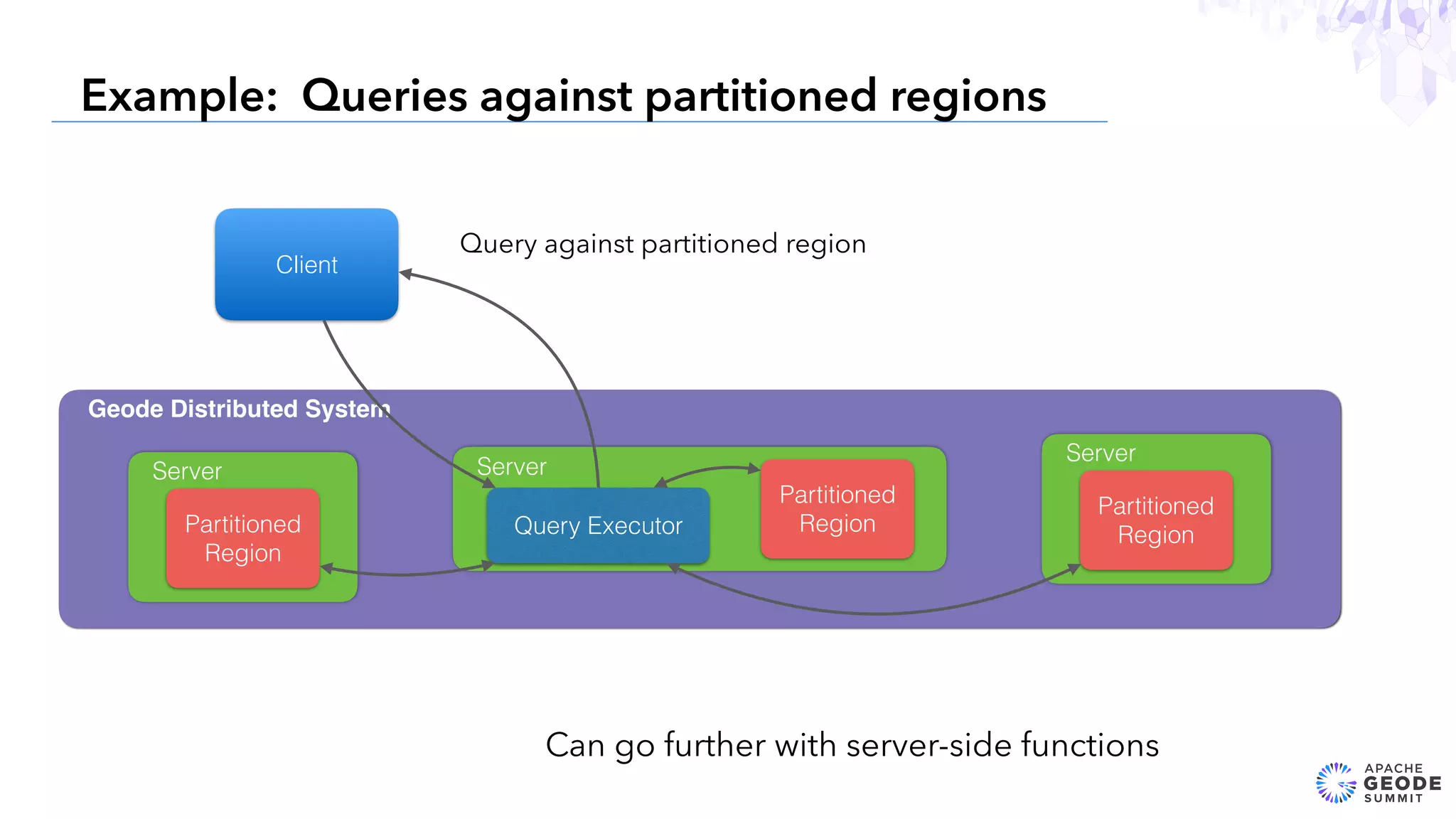

- 7. 7 Example: Queries againstpartitioned regions Client Geode Distributed System Query against partitioned region Server Query Executor Partitioned Region Server Partitioned Region Server Partitioned Region Can go further with server-side functions

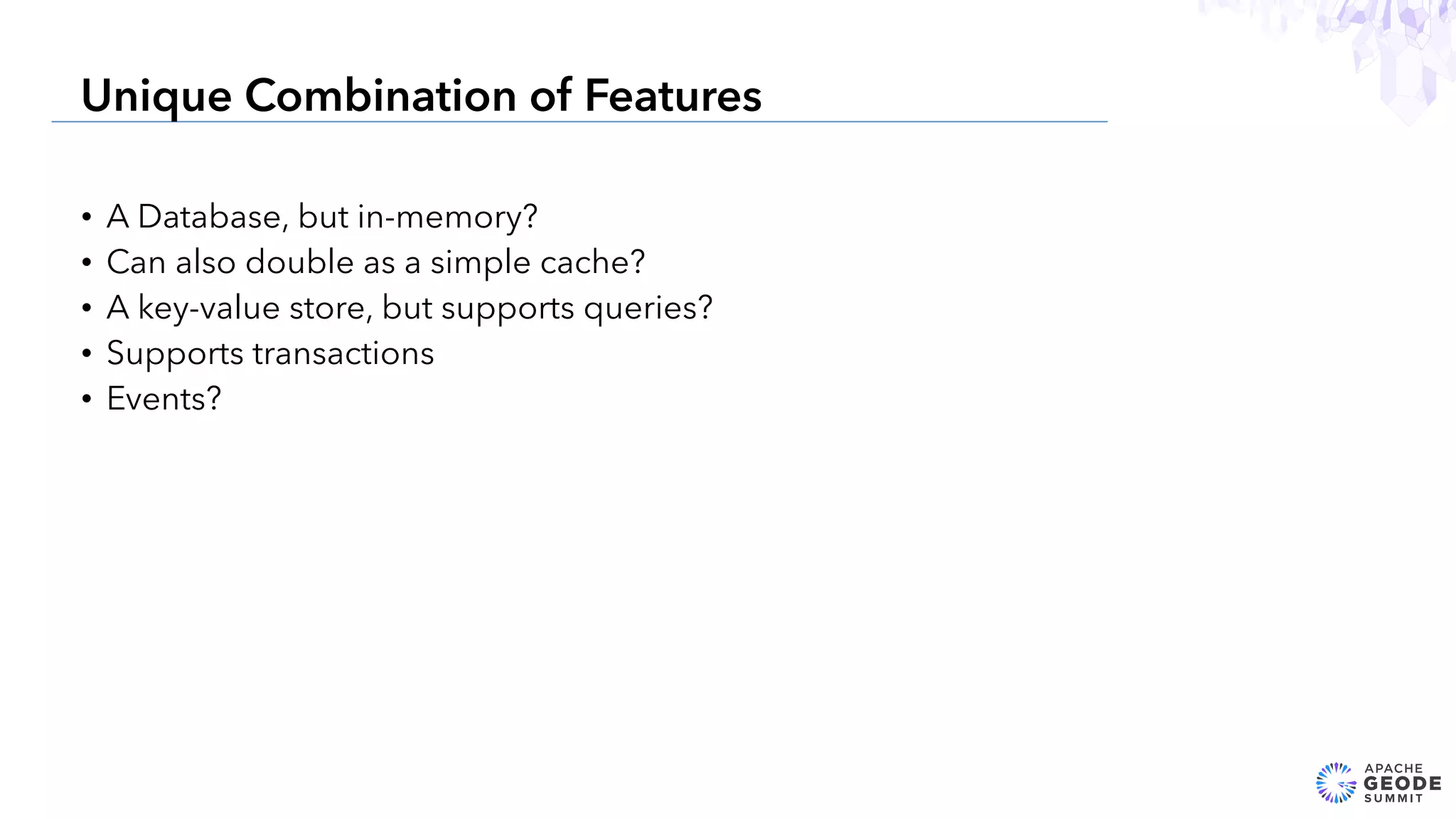

- 8. • A Database,but in-memory? • Can also double as a simple cache? • A key-value store, but supports queries? • Supports transactions • Events? 8 Unique Combination of Features

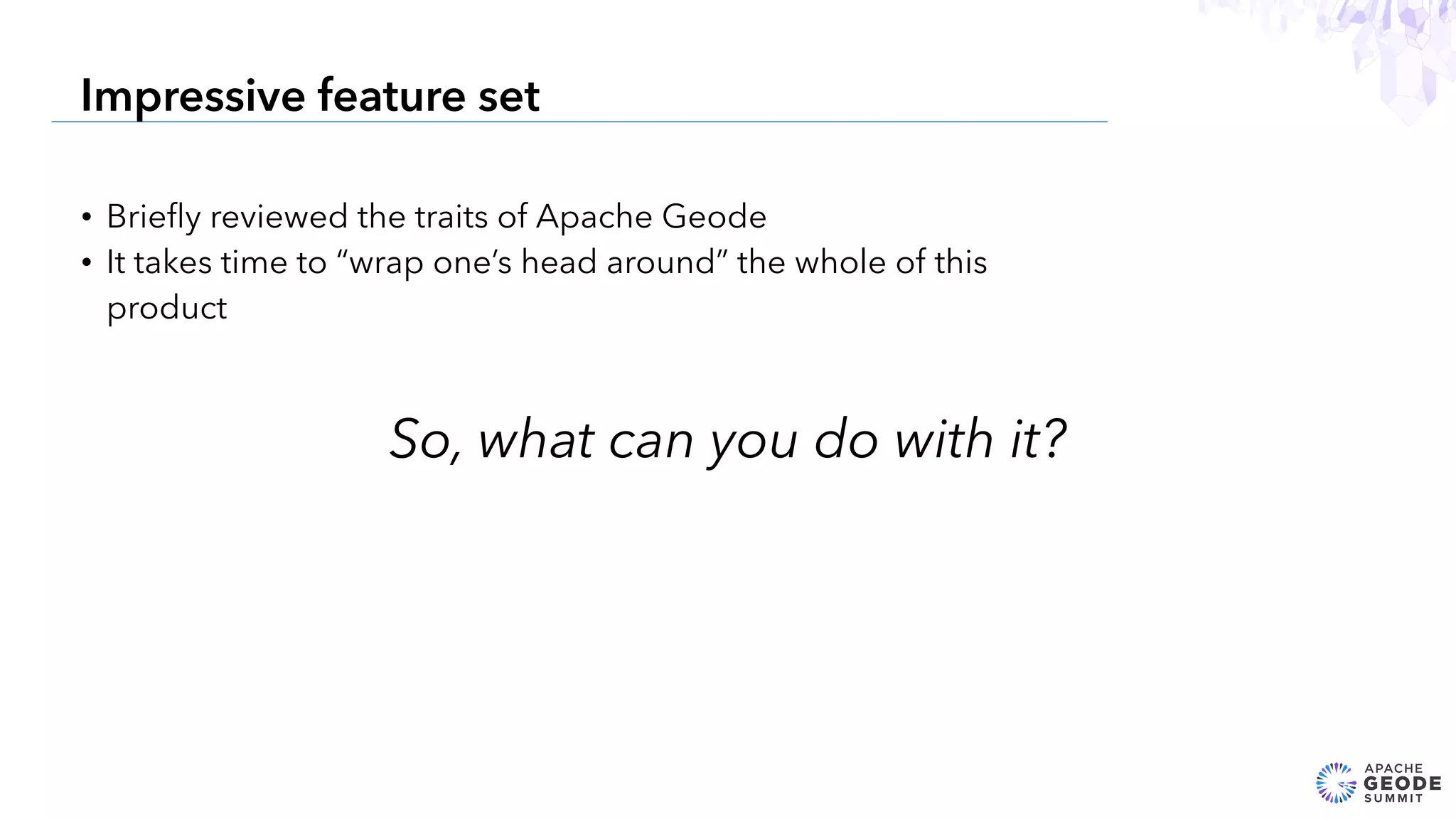

- 9. • Briefly reviewedthe traits of Apache Geode • It takes time to “wrap one’s head around” the whole of this product 9 Impressive feature set So, what can you do with it?

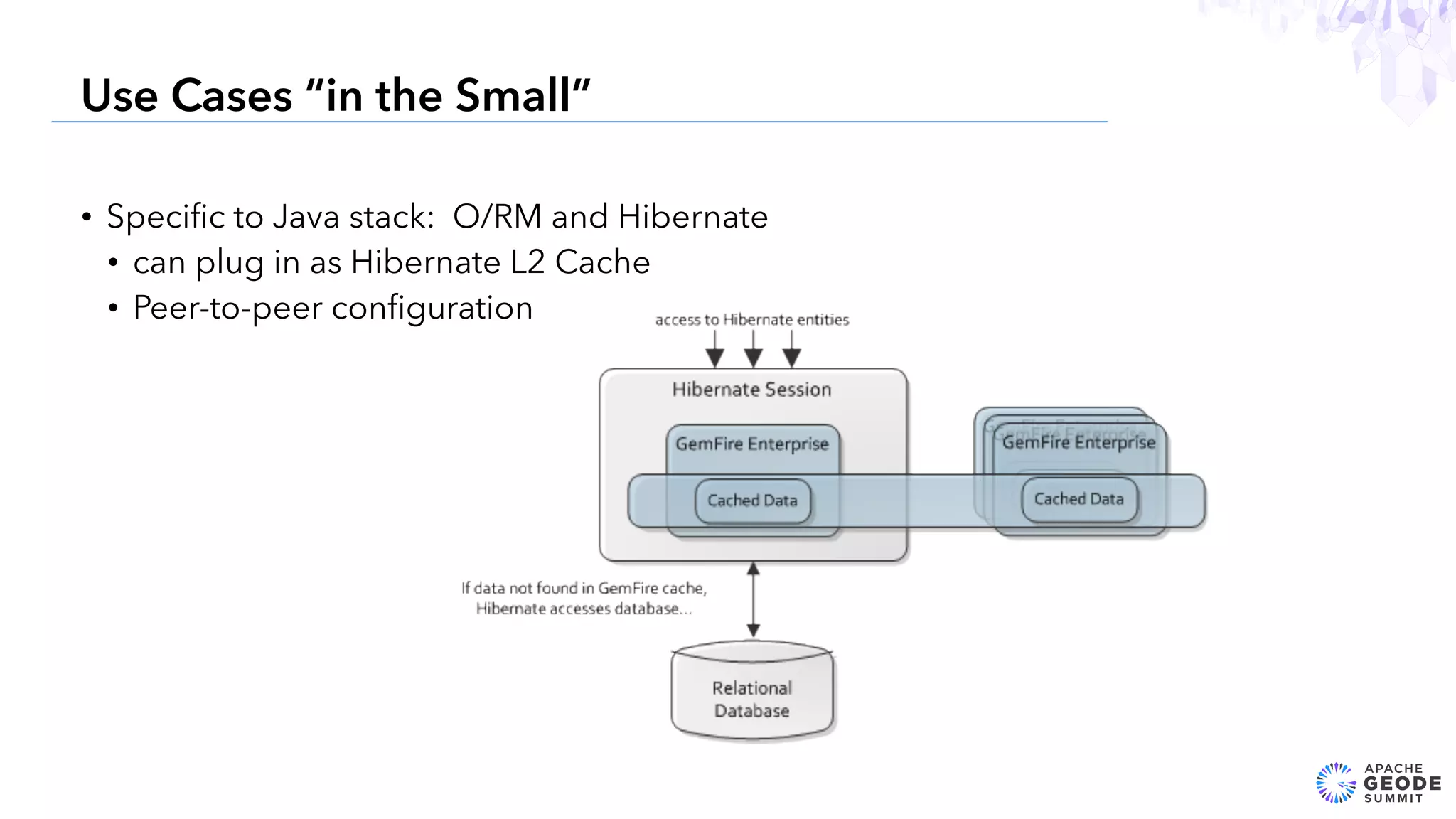

- 10. • Specific toJava stack: O/RM and Hibernate • can plug in as Hibernate L2 Cache • Peer-to-peer configuration 10 Use Cases “in the Small”

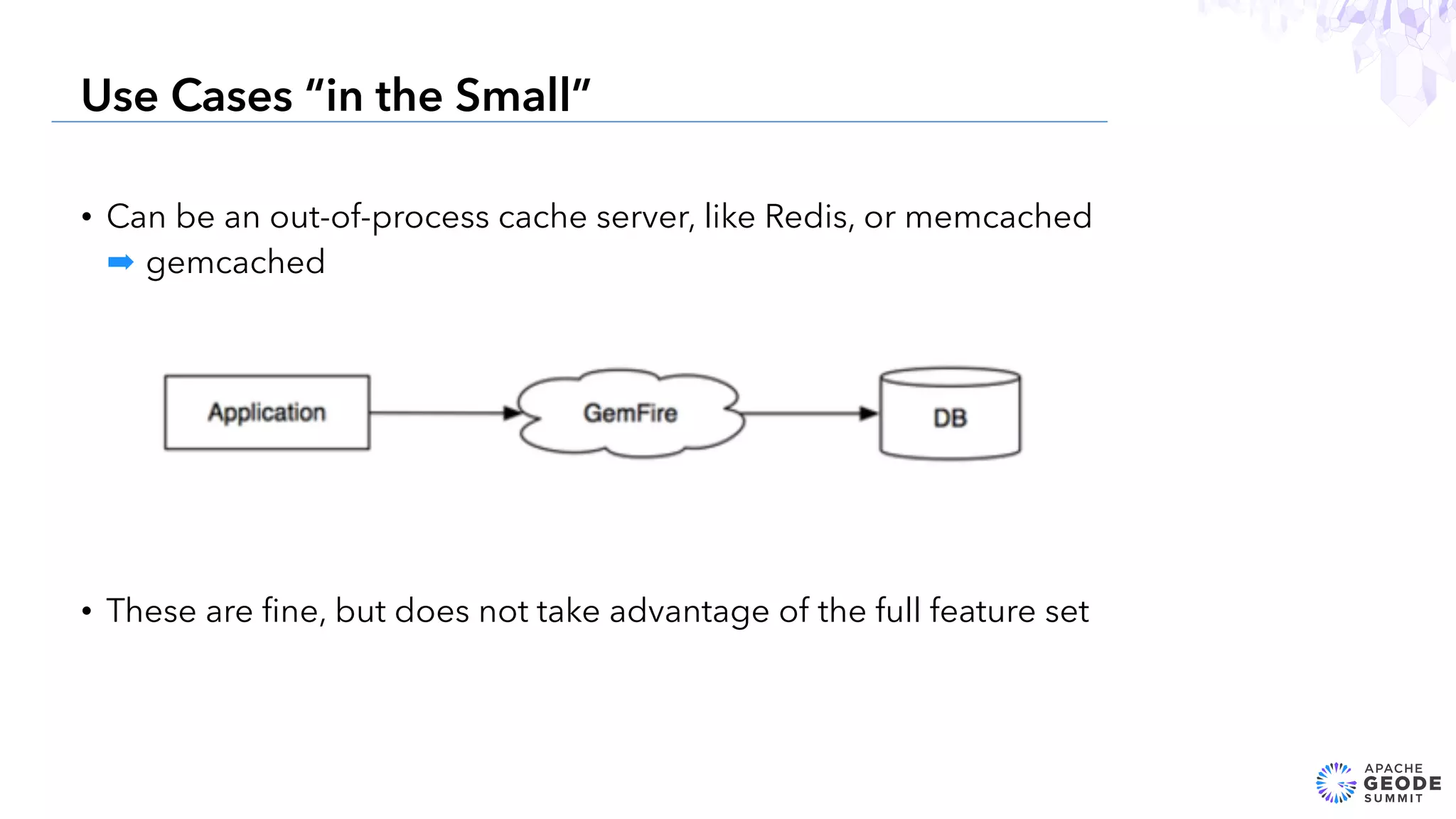

- 11. • Can bean out-of-process cache server, like Redis, or memcached ➡ gemcached • These are fine, but does not take advantage of the full feature set 11 Use Cases “in the Small”

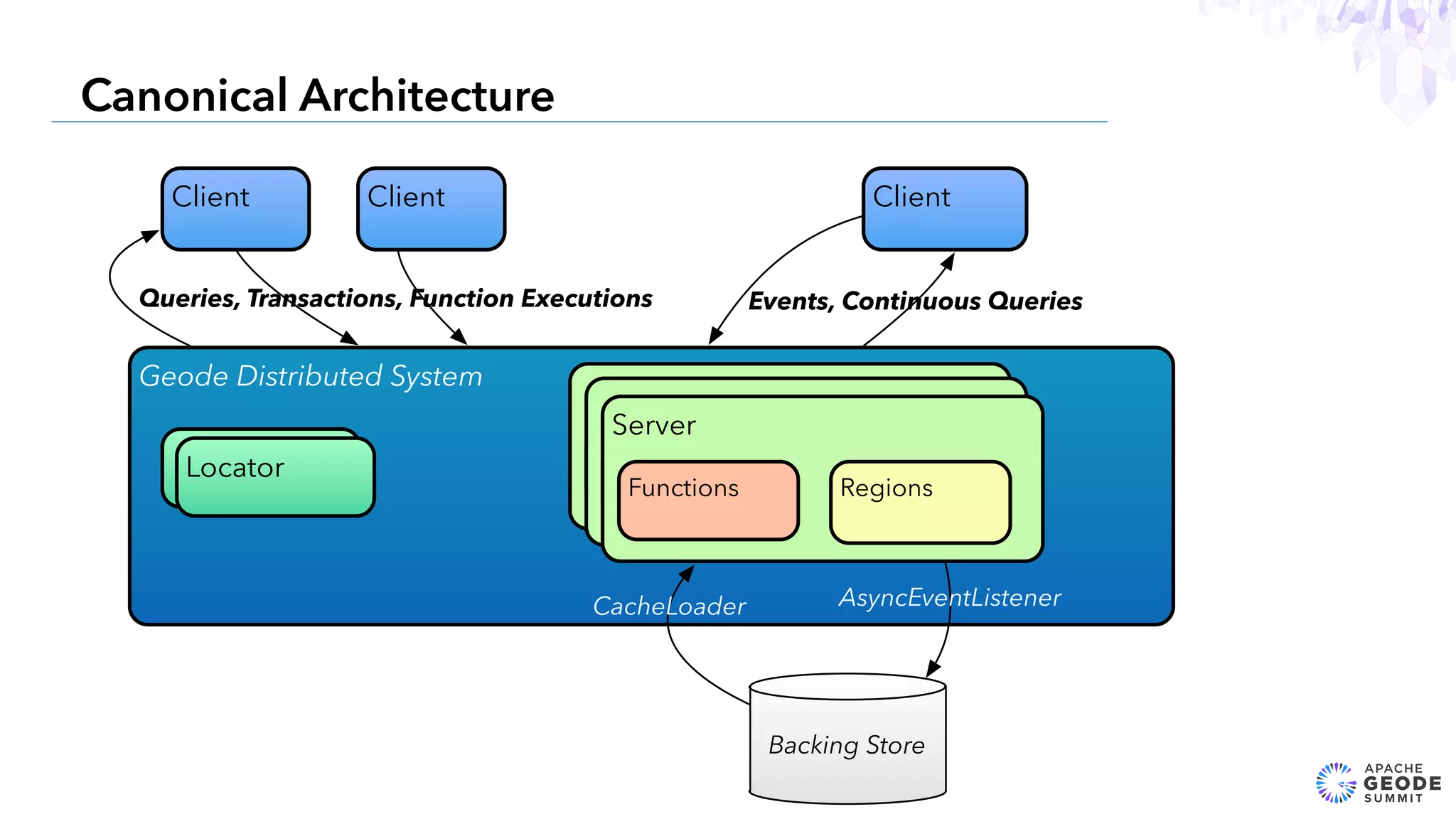

- 12. 12 Canonical Architecture Geode DistributedSystem RegionsFunctions Locator Backing Store Client Client Events, Continuous Queries RegionsFunctions CacheLoader AsyncEventListener Server RegionsFunctions Client Queries, Transactions, Function Executions

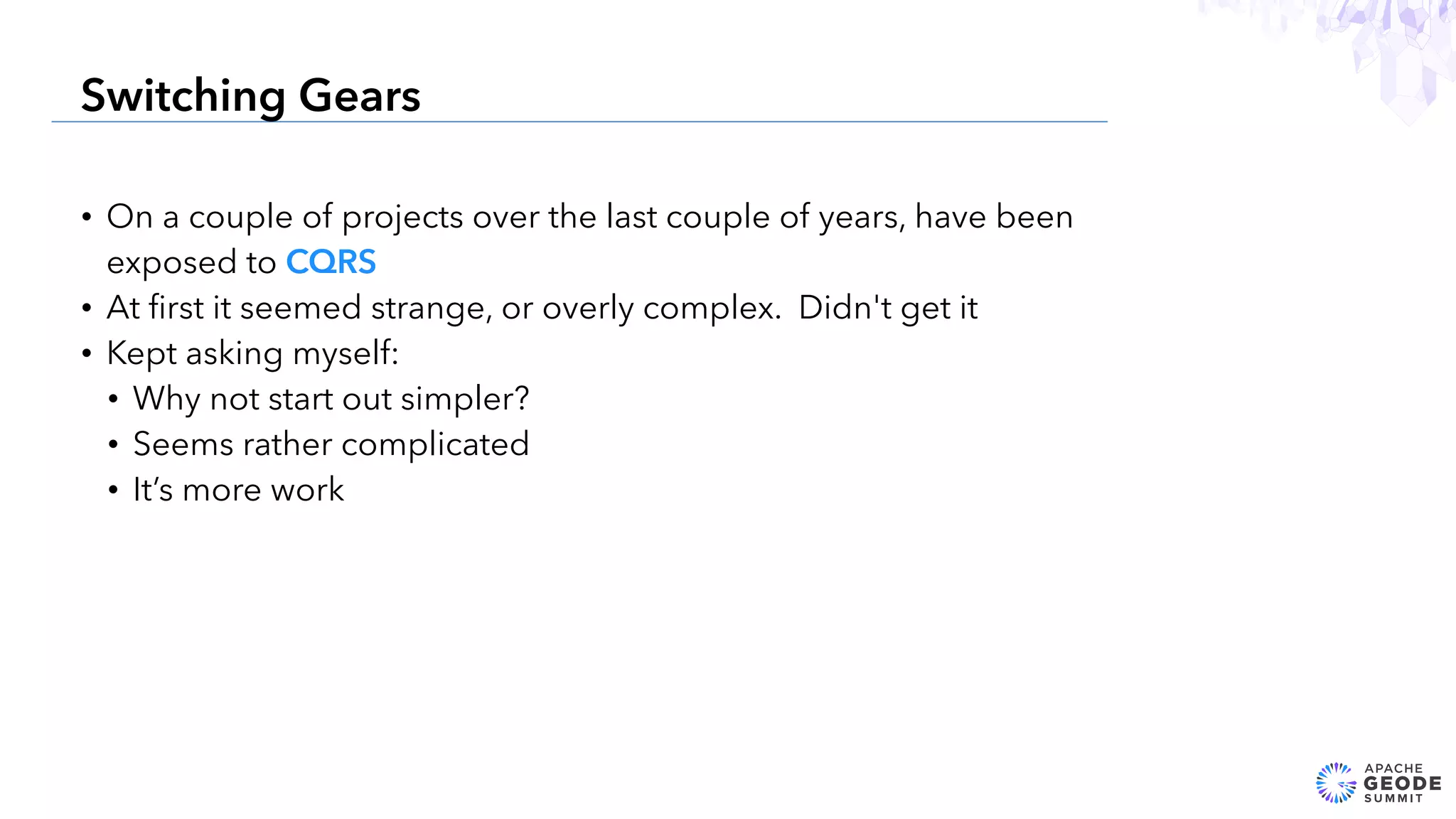

- 13. • On acouple of projects over the last couple of years, have been exposed to CQRS • At first it seemed strange, or overly complex. Didn't get it • Kept asking myself: • Why not start out simpler? • Seems rather complicated • It’s more work 13 Switching Gears

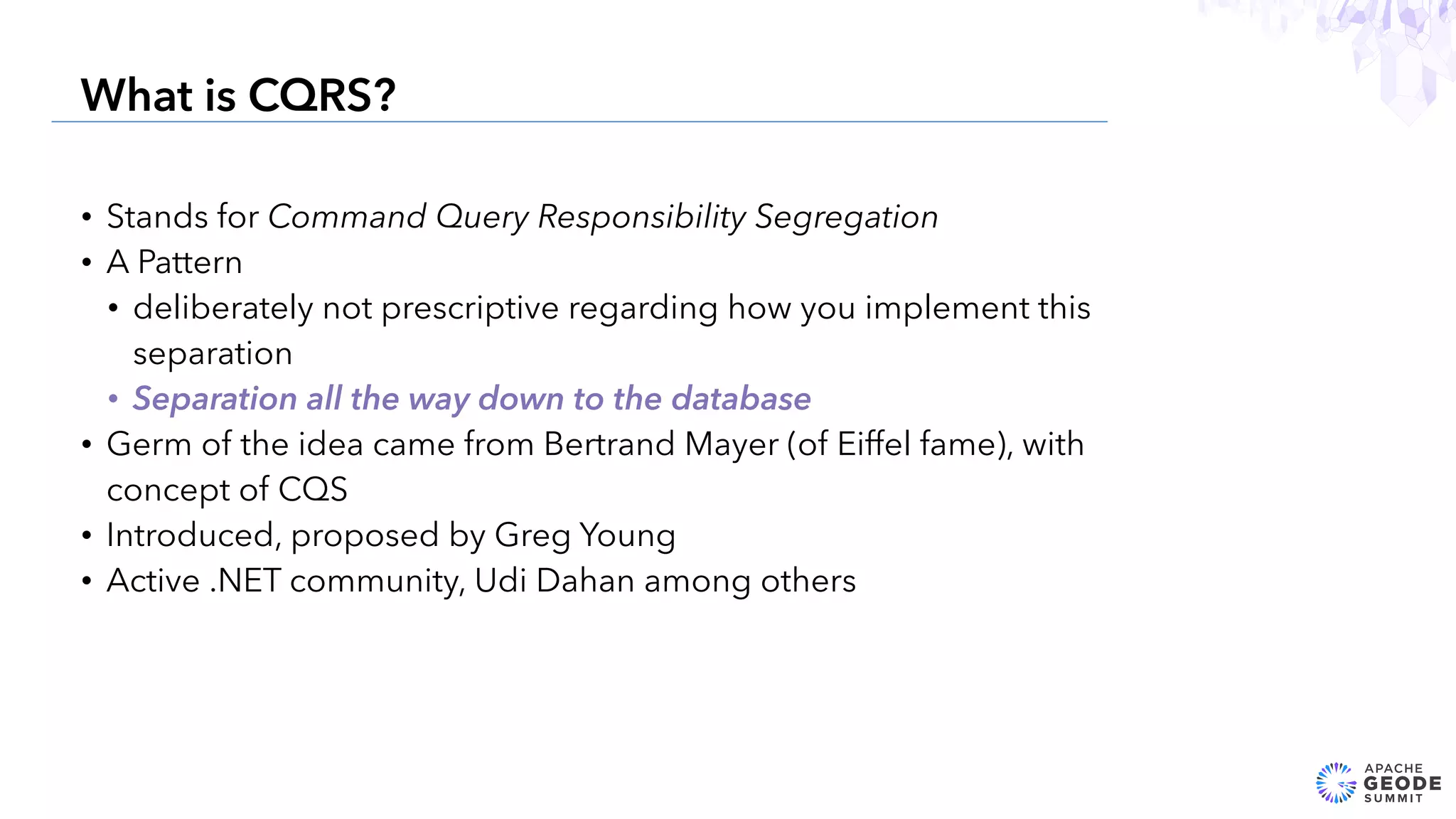

- 14. • Stands forCommand Query Responsibility Segregation • A Pattern • deliberately not prescriptive regarding how you implement this separation • Separation all the way down to the database • Germ of the idea came from Bertrand Mayer (of Eiffel fame), with concept of CQS • Introduced, proposed by Greg Young • Active .NET community, Udi Dahan among others 14 What is CQRS?

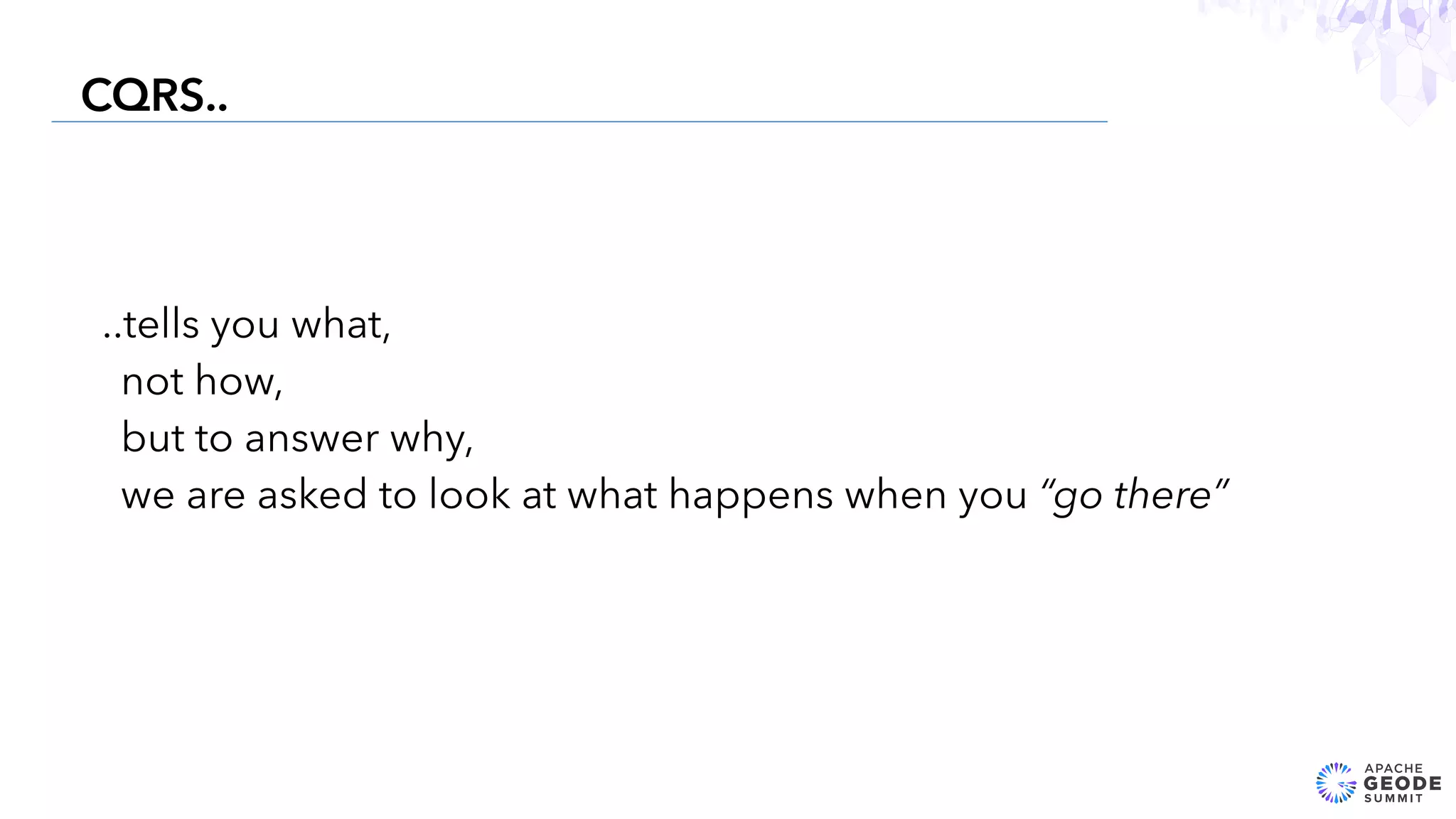

- 15. 15 CQRS.. ..tells you what, nothow, but to answer why, we are asked to look at what happens when you “go there”

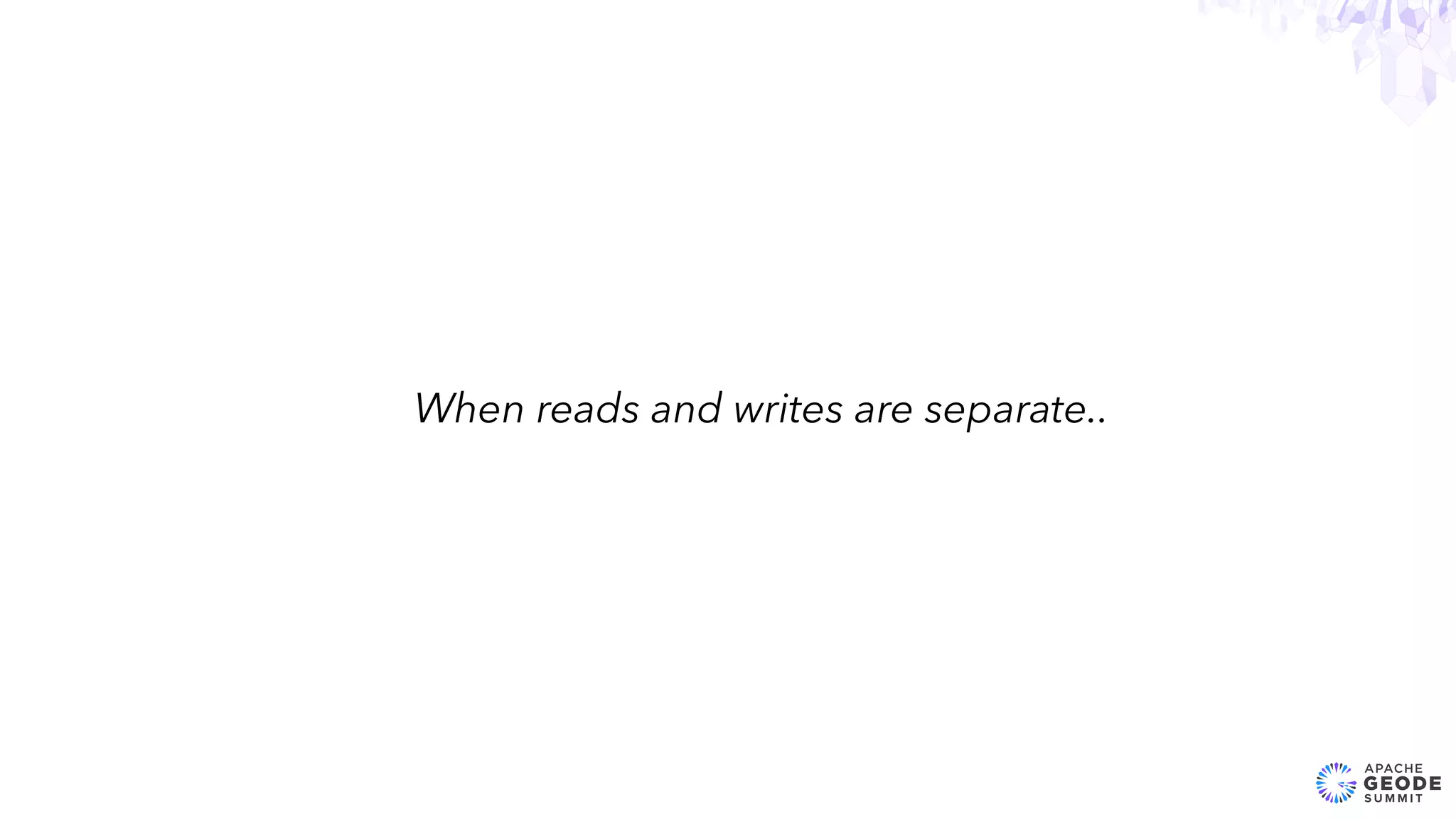

- 16. 16 When reads andwrites are separate..

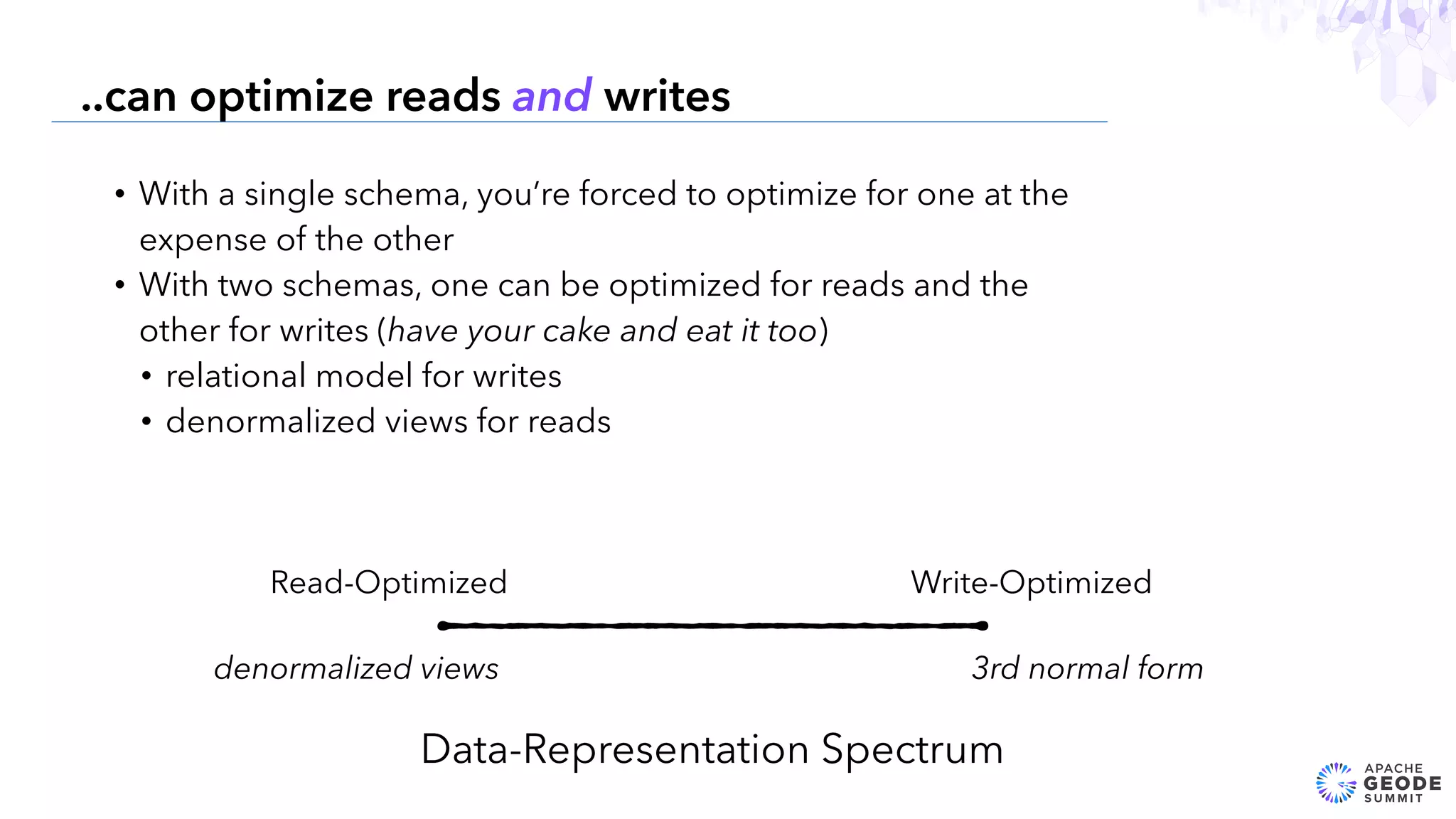

- 17. • With asingle schema, you’re forced to optimize for one at the expense of the other • With two schemas, one can be optimized for reads and the other for writes (have your cake and eat it too) • relational model for writes • denormalized views for reads 17 ..can optimize reads and writes Read-Optimized Write-Optimized Data-Representation Spectrum 3rd normal formdenormalized views

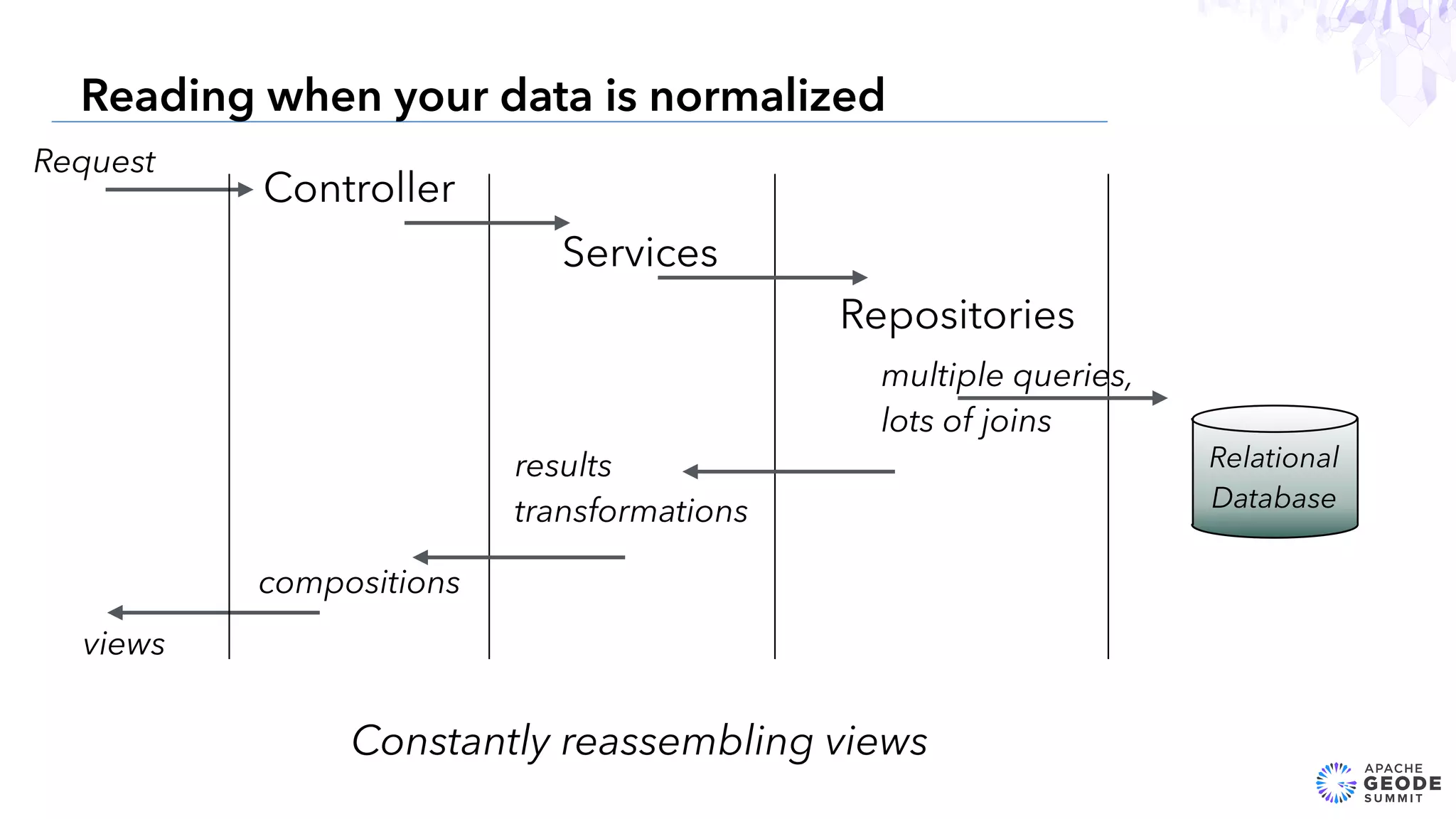

- 18. 18 Reading when yourdata is normalized Request Services Repositories multiple queries, lots of joins results transformations views Relational Database Controller compositions Constantly reassembling views

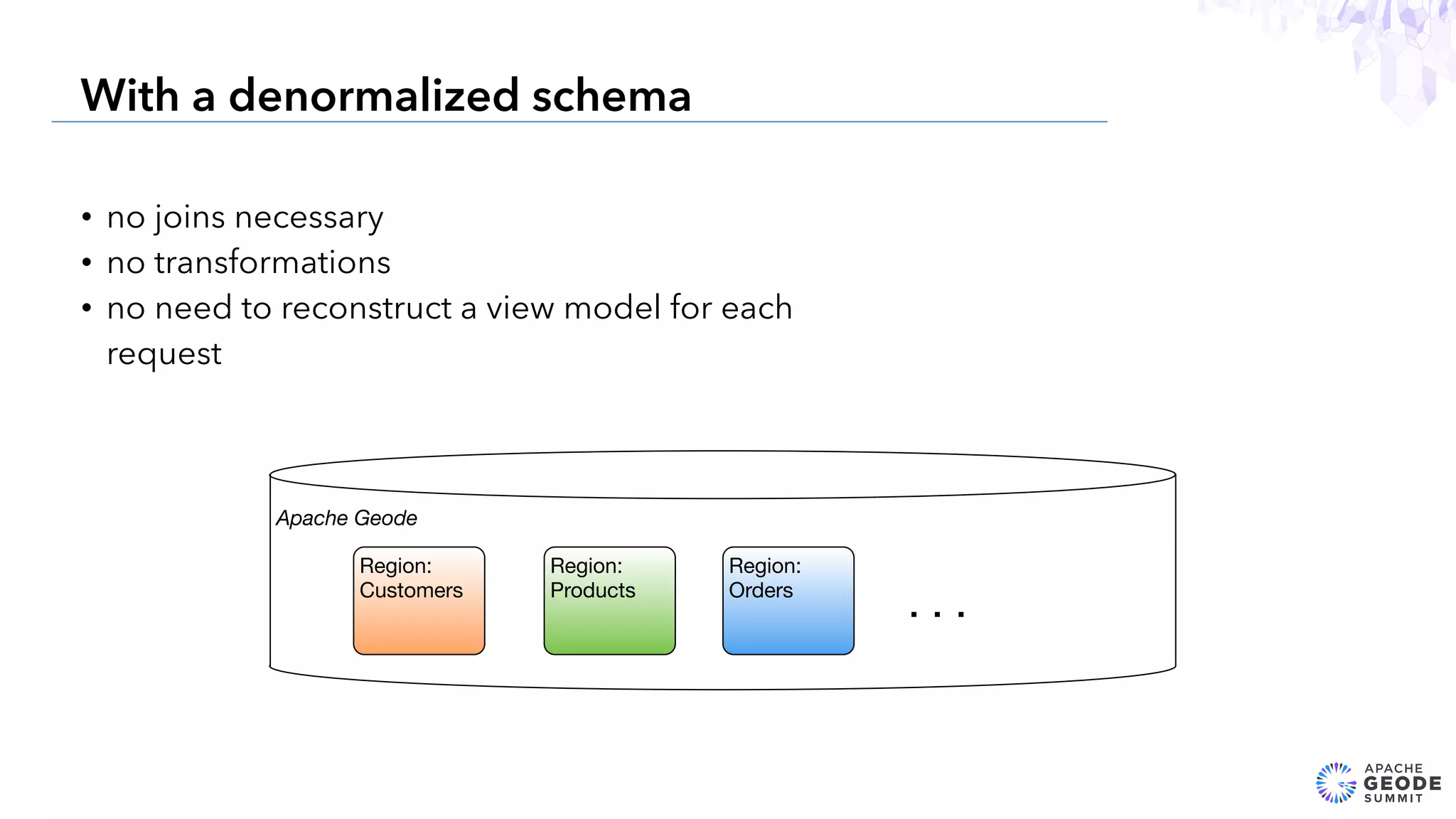

- 19. • no joinsnecessary • no transformations • no need to reconstruct a view model for each request 19 With a denormalized schema Apache Geode Region: Customers Region: Orders Region: Products . . .

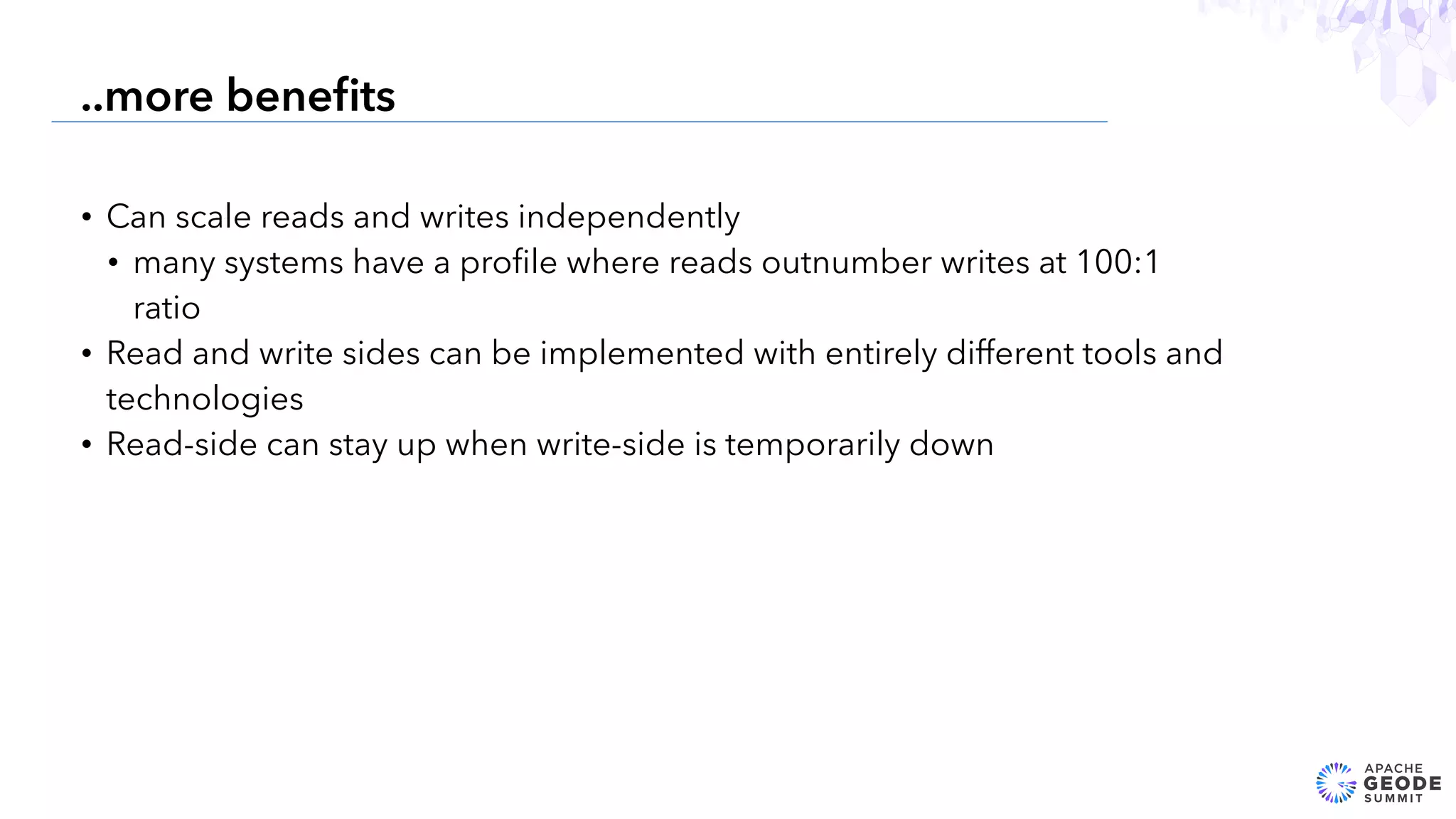

- 20. • Can scalereads and writes independently • many systems have a profile where reads outnumber writes at 100:1 ratio • Read and write sides can be implemented with entirely different tools and technologies • Read-side can stay up when write-side is temporarily down 20 ..more benefits

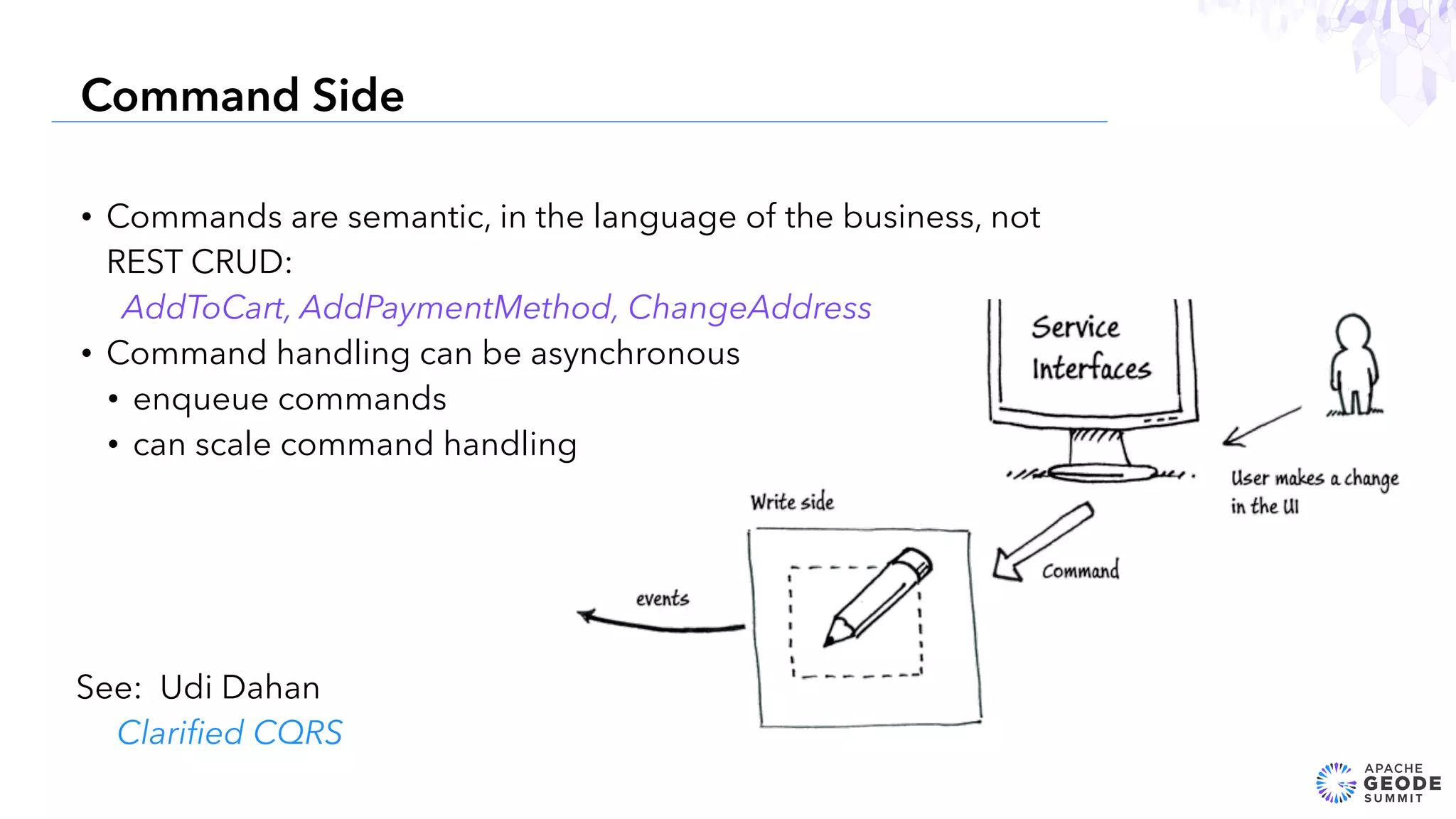

- 21. • Commands aresemantic, in the language of the business, not REST CRUD: AddToCart, AddPaymentMethod, ChangeAddress • Command handling can be asynchronous • enqueue commands • can scale command handling 21 Command Side See: Udi Dahan Clarified CQRS

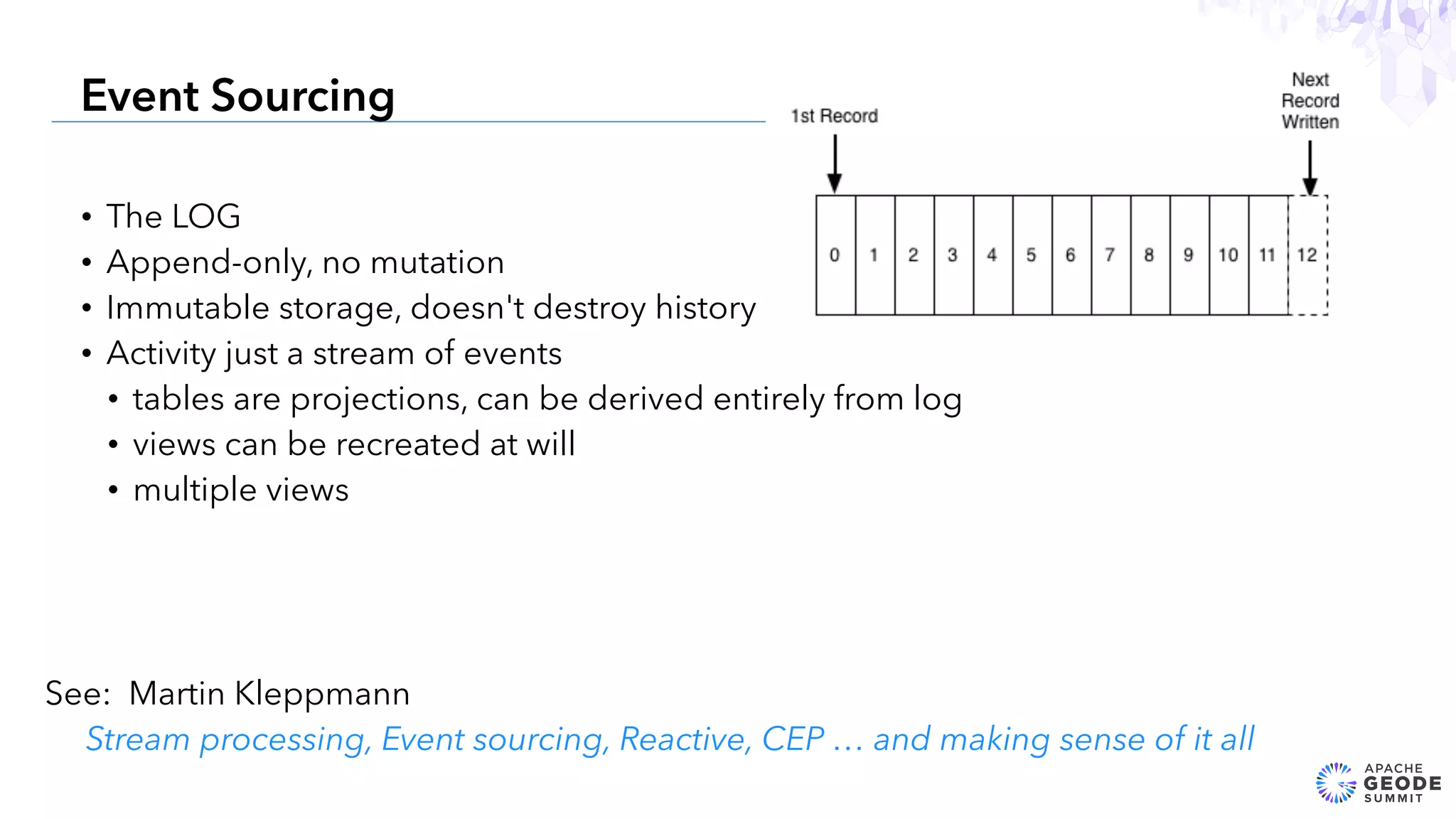

- 22. • The LOG •Append-only, no mutation • Immutable storage, doesn't destroy history • Activity just a stream of events • tables are projections, can be derived entirely from log • views can be recreated at will • multiple views 22 Event Sourcing See: Martin Kleppmann Stream processing, Event sourcing, Reactive, CEP … and making sense of it all

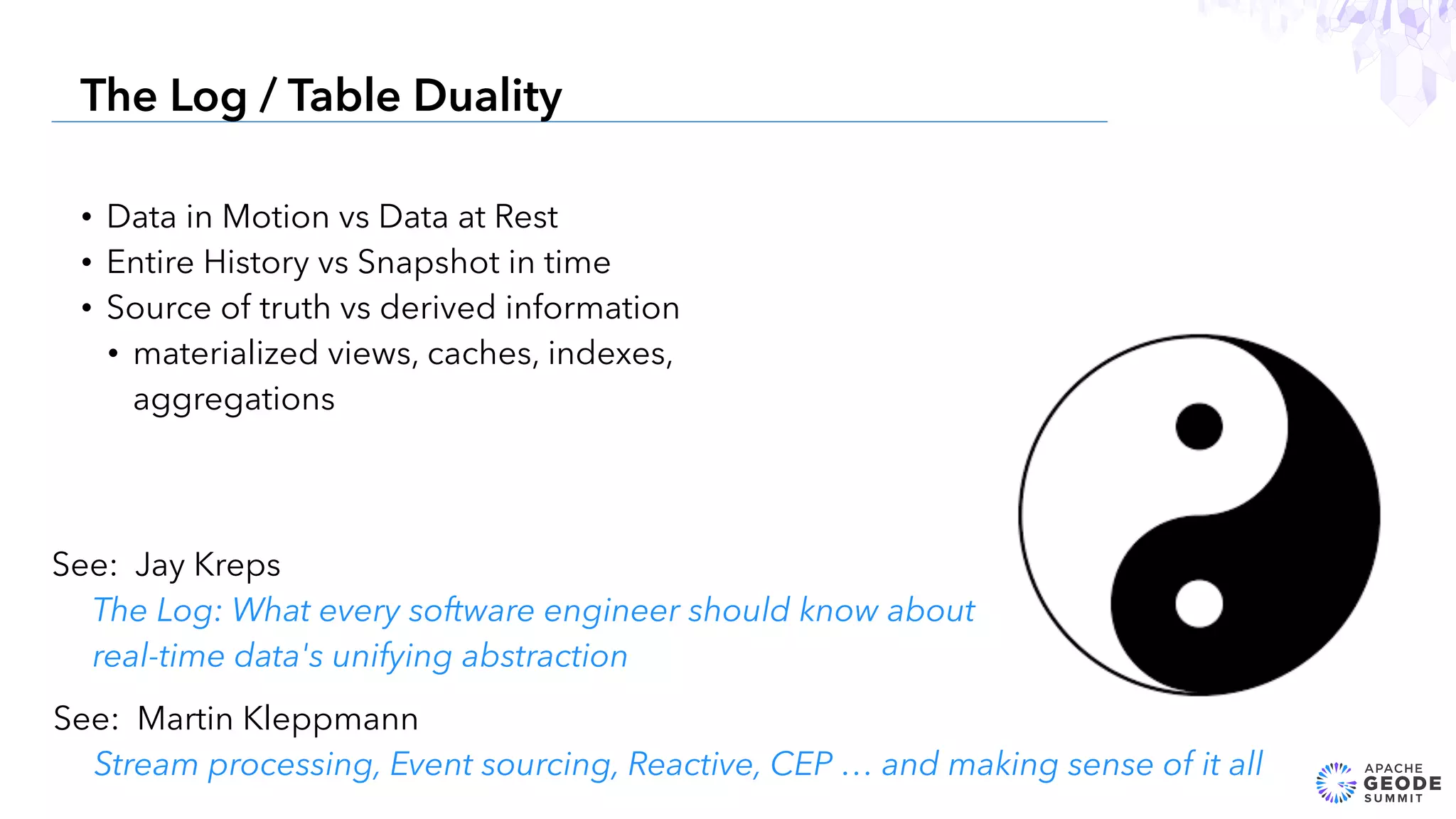

- 23. • Data inMotion vs Data at Rest • Entire History vs Snapshot in time • Source of truth vs derived information • materialized views, caches, indexes, aggregations 23 The Log / Table Duality See: Jay Kreps The Log: What every software engineer should know about real-time data's unifying abstraction See: Martin Kleppmann Stream processing, Event sourcing, Reactive, CEP … and making sense of it all

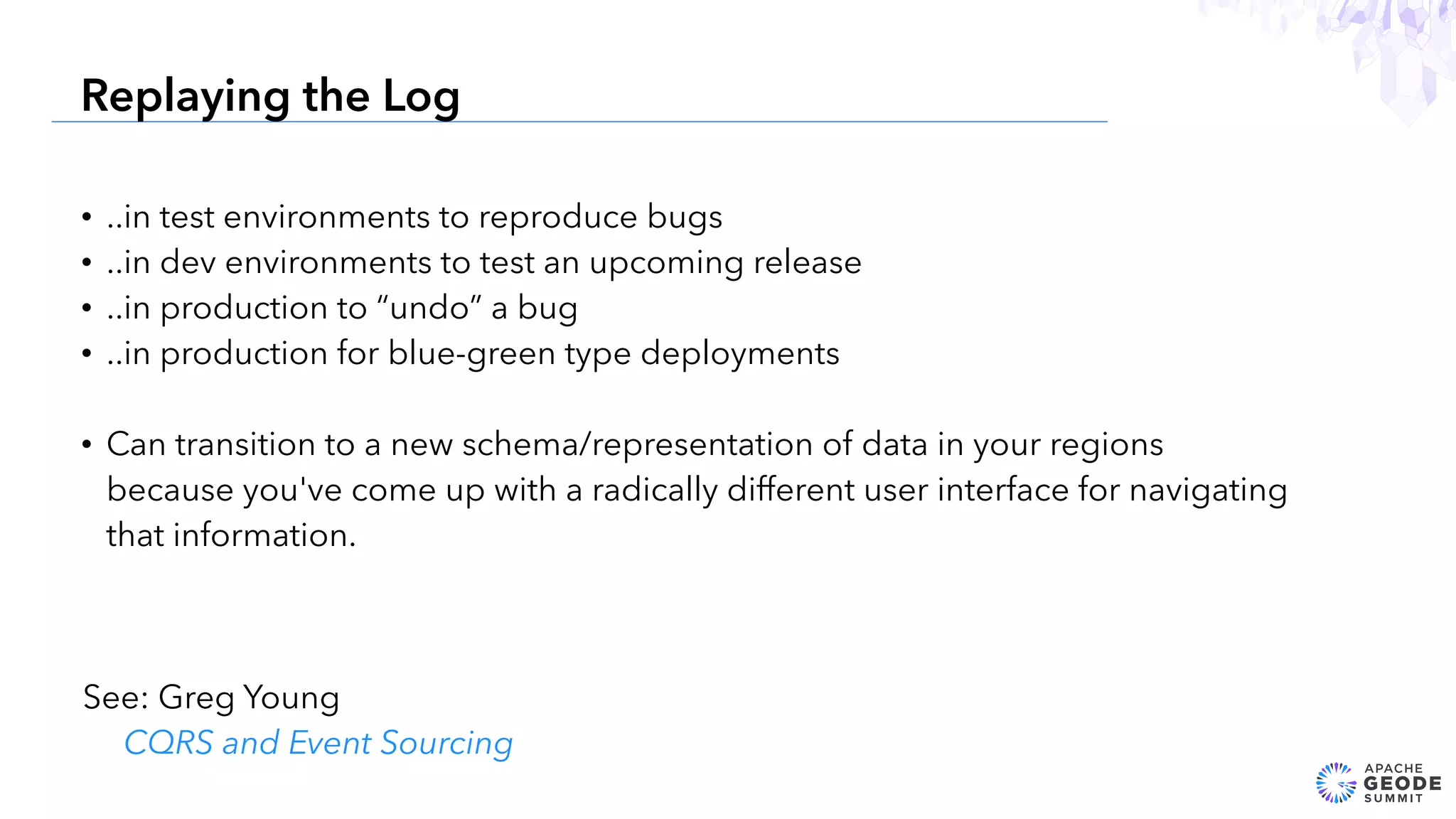

- 24. • ..in testenvironments to reproduce bugs • ..in dev environments to test an upcoming release • ..in production to “undo” a bug • ..in production for blue-green type deployments • Can transition to a new schema/representation of data in your regions because you've come up with a radically different user interface for navigating that information. 24 Replaying the Log See: Greg Young CQRS and Event Sourcing

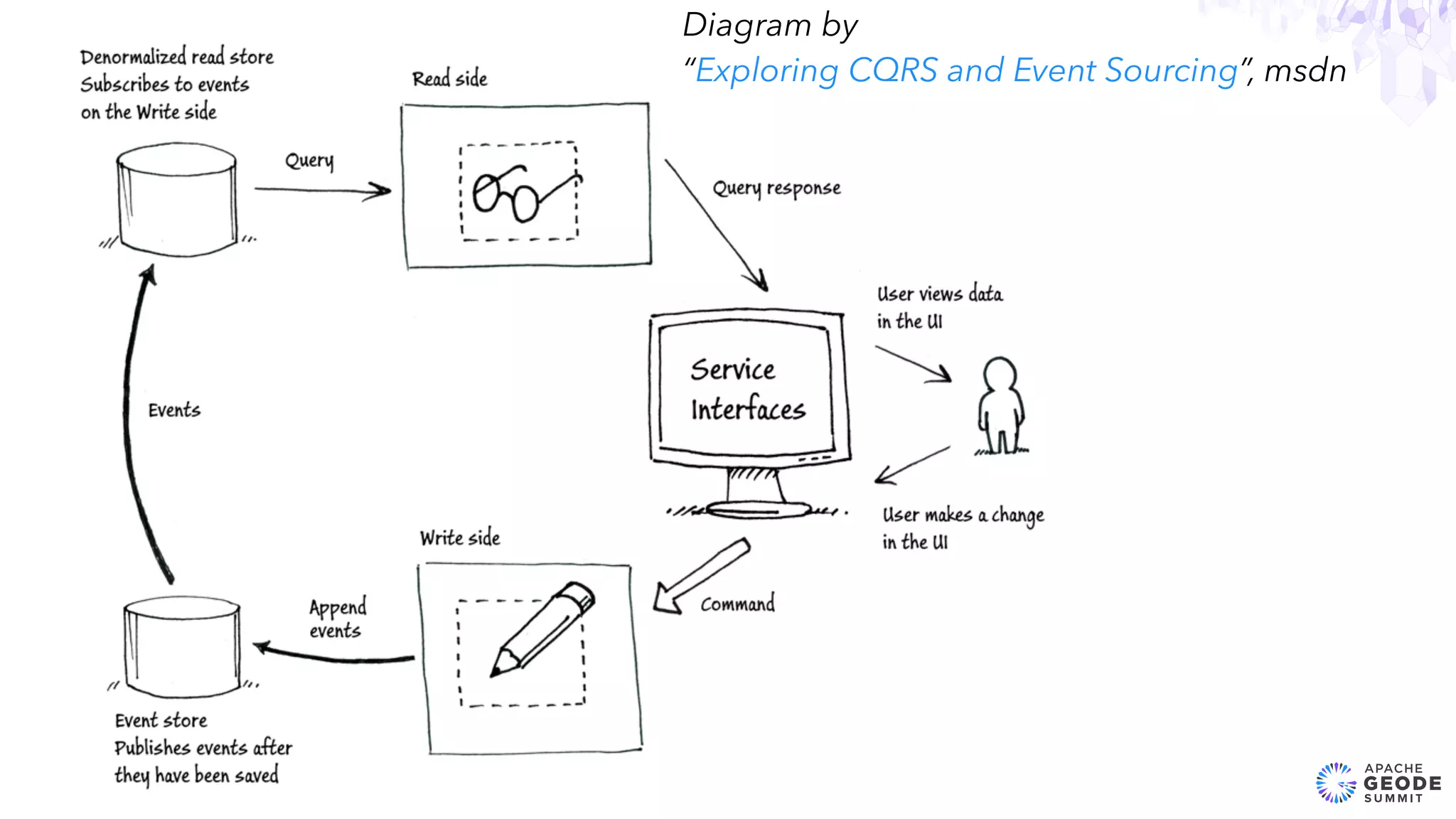

- 25. 25 Diagram by “Exploring CQRSand Event Sourcing”, msdn

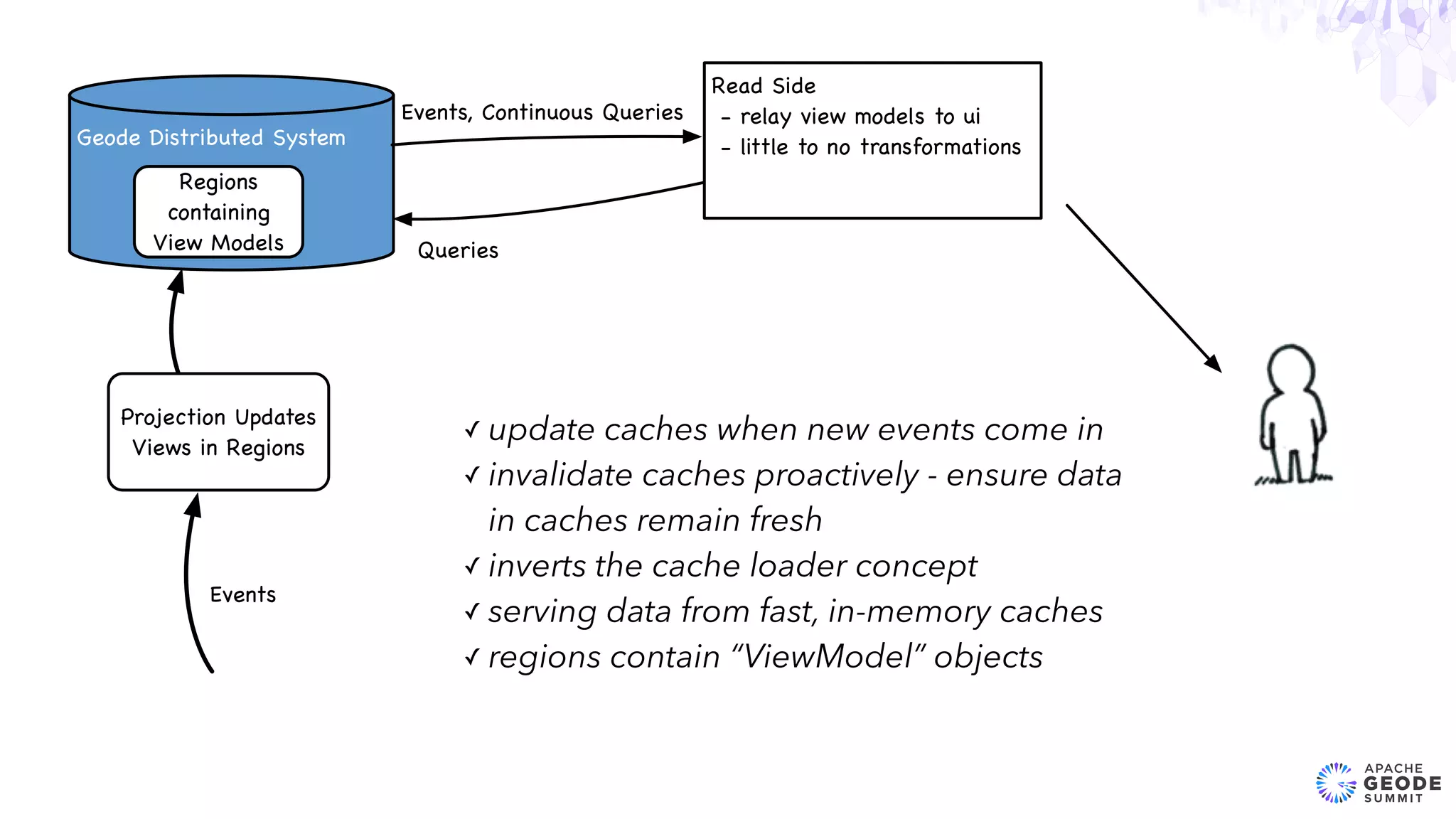

- 26. 26 ✓ update cacheswhen new events come in ✓ invalidate caches proactively - ensure data in caches remain fresh ✓ inverts the cache loader concept ✓ serving data from fast, in-memory caches ✓ regions contain “ViewModel” objects Events Projection Updates Views in Regions Geode Distributed System Regions containing View Models Read Side - relay view models to ui - little to no transformations Events, Continuous Queries Queries

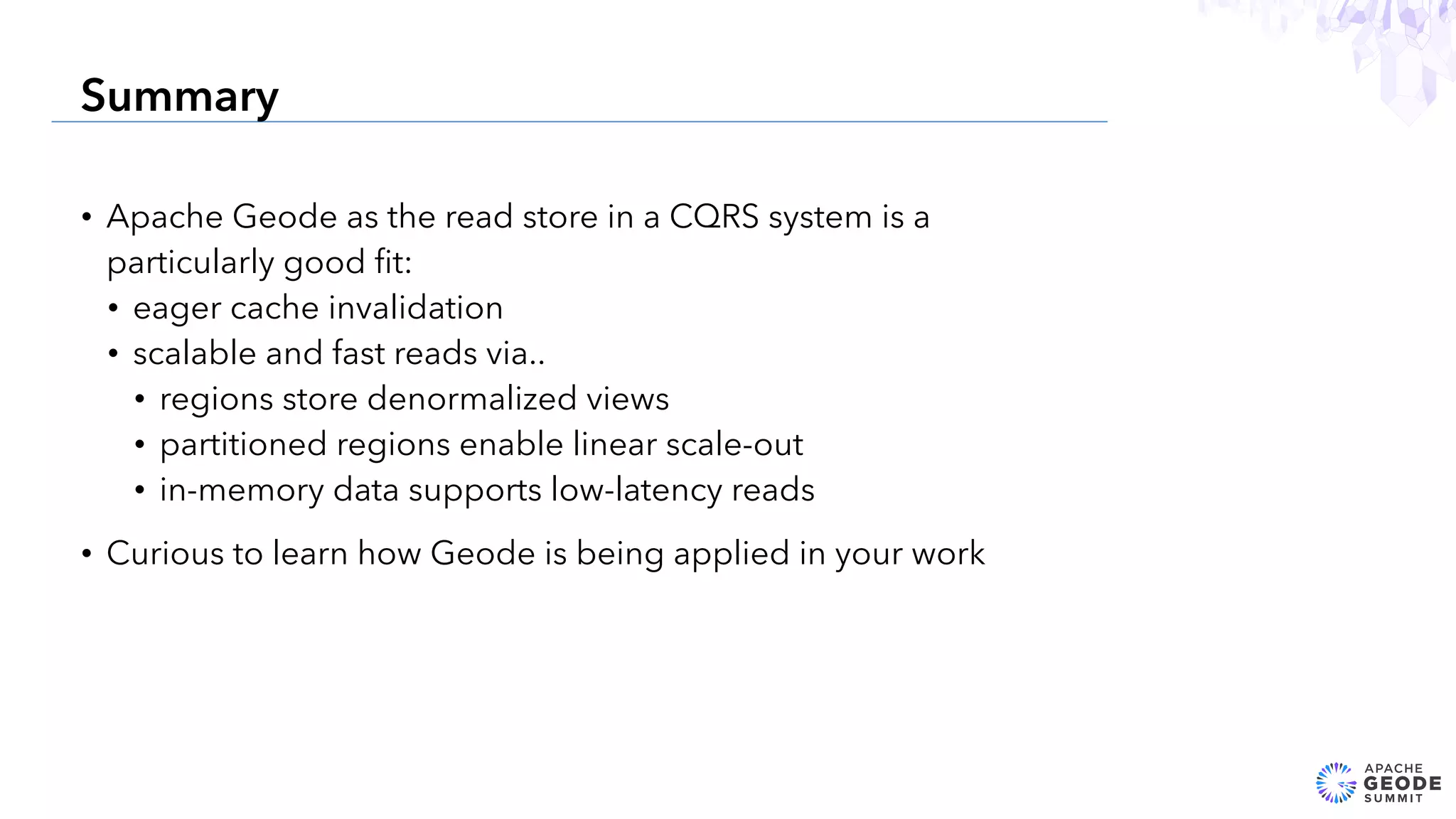

- 27. • Apache Geodeas the read store in a CQRS system is a particularly good fit: • eager cache invalidation • scalable and fast reads via.. • regions store denormalized views • partitioned regions enable linear scale-out • in-memory data supports low-latency reads • Curious to learn how Geode is being applied in your work 27 Summary

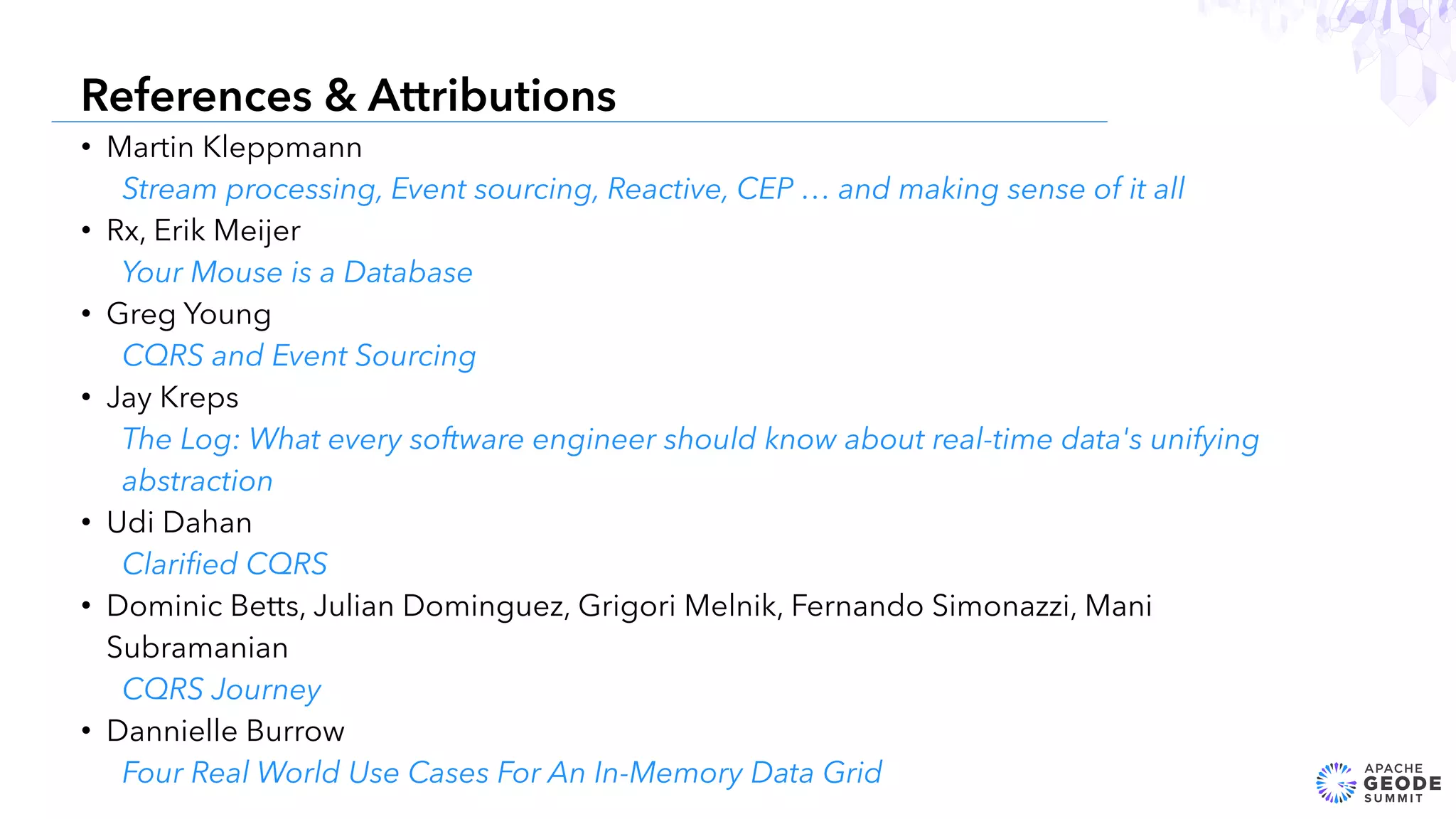

- 28. • Martin Kleppmann Streamprocessing, Event sourcing, Reactive, CEP … and making sense of it all • Rx, Erik Meijer Your Mouse is a Database • Greg Young CQRS and Event Sourcing • Jay Kreps The Log: What every software engineer should know about real-time data's unifying abstraction • Udi Dahan Clarified CQRS • Dominic Betts, Julian Dominguez, Grigori Melnik, Fernando Simonazzi, Mani Subramanian CQRS Journey • Dannielle Burrow Four Real World Use Cases For An In-Memory Data Grid 28 References & Attributions

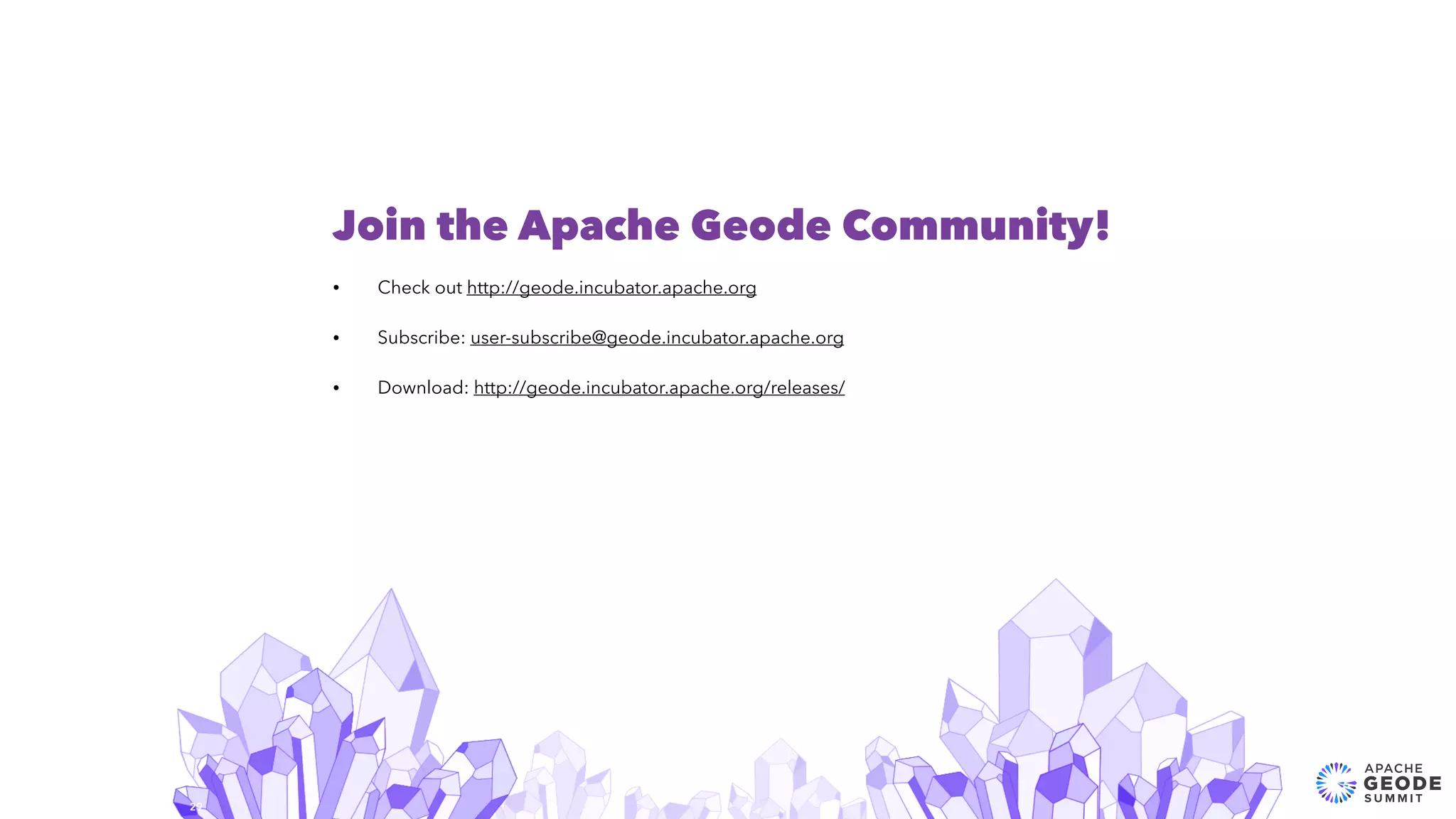

- 29. 29 Join the ApacheGeode Community! • Check out http://geode.incubator.apache.org • Subscribe: user-subscribe@geode.incubator.apache.org • Download: http://geode.incubator.apache.org/releases/
