Expect the unexpected: Anticipate and prepare for failures in microservices based architectures

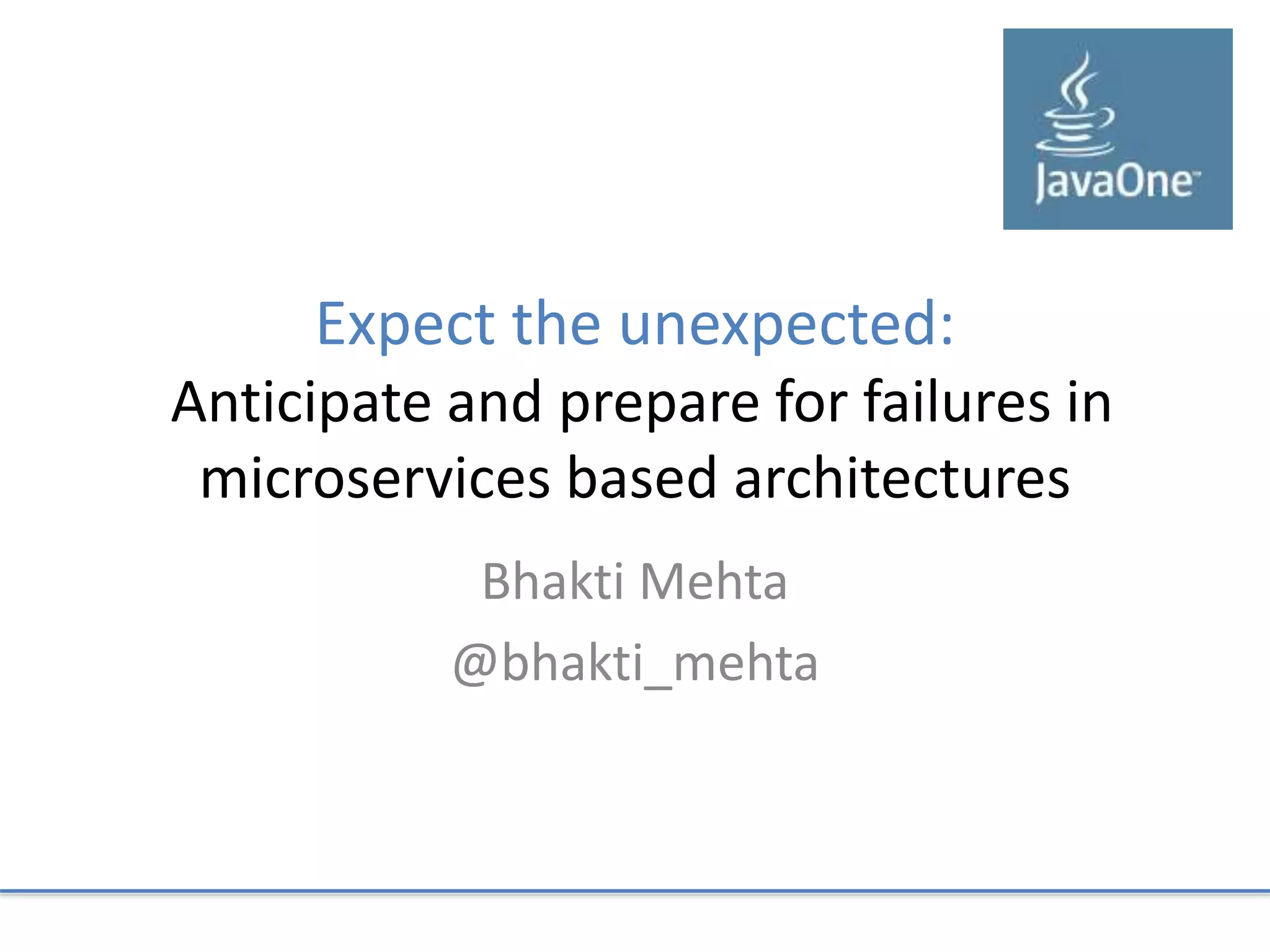

- 1. Expect the unexpected: Anticipateand prepare for failures in microservices based architectures Bhakti Mehta @bhakti_mehta

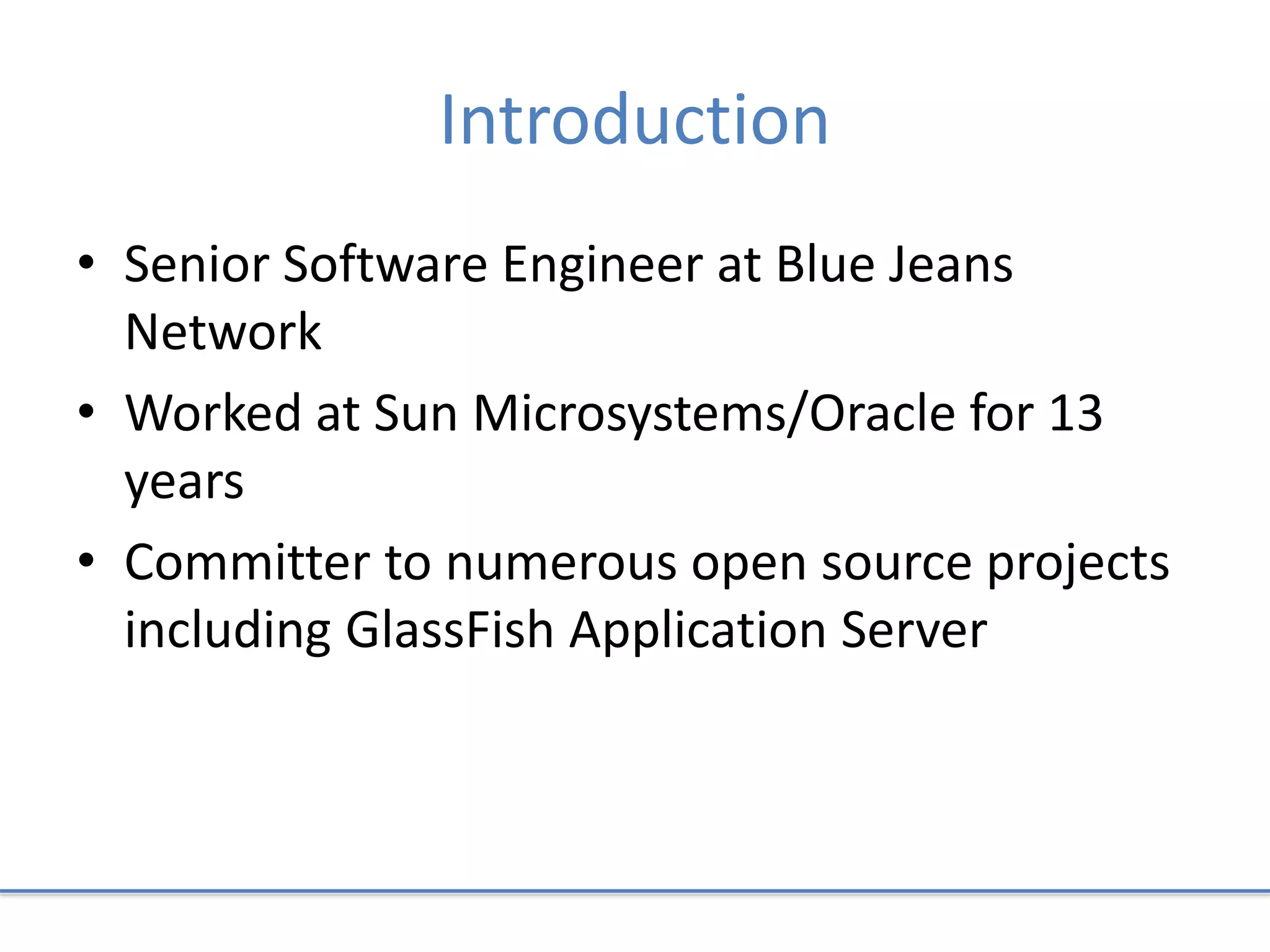

- 2. Introduction • Senior SoftwareEngineer at Blue Jeans Network • Worked at Sun Microsystems/Oracle for 13 years • Committer to numerous open source projects including GlassFish Application Server
- 3.
- 4.

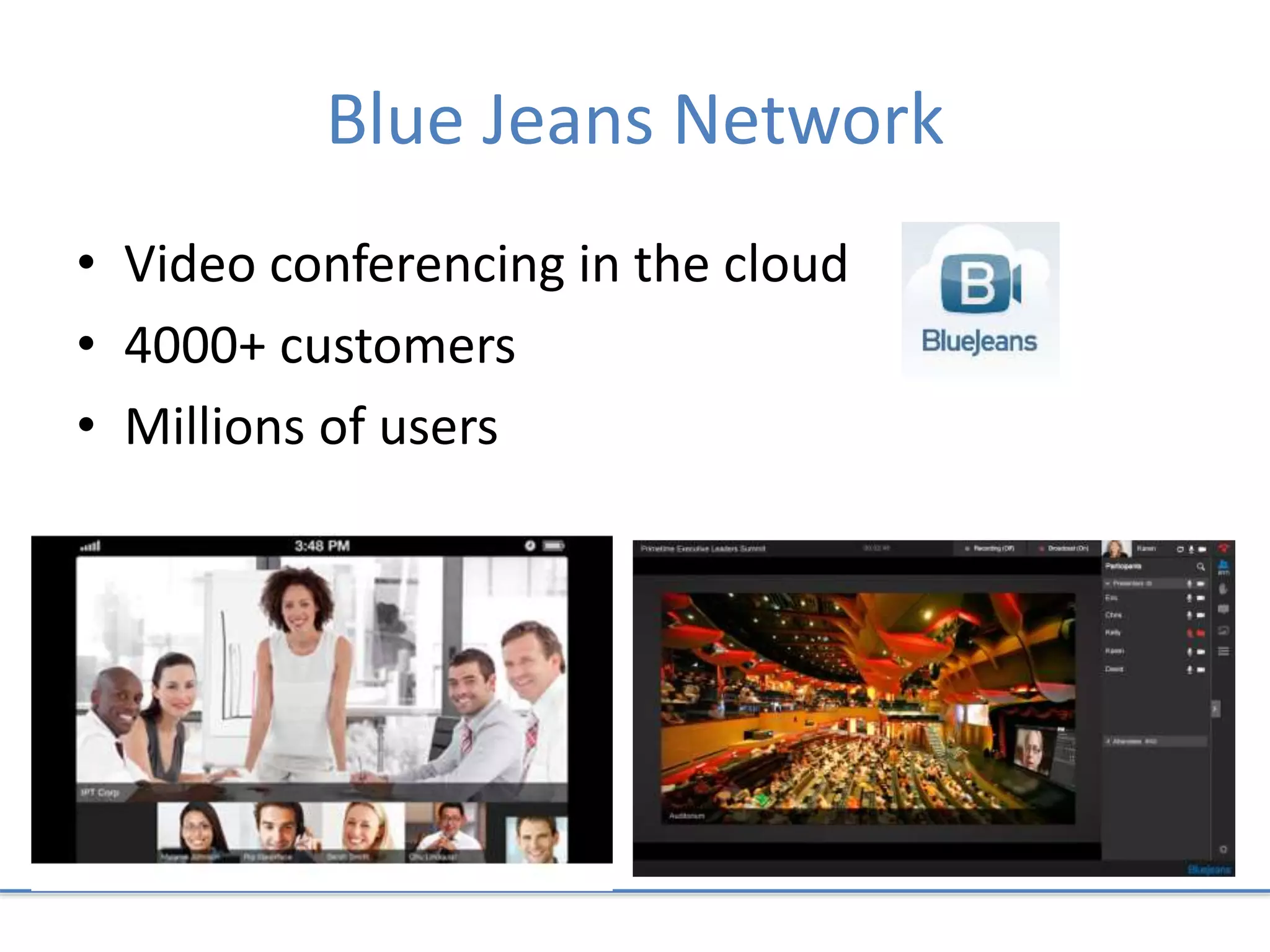

- 5. Blue Jeans Network •Video conferencing in the cloud • 4000+ customers • Millions of users

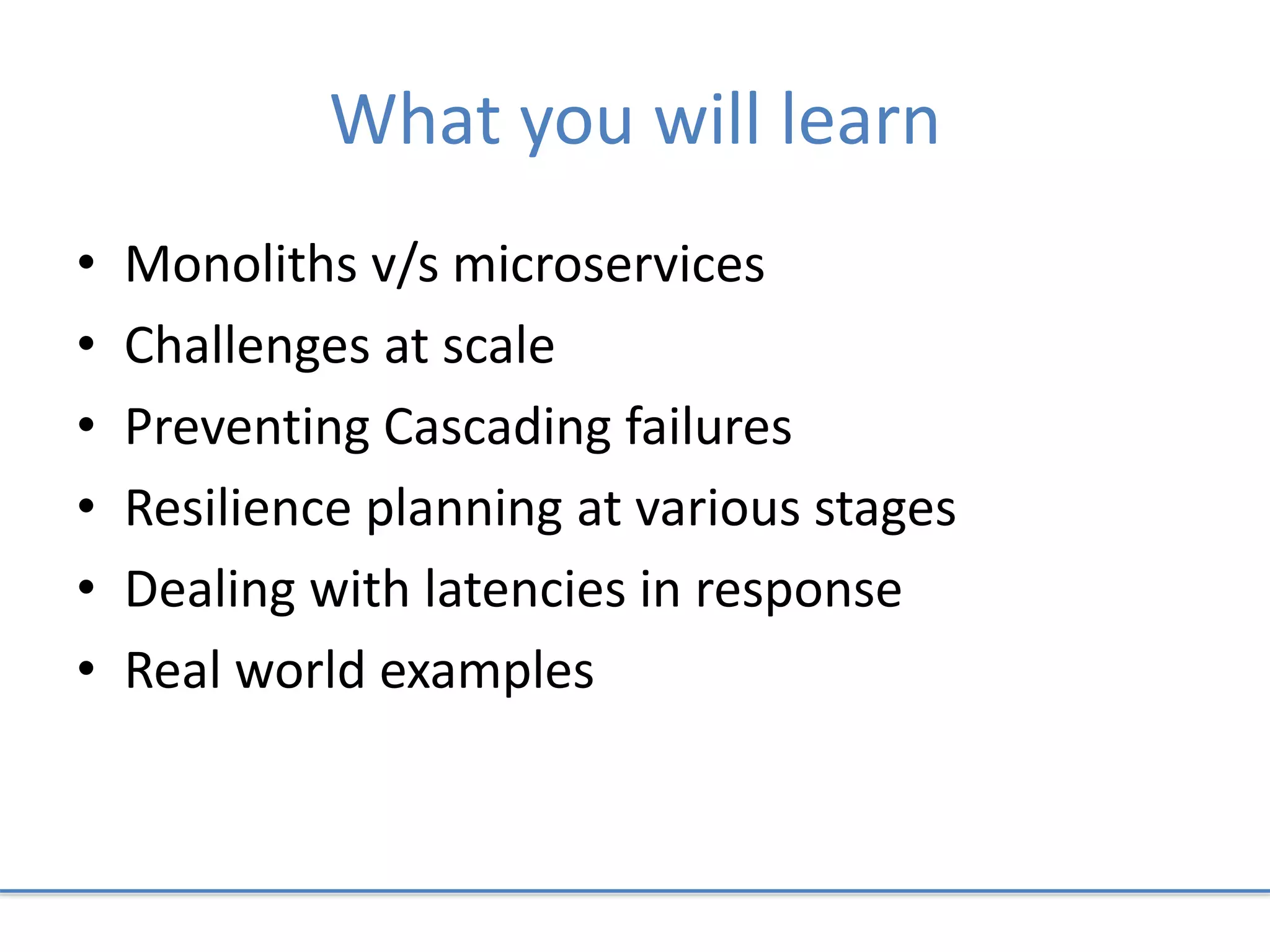

- 6. What you willlearn • Monoliths v/s microservices • Challenges at scale • Preventing Cascading failures • Resilience planning at various stages • Dealing with latencies in response • Real world examples

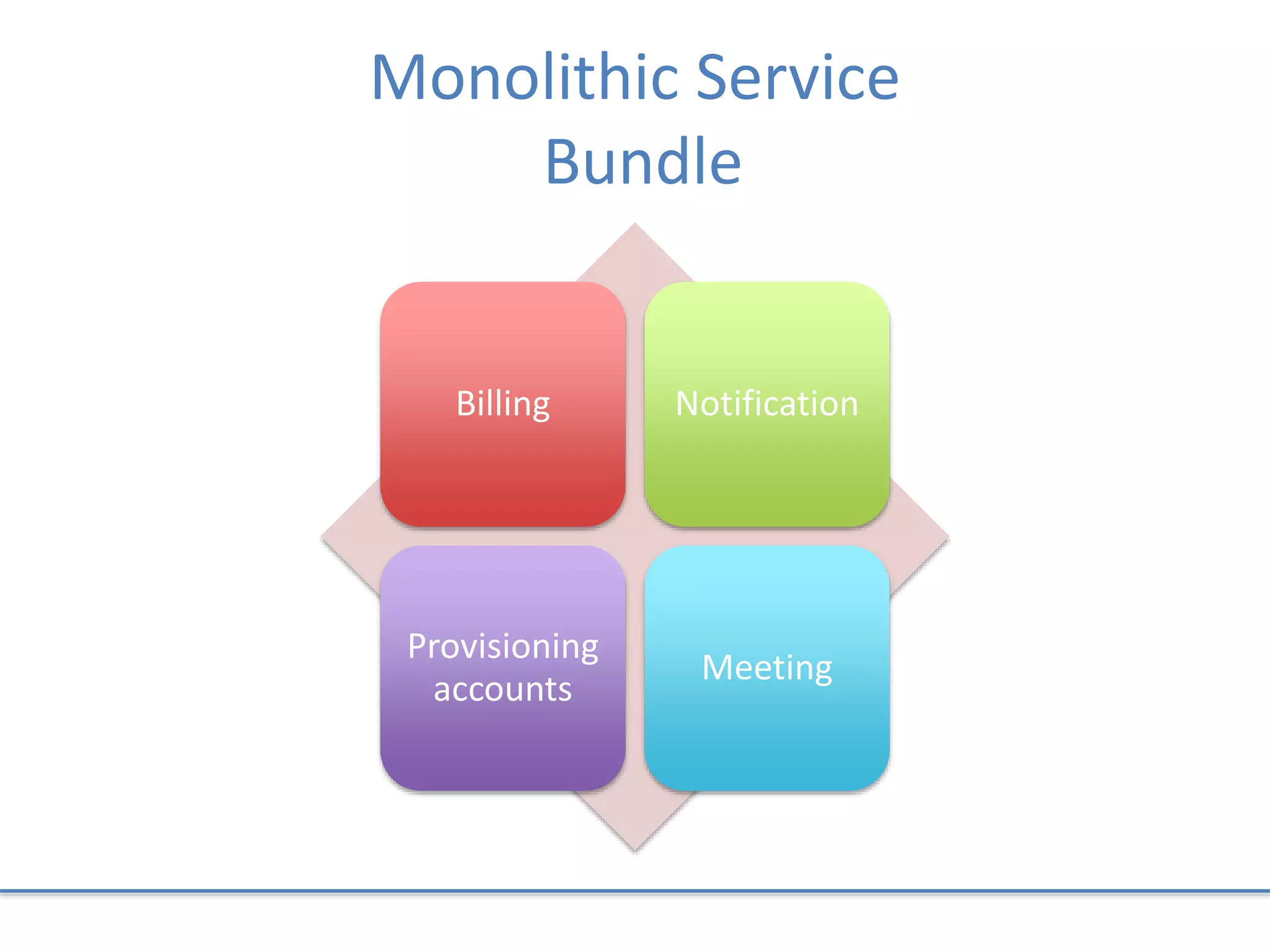

- 7.
- 8.

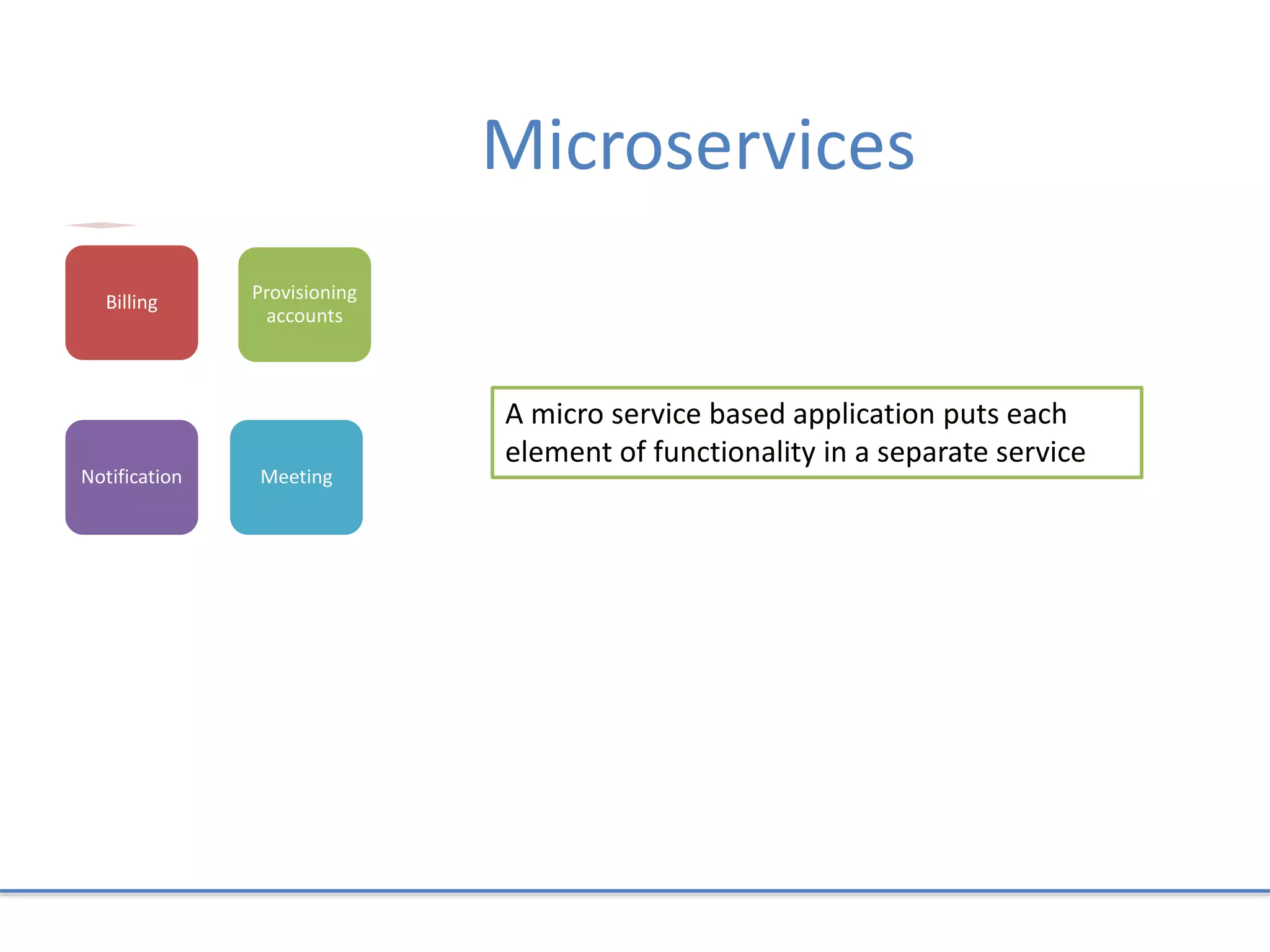

- 9. Microservices Billing Provisioning accounts Notification Meeting Amicro service based application puts each element of functionality in a separate service

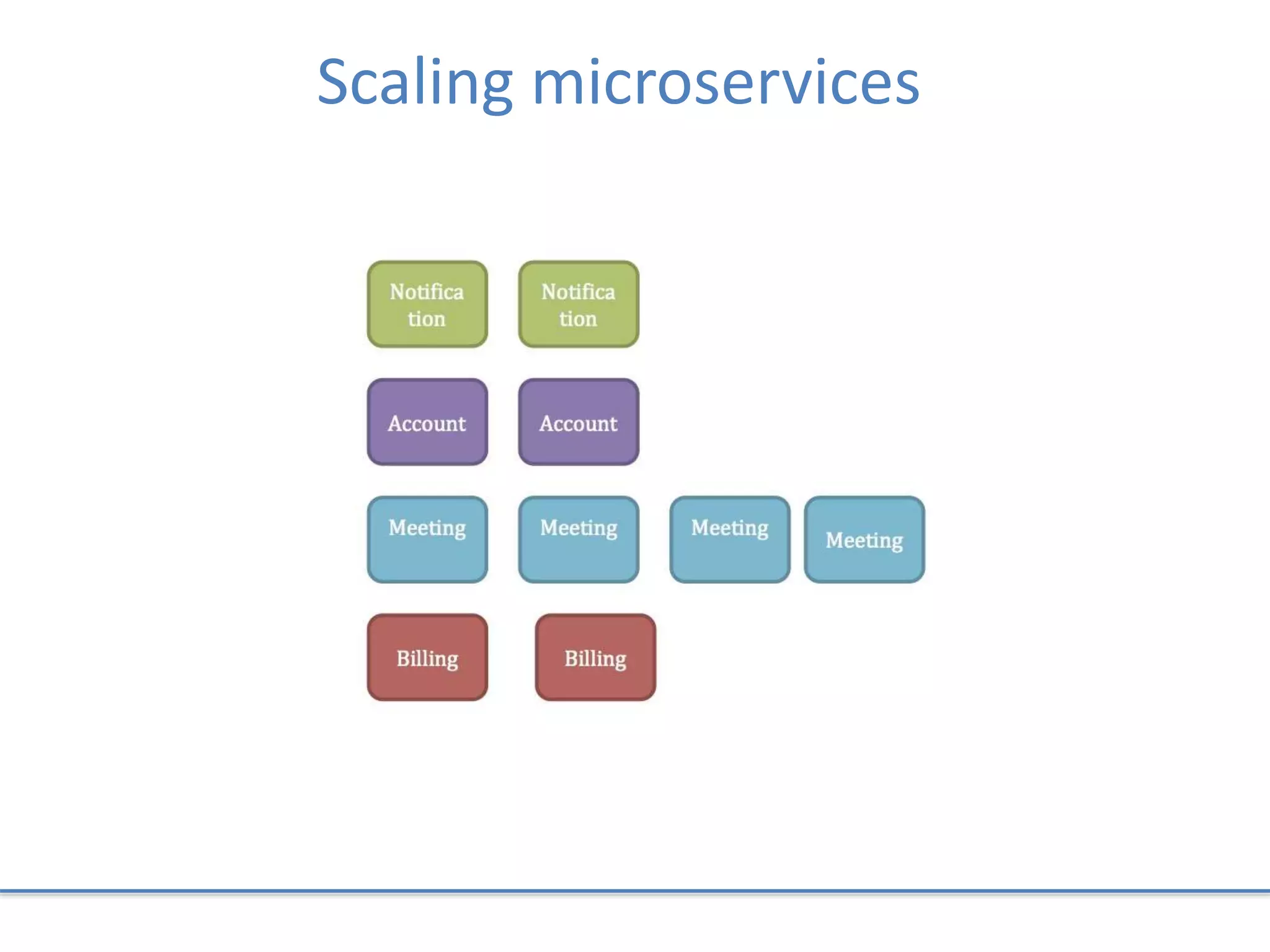

- 10.

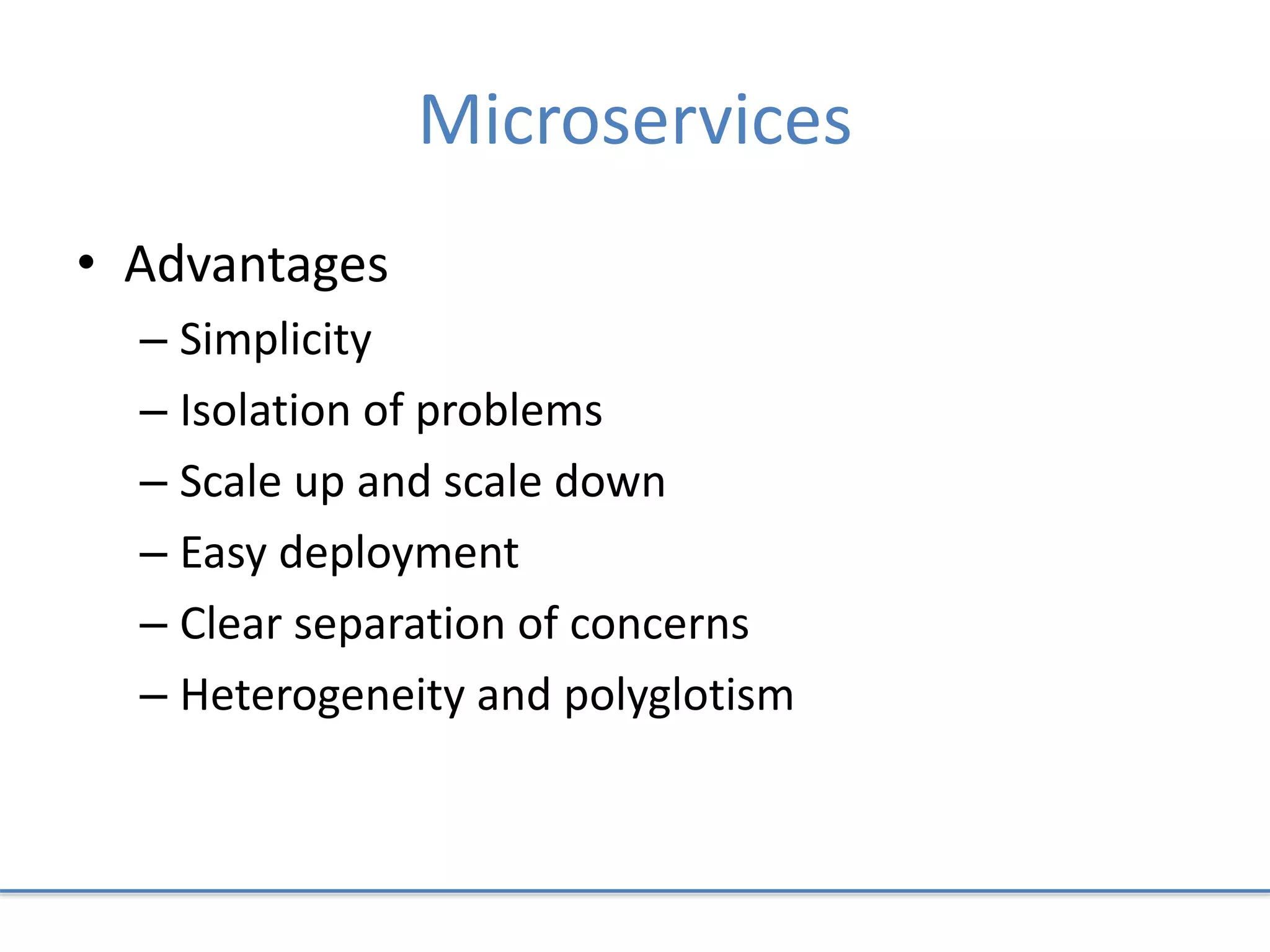

- 11. Microservices • Advantages – Simplicity –Isolation of problems – Scale up and scale down – Easy deployment – Clear separation of concerns – Heterogeneity and polyglotism

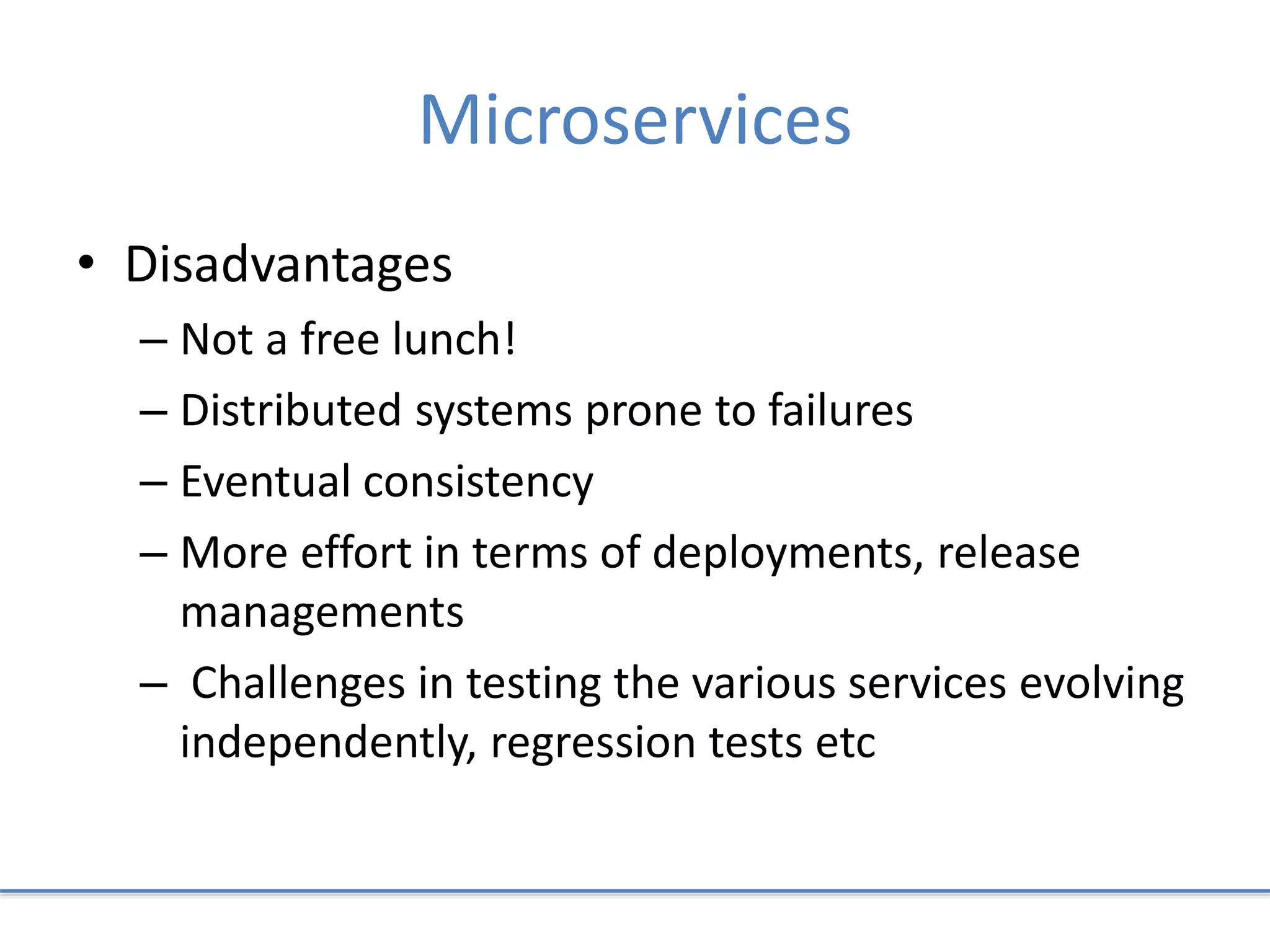

- 12. Microservices • Disadvantages – Nota free lunch! – Distributed systems prone to failures – Eventual consistency – More effort in terms of deployments, release managements – Challenges in testing the various services evolving independently, regression tests etc
- 13.

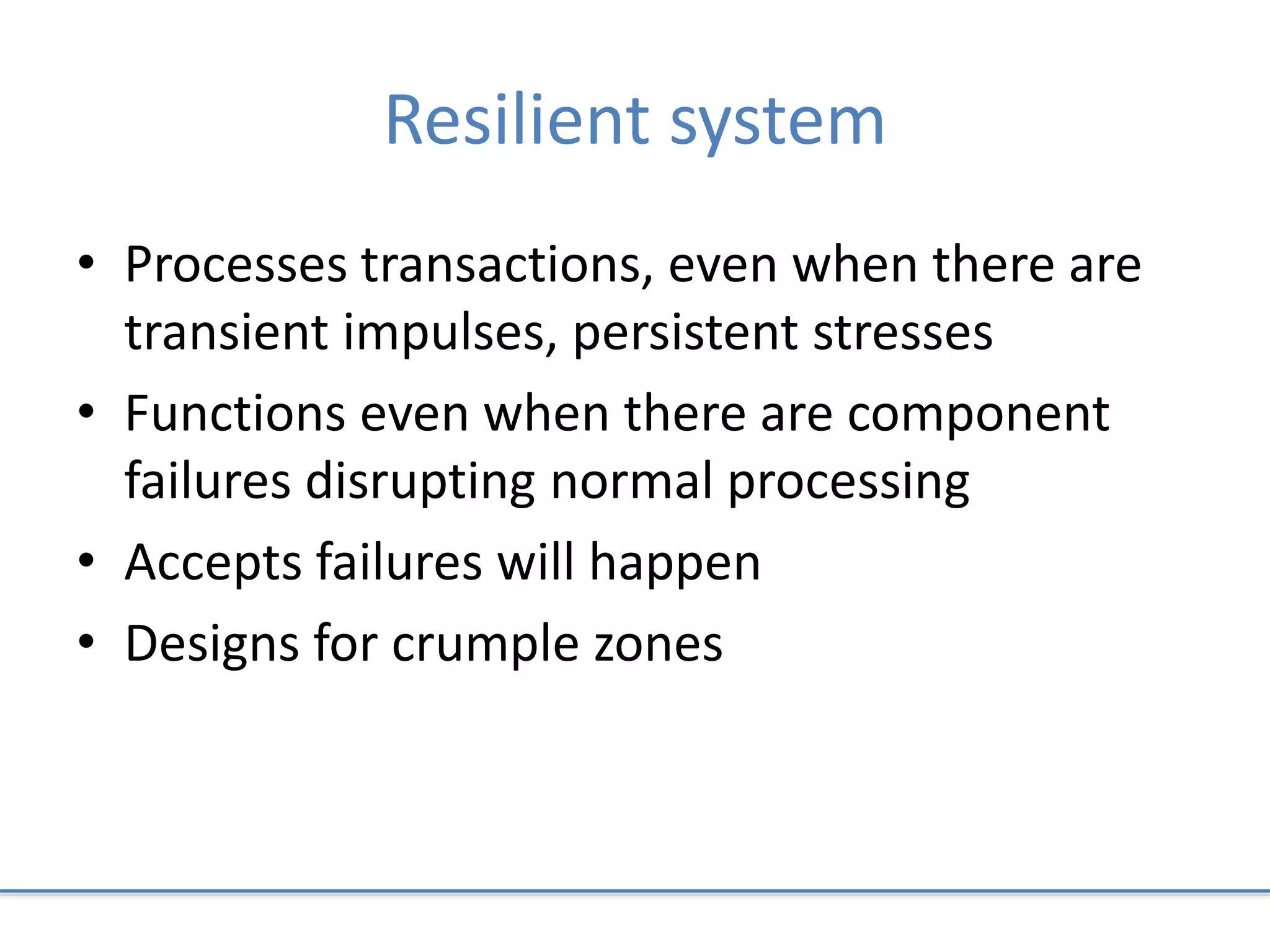

- 14. Resilient system • Processestransactions, even when there are transient impulses, persistent stresses • Functions even when there are component failures disrupting normal processing • Accepts failures will happen • Designs for crumple zones

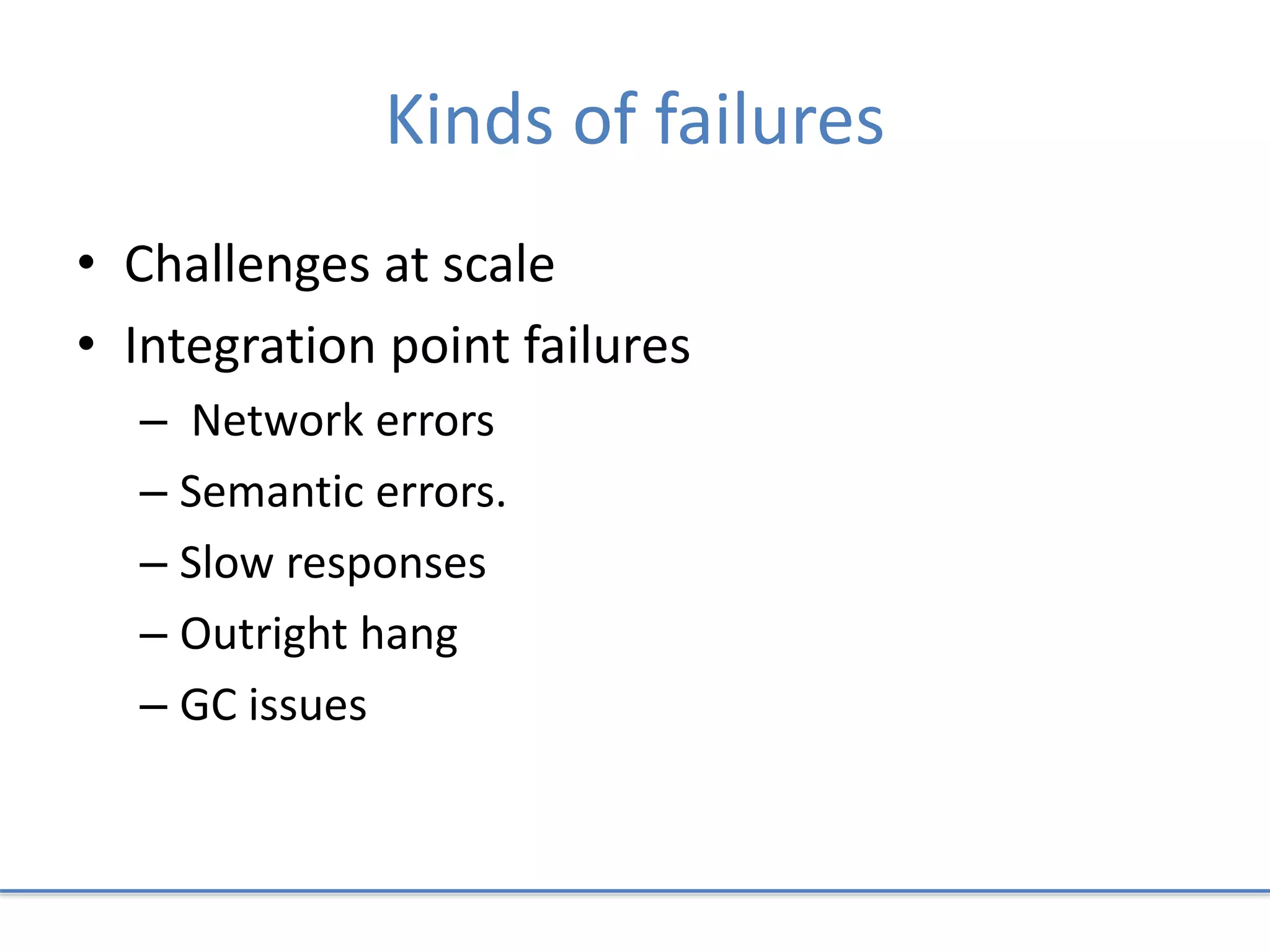

- 15. Kinds of failures •Challenges at scale • Integration point failures – Network errors – Semantic errors. – Slow responses – Outright hang – GC issues

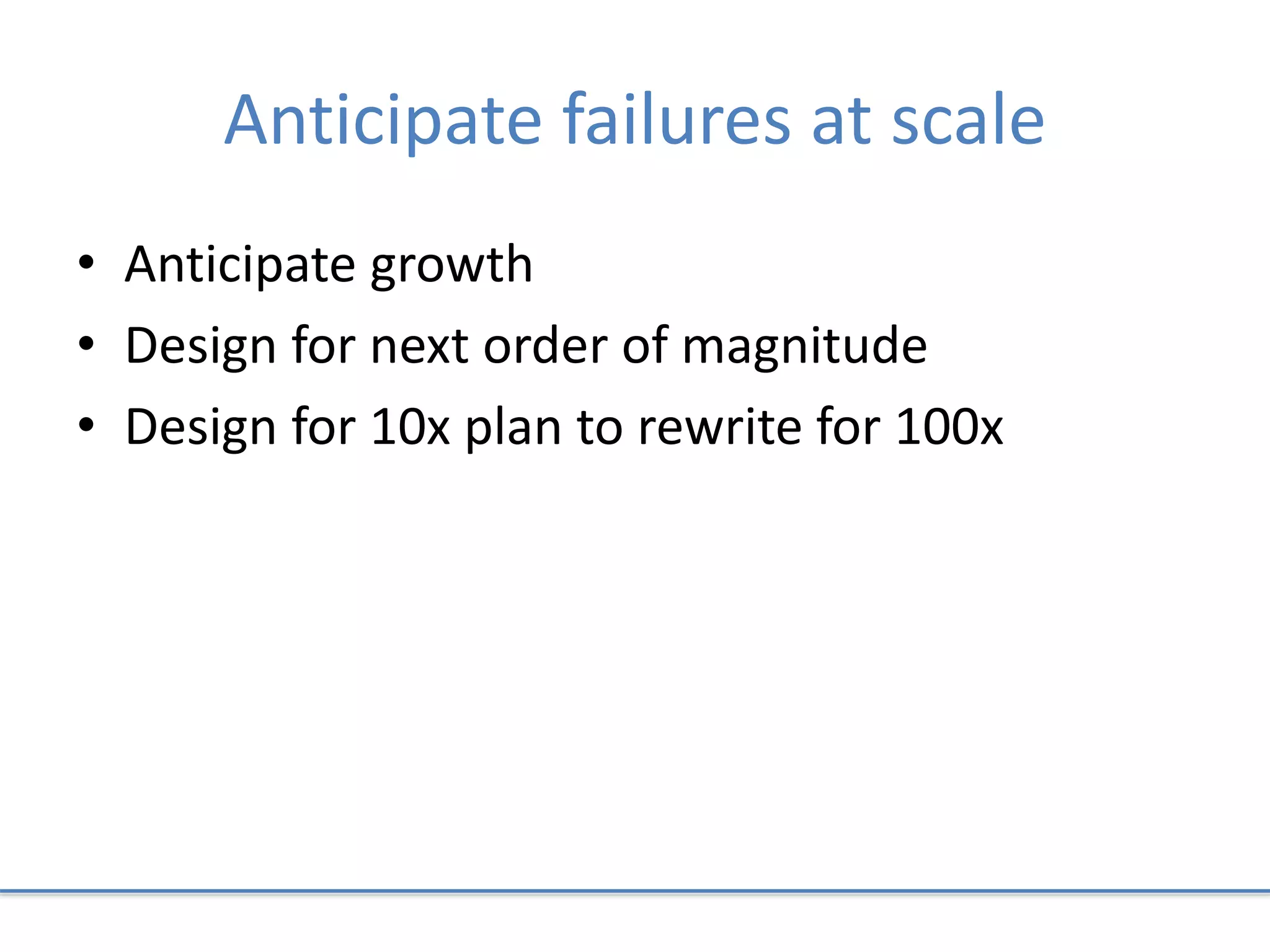

- 18. Anticipate failures atscale • Anticipate growth • Design for next order of magnitude • Design for 10x plan to rewrite for 100x

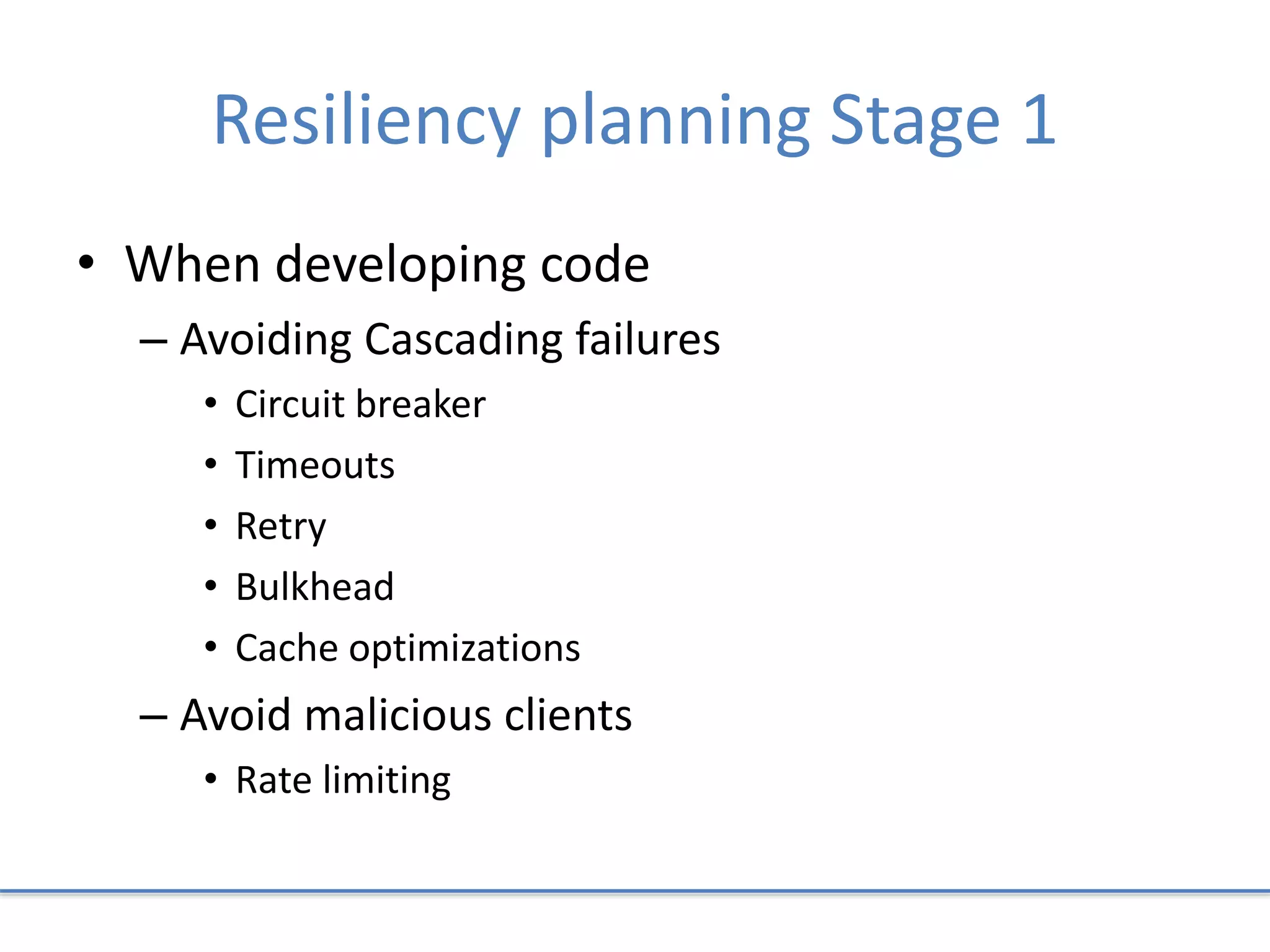

- 19. Resiliency planning Stage1 • When developing code – Avoiding Cascading failures • Circuit breaker • Timeouts • Retry • Bulkhead • Cache optimizations – Avoid malicious clients • Rate limiting

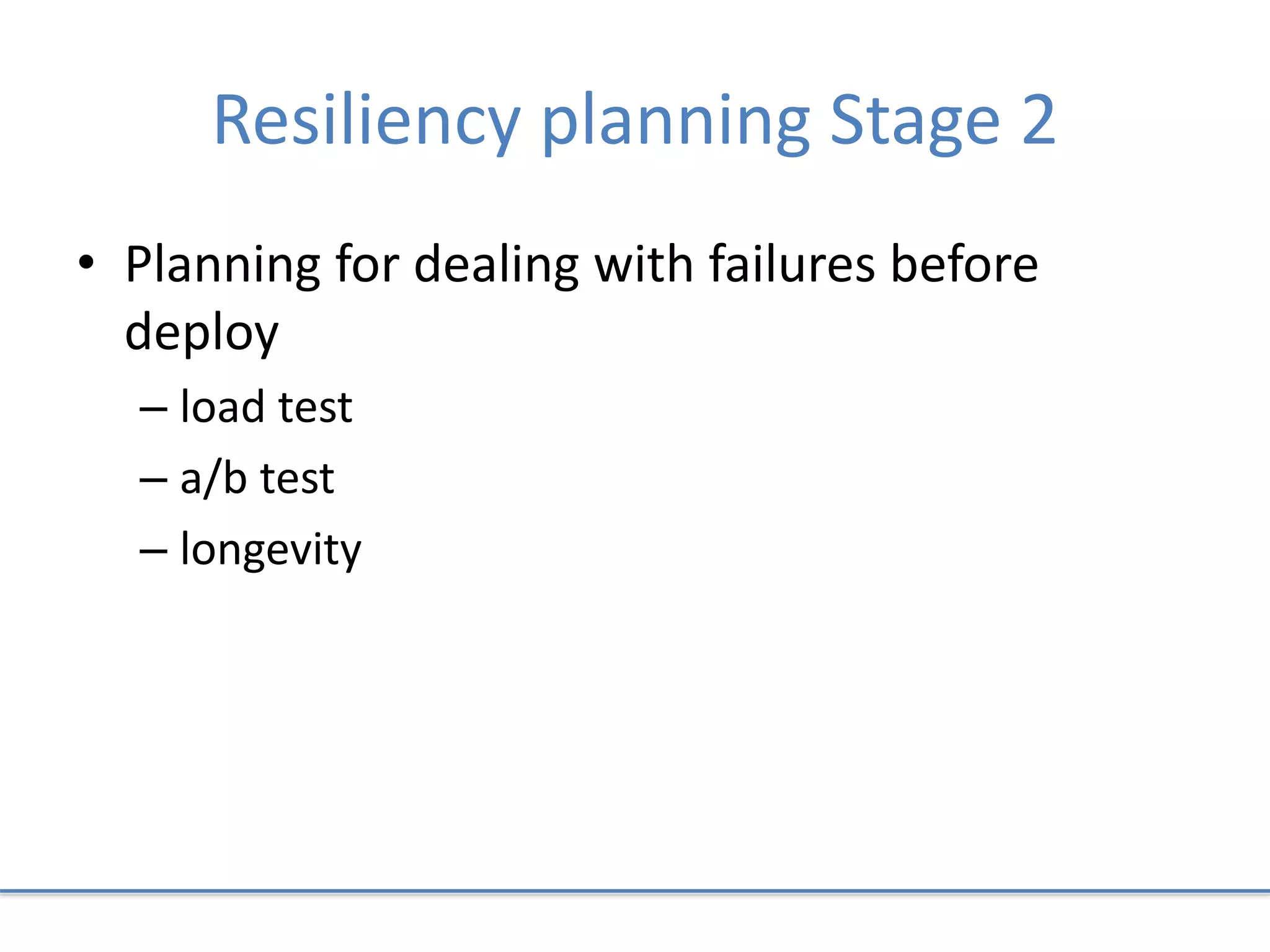

- 20. Resiliency planning Stage2 • Planning for dealing with failures before deploy – load test – a/b test – longevity

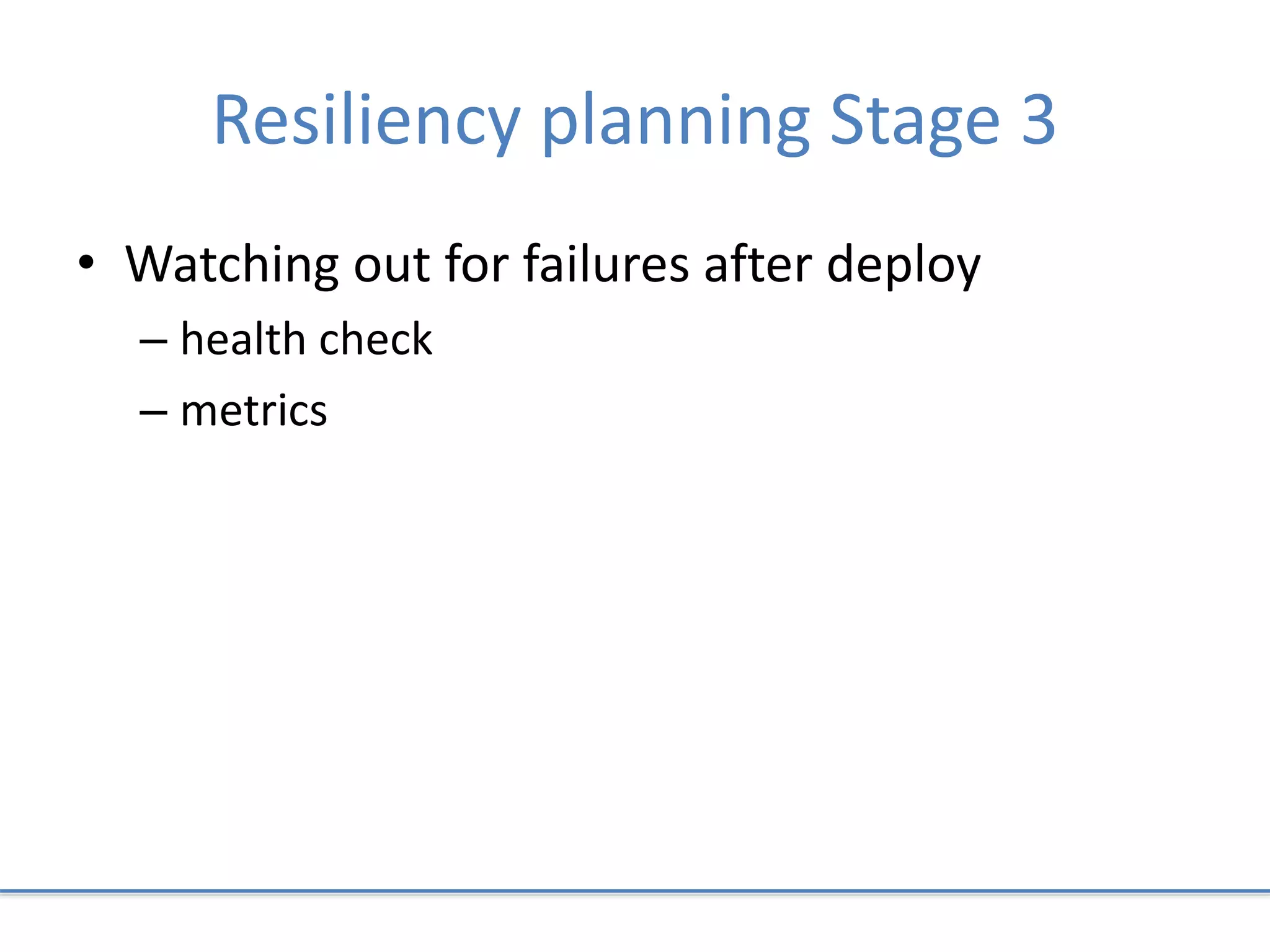

- 21. Resiliency planning Stage3 • Watching out for failures after deploy – health check – metrics

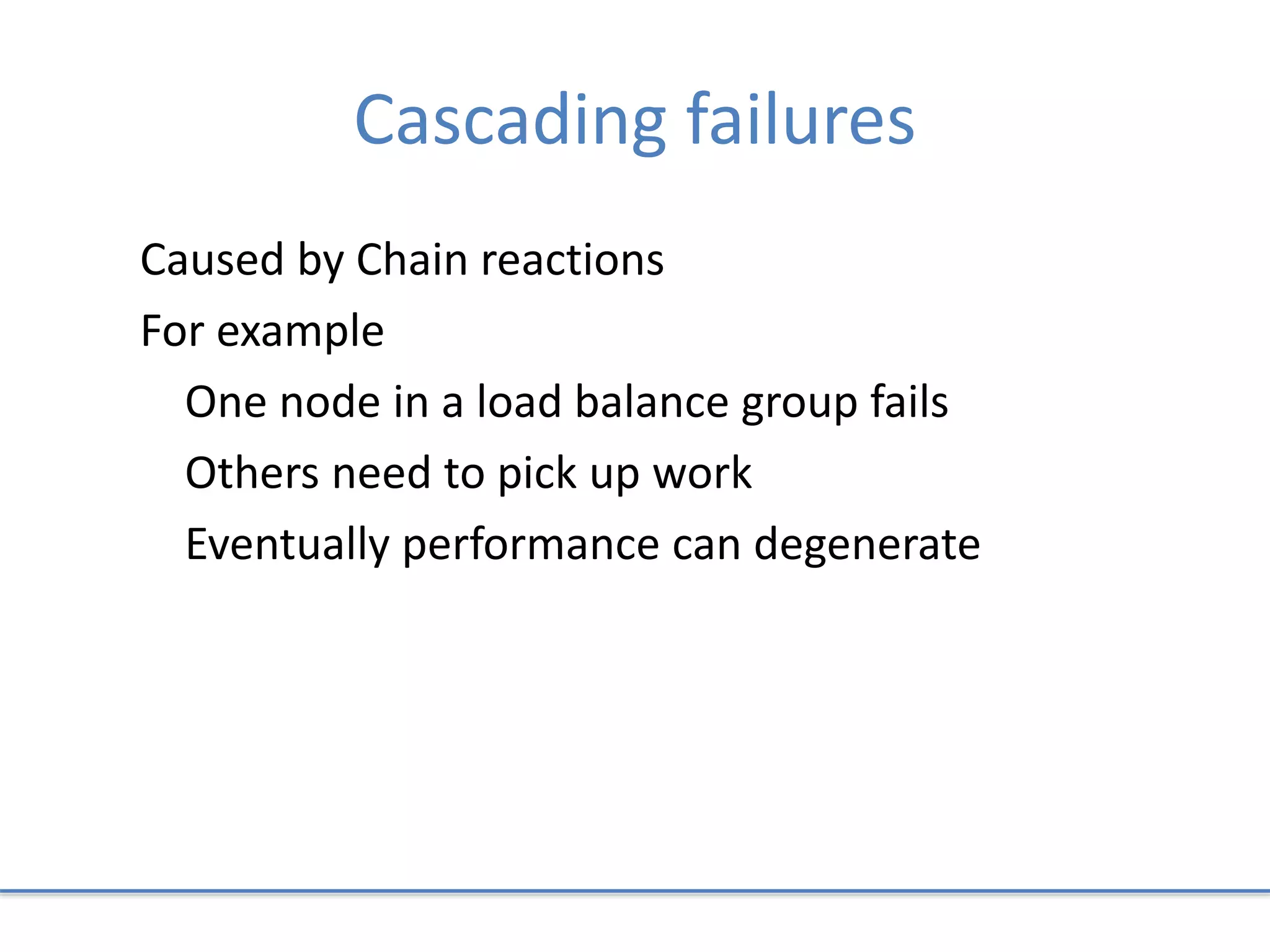

- 23. Cascading failures Caused byChain reactions For example One node in a load balance group fails Others need to pick up work Eventually performance can degenerate

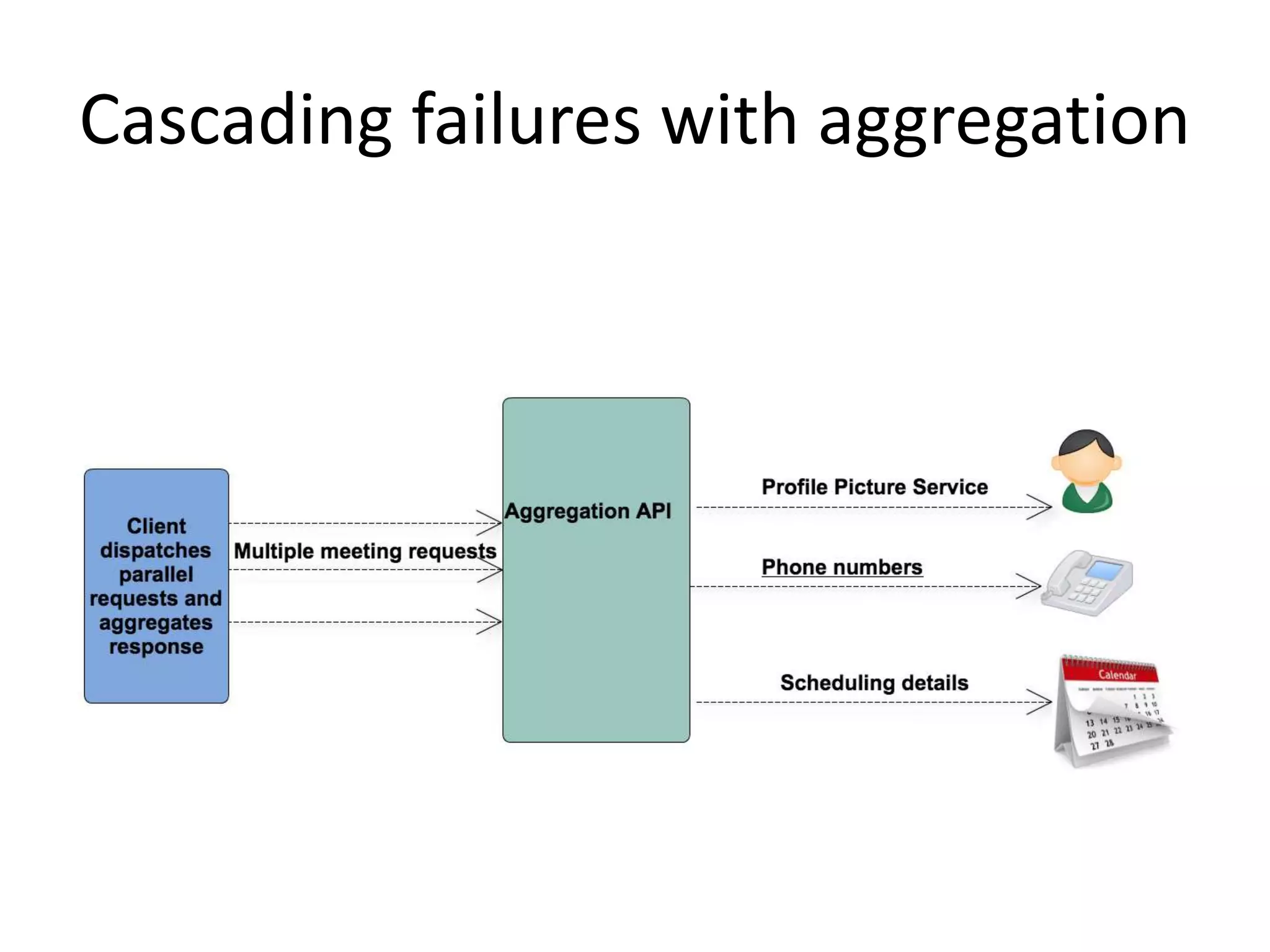

- 24. Cascading failures withaggregation

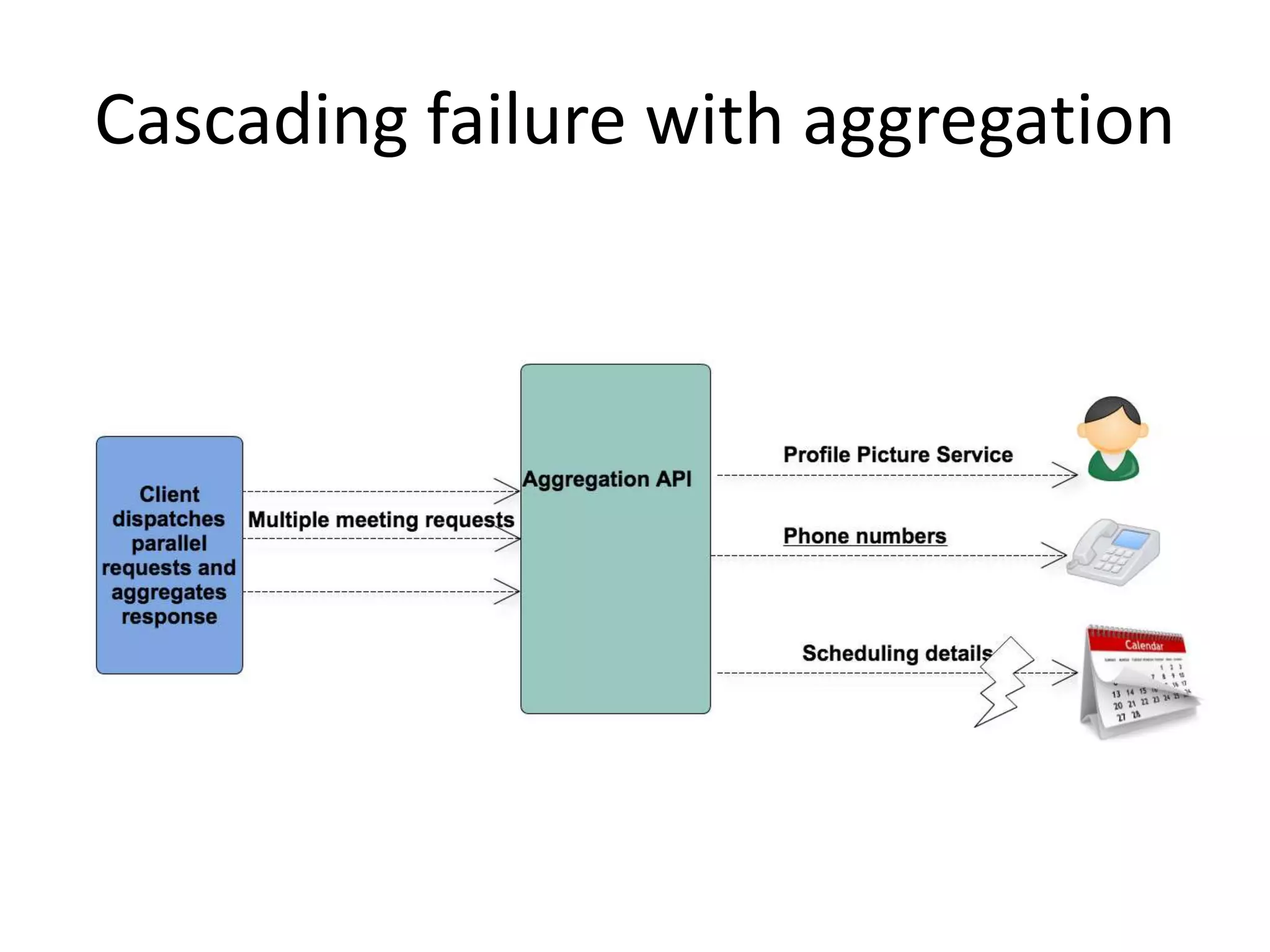

- 25. Cascading failure withaggregation

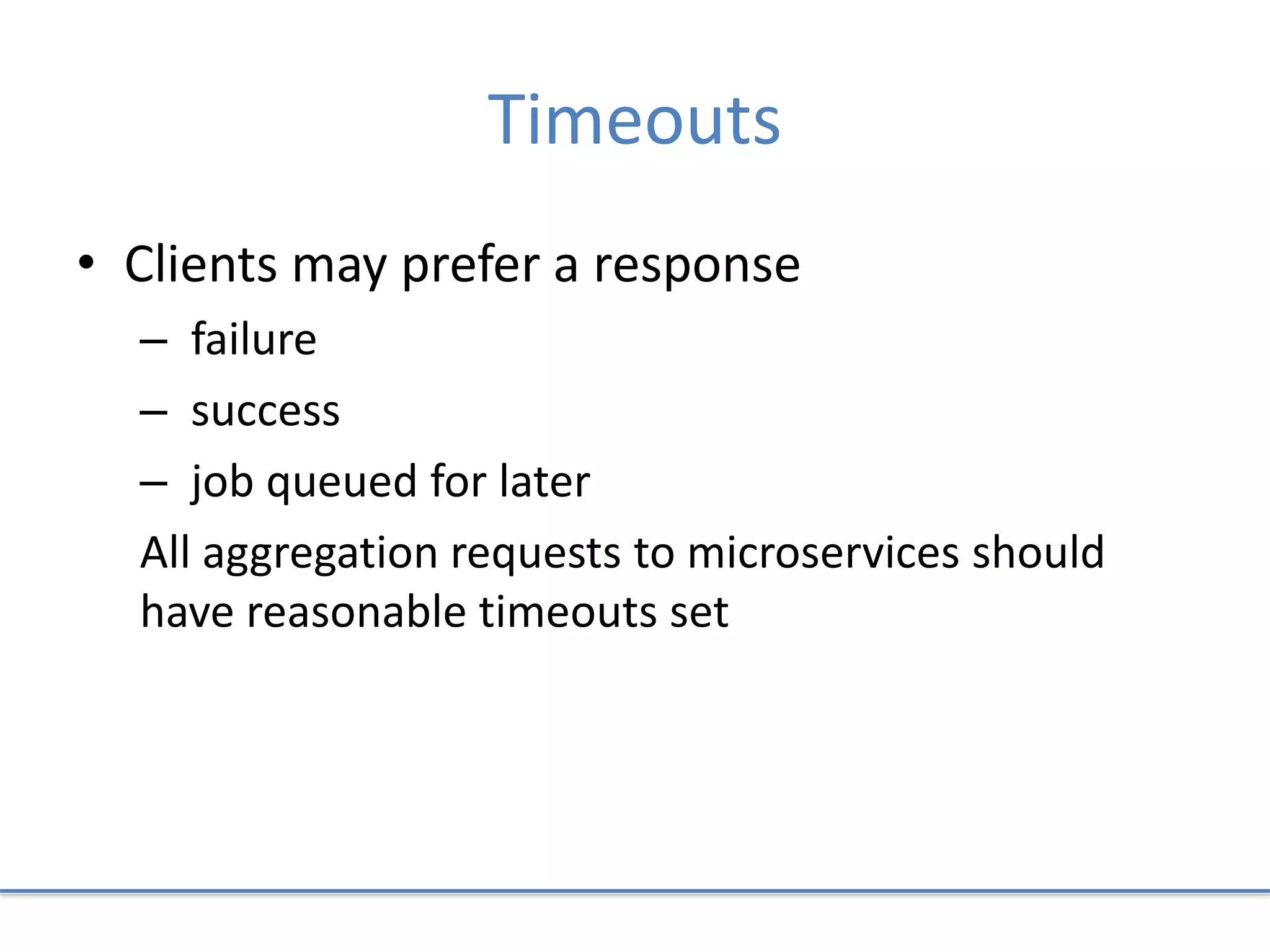

- 27. Timeouts • Clients mayprefer a response – failure – success – job queued for later All aggregation requests to microservices should have reasonable timeouts set

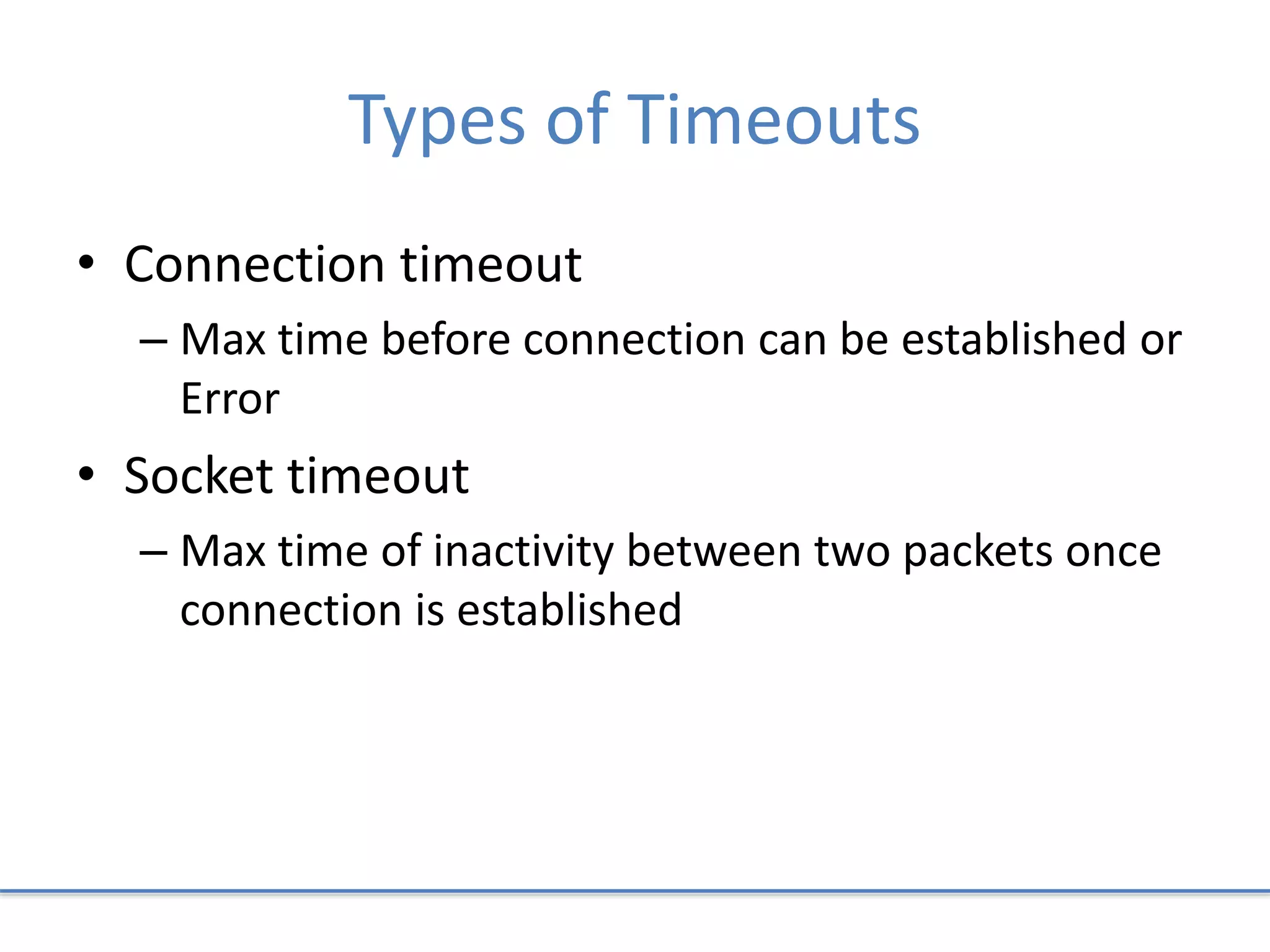

- 28. Types of Timeouts •Connection timeout – Max time before connection can be established or Error • Socket timeout – Max time of inactivity between two packets once connection is established

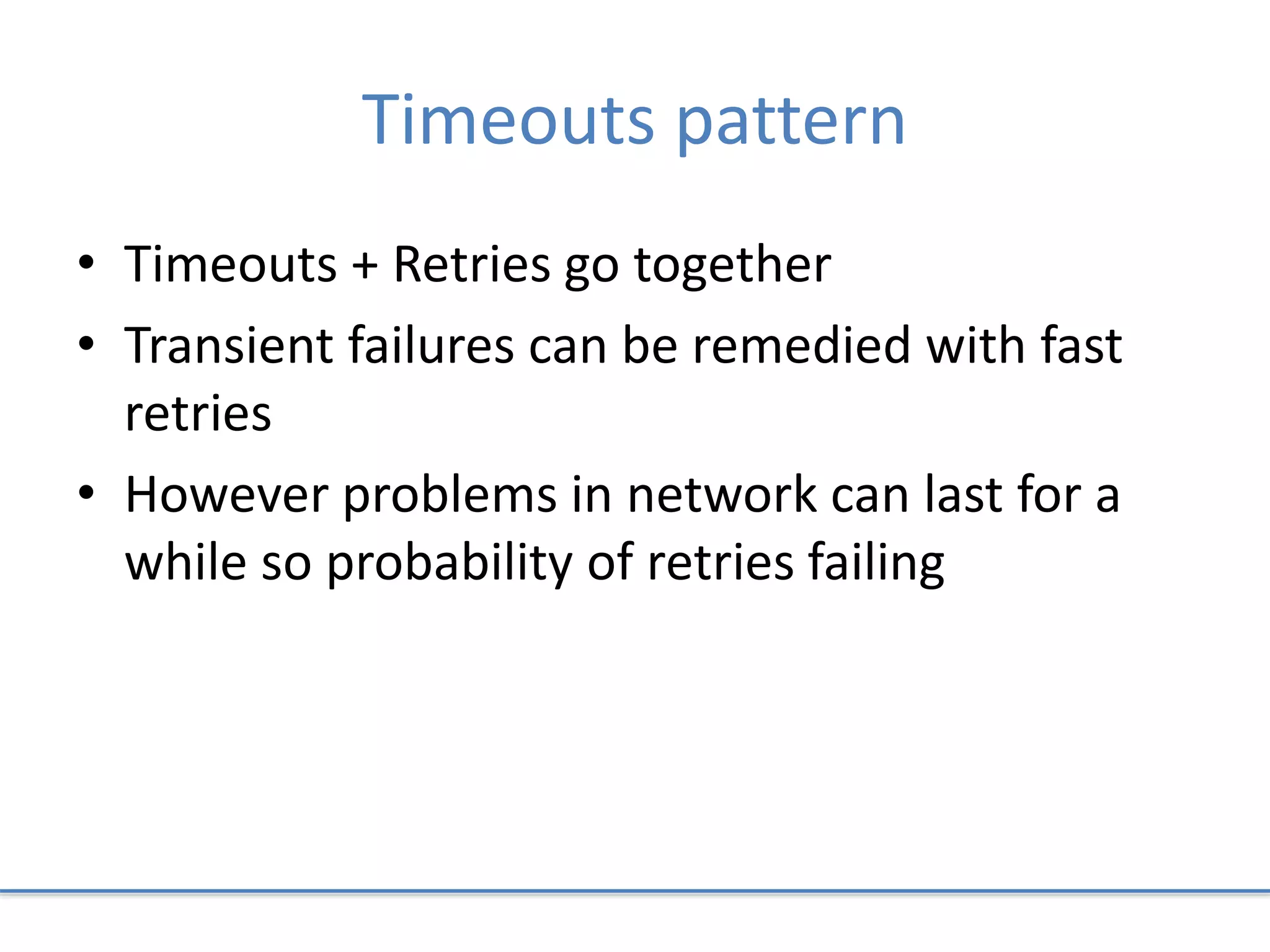

- 29. Timeouts pattern • Timeouts+ Retries go together • Transient failures can be remedied with fast retries • However problems in network can last for a while so probability of retries failing

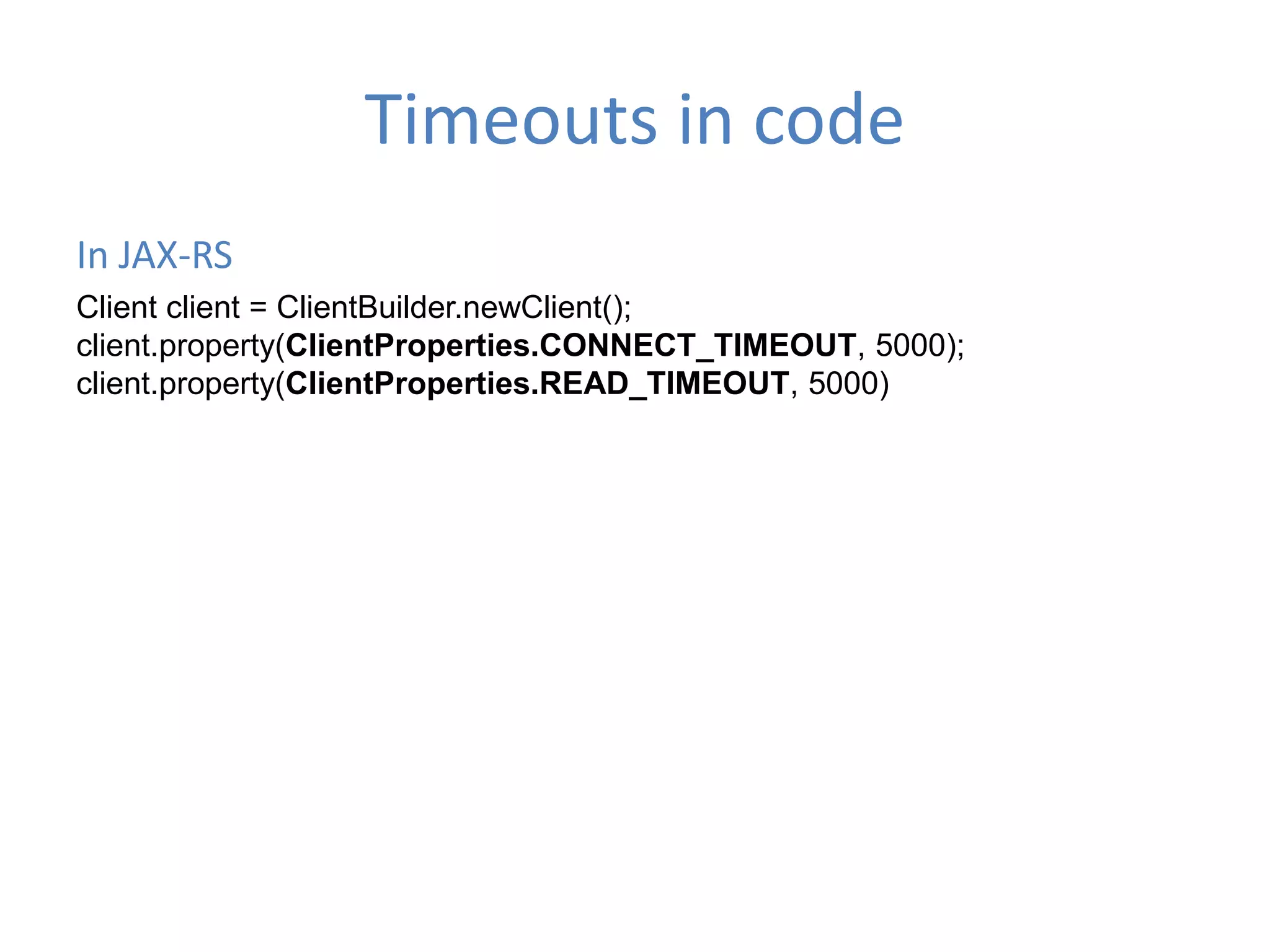

- 30. Timeouts in code InJAX-RS Client client = ClientBuilder.newClient(); client.property(ClientProperties.CONNECT_TIMEOUT, 5000); client.property(ClientProperties.READ_TIMEOUT, 5000)

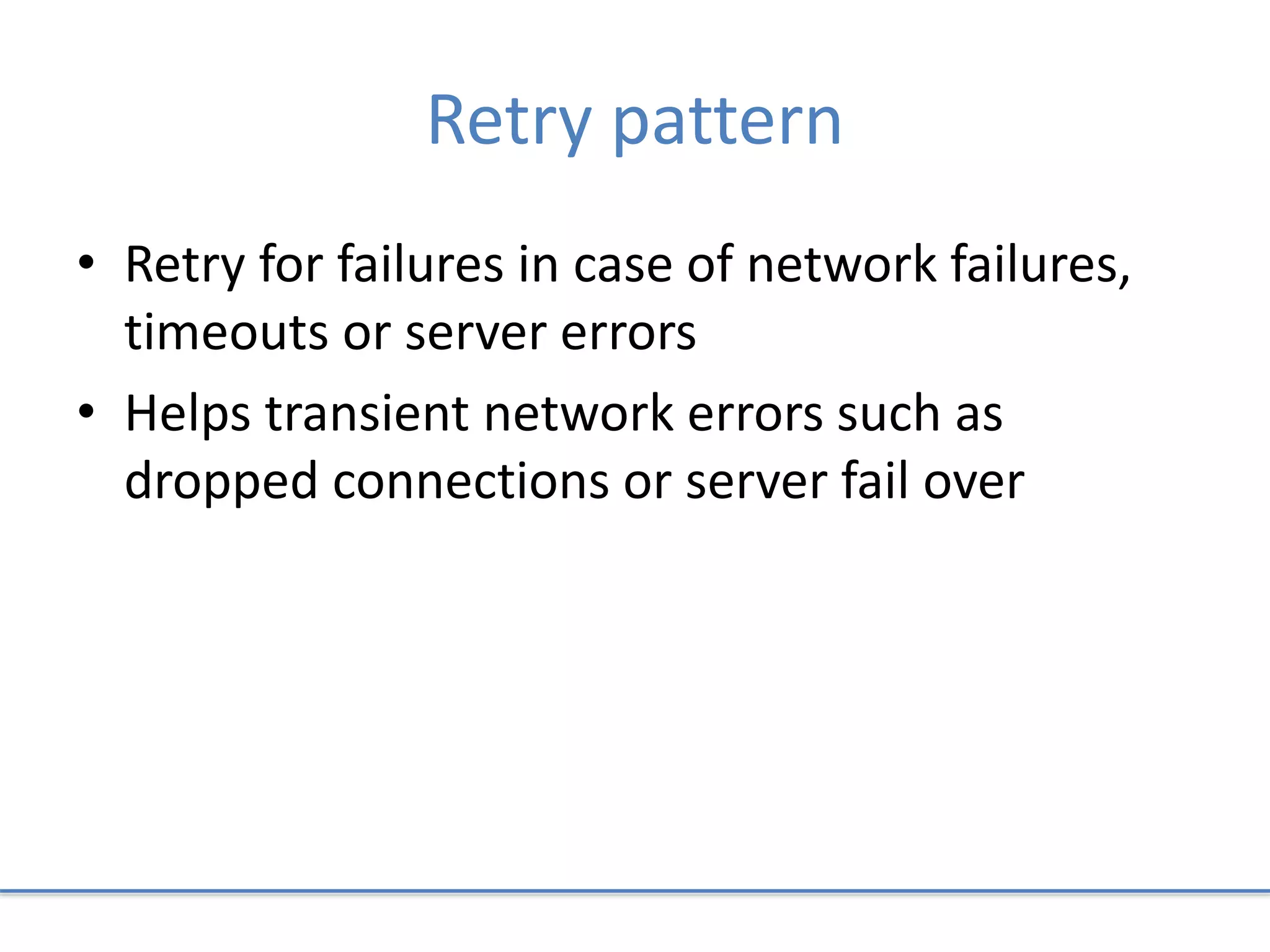

- 31. Retry pattern • Retryfor failures in case of network failures, timeouts or server errors • Helps transient network errors such as dropped connections or server fail over

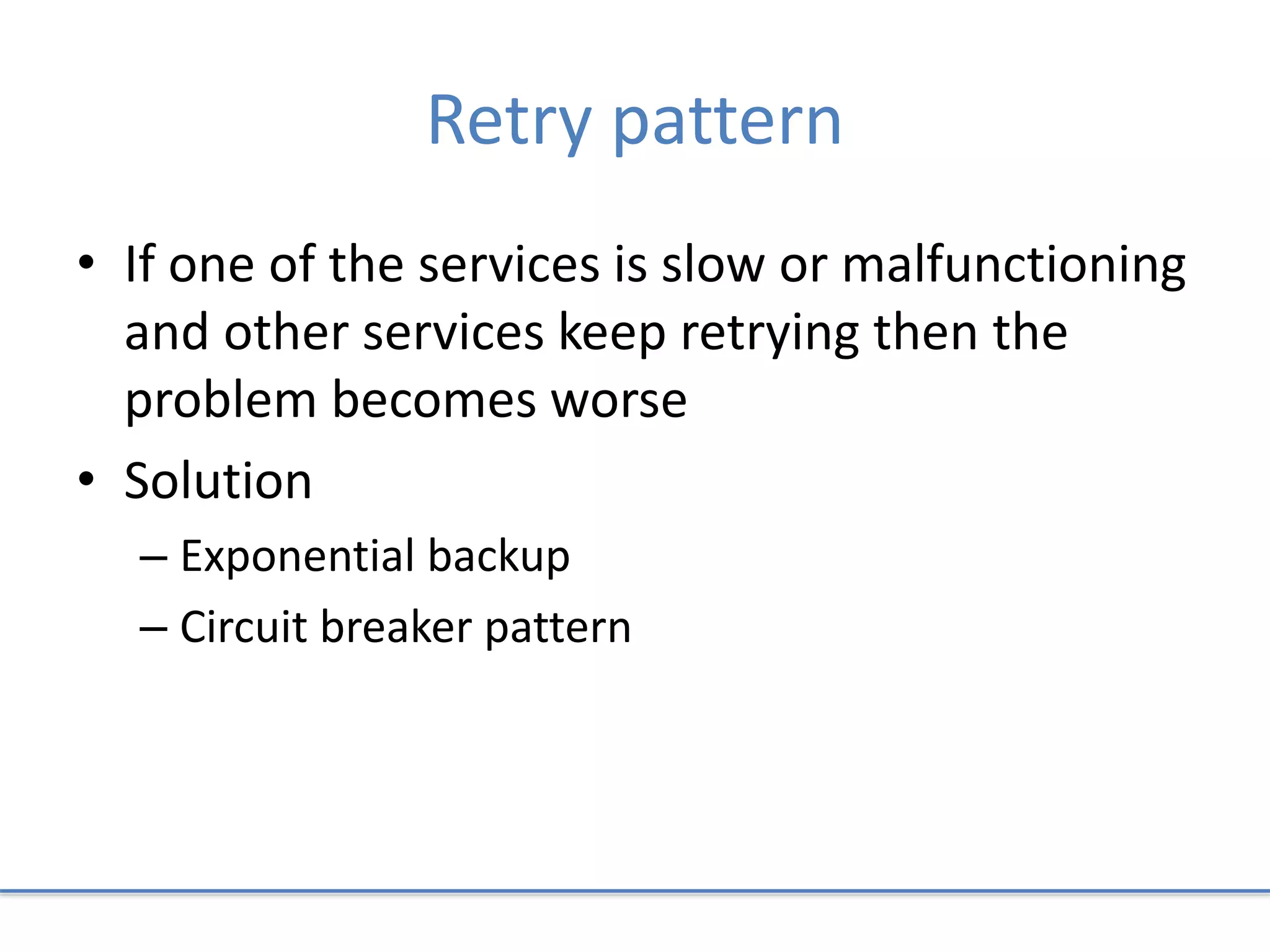

- 32. Retry pattern • Ifone of the services is slow or malfunctioning and other services keep retrying then the problem becomes worse • Solution – Exponential backup – Circuit breaker pattern

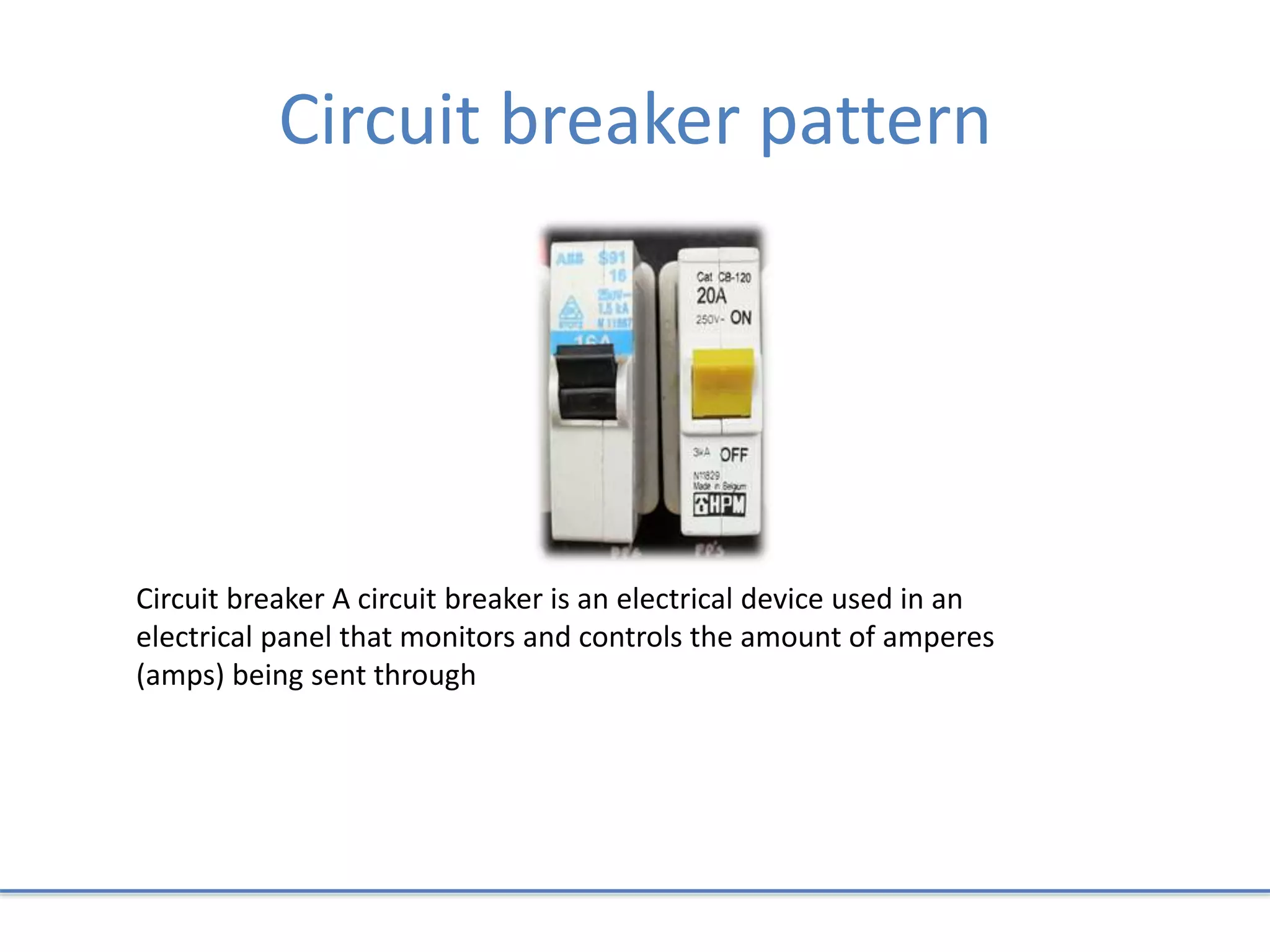

- 33. Circuit breaker pattern Circuitbreaker A circuit breaker is an electrical device used in an electrical panel that monitors and controls the amount of amperes (amps) being sent through

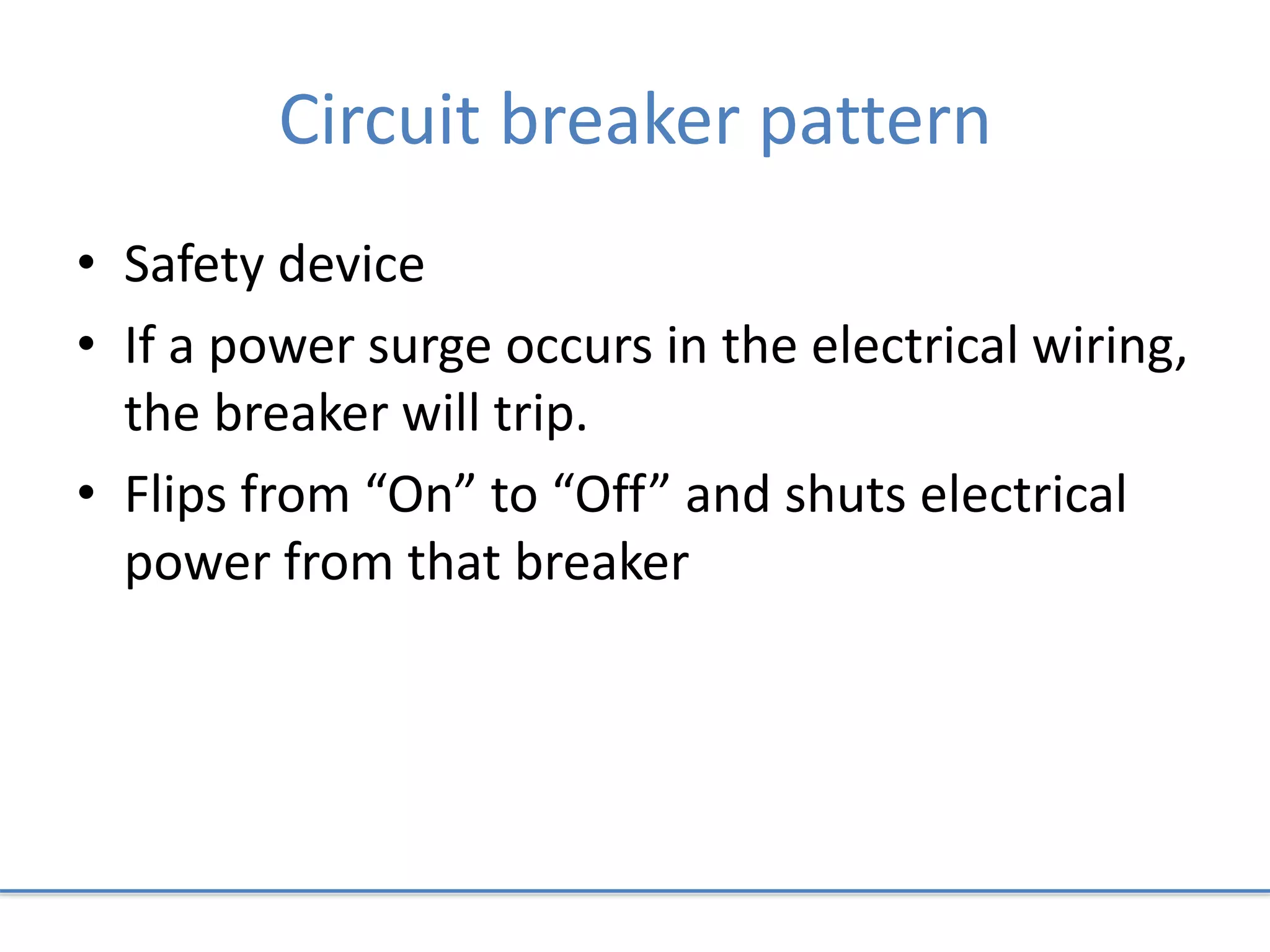

- 34. Circuit breaker pattern •Safety device • If a power surge occurs in the electrical wiring, the breaker will trip. • Flips from “On” to “Off” and shuts electrical power from that breaker

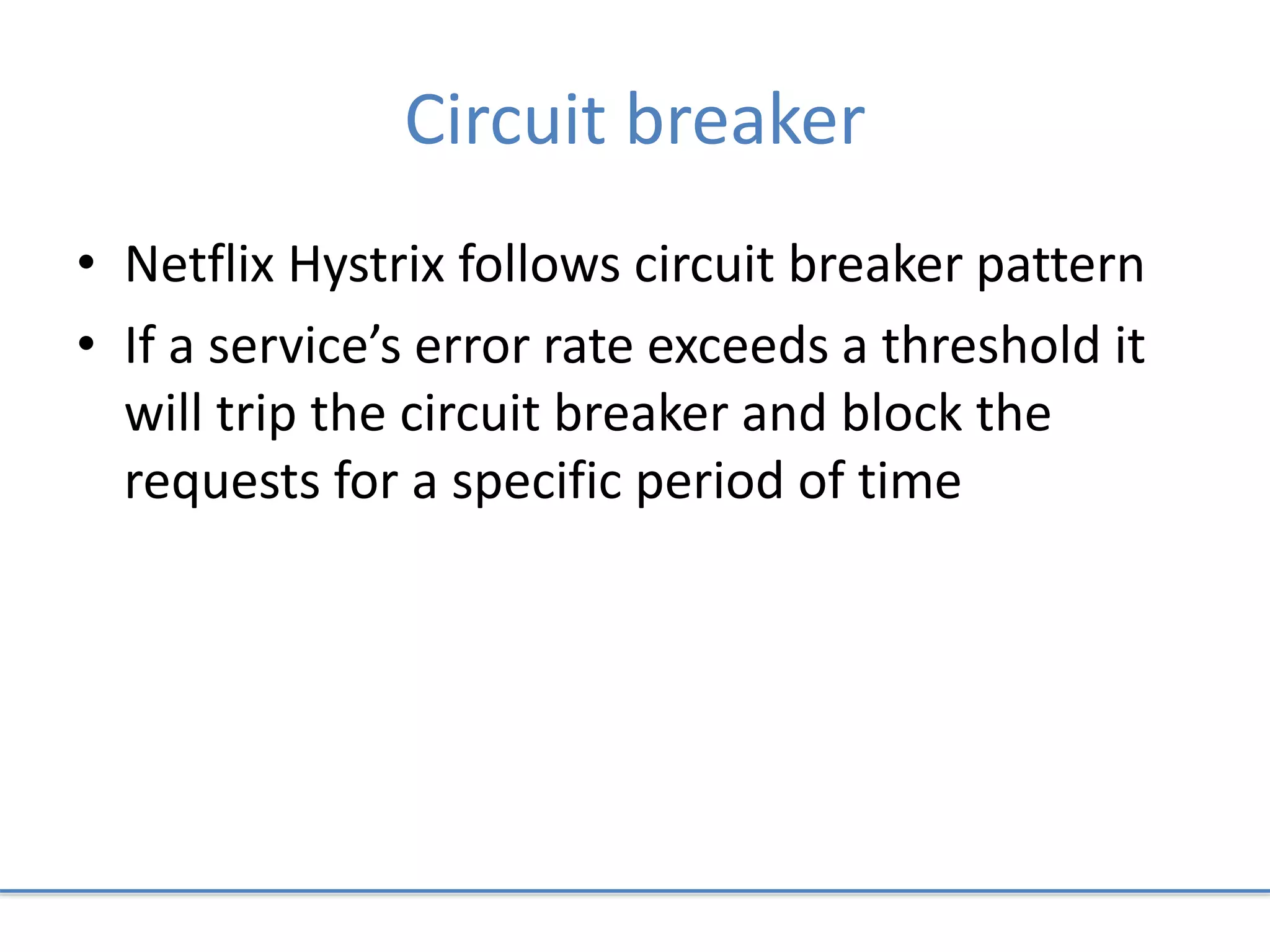

- 35. Circuit breaker • NetflixHystrix follows circuit breaker pattern • If a service’s error rate exceeds a threshold it will trip the circuit breaker and block the requests for a specific period of time

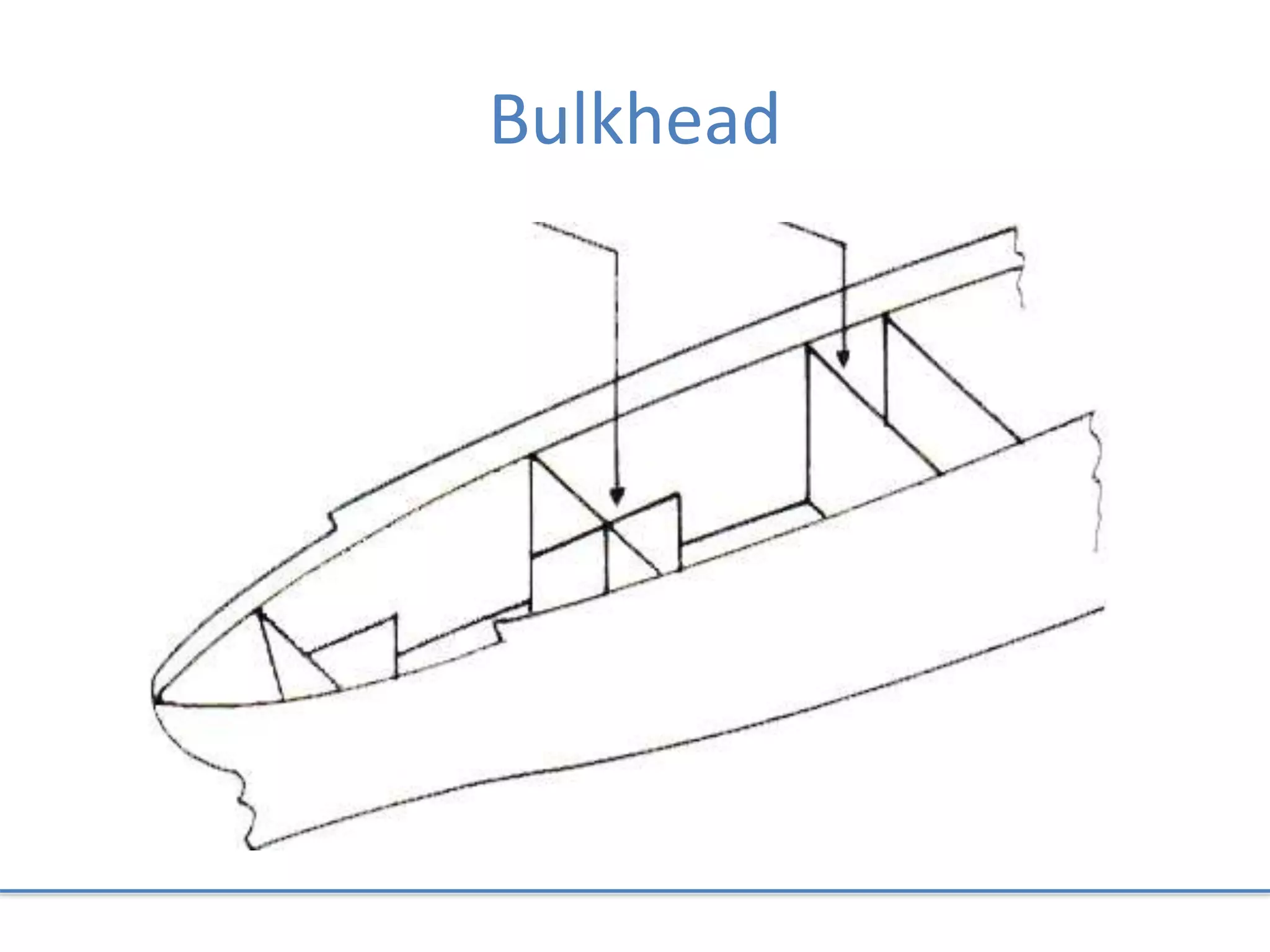

- 36.

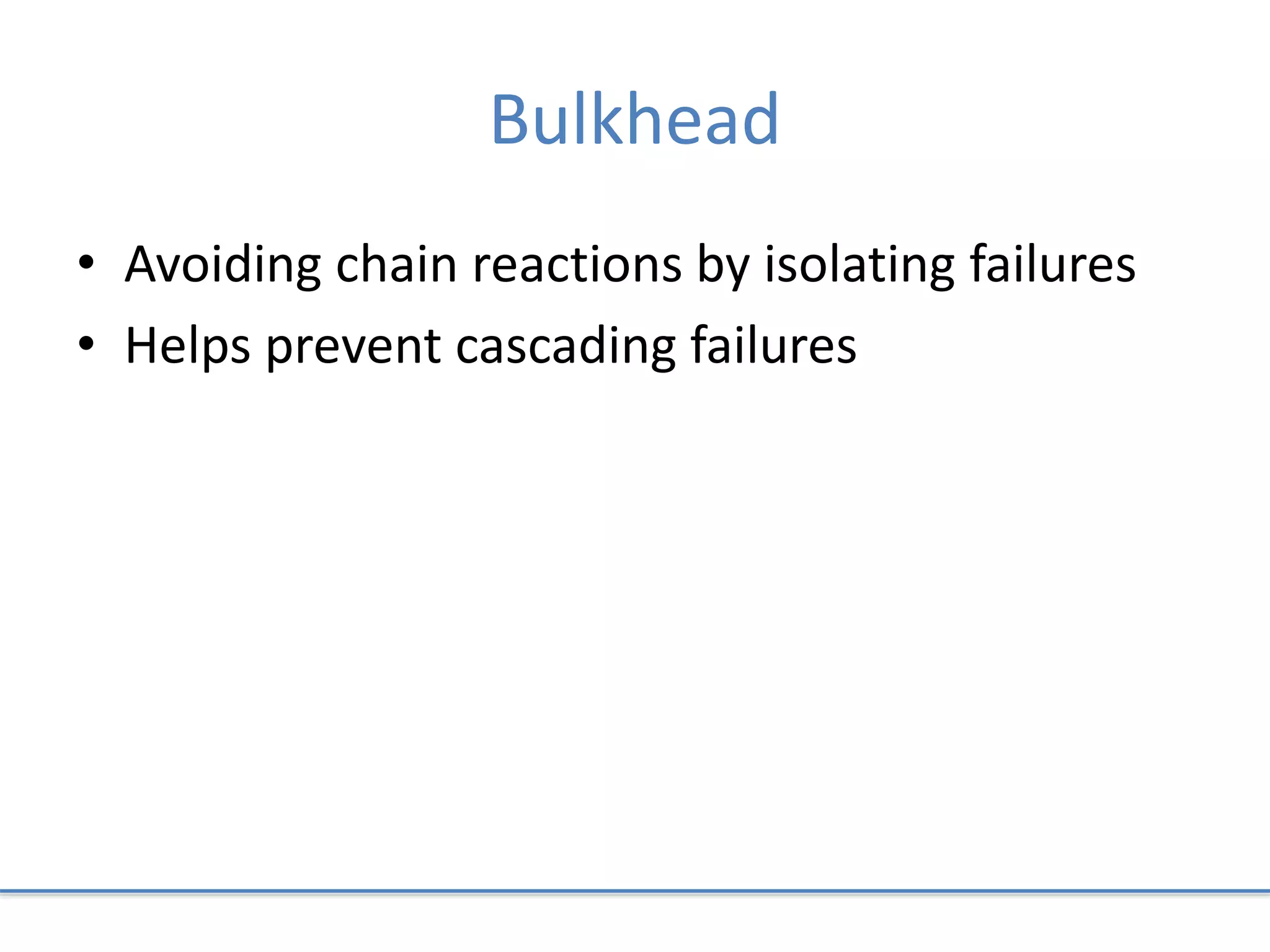

- 37. Bulkhead • Avoiding chainreactions by isolating failures • Helps prevent cascading failures

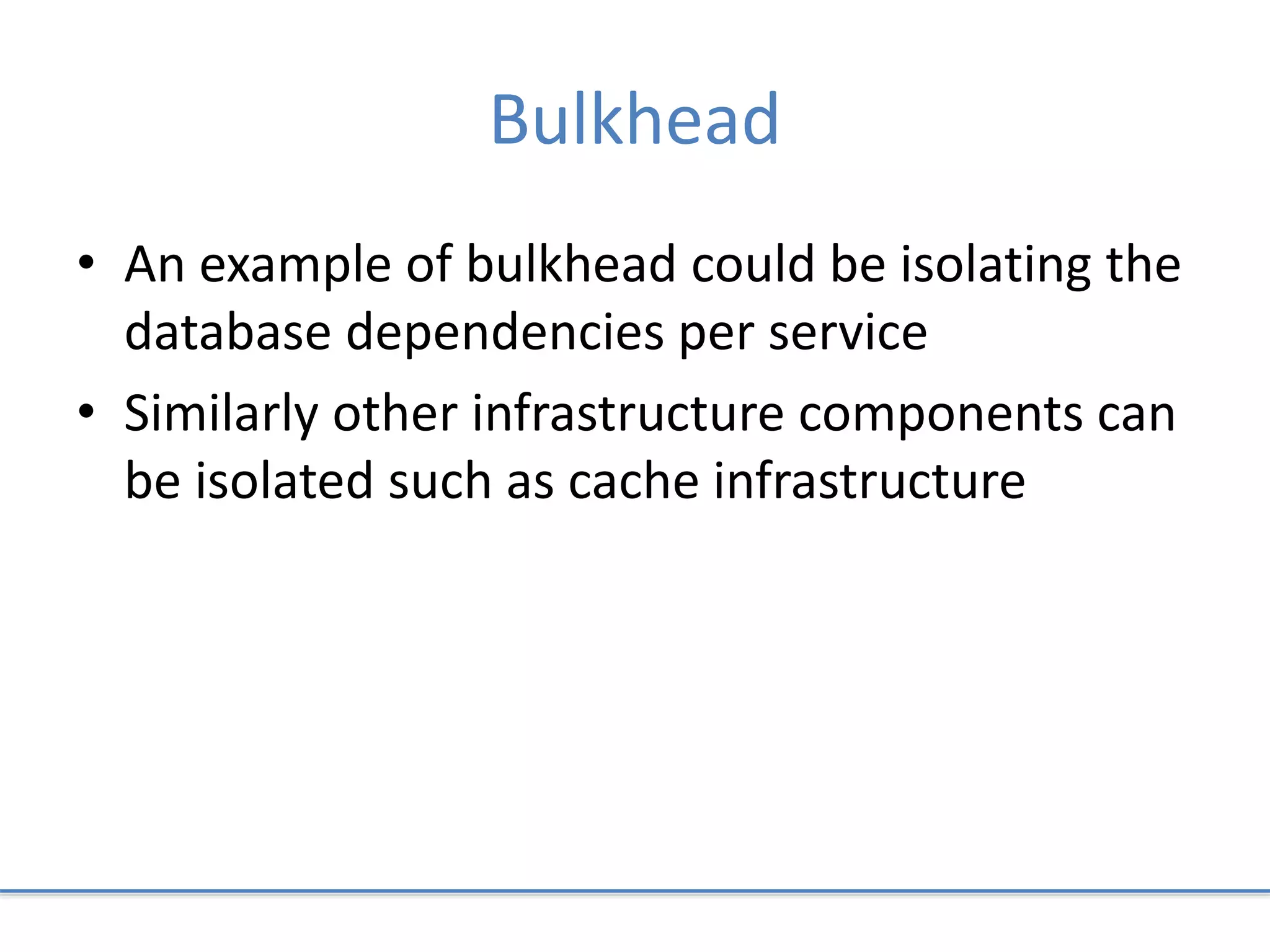

- 38. Bulkhead • An exampleof bulkhead could be isolating the database dependencies per service • Similarly other infrastructure components can be isolated such as cache infrastructure

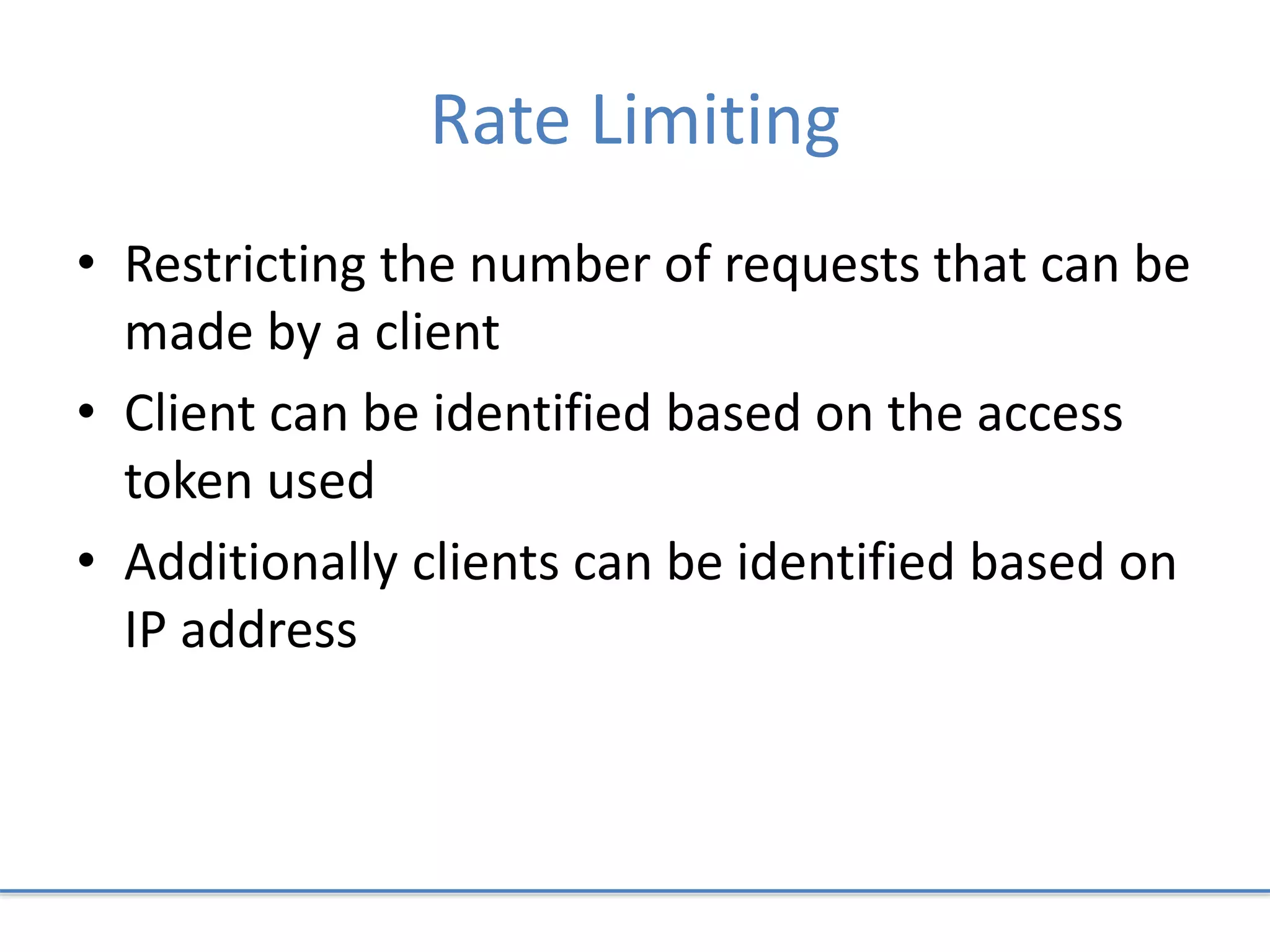

- 39. Rate Limiting • Restrictingthe number of requests that can be made by a client • Client can be identified based on the access token used • Additionally clients can be identified based on IP address

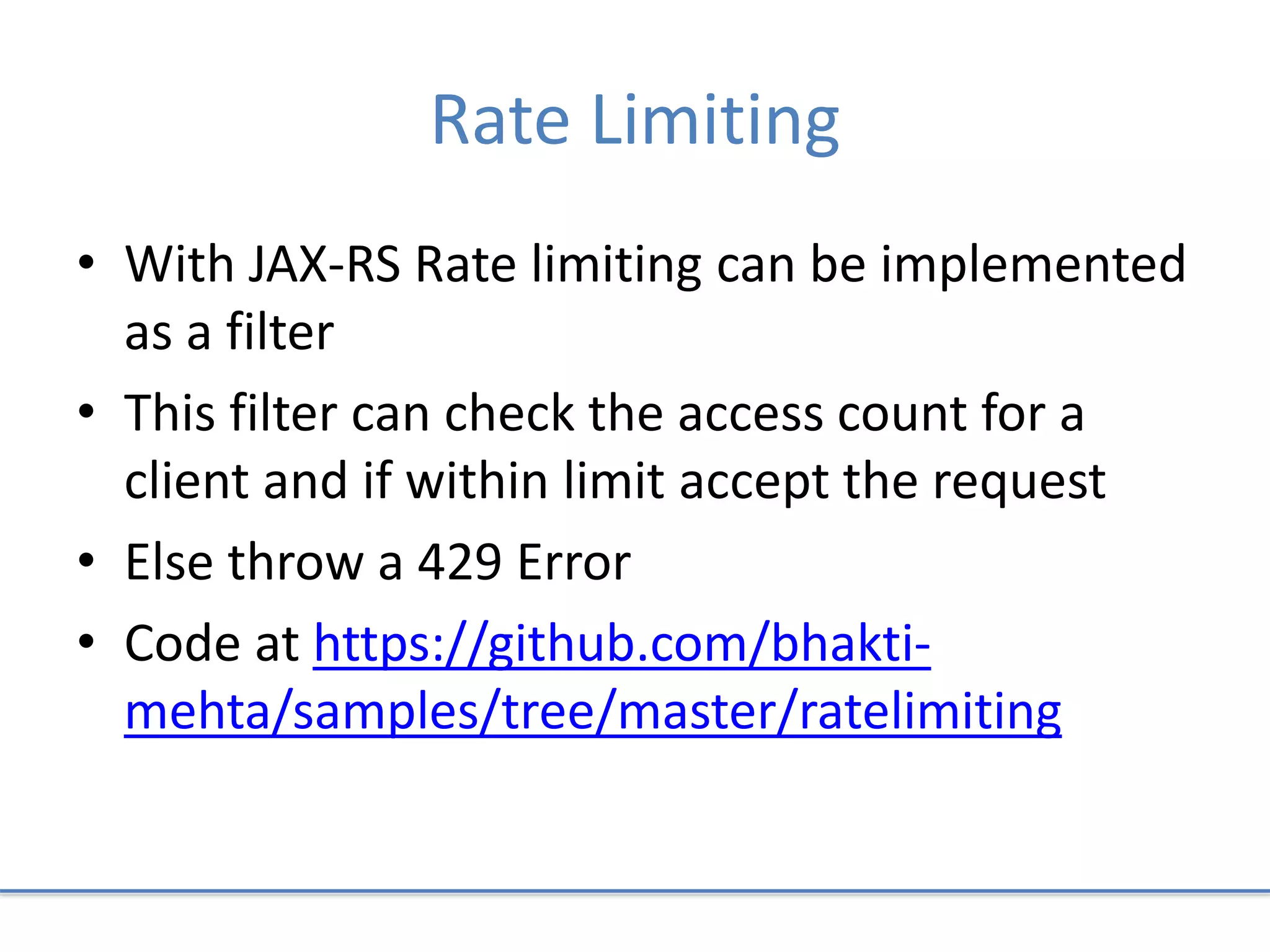

- 40. Rate Limiting • WithJAX-RS Rate limiting can be implemented as a filter • This filter can check the access count for a client and if within limit accept the request • Else throw a 429 Error • Code at https://github.com/bhakti- mehta/samples/tree/master/ratelimiting

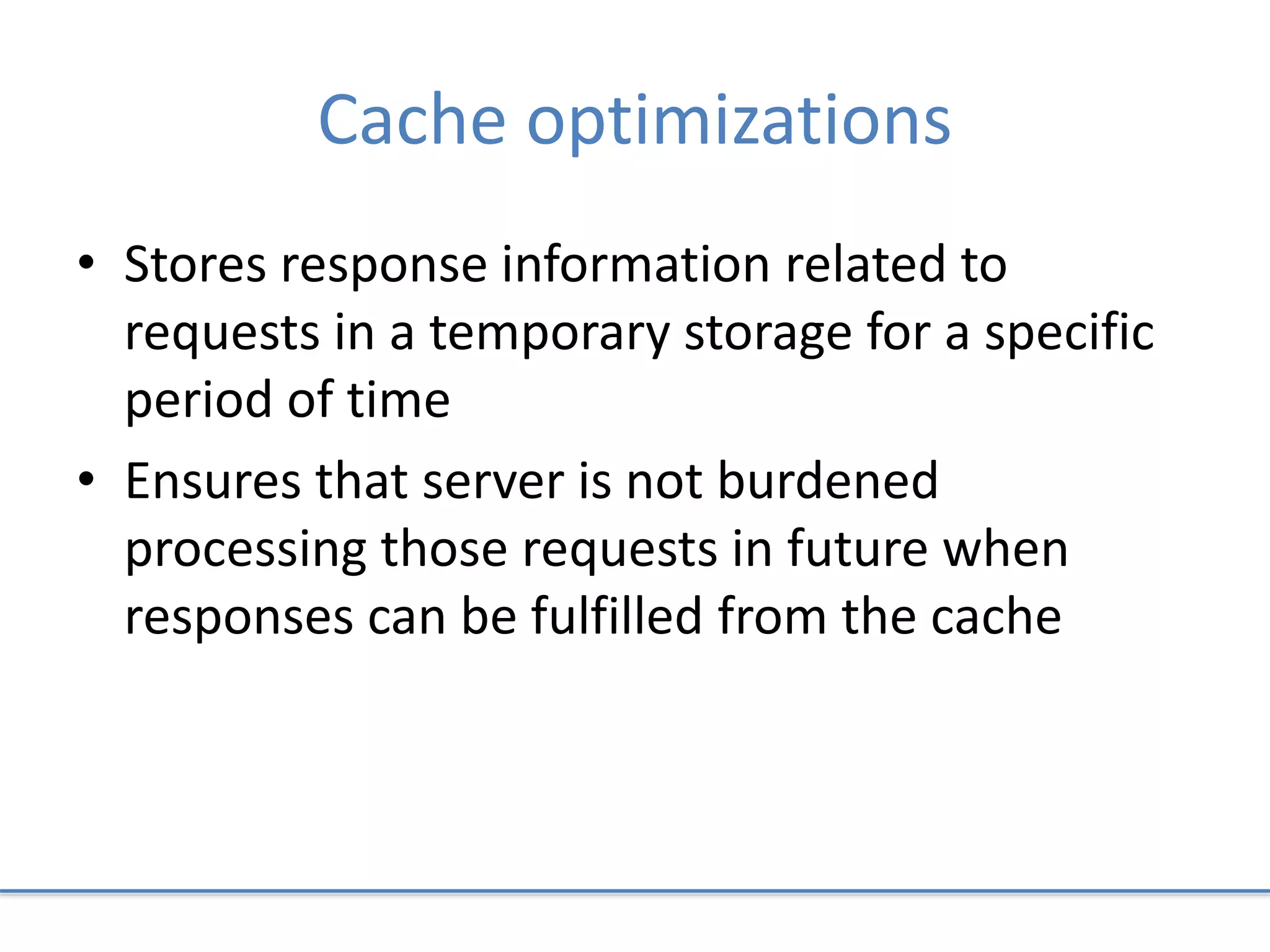

- 41. Cache optimizations • Storesresponse information related to requests in a temporary storage for a specific period of time • Ensures that server is not burdened processing those requests in future when responses can be fulfilled from the cache

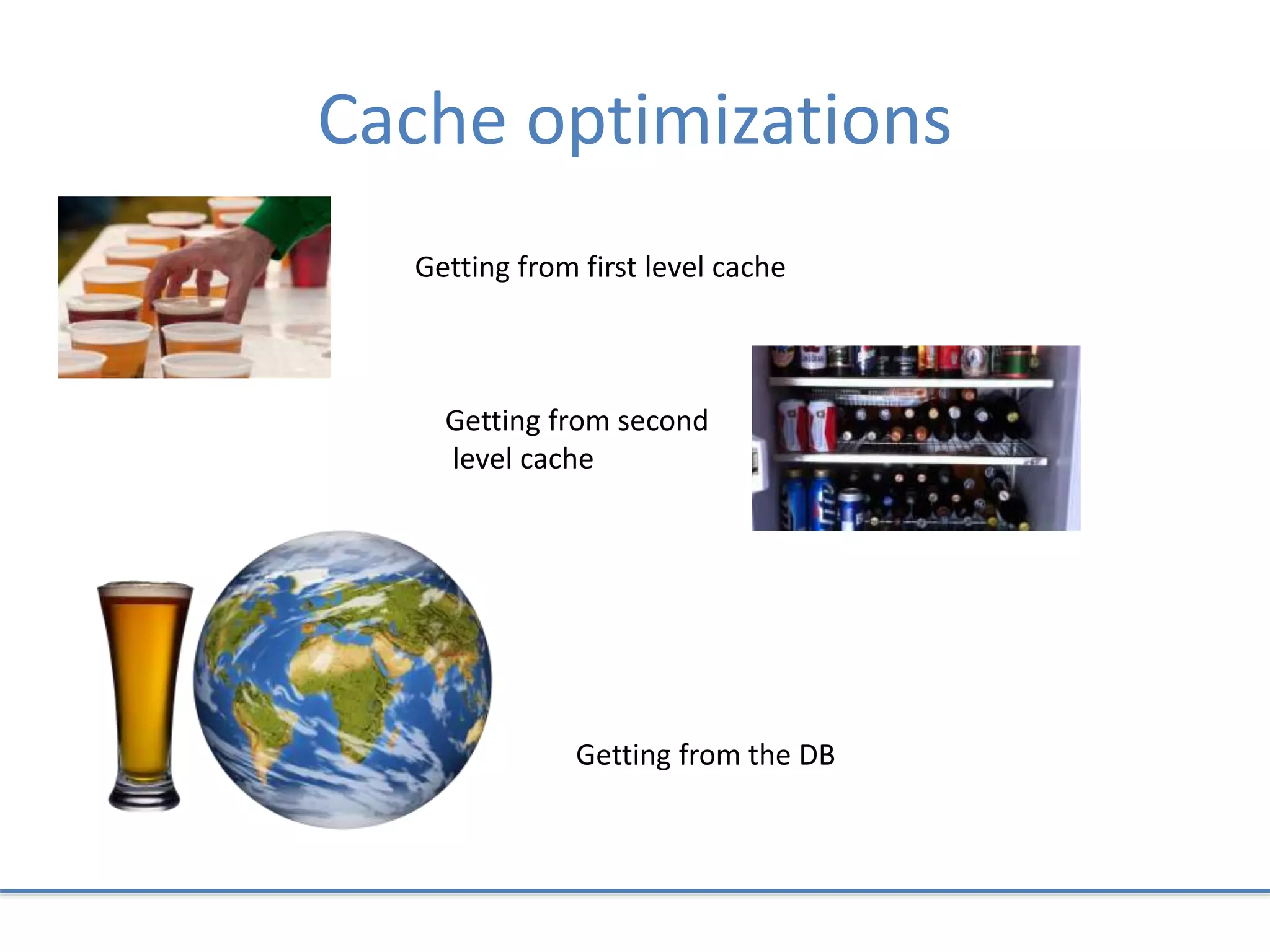

- 42. Cache optimizations Getting fromfirst level cache Getting from second level cache Getting from the DB

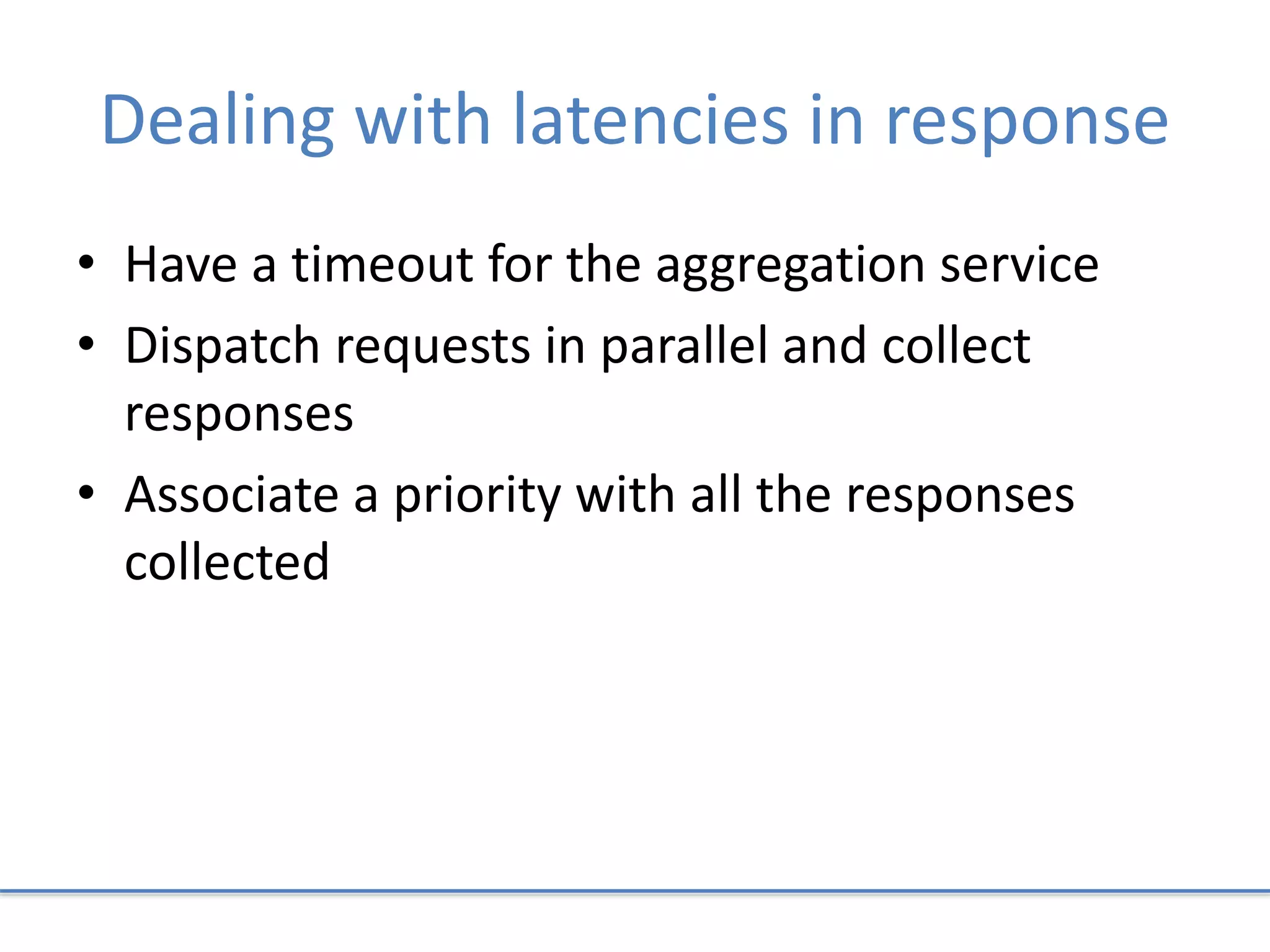

- 43. Dealing with latenciesin response • Have a timeout for the aggregation service • Dispatch requests in parallel and collect responses • Associate a priority with all the responses collected

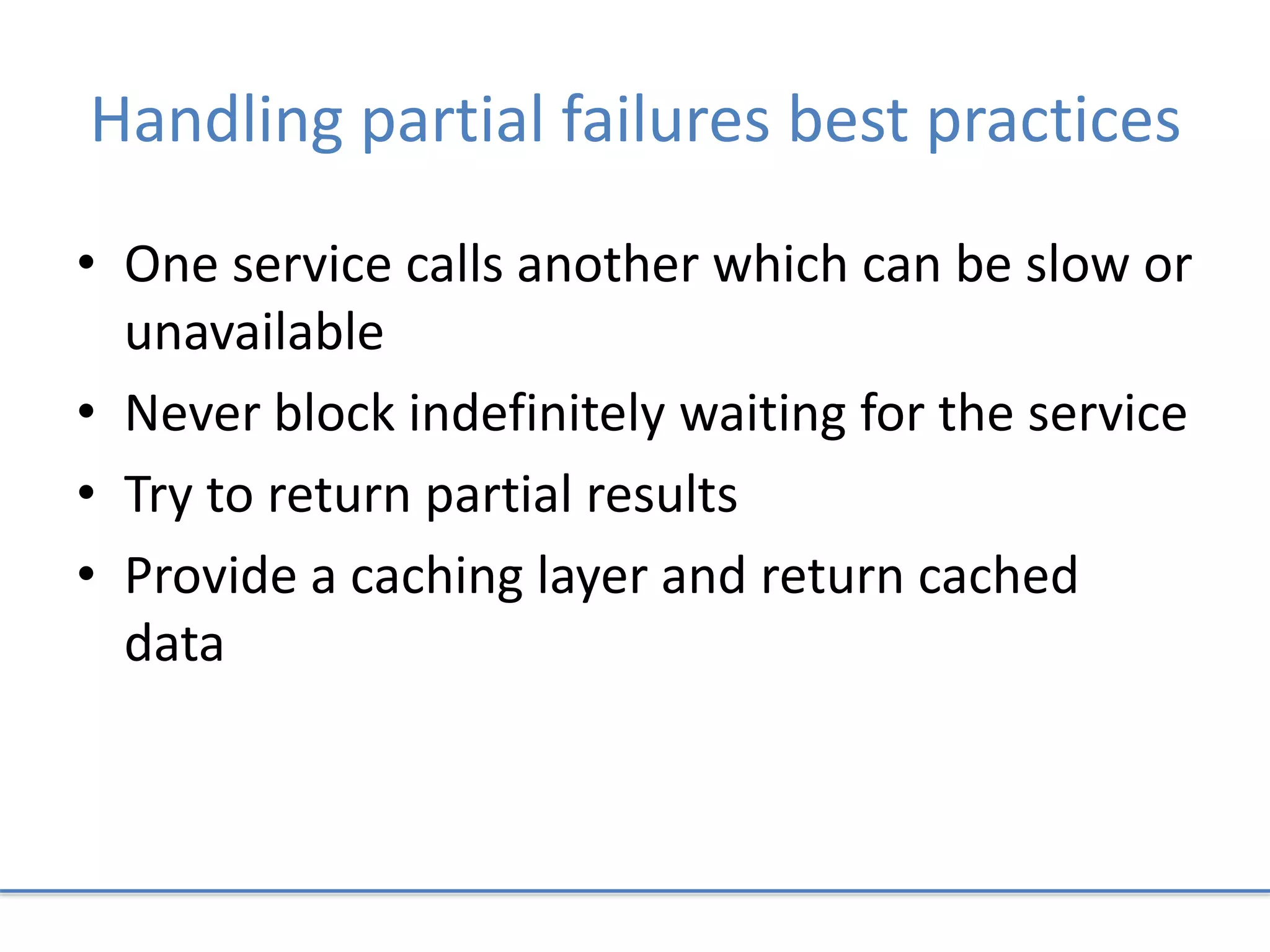

- 44. Handling partial failuresbest practices • One service calls another which can be slow or unavailable • Never block indefinitely waiting for the service • Try to return partial results • Provide a caching layer and return cached data

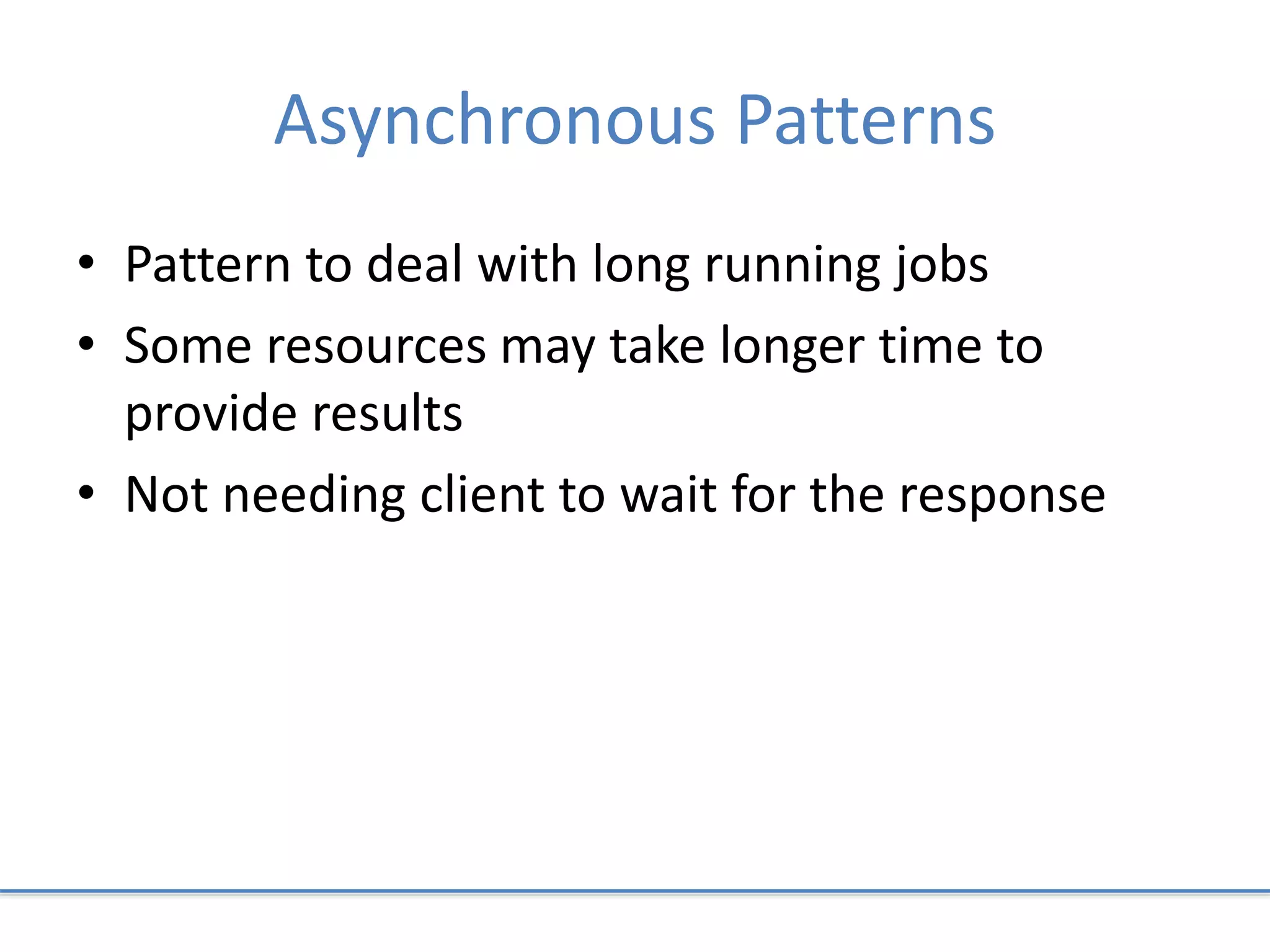

- 45. Asynchronous Patterns • Patternto deal with long running jobs • Some resources may take longer time to provide results • Not needing client to wait for the response

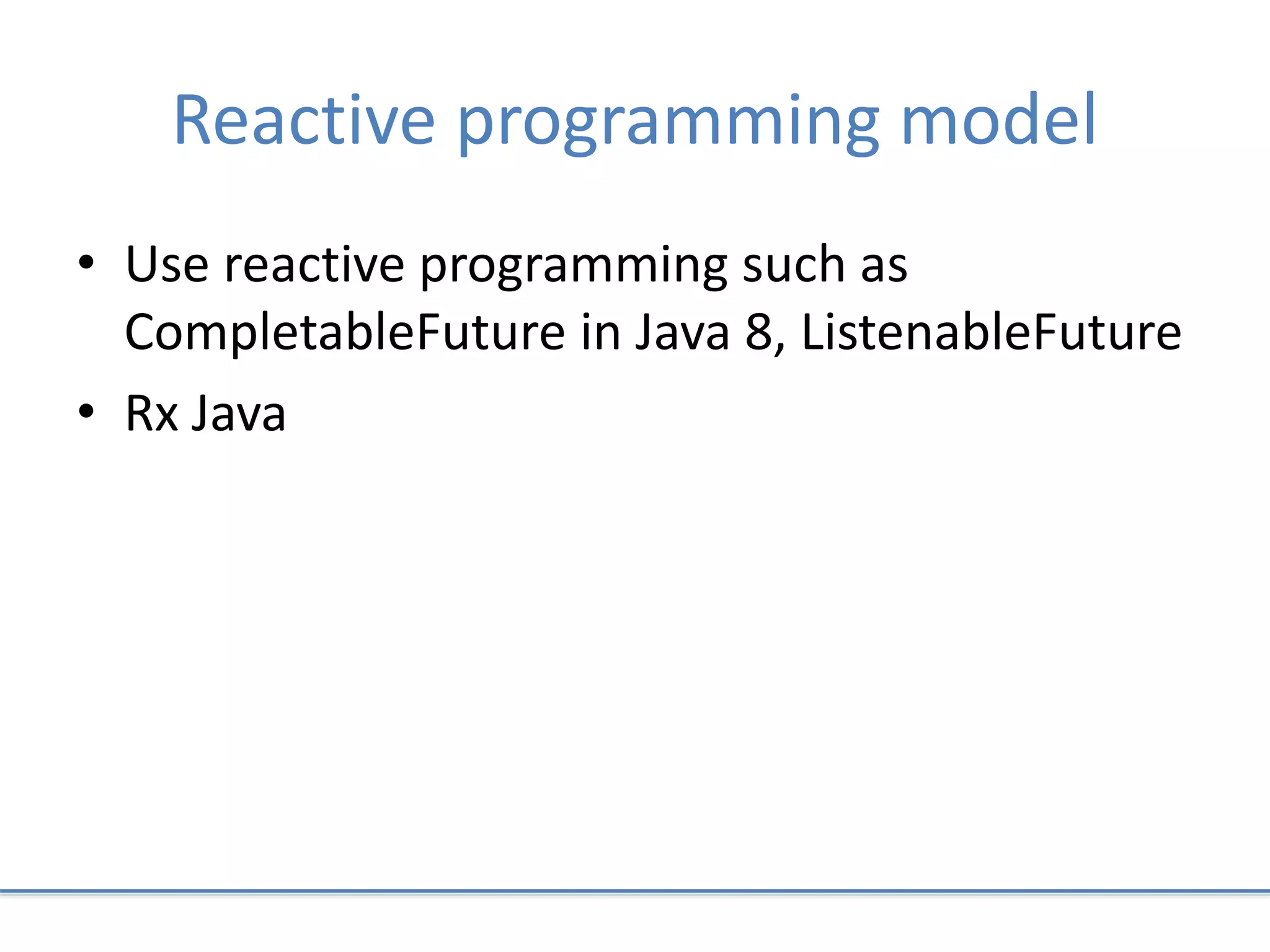

- 46. Reactive programming model •Use reactive programming such as CompletableFuture in Java 8, ListenableFuture • Rx Java

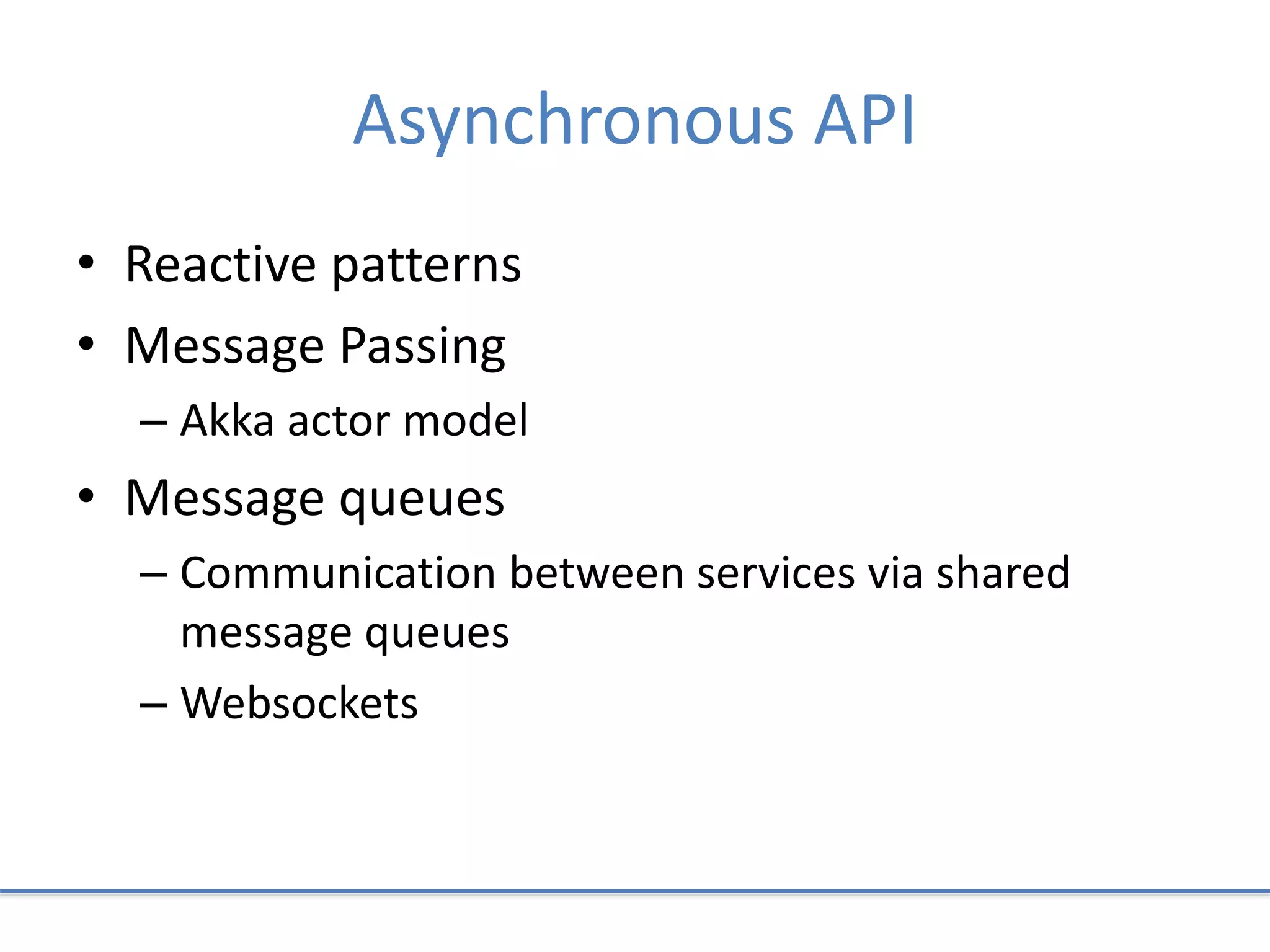

- 47. Asynchronous API • Reactivepatterns • Message Passing – Akka actor model • Message queues – Communication between services via shared message queues – Websockets

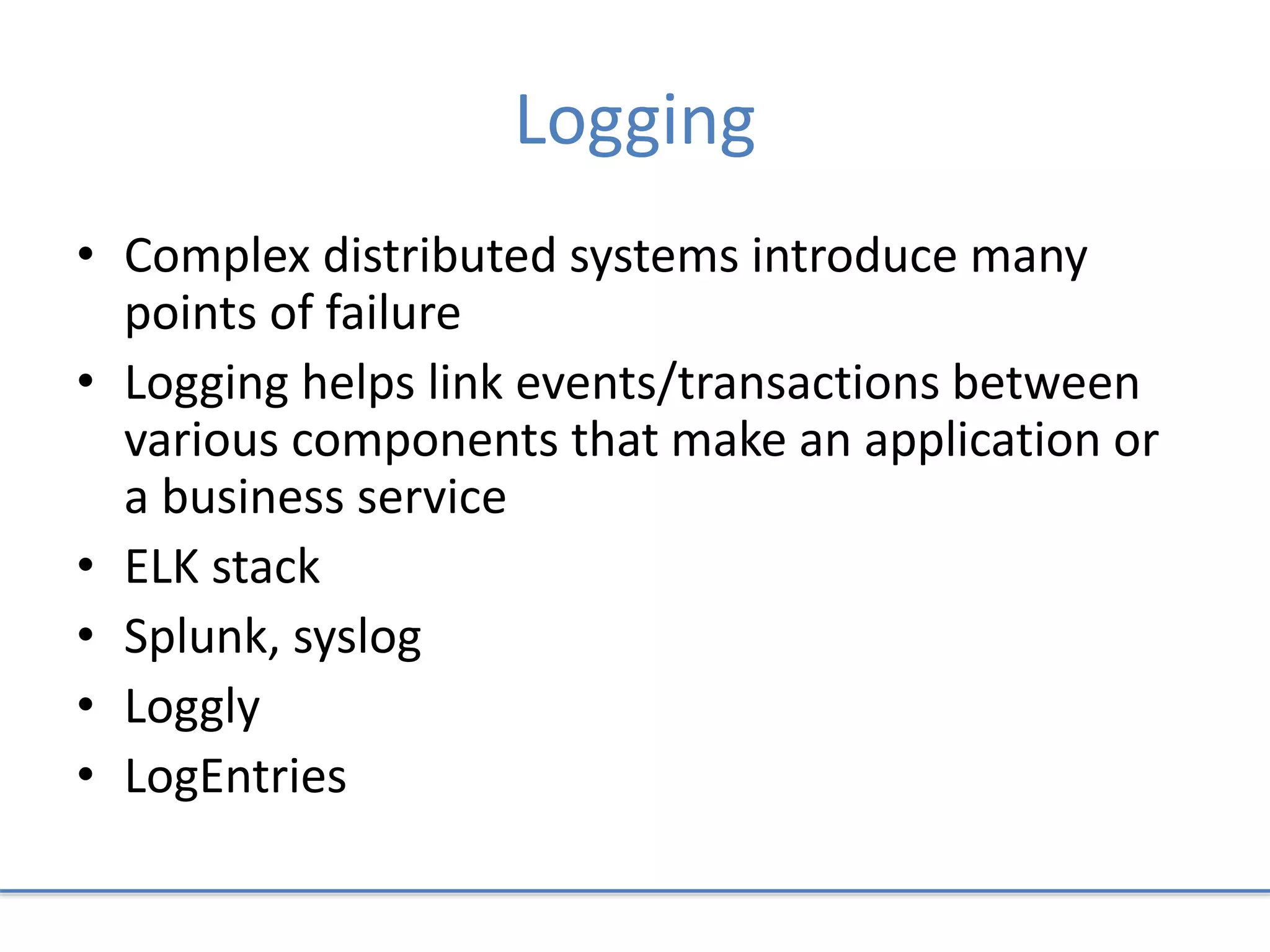

- 48. Logging • Complex distributedsystems introduce many points of failure • Logging helps link events/transactions between various components that make an application or a business service • ELK stack • Splunk, syslog • Loggly • LogEntries

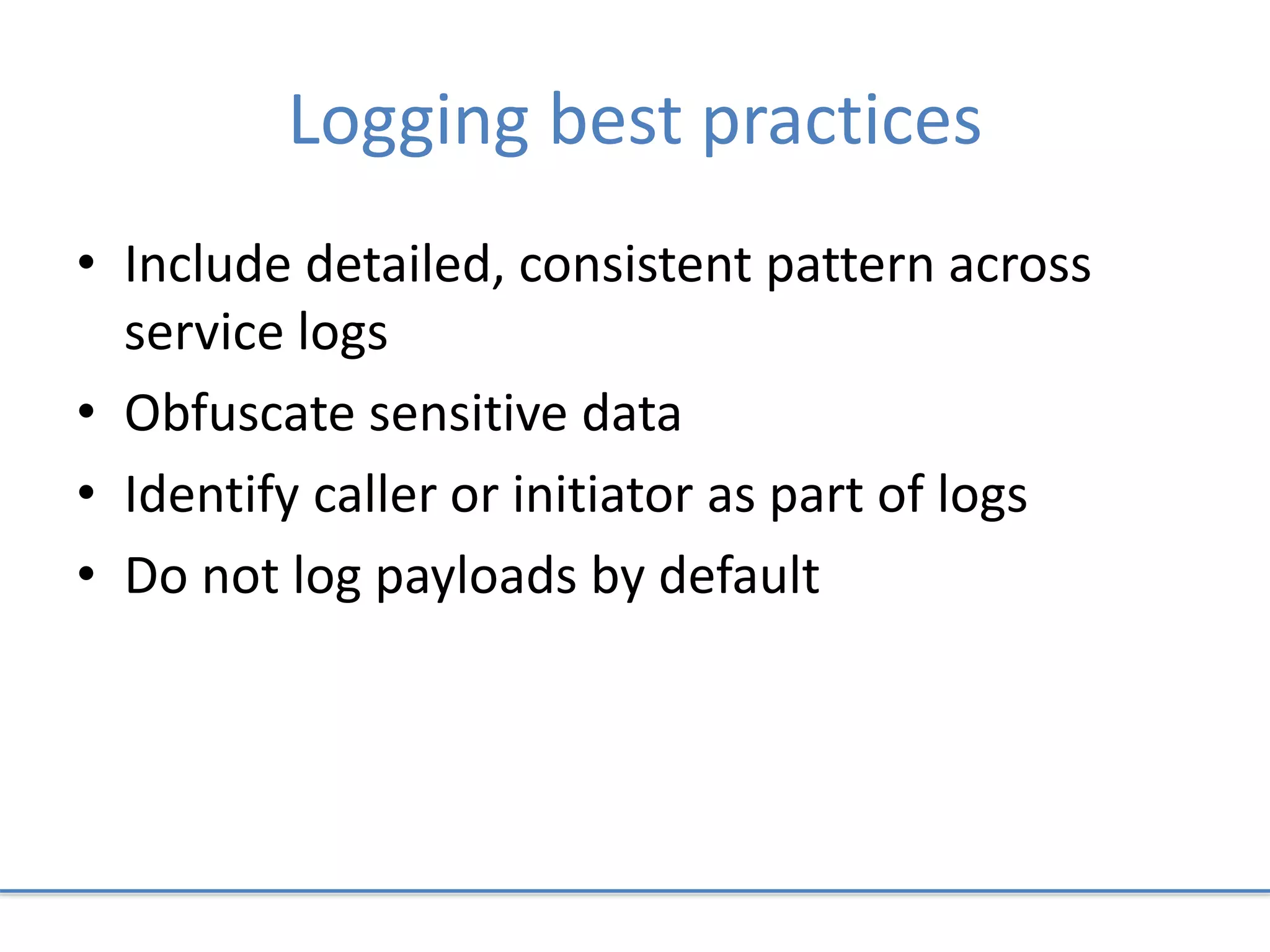

- 49. Logging best practices •Include detailed, consistent pattern across service logs • Obfuscate sensitive data • Identify caller or initiator as part of logs • Do not log payloads by default

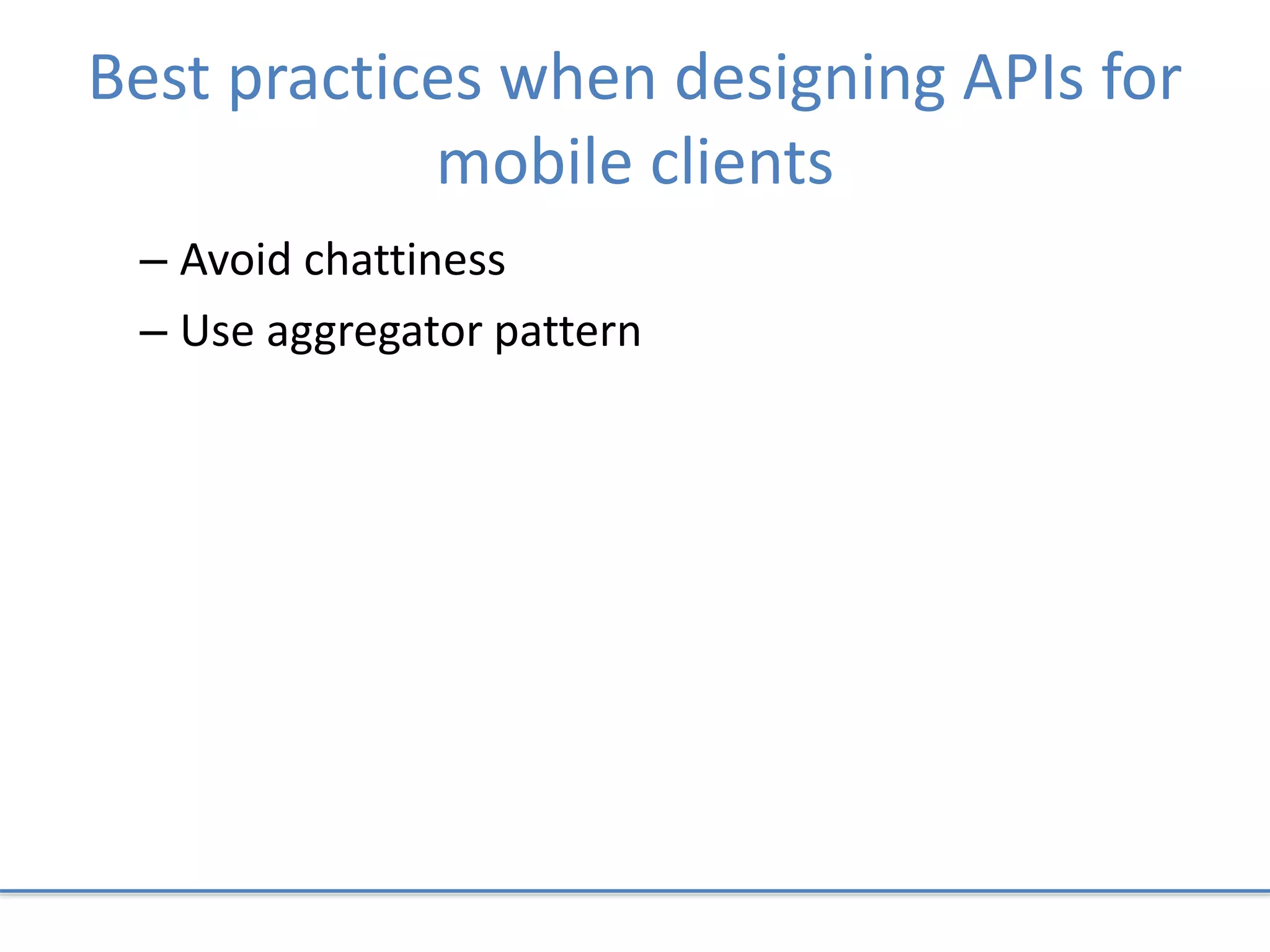

- 50. Best practices whendesigning APIs for mobile clients – Avoid chattiness – Use aggregator pattern

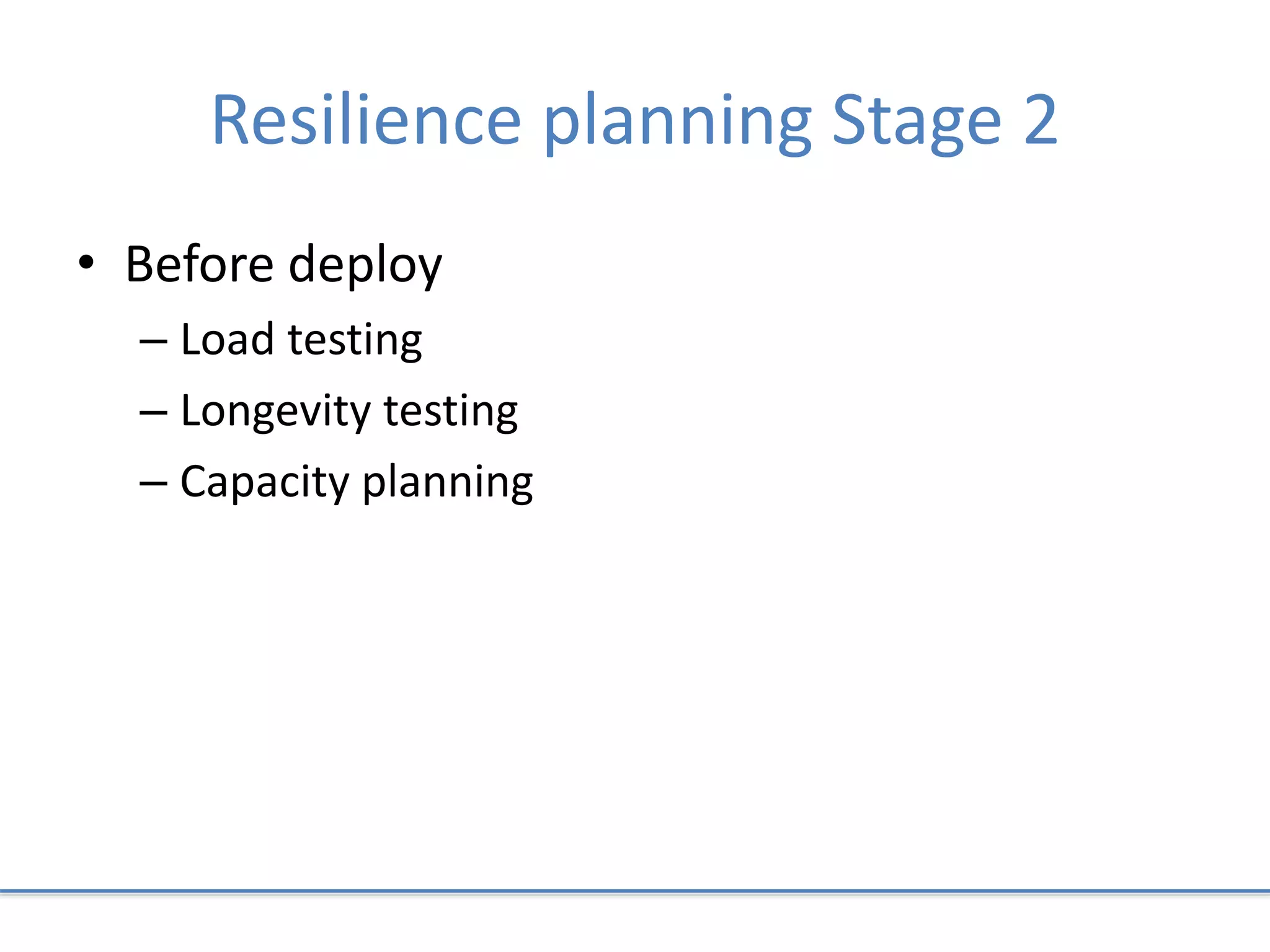

- 51. Resilience planning Stage2 • Before deploy – Load testing – Longevity testing – Capacity planning

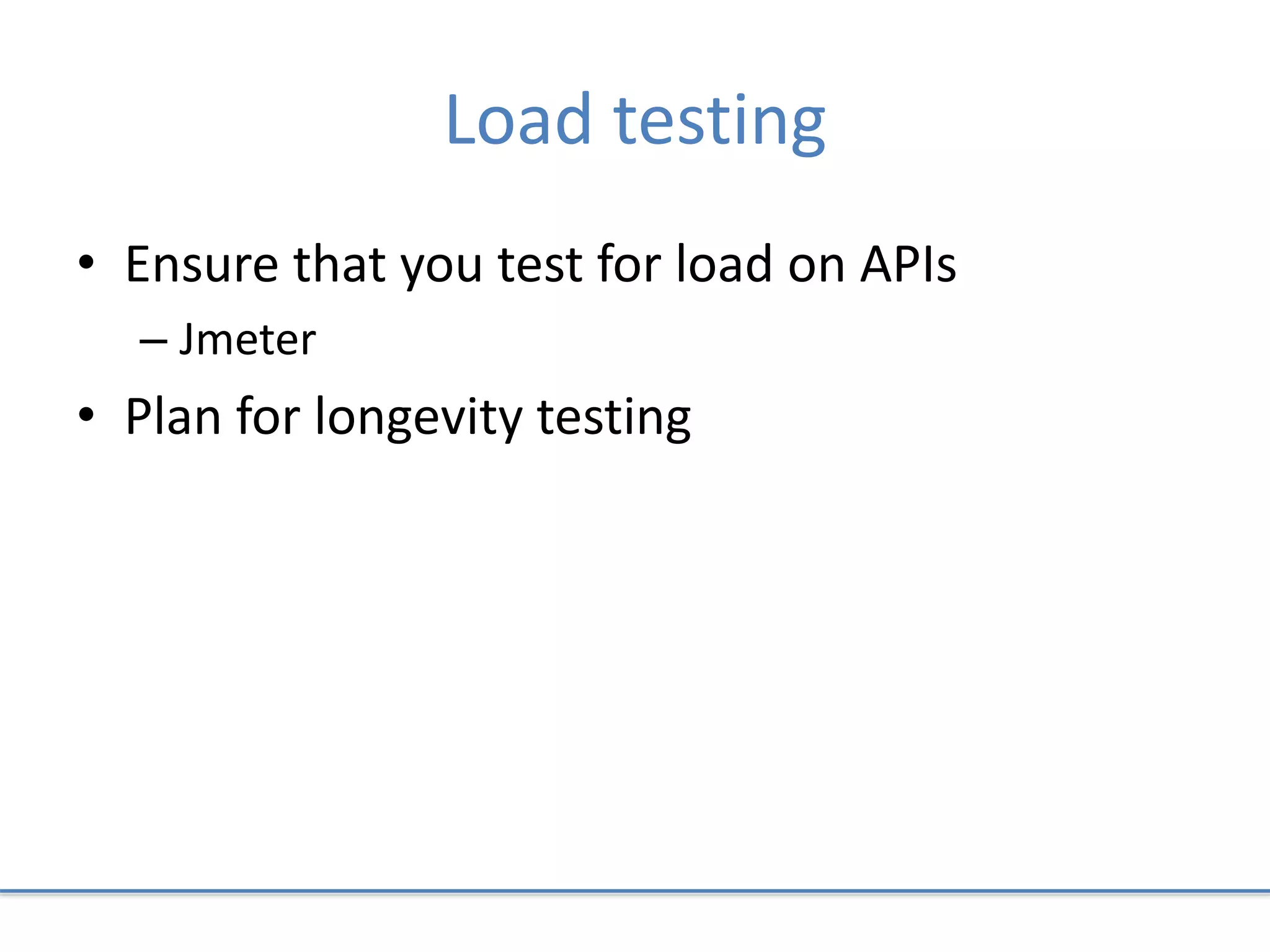

- 52. Load testing • Ensurethat you test for load on APIs – Jmeter • Plan for longevity testing

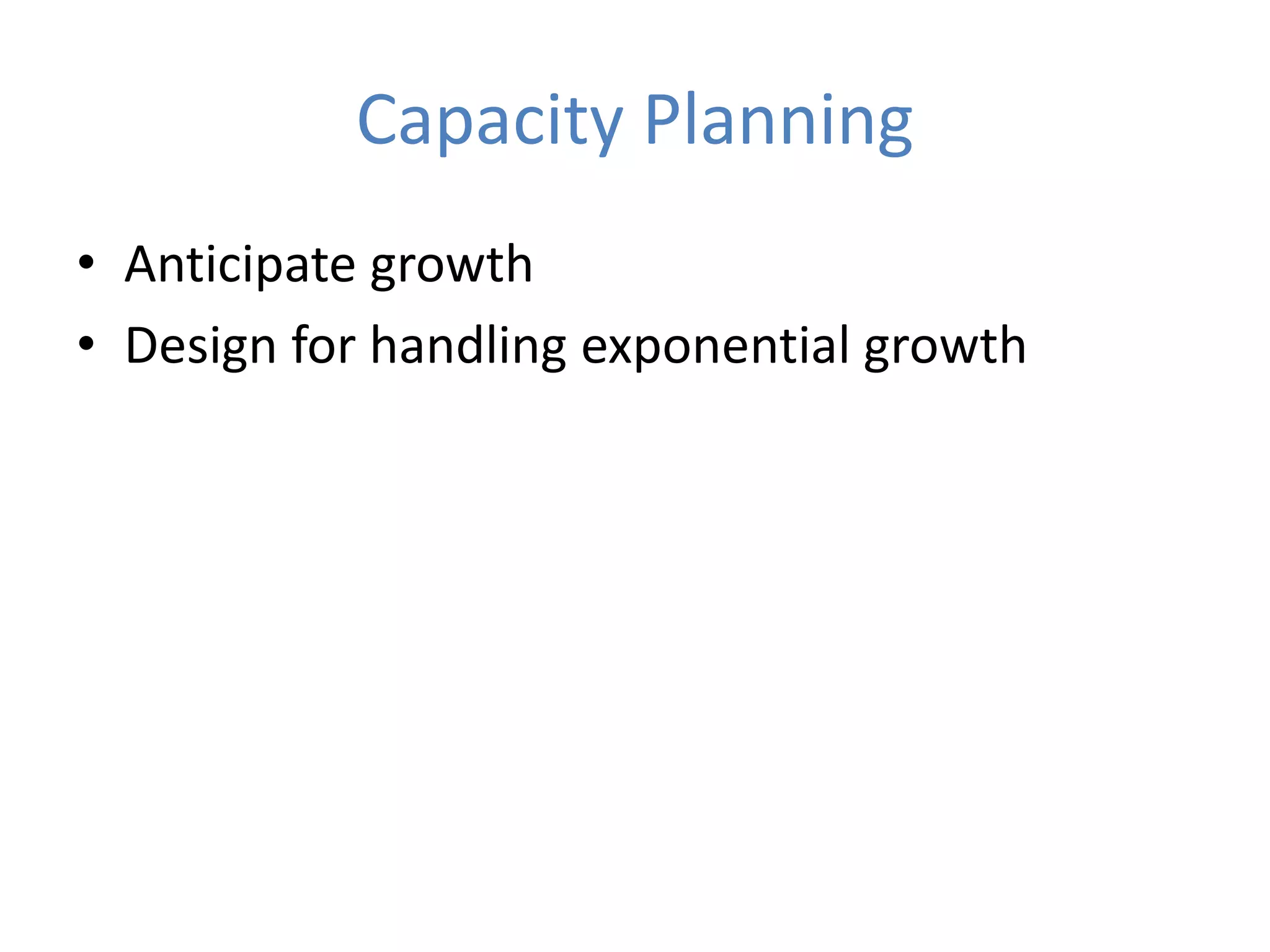

- 53. Capacity Planning • Anticipategrowth • Design for handling exponential growth

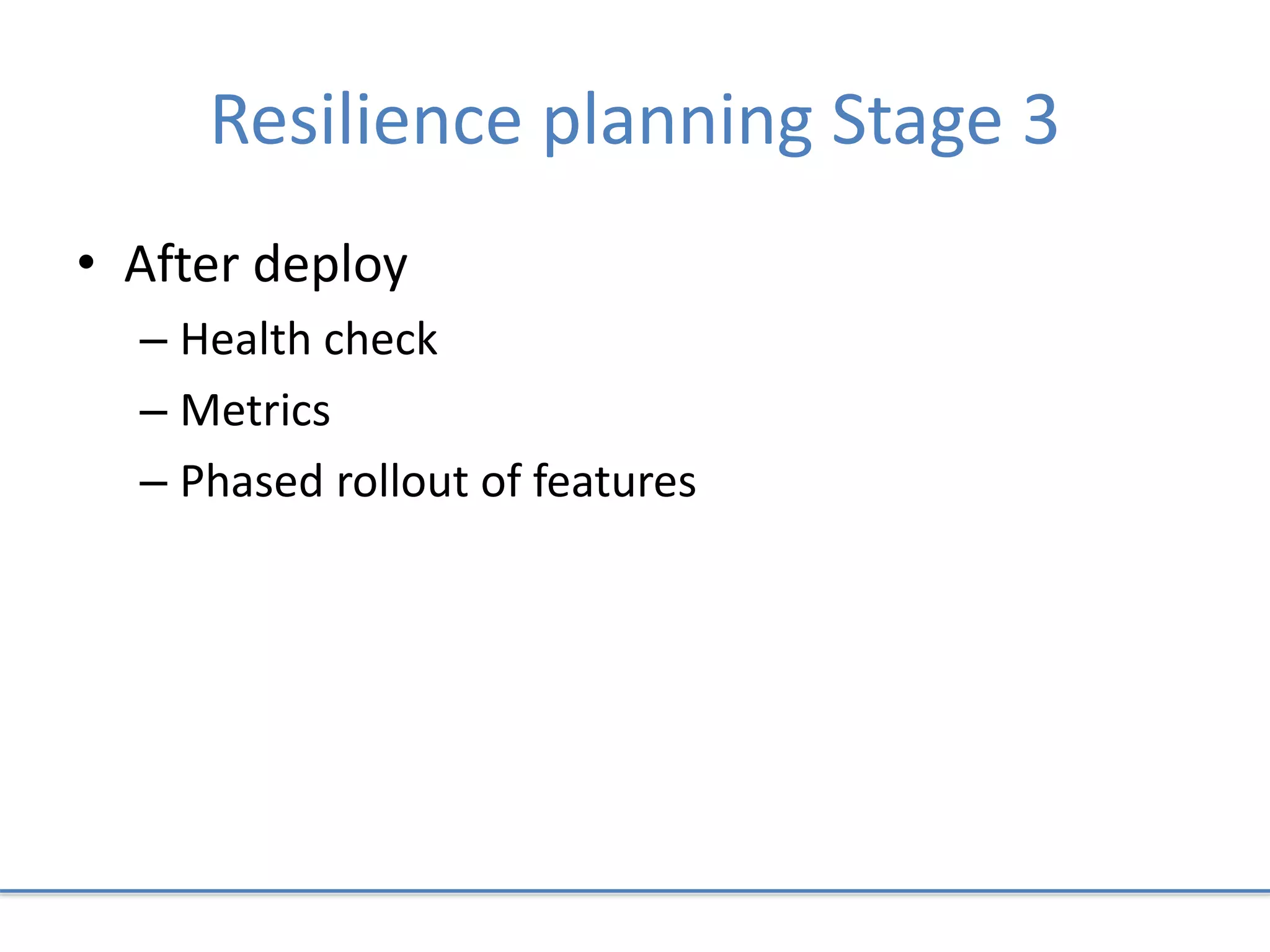

- 54. Resilience planning Stage3 • After deploy – Health check – Metrics – Phased rollout of features

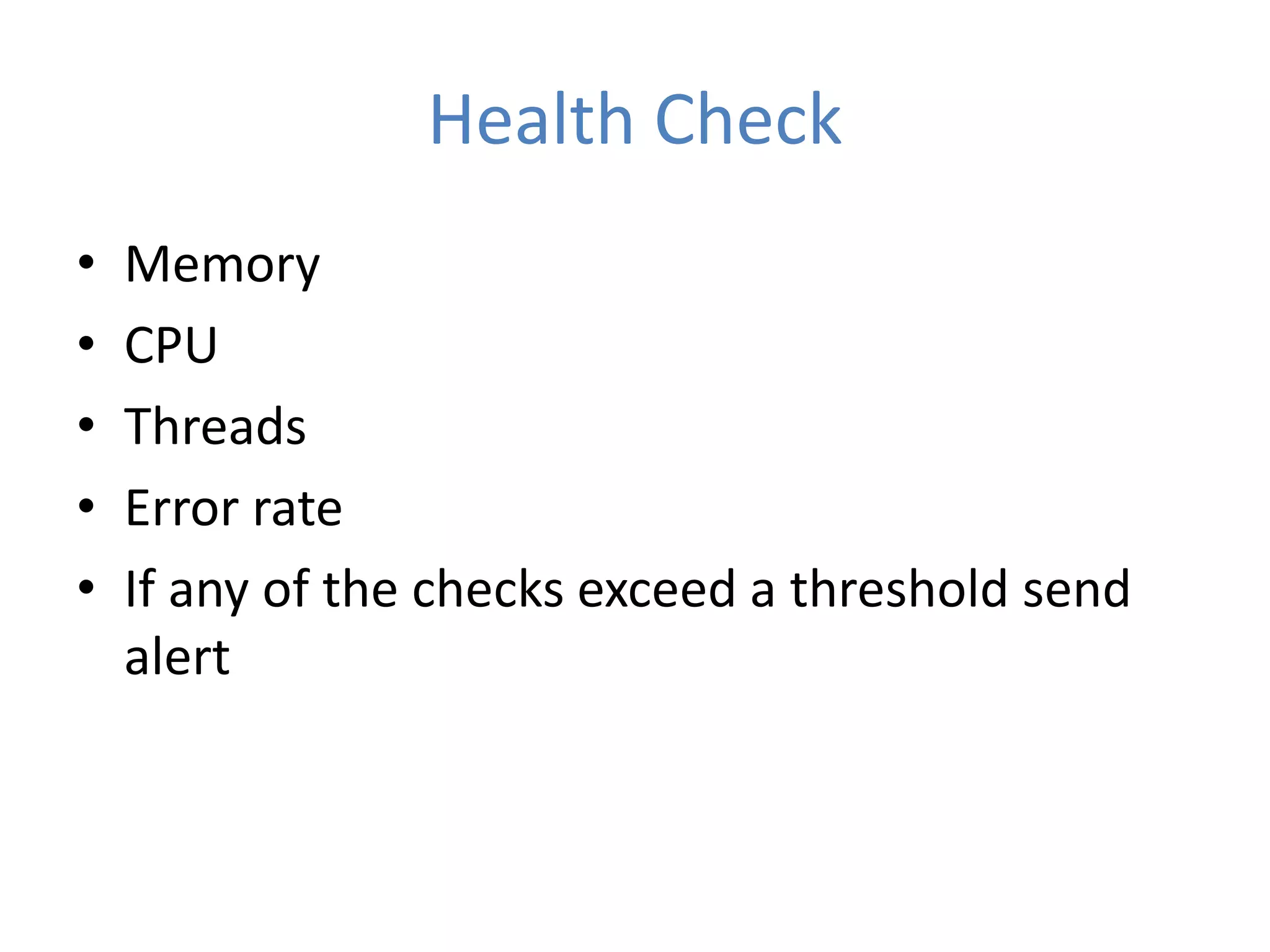

- 56. Health Check • Memory •CPU • Threads • Error rate • If any of the checks exceed a threshold send alert

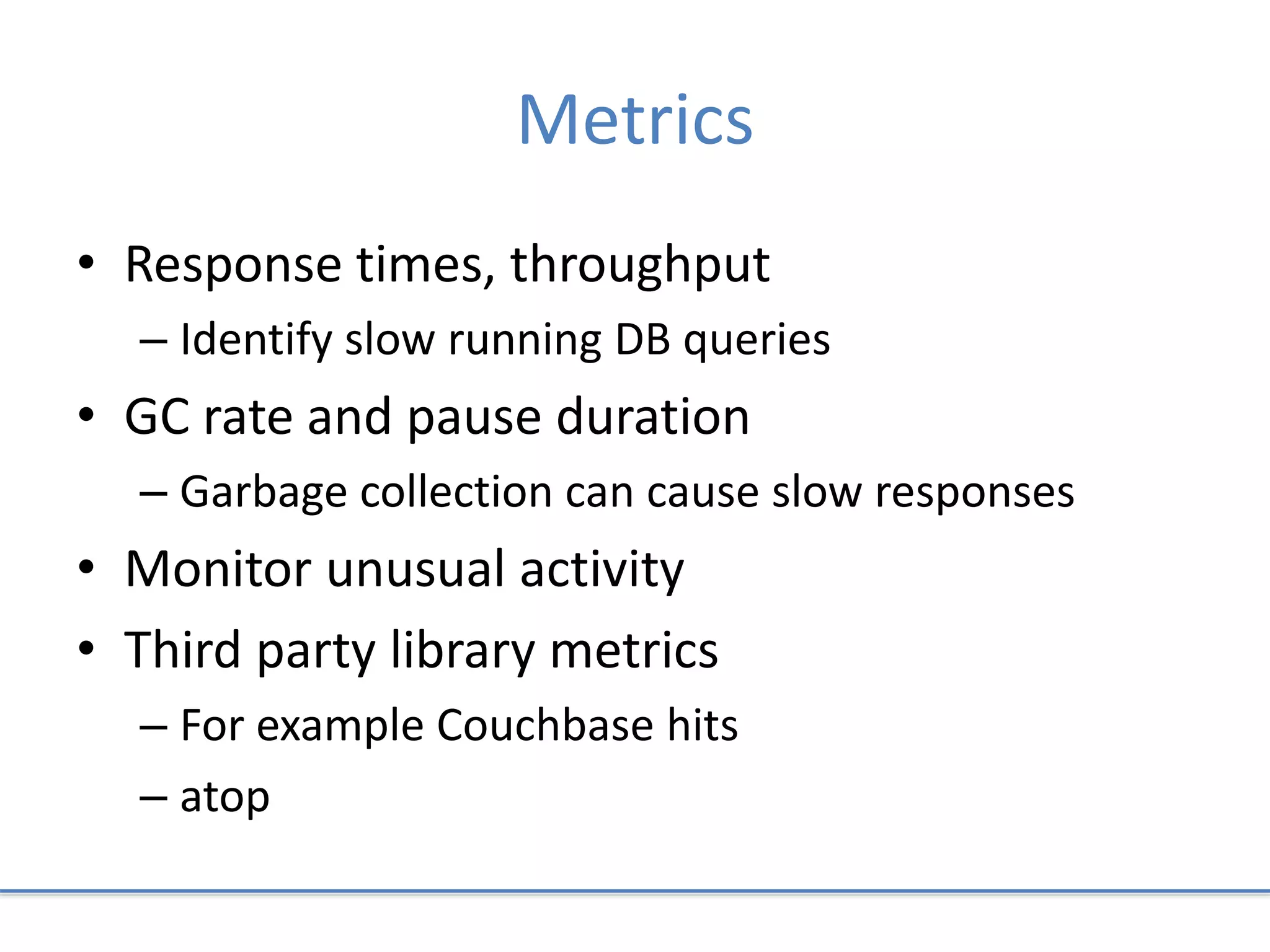

- 58. Metrics • Response times,throughput – Identify slow running DB queries • GC rate and pause duration – Garbage collection can cause slow responses • Monitor unusual activity • Third party library metrics – For example Couchbase hits – atop

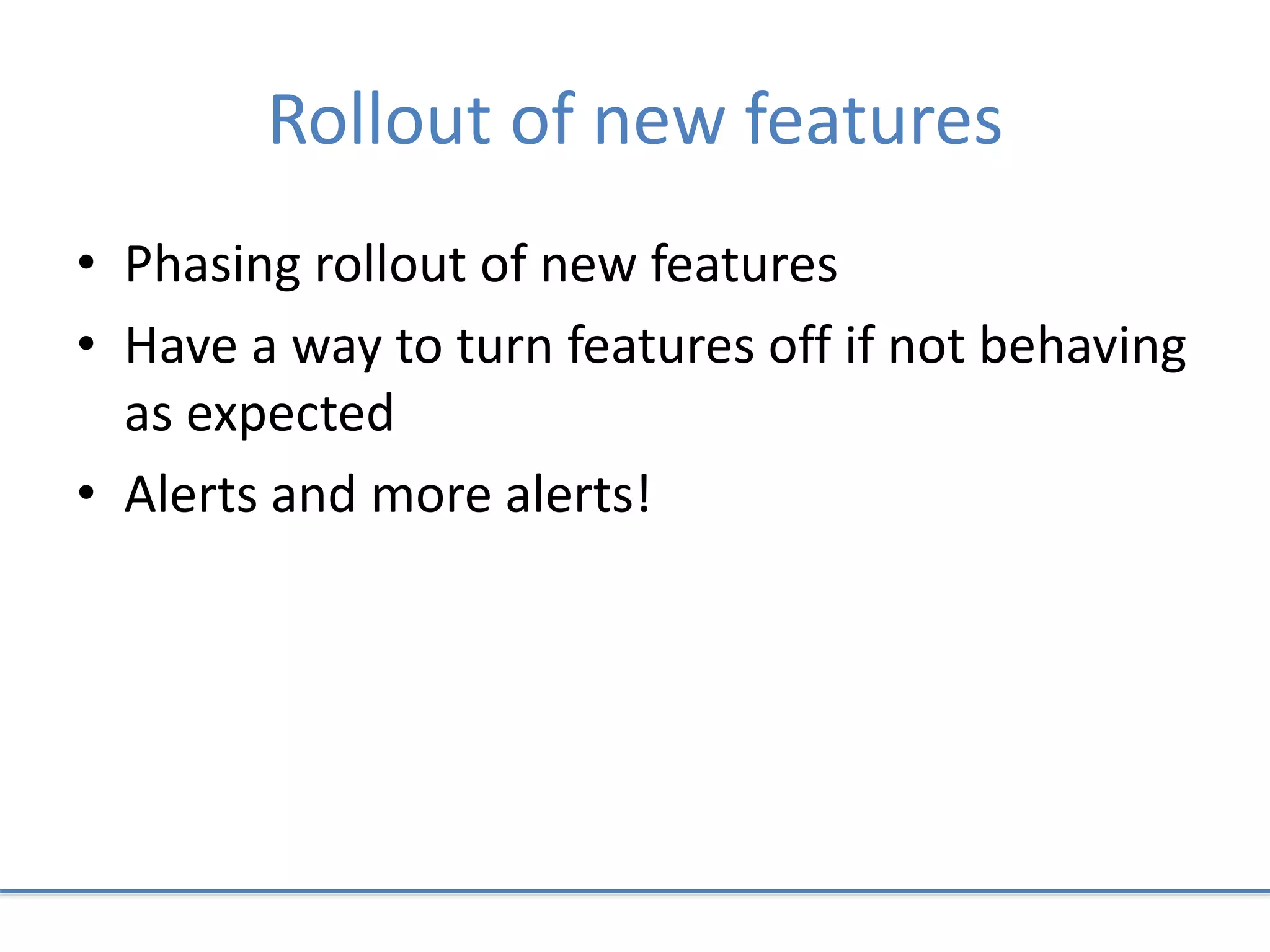

- 59. Rollout of newfeatures • Phasing rollout of new features • Have a way to turn features off if not behaving as expected • Alerts and more alerts!

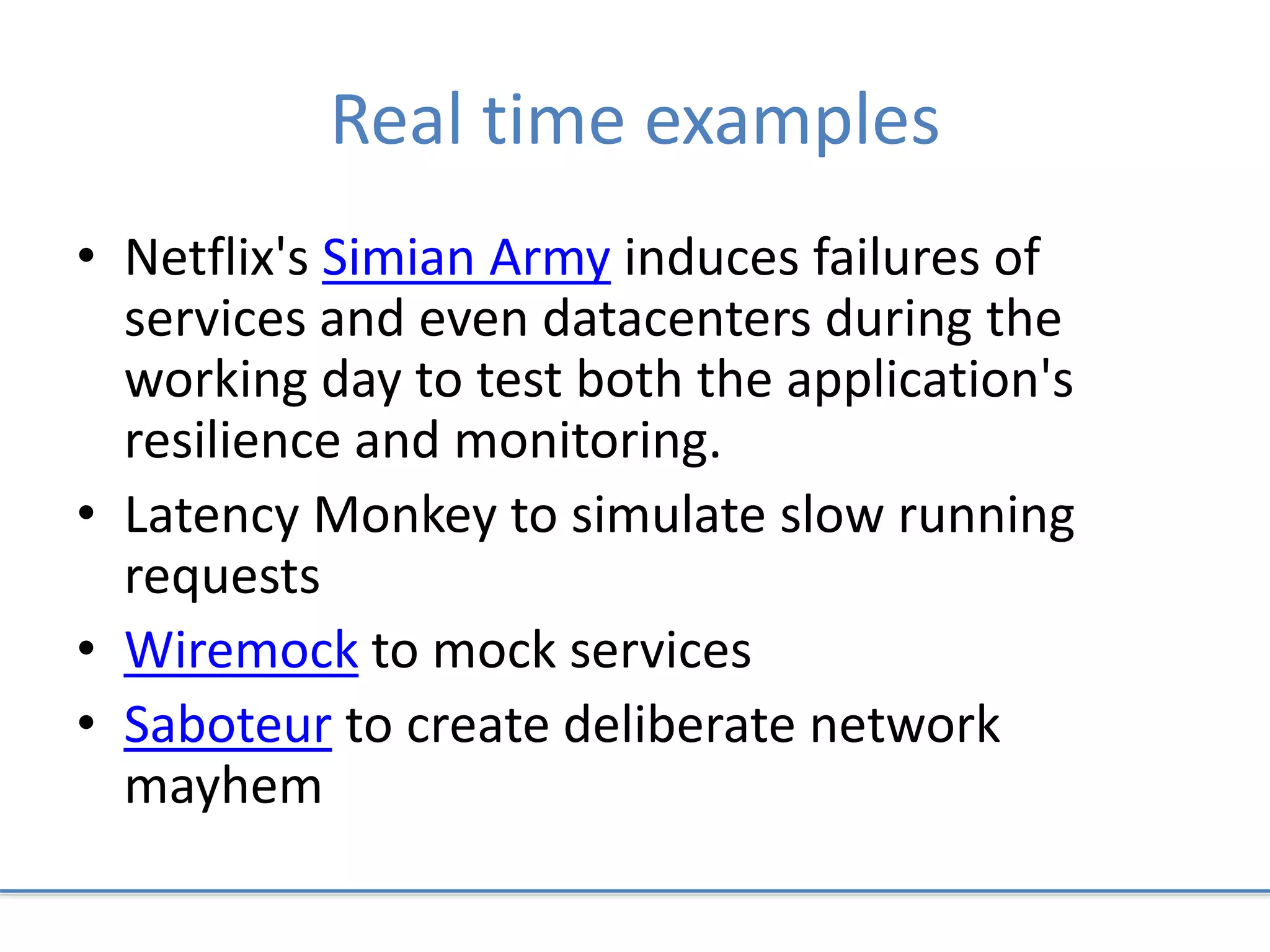

- 60. Real time examples •Netflix's Simian Army induces failures of services and even datacenters during the working day to test both the application's resilience and monitoring. • Latency Monkey to simulate slow running requests • Wiremock to mock services • Saboteur to create deliberate network mayhem

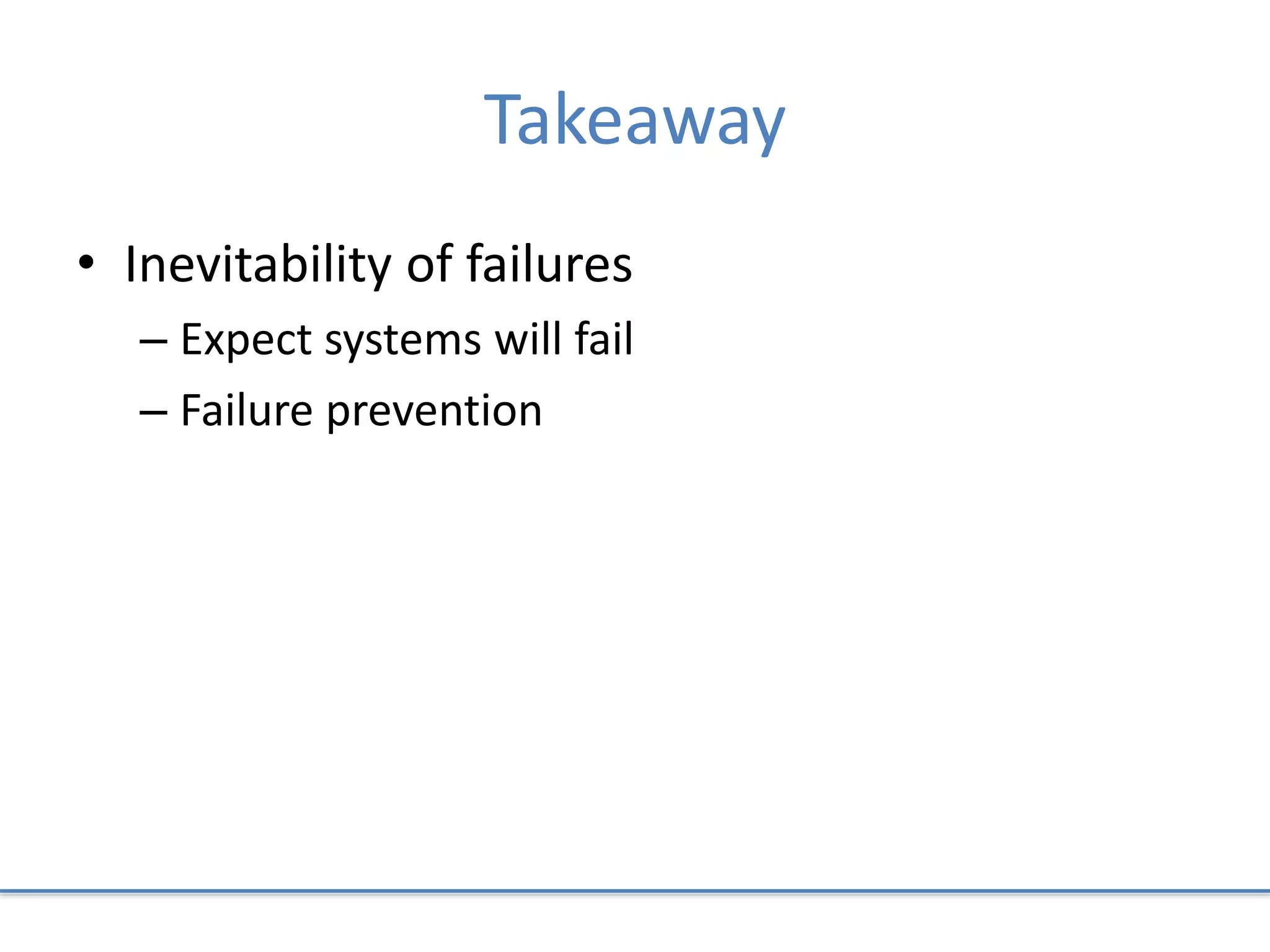

- 61. Takeaway • Inevitability offailures – Expect systems will fail – Failure prevention

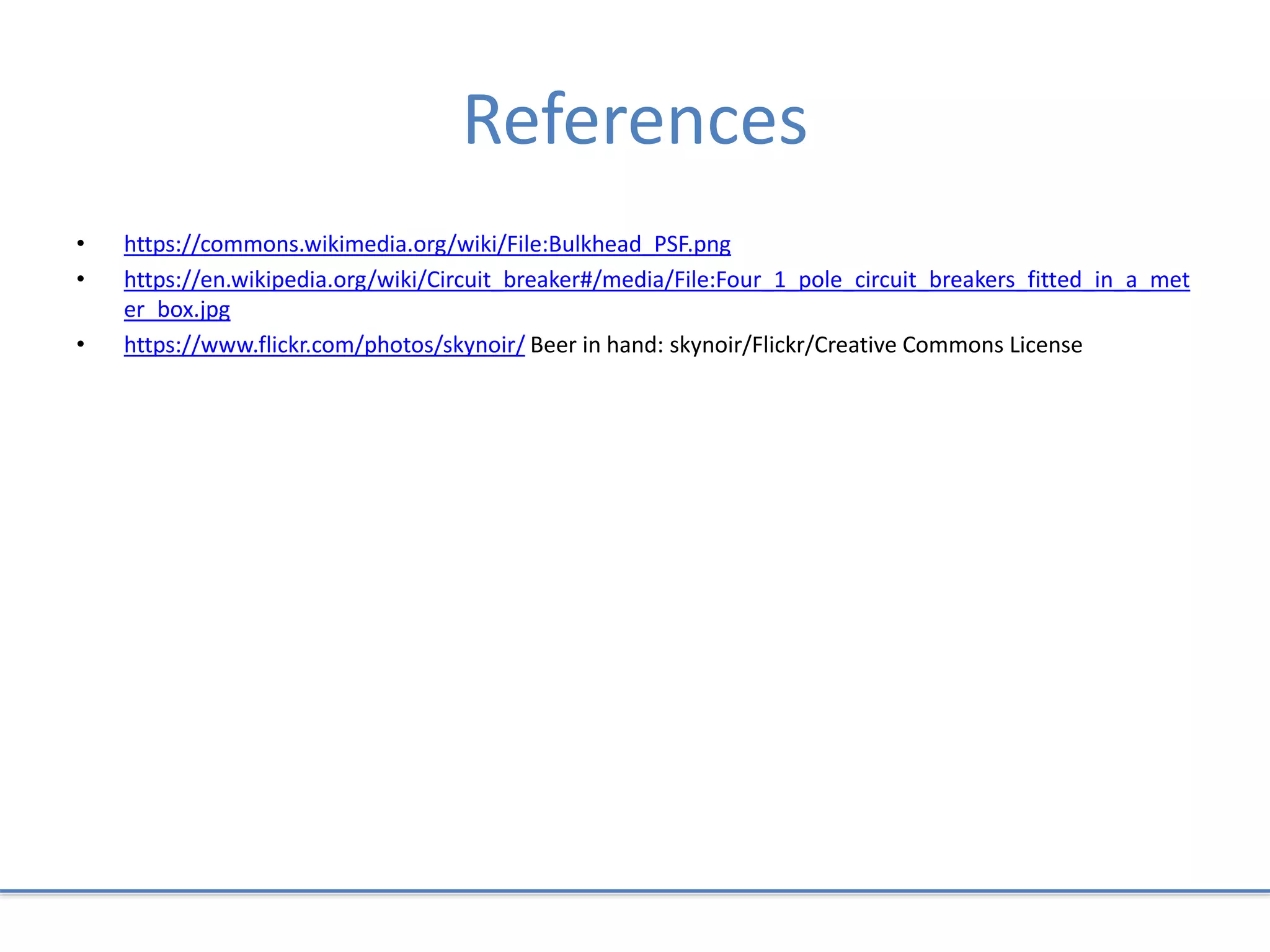

- 63. References • https://commons.wikimedia.org/wiki/File:Bulkhead_PSF.png • https://en.wikipedia.org/wiki/Circuit_breaker#/media/File:Four_1_pole_circuit_breakers_fitted_in_a_met er_box.jpg •https://www.flickr.com/photos/skynoir/ Beer in hand: skynoir/Flickr/Creative Commons License
