  PRESENTATION ON DATA WAREHOUSING Presented By: Jagnesh Chawla Manpreet Singh Mintu
• 2.

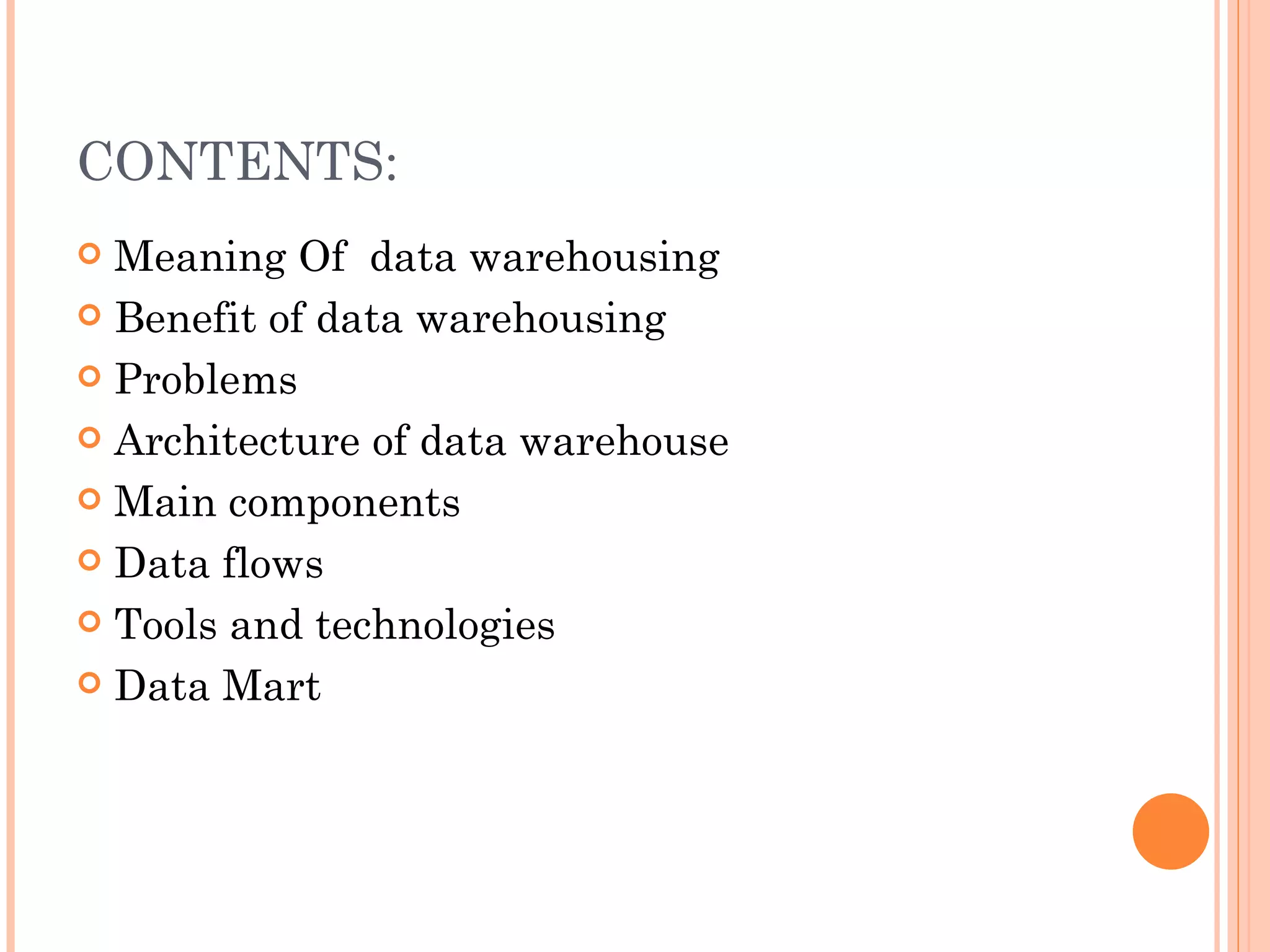

  CONTENTS:  Meaning Ofdata warehousing  Benefit of data warehousing  Problems  Architecture of data warehouse  Main components  Data flows  Tools and technologies  Data Mart
• 3.

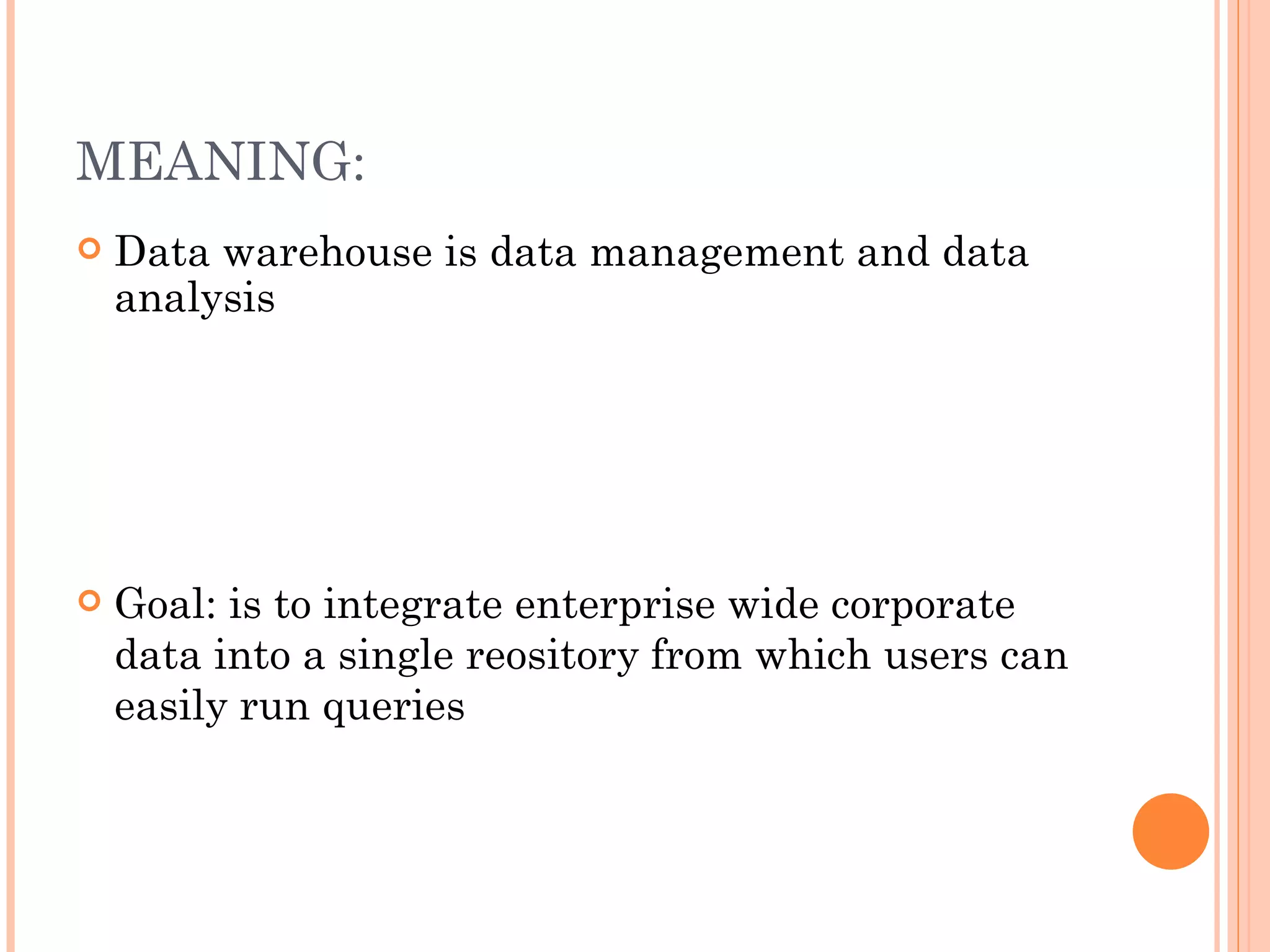

  MEANING:  Data warehouse is data management and data analysis  Goal: is to integrate enterprise wide corporate data into a single reository from which users can easily run queries
• 4.

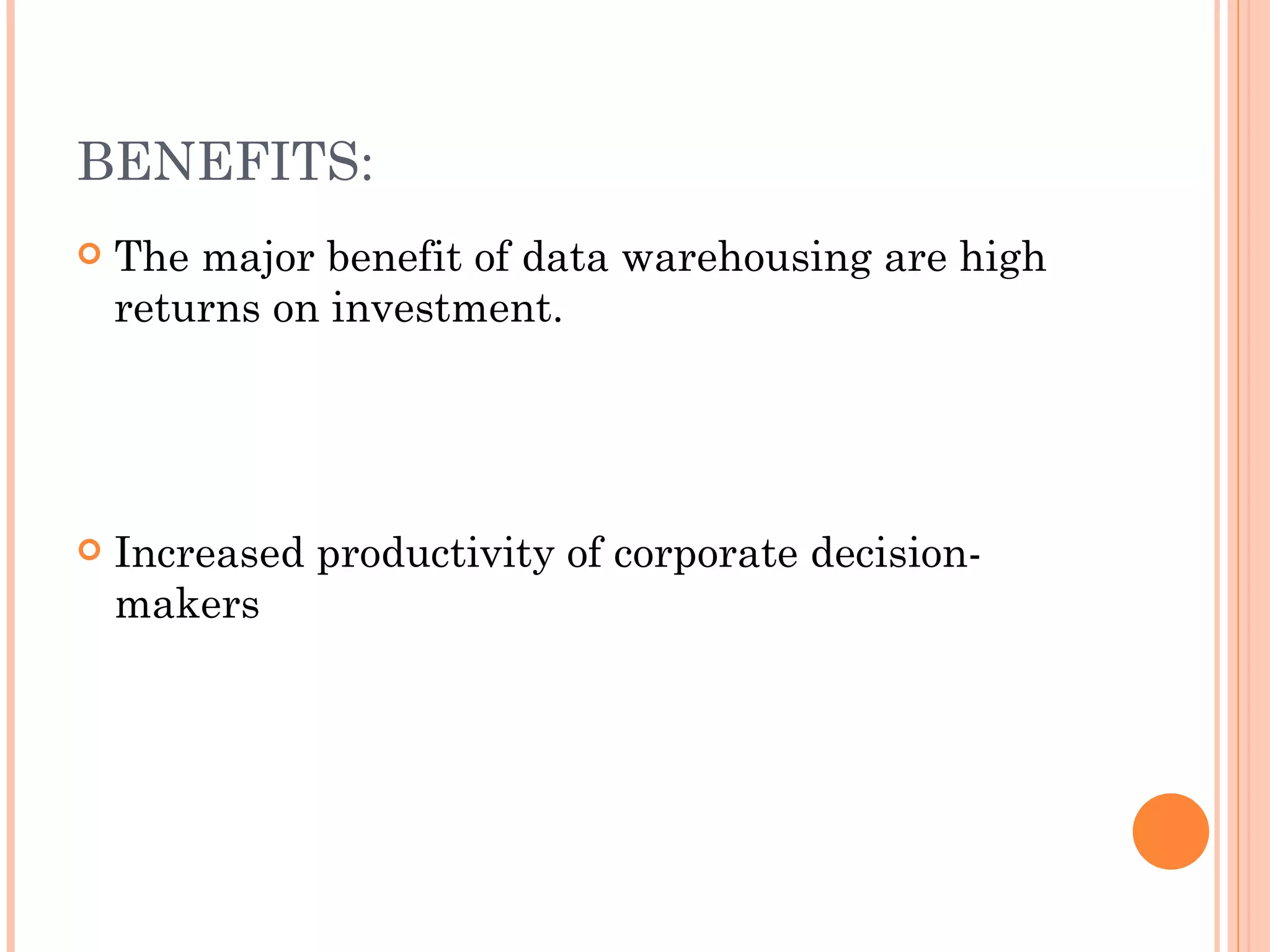

  BENEFITS:  The major benefit of data warehousing are high returns on investment.  Increased productivity of corporate decision- makers
• 5.

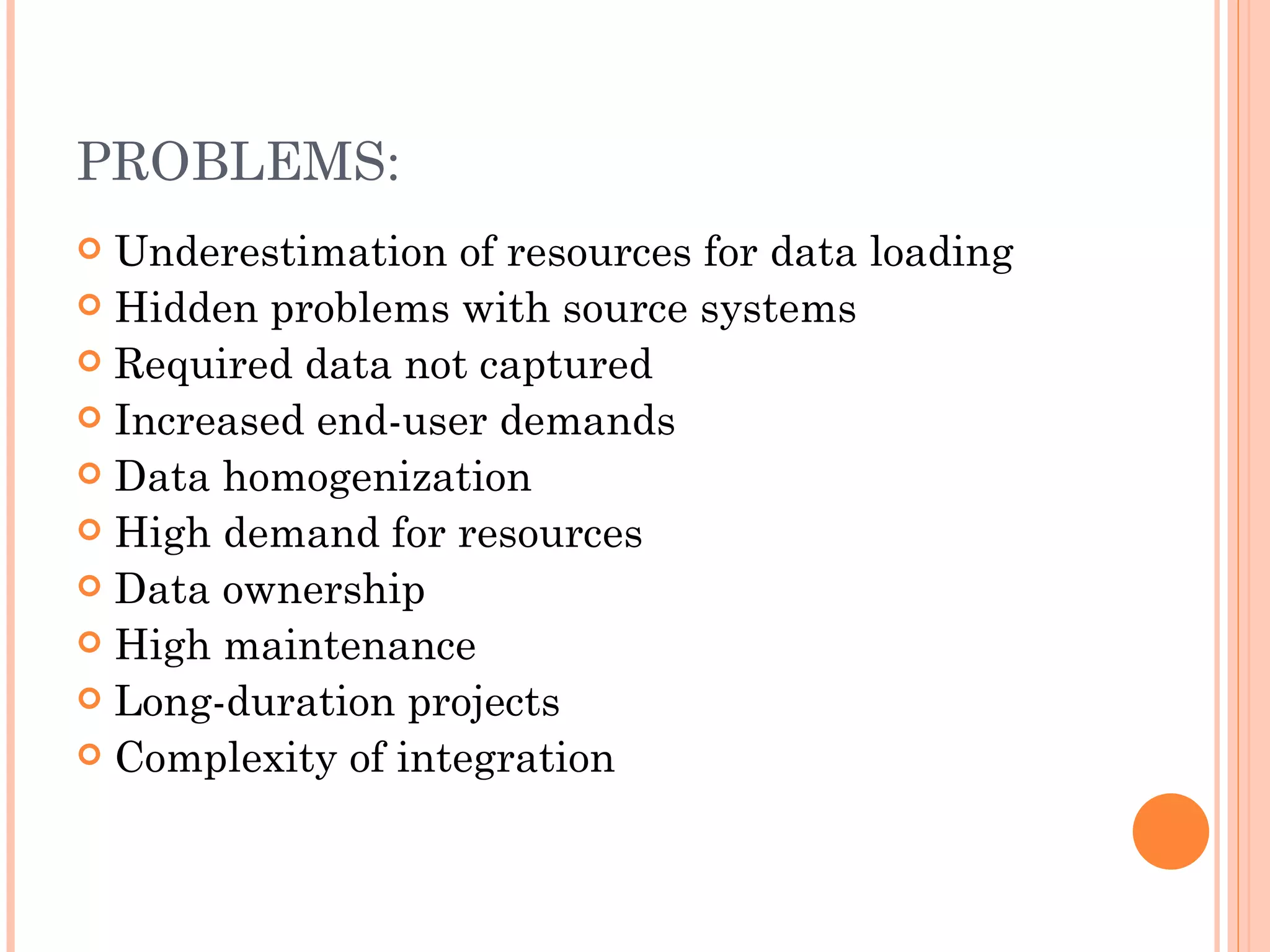

  PROBLEMS:  Underestimation ofresources for data loading  Hidden problems with source systems  Required data not captured  Increased end-user demands  Data homogenization  High demand for resources  Data ownership  High maintenance  Long-duration projects  Complexity of integration
• 6.

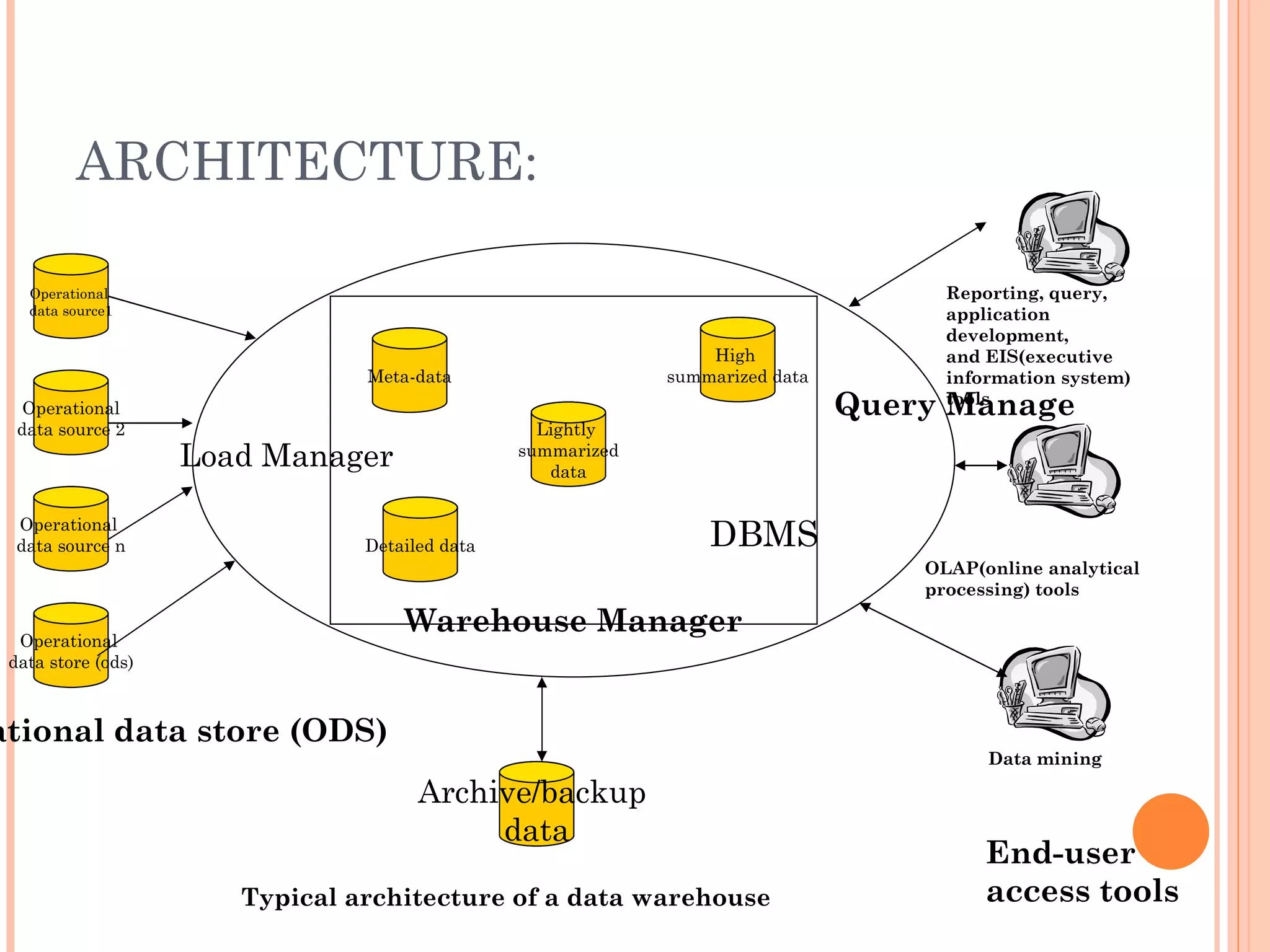

  ARCHITECTURE: Operational Reporting, query, data source1 application development, High and EIS(executive Meta-data summarized data information system) Operational Query Manage tools data source 2 Lightly Load Manager summarized data Operational data source n Detailed data DBMS OLAP(online analytical processing) tools Operational Warehouse Manager data store (ods) ational data store (ODS) Data mining Archive/backup data End-user Typical architecture of a data warehouse access tools
• 7.

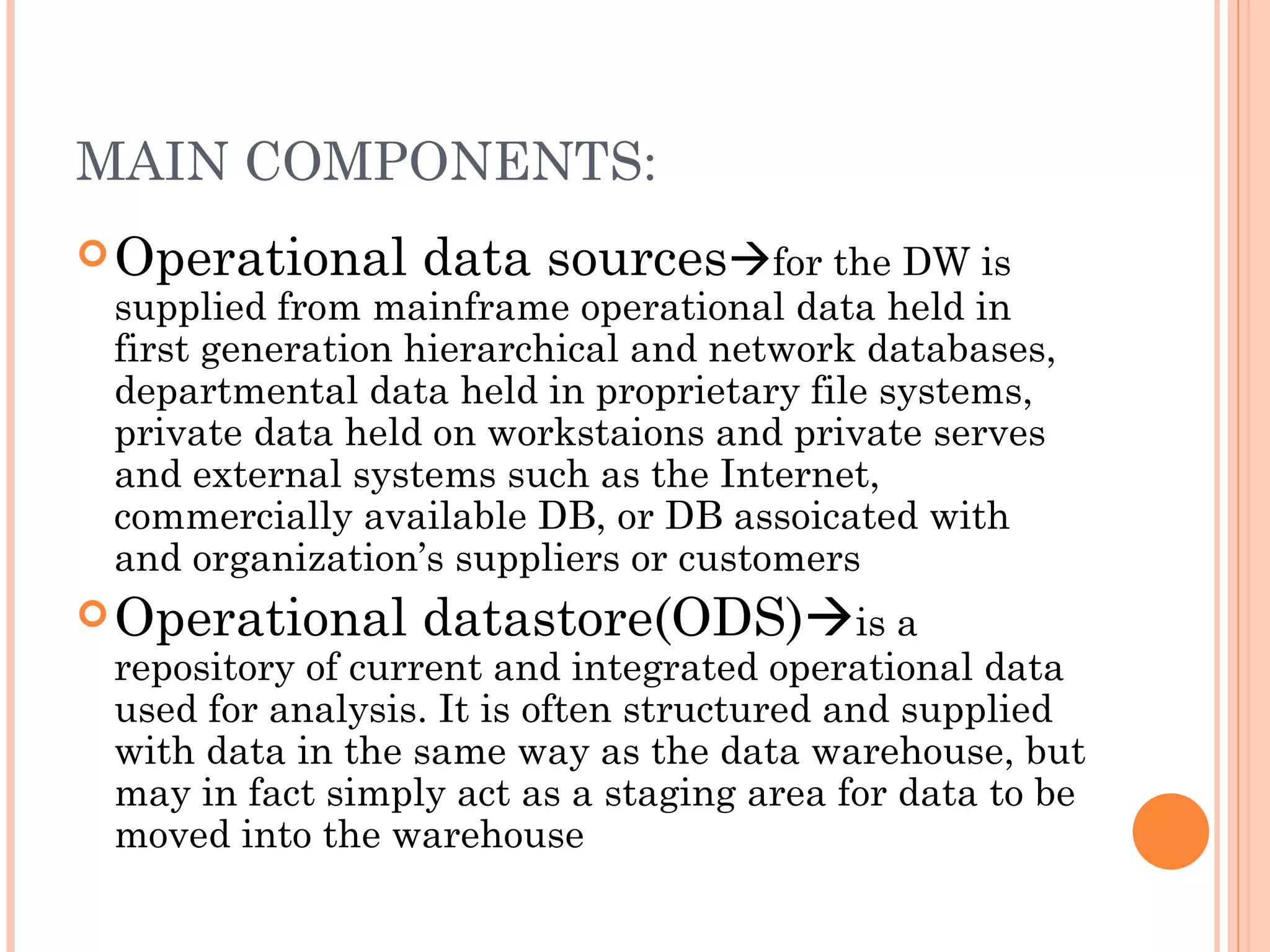

  MAIN COMPONENTS:  Operationaldata sourcesfor the DW is supplied from mainframe operational data held in first generation hierarchical and network databases, departmental data held in proprietary file systems, private data held on workstaions and private serves and external systems such as the Internet, commercially available DB, or DB assoicated with and organization’s suppliers or customers  Operational datastore(ODS)is a repository of current and integrated operational data used for analysis. It is often structured and supplied with data in the same way as the data warehouse, but may in fact simply act as a staging area for data to be moved into the warehouse
• 8.

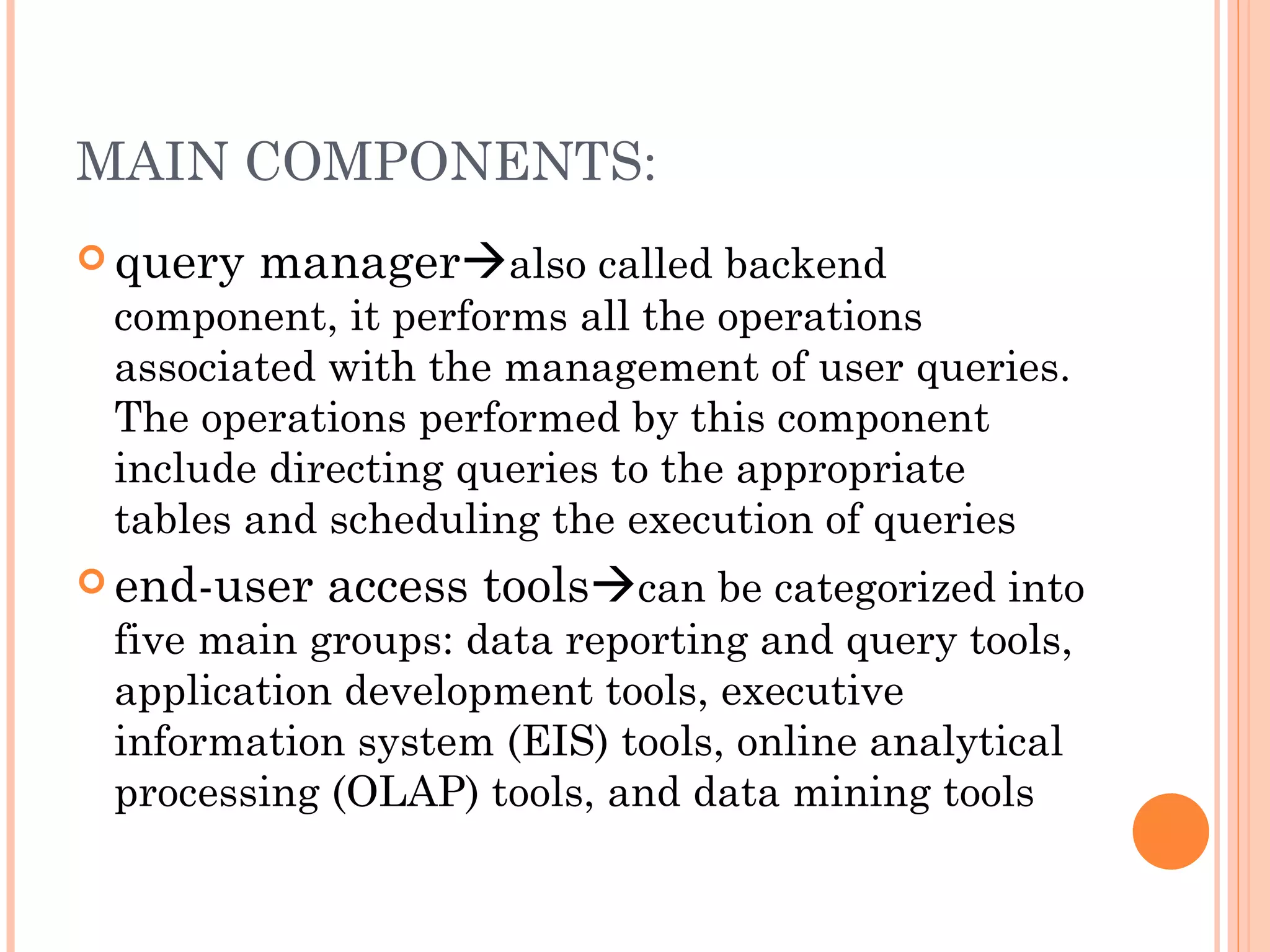

  MAIN COMPONENTS:  query manageralso called backend component, it performs all the operations associated with the management of user queries. The operations performed by this component include directing queries to the appropriate tables and scheduling the execution of queries  end-user access toolscan be categorized into five main groups: data reporting and query tools, application development tools, executive information system (EIS) tools, online analytical processing (OLAP) tools, and data mining tools
• 9.

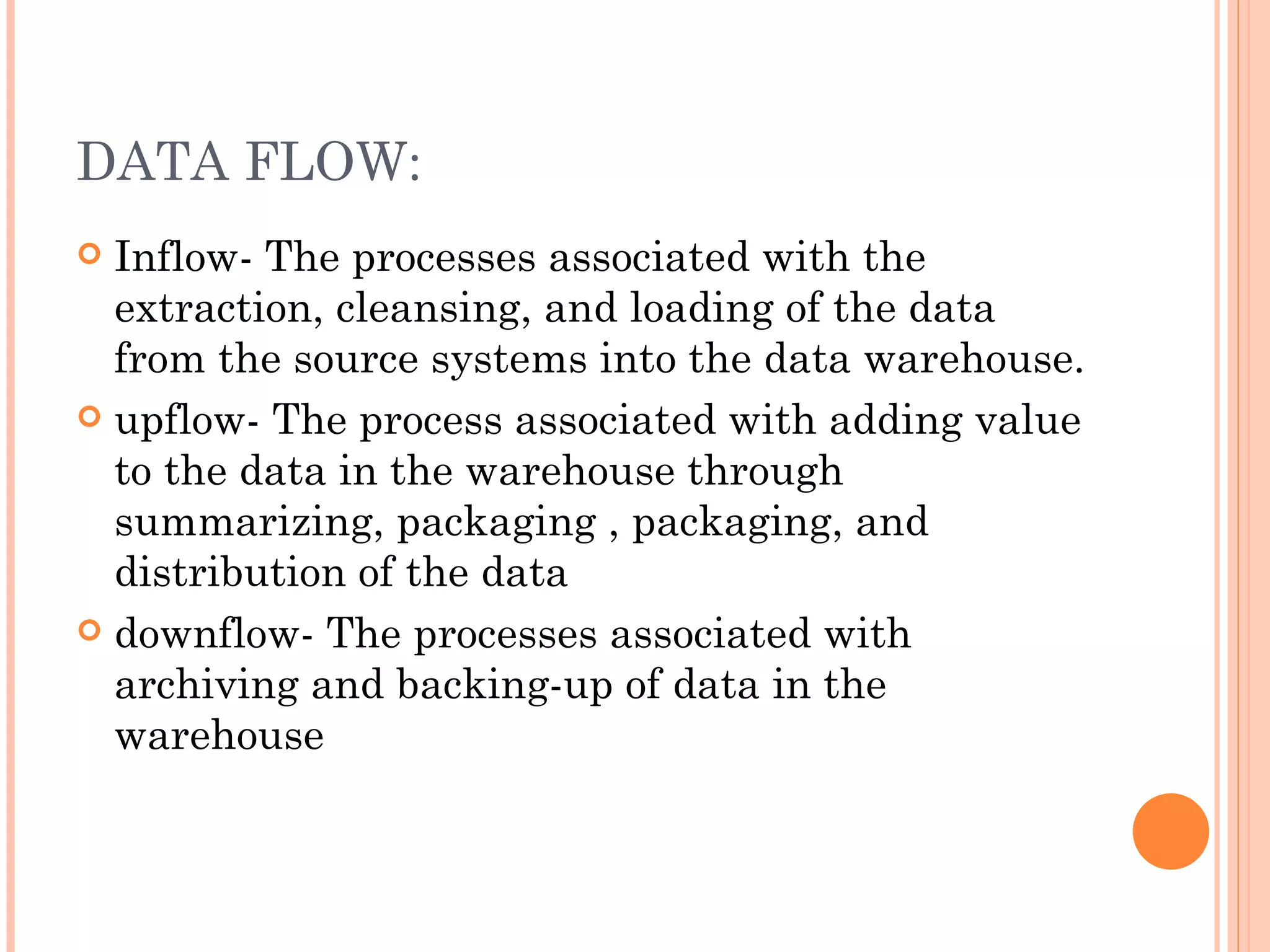

  DATA FLOW:  Inflow-The processes associated with the extraction, cleansing, and loading of the data from the source systems into the data warehouse.  upflow- The process associated with adding value to the data in the warehouse through summarizing, packaging , packaging, and distribution of the data  downflow- The processes associated with archiving and backing-up of data in the warehouse
• 10.

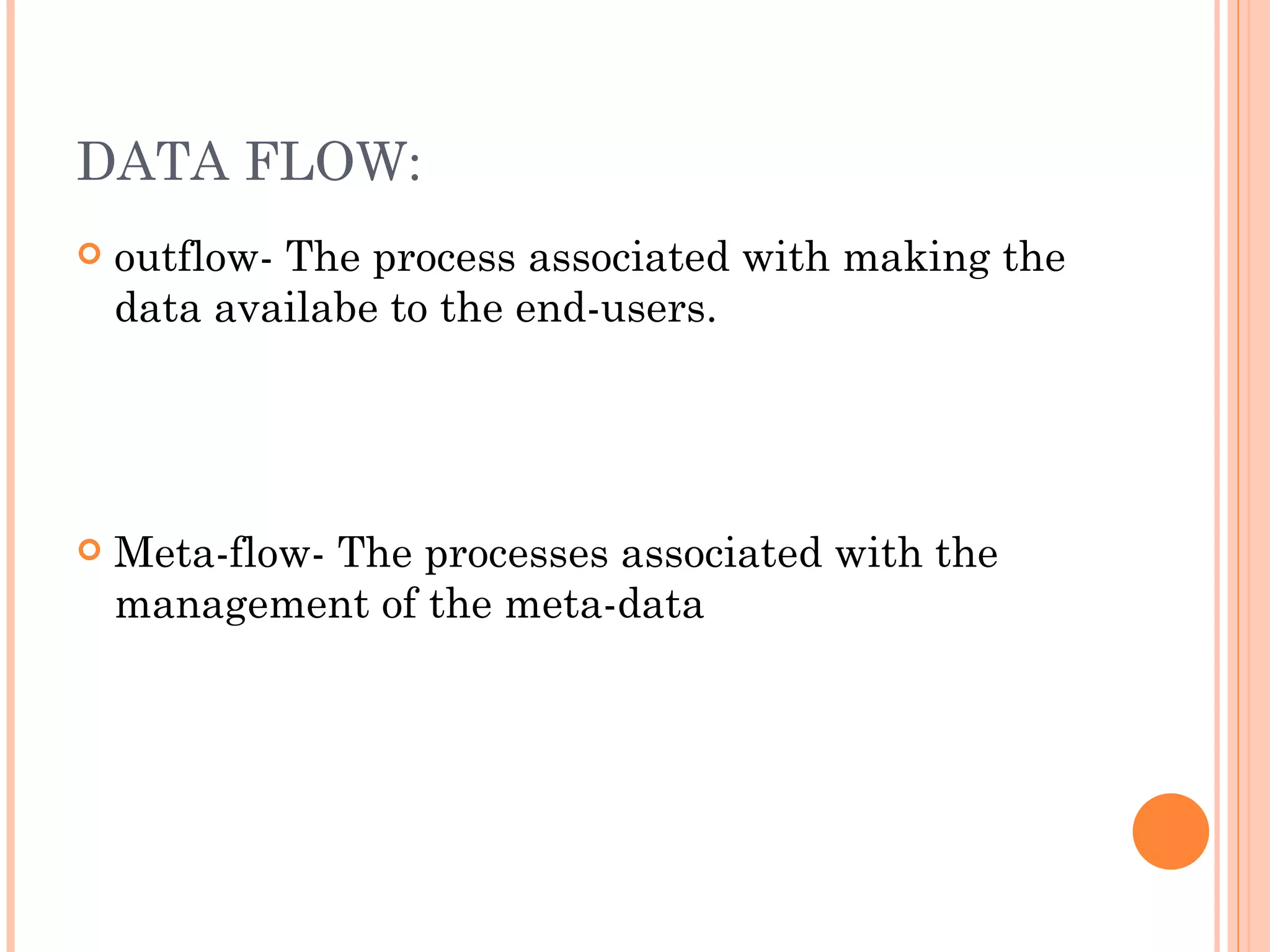

  DATA FLOW:  outflow- The process associated with making the data availabe to the end-users.  Meta-flow- The processes associated with the management of the meta-data
• 11.

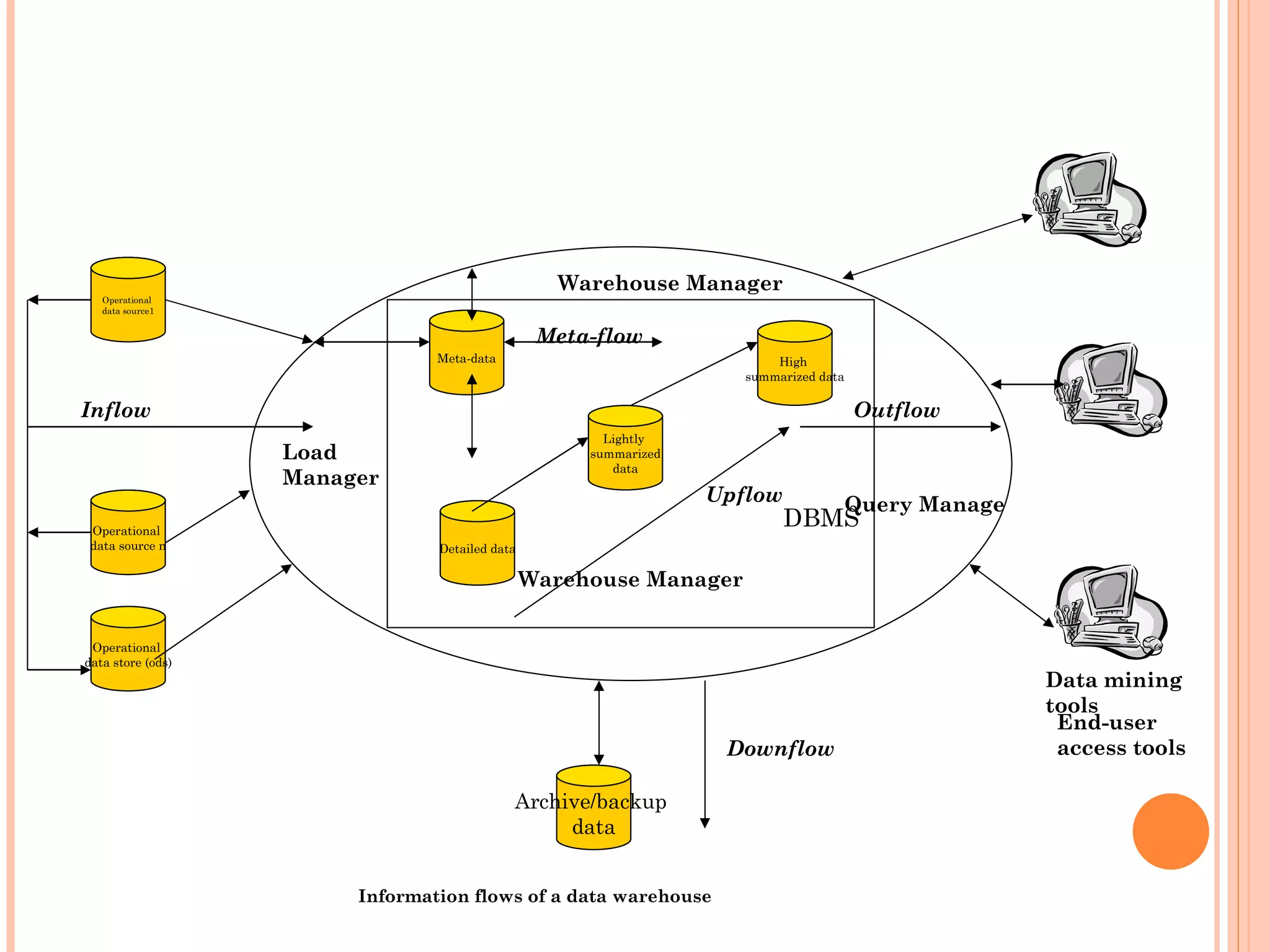

  Warehouse Manager Operational data source1 Meta-flow Meta-data High summarized data Inflow Outflow Lightly Load summarized data Manager Upflow Query Manage Operational DBMS data source n Detailed data Warehouse Manager Operational data store (ods) Data mining tools End-user Downflow access tools Archive/backup data Information flows of a data warehouse
• 12.

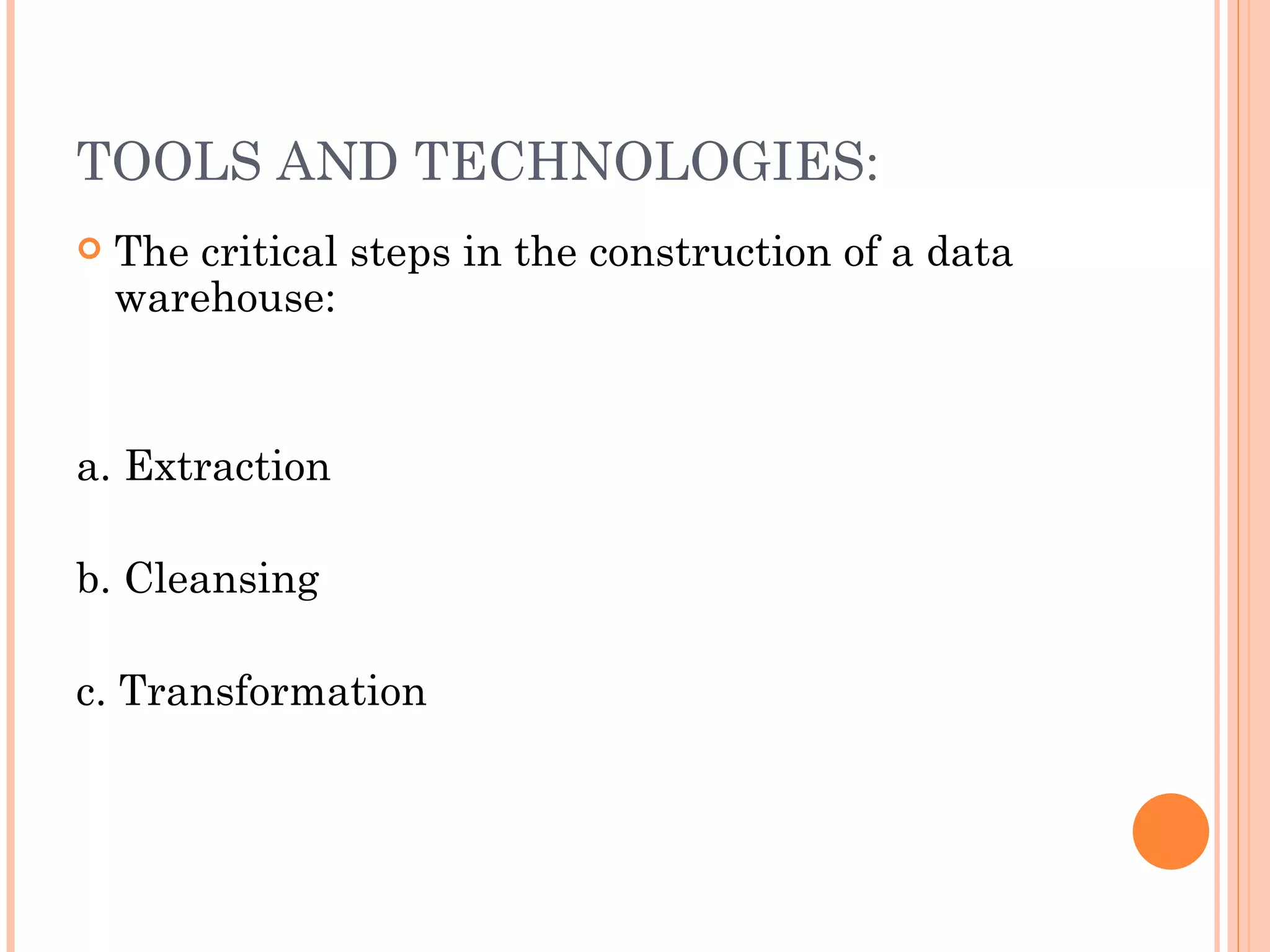

  TOOLS AND TECHNOLOGIES:  The critical steps in the construction of a data warehouse: a. Extraction b. Cleansing c. Transformation
• 13.

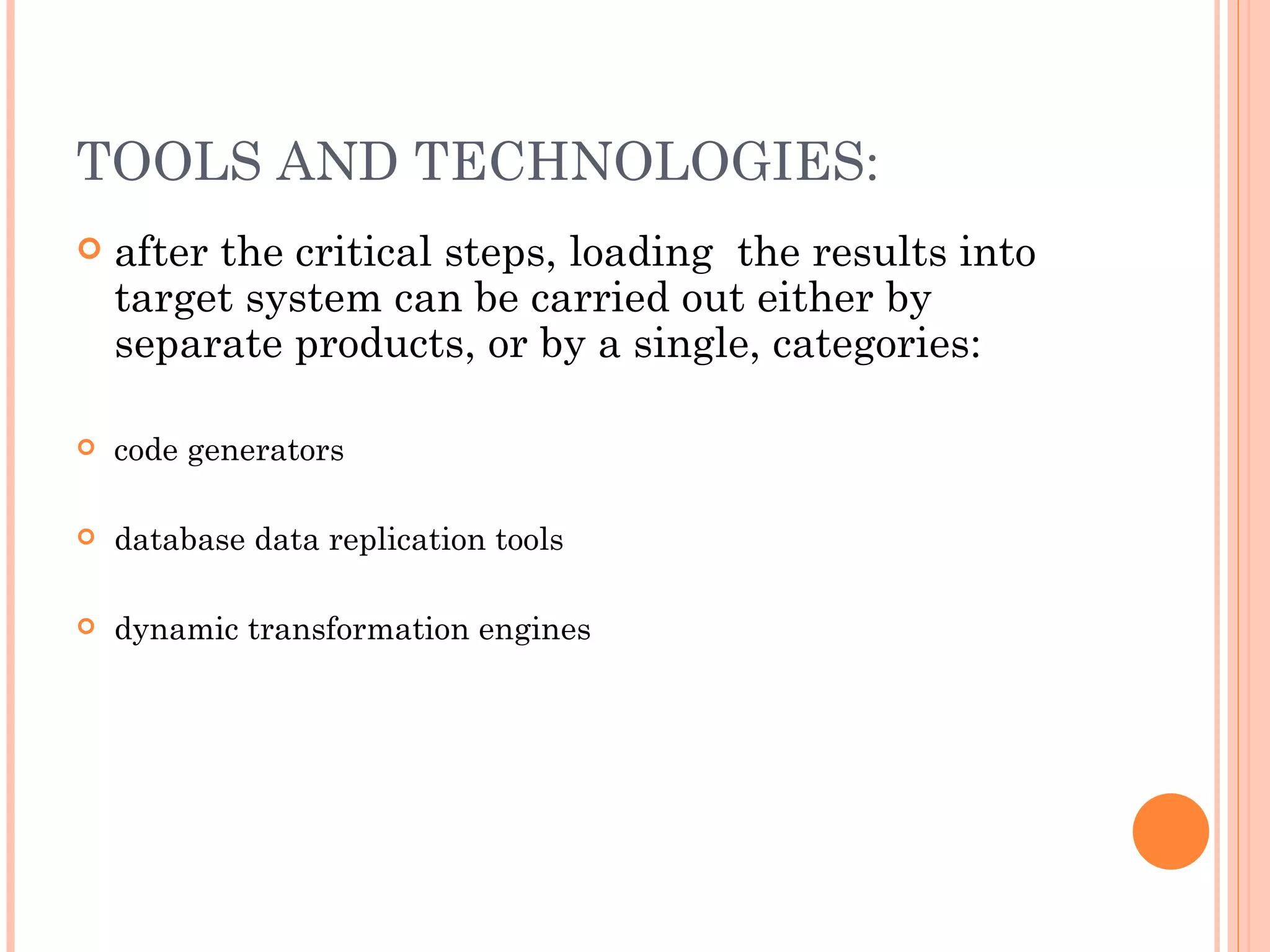

  TOOLS AND TECHNOLOGIES:  after the critical steps, loading the results into target system can be carried out either by separate products, or by a single, categories:  code generators  database data replication tools  dynamic transformation engines
• 14.

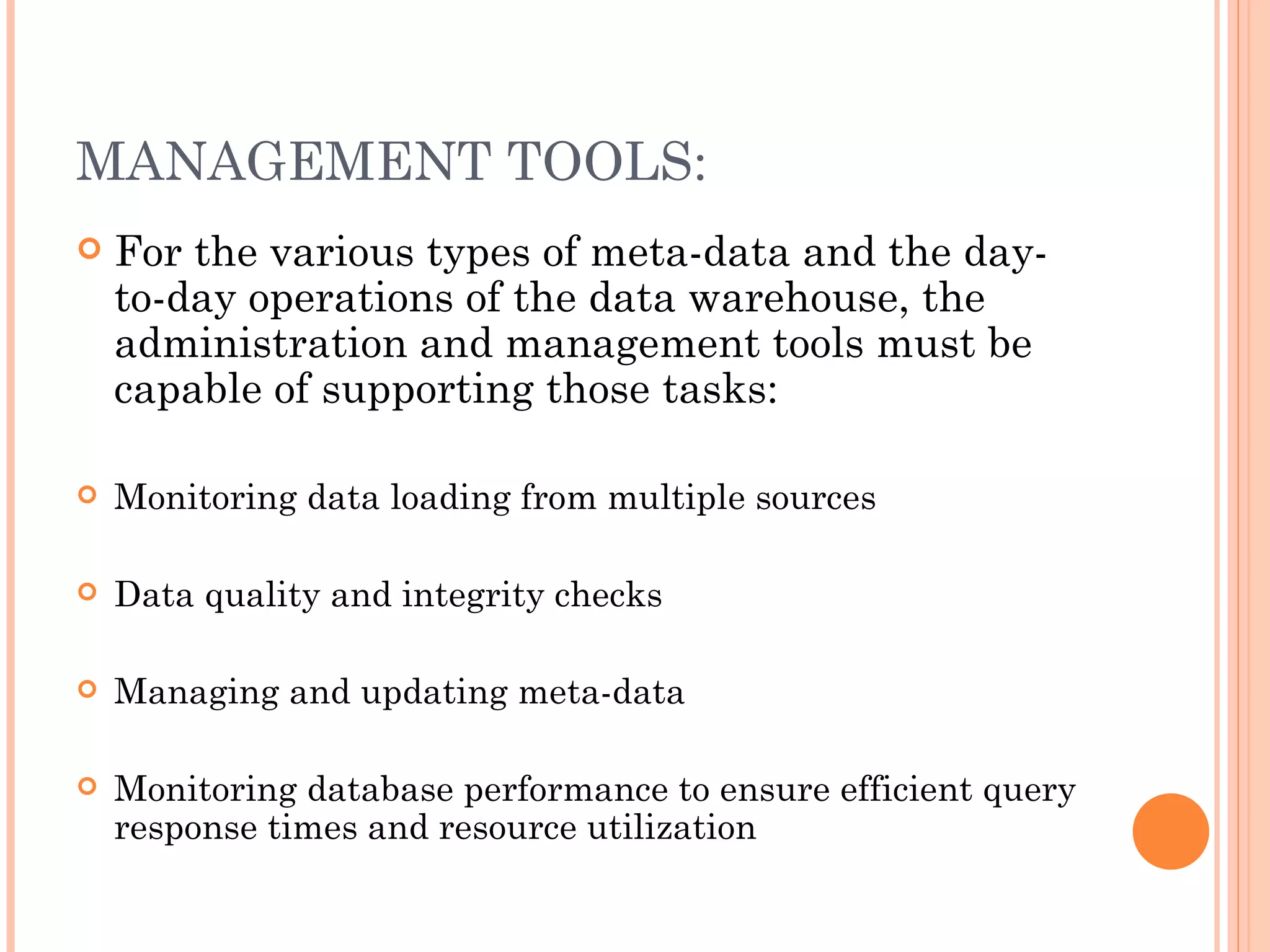

  MANAGEMENT TOOLS:  For the various types of meta-data and the day- to-day operations of the data warehouse, the administration and management tools must be capable of supporting those tasks:  Monitoring data loading from multiple sources  Data quality and integrity checks  Managing and updating meta-data  Monitoring database performance to ensure efficient query response times and resource utilization
• 15.

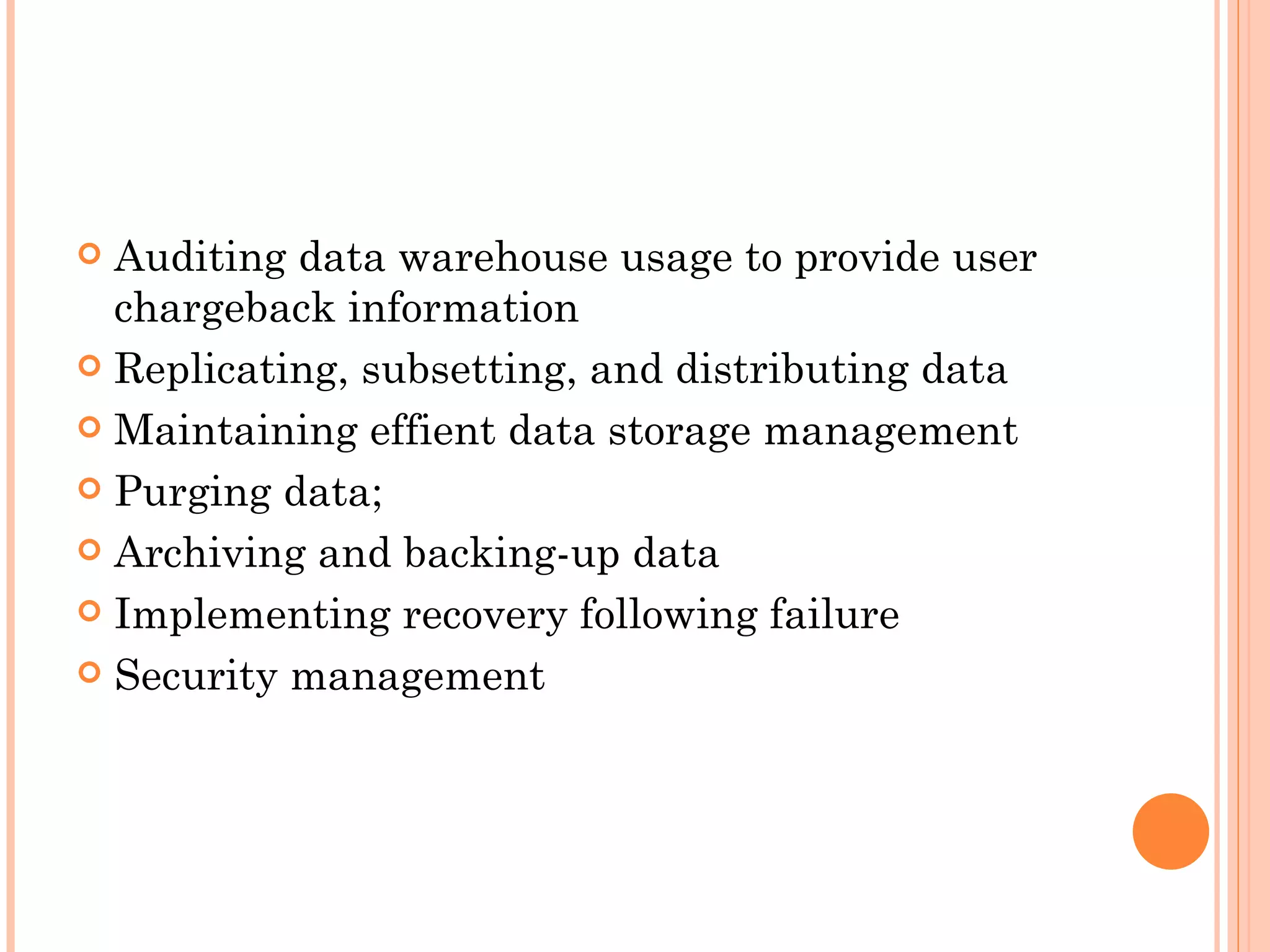

   Auditing datawarehouse usage to provide user chargeback information  Replicating, subsetting, and distributing data  Maintaining effient data storage management  Purging data;  Archiving and backing-up data  Implementing recovery following failure  Security management
• 16.

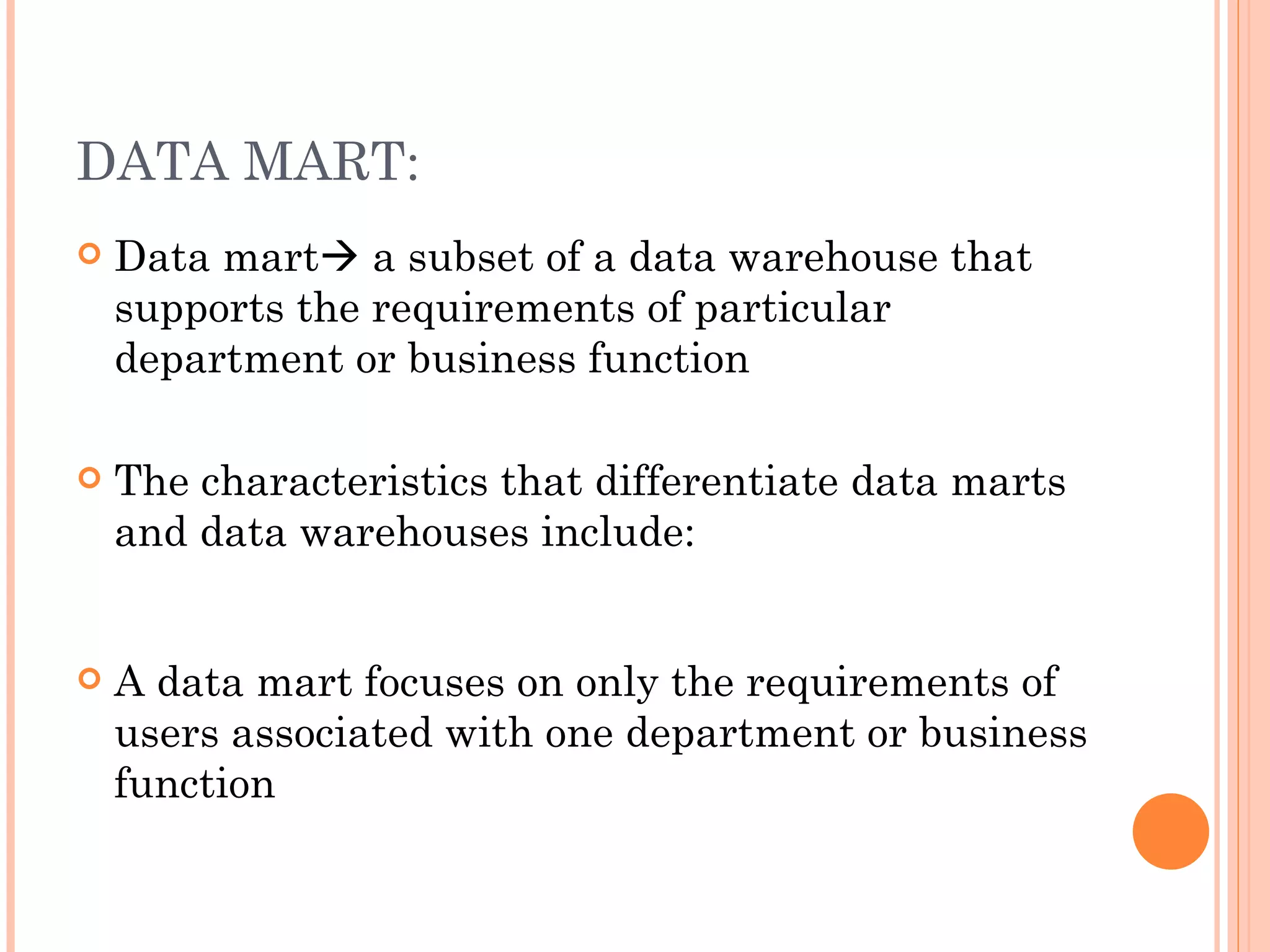

  DATA MART:  Data mart a subset of a data warehouse that supports the requirements of particular department or business function  The characteristics that differentiate data marts and data warehouses include:  A data mart focuses on only the requirements of users associated with one department or business function
• 17.
  Warehouse Manager Operational data source1 High Meta-data summarized data Operational data source 2 Lightly Query Load summarized data Manage Manager Operational DBMS Detailed data data source n Warehouse Manager Operational data store (ods) (First Tier) (Third Tier) Operational data store (ODS) Archive/backup End-user data access tools Data Mart summarized data(Relational database) Summarized data (Multi-dimension database) (Second Tier) Typical data warehouse adn data mart architecture
• 18.

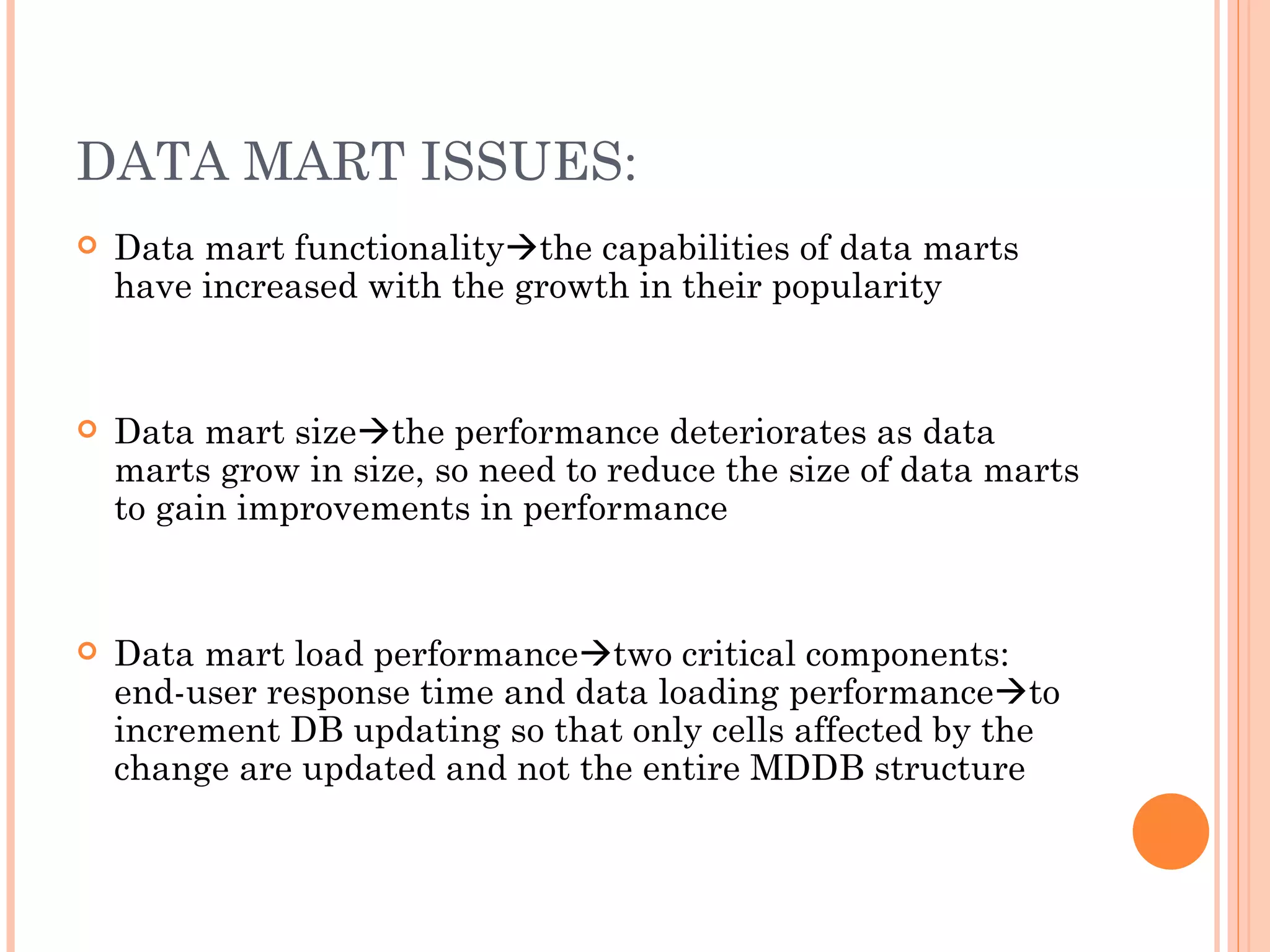

  DATA MART ISSUES:  Data mart functionalitythe capabilities of data marts have increased with the growth in their popularity  Data mart sizethe performance deteriorates as data marts grow in size, so need to reduce the size of data marts to gain improvements in performance  Data mart load performancetwo critical components: end-user response time and data loading performanceto increment DB updating so that only cells affected by the change are updated and not the entire MDDB structure
• 19.

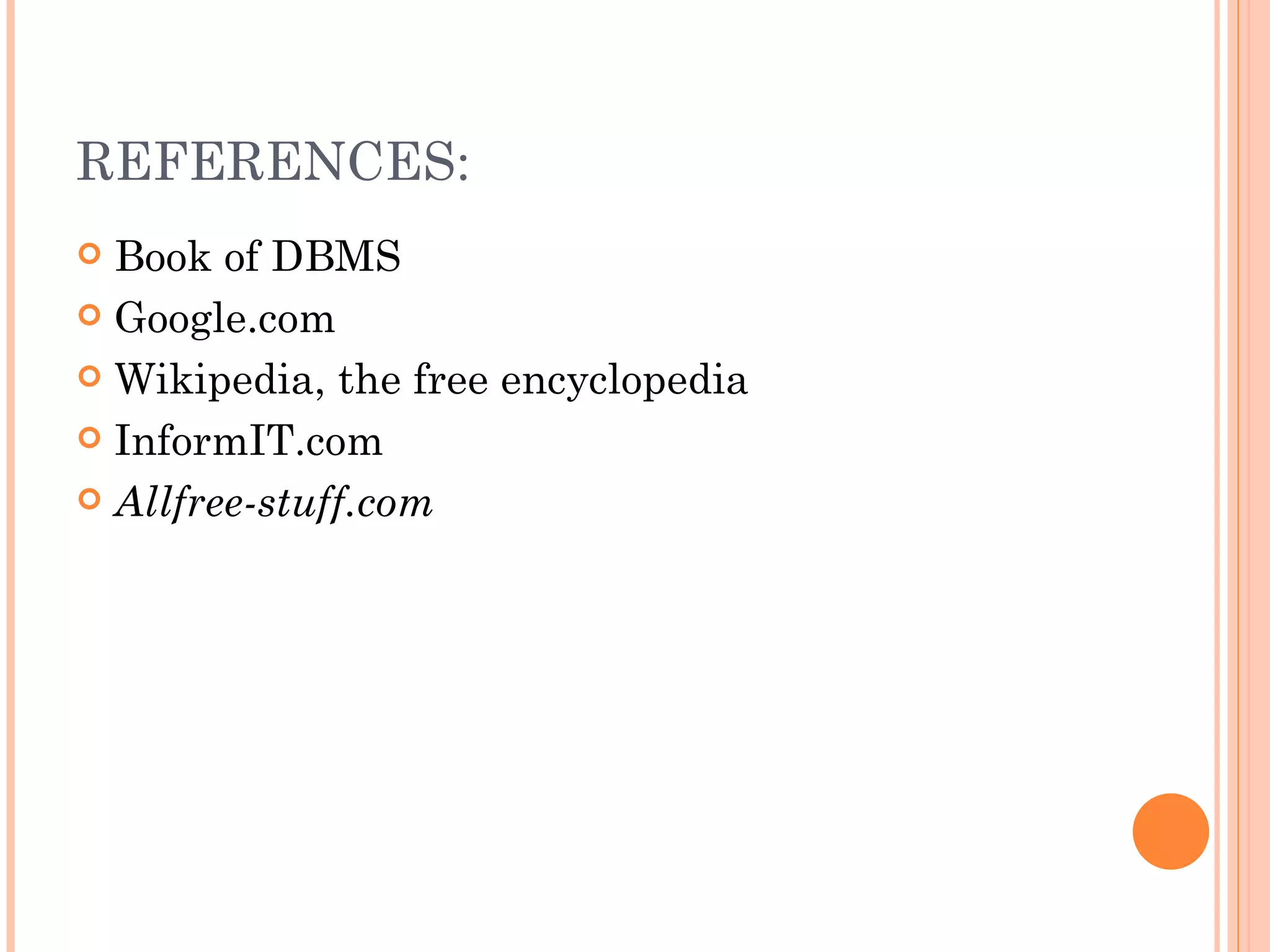

  REFERENCES:  Book ofDBMS  Google.com  Wikipedia, the free encyclopedia  InformIT.com  Allfree-stuff.com
