CS 561a: Introduction to Artificial Intelligence

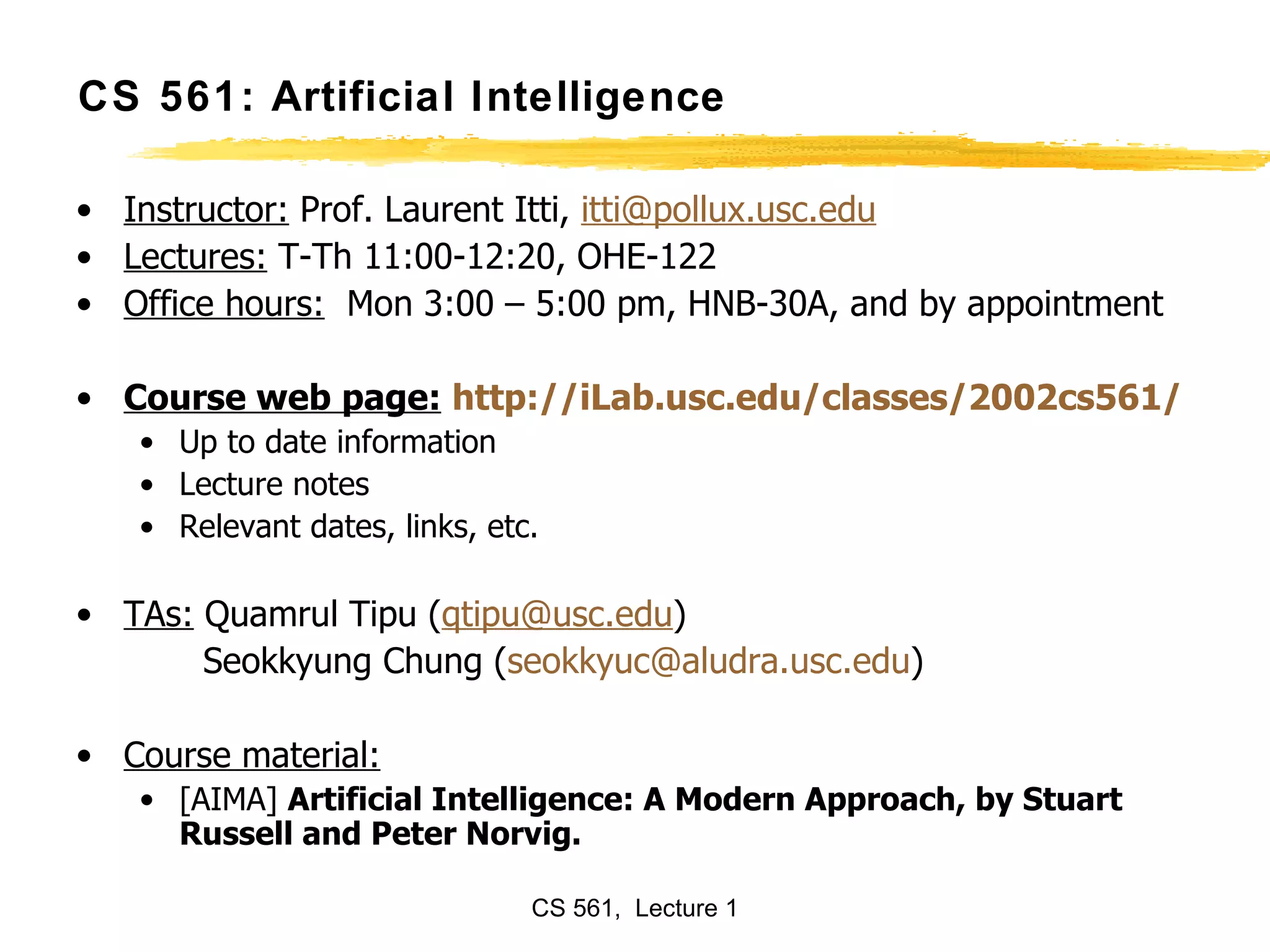

CS 561: Artificial Intelligence Instructor: Prof. Laurent Itti, [email_address] Lectures: T-Th 11:00-12:20, OHE-122 Office hours: Mon 3:00 – 5:00 pm, HNB-30A, and by appointment Course web page: http://iLab.usc.edu/classes/2002cs561/ Up to date information Lecture notes Relevant dates, links, etc. TAs: Quamrul Tipu ( [email_address] ) Seokkyung Chung ( [email_address] edu ) Course material: [AIMA] Artificial Intelligence: A Modern Approach, by Stuart Russell and Peter Norvig.

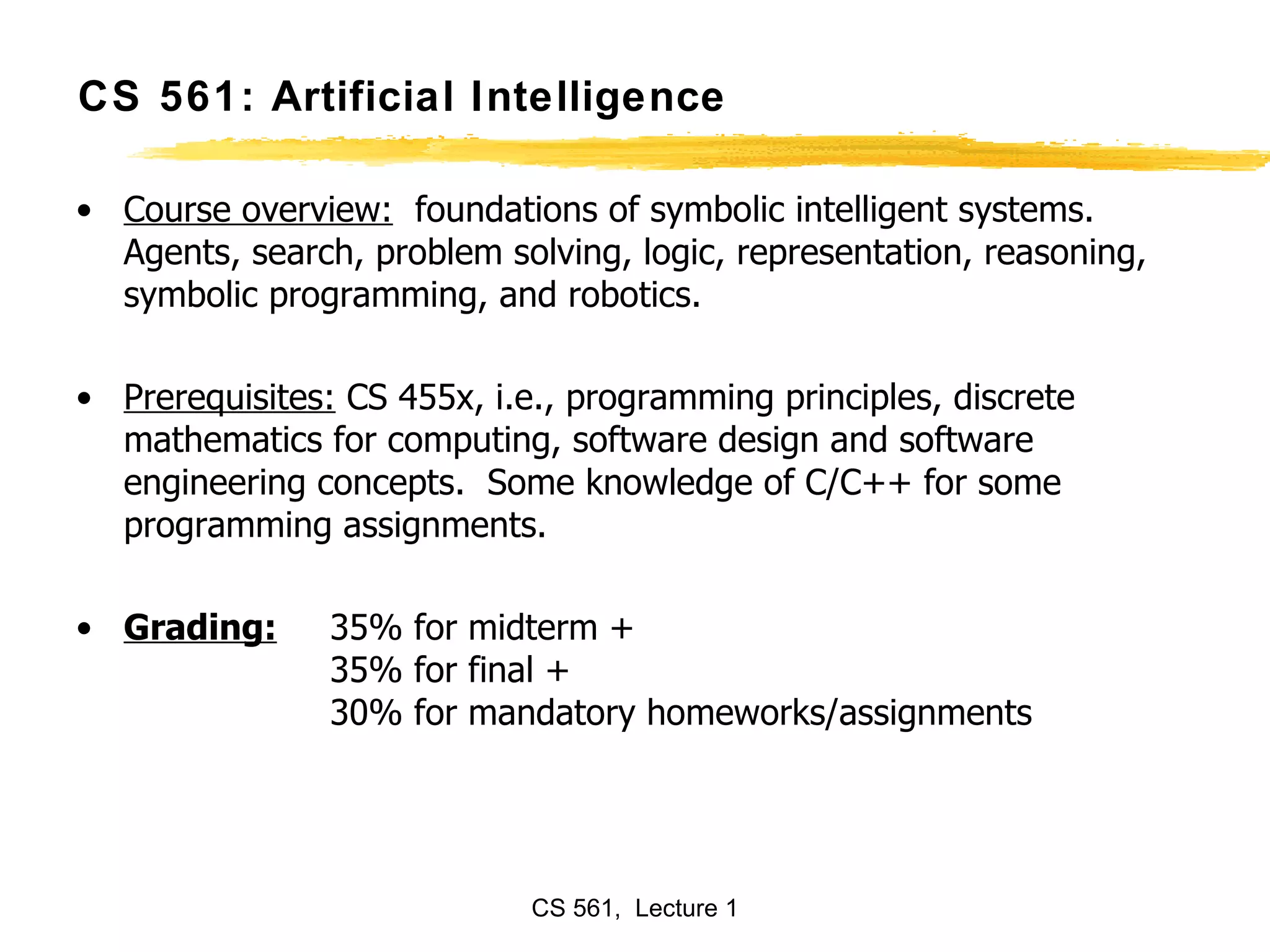

CS 561: Artificial Intelligence Course overview: foundations of symbolic intelligent systems. Agents, search, problem solving, logic, representation, reasoning, symbolic programming, and robotics. Prerequisites: CS 455x, i.e., programming principles, discrete mathematics for computing, software design and software engineering concepts. Some knowledge of C/C++ for some programming assignments. Grading: 35% for midterm + 35% for final + 30% for mandatory homeworks/assignments

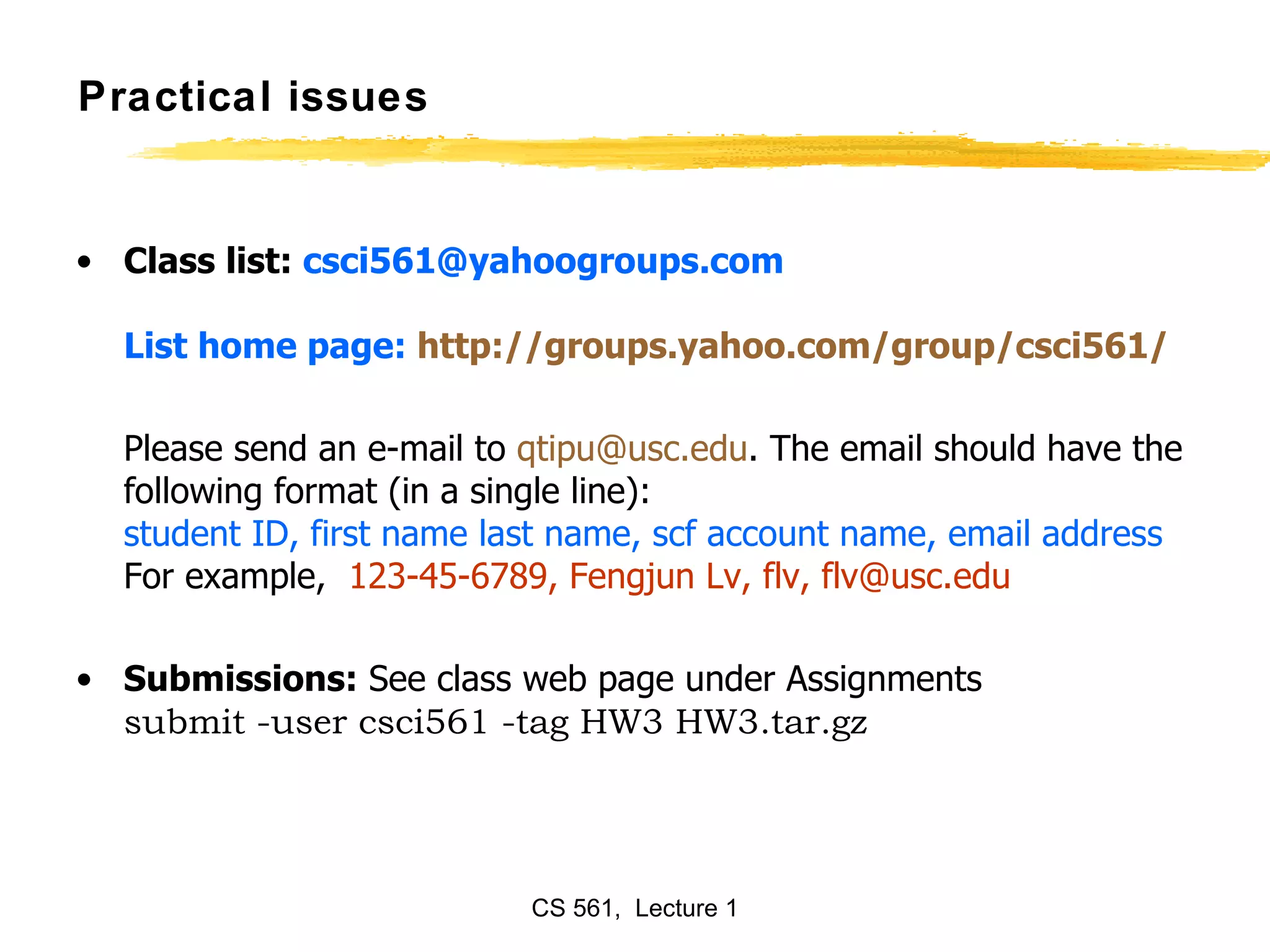

Practical issues Class list: [email_address] List home page: http://groups.yahoo.com/group/csci561/ Please send an e-mail to [email_address] . The email should have the following format (in a single line): student ID, first name last name, scf account name, email address For example, 123-45-6789, Fengjun Lv, flv, flv@usc.edu Submissions: See class web page under Assignments submit -user csci561 -tag HW3 HW3.tar.gz

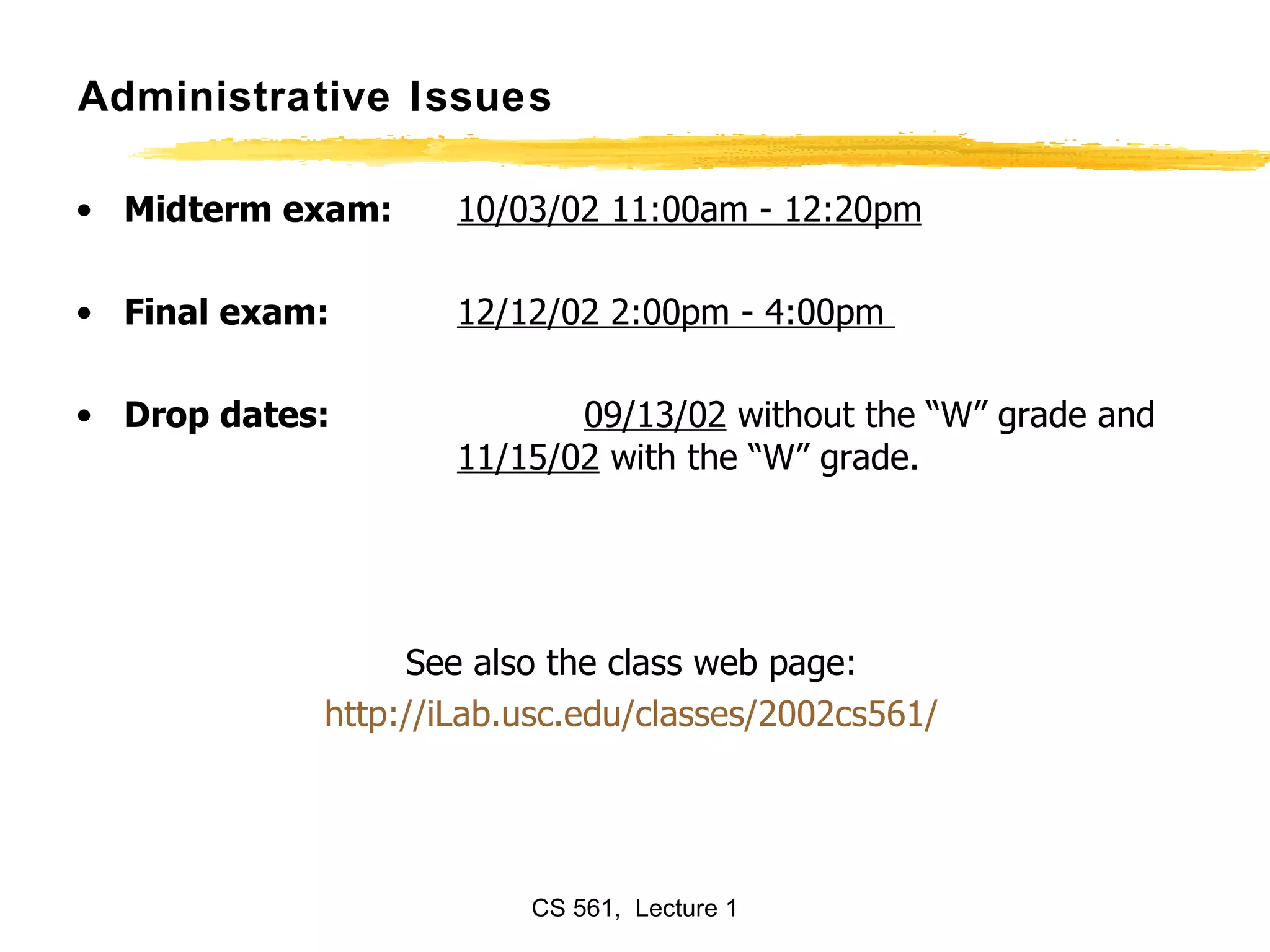

Administrative Issues Midterm exam: 10/03/02 11:00am - 12:20pm Final exam: 12/12/02 2:00pm - 4:00pm Drop dates: 09/13/02 without the “W” grade and 11/15/02 with the “W” grade. See also the class web page: http://iLab.usc.edu/classes/2002cs561/

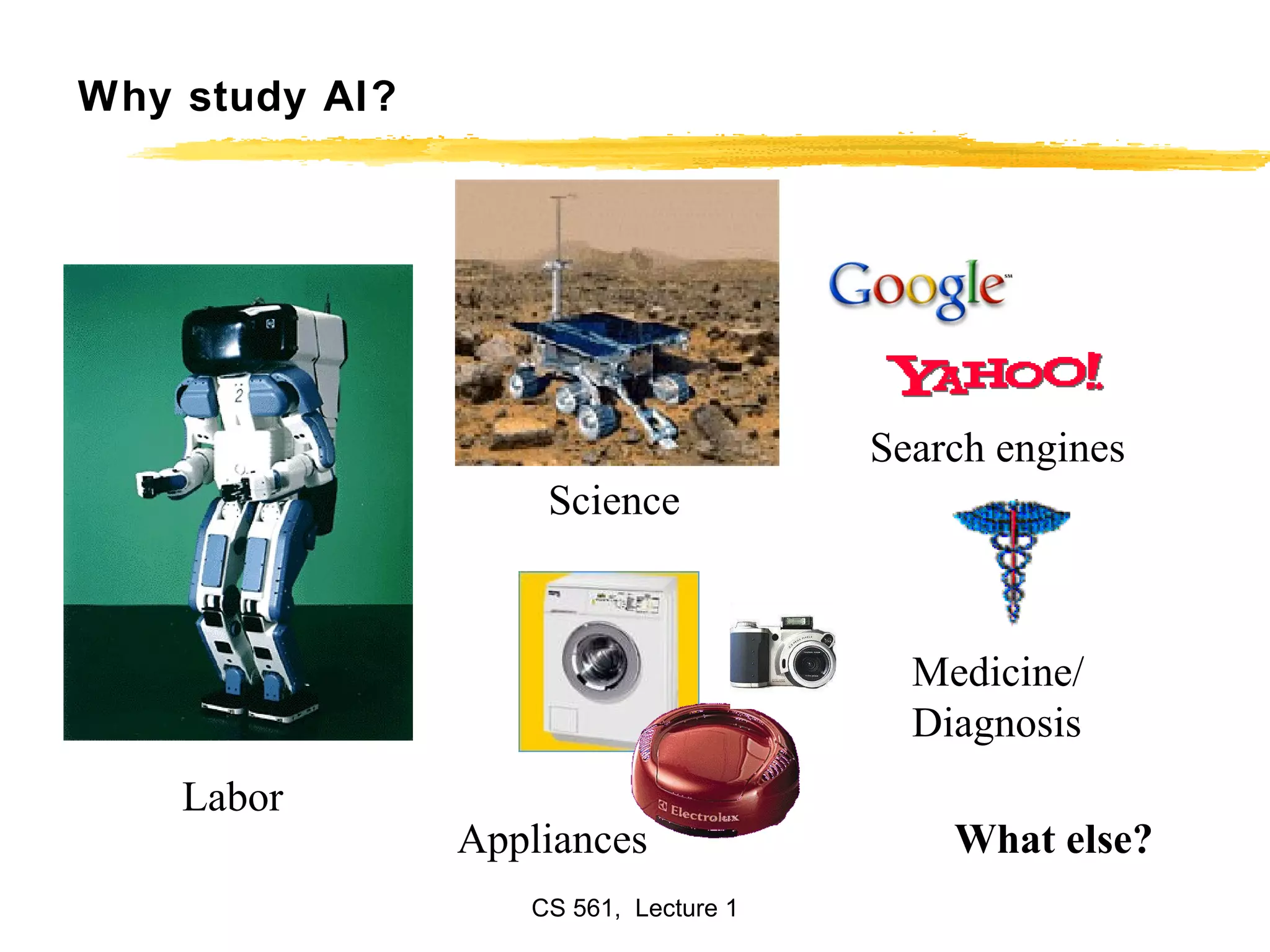

Why study AI? Search engines Labor Science Medicine/ Diagnosis Appliances What else?

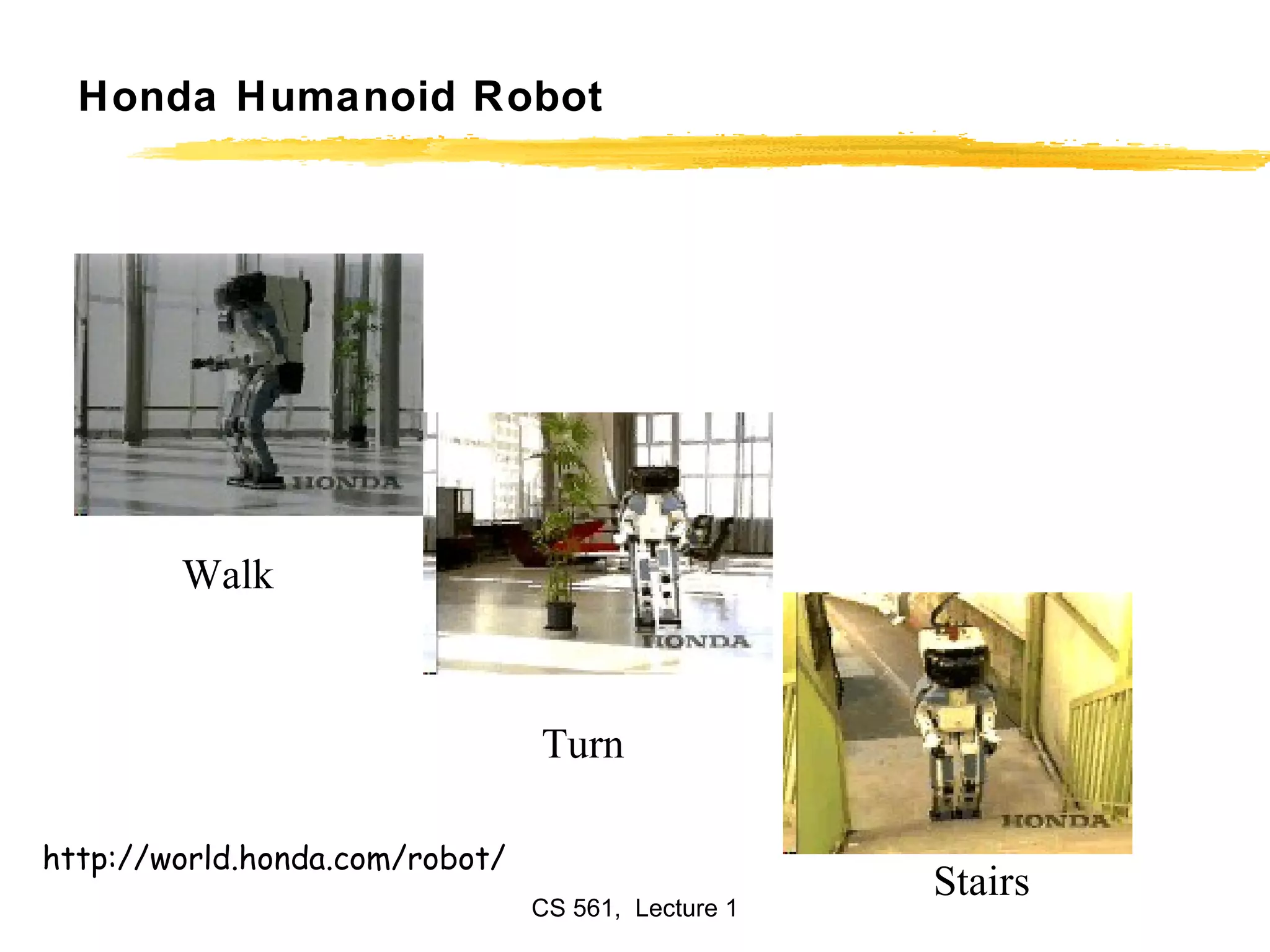

Honda Humanoid Robot Walk Turn Stairs http://world.honda.com/robot/

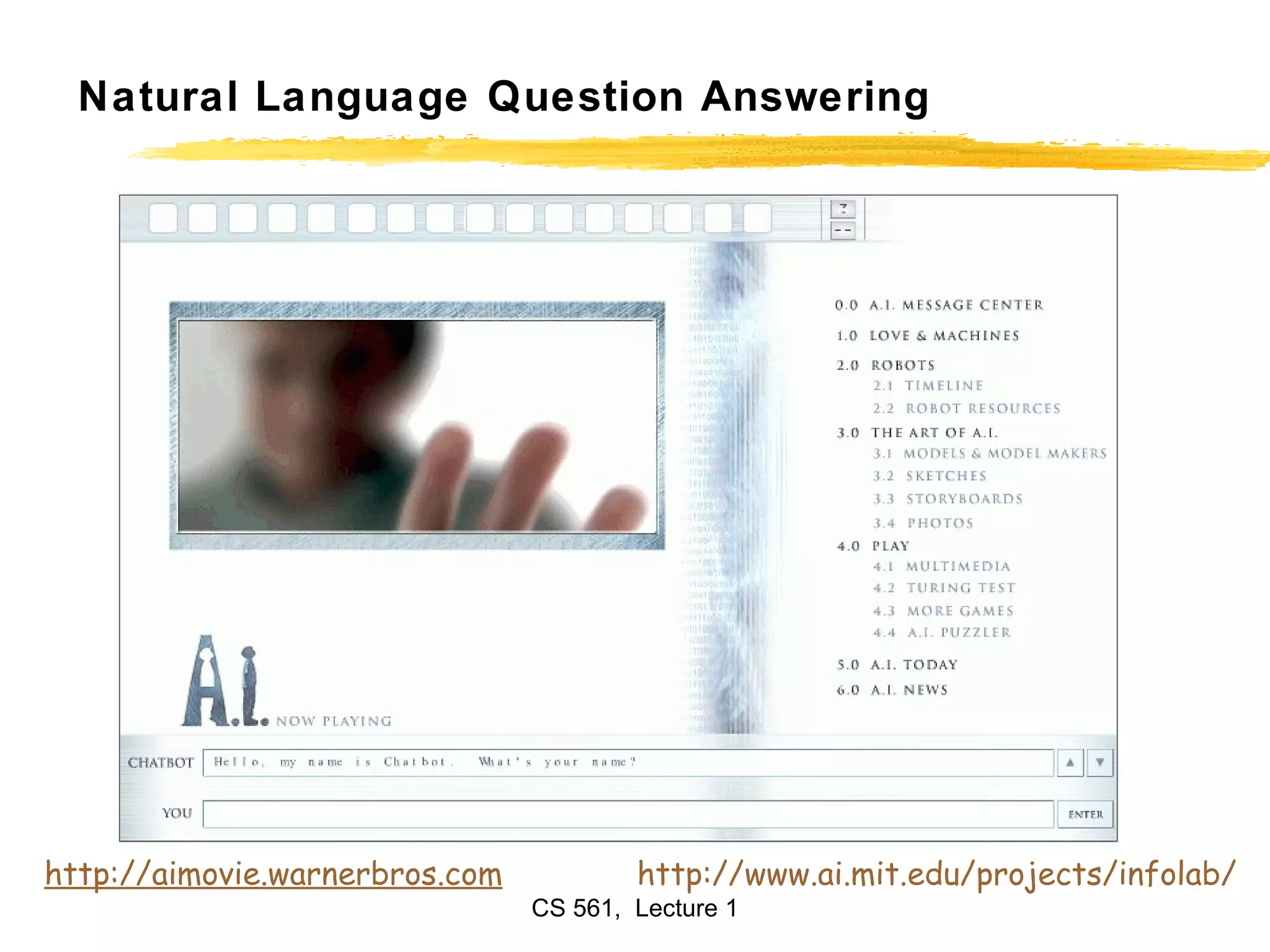

Natural Language Question Answering http://www. ai . mit . edu /projects/ infolab / http://aimovie.warnerbros.com

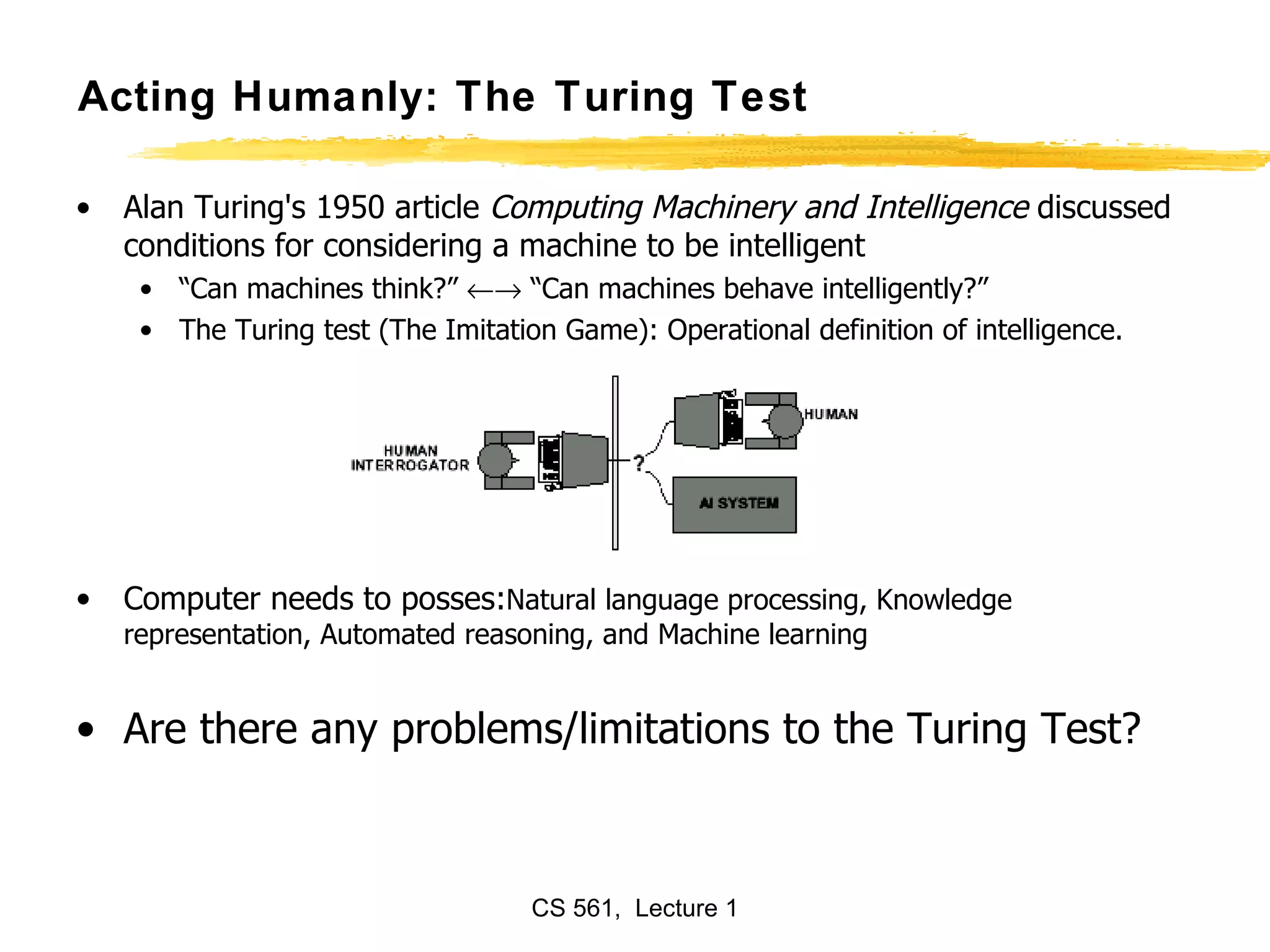

Acting Humanly: The Turing Test Alan Turing's 1950 article Computing Machinery and Intelligence discussed conditions for considering a machine to be intelligent “ Can machines think?”  “Can machines behave intelligently?” The Turing test (The Imitation Game): Operational definition of intelligence. Computer needs to posses: Natural language processing, Knowledge representation, Automated reasoning, and Machine learning Are there any problems/limitations to the Turing Test?

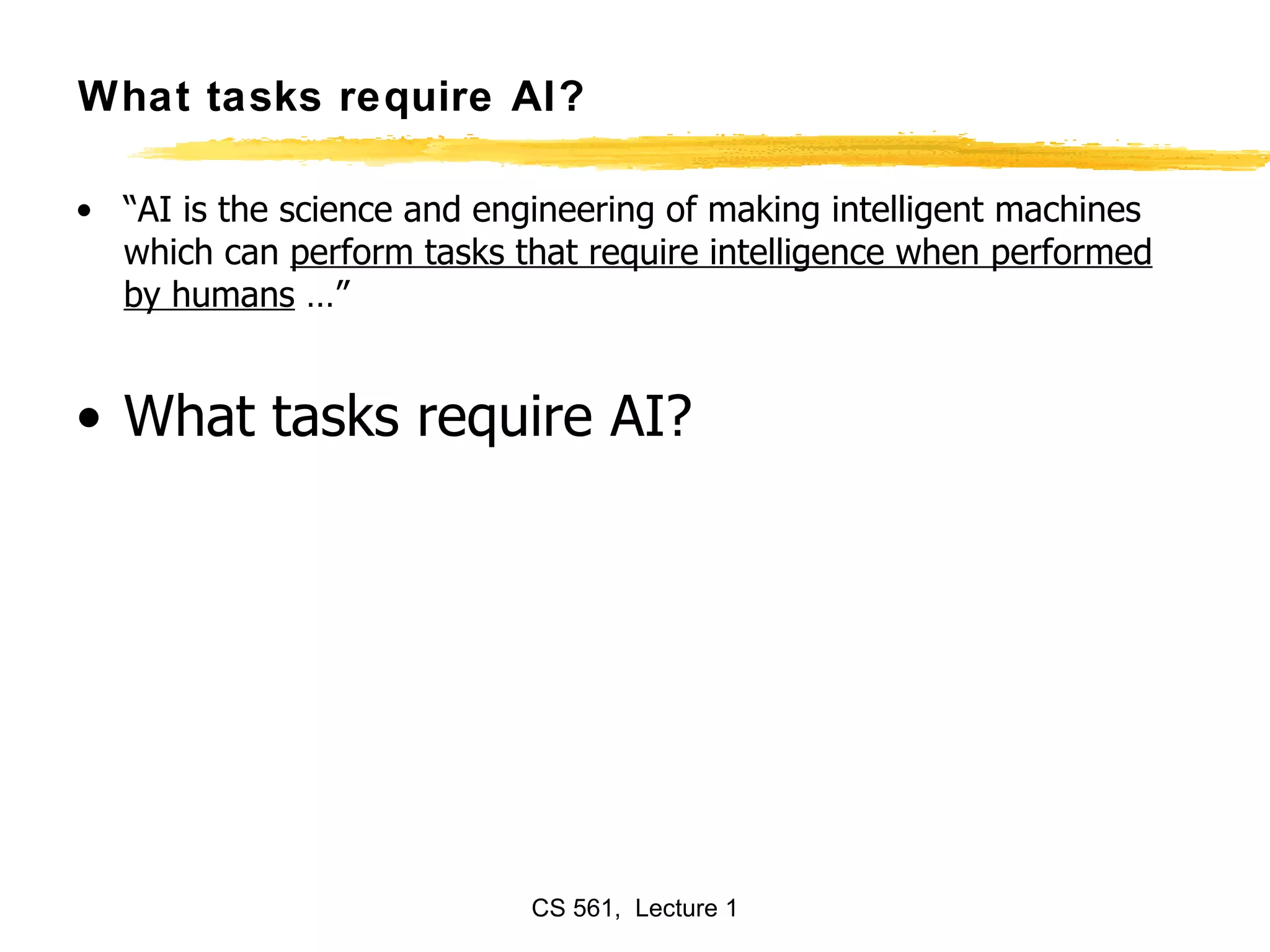

What tasks require AI? “AI is the science and engineering of making intelligent machines which can perform tasks that require intelligence when performed by humans …” What tasks require AI?

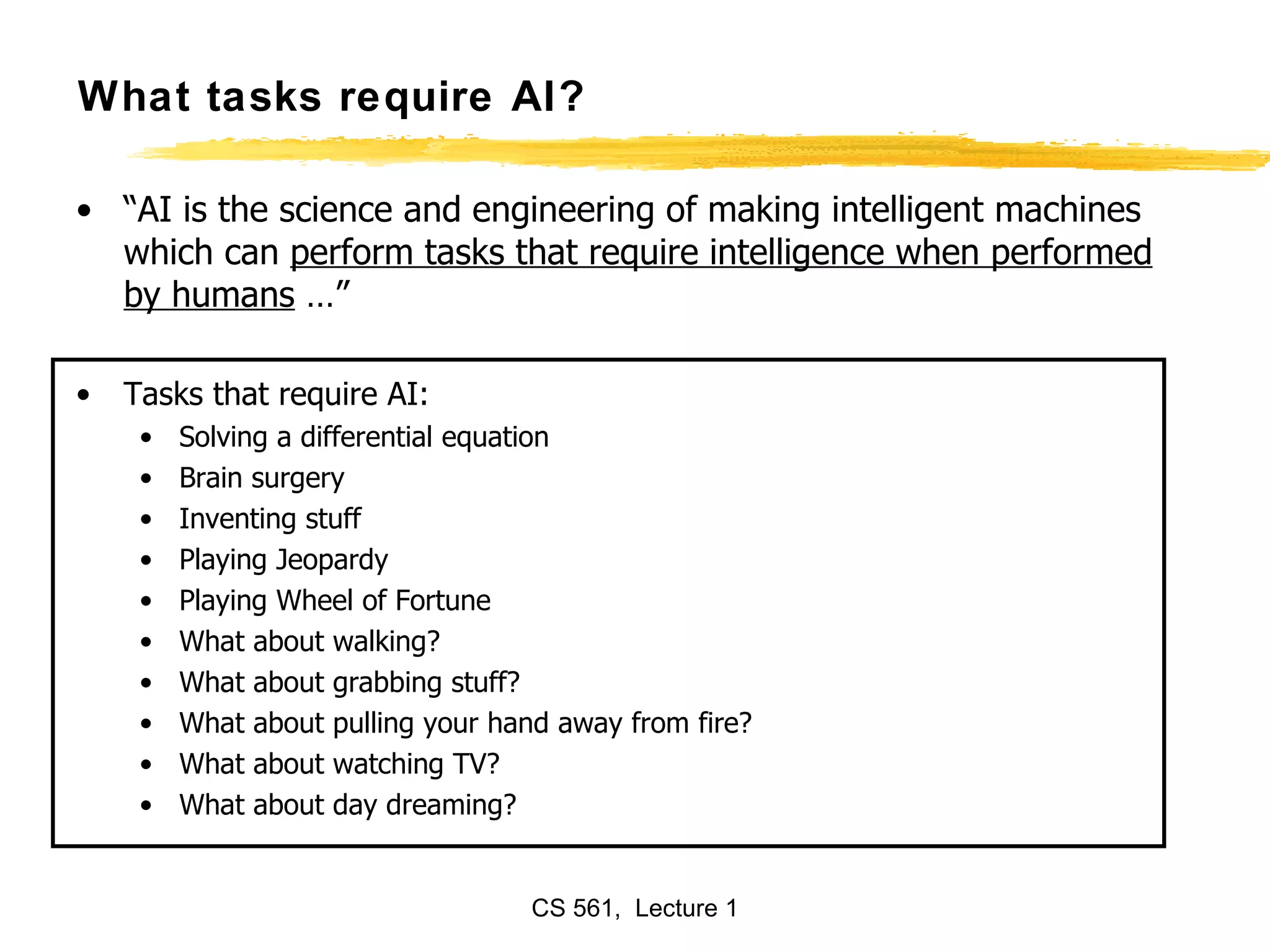

What tasks require AI? “ AI is the science and engineering of making intelligent machines which can perform tasks that require intelligence when performed by humans …” Tasks that require AI: Solving a differential equation Brain surgery Inventing stuff Playing Jeopardy Playing Wheel of Fortune What about walking? What about grabbing stuff? What about pulling your hand away from fire? What about watching TV? What about day dreaming?

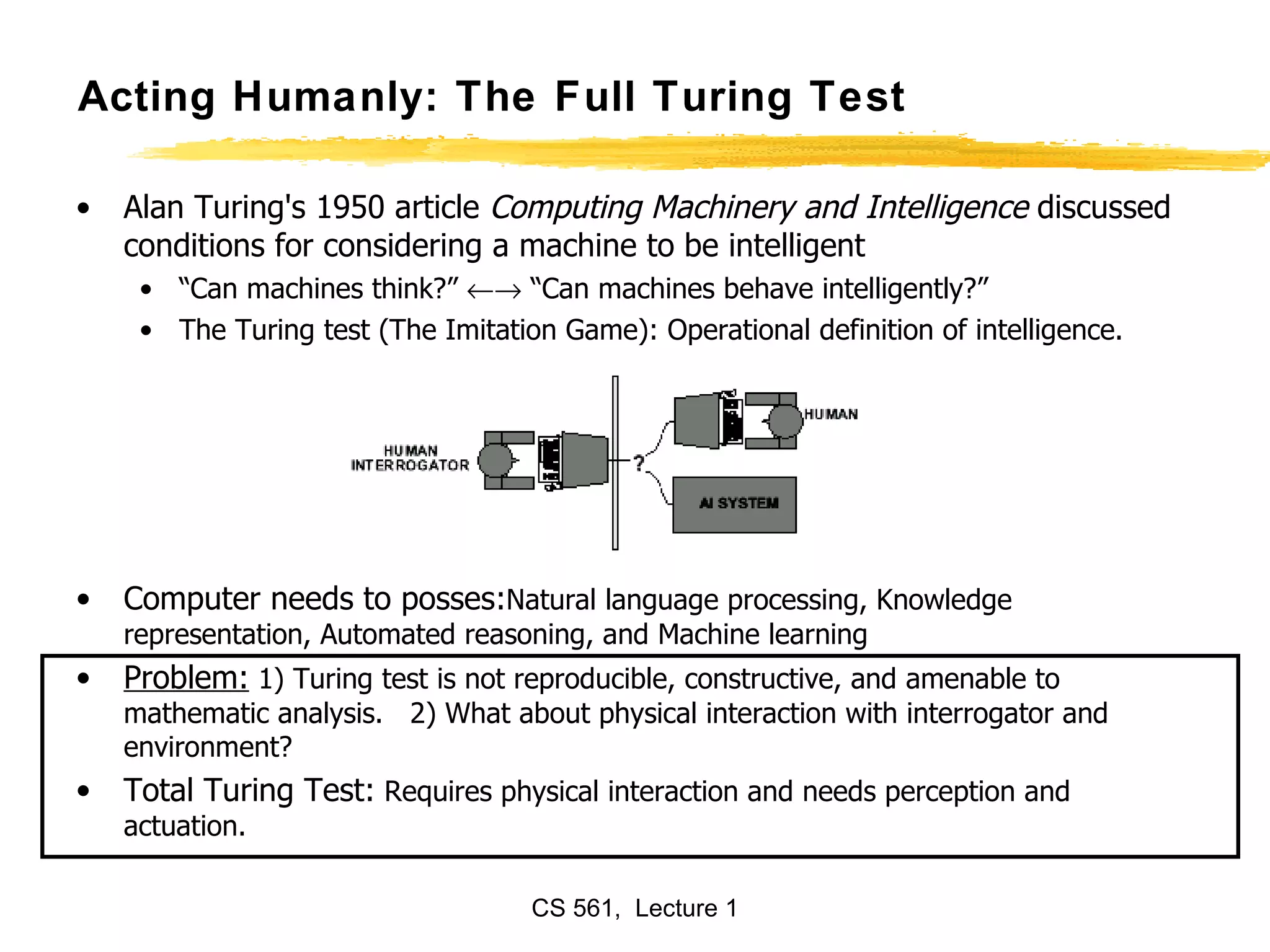

Acting Humanly: The Full Turing Test Alan Turing's 1950 article Computing Machinery and Intelligence discussed conditions for considering a machine to be intelligent “ Can machines think?”  “Can machines behave intelligently?” The Turing test (The Imitation Game): Operational definition of intelligence. Computer needs to posses: Natural language processing, Knowledge representation, Automated reasoning, and Machine learning Problem: 1) Turing test is not reproducible, constructive, and amenable to mathematic analysis. 2) What about physical interaction with interrogator and environment? Total Turing Test: Requires physical interaction and needs perception and actuation.

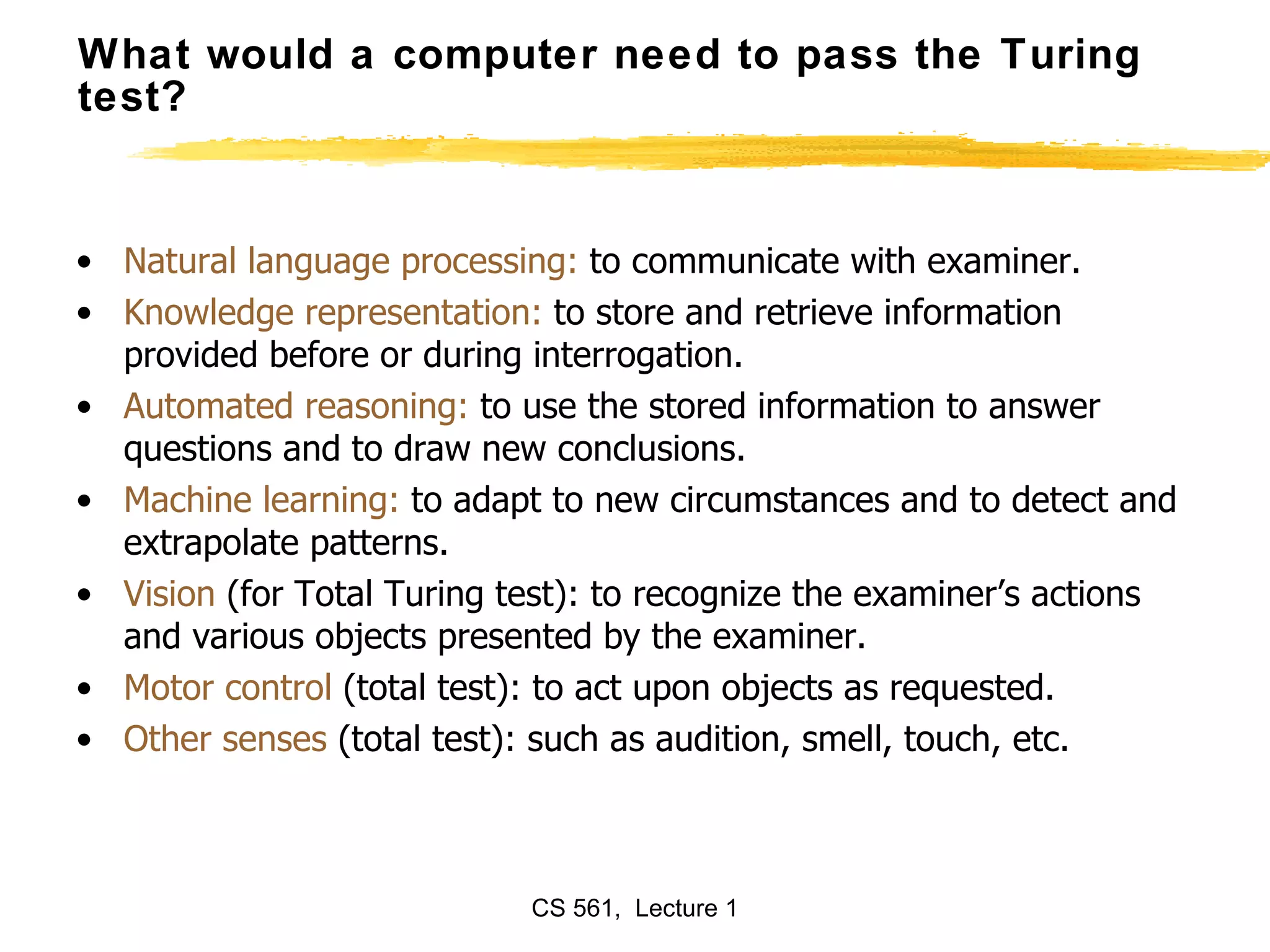

What would a computer need to pass the Turing test? Natural language processing: to communicate with examiner. Knowledge representation: to store and retrieve information provided before or during interrogation. Automated reasoning: to use the stored information to answer questions and to draw new conclusions. Machine learning: to adapt to new circumstances and to detect and extrapolate patterns. Vision (for Total Turing test): to recognize the examiner’s actions and various objects presented by the examiner. Motor control (total test): to act upon objects as requested. Other senses (total test): such as audition, smell, touch, etc.

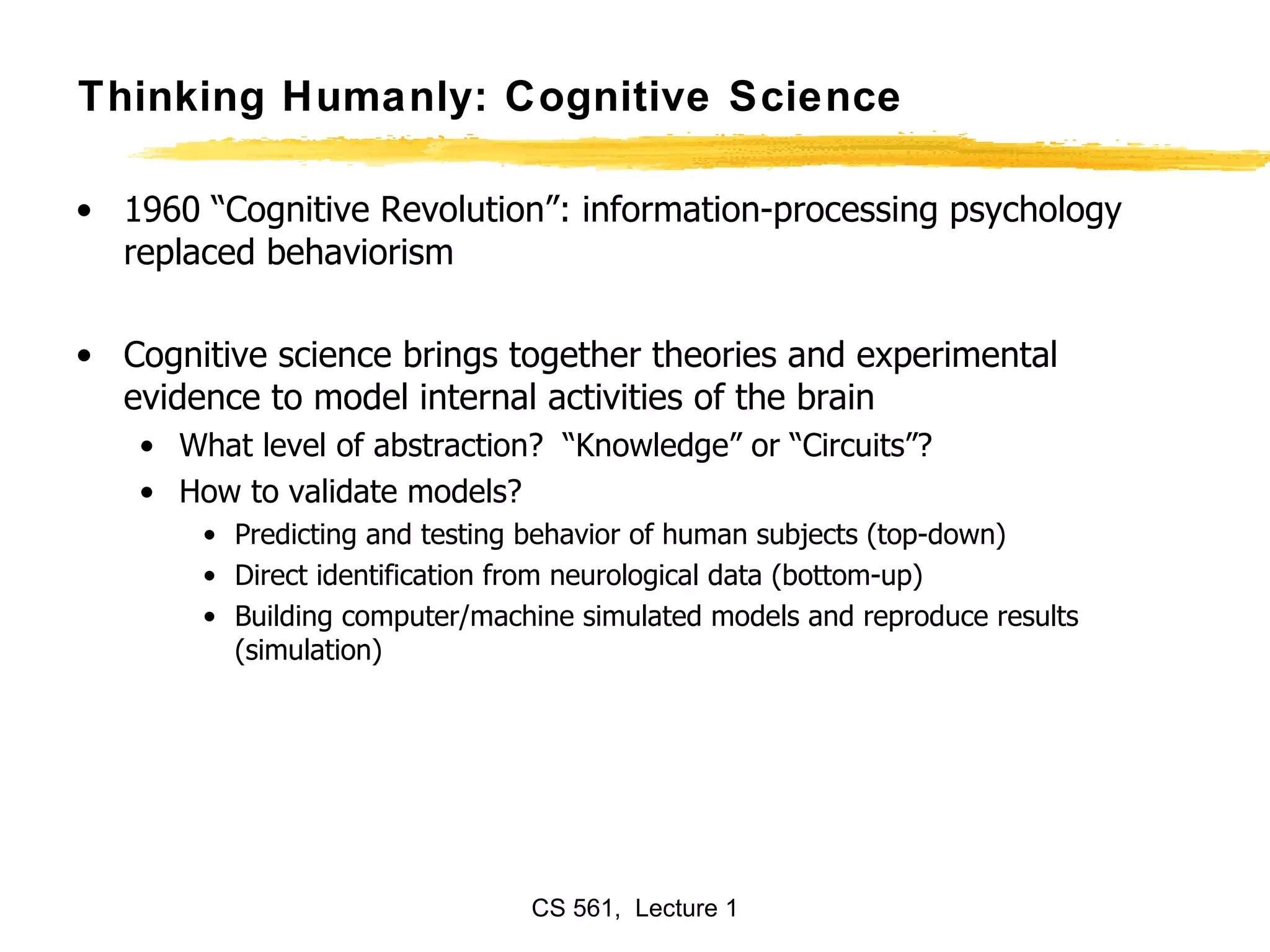

Thinking Humanly: Cognitive Science 1960 “Cognitive Revolution”: information-processing psychology replaced behaviorism Cognitive science brings together theories and experimental evidence to model internal activities of the brain What level of abstraction? “Knowledge” or “Circuits”? How to validate models? Predicting and testing behavior of human subjects (top-down) Direct identification from neurological data (bottom-up) Building computer/machine simulated models and reproduce results (simulation)

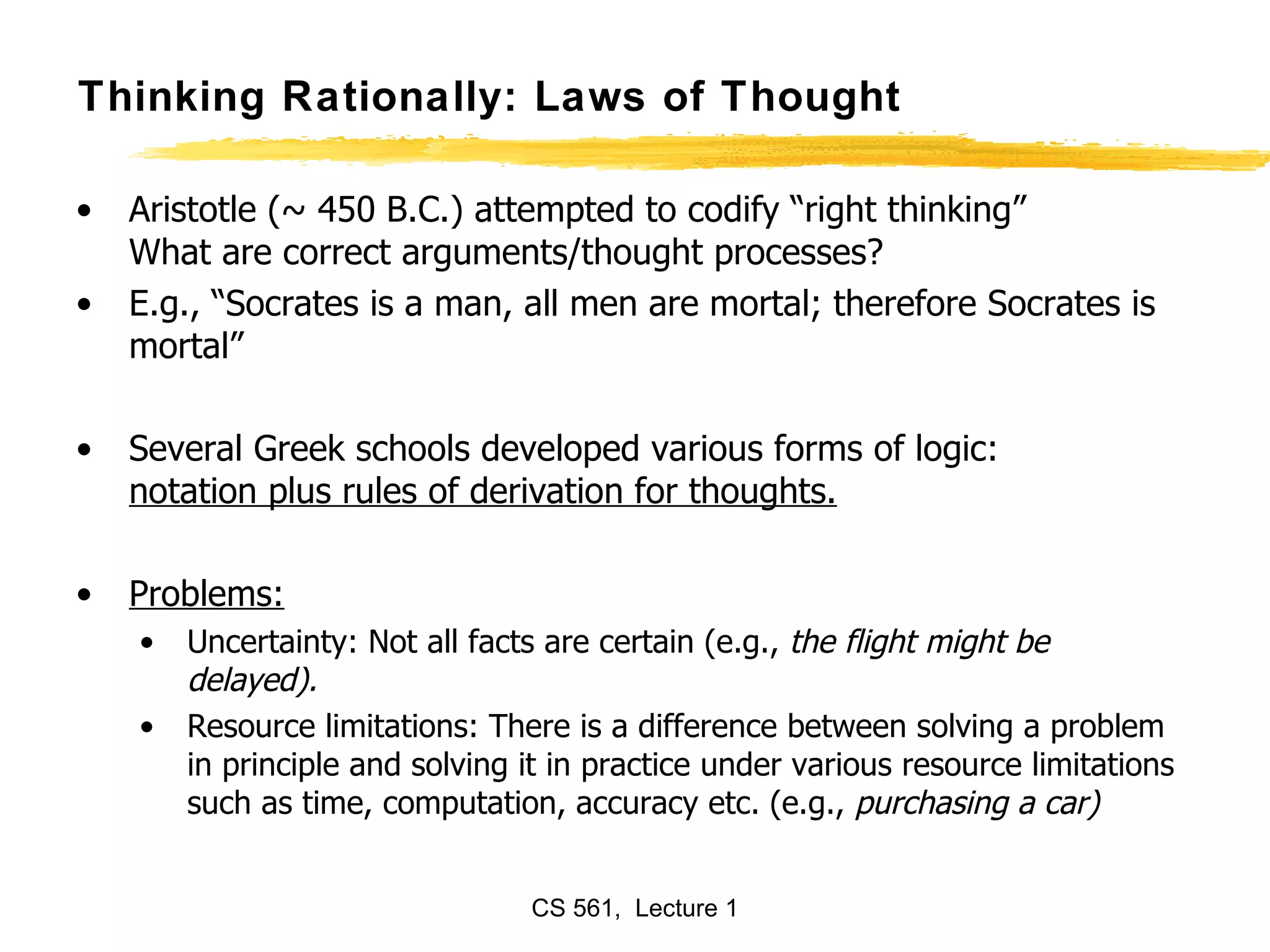

Thinking Rationally: Laws of Thought Aristotle (~ 450 B.C.) attempted to codify “right thinking” What are correct arguments/thought processes? E.g., “Socrates is a man, all men are mortal; therefore Socrates is mortal” Several Greek schools developed various forms of logic: notation plus rules of derivation for thoughts. Problems: Uncertainty: Not all facts are certain (e.g., the flight might be delayed). Resource limitations: There is a difference between solving a problem in principle and solving it in practice under various resource limitations such as time, computation, accuracy etc. (e.g., purchasing a car)

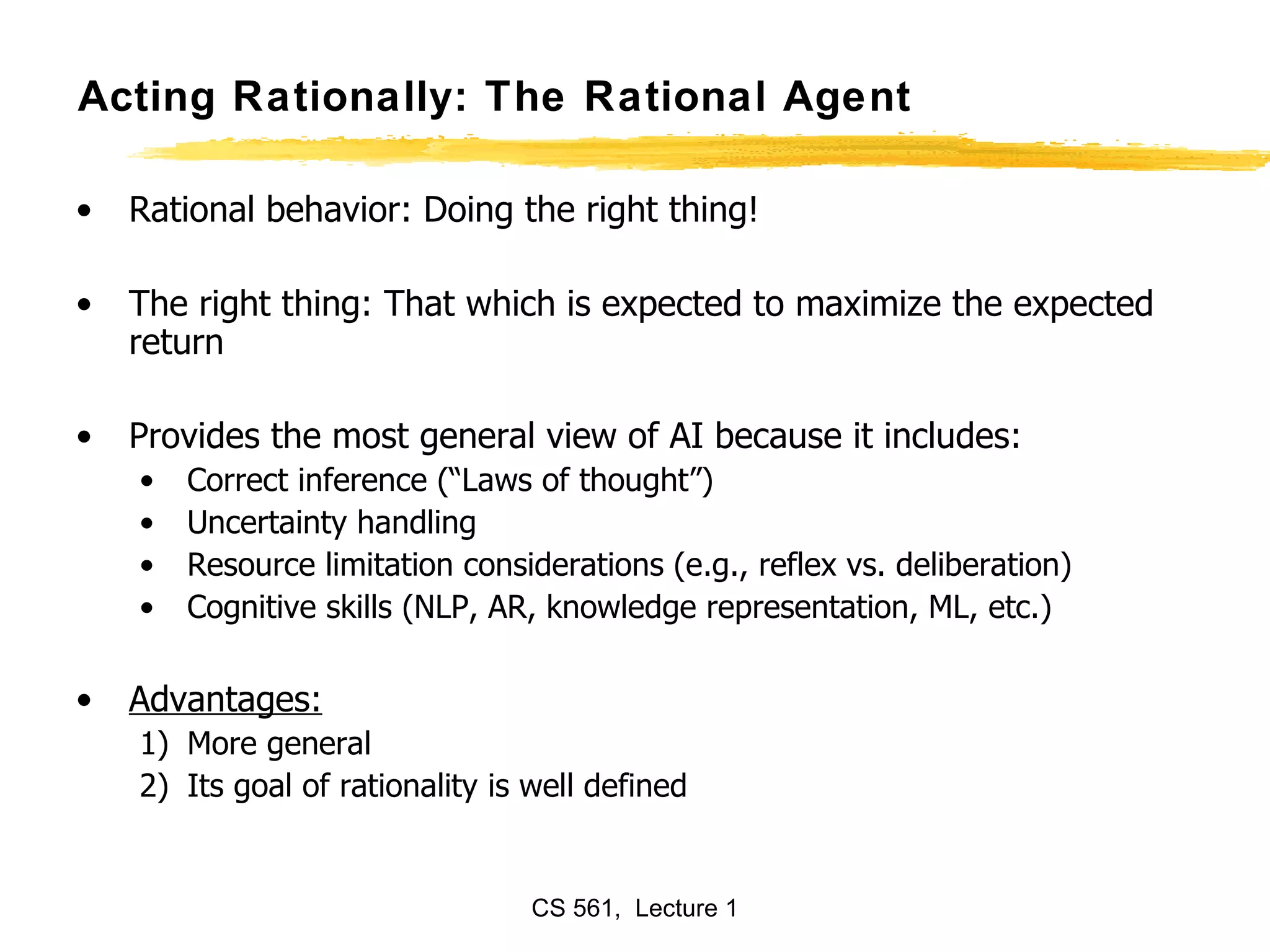

Acting Rationally: The Rational Agent Rational behavior: Doing the right thing! The right thing: That which is expected to maximize the expected return Provides the most general view of AI because it includes: Correct inference (“Laws of thought”) Uncertainty handling Resource limitation considerations (e.g., reflex vs. deliberation) Cognitive skills (NLP, AR, knowledge representation, ML, etc.) Advantages: More general Its goal of rationality is well defined

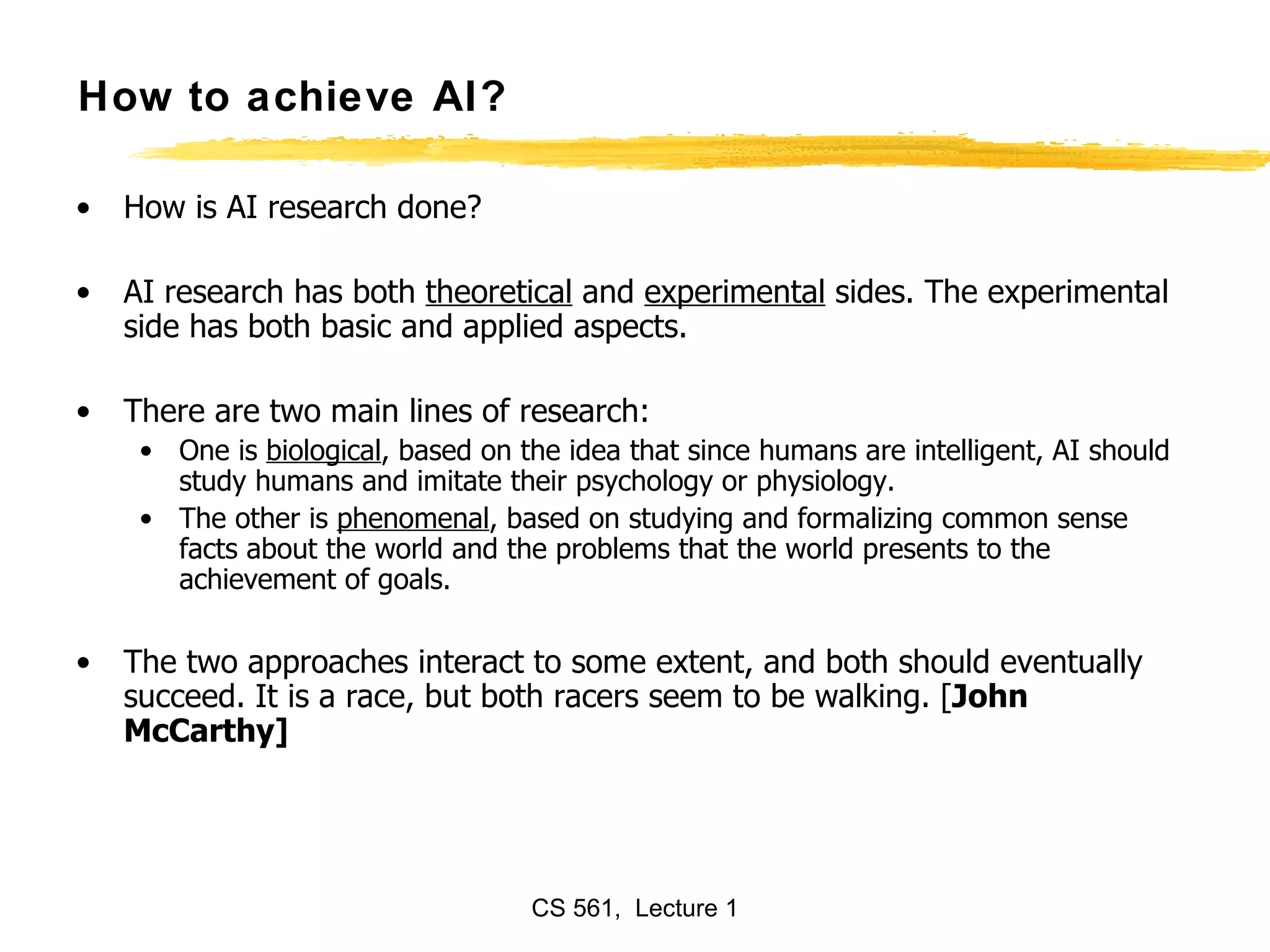

How to achieve AI? How is AI research done? AI research has both theoretical and experimental sides. The experimental side has both basic and applied aspects. There are two main lines of research: One is biological , based on the idea that since humans are intelligent, AI should study humans and imitate their psychology or physiology. The other is phenomenal , based on studying and formalizing common sense facts about the world and the problems that the world presents to the achievement of goals. The two approaches interact to some extent, and both should eventually succeed. It is a race, but both racers seem to be walking. [ John McCarthy]

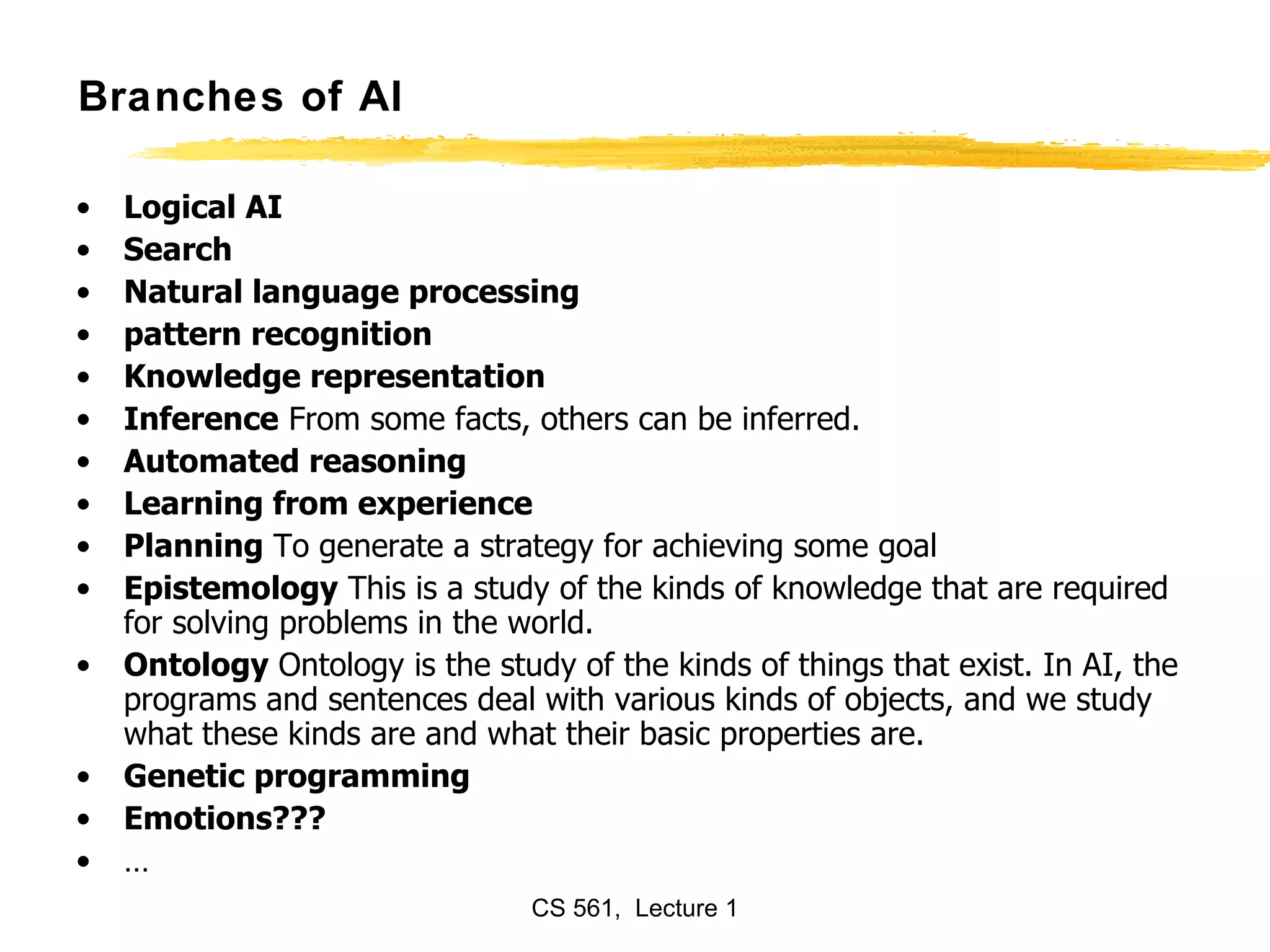

Branches of AI Logical AI Search Natural language processing pattern recognition Knowledge representation Inference From some facts, others can be inferred. Automated reasoning Learning from experience Planning To generate a strategy for achieving some goal Epistemology This is a study of the kinds of knowledge that are required for solving problems in the world. Ontology Ontology is the study of the kinds of things that exist. In AI, the programs and sentences deal with various kinds of objects, and we study what these kinds are and what their basic properties are. Genetic programming Emotions??? …

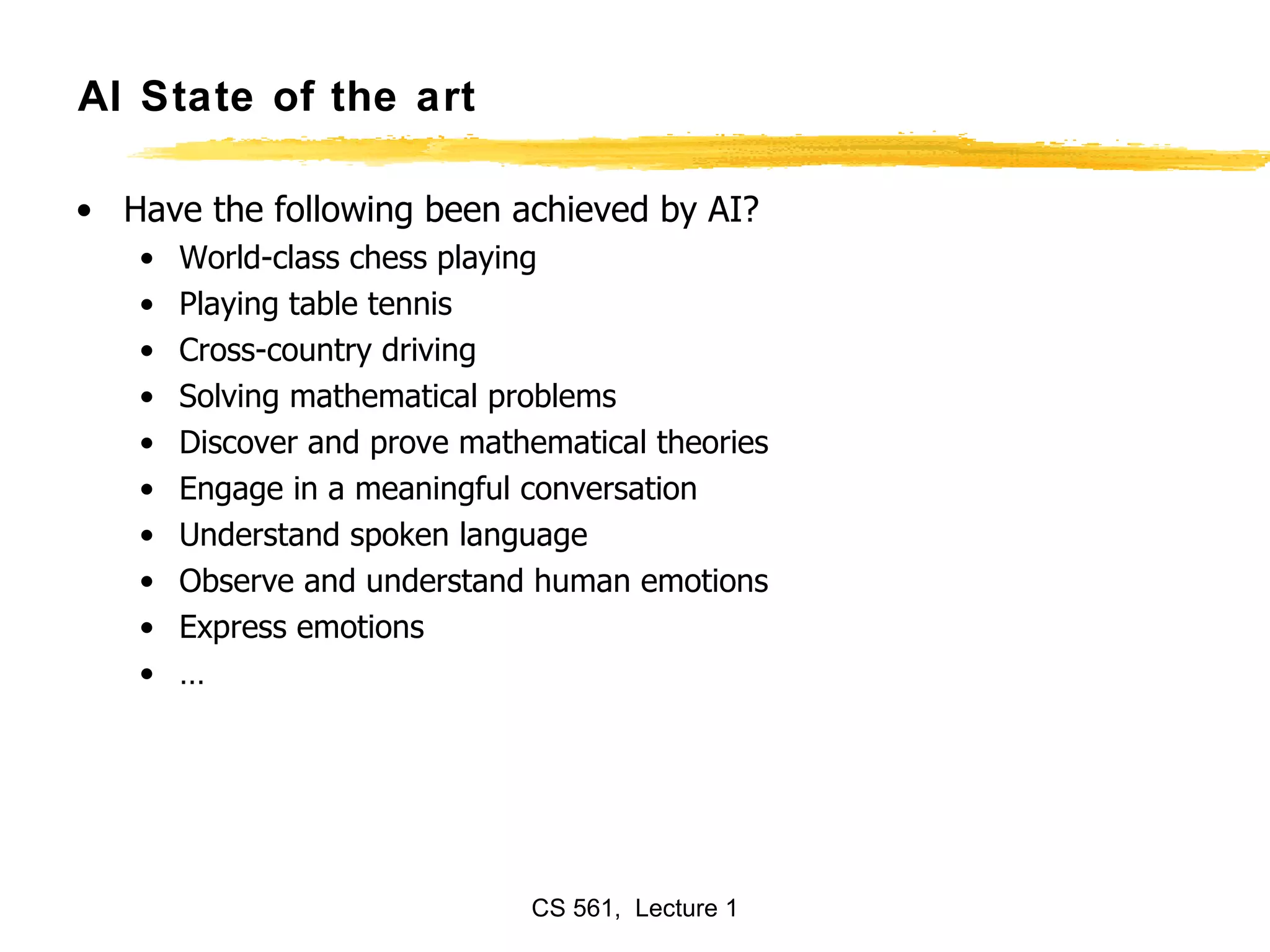

AI State of the art Have the following been achieved by AI? World-class chess playing Playing table tennis Cross-country driving Solving mathematical problems Discover and prove mathematical theories Engage in a meaningful conversation Understand spoken language Observe and understand human emotions Express emotions …

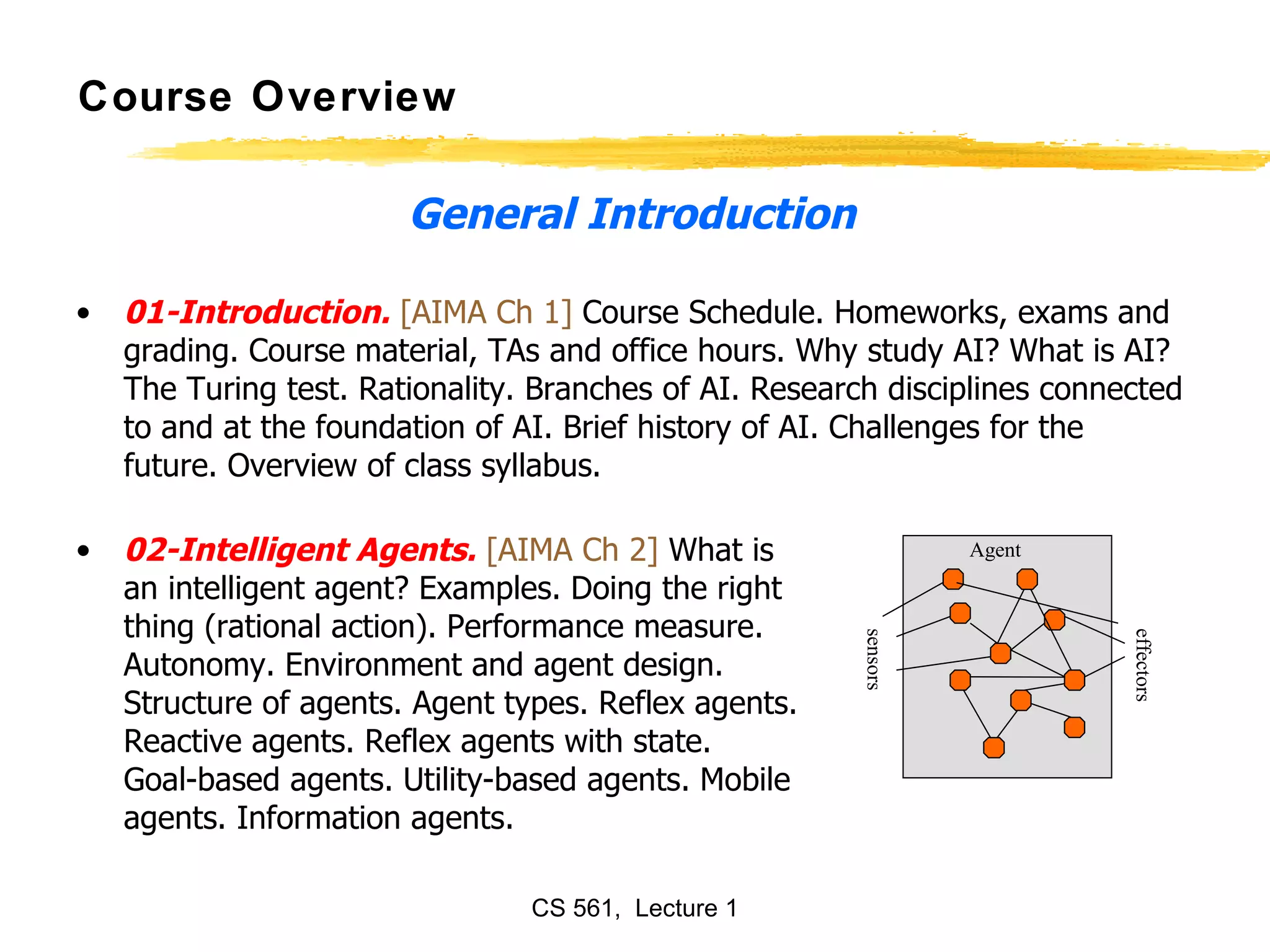

General Introduction 01-Introduction. [AIMA Ch 1] Course Schedule. Homeworks, exams and grading. Course material, TAs and office hours. Why study AI? What is AI? The Turing test. Rationality. Branches of AI. Research disciplines connected to and at the foundation of AI. Brief history of AI. Challenges for the future. Overview of class syllabus. 02-Intelligent Agents. [AIMA Ch 2] What is an intelligent agent? Examples. Doing the right thing (rational action). Performance measure. Autonomy. Environment and agent design. Structure of agents. Agent types. Reflex agents. Reactive agents. Reflex agents with state. Goal-based agents. Utility-based agents. Mobile agents. Information agents. Course Overview sensors effectors Agent

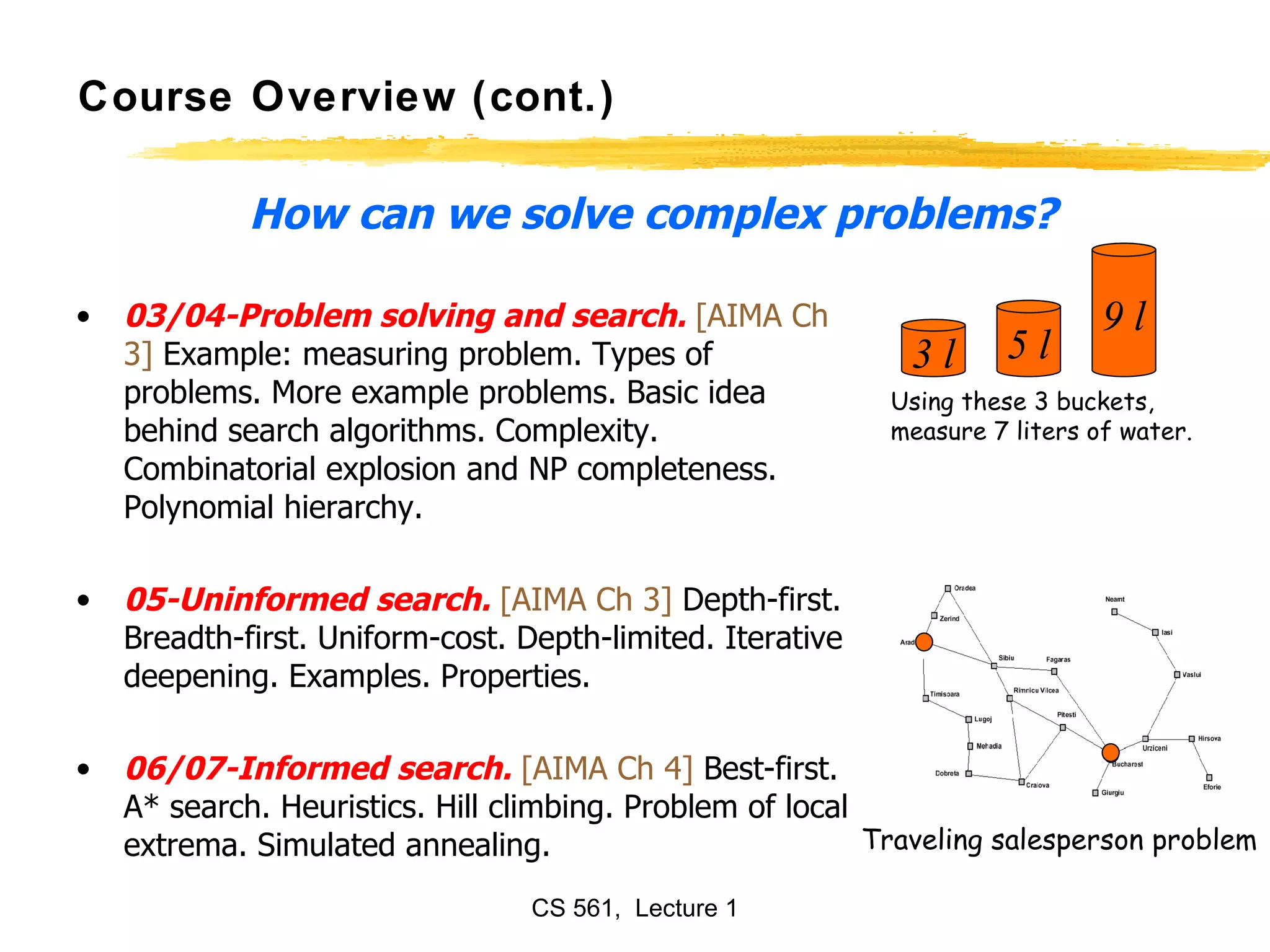

Course Overview (cont.) 03/04-Problem solving and search. [AIMA Ch 3] Example: measuring problem. Types of problems. More example problems. Basic idea behind search algorithms. Complexity. Combinatorial explosion and NP completeness. Polynomial hierarchy. 05-Uninformed search. [AIMA Ch 3] Depth-first. Breadth-first. Uniform-cost. Depth-limited. Iterative deepening. Examples. Properties. 06/07-Informed search. [AIMA Ch 4] Best-first. A* search. Heuristics. Hill climbing. Problem of local extrema. Simulated annealing. How can we solve complex problems? 3 l 5 l 9 l Using these 3 buckets, measure 7 liters of water. Traveling salesperson problem

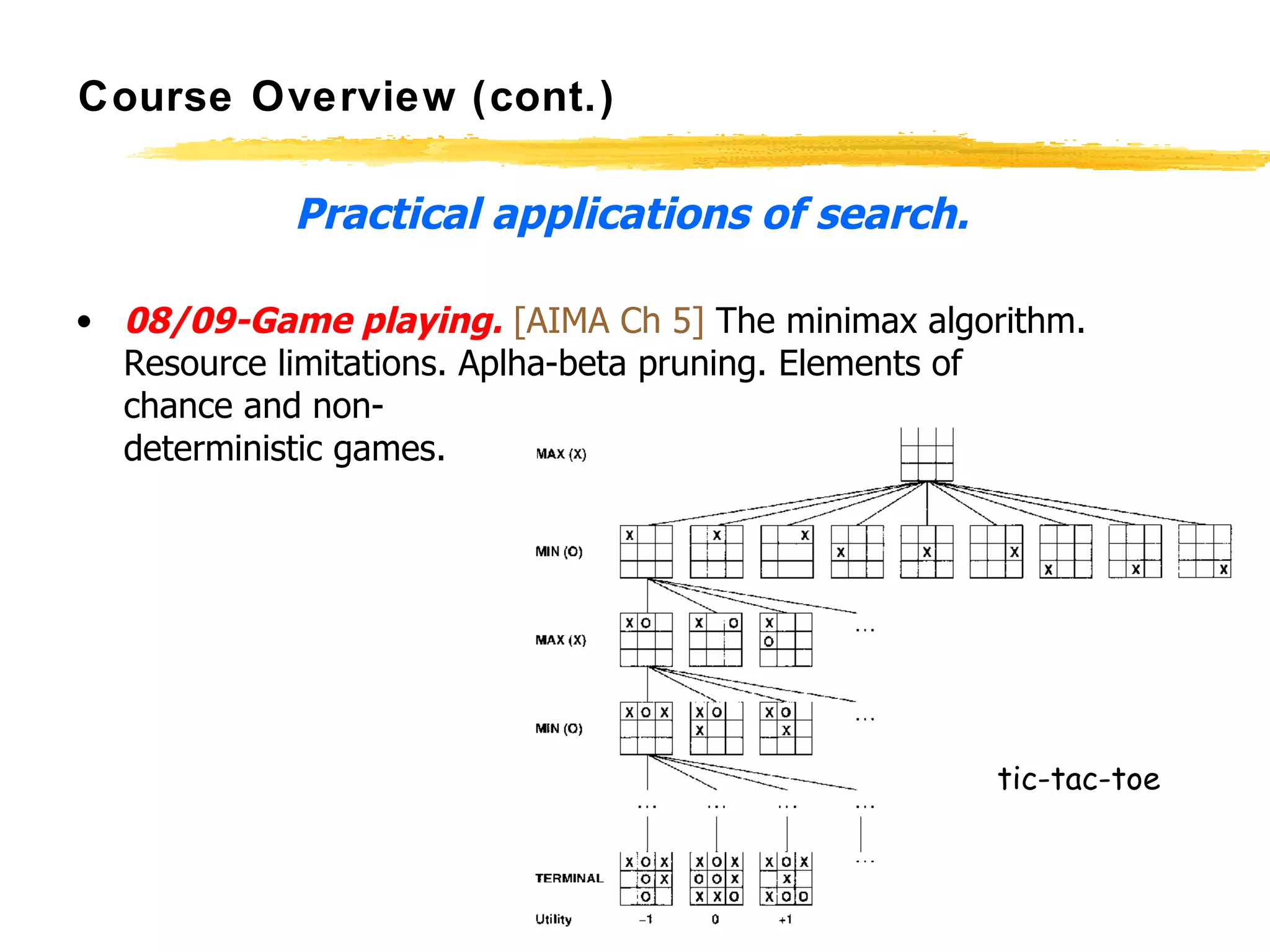

Course Overview (cont.) Practical applications of search. 08/09-Game playing. [AIMA Ch 5] The minimax algorithm. Resource limitations. Aplha-beta pruning. Elements of chance and non- deterministic games. tic-tac-toe

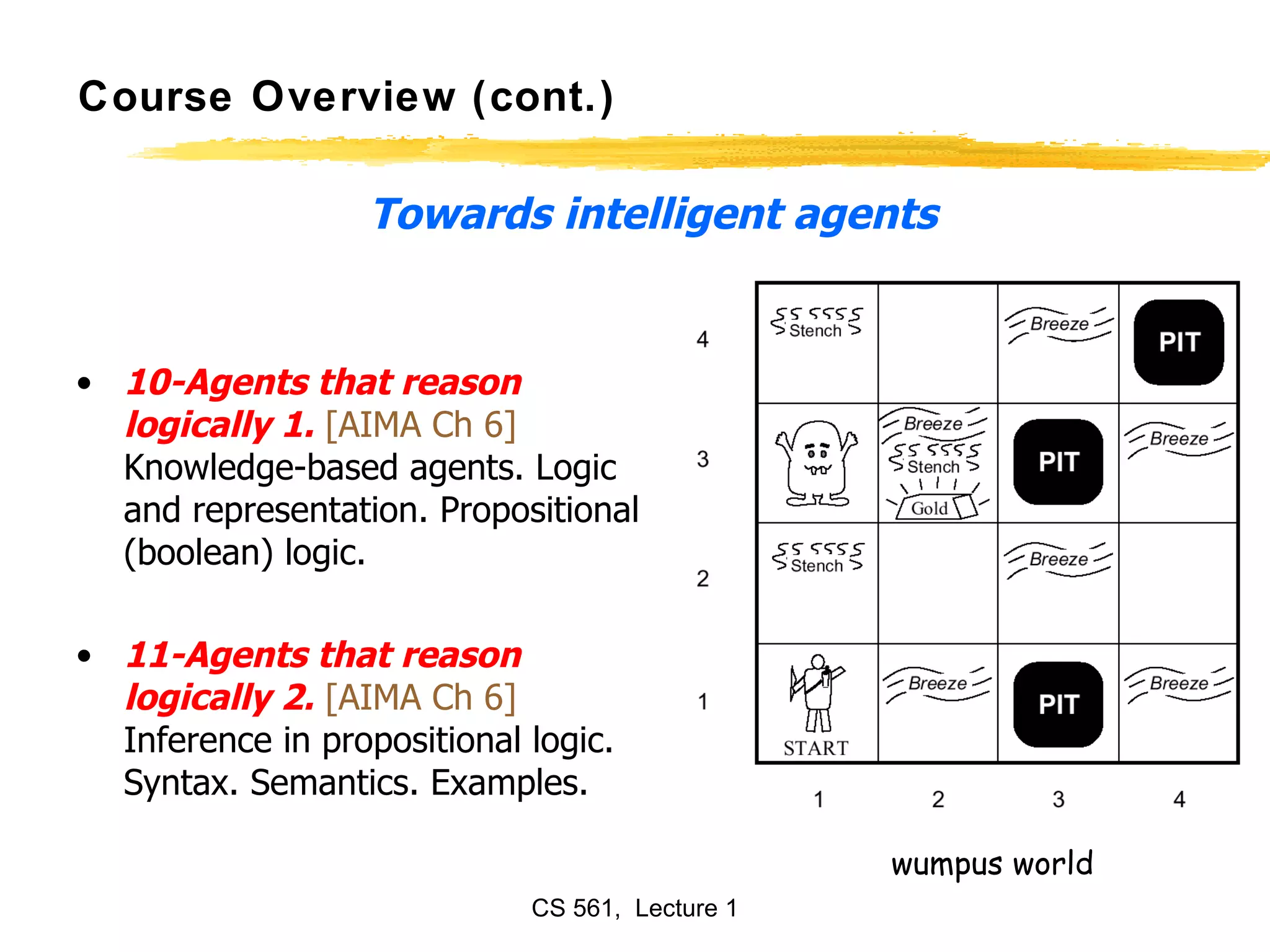

Course Overview (cont.) 10-Agents that reason logically 1. [AIMA Ch 6] Knowledge-based agents. Logic and representation. Propositional (boolean) logic. 11-Agents that reason logically 2. [AIMA Ch 6] Inference in propositional logic. Syntax. Semantics. Examples. Towards intelligent agents wumpus world

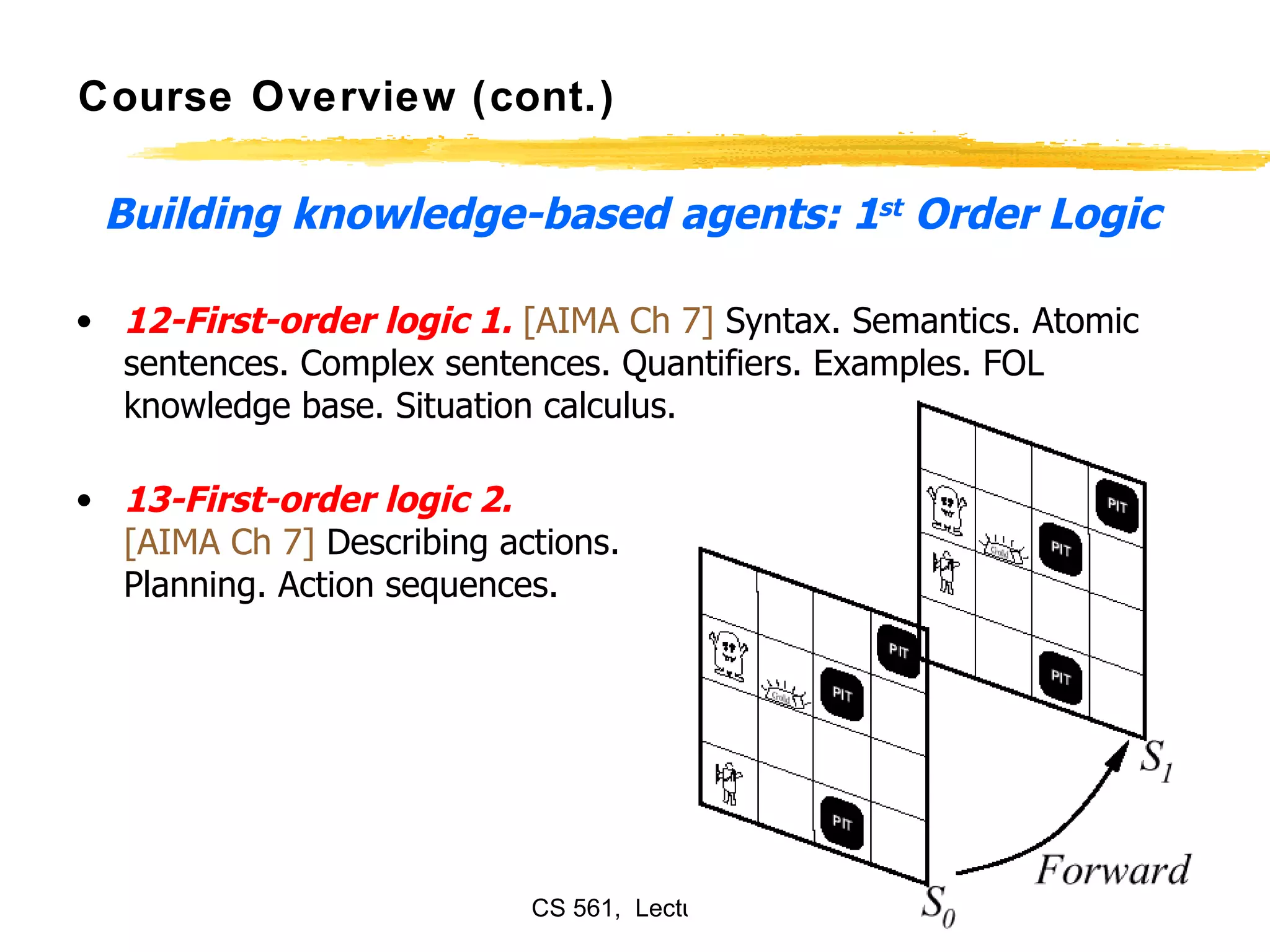

Course Overview (cont.) Building knowledge-based agents: 1 st Order Logic 12-First-order logic 1. [AIMA Ch 7] Syntax. Semantics. Atomic sentences. Complex sentences. Quantifiers. Examples. FOL knowledge base. Situation calculus. 13-First-order logic 2. [AIMA Ch 7] Describing actions. Planning. Action sequences.

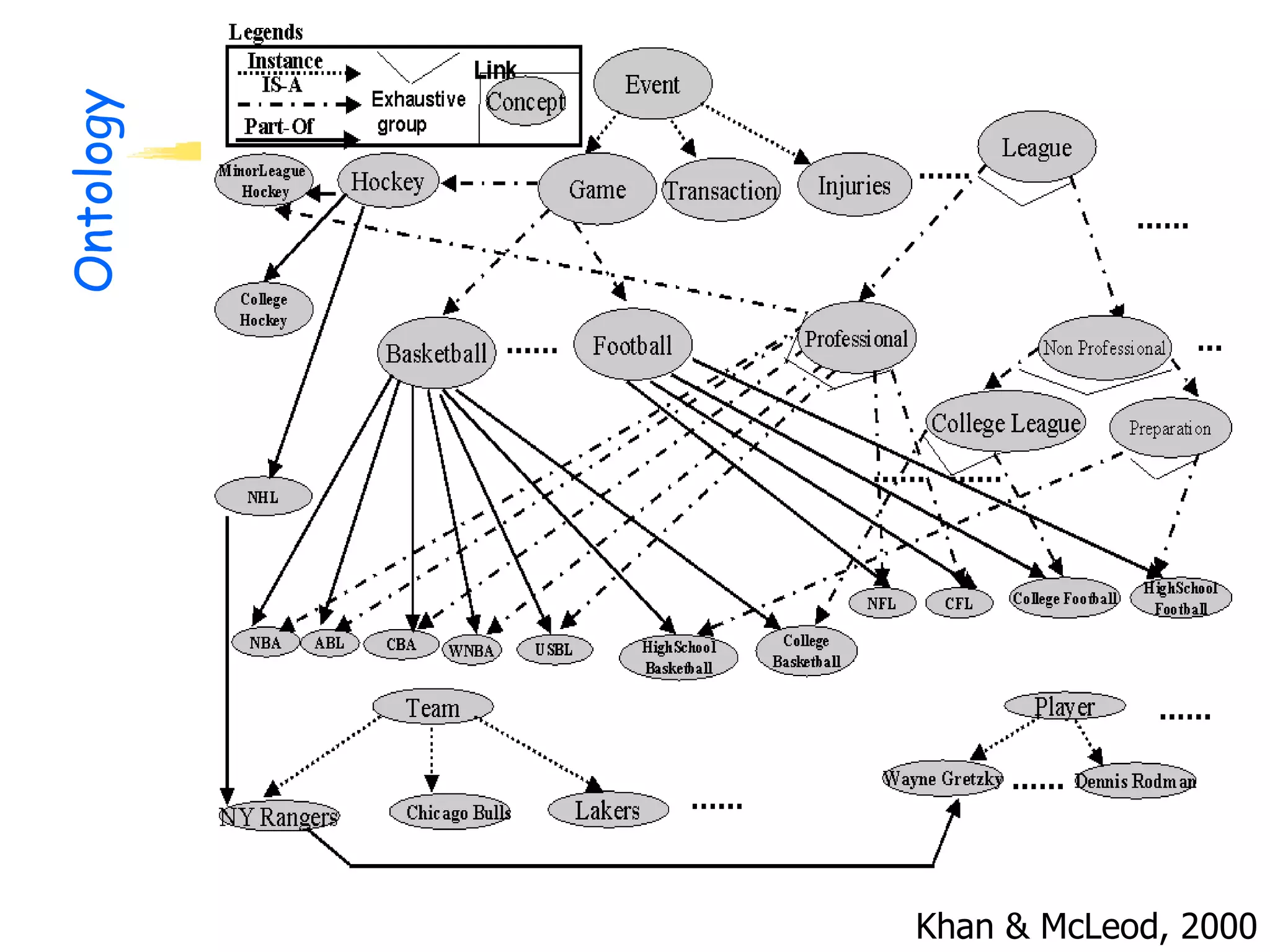

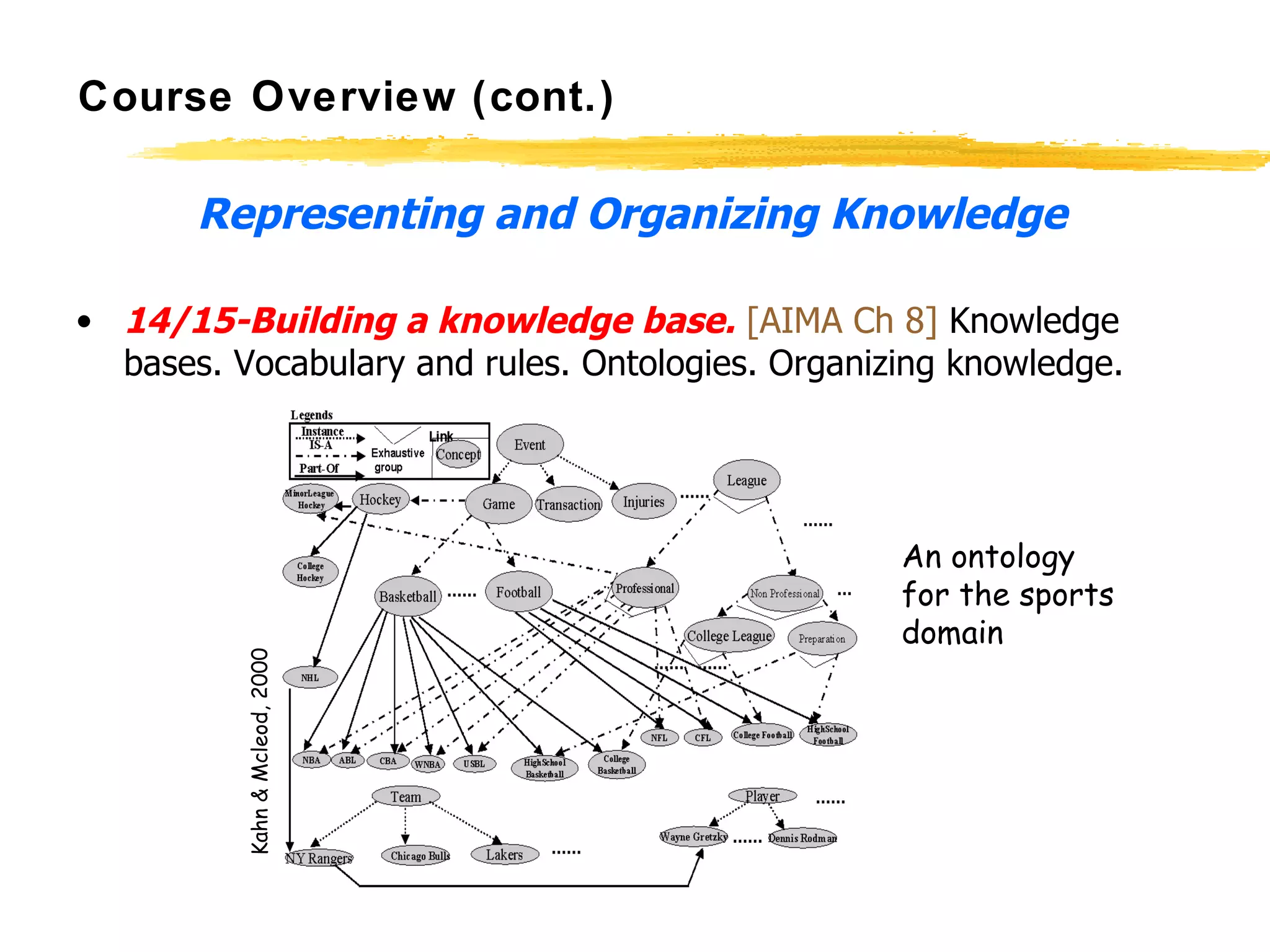

Course Overview (cont.) Representing and Organizing Knowledge 14/15-Building a knowledge base. [AIMA Ch 8] Knowledge bases. Vocabulary and rules. Ontologies. Organizing knowledge. Kahn & Mcleod, 2000 An ontology for the sports domain

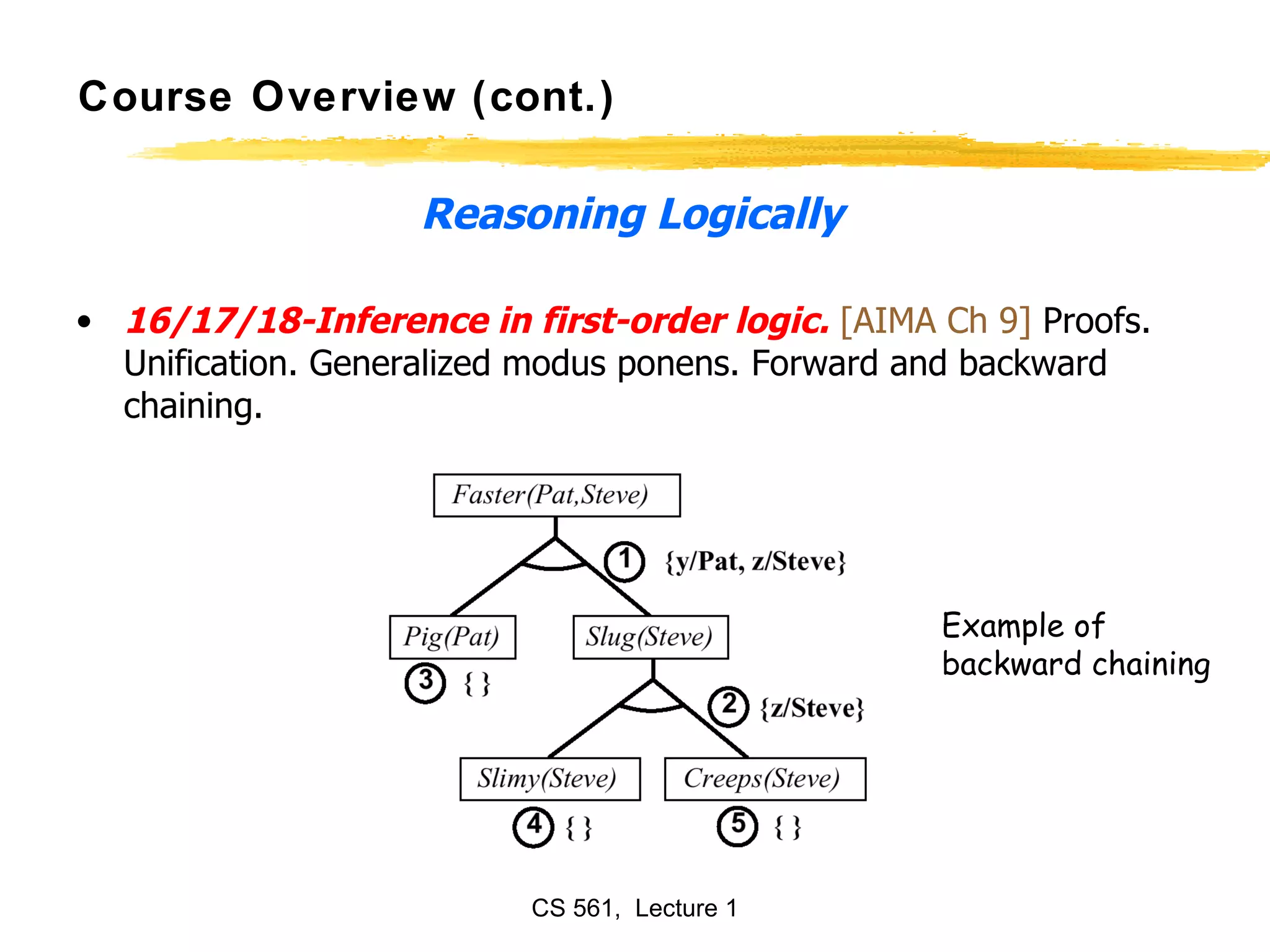

Course Overview (cont.) Reasoning Logically 16/17/18-Inference in first-order logic. [AIMA Ch 9] Proofs. Unification. Generalized modus ponens. Forward and backward chaining. Example of backward chaining

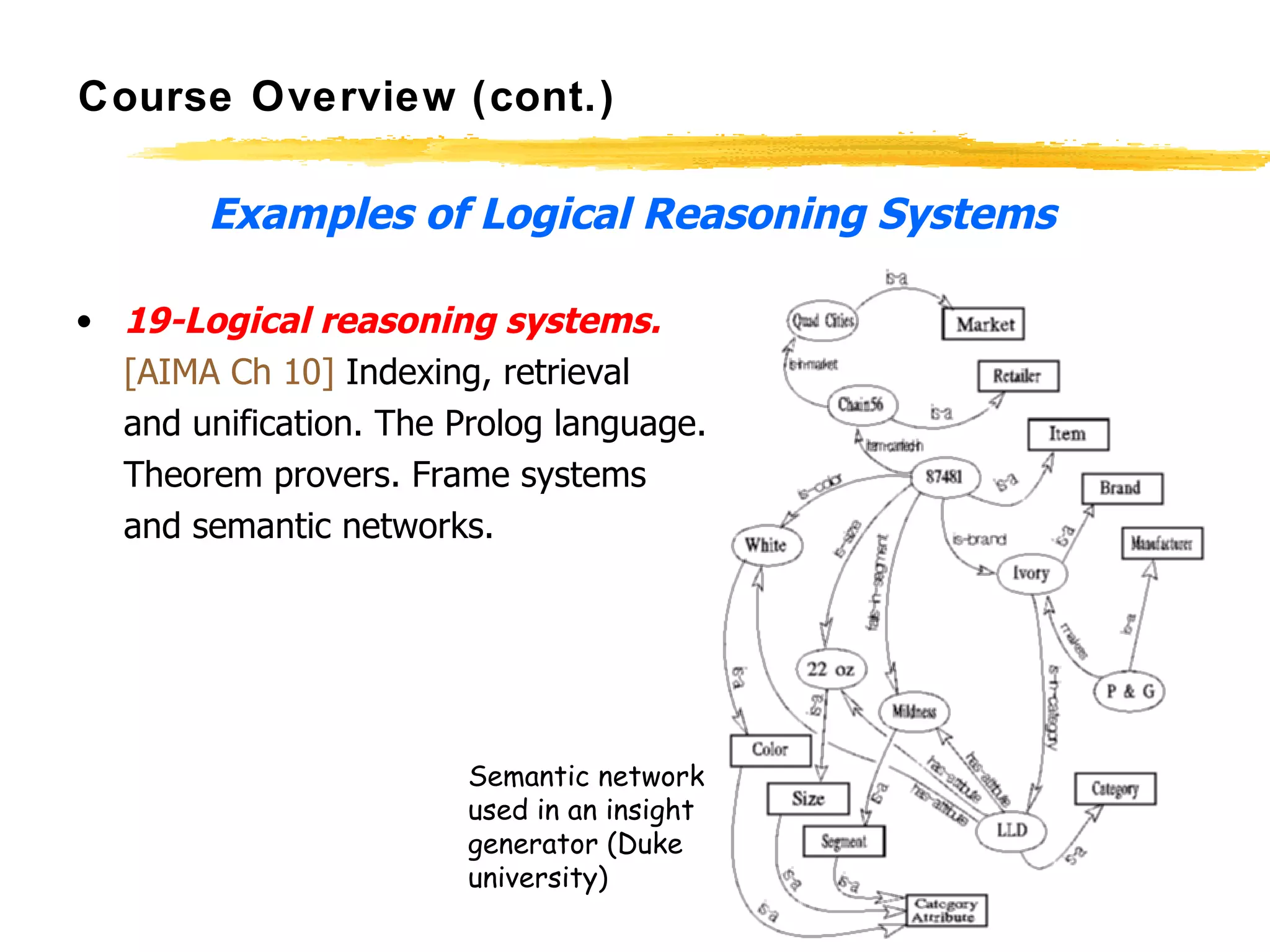

Course Overview (cont.) Examples of Logical Reasoning Systems 19-Logical reasoning systems. [AIMA Ch 10] Indexing, retrieval and unification. The Prolog language. Theorem provers. Frame systems and semantic networks. Semantic network used in an insight generator (Duke university)

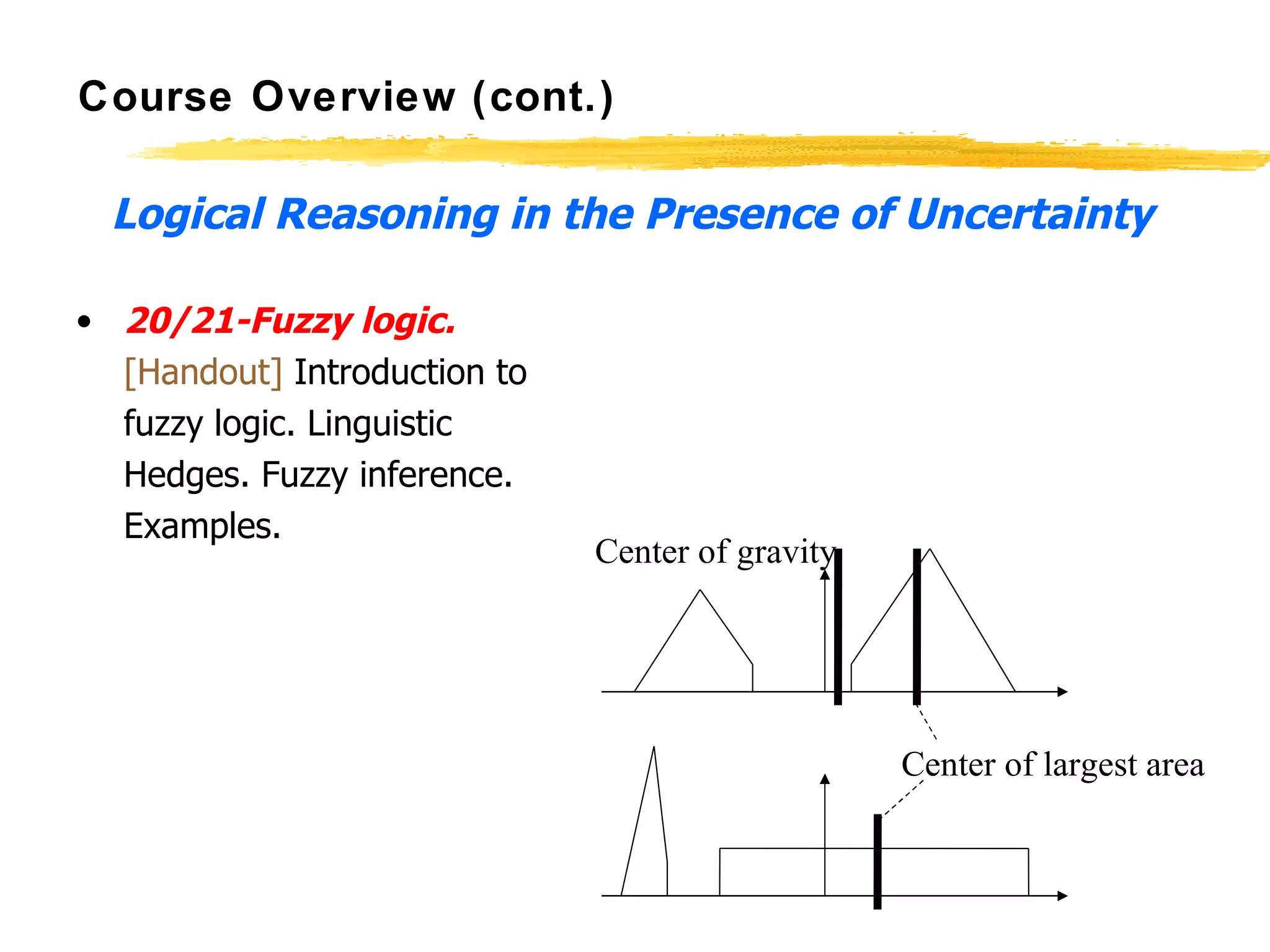

Course Overview (cont.) Logical Reasoning in the Presence of Uncertainty 20/21-Fuzzy logic. [Handout] Introduction to fuzzy logic. Linguistic Hedges. Fuzzy inference. Examples. Center of largest area Center of gravity

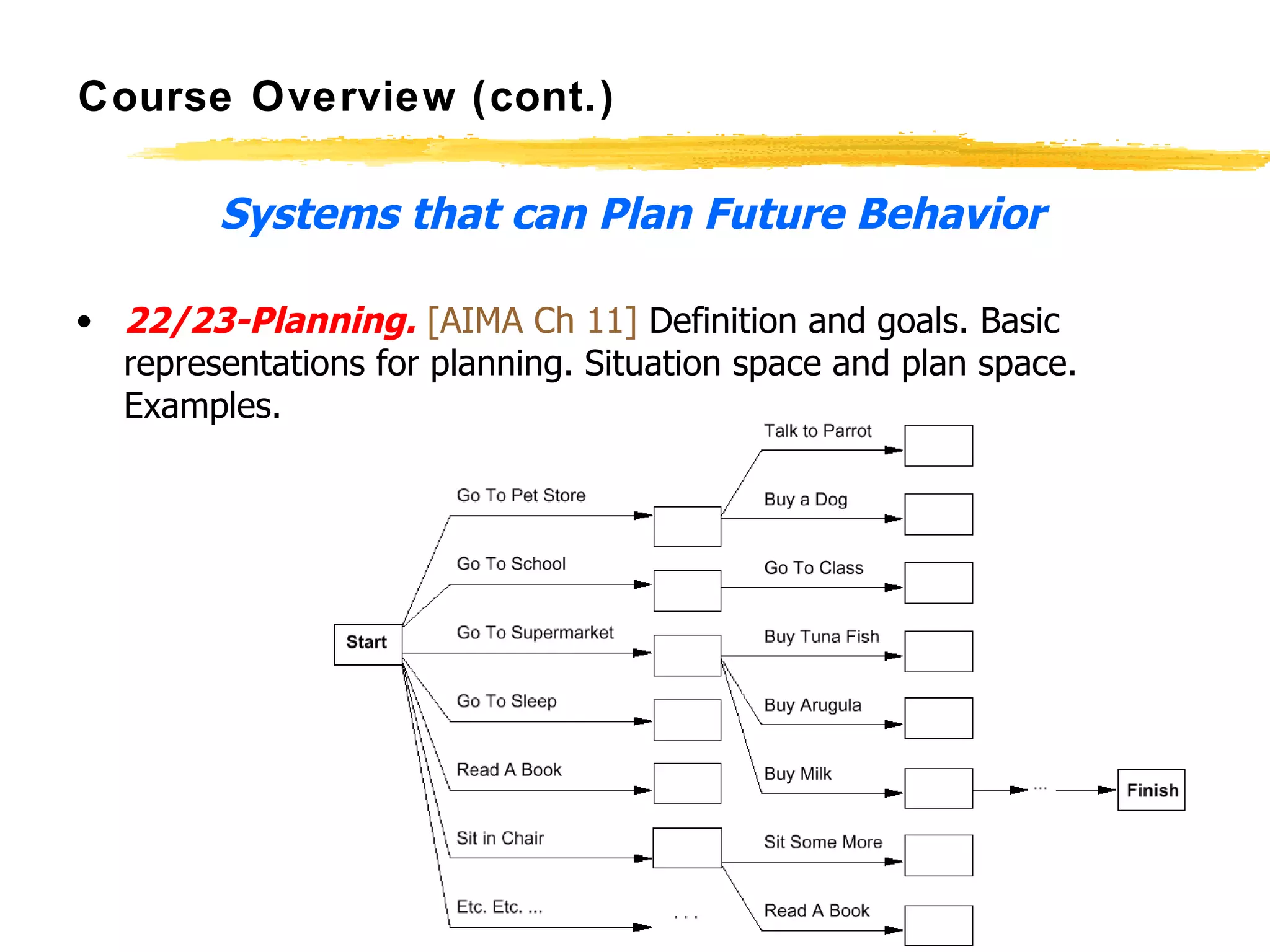

Course Overview (cont.) Systems that can Plan Future Behavior 22/23-Planning. [AIMA Ch 11] Definition and goals. Basic representations for planning. Situation space and plan space. Examples.

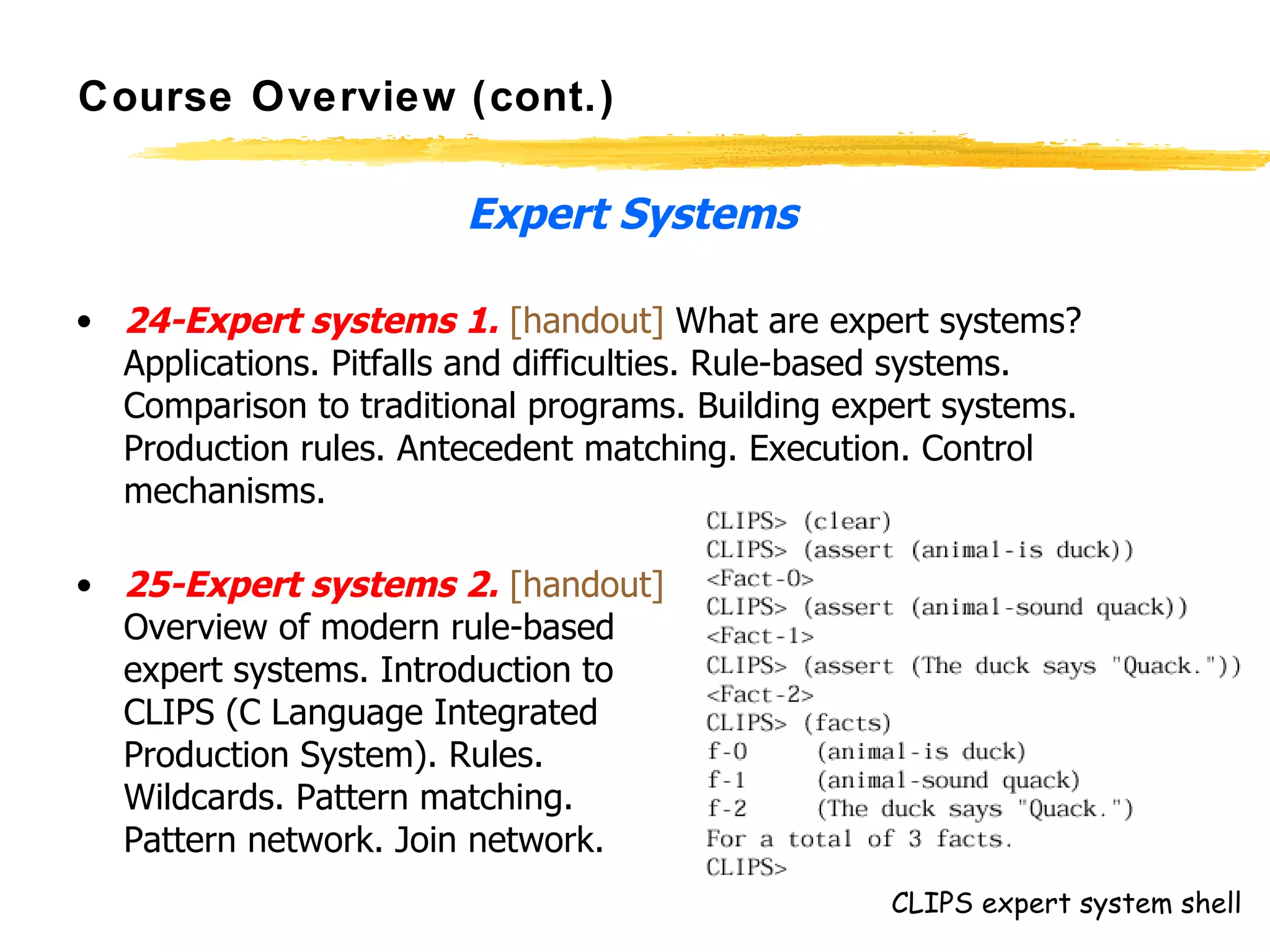

Course Overview (cont.) Expert Systems 24-Expert systems 1. [handout] What are expert systems? Applications. Pitfalls and difficulties. Rule-based systems. Comparison to traditional programs. Building expert systems. Production rules. Antecedent matching. Execution. Control mechanisms. 25-Expert systems 2. [handout] Overview of modern rule-based expert systems. Introduction to CLIPS (C Language Integrated Production System). Rules. Wildcards. Pattern matching. Pattern network. Join network. CLIPS expert system shell

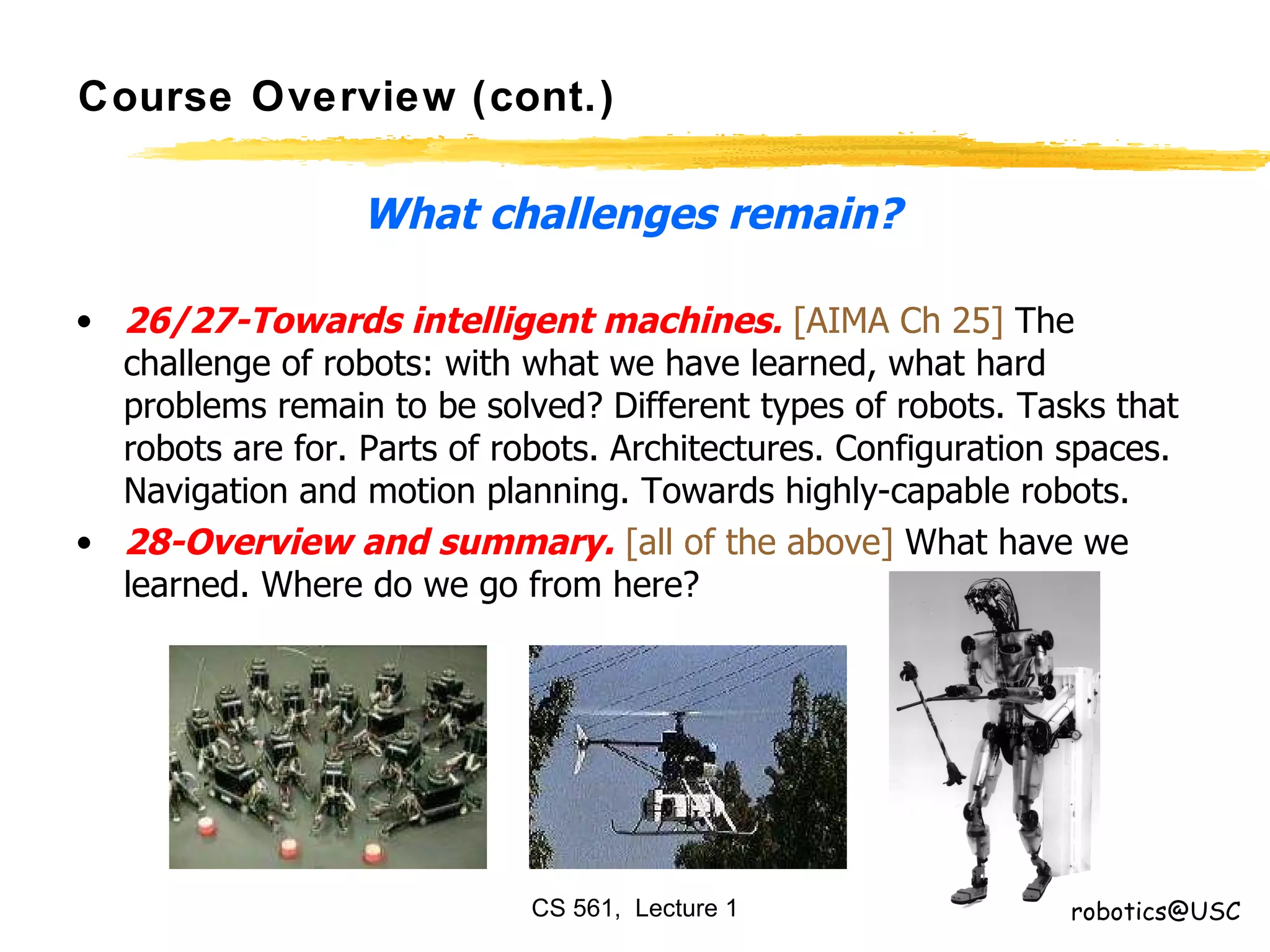

Course Overview (cont.) What challenges remain? 26/27-Towards intelligent machines. [AIMA Ch 25] The challenge of robots: with what we have learned, what hard problems remain to be solved? Different types of robots. Tasks that robots are for. Parts of robots. Architectures. Configuration spaces. Navigation and motion planning. Towards highly-capable robots. 28-Overview and summary. [all of the above] What have we learned. Where do we go from here? [email_address]

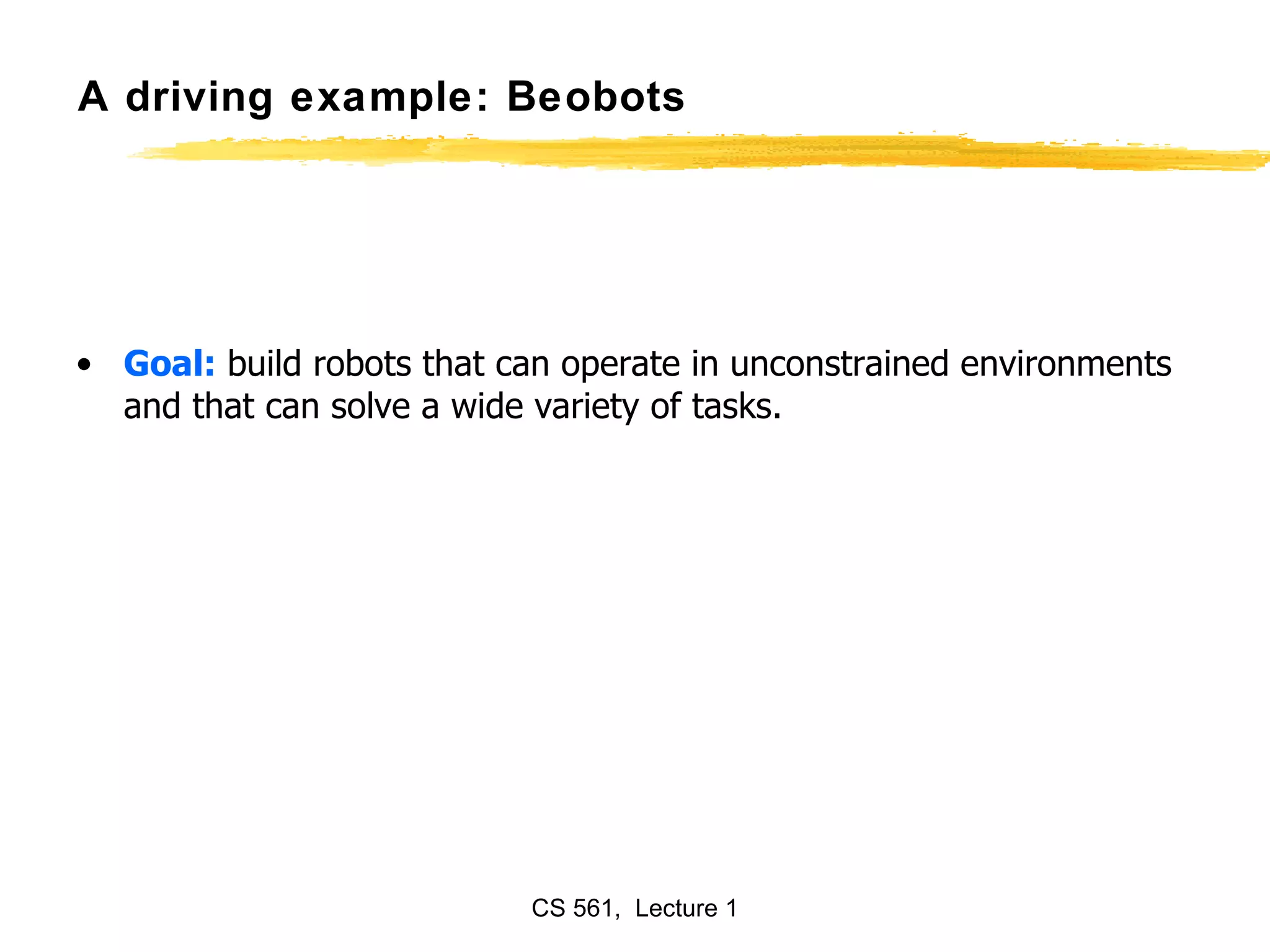

A driving example: Beobots Goal: build robots that can operate in unconstrained environments and that can solve a wide variety of tasks.

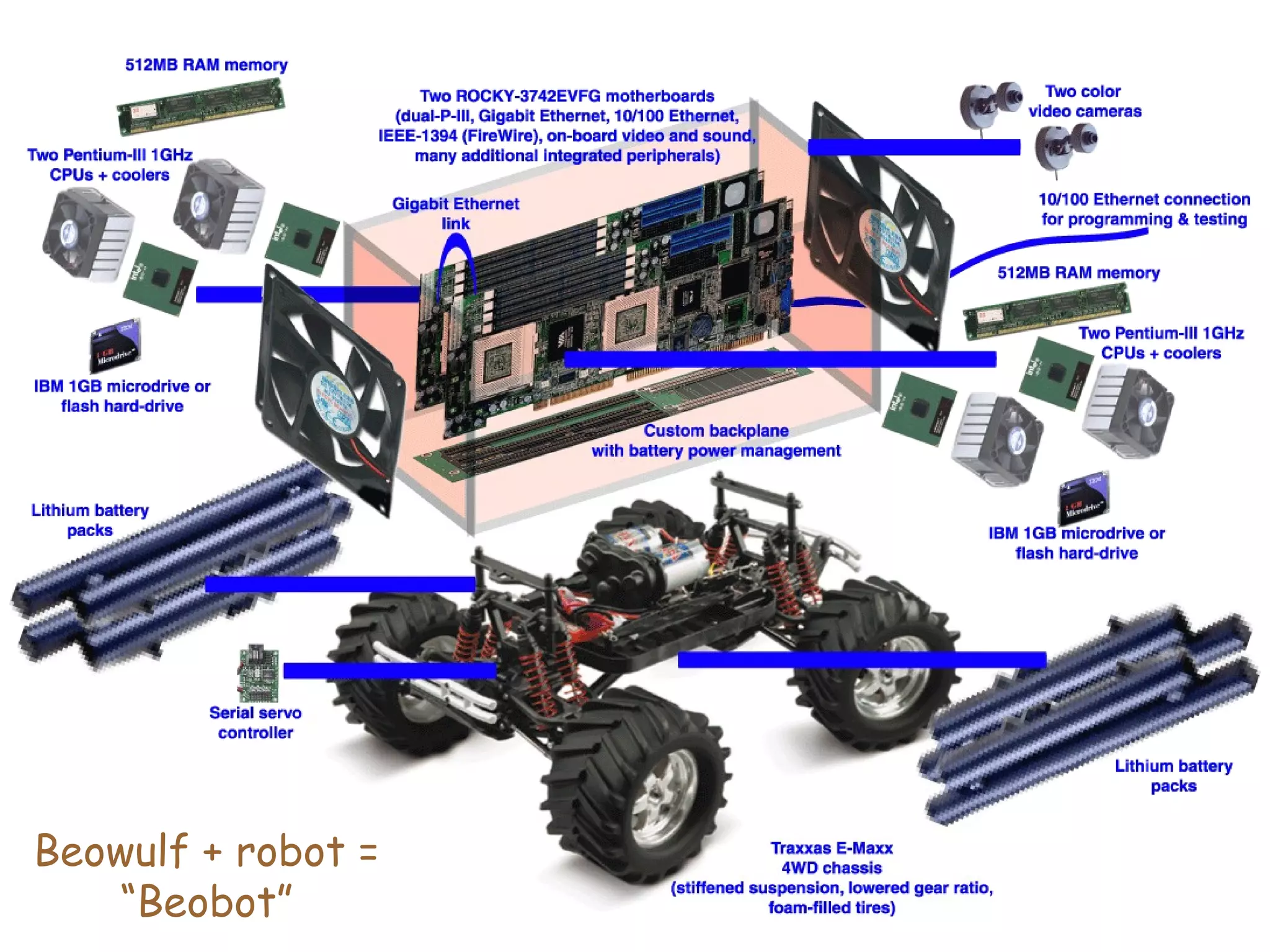

Beowulf + robot = “ Beobot”

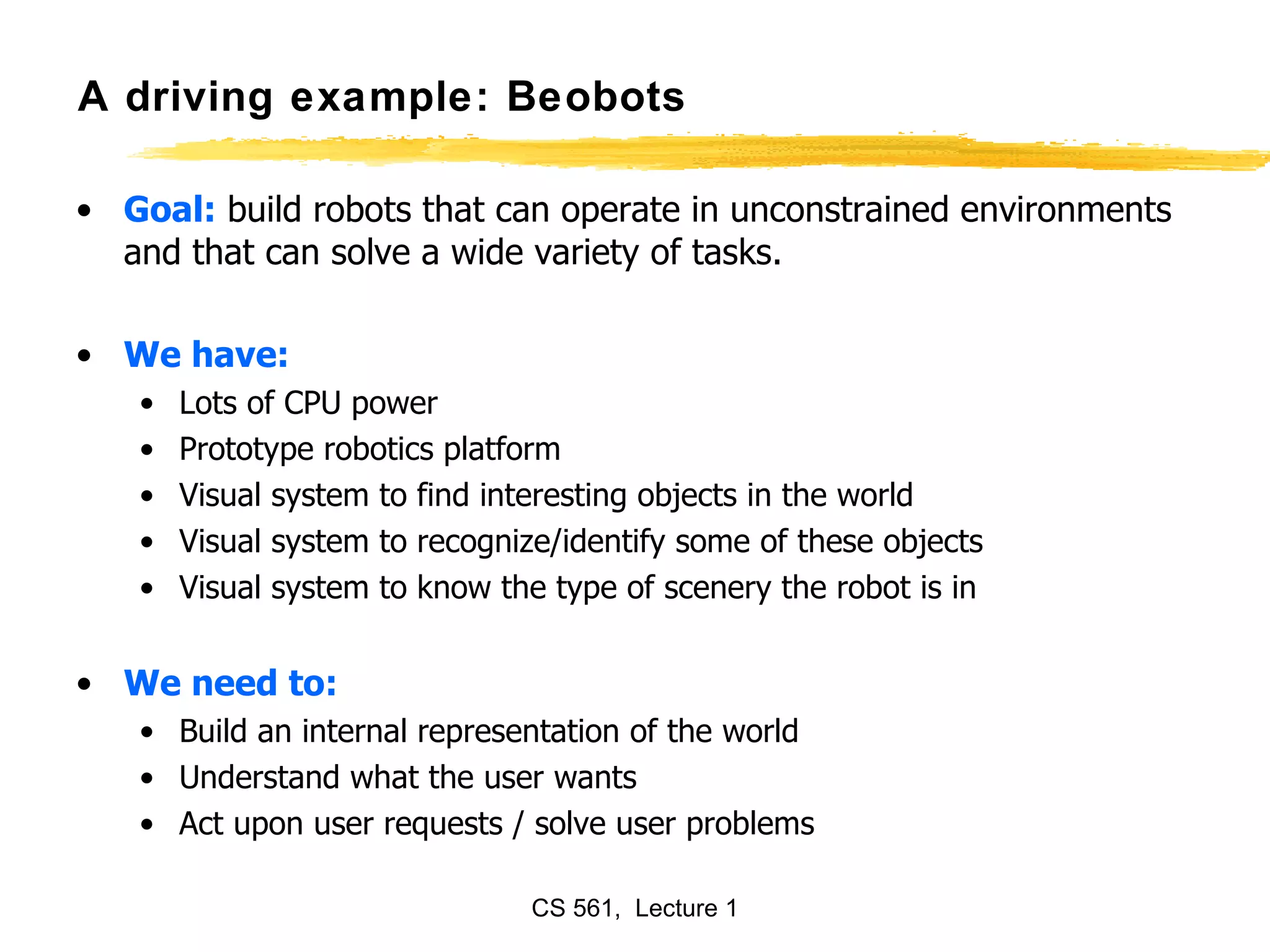

A driving example: Beobots Goal: build robots that can operate in unconstrained environments and that can solve a wide variety of tasks. We have: Lots of CPU power Prototype robotics platform Visual system to find interesting objects in the world Visual system to recognize/identify some of these objects Visual system to know the type of scenery the robot is in We need to: Build an internal representation of the world Understand what the user wants Act upon user requests / solve user problems

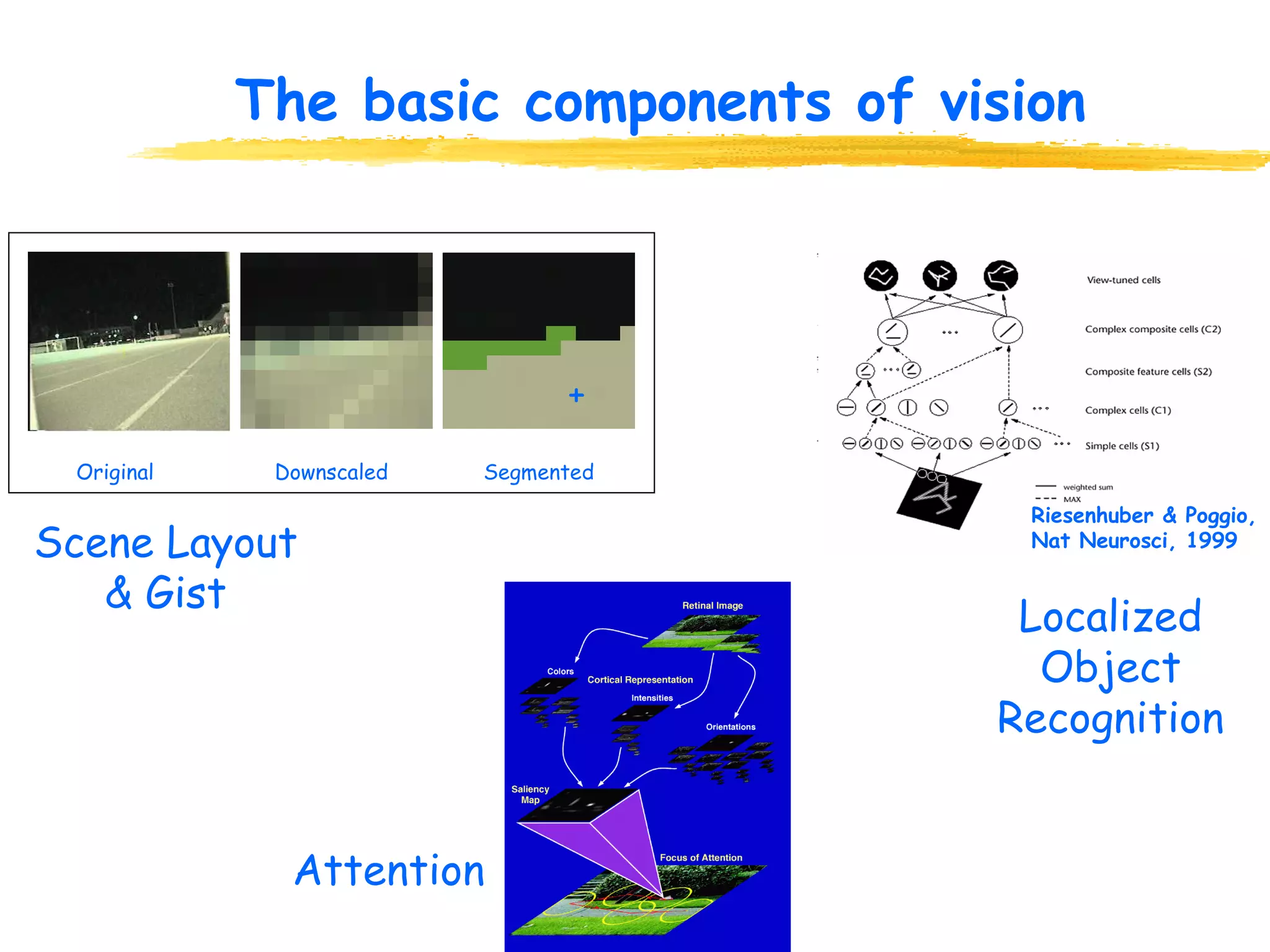

The basic components of vision Attention Localized Object Recognition Scene Layout & Gist Riesenhuber & Poggio, Nat Neurosci, 1999 Original Downscaled Segmented +

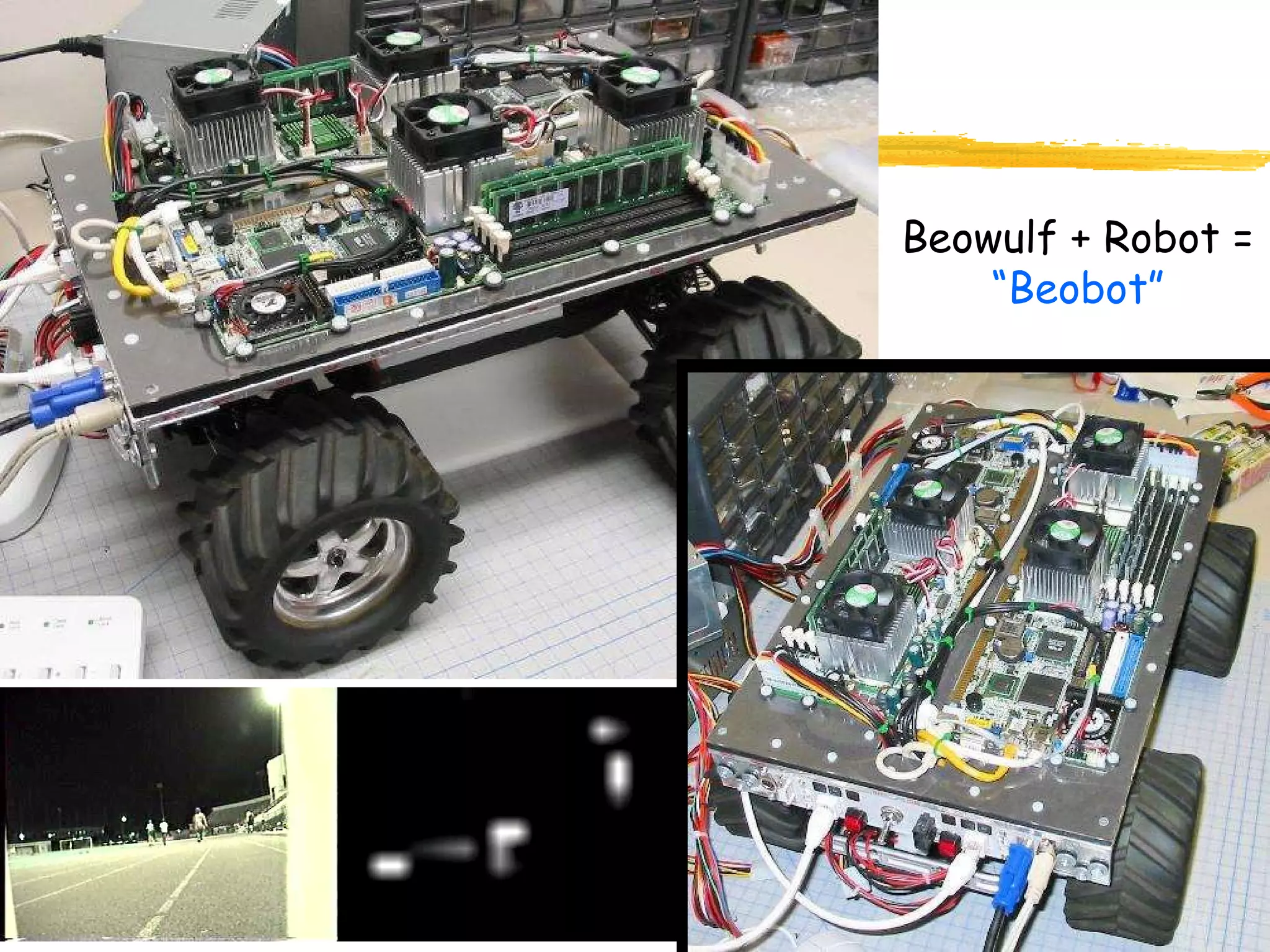

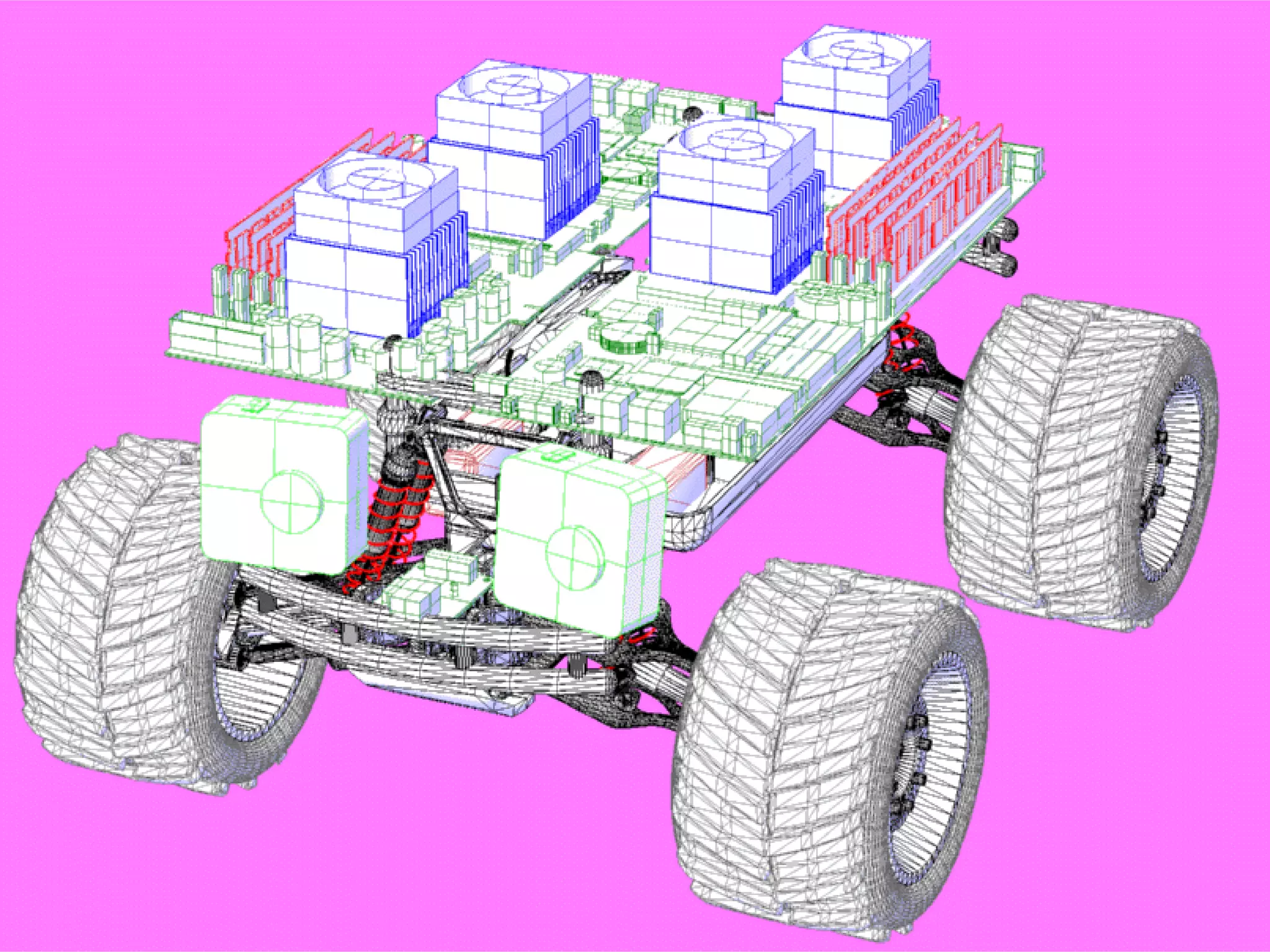

Beowulf + Robot = “ Beobot”

Main challenge: extract the “minimal subscene” (i.e., small number of objects and actions) that is relevant to present behavior from the noisy attentional scanpaths. Achieve representation for it that is robust and stable against noise, world motion, and egomotion.

Prototype Stripped-down version of proposed general system, for simplified goal: drive around USC olympic track, avoiding obstacles Operates at 30fps on quad-CPU Beobot; Layout & saliency very robust; Object recognition often confused by background clutter.

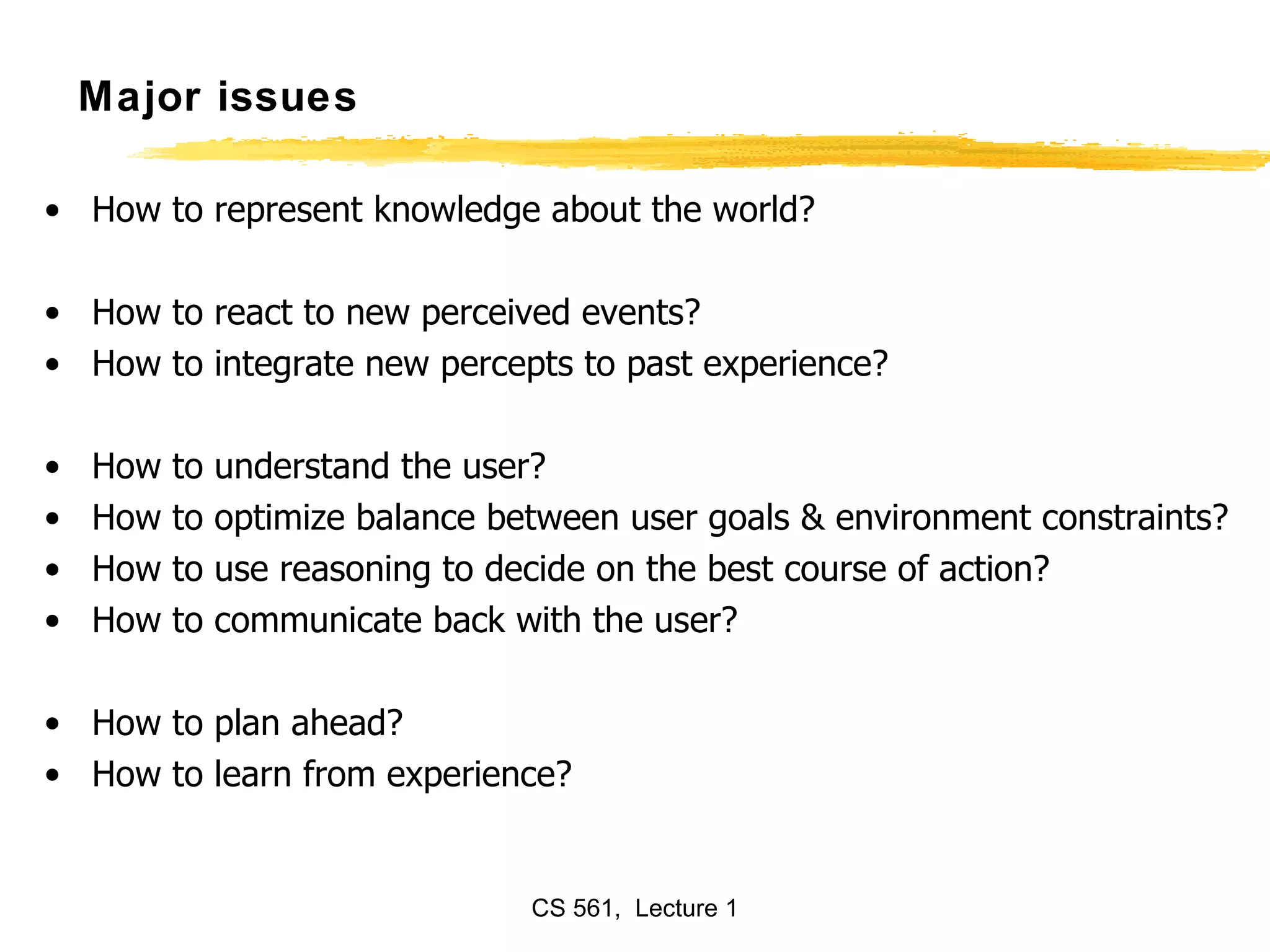

Major issues How to represent knowledge about the world? How to react to new perceived events? How to integrate new percepts to past experience? How to understand the user? How to optimize balance between user goals & environment constraints? How to use reasoning to decide on the best course of action? How to communicate back with the user? How to plan ahead? How to learn from experience?

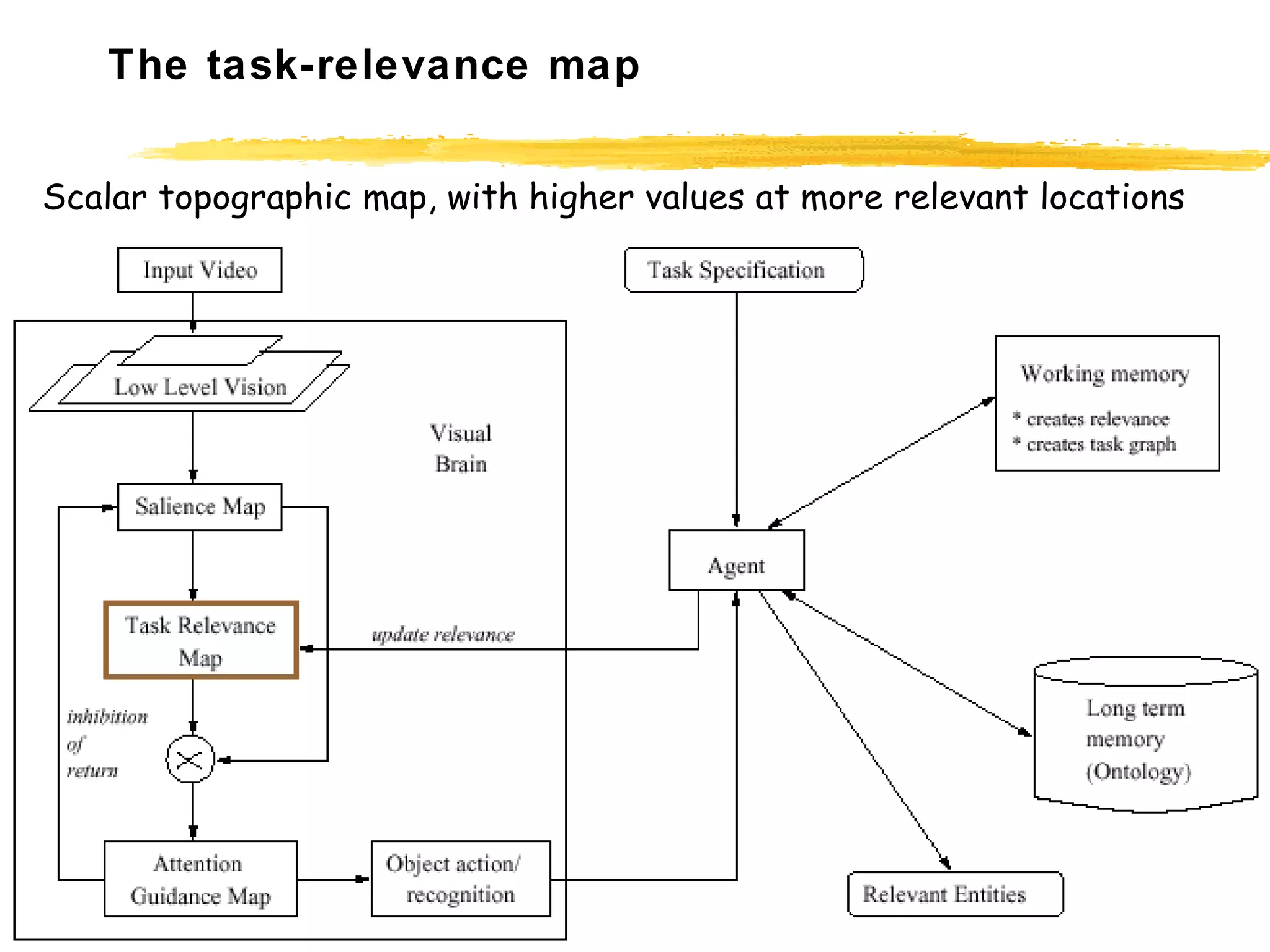

The task-relevance map Scalar topographic map, with higher values at more relevant locations

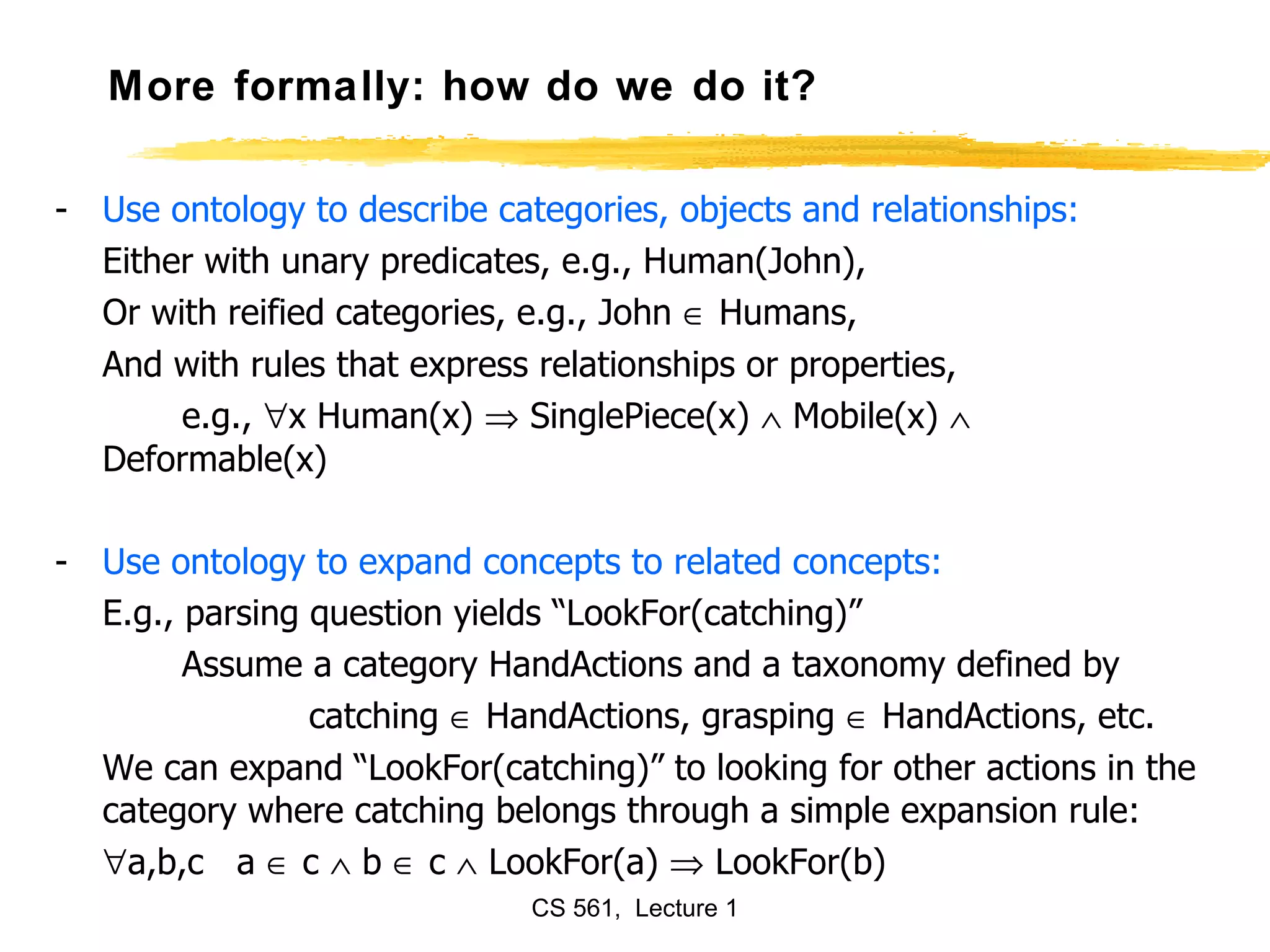

More formally: how do we do it? Use ontology to describe categories, objects and relationships: Either with unary predicates, e.g., Human(John), Or with reified categories, e.g., John  Humans, And with rules that express relationships or properties, e.g.,  x Human(x)  SinglePiece(x)  Mobile(x)  Deformable(x) Use ontology to expand concepts to related concepts: E.g., parsing question yields “LookFor(catching)” Assume a category HandActions and a taxonomy defined by catching  HandActions, grasping  HandActions, etc. We can expand “LookFor(catching)” to looking for other actions in the category where catching belongs through a simple expansion rule:  a,b,c a  c  b  c  LookFor(a)  LookFor(b)

Outlook AI is a very exciting area right now. This course will teach you the foundations. In addition, we will use the Beobot example to reflect on how this foundation could be put to work in a large-scale, real system.
