• 1.
  Coverage-Based testing CONSIDERINGTHE OBJECTS OF TESTING TO COVERING FUNCTIONAL OR EXECUTION UNITS
• 2.
  Testing techniques BlackBox  (Specification-based techniques) Examines the functionality of an application without peering into its internal structures or workings.  This method of test can be applied to virtually every level of software testing: unit, integration, system and acceptance. White Box  (Structure-based techniques) Tests internal structures or workings of an application. An internal perspective of the system, as well as programming skills, are used to design test cases.  White-box testing can be applied at the unit, integration and system levels of the software testing process.
• 3.

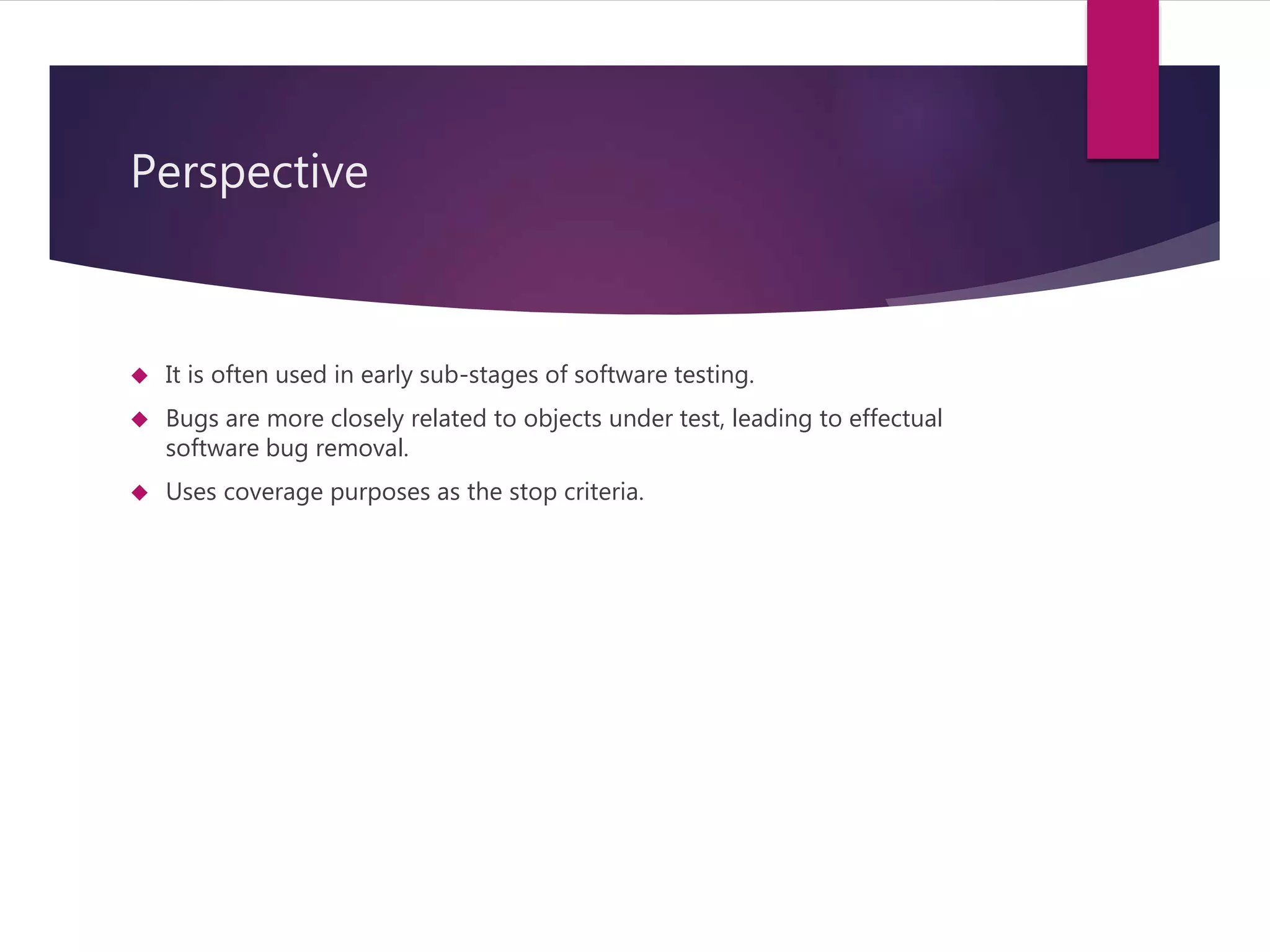

  Perspective  Itis often used in early sub-stages of software testing.  Bugs are more closely related to objects under test, leading to effectual software bug removal.  Uses coverage purposes as the stop criteria.
• 4.

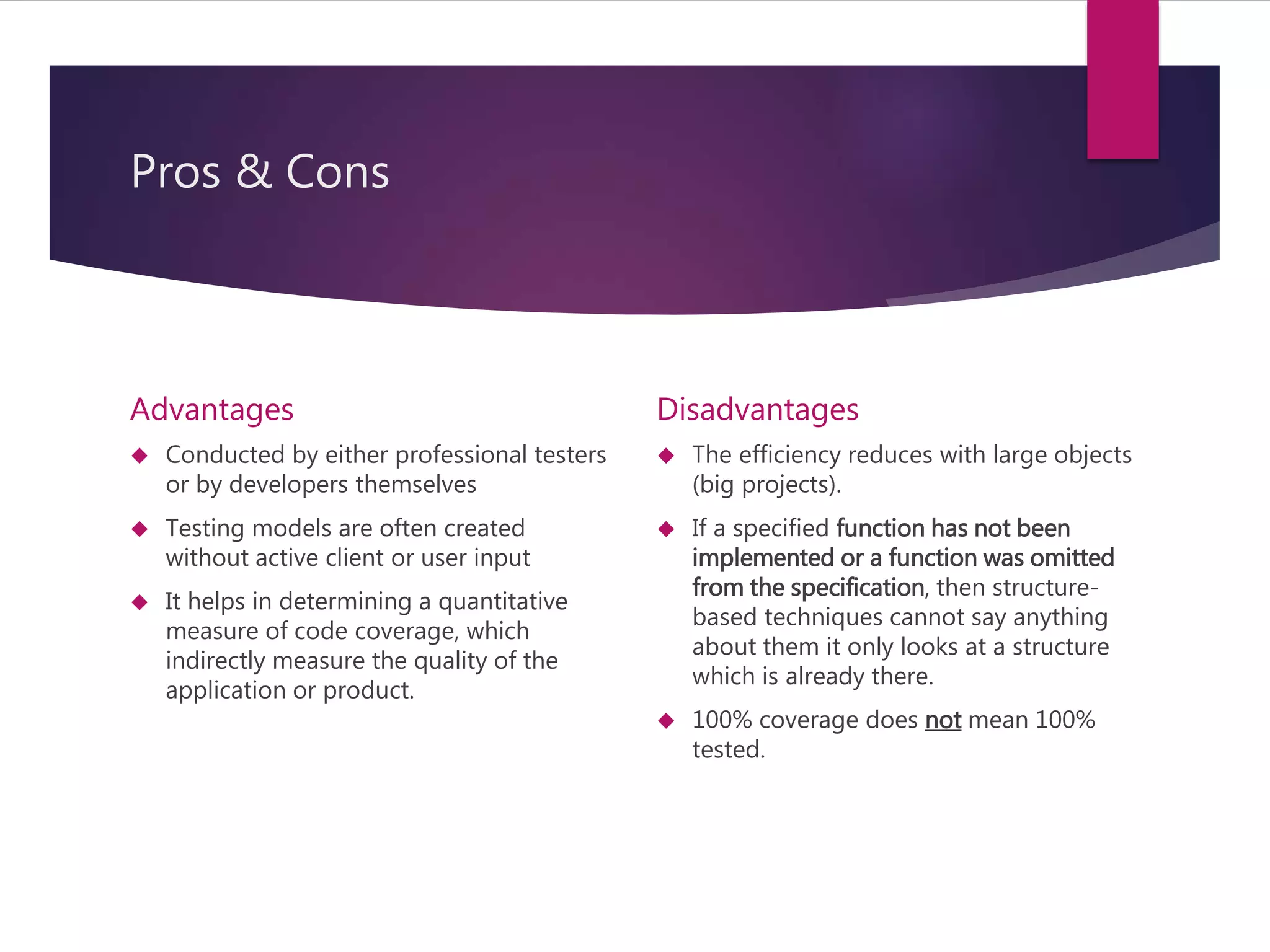

  Pros & Cons Advantages  Conducted by either professional testers or by developers themselves  Testing models are often created without active client or user input  It helps in determining a quantitative measure of code coverage, which indirectly measure the quality of the application or product. Disadvantages  The efficiency reduces with large objects (big projects).  If a specified function has not been implemented or a function was omitted from the specification, then structure-based techniques cannot say anything about them it only looks at a structure which is already there.  100% coverage does not mean 100% tested.
• 5.

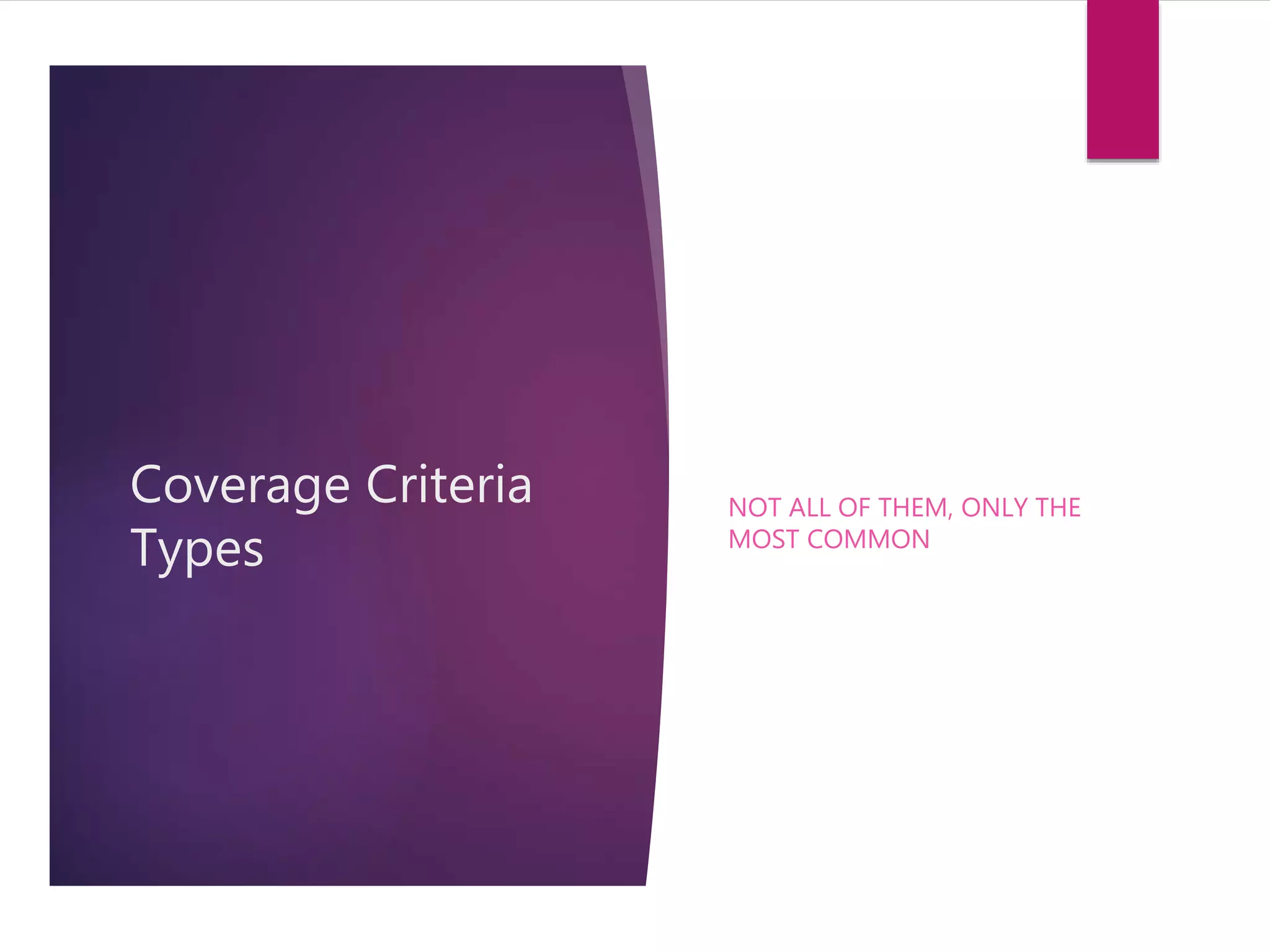

  Coverage Criteria Types NOT ALL OF THEM, ONLY THE MOST COMMON
• 6.

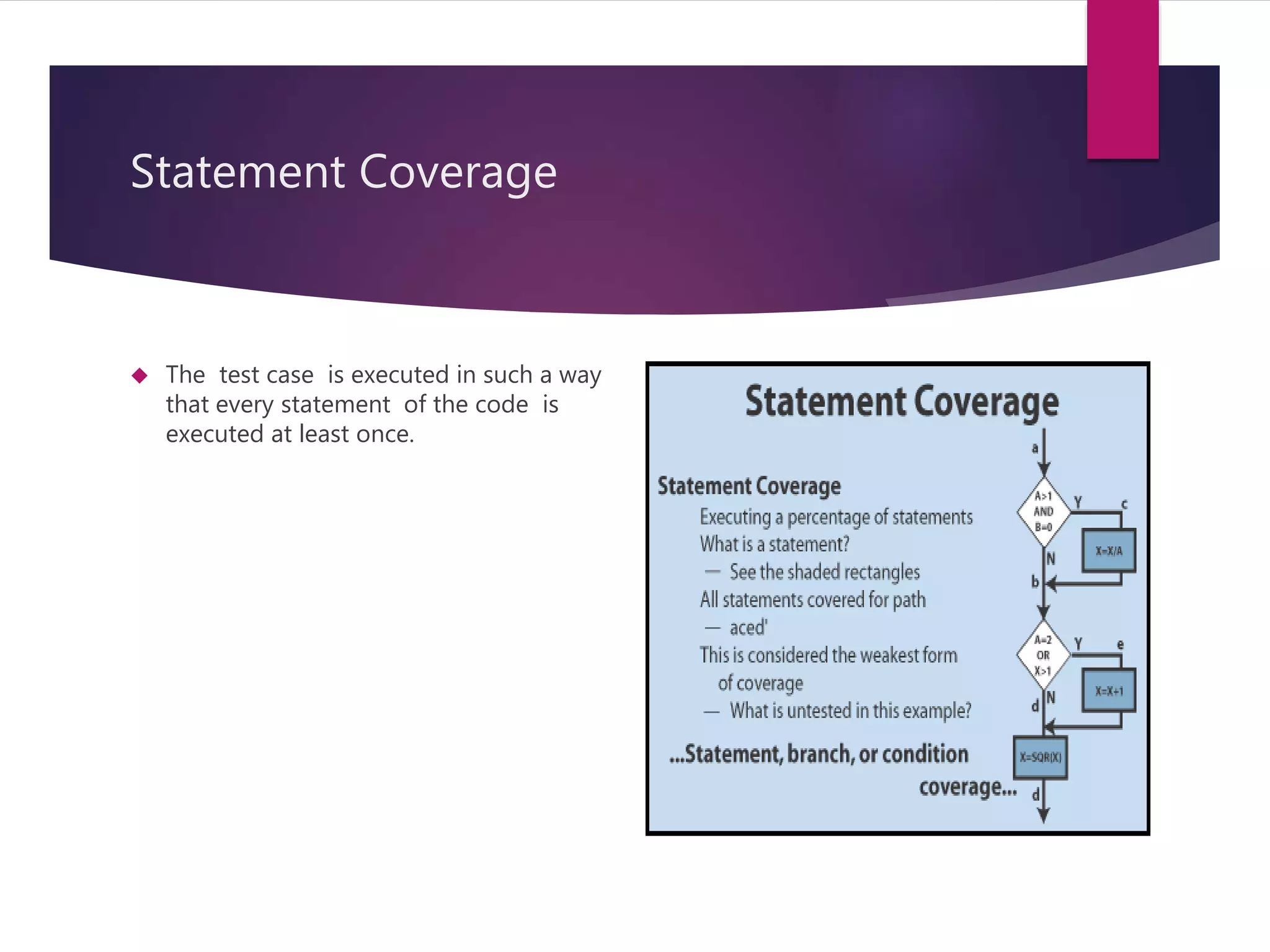

  Statement Coverage The test case is executed in such a way that every statement of the code is executed at least once.
• 7.

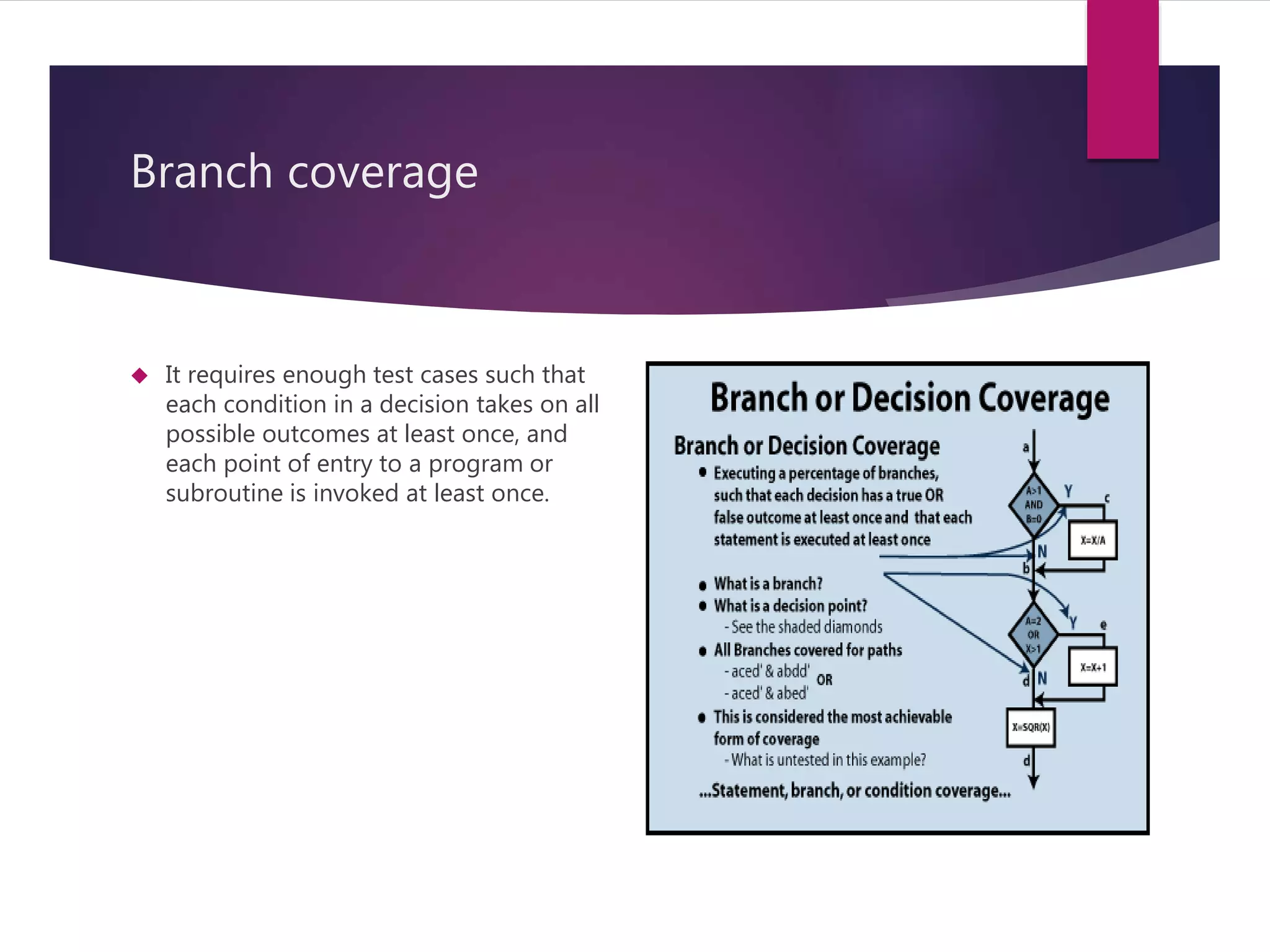

  Branch coverage It requires enough test cases such that each condition in a decision takes on all possible outcomes at least once, and each point of entry to a program or subroutine is invoked at least once.
• 8.

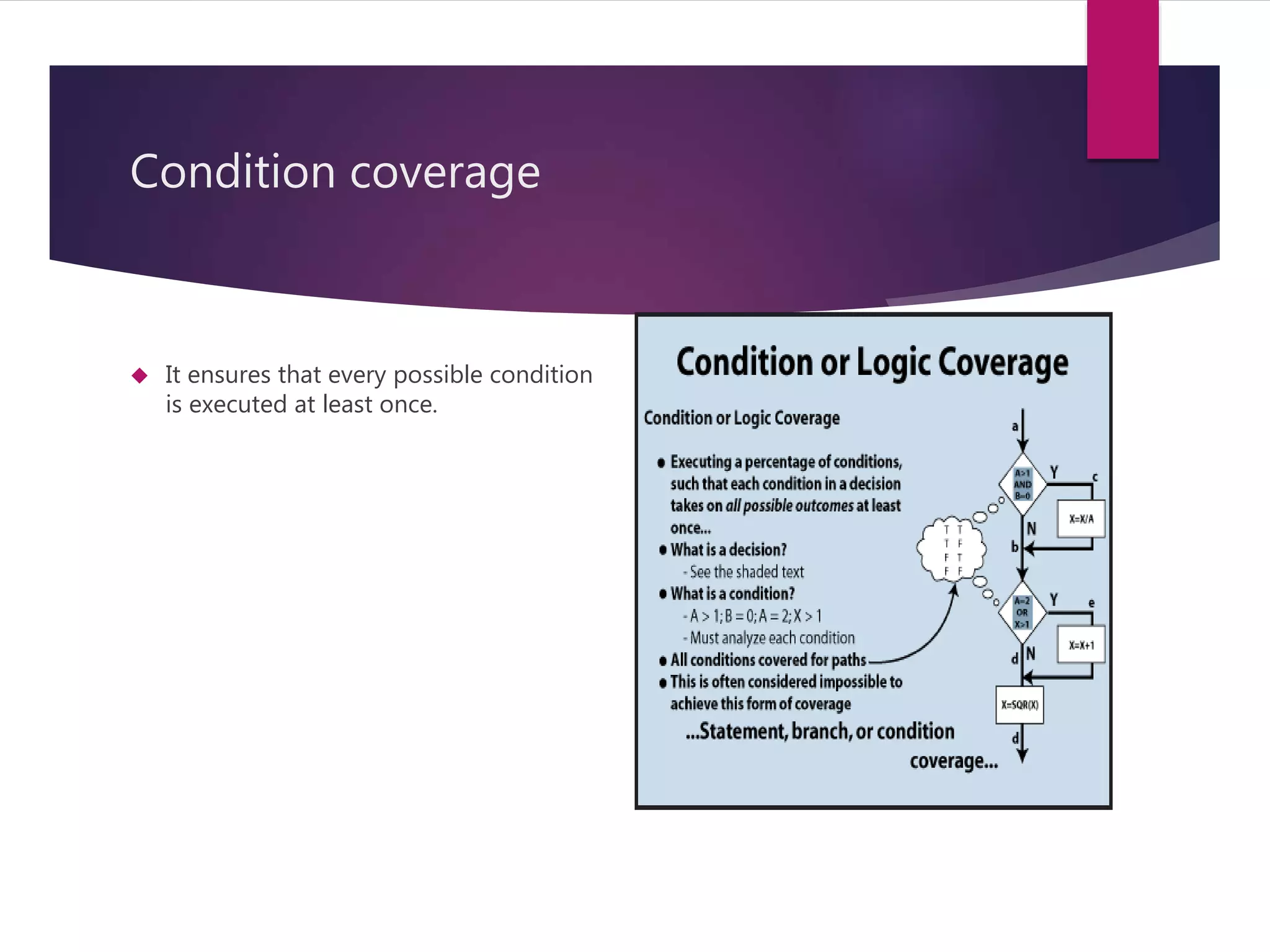

  Condition coverage It ensures that every possible condition is executed at least once.
• 9.

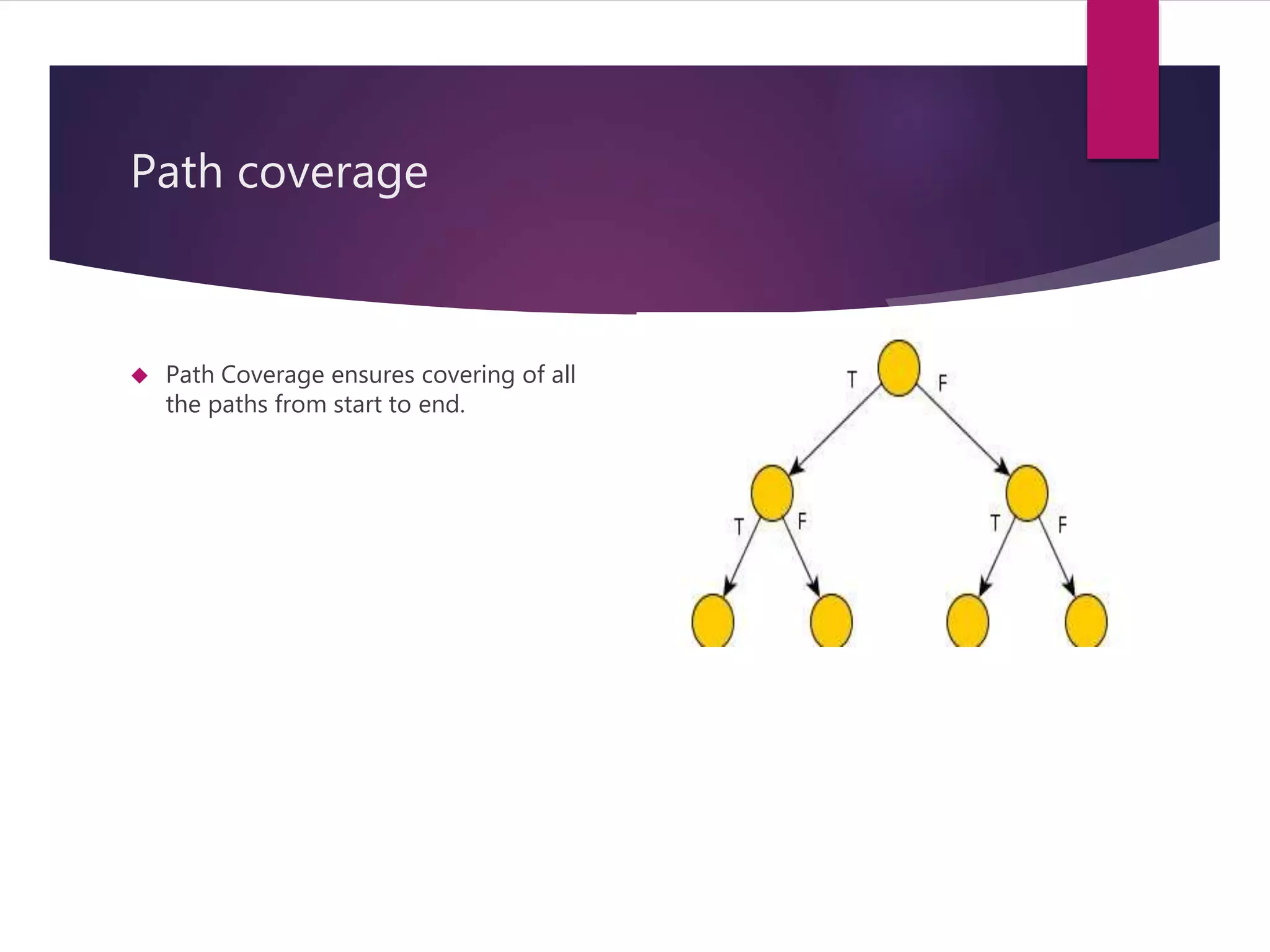

  Path coverage Path Coverage ensures covering of all the paths from start to end.
• 10.

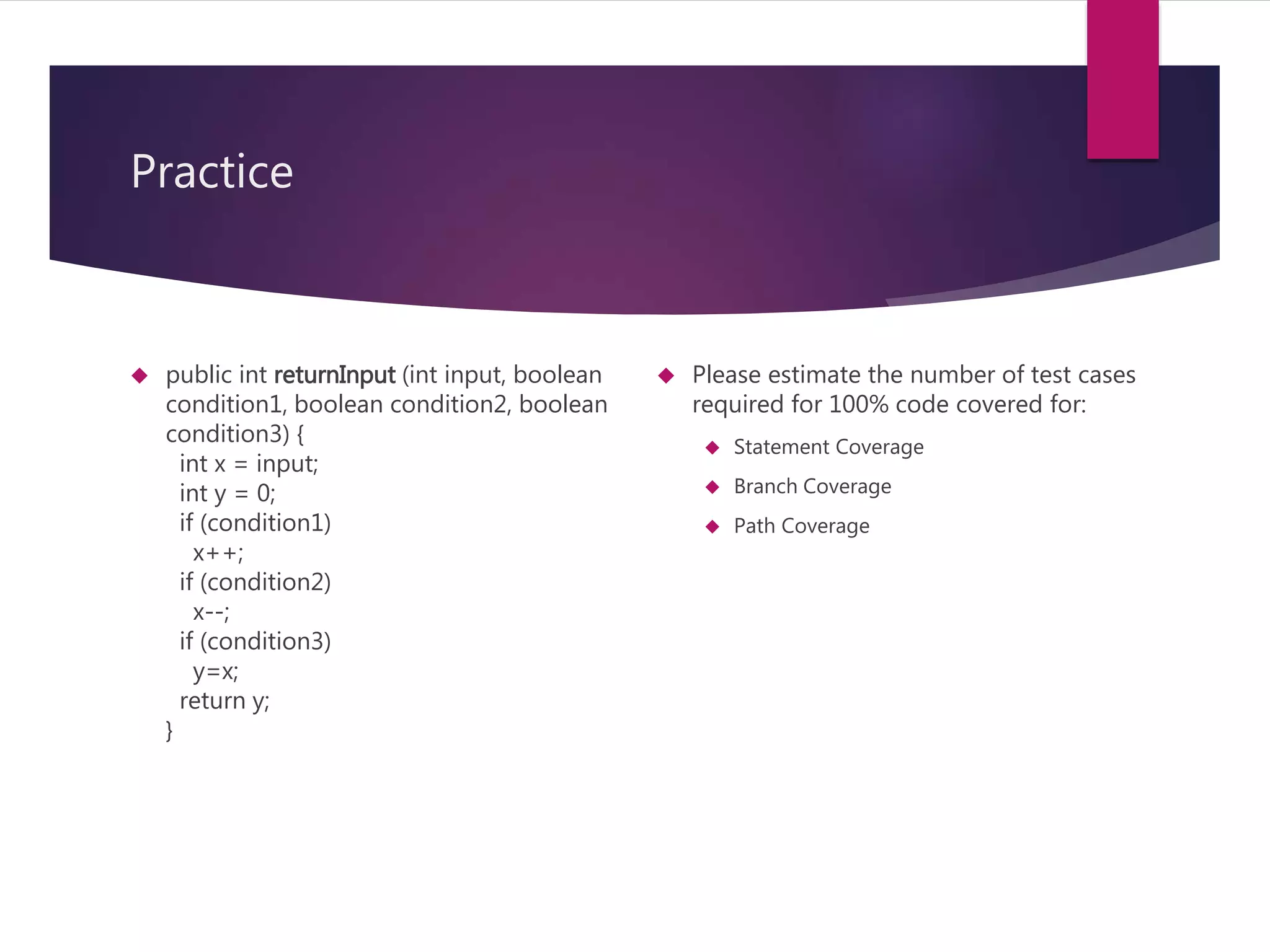

  Practice  publicint returnInput (int input, boolean condition1, boolean condition2, boolean condition3) { int x = input; int y = 0; if (condition1) x++; if (condition2) x--; if (condition3) y=x; return y; }  Please estimate the number of test cases required for 100% code covered for:  Statement Coverage  Branch Coverage  Path Coverage
• 11.

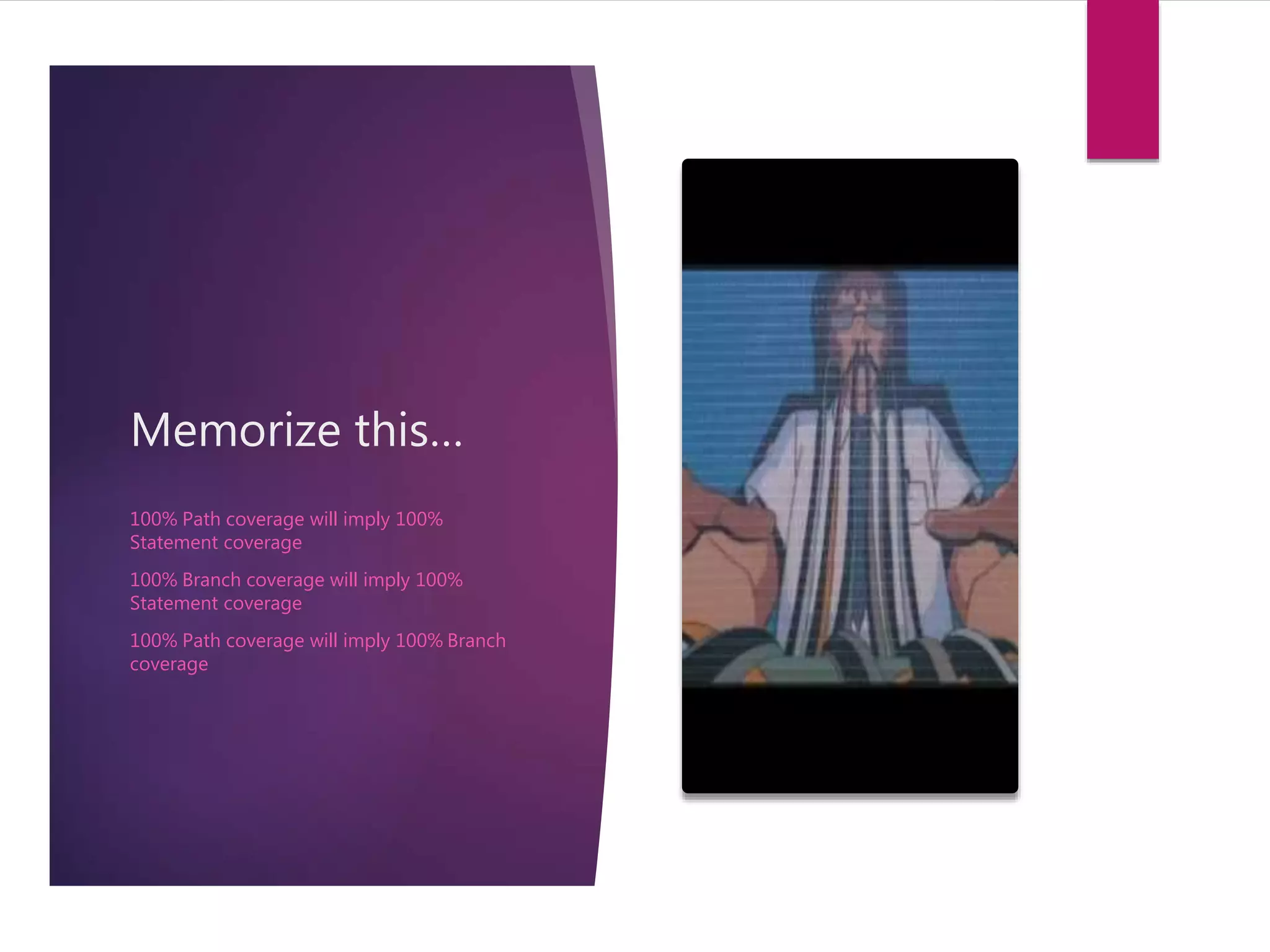

  Memorize this… 100%Path coverage will imply 100% Statement coverage 100% Branch coverage will imply 100% Statement coverage 100% Path coverage will imply 100% Branch coverage
• 12.

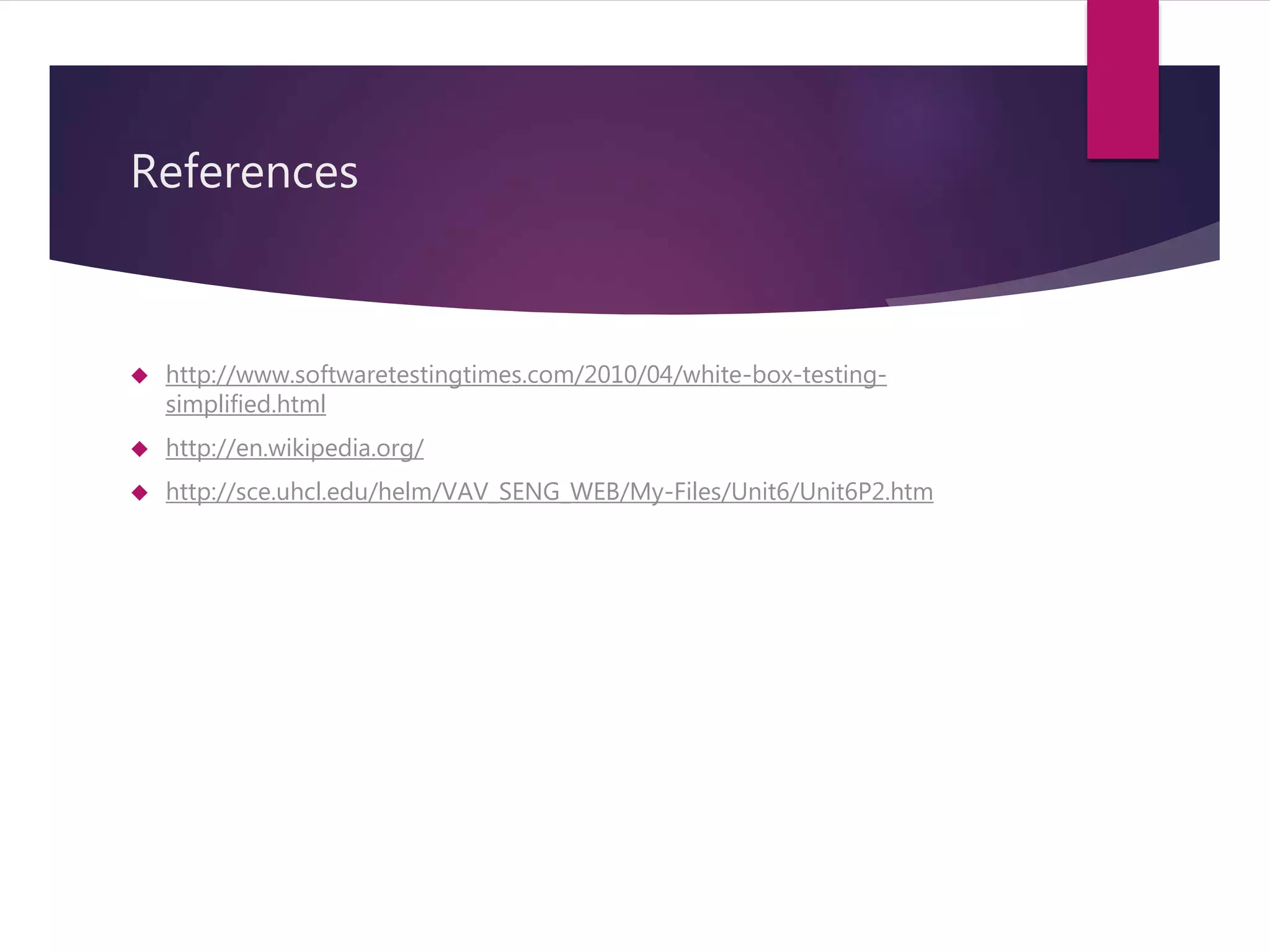

  References  http://www.softwaretestingtimes.com/2010/04/white-box-testing-simplified. html  http://en.wikipedia.org/  http://sce.uhcl.edu/helm/VAV_SENG_WEB/My-Files/Unit6/Unit6P2.htm
