Continuously Design your Continuous Deployment

Presented by:Continuously Design your
Application Workload for
Continuous Deployment with
OpenStack Heat
18 May 2015
Michael D. Elder
Senior Technical Staff Member
@mdelder
Ton Ngo
Senior Software Engineer

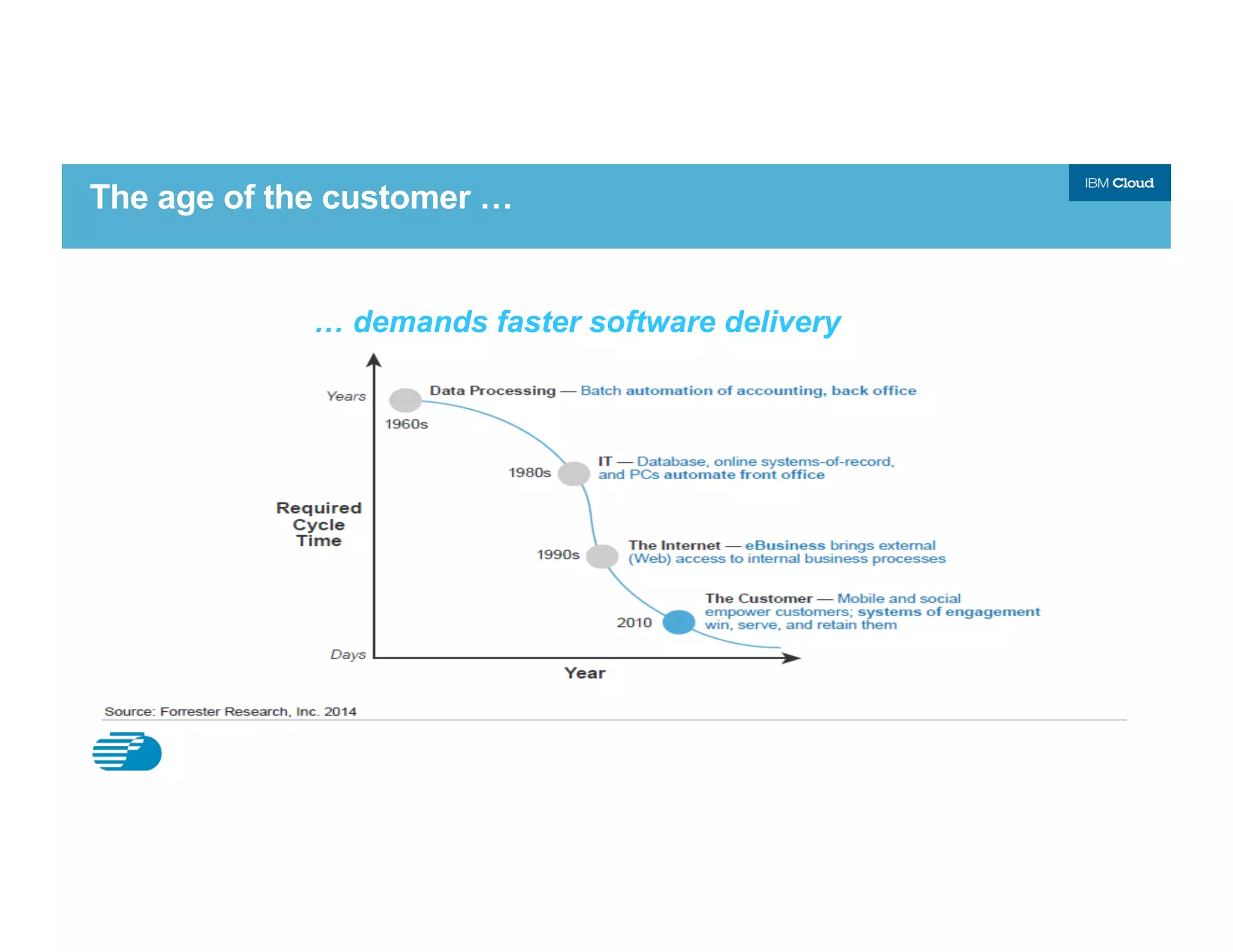

The age of the customer …
… demands faster software delivery

Deploying to different infrastructures in Dev and Production
further slows down application delivery
“My application is working on Amazon
and I am using a LAMP stack with
RHEL – why can’t you make it work on
private cloud”
“I have LAMP stack with RHEL for the on-
prem environment – it isn’t working! How
did you configure network and load
balancers?”
Development team Operations team
Both: “Why can’t we build out environments consistently across different clouds”

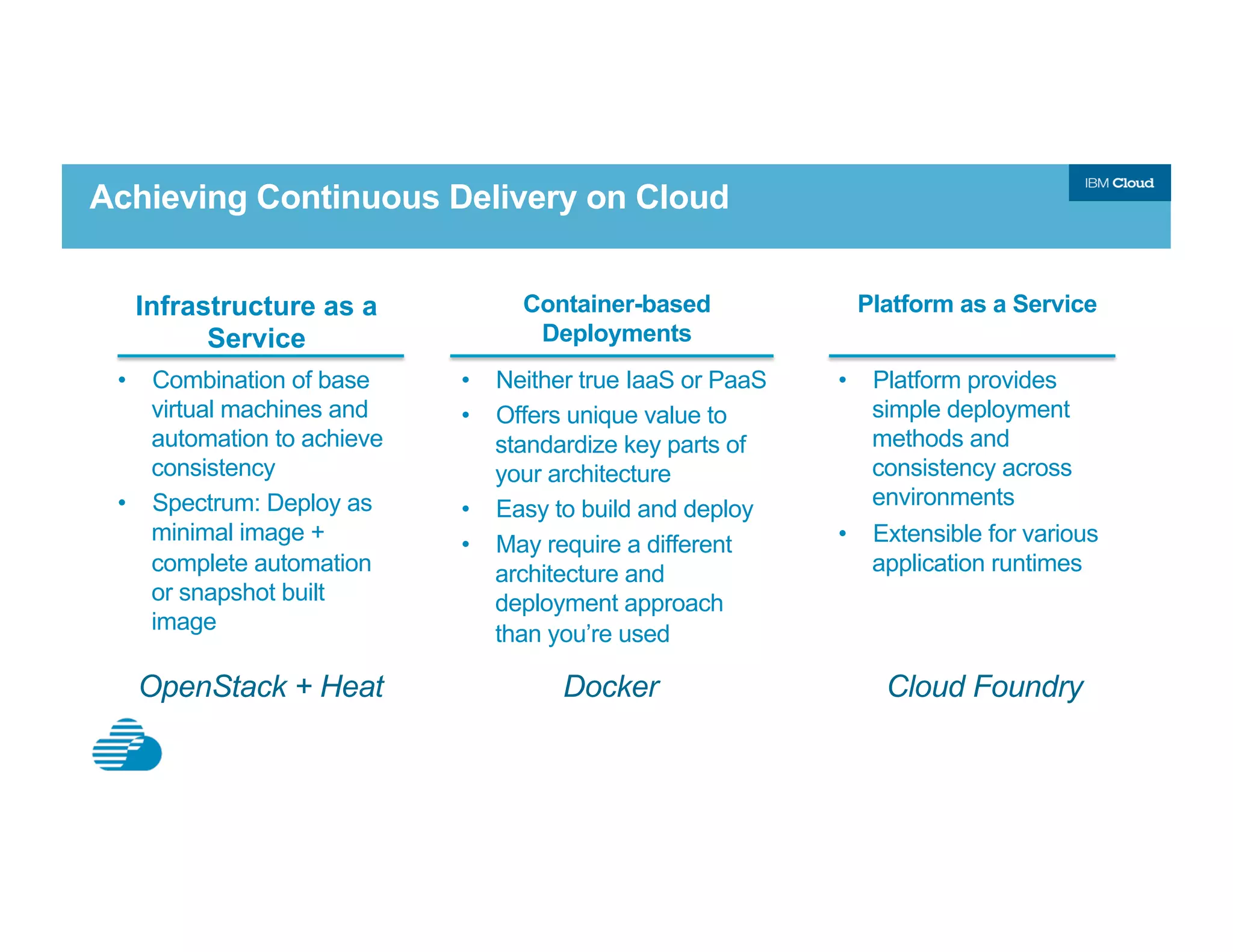

Achieving Continuous Delivery on Cloud
Infrastructure as a
Service
•  Combination of base
virtual machines and
automation to achieve
consistency
•  Spectrum: Deploy as
minimal image +
complete automation
or snapshot built
Container-based
Deployments
•  Neither true IaaS or PaaS
•  Offers unique value to
standardize key parts of
your architecture
•  Easy to build and deploy
•  May require a different
architecture and
deployment approach
than you’re used
Platform as a Service
•  Platform provides
simple deployment
methods and
consistency across
environments
•  Extensible for various
application runtimes
OpenStack + Heat Docker Cloud Foundry

5

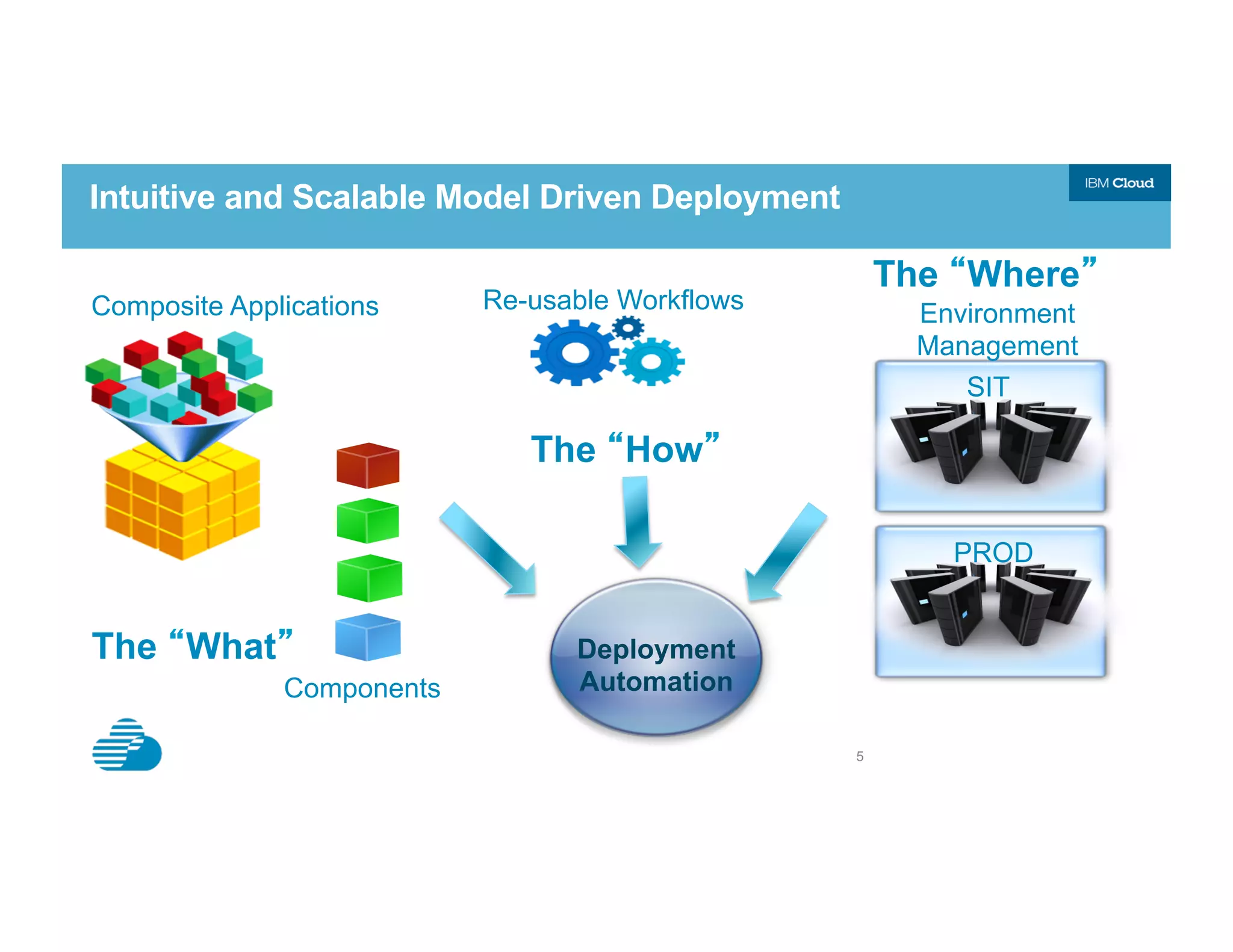

Intuitive and Scalable Model Driven Deployment
Composite Applications
Components
Re-usable Workflows Environment
Management
SIT
PROD
The “What”
The “How”
The “Where”
Deployment
Automation

6

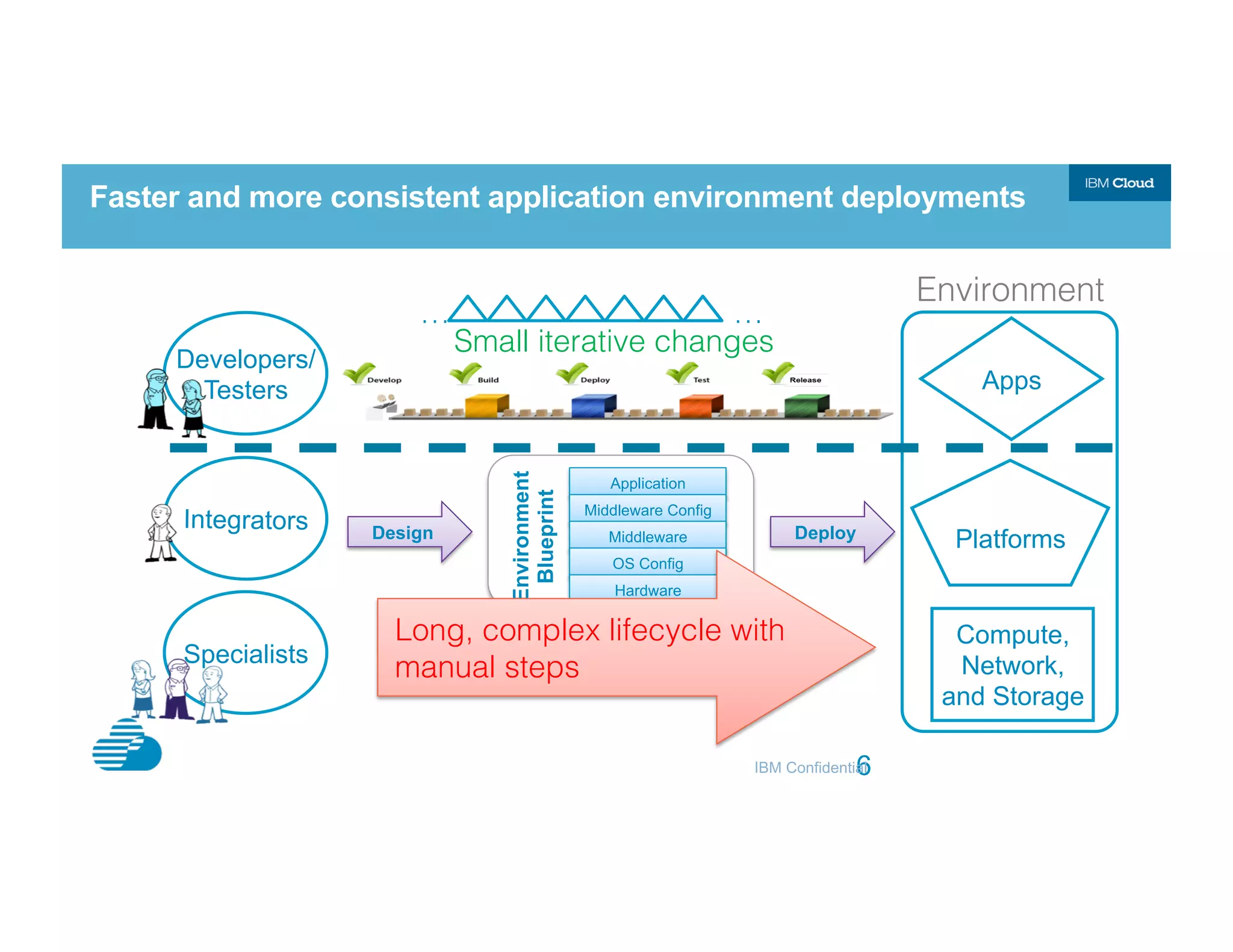

Faster and more consistent application environment deployments
IBM Confidential
Developers/
Testers
Integrators
Specialists
Compute,
Network,
and Storage
Platforms
Apps
Environment!
Application
Middleware Config
Middleware
OS Config
Hardware
Environment
Blueprint
Design Deploy
Long, complex lifecycle with
manual steps!
Small iterative changes!
…! …!

8

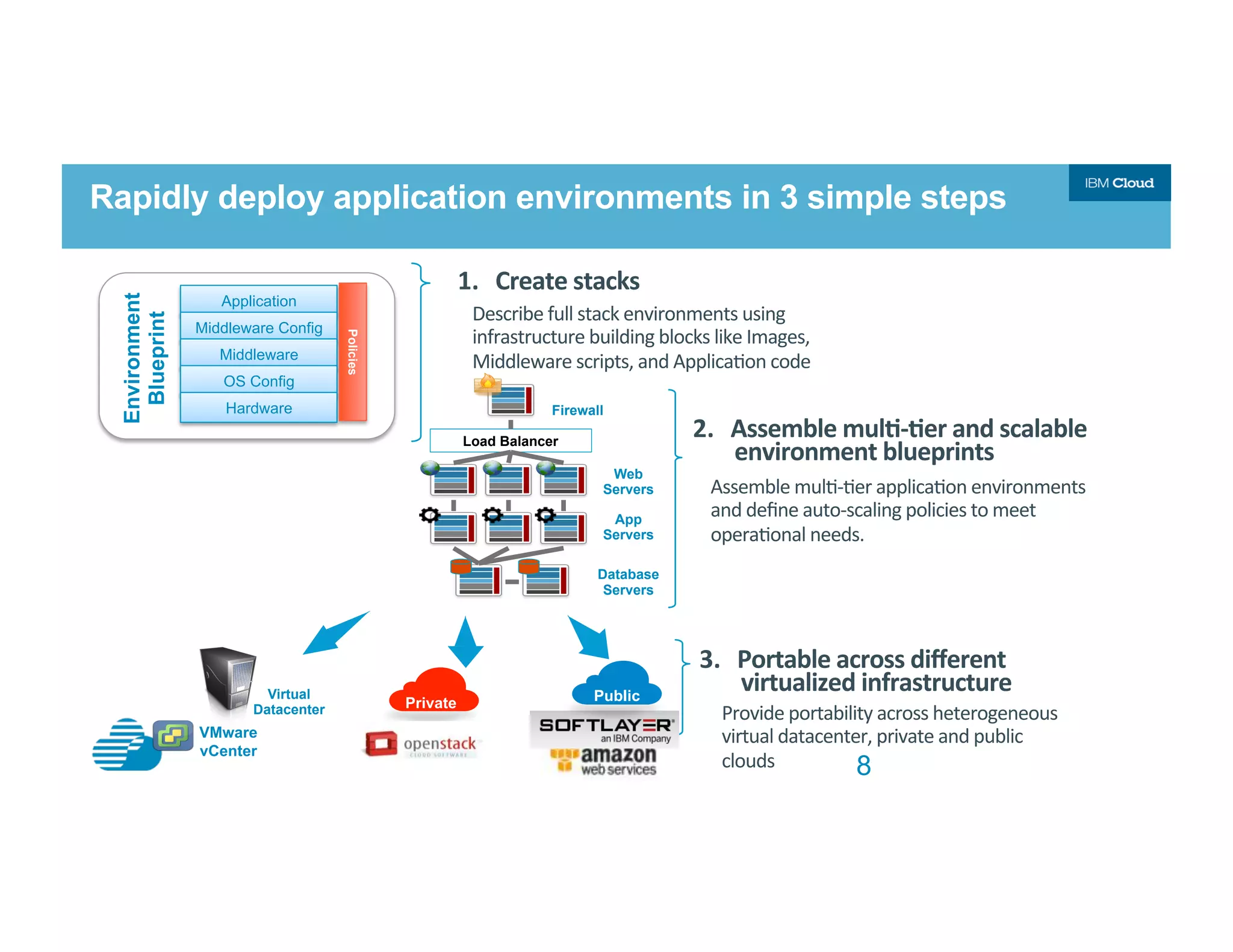

Rapidly deploy application environments in 3 simple steps
Provide
portability
across
heterogeneous

virtual
datacenter,
private
and
public

clouds

3.  Portable
across
diﬀerent

virtualized
infrastructure

Assemble
mul8-‐8er
applica8on
environments

and
deﬁne
auto-‐scaling
policies
to
meet

opera8onal
needs.

2.  Assemble
mul9-‐9er
and
scalable

environment
blueprints

1.  Create
stacks

Load Balancer
Web
Servers
App
Servers
Database
Servers
Firewall
Describe
full
stack
environments
using

infrastructure
building
blocks
like
Images,

Middleware
scripts,
and
Applica8on
code

VMware
vCenter
Private PublicVirtual
Datacenter
Application
Middleware Config
Middleware
OS Config
Hardware
Environment
Blueprint
Policies

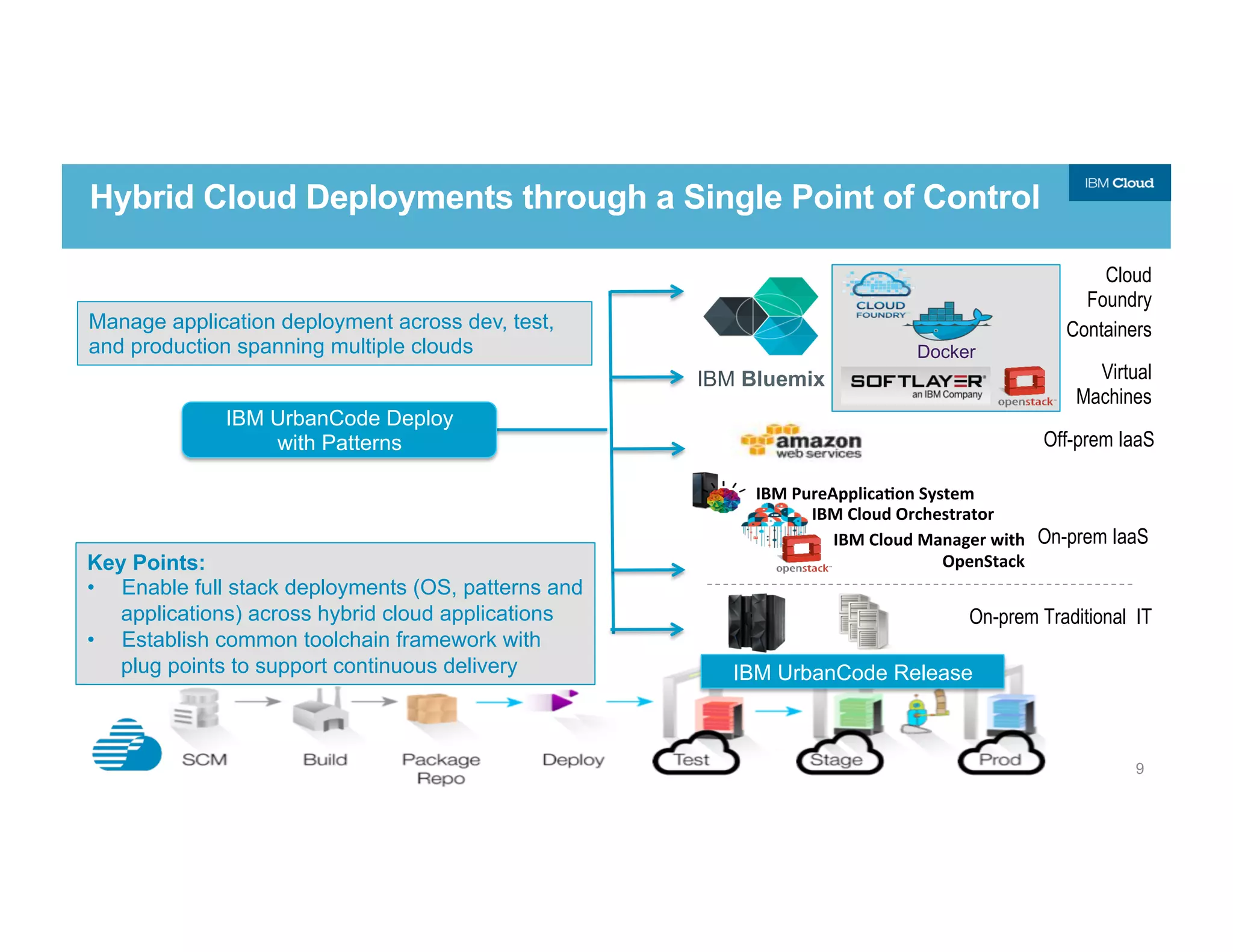

Hybrid Cloud Deployments through a Single Point of Control
IBM Bluemix
Cloud
Foundry
On-prem IaaS
On-prem Traditional IT
IBM
Cloud
Orchestrator

IBM
PureApplica9on
System

IBM
Cloud
Manager
with

OpenStack

9
Manage application deployment across dev, test,
and production spanning multiple clouds
Key Points:
•  Enable full stack deployments (OS, patterns and
applications) across hybrid cloud applications
•  Establish common toolchain framework with
plug points to support continuous delivery
Virtual
Machines
Docker
Containers
IBM UrbanCode Release
Off-prem IaaS
IBM UrbanCode Deploy
with Patterns

© IBM Corporation 10

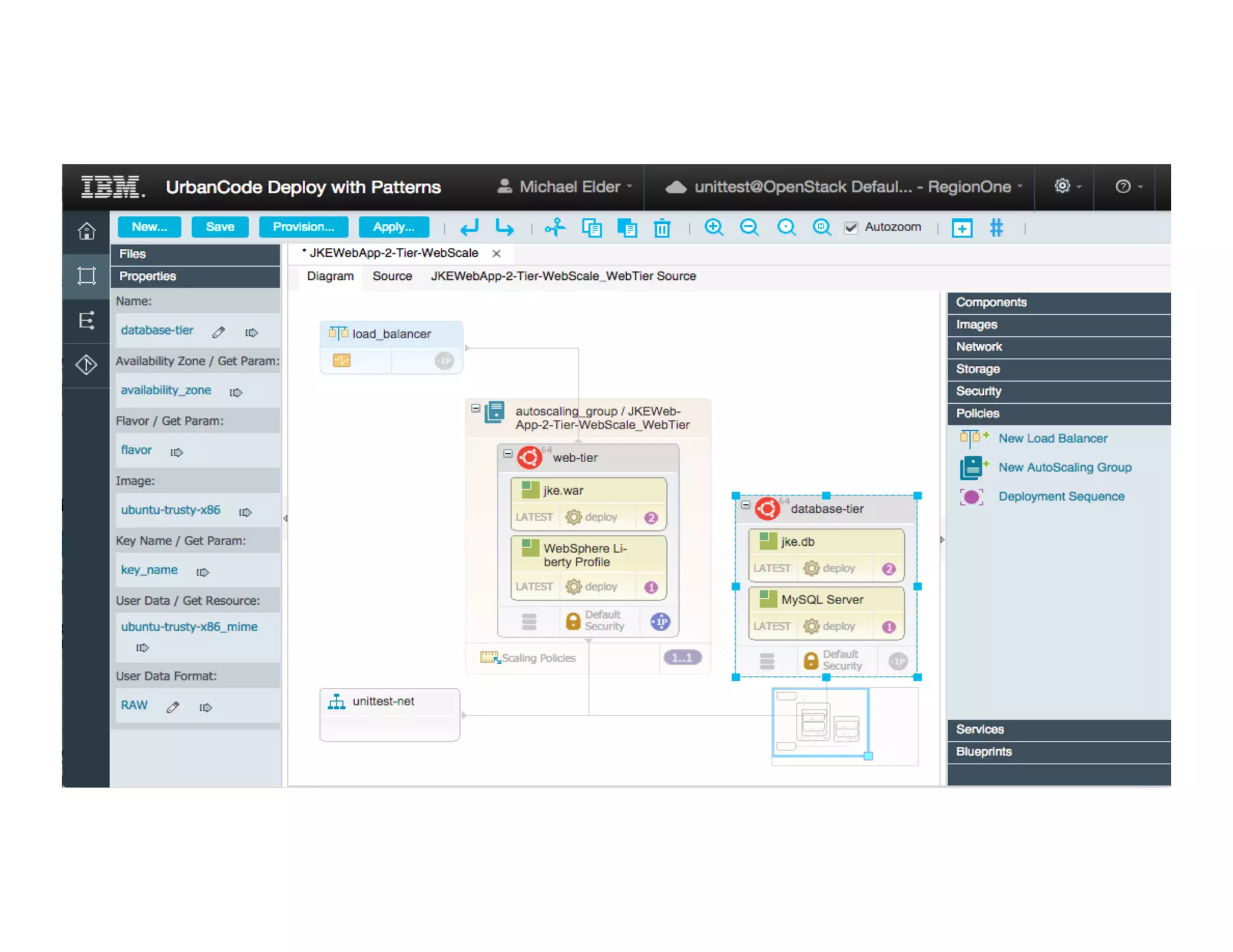

SCREENCAP: Designer &
Palette

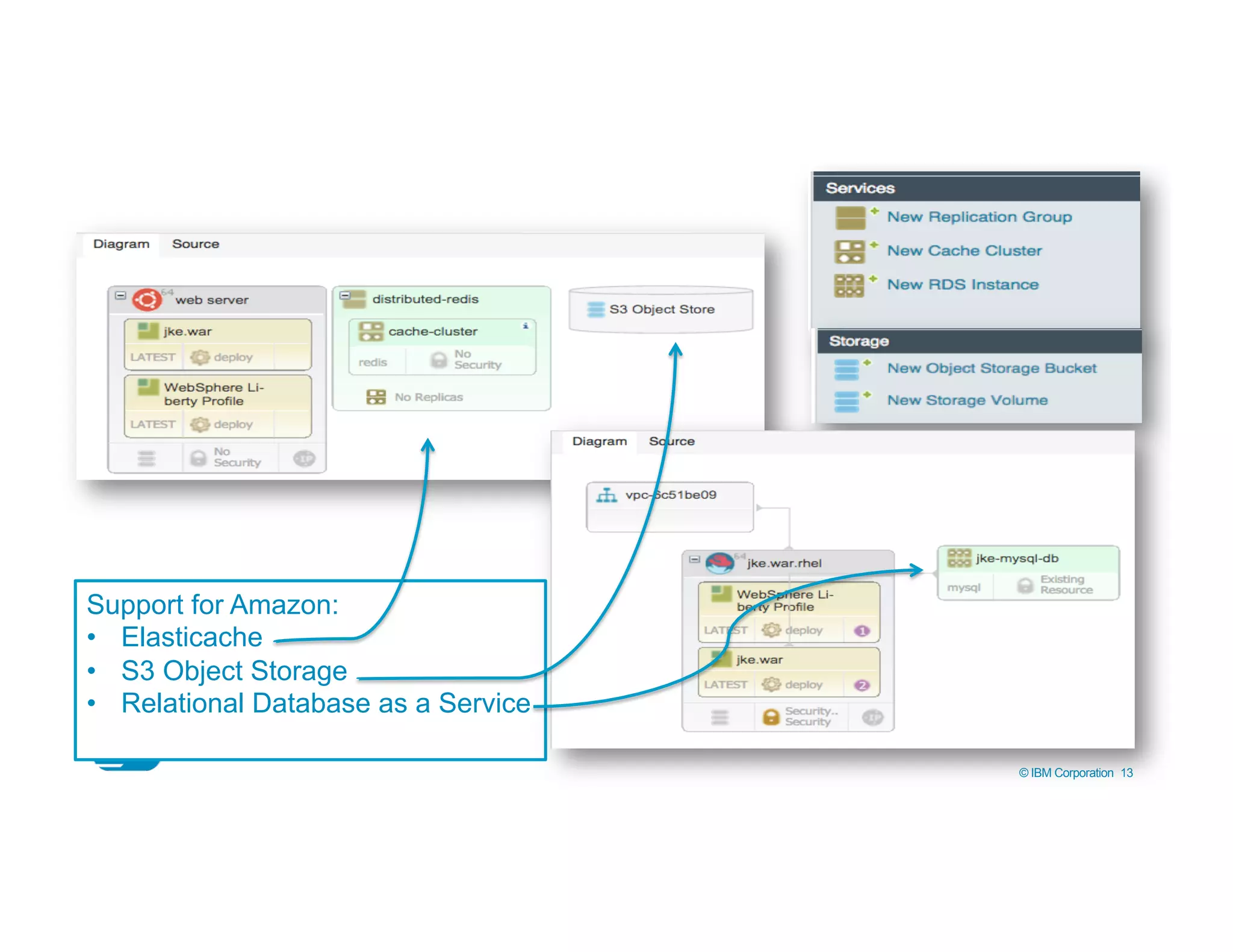

Support for Amazon:
•  Elasticache
•  S3 Object Storage
•  Relational Database as a Service

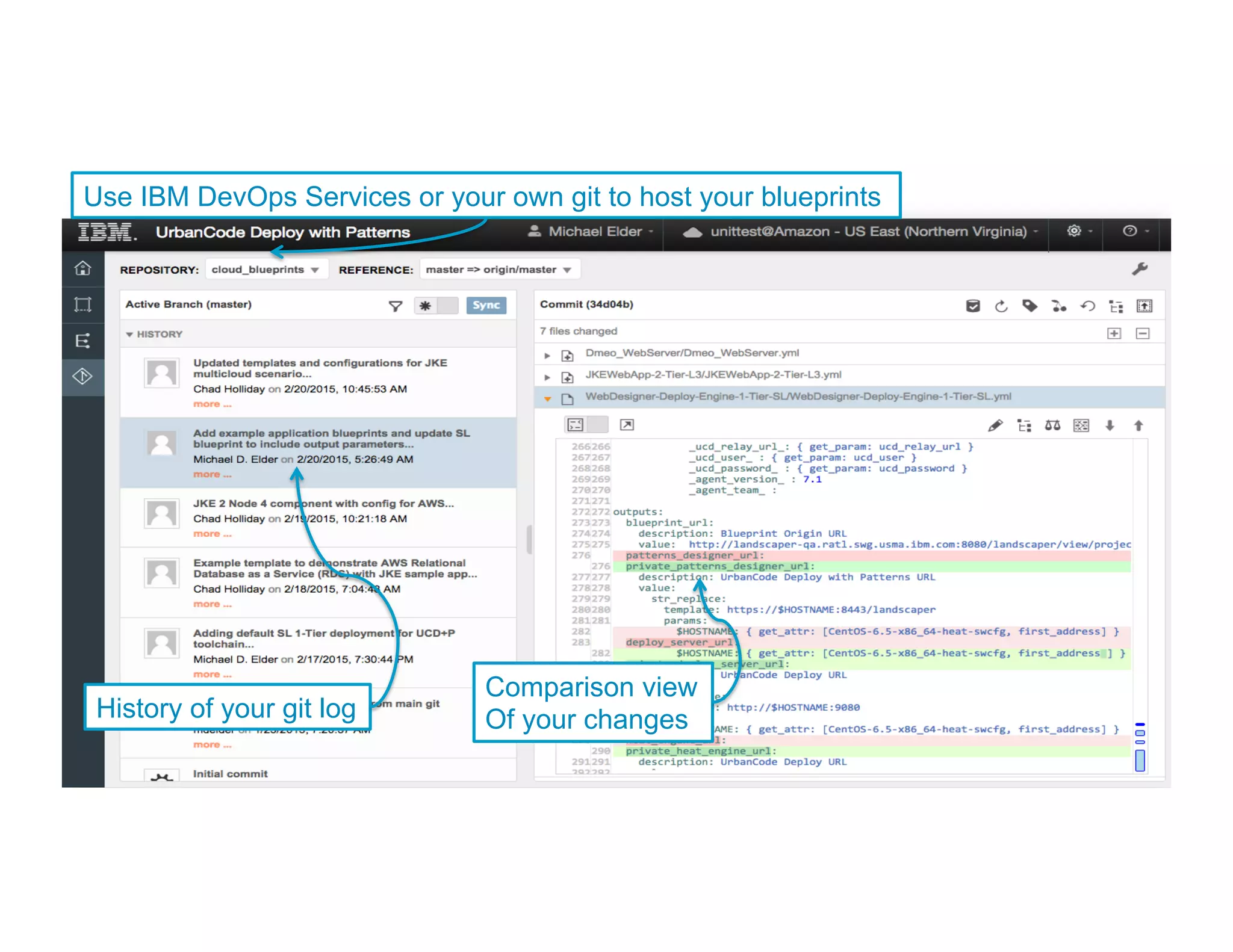

History of your git log
Comparison view
Of your changes
Use IBM DevOps Services or your own git to host your blueprints

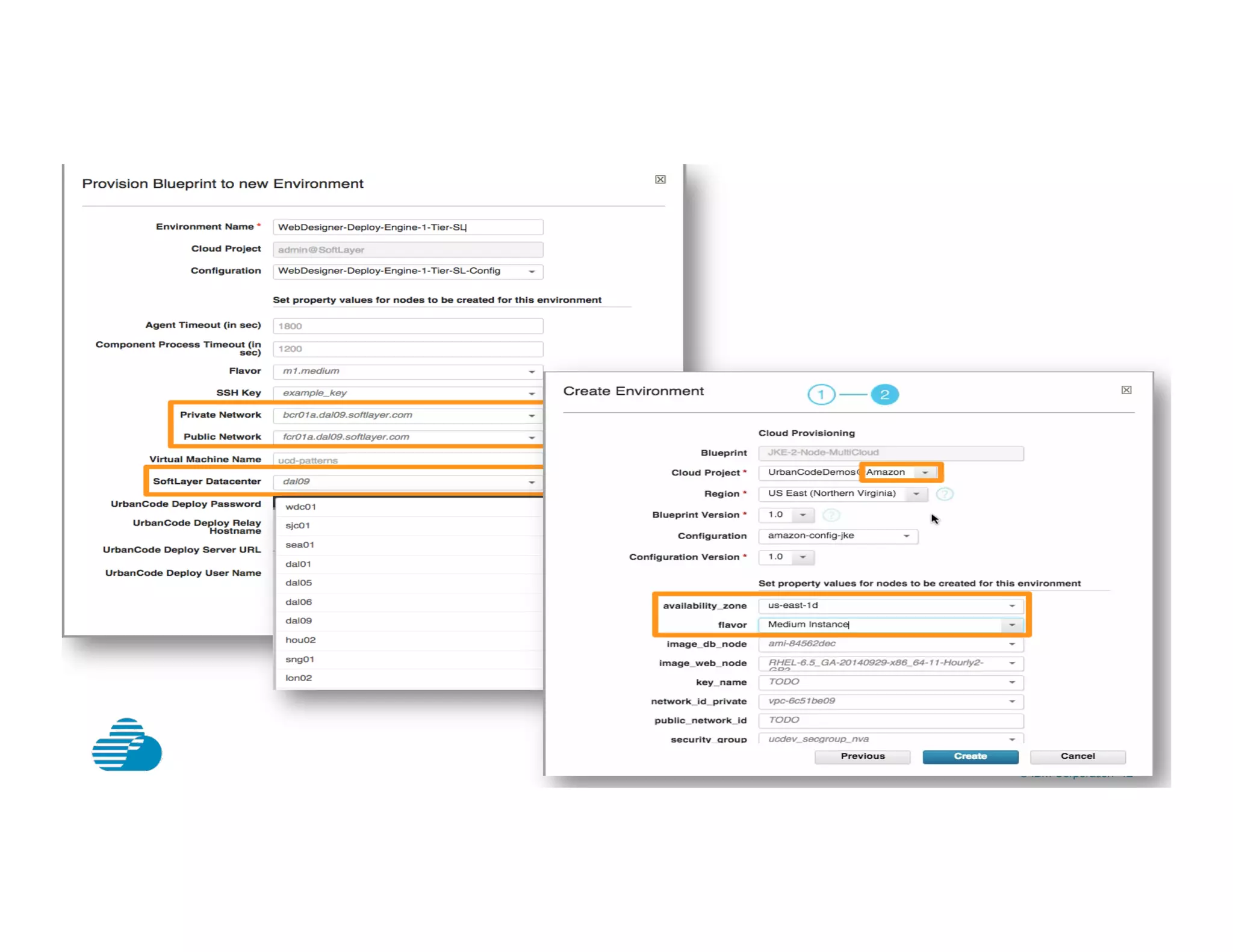

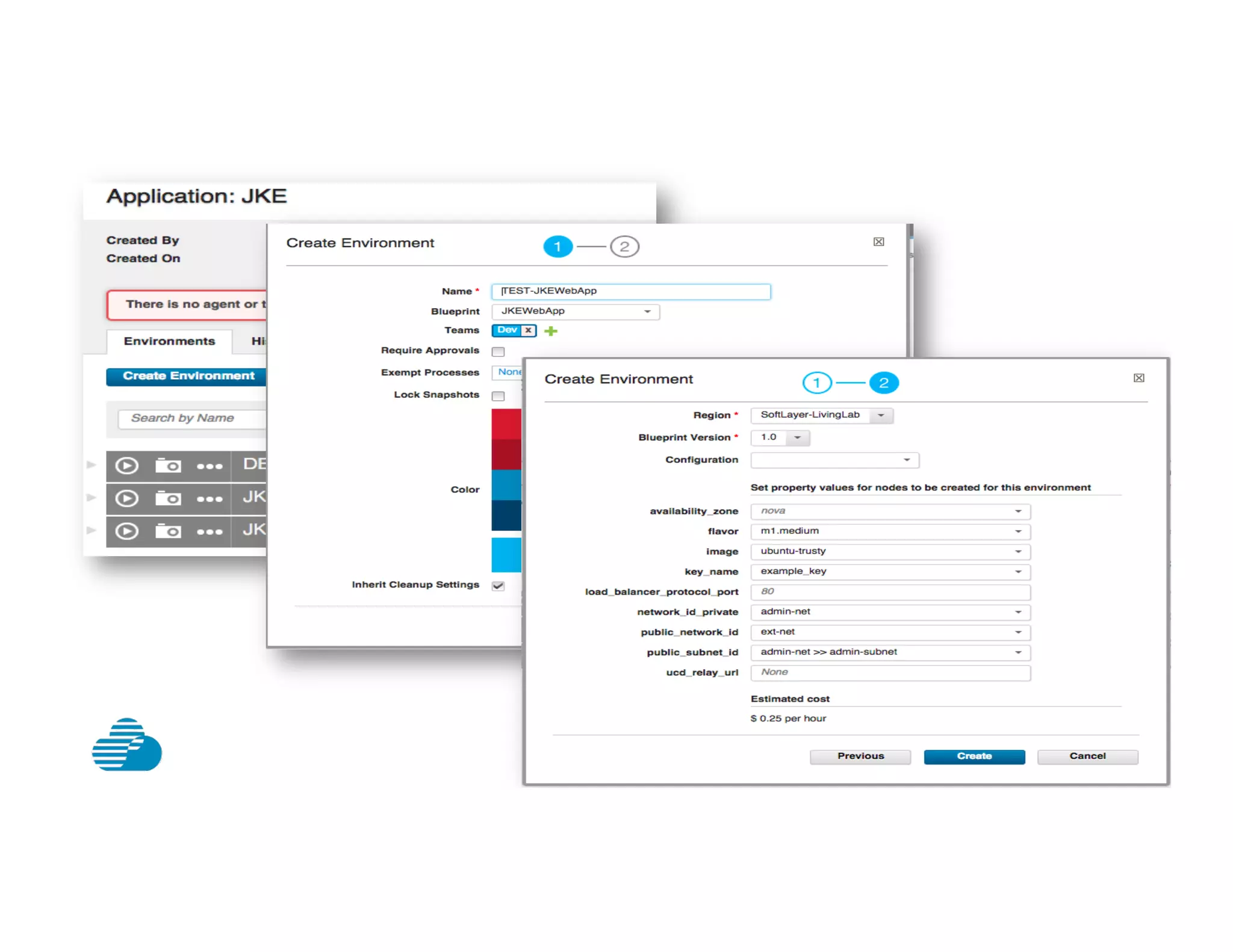

Demo
•  Web-based design – live feedback across the entire
deployed stack from UrbanCode Deploy with Patterns
•  Hybrid Cloud Design & Deploy (Amazon/OpenStack)
•  Containers & Virtual Machines in a single template
•  Composite template design

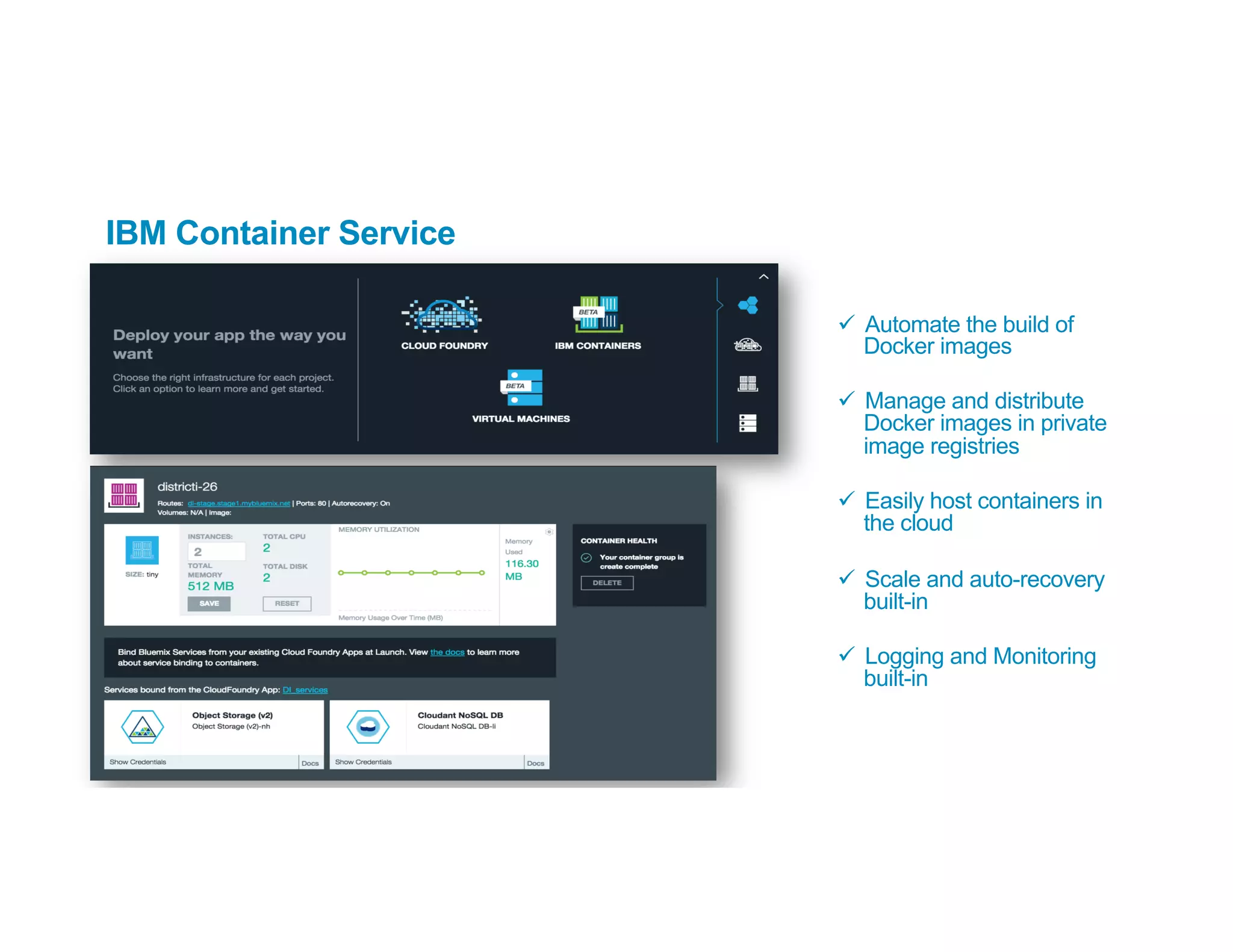

IBM Container Service
ü  Automate the build of
Docker images
ü  Manage and distribute
Docker images in private
image registries
ü  Easily host containers in
the cloud
ü  Scale and auto-recovery
built-in
ü  Logging and Monitoring
built-in

17

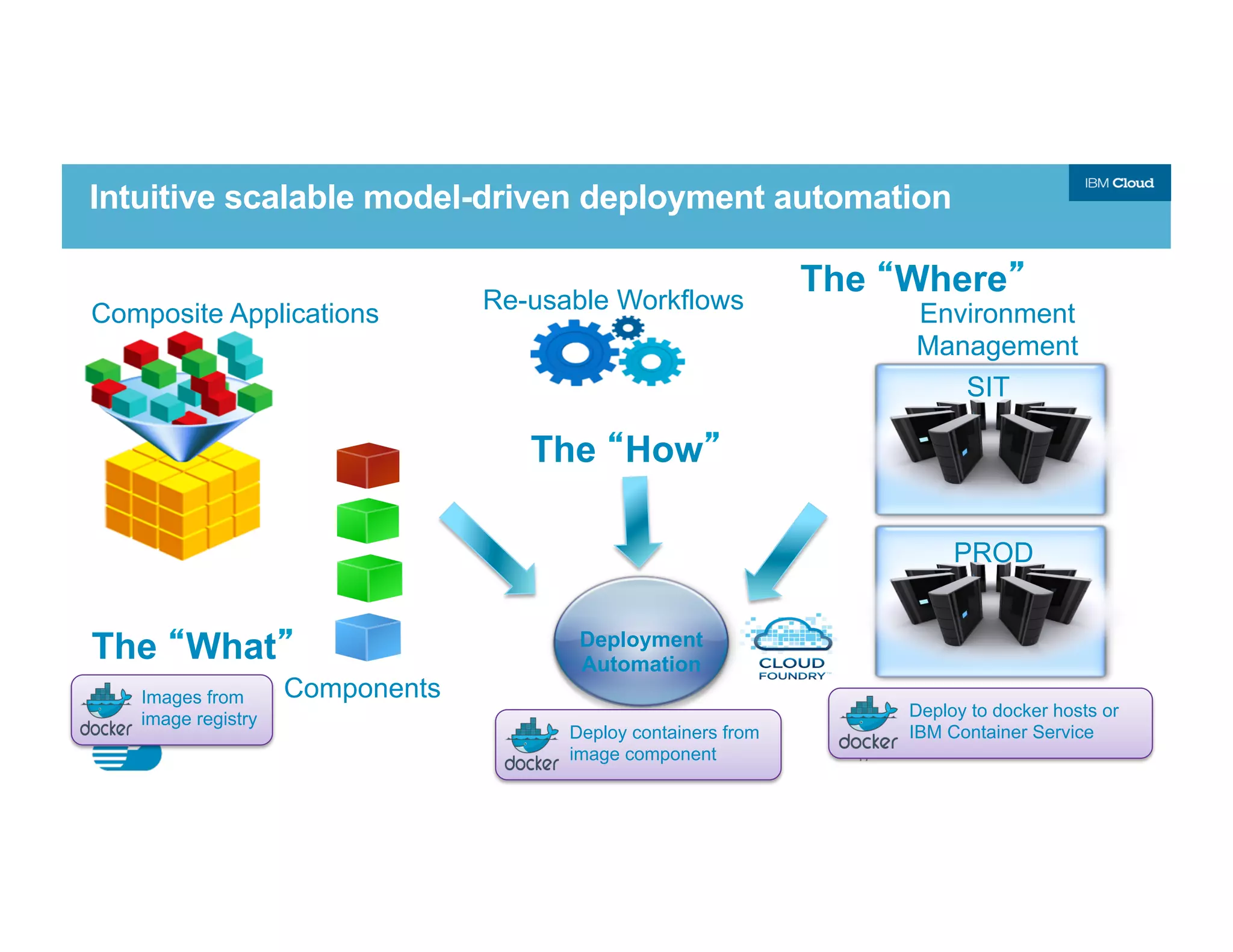

Intuitive scalable model-driven deployment automation
Composite Applications
Components
Re-usable Workflows Environment
Management
SIT
PROD
The “What”
The “How”
The “Where”
Deployment
Automation
Images from
image registry
Deploy containers from
image component
Deploy to docker hosts or
IBM Container Service

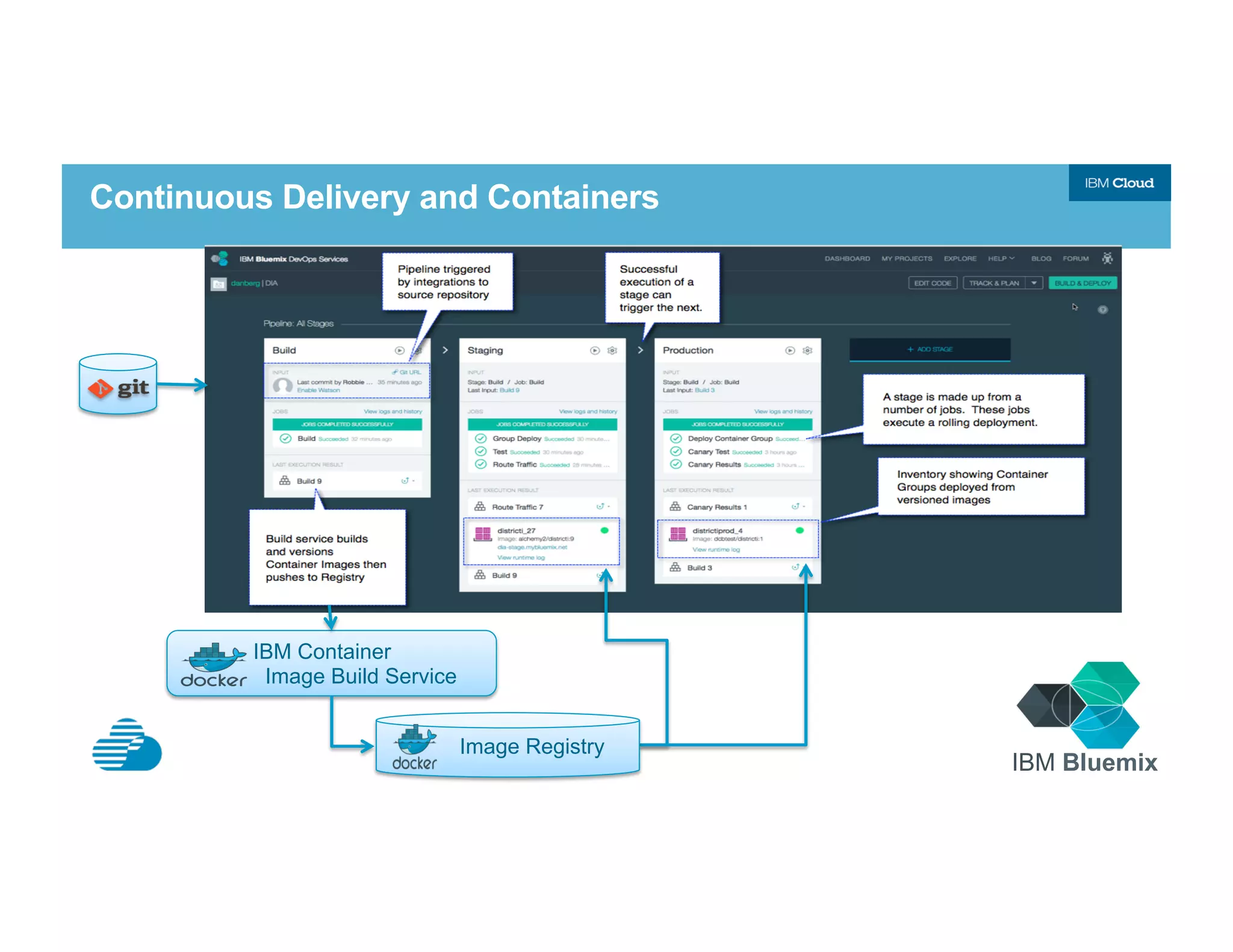

Continuous Delivery and Containers
IBM Container
Image Build Service
IBM Bluemix
Image Registry

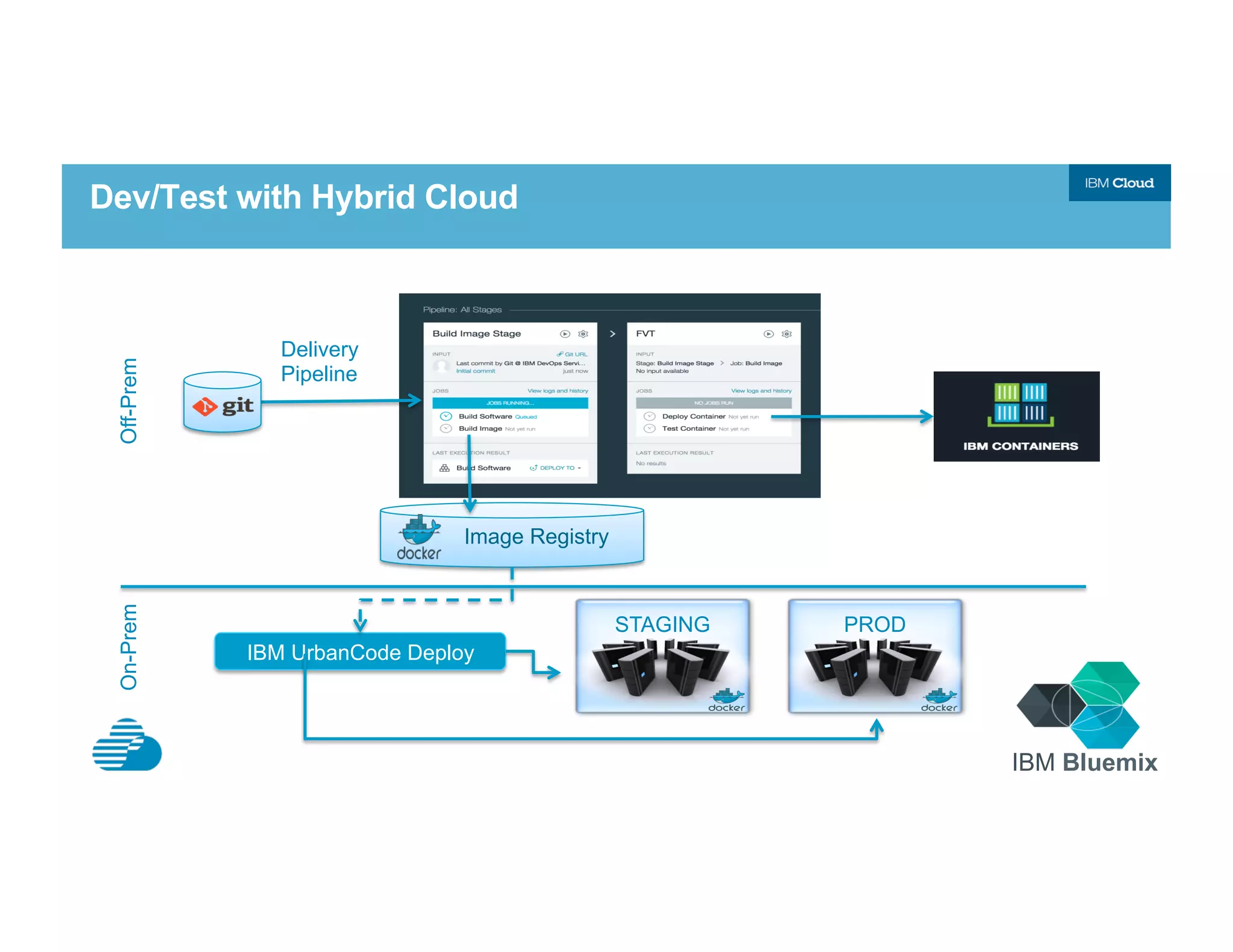

Dev/Test with Hybrid Cloud
Off-PremOn-Prem
Image Registry
PRODSTAGING
Delivery
Pipeline
IBM Bluemix

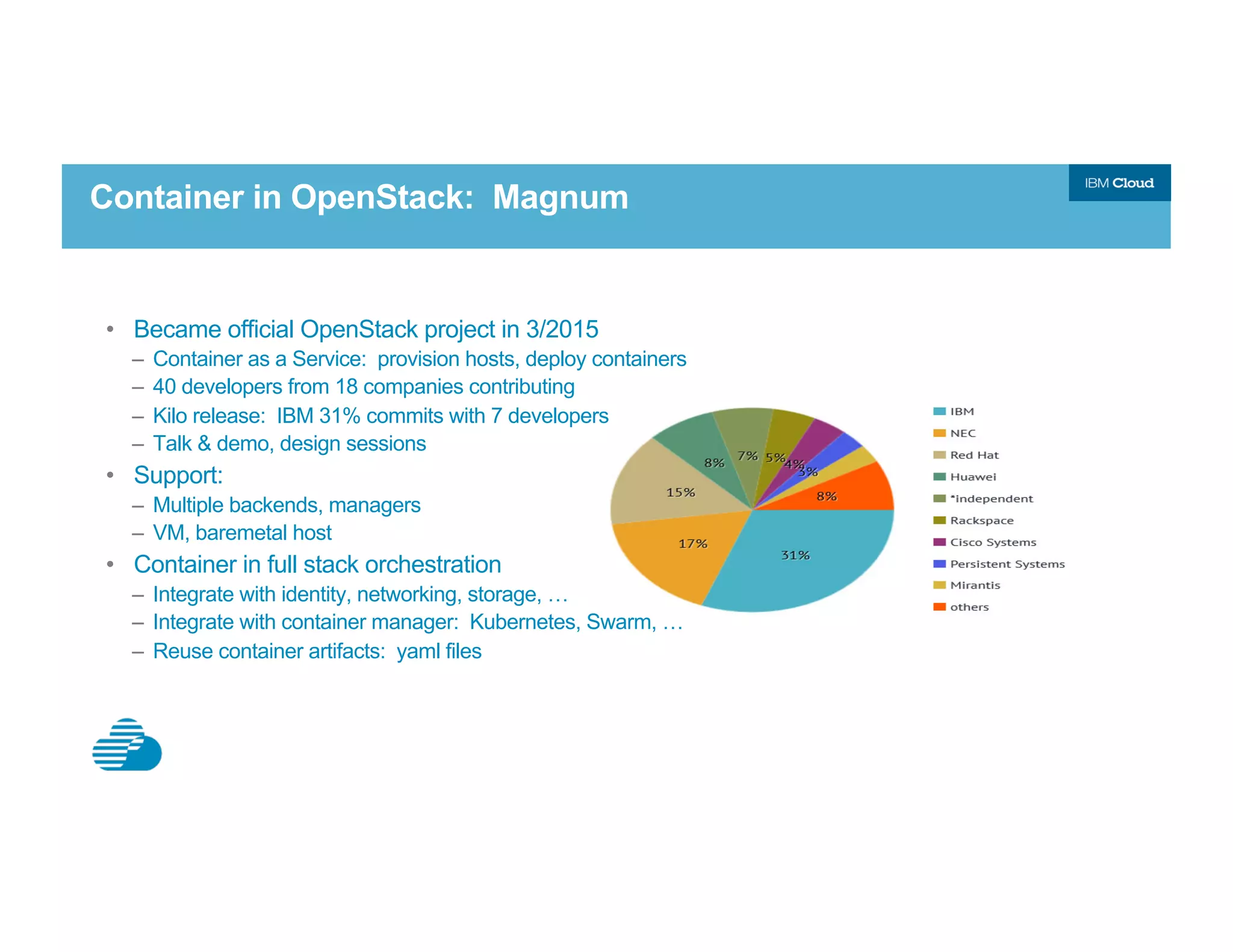

Container in OpenStack: Magnum
•  Became official OpenStack project in 3/2015
–  Container as a Service: provision hosts, deploy containers
–  40 developers from 18 companies contributing
–  Kilo release: IBM 31% commits with 7 developers
–  Talk & demo, design sessions
•  Support:
–  Multiple backends, managers
–  VM, baremetal host
•  Container in full stack orchestration
–  Integrate with identity, networking, storage, …
–  Integrate with container manager: Kubernetes, Swarm, …
–  Reuse container artifacts: yaml files

minion
minion
master

Kubernetes
controller
Neutron Private Network

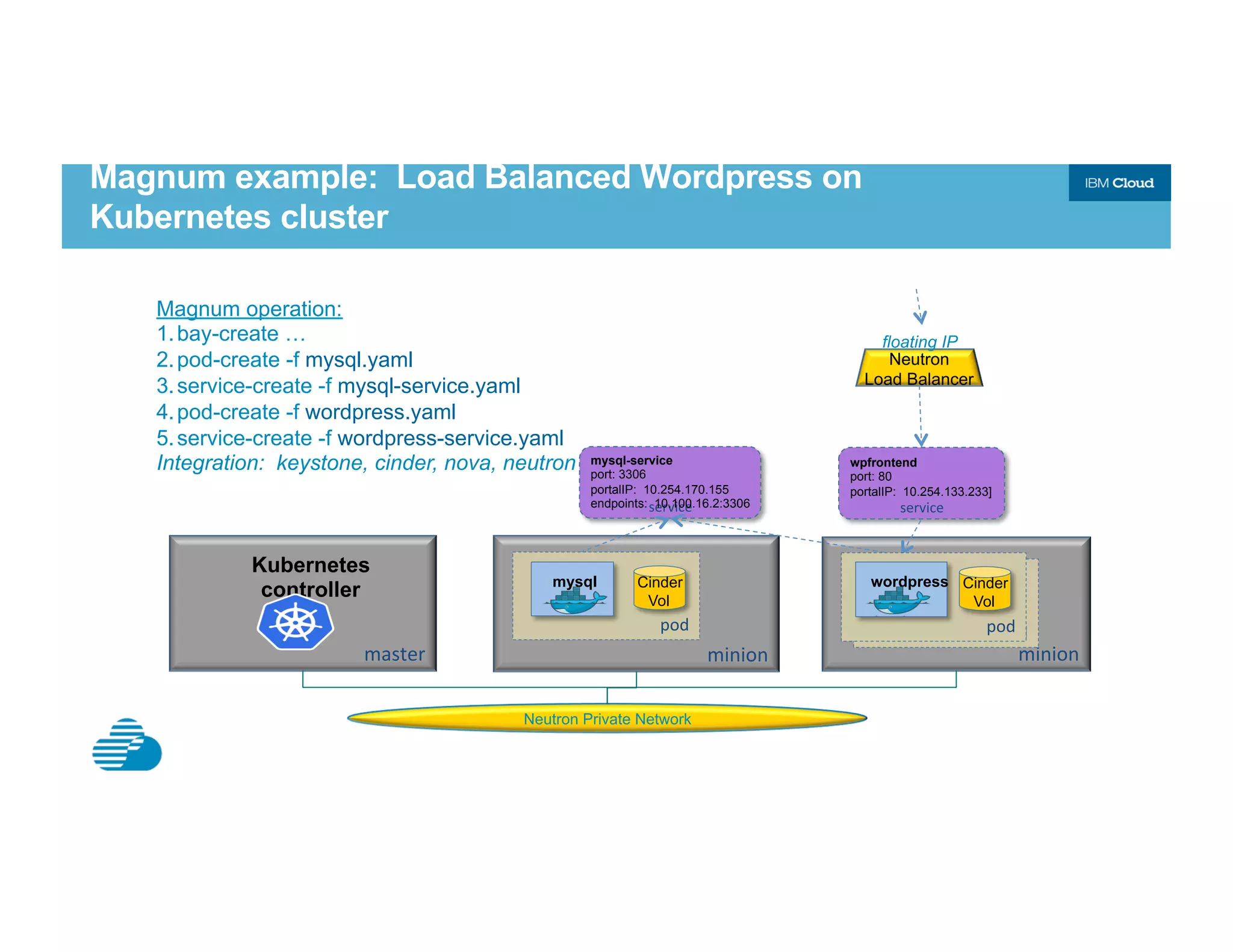

Magnum example: Load Balanced Wordpress on
Kubernetes cluster
Magnum operation:
1. bay-create …
2. pod-create -f mysql.yaml
3. service-create -f mysql-service.yaml
4. pod-create -f wordpress.yaml
5. service-create -f wordpress-service.yaml
Integration: keystone, cinder, nova, neutron
service

wpfrontend
port: 80
portalIP: 10.254.133.233]
Neutron
Load Balancer
floating IP
service

mysql-service
port: 3306
portalIP: 10.254.170.155
endpoints: 10.100.16.2:3306
pod

mysql Cinder
Vol
pod
pod

wordpress Cinder
Vol

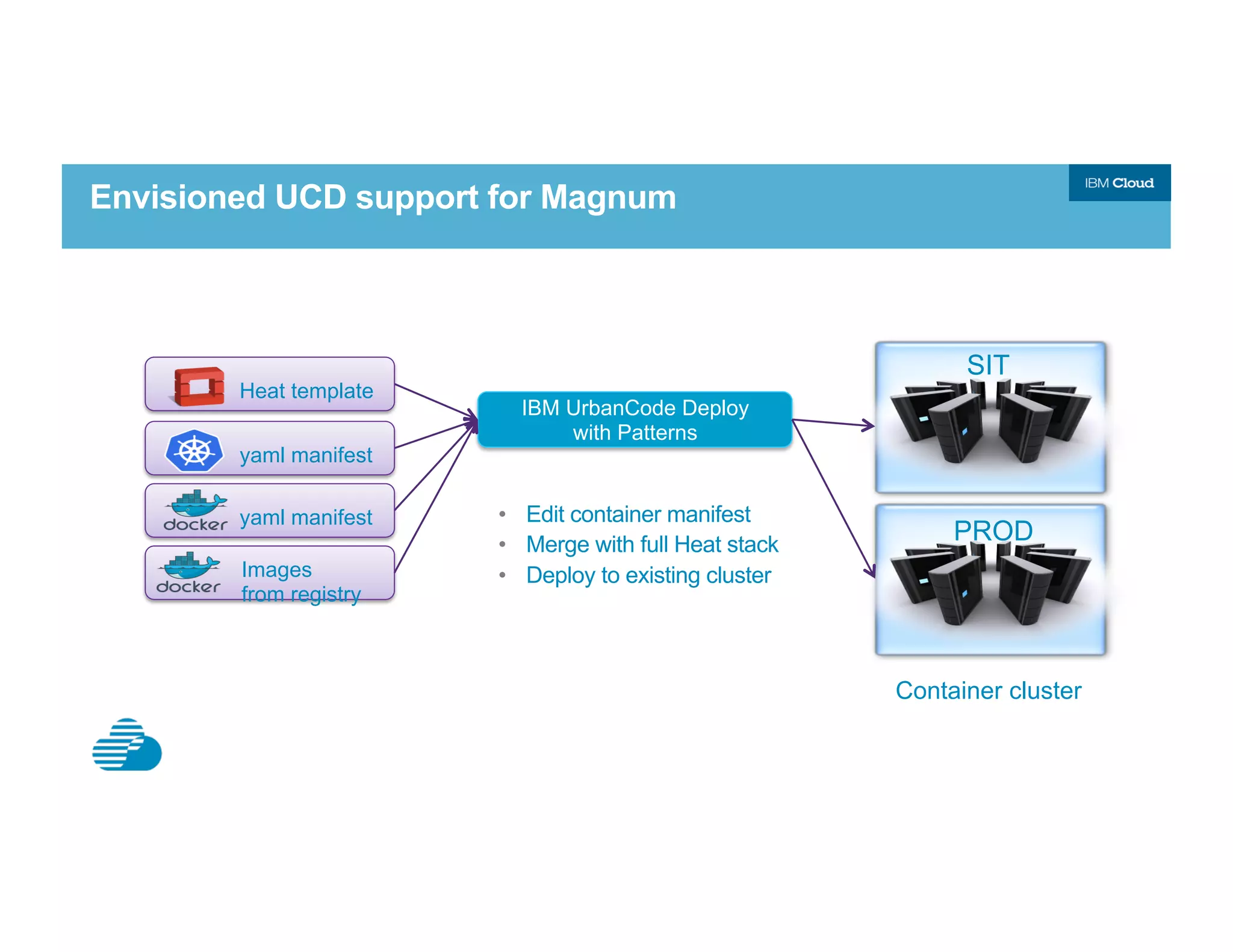

Envisioned UCD support for Magnum
•  Edit container manifest
•  Merge with full Heat stack
•  Deploy to existing cluster
with Patterns
Images
from registry
yaml manifest
yaml manifest
Heat template
SIT
PROD
Container cluster

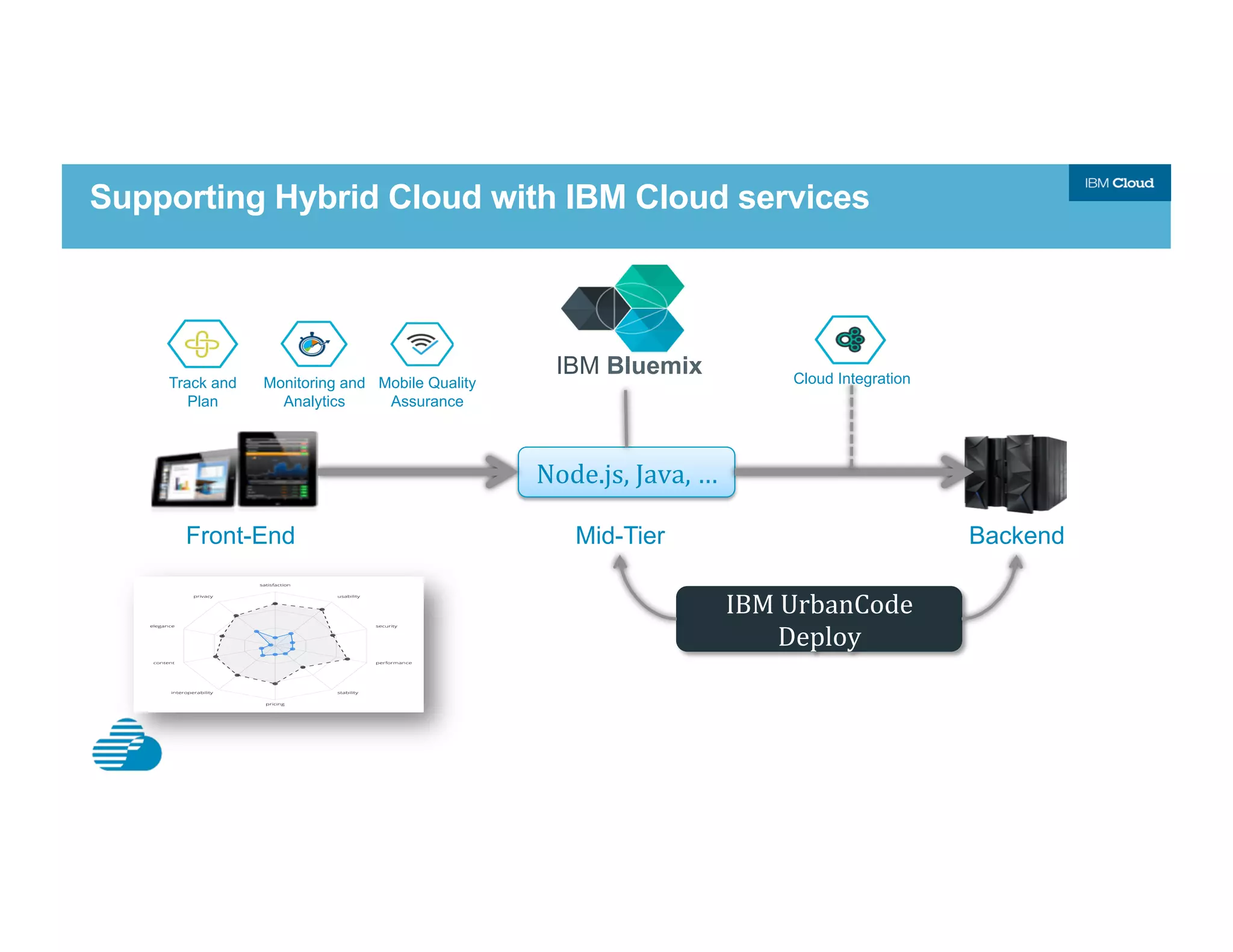

Supporting Hybrid Cloud with IBM Cloud services
IBM
UrbanCode

Deploy

Node.js,
Java,
…

Front-End Mid-Tier Backend
Mobile Quality
Assurance
Monitoring and
Analytics
Cloud IntegrationTrack and
Plan
IBM Bluemix

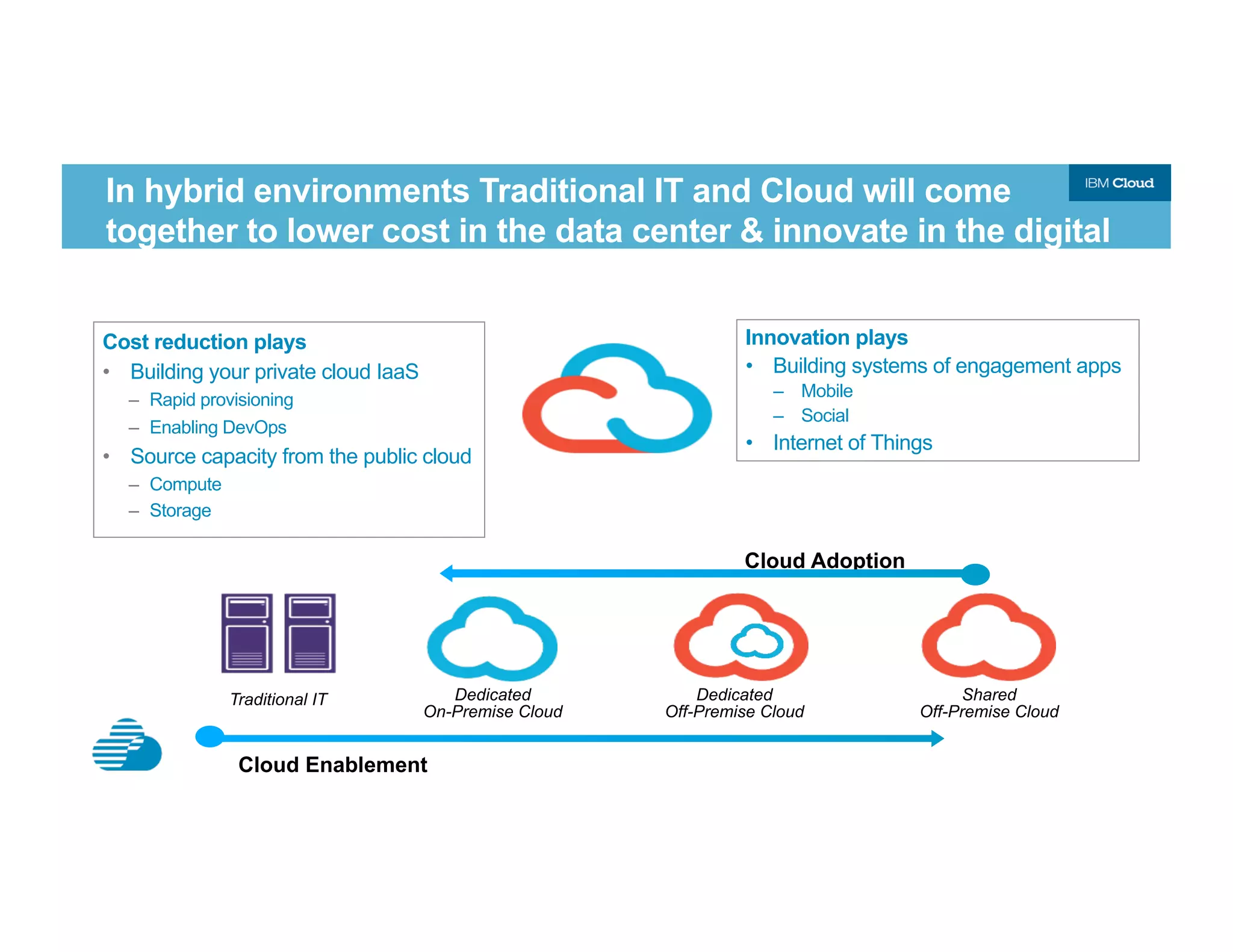

In hybrid environments Traditional IT and Cloud will come
together to lower cost in the data center & innovate in the digital
channels.
Cost reduction plays
•  Building your private cloud IaaS
–  Rapid provisioning
–  Enabling DevOps
•  Source capacity from the public cloud
–  Compute
–  Storage
Innovation plays
•  Building systems of engagement apps
–  Mobile
–  Social
•  Internet of Things
Shared
Off-Premise Cloud
Dedicated
On-Premise Cloud
Traditional IT Dedicated
Off-Premise Cloud
Cloud Enablement
Cloud Adoption

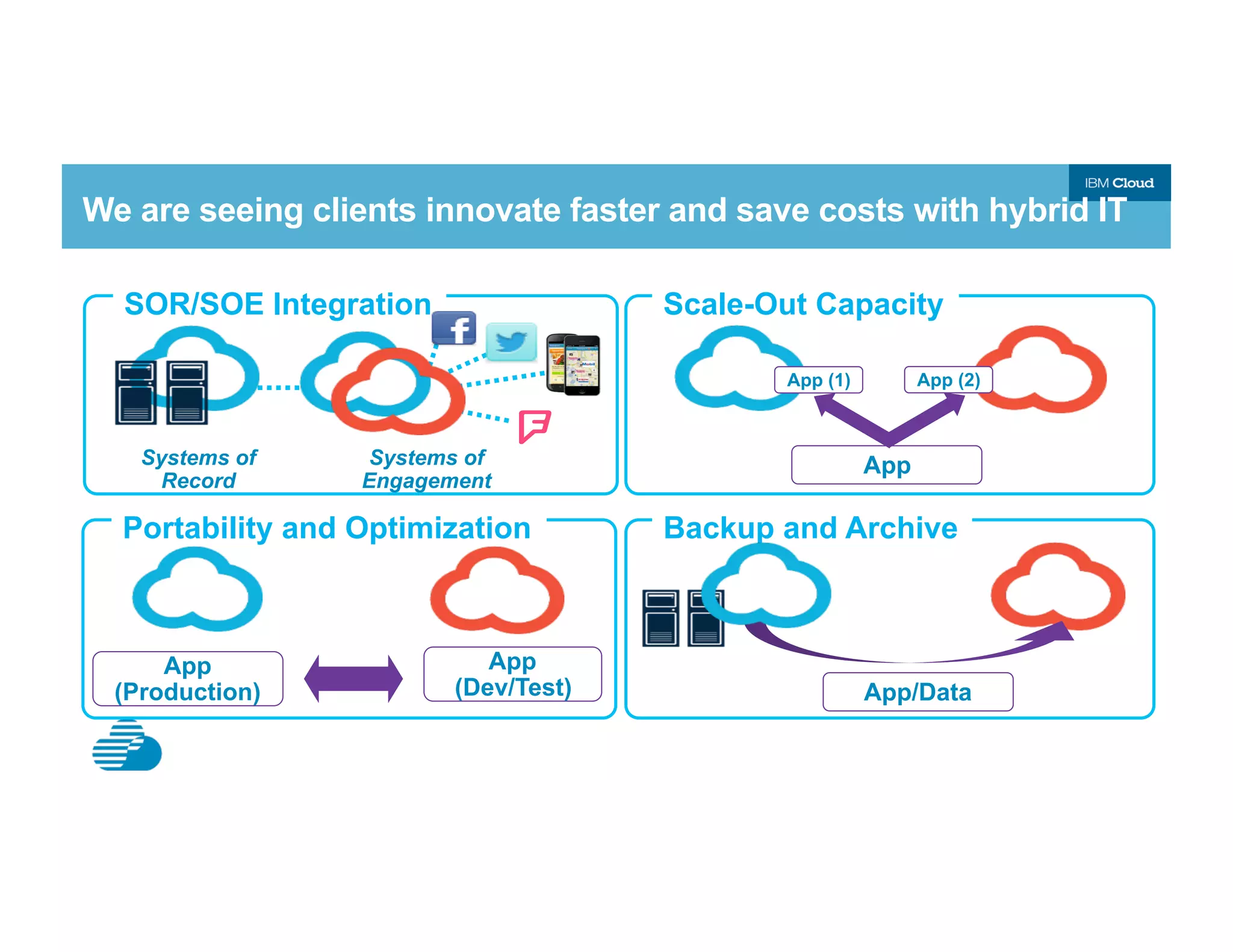

We are seeing clients innovate faster and save costs with hybrid IT
SOR/SOE Integration
Systems of
Record
Systems of
Engagement
Portability and Optimization
App
(Production)
App
(Dev/Test)
Scale-Out Capacity
App
App (1) App (2)
Backup and Archive
App/Data

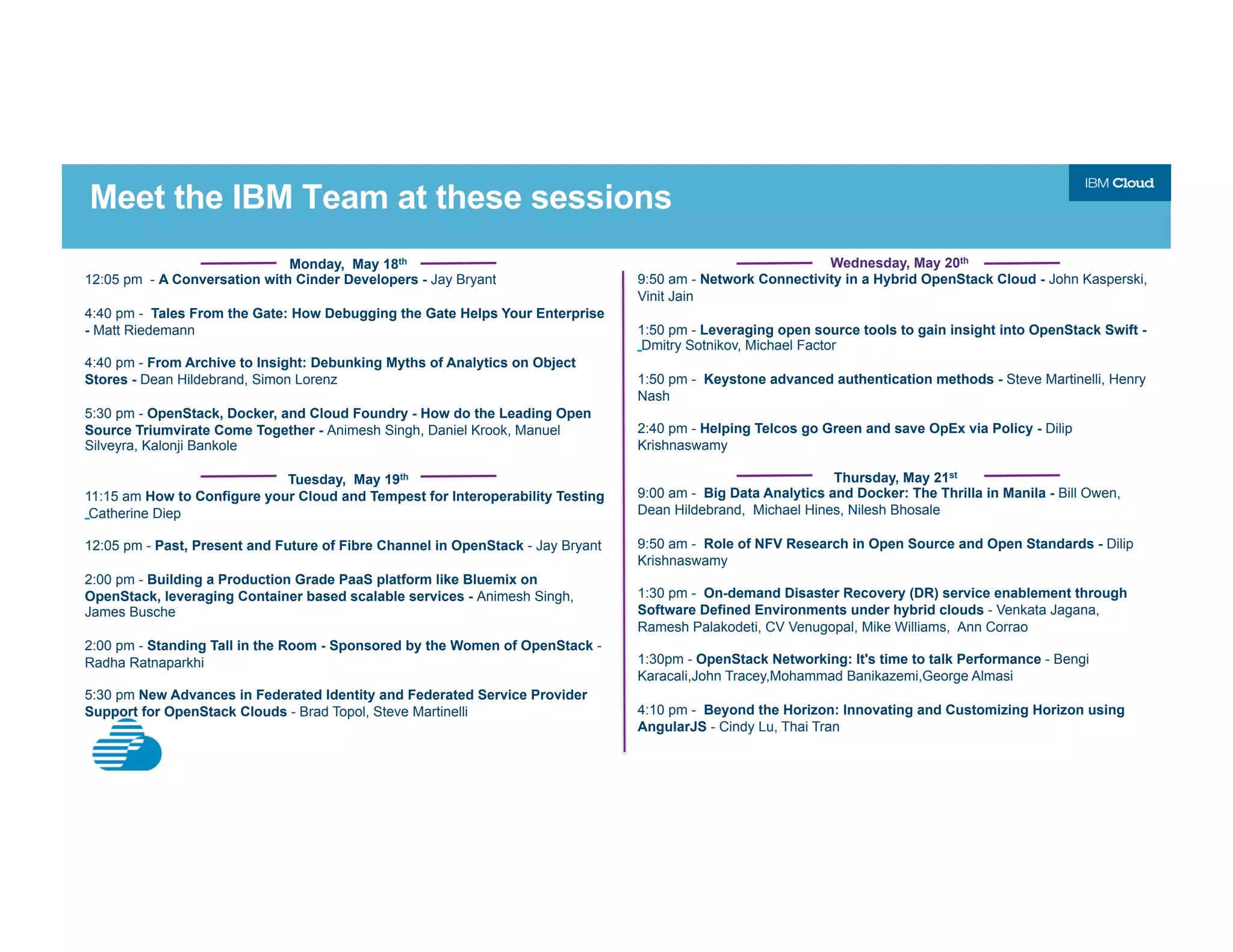

Meet the IBM Team at these sessions
Monday, May 18th
12:05 pm - A Conversation with Cinder Developers - Jay Bryant
4:40 pm - Tales From the Gate: How Debugging the Gate Helps Your Enterprise
- Matt Riedemann
4:40 pm - From Archive to Insight: Debunking Myths of Analytics on Object
Stores - Dean Hildebrand, Simon Lorenz
5:30 pm - OpenStack, Docker, and Cloud Foundry - How do the Leading Open
Source Triumvirate Come Together - Animesh Singh, Daniel Krook, Manuel
Silveyra, Kalonji Bankole
Tuesday, May 19th
11:15 am How to Configure your Cloud and Tempest for Interoperability Testing
Catherine Diep
12:05 pm - Past, Present and Future of Fibre Channel in OpenStack - Jay Bryant
2:00 pm - Building a Production Grade PaaS platform like Bluemix on
OpenStack, leveraging Container based scalable services - Animesh Singh,
James Busche
2:00 pm - Standing Tall in the Room - Sponsored by the Women of OpenStack -
Radha Ratnaparkhi
5:30 pm New Advances in Federated Identity and Federated Service Provider
Support for OpenStack Clouds - Brad Topol, Steve Martinelli
Wednesday, May 20th
9:50 am - Network Connectivity in a Hybrid OpenStack Cloud - John Kasperski,
Vinit Jain
1:50 pm - Leveraging open source tools to gain insight into OpenStack Swift -
Dmitry Sotnikov, Michael Factor
1:50 pm - Keystone advanced authentication methods - Steve Martinelli, Henry
Nash
2:40 pm - Helping Telcos go Green and save OpEx via Policy - Dilip
Krishnaswamy
Thursday, May 21st
9:00 am - Big Data Analytics and Docker: The Thrilla in Manila - Bill Owen,
Dean Hildebrand, Michael Hines, Nilesh Bhosale
9:50 am - Role of NFV Research in Open Source and Open Standards - Dilip
Krishnaswamy
1:30 pm - On-demand Disaster Recovery (DR) service enablement through
Software Defined Environments under hybrid clouds - Venkata Jagana,
Ramesh Palakodeti, CV Venugopal, Mike Williams, Ann Corrao
1:30pm - OpenStack Networking: It's time to talk Performance - Bengi
Karacali,John Tracey,Mohammad Banikazemi,George Almasi
4:10 pm - Beyond the Horizon: Innovating and Customizing Horizon using
AngularJS - Cindy Lu, Thai Tran

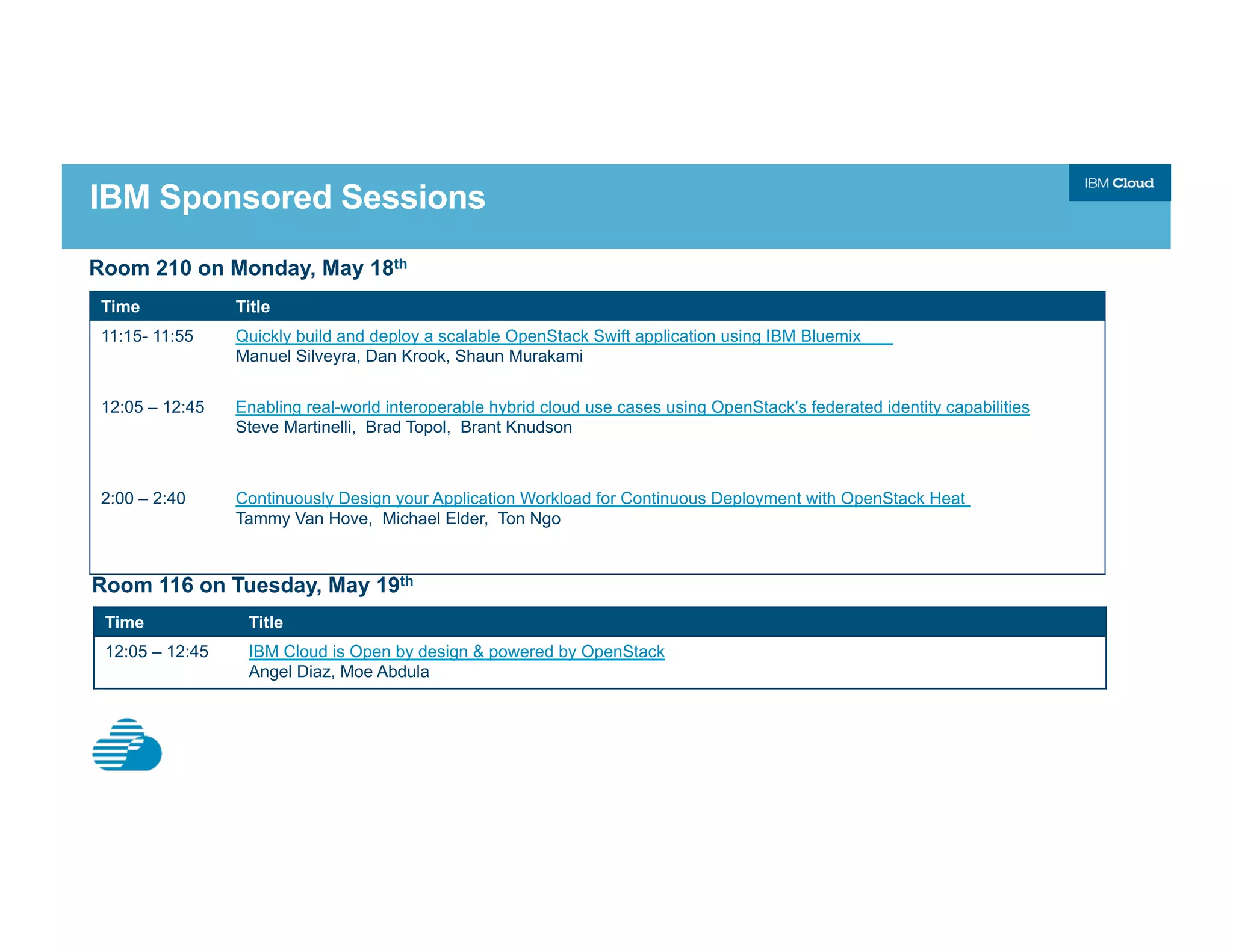

IBM Sponsored Sessions
