  Checkpoint-restore in userspace. Arewe there yet? Pavel Emelyanov LinuxCon Europe 2012
• 2.

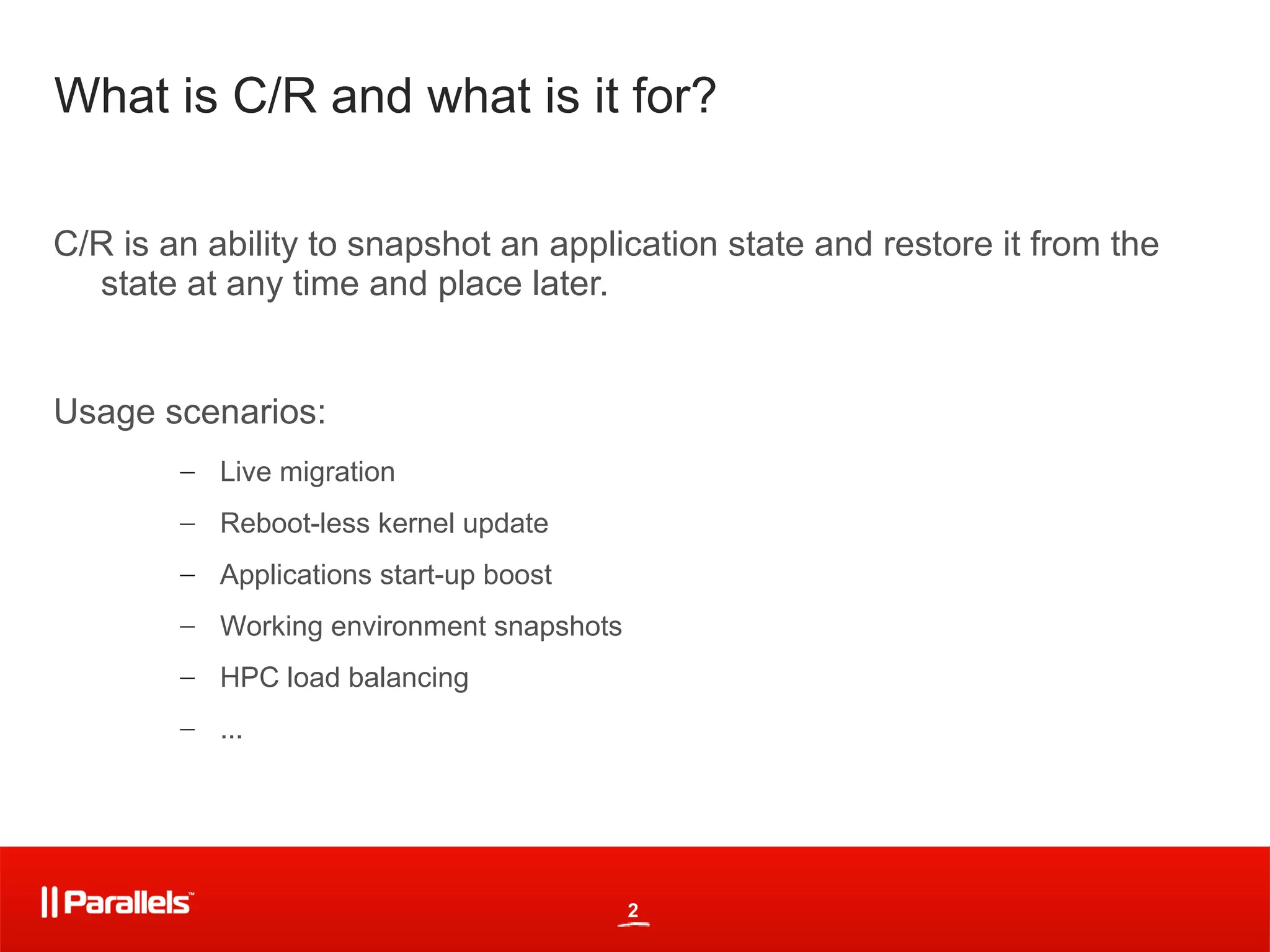

  What is C/Rand what is it for? C/R is an ability to snapshot an application state and restore it from the state at any time and place later. Usage scenarios: – Live migration – Reboot-less kernel update – Applications start-up boost – Working environment snapshots – HPC load balancing – ... 2
• 3.

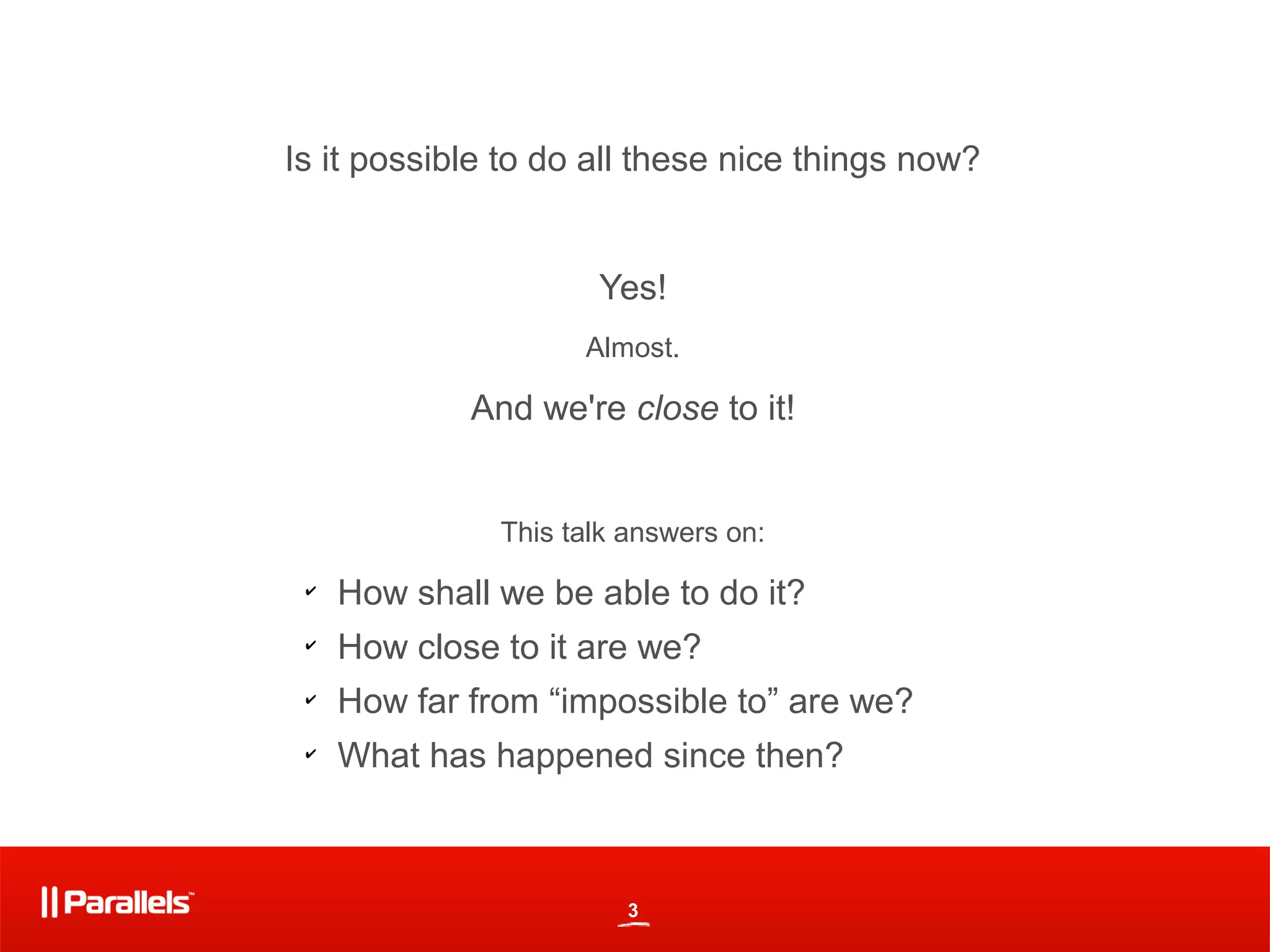

  Is it possibleto do all these nice things now? Yes! Almost. And we're close to it! This talk answers on: ✔ How shall we be able to do it? ✔ How close to it are we? ✔ How far from “impossible to” are we? ✔ What has happened since then? 3
• 4.
  A brief historyof C/R in Linux 2005 2008 2010 2011 2012 Jan Jul Sep CRIU v0.2 + LXC support CRIU v0.1 Linus decided to merge first set of patches upstream First attempt to do C/R mostly in user-space First more-or-less complete version (over 100 patches) First collaborative attempt OpenVZ project starts to get C/R upstream with live-migration support all in kernel feature 4
• 5.
  CRIU project ultimategoal ... Timers APP FS APP Creds dump MM Image 0011011001 0010101110 1101011001 1011100111 APP 0001011011 APP 0101011100 1011010110 ... restore share APP APP IPC IPC ... ... Network Network 5
• 6.

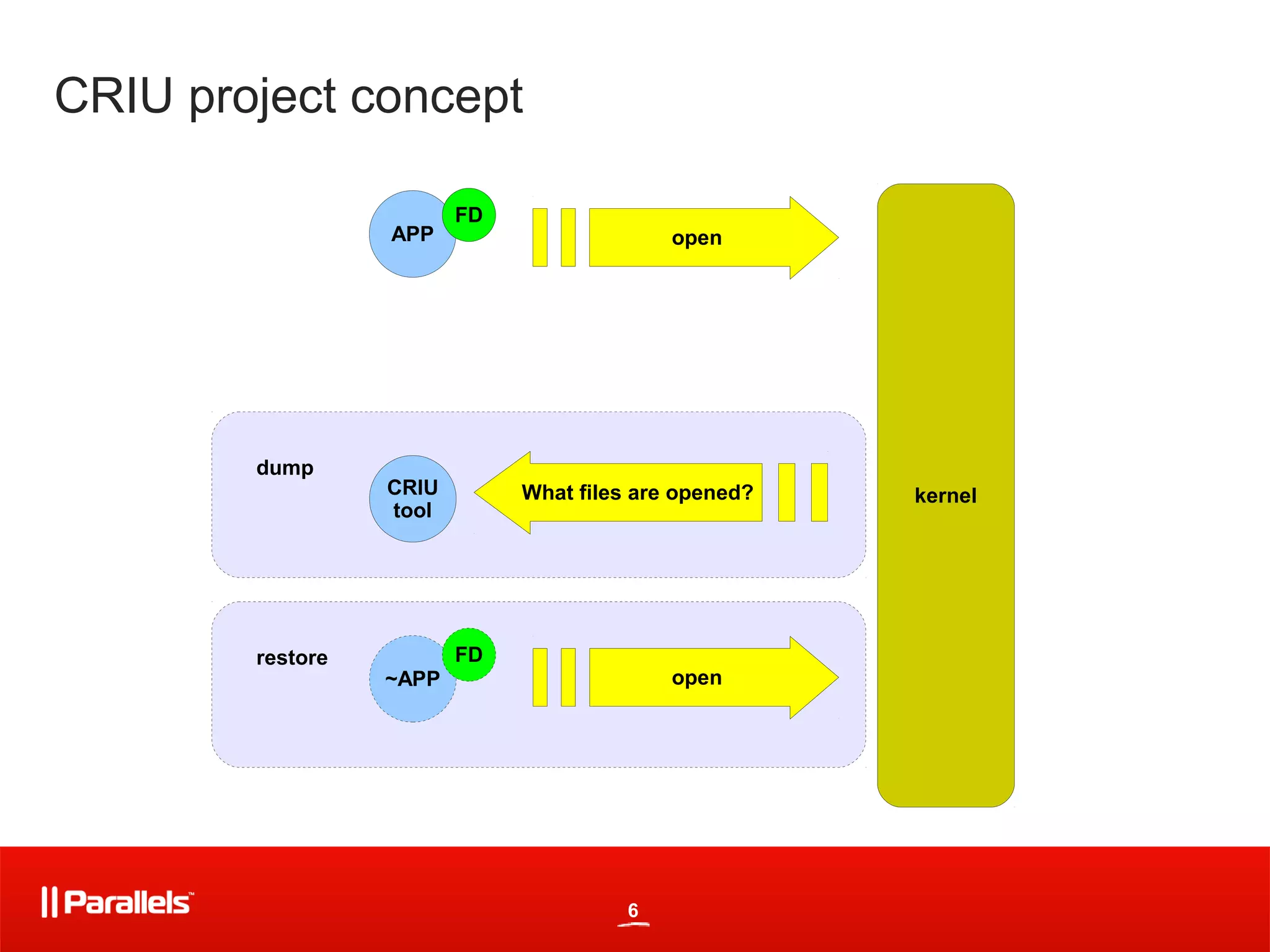

  CRIU project concept FD APP open dump CRIU What files are opened? kernel tool restore FD ~APP open 6
• 7.

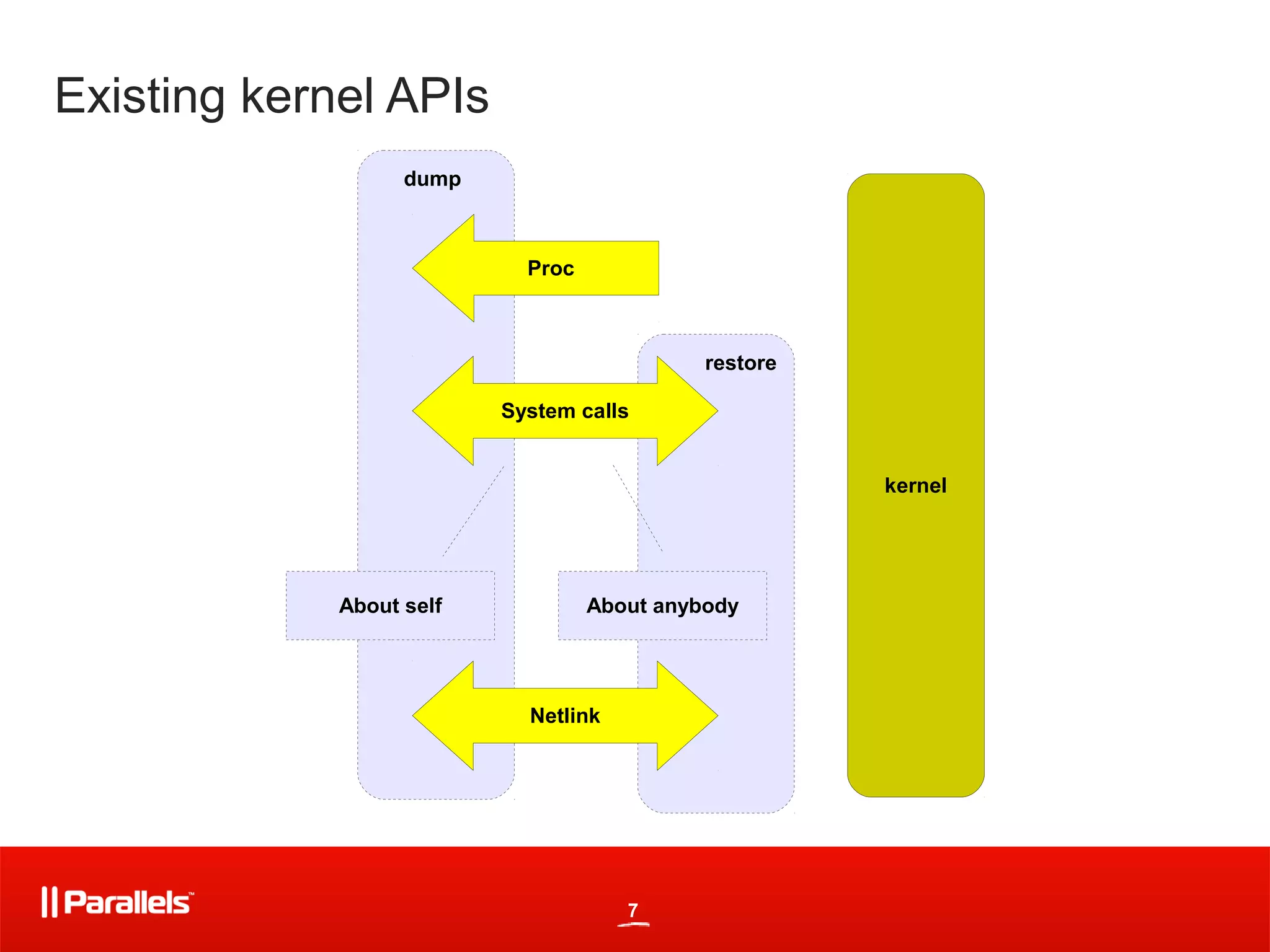

  Existing kernel APIs dump Proc restore System calls kernel About self About anybody Netlink 7
• 8.

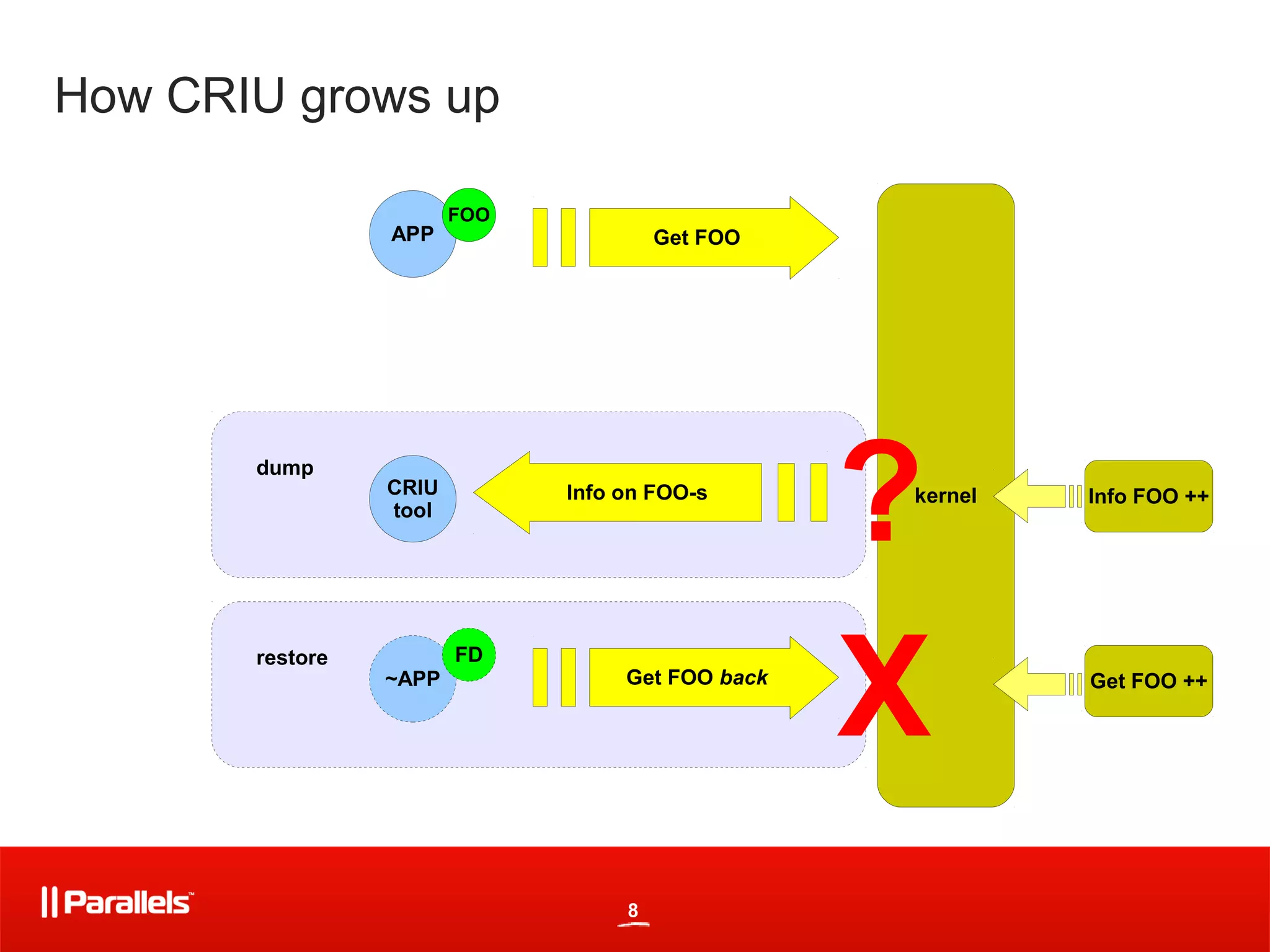

  How CRIU growsup FOO APP Get FOO dump CRIU tool Info on FOO-s ? kernel Info FOO ++ X restore FD ~APP Get FOO back Get FOO ++ 8
• 9.

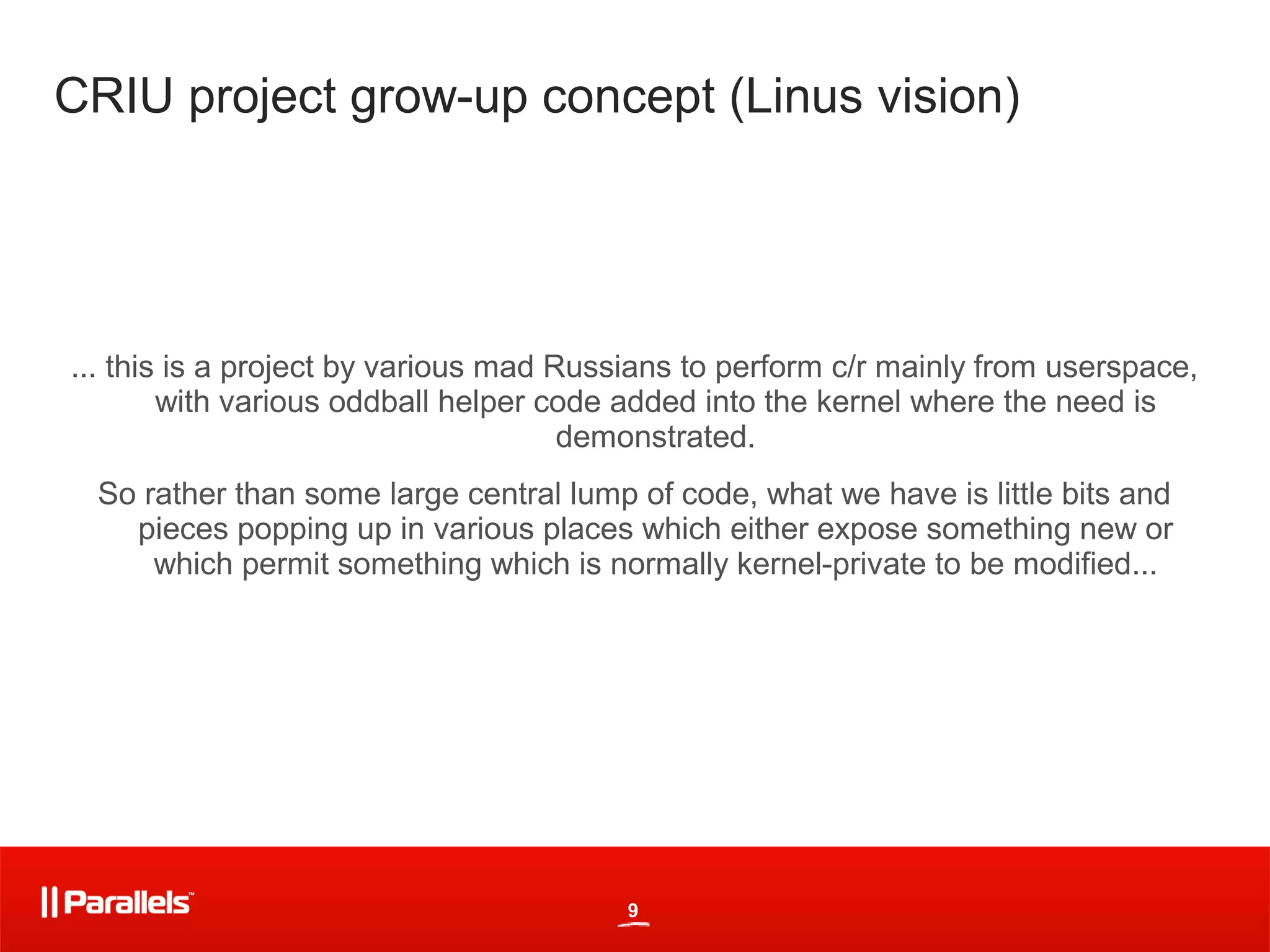

  CRIU project grow-upconcept (Linus vision) ... this is a project by various mad Russians to perform c/r mainly from userspace, with various oddball helper code added into the kernel where the need is demonstrated. So rather than some large central lump of code, what we have is little bits and pieces popping up in various places which either expose something new or which permit something which is normally kernel-private to be modified... 9
• 10.

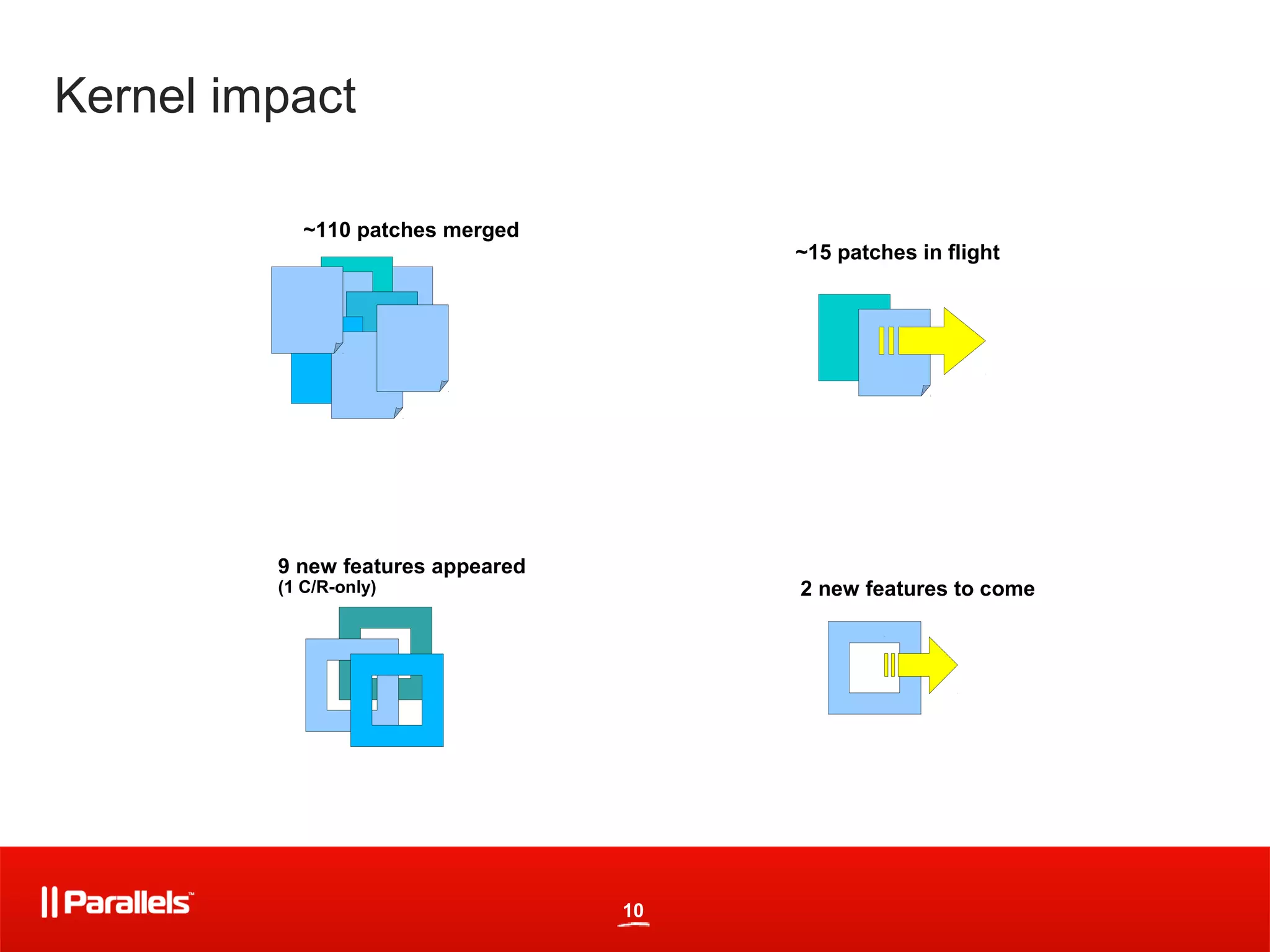

  Kernel impact ~110 patches merged ~15 patches in flight 9 new features appeared (1 C/R-only) 2 new features to come 10
• 11.

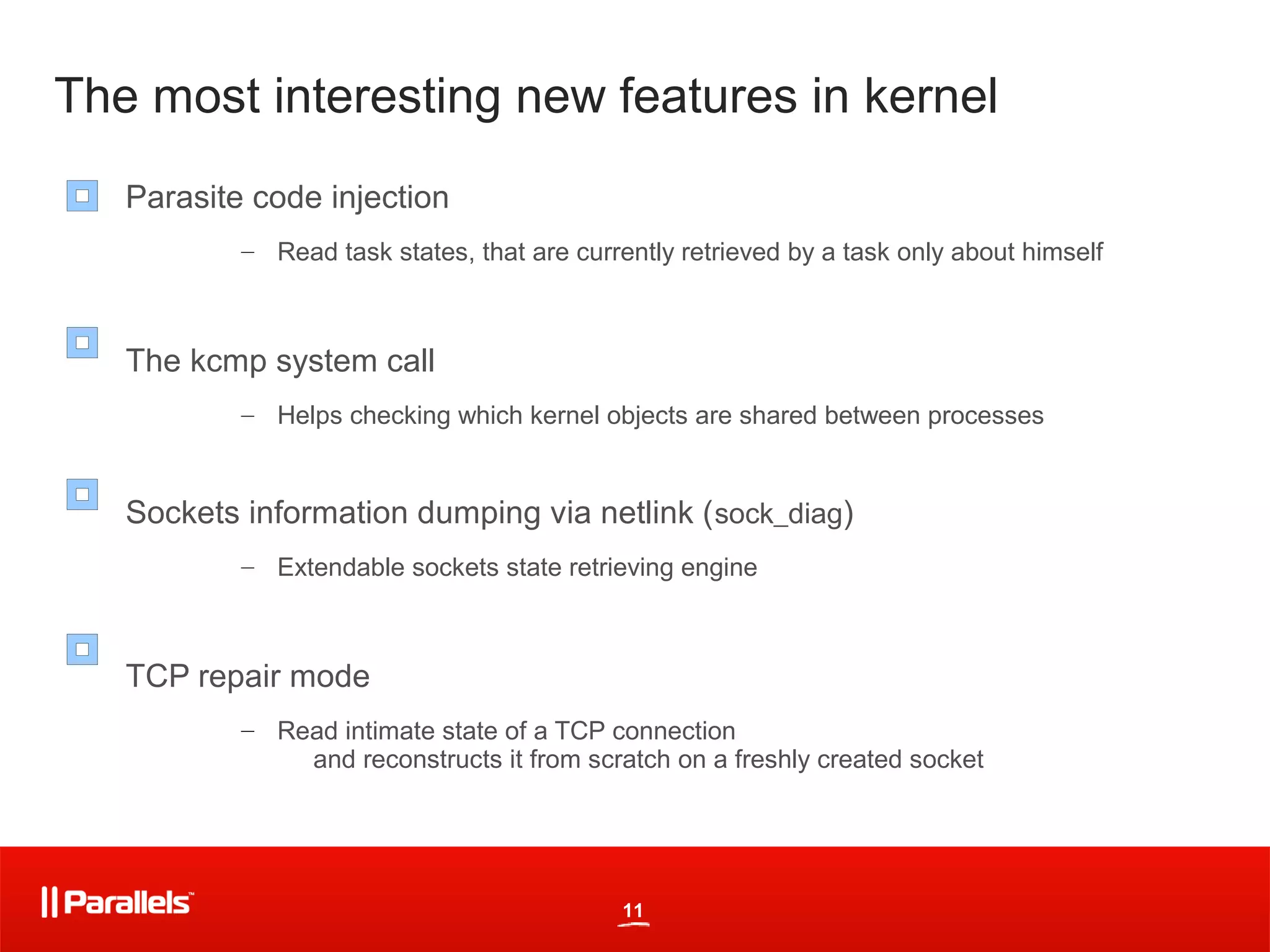

  The most interestingnew features in kernel Parasite code injection – Read task states, that are currently retrieved by a task only about himself The kcmp system call – Helps checking which kernel objects are shared between processes Sockets information dumping via netlink ( sock_diag) – Extendable sockets state retrieving engine TCP repair mode – Read intimate state of a TCP connection and reconstructs it from scratch on a freshly created socket 11
• 12.

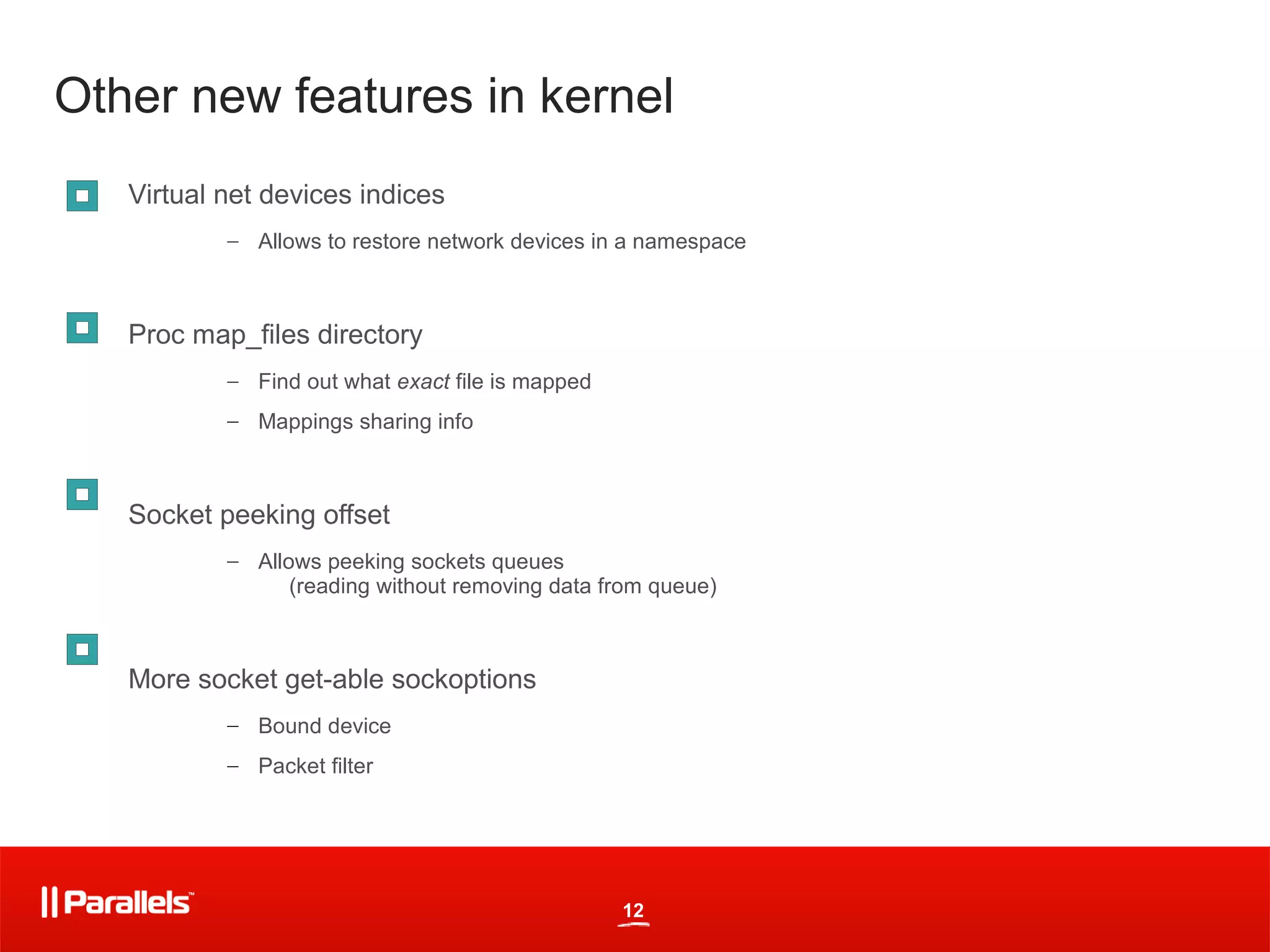

  Other new featuresin kernel Virtual net devices indices – Allows to restore network devices in a namespace Proc map_files directory – Find out what exact file is mapped – Mappings sharing info Socket peeking offset – Allows peeking sockets queues (reading without removing data from queue) More socket get-able sockoptions – Bound device – Packet filter 12
• 13.

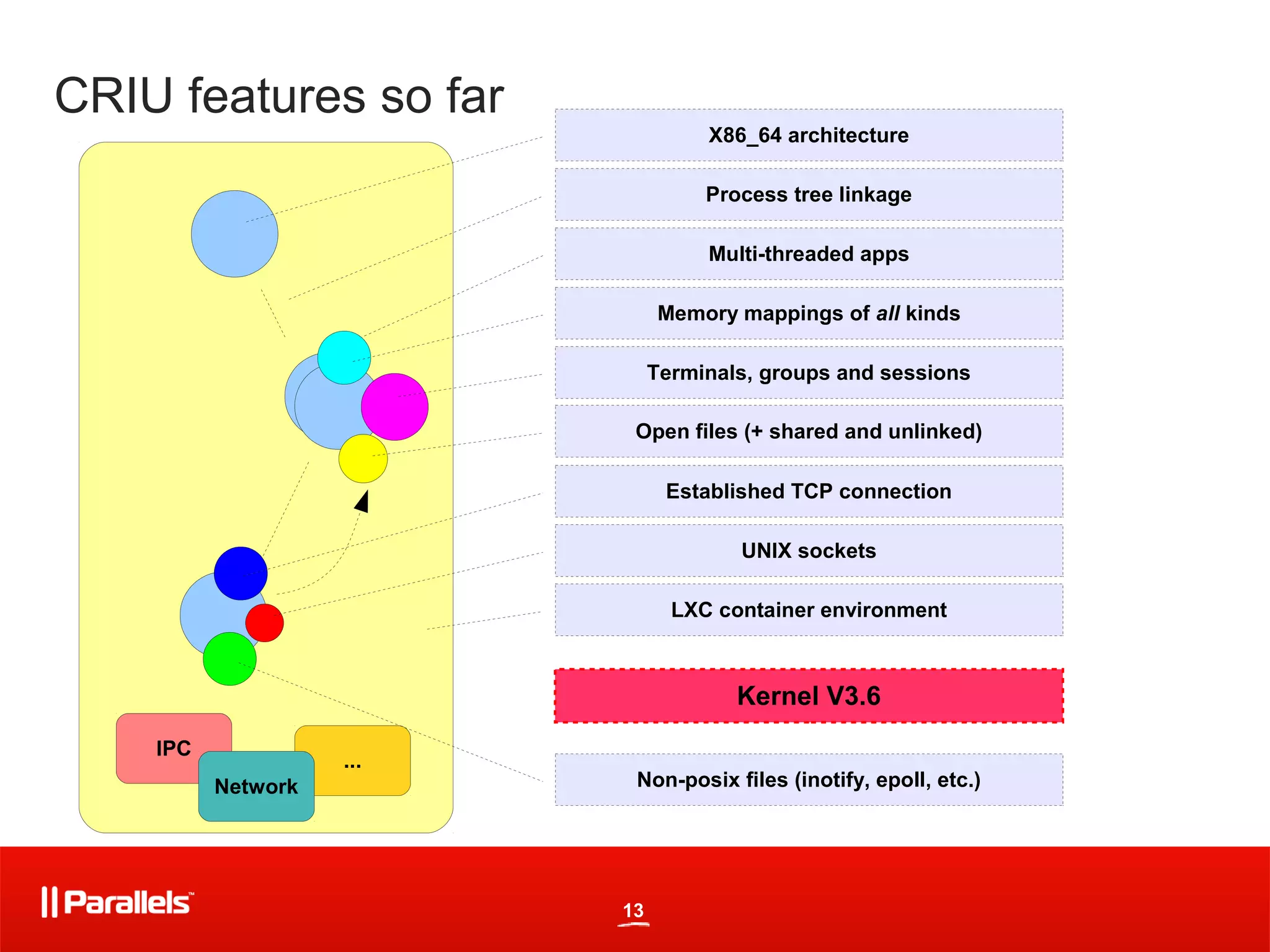

  CRIU features sofar X86_64 architecture Process tree linkage Multi-threaded apps Memory mappings of all kinds Terminals, groups and sessions Open files (+ shared and unlinked) Established TCP connection UNIX sockets LXC container environment Kernel V3.6 IPC ... Network Non-posix files (inotify, epoll, etc.) 13
• 14.

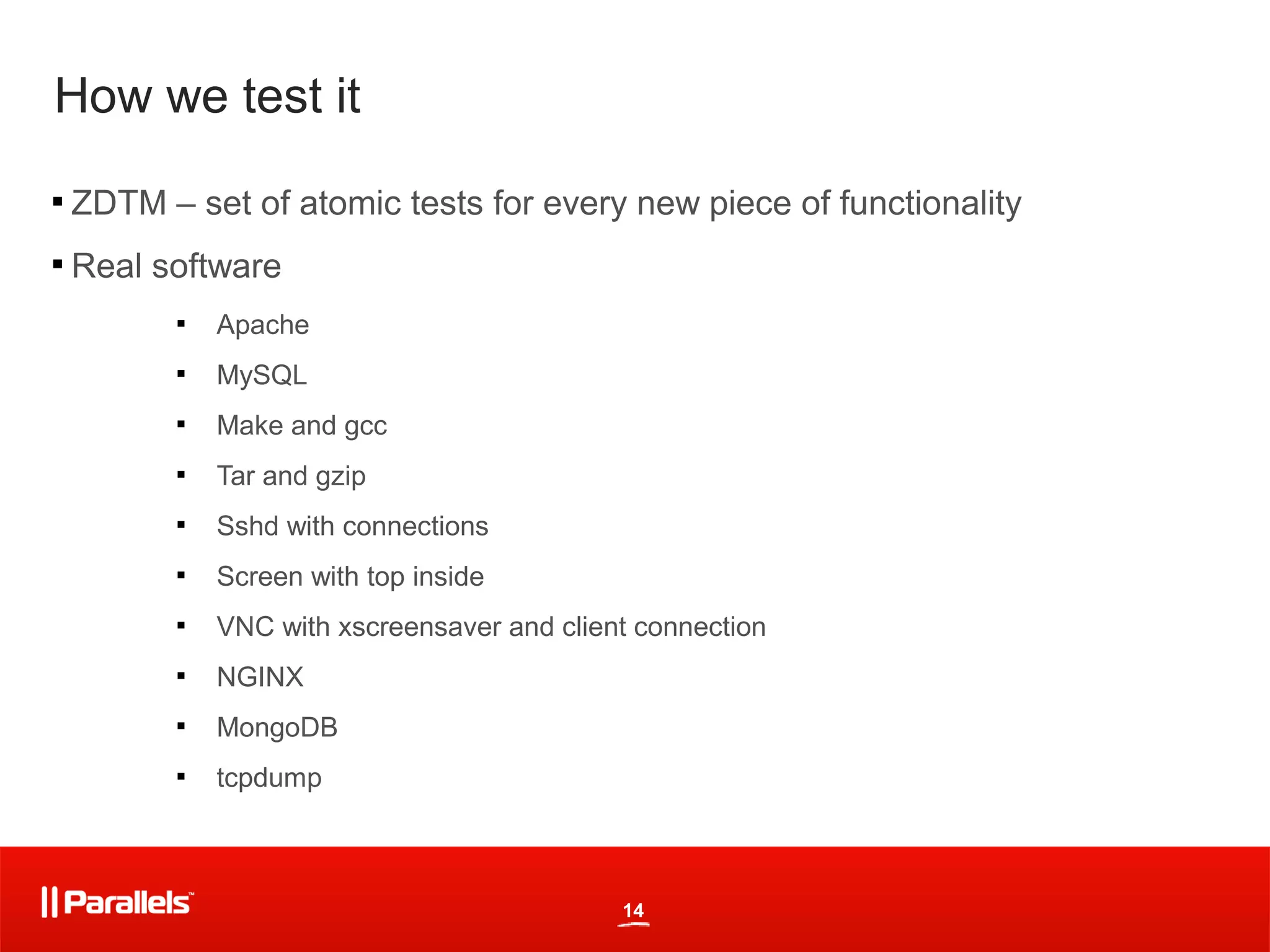

  How we testit  ZDTM – set of atomic tests for every new piece of functionality  Real software  Apache  MySQL  Make and gcc  Tar and gzip  Sshd with connections  Screen with top inside  VNC with xscreensaver and client connection  NGINX  MongoDB  tcpdump 14
• 15.
  Main plans forthe nearest future ● Full OS resources coverage ● Merge in-flight patches, so that everything works on vanilla kernel ● Properly integrate crtools with LXC and OpenVZ ● Live-migration script ● Pre-migrate app memory before freeze (speeds things up) 15
• 16.

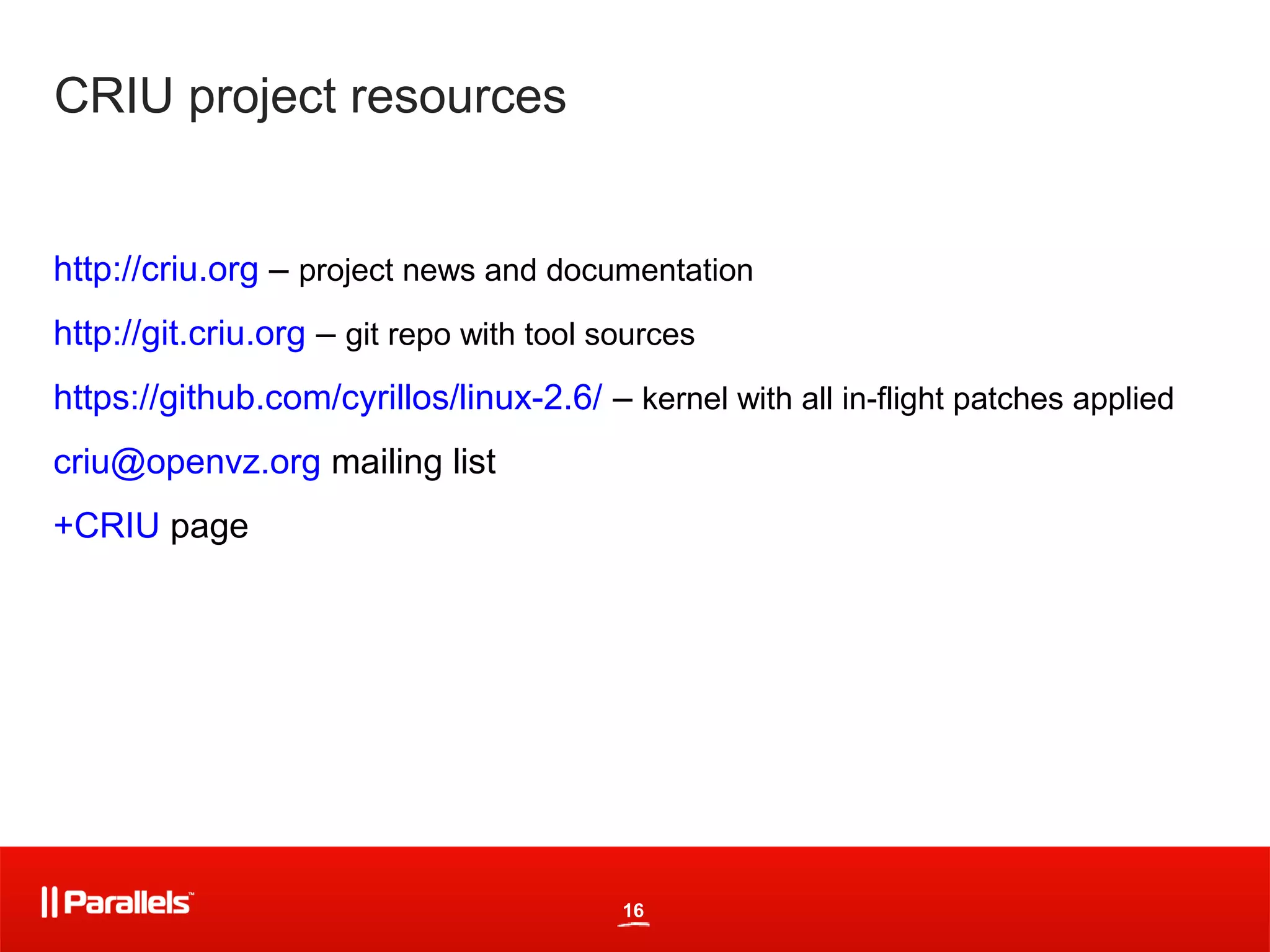

  CRIU project resources http://criu.org– project news and documentation http://git.criu.org – git repo with tool sources https://github.com/cyrillos/linux-2.6/ – kernel with all in-flight patches applied criu@openvz.org mailing list +CRIU page 16
• 17.
  Pavel Emelyanov xemul@parallels.com 17 Parallels – Optimized ComputingTM Confidential
