Introduc)on to Pointer Variables
Chapter 2

Pointer Variables
• Pointer variables are an important concept and one
that’s tradi5onally difficult to grasp at first
• Programming with pointer variables in C/C++ is a
double-edge sword
– They can be extremely useful and flexible
– Misuses of pointers can lead to both bizarre effects and very
subtle errors
2

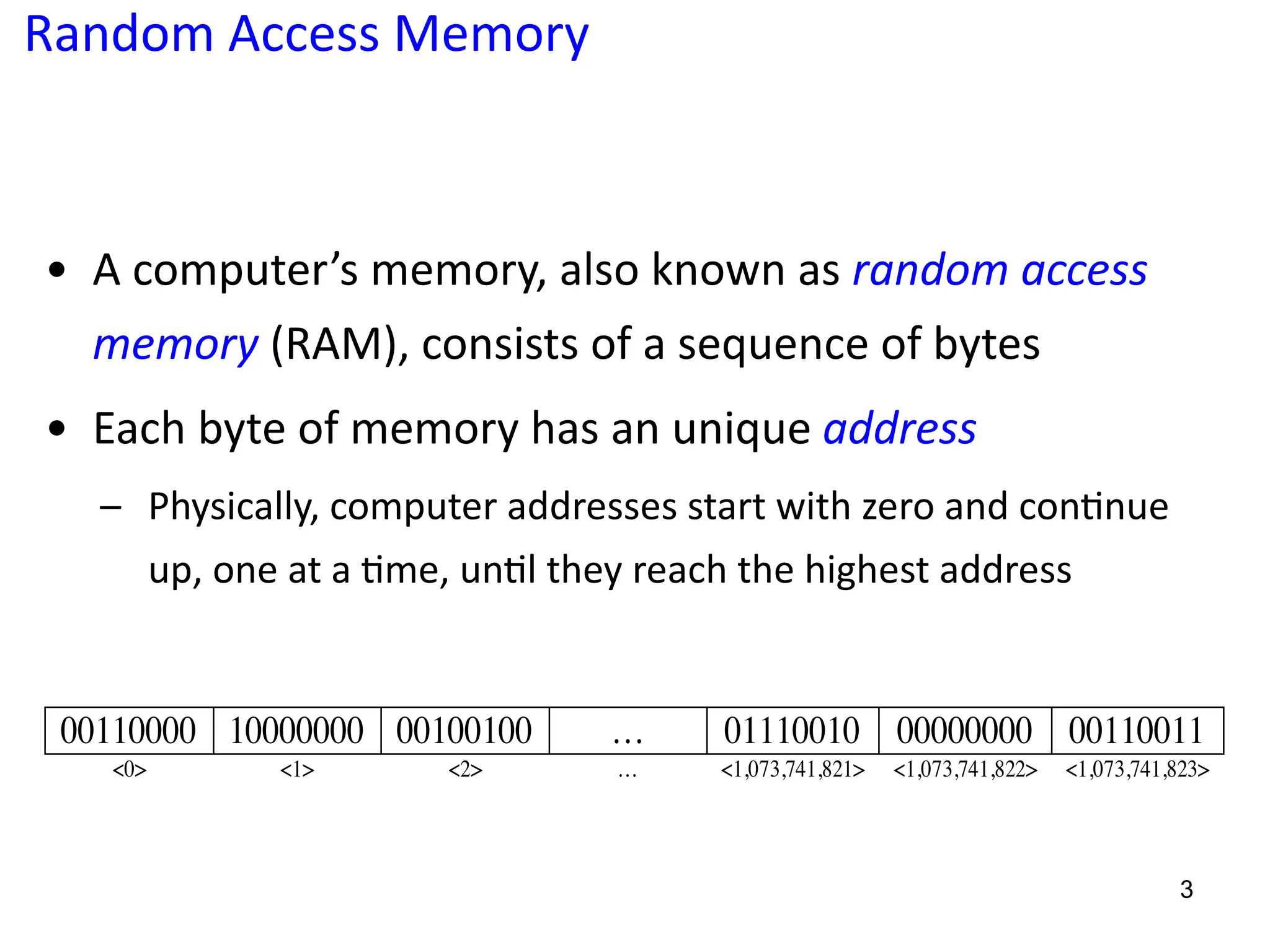

Random Access Memory
• A computer’s memory, also known as random access
memory (RAM), consists of a sequence of bytes
• Each byte of memory has an unique address
– Physically, computer addresses start with zero and con?nue
up, one at a ?me, un?l they reach the highest address
3
A computer’s memory, also known as random access memory (RAM), consists
of a sequence of bytes.
For example: 1MB of RAM has exactly 220
(or 1,048,576) bytes of memory,
1GB of RAM has exactly 230
(or 1,073,741,824) bytes of memory. My laptop has 8GB
of RAM so it has exactly 8x230
(or 8,589,934,592) bytes of memory.
Each byte of memory has a unique address. Computer addresses typically start
with zero and continue up, one at a time, until they reach the highest address. The first
byte has an address of 0, the next byte has an address of 1, and so on.
The following figure shows the addressing scheme for a computer with 1GB of
RAM. Notice that the addresses run from 0 (the lowest address) all the way up to
1,073,741,823 (the highest address).
00110000 10000000 00100100 … 01110010 00000000 00110011
<0> <1> <2> … <1,073,741,821> <1,073,741,822> <1,073,741,823>
Note: For distinguishing purposes/clearity of vision, an address is always surrounded

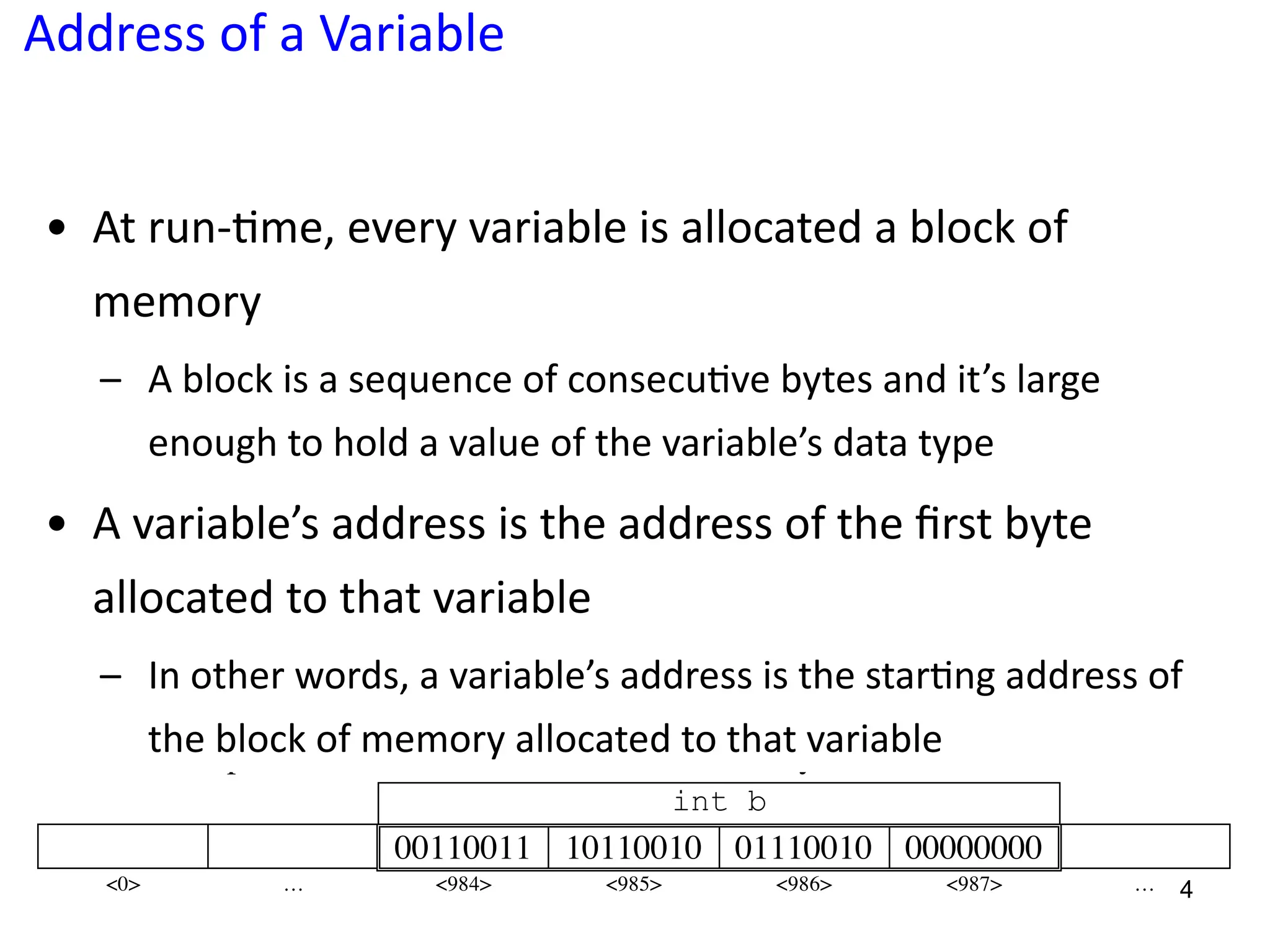

Address of a Variable
• At run-5me, every variable is allocated a block of
memory
– A block is a sequence of consecu?ve bytes and it’s large
enough to hold a value of the variable’s data type
• A variable’s address is the address of the ﬁrst byte
allocated to that variable
– In other words, a variable’s address is the star?ng address of
the block of memory allocated to that variable
4
addresses 984, 985, 986, 987.
int b
00110011 10110010 01110010 00000000
<0> … <984> <985> <986> <987> …
•! The sizeof operator
The sizeof operator is typically followed by a pair of parentheses surrounding
a single operand. The operand is either a type name or a variable. This operator returns
the size, in bytes, of its operand.
int a;
cout << sizeof(a) << sizeof(char) << sizeof(float);
•! The & (ampersand, address) operator
The & operator, called the address-of operator, is a unary operator that pairs with
a variable name to produce the address of the variable.
The expression &b refers to the adress of memory allocated to b variable.
int b
00110011 10110010 01110010 00000000
<0> … <984> <985> <986> <987> …
int b;

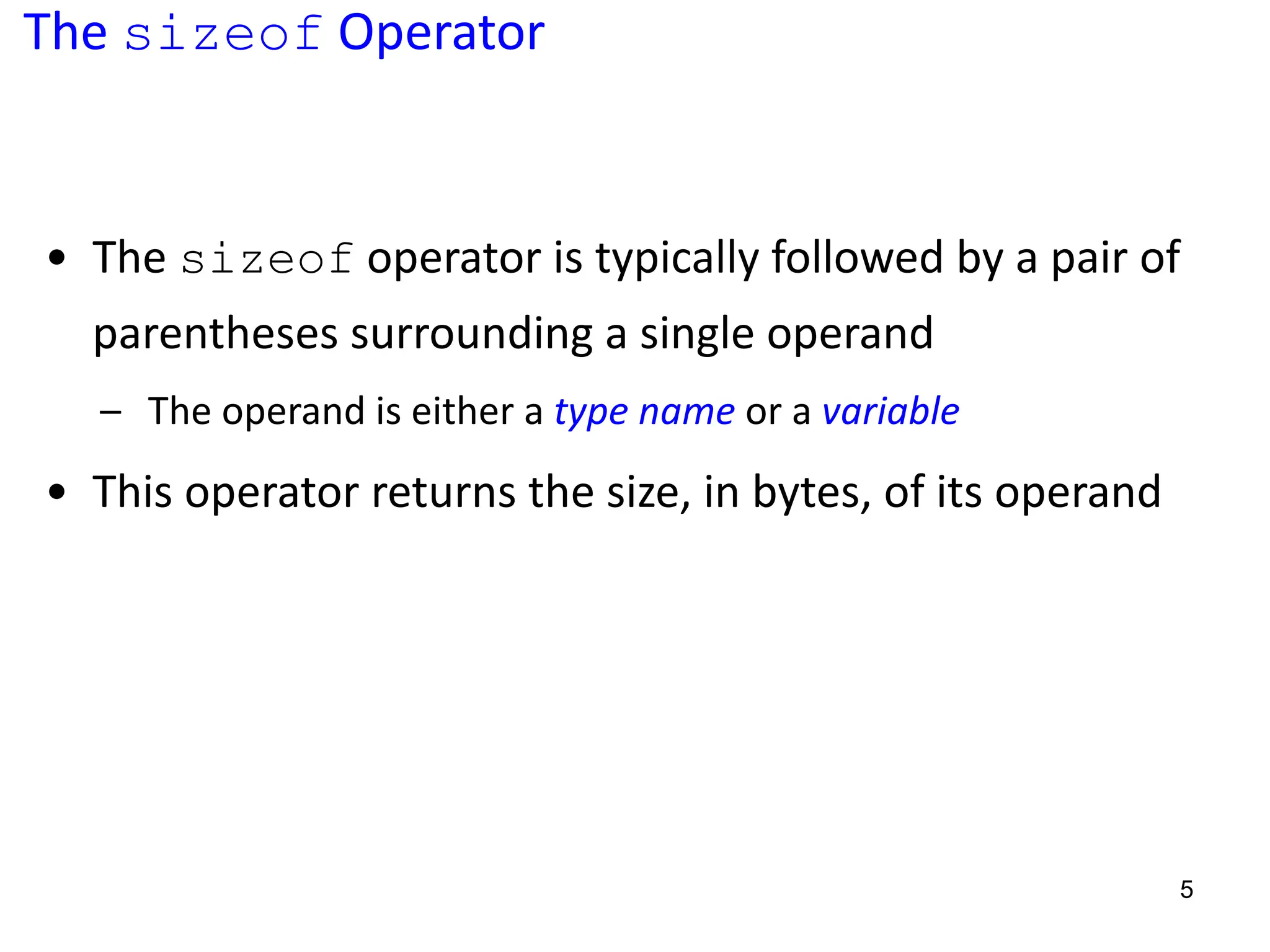

The sizeof Operator
• The sizeof operator is typically followed by a pair of
parentheses surrounding a single operand
– The operand is either a type name or a variable
• This operator returns the size, in bytes, of its operand
5

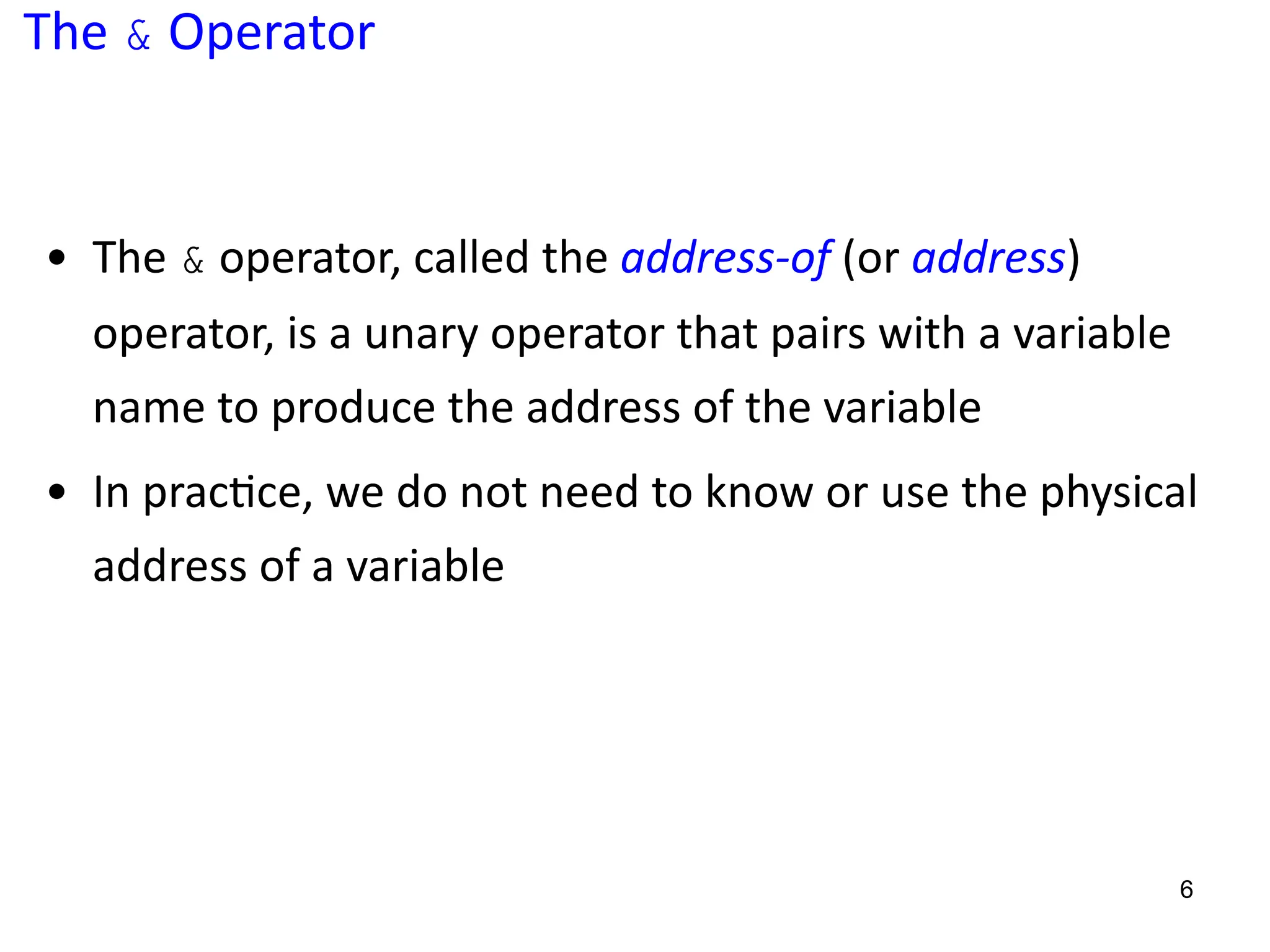

The & Operator
• The & operator, called the address-of (or address)
operator, is a unary operator that pairs with a variable
name to produce the address of the variable
• In prac5ce, we do not need to know or use the physical
address of a variable
6

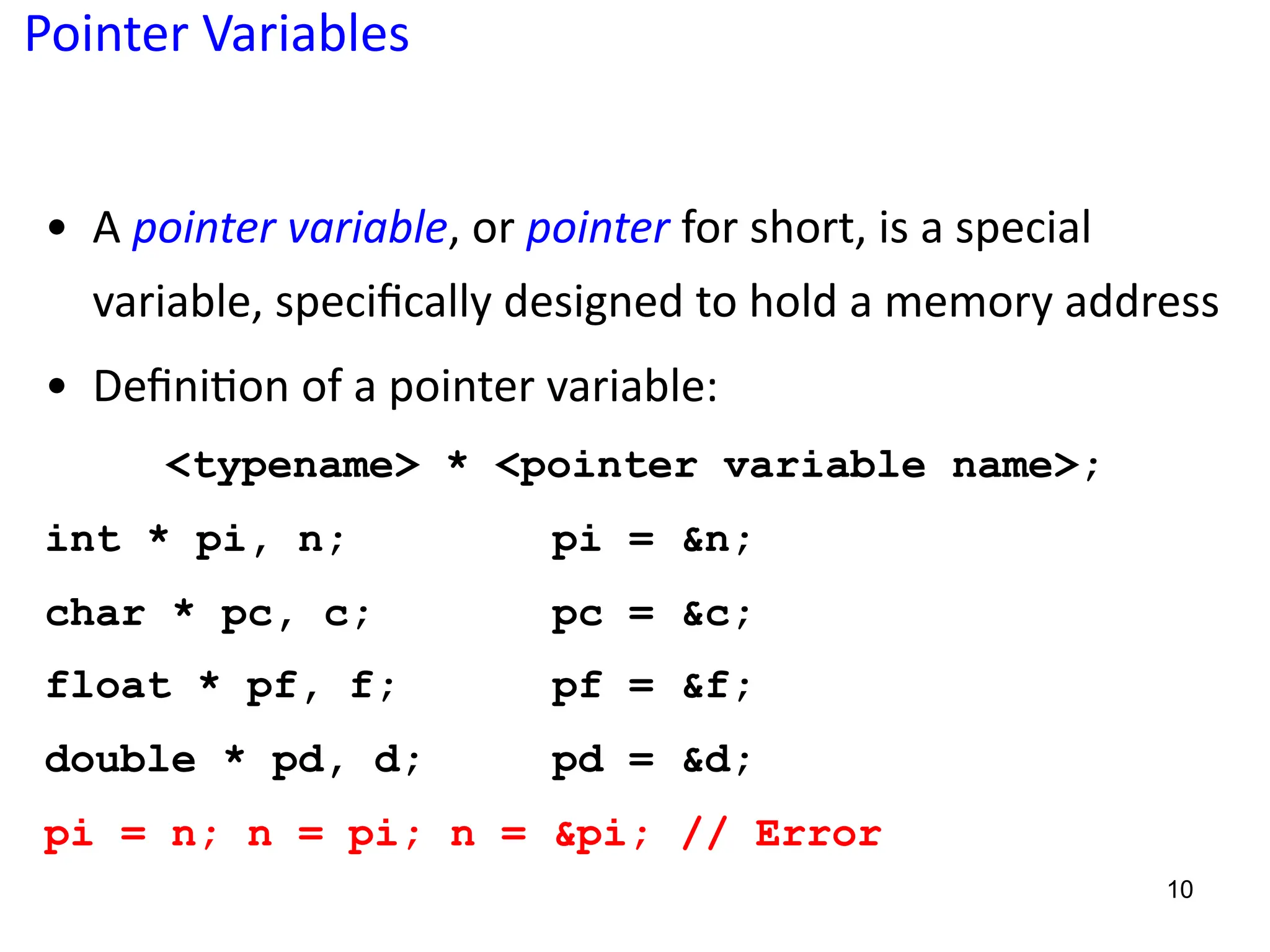

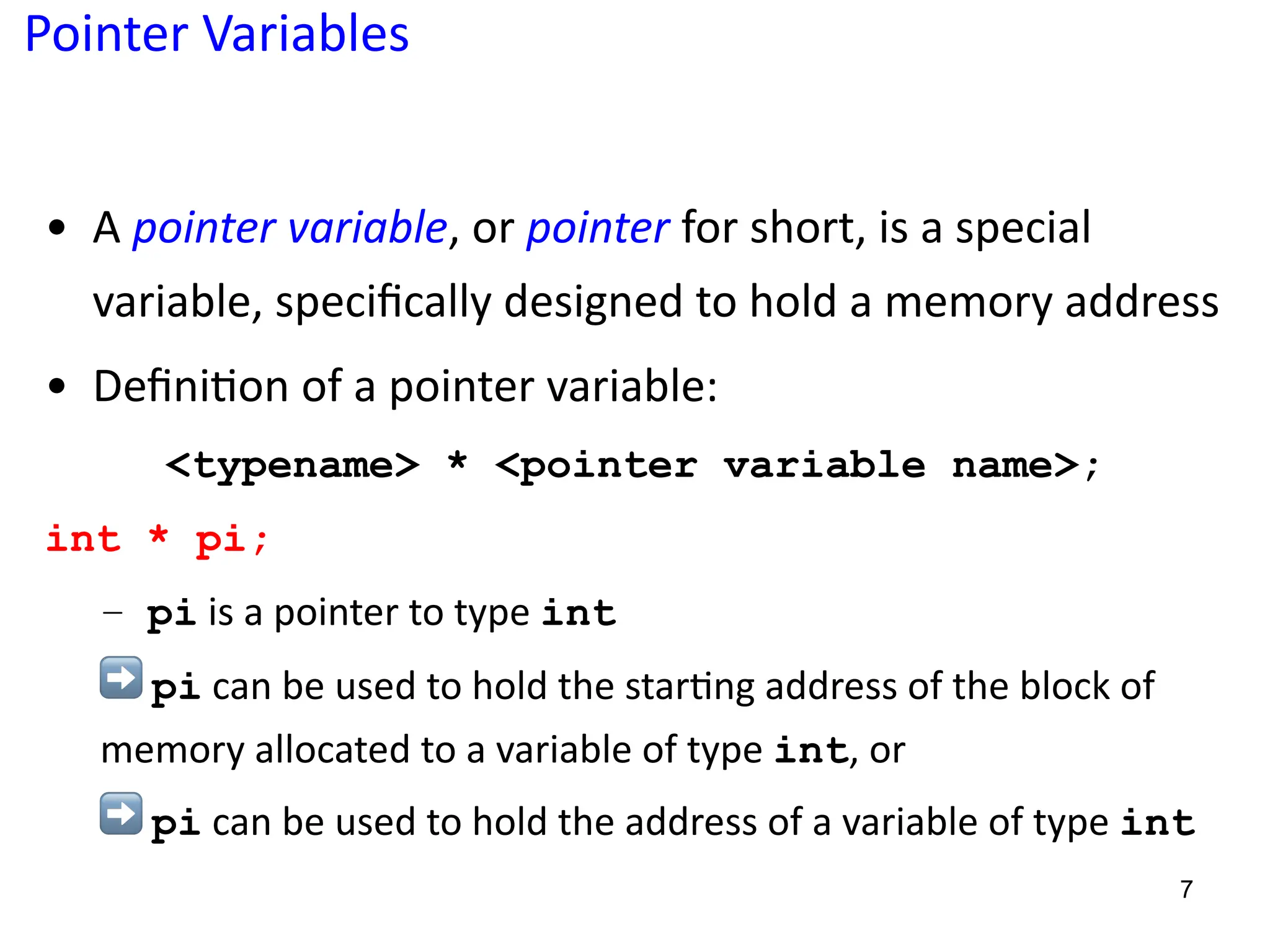

Pointer Variables
• A pointer variable, or pointer for short, is a special
variable, speciﬁcally designed to hold a memory address
• Deﬁni5on of a pointer variable:
<typename> * <pointer variable name>;
int * pi;
– pi is a pointer to type int
➡ pi can be used to hold the star?ng address of the block of
memory allocated to a variable of type int, or
➡ pi can be used to hold the address of a variable of type int
7

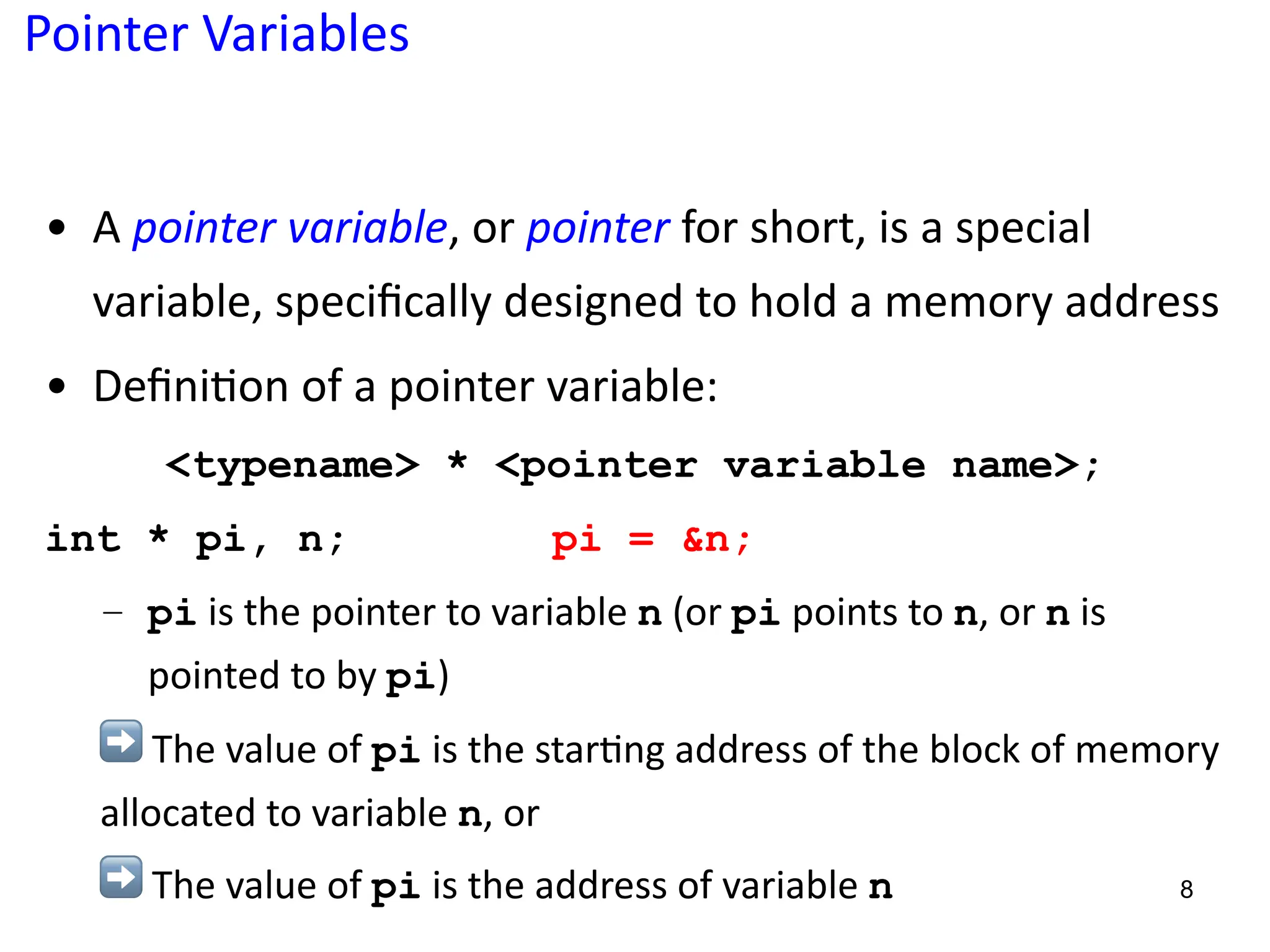

Pointer Variables
int * pi, n; pi = &n;
– pi is the pointer to variable n (or pi points to n, or n is
pointed to by pi)
➡ The value of pi is the star?ng address of the block of memory
allocated to variable n, or
➡ The value of pi is the address of variable n 8

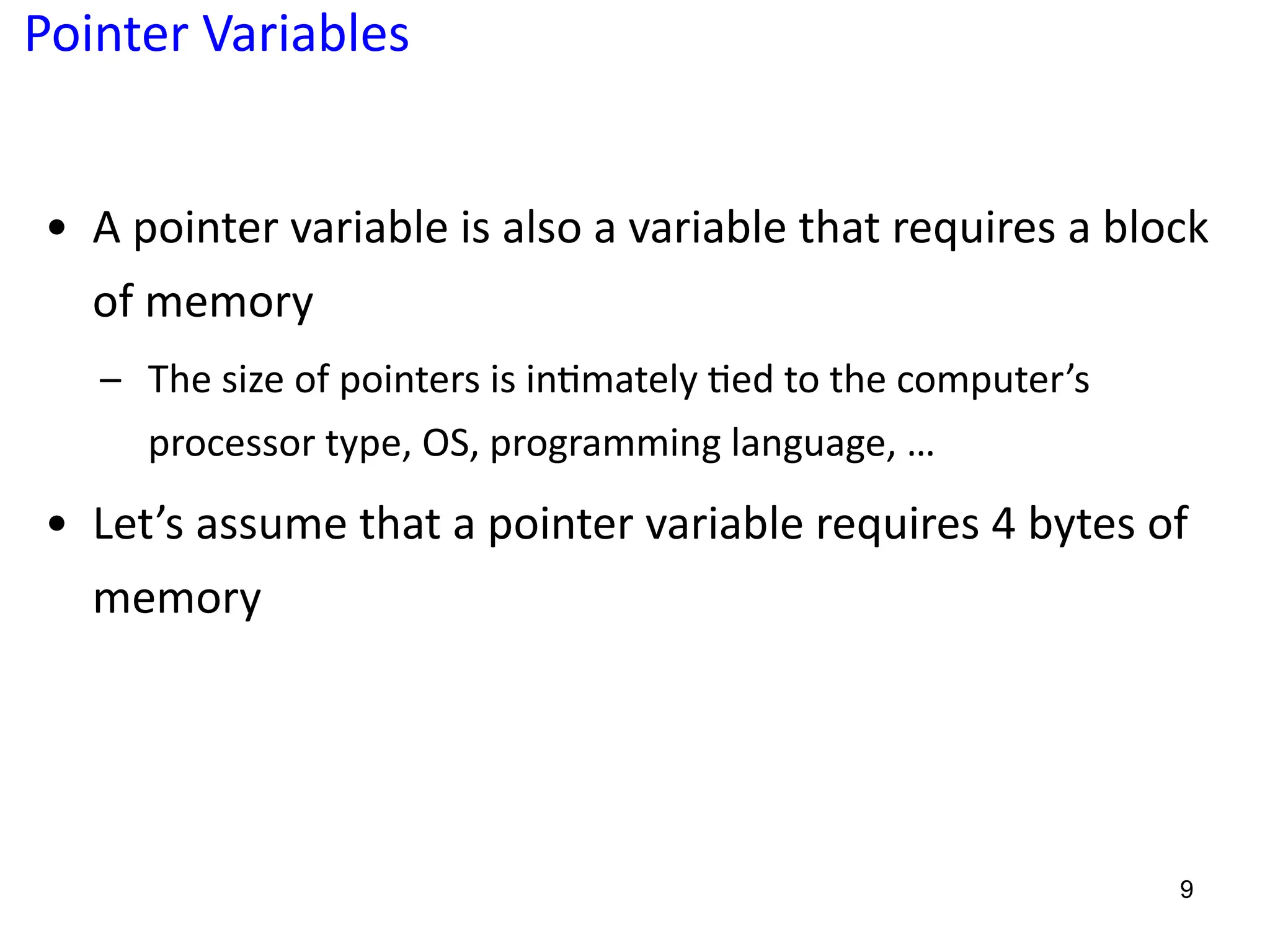

Pointer Variables
• A pointer variable is also a variable that requires a block
of memory
– The size of pointers is in?mately ?ed to the computer’s
processor type, OS, programming language, …
• Let’s assume that a pointer variable requires 4 bytes of
memory
9

Pointer Variables
int * pi, n; pi = &n;
char * pc, c; pc = &c;
float * pf, f; pf = &f;
double * pd, d; pd = &d;
pi = n; n = pi; n = π // Error
10

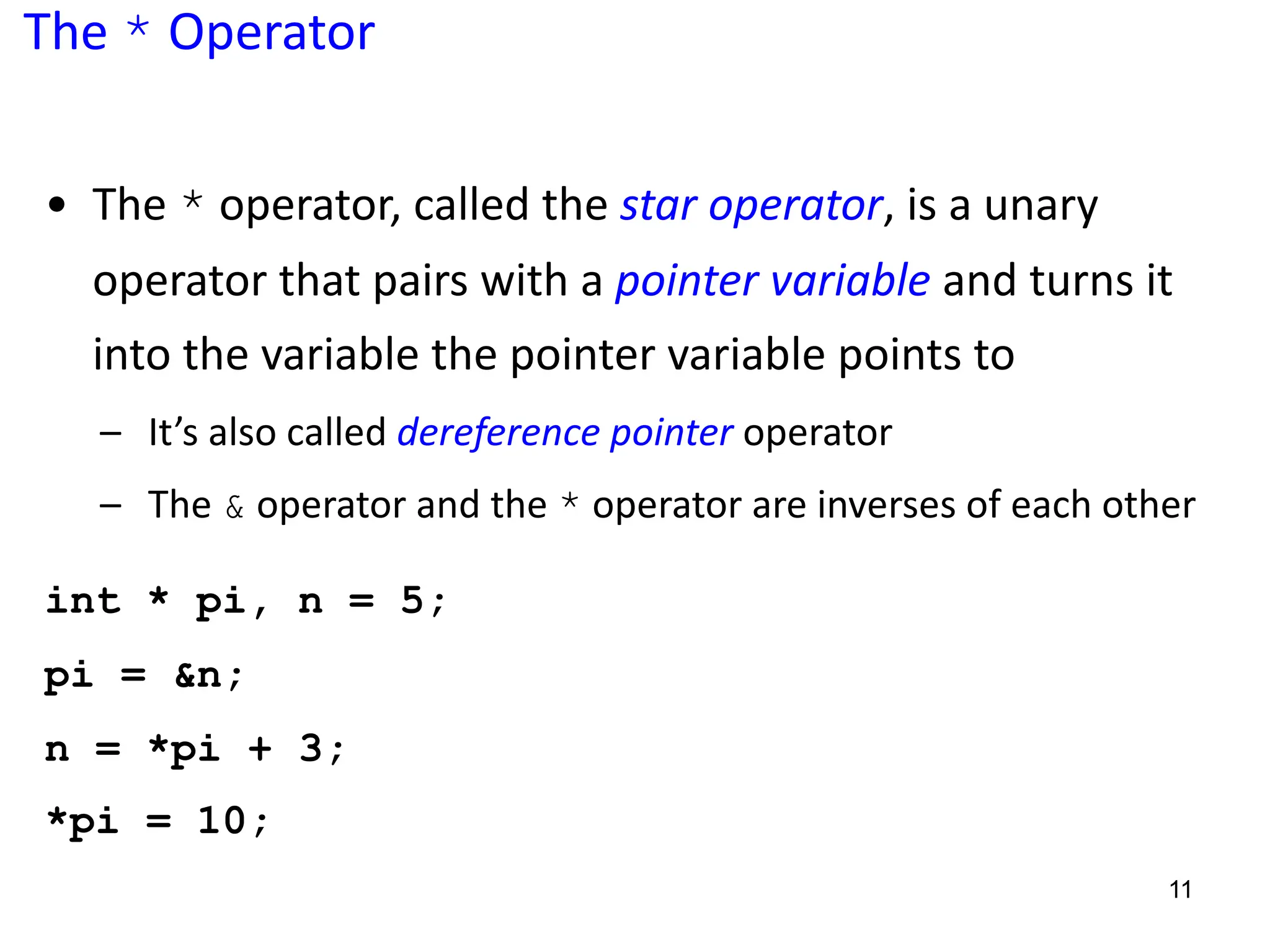

The * Operator
• The * operator, called the star operator, is a unary
operator that pairs with a pointer variable and turns it
into the variable the pointer variable points to
– It’s also called dereference pointer operator
– The & operator and the * operator are inverses of each other
int * pi, n = 5;
pi = &n;
n = *pi + 3;
*pi = 10;
11

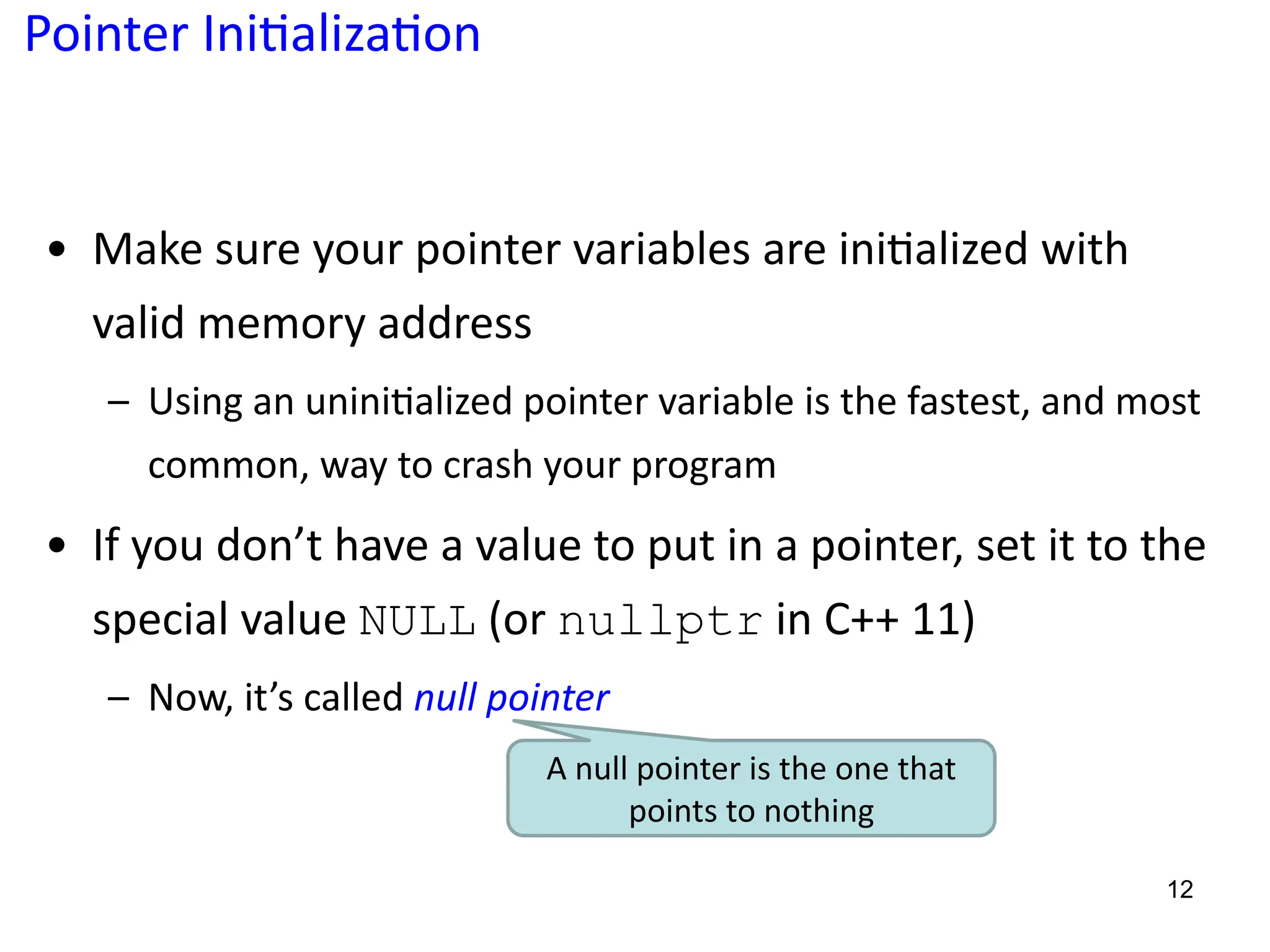

Pointer Ini;aliza;on
• Make sure your pointer variables are ini5alized with
valid memory address
– Using an unini?alized pointer variable is the fastest, and most
common, way to crash your program
• If you don’t have a value to put in a pointer, set it to the
special value NULL (or nullptr in C++ 11)
– Now, it’s called null pointer
12
A null pointer is the one that
points to nothing

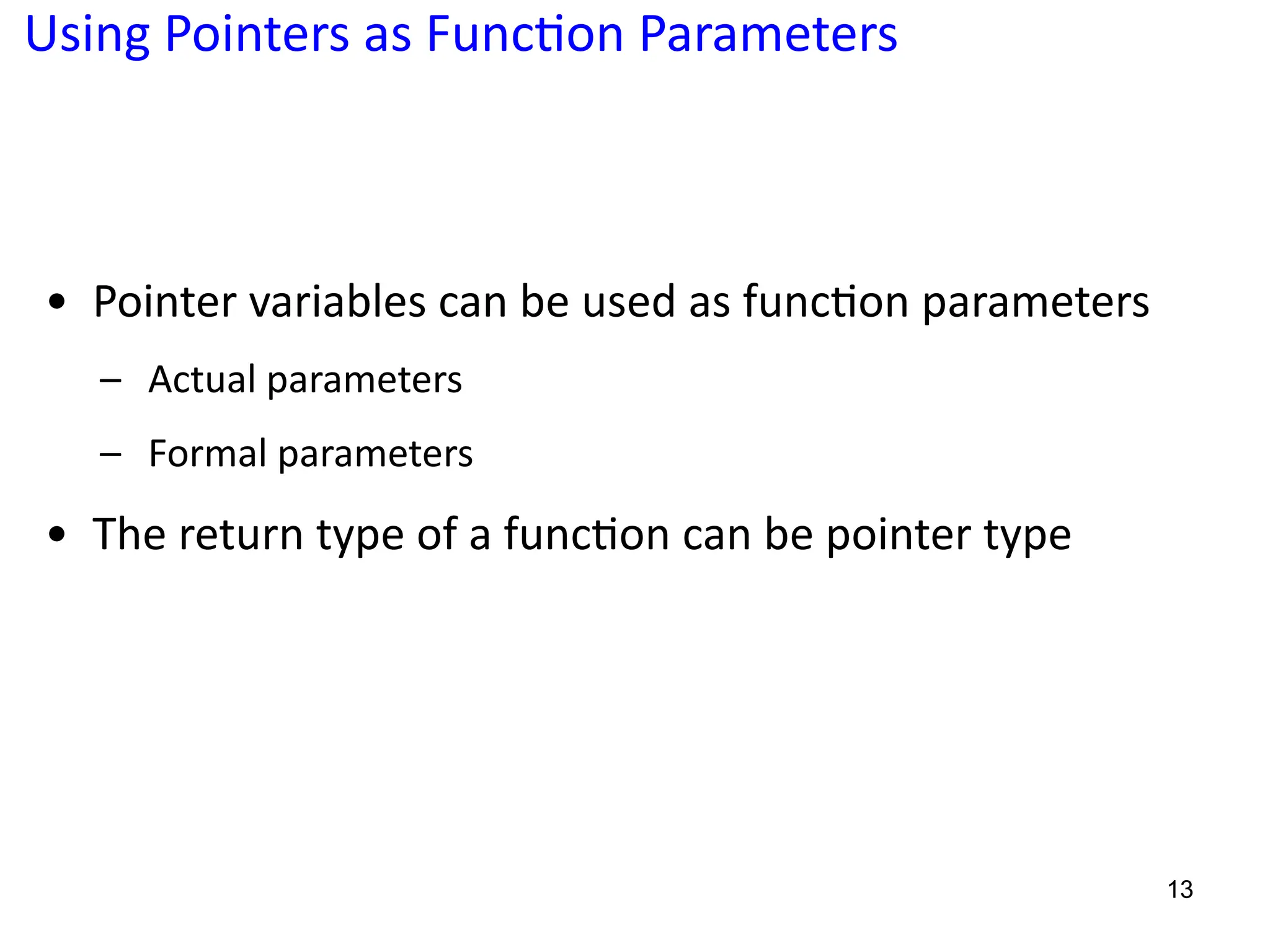

Using Pointers as Func;on Parameters
• Pointer variables can be used as func5on parameters
– Actual parameters
– Formal parameters
• The return type of a func5on can be pointer type
13

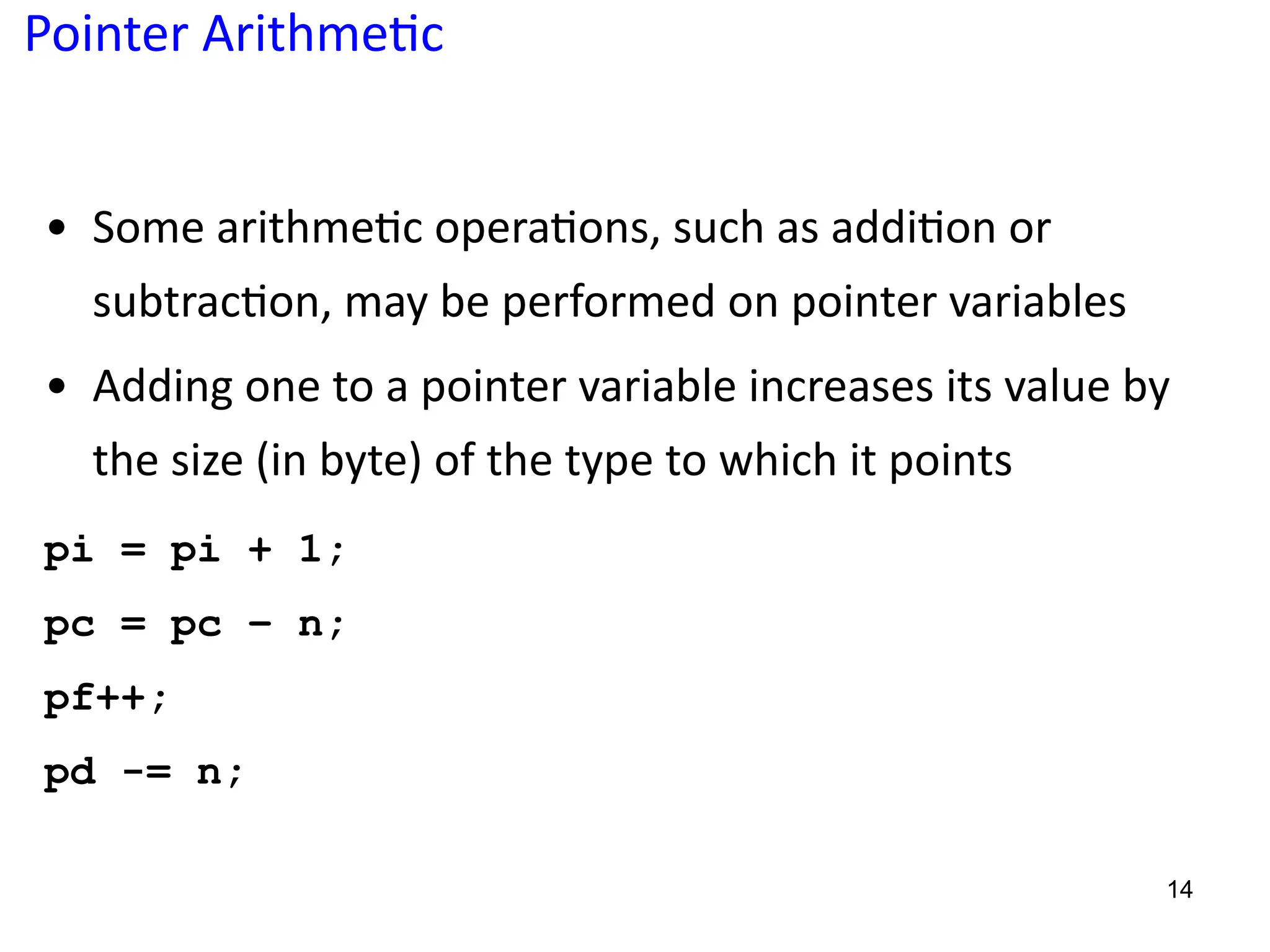

Pointer Arithme;c
• Some arithme5c opera5ons, such as addi5on or
subtrac5on, may be performed on pointer variables
• Adding one to a pointer variable increases its value by
the size (in byte) of the type to which it points
pi = pi + 1;
pc = pc – n;
pf++;
pd -= n;
14

Pointer Arithme;c
• Two pointers of the same type can be subtracted from
each other
int * pi, * qi, n;
…
n = pi – qi;
15

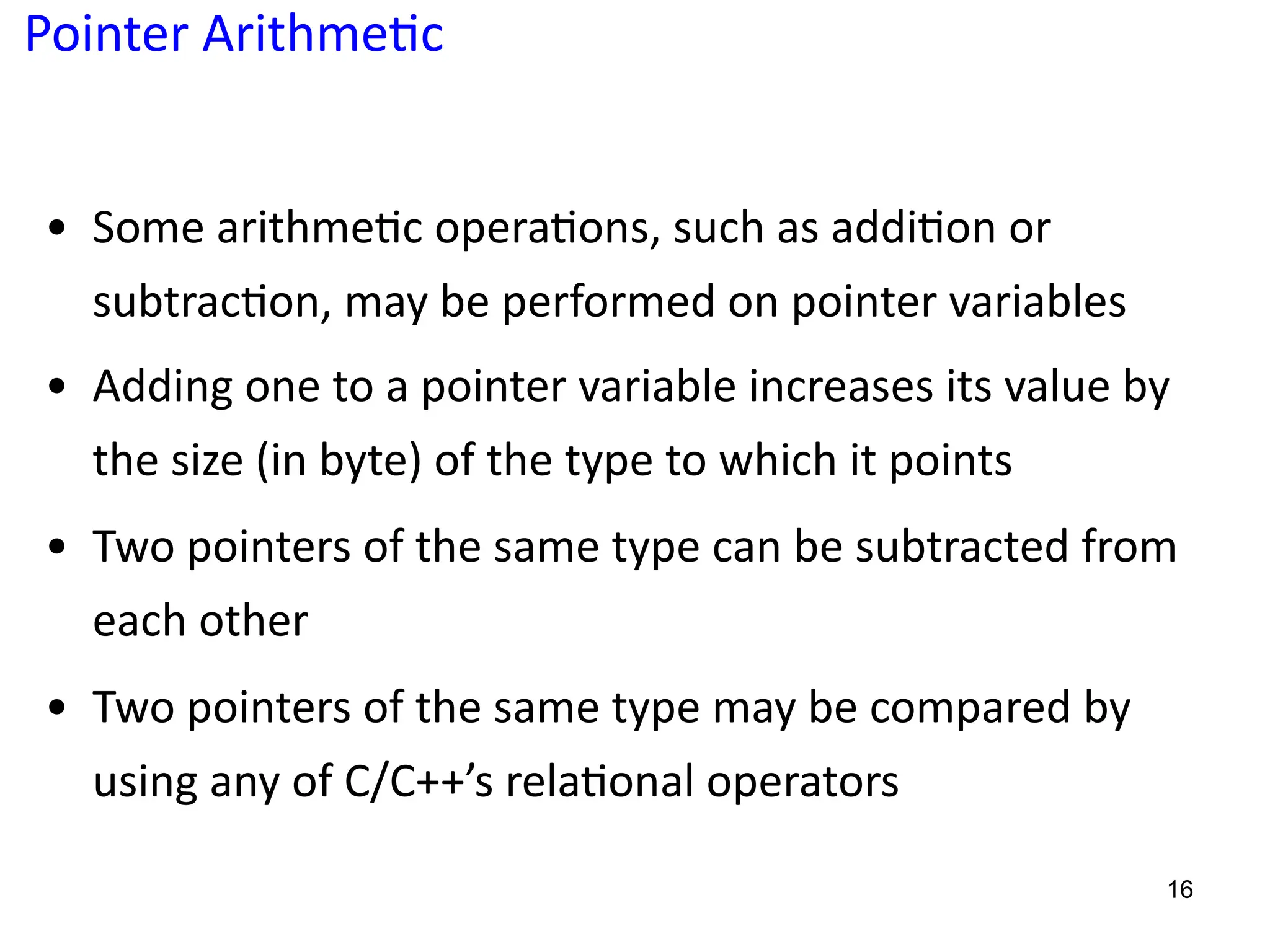

Pointer Arithme;c
• Two pointers of the same type can be subtracted from
each other
• Two pointers of the same type may be compared by
using any of C/C++’s rela5onal operators
16

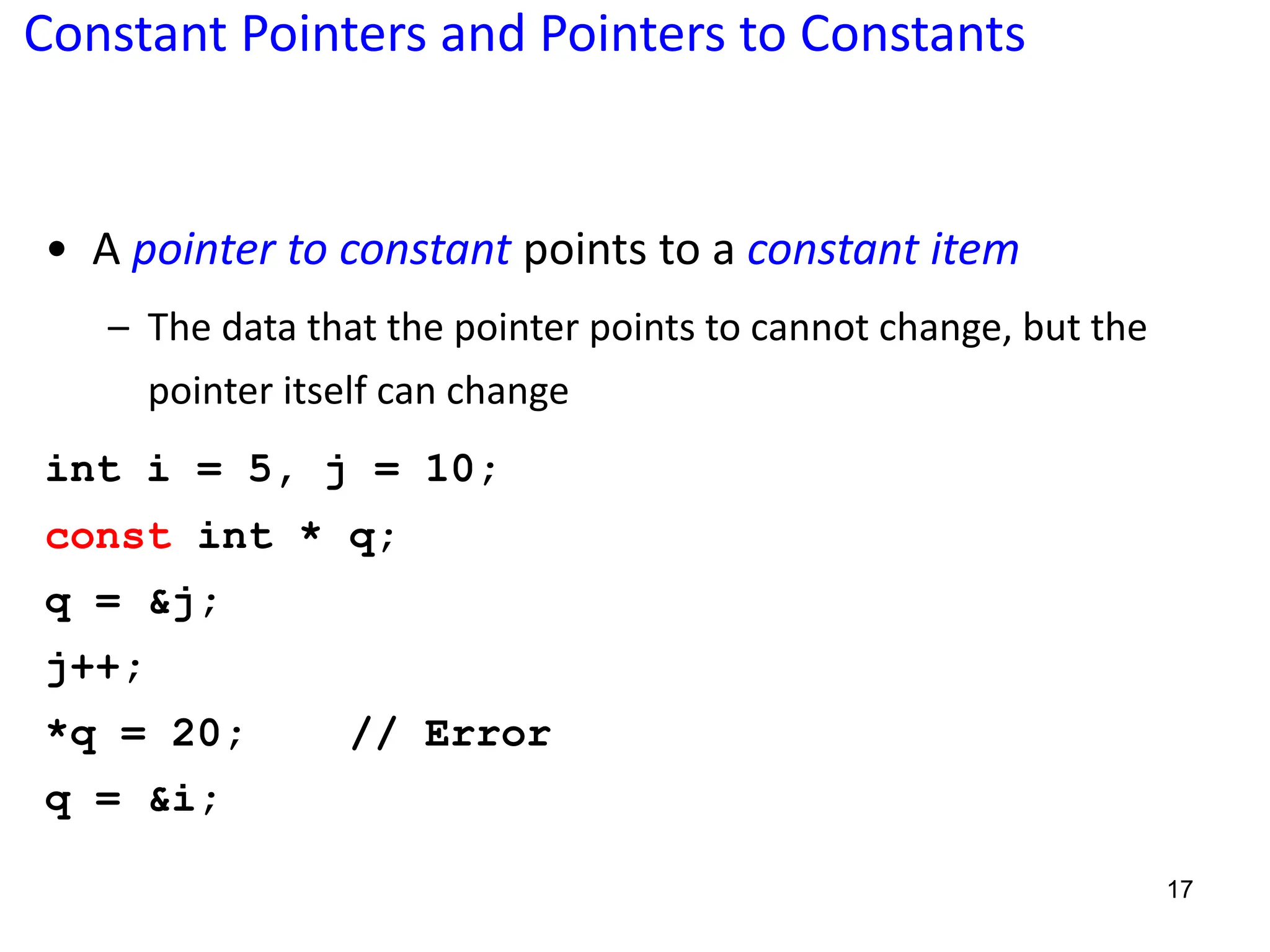

Constant Pointers and Pointers to Constants
• A pointer to constant points to a constant item
– The data that the pointer points to cannot change, but the
pointer itself can change
int i = 5, j = 10;
const int * q;
q = &j;
j++;
*q = 20; // Error
q = &i;
17

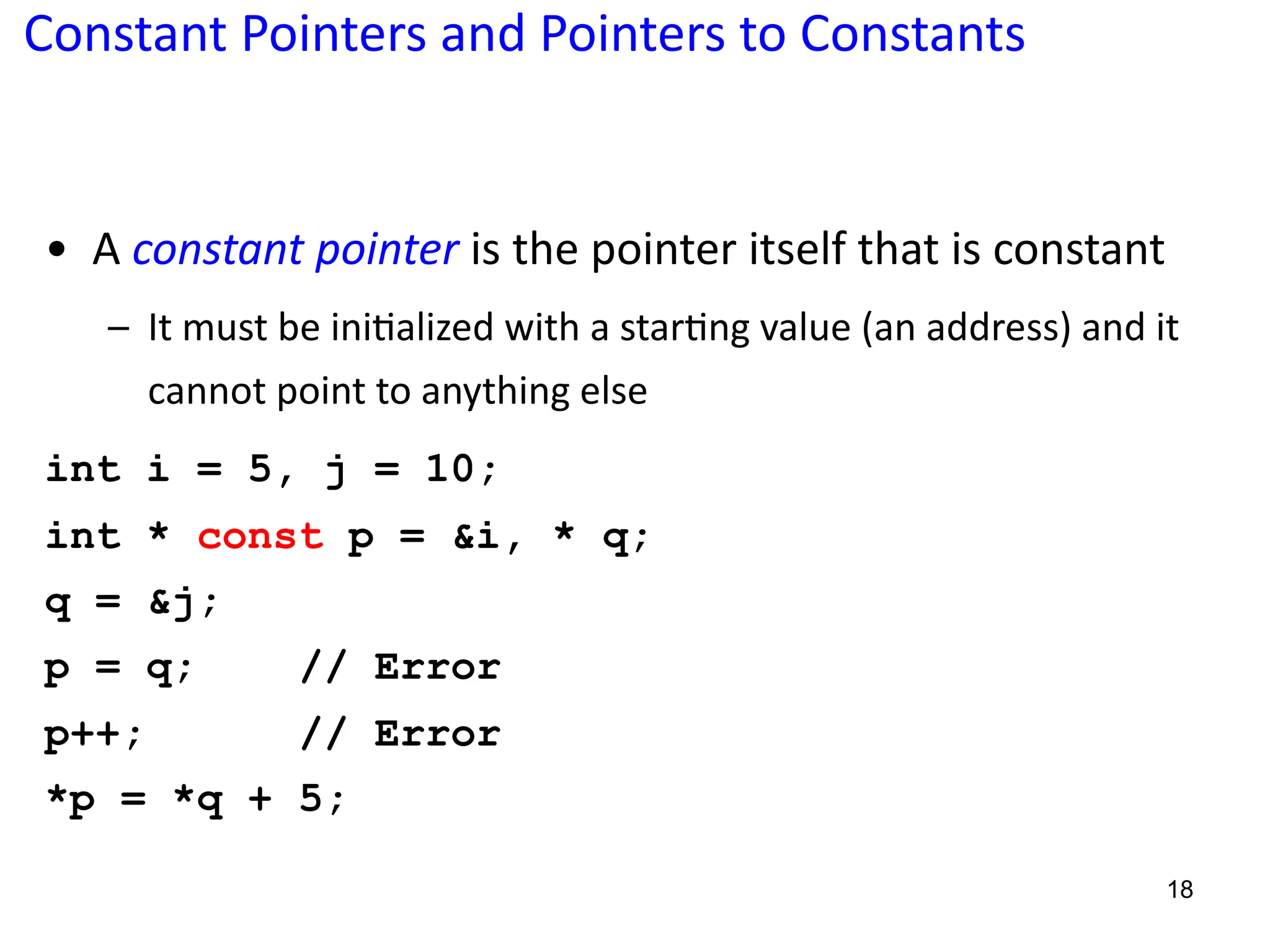

• A constant pointer is the pointer itself that is constant
– It must be ini?alized with a star?ng value (an address) and it
cannot point to anything else
int i = 5, j = 10;
int * const p = &i, * q;
q = &j;
p = q; // Error
p++; // Error
*p = *q + 5;
18

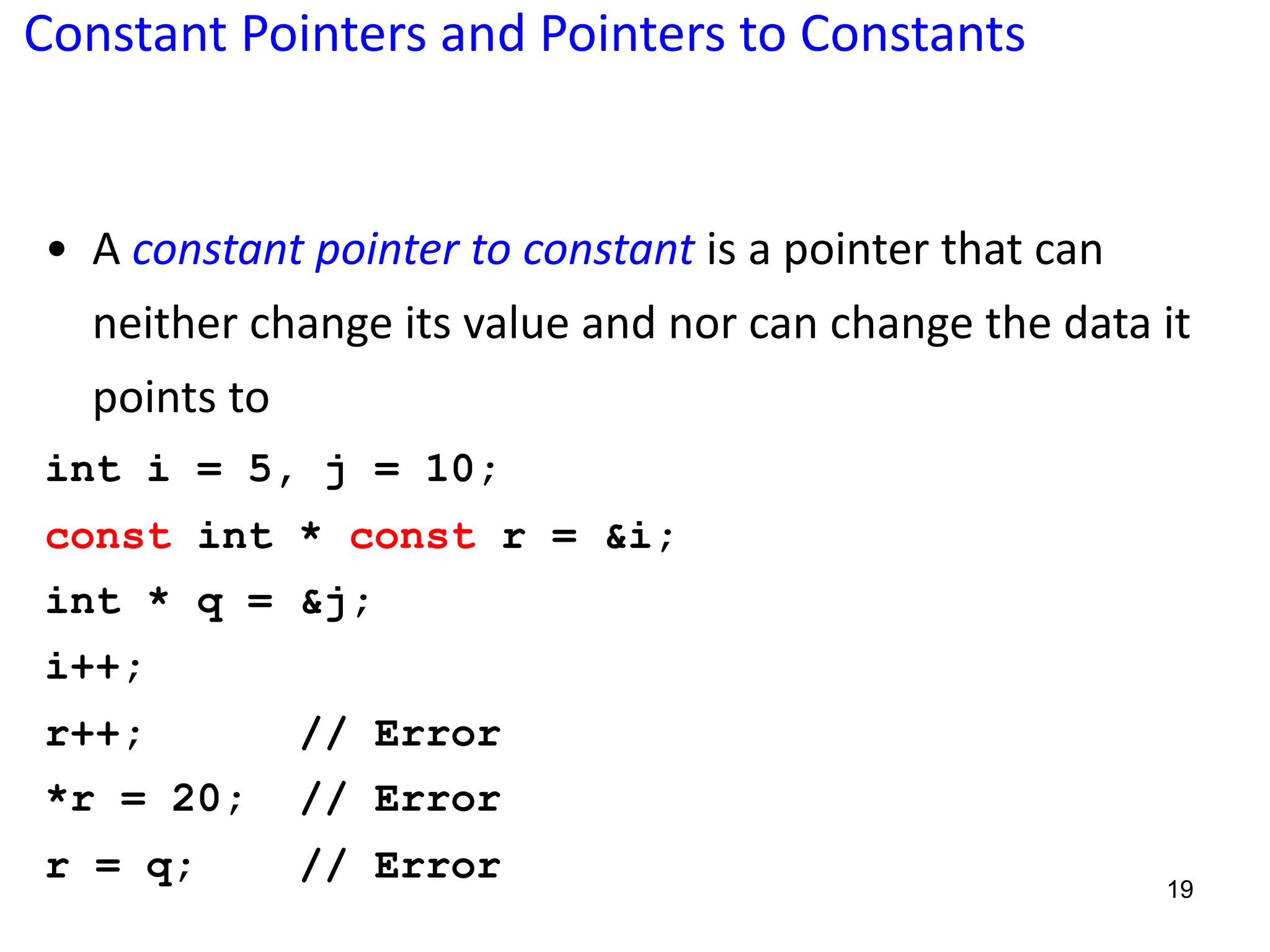

• A constant pointer to constant is a pointer that can
neither change its value and nor can change the data it
points to
int i = 5, j = 10;
const int * const r = &i;
int * q = &j;
i++;
r++; // Error
*r = 20; // Error
r = q; // Error 19

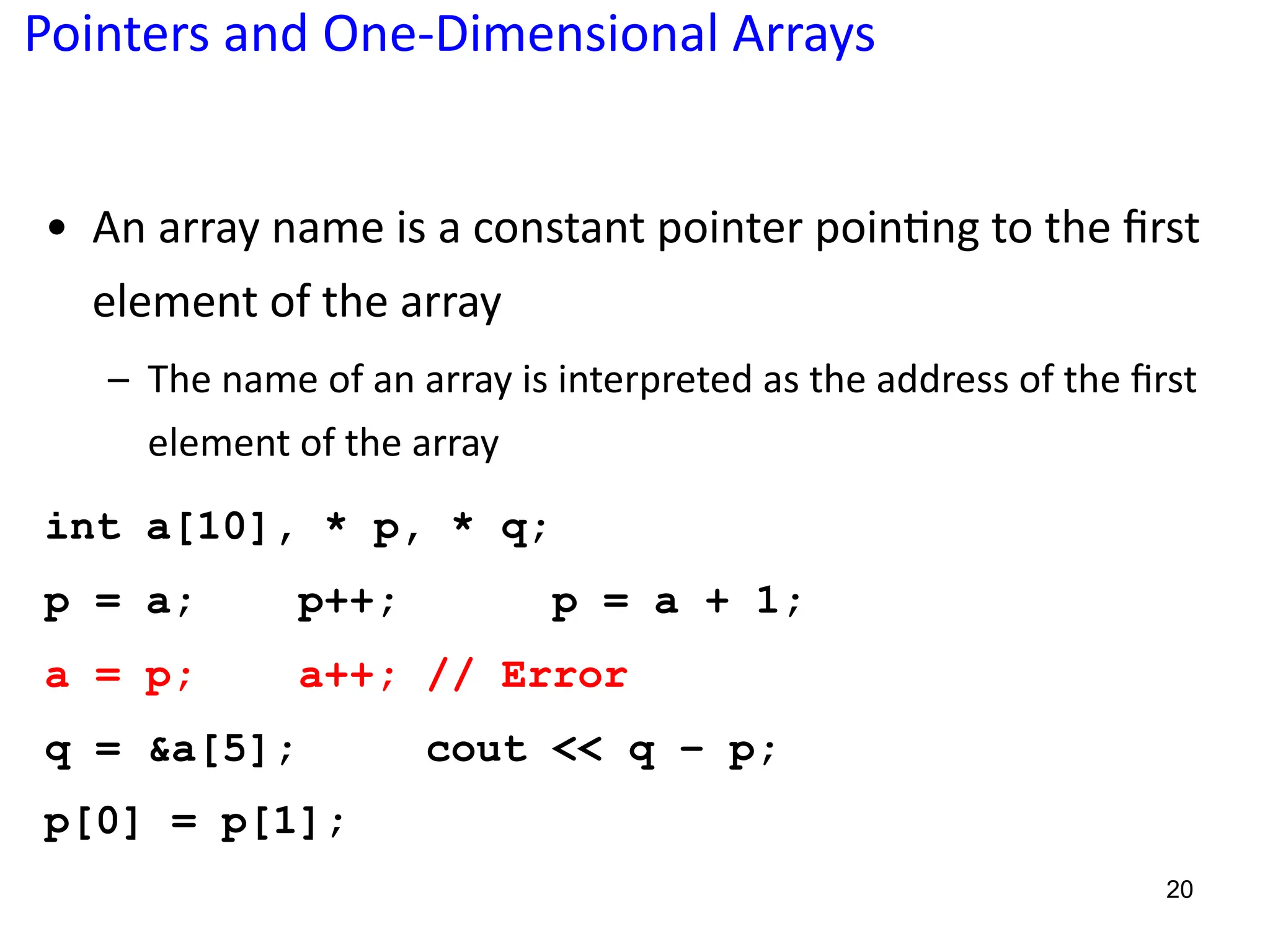

Pointers and One-Dimensional Arrays
• An array name is a constant pointer poin5ng to the ﬁrst
element of the array
– The name of an array is interpreted as the address of the ﬁrst
element of the array
int a[10], * p, * q;
p = a; p++; p = a + 1;
a = p; a++; // Error
q = &a[5]; cout << q – p;
p[0] = p[1];
20

21

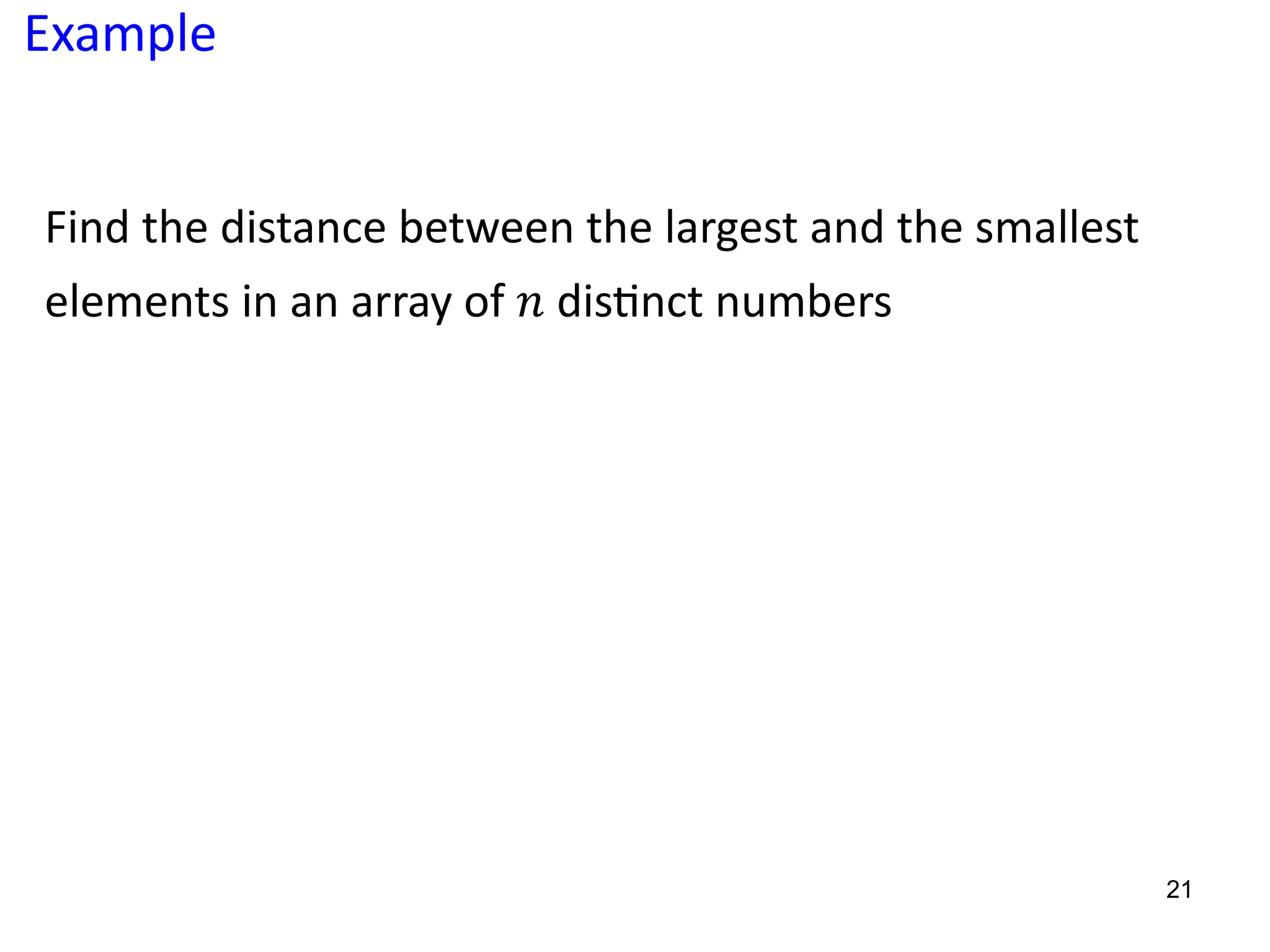

Example
Find the distance between the largest and the smallest
elements in an array of 𝑛 dis5nct numbers

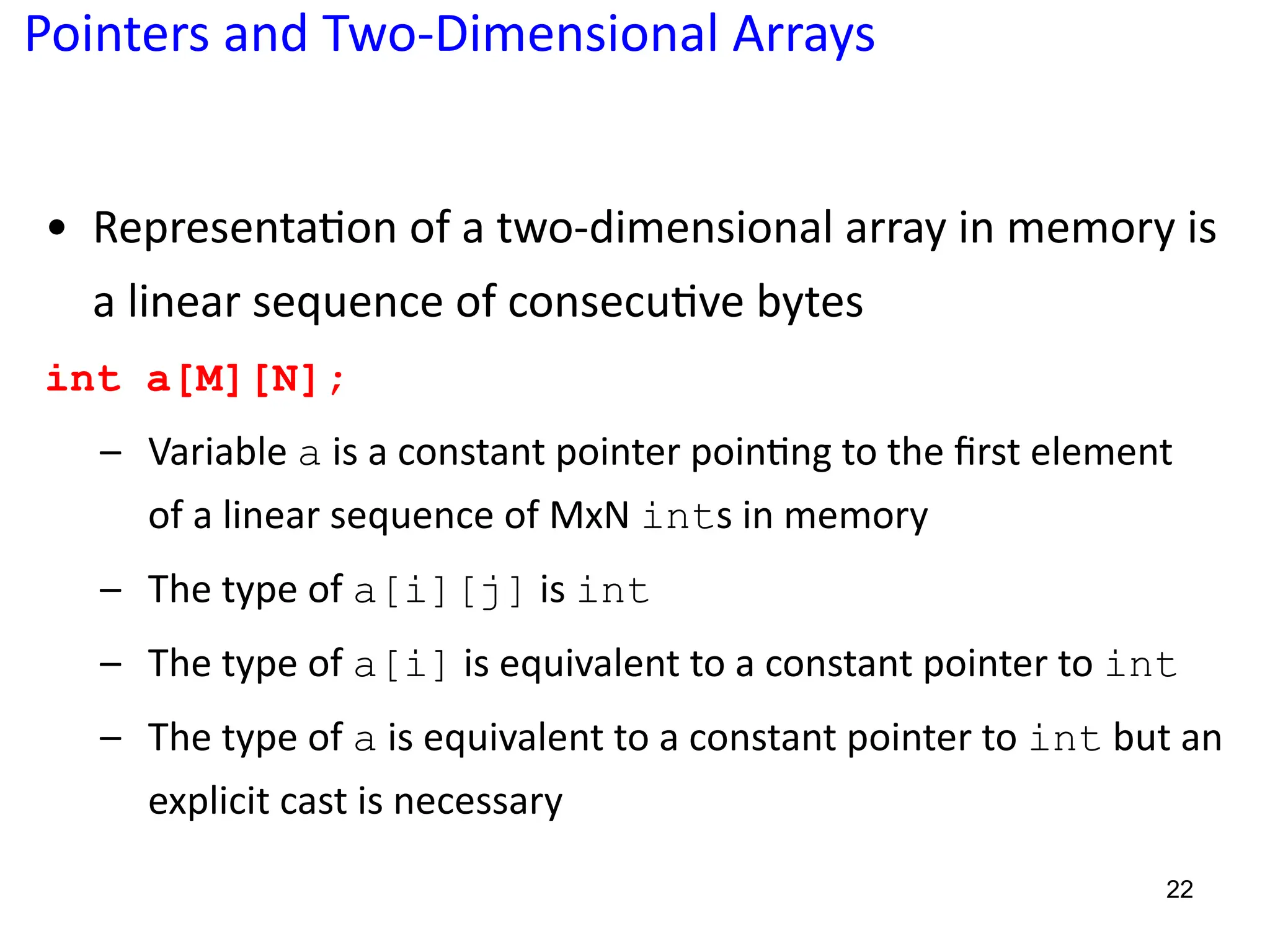

Pointers and Two-Dimensional Arrays
• Representa5on of a two-dimensional array in memory is
a linear sequence of consecu5ve bytes
int a[M][N];
– Variable a is a constant pointer poin?ng to the ﬁrst element
of a linear sequence of MxN ints in memory
– The type of a[i][j] is int
– The type of a[i] is equivalent to a constant pointer to int
– The type of a is equivalent to a constant pointer to int but an
explicit cast is necessary
22

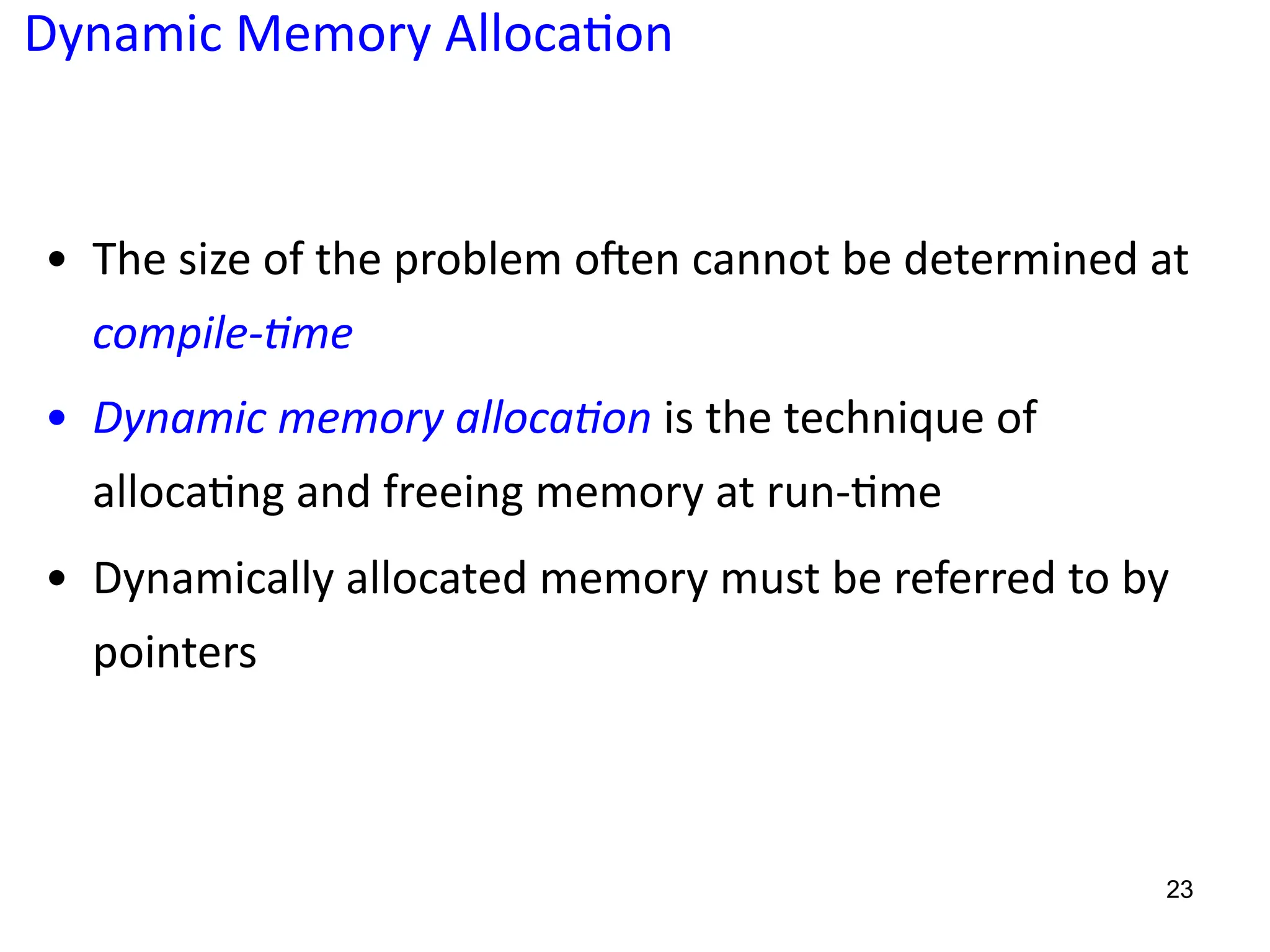

Dynamic Memory Alloca;on
• The size of the problem oTen cannot be determined at
compile-4me
• Dynamic memory alloca4on is the technique of
alloca5ng and freeing memory at run-5me
• Dynamically allocated memory must be referred to by
pointers
23

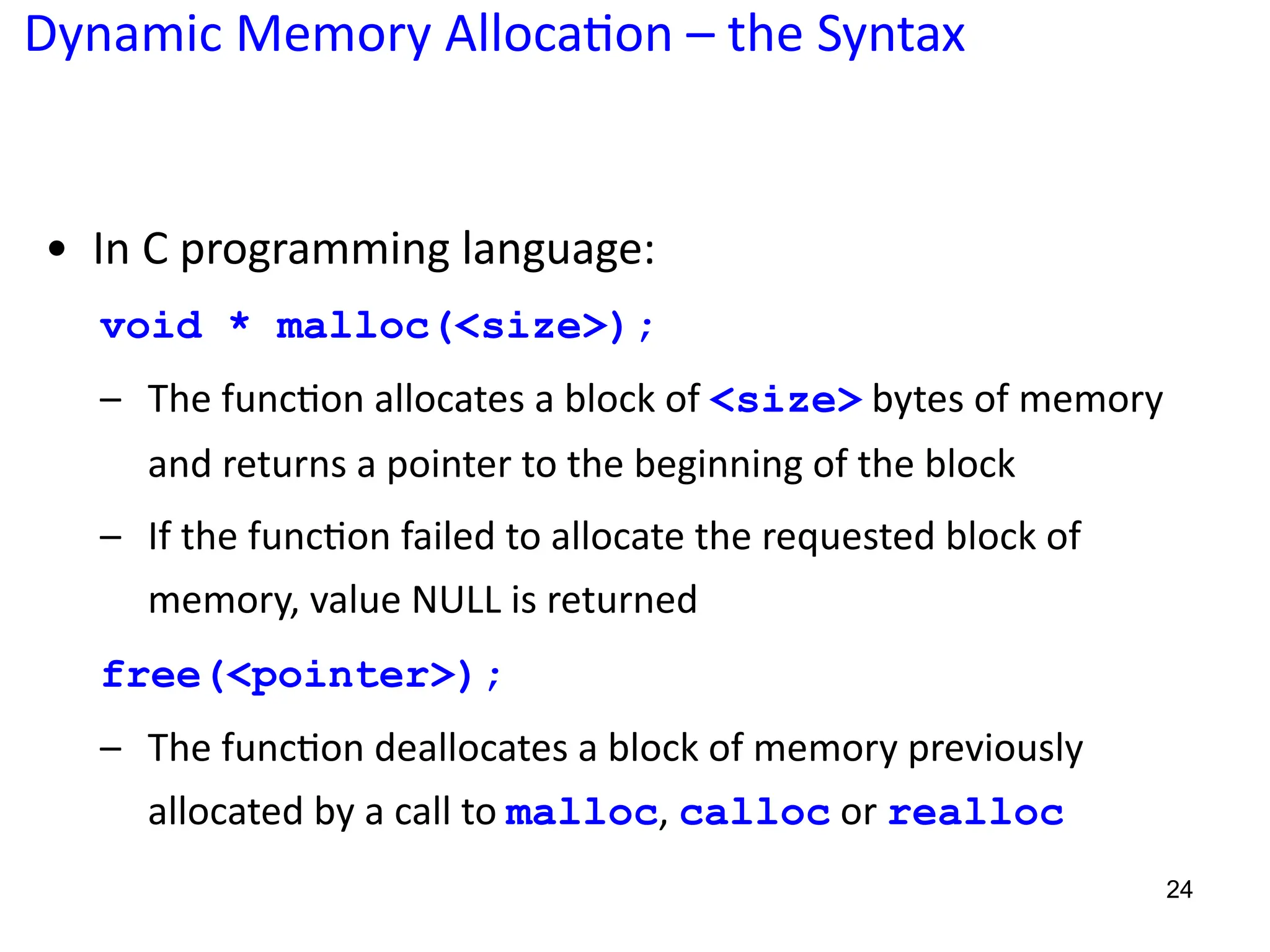

Dynamic Memory Alloca;on – the Syntax
24
• In C programming language:
void * malloc(<size>);
– The func?on allocates a block of <size> bytes of memory
and returns a pointer to the beginning of the block
– If the func?on failed to allocate the requested block of
memory, value NULL is returned
free(<pointer>);
– The func?on deallocates a block of memory previously
allocated by a call to malloc, calloc or realloc

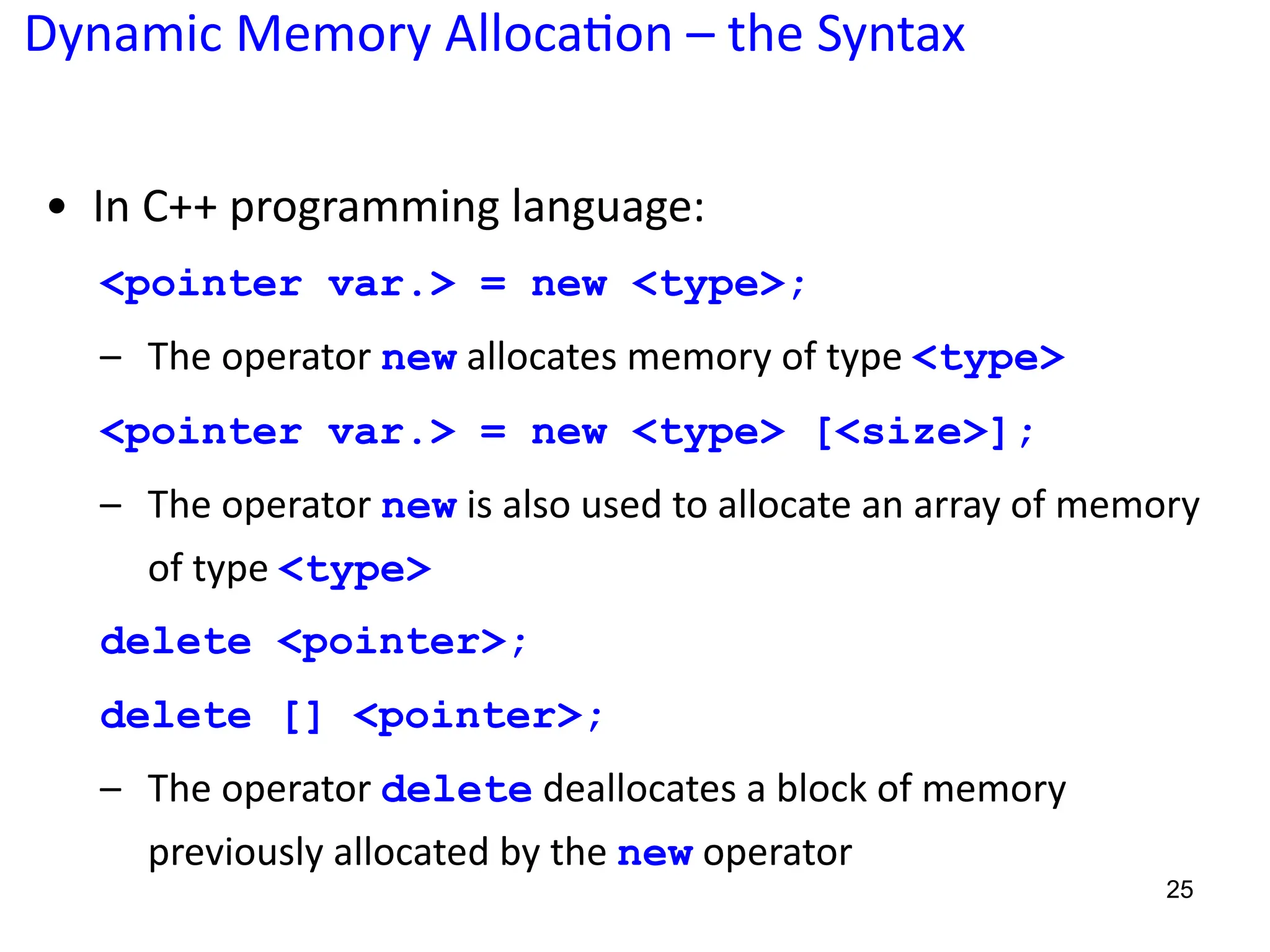

Dynamic Memory Alloca;on – the Syntax
25
• In C++ programming language:
<pointer var.> = new <type>;
– The operator new allocates memory of type <type>
<pointer var.> = new <type> [<size>];
– The operator new is also used to allocate an array of memory
of type <type>
delete <pointer>;
delete [] <pointer>;
– The operator delete deallocates a block of memory
previously allocated by the new operator
