Building Universal Servers (On-prem meets Azure PAAS)
- 1. Automating visual softwaretesting BUILDING UNIVERSAL SERVERS ON-PREM MEETS AZURE PAAS Adam Carmi Applitools Co-Founder & CTO
- 2. Automating visual softwaretesting ABOUT ME

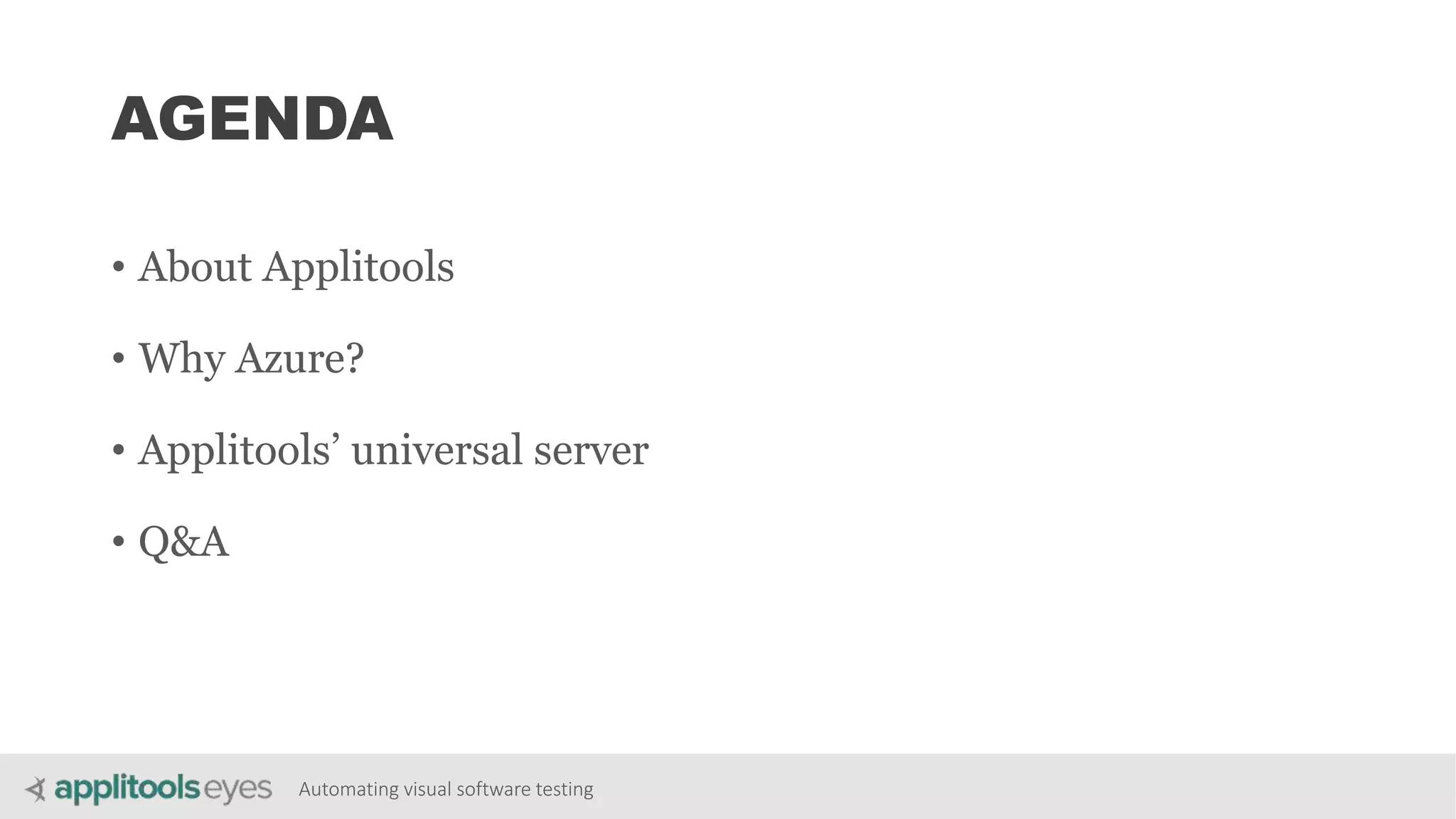

- 3. Automating visual softwaretesting AGENDA • About Applitools • Why Azure? • Applitools’ universal server • Q&A

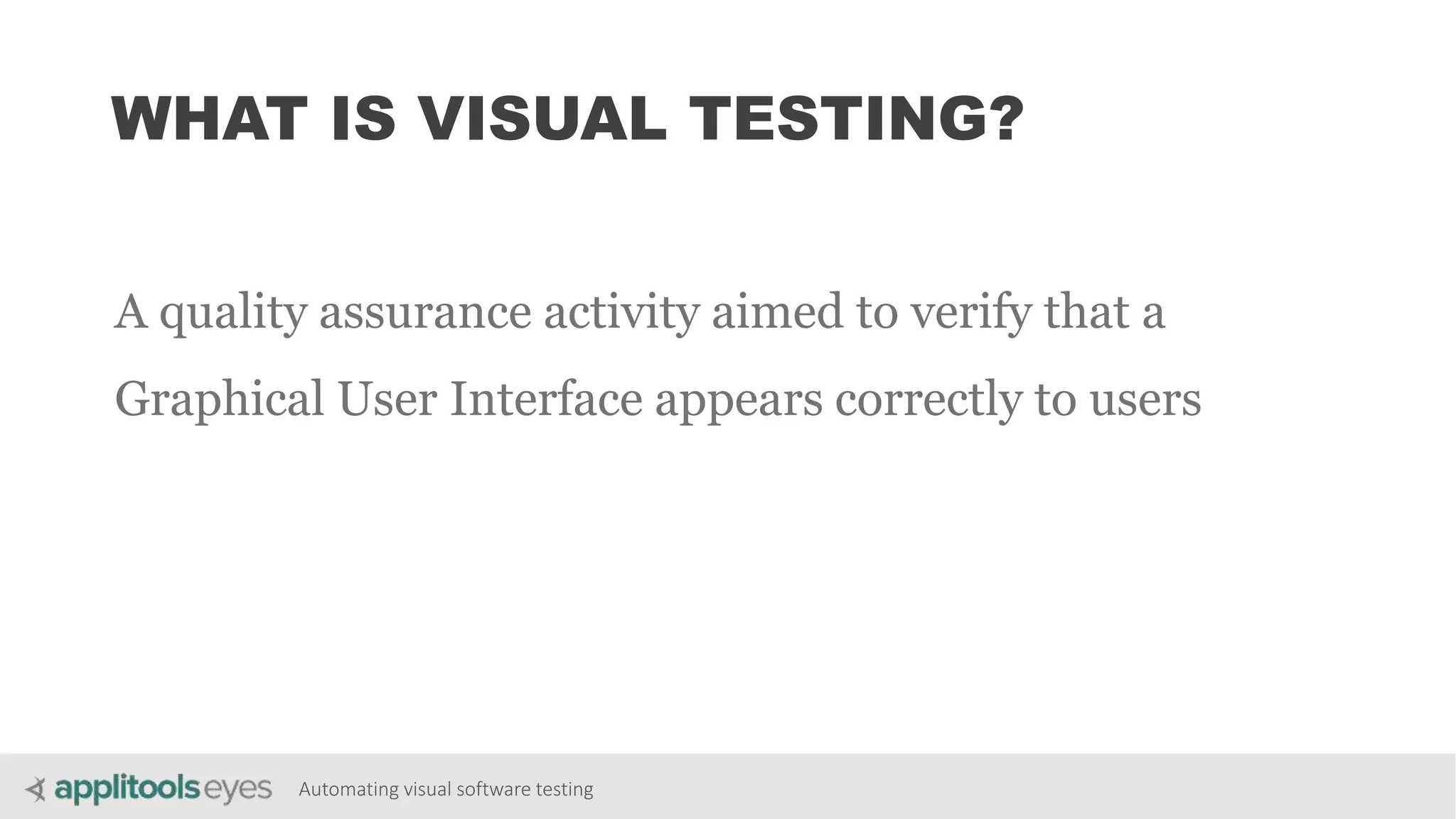

- 4. Automating visual softwaretesting WHAT IS VISUAL TESTING? A quality assurance activity aimed to verify that a Graphical User Interface appears correctly to users

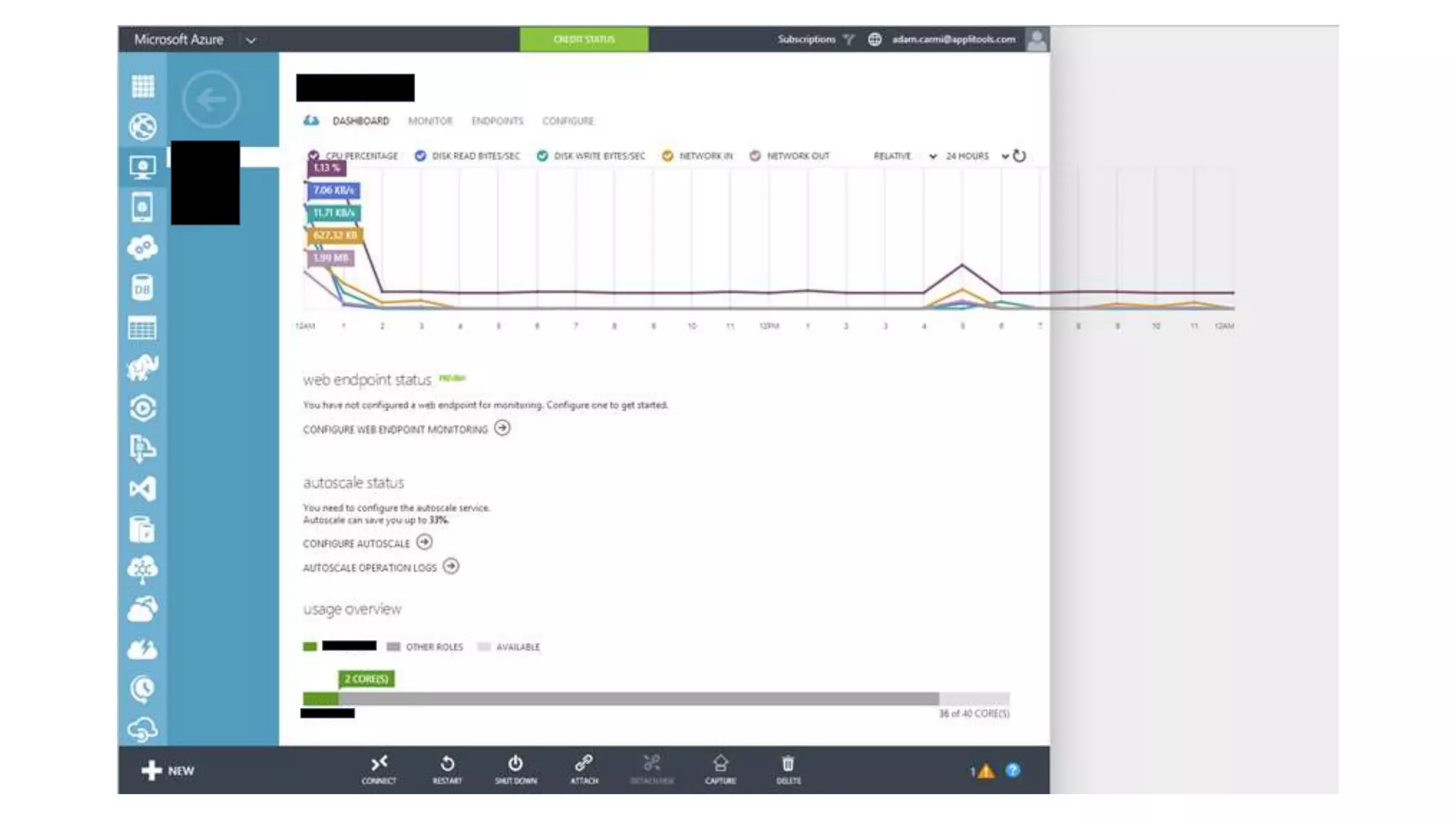

- 5. Automating visual softwaretesting

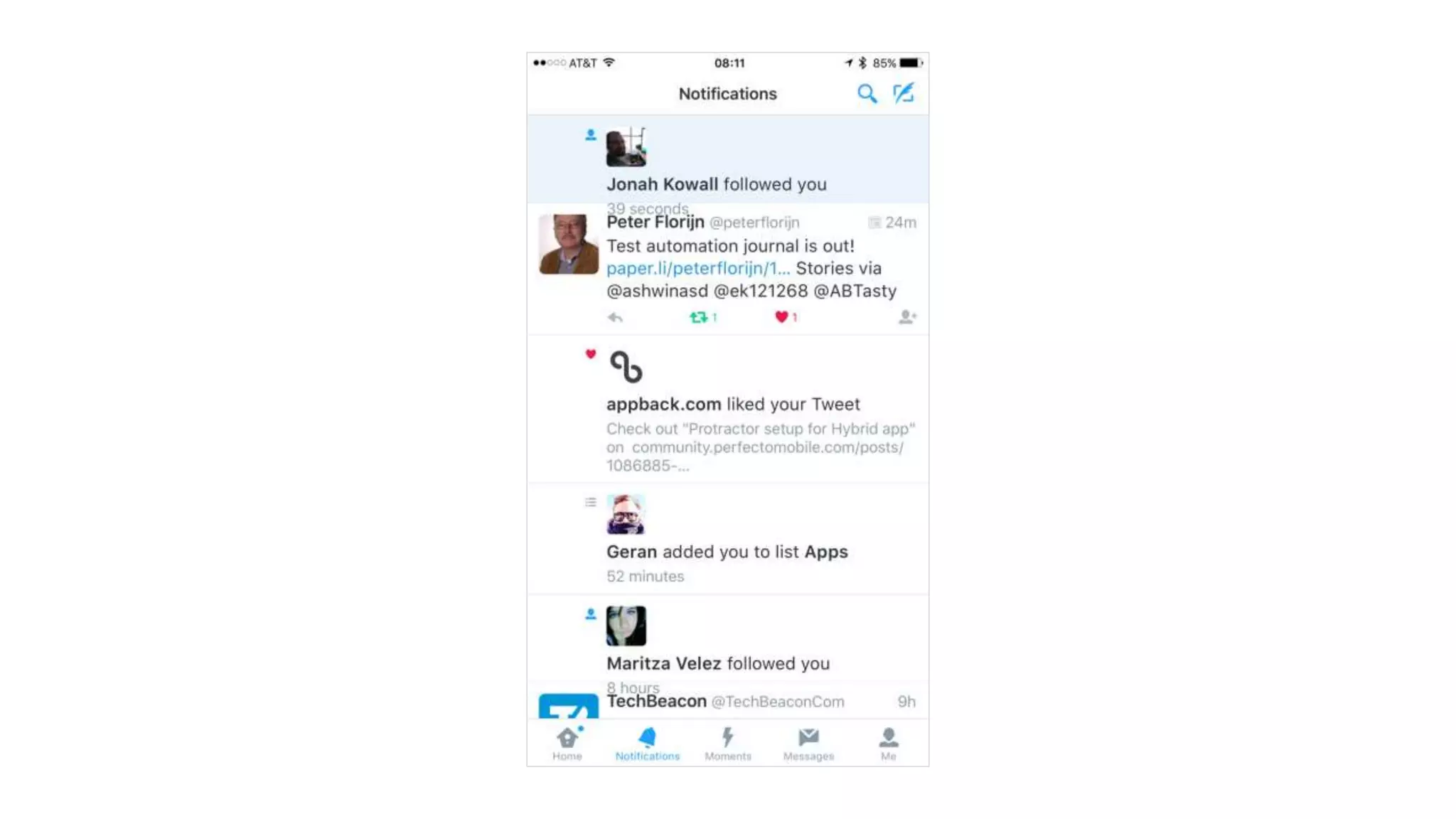

- 6. Automating visual softwaretesting

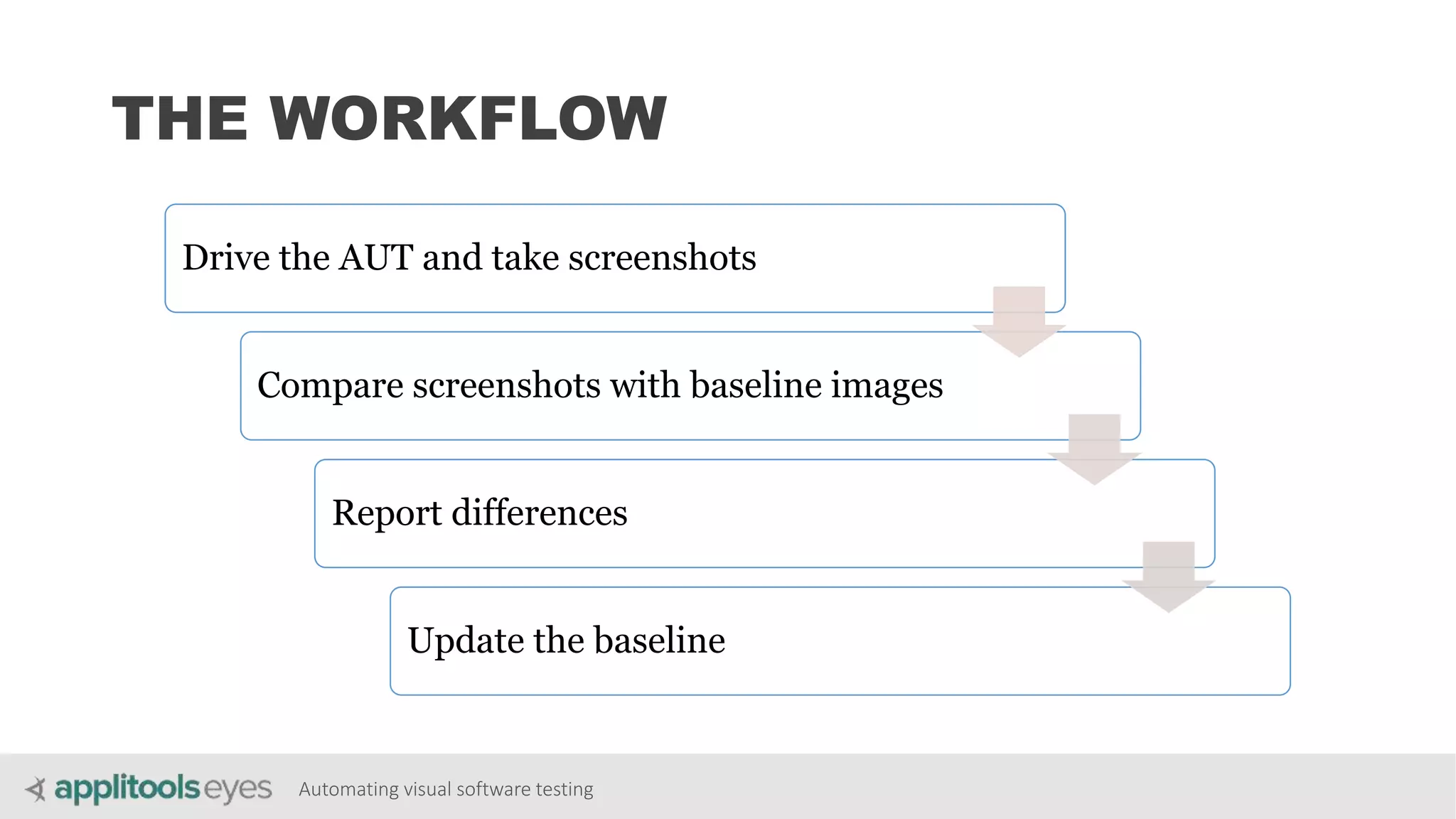

- 7. Automating visual softwaretesting THE WORKFLOW Drive the AUT and take screenshots Compare screenshots with baseline images Report differences Update the baseline
- 8. Automating visual softwaretesting DEMO

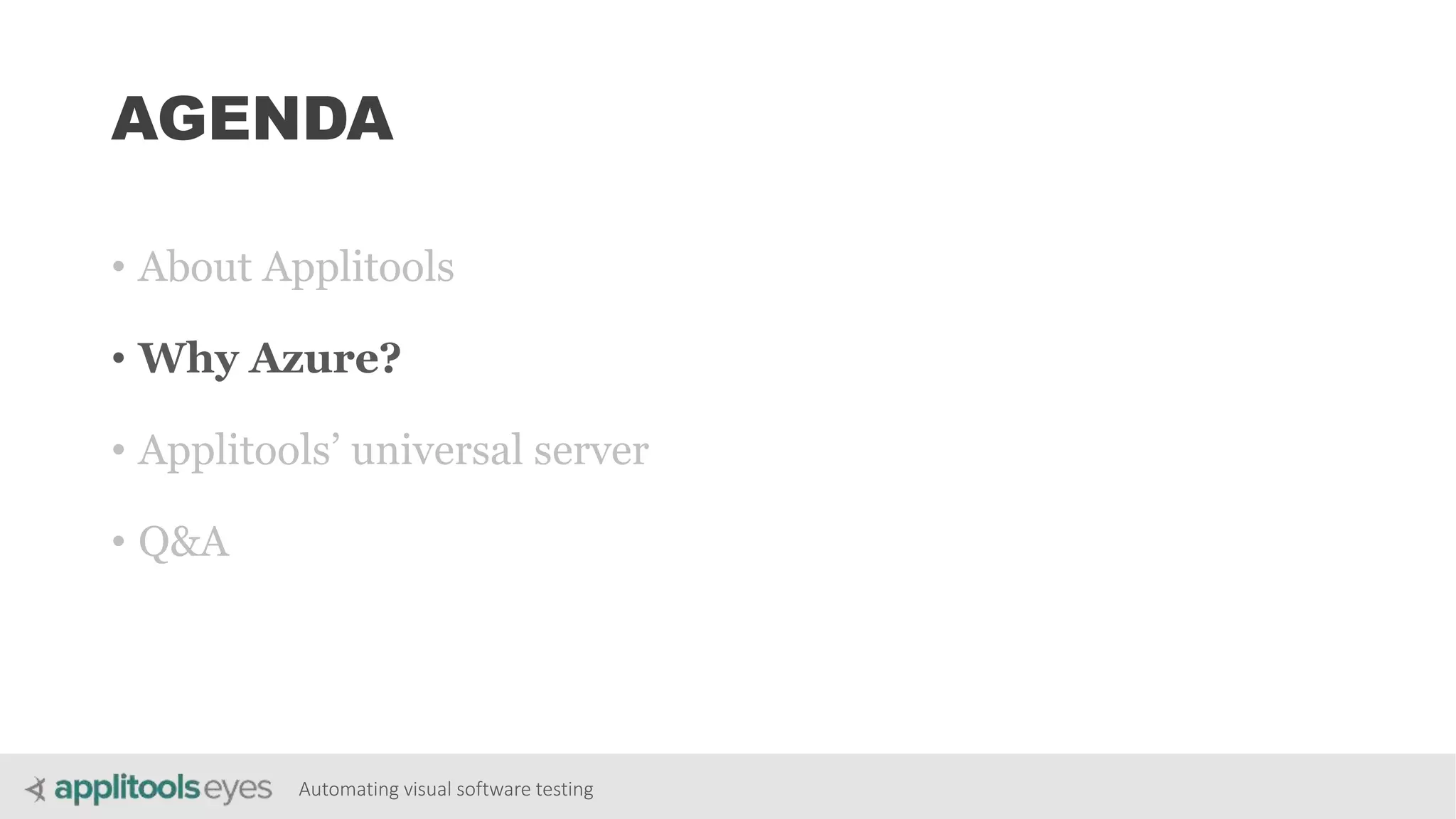

- 9. Automating visual softwaretesting AGENDA • About Applitools • Why Azure? • Applitools’ universal server • Q&A

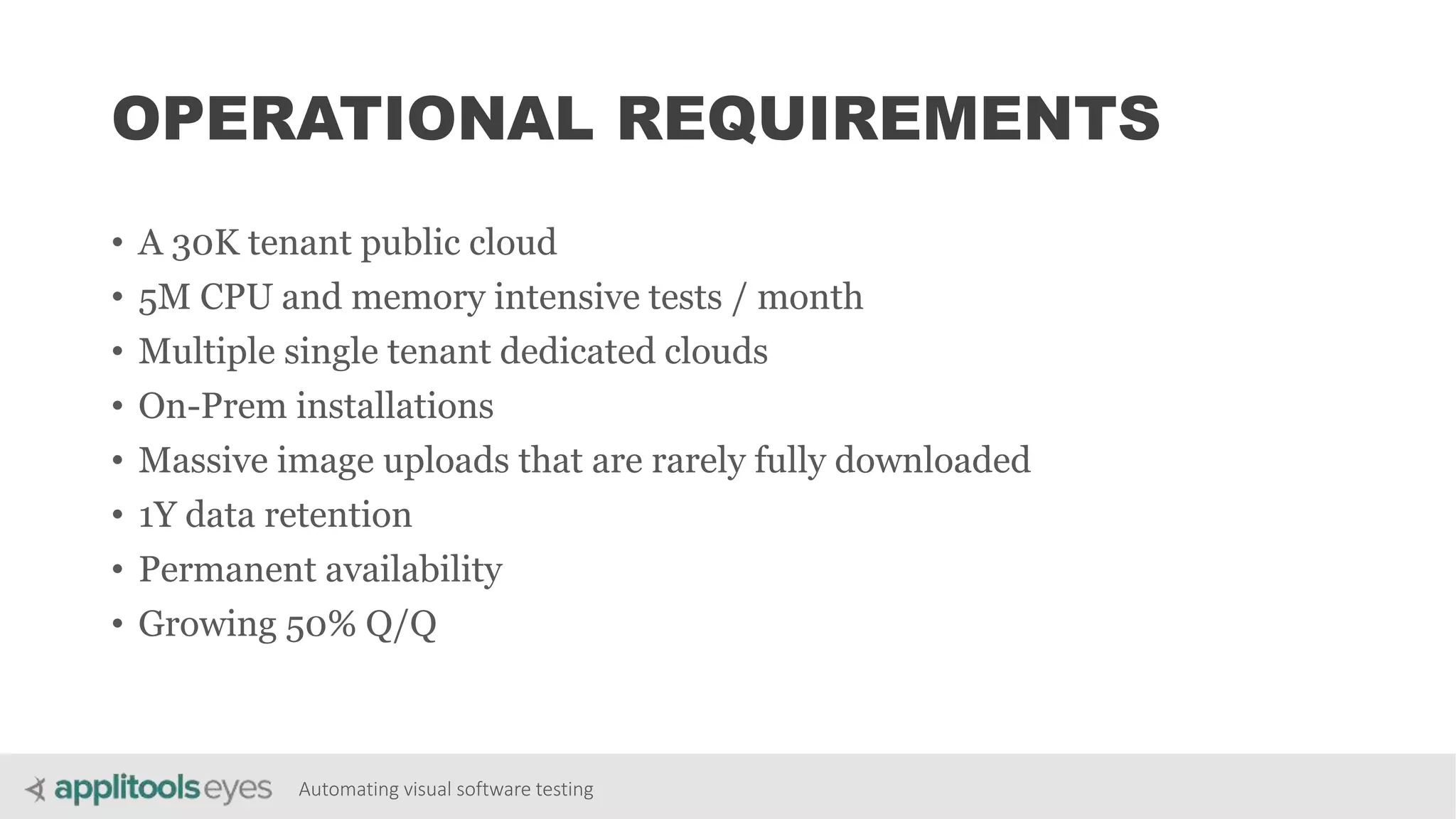

- 10. Automating visual softwaretesting OPERATIONAL REQUIREMENTS • A 30K tenant public cloud • 5M CPU and memory intensive tests / month • Multiple single tenant dedicated clouds • On-Prem installations • Massive image uploads that are rarely fully downloaded • 1Y data retention • Permanent availability • Growing 50% Q/Q

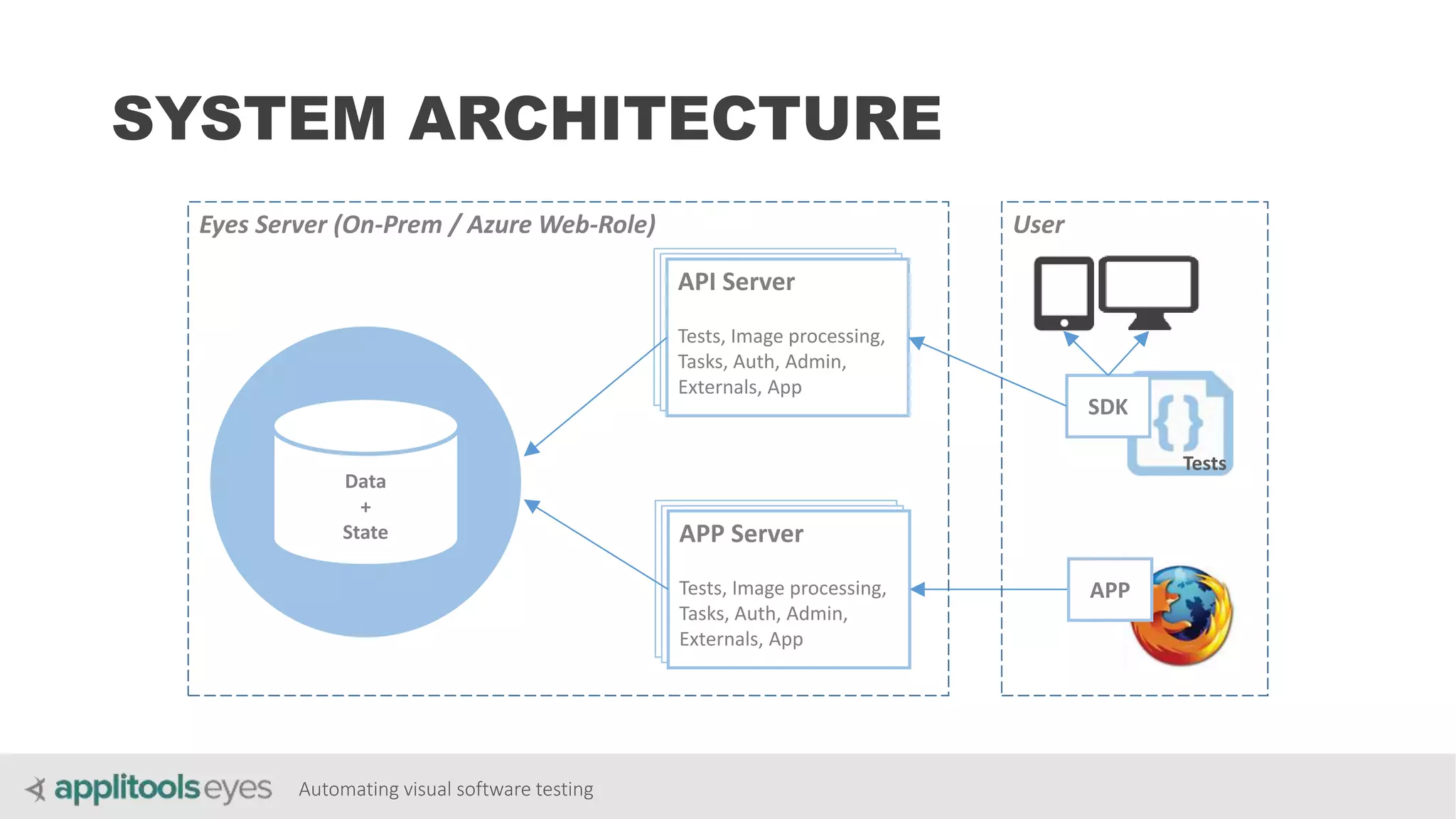

- 11. Automating visual softwaretesting SYSTEM ARCHITECTURE API Server Tests, Image processing, Tasks, Auth, Admin, Externals, App APP Server Tests, Image processing, Tasks, Auth, Admin, Externals, App SDK Data + State Eyes Server (On-Prem / Azure Web-Role) User APP Tests

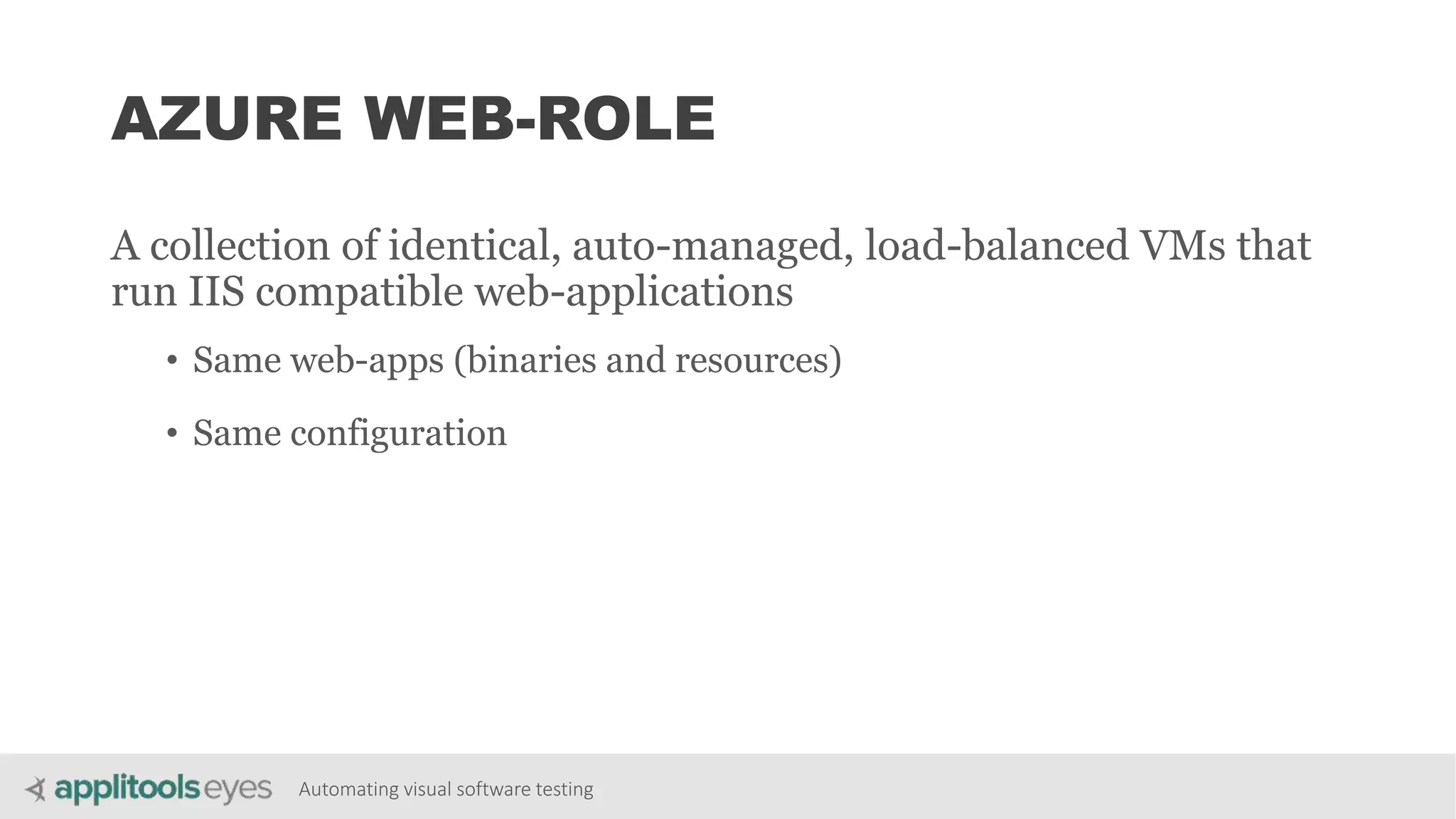

- 12. Automating visual softwaretesting AZURE WEB-ROLE A collection of identical, auto-managed, load-balanced VMs that run IIS compatible web-applications • Same web-apps (binaries and resources) • Same configuration

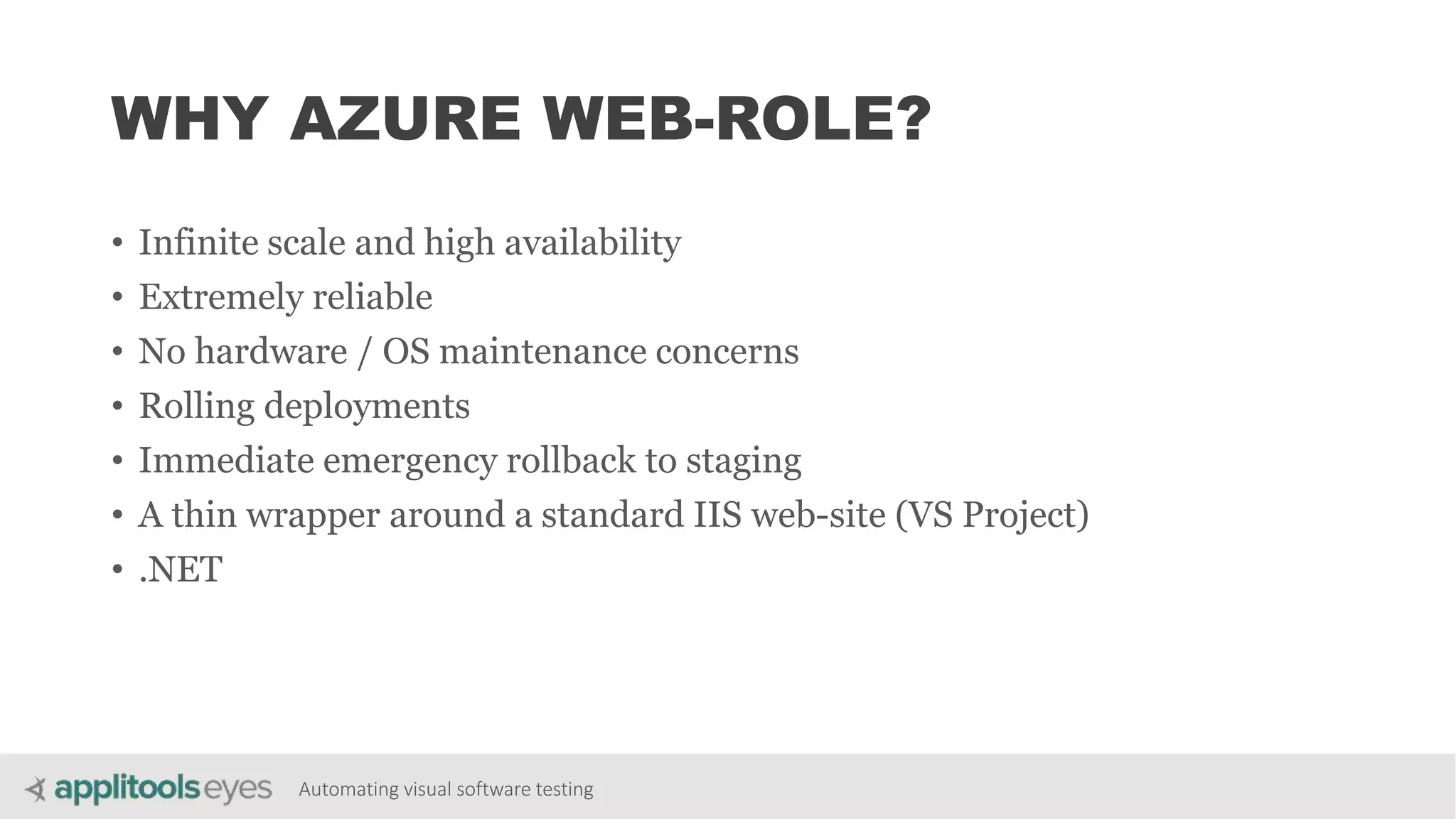

- 13. Automating visual softwaretesting WHY AZURE WEB-ROLE? • Infinite scale and high availability • Extremely reliable • No hardware / OS maintenance concerns • Rolling deployments • Immediate emergency rollback to staging • A thin wrapper around a standard IIS web-site (VS Project) • .NET

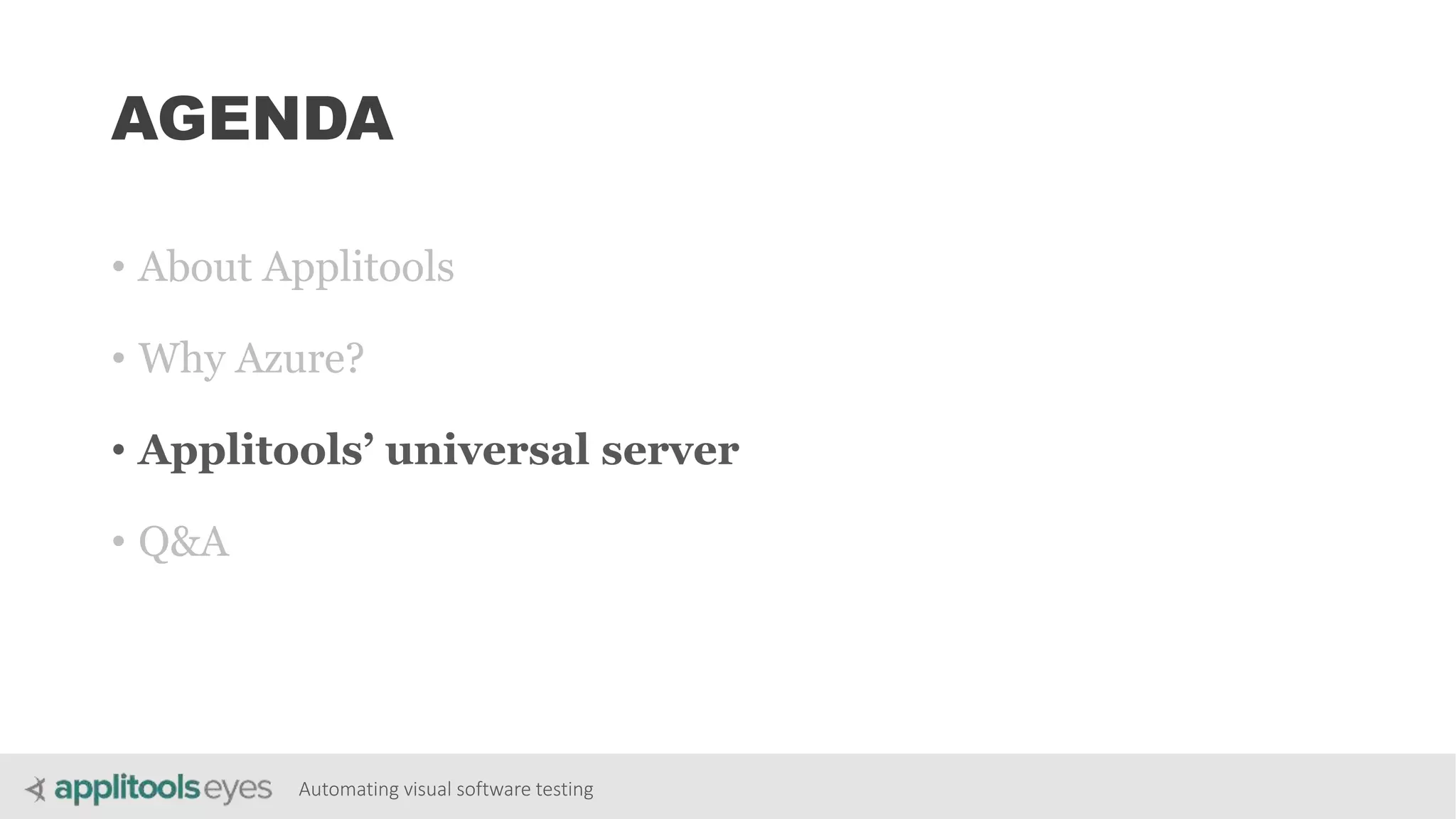

- 14. Automating visual softwaretesting AGENDA • About Applitools • Why Azure? • Applitools’ universal server • Q&A

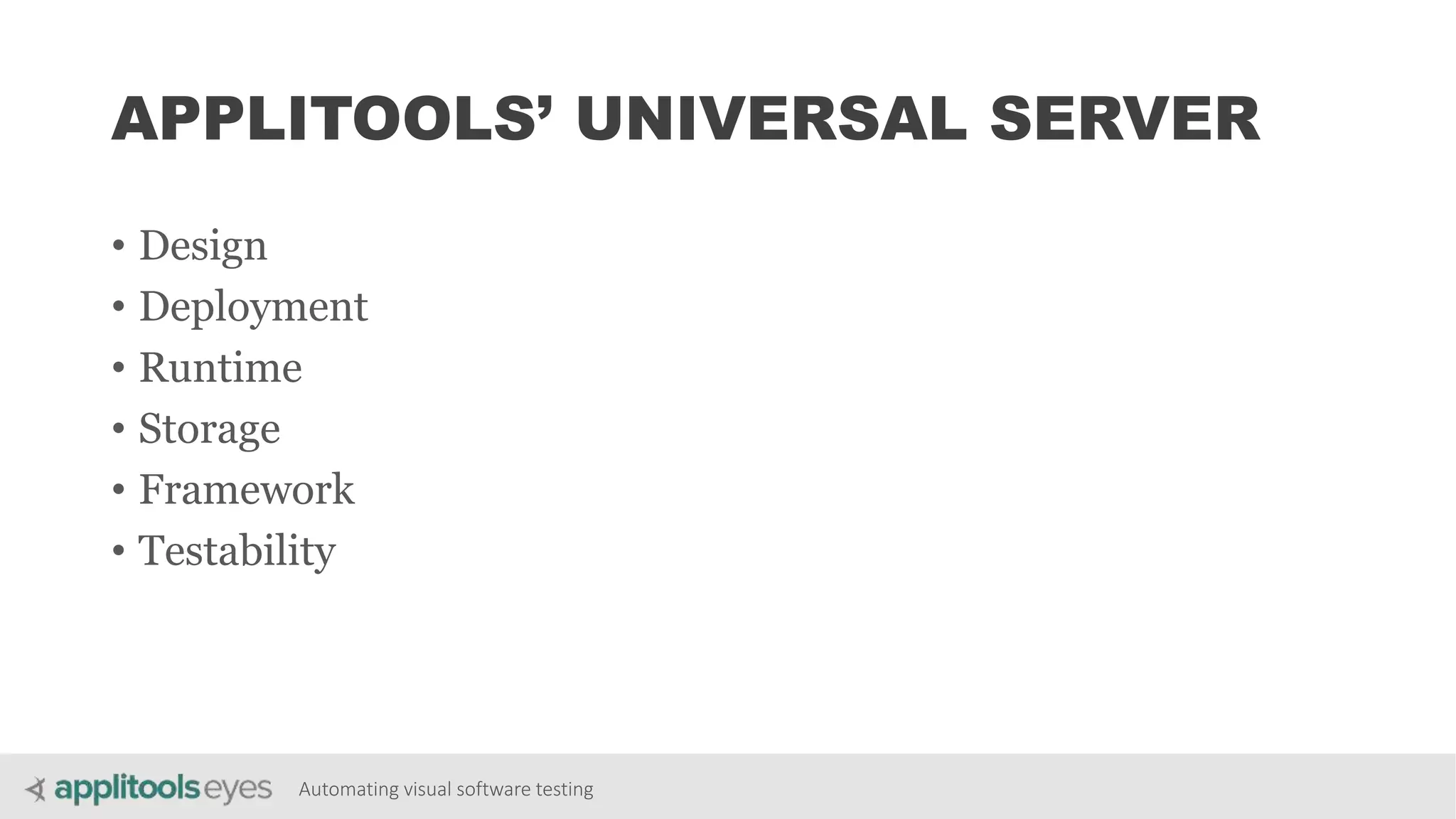

- 15. Automating visual softwaretesting APPLITOOLS’ UNIVERSAL SERVER • Design • Deployment • Runtime • Storage • Framework • Testability

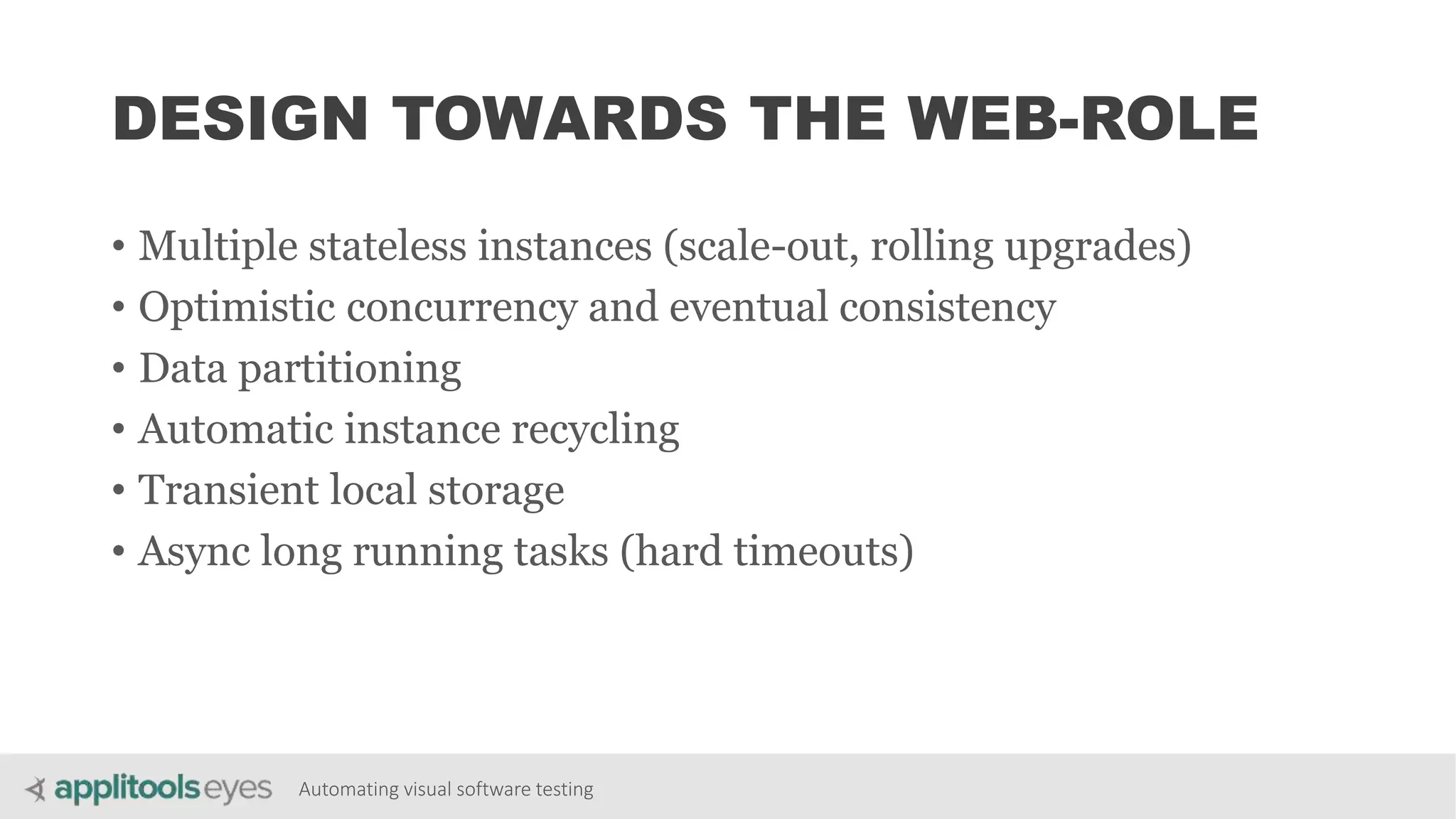

- 16. Automating visual softwaretesting DESIGN TOWARDS THE WEB-ROLE • Multiple stateless instances (scale-out, rolling upgrades) • Optimistic concurrency and eventual consistency • Data partitioning • Automatic instance recycling • Transient local storage • Async long running tasks (hard timeouts)

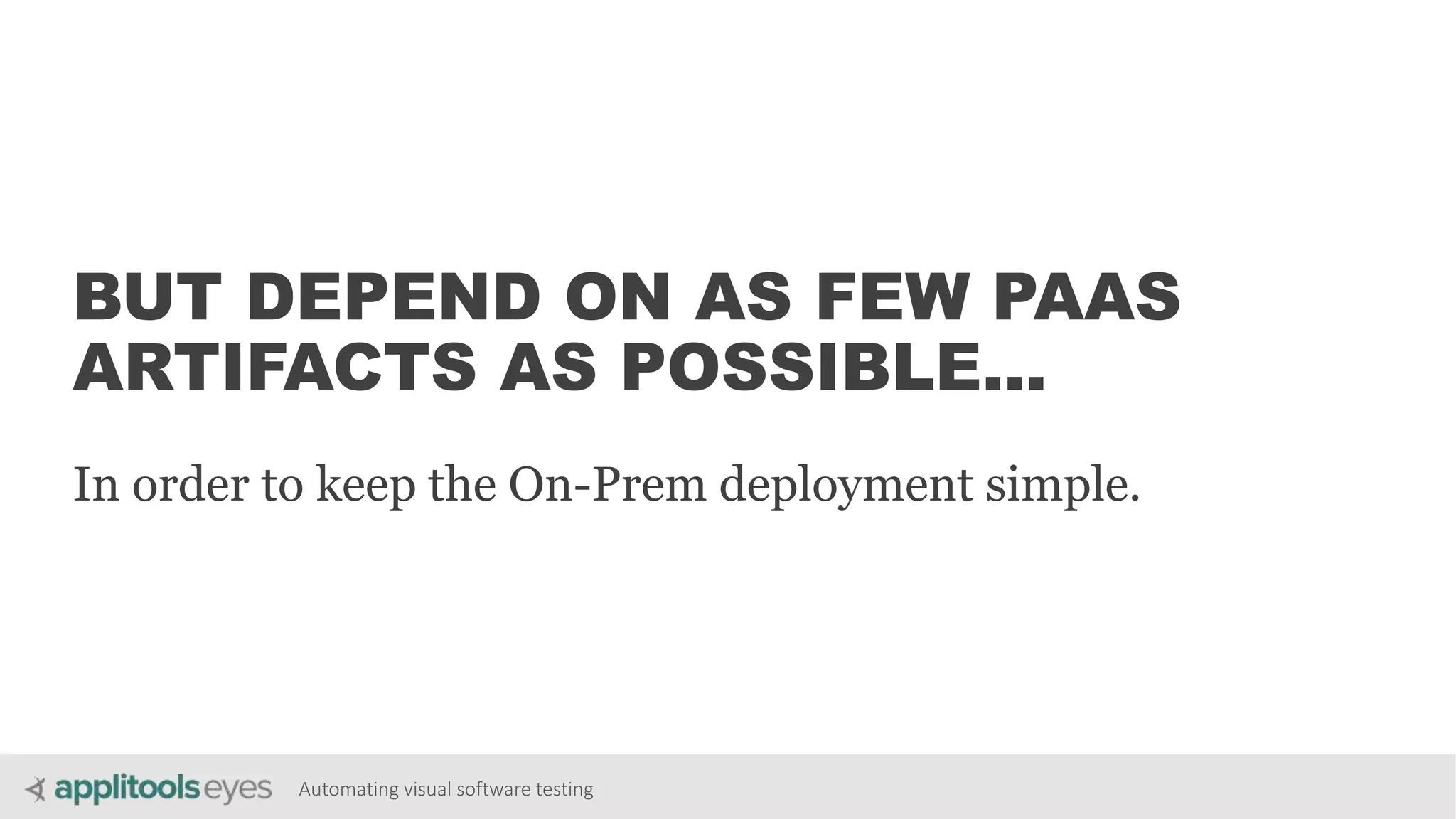

- 17. Automating visual softwaretesting BUT DEPEND ON AS FEW PAAS ARTIFACTS AS POSSIBLE... In order to keep the On-Prem deployment simple.

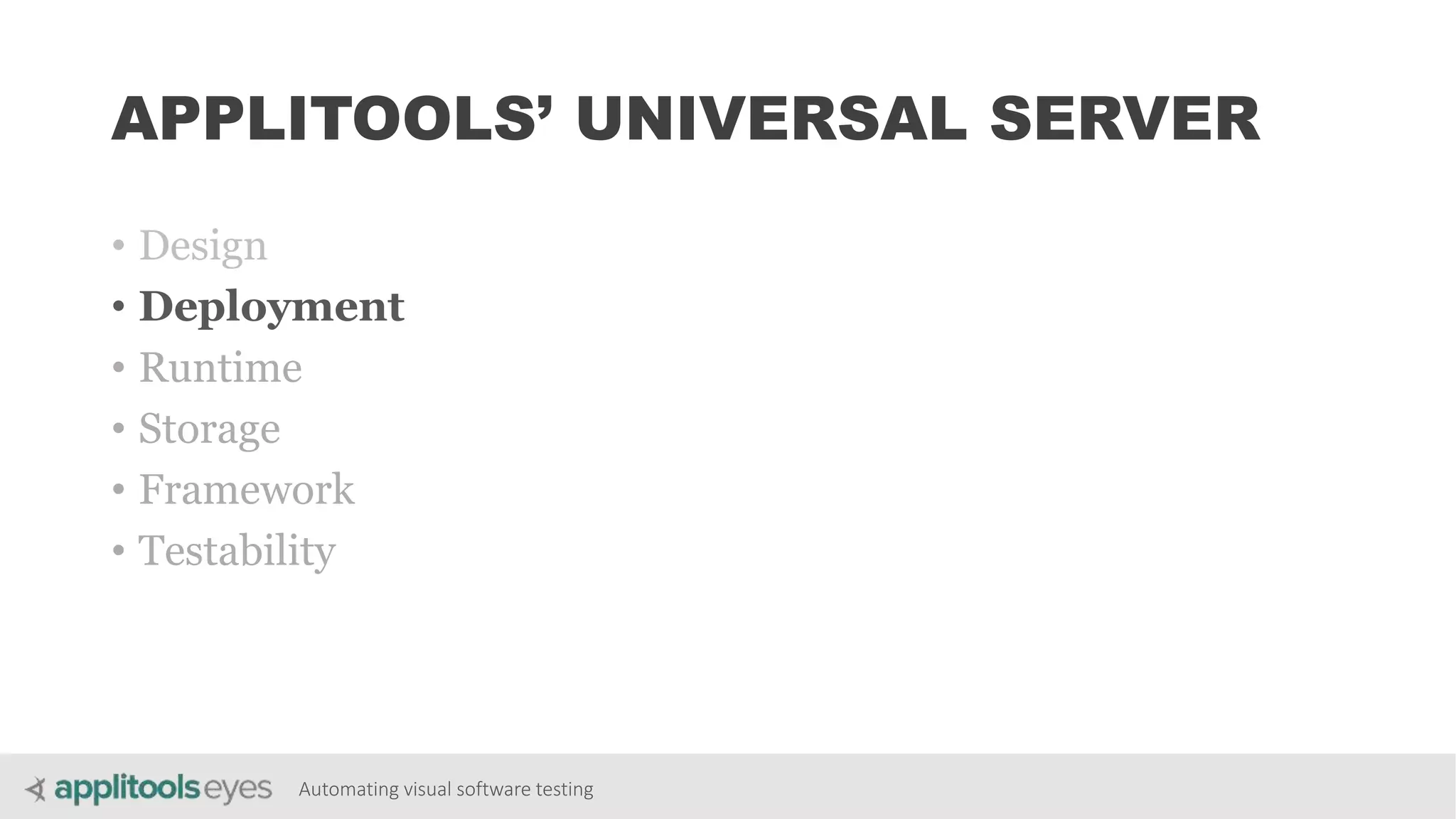

- 18. Automating visual softwaretesting APPLITOOLS’ UNIVERSAL SERVER • Design • Deployment • Runtime • Storage • Framework • Testability

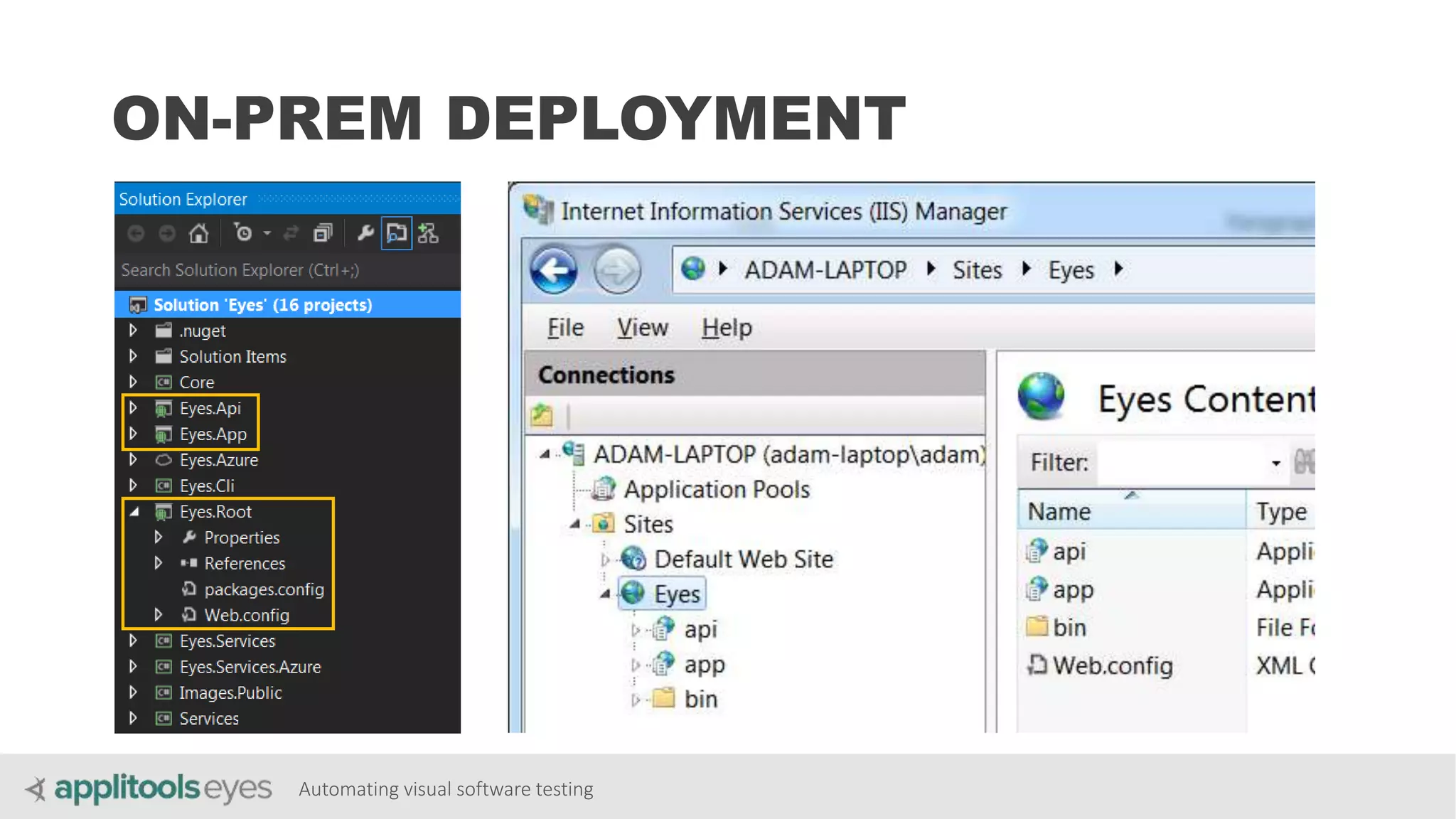

- 19. Automating visual softwaretesting ON-PREM DEPLOYMENT

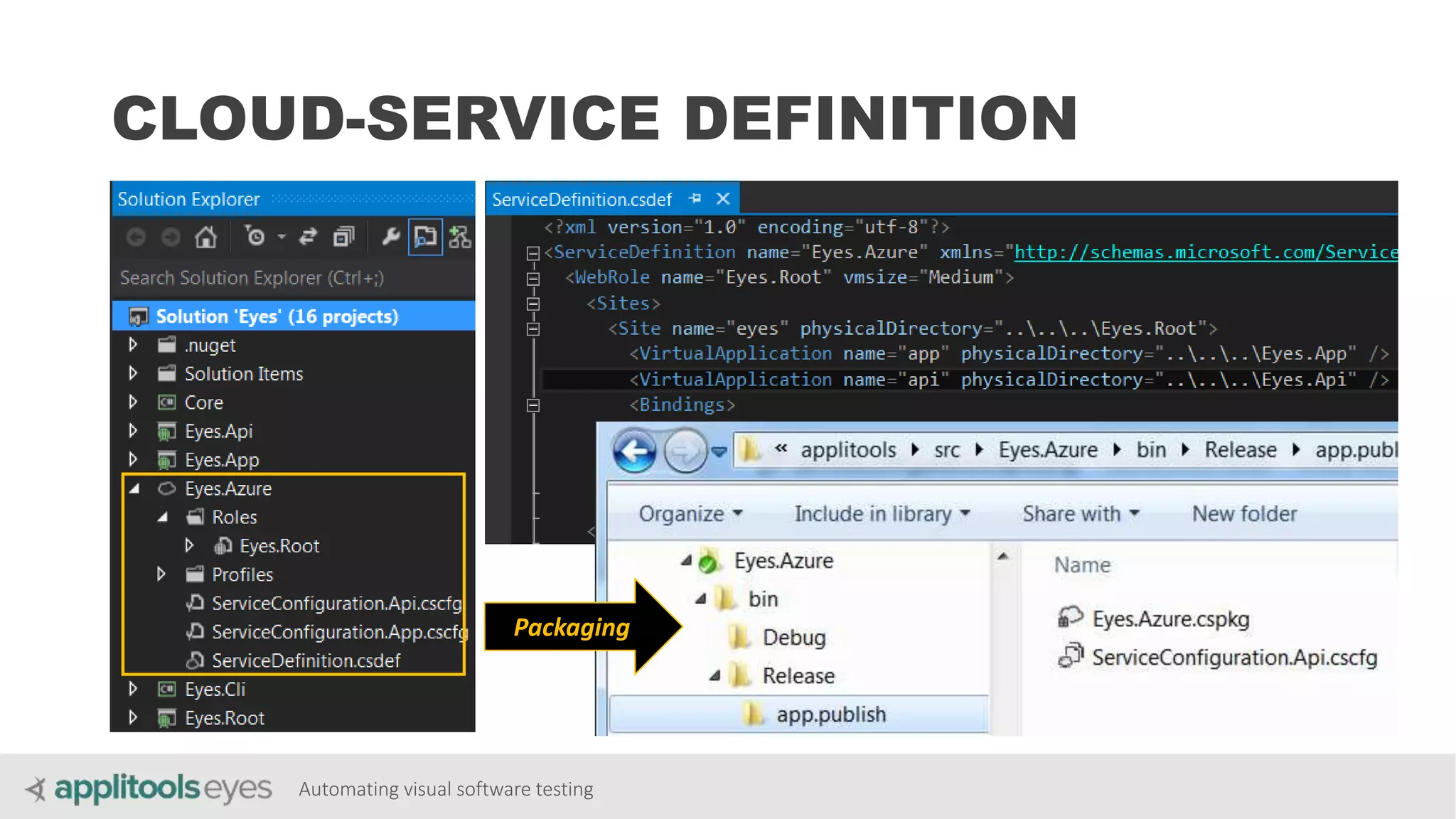

- 20. Automating visual softwaretesting CLOUD-SERVICE DEFINITION Packaging

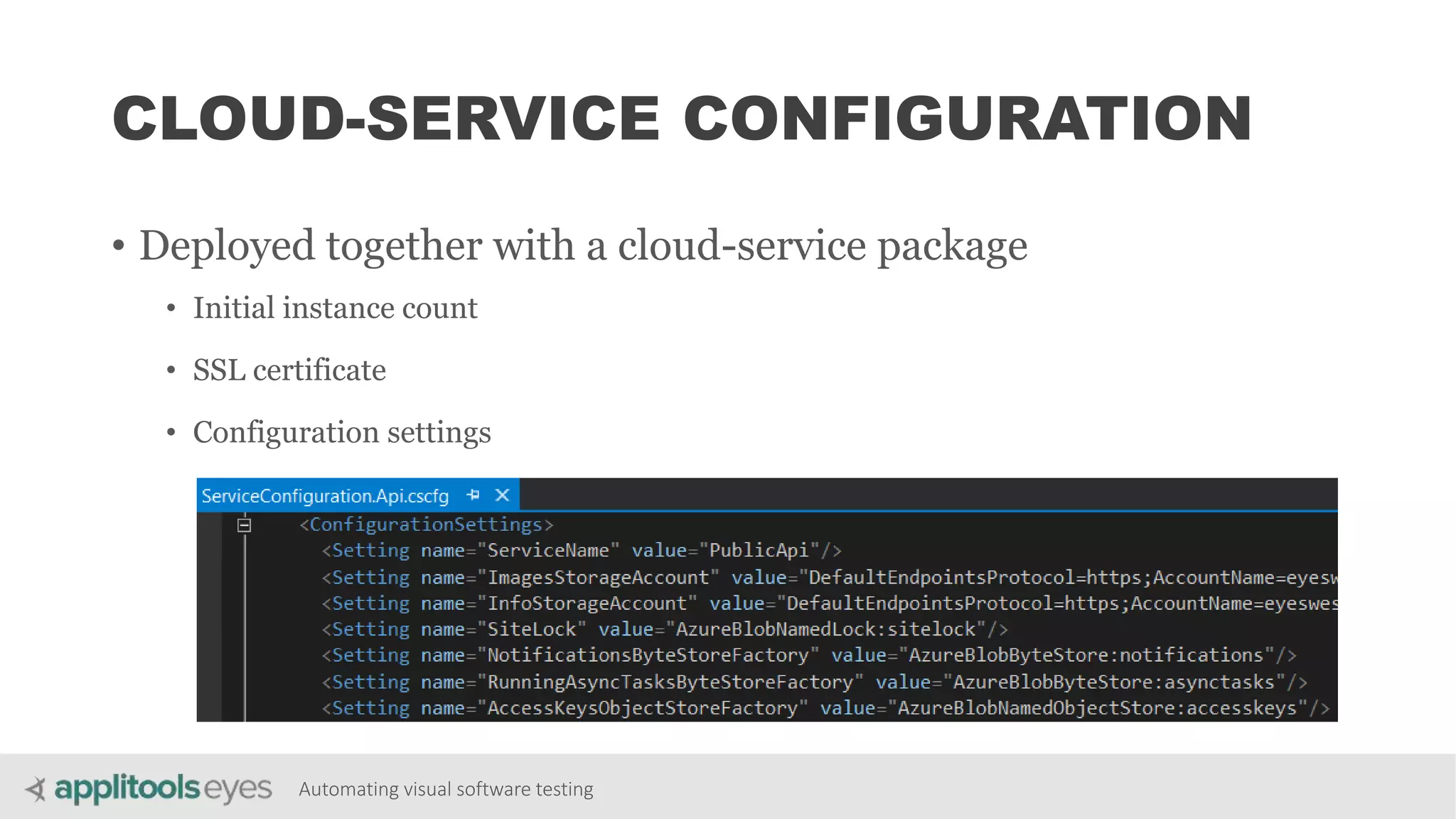

- 21. Automating visual softwaretesting • Deployed together with a cloud-service package • Initial instance count • SSL certificate • Configuration settings CLOUD-SERVICE CONFIGURATION

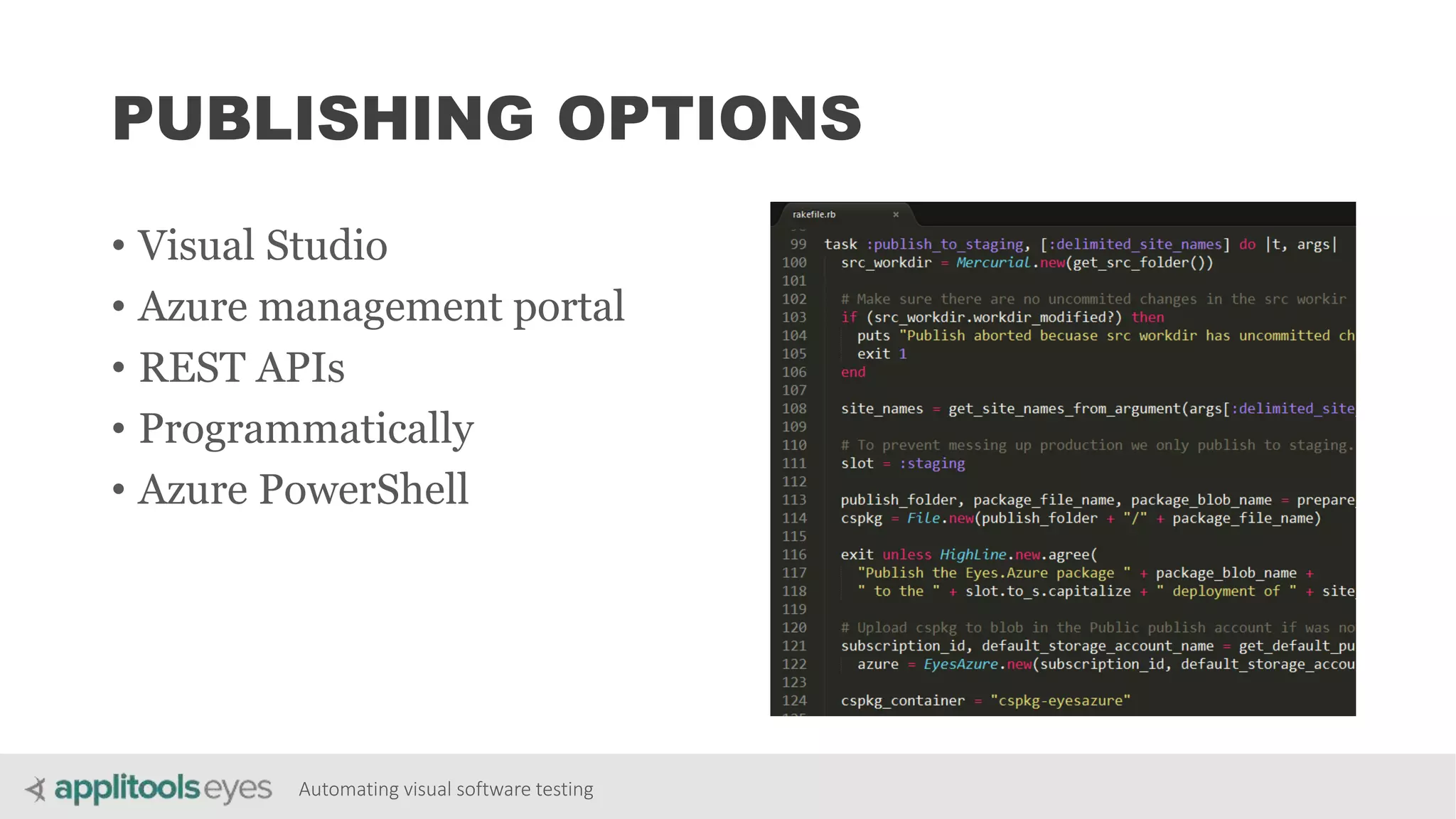

- 22. Automating visual softwaretesting PUBLISHING OPTIONS • Visual Studio • Azure management portal • REST APIs • Programmatically • Azure PowerShell

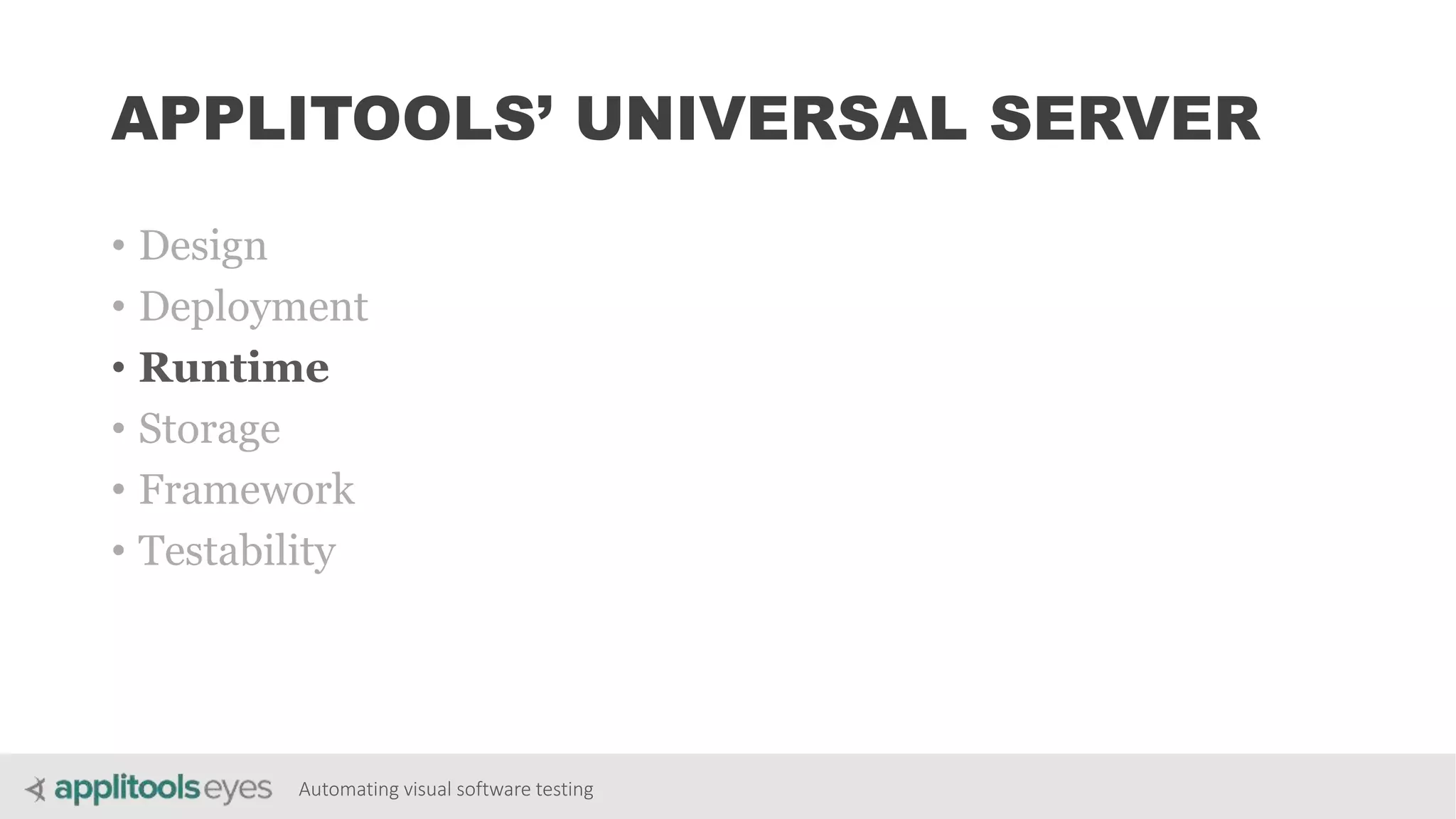

- 23. Automating visual softwaretesting APPLITOOLS’ UNIVERSAL SERVER • Design • Deployment • Runtime • Storage • Framework • Testability

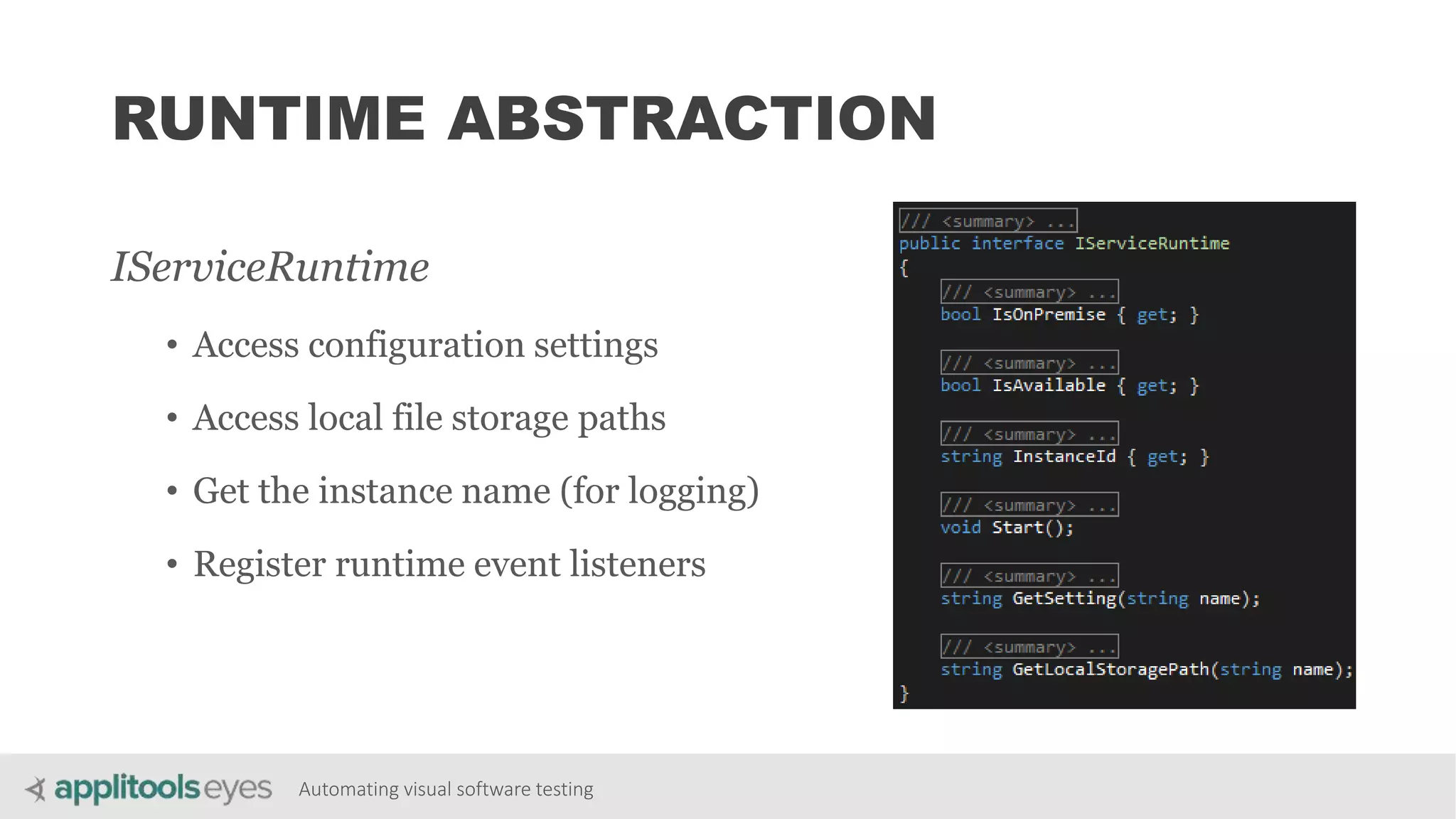

- 24. Automating visual softwaretesting RUNTIME ABSTRACTION IServiceRuntime • Access configuration settings • Access local file storage paths • Get the instance name (for logging) • Register runtime event listeners
- 25. Automating visual softwaretesting APPLITOOLS’ UNIVERSAL SERVER • Design • Deployment • Runtime • Storage • Framework • Testability

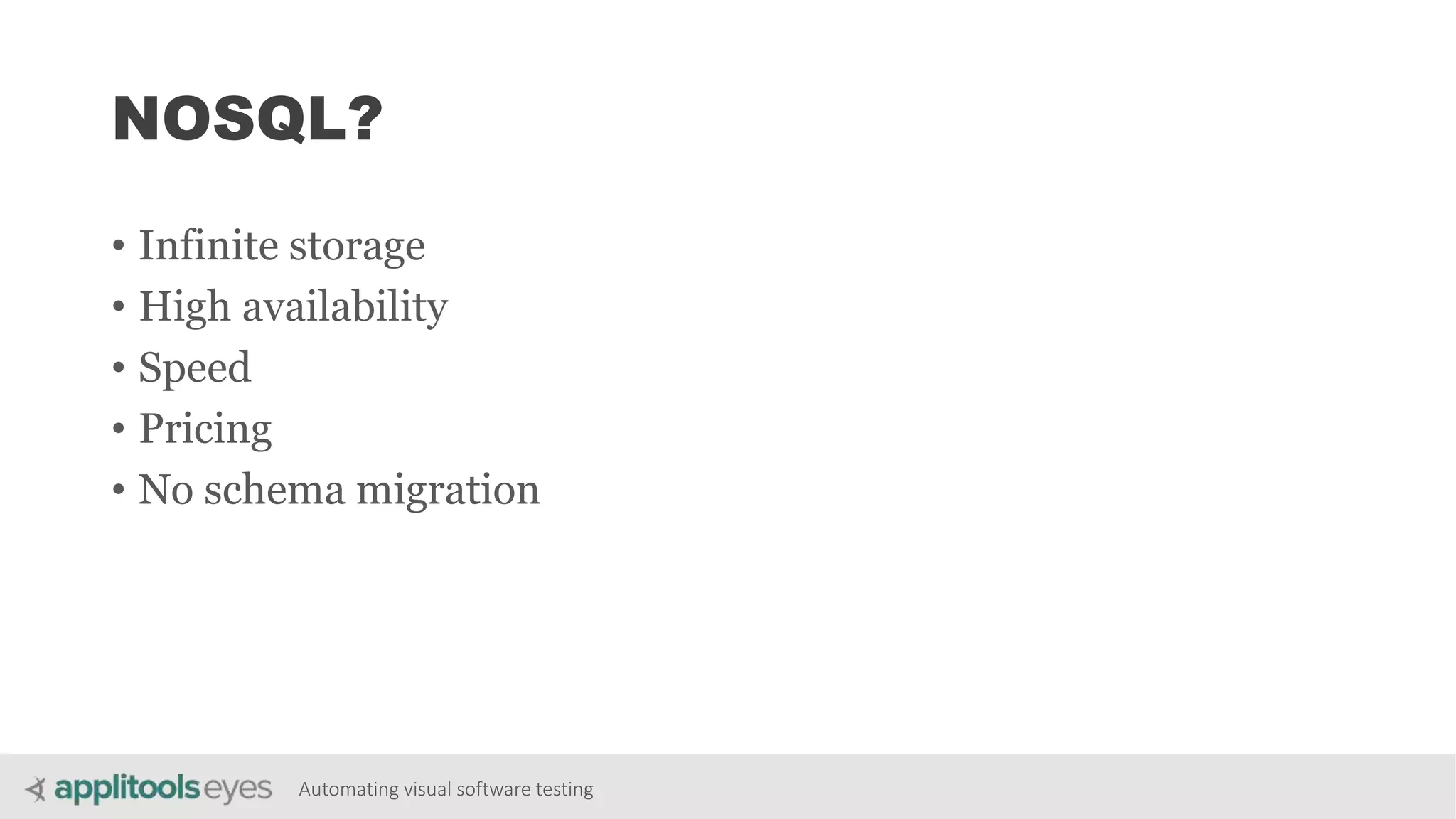

- 26. Automating visual softwaretesting NOSQL? • Infinite storage • High availability • Speed • Pricing • No schema migration

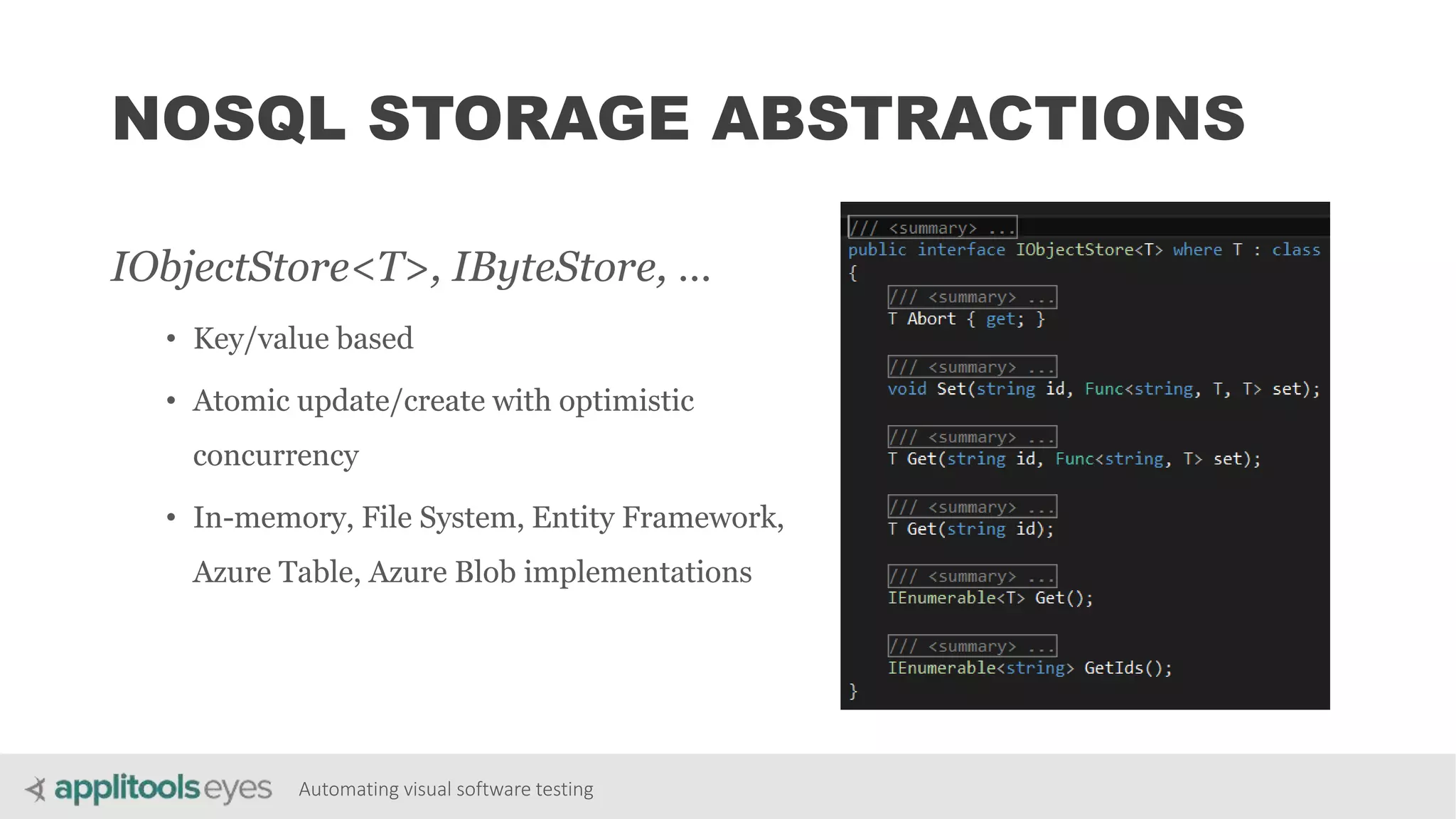

- 27. Automating visual softwaretesting NOSQL STORAGE ABSTRACTIONS IObjectStore<T>, IByteStore, … • Key/value based • Atomic update/create with optimistic concurrency • In-memory, File System, Entity Framework, Azure Table, Azure Blob implementations

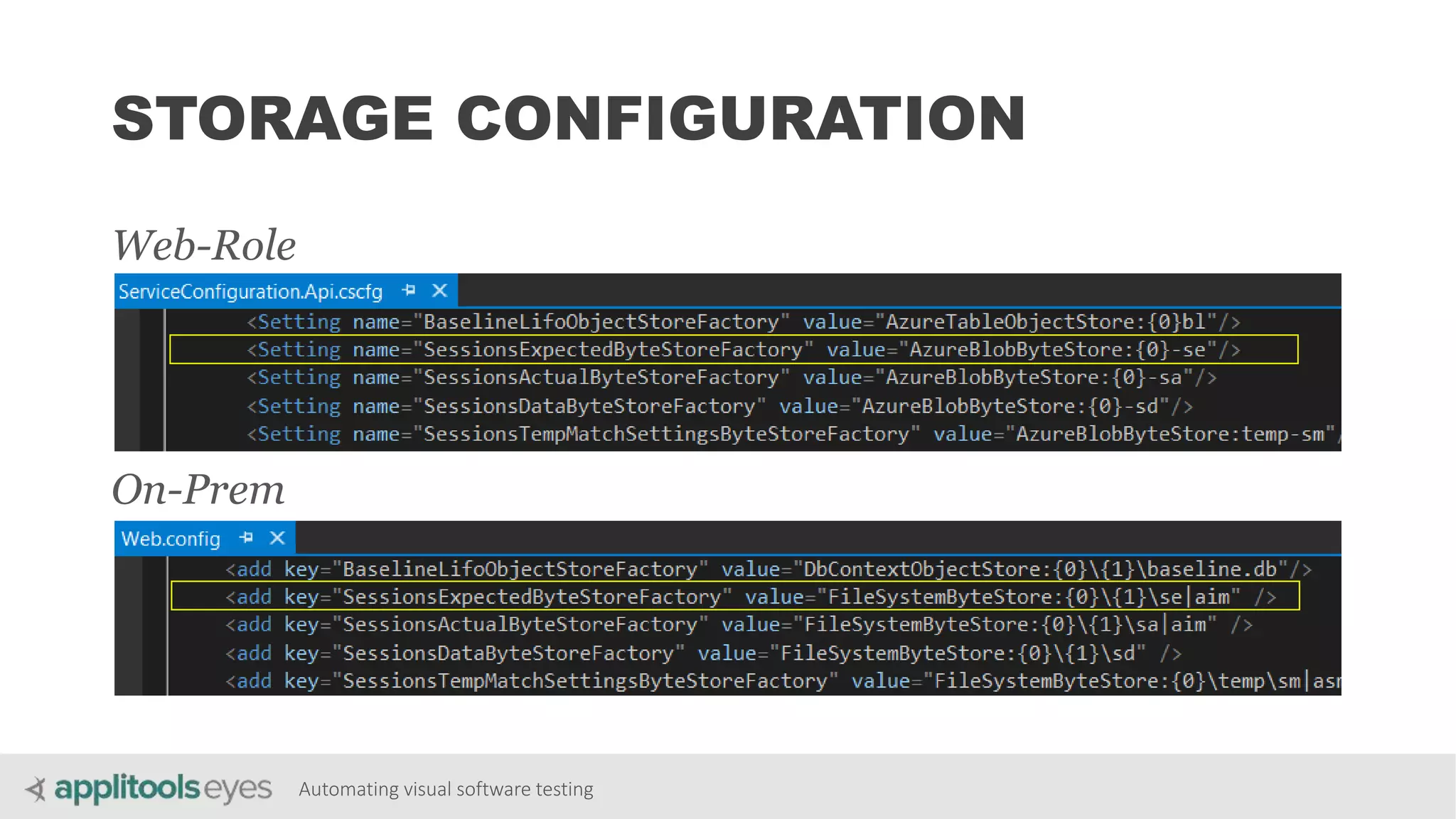

- 28. Automating visual softwaretesting STORAGE CONFIGURATION Web-Role On-Prem

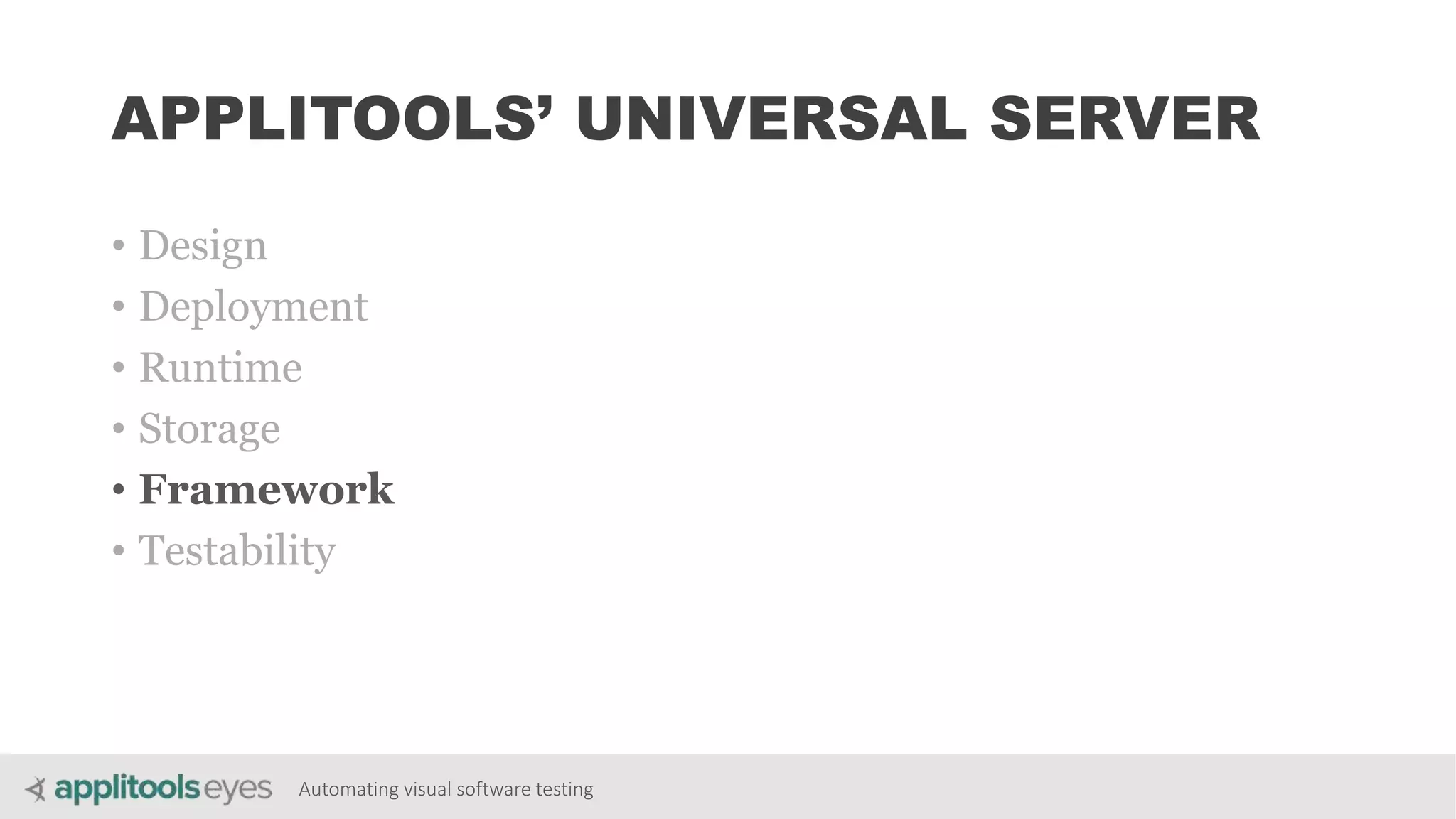

- 29. Automating visual softwaretesting APPLITOOLS’ UNIVERSAL SERVER • Design • Deployment • Runtime • Storage • Framework • Testability

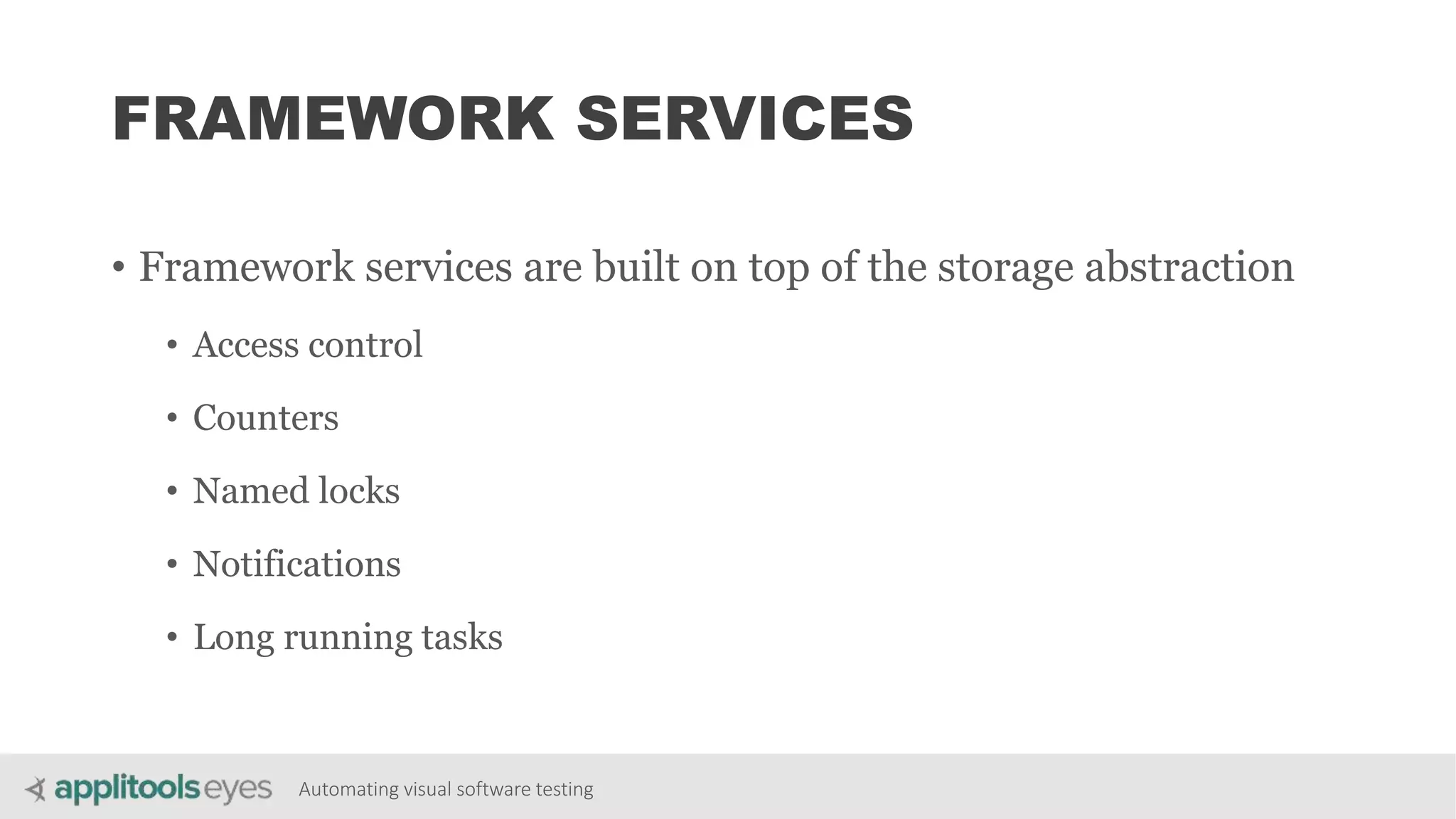

- 30. Automating visual softwaretesting FRAMEWORK SERVICES • Framework services are built on top of the storage abstraction • Access control • Counters • Named locks • Notifications • Long running tasks

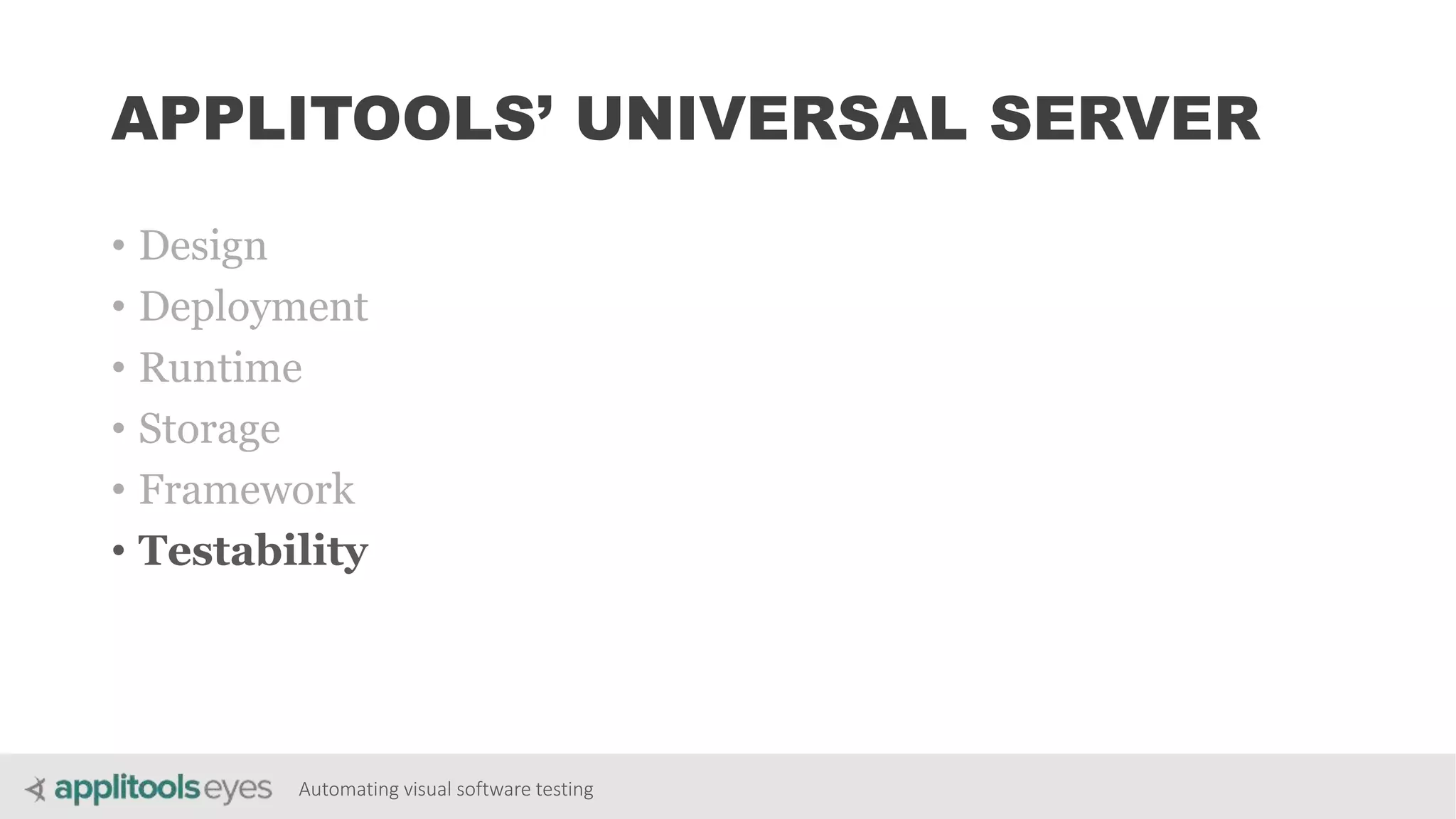

- 31. Automating visual softwaretesting APPLITOOLS’ UNIVERSAL SERVER • Design • Deployment • Runtime • Storage • Framework • Testability

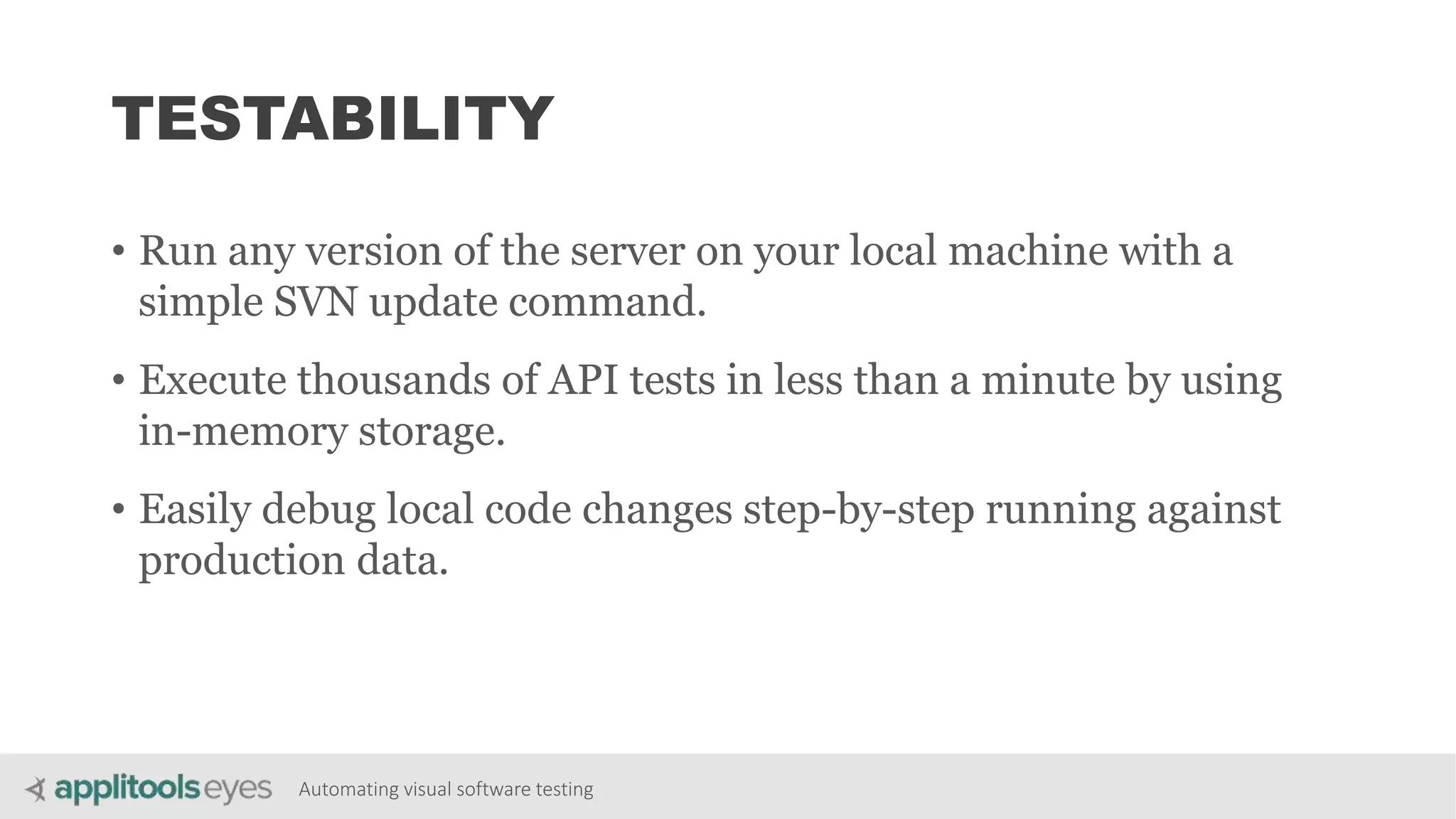

- 32. Automating visual softwaretesting TESTABILITY • Run any version of the server on your local machine with a simple SVN update command. • Execute thousands of API tests in less than a minute by using in-memory storage. • Easily debug local code changes step-by-step running against production data.

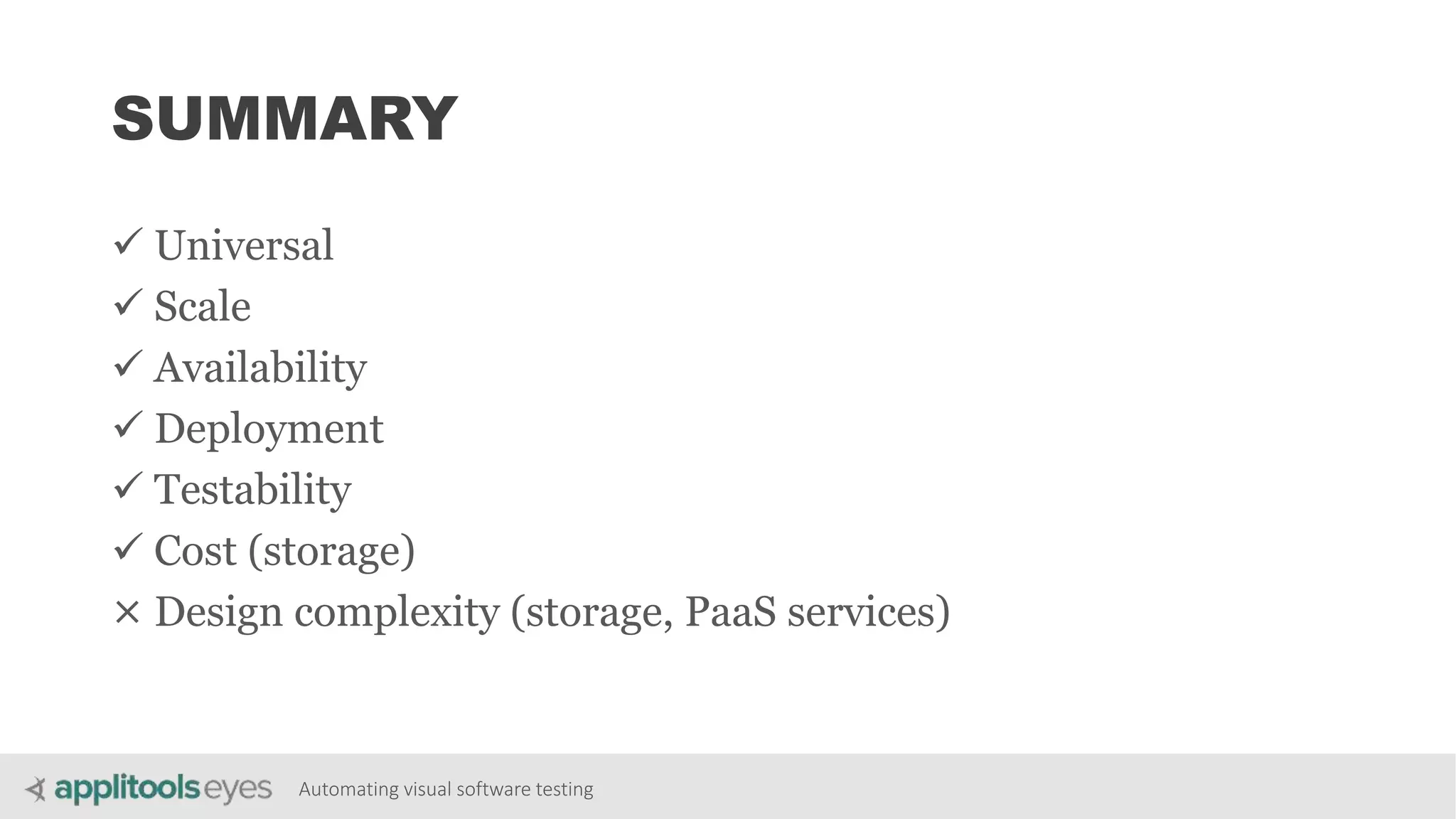

- 33. Automating visual softwaretesting SUMMARY Universal Scale Availability Deployment Testability Cost (storage) × Design complexity (storage, PaaS services)
- 34. Automating visual softwaretesting QUESTIONS? Adam Carmi Applitools Co-Founder & CTO
