Brief State of the Art - Semantic Web technologies for geospatial data - Modelling and interoperability
- 1.
- 2.
- 3. /37 Spatial Information Infrastructures SemanticWeb Spatial Semantic Web Introduction 3

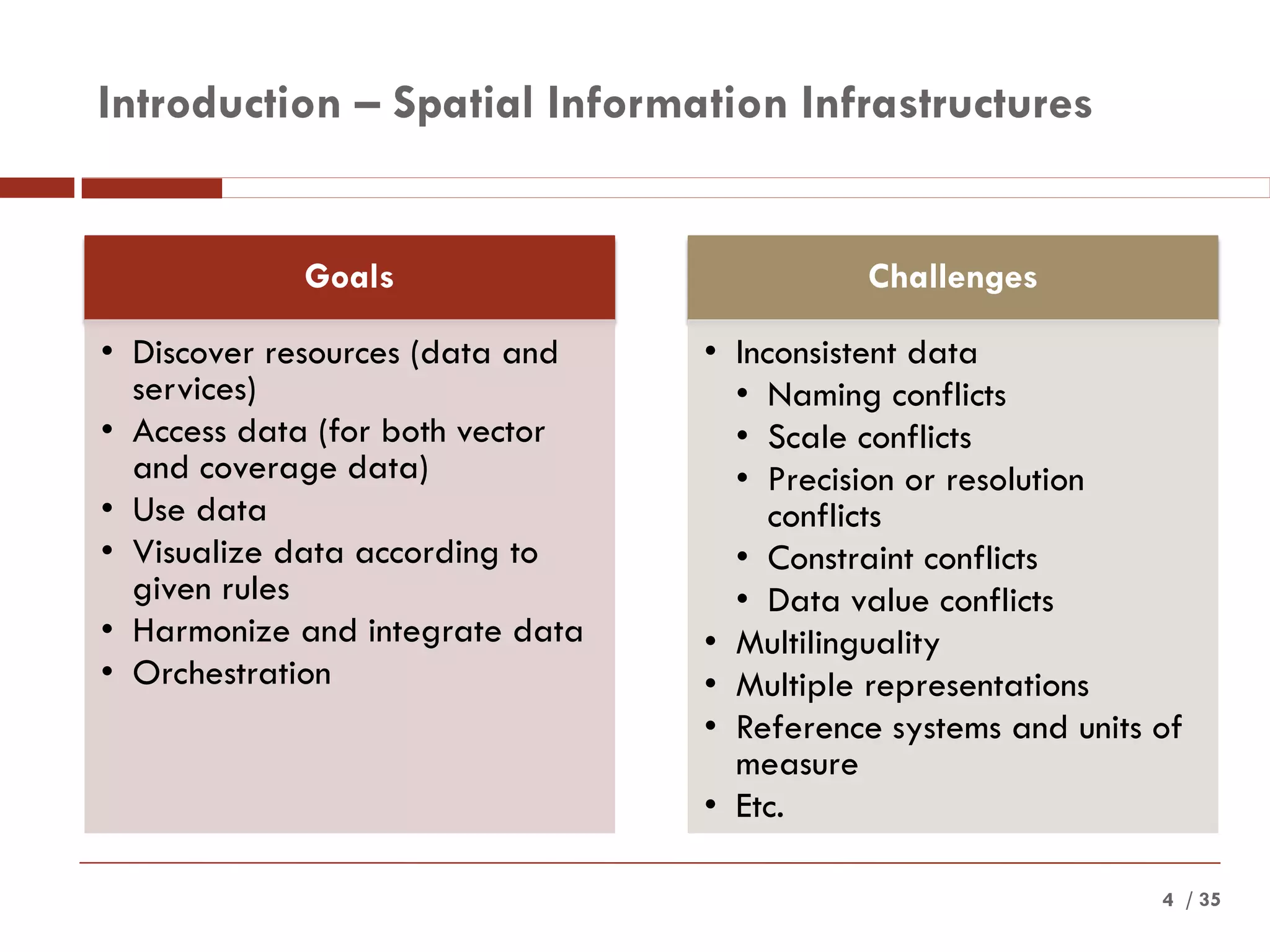

- 4. / 35 Introduction –Spatial Information Infrastructures 4 Goals • Discover resources (data and services) • Access data (for both vector and coverage data) • Use data • Visualize data according to given rules • Harmonize and integrate data • Orchestration Challenges • Inconsistent data • Naming conflicts • Scale conflicts • Precision or resolution conflicts • Constraint conflicts • Data value conflicts • Multilinguality • Multiple representations • Reference systems and units of measure • Etc.

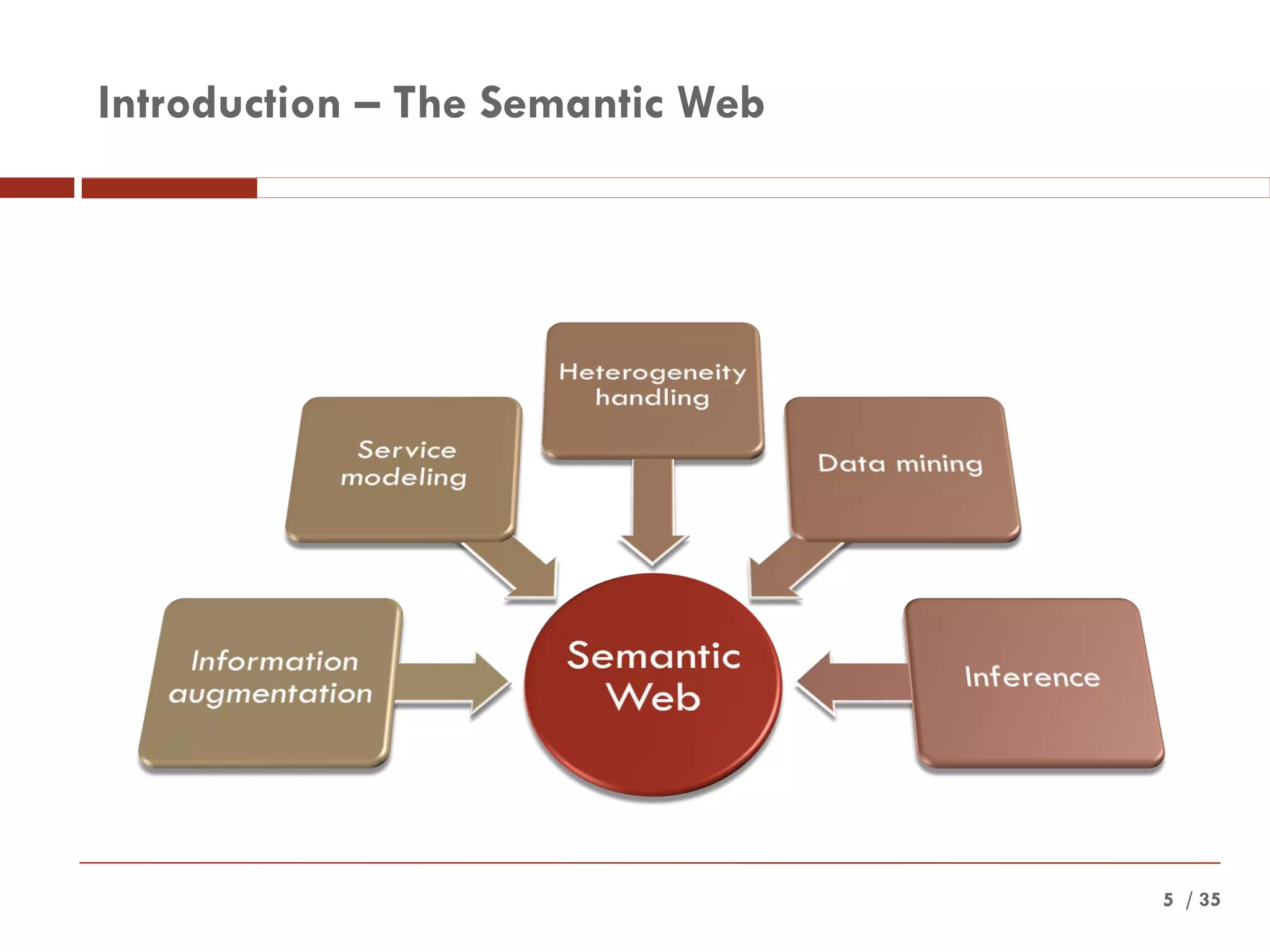

- 5. / 355 Introduction –The Semantic Web

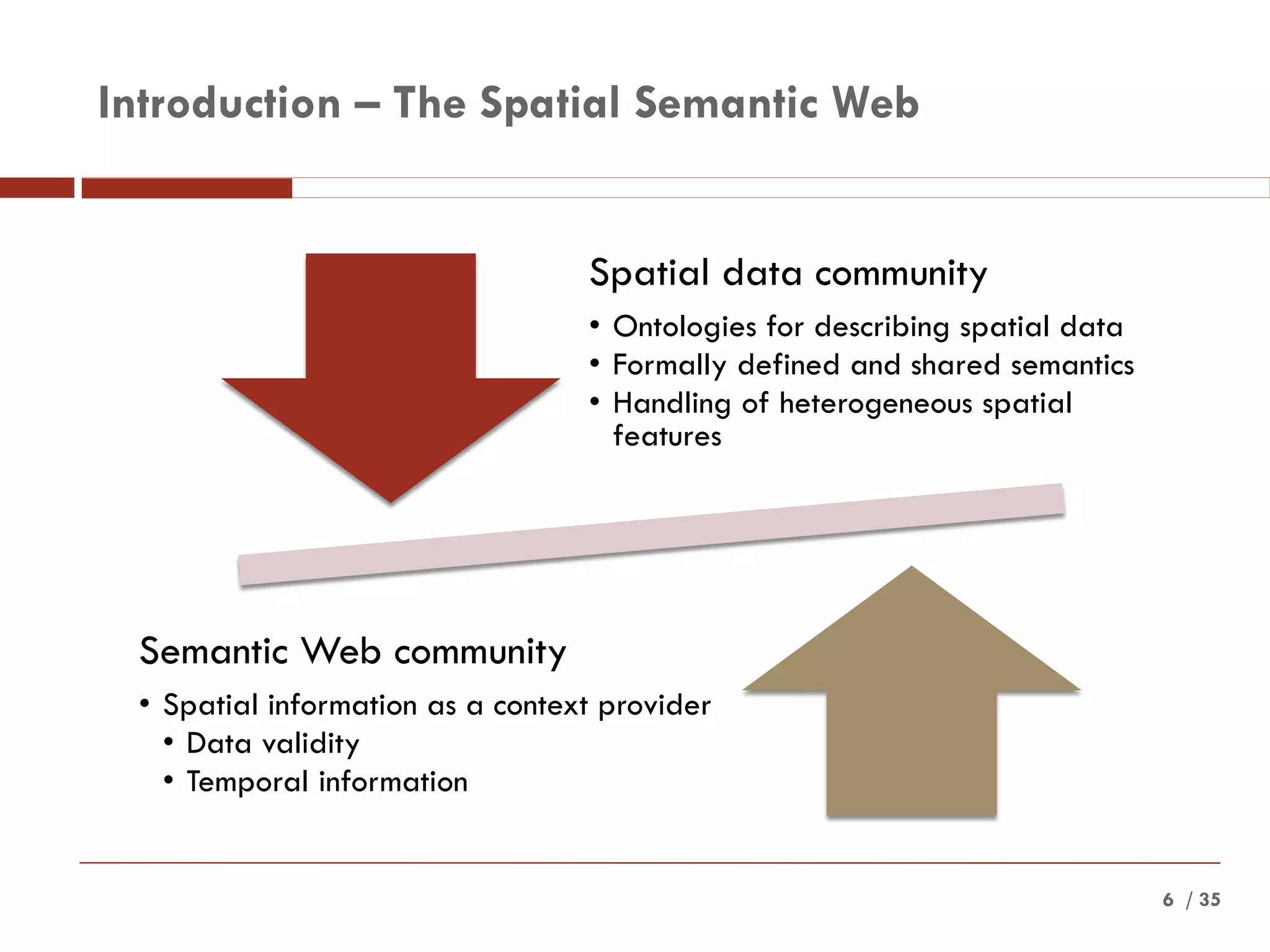

- 6. / 356 Introduction –The Spatial Semantic Web Spatial data community • Ontologies for describing spatial data • Formally defined and shared semantics • Handling of heterogeneous spatial features Semantic Web community • Spatial information as a context provider • Data validity • Temporal information

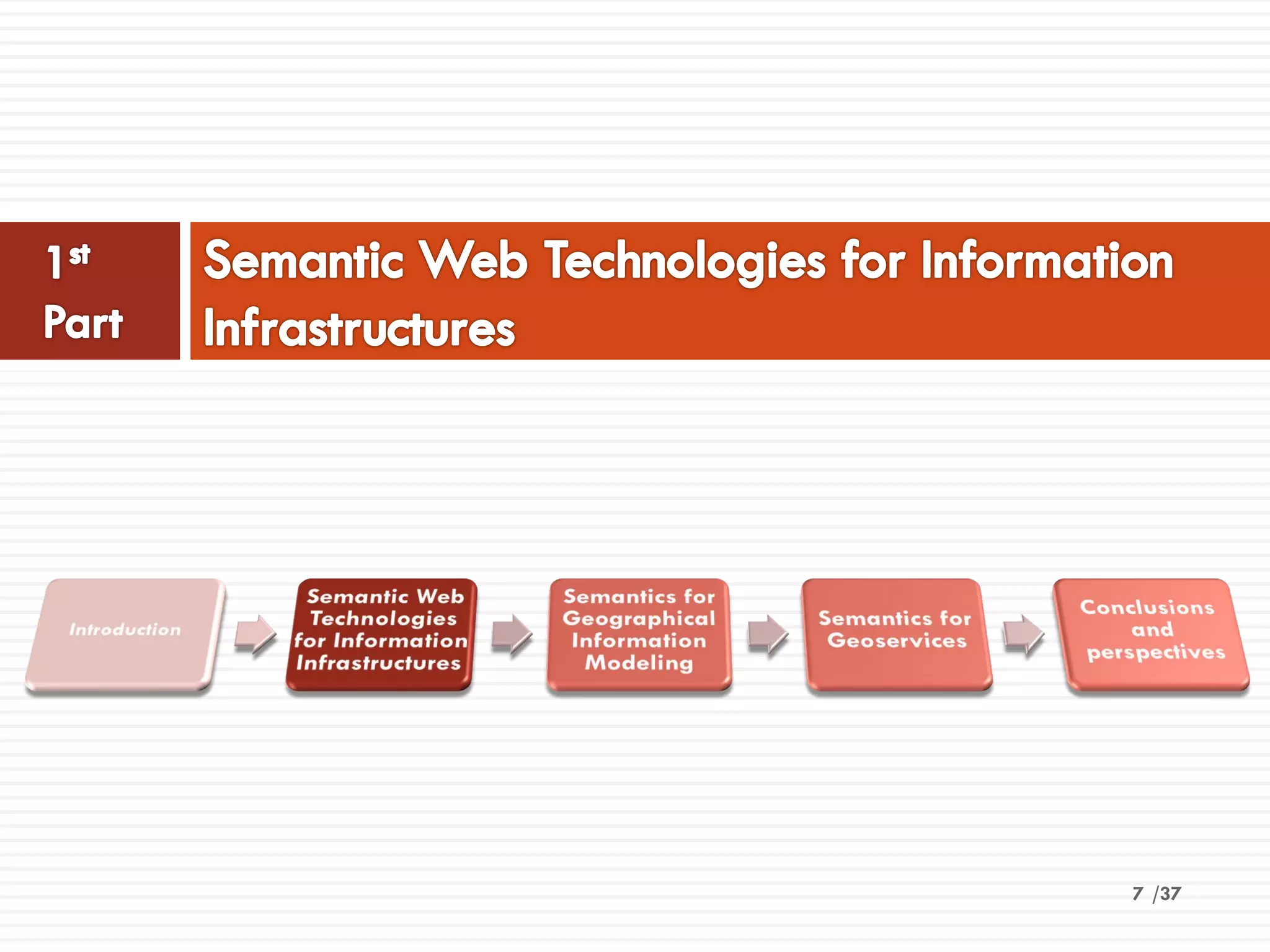

- 7.

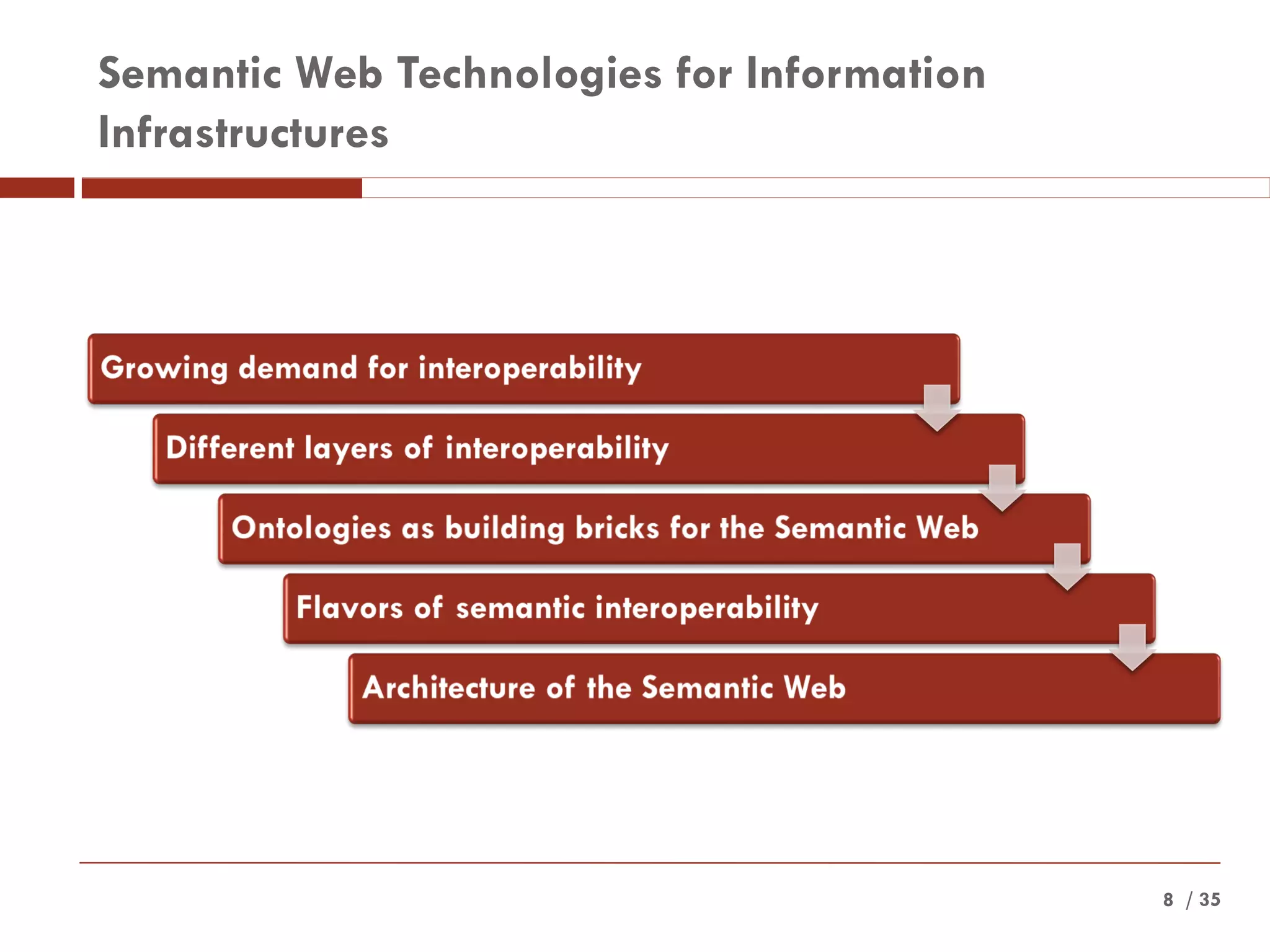

- 8. / 358 Semantic WebTechnologies for Information Infrastructures

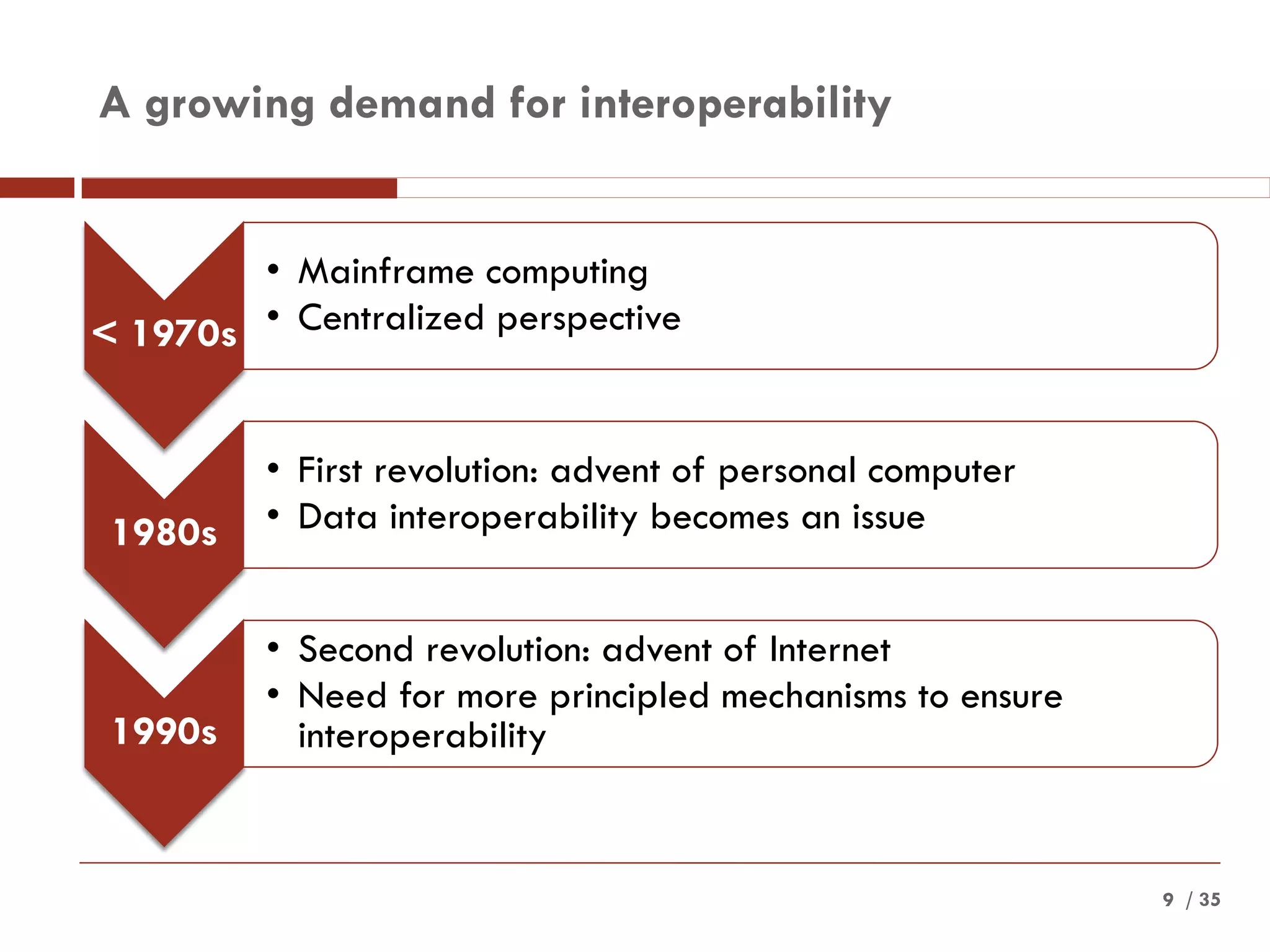

- 9. / 359 A growingdemand for interoperability < 1970s • Mainframe computing • Centralized perspective 1980s • First revolution: advent of personal computer • Data interoperability becomes an issue 1990s • Second revolution: advent of Internet • Need for more principled mechanisms to ensure interoperability

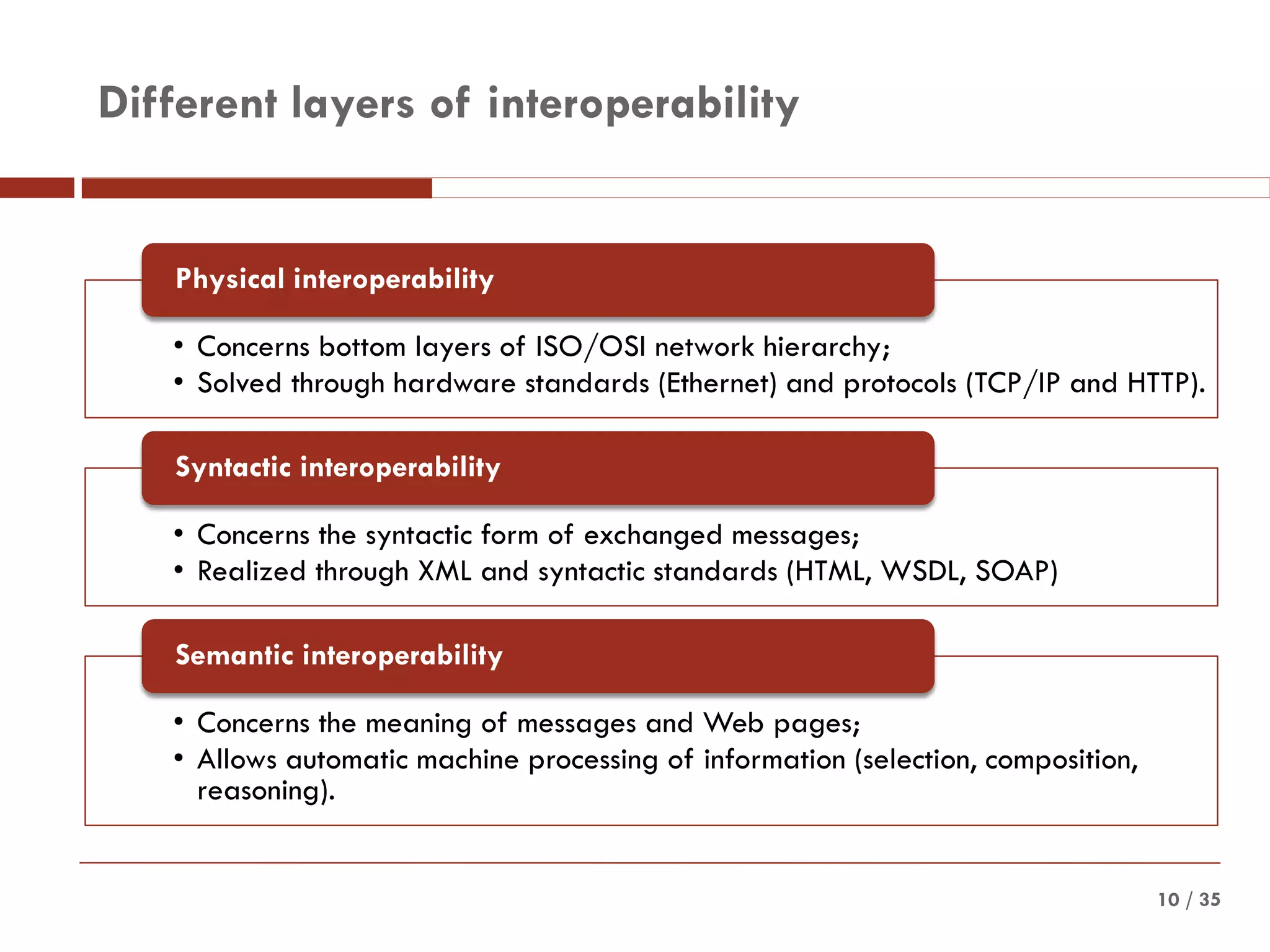

- 10. / 3510 Different layersof interoperability • Concerns bottom layers of ISO/OSI network hierarchy; • Solved through hardware standards (Ethernet) and protocols (TCP/IP and HTTP). Physical interoperability • Concerns the syntactic form of exchanged messages; • Realized through XML and syntactic standards (HTML, WSDL, SOAP) Syntactic interoperability • Concerns the meaning of messages and Web pages; • Allows automatic machine processing of information (selection, composition, reasoning). Semantic interoperability

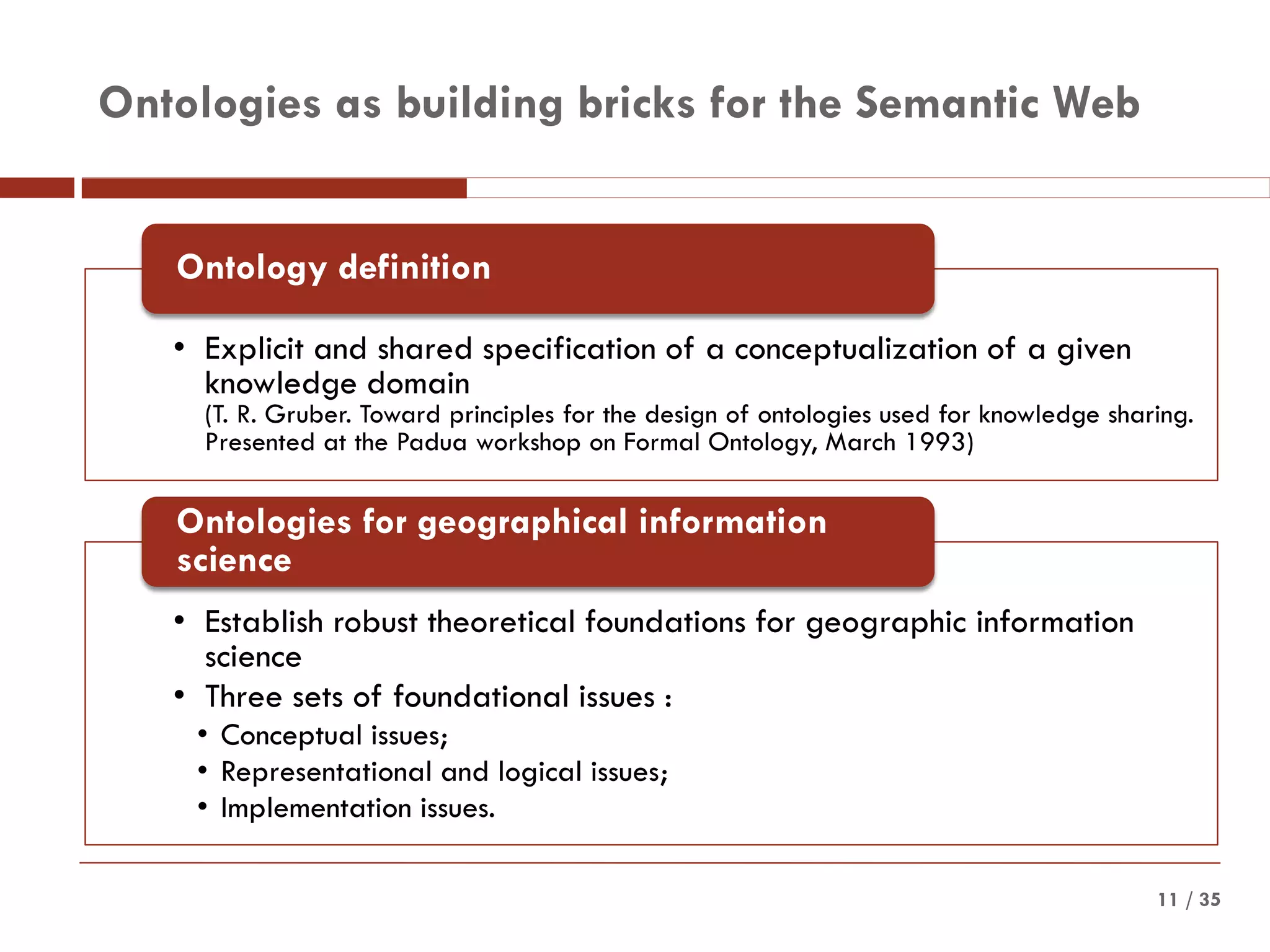

- 11. / 3511 Ontologies asbuilding bricks for the Semantic Web • Explicit and shared specification of a conceptualization of a given knowledge domain (T. R. Gruber. Toward principles for the design of ontologies used for knowledge sharing. Presented at the Padua workshop on Formal Ontology, March 1993) Ontology definition • Establish robust theoretical foundations for geographic information science • Three sets of foundational issues : • Conceptual issues; • Representational and logical issues; • Implementation issues. Ontologies for geographical information science
- 12.

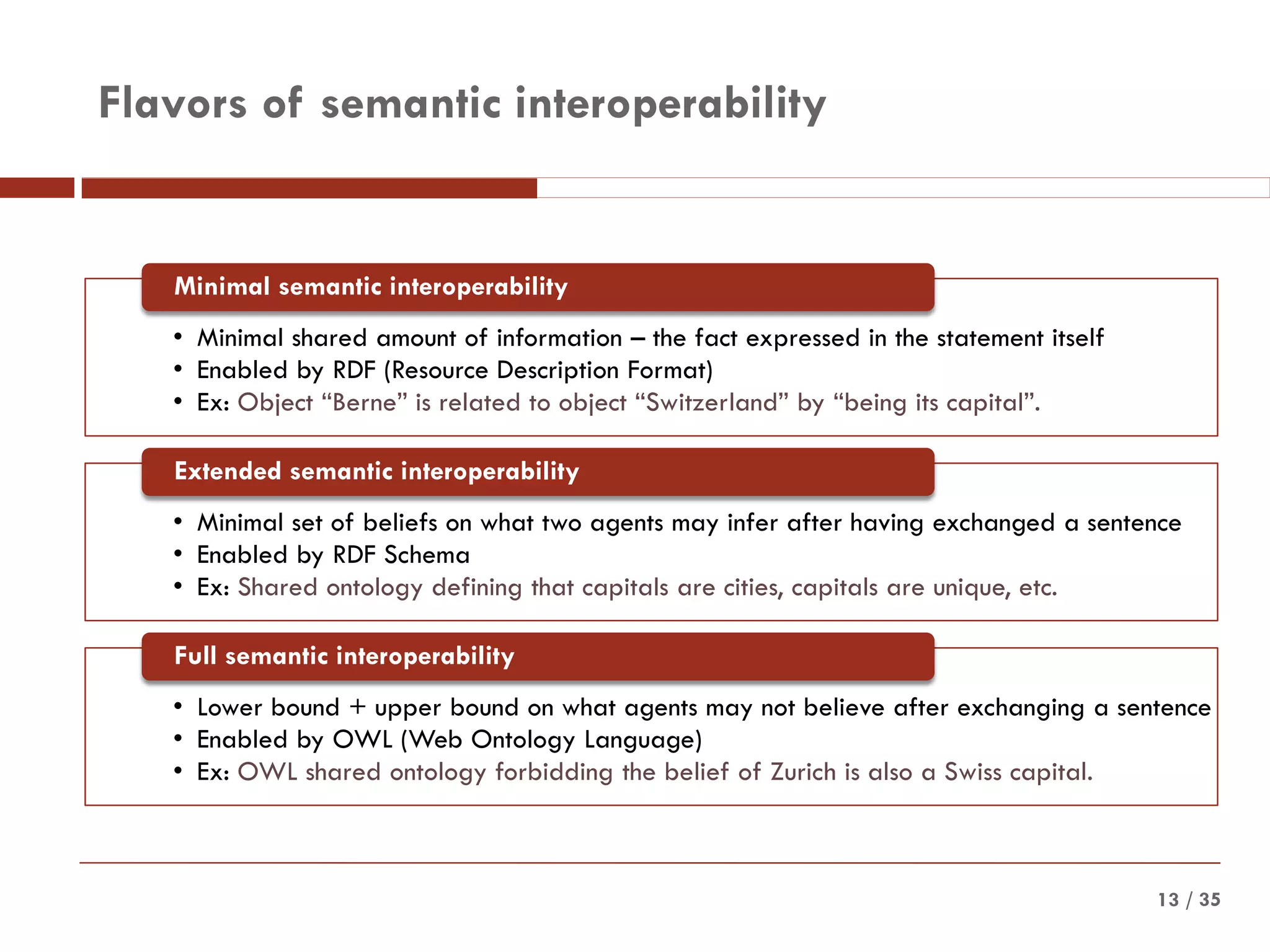

- 13. / 3513 Flavors ofsemantic interoperability • Minimal shared amount of information – the fact expressed in the statement itself • Enabled by RDF (Resource Description Format) • Ex: Object “Berne” is related to object “Switzerland” by “being its capital”. Minimal semantic interoperability • Minimal set of beliefs on what two agents may infer after having exchanged a sentence • Enabled by RDF Schema • Ex: Shared ontology defining that capitals are cities, capitals are unique, etc. Extended semantic interoperability • Lower bound + upper bound on what agents may not believe after exchanging a sentence • Enabled by OWL (Web Ontology Language) • Ex: OWL shared ontology forbidding the belief of Zurich is also a Swiss capital. Full semantic interoperability

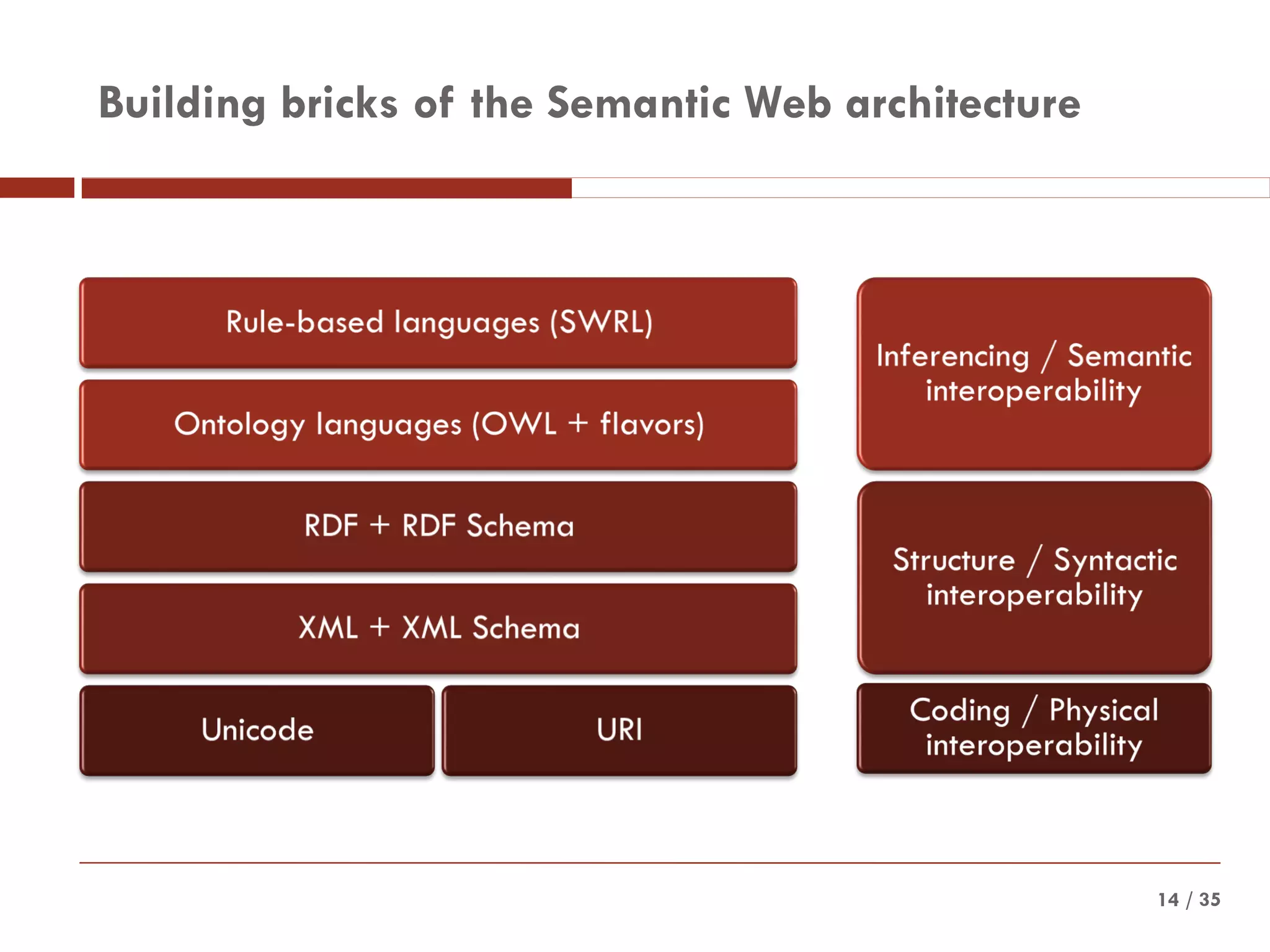

- 14. / 3514 Building bricksof the Semantic Web architecture

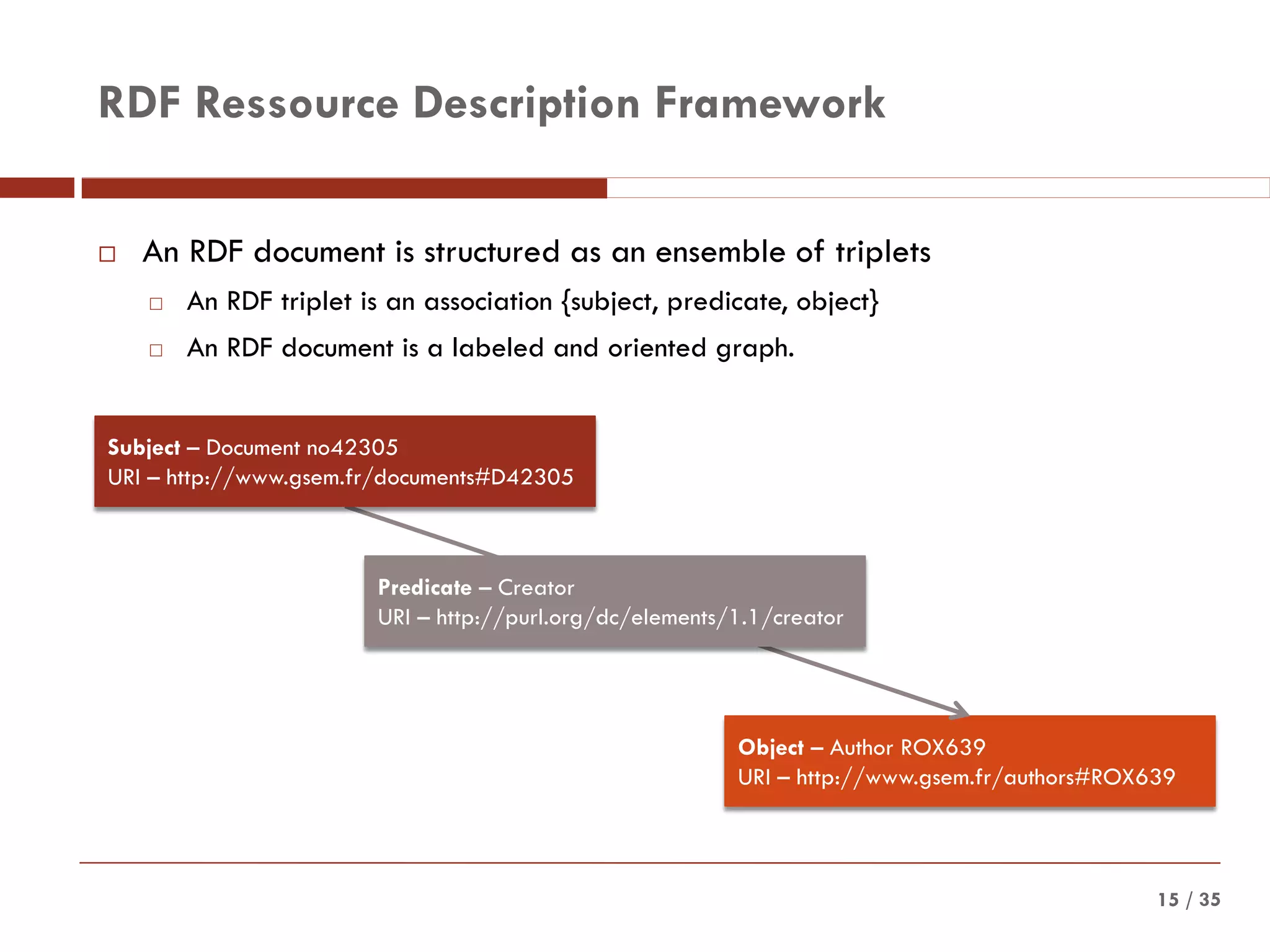

- 15. / 3515 RDF RessourceDescription Framework An RDF document is structured as an ensemble of triplets An RDF triplet is an association {subject, predicate, object} An RDF document is a labeled and oriented graph. Object – Author ROX639 URI – http://www.gsem.fr/authors#ROX639 Predicate – Creator URI – http://purl.org/dc/elements/1.1/creator Subject – Document no42305 URI – http://www.gsem.fr/documents#D42305

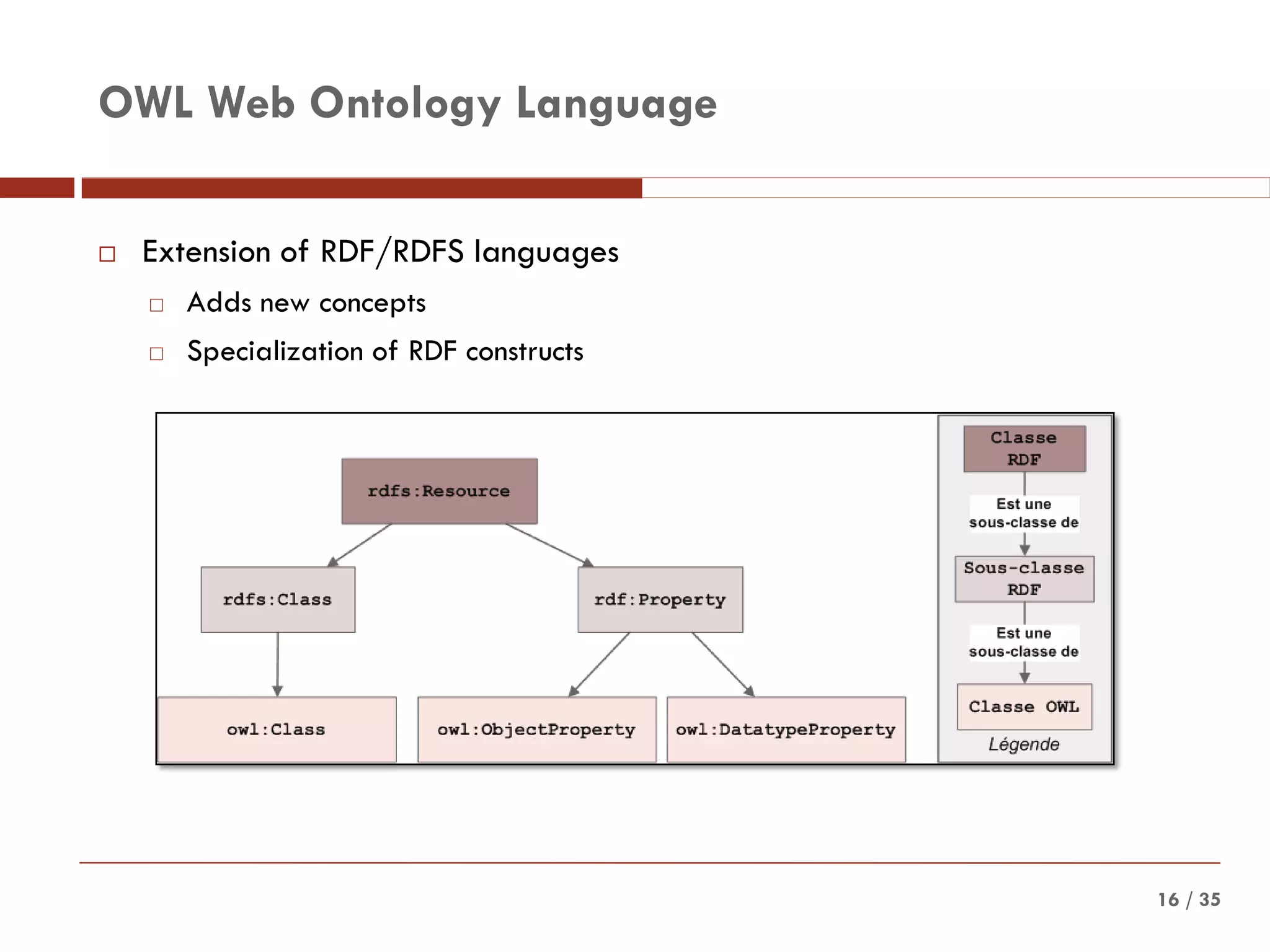

- 16. / 3516 OWL WebOntology Language Extension of RDF/RDFS languages Adds new concepts Specialization of RDF constructs

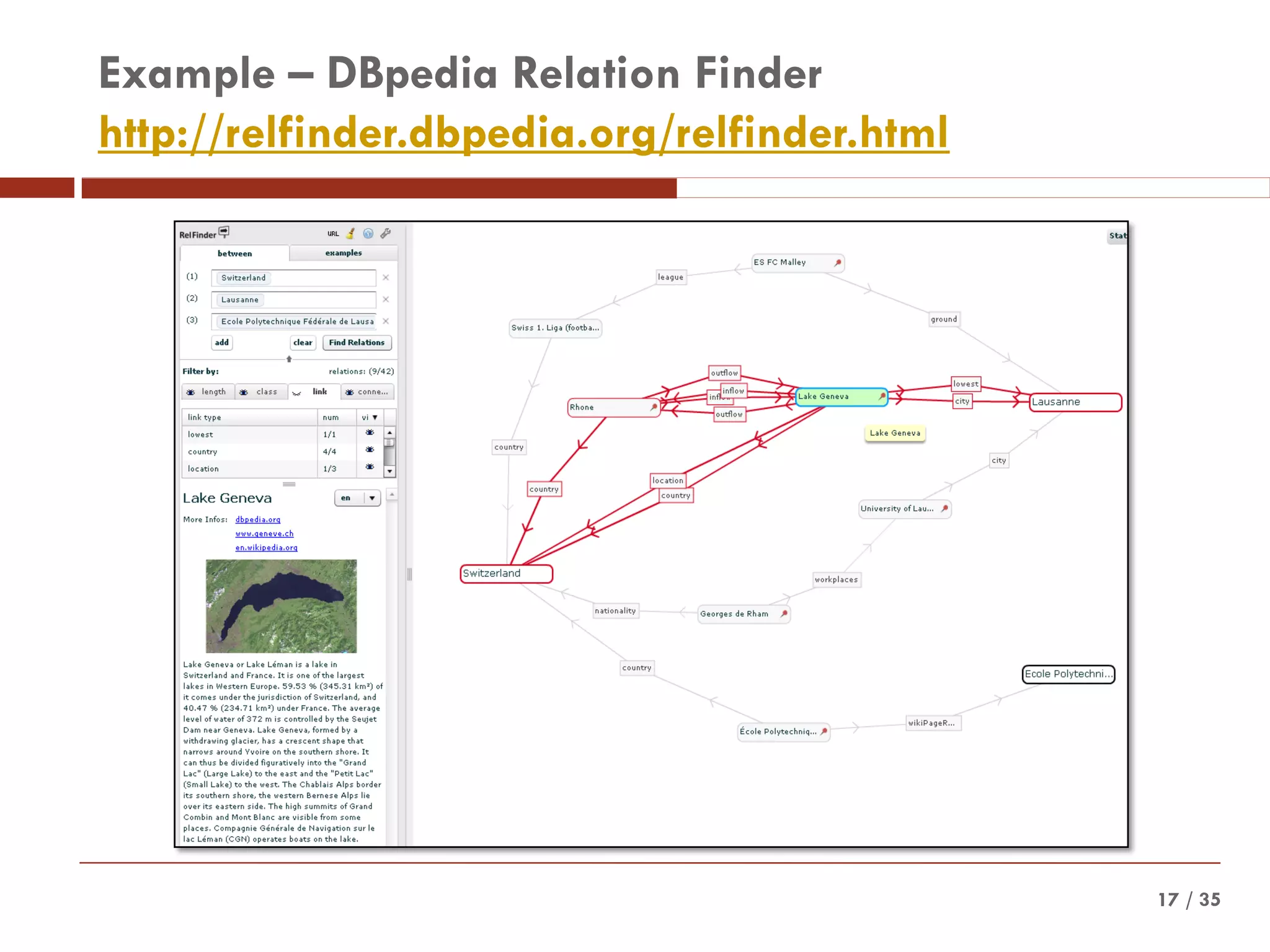

- 17. / 3517 Example –DBpedia Relation Finder http://relfinder.dbpedia.org/relfinder.html

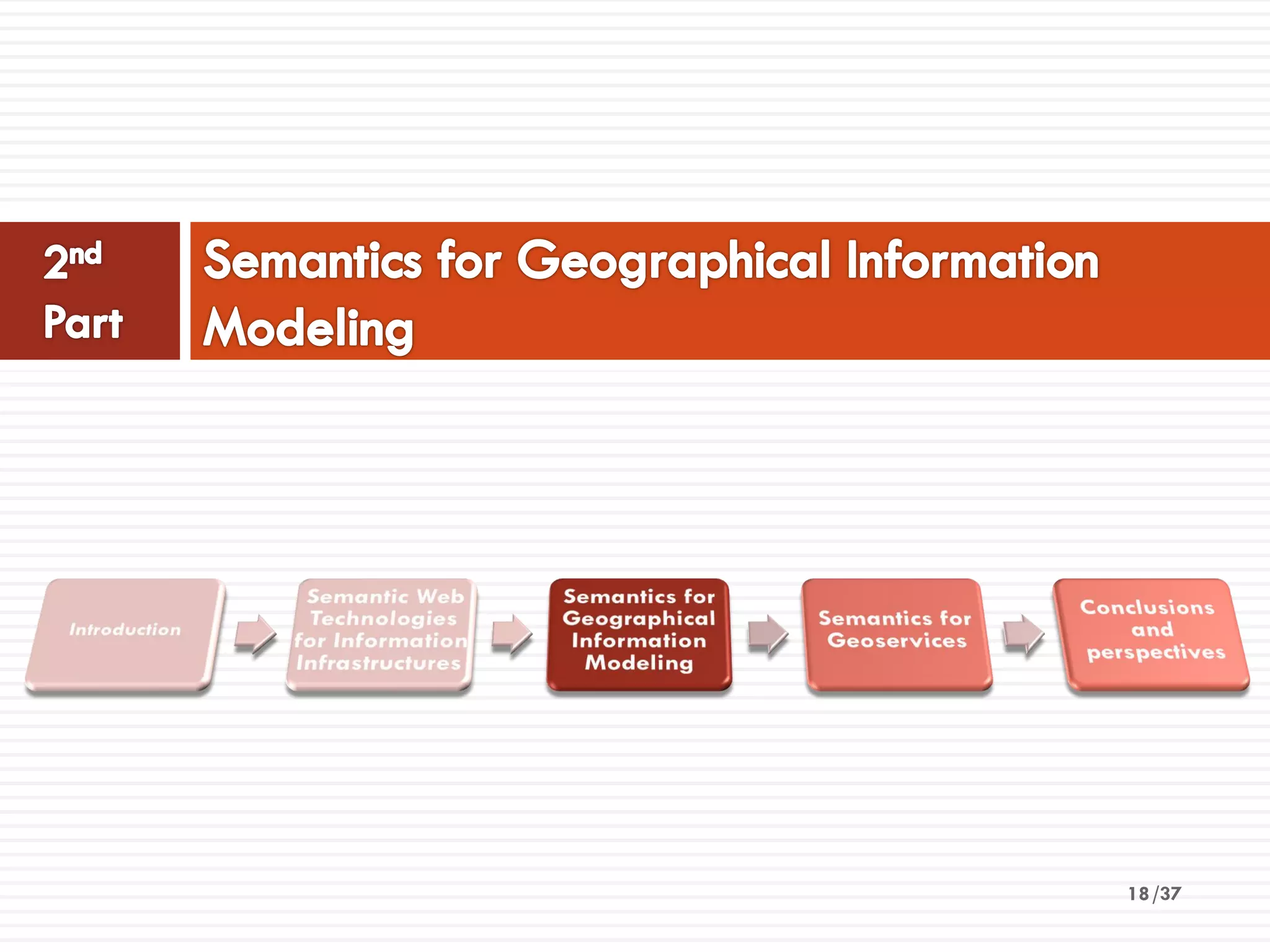

- 18.

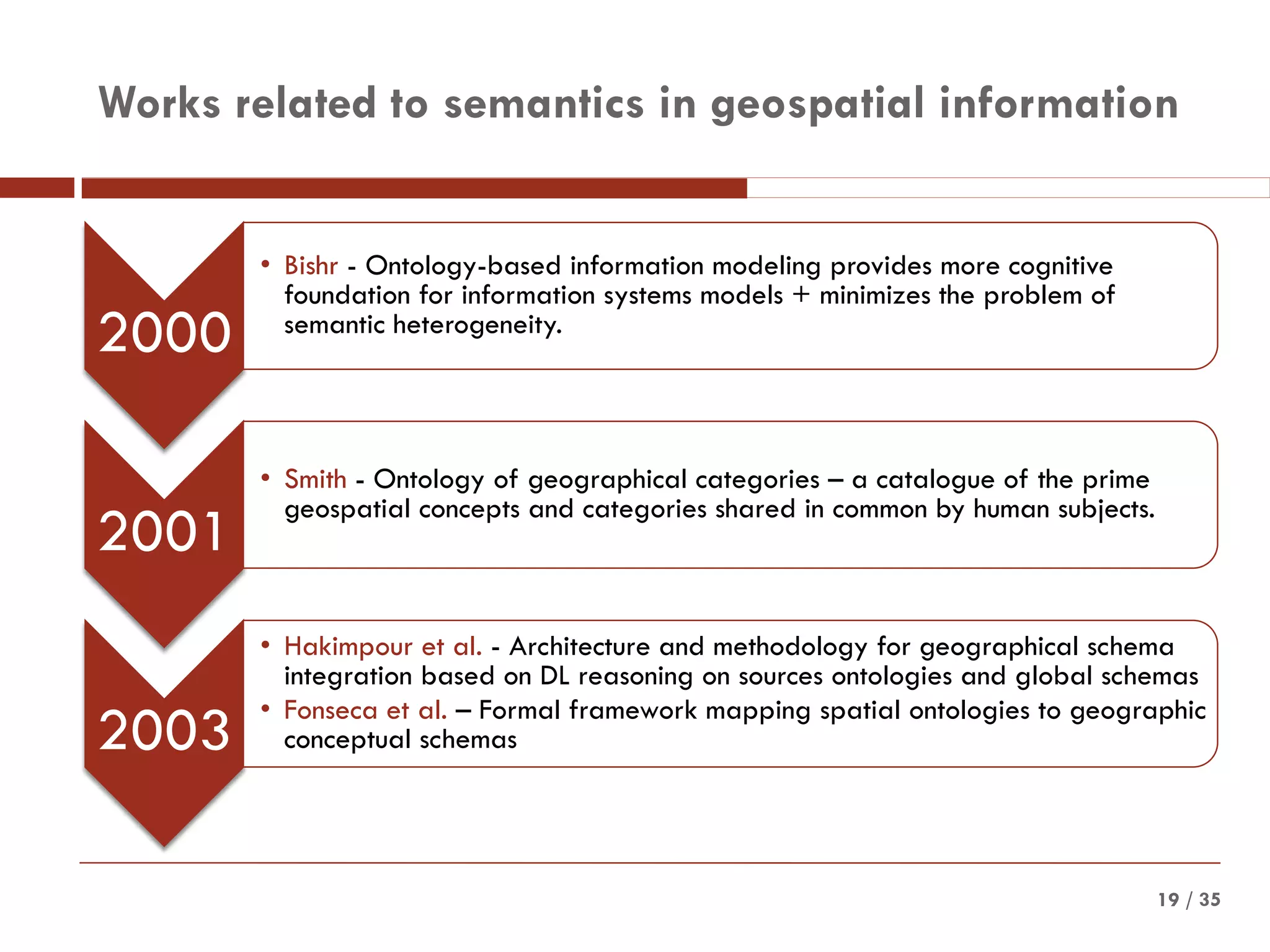

- 19. / 3519 Works relatedto semantics in geospatial information 2000 • Bishr - Ontology-based information modeling provides more cognitive foundation for information systems models + minimizes the problem of semantic heterogeneity. 2001 • Smith - Ontology of geographical categories – a catalogue of the prime geospatial concepts and categories shared in common by human subjects. 2003 • Hakimpour et al. - Architecture and methodology for geographical schema integration based on DL reasoning on sources ontologies and global schemas • Fonseca et al. – Formal framework mapping spatial ontologies to geographic conceptual schemas

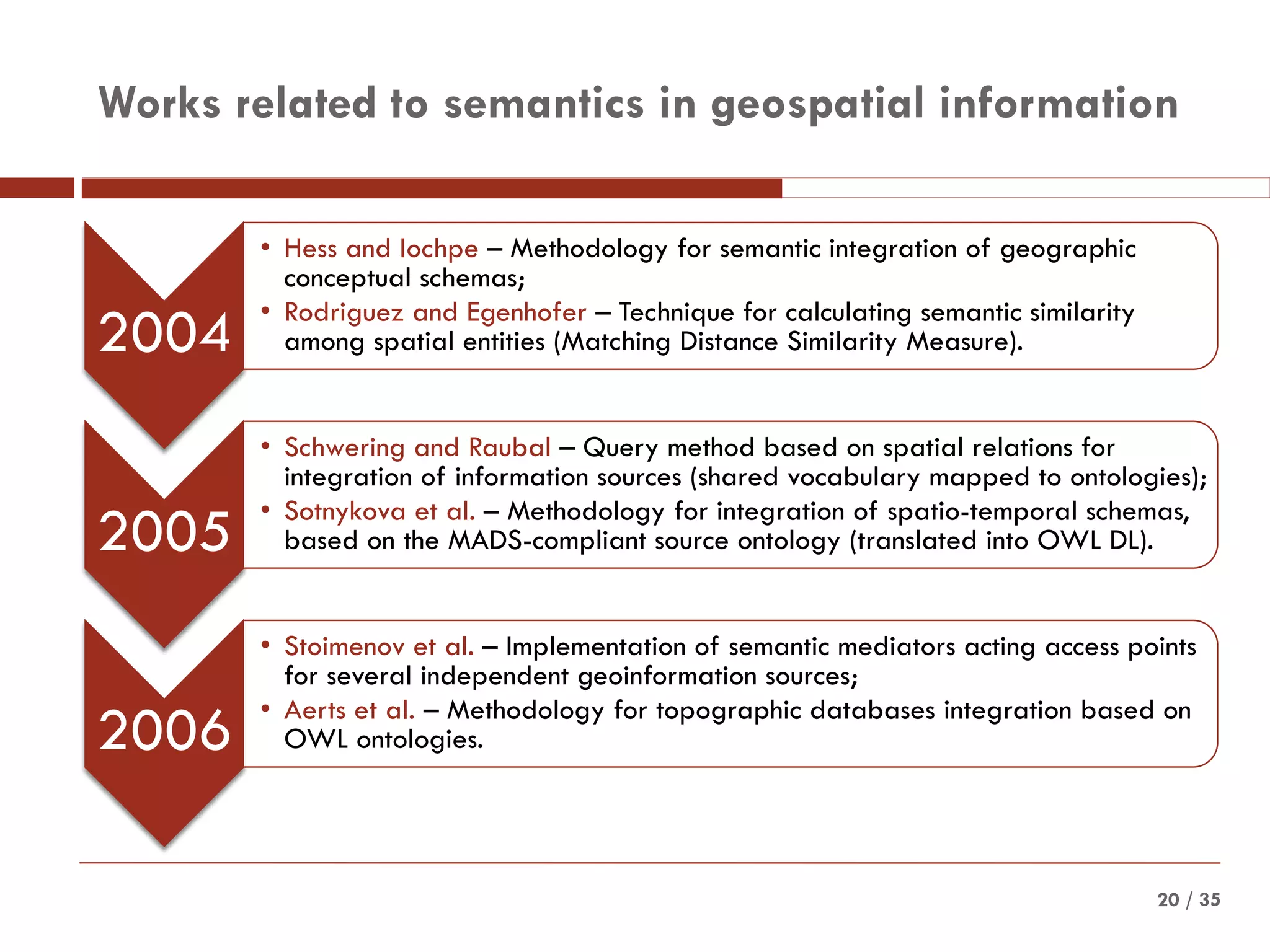

- 20. / 3520 Works relatedto semantics in geospatial information 2004 • Hess and Iochpe – Methodology for semantic integration of geographic conceptual schemas; • Rodriguez and Egenhofer – Technique for calculating semantic similarity among spatial entities (Matching Distance Similarity Measure). 2005 • Schwering and Raubal – Query method based on spatial relations for integration of information sources (shared vocabulary mapped to ontologies); • Sotnykova et al. – Methodology for integration of spatio-temporal schemas, based on the MADS-compliant source ontology (translated into OWL DL). 2006 • Stoimenov et al. – Implementation of semantic mediators acting access points for several independent geoinformation sources; • Aerts et al. – Methodology for topographic databases integration based on OWL ontologies.

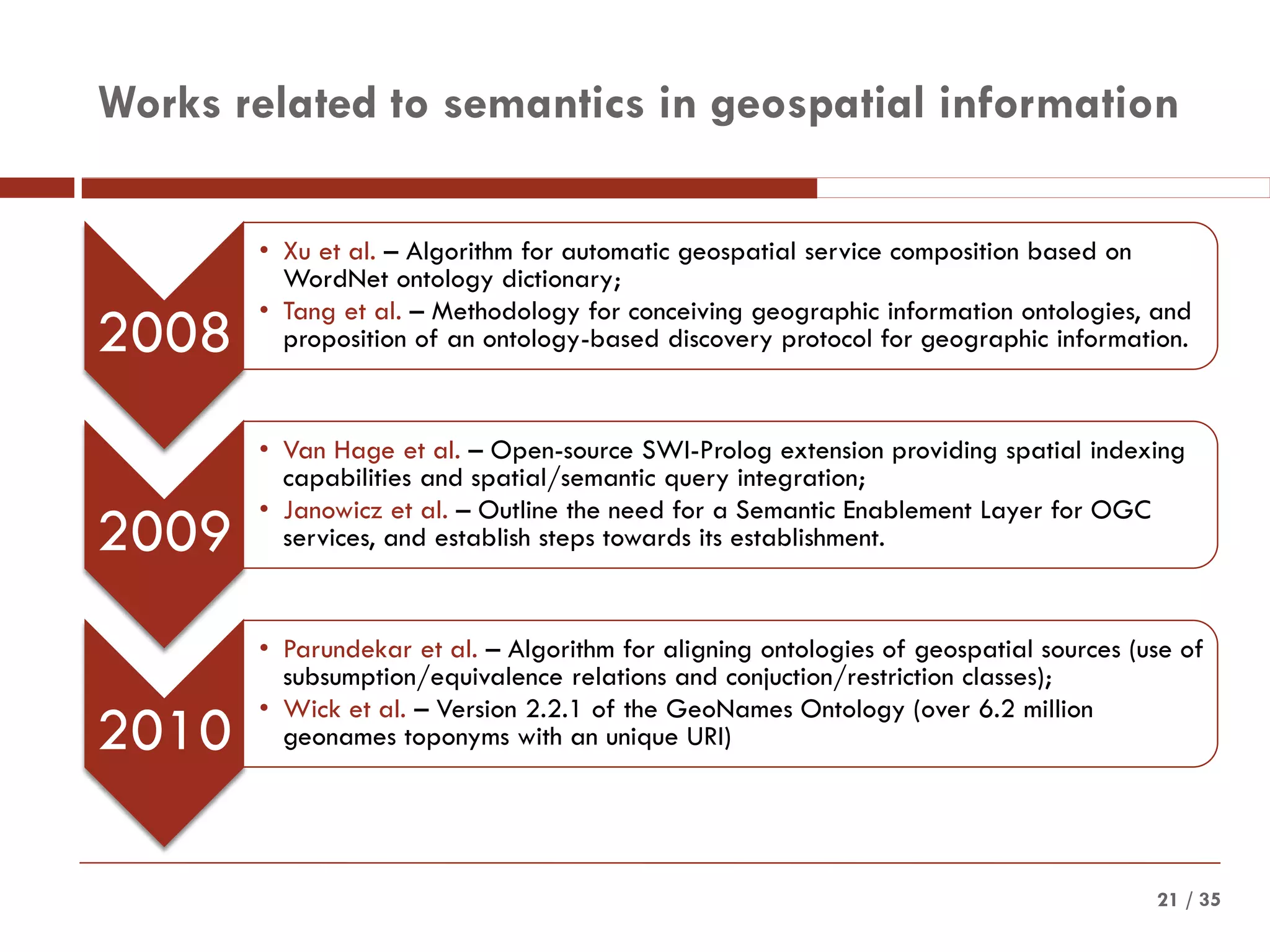

- 21. / 3521 Works relatedto semantics in geospatial information 2008 • Xu et al. – Algorithm for automatic geospatial service composition based on WordNet ontology dictionary; • Tang et al. – Methodology for conceiving geographic information ontologies, and proposition of an ontology-based discovery protocol for geographic information. 2009 • Van Hage et al. – Open-source SWI-Prolog extension providing spatial indexing capabilities and spatial/semantic query integration; • Janowicz et al. – Outline the need for a Semantic Enablement Layer for OGC services, and establish steps towards its establishment. 2010 • Parundekar et al. – Algorithm for aligning ontologies of geospatial sources (use of subsumption/equivalence relations and conjuction/restriction classes); • Wick et al. – Version 2.2.1 of the GeoNames Ontology (over 6.2 million geonames toponyms with an unique URI)

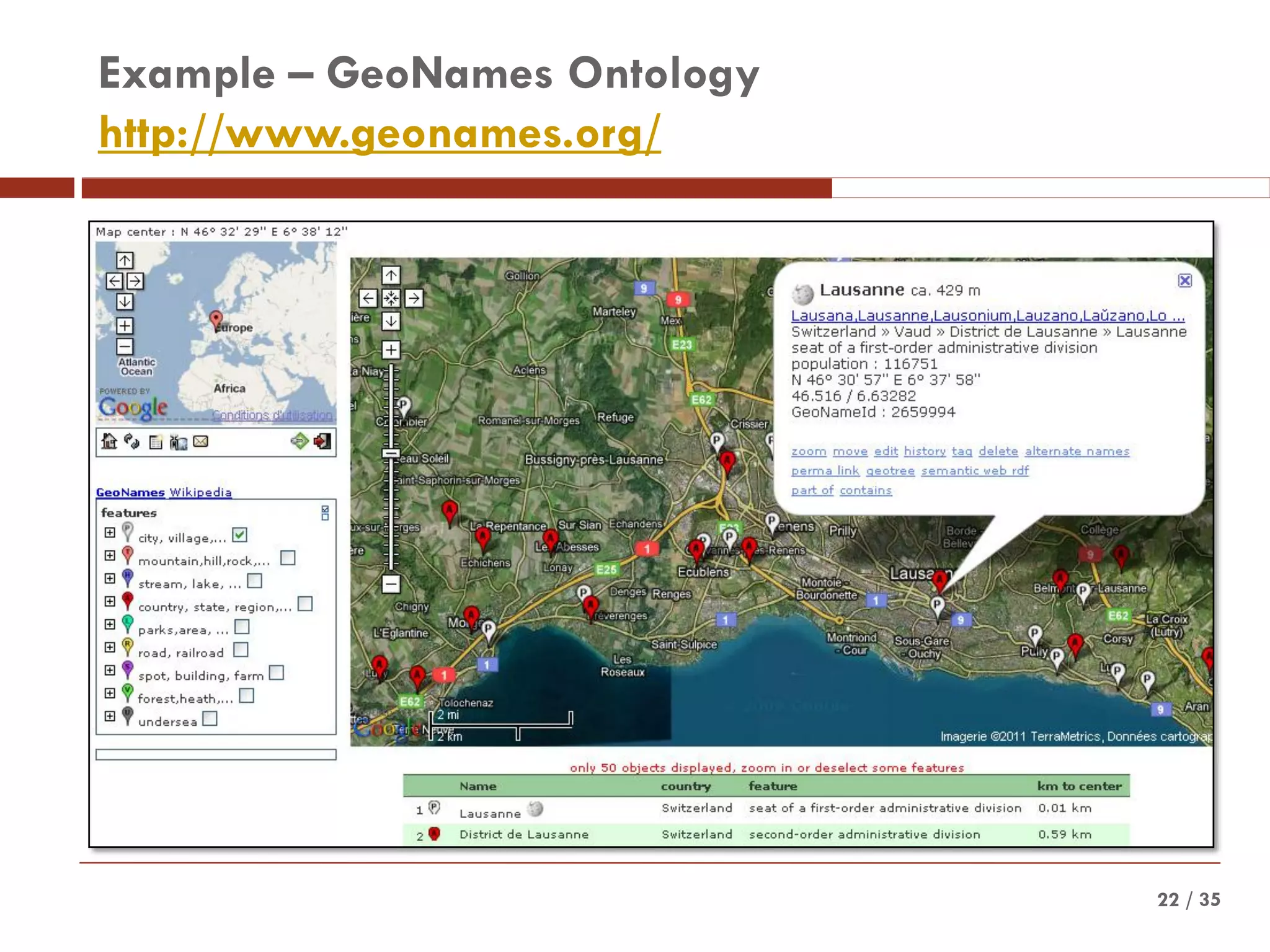

- 22. / 3522 Example –GeoNames Ontology http://www.geonames.org/

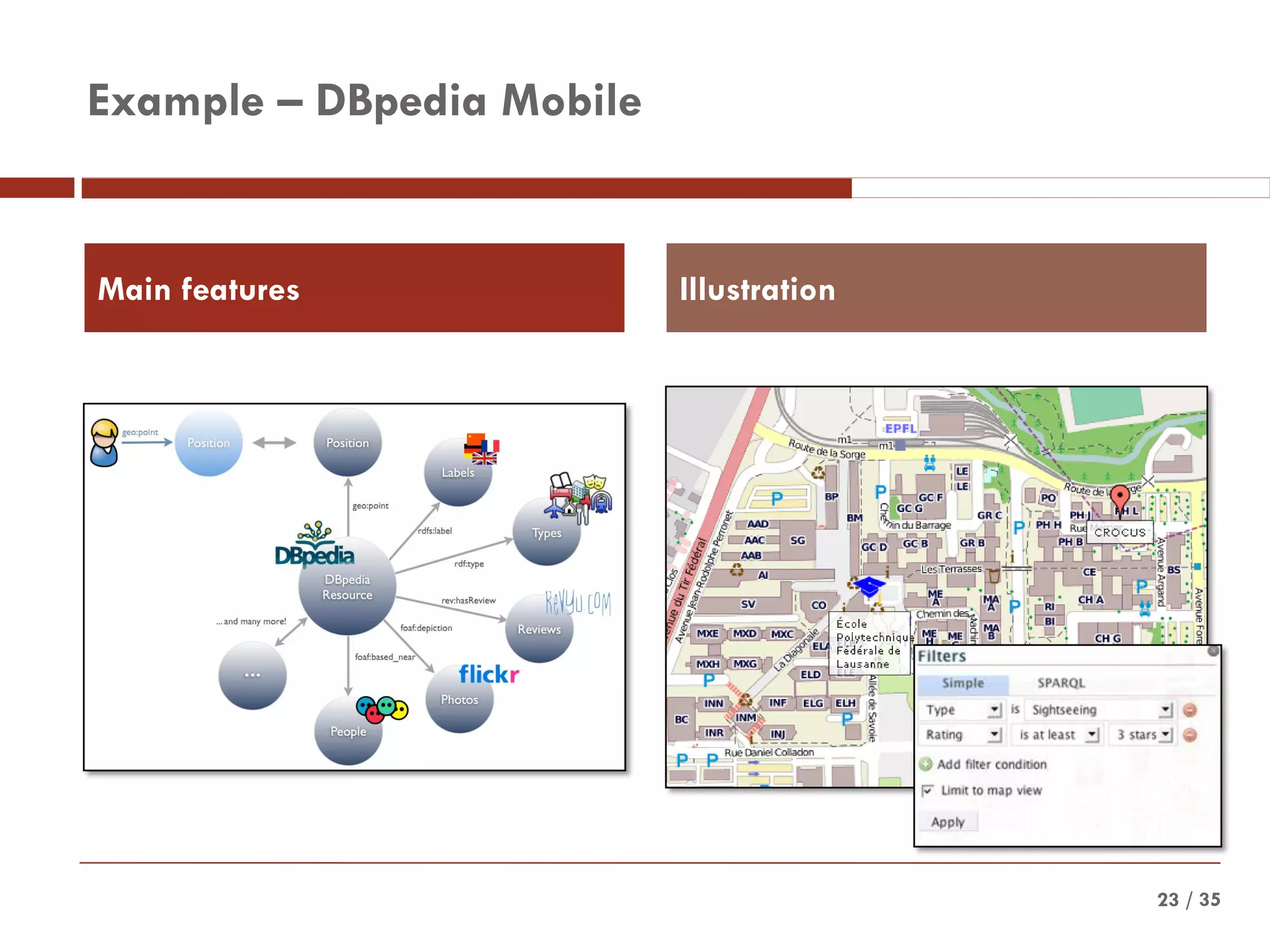

- 23. / 35 Example –DBpedia Mobile 23 Main features Illustration
- 24.

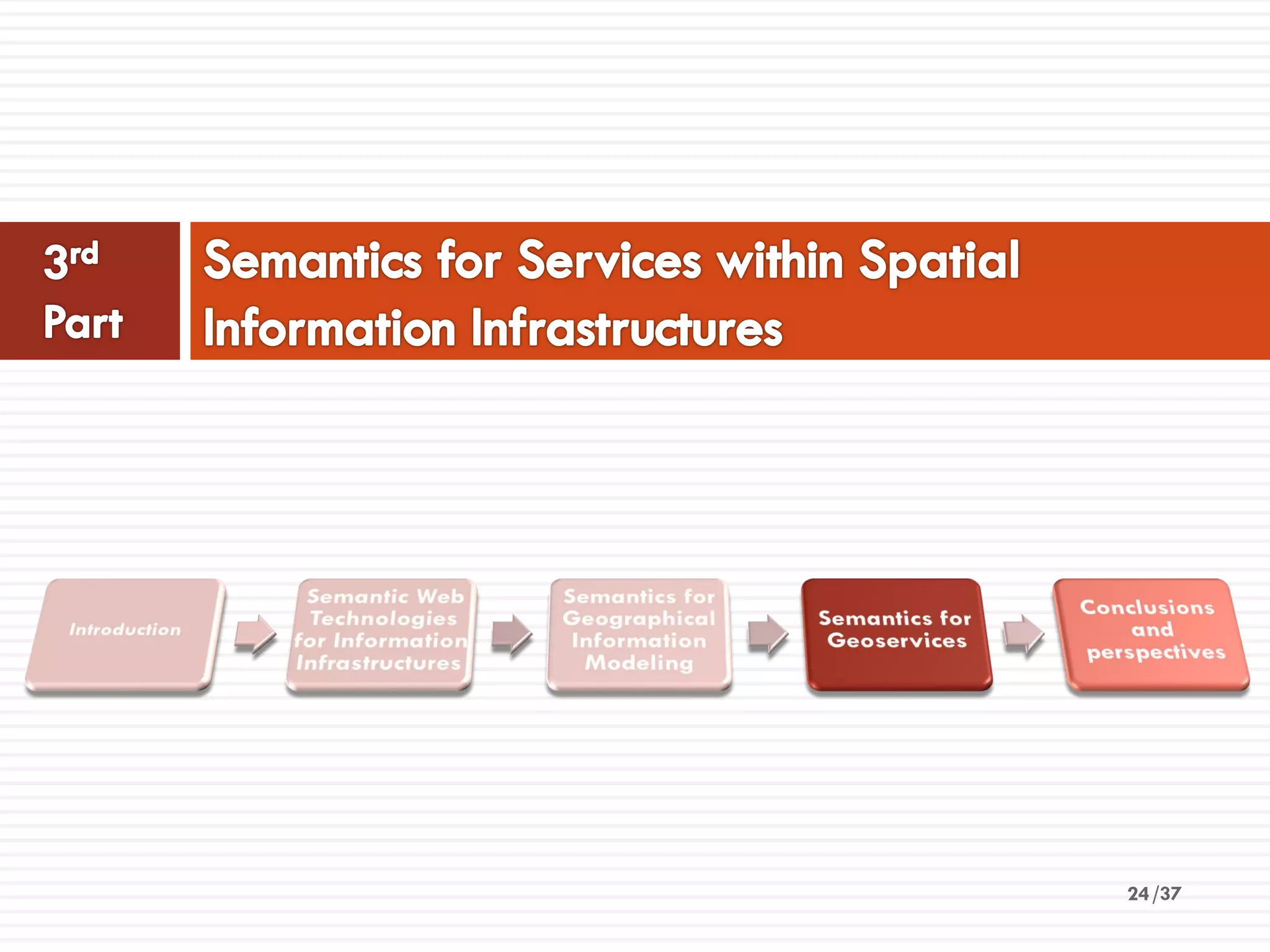

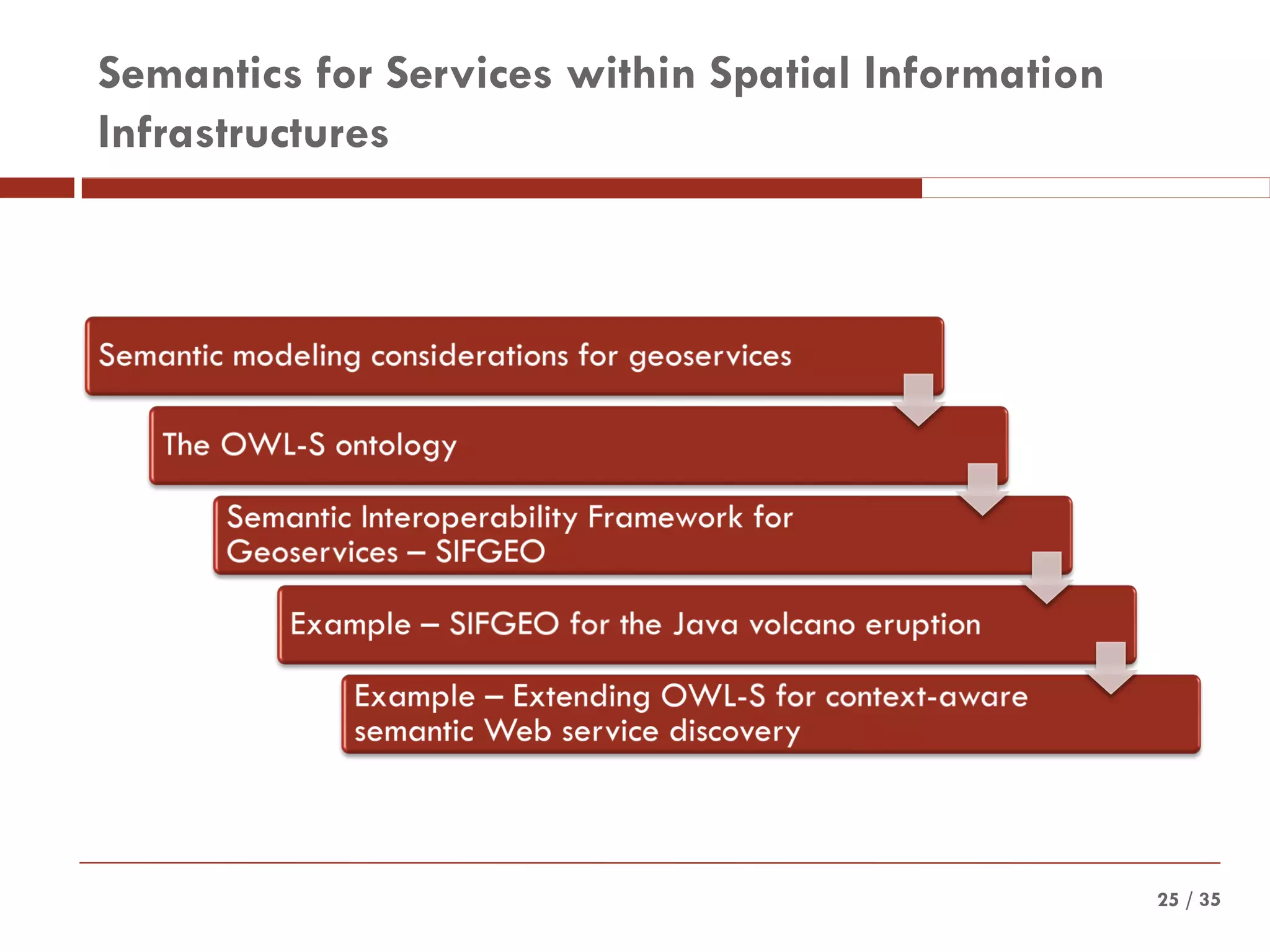

- 25. / 3525 Semantics forServices within Spatial Information Infrastructures

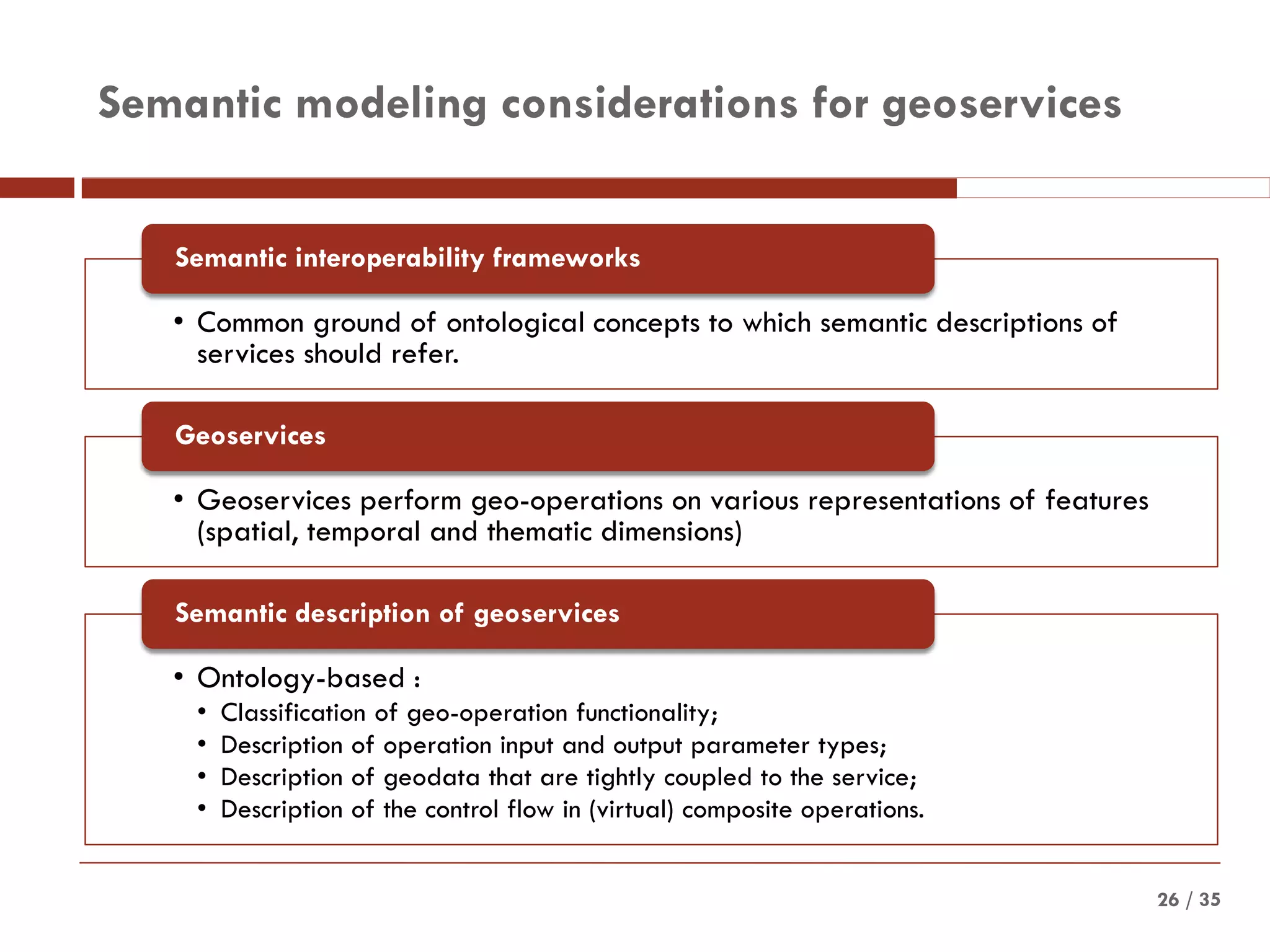

- 26. / 3526 Semantic modelingconsiderations for geoservices • Common ground of ontological concepts to which semantic descriptions of services should refer. Semantic interoperability frameworks • Geoservices perform geo-operations on various representations of features (spatial, temporal and thematic dimensions) Geoservices • Ontology-based : • Classification of geo-operation functionality; • Description of operation input and output parameter types; • Description of geodata that are tightly coupled to the service; • Description of the control flow in (virtual) composite operations. Semantic description of geoservices

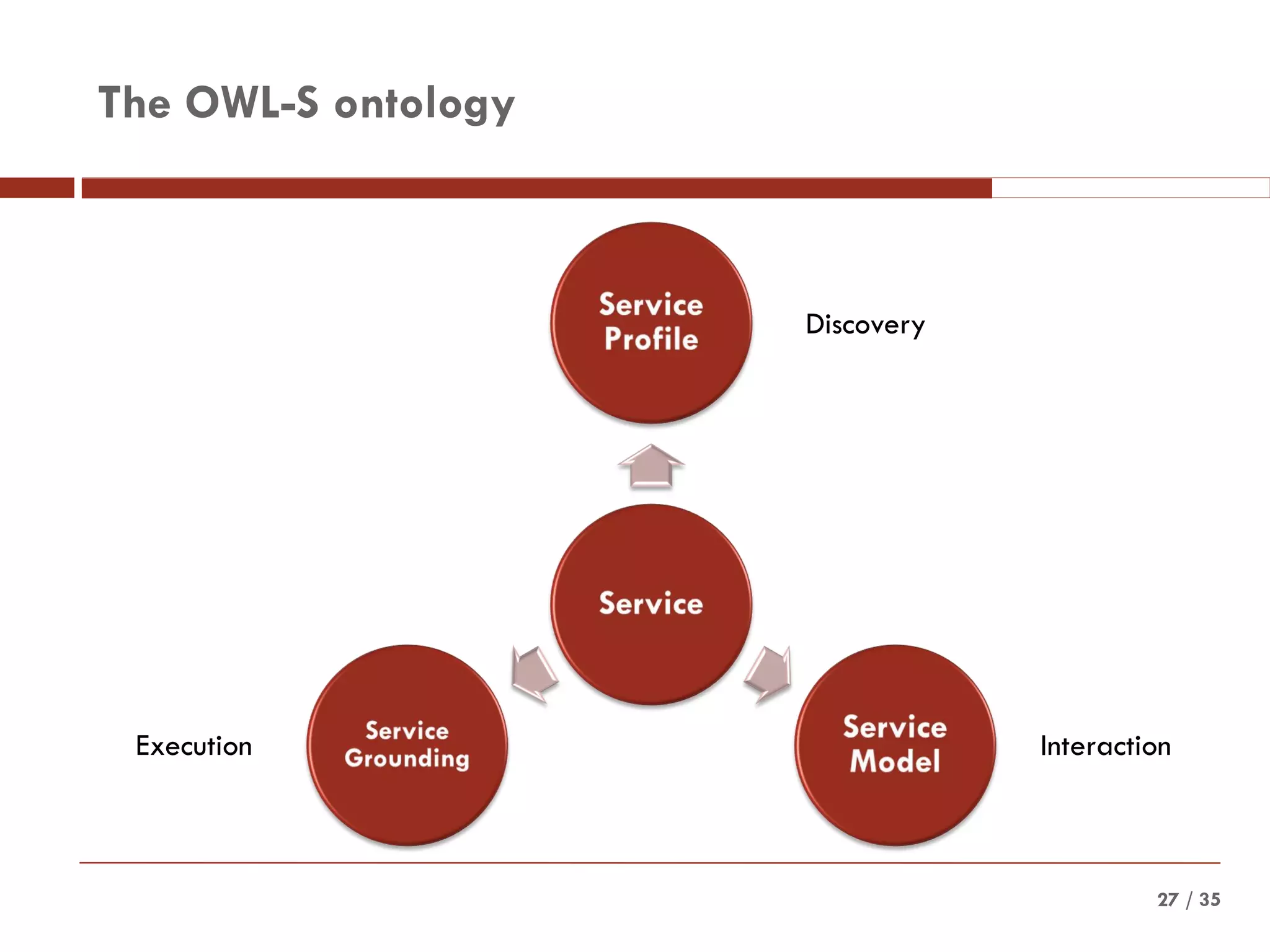

- 27. / 3527 The OWL-Sontology Discovery InteractionExecution

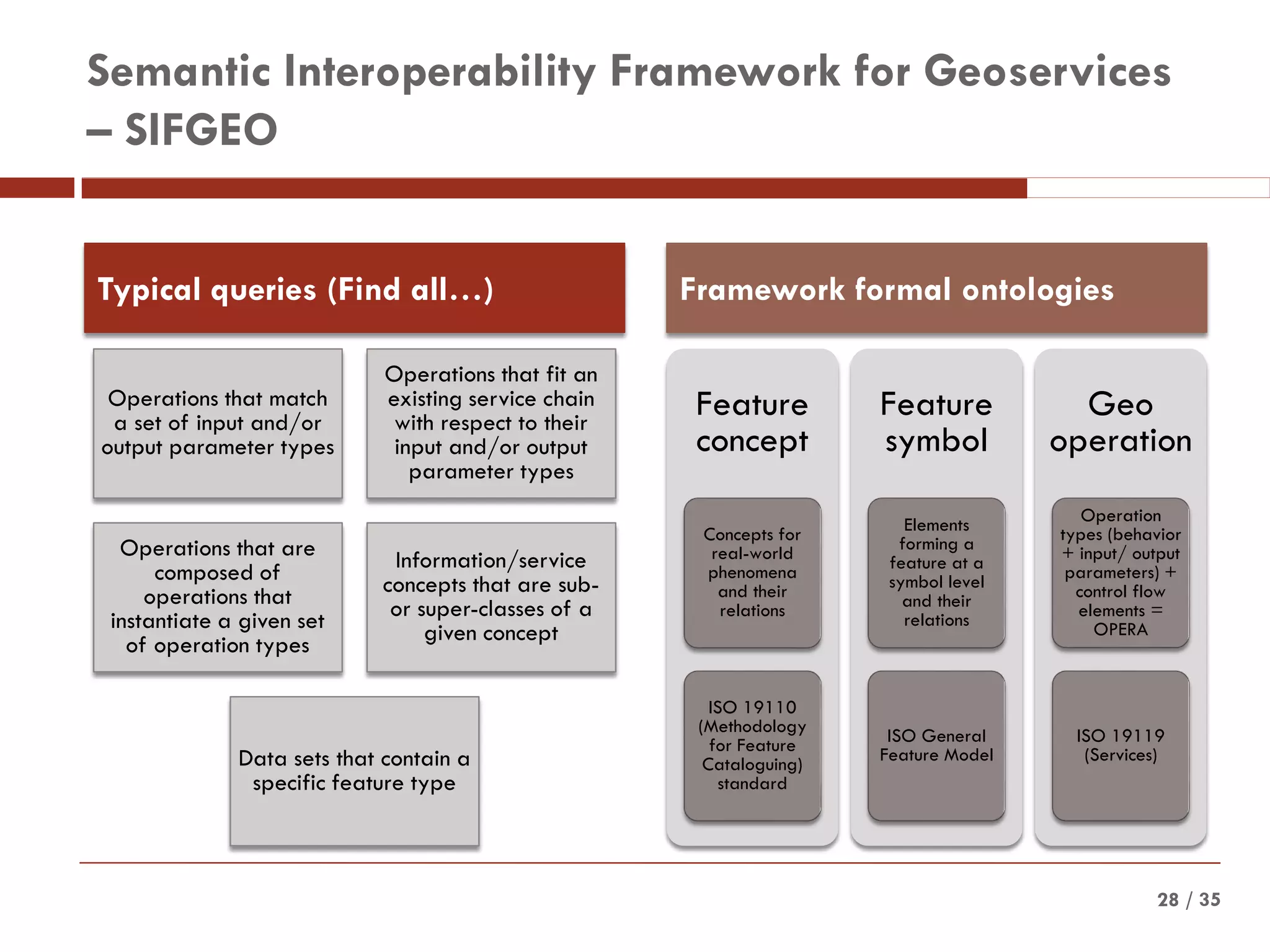

- 28. / 35 Semantic InteroperabilityFramework for Geoservices – SIFGEO Operations that match a set of input and/or output parameter types Operations that fit an existing service chain with respect to their input and/or output parameter types Operations that are composed of operations that instantiate a given set of operation types Information/service concepts that are sub- or super-classes of a given concept Data sets that contain a specific feature type Feature concept Concepts for real-world phenomena and their relations ISO 19110 (Methodology for Feature Cataloguing) standard Feature symbol Elements forming a feature at a symbol level and their relations ISO General Feature Model Geo operation Operation types (behavior + input/ output parameters) + control flow elements = OPERA ISO 19119 (Services) 28 Typical queries (Find all…) Framework formal ontologies

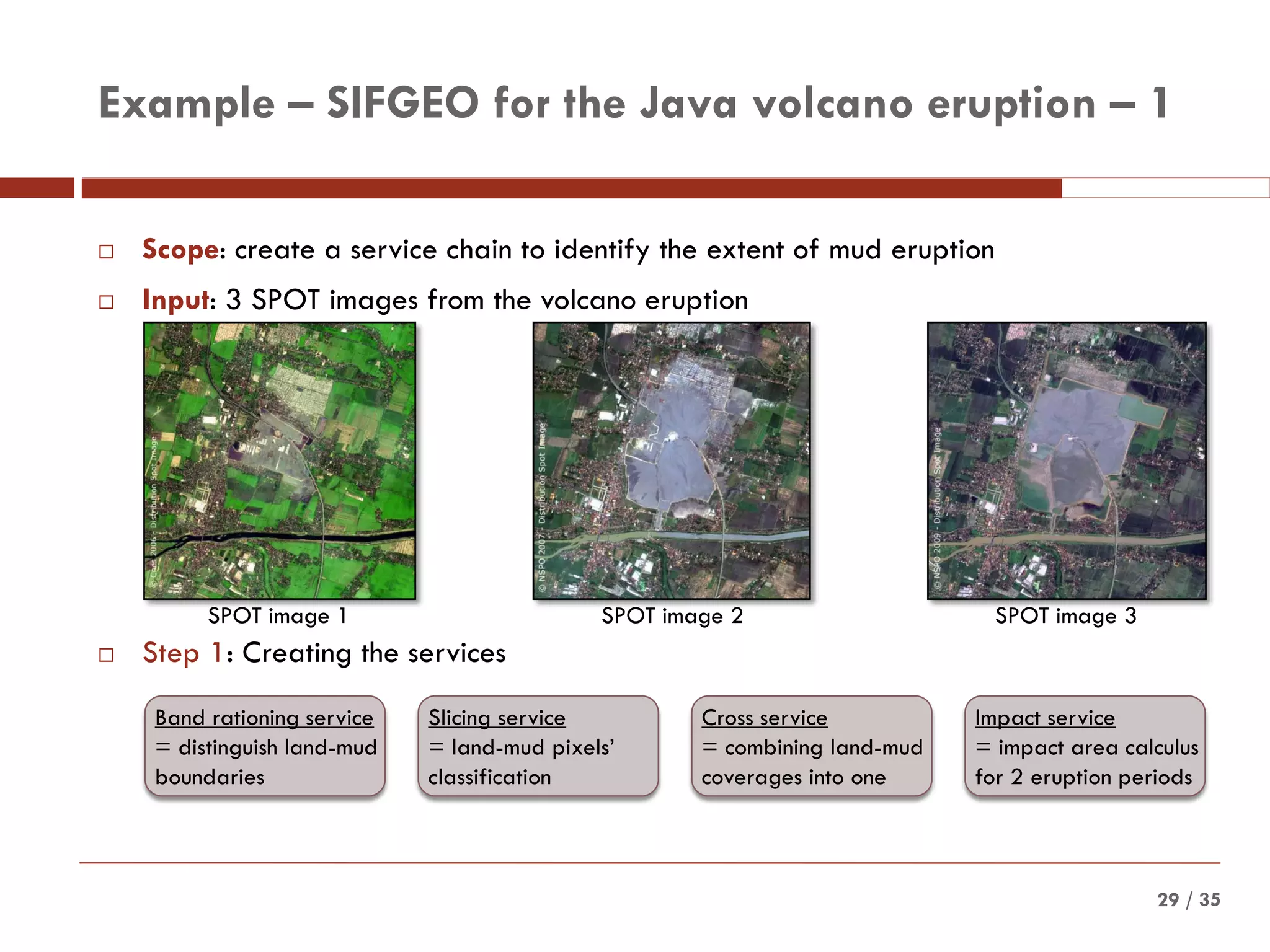

- 29. / 3529 Example –SIFGEO for the Java volcano eruption – 1 Scope: create a service chain to identify the extent of mud eruption Input: 3 SPOT images from the volcano eruption Step 1: Creating the services SPOT image 1 SPOT image 2 SPOT image 3 Band rationing service = distinguish land-mud boundaries Slicing service = land-mud pixels’ classification Cross service = combining land-mud coverages into one Impact service = impact area calculus for 2 eruption periods

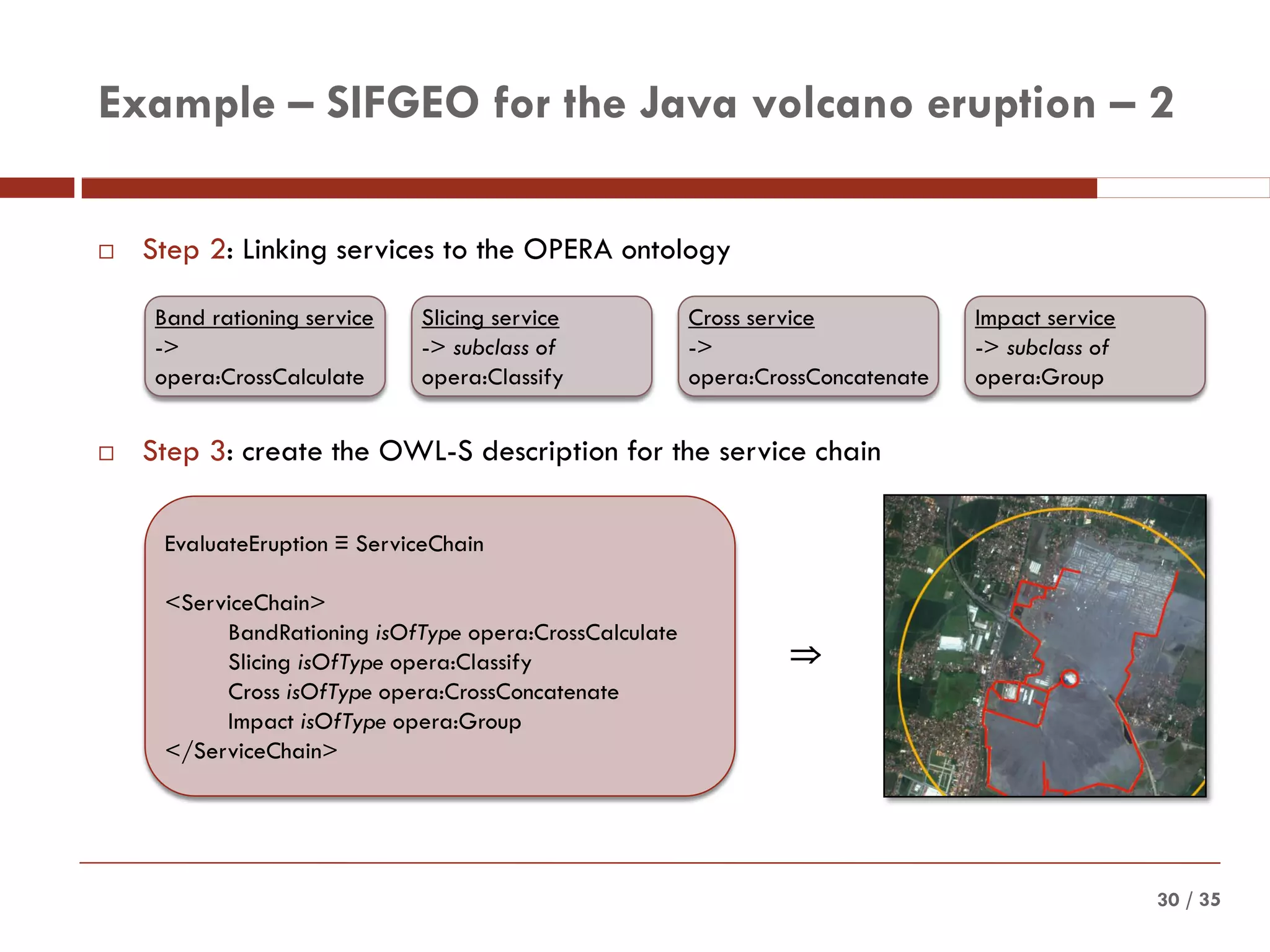

- 30. / 3530 Example –SIFGEO for the Java volcano eruption – 2 Step 2: Linking services to the OPERA ontology Step 3: create the OWL-S description for the service chain Band rationing service -> opera:CrossCalculate Slicing service -> subclass of opera:Classify Cross service -> opera:CrossConcatenate Impact service -> subclass of opera:Group EvaluateEruption ≡ ServiceChain <ServiceChain> BandRationing isOfType opera:CrossCalculate Slicing isOfType opera:Classify Cross isOfType opera:CrossConcatenate Impact isOfType opera:Group </ServiceChain>

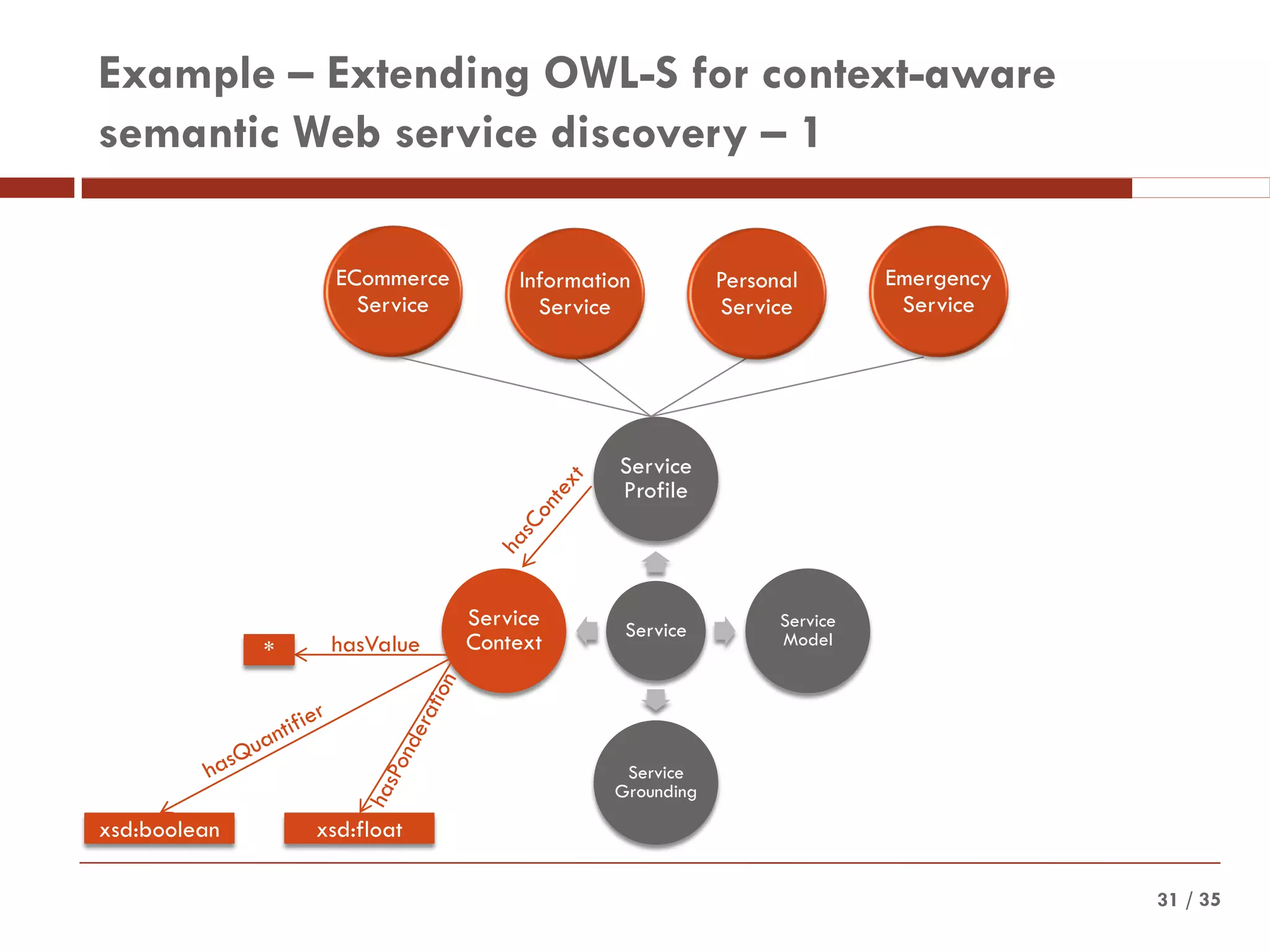

- 31. / 35 Example –Extending OWL-S for context-aware semantic Web service discovery – 1 31 Service Service Profile Service Model Service Grounding Service Context ECommerce Service xsd:float Information Service Personal Service Emergency Service xsd:boolean hasValue*

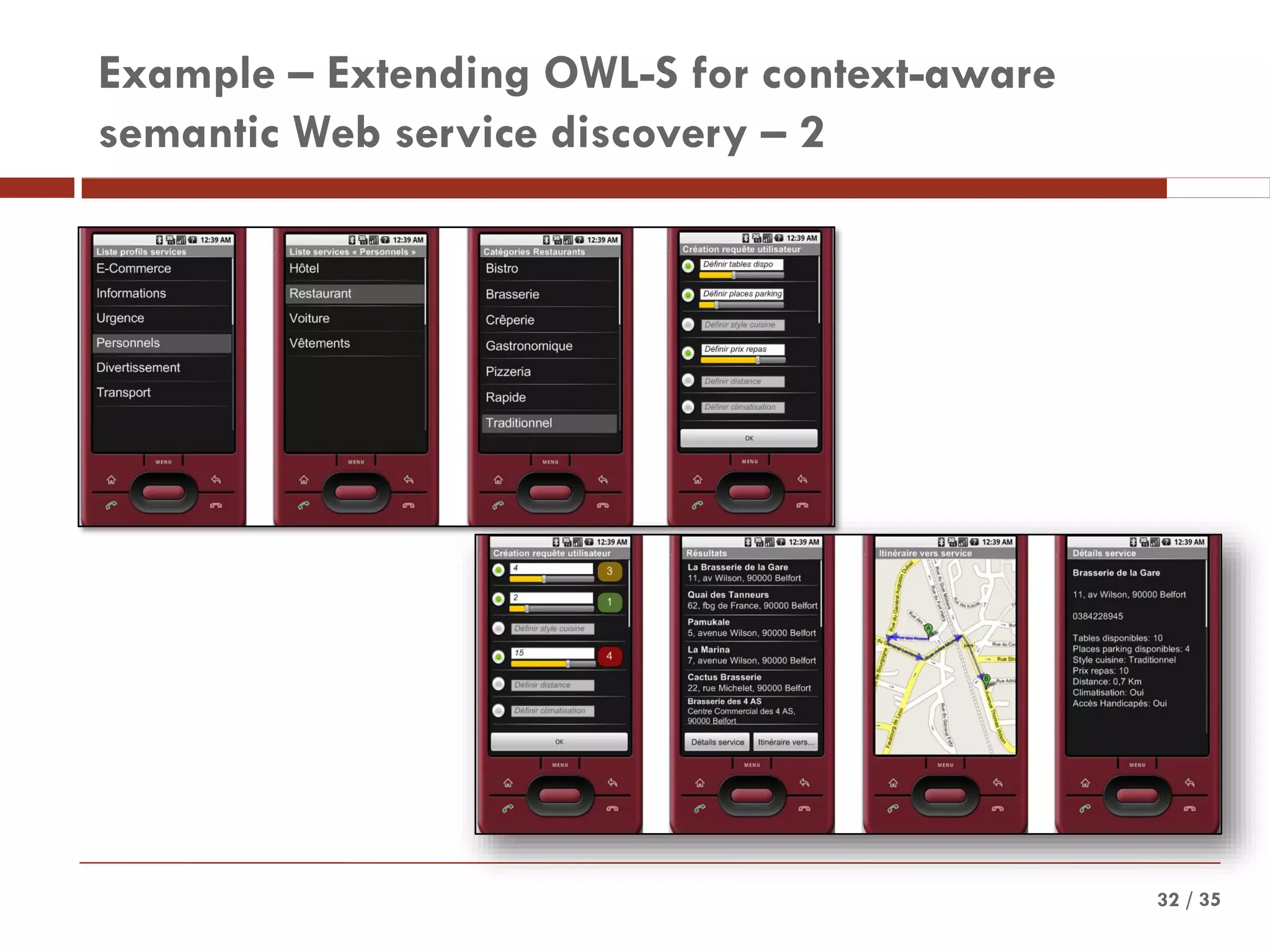

- 32. / 3532 Example –Extending OWL-S for context-aware semantic Web service discovery – 2
- 33.

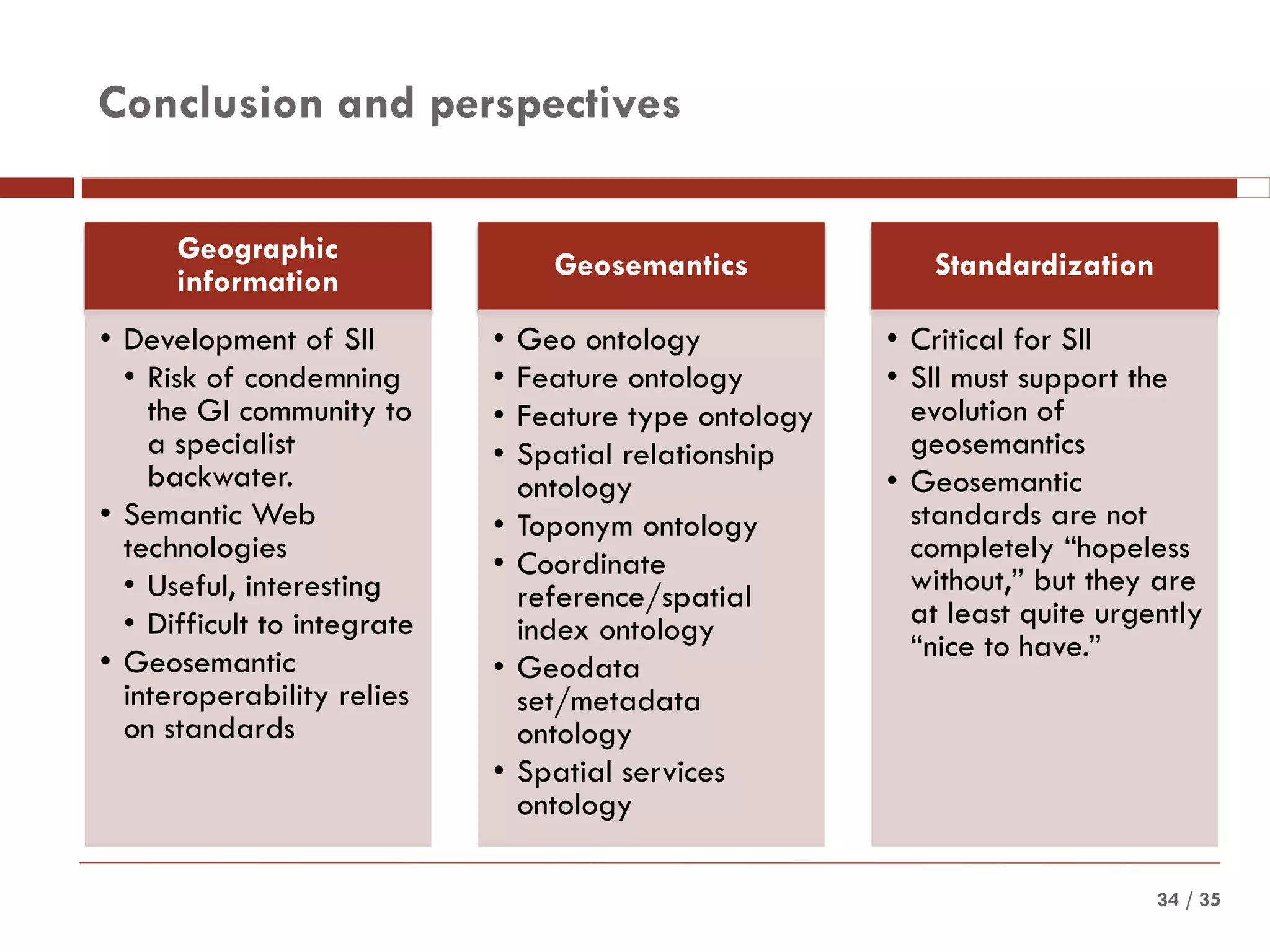

- 34. / 35 Geographic information • Developmentof SII • Risk of condemning the GI community to a specialist backwater. • Semantic Web technologies • Useful, interesting • Difficult to integrate • Geosemantic interoperability relies on standards Geosemantics • Geo ontology • Feature ontology • Feature type ontology • Spatial relationship ontology • Toponym ontology • Coordinate reference/spatial index ontology • Geodata set/metadata ontology • Spatial services ontology Standardization • Critical for SII • SII must support the evolution of geosemantics • Geosemantic standards are not completely “hopeless without,” but they are at least quite urgently “nice to have.” 34 Conclusion and perspectives
- 35.
