- 1. © 2023 SudhirChepeni 1 Exploring Advanced API Security Techniques and Technologies Sudhir Chepeni Director Application Security @ Akamai Technologies
- 2. © 2023 SudhirChepeni 2 Global Trends Raising The Risks Of Online Interactions ● Digitalization ● COVID 19 ● More interconnectivity of supply chains ● Cost savings ● Skills

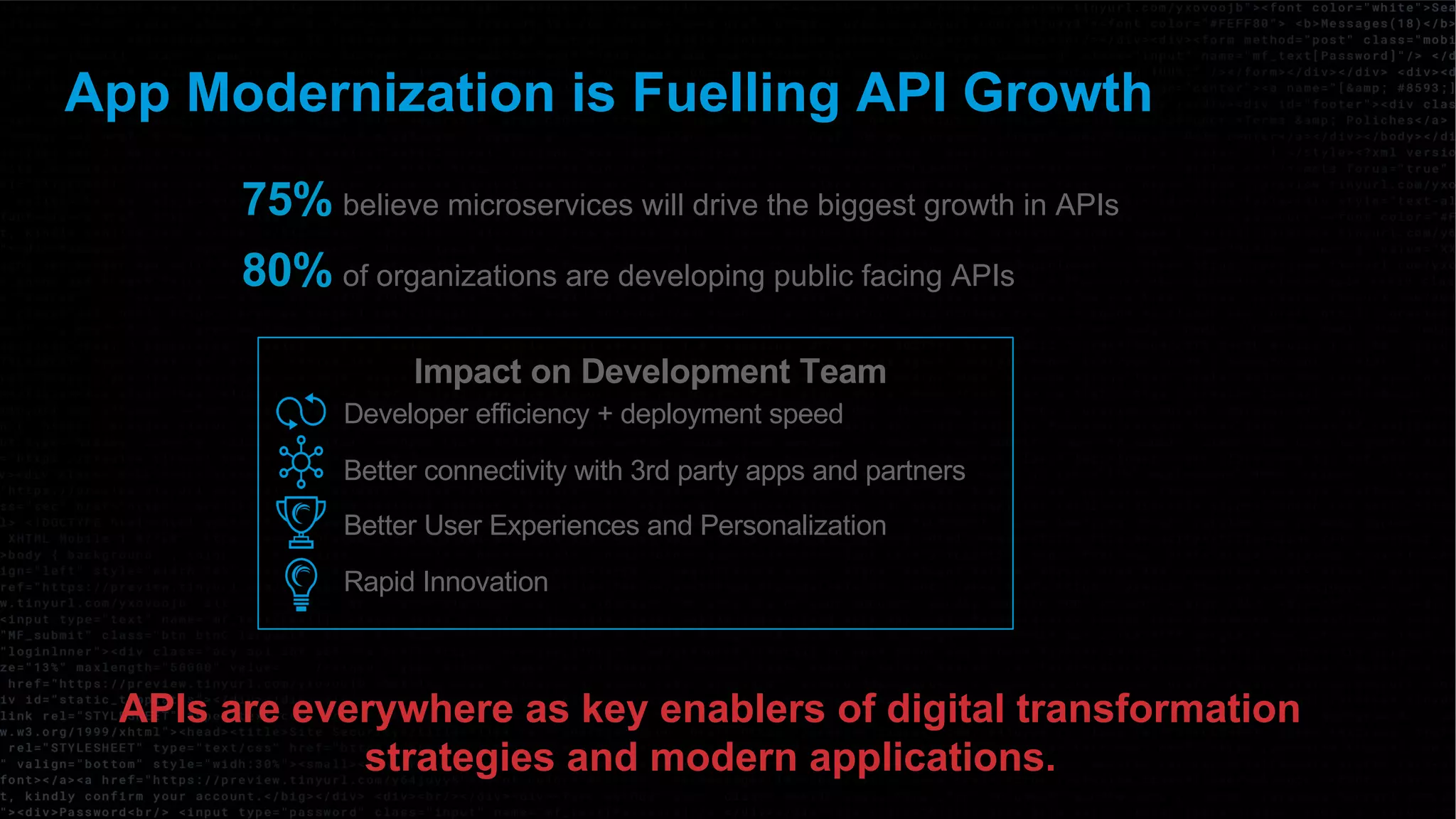

- 3. © 2023 SudhirChepeni 3 App Modernization is Fuelling API Growth Impact on Development Team Developer efficiency + deployment speed Better connectivity with 3rd party apps and partners Better User Experiences and Personalization Rapid Innovation 75% believe microservices will drive the biggest growth in APIs 80% of organizations are developing public facing APIs APIs are everywhere as key enablers of digital transformation strategies and modern applications.

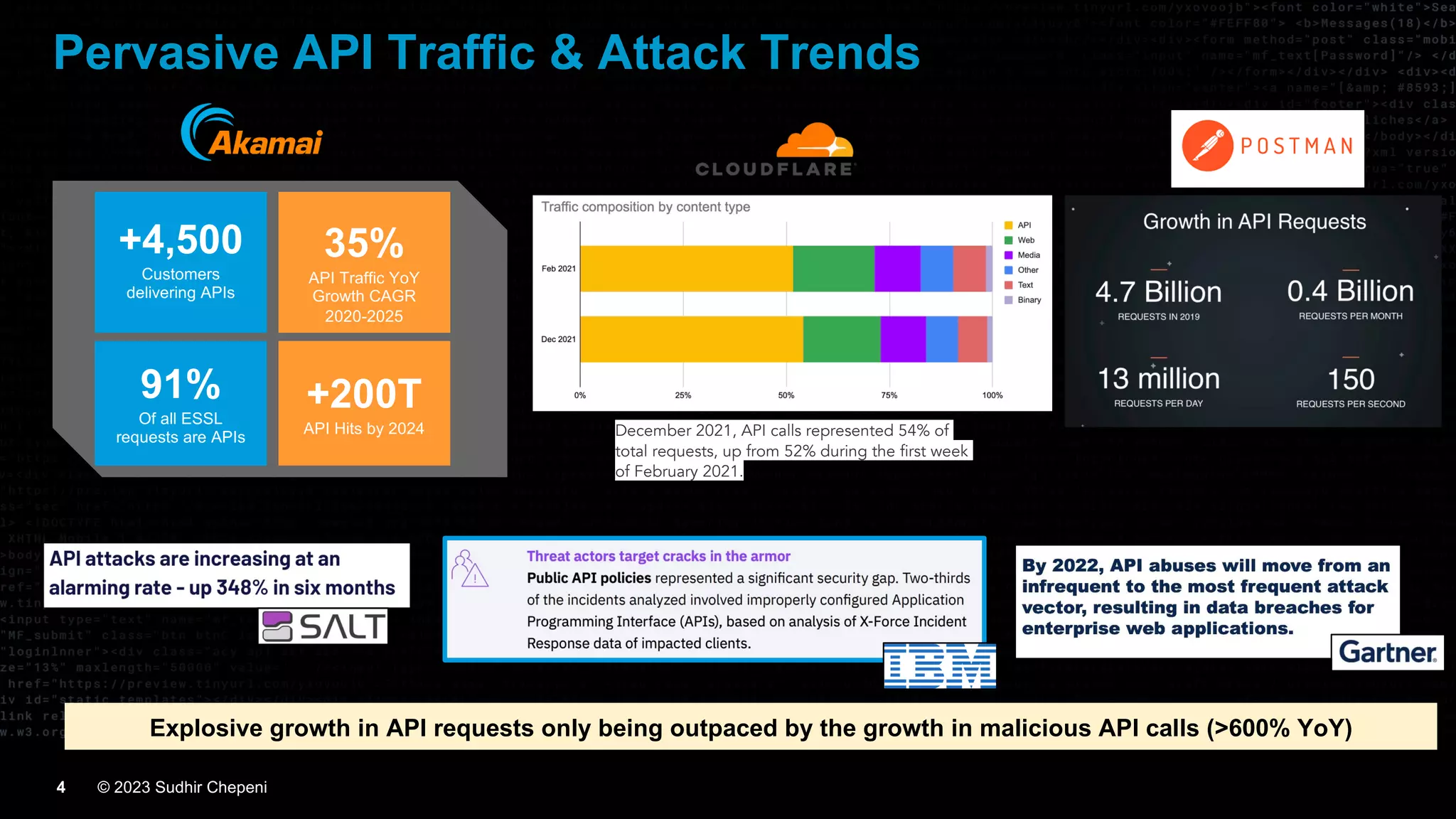

- 4. © 2023 SudhirChepeni 4 Pervasive API Traffic & Attack Trends 35% API Traffic YoY Growth CAGR 2020-2025 +200T API Hits by 2024 +4,500 Customers delivering APIs 91% Of all ESSL requests are APIs December 2021, API calls represented 54% of total requests, up from 52% during the first week of February 2021. Explosive growth in API requests only being outpaced by the growth in malicious API calls (>600% YoY)
- 5. © 2023 SudhirChepeni 5 Web Application Attacks Continue to Rise +23% Q/Q | +196% Y/Y 6.31 Billion NEW RECORD In Q1’22, we experienced We analyze ~350 TB of new attack data every day web app attacks in a single quarter for the first time (that’s over 1 billion more than the prior quarter!) 6 Billion

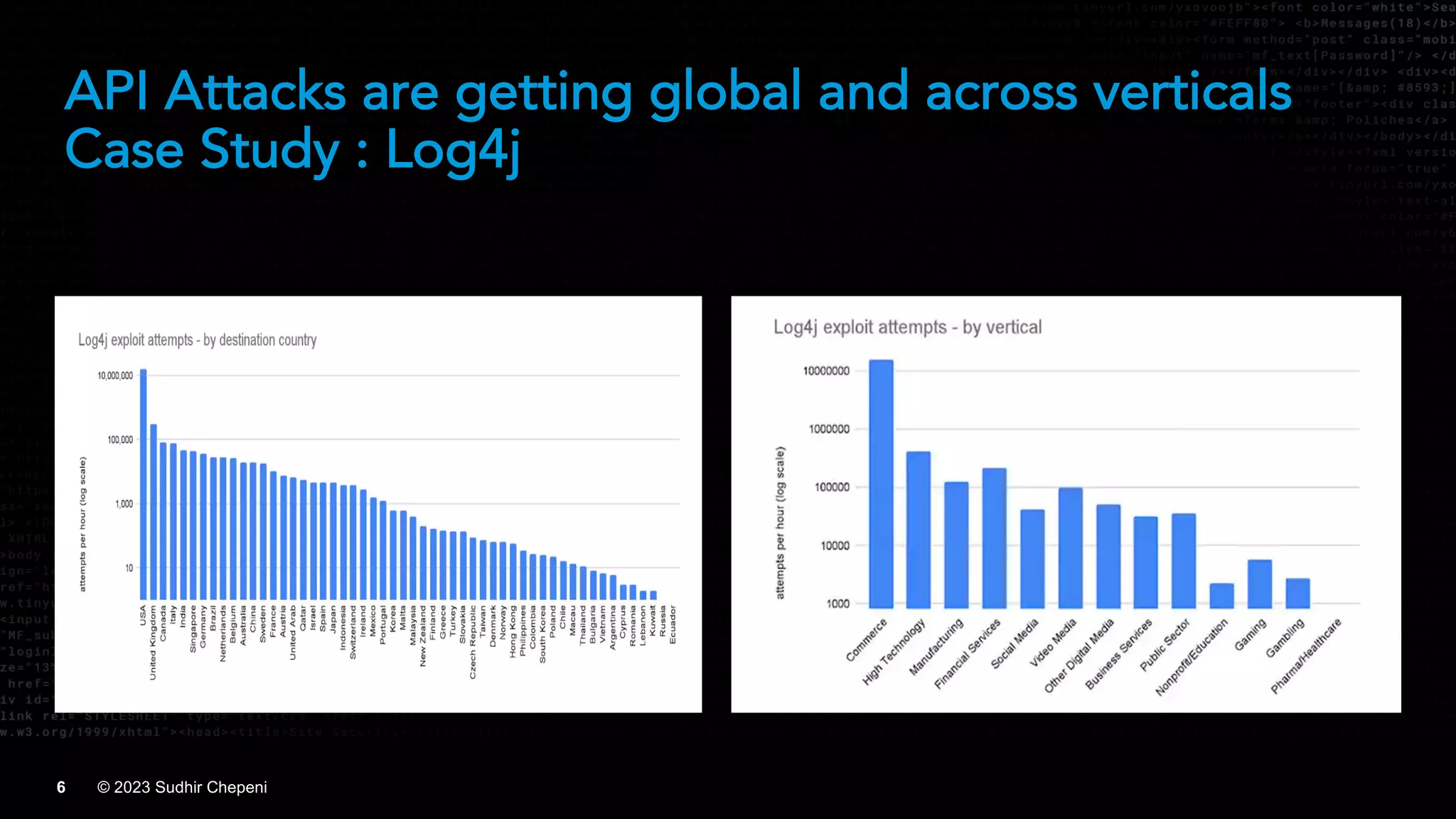

- 6. © 2023 SudhirChepeni 6 API Attacks are getting global and across verticals Case Study : Log4j

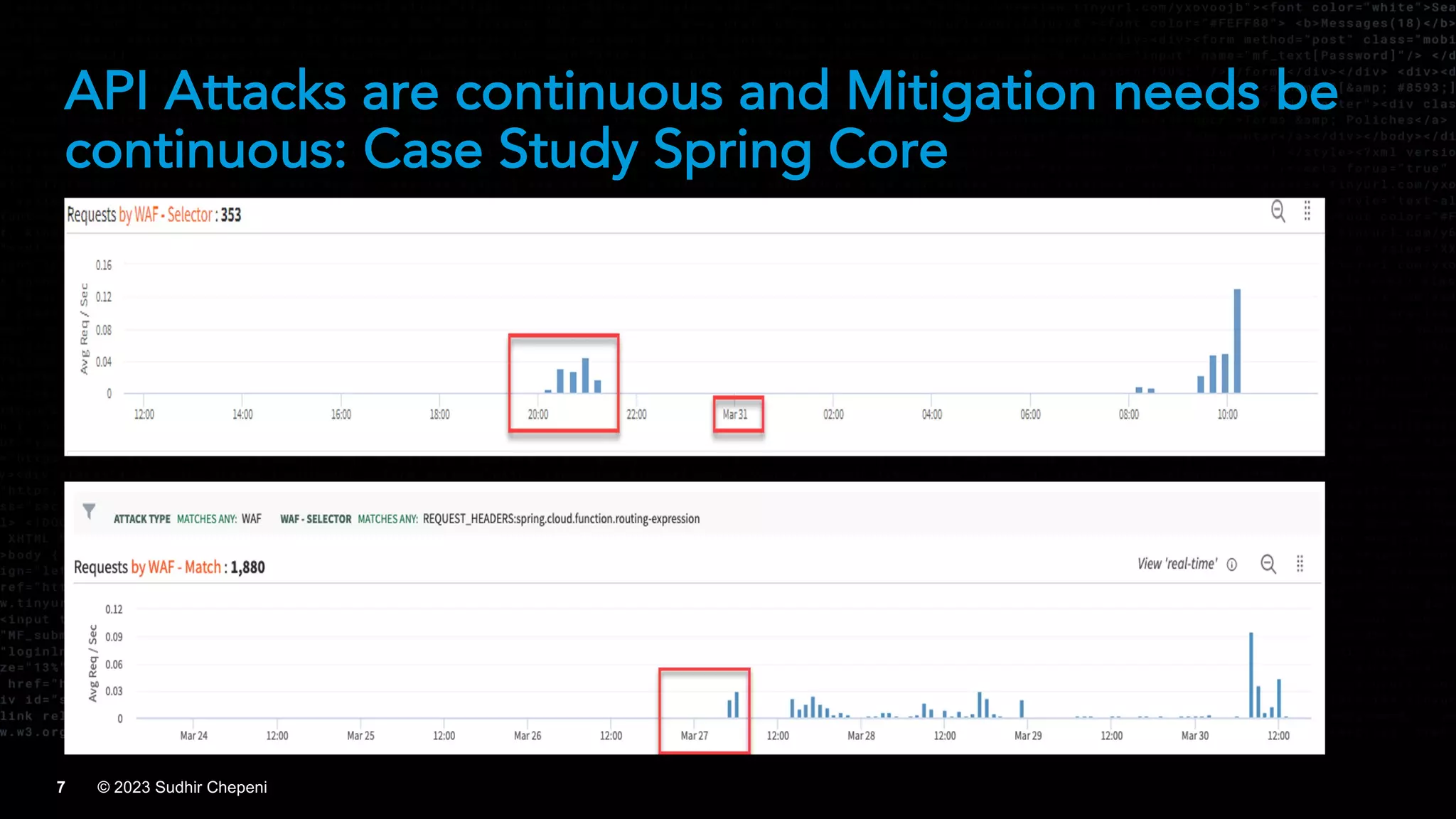

- 7. © 2023 SudhirChepeni 7 API Attacks are continuous and Mitigation needs be continuous: Case Study Spring Core
- 8. © 2023 SudhirChepeni 8 APIs complexity leads to Risk ● Modern applications have more moving parts or pieces to manage ● The nature of collaboration is evolving - from local to global ● Development trends are changing ● Teams are often in different tooling ecosystems More Functionalities More Features More Users More Data

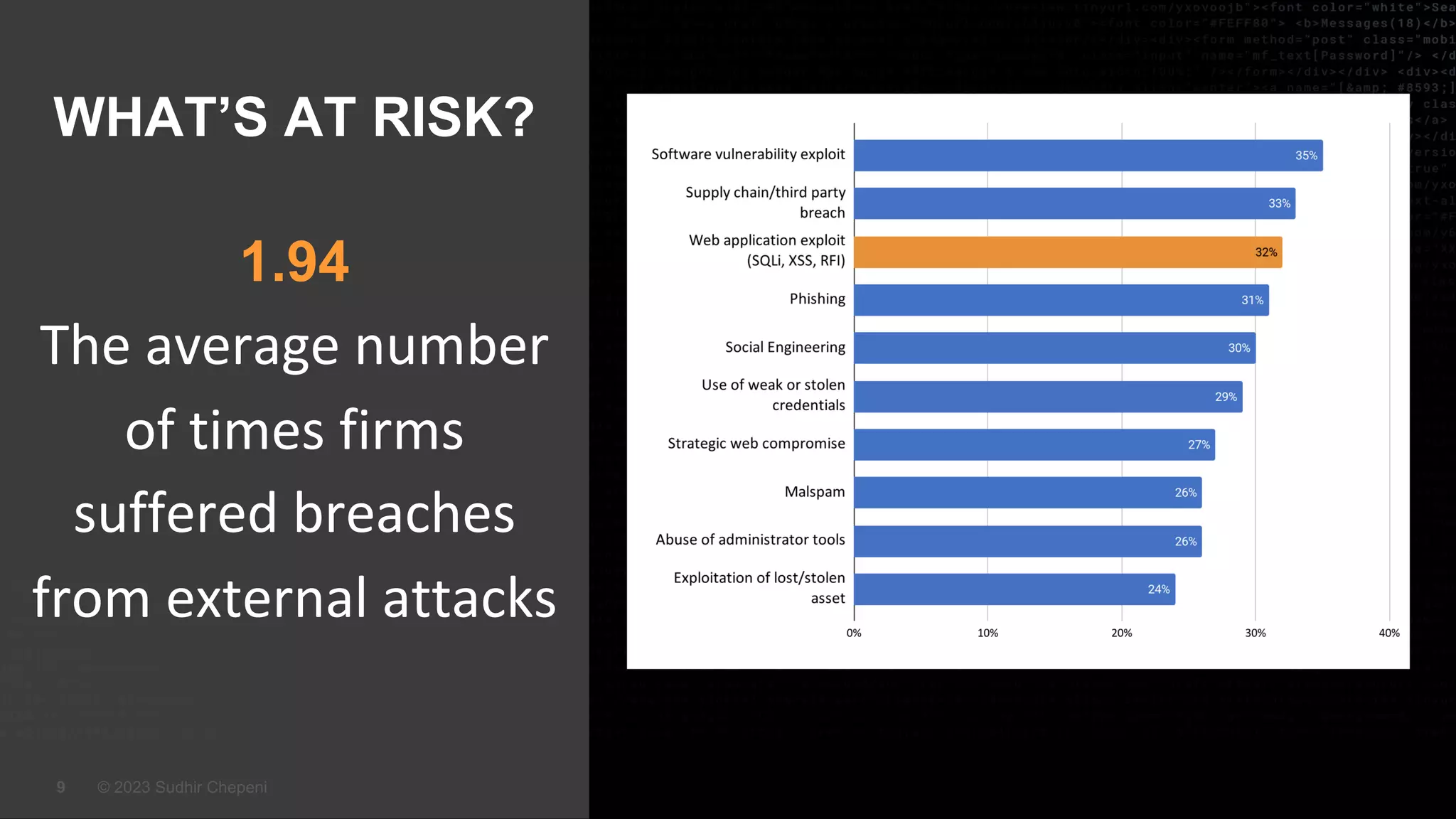

- 9. © 2023 SudhirChepeni 9 Source: Forrester Analytics Business Technographics Security Survey, 2021 Base: 530 Security decision-makers with network, data center, app security, or security ops responsibilities who experienced an external attack when their company was breached 1.94 The average number of times firms suffered breaches from external attacks WHAT’S AT RISK?

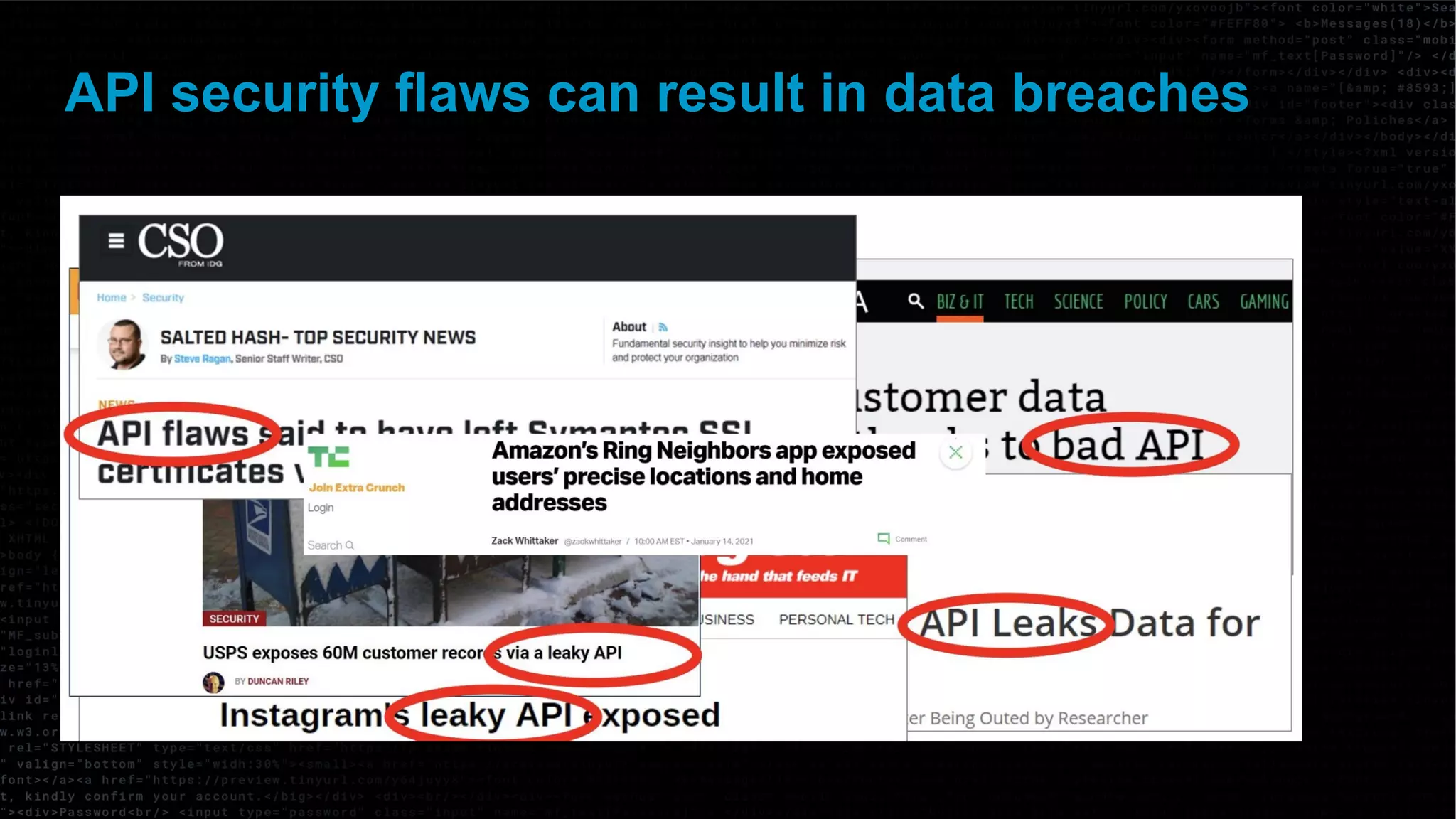

- 10. © 2023 SudhirChepeni 10 API security flaws can result in data breaches

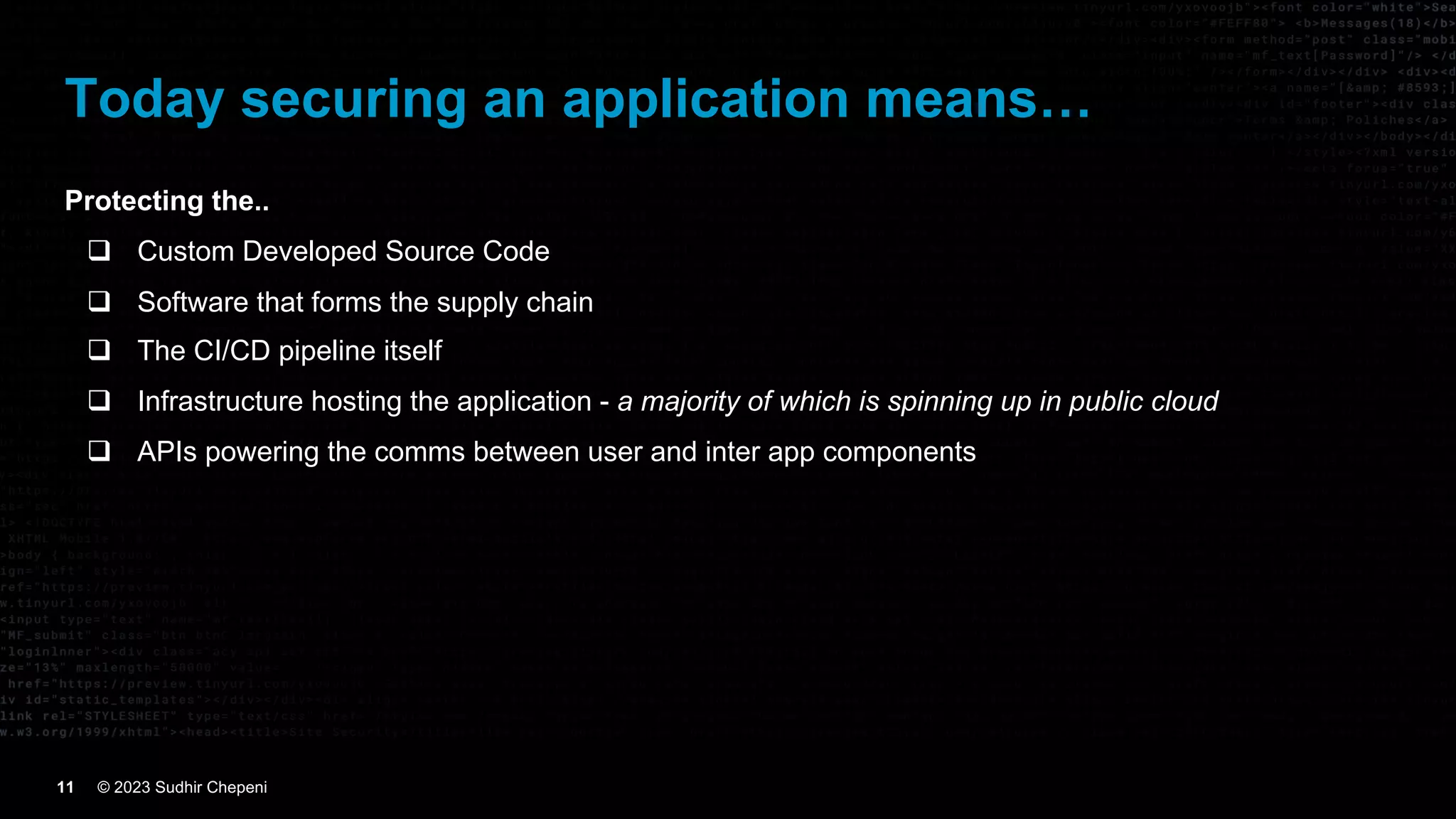

- 11. © 2023 SudhirChepeni 11 Today securing an application means… Protecting the.. q Custom Developed Source Code q Software that forms the supply chain q The CI/CD pipeline itself q Infrastructure hosting the application - a majority of which is spinning up in public cloud q APIs powering the comms between user and inter app components
- 12. © 2023 SudhirChepeni 12 API Overview

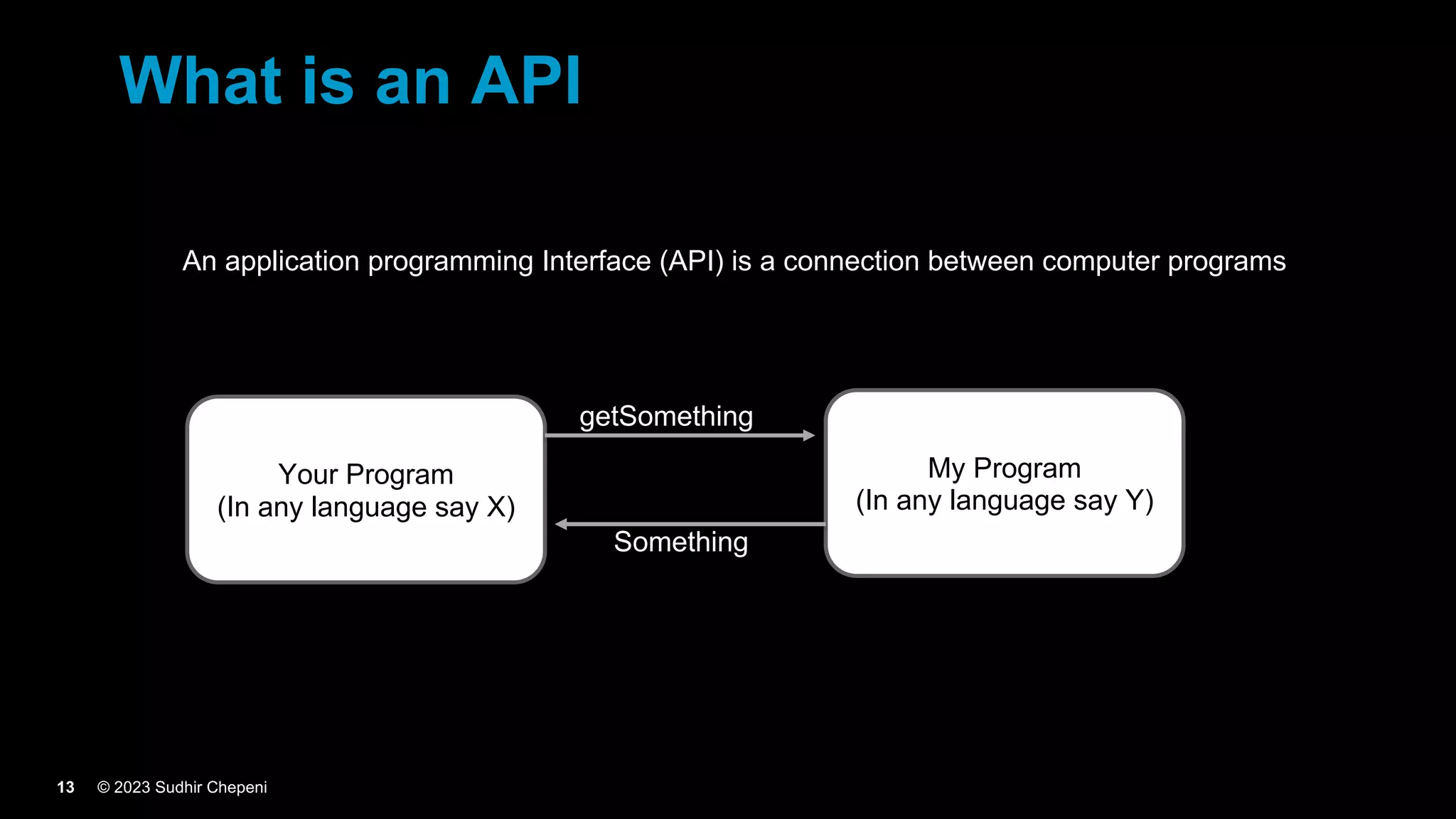

- 13. © 2023 SudhirChepeni 13 What is an API An application programming Interface (API) is a connection between computer programs Your Program (In any language say X) My Program (In any language say Y) getSomething Something

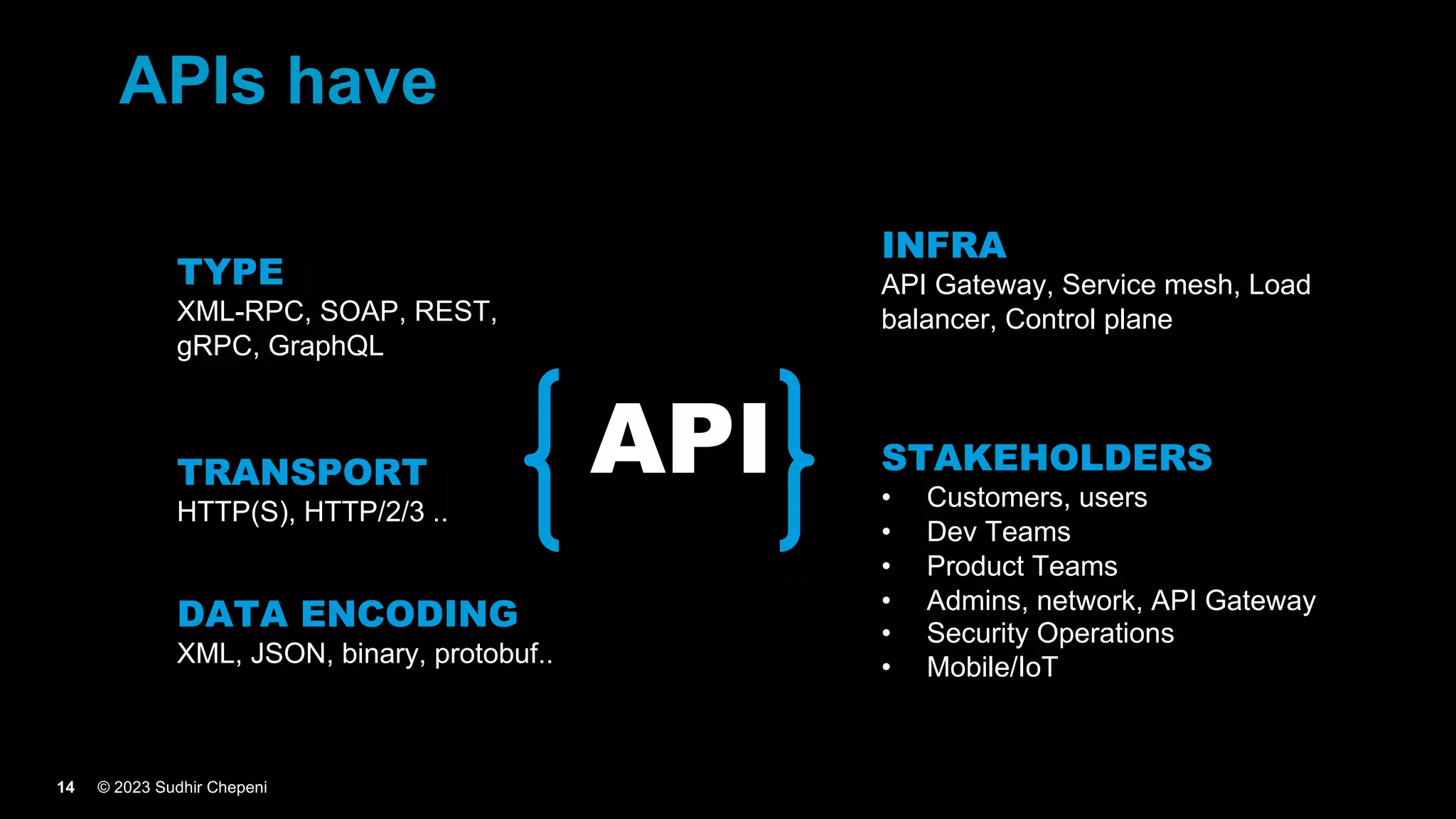

- 14. © 2023 SudhirChepeni 14 APIs have TYPE XML-RPC, SOAP, REST, gRPC, GraphQL TRANSPORT HTTP(S), HTTP/2/3 .. DATA ENCODING XML, JSON, binary, protobuf.. INFRA API Gateway, Service mesh, Load balancer, Control plane STAKEHOLDERS • Customers, users • Dev Teams • Product Teams • Admins, network, API Gateway • Security Operations • Mobile/IoT API

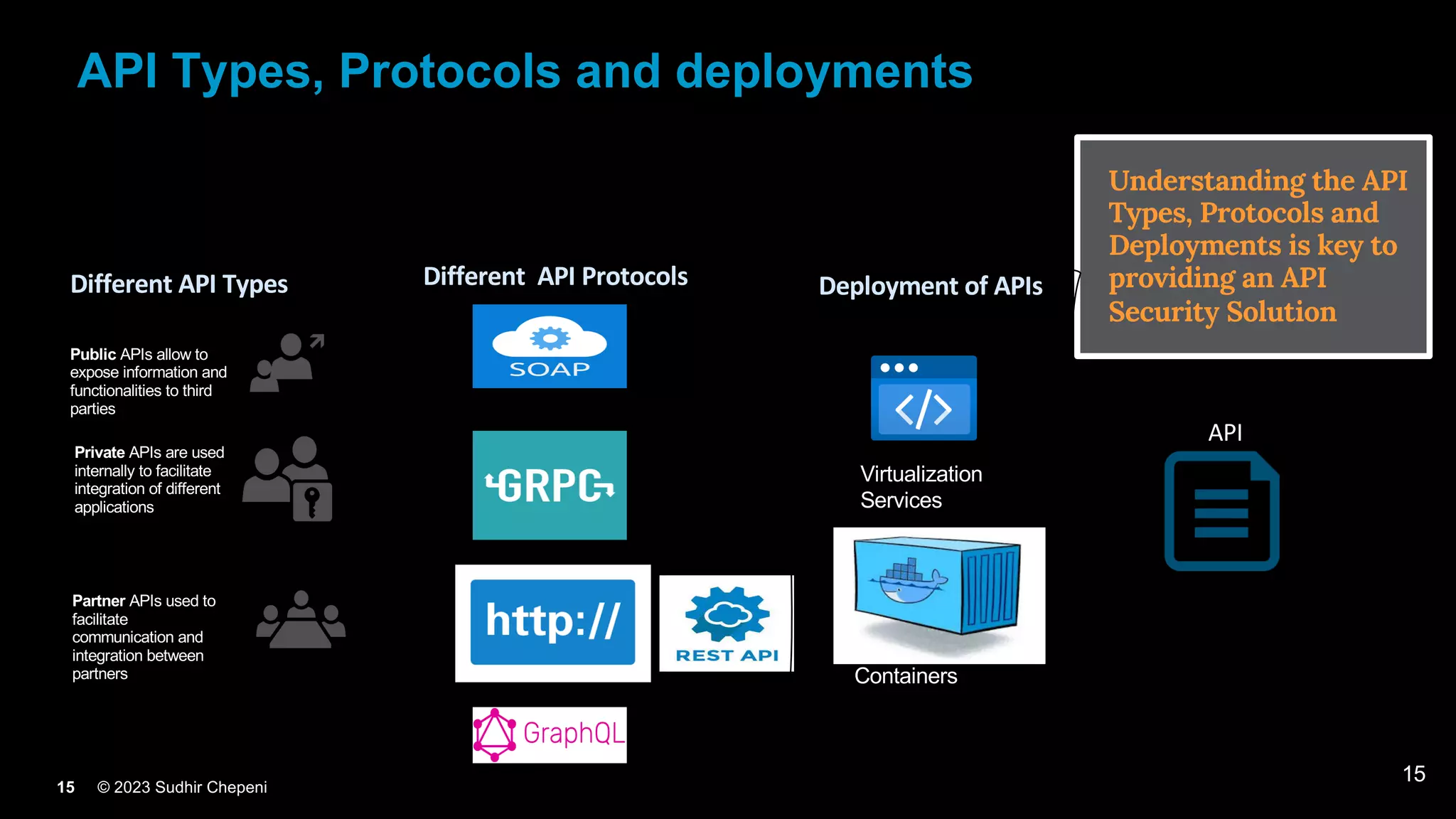

- 15. © 2023 SudhirChepeni 15 15 API Types, Protocols and deployments Public APIs allow to expose information and functionalities to third parties Private APIs are used internally to facilitate integration of different applications Partner APIs used to facilitate communication and integration between partners Different API Types Different API Protocols Understanding the API Types, Protocols and Deployments is key to providing an API Security Solution Deployment of APIs Virtualization Services Containers API

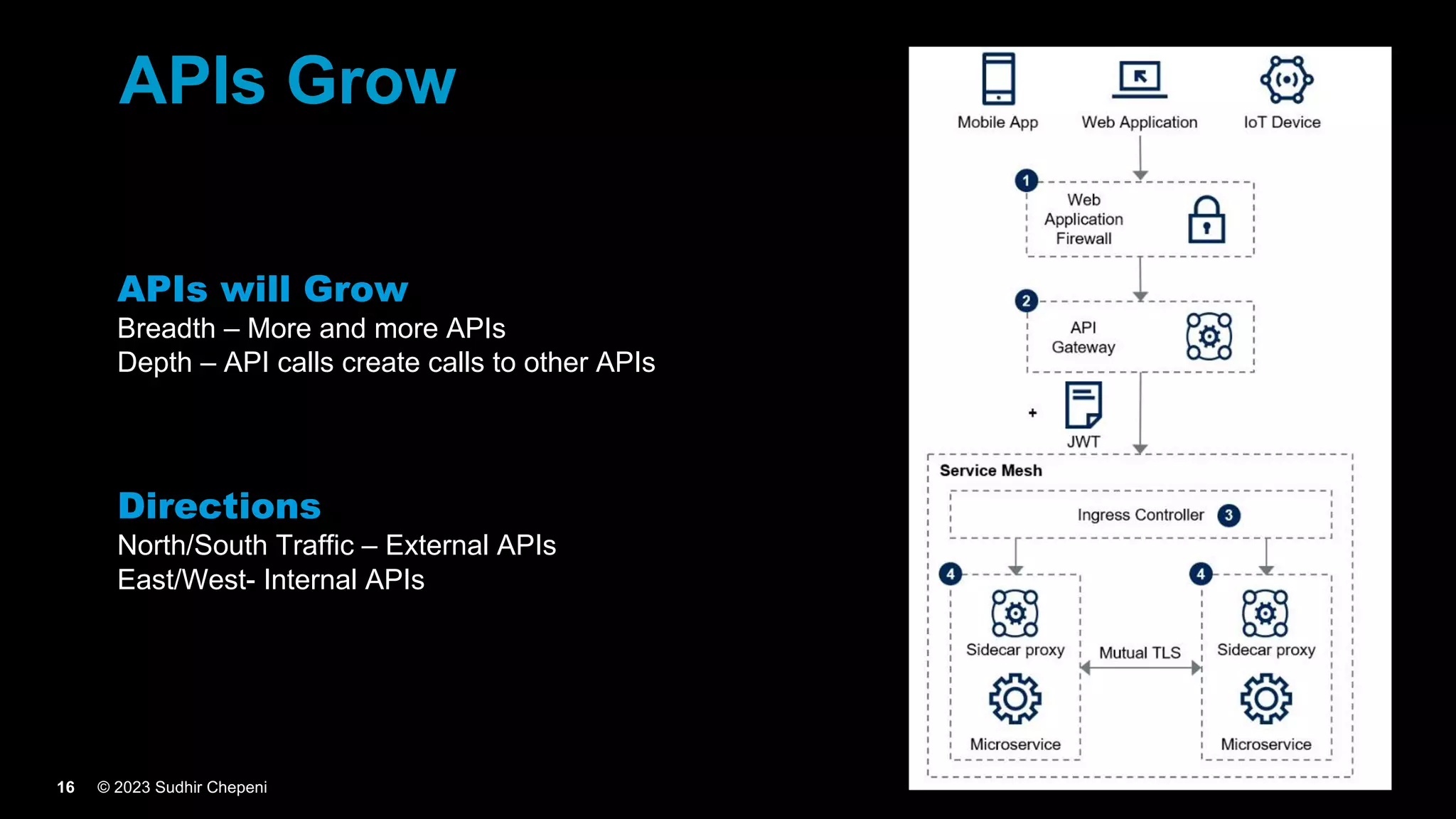

- 16. © 2023 SudhirChepeni 16 APIs Grow APIs will Grow Breadth – More and more APIs Depth – API calls create calls to other APIs Directions North/South Traffic – External APIs East/West- Internal APIs

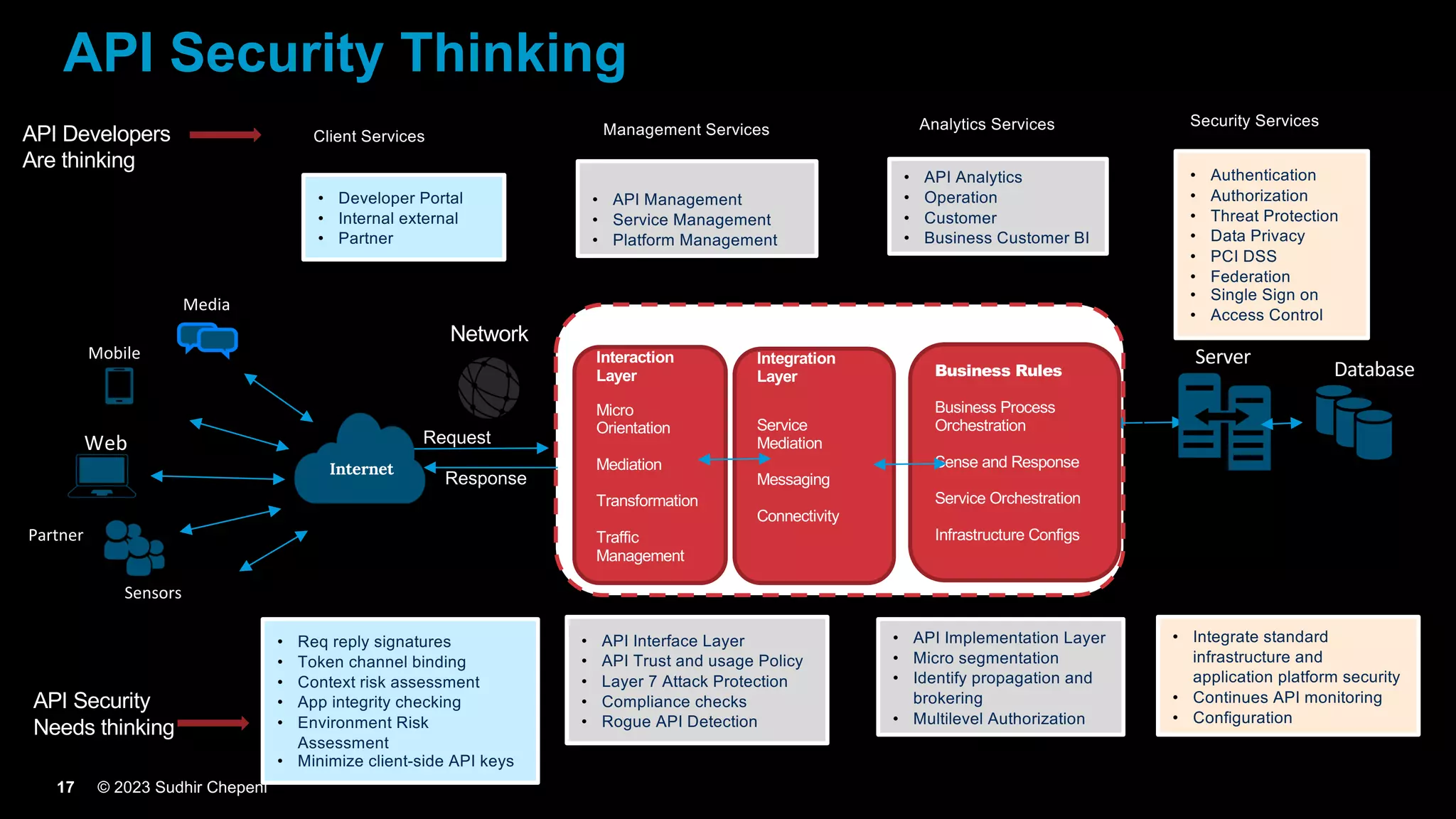

- 17. © 2023 SudhirChepeni 17 Server Database Media Web Mobile Partner Internet Sensors Request Response Interaction Layer Micro Orientation Mediation Transformation Traffic Management Network Integration Layer Service Mediation Messaging Connectivity Application Layer Business Rules Business Process Orchestration Sense and Response Service Orchestration Infrastructure Configs API Architecture • API Management • Service Management • Platform Management • Developer Portal • Internal external • Partner • Authentication • Authorization • Threat Protection • Data Privacy • PCI DSS • Federation • Single Sign on • Access Control • API Analytics • Operation • Customer • Business Customer BI • Req reply signatures • Token channel binding • Context risk assessment • App integrity checking • Environment Risk Assessment • Minimize client-side API keys API Security Thinking • API Interface Layer • API Trust and usage Policy • Layer 7 Attack Protection • Compliance checks • Rogue API Detection • API Implementation Layer • Micro segmentation • Identify propagation and brokering • Multilevel Authorization • Integrate standard infrastructure and application platform security • Continues API monitoring • Configuration API Developers Are thinking API Security Needs thinking Management Services Analytics Services Client Services Security Services

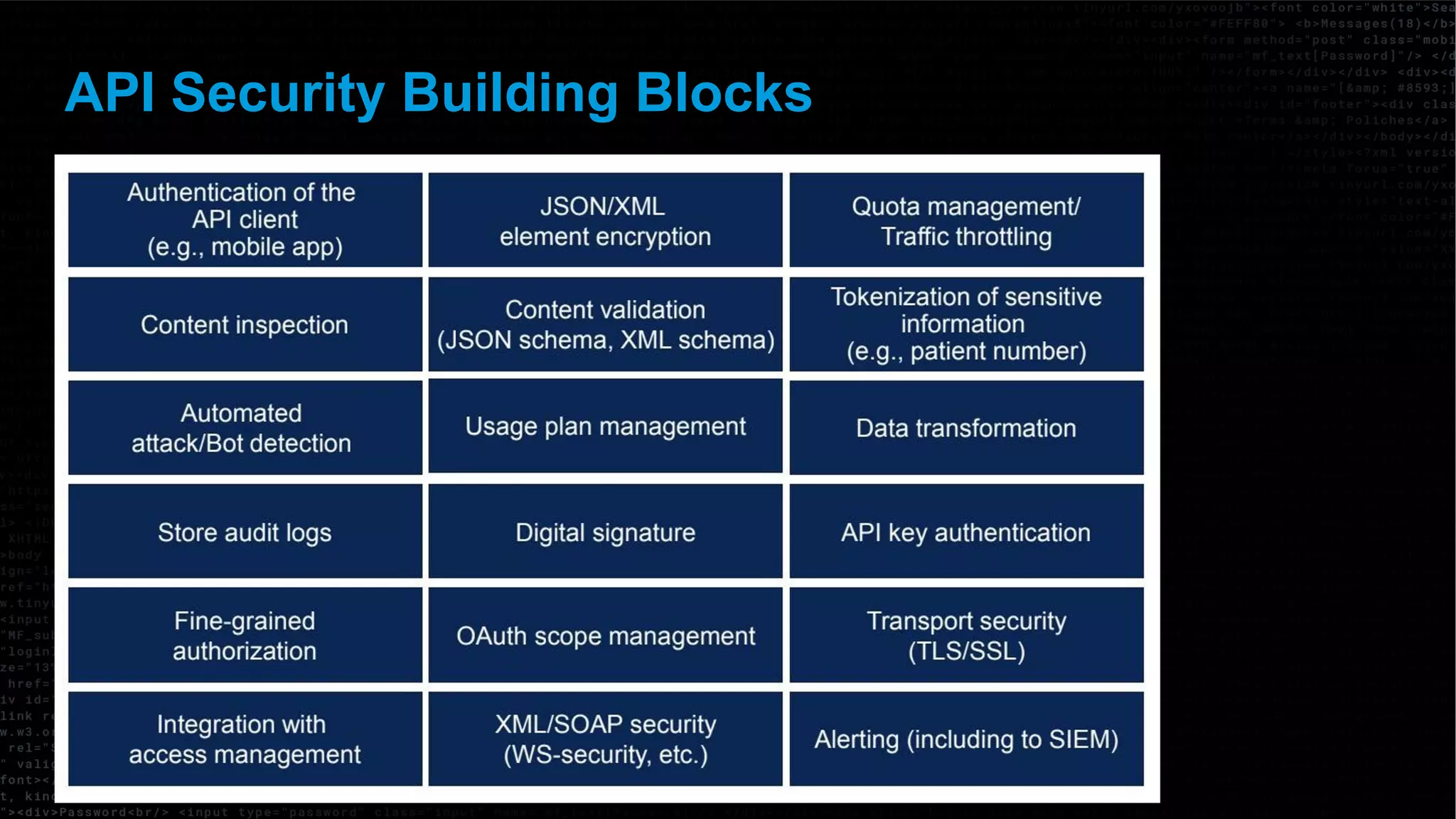

- 18. © 2023 SudhirChepeni 18 API Security Building Blocks

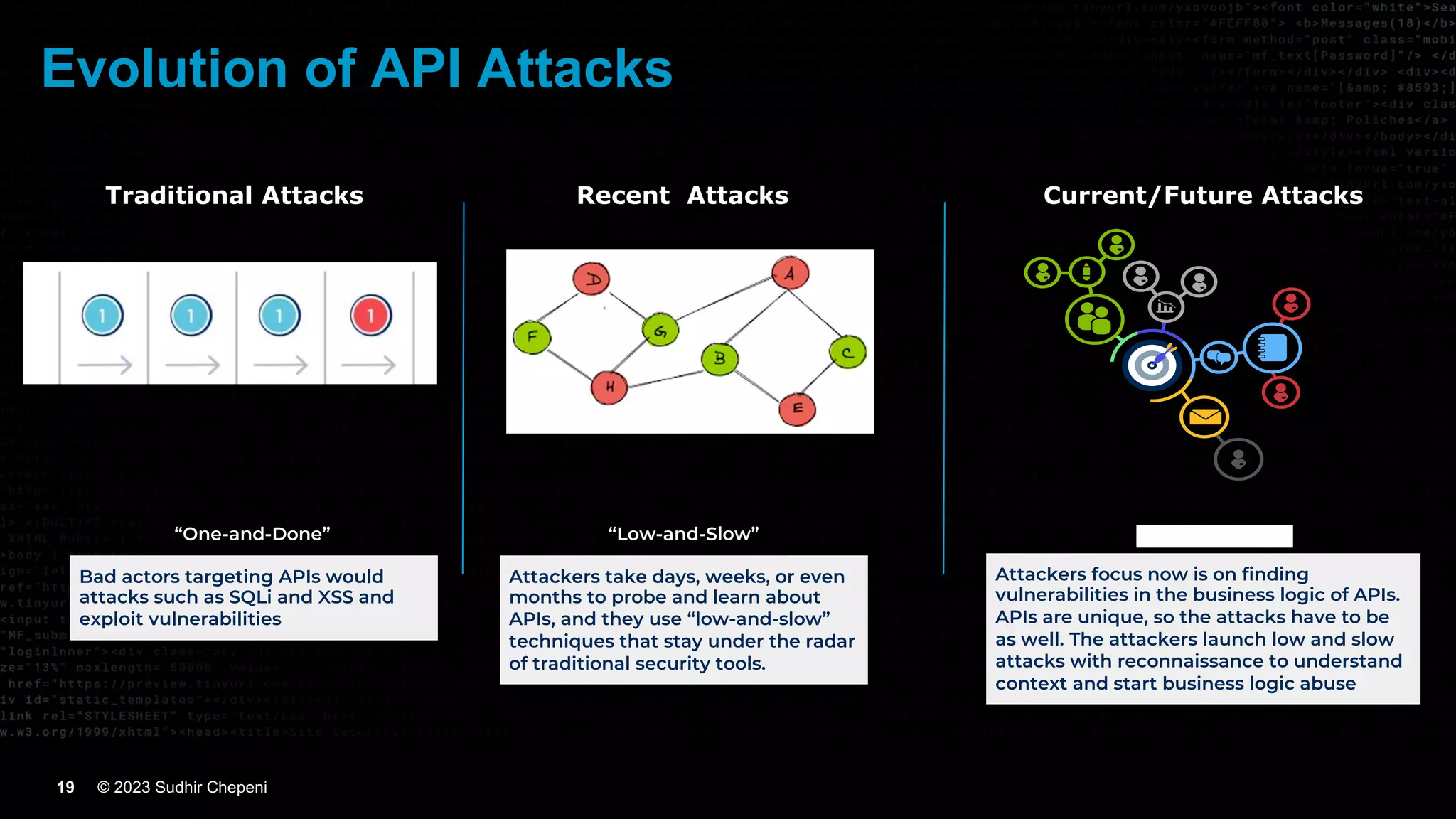

- 19. © 2023 SudhirChepeni 19 Traditional Attacks Current/Future Attacks Recent Attacks Bad actors targeting APIs would attacks such as SQLi and XSS and exploit vulnerabilities Attackers take days, weeks, or even months to probe and learn about APIs, and they use “low-and-slow” techniques that stay under the radar of traditional security tools. “One-and-Done” “Low-and-Slow” Attackers focus now is on finding vulnerabilities in the business logic of APIs. APIs are unique, so the attacks have to be as well. The attackers launch low and slow attacks with reconnaissance to understand context and start business logic abuse “Context-Based” Evolution of API Attacks

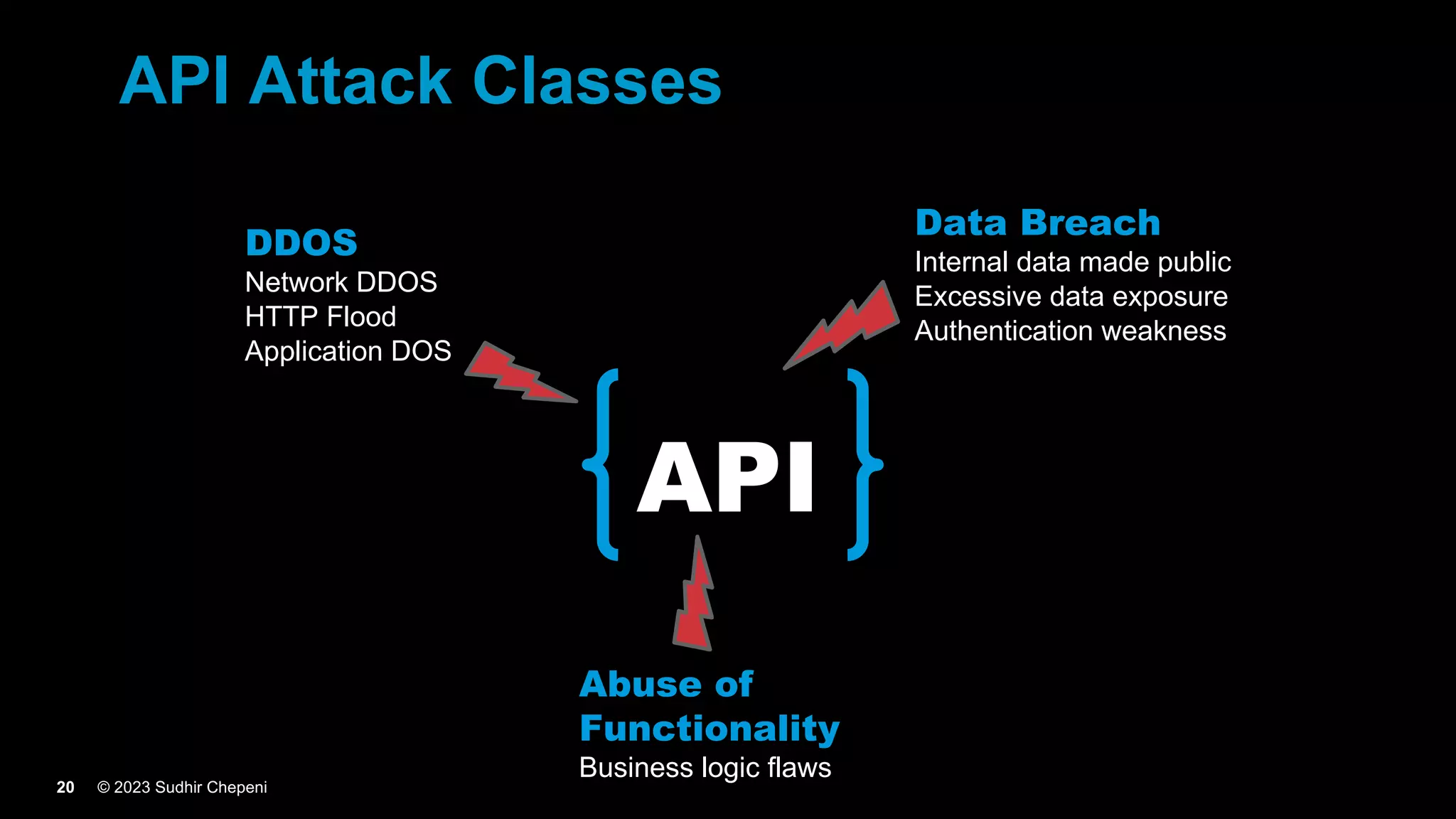

- 20. © 2023 SudhirChepeni 20 API Attack Classes DDOS Network DDOS HTTP Flood Application DOS Data Breach Internal data made public Excessive data exposure Authentication weakness Abuse of Functionality Business logic flaws API
- 21. © 2023 SudhirChepeni 21 DDoS
- 22. © 2023 SudhirChepeni 22 API DDoS Attack Surface

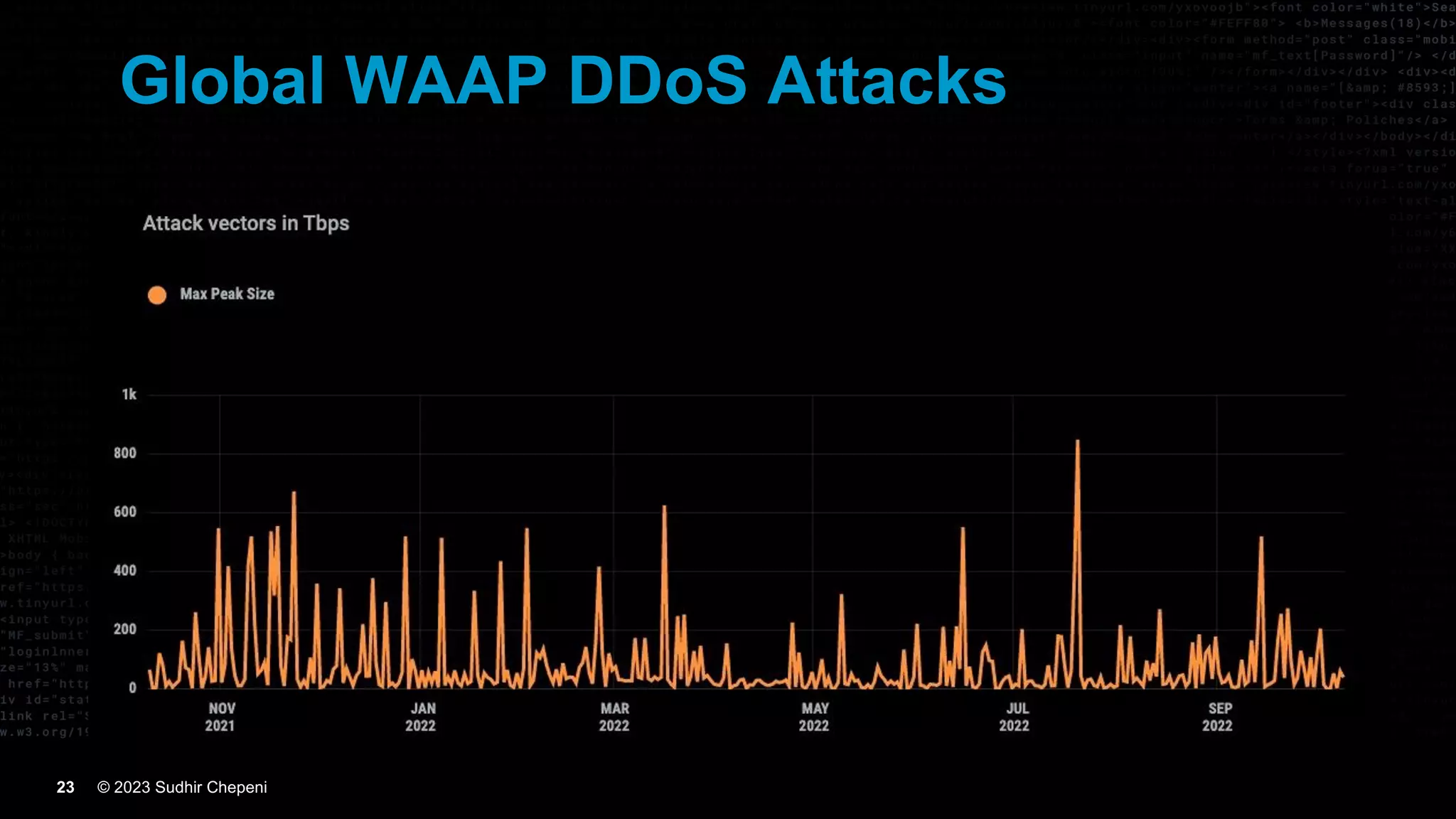

- 23. © 2023 SudhirChepeni 23 Global WAAP DDoS Attacks
- 24. © 2023 SudhirChepeni 24 BOTS

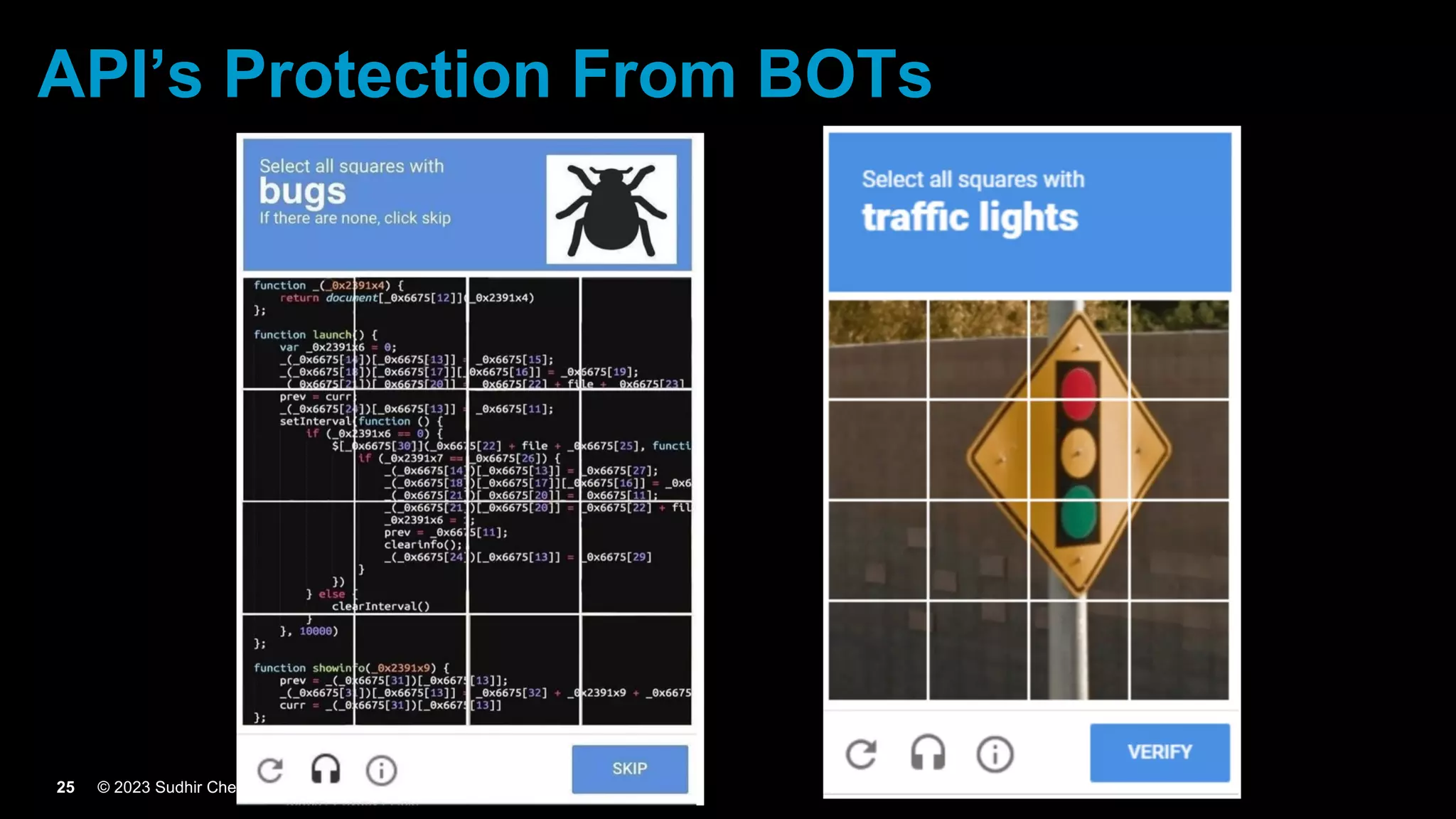

- 25. © 2023 SudhirChepeni 25 API’s Protection From BOTs

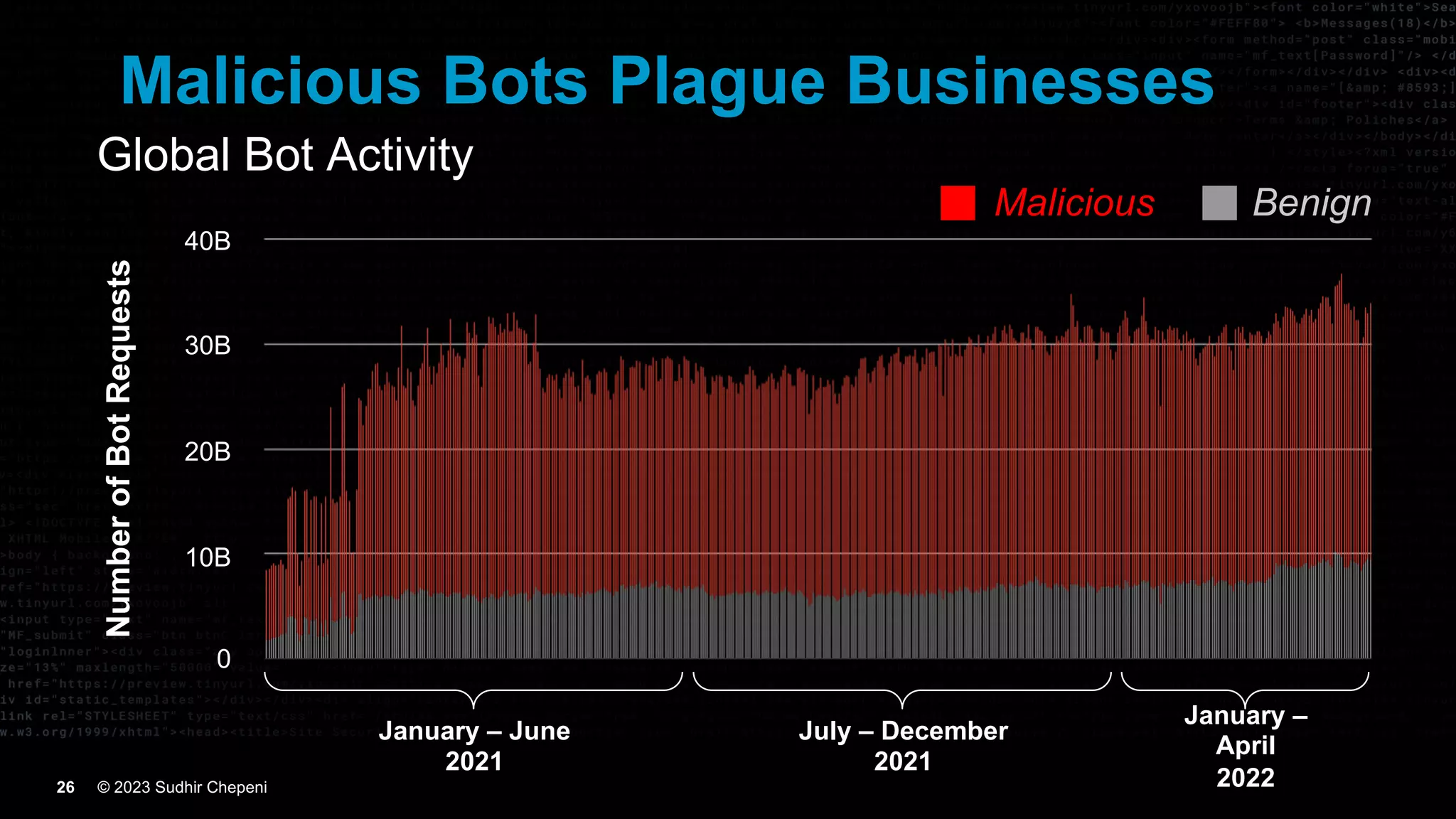

- 26. © 2023 SudhirChepeni 26 Global Bot Activity Malicious Bots Plague Businesses January – June 2021 July – December 2021 January – April 2022 40B 30B 20B 0 Number of Bot Requests Malicious Benign 10B

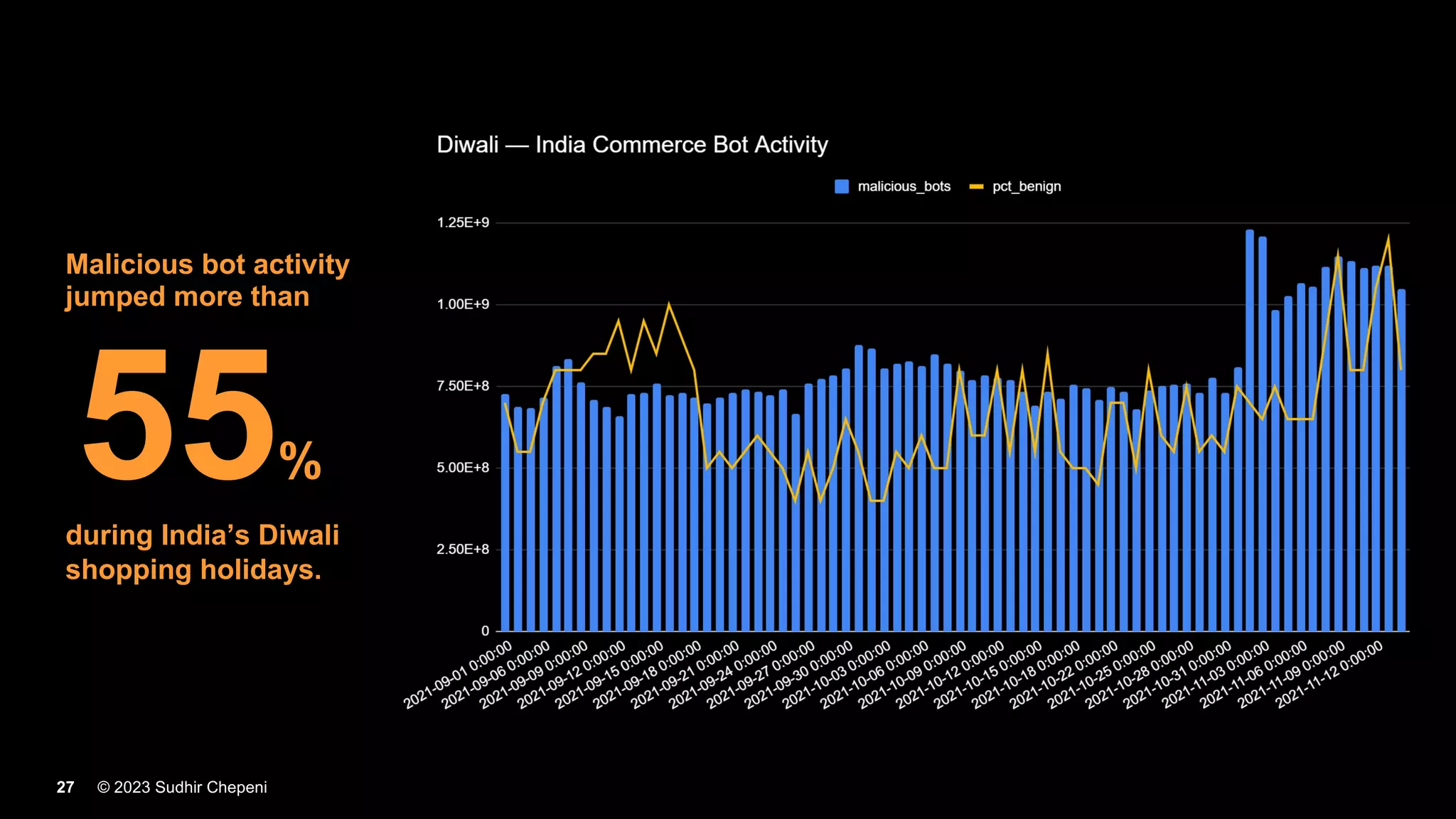

- 27. © 2023 SudhirChepeni 27 Malicious bot activity jumped more than during India’s Diwali shopping holidays. 55%
- 28. © 2023 SudhirChepeni 28 Business Logic

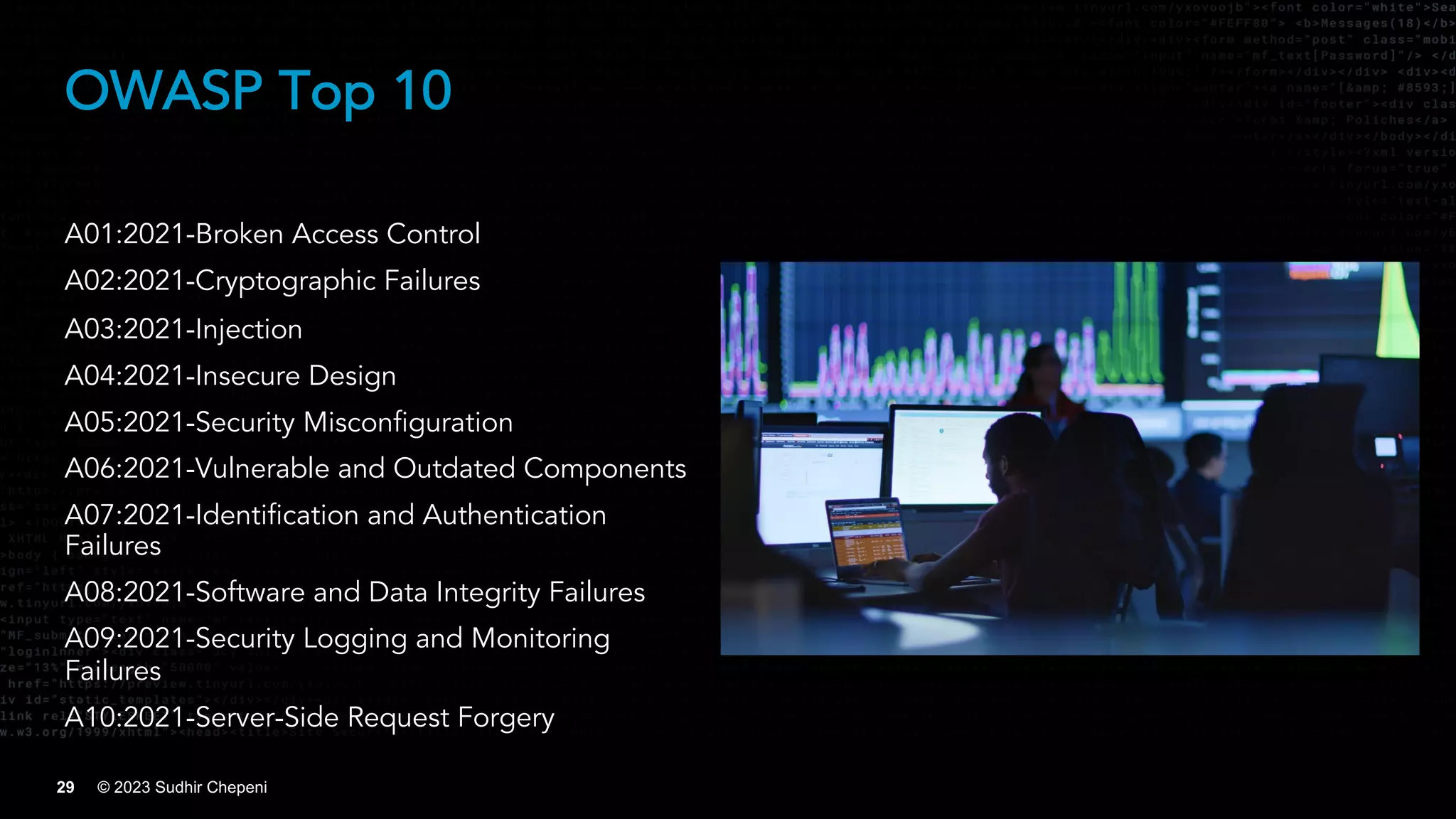

- 29. © 2023 SudhirChepeni 29 OWASP Top 10 A01:2021-Broken Access Control A02:2021-Cryptographic Failures A03:2021-Injection A04:2021-Insecure Design A05:2021-Security Misconfiguration A06:2021-Vulnerable and Outdated Components A07:2021-Identification and Authentication Failures A08:2021-Software and Data Integrity Failures A09:2021-Security Logging and Monitoring Failures A10:2021-Server-Side Request Forgery

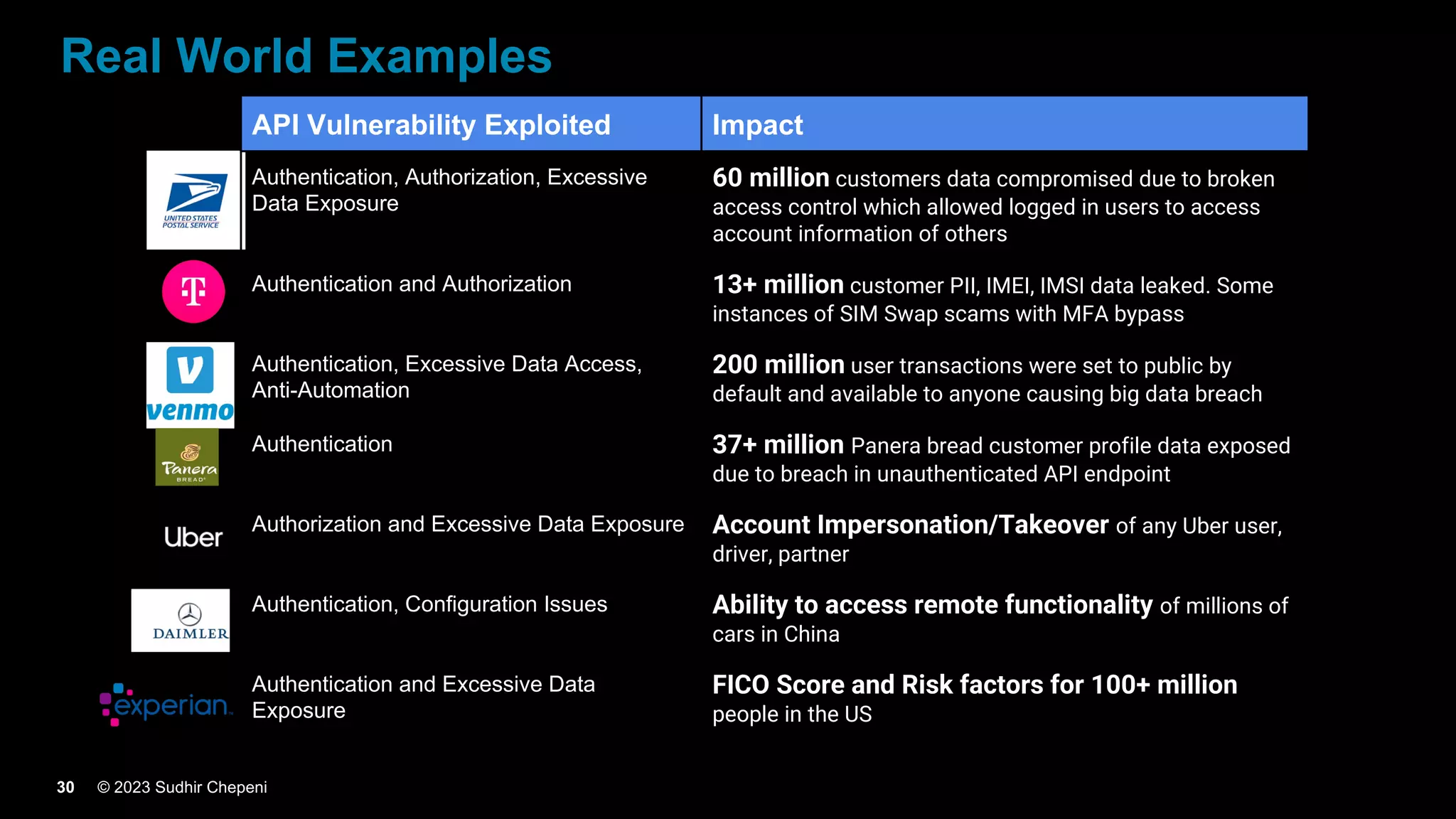

- 30. © 2023 SudhirChepeni 30 Real World Examples 30 API Vulnerability Exploited Impact Authentication, Authorization, Excessive Data Exposure 60 million customers data compromised due to broken access control which allowed logged in users to access account information of others Authentication and Authorization 13+ million customer PII, IMEI, IMSI data leaked. Some instances of SIM Swap scams with MFA bypass Authentication, Excessive Data Access, Anti-Automation 200 million user transactions were set to public by default and available to anyone causing big data breach Authentication 37+ million Panera bread customer profile data exposed due to breach in unauthenticated API endpoint Authorization and Excessive Data Exposure Account Impersonation/Takeover of any Uber user, driver, partner Authentication, Configuration Issues Ability to access remote functionality of millions of cars in China Authentication and Excessive Data Exposure FICO Score and Risk factors for 100+ million people in the US
- 31. © 2023 SudhirChepeni 31 API Security Solutions

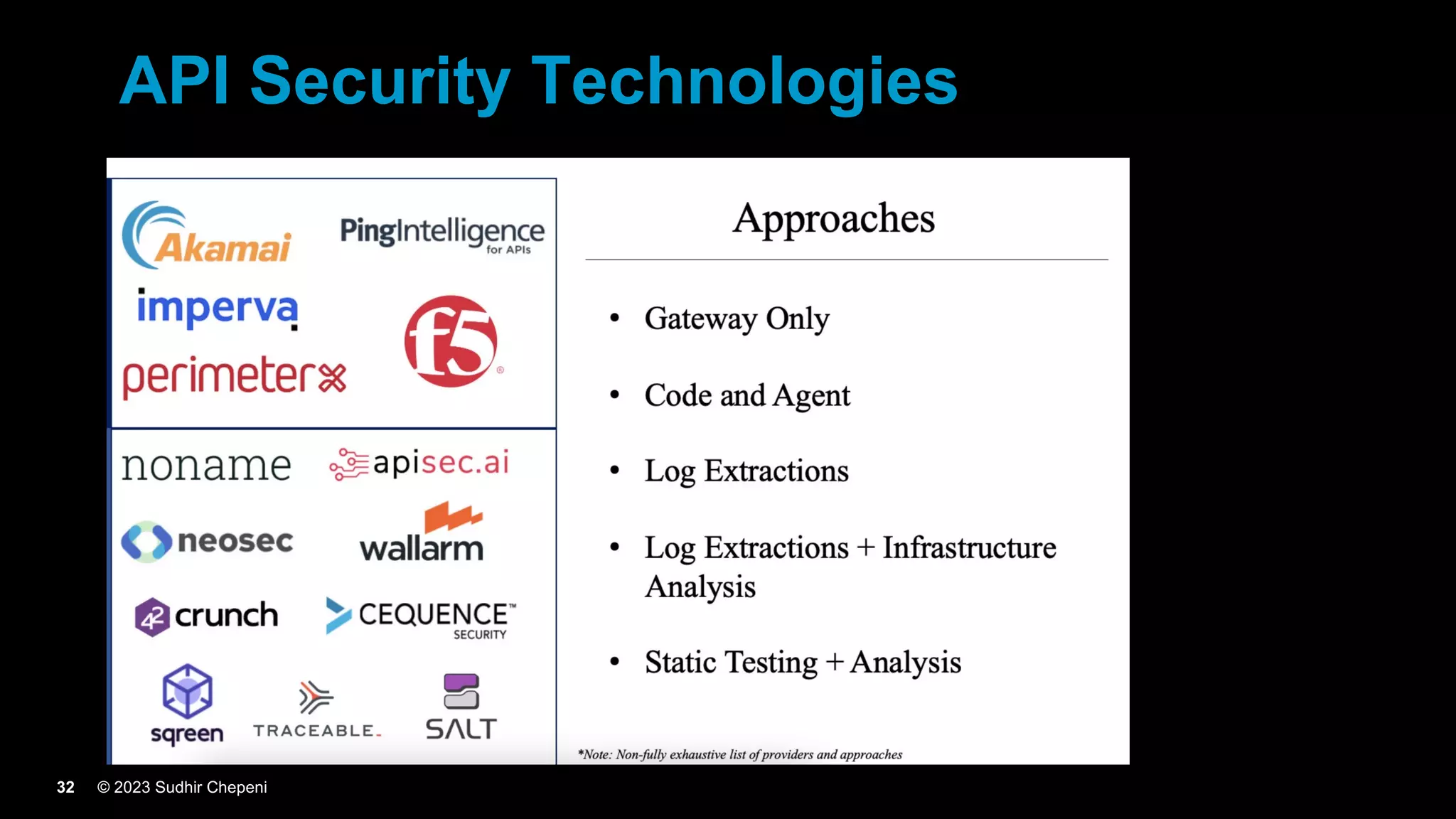

- 32. © 2023 SudhirChepeni 32 API Security Technologies
- 33. © 2023 SudhirChepeni 33 Vestibulum congue tempus Lorem ipsum Vestibulum congue tempus Lorem ipsum Vestibulum congue tempus Lorem ipsum Vestibulum congue tempus Lorem ipsum Vestibulum congue tempus Lorem ipsum Vestibulum congue tempus Lorem ipsum Vestibulum congue tempus Lorem ipsum Vestibulum congue tempus Lorem ipsum Vestibulum congue tempus Lorem ipsum Vestibulum congue tempus Lorem ipsum Vestibulum congue tempus Lorem ipsum Vestibulum congue tempus Lorem ipsum ●DoS & Automation ●Injection Attacks ●Business Logic Abuse & ●Industry Specific Workflows Runtime Detections ●API Discovery & Profiling ●API Misconfigurations ●Risk Assessment & Prioritization Visibility and Posture Management ●Integration into CI/CD ●API Security Testing SDLC Integrations ●API centric threat hunting ●API centric analytics ●Integrations with prevention and response tools Threat Hunting, Analytics API Security Framework

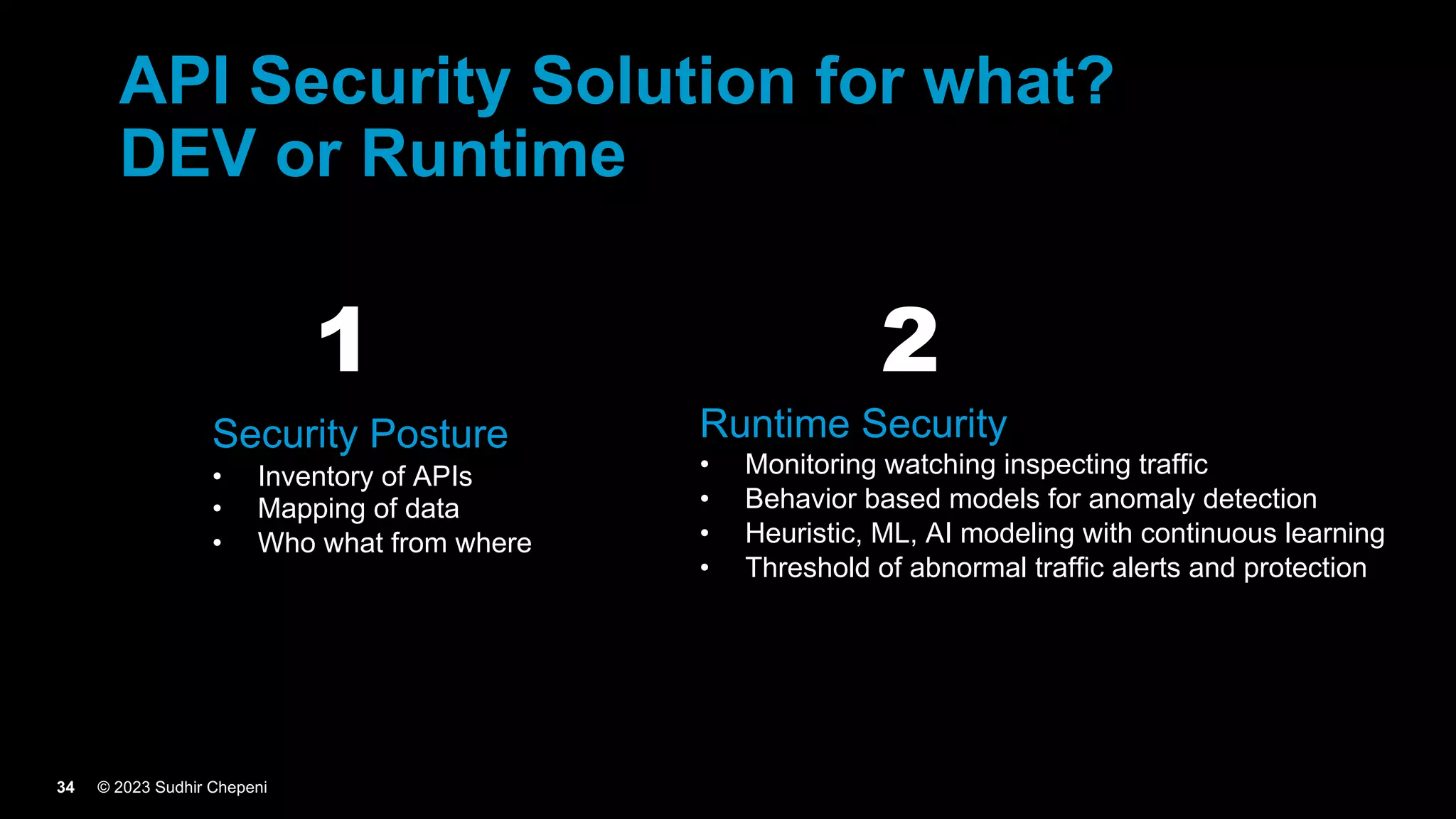

- 34. © 2023 SudhirChepeni 34 API Security Solution for what? DEV or Runtime Security Posture • Inventory of APIs • Mapping of data • Who what from where Runtime Security • Monitoring watching inspecting traffic • Behavior based models for anomaly detection • Heuristic, ML, AI modeling with continuous learning • Threshold of abnormal traffic alerts and protection 1 2

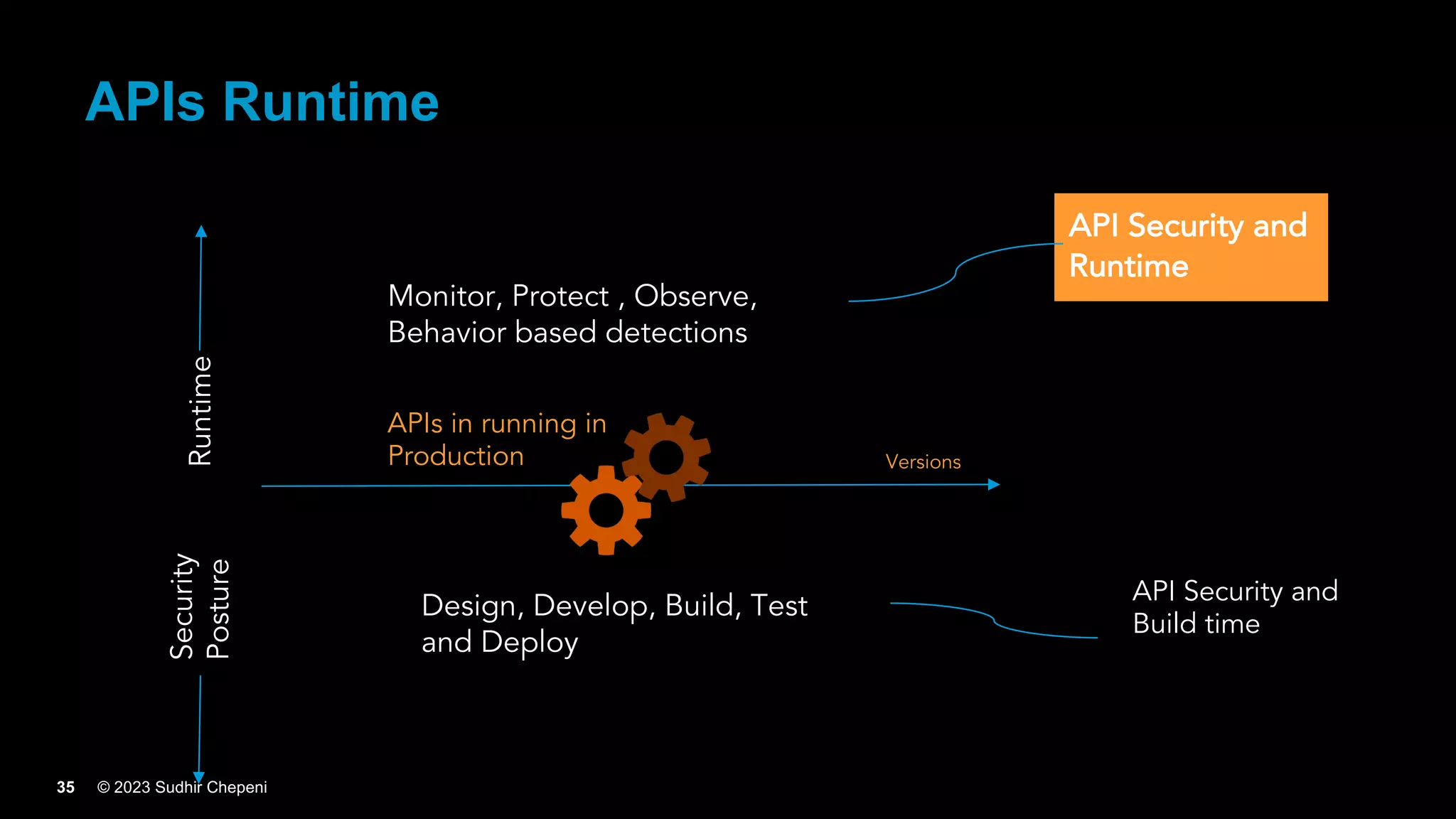

- 35. © 2023 SudhirChepeni 35 APIs Runtime Versions Design, Develop, Build, Test and Deploy APIs in running in Production API Security and Build time API Security and Runtime Monitor, Protect , Observe, Behavior based detections Security Posture Runtime
- 36. © 2023 SudhirChepeni 36 API Security Full Cycle

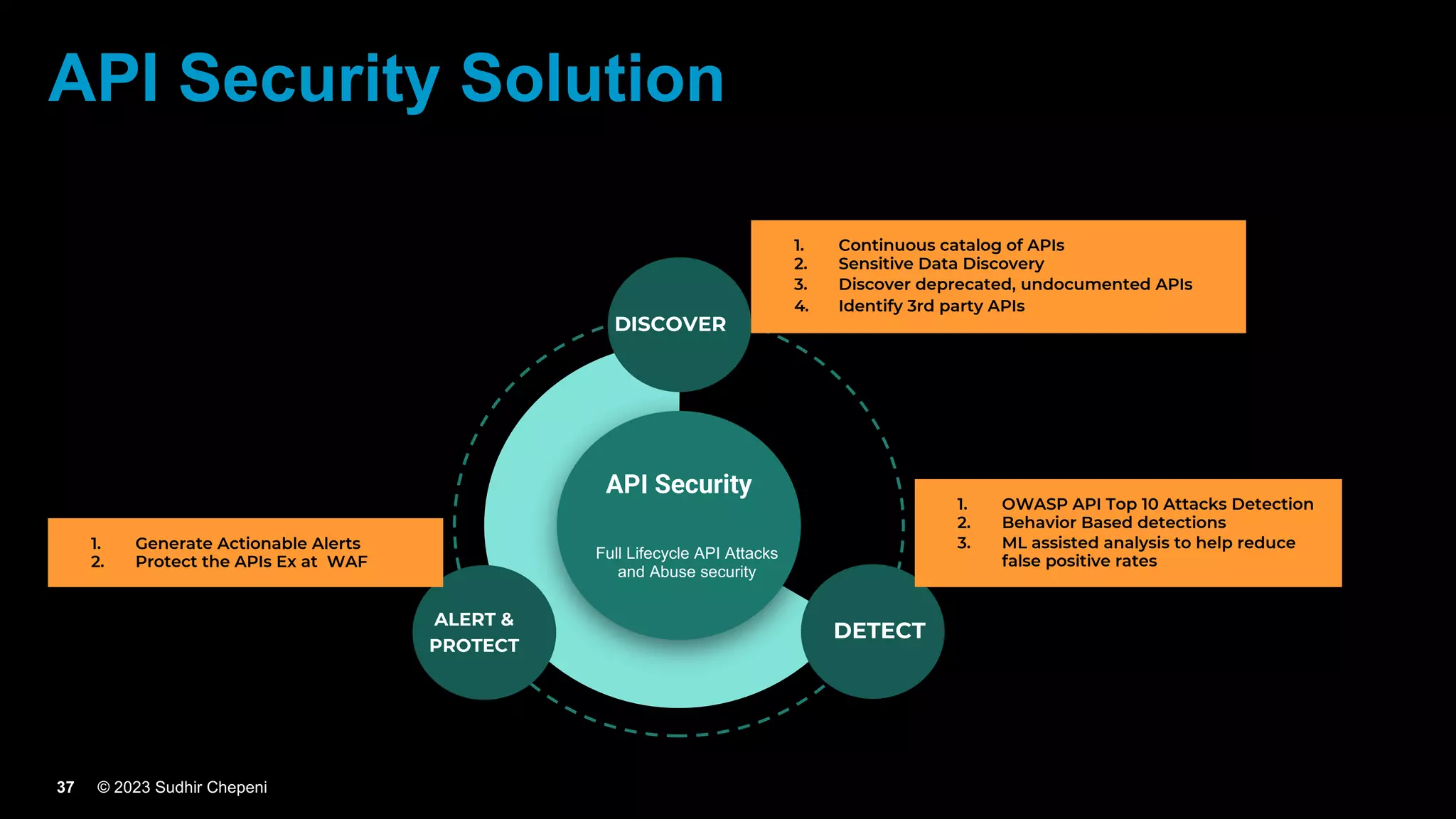

- 37. © 2023 SudhirChepeni 37 API Security DISCOVER ALERT & PROTECT DETECT Full Lifecycle API Attacks and Abuse security 1. Continuous catalog of APIs 2. Sensitive Data Discovery 3. Discover deprecated, undocumented APIs 4. Identify 3rd party APIs 1. OWASP API Top 10 Attacks Detection 2. Behavior Based detections 3. ML assisted analysis to help reduce false positive rates 1. Generate Actionable Alerts 2. Protect the APIs Ex at WAF API Security Solution

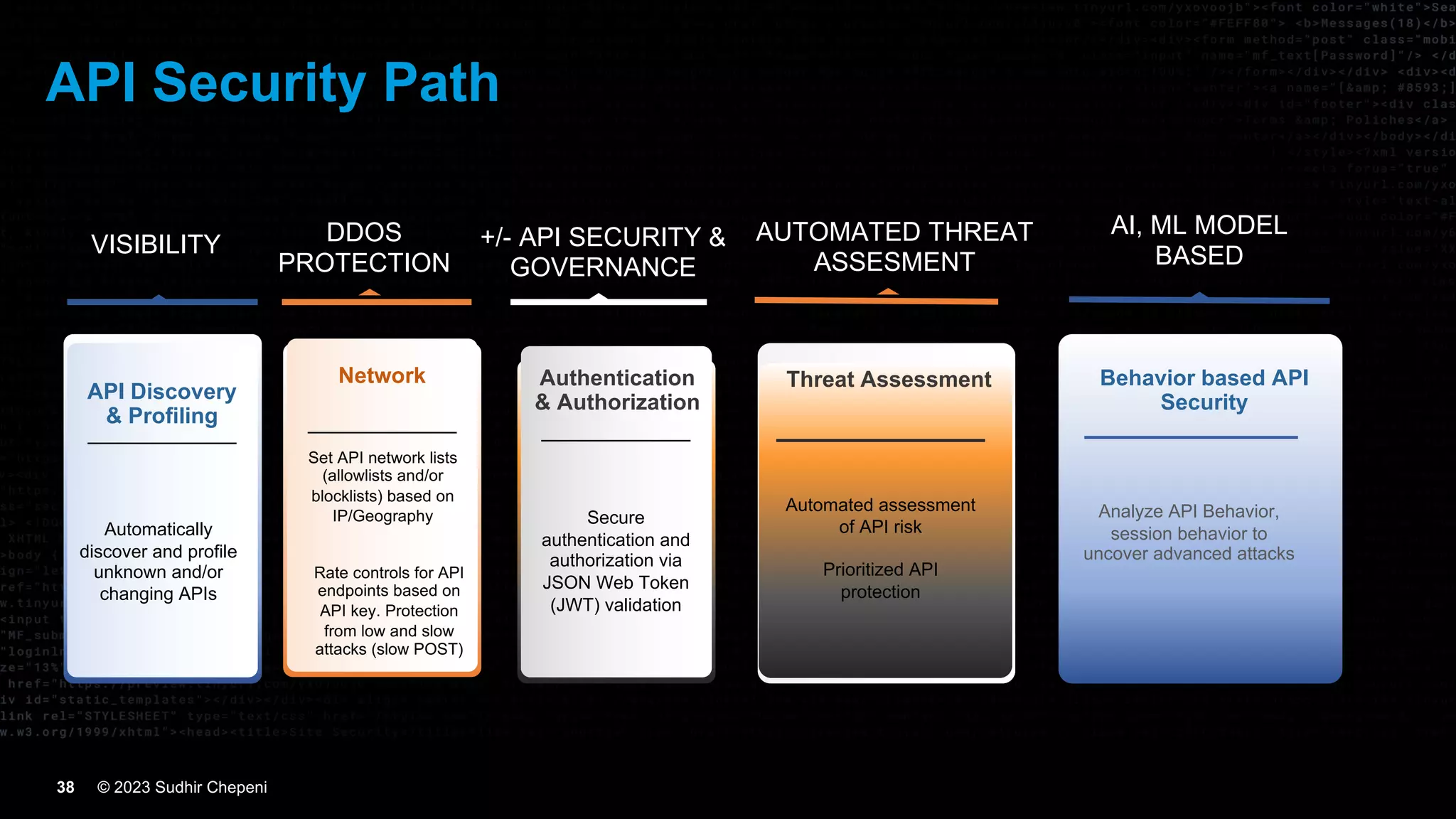

- 38. © 2023 SudhirChepeni 38 API Discovery & Profiling Automatically discover and profile unknown and/or changing APIs VISIBILITY Network Set API network lists (allowlists and/or blocklists) based on IP/Geography Rate controls for API endpoints based on API key. Protection from low and slow attacks (slow POST) DDOS PROTECTION Authentication & Authorization Secure authentication and authorization via JSON Web Token (JWT) validation +/- API SECURITY & GOVERNANCE Threat Assessment Automated assessment of API risk Prioritized API protection Behavior based API Security Analyze API Behavior, session behavior to uncover advanced attacks AI, ML MODEL BASED AUTOMATED THREAT ASSESMENT API Security Path

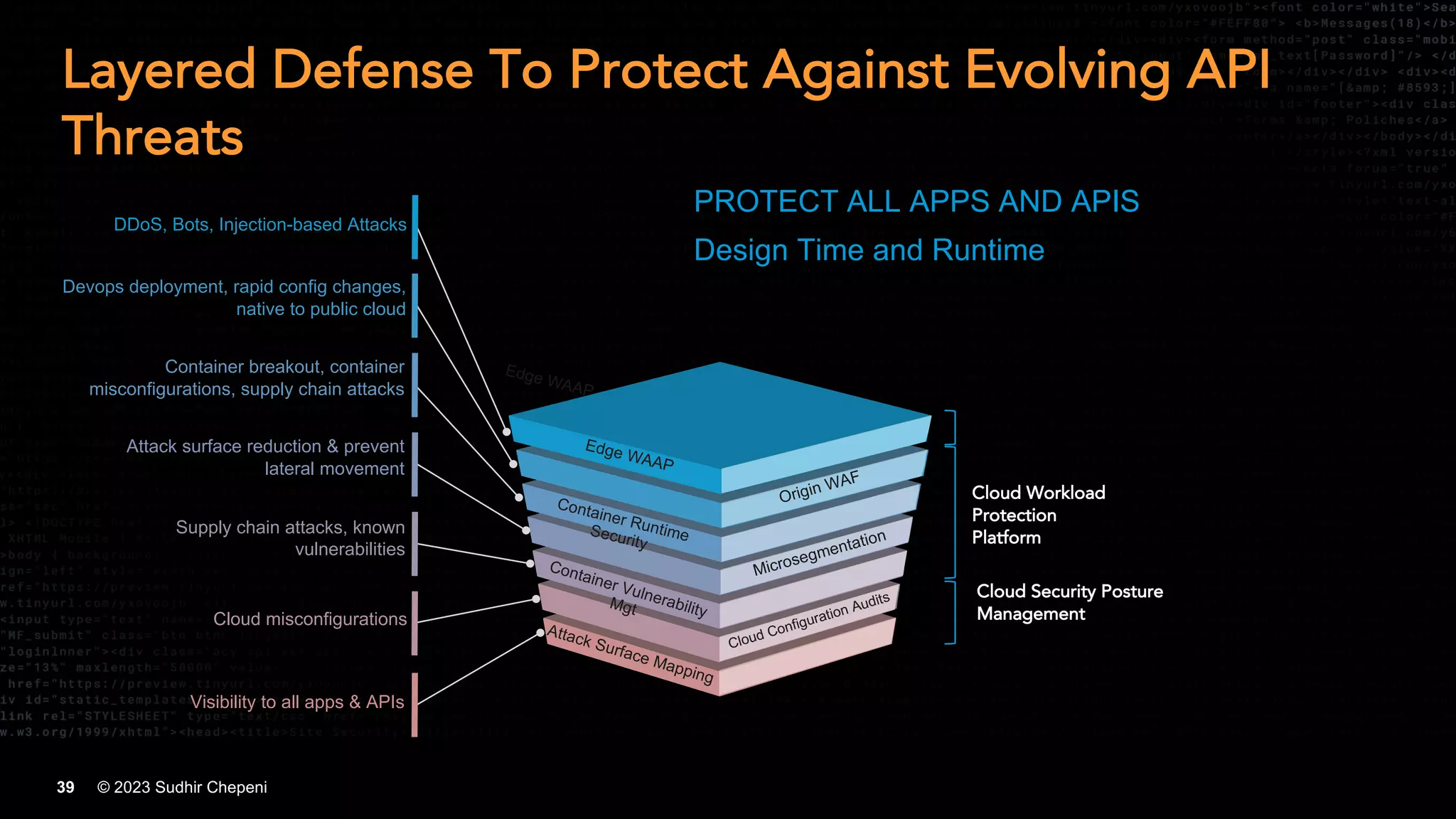

- 39. © 2023 SudhirChepeni 39 PROTECT ALL APPS AND APIS Design Time and Runtime Layered Defense To Protect Against Evolving API Threats Attack surface reduction & prevent lateral movement Cloud misconfigurations Supply chain attacks, known vulnerabilities Edge WAAP Visibility to all apps & APIs Devops deployment, rapid config changes, native to public cloud DDoS, Bots, Injection-based Attacks Container breakout, container misconfigurations, supply chain attacks Container Runtime Security Container Vulnerability Mgt Attack Surface Mapping Cloud Configuration Audits Microsegmentation Origin WAF Edge WAAP Cloud Workload Protection Platform Cloud Security Posture Management
- 40. © 2023 SudhirChepeni 40 Recommendations 1. Think about full lifecycle of APIs for API Security Solutions 2. API security is Discovery Detection and Protection 3. API security is a layered, choose fewer tools 4. Use automation to alert right people in time 5. Focus on observability, use tools to automatically detect and protect
- 41. © 2023 SudhirChepeni 41 41 Customers expect their digital experience to be consistently fast, consistently engaging, completely secure APIs are at the Center of Modern Experience
