A Hybrid CNN-LSTM Deep Learning Model for Intrusion Detection in Smart Grid

International Journal of Artificial Intelligence and Applications (IJAIA), Vol.16, No.5, September 2025
DOI:10.5121/ijaia.2025.16501 1

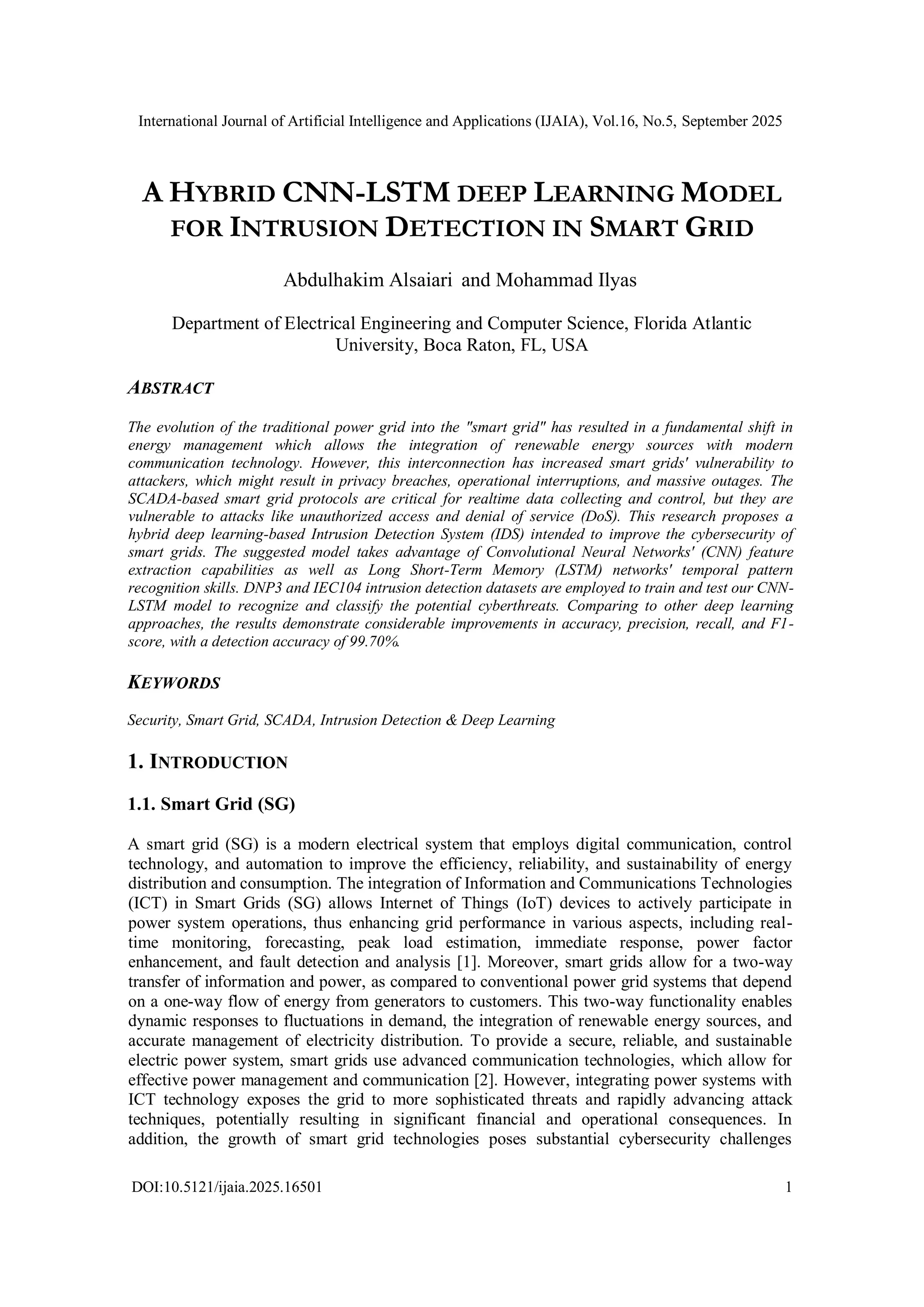

A HYBRID CNN-LSTM DEEP LEARNING MODEL
FOR INTRUSION DETECTION IN SMART GRID
Abdulhakim Alsaiari and Mohammad Ilyas
Department of Electrical Engineering and Computer Science, Florida Atlantic
University, Boca Raton, FL, USA
ABSTRACT
The evolution of the traditional power grid into the "smart grid" has resulted in a fundamental shift in
energy management which allows the integration of renewable energy sources with modern
communication technology. However, this interconnection has increased smart grids' vulnerability to
attackers, which might result in privacy breaches, operational interruptions, and massive outages. The
SCADA-based smart grid protocols are critical for realtime data collecting and control, but they are
vulnerable to attacks like unauthorized access and denial of service (DoS). This research proposes a
hybrid deep learning-based Intrusion Detection System (IDS) intended to improve the cybersecurity of
smart grids. The suggested model takes advantage of Convolutional Neural Networks' (CNN) feature
extraction capabilities as well as Long Short-Term Memory (LSTM) networks' temporal pattern
recognition skills. DNP3 and IEC104 intrusion detection datasets are employed to train and test our CNN-
LSTM model to recognize and classify the potential cyberthreats. Comparing to other deep learning
approaches, the results demonstrate considerable improvements in accuracy, precision, recall, and F1-
score, with a detection accuracy of 99.70%.
KEYWORDS
Security, Smart Grid, SCADA, Intrusion Detection & Deep Learning
1. INTRODUCTION
1.1. Smart Grid (SG)
A smart grid (SG) is a modern electrical system that employs digital communication, control
technology, and automation to improve the efficiency, reliability, and sustainability of energy
distribution and consumption. The integration of Information and Communications Technologies
(ICT) in Smart Grids (SG) allows Internet of Things (IoT) devices to actively participate in
power system operations, thus enhancing grid performance in various aspects, including real-
time monitoring, forecasting, peak load estimation, immediate response, power factor
enhancement, and fault detection and analysis [1]. Moreover, smart grids allow for a two-way
transfer of information and power, as compared to conventional power grid systems that depend
on a one-way flow of energy from generators to customers. This two-way functionality enables
dynamic responses to fluctuations in demand, the integration of renewable energy sources, and
accurate management of electricity distribution. To provide a secure, reliable, and sustainable
electric power system, smart grids use advanced communication technologies, which allow for
effective power management and communication [2]. However, integrating power systems with
ICT technology exposes the grid to more sophisticated threats and rapidly advancing attack
techniques, potentially resulting in significant financial and operational consequences. In
addition, the growth of smart grid technologies poses substantial cybersecurity challenges

2

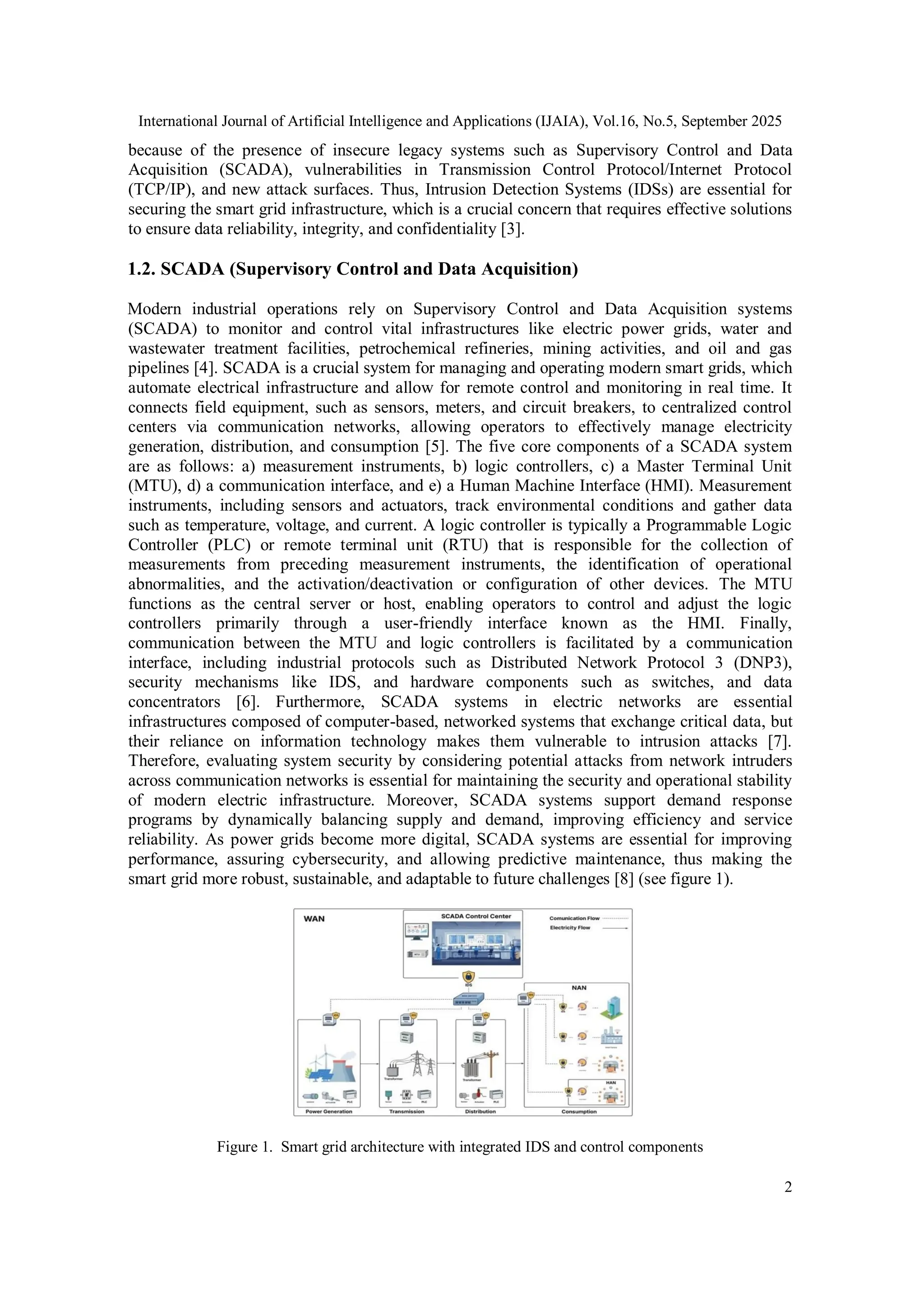

because of the presence of insecure legacy systems such as Supervisory Control and Data
Acquisition (SCADA), vulnerabilities in Transmission Control Protocol/Internet Protocol
(TCP/IP), and new attack surfaces. Thus, Intrusion Detection Systems (IDSs) are essential for
securing the smart grid infrastructure, which is a crucial concern that requires effective solutions
to ensure data reliability, integrity, and confidentiality [3].
1.2. SCADA (Supervisory Control and Data Acquisition)
Modern industrial operations rely on Supervisory Control and Data Acquisition systems
(SCADA) to monitor and control vital infrastructures like electric power grids, water and
wastewater treatment facilities, petrochemical refineries, mining activities, and oil and gas
pipelines [4]. SCADA is a crucial system for managing and operating modern smart grids, which
automate electrical infrastructure and allow for remote control and monitoring in real time. It
connects field equipment, such as sensors, meters, and circuit breakers, to centralized control
centers via communication networks, allowing operators to effectively manage electricity
generation, distribution, and consumption [5]. The five core components of a SCADA system
are as follows: a) measurement instruments, b) logic controllers, c) a Master Terminal Unit
(MTU), d) a communication interface, and e) a Human Machine Interface (HMI). Measurement
instruments, including sensors and actuators, track environmental conditions and gather data
such as temperature, voltage, and current. A logic controller is typically a Programmable Logic
Controller (PLC) or remote terminal unit (RTU) that is responsible for the collection of
measurements from preceding measurement instruments, the identification of operational
abnormalities, and the activation/deactivation or configuration of other devices. The MTU
functions as the central server or host, enabling operators to control and adjust the logic
controllers primarily through a user-friendly interface known as the HMI. Finally,
communication between the MTU and logic controllers is facilitated by a communication
interface, including industrial protocols such as Distributed Network Protocol 3 (DNP3),
security mechanisms like IDS, and hardware components such as switches, and data
concentrators [6]. Furthermore, SCADA systems in electric networks are essential
infrastructures composed of computer-based, networked systems that exchange critical data, but
their reliance on information technology makes them vulnerable to intrusion attacks [7].
Therefore, evaluating system security by considering potential attacks from network intruders
across communication networks is essential for maintaining the security and operational stability
of modern electric infrastructure. Moreover, SCADA systems support demand response
programs by dynamically balancing supply and demand, improving efficiency and service
reliability. As power grids become more digital, SCADA systems are essential for improving
performance, assuring cybersecurity, and allowing predictive maintenance, thus making the
smart grid more robust, sustainable, and adaptable to future challenges [8] (see figure 1).
Figure 1. Smart grid architecture with integrated IDS and control components

3

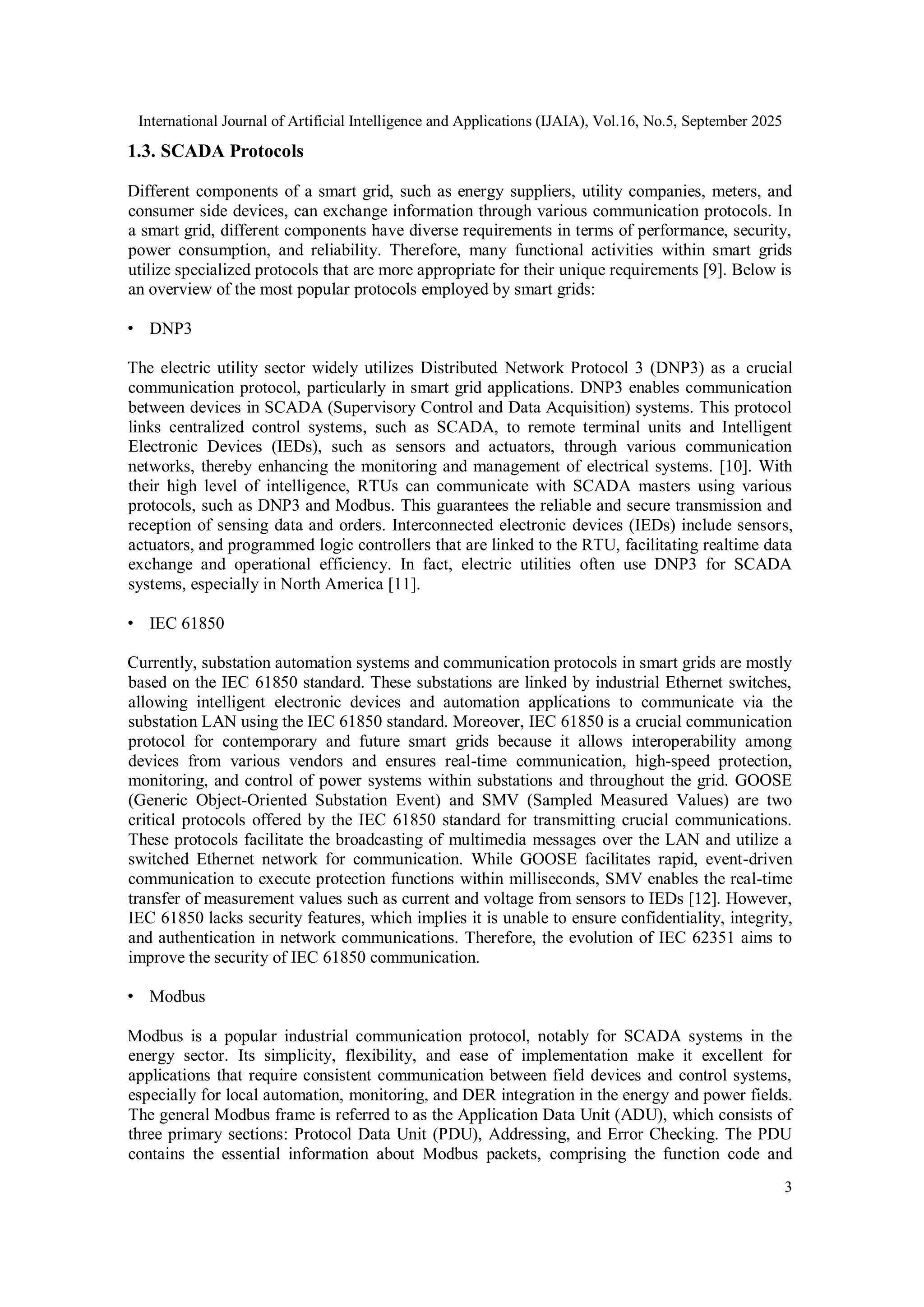

1.3. SCADA Protocols
Different components of a smart grid, such as energy suppliers, utility companies, meters, and
consumer side devices, can exchange information through various communication protocols. In
a smart grid, different components have diverse requirements in terms of performance, security,
power consumption, and reliability. Therefore, many functional activities within smart grids
utilize specialized protocols that are more appropriate for their unique requirements [9]. Below is
an overview of the most popular protocols employed by smart grids:
• DNP3
The electric utility sector widely utilizes Distributed Network Protocol 3 (DNP3) as a crucial
communication protocol, particularly in smart grid applications. DNP3 enables communication
between devices in SCADA (Supervisory Control and Data Acquisition) systems. This protocol
links centralized control systems, such as SCADA, to remote terminal units and Intelligent
Electronic Devices (IEDs), such as sensors and actuators, through various communication
networks, thereby enhancing the monitoring and management of electrical systems. [10]. With
their high level of intelligence, RTUs can communicate with SCADA masters using various
protocols, such as DNP3 and Modbus. This guarantees the reliable and secure transmission and
reception of sensing data and orders. Interconnected electronic devices (IEDs) include sensors,
actuators, and programmed logic controllers that are linked to the RTU, facilitating realtime data
exchange and operational efficiency. In fact, electric utilities often use DNP3 for SCADA
systems, especially in North America [11].
• IEC 61850
Currently, substation automation systems and communication protocols in smart grids are mostly
based on the IEC 61850 standard. These substations are linked by industrial Ethernet switches,
allowing intelligent electronic devices and automation applications to communicate via the
substation LAN using the IEC 61850 standard. Moreover, IEC 61850 is a crucial communication
protocol for contemporary and future smart grids because it allows interoperability among
devices from various vendors and ensures real-time communication, high-speed protection,
monitoring, and control of power systems within substations and throughout the grid. GOOSE
(Generic Object-Oriented Substation Event) and SMV (Sampled Measured Values) are two
critical protocols offered by the IEC 61850 standard for transmitting crucial communications.
These protocols facilitate the broadcasting of multimedia messages over the LAN and utilize a
switched Ethernet network for communication. While GOOSE facilitates rapid, event-driven
communication to execute protection functions within milliseconds, SMV enables the real-time
transfer of measurement values such as current and voltage from sensors to IEDs [12]. However,
IEC 61850 lacks security features, which implies it is unable to ensure confidentiality, integrity,
and authentication in network communications. Therefore, the evolution of IEC 62351 aims to
improve the security of IEC 61850 communication.
• Modbus
Modbus is a popular industrial communication protocol, notably for SCADA systems in the
energy sector. Its simplicity, flexibility, and ease of implementation make it excellent for
applications that require consistent communication between field devices and control systems,
especially for local automation, monitoring, and DER integration in the energy and power fields.
The general Modbus frame is referred to as the Application Data Unit (ADU), which consists of
three primary sections: Protocol Data Unit (PDU), Addressing, and Error Checking. The PDU
contains the essential information about Modbus packets, comprising the function code and

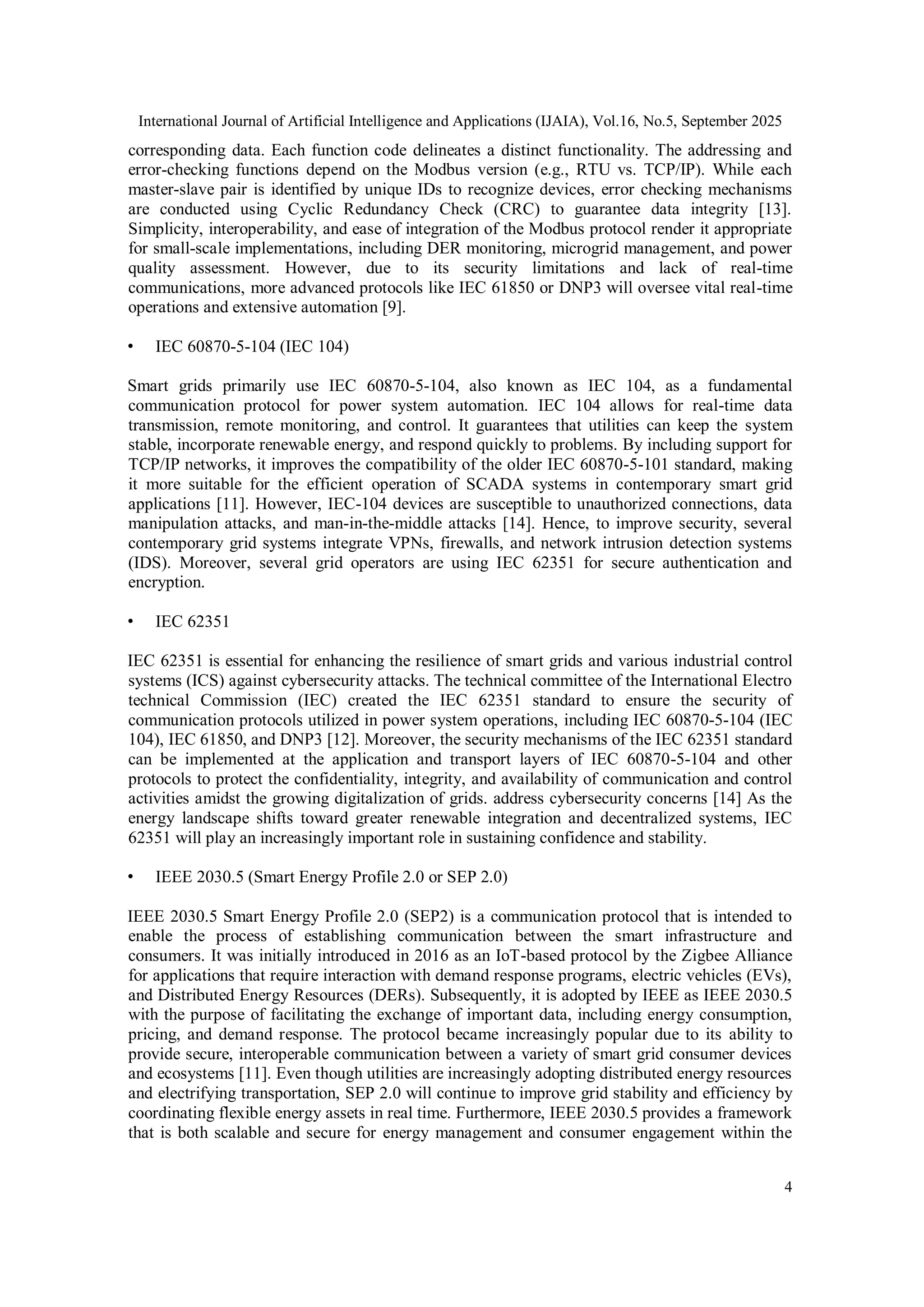

4
corresponding data. Each function code delineates a distinct functionality. The addressing and
error-checking functions depend on the Modbus version (e.g., RTU vs. TCP/IP). While each
master-slave pair is identified by unique IDs to recognize devices, error checking mechanisms
are conducted using Cyclic Redundancy Check (CRC) to guarantee data integrity [13].
Simplicity, interoperability, and ease of integration of the Modbus protocol render it appropriate
for small-scale implementations, including DER monitoring, microgrid management, and power
quality assessment. However, due to its security limitations and lack of real-time
communications, more advanced protocols like IEC 61850 or DNP3 will oversee vital real-time
operations and extensive automation [9].
• IEC 60870-5-104 (IEC 104)
Smart grids primarily use IEC 60870-5-104, also known as IEC 104, as a fundamental
communication protocol for power system automation. IEC 104 allows for real-time data
transmission, remote monitoring, and control. It guarantees that utilities can keep the system
stable, incorporate renewable energy, and respond quickly to problems. By including support for
TCP/IP networks, it improves the compatibility of the older IEC 60870-5-101 standard, making
it more suitable for the efficient operation of SCADA systems in contemporary smart grid
applications [11]. However, IEC-104 devices are susceptible to unauthorized connections, data
manipulation attacks, and man-in-the-middle attacks [14]. Hence, to improve security, several
contemporary grid systems integrate VPNs, firewalls, and network intrusion detection systems
(IDS). Moreover, several grid operators are using IEC 62351 for secure authentication and
encryption.
• IEC 62351
IEC 62351 is essential for enhancing the resilience of smart grids and various industrial control
systems (ICS) against cybersecurity attacks. The technical committee of the International Electro
technical Commission (IEC) created the IEC 62351 standard to ensure the security of
communication protocols utilized in power system operations, including IEC 60870-5-104 (IEC
104), IEC 61850, and DNP3 [12]. Moreover, the security mechanisms of the IEC 62351 standard
can be implemented at the application and transport layers of IEC 60870-5-104 and other
protocols to protect the confidentiality, integrity, and availability of communication and control
activities amidst the growing digitalization of grids. address cybersecurity concerns [14] As the
energy landscape shifts toward greater renewable integration and decentralized systems, IEC
62351 will play an increasingly important role in sustaining confidence and stability.
• IEEE 2030.5 (Smart Energy Profile 2.0 or SEP 2.0)
IEEE 2030.5 Smart Energy Profile 2.0 (SEP2) is a communication protocol that is intended to
enable the process of establishing communication between the smart infrastructure and
consumers. It was initially introduced in 2016 as an IoT-based protocol by the Zigbee Alliance
for applications that require interaction with demand response programs, electric vehicles (EVs),
and Distributed Energy Resources (DERs). Subsequently, it is adopted by IEEE as IEEE 2030.5
with the purpose of facilitating the exchange of important data, including energy consumption,
pricing, and demand response. The protocol became increasingly popular due to its ability to
provide secure, interoperable communication between a variety of smart grid consumer devices
and ecosystems [11]. Even though utilities are increasingly adopting distributed energy resources
and electrifying transportation, SEP 2.0 will continue to improve grid stability and efficiency by
coordinating flexible energy assets in real time. Furthermore, IEEE 2030.5 provides a framework
that is both scalable and secure for energy management and consumer engagement within the

5

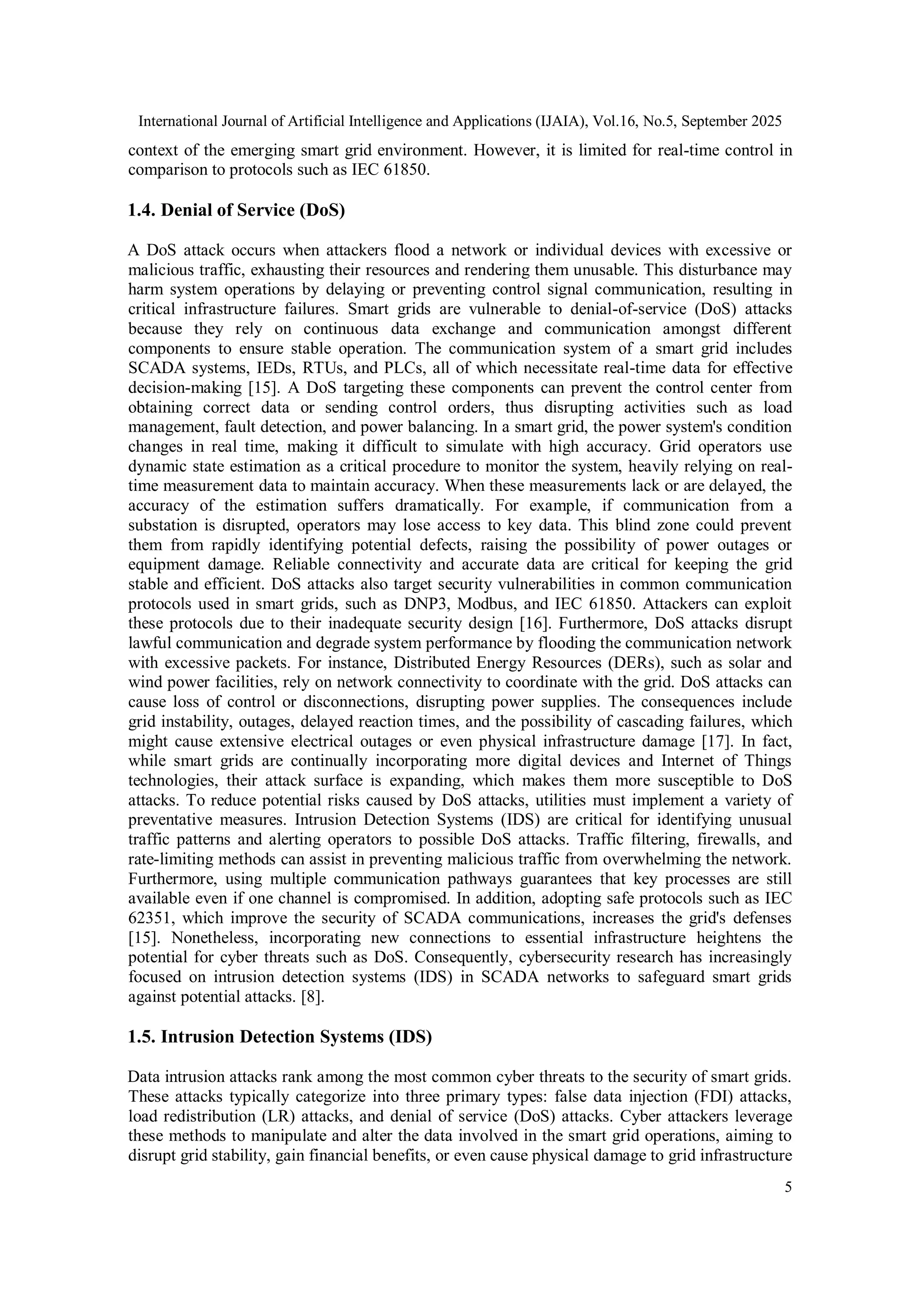

context of the emerging smart grid environment. However, it is limited for real-time control in
comparison to protocols such as IEC 61850.
1.4. Denial of Service (DoS)
A DoS attack occurs when attackers flood a network or individual devices with excessive or
malicious traffic, exhausting their resources and rendering them unusable. This disturbance may
harm system operations by delaying or preventing control signal communication, resulting in
critical infrastructure failures. Smart grids are vulnerable to denial-of-service (DoS) attacks
because they rely on continuous data exchange and communication amongst different
components to ensure stable operation. The communication system of a smart grid includes
SCADA systems, IEDs, RTUs, and PLCs, all of which necessitate real-time data for effective
decision-making [15]. A DoS targeting these components can prevent the control center from
obtaining correct data or sending control orders, thus disrupting activities such as load
management, fault detection, and power balancing. In a smart grid, the power system's condition
changes in real time, making it difficult to simulate with high accuracy. Grid operators use
dynamic state estimation as a critical procedure to monitor the system, heavily relying on real-
time measurement data to maintain accuracy. When these measurements lack or are delayed, the
accuracy of the estimation suffers dramatically. For example, if communication from a
substation is disrupted, operators may lose access to key data. This blind zone could prevent
them from rapidly identifying potential defects, raising the possibility of power outages or
equipment damage. Reliable connectivity and accurate data are critical for keeping the grid
stable and efficient. DoS attacks also target security vulnerabilities in common communication
protocols used in smart grids, such as DNP3, Modbus, and IEC 61850. Attackers can exploit
these protocols due to their inadequate security design [16]. Furthermore, DoS attacks disrupt
lawful communication and degrade system performance by flooding the communication network
with excessive packets. For instance, Distributed Energy Resources (DERs), such as solar and
wind power facilities, rely on network connectivity to coordinate with the grid. DoS attacks can
cause loss of control or disconnections, disrupting power supplies. The consequences include
grid instability, outages, delayed reaction times, and the possibility of cascading failures, which
might cause extensive electrical outages or even physical infrastructure damage [17]. In fact,
while smart grids are continually incorporating more digital devices and Internet of Things
technologies, their attack surface is expanding, which makes them more susceptible to DoS
attacks. To reduce potential risks caused by DoS attacks, utilities must implement a variety of
preventative measures. Intrusion Detection Systems (IDS) are critical for identifying unusual
traffic patterns and alerting operators to possible DoS attacks. Traffic filtering, firewalls, and
rate-limiting methods can assist in preventing malicious traffic from overwhelming the network.
Furthermore, using multiple communication pathways guarantees that key processes are still
available even if one channel is compromised. In addition, adopting safe protocols such as IEC
62351, which improve the security of SCADA communications, increases the grid's defenses
[15]. Nonetheless, incorporating new connections to essential infrastructure heightens the
potential for cyber threats such as DoS. Consequently, cybersecurity research has increasingly
focused on intrusion detection systems (IDS) in SCADA networks to safeguard smart grids
against potential attacks. [8].
1.5. Intrusion Detection Systems (IDS)
Data intrusion attacks rank among the most common cyber threats to the security of smart grids.
These attacks typically categorize into three primary types: false data injection (FDI) attacks,
load redistribution (LR) attacks, and denial of service (DoS) attacks. Cyber attackers leverage
these methods to manipulate and alter the data involved in the smart grid operations, aiming to
disrupt grid stability, gain financial benefits, or even cause physical damage to grid infrastructure

6

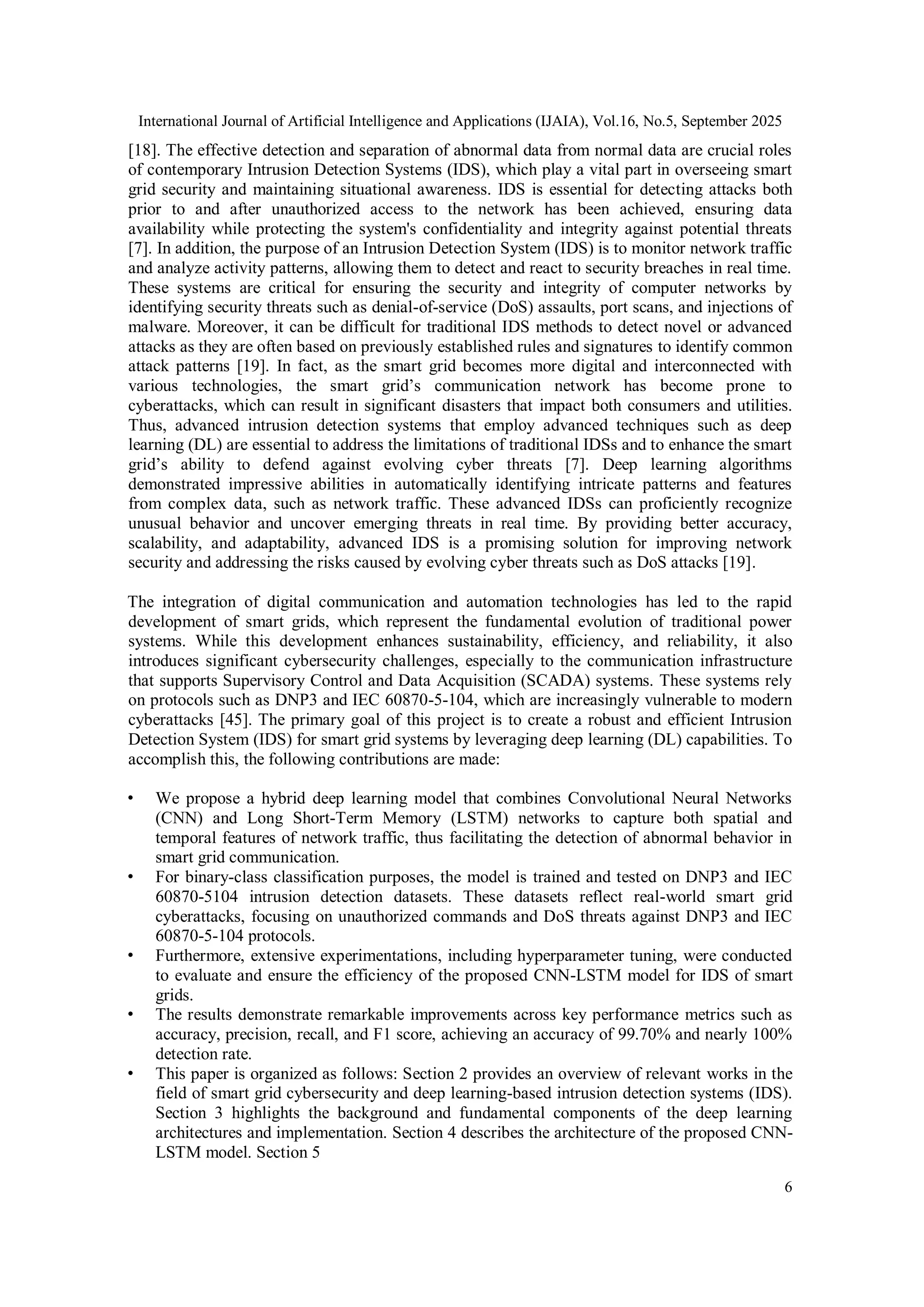

[18]. The effective detection and separation of abnormal data from normal data are crucial roles
of contemporary Intrusion Detection Systems (IDS), which play a vital part in overseeing smart
grid security and maintaining situational awareness. IDS is essential for detecting attacks both
prior to and after unauthorized access to the network has been achieved, ensuring data
availability while protecting the system's confidentiality and integrity against potential threats
[7]. In addition, the purpose of an Intrusion Detection System (IDS) is to monitor network traffic
and analyze activity patterns, allowing them to detect and react to security breaches in real time.
These systems are critical for ensuring the security and integrity of computer networks by
identifying security threats such as denial-of-service (DoS) assaults, port scans, and injections of
malware. Moreover, it can be difficult for traditional IDS methods to detect novel or advanced
attacks as they are often based on previously established rules and signatures to identify common
attack patterns [19]. In fact, as the smart grid becomes more digital and interconnected with
various technologies, the smart grid’s communication network has become prone to
cyberattacks, which can result in significant disasters that impact both consumers and utilities.
Thus, advanced intrusion detection systems that employ advanced techniques such as deep
learning (DL) are essential to address the limitations of traditional IDSs and to enhance the smart
grid’s ability to defend against evolving cyber threats [7]. Deep learning algorithms
demonstrated impressive abilities in automatically identifying intricate patterns and features
from complex data, such as network traffic. These advanced IDSs can proficiently recognize
unusual behavior and uncover emerging threats in real time. By providing better accuracy,
scalability, and adaptability, advanced IDS is a promising solution for improving network
security and addressing the risks caused by evolving cyber threats such as DoS attacks [19].
The integration of digital communication and automation technologies has led to the rapid
development of smart grids, which represent the fundamental evolution of traditional power
systems. While this development enhances sustainability, efficiency, and reliability, it also
introduces significant cybersecurity challenges, especially to the communication infrastructure
that supports Supervisory Control and Data Acquisition (SCADA) systems. These systems rely
on protocols such as DNP3 and IEC 60870-5-104, which are increasingly vulnerable to modern
cyberattacks [45]. The primary goal of this project is to create a robust and efficient Intrusion
Detection System (IDS) for smart grid systems by leveraging deep learning (DL) capabilities. To
accomplish this, the following contributions are made:
• We propose a hybrid deep learning model that combines Convolutional Neural Networks
(CNN) and Long Short-Term Memory (LSTM) networks to capture both spatial and
temporal features of network traffic, thus facilitating the detection of abnormal behavior in
smart grid communication.
• For binary-class classification purposes, the model is trained and tested on DNP3 and IEC
60870-5104 intrusion detection datasets. These datasets reflect real-world smart grid
cyberattacks, focusing on unauthorized commands and DoS threats against DNP3 and IEC
60870-5-104 protocols.
• Furthermore, extensive experimentations, including hyperparameter tuning, were conducted
to evaluate and ensure the efficiency of the proposed CNN-LSTM model for IDS of smart
grids.
• The results demonstrate remarkable improvements across key performance metrics such as
accuracy, precision, recall, and F1 score, achieving an accuracy of 99.70% and nearly 100%
detection rate.
• This paper is organized as follows: Section 2 provides an overview of relevant works in the
field of smart grid cybersecurity and deep learning-based intrusion detection systems (IDS).
Section 3 highlights the background and fundamental components of the deep learning
architectures and implementation. Section 4 describes the architecture of the proposed CNN-
LSTM model. Section 5

7

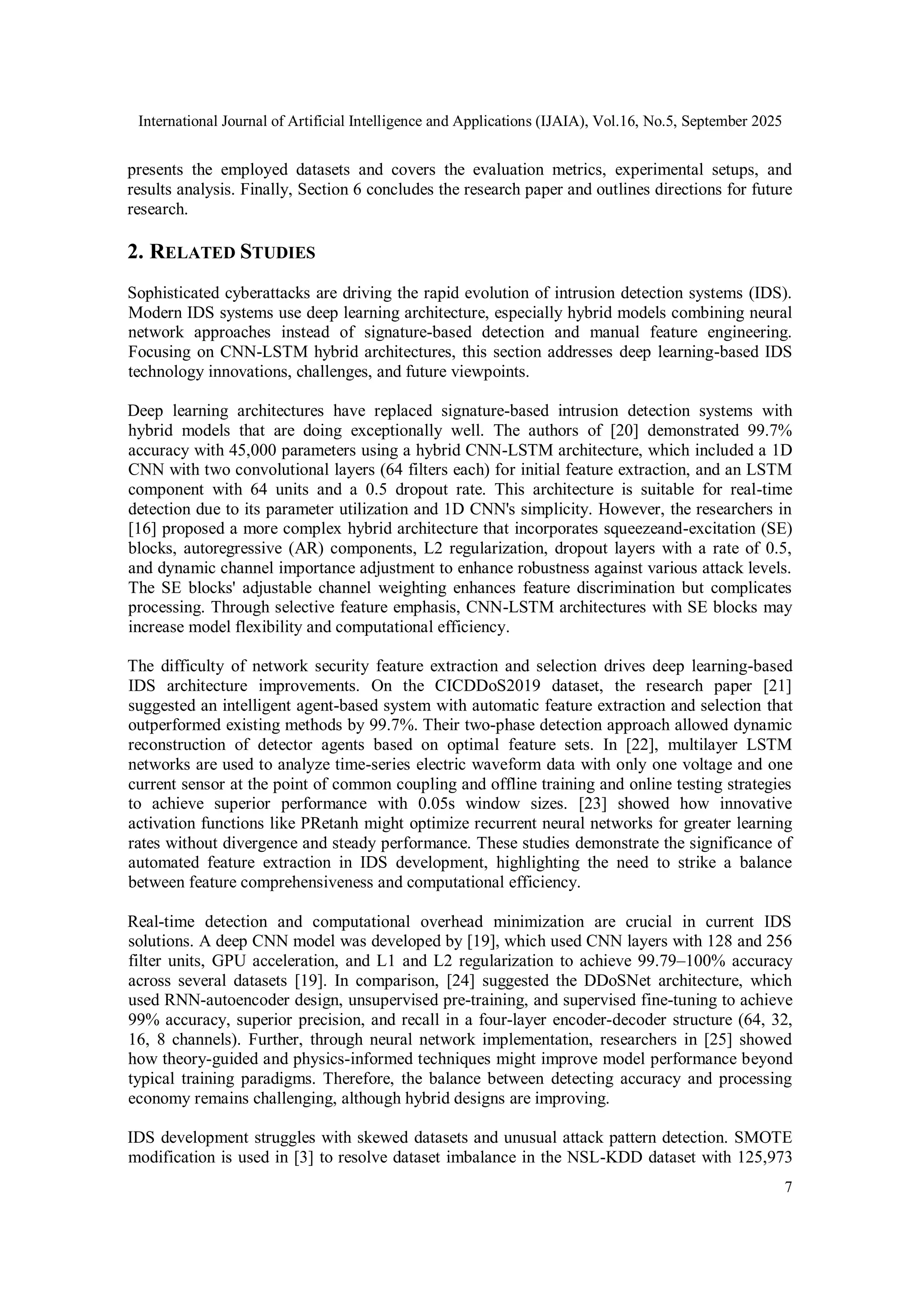

presents the employed datasets and covers the evaluation metrics, experimental setups, and
results analysis. Finally, Section 6 concludes the research paper and outlines directions for future
research.
2. RELATED STUDIES
Sophisticated cyberattacks are driving the rapid evolution of intrusion detection systems (IDS).
Modern IDS systems use deep learning architecture, especially hybrid models combining neural
network approaches instead of signature-based detection and manual feature engineering.
Focusing on CNN-LSTM hybrid architectures, this section addresses deep learning-based IDS
technology innovations, challenges, and future viewpoints.
Deep learning architectures have replaced signature-based intrusion detection systems with
hybrid models that are doing exceptionally well. The authors of [20] demonstrated 99.7%
accuracy with 45,000 parameters using a hybrid CNN-LSTM architecture, which included a 1D
CNN with two convolutional layers (64 filters each) for initial feature extraction, and an LSTM
component with 64 units and a 0.5 dropout rate. This architecture is suitable for real-time
detection due to its parameter utilization and 1D CNN's simplicity. However, the researchers in
[16] proposed a more complex hybrid architecture that incorporates squeezeand-excitation (SE)
blocks, autoregressive (AR) components, L2 regularization, dropout layers with a rate of 0.5,
and dynamic channel importance adjustment to enhance robustness against various attack levels.
The SE blocks' adjustable channel weighting enhances feature discrimination but complicates
processing. Through selective feature emphasis, CNN-LSTM architectures with SE blocks may
increase model flexibility and computational efficiency.
The difficulty of network security feature extraction and selection drives deep learning-based
IDS architecture improvements. On the CICDDoS2019 dataset, the research paper [21]
suggested an intelligent agent-based system with automatic feature extraction and selection that
outperformed existing methods by 99.7%. Their two-phase detection approach allowed dynamic
reconstruction of detector agents based on optimal feature sets. In [22], multilayer LSTM
networks are used to analyze time-series electric waveform data with only one voltage and one
current sensor at the point of common coupling and offline training and online testing strategies
to achieve superior performance with 0.05s window sizes. [23] showed how innovative
activation functions like PRetanh might optimize recurrent neural networks for greater learning
rates without divergence and steady performance. These studies demonstrate the significance of
automated feature extraction in IDS development, highlighting the need to strike a balance
between feature comprehensiveness and computational efficiency.
Real-time detection and computational overhead minimization are crucial in current IDS
solutions. A deep CNN model was developed by [19], which used CNN layers with 128 and 256
filter units, GPU acceleration, and L1 and L2 regularization to achieve 99.79–100% accuracy
across several datasets [19]. In comparison, [24] suggested the DDoSNet architecture, which
used RNN-autoencoder design, unsupervised pre-training, and supervised fine-tuning to achieve
99% accuracy, superior precision, and recall in a four-layer encoder-decoder structure (64, 32,
16, 8 channels). Further, through neural network implementation, researchers in [25] showed
how theory-guided and physics-informed techniques might improve model performance beyond
typical training paradigms. Therefore, the balance between detecting accuracy and processing
economy remains challenging, although hybrid designs are improving.
IDS development struggles with skewed datasets and unusual attack pattern detection. SMOTE
modification is used in [3] to resolve dataset imbalance in the NSL-KDD dataset with 125,973

8

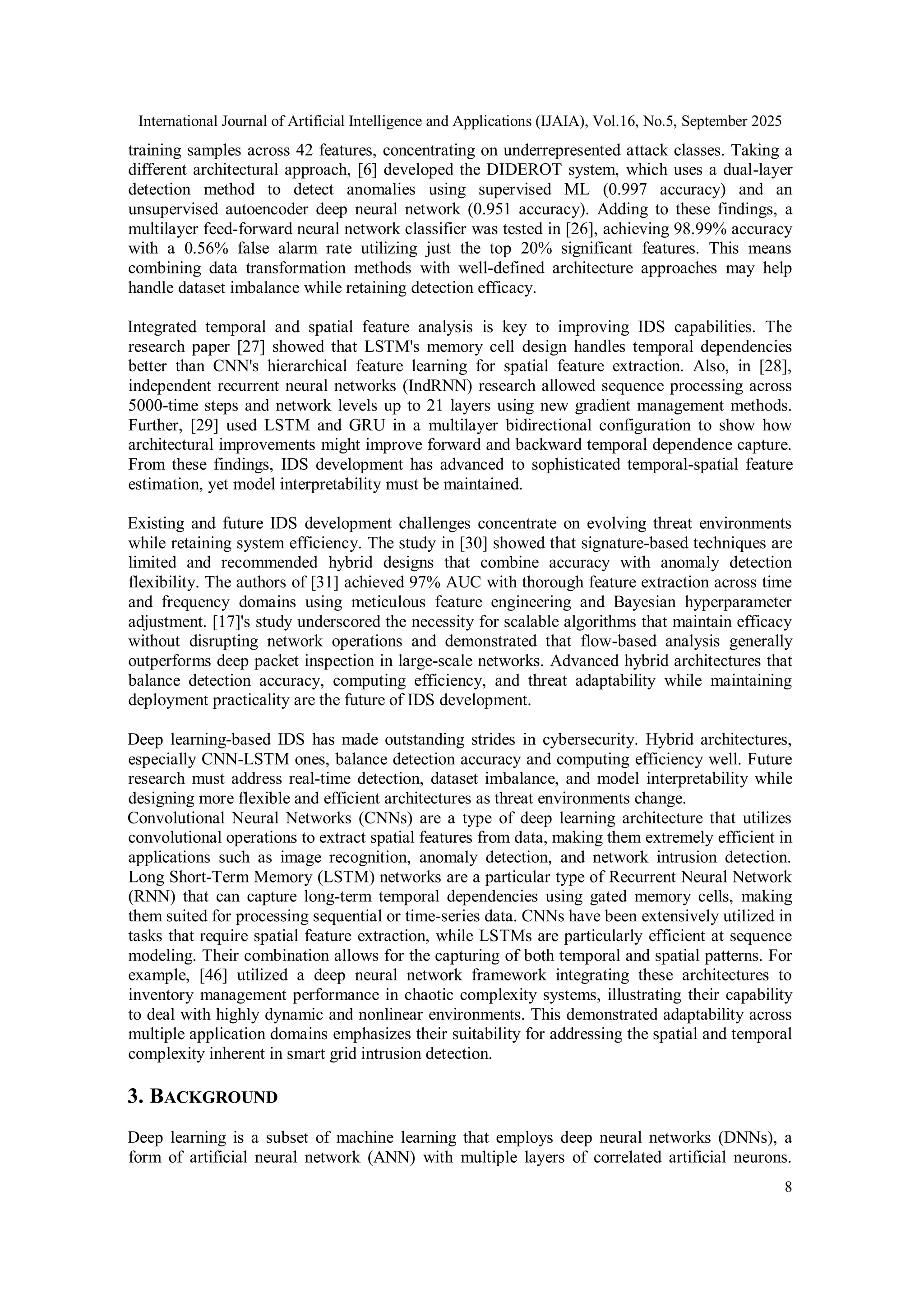

training samples across 42 features, concentrating on underrepresented attack classes. Taking a
different architectural approach, [6] developed the DIDEROT system, which uses a dual-layer
detection method to detect anomalies using supervised ML (0.997 accuracy) and an
unsupervised autoencoder deep neural network (0.951 accuracy). Adding to these findings, a
multilayer feed-forward neural network classifier was tested in [26], achieving 98.99% accuracy
with a 0.56% false alarm rate utilizing just the top 20% significant features. This means
combining data transformation methods with well-defined architecture approaches may help
handle dataset imbalance while retaining detection efficacy.
Integrated temporal and spatial feature analysis is key to improving IDS capabilities. The
research paper [27] showed that LSTM's memory cell design handles temporal dependencies
better than CNN's hierarchical feature learning for spatial feature extraction. Also, in [28],
independent recurrent neural networks (IndRNN) research allowed sequence processing across
5000-time steps and network levels up to 21 layers using new gradient management methods.
Further, [29] used LSTM and GRU in a multilayer bidirectional configuration to show how
architectural improvements might improve forward and backward temporal dependence capture.
From these findings, IDS development has advanced to sophisticated temporal-spatial feature
estimation, yet model interpretability must be maintained.
Existing and future IDS development challenges concentrate on evolving threat environments
while retaining system efficiency. The study in [30] showed that signature-based techniques are
limited and recommended hybrid designs that combine accuracy with anomaly detection
flexibility. The authors of [31] achieved 97% AUC with thorough feature extraction across time
and frequency domains using meticulous feature engineering and Bayesian hyperparameter
adjustment. [17]'s study underscored the necessity for scalable algorithms that maintain efficacy
without disrupting network operations and demonstrated that flow-based analysis generally
outperforms deep packet inspection in large-scale networks. Advanced hybrid architectures that
balance detection accuracy, computing efficiency, and threat adaptability while maintaining
deployment practicality are the future of IDS development.
Deep learning-based IDS has made outstanding strides in cybersecurity. Hybrid architectures,
especially CNN-LSTM ones, balance detection accuracy and computing efficiency well. Future
research must address real-time detection, dataset imbalance, and model interpretability while
designing more flexible and efficient architectures as threat environments change.
Convolutional Neural Networks (CNNs) are a type of deep learning architecture that utilizes
convolutional operations to extract spatial features from data, making them extremely efficient in
applications such as image recognition, anomaly detection, and network intrusion detection.
Long Short-Term Memory (LSTM) networks are a particular type of Recurrent Neural Network
(RNN) that can capture long-term temporal dependencies using gated memory cells, making
them suited for processing sequential or time-series data. CNNs have been extensively utilized in
tasks that require spatial feature extraction, while LSTMs are particularly efficient at sequence
modeling. Their combination allows for the capturing of both temporal and spatial patterns. For
example, [46] utilized a deep neural network framework integrating these architectures to
inventory management performance in chaotic complexity systems, illustrating their capability
to deal with highly dynamic and nonlinear environments. This demonstrated adaptability across
multiple application domains emphasizes their suitability for addressing the spatial and temporal
complexity inherent in smart grid intrusion detection.
3. BACKGROUND
Deep learning is a subset of machine learning that employs deep neural networks (DNNs), a
form of artificial neural network (ANN) with multiple layers of correlated artificial neurons.

9

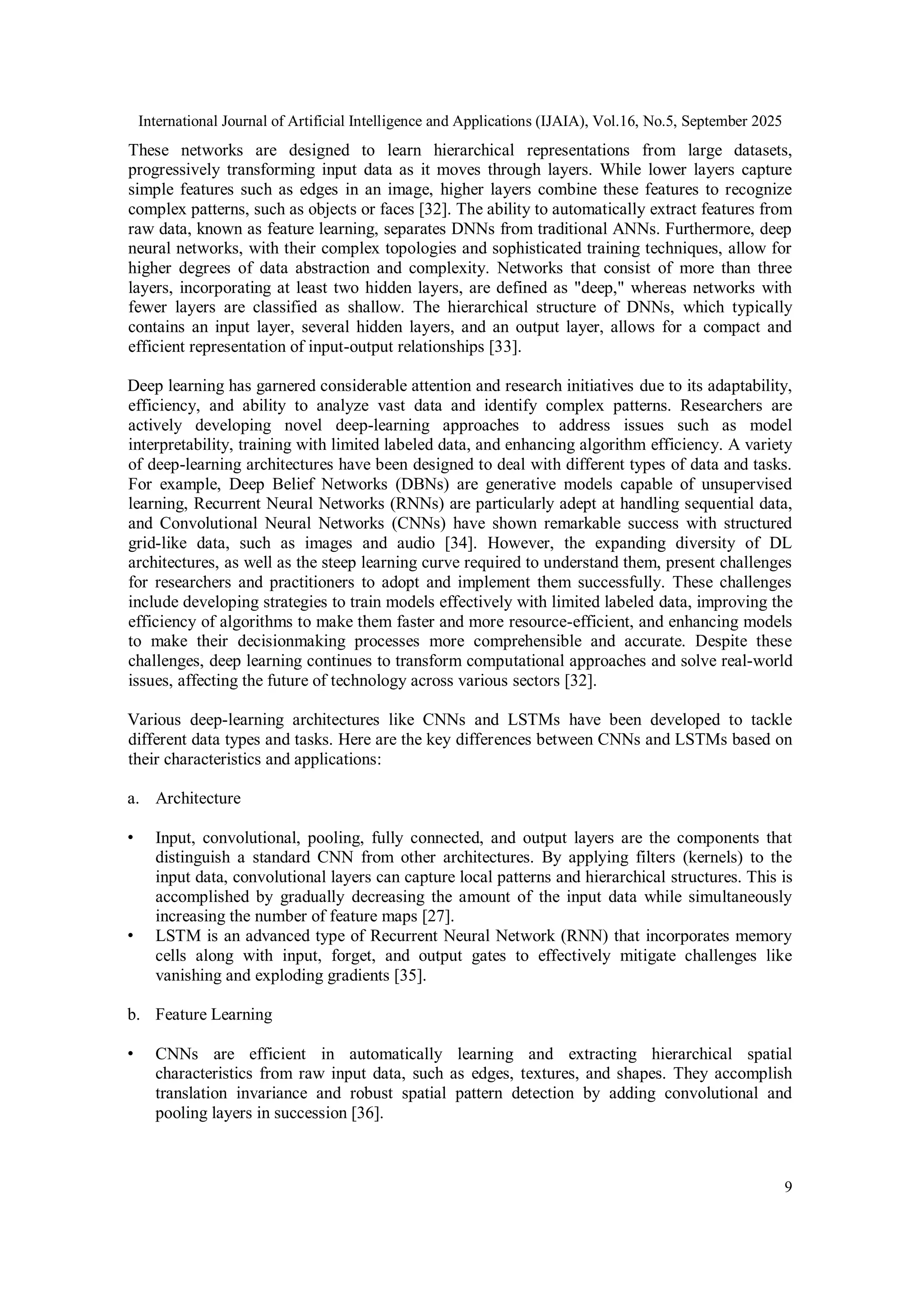

These networks are designed to learn hierarchical representations from large datasets,
progressively transforming input data as it moves through layers. While lower layers capture
simple features such as edges in an image, higher layers combine these features to recognize
complex patterns, such as objects or faces [32]. The ability to automatically extract features from
raw data, known as feature learning, separates DNNs from traditional ANNs. Furthermore, deep
neural networks, with their complex topologies and sophisticated training techniques, allow for
higher degrees of data abstraction and complexity. Networks that consist of more than three
layers, incorporating at least two hidden layers, are defined as "deep," whereas networks with
fewer layers are classified as shallow. The hierarchical structure of DNNs, which typically
contains an input layer, several hidden layers, and an output layer, allows for a compact and
efficient representation of input-output relationships [33].
Deep learning has garnered considerable attention and research initiatives due to its adaptability,
efficiency, and ability to analyze vast data and identify complex patterns. Researchers are
actively developing novel deep-learning approaches to address issues such as model
interpretability, training with limited labeled data, and enhancing algorithm efficiency. A variety
of deep-learning architectures have been designed to deal with different types of data and tasks.
For example, Deep Belief Networks (DBNs) are generative models capable of unsupervised
learning, Recurrent Neural Networks (RNNs) are particularly adept at handling sequential data,
and Convolutional Neural Networks (CNNs) have shown remarkable success with structured
grid-like data, such as images and audio [34]. However, the expanding diversity of DL
architectures, as well as the steep learning curve required to understand them, present challenges
for researchers and practitioners to adopt and implement them successfully. These challenges
include developing strategies to train models effectively with limited labeled data, improving the
efficiency of algorithms to make them faster and more resource-efficient, and enhancing models
to make their decisionmaking processes more comprehensible and accurate. Despite these
challenges, deep learning continues to transform computational approaches and solve real-world
issues, affecting the future of technology across various sectors [32].
Various deep-learning architectures like CNNs and LSTMs have been developed to tackle
different data types and tasks. Here are the key differences between CNNs and LSTMs based on
their characteristics and applications:
a. Architecture
• Input, convolutional, pooling, fully connected, and output layers are the components that
distinguish a standard CNN from other architectures. By applying filters (kernels) to the
input data, convolutional layers can capture local patterns and hierarchical structures. This is
accomplished by gradually decreasing the amount of the input data while simultaneously
increasing the number of feature maps [27].
• LSTM is an advanced type of Recurrent Neural Network (RNN) that incorporates memory
cells along with input, forget, and output gates to effectively mitigate challenges like
vanishing and exploding gradients [35].
b. Feature Learning
• CNNs are efficient in automatically learning and extracting hierarchical spatial
characteristics from raw input data, such as edges, textures, and shapes. They accomplish
translation invariance and robust spatial pattern detection by adding convolutional and
pooling layers in succession [36].

10

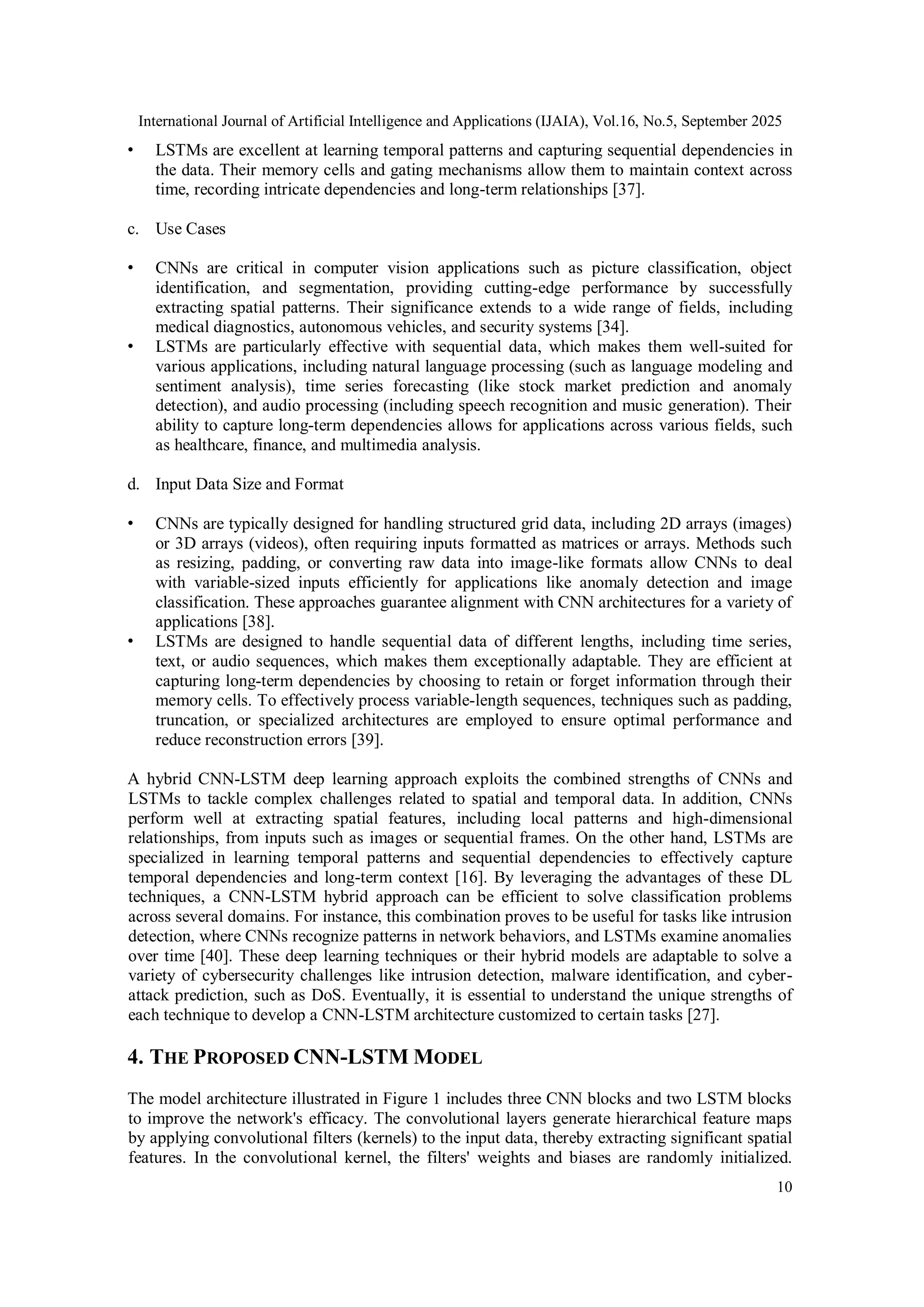

• LSTMs are excellent at learning temporal patterns and capturing sequential dependencies in
the data. Their memory cells and gating mechanisms allow them to maintain context across
time, recording intricate dependencies and long-term relationships [37].
c. Use Cases
• CNNs are critical in computer vision applications such as picture classification, object
identification, and segmentation, providing cutting-edge performance by successfully
extracting spatial patterns. Their significance extends to a wide range of fields, including
medical diagnostics, autonomous vehicles, and security systems [34].
• LSTMs are particularly effective with sequential data, which makes them well-suited for
various applications, including natural language processing (such as language modeling and
sentiment analysis), time series forecasting (like stock market prediction and anomaly
detection), and audio processing (including speech recognition and music generation). Their
ability to capture long-term dependencies allows for applications across various fields, such
as healthcare, finance, and multimedia analysis.
d. Input Data Size and Format
• CNNs are typically designed for handling structured grid data, including 2D arrays (images)
or 3D arrays (videos), often requiring inputs formatted as matrices or arrays. Methods such
as resizing, padding, or converting raw data into image-like formats allow CNNs to deal
with variable-sized inputs efficiently for applications like anomaly detection and image
classification. These approaches guarantee alignment with CNN architectures for a variety of
applications [38].
• LSTMs are designed to handle sequential data of different lengths, including time series,
text, or audio sequences, which makes them exceptionally adaptable. They are efficient at
capturing long-term dependencies by choosing to retain or forget information through their
memory cells. To effectively process variable-length sequences, techniques such as padding,
truncation, or specialized architectures are employed to ensure optimal performance and
reduce reconstruction errors [39].
A hybrid CNN-LSTM deep learning approach exploits the combined strengths of CNNs and
LSTMs to tackle complex challenges related to spatial and temporal data. In addition, CNNs
perform well at extracting spatial features, including local patterns and high-dimensional
relationships, from inputs such as images or sequential frames. On the other hand, LSTMs are
specialized in learning temporal patterns and sequential dependencies to effectively capture
temporal dependencies and long-term context [16]. By leveraging the advantages of these DL
techniques, a CNN-LSTM hybrid approach can be efficient to solve classification problems
across several domains. For instance, this combination proves to be useful for tasks like intrusion
detection, where CNNs recognize patterns in network behaviors, and LSTMs examine anomalies
over time [40]. These deep learning techniques or their hybrid models are adaptable to solve a
variety of cybersecurity challenges like intrusion detection, malware identification, and cyber-
attack prediction, such as DoS. Eventually, it is essential to understand the unique strengths of
each technique to develop a CNN-LSTM architecture customized to certain tasks [27].
4. THE PROPOSED CNN-LSTM MODEL
The model architecture illustrated in Figure 1 includes three CNN blocks and two LSTM blocks
to improve the network's efficacy. The convolutional layers generate hierarchical feature maps
by applying convolutional filters (kernels) to the input data, thereby extracting significant spatial
features. In the convolutional kernel, the filters' weights and biases are randomly initialized.

11

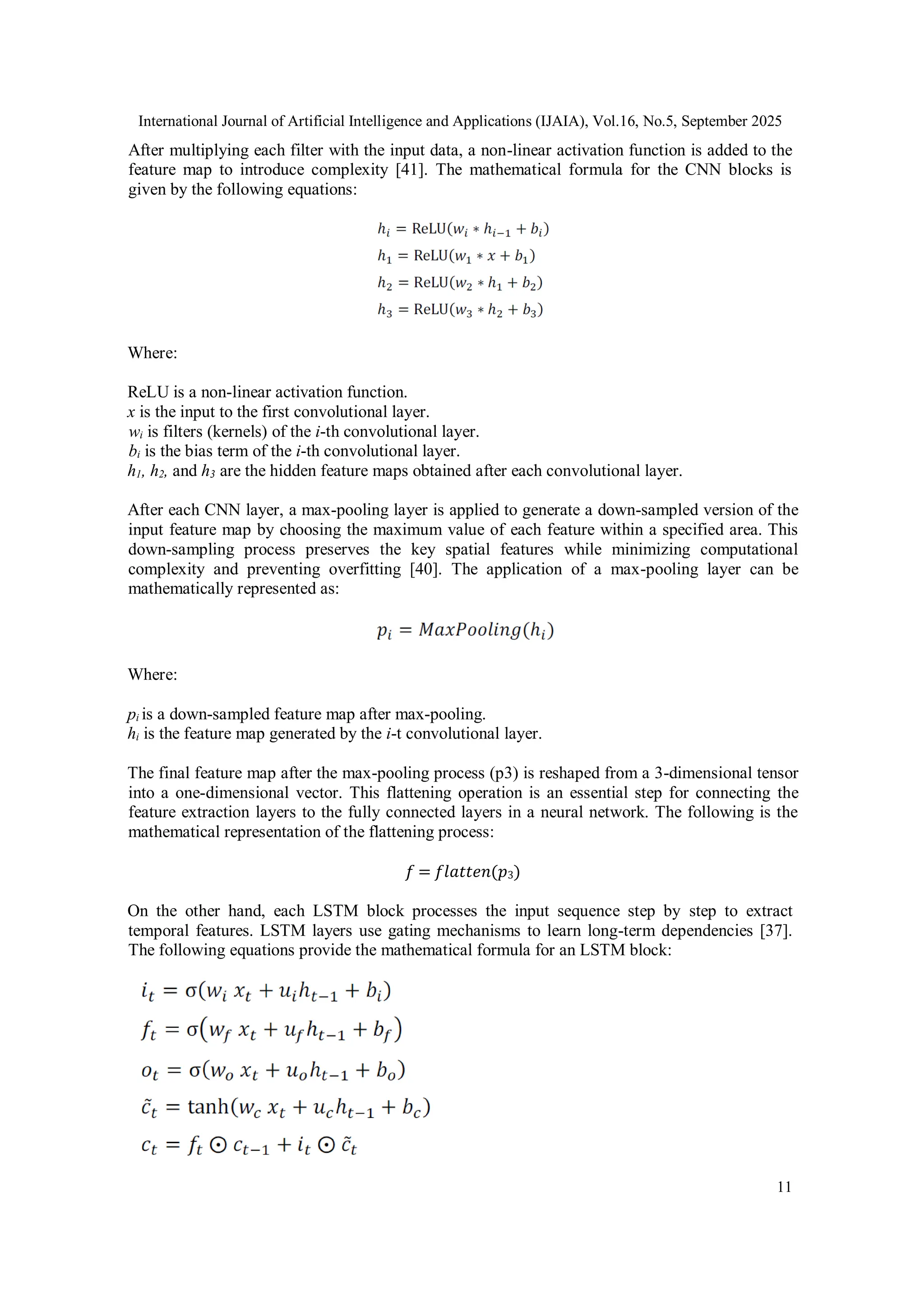

After multiplying each filter with the input data, a non-linear activation function is added to the
feature map to introduce complexity [41]. The mathematical formula for the CNN blocks is
given by the following equations:
Where:
ReLU is a non-linear activation function.
x is the input to the first convolutional layer.
wi is filters (kernels) of the i-th convolutional layer.
bi is the bias term of the i-th convolutional layer.
h1, h2, and h3 are the hidden feature maps obtained after each convolutional layer.
After each CNN layer, a max-pooling layer is applied to generate a down-sampled version of the
input feature map by choosing the maximum value of each feature within a specified area. This
down-sampling process preserves the key spatial features while minimizing computational
complexity and preventing overfitting [40]. The application of a max-pooling layer can be
mathematically represented as:
Where:
pi is a down-sampled feature map after max-pooling.
hi is the feature map generated by the i-t convolutional layer.
The final feature map after the max-pooling process (p3) is reshaped from a 3-dimensional tensor
into a one-dimensional vector. This flattening operation is an essential step for connecting the
feature extraction layers to the fully connected layers in a neural network. The following is the
mathematical representation of the flattening process:
𝑓 = 𝑓𝑙𝑎𝑡𝑡𝑒𝑛(𝑝3)
On the other hand, each LSTM block processes the input sequence step by step to extract
temporal features. LSTM layers use gating mechanisms to learn long-term dependencies [37].
The following equations provide the mathematical formula for an LSTM block:

12

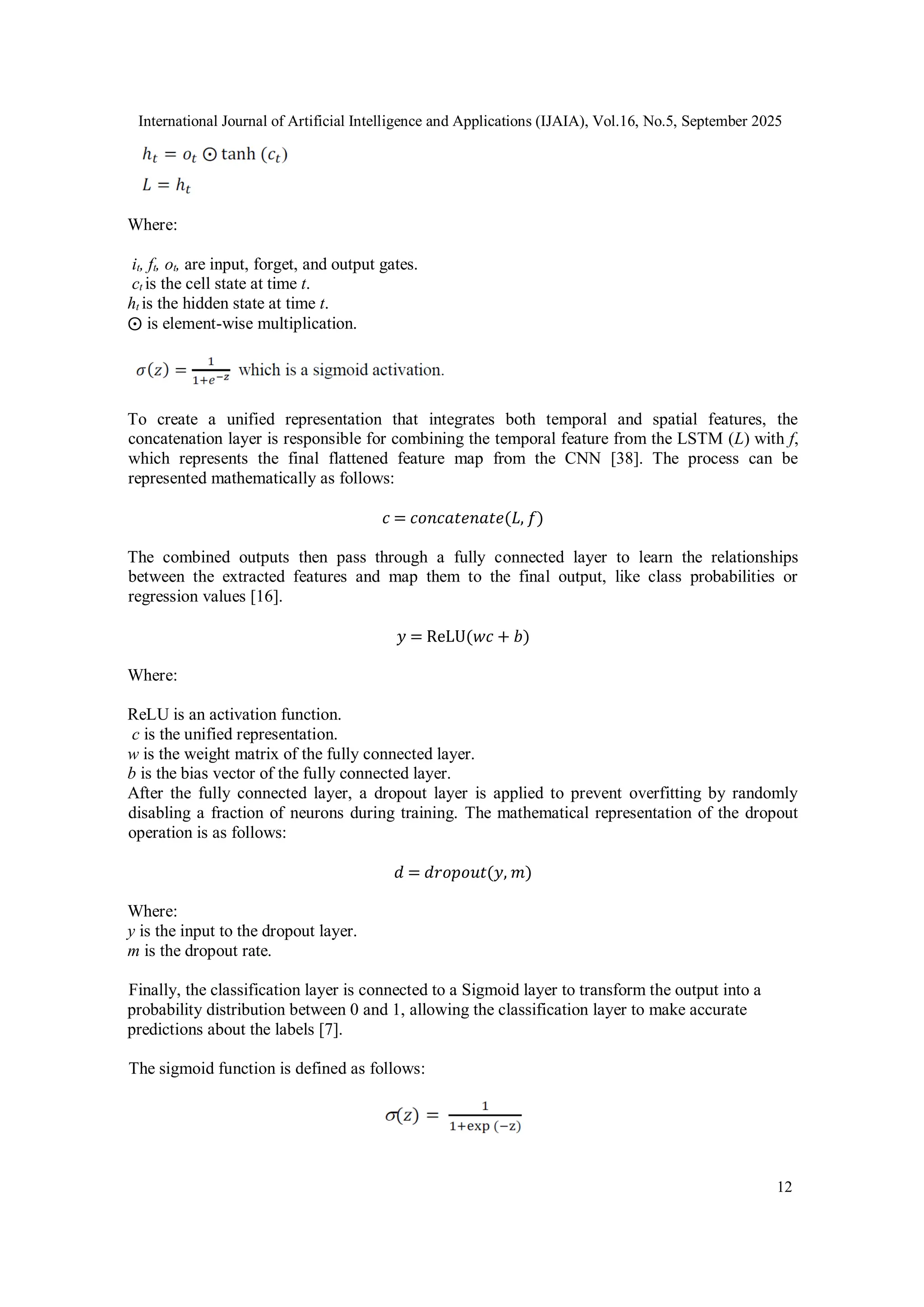

Where:
it, ft, ot, are input, forget, and output gates.
ct is the cell state at time t.
ht is the hidden state at time t.
⨀ is element-wise multiplication.
To create a unified representation that integrates both temporal and spatial features, the
concatenation layer is responsible for combining the temporal feature from the LSTM (L) with f,
which represents the final flattened feature map from the CNN [38]. The process can be
represented mathematically as follows:
𝑐 = 𝑐𝑜𝑛𝑐𝑎𝑡𝑒𝑛𝑎𝑡𝑒(𝐿, 𝑓)
The combined outputs then pass through a fully connected layer to learn the relationships
between the extracted features and map them to the final output, like class probabilities or
regression values [16].
𝑦 = ReLU(𝑤𝑐 + 𝑏)
Where:
ReLU is an activation function.
c is the unified representation.
w is the weight matrix of the fully connected layer.
b is the bias vector of the fully connected layer.
After the fully connected layer, a dropout layer is applied to prevent overfitting by randomly
disabling a fraction of neurons during training. The mathematical representation of the dropout
operation is as follows:
𝑑 = 𝑑𝑟𝑜𝑝𝑜𝑢𝑡(𝑦, 𝑚)
Where:
y is the input to the dropout layer.
m is the dropout rate.
Finally, the classification layer is connected to a Sigmoid layer to transform the output into a
probability distribution between 0 and 1, allowing the classification layer to make accurate
predictions about the labels [7].
The sigmoid function is defined as follows:

13
where:
z is the raw score (logit) for the classification layer.
exp(-z) is the exponential function applied to the negated logit.

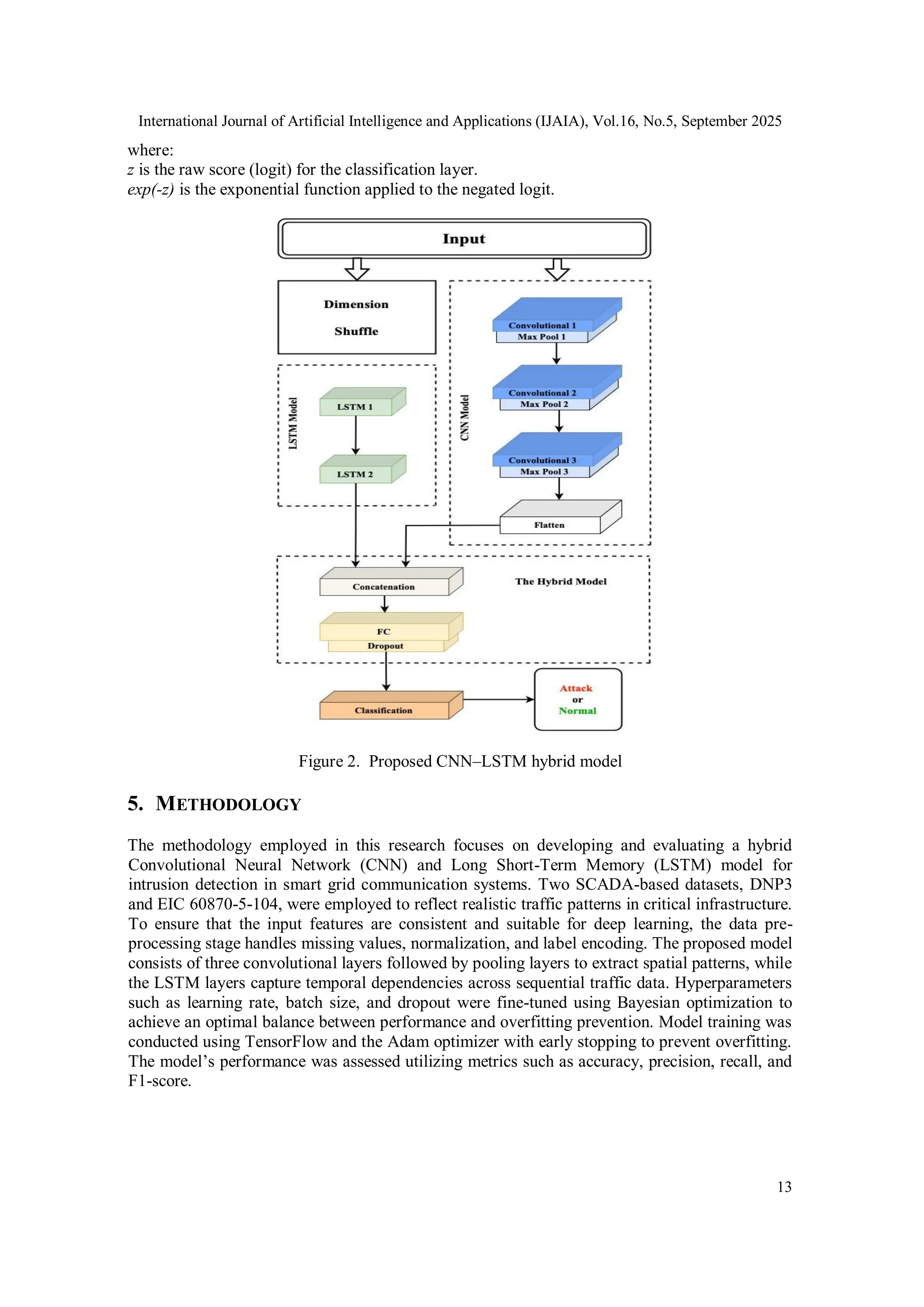

Figure 2. Proposed CNN–LSTM hybrid model
5. METHODOLOGY
The methodology employed in this research focuses on developing and evaluating a hybrid
Convolutional Neural Network (CNN) and Long Short-Term Memory (LSTM) model for
intrusion detection in smart grid communication systems. Two SCADA-based datasets, DNP3
and EIC 60870-5-104, were employed to reflect realistic traffic patterns in critical infrastructure.
To ensure that the input features are consistent and suitable for deep learning, the data pre-
processing stage handles missing values, normalization, and label encoding. The proposed model
consists of three convolutional layers followed by pooling layers to extract spatial patterns, while
the LSTM layers capture temporal dependencies across sequential traffic data. Hyperparameters
such as learning rate, batch size, and dropout were fine-tuned using Bayesian optimization to
achieve an optimal balance between performance and overfitting prevention. Model training was
conducted using TensorFlow and the Adam optimizer with early stopping to prevent overfitting.
The model’s performance was assessed utilizing metrics such as accuracy, precision, recall, and
F1-score.

14

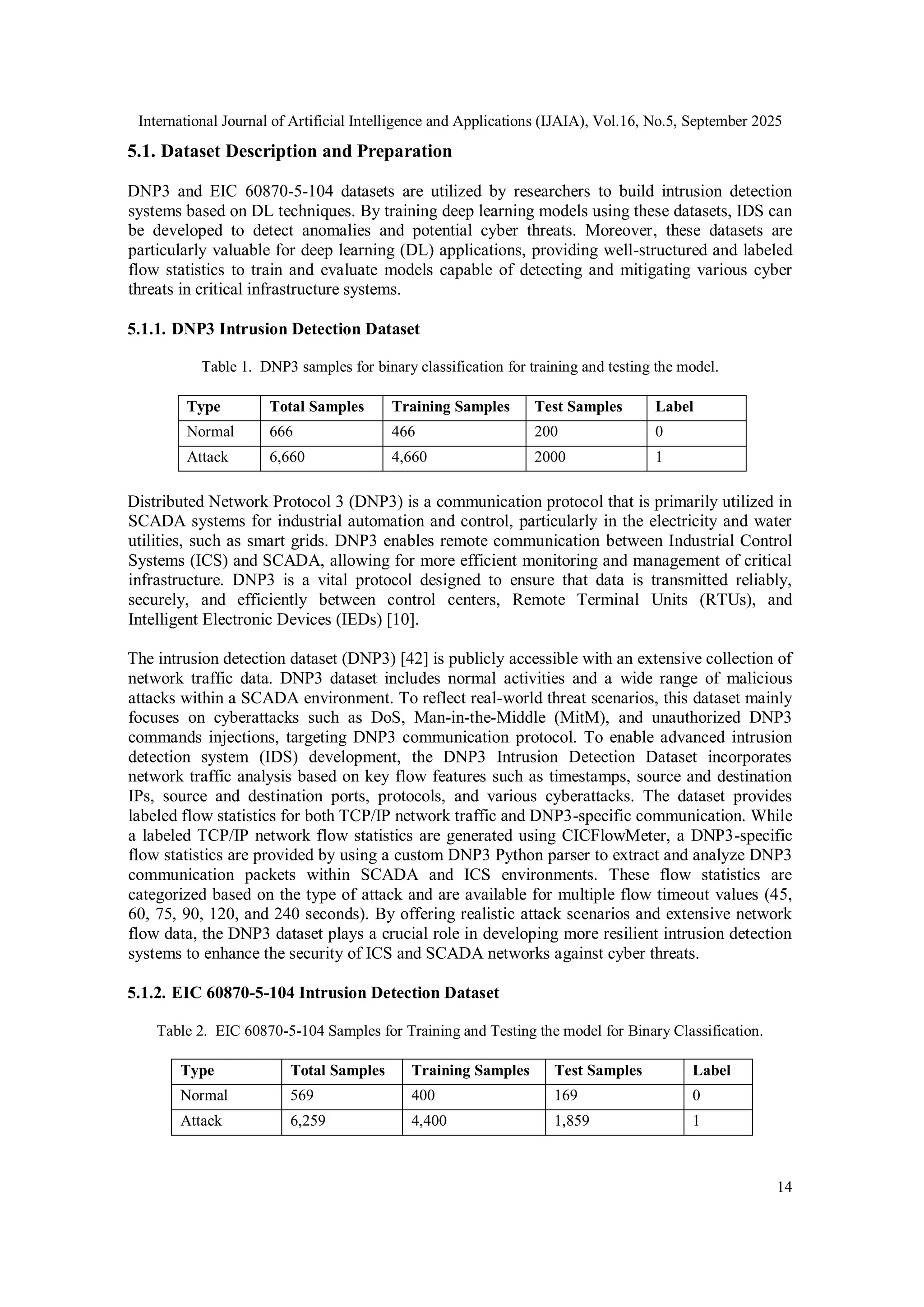

5.1. Dataset Description and Preparation
DNP3 and EIC 60870-5-104 datasets are utilized by researchers to build intrusion detection
systems based on DL techniques. By training deep learning models using these datasets, IDS can
be developed to detect anomalies and potential cyber threats. Moreover, these datasets are
particularly valuable for deep learning (DL) applications, providing well-structured and labeled
flow statistics to train and evaluate models capable of detecting and mitigating various cyber
threats in critical infrastructure systems.
5.1.1. DNP3 Intrusion Detection Dataset
Table 1. DNP3 samples for binary classification for training and testing the model.
Type Total Samples Training Samples Test Samples Label
Normal 666 466 200 0
Attack 6,660 4,660 2000 1
Distributed Network Protocol 3 (DNP3) is a communication protocol that is primarily utilized in
SCADA systems for industrial automation and control, particularly in the electricity and water
utilities, such as smart grids. DNP3 enables remote communication between Industrial Control
Systems (ICS) and SCADA, allowing for more efficient monitoring and management of critical
infrastructure. DNP3 is a vital protocol designed to ensure that data is transmitted reliably,
securely, and efficiently between control centers, Remote Terminal Units (RTUs), and
Intelligent Electronic Devices (IEDs) [10].
The intrusion detection dataset (DNP3) [42] is publicly accessible with an extensive collection of
network traffic data. DNP3 dataset includes normal activities and a wide range of malicious
attacks within a SCADA environment. To reflect real-world threat scenarios, this dataset mainly
focuses on cyberattacks such as DoS, Man-in-the-Middle (MitM), and unauthorized DNP3
commands injections, targeting DNP3 communication protocol. To enable advanced intrusion
detection system (IDS) development, the DNP3 Intrusion Detection Dataset incorporates
network traffic analysis based on key flow features such as timestamps, source and destination
IPs, source and destination ports, protocols, and various cyberattacks. The dataset provides
labeled flow statistics for both TCP/IP network traffic and DNP3-specific communication. While
a labeled TCP/IP network flow statistics are generated using CICFlowMeter, a DNP3-specific
flow statistics are provided by using a custom DNP3 Python parser to extract and analyze DNP3
communication packets within SCADA and ICS environments. These flow statistics are
categorized based on the type of attack and are available for multiple flow timeout values (45,
60, 75, 90, 120, and 240 seconds). By offering realistic attack scenarios and extensive network
flow data, the DNP3 dataset plays a crucial role in developing more resilient intrusion detection
systems to enhance the security of ICS and SCADA networks against cyber threats.
5.1.2. EIC 60870-5-104 Intrusion Detection Dataset
Table 2. EIC 60870-5-104 Samples for Training and Testing the model for Binary Classification.
Type Total Samples Training Samples Test Samples Label
Normal 569 400 169 0
Attack 6,259 4,400 1,859 1

15
IEC 60870-5-104 (IEC104) is a popular SCADA communication protocol utilized in smart grids
and industrial automation for remote monitoring and control. IEC 60870-5-104 is an extension
of IEC 608705-101 protocol with the development in transport, network, datalink, and physical
layer services to facilitate real-time data exchange between control centers and remote terminal
units (RTUs) at substations. Through TCP/IP networks, IEC 104 enables devices to transmit
vital data such as voltage, current, and status updates. Even though IEC 104 improves
operational efficiency, it raises several security challenges due to the lack of integrity and
authentication [43]. Therefore, network traffic analysis is essential for security monitoring due to
the vulnerability of IEC 104 to cyber threats like man-in-the-middle attacks, denial-of-service
(DoS) attacks, and unauthorized data modification.
IEC 60870-5-104 dataset is demonstrated in [44] as an intrusion detection dataset which contain
network traffic records of data transferred between devices utilizing the IEC 60870-5-104
protocol. The dataset was created using a network architecture of seven industrial entities
executing IEC TestServer, one Human Machine Interfaces (HMI) utilized QTester104, and three
attacking machines. Conversely, the cyberattacks employed Kali Linux integrated with
Metasploit, OpenMUC j60870, and Ettercap. The dataset includes raw packet data obtained from
equipment designed to monitor networks. These data packets include vital data such as source
and destination IP addresses, source and destination ports, timestamps, and more. IEC 60870-5-
104 dataset contains labeled network traffic that are categorized as normal and malicious
activities with twelve IEC 60870-5-104 cyberattacks, including unauthorized commands and
Denial of Service (DoS) attacks. Moreover, CICFlowMeter and a custom IEC 60870-5-104
Python Parser were employed to generate flow statistics by extracting features from the network
flows. The custom parser produced 111 features, while CICFlowMeter extracted 83 features.
These flow statistics are classified by attack type and are available in a variety of flow timeout
values (15, 30, 60, 90, 120, and 180 seconds). Therefore, the IEC 60870-5-104 dataset is well-
suited for training and enhancing robustness of AI-based intrusion detection models that utilize
ML and DL techniques.
The first step in preparing the datasets for binary and multi-class classification using deep
learning algorithms is data cleaning. Then the features in the datasets have been converted to
numerical values and combined with other numerical features. For binary classification, as
shown in tables 1 and 2, the labels in the datasets are numerically encoded by converting the
"normal" labels to 0, which represent benign traffic, and converting the other cyberattack labels,
such as MITM_DOS and STOP_APP, to 1. Furthermore, the datasets are min-max normalized to
map all numerical features to a range of [0,1], aiming to decrease feature variance while
maintaining feature associations. Tables 1 and 2 demonstrate that the datasets are divided into
training and testing sets in a 70:30 ratio, with 70% assigned for model training and 30% assigned
to validation and testing. In addition, while the training dataset enables the model to learn from
the recognized behaviors of the network, the testing dataset can assess the model's capacity to
identify unknown attacks. Eventually, the processed datasets are ready to be applied to train and
test our deep learning model.
5.2. Performance Metrics
The performance of the hybrid model classifier is evaluated using various performance metrics
derived from the confusion matrix. These metrics provide a comprehensive assessment of the
model’s effectiveness. The four key metrics that are utilized are represented mathematically as in
[7] and written in subsequent equations as follows:

16
a. Classification Accuracy:
b. Precision:
c. Recall:
d. F1 Score:
Where:
TP (True Positive) indicates a correct prediction when the algorithm classifies an instance as
positive, and it’s truly positive.
TN (True Negative) indicates a correct prediction when the algorithm classifies an instance as
negative, and it’s truly negative.
FP (False Positive) indicates a wrong prediction when the algorithm classifies an instance as
positive, but it is negative.
FN (False Negative) indicates a wrong prediction when the algorithm classifies an instance as
negative, but it’s positive.
5.3. Implementation and Result Analysis
To develop a reliable intrusion detection model, it's important to efficiently preprocess the
datasets that are utilized to train, evaluate, and test the model. This involved data cleaning,
normalization, and data encoding to ensure optimal input quality. After preprocessing the
datasets, they have been applied to the proposed model. All experiments were executed in a
Python environment using Jupyter Notebook, with Keras as the deep learning framework
running on a CPU powered by an Apple M1 chip, 8 GB unified memory, and integrated 8-core
Apple M1 GPU. We conducted extensive experimentation with several hyperparameter
configurations to determine the optimal settings for enhancing model performance. The major
goal of this hyperparameter modification was to improve the deep neural network's performance
on the selected datasets.
Table 3. Hyperparameters for our model.
Hyperparameter Value
Learning rate 0.001
Epoch 100 to 150
Batch size 16
Optimizer Adam
Dropout rate 0.4
Convolutional layers 3
LSTM units 64 (1st
layer), 128 (2nd
layer)
Hyperparameter tuning is crucial when developing a high-performing deep learning model,
especially for complex tasks such as intrusion detection. The proposed CNN-LSTM architecture
was fine-tuned through extensive experiments by focusing on hyperparameters that directly

17
impact training dynamics and model generalization. Key hyperparameters that are shown in
Table 3, including learning rate, batch size, number of epochs, dropout rate, and the depth of
CNN and LSTM layers, were carefully tuned to obtain the best results. Training the model was
stable and efficient by using the Adam optimizer (Adaptive Moment Estimation), which is
known for its ability to adaptively adjust learning rates. Moreover, the learning rate is a key
hyperparameter in training neural networks, which is responsible for controlling how much the
model's weights are adjusted during each update step. For our model, a learning rate of 0.001
provided an ideal balance between convergence speed and stability, avoiding the risks of
overshooting related to higher learning rates. Selecting an appropriate number of epochs is
critical, since overtraining may lead the model to incorporate noise from the training data,
resulting in worse performance on unseen data, while low epochs may cause the model to not
train enough to learn patterns from the data. To avoid both overfitting and underfitting while
ensuring sufficient training, the model was trained for 100 to 150 epochs with early stopping.
Based on validation performance, the early stopping technique helps terminate training at the
ideal time for generalization. Furthermore, a batch size of between 16 and 32 was chosen to
achieve a balance between training efficiency and model accuracy, especially when dealing with
limited GPU memory. While large batch sizes allow for capturing more global patterns and
accelerating training, they also need more computational resources. In addition, dropout
regularization was used at a rate of 0.4 to mitigate the problem of overfitting and improve
generalization on unseen test data. An experimental evaluation of various dropout configurations
revealed that this rate was the optimal value for our model and dataset, as it consistently reduced
overfitting while maintaining high performance. Aiming to capture complex patterns while
preserving computational efficiency, our proposed model comprises three convolutional layers
for hierarchical feature extraction from the input data. Indeed, deeper convolutional networks
can improve performance, but they also increase parameter count and resource consumption.
Thus, three layers were chosen to achieve a balance of performance and resource efficiency.
Subsequently, two layers of LSTM with 128 and 64 units are employed to capture the temporal
relationships in network traffic data. This configuration was chosen to optimize performance
while maintaining computational efficiency and mitigating overfitting.

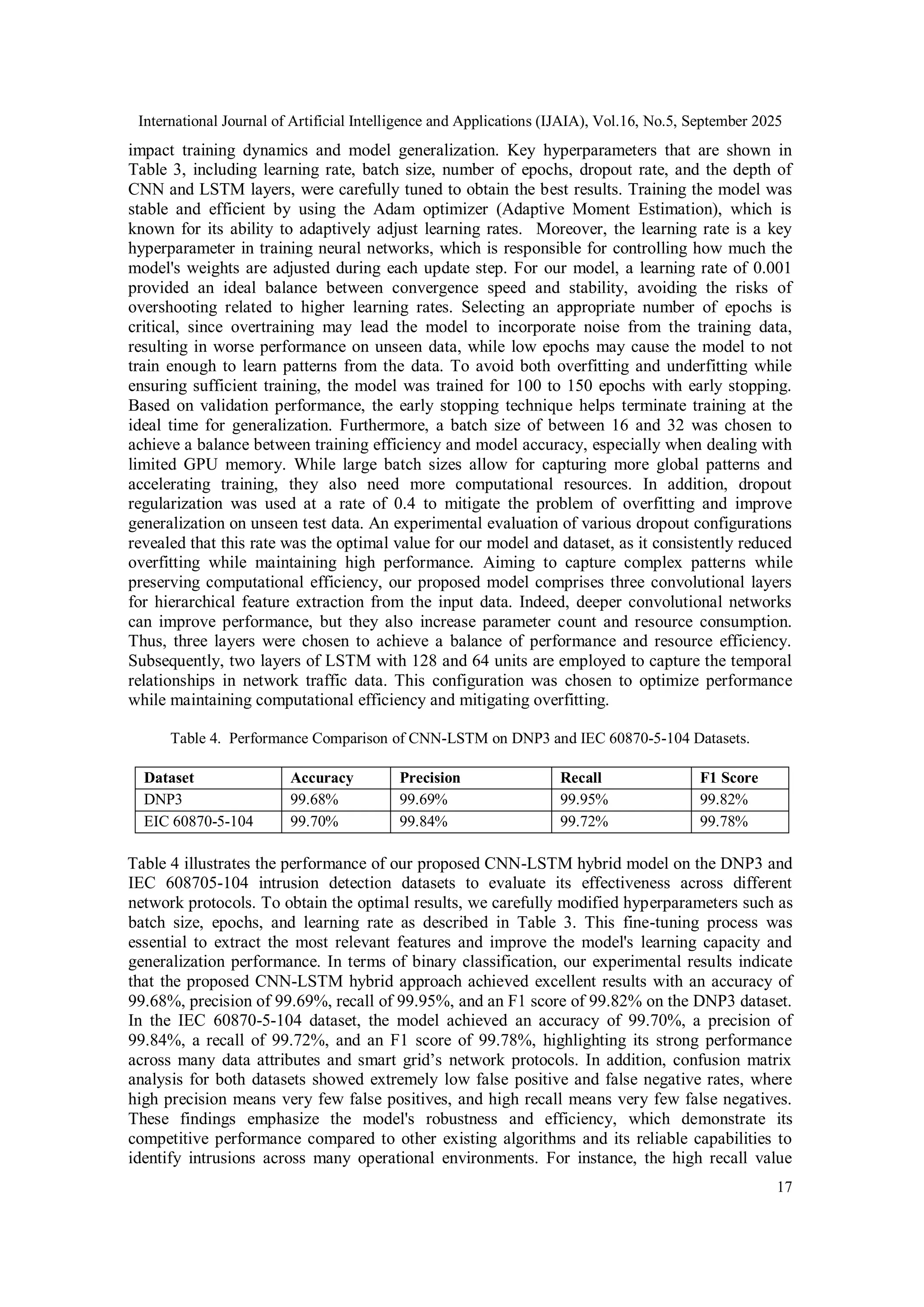

Table 4. Performance Comparison of CNN-LSTM on DNP3 and IEC 60870-5-104 Datasets.
Dataset Accuracy Precision Recall F1 Score
DNP3 99.68% 99.69% 99.95% 99.82%
EIC 60870-5-104 99.70% 99.84% 99.72% 99.78%
Table 4 illustrates the performance of our proposed CNN-LSTM hybrid model on the DNP3 and
IEC 608705-104 intrusion detection datasets to evaluate its effectiveness across different
network protocols. To obtain the optimal results, we carefully modified hyperparameters such as
batch size, epochs, and learning rate as described in Table 3. This fine-tuning process was
essential to extract the most relevant features and improve the model's learning capacity and
generalization performance. In terms of binary classification, our experimental results indicate
that the proposed CNN-LSTM hybrid approach achieved excellent results with an accuracy of
99.68%, precision of 99.69%, recall of 99.95%, and an F1 score of 99.82% on the DNP3 dataset.
In the IEC 60870-5-104 dataset, the model achieved an accuracy of 99.70%, a precision of
99.84%, a recall of 99.72%, and an F1 score of 99.78%, highlighting its strong performance
across many data attributes and smart grid’s network protocols. In addition, confusion matrix
analysis for both datasets showed extremely low false positive and false negative rates, where
high precision means very few false positives, and high recall means very few false negatives.
These findings emphasize the model's robustness and efficiency, which demonstrate its
competitive performance compared to other existing algorithms and its reliable capabilities to
identify intrusions across many operational environments. For instance, the high recall value

18
indicates that the model is highly efficient in accurately identifying both normal and invasive
behaviors.

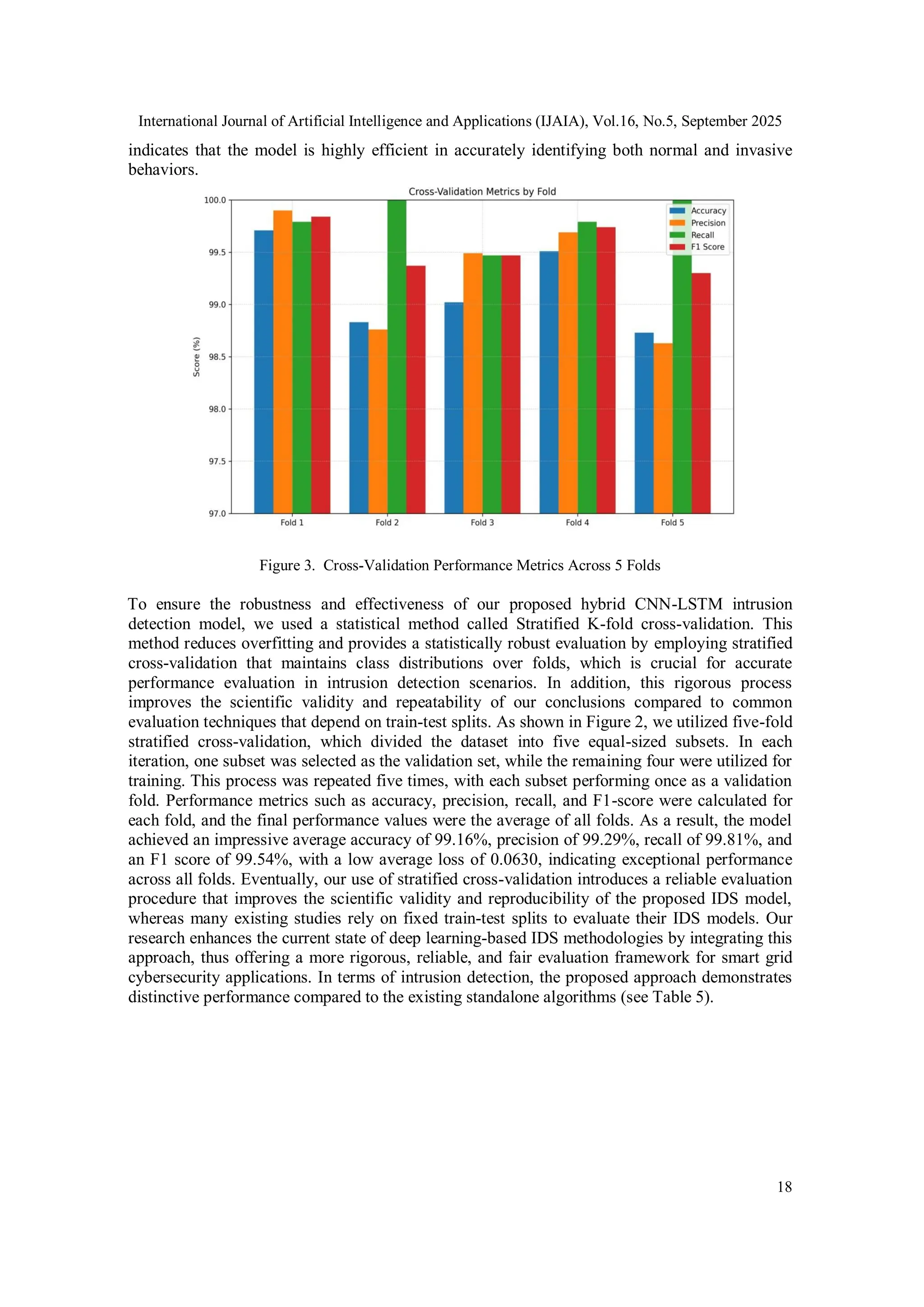

Figure 3. Cross-Validation Performance Metrics Across 5 Folds
To ensure the robustness and effectiveness of our proposed hybrid CNN-LSTM intrusion
detection model, we used a statistical method called Stratified K-fold cross-validation. This
method reduces overfitting and provides a statistically robust evaluation by employing stratified
cross-validation that maintains class distributions over folds, which is crucial for accurate
performance evaluation in intrusion detection scenarios. In addition, this rigorous process
improves the scientific validity and repeatability of our conclusions compared to common
evaluation techniques that depend on train-test splits. As shown in Figure 2, we utilized five-fold
stratified cross-validation, which divided the dataset into five equal-sized subsets. In each
iteration, one subset was selected as the validation set, while the remaining four were utilized for
training. This process was repeated five times, with each subset performing once as a validation
fold. Performance metrics such as accuracy, precision, recall, and F1-score were calculated for
each fold, and the final performance values were the average of all folds. As a result, the model
achieved an impressive average accuracy of 99.16%, precision of 99.29%, recall of 99.81%, and
an F1 score of 99.54%, with a low average loss of 0.0630, indicating exceptional performance
across all folds. Eventually, our use of stratified cross-validation introduces a reliable evaluation
procedure that improves the scientific validity and reproducibility of the proposed IDS model,
whereas many existing studies rely on fixed train-test splits to evaluate their IDS models. Our
research enhances the current state of deep learning-based IDS methodologies by integrating this
approach, thus offering a more rigorous, reliable, and fair evaluation framework for smart grid
cybersecurity applications. In terms of intrusion detection, the proposed approach demonstrates
distinctive performance compared to the existing standalone algorithms (see Table 5).

19
Table 5. Comparison with relevant works.
6. CONCLUSION AND FUTURE WORK
As electrical grids become more digitalized, it is critical to ensure the cybersecurity of smart grid
communication networks. Protocols such as DNP3 and IEC 60870-5-104, which are essential
components of SCADA-based infrastructures, provide real-time monitoring and control while
also exposing the system to possible cyber threats such as unauthorized access and denial-of-
service (DoS). In this research paper, we proposed a hybrid deep learning-based intrusion
detection system (IDS) that combines CNN and LSTM networks to take advantage of their
strengths in spatial features extraction and temporal patterns learning. The model was trained
and validated on DNP3 and IEC 60870-5-104 intrusion detection datasets, which reflect real
attack scenarios in smart grid environments. Through extensive experiment and hyperparameter
adjustment, the hybrid CNN-LSTM model demonstrated improvements in the performance of
detecting and classifying intrusions, obtaining a detection accuracy of 99.68% on the DNP3
dataset and 99.70% on the IEC 60870-5-104 dataset. Furthermore, high precision, recall, and F1
scores across both datasets prove the model’s capability to accurately identify normal and
malicious traffic on unseen data. Moreover, compared to existing intrusion detection techniques,
our hybrid deep learning model outperformed in multiple evaluation metrics, illustrating the
efficiency of hybrid deep learning architectures for intrusion detection systems in sophisticated
smart grid environments.
In the future, we intend to improve the efficiency, scalability, and flexibility of the proposed
CNN-LSTM hybrid model for smart grid intrusion detection. One important goal is to involve
other deep learning architectures, such as transformers, GRUs, or attention mechanisms, to
investigate their potential for capturing complex spatial and temporal data from network traffic.
Furthermore, expanding the model's evaluation to a wide range of benchmark datasets and real-

20
world smart grid scenarios will offer further insight about its robustness and generalizability.
Another key focus will be on automating hyperparameter tuning using advanced optimization
approaches, including Bayesian optimization and reinforcement learning-based strategies. This
will significantly minimize human involvement while increasing model efficiency. Eventually,
we intend to investigate a variety of optimization methodologies to improve the computational
and memory efficiency of the proposed hybrid model while maintaining the intrusion detection
system's accuracy and dependability.
REFERENCE
[1] P. K. Gupta, N. K. Singh, and V. Mahajan, “Intrusion detection in Cyber-Physical layer of smart
grid using intelligent loop based artificial neural network technique,” International Journal of
Engineering. Transactions B: Applications, vol. 34, no. 5, Jan. 2021, doi: 10.5829/ije. 2021.34.05 b.
18.
[2] P. H. Mirzaee, M. Shojafar, H. Cruickshank, and R. Tafazolli, “Smart Grid Security and Privacy:
From conventional to machine learning issues (Threats and Countermeasures),” IEEE Access, vol.
10, pp. 52922– 52954, Jan. 2022, doi: 10.1109/access.2022.3174259.
[3] M. Massaoudi, S. S. Refaat and H. Abu-Rub, "Intrusion Detection Method Based on SMOTE
Transformation for Smart Grid Cybersecurity," 2022 3rd International Conference on Smart Grid
and Renewable Energy (SGRE), Doha, Qatar, 2022, pp. 1-6, doi:
10.1109/SGRE53517.2022.9774070.
[4] M. Abdelkhalek, G. Ravikumar and M. Govindarasu, "ML-based Anomaly Detection System for
DER Communication in Smart Grid," 2022 IEEE Power & Energy Society Innovative Smart Grid
Technologies Conference (ISGT), New Orleans, LA, USA, 2022, pp. 1-5, doi:
10.1109/ISGT50606.2022.9817481.
[5] T. Cherifi and L. Hamami, “A practical implementation of unconditional security for the IEC
60780-5-101 SCADA protocol,” International Journal of Critical Infrastructure Protection, vol. 20,
pp. 68–84, Dec. 2017, doi: 10.1016/j.ijcip.2017.12.001.
[6] P. Radoglou-Grammatikis, P. Sarigiannidis, G. Efstathopoulos, P.-A. Karypidis, and A.
Sarigiannidis, “DIDEROT: An Intrusion Detection and Prevention System for DNP3-based
SCADA Systems,” Proceedings of the 17th International Conference on Availability, Reliability
and Security, pp. 1–8, Jul. 2020, doi: 10.1145/3407023.3409314.
[7] S. Y. Diaba and M. Elmusrati, “Proposed algorithm for smart grid DDoS detection based on deep
learning,” Neural Networks, vol. 159, pp. 175–184, Dec. 2022, doi: 10.1016/j.neunet.2022.12.011.
[8] R. Fu, X. Huang, Y. Xue, Y. Wu, Y. Tang, and D. Yue, “Security Assessment for Cyber Physical
Distribution Power System under intrusion attacks,” IEEE Access, vol. 7, pp. 75615–75628, Jul.
2018, doi: 10.1109/access.2018.2855752.
[9] L. Tightiz, H. Yang, “A Comprehensive Review on IoT Protocols’ Features in Smart Grid
Communication,” Energies, vol. 13, pp. 2762, 2020, doi: 10.3390/en13112762.
[10] V. Kelli, P. Radoglou-Grammatikis, T. Lagkas, E. K. Markakis and P. Sarigiannidis, "Risk
Analysis of DNP3 Attacks," 2022 IEEE International Conference on Cyber Security and Resilience
(CSR), Rhodes, Greece, 2022, pp. 351-356, doi: 10.1109/CSR54599.2022.9850291.
[11] M. M. Alani and T. Baker, “A survey of smart Grid Intrusion Detection datasets,” in Ambient
intelligence and smart environments, 2023. doi: 10.3233/aise230004.
[12] M. F. Moghadam, M. Nikooghadam, A. H. Mohajerzadeh, and B. Movali, “A lightweight key
management protocol for secure communication in smart grids,” Electric Power Systems Research,
vol. 178, p. 106024, Sep. 2019, doi: 10.1016/j.epsr.2019.106024.
[13] I. Siniosoglou, P. Radoglou-Grammatikis, G. Efstathopoulos, P. Fouliras, and P. Sarigiannidis, “A
unified deep learning anomaly detection and classification approach for smart grid environments,”
IEEE Transactions on Network and Service Management, vol. 18, no. 2, pp. 1137–1151, May
2021, doi: 10.1109/tnsm.2021.3078381.
[14] E. Grigoriou et al., “Protecting IEC 60870-5-104 ICS/SCADA Systems with Honeypots,” 2022
IEEE International Conference on Cyber Security and Resilience (CSR), pp. 345–350, Jul. 2022,
doi: 10.1109/csr54599.2022.9850329.

21
[15] A. Huseinovic, S. Mrdovic, K. Bicakci, and S. Uludag, “A survey of Denial-of-Service Attacks and
Solutions in the smart Grid,” IEEE Access, vol. 8, pp. 177447–177470, Jan. 2020, doi:
10.1109/access.2020.3026923.
[16] X. Xu, J. Sun, C. Wang, and B. Zou, “A novel hybrid CNN-LSTM compensation model against
DOS attacks in power system state estimation,” Neural Processing Letters, vol. 54, no. 3, pp. 1597–
1621, Jan. 2022, doi: 10.1007/s11063-021-10696-3.
[17] I. Ortega-Fernandez and F. Liberati, “A review of denial of service attack and mitigation in the
smart Grid using Reinforcement learning,” Energies, vol. 16, no. 2, p. 635, Jan. 2023, doi:
10.3390/en16020635.
[18] L. Haghnegahdar and Y. Wang, “A whale optimization algorithm-trained artificial neural network
for smart grid cyber intrusion detection,” Neural Computing and Applications, vol. 32, no. 13, pp.
9427–9441, Aug. 2019, doi: 10.1007/s00521-019-04453-w.
[19] V. Hnamte and J. Hussain, “Dependable intrusion detection system using deep convolutional neural
network: A Novel framework and performance evaluation approach,” Telematics and Informatics
Reports, vol. 11, p. 100077, Jul. 2023, doi: 10.1016/j.teler.2023.100077.
[20] A. K. Ozcanli and M. Baysal, “Islanding detection in microgrid using deep learning based on 1D
CNN and CNN-LSTM networks,” Sustainable Energy Grids and Networks, vol. 32, p. 100839, Jul.
2022, doi: 10.1016/j.segan.2022.100839.
[21] R. A. Bakar, X. Huang, M. S. Javed, S. Hussain, and M. F. Majeed, “An intelligent Agent-Based
detection system for DDOS attacks using automatic feature extraction and selection,” Sensors, vol.
23, no. 6, p. 3333, Mar. 2023, doi: 10.3390/s23063333.
[22] F. Li et al., “Detection and diagnosis of data integrity attacks in solar farms based on multilayer
Long ShortTerm memory network,” IEEE Transactions on Power Electronics, vol. 36, no. 3, pp.
2495–2498, Aug. 2020, doi: 10.1109/tpel.2020.3017935.
[23] L. Mou, P. Ghamisi, and X. X. Zhu, “Deep recurrent neural networks for hyperspectral image
classification,” IEEE Transactions on Geoscience and Remote Sensing, vol. 55, no. 7, pp. 3639–
3655, Apr. 2017, doi: 10.1109/tgrs.2016.2636241.
[24] M. S. Elsayed, N.-A. Le-Khac, S. Dev, and A. D. Jurcut, “DDoSNet: A Deep-Learning Model for
Detecting Network Attacks,” 2020 IEEE 21st International Symposium on “a World of Wireless,
Mobile and Multimedia Networks” (WoWMoM), Aug. 2020, doi:
10.1109/wowmom49955.2020.00072.
[25] X. Liu, S. Tian, F. Tao, “A review of artificial neural networks in the constitutive modeling of
composite materials,” journal-article, 2021, doi: 10.1016/j.compositesb.2021.109152.
[26] R. Priyadarshini and R. K. Barik, “A deep learning based intelligent framework to mitigate DDoS
attack in fog environment,” Journal of King Saud University - Computer and Information Sciences,
vol. 34, no. 3, pp. 825–831, Apr. 2019, doi: 10.1016/j.jksuci.2019.04.010.
[27] I. H. Sarker, “Deep Cybersecurity: A Comprehensive Overview from Neural Network and Deep
Learning Perspective,” SN Computer Science, vol. 2, no. 3, Mar. 2021, doi: 10.1007/s42979-021-
00535-6.
[28] S. Li, W. Li, C. Cook, Ce Zhu, and Yanbo Gao, “Independently Recurrent Neural Network
(INDRNN): building a longer and deeper RNN,” journal-article, 2018.
[29] X. Tang, Y. Dai, T. Wang, and Y. Chen, “Short‐term power load forecasting based on multi‐layer
bidirectional recurrent neural network,” IET Generation Transmission & Distribution, vol. 13, no.
17, pp. 3847–3854, Jul. 2019, doi: 10.1049/iet-gtd.2018.6687.
[30] A. Huseinovic, S. Mrdovic, K. Bicakci, and S. Uludag, “A survey of Denial-of-Service Attacks and
Solutions in the smart Grid,” IEEE Access, vol. 8, pp. 177447–177470, Jan. 2020, doi:
10.1109/access.2020.3026923.
[31] L. J. Lepolesa, S. Achari, and L. Cheng, “Electricity theft detection in smart grids based on deep
neural network,” IEEE Access, vol. 10, pp. 39638–39655, Jan. 2022, doi:
10.1109/access.2022.3166146.
[32] E. Haghighat and R. Juanes, “SciANN: A Keras/TensorFlow wrapper for scientific computations
and physics-informed deep learning using artificial neural networks,” Computer Methods in
Applied Mechanics and Engineering, vol. 373, p. 113552, Nov. 2020, doi:
10.1016/j.cma.2020.113552.
[33] A. Masood and K. Ahmad, “A review on emerging artificial intelligence (AI) techniques for air
pollution forecasting: Fundamentals, application and performance,” vol. 322, pp. 129072, 2021,
doi: 10.1016/j.jclepro.2021.129072.

22
[34] U. AlHaddad, A. Basuhail, M. Khemakhem, F. E. Eassa, and K. Jambi, “Ensemble model based on
hybrid deep learning for intrusion detection in smart grid networks,” Sensors, vol. 23, no. 17, p.
7464, Aug. 2023, doi: 10.3390/s23177464.
[35] C. Song, Y. Sun, G. Han, and J. J. P. C. Rodrigues, “Intrusion detection based on hybrid classifiers
for smart grid,” Computers & Electrical Engineering, vol. 93, p.
107212, May 2021, doi: 10.1016/j.compeleceng.2021.107212.
[36] F. Zhai, T. Yang, H. Chen, B. He, and S. Li, “Intrusion detection method based on CNN–GRU–FL
in a smart grid environment,” Electronics, vol. 12, no. 5, p. 1164, Feb. 2023, doi:
10.3390/electronics12051164.
[37] M. Al-Zewairi, S. Almajali, and A. Awajan, “Experimental Evaluation of a Multi-layer Feed-
Forward Artificial Neural Network Classifier for Network Intrusion Detection System,” pp. 167–
172, 2017, doi: 10.1109/ictcs.2017.29.
[38] M. Alabadi and Y. Celik, “Anomaly Detection for Cyber-Security Based on Convolution Neural
Network: A survey,” 2022 International Congress on Human-Computer Interaction, Optimization
and Robotic Applications (HORA), pp. 1–14, Jun. 2020, doi: 10.1109/hora49412.2020.9152899.
[39] Y. Wei Member, J. Jang-Jaccard, F. Sabrina, W. Xu, S. Camtepe, and A. Dunmore,
“Reconstruction-based LSTM-Autoencoder for Anomaly-based DDoS Attack Detection over
Multivariate Time-Series Data,” Aug. 2021, arXiv preprint arXiv:2305.09475.
[40] Md. N. Hasan, R. N. Toma, A.-A. Nahid, M. M. M. Islam, and J.-M. Kim, “Electricity theft
detection in smart grid systems: A CNN-LSTM based approach,” Energies, vol. 12, no. 17, p. 3310,
Aug. 2019, doi: 10.3390/en12173310.
[41] H. Liang, C. Ye, Y. Zhou, and H. Yang, “Anomaly Detection Based on Edge Computing
Framework for AMI,” 2021 IEEE International Conference on Electrical Engineering and
Mechatronics Technology (ICEEMT 2021), pp. 385–390, Jul. 2021, doi:
10.1109/iceemt52412.2021.9601888.
[42] P. Radoglou-Grammatikis, V. Kelli, T. Lagkas, V. Argyriou, P. Sarigiannidis, and ITHACA –
University of Western Macedonia, “DNP3 Intrusion Detection Dataset,” Nov. 2022.
[43] M. Anwar, A. Borg, and L. Lundberg, “A Comparison of Unsupervised Learning Algorithms for
Intrusion Detection in IEC 104 SCADA Protocol,” 2021 International Conference on Machine
Learning and Cybernetics (ICMLC), pp. 1–8, Dec. 2021, doi: 10.1109/icmlc54886.2021.9737267.
[44] P. Radoglou-Grammatikis et al., “Modeling, detecting, and mitigating threats against industrial
healthcare systems: a combined software defined networking and reinforcement learning
approach,” IEEE Transactions on Industrial Informatics, vol. 18, no. 3, pp. 2041–2052, Jul. 2021,
doi: 10.1109/tii.2021.3093905.
[45] Q. S. Qassim, N. Jamil, M. R. Z, N. A. Aba, and W. A. W. Kamarulzaman, “Assessing the cyber-
security of the IEC 60870-5-104 protocol in SCADA system,” International Journal of Critical
Infrastructures, vol. 16, no. 2, p. 91, Jan. 2020, doi: 10.1504/ijcis.2020.107242.
[46] T. Lei, R. Y. M. Li, N. Jotikastira, H. Fu, and C. Wang, “Prediction for the inventory Management
Chaotic complexity system based on the Deep Neural Network algorithm,” Complexity, vol. 2023,
pp. 1–11, May 2023, doi: 10.1155/2023/9369888.

A Hybrid CNN-LSTM Deep Learning Model for Intrusion Detection in Smart Grid

More Related Content

Similar to A Hybrid CNN-LSTM Deep Learning Model for Intrusion Detection in Smart Grid

More from gerogepatton

Recently uploaded

A Hybrid CNN-LSTM Deep Learning Model for Intrusion Detection in Smart Grid
