A Framework for Classifying and Comparing Architecture-Centric Software Evolution Research
The document presents a systematic literature review of architecture-centric software evolution research. It aims to provide a conceptual framework and taxonomy for classifying and comparing different approaches. The review examines 60 relevant papers and extracts data on the types of evolution supported, formalisms used, architectural reasoning adopted, runtime environments/mechanisms enabled, and available tool supports.
More Related Content
Similar to A Framework for Classifying and Comparing Architecture-Centric Software Evolution Research
A Framework for Classifying and Comparing Architecture-Centric Software Evolution Research
- 1. A Framework forClassifying and Comparing Architecture-Centric Software Evolution Research Pooyan Jamshidi, Mohammad Ghafari, Aakash Ahmad, Claus Pahl Lero - The Irish Software Engineering Research Centre, School of Computing, Dublin City University

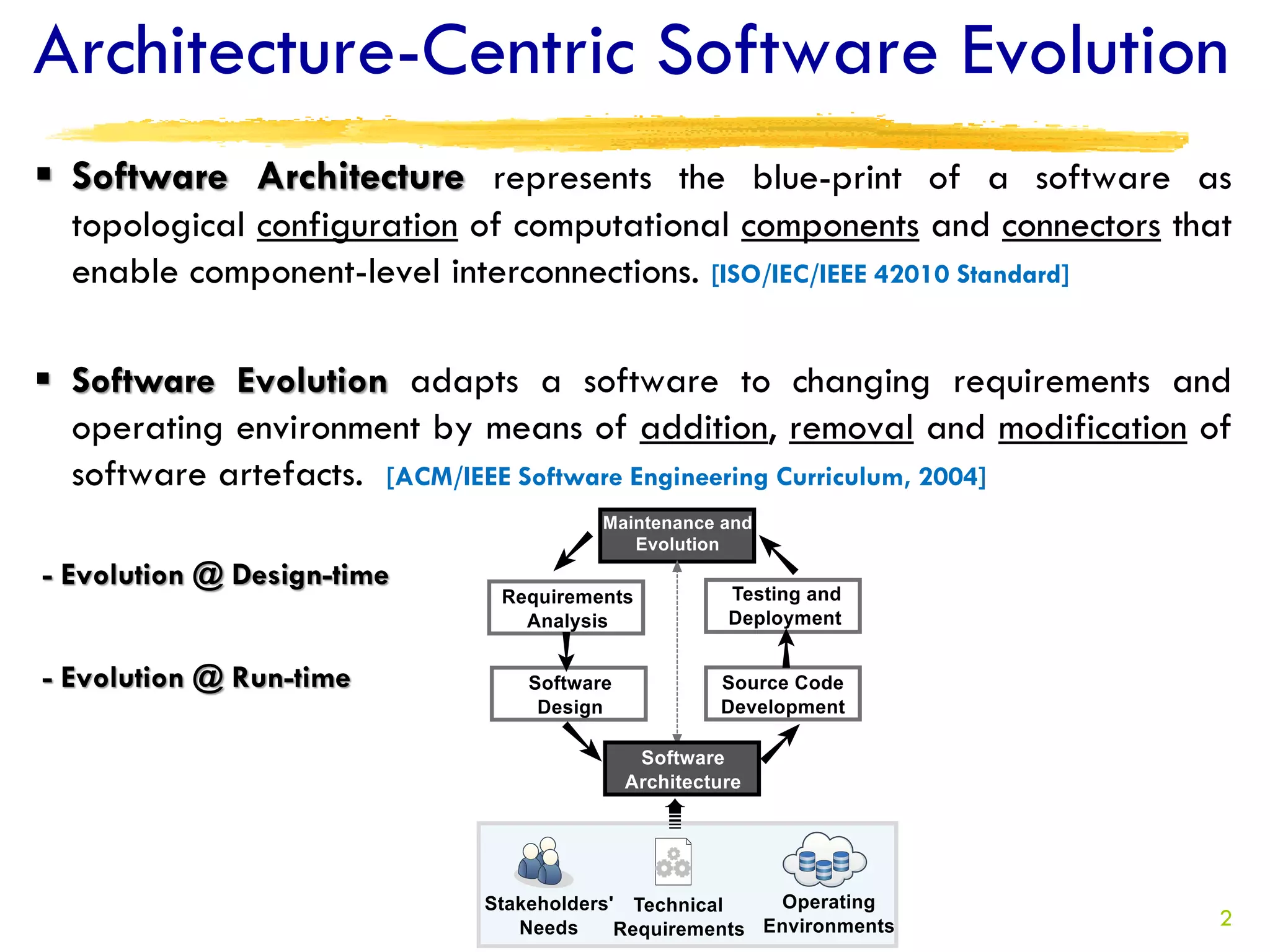

- 2. Architecture-Centric Software Evolution Software Architecture represents the blue-print of a software as topological configuration of computational components and connectors that enable component-level interconnections. [ISO/IEC/IEEE 42010 Standard] Software Evolution adapts a software to changing requirements and operating environment by means of addition, removal and modification of software artefacts. [ACM/IEEE Software Engineering Curriculum, 2004] - Evolution @ Design-time - Evolution @ Run-time 2

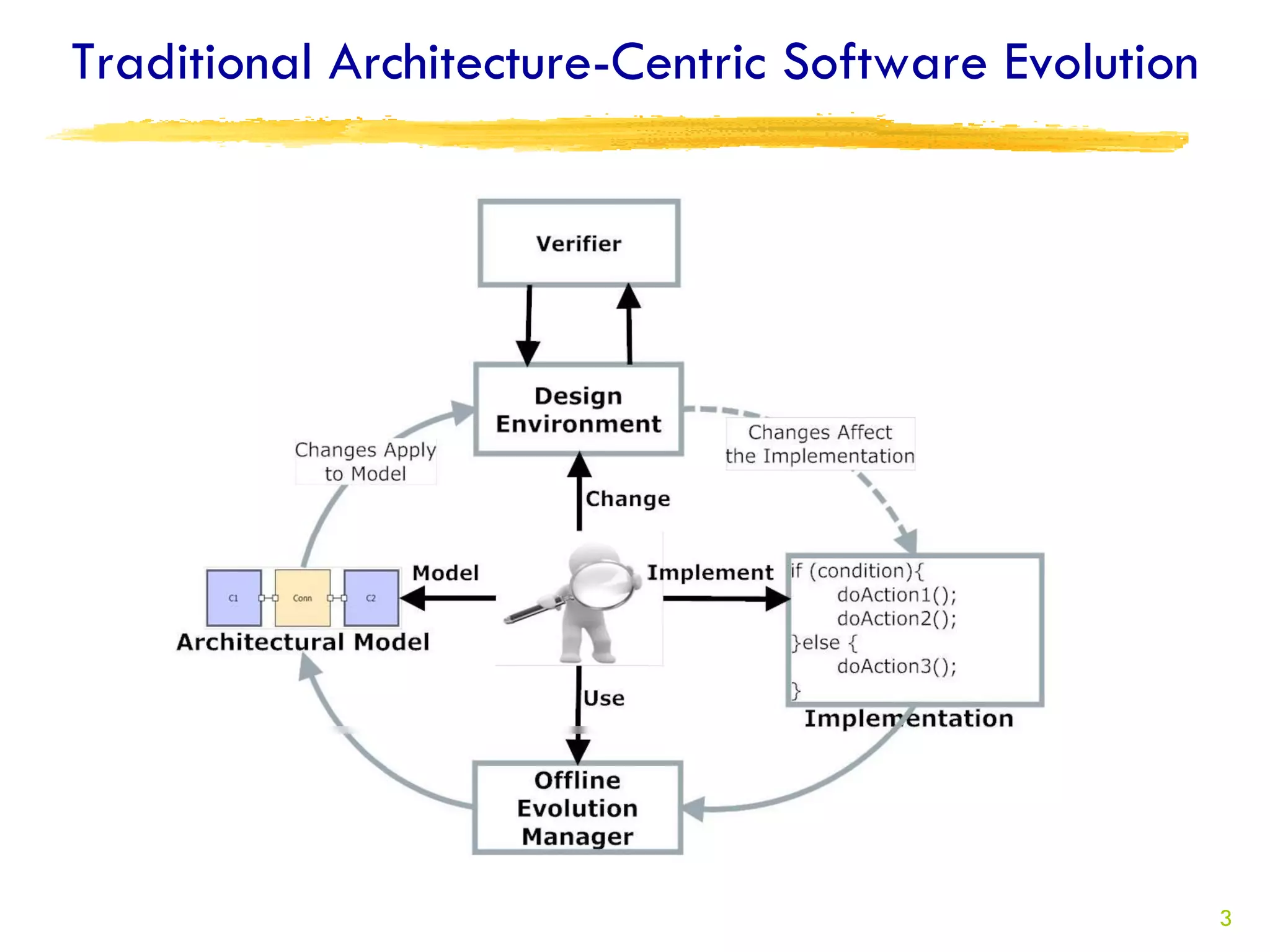

- 3. Traditional Architecture-Centric SoftwareEvolution 3
- 4. A Paradigm Change(I): models@runtime 4

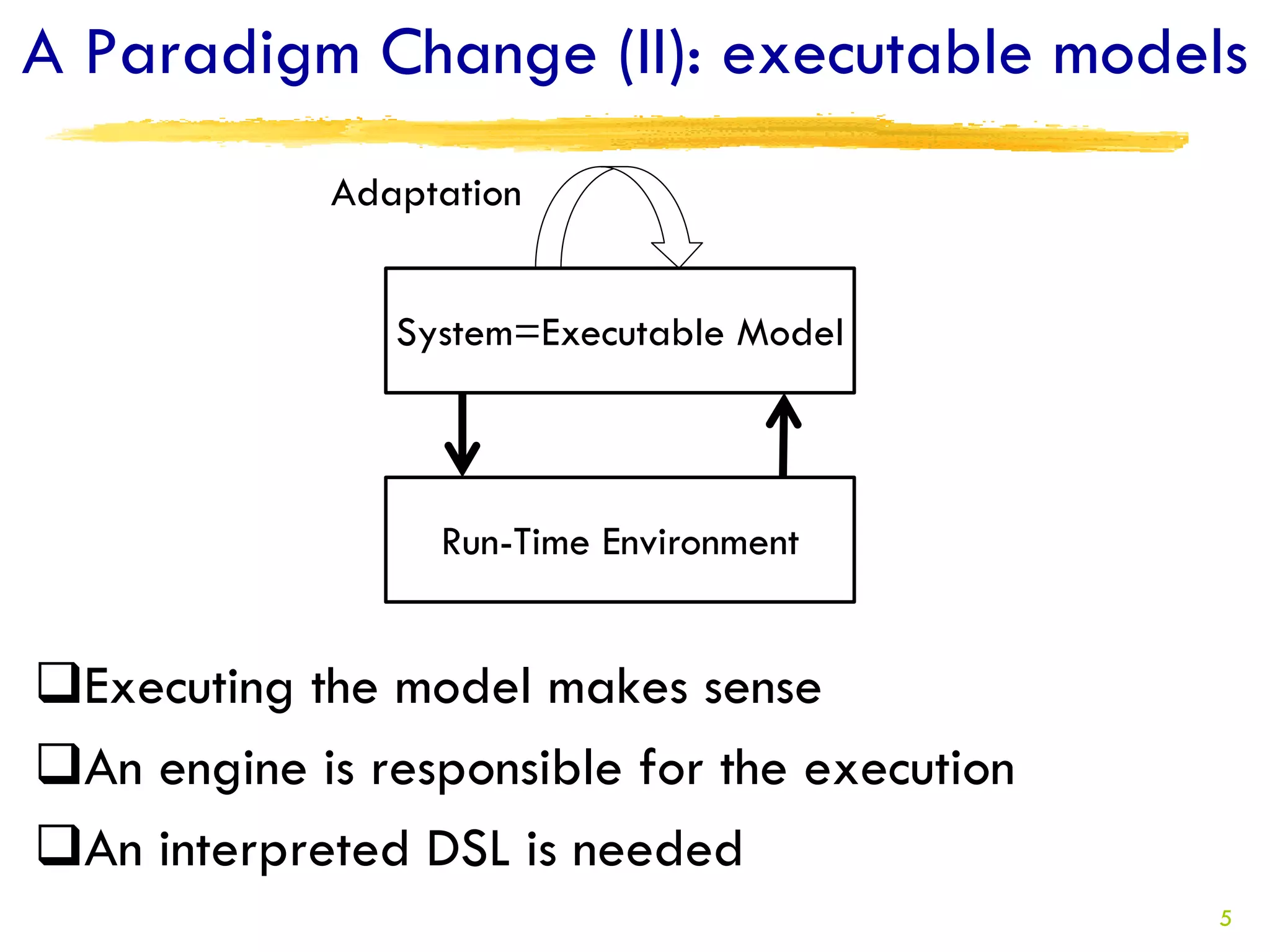

- 5. A Paradigm Change(II): executable models Adaptation System=Executable Model Run-Time Environment Executing the model makes sense An engine is responsible for the execution An interpreted DSL is needed 5

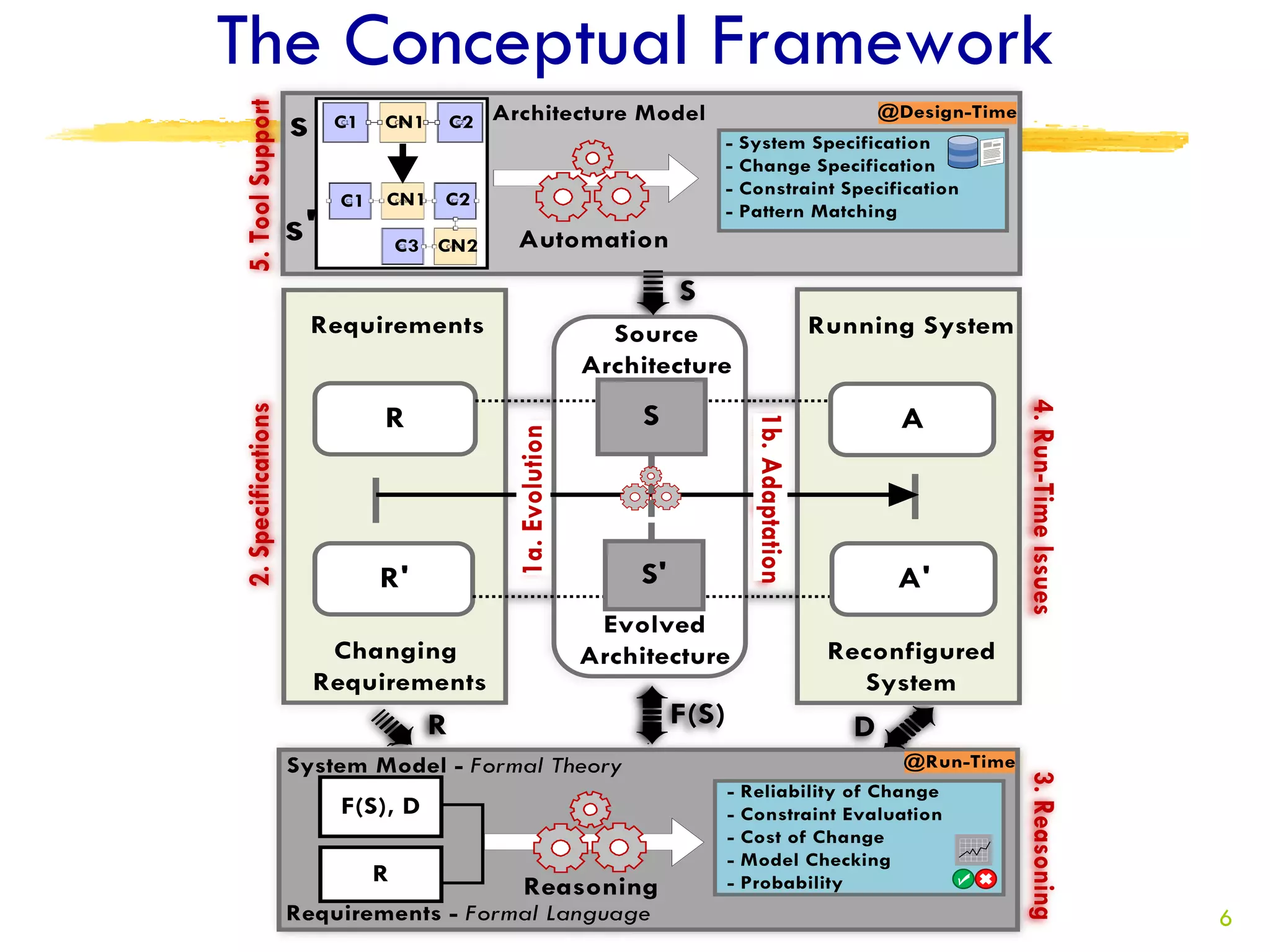

- 6.

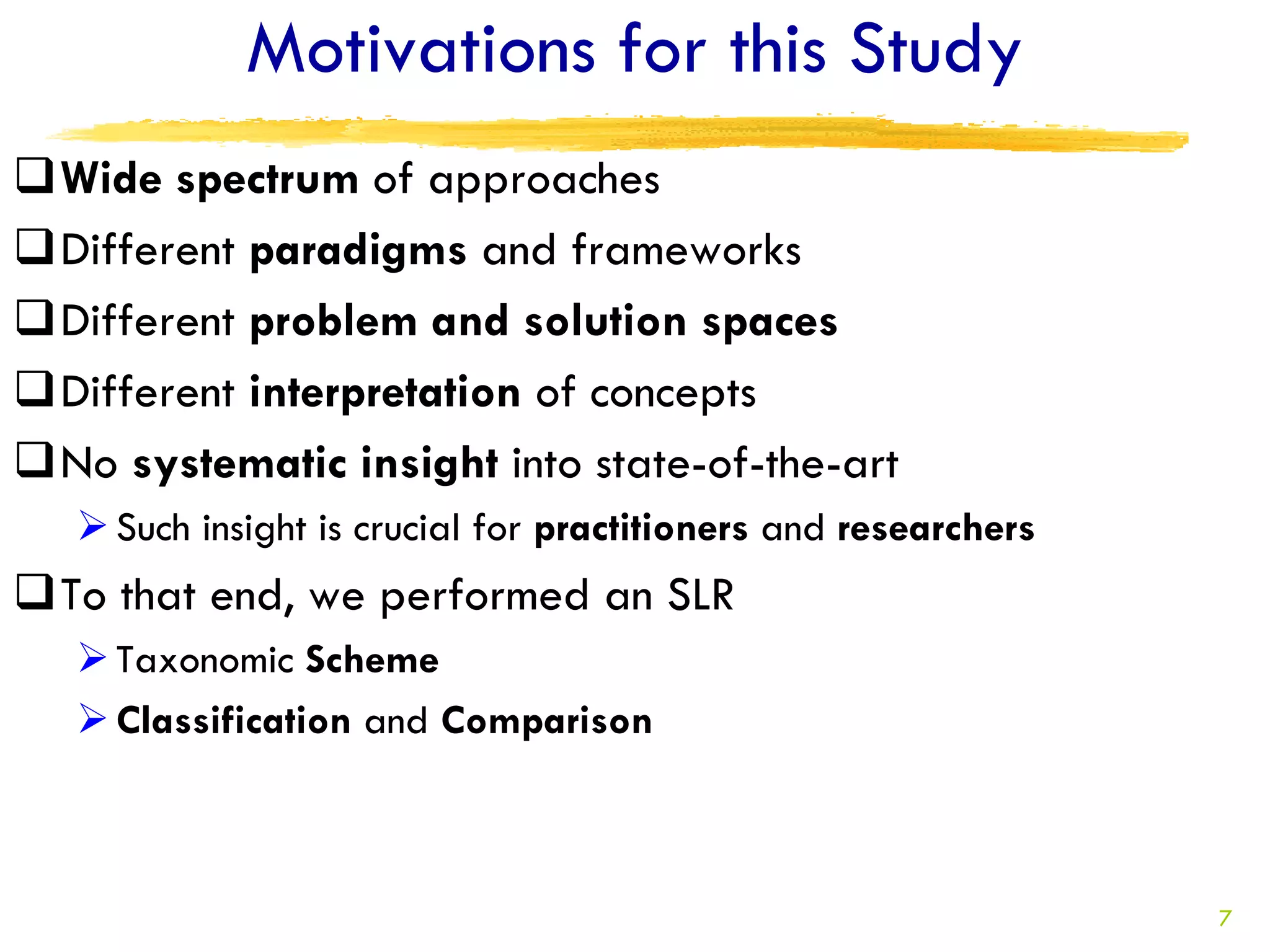

- 7. Motivations for thisStudy Wide spectrum of approaches Different paradigms and frameworks Different problem and solution spaces Different interpretation of concepts No systematic insight into state-of-the-art Such insight is crucial for practitioners and researchers To that end, we performed an SLR Taxonomic Scheme Classification and Comparison 7
- 8. Agenda • Research Methodology • Research Questions • Search Strategy & Quality Assessment • Data Items • Results • Limitations 8

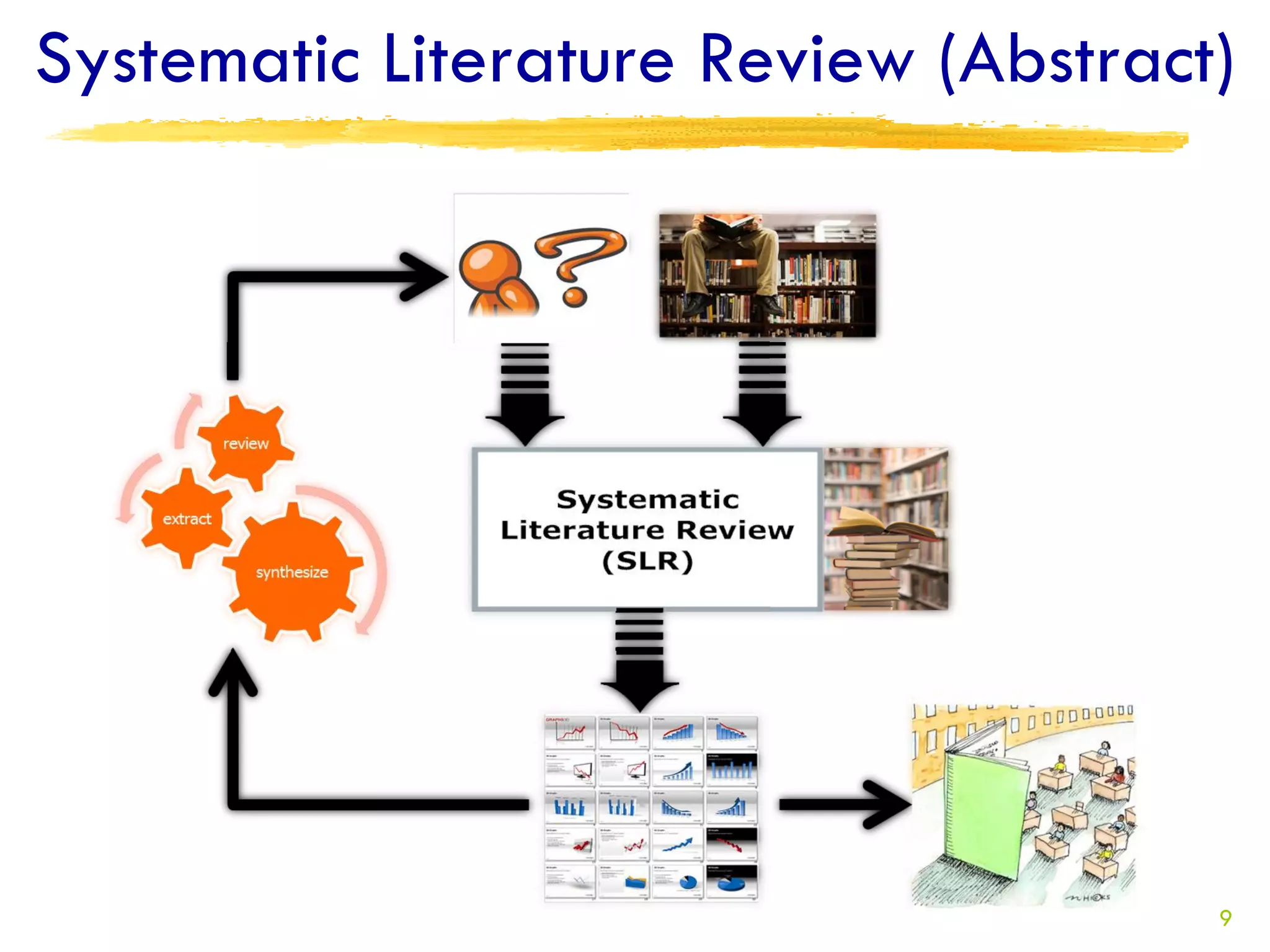

- 9. Systematic Literature Review(Abstract) 9

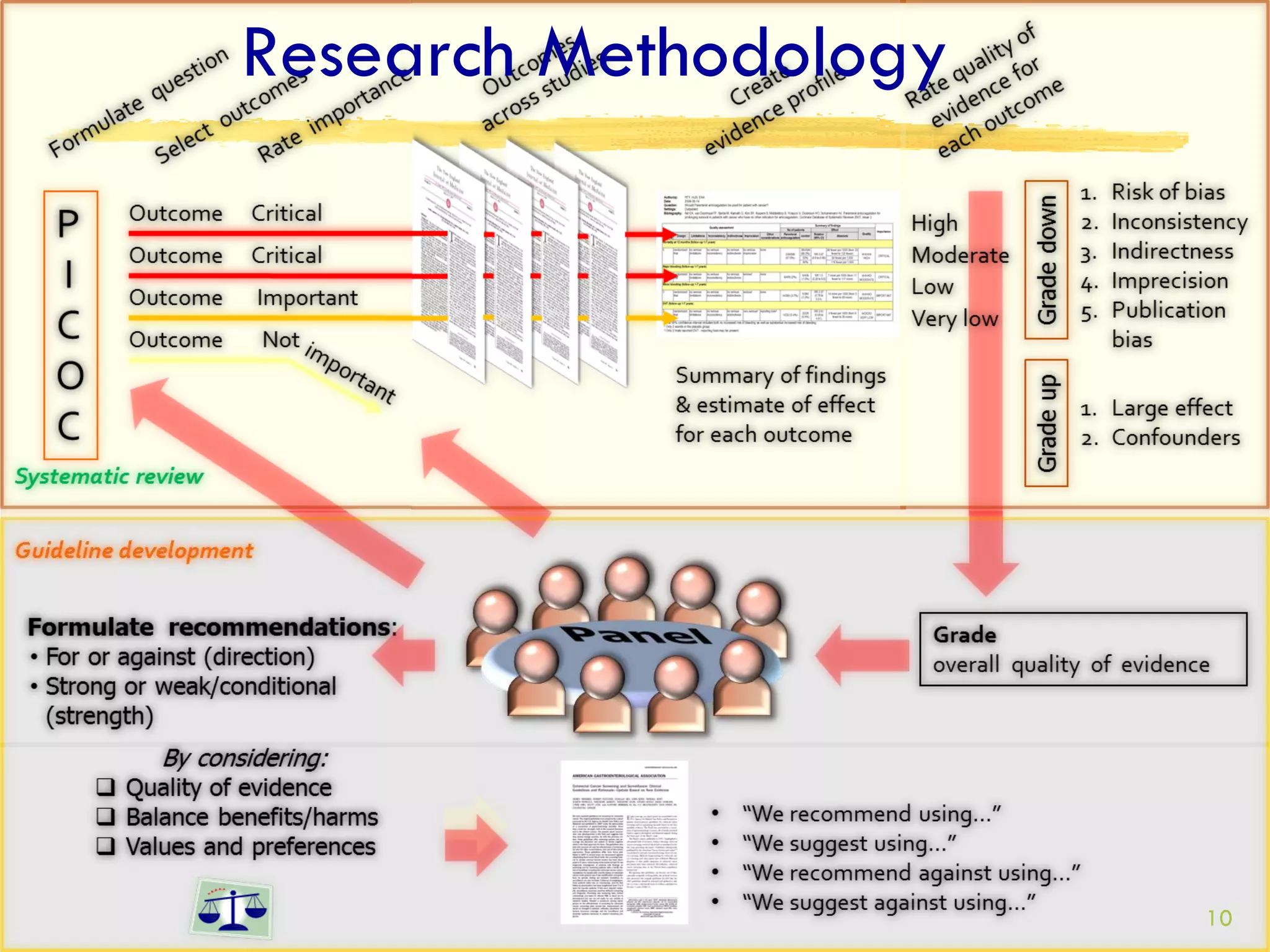

- 10.

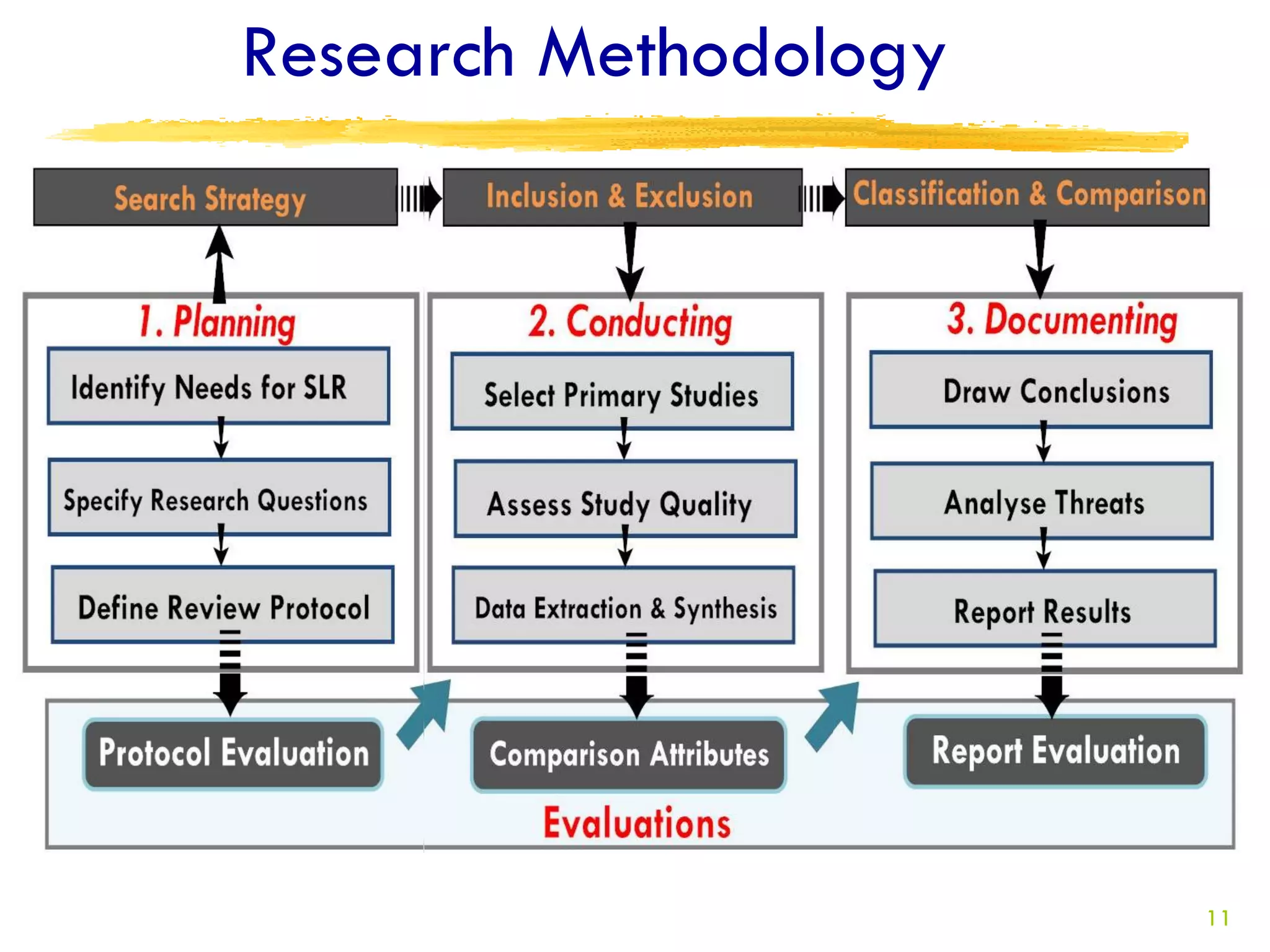

- 11.

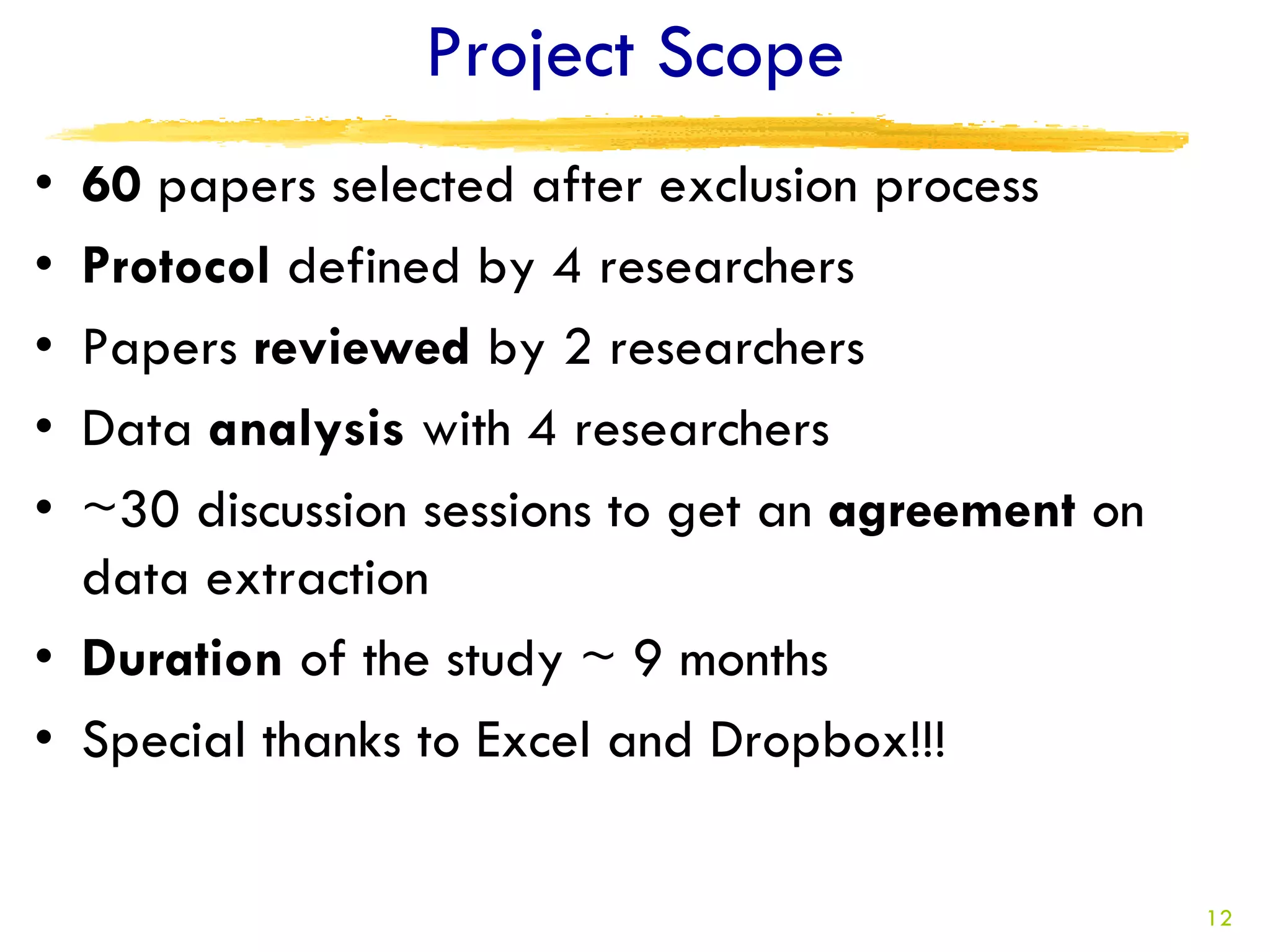

- 12. Project Scope • 60papers selected after exclusion process • Protocol defined by 4 researchers • Papers reviewed by 2 researchers • Data analysis with 4 researchers • ~30 discussion sessions to get an agreement on data extraction • Duration of the study ~ 9 months • Special thanks to Excel and Dropbox!!! 12

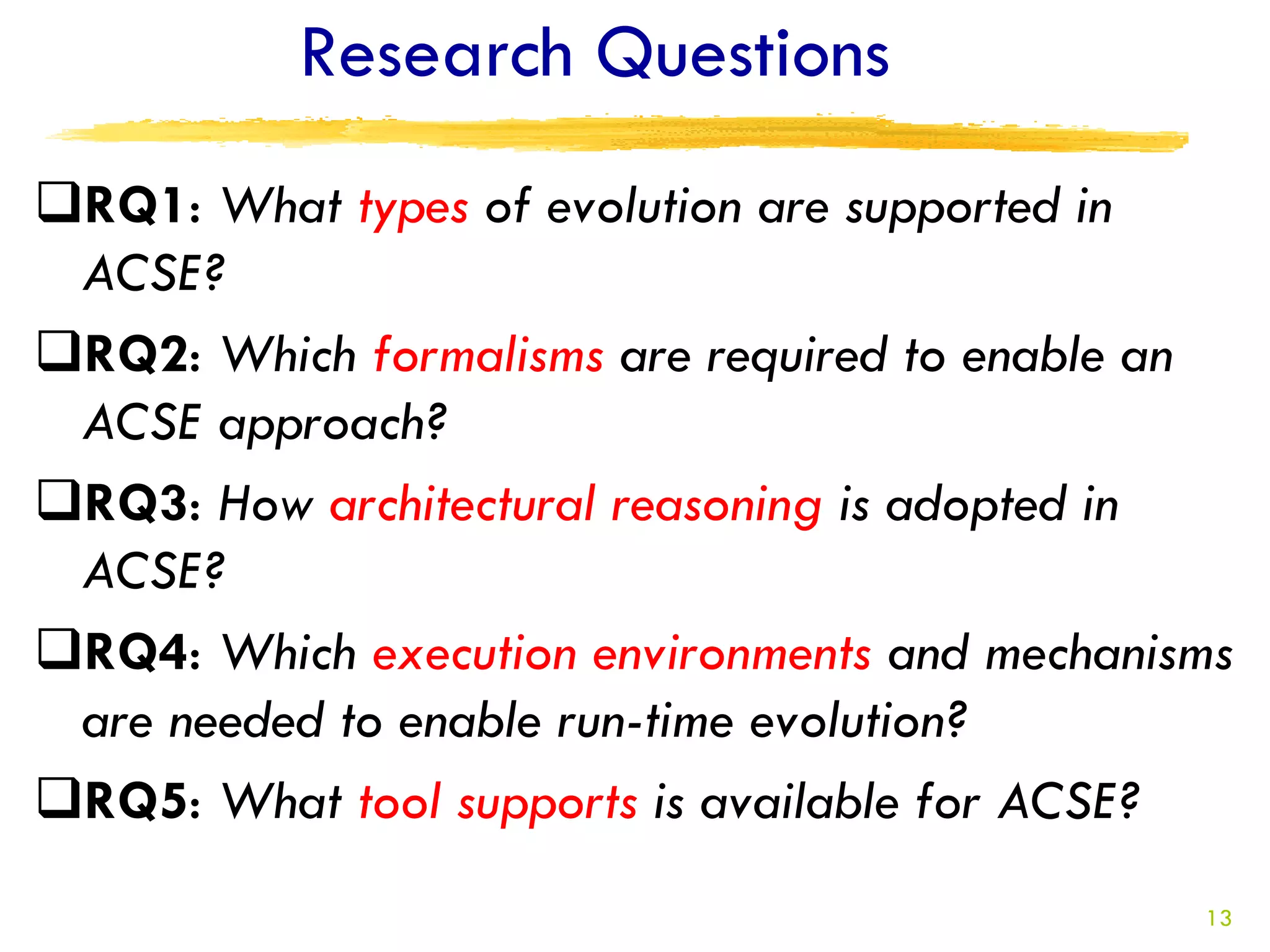

- 13. Research Questions RQ1: Whattypes of evolution are supported in ACSE? RQ2: Which formalisms are required to enable an ACSE approach? RQ3: How architectural reasoning is adopted in ACSE? RQ4: Which execution environments and mechanisms are needed to enable run-time evolution? RQ5: What tool supports is available for ACSE? 13

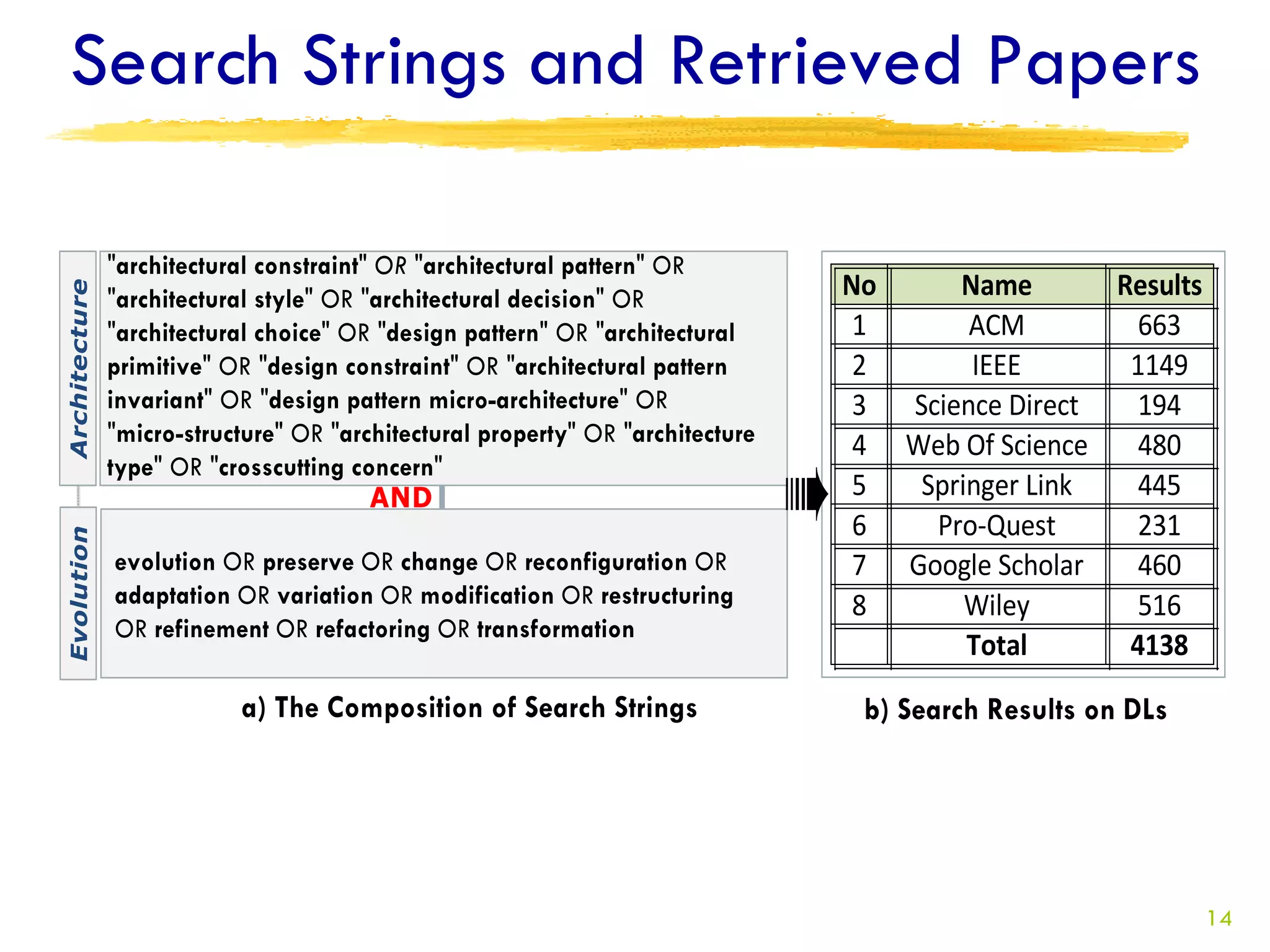

- 14. Search Strings andRetrieved Papers No Name Results 1 ACM 663 2 IEEE 1149 3 Science Direct 194 4 Web Of Science 480 5 Springer Link 445 6 Pro-Quest 231 7 Google Scholar 460 8 Wiley 516 Total 4138 14

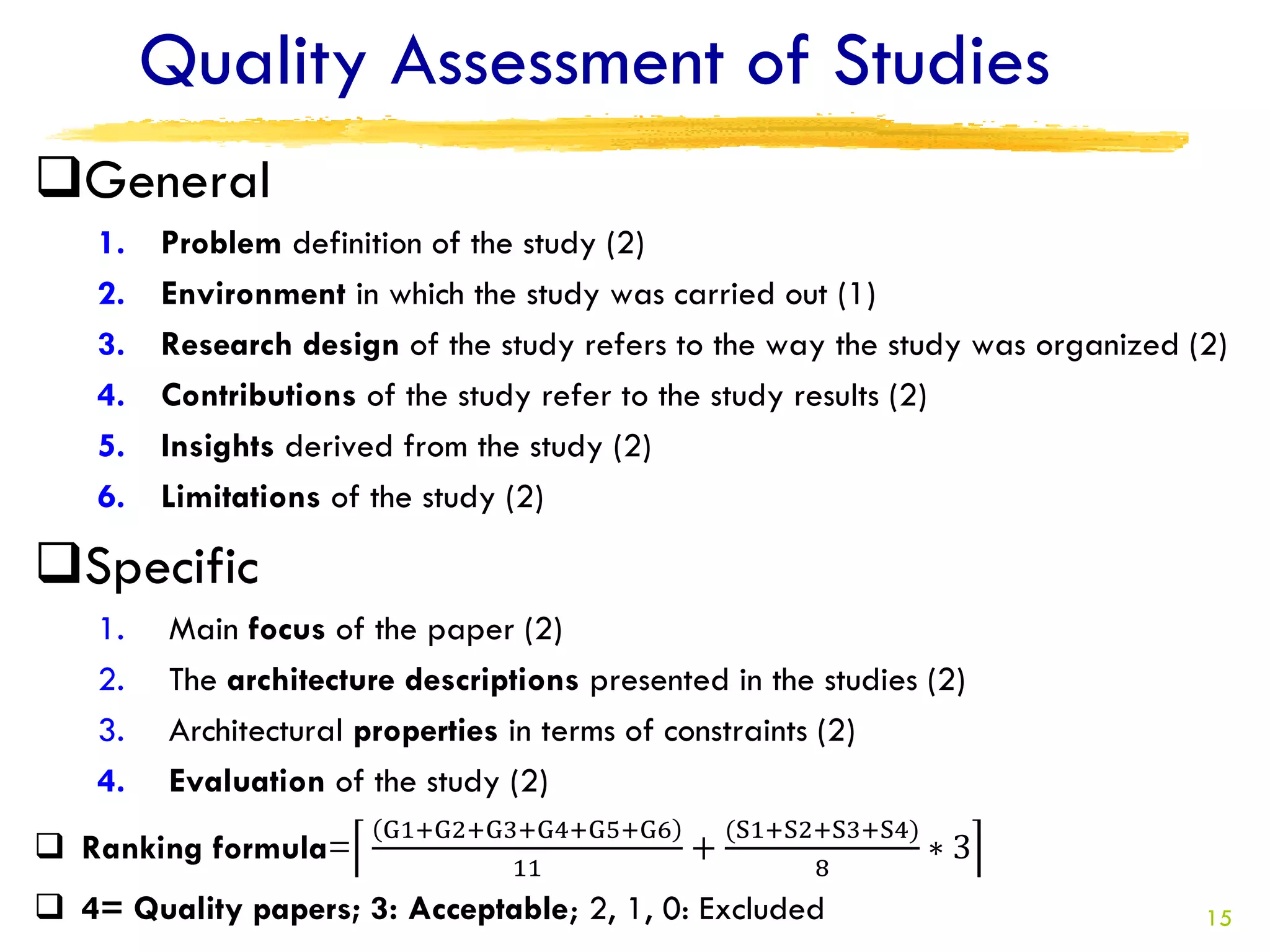

- 15. Quality Assessment ofStudies General 1. Problem definition of the study (2) 2. Environment in which the study was carried out (1) 3. Research design of the study refers to the way the study was organized (2) 4. Contributions of the study refer to the study results (2) 5. Insights derived from the study (2) 6. Limitations of the study (2) Specific 1. Main focus of the paper (2) 2. The architecture descriptions presented in the studies (2) 3. Architectural properties in terms of constraints (2) 4. Evaluation of the study (2) G1+G2+G3+G4+G5+G6 (S1+S2+S3+S4) Ranking formula= + ∗3 11 8 4= Quality papers; 3: Acceptable; 2, 1, 0: Excluded 15

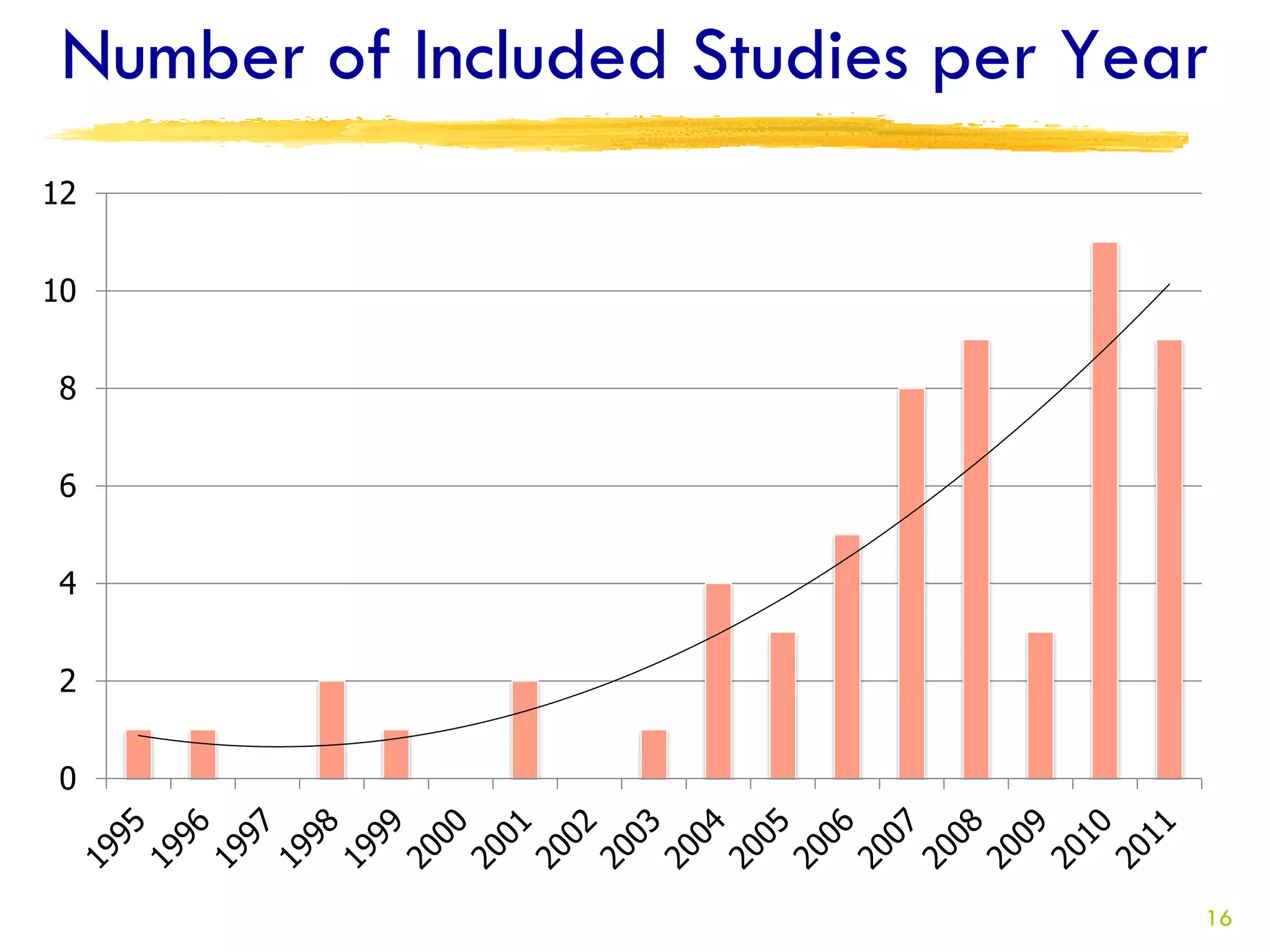

- 16. Number of IncludedStudies per Year 12 10 8 6 4 2 0 16

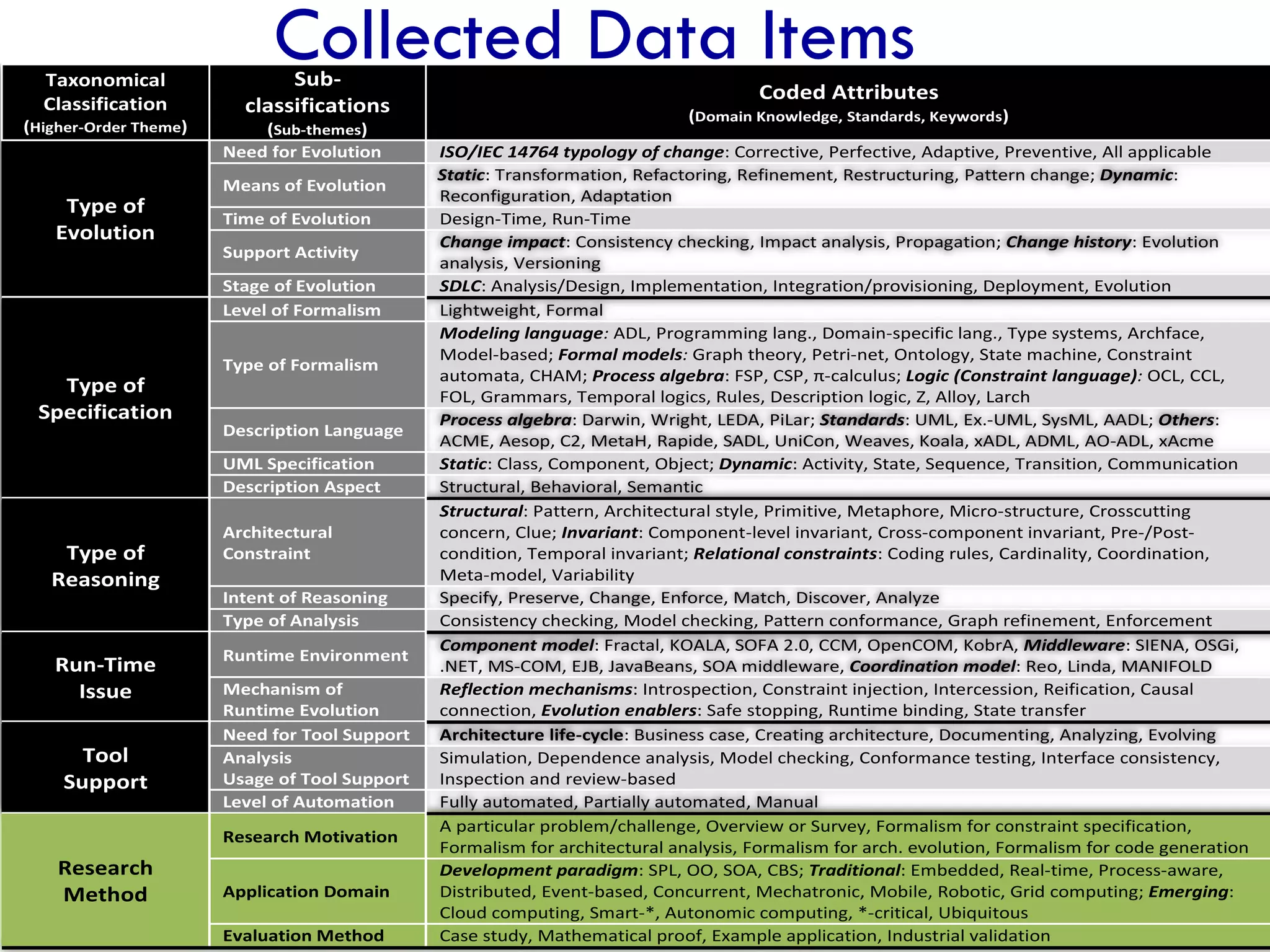

- 17. Taxonomical Collected Data Items Sub- Coded Attributes Classification classifications (Domain Knowledge, Standards, Keywords) (Higher-Order Theme) (Sub-themes) Need for Evolution ISO/IEC 14764 typology of change: Corrective, Perfective, Adaptive, Preventive, All applicable Static: Transformation, Refactoring, Refinement, Restructuring, Pattern change; Dynamic: Means of Evolution Reconfiguration, Adaptation Type of Time of Evolution Design-Time, Run-Time Evolution Change impact: Consistency checking, Impact analysis, Propagation; Change history: Evolution Support Activity analysis, Versioning Stage of Evolution SDLC: Analysis/Design, Implementation, Integration/provisioning, Deployment, Evolution Level of Formalism Lightweight, Formal Modeling language: ADL, Programming lang., Domain-specific lang., Type systems, Archface, Model-based; Formal models: Graph theory, Petri-net, Ontology, State machine, Constraint Type of Formalism automata, CHAM; Process algebra: FSP, CSP, π-calculus; Logic (Constraint language): OCL, CCL, Type of FOL, Grammars, Temporal logics, Rules, Description logic, Z, Alloy, Larch Specification Process algebra: Darwin, Wright, LEDA, PiLar; Standards: UML, Ex.-UML, SysML, AADL; Others: Description Language ACME, Aesop, C2, MetaH, Rapide, SADL, UniCon, Weaves, Koala, xADL, ADML, AO-ADL, xAcme UML Specification Static: Class, Component, Object; Dynamic: Activity, State, Sequence, Transition, Communication Description Aspect Structural, Behavioral, Semantic Structural: Pattern, Architectural style, Primitive, Metaphore, Micro-structure, Crosscutting Architectural concern, Clue; Invariant: Component-level invariant, Cross-component invariant, Pre-/Post- Type of Constraint condition, Temporal invariant; Relational constraints: Coding rules, Cardinality, Coordination, Reasoning Meta-model, Variability Intent of Reasoning Specify, Preserve, Change, Enforce, Match, Discover, Analyze Type of Analysis Consistency checking, Model checking, Pattern conformance, Graph refinement, Enforcement Component model: Fractal, KOALA, SOFA 2.0, CCM, OpenCOM, KobrA, Middleware: SIENA, OSGi, Runtime Environment Run-Time .NET, MS-COM, EJB, JavaBeans, SOA middleware, Coordination model: Reo, Linda, MANIFOLD Issue Mechanism of Reflection mechanisms: Introspection, Constraint injection, Intercession, Reification, Causal Runtime Evolution connection, Evolution enablers: Safe stopping, Runtime binding, State transfer Need for Tool Support Architecture life-cycle: Business case, Creating architecture, Documenting, Analyzing, Evolving Tool Analysis Simulation, Dependence analysis, Model checking, Conformance testing, Interface consistency, Support Usage of Tool Support Inspection and review-based Level of Automation Fully automated, Partially automated, Manual A particular problem/challenge, Overview or Survey, Formalism for constraint specification, Research Motivation Formalism for architectural analysis, Formalism for arch. evolution, Formalism for code generation Research Development paradigm: SPL, OO, SOA, CBS; Traditional: Embedded, Real-time, Process-aware, Method Application Domain Distributed, Event-based, Concurrent, Mechatronic, Mobile, Robotic, Grid computing; Emerging: Cloud computing, Smart-*, Autonomic computing, *-critical, Ubiquitous 17 Evaluation Method Case study, Mathematical proof, Example application, Industrial validation
- 18. Results, RQ1: “typesof evolution” 1. Need for Evolution 2. Means of Evolution 3. Time of Evolution 4. Support Activity 5. Stage of Evolution 18

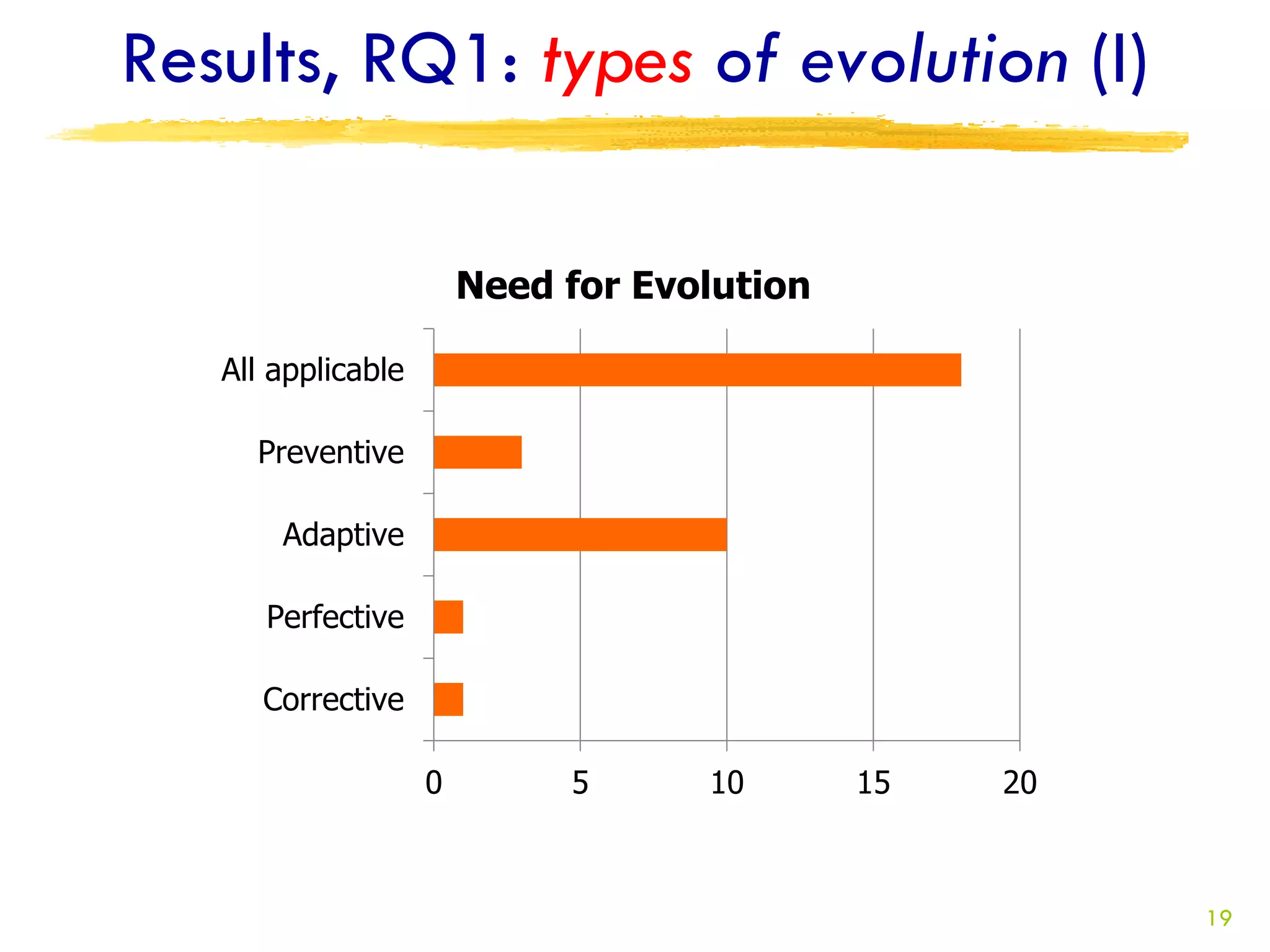

- 19. Results, RQ1: typesof evolution (I) Need for Evolution All applicable Preventive Adaptive Perfective Corrective 0 5 10 15 20 19

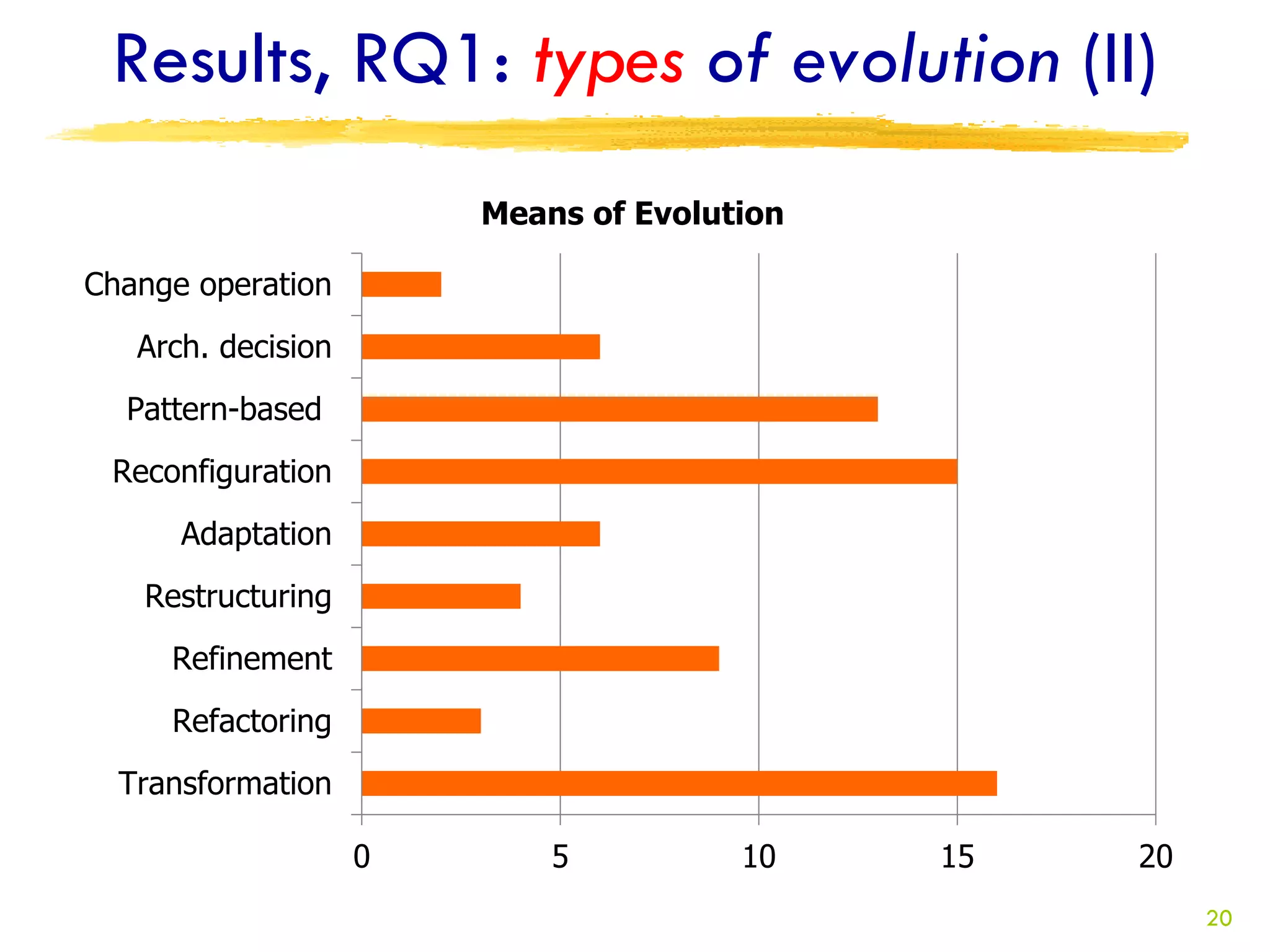

- 20. Results, RQ1: typesof evolution (II) Means of Evolution Change operation Arch. decision Pattern-based Reconfiguration Adaptation Restructuring Refinement Refactoring Transformation 0 5 10 15 20 20

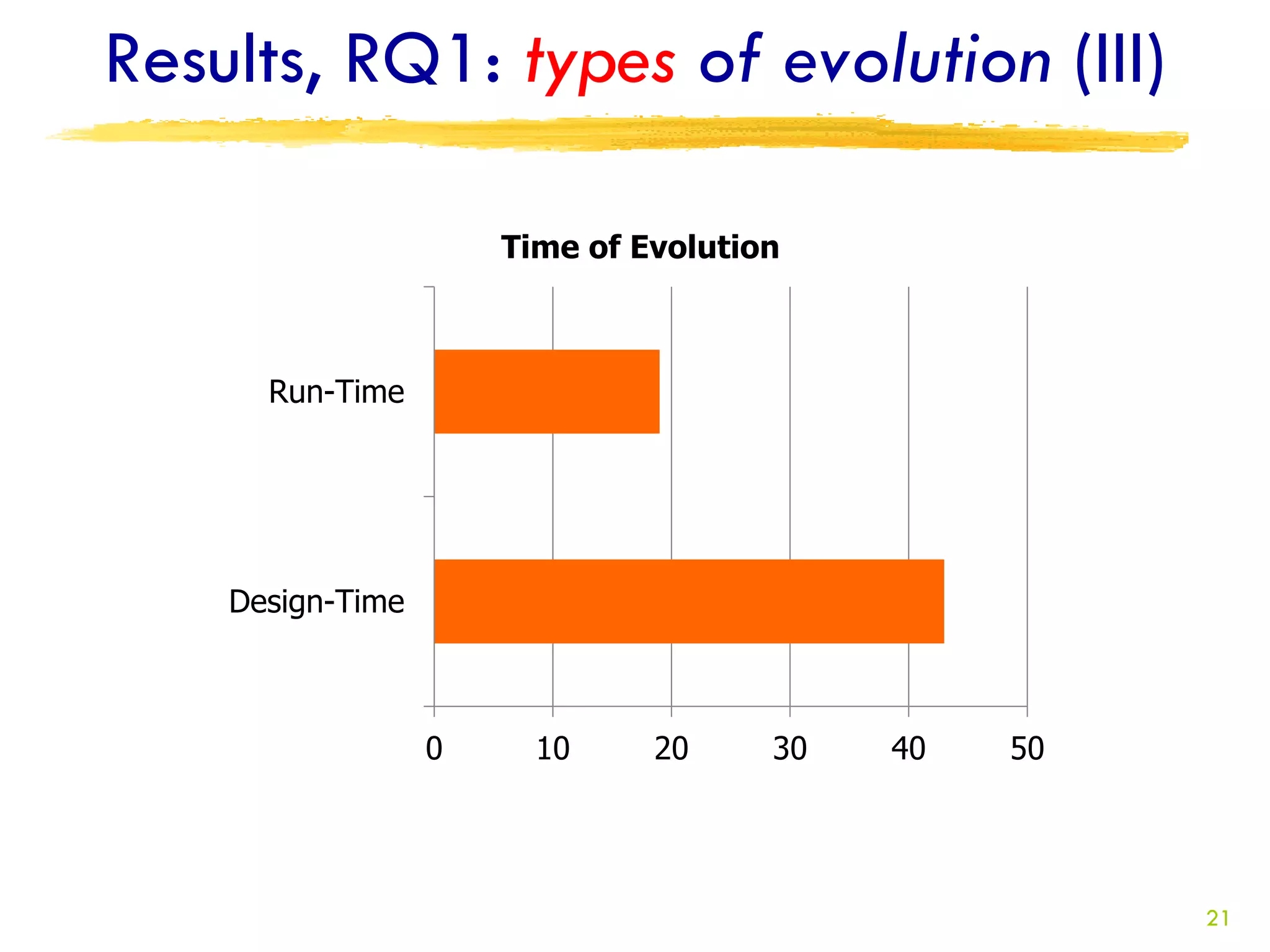

- 21. Results, RQ1: typesof evolution (III) Time of Evolution Run-Time Design-Time 0 10 20 30 40 50 21

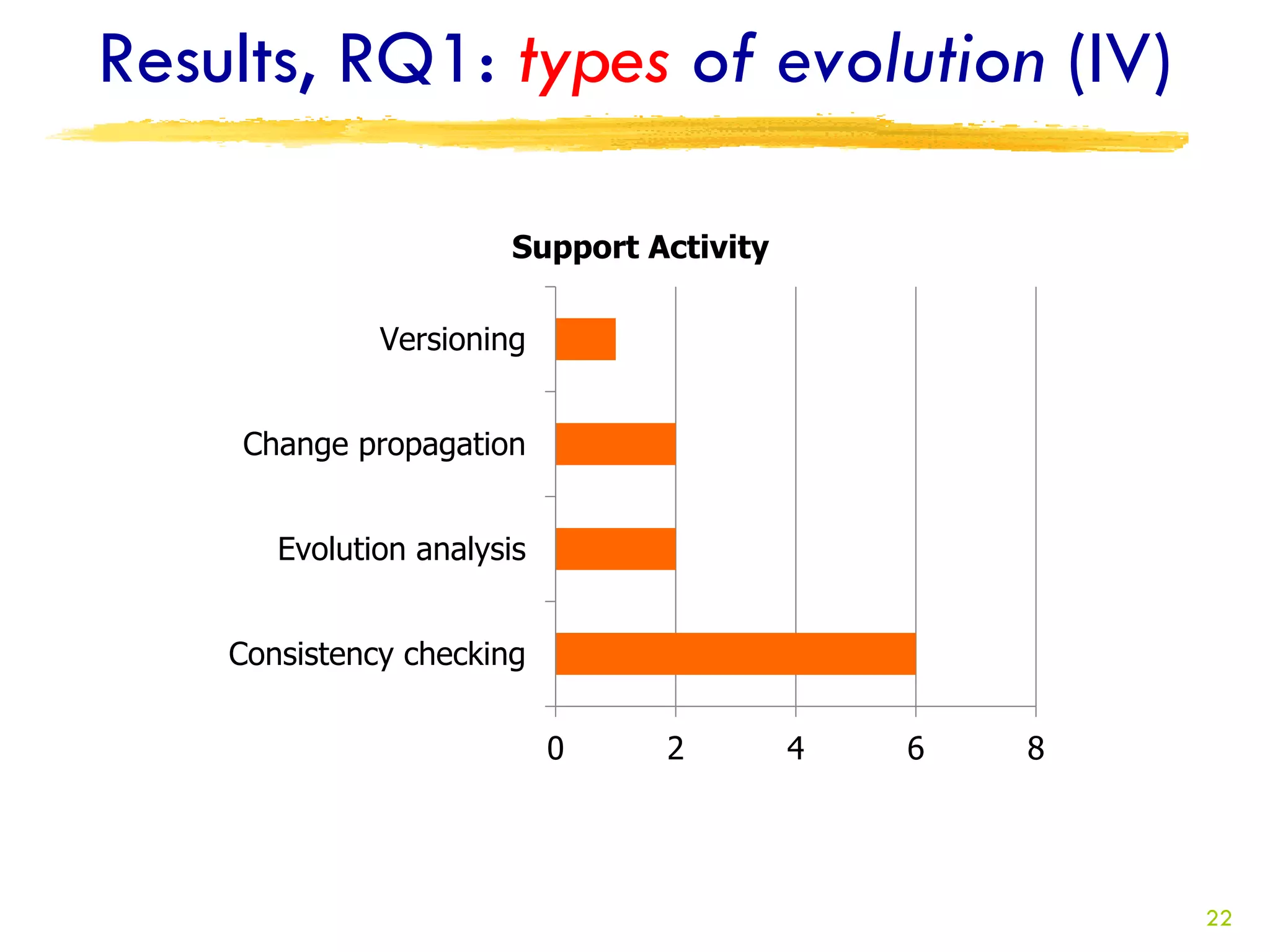

- 22. Results, RQ1: typesof evolution (IV) Support Activity Versioning Change propagation Evolution analysis Consistency checking 0 2 4 6 8 22

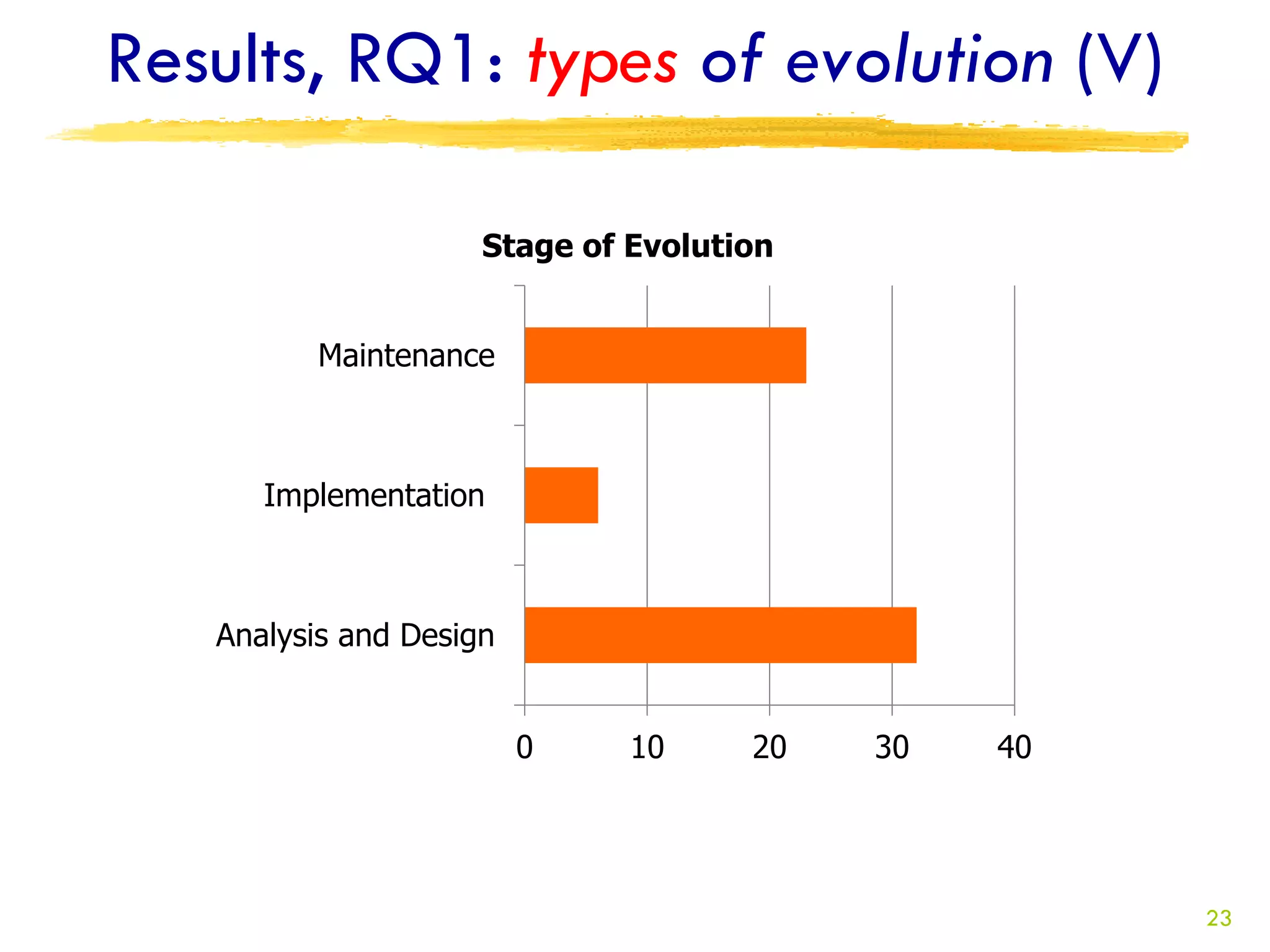

- 23. Results, RQ1: typesof evolution (V) Stage of Evolution Maintenance Implementation Analysis and Design 0 10 20 30 40 23

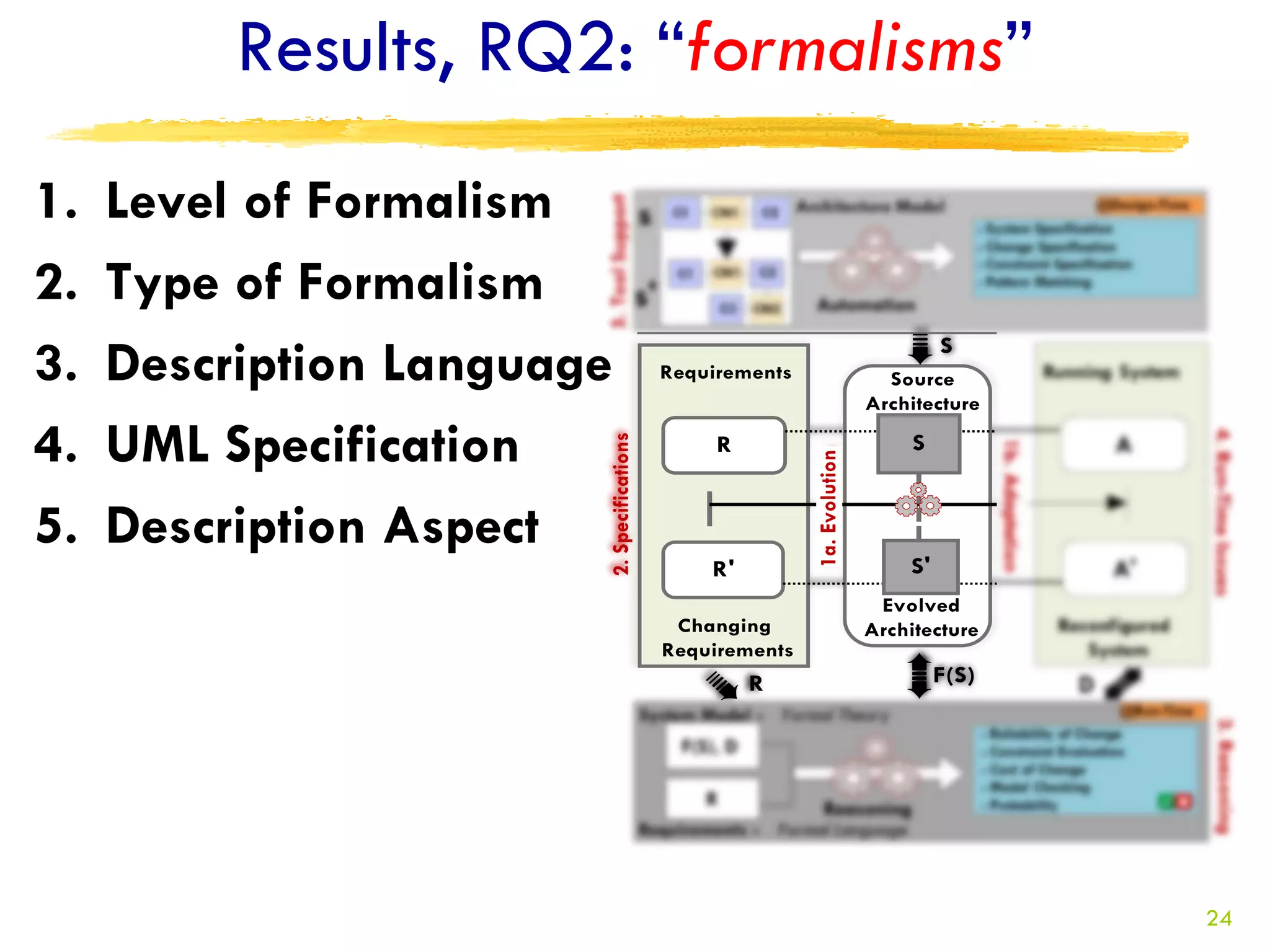

- 24. Results, RQ2: “formalisms” 1. Level of Formalism 2. Type of Formalism 3. Description Language 4. UML Specification 5. Description Aspect 24

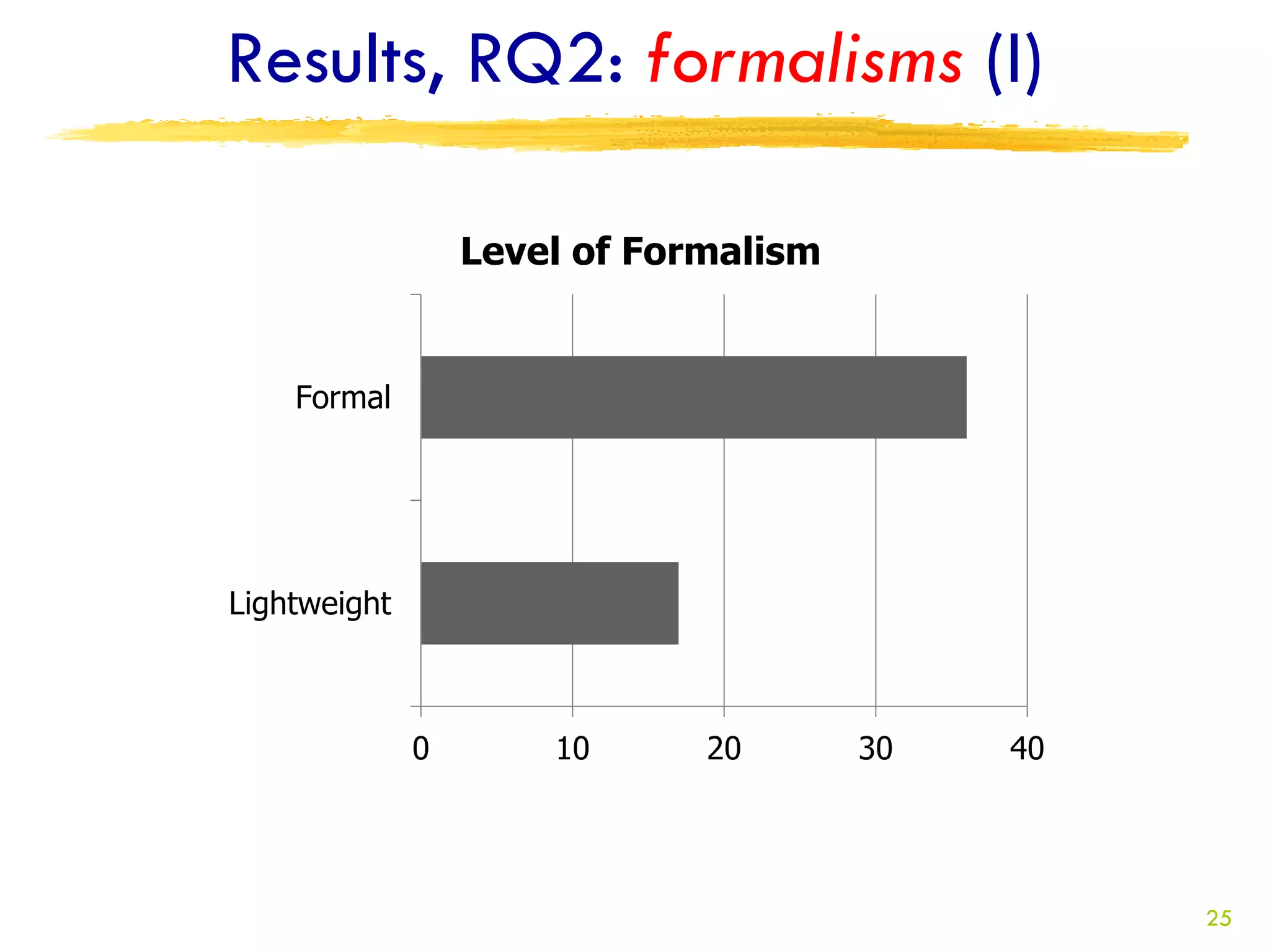

- 25. Results, RQ2: formalisms(I) Level of Formalism Formal Lightweight 0 10 20 30 40 25

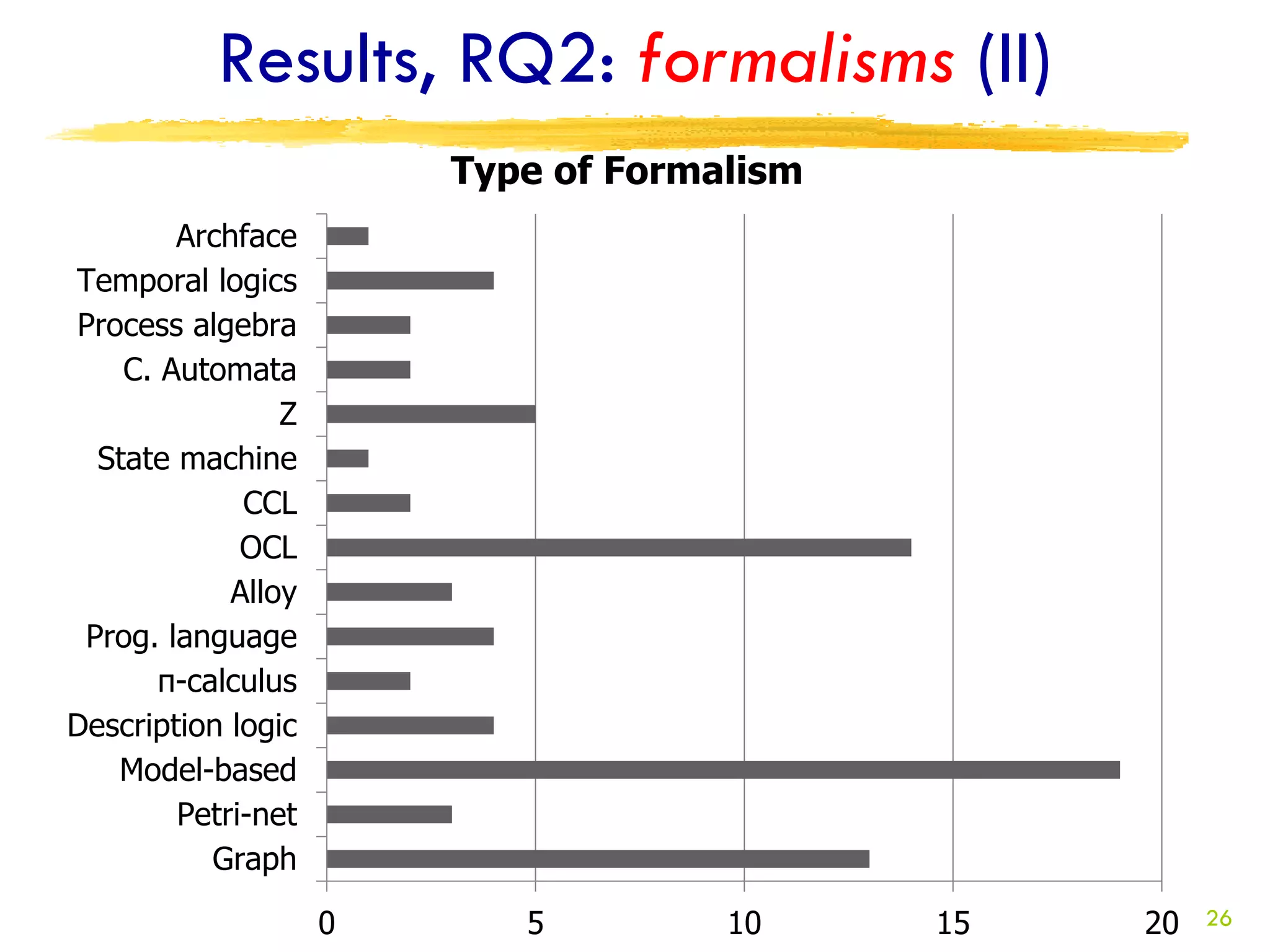

- 26. Results, RQ2: formalisms(II) Type of Formalism Archface Temporal logics Process algebra C. Automata Z State machine CCL OCL Alloy Prog. language π-calculus Description logic Model-based Petri-net Graph 0 5 10 15 20 26

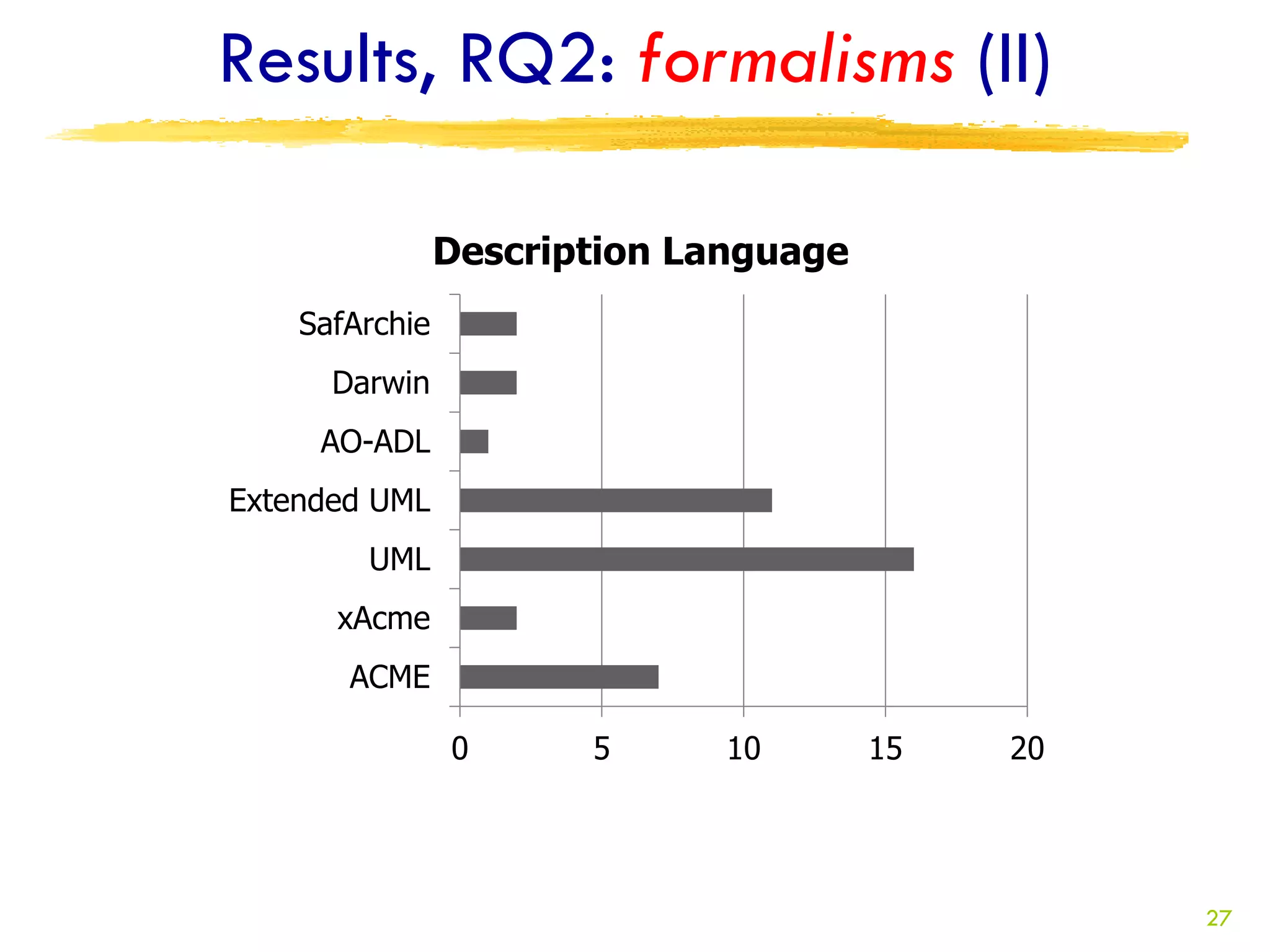

- 27. Results, RQ2: formalisms(II) Description Language SafArchie Darwin AO-ADL Extended UML UML xAcme ACME 0 5 10 15 20 27

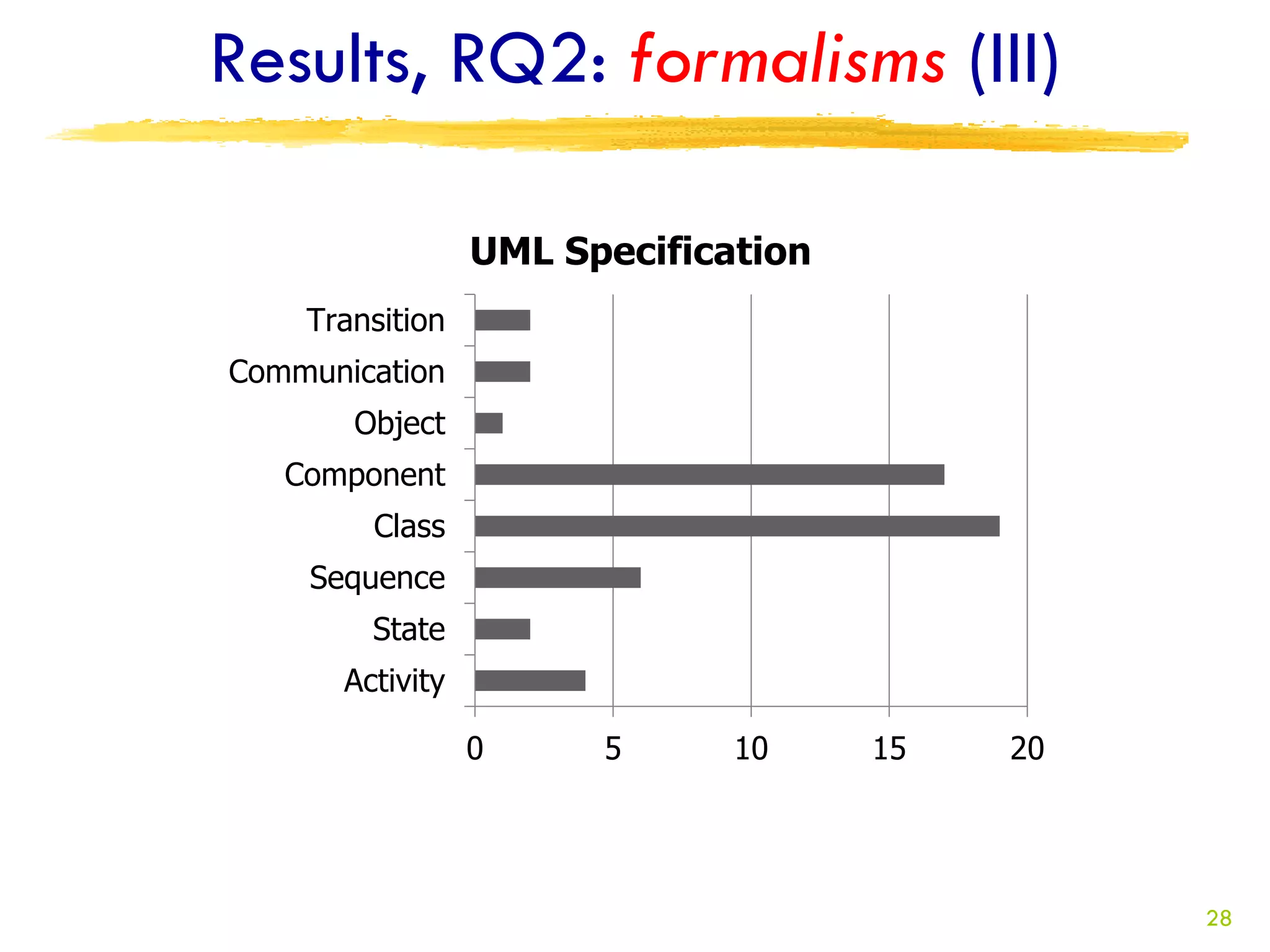

- 28. Results, RQ2: formalisms(III) UML Specification Transition Communication Object Component Class Sequence State Activity 0 5 10 15 20 28

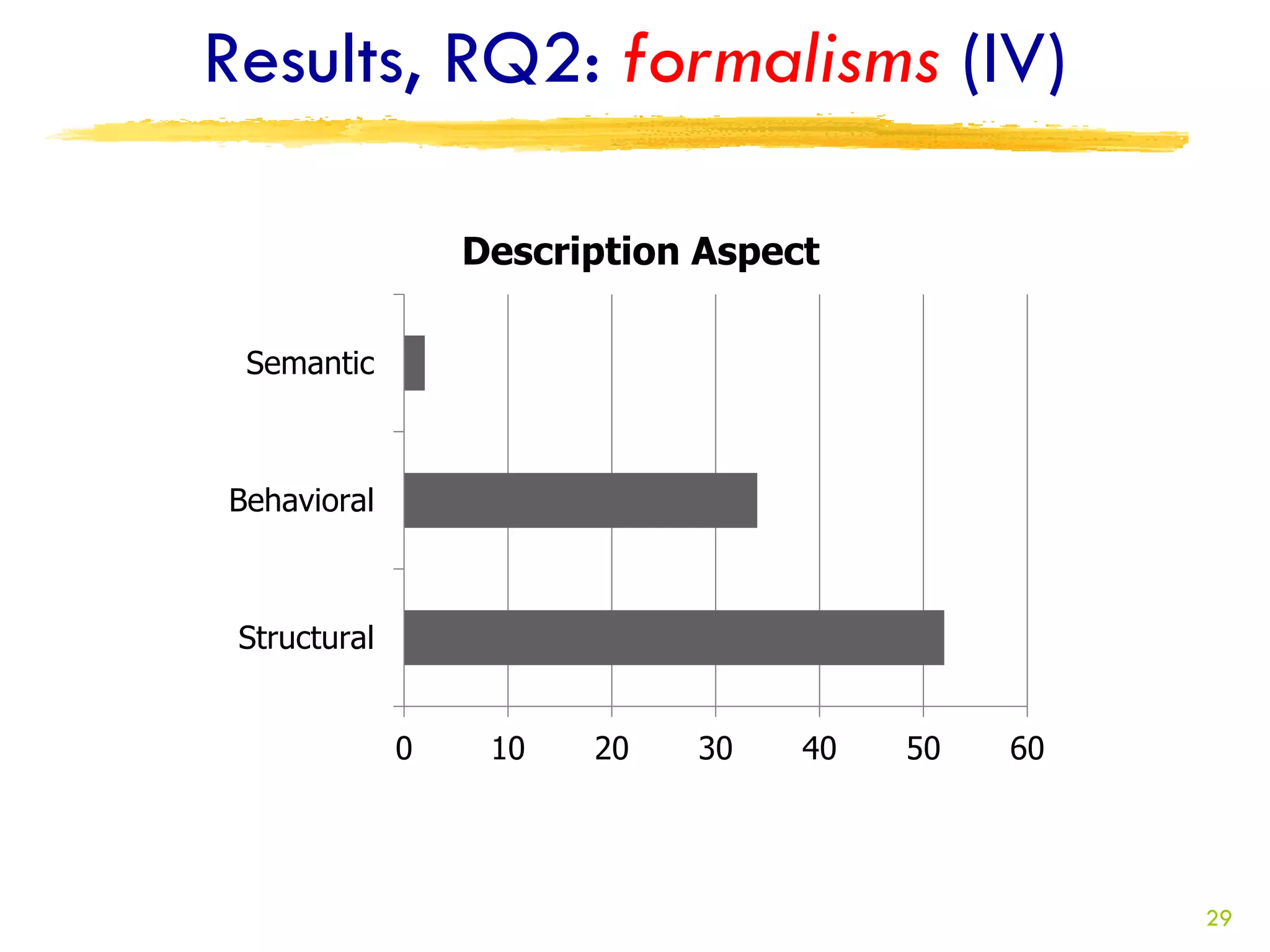

- 29. Results, RQ2: formalisms(IV) Description Aspect Semantic Behavioral Structural 0 10 20 30 40 50 60 29

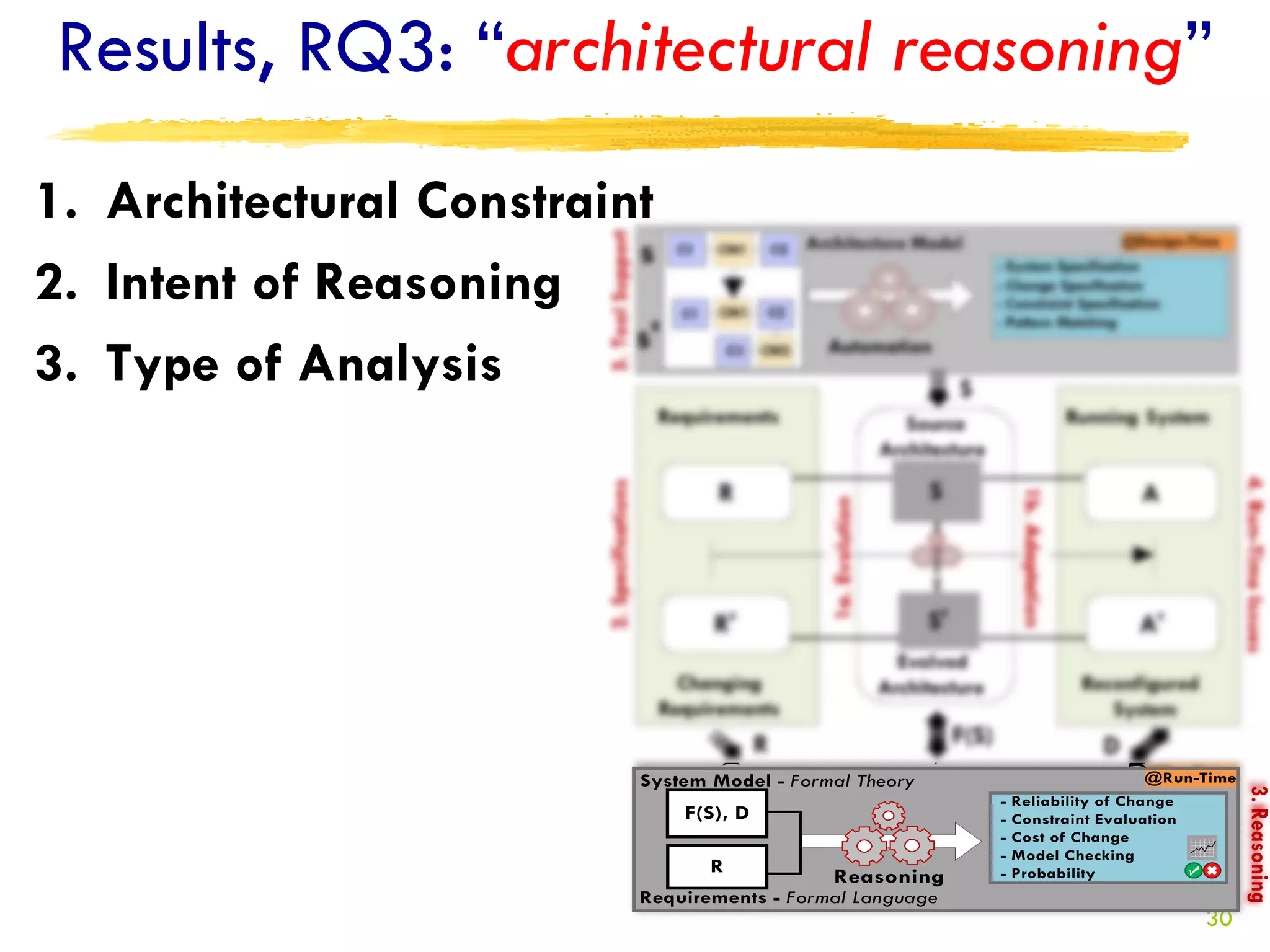

- 30. Results, RQ3: “architecturalreasoning” 1. Architectural Constraint 2. Intent of Reasoning 3. Type of Analysis 30

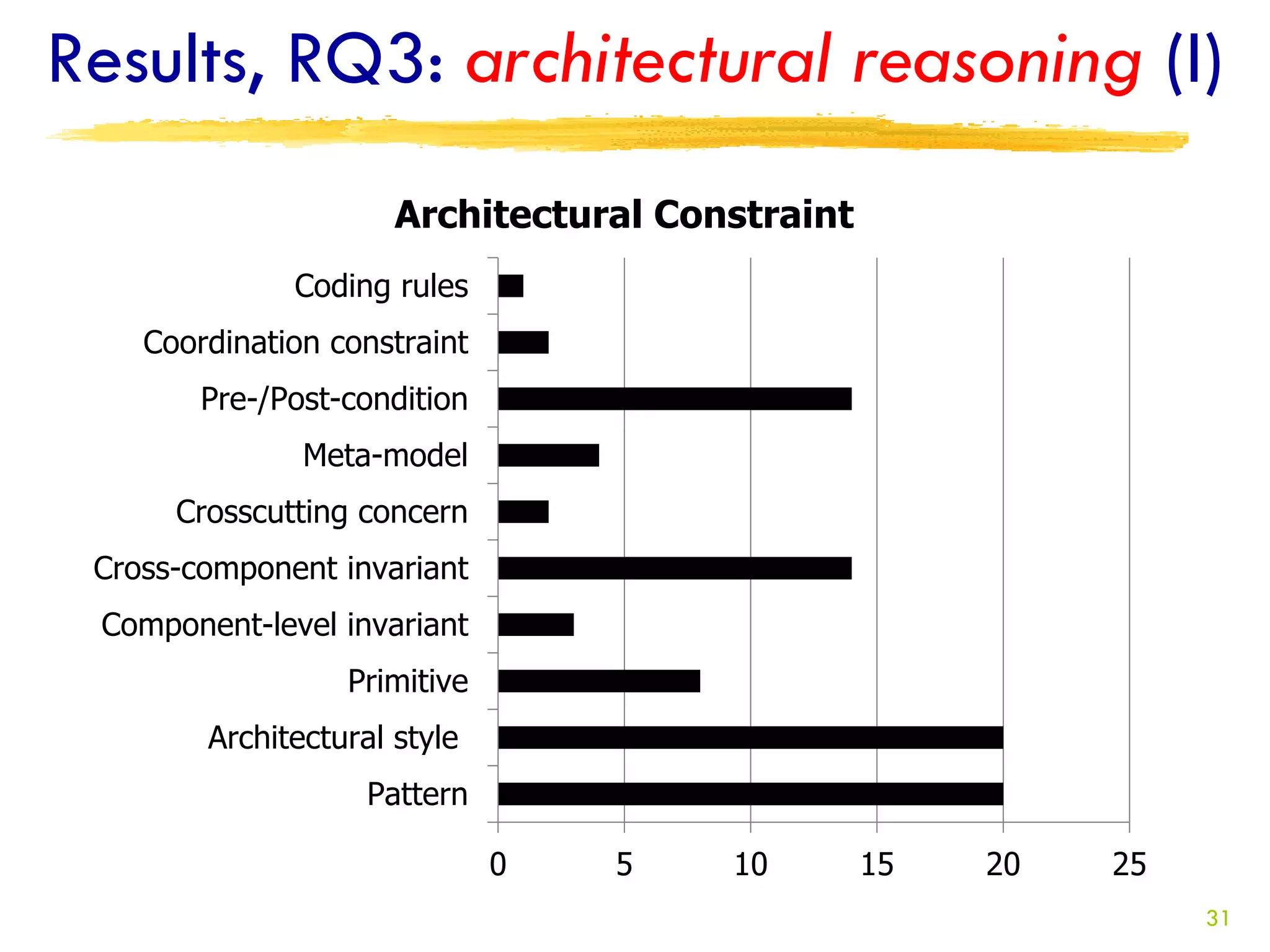

- 31. Results, RQ3: architecturalreasoning (I) Architectural Constraint Coding rules Coordination constraint Pre-/Post-condition Meta-model Crosscutting concern Cross-component invariant Component-level invariant Primitive Architectural style Pattern 0 5 10 15 20 25 31

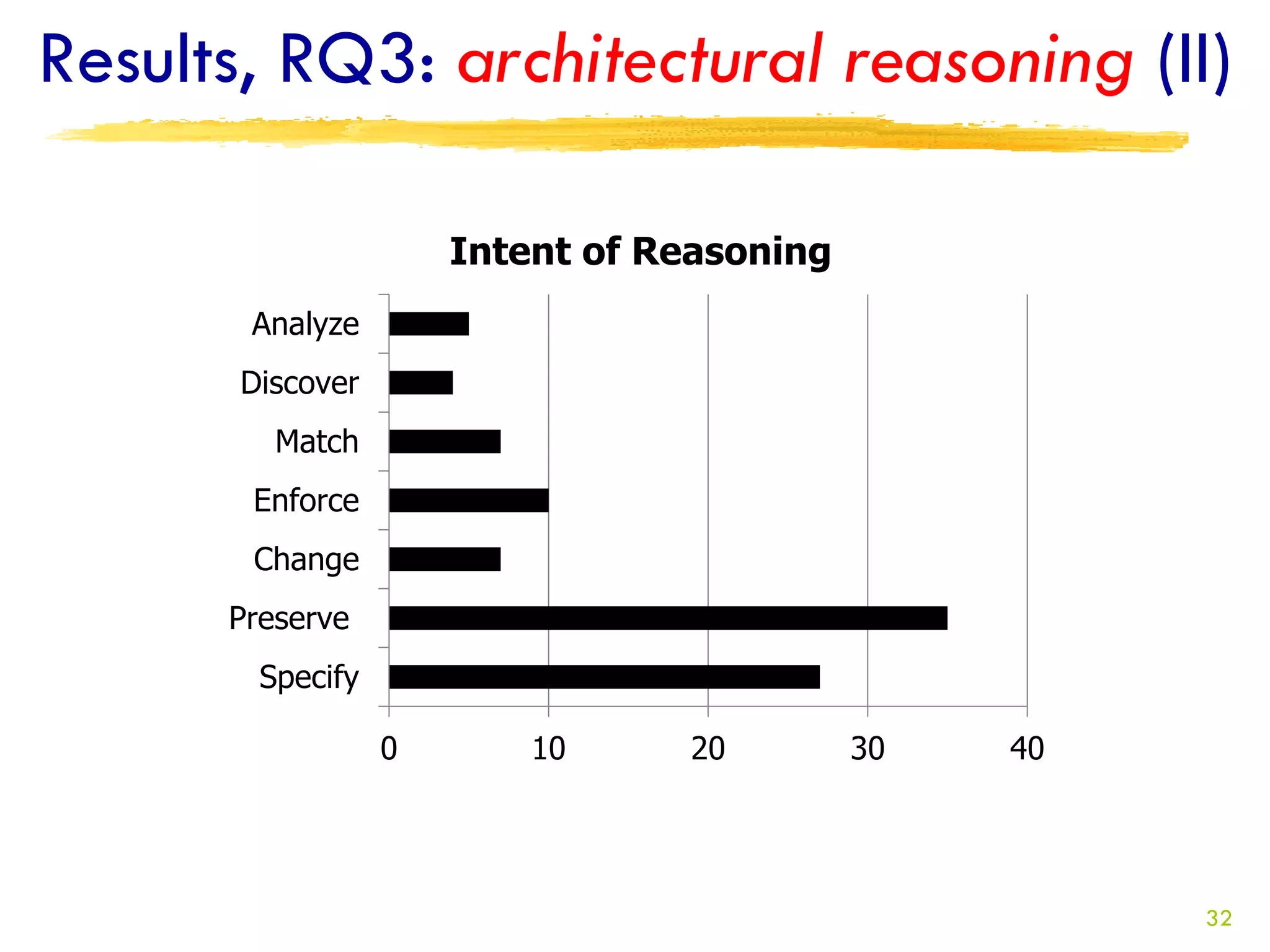

- 32. Results, RQ3: architecturalreasoning (II) Intent of Reasoning Analyze Discover Match Enforce Change Preserve Specify 0 10 20 30 40 32

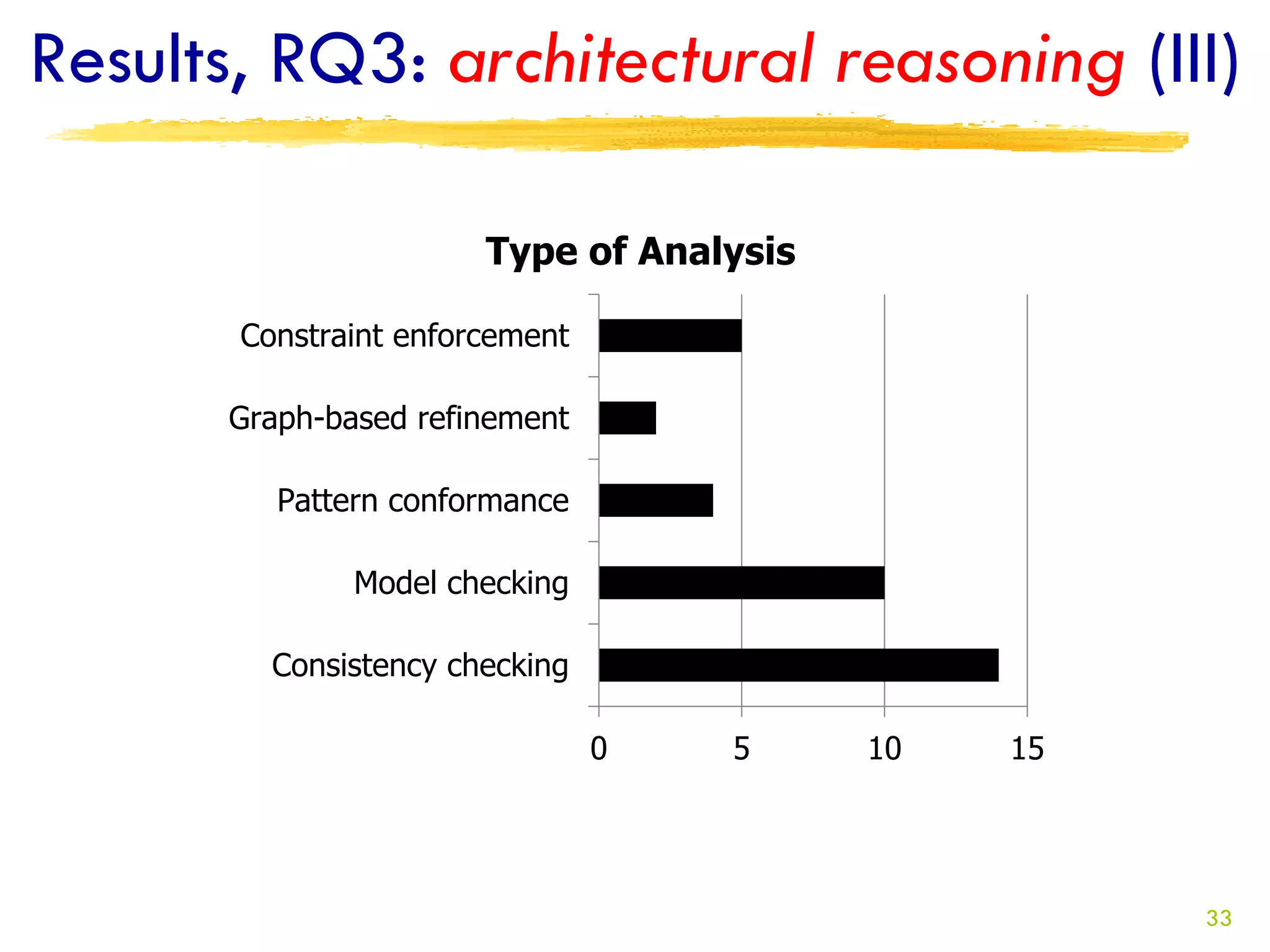

- 33. Results, RQ3: architecturalreasoning (III) Type of Analysis Constraint enforcement Graph-based refinement Pattern conformance Model checking Consistency checking 0 5 10 15 33

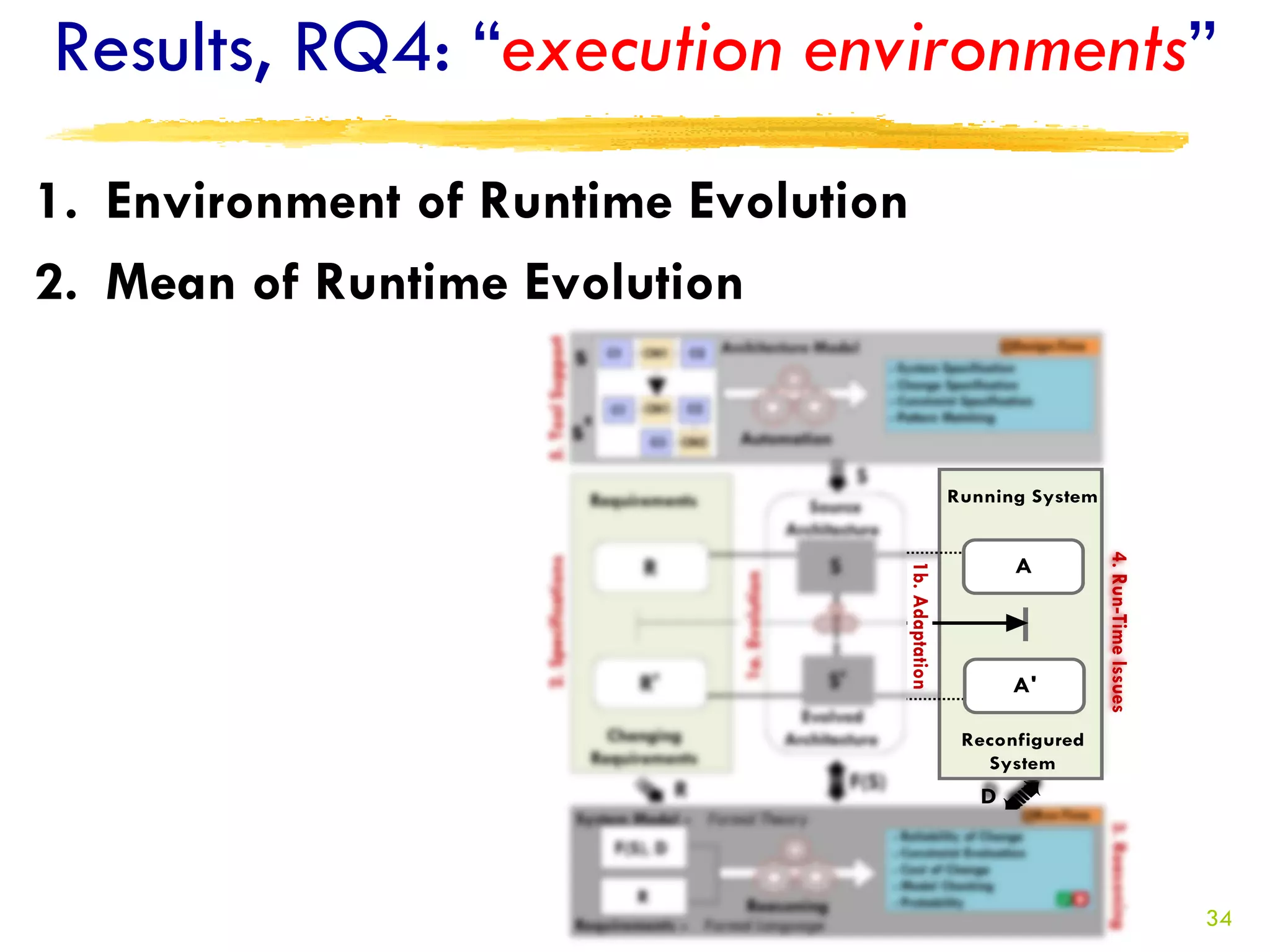

- 34. Results, RQ4: “executionenvironments” 1. Environment of Runtime Evolution 2. Mean of Runtime Evolution 34

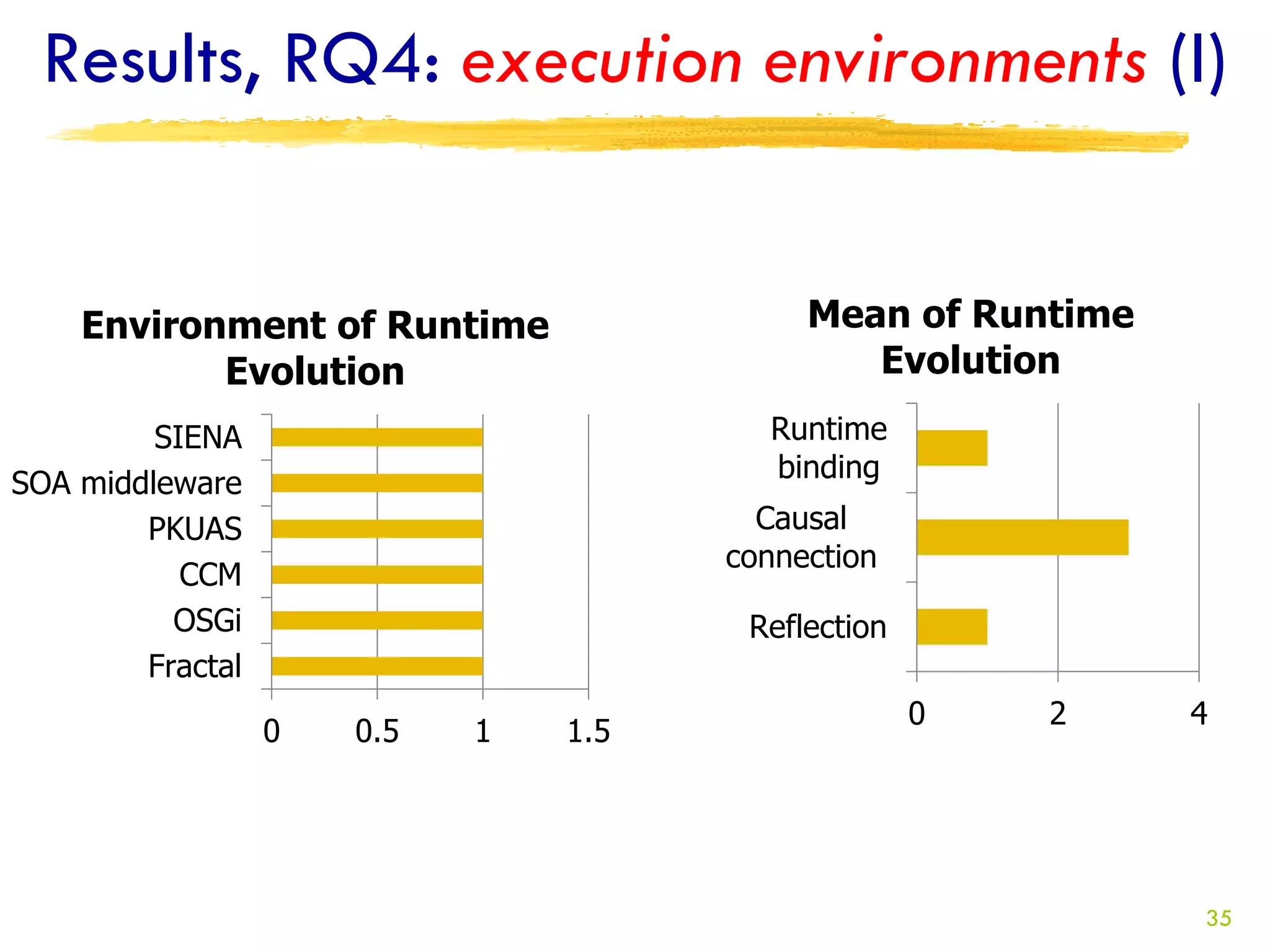

- 35. Results, RQ4: executionenvironments (I) Environment of Runtime Mean of Runtime Evolution Evolution SIENA Runtime binding SOA middleware PKUAS Causal connection CCM OSGi Reflection Fractal 0 2 4 0 0.5 1 1.5 35

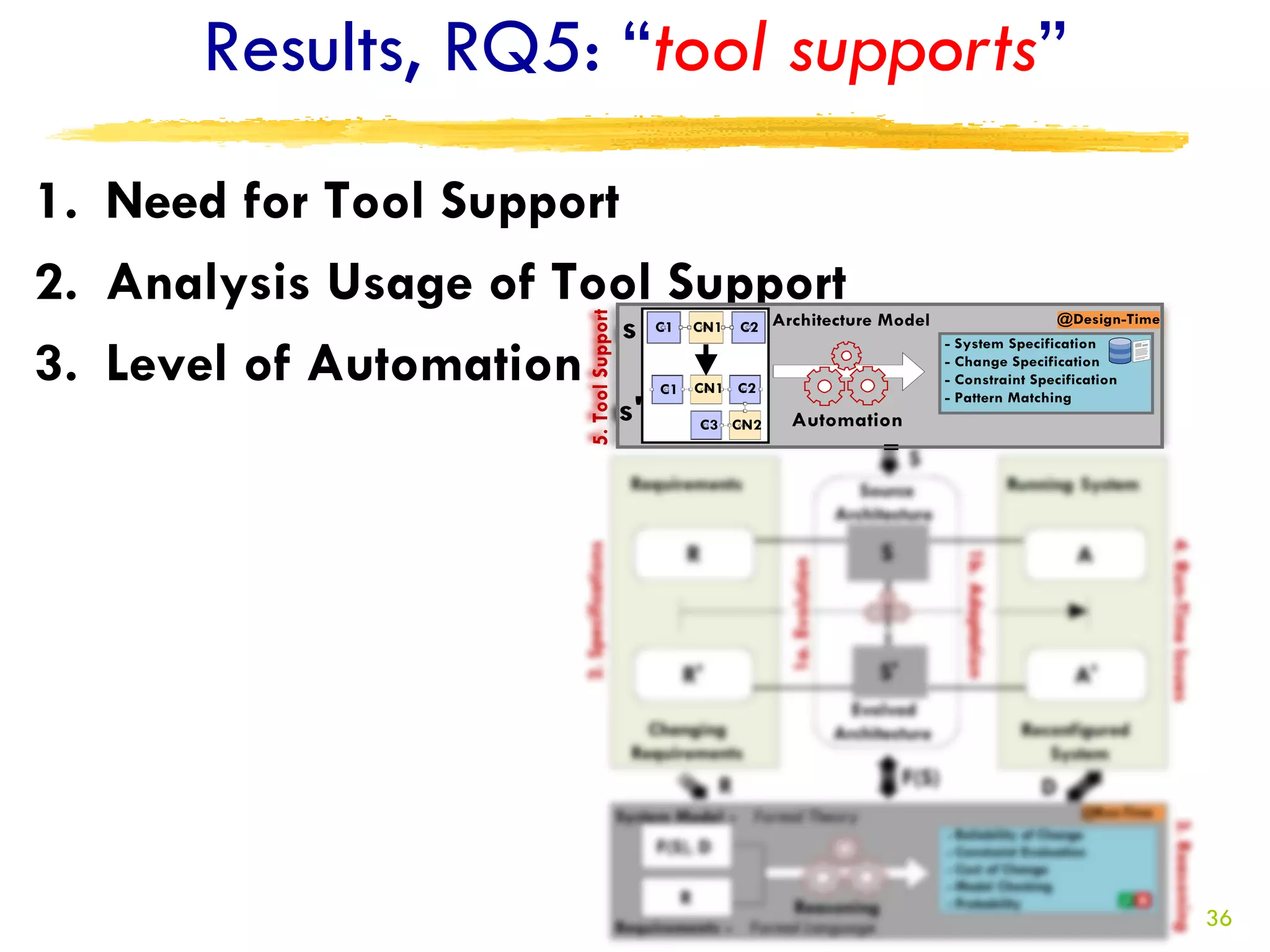

- 36. Results, RQ5: “toolsupports” 1. Need for Tool Support 2. Analysis Usage of Tool Support 3. Level of Automation 36

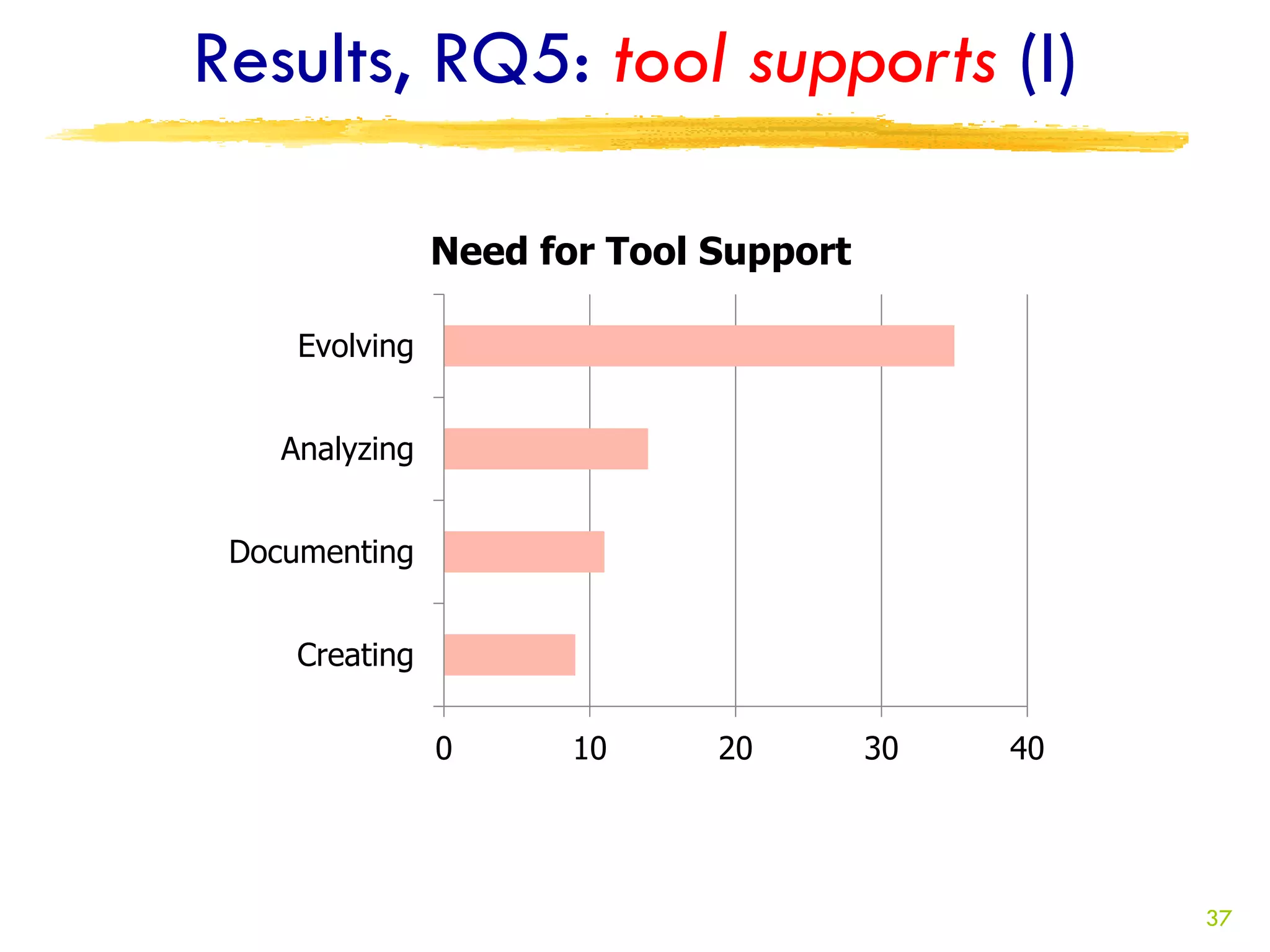

- 37. Results, RQ5: toolsupports (I) Need for Tool Support Evolving Analyzing Documenting Creating 0 10 20 30 40 37

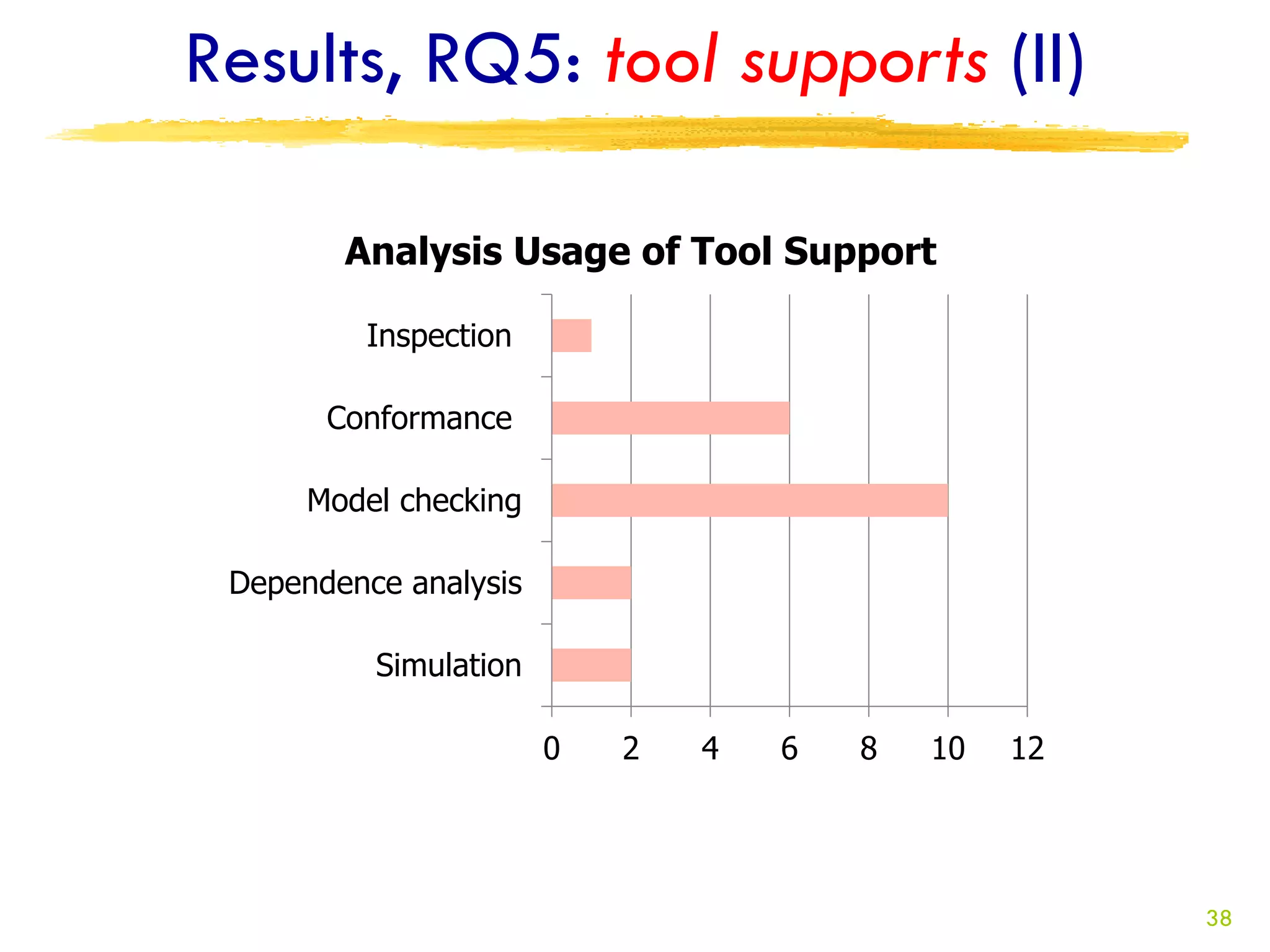

- 38. Results, RQ5: toolsupports (II) Analysis Usage of Tool Support Inspection Conformance Model checking Dependence analysis Simulation 0 2 4 6 8 10 12 38

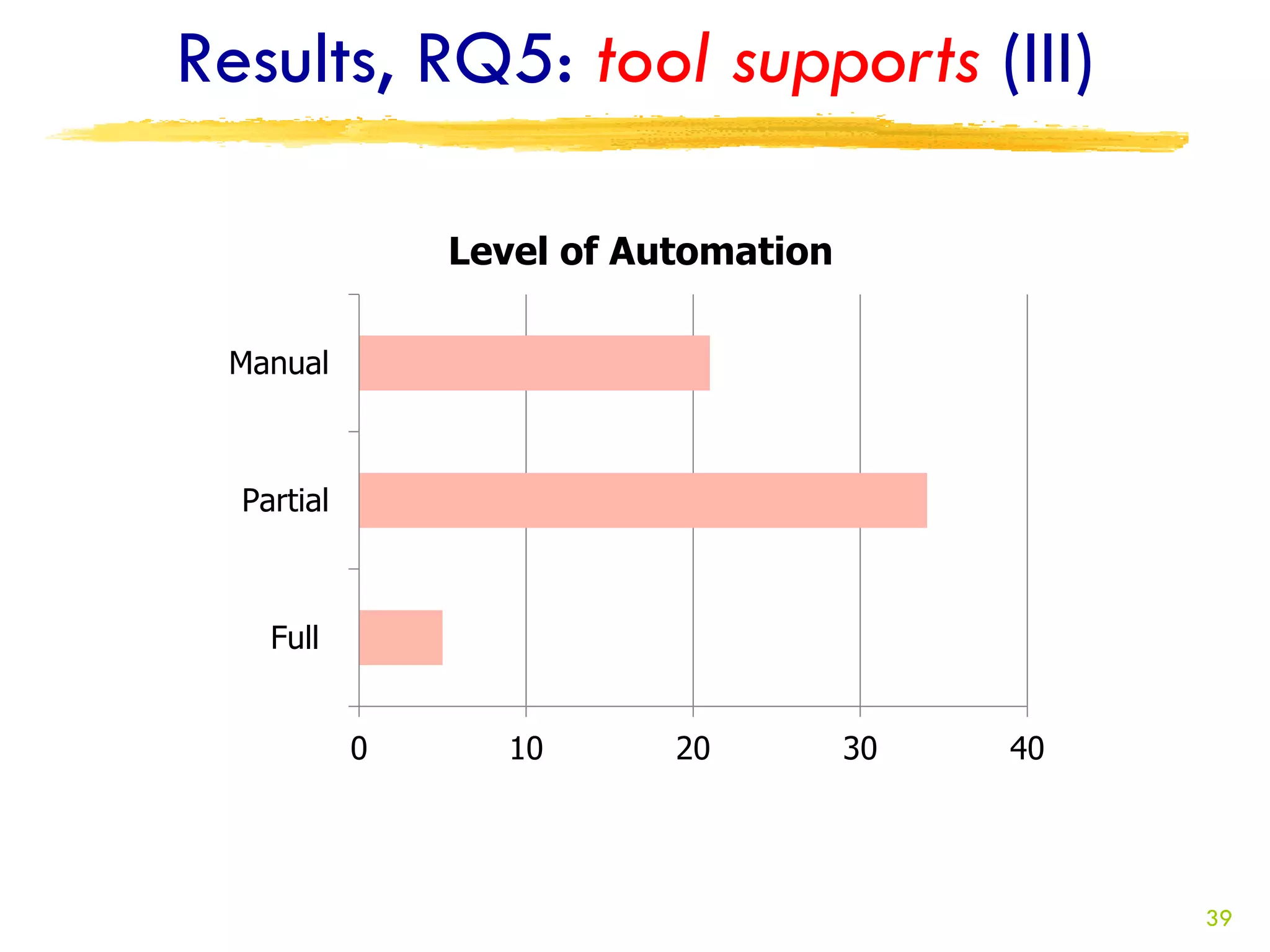

- 39. Results, RQ5: toolsupports (III) Level of Automation Manual Partial Full 0 10 20 30 40 39

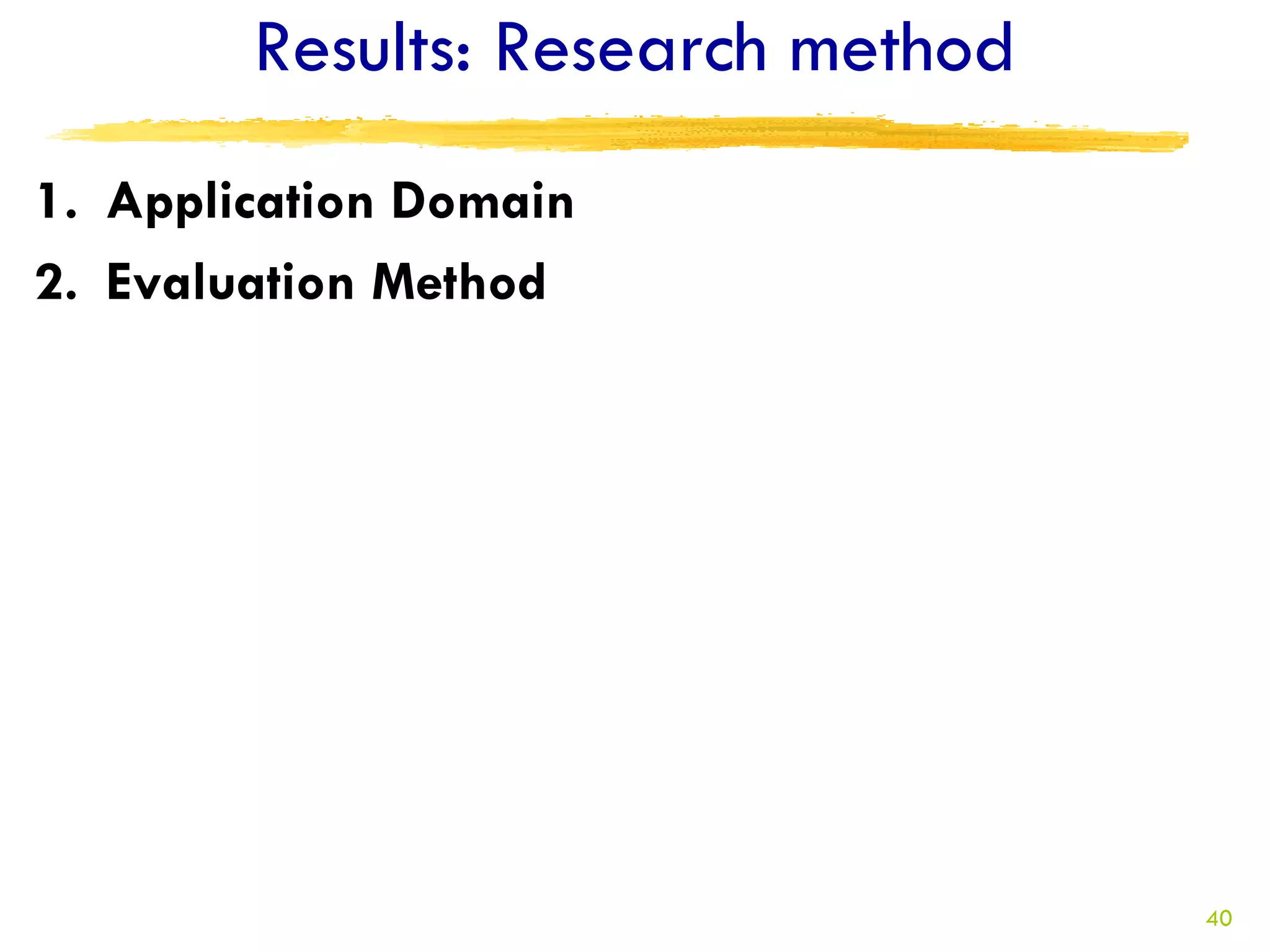

- 40. Results: Research method 1.Application Domain 2. Evaluation Method 40

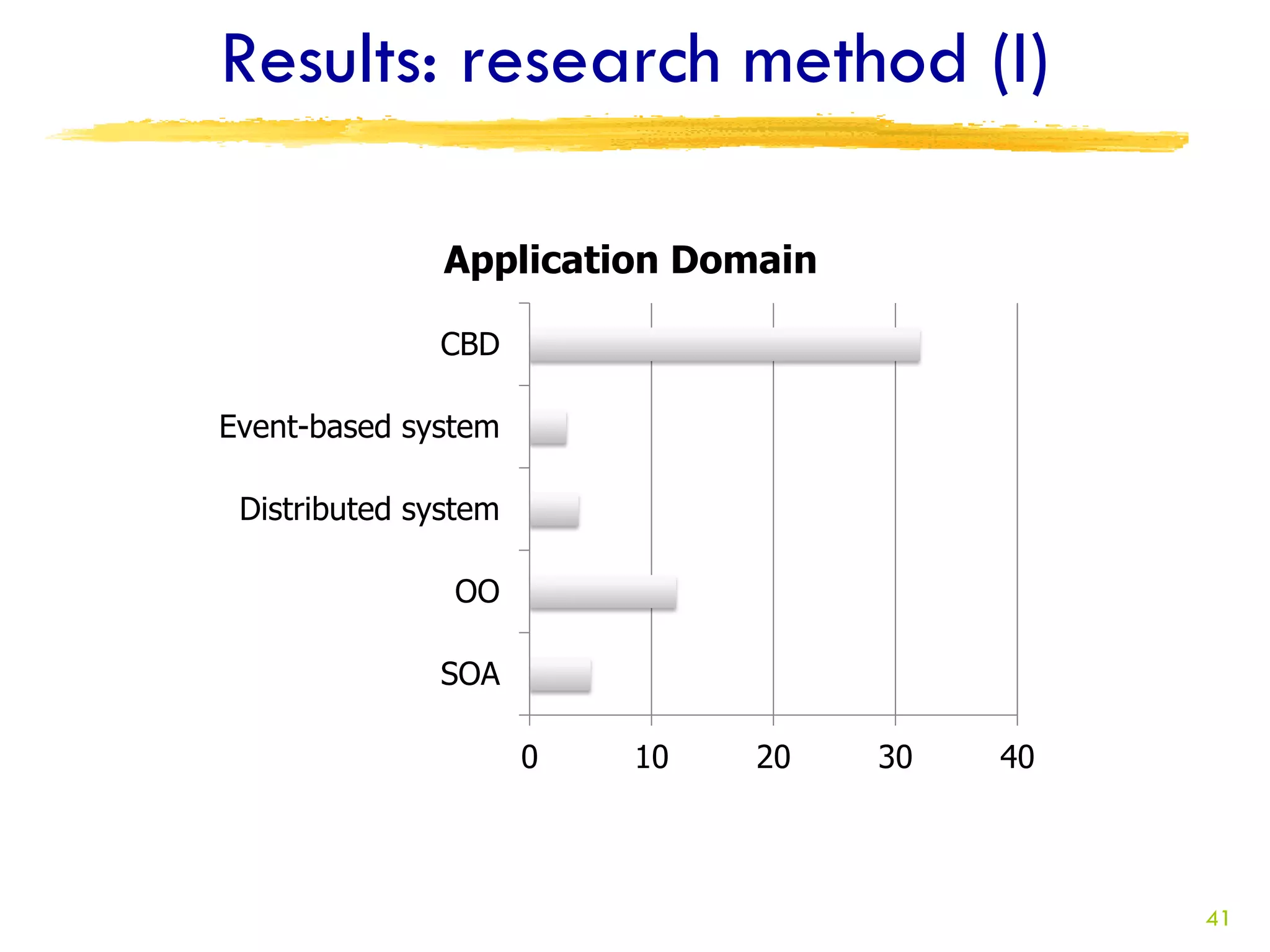

- 41. Results: research method(I) Application Domain CBD Event-based system Distributed system OO SOA 0 10 20 30 40 41

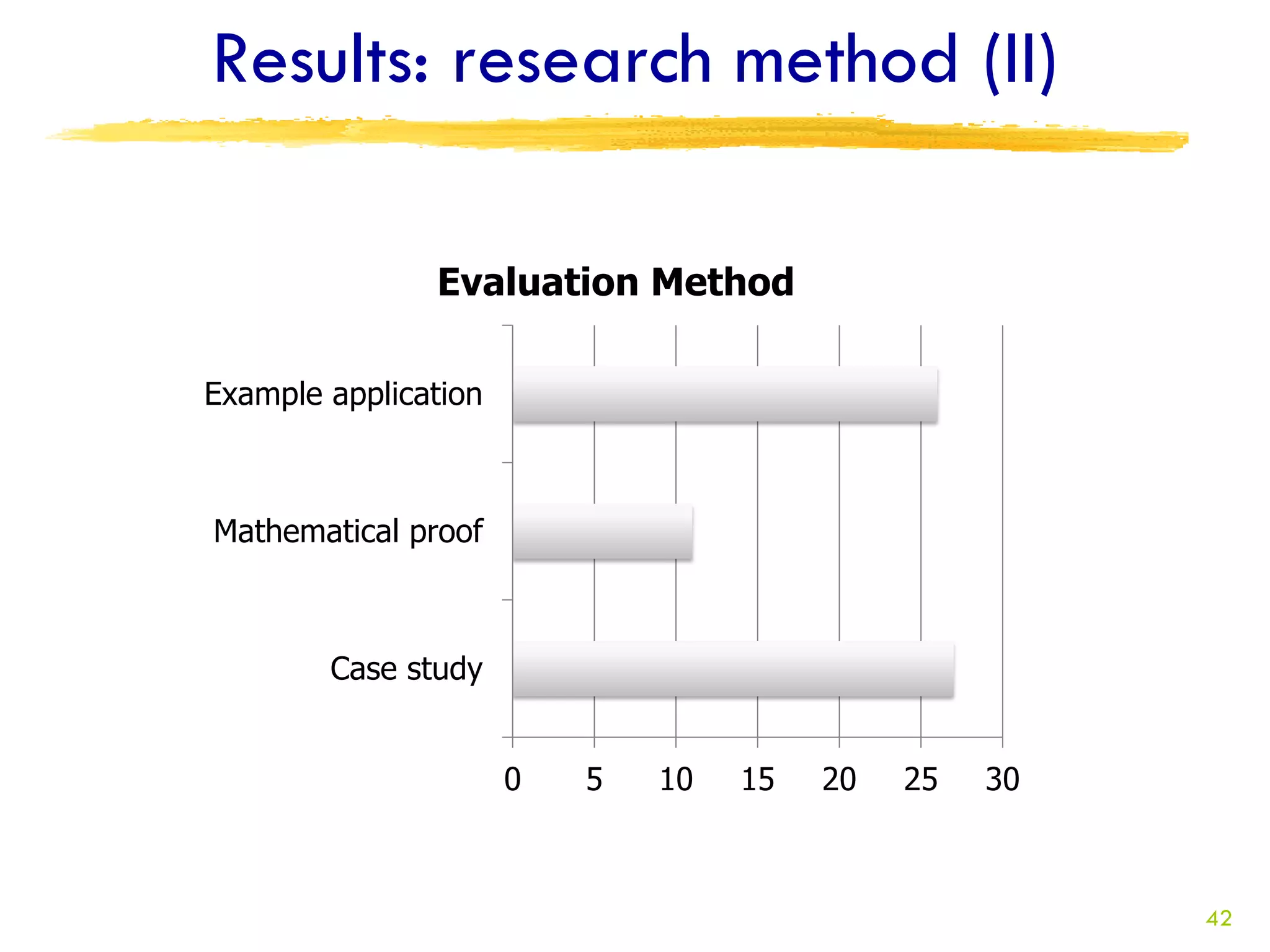

- 42. Results: research method(II) Evaluation Method Example application Mathematical proof Case study 0 5 10 15 20 25 30 42

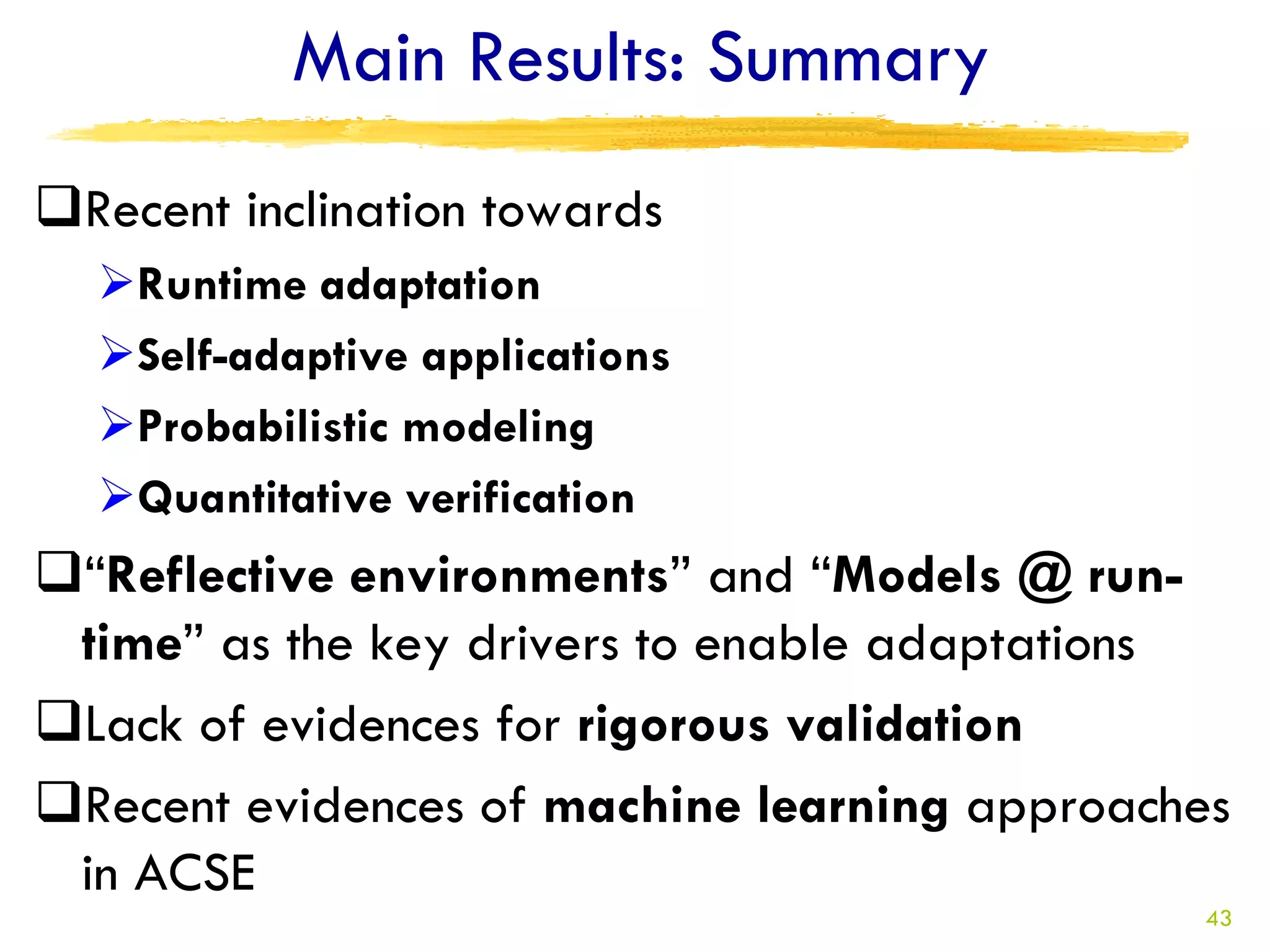

- 43. Main Results: Summary Recentinclination towards Runtime adaptation Self-adaptive applications Probabilistic modeling Quantitative verification “Reflective environments” and “Models @ run- time” as the key drivers to enable adaptations Lack of evidences for rigorous validation Recent evidences of machine learning approaches in ACSE 43

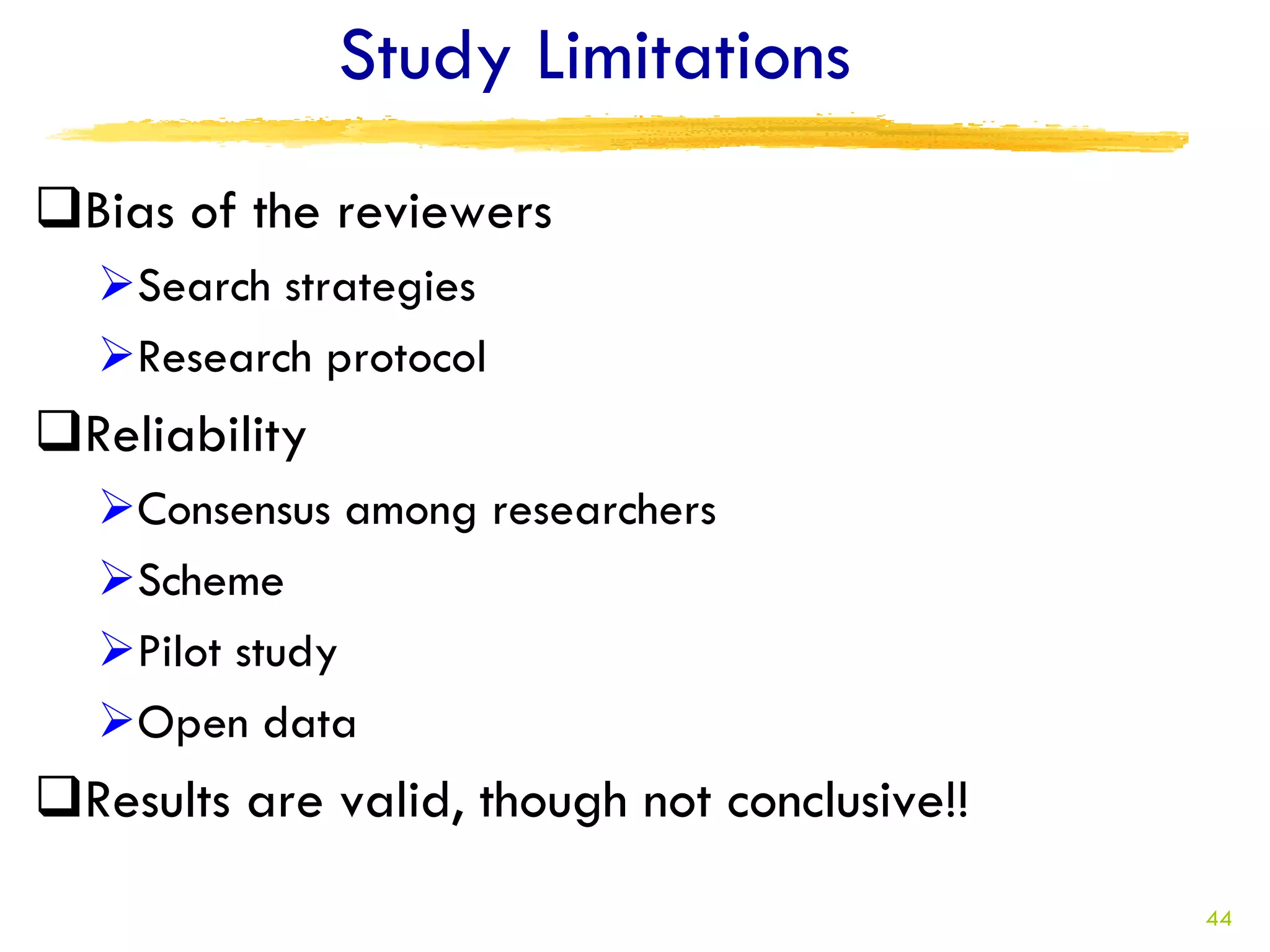

- 44. Study Limitations Bias ofthe reviewers Search strategies Research protocol Reliability Consensus among researchers Scheme Pilot study Open data Results are valid, though not conclusive!! 44
- 45. Thanks, more details?Check out the link below http://tiny.cc/hcg8sw 45
