DISTRIBUTED FILE SYSTEMS
(DFS)

DISTRIBUTED FILE SYSTEMS
• Including
1.Introduction
2.File Service Architecture
3.Case Study: Sun NFS

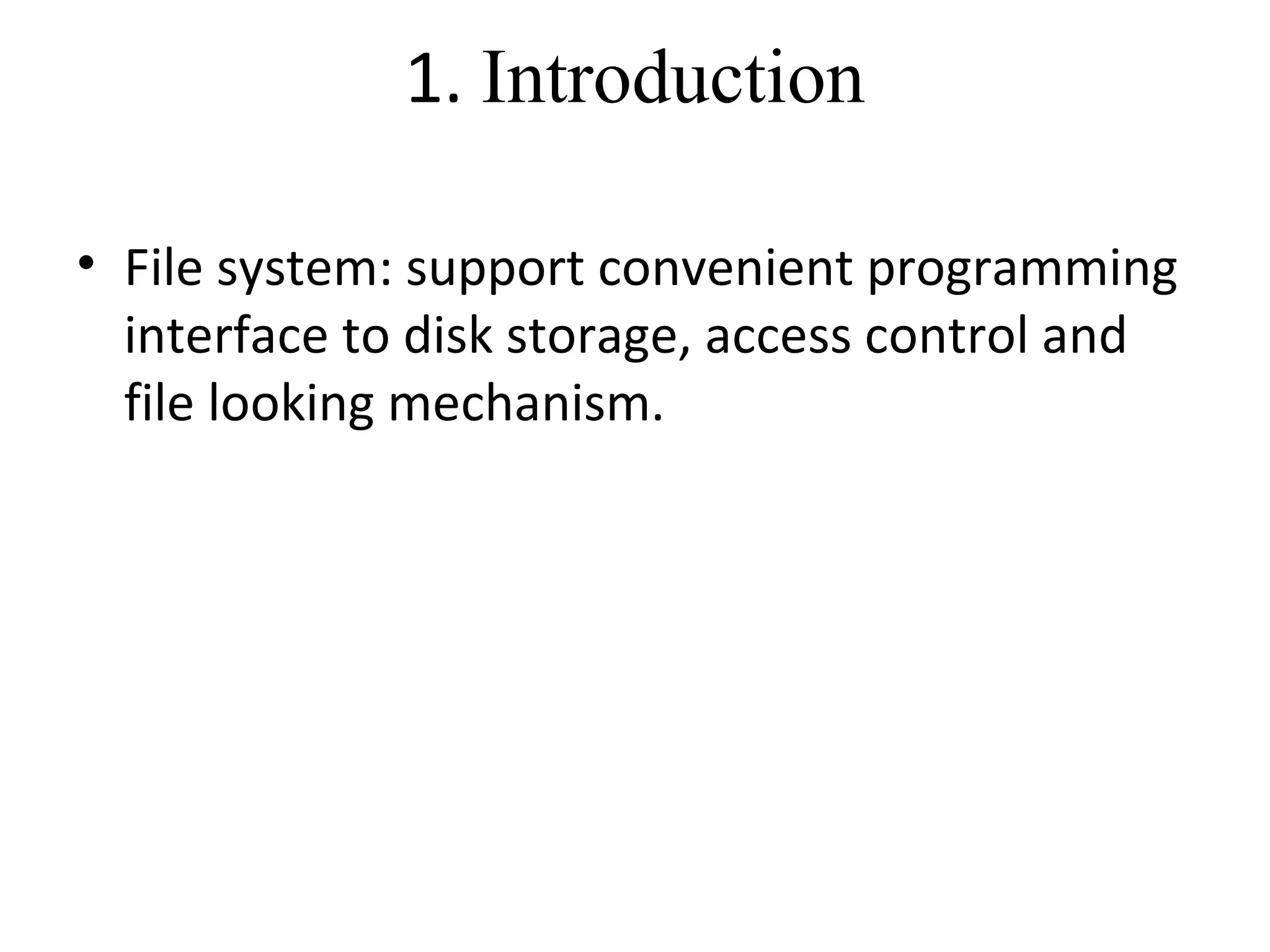

1. Introduction
• File system: support convenient programming
interface to disk storage, access control and
file looking mechanism.

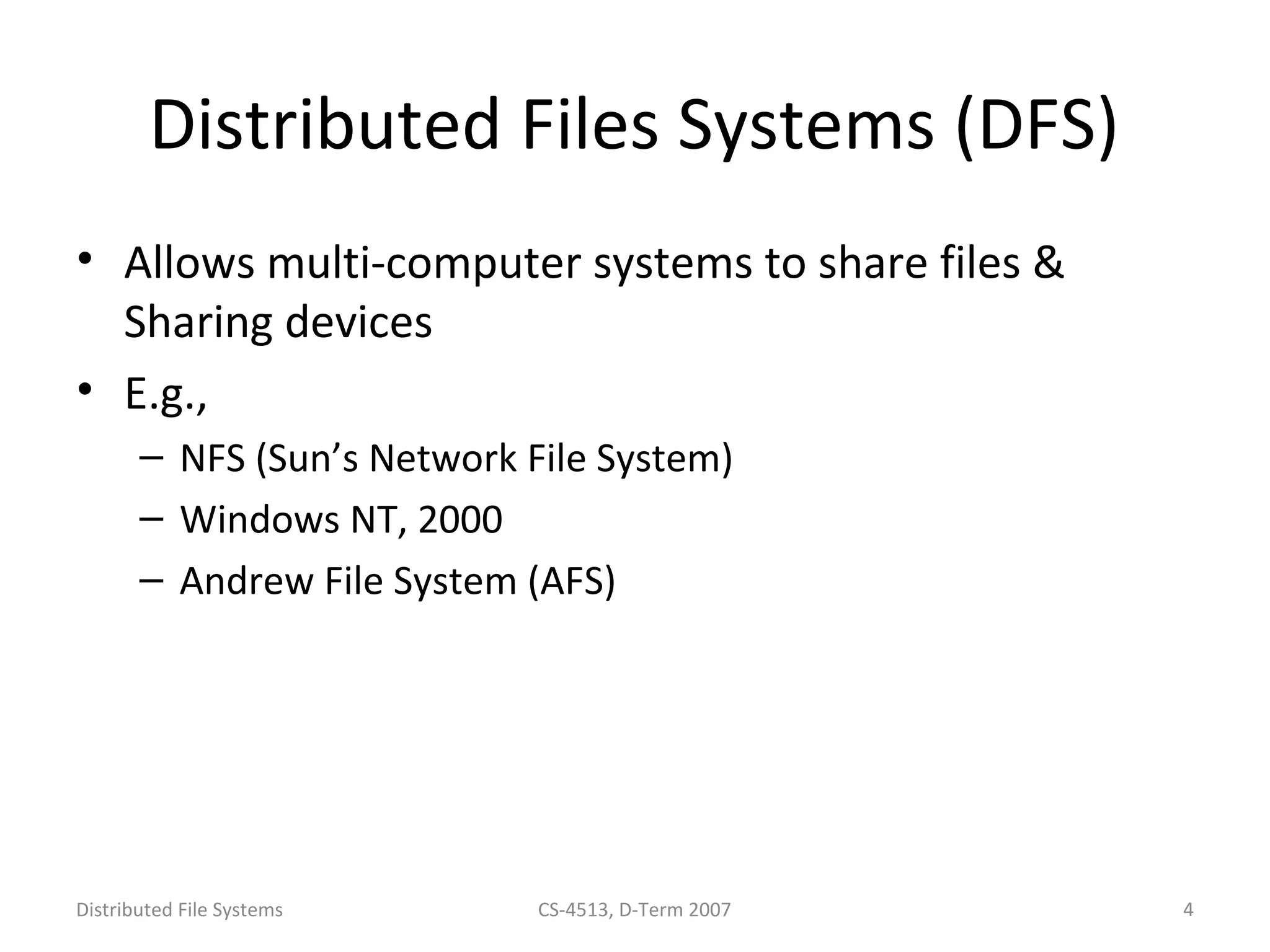

Distributed Files Systems (DFS)
• Allows multi-computer systems to share files &
Sharing devices
• E.g.,
– NFS (Sun’s Network File System)
– Windows NT, 2000
– Andrew File System (AFS)
Distributed File Systems CS-4513, D-Term 2007 4

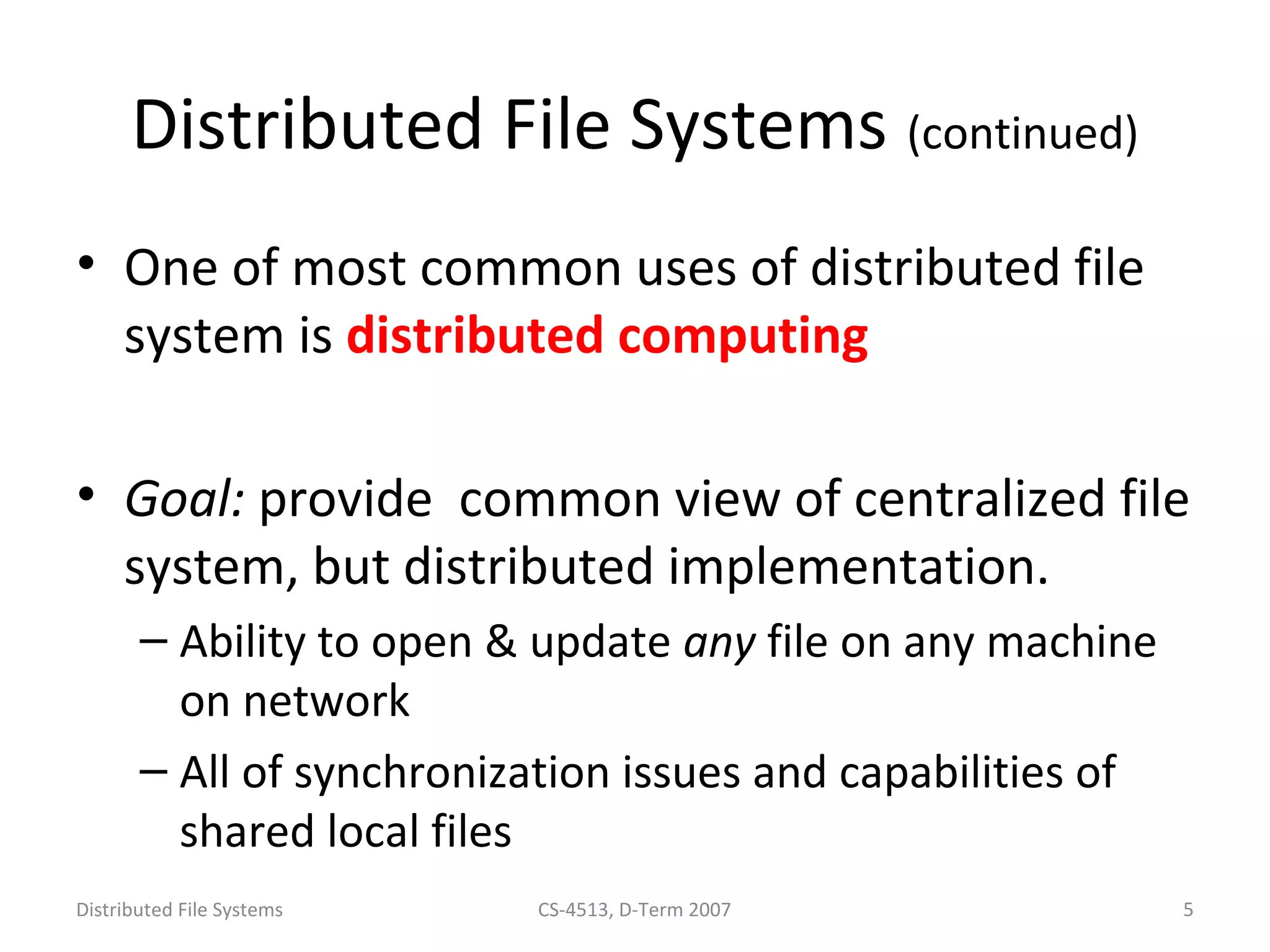

Distributed File Systems (continued)
• One of most common uses of distributed file
system is distributed computing
• Goal: provide common view of centralized file
system, but distributed implementation.
– Ability to open & update any file on any machine
on network
– All of synchronization issues and capabilities of
shared local files
Distributed File Systems CS-4513, D-Term 2007 5

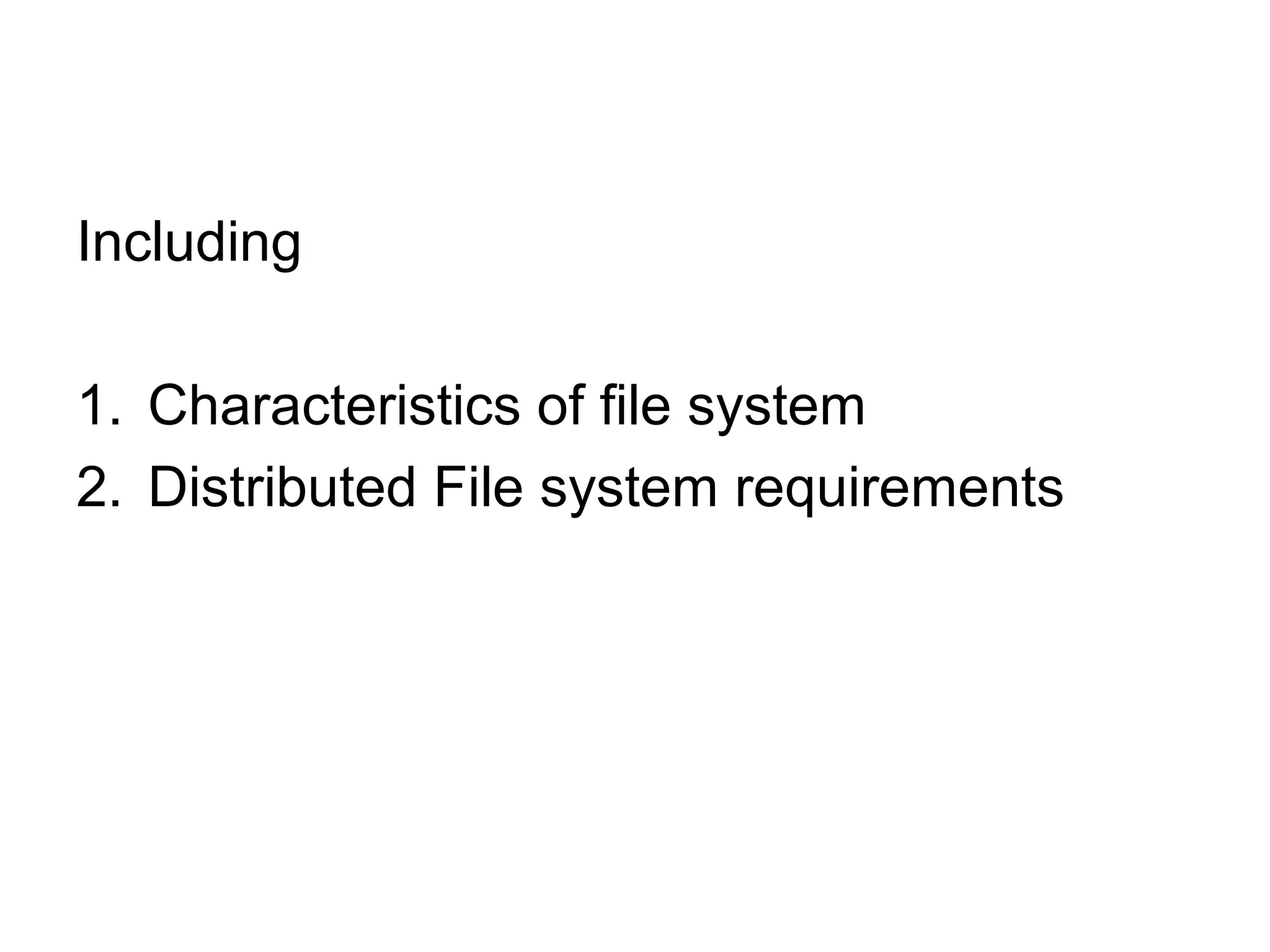

Including
1. Characteristics of file system
2. Distributed File system requirements

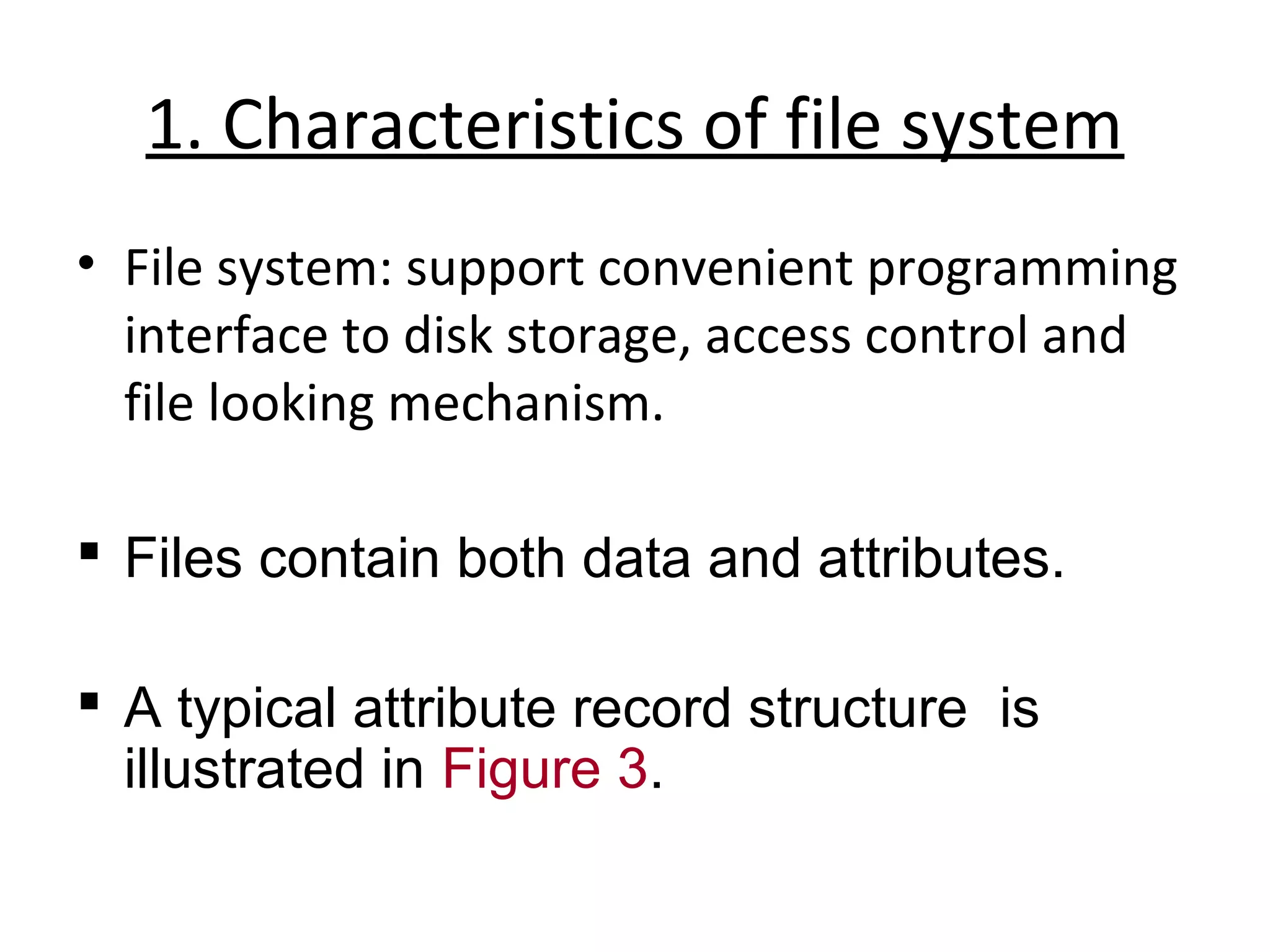

1. Characteristics of file system
• File system: support convenient programming
interface to disk storage, access control and
file looking mechanism.
 Files contain both data and attributes.
 A typical attribute record structure is
illustrated in Figure 3.

8
Introduction
File length
Creation timestamp
Read timestamp
Write timestamp
Attribute timestamp
Reference count
Owner
File type
Access control list

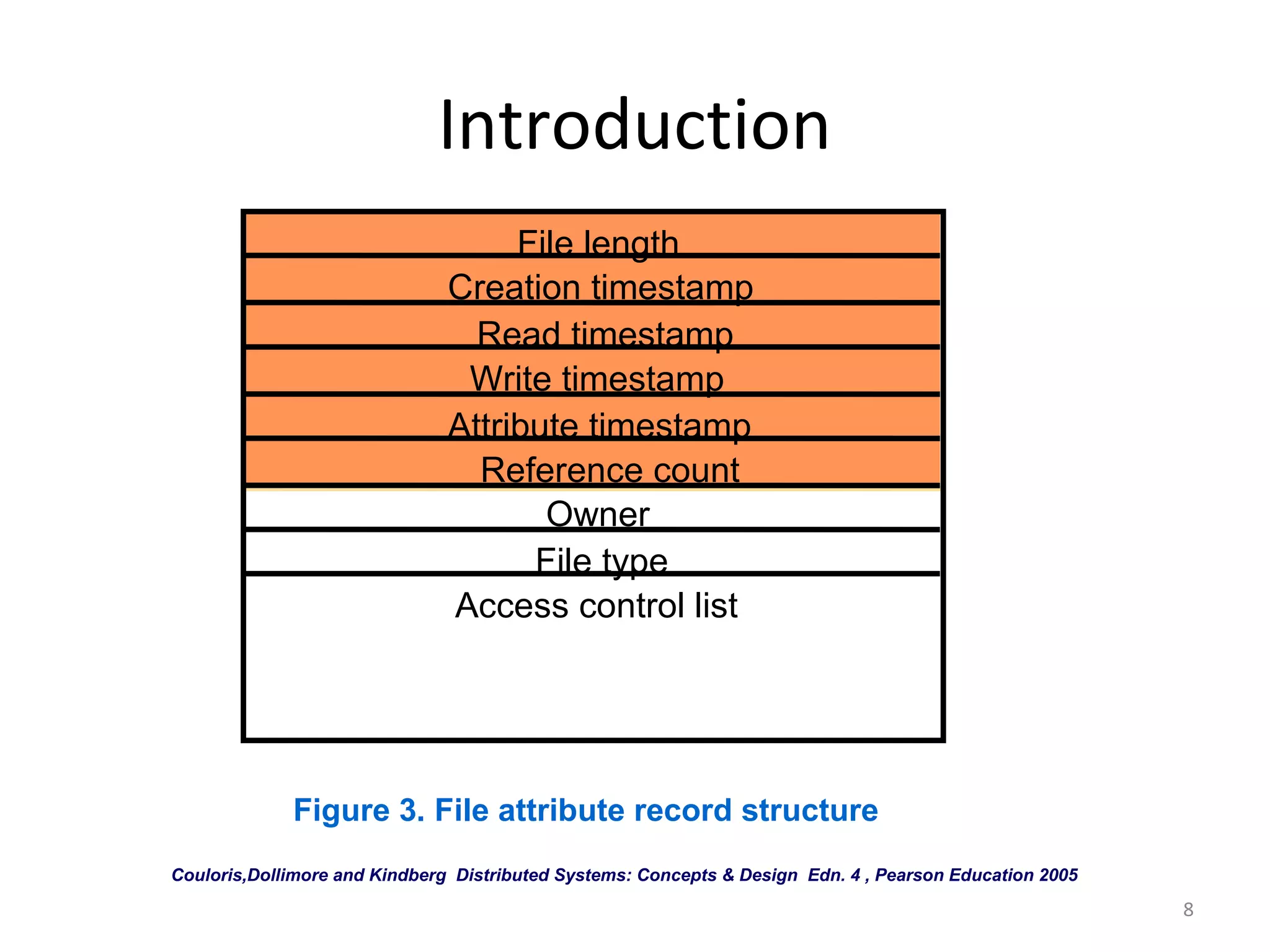

Figure 3. File attribute record structure
Couloris,Dollimore and Kindberg Distributed Systems: Concepts & Design Edn. 4 , Pearson Education 2005

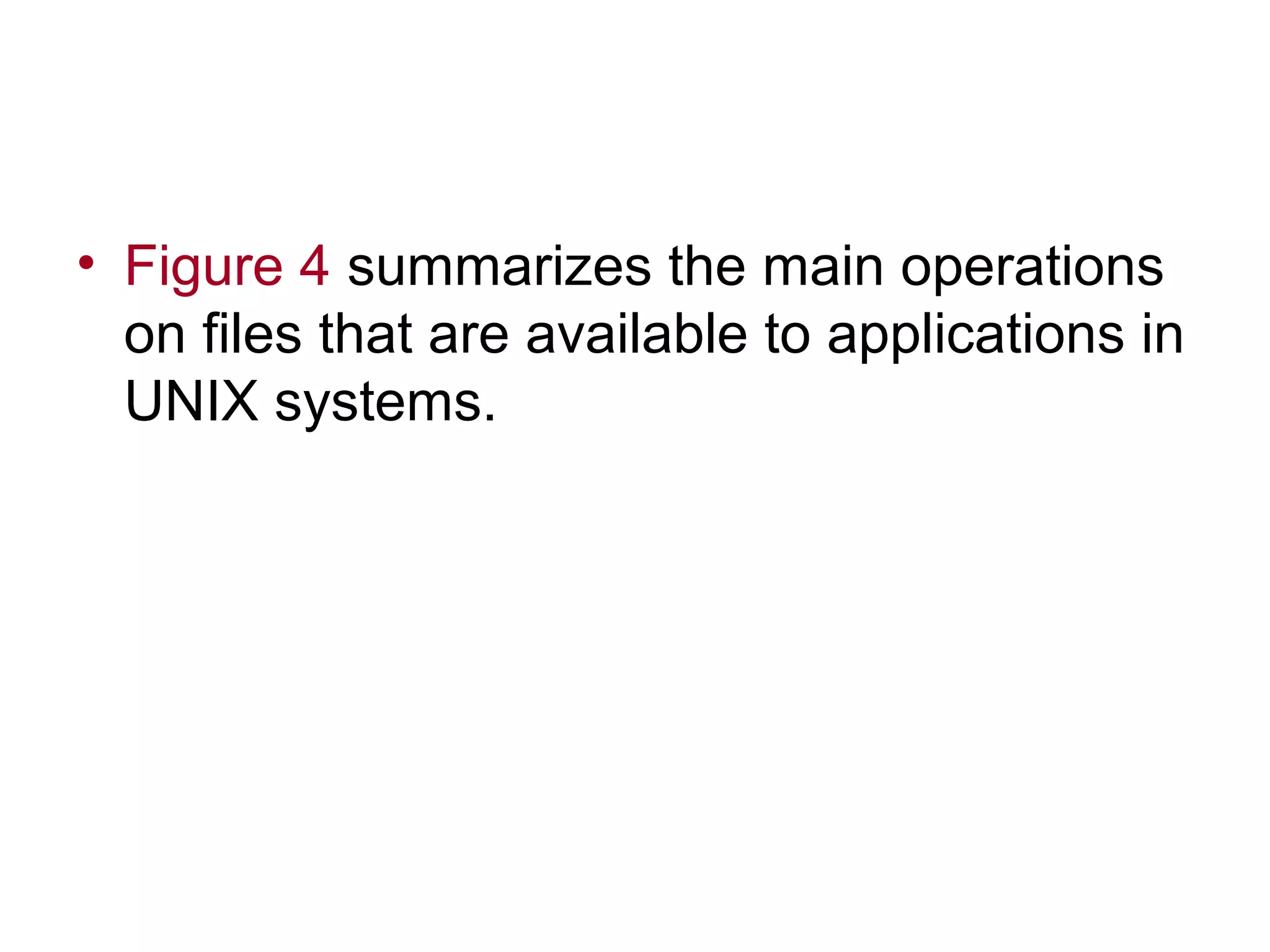

• Figure 4 summarizes the main operations
on files that are available to applications in
UNIX systems.

10
Introduction

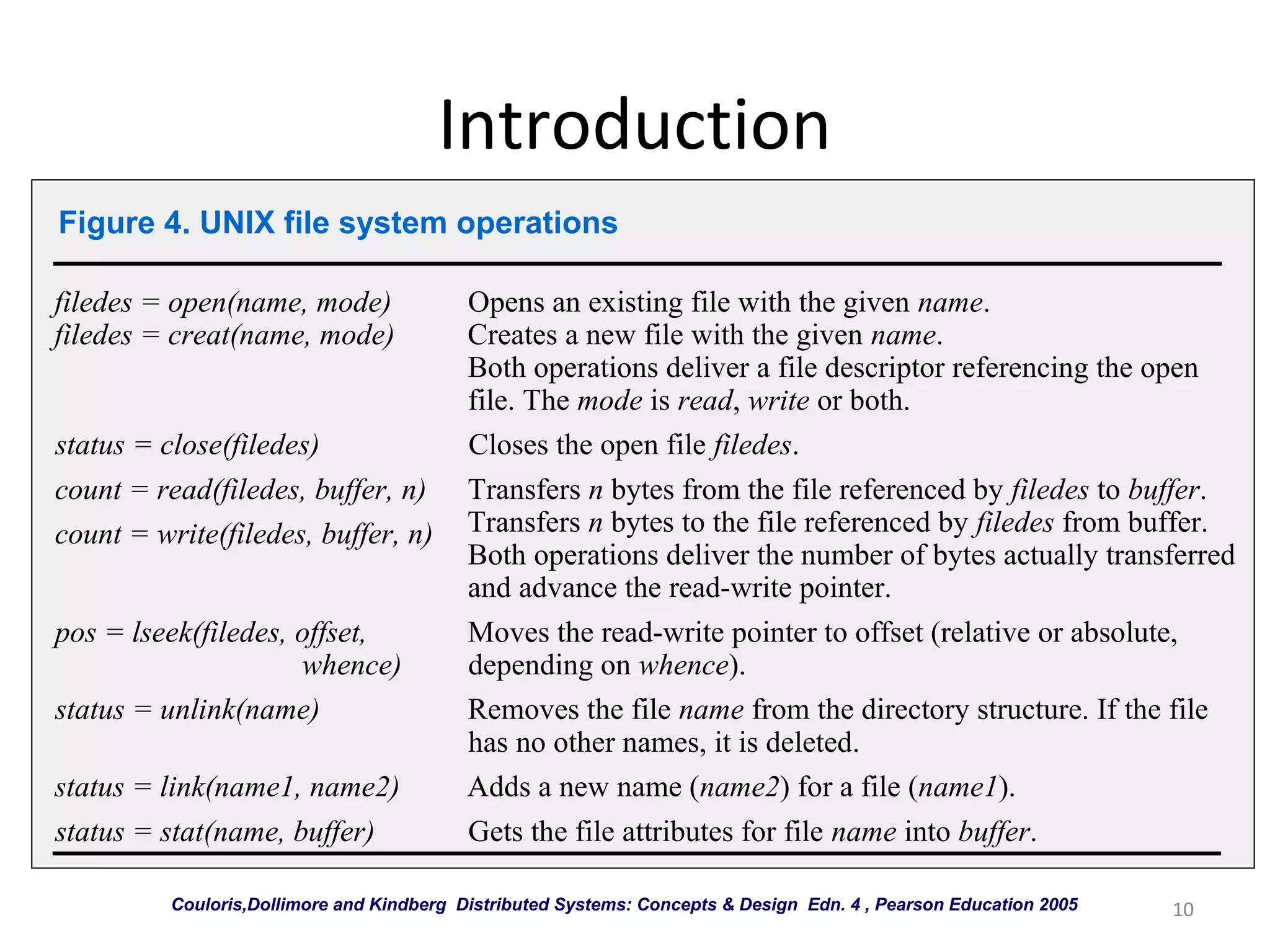

Figure 4. UNIX file system operations
filedes = open(name, mode)
filedes = creat(name, mode)
Opens an existing file with the given name.
Creates a new file with the given name.
Both operations deliver a file descriptor referencing the open
file. The mode is read, write or both.
status = close(filedes) Closes the open file filedes.
count = read(filedes, buffer, n)
count = write(filedes, buffer, n)
Transfers n bytes from the file referenced by filedes to buffer .
Transfers n bytes to the file referenced by filedes from buffer.
Both operations deliver the number of bytes actually transferred
and advance the read-write pointer.
pos = lseek(filedes, offset,
whence)
Moves the read-write pointer to offset (relative or absolute,
depending on whence).
status = unlink(name) Removes the file name from the directory structure. If the file
has no other names, it is deleted.
status = link(name1, name2) Adds a new name (name2) for a file (name1) .
status = stat(name, buffer) Gets the file attributes for file name into buffer.

11

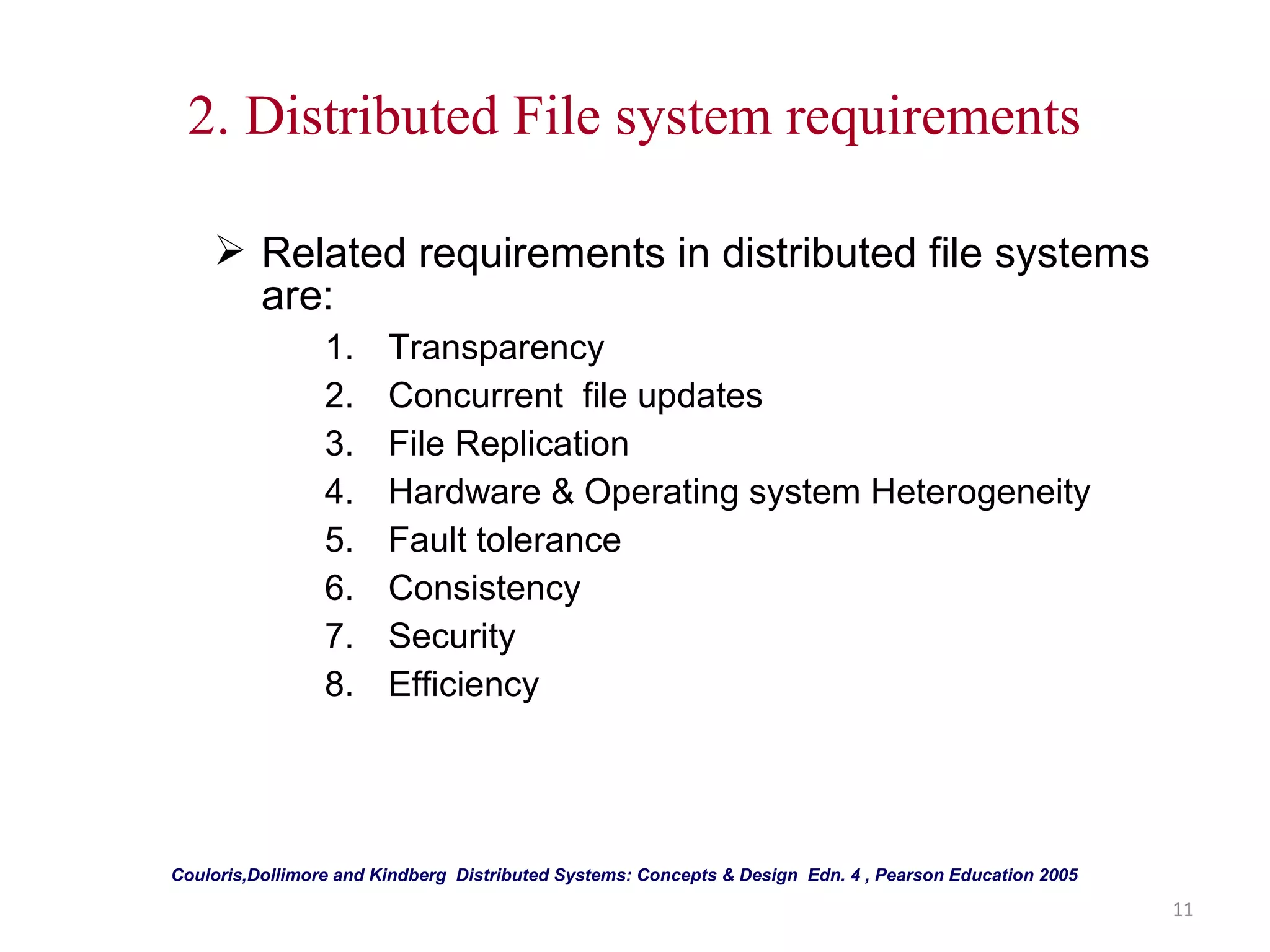

2. Distributed File system requirements
 Related requirements in distributed file systems
are:
1. Transparency
2. Concurrent file updates
3. File Replication
4. Hardware & Operating system Heterogeneity
5. Fault tolerance
6. Consistency
7. Security
8. Efficiency

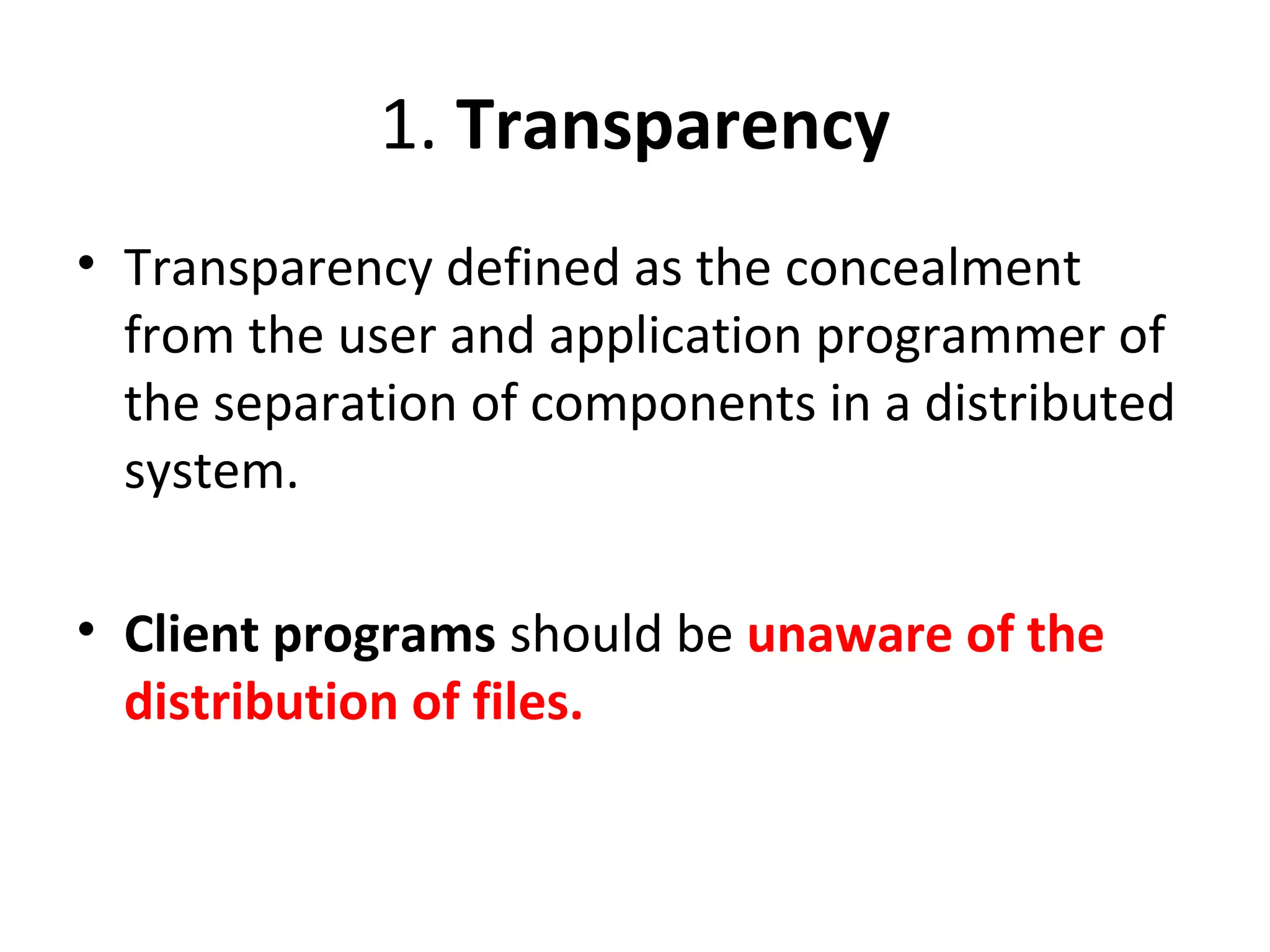

1. Transparency
• Transparency defined as the concealment
from the user and application programmer of
the separation of components in a distributed
system.
• Client programs should be unaware of the
distribution of files.

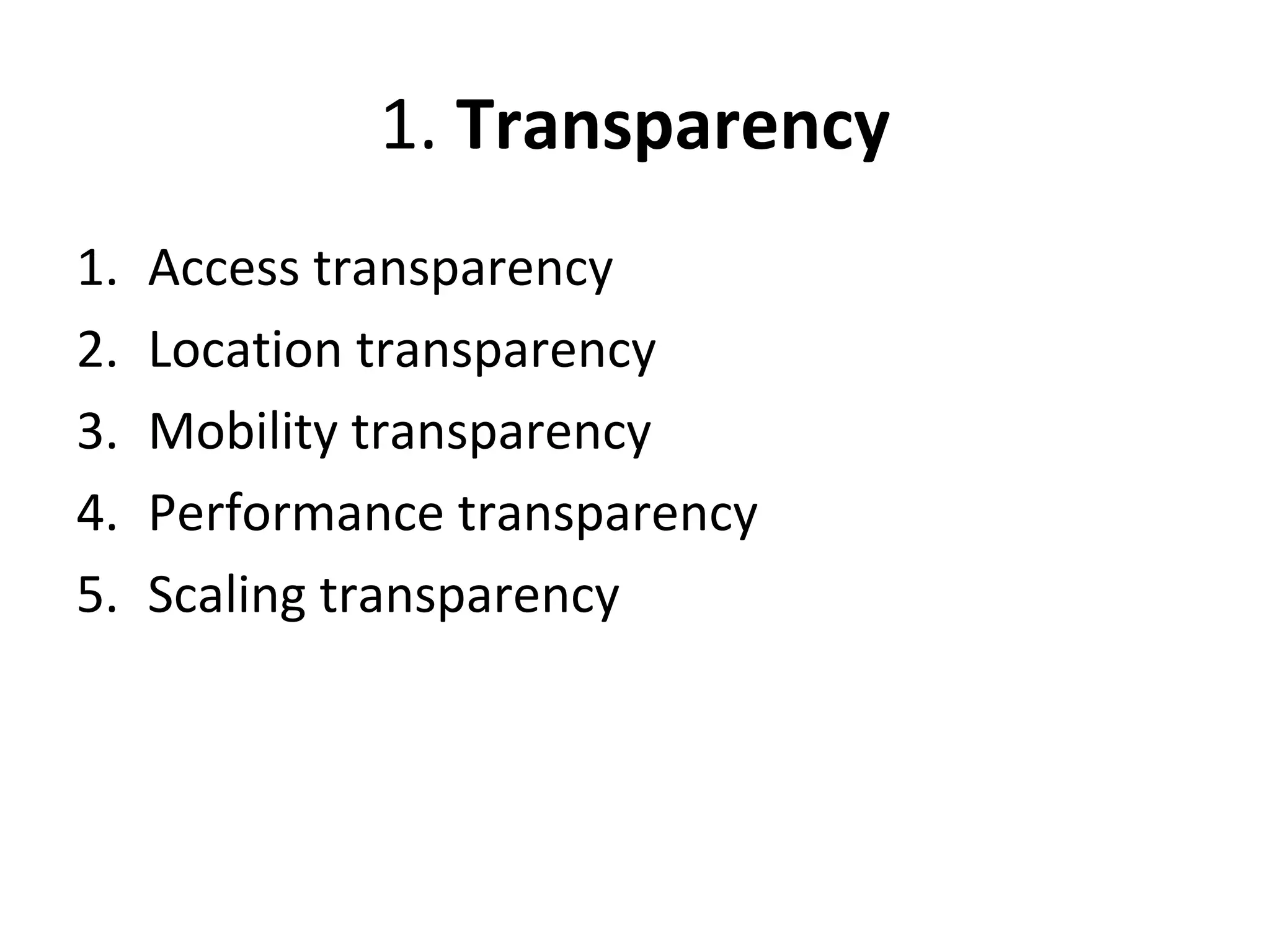

1. Transparency
1. Access transparency
2. Location transparency
3. Mobility transparency
4. Performance transparency
5. Scaling transparency

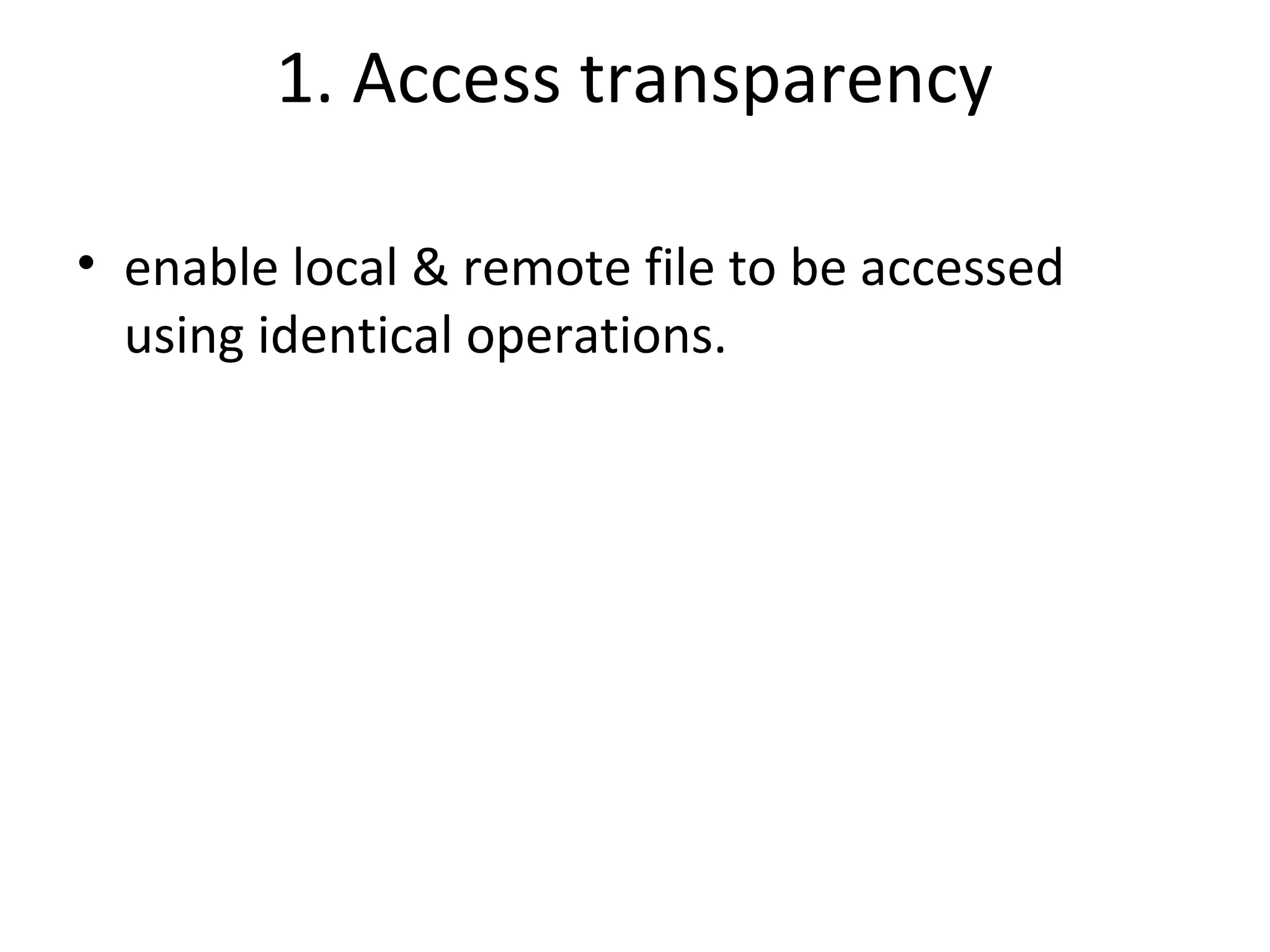

1. Access transparency
• enable local & remote file to be accessed
using identical operations.

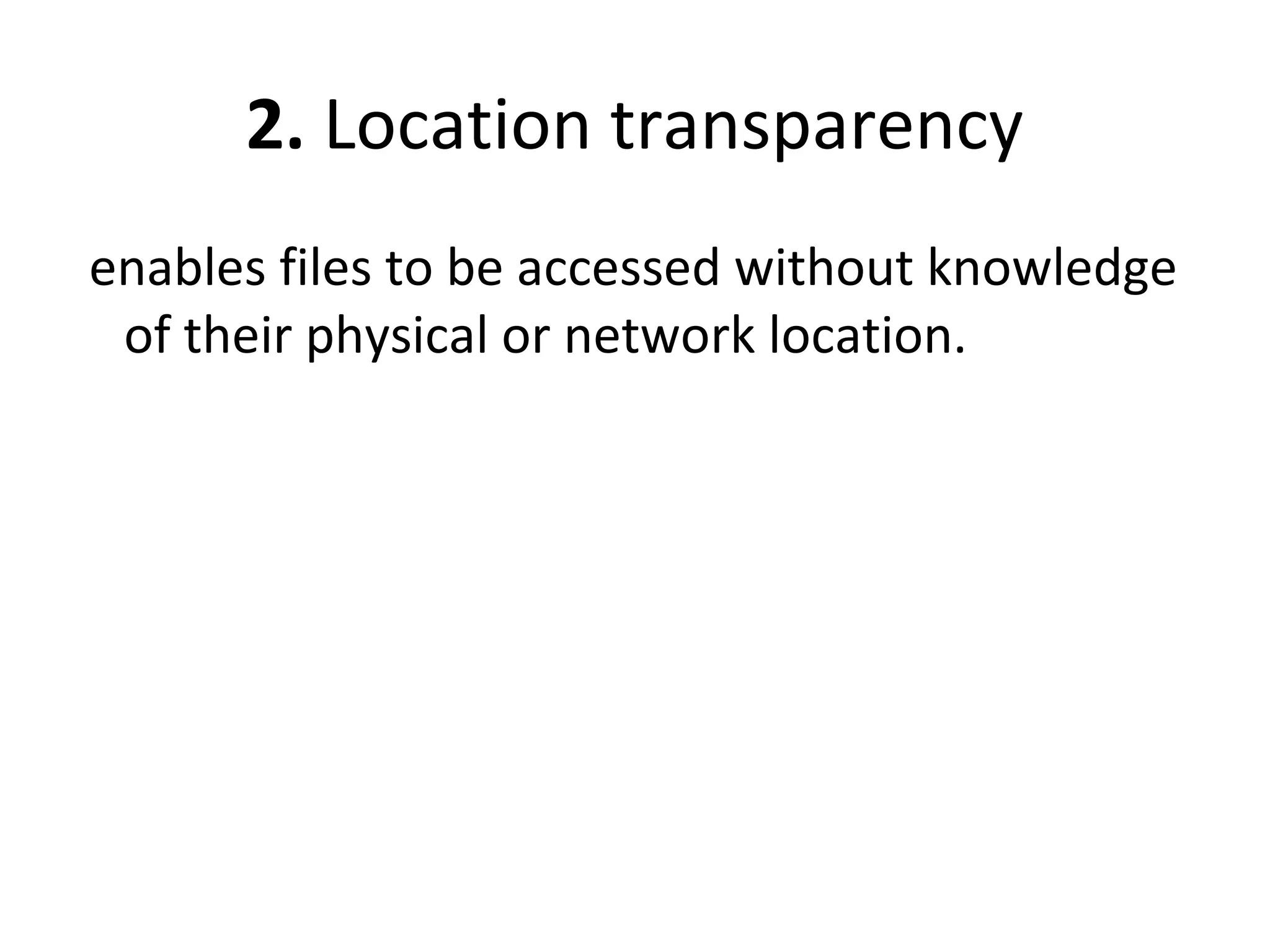

2. Location transparency
enables files to be accessed without knowledge
of their physical or network location.

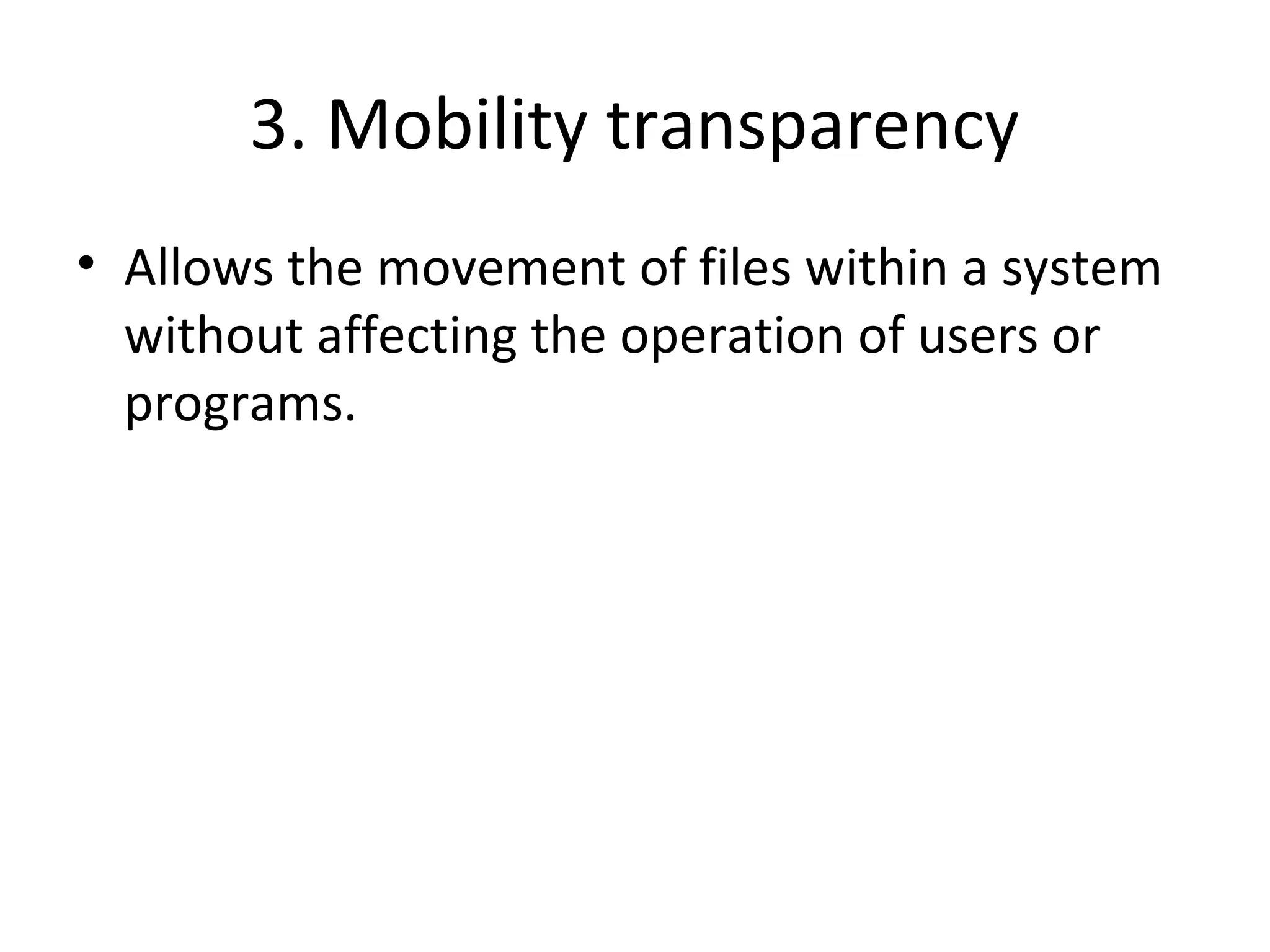

3. Mobility transparency
• Allows the movement of files within a system
without affecting the operation of users or
programs.

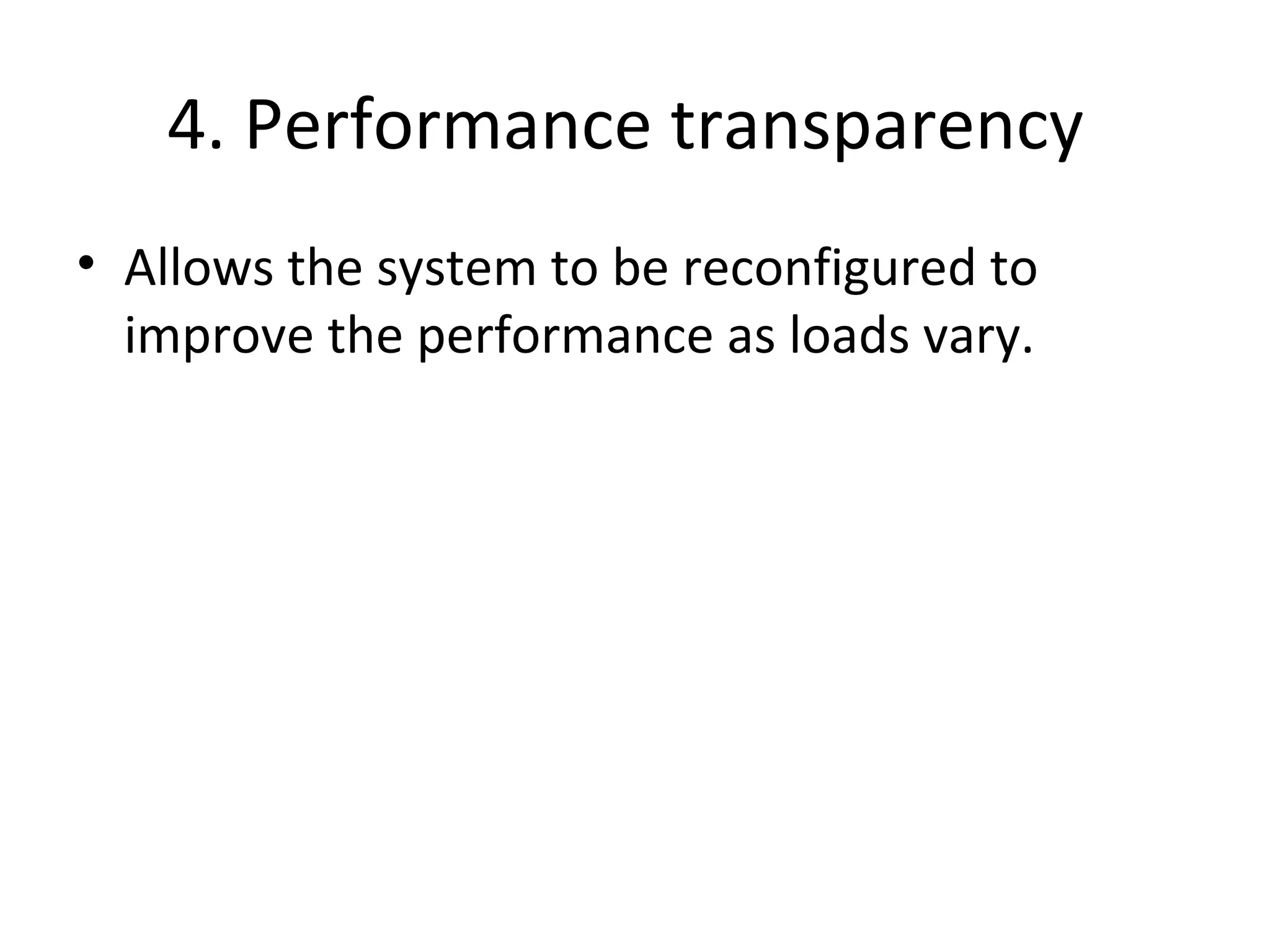

4. Performance transparency
• Allows the system to be reconfigured to
improve the performance as loads vary.

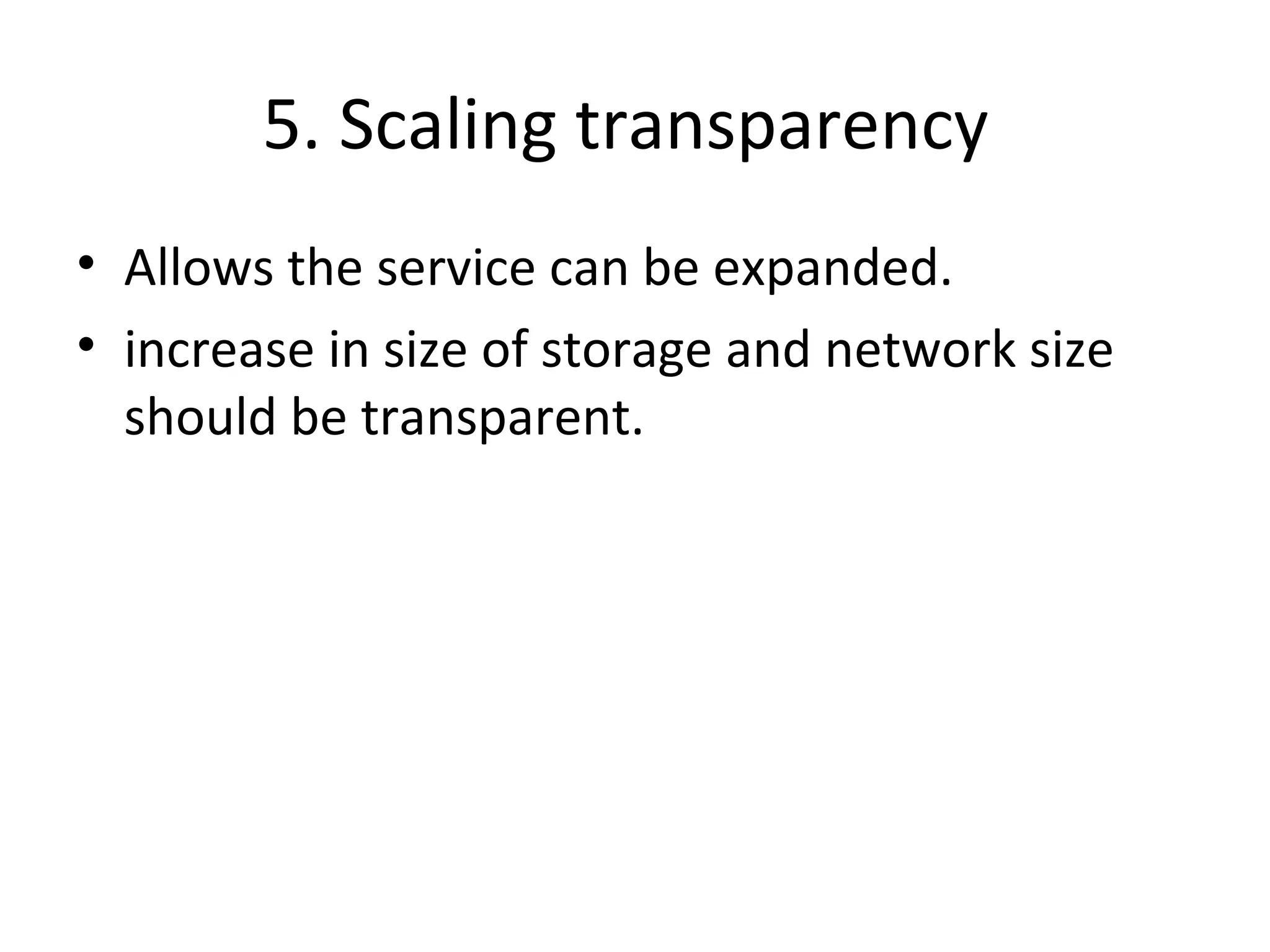

5. Scaling transparency
• Allows the service can be expanded.
• increase in size of storage and network size
should be transparent.

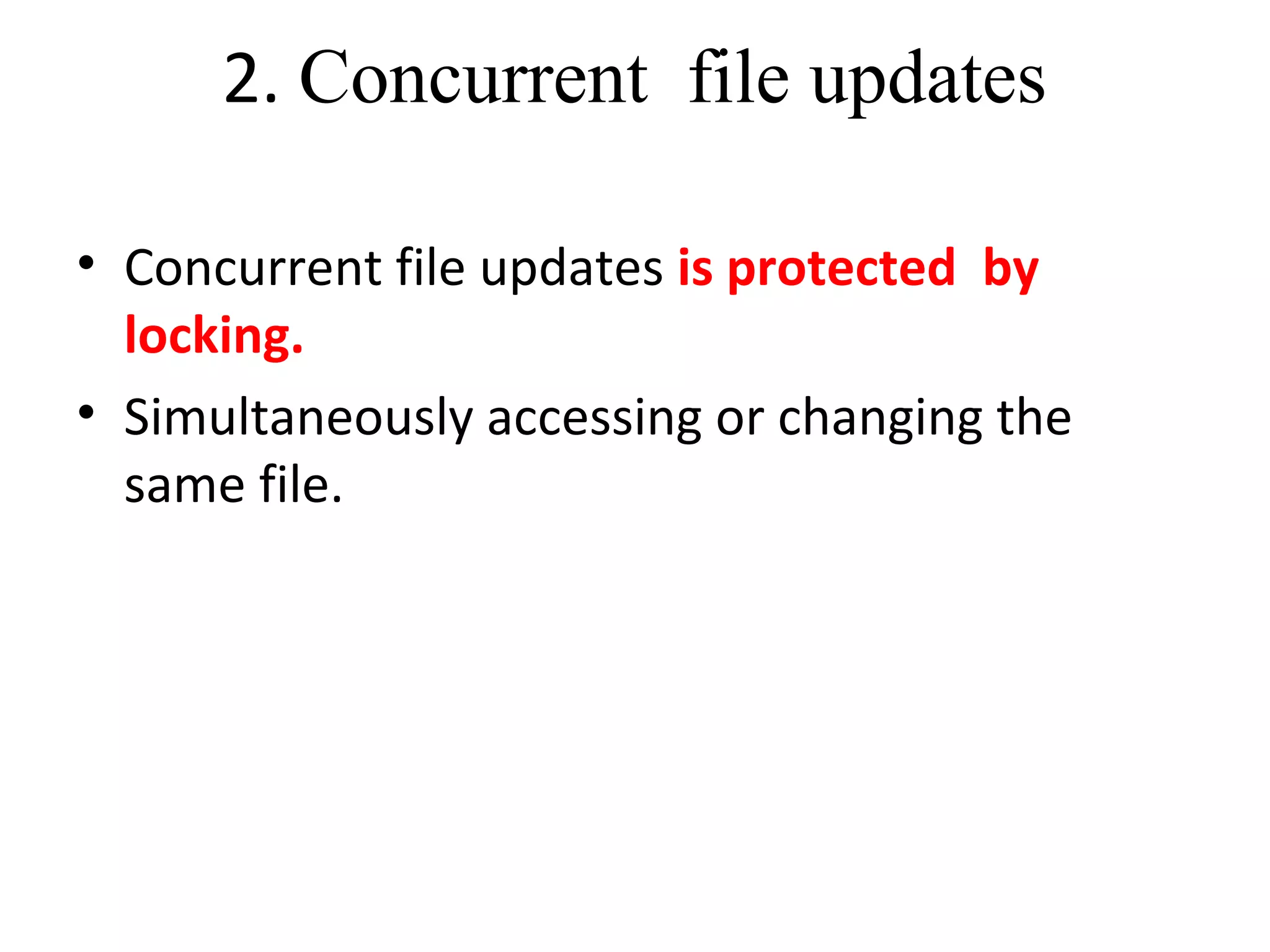

2. Concurrent file updates
• Concurrent file updates is protected by
locking.
• Simultaneously accessing or changing the
same file.

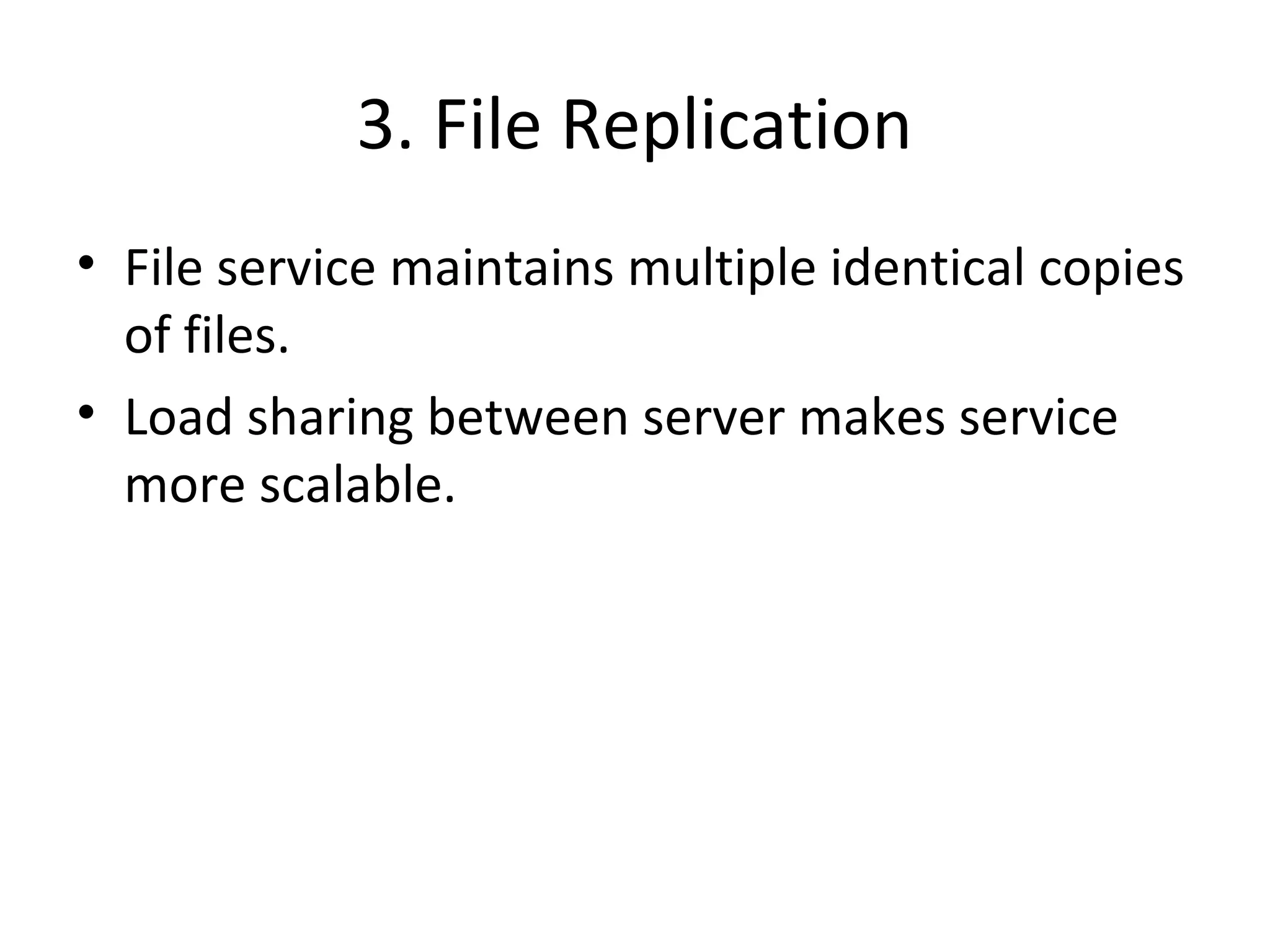

3. File Replication
• File service maintains multiple identical copies
of files.
• Load sharing between server makes service
more scalable.

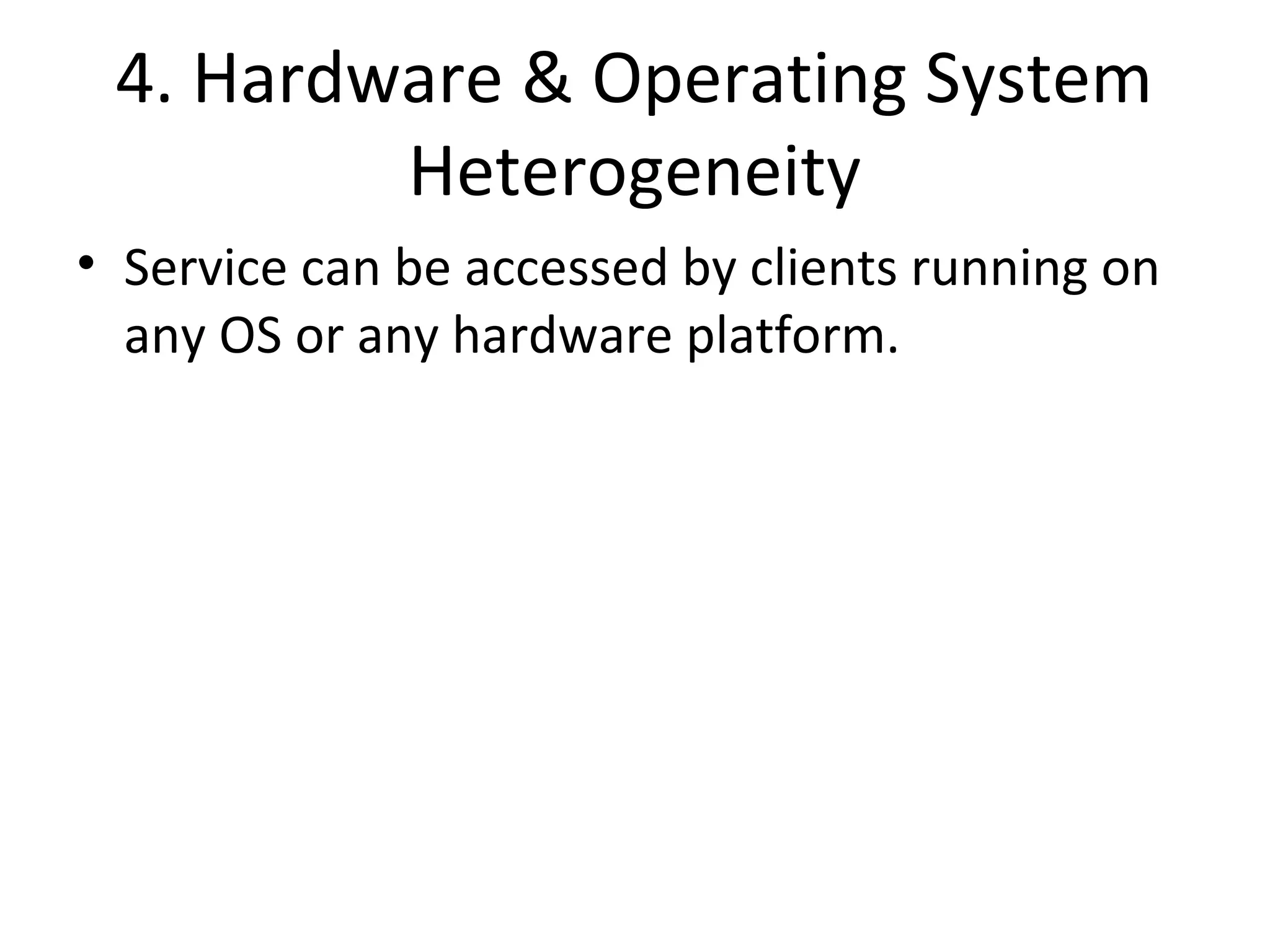

4. Hardware & Operating System
Heterogeneity
• Service can be accessed by clients running on
any OS or any hardware platform.

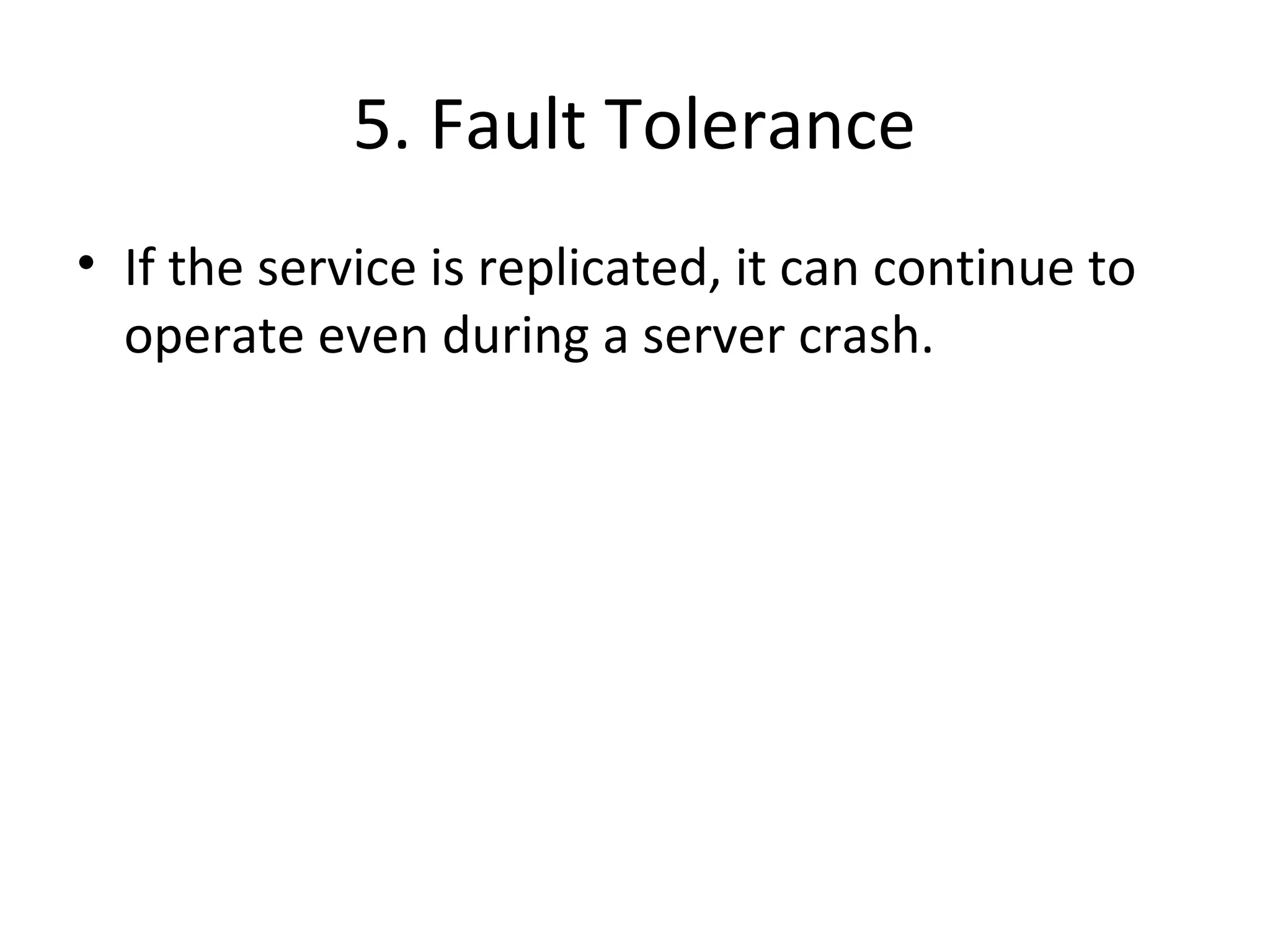

5. Fault Tolerance
• If the service is replicated, it can continue to
operate even during a server crash.

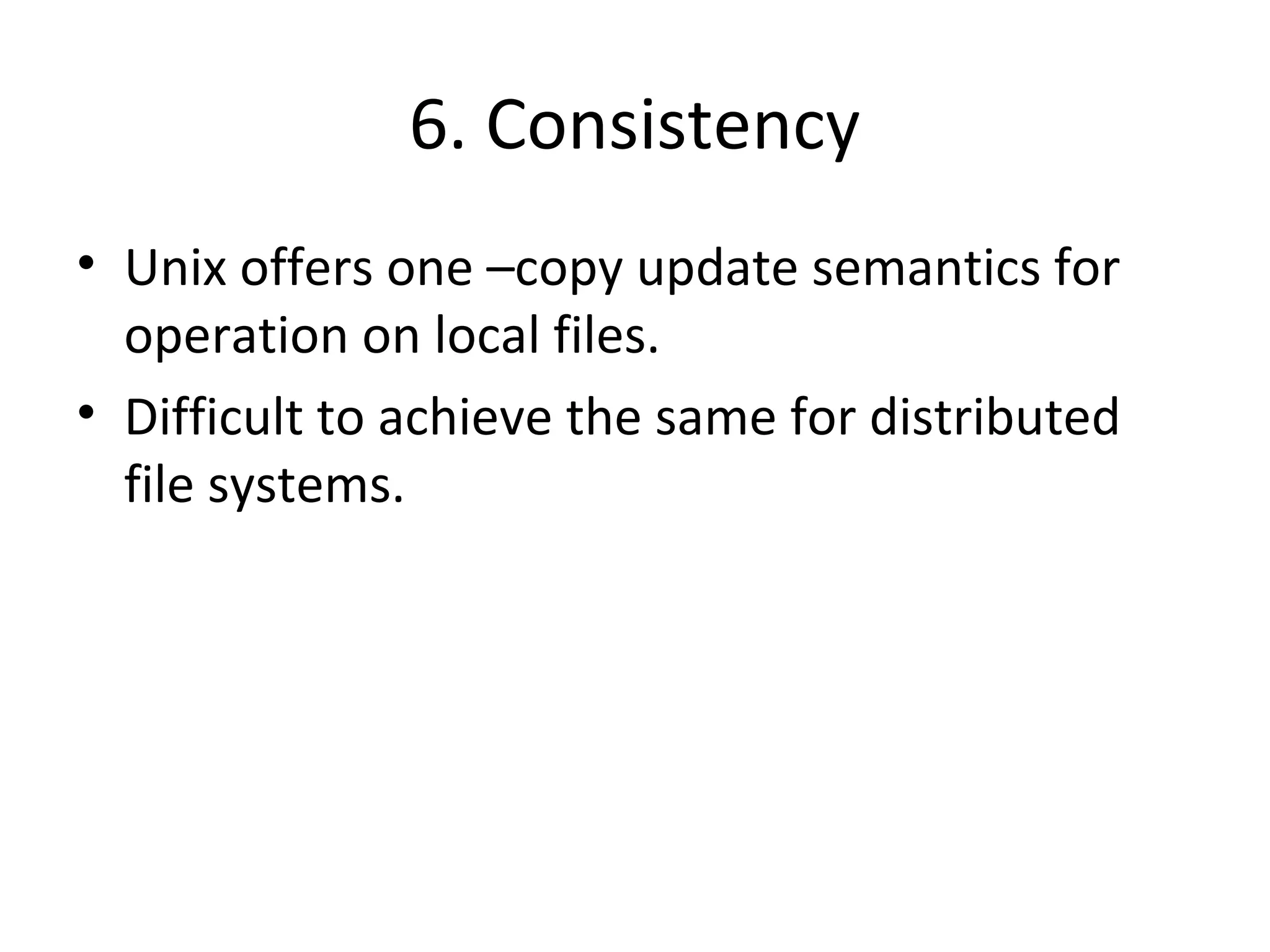

6. Consistency
• Unix offers one –copy update semantics for
operation on local files.
• Difficult to achieve the same for distributed
file systems.

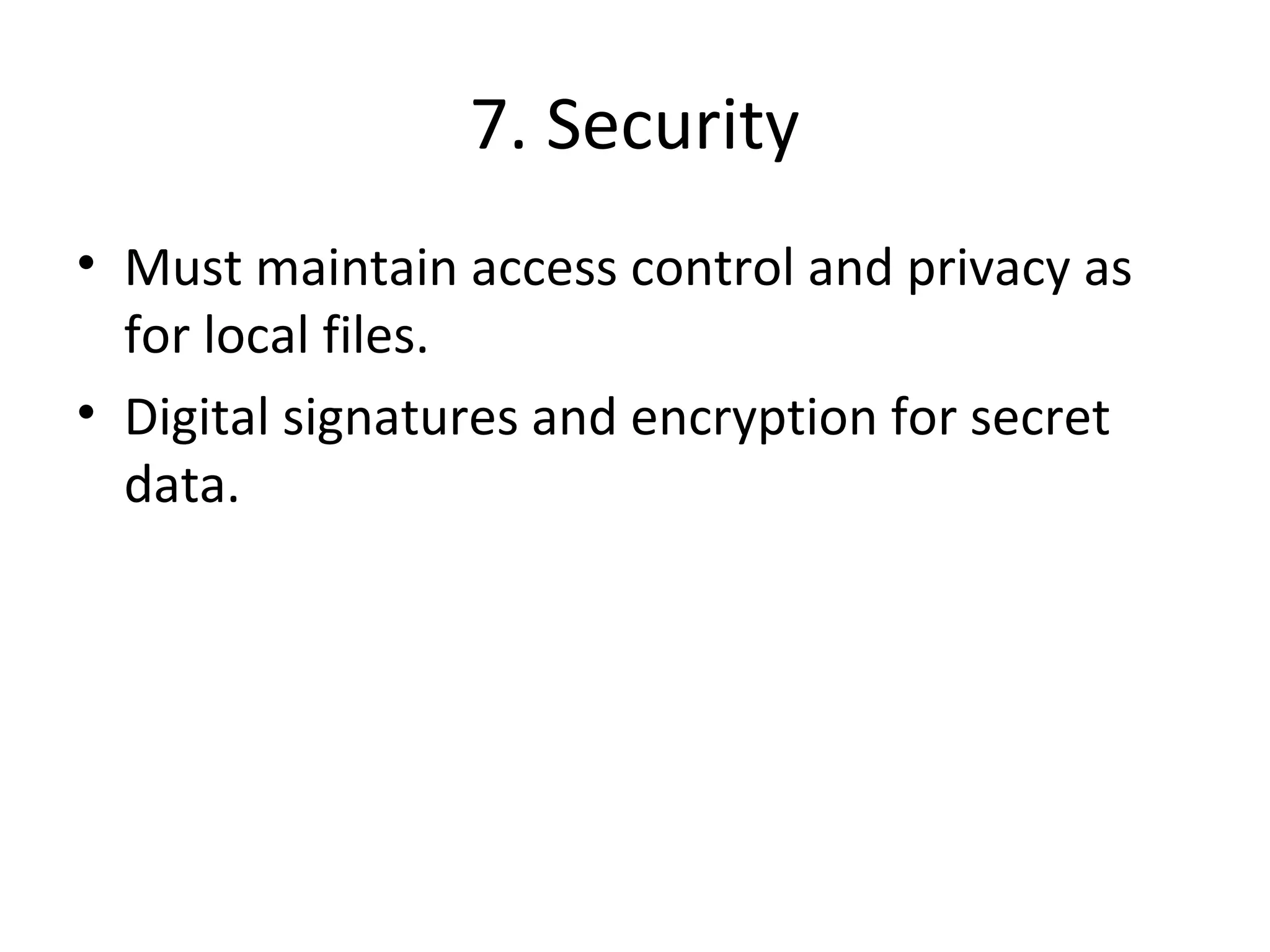

7. Security
• Must maintain access control and privacy as
for local files.
• Digital signatures and encryption for secret
data.

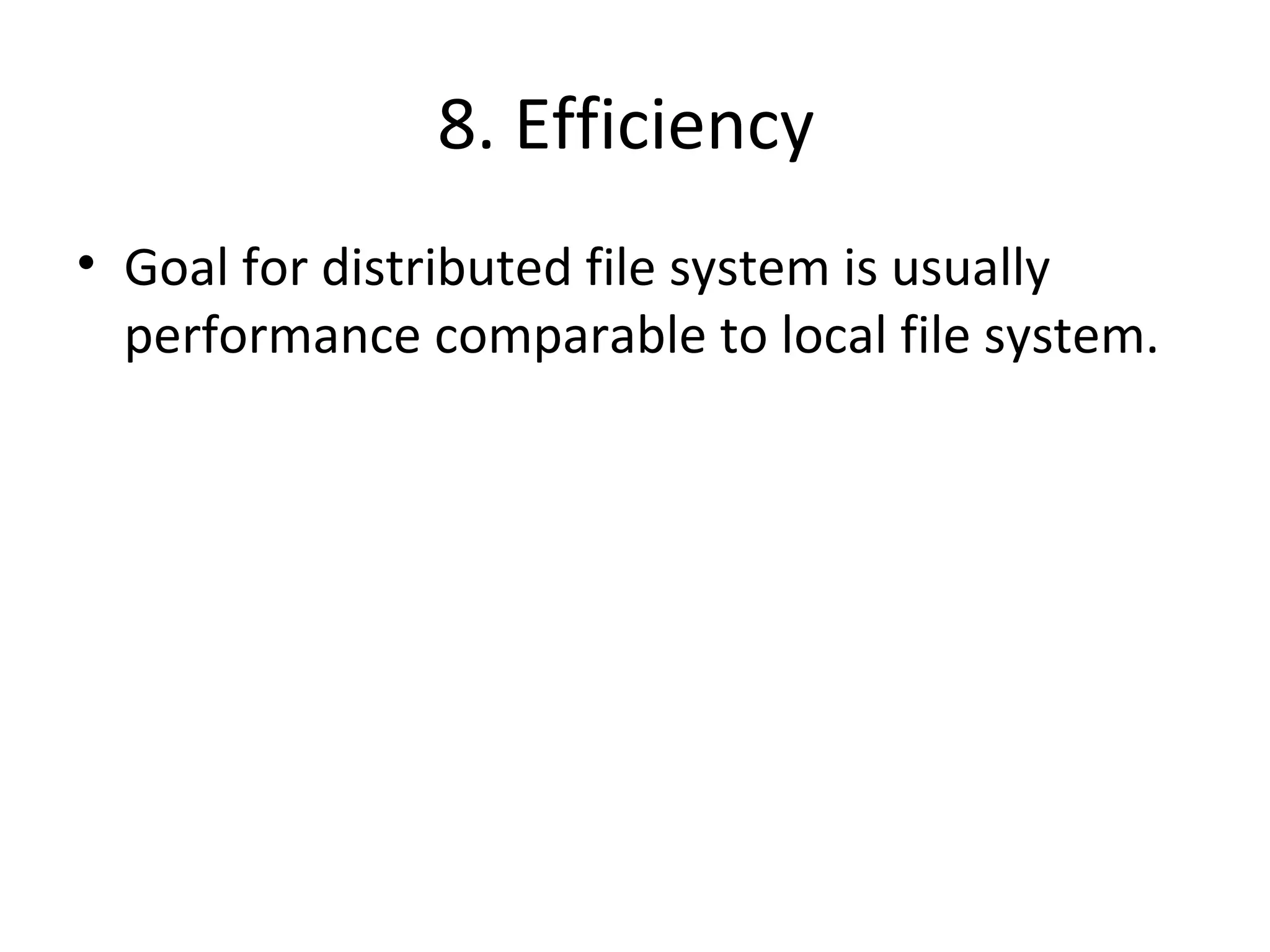

8. Efficiency
• Goal for distributed file system is usually
performance comparable to local file system.
